NVIDIA GeForce GTX 1050 Mobile

NVIDIA GeForce GTX 1050 Mobile

Nvidia GTX 1050是基于Pascal架构的主流显卡,于2017年1月发布。与更快的型号不同的是,GTX 1050使用GP107芯片,该芯片采用三星14纳米工艺制造。

而笔记本的版本在时钟频率方面有所不同。与桌面型号一样的是,它配备了640个着色单元。配合128位接口和7 Gbps数据储存速率(112 GB/s),附带高达4 GB的GDDR5-VRAM。

特点

GP107芯片采用14纳米的FinFET工艺制造,提供了许多新的功能,包括支持DisplayPort 1.4(Ready),HDMI 2.0b,HDR,同时多输出投影(SMP)以及改进后的H.265 视频解码和编码方式(PlayReady 3.0)。在我们的专门的Pascal架构文章中,提供了完整的改进项目和新Pascal桌面级显卡的信息。

性能

伴随着笔记本电脑的散热能力,GeForce GTX 1050的性能可能会有很大的不同。在理想的状况下,它可以和桌面级型号一样快。当然,笔记本型号通常会慢一些。 GeForce GTX 960M被大约30%的产品击败,因此GTX 1050性能与GTX 965M相当。可以说是上层的主流显卡。2016年的游戏,可以在全高清分辨率的高设置下顺利运行。

能耗

GeForce GTX 1050的能耗与旧GTX 960M大致相当,这意味着约40-50瓦特(可能是由于更好的配置和优化的部件),与桌面级相比要低得多。这意味着该显卡通常用于功能强大的多媒体笔记本和至少15.4英寸的入门级游戏本。

ManufacturerNVIDIA
GeForce GTX 1000 Series
GeForce GTX 1080 Ti 3584 @ 1481 - 1600 MHz352 Bit @ 11000 MHz
GeForce GTX 1080 SLI (Laptop) 5120 @ 1556 - 1733 MHz256 Bit @ 10000 MHz
GeForce GTX 1070 SLI (Desktop) 3840 @ 1506 - 1683 MHz256 Bit @ 8000 MHz
GeForce GTX 1070 SLI (Laptop) 4096 @ 1443 - 1645 MHz256 Bit @ 8000 MHz
GeForce GTX 1080 (Desktop) 2560 @ 1607 - 1733 MHz256 Bit @ 10000 MHz
GeForce GTX 1080 Mobile 2560 @ 1566 - 1733 MHz256 Bit @ 10000 MHz
GeForce GTX 1070 Ti (Desktop) 2432 @ 1607 - 1683 MHz256 Bit @ 8000 MHz
GeForce GTX 1070 (Desktop) 1920 @ 1506 - 1683 MHz256 Bit @ 8000 MHz
GeForce GTX 1080 Max-Q 2560 @ 1101 - 1290 - 1278 - 1468 MHz256 Bit @ 10000 MHz
GeForce GTX 1070 Mobile 2048 @ 1443 - 1645 MHz256 Bit @ 8000 MHz
GeForce GTX 1070 Max-Q 2048 @ 1101 - 1215 - 1265 - 1379 MHz256 Bit @ 8000 MHz
GeForce GTX 1060 (Desktop) 1280 @ 1506 - 1708 MHz192 Bit @ 8000 MHz
GeForce GTX 1060 Mobile 1280 @ 1404 - 1670 MHz192 Bit @ 8000 MHz
GeForce GTX 1060 Max-Q 1280 @ 1063 - 1265 - 1341 - 1480 MHz192 Bit @ 8000 MHz
GeForce GTX 1050 Ti Mobile 768 @ 1493 - 1620 MHz128 Bit @ 7000 MHz
GeForce GTX 1050 Ti (Desktop) 768 @ 1290 - 1392 MHz128 Bit @ 7008 MHz
GeForce GTX 1050 Ti Max-Q 768 @ 1151 – 1290 - 1290 – 1417 MHz128 Bit @ 7000 MHz
GeForce GTX 1050 (Desktop) 640 @ 1354 - 1455 MHz128 Bit @ 7008 MHz
GeForce GTX 1050 Mobile 640 @ 1354 - 1493 MHz128 Bit @ 7000 MHz
GeForce GTX 1050 Max-Q 640 @ 999 - 1189 - 1139 - 1328 MHz128 Bit @ 7000 MHz
GeForce GT 1030 (Desktop) 384 @ 1228 - 1670 MHz64 Bit @ 6000 MHz

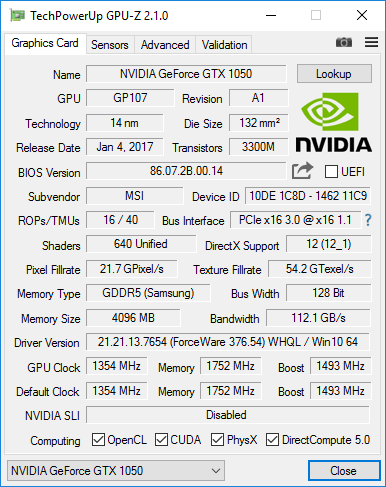

CodenameN17P-G0
ArchitecturePascal
Pipelines640 - unified
Core Speed1354 - 1493 (Boost) MHz
Memory Speed7000 MHz
Memory Bus Width128 Bit
Memory TypeGDDR5
Max. Amount of Memory4096 MB
Shared Memoryno
DirectXDirectX 12_1
technology14 nm
FeaturesMulti-Projection, G-SYNC, Vulkan, Multi Monitor
Notebook Sizelarge
Date of Announcement03.01.2017

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
16.7 pt (17%)
Intel HD Graphics (Bay Trail) -91%
...
NVIDIA GeForce GTX 960M -6%
AMD Radeon HD 7770 -6%
AMD FirePro W5170M -4%
NVIDIA Quadro M2000M -3%
NVIDIA GeForce GTX 1050 Ti Max-Q -1%
NVIDIA GeForce GTX 1050 Mobile
NVIDIA Quadro P600 0%
AMD Radeon Pro WX Vega M GL 1%
AMD Radeon HD 8970M 2%
NVIDIA GeForce GT 750M SLI 3%
NVIDIA Quadro M3000M 4%
NVIDIA Quadro P620 4%
NVIDIA GeForce GT 755M SLI 5%
...
0%
100%
3DMark - Time Spy Score 2560x1440
min: 1564     avg: 1789     median: 1751.5 (12%)     max: 2258 Points
3DMark - Time Spy Graphics 2560x1440
min: 1416     avg: 1653     median: 1603.5 (11%)     max: 2130 Points
3DMark - Ice Storm Unlimited Graphics Score 1280x720 offscreen
min: 200623     avg: 285488     median: 287287 (54%)     max: 328292 Points
3DMark - Ice Storm Extreme Graphics 1920x1080
min: 7482     avg: 103171     median: 83970 (12%)     max: 200390 Points
3DMark - Cloud Gate Standard Score 1280x720
min: 11173     avg: 17957     median: 18946 (28%)     max: 21868 Points
3DMark - Cloud Gate Standard Graphics 1280x720
min: 14979     avg: 36212     median: 38041.5 (19%)     max: 40201 Points
3DMark - Fire Strike Score 1920x1080
min: 4658     avg: 5408     median: 5453.5 (18%)     max: 5862 Points
3DMark - Fire Strike Graphics 1920x1080
min: 4935     avg: 6024     median: 6067.5 (15%)     max: 6651 Points
3DMark - Ice Storm Standard Graphics 1280x720
min: 11212     avg: 107998     median: 86128 (11%)     max: 241210 Points
3DMark 11 - Performance 1280x720
min: 6282     avg: 7505     median: 7550 (20%)     max: 8458 points
3DMark 11 - Performance GPU 1280x720
min: 6744     avg: 7668     median: 7693 (15%)     max: 8903 points
...
AMD Radeon R9 M290X -11%
AMD Radeon R9 M390 -11%
NVIDIA Quadro K5100M -10%
NVIDIA GeForce GTX 1050 Max-Q -7%
AMD Radeon HD 8970M -6%
AMD Radeon Pro 560X -1%
NVIDIA GeForce GTX 1050 Mobile
NVIDIA GeForce GTX 780M 0%
AMD Radeon RX 460 (Laptop) 2%
AMD Radeon RX 560X (Laptop) 3%
NVIDIA GeForce GTX 765M SLI 4%
NVIDIA Quadro P2000 Max-Q 6%
NVIDIA Quadro M3000M 8%
AMD Radeon RX 560 (Laptop) 9%
...
0%
100%
3DMark Vantage
P Result 1280x1024 +
P GPU no PhysX 1280x1024 +
3DMark 06 Standard 1280x1024 +
Unigine Heaven 3.0 - DX 11, Normal Tessellation, High Shaders 1920x1080
78.3 fps (26%)
Unigine Heaven 3.0 - OpenGL, Normal Tessellation, High Shaders 1920x1080
70.8 fps (31%)
Unigine Heaven 2.1 - high, Tesselation (normal), DirectX11 1280x1024
min: 75.7     avg: 97     median: 105.3 (20%)     max: 110 fps
SPEC Viewperf 10.0 - 3ds Max 1280x1024
15.2 fps (32%)
SPEC Viewperf 10.0 - Catia 1280x1024
15.2 fps (32%)
SPEC Viewperf 10.0 - EnSight 1280x1024
25.2 fps (53%)
SPEC Viewperf 10.0 - Maya 1280x1024
45.3 fps (24%)
SPEC Viewperf 10.0 - Pro/Engeneer 1280x1024
18.9 fps (37%)
SPEC Viewperf 10.0 - SolidWorks 1280x1024
16.6 fps (25%)
SPEC Viewperf 10.0 - UGS Teamcenter 1280x1024
5.1 fps (13%)
SPEC Viewperf 10.0 - UGS NX 1280x1024
6.5 fps (13%)
SPECviewperf 11
Siemens NX 1920x1080 +
Tcvis 1920x1080 +
SolidWorks 1920x1080 +
Pro/ENGINEER 1920x1080 +
Maya 1920x1080 +
Lightwave 1920x1080 +
Ensight 1920x1080 +
Catia 1920x1080 +
SPECviewperf 12
Solidworks (sw-03) 1900x1060 +
Siemens NX (snx-02) 1900x1060 +
Showcase (showcase-01) 1900x1060 +
Medical (medical-01) 1900x1060 +
Maya (maya-04) 1900x1060 +
Energy (energy-01) 1900x1060 +
Creo (creo-01) 1900x1060 +
Catia (catia-04) 1900x1060 +
3ds Max (3dsmax-05) 1900x1060 +
Cinebench R10 Shading 32Bit +
Cinebench R11.5 OpenGL 64Bit +
Cinebench R15
OpenGL 64Bit +
Ref. Match 64Bit +
GFXBench (DX / GLBenchmark) 2.7
T-Rex HD Offscreen C24Z16 1920x1080 +
T-Rex HD Onscreen C24Z16 +
GFXBench 3.0 - Manhattan Offscreen OGL off screen
247 fps (39%)
GFXBench 3.0 - Manhattan Onscreen OGL on screen
227 fps (62%)
GFXBench - Car Chase Offscreen off screen
min: 105     avg: 114     median: 114.1 (26%)     max: 123.2 fps
GFXBench - Car Chase Onscreen on screen
min: 60     avg: 88.6     median: 88.6 (33%)     max: 117.1 fps
LuxMark v2.0 64Bit - Room GPUs-only
min: 954     avg: 1118     median: 1129.5 (12%)     max: 1260 Samples/s
LuxMark v2.0 64Bit - Sala GPUs-only
min: 1635     avg: 1986     median: 2008 (19%)     max: 2291 Samples/s
ComputeMark v2.1 - Normal, Score 1024x600
min: 4314     avg: 4550     median: 4583 (16%)     max: 4793 Points
Power Consumption - FurMark 1.19 GPU Stress Test - Power Consumption (external Monitor) 1280x720 *
101 Watt (23%)
Power Consumption - The Witcher 3 Power Consumption (external Monitor) ultra 1920x1080 *
min: 72.8     avg: 85.9     median: 85.9 (18%)     max: 99 Watt
Power Consumption - Witcher 3 ultra - Power Consumption *
min: 75     avg: 92.7     median: 92.9 (20%)     max: 109 Watt
Clock Speed - GPU Clock Witcher 3 ultra
min: 1502     avg: 1625     median: 1644 (86%)     max: 1708 MHz
Clock Speed - GPU Clock Speed Furmark 1.19 GPU Stress Test 1280x720
1481 MHz (85%)
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Gears Tactics

Gears Tactics

2020
low 1280x720
174  fps    + Compare
med. 1920x1080
64.5  fps    + Compare
high 1920x1080
39.3  fps    + Compare
ultra 1920x1080
27.1  fps    + Compare
