Apple M4 9-Core GPU

Apple M4 9-Core GPU

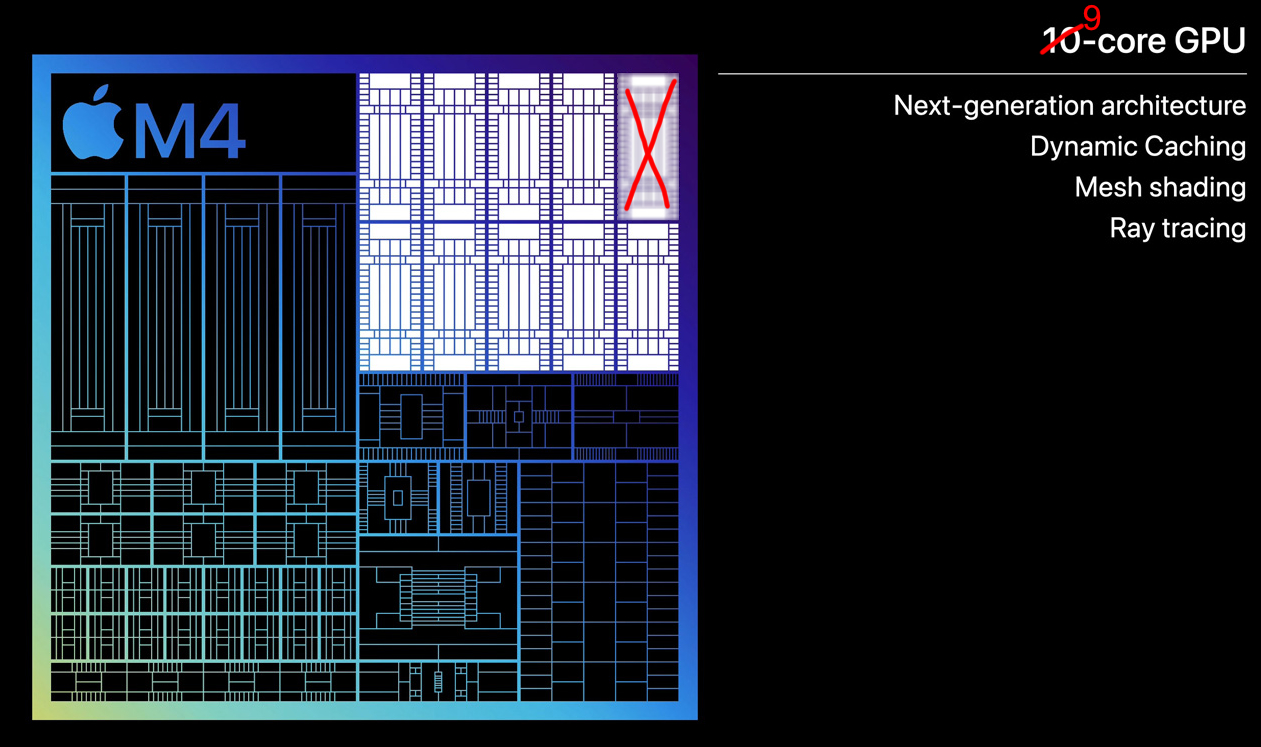

9 核 GPUApple M4是用于 iPad Air 的显卡，配备了 M4 芯片并提供 10 个内核中的 9 个。这意味着该芯片可使用 160 个 SIMD EU 中的 144 个。图形处理器可与 CPU 一起访问 12 GB 的统一内存，带宽高达 120 GB/s。

一些流行的视频编解码器可以在这里进行硬件解码和硬件编码，但其数量远不及当前的 AMD iGPU，更不用说英特尔 iGPU 了。不过，这里提供了大量现代技术，如光线追踪技术。

与Apple M4 芯片的其他部分一样，该显卡采用第二代台积电工艺（3 纳米）制造，到 2024 年底仍将是最先进的工艺。

Apple M4 Series

M4 Max 40-Core GPU 40 ? Bit @ 8533 MHz
M4 Max 32-Core GPU 32 ? Bit @ 8533 MHz
M4 Pro 20-Core GPU 20 ? Bit @ 8533 MHz
M4 Pro 16-Core GPU 16
M4 10-Core GPU 10
M4 9-Core GPU 9
M4 8-Core GPU 8
iGPUIntegrated Graphics
Pipelines9 - unified
Memory TypeLPDDR5X-7500
Shared Memoryyes
Power Consumption4 Watt
Man. Technology3 nm
Date of Announcement28.10.2024
PredecessorM3 8-Core GPU

Benchmarks

- Range of benchmark values
red legend - Average benchmark values
* Smaller numbers mean a higher performance
