AMD Radeon RX 6700M

AMD Radeon RX 6700M

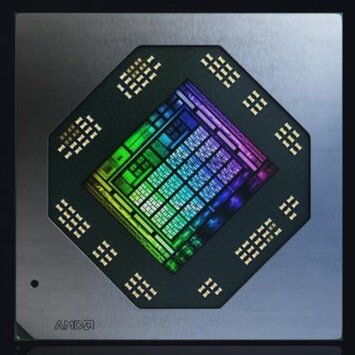

AMD Radeon RX 6700M是一款适用于游戏笔记本电脑的移动高端显卡。 使用基于新 RDNA2 体系结构的 Navi 22 芯片。 使用 2,560 个着色器中的 2,304 个(= 36 CU),144 个着色器。 TMU和64个ROP。 160位存储器系统将10GB GDDR6与2GHz存储器时钟连接。 此外,RX6800M还包含 80 MB Infinity Cache。 AMD指定2.3GHz游戏时钟,TDP为10.6TFLOPS理论FP32性能(135瓦特)。 也就是说,理论上GPU比RX6800M慢11%。

RX 6700M的游戏性能略低于RTX 3070。 激活光线跟踪效果后,将落后于 GeForce GPU。

Navi 22芯片采用现代7nm工艺,由TSMC制造。 与Nvidia 12nm芯片相比,RX 6700M的电力效率更高。

Radeon RX 6000M Series
Radeon RX 6850M XT 2560 @ 2.46 GHz192 Bit @ 18000 MHz
Radeon RX 6800M 2560 @ 2.12 - 2.3 GHz192 Bit @ 16000 MHz
Radeon RX 6800S 2048 @ 1.8 - 1.98 GHz128 Bit @ 16000 MHz
Radeon RX 6700M 2304 @ 2.3 GHz160 Bit @ 16000 MHz
Radeon RX 6650M XT 2048 @ 2.16 GHz128 Bit @ 18000 MHz
Radeon RX 6650M 1792 @ 2.22 GHz128 Bit @ 18000 MHz
Radeon RX 6600M 1792 @ 2.07 - 2.18 GHz128 Bit @ 14000 MHz
Radeon RX 6700S 2304 @ 1.89 GHz160 Bit @ 16000 MHz
Radeon PRO W6600M 1792 128 Bit @ 14000 MHz
Radeon RX 6600S 1792 @ 1.88 GHz128 Bit @ 16000 MHz
Radeon RX 6500M 1024 @ 2.19 GHz128 Bit @ 18000 MHz
Radeon RX 6300M 768 @ 1.51 GHz128 Bit @ 18000 MHz
CodenameR21M-E110-70
ArchitectureRDNA 2
Pipelines2304 - unified
Core Speed2300 (Boost) MHz
Memory Speed16000 MHz
Memory Bus Width160 Bit
Memory TypeGDDR6
Max. Amount of Memory10 GB
Shared Memoryno
APIDirectX 12, Shader 6.4, OpenGL 4.6
Power Consumption135 Watt
Transistor Count17.2 Billion
technology7 nm
FeaturesDisplayPort 1.4 w/DFSC, HDMI 2.0b, Radeon Media Engine (H.264 4K150 decode, 4K90 encode / H.265 4K90 decode, 4K60 encode / VP9 4K90 decode)
Notebook Sizemedium sized
Date of Announcement01.09.2020

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
42 pt (46%)
3DMark - 3DMark Time Spy Score
min: 8717     avg: 9039     median: 9038.5 (47%)     max: 9360 Points
3DMark - 3DMark Time Spy Graphics
min: 8654     avg: 8989     median: 8988.5 (42%)     max: 9323 Points
Intel UHD Graphics 605 -99%
...
NVIDIA Quadro RTX 4000 (Laptop) -19%
NVIDIA Quadro RTX 5000 Max-Q -17%
NVIDIA GeForce RTX 2070 Super Max-Q -17%
NVIDIA GeForce RTX 2070 Super Mobile -8%
AMD Radeon RX 6700M
NVIDIA GeForce RTX 2080 Super Mobile 15%
...
0%
100%
3DMark - 3DMark Cloud Gate Score
47472 Points (58%)
3DMark - 3DMark Cloud Gate Graphics
91672 Points (37%)
3DMark - 3DMark Fire Strike Standard Score
min: 23679     avg: 23987     median: 23986.5 (60%)     max: 24294 Points
3DMark - 3DMark Fire Strike Standard Graphics
min: 27449     avg: 27924     median: 27924 (53%)     max: 28399 Points
3DMark - 3DMark Ice Storm Graphics
172708 Points (23%)
3DMark 11 - 3DM11 Performance Score
min: 25542     avg: 25736     median: 25735.5 (52%)     max: 25929 Points
3DMark 11 - 3DM11 Performance GPU
33497 Points (48%)
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
66973 Points (19%)
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
66735 Points (51%)
ATI Radeon HD 3200 -100%
...
NVIDIA Quadro RTX 4000 (Laptop) -6%
NVIDIA Quadro RTX 5000 Max-Q -6%
NVIDIA GeForce GTX 1080 Mobile -5%
AMD Radeon RX 6700M
NVIDIA Quadro P5200 3%
NVIDIA GeForce RTX 2070 Super Max-Q 4%
NVIDIA GeForce RTX 2070 Super Mobile 13%
...
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
46372 Points (70%)
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
15120 points (11%)
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
159.6 fps (58%)
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
186 fps (50%)
Cinebench R15 OpenGL Ref. Match 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
98 % (98%)
ComputeMark v2.1 - ComputeMark v2.1 Result
16389 points (31%)
Power Consumption - Furmark Stress Test Power Consumption - external Monitor *
155 Watt (24%)
0102030405060708090100110120130140150160170Tooltip
Power Consumption - The Witcher 3 Power Consumption - external Monitor *
182 Watt (25%)
0102030405060708090100110120130140150160170180Tooltip
Power Consumption - Witcher 3 Power Consumption *
187 Watt (41%)
0102030405060708090100110120130140150160170180190Tooltip
Clock Speed - GPU Clock Witcher 3 ultra
1786 MHz (89%)
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

med. 1920x1080
195 fps  fps    + Compare
high 1920x1080
163 fps  fps    + Compare
ultra 1920x1080
149 fps  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Far Cry 6

Far Cry 6

2021
med. 1920x1080
97  fps    + Compare
high 1920x1080
82  fps    + Compare
ultra 1920x1080
74  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Ultra Graphics Quality + HD Textures + DXR TAA 1920x1080
54 fps
FIFA 22

FIFA 22

2021
med. 1920x1080
229 fps  fps    + Compare
high 1920x1080
224 fps  fps    + Compare
ultra 1920x1080
217 fps  fps    + Compare
» With all tested laptops playable in detail settings ultra.
New World

New World

2021
med. 1920x1080
82.2 fps  fps    + Compare
high 1920x1080
78.5 fps  fps    + Compare
ultra 1920x1080
73 fps  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Deathloop

Deathloop

2021
med. 1920x1080
99.8 fps  fps    + Compare
high 1920x1080
85.1 fps  fps    + Compare
ultra 1920x1080
77.3 fps  fps    + Compare
» With all tested laptops playable in detail settings ultra.
F1 2021

F1 2021

2021
med. 1920x1080
212  fps    + Compare
high 1920x1080
185  fps    + Compare
ultra 1920x1080
100  fps    + Compare
» With all tested laptops playable in detail settings ultra.
med. 1920x1080
143 fps  fps    + Compare
high 1920x1080
142 fps  fps    + Compare
» With all tested laptops playable in detail settings high.
Days Gone

Days Gone

2021
med. 1920x1080
113 fps  fps    + Compare
high 1920x1080
106 fps  fps    + Compare
ultra 1920x1080
80.5 fps  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
99.6 fps  fps    + Compare
» With all tested laptops playable in detail settings ultra.
med. 1920x1080
171 fps  fps    + Compare
high 1920x1080
161 fps  fps    + Compare
ultra 1920x1080
140 fps  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Ray Tracing Preset 1920x1080
70.5 fps
Outriders

Outriders

2021
med. 1920x1080
107 fps  fps    + Compare
high 1920x1080
98.1 fps  fps    + Compare
ultra 1920x1080
94.6 fps  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Hitman 3

Hitman 3

2021
med. 1920x1080
175  fps    + Compare
high 1920x1080
154  fps    + Compare
ultra 1920x1080
144  fps    + Compare
» With all tested laptops playable in detail settings ultra.
med. 1920x1080
85.4 fps  fps    + Compare
high 1920x1080
67.9 fps  fps    + Compare
ultra 1920x1080
56.5 fps  fps    + Compare
