NVIDIA GeForce GTX 1070 (Desktop)

NVIDIA GeForce GTX 1070 (Desktop)

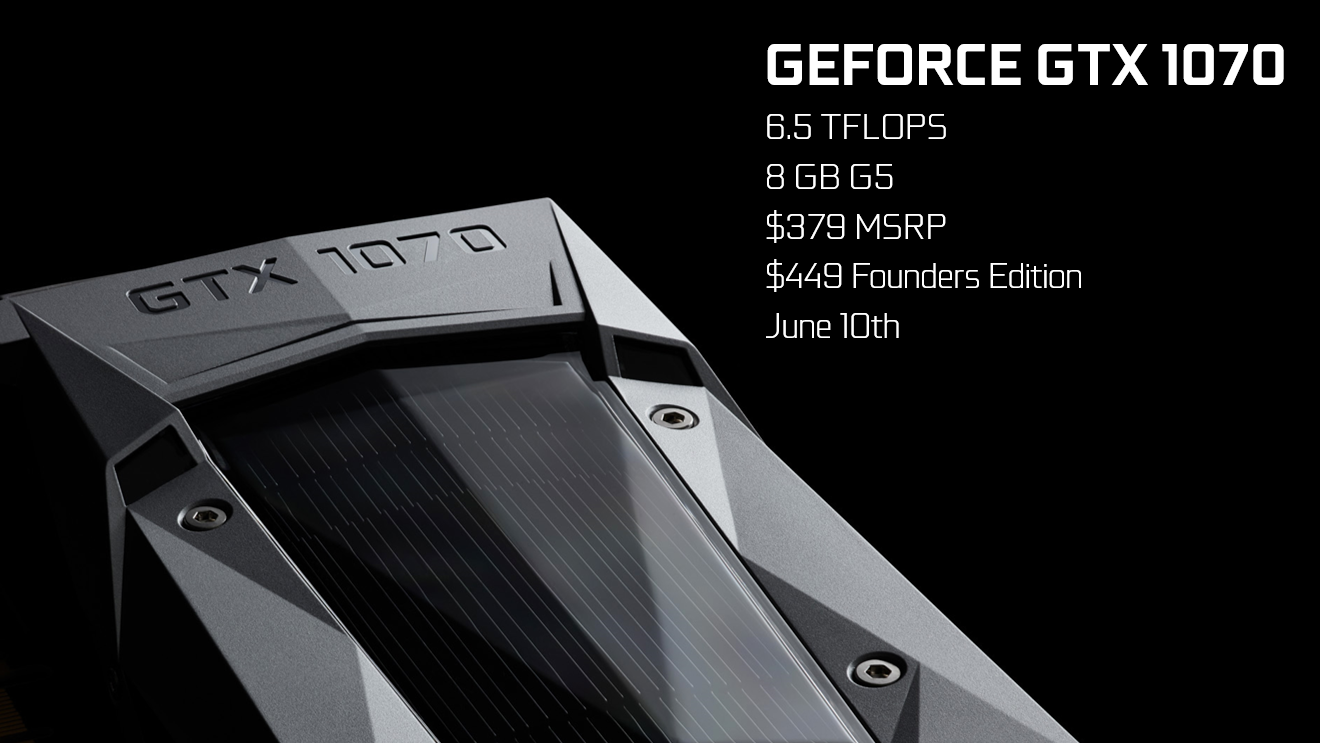

英伟达GeForce GTX 1070在2016年5月中旬是第二快的帕斯卡架构显卡。它是一块高端台式机显卡。它的移动版同样名为GeForce GTX 1070,但搭配更多的着色器略低的核心频率(参见GTX 1070笔记本电脑版本的页面了解详细信息)。这两款显卡都基于缩水的GP104芯片(同GTX 1080),采用16纳米FinFET制程技术由台积电制造。关于帕斯卡尔架构的更多细节,包括所有特性、与麦克斯韦尔架构的对比,可以在这里找到。

相比GTX1080,GTX1070提供了较少的CUDA核心(1920相比2560)和较低的主频(最高1683相比1733)。没有搭配最新GDDR5X显存,1070 GTX采用了较慢的GDDR5显存,不过同样搭配了8 GB容量。它的TDP也从180瓦降低到了150瓦。

GTX 1070的性能介于前代GTX 980 Ti和GTX 1080之间。因此,它可以在4K分辨率高细节下流畅运行游戏,也可以为VR提供支持。

ManufacturerNVIDIA
GeForce GTX 1000 Series
GeForce GTX 1080 Ti 3584 @ 1481 - 1600 MHz352 Bit @ 11000 MHz
GeForce GTX 1080 SLI (Laptop) 5120 @ 1556 - 1733 MHz256 Bit @ 10000 MHz
GeForce GTX 1070 SLI (Desktop) 3840 @ 1506 - 1683 MHz256 Bit @ 8000 MHz
GeForce GTX 1070 SLI (Laptop) 4096 @ 1443 - 1645 MHz256 Bit @ 8000 MHz
GeForce GTX 1080 (Desktop) 2560 @ 1607 - 1733 MHz256 Bit @ 10000 MHz
GeForce GTX 1080 Mobile 2560 @ 1566 - 1733 MHz256 Bit @ 10000 MHz
GeForce GTX 1070 Ti (Desktop) 2432 @ 1607 - 1683 MHz256 Bit @ 8000 MHz
GeForce GTX 1070 (Desktop) 1920 @ 1506 - 1683 MHz256 Bit @ 8000 MHz
GeForce GTX 1080 Max-Q 2560 @ 1101 - 1290 - 1278 - 1468 MHz256 Bit @ 10000 MHz
GeForce GTX 1070 Mobile 2048 @ 1443 - 1645 MHz256 Bit @ 8000 MHz
GeForce GTX 1070 Max-Q 2048 @ 1101 - 1215 - 1265 - 1379 MHz256 Bit @ 8000 MHz
GeForce GTX 1060 (Desktop) 1280 @ 1506 - 1708 MHz192 Bit @ 8000 MHz
GeForce GTX 1060 Mobile 1280 @ 1404 - 1670 MHz192 Bit @ 8000 MHz
GeForce GTX 1060 Max-Q 1280 @ 1063 - 1265 - 1341 - 1480 MHz192 Bit @ 8000 MHz
GeForce GTX 1050 Ti Mobile 768 @ 1493 - 1620 MHz128 Bit @ 7000 MHz
GeForce GTX 1050 Ti (Desktop) 768 @ 1290 - 1392 MHz128 Bit @ 7008 MHz
GeForce GTX 1050 Ti Max-Q 768 @ 1151 – 1290 - 1290 – 1417 MHz128 Bit @ 7000 MHz
GeForce GTX 1050 (Desktop) 640 @ 1354 - 1455 MHz128 Bit @ 7008 MHz
GeForce GTX 1050 Mobile 640 @ 1354 - 1493 MHz128 Bit @ 7000 MHz
GeForce GTX 1050 Max-Q 640 @ 999 - 1189 - 1139 - 1328 MHz128 Bit @ 7000 MHz
GeForce GT 1030 (Desktop) 384 @ 1228 - 1670 MHz64 Bit @ 6000 MHz
CodenamePascal GP104
ArchitecturePascal
Pipelines1920 - unified
Core Speed1506 - 1683 (Boost) MHz
Memory Speed8000 MHz
Memory Bus Width256 Bit
Memory TypeGDDR5
Max. Amount of Memory8192 MB
Shared Memoryno
DirectXDirectX 12_1
Transistor Count7200 Million
technology16 nm
FeaturesMulti-Projection, VR Ready, G-SYNC, Vulkan, Multi Monitor
Date of Announcement06.05.2016
Link to Manufacturer Pagehttp://www.geforce.com/hardware/10series...

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
60.4 pt (62%)
Intel HD Graphics (Bay Trail) -98%
...
NVIDIA GeForce GTX 1660 Ti (Desktop) -12%
NVIDIA GeForce GTX 1660 Super (Desktop) -10%
NVIDIA GeForce GTX 1080 (Desktop) -4%
NVIDIA GeForce RTX 2060 (Desktop) -1%
NVIDIA GeForce GTX 1070 (Desktop)
NVIDIA Quadro P5200 2%
NVIDIA GeForce RTX 2060 Super (Desktop) 4%
NVIDIA Titan X Pascal 6%
AMD Radeon RX Vega 56 7%
NVIDIA GeForce GTX 1080 Mobile 9%
AMD Radeon RX Vega 64 12%
AMD Radeon RX 5700 (Desktop) 14%
...
0%
100%
3DMark - Time Spy Score 2560x1440
min: 5393     avg: 5726     median: 5679 (120%)     max: 4738 Points
3DMark - Time Spy Graphics 2560x1440
min: 5555     avg: 5808     median: 5896 (135%)     max: 4378 Points
3DMark - Ice Storm Unlimited Graphics Score 1280x720 offscreen
min: 463865     avg: 463865     median: 463865 (106%)     max: 436117 Points
3DMark - Ice Storm Extreme Graphics 1920x1080
310978 Points (85%)
3DMark - Cloud Gate Standard Score 1280x720
min: 29721     avg: 32363.3     median: 30229.5 (77%)     max: 39273 Points
3DMark - Cloud Gate Standard Graphics 1280x720
min: 104764     avg: 107293.5     median: 106934 (124%)     max: 86193 Points
3DMark - Fire Strike Score 1920x1080
min: 13917     avg: 15175     median: 14984 (125%)     max: 11956 Points
3DMark - Fire Strike Graphics 1920x1080
min: 16685     avg: 17893.4     median: 18255 (132%)     max: 13827 Points
3DMark - Ice Storm Standard Graphics 1280x720
379960 Points (51%)
3DMark 11 - Performance 1280x720
min: 18555     avg: 19713.2     median: 19449 (111%)     max: 17450 points
3DMark 11 - Performance GPU 1280x720
min: 23660     avg: 24686     median: 24652 (130%)     max: 18967 points
...
NVIDIA GeForce GTX 970 -36%
NVIDIA Quadro P4000 Max-Q -36%
NVIDIA Quadro P3200 -34%
AMD Radeon RX 480 (Desktop) -27%
AMD Radeon RX 570 (Desktop) -23%
NVIDIA GeForce GTX 1070 (Desktop)
...
AMD Radeon RX 570 (Desktop) -23%
0%
100%
3DMark Vantage
P Result 1280x1024 +
P GPU no PhysX 1280x1024 +
3DMark 03 - Standard 1024x768
min: 163345     avg: 163345     median: 163345 (108%)     max: 150623 Points
3DMark 06 Standard 1280x1024 +
Unigine Valley 1.0 - Extreme HD DirectX 1920x1080
min: 91.8     avg: 93.4     median: 92.6 (113%)     max: 81.69999694824219 fps
SPECviewperf 12
Solidworks (sw-03) 1900x1060 +
Siemens NX (snx-02) 1900x1060 +
Showcase (showcase-01) 1900x1060 +
Medical (medical-01) 1900x1060 +
Maya (maya-04) 1900x1060 +
Energy (energy-01) 1900x1060 +
Creo (creo-01) 1900x1060 +
Catia (catia-04) 1900x1060 +
3ds Max (3dsmax-05) 1900x1060 +
SPECviewperf 13 Solidworks (sw-04) +
Siemens NX (snx-03) +
Showcase (showcase-02) +
Medical (medical-02) +
Maya (maya-05) +
Energy (energy-02) +
Creo (creo-02) +
Catia (catia-05) +
3ds Max (3dsmax-06) +
Cinebench R10 Shading 32Bit +
Cinebench R11.5 OpenGL 64Bit +
Cinebench R15
OpenGL 64Bit +
Ref. Match 64Bit +
LuxMark v2.0 64Bit - Room GPUs-only
min: 2474     avg: 2479.5     median: 2479.5 (25%)     max: 2485 Samples/s
LuxMark v2.0 64Bit - Sala GPUs-only
min: 3877     avg: 4444.5     median: 4444.5 (41%)     max: 5012 Samples/s
ComputeMark v2.1 - Normal, Score 1024x600
min: 13121     avg: 13488.5     median: 13488.5 (140%)     max: 9659 Points
Power Consumption - FurMark 1.19 GPU Stress Test - Power Consumption (external Monitor) 1280x720 *
min: 218.2     avg: 258.1     median: 253 (76%)     max: 303 Watt
Power Consumption - The Witcher 3 Power Consumption (external Monitor) ultra 1920x1080 *
min: 243     avg: 252.9     median: 247.8 (71%)     max: 268 Watt
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

low 1280x720
142  fps    + Compare
med. 1920x1080
79.8  fps    + Compare
high 1920x1080
53  fps    + Compare
ultra 1920x1080
33.8  fps    + Compare
QHD 2560x1440
27.3  fps    + Compare
4K 3840x2160
17.5  fps    + Compare
» With all tested laptops playable in detail settings high.
med. 1920x1080
115  fps    + Compare
high 1920x1080
103  fps    + Compare
ultra 1920x1080
93.4  fps    + Compare
QHD 2560x1440
69  fps    + Compare
4K 3840x2160
34.1  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
123  fps    + Compare
med. 1920x1080
104  fps    + Compare
high 1920x1080
93.9  fps    + Compare
ultra 1920x1080
76.4  fps    + Compare
QHD 2560x1440
55.4  fps    + Compare
4K 3840x2160
30.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
177  fps    + Compare
med. 1920x1080
113  fps    + Compare
high 1920x1080
103  fps    + Compare
ultra 1920x1080
85.5  fps    + Compare
QHD 2560x1440
61.5  fps    + Compare
4K 3840x2160
33.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Maximum Settings with Raytracing T2X Filmic SMAA 1920x1080
30.6
GRID 2019

GRID 2019

2019
low 1280x720
218  fps    + Compare
med. 1920x1080
134  fps    + Compare
high 1920x1080
105  fps    + Compare
ultra 1920x1080
72.8  fps    + Compare
QHD 2560x1440
59.9  fps    + Compare
4K 3840x2160
36.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
140  fps    + Compare
med. 1920x1080
91  fps    + Compare
high 1920x1080
82  fps    + Compare
ultra 1920x1080
61  fps    + Compare
QHD 2560x1440
43  fps    + Compare
4K 3840x2160
24  fps    + Compare
» With all tested laptops playable in detail settings ultra.
FIFA 20

FIFA 20

2019
low 1280x720
286  fps    + Compare
med. 1920x1080
285  fps    + Compare
high 1920x1080
267  fps    + Compare
ultra 1920x1080
257  fps    + Compare
QHD 2560x1440
216  fps    + Compare
4K 3840x2160
146  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
141  fps    + Compare
med. 1920x1080
106  fps    + Compare
high 1920x1080
74.6  fps    + Compare
ultra 1920x1080
57.9  fps    + Compare
QHD 2560x1440
40  fps    + Compare
4K 3840x2160
21.4  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Control

Control

2019
low 1280x720
207  fps    + Compare
med. 1920x1080
74.8  fps    + Compare
high 1920x1080
55.6  fps    + Compare
QHD 2560x1440
35.2  fps    + Compare
4K 3840x2160
17.2  fps    + Compare
» With all tested laptops playable in detail settings high.
Additional Benchmarks
High Quality Preset & High Ray Tracing Preset (DX12) 1920x1080
13.9
F1 2019

F1 2019

2019
low 1280x720
248  fps    + Compare
med. 1920x1080
185  fps    + Compare
high 1920x1080
152  fps    + Compare
ultra 1920x1080
106  fps    + Compare
QHD 2560x1440
82  fps    + Compare
4K 3840x2160
48  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Rage 2

Rage 2

2019
low 1280x720
188  fps    + Compare
med. 1920x1080
93  fps    + Compare
high 1920x1080
81.1  fps    + Compare
ultra 1920x1080
80  fps    + Compare
QHD 2560x1440
50.3  fps    + Compare
4K 3840x2160
24.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Anno 1800

Anno 1800

2019
low 1280x720
111  fps    + Compare
med. 1920x1080
109  fps    + Compare
high 1920x1080
90  fps    + Compare
ultra 1920x1080
43.3  fps    + Compare
QHD 2560x1440
32.1  fps    + Compare
4K 3840x2160
18.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
200  fps    + Compare
med. 1920x1080
122  fps    + Compare
high 1920x1080
97  fps    + Compare
ultra 1920x1080
77  fps    + Compare
QHD 2560x1440
53  fps    + Compare
4K 3840x2160
28  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
287  fps    + Compare
med. 1920x1080
139  fps    + Compare
high 1920x1080
113  fps    + Compare
ultra 1920x1080
72.6  fps    + Compare
QHD 2560x1440
54.3  fps    + Compare
