AMD Radeon RX 6600M

AMD Radeon RX 6600M

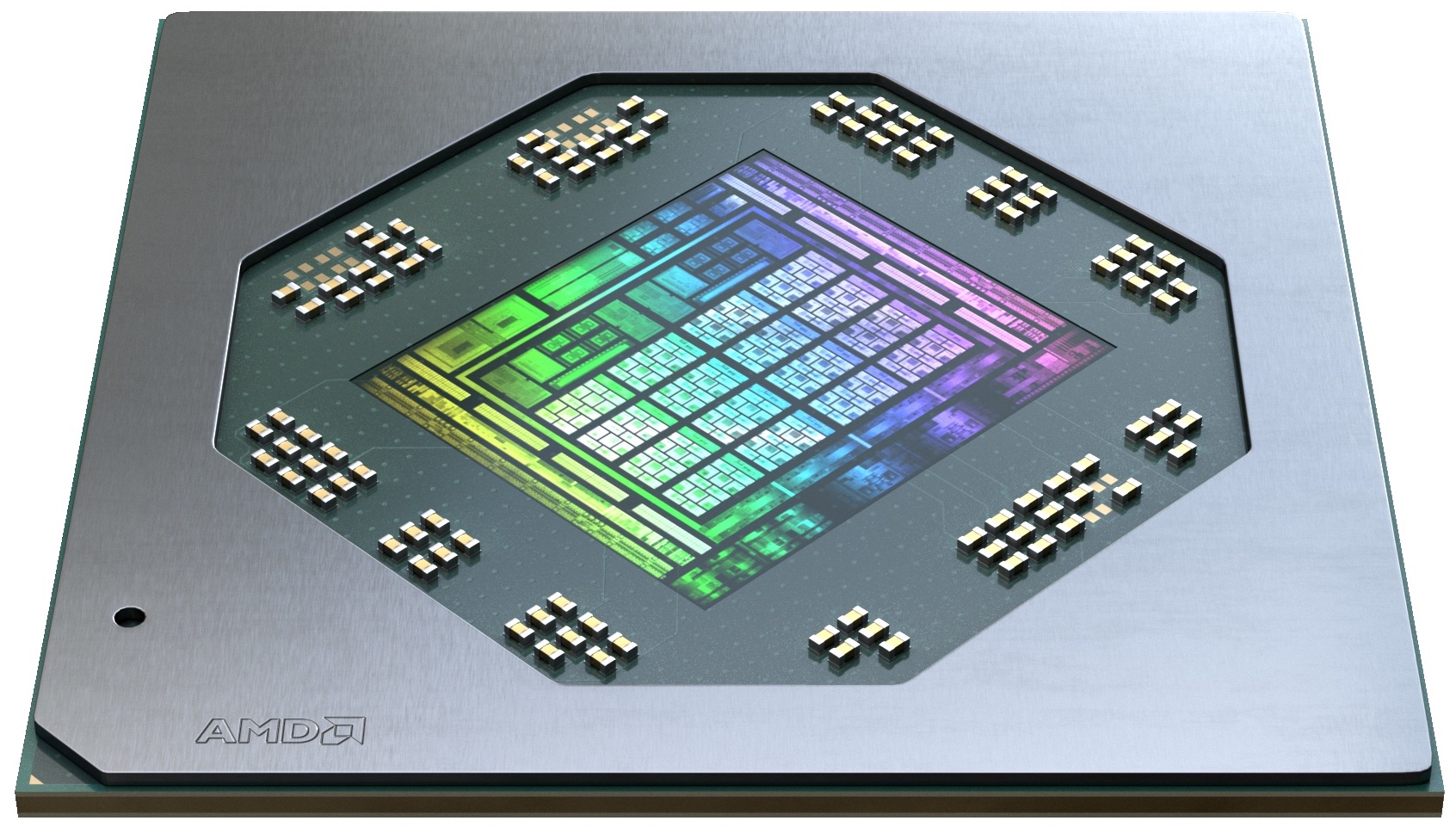

AMD Radeon RX 6600M 是基于 Navi 23 芯片 (RDNA2 体系结构) 的移动中端显卡。 配备1,792个内核(28CU - 计算单元)和8GB高速GDDR6图形内存,连接到128位内存总线。 此芯片还包括 32 MB Infinity Cache。 根据AMD,内核的时钟速度因笔记本电脑而异。 功耗(TDP设定)范围为50~100瓦,时钟速度不同(与Nvidia相似)。

100瓦特时,游戏时钟达到2177MHz,性能与笔记本电脑的RTX 3060相同。 激活光线跟踪效果后,将落后于 GeForce GPU。

Navi 21芯片采用现代7nm工艺,由TSMC制造。 与Nvidia 12nm芯片相比,RX 6600M的功耗更高。

Radeon RX 6000M Series
Radeon RX 6850M XT 2560 @ 2.46 GHz192 Bit @ 18000 MHz
Radeon RX 6800M 2560 @ 2.12 - 2.3 GHz192 Bit @ 16000 MHz
Radeon RX 6800S 2048 @ 1.8 - 1.98 GHz128 Bit @ 16000 MHz
Radeon RX 6700M 2304 @ 2.3 GHz160 Bit @ 16000 MHz
Radeon RX 6650M XT 2048 @ 2.16 GHz128 Bit @ 18000 MHz
Radeon RX 6650M 1792 @ 2.22 GHz128 Bit @ 18000 MHz
Radeon RX 6600M 1792 @ 2.07 - 2.18 GHz128 Bit @ 14000 MHz
Radeon RX 6700S 2304 @ 1.89 GHz160 Bit @ 16000 MHz
Radeon PRO W6600M 1792 128 Bit @ 14000 MHz
Radeon RX 6600S 1792 @ 1.88 GHz128 Bit @ 16000 MHz
Radeon RX 6500M 1024 @ 2.19 GHz128 Bit @ 18000 MHz
Radeon RX 6300M 768 @ 1.51 GHz128 Bit @ 18000 MHz
CodenameR21M-E65-70
ArchitectureRDNA 2
Pipelines1792 - unified
TMUs112
ROPs64
Core Speed2068 - 2177 (Boost) MHz
Memory Speed14000 effective = 1750 MHz
Memory Bus Width128 Bit
Memory TypeGDDR6
Max. Amount of Memory8 GB
Shared Memoryno
Memory Bandwidth224 GB/s
APIDirectX 12, Shader 6.4, OpenGL 4.6
Power Consumption100 Watt (50 - 100 Watt TGP)
Transistor Count11.1 Billion
technology7 nm
PCIe4.0
DisplaysHDMI 2.0b, DisplayPort 1.4
FeaturesDisplayPort 1.4 w/DFSC, HDMI 2.0b, Radeon Media Engine (H.264 4K150 decode, 4K90 encode / H.265 4K90 decode, 4K60 encode / VP9 4K90 decode), Resizable BAR, Ray Tracing
Notebook Sizemedium sized
Date of Announcement01.09.2020

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
40 pt (44%)
3DMark - 3DMark Time Spy Score
min: 7476     avg: 7947     median: 8013 (42%)     max: 8353 Points
3DMark - 3DMark Time Spy Graphics
min: 7200     avg: 7870     median: 8023.5 (37%)     max: 8234 Points
Intel UHD Graphics 605 -99%
...
NVIDIA Quadro P5200 -18%
NVIDIA Quadro RTX 4000 Max-Q -14%
NVIDIA GeForce GTX 1080 Mobile -13%
NVIDIA Quadro RTX 4000 (Laptop) -7%
NVIDIA Quadro RTX 5000 Max-Q -6%
NVIDIA GeForce RTX 2070 Super Max-Q -5%
AMD Radeon RX 6600M
NVIDIA GeForce RTX 2070 Super Mobile 5%
...
0%
100%
3DMark - 3DMark Ice Storm Unlimited Graphics
min: 450349     avg: 462521     median: 462520 (62%)     max: 474692 Points
3DMark - 3DMark Ice Storm Extreme Graphics
min: 191190     avg: 192046     median: 192046 (26%)     max: 192901 Points
3DMark - 3DMark Cloud Gate Score
min: 44854     avg: 50334     median: 51430 (63%)     max: 54719 Points
3DMark - 3DMark Cloud Gate Graphics
min: 127549     avg: 142476     median: 144092 (58%)     max: 155788 Points
3DMark - 3DMark Fire Strike Standard Score
min: 19451     avg: 20601     median: 20992 (52%)     max: 21360 Points
3DMark - 3DMark Fire Strike Standard Graphics
min: 21876     avg: 23924     median: 24515 (46%)     max: 24788 Points
3DMark - 3DMark Ice Storm Graphics
min: 193923     avg: 194113     median: 194113 (26%)     max: 194303 Points
3DMark 11 - 3DM11 Performance Score
min: 22934     avg: 23699     median: 23141 (47%)     max: 25021 Points
3DMark 11 - 3DM11 Performance GPU
min: 27030     avg: 30197     median: 31702 (46%)     max: 31859 Points
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
68792 Points (57%)
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
74954 Points (58%)
ATI Radeon HD 3200 -100%
...
NVIDIA GeForce GTX 1080 Mobile -16%
NVIDIA Quadro P5200 -8%
NVIDIA GeForce RTX 2070 Super Max-Q -8%
AMD Radeon RX 6600M
NVIDIA GeForce RTX 2070 Super Mobile 1%
NVIDIA GeForce RTX 2080 Super Mobile 3%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
43447 Points (66%)
Unigine Valley 1.0 - Unigine Valley 1.0 DX
83.6 fps (36%)
SPECviewperf 12
specvp12 sw-03 +
SPECviewperf 12 - specvp12 sw-03
105 fps (46%)
specvp12 snx-02 +
SPECviewperf 12 - specvp12 snx-02
36.2 fps (10%)
specvp12 showcase-01 +
specvp12 mediacal-01 +
specvp12 maya-04 +
specvp12 energy-01 +
SPECviewperf 12 - specvp12 energy-01
2.1 fps (5%)
specvp12 creo-01 +
SPECviewperf 12 - specvp12 creo-01
86 fps (46%)
specvp12 catia-04 +
SPECviewperf 12 - specvp12 catia-04
141 fps (48%)
specvp12 3dsmax-05 +
SPECviewperf 13 specvp13 sw-04 +
SPECviewperf 13 - specvp13 sw-04
127 fps (59%)
specvp13 snx-03 +
SPECviewperf 13 - specvp13 snx-03
64.2 fps (10%)
specvp13 showcase-02 +
SPECviewperf 13 - specvp13 showcase-02
98.5 fps (37%)
specvp13 medical-02 +
SPECviewperf 13 - specvp13 medical-02
63 fps (34%)
specvp13 maya-05 +
SPECviewperf 13 - specvp13 maya-05
187 fps (33%)
specvp13 energy-02 +
SPECviewperf 13 - specvp13 energy-02
2.1 fps (2%)
specvp13 creo-02 +
SPECviewperf 13 - specvp13 creo-02
166 fps (43%)
specvp13 catia-05 +
SPECviewperf 13 - specvp13 catia-05
211 fps (45%)
specvp13 3dsmax-06 +
SPECviewperf 13 - specvp13 3dsmax-06
174 fps (47%)
SPECviewperf 2020 specvp2020 solidworks-05 4k +
SPECviewperf 2020 - specvp2020 solidworks-05 4k
min: 113     avg: 118.3     median: 113 (34%)     max: 129 fps
specvp2020 snx-04 4k +
SPECviewperf 2020 - specvp2020 snx-04 4k
min: 62.5     avg: 67.3     median: 62.5 (13%)     max: 77 fps
specvp2020 medical-03 4k +
SPECviewperf 2020 - specvp2020 medical-03 4k
min: 29.3     avg: 30.9     median: 29.3 (56%)     max: 34 fps
specvp2020 maya-06 4k +
SPECviewperf 2020 - specvp2020 maya-06 4k
min: 196     avg: 219.3     median: 196 (44%)     max: 266 fps
specvp2020 energy-03 4k +
SPECviewperf 2020 - specvp2020 energy-03 4k
min: 2.05     avg: 3.4     median: 2.1 (1%)     max: 6 fps
specvp2020 creo-03 4k +
specvp2020 catia-06 4k +
SPECviewperf 2020 - specvp2020 catia-06 4k
min: 16.8     avg: 26.9     median: 16.8 (14%)     max: 47 fps
specvp2020 3dsmax-07 4k +
SPECviewperf 2020 - specvp2020 3dsmax-07 4k
min: 66     avg: 66.3     median: 66.5 (39%)     max: 66.5 fps
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
14081 points (60%)
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
77 fps (28%)
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 136.78     avg: 169.8     median: 176 (47%)     max: 197.8 fps
Cinebench R15 OpenGL Ref. Match 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
min: 98     avg: 98.2     median: 98 (98%)     max: 99.6 %
Power Consumption - Furmark Stress Test Power Consumption - external Monitor *
min: 113     avg: 155     median: 165 (25%)     max: 187 Watt
0153045607590105120135150165180195Tooltip
Power Consumption - The Witcher 3 Power Consumption - external Monitor *
min: 124     avg: 164     median: 177 (25%)     max: 191 Watt
0102030405060708090100110120130140150160170180190Tooltip
Power Consumption - Witcher 3 Power Consumption *
min: 131     avg: 168.7     median: 181 (40%)     max: 194 Watt
0153045607590105120135150165180195Tooltip
Power Consumption - Witcher 3 ultra Power Efficiency - external Monitor
0.6 Points per Watt (0%)
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

The Quarry

The Quarry

2022
med. 1920x1080
94.7 fps  fps    + Compare
high 1920x1080
74.9 fps  fps    + Compare
ultra 1920x1080
50 fps  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Vampire Bloodhunt

Vampire Bloodhunt

2022
med. 1920x1080
169.1 fps  fps    + Compare
high 1920x1080
158.7 fps  fps    + Compare
ultra 1920x1080
157.7 fps  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Ghostwire Tokyo

Ghostwire Tokyo

2022
med. 1920x1080
115.1 fps  fps    + Compare
high 1920x1080
113.2 fps  fps    + Compare
ultra 1920x1080
112 fps  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Tiny Tina's Wonderlands

Tiny Tina's Wonderlands

2022
med. 1920x1080
125  fps    + Compare
