NVIDIA GeForce RTX 4080 Super

NVIDIA NVIDIA GeForce RTX 4080 Super

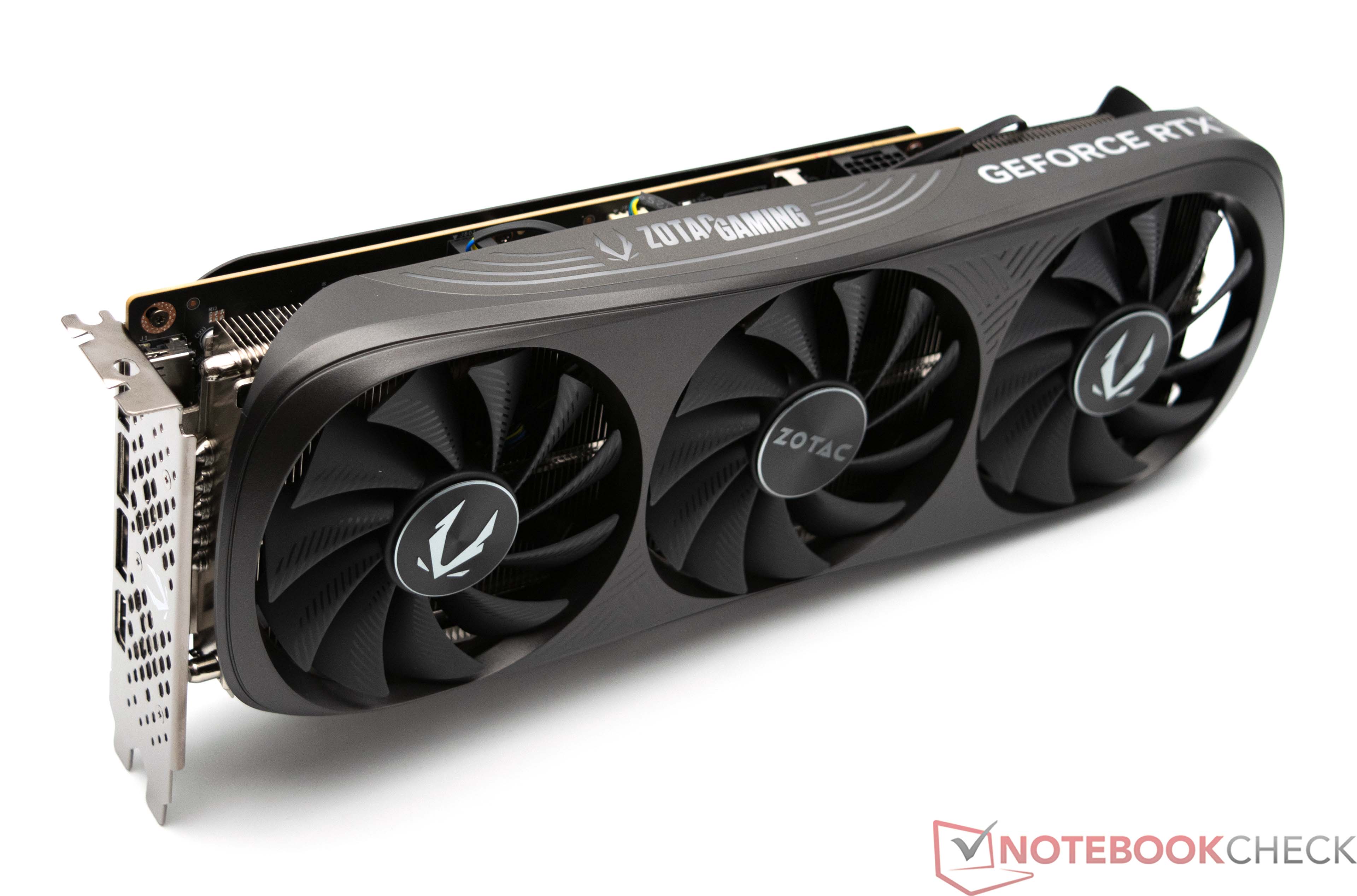

NvidiaGeForce RTX 4080 Super 是一款基于 Ada Lovelace 架构的高端桌面显卡。它采用 AD103 芯片的完整配置，拥有 10,240 个核心和 16 GB GDDR6X 显存（256 位总线，23 Gbits）。

76 个专用内核和 320 个张量内核可用于 DLSS 3，因此光线追踪性能非常出色。

在没有 DLSS 的情况下，游戏性能非常理想，在没有光线追踪效果的高要求游戏（如《F1 22》或《赛博朋克 2077》）中，4k 游戏帧率约为 60fps，2k 游戏帧率更高。有光线追踪效果时，建议使用 DLSS。与同类产品相比，不使用 DLSS 和光线追踪的性能略优于价格便宜得多的 AMD Radeon RX 7900 XT.

目前市面上的 RTX 4080 显卡都非常大（2.5 或 3 个插槽），并使用新的 12VHPWR 接口（这在适配器方面造成了一些问题）。

AD103 芯片在台积电以 5 纳米（4N，带 EUV）工艺生产，TGP（图形总功率）指定为 320 瓦（Nvidia 建议至少使用 750 瓦电源）。

GeForce RTX 4000 Series

NVIDIA GeForce RTX 4090 16384 @ 2.24 - 2.52 GHz384 Bit @ 21000 MHz
NVIDIA GeForce RTX 4080 Super 10240 @ 2.3 - 2.55 GHz256 Bit @ 23000 MHz
NVIDIA GeForce RTX 4080 9728 @ 2.21 - 2.51 GHz256 Bit @ 22400 MHz
NVIDIA GeForce RTX 4070 Ti SUPER 8448 @ 2.34 - 2.61 GHz256 Bit @ 21000 MHz
NVIDIA GeForce RTX 4070 Ti 7680 @ 2.31 - 2.61 GHz192 Bit @ 21000 MHz
NVIDIA GeForce RTX 4070 SUPER 7168 @ 1.98 - 2.48 GHz192 Bit @ 21000 MHz
NVIDIA GeForce RTX 4070 5888 @ 1.92 - 2.48 GHz192 Bit @ 21000 MHz
NVIDIA GeForce RTX 4060 Ti 16G 4352 @ 2.31 - 2.54 GHz128 Bit @ 18000 MHz
NVIDIA GeForce RTX 4060 Ti 8G 4352 @ 2.31 - 2.54 GHz128 Bit @ 18000 MHz
NVIDIA GeForce RTX 4060 3072 @ 1.83 - 2.46 GHz128 Bit @ 17000 MHz
CodenameAD103-400-A1
ArchitectureAda Lovelace
Pipelines10240 - unified
TMUs320
ROPs112
Raytracing Cores80
Tensor / AI Cores320
Core Speed2295 - 2550 (Boost) MHz
Theoretical Performance52.22 TFLOPS FP16, 52.22 TFLOPS FP32, 816 TFLOPS FP64
CacheL2: 64 MB
Memory Speed23000 effective = 1438 MHz
Memory Bus Width256 Bit
Memory TypeGDDR6X
Max. Amount of Memory16 GB
Shared Memoryno
Memory Bandwidth736.3 GB/s
APIDirectX 12 Ultimate (12_2), Shader 6.7, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3
Power Consumption320 Watt
Transistor Count45.900 Million
Die Size 379 mm²
technology5 nm
PCIePCIe 4.0 x16
Displays4 Displays (max.), HDMI 2.1, DisplayPort 1.4a
Date of Announcement31.01.2024

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
22.1 pt (66%)
AMD Radeon HD 8180
0.05426 -100%
...
AMD Radeon RX 7800 XT
18.6 -16%
AMD Radeon RX 6800 XT
18.6 -16%
Nvidia GeForce RTX 5090 Laptop
19 -14%
NVIDIA GeForce RTX 4070 Ti
19.9 -10%
NVIDIA GeForce RTX 3090 Ti
19.9 -10%
NVIDIA GeForce RTX 4070 Ti SUPER
20.4 -8%
AMD Radeon RX 7900 GRE
20.4 -8%
NVIDIA GeForce RTX 5070
21.1 -5%
NVIDIA GeForce RTX 4080
22 0%
NVIDIA GeForce RTX 4080 Super
22.1
AMD Radeon RX 6950 XT
22.3 1%
AMD Radeon RX 9070
22.6 2%
AMD Radeon RX 7900 XT
23.7 7%
NVIDIA GeForce RTX 5080
24 9%
AMD Radeon RX 9070 XT
24.3 10%
AMD Radeon RX 7900 XTX
25 13%
NVIDIA GeForce RTX 5070 Ti
26.3 19%
NVIDIA GeForce RTX 4090
28.4 29%
NVIDIA GeForce RTX 5090
33.3 51%
0%
100%
Restrict / Search: Model: Max. age: years
3DMark - 3DMark Time Spy Score
min: 27079     avg: 27286     median: 27111 (72%)     max: 27669 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Time Spy Graphics
min: 28049     avg: 28344     median: 28378 (58%)     max: 28605 Points
+ 3 benchmarks and specifications   - Hide comparison chart
Qualcomm Adreno 618
112 -100%
...
NVIDIA GeForce RTX 5070
22260 -21%
AMD Radeon RX 6950 XT
22276 -21%
NVIDIA GeForce RTX 4070 Ti
22801 -20%
NVIDIA GeForce RTX 4070 Ti SUPER
23409 -17%
Nvidia GeForce RTX 5090 Laptop
23963 -15%
AMD Radeon RX 7900 XT
26376 -7%
AMD Radeon RX 9070
26512 -6%
NVIDIA GeForce RTX 4080
27394 -3%
NVIDIA GeForce RTX 5070 Ti
27541 -3%
NVIDIA GeForce RTX 4080 Super
28344
AMD Radeon RX 9070 XT
30530 8%
AMD Radeon RX 7900 XTX
31462 11%
NVIDIA GeForce RTX 5080
32333 14%
NVIDIA GeForce RTX 4090
35986 27%
NVIDIA GeForce RTX 5090
46337 63%
0%
100%
Restrict / Search: Model: Max. age: years
3DMark - 3DMark Ice Storm Unlimited Graphics
min: 760629     avg: 837697     median: 870270 (88%)     max: 882191 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Extreme Graphics
min: 571282     avg: 640225     median: 667521 (78%)     max: 681871 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Score
min: 80761     avg: 84553     median: 86181 (81%)     max: 86716 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Graphics
min: 174309     avg: 185738     median: 187847 (46%)     max: 195058 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Score
min: 45427     avg: 45776     median: 45767 (69%)     max: 46135 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Graphics
min: 58368     avg: 59039     median: 59075 (54%)     max: 59674 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Graphics
min: 623960     avg: 714523     median: 712491 (79%)     max: 807119 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Wild Life Unlimited
172147 Points (87%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Wild Life Extreme Unlimited
59462 Points (69%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Night Raid
min: 94035     avg: 98903     median: 99666 (94%)     max: 103007 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Night Raid Graphics Score
min: 215298     avg: 232956     median: 235474 (91%)     max: 248095 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Score
min: 57532     avg: 59122     median: 59568 (72%)     max: 60267 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
min: 84210     avg: 86347     median: 87055 (67%)     max: 87776 Points
+ 3 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -100%
...
NVIDIA RTX 6000 Ada Generation
70850 -18%
NVIDIA GeForce RTX 5070
71642 -17%
NVIDIA GeForce RTX 4070 Ti SUPER
74834 -13%
NVIDIA GeForce RTX 4070 Ti
75509 -13%
AMD Radeon RX 7900 XT
75896 -12%
AMD Radeon RX 6950 XT
76549 -11%
NVIDIA GeForce RTX 4080
81373 -6%
NVIDIA GeForce RTX 5070 Ti
85512 -1%
AMD Radeon RX 7900 XTX
85868 -1%
NVIDIA GeForce RTX 4080 Super
86347
AMD Radeon RX 9070
88618 3%
AMD Radeon RX 9070 XT
98912 15%
NVIDIA GeForce RTX 5080
100191 16%
NVIDIA GeForce RTX 4090
104351 21%
NVIDIA GeForce RTX 5090
129772 50%
0%
100%
Restrict / Search: Model: Max. age: years
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 139305     avg: 141652     median: 141652 (41%)     max: 143998 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 151574     avg: 155185     median: 155185 (85%)     max: 158796 Points
+ 2 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -100%
...
AMD Radeon RX 7700 XT
135301 -13%
NVIDIA GeForce RTX 4070
136272 -12%
NVIDIA GeForce RTX 3080 Ti
136576 -12%
AMD Radeon RX 7900 GRE
138530 -11%
AMD Radeon RX 7800 XT
144699 -7%
NVIDIA RTX 6000 Ada Generation
145886 -6%
NVIDIA GeForce RTX 4070 Ti
149579 -4%
Nvidia GeForce RTX 5080 Laptop
151016 -3%
NVIDIA GeForce RTX 5070
151920 -2%
NVIDIA GeForce RTX 4080 Super
155185
AMD Radeon RX 9070
155869 0%
NVIDIA GeForce RTX 4090
160379 3%
NVIDIA GeForce RTX 5070 Ti
161246 4%
AMD Radeon RX 7900 XT
161658 4%
NVIDIA GeForce RTX 4080
162529 5%
AMD Radeon RX 9070 XT
164953 6%
NVIDIA GeForce RTX 5080
168245 8%
AMD Radeon RX 7900 XTX
173912 12%
0%
100%
Restrict / Search: Model: Max. age: years
3DMark 05 - 3DMark 05 - Standard
min: 87139     avg: 87172     median: 87171.5 (95%)     max: 87204 Points
+ 2 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -100%
...
NVIDIA GeForce RTX 5060 Ti
85740 -2%
NVIDIA GeForce RTX 5070
85743 -2%
NVIDIA GeForce RTX 5070 Ti
85773 -2%
NVIDIA GeForce RTX 4080
85804 -2%
NVIDIA GeForce GTX 1060 (Desktop)
85875 -1%
NVIDIA GeForce RTX 5080
86046 -1%
NVIDIA GeForce RTX 5090
86188 -1%
NVIDIA GeForce RTX 4070
86191 -1%
NVIDIA GeForce GTX 1650 Super (Desktop)
86965 0%
NVIDIA GeForce RTX 4080 Super
87172
0%
100%
Restrict / Search: Model: Max. age: years
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 73603     avg: 74741     median: 74741 (98%)     max: 75879 Points
+ 2 benchmarks and specifications   + Show comparison chart
Unigine Valley 1.0 - Unigine Valley 1.0 DX
min: 269.4     avg: 276.3     median: 277.1 (84%)     max: 282.3 fps
+ 3 benchmarks and specifications   + Show comparison chart
Blender - Blender 3.3 Classroom CUDA *
min: 14     avg: 70     median: 97 (14%)     max: 99 Seconds
+ 3 benchmarks and specifications   + Show comparison chart
Blender - Blender 3.3 Classroom OPTIX *
min: 8     avg: 8.7     median: 9 (3%)     max: 9 Seconds
+ 3 benchmarks and specifications   + Show comparison chart
SPECviewperf 12
specvp12 sw-03 +
SPECviewperf 12 - specvp12 sw-03
min: 116     avg: 123.5     median: 123.5 (31%)     max: 131 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp12 snx-02 +
SPECviewperf 12 - specvp12 snx-02
min: 24.5     avg: 24.6     median: 24.6 (4%)     max: 24.7 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp12 showcase-01 +
SPECviewperf 12 - specvp12 showcase-01
min: 296     avg: 316     median: 316 (55%)     max: 336 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp12 mediacal-01 +
SPECviewperf 12 - specvp12 mediacal-01
202 fps (52%)
+ 2 benchmarks and specifications   + Show comparison chart
specvp12 maya-04 +
SPECviewperf 12 - specvp12 maya-04
min: 317     avg: 317.5     median: 317.5 (87%)     max: 318 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp12 energy-01 +
SPECviewperf 12 - specvp12 energy-01
min: 60.4     avg: 60.5     median: 60.5 (54%)     max: 60.6 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp12 creo-01 +
SPECviewperf 12 - specvp12 creo-01
min: 120     avg: 121     median: 121 (48%)     max: 122 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp12 catia-04 +
SPECviewperf 12 - specvp12 catia-04
min: 236     avg: 237     median: 237 (39%)     max: 238 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp12 3dsmax-05 +
SPECviewperf 12 - specvp12 3dsmax-05
min: 485     avg: 490     median: 490 (74%)     max: 495 fps
+ 2 benchmarks and specifications   + Show comparison chart
SPECviewperf 13 specvp13 sw-04 +
SPECviewperf 13 - specvp13 sw-04
min: 185     avg: 186     median: 186 (50%)     max: 187 fps
+ 2 benchmarks and specifications   + Show comparison chart
