Intel Graphics 2 Xe3 Wildcat Lake iGPU

Intel Intel Graphics 2 Xe3 WCL

Intel Graphics 2-Core Xe3 是 Wildcat Lake SoC 中的集成显卡,具有 2 个 Xe3 内核(16 个 EU / 256 个 ALU)和 2 个光线追踪内核。

新的媒体引擎现在支持 AV1 编解码、VVC 解码、AVC 10 位和 eDP 1.5。

小型 iGPU 不适合要求较高的 3D 游戏。只有要求不高的老游戏才能流畅运行。

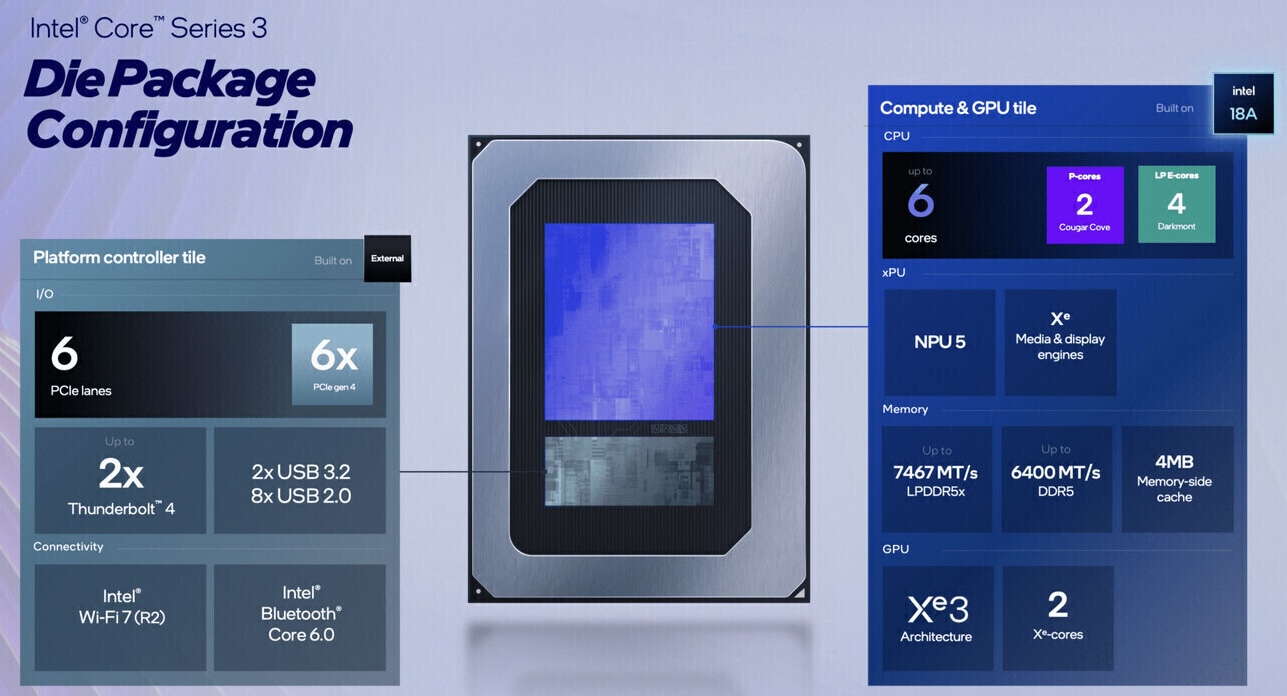

图形核心位于 WCL 芯片的计算和 GPU 瓦内,采用现代 1.8 纳米工艺(英特尔 18A)制造。

Wildcat Lake Xe3 Series

Intel Graphics 2 Xe3 WCL 16 @ 2.6 GHz
Intel Graphics 1 Xe3 WCL 8 @ 2.3 GHz
CodenameWildcat Lake
ArchitectureXe3
iGPUIntegrated Graphics
Pipelines16 - unified
Raytracing Cores2
Core Speed2600 (Boost) MHz
AI GPU21 TOPS INT8
Shared Memoryno
APIDirectX 12_2
Man. Technology1.8 nm
Date of Announcement01.05.2026
CPU in Intel Graphics 2 Xe3 WCLGPU Base SpeedGPU Boost / Turbo
Intel Core 7 3606 x 1400 MHz, 15 W? MHz2600 MHz
Intel Core 7 3506 x 1400 MHz, 15 W? MHz2600 MHz
Intel Core 5 3306 x 1400 MHz, 15 W? MHz2500 MHz
min. - max.? MHz2300 - 2600 MHz

Benchmarks

3DMark - 3DMark Fire Strike Standard Score
3426 Points (5%)
3DMark - 3DMark Fire Strike Standard Graphics
3642 Points (3%)
3DMark - 3DMark Time Spy Score
1576 Points (4%)
3DMark - 3DMark Time Spy Graphics
1401 Points (3%)
Intel UHD Graphics 600
107.5 -92%
...
NVIDIA GeForce GTX 960M
1148 -18%
NVIDIA Quadro P600
1162 -17%
1175 -16%
unknown
1257 -10%
1281 -9%
1322 -6%
AMD Radeon Pro 560
1376 -2%
NVIDIA Quadro P620
1388 -1%
NVIDIA Quadro P1000
1395 0%
Intel Graphics 2 Xe3 Wildcat Lake iGPU
1401
1430 2%
AMD Radeon 660M
1450 3%
1493 7%
1496 7%
AMD Radeon Pro 560X
1614 15%
NVIDIA GeForce GTX 1050 Max-Q
1615 15%
1616 15%
1672 19%
1724 23%
...
NVIDIA RTX PRO 5000 Blackwell Generation Laptop
23277 1561%
max:
NVIDIA GeForce RTX 5090
44063 3045%
0%
100%
Restrict / Search: Model: Max. age: years
3DMark - 3DMark Cloud Gate Score
18182 Points (17%)
3DMark - 3DMark Cloud Gate Graphics
22468 Points (6%)
3DMark 11 - 3DM11 Performance Score
4159 Points (5%)
3DMark 11 - 3DM11 Performance GPU
3749 Points (3%)
171.8 -95%
...
3535 -6%
AMD Radeon R7 M275DX
3553 -5%
Intel UHD Graphics Xe G4 48EUs
3554 -5%
3581 -4%
3587 -4%
NVIDIA Quadro K3100M
3588 -4%
3616 -4%
AMD Radeon R9 M370X
3638 -3%
AMD Radeon Pro WX 3100
3691 -2%
Intel Graphics 2 Xe3 Wildcat Lake iGPU
3749
3761 0%
3761 0%
3913 4%
NVIDIA GeForce GTX 765M
3949 5%
3979 6%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
3996 7%
4070 9%
AMD Radeon 540X
4097 9%
4116 10%
...
NVIDIA RTX PRO 5000 Blackwell Generation Laptop
68271 1721%
max:
NVIDIA GeForce RTX 5090
129772 3362%
0%
100%
Restrict / Search: Model: Max. age: years
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
115.3 fps (7%)
Cinebench R15 OpenGL Ref. Match 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
97.8 % (98%)
Basemark GPU 1.2 - Basemark GPU 1.2 Vulkan Official Medium Offscreen 1080
104.6 fps (3%)
Basemark GPU 1.2 - Basemark GPU 1.2 Vulkan Official High Offscreen 2160
3.6 fps (1%)
Geekbench 6.7 - Geekbench 6.7.1 GPU OpenCL
12805 points (3%)
Geekbench 6.7 - Geekbench 6.7.1 GPU Vulkan
13821 points (3%)
Power Consumption - Furmark Stress Test Power Consumption - external Monitor *
19.8 Watt (3%)
05101520Tooltip
Power Consumption - Cyberpunk 2077 Power Consumption 150cd *
38.1 Watt (11%)
051015202530354045Tooltip
Power Consumption - Cyberpunk 2077 Power Consumption - external Monitor *
33.8 Watt (4%)
05101520253035Tooltip
- Range of benchmark values
red legend - Average benchmark values
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

F1 24

F1 24

2024
low 1920x1080
36.6  fps    + Compare
med. 1920x1080
32.3  fps    + Compare
high 1920x1080
25.2  fps    + Compare
ultra 1920x1080
17.2  fps    + Compare
» With all tested laptops playable in detail settings low.
low 1920x1080
20.6  fps    + Compare
med. 1920x1080
15.3  fps    + Compare
high 1920x1080
13  fps    + Compare
ultra 1920x1080
10.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Additional Benchmarks
Low Preset (FSR off) 1280x720
34.7
30min Start Ultra Preset (FSR off) 1920x1080
10.6
low 1920x1080
17.1  fps    + Compare + 📈 Graph
med. 1920x1080
13.9  fps    + Compare + 📈 Graph
high 1920x1080
12  fps    + Compare + 📈 Graph
ultra 1920x1080
11.8  fps    + Compare + 📈 Graph
» The benchmarks indicate that the game is not playable in the tested settings.
Additional Benchmarks
Low Preset SMAA 1280x720
26.9
Strange Brigade

Strange Brigade

2018
low 1280x720
92  fps    + Compare
med. 1920x1080
36.8  fps    + Compare
high 1920x1080
29.1  fps    + Compare
ultra 1920x1080
25.5  fps    + Compare
» With all tested laptops playable in detail settings med..
low 1280x720
32.6  fps    + Compare
med. 1920x1080
26.2  fps    + Compare
high 1920x1080
17.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
low 1280x720
39.4  fps    + Compare
med. 1920x1080
20.3  fps    + Compare
high 1920x1080
15.2  fps    + Compare
» With all tested laptops playable in detail settings low.
low 1280x720
99.2  fps    + Compare
med. 1366x768
75.6  fps    + Compare
high 1920x1080
34.9  fps    + Compare
ultra 1920x1080
32.8  fps    + Compare
» With all tested laptops playable in detail settings med..
GTA V

GTA V

2015
low 1024x768
106.1  fps    + Compare
med. 1366x768
98.1  fps    + Compare
high 1920x1080
27.2  fps    + Compare
ultra 1920x1080
10.5  fps    + Compare
» With all tested laptops playable in detail settings med..
Additional Benchmarks
Normal/Off 4xAF 1920x1080
78.7
Lowest Settings possible 1920x1080
83.9
lowmed.highultraQHD4K
F1 2436.632.325.217.2
Cyberpunk 207720.615.31310.8
Baldur's Gate 317.113.91211.8
Strange Brigade9236.829.125.5
X-Plane 11.1132.626.217.8
Final Fantasy XV Benchmark39.420.315.2
Dota 2 Reborn99.275.634.932.8
GTA V106.198.127.210.5
lowmed.highultraQHD4K
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps
2
3
3
4
2
2
7
1

5
1







For more games that might be playable and a list of all games and graphics cards visit our Gaming List
