Intel Arc Graphics 140T

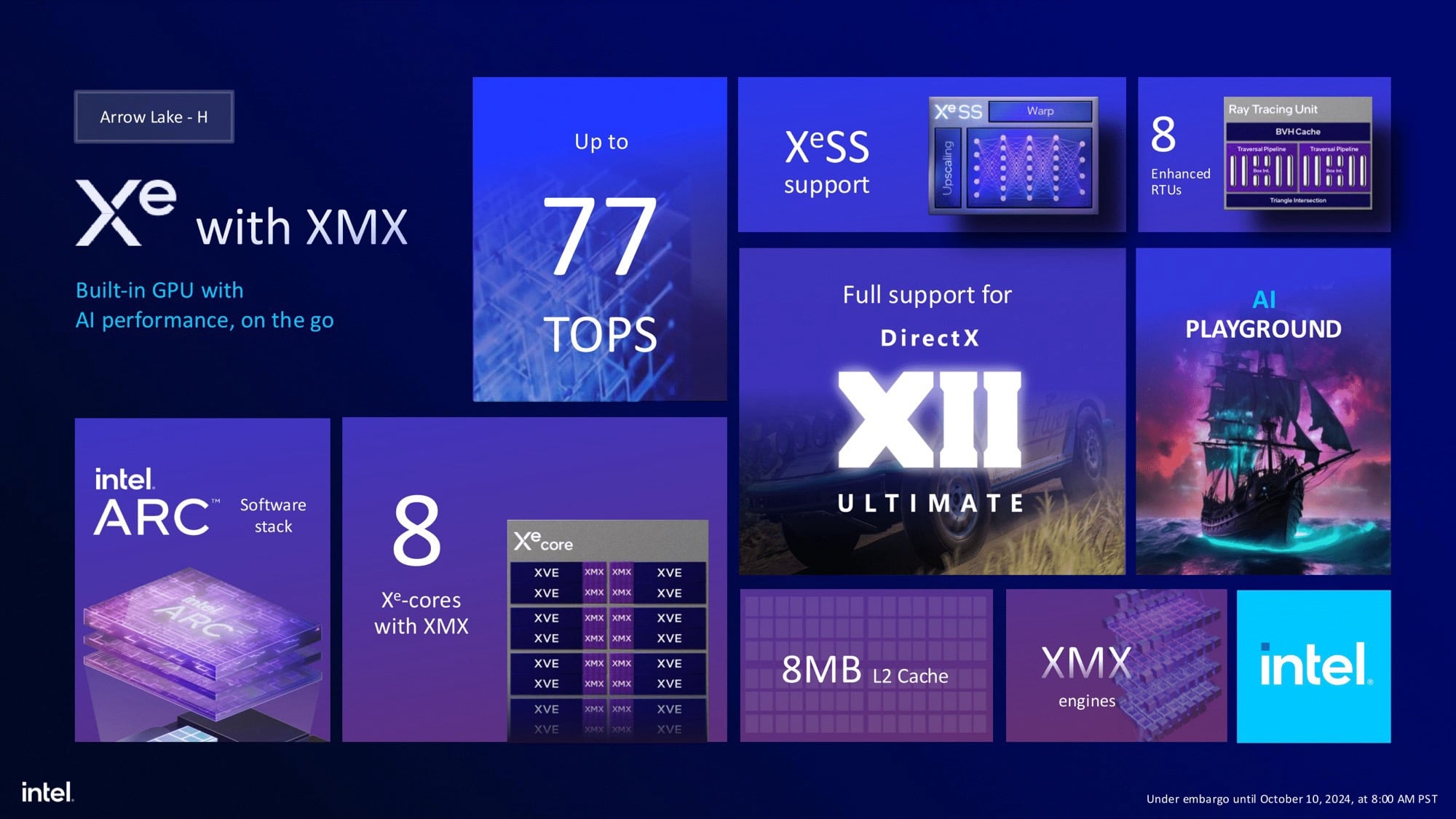

英特尔 Arc 140T 是一款集成显卡(iGPU),用于英特尔箭湖 H/HX 处理器系列。它基于 Xe+ 架构(而不是较新的 Xe2 架构,例如,后者使用的是 Arc Graphics 140VLunar Lake 中使用的 Arc Graphics 140V)。该显卡有 8 个内核(128 个 CU = 1024 个着色器),采用 XMX 指令以提高 AI 性能,并配备 8 MB 二级缓存。
由于核心数和时钟速度相似,但 TDP 更高,因此性能应该与基于 Xe2 的英特尔 Arc 140V iGPU 相似。我们的基准测试表明,大多数游戏都能在低设置下流畅运行。要求不高的游戏,如《 全面战争:帕哈罗》,也可以在高细节设置下运行。
Arc 140T 集成在 H 和 HX 系列的 CPU 中,但使用自己的芯片组,由台积电公司以 5 纳米 N5P 工艺制造。
Arc Xe-LPG+ Series
| |||||||
| Architecture | Xe+ | ||||||
| iGPU | Integrated Graphics | ||||||
| Pipelines | 128 - unified | ||||||
| Raytracing Cores | 8 | ||||||
| Cache | L2: 8 MB | ||||||
| Shared Memory | yes | ||||||
| API | DirectX 12 Ultrimate | ||||||
| Date of Announcement | 06.01.2025 | ||||||
| ||||||||||||||||||||||||
Benchmarks
3DM Vant. Perf. total +
specvp12 sw-03 +
Cinebench R15 OpenGL 64 Bit +
GFXBench T-Rex HD Offscreen C24Z16 +
* Smaller numbers mean a higher performance
Game Benchmarks
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

F1 25
2025
F1 24
2024
Total War Pharaoh
2023
Cyberpunk 2077
2023
Baldur's Gate 3
2023
The Witcher 3 v4
2023
Anno 1800
2019
Far Cry 5
2018
X-Plane 11.11
2018
Dota 2 Reborn
2015
The Witcher 3
2015
GTA V
2015| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| F1 25 | 63 | 54 | 42 | 30.2 | 9.58 | |
| Kingdom Come Deliverance 2 | 37.3 | 29.8 | 24.5 | 18 | ||
| F1 24 | 78 | 71 | 55 | 18 | 13.7 | |
| Total War Pharaoh | 118 | 86 | 65 | 58 | ||
| Cyberpunk 2077 | 37 | 30 | 26 | 23 | 15.8 | |
| Baldur's Gate 3 | 37 | 29 | 25 | 25 | 19.5 | |
| The Witcher 3 v4 | 54.1 | 42.7 | 37.5 | 32.8 | ||
| Anno 1800 | 92.7 | 50.4 | 37 | 28 | ||
| Strange Brigade | 181 | 78 | 65 | 54 | 41.3 | |
| Far Cry 5 | 84 | 48 | 45 | 40 | ||
| X-Plane 11.11 | 59 | 48 | 40 | |||
| Final Fantasy XV Benchmark | 77 | 42 | 29 | 23.4 | ||
| Dota 2 Reborn | 104 | 84 | 74 | 77 | ||
| The Witcher 3 | 167 | 108 | 58 | 31 | ||
| GTA V | 168 | 157 | 41 | 17 | 12.3 | |
| low | med. | high | ultra | QHD | 4K | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 5 7 3 | 2 7 5 1 | 4 8 3 | 6 6 1 | 6 1 | |
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
