AMD Ryzen 9 5900HX

AMD R9 5900HX

AMD Ryzen 9 5900HX是一款基于塞尚一代的大型(游戏)笔记本电脑的处理器。R9 5900H集成了基于Zen 3微架构的所有八个核心。它们的时钟频率为3.3(保证基本时钟)至4.6 GHz(涡轮增压),支持SMT,共有16个线程。该芯片采用现代7纳米台积电工艺制造。名称中的 "X "表示该CPU的超频能力。

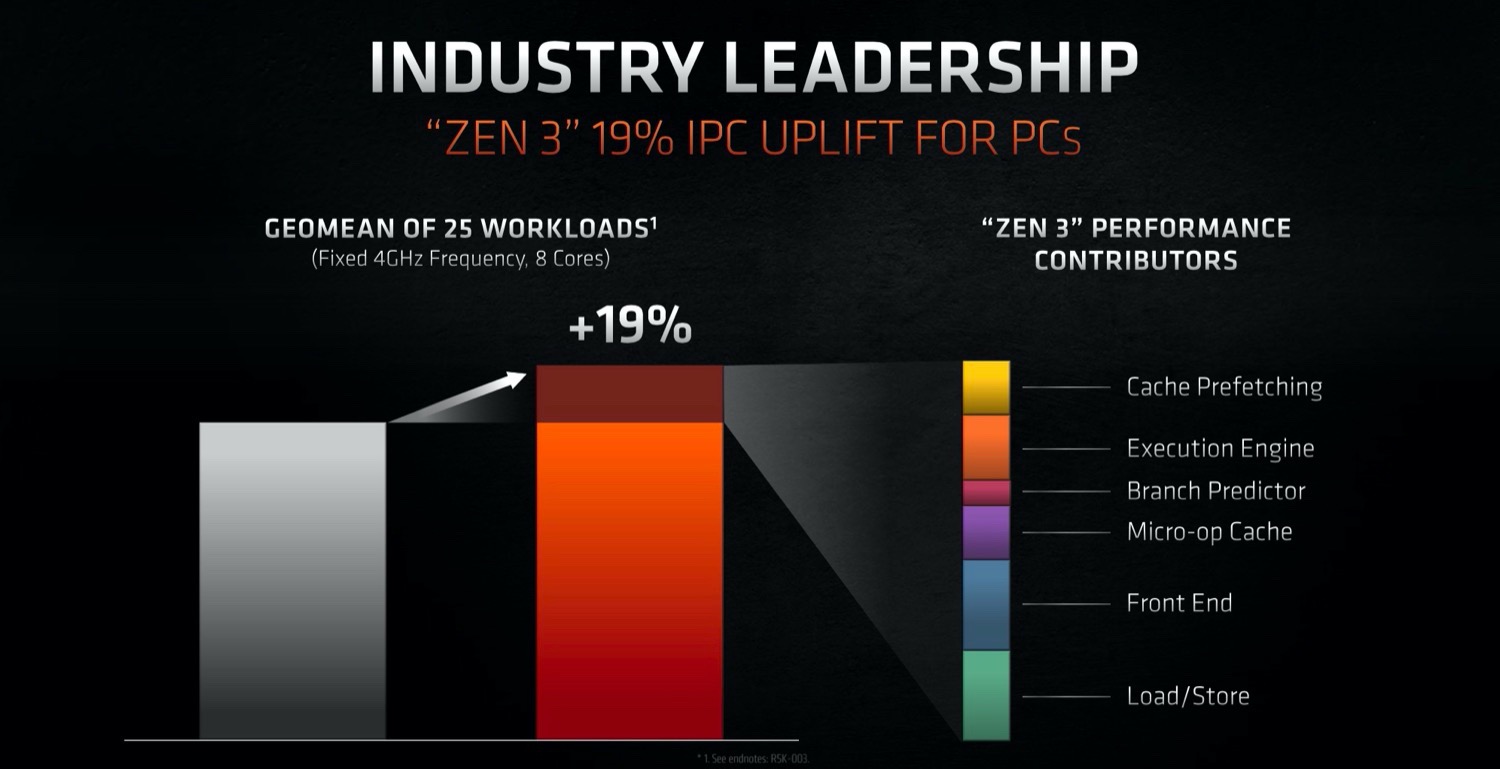

与Zen 2相比,新的Zen 3微架构提供了明显更高的IPC(每时钟指令)。对于台式机处理器,AMD声称平均提高了19%,在应用评测中,在相同的时钟速度下,显示出约12%的收益。

由于Zen 3提高了时钟速度和IPC改进,Ryzen 9 5900HX应该明显比低时钟的Ryzen 9 4900H快。

除了8个CPU核心外,APU还集成了Radeon RX Vega 8集成显卡,有8个CU,频率高达2100 MHz。双通道内存控制器支持DDR4-3200和节能的LPDDR4-4266内存。此外,在该芯片上可以找到16MB的三级缓存。

APU的TDP被指定为45瓦(默认),笔记本电脑供应商可以将其配置为35至54瓦。

SeriesAMD Cezanne (Zen 3, Ryzen 5000)
CodenameCezanne H (Zen 3)

Series: Cezanne (Zen 3, Ryzen 5000) Cezanne H (Zen 3)

AMD Ryzen 9 5980HX3.3 - 4.8 GHz8 / 16 cores16 MB L3
AMD Ryzen 9 5900HX « 3.3 - 4.6 GHz8 / 16 cores16 MB L3
AMD Ryzen 9 5980HS3.3 - 4.8 GHz8 / 16 cores16 MB L3
AMD Ryzen 9 5900HS3.3 - 4.6 GHz8 / 16 cores16 MB L3
AMD Ryzen 7 5800H3.2 - 4.4 GHz8 / 16 cores16 MB L3
AMD Ryzen 7 5800HS2.8 - 4.4 GHz8 / 16 cores16 MB L3
AMD Ryzen 5 5600H3.3 - 4.2 GHz6 / 12 cores16 MB L3
AMD Ryzen 5 5600HS3 - 4.2 GHz6 / 12 cores16 MB L3
Clock Rate3300 - 4600 MHz
Level 1 Cache512 KB
Level 2 Cache4 MB
Level 3 Cache16 MB
Number of Cores / Threads8 / 16
Power Consumption (TDP = Thermal Design Power)45 Watt
Manufacturing Technology7 nm
Die Size180 mm2
Max. Temperature105 °C
SocketFP6
FeaturesXFR, FMA3, SSE 4.2, AVX2, SMT
GPUAMD Radeon RX Vega 8 (Ryzen 4000/5000) ( - 2100 MHz)
64 Bit64 Bit support
Architecturex86
Announcement Date01/07/2021
Product Link (external)AMD Cezanne (Zen 3, Ryzen 5000) R9 5900HX

Benchmarks

Performance Rating - CB R15 + R20 + 7-Zip + X265 + Blender + 3DM11 CPU
52.2 pt (58%)
AMD E1-2100 -95%
...
AMD Ryzen 7 PRO 6850H -3%
AMD Ryzen 9 5900HS -3%
AMD Ryzen 9 5980HS -1%
AMD Ryzen 9 5900HX
Intel Core i7-12650H 4%
Intel Core i7-1360P 4%
Intel Core i7-12850HX 9%
...
0%
100%
Cinebench R23 - Cinebench R23 Multi Core
min: 10808     avg: 12771     median: 12880.5 (21%)     max: 14363 Points
AMD E1-2100 -98%
...
AMD Ryzen 7 PRO 6850H -6%
AMD Ryzen 9 5900HS -2%
AMD Ryzen 9 5980HS -1%
Intel Core i7-12650H 0%
AMD Ryzen 9 5900HX
Intel Core i7-12800H 13%
Apple M2 Max 16%
Apple M2 Pro 16%
...
Intel Core i9-13980HX 138%
0%
100%
Cinebench R23 - Cinebench R23 Single Core
min: 1218     avg: 1473     median: 1488 (65%)     max: 1499 Points
AMD E1-2100 -92%
...
AMD Ryzen 5 6600HS -1%
AMD Ryzen 5 PRO 6650U 0%
AMD Ryzen 7 PRO 6860Z 0%
AMD Ryzen 9 5900HX
AMD Ryzen 9 5900HS 0%
AMD Ryzen 7 PRO 6850U 1%
AMD Ryzen 7 PRO 6850H 1%
Apple M1 3%
AMD Ryzen 9 PRO 6950HS 3%
...
0%
100%
Cinebench R20 - Cinebench R20 CPU (Single Core)
min: 471     avg: 573     median: 578 (66%)     max: 584 Points
Cinebench R20 - Cinebench R20 CPU (Multi Core)
min: 4148     avg: 4950     median: 4979.5 (21%)     max: 5476 Points
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
min: 1337     avg: 2090     median: 2114 (22%)     max: 2267 Points
AMD A4-1250 -98%
...
AMD Ryzen 7 PRO 6860Z -5%
AMD Ryzen 9 5900HS -2%
Apple M2 Pro -1%
Apple M2 Max -1%
AMD Ryzen 7 PRO 6850H 0%
AMD Ryzen 9 5980HS 0%
AMD Ryzen 9 5900HX
Intel Core i7-1360P 1%
Intel Core i7-12800H 7%
...
Intel Core i7-12800HX 62%
0%
100%
011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
min: 197     avg: 237.7     median: 240 (73%)     max: 243 Points
AMD A4-1200 -92%
...
AMD Ryzen 7 PRO 6860Z -2%
AMD Ryzen 5 6600HS -1%
AMD Ryzen 7 PRO 6850U -1%
Intel Core i7-1265U 0%
AMD Ryzen 9 5900HX
Apple M2 Max 1%
AMD Ryzen 9 PRO 6950HS 1%
Intel Core i7-11390H 1%
Intel Core i5-1245U 2%
AMD Ryzen 9 5980HS 2%
...
0%
100%
Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 22     avg: 24.3     median: 24.8 (35%)     max: 25.6 Points
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
min: 2.8     avg: 2.8     median: 2.8 (9%)     max: 2.86 Points
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 6294     avg: 6369     median: 6365 (52%)     max: 6452 points
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 36642     avg: 40051     median: 40595 (46%)     max: 42371 points
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 64320     avg: 71249     median: 72952.5 (52%)     max: 74772 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 11811     avg: 12019     median: 12056.5 (66%)     max: 12152 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 91.6     avg: 97.1     median: 93.1 (1%)     max: 106.7 s
wPrime 2.10 - wPrime 2.0 32m *
min: 3.308     avg: 3.7     median: 3.3 (1%)     max: 4.4 s
WinRAR - WinRAR 4.0
min: 4297     avg: 6514     median: 7523 (44%)     max: 7722 points
7-Zip 18.03 - 7-Zip 18.03 Multli Thread 4 runs
min: 52370     avg: 58298     median: 58752 (36%)     max: 62503 MIPS
7-Zip 18.03 - 7-Zip 18.03 Single Thread 4 runs
min: 4791     avg: 5709     median: 5753 (69%)     max: 5905 MIPS
X264 HD Benchmark 4.0 - x264 Pass 2
min: 112     avg: 122.8     median: 128 (47%)     max: 128.35 fps
X264 HD Benchmark 4.0 - x264 Pass 1
min: 271.5     avg: 275.3     median: 276.5 (65%)     max: 278 fps
HWBOT x265 Benchmark v2.2 - HWBOT x265 4k Preset
min: 13.8     avg: 15.5     median: 15.6 (33%)     max: 17.1 fps
0510152025Tooltip
TrueCrypt - TrueCrypt Serpent
min: 1.1     avg: 1.2     median: 1.2 (0%)     max: 1.2 GB/s
TrueCrypt - TrueCrypt Twofish
min: 1.6     avg: 1.8     median: 1.9 (0%)     max: 2 GB/s
TrueCrypt - TrueCrypt AES
min: 7.4     avg: 9.9     median: 10.8 (0%)     max: 11.4 GB/s
Blender - Blender 3.3 Classroom CPU *
405 Seconds (5%)
Blender - Blender 2.79 BMW27 CPU *
min: 219     avg: 242.3     median: 241 (2%)     max: 284 Seconds
R Benchmark 2.5 - R Benchmark 2.5 *
min: 0.48     avg: 0.5     median: 0.5 (11%)     max: 0.599 sec
3DMark 06 - CPU - 3DMark 06 - CPU
min: 13734     avg: 14312     median: 14317 (30%)     max: 14746 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 7.734     avg: 8.3     median: 7.8 (2%)     max: 9.46 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 16.716     avg: 19.2     median: 16.8 (1%)     max: 24.05 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 406.505     avg: 517     median: 414 (2%)     max: 729 s
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 65434     avg: 70623     median: 71141 (66%)     max: 74775 Points
3DMark 11 - 3DM11 Performance Physics
min: 13940     avg: 16640     median: 17154 (47%)     max: 18790 Points
3DMark - 3DMark Ice Storm Physics
min: 47433     avg: 79996     median: 84630.5 (54%)     max: 88152 Points
3DMark - 3DMark Ice Storm Extreme Physics
min: 47461     avg: 79956     median: 85259 (71%)     max: 87829 Points
3DMark - 3DMark Ice Storm Unlimited Physics
min: 87770     avg: 90126     median: 89857 (76%)     max: 93052 Points
3DMark - 3DMark Cloud Gate Physics
min: 17016     avg: 18114     median: 18035 (46%)     max: 19583 Points
3DMark - 3DMark Fire Strike Standard Physics
min: 17714     avg: 24914     median: 25066.5 (46%)     max: 27288 Points
3DMark - 3DMark Time Spy CPU
min: 6932     avg: 9243     median: 9503.5 (47%)     max: 10603 Points
Geekbench 5.4 - Geekbench 5.1 - 5.4 64 Bit Single-Core
min: 1271     avg: 1517     median: 1538 (67%)     max: 1561 points
Geekbench 5.4 - Geekbench 5.1 - 5.4 64 Bit Multi-Core
min: 7370     avg: 8288     median: 8445 (29%)     max: 9294 points
Geekbench 5.0 - Geekbench 5.0 64 Bit Single-Core
min: 1233     avg: 1453     median: 1481.5 (6%)     max: 1504 points
Geekbench 5.0 - Geekbench 5.0 64 Bit Multi-Core
min: 7327     avg: 8207     median: 8129.5 (26%)     max: 9053 points
Geekbench 4.1 - 4.4 - Geekbench 4.1 - 4.4 64 Bit Single-Core
min: 5249     avg: 6190     median: 6336 (65%)     max: 6572 points
