NVIDIA Quadro P5000

NVIDIA Quadro P5000

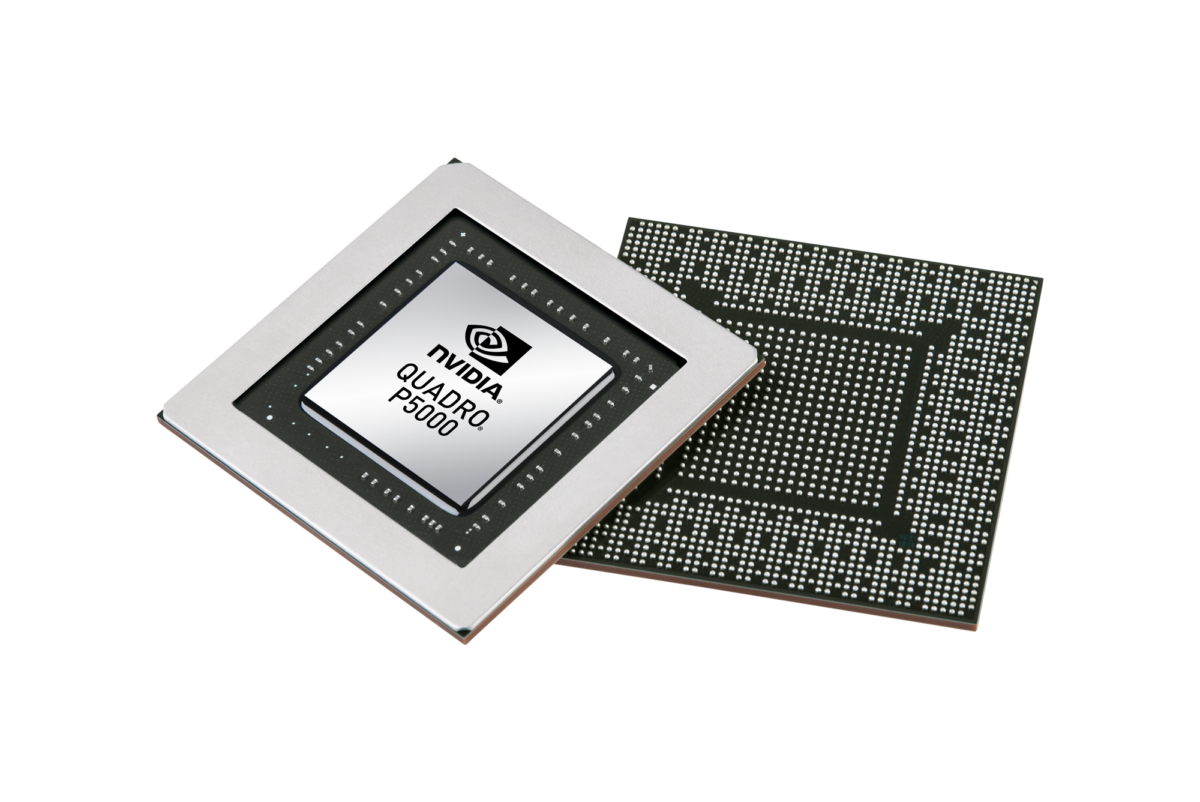

英伟达Quadro P5000是为笔记本电脑设计的高端工作站显卡。类似于消费级别的GeForce GTX 1070(笔记本版),它是基于精简的GP104芯片与2048着色器。该显卡专为Kaby Lake一代而设计,是Quadro M5000M(Maxwell)的后继产品。但是,P5000配备16GB GDDR5视频内存(带宽较低),而GTX 1070仅有8GB。时钟频率范围介于1164 MHz(基础)到1506 MHz(睿频)和高达1657 MHz(最大值)之间。

Quadro显卡提供经过认证的驱动程序,针对专业应用程序(CAD,DCC,医疗,勘探和可视化应用程序)的稳定性和性能进行了优化。因此,在这些领域的性能比相应的消费级别要好得多。

性能

理论性能应该与GTX 1070相当(如果时钟频率没有受到大的削减),所以它应该比以前的M5000M快得多。即使是旧的M5500M也可能没它快。

能耗

Quadro P5000的功耗与旧款Quadro M5000M差不多,都是100瓦TGP(最大功耗,包括内存)。英伟达称,数值为73.4瓦特TDP。因此该卡适用于大型17英寸笔记本电脑。

ManufacturerNVIDIA
Quadro P Series
Quadro P5200 2560 @ 1316 - 1569 (Boost) MHz256 Bit @ 7216 MHz
Quadro P4200 2304 @ 1215 - 1480 (Boost) MHz256 Bit @ 7132 MHz
Quadro P5000 2048 @ 1164 - 1506 (Boost) MHz256 Bit @ 6006 MHz
Quadro P5000 Max-Q 2048 @ 1101 - 1366 (Boost) MHz256 Bit @ 6006 MHz
Quadro P4000 1792 @ 1202 - 1228 (Boost) MHz256 Bit @ 6006 MHz
Quadro P4000 Max-Q 1792 @ 1113 - 1240 (Boost) MHz256 Bit @ 6006 MHz
Quadro P3200 1792 @ 708 - 1202 - 1228 (Boost) MHz192 Bit @ 7008 MHz
Quadro P3000 1280 @ 1088 - 1215 (Boost) MHz192 Bit @ 7008 MHz
Quadro P3000 Max-Q 1280 @ 1075 - 1240 (Boost) MHz192 Bit @ 7008 MHz
Quadro P2000 768 @ 1215 - 1468 (Boost) MHz128 Bit @ 6008 MHz
Quadro P2000 Max-Q 768 @ 1215 - 1468 (Boost) MHz128 Bit @ 6008 MHz
Quadro P1000 512 @ 1493 - 1519 (Boost) MHz128 Bit @ 6008 MHz
Quadro P620 512 @ 1177 - 1442 (Boost) MHz128 Bit @ 6000 MHz
CodenameN17E-Q5
ArchitecturePascal
Pipelines2048 - unified
Core Speed1164 - 1506 (Boost) MHz
Memory Speed6006 MHz
Memory Bus Width256 Bit
Memory TypeGDDR5
Max. Amount of Memory16384 MB
Shared Memoryno
DirectXDirectX 12_1, Shader 5.0
technology16 nm
FeaturesOptimus, PhysX, 3D Vision Pro, nView, Optimus
Notebook Sizelarge
Date of Announcement11.01.2017
Link to Manufacturer Pagehttp://www.nvidia.com/object/quadro-for-...

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
41.5 pt (43%)
Intel HD Graphics (Bay Trail) -96%
...
NVIDIA Quadro M5000M -6%
AMD Radeon RX 580 (Laptop) -4%
NVIDIA Quadro RTX 5000 Max-Q -3%
AMD Radeon HD 8970M Crossfire -3%
NVIDIA GeForce RTX 2070 Super Max-Q 0%
NVIDIA Quadro P5000
NVIDIA GeForce GTX 1060 (Desktop) 1%
AMD Radeon RX Vega M GH 2%
NVIDIA GeForce GTX 780M SLI 4%
NVIDIA GeForce GTX 970 8%
NVIDIA GeForce GTX 980 (Laptop) 9%
...
0%
100%
3DMark - Time Spy Score 2560x1440
Maximum value not found for - , could not paint bar!
3DMark - Time Spy Graphics 2560x1440
Maximum value not found for - , could not paint bar!
3DMark - Ice Storm Unlimited Graphics Score 1280x720 offscreen
401246 Points (1905%)
3DMark - Ice Storm Extreme Graphics 1920x1080
310648 Points (3412%)
3DMark - Cloud Gate Standard Score 1280x720
min: 28992     avg: 29216.3     median: 28999 (16292%)     max: 29658 Points
3DMark - Cloud Gate Standard Graphics 1280x720
min: 83316     avg: 90787.7     median: 86679 (59779%)     max: 102368 Points
3DMark - Fire Strike Score 1920x1080
Maximum value not found for - , could not paint bar!
3DMark - Fire Strike Graphics 1920x1080
Maximum value not found for - , could not paint bar!
3DMark - Ice Storm Standard Graphics 1280x720
min: 59012     avg: 208837     median: 208837 (1549%)     max: 358662 Points
3DMark 11 - Performance 1280x720
Maximum value not found for - , could not paint bar!
3DMark 11 - Performance GPU 1280x720
Maximum value not found for - , could not paint bar!
Maximum value not found for - , could not paint bar!
...
NVIDIA Quadro P5000
Maximum value not found for - , could not paint bar!
...
Maximum value not found for - , could not paint bar!
0%
100%
3DMark Vantage
P Result 1280x1024 +
P GPU no PhysX 1280x1024 +
3DMark 06 Standard 1280x1024 +
Unigine Valley 1.0 - Extreme HD DirectX 1920x1080
Maximum value not found for - , could not paint bar!
SPECviewperf 11
Siemens NX 1920x1080 +
Tcvis 1920x1080 +
SolidWorks 1920x1080 +
Pro/ENGINEER 1920x1080 +
Maya 1920x1080 +
Lightwave 1920x1080 +
Ensight 1920x1080 +
Catia 1920x1080 +
SPECviewperf 12
Solidworks (sw-03) 1900x1060 +
Siemens NX (snx-02) 1900x1060 +
Showcase (showcase-01) 1900x1060 +
Medical (medical-01) 1900x1060 +
Maya (maya-04) 1900x1060 +
Energy (energy-01) 1900x1060 +
Creo (creo-01) 1900x1060 +
Catia (catia-04) 1900x1060 +
3ds Max (3dsmax-05) 1900x1060 +
Cinebench R10 Shading 32Bit +
Cinebench R11.5 OpenGL 64Bit +
Cinebench R15
OpenGL 64Bit +
Ref. Match 64Bit +
GFXBench (DX / GLBenchmark) 2.7
T-Rex HD Offscreen C24Z16 1920x1080 +
T-Rex HD Onscreen C24Z16 +
GFXBench 3.0 - Manhattan Offscreen OGL off screen
448.1 fps (2358%)
GFXBench 3.0 - Manhattan Onscreen OGL on screen
60 fps (300%)
GFXBench - Car Chase Offscreen off screen
262.2 fps (4162%)
GFXBench - Car Chase Onscreen on screen
57 fps (721%)
LuxMark v2.0 64Bit - Room GPUs-only
Maximum value not found for - , could not paint bar!
LuxMark v2.0 64Bit - Sala GPUs-only
Maximum value not found for - , could not paint bar!
ComputeMark v2.1 - Normal, Score 1024x600
Maximum value not found for - , could not paint bar!
Power Consumption - FurMark 1.19 GPU Stress Test - Power Consumption (external Monitor) 1280x720 *
Maximum value not found for - , could not paint bar!
Power Consumption - The Witcher 3 Power Consumption (external Monitor) ultra 1920x1080 *
Maximum value not found for - , could not paint bar!
Power Consumption - Witcher 3 ultra - Power Consumption *
Maximum value not found for - , could not paint bar!
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Prey

Prey

2017
ultra 1920x1080
125.2  fps    + Compare
4K 3840x2160
47.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
med. 1920x1080
83.9  fps    + Compare
high 1920x1080
76.5 76.7 ~ 77 fps    + Compare
ultra 1920x1080
42.8 42.9 ~ 43 fps    + Compare
4K 3840x2160
27.5 27.6 ~ 28 fps    + Compare
» With all tested laptops playable in detail settings ultra.
For Honor

For Honor

2017
med. 1920x1080
127.9  fps    + Compare
high 1920x1080
121.1  fps    + Compare
ultra 1920x1080
95.1 95.3 ~ 95 fps    + Compare
4K 3840x2160
37.6 38.4 ~ 38 fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
110.6  fps    + Compare
4K 3840x2160
55  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
107  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
98.6  fps    + Compare
4K 3840x2160
40.8 41.2 ~ 41 fps    + Compare
» With all tested laptops playable in detail settings ultra.
high 1920x1080
70.8  fps    + Compare
ultra 1920x1080
37.8  fps    + Compare
4K 3840x2160
24  fps    + Compare
» With all tested laptops playable in detail settings ultra.
high 1920x1080
97.9  fps    + Compare
ultra 1920x1080
84 84.8 90 ~ 86 fps    + Compare
4K 3840x2160
35.8 36 ~ 36 fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
127.7  fps    + Compare
4K 3840x2160
55.6 56.1 ~ 56 fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
118.5 119 ~ 119 fps    + Compare
4K 3840x2160
44 44.2 ~ 44 fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
79  fps    + Compare
» With all tested laptops playable in detail settings ultra.
high 1920x1080
97.5  fps    + Compare
ultra 1920x1080
51.5 fps 53.4 fps 54 fps ~ 53 fps    + Compare
4K 3840x2160
35.6 36 ~ 36 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Thief

Thief

2014
ultra 1920x1080
98  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
99  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
126.2 129 ~ 128 fps    + Compare
» With all tested laptops playable in detail settings ultra.

For more games that might be playable and a list of all games and graphics cards visit our Gaming List
