NVIDIA Quadro M5500

NVIDIA Quadro M5500

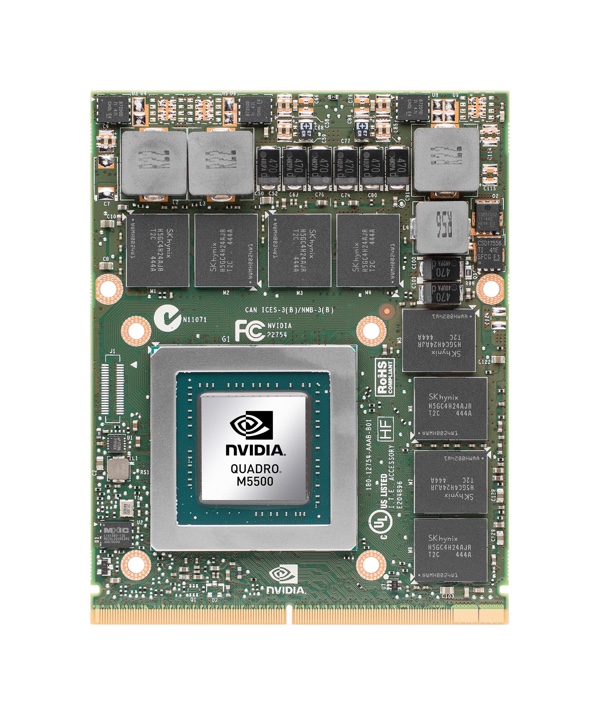

英伟达Quadro M5500是一块支持DirectX 12(FL_12_1)和OpenGL 4.5的高端移动工作站显卡。这是一块基于Maxwell架构,采用GM204芯片的显卡,所有的2048个着色器内核均处于激活状态,采用28nm制程技术由TSMC制造。因此,这款显卡类似于消费市场的英伟达GeForce GTX 980(笔记本电脑)。相比较慢同时功耗较低的Quadro M5000M,M5500多提供了512个着色器,根据英伟达的数据,这将带来30-40%的性能提升。

Quadro系列提供为专业应用如CAD或DCC的稳定性和性能进行优化的认证驱动程序。例如,在OpenGL性能上它应显著高于同规格的GeForce显卡。

使用CUDA(Compute Capability 5.2)或OpenCL 1.2,Quadro M5000M的核心可用于一般计算。

功耗

Quadro M5500的额定功率为150瓦。因此,这款显卡适于17寸或更大的大型笔记本电脑。

第一台搭配M5500的笔记本是微星WT72工作站。

ManufacturerNVIDIA
Quadro M Series
Quadro M5500 2048 @ 1139 - 1140 (Boost) MHz256 Bit @ 6606 MHz
Quadro M5000M 1536 @ 962 - 1051 (Boost) MHz256 Bit @ 5000 MHz
Quadro M4000M 1280 @ 975 - 1013 (Boost) MHz256 Bit @ 5012 MHz
Quadro M3000M 1024 @ 1050 MHz256 Bit @ 5000 MHz
Quadro M2200 1024 @ 694 - 1038 (Boost) MHz128 Bit @ 5508 MHz
Quadro M1200 640 @ 991 - 1150 (Boost) MHz128 Bit @ 5000 MHz
Quadro M2000M 640 @ 1038 - 1197 (Boost) MHz128 Bit @ 5000 MHz
Quadro M1000M 512 @ 993 - 1072 (Boost) MHz128 Bit @ 5000 MHz
Quadro M620 512 128 Bit @ 5000 MHz
Quadro M520 384 @ 756 - 1019 (Boost) MHz64 Bit
Quadro M600M 384 @ 837 - 876 (Boost) MHz128 Bit @ 5012 MHz
Quadro M500M 384 @ 1029 - 1124 (Boost) MHz64 Bit @ 4004 MHz
ArchitectureMaxwell
Pipelines2048 - unified
Core Speed1139 - 1140 (Boost) MHz
Memory Speed6606 MHz
Memory Bus Width256 Bit
Memory TypeGDDR5
Max. Amount of Memory8192 MB
Shared Memoryno
DirectXDirectX 12 (FL 12_1)
Transistor Count5200 Million
technology28 nm
FeaturesCUDA, 3D Vision, PhysX, GeForce Experience, Surround, GameStream, GPU Boost 2.0, Adaptive Vertical Sync, G-SYNC, SLI
Notebook Sizelarge
Date of Announcement04.04.2016

Benchmarks

3DMark 11 - Performance 1280x720
14413 points (48%)
SPECviewperf 12
Solidworks (sw-03) 1900x1060 +
Siemens NX (snx-02) 1900x1060 +
Showcase (showcase-01) 1900x1060 +
Medical (medical-01) 1900x1060 +
Maya (maya-04) 1900x1060 +
Energy (energy-01) 1900x1060 +
Creo (creo-01) 1900x1060 +
Catia (catia-04) 1900x1060 +
Cinebench R15
OpenGL 64Bit +
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

For more games that might be playable and a list of all games and graphics cards visit our Gaming List
v1.8

Notebook reviews with NVIDIA Quadro M5500 graphics card

MSI WT72 6QN-229UK: Intel Core i7-6920HQ, 17.3", 3.9 kg
  External Review » MSI WT72 6QN-229UK
