微星宙斯盾Aegis 3 8RD(Core i7-8700, GTX 1070, 16 GB)主机评测

Sebastian Bade (translated by Zewei Shen), 12/25/2018
MSI Desktop Gaming Geforce Coffee Lake Windows

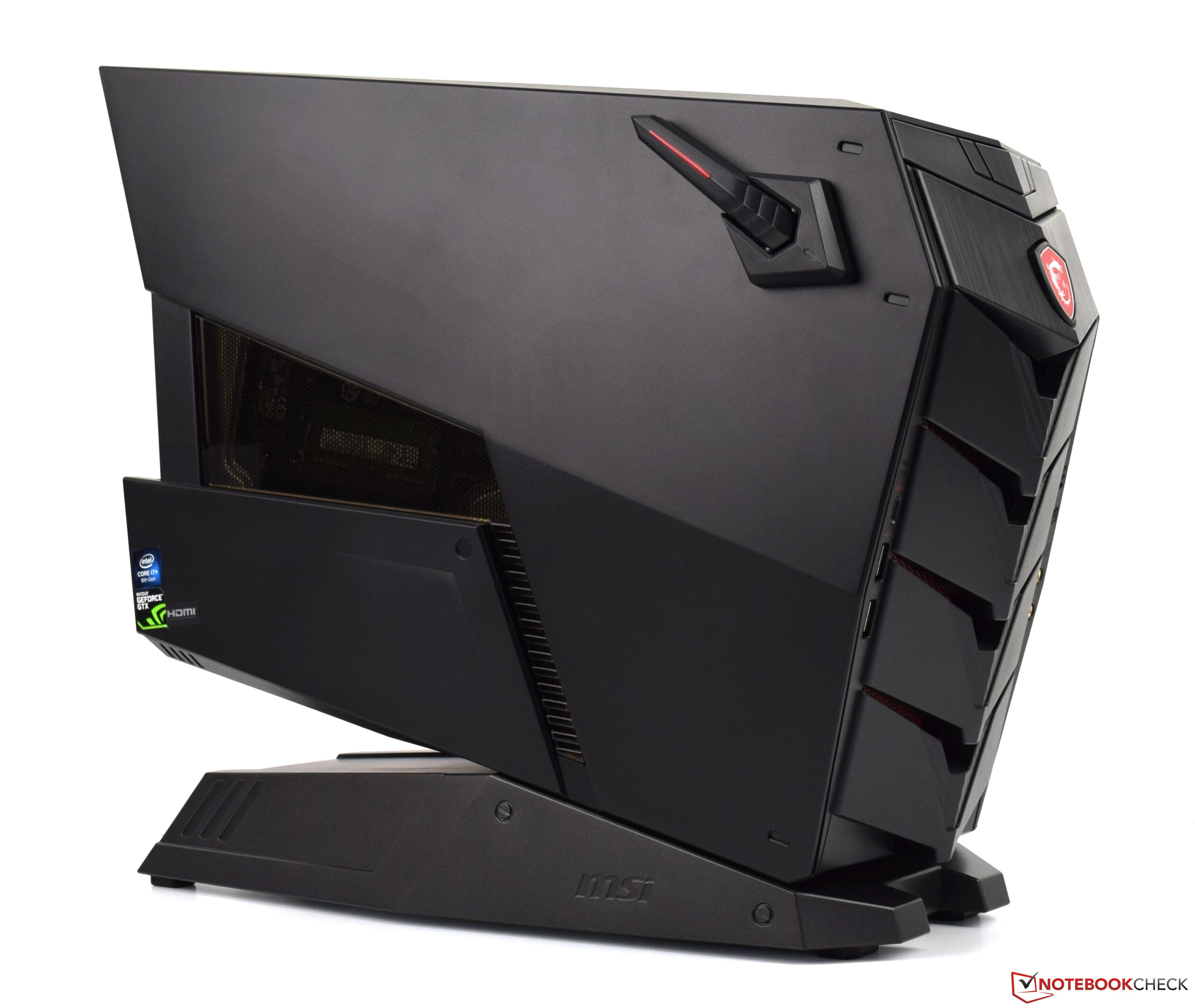

小巧的游戏PC! 微星宙斯盾Aegis 3 8RD是一款紧凑型游戏PC,配备英特尔酷睿i7-8700处理器和Nvidia GeForce GTX 1070 GPU。因此,Aegis 3理论上足以运行所有新游戏。整个产品采用时尚的RGB灯光设计。在我们的评测中了解MSI最新的小型游戏PC是否能给人留下深刻印象,是否值得购买。

MSI Aegis 3 8RD
Processor
Intel Core i7-8700
Graphics adapter

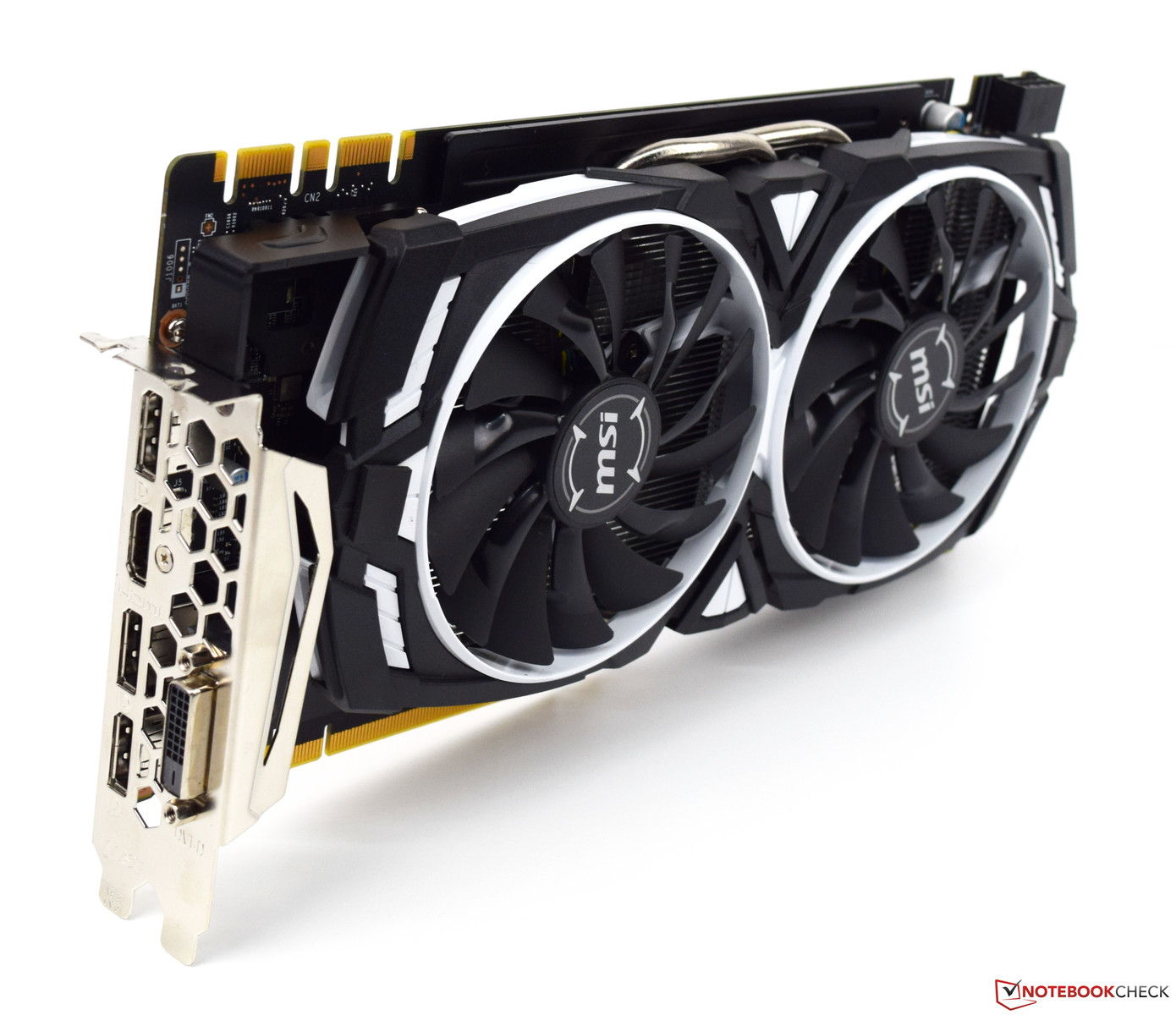

NVIDIA GeForce GTX 1070 (Desktop) - 8192 MB, Core: 1557 - 1747 MHz, Memory: 8000 MHz, Nvidia 416.81
Memory
16384 MB
, DDR4 2400, 两个插槽,已占满,最大32 GB
Mainboard
Intel B360 (Cannon Lake-H)
Storage

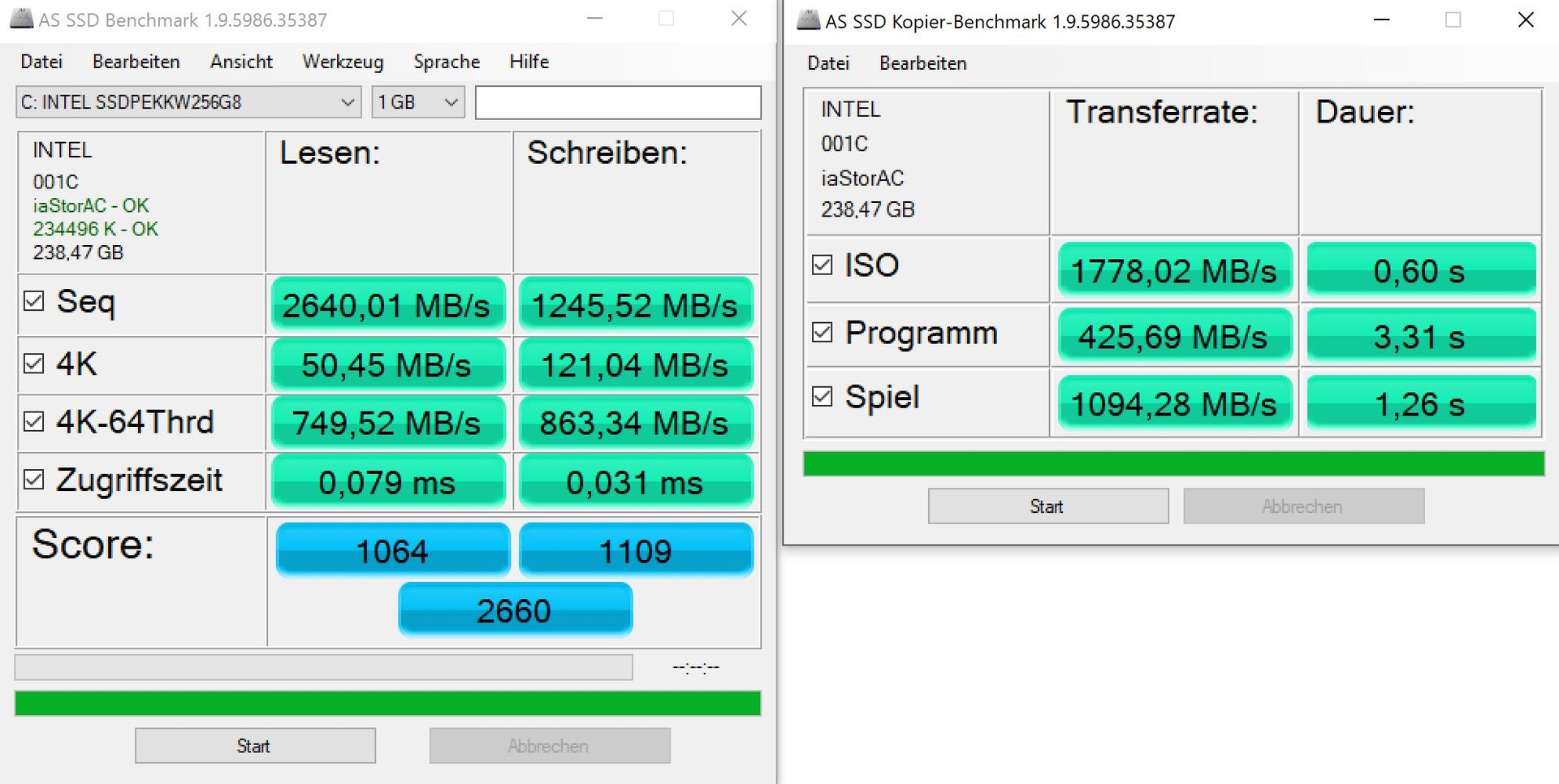

Intel SSD 760p SSDPEKKW256G8, 256 GB
, WDC WD10EZEX-22MFCA0 & Intel 傲腾 内存 16 GB - MEMPEK1W016GA, 1100 GB free
Soundcard
Realtek Audio
Connections
4 USB 2.0, 5 USB 3.0 / 3.1 Gen1, 1 DVI, 2 HDMI, 3 DisplayPort, 1 Kensington Lock, Audio Connections: 7.1 声道, SPDIF
Networking

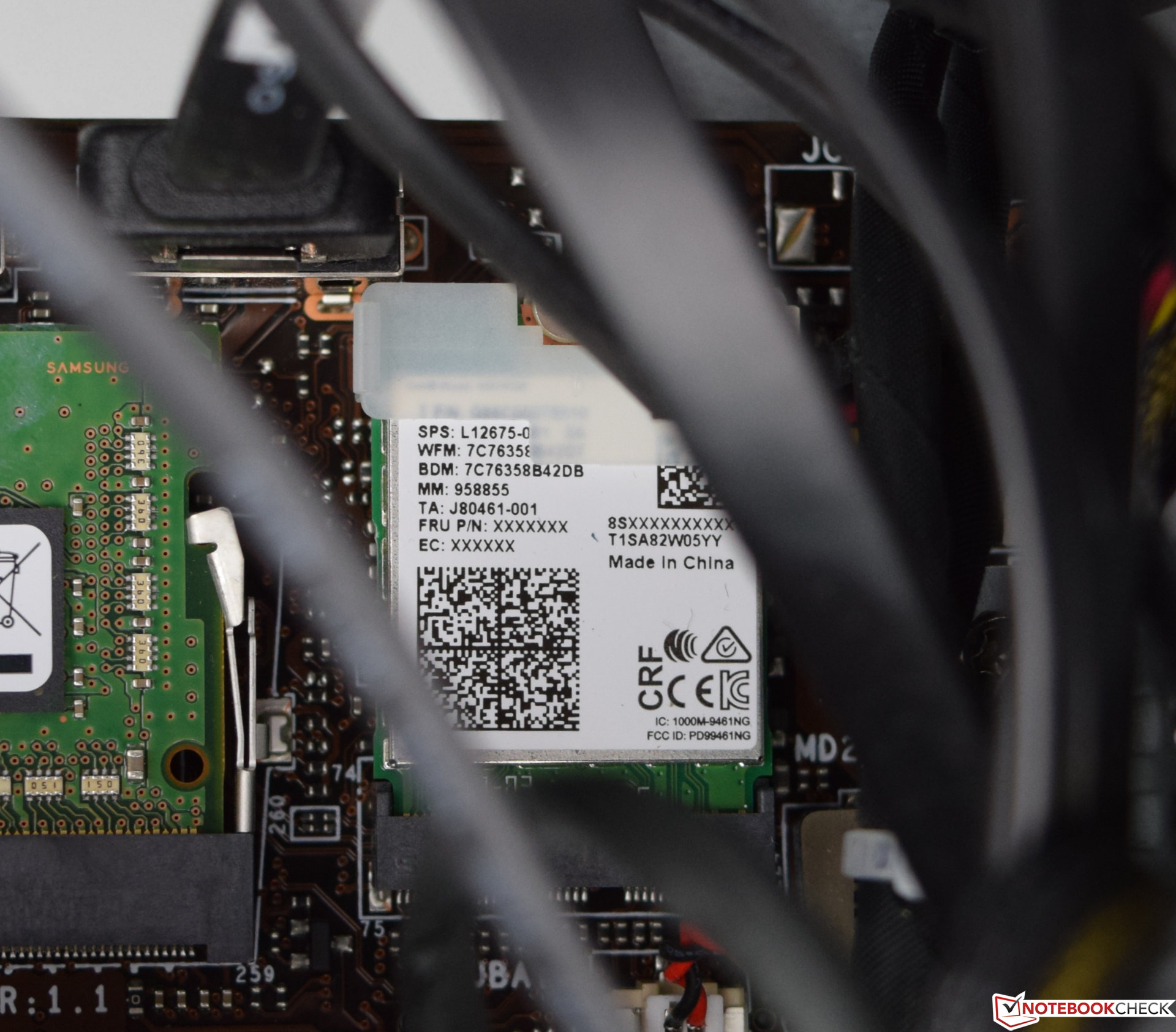

Intel Ethernet Connection I219-V (10/100/1000MBit), Wireless AC-9461 (ac), Bluetooth 5.0
Size
height x width x depth (in mm): 376 x 170 x 433
Operating System
Microsoft Windows 10 Home 64 Bit
Additional features
MSI Gaming Center, MSI Mystic Light, 24 Months Warranty
Price
11699元 ~ 1500 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD
MSI Aegis 3 8RD

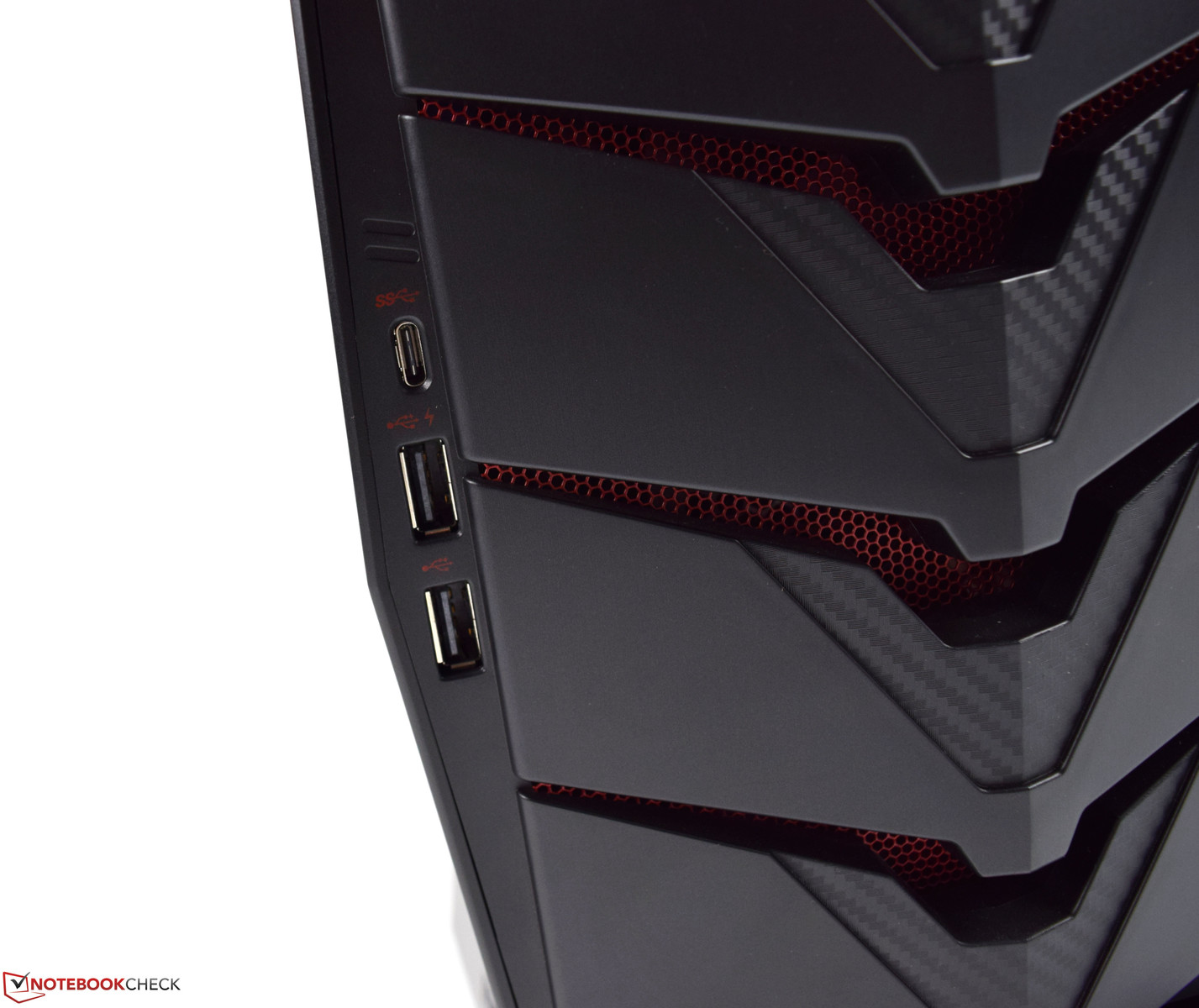

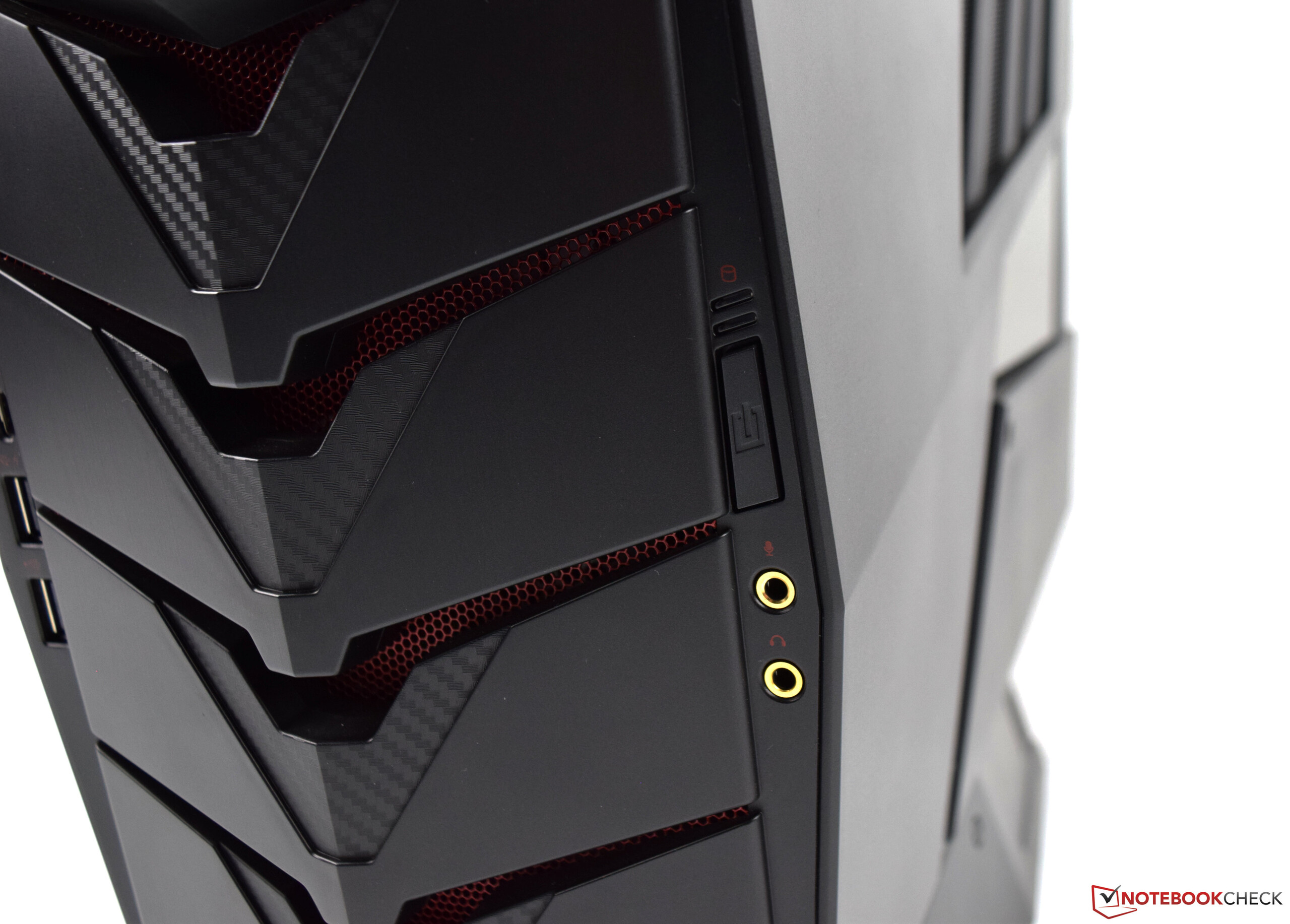

Ports on the front - left-hand side
Ports on the front - left-hand side

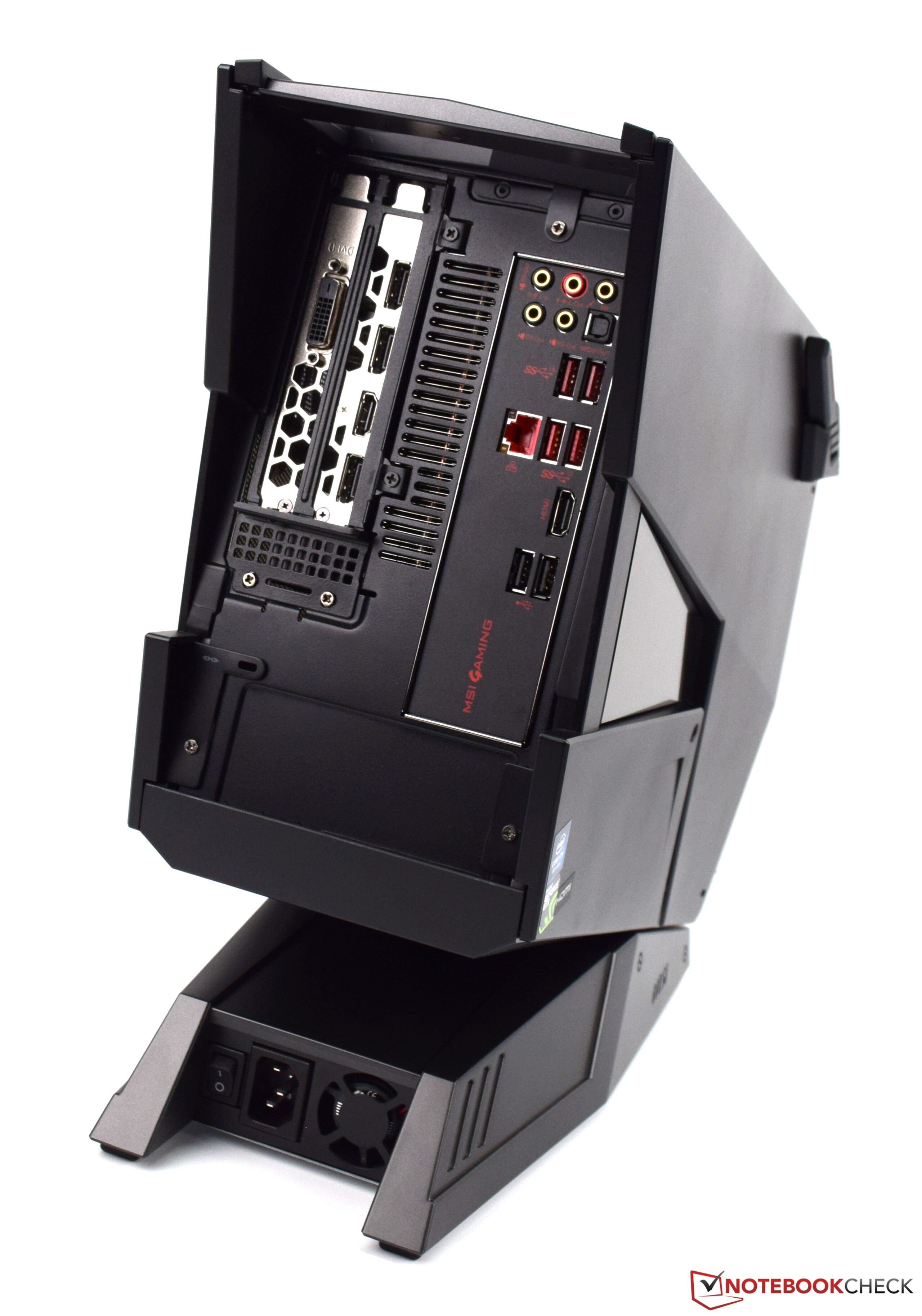

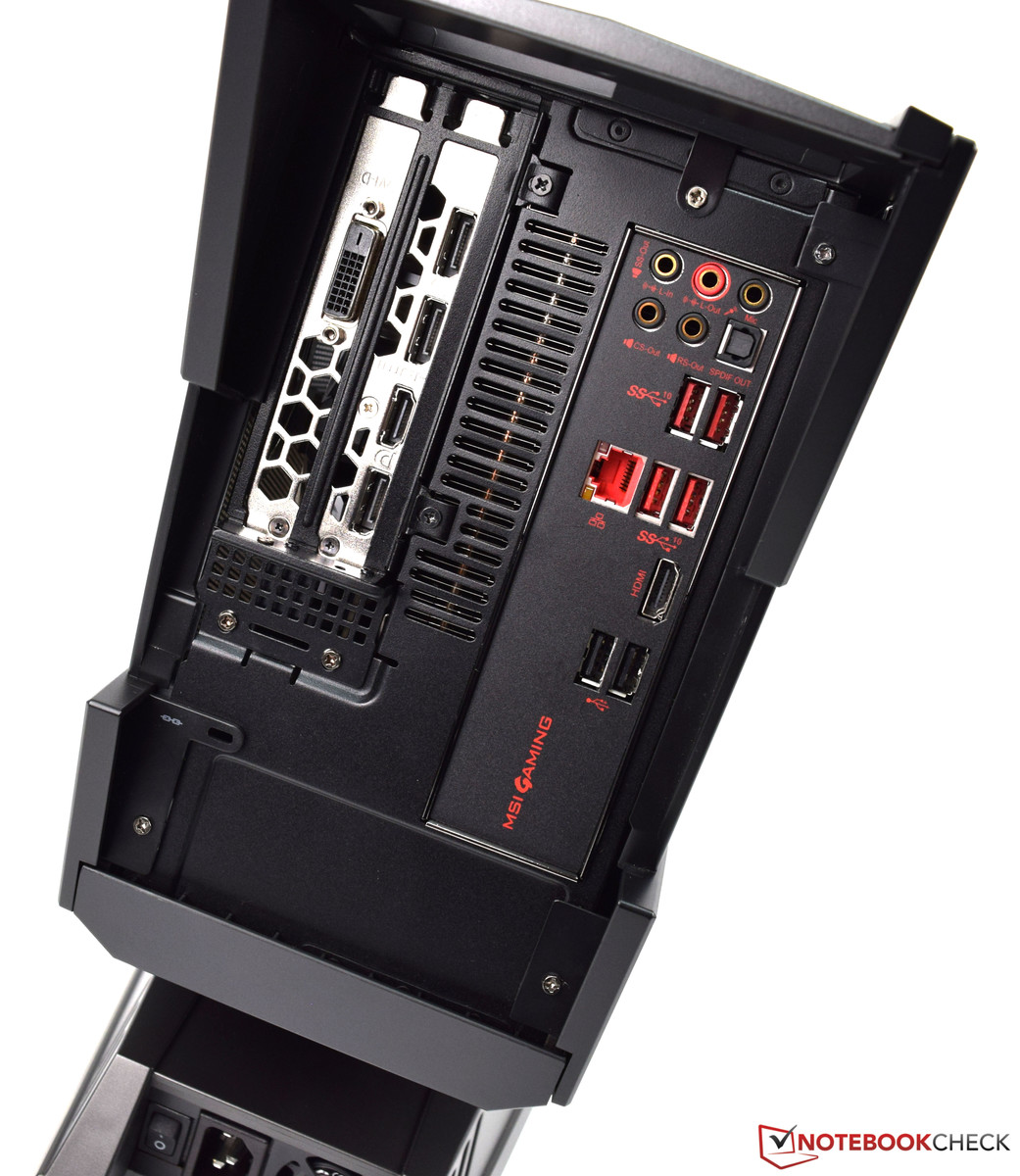

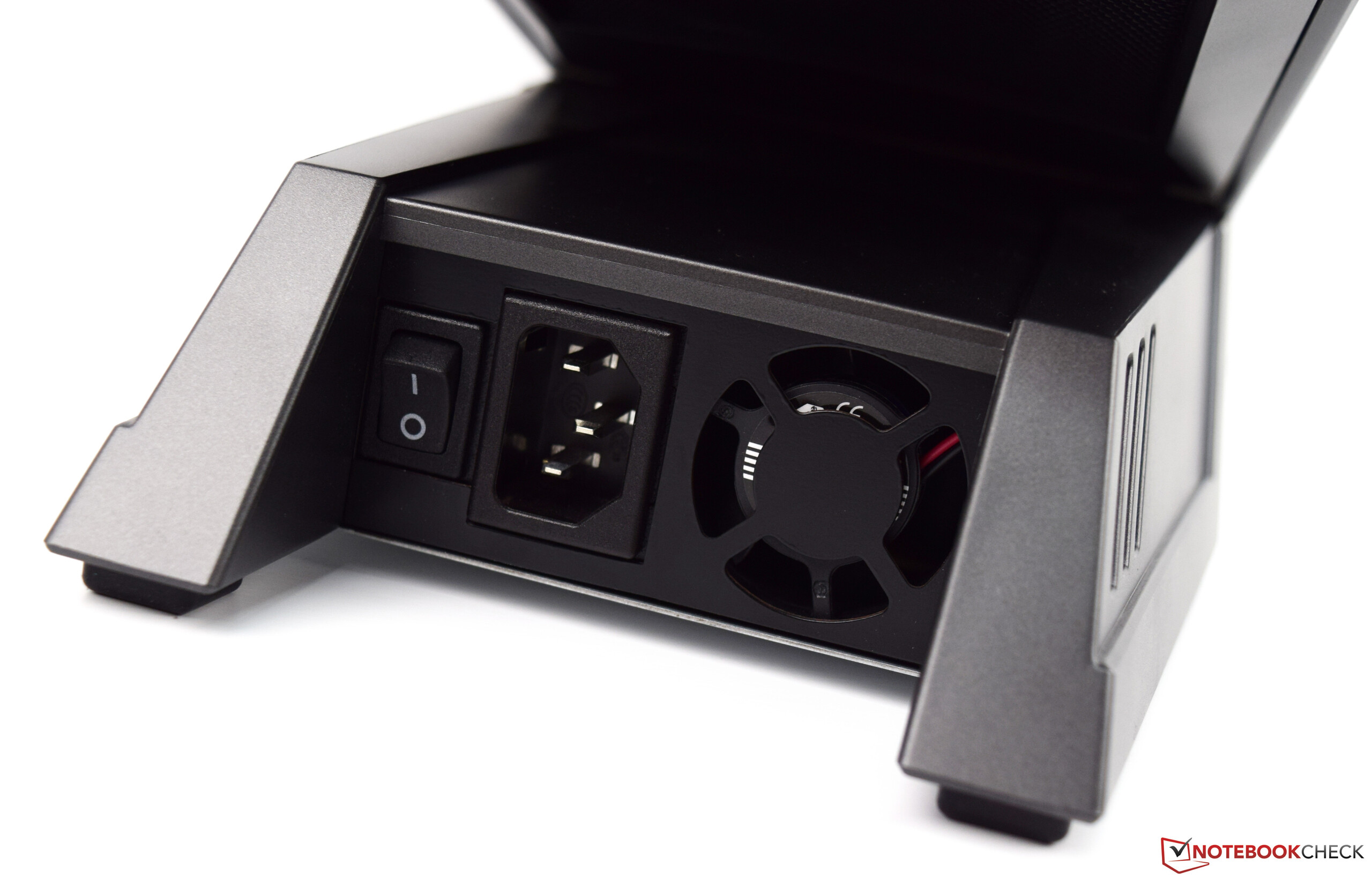

Ports on the back
Ports on the back
Ports on the front - right-hand side
Ports on the front - right-hand side

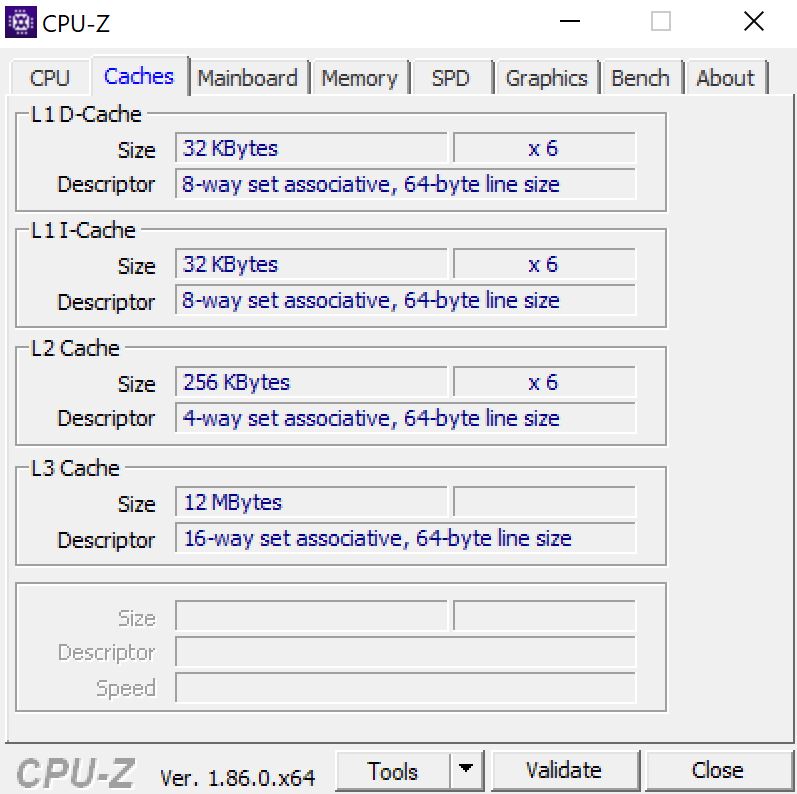

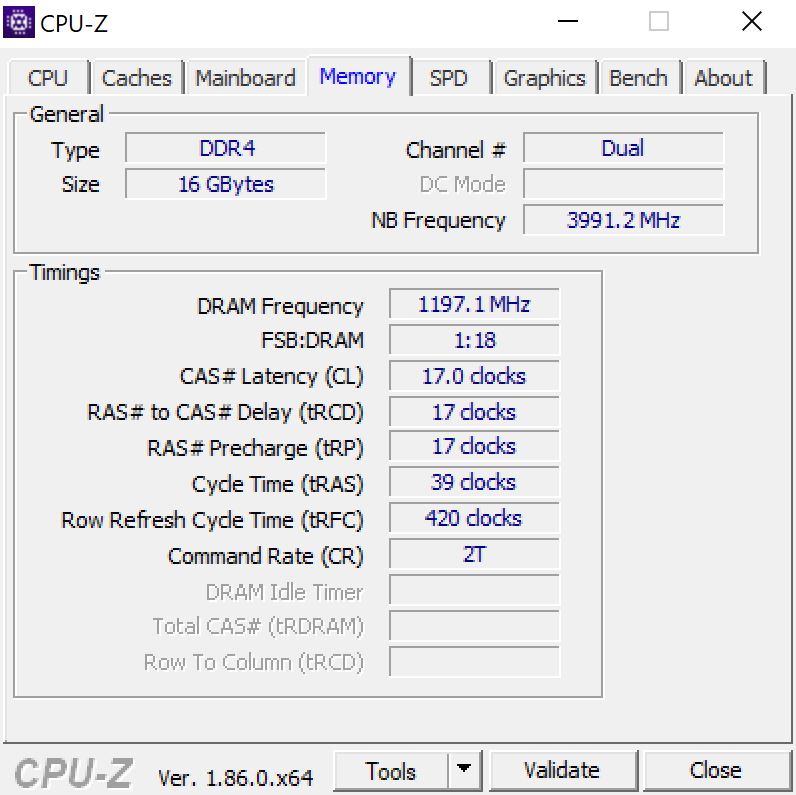

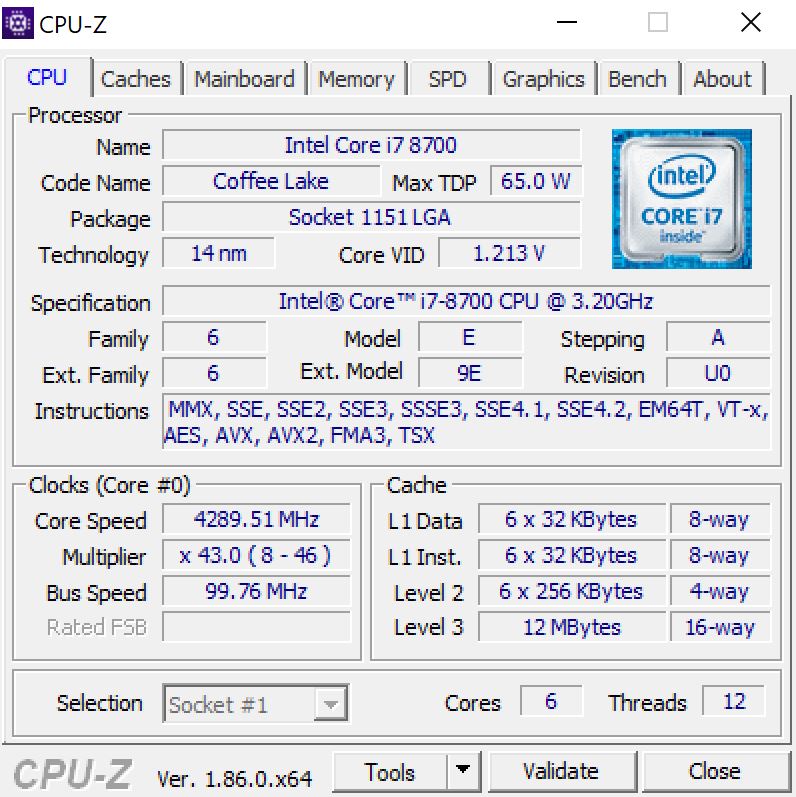

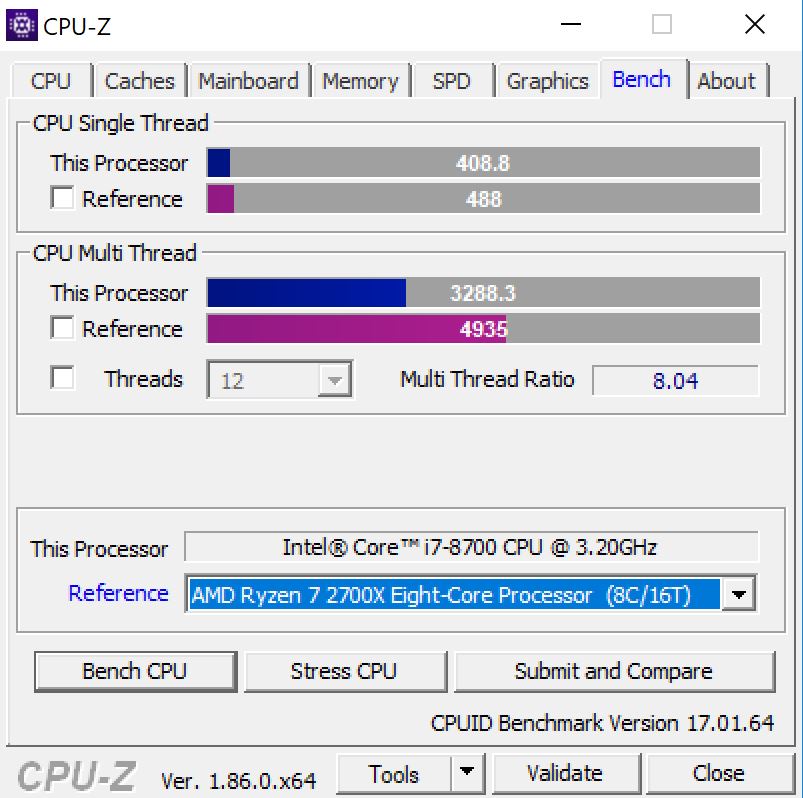

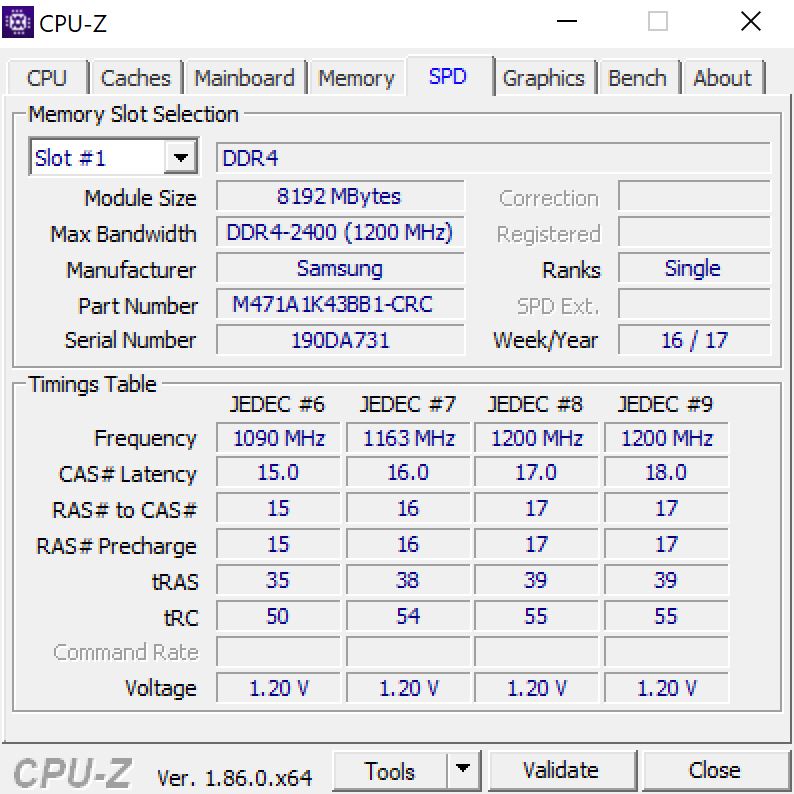

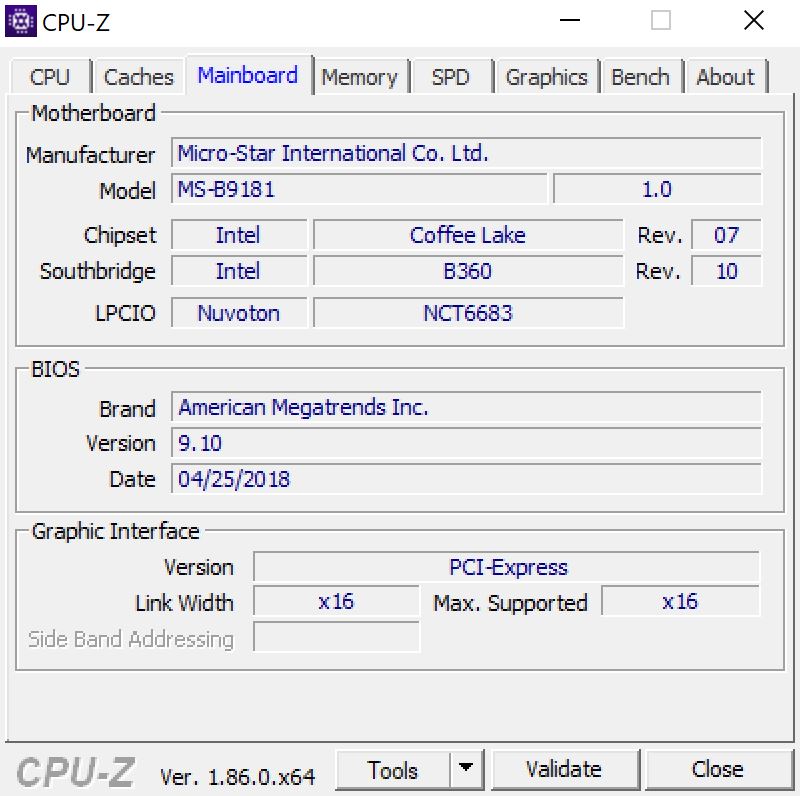

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

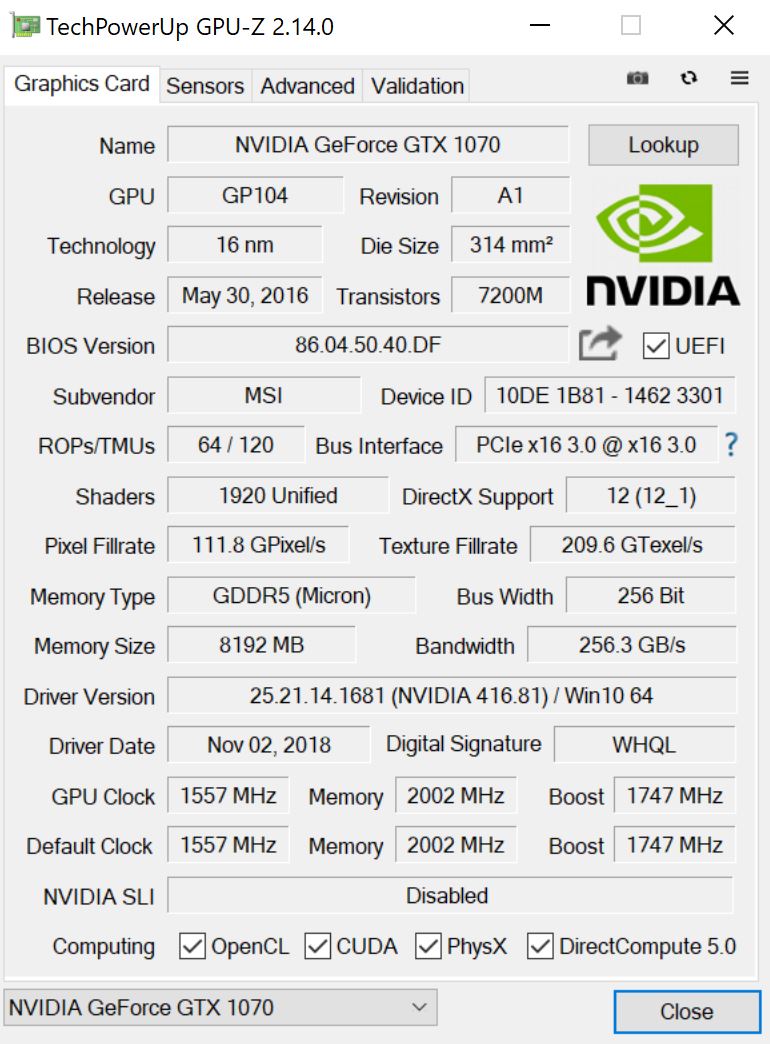

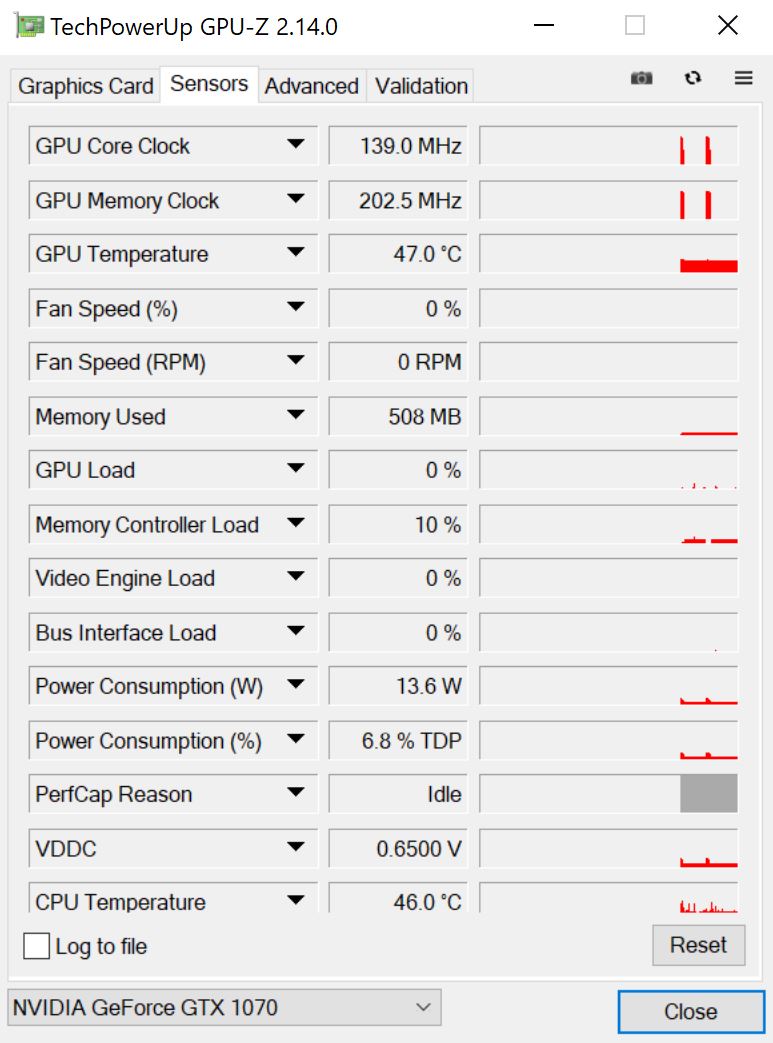

GPU-Z
GPU-Z

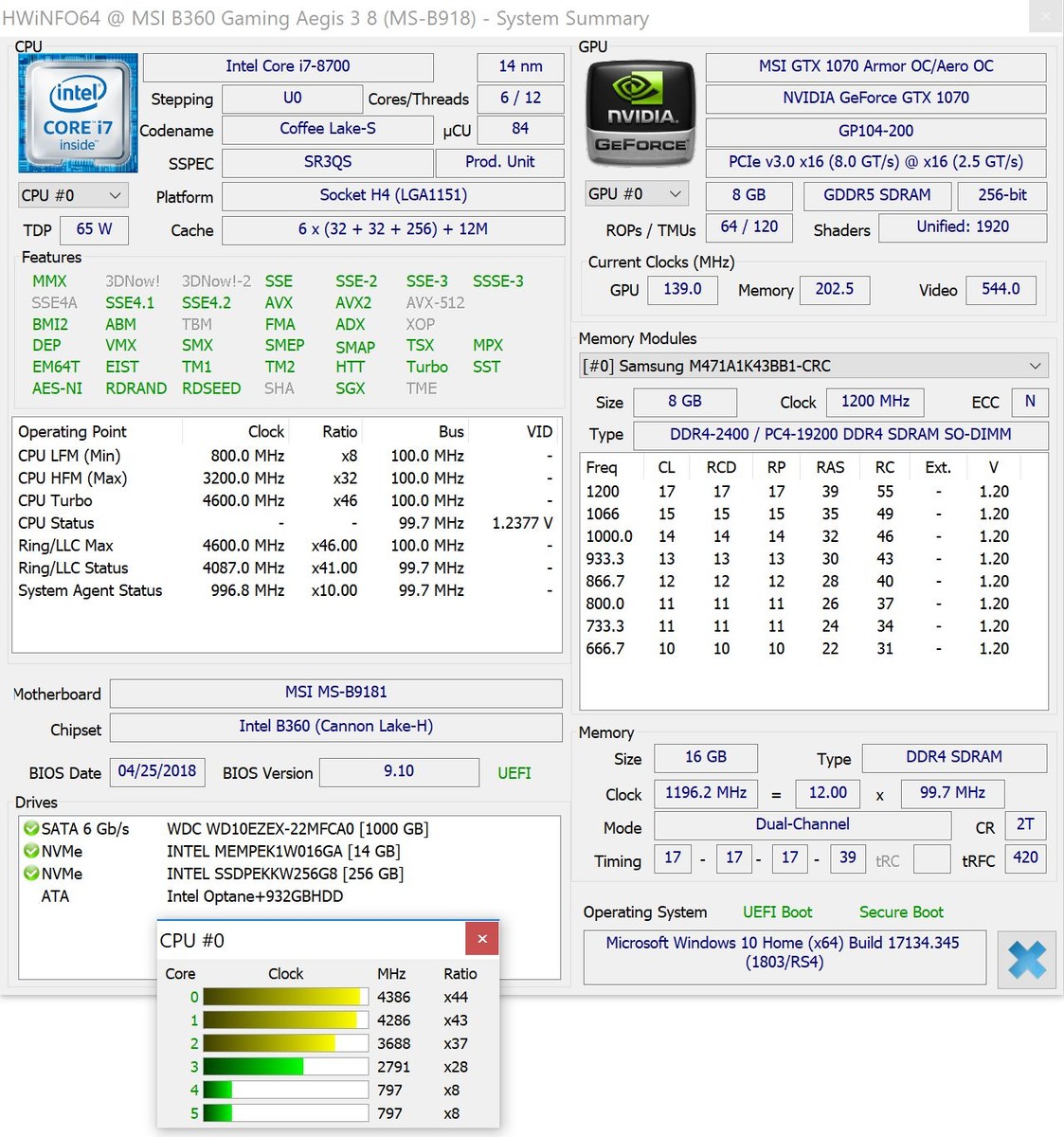

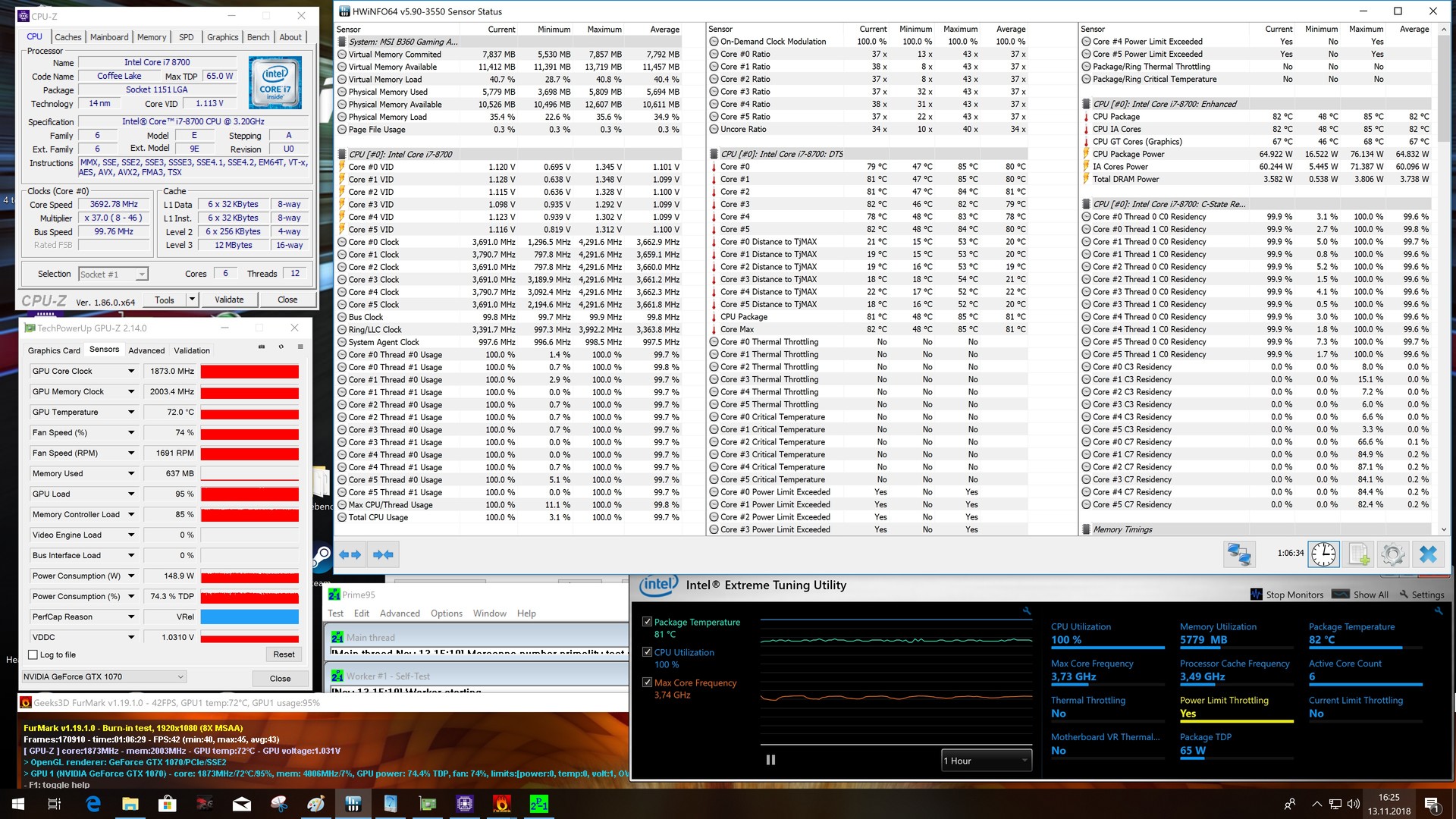

HWiNFO

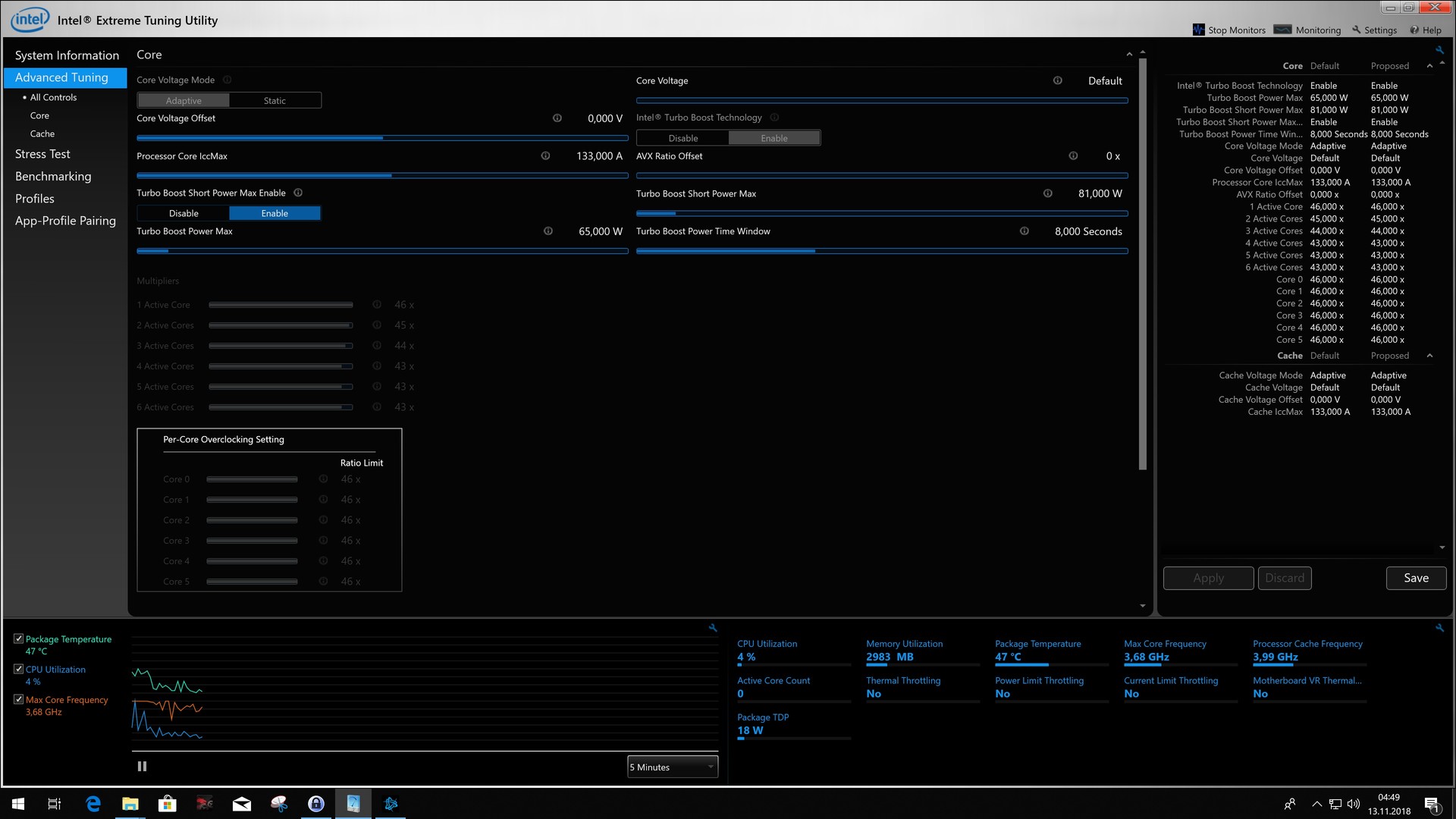

Intel Extreme Utility

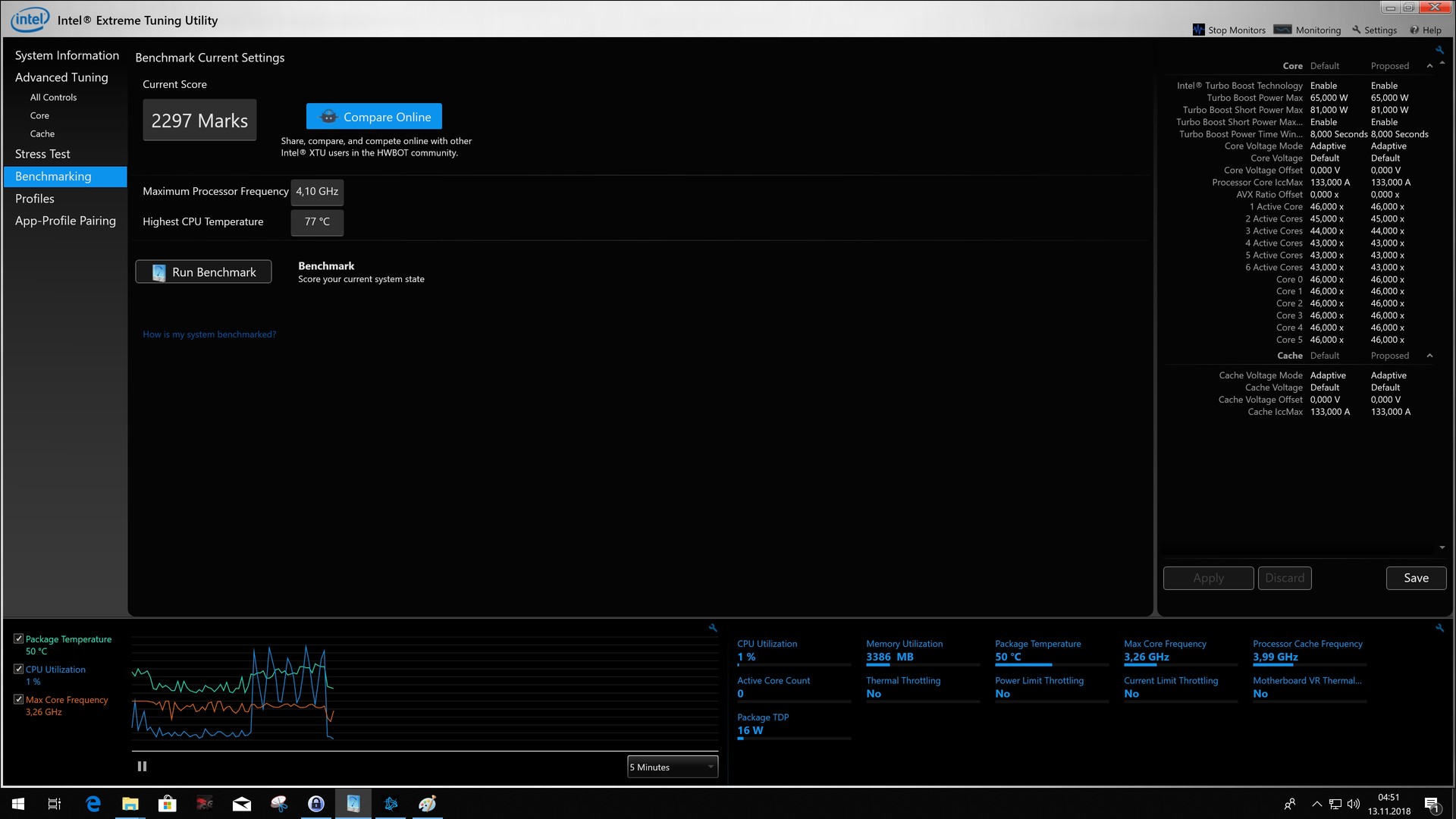

Intel Extreme Utility (Benchmark)

Performance Rating
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
82.9 pt ∼83%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
77.5 pt ∼78%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
69.1 pt ∼69%
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
68.1 pt ∼68%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
65 pt ∼65%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
62.9 pt ∼63%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
61.9 pt ∼62%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
59 pt ∼59%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
51.9 pt ∼52%
Cinebench R15
CPU Single 64Bit
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
199 Points ∼91% +4%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
192 Points ∼88%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
176 Points ∼81% -8%
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
176 Points ∼81% -8%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
163 Points ∼75% -15%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
161 Points ∼74% -16%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
159 Points ∼73% -17%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
159 Points ∼73% -17%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
145 Points ∼67% -24%
CPU Multi 64Bit
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
3110 Points ∼71% +164%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
2944 Points ∼67% +150%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
1801 Points ∼41% +53%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
1551 Points ∼35% +32%
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
1405 (min: 1375.04, max: 1405.28) Points ∼32% +19%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
1341 Points ∼31% +14%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
1270 Points ∼29% +8%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
1178 Points ∼27%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
843 Points ∼19% -28%

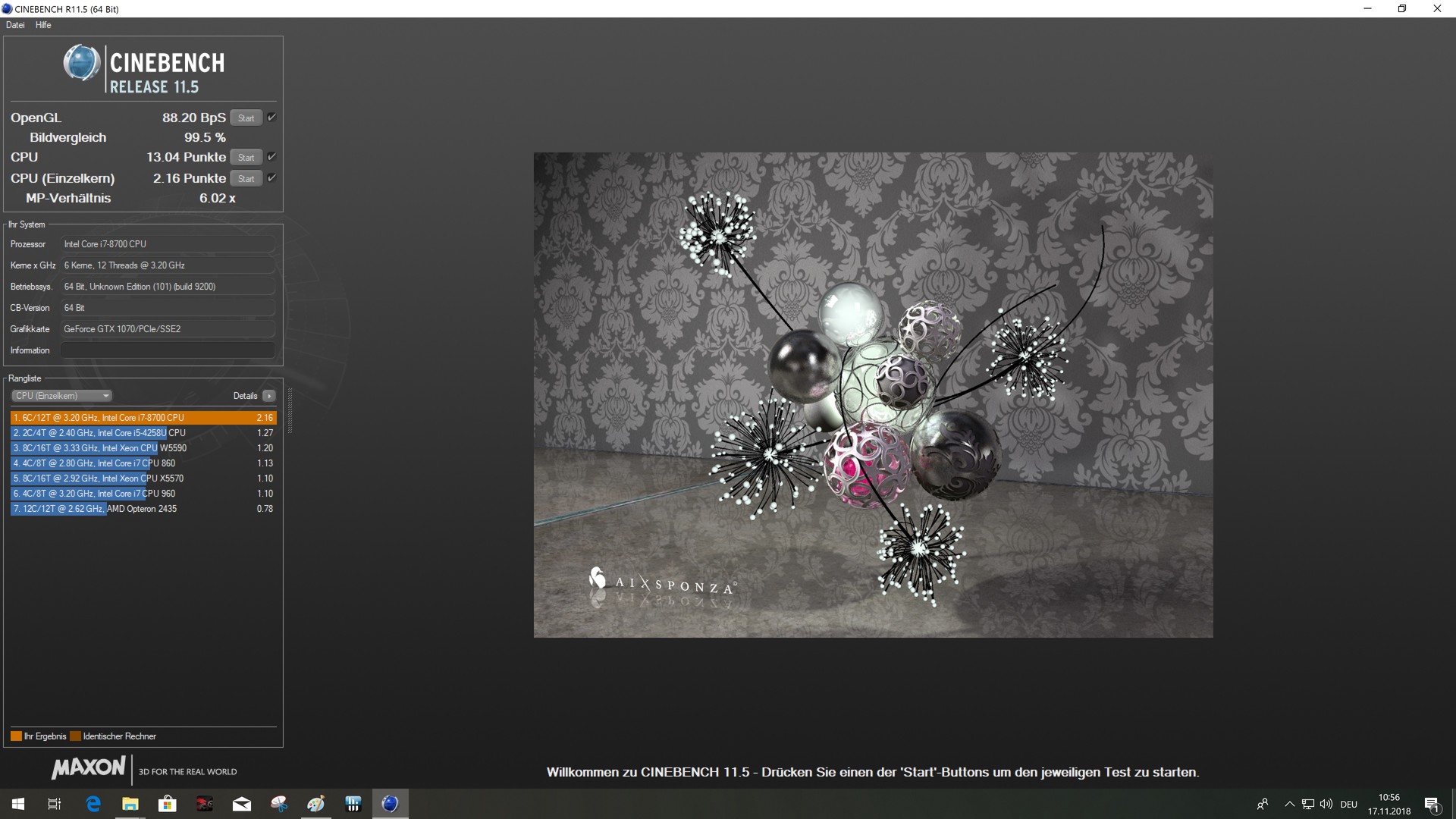

Cinebench R11.5
CPU Single 64Bit
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
2.27 Points ∼93% +5%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
2.16 Points ∼89%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
1.95 Points ∼80% -10%
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
1.9 Points ∼78% -12%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
1.81 Points ∼74% -16%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
1.78 Points ∼73% -18%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
1.76 Points ∼72% -19%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
1.73 Points ∼71% -20%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
1.65 Points ∼68% -24%
CPU Multi 64Bit
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
27.07 Points ∼100% +108%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
23.13 Points ∼85% +77%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
18.68 Points ∼69% +43%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
16.71 Points ∼62% +28%
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
15.64 Points ∼58% +20%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
14.56 Points ∼54% +12%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
13.71 Points ∼51% +5%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
13.04 Points ∼48%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
8.6 Points ∼32% -34%
Blender 2.79 - ---
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
561.3 Seconds * ∼7% -45%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
388.2 Seconds * ∼5%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
375.7 Seconds * ∼4% +3%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
350 Seconds * ∼4% +10%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
308.3 Seconds * ∼4% +21%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
264 Seconds * ∼3% +32%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
163 Seconds * ∼2% +58%
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
152.7 Seconds * ∼2% +61%
wPrime 2.0x
1024m
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
235.115 s * ∼3% -64%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
143.673 s * ∼2%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
140.9 s * ∼2% +2%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
133.8 s * ∼2% +7%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
130.519 s * ∼2% +9%
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
118.6 s * ∼1% +17%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
96.622 s * ∼1% +33%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
55.07 s * ∼1% +62%
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
53.159 s * ∼1% +63%
32m
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
8.025 s * ∼2% -47%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
5.5 s * ∼1% -1%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
5.469 s * ∼1%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
5.141 s * ∼1% +6%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
4.62 s * ∼1% +16%
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
4.186 s * ∼1% +23%
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
4 s * ∼1% +27%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
3.484 s * ∼1% +36%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
3.34 s * ∼1% +39%
HWBOT x265 Benchmark v2.2 - 4k Preset
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
17.5 fps ∼97% +84%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
16.9 fps ∼94% +77%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
9.53 fps ∼53%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
9.51 fps ∼53% 0%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
7.79 fps ∼43% -18%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
6.3 fps ∼35% -34%
X264 HD Benchmark 4.0
Pass 2
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
144.88 (min: 143.48, max: 145.54) fps ∼100% +93%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
134.26 (min: 133.84, max: 135.07) fps ∼93% +79%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
104.5 fps ∼72% +39%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
89.715 (min: 89.5, max: 89.85) fps ∼62% +19%
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
87.4 fps ∼60% +16%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
80.5 fps ∼56% +7%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
75.2 (min: 74.9, max: 76.3) fps ∼52%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
74.96 (min: 74.84, max: 75.82) fps ∼52% 0%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
51.75 (min: 51.6, max: 51.9) fps ∼36% -31%
Pass 1
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
235.5 (min: 234, max: 237) fps ∼87%
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
232 (min: 229, max: 233) fps ∼86% -1%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
226.7 fps ∼84% -4%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
207.4 fps ∼77% -12%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
205.295 (min: 204.6, max: 207.33) fps ∼76% -13%
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
202.305 (min: 200.47, max: 203.47) fps ∼75% -14%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
196 (min: 196, max: 196) fps ∼73% -17%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
195.71 (min: 195.08, max: 196.35) fps ∼72% -17%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
189.58 (min: 188.03, max: 193.43) fps ∼70% -19%
WinRAR - Result
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
7120 KB/s ∼84% +20%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
5912 KB/s ∼69%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
4779 KB/s ∼56% -19%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
4599 KB/s ∼54% -22%
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
4548 KB/s ∼53% -23%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
4517 KB/s ∼53% -24%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
4440 KB/s ∼52% -25%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
4331 KB/s ∼51% -27%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
4150 KB/s ∼49% -30%
TrueCrypt
Serpent Mean 100MB
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
1.8 GB/s ∼0% +126%
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
1.8 GB/s ∼0% +126%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
1 GB/s ∼0% +26%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
0.899 GB/s ∼0% +13%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
0.795 GB/s ∼0%
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
0.793 GB/s ∼0% 0%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
0.78 GB/s ∼0% -2%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
0.732 GB/s ∼0% -8%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
0.359 GB/s ∼0% -55%
Twofish Mean 100MB
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
2.9 GB/s ∼97% +123%
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
2.9 GB/s ∼97% +123%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
1.6 GB/s ∼53% +23%
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
1.4 GB/s ∼47% +8%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
1.4 GB/s ∼47% +8%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
1.3 GB/s ∼43%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
1.2 GB/s ∼40% -8%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
1 GB/s ∼33% -23%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
0.629 GB/s ∼21% -52%
AES Mean 100MB
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
19.5 GB/s ∼100% +153%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
19 GB/s ∼97% +147%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
10.6 GB/s ∼54% +38%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
9 GB/s ∼46% +17%
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
8 GB/s ∼41% +4%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
8 GB/s ∼41% +4%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
7.7 GB/s ∼39%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
7.5 GB/s ∼38% -3%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
3.4 GB/s ∼17% -56%
Geekbench 4.3
64 Bit Multi-Core Score
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
36198 Points ∼100% +56%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
28877 Points ∼80% +24%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
25919 Points ∼72% +12%
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
25223 Points ∼70% +9%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
23220 Points ∼64%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
22776 Points ∼63% -2%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
21616 Points ∼60% -7%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
20633 Points ∼57% -11%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
18335 Points ∼51% -21%
64 Bit Single-Core Score
Intel Core i7-8700K
3700, NVIDIA GeForce GTX 1080 Ti (Desktop)
5937 Points ∼94% +7%
Intel Core i7-8700
3200, NVIDIA GeForce GTX 1070 (Desktop)
5565 Points ∼88%
AMD Ryzen 7 2700X
3700, AMD Radeon RX Vega 64
4999 Points ∼79% -10%
AMD Ryzen Threadripper 2950X
3500, AMD Radeon RX Vega 64
4903 Points ∼77% -12%
AMD Ryzen 5 2600X
3600, AMD Radeon RX Vega 64
4706 Points ∼74% -15%
AMD Ryzen 7 2700
3200, AMD Radeon RX Vega 64
4681 Points ∼74% -16%
AMD Ryzen 5 2600
3400, AMD Radeon RX Vega 64
4631 Points ∼73% -17%
Intel Core i5-8500T
2100, AMD Radeon RX Vega 64
4626 Points ∼73% -17%
AMD Ryzen Threadripper 1950X
3400, NVIDIA Titan X Pascal
4304 Points ∼68% -23%

* ... smaller is better

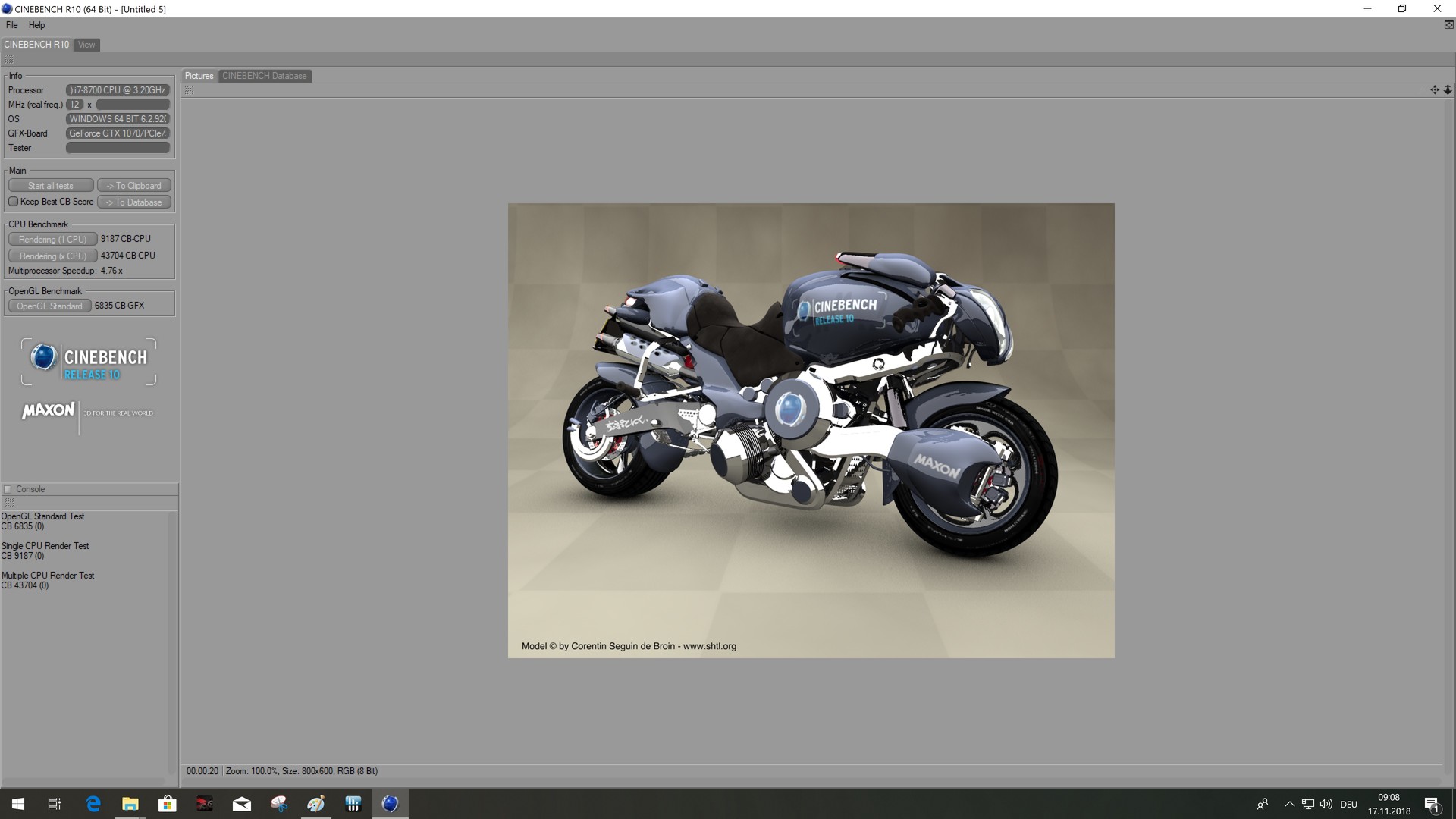

Cinebench R10
Cinebench R10
Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930940950960970980990100010101020103010401050106010701080109011001110112011301140115011601170118011901200Tooltip
: Ø1169 (1152.37-1199.4)
Cinebench R10 Shading 32Bit
6835
Cinebench R10 Rendering Single CPUs 64Bit
9187 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
43704 Points
Cinebench R10 Shading 64Bit
6835 Points
Cinebench R10 Rendering Single 32Bit
6992
Cinebench R10 Rendering Multiple CPUs 32Bit
35384
Cinebench R11.5 CPU Multi 32Bit
12.17 Points
Cinebench R11.5 OpenGL 32Bit
87.31 fps
Cinebench R11.5 CPU Single 64Bit
2.16 Points
Cinebench R11.5 CPU Multi 64Bit
13.04 Points
Cinebench R11.5 OpenGL 64Bit
88.2 fps
Cinebench R11.5 CPU Single 32Bit
1.92 Points
Cinebench R15 CPU Single 64Bit
192 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
136.03 fps
Cinebench R15 CPU Multi 64Bit
1178 Points
Help
PCMark 10
Digital Content Creation
AMD Ryzen Threadripper 1950X
NVIDIA Titan X Pascal
8528 Points ∼100% +5%
Intel Core i7-8700K
NVIDIA GeForce GTX 1080 Ti (Desktop)
8356 Points ∼98% +3%
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
8266 Points ∼97% +2%
AMD Ryzen 7 2700X
AMD Radeon RX Vega 64
8215 Points ∼96% +1%
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
8141 Points ∼95%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
7433 Points ∼87% -9%
AMD Ryzen 5 2600X
AMD Radeon RX Vega 64
7388 Points ∼87% -9%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
7020 Points ∼82% -14%
Intel Core i5-8500T
AMD Radeon RX Vega 64
6966 Points ∼82% -14%
Productivity
AMD Ryzen 7 2700X
AMD Radeon RX Vega 64
8447 Points ∼100% +8%
AMD Ryzen 5 2600X
AMD Radeon RX Vega 64
8024 Points ∼95% +3%
Intel Core i7-8700K
NVIDIA GeForce GTX 1080 Ti (Desktop)
7871 Points ∼93% +1%
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
7808 Points ∼92%
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
7703 Points ∼91% -1%
Intel Core i5-8500T
AMD Radeon RX Vega 64
7516 Points ∼89% -4%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
7443 Points ∼88% -5%
AMD Ryzen Threadripper 1950X
NVIDIA Titan X Pascal
5982 Points ∼71% -23%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
5779 Points ∼68% -26%
Essentials
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
9689 Points ∼100%
Intel Core i7-8700K
NVIDIA GeForce GTX 1080 Ti (Desktop)
9597 Points ∼99% -1%
AMD Ryzen 7 2700X
AMD Radeon RX Vega 64
9521 Points ∼98% -2%
AMD Ryzen 5 2600X
AMD Radeon RX Vega 64
9205 Points ∼95% -5%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
8985 Points ∼93% -7%
Intel Core i5-8500T
AMD Radeon RX Vega 64
8499 Points ∼88% -12%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
8382 Points ∼87% -13%
AMD Ryzen Threadripper 1950X
NVIDIA Titan X Pascal
8377 Points ∼86% -14%
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
8203 Points ∼85% -15%
Score
AMD Ryzen 7 2700X
AMD Radeon RX Vega 64
7764 Points ∼100% +27%
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
7451 Points ∼96% +22%
AMD Ryzen 5 2600X
AMD Radeon RX Vega 64
7337 Points ∼95% +20%
AMD Ryzen Threadripper 1950X
NVIDIA Titan X Pascal
7285 Points ∼94% +19%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
7018 Points ∼90% +15%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
6465 Points ∼83% +6%
Intel Core i7-8700K
NVIDIA GeForce GTX 1080 Ti (Desktop)
6150 Points ∼79% +1%
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
6100 Points ∼79%
Intel Core i5-8500T
AMD Radeon RX Vega 64
5473 Points ∼70% -10%
PCMark 8
Work Score Accelerated v2
Intel Core i5-8500T
AMD Radeon RX Vega 64
5495 Points ∼100% +12%
AMD Ryzen 7 2700X
AMD Radeon RX Vega 64
4891 Points ∼89% 0%
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
4891 Points ∼89%
Intel Core i7-8700K
NVIDIA GeForce GTX 1080 Ti (Desktop)
4821 Points ∼88% -1%
AMD Ryzen 5 2600X
AMD Radeon RX Vega 64
4750 Points ∼86% -3%
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
4735 Points ∼86% -3%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
4633 Points ∼84% -5%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
4598 Points ∼84% -6%
AMD Ryzen Threadripper 1950X
NVIDIA Titan X Pascal
4520 Points ∼82% -8%
Home Score Accelerated v2
Intel Core i5-8500T
AMD Radeon RX Vega 64
4898 Points ∼100% +4%
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
4708 Points ∼96%
Intel Core i7-8700K
NVIDIA GeForce GTX 1080 Ti (Desktop)
4648 Points ∼95% -1%
AMD Ryzen 7 2700X
AMD Radeon RX Vega 64
4483 Points ∼92% -5%
AMD Ryzen 5 2600X
AMD Radeon RX Vega 64
4392 Points ∼90% -7%
AMD Ryzen Threadripper 1950X
NVIDIA Titan X Pascal
4367 Points ∼89% -7%
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
4359 Points ∼89% -7%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
4311 Points ∼88% -8%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
4209 Points ∼86% -11%
PCMark 7
Entertainment
AMD Ryzen 7 2700X
AMD Radeon RX Vega 64
7939 Points ∼100% +9%
AMD Ryzen 5 2600X
AMD Radeon RX Vega 64
7809 Points ∼98% +7%
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
7302 Points ∼92%
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
7262 Points ∼91% -1%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
7065 Points ∼89% -3%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
7000 Points ∼88% -4%
Productivity
AMD Ryzen 7 2700X
AMD Radeon RX Vega 64
8383 Points ∼100% +42%
AMD Ryzen 5 2600X
AMD Radeon RX Vega 64
8137 Points ∼97% +38%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
7074 Points ∼84% +20%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
6869 Points ∼82% +17%
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
6860 Points ∼82% +17%
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
5886 Points ∼70%
Score
AMD Ryzen 7 2700X
AMD Radeon RX Vega 64
8593 Points ∼100% +17%
AMD Ryzen 5 2600X
AMD Radeon RX Vega 64
8402 Points ∼98% +14%
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
7960 Points ∼93% +8%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
7619 Points ∼89% +4%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
7556 Points ∼88% +3%
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
7338 Points ∼85%
PCMark 7 Score
7338 points
PCMark 8 Home Score Accelerated v2
4708 points
PCMark 8 Creative Score Accelerated v2
8234 points
PCMark 8 Work Score Accelerated v2
4891 points
Help

Intel SSD benchmarks

AS SSD
AS SSD
CDM 3
CDM 3

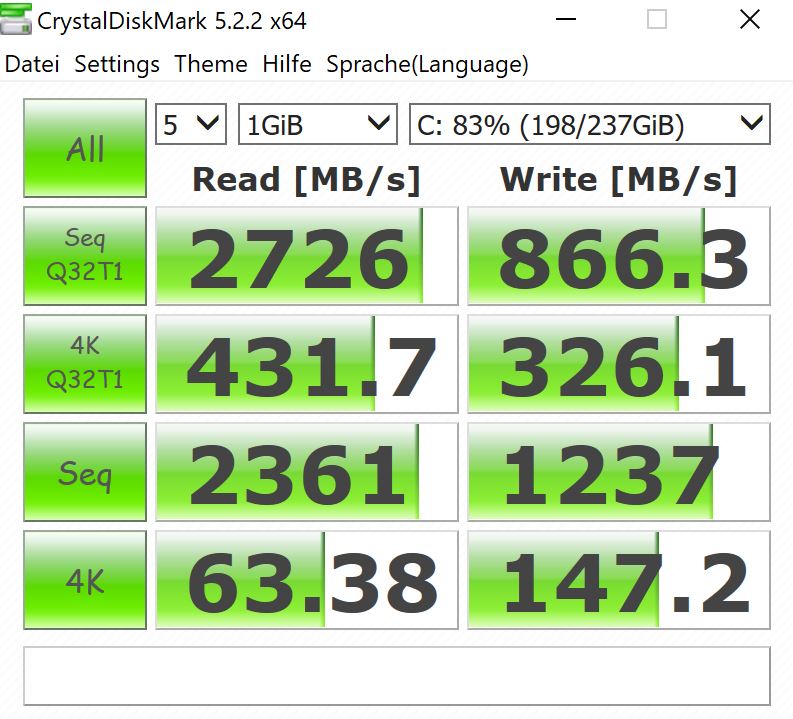

CDM 5
CDM 5

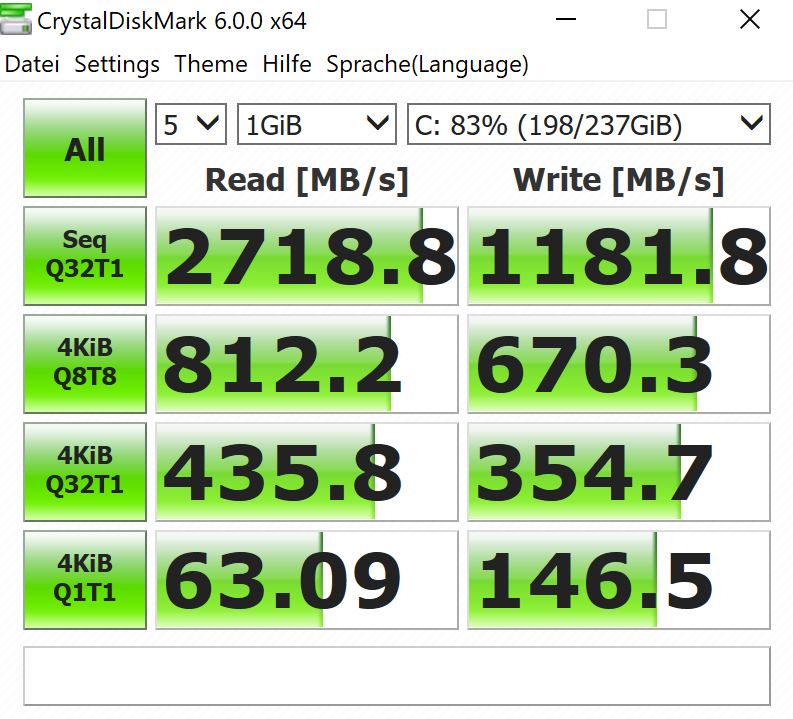

CDM 6
CDM 6

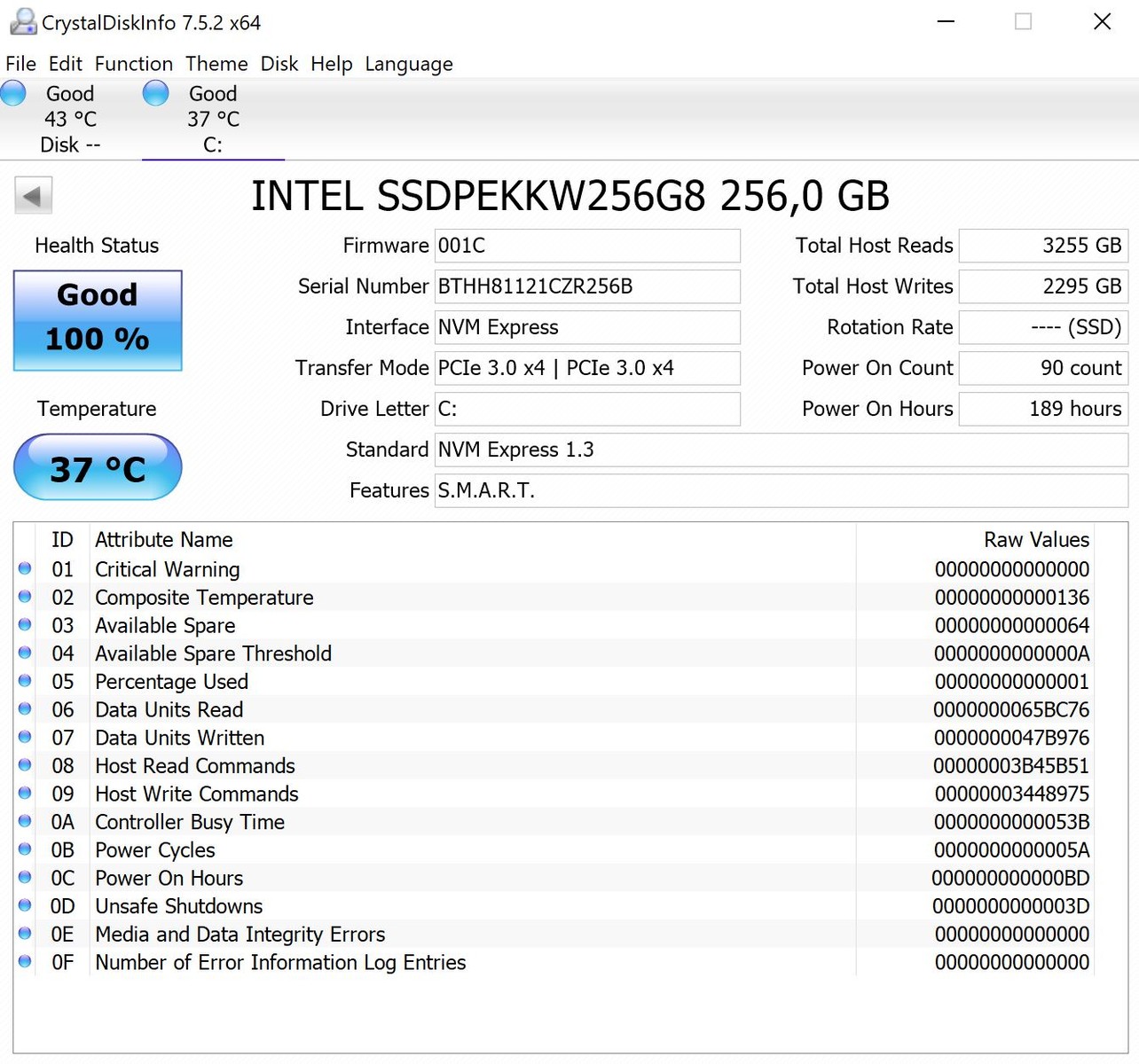

CDI
CDI

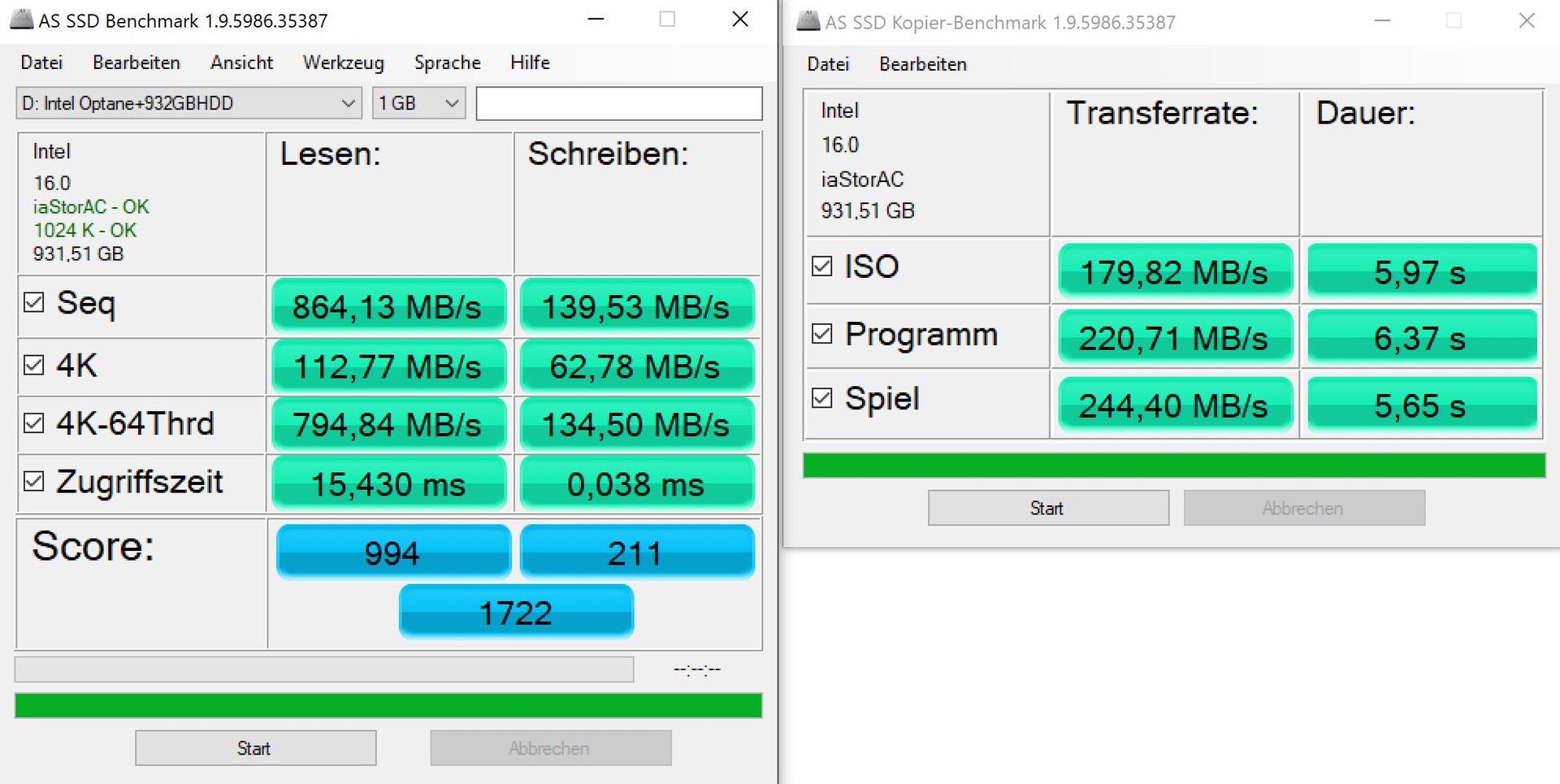

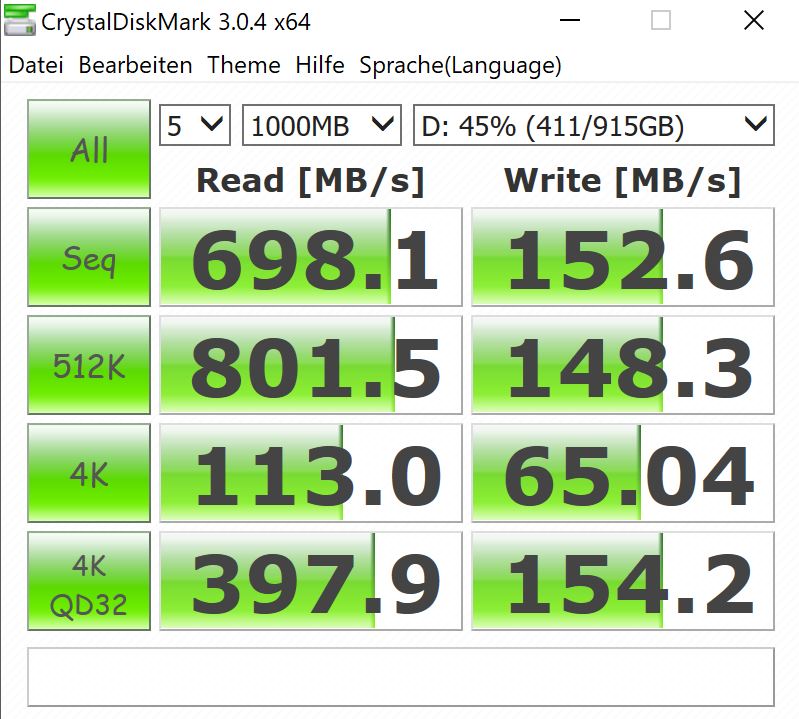

Western Digital HDD & Intel Optane benchmarks

AS SSD
AS SSD
CDM 3
CDM 3

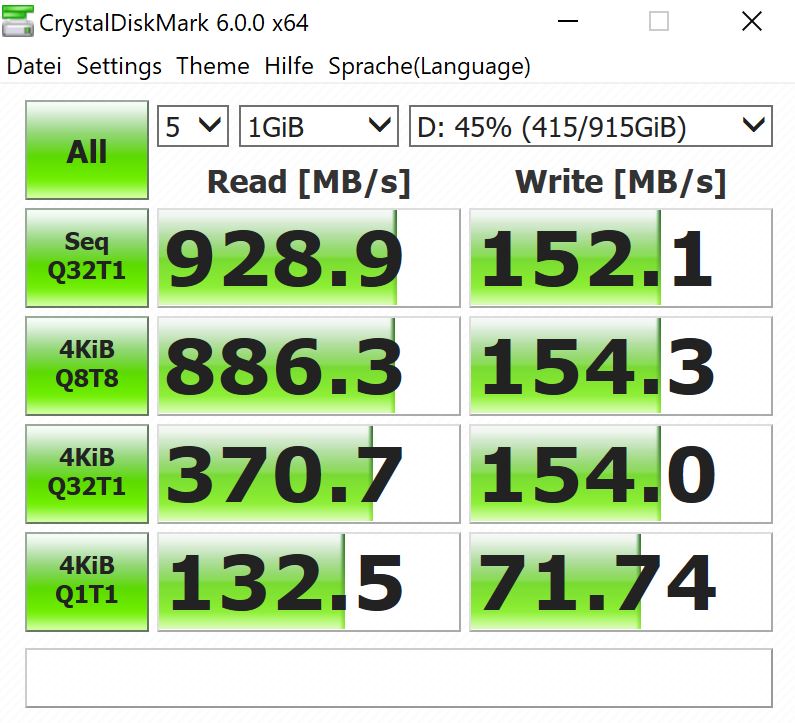

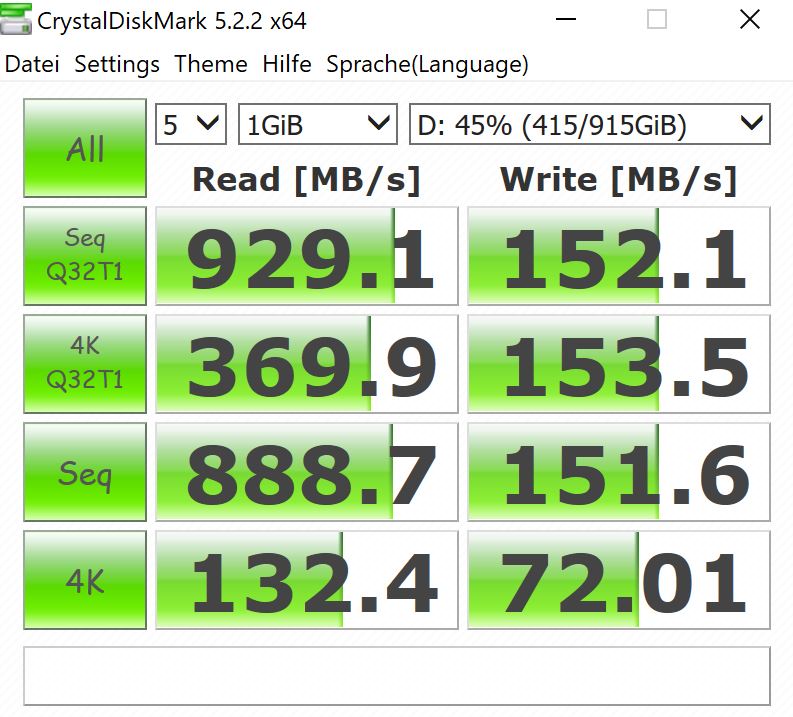

CDM 5
CDM 5
CDM 6
CDM 6

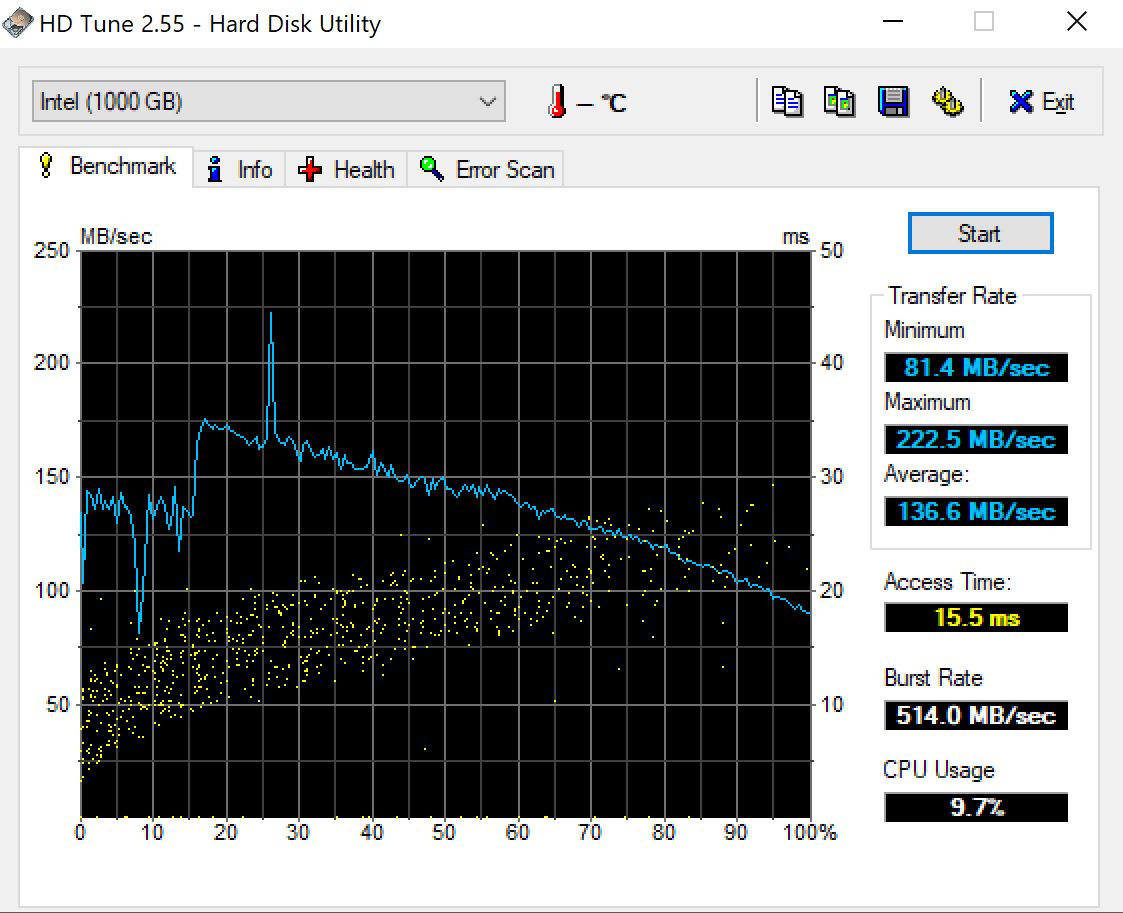

HD Tune
HD Tune

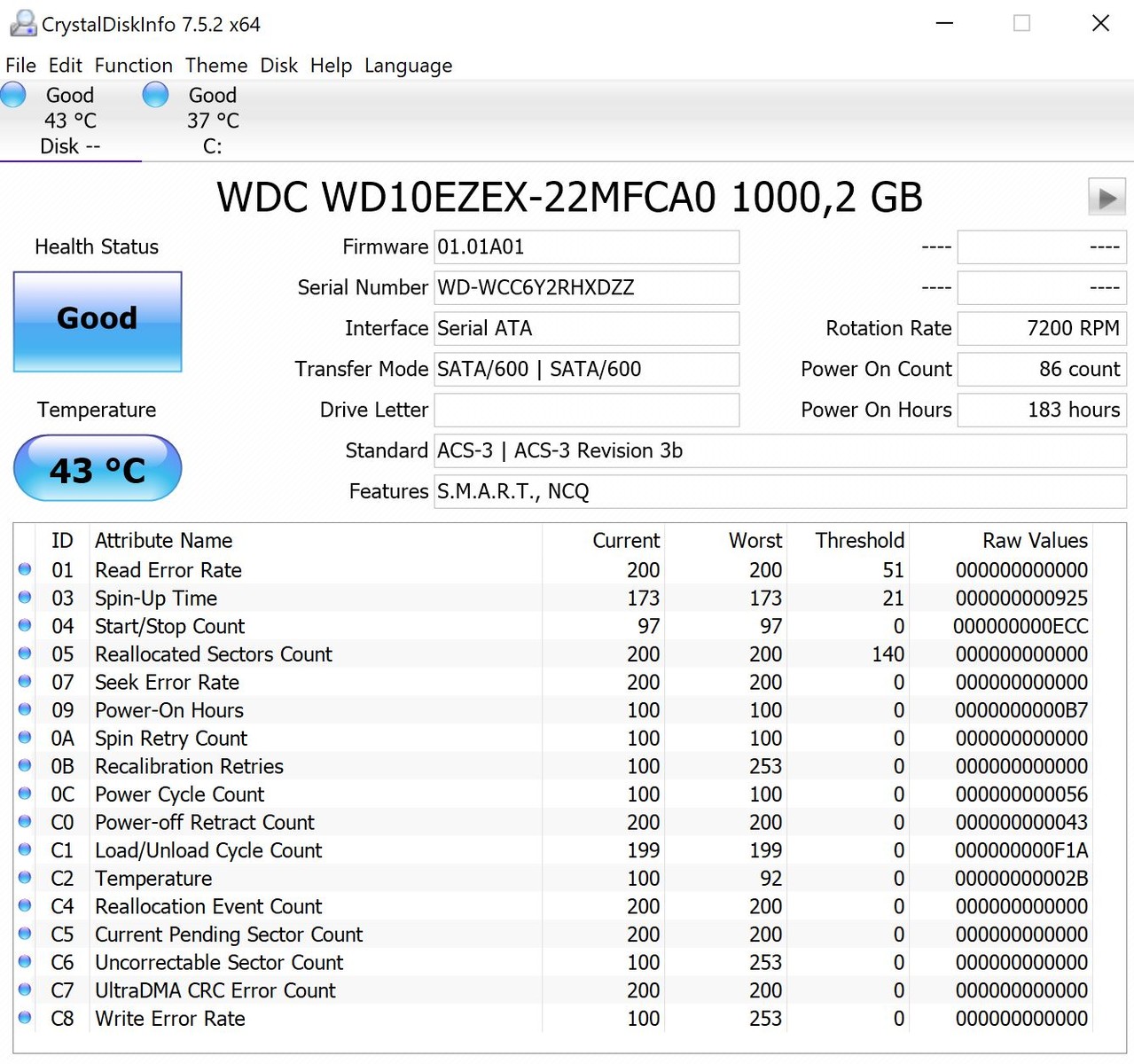

CDI
CDI

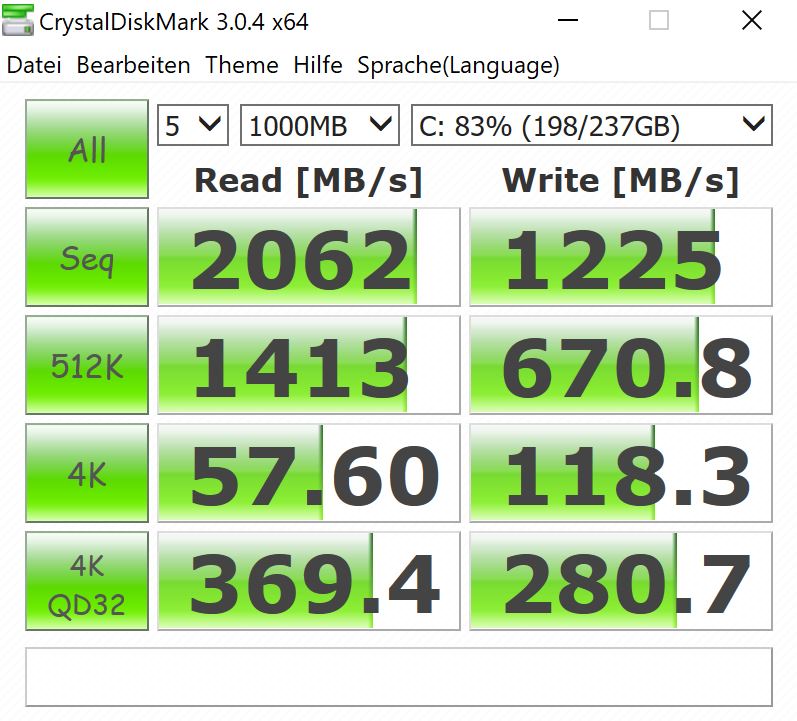

Intel SSD 760p SSDPEKKW256G8
Sequential Read: 2062 MB/s
Sequential Write: 1225 MB/s
512K Read: 1413 MB/s
512K Write: 670.8 MB/s
4K Read: 57.6 MB/s
4K Write: 118.3 MB/s
4K QD32 Read: 369.4 MB/s
4K QD32 Write: 280.7 MB/s

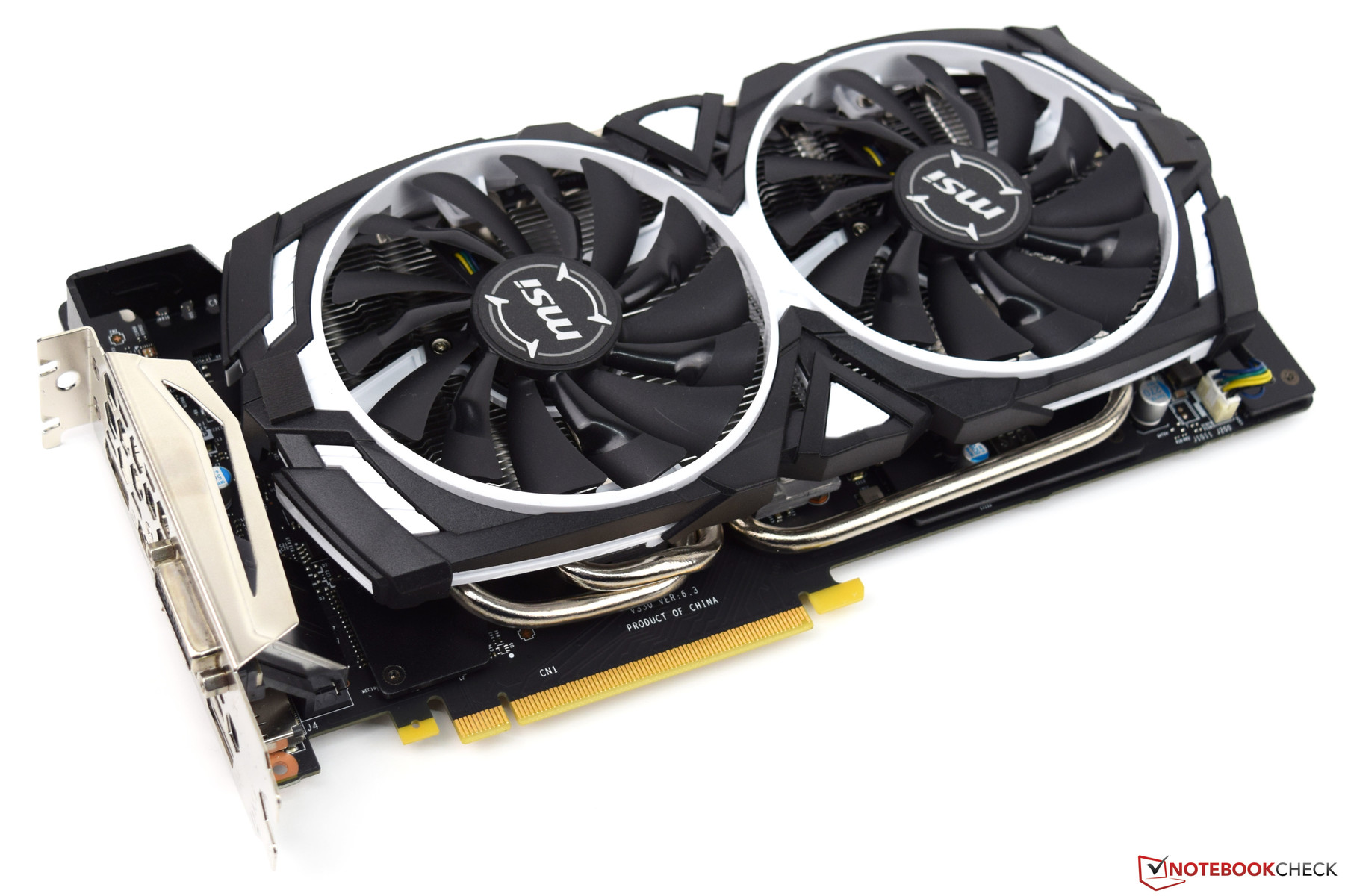

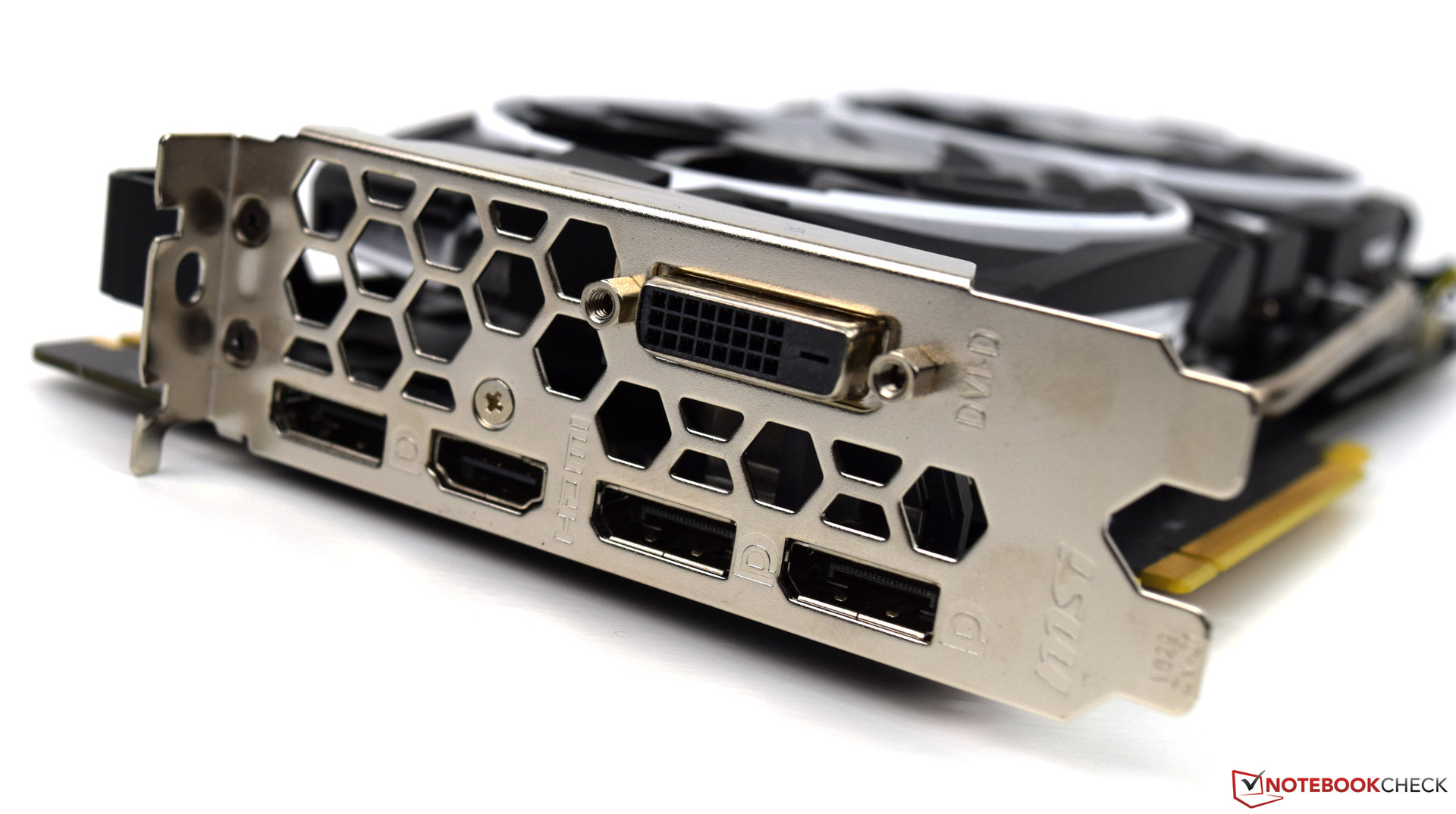

MSI GeForce GTX 1070 Gaming Armor 8G
MSI GeForce GTX 1070 Gaming Armor 8G
MSI GeForce GTX 1070 Gaming Armor 8G
MSI GeForce GTX 1070 Gaming Armor 8G

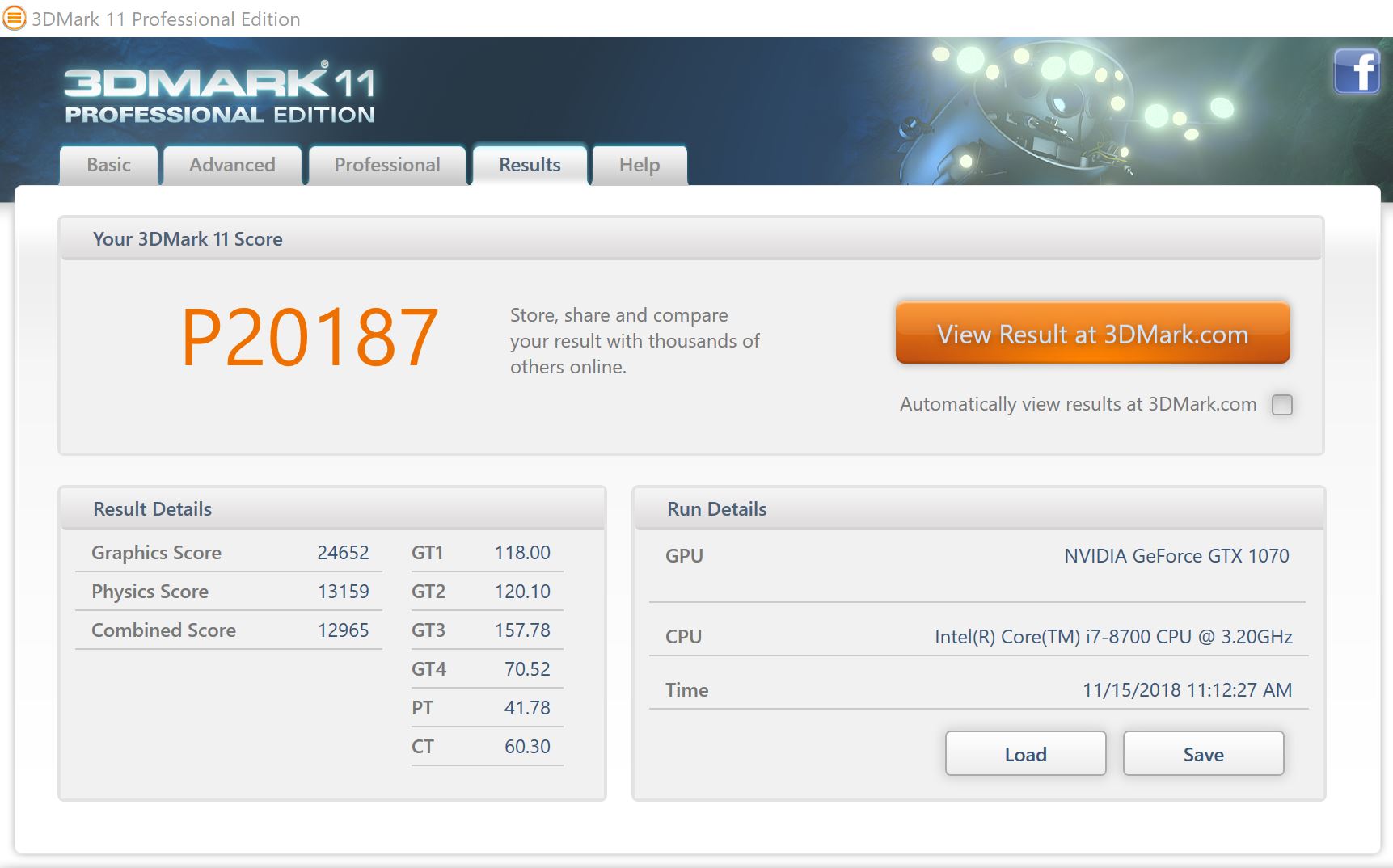

3DMark 11 - 1280x720 Performance GPU
AMD Radeon RX Vega 64
Intel Core i5-8500T
31785 Points ∼100% +29%
AMD Radeon RX Vega 64
Intel Core i7-8700K
31548 Points ∼99% +28%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
31265 Points ∼98% +27%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
29935 Points ∼94% +21%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
29285 Points ∼92% +19%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
28462 Points ∼90% +15%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
27881 Points ∼88% +13%
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
27632 Points ∼87% +12%
Average NVIDIA GeForce GTX 1070 (Desktop)
  (23660 - 26098, n=5)
24686 Points ∼78% 0%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
24652 Points ∼78%
Average of class Desktop
  (484 - 31656, n=18)
9246 Points ∼29% -62%

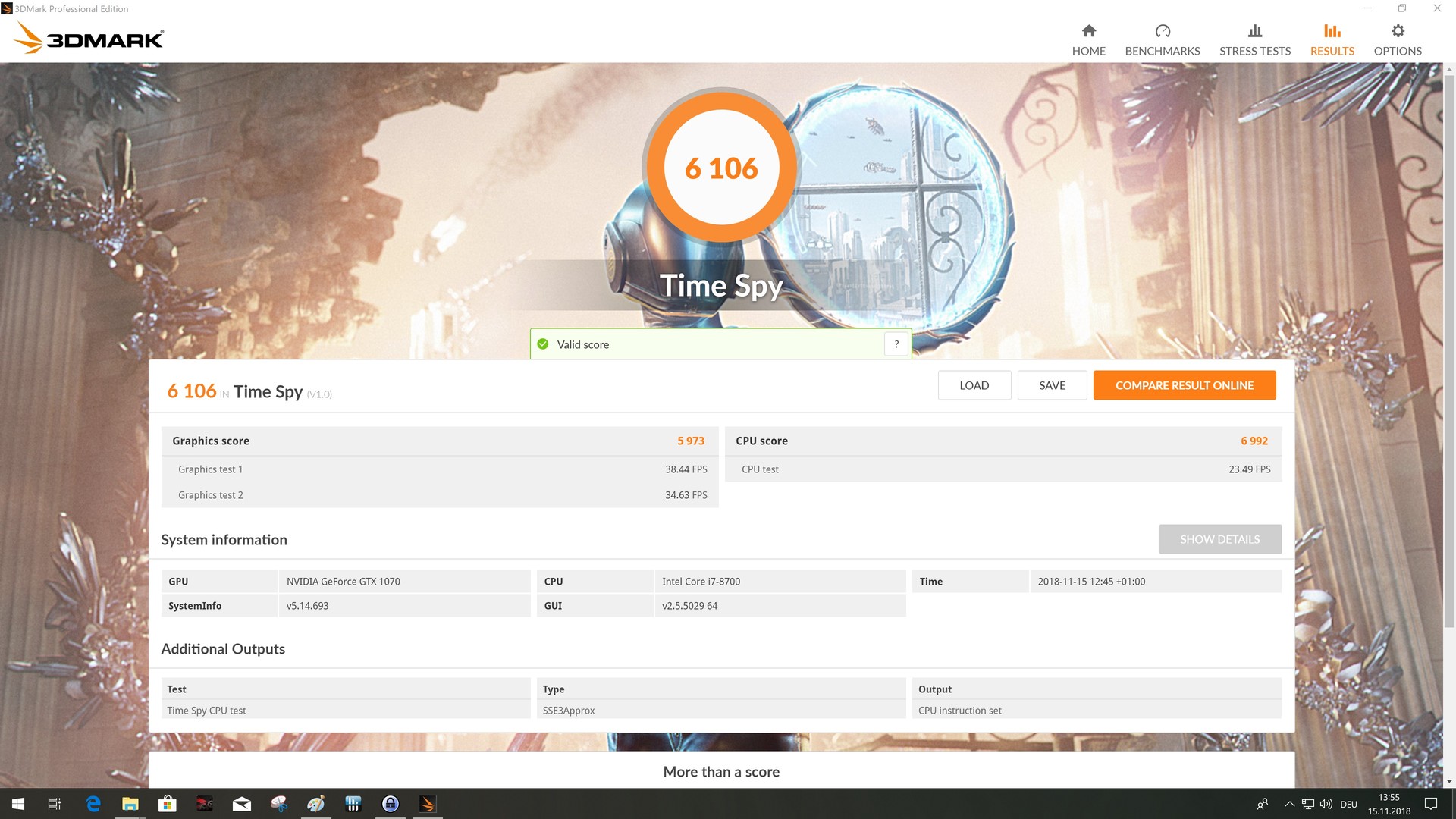

3DMark
2560x1440 Time Spy Graphics
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
9635 Points ∼100% +61%
AMD Radeon RX Vega 64
Intel Core i7-8700K
7284 Points ∼76% +22%
AMD Radeon RX Vega 64
Intel Core i5-8500T
7238 Points ∼75% +21%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
7183 Points ∼75% +20%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
7129 Points ∼74% +19%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
6815 Points ∼71% +14%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
6673 Points ∼69% +12%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
6530 Points ∼68% +9%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
5973 Points ∼62%
Average NVIDIA GeForce GTX 1070 (Desktop)
  (5555 - 5973, n=3)
5808 Points ∼60% -3%
Average of class Desktop
  (255 - 7592, n=8)
2942 Points ∼31% -51%
1920x1080 Fire Strike Graphics
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
27349 Points ∼100% +49%
AMD Radeon RX Vega 64
Intel Core i7-8700K
23194 Points ∼85% +27%
AMD Radeon RX Vega 64
Intel Core i5-8500T
23130 Points ∼85% +26%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
22761 Points ∼83% +24%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
22338 Points ∼82% +22%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
21547 Points ∼79% +18%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
20808 Points ∼76% +14%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
20234 Points ∼74% +10%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
18313 Points ∼67%
Average NVIDIA GeForce GTX 1070 (Desktop)
  (16685 - 18408, n=5)
17893 Points ∼65% -2%
Average of class Desktop
  (603 - 22887, n=16)
7213 Points ∼26% -61%
1280x720 Cloud Gate Standard Graphics
AMD Radeon RX Vega 64
Intel Core i7-8700K
155414 Points ∼100% +41%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
127011 Points ∼82% +15%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
120426 Points ∼77% +9%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
118153 Points ∼76% +7%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
110542 Points ∼71%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
107514 Points ∼69% -3%
Average NVIDIA GeForce GTX 1070 (Desktop)
  (104764 - 110542, n=4)
107294 Points ∼69% -3%
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
102781 Points ∼66% -7%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
86339 Points ∼56% -22%
AMD Radeon RX Vega 64
Intel Core i5-8500T
60794 Points ∼39% -45%
Average of class Desktop
  (5027 - 110542, n=13)
26959 Points ∼17% -76%
3DMark Ice Storm

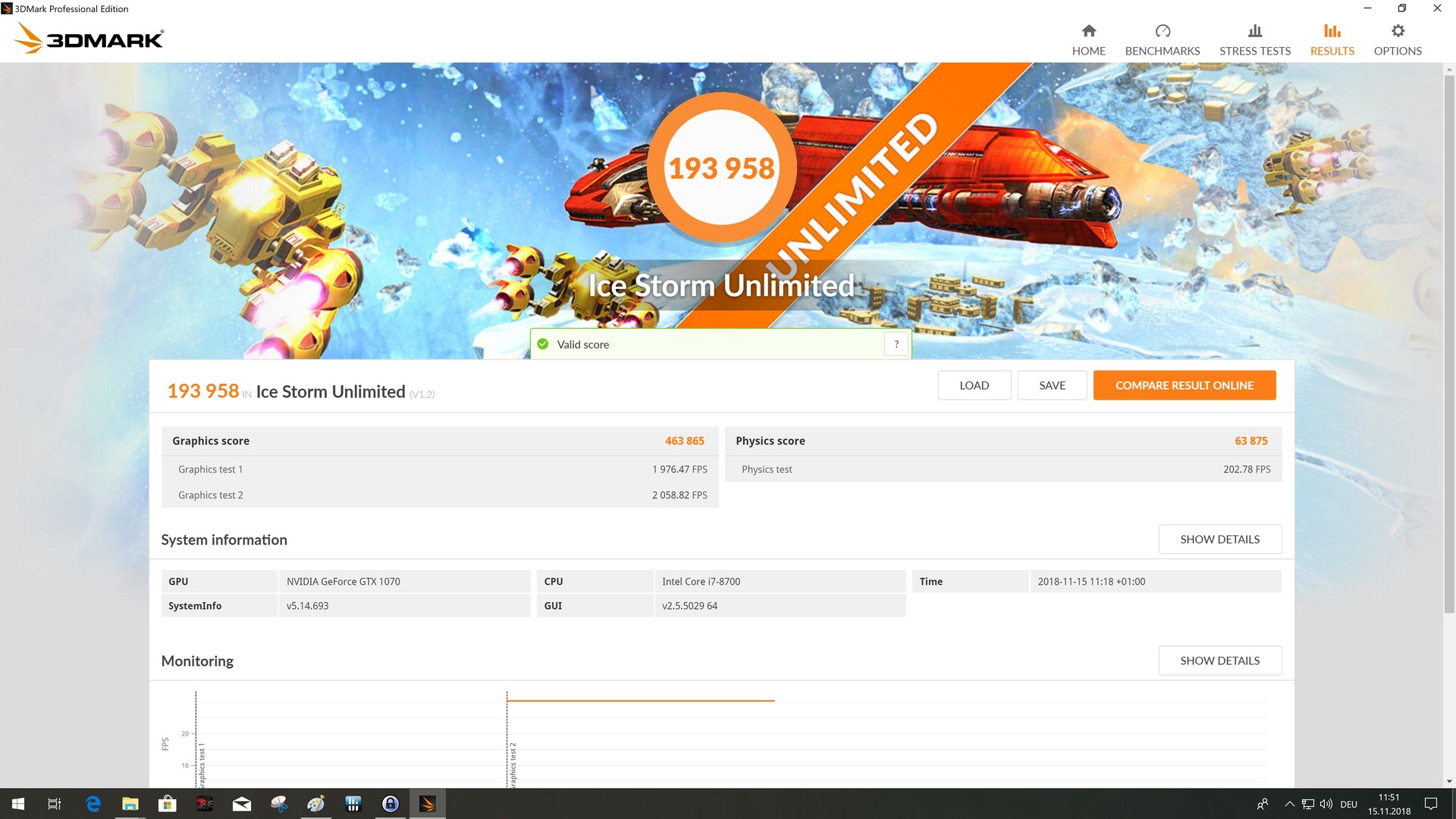

3DMark Ice Storm Unlimited

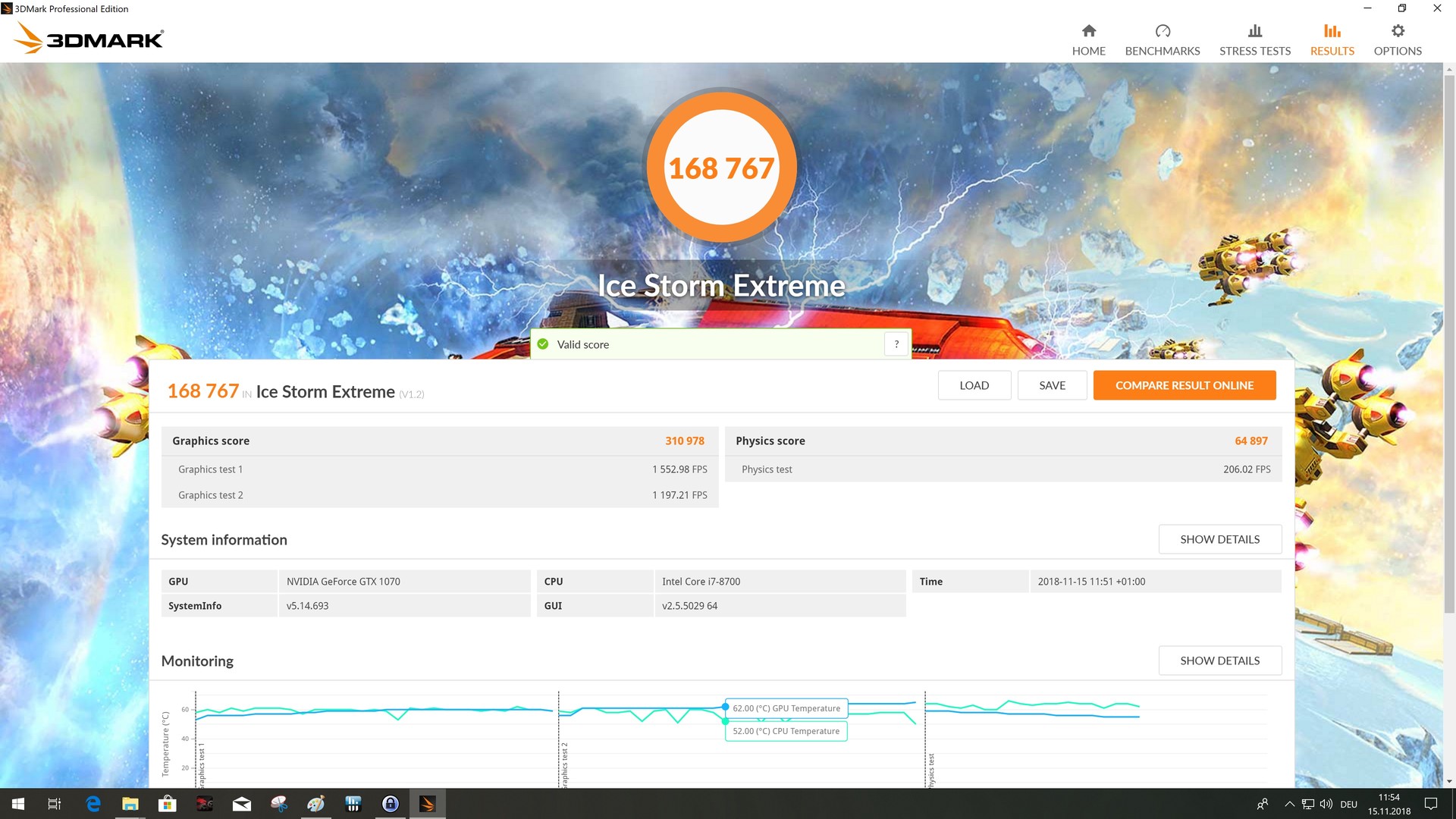

3DMark Ice Storm Extreme
3DMark Cloud Gate
3DMark Sky Diver
3DMark Fire Strike
3DMark Fire Strike Extreme

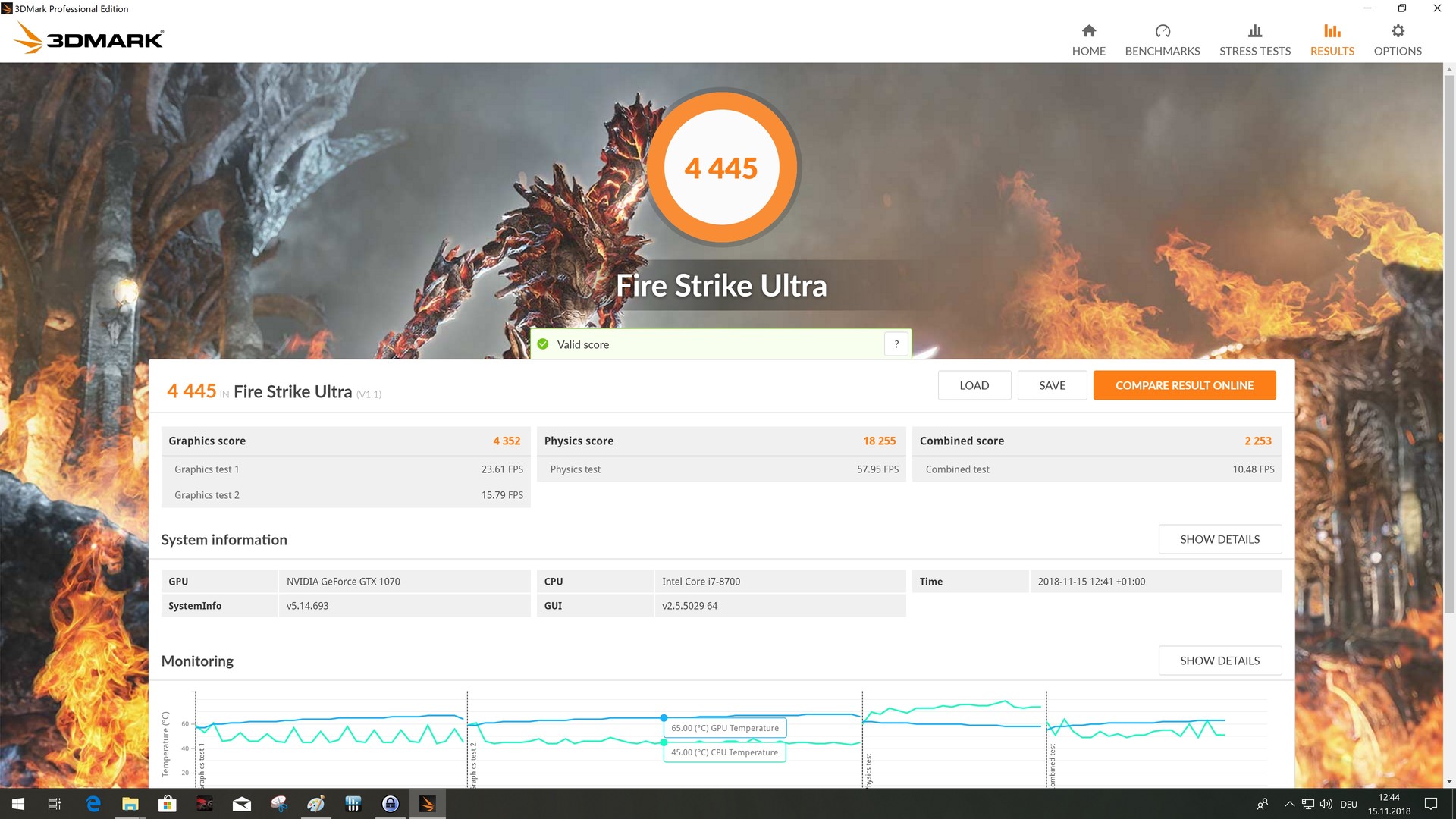

3DMark Fire Strike Ultra
3DMark Time Spy
3DMark 11
3DMark Vantage

3DMark 03 Standard
163345 points
3DMark 06 Standard
39794 points

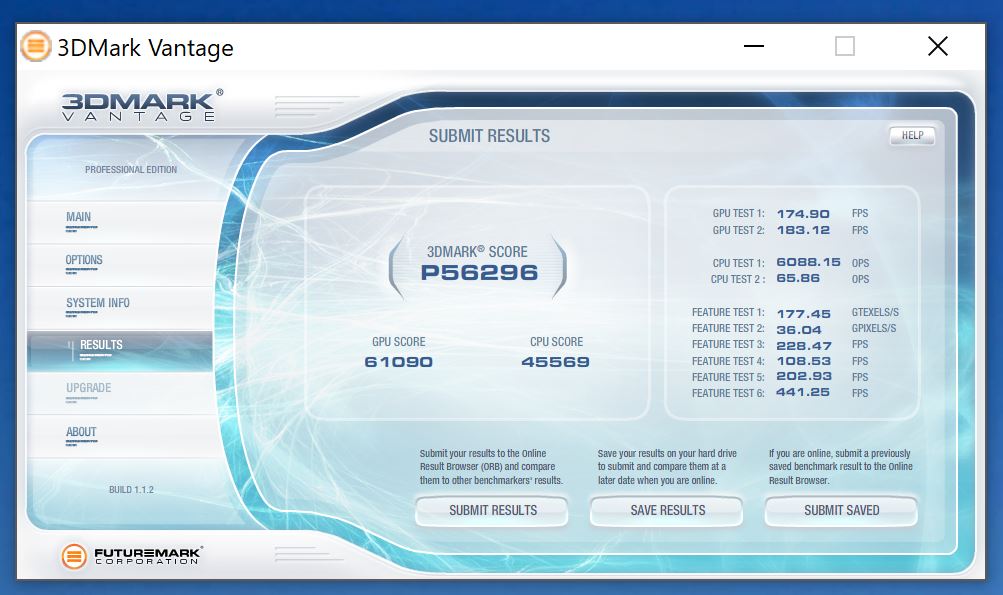

3DMark Vantage P Result
56296 points
3DMark 11 Performance
20187 points
3DMark Ice Storm Standard Score
182786 points

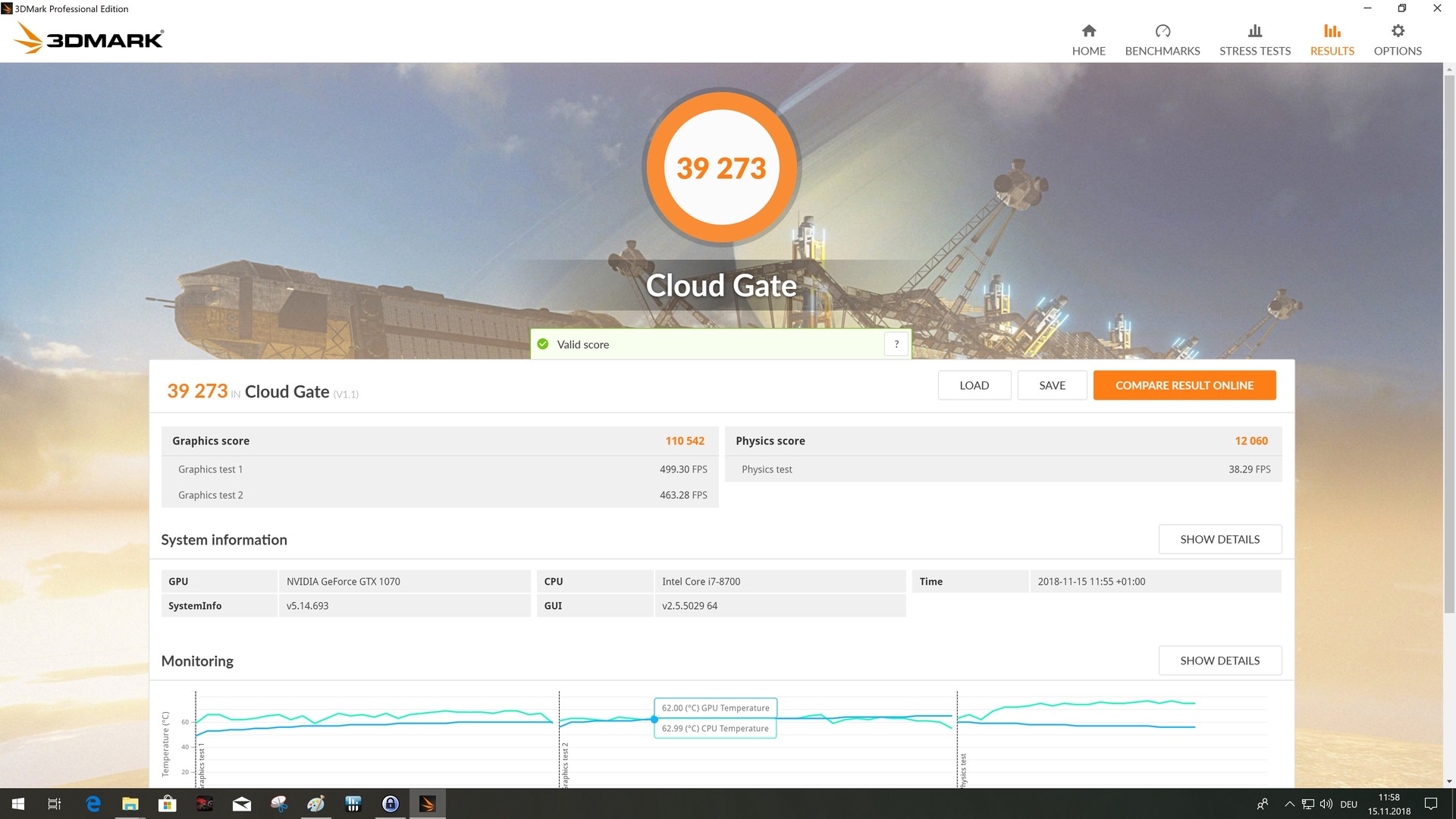

3DMark Cloud Gate Standard Score
39273 points
3DMark Fire Strike Score
16083 points
3DMark Fire Strike Extreme Score
8230 points
3DMark Time Spy Score
6106 points
Help
Performance Rating
AMD Radeon RX Vega 64
Intel Core i7-8700K
94 pt ∼94%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
88.7 pt ∼89%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
88.4 pt ∼88%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
86.8 pt ∼87%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
86.6 pt ∼87%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
86.6 pt ∼87%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
86.6 pt ∼87%
AMD Radeon RX Vega 64
Intel Core i5-8500T
83.3 pt ∼83%
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
80.8 pt ∼81%
Assassin´s Creed Odyssey
1920x1080 Ultra High Preset
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
67 (min: 30, max: 125) fps ∼100% +22%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
55 (min: 11, max: 101) fps ∼82%
AMD Radeon RX Vega 64
Intel Core i7-8700K
51 fps ∼76% -7%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
50 (min: 25, max: 75) fps ∼75% -9%
AMD Radeon RX Vega 64
Intel Core i5-8500T
50 fps ∼75% -9%
1280x720 Low Preset
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
120 (min: 52, max: 163) fps ∼100% +6%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
113 (min: 59, max: 169) fps ∼94%
AMD Radeon RX Vega 64
Intel Core i7-8700K
92 fps ∼77% -19%
AMD Radeon RX Vega 64
Intel Core i5-8500T
79 fps ∼66% -30%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
73 (min: 20, max: 101) fps ∼61% -35%
Forza Horizon 4
1920x1080 Ultra Preset AA:2xMS
AMD Radeon RX Vega 64
Intel Core i7-8700K
131 fps ∼100% +39%
AMD Radeon RX Vega 64
Intel Core i5-8500T
131 fps ∼100% +39%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
121 fps ∼92% +29%
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
112 fps ∼85% +19%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
94 fps ∼72%
1280x720 Very Low Preset
AMD Radeon RX Vega 64
Intel Core i7-8700K
234 fps ∼100% +30%
AMD Radeon RX Vega 64
Intel Core i5-8500T
203 fps ∼87% +13%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
200 fps ∼85% +11%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
180 fps ∼77%
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
141 fps ∼60% -22%
Shadow of the Tomb Raider
1920x1080 Highest Preset AA:T
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
103 fps ∼100% +37%
AMD Radeon RX Vega 64
Intel Core i7-8700K
91 fps ∼88% +21%
AMD Radeon RX Vega 64
Intel Core i5-8500T
91 fps ∼88% +21%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
85 fps ∼83% +13%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
75 fps ∼73%
1280x720 Lowest Preset
AMD Radeon RX Vega 64
Intel Core i7-8700K
188 fps ∼100% +21%
AMD Radeon RX Vega 64
Intel Core i5-8500T
155 fps ∼82% 0%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
155 fps ∼82%
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
117 fps ∼62% -25%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
107 fps ∼57% -31%
Far Cry 5
1920x1080 Ultra Preset AA:T
AMD Radeon RX Vega 64
Intel Core i7-8700K
111 (min: 90, max: 128) fps ∼100% +23%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
99 (min: 78, max: 124) fps ∼89% +10%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
98 (min: 75, max: 125) fps ∼88% +9%
AMD Radeon RX Vega 64
Intel Core i5-8500T
98 (min: 79, max: 125) fps ∼88% +9%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
96 (min: 75, max: 121) fps ∼86% +7%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
94 (min: 74, max: 117) fps ∼85% +4%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
90 (min: 78, max: 103) fps ∼81%
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
80 (min: 64, max: 107) fps ∼72% -11%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
80 (min: 61, max: 108) fps ∼72% -11%
1280x720 Low Preset AA:T
AMD Radeon RX Vega 64
Intel Core i7-8700K
144 (min: 114, max: 194) fps ∼100% +2%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
141 (min: 110, max: 179) fps ∼98%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
125 (min: 99, max: 171) fps ∼87% -11%
AMD Radeon RX Vega 64
Intel Core i5-8500T
124 (min: 98, max: 165) fps ∼86% -12%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
122 (min: 97, max: 162) fps ∼85% -13%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
118 (min: 90, max: 159) fps ∼82% -16%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
114 (min: 89, max: 154) fps ∼79% -19%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
100 (min: 82, max: 133) fps ∼69% -29%
NVIDIA Titan X Pascal
AMD Ryzen Threadripper 1950X
96 (min: 77, max: 116) fps ∼67% -32%
Final Fantasy XV Benchmark
1920x1080 High Quality
AMD Radeon RX Vega 64
Intel Core i7-8700K
61.4 (min: 39, max: 99) fps ∼100% +3%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
59.8 (min: 33, max: 93) fps ∼97% 0%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
59.6 (min: 35, max: 90) fps ∼97%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
58.9 (min: 23, max: 92) fps ∼96% -1%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
58.5 (min: 23, max: 92) fps ∼95% -2%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
58.5 (min: 23, max: 92) fps ∼95% -2%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
56.7 (min: 20, max: 89) fps ∼92% -5%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
55 (min: 19, max: 86) fps ∼90% -8%
AMD Radeon RX Vega 64
Intel Core i5-8500T
54.5 (min: 34, max: 85) fps ∼89% -9%
1280x720 Lite Quality
AMD Radeon RX Vega 64
Intel Core i7-8700K
164.4 (min: 87, max: 226) fps ∼100% +13%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
145.6 (min: 94, max: 177) fps ∼89% 0%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
145.4 (min: 95, max: 203) fps ∼88%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
143 (min: 98, max: 201) fps ∼87% -2%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
141.5 (min: 72, max: 177) fps ∼86% -3%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
133.6 (min: 88, max: 191) fps ∼81% -8%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
133.4 (min: 78, max: 177) fps ∼81% -8%
AMD Radeon RX Vega 64
Intel Core i5-8500T
68.1 (min: 49, max: 198) fps ∼41% -53%
Assassin´s Creed Origins
1920x1080 Ultra High Preset
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
72 fps ∼100%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
67 fps ∼93% -7%
AMD Radeon RX Vega 64
Intel Core i7-8700K
67 fps ∼93% -7%
AMD Radeon RX Vega 64
Intel Core i5-8500T
66 fps ∼92% -8%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
63 fps ∼88% -12%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
59 fps ∼82% -18%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
57 (min: 6, max: 93) fps ∼79% -21%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
57 fps ∼79% -21%
1280x720 Very Low Preset
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
111 fps ∼100%
AMD Radeon RX Vega 64
Intel Core i7-8700K
84 fps ∼76% -24%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
81 fps ∼73% -27%
AMD Radeon RX Vega 64
Intel Core i5-8500T
80 fps ∼72% -28%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
76 fps ∼68% -32%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
70 fps ∼63% -37%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
68 (min: 34, max: 93) fps ∼61% -39%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
67 fps ∼60% -40%
Battlefield 1
1920x1080 Ultra Preset AA:T
AMD Radeon RX Vega 64
Intel Core i7-8700K
147.7 (min: 137, max: 155) fps ∼100% +21%
AMD Radeon RX Vega 64
Intel Core i5-8500T
146 (min: 131, max: 155) fps ∼99% +20%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
145.1 (min: 131, max: 167) fps ∼98% +19%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
136 (min: 123, max: 142) fps ∼92% +11%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
135.6 (min: 124, max: 152) fps ∼92% +11%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
135.2 (min: 124, max: 148) fps ∼92% +11%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
127.1 (min: 116, max: 144) fps ∼86% +4%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
122.1 (min: 108, max: 131) fps ∼83%
1280x720 Low Preset
AMD Radeon RX Vega 64
Intel Core i7-8700K
200 (min: 186, max: 201) fps ∼100% +9%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
199.1 (min: 182, max: 201) fps ∼100% +8%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
197.6 (min: 183, max: 201) fps ∼99% +7%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
196.2 (min: 185, max: 201) fps ∼98% +7%
AMD Radeon RX Vega 64
Intel Core i5-8500T
196 (min: 181, max: 201) fps ∼98% +6%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
184.2 (min: 135, max: 199) fps ∼92%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
181.4 (min: 141, max: 194) fps ∼91% -2%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
173 (min: 161, max: 185) fps ∼87% -6%
Rise of the Tomb Raider
1920x1080 Very High Preset AA:FX AF:16x
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
105.7 (min: 90, max: 116) fps ∼100% +6%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
99.7 (min: 90, max: 108) fps ∼94%
AMD Radeon RX Vega 64
Intel Core i7-8700K
99 (min: 85, max: 112) fps ∼94% -1%
AMD Radeon RX Vega 64
Intel Core i5-8500T
96.6 (min: 83, max: 107) fps ∼91% -3%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
94.7 (min: 78, max: 106) fps ∼90% -5%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
94 (min: 82, max: 103) fps ∼89% -6%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
91.5 (min: 82, max: 103) fps ∼87% -8%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
91.3 (min: 79, max: 101) fps ∼86% -8%
1024x768 Lowest Preset
AMD Radeon RX Vega 64
Intel Core i7-8700K
281.7 (min: 266, max: 303) fps ∼100% +4%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
271.4 (min: 263, max: 279) fps ∼96%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
263.8 (min: 256, max: 274) fps ∼94% -3%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
263.7 (min: 256, max: 276) fps ∼94% -3%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
262.2 (min: 252, max: 300) fps ∼93% -3%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
258.9 (min: 230, max: 274) fps ∼92% -5%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
253.2 (min: 243, max: 262) fps ∼90% -7%
AMD Radeon RX Vega 64
Intel Core i5-8500T
221.6 (min: 204, max: 244) fps ∼79% -18%
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
80.9 (min: 68, max: 87) fps ∼100% +28%
AMD Radeon RX Vega 64
Intel Core i7-8700K
79.4 (min: 70, max: 86) fps ∼98% +26%
AMD Radeon RX Vega 64
Intel Core i5-8500T
77.7 (min: 67, max: 86) fps ∼96% +23%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
77 (min: 67, max: 84) fps ∼95% +22%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
73.3 (min: 62, max: 82) fps ∼91% +16%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
73.3 (min: 62, max: 80) fps ∼91% +16%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
69.4 (min: 58, max: 76) fps ∼86% +10%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
63.2 fps ∼78%
1024x768 Low Graphics & Postprocessing
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
318.2 (min: 289, max: 352) fps ∼100% +16%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
298.7 (min: 259, max: 354) fps ∼94% +9%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
285.1 (min: 259, max: 331) fps ∼90% +4%
AMD Radeon RX Vega 64
Intel Core i7-8700K
284.8 (min: 216, max: 294) fps ∼90% +4%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
283.7 (min: 248, max: 321) fps ∼89% +4%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
273.3 fps ∼86%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
258.5 (min: 219, max: 295) fps ∼81% -5%
AMD Radeon RX Vega 64
Intel Core i5-8500T
225.9 (min: 176, max: 251) fps ∼71% -17%
Battlefield 4
1920x1080 Ultra Preset AA:4x MS
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
158.4 (min: 144, max: 192) fps ∼100%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
142.5 (min: 132, max: 172) fps ∼90% -10%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
139.5 (min: 130, max: 169) fps ∼88% -12%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
139.5 (min: 130, max: 169) fps ∼88% -12%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
137.2 (min: 125, max: 173) fps ∼87% -13%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
136.3 (min: 126, max: 174) fps ∼86% -14%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
133.1 (min: 121, max: 159) fps ∼84% -16%
1024x768 Low Preset
AMD Radeon RX Vega 64
AMD Ryzen 7 2700X
200 (min: 190, max: 202) fps ∼100% 0%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600X
200 (min: 192, max: 201) fps ∼100% 0%
NVIDIA GeForce GTX 1070 (Desktop)
Intel Core i7-8700
200 (min: 195, max: 202) fps ∼100%
AMD Radeon RX Vega 64
AMD Ryzen 5 2600
199.9 (min: 190, max: 201) fps ∼100% 0%
AMD Radeon RX Vega 64
AMD Ryzen 7 2700
199.6 (min: 194, max: 202) fps ∼100% 0%
AMD Radeon RX Vega 64
AMD Ryzen Threadripper 2950X
191.8 (min: 178, max: 200) fps ∼96% -4%
0510152025303540455055606570Tooltip
MSI Aegis 3 8RD GeForce GTX 1070 (Desktop), 8700, Intel SSD 760p SSDPEKKW256G8; The Witcher 3: Ø63.6 (61-65)
low med. high ultra4K
Battlefield 4 (2013) 200200200158.478fps
GTA V (2015) 174.1168.6148101.489.5fps
The Witcher 3 (2015) 273.3194.411663.242.3fps
Rainbow Six Siege (2015) 322.9279.7207.218974.9fps
Rise of the Tomb Raider (2016) 271.4195.411999.742fps
Far Cry Primal (2016) 1541311169441fps
The Division (2016) 245.9192.1109.386.542.2fps
Overwatch (2016) 300297.2279.7176.860.8fps
Deus Ex Mankind Divided (2016) 160.714487.262.929.6fps
Battlefield 1 (2016) 184.2164.2134.5122.147.7fps
Dishonored 2 (2016) 118.8118.4111.4102.145.2fps
Watch Dogs 2 (2016) 166.5120.888.16433.8fps
For Honor (2017) 298.6151.7143.4115.747fps
Ghost Recon Wildlands (2017) 174.199.89253.234.4fps
Rocket League (2017) 242.5248205.996.1fps
Dirt 4 (2017) 308.9234.517195.956.3fps
Playerunknown's Battlegrounds (PUBG) (2017) 182.8153.3136.9110.641.8fps
Destiny 2 (2017) 183.5156.8148.7129.245.8fps
Assassin´s Creed Origins (2017) 11194867232fps
Call of Duty WWII (2017) 256.8249156120.260.4fps
Fortnite (2018) 247226.5169.2124.938.4fps
Final Fantasy XV Benchmark (2018) 145.48559.627fps
Kingdom Come: Deliverance (2018) 138.8103.282.863.222fps
Far Cry 5 (2018) 141103969035fps
The Crew 2 (2018) 6060606041.3fps
Monster Hunter World (2018) 166.8102.393.572.222.4fps
F1 2018 (2018) 2491771429547fps
Shadow of the Tomb Raider (2018) 15593867525fps
FIFA 19 (2018) 273.3248.7232.1229.3117.4fps
Forza Horizon 4 (2018) 1801271189452fps
Assassin´s Creed Odyssey (2018) 11389765526fps
Call of Duty Black Ops 4 (2018) 224.7199.5196.7184.5104.6fps
Hitman 2 (2018) 92.791.483.280.239.7fps
Fallout 76 (2018) 606059.959.943.3fps
Battlefield V (2018) 177.3136.6117.5106.744.9fps
Combined FurMark and Prime95 stress test
Combined FurMark and Prime95 stress test

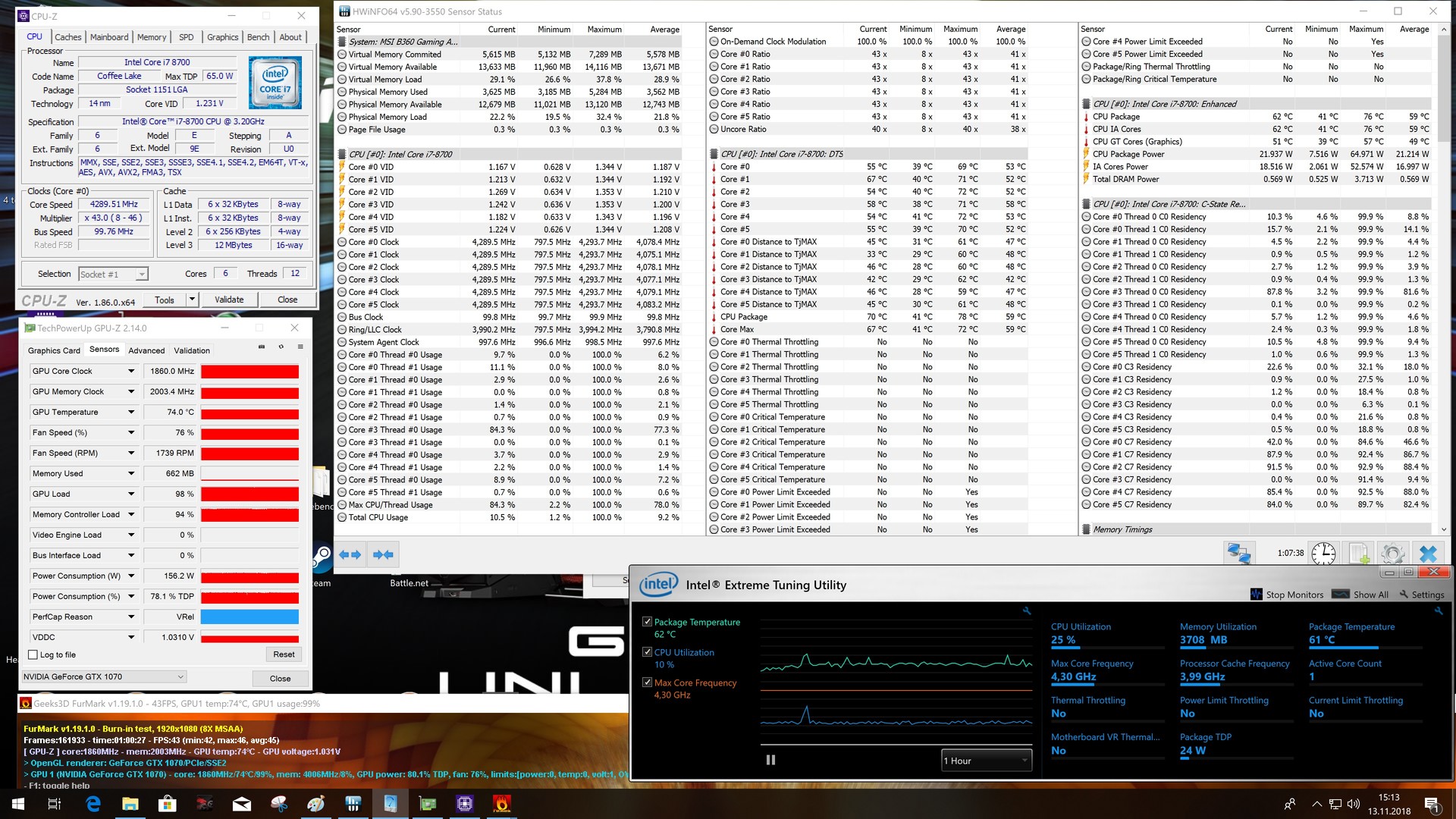

FurMark stress test
FurMark stress test
3DMark Sky Diver stress test
3DMark Sky Diver stress test

The power consumption of our test system

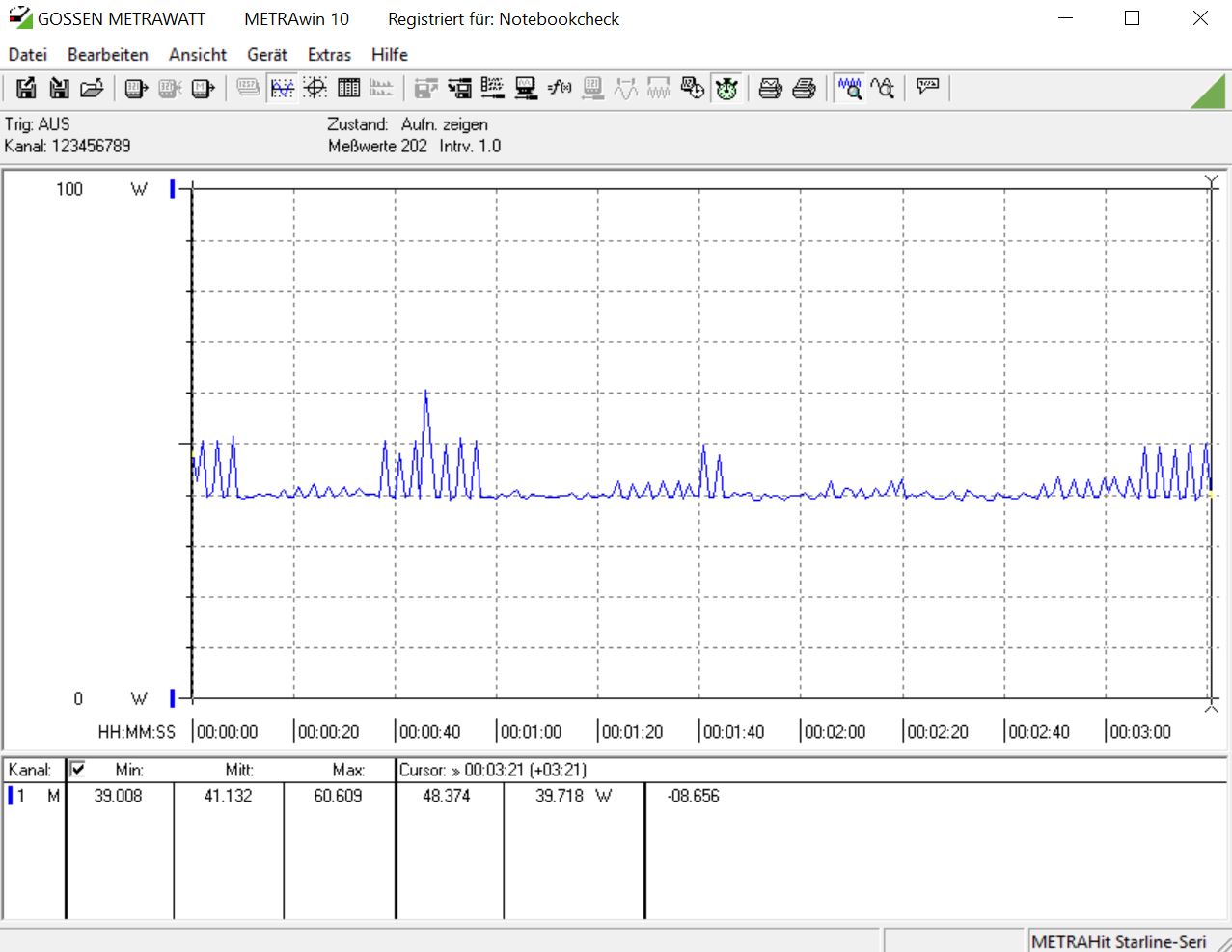

At idle
At idle

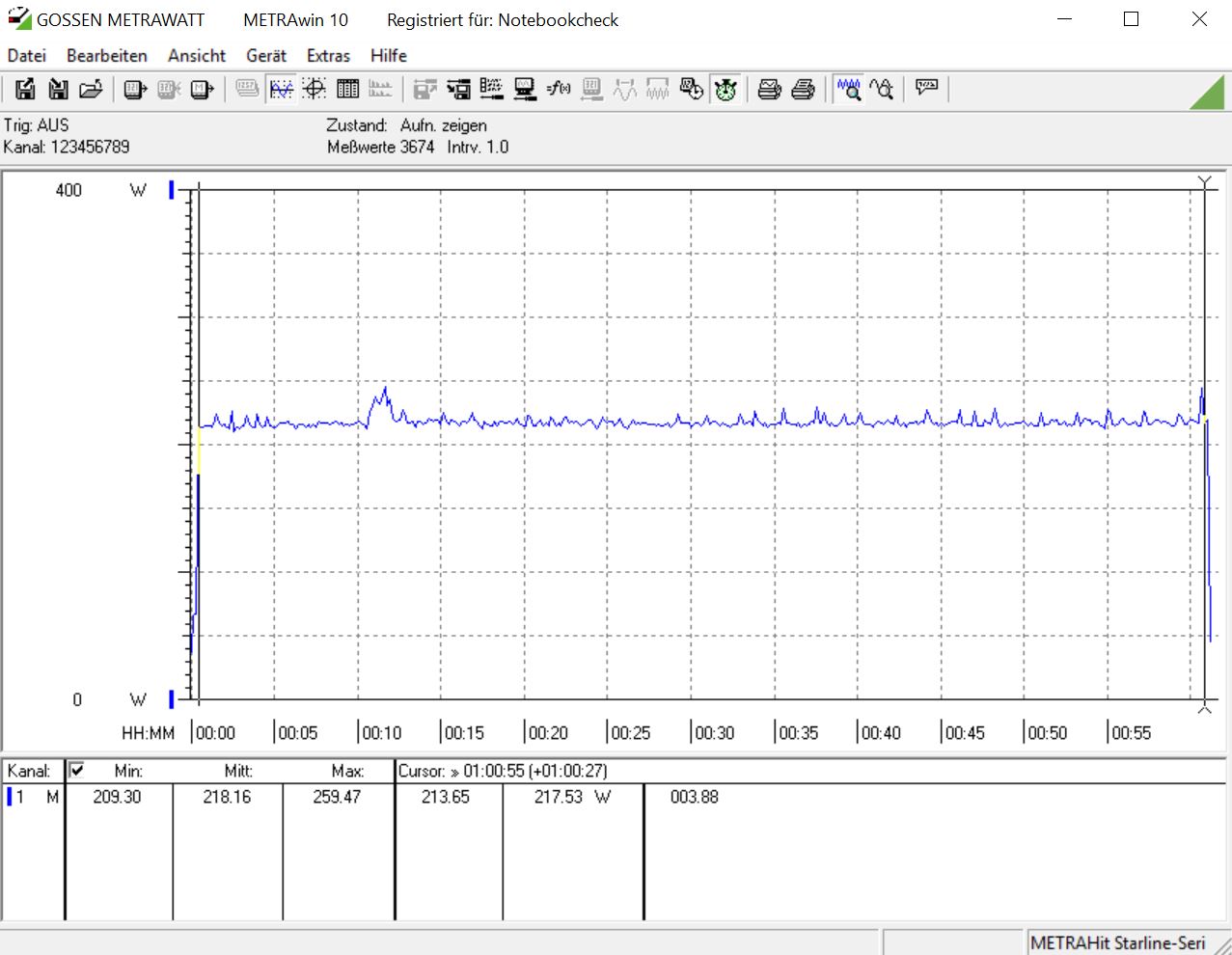

During a one-hour FurMark stress test
During a one-hour FurMark stress test

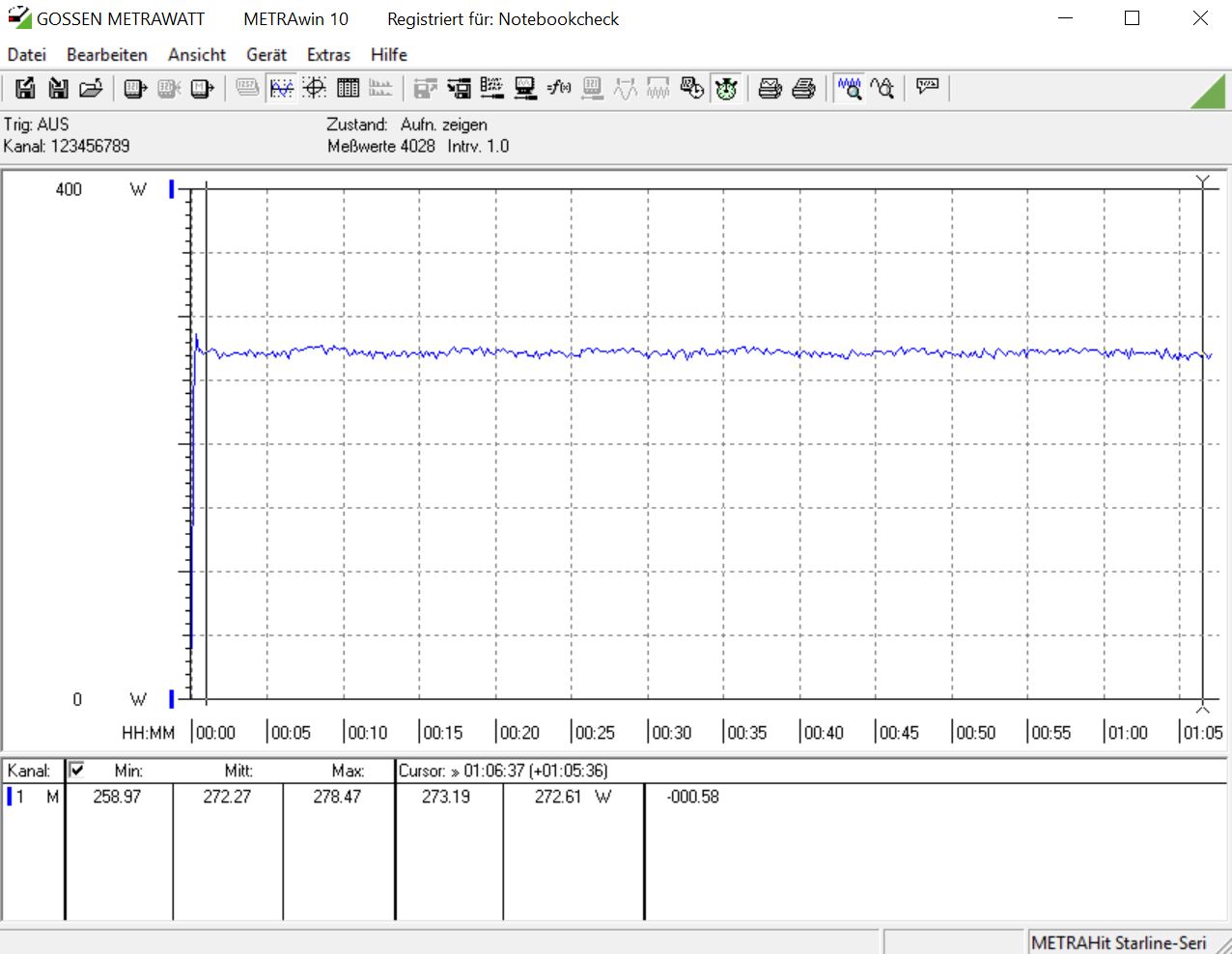

During a one-hour FurMark and Prime95 stress test
During a one-hour FurMark and Prime95 stress test

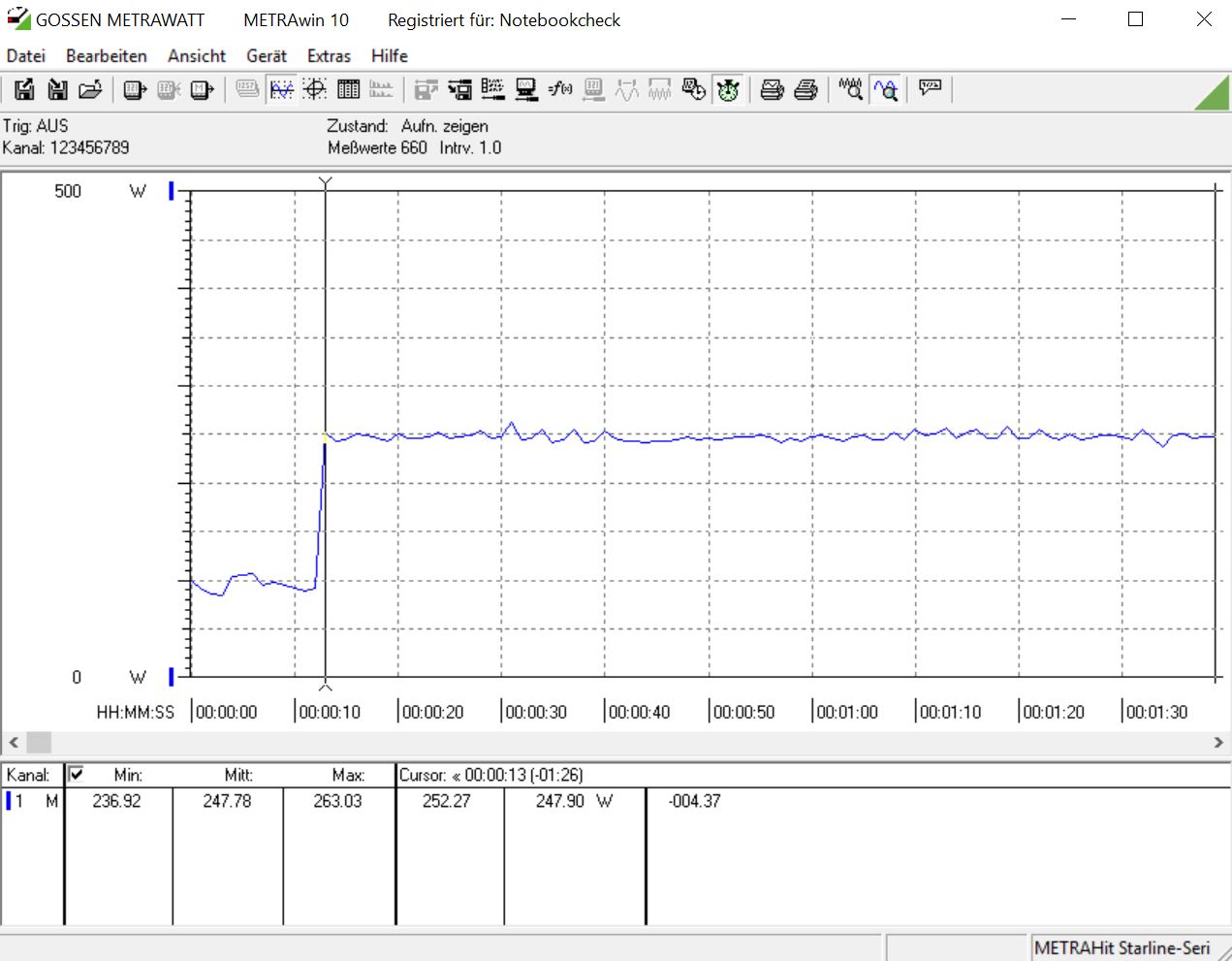

While playing The Witcher 3 1,080p on the ultra preset
While playing The Witcher 3 1,080p on the ultra preset
Power Consumption
Prime95 V28,10 Stress Power Consumption (external Monitor) ultra
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
270 Watt * ∼100% -140%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
157.5 Watt * ∼58% -40%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
140.85 Watt * ∼52% -25%
Intel Core i5-8500T
AMD Radeon RX Vega 64
132.7 (min: 120, max: 145) Watt * ∼49% -18%
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
112.3 Watt * ∼42%
Cinebench R15 Multi Power Consumption (external Monitor) ultra
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
263 Watt * ∼100% -133%
AMD Ryzen 7 2700X
AMD Radeon RX Vega 64
219.2 Watt * ∼83% -94%
AMD Ryzen 5 2600X
AMD Radeon RX Vega 64
164.45 (min: 159.3, max: 165.75) Watt * ∼63% -46%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
149.52 Watt * ∼57% -33%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
143.17 Watt * ∼54% -27%
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
112.8 Watt * ∼43%
Intel Core i5-8500T
AMD Radeon RX Vega 64
108.1 (min: 106, max: 110) Watt * ∼41% +4%
1280x720 FurMark 1.19 GPU Stress Test - Power Consumption (external Monitor)
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
218.2 Watt * ∼100%
1920x1080 The Witcher 3 Power Consumption (external Monitor) ultra
AMD Ryzen 5 2600X
AMD Radeon RX Vega 64
421 Watt * ∼100% -70%
AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
411 Watt * ∼98% -66%
AMD Ryzen 7 2700X
AMD Radeon RX Vega 64
408 Watt * ∼97% -65%
AMD Ryzen 5 2600
AMD Radeon RX Vega 64
396.49 (min: 376, max: 415) Watt * ∼94% -60%
AMD Ryzen 7 2700
AMD Radeon RX Vega 64
378.2 Watt * ∼90% -53%
Intel Core i5-8500T
AMD Radeon RX Vega 64
353.6 (min: 271, max: 395) Watt * ∼84% -43%
Intel Core i7-8700
NVIDIA GeForce GTX 1070 (Desktop)
247.8 Watt * ∼59%

* ... smaller is better

Pros

+ 高性能六核处理器,TDP 65W
+ Nvidia GeForce GTX 1070 GPU
+ 256 GB NVMe SSD
+ 1 TB HDD & 英特尔傲腾内存
+ USB接口很多
+ 紧凑的机箱
+ 游戏性能很强
+ 相对较低的功耗
+ WiFi ac
+ 蓝牙5.0

Cons

- 外壳看起来廉价
- 非标准ATX主板
- 原装CPU风扇在符合下声音较大
微星宙斯盾Aegis 3 8RD主机评测. Test device courtesy of MSI Germany.
微星宙斯盾Aegis 3 8RD主机评测. Test device courtesy of MSI Germany.

微星宙斯盾Aegis 3 8RD是一款紧凑型游戏PC,在撰写本文时售价约为12000元。它配备了高性能六核CPU和不错的显卡。简而言之,Aegis 3 8RD可以在最大程度上流程地运行新的3A游戏。

i7-8700不是英特尔的最新CPU,它早在去年就发布了。然而,它性能足够,物超所值。Nvidia GeForce GTX 1070 GPU也是如此,但为机器配备AMD Radeon RX Vega 56可进一步降低游戏时的功耗。

“微星宙斯盾Aegis 3 8RD是一款紧凑型游戏台式电脑,可轻松运行3A游戏。该机器也具有很好的散热,这确保即使到极限负载,系统也不会降频。如果买家选择Aegis 3 8RD而不是自己组装电脑,肯定不会有什么差错。简而言之,微星Aegis 3 8RD非常适合作为局域网游戏派对的第二台主机或客厅游戏PC。“

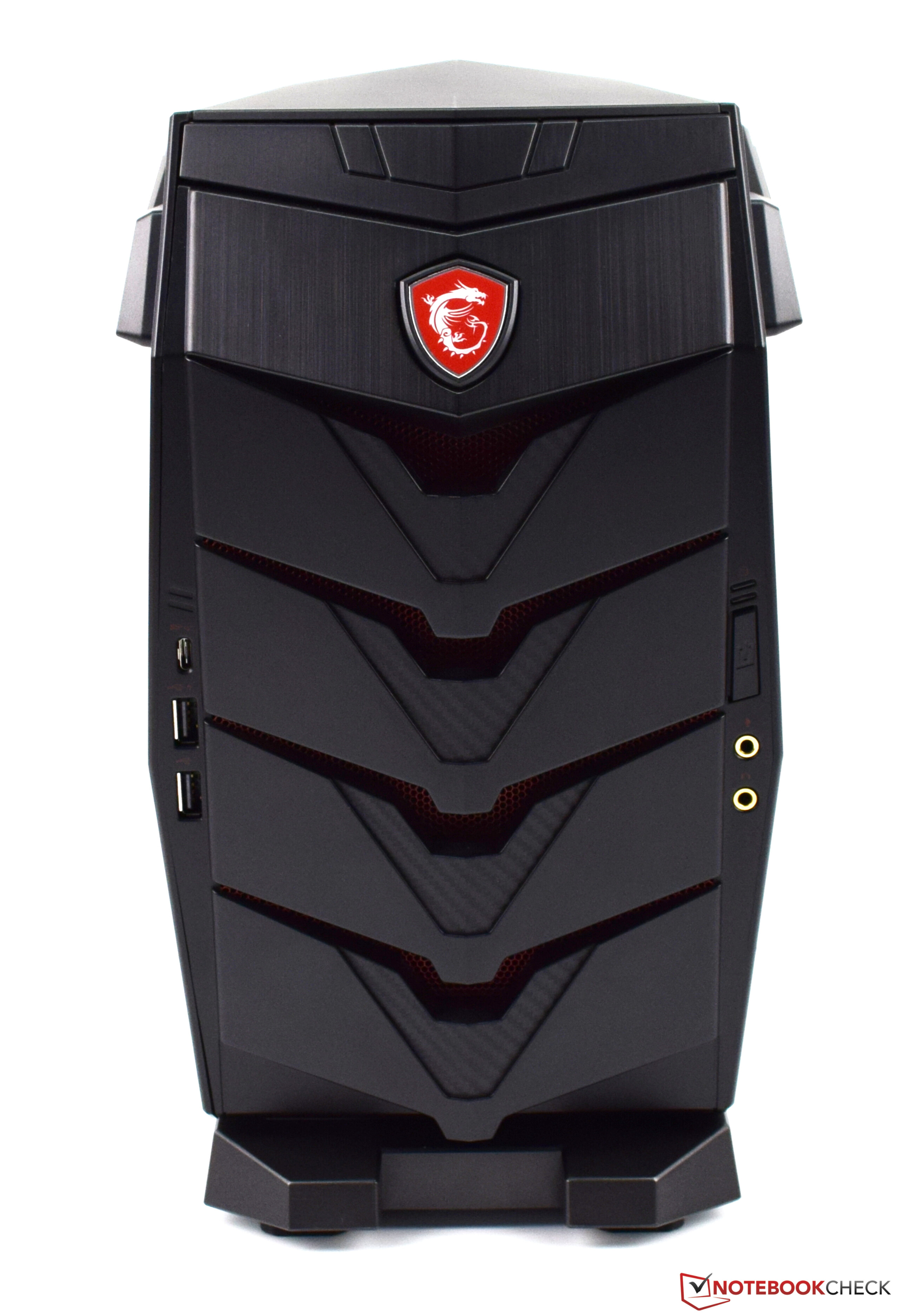

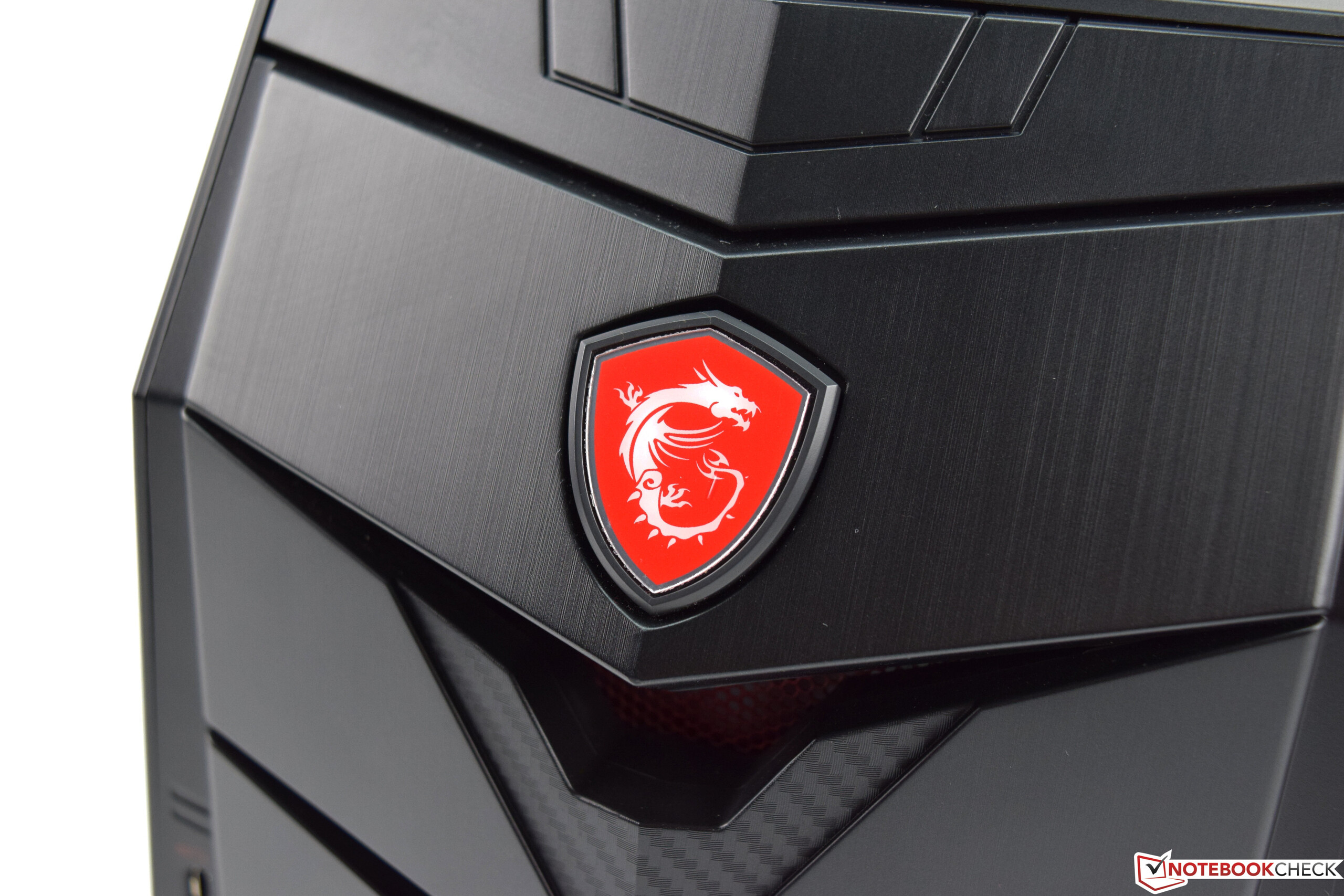

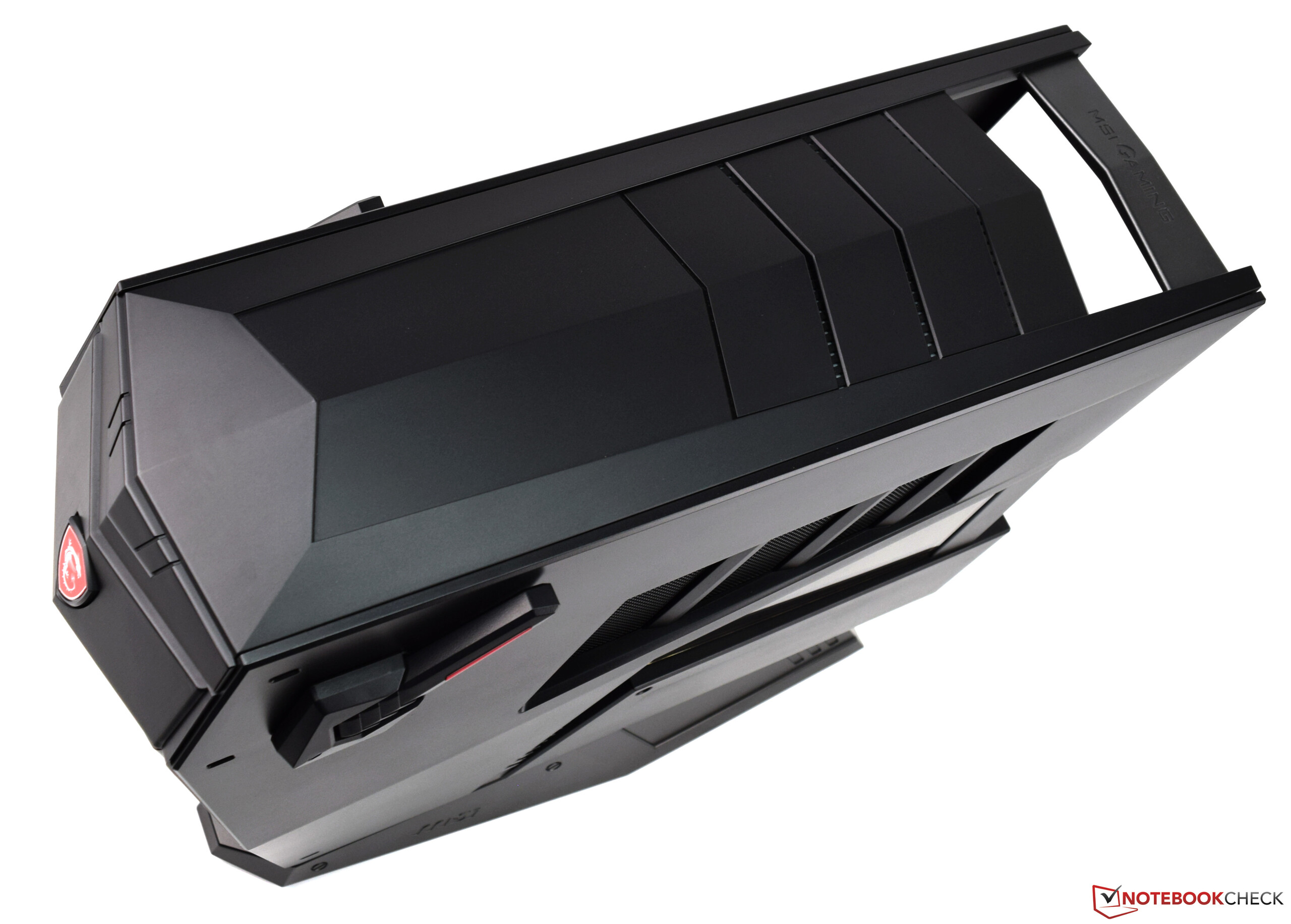

Aegis 3 8RD采用相对紧凑的19.6升外壳,并采用RGB照明装饰。如果发现它分散注意力或没什么用,用户可以选择关闭。我们希望能有更优质的外壳,因为塑料镶板看起来不像是一台1万2的机子应该有的。

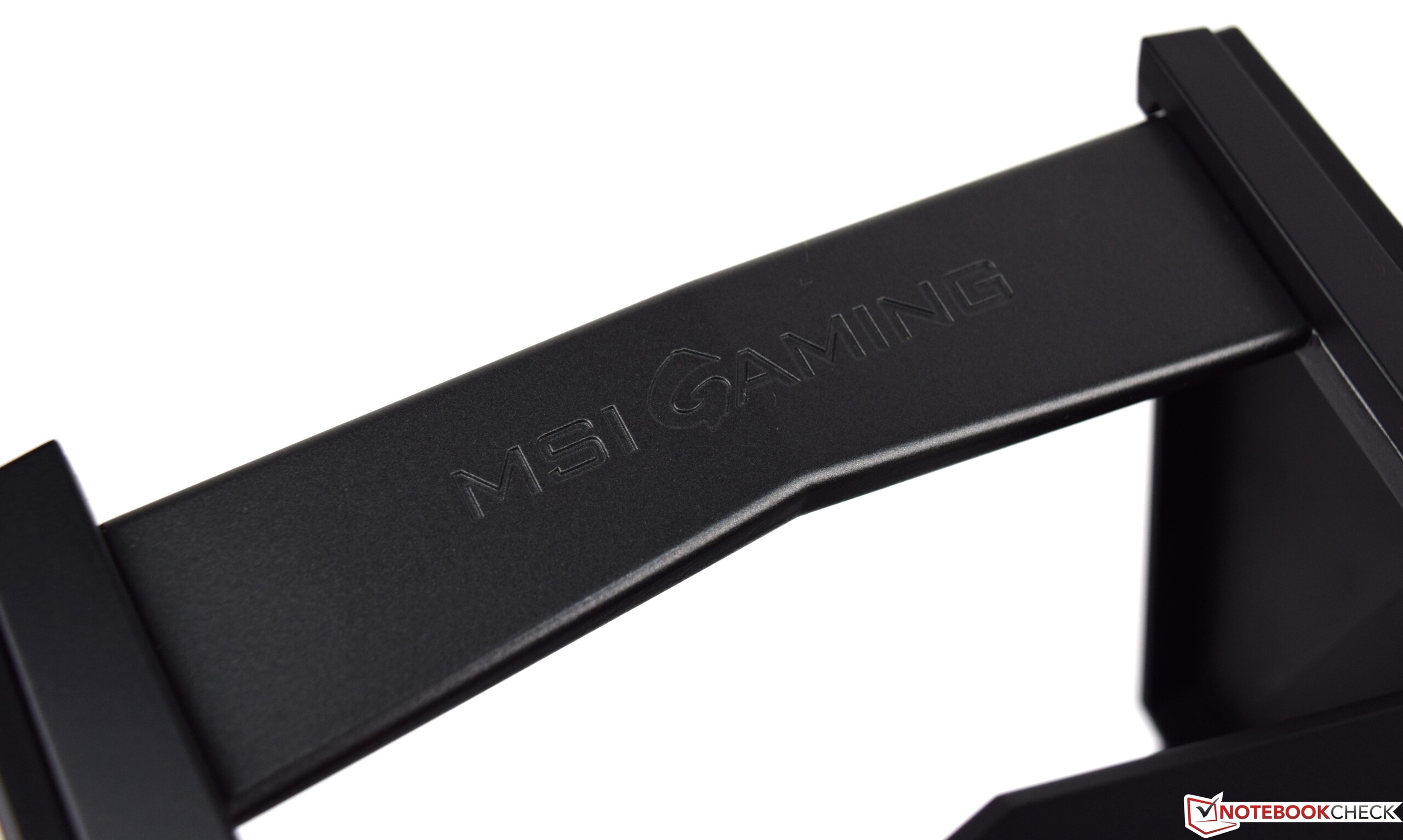

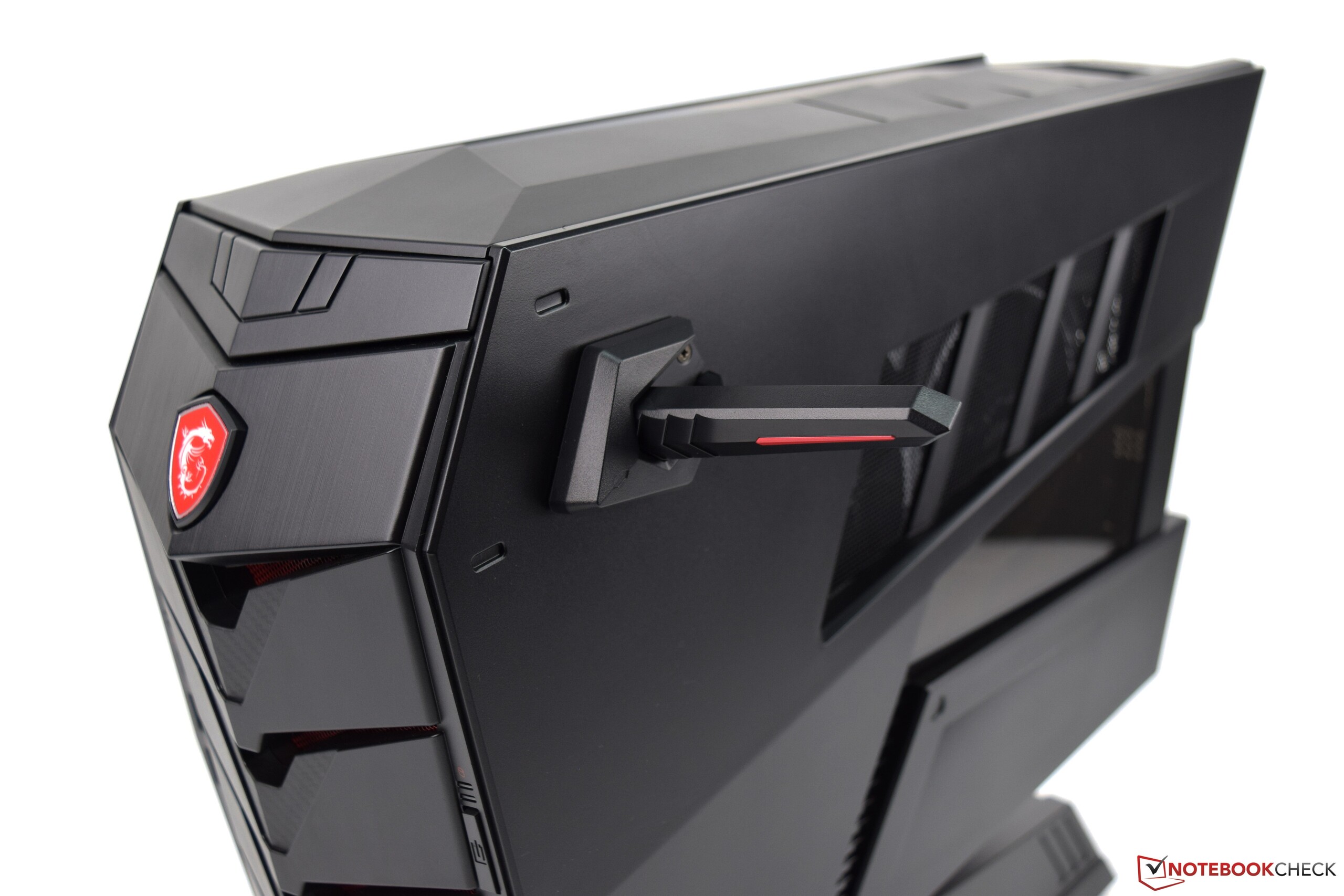

携带把手很有用,塑料的使用使整个系统的重量保持在10公斤以下,这使得Aegis 3 8RD在局域网游戏派对时相对容易携带。

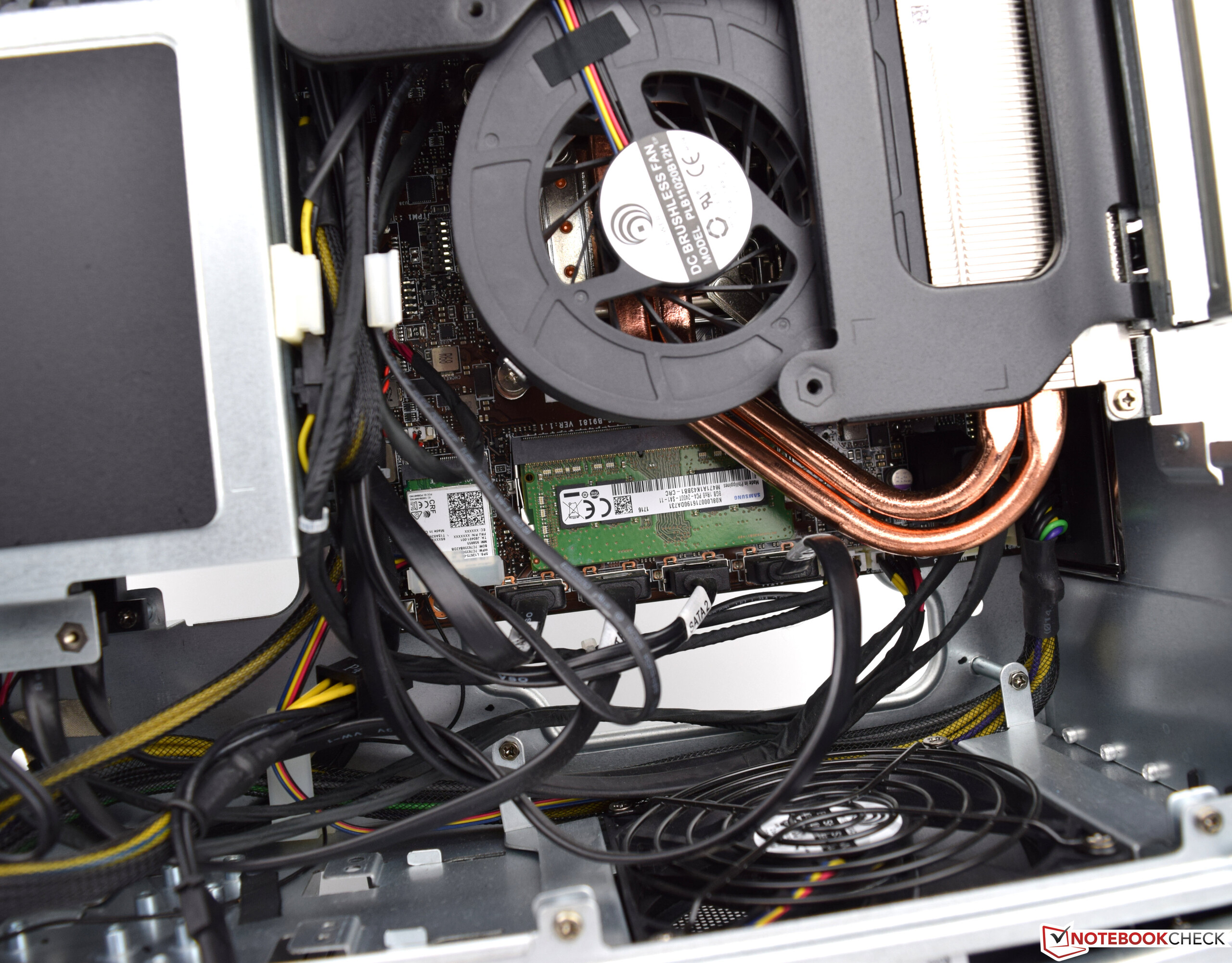

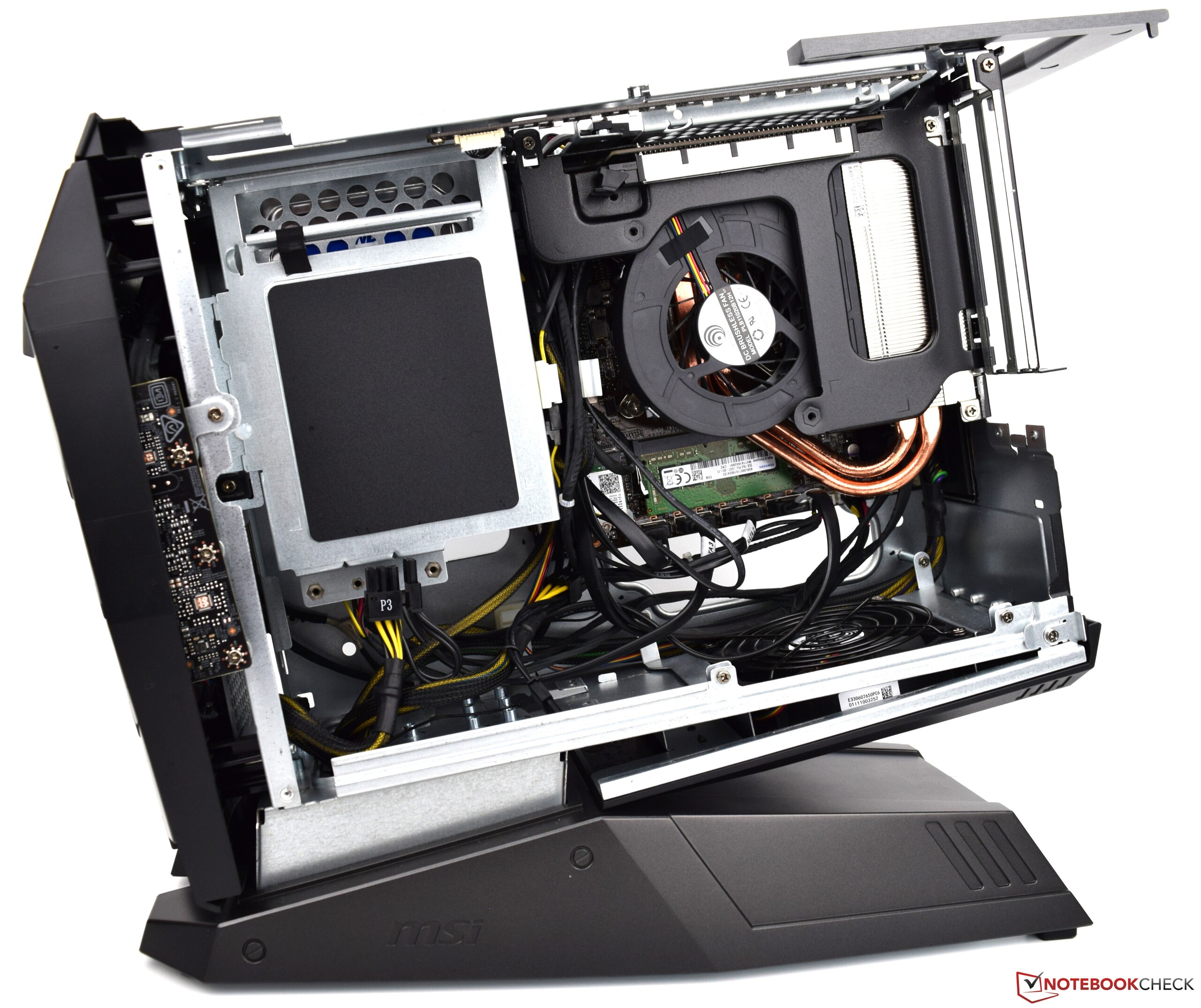

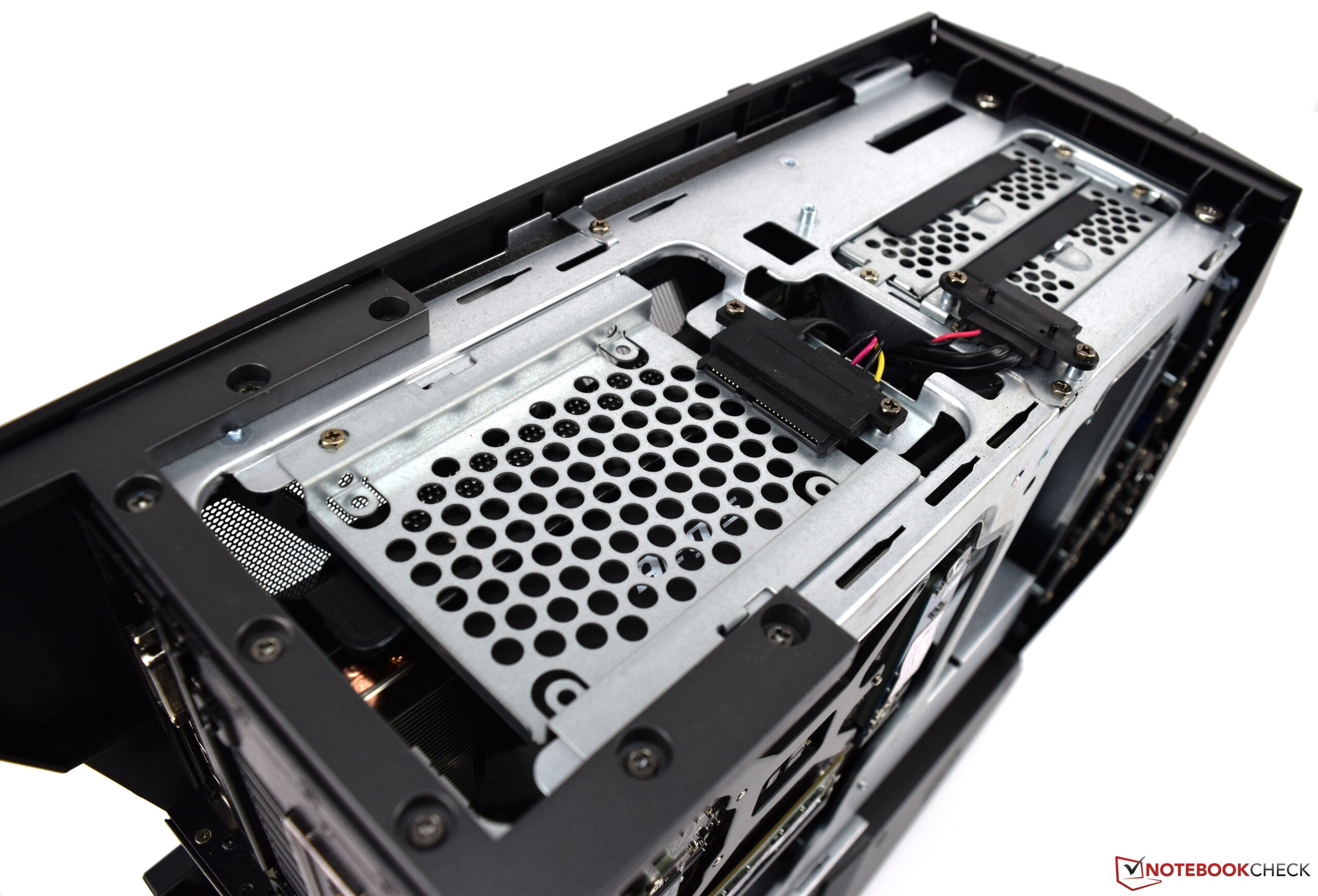

该机器有五个驱动器托架和1.2 TB的存储空间,对大多数人来说应该足够了。虽然有预先连接备用的2.5英寸和3.5英寸驱动器托架,但您可以简单地放入其他驱动器而无需重新格式化系统。

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 微星宙斯盾Aegis 3 8RD(Core i7-8700, GTX 1070, 16 GB)主机评测
Sebastian Bade, 2018-12-25 (Update: 2018-12-25)
