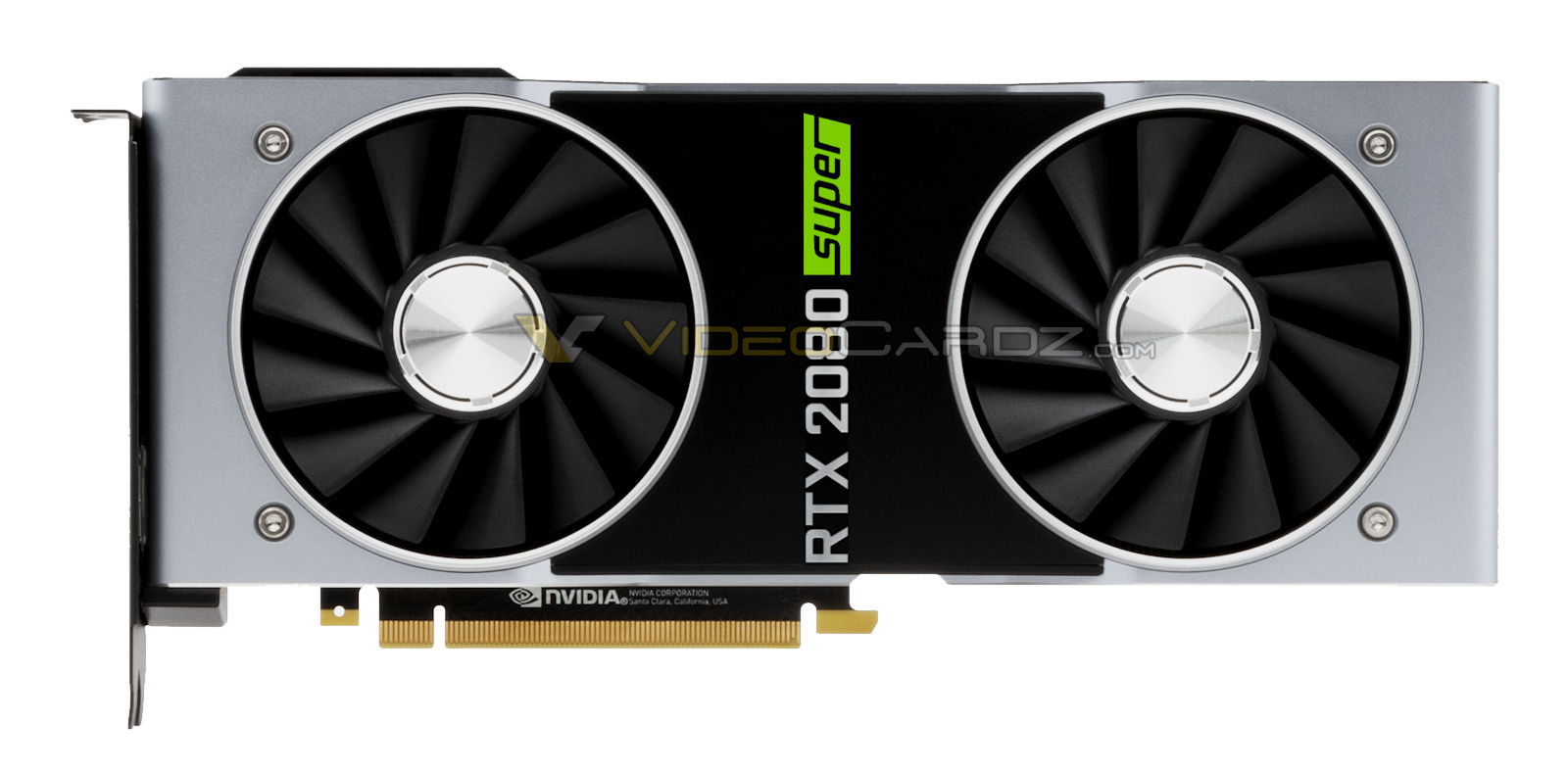

NVIDIA GeForce RTX 2080 Super (Desktop)

NVIDIA GeForce RTX 2080 Super (Desktop)

NVIDIA GeForce RTX 2080 Super或2080S性能仅次于GeForce RTX 2080 Ti,成为NVIDIA当前Turing产品阵容中第二快的台式机GPU(2019年)。它是RTX 2080(台式机)的更新,性能略高。该GPU基于TU104芯片,提供了3,072个内核(从2,944个内核)。 VRAM仍为8 GB GDDR6,但现在主频为15.5 GHz(496 GB / s与14 GHz和448 GB / s)。

特征

NVIDIA以2 nm FinFET工艺制造TU104芯片,并包含深度学习超级采样(DLSS)和实时光线追踪(RTRT)等功能,与基于公司Pascal架构的旧GPU相比,它们应结合起来可产生更逼真的照明效果(如果游戏支持)。 RTX 2080还支持DisplayPort 1.4,同时还支持HDMI 2.0b,HDR,同时多投影(SMP)和H.265视频编码/解码(PlayReady 3.0)。

性能

RTX 2080 Super的性能略胜于较早的Nvidia Titan XP,当然还胜过RTX 2080。因此,RTX2080S位于绝对高端,非常适合高或极高特效的4k游戏。但是,使用光线跟踪功能可能需要降分辨率。

电源要求

NVIDIA估计RTX 2080 Super的最大功耗应为250 W,这比该公司对GeForce GTX 2080的高35W。

ManufacturerNVIDIA
GeForce RTX 2000 Series
NVIDIA Titan RTX 4608 @ 1350 - 1770 MHz384 Bit @ 14000 MHz
GeForce RTX 2080 Ti (Desktop) 4352 @ 1350 - 1545 MHz352 Bit @ 14000 MHz
GeForce RTX 2080 Super (Desktop) 3072 @ 1650 - 1815 MHz256 Bit @ 15500 MHz
GeForce RTX 2080 (Desktop) 2944 @ 1515 - 1710 MHz256 Bit @ 14000 MHz
GeForce RTX 2080 Super Mobile 3072 @ 1365 - 1560 MHz256 Bit @ 14000 MHz
GeForce RTX 2080 Mobile 2944 @ 1380 - 1590 MHz256 Bit @ 14000 MHz
GeForce RTX 2080 Super Max-Q 3072 @ 975 - 1230 MHz256 Bit @ 11000 MHz
GeForce RTX 2080 Max-Q 2944 @ 735-990 - 1095-1230 MHz256 Bit @ 12000 MHz
GeForce RTX 2070 Super (Desktop) 2560 @ 1605 - 1770 MHz256 Bit @ 14000 MHz
GeForce RTX 2070 (Desktop) 2304 @ 1410 - 1620 MHz256 Bit @ 14000 MHz
GeForce RTX 2070 Super Mobile 2560 @ 1140 - 1380 MHz256 Bit @ 14002 MHz
GeForce RTX 2070 Mobile 2304 @ 1215 - 1440 MHz256 Bit @ 14000 MHz
GeForce RTX 2060 Super (Desktop) 2176 @ 1470 - 1650 MHz256 Bit @ 14000 MHz
GeForce RTX 2060 (Desktop) 1920 @ 1320 - 1620 MHz192 Bit @ 14000 MHz
GeForce RTX 2070 Super Max-Q 2560 @ 930 - 1155 MHz256 Bit @ 11000 MHz
GeForce RTX 2070 Max-Q 2304 @ 885-1080 - 1185-1305 MHz256 Bit @ 12000 MHz
GeForce RTX 2060 Mobile 1920 @ 960 - 1200 MHz192 Bit @ 14000 MHz
GeForce RTX 2060 Max-Q 1920 @ 975 - 1185 MHz192 Bit @ 11000 MHz
CodenameTuring TU104
ArchitectureTuring
Pipelines3072 - unified
Core Speed1650 - 1815 (Boost) MHz
Memory Speed15500 MHz
Memory Bus Width256 Bit
Memory TypeGDDR6
Max. Amount of Memory8192 MB
Shared Memoryno
DirectXDirectX 12_1, Shader 6.4
Transistor Count13600 Million
technology12 nm
FeaturesDLSS, Raytraycing, NVLink, VR Ready, G-SYNC, Vulkan, Multi Monitor, 650 Watt system power recommended
Date of Announcement02.07.2019

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
71.6 pt (74%)
Intel HD Graphics (Bay Trail) -98%
...
NVIDIA Quadro P5200 -14%
NVIDIA GeForce RTX 2060 Super (Desktop) -13%
NVIDIA Titan X Pascal -10%
AMD Radeon RX Vega 56 -10%
NVIDIA GeForce GTX 1080 Mobile -8%
AMD Radeon RX Vega 64 -5%
AMD Radeon RX 5700 (Desktop) -4%
AMD Radeon RX 5600 XT (Desktop) -1%
NVIDIA GeForce RTX 2080 Super (Desktop)
AMD Radeon VII 6%
AMD Radeon RX 5700 XT (Desktop) 9%
NVIDIA GeForce RTX 2080 (Desktop) 9%
NVIDIA GeForce GTX 1070 SLI (Desktop) 14%
...
0%
100%
3DMark - Time Spy Score 2560x1440
min: 9969     avg: 10450     median: 10450 (71%)     max: 10931 Points
3DMark - Time Spy Graphics 2560x1440
min: 11423     avg: 11450     median: 11450 (76%)     max: 11477 Points
3DMark - Ice Storm Unlimited Graphics Score 1280x720 offscreen
min: 434157     avg: 475022     median: 475022 (87%)     max: 515887 Points
3DMark - Ice Storm Extreme Graphics 1920x1080
276319 Points (38%)
3DMark - Cloud Gate Standard Score 1280x720
min: 37925     avg: 41055     median: 41054.5 (61%)     max: 44184 Points
3DMark - Cloud Gate Standard Graphics 1280x720
min: 137520     avg: 144832     median: 144832 (74%)     max: 152144 Points
3DMark - Fire Strike Score 1920x1080
min: 21093     avg: 21767     median: 21767 (73%)     max: 22441 Points
3DMark - Fire Strike Graphics 1920x1080
min: 27075     avg: 28022     median: 28021.5 (69%)     max: 28968 Points
3DMark - Ice Storm Standard Graphics 1280x720
285953 Points (38%)
3DMark 11 - Performance 1280x720
min: 25920     avg: 26416     median: 26415.5 (68%)     max: 26911 points
3DMark 11 - Performance GPU 1280x720
min: 37958     avg: 39738     median: 39738 (78%)     max: 41518 points
...
NVIDIA Titan X Pascal -23%
AMD Radeon RX 5700 (Desktop) -21%
NVIDIA GeForce RTX 2080 Super Mobile -14%
AMD Radeon RX 5700 XT (Desktop) -10%
AMD Radeon VII -5%
NVIDIA GeForce RTX 2080 Super (Desktop)
NVIDIA GeForce RTX 2080 (Desktop) 1%
NVIDIA GeForce GTX 1070 SLI (Desktop) 7%
NVIDIA Titan RTX 20%
...
0%
100%
3DMark 05 - Standard 1024x768
43011 Points (81%)
3DMark 06 Standard 1280x1024 +
Unigine Valley 1.0 - Extreme HD DirectX 1920x1080
120 fps (72%)
SPECviewperf 12
Solidworks (sw-03) 1900x1060 +
Siemens NX (snx-02) 1900x1060 +
Showcase (showcase-01) 1900x1060 +
Medical (medical-01) 1900x1060 +
Maya (maya-04) 1900x1060 +
Energy (energy-01) 1900x1060 +
Creo (creo-01) 1900x1060 +
Catia (catia-04) 1900x1060 +
3ds Max (3dsmax-05) 1900x1060 +
SPECviewperf 13 Solidworks (sw-04) +
Siemens NX (snx-03) +
Showcase (showcase-02) +
Medical (medical-02) +
Maya (maya-05) +
Energy (energy-02) +
Creo (creo-02) +
Catia (catia-05) +
3ds Max (3dsmax-06) +
LuxMark v2.0 64Bit - Room GPUs-only
3430 Samples/s (35%)
LuxMark v2.0 64Bit - Sala GPUs-only
7878 Samples/s (73%)
ComputeMark v2.1 - Normal, Score 1024x600
21009 Points (75%)
Power Consumption - FurMark 1.19 GPU Stress Test - Power Consumption (external Monitor) 1280x720 *
min: 328     avg: 373     median: 376.8 (86%)     max: 413.6 Watt
Power Consumption - The Witcher 3 Power Consumption (external Monitor) ultra 1920x1080 *
min: 336     avg: 378     median: 382.8 (82%)     max: 416.1 Watt
Clock Speed - GPU Clock Witcher 3 ultra
min: 1883     avg: 1902     median: 1901.5 (99%)     max: 1920 MHz
Clock Speed - GPU Clock Speed Furmark 1.19 GPU Stress Test 1280x720
1741 MHz (100%)
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Gears Tactics

Gears Tactics

2020
low 1280x720
323.2  fps    + Compare
med. 1920x1080
228.5  fps    + Compare
high 1920x1080
151  fps    + Compare
ultra 1920x1080
118.5  fps    + Compare
QHD 2560x1440
81.6  fps    + Compare
4K 3840x2160
48.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
242  fps    + Compare
med. 1920x1080
223  fps    + Compare
high 1920x1080
219  fps    + Compare
ultra 1920x1080
217  fps    + Compare
QHD 2560x1440
163  fps    + Compare
4K 3840x2160
86.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
254  fps    + Compare
med. 1920x1080
170  fps    + Compare
high 1920x1080
142  fps    + Compare
QHD 2560x1440
96.6  fps    + Compare
4K 3840x2160
46.8  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1280x720
120  fps    + Compare
med. 1920x1080
118  fps    + Compare
high 1920x1080
117  fps    + Compare
ultra 1920x1080
111  fps    + Compare
QHD 2560x1440
90.2  fps    + Compare
4K 3840x2160
53.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
144  fps    + Compare
med. 1920x1080
126  fps    + Compare
high 1920x1080
93  fps    + Compare
ultra 1920x1080
61  fps    + Compare
QHD 2560x1440
50.6  fps    + Compare
4K 3840x2160
33  fps    + Compare
» With all tested laptops playable in detail settings ultra.
med. 1920x1080
122  fps    + Compare
high 1920x1080
120  fps    + Compare
ultra 1920x1080
118  fps    + Compare
QHD 2560x1440
107  fps    + Compare
4K 3840x2160
59.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
114  fps    + Compare
med. 1920x1080
108  fps    + Compare
high 1920x1080
100  fps    + Compare
ultra 1920x1080
92  fps    + Compare
QHD 2560x1440
90  fps    + Compare
4K 3840x2160
56.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
203  fps    + Compare
med. 1920x1080
191  fps    + Compare
high 1920x1080
163  fps    + Compare
ultra 1920x1080
144  fps    + Compare
QHD 2560x1440
110  fps    + Compare
4K 3840x2160
65  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Maximum Settings with Raytracing T2X Filmic SMAA 1920x1080
121
Maximum Settings with Raytracing T2X Filmic SMAA 3840x2160
45.6
GRID 2019

GRID 2019

2019
low 1280x720
169  fps    + Compare
med. 1920x1080
148  fps    + Compare
high 1920x1080
141  fps    + Compare
ultra 1920x1080
118  fps    + Compare
QHD 2560x1440
99  fps    + Compare
4K 3840x2160
64  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
158  fps    + Compare
med. 1920x1080
127  fps    + Compare
high 1920x1080
120  fps    + Compare
ultra 1920x1080
90  fps    + Compare
QHD 2560x1440
65  fps    + Compare
4K 3840x2160
39  fps    + Compare
» With all tested laptops playable in detail settings ultra.
FIFA 20

FIFA 20

2019
low 1280x720
269  fps    + Compare
med. 1920x1080
267  fps    + Compare
high 1920x1080
254  fps    + Compare
