Intel Core i7-14700HX

Intel i7-14700HX

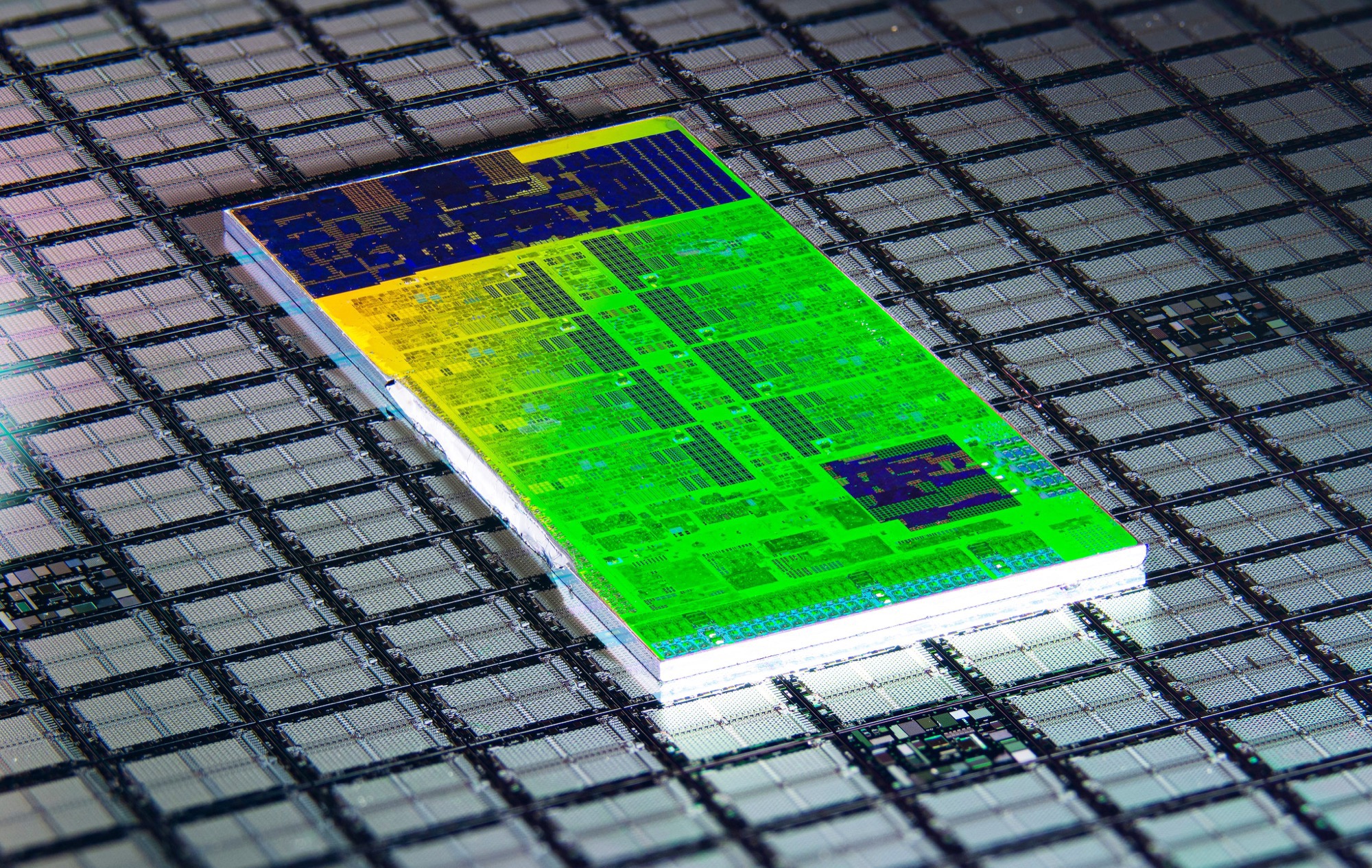

英特尔酷睿 i7-14700HX是一款基于全新 Raptor Lake 架构的高端 CPU，适用于大型和重型笔记本电脑。该 CPU 于 2024 年初推出，是 Raptor Lake HX 更新的一部分。i7-14700HX 类似于Core i7-13850HX ，CPU 内核的时钟频率略高。

总共 28 个线程分为 P 核心和 E 核心，我们已经从 Alder Lake 中了解到这一点。13700HX 提供 8 个带超线程的性能核心（P 核心）和 12 个不带超线程的效率核心（E 核心）。因此总共支持 28 个线程。P 核心的主频最高可达 5.5 GHz（单核心），E 核心的主频最高可达 3.9 GHz。集成内存控制器最大支持 5600 MHz 的 DDR5。

与 Alder Lake 相比，新的Raptor Lake 架构提供了改进的 P 核心（Raptor Cove 架构，具有更多缓存）、更多的 E 核心（相同的 Gracemont 架构）以及更高的时钟频率，这要归功于改进的英特尔 7 处理器。此外，英特尔现在在顶级型号中支持更快的 DDR5 主内存（最高 5600 MHz）。

13700HX 采用英特尔较早的 10 纳米 FinFET 工艺（英特尔 7 工艺）制造，基本功率为 55 瓦，涡轮增压功率为 157 瓦。

SeriesIntel Raptor Lake-HX
CodenameRaptor Lake-HX Refresh

Series: Raptor Lake-HX Raptor Lake-HX Refresh

Intel Core i9-14900HX1.6 - 5.8 GHz24 / 32 cores36 MB L3
Intel Core i7-14700HX « 3.9 - 5.5 GHz20 / 28 cores30 MB L3
Intel Core i7-14650HX1.6 - 5.2 GHz16 / 24 cores30 MB L3
Intel Core i5-14500HX1.8 - 5 GHz14 / 20 cores24 MB L3
Intel Core i5-14450HX1.8 - 4.8 GHz10 / 16 cores20 MB L3
Clock Rate3900 - 5500 MHz
Level 2 Cache24 MB
Level 3 Cache30 MB
Number of Cores / Threads20 / 28
8 x 5.5 GHz Intel Raptor Cove P-Core
12 x 3.9 GHz Intel Gracemont E-Core
Power Consumption (TDP = Thermal Design Power)55 Watt
TDP Turbo PL2157 Watt
Manufacturing Technology10 nm
Die Size257 mm2
Max. Temperature100 °C
SocketBGA1964
FeaturesDDR4-3200/DDR5-5600 RAM, PCIe 5, Thr. Director, DL Boost, GNA, vPro Enter., MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AVX, AVX2, BMI2, ABM, FMA, ADX, VMX, SMEP, SMAP, EIST, TM1, TM2, HT, Turbo, SST, AES-NI, RDRAND, RDSEED, SHA
GPUIntel UHD Graphics 770 ( - 1600 MHz)
64 Bit64 Bit support
Architecturex86
Announcement Date01/09/2024

Benchmarks

Cinebench 2024 - CB24 CPU Single Core
125.5 Points (87%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench 2024 - CB24 CPU Multi Core
1358 Points (25%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R23 - Cinebench R23 Multi Core
23207 Points (22%)
+ 1 benchmarks and specifications   - Hide comparison chart
Cinebench R23 - Cinebench R23 Single Core
2103 Points (89%)
+ 1 benchmarks and specifications   - Hide comparison chart
Cinebench R20 - Cinebench R20 CPU (Single Core)
803 Points (89%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R20 - Cinebench R20 CPU (Multi Core)
8361 Points (20%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
3455 Points (22%)
+ 1 benchmarks and specifications   - Hide comparison chart
017535052570087510501225140015751750192521002275245026252800297531503325Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
294 Points (89%)
+ 1 benchmarks and specifications   - Hide comparison chart
Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
10.4 Points (14%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
3.6 Points (90%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
11767 points (71%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
68172 points (49%)
+ 1 benchmarks and specifications   + Show comparison chart
wPrime 2.10 - wPrime 2.0 1024m *
409.9 s (5%)
+ 1 benchmarks and specifications   + Show comparison chart
wPrime 2.10 - wPrime 2.0 32m *
2.7 s (1%)
+ 1 benchmarks and specifications   + Show comparison chart
WinRAR - WinRAR 4.0
10202 points (16%)
+ 1 benchmarks and specifications   + Show comparison chart
7-Zip 18.03 - 7-Zip 18.03 Multli Thread 4 runs
93134 MIPS (53%)
+ 1 benchmarks and specifications   + Show comparison chart
7-Zip 18.03 - 7-Zip 18.03 Single Thread 4 runs
6890 MIPS (82%)
+ 1 benchmarks and specifications   + Show comparison chart
X264 HD Benchmark 4.0 - x264 Pass 2
177.1 fps (62%)
+ 1 benchmarks and specifications   + Show comparison chart
X264 HD Benchmark 4.0 - x264 Pass 1
365.2 fps (84%)
+ 1 benchmarks and specifications   + Show comparison chart
HWBOT x265 Benchmark v2.2 - HWBOT x265 4k Preset
24.6 fps (43%)
+ 1 benchmarks and specifications   + Show comparison chart
05101520Tooltip
TrueCrypt - TrueCrypt Serpent
2.2 GB/s (0%)
+ 1 benchmarks and specifications   + Show comparison chart
TrueCrypt - TrueCrypt Twofish
4.1 GB/s (71%)
+ 1 benchmarks and specifications   + Show comparison chart
TrueCrypt - TrueCrypt AES
19.3 GB/s (50%)
+ 1 benchmarks and specifications   + Show comparison chart
Blender - Blender 3.3 Classroom CPU *
245 Seconds (3%)
+ 1 benchmarks and specifications   + Show comparison chart
Blender - Blender 2.79 BMW27 CPU *
140 Seconds (1%)
+ 1 benchmarks and specifications   + Show comparison chart
R Benchmark 2.5 - R Benchmark 2.5 *
0.4 sec (8%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 06 - CPU - 3DMark 06 - CPU
18104 Points (39%)
+ 1 benchmarks and specifications   + Show comparison chart
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
6 s (1%)
+ 1 benchmarks and specifications   + Show comparison chart
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
13.1 s (1%)
+ 1 benchmarks and specifications   + Show comparison chart
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
310.6 s (1%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Physics
24141 Points (65%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Physics
35140 Points (63%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Time Spy CPU
16225 Points (68%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.2 - Geekbench 6.2 Single-Core
2975 points (90%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.2 - Geekbench 6.2 Multi-Core
17292 points (68%)
+ 1 benchmarks and specifications   - Hide comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.4 64 Bit Single-Core
2131 points (90%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.4 64 Bit Multi-Core
18225 points (33%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 5.0 - Geekbench 5.0 64 Bit Single-Core
1987 points (9%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 5.0 - Geekbench 5.0 64 Bit Multi-Core
17958 points (57%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 4.4 - Geekbench 4.1 - 4.4 64 Bit Single-Core
8945 points (89%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 4.4 - Geekbench 4.1 - 4.4 64 Bit Multi-Core
67087 points (75%)
+ 1 benchmarks and specifications   + Show comparison chart
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
447 ms (1%)
+ 1 benchmarks and specifications   + Show comparison chart
Octane V2 - Octane V2 Total Score
107455 Points (97%)
+ 1 benchmarks and specifications   + Show comparison chart
WebXPRT 4 - WebXPRT 4 Score
307 Points (88%)
+ 1 benchmarks and specifications   + Show comparison chart
WebXPRT 3 - WebXPRT 3 Score
323 Points (67%)
+ 1 benchmarks and specifications   + Show comparison chart
CrossMark - CrossMark Overall
2235 Points (86%)
+ 1 benchmarks and specifications   + Show comparison chart
Power Consumption - Prime95 Power Consumption - external Monitor *
150 Watt (26%)
+ 1 benchmarks and specifications   + Show comparison chart
0102030405060708090100110120130140150160170180Tooltip
Power Consumption - Idle Power Consumption - external Monitor *
26.6 Watt (18%)
+ 1 benchmarks and specifications   + Show comparison chart
05101520253035Tooltip
Power Consumption - Idle Power Consumption 150cd 1min *
26.8 Watt (30%)
+ 1 benchmarks and specifications   + Show comparison chart
051015202530Tooltip
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
