2022年Beelink GTR5迷你电脑回顾。带有AMD Ryzen 9的英特尔NUC

比大多数游戏笔记本电脑更快的CPU。 GTR5是你能得到的最接近英特尔NUC的东西，由AMD Zen 3 Ryzen处理器驱动。原始的CPU性能是壮观的，超出了大多数其他迷你PC。只是没有Thunderbolt或eGPU选项，这太糟糕了。

Allen Ngo, 👁 Allen Ngo (translated by DeepL / Ninh Duy), Published 01/30/2022 🇺🇸 🇳🇱 ...

AMD Desktop Mini PC Zen 3 (Vermeer) Business

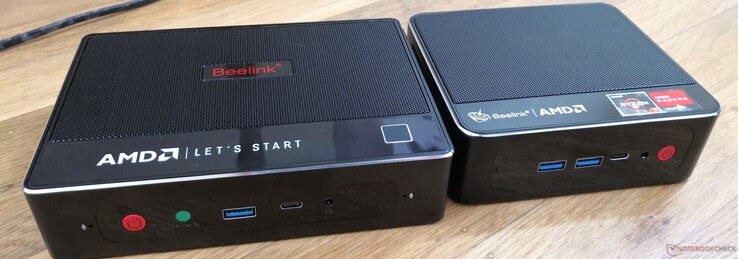

左：Beelink GTR5，右：Beelink SER3。Beelink SER3

在早期的NUC大小的迷你电脑中，此类产品通常被视为典型的台式机或笔记本电脑的超低功耗替代品。如今，迷你电脑已经发展到包括游戏级规格和其他强大的功能。Beelink GTR5是制造商最新推出的高性能迷你电脑，配备了AMD Zen 3 Ryzen 9 5900HX处理器，该处理器通常为强大的游戏笔记本电脑保留，如华硕ROG Zephyrus Duo 15 SE, 联想Legion 7 16，或 Gigabyte A7 X1.看到0.8L外形尺寸的PC有这样的选择，如果一切如宣传的那样运行，GTR5应该自动成为同类产品中最快的产品之一。

GTR5目前在Indiegogo上的网址是https://www.indiegogo.com/projects/beelink-gtr5-powerful-amd-ryzen-9-gaming-mini-pc#/如果配置齐全，裸机套件的价格从620美元到950美元不等。所有SKU都配备了相同的Ryzen 9 5900HX处理器。GTR5不应与GTR7混淆，后者实际上是运行在慢得多的Ryzen 7 3750H上的旧版Beelink模型。

更多Beelink的评论。

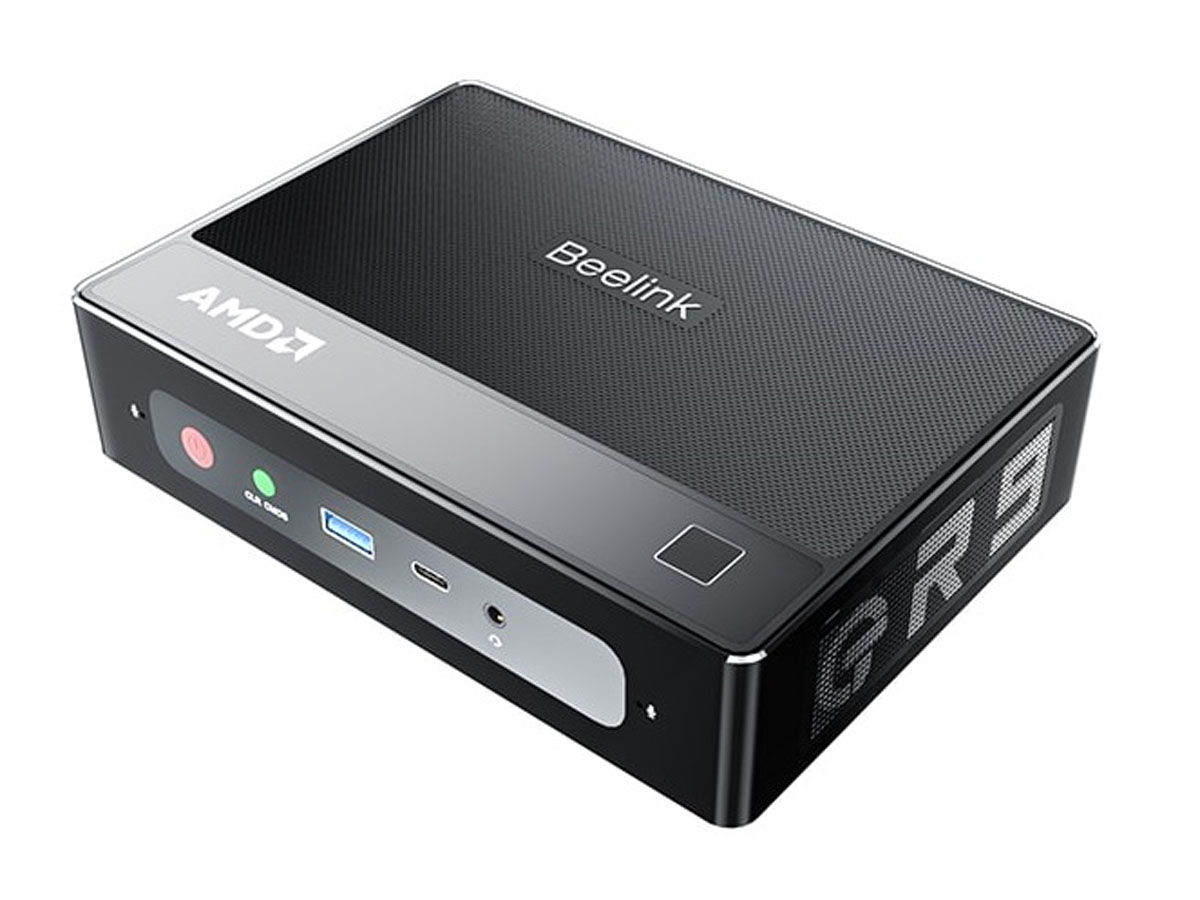

Beelink GTR5

Processor

AMD Ryzen 9 5900HX 8 x 3.3 - 4.6 GHz, 52 W PL2 / Short Burst, 46 W PL1 / Sustained, Cezanne-H (Zen 3)

Graphics adapter

AMD Radeon RX Vega 8 (Ryzen 4000/5000) - 512 MB VRAM, Memory: 1600 MHz, DDR4, 30.0.13025.5005

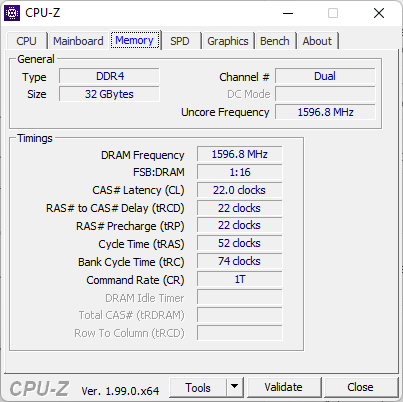

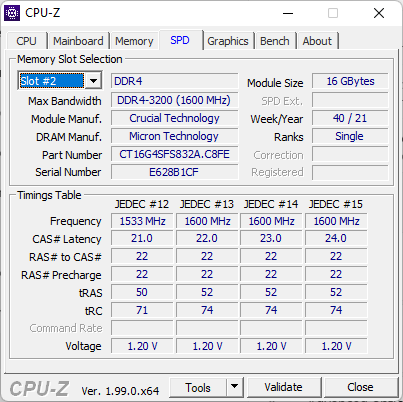

Memory

32 GB

, DDR4-3200, Crucial, 22-22-22-52, Dual-Channel

Mainboard

AMD Promontory/Bixby FCH

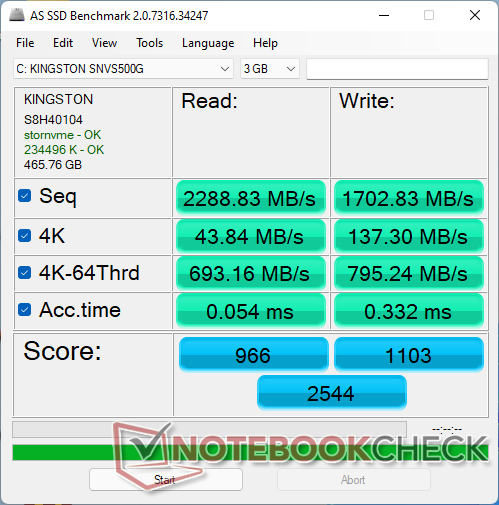

Storage

Kingston NV1 SNVS/500GCN, 500 GB

Soundcard

AMD Raven/Renoir/Van Gogh/Cezanne/Rembrandt/Raphael - HD Audio Controller

Connections

6 USB 2.0, 4 USB 3.0 / 3.1 Gen1, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, Audio Connections: 3.5 mm combo, 1 Fingerprint Reader

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 39 x 168 x 120

Operating System

Microsoft Windows 11 Pro

Additional features

VESA adapter, 12 Months Warranty

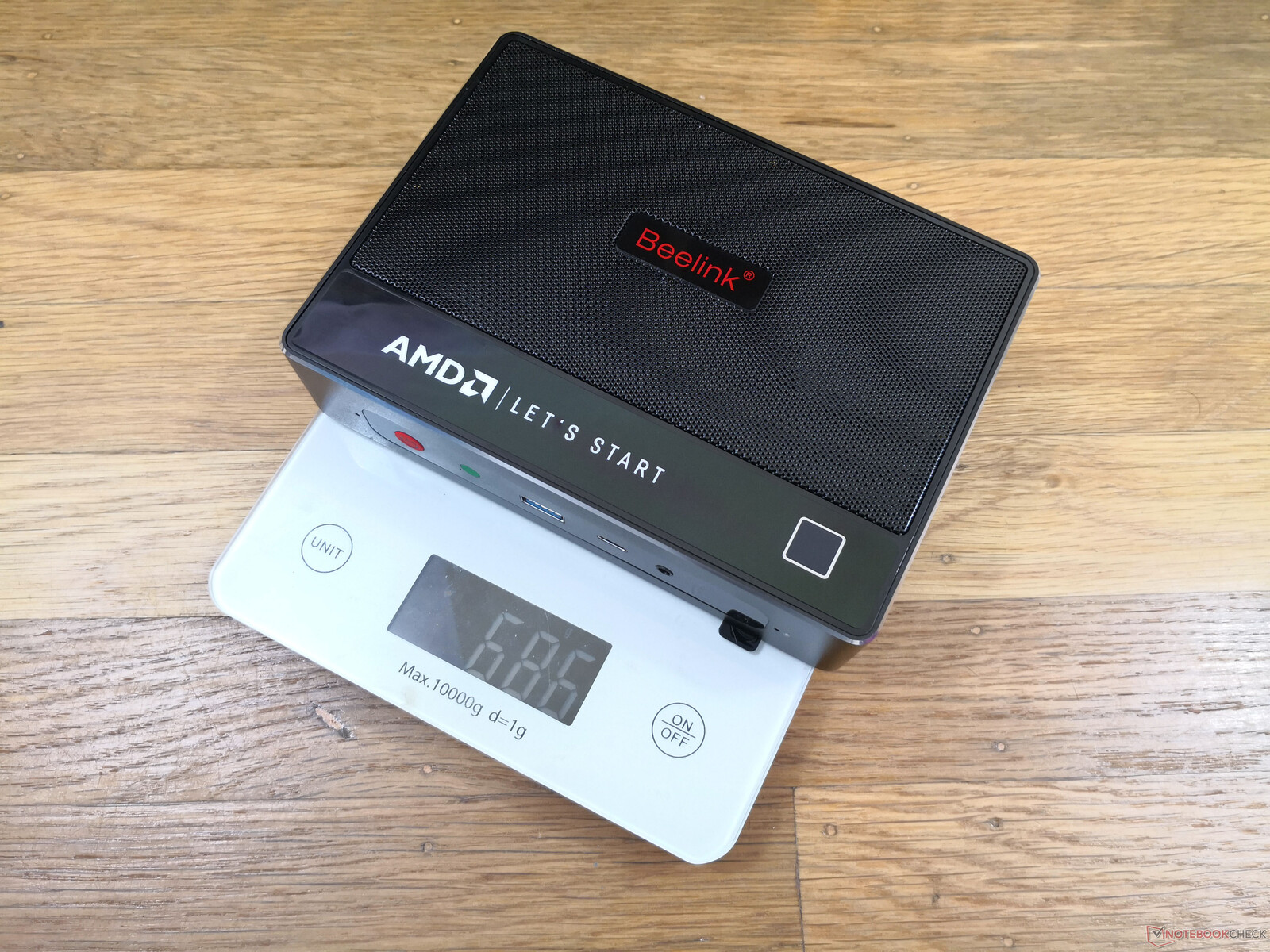

Weight

686 g, Power Supply: 382 g

Price

700 USD

Links

Beelink homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Potential Competitors in Comparison

Date	Model	Weight	Height	Resolution
01/2022	Beelink GTR5 R9 5900HX, Vega 8	686 g	39 mm	x
12/2021	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs	638 g	39 mm	x
	GMK NucBox 2 i5-8259U, Iris Plus Graphics 655	430 g	50 mm	x
	Intel NUC11PHKi7C i7-1165G7, GeForce RTX 2060 Mobile	1.4 kg	42 mm	x
	Intel NUC11PAQi7 i7-1165G7, Iris Xe G7 96EUs	647 g	56 mm	x
	Beelink GK Mini Celeron J4125, UHD Graphics 600	269 g	43 mm	x

案例

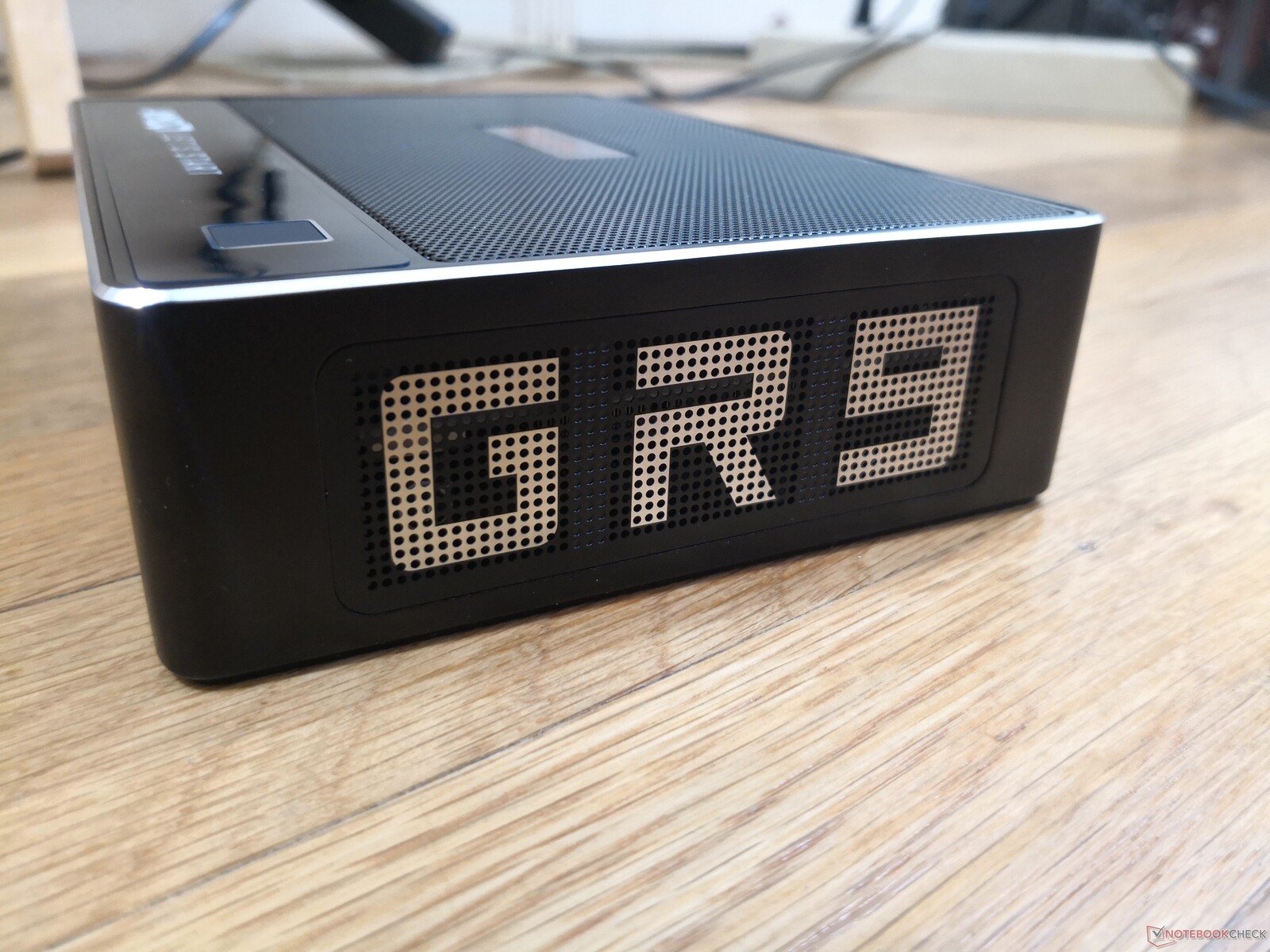

Beelink将其英特尔GTI11机箱重新用于AMD GTR5，因为GTR5的尺寸和整体结构与英特尔的同类产品基本相同。最显著的变化是该装置的顶部，以更好地适应要求更高的H系列AMD处理器。这个表面现在是打孔的，而不是光滑的光面塑料，以获得更好的空气流通。

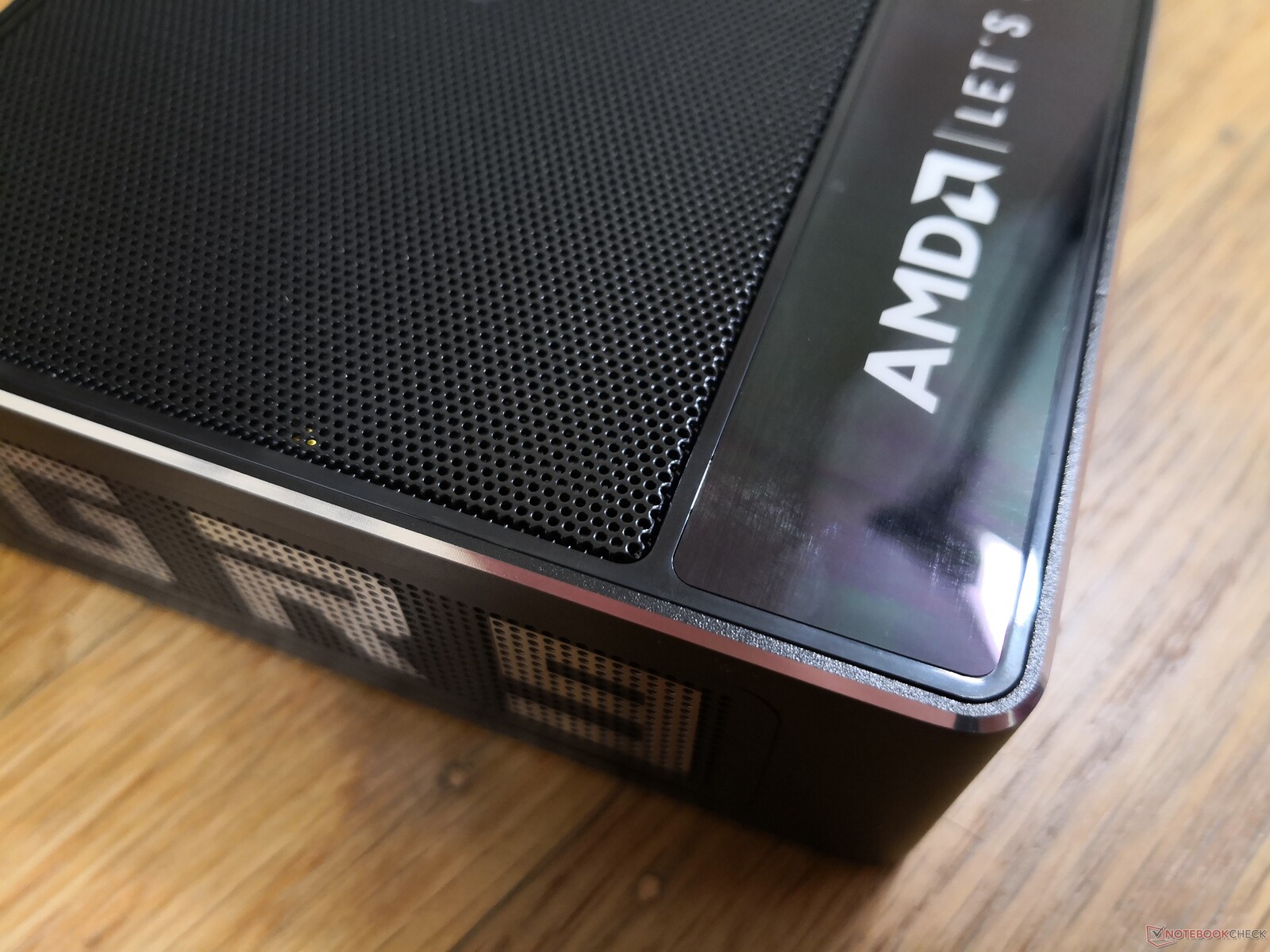

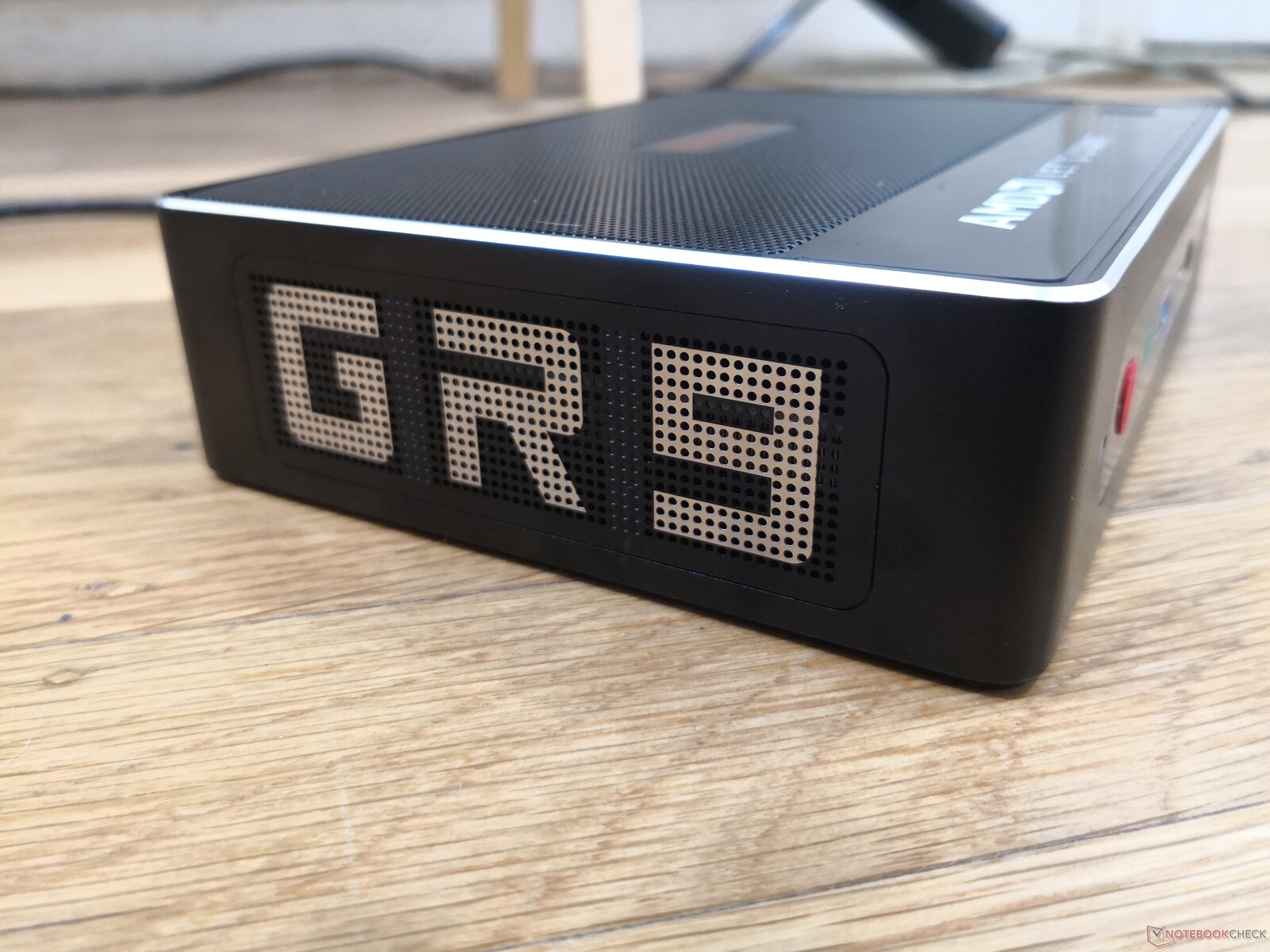

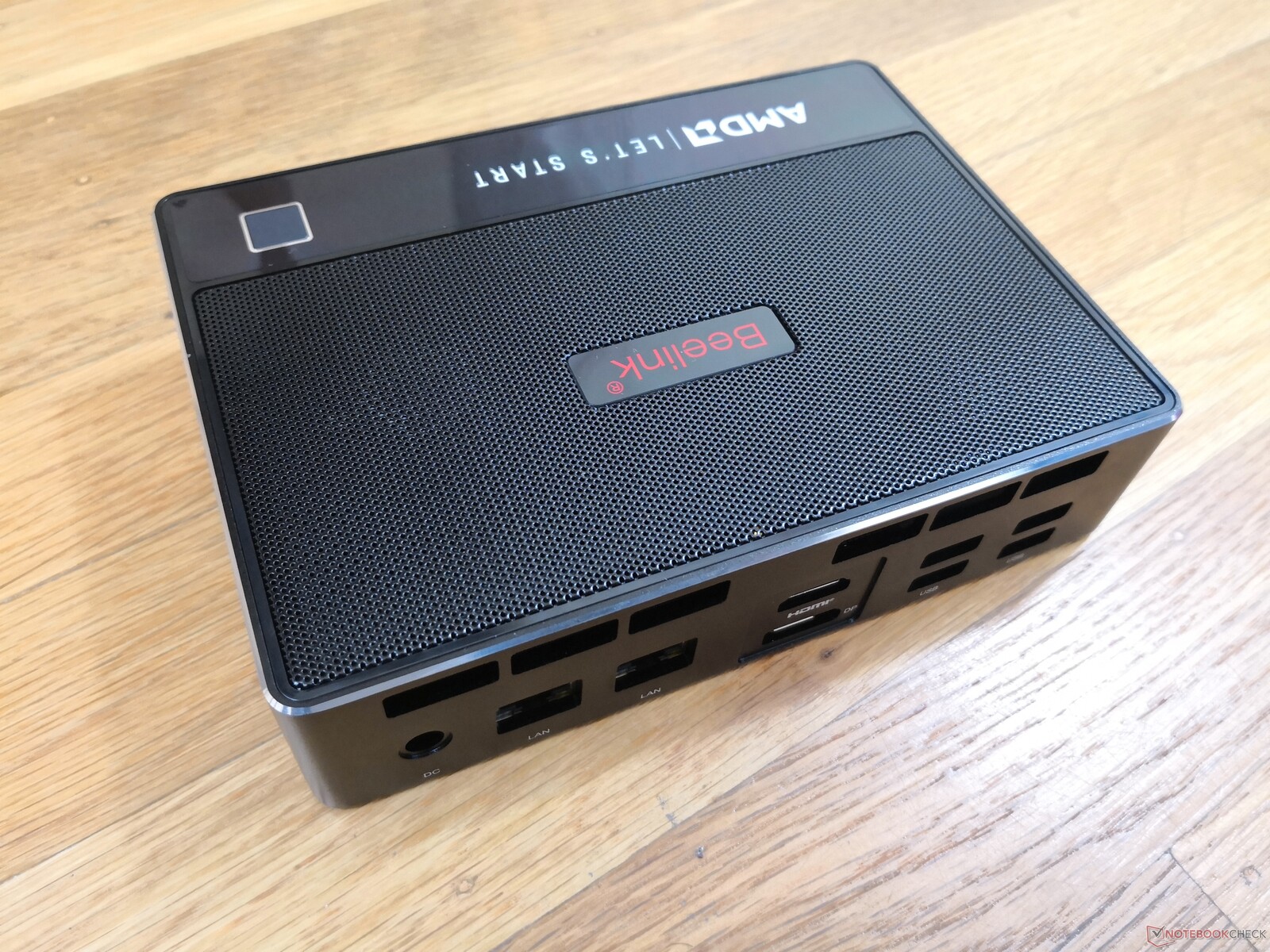

几乎整个设备的顶部表面都是专门为内部要求严格的Ryzen H系列CPU提供气流。

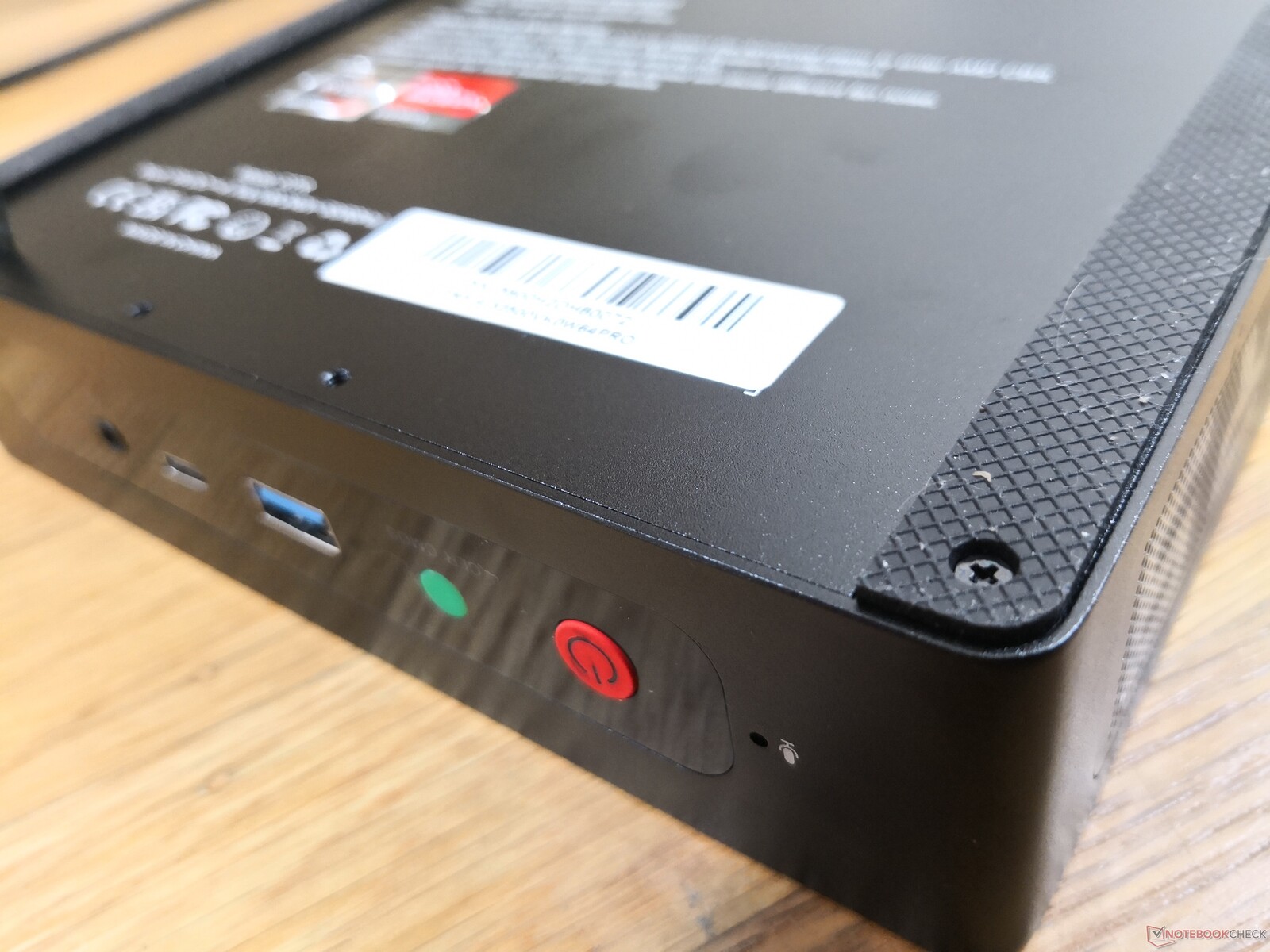

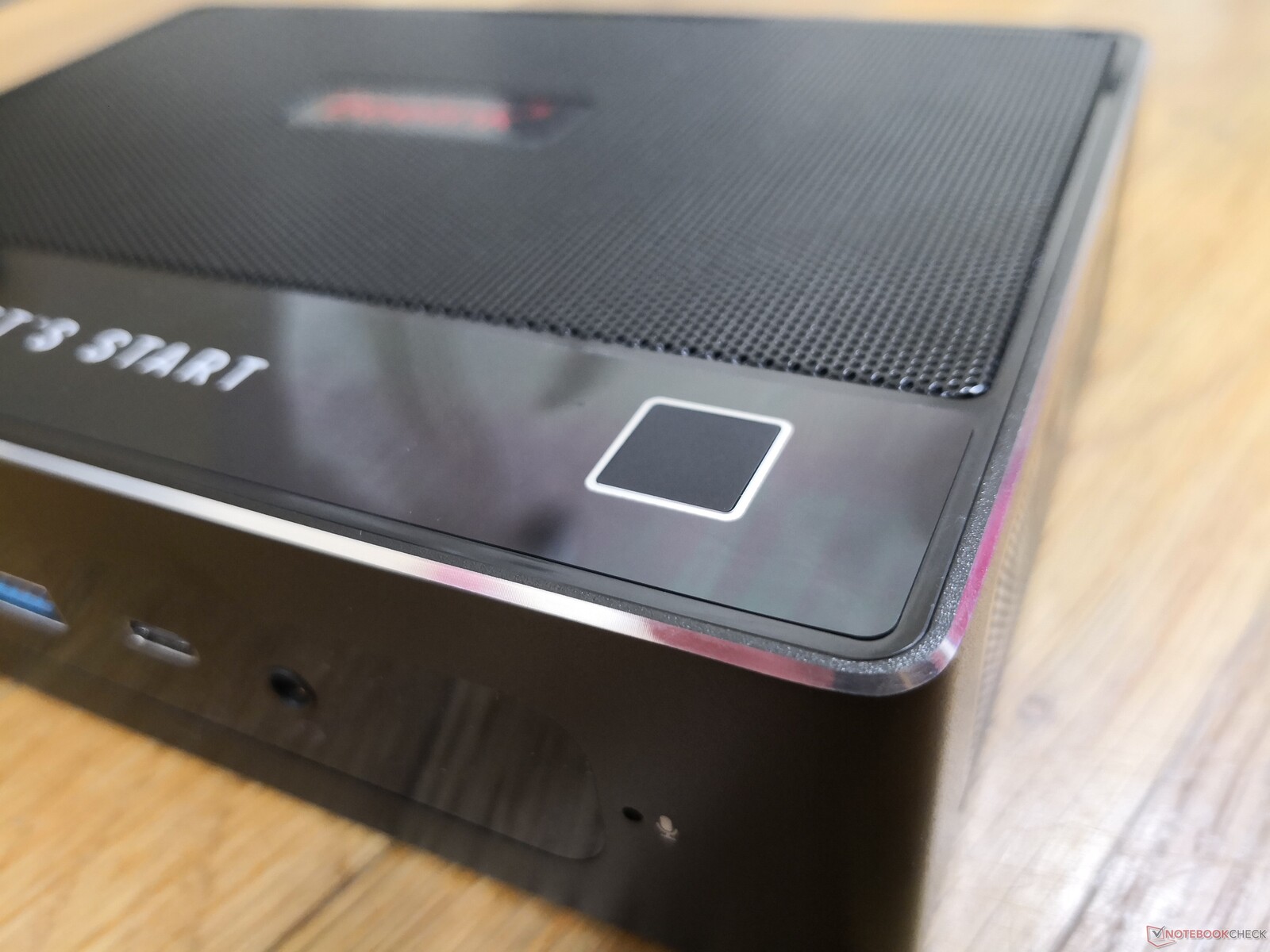

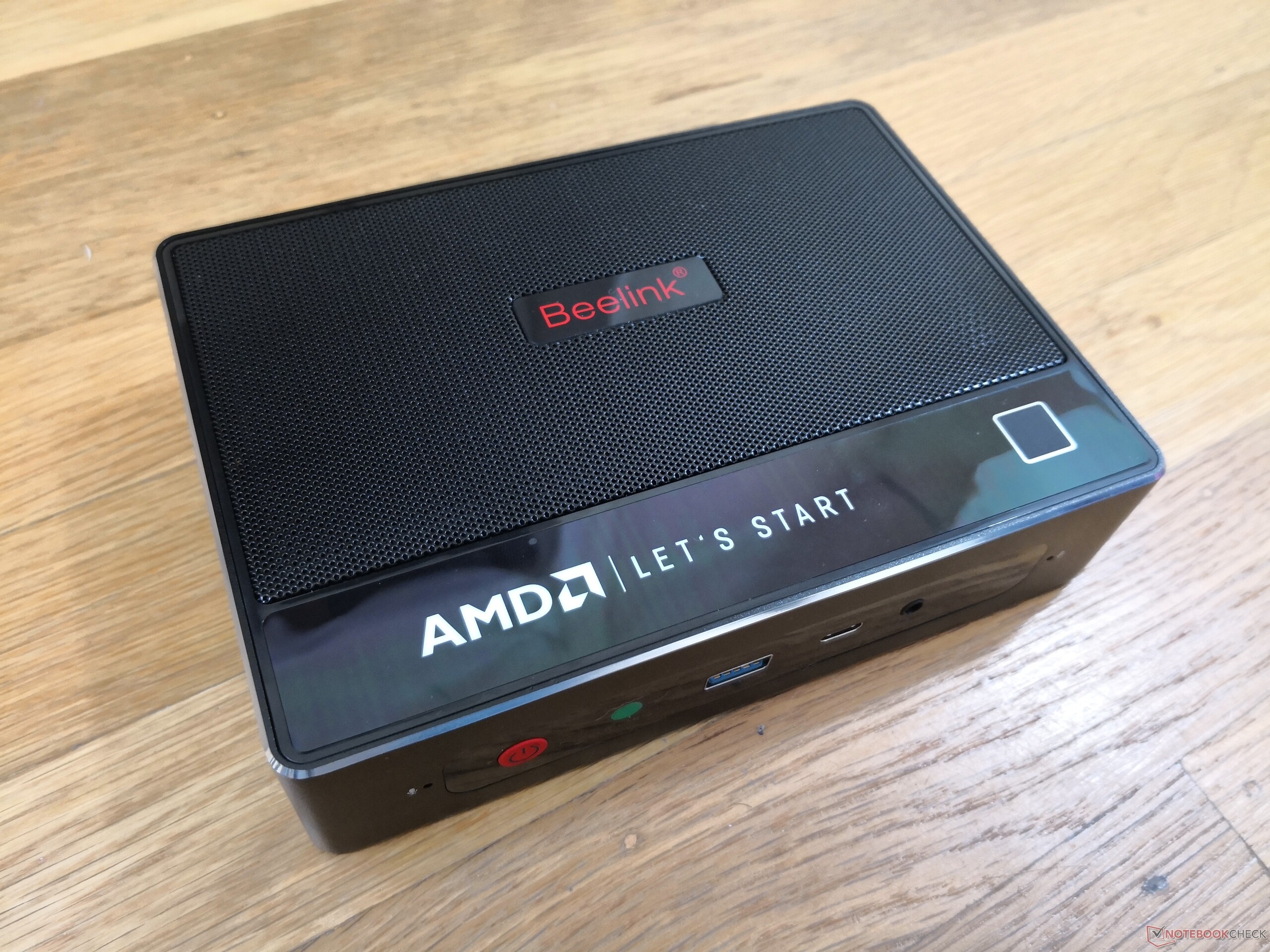

靠近前顶角的指纹识别器可作为第二个电源按钮。奇怪的是，该设备有两个独立的电源按钮

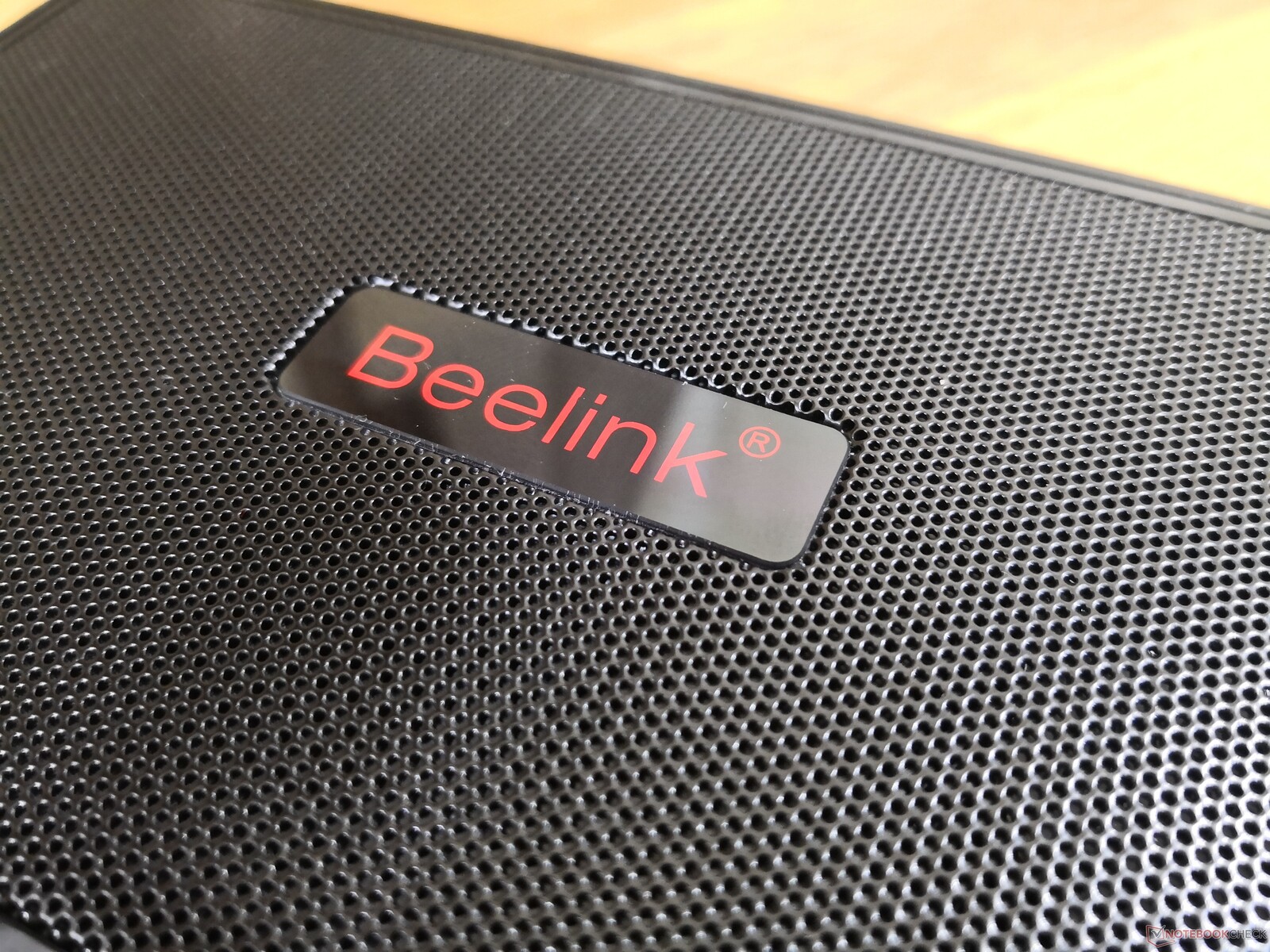

Beelink的标志似乎总是根据迷你电脑的型号而改变。这里它是红色的，而不是通常的黄色或白色。

Size Comparison

连接性

端口选项与Beelink GTI 11相同，只有两个重要的区别：我们的AMD供电的GTR5缺乏雷电支持和一个额外的USB-A端口。我们希望有更多的USB-C端口，就像英特尔幻影峡谷NUC11PHKi7C一样，或者至少有一个集成的SD卡读卡器。

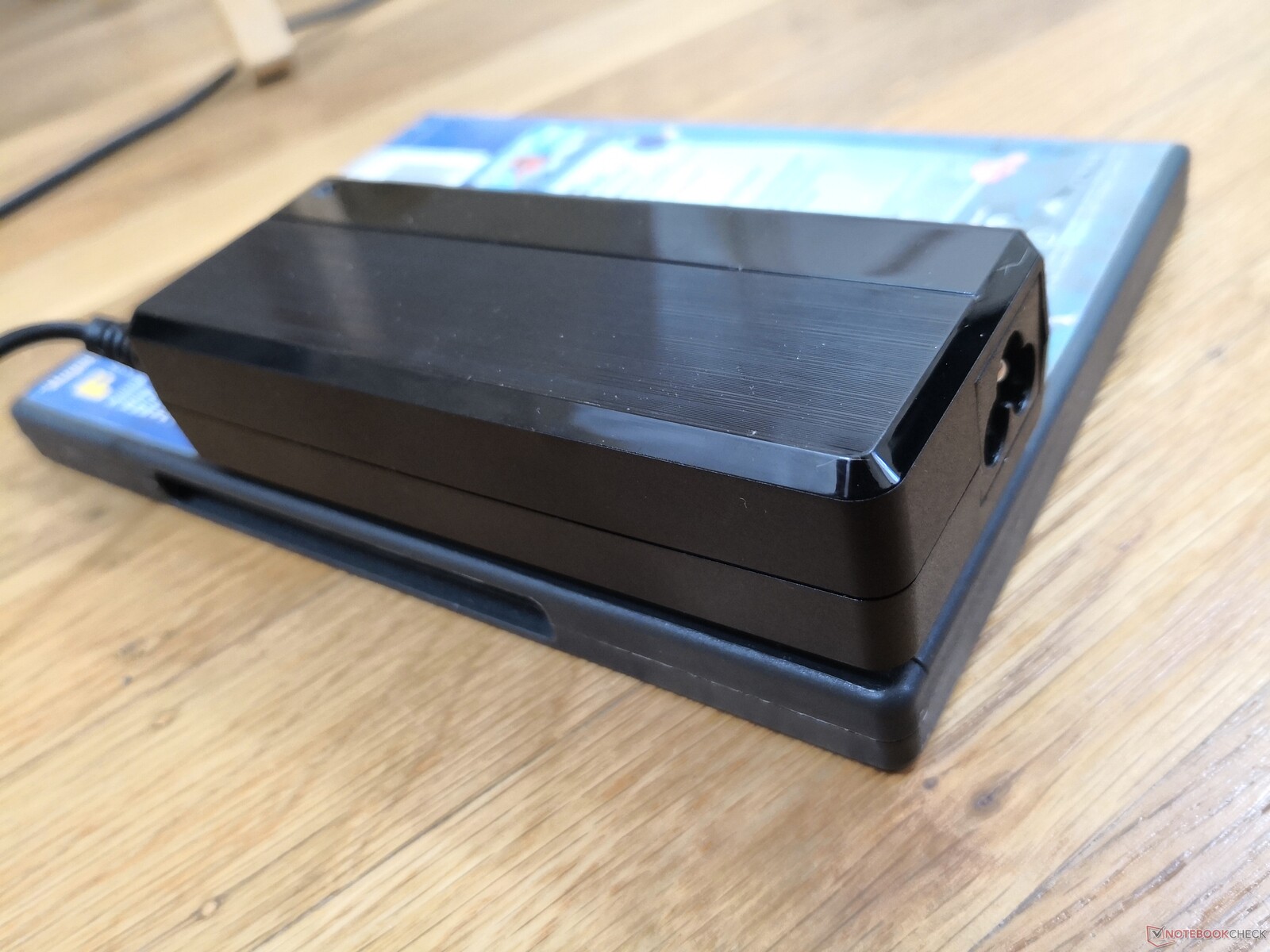

有趣的是，如果你失去了专有的90瓦交流适配器，该系统可以用USB-C供电。我们将我们的戴尔XPS 15 9575130W USB-C适配器到GTR5上，它的供电没有任何问题。尽管如此，我们建议尽可能使用专有的90W交流适配器，因为大多数第三方USB-C适配器的功率输出要低得多。

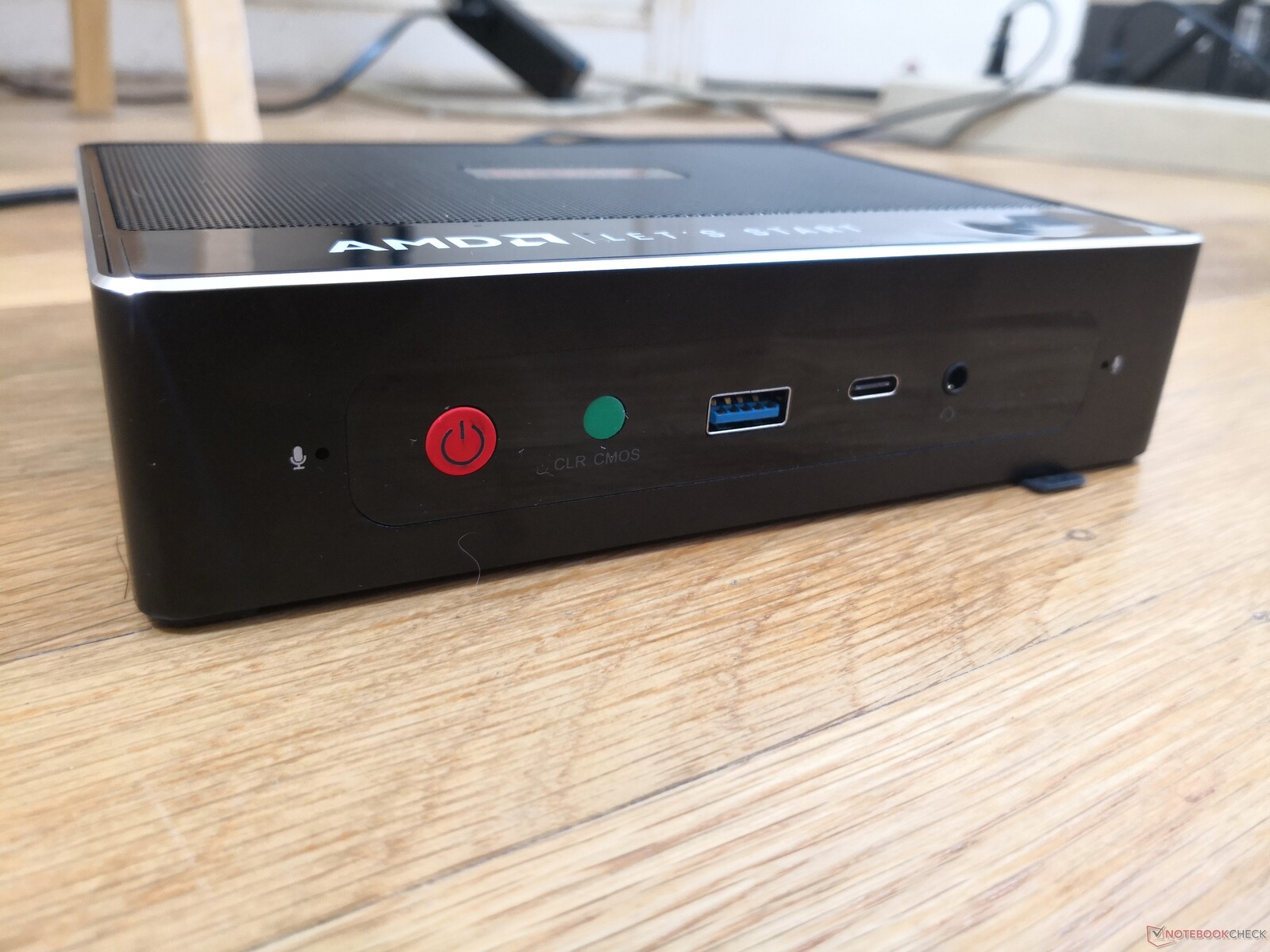

正面。电源按钮，清除CMOS按钮，USB-A 3.0，USB-C 3.0（带电源传输+显示端口），3.5毫米组合音频，麦克风

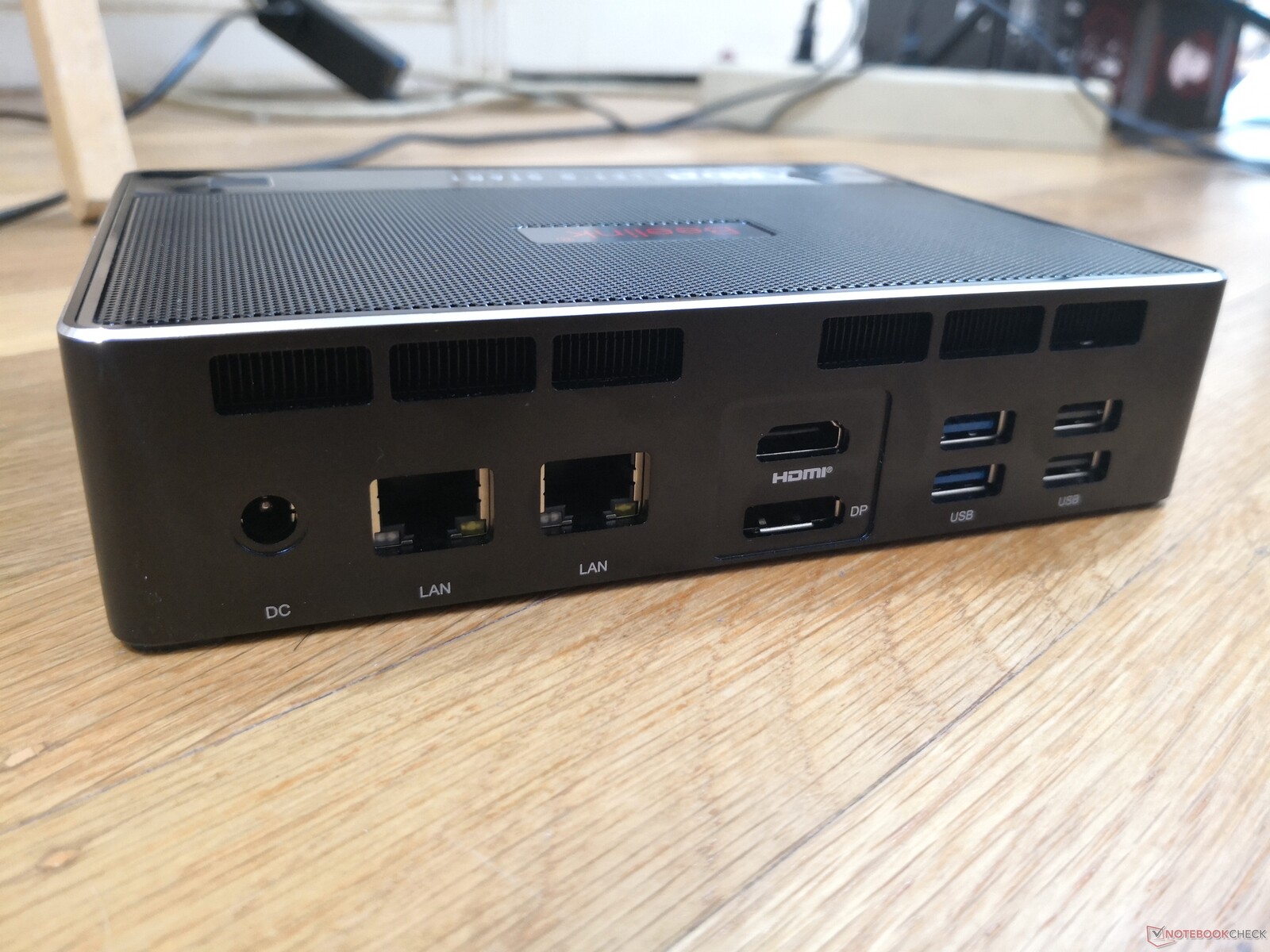

后部。交流适配器，2个2.5Gbps RJ-45，HDMI 2.0，DisplayPort 1.4，2个USB-A 3.0，2个USB-A 2.0

沟通

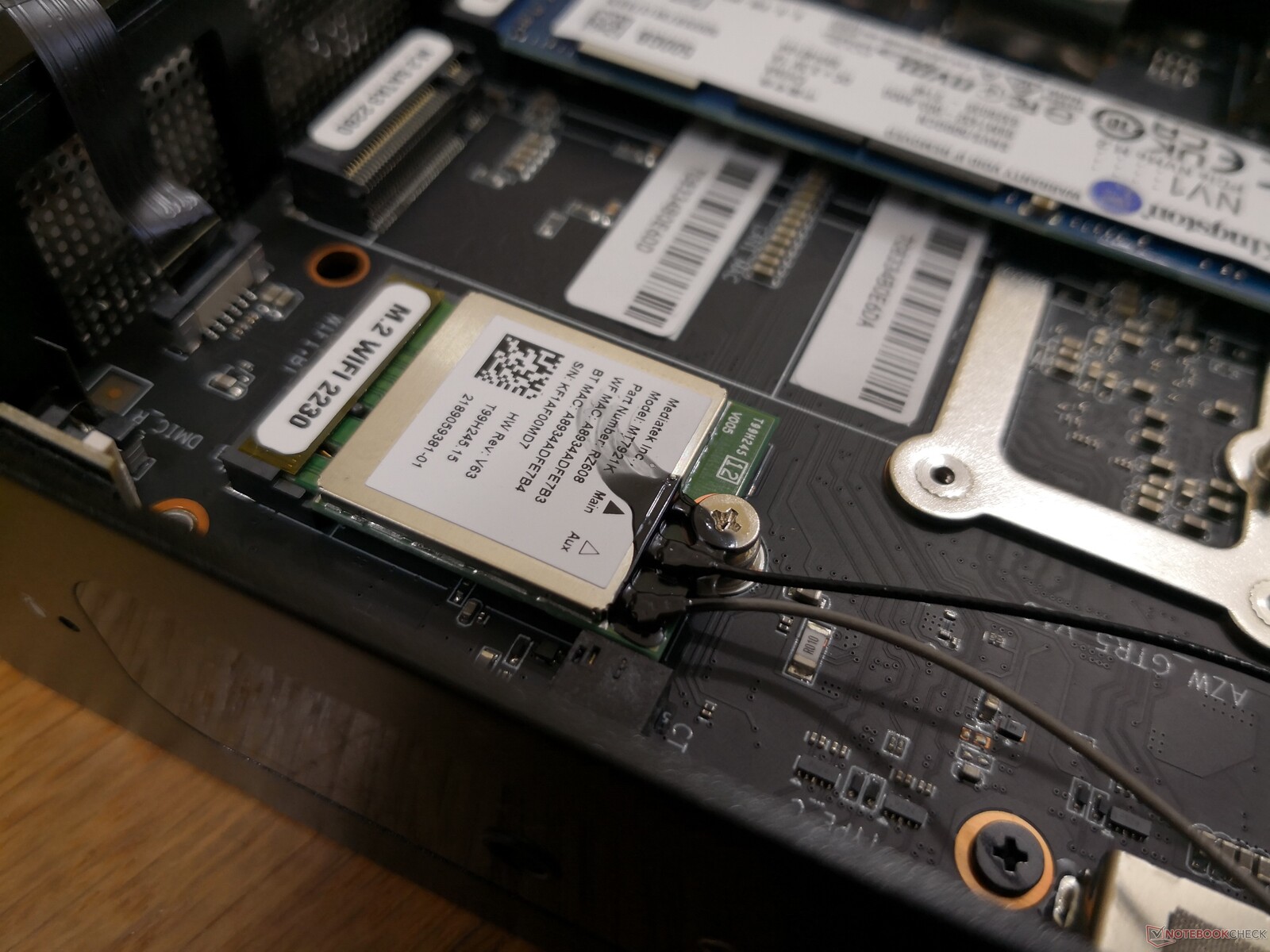

GTR5是首批利用联发科RZ608而不是更典型的英特尔AX200系列或高通Atheros的迷你PC之一。该模块能够达到Wi-Fi 6E的速度，但我们现在仅限于使用Wi-Fi 6的Netgear RAX200。尽管如此，传输率还是很可靠的。

Networking
iperf3 transmit AX12
Beelink GTI 11 Intel Wi-Fi 6 AX201	1228 (1149^min - 1287^max) MBit/s +87%
Intel NUC11PHKi7C Intel Wi-Fi 6 AX201	1129 (1014^min - 1229^max) MBit/s +72%
Beelink GTR5 MediaTek RZ608	657 (321^min - 735^max) MBit/s
Intel NUC11PAQi7 Intel Wi-Fi 6 AX201	546 (369^min - 618^max) MBit/s -17%
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	385 (299^min - 426^max) MBit/s -41%
Beelink GK Mini Intel Dual Band Wireless-AC 3165	172 (111^min - 230^max) MBit/s -74%
iperf3 receive AX12
Beelink GTI 11 Intel Wi-Fi 6 AX201	1086 (810^min - 1317^max) MBit/s +30%
Intel NUC11PHKi7C Intel Wi-Fi 6 AX201	870 (452^min - 924^max) MBit/s +4%
Intel NUC11PAQi7 Intel Wi-Fi 6 AX201	862 (809^min - 916^max) MBit/s +3%
Beelink GTR5 MediaTek RZ608	837 (806^min - 876^max) MBit/s
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	625 (346^min - 678^max) MBit/s -25%
Beelink GK Mini Intel Dual Band Wireless-AC 3165	346 (325^min - 352^max) MBit/s -59%

Beelink GTR5; iperf3 receive AX12; iperf 3.1.3: Ø837 (806-876)

Beelink GTR5; iperf3 transmit AX12; iperf 3.1.3: Ø646 (321-735)

维护

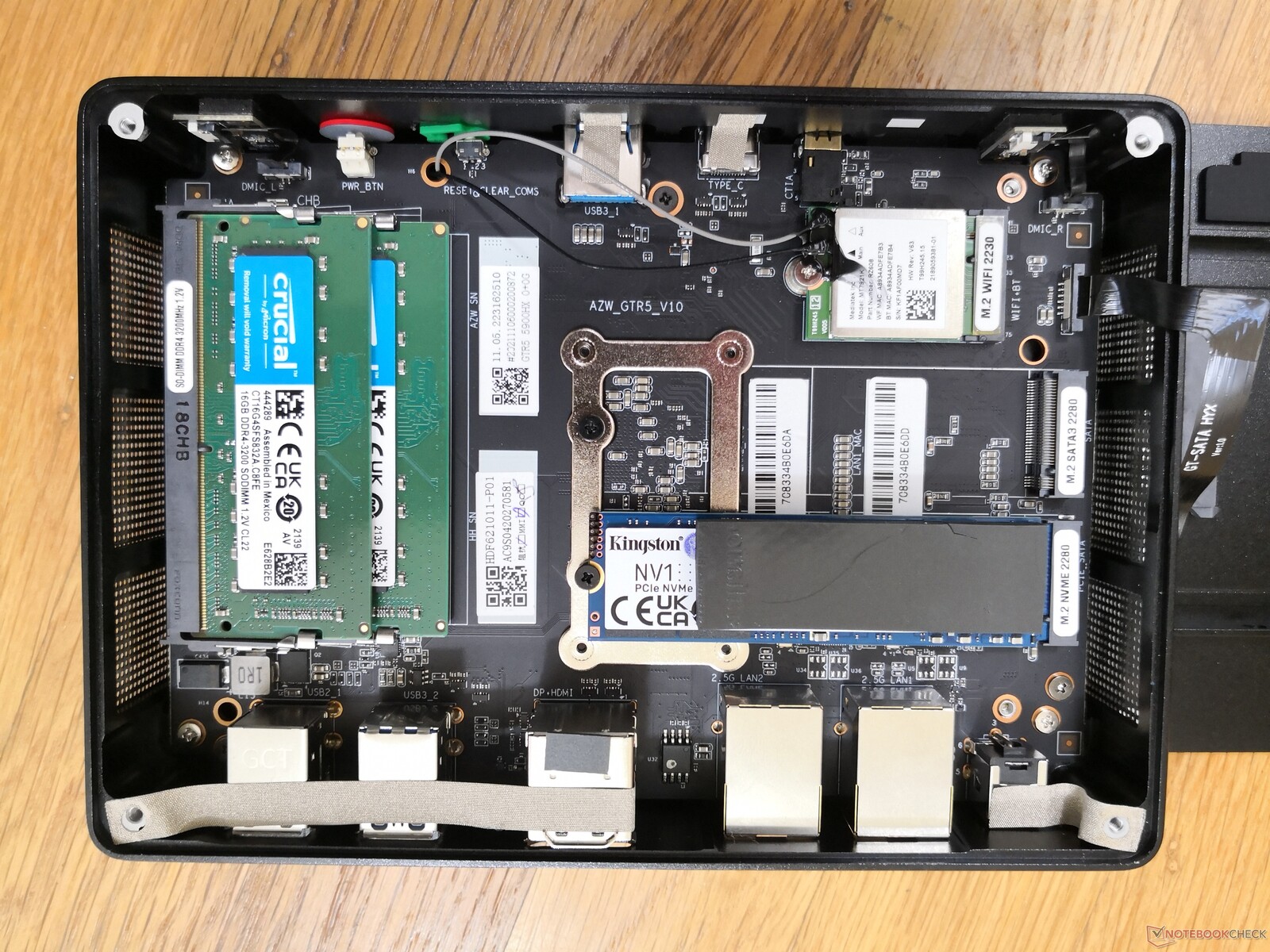

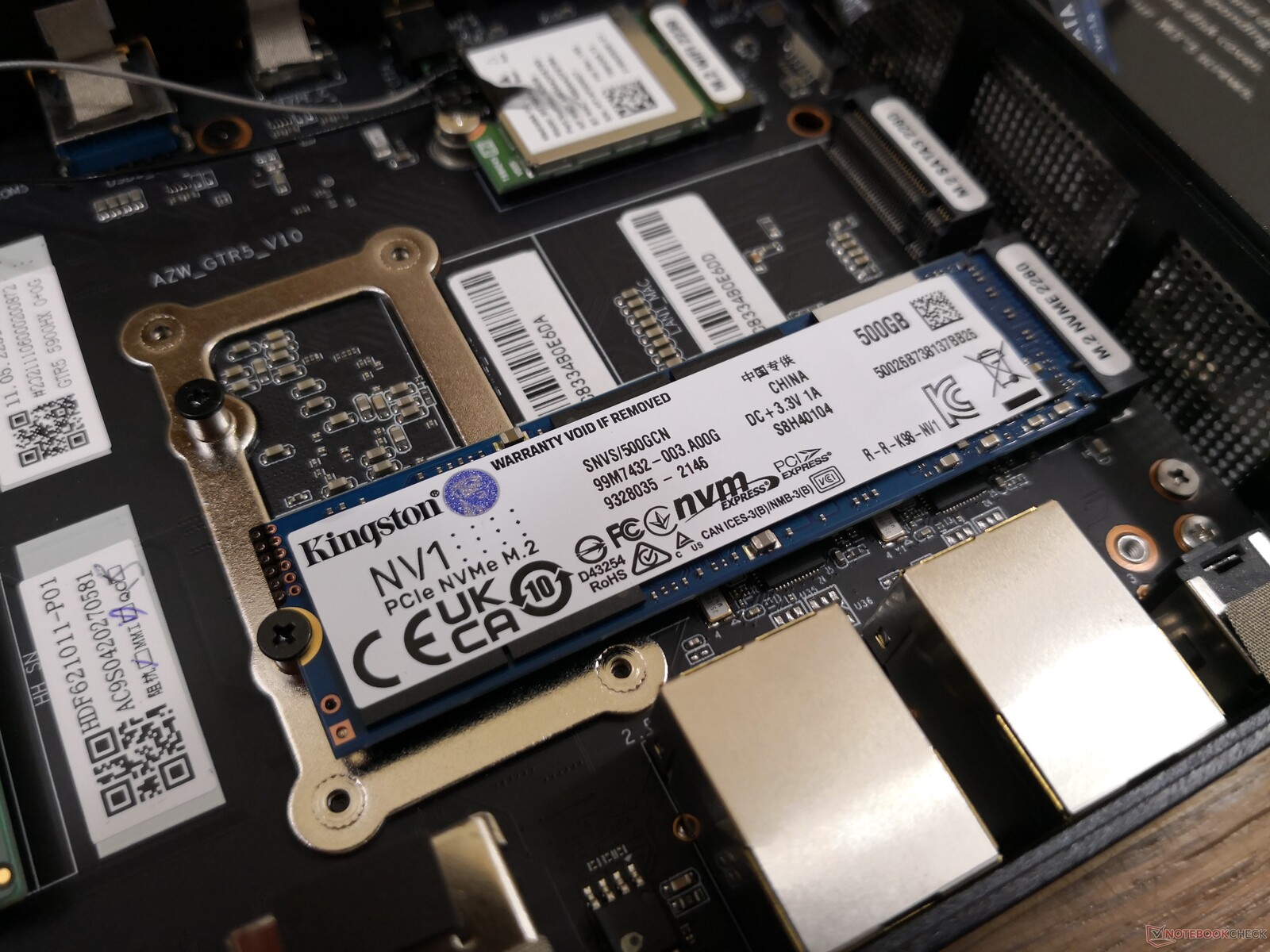

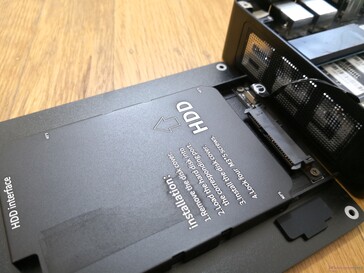

底部面板仅由四个飞利浦螺钉固定，便于维修。然而，与英特尔NUC上的拇指螺丝不同，这里的螺丝要小得多，需要用螺丝刀来拆卸。一旦进入内部，用户就可以直接接触到2个SODIMM，3个存储托架，然后是WLAN模块。不幸的是，如果你想清洁主板另一侧的双风扇，则需要额外拆卸。

配件和保修

零售包装盒包括交流适配器、文书、一条HDMI线和一个带螺丝的VESA安装支架。标准的一年有限制造商保修适用。

业绩

测试条件

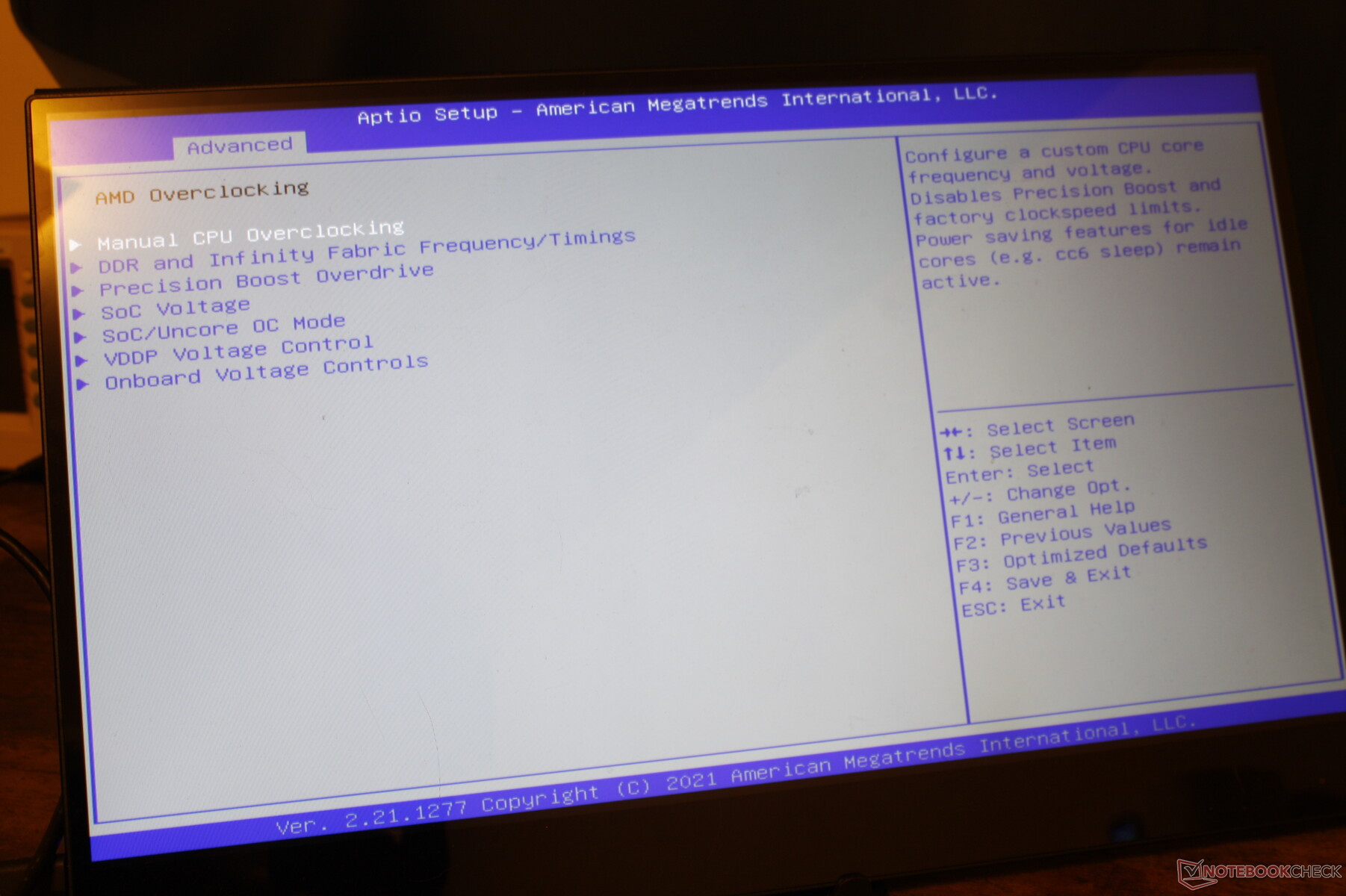

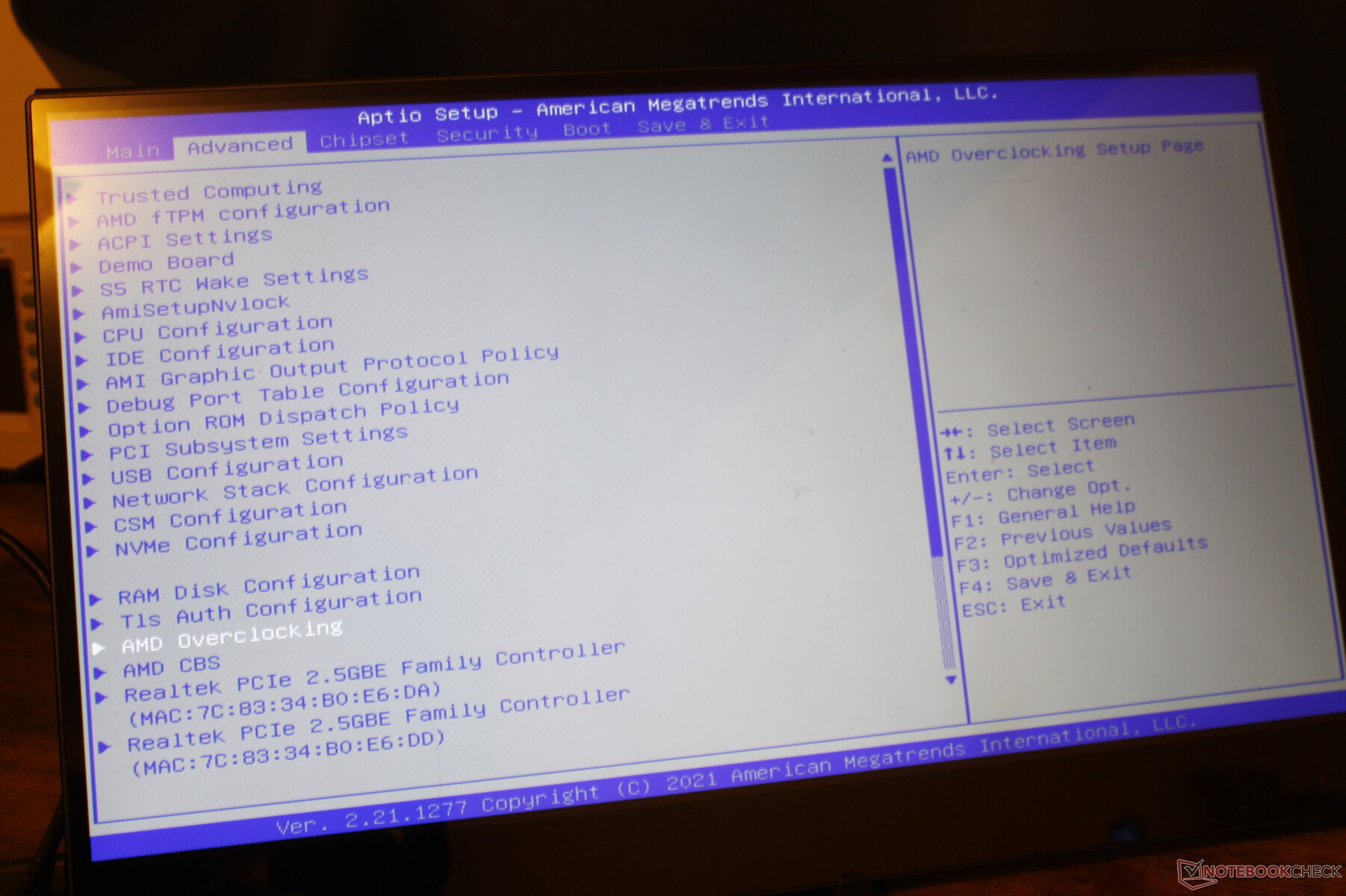

在运行下面的任何基准测试之前，我们使用了库存BIOS设置和Windows Performance电源配置文件。如果需要的话，用户可以通过BIOS选择超频CPU，以压榨出更多的性能。

处理器

原始多线程CPU性能比运行在第11代酷睿i7 CPU上的大多数游戏笔记本电脑要快，同时与第11代酷睿i9的CPU相当。当与其他具有相同的笔记本电脑相比 Ryzen 9 5900HX相比，我们的Beelink差了大约5%。然而，性能还是非常接近于 Ryzen 9 5900X上发现的那样 Eurocom Nightsky ARX15甚至在任何超频之前。

Cinebench R15 Multi Loop

Beelink GTR5 AMD Ryzen 9 5900HX: Ø1938 (1889.11-1963.48)

Eurocom Nightsky ARX315 AMD Ryzen 9 5900X: Ø2239 (2223.83-2252.38)

Gigabyte A5 X1 AMD Ryzen 9 5900HX: Ø2143 (2094.46-2151.12)

MSI Delta 15 A5EFK AMD Ryzen 9 5900HX: Ø2078 (2068.68-2093.36)

Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R23 / Multi Core
MSI GE76 Raider Intel Core i9-12900HK	18288 Points +58%
Intel Core i9-10900K Intel Core i9-10900K	15821 Points +36%
MSI GS76 Stealth 11UH Intel Core i9-11900H	13012 Points +12%
Average AMD Ryzen 9 5900HX (6622 - 14363, n=30)	12529 Points +8%
Minisforum HM90 AMD Ryzen 9 4900H	11792 Points +2%
Beelink GTR5 AMD Ryzen 9 5900HX	11599 (11445.9^min - 11598.6^max) Points
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	10336 Points -11%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	8858 Points -24%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	8194 Points -29%
Intel NUC11PAQi7 Intel Core i7-1165G7	6862 Points -41%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	5609 (5443.41^min - 5609.45^max) Points -52%
Beelink GTI 11 Intel Core i5-1135G7	5597 (5425.4^min - 5596.59^max) Points -52%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	5522 (5420.84^min - 5521.57^max) Points -52%
Beelink SER3 AMD Ryzen 7 3750H	3897 (3854.8^min - 3897.37^max) Points -66%
GMK NucBox 2 Intel Core i5-8259U	3728 (3687.99^min - 3727.55^max) Points -68%
Beelink GK Mini Intel Celeron J4125	1563 (1557.19^min - 1562.55^max) Points -87%

Cinebench R23 / Single Core
MSI GE76 Raider Intel Core i9-12900HK	1909 Points +28%
MSI GS76 Stealth 11UH Intel Core i9-11900H	1575 Points +5%
Beelink GTR5 AMD Ryzen 9 5900HX	1497 Points
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	1480 Points -1%
Average AMD Ryzen 9 5900HX (1218 - 1499, n=29)	1471 Points -2%
Intel Core i9-10900K Intel Core i9-10900K	1374 Points -8%
Beelink GTI 11 Intel Core i5-1135G7	1356 Points -9%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	1338 Points -11%
Minisforum HM90 AMD Ryzen 9 4900H	1298 Points -13%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	1267 Points -15%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	1252 Points -16%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	1129 Points -25%
GMK NucBox 2 Intel Core i5-8259U	973 Points -35%
Beelink SER3 AMD Ryzen 7 3750H	971 Points -35%
Beelink GK Mini Intel Celeron J4125	446 Points -70%

Cinebench R20 / CPU (Multi Core)
MSI GE76 Raider Intel Core i9-12900HK	6849 Points +49%
Intel Core i9-10900K Intel Core i9-10900K	6381 Points +39%
MSI GS76 Stealth 11UH Intel Core i9-11900H	4878 Points +6%
Average AMD Ryzen 9 5900HX (2242 - 5476, n=30)	4847 Points +5%
Beelink GTR5 AMD Ryzen 9 5900HX	4596 Points
Minisforum HM90 AMD Ryzen 9 4900H	4585 Points 0%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	3993 Points -13%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	3365 Points -27%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	3149 Points -31%
Intel NUC11PAQi7 Intel Core i7-1165G7	2657 Points -42%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	2182 Points -53%
Beelink GTI 11 Intel Core i5-1135G7	2163 Points -53%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	2138 Points -53%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	2005 Points -56%
Beelink SER3 AMD Ryzen 7 3750H	1514 Points -67%
GMK NucBox 2 Intel Core i5-8259U	1432 Points -69%
Beelink GK Mini Intel Celeron J4125	610 Points -87%

Cinebench R20 / CPU (Single Core)
MSI GE76 Raider Intel Core i9-12900HK	734 Points +27%
MSI GS76 Stealth 11UH Intel Core i9-11900H	610 Points +5%
Intel NUC11PAQi7 Intel Core i7-1165G7	582 Points +1%
Beelink GTR5 AMD Ryzen 9 5900HX	579 Points
Average AMD Ryzen 9 5900HX (471 - 584, n=29)	573 Points -1%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	565 Points -2%
Intel Core i9-10900K Intel Core i9-10900K	532 Points -8%
Beelink GTI 11 Intel Core i5-1135G7	520 Points -10%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	518 Points -11%
Minisforum HM90 AMD Ryzen 9 4900H	505 Points -13%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	492 Points -15%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	483 Points -17%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	438 Points -24%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	404 Points -30%
GMK NucBox 2 Intel Core i5-8259U	382 Points -34%
Beelink SER3 AMD Ryzen 7 3750H	377 Points -35%
Beelink GK Mini Intel Celeron J4125	174 Points -70%

Cinebench R15 / CPU Multi 64Bit
MSI GE76 Raider Intel Core i9-12900HK	2909 (2660.99^min - 2908.88^max) Points +48%
Intel Core i9-10900K Intel Core i9-10900K	2620 Points +33%
MSI GS76 Stealth 11UH Intel Core i9-11900H	2148 (1832.59^min - 2147.65^max) Points +9%
Average AMD Ryzen 9 5900HX (1076 - 2267, n=29)	2050 Points +4%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	2009 (1980.49^min - 2009.14^max) Points +2%
Minisforum HM90 AMD Ryzen 9 4900H	1967 Points 0%
Beelink GTR5 AMD Ryzen 9 5900HX	1963 (1889.11^min - 1963.48^max) Points
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	1683 Points -14%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	1375 (1241.5^min - 1374.76^max) Points -30%
Intel NUC11PAQi7 Intel Core i7-1165G7	986 (962.77^min - 985.76^max) Points -50%
Beelink GTI 11 Intel Core i5-1135G7	916 (822.06^min - 915.5^max) Points -53%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	915 (902.16^min - 915.31^max) Points -53%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	866 (831.5^min - 866.44^max) Points -56%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	864 Points -56%
Beelink SER3 AMD Ryzen 7 3750H	680 (670.93^min - 679.66^max) Points -65%
GMK NucBox 2 Intel Core i5-8259U	615 (608.07^min - 614.94^max) Points -69%
Beelink GK Mini Intel Celeron J4125	271 (263.32^min - 271.42^max) Points -86%

Cinebench R15 / CPU Single 64Bit
MSI GE76 Raider Intel Core i9-12900HK	275 Points +15%
Beelink GTR5 AMD Ryzen 9 5900HX	240 Points
MSI GS76 Stealth 11UH Intel Core i9-11900H	238 Points -1%
Average AMD Ryzen 9 5900HX (197 - 243, n=25)	238 Points -1%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	232 Points -3%
Intel NUC11PAQi7 Intel Core i7-1165G7	230 Points -4%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	225 Points -6%
Intel Core i9-10900K Intel Core i9-10900K	224 Points -7%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	204 Points -15%
Beelink GTI 11 Intel Core i5-1135G7	200 Points -17%
Minisforum HM90 AMD Ryzen 9 4900H	194 Points -19%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	190 Points -21%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	178 Points -26%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	170 Points -29%
GMK NucBox 2 Intel Core i5-8259U	151 Points -37%
Beelink SER3 AMD Ryzen 7 3750H	146 Points -39%
Beelink GK Mini Intel Celeron J4125	79.1 Points -67%

Blender / v2.79 BMW27 CPU
Beelink GK Mini Intel Celeron J4125	2198 Seconds * -739%
GMK NucBox 2 Intel Core i5-8259U	755 Seconds * -188%
Beelink SER3 AMD Ryzen 7 3750H	672 Seconds * -156%
Beelink GTI 11 Intel Core i5-1135G7	551 Seconds * -110%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	542 Seconds * -107%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	537 Seconds * -105%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	524 Seconds * -100%
Intel NUC11PAQi7 Intel Core i7-1165G7	468 Seconds * -79%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	371 Seconds * -42%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	324 Seconds * -24%
Beelink GTR5 AMD Ryzen 9 5900HX	262 Seconds *
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	254 Seconds * +3%
Average AMD Ryzen 9 5900HX (219 - 442, n=29)	250 Seconds * +5%
MSI GS76 Stealth 11UH Intel Core i9-11900H	249 Seconds * +5%
Minisforum HM90 AMD Ryzen 9 4900H	247.3 Seconds * +6%
MSI GE76 Raider Intel Core i9-12900HK	181 Seconds * +31%
Intel Core i9-10900K Intel Core i9-10900K	167.3 Seconds * +36%

7-Zip 18.03 / 7z b 4
MSI GE76 Raider Intel Core i9-12900HK	72836 MIPS +28%
Intel Core i9-10900K Intel Core i9-10900K	70968 MIPS +25%
Average AMD Ryzen 9 5900HX (36011 - 62503, n=29)	57266 MIPS +1%
Beelink GTR5 AMD Ryzen 9 5900HX	56761 MIPS
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	53767 MIPS -5%
MSI GS76 Stealth 11UH Intel Core i9-11900H	53205 MIPS -6%
Minisforum HM90 AMD Ryzen 9 4900H	48976 MIPS -14%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	46136 MIPS -19%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	35448 MIPS -38%
Intel NUC11PAQi7 Intel Core i7-1165G7	27203 MIPS -52%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	25242 MIPS -56%
Beelink GTI 11 Intel Core i5-1135G7	24655 MIPS -57%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	24366 MIPS -57%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	19347 MIPS -66%
GMK NucBox 2 Intel Core i5-8259U	18802 MIPS -67%
Beelink SER3 AMD Ryzen 7 3750H	17077 MIPS -70%
Beelink GK Mini Intel Celeron J4125	8399 MIPS -85%

7-Zip 18.03 / 7z b 4 -mmt1
MSI GE76 Raider Intel Core i9-12900HK	6144 MIPS +6%
Intel Core i9-10900K Intel Core i9-10900K	5954 MIPS +3%
Beelink GTR5 AMD Ryzen 9 5900HX	5791 MIPS
Average AMD Ryzen 9 5900HX (4791 - 5905, n=29)	5701 MIPS -2%
MSI GS76 Stealth 11UH Intel Core i9-11900H	5640 MIPS -3%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	5593 MIPS -3%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	5410 MIPS -7%
Intel NUC11PAQi7 Intel Core i7-1165G7	5405 MIPS -7%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	5308 MIPS -8%
Beelink GTI 11 Intel Core i5-1135G7	4852 MIPS -16%
Minisforum HM90 AMD Ryzen 9 4900H	4727 MIPS -18%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	4620 MIPS -20%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	4198 MIPS -28%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	4101 MIPS -29%
GMK NucBox 2 Intel Core i5-8259U	3951 MIPS -32%
Beelink SER3 AMD Ryzen 7 3750H	3752 MIPS -35%
Beelink GK Mini Intel Celeron J4125	2444 MIPS -58%

Geekbench 5.5 / Multi-Core
MSI GE76 Raider Intel Core i9-12900HK	13648 Points +68%
Intel Core i9-10900K Intel Core i9-10900K	11414 Points +40%
MSI GS76 Stealth 11UH Intel Core i9-11900H	9856 Points +21%
Average AMD Ryzen 9 5900HX (5057 - 9294, n=27)	8188 Points +1%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	8176 Points 0%
Beelink GTR5 AMD Ryzen 9 5900HX	8147 Points
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	7641 Points -6%
Minisforum HM90 AMD Ryzen 9 4900H	7224 Points -11%
Beelink GTI 11 Intel Core i5-1135G7	5059 Points -38%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	5017 Points -38%
Intel NUC11PAQi7 Intel Core i7-1165G7	4975 Points -39%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	4191 Points -49%
GMK NucBox 2 Intel Core i5-8259U	3359 Points -59%
Beelink GK Mini Intel Celeron J4125	1512 Points -81%

Geekbench 5.5 / Single-Core
MSI GE76 Raider Intel Core i9-12900HK	1918 Points +23%
MSI GS76 Stealth 11UH Intel Core i9-11900H	1632 Points +5%
Beelink GTR5 AMD Ryzen 9 5900HX	1560 Points
Intel NUC11PAQi7 Intel Core i7-1165G7	1559 Points 0%
Average AMD Ryzen 9 5900HX (1271 - 1574, n=27)	1517 Points -3%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	1480 Points -5%
Intel Core i9-10900K Intel Core i9-10900K	1449 Points -7%
Beelink GTI 11 Intel Core i5-1135G7	1415 Points -9%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	1315 Points -16%
Minisforum HM90 AMD Ryzen 9 4900H	1233 Points -21%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	1183 Points -24%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	1080 Points -31%
GMK NucBox 2 Intel Core i5-8259U	984 Points -37%
Beelink GK Mini Intel Celeron J4125	466 Points -70%

HWBOT x265 Benchmark v2.2 / 4k Preset
Intel Core i9-10900K Intel Core i9-10900K	21 fps +42%
MSI GE76 Raider Intel Core i9-12900HK	19.9 fps +34%
Average AMD Ryzen 9 5900HX (8.26 - 17.1, n=29)	15.2 fps +3%
MSI GS76 Stealth 11UH Intel Core i9-11900H	15 fps +1%
Beelink GTR5 AMD Ryzen 9 5900HX	14.8 fps
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	14.4 fps -3%
Minisforum HM90 AMD Ryzen 9 4900H	12.9 fps -13%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	11.9 fps -20%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	8.55 fps -42%
Intel NUC11PAQi7 Intel Core i7-1165G7	8.47 fps -43%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	7.27 fps -51%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	7.1 fps -52%
Beelink GTI 11 Intel Core i5-1135G7	6.98 fps -53%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	6.74 fps -54%
GMK NucBox 2 Intel Core i5-8259U	5.37 fps -64%
Beelink SER3 AMD Ryzen 7 3750H	4.14 fps -72%
Beelink GK Mini Intel Celeron J4125	1.61 fps -89%

LibreOffice / 20 Documents To PDF
Beelink GK Mini Intel Celeron J4125	126 s * -154%
Beelink SER3 AMD Ryzen 7 3750H	86.5 s * -74%
Intel Core i9-10900K Intel Core i9-10900K	76 s * -53%
Minisforum HM90 AMD Ryzen 9 4900H	66 s * -33%
GMK NucBox 2 Intel Core i5-8259U	63.6 s * -28%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	63.4 s * -28%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	61.4 s * -24%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	55.9 s * -12%
Beelink GTI 11 Intel Core i5-1135G7	54.5 s * -10%
Average AMD Ryzen 9 5900HX (44.1 - 87.4, n=29)	53.3 s * -7%
Beelink GTR5 AMD Ryzen 9 5900HX	49.7 s *
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	49.6 s * -0%
MSI GS76 Stealth 11UH Intel Core i9-11900H	49.3 s * +1%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	46.9 s * +6%
Intel NUC11PAQi7 Intel Core i7-1165G7	42.2 s * +15%
MSI GE76 Raider Intel Core i9-12900HK	38.9 s * +22%

R Benchmark 2.5 / Overall mean
Beelink GK Mini Intel Celeron J4125	1.553 sec * -224%
GMK NucBox 2 Intel Core i5-8259U	0.786 sec * -64%
Beelink SER3 AMD Ryzen 7 3750H	0.723 sec * -51%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U	0.654 sec * -36%
Beelink GTI 11 Intel Core i5-1135G7	0.627 sec * -31%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	0.599 sec * -25%
Lenovo Legion C7 15IMH05 82EH0030GE Intel Core i7-10875H	0.581 sec * -21%
Minisforum HM90 AMD Ryzen 9 4900H	0.572 sec * -19%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	0.563 sec * -17%
Intel NUC11PAQi7 Intel Core i7-1165G7	0.553 sec * -15%
MSI GS76 Stealth 11UH Intel Core i9-11900H	0.533 sec * -11%
Intel Core i9-10900K Intel Core i9-10900K	0.528 sec * -10%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H	0.517 sec * -8%
Average AMD Ryzen 9 5900HX (0.48 - 0.599, n=29)	0.507 sec * -6%
Beelink GTR5 AMD Ryzen 9 5900HX	0.48 sec *
MSI GE76 Raider Intel Core i9-12900HK	0.4252 sec * +11%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1963 Points

Cinebench R15 OpenGL 64Bit

96.6 fps

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 CPU Single 64Bit

240 Points

Help

... in comparison

Performance Rating
Average AMD Ryzen 9 5900HX	96.1 pt
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	91.8 pt
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	51.8 pt
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	51.1 pt
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	30.9 pt
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	11.8 pt

AIDA64 / FP32 Ray-Trace
Average AMD Ryzen 9 5900HX (12470 - 16014, n=26)	14857 KRay/s +6%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	13987 KRay/s
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	7627 KRay/s -45%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	7216 KRay/s -48%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	4840 KRay/s -65%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	1040 KRay/s -93%

AIDA64 / FPU Julia
Average AMD Ryzen 9 5900HX (79554 - 101008, n=26)	94297 Points +7%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	88153 Points
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31613 Points -64%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	30533 Points -65%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	24481 Points -72%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	6611 Points -93%

AIDA64 / CPU SHA3
Average AMD Ryzen 9 5900HX (2754 - 3444, n=26)	3232 MB/s +7%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	3026 MB/s
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	2171 MB/s -28%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	2059 MB/s -32%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	1234 MB/s -59%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	417 MB/s -86%

AIDA64 / CPU Queen
Average AMD Ryzen 9 5900HX (87865 - 105123, n=26)	101111 Points +3%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	97835 Points
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	50477 Points -48%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46657 Points -52%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	41340 Points -58%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	20042 Points -80%

AIDA64 / FPU SinJulia
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	12402 Points
Average AMD Ryzen 9 5900HX (10899 - 12806, n=26)	12392 Points 0%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	4793 Points -61%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	4442 Points -64%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	4241 Points -66%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	1263 Points -90%

AIDA64 / FPU Mandel
Average AMD Ryzen 9 5900HX (43685 - 55702, n=26)	51901 Points +7%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	48563 Points
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	18656 Points -62%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	18635 Points -62%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	12377 Points -75%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	3614 Points -93%

AIDA64 / CPU AES
Average AMD Ryzen 9 5900HX (109927 - 137901, n=26)	126869 MB/s +6%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	119784 MB/s
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	73326 MB/s -39%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	67937 MB/s -43%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	16202 MB/s -86%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	10604 MB/s -91%

AIDA64 / CPU ZLib
Average AMD Ryzen 9 5900HX (706 - 878, n=26)	815 MB/s +6%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	769 MB/s
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	397 MB/s -48%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	370 MB/s -52%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	285 MB/s -63%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	137 MB/s -82%

AIDA64 / FP64 Ray-Trace
Average AMD Ryzen 9 5900HX (6664 - 8644, n=26)	7892 KRay/s +7%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	7395 KRay/s
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	3864 KRay/s -48%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	3838 KRay/s -48%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	2671 KRay/s -64%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	578 KRay/s -92%

AIDA64 / CPU PhotoWorxx
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31708 MPixel/s +56%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	27471 MPixel/s +35%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	20277 MPixel/s
Average AMD Ryzen 9 5900HX (14344 - 25533, n=26)	19273 MPixel/s -5%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	10092 MPixel/s -50%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	6756 MPixel/s -67%

系统性能

PCMark的结果非常好，远远高于其他大多数迷你PC和NUC。然而，我们在测试过程中确实遇到了两次崩溃，设备会自动断电，似乎没有任何理由。无论好坏，我们都无法可靠地重复这些崩溃。

PCMark 10 / Score
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	6504 Points
Average AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (6290 - 6507, n=5)	6429 Points -1%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5931 Points -9%
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5158 Points -21%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	4952 Points -24%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	4132 Points -36%
Beelink GK Mini UHD Graphics 600, Celeron J4125, Silicon Motion SM2258XT 256GB	1898 Points -71%

PCMark 10 / Essentials
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	10772 Points
Average AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (10087 - 10836, n=5)	10544 Points -2%
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	10258 Points -5%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	9893 Points -8%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	9233 Points -14%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	8351 Points -22%
Beelink GK Mini UHD Graphics 600, Celeron J4125, Silicon Motion SM2258XT 256GB	4993 Points -54%

PCMark 10 / Productivity
Average AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (9852 - 10196, n=5)	9980 Points +1%
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	9875 Points
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	8818 Points -11%
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	7136 Points -28%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	6400 Points -35%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	6348 Points -36%
Beelink GK Mini UHD Graphics 600, Celeron J4125, Silicon Motion SM2258XT 256GB	3050 Points -69%

PCMark 10 / Digital Content Creation
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	7020 Points
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	6957 Points -1%
Average AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (6660 - 7105, n=5)	6858 Points -2%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	5206 Points -26%
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5087 Points -28%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	3613 Points -49%
Beelink GK Mini UHD Graphics 600, Celeron J4125, Silicon Motion SM2258XT 256GB	1216 Points -83%

CrossMark / Overall
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1501 Points
Average AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1402 - 1501, n=2)	1452 Points -3%

CrossMark / Productivity
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1495 Points
Average AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1387 - 1495, n=2)	1441 Points -4%

CrossMark / Creativity
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1589 Points
Average AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1553 - 1589, n=2)	1571 Points -1%

CrossMark / Responsiveness
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1281 Points
Average AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1068 - 1281, n=2)	1175 Points -8%

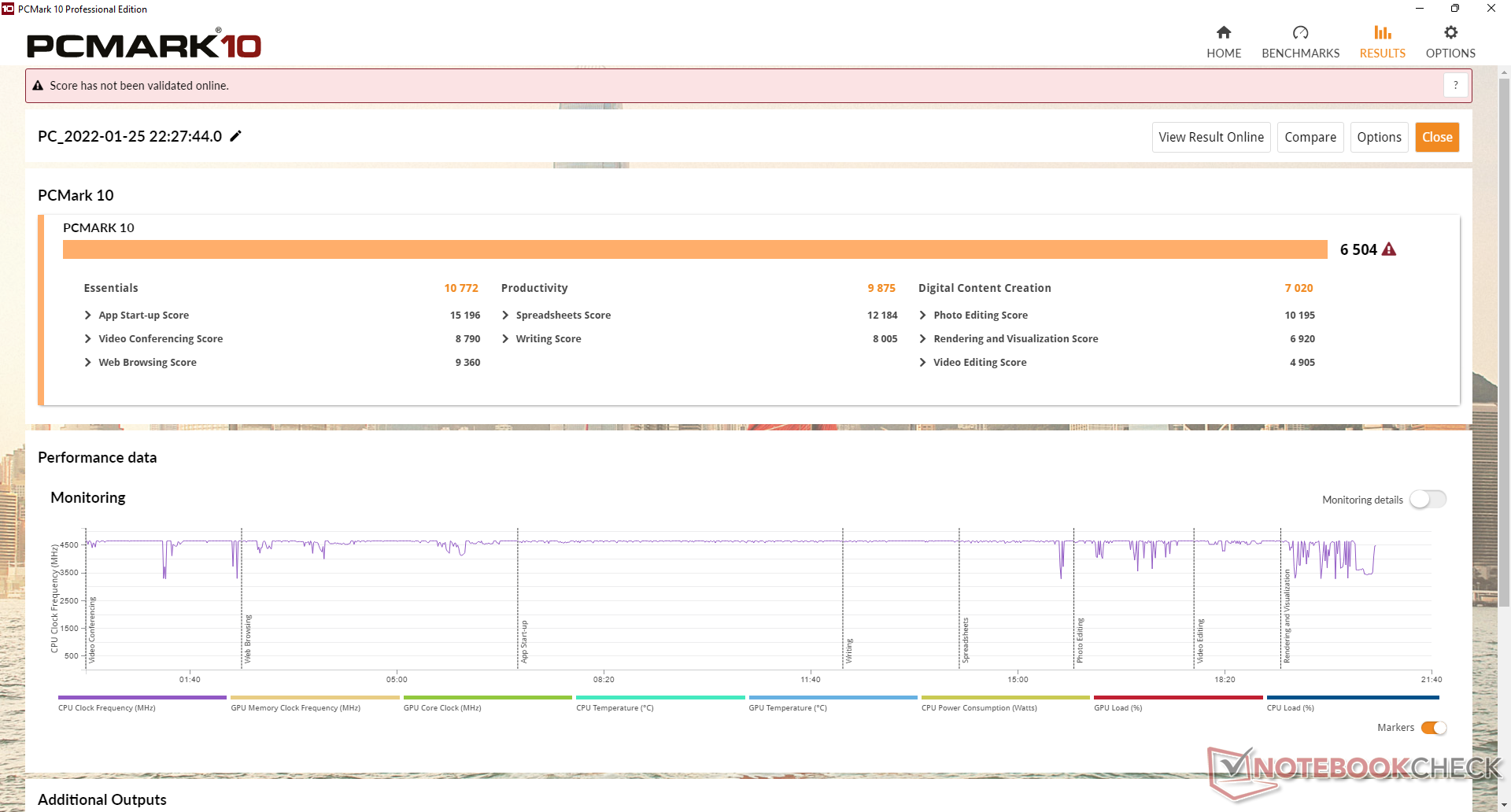

PCMark 10 Score		6504 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	48099 MB/s +14%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	42079 MB/s
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	40994 MB/s -3%
Average AMD Ryzen 9 5900HX (36725 - 43318, n=26)	40935 MB/s -3%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	35353 MB/s -16%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	12604 MB/s -70%

AIDA64 / Memory Read
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	47281 MB/s
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46916 MB/s -1%
Average AMD Ryzen 9 5900HX (41378 - 47593, n=26)	45797 MB/s -3%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	41238 MB/s -13%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	38017 MB/s -20%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	10095 MB/s -79%

AIDA64 / Memory Write
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	51980 MB/s +23%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46366 MB/s +10%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	42270 MB/s
Average AMD Ryzen 9 5900HX (32536 - 46718, n=26)	41417 MB/s -2%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	39237 MB/s -7%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	10347 MB/s -76%

AIDA64 / Memory Latency
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	92 ns * -15%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	80 ns *
Average AMD Ryzen 9 5900HX (73.5 - 97.1, n=26)	78.8 ns * +1%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	73.2 ns * +8%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	68.3 ns * +15%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	55.6 ns * +30%

* ... smaller is better

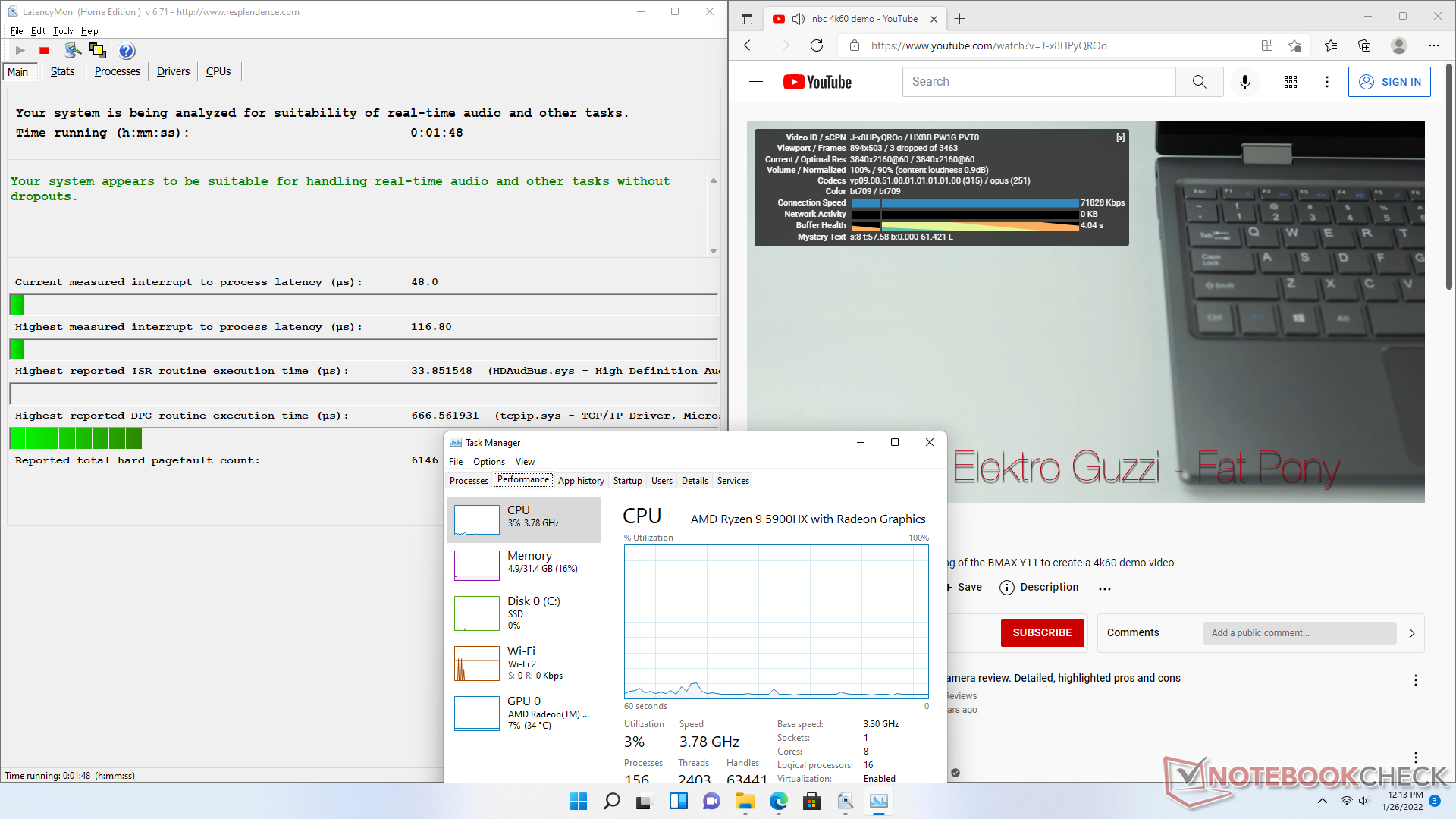

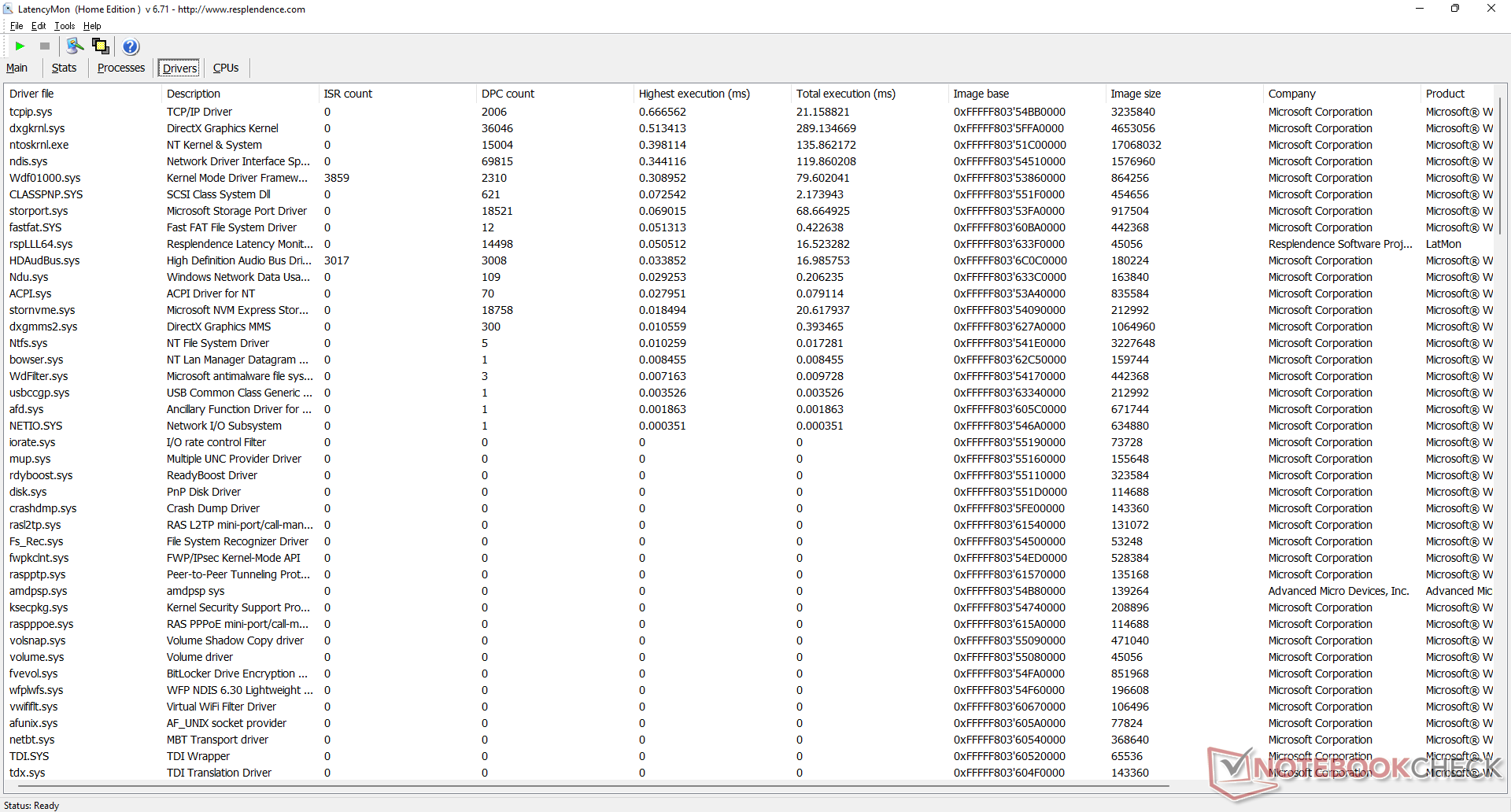

DPC延时

LatencyMon显示在我们的主页上打开多个浏览器标签时没有DPC问题。在我们长达1分钟的YouTube测试中，4K视频在60FPS下的播放很流畅，只有3个丢帧。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink GK Mini UHD Graphics 600, Celeron J4125, Silicon Motion SM2258XT 256GB	1318 μs * -1036%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	1132 μs * -876%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	786 μs * -578%
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	568 μs * -390%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	278.2 μs * -140%
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	116 μs *

* ... smaller is better

存储设备

我们的测试设备配备了一个中档的 500GB金士顿NV1PCIe3 x4 SSD。与运行在第11代酷睿CPU上的最新英特尔NUC不同，不支持PCIe4速度。金士顿的驱动器在其他方面没有显示出任何问题，它的最大传输率在长时间内保持在2300MB/s左右。

系统可以支持多达两个M.2 2280固态硬盘。请记住，只有一个M.2插槽可以支持NVMe，而另一个只能是SATA III。

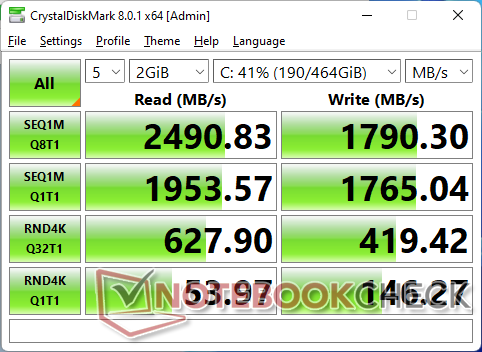

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV1 SNVS/500GCN

CDM 5/6 Read Seq Q32T1: 2499 MB/s

CDM 5/6 Write Seq Q32T1: 1826 MB/s

CDM 5/6 Read 4K Q32T1: 631 MB/s

CDM 5/6 Write 4K Q32T1: 436.4 MB/s

CDM 5 Read Seq: 2010 MB/s

CDM 5 Write Seq: 1798 MB/s

CDM 5/6 Read 4K: 54.5 MB/s

CDM 5/6 Write 4K: 149.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	89.3 pt
Beelink GTI 11 Kingston SA2000M8500G	59.2 pt
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	54.8 pt
Beelink GTR5 Kingston NV1 SNVS/500GCN	49.4 pt
GMK NucBox 2 Netac S930E8/256GPN	37.6 pt
Beelink GK Mini Silicon Motion SM2258XT 256GB	13.9 pt

DiskSpd
seq read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3630 (3511.15^min - 3630.17^max) MB/s +83%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	2068 (2046.82^min - 2067.79^max) MB/s +4%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1986 (1983.26^min - 1986.21^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	1566 (1557.38^min - 1565.96^max) MB/s -21%
Beelink GTI 11 Kingston SA2000M8500G	1392 (1389.99^min - 1391.88^max) MB/s -30%
Beelink GK Mini Silicon Motion SM2258XT 256GB	429 (426.55^min - 429.27^max) MB/s -78%
seq write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3504 (3409.87^min - 3503.8^max) MB/s +98%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1887 (1880.31^min - 1887.23^max) MB/s +7%
Beelink GTI 11 Kingston SA2000M8500G	1810 (1639.55^min - 1810.32^max) MB/s +2%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1766 (564^min - 1766.22^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	1213 (454.38^min - 1213.29^max) MB/s -31%
Beelink GK Mini Silicon Motion SM2258XT 256GB	408 (403.91^min - 408.11^max) MB/s -77%
seq q8 t1 read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	6794 (6533.05^min - 6794.19^max) MB/s +171%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	3415 (3195.01^min - 3414.88^max) MB/s +36%
Beelink GTR5 Kingston NV1 SNVS/500GCN	2511 (2320.5^min - 2511.12^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	2121 (1959.37^min - 2121.01^max) MB/s -16%
Beelink GTI 11 Kingston SA2000M8500G	1699 (1607.68^min - 1699.07^max) MB/s -32%
Beelink GK Mini Silicon Motion SM2258XT 256GB	467 (426.34^min - 466.73^max) MB/s -81%
seq q8 t1 write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	4867 (4865.94^min - 4867.49^max) MB/s +171%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	3400 (3383.13^min - 3399.9^max) MB/s +89%
Beelink GTI 11 Kingston SA2000M8500G	1873 (1713.16^min - 1872.55^max) MB/s +4%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1797 (679.16^min - 1796.66^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	1248 (414.41^min - 1248.45^max) MB/s -31%
Beelink GK Mini Silicon Motion SM2258XT 256GB	483 (472.07^min - 482.85^max) MB/s -73%
4k q1 t1 read
Beelink GTI 11 Kingston SA2000M8500G	66 (65.66^min - 66.02^max) MB/s +29%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	55.8 (55.66^min - 55.82^max) MB/s +9%
Beelink GTR5 Kingston NV1 SNVS/500GCN	51.1 (45.32^min - 51.14^max) MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	41.8 (41.45^min - 41.8^max) MB/s -18%
GMK NucBox 2 Netac S930E8/256GPN	29.4 (21.8^min - 29.38^max) MB/s -42%
Beelink GK Mini Silicon Motion SM2258XT 256GB	22.1 (5.61^min - 22.1^max) MB/s -57%
4k q1 t1 write
Beelink GTI 11 Kingston SA2000M8500G	223 (200.71^min - 223.16^max) MB/s +10%
Beelink GTR5 Kingston NV1 SNVS/500GCN	203 (155.48^min - 203.38^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	156 (133.05^min - 156.14^max) MB/s -23%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	83.2 (82.75^min - 83.2^max) MB/s -59%
Beelink GK Mini Silicon Motion SM2258XT 256GB	63.9 (62.82^min - 63.93^max) MB/s -69%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	60.6 (60.37^min - 60.61^max) MB/s -70%
4k q32 t16 read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3117 (3085.18^min - 3117.44^max) MB/s +317%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1146 (1123.37^min - 1146.36^max) MB/s +53%
Beelink GTI 11 Kingston SA2000M8500G	813 (810.85^min - 813.32^max) MB/s +9%
Beelink GTR5 Kingston NV1 SNVS/500GCN	747 (741.87^min - 747.14^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	331 (329.92^min - 330.85^max) MB/s -56%
Beelink GK Mini Silicon Motion SM2258XT 256GB	168 (164.34^min - 167.81^max) MB/s -78%
4k q32 t16 write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2636 (2619.44^min - 2635.84^max) MB/s +229%
Beelink GTI 11 Kingston SA2000M8500G	1089 (1047.09^min - 1088.53^max) MB/s +36%
Beelink GTR5 Kingston NV1 SNVS/500GCN	801 (384.08^min - 801.12^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	739 (122.91^min - 738.54^max) MB/s -8%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	502 (468.48^min - 501.52^max) MB/s -37%
Beelink GK Mini Silicon Motion SM2258XT 256GB	284 (277.52^min - 283.94^max) MB/s -65%

AS SSD
Score Total
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	6725 Points +164%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	4036 Points +59%
Beelink GTI 11 Kingston SA2000M8500G	3013 Points +18%
Beelink GTR5 Kingston NV1 SNVS/500GCN	2544 Points
GMK NucBox 2 Netac S930E8/256GPN	1497 Points -41%
Beelink GK Mini Silicon Motion SM2258XT 256GB	638 Points -75%
Score Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2660 Points +175%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1439 Points +49%
Beelink GTI 11 Kingston SA2000M8500G	1001 Points +4%
Beelink GTR5 Kingston NV1 SNVS/500GCN	966 Points
GMK NucBox 2 Netac S930E8/256GPN	615 Points -36%
Beelink GK Mini Silicon Motion SM2258XT 256GB	192 Points -80%
Score Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2676 Points +143%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1923 Points +74%
Beelink GTI 11 Kingston SA2000M8500G	1486 Points +35%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1103 Points
GMK NucBox 2 Netac S930E8/256GPN	598 Points -46%
Beelink GK Mini Silicon Motion SM2258XT 256GB	345 Points -69%
Seq Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3257 MB/s +42%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	2562 MB/s +12%
Beelink GTR5 Kingston NV1 SNVS/500GCN	2289 MB/s
GMK NucBox 2 Netac S930E8/256GPN	2069 MB/s -10%
Beelink GTI 11 Kingston SA2000M8500G	2006 MB/s -12%
Beelink GK Mini Silicon Motion SM2258XT 256GB	445.5 MB/s -81%
Seq Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3937 MB/s +131%
Beelink GTI 11 Kingston SA2000M8500G	1904 MB/s +12%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1703 MB/s
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1265 MB/s -26%
GMK NucBox 2 Netac S930E8/256GPN	1203 MB/s -29%
Beelink GK Mini Silicon Motion SM2258XT 256GB	440.5 MB/s -74%
4K Read
Beelink GTI 11 Kingston SA2000M8500G	60.9 MB/s +39%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	51.3 MB/s +17%
Beelink GTR5 Kingston NV1 SNVS/500GCN	43.84 MB/s
GMK NucBox 2 Netac S930E8/256GPN	41.66 MB/s -5%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	39.24 MB/s -10%
Beelink GK Mini Silicon Motion SM2258XT 256GB	12.69 MB/s -71%
4K Write
Beelink GTI 11 Kingston SA2000M8500G	203.7 MB/s +48%
Beelink GTR5 Kingston NV1 SNVS/500GCN	137.3 MB/s
GMK NucBox 2 Netac S930E8/256GPN	136.9 MB/s 0%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	75.7 MB/s -45%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	63.5 MB/s -54%
Beelink GK Mini Silicon Motion SM2258XT 256GB	51.8 MB/s -62%
4K-64 Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2283 MB/s +229%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1143 MB/s +65%
Beelink GTI 11 Kingston SA2000M8500G	740 MB/s +7%
Beelink GTR5 Kingston NV1 SNVS/500GCN	693 MB/s
GMK NucBox 2 Netac S930E8/256GPN	366.3 MB/s -47%
Beelink GK Mini Silicon Motion SM2258XT 256GB	134.3 MB/s -81%
4K-64 Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2206 MB/s +177%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1733 MB/s +118%
Beelink GTI 11 Kingston SA2000M8500G	1092 MB/s +37%
Beelink GTR5 Kingston NV1 SNVS/500GCN	795 MB/s
GMK NucBox 2 Netac S930E8/256GPN	340.5 MB/s -57%
Beelink GK Mini Silicon Motion SM2258XT 256GB	249.2 MB/s -69%
Access Time Read
Beelink GK Mini Silicon Motion SM2258XT 256GB	3.629 ms * -6620%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.075 ms * -39%
GMK NucBox 2 Netac S930E8/256GPN	0.064 ms * -19%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.056 ms * -4%
Beelink GTR5 Kingston NV1 SNVS/500GCN	0.054 ms *
Beelink GTI 11 Kingston SA2000M8500G	0.047 ms * +13%
Access Time Write
GMK NucBox 2 Netac S930E8/256GPN	0.347 ms * -5%
Beelink GTR5 Kingston NV1 SNVS/500GCN	0.332 ms *
Beelink GK Mini Silicon Motion SM2258XT 256GB	0.253 ms * +24%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.193 ms * +42%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.154 ms * +54%
Beelink GTI 11 Kingston SA2000M8500G	0.083 ms * +75%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink GTR5: Ø2448 (1889.95-2470.35)

GPU性能

集成的Radeon RX Vega 8这里比我们数据库中配备相同集成GPU的普通笔记本电脑快约20%。英特尔的 Iris Xe 96 EUs大多数第11代酷睿i7笔记本电脑上的解决方案仍然在大多数游戏中领先于我们的AMD解决方案，但这次他们之间的差距要小得多。大多数现代和高要求的游戏在1080p低设置下运行得相当好。

3DMark Performance Rating | 3DMark | 3DMark 11

3DMark Performance Rating - Percent
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	100 pt
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	53.1 pt
Asus Zenbook 14X UX5400E ^-1! NVIDIA GeForce MX450, Intel Core i7-1165G7	28.3 pt
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	27.9 pt
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	25.9 pt
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	24.1 pt
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	22.2 pt
Huawei MateBook 16 R7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	21.7 pt
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	21.3 pt
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.1 pt
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	19.8 pt
Lenovo IdeaPad 3 15ALC6 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 3 5300U	15.4 pt
Acer Aspire 5 A515-45-R4R1 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	14.2 pt
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	11.4 pt
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	10.8 pt
Beelink GK Mini Intel UHD Graphics 600, Intel Celeron J4125	2.3 pt

3DMark
1920x1080 Fire Strike Graphics
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	17077 Points +280%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	10248 Points +128%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	5410 Points +20%
Asus Zenbook 14X UX5400E NVIDIA GeForce MX450, Intel Core i7-1165G7	5274 Points +17%
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	4496 Points 0%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4493 Points
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	4010 Points -11%
Huawei MateBook 16 R7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	3734 Points -17%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3724 Points -17%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1694 - 5041, n=54)	3676 Points -18%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	3414 Points -24%
Lenovo IdeaPad 3 15ALC6 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 3 5300U	2695 Points -40%
Acer Aspire 5 A515-45-R4R1 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	2363 Points -47%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	2027 Points -55%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	1914 Points -57%
Beelink GK Mini Intel UHD Graphics 600, Intel Celeron J4125	455 Points -90%
2560x1440 Time Spy Graphics
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	6599 Points +358%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	2908 Points +102%
Asus Zenbook 14X UX5400E NVIDIA GeForce MX450, Intel Core i7-1165G7	1688 Points +17%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1618 Points +12%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1441 Points
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	1333 Points -7%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1281 Points -11%
Huawei MateBook 16 R7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1186 Points -18%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1168 Points -19%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (540 - 1557, n=54)	1156 Points -20%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	1088 Points -24%
Lenovo IdeaPad 3 15ALC6 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 3 5300U	885 Points -39%
Acer Aspire 5 A515-45-R4R1 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	757 Points -47%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	609 Points -58%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	594 Points -59%
Beelink GK Mini Intel UHD Graphics 600, Intel Celeron J4125	124 Points -91%
2560x1440 Time Spy Score
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	6380 Points +287%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	3096 Points +88%
Asus Zenbook 14X UX5400E NVIDIA GeForce MX450, Intel Core i7-1165G7	1810 Points +10%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1793 Points +9%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1647 Points
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	1497 Points -9%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1441 Points -13%
Huawei MateBook 16 R7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1357 Points -18%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (620 - 1781, n=55)	1317 Points -20%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1316 Points -20%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	1243 Points -25%
Lenovo IdeaPad 3 15ALC6 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 3 5300U	1001 Points -39%
Acer Aspire 5 A515-45-R4R1 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	867 Points -47%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	690 Points -58%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	676 Points -59%
Beelink GK Mini Intel UHD Graphics 600, Intel Celeron J4125	143 Points -91%

3DMark 11 - 1280x720 Performance GPU
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	23992 Points +238%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	14302 Points +101%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7102 Points
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6529 Points -8%
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	6293 Points -11%
Huawei MateBook 16 R7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	6117 Points -14%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6027 Points -15%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3459 - 7591, n=54)	5910 Points -17%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	5567 Points -22%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5566 Points -22%
Acer Aspire 5 A515-45-R4R1 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	4277 Points -40%
Lenovo IdeaPad 3 15ALC6 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 3 5300U	4035 Points -43%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	3245 Points -54%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	2947 Points -59%
Beelink GK Mini Intel UHD Graphics 600, Intel Celeron J4125	613 Points -91%

3DMark Performance Rating | 3DMark | 3DMark 11

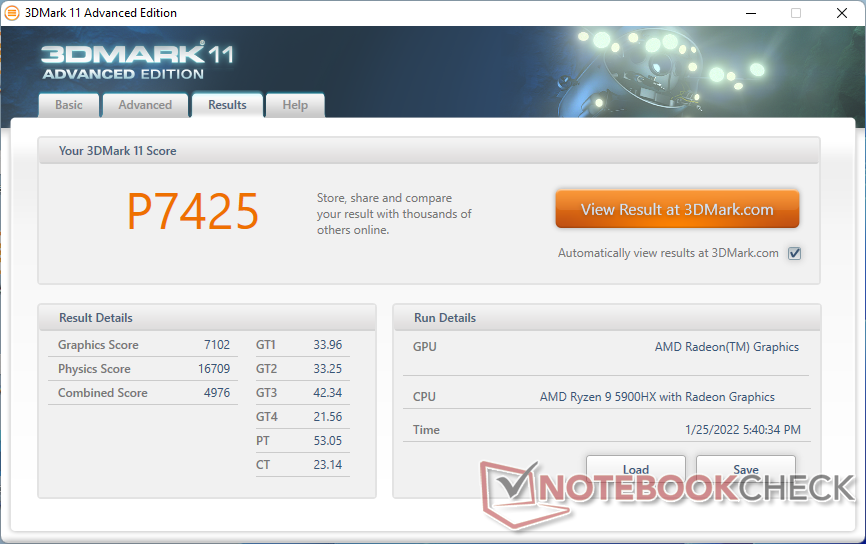

3DMark 11 Performance		7425 points

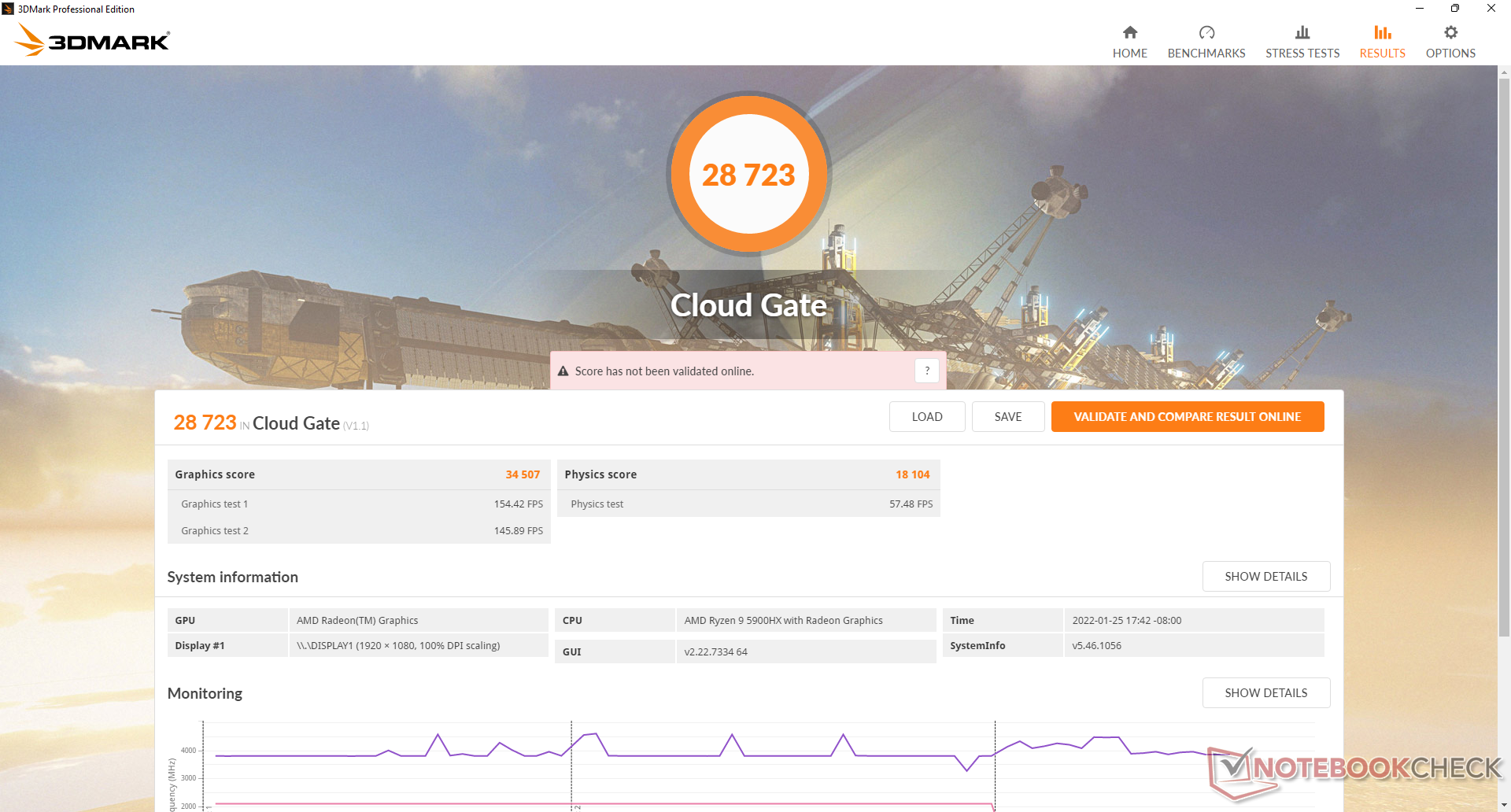

3DMark Cloud Gate Standard Score		28723 points

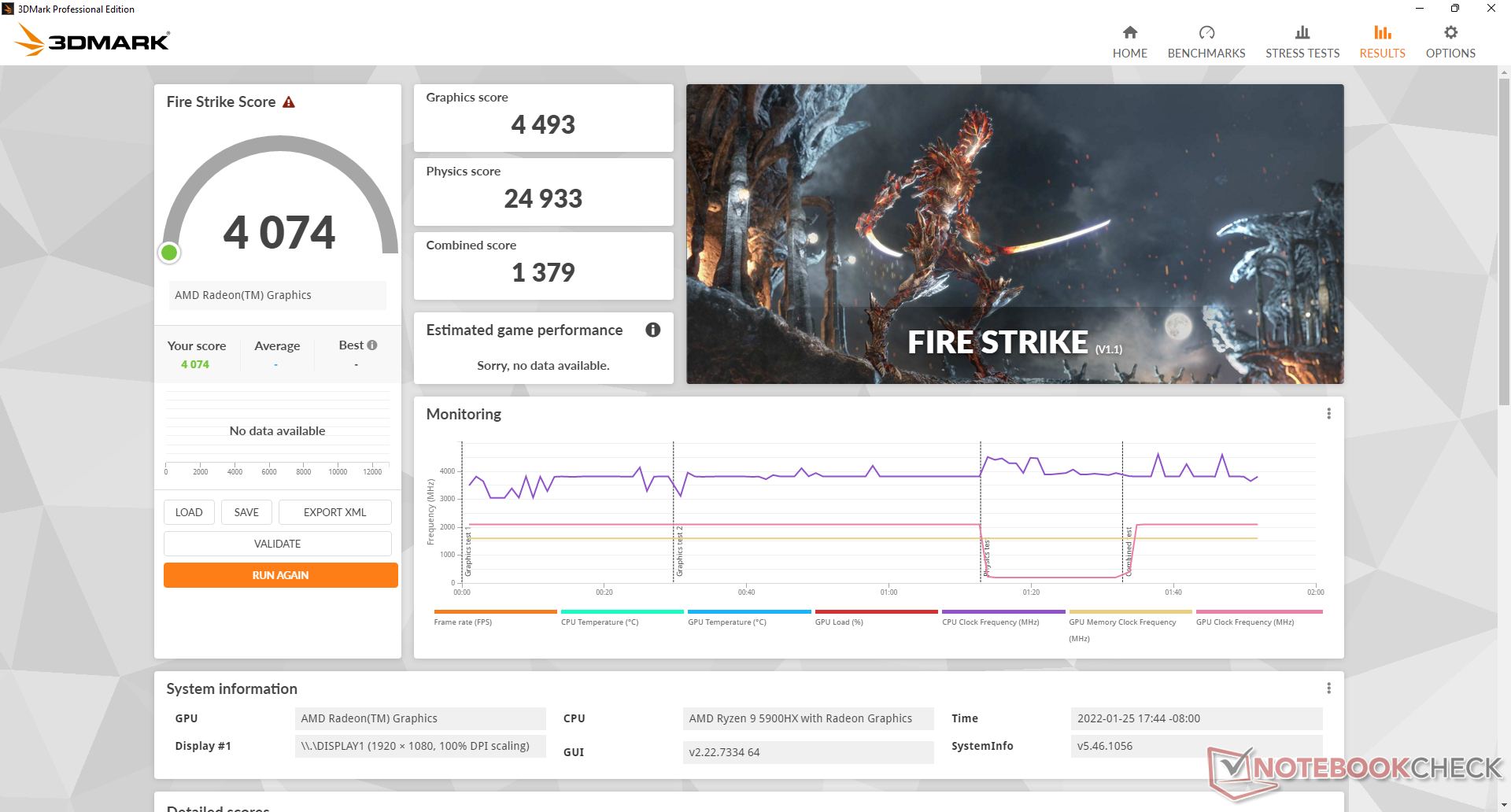

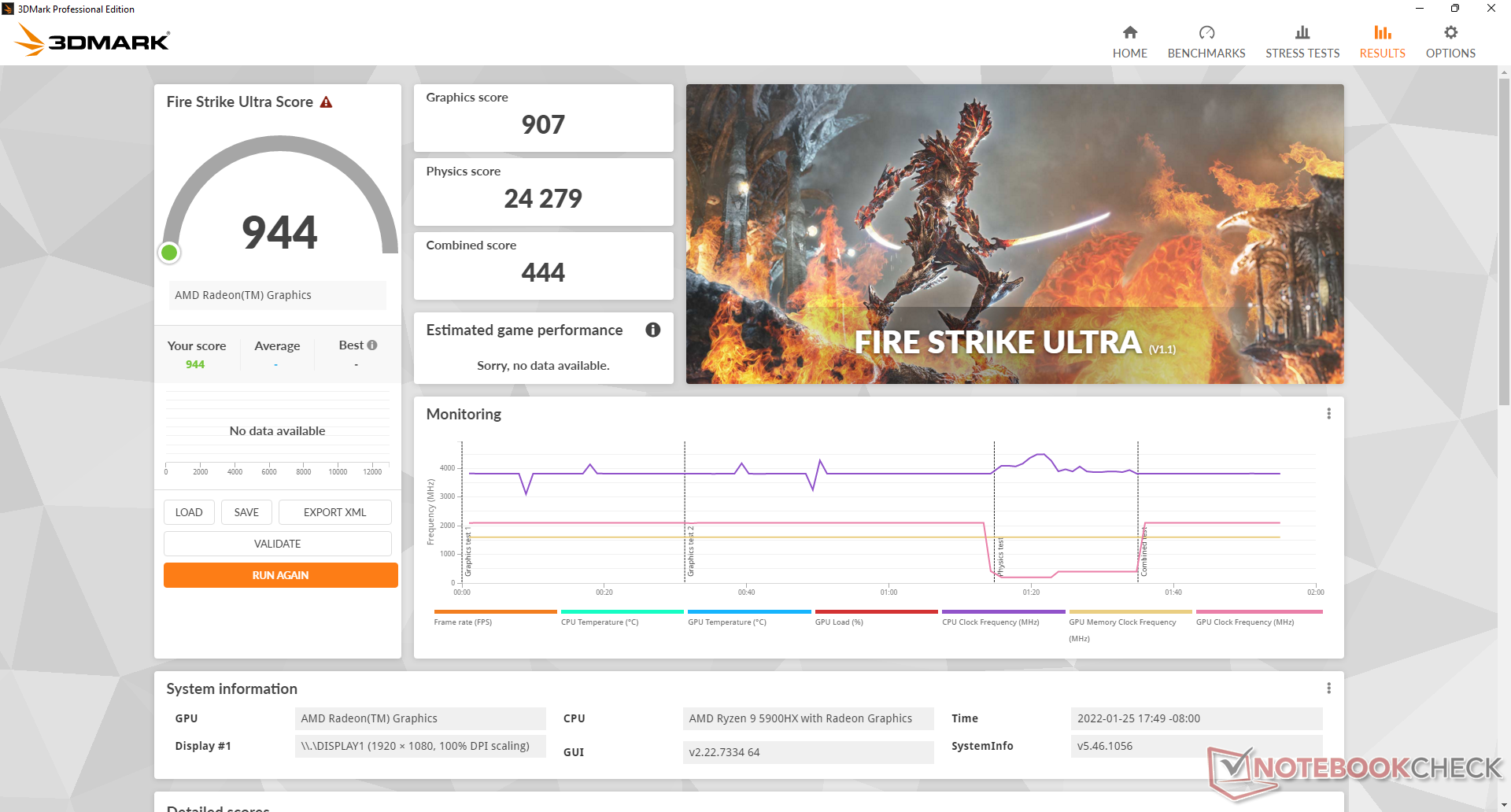

3DMark Fire Strike Score		4074 points

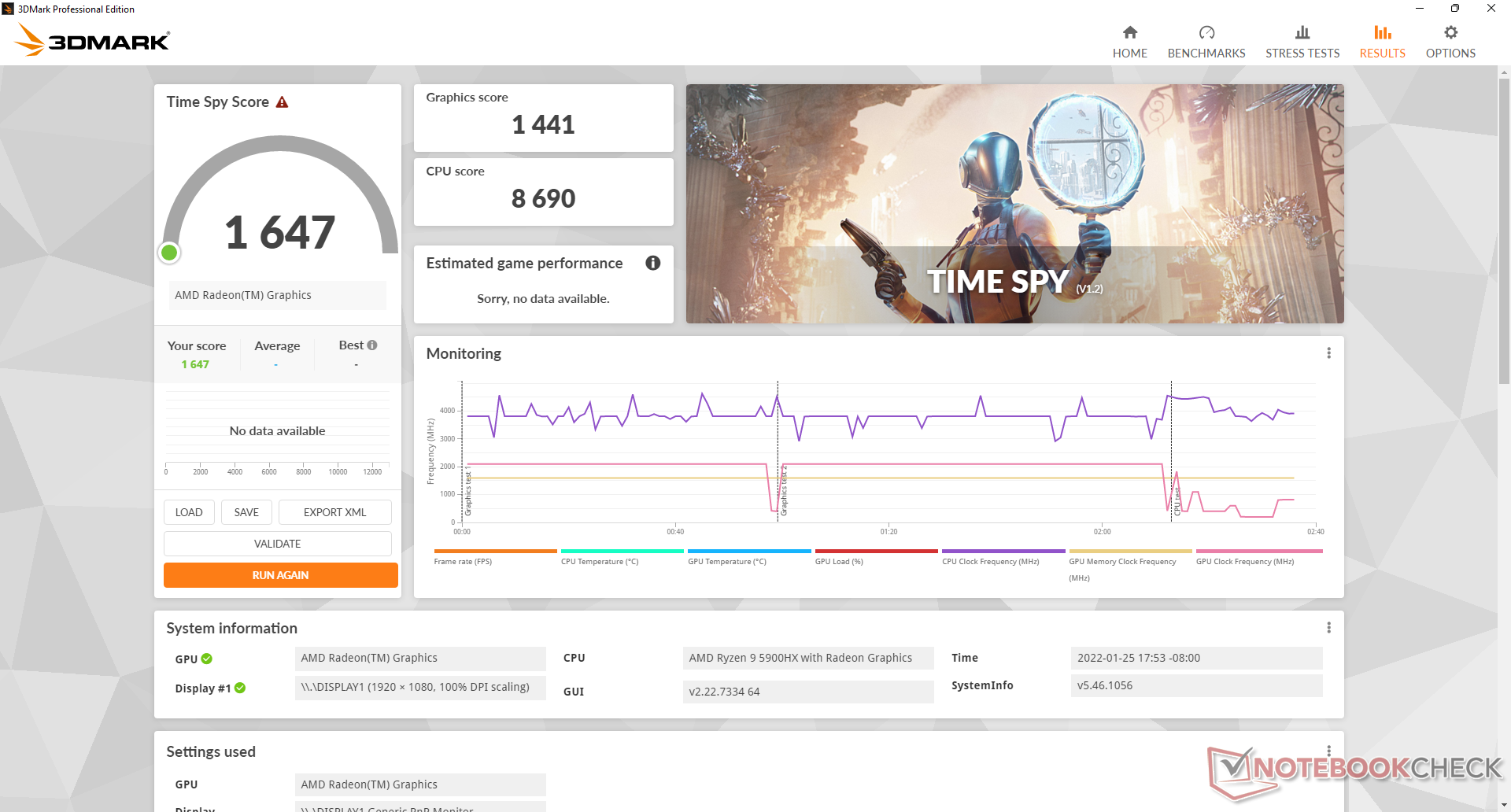

3DMark Time Spy Score		1647 points
Help

... in comparison

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	220.7 (196^min) fps +154%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	98.7 (60^min) fps +14%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	86.9 (77^min) fps
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	86 (81^min) fps -1%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	77.1 (44^min) fps -11%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72 fps -17%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	70.3 (63^min) fps -19%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (27.2 - 89, n=47)	65.9 fps -24%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	61.6 (30.7^min, 37.2^P0.1, 46.5^P1) fps -29%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	52.2 (46^min) fps -40%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.4 fps -56%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	35.7 (28^min) fps -59%
1366x768 Medium Graphics & Postprocessing
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	152.2 (142^min) fps +176%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	62.8 (58^min) fps +14%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	55.2 (52^min) fps
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	48.6 (46^min) fps -12%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	46.6 (41^min) fps -16%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	43.7 (40^min) fps -21%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (19.6 - 55.2, n=35)	40.8 fps -26%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.5 (21.6^min, 25.4^P0.1, 31.8^P1) fps -28%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	33 (29^min) fps -40%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.9 fps -53%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	22.9 (21^min) fps -59%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	101.5 (96^min) fps +279%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35 (31^min) fps +31%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	29.9 (27^min) fps +12%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	28.1 fps +5%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.8 (25^min) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	23.1 (19^min) fps -14%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 fps -18%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.7 (18^min) fps -23%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8.7 - 26.8, n=46)	20.6 fps -23%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19.6 (15.7^min, 15.8^P0.1, 16.8^P1) fps -27%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	17 (15^min) fps -37%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	12.2 (11^min) fps -54%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11.5 fps -57%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	61.4 (59^min) fps +259%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	22.9 fps +34%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.1 (15^min) fps
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	16.7 (14^min) fps -2%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	16.5 (13^min) fps -4%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.6 (13^min, 14^P1) fps -15%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7.07 - 17.6, n=49)	13.7 fps -20%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.6 (11.8^min, 11.8^P0.1, 12^P1) fps -20%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	11.5 (10^min) fps -33%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	10.3 (9^min) fps -40%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	10.2 (9^min) fps -40%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	8 (7^min) fps -53%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7.9 (8^min, 8^P1) fps -54%

Far Cry 5
1280x720 Low Preset AA:T
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (56^min) fps
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	59 (49^min) fps -5%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	49 (37^min) fps -21%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	47 (39^min) fps -24%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46 (41^min) fps -26%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (22 - 71, n=31)	46 fps -26%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	39 (34^min) fps -37%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	23 (20^min) fps -63%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 fps -65%
1920x1080 Low Preset AA:T
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47 fps +42%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33 (29^min) fps
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	32 (29^min) fps -3%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32 (29^min) fps -3%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (15 - 47, n=16)	27.5 fps -17%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	26 (23^min) fps -21%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20 (18^min) fps -39%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	13 (11^min) fps -61%
1920x1080 Medium Preset AA:T
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	36 fps +24%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps 0%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	26 (22^min) fps -10%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	23 (21^min) fps -21%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13 - 34, n=31)	22.2 fps -23%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 fps -28%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (18^min) fps -28%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18 (15^min) fps -38%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	12 (10^min) fps -59%
1920x1080 High Preset AA:T
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	30 fps +11%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27 (24^min) fps
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps -4%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	23 (19^min) fps -15%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	22 (19^min) fps -19%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (12 - 31, n=30)	20.5 fps -24%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 fps -26%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (17^min) fps -26%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	16 (14^min) fps -41%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	11 (10^min) fps -59%
1920x1080 Ultra Preset AA:T
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	27 fps +8%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	25 (22^min) fps 0%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25 (23^min) fps
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	22 (16^min) fps -12%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21 (19^min) fps -16%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (12 - 29, n=27)	19.3 fps -23%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 (16^min) fps -24%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	15 (13^min) fps -40%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	10 (9^min) fps -60%

Strange Brigade
1280x720 lowest AF:1
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	287 (77^min, 220^P1) fps +190%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99.1 (72.8^min, 85.4^P1) fps
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	93.3 (20.2^min, 36.6^P1) fps -6%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	92.7 (72^min, 76.8^P1) fps -6%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	85 fps -14%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43 - 117, n=50)	78.6 fps -21%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	76.5 (17.1^min, 23^P1) fps -23%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.6 (43.7^min, 64.9^P1) fps -27%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	67.3 (51.7^min, 56.6^P1) fps -32%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	66.2 (14^min, 22.8^P1) fps -33%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	43 (29.7^min, 37.5^P1) fps -57%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	37.9 (30.4^min, 31.9^P1) fps -62%
1920x1080 medium AA:medium AF:4
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	148 (64.5^min, 124^P1) fps +292%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	40.4 (15.5^min, 23^P1) fps +7%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.8 (31.8^min, 33.6^P1) fps
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33 fps -13%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	32.3 (27.7^min, 28.5^P1) fps -15%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (16.9 - 45.3, n=49)	30.9 fps -18%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	30.8 (9.7^min, 16.6^P1) fps -19%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.1 (23.3^min, 25.9^P1) fps -23%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	26.3 (22.1^min, 23.4^P1) fps -30%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	23.8 (5.4^min, 6.17^P1) fps -37%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.3 (13.6^min, 15.1^P1) fps -54%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	15.1 (11.9^min, 13.1^P1) fps -60%
1920x1080 high AA:high AF:8
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	124 (75.3^min, 98^P1) fps +289%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	44.8 fps +40%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32 (8.9^min, 17.8^P1) fps 0%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.9 (23.5^min, 25.5^P1) fps
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 fps -9%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (14.6 - 37.7, n=49)	26 fps -18%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	25.2 (5.1^min, 8.82^P1) fps -21%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	25 (20.5^min, 21.4^P1) fps -22%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.7 (17.5^min, 19.6^P1) fps -23%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21.7 (17.1^min, 17.5^P1) fps -32%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.1 (5^min, 5.19^P1) fps -37%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15 (11.4^min, 12.1^P1) fps -53%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	12.6 (9.9^min, 10.2^P1) fps -61%
1920x1080 ultra AA:ultra AF:16
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	109 (68.2^min, 83.9^P1) fps +296%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	36 fps +31%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.5 (21.3^min, 22.3^P1) fps
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	25.8 (5.7^min, 8.17^P1) fps -6%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25 fps -9%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (12.8 - 32.1, n=47)	22.2 fps -19%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.1 (14.5^min, 16.8^P1) fps -23%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	20.2 (5^min, 5^P1) fps -27%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	18.8 (14.8^min, 15.1^P1) fps -32%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18.5 (13.1^min, 14.1^P1) fps -33%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	16.9 (5^min, 5^P1) fps -39%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.3 (5.7^min, 10.1^P1) fps -52%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	10.9 (8.1^min, 8.84^P1) fps -60%

Dota 2 Reborn
1280x720 min (0/3) fastest
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	139 (124.5^min) fps +3%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	135 (115.7^min) fps
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	128 (110.6^min) fps -5%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	126 (109.8^min) fps -7%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124 (105^min) fps -8%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	123 (107.9^min) fps -9%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (67.9 - 152, n=57)	108.1 fps -20%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100.5 (88.7^min) fps -26%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	98 (79.8^min) fps -27%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	95.5 (78.4^min) fps -29%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	90.1 (81^min) fps -33%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	78.8 (48.8^min) fps -42%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	67.4 (57.5^min) fps -50%
Beelink GK Mini Intel Celeron J4125, Intel UHD Graphics 600	41.3 (35.4^min) fps -69%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	36.1 (34.9^min) fps -73%
1366x768 med (1/3)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	123 (107.7^min) fps +15%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	119 (102.7^min) fps +11%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	107 (88.2^min) fps
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	95.5 (79.6^min) fps -11%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (49.9 - 122.3, n=57)	86.1 fps -20%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	81 (68.5^min) fps -24%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.4 (69^min) fps -25%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	77.7 (63.1^min) fps -27%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	74 (57.8^min) fps -31%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	66 (54.7^min) fps -38%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.5 (53.7^min) fps -40%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	61.8 (46.8^min) fps -42%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	52 (42.4^min) fps -51%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	35.5 (34.2^min) fps -67%
Beelink GK Mini Intel Celeron J4125, Intel UHD Graphics 600	18.4 (13.4^min) fps -83%
1920x1080 high (2/3)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	116 (100.9^min) fps +82%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	80.4 (66.9^min) fps +26%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	63.8 (56.8^min) fps
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	61 (52^min) fps -4%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	53.7 (49^min) fps -16%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (25.5 - 76.7, n=57)	51.8 fps -19%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.1 (44.2^min) fps -21%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	49.7 (44.3^min) fps -22%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	42.4 (39.4^min) fps -34%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	37.7 (26.8^min) fps -41%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	35.4 (34.2^min) fps -45%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.6 (31.2^min) fps -47%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	31.9 (29.3^min) fps -50%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	30.1 (27.5^min) fps -53%
Beelink GK Mini Intel Celeron J4125, Intel UHD Graphics 600	8.8 (7.3^min) fps -86%
1920x1080 ultra (3/3) best looking
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	112 (98.7^min) fps +87%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	73.4 (61.5^min) fps +23%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	59.9 (53.3^min) fps
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	57.8 (50.2^min) fps -4%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.8 (47.1^min) fps -15%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (23.3 - 72, n=57)	48.6 fps -19%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	47.2 (41.2^min) fps -21%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46 (40.7^min) fps -23%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	40 (37.4^min) fps -33%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35 (25.8^min) fps -42%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	34.9 (33.7^min) fps -42%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31 (28.7^min) fps -48%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	28.3 (25.9^min) fps -53%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	27.7 (25.5^min) fps -54%
Beelink GK Mini Intel Celeron J4125, Intel UHD Graphics 600	8 (6.5^min) fps -87%

GTA V
1024x768 Lowest Settings possible
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	168 (5.58^min, 111^P1) fps +20%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	141 (8.38^min, 83.3^P1) fps +1%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	140 (14^min, 90.9^P1) fps
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	112 (10.3^min, 71.4^P1) fps -20%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (53.6 - 160, n=47)	100.4 fps -28%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	100 (10.6^min, 58.8^P1) fps -29%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	95.1 (21.9^min, 55.6^P1) fps -32%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	92.8 (13.8^min, 62.5^P1) fps -34%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	81.7 (26.7^min, 52.6^P1) fps -42%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	67.6 (16.5^min, 47.6^P1) fps -52%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	55.8 fps -60%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	51.8 (15.8^min, 35.7^P1) fps -63%
1920x1080 Lowest Settings possible
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	156 (4.99^min, 111^P1) fps +91%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	86.9 (24^min, 34.5^P1) fps +6%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	84 (13.4^min, 55.6^P1) fps +3%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	81.8 (10.6^min, 58.8^P1) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	65.4 (20.4^min, 45.5^P1) fps -20%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (30.5 - 101, n=32)	64.2 fps -22%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	58.8 (8.1^min, 40^P1) fps -28%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	40.7 (12.8^min, 27.8^P1) fps -50%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	30.3 (12.2^min, 21.7^P1) fps -63%
1366x768 Normal/Off AF:4x
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	158 (4.65^min, 90.9^P1) fps +27%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124 (14.4^min, 83.3^P1) fps
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	115 (5.06^min, 55.6^P1) fps -7%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	103 (18.8^min, 66.7^P1) fps -17%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	88.6 (14.1^min, 52.6^P1) fps -29%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (34 - 148, n=42)	87.7 fps -29%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 (12.9^min, 50^P1) fps -34%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	79.5 (21.5^min, 50^P1) fps -36%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	72.5 (25.1^min, 43.5^P1) fps -42%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	52.5 (13.6^min, 37^P1) fps -58%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48.5 fps -61%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	46.3 (17^min, 30.3^P1) fps -63%
1920x1080 Normal/Off AF:4x
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	147 (4.13^min, 90.9^P1) fps +74%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.6 (9.51^min, 58.8^P1) fps
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	75.1 (12.7^min, 47.6^P1) fps -11%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	69 (23.7^min, 33.3^P1) fps -18%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (31.7 - 104, n=32)	65.5 fps -23%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	59.1 (9.09^min, 40^P1) fps -30%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	56.6 (16.5^min, 38.5^P1) fps -33%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	51.6 (20.8^min, 35.7^P1) fps -39%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35.3 (13.8^min, 23.8^P1) fps -58%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	32.1 (10.7^min, 22.7^P1) fps -62%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	119 (39.3^min, 76.9^P1) fps +256%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	53 fps +59%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	45.8 (0.907^min, 20.8^P1) fps +37%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.4 (6.39^min, 24.4^P1) fps
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	31.4 (7.49^min, 20.8^P1) fps -6%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.3 (6.93^min, 18.9^P1) fps -21%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13.8 - 40.6, n=44)	26.1 fps -22%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.6 (5.84^min, 16.4^P1) fps -29%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.1 (8.42^min, 14.9^P1) fps -37%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.6 (10^min, 14.5^P1) fps -38%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps -59%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	13.2 (6.31^min, 9.52^P1) fps -60%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.6 (5.49^min, 8.93^P1) fps -62%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	69.6 (19.2^min, 47.6^P1) fps +361%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	23.7 (1.708^min, 15.2^P1) fps +57%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	23.4 fps +55%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.1 (3.94^min, 10.6^P1) fps
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.8 (3.21^min, 7.58^P1) fps -15%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (6 - 18.2, n=41)	11.1 fps -26%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.5 (3.52^min, 7.35^P1) fps -30%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9.85 (3.24^min, 6.9^P1) fps -35%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	9.41 (1.688^min, 6.29^P1) fps -38%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	8.17 (3.68^min, 5.03^P1) fps -46%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	6.76 (1.83^min, 3.56^P1) fps -55%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6 fps -60%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	5.72 (2.43^min, 3.77^P1) fps -62%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	130 fps +190%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	48.6 fps +8%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	46.9 fps +5%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.8 fps
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.2 fps -17%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	36.7 fps -18%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (21.9 - 50.1, n=52)	35.4 fps -21%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	34.2 fps -24%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	30.3 fps -32%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	28.6 fps -36%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.9 fps -51%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	19 fps -58%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	17.3 fps -61%
Beelink GK Mini Intel Celeron J4125, Intel UHD Graphics 600	5.33 fps -88%
1920x1080 Standard Quality
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	89.2 fps +300%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	26.2 fps +17%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	23 fps +3%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.3 fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	18.7 fps -16%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18.1 fps -19%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (11.7 - 25, n=47)	17.9 fps -20%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.4 fps -22%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	15.6 fps -30%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	14.2 fps -36%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11.8 fps -47%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	9.98 fps -55%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	9.07 fps -59%
Beelink GK Mini Intel Celeron J4125, Intel UHD Graphics 600	2.34 fps -90%
1920x1080 High Quality
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	67.5 fps +330%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	24 fps +53%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.7 fps
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	14.5 fps -8%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	13.5 fps -14%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.7 fps -19%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7.71 - 17.7, n=46)	12.4 fps -21%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12.3 fps -22%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12.1 fps -23%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	9.99 fps -36%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7.71 fps -51%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	6.8 fps -57%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	6.04 fps -62%
Beelink GK Mini Intel Celeron J4125, Intel UHD Graphics 600	1.63 fps -90%

X-Plane 11.11
1280x720 low (fps_test=1)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	94.8 fps +63%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	66.7 fps +15%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	62.7 fps +8%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	58.2 fps
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	53.2 fps -9%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.8 fps -23%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (26.9 - 64.9, n=57)	44.3 fps -24%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	42.3 fps -27%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	36.7 fps -37%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.4 fps -39%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	30.6 fps -47%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	25.3 fps -57%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	24 fps -59%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	23.8 fps -59%
Beelink GK Mini Intel Celeron J4125, Intel UHD Graphics 600	8.89 fps -85%
1920x1080 med (fps_test=2)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	81.3 fps +78%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	62.7 fps +37%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	51.3 fps +12%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.7 fps
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.7 fps -9%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	41.1 fps -10%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.2 fps -23%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (21.1 - 49.6, n=57)	34.6 fps -24%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32.7 fps -28%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	28 fps -39%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.6 fps -40%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.4 fps -53%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	18.5 fps -60%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	18 fps -61%
Beelink GK Mini Intel Celeron J4125, Intel UHD Graphics 600	5.8 fps -87%
1920x1080 high (fps_test=3)
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	69.8 fps +72%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	53.9 fps +33%
Asus Zenbook 14X UX5400E Intel Core i7-1165G7, NVIDIA GeForce MX450	41.4 fps +2%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.5 fps
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	38.6 fps -5%
Huawei MateBook 16 R7 5800H AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	36.8 fps -9%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.8 fps -21%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (19.1 - 43.1, n=57)	30.5 fps -25%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	28.8 fps -29%
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	25.5 fps -37%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.8 fps -39%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.9 fps -46%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	16.7 fps -59%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	15.9 fps -61%
Beelink GK Mini Intel Celeron J4125, Intel UHD Graphics 600	5.39 fps -87%

Witcher 3 FPS Chart

Beelink GTR5: Ø82.3 (77-85)

	low	med.	high	ultra
GTA V (2015)	140	124	33.4	15.1
The Witcher 3 (2015)	86.9	55.2	26.8	17.1
Dota 2 Reborn (2015)	135	107	63.8	59.9
Final Fantasy XV Benchmark (2018)	44.8	22.3	15.7
X-Plane 11.11 (2018)	58.2	45.7	40.5
Far Cry 5 (2018)	62	29	27	25
Strange Brigade (2018)	99.1	37.8	31.9	27.5

排放

系统噪音

GTR5是我们测试过的最响亮的迷你电脑之一，因为它的两个内部风扇基本上一直在活动。例如，当简单地坐在Windows桌面屏幕上时，我们已经能够记录到34.2 dB(A)的风扇噪音，而GMK NucBox 2或英特尔NUC11PAQi7的CPU功率都较小，只有约25 dB(A)。

运行更高的负载，如游戏，可能会引起41至45 dB(A)的风扇噪音，甚至比配备了明显更快的GeForce RTX 2060的英特尔NUC11PHKi7C更响。无论你如何切割，GTR5在大多数情况下都会很吵。好消息是，风扇没有脉冲或循环非常频繁，这将使噪音更加恼人。

风扇噪音曲线（白色：背景，红色：系统空闲，蓝色：3DMark 06，绿色：Prime95压力）。

Noise Level

Idle		34.2 / 34.2 / 34.2 dB(A)
Load		44.6 / 45.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.1 dB(A)

	Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	Beelink GK Mini UHD Graphics 600, Celeron J4125, Silicon Motion SM2258XT 256GB
Noise		-4%	18%	13%	12%	1%
off / environment *	23.1	25.7 -11%	25.6 -11%	24.5 -6%	25.6 -11%	24.6 -6%
Idle Minimum *	34.2	28.4 17%	25.7 25%	25.3 26%	25.6 25%	36.9 -8%
Idle Average *	34.2	32 6%	25.7 25%	25.3 26%	25.6 25%	36.9 -8%
Idle Maximum *	34.2	37.7 -10%	25.7 25%	25.3 26%	25.6 25%	36.9 -8%
Load Average *	44.6	44.2 1%	35.3 21%	36.4 18%	33.6 25%	37 17%
Witcher 3 ultra *	41.4	44.5 -7%		39.7 4%	33.6 19%
Load Maximum *	45.1	56 -24%	35.1 22%	47.9 -6%	54.5 -21%	37 18%

* ... smaller is better

温度

表面温度不是一个问题，特别是由于整个设备的顶部是一个进气孔。因此，不建议在迷你电脑的顶部放置任何纸张或书籍。如果将设备垂直放置，确保不要将迷你电脑的顶部压在任何墙壁或架子上，以保持空气流通。

压力测试

当运行Prime95，在原始BIOS设置下对CPU施加压力时，时钟频率在最初几秒钟会提升到3.9GHz，然后略微下降到一个更稳定的3.8GHz。核心温度（Tctl/Tdie）将稳定在74℃，为超频留下足够的空间。根据WiNFO的数据，CPU的TDP在测试开始时似乎达到了55W，然后稳定在45W。

当运行 Witcher 3代表游戏压力时，集成GPU将稳定在2100MHz，CPU（Tctl/Tdie）核心温度为65C。 Beelink GTI11装备要求较低的酷睿i5-1135G7，会有类似的温度结果。

	CPU时钟(GHz)	GPU时钟(MHz)	CPU平均温度Tctl/Tdie (℃)
系统空闲	--	--	33
Prime95压力	3.8	--	74
Prime95 + FurMark 压力	3.6	1412	69
Witcher 3 应力	~0.8	2100	65

能源管理

消耗功率

运行更高的负载，如游戏，将比搭载酷睿i7的英特尔NUC11PAQi7多消耗约2倍的电量。 NUC11PAQi7 尽管我们的Radeon RX Vega 8的图形性能略低。然而，GTR5的所有者仍将获得大约70%的多线程CPU性能，这可能会抵消其相对较高的功耗。

在运行极端的Prime95和FurMark负载时，我们能够从小型（12.5 x 5 x 3厘米）的90瓦交流适配器中记录到82瓦的最大消耗。

当运行Prime95时，消耗量将飙升至83瓦，大约10秒后下降并稳定在78瓦左右。飙升的持续时间与上述压力测试部分的CPU时钟速率行为相关。

Prime95+FurMark的压力在10秒后开始。消耗量会暂时飙升到82瓦，然后略微下降到78瓦。

Power Consumption

Off / Standby	0.34 / 0.68 Watt
Idle	6.2 / 8.9 / 9 Watt
Load	66.8 / 81.6 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Beelink GTR5 R9 5900HX, Vega 8, Kingston NV1 SNVS/500GCN, , x,	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs, Kingston SA2000M8500G, , x,	GMK NucBox 2 i5-8259U, Iris Plus Graphics 655, Netac S930E8/256GPN, , x,	Intel NUC11PHKi7C i7-1165G7, GeForce RTX 2060 Mobile, Samsung SSD 980 Pro 500GB MZ-V8P500BW, , x,	Intel NUC11PAQi7 i7-1165G7, Iris Xe G7 96EUs, Samsung SSD 980 Pro 500GB MZ-V8P500BW, , x,	Beelink GK Mini Celeron J4125, UHD Graphics 600, Silicon Motion SM2258XT 256GB, , x,
Power Consumption		-48%	23%	-85%	29%	66%
Idle Minimum *	6.2	15.2 -145%	6.1 2%	5.8 6%	5.6 10%	3.2 48%
Idle Average *	8.9	16 -80%	6.8 24%	5.9 34%	5.6 37%	3.3 63%
Idle Maximum *	9	16 -78%	7.3 19%	20.7 -130%	6 33%	3.7 59%
Load Average *	66.8	48.6 27%	46.3 31%	130.8 -96%	31.4 53%	13.6 80%
Witcher 3 ultra *	62.6	53.8 14%		154.4 -147%	39 38%
Load Maximum *	81.6	104.3 -28%	50.7 38%	225.2 -176%	80.5 1%	17.8 78%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Beelink GTR5; Witcher 3 ultra: Ø62.6 (55.8-65.3)

Beelink GTR5; 1280x720 Prime95 28.10 and Furmark 1.25: Ø77.5 (74.5-81.6)

Power Consumption external Monitor

Beelink GTR5; Prime95 V2810 Stress (external Monitor): Ø77.7 (75.5-83.8)

Beelink GTR5; Cinebench R15 Multi (external Monitor): Ø73.5 (60.5-79.3)

Beelink GTR5; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø61.6 (59.4-64.1)

Beelink GTR5; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.6 (55.8-65.3)

Pros

+ 支持多达3倍的内部存储驱动器

+ 高于平均水平的图形性能

+ 非常快的处理器性能

+ 超频空间

+ 支持VESA

Cons

- 没有Thunderbolt、eGPU或PCIe4支持

- 没有Kensington锁或SD卡阅读器

- 在压力下，风扇噪音很大

- 难以清洁风扇

- 只有一个USB-C端口

结论--关于处理器的一切

任何配备Ryzen 9 5900HX的PC都将以惊人的速度达到这个价格，Beelink GTR5也不例外。这款AMD处理器在原始CPU性能方面可与任何移动的第11代英特尔解决方案相媲美，包括更昂贵的酷睿i9-11900H.如果你想在保持系统尽可能小的同时最大限度地提高处理器性能，那么GTR5将是你最好的选择。

要想以最小的成本和尺寸获得最大的CPU性能，请看Beelink GTR5。

有两个主要的缺点需要记住。首先，图形受到集成Radeon Vega 8 GPU的限制，而大多数具有相同CPU的笔记本电脑通常会配备更快的独立图形。用户在运行图形编辑或游戏等更密集的应用程序时，几乎肯定会受到GPU的限制。令人遗憾的是，不支持Thunderbolt，而Thunderbolt可以通过eGPU解决这一限制。其次，风扇噪音比其他大多数迷你电脑都要大，这是将如此快速的处理器塞进如此小的机箱中的直接结果。因此，GTR5可能不是HTPC或会议室设置的最佳选择，因为环境噪音应保持在最低水平。也许未来转向蒸汽室冷却可以减少整体风扇噪音。不过，预算较紧的CPU性能猎手仍会对GTR5所提供的功能留下深刻印象。

价格和可用性

Beelink GTR5还没有广泛上市。其Indiegogo页面可以在这里找到https://www.indiegogo.com/projects/beelink-gtr5-powerful-amd-ryzen-9-gaming-mini-pc#/.

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5192 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 388744 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 2022年Beelink GTR5迷你电脑回顾。带有AMD Ryzen 9的英特尔NUC

Allen Ngo, 2022-01-30 (Update: 2022-01-30)

2022年Beelink GTR5迷你电脑回顾。带有AMD Ryzen 9的英特尔NUC

Potential Competitors in Comparison

案例

Size Comparison

连接性

沟通

维护

配件和保修

业绩

测试条件

处理器

Cinebench R15 Multi Loop

系统性能

DPC延时

存储设备

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU性能

Witcher 3 FPS Chart

排放

系统噪音

温度

压力测试

能源管理

消耗功率

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pros

Cons

结论--关于处理器的一切

价格和可用性

More articles related to this device

Pricecompare
