Geekom AS 5评测：苛刻项目的完美伴侣，包括AMD Ryzen 9 5900HX和AMD Radeon Vega 8

Name: Geekom AS 5
Brand: Geekom

在最狭小的空间里也有很大的能量! Geekom将强大的AMD Ryzen 9 5900HX装入其小型AS 5迷你PC。阅读我们的广泛评论，了解这个小型电脑精灵在日常使用中的表现，以及32GB内存和1TB固态硬盘的组合是否能与英特尔NUC模型相提并论。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 07/03/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop Radeon Cezanne (Zen 3)

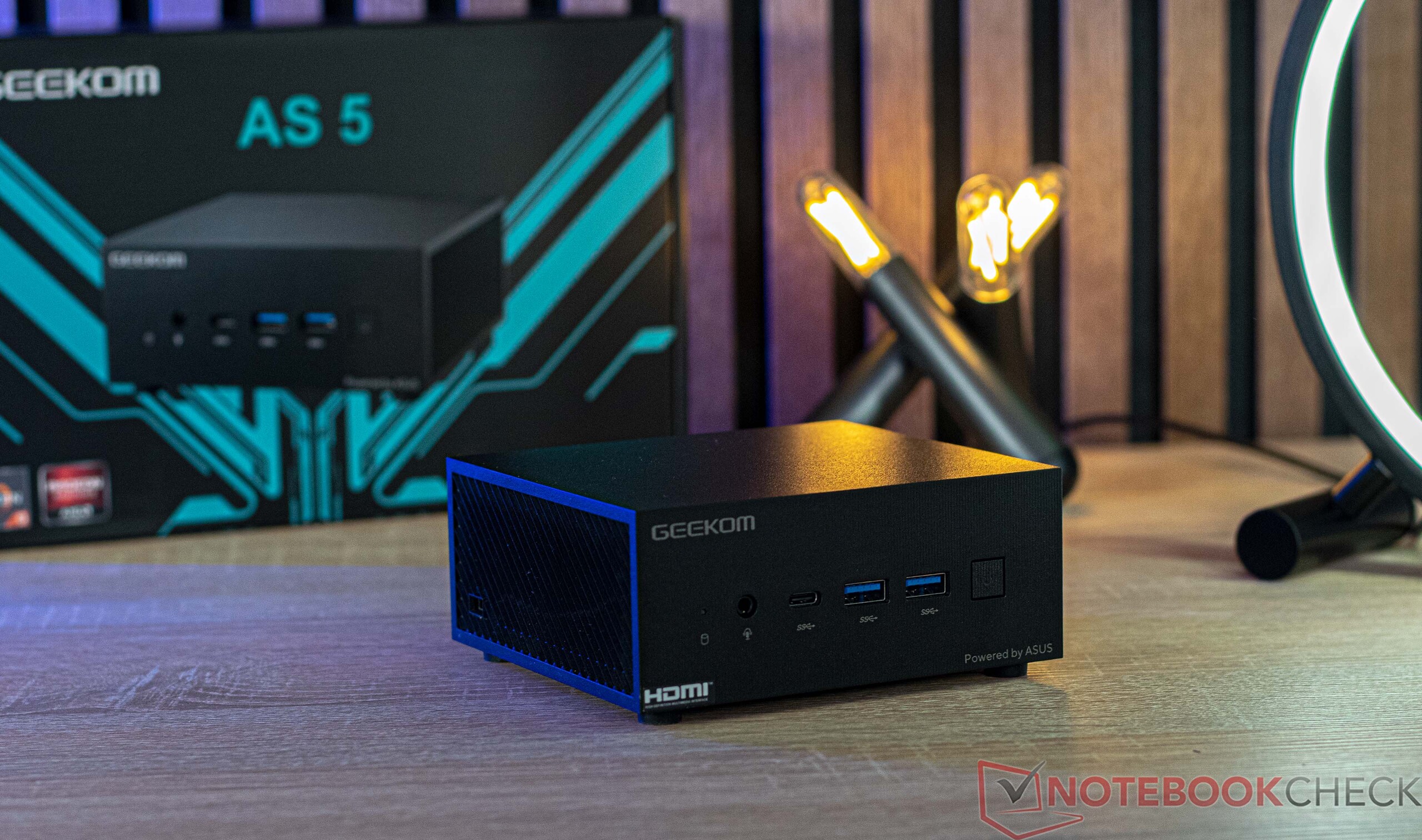

尽管是一个小型的迷你PC，Geekom AS 5仍然能够提供一个AMD Ryzen 9 5900HX和一个快速的SoC，对于日常使用来说，这可能已经是一件太好的事情了。但是，正如俗话所说，拥有总比需要好。因此，只要你只关心办公室工作，你就可以期待Geekom AS 5的自信未来。

长期以来，迷你电脑鉴赏家们看了一眼Geekom AS 5，肯定会认为他们在哪里见过它。嗯，这不是没有道理的。Geekom和华硕已经形成合作，这意味着Geekom AS 5和华硕ExpertCenter PN52的构造是一样的。与华硕不同的是，华硕的PN52也配备了较低规格的SoC，Geekom的唯一选择是基于AMD的Ryzen 9 5900HX。目前，Geekom AS 5正在以609美元的价格转手。这是一个公平的价格，因为华硕要求一个相同的迷你PC的价格是900美元，只有16GB的内存和相同的SSD。

在这次评测中，测试样本与当前相同价格段的类似装备的迷你PC进行了正面交锋。你可以在下面的表格中找到相关列表。

Test device courtesy of Geekom

Download your licensed rating image as PNG / SVG

Geekom AS 5

Processor

AMD Ryzen 9 5900HX 8 x 3.3 - 4.6 GHz, 54 W PL2 / Short Burst, 35 W PL1 / Sustained, Cezanne-H (Zen 3)

Graphics adapter

AMD Radeon RX Vega 8 (Ryzen 4000/5000), Adrenalin 13.5.1

Memory

32 GB

, DDR4 3200, 2 of 2 occupied, max. 64 GB

Mainboard

AMD Promontory/Bixby FCH

Storage

Kingston NV2 1000GB SNV2S/1000G, 1000 GB

, M.2 2280, NVMe, 920 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

5 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, USB-C Power Delivery (PD), 2 HDMI, 1 DisplayPort, 1 Kensington Lock

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 58 x 130 x 120

Operating System

Microsoft Windows 11 Pro

Additional features

120-watt PSU, VESA mount mounting plate, 24 Months Warranty

Weight

742 g, Power Supply: 350 g

Price

599 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
79.5 %	07/2023	Geekom AS 5 R9 5900HX, Vega 8	742 g	58 mm
85.1 %	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
85.5 %	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
83.7 %	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
82.3 %	05/2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
81.9 %	05/2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
80.8 %	04/2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm

Geekom AS 5的详细情况

案例

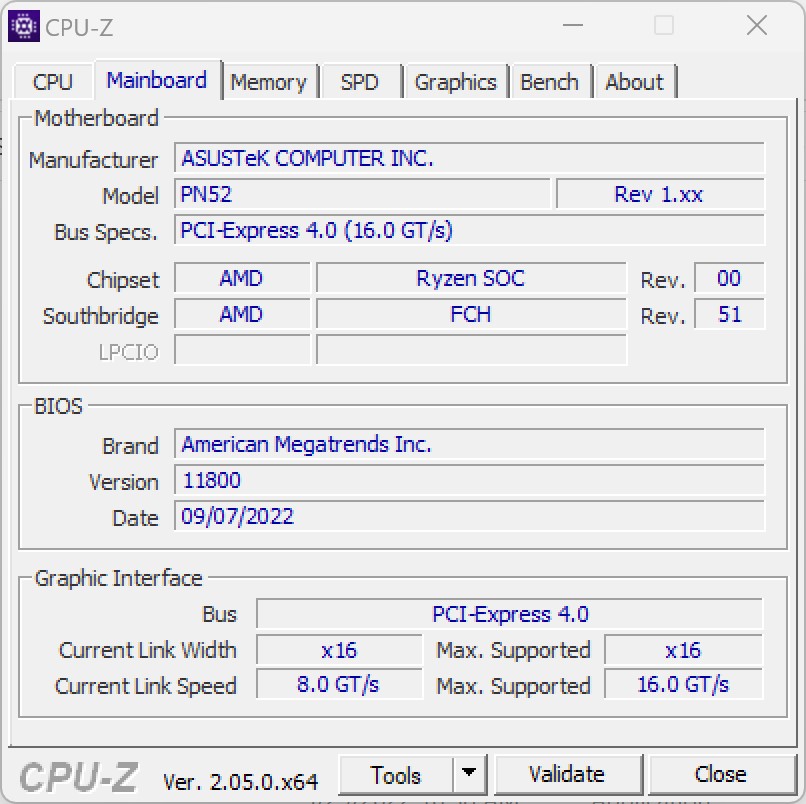

正如我们已经提到的，Geekom AS 5和华硕ExpertCenter PN52都共享同一个平台。这意味着我们面对的是一个不同的设计，与Geekom Mini IT12.与其他内部设备相比，AS 5的尺寸有一定程度的增长，尽管该设备的占地面积仍然很小。说到重量，724克，我们的评测样本确保了一个中等水平的位置。材料主要由塑料和铝组成。这再次让我们想起了在Geekom Mini IT12中看到的熟悉的NUC设计。基本上，这个概念很好，而且特别坚固。从主观上看，凭借其铝制底盘，Morefine的设备给人一种更高级的感觉。对其制造质量没有真正的抱怨。所有东西都紧紧地贴在一起，我们在评测模型中找不到任何缝隙。

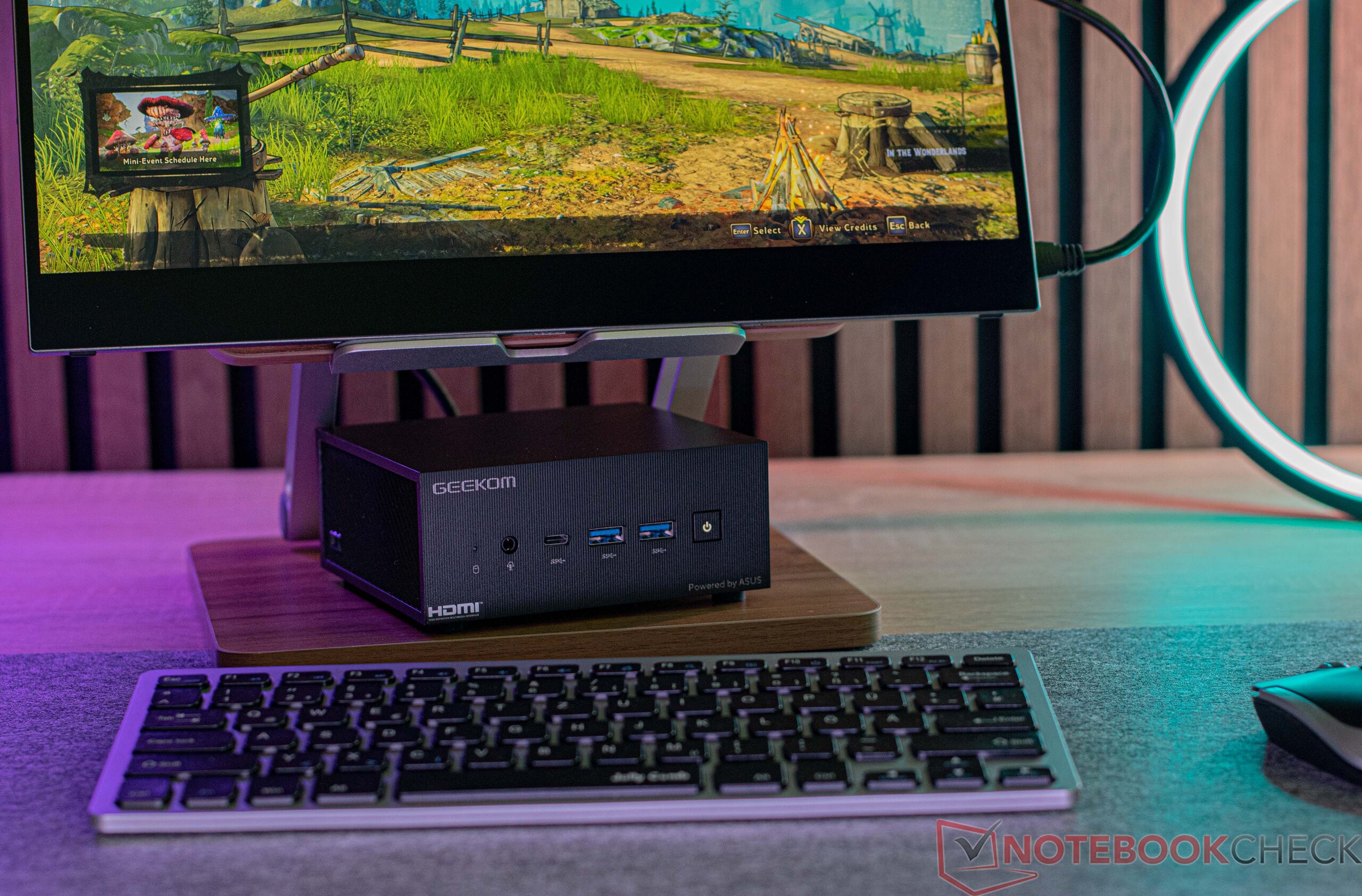

像许多其他迷你PC一样，Geekom AS 5也可以通过附带的VESA支架连接到显示器上。

尺寸比较

Minisforum Neptune Series NAD9 Geekom AS 5 Morefine M600, 6900HX Morefine M600, 6600U Minisforum Venus Series NAB6 Geekom Mini IT12 Intel NUC 13 Pro Kit NUC13ANK DIN A4 ❌

特点

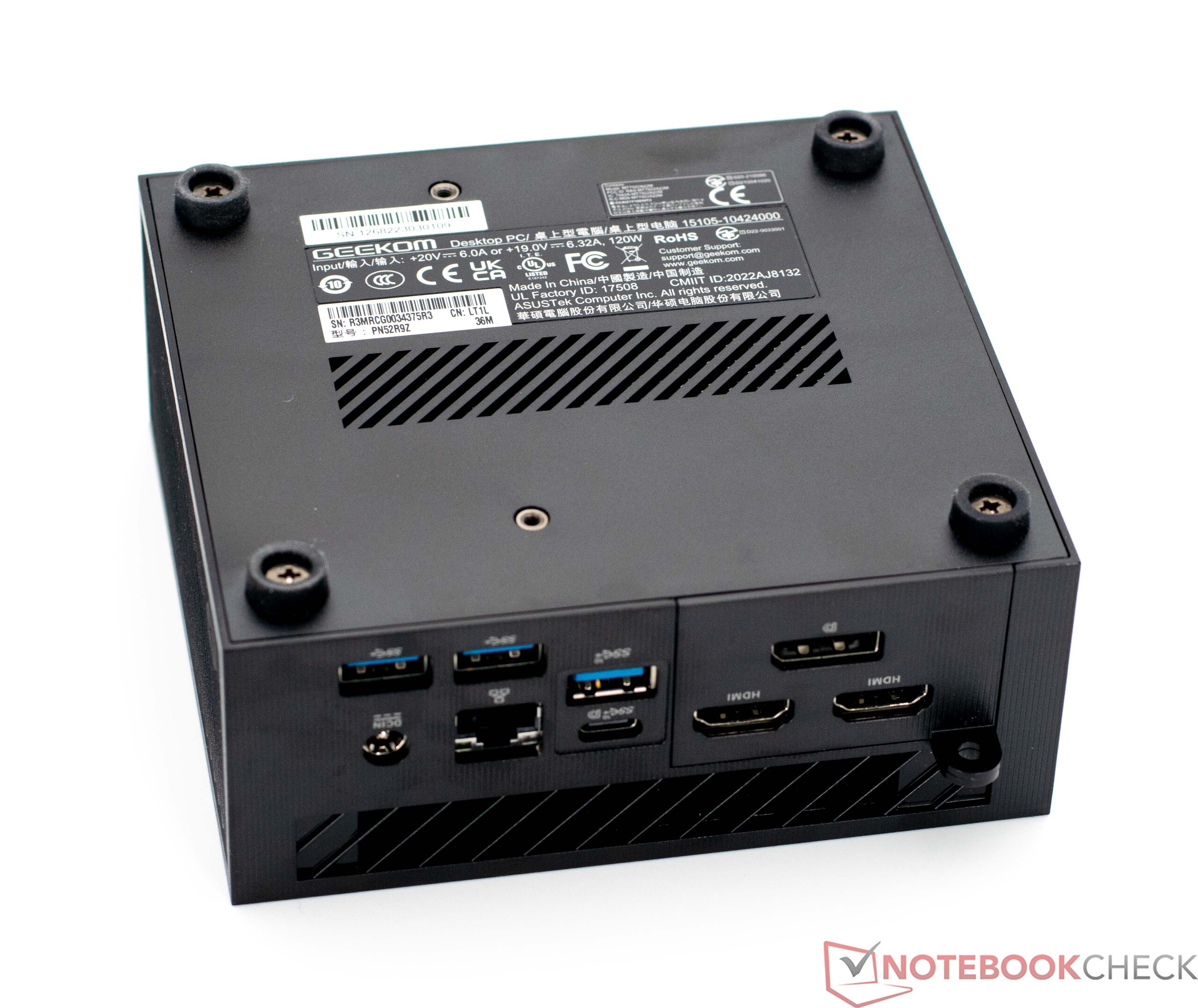

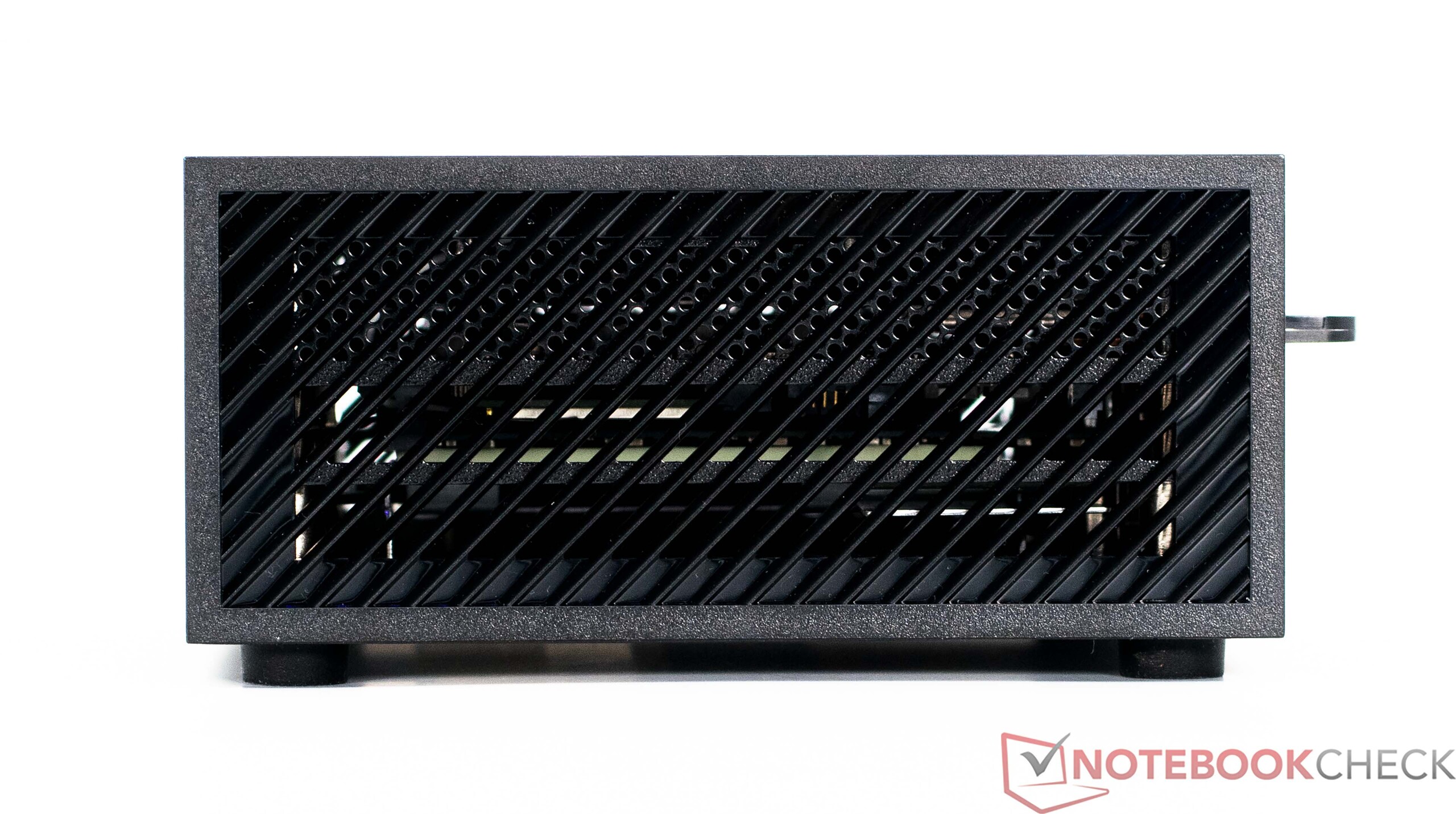

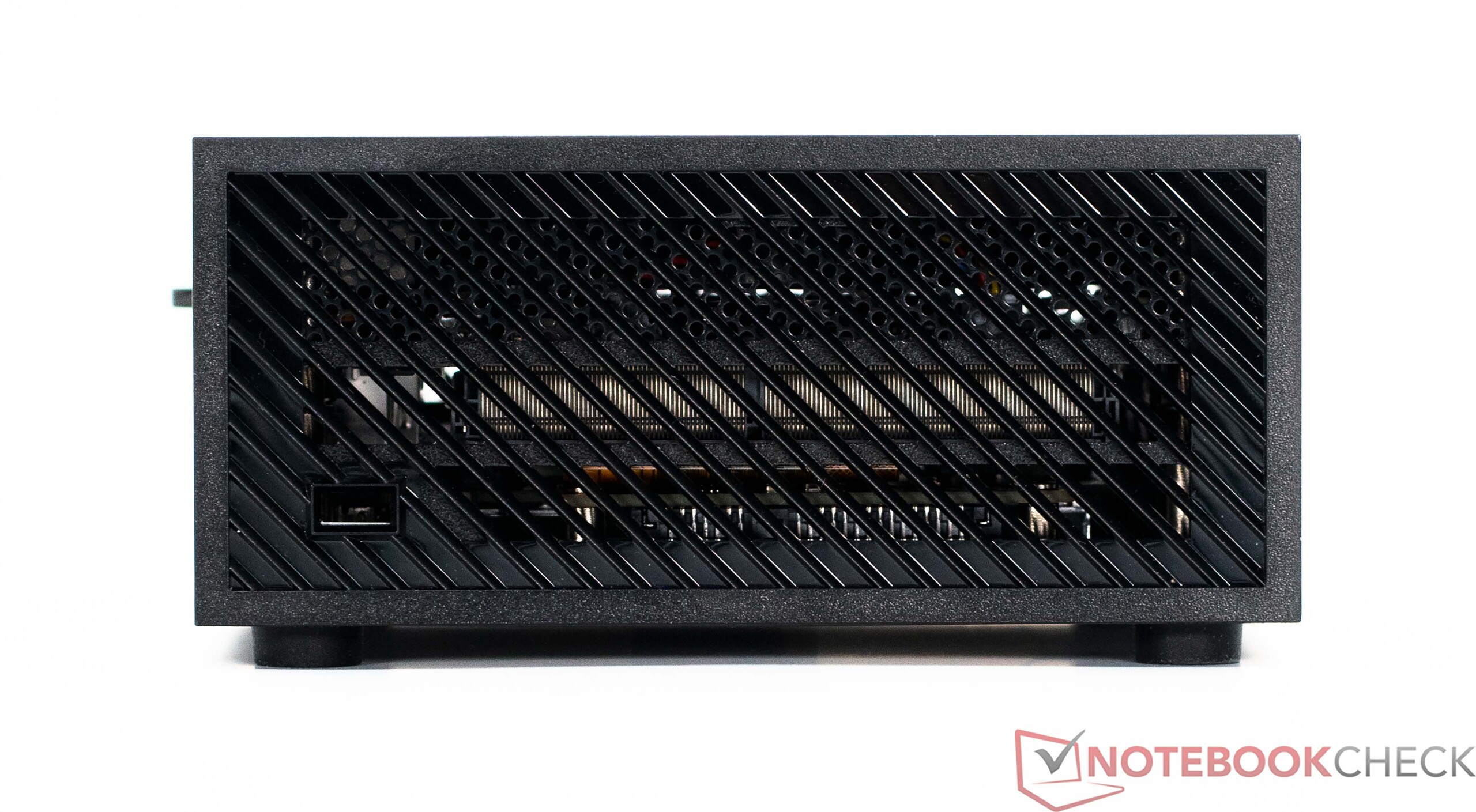

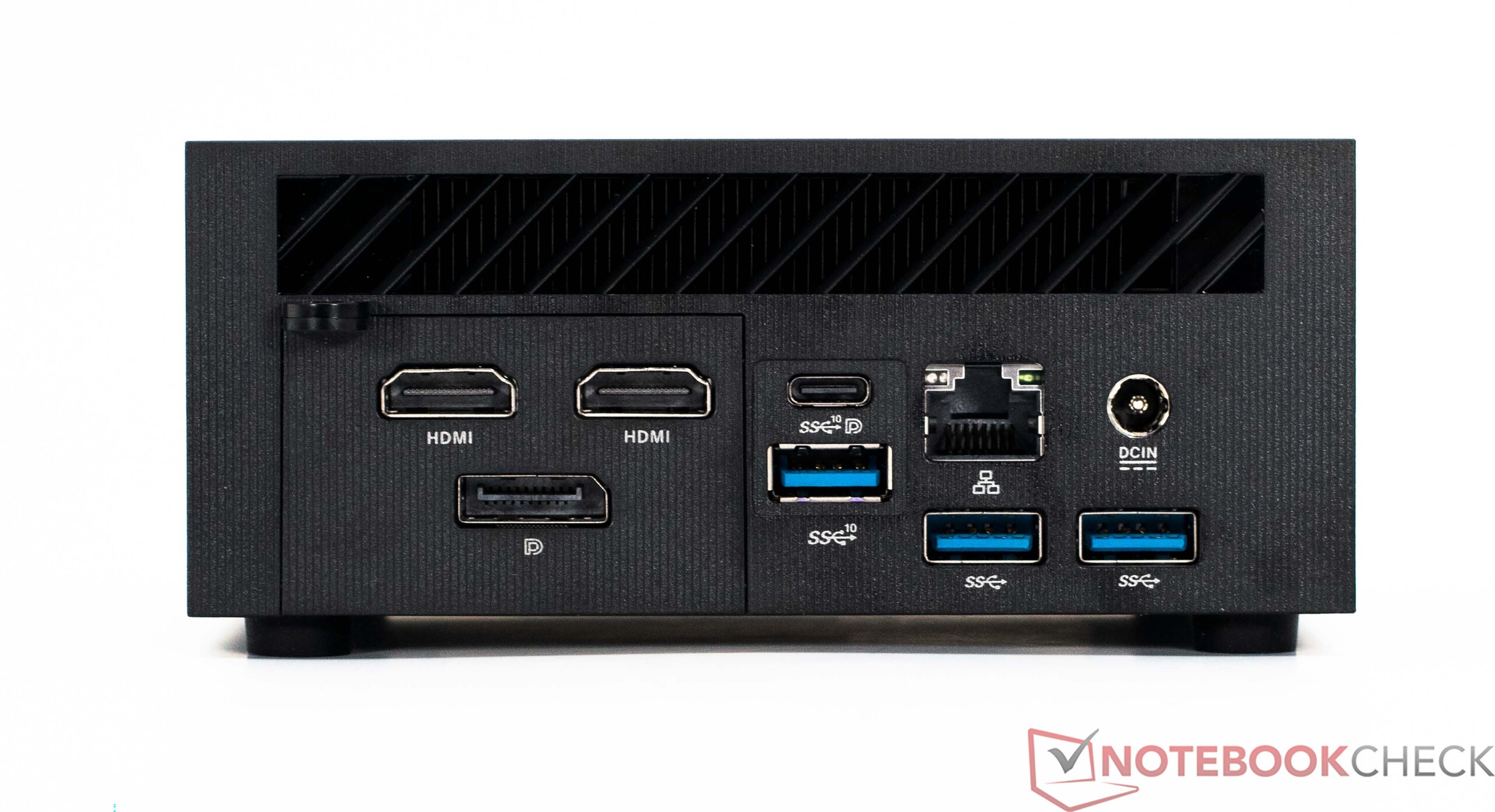

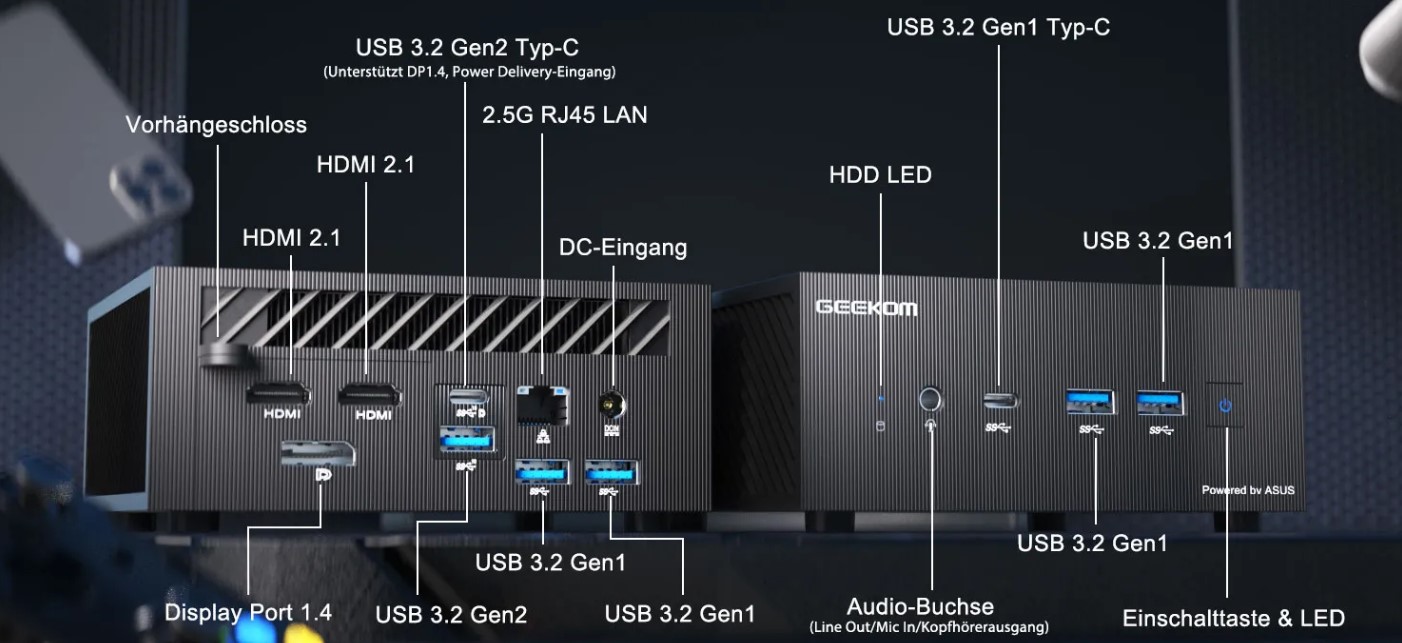

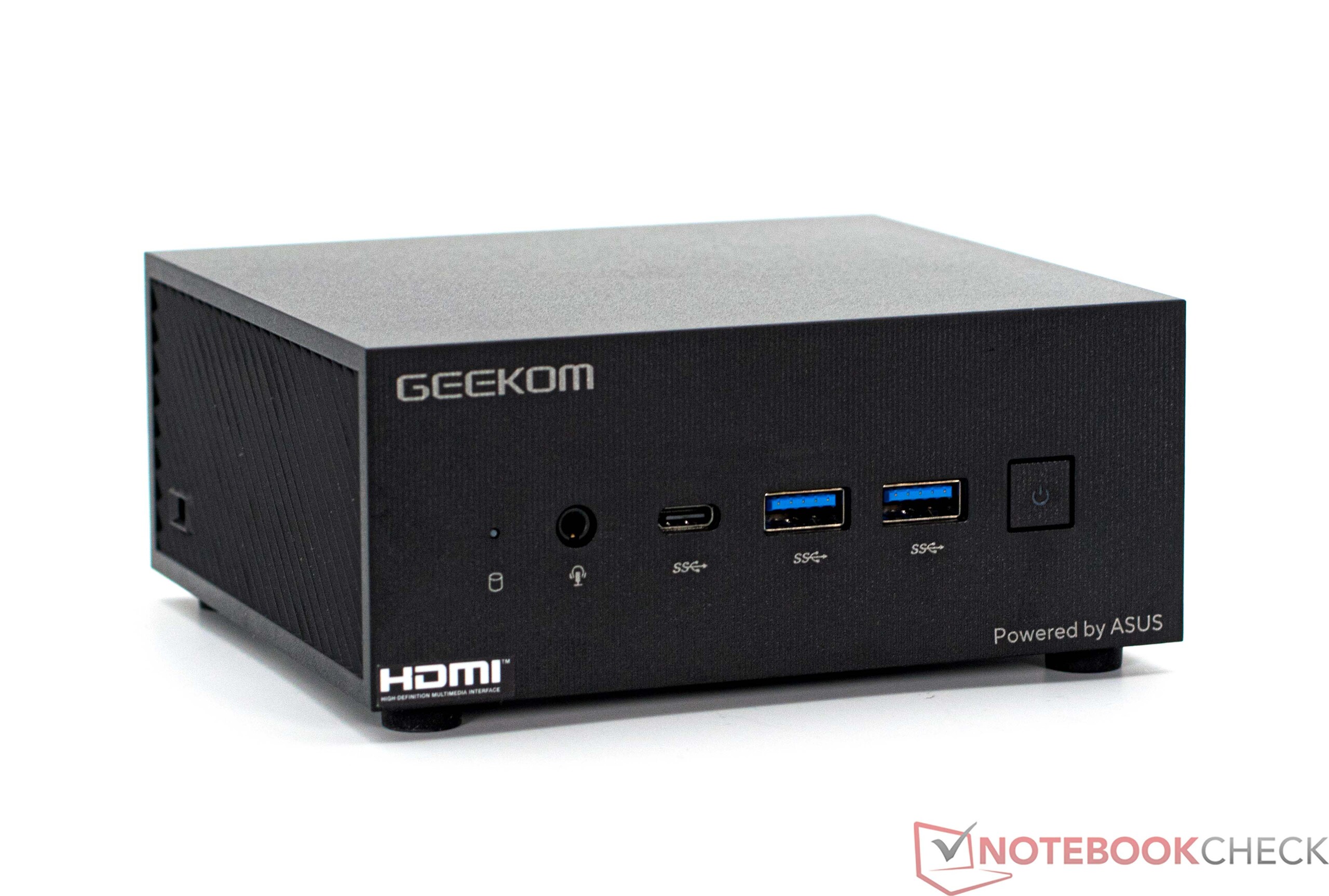

尽管体积小，但小型Geekom AS 5提供了非常多的接口选择。所有的端口都可以在设备的前面和后面找到。在迷你PC的两侧，有大尺寸的通风口，旨在帮助冷却。我们的迷你PC评测模型有七个USB接口，是这类机器中最多的一些接口。然而，AS 5缺乏对Thunderbolt的支持。然而，任何希望同时连接许多显示器的人都可以自信地抓住Geekom AS 5，因为我们的测试模型可以轻松处理多达四个显示器。

沟通

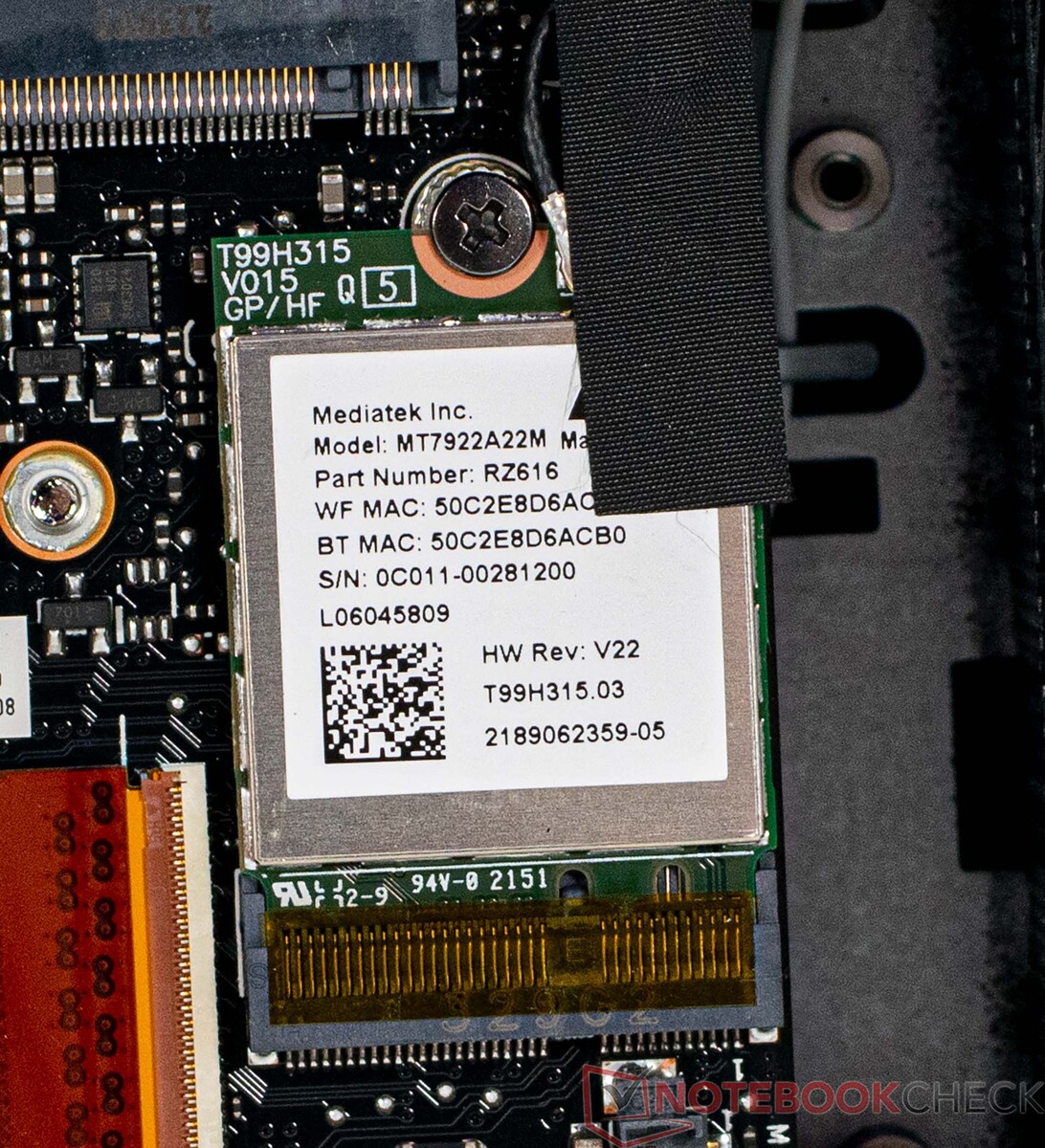

Geekom为其AS 5配备了联发科的现代Wi-Fi 6E模块。这个可更换的M.2卡也可以处理快速的6GHz频段，在那里，数据传输速度明显高于与常规5GHz频段的连接。在这个领域，我们的评测设备不仅在竞争对手中处于领先地位，而且还能让他们站起来。在5GHz连接的测试中，情况并不那么乐观，我们的Geekom AS 5滑落到一个低位，处于中间位置，落后于许多竞争对手。除了Minisforum Neptune系列NAD9之外以外，其他竞争者都被紧紧地挤在一起。像往常一样，我们使用我们的测试路由器进行这项测试 - 华硕ROG Rapture GT-AXE11000。另外，也可以通过以太网接口将AS 5连接到网络上。在高达2.5Gbit/s的速度下，这甚至比6GHz的无线连接更快。

Networking
iperf3 receive AXE11000 6GHz
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1771 (1758^min - 1782^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s -6%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1519 (1392^min - 1699^max) MBit/s -14%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (860 - 1771, n=26)	1424 MBit/s -20%
Average of class Mini PC (390 - 1771, n=39, last 2 years)	1196 MBit/s -32%
Morefine M600, 6600U MediaTek RZ608	957 (943^min - 967^max) MBit/s -46%
Minisforum Venus Series NAB6 MediaTek RZ608	791 (776^min - 799^max) MBit/s -55%
iperf3 transmit AXE11000 6GHz
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1764 (1647^min - 1826^max) MBit/s
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1622 (1561^min - 1670^max) MBit/s -8%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (875 - 1775, n=25)	1453 MBit/s -18%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s -18%
Average of class Mini PC (432 - 1764, n=40, last 2 years)	1162 MBit/s -34%
Minisforum Venus Series NAB6 MediaTek RZ608	919 (853^min - 980^max) MBit/s -48%
Morefine M600, 6600U MediaTek RZ608	765 (718^min - 814^max) MBit/s -57%
iperf3 receive AXE11000
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (848 - 1775, n=38)	1435 MBit/s +65%
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +51%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +9%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +8%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s +7%
Average of class Mini PC (192.9 - 1796, n=87, last 2 years)	892 MBit/s +3%
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	870 (788^min - 885^max) MBit/s
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -10%
iperf3 transmit AXE11000
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (358 - 1785, n=38)	1328 MBit/s +58%
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +58%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +15%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +10%
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	838 (749^min - 923^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -1%
Average of class Mini PC (184.1 - 1776, n=87, last 2 years)	822 MBit/s -2%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -6%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -25%

Geekom AS 5; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1764 (1647-1826)

Geekom AS 5; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1771 (1758-1782)

Geekom AS 5; iperf3 receive AXE11000; iperf 3.1.3: Ø870 (788-885)

Geekom AS 5; iperf3 transmit AXE11000; iperf 3.1.3: Ø838 (749-923)

辅料

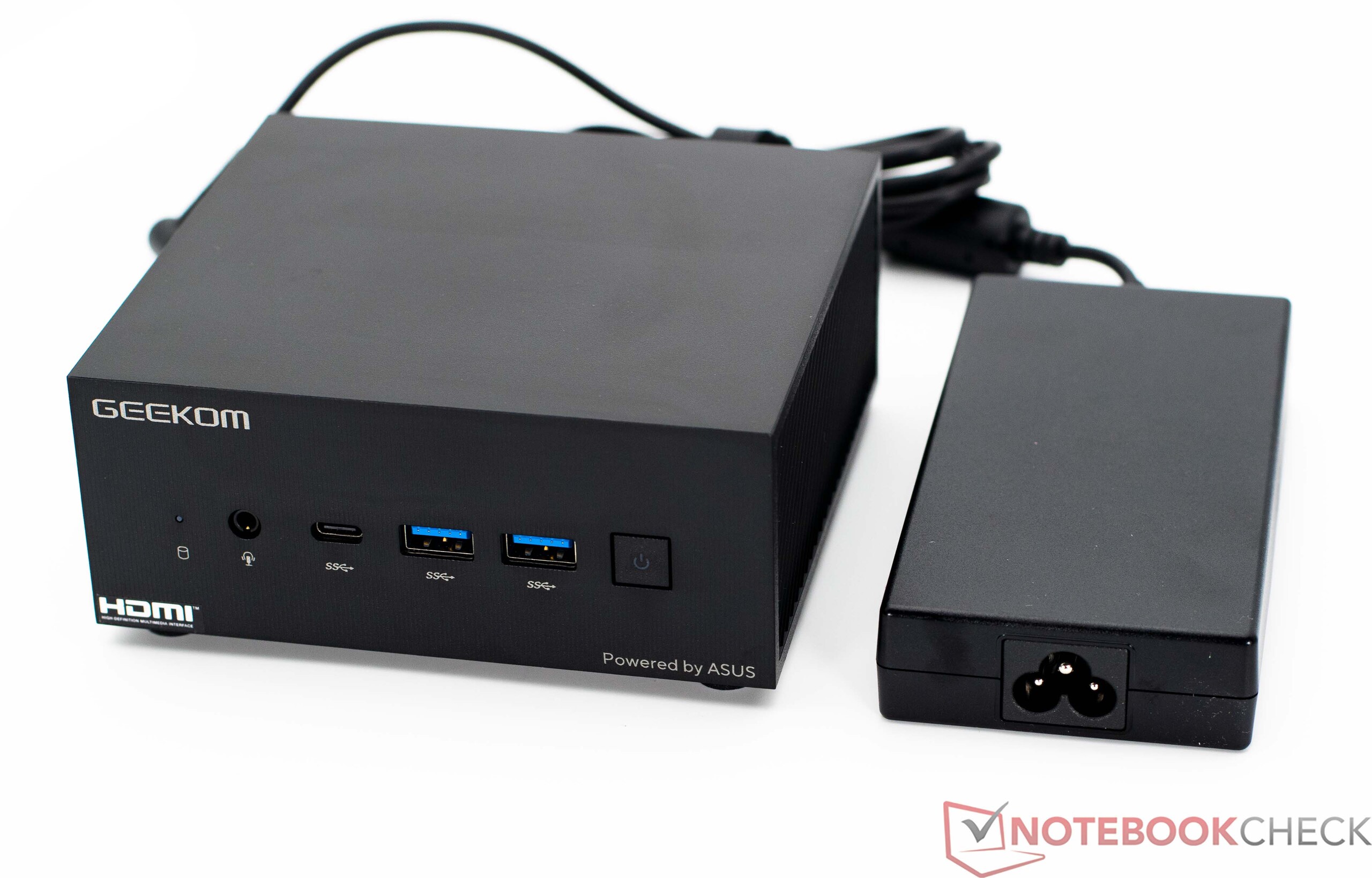

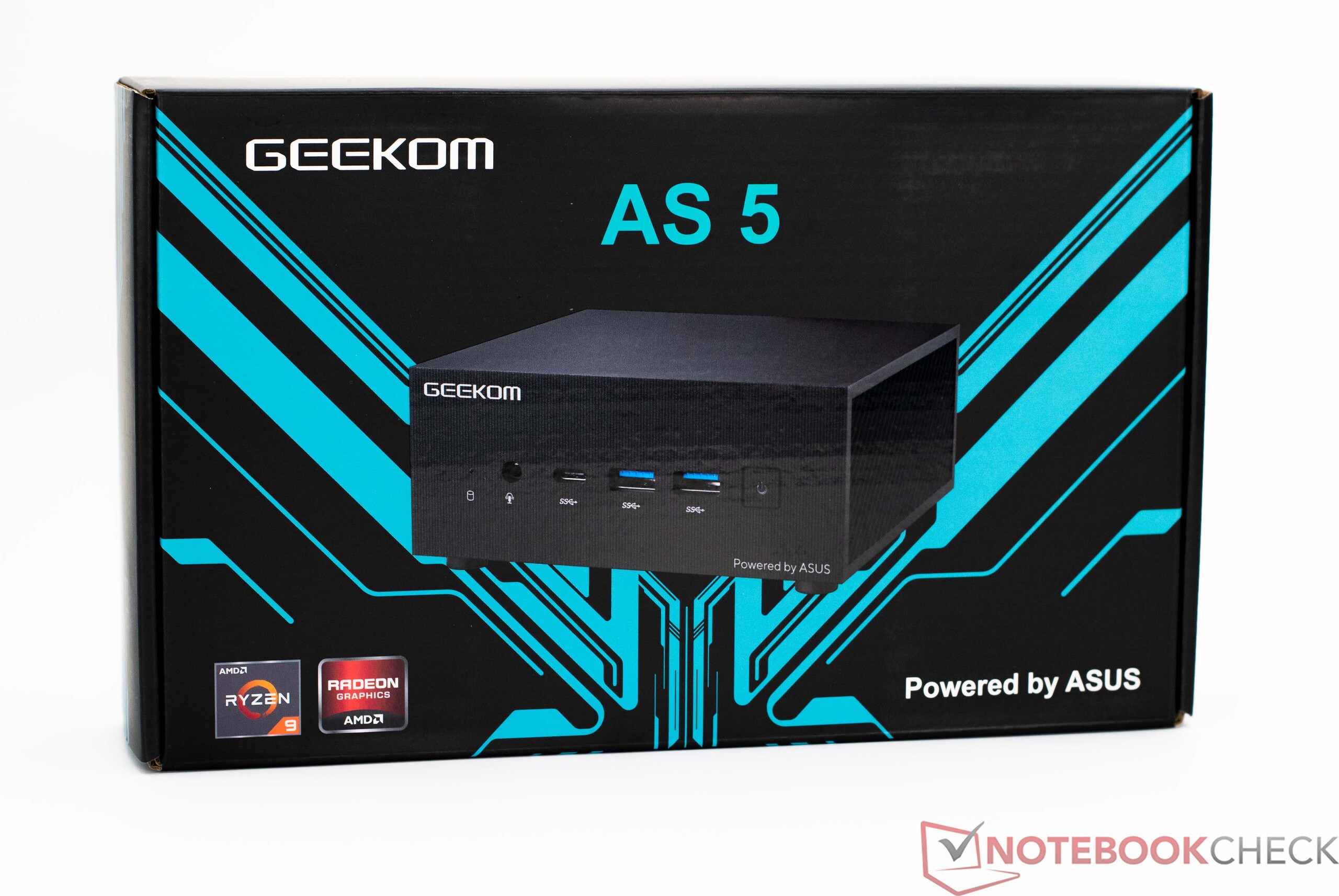

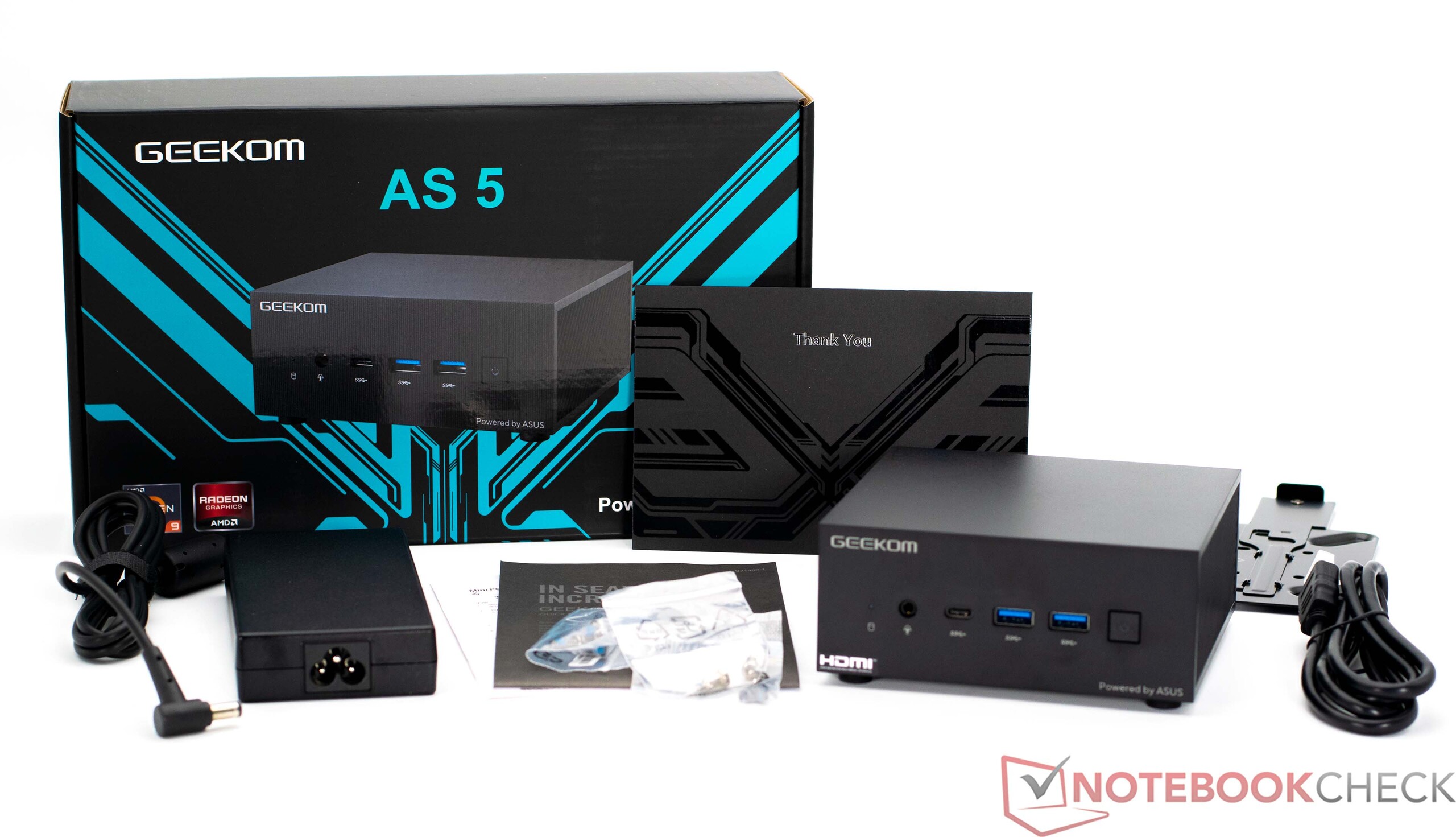

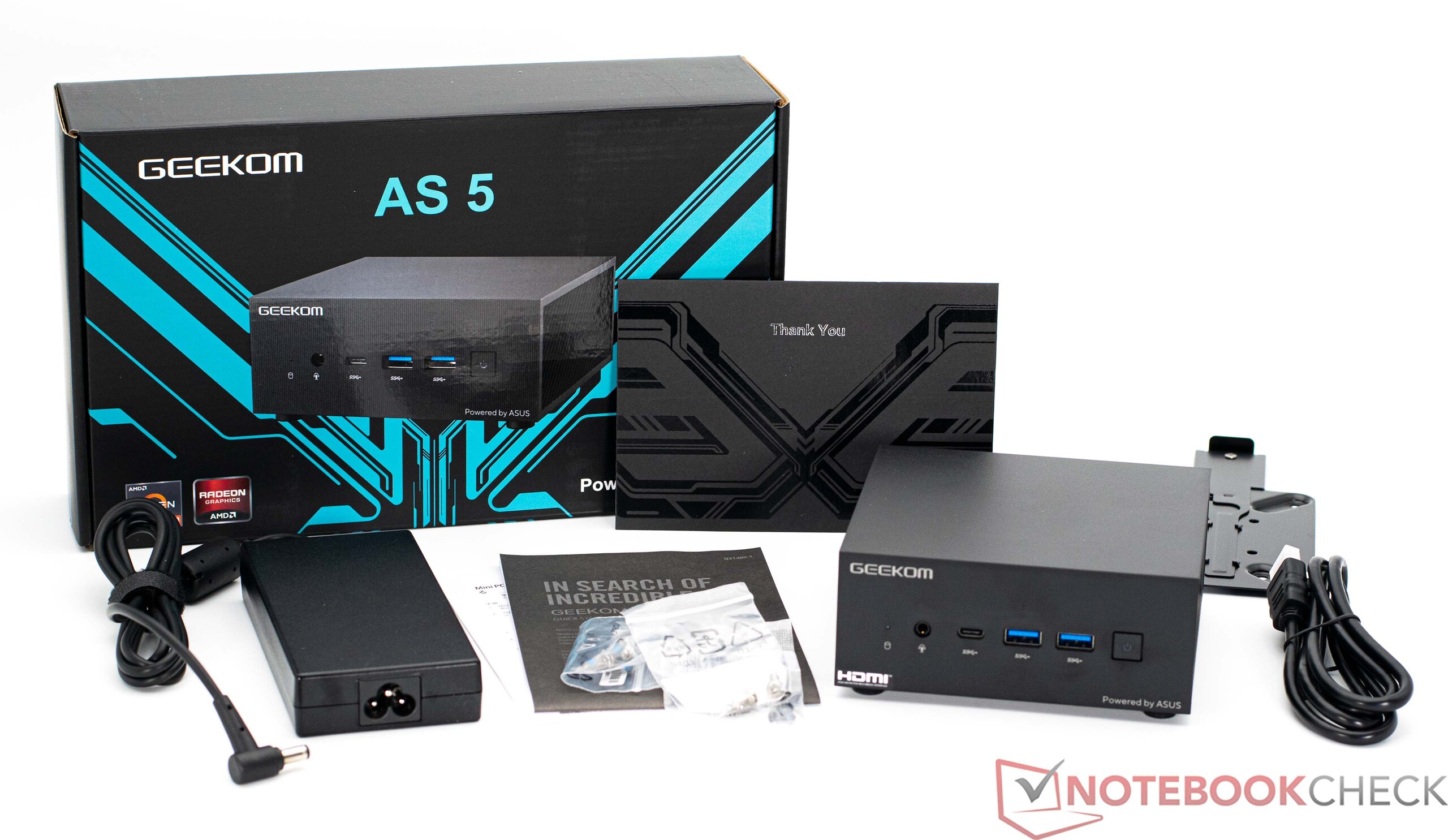

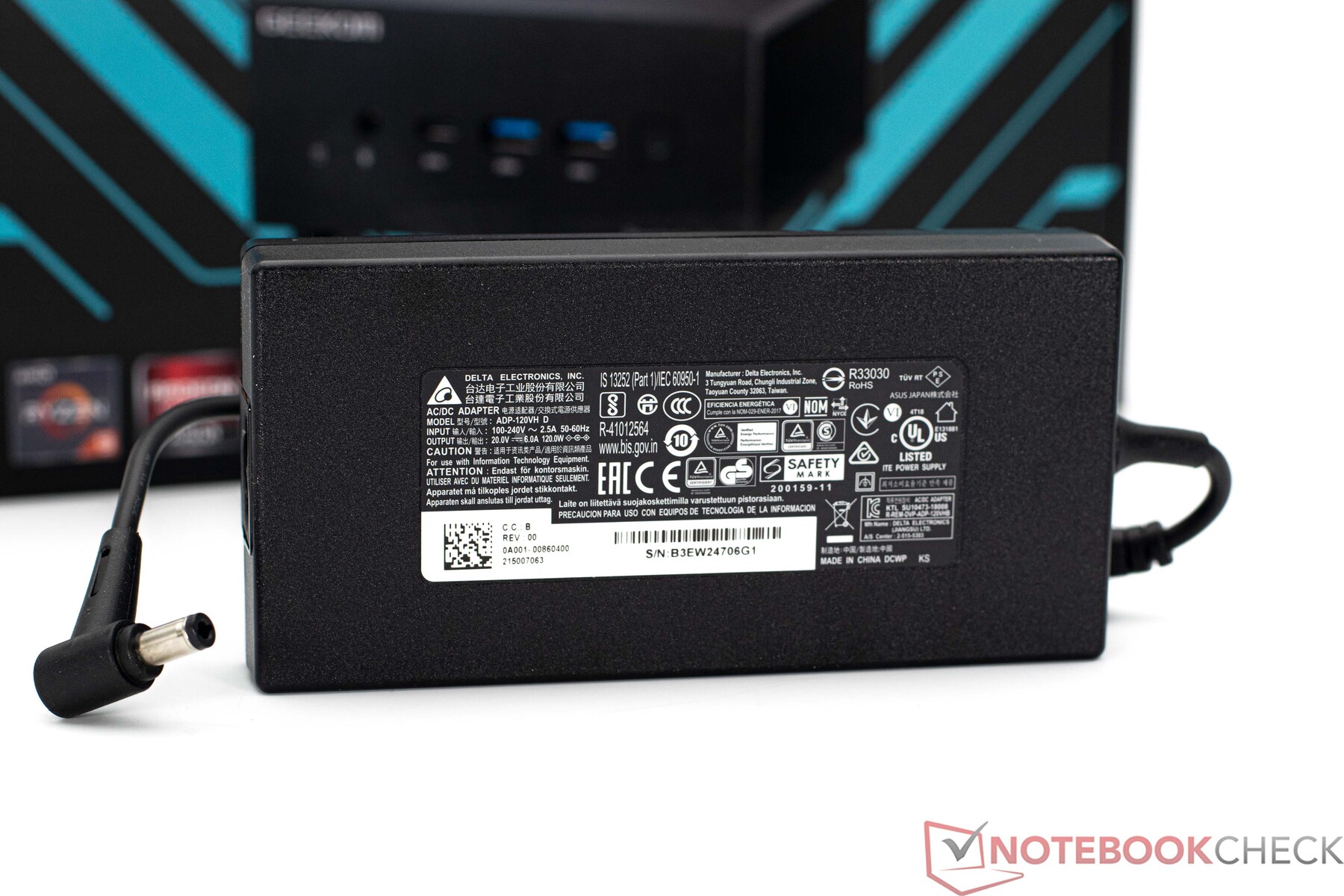

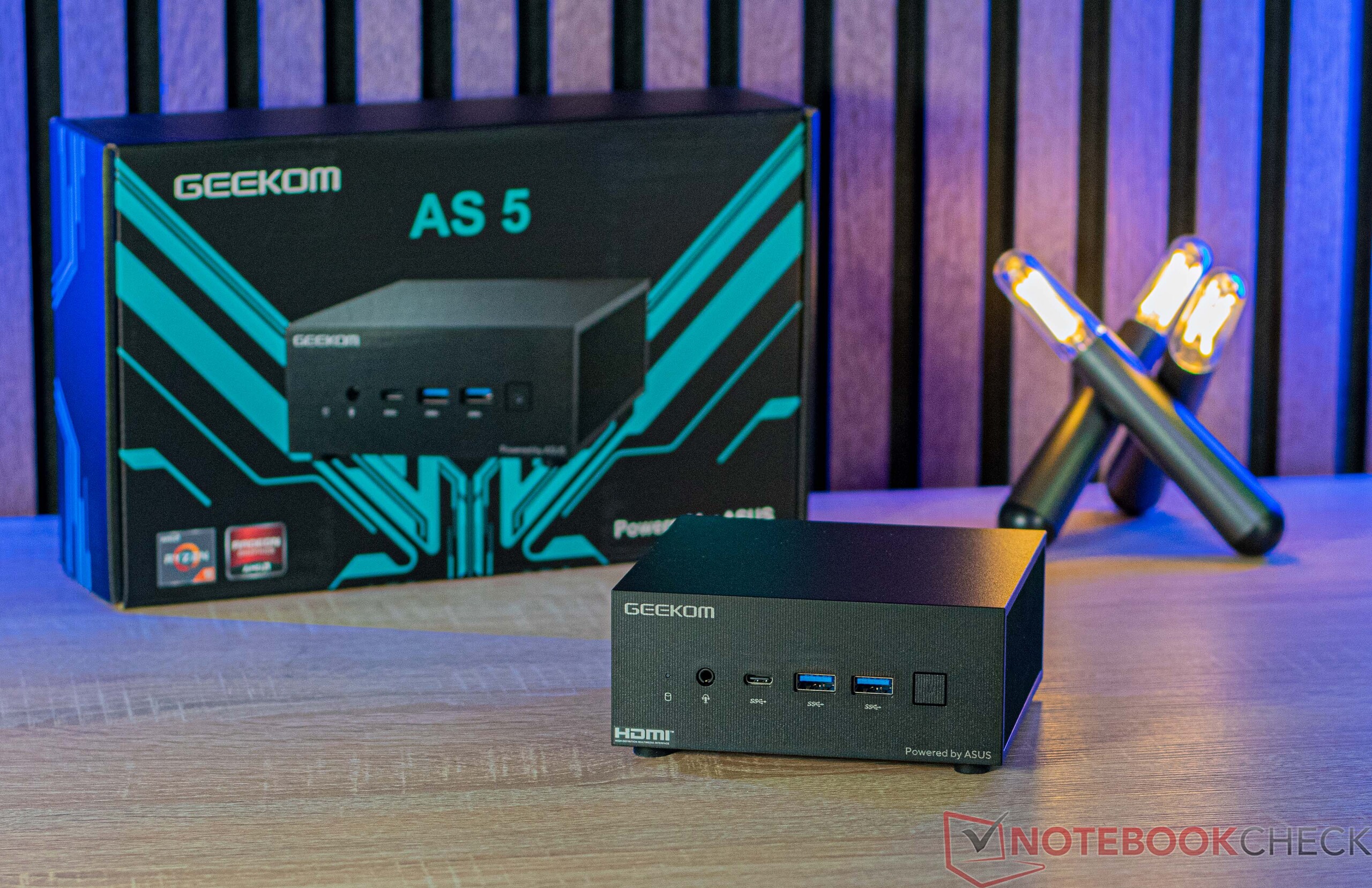

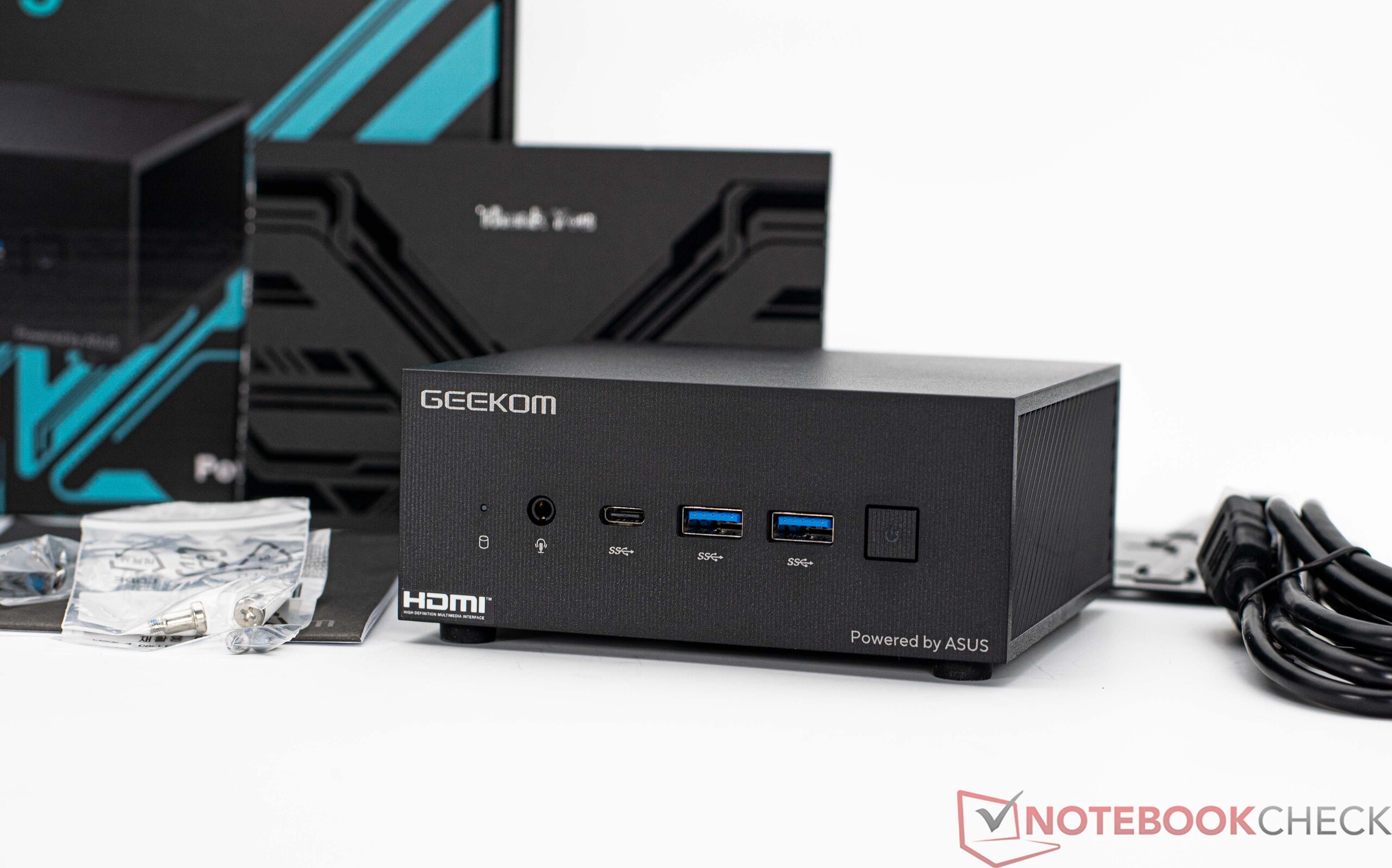

Geekom AS 5的包装盒内容包括120瓦的PSU以及用于将设备安装到显示器上的安装板（VESA支架）、一条HDMI线、一份快速指南和一些螺丝。

维护

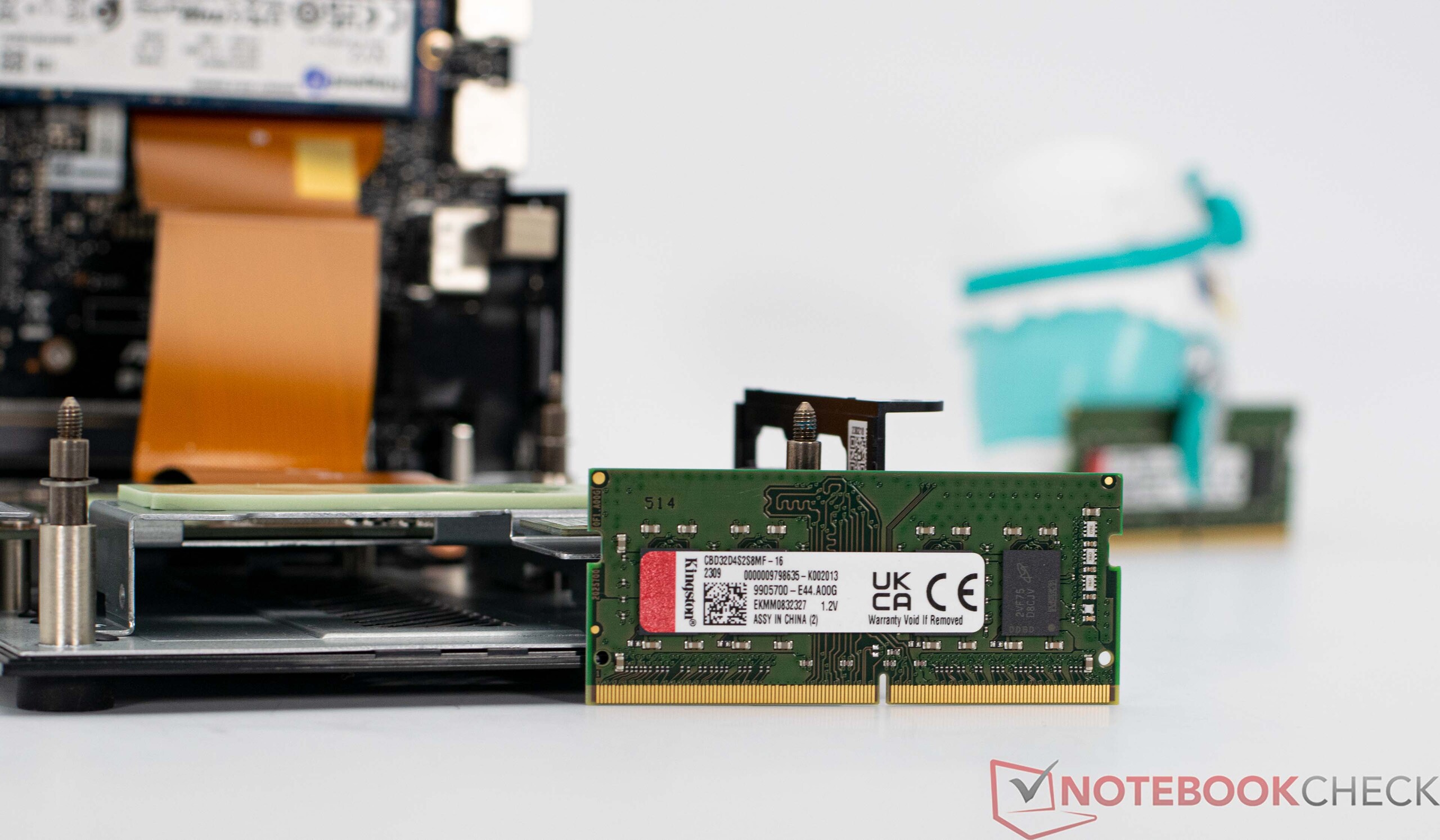

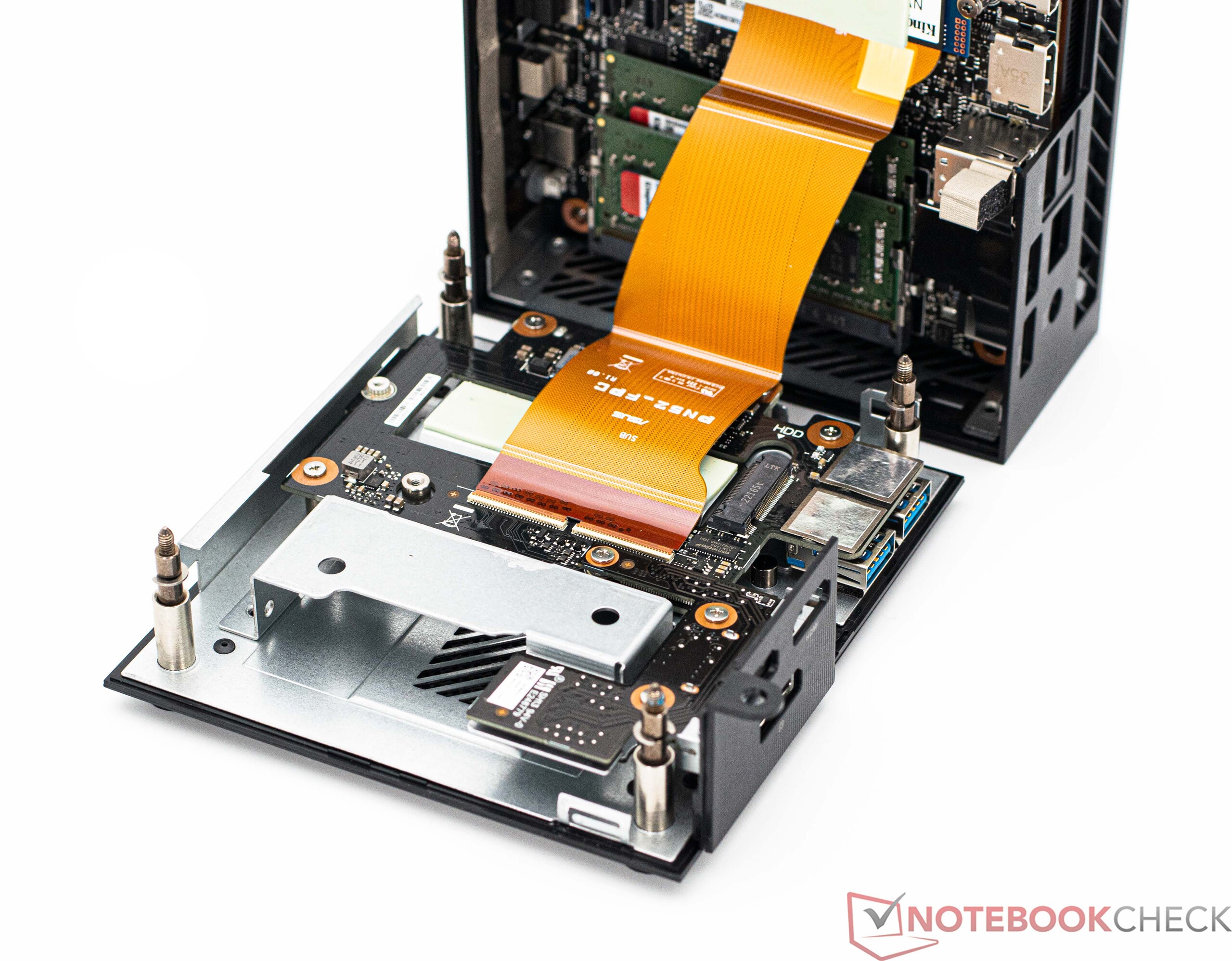

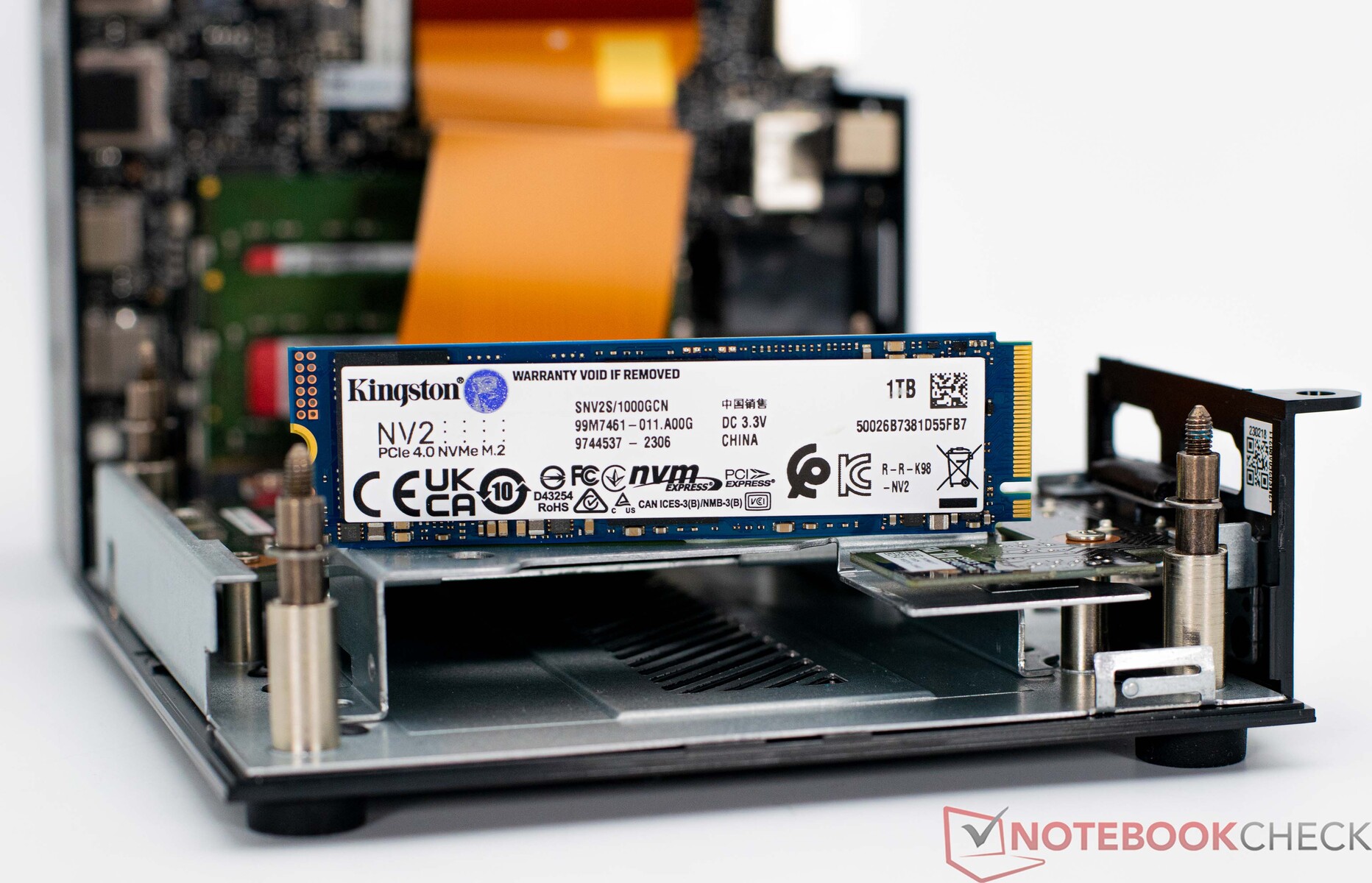

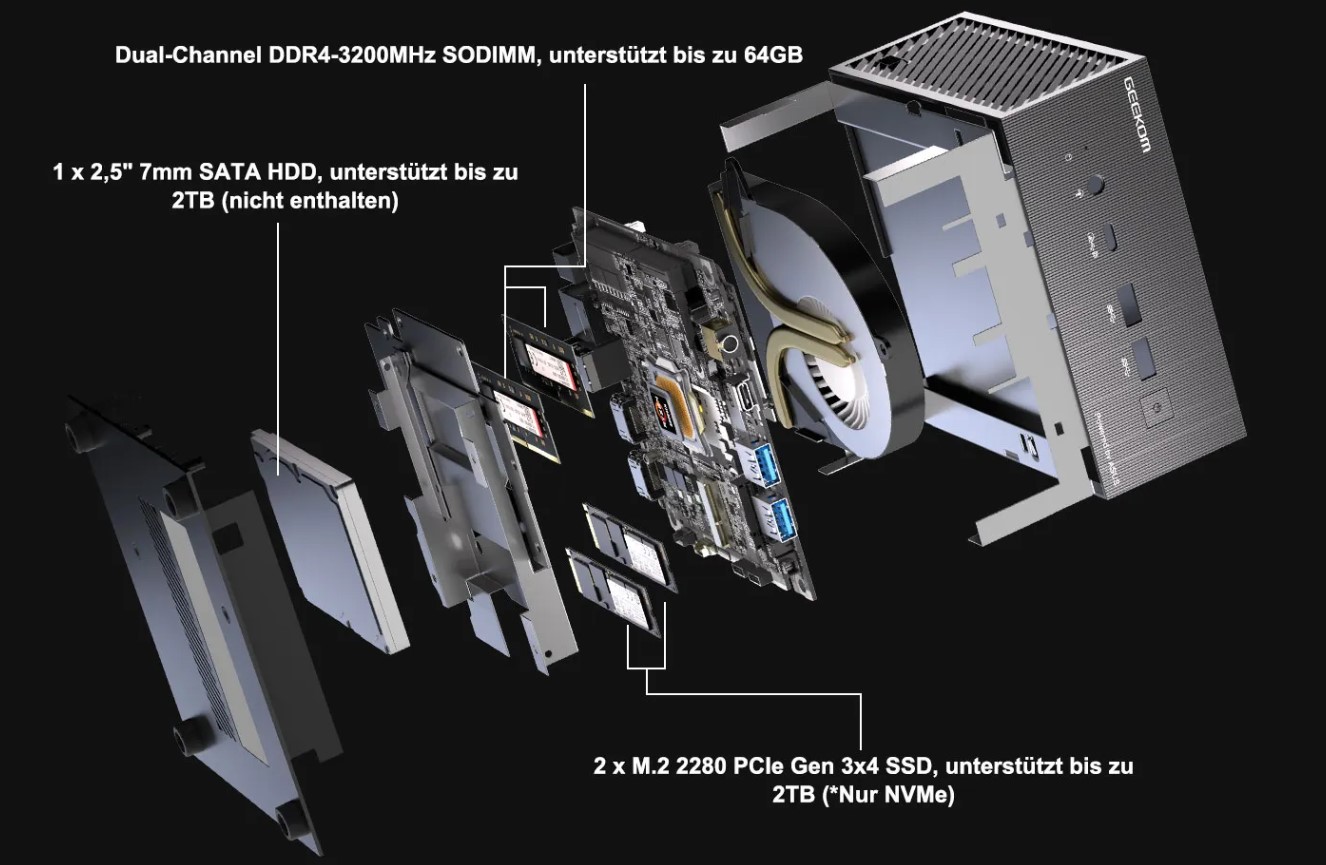

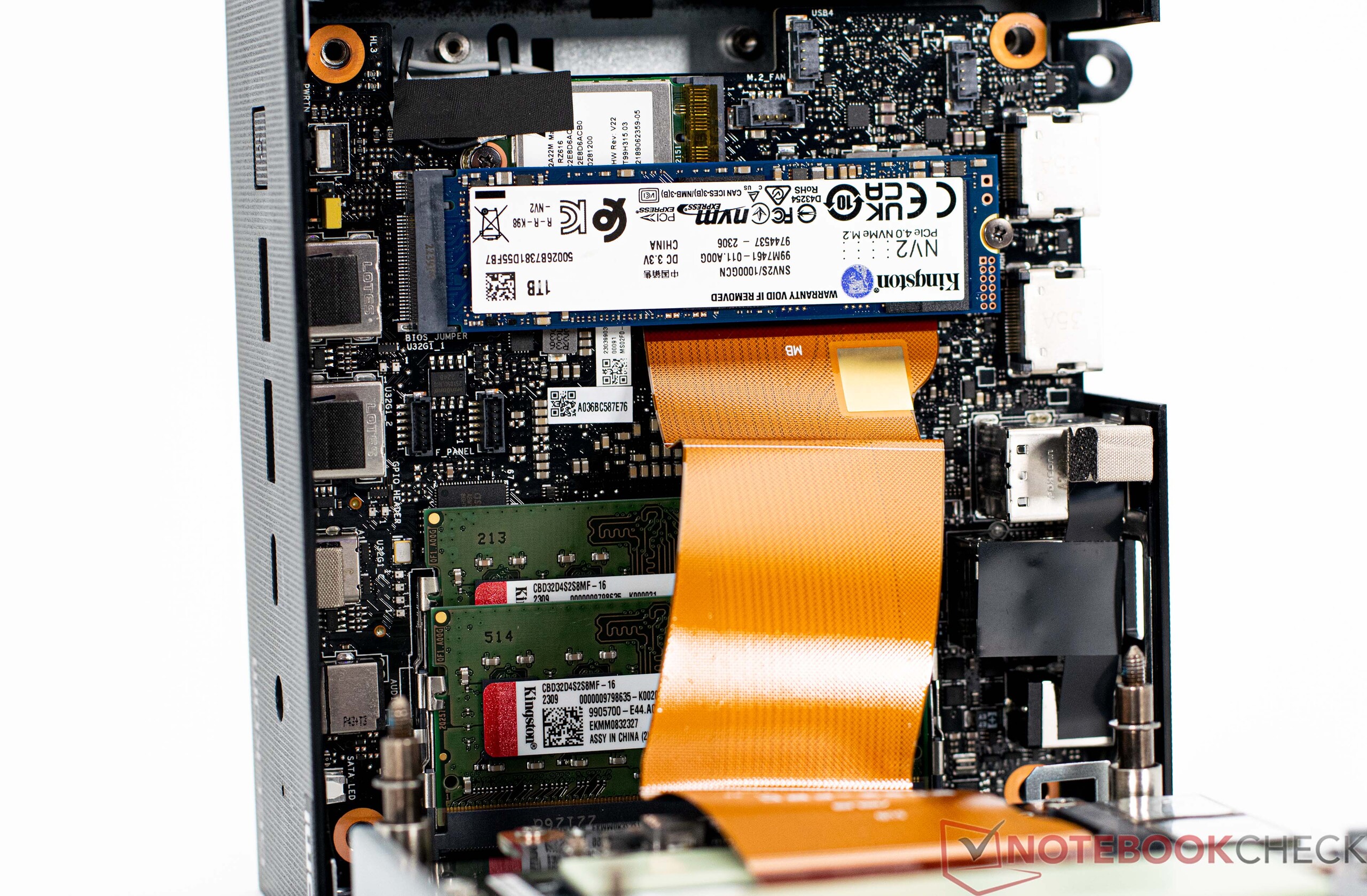

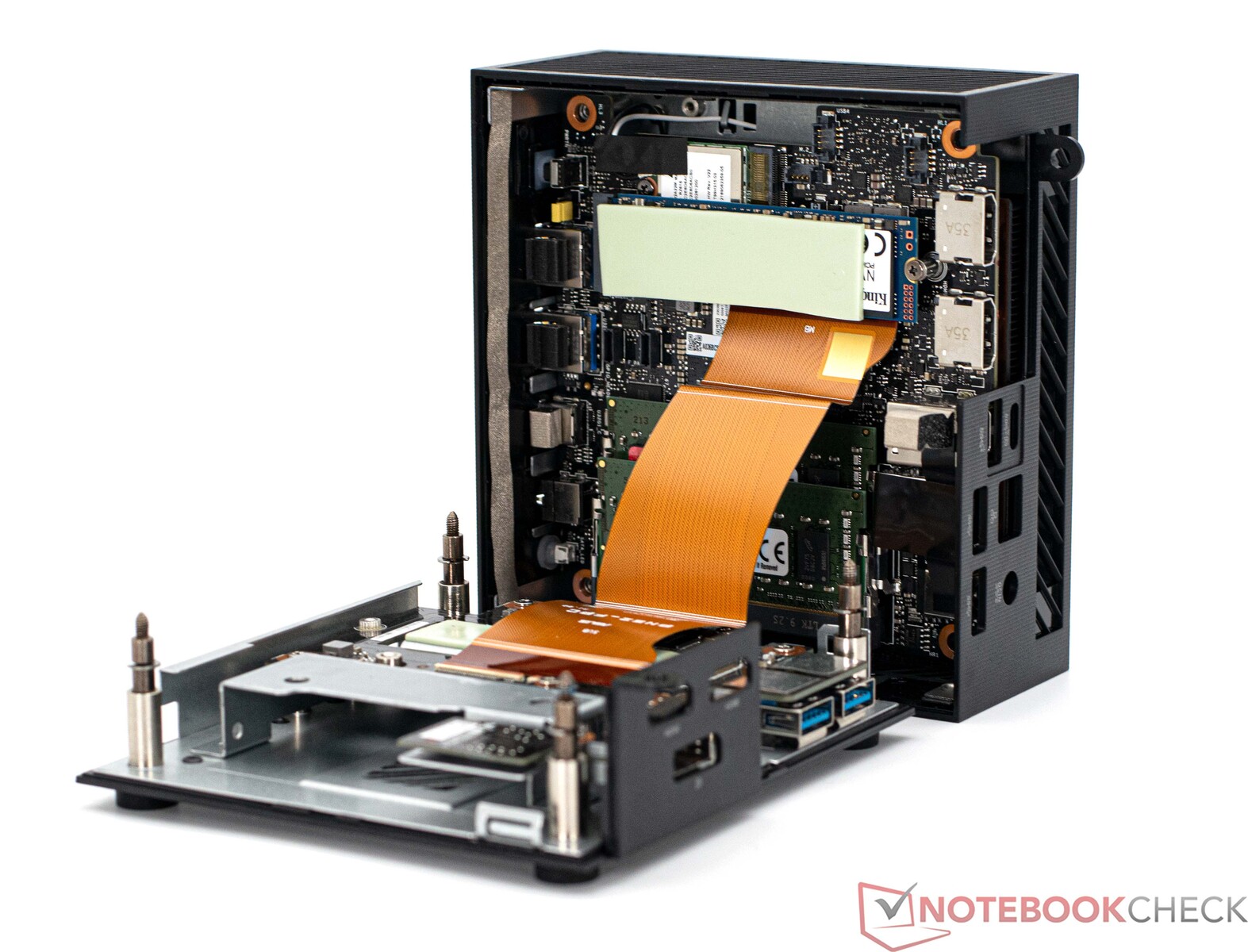

Geekom AS 5可以通过底座打开。四个螺丝构成了底座的一部分，并保持底座，以及部分机箱顶部的一些通信端口。尽管固态硬盘的散热垫提供了一些阻力，但拆下底盖并不难。基本上，访问内置组件，如内存和SSD，是小菜一碟。然而，任何希望检查冷却装置的人都必须把设备再拆开一些。然而，你应该谨慎行事，以避免损坏Wi-Fi天线的脆弱电缆。

性能--AMD Ryzen 9 5900HX是问题的核心

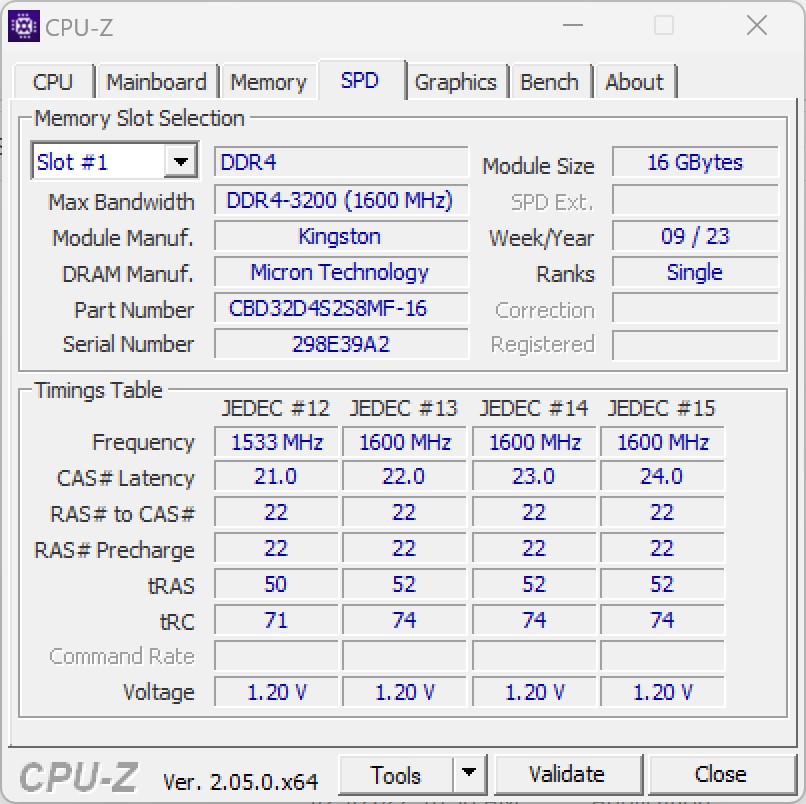

随着芯片-基于Geekom AS 5，你可以在最小的空间里获得很大的能量。有了32GB内存和1TB固态硬盘，其余的规格也是值得骄傲的。所有这些都使Geekom AS 5完美地配备了日常办公使用，甚至更苛刻的任务，如照片编辑和简单的视频编辑，对这个计算仆人来说都不是障碍。

测试条件

所有的性能测试都是在最高性能模式下进行的。SoC的性能在BIOS中没有改变，而是按照制造商的出厂设置进行。

处理器

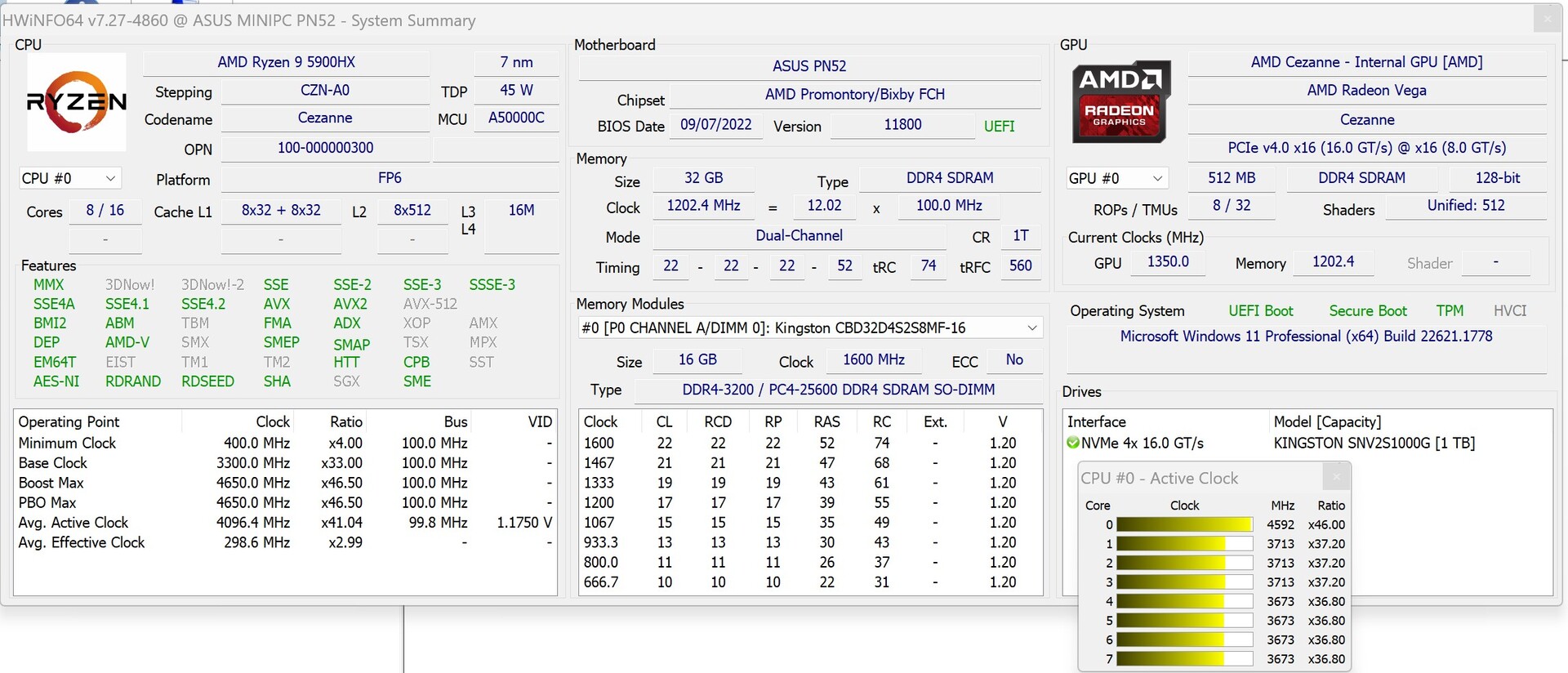

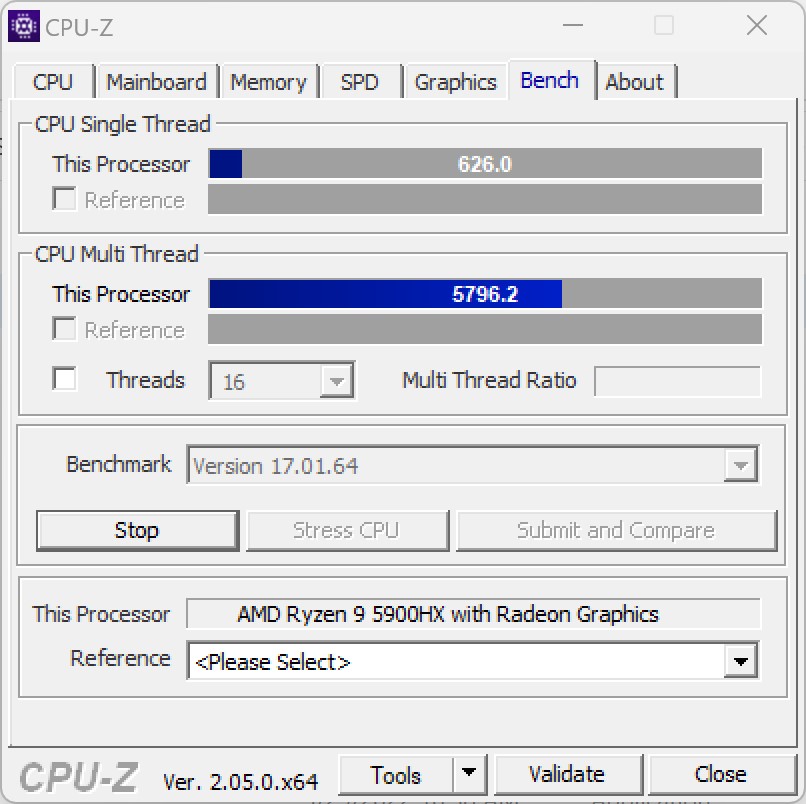

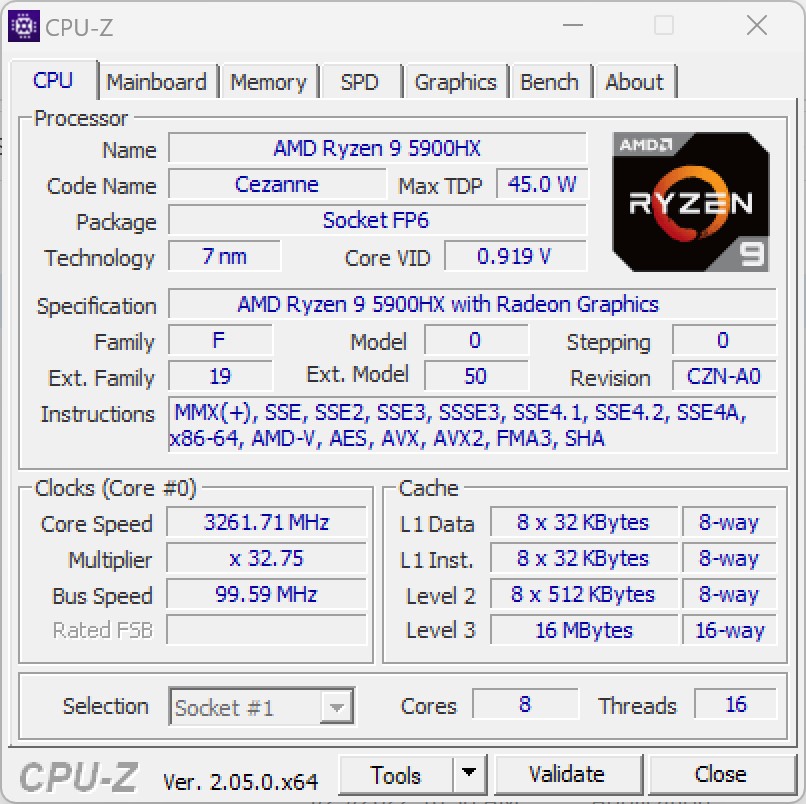

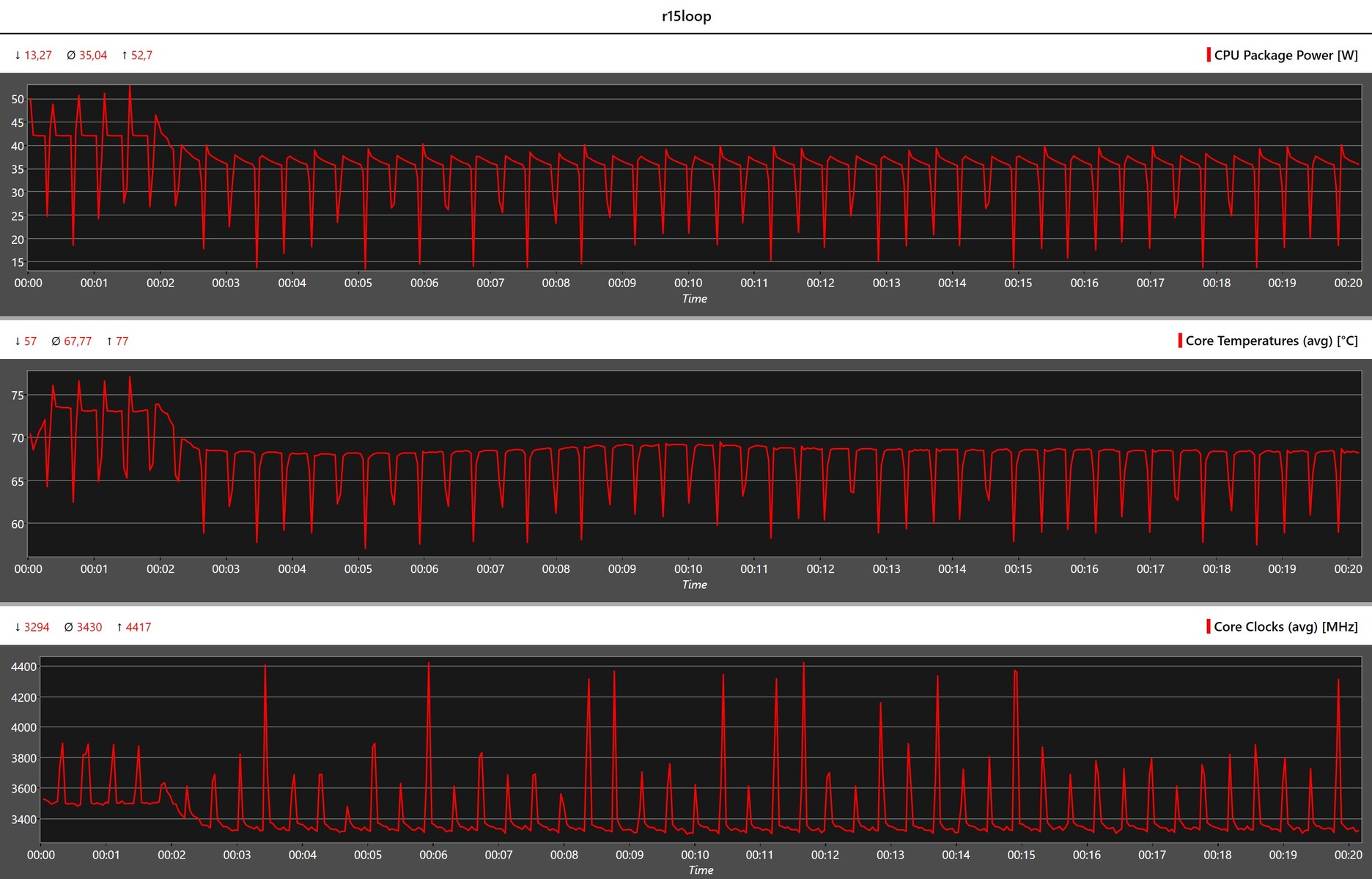

随着AMD Ryzen 9 5900HXGeekom AS 5提供了一个具有8个内核和16个线程的良好SoC，然而，它不再属于最新的芯片，因为AMD已经有了它的继任者，即Ryzen 9 6900HX- 我们将在即将进行的一项测试中看看这款芯片。

然而，在目前的比较中，我们的审查设备做得相对较好，并紧跟在配备了较新的SoC的竞争对手后面。Geekom没有对AMD Ryzen 9 5900HX的功耗进行节流，这意味着该SoC在涡轮增压模式下的运行功率为54瓦，在连续负载下为35瓦，符合制造商的说法。这里使用的SoC的优势之一是其多线程性能，尽管与竞争对手相比，单核性能下降了一些。英特尔在这里用其目前的猛禽湖P处理器在玩另一个联盟，例如，从英特尔NUC 13 Pro 。即使是Morefine M600 ，它已经配备了AMD Ryzen 9 6900HX ，也对此无能为力。

然而，在AIDA64基准测试中，The Geekom AS 5的得分令人吃惊，我们的评测设备甚至处于领先地位，并将Morefine M600推到第二位。基本上，我们看到基于AMD的设备具有明显的优势。英特尔在这方面似乎略显弱势，英特尔NUC 13 Pro ，不得不应对落后于其AMD表弟约19%。

其他比较和基准可以在我们的CPU比较表.

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	49.9 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	49 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	48.9 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.2 pt
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	46.8 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	44.8 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	43 pt

Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points +12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points +1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points 0%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	241 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points -6%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points +5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1928 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -19%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points -29%

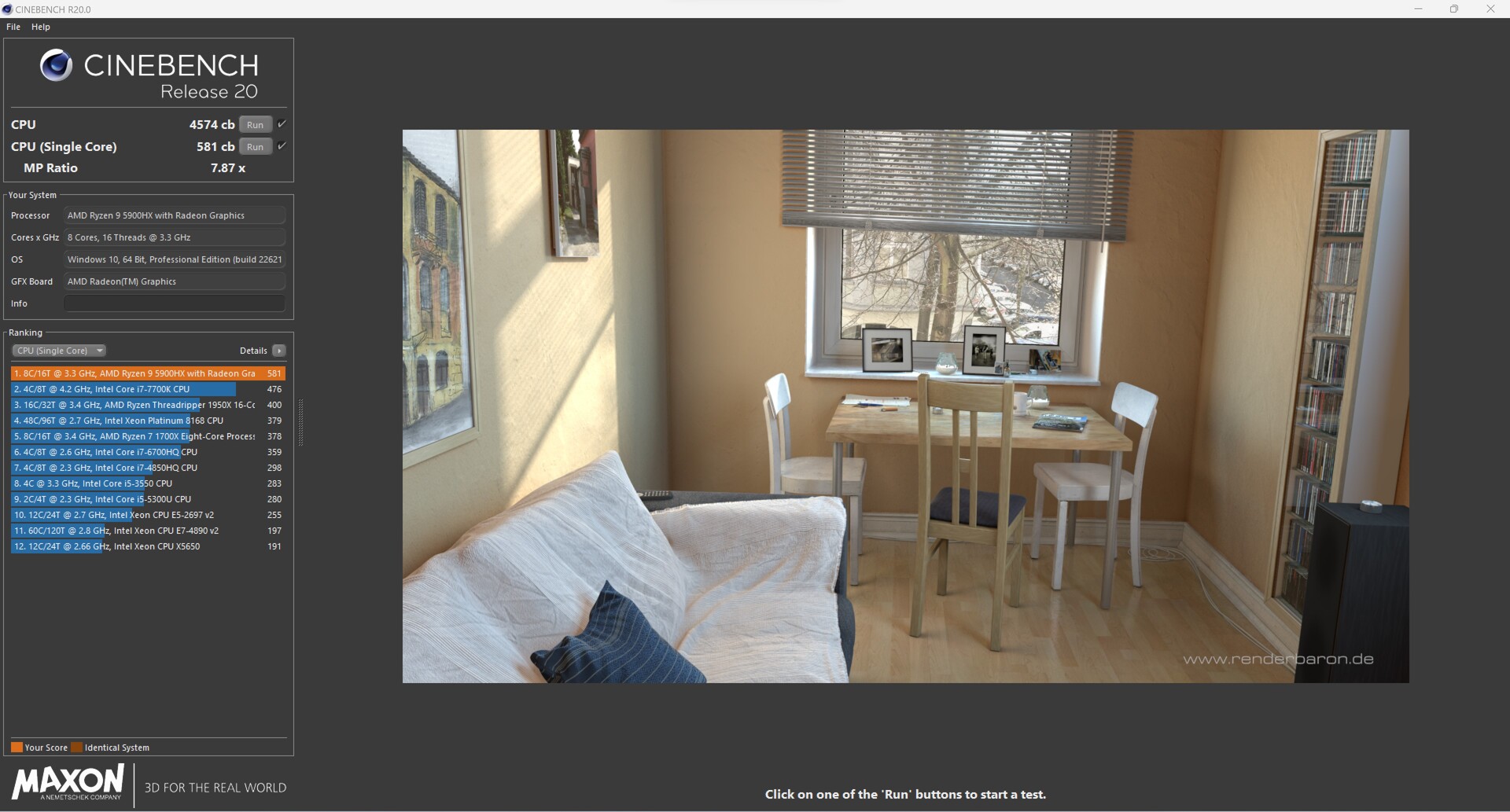

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	581 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points -4%
CPU (Multi Core)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	4574 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points -25%

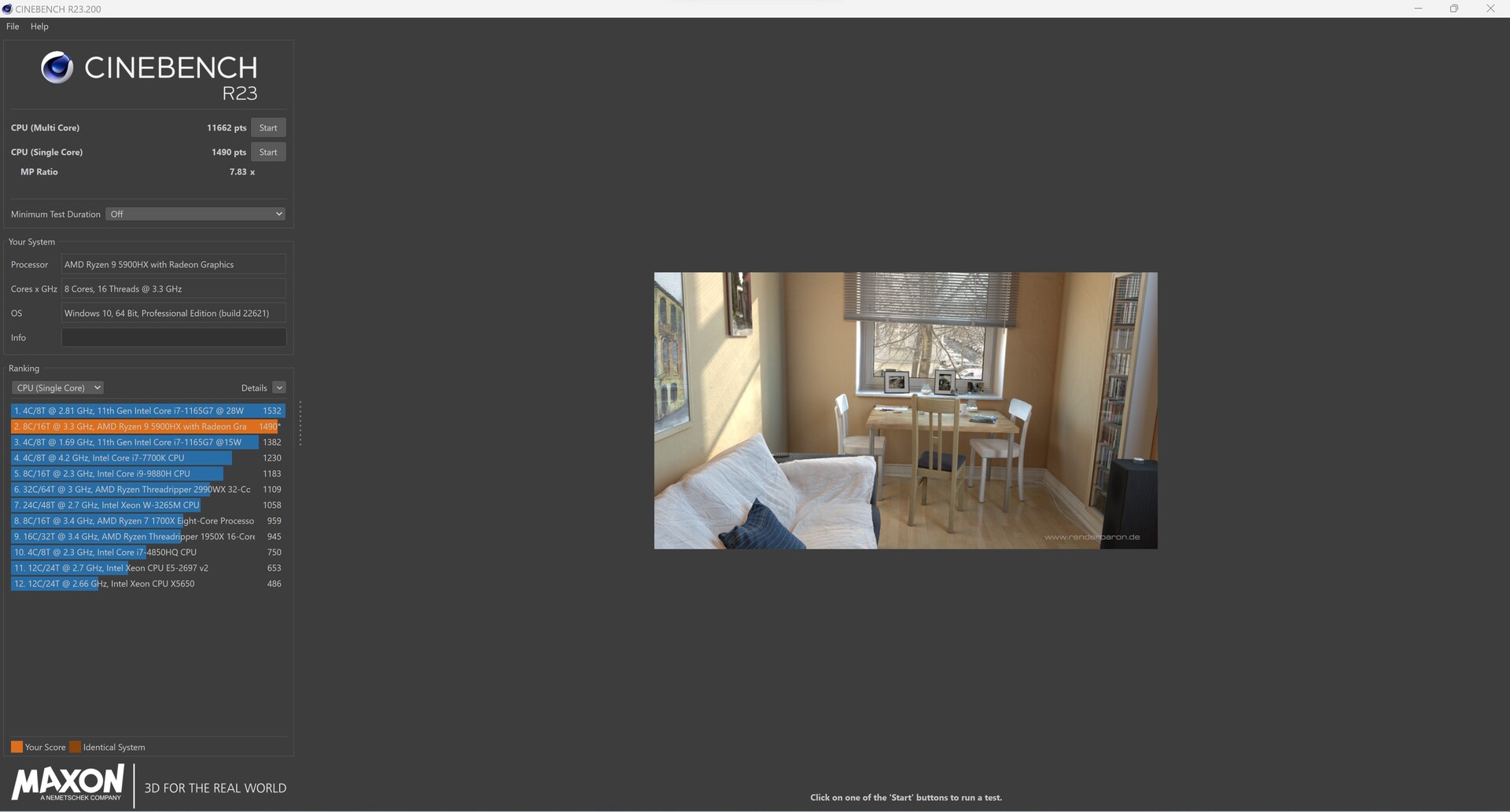

Cinebench R23
Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1909 Points +28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1743 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1693 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1533 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1490 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1420 Points -5%
Multi Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	13320 Points +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12637 Points +8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12375 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points +4%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	11662 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8846 Points -24%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	8491 Points -27%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points +16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points +1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	2.84 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points -4%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points +4%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	22.78 Points
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points -25%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points +29%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +21%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	12025 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points -3%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points +15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	66904 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points -18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -19%

Blender - v2.79 BMW27 CPU
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * -60%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds * -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * -5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	260 Seconds *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +11%

wPrime 2.10
32m
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * -31%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * -25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s * -4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * -2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	3.58 s *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +4%
1024m
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * -297%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s * -168%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * -130%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -83%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * -42%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	103.299 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * -0%

X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +14%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	274 (272^min - 279^max) fps
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -23%
Pass 2
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	112.45 (112.3^min - 114.9^max) fps
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -31%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps -36%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +38%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	6599 KB/s
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5759 KB/s -13%

TrueCrypt
AES Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	12.3 GB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s -15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s -24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -30%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s +38%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +25%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s 0%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s -19%
Serpent Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s 0%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s -22%

Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8826 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points -13%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points +18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +12%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1574 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -4%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +4%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8750 Points
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +21%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points +3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points +3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1517 Points

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +22%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +17%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points +2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	6591 Points
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points +16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points +16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	34237 Points

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points +8%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	16684 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points -5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -22%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -30%

7-Zip 18.03
7z b 4
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	50673 MIPS
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS -13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -26%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS +5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	5653 MIPS
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS -3%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	15 fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps -6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps -9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -33%

R Benchmark 2.5 - Overall mean
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * -1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	0.506 sec *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec * +12%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * -6%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	50.1 s *
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * +4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s * +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +24%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points +2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	285 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points -4%

Mozilla Kraken 1.1 - Total
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * -1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	601 ms *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms * +18%

3DMark
3840x2160 Fire Strike Ultra Physics
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	23977 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points -11%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points -16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -34%
1920x1080 Fire Strike Physics
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	24427 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points -8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points -12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -32%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -35%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points +8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +6%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8653 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -41%

* ... smaller is better

Performance Rating
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	95.5 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	93.2 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	80.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	76.9 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	75.3 pt
Average of class Mini PC	69 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	67.9 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	61.7 pt

AIDA64 / FP32 Ray-Trace
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s 0%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	13746 KRay/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s -21%
Average of class Mini PC (561 - 27538, n=99, last 2 years)	10007 KRay/s -27%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -31%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -42%

AIDA64 / FPU Julia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	86566 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points -31%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -36%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -36%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points -37%
Average of class Mini PC (3604 - 116903, n=99, last 2 years)	52649 Points -39%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -54%

AIDA64 / CPU SHA3
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	2980 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s -21%
Average of class Mini PC (225 - 5096, n=99, last 2 years)	2303 MB/s -23%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -33%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -33%

AIDA64 / CPU Queen
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	100712 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points -14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points -25%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -27%
Average of class Mini PC (8172 - 119569, n=99, last 2 years)	69580 Points -31%

AIDA64 / FPU SinJulia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	12082 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points -28%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points -38%
Average of class Mini PC (408 - 15525, n=99, last 2 years)	7339 Points -39%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -40%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -54%

AIDA64 / FPU Mandel
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	47652 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points -32%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -41%
Average of class Mini PC (1958 - 62378, n=99, last 2 years)	27876 Points -42%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -42%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points -44%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -58%

AIDA64 / CPU AES
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	117773 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s -16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s -21%
Average of class Mini PC (3691 - 177158, n=99, last 2 years)	75619 MB/s -36%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -37%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -52%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -66%

AIDA64 / CPU ZLib
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +8%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	750 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s -10%
Average of class Mini PC (74.8 - 1183, n=99, last 2 years)	585 MB/s -22%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -23%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -29%

AIDA64 / FP64 Ray-Trace
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	7289 KRay/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -21%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s -21%
Average of class Mini PC (308 - 14722, n=99, last 2 years)	5342 KRay/s -27%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -31%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -43%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +51%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s +47%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s +42%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s +42%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +39%
Average of class Mini PC (4408 - 44347, n=99, last 2 years)	24663 MPixel/s +25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s +23%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	19749 MPixel/s

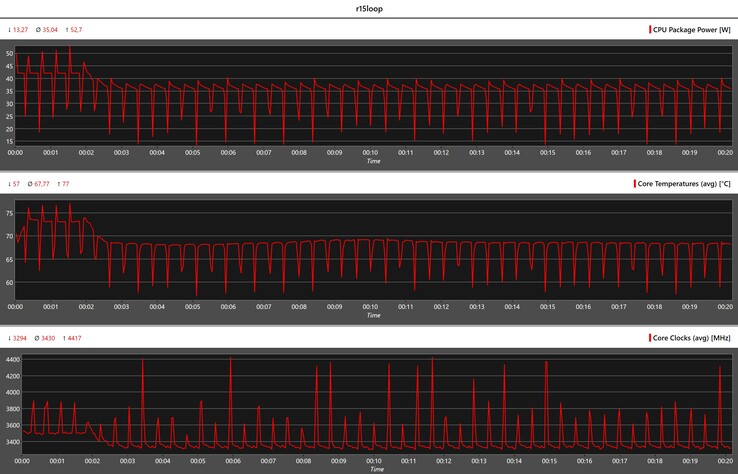

Geekom AS 5与Cinebench R15-Multi-Loop的比较

通过Cinebench R15连续循环，我们评估了SoC在很长一段时间内的负载行为。Geekom AS 5对50次运行的处理相对较好，尽管我们在第20次运行后记录了性能的轻微下降。

Geekom AS 5 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1896 (1822.41-1994.52)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

系统性能

系统性能合成基准是坚实的。在PCMark 10中，我们的Geekom AS 5取得了优异的成绩，位居第二。然而，在Crossmark和RAM基准测试中看到的趋势并没有继续下去。在这个领域，我们的评测模型甚至滑落到了最后一名，因为基于英特尔的系统略微更适合Crossmark测试。由于只有DDR4，Geekom AS 5在内存基准测试中难以跟上DDR5系统的步伐。尽管这样，我们可以自信地说，在日常使用中不会感觉到这些。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +3%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	6430 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6281 Points -2%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points -4%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points -6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points -9%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -12%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11596 Points +8%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +5%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	10702 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -3%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -5%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -8%

PCMark 10 / Productivity
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	10120 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points -11%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points -19%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	7893 Points -22%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -24%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -27%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +35%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +34%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1810 Points +29%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +24%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points +8%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +8%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1402 Points

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +98%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +94%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +62%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1578 Points +48%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points +16%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points +16%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1068 Points

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1970 Points +27%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +17%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +16%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +13%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points +6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +6%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1553 Points

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +39%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +35%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1740 Points +25%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +25%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points +7%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points +7%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1387 Points

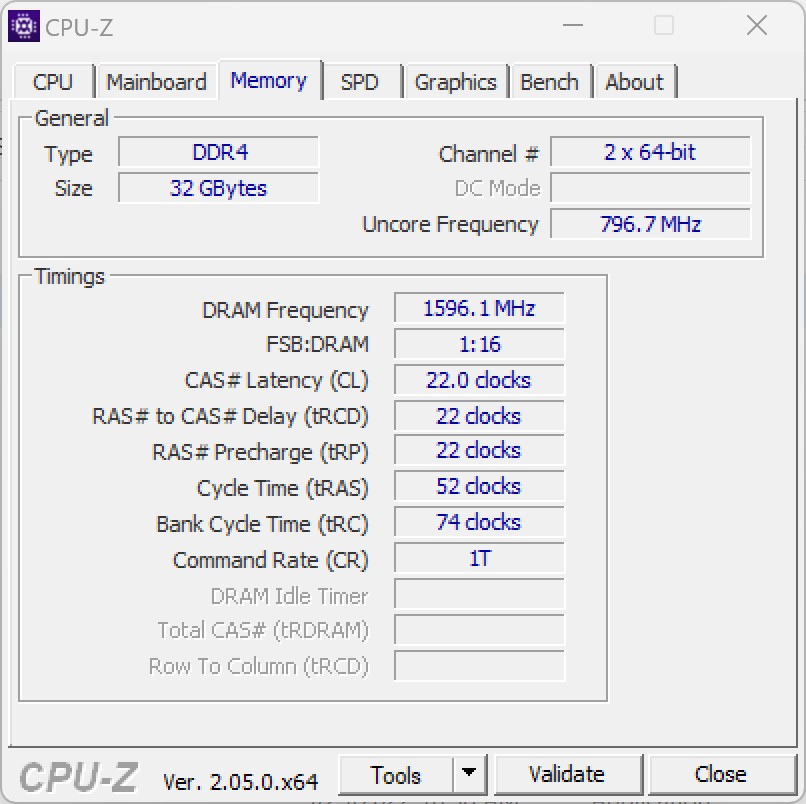

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +21%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s +8%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s +8%
Average of class Mini PC (6481 - 70620, n=99, last 2 years)	42930 MB/s +4%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	41434 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -15%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +8%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +5%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s +1%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	47137 MB/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -4%
Average of class Mini PC (6914 - 71285, n=99, last 2 years)	43615 MB/s -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -19%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +28%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s +27%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s +9%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s +9%
Average of class Mini PC (6862 - 89318, n=99, last 2 years)	46629 MB/s +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s +7%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	43042 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -13%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -27%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -22%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -16%
Average of class Mini PC (44.9 - 154.6, n=99, last 2 years)	87.8 ns * -11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * -5%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * -2%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	78.9 ns *

* ... smaller is better

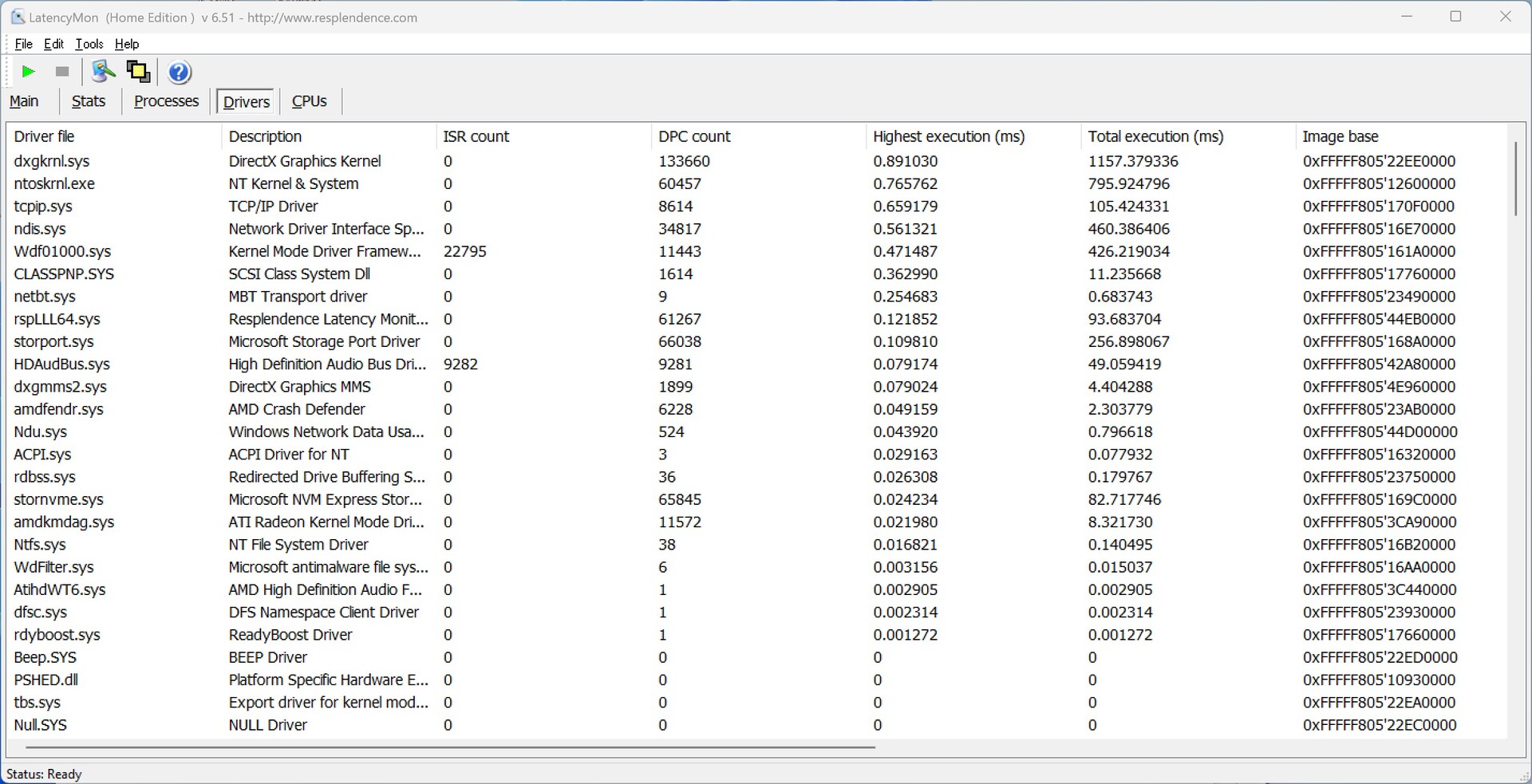

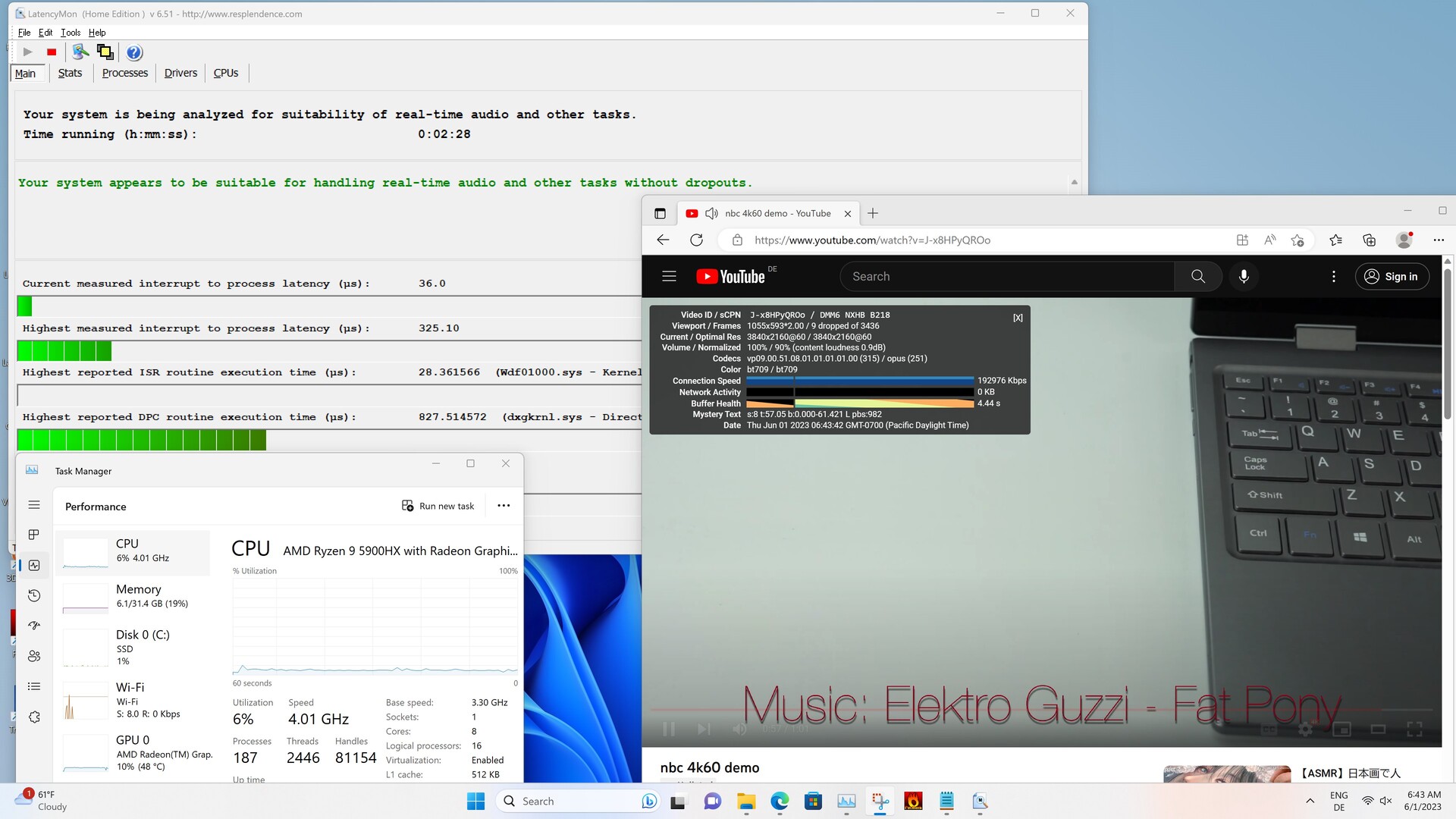

DPC延迟

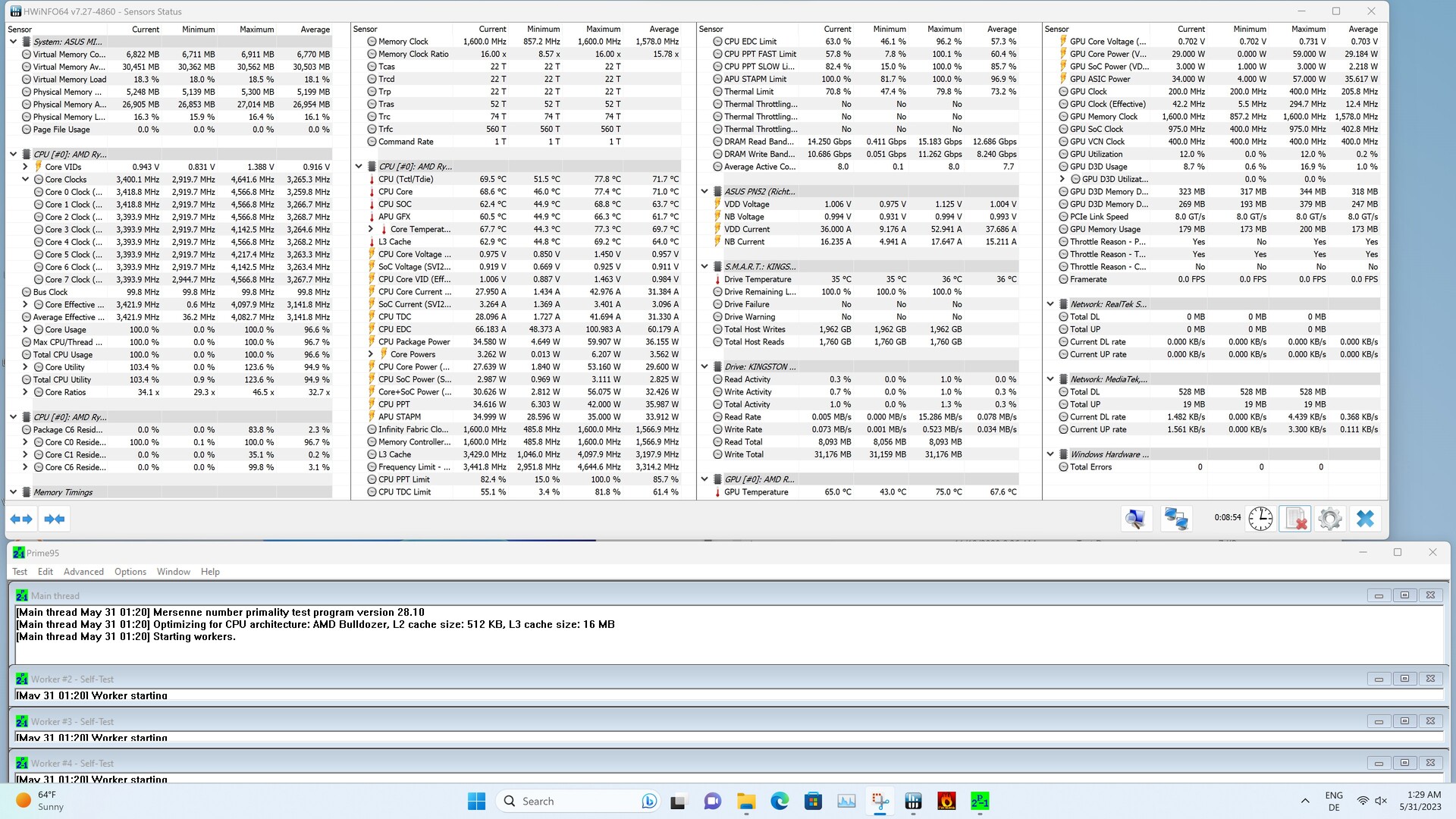

最初，内置组件的互动很好，在我们的4K测试视频的播放中没有造成任何高延迟。关于iGPU，我们观察到相对较低的负载，只有10%。在启动Prime95之后，延迟才开始上升，但尽管如此，我们的评测设备仍然能够在其同行中获得第二名。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -48%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -25%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * -22%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -14%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * -11%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	891 μs *
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * +11%

* ... smaller is better

大容量存储

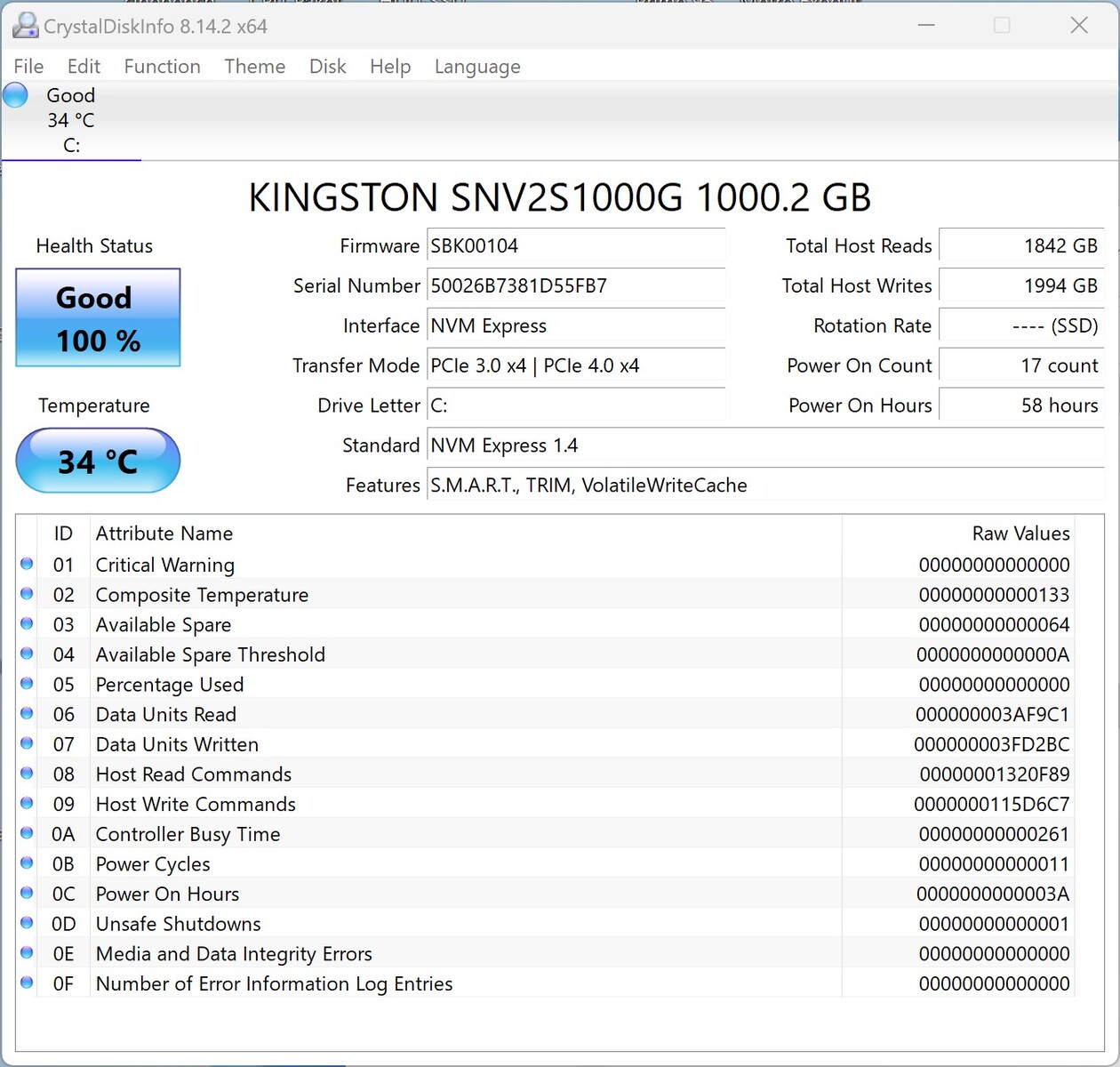

Geekom为AS 5配备了金士顿1024GB NVMe SSD。安装的模型使用NVMe接口，应该能提供相应的传输速率。在读取速度方面，我们观察到坚实的性能，尽管写入速度非常糟糕。为了排除这是Geekom AS 5的问题，我们还在另一台迷你PC上测试了金士顿NV2。然而，性能并没有明显提高。作为比较，我们还为Geekom AS 5配备了金士顿KC3000。这导致了更好的传输率，并清楚地表明问题不在于我们的审查设备，而在于金士顿NV2。

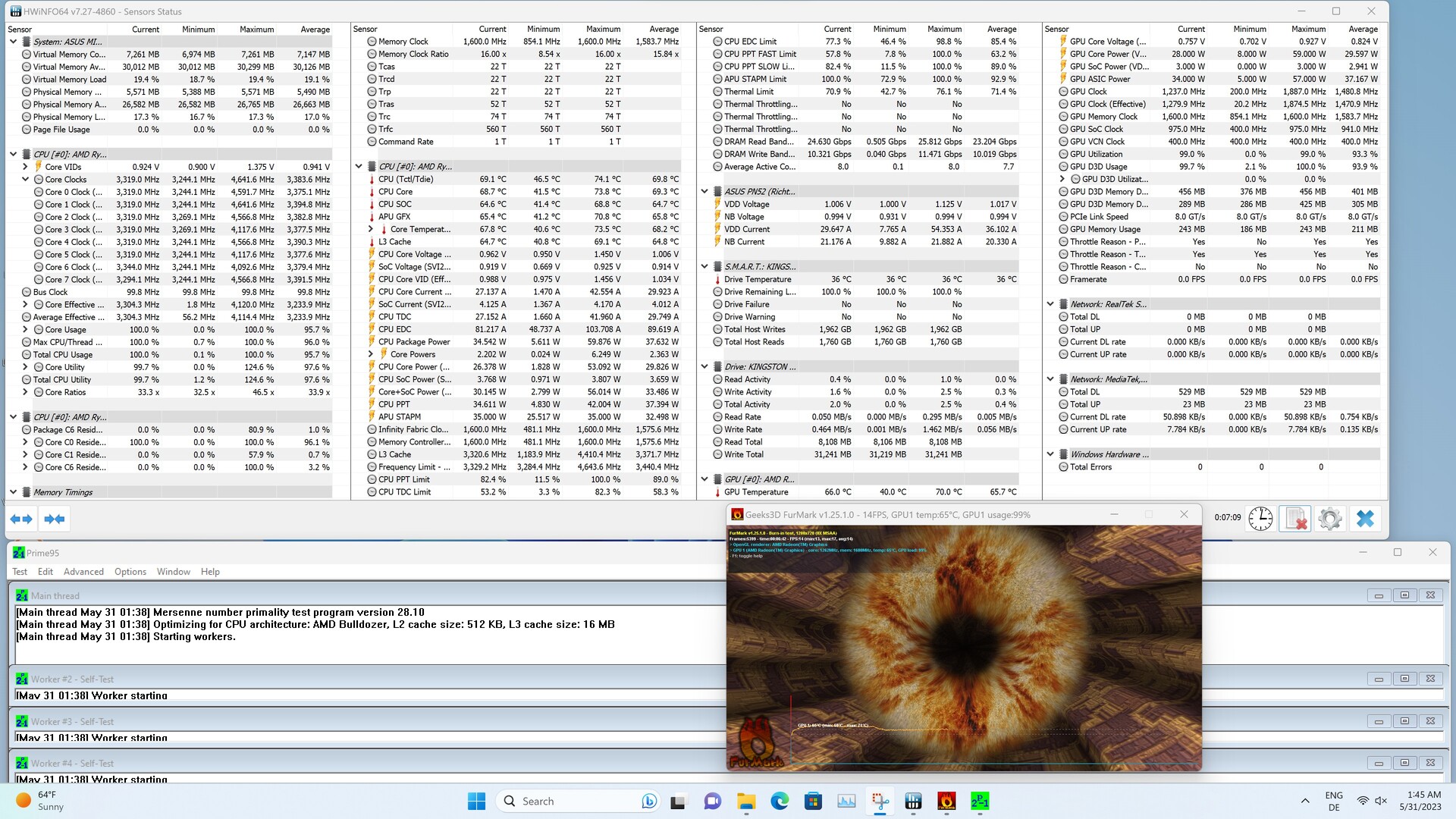

在测试中，我们的评测机型的问题意味着它不得不满足于最后的排名。此外，在压力测试中也出现了性能持续下降的情况。尽管内部金属表面用于冷却，但与连续读取访问有关的性能损失是无法避免的。

同时，Geekom AS 5最多可以容纳三个存储驱动器。其中两个使用M.2接口，另外一个2.5英寸格式的驱动器也可以安装。

关于其他比较和基准，请看我们的比较表.

注意：

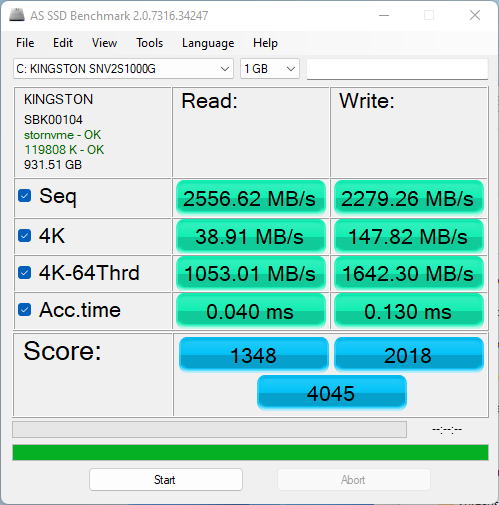

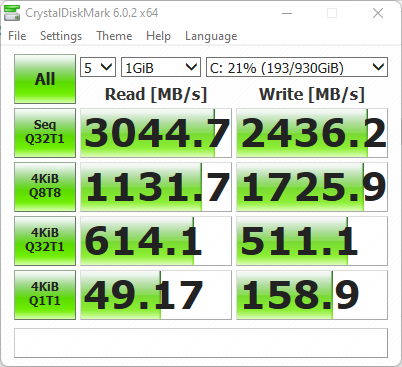

我们的美国同事也在同一时间收到了Geekom AS 5。很快，我们就能与共享相同构造的设备进行比较。看，他们记录的传输率标准要好得多。

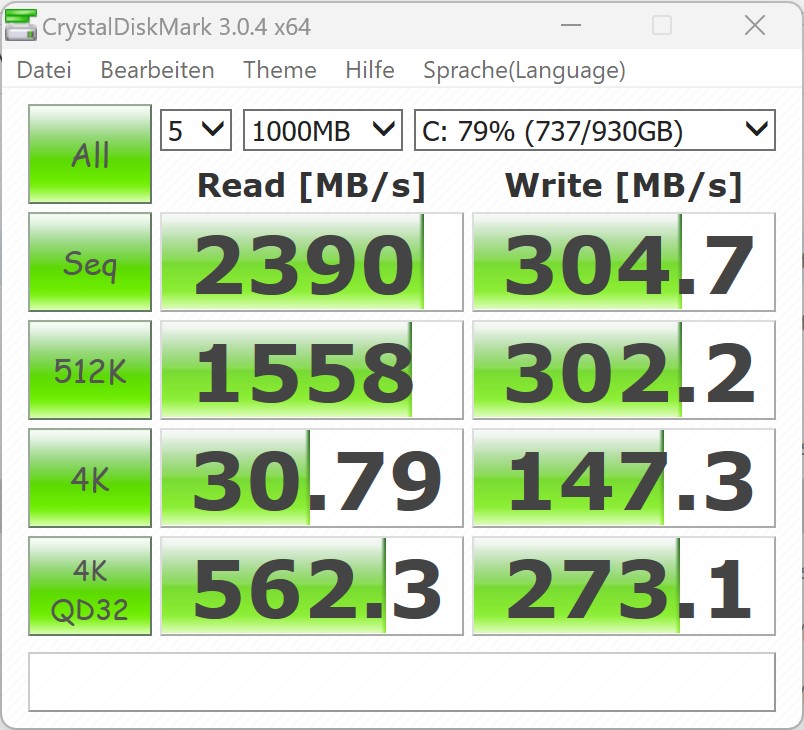

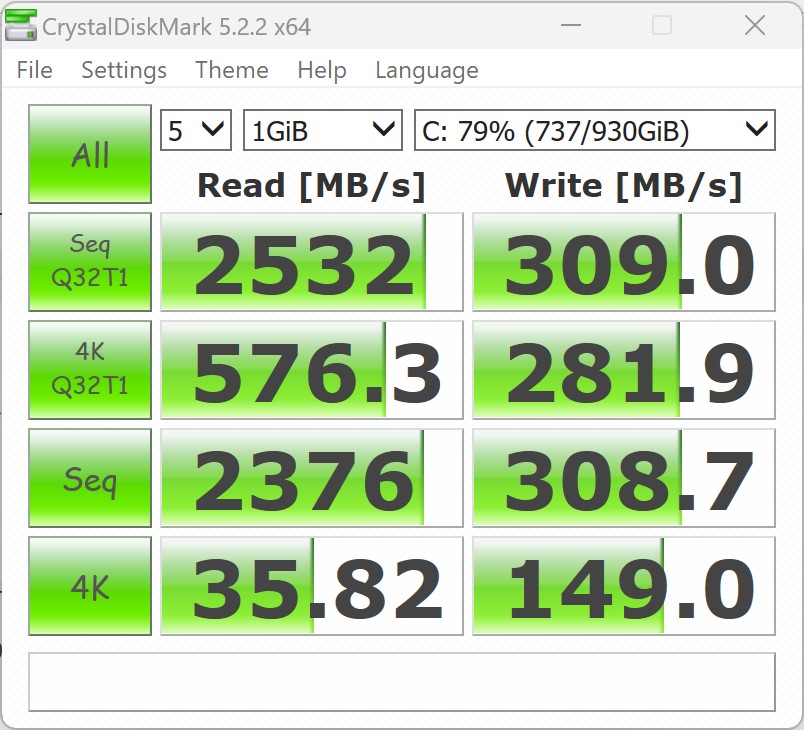

CrystalDiskMark 3.0

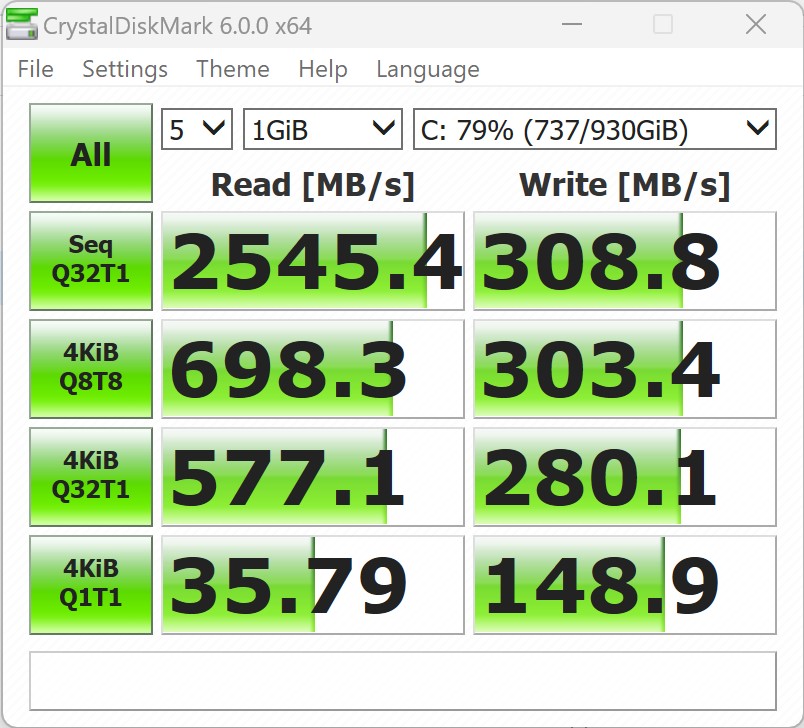

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV2 1000GB SNV2S/1000G

Sequential Read: 2390 MB/s

Sequential Write: 304.7 MB/s

512K Read: 1558 MB/s

512K Write: 302.2 MB/s

4K Read: 30.79 MB/s

4K Write: 147.3 MB/s

4K QD32 Read: 562.3 MB/s

4K QD32 Write: 273.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	84.5 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	71.2 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	71.1 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	65.9 pt
Average of class Mini PC	47.4 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	39 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	36.7 pt
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	22 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +74%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +45%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +39%
Average of class Mini PC (233 - 4168, n=98, last 2 years)	2036 MB/s +5%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	1935 (1920.15^min - 1935.25^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s -11%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -25%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -39%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +1077%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +1030%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +1016%
Average of class Mini PC (222 - 5595, n=98, last 2 years)	2070 MB/s +588%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s +408%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s +300%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s +257%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	301 (225.06^min - 301.12^max) MB/s
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +184%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +103%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +103%
Average of class Mini PC (236 - 8430, n=98, last 2 years)	3188 MB/s +35%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +7%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	2366 (1354.13^min - 2365.71^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -16%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -28%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +1076%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +1030%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s +840%
Average of class Mini PC (228 - 6669, n=98, last 2 years)	2250 MB/s +648%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s +431%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s +303%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s +260%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	301 (225.44^min - 301.12^max) MB/s
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +170%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +167%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s +81%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s +69%
Average of class Mini PC (5.67 - 86.6, n=98, last 2 years)	51.8 MB/s +69%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s +58%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s +31%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	30.7 (30.15^min - 30.74^max) MB/s
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +217%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +213%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +106%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +71%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +64%
Average of class Mini PC (22 - 425, n=98, last 2 years)	188.1 MB/s +40%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s +33%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	134 (102.93^min - 134.02^max) MB/s
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +155%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +155%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s +61%
Average of class Mini PC (26.1 - 2967, n=98, last 2 years)	1111 MB/s +46%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	761 (756^min - 761.3^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -26%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -45%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -53%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +1106%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +753%
Average of class Mini PC (30.2 - 3983, n=98, last 2 years)	1111 MB/s +295%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s +235%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s +218%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s +123%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s +94%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	281 (203.56^min - 280.69^max) MB/s

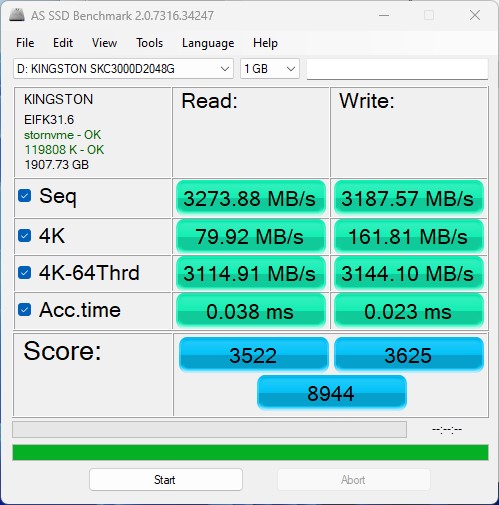

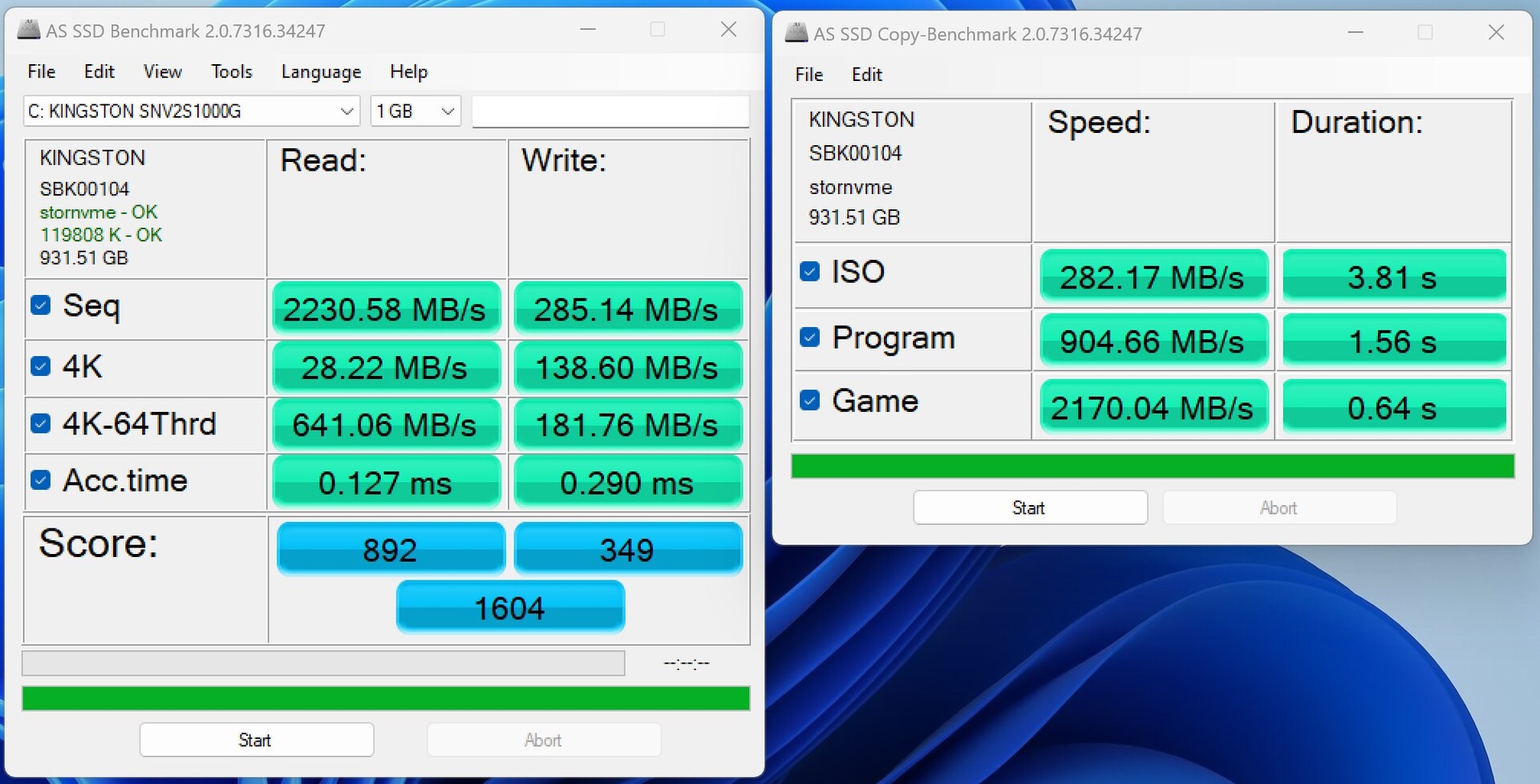

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +463%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +345%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +274%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points +196%
Average of class Mini PC (151.3 - 9030, n=96, last 2 years)	3606 Points +125%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points +55%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	1604 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -53%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +308%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +168%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points +164%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points +88%
Average of class Mini PC (61 - 3635, n=96, last 2 years)	1370 Points +54%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	892 Points
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -19%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -26%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +936%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +924%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +914%
Average of class Mini PC (88 - 4185, n=96, last 2 years)	1585 Points +354%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points +317%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points +275%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points +101%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	349 Points
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +139%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +114%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +86%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s +74%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s +27%
Average of class Mini PC (291 - 6620, n=96, last 2 years)	2834 MB/s +27%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s +25%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	2231 MB/s
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +1278%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +1055%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +757%
Average of class Mini PC (240 - 5783, n=96, last 2 years)	1986 MB/s +597%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s +332%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s +210%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s +84%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	285 MB/s
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +268%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s +265%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +178%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s +136%
Average of class Mini PC (6.08 - 104.3, n=96, last 2 years)	56 MB/s +99%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s +90%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s +73%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	28.2 MB/s
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +164%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s +156%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +97%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s +51%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s +51%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s +34%
Average of class Mini PC (30.9 - 366, n=96, last 2 years)	170.3 MB/s +23%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	138.6 MB/s
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +373%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +192%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s +191%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s +74%
Average of class Mini PC (23.4 - 3035, n=96, last 2 years)	1030 MB/s +61%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	641 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -38%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -50%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +1616%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +1557%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +1464%
Average of class Mini PC (32.8 - 3598, n=96, last 2 years)	1216 MB/s +569%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s +483%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s +376%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s +154%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	181.8 MB/s
Access Time Read
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	0.127 ms *
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms * +8%
Average of class Mini PC (0.022 - 0.489, n=96, last 2 years)	0.1019 ms * +20%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +23%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +42%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * +48%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +53%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +65%
Access Time Write
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	0.29 ms *
Average of class Mini PC (0.016 - 0.765, n=96, last 2 years)	0.1287 ms * +56%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * +59%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms * +62%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * +89%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +92%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +93%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +94%

* ... smaller is better

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Geekom AS 5: Ø2244 (336.8-2451.44)

图形卡

随着AMD Radeon RX Vega 8 ，该SoC配备的iGPU已经陪伴我们多年。不幸的是，你也可以在此期间观察到这一点，因为在基准测试中，现在的老式iGPU明显不如其继任者。然而，它仍然可以与Intel Iris Xe Graphics G7 。这意味着Geekom AS 5能够确保在我们的比较中处于中间位置，因为这里有许多英特尔系统。

遗憾的是，Geekom AS 5缺乏Thunderbolt选项，这意味着该设备不能与外部GPU连接，以加速3D性能。

进一步的比较和基准测试可以在我们的G PU比较表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	100 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	74 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	71.2 pt
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	65.6 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	64.3 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	63.7 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	54.9 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +54%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7166 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points 0%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -2%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points -8%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points -21%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points -24%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +30%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	31638 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points -4%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points -13%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points -29%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points -32%
1920x1080 Fire Strike Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +50%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +25%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +18%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points +10%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +5%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4419 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points -7%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +68%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +17%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points +16%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points +7%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points 0%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1430 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points -15%
Fire Strike Extreme Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +66%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +33%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2340 Points +27%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points +17%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +17%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points +1%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1844 Points

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Unigine Superposition

Performance Rating - Percent
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	100 pt
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	69.8 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	68.9 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	64 pt
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	62 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	54 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +50%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps +5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps +4%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	22.4 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps -6%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps -9%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps -12%
Extreme Preset DX11
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +50%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps +14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	21.5 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps -3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps -5%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +49%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps +7%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	14.1 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps -6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps -9%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps -23%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +58%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps +23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps +12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps +6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps +5%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	14.4 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps -19%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +39%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	4178 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points -14%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points -18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -19%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points -21%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points -40%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +34%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +15%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points +3%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	276 Points
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -15%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points -22%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +39%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +29%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points +5%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	264 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -6%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points -17%
1024x600 Normal, Mandel Vector
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +29%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1295 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points -28%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points -30%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -34%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points -36%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points -63%
1024x600 Normal, Mandel Scalar
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +31%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1126 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points -21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points -23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points -23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points -26%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points -32%
1024x600 Normal, QJuliaRayTrace
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +58%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points +4%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1217 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -2%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points -4%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points -21%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points -32%

Unigine Superposition
1280x720 720p Low
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	9915 Points +28%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7862 Points +2%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	7731 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5662 Points -27%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	5162 Points -33%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	5141 Points -34%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	4088 Points -47%
1920x1080 1080p High
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2916 Points +51%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2062 Points +7%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1935 Points
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1923 Points -1%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1800 Points -7%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	1659 Points -14%
1920x1080 1080p Extreme
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1358 Points +55%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points +23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1069 Points +22%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	992 Points +13%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	875 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	801 Points -8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	796 Points -9%

3DMark 06 Standard Score		29311 points
3DMark Vantage P Result		23140 points
3DMark 11 Performance		7473 points
3DMark Ice Storm Standard Score		132906 points
3DMark Cloud Gate Standard Score		27070 points
3DMark Fire Strike Score		4015 points
3DMark Fire Strike Extreme Score		1825 points
3DMark Time Spy Score		1634 points
Help

... in comparison

游戏性能

内置的iGPU已经可以被推荐作为一个游戏解决方案。凭借其 AMD Radeon RX Vega的支持，Geekom AS 5只能在较早的游戏中管理可玩的帧率，而且往往是在低分辨率和稀疏的细节下。基于AMD Ryzen 9 6900HX的，莫尔菲恩M600提供了一个更强大的iGPU，这让我们希望Geekom的后继者将更具竞争力。

任何正在寻找明显更好的游戏性能的人都应该看看MINISFORUMHX99G 和NUCXi7 。上述两款MINISFORUM机型都配备了专用显卡，在测试中，它们提供了良好的游戏性能。

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +34%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps +20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +15%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps +3%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	84.7 fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.8 fps -5%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	76.8 fps -9%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +52%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +24%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps +20%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps +12%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	26.2 fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	25.9 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	22.6 fps -13%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +25%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	72.5 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps -18%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps -23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps -29%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	49 fps -32%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	46 fps -37%
1920x1080 High Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +35%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	17.9 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps -9%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps -9%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -17%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps -24%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.1 fps -32%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +7%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (1.358^min, 71.4^P1) fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	141.6 (8.77^min, 90.9^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -4%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	129.9 (16.1^min, 83.3^P1) fps -8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps -11%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -16%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +62%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	33.9 (1.094^min, 20.4^P1) fps +2%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	33.1 (15.2^min, 23.8^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -37%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps -37%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -44%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	18.5 (6.9^min, 14.3^P1) fps -44%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +23%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62 (49^min) fps +2%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	61 (56^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps -18%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	50 (44^min) fps -18%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -25%
1920x1080 High Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +31%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (25^min) fps +12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +4%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	26 (23^min) fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps -4%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	22 (19^min) fps -15%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +25%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	58 (42^min) fps +9%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	53 (40^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps -2%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48 (32^min) fps -9%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -13%
1920x1080 High Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +48%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps +16%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps +12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps 0%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	25 (20^min) fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	23 (17^min) fps -8%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +1%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	135.9 (121.4^min) fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	135 (114.8^min) fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	134.7 (102.1^min) fps 0%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps -1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps -8%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -20%
1920x1080 high (2/3)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +31%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps +8%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64.9 (56.8^min) fps +3%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	62.8 (54.9^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	57.8 (54.5^min) fps -8%

	low	med.	high	ultra
GTA V (2015)	141.6	129.5	33.1	14.5
The Witcher 3 (2015)	84.7		25.9	17.3
Dota 2 Reborn (2015)	135	106.6	62.8	59.1
Final Fantasy XV Benchmark (2018)	44.4	22.2	16
X-Plane 11.11 (2018)	53.2	40.3	34.5
Far Cry 5 (2018)	61	28	26	25
Strange Brigade (2018)	97.8	37.9	32.1	27.3
Shadow of the Tomb Raider (2018)	69.2	25	23	19.9
Far Cry New Dawn (2019)	53	27	25	24
Metro Exodus (2019)	48.4	19.8	15.3	12.5
Borderlands 3 (2019)	72.5	28.3	17.9	13.9
F1 2020 (2020)	113.3	50.3	39.3	27.5
F1 2021 (2021)	118.5	50.1	38.1	25.9
GRID Legends (2022)	64	47.6	36.9	28
Tiny Tina's Wonderlands (2022)	38.4	28.8	18	13.1
F1 22 (2022)	46.7	41.2	31.2	22.1

排放 - 良好，但不是完美的冷却

噪声排放

在空闲使用时，强大的SoC仍然可以在没有噪音的情况下进行冷却。相比之下，在负载情况下，我们注意到Geekom AS 5遭受到风扇噪音的显著增加。在最高47.1 dB(A)的情况下，我们的测试样本比目前比较的大多数其他迷你PC的运行噪音要大。在50.9 dB(A)时，我们只在Ace Magician AMR5上记录了更高的噪音水平。王牌魔术师AMR5

Noise Level

Idle		30.8 / 30.8 / 30.8 dB(A)
Load		47 / 47.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30 dB(A)

	Geekom AS 5 R9 5900HX, Vega 8	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7
Noise		7%	7%	5%	12%	12%	-6%
off / environment *	30	30.4 -1%	30.5 -2%	29.8 1%	29.8 1%	30.2 -1%	30.5 -2%
Idle Minimum *	30.8	30.9 -0%	31.6 -3%	30.2 2%	29.9 3%	30.5 1%	31.5 -2%
Idle Average *	30.8	31.5 -2%	31.6 -3%	31.1 -1%	30.1 2%	30.5 1%	32.6 -6%
Idle Maximum *	30.8	31.5 -2%	31.6 -3%	31.9 -4%	30.2 2%	30.5 1%	33.8 -10%
Load Average *	47	37.5 20%	33.9 28%	40 15%	32.1 32%	30.5 35%	49.3 -5%
Load Maximum *	47.1	34.1 28%	34.4 27%	40.5 14%	32.5 31%	30.5 35%	50.9 -8%

* ... smaller is better

温度

在空闲状态下，Geekom AS 5的外壳会有一点发热。这意味着没有真正的热量积聚可言，因为热空气采取了最短的路线，在被排出之前被引向设备的后部。

在Prime95压力测试中，AMD Ryzen 9 5900HX 只能达到77.8℃，这意味着该SoC在达到其热极限之前仍有很大的呼吸空间。当同时将CPU和iGPU置于负载之下时，我们看到的温度只是略低，因为这两个组件必须分享高达54瓦的综合TDP。

消耗功率

说到能源需求，Geekom AS 5的成绩非常好。在空闲使用时，我们测量了大约8.6到9.6瓦，尽管在负载下的平均消耗量稳定在60瓦左右。我们测量的最大功率为84瓦，这意味着120瓦的PSU没有任何困难，而且还有足够的储备用于两个额外的大容量存储设备。

Power Consumption

Off / Standby	0.1 / 1.1 Watt
Idle	8.6 / 9.3 / 9.6 Watt
Load	59.8 / 83.7 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Geekom AS 5 R9 5900HX, Vega 8	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)	Average of class Mini PC
Power Consumption		15%	-25%	6%	-19%	-45%	6%	22%	-17%
Idle Minimum *	8.6	5 42%	10.4 -21%	5.1 41%	9.9 -15%	12.1 -41%	8 7%	5.25 ?(3 - 12.5, n=45) 39%	9.78 ?(1.9 - 46.5, n=93, last 2 years) -14%
Idle Average *	9.3	7 25%	12.3 -32%	5.8 38%	11 -18%	13 -40%	8.7 6%	7.82 ?(4.1 - 12.8, n=45) 16%	11.7 ?(1.9 - 63, n=92, last 2 years) -26%
Idle Maximum *	9.6	10.7 -11%	12.4 -29%	10.2 -6%	11.2 -17%	18.2 -90%	8.8 8%	9.25 ?(4.6 - 15.7, n=45) 4%	14.7 ?(2.6 - 68.9, n=93, last 2 years) -53%
Load Average *	59.8	50.3 16%	72.9 -22%	68.1 -14%	74.2 -24%	70.6 -18%	54.6 9%	45.3 ?(29.4 - 98.9, n=45) 24%	52.2 ?(11.3 - 158.7, n=93, last 2 years) 13%
Load Maximum *	83.7	82 2%	101.2 -21%	108.3 -29%	103.2 -23%	113 -35%	83.2 1%	60.1 ?(37.2 - 101.8, n=45) 28%	86.3 ?(18.1 - 271, n=93, last 2 years) -3%

* ... smaller is better

Power consumption with an external monitor

Geekom AS 5; Prime95 V2810 Stress (external Monitor): Ø59.5 (53.2-84.5)

Geekom AS 5; Cinebench R15 Multi (external Monitor): Ø64.8 (59.2-81)

Geekom AS 5; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø55.2 (52.2-72.6)

Geekom AS 5; 1920x1080 The Witcher 3 ultra (external Monitor): Ø54 (51.4-73.9)

Geekom AS 5; Idle 1min (external Monitor): Ø9.67 (6-17.3)

Geekom AS 5; Cinebench R23 Multi (external Monitor): Ø60.7 (59-80.8)

Geekom AS 5; Cinebench R23 Single (external Monitor): Ø33.1 (31.1-71.6)

Pros

+ 稳定、紧凑的外壳

+ 快速的AMD Ryzen 9 5900HX

+ 低DPC延迟

+ 良好的Wi-Fi性能

+ 可以安装三个大容量存储设备

+ 许多USB端口

+ 支持四台显示器

+ 32GB的内存

+ 易于打开

+ 1TB SSD

Cons

- 负载下清晰可闻

- 没有Thunderbolt

- 固态硬盘性能差（读取速度）。

结论 - 强大但有弱点

Geekom AS 5无疑是一个小的，甚至是最小的，非常强大的迷你PC，并且有很多东西可以提供。所提供的基础是AMD Ryzen 9 5900HX是一个不错的选择，足以满足日常办公使用。你可以对这台迷你PC提出更高的要求，因为有32GB内存和1TB固态硬盘，很少有角落被削减。

考虑到该设备的紧凑尺寸，端口的选择是非常慷慨的。Geekom AS 5带来了许多USB接口。即使是多显示器设置也不成问题，因为最多可以连接四台显示器。在Wi-Fi性能方面，该设备在本次测试中只有在6GHz频段上优于竞争对手。如果你选择使用5GHz的Wi-Fi频率，预计将与竞争对手并驾齐驱。到目前为止，Geekom AS 5并没有真正把脚放错。你唯一需要吞下的是缺乏Thunderbolt。

Geekom AS 5是一个很好的迷你电脑，有一个快速的AMD Ryzen 9 5900HX。然而，没有Thunderbolt，它并不完全是面向未来的。

我们不认为与华硕的合作是关键性的，而更多地认为是一种优势。在609美元，我们的审查配置Geekom的价格是完美的，比华硕电脑便宜。固态硬盘的选择是值得批评的，因为在我们的基准测试中，它没有达到NVMe固态硬盘的预期要求。另一个批评点是负载下的噪音水平。该设备只有在空闲使用或轻度负载下才真正安静。由于我们的压力测试中记录的温度，Geekom可以将风扇曲线调整得更好一些。这意味着要靠用户自己的技术。幸运的是，BIOS提供了多样化的选项来抵制这种情况。

价格和可用性

Geekom AS 5目前的价格为609美元，可以直接从制造商购买。.

Transparency

The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Geekom AS 5 - 2023-06-04 06/04/2023 v7
Sebastian Bade

Chassis

84 / 98 → 85%

Connectivity

63 / 81 → 77%

Weight

79%

Games Performance

69%

Application Performance

92%

Noise

73%

Average

74%

80%

Mini PC - Weighted Average

Geekom AS 5评测：苛刻项目的完美伴侣，包括AMD Ryzen 9 5900HX和AMD Radeon Vega 8

潜在的竞争对手比较

Geekom AS 5的详细情况

案例

尺寸比较

特点

沟通

辅料

维护

性能--AMD Ryzen 9 5900HX是问题的核心

测试条件

处理器

Geekom AS 5与Cinebench R15-Multi-Loop的比较

系统性能

DPC延迟

大容量存储

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

排放 - 良好，但不是完美的冷却

噪声排放

温度

消耗功率

Power consumption with an external monitor

Pros

Cons

结论 - 强大但有弱点

价格和可用性

Transparency

More articles related to this device
