Apple M2 Max

Apple M2 Max

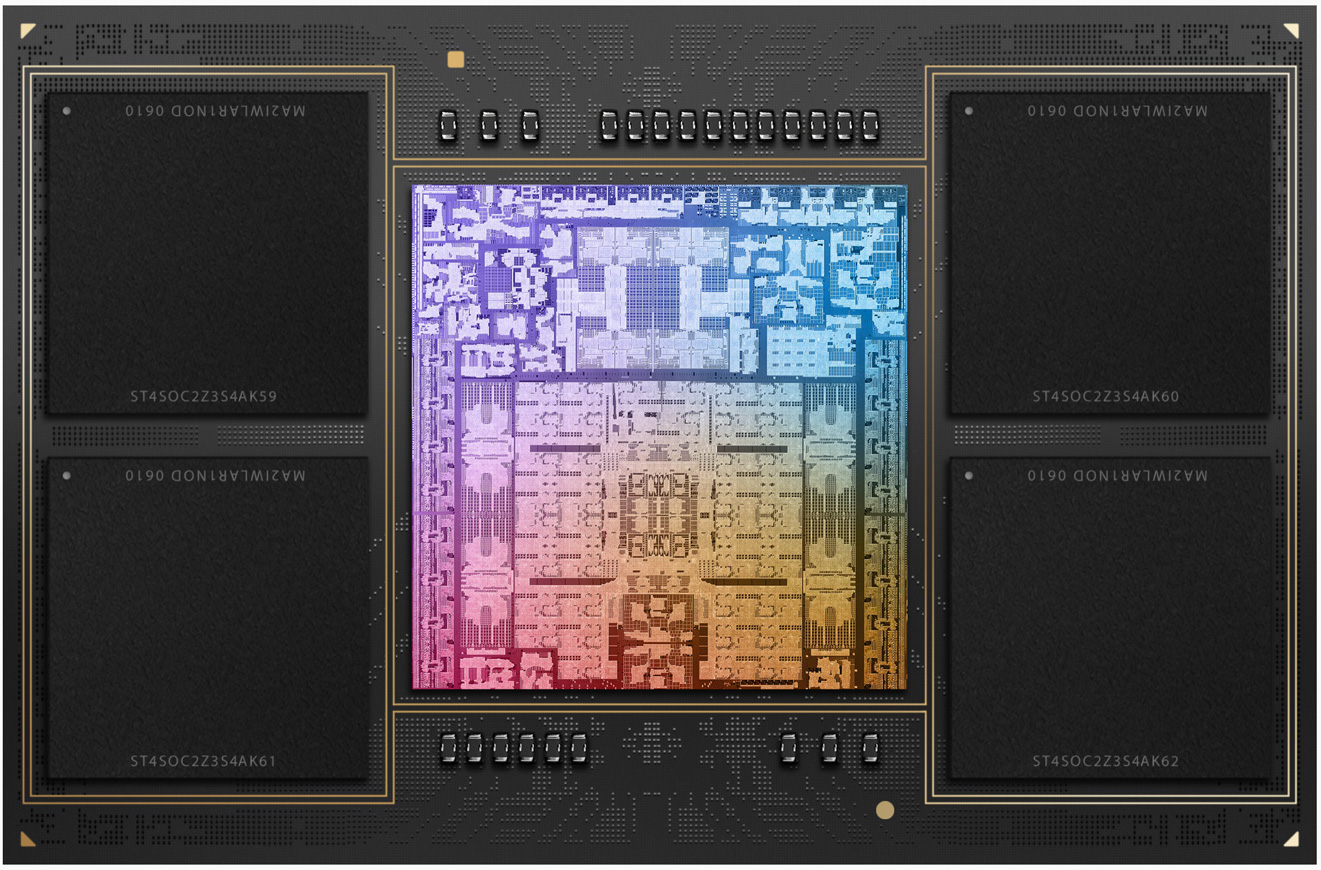

Apple M2 Max 是Apple 推出的一款片上系统（SoC），用于 2023 年初的 MacBook Pro 14 和 16 英寸机型。该芯片提供全部 12 个 CPU 内核，分为 8 个性能内核（P-cores）和 4 个能效内核（E-cores）。E 核心的主频最高可达 3.4 GHz，P 核心的主频最高可达 3.7 GHz（多线程工作负载下大多为 3.3 GHz，单线程工作负载下为 3.4 GHz）。

大核（代号 Avalanche）提供 192 KB 指令缓存、128 KB 数据缓存和 36 MB 共享二级缓存（M1 Pro 为 24 MB）。四个高效内核（代号 Blizzard）则小得多，仅提供 128 KB 指令缓存、64 KB 数据缓存和 4 MB 共享缓存。CPU 和 GPU 可同时使用 49 MB SLC（系统级缓存）。

芯片旁边的统一内存（32、64 或 96 GB LPDDR5-6400）由 512 位内存控制器（400 GB/秒带宽）连接，可供 GPU 和 CPU 使用。

CPU 性能应与 M2 Pro因为只有更高的内存带宽和更大的 L3 高速缓存才能在某些工作负载中发挥作用。

M1 Max 的集成显卡可提供 30 核 GPU或 全部 38 个内核的 GPU.

此外，该 SoC 还集成了 16 核快速神经引擎（比 M1 Max 更快）、安全飞地（例如用于加密）、统一内存架构、Thunderbolt 4 控制器、ISP 以及媒体解码器和编码器（包括 ProRes）。

M2 Max 采用台积电 5 纳米制造工艺（第二代），集成了 400 亿个晶体管。根据 powermetrics 数据，CPU 部分的功耗高达 36 瓦。当 CPU 和 GPU 内核满载时，芯片的功耗高达 89 瓦，而 CPU 部分的功耗限制在 25 瓦。

SeriesApple Apple M2

Series: Apple M2

Apple M2 Max « 2.42 - 3.7 GHz12 / 12 cores48 MB L3
Apple M2 Pro2.42 - 3.5 GHz12 / 12 cores24 MB L3
Apple M2 Pro 10-Core2.42 - 3.7 GHz10 / 10 cores24 MB L3
Apple M22.42 - 3.48 GHz8 / 8 cores8 MB L3
Clock Rate2424 - 3696 MHz
Level 1 Cache3.3 MB
Level 2 Cache36 MB
Level 3 Cache48 MB
Number of Cores / Threads12 / 12
Power Consumption (TDP = Thermal Design Power)79 Watt
Transistor Count67000 Million
Manufacturing Technology5 nm
FeaturesARMv8 Instruction Set
GPUApple M2 Max 38-Core GPU
64 Bit64 Bit support
ArchitectureARM
Announcement Date01/17/2023

Benchmarks

Cinebench R23 - Cinebench R23 Multi Core
min: 14738     avg: 14753     median: 14752.5 (14%)     max: 14767 Points
+ 2 benchmarks and specifications   - Hide comparison chart
Cinebench R23 - Cinebench R23 Single Core
min: 1625     avg: 1644     median: 1643.5 (70%)     max: 1662 Points
+ 2 benchmarks and specifications   - Hide comparison chart
Cinebench R20 - Cinebench R20 CPU (Single Core)
min: 451     avg: 455.5     median: 455.5 (51%)     max: 460 Points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R20 - Cinebench R20 CPU (Multi Core)
min: 4044     avg: 4065     median: 4064.5 (10%)     max: 4085 Points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
min: 2074     avg: 2084     median: 2084 (13%)     max: 2094 Points
+ 2 benchmarks and specifications   - Hide comparison chart
AMD A4-1200
31 -99%
...
AMD Ryzen 7 PRO 6860Z
1992 -4%
AMD Ryzen 7 7736U
2019 -3%
AMD Ryzen 7 8840U
2024 -3%
AMD Ryzen 9 5900HS
2053 -1%
Intel Core i9-11980HK
2055 -1%
Intel Core i9-11900H
2068 -1%
Apple M2 Pro
2069 -1%
AMD Ryzen 5 7640HS
2079 0%
AMD Ryzen 9 5980HS
2083 0%
Apple M2 Max
2084
AMD Ryzen 9 5900HX
2085 0%
AMD Ryzen 7 PRO 6850H
2086 0%
AMD Ryzen 7 6800H
2086 0%
Intel Core i7-1280P
2120 2%
Intel Core i5-12500H
2142 3%
Apple M3 Pro 12-Core
2163 4%
AMD Ryzen 9 6900HX
2163 4%
AMD Ryzen 7 7735HS
2164 4%
AMD Ryzen 9 6900HS
2191 5%
...
AMD Ryzen 9 7945HX3D
5600 169%
max:
AMD Ryzen Threadripper PRO 7995WX
15842 660%
0%
100%
01052103154205256307358409451050115512601365147015751680178518901995Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
min: 233     avg: 236     median: 236 (71%)     max: 239 Points
+ 2 benchmarks and specifications   - Hide comparison chart
Blender - Blender 3.3 Classroom CPU *
326 Seconds (4%)
+ 2 benchmarks and specifications   + Show comparison chart
Blender - Blender 2.79 BMW27 CPU *
333 Seconds (2%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.2 - Geekbench 6.2 Single-Core
2692 points (82%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.2 - Geekbench 6.2 Multi-Core
14863 points (59%)
+ 1 benchmarks and specifications   - Hide comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.4 64 Bit Single-Core
min: 1965     avg: 1970     median: 1967 (83%)     max: 1978 points
+ 3 benchmarks and specifications   + Show comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.4 64 Bit Multi-Core
min: 15348     avg: 15388     median: 15373 (28%)     max: 15444 points
+ 3 benchmarks and specifications   + Show comparison chart
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 430.2     avg: 437.2     median: 437.2 (1%)     max: 444.2 ms
+ 2 benchmarks and specifications   + Show comparison chart
Octane V2 - Octane V2 Total Score
min: 76610     avg: 77676     median: 77676 (70%)     max: 78742 Points
+ 2 benchmarks and specifications   + Show comparison chart
WebXPRT 4 - WebXPRT 4 Score
min: 258     avg: 259     median: 259 (74%)     max: 260 Points
+ 2 benchmarks and specifications   + Show comparison chart
WebXPRT 3 - WebXPRT 3 Score
min: 402     avg: 404.5     median: 404.5 (84%)     max: 407 Points
+ 2 benchmarks and specifications   + Show comparison chart
CrossMark - CrossMark Overall
min: 1759     avg: 1835     median: 1834.5 (70%)     max: 1910 Points
+ 2 benchmarks and specifications   + Show comparison chart
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
72.8 Watt (13%)
+ 1 benchmarks and specifications   + Show comparison chart
0510152025303540455055606570Tooltip
Power Consumption - Idle Power Consumption - external Monitor *
9.2 Watt (6%)
+ 1 benchmarks and specifications   + Show comparison chart
012345678910Tooltip
Power Consumption - Cinebench R15 Multi Power Efficiency - external Monitor
28.5 Points per Watt (21%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
