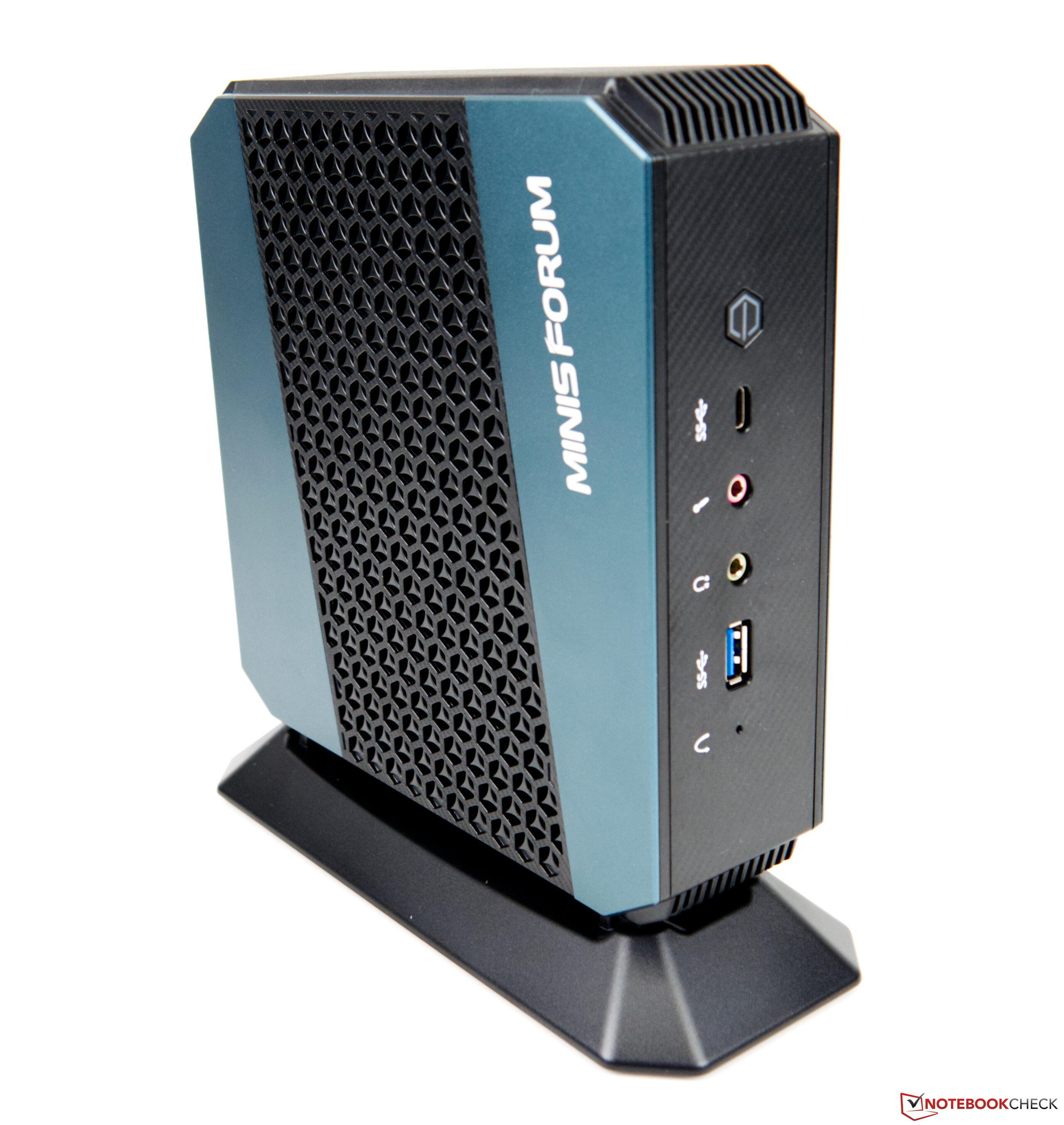

Minisforum EliteMini HX90回顾。带有AMD Ryzen 9 5900HX的紧凑型高性能迷你电脑

紧凑型游戏电脑? Minisforum的产品组合包括EliteMini HX90,这是一款基于AMD Ryzen 9 5900HX的快速迷你台式电脑。这款紧凑的计算能力被宣传为具有良好的游戏性能。我们仔细看了一下底细,并在这篇评论中解释了它的优点和缺点。
AMD Cezanne (Zen 3) Desktop Mini PC
CPU-Z
CPU-Z

Minisforum是一家中国的系统制造商,专门生产超紧凑的迷你PC。我们最近有机会看了一下 精英迷你HM90并留下了积极的印象。现在,制造商给我们送来了EliteMini HX90,这是其产品组合中目前的旗舰产品。EliteMini HX90针对的是不同的目标群体,应该也会对游戏玩家产生吸引力。当我们仔细观察游戏性能时,我们会发现这是否是真的。然而,其他用户不应该感到完全被遗弃,因为安装了 AMD Ryzen 9 5900HX提供了出色的性能,在日常使用中也很受好评。

由于工作速度快,使用EliteMini HX90工作起来真的很有趣。在设备方面,这台迷你电脑既可以作为裸机购买,也可以预先配置内存和固态硬盘。裸机系统(不含固态硬盘和内存)目前售价为649美元,而配备32GB内存和512GB固态硬盘的配置将花费909美元。运输是直接从中国出发,而且是免费的。根据该商店的说法,还包括税收。EliteMini HX90没有替代的CPU选项。

我们的审查样本配备了16GB内存和512GB固态硬盘。该设备还配备了Windows 10专业版,除非是裸机版本。一切都安装在195 x 190 x 60毫米的紧凑外壳中,这使得MINISFORUM EliteMini HX90比MINISFORUM EliteMini HM90略大。英特尔的NUC 10在尺寸上要紧凑得多。

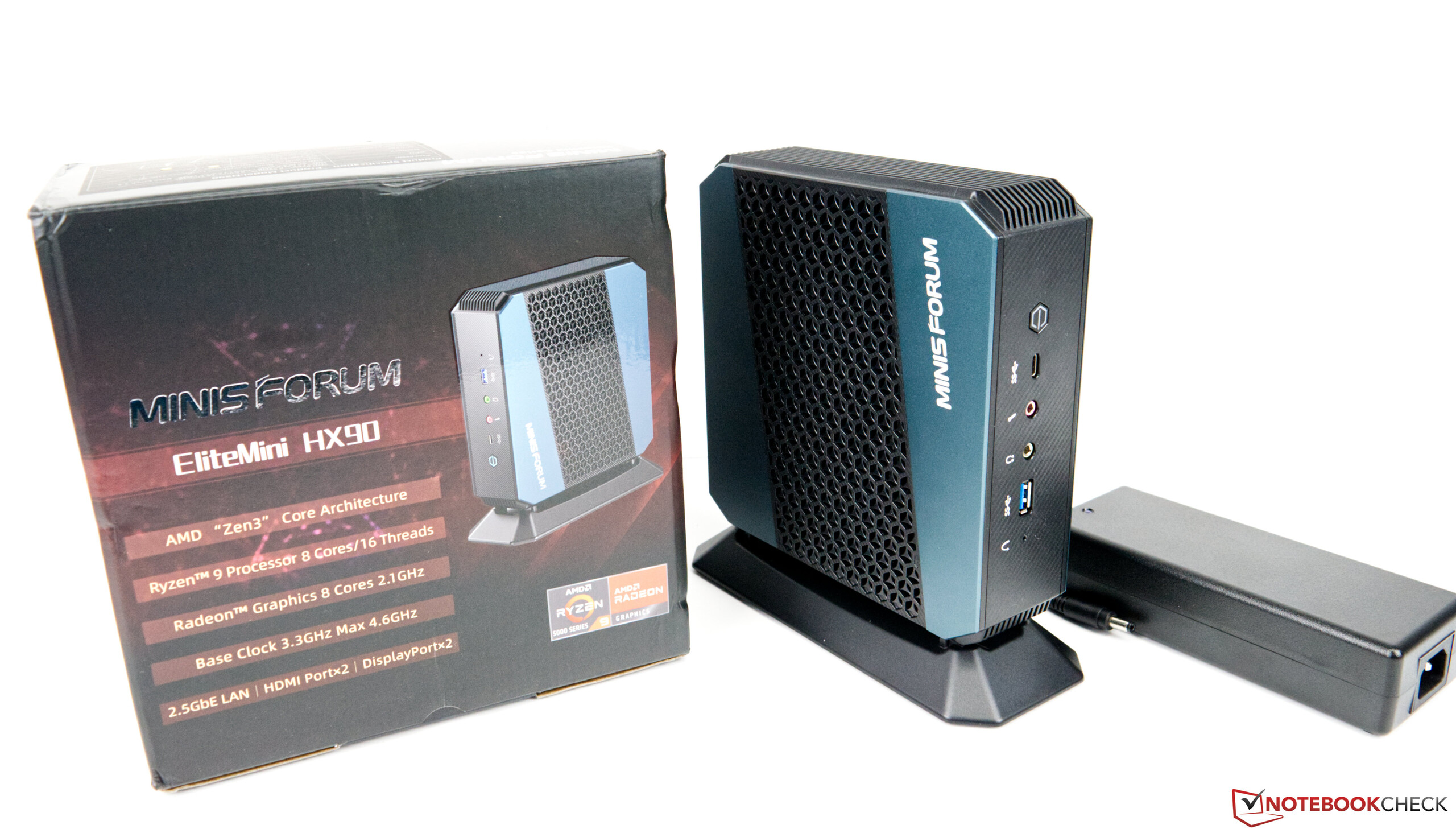

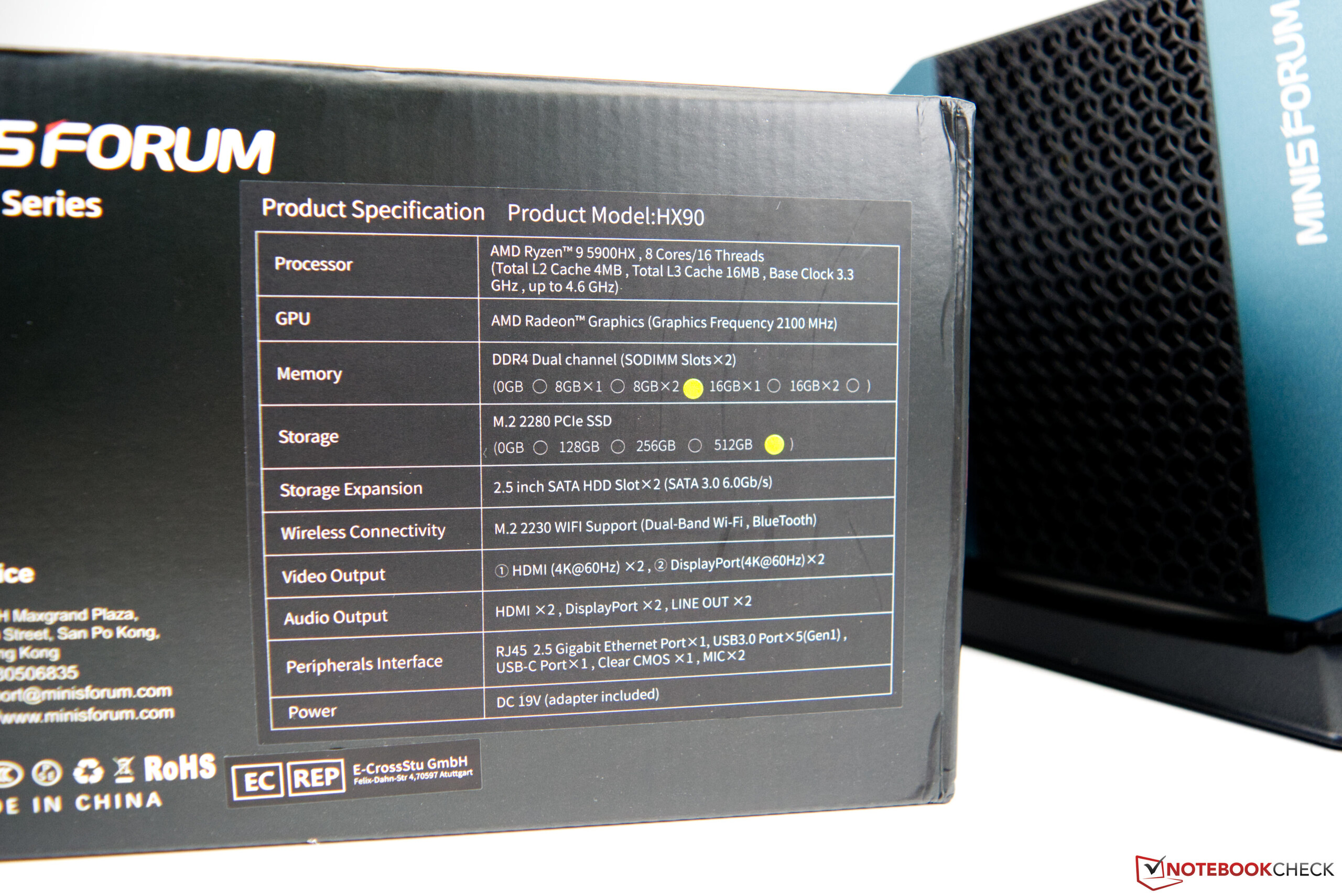

Minisforum EliteMini HX90被装在一个坚固的盒子里,里面有所有的配件,可以让系统快速启动和运行。相对较大的电源与EliteMini HM90相似,但它没有USB-C接口。此外,还包括一个用于将设备固定在显示器上的安装板(Vesa支架)。还有一个合适的支架,用于将设备直立起来。在内部,该设备可以配备两个额外的2.5英寸存储设备。

Minisforum EliteMini HX90
Processor
AMD Ryzen 9 5900HX 8 x 3.3 - 4.6 GHz, 54 W PL2 / Short Burst, 54 W PL1 / Sustained, Cezanne H (Zen 3)
Memory
16384 MB
, DDR4-3200 Dual-Channel 2 von 2 belegt
Mainboard
AMD Promontory/Bixby FCH
Storage
Kingston OM8PCP3512F-AB, 512 GB
, 420 GB free
Soundcard
AMD Raven/Renoir/VanGogh/Cezanne - Audio Processor - HD Audio Controller
Connections
6 USB 3.0 / 3.1 Gen1, 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm Audio Jack
Networking
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Size
height x width x depth (in mm): 60 x 195 x 190
Operating System
Microsoft Windows 10 Pro 64 Bit
Released
08/05/2021
Price
659 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



案例与设备

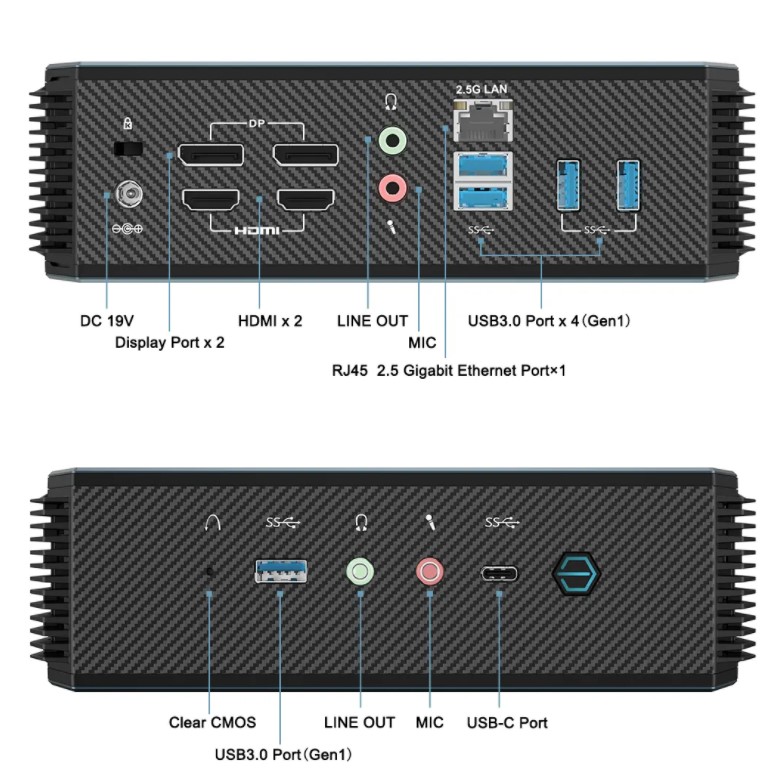

外部接口(来源:Minisforum)。
外部接口(来源:Minisforum)。

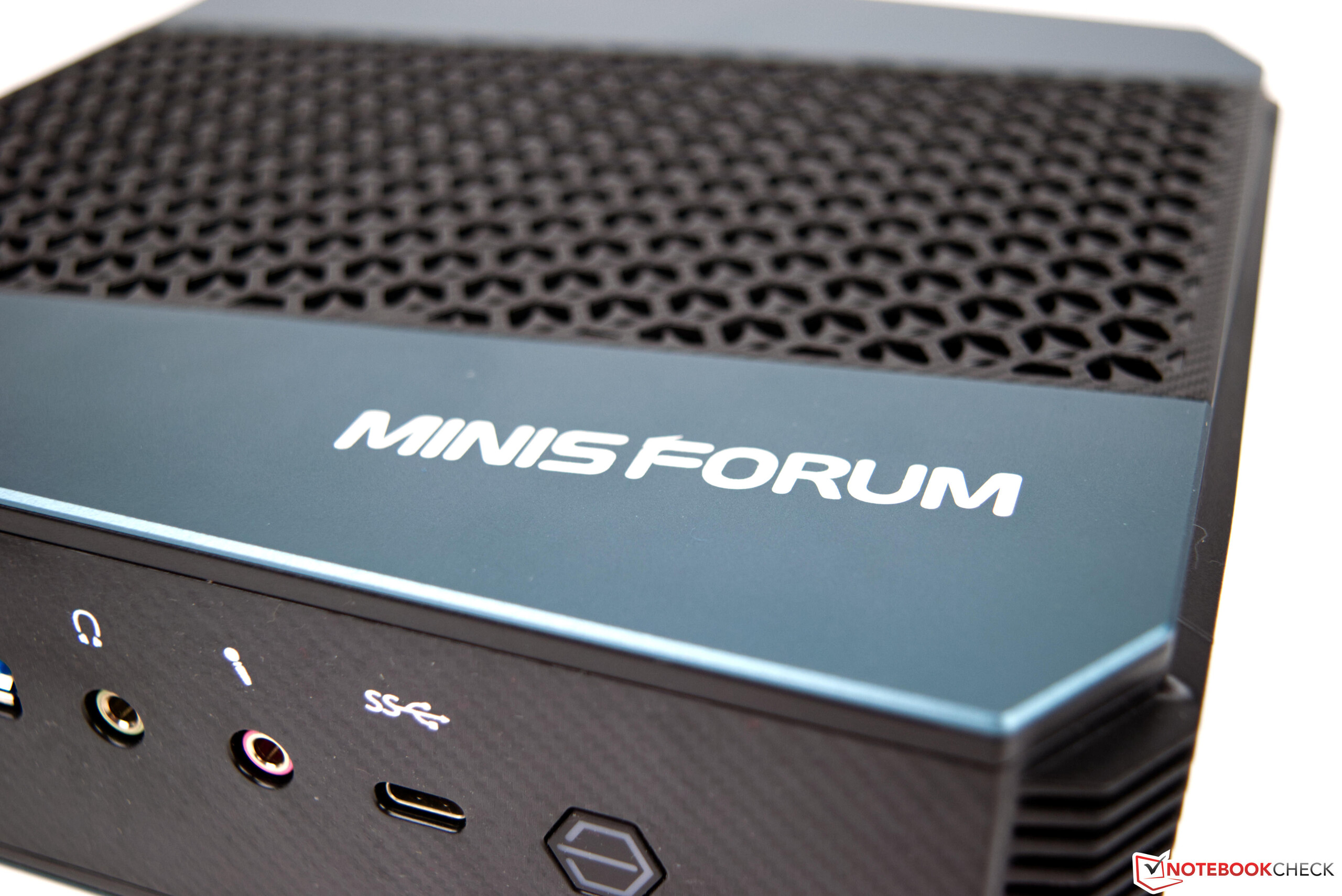

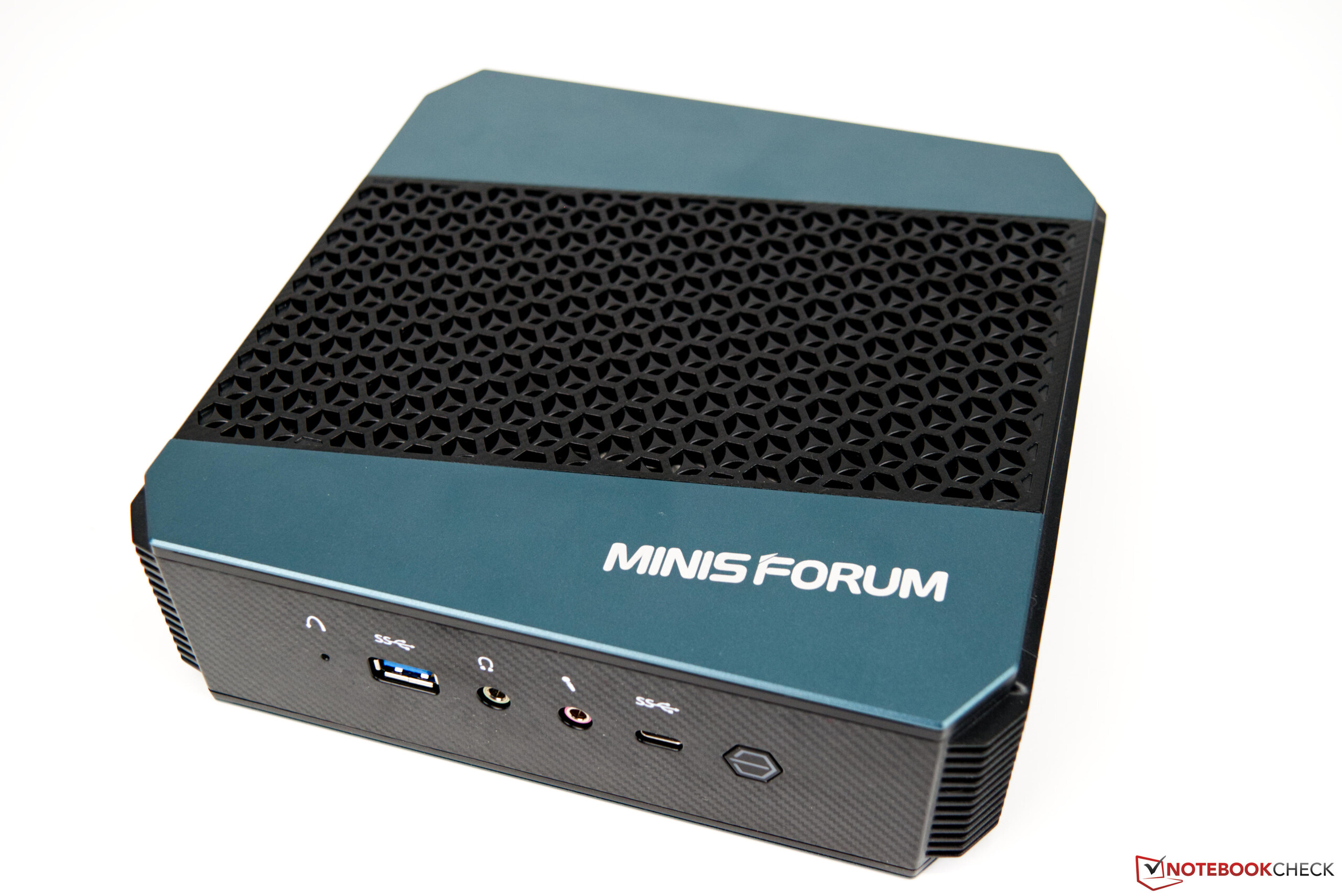

外壳完全由塑料制成,部分具有碳素外观。这些表面提供了良好的触觉反馈,并传达了高质量的印象,这也体现在视觉上。然而,你别无选择,只能喜欢这种设计和颜色的点缀,因为没有其他选择。侧面有宽敞的通风槽,空气可以从这里被引出机箱。如果不使用支架,空气会在上侧被吸入,制造商为此创造了一个蜂巢图案。我们欢迎省略任何钢琴漆的表面,因为它们在短时间内会显得非常使用。

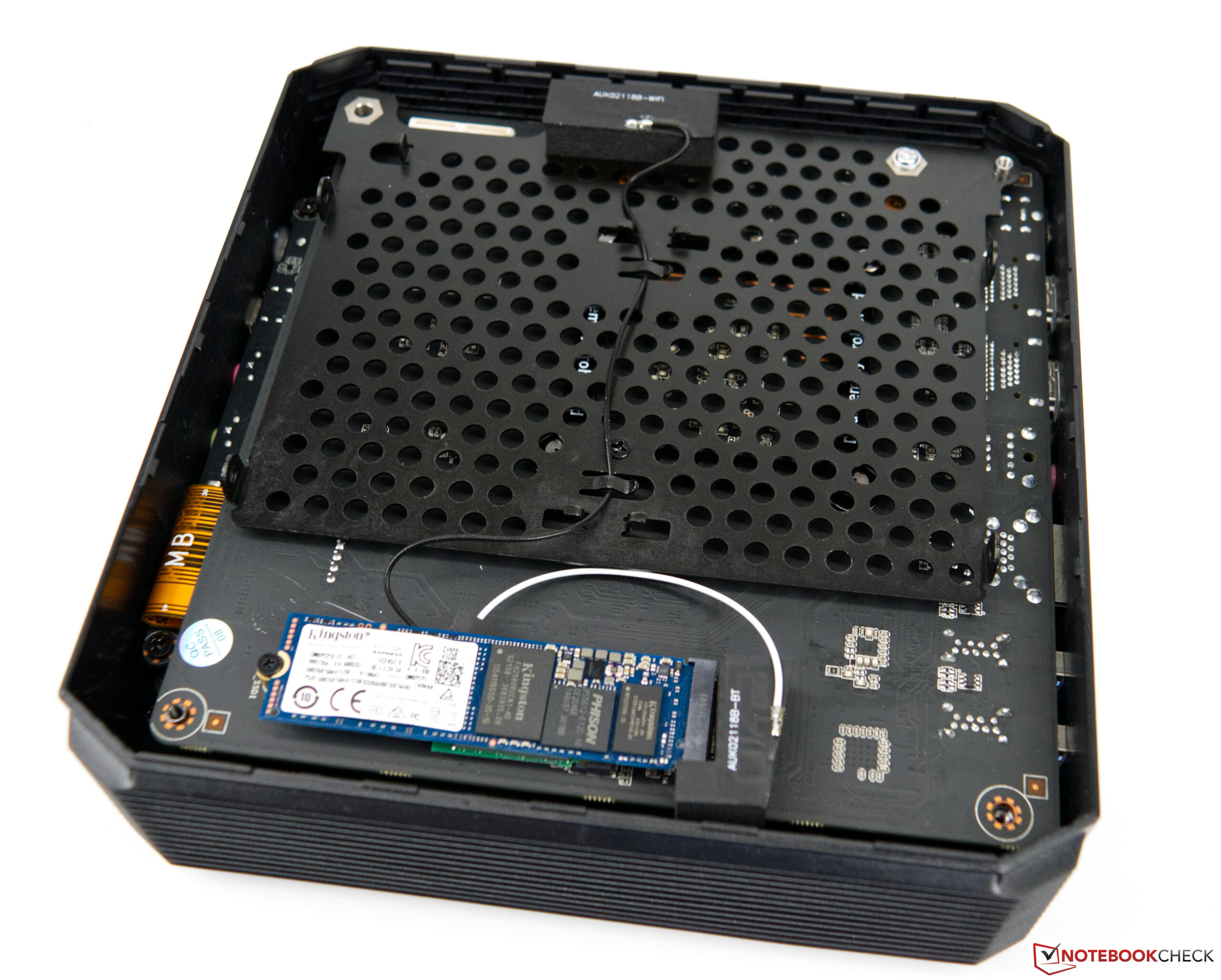

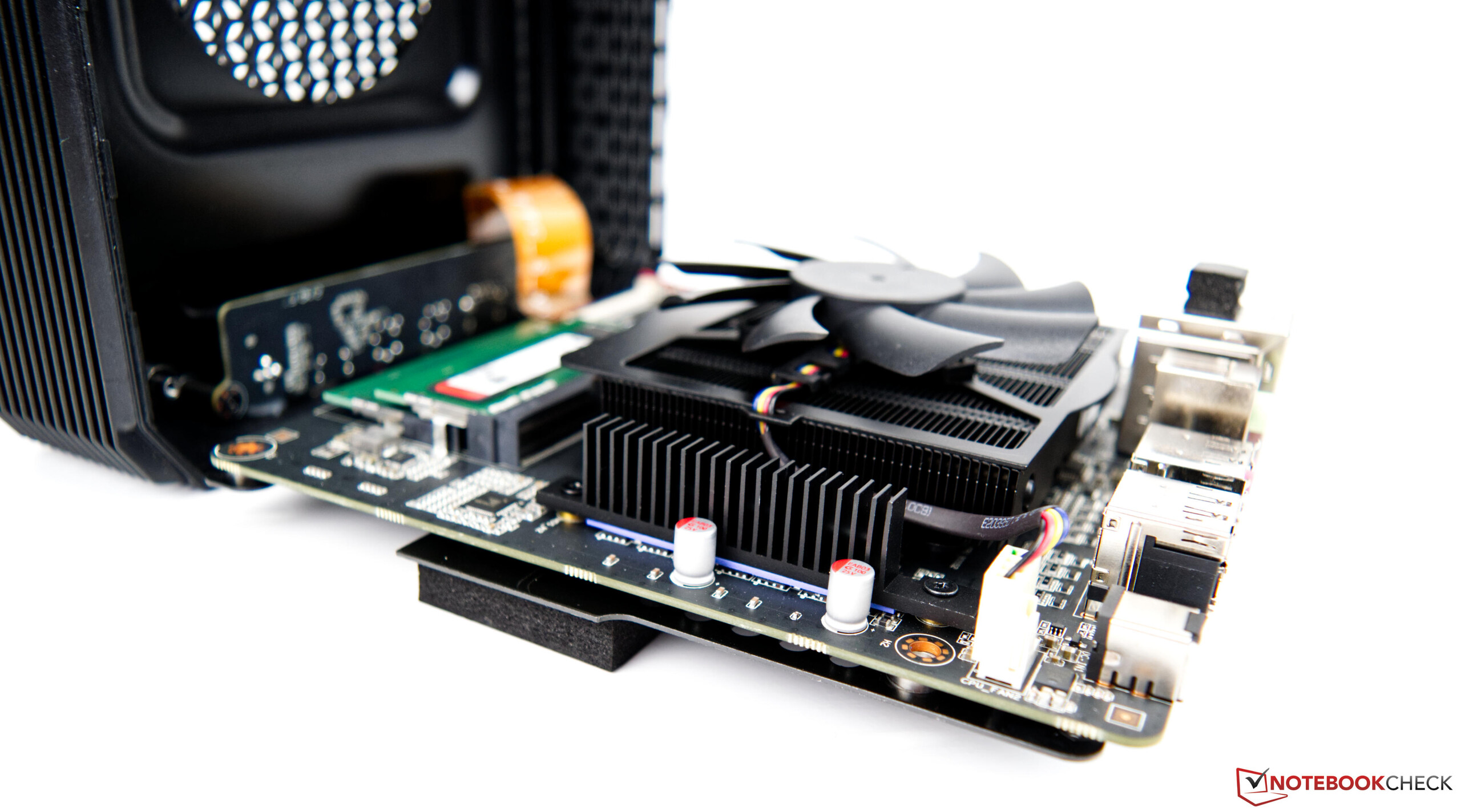

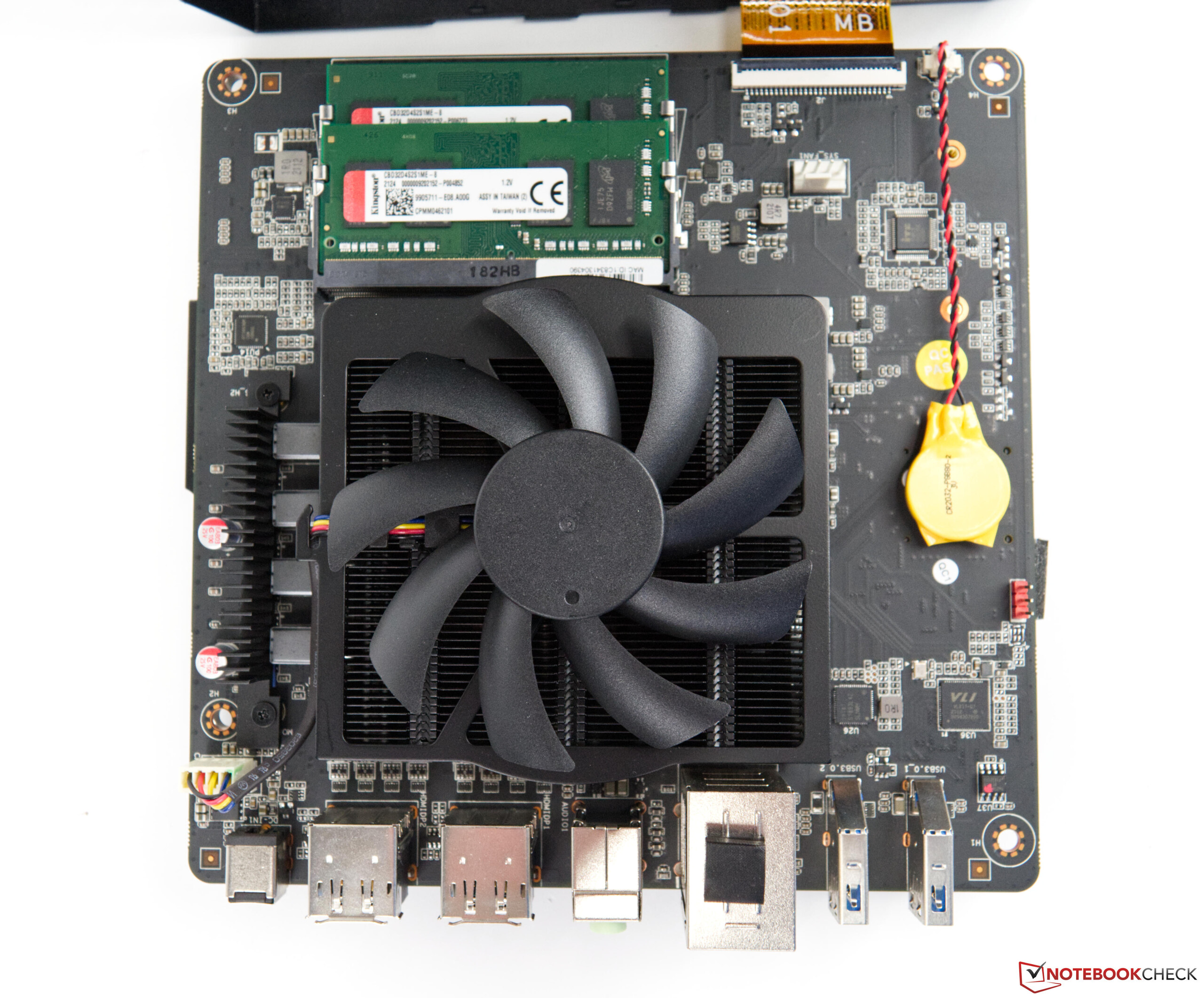

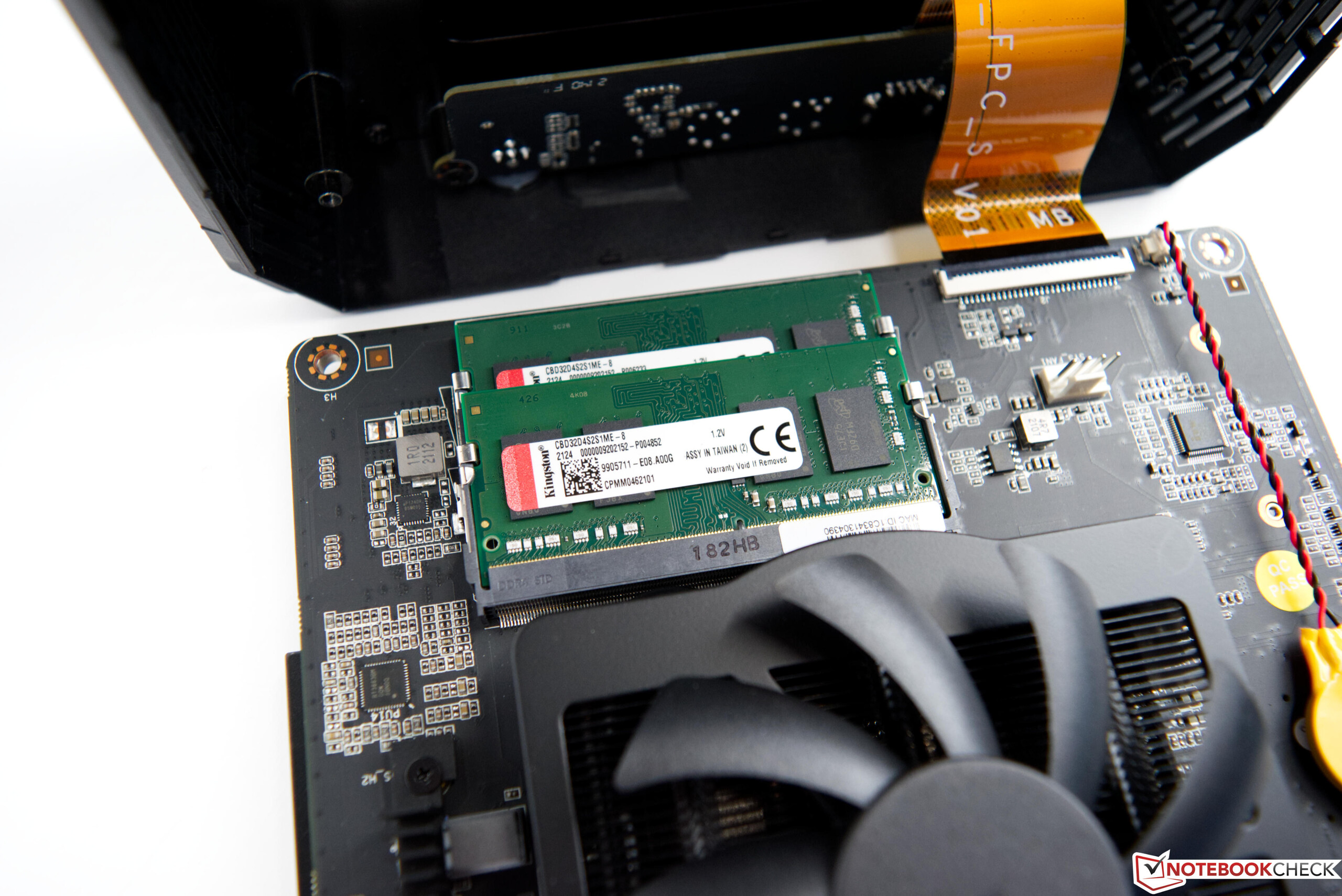

卸下底部的四个螺丝,就可以很容易地进入内部。然后用一点技巧就可以把底板拆下来。如果你想更换或扩大工作存储器,例如,你必须拆除整个板子,包括冷却装置。这是用另一个螺丝固定的。

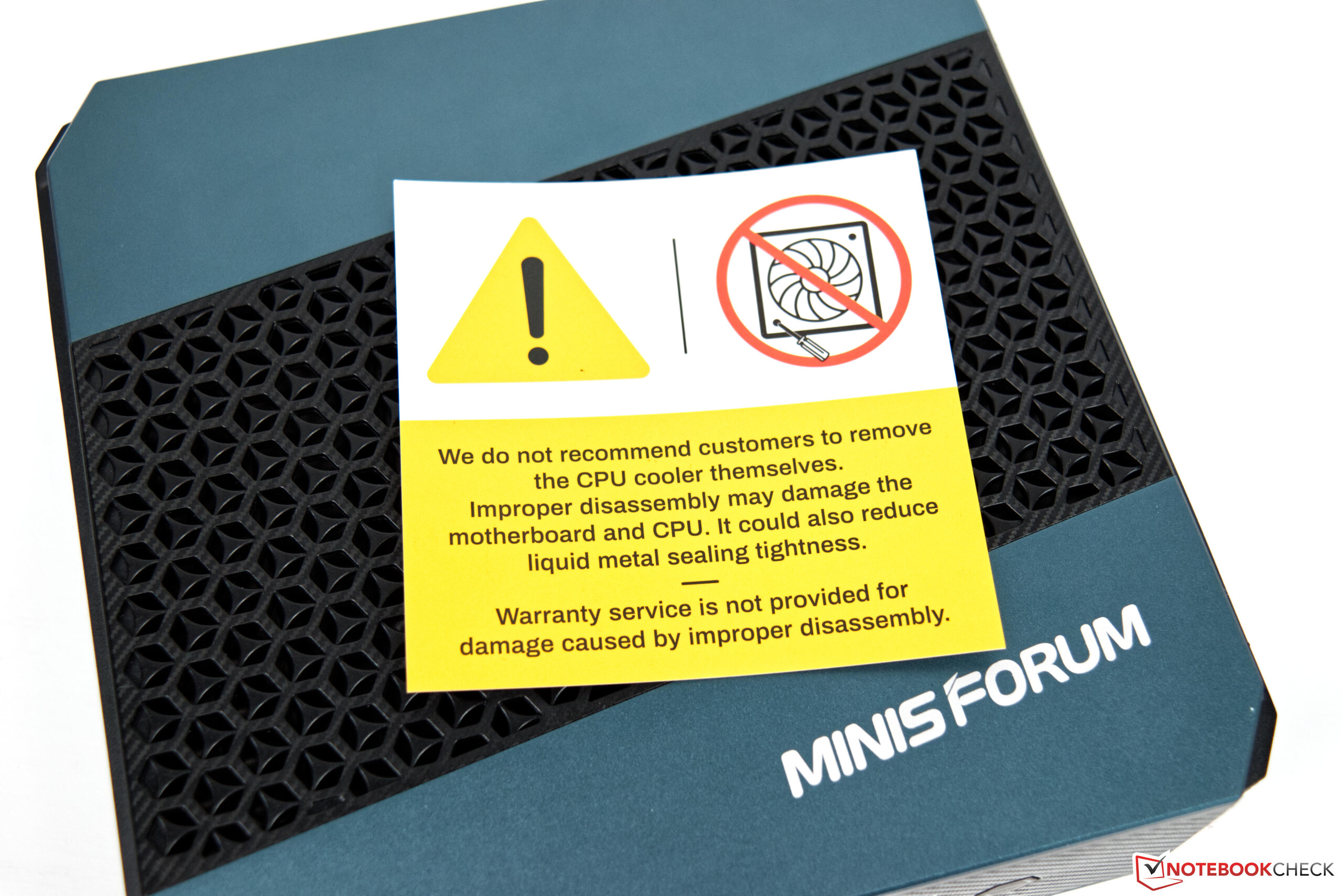

进一步拆卸是不可取的,制造商在警告中也指出了这一点。CPU冷却器不应该被拆除,因为它可能会损坏SoC。此外,制造商使用液态金属进行快速散热。

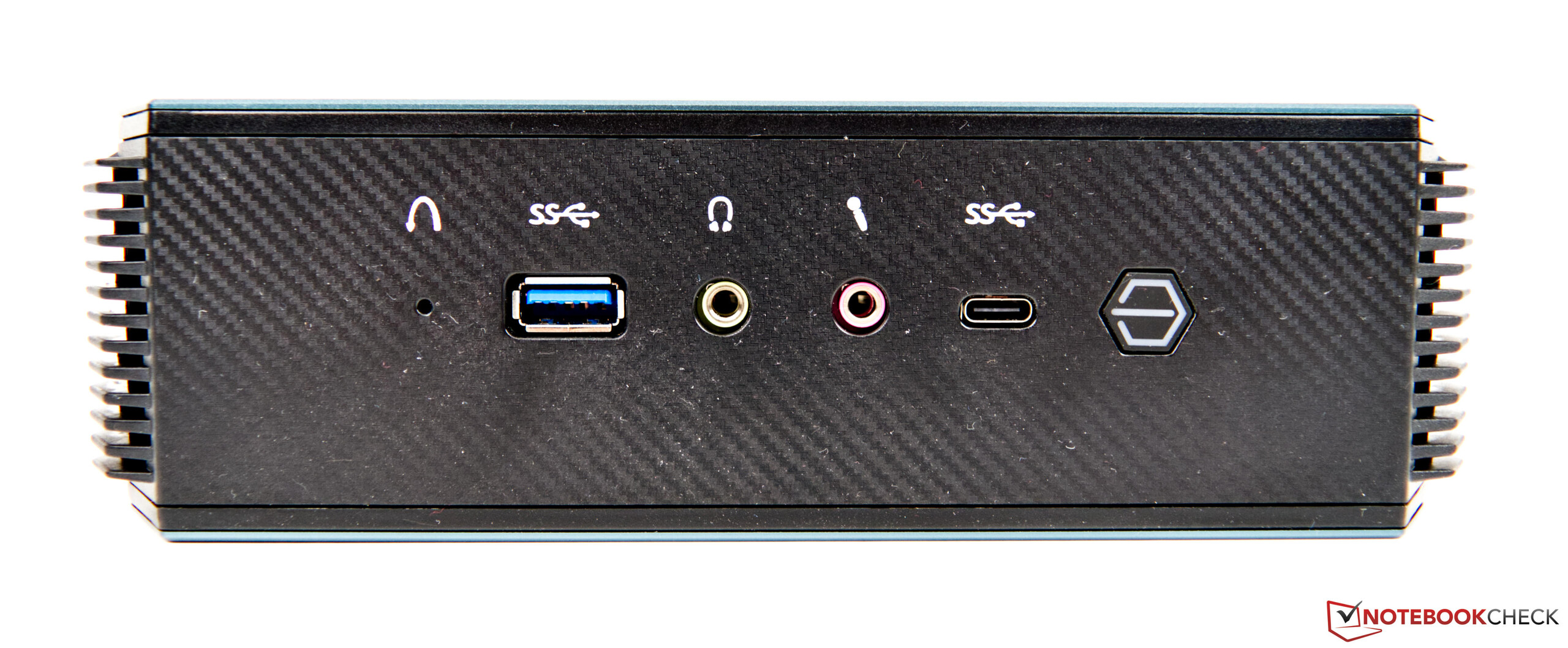

在外部连接方面,EliteMini HX90提供了许多连接额外设备的选择。总共有五个USB-A端口是绰绰有余的,而且都提供USB-3速度。此外,前面还有一个Type-C接口。外部显示器可以通过DisplayPort或HDMI连接。最多可以同时使用四台显示器。不幸的是,没有Thunderbolt接口。

迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90
迷你论坛EliteMini HX90

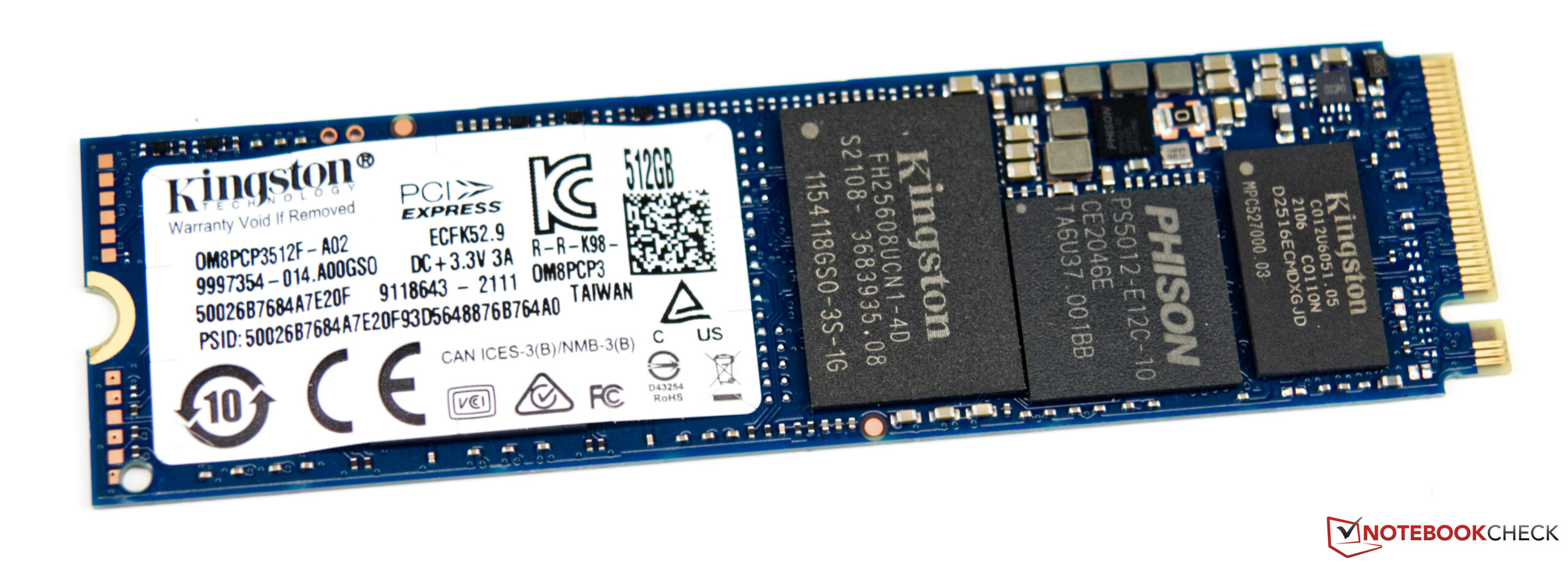

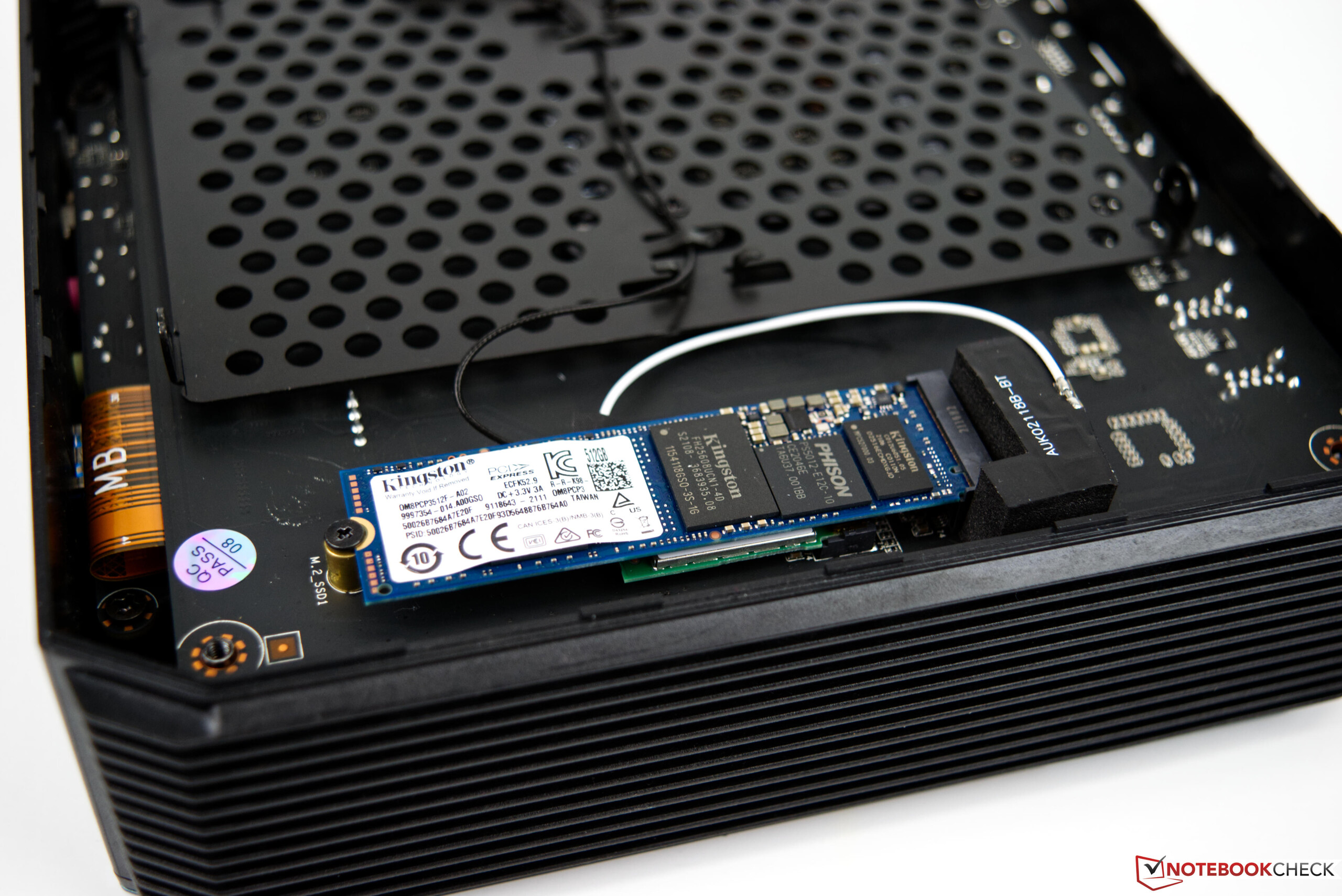

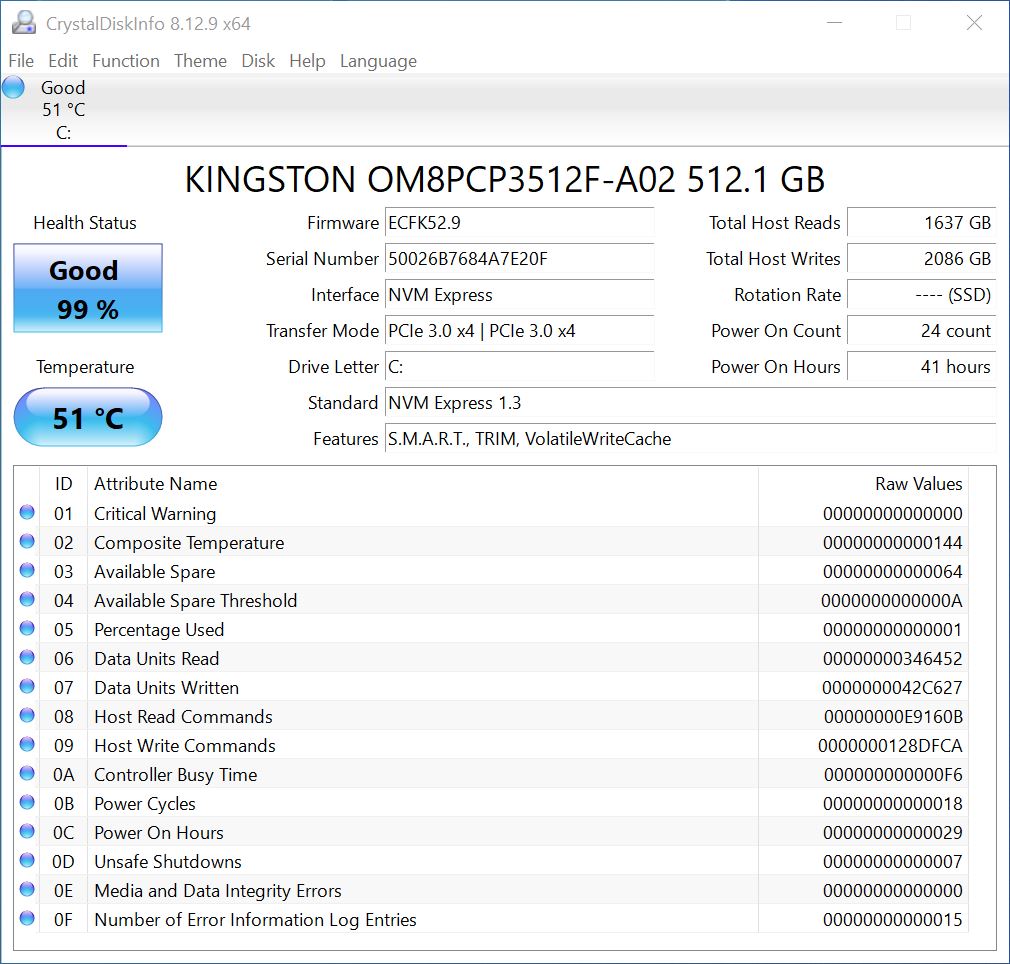

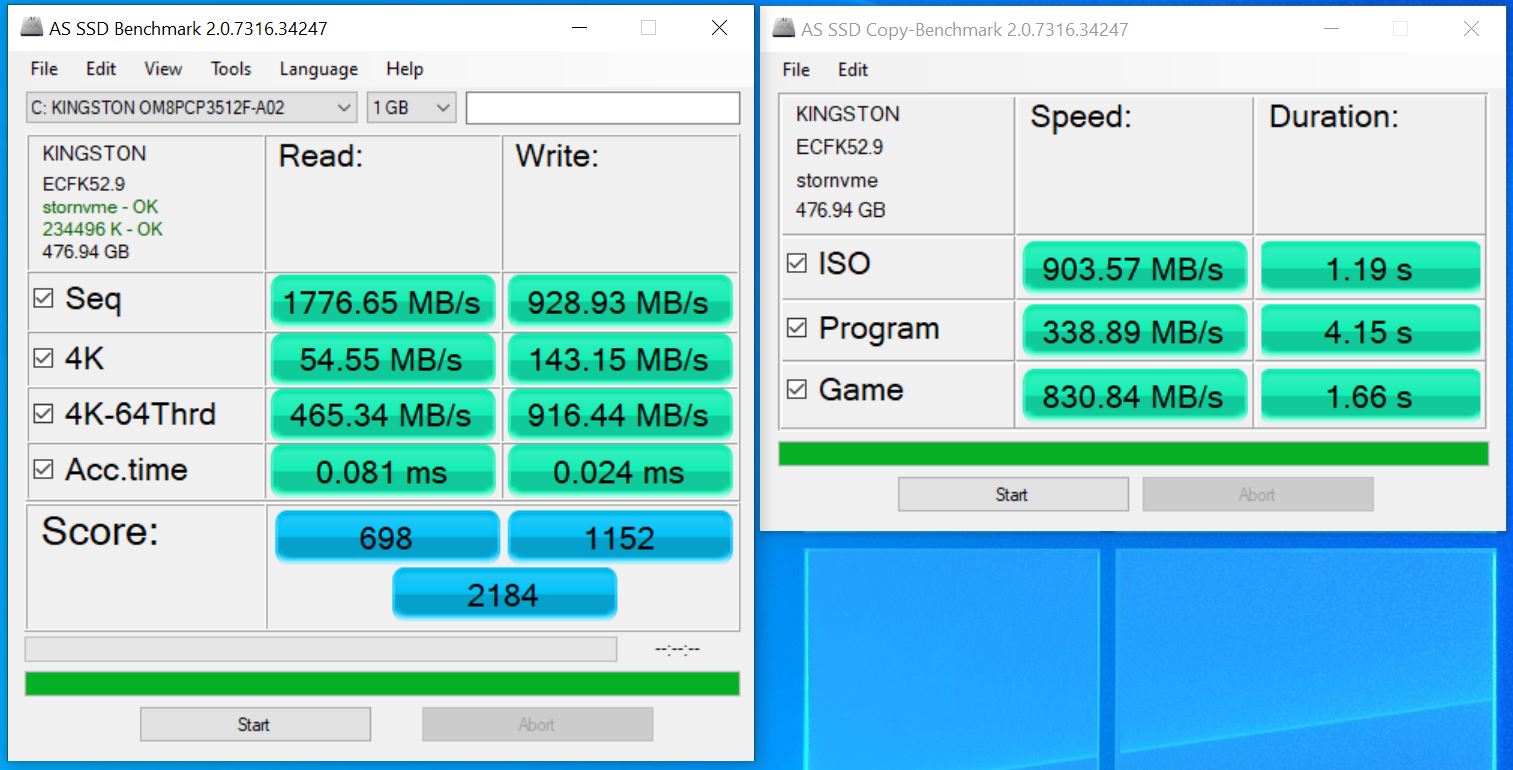

Minisforum EliteMini HX90 (SSD)

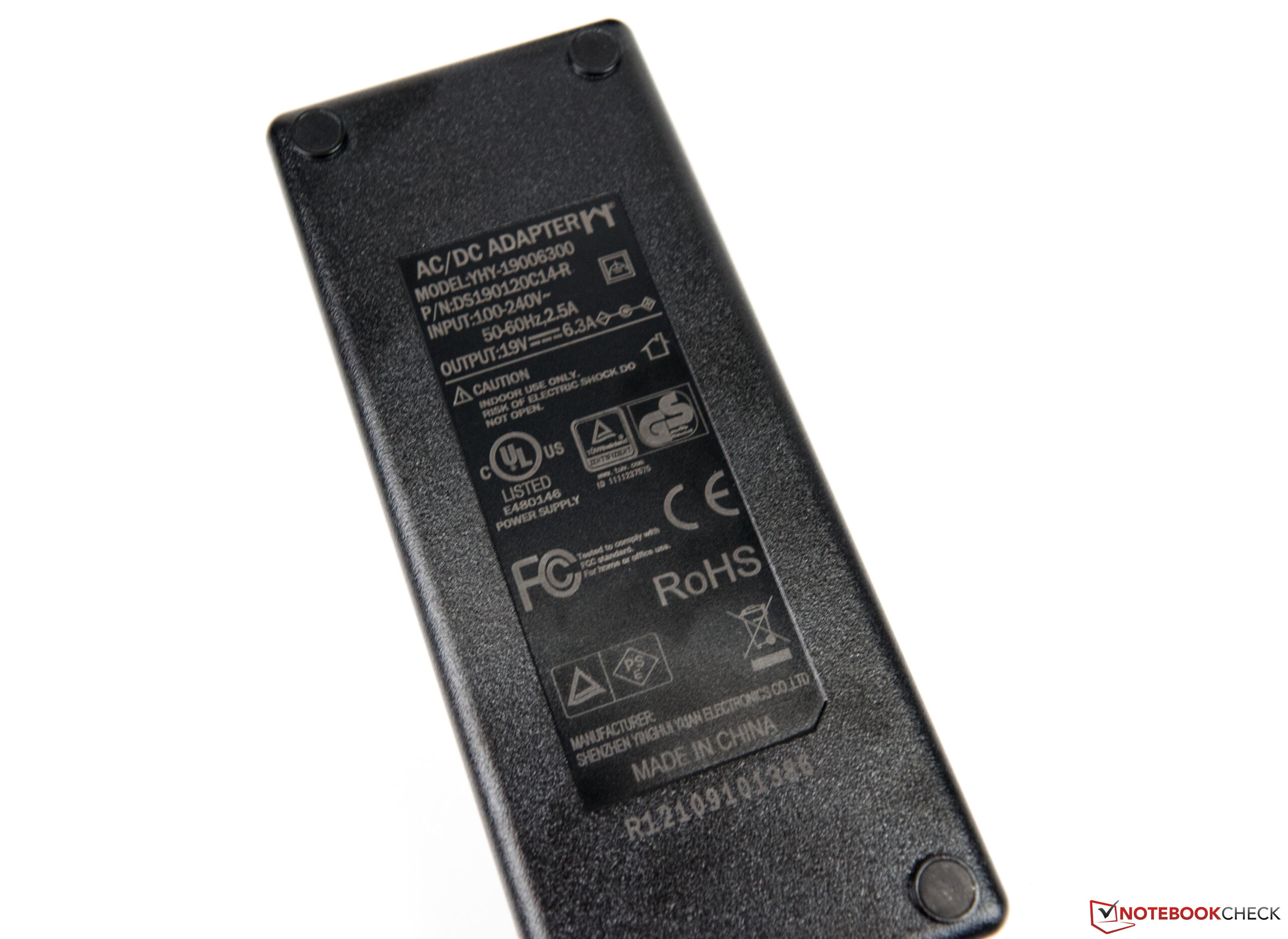

Minisforum EliteMini HX90 (PSU)

性能 - 非常好的全能型选手

正如一开始提到的,MINISFORUM EliteMini HX90专门配备了 AMD Ryzen 9 5900HX,现在已经从笔记本电脑中找到了进入紧凑型桌面系统的途径。低功耗和由此产生的容易冷却的优势是显而易见的。因此,可以建立具有相当水平的性能的极其紧凑的PC。

AMD Ryzen 9 5900HX是一个集成了AMD Radeon RX Vega 8 图形单元的SoC。在我们的案例中,Minicforum为我们的测试样品配备了16GB DDR4内存。使用了两个SO-DIMM模块,允许双通道运行。固态硬盘使用了512GB的型号,目前来说已经足够。由于预装了操作系统,Minisforum EliteMini HX90在经过几分钟的设置和个性化后就可以马上使用。

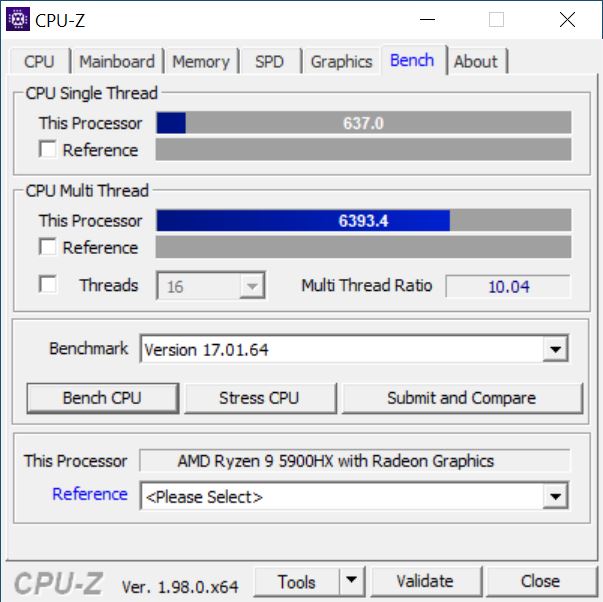

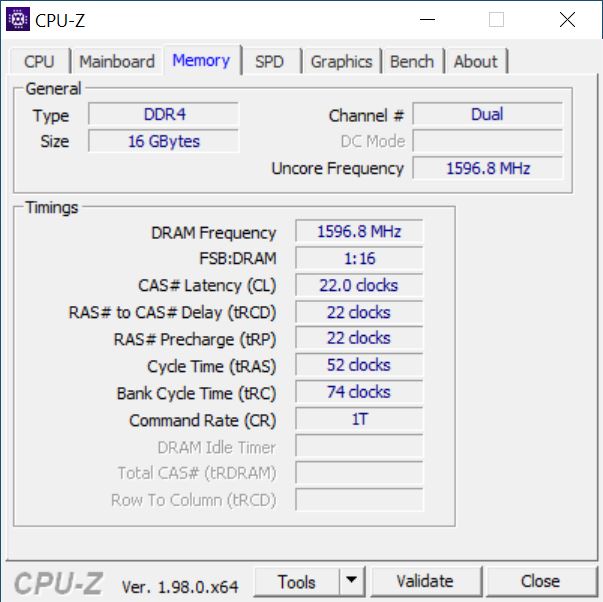

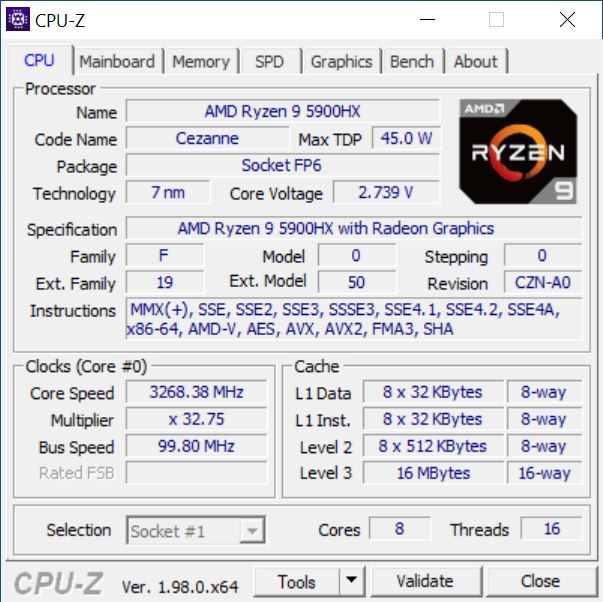

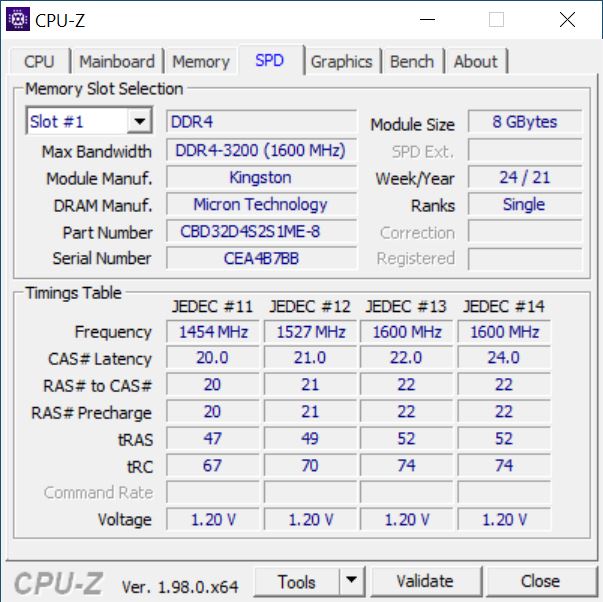

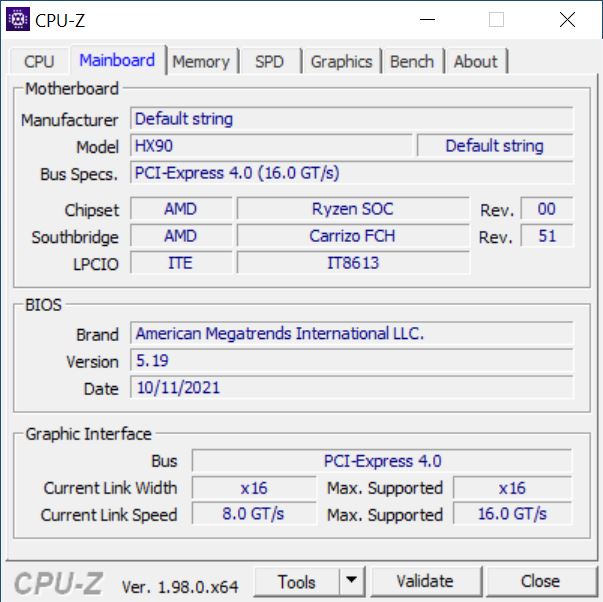

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

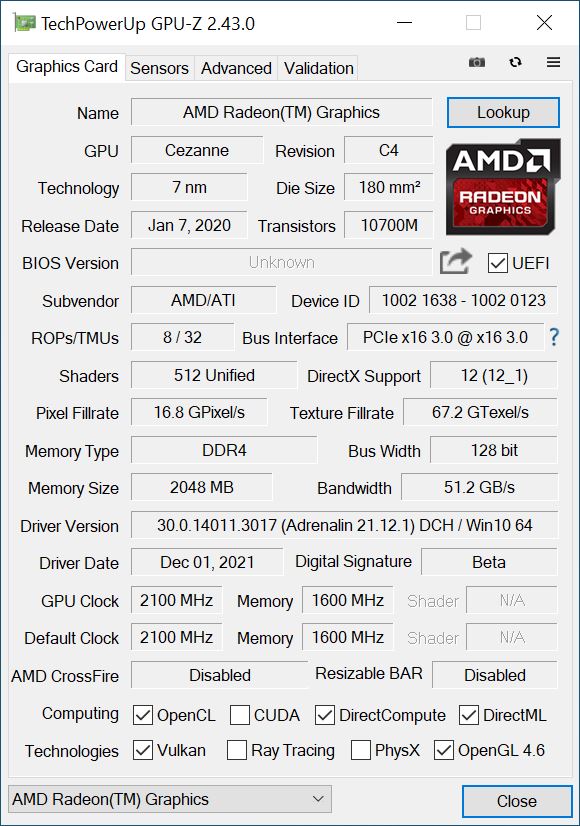

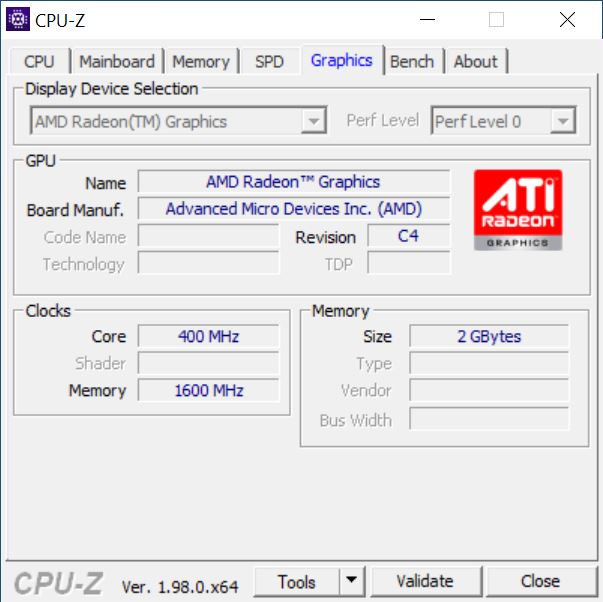

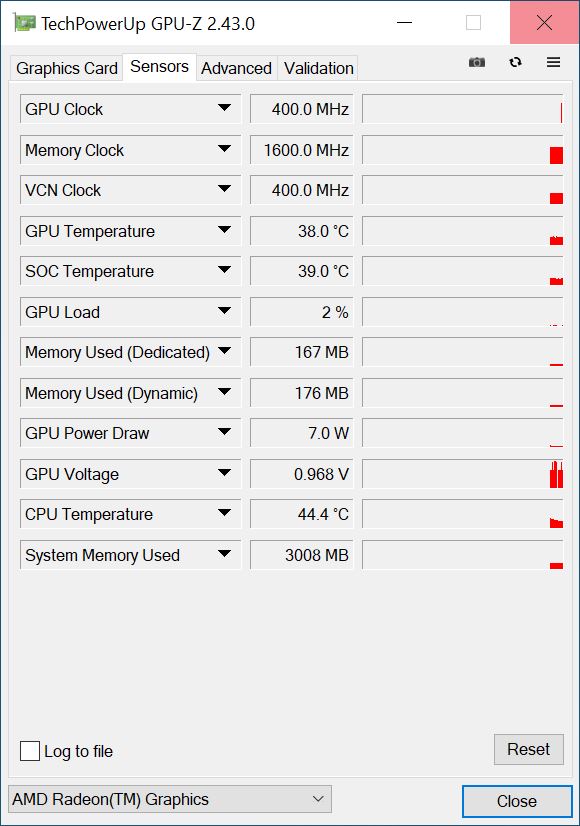

GPU-Z
GPU-Z

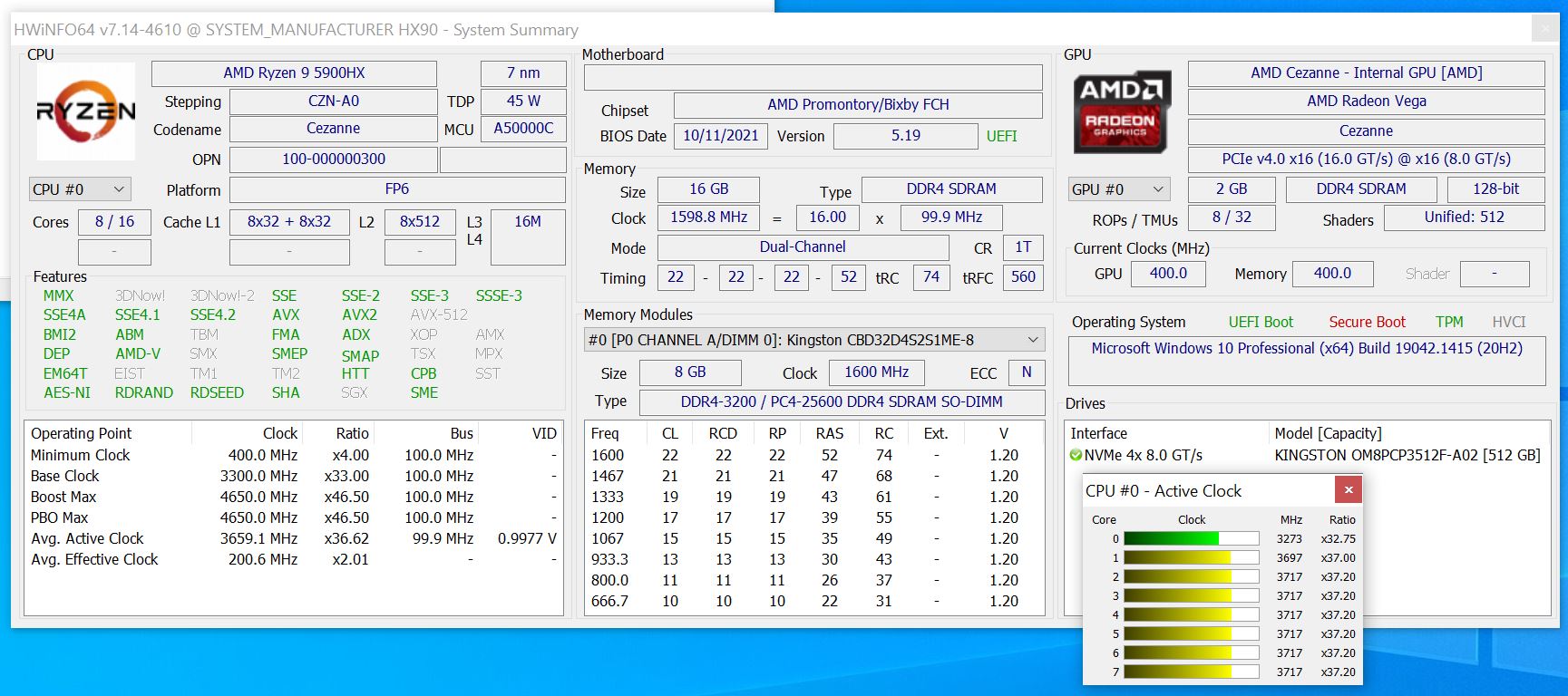

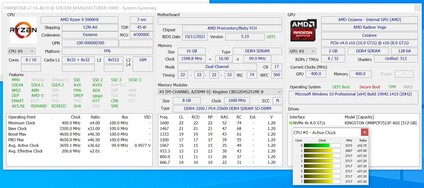

HWiNFO




处理器

已安装的 AMD Ryzen 9 5900HX属于Cezanne系列,基于Zen 3架构。该SoC提供8个物理处理核心,共有16个线程(得益于SMT),这特别有利于多线程应用。EliteMini HX90的性能明显优于最近测试的 Minisforum EliteMini HM90基于 AMD Ryzen 9 4900H.Zen 2和Zen 3之间的差异在这里变得相当明显。

在CPU基准测试中,Ryzen 9 5900HX可以在很大程度上战胜竞争对手。为了进行比较,我们还将目前AMD和英特尔的台式机处理器放在这里,以便更好地对迷你论坛EliteMini HX90的性能进行分类。很明显,可以预期与Intel Core i5-11600K 的性能大致相同。然而,在这一点上应该提到Ryzen 9 5900HX的功耗明显较低。在BIOS中有六种不同的模式(10、15、25、35、45和54 W),可以对SoC进行操作。

AMD Ryzen 7 5700G相比,Ryzen 9 5900HX只显示出轻微的性能差异。这两款处理器几乎是相同的。尽管如此,基于AM4的处理器可以在短时间内使用高达87W的功率,这使得性能优势明显。

关于进一步的比较和基准测试,我们请您参考我们的CPU比较表.

Performance Rating - Percent
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
82.9 pt ∼83%
Average AMD Ryzen 5 5600X
81.7 pt ∼82%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
77.7 pt ∼78%
Average Intel Core i5-11600K
75.5 pt ∼76%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
67.7 pt ∼68%
Minisforum HM90, AMD Ryzen 9 4900H
66.9 pt ∼67%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 -2!
65.4 pt ∼65%
Average Intel Core i5-10600K
62.9 pt ∼63%
Average Intel Core i5-10400F -5!
55.1 pt ∼55%
Average Intel Core i7-10750H -2!
54.4 pt ∼54%

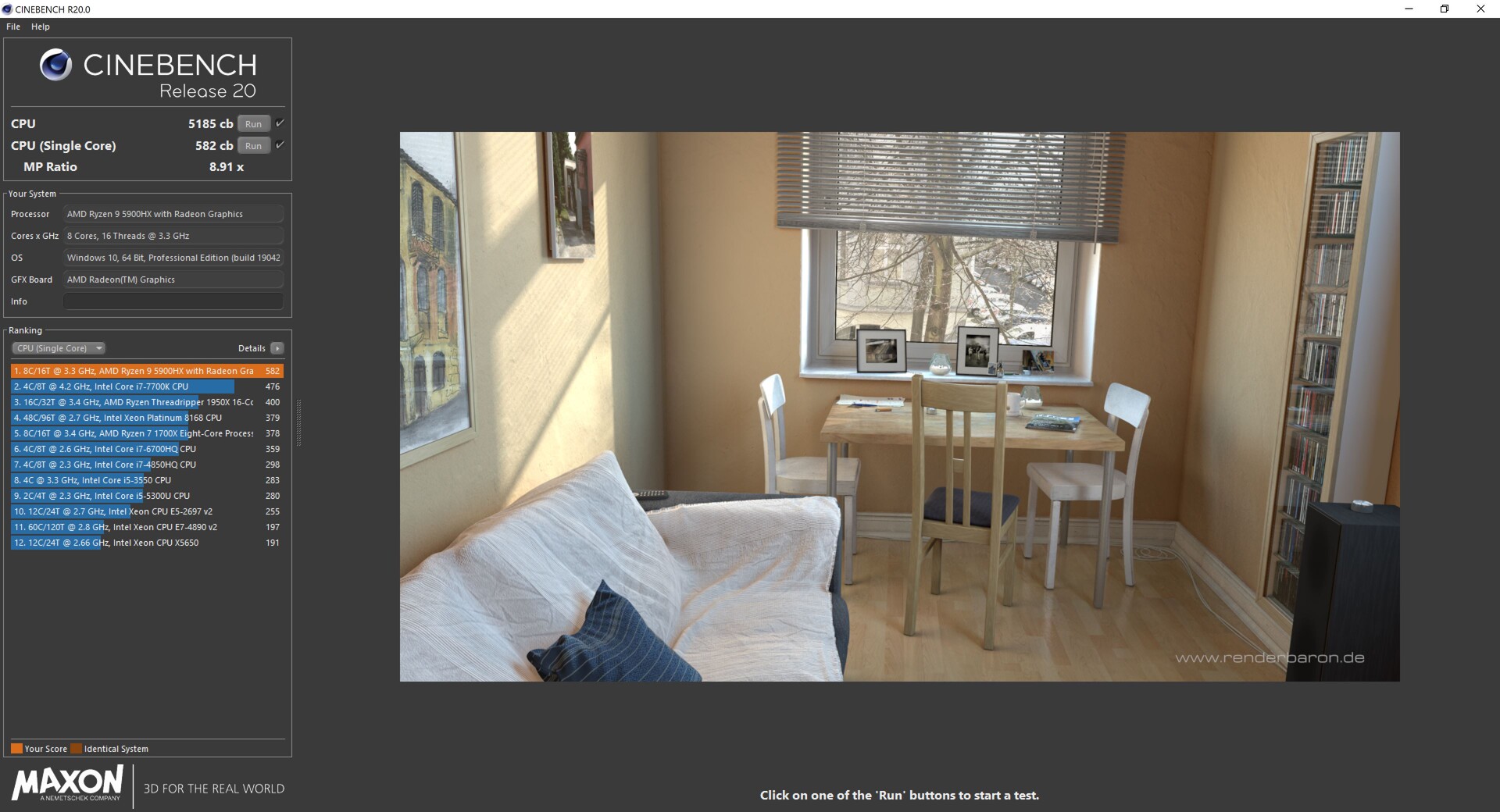

Cinebench R20
CPU (Single Core)
Average AMD Ryzen 5 5600X
601 Points ∼100% +3%
Average Intel Core i5-11600K (576 - 595, n=2)
586 Points ∼98% +1%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
583 Points ∼97% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
582 Points ∼97%
Minisforum HM90, AMD Ryzen 9 4900H
505 Points ∼84% -13%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
504 Points ∼84% -13%
Average Intel Core i7-10750H (431 - 504, n=43)
473 Points ∼79% -19%
Average Intel Core i5-10600K
464 Points ∼77% -20%
Average Intel Core i5-10400F
438 Points ∼73% -25%
CPU (Multi Core)
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
5371 Points ∼100% +4%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
5185 Points ∼97%
Minisforum HM90, AMD Ryzen 9 4900H
4585 Points ∼85% -12%
Average AMD Ryzen 5 5600X
4567 Points ∼85% -12%
Average Intel Core i5-11600K (4254 - 4349, n=2)
4302 Points ∼80% -17%
Average Intel Core i5-10600K
3443 Points ∼64% -34%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
3357 Points ∼63% -35%
Average Intel Core i5-10400F
3201 Points ∼60% -38%
Average Intel Core i7-10750H (1749 - 3325, n=43)
2848 Points ∼53% -45%

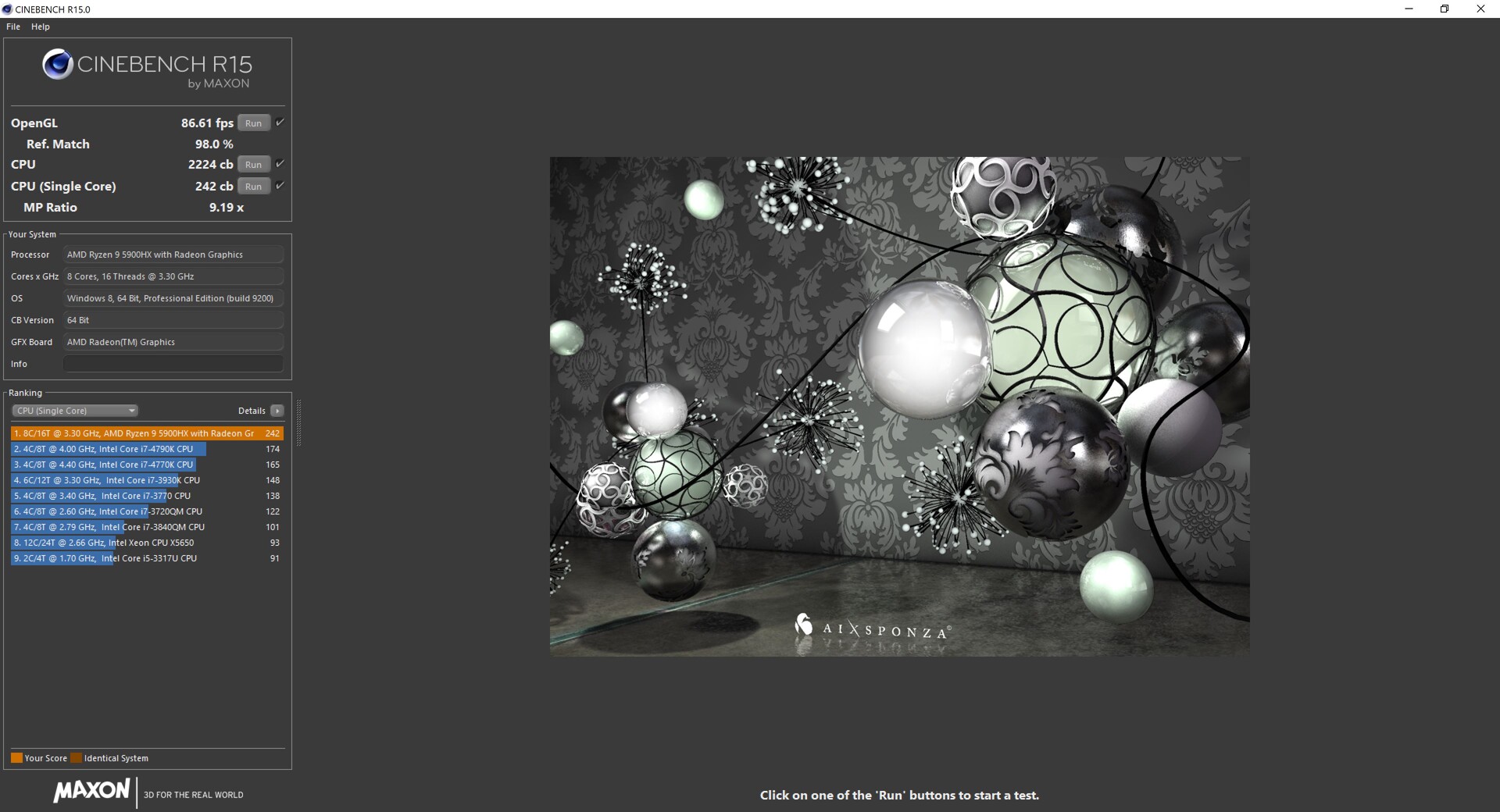

Cinebench R15
CPU Single 64Bit
Average AMD Ryzen 5 5600X
254 Points ∼100% +5%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
242 Points ∼95% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
242 Points ∼95%
Average Intel Core i5-11600K (234 - 242, n=2)
238 Points ∼94% -2%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
215 Points ∼85% -11%
Average Intel Core i5-10600K
205 Points ∼81% -15%
Average Intel Core i7-10750H (184 - 213, n=45)
196.7 Points ∼77% -19%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
196 Points ∼77% -19%
Minisforum HM90, AMD Ryzen 9 4900H
194 Points ∼76% -20%
Average Intel Core i5-10400F
180 Points ∼71% -26%
CPU Multi 64Bit
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
2234 Points ∼100% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
2224 Points ∼100%
Average AMD Ryzen 5 5600X
1968 Points ∼88% -12%
Minisforum HM90, AMD Ryzen 9 4900H
1967 Points ∼88% -12%
Average Intel Core i5-11600K (1738 - 1750, n=2)
1744 Points ∼78% -22%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
1607 Points ∼72% -28%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
1455 Points ∼65% -35%
Average Intel Core i5-10600K
1452 Points ∼65% -35%
Average Intel Core i5-10400F
1332 Points ∼60% -40%
Average Intel Core i7-10750H (804 - 1418, n=50)
1263 Points ∼57% -43%
Cinebench R11.5
CPU Single 64Bit
Average AMD Ryzen 5 5600X
2.95 Points ∼100% +3%
Average Intel Core i5-11600K
2.87 Points ∼97% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
2.86 Points ∼97%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
2.84 Points ∼96% -1%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2.4 Points ∼81% -16%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2.26 Points ∼77% -21%
Minisforum HM90, AMD Ryzen 9 4900H
2.24 Points ∼76% -22%
Average Intel Core i7-10750H (2.17 - 2.22, n=2)
2.2 Points ∼75% -23%
Average Intel Core i5-10600K
2.19 Points ∼74% -23%
Average Intel Core i5-10400F
2.03 Points ∼69% -29%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
25.6 Points ∼100%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
24.37 Points ∼95% -5%
Minisforum HM90, AMD Ryzen 9 4900H
23.03 Points ∼90% -10%
Average AMD Ryzen 5 5600X
21.8 Points ∼85% -15%
Average Intel Core i5-11600K
19.3 Points ∼75% -25%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
18.04 Points ∼70% -30%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
16.7 Points ∼65% -35%
Average Intel Core i5-10600K
15.8 Points ∼62% -38%
Average Intel Core i5-10400F
14.4 Points ∼56% -44%
Average Intel Core i7-10750H (13.7 - 14.1, n=2)
13.9 Points ∼54% -46%
Cinebench R10
Rendering Single CPUs 64Bit
Average Intel Core i5-11600K
12957 Points ∼100% +7%
Average AMD Ryzen 5 5600X
12563 Points ∼97% +3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
12152 Points ∼94%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
11351 Points ∼88% -7%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
10359 Points ∼80% -15%
Minisforum HM90, AMD Ryzen 9 4900H
10173 Points ∼79% -16%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
9898 Points ∼76% -19%
Average Intel Core i5-10600K
9594 Points ∼74% -21%
Average Intel Core i5-10400F
8849 Points ∼68% -27%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
73115 Points ∼100%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
71162 Points ∼97% -3%
Average AMD Ryzen 5 5600X
69545 Points ∼95% -5%
Minisforum HM90, AMD Ryzen 9 4900H
65380 Points ∼89% -11%
Average Intel Core i5-11600K
64663 Points ∼88% -12%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
55742 Points ∼76% -24%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
52577 Points ∼72% -28%
Average Intel Core i5-10600K
51816 Points ∼71% -29%
Average Intel Core i5-10400F
47901 Points ∼66% -34%
Blender - v2.79 BMW27 CPU
Average Intel Core i7-10750H (322 - 587, n=43)
389 Seconds * ∼100% -70%
Average Intel Core i5-10400F
332 Seconds * ∼85% -45%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
317.4 Seconds * ∼82% -38%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
315.4 Seconds * ∼81% -38%
Average Intel Core i5-10600K
302 Seconds * ∼78% -32%
Average Intel Core i5-11600K (265 - 270, n=2)
267 Seconds * ∼69% -16%
Average AMD Ryzen 5 5600X
260 Seconds * ∼67% -13%
Minisforum HM90, AMD Ryzen 9 4900H
247.3 Seconds * ∼64% -8%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
229.3 Seconds * ∼59%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
213.6 Seconds * ∼55% +7%
wPrime 2.10
32m
Average Intel Core i5-10400F
6.25 s * ∼100% -89%
Average Intel Core i7-10750H
5.56 s * ∼89% -68%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
5.067 s * ∼81% -53%
Average Intel Core i5-11600K
4.92 s * ∼79% -49%
Average Intel Core i5-10600K
4.65 s * ∼74% -41%
Average AMD Ryzen 5 5600X
3.89 s * ∼62% -18%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
3.788 s * ∼61% -15%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3.308 s * ∼53%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
3.257 s * ∼52% +2%
Minisforum HM90, AMD Ryzen 9 4900H
3.194 s * ∼51% +3%
1024m
Average Intel Core i7-10750H
142.7 s * ∼100% -56%
Average Intel Core i5-10400F
134.7 s * ∼94% -47%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
120.2 s * ∼84% -31%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
119.5 s * ∼84% -30%
Average AMD Ryzen 5 5600X
113.9 s * ∼80% -24%
Average Intel Core i5-10600K
113.2 s * ∼79% -24%
Average Intel Core i5-11600K
107.6 s * ∼75% -17%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
91.6 s * ∼64%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
90.5 s * ∼63% +1%
Minisforum HM90, AMD Ryzen 9 4900H
82.9 s * ∼58% +9%
X264 HD Benchmark 4.0
Pass 1
Average AMD Ryzen 5 5600X
320 fps ∼100% +18%
Average Intel Core i5-11600K (279 - 299, n=2)
289 fps ∼90% +6%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
284 (283min - 285max) fps ∼89% +5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
271.5 (259min - 276max) fps ∼85%
Average Intel Core i5-10600K
252 fps ∼79% -7%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
237.5 (236min - 239max) fps ∼74% -13%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
236 (235min - 257max) fps ∼74% -13%
Average Intel Core i5-10400F
229 fps ∼72% -16%
Average Intel Core i7-10750H (221 - 222, n=2)
221 fps ∼69% -19%
Minisforum HM90, AMD Ryzen 9 4900H
215 (213min - 217max) fps ∼67% -21%
Pass 2
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
130 (130min - 130max) fps ∼100% +2%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
128 (122min - 128max) fps ∼98%
Average AMD Ryzen 5 5600X
117 fps ∼90% -9%
Minisforum HM90, AMD Ryzen 9 4900H
111 (111min - 112max) fps ∼85% -13%
Average Intel Core i5-11600K (100.5 - 101, n=2)
100.8 fps ∼78% -21%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
92.8 (89.1min - 100max) fps ∼71% -27%
Average Intel Core i5-10600K
88.2 fps ∼68% -31%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
84.8 (84.6min - 105max) fps ∼65% -34%
Average Intel Core i5-10400F
81.2 fps ∼62% -37%
Average Intel Core i7-10750H (77.4 - 79.2, n=2)
78.3 fps ∼60% -39%
WinRAR - Result
Average AMD Ryzen 5 5600X
13282 KB/s ∼100% +209%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
8401 KB/s ∼63% +96%
Average Intel Core i5-11600K
7850 KB/s ∼59% +83%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
7266 KB/s ∼55% +69%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
6555 KB/s ∼49% +53%
Average Intel Core i5-10600K
6536 KB/s ∼49% +52%
Average Intel Core i7-10750H (6265 - 6309, n=2)
6287 KB/s ∼47% +46%
Minisforum HM90, AMD Ryzen 9 4900H
4297 KB/s ∼32% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
4297 KB/s ∼32%
TrueCrypt
AES Mean 100MB
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
13.4 GB/s ∼100% +81%
Average AMD Ryzen 5 5600X
10.7 GB/s ∼80% +45%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
10.3 GB/s ∼77% +39%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
10.1 GB/s ∼75% +36%
Average Intel Core i5-11600K
9.7 GB/s ∼72% +31%
Average Intel Core i5-10600K
8 GB/s ∼60% +8%
Average Intel Core i7-10750H (7.6 - 7.6, n=2)
7.6 GB/s ∼57% +3%
Minisforum HM90, AMD Ryzen 9 4900H
7.4 GB/s ∼55% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
7.4 GB/s ∼55%
Twofish Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
2 GB/s ∼100% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
2 GB/s ∼100%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
1.8 GB/s ∼90% -10%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
1.7 GB/s ∼85% -15%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
1.7 GB/s ∼85% -15%
Average AMD Ryzen 5 5600X
1.5 GB/s ∼75% -25%
Average Intel Core i5-11600K
1.5 GB/s ∼75% -25%
Average Intel Core i5-10600K
1.4 GB/s ∼70% -30%
Average Intel Core i7-10750H (1.3 - 1.3, n=2)
1.3 GB/s ∼65% -35%
Serpent Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
1.2 GB/s ∼100% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
1.2 GB/s ∼100%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
1.1 GB/s ∼92% -8%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
1 GB/s ∼83% -17%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
1 GB/s ∼83% -17%
Average AMD Ryzen 5 5600X
0.938 GB/s ∼78% -22%
Average Intel Core i5-11600K
0.9 GB/s ∼75% -25%
Average Intel Core i5-10600K
0.82 GB/s ∼68% -32%
Average Intel Core i7-10750H (0.767 - 0.78, n=2)
0.774 GB/s ∼65% -35%
Geekbench 5.3
64 Bit Multi-Core Score
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
9544 Points ∼100% +21%
Average AMD Ryzen 5 5600X
8980 Points ∼94% +14%
Average Intel Core i5-11600K (8336 - 8523, n=2)
8430 Points ∼88% +7%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
8173 Points ∼86% +4%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
7875 Points ∼83%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
7568 Points ∼79% -4%
Average Intel Core i5-10600K
7248 Points ∼76% -8%
Minisforum HM90, AMD Ryzen 9 4900H
7224 Points ∼76% -8%
Average Intel Core i5-10400F (6358 - 6372, n=2)
6365 Points ∼67% -19%
Average Intel Core i7-10750H (4443 - 6674, n=43)
6135 Points ∼64% -22%
64 Bit Single-Core Score
Average Intel Core i5-11600K (1694 - 1752, n=2)
1723 Points ∼100% +12%
Average AMD Ryzen 5 5600X
1657 Points ∼96% +7%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
1598 Points ∼93% +4%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
1542 Points ∼89%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
1378 Points ∼80% -11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
1299 Points ∼75% -16%
Average Intel Core i5-10600K
1286 Points ∼75% -17%
Average Intel Core i7-10750H (1114 - 1333, n=43)
1263 Points ∼73% -18%
Minisforum HM90, AMD Ryzen 9 4900H
1233 Points ∼72% -20%
Average Intel Core i5-10400F (1217 - 1223, n=2)
1220 Points ∼71% -21%
Geekbench 5.0
64 Bit Multi-Core Score
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
9563 Points ∼100% +22%
Average AMD Ryzen 5 5600X
8926 Points ∼93% +14%
Average Intel Core i5-11600K
8542 Points ∼89% +9%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
8196 Points ∼86% +4%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
7859 Points ∼82%
Minisforum HM90, AMD Ryzen 9 4900H
7624 Points ∼80% -3%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
7540 Points ∼79% -4%
Average Intel Core i5-10600K
7237 Points ∼76% -8%
Average Intel Core i5-10400F
6349 Points ∼66% -19%
Average Intel Core i7-10750H (5710 - 6632, n=8)
6283 Points ∼66% -20%
64 Bit Single-Core Score
Average Intel Core i5-11600K
1731 Points ∼100% +16%
Average AMD Ryzen 5 5600X
1587 Points ∼92% +6%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
1525 Points ∼88% +2%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
1498 Points ∼87%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
1355 Points ∼78% -10%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
1304 Points ∼75% -13%
Average Intel Core i5-10600K
1281 Points ∼74% -14%
Average Intel Core i7-10750H (1215 - 1325, n=8)
1258 Points ∼73% -16%
Minisforum HM90, AMD Ryzen 9 4900H
1237 Points ∼71% -17%
Average Intel Core i5-10400F
1217 Points ∼70% -19%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Average Intel Core i5-11600K
7438 Points ∼100% +17%
Average AMD Ryzen 5 5600X
6953 Points ∼93% +9%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
6743 Points ∼91% +6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
6365 Points ∼86%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
5969 Points ∼80% -6%
Average Intel Core i5-10600K
5821 Points ∼78% -9%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
5726 Points ∼77% -10%
Average Intel Core i5-10400F
5587 Points ∼75% -12%
Average Intel Core i7-10750H (5321 - 5832, n=8)
5572 Points ∼75% -12%
Minisforum HM90, AMD Ryzen 9 4900H
5287 Points ∼71% -17%
64 Bit Multi-Core Score
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
36970 Points ∼100% +14%
Average AMD Ryzen 5 5600X
35617 Points ∼96% +10%
Average Intel Core i5-11600K
33266 Points ∼90% +3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
32434 Points ∼88%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
32174 Points ∼87% -1%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
29385 Points ∼79% -9%
Minisforum HM90, AMD Ryzen 9 4900H
28402 Points ∼77% -12%
Average Intel Core i5-10600K
28391 Points ∼77% -12%
Average Intel Core i5-10400F
25403 Points ∼69% -22%
Average Intel Core i7-10750H (22859 - 25637, n=8)
24682 Points ∼67% -24%

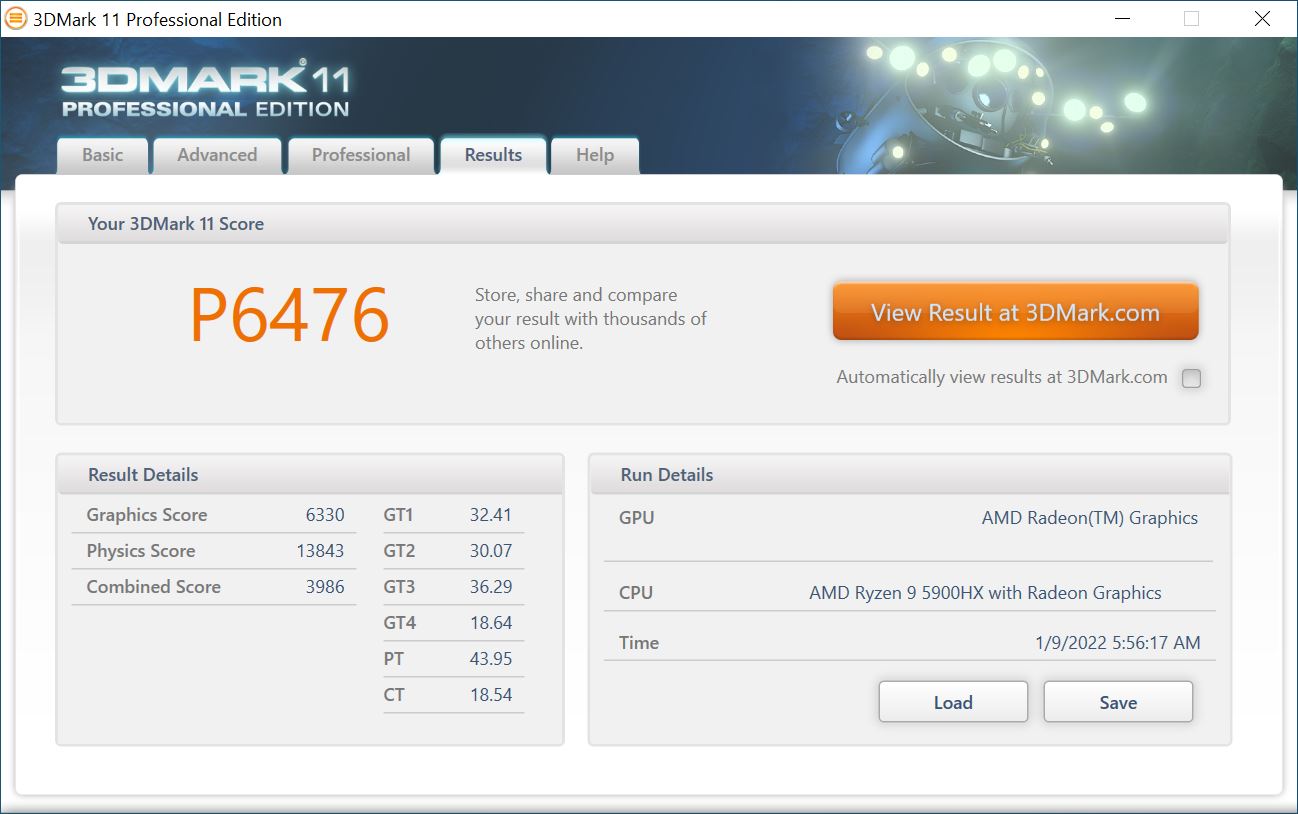

3DMark 11 - 1280x720 Performance Physics
Average AMD Ryzen 5 5600X
19649 Points ∼100% +41%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
18372 Points ∼94% +32%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
16422 Points ∼84% +18%
Average Intel Core i5-11600K (15381 - 17381, n=2)
16381 Points ∼83% +18%
Average Intel Core i5-10600K
15961 Points ∼81% +14%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
15497 Points ∼79% +11%
Average Intel Core i5-10400F
14539 Points ∼74% +4%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
13940 Points ∼71%
Average Intel Core i7-10750H (8587 - 14993, n=48)
12991 Points ∼66% -7%
Minisforum HM90, AMD Ryzen 9 4900H
12199 Points ∼62% -12%
7-Zip 18.03
7z b 4
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
64358 MIPS ∼100% +12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
57435 MIPS ∼89%
Average AMD Ryzen 5 5600X
56607 MIPS ∼88% -1%
Minisforum HM90, AMD Ryzen 9 4900H
48976 MIPS ∼76% -15%
Average Intel Core i5-11600K (44620 - 45322, n=2)
44971 MIPS ∼70% -22%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
44081 MIPS ∼68% -23%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
43007 MIPS ∼67% -25%
Average Intel Core i5-10600K
40379 MIPS ∼63% -30%
Average Intel Core i5-10400F
36731 MIPS ∼57% -36%
Average Intel Core i7-10750H (26040 - 37345, n=43)
33946 MIPS ∼53% -41%
7z b 4 -mmt1
Average AMD Ryzen 5 5600X
6594 MIPS ∼100% +15%
Average Intel Core i5-11600K (5987 - 6136, n=2)
6062 MIPS ∼92% +6%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
5818 MIPS ∼88% +1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
5739 MIPS ∼87%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
5642 MIPS ∼86% -2%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
5293 MIPS ∼80% -8%
Average Intel Core i5-10600K
5289 MIPS ∼80% -8%
Average Intel Core i7-10750H (4504 - 5470, n=43)
5114 MIPS ∼78% -11%
Average Intel Core i5-10400F
5064 MIPS ∼77% -12%
Minisforum HM90, AMD Ryzen 9 4900H
4727 MIPS ∼72% -18%
HWBOT x265 Benchmark v2.2 - 4k Preset
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
16.8 fps ∼100% +6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
15.9 fps ∼95%
Average AMD Ryzen 5 5600X
15.7 fps ∼93% -1%
Average Intel Core i5-11600K (14 - 14.7, n=2)
14.4 fps ∼86% -9%
Minisforum HM90, AMD Ryzen 9 4900H
12.9 fps ∼77% -19%
Average Intel Core i5-10600K
12.2 fps ∼73% -23%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
11.6 fps ∼69% -27%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
11.4 fps ∼68% -28%
Average Intel Core i5-10400F
11.2 fps ∼67% -30%
Average Intel Core i7-10750H (5.54 - 11.6, n=43)
9.61 fps ∼57% -40%
R Benchmark 2.5 - Overall mean
Average Intel Core i5-10400F
0.618 sec * ∼100% -24%
Average Intel Core i7-10750H (0.578 - 0.708, n=42)
0.611 sec * ∼99% -23%
Average Intel Core i5-10600K
0.593 sec * ∼96% -19%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
0.588 sec * ∼95% -18%
Minisforum HM90, AMD Ryzen 9 4900H
0.572 sec * ∼93% -15%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
0.541 sec * ∼88% -9%
Average Intel Core i5-11600K (0.506 - 0.528, n=2)
0.517 sec * ∼84% -4%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
0.4965 sec * ∼80%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
0.4896 sec * ∼79% +1%
Average AMD Ryzen 5 5600X
0.4778 sec * ∼77% +4%
LibreOffice - 20 Documents To PDF
Minisforum HM90, AMD Ryzen 9 4900H
66 s * ∼100% -34%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
59.5 s * ∼90% -21%
Average Intel Core i5-10400F
57.1 s * ∼87% -16%
Average Intel Core i7-10750H (43.1 - 99.2, n=43)
53.3 s * ∼81% -8%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
49.8 s * ∼75% -1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
49.3 s * ∼75%
Average Intel Core i5-10600K
46.1 s * ∼70% +6%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
45.23 s * ∼69% +8%
Average AMD Ryzen 5 5600X
45.1 s * ∼68% +9%
Average Intel Core i5-11600K (39.7 - 43.8, n=2)
41.8 s * ∼63% +15%
WebXPRT 3 - ---
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
295 Points ∼100% +6%
Average AMD Ryzen 5 5600X
286 Points ∼97% +3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
278 Points ∼94%
Average Intel Core i5-11600K (263 - 280, n=2)
272 Points ∼92% -2%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
244 Points ∼83% -12%
Average Intel Core i5-10600K
239 Points ∼81% -14%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
233 Points ∼79% -16%
Minisforum HM90, AMD Ryzen 9 4900H
227 Points ∼77% -18%
Average Intel Core i7-10750H (202 - 239, n=39)
225 Points ∼76% -19%
Average Intel Core i5-10400F
215 Points ∼73% -23%
Mozilla Kraken 1.1 - Total Score
Average Intel Core i5-10400F
849 ms * ∼100% -41%
Average Intel Core i7-10750H (764 - 840, n=43)
783 ms * ∼92% -30%
Minisforum HM90, AMD Ryzen 9 4900H
767 ms * ∼90% -28%
Average Intel Core i5-10600K
760 ms * ∼90% -26%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
754 ms * ∼89% -25%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
752 ms * ∼89% -25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
601 ms * ∼71%
Average Intel Core i5-11600K (587 - 608, n=2)
598 ms * ∼70% -0%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
587 ms * ∼69% +2%
Average AMD Ryzen 5 5600X
578 ms * ∼68% +4%
3DMark
3840x2160 Fire Strike Ultra Physics
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
27096 Points ∼100% +18%
Average AMD Ryzen 5 5600X
26038 Points ∼96% +13%
Average Intel Core i5-11600K
23190 Points ∼86% +1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
22976 Points ∼85%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
21864 Points ∼81% -5%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
21542 Points ∼80% -6%
Average Intel Core i5-10600K
19942 Points ∼74% -13%
Minisforum HM90, AMD Ryzen 9 4900H
18986 Points ∼70% -17%
Average Intel Core i5-10400F
18082 Points ∼67% -21%
Average Intel Core i7-10750H (16535 - 18978, n=29)
17806 Points ∼66% -23%
1920x1080 Fire Strike Physics
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
27300 Points ∼100% +13%
Average AMD Ryzen 5 5600X
25990 Points ∼95% +8%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
24096 Points ∼88%
Average Intel Core i5-11600K (21677 - 22631, n=2)
22154 Points ∼81% -8%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
21706 Points ∼80% -10%
Minisforum HM90, AMD Ryzen 9 4900H
20613 Points ∼76% -14%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
20080 Points ∼74% -17%
Average Intel Core i5-10600K
20040 Points ∼73% -17%
Average Intel Core i7-10750H (11653 - 18769, n=46)
17163 Points ∼63% -29%
2560x1440 Time Spy CPU
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
9743 Points ∼100% +40%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
9417 Points ∼97% +35%
Average AMD Ryzen 5 5600X
8911 Points ∼91% +28%
Average Intel Core i5-11600K (8286 - 9482, n=2)
8884 Points ∼91% +28%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
8580 Points ∼88% +23%
Average Intel Core i5-10600K
8290 Points ∼85% +19%
Average Intel Core i5-10400F
7548 Points ∼77% +9%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
6955 Points ∼71%
Average Intel Core i7-10750H (4911 - 7543, n=47)
6649 Points ∼68% -4%
Minisforum HM90, AMD Ryzen 9 4900H
6523 Points ∼67% -6%

* ... smaller is better

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20

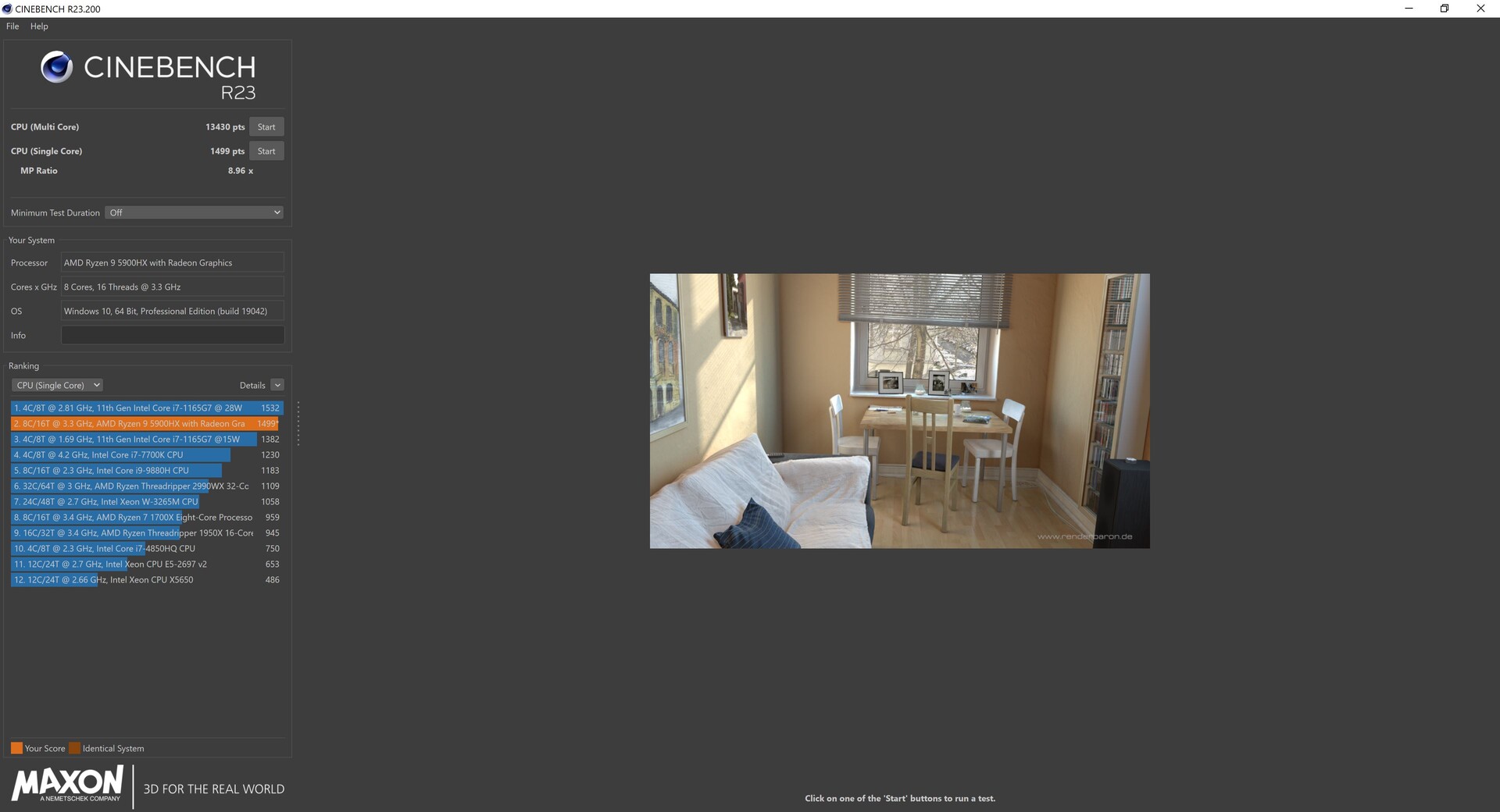

电影院R23
电影院R23

Cinebench R15多循环

在第一个负载测试中,我们用Cinebench R15多循环模拟,MINISFORUM EliteMini HX90可以很好地控制AMD Ryzen 9 5900HX。我们注意到平均2,121分。与最佳价值(2,197分)相比,这并不是一个明显的性能损失。然而,总的来说,几乎所有的竞争者在这个测试中都能提供良好的结果。

011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)
Intel Ghost Canyon NUC (RTX 2070) Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1463 (1410.79-1593.44)
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø2227 (2208.24-2244.79)
Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)
Zotac Magnus One (ECM73070C) Intel Core i7-10700, Intel Core i7-10700: Ø1338 (1184.66-1454.54)

系统性能

在合成基准中,MINISFORUM EliteMini HX90为纯粹的办公工作和生产力提供了非常高的工作速度。正如与Minisforum EliteMini HM90的情况一样,EliteMini HX90缺乏专用显卡,这就是为什么英特尔幽灵峡谷NUC和众泰Magnus One之间的差距。Zotac Magnus One的差距明显变大。在负载下和播放4K视频时,测得的延迟很好,没有掉线。在播放过程中,iGPU的利用率约为30%。然而,在Prime95启动后,延迟略有增加。

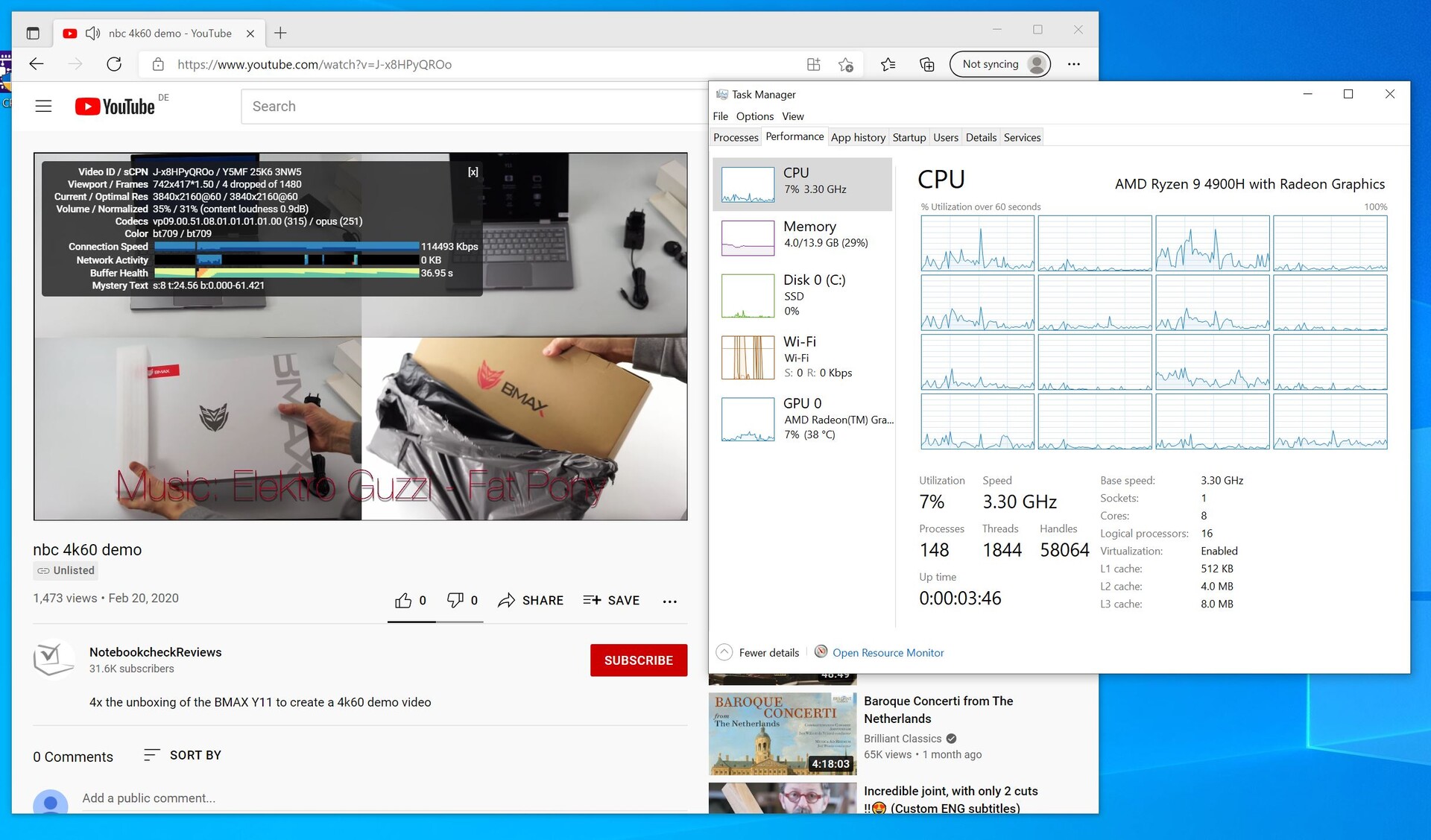

打开多个浏览器标签和播放4K视频时的最大延迟。
打开多个浏览器标签和播放4K视频时的最大延迟。
Prime95十秒后的最大延时
Prime95十秒后的最大延时
PCMark 10
Score
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
6939 Points ∼100% +7%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
6507 Points ∼94%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
6499 Points ∼94% 0%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
6444 Points ∼93% -1%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
5565 Points ∼80% -14%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2958 Points ∼43% -55%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1806 Points ∼26% -72%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
10196 Points ∼100%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
9332 Points ∼92% -8%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
8581 Points ∼84% -16%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
8277 Points ∼81% -19%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
7447 Points ∼73% -27%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
5397 Points ∼53% -47%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2928 Points ∼29% -71%
Essentials
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
10797 Points ∼100% +5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
10321 Points ∼96%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
10226 Points ∼95% -1%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
9846 Points ∼91% -5%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
9026 Points ∼84% -13%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
6210 Points ∼58% -40%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
4693 Points ∼43% -55%
Digital Content Creation
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
10161 Points ∼100% +43%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
9785 Points ∼96% +38%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
7610 Points ∼75% +7%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
7105 Points ∼70%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
6262 Points ∼62% -12%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2097 Points ∼21% -70%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1165 Points ∼11% -84%

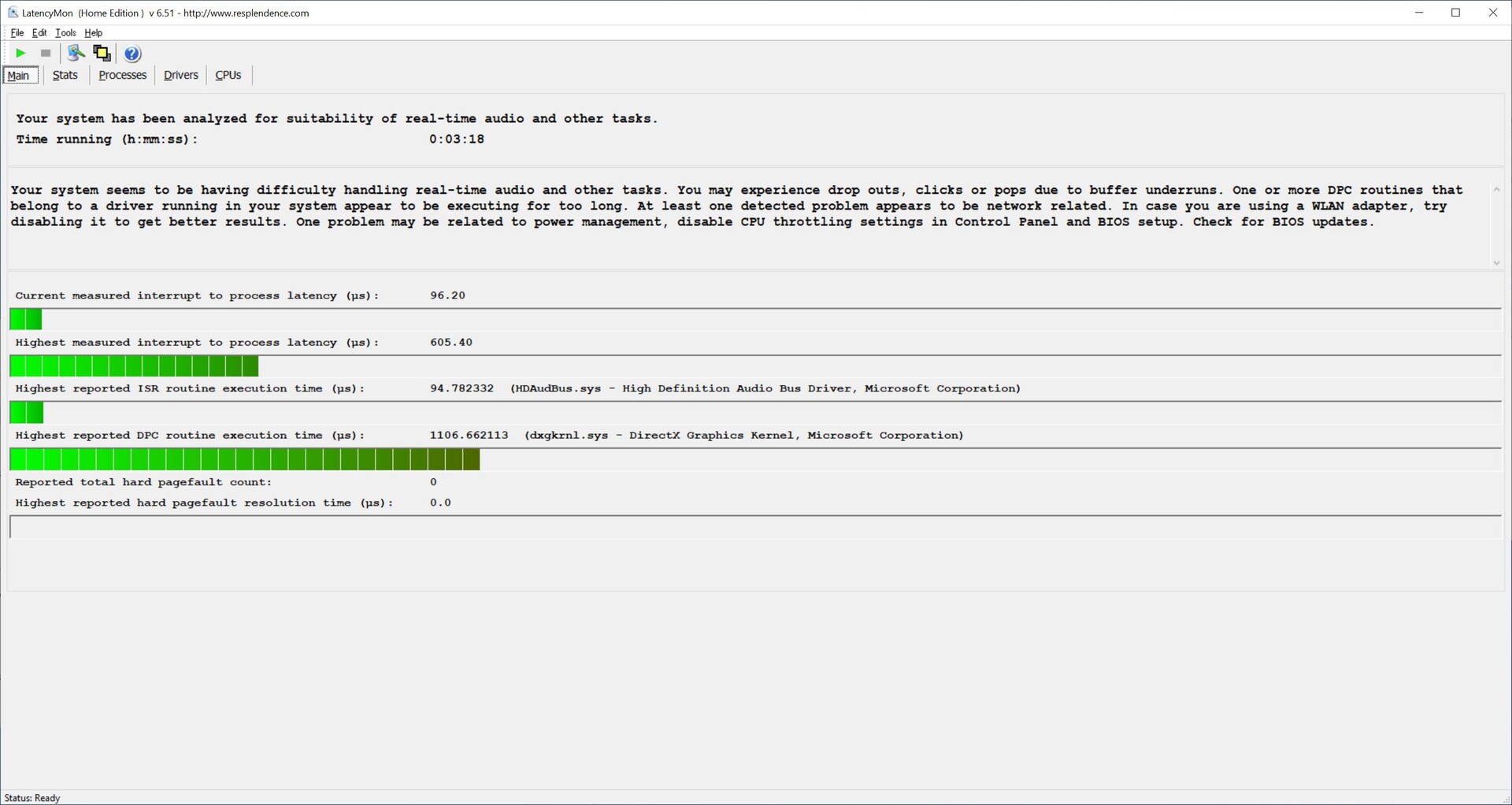

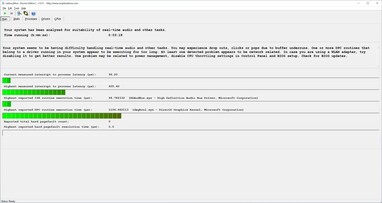

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3767 μs * ∼100% -241%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1581 μs * ∼42% -43%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
1106 μs * ∼29% -0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
1106 μs * ∼29%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
829 μs * ∼22% +25%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
82.3 fps ∼100% +33%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
71.1 fps ∼86% +15%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
61.8 fps ∼75%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
59.2 fps ∼72% -4%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
49.3 fps ∼60% -20%
1900x1060 Siemens NX (snx-02)
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
22.2 fps ∼100% +10%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
20.1 fps ∼91%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
16.4 fps ∼74% -18%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
12 fps ∼54% -40%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
9.08 fps ∼41% -55%
1900x1060 Showcase (showcase-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
165 fps ∼100% +1046%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
118.5 fps ∼72% +723%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
22 fps ∼13% +53%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
14.4 fps ∼9%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
13.3 fps ∼8% -8%
1900x1060 Medical (medical-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
49 fps ∼100% +302%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
40.14 fps ∼82% +229%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
15.3 fps ∼31% +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
12.2 fps ∼25%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
11.7 fps ∼24% -4%
1900x1060 Maya (maya-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
200 fps ∼100% +545%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
171 fps ∼86% +452%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
43.5 fps ∼22% +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
31 fps ∼16%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
26.6 fps ∼13% -14%
1900x1060 Energy (energy-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
13.1 fps ∼100% +2419%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
11.49 fps ∼88% +2110%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
2.68 fps ∼20% +415%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
0.52 fps ∼4%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
0.5 fps ∼4% -4%
1900x1060 Creo (creo-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
61.5 fps ∼100% +71%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
52.2 fps ∼85% +45%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
42.4 fps ∼69% +18%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
35.9 fps ∼58%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
29.9 fps ∼49% -17%
1900x1060 Catia (catia-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
117 fps ∼100% +210%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
78.3 fps ∼67% +108%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
48 fps ∼41% +27%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
37.7 fps ∼32%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
32.7 fps ∼28% -13%
1900x1060 3ds Max (3dsmax-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
213 fps ∼100% +387%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
180.8 fps ∼85% +314%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
53 fps ∼25% +21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
43.7 fps ∼21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
37.4 fps ∼18% -14%
SPECviewperf 13
Solidworks (sw-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
114 fps ∼100% +64%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
85.4 fps ∼75% +23%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
79.4 fps ∼70% +14%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
69.6 fps ∼61%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
57.4 fps ∼50% -18%
Siemens NX (snx-03)
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
39.9 fps ∼100% +10%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
36.3 fps ∼91%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
29.6 fps ∼74% -18%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
21.9 fps ∼55% -40%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
16.33 fps ∼41% -55%
Showcase (showcase-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
165 fps ∼100% +1070%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
118.5 fps ∼72% +740%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
22 fps ∼13% +56%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
14.1 fps ∼9%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
13.5 fps ∼8% -4%
Medical (medical-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
78.3 fps ∼100% +308%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
56.4 fps ∼72% +194%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
21.7 fps ∼28% +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
19.2 fps ∼25%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
16.4 fps ∼21% -15%
Maya (maya-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
367 fps ∼100% +843%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
281 fps ∼77% +622%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
58.5 fps ∼16% +50%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
38.9 fps ∼11%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
35.1 fps ∼10% -10%
Energy (energy-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
28.2 fps ∼100% +3105%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
21.83 fps ∼77% +2381%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
7.57 fps ∼27% +760%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
0.88 fps ∼3%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
0.82 fps ∼3% -7%
Creo (creo-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
241 fps ∼100% +437%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
183.8 fps ∼76% +309%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
59.3 fps ∼25% +32%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
44.9 fps ∼19%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
37.7 fps ∼16% -16%
Catia (catia-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
171 fps ∼100% +228%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
113.7 fps ∼66% +118%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
69.1 fps ∼40% +32%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
52.2 fps ∼31%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
46.4 fps ∼27% -11%
3ds Max (3dsmax-06)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
213 fps ∼100% +397%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
178.6 fps ∼84% +316%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
52.9 fps ∼25% +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
42.9 fps ∼20%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
37.8 fps ∼18% -12%
ComputeMark v2.1
1024x600 Normal, Score
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
4166 Points ∼100% +19%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
3499 Points ∼84% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
3499 Points ∼84%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
631 Points ∼15% -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
337 Points ∼8% -90%
1024x600 Normal, Fluid 3DTex
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
340 Points ∼100% +45%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
235 Points ∼69% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
235 Points ∼69%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
54 Points ∼16% -77%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
44 Points ∼13% -81%
1024x600 Normal, Fluid 2DTexArr
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
337 Points ∼100% +46%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
231 Points ∼69% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
231 Points ∼69%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
63 Points ∼19% -73%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
42 Points ∼12% -82%
1024x600 Normal, Mandel Vector
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
1255 Points ∼100% +18%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
1066 Points ∼85% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
1066 Points ∼85%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
147 Points ∼12% -86%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
79 Points ∼6% -93%
1024x600 Normal, Mandel Scalar
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
1084 Points ∼100% +12%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
964 Points ∼89% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
964 Points ∼89%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
137 Points ∼13% -86%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
54 Points ∼5% -94%
1024x600 Normal, QJuliaRayTrace
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
1149 Points ∼100% +15%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
1002 Points ∼87% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
1002 Points ∼87%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
230 Points ∼20% -77%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
118 Points ∼10% -88%
LuxMark v2.0 64Bit
Room GPUs-only
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
772 Samples/s ∼100% +71%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
451 Samples/s ∼58% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
451 Samples/s ∼58%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
109 Samples/s ∼14% -76%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
76 Samples/s ∼10% -83%
Sala GPUs-only
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
1575 Samples/s ∼100% +68%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
939 Samples/s ∼60% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
939 Samples/s ∼60%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
266 Samples/s ∼17% -72%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
129 Samples/s ∼8% -86%

* ... smaller is better

大容量存储

512GB金士顿固态硬盘
512GB金士顿固态硬盘

Minisforum向我们发送了EliteMini HX90的顶级型号,配备了512GB的固态硬盘。该固态硬盘来自金士顿,使用NVMe协议进行快速数据传输。固态硬盘在测试中能够提供良好的速率,尽管我们预期连续写速率会稍好。然而,这是在高水平上的抱怨,因为900MB/s的传输对于日常使用是绰绰有余的。4K读取率,即54MB/s的良好速率更为重要。在加载许多小文件时,特别是在系统启动时,系统会从中受益,这只需要几秒钟。

如果所提供的固态硬盘不够用,你可以用更大的型号替换它,或者选择安装最多两个2.5英寸的存储设备。适当的安装材料以及连接线都包括在内。然而,应该注意的是,最大高度为7毫米。

AS SSD
AS SSD
CrystalDiskInfo
CrystalDiskInfo

图形卡

EliteMini HX90与游戏的对比 (来源: Minisforum)
EliteMini HX90与游戏的对比 (来源: Minisforum)

AMD Ryzen 9 5900HX的集成图形单元是 AMD Radeon RX Vega 8.我们已经可以在EliteMini HM90中对其性能有一个良好的印象。然而,AMD在5000系列中改进了iGPU的性能,并将芯片时钟提高到2100MHz。这导致了比上一代RX Vega 8的性能略有优势。

与英特尔的 Iris Xe Graphics G7 96EU,性能差距现在缩小了一些,AMD不再那么落后。不过,如果你想玩当前的游戏,AMD的Radeon RX Vega 8的性能还是明显缓慢。在低分辨率下玩旧的和当前的游戏是可能的。然而,在原生1080p分辨率下,帧率往往明显下降,所以游戏没有乐趣。如果该系统只用于某些游戏,我们建议看一下我们的测试游戏表,因为在这里可以清楚地看到,该系统绝对可以用于CS:GO或火箭联盟。在不久的将来,会有更多用这个系统进行的游戏测试,所以这个表格会不断扩大。

Minisforum将EliteMini HX90作为游戏迷你PC进行宣传。从下面的表格中可以看出,各种游戏也显示了可玩的帧率。然而,这取决于所使用的分辨率和预设值,因此,MINISFORUM的说法不能完全照单全收。

那些想购买MINISFORUM EliteMini HX90的人应该知道AMD Radeon RX Vega 8提供了什么性能,以及可以预期的情况。由于iGPU性能较低,我们不能给出无条件的游戏推荐。也许,这将是不同的,如果我们能看到一个配置与 AMD Ryzen 9 6900HX.然而,目前这只是一种猜测。

更多关于AMD Radeon RX Vega 8的基准测试可以在下面找到这里.

3DMark 11 - 1280x720 Performance GPU
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
40950 Points ∼100% +549%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
28828 Points ∼70% +357%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
7591 Points ∼19% +20%
Average Intel Iris Xe Graphics G7 96EUs
  (2867 - 7134, n=99)
6315 Points ∼15% 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
6306 Points ∼15%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (4370 - 7591, n=16)
6116 Points ∼15% -3%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
5567 Points ∼14% -12%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2322 Points ∼6% -63%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1983 Points ∼5% -69%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1853 Points ∼5% -71%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1458 Points ∼4% -77%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1316 Points ∼3% -79%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1175 Points ∼3% -81%
3DMark
1280x720 Ice Storm Standard Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
441161 Points ∼100% +158%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
286573 Points ∼65% +67%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
187444 Points ∼42% +10%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (124963 - 231980, n=9)
176340 Points ∼40% +3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
171104 Points ∼39%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
100414 Points ∼23% -41%
Average Intel Iris Xe Graphics G7 96EUs
  (60011 - 119768, n=19)
86877 Points ∼20% -49%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
79747 Points ∼18% -53%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
61979 Points ∼14% -64%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
58199 Points ∼13% -66%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
41037 Points ∼9% -76%
1920x1080 Ice Storm Extreme Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
376770 Points ∼100% +269%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
284001 Points ∼75% +178%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
147236 Points ∼39% +44%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (96874 - 147236, n=7)
118937 Points ∼32% +16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
102227 Points ∼27%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
84227 Points ∼22% -18%
Average Intel Iris Xe Graphics G7 96EUs
  (45789 - 88727, n=9)
64651 Points ∼17% -37%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
48446 Points ∼13% -53%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
40670 Points ∼11% -60%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
40532 Points ∼11% -60%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
26409 Points ∼7% -74%
1920x1080 Fire Strike Graphics
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
30090 Points ∼100% +697%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
20775 Points ∼69% +450%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
5041 Points ∼17% +34%
Average Intel Iris Xe Graphics G7 96EUs
  (2286 - 5955, n=109)
4790 Points ∼16% +27%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 5000)
3775 Points ∼13%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (2534 - 5041, n=16)
3773 Points ∼13% 0%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000)
3414 Points ∼11% -10%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1479 Points ∼5% -61%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1418 Points ∼5% -62%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1202 Points ∼4% -68%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1033 Points ∼3% -73%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
772 Points ∼3% -80%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
770 Points ∼3% -80%
3DMark 05 Standard
41727 points
3DMark 06 Standard Score
25886 points
3DMark Vantage P Result
21716 points
3DMark 11 Performance
6462 points
3DMark Ice Storm Standard Score
140539 points
3DMark Cloud Gate Standard Score
25447 points
3DMark Fire Strike Score
3479 points
3DMark Fire Strike Extreme Score
1573 points
3DMark Time Spy Score
1422 points
Help
low med. high ultraQHD4K
Counter-Strike: GO (2012) 212 135 78.8 47.5 21.3
GTA V (2015) 116 104 27.9 12 8.55 8.77
The Witcher 3 (2015) 72.2 44.5 21.9 14.4
Dota 2 Reborn (2015) 127 96.3 53.7 49.9 14.3
Rise of the Tomb Raider (2016) 46.3 33.5 19.7 16.3
Rocket League (2017) 56.2 46.3 31.3 22.3 12.6
Final Fantasy XV Benchmark (2018) 37 19.2 13.6 9.67 5.22
X-Plane 11.11 (2018) 53.1 41.1 37 20.8
Far Cry 5 (2018) 48 21 20 19 12 6
Strange Brigade (2018) 87.7 33.5 28.4 23.9 15.8 8.2
Shadow of the Tomb Raider (2018) 52 20.3 18.7 16.3 10.4 5
Far Cry New Dawn (2019) 44 22 21 19 13 6
Metro Exodus (2019) 39.2 16.4 12.8 10.8 8.24 4.87
Borderlands 3 (2019) 60.1 23.1 14.4 11.3 7.28 3.52
F1 2020 (2020) 94.7 33.4 24.3 16.7 8.53
F1 2021 (2021) 98.3 42.5 31.9 22 16.3 8.35
Alan Wake Remastered (2021) 39.1 30.1
Far Cry 6 (2021) 45.1 21.1 17.2
Riders Republic (2021) 41 21 15 14 9 4
Forza Horizon 5 (2021) 43 33 28 15 11 7
Farming Simulator 22 (2021) 131 51.1 33.2 29.5 21.3 11.8
God of War (2022) 13.7 11.2 7.92
Rainbow Six Extraction (2022) 29 28 27 19 11 5
Dying Light 2 (2022) 18.5 15.4 11.4 6.73
GRID Legends (2022) 63.3 43.2 35.1 24.7 17.6 9.7
Elden Ring (2022) 30.7 30.6 30.5 27 19.2 10.9
Cyberpunk 2077 1.5 (2022) 21.2 16 11.2 8.9 4.8
Elex 2 (2022) 17.8 15.4 13.6 11.6 7.55

排放与能源

温度

Minisforum为EliteMini HX90使用了一个辐射式风扇。它从顶部吸进新鲜空气,并通过通风口横向吹出机箱。这个概念似乎非常有效,因为在Cinebench R15多循环测试中,没有出现表明SoC过热的问题。此外,液态金属在出厂时就已使用,以达到最佳的散热效果。因此,强烈不鼓励拆卸CPU冷却器。它也是用胶水粘住的,因此不能排除在拆卸散热器时对SoC的损害。

在全负荷下,我们测量了AMD Ryzen 9 5900HX达到最高70℃,尽管iGPU的温度较低,为65℃。然而,我们想强调的是,增加的TDP为54W,我们在所有测试中都使用了这一数值。因此,没有理由对温度感到恐慌。即使在压力测试之后,3D性能也没有下降,这并不令人惊讶。与冷启动相比,3DMark11基准测试的结果几乎是相同的,只是在测量公差范围内有几个点的波动。

压力测试。Prime95独奏
压力测试。Prime95独奏
压力测试。FurMark独奏
压力测试。FurMark独奏
压力测试。FurMark+Prime95
压力测试。FurMark+Prime95
压力测试后的3DMark 11
压力测试后的3DMark 11
压力测试期间的热量发展
压力测试期间的热量发展
压力测试期间的热量发展
压力测试期间的热量发展
压力测试期间的热量发展(PSU)
压力测试期间的热量发展(PSU)


噪声排放

一台安静的电脑总是好的,如果性能不同时下降,那就更好了。Minisforum EliteMini HX90能满足这两点。我们测得空闲时只有31.6分贝(A),满载时也只有33.4分贝(A),略高。

此外,风扇的噪音也很悦耳,没有恼人的高频风扇呼啸声。风扇速度很快就能适应各种条件,所以在短暂的负载之后,已经很低的噪音水平又下降了。然而,风扇速度仍然可以在BIOS中根据用户的需要进行调整。我们对默认设置很满意,所以我们没有在这里做任何改动。

噪声排放(周围环境)
噪声排放(周围环境)
噪声排放(空转)
噪声排放(空转)
噪声排放(压力测试:FurMark+Prime95)
噪声排放(压力测试:FurMark+Prime95)

Noise Level

Idle
/ 31.6 / dB(A)
Load
/ 33.4 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 30.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.92530.93129.94030.75031.56327.380261002512526.416023.520025.52502431521.940021.650022.663021.780024.9100023.7125023.5160022.2200020.1250018.7315019.1400018.9500019.1630019.5800019.91000020.21250020.61600021.1SPL33.4N1.9median 21.7Delta1.9hearing rangehide median Fan NoiseMinisforum EliteMini HX90

能源消耗

Minisforum EliteMini HX90在我们这里列出的其他迷你电脑中相对来说更耗费能源。然而,这不应该是一个太消极的判断,因为其性能处于较高的水平。由于iGPU的存在,在3D性能方面存在一些批评,但在能源消耗方面,它得到了积极的回报。在其两个拥有专用图形单元的竞争对手中,3D应用的能耗要高得多。

在压力测试中测得的平均功率为87W,功耗还是比较节俭的。此外,Minicforum很好地控制了空闲能量流,我们的测试设备在没有负载的情况下仅显示6.3瓦。相对较大的120W电源可以轻松应对电源需求。因此,如果MINISFORUM EliteMini HX90配备两个独立的2.5英寸驱动器,仍有一些缓冲空间。

能源消耗被关闭
能源消耗被关闭
闲置模式下的能源消耗
闲置模式下的能源消耗
压力测试期间的能源消耗(Prime95)。
压力测试期间的能源消耗(Prime95)。
压力测试期间的能源消耗(FurMark)。
压力测试期间的能源消耗(FurMark)。
压力测试中的能耗(FurMark和Prime95)。
压力测试中的能耗(FurMark和Prime95)。
游戏过程中的能源消耗(TheWitcher 3 Ultra Preset)。
游戏过程中的能源消耗(TheWitcher 3 Ultra Preset)。
Power Consumption
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)
326.2 (316min - 333max) Watt * ∼100% -480%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)
251.9 (242min - 270max) Watt * ∼77% -348%
AMD Ryzen 7 5700G
93.9 (48.3min, 91.6P1 - 112max) Watt * ∼29% -67%
Minisforum EliteMini HX90 (Idle: 6.3 W)
56.2 (52.1min, 53.3P1 - 79.8max) Watt * ∼17%
Minisforum HM90 (Idle: 9.8 W)
47.47 (44min - 78max) Watt * ∼15% +16%
Intel NUC10i7FNH (Idle: 8.4 W)
46.6 (45min - 68max) Watt * ∼14% +17%
Intel NUC10i5FNK (Idle: 15.7 W)
37.8 (35min - 63max) Watt * ∼12% +33%
MSI Cubi 5 10M (Idle: 8 W)
25.17 (25min - 26max) Watt * ∼8% +55%
Prime95 V28,10 Stress (external Monitor)
AMD Ryzen 7 5700G
125 (50.4min, 112P1 - 145max) Watt * ∼100% -44%
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)
116.3 (110min - 238max) Watt * ∼93% -34%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)
109.4 (107min - 151max) Watt * ∼88% -26%
Minisforum EliteMini HX90 (Idle: 6.3 W)
86.9 (77.4min, 79.5P1 - 109max) Watt * ∼70%
Minisforum HM90 (Idle: 9.8 W)
73.2 (71min - 76max) Watt * ∼59% +16%
Intel NUC10i7FNH (Idle: 8.4 W)
60 (52min - 86max) Watt * ∼48% +31%
Intel NUC10i5FNK (Idle: 15.7 W)
58.5 (56min - 69max) Watt * ∼47% +33%
MSI Cubi 5 10M (Idle: 8 W)
46.72 (40min - 66max) Watt * ∼37% +46%
AC6-M Mini-PC
17.4 (15.8min, 16.8P1 - 18max) Watt * ∼14% +80%

* ... smaller is better

Pros

+ 非常好的系统性能
+ 8个核心和16个线程
+ 稳定的外壳
+ 尺寸紧凑
+ 任何时候都很安静
+ 许多USB接口
+ 最多可以同时使用四个显示器
+ 最多可以有三个大容量存储设备

Cons

- 没有SD卡读卡器
- 对现代游戏来说,3D性能太低

评语 - 表现出色,但浪费了潜力

Minisforum EliteMini HX90回顾,由Minisforum提供
Minisforum EliteMini HX90回顾,由Minisforum提供

Minisforum EliteMini HX90是一款适用于苛刻任务的小型PC。安装的AMD Ryzen 9 5900HX是一个尖端的快速处理器,最适合于多线程应用。然而,由于过时的iGPU,该SoC受到影响。Vega架构明显过时,不幸的是无法跟上与专用显卡配对的5000代芯片。与AMD Ryzen 9 4900H相比,更高的芯片时钟确保了更好的3D性能,但只有几个百分点,并没有把这两个竞争对手分开多少。

也就是说,Minisforum EliteMini HX90完全适合作为工作设备。在这里,8核CPU可以在不损失性能的情况下释放其全部潜力,因为这台小型PC的冷却系统很成熟,适合日常使用。许多外部端口的位置很好,对普通用户来说绰绰有余。该设备上最多可以同时使用四个显示器。这几乎是小型PC的一个独特卖点,因为通常只有一个HDMI和一个DisplayPort,运气好的话,还有一个支持DisplayPort的USB-C端口。唯一的主要限制仍然是缺乏Thunderbolt 4,这将使它有可能连接一个高性能的外部显卡,将紧凑型PC变成一个真正的游戏PC。

Minisforum EliteMini HX90是一款非常强大的迷你PC,适合日常使用。然而,只有选定的游戏可以使用AMD Ryzen 9 5900HX而没有任何问题。

那么,谁会觉得这台迷你电脑很有趣呢?作为一个纯粹的无限制的游戏PC,Minicforum EliteMini HX90缺乏必要的3D马力。只有一些游戏即使在中等预设下也能顺利渲染。如果你把自己限制在这些选定的游戏中,你就不会在MINISFORUM EliteMini HX90上犯错。此外,这台紧凑型PC也适合作为流媒体客户端,尽管它在这方面的能力明显不足。然而,SoC的性能可以在BIOS中改变,所以如果感兴趣的话,可以在这方面进行探索。

从纯粹的视觉角度来看,你别无选择,只能喜欢这种颜色方案,因为没有提供任何其他颜色组合。市场根本就太小了。不过,Minisforum EliteMini HX90在现实中看起来并不那么糟糕。总的来说,我们在外观和做工方面发现不了任何负面的批评点。一些竞争对手使用的钢琴漆的省略,防止了任何微小划痕的出现。

考虑到所提供的性能,这个紧凑级别的替代品是非常少的。Zotac有一个平等的对手,它的ZBOX Magnus有一个专门的显卡。然而,这个裸机模型的价格至少是1450欧元。另一家中国制造商Morefine也有一款迷你电脑,与Minicforum EliteMini HX90的基础相同,名为S500+。目前,Morefine S500+可以在价格为779美元。对这一型号的详细审查将在不久之后进行。

Minisforum EliteMini HX90可在其自己的在线商店购买起价为649美元的裸机版本。我们的测试样品在测试时的售价为909美元。

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Minisforum EliteMini HX90回顾。带有AMD Ryzen 9 5900HX的紧凑型高性能迷你电脑
Sebastian Bade, 2022-01-27 (Update: 2022-01-27)
