Apple M1 Max

Apple M1 Max

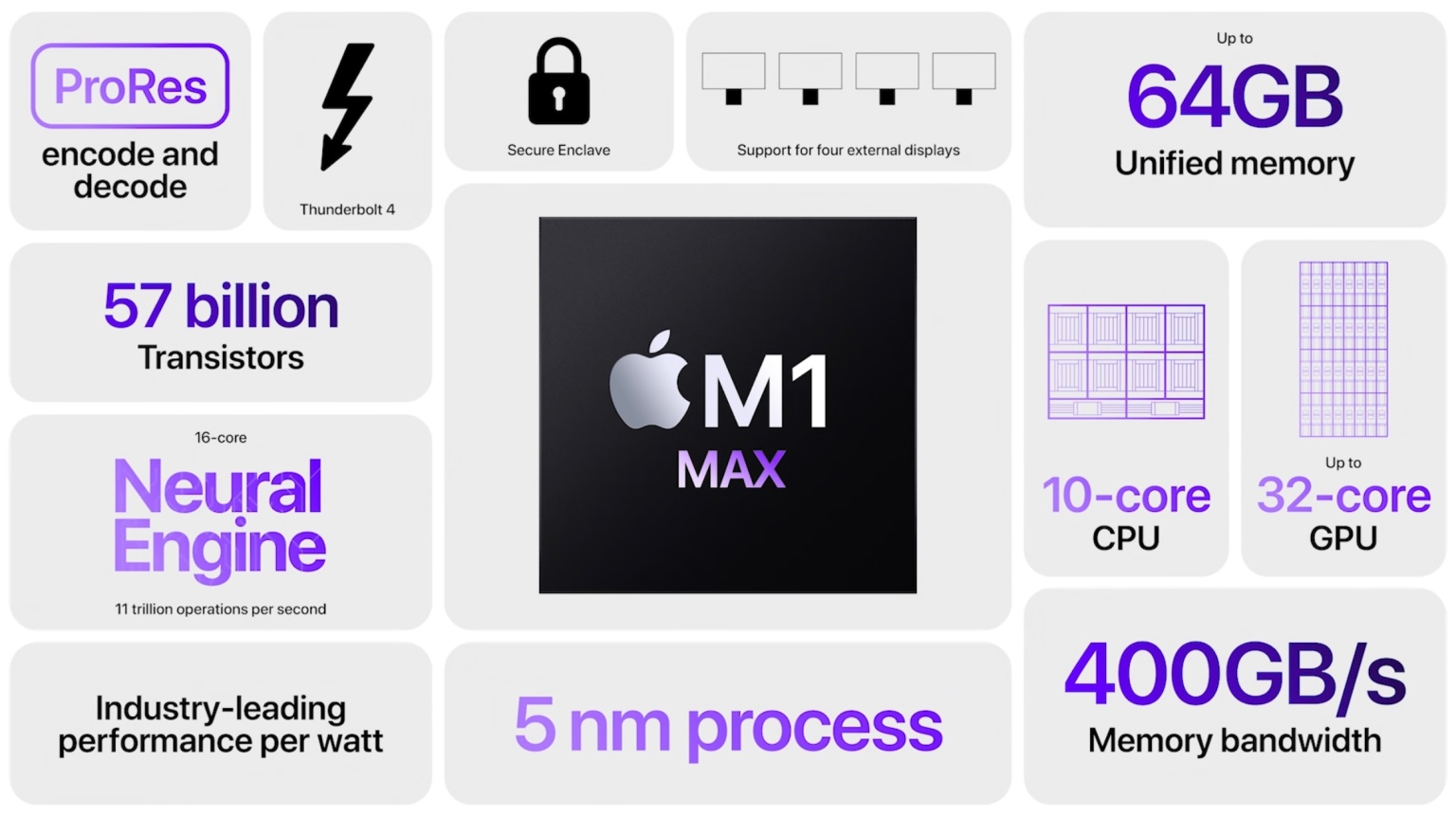

苹果M1 Max是苹果公司的一个片上系统(SoC),在2021年后期的MacBook Pro 14和16英寸机型中发现。它提供了芯片中可用的所有10个内核,分为8个性能内核(P内核,频率为600-3220 MHz)和两个节能内核(E内核,频率为600-2064 MHz)。单个核心或短时爆发期没有Turbo Boost。 这些内核与苹果M1的内核类似。

大核心(代号为Firestorm)提供192KB指令缓存、128KB数据缓存和24MB共享二级缓存(高于M1的12MB)。四个效率核心(代号Icestorm)要小得多,只提供128KB指令缓存、64KB数据缓存和4MB共享缓存。CPU和GPU都可以使用48MB的SLC(系统级缓存)。效率核心(E集群)的时钟频率为600-2064 MHz,性能核心(P集群)的时钟频率为600-3228 MHz。

芯片旁边的统一内存(32或64GB LPDDR5-6400)由一个512位内存控制器连接(200GB/s带宽),可供GPU和CPU使用。这是与M1 Pro的主要区别,而CPU的性能则相当相似。

与M1 Pro的最大区别是集成了更大的GPU,有24或32个内核(高于16个)。

此外,SoC集成了一个快速的16核神经引擎,一个安全飞地(例如用于加密),一个统一的内存架构,Thunderbolt 4控制器,一个ISP,以及媒体去除和编码器(包括两个ProRes引擎)。

M1 Pro在台积电以5纳米制造,集成了570亿个晶体管。该芯片的峰值功耗被宣传为CPU密集型任务的30W左右。

SeriesApple Apple M-Series

Series: Apple M-Series

Apple M1 Max « 2.06 - 3.22 GHz10 / 10 cores48 MB L3
Apple M1 Pro2.06 - 3.22 GHz10 / 10 cores24 MB L3
Apple M1 Pro 8-Core2.06 - 3.22 GHz8 / 8 cores16 MB L3
Apple M12.06 - 3.22 GHz8 / 8 cores8 MB L3
Clock Rate2060 - 3220 MHz
Level 1 Cache2.9 MB
Level 2 Cache28 MB
Level 3 Cache48 MB
Number of Cores / Threads10 / 10
Transistor Count57000 Million
Manufacturing Technology5 nm
FeaturesARMv8 Instruction Set
GPUApple M1 Max 32-Core GPU
64 Bit64 Bit support
ArchitectureARM
Announcement Date10/18/2021

Benchmarks

Cinebench R23 - Cinebench R23 Multi Core
min: 12385     avg: 12389     median: 12386 (12%)     max: 12396 Points
AMD E1-2100
202 -98%
...
11662 -6%
11685 -6%
11811 -5%
11822 -5%
11822 -5%
11871 -4%
11992 -3%
12109 -2%
12370 0%
Apple M1 Max
12389
12393 0%
12394 0%
AMD Ryzen 9 5900HS
12533 1%
AMD Ryzen 9 5980HS
12629 2%
12688 2%
12733 3%
12768 3%
12865 4%
12941 4%
...
32782 165%
max:
107681 769%
0%
100%
Cinebench R23 - Cinebench R23 Single Core
min: 1530     avg: 1533     median: 1533 (65%)     max: 1536 Points
AMD E1-2100
114 -93%
...
1499 -2%
Apple M1
1512 -1%
1512 -1%
1514 -1%
1521 -1%
1525 -1%
1525 -1%
AMD Ryzen 9 5980HS
1529 0%
1531 0%
Apple M1 Max
1533
1534 0%
AMD Ryzen 7 7735H
1536 0%
Intel Core i7-11390H
1537 0%
1538 0%
1548 1%
1553 1%
1559 2%
Intel Core i5-1240U
1559 2%
1565 2%
...
2186 43%
max:
2351 53%
0%
100%
Cinebench R20 - Cinebench R20 CPU (Single Core)
min: 390     avg: 393.3     median: 395 (44%)     max: 395 Points
Cinebench R20 - Cinebench R20 CPU (Multi Core)
min: 2735     avg: 2746     median: 2750 (7%)     max: 2753 Points
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
min: 1689     avg: 1691     median: 1691 (11%)     max: 1693 Points
AMD A4-1200
31 -98%
...
1625 -4%
1628 -4%
1656 -2%
Intel Core i9-9980HK
1656 -2%
1658 -2%
1664 -2%
Intel Xeon W-2145
1682 -1%
1683 0%
1690 0%
Apple M1 Max
1691
1698 0%
1701 1%
1739 3%
1739 3%
1748 3%
1756 4%
1756 4%
1757 4%
1757 4%
...
5600 231%
max:
15842 837%
0%
100%
08517025534042551059568076585093510201105119012751360144515301615Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
min: 197     avg: 202.3     median: 200 (60%)     max: 210 Points
AMD A4-1200
19 -91%
...
194.4 -4%
194.8 -4%
Intel Xeon E-2276M
195 -4%
Intel Core i9-8950HK
195.9 -3%
196.7 -3%
Intel Core i9-9980HK
198.8 -2%
199.8 -1%
201 -1%
AMD Ryzen 5 5560U
202 0%
Apple M1 Max
202.3
202.5 0%
203 0%
203.6 1%
205.1 1%
206.7 2%
206.7 2%
Apple M1
207.3 2%
209 3%
Intel Xeon W-10885M
209.8 4%
...
311 54%
max:
332 64%
0%
100%
Blender - Blender 2.79 BMW27 CPU *
min: 187     avg: 188.7     median: 189 (1%)     max: 190 Seconds
Geekbench 5.5 - Geekbench 5.1 - 5.4 64 Bit Multi-Core
min: 12563     avg: 12656     median: 12697 (23%)     max: 12708 points
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 404.3     avg: 459.2     median: 482.3 (1%)     max: 491.1 ms
Octane V2 - Octane V2 Total Score
min: 66938     avg: 68647     median: 68029 (61%)     max: 70973 Points
WebXPRT 3 - WebXPRT 3 Score
min: 350     avg: 358.7     median: 360 (75%)     max: 366 Points
Power Consumption - Prime95 Power Consumption - external Monitor *
50.8 Watt (9%)
05101520253035404550556065Tooltip
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
53 Watt (10%)
0510152025303540455055Tooltip
Power Consumption - Idle Power Consumption - external Monitor *
11.6 Watt (8%)
0123456789101112Tooltip
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
