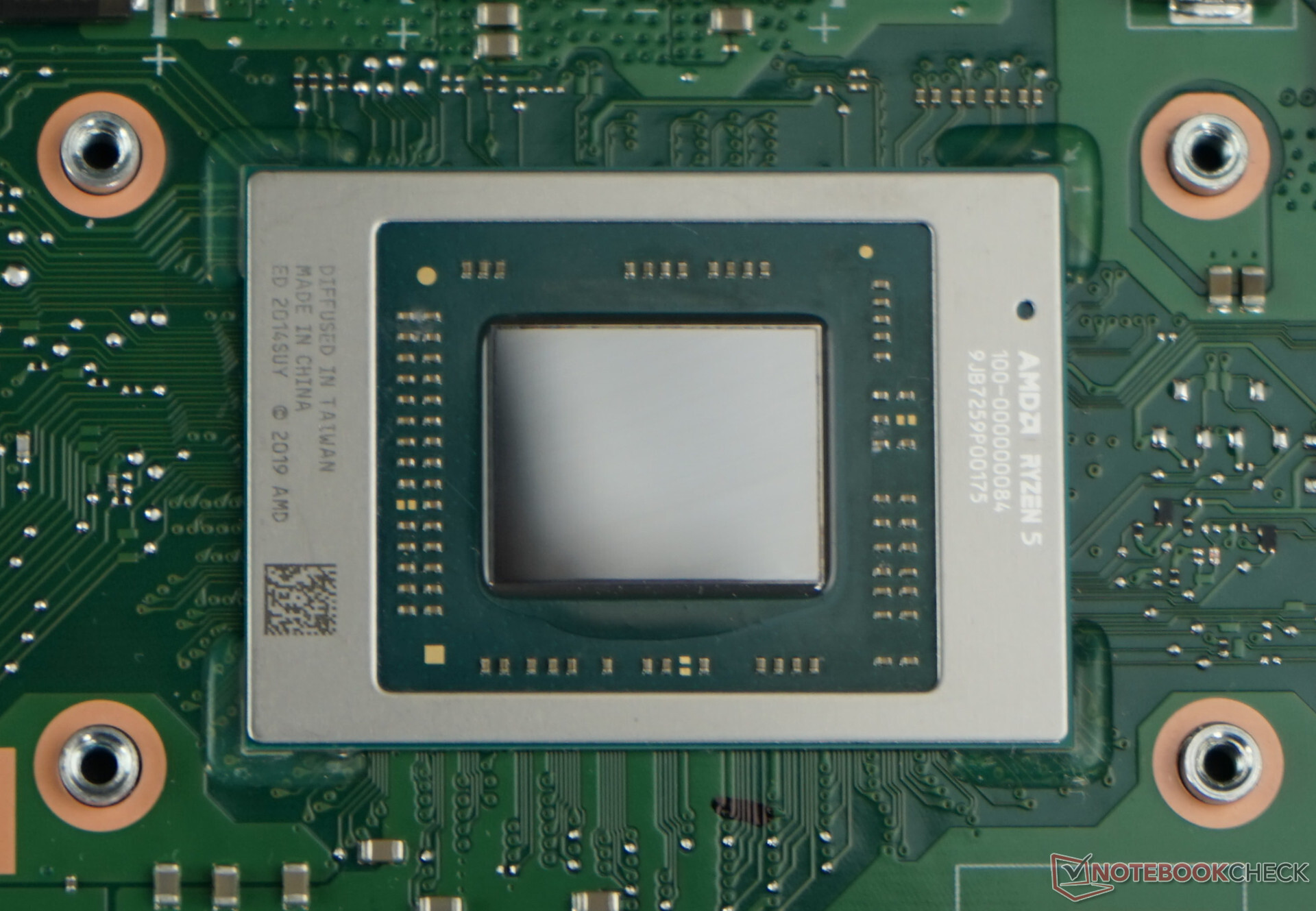

AMD Ryzen 5 4500U

AMD R5 4500U

AMD Ryzen 5 4500U是基于Renoir架构的轻薄笔记本电脑处理器。 4500U集成了基于Zen 2微体系结构的六个内核。它们的频率为2.3(保证的基本时钟)至4 GHz(Turbo),而没有SMT /超线程支持(6个线程)。该芯片是在台积电(TSMC)以现代7纳米工艺制造的,部分原因是AMD宣传雷诺阿(Renoir)芯片的每瓦性能提高了2倍。与类似的Ryzen 5 4600U相比,4500U不提供SMT,但在其他方面却表现十分相似。

在少两个内核的情况下,Ryzen 5 4500U在多线程工作负载中明显比Ryzen 7 4700U和4800U慢。但是,它仍然应该能够击败最强的15瓦Ice Lake Intel Core i7-1065G7(4核,3.9 GHz)。多亏了4 GHz Boost,单核性能应该相似。因此,Ryzen 5 4600U是非常强的15瓦CPU,显然比旧的Ryzen 7 3700U快。

除了六个CPU内核之外,APU还集成了Radeon RX Vega 6集成显卡,具有6个CU和高达1500 MHz的频率。双通道内存控制器支持DDR4-3200和高能效LPDDR4-4266 RAM。此外,还有8 MB的3级缓存。有关更多信息,请参见雷诺阿处理器上的中心页面。

APU的TDP指定为15瓦(默认),笔记本电脑供应商可以将其配置为10至25瓦。这意味着该芯片适用于轻薄型笔记本电脑(但带有风扇)。

SeriesAMD Renoir (Ryzen 4000 APU)
CodenameRenoir (Zen 2)
Series: Renoir (Ryzen 4000 APU) Renoir (Zen 2)
AMD Ryzen 9 4900H3.3 - 4.4 GHz8 / 168 MB
AMD Ryzen 9 4900HS3 - 4.3 GHz8 / 168 MB
AMD Ryzen 7 4800H2.9 - 4.2 GHz8 / 167.9 MB
AMD Ryzen 7 4800HS2.9 - 4.2 GHz8 / 168 MB
AMD Ryzen 5 4600H3 - 4 GHz6 / 1211 MB
AMD Ryzen 5 4600HS3 - 4 GHz6 / 128 MB
AMD Ryzen 7 4800U1.8 - 4.2 GHz8 / 168 MB
AMD Ryzen 7 4700U2 - 4.1 GHz8 / 88 MB
AMD Ryzen 5 4600U2.1 - 4 GHz6 / 128 MB
» AMD Ryzen 5 4500U2.3 - 4 GHz6 / 68 MB
AMD Ryzen 3 4300U2.7 - 3.7 GHz4 / 46 MB
Clock Rate2300 - 4000 MHz
Level 1 Cache384 KB
Level 2 Cache3 MB
Level 3 Cache8 MB
Number of Cores / Threads6 / 6
Power Consumption (TDP = Thermal Design Power)15 Watt
Manufacturing Technology7 nm
Max. Temperature105 °C
SocketFP6
FeaturesXFR, FMA3, SSE 4.2, AVX2, SMT
GPUAMD Radeon RX Vega 6 (Ryzen 4000) ( - 1500 MHz)
64 Bit64 Bit support
Architecturex86
Announcement Date01/07/2020
Product Link (external)AMD Renoir (Ryzen 4000 APU) R5 4500U

Benchmarks

Performance Rating - CB R15 + R20 + 7-Zip + X265 + Blender + 3DM11 CPU
45.3 pt (52%)
AMD E1-2100 -92%
...
Intel Core i3-9100F -6%
Intel Core i7-1065G7 -5%
Intel Core i7-10810U -2%
Intel Core i5-1038NG7 -2%
AMD Ryzen 5 1600 -1%
Intel Core i7-8809G 0%
AMD Ryzen 5 4500U
Intel Core i9-9900T 2%
Intel Core i7-4790K 4%
Intel Core i7-8559U 5%
AMD Ryzen 5 2600 5%
AMD Ryzen 3 3100 6%
Intel Core i5-9400F 6%
...
AMD Ryzen 9 5900X 92%
0%
100%
Cinebench R23 - Cinebench R23 CPU (Multi Core)
5920 Points (22%)
Cinebench R23 - Cinebench R23 CPU (Single Core)
1152 Points (70%)
Cinebench R20 - Cinebench R20 CPU (Single Core)
min: 424     avg: 447     median: 448.5 (70%)     max: 453 Points
Cinebench R20 - Cinebench R20 CPU (Multi Core)
min: 1843     avg: 2212     median: 2208 (21%)     max: 2530 Points
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
min: 715     avg: 890     median: 889 (20%)     max: 1007 Points
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930940950960970980Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
min: 156     avg: 173     median: 174 (64%)     max: 177 Points
Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 10.22     avg: 10.9     median: 10.9 (22%)     max: 11.6 Points
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
min: 2.02     avg: 2     median: 2 (65%)     max: 2.04 Points
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 5319     avg: 5337     median: 5337 (48%)     max: 5355 points
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 22934     avg: 24156     median: 24155.5 (41%)     max: 25377 points
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
38477 Points (37%)
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
9139 Points (69%)
wPrime 2.10 - wPrime 2.0 1024m *
min: 170.4     avg: 172     median: 171.9 (2%)     max: 173.4 s
wPrime 2.10 - wPrime 2.0 32m *
min: 5.7     avg: 7.8     median: 8.3 (2%)     max: 9.48 s
WinRAR - WinRAR 4.0
min: 3420     avg: 3493     median: 3493 (22%)     max: 3566 points
7-Zip 18.03 - 7-Zip 18.03 Multli Thread 4 runs
min: 23237     avg: 24267     median: 24079.5 (19%)     max: 25891 MIPS
7-Zip 18.03 - 7-Zip 18.03 Single Thread 4 runs
min: 4278     avg: 4302     median: 4300 (28%)     max: 4338 MIPS
X264 HD Benchmark 4.0 - x264 Pass 2
59.3 fps (27%)
X264 HD Benchmark 4.0 - x264 Pass 1
210 fps (62%)
HWBOT x265 Benchmark v2.2 - HWBOT x265 4k Preset
min: 5.86     avg: 6.8     median: 6.9 (22%)     max: 7.16 fps
01020Tooltip
TrueCrypt - TrueCrypt Serpent
min: 0.511     avg: 0.5     median: 0.5 (1%)     max: 0.541 GB/s
TrueCrypt - TrueCrypt Twofish
min: 0.865     avg: 0.9     median: 0.9 (1%)     max: 0.922 GB/s
TrueCrypt - TrueCrypt AES
4.9 GB/s (1%)
Blender 2.79 - Blender 2.79 BMW27 CPU *
min: 533     avg: 605     median: 588.7 (4%)     max: 747.7 Seconds
R Benchmark 2.5 - R Benchmark 2.5 *
min: 0.614     avg: 0.6     median: 0.6 (14%)     max: 0.654 sec
3DMark 06 - CPU - 3DMark 06 - CPU
min: 8933     avg: 8934     median: 8933.5 (49%)     max: 8934 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 10     avg: 10.3     median: 10.3 (2%)     max: 10.5 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
24 s (1%)
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 619.7     avg: 622     median: 621.9 (3%)     max: 624 s
3DMark 11 - 3DM11 Performance Physics
min: 7061     avg: 8059     median: 8058 (34%)     max: 8625 Points
3DMark - 3DMark Ice Storm Physics
min: 63892     avg: 64582     median: 64582 (42%)     max: 65272 Points
3DMark - 3DMark Ice Storm Extreme Physics
min: 57910     avg: 62737     median: 64287 (68%)     max: 66013 Points
3DMark - 3DMark Ice Storm Unlimited Physics
min: 68588     avg: 69236     median: 69236 (72%)     max: 69884 Points
3DMark - 3DMark Cloud Gate Physics
min: 7243     avg: 7593     median: 7636.5 (19%)     max: 7925 Points
3DMark - 3DMark Fire Strike Standard Physics
min: 9800     avg: 11373     median: 11477 (29%)     max: 12259 Points
3DMark - 3DMark Time Spy CPU
min: 3502     avg: 3814     median: 3804 (27%)     max: 4187 Points
Geekbench 2 - 32 Bit - Geekbench Stream
6630 Points (53%)
Geekbench 2 - 32 Bit - Geekbench Memory
5771 Points (52%)
Geekbench 2 - 32 Bit - Geekbench Floating Point
20968 Points (41%)
Geekbench 2 - 32 Bit - Geekbench Integer
16596 Points (33%)
Geekbench 2 - 32 Bit - Geekbench Total Score
14964 Points (39%)
Geekbench 3 - Geekbench 3 32 Bit Multi-Core
18690 points (33%)
Geekbench 3 - Geekbench 3 32 Bit Single-Core
3960 points (81%)
Geekbench 3 - Geekbench 3 64 Bit Multi-Core
19029 points (30%)
Geekbench 3 - Geekbench 3 64 Bit Single-Core
4162 points (85%)
Geekbench 4.1 - 4.4 - Geekbench 4.1 - 4.4 64 Bit Single-Core
min: 4486     avg: 4624     median: 4624 (63%)     max: 4762 points
Geekbench 4.1 - 4.4 - Geekbench 4.1 - 4.4 64 Bit Multi-Core
min: 17798     avg: 18561     median: 18561 (29%)     max: 19324 points
Geekbench 5.0 - Geekbench 5.0 64 Bit Single-Core
1074 points (64%)
Geekbench 5.0 - Geekbench 5.0 64 Bit Multi-Core
4282 points (26%)
Geekbench 5.1 - 5.3 - Geekbench 5.1 - 5.3 64 Bit Single-Core
min: 1082     avg: 1096     median: 1097 (63%)     max: 1108 points
Geekbench 5.1 - 5.3 - Geekbench 5.1 - 5.3 64 Bit Multi-Core
min: 4352     avg: 4597     median: 4543.5 (27%)     max: 5091 points
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 819     avg: 847     median: 851 (1%)     max: 855 ms
Sunspider - Sunspider 1.0 Total Score *
99 ms (1%)
Sunspider - Sunspider 0.9.1 Total Score *
90.9 ms (1%)
Octane V2 - Octane V2 Total Score
min: 33759     avg: 43608     median: 48506 (82%)     max: 48558 Points
Power Consumption - Prime95 Power Consumption - external Monitor *
min: 28.8     avg: 43.7     median: 46.5 (12%)     max: 53 Watt
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
min: 28.6     avg: 40.6     median: 40.4 (11%)     max: 53 Watt
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

v1.16
