Apple M3 Pro 12-Core

Apple Apple M3 Pro 12-Core

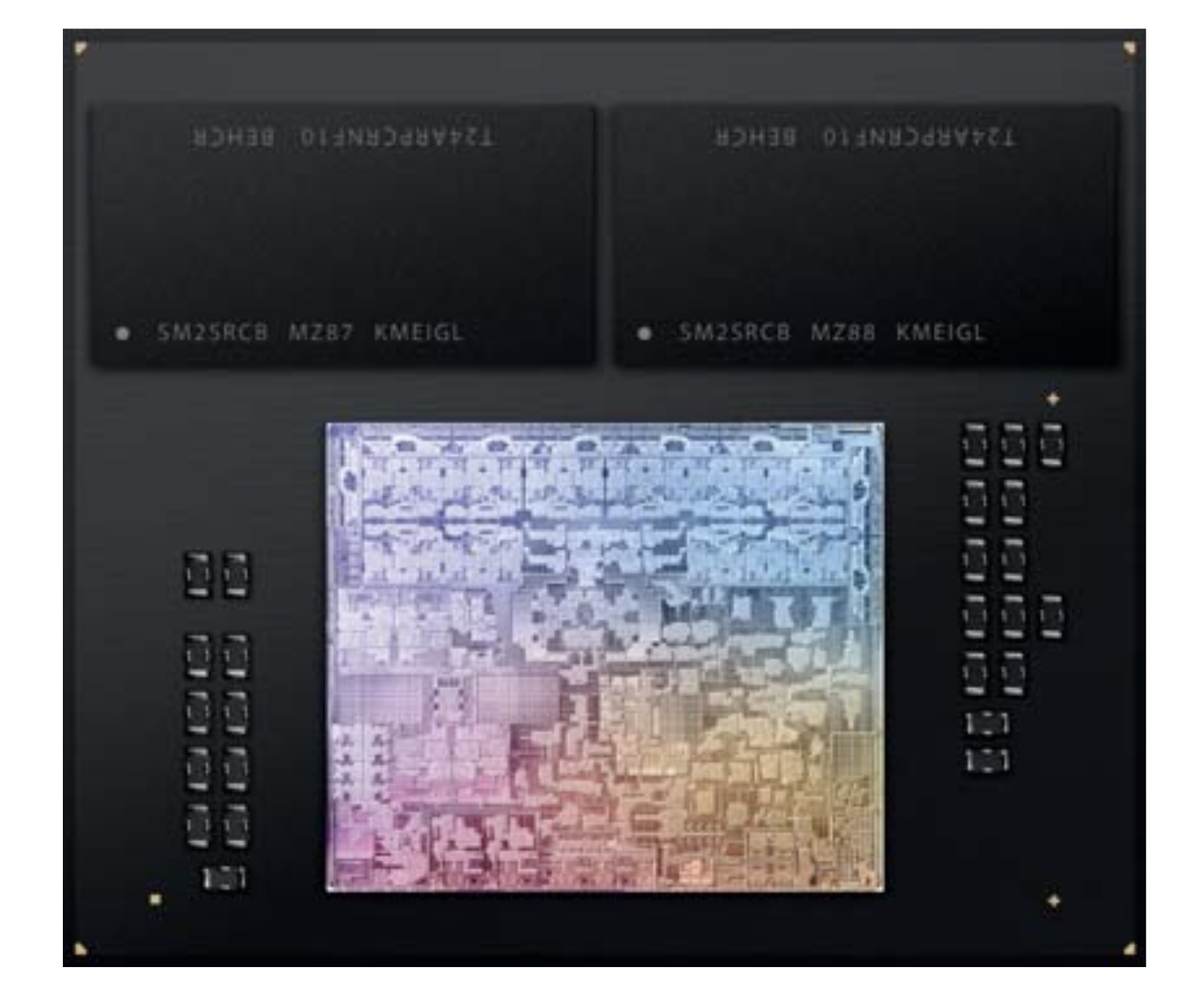

Apple M3 是Apple 于 2023 年底推出的笔记本电脑片上系统（SoC）。它集成了一个新的 8 核 CPU，其中 4 个性能内核的主频高达 4.06 GHz，4 个效率内核的主频高达 2.75 GHz。Apple 声称，该 CPU 比旧的 M2（3.5 GHz）快 20%。 Apple M2（3.5 GHz）.

由于更高的时钟频率和架构改进，该处理器在基准测试中的性能也明显优于 M2（见下文 Geekbench 等），并能在短时间的单核测试中赶上最快的 CPU（如 Raptor Lake i9-13950HX).

M3 还集成了新的显卡，具有动态缓存、网格着色和光线跟踪加速功能。根据Apple 的数据，它比 M2 的 M2 的 GPU 快 20% 。.芯片再次集成了 10 个 GPU 内核，但更便宜的型号只提供 8 个内核（如入门级 iMac）。此外，GPU 仅支持 2 个显示器（在内部显示器之外增加一个 6K60 显示器）。

GPU 和 CPU 可一起访问软件包上的统一内存。它仍有 8 GB、16 GB 和 24 GB 三种规格可供选择，并提供相同的 100 GB/s 最大带宽（与 Pro 机型不同的是，Pro 机型的内存带宽有所降低）。

集成的 16 核神经引擎也进行了修改，现在可提供 18 TOPS 的峰值性能（M2 为 15.8 TOPS，而新的 A17 Pro 为 35 TOPS）。视频引擎现在支持硬件 AV1 解码。H.264、HEVC 和 ProRes（RAW）仍可解码和编码。

遗憾的是，集成的无线局域网只支持 Wi-Fi 6E（不支持 Wi-Fi 7），而且由于只支持单个外接显示器，该芯片也不支持 Thunderbolt 4（官方支持 Thunderbolt 3/USB4，速度为 40 Gbit/s）。

该芯片采用台积电目前的 3 纳米工艺（最有可能是 N3B）制造，包含 250 亿个晶体管（与Apple M2 相比增加了 25%）。3 纳米工艺还有助于提高芯片的效率。在负载情况下，M3 CPU 的功耗约为 20 瓦。

SeriesApple Apple M3

Series: Apple M3

Apple M3 Max 16-Core2.75 - 4.06 GHz16 / 16 cores
Apple M3 Max 14-Core2.75 - 4.06 GHz14 / 14 cores
Apple M3 Pro 12-Core « 2.75 - 4.06 GHz12 / 12 cores
Apple M3 Pro 11-Core2.75 - 4.06 GHz11 / 11 cores
Apple M32.75 - 4.06 GHz8 / 8 cores
Clock Rate2748 - 4056 MHz
Number of Cores / Threads12 / 12
6 x 4.1 GHz Apple M3 P-Core
6 x 2.7 GHz Apple M3 E-Core
Power Consumption (TDP = Thermal Design Power)27 Watt
Transistor Count37000 Million
Manufacturing Technology3 nm
FeaturesARMv8 Instruction Set
GPUApple M3 Pro 18-Core GPU
64 Bit64 Bit support
ArchitectureARM
Announcement Date10/30/2023
Product Link (external)www.apple.com

Benchmarks

Cinebench 2024 - CB24 CPU Single Core
143 Points (99%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench 2024 - CB24 CPU Multi Core
1059 Points (20%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R23 - Cinebench R23 Multi Core
15106 Points (14%)
+ 1 benchmarks and specifications   - Hide comparison chart
Cinebench R23 - Cinebench R23 Single Core
1977 Points (84%)
+ 1 benchmarks and specifications   - Hide comparison chart
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
2163 Points (14%)
+ 1 benchmarks and specifications   - Hide comparison chart
01102203304405506607708809901100121013201430154016501760187019802090Tooltip
Blender - Blender 3.3 Classroom CPU *
314 Seconds (4%)
+ 1 benchmarks and specifications   + Show comparison chart
Blender - Blender 2.79 BMW27 CPU *
327 Seconds (2%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.2 - Geekbench 6.2 Single-Core
3138 points (95%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.2 - Geekbench 6.2 Multi-Core
15480 points (61%)
+ 1 benchmarks and specifications   - Hide comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.4 64 Bit Single-Core
2327 points (98%)
+ 1 benchmarks and specifications   - Hide comparison chart
AMD E1-2100
125 -95%
...
AMD Ryzen 9 7845HX
2008 -14%
Intel Core i9-13950HX
2013 -13%
AMD Ryzen 7 7745HX
2054 -12%
Intel Core i9-13980HX
2079 -11%
AMD Ryzen 9 7945HX
2092 -10%
Intel Core i9-14900HX
2103 -10%
AMD Ryzen 9 7945HX3D
2133 -8%
Apple M3
2316 0%
Apple M3 Max 16-Core
2325 0%
Apple M3 Pro 12-Core
2327
Apple M3 Pro 11-Core
2331 0%
0%
100%
Geekbench 5.5 - Geekbench 5.1 - 5.4 64 Bit Multi-Core
15298 points (27%)
+ 1 benchmarks and specifications   + Show comparison chart
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
376.2 ms (0%)
+ 1 benchmarks and specifications   + Show comparison chart
Octane V2 - Octane V2 Total Score
96501 Points (87%)
+ 1 benchmarks and specifications   + Show comparison chart
WebXPRT 3 - WebXPRT 3 Score
427 Points (89%)
+ 1 benchmarks and specifications   + Show comparison chart
CrossMark - CrossMark Overall
1977 Points (76%)
+ 1 benchmarks and specifications   + Show comparison chart
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
47.9 Watt (9%)
+ 1 benchmarks and specifications   + Show comparison chart
051015202530354045Tooltip
Power Consumption - Idle Power Consumption - external Monitor *
5.8 Watt (4%)
+ 1 benchmarks and specifications   + Show comparison chart
0123456Tooltip
Power Consumption - Idle Power Consumption 150cd 1min *
7.5 Watt (8%)
+ 1 benchmarks and specifications   + Show comparison chart
012345678Tooltip
Power Consumption - Cinebench R15 Multi Power Efficiency - external Monitor
45.2 Points per Watt (34%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
