装甲核心 6：卢比肯之火》技术评测：笔记本电脑和台式机基准测试

机甲大战，画面过时。 如果《装甲核心 6》不是由《黑暗之魂》背后的游戏工作室 FromSoftware 制作，可能不会引起如此大的兴趣。请阅读我们的技术评测，了解它的系统要求有多高（或多低）。
Gaming Laptop / Notebook Desktop Gamecheck

现在，我们使用这些笔记本电脑进行游戏基准测试。点击图片访问相应的产品页面。本文末尾列出了所有其他测试系统（塔式电脑、迷你电脑等）。

技术方面

玩家们对《装甲核心 6》的看法众说纷纭。例如，有些人称赞游戏中高难度的 BOSS 战，而有些人则对游戏中沉闷的故事情节（尽管场景很酷）和单调乏味的关卡表示失望。我们可以理解这两种观点，并认为《卢比肯之火》是一款扎实的游戏，尽管它并不出众。艾尔登指环.

装甲核心 6
装甲核心 6
装甲核心 6
装甲核心 6
装甲核心 6
装甲核心 6

遗憾的是，在技术方面几乎没有什么值得批评的地方。正如我们之前所暗示的，作为一款在 2023 年发布的游戏，游戏的视觉效果非常一般。除了纹理之外，游戏的细节、环境的多样性和特效时不时都会让人觉得有些不尽如人意。总的来说，《装甲核心 6》即使在较高分辨率下也显得相当模糊和不太清晰。机甲的动画效果也有些奇怪，运动时显得相当僵硬，尤其是在悬停时。

装甲核心 6
装甲核心 6
装甲核心 6
装甲核心 6
装甲核心 6
装甲核心 6

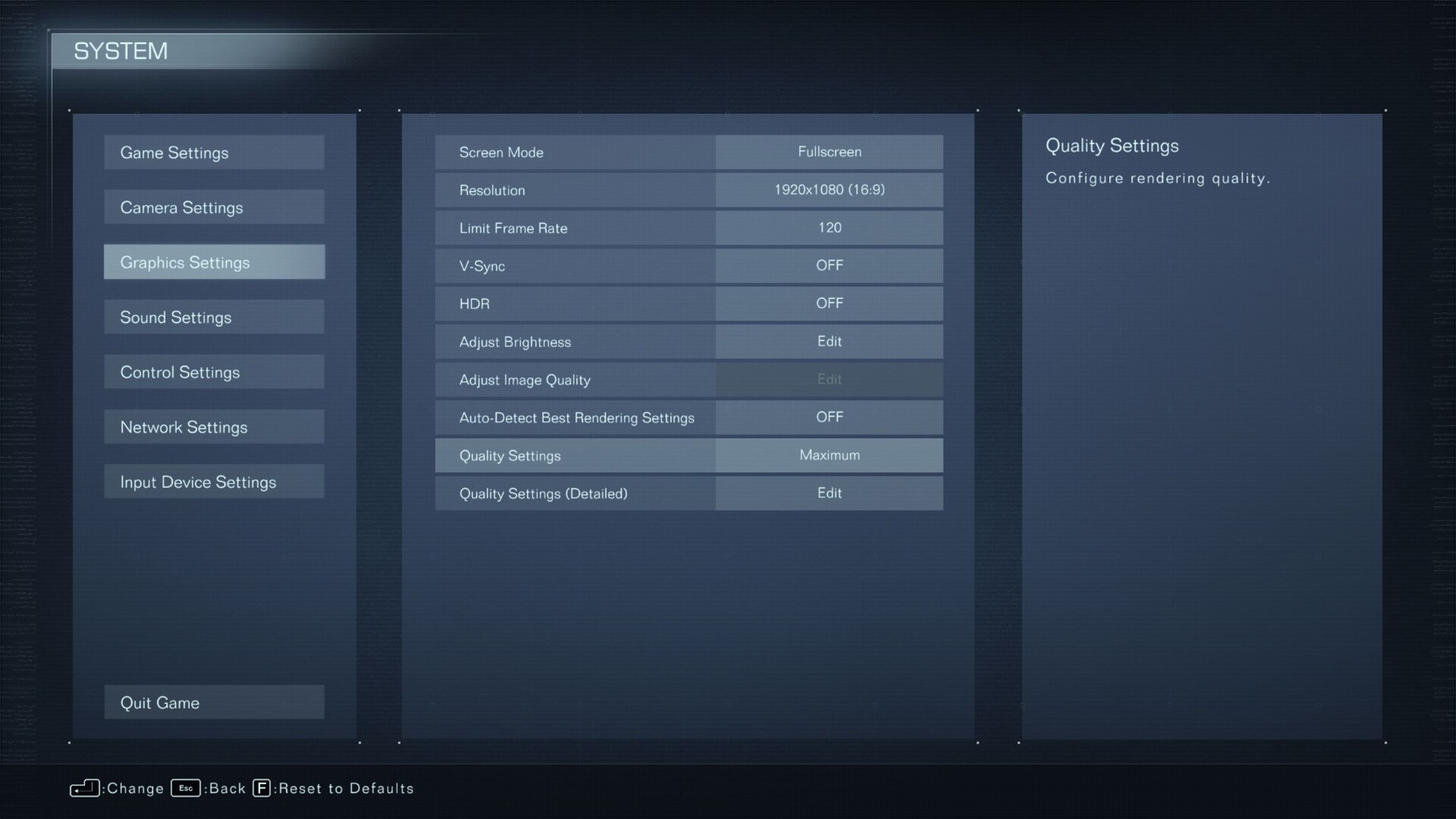

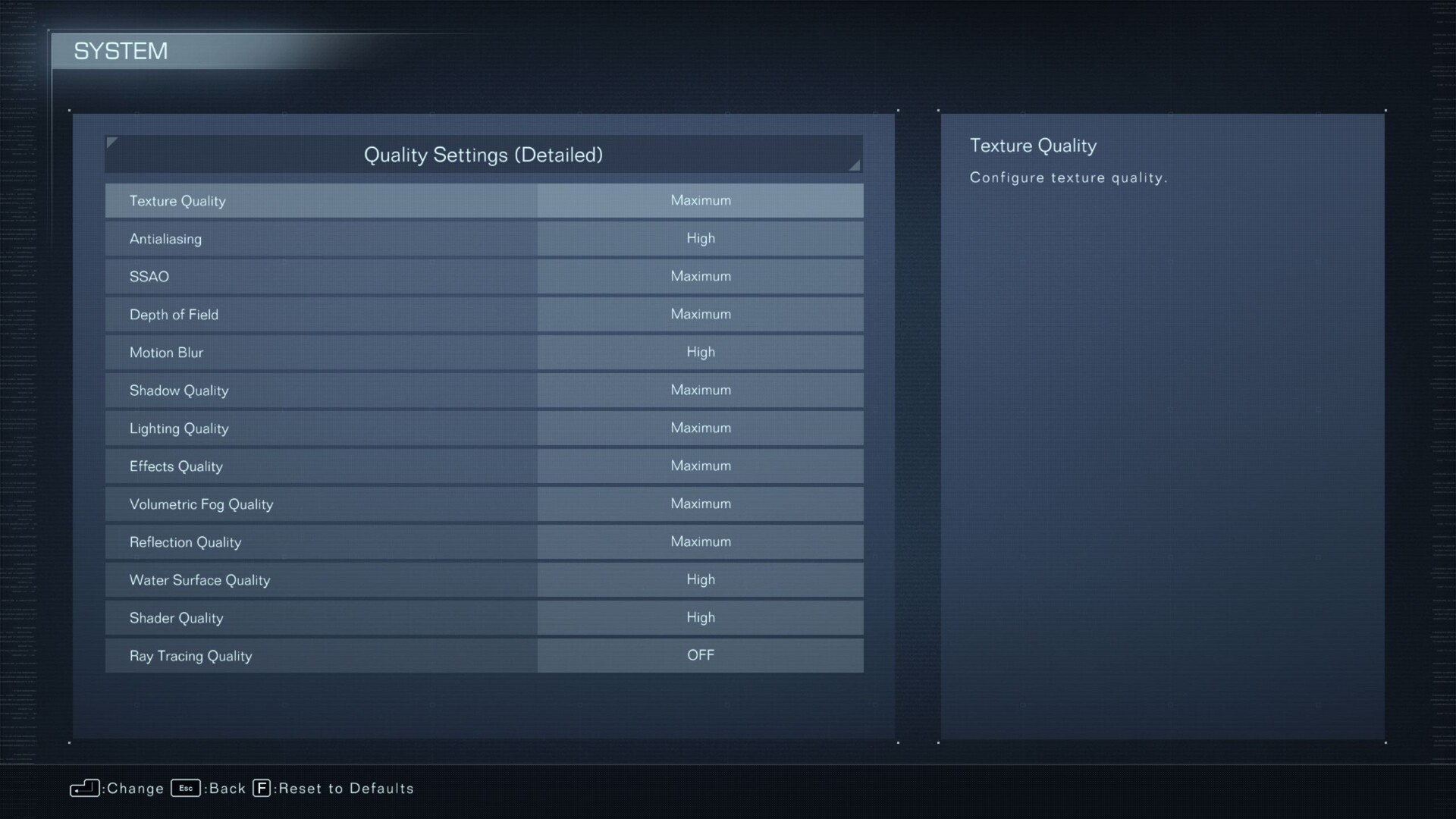

装甲核心 6》的图形菜单与《Elden Ring》的非常相似。主选项卡可让你调整屏幕模式、分辨率和帧速率限制（最高 120 FPS），并打开或关闭 V-Sync 和 HDR。质量设置 "选项提供了四个方便的预设值，可更改详细设置窗口中的几乎所有内容。光线追踪质量只适用于机械车库，是唯一不受质量预设影响的设置。

装甲核心 6
装甲核心 6

你找不到各个设置的对比图片，但至少游戏提供了简短的说明，解释了这些设置的作用。相比之下，更改任何设置后都无需重启游戏，这一点非常棒。游戏启动需要一段时间，因为它需要初始化反作弊功能，但其他方面的加载时间都还不错。游戏文件大小约为 60GB，对于一款现代游戏来说不算大也不算小。

基准

在基准序列中，我们使用了第一章中 "摧毁火炮设施 "任务的开头，该任务可在第一场 BOSS 战之后进入。正如您在下面的视频中看到的，我们让机甲沿着设定的路径飞行了大约 30 秒。我们使用 CapFrameX 记录了帧率。我们认为游戏在 40 FPS 以上的帧数都能正常运行，但要获得真正流畅的体验，至少需要 60 FPS。

成果


全高清（1,920 x 1,080）

游戏画面适中的一大优势是对 GPU 的要求不高。虽然 iGPU 如 Radeon 680M这样的 iGPU 可能只能在 720p 和最低设置下运行，而像RX 6800S或类似产品在 1080p 和超高设置下处理游戏应该不成问题。

Armored Core 6
    1920x1080 Low Preset     1920x1080 Medium Preset     1920x1080 High Preset     1920x1080 Maximum Preset
NVIDIA GeForce RTX 4080, i9-13900K
Desktop-PC Asus ROG Strix Z790-F
120 (79.5min, 93.4P0.1, 100P1) fps ∼100%
120 (85.7min, 95.5P0.1, 99.3P1) fps ∼100%
120 (84.7min, 95.3P0.1, 98P1) fps ∼100%
AMD Radeon RX 7900 XT, i9-13900K
Desktop-PC Asus ROG Strix Z790-F
118.8 (78.8min, 90.4P0.1, 96.2P1) fps ∼99%
118.9 (69.9min, 86.5P0.1, 97.7P1) fps ∼99%
118.7 (74.5min, 83.4P0.1, 97.6P1) fps ∼99%
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX
XMG Neo 17 E23
116.3 (77.5min, 78.9P0.1, 90.5P1) fps ∼97%
116.1 (71.7min, 74.3P0.1, 91.8P1) fps ∼97%
115.4 (50.9min, 69.6P0.1, 91.4P1) fps ∼96%
NVIDIA GeForce RTX 4080 Laptop GPU, i9-13900HX
Schenker Key 17 Pro E23
111.7 (8.35min, 41.1P0.1, 85.1P1) fps ∼93%
112.1 (7.53min, 78.4P0.1, 87.5P1) fps ∼93%
111.2 (62.5min, 71.1P0.1, 85.7P1) fps ∼93%
NVIDIA GeForce RTX 3080 Ti Laptop GPU, i9-12900H
Asus ROG Strix Scar 17 G733ZX
115.9 (50.4min, 76.9P0.1, 92.5P1) fps ∼97%
114.5 (10.6min, 23.1P0.1, 89.5P1) fps ∼95%
109.6 (20.3min, 46.5P0.1, 81.3P1) fps ∼91%
NVIDIA GeForce RTX 4070 Laptop GPU, i9-13900HX
XMG Pro 15 E23
109.7 (64.9min, 73.1P0.1, 80.8P1) fps ∼91%
109.2 (66.5min, 75.6P0.1, 83P1) fps ∼91%
106.4 (37.5min, 50P0.1, 79.5P1) fps ∼89%
NVIDIA GeForce RTX 4060 Laptop GPU, i9-13900HX
XMG Pro 15 E23
101.7 (55.5min, 59.2P0.1, 73.6P1) fps ∼85%
99.9 (15.1min, 44.2P0.1, 71.1P1) fps ∼83%
98 (47.1min, 55.1P0.1, 74.1P1) fps ∼82%
NVIDIA GeForce RTX 4050 Laptop GPU, i9-13900HX
XMG Focus 15 E23
105.2 (40.4min, 61.6P0.1, 76.6P1) fps ∼88%
99.8 (38.6min, 53.6P0.1, 72P1) fps ∼83%
87.8 (59.5min, 64.9P0.1, 69.8P1) fps ∼73%
NVIDIA GeForce RTX 3070 Ti Laptop GPU, i7-12700H
Acer Predator Helios 300 PH315-55
96.3 (53.2min, 58.4P0.1, 67.1P1) fps ∼80%
89.5 (14.9min, 38.4P0.1, 59P1) fps ∼75%
84.6 (13.4min, 21.2P0.1, 49.5P1) fps ∼71%
AMD Radeon RX 6800S, R9 6900HS
Asus ROG Zephyrus G14
95.4 (41.8min, 58.5P0.1, 69.6P1) fps ∼100%
90.4 (40.7min, 56.1P0.1, 66.3P1) fps ∼75%
84.7 (36.8min, 51P0.1, 62.5P1) fps ∼71%
71.8 (31.6min, 36.6P0.1, 56.3P1) fps ∼60%
AMD Radeon 680M, R9 6900HS
Asus ROG Zephyrus G14
32.3 (5.15min, 5.29P0.1, 21.6P1) fps ∼34%
31.4 (5.99min, 9.32P0.1, 21.8P1) fps ∼26%
30 (6.61min, 6.88P0.1, 19.7P1) fps ∼25%
25.3 (6.68min, 9.1P0.1, 20.1P1) fps ∼21%

QHD (2,560 x 1,440)

在 QHD 下，游戏的系统要求也在可控范围内。A GeForce RTX 4050已经足以在 1440p 和最高设置下提供约 60 FPS 的速度。

Armored Core 6
    2560x1440 Maximum Preset
NVIDIA GeForce RTX 4080, i9-13900K
Desktop-PC Asus ROG Strix Z790-F
119.9 (72.9min, 93.6P0.1, 98.2P1) fps ∼100%
AMD Radeon RX 7900 XT, i9-13900K
Desktop-PC Asus ROG Strix Z790-F
118.3 (62.7min, 81.1P0.1, 95.5P1) fps ∼99%
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX
XMG Neo 17 E23
114.7 (33min, 52.7P0.1, 86.1P1) fps ∼96%
NVIDIA GeForce RTX 4080 Laptop GPU, i9-13900HX
Schenker Key 17 Pro E23
107.1 (20.6min, 45.4P0.1, 77.1P1) fps ∼89%
NVIDIA GeForce RTX 3080 Ti Laptop GPU, i9-12900H
Asus ROG Strix Scar 17 G733ZX
88.6 (15.1min, 36.2P0.1, 63.9P1) fps ∼74%
NVIDIA GeForce RTX 4070 Laptop GPU, i9-13900HX
XMG Pro 15 E23
85 (31.7min, 61.6P0.1, 68.2P1) fps ∼71%
NVIDIA GeForce RTX 3070 Ti Laptop GPU, i7-12700H
Acer Predator Helios 300 PH315-55
74.5 (20.6min, 31.2P0.1, 47.4P1) fps ∼62%
NVIDIA GeForce RTX 4060 Laptop GPU, i9-13900HX
XMG Pro 15 E23
74.2 (39.7min, 48.1P0.1, 55.9P1) fps ∼62%
NVIDIA GeForce RTX 4050 Laptop GPU, i9-13900HX
XMG Focus 15 E23
61.8 (17.6min, 40.9P0.1, 50P1) fps ∼52%

超高清（3,840 x 2,160）

装甲核心 6》只有在 4K 下才会变得有些吃力。我们建议至少配备 GeForce RTX 4060或 RTX 4070如果您想在 4K 和最大预设值下玩游戏，我们建议您至少配备 RTX 4060 或 RTX 4070。

Armored Core 6
    3840x2160 Maximum Preset
NVIDIA GeForce RTX 4080, i9-13900K
Desktop-PC Asus ROG Strix Z790-F
106.8 (63.5min, 80.1P0.1, 86.1P1) fps ∼100%
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX
XMG Neo 17 E23
92 (14.4min, 18.1P0.1, 67.9P1) fps ∼86%
AMD Radeon RX 7900 XT, i9-13900K
Desktop-PC Asus ROG Strix Z790-F
84.7 (53.8min, 61.7P0.1, 69.6P1) fps ∼79%
NVIDIA GeForce RTX 4080 Laptop GPU, i9-13900HX
Schenker Key 17 Pro E23
70.2 (4.6min, 8.62P0.1, 49P1) fps ∼66%
NVIDIA GeForce RTX 3080 Ti Laptop GPU, i9-12900H
Asus ROG Strix Scar 17 G733ZX
55.5 (13.1min, 15.1P0.1, 42.6P1) fps ∼52%
NVIDIA GeForce RTX 3070 Ti Laptop GPU, i7-12700H
Acer Predator Helios 300 PH315-55
47.6 (25.3min, 25.8P0.1, 33.3P1) fps ∼45%
NVIDIA GeForce RTX 4070 Laptop GPU, i9-13900HX
XMG Pro 15 E23
45.2 (18.5min, 32.1P0.1, 37.8P1) fps ∼42%
NVIDIA GeForce RTX 4060 Laptop GPU, i9-13900HX
XMG Pro 15 E23
40.1 (7.15min, 7.77P0.1, 29.8P1) fps ∼38%
NVIDIA GeForce RTX 4050 Laptop GPU, i9-13900HX
XMG Focus 15 E23
29.2 (1.168min, 1.251P0.1, 25.4P1) fps ∼27%

备注

由于游戏测试非常耗时，而且经常受到安装或激活限制，因此在发布本文时，我们只能为您提供部分基准测试结果。我们将在未来几天或几周内添加更多显卡。

Overview

Show Restrictions
PosModel< PrevNext >Armored Core 6
 Armored Core 6 (2023)
low
1920x1080
Low Preset
med.
1920x1080
Medium Preset
high
1920x1080
High Preset
ultra
1920x1080
Maximum Preset
QHD
2560x1440
Maximum Preset
4K
3840x2160
Maximum Preset
NVIDIA GeForce RTX 4090
119.8n2
119.75n2
119.8n2
119.7n2
119.7n2
119.6n2
AMD Radeon RX 7900 XTX
120
119.9
119.9
119.9
119.9
103.1
NVIDIA GeForce RTX 4080 Super
119.7
119.9
119.8
119.9
114.1
110.2
NVIDIA GeForce RTX 4080
120
120
120
119.9
106.8
AMD Radeon RX 7900 XT
118.8
118.9
118.7
118.3
84.7
AMD Radeon RX 6950 XT
119.7
119.7
119.9
119.6
115
78.6
NVIDIA GeForce RTX 4090 Laptop GPU
116.3
112.7n2
109.45n2
103.35n2
92
NVIDIA GeForce RTX 3090
119.6n2
119.7n2
119.7n2
119.65n2
119.5n2
83.65n2
AMD Radeon RX 7800 XT
119.6
119.6
119.5
119.7
119.7
70.6
NVIDIA GeForce RTX 4080 Laptop GPU
111.7
112.1
111.2
107.1
70.2
NVIDIA GeForce RTX 3080 12 GB
119.9
119.9
119.7
118.7
73.9
AMD Radeon RX 6800
119.8
119.8
118.9
108.8
93.3
58.8
AMD Radeon RX 7700 XT
119.5
118.9
116.8
106.4
84.3
51.5
NVIDIA Titan RTX
119.7
119.6
119.5
119.1
100.7
60.5
NVIDIA GeForce RTX 3070 Ti
119.6
119.6
119.6
119.3
109.8
66.2
NVIDIA GeForce RTX 4060 Ti 16G
119.4
119.1
119.2
118.8
94.1
50
NVIDIA GeForce RTX 4060 Ti 8G
119.7
119.4
119.5
119.4
97.5
51.2
NVIDIA GeForce RTX 3080 Ti Laptop GPU
115.9
114.5
109.6
88.6
55.5
NVIDIA GeForce RTX 4070 Laptop GPU
106.1n4
105.55n4
101.7n4
80.6n2
45.2
PosModel< PrevNext >Armored Core 6
low med. high ultra QHD 4K
NVIDIA GeForce RTX 3070
119.9
119.8
119.8
98.2
58.3
AMD Radeon RX 6750 XT
119.7
118.6
113.4
99.6
79.2
49.6
AMD Radeon RX 6700 XT
119.8
117.5
112
95
77.1
47.6
NVIDIA GeForce RTX 3080 Laptop GPU
103.2
88.8
54
NVIDIA GeForce RTX 3060 Ti
119.6
119.3
119.5
118
92.5
53.2
Intel Arc A770
71.6
69.3
68
67.9
66.9
46.7
AMD Radeon RX 7600
119.8
118.4
114.6
100.7
74.5
40.6
NVIDIA GeForce RTX 3070 Ti Laptop GPU
96.3
89.5
84.6
74.5
47.6
NVIDIA GeForce RTX 4060 Laptop GPU
111.1
104.5n3
103.1n3
98n3
74.2n3
40.1
AMD Radeon RX 6650 XT
119.7
114.8
108.4
91.7
68.8
38.6
NVIDIA GeForce RTX 3070 Laptop GPU
104.3
102.4
101.1
96.3
76.6
44.6
AMD Radeon RX 6800S
95.4
90.4
84.7
71.8
AMD Radeon RX 7600M XT
114.4
98.4
91.5
59.2
77.9
34.4
Intel Arc A750
75
73.9
71.5
70.4
65.7
41.6
NVIDIA Titan X Pascal
119.6
118.7
115.5
99.2
75.1
45.6
NVIDIA GeForce RTX 2070 Super (Desktop)
119.6
119.5
115.8
99.5
73.1
43.1
AMD Radeon RX 5700 XT (Desktop)
119.6
108.4
82
64.7
38.8
AMD Radeon RX 7600M
84.1
78.6
63.9
52.9
31.1
AMD Radeon RX 7600S
99.7
90.6
75.8
57.9
31.9
Intel Arc A580
106.7
101.5
94.8
82.8
63.8
37.9
PosModel< PrevNext >Armored Core 6
low med. high ultra QHD 4K
NVIDIA GeForce RTX 2060 Super (Desktop)
119.5
115.7
107.3
88.6
65.6
37.9
AMD Radeon RX 6600
119.1
104.6
94.7
77.1
56.2
30.2
AMD Radeon RX 5700 (Desktop)
115
97.2
87.9
74.2
56.6
33.9
AMD Radeon RX 6600M
74.9
72.6
69
68.9
52.3
31.2
AMD Radeon RX 5600 XT (Desktop)
106
84.4
76.6
65.2
51
27.8
NVIDIA GeForce GTX 1660 Super (Desktop)
115.3
97.2
85.5
68.5
49.5
20.4
AMD Radeon RX 6500 XT
89.6
69.3
58.7
35.3
20
10.7
AMD Radeon RX 5500 XT (Desktop)
87.6
69.3
62.1
50.8
37.5
21.9
NVIDIA GeForce RTX 4050 Laptop GPU
102.8
103.8n3
98.9n3
87.1n3
61.6n2
29.2
Intel Arc A730M
70.9
64.3
63.9
58.5
25.2
NVIDIA GeForce GTX 1660 Ti Mobile
69.3
67.5
64.2
60.4
NVIDIA GeForce GTX 1660 (Desktop)
103
80.9
74.1
54.8
60.5
18.9
NVIDIA GeForce GTX 1650 Super (Desktop)
94.2
75.8
68.3
28.7
22.8
12.3
NVIDIA GeForce RTX 3050 4GB Laptop GPU
80.1
63
53.7
41.8
NVIDIA GeForce GTX 1650 Ti Mobile
68.2
58.6
51.4
41
AMD Radeon RX 5500M
47.9
47
45.3
37.4
NVIDIA GeForce RTX 2050 Mobile
42.6
35.9
32
29.6
NVIDIA GeForce GTX 1650 Mobile
64.5
54.4
41.7
21.3
Intel Arc A380
69.9
55.1
47.4
37.2
Intel Arc A310
56.3
43.8
39
26.9
PosModel< PrevNext >Armored Core 6
low med. high ultra QHD 4K
Intel Arc 8-Cores iGPU
50
40.1
36.2
32.2
Intel Arc 7-Cores iGPU
39.7
32.6
28.5
23.5
AMD Radeon 780M
50.3
41.2
36.7
30.3
AMD Radeon 680M
32.3
31.4
30
25.3
NVIDIA GeForce MX350
18.9
14.9
9.89
NVIDIA GeForce MX250
13.7
10.2
Intel Iris Xe Graphics G7 80EUs
27.8
23
20.2
15.5
11.2
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
14.6
11.9
AMD Radeon RX Vega 10
19.1
15.1
13.6
10.7
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
22.8
17.5
14.7
Intel UHD Graphics 770
21.8
16.9
14.2
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22.8
16.8
15.2
11.2
AMD Radeon RX Vega 6 (Ryzen 4000/5000)
20.8
15.8
13.9
10.7
Intel UHD Graphics G1 (Ice Lake 32 EU)
6.87
Intel UHD Graphics 630
9.76
Intel UHD Graphics Xe 16EUs (Tiger Lake-H)
10.1
Intel UHD Graphics 620
8.19
AMD Radeon R5 M255
4.46
AMD Radeon RX Vega 3
11.4
(-) * Smaller values are better. / n123 Number of benchmarks for this median value / * Approximate position



Legend
5Stutters – This game is very likely to stutter and have poor frame rates. Based on all known benchmarks using the specified graphical settings, average frame rates are expected to fall below 25fps
May Stutter – This graphics card has not been explicitly tested on this game. Based on interpolated information from surrounding graphics cards of similar performance levels, stutters and poor frame rates are expected.
30Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 25fps
40Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 35fps
60Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 58fps
May Run Fluently – This graphics card has not been explicitly tested on this game. Based on interpolated information from surrounding graphics cards of similar performance levels, fluent frame rates are expected.
?Uncertain – This graphics card experienced unexpected performance issues during testing for this game. A slower card may be able to achieve better and more consistent frame rates than this particular GPU running the same benchmark scene.
Uncertain – This graphics card has not been explicitly tested on this game and no reliable interpolation can be made based on the performances of surrounding cards of the same class or family.
The value in the fields displays the average frame rate of all values in the database. Move your cursor over the value to see individual results.

All test systems

笔记本 显卡 处理器 内存
XMG Neo 17 E23 NvidiaGeForce RTX 4090 @175 W TGP (16 GB GDDR6X) Intel Core i9-13900HX 2 x 16 GB DDR5
Schenker Key 17 Pro E23 NvidiaGeForce RTX 4080 @175 W TGP (12 GB GDDR6X) Intel Core i9-13900HX 2 x 16 GB DDR5
XMG Pro 15 E23 NvidiaGeForce RTX 4070 @140 W TGP (8 GB GDDR6) Intel Core i9-13900HX 2 x 16 GB DDR5
XMG Pro 15 E23 NvidiaGeForce RTX 4060 @140 W TGP (8 GB GDDR6) Intel Core i9-13900HX 2 x 16 GB DDR5
XMG Focus 15 E23 NvidiaGeForce RTX 4050 @140 W TGP (6 GB GDDR6) Intel Core i9-13900HX 2 x 16 GB DDR5
华硕 ROG Strix Scar 17 NvidiaGeForce RTX 3080 Ti @150 W TGP (16 GB GDDR6) Intel Core i9-12900H 2 x 16 GB DDR5
Acer Predator Helios 300 NvidiaGeForce RTX 3070 Ti @150 W TGP (8 GB GDDR6) Intel Core i7-12700H 2 x 8 GB DDR5
华硕 ROG Zephyrus G14 AMD Radeon RX 6800S (8 GB GDDR6) & AMD Radeon 680M AMD Ryzen 9 6900HS 2 x 16 GB DDR5
塔式电脑 显卡 处理器 内存
定制 I / 华硕 ROG Strix Z790-F / G.Skill Trident Z5 RGB NvidiaGeForce RTX 4080 (16 GB GDDR6X)
AMD Radeon RX 7900 XT (20 GB GDDR6)		 Intel Core i9-13900K 2 x 24 GB DDR5
Custom II PalitGeForce RTX 4090 GameRock OC (24 GB GDDR6X)
Nvidia GeForce RTX 3090 FE (24 GB GDDR6X)
Nvidia GeForce RTX 3060 Ti (8GB GDDR6X)
Nvidia Titan RTX (24GB GDDR6)
NvidiaGeForce RTX2070 Super (8 GB GDDR6)
Nvidia GeForce RTX 2060 Super (8GB GDDR6)
KFA2 GeForce GTX 1660 Super (6GB GDDR6)
PNY GeForce GTX 1660 (6 GB GDDR5)
KFA2 GeForce GTX 1650 Super (4GB GDDR6)
AMD RadeonRX 6950 XT (16 GB DDR6)
AMD Radeon RX 6800 (16 GB DDR6)
AMD Radeon RX 6700 XT (12GB DDR6)
AMD Radeon RX 6650 XT (8GB GDDR6)
AMD Radeon RX 6600 (8GB GDDR6)
AMDRadeon RX 5700 XT (8 GB GDDR6)
AMD Radeon RX5700 (8GB GDDR6)
AMD Radeon RX 5600 XT (6GB GDDR6)
AMD Radeon RX 5500 XT (8GB GDDR6)		 AMD Ryzen 9 7950X 2 x 16 GB DDR5
Mini-PC 显卡 处理器 内存
Minisforum NUCXi7 NvidiaGeForce RTX 3070 @125 W TGP (8 GB GDDR6) Intel Core i7-11800H 2 x 8 GB DDR4
Minisforum HX99G AMD Radeon RX 6600M @100 W TGP (8 GB GDDR6) AMD Ryzen 9 6900HX 2 x 16 GB DDR5
Morefine S500+ AMD Radeon RX Vega 8 AMD Ryzen 9 5900HX 2 x 16 GB DDR4
4K 显示器 操作系统 Nvidia 驱动程序 AMD 驱动程序
技嘉 M32U Windows 11 ForceWare 537.13 Adrenalin 28.8.1
Please share our article, every link counts!
> Notebookcheck中文版（NBC中国） > 评测 > 装甲核心 6：卢比肯之火》技术评测：笔记本电脑和台式机基准测试
Florian Glaser, 2023-09- 5 (Update: 2023-09- 5)
