结论 - 性能卓越，功能实用
戴尔 Pro Max 16 Plus 与上一代Precision 7680 或 7670.除了预期的性能提升外，改款机型还增加了旧款机型没有的功能，包括 120 Hz OLED、用于维修的模块化 USB-C 端口、PCIe5 SSD 选项、雷电 5 支持、紧凑型 USB-C 充电和更高分辨率的网络摄像头。可以说，这些改进超过了厚度和占地面积的小幅增加。

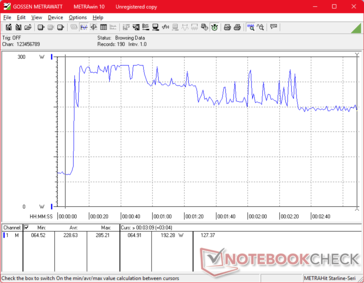

缺点一般不大。与Precision 7680 的 240 瓦或更低的功耗相比，现在的功耗比以前更高，高达 280 瓦。因此，Pro Max 16 Plus 的性能固然更强，但对散热解决方案的要求也更高，电池寿命整体缩短。特别是 CPU 温度，在受压时可达到 95 C 至 105 C，从而影响系统的 Turbo Boost 性能。因此，同样的 CPU 和 GPU 在 18 英寸 Pro Max 18 Plus 等更厚或更大的机型上可能会运行得更快。Pro Max 16 Plus 系统是目前速度最快、最实用的工作站之一，尽管存在散热解决方案方面的限制。
Pros
+ 快速、可移动的 CAMM2 内存和显卡

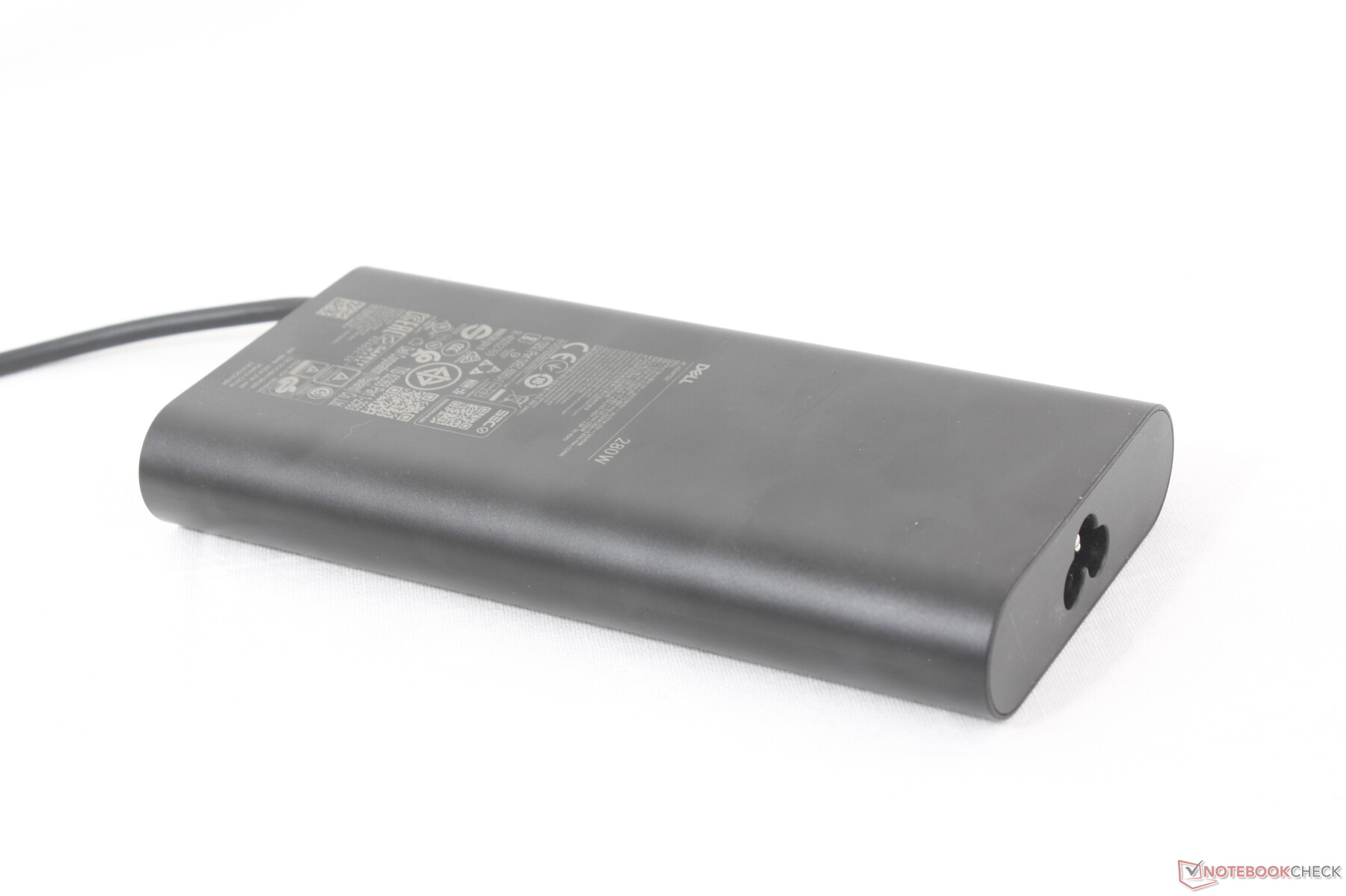

+ 便携式 280 瓦 USB-C AC 适配器
+ 4K 120 Hz OLED 触摸屏
+ 兼容雷电 5
+ 易于维修的 USB-C 端口
Cons

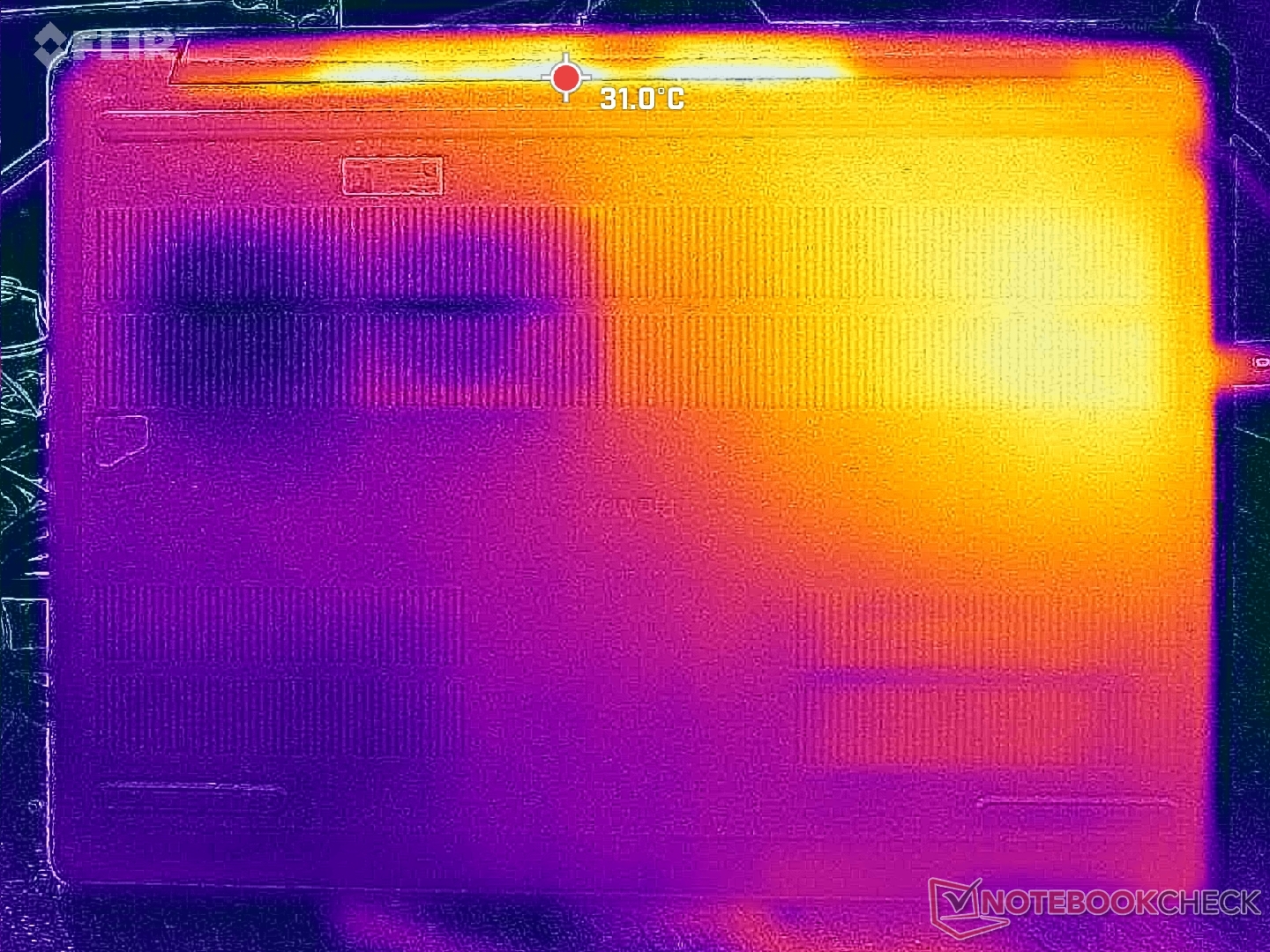

- 负载时 CPU 温度很高
- 功耗高；电池寿命有限
- 比上一代机型厚
- 昙花一现的最大 Turbo Boost
- 没有 ECC 内存选项
价格和供应情况
戴尔现已出货Pro Max 16 Plus，基础 Core Ultra 7、RTX Pro 1000 配置的起价为 3700 美元。配备 RTX Pro 5000 Blackwell 的 Core Ultra 9 尚未广泛上市。
$1,699.99
Dell Inspiron 16 Plus Laptop - Intel 16-Core Ultra 7 155H, NVIDIA GeForce RTX 4060, 16" 2.5K 120Hz Anti-Glare Screen, Backlit Keyboard, Windows 11 Pro OS for Business Work, 32GB DDR5 + 1TB SSD
- $5.90JuYuish Keyboard Skin Compatible for Dell Pro 16/16 Plus PC16250 PC16255 PB16255 PB16250, Dell Pro Max 16/16 Plus / 18 Plus MC16255 MC16250 MB16250 MB18250 Laptop with Numeric Keypad (Clear)
- $1,414.95Dell Pro 16 Plus PB16250 (Replaces Latitude 5550) Business Notebook 16" FHD+ Intel Ultra 7-265U, 32GB DDR5 RAM, 1TB NVMe, Wi-Fi 6E, BT, Backlit Keyboard, HD Webcam, RJ-45, Win 11 Pro

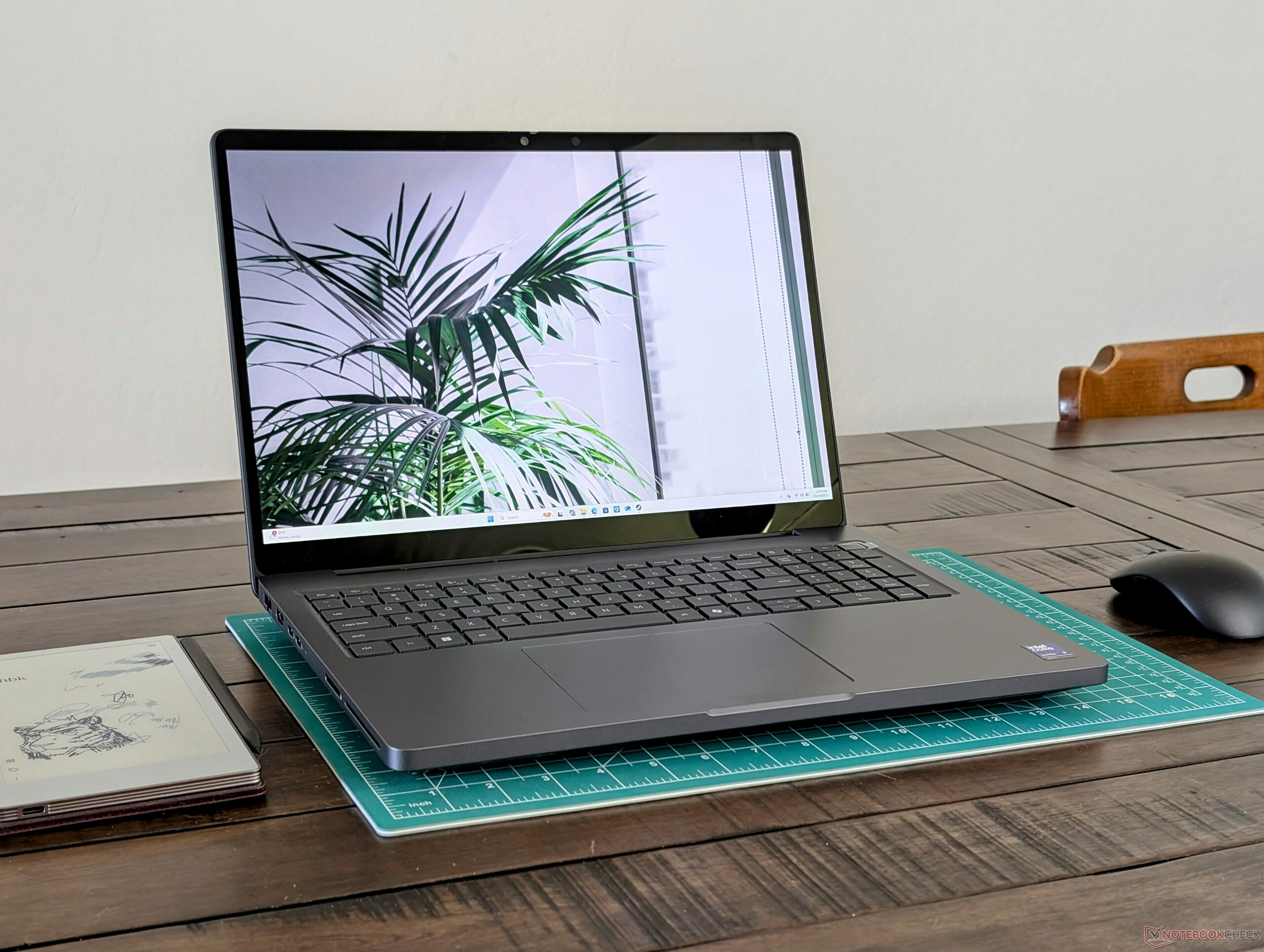

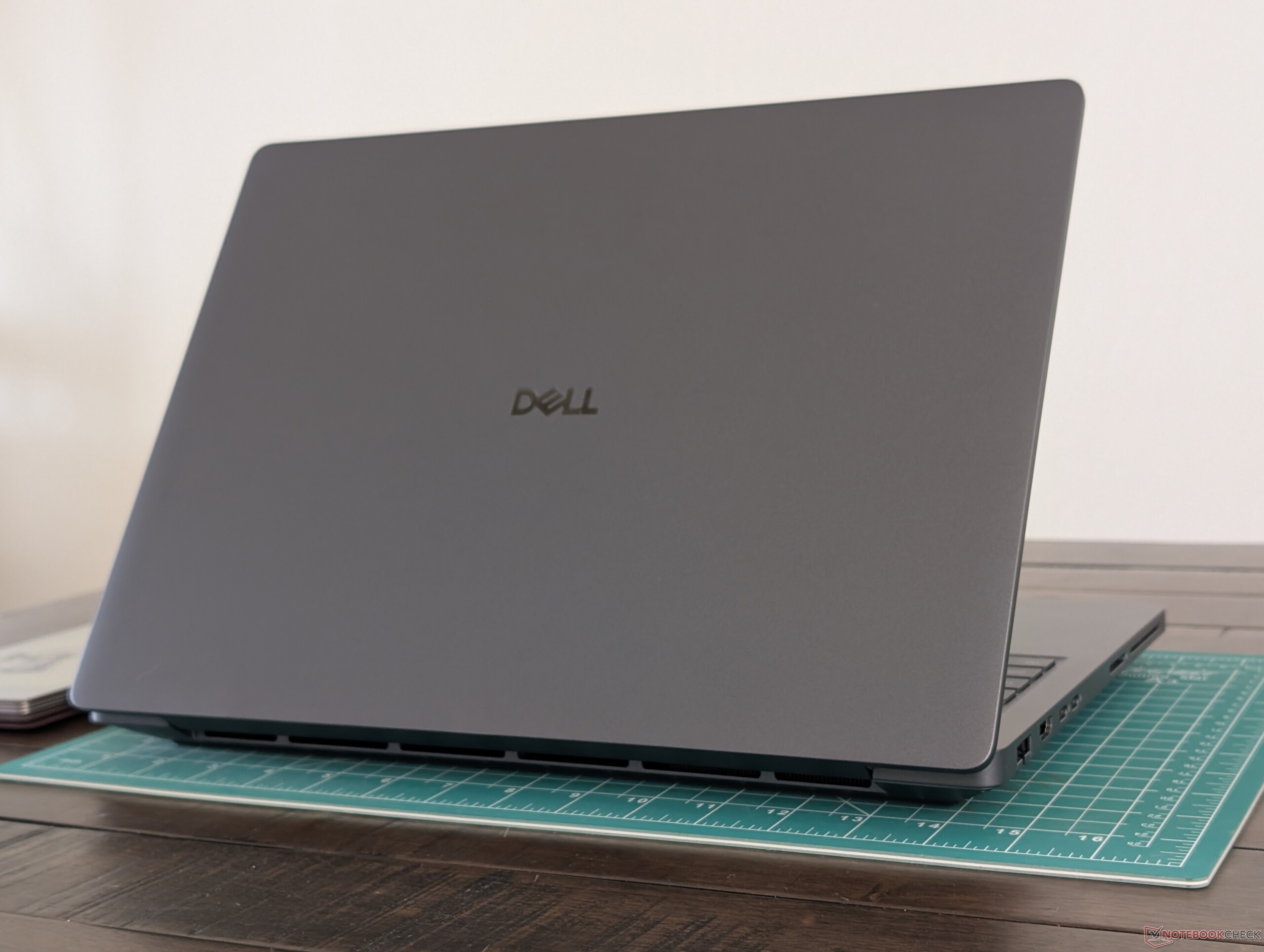

戴尔 Pro Max 16 Plus 是该制造商继上一代Precision 7680 系列之后推出的最新 16 英寸移动工作站。因此，它是一款高端工作站，配备了先进的处理器和功能，包括英特尔 Arrow Lake-HX CPU、Nvidia Pro Blackwell GPU，并兼容 DGFF 和 CAMM2 模块等专用硬件。
我们的测试机是最高端的配置，配备酷睿至尊 9 285HX、RTX Pro 5000 Blackwell、4K UHD 120 Hz OLED 触摸屏、2 TB PCIe5 固态硬盘和 128 GB CAMM2 内存，价格约为 5000 美元。较少的 SKU 从酷睿 Ultra 5 245HX、16 GB CSoDIMM、集成显卡和基本的 FHD+ 非触摸显示屏开始，价格约为 3700 美元。
该领域的替代产品包括其他以性能为导向的 16 英寸工作站，如 微星 CreatorPro Z16P, 联想 ThinkPad P16 Gen 2或 惠普 ZBook Studio 16.
更多戴尔评论：

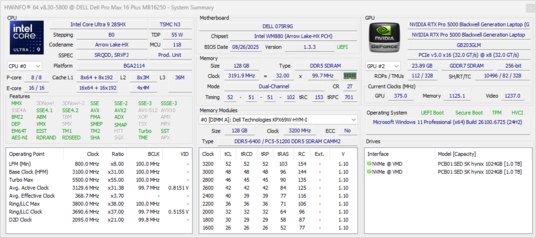

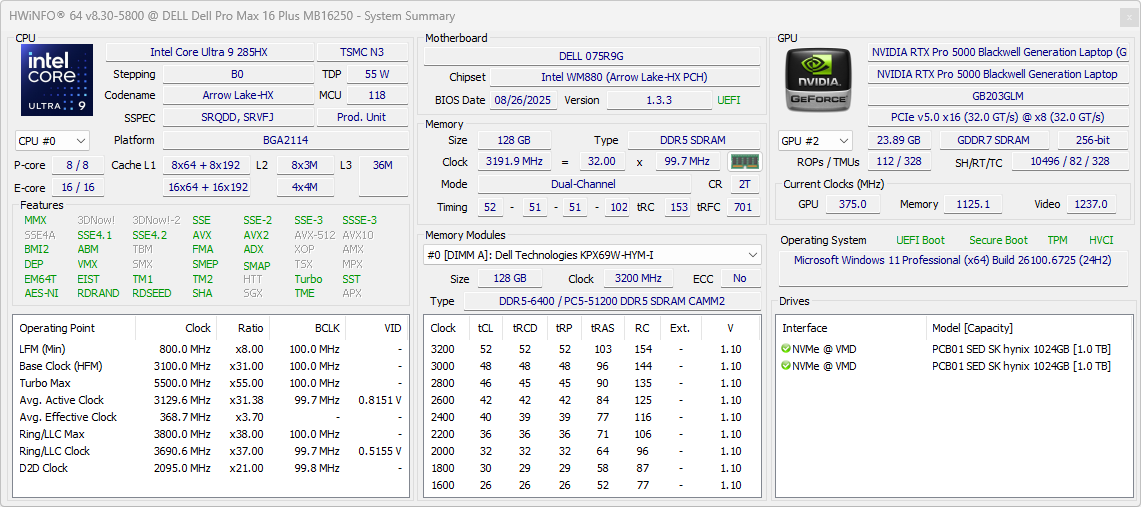

规格
Dell Pro Max 16 Plus (Pro 16 Series)
Processor
Intel Core Ultra 9 285HX 24 x 2.1 - 5.5 GHz, 159 W PL2 / Short Burst, 90 W PL1 / Sustained, Arrow Lake-HX
Graphics adapter
Nvidia RTX PRO 5000 Blackwell Generation Laptop - 24 GB VRAM, Core: 1807 MHz, RAM: 1750 MHz, 175 W TDP, GDDR7, 581.15, Optimus

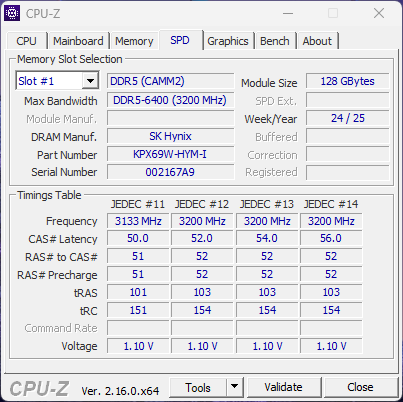

Memory
128 GB
, DDR5-6400, CAMM2, SK Hynix
Display
16.00 inch 16:10, 3840 x 2400 pixel 283 PPI, 10-point capacitive, Samsung 160HC01, OLED, Dell P/N: PT6M8, glossy: yes, HDR, 120 Hz
Mainboard
Intel WM880 (Arrow Lake-HX PCH)
Storage
SK hynix PCB01 HFS001TFM9X186N
Weight
2.845 kg, Power Supply: 755 g
Price
5000 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

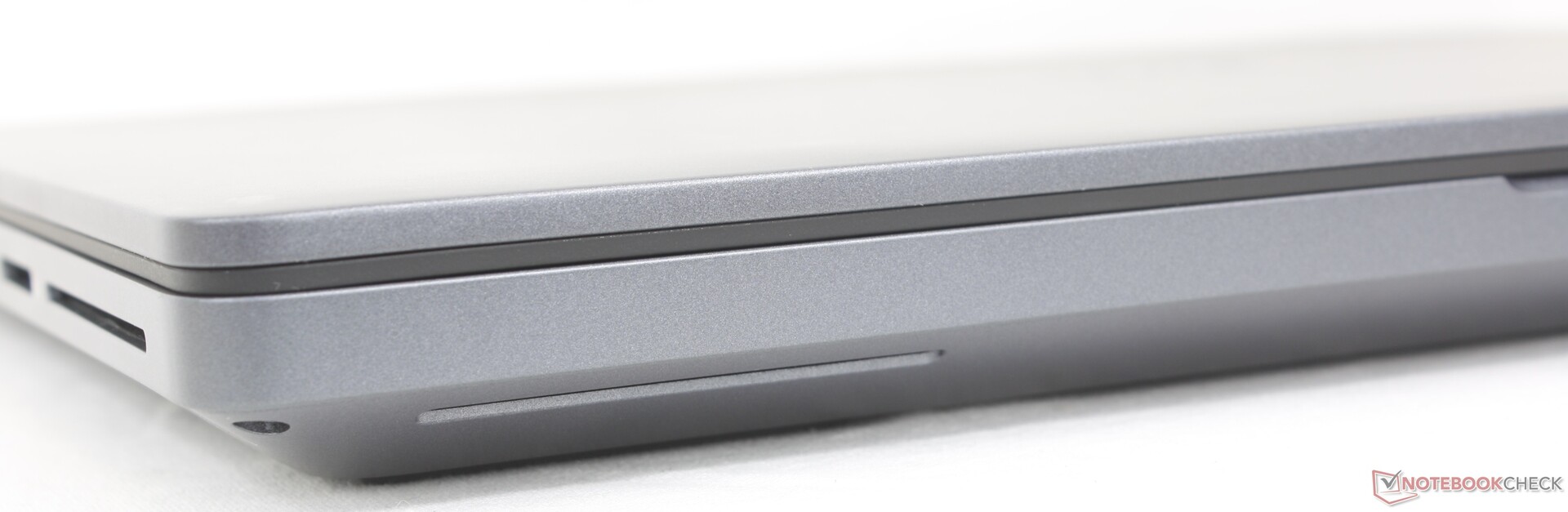

案例

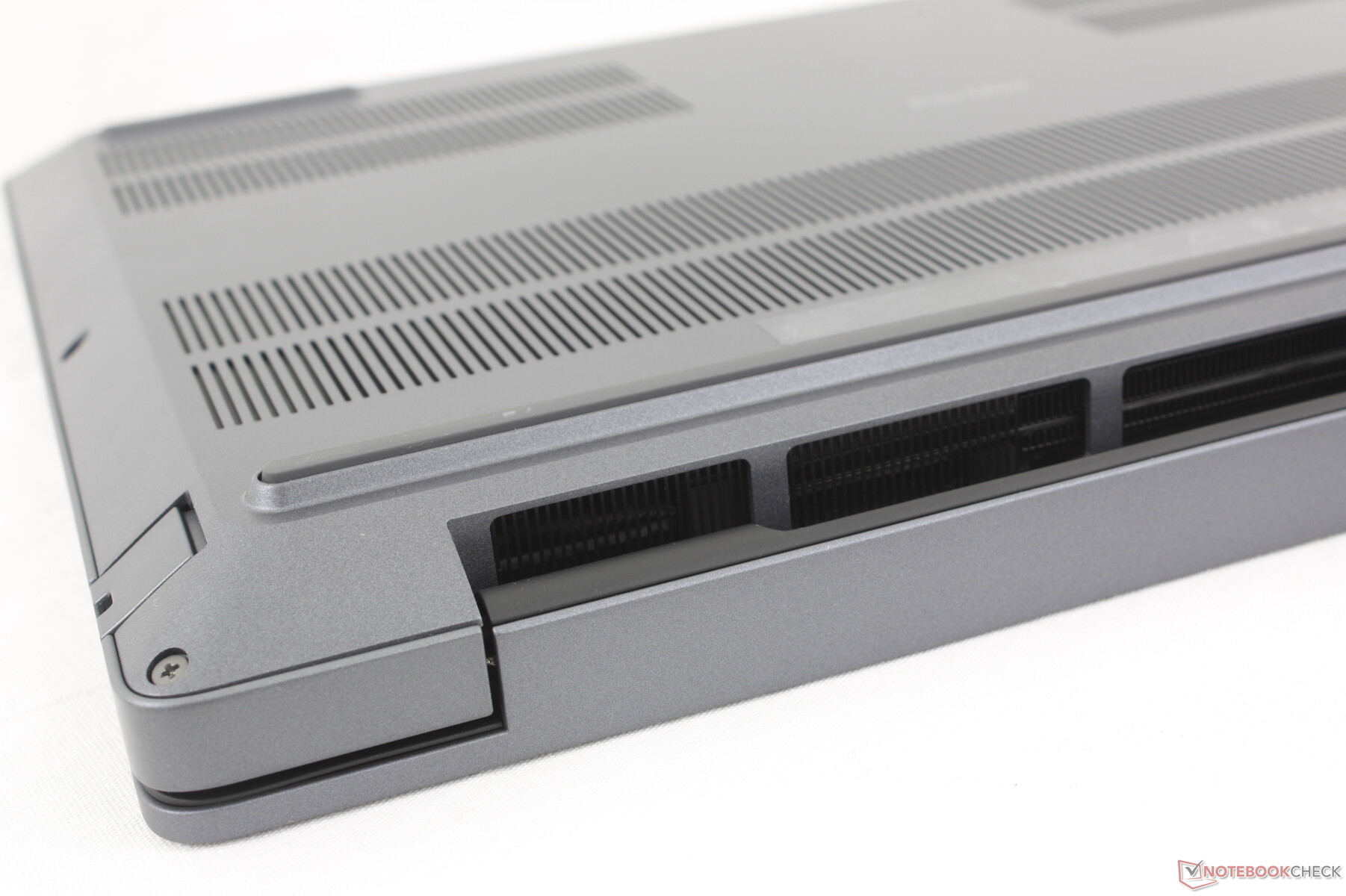

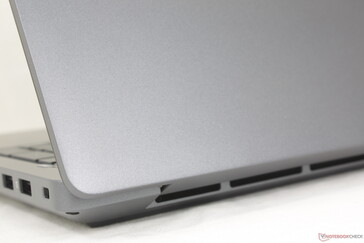

实际上，该机型比已有 4 年历史的Precision 7670 稍微大了一些，也厚了一些。即便如此，扎实的制造质量以及 CAMM2、DGFF 和模块化 USB-C 接口可修复性等专业功能，可以说更大的尺寸还是值得投资的。

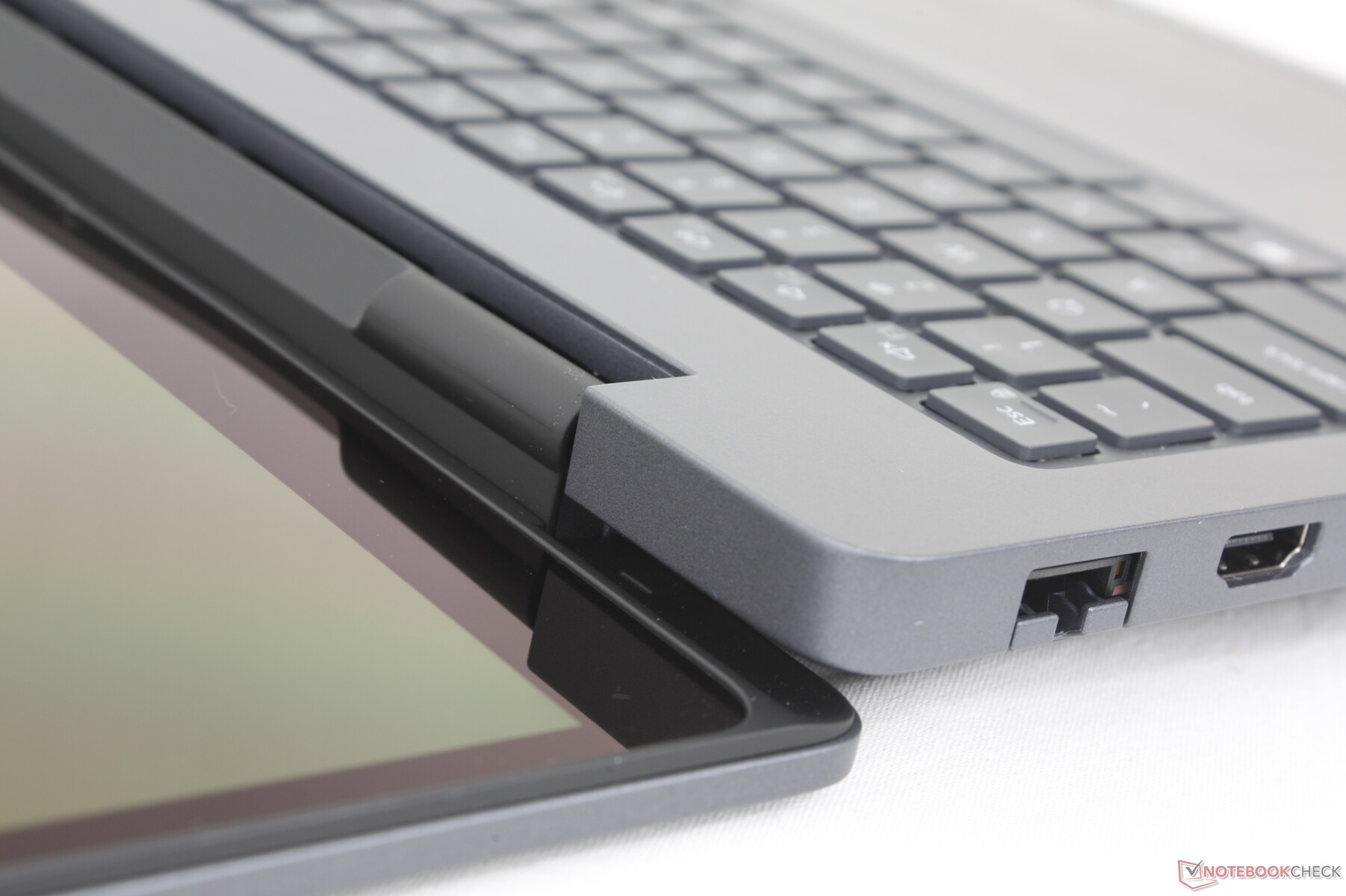

连接性

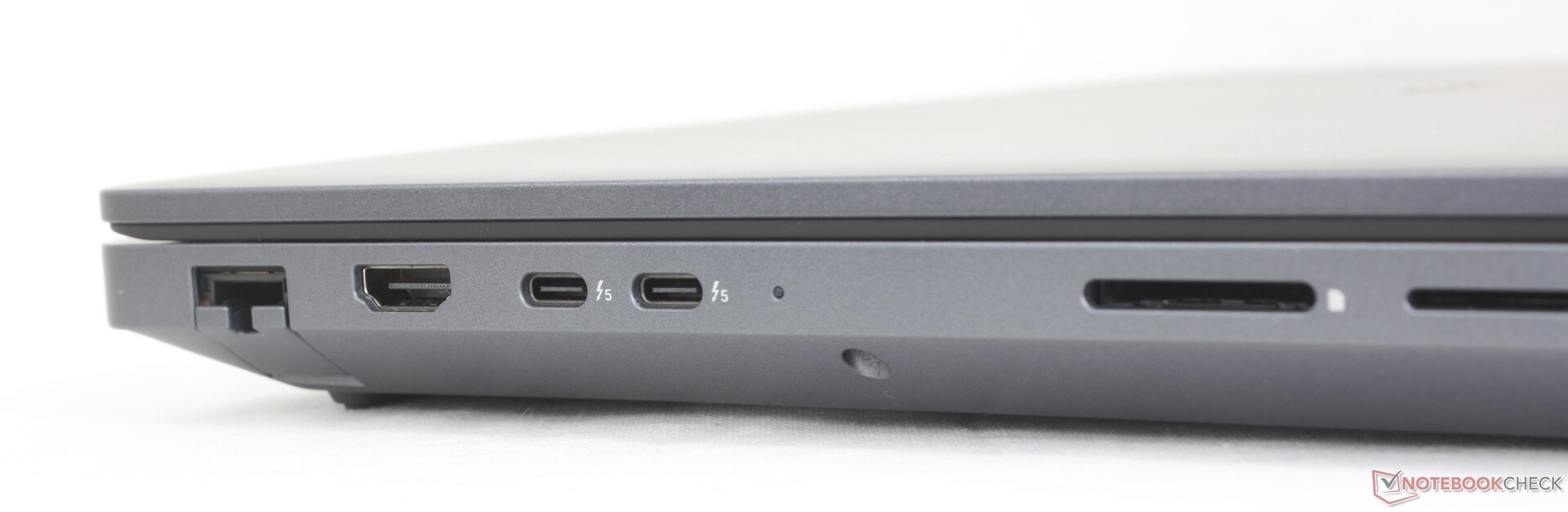

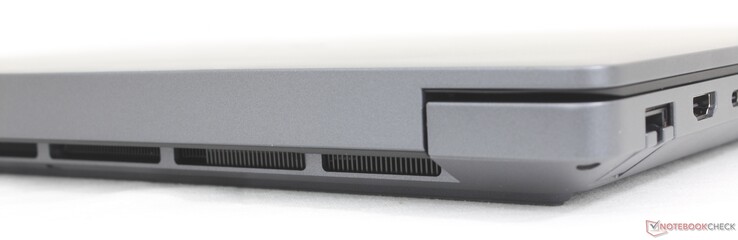

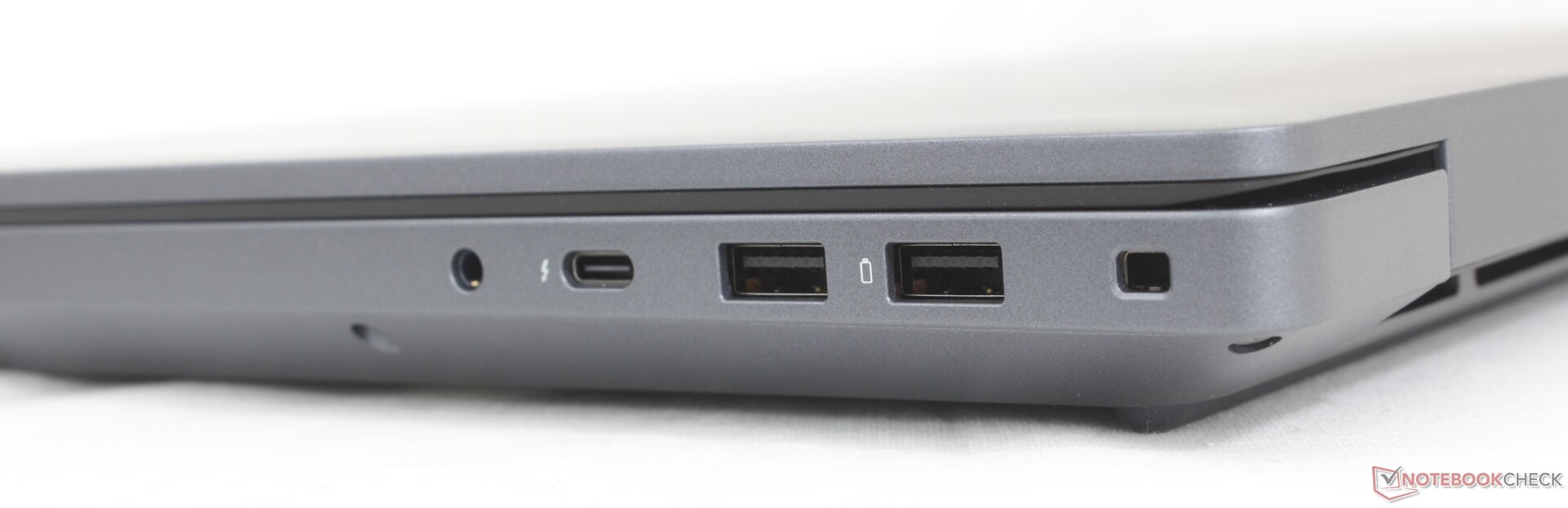

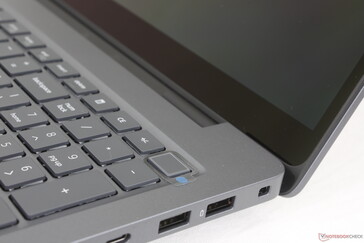

端口选项与Precision 7680 基本相同，但有一些重要变化。例如，Pro Max 16 Plus 取消了专用的交流适配器桶状端口，这意味着三个 USB-C 端口中几乎总有一个用于充电。同时，标准配置的 Thunderbolt 5 可提供更先进的对接功能。

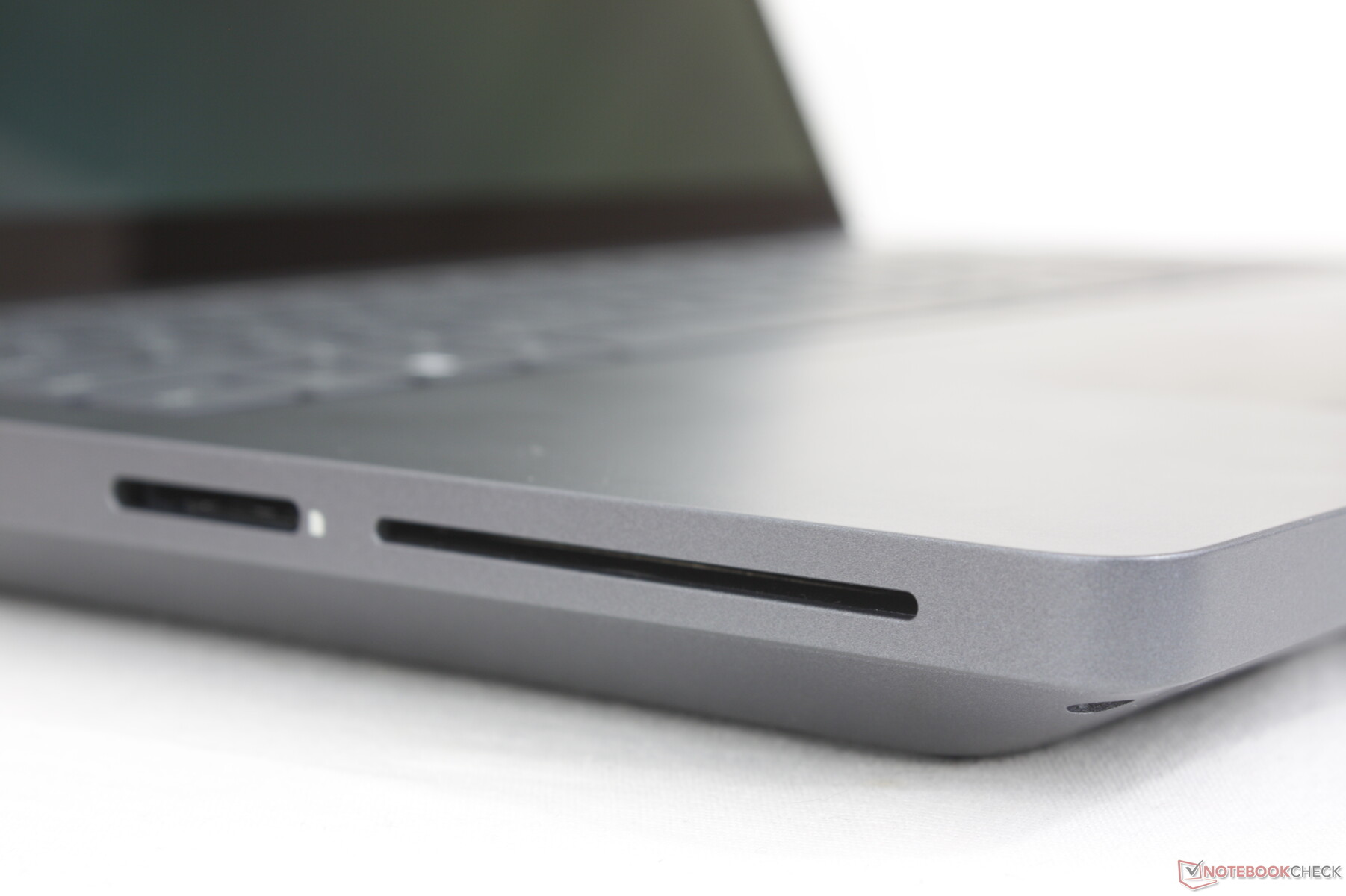

SD 读卡器
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Dell Precision 5000 5680 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad P16 Gen 2 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| MSI CreatorPro Z16P B12UKST (AV Pro V60) | |
| Dell Pro Max 16 Plus (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE (AV Pro V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Dell Precision 5000 5680 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Dell Pro Max 16 Plus (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE (AV Pro V60) | |
| Lenovo ThinkPad P16 Gen 2 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| MSI CreatorPro Z16P B12UKST (AV Pro V60) | |
交流
Dell Pro Max 16 Plus; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø801 (612-933)
Dell Pro Max 16 Plus; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1196 (1003-1326)

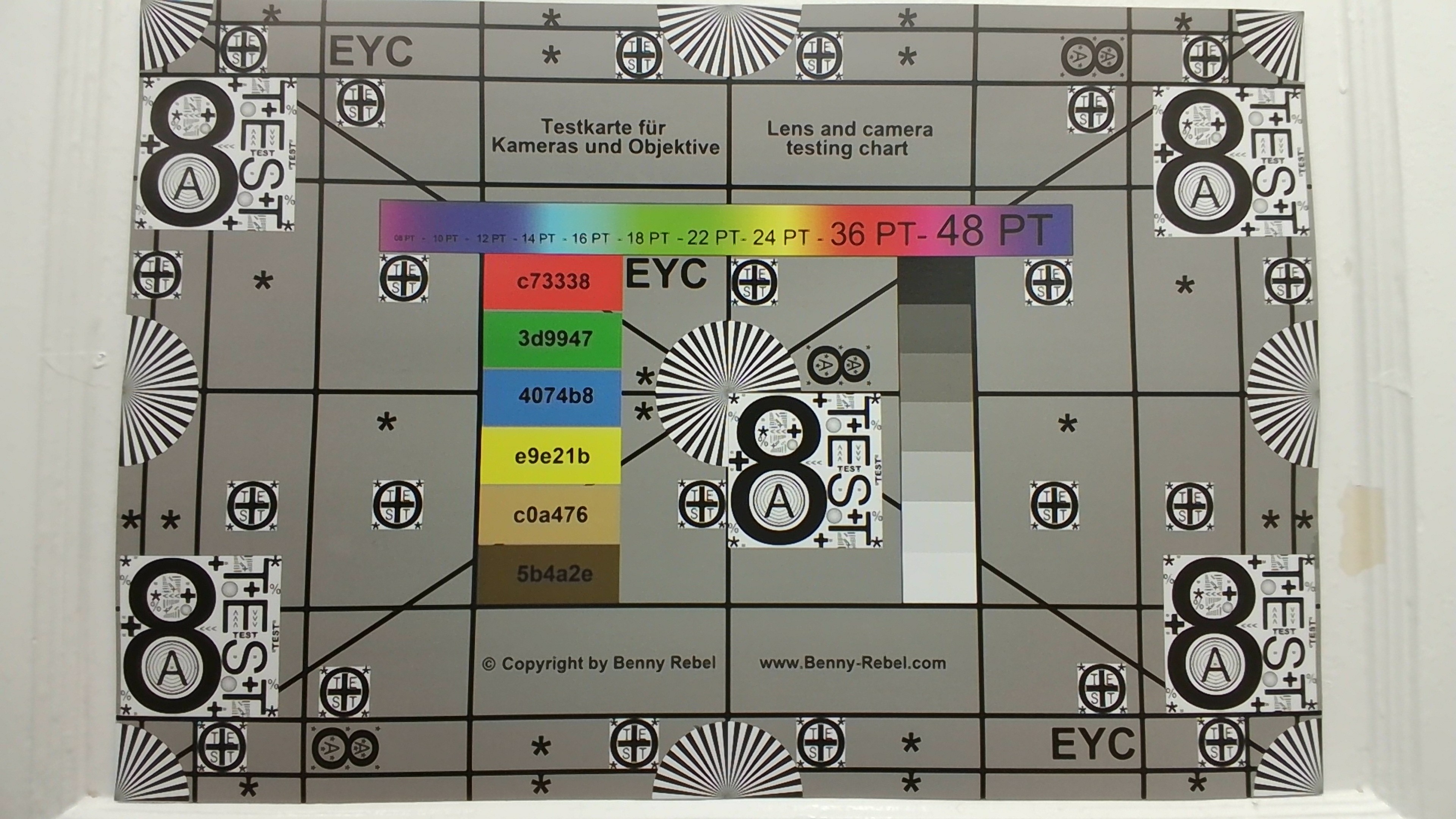

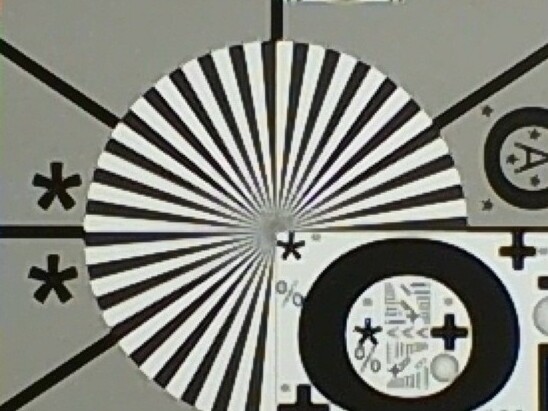

网络摄像头
可选 800 万像素网络摄像头，带红外和物理快门。
9.2 ∆E
9.8 ∆E
17.4 ∆E
19.3 ∆E
17.7 ∆E
14.2 ∆E
8.2 ∆E
9.8 ∆E
13.8 ∆E
7.4 ∆E
12.4 ∆E
12.3 ∆E
3.1 ∆E
15.3 ∆E
14.5 ∆E
10 ∆E
11.3 ∆E
19.8 ∆E
4.6 ∆E
4.9 ∆E
9.4 ∆E
11.5 ∆E
8 ∆E
2.4 ∆E
维护

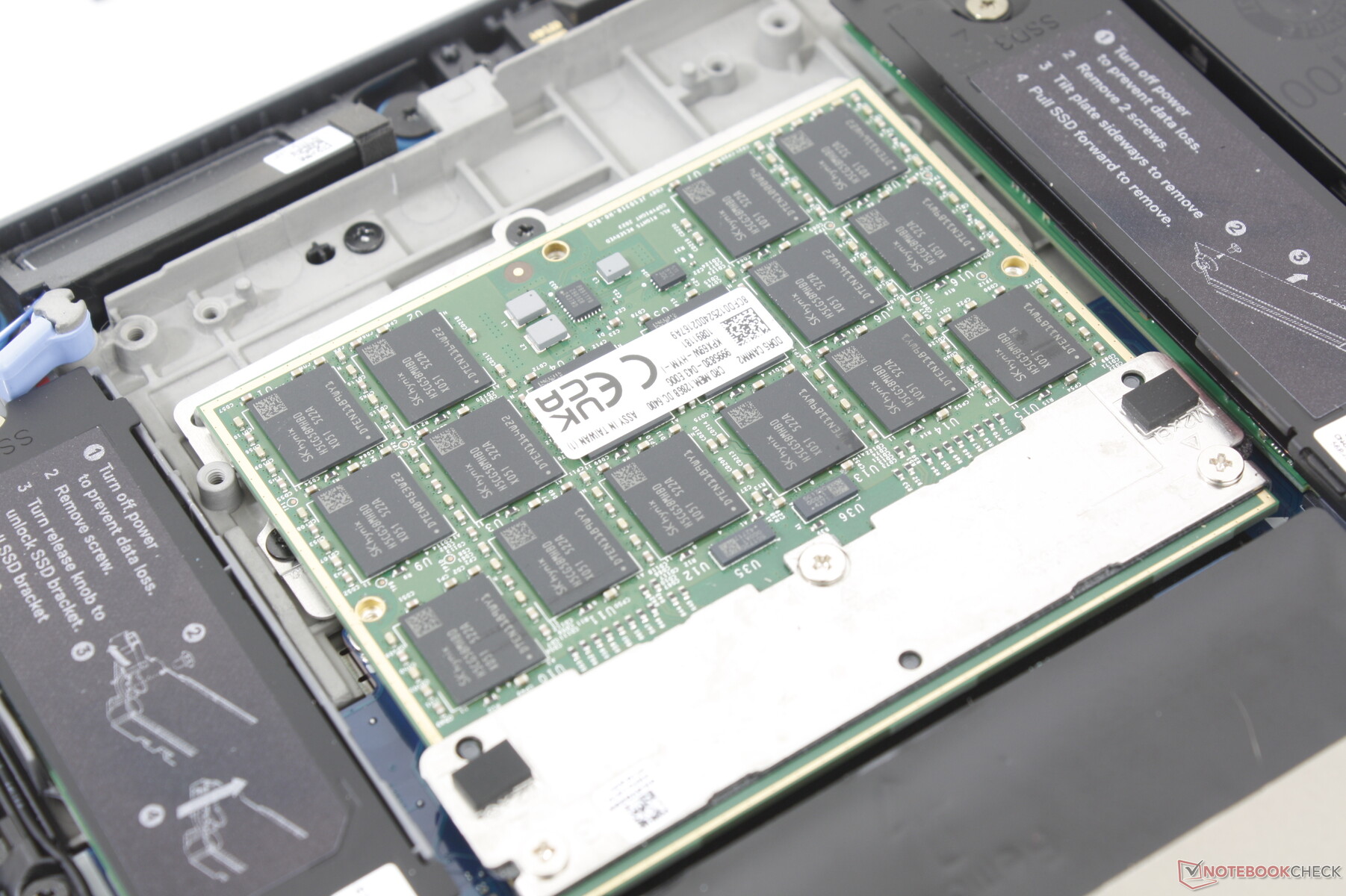

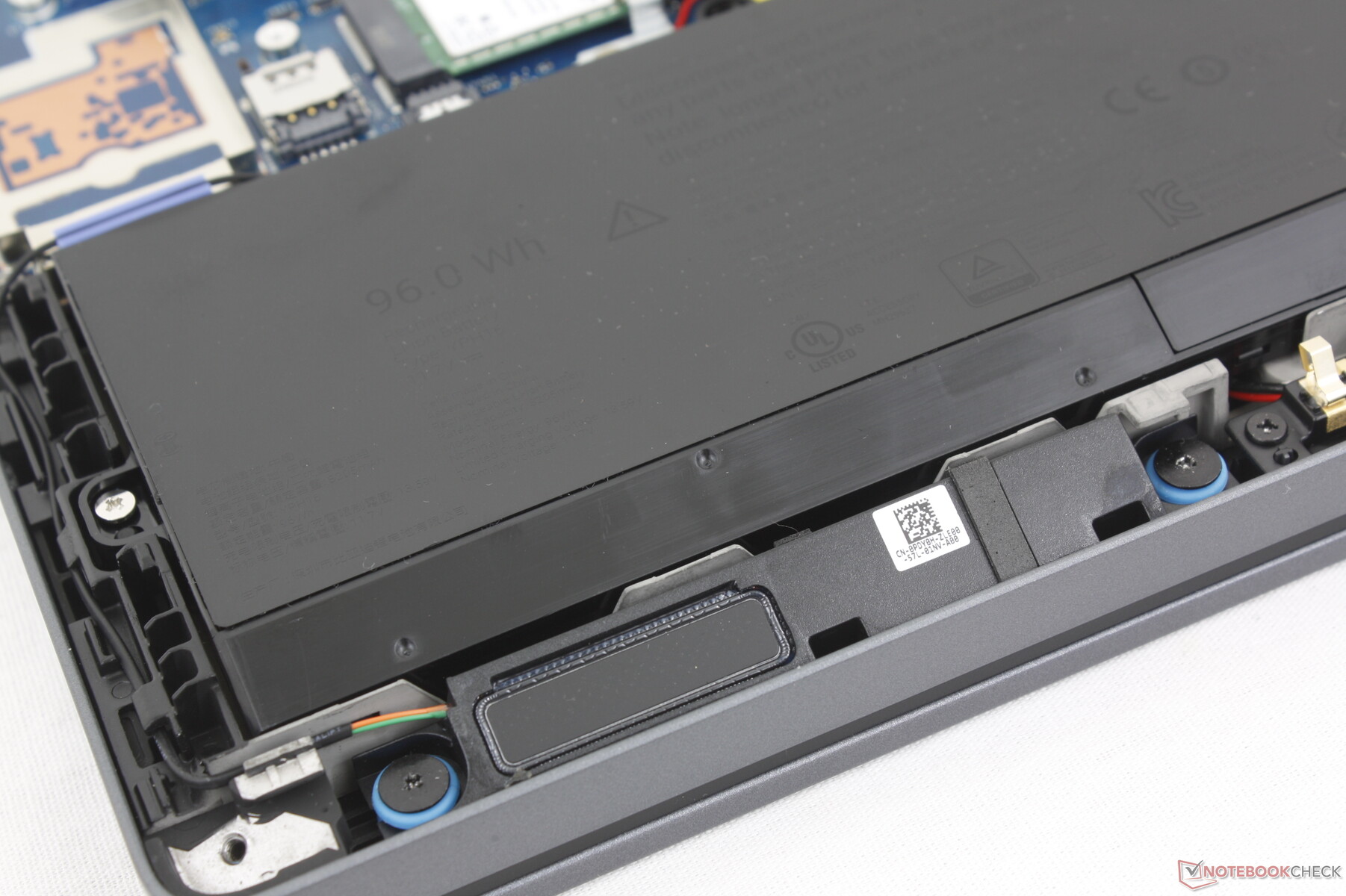

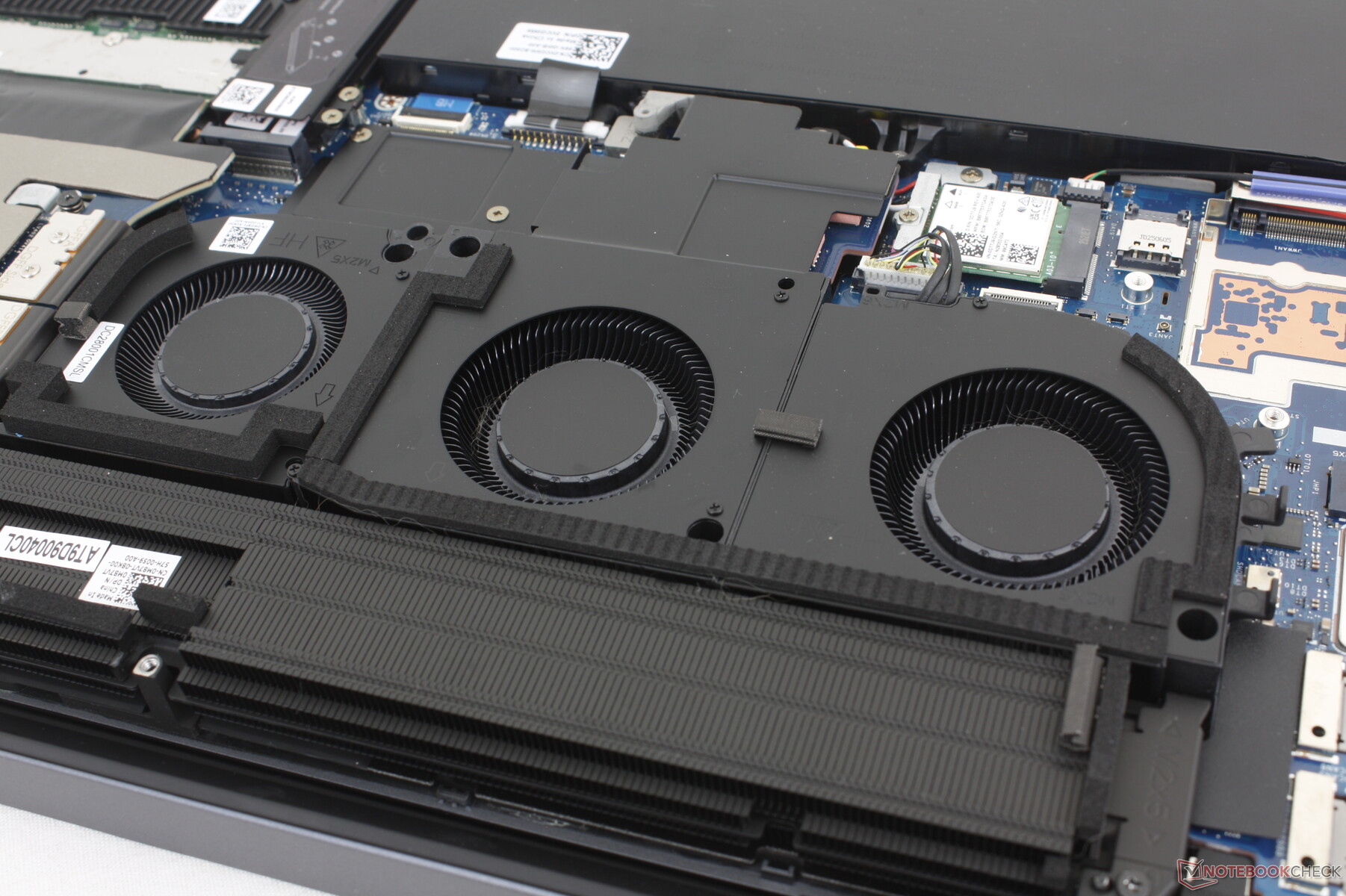

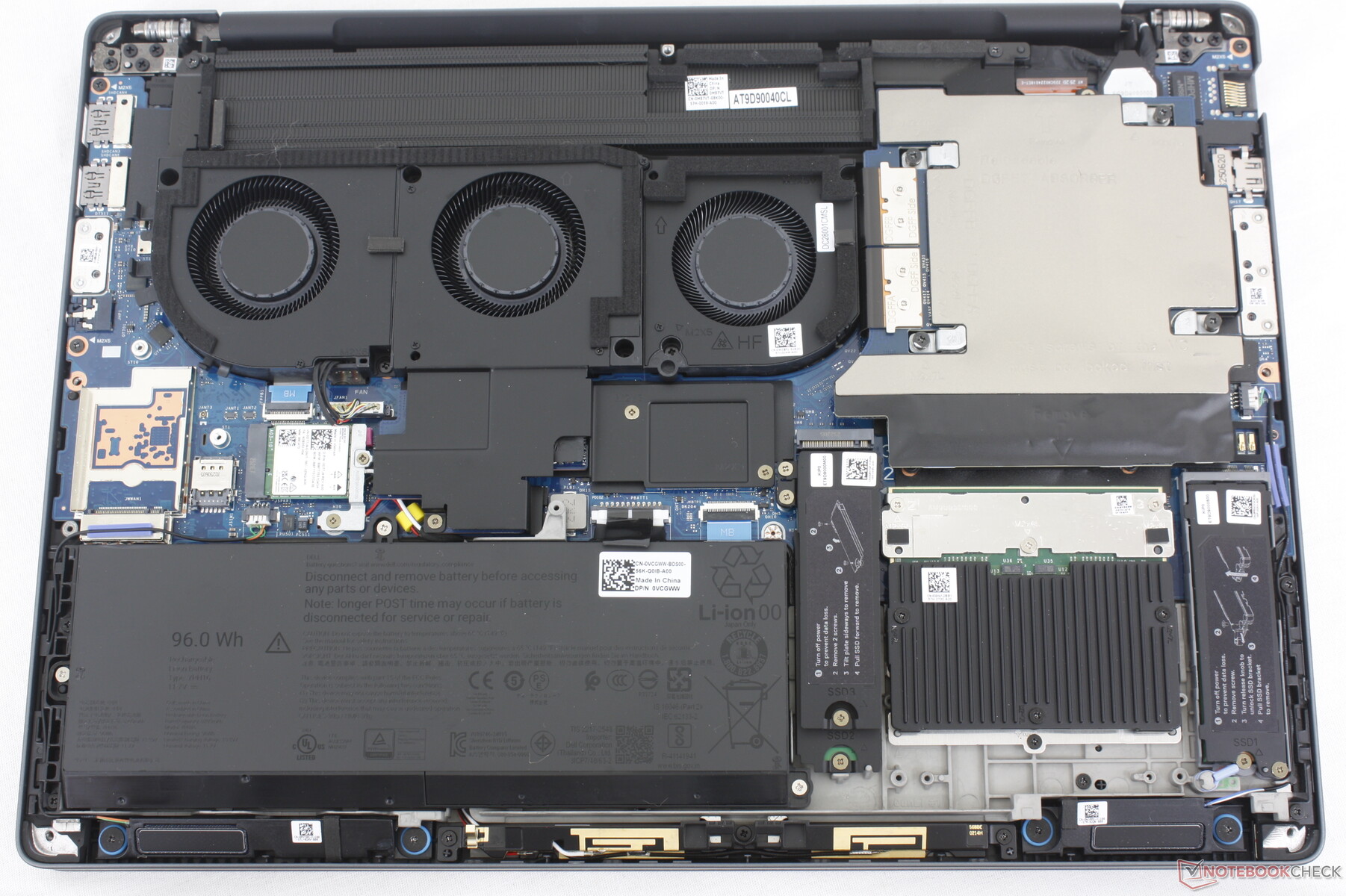

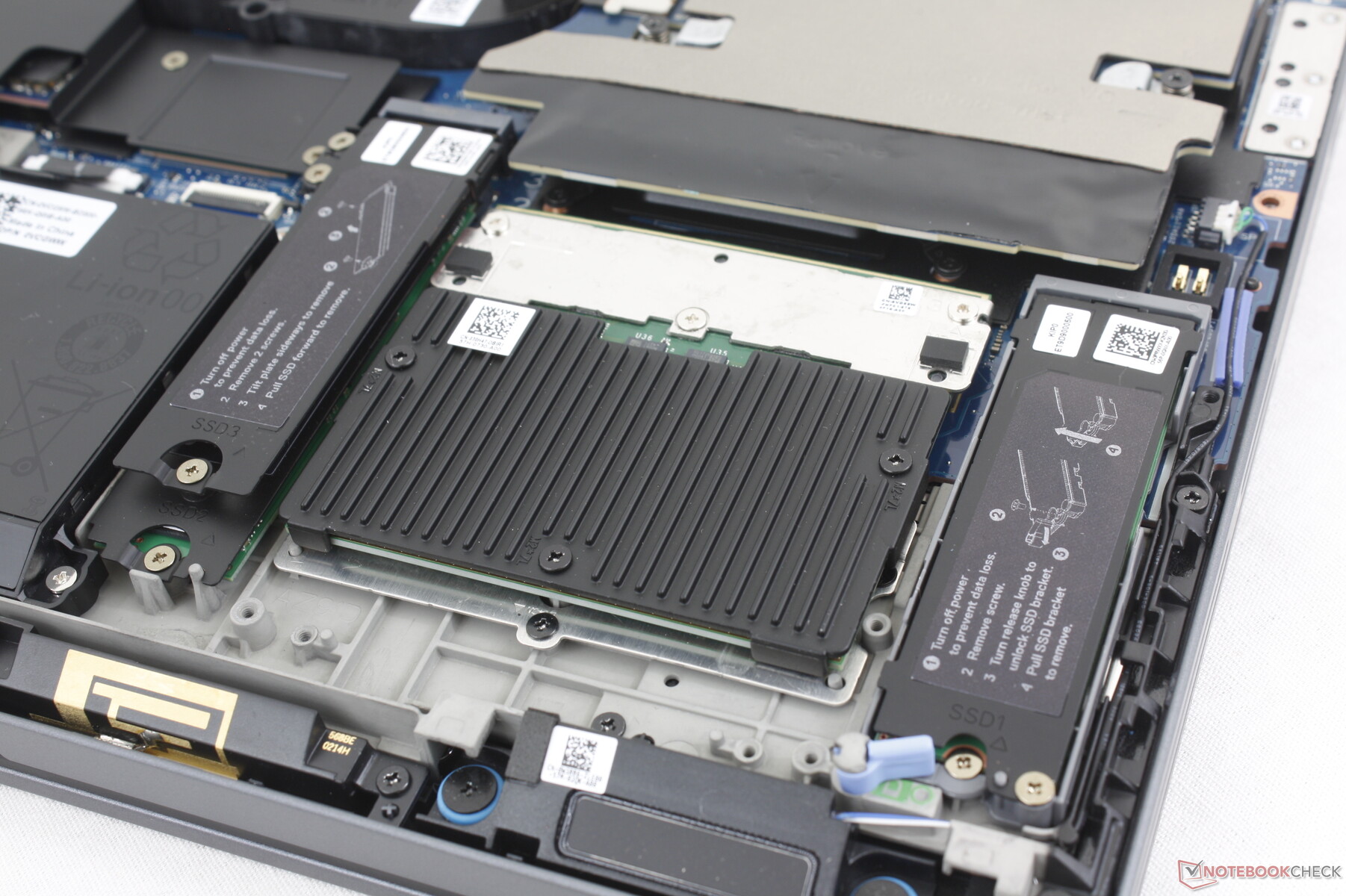

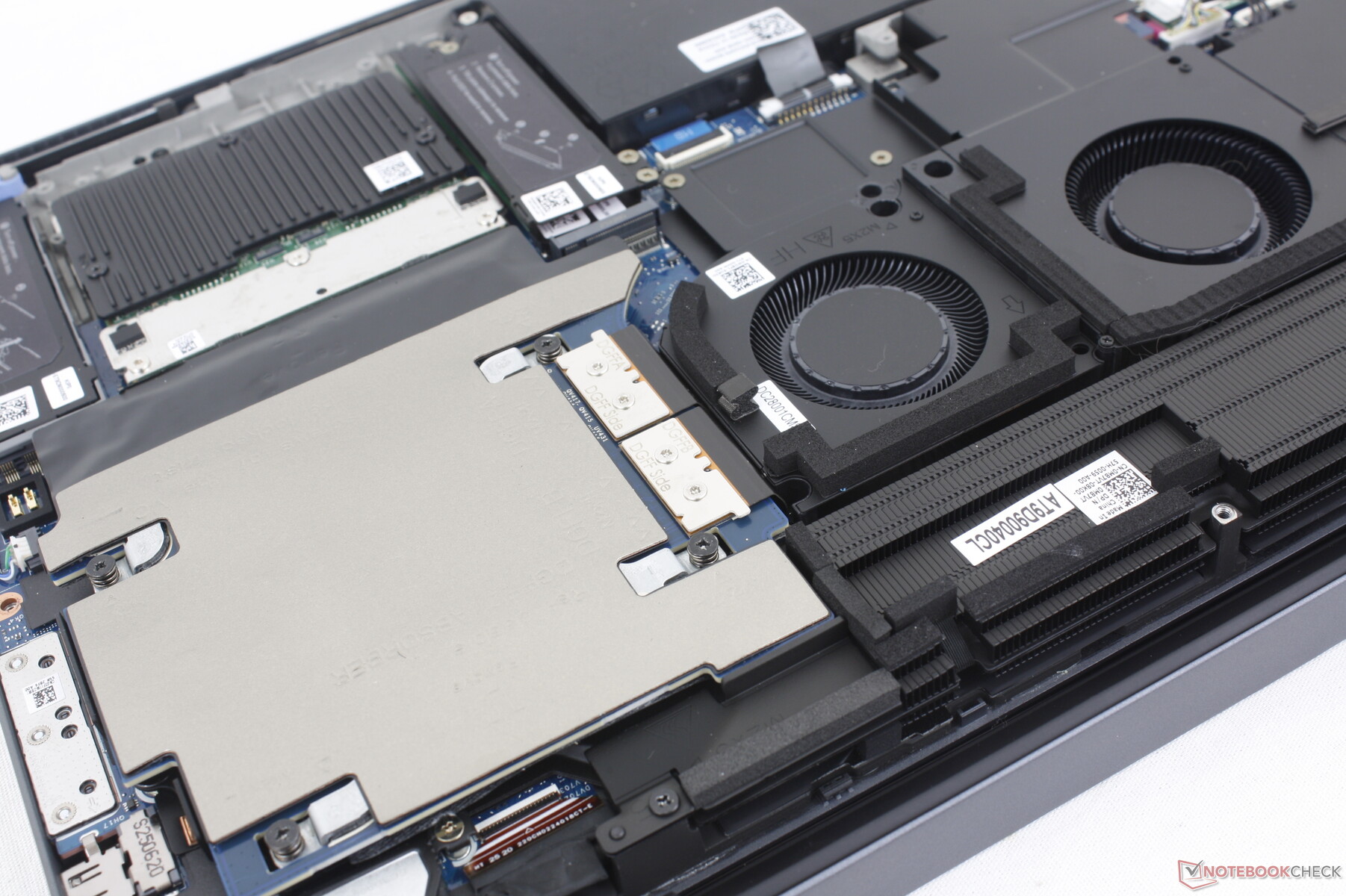

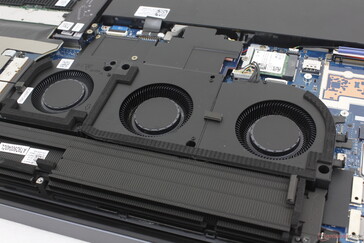

底部面板只需一把十字螺丝刀就可拆卸，方便查看内部结构。CAMM2 模块、两个 M.2 2280 固态硬盘插槽、WLAN 模块和图形卡 (DGFF) 都是可拆卸的。
旧版Precision 7670/7680 上的固态硬盘 "驱动器门 "已被取消。
可持续性
机身的顶部和底部盖板使用了 90% 的可回收镁，掌托使用了 30% 的 PCC 塑料，底部保险杠使用了 46% 的生物基塑料，96 Whr 电池使用了 50% 的可回收钴。该机型还是戴尔首批采用模块化 USB-C 端口的机型之一，如果端口因过度使用而断裂或松动，可以轻松更换。
配件和保修
包装盒内除了交流适配器和文件外，没有其他附件。制造商提供三年标准保修。
输入设备

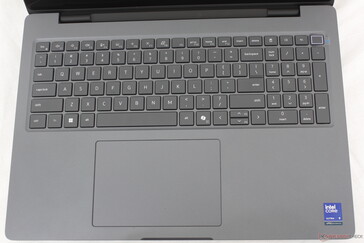

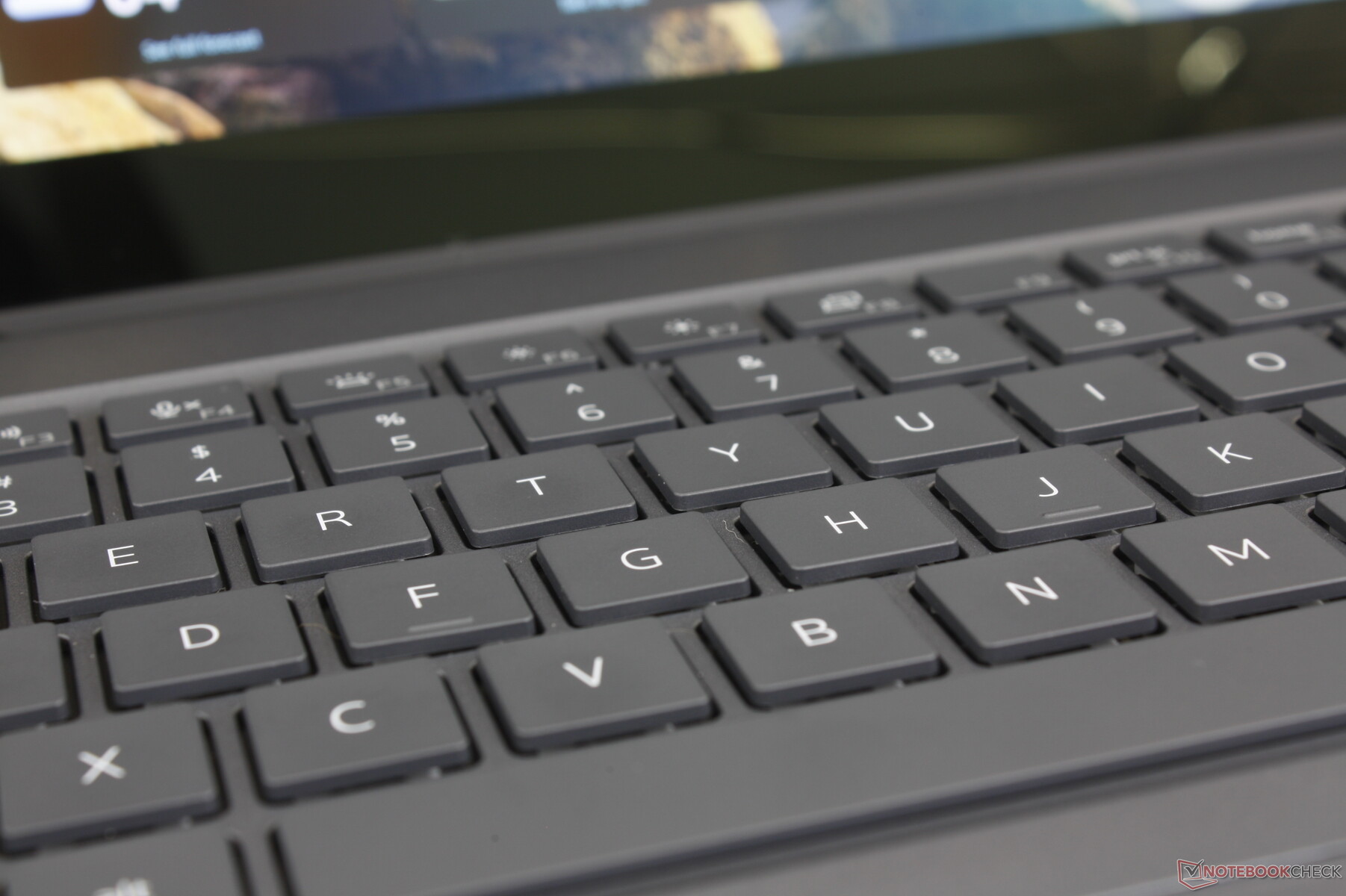

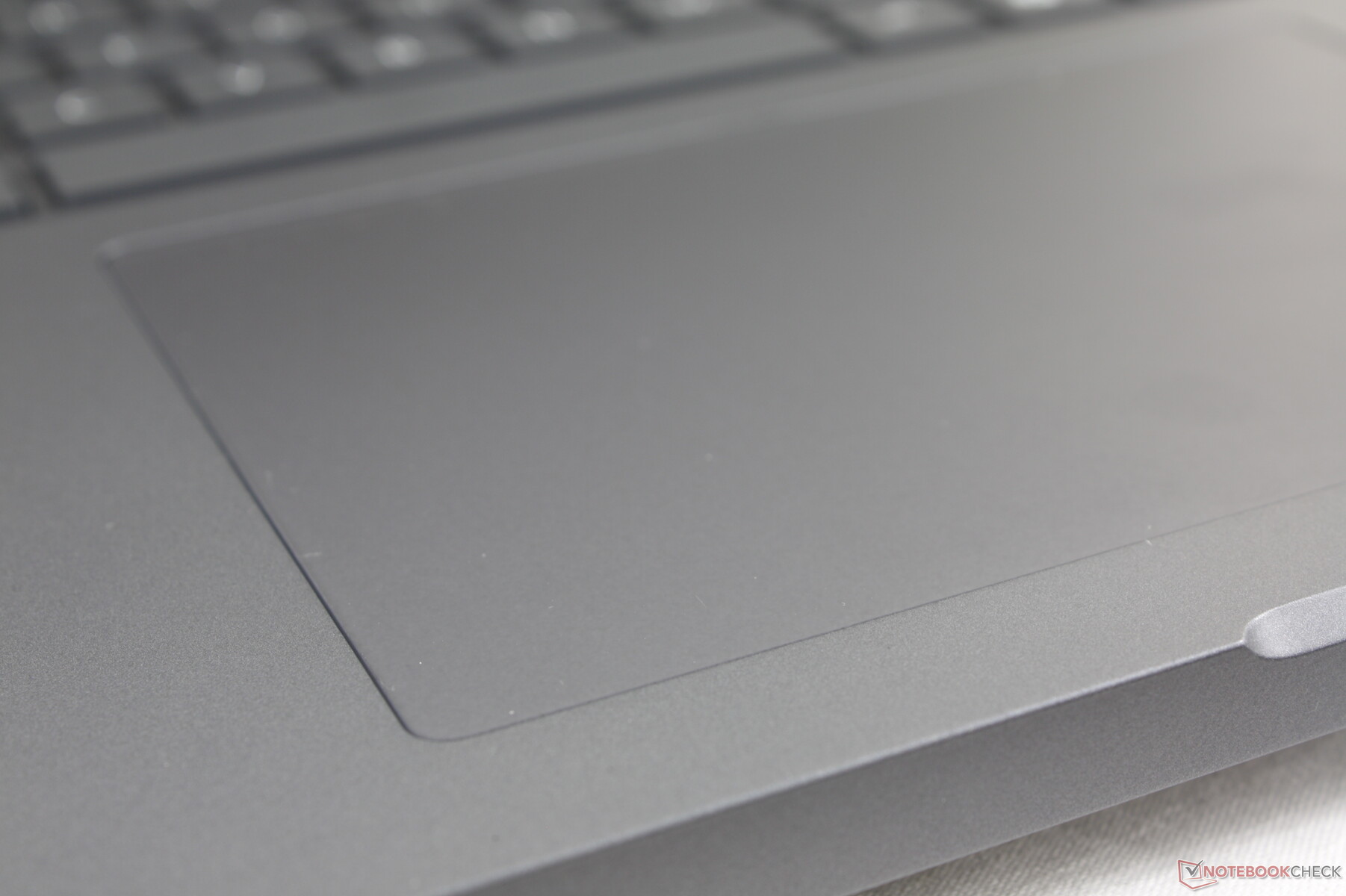

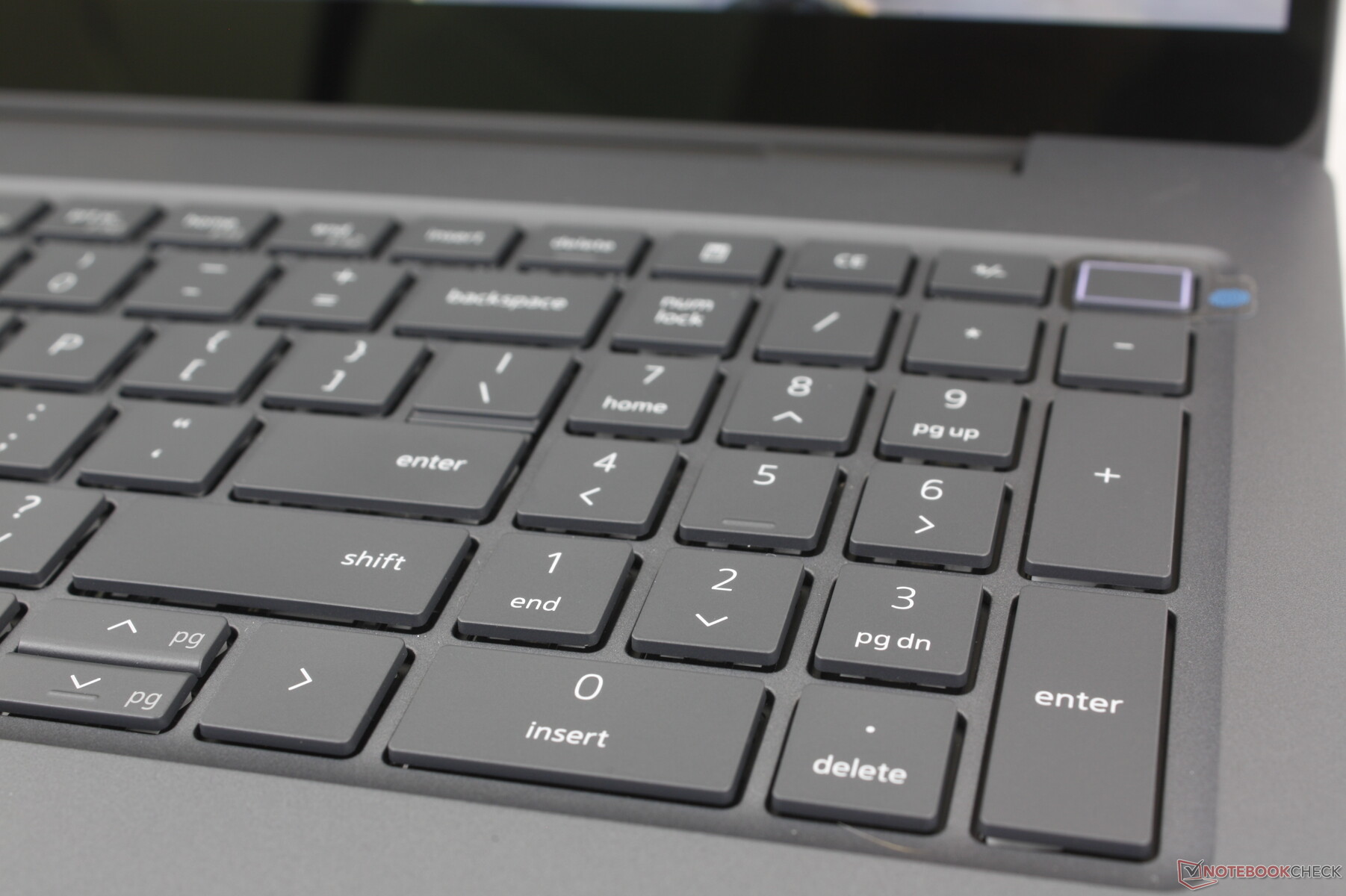

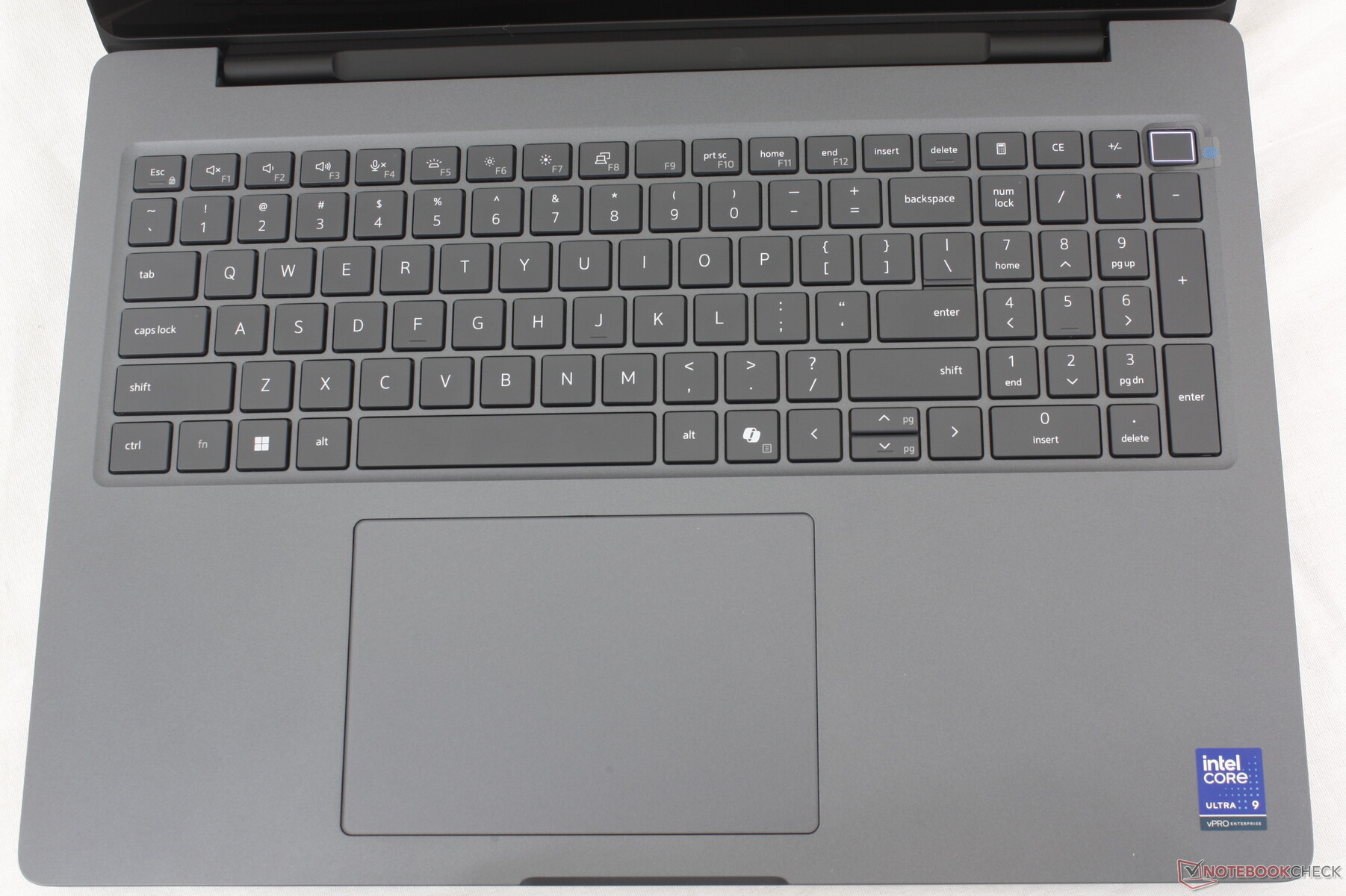

键盘和触摸板

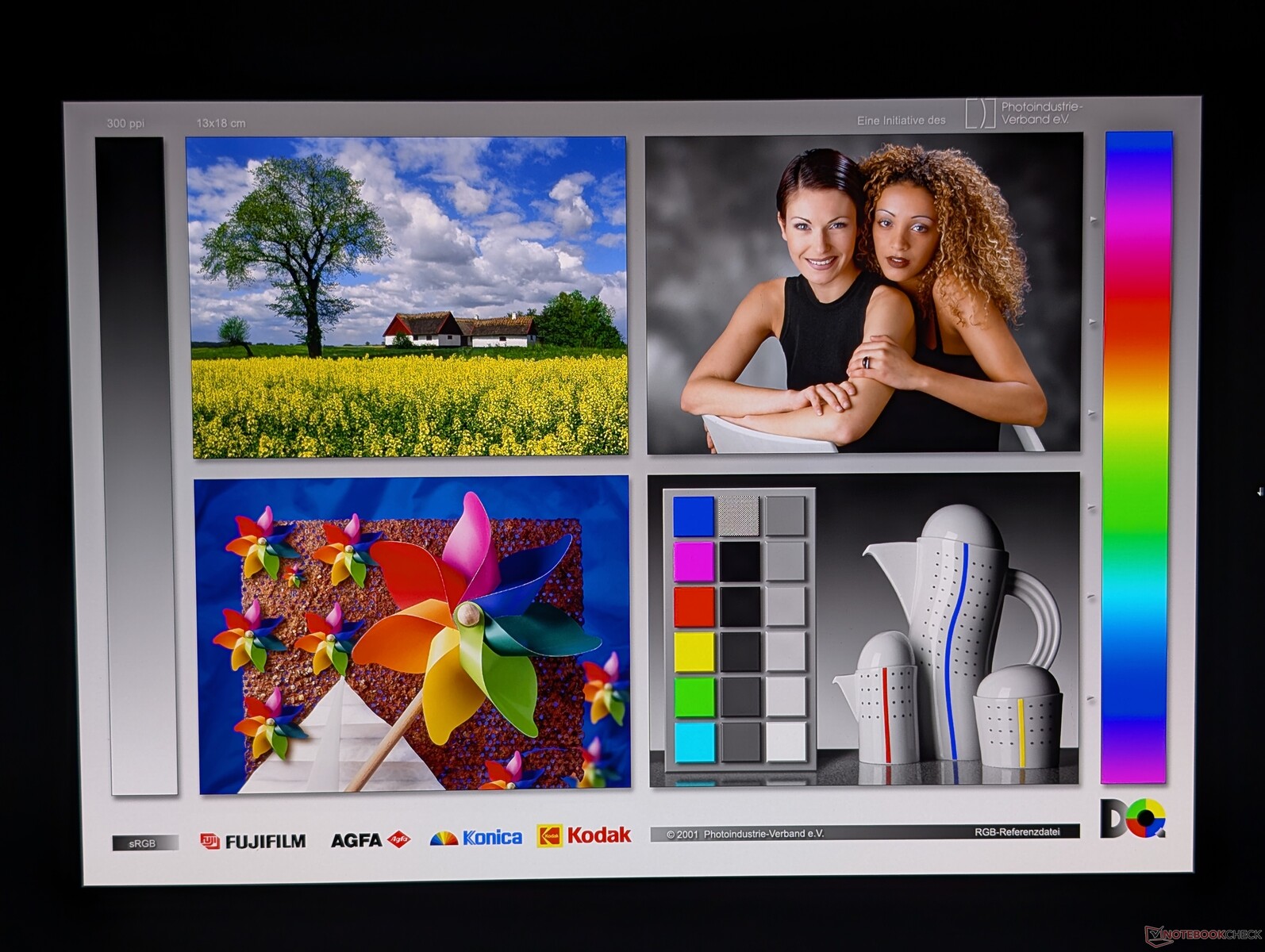

显示屏
有以下三种显示选项：
- 1920 x 1200、60 Hz、非触摸、300 nits、 ~60% sRGB
- 1920 x 1200、120 赫兹、非触摸、500 尼特、100% DCI-P3
- 3840 x 2400、120 赫兹、OLED、触摸、500 尼特、100% DCI-P3

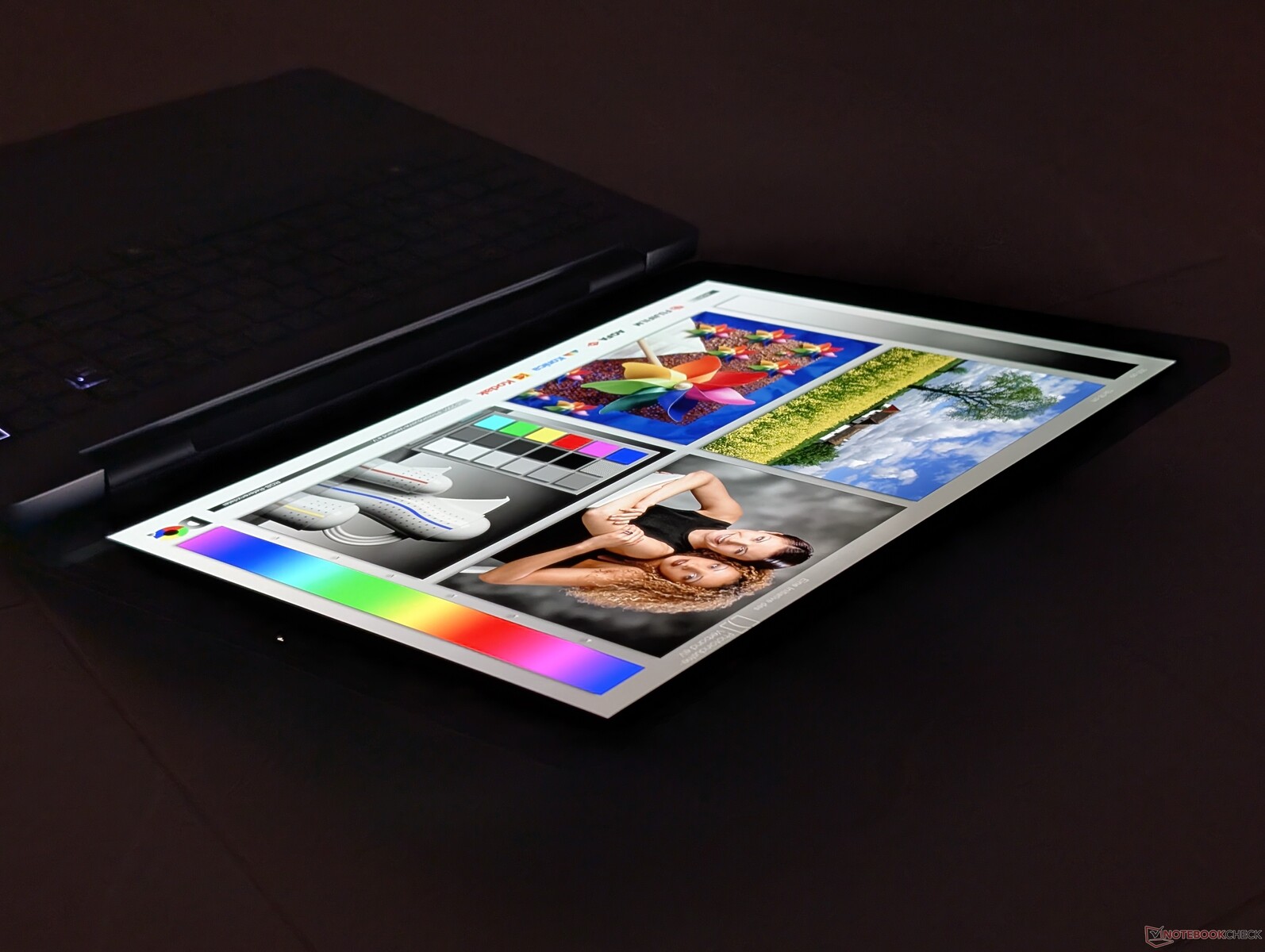

我们的测试机配备了上面加粗的选项，是少数配备 4K 120 Hz OLED 面板的 16 英寸工作站之一。

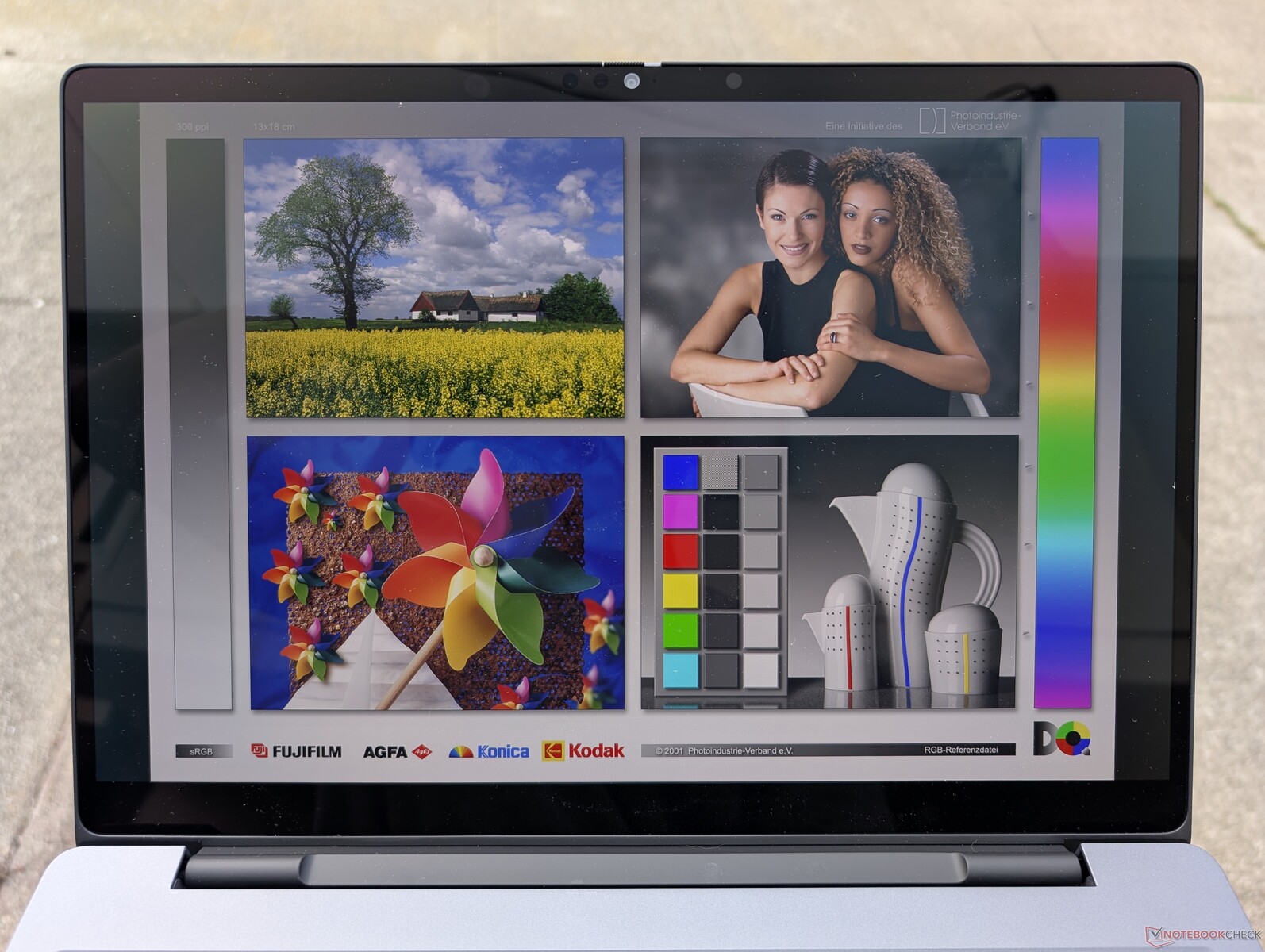

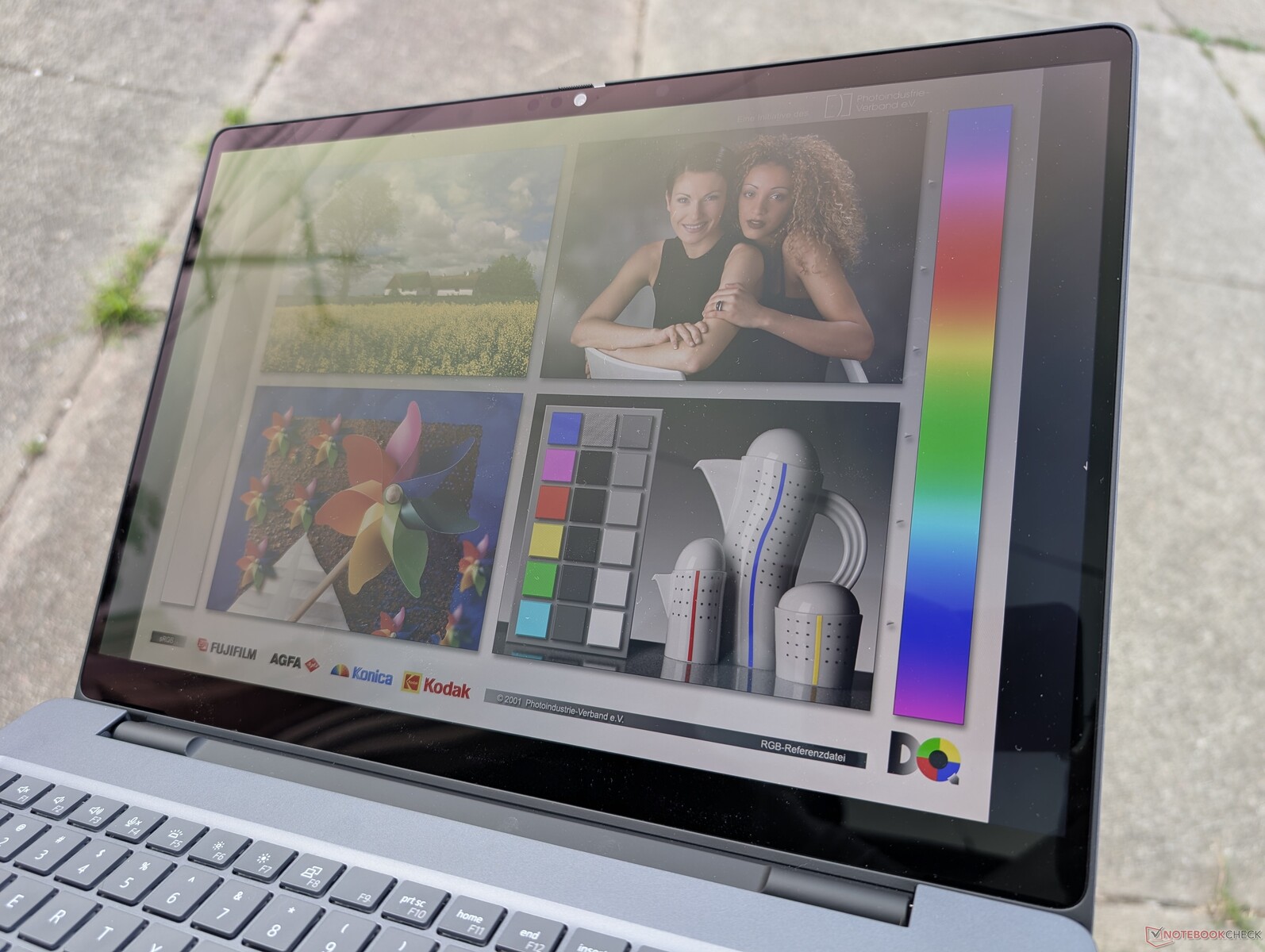

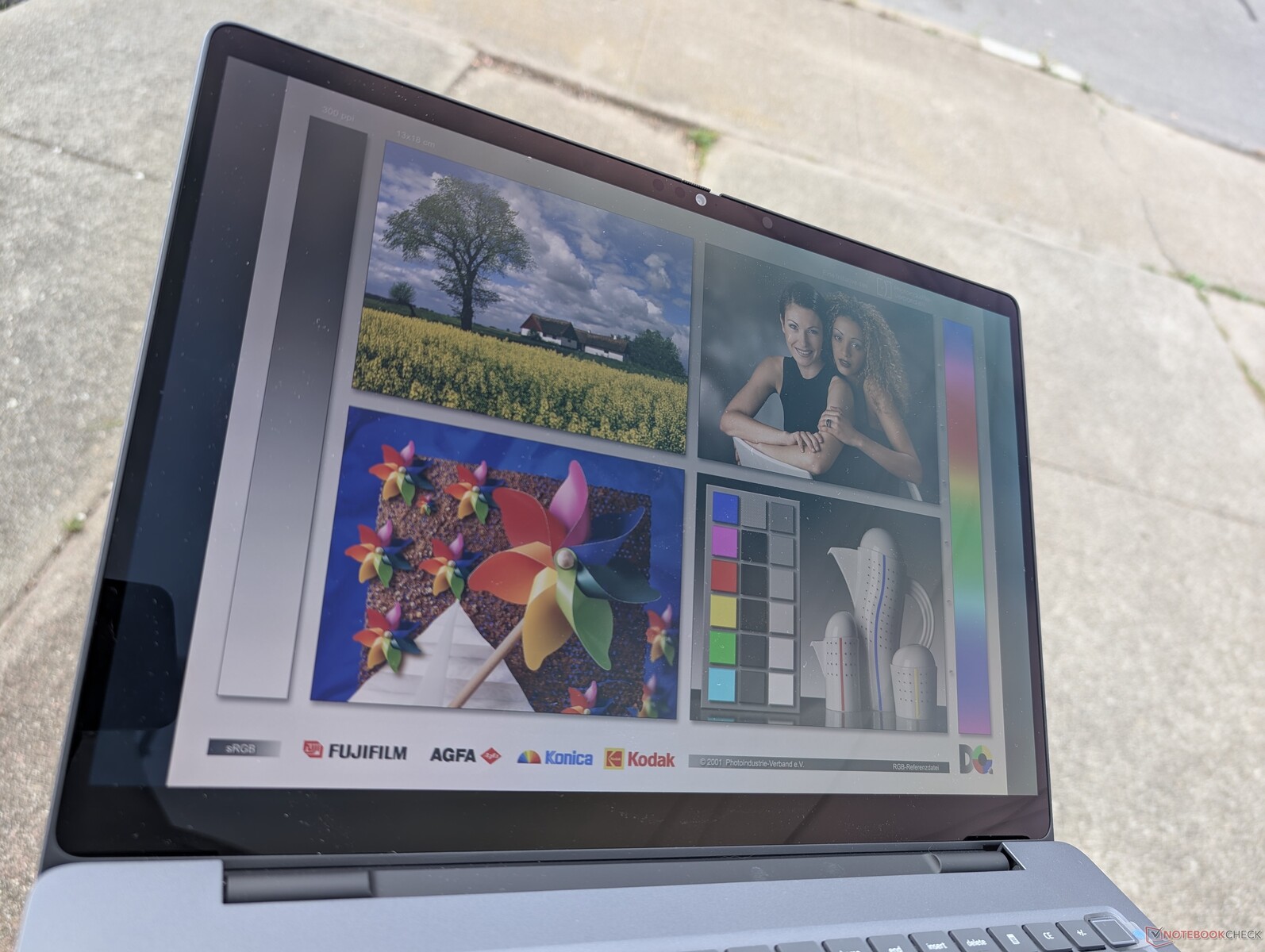

如果使用 SDR 模式，最高亮度可达 550 尼特；如果启用 HDR 模式，最高亮度可达 1066 尼特。因此，4K HDR 播放效果与大多数发烧级消费笔记本电脑相当，甚至更好。
| |||||||||||||||||||||||||
Samsung 160HC01 tested with X-Rite i1Pro 3
Maximum: 556.8 cd/m² (Nits) Average: 540.1 cd/m² Minimum: 29.2 cd/m²Brightness Distribution: 95 %
Center on Battery: 530.9 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE ColorChecker Calman: 2.42 | ∀{0.5-29.43 Ø4.8}
calibrated: 0.7
ΔE Greyscale Calman: 0.8 | ∀{0.09-98 Ø5}

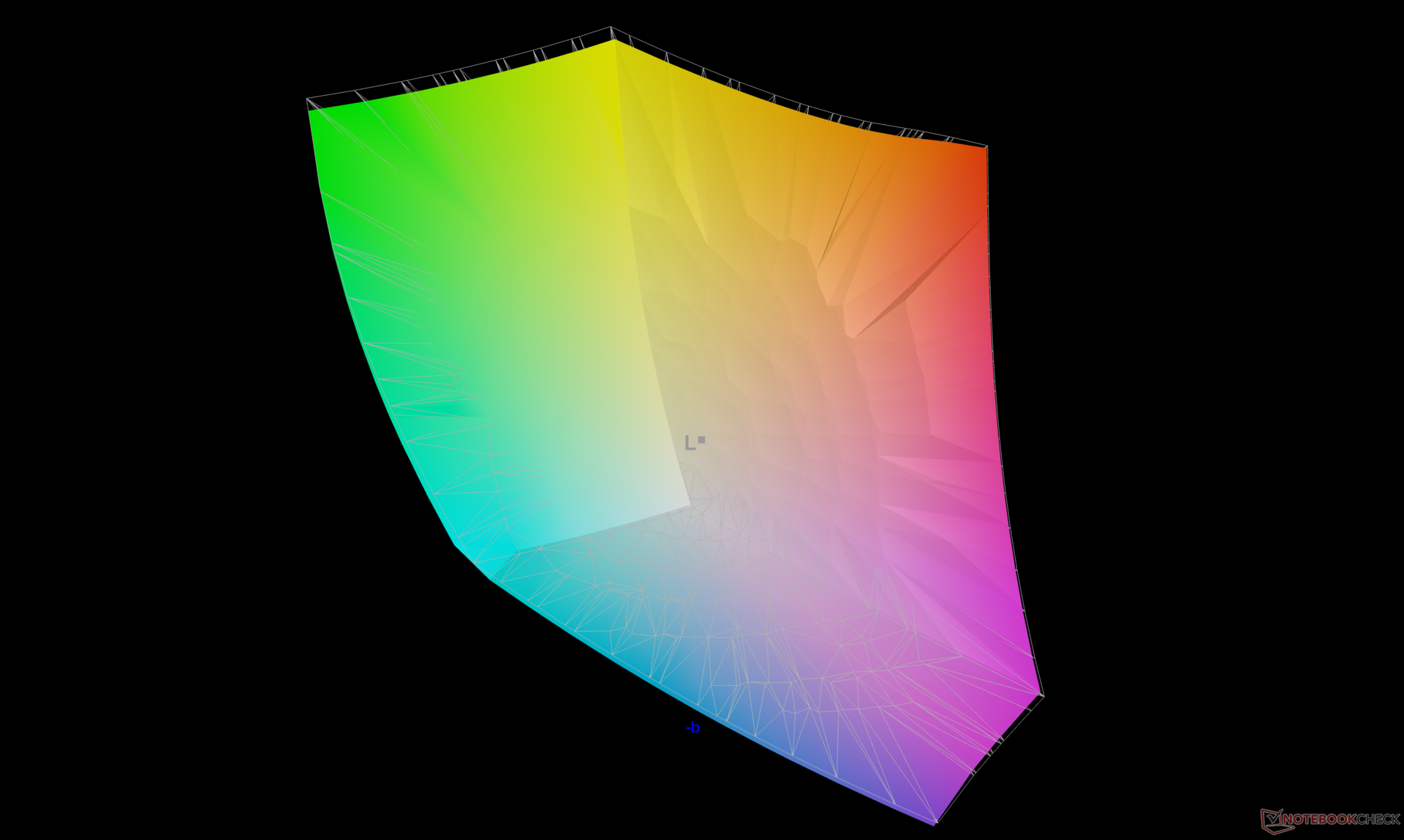

88.8% AdobeRGB 1998 (Argyll 3D)
100% sRGB (Argyll 3D)
97.3% Display P3 (Argyll 3D)
Gamma: 2.23
CCT: 6488 K
| Dell Pro Max 16 Plus Samsung 160HC01, OLED, 3840x2400, 16", 120 Hz | Dell Precision 5690 Samsung 160YV03, OLED, 3840x2400, 16", 60 Hz | Dell Precision 5000 5680 Samsung 160YV03, OLED, 3840x2400, 16", 60 Hz | Lenovo ThinkPad P16 Gen 2 NE160QDM-NY1, IPS, 2560x1600, 16", 165 Hz | Lenovo ThinkPad P1 Gen 7 21KV001SGE MNG007DA1-9 , IPS LED, 2560x1600, 16", 165 Hz | HP ZBook Studio 16 G11 AUO87A8, IPS, 3840x2400, 16", 120 Hz | MSI CreatorPro Z16P B12UKST B160QAN02.N, IPS, 2560x1600, 16", 165 Hz | |
|---|---|---|---|---|---|---|---|
| Display | 4% | 4% | -18% | -17% | -1% | -1% | |
| Display P3 Coverage (%) | 97.3 | 99.8 3% | 99.9 3% | 68.4 -30% | 69.4 -29% | 97.7 0% | 97.6 0% |
| sRGB Coverage (%) | 100 | 100 0% | 100 0% | 96.9 -3% | 97.6 -2% | 99.9 0% | 99.9 0% |
| AdobeRGB 1998 Coverage (%) | 88.8 | 96.6 9% | 97.5 10% | 70.6 -20% | 71.8 -19% | 85.7 -3% | 87.4 -2% |
| Response Times | -131% | -133% | -1575% | -1385% | -1623% | -1332% | |
| Response Time Grey 50% / Grey 80% * (ms) | 0.63 ? | 1.7 ? -170% | 1.68 ? -167% | 14.1 ? -2138% | 11.2 ? -1678% | 14.2 ? -2154% | 12.8 ? -1932% |
| Response Time Black / White * (ms) | 0.89 ? | 1.7 ? -91% | 1.77 ? -99% | 9.9 ? -1012% | 10.6 ? -1091% | 10.6 ? -1091% | 7.4 ? -731% |
| PWM Frequency (Hz) | 479.9 ? | 60 ? | 60 ? | ||||
| PWM Amplitude * (%) | 28 | ||||||
| Screen | -44% | -67% | 0% | -112% | -44% | -17% | |
| Brightness middle (cd/m²) | 530.9 | 348.1 -34% | 345.7 -35% | 531.5 0% | 516 -3% | 404.3 -24% | 407 -23% |
| Brightness (cd/m²) | 540 | 351 -35% | 349 -35% | 499 -8% | 505 -6% | 405 -25% | 388 -28% |
| Brightness Distribution (%) | 95 | 97 2% | 98 3% | 89 -6% | 89 -6% | 92 -3% | 88 -7% |
| Black Level * (cd/m²) | 0.38 | 0.41 | 0.28 | 0.36 | |||
| Colorchecker dE 2000 * | 2.42 | 4.18 -73% | 3.59 -48% | 1.82 25% | 3.5 -45% | 2.63 -9% | 1.3 46% |
| Colorchecker dE 2000 max. * | 5.76 | 6.68 -16% | 7.02 -22% | 4.1 29% | 8.8 -53% | 4.48 22% | 2.5 57% |
| Colorchecker dE 2000 calibrated * | 0.7 | 0.97 -39% | 0.99 -41% | 0.63 10% | 1.2 -71% | 1.46 -109% | 0.7 -0% |
| Greyscale dE 2000 * | 0.8 | 1.7 -113% | 3.1 -288% | 1.2 -50% | 5.6 -600% | 2.1 -163% | 2.1 -163% |
| Gamma | 2.23 99% | 2.2 100% | 2.13 103% | 2.15 102% | 2.27 97% | 2.3 96% | 2.26 97% |
| CCT | 6488 100% | 6198 105% | 6448 101% | 6484 100% | 6071 107% | 6810 95% | 6437 101% |
| Contrast (:1) | 1399 | 1259 | 1444 | 1131 | |||
| Total Average (Program / Settings) | -57% /
-46% | -65% /
-60% | -531% /
-267% | -505% /
-300% | -556% /
-297% | -450% /
-232% |
* ... smaller is better

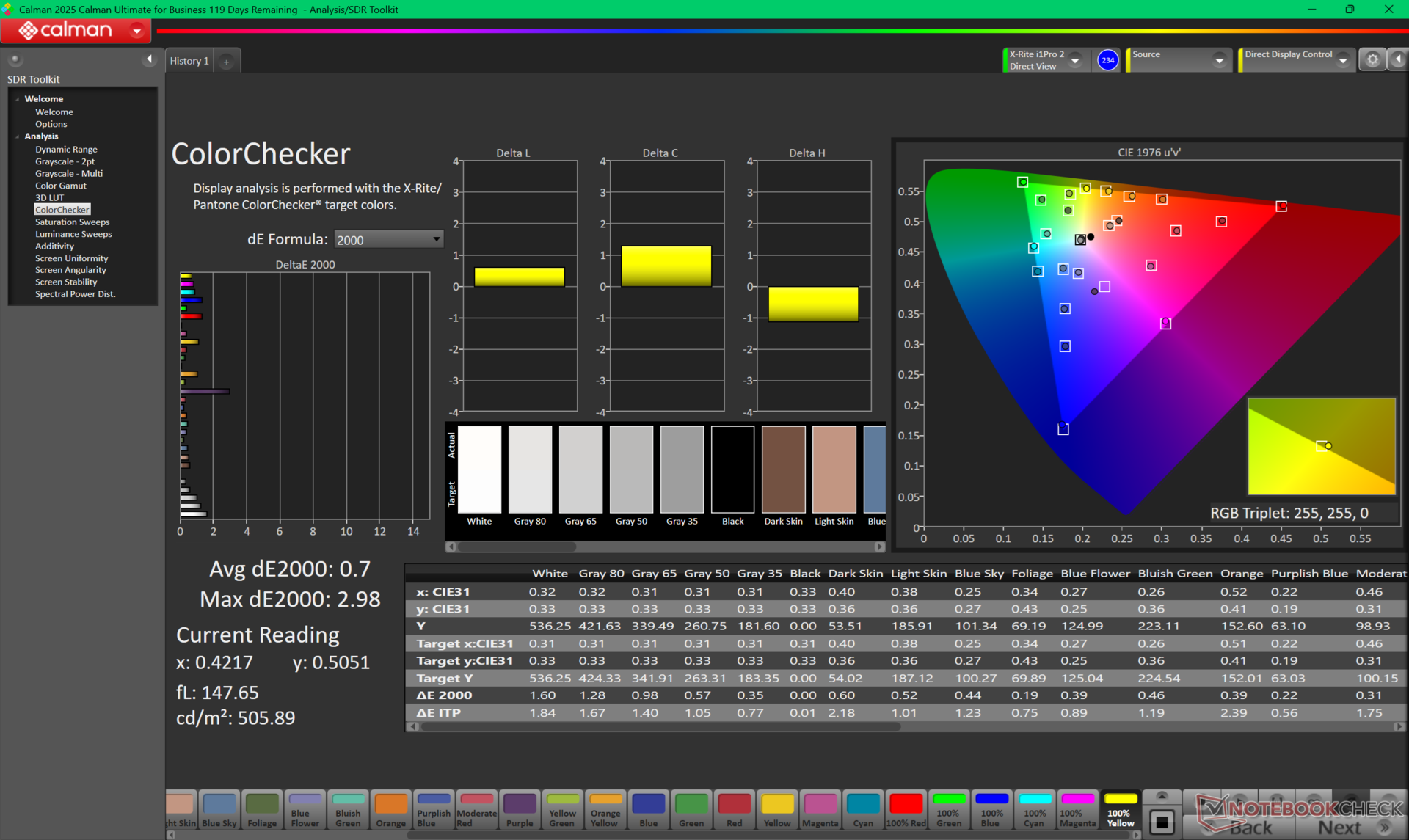

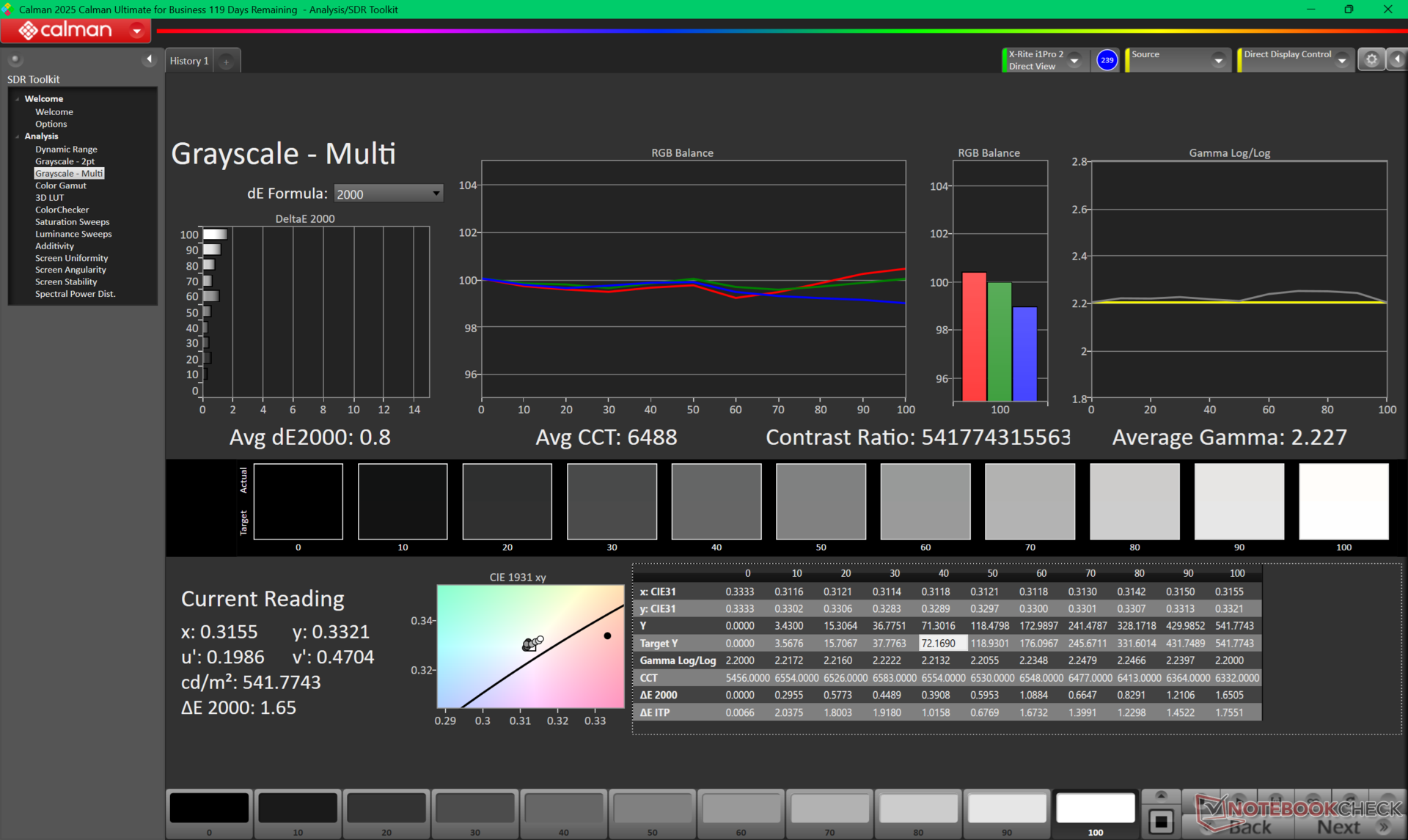

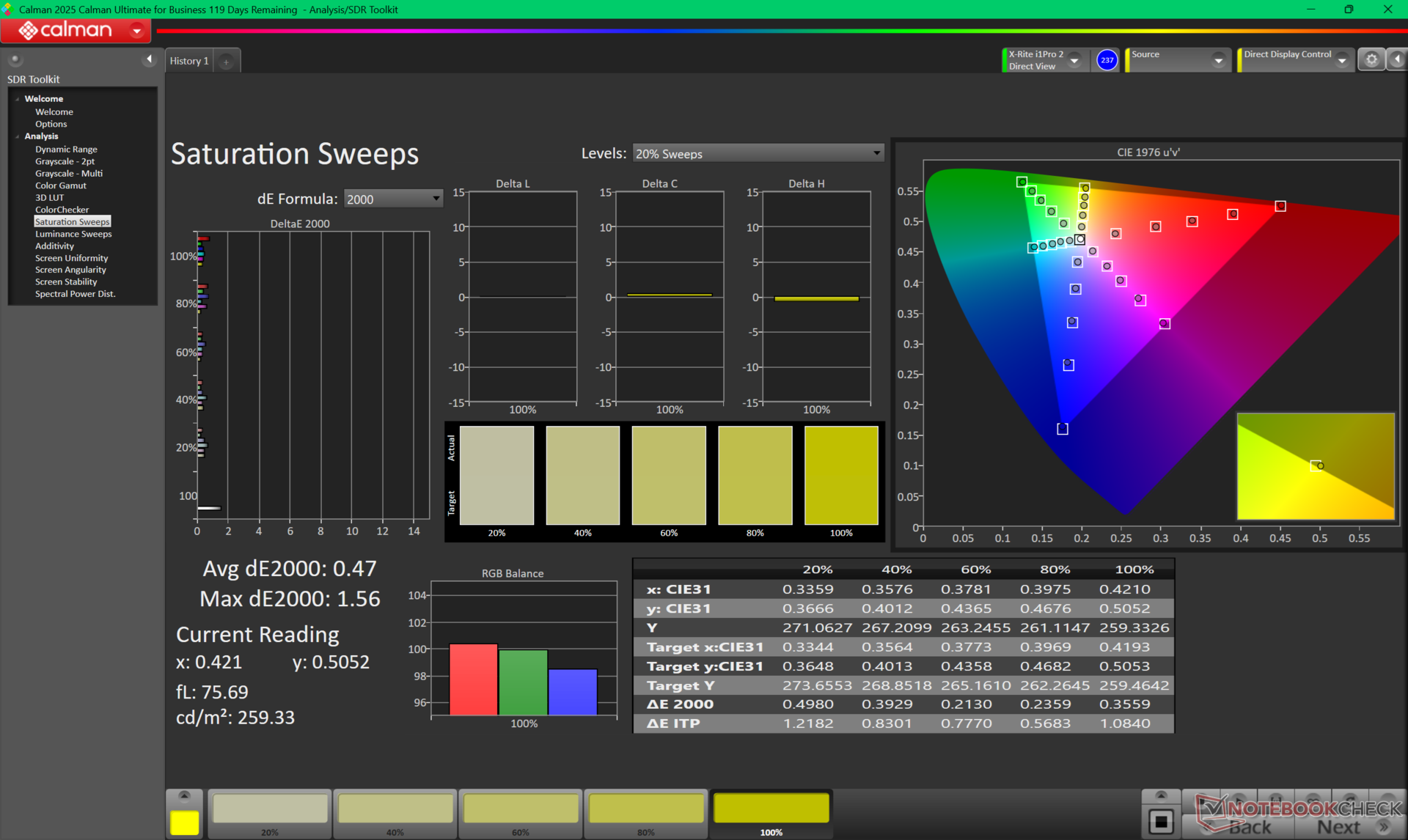

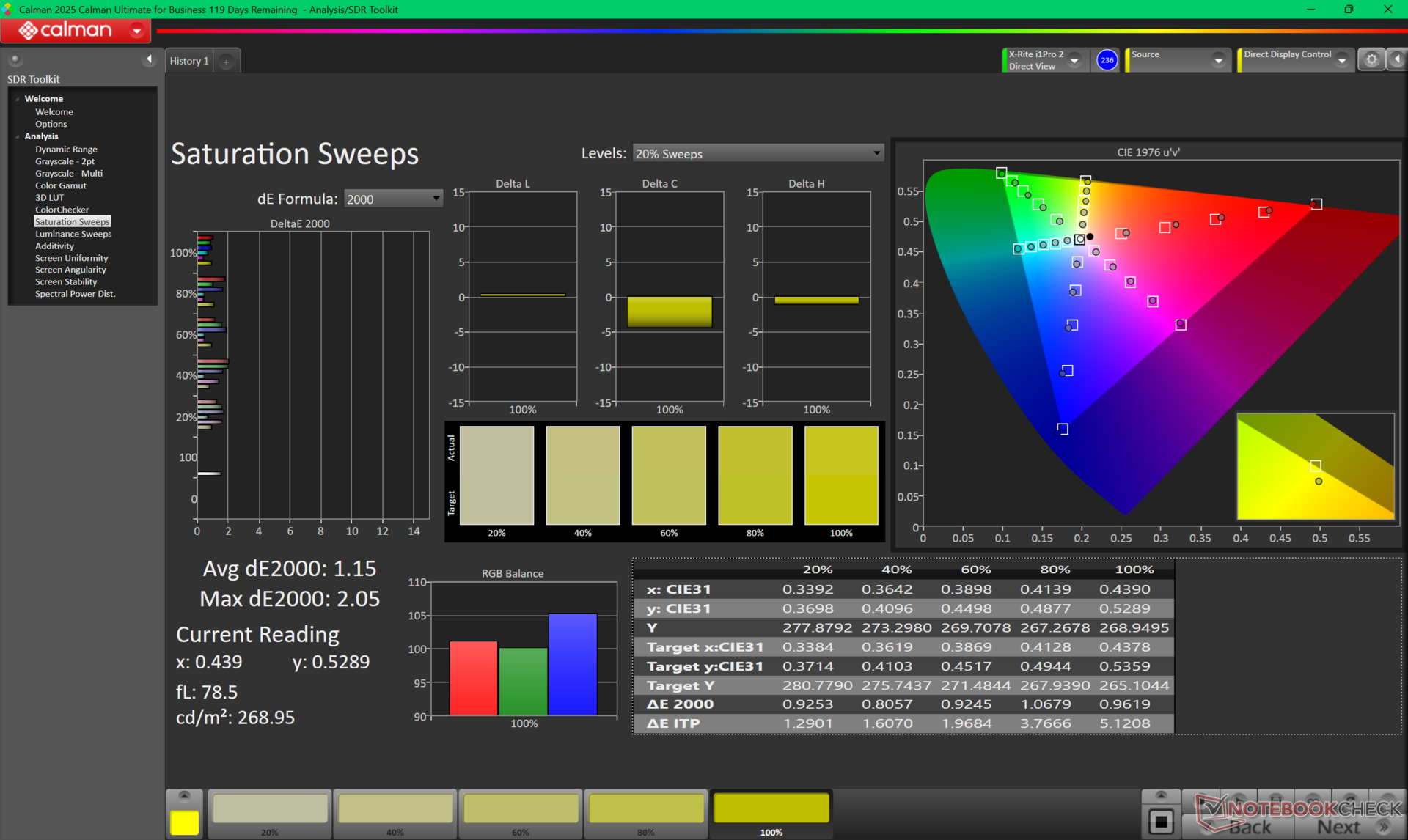

显示屏根据 P3 标准进行了良好校准，平均灰度和色彩 deltaE 值分别仅为 0.8 和 2.42。

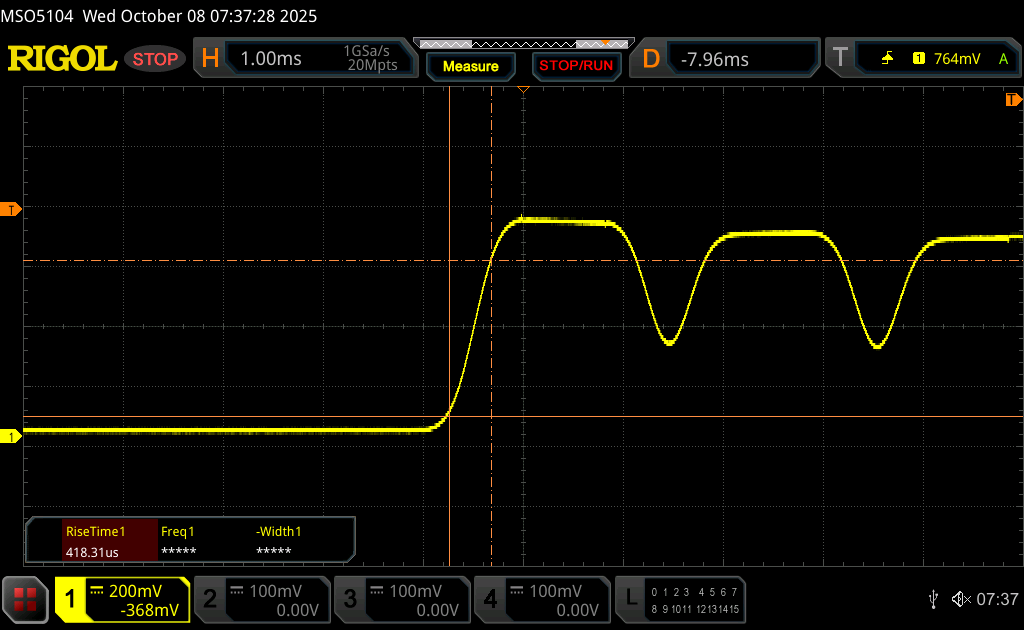

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 0.89 ms ... rise ↗ and fall ↘ combined | ↗ 0.42 ms rise |  |
| ↘ 0.47 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 2 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.3 ms). | ||

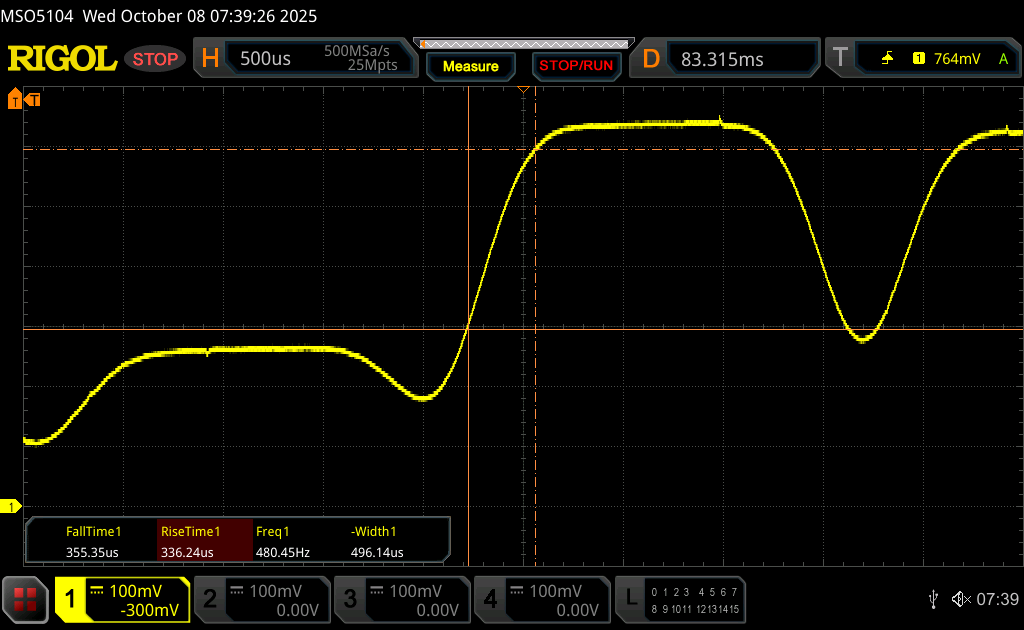

| ↔ Response Time 50% Grey to 80% Grey | ||
| 0.63 ms ... rise ↗ and fall ↘ combined | ↗ 0.34 ms rise |  |
| ↘ 0.29 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 1 % of all devices are better. This means that the measured response time is better than the average of all tested devices (31.7 ms). | ||

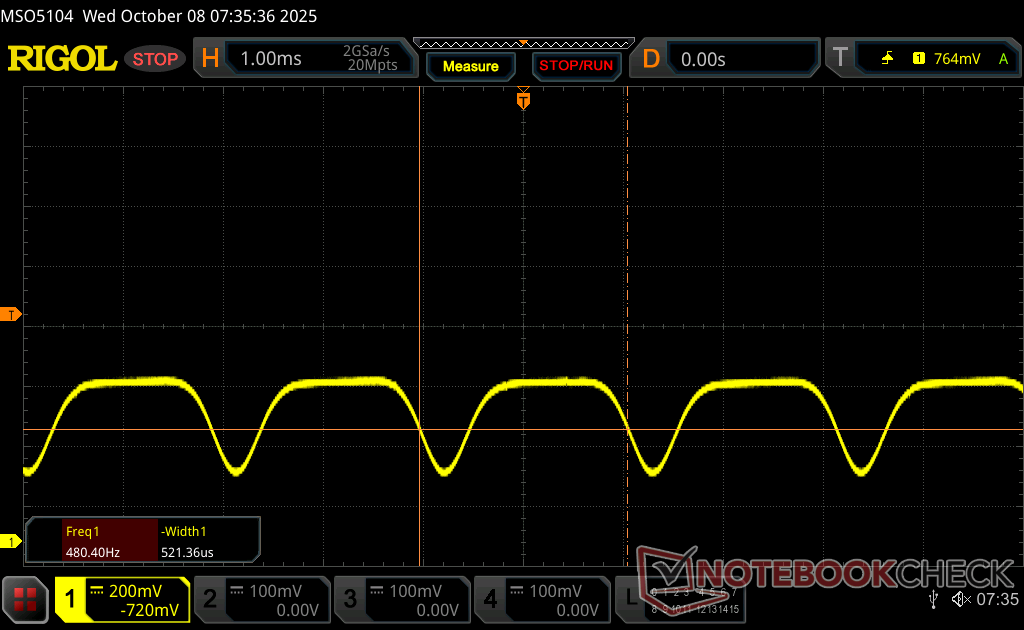

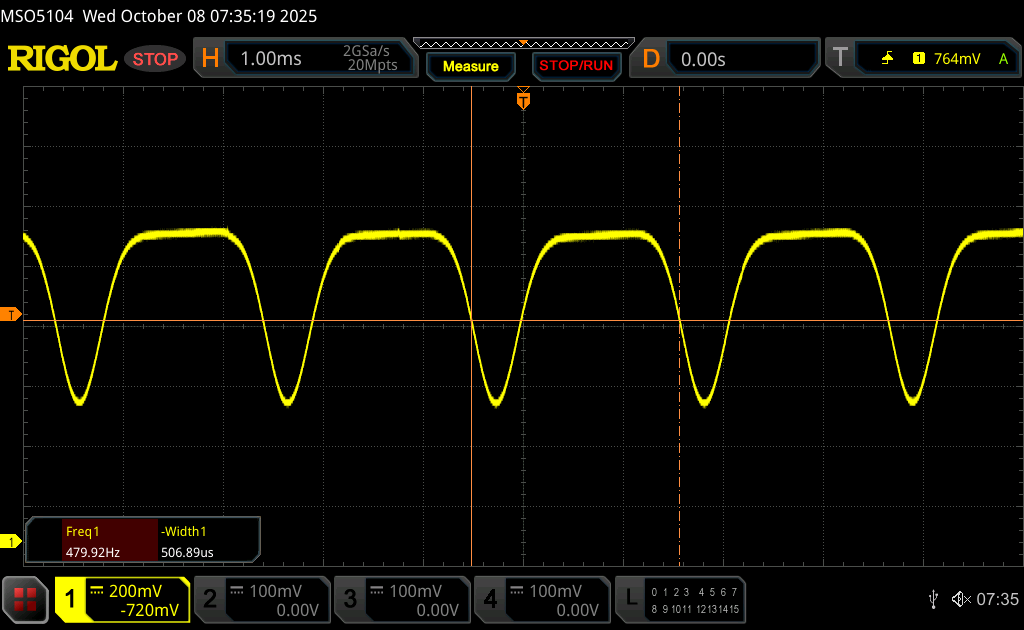

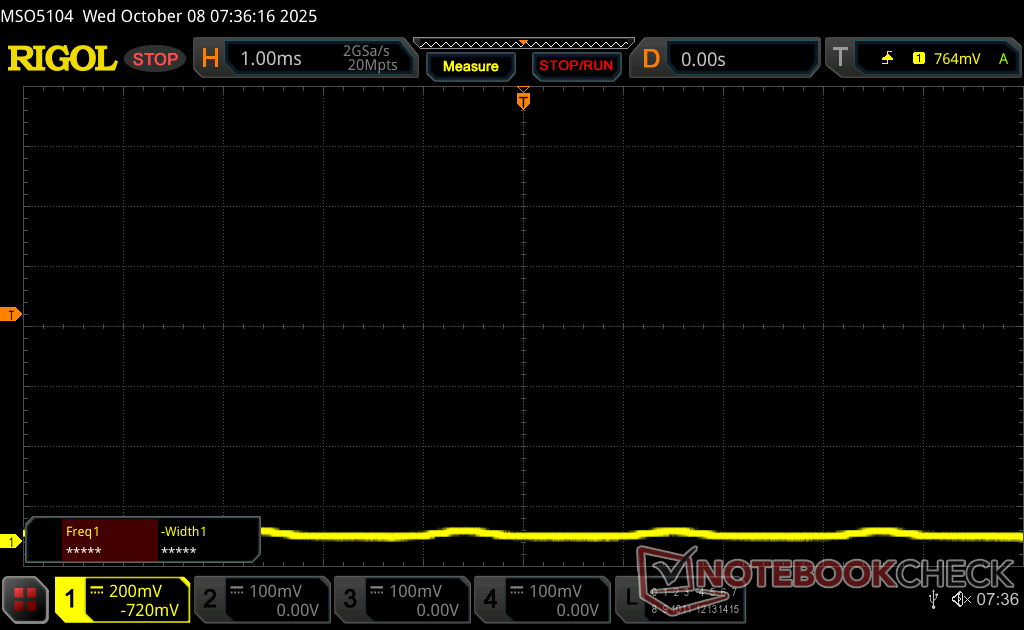

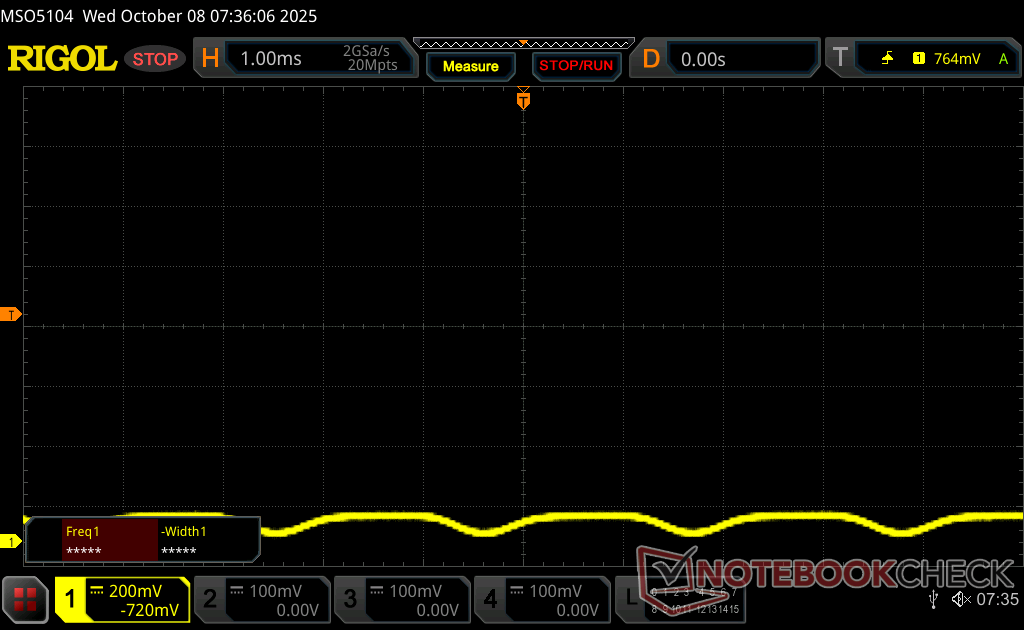

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 479.9 Hz Amplitude: 28 % | ≤ 100 % brightness setting |  |

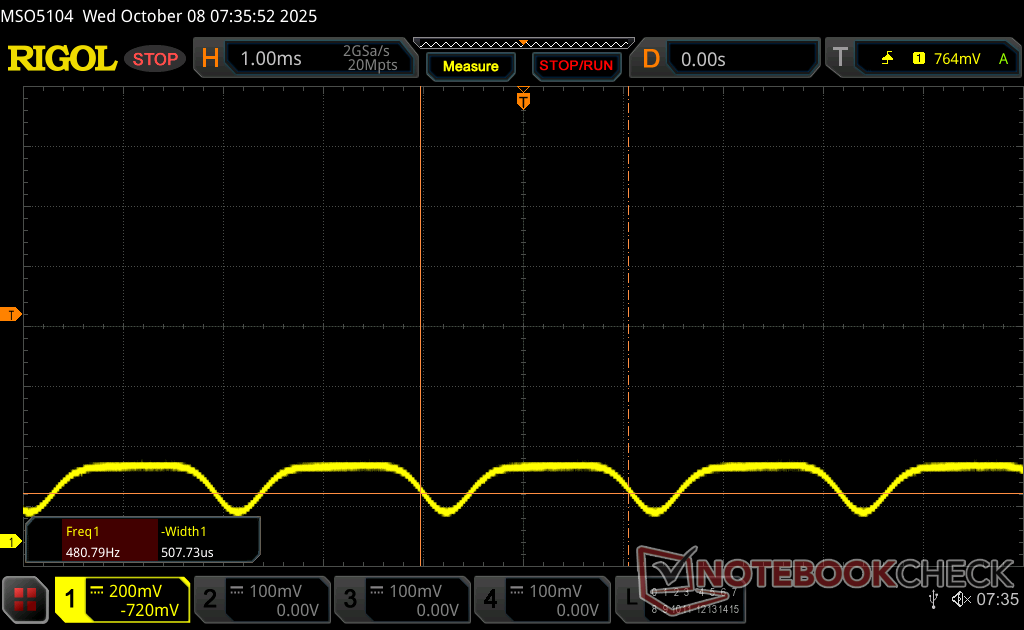

The display backlight flickers at 479.9 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 479.9 Hz is relatively high, so most users sensitive to PWM should not notice any flickering. However, there are reports that some users are still sensitive to PWM at 500 Hz and above, so be aware. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8169 (minimum: 5 - maximum: 343500) Hz was measured. | |||
性能
测试条件
在运行以下基准测试之前，我们将戴尔优化大师设置为性能模式，将 Nvidia 控制面板设置为独立显卡模式。在 Optimus 和 dGPU 模式之间切换无需重启。
处理器

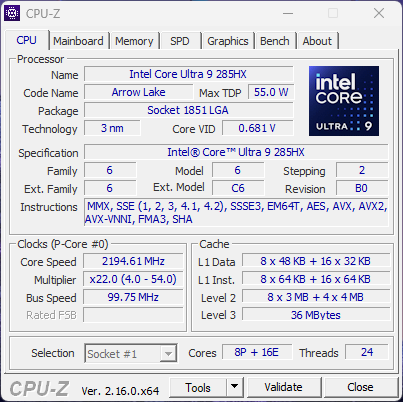

酷睿 Ultra 9 285HX 酷睿至尊 9 285HX是所有移动工作站中速度最快的处理器之一，性能比 Core Ultra 9 185H提高了近 2 倍。 Precision 5690.不过，性能的可持续性并不完美；例如，在循环运行 CineBench R15 xT 时，性能会随着时间的推移下降约 10%，如下图所示。
Cinebench R15 多回路运行
Dell Pro Max 16 Plus Intel Core Ultra 9 285HX: Ø4879 (4779.54-5426.67)
Dell Precision 5690 Intel Core Ultra 9 185H: Ø2340 (2218.28-3164.56)
Dell Precision 5000 5680 Intel Core i9-13900H: Ø2332 (2200.22-2354.19)
Lenovo ThinkPad P16 Gen 2 Intel Core i7-14700HX: Ø3368 (2675.23-3930.05)
Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H: Ø2743 (2699.24-2880.39)
HP ZBook Studio 16 G11 Intel Core Ultra 9 185H: Ø2646 (2585.98-2853.07)
MSI CreatorPro Z16P B12UKST Intel Core i7-12700H: Ø2211 (2130.95-2274.54)
CPU Performance rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.5: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.5: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| Geekbench 6.5 / Multi-Core | |
| Average Intel Core Ultra 9 285HX (20630 - 22104, n=2) | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| HP ZBook Fury 16 G10 | |
| Dell Precision 5000 5680 | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| Lenovo ThinkPad P16s G2 21K9000CGE | |
| Geekbench 6.5 / Single-Core | |
| Average Intel Core Ultra 9 285HX (2907 - 3088, n=2) | |
| HP ZBook Fury 16 G10 | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5000 5680 | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P16s G2 21K9000CGE | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
* ... smaller is better
Performance rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance rating | |
| Average Intel Core Ultra 9 285HX | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Precision 5000 5680 | |
| AIDA64 / FP32 Ray-Trace | |
| Average Intel Core Ultra 9 285HX (31893 - 42341, n=2) | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5690 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| HP ZBook Studio 16 G11 | |
| Dell Precision 5000 5680 | |
| MSI CreatorPro Z16P B12UKST | |
| AIDA64 / FPU Julia | |
| Average Intel Core Ultra 9 285HX (161276 - 210885, n=2) | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| Dell Precision 5000 5680 | |
| MSI CreatorPro Z16P B12UKST | |
| AIDA64 / CPU SHA3 | |
| Average Intel Core Ultra 9 285HX (7921 - 9815, n=2) | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Precision 5000 5680 | |
| AIDA64 / CPU Queen | |
| Lenovo ThinkPad P16 Gen 2 | |
| Average Intel Core Ultra 9 285HX (135057 - 141681, n=2) | |
| Dell Pro Max 16 Plus | |
| Dell Precision 5000 5680 | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| AIDA64 / FPU SinJulia | |
| Average Intel Core Ultra 9 285HX (13080 - 14431, n=2) | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Pro Max 16 Plus | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| Dell Precision 5000 5680 | |
| MSI CreatorPro Z16P B12UKST | |
| AIDA64 / FPU Mandel | |
| Average Intel Core Ultra 9 285HX (84053 - 108922, n=2) | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5690 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| HP ZBook Studio 16 G11 | |
| Dell Precision 5000 5680 | |
| MSI CreatorPro Z16P B12UKST | |
| AIDA64 / CPU AES | |
| MSI CreatorPro Z16P B12UKST | |
| Average Intel Core Ultra 9 285HX (119553 - 134195, n=2) | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| Dell Precision 5000 5680 | |
| AIDA64 / CPU ZLib | |
| Average Intel Core Ultra 9 285HX (1886 - 2267, n=2) | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Precision 5000 5680 | |
| AIDA64 / FP64 Ray-Trace | |
| Average Intel Core Ultra 9 285HX (17357 - 22312, n=2) | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5690 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| HP ZBook Studio 16 G11 | |
| Dell Precision 5000 5680 | |
| MSI CreatorPro Z16P B12UKST | |
| AIDA64 / CPU PhotoWorxx | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX (62274 - 62611, n=2) | |
| HP ZBook Studio 16 G11 | |
| Dell Precision 5690 | |
| Dell Precision 5000 5680 | |
| MSI CreatorPro Z16P B12UKST | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| Lenovo ThinkPad P16 Gen 2 | |
系统性能

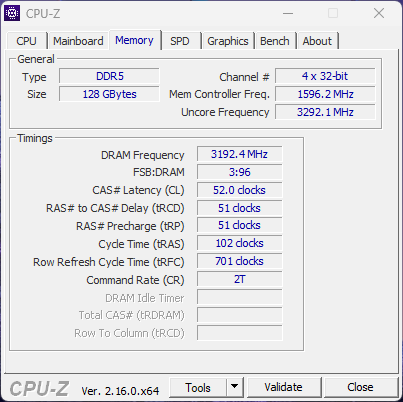

PCMark 10 分数未包括在内，因为即使更新到最新版本并尝试不同的 GPU 配置，该基准也会持续崩溃。尽管如此，由于 CAMM2 内存的性能优势，AIDA64 内存分数是所有移动工作站中最高的。
Performance rating: Percent
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| Performance rating | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX, Nvidia RTX PRO 5000 Blackwell Generation Laptop | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5000 5680 | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| CrossMark / Overall | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX, Nvidia RTX PRO 5000 Blackwell Generation Laptop (n=1) | |
| Lenovo ThinkPad P16 Gen 2 | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Precision 5000 5680 | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| CrossMark / Productivity | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX, Nvidia RTX PRO 5000 Blackwell Generation Laptop (n=1) | |
| Lenovo ThinkPad P16 Gen 2 | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Precision 5000 5680 | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| CrossMark / Creativity | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX, Nvidia RTX PRO 5000 Blackwell Generation Laptop (n=1) | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5000 5680 | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| CrossMark / Responsiveness | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX, Nvidia RTX PRO 5000 Blackwell Generation Laptop (n=1) | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5000 5680 | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| WebXPRT 3 / Overall | |
| Dell Precision 5000 5680 | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX, Nvidia RTX PRO 5000 Blackwell Generation Laptop (n=1) | |
| MSI CreatorPro Z16P B12UKST | |
| HP ZBook Studio 16 G11 | |
| Dell Precision 5690 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| WebXPRT 4 / Overall | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX, Nvidia RTX PRO 5000 Blackwell Generation Laptop (n=1) | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5000 5680 | |
| Dell Precision 5690 | |
| MSI CreatorPro Z16P B12UKST | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| Mozilla Kraken 1.1 / Total | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| MSI CreatorPro Z16P B12UKST | |
| HP ZBook Studio 16 G11 | |
| Dell Precision 5690 | |
| Dell Precision 5000 5680 | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX, Nvidia RTX PRO 5000 Blackwell Generation Laptop (n=1) | |
* ... smaller is better
| AIDA64 / Memory Copy | |
| Average Intel Core Ultra 9 285HX (93381 - 93933, n=2) | |
| Dell Pro Max 16 Plus | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Dell Precision 5000 5680 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| Lenovo ThinkPad P16 Gen 2 | |
| MSI CreatorPro Z16P B12UKST | |
| AIDA64 / Memory Read | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX (97209 - 97565, n=2) | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5000 5680 | |
| MSI CreatorPro Z16P B12UKST | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| AIDA64 / Memory Write | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX (89392 - 89630, n=2) | |
| Dell Precision 5000 5680 | |
| HP ZBook Studio 16 G11 | |
| Dell Precision 5690 | |
| MSI CreatorPro Z16P B12UKST | |
| Lenovo ThinkPad P16 Gen 2 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| AIDA64 / Memory Latency | |
| Dell Precision 5690 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| HP ZBook Studio 16 G11 | |
| Dell Pro Max 16 Plus | |
| Average Intel Core Ultra 9 285HX (104.8 - 115.1, n=2) | |
| MSI CreatorPro Z16P B12UKST | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5000 5680 | |
* ... smaller is better
DPC 延迟

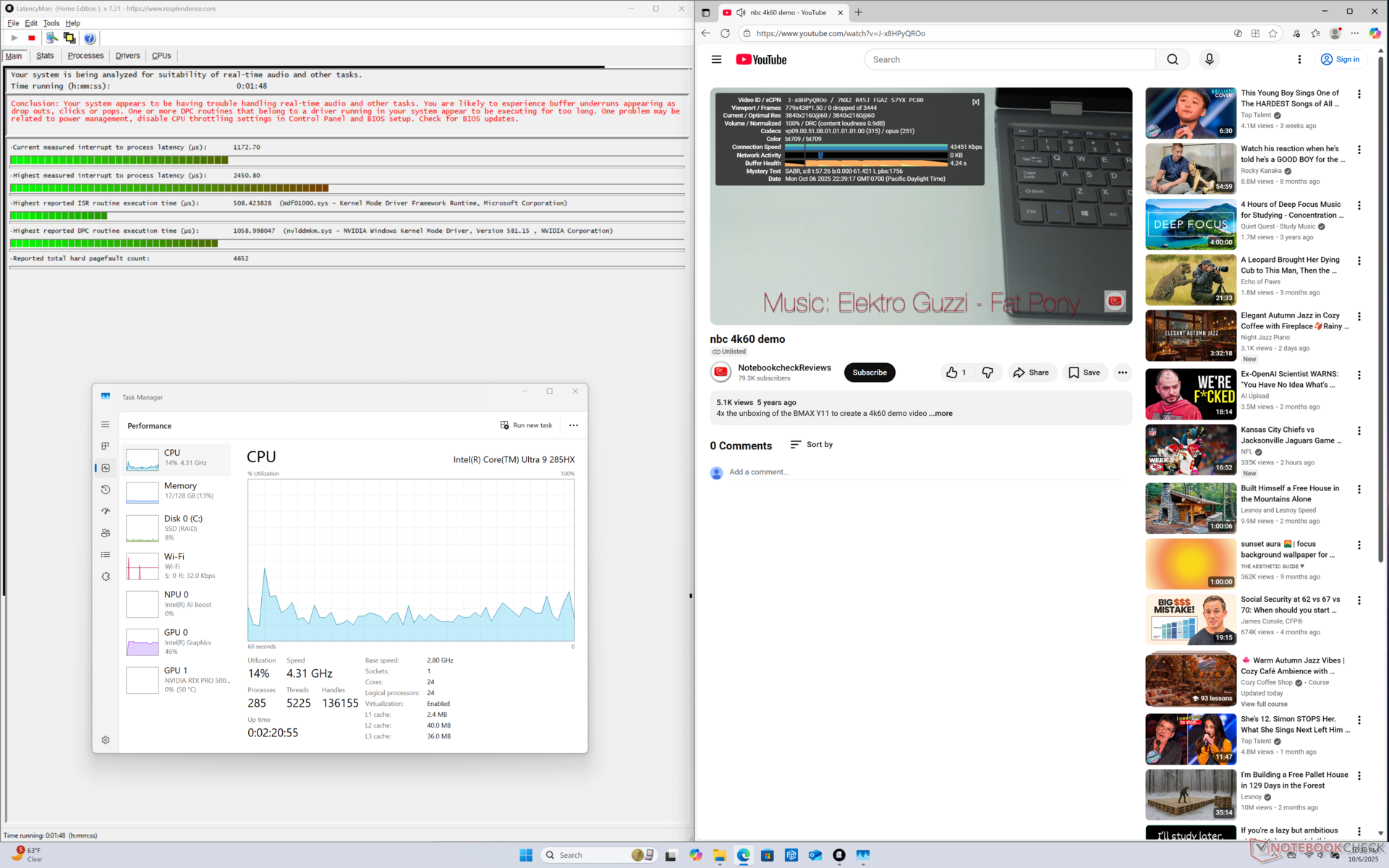

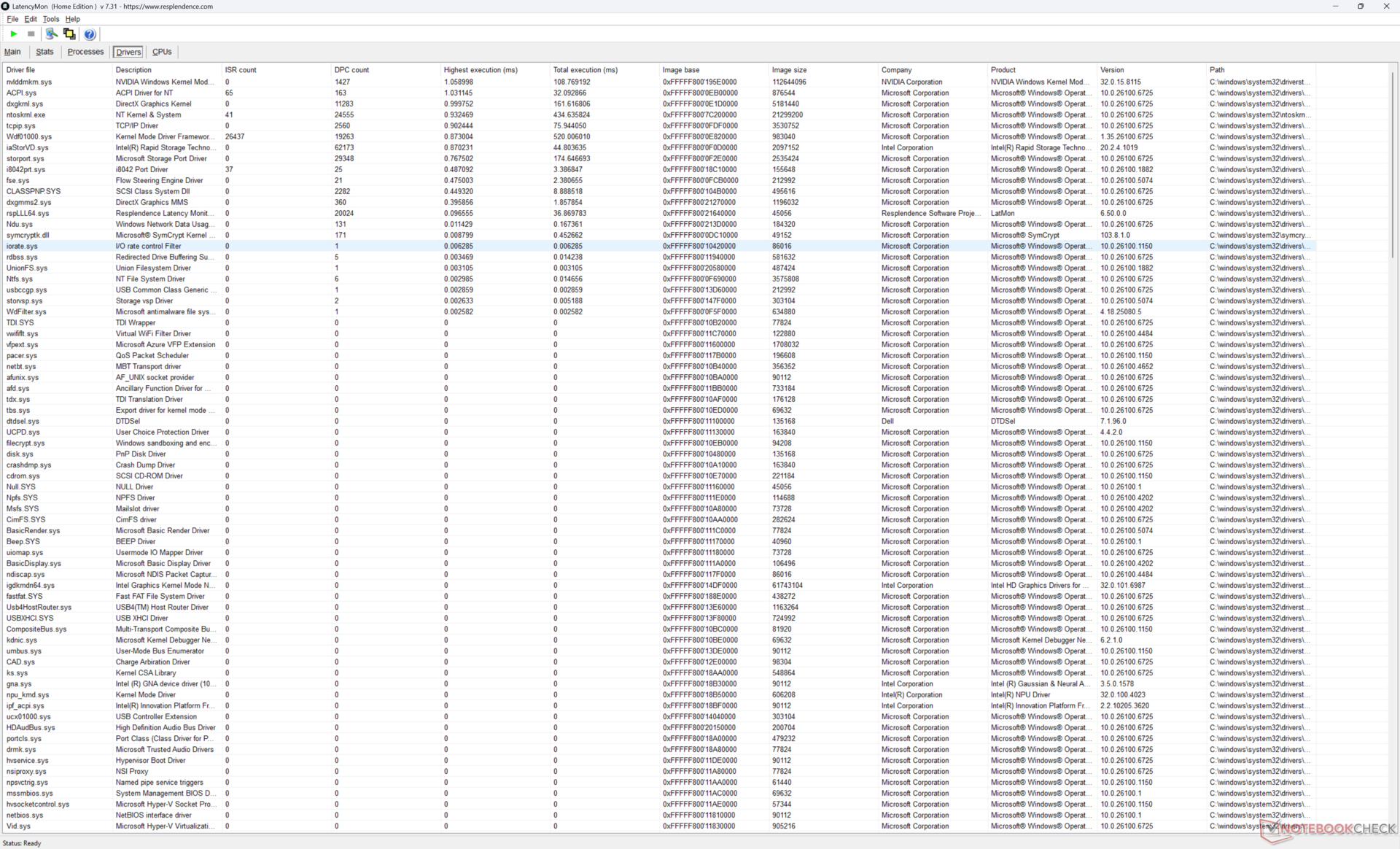

在 4K60 视频播放测试中，LatencyMon 显示了轻微的 DPC 问题，但没有出现掉帧现象。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Dell Pro Max 16 Plus | |
| Dell Precision 5000 5680 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P16 Gen 2 | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Precision 5690 | |
* ... smaller is better
存储设备

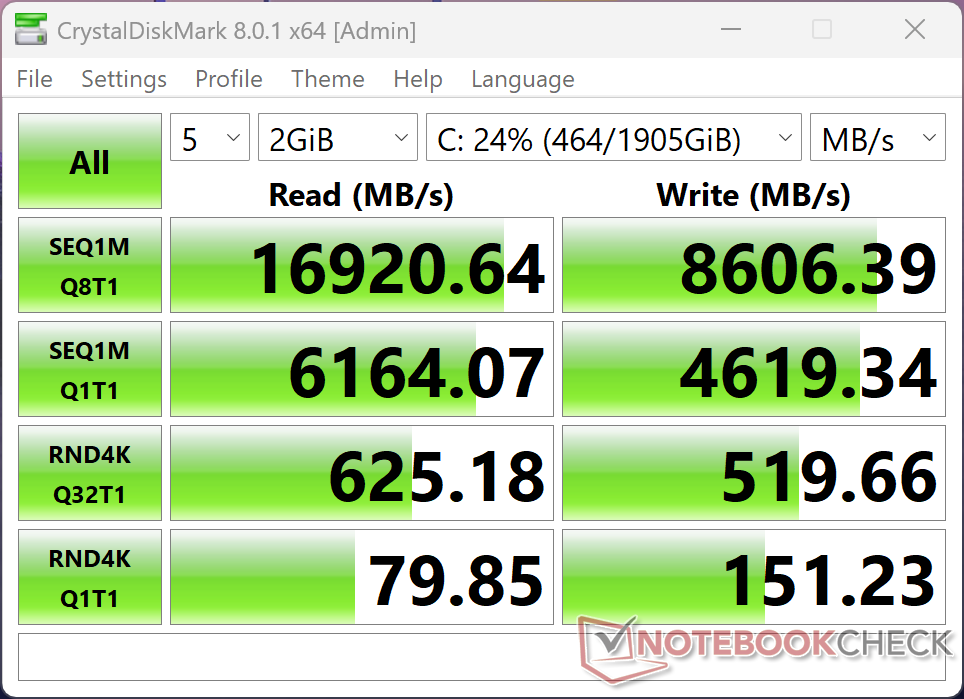

我们的测试装置配备了 SK Hynix PCB01PCIe5 x4 NVMe 固态硬盘，读取速度高达 16 GB/秒。如下图所示，DisKSpd 压力测试开始几分钟后，性能会略微下降到 13 GB/s。
SK hynix PCB01 HFS001TFM9X186N
CDM 5/6 Read Seq Q32T1:
11918 MB/s
CDM 5/6 Write Seq Q32T1:
6118 MB/s
CDM 5/6 Read 4K Q32T1:
632.5 MB/s
CDM 5/6 Write 4K Q32T1:
530.3 MB/s
CDM 5 Read Seq:
5570 MB/s
CDM 5 Write Seq:
4783 MB/s
CDM 5/6 Read 4K:
80.27 MB/s
CDM 5/6 Write 4K:
147.9 MB/s
* ... smaller is better
磁盘节流DiskSpd 读取循环，队列深度 8
Dell Pro Max 16 Plus SK hynix PCB01 HFS001TFM9X186N; diskspd 2.0.17 f: Ø15311 (13268.36-16302.11)
Dell Precision 5690 2x Samsung PM9A1 1TB (RAID 0); diskspd 2.0.17 f: Ø12556 (11605.5-12741.67)

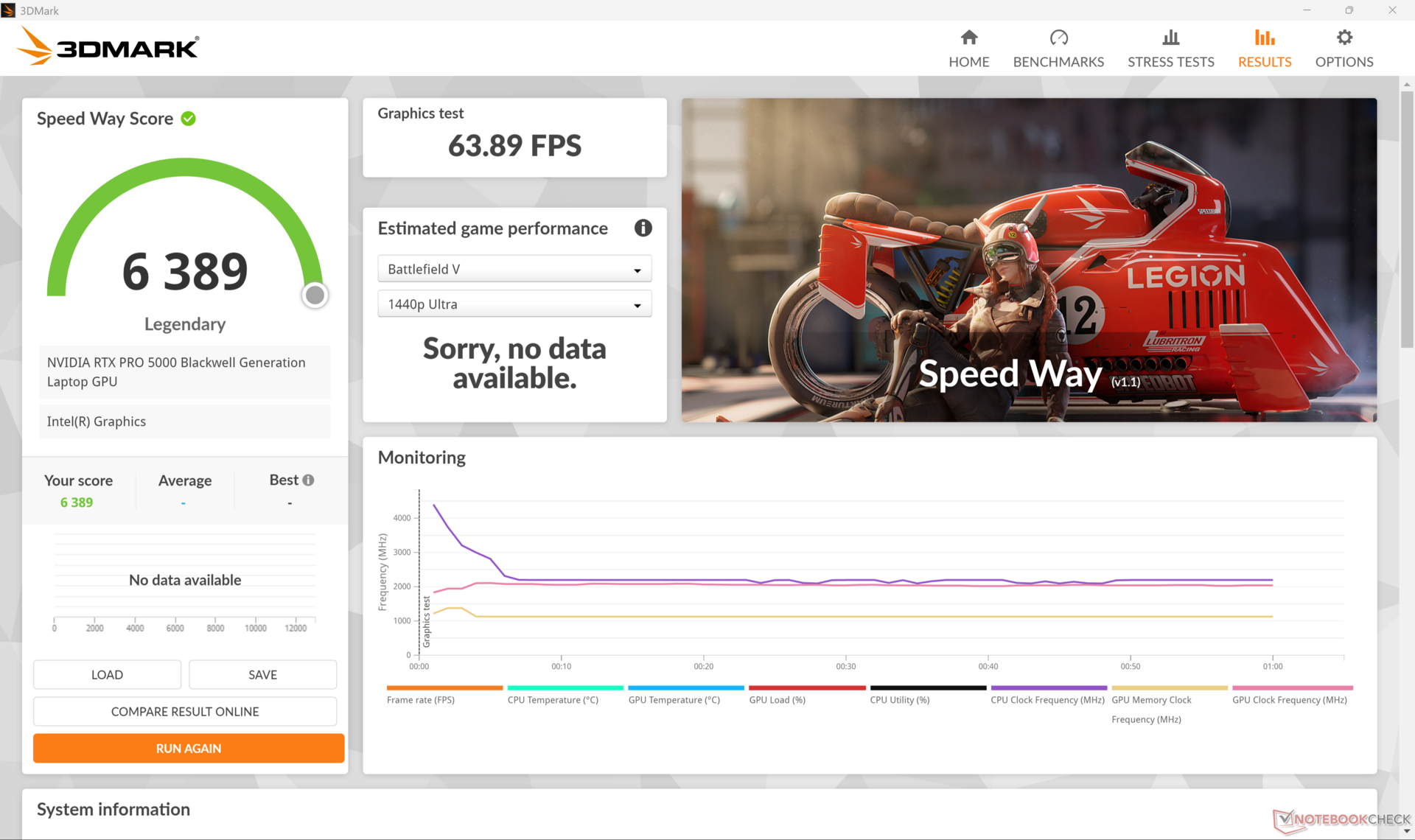

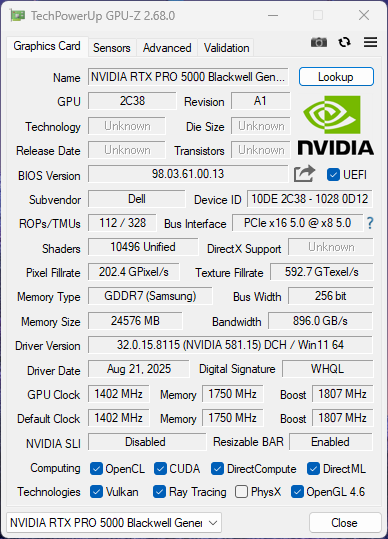

图形处理器性能
作为我们数据库中第一台配备RTX Pro 5000 Blackwell的工作站，其 GPU 性能大大超过了即将推出的 RTX 5000 Ada在上一代旗舰工作站（如 惠普 ZBook Fury 16 G10约 35% 至 50%。如果考虑到 Specviewperf 的结果，优势会更大。根据 3DMarkFire Strike 基准测试，在平衡或优化模式而非性能模式下运行系统对性能的影响微乎其微。

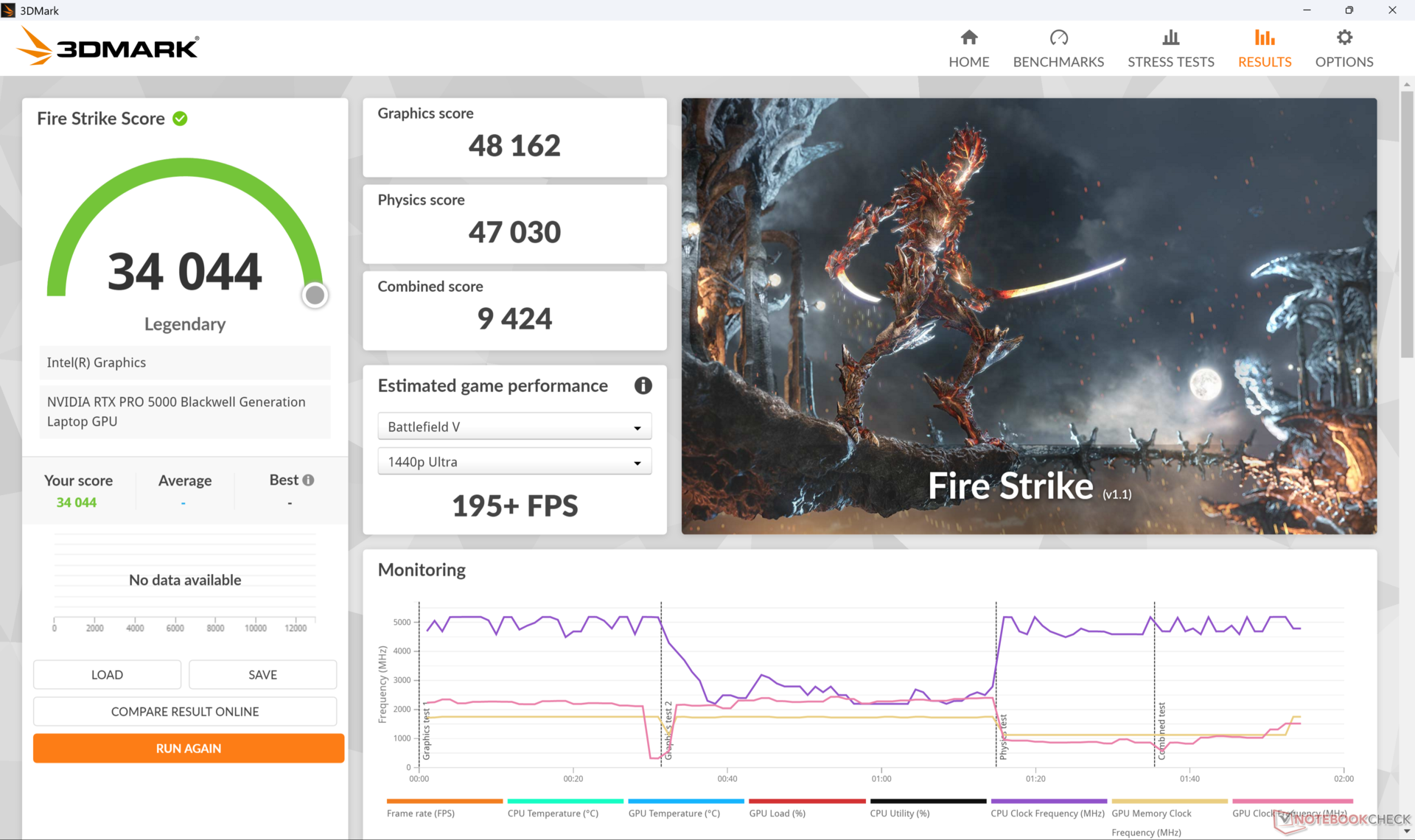

| 电源配置文件 | 图形分数 | 物理得分 | 综合得分 |
| 性能模式（~121 瓦） | 48162 | 47030 | 9424 |
| 平衡模式（~108 瓦） | 47134 (-2%) | 45150 (-4%) | 12212 (+30%) |
| 电池功率 | 25838 (-46%) | 34253 (-27%) | 6186 (-34%) |

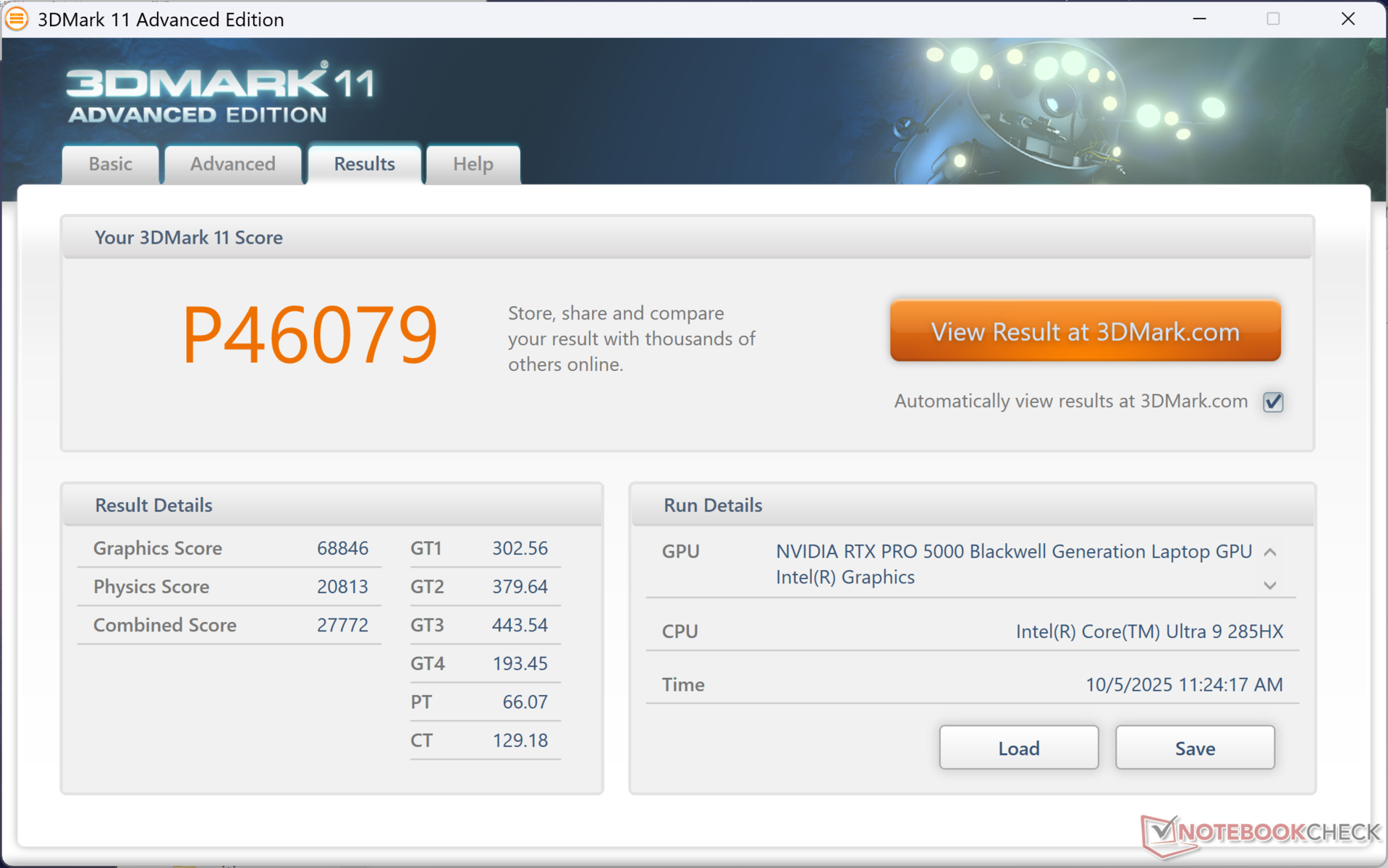

| 3DMark 11 Performance | 46079 points | |
| 3DMark Cloud Gate Standard Score | 67837 points | |
| 3DMark Fire Strike Score | 34044 points | |

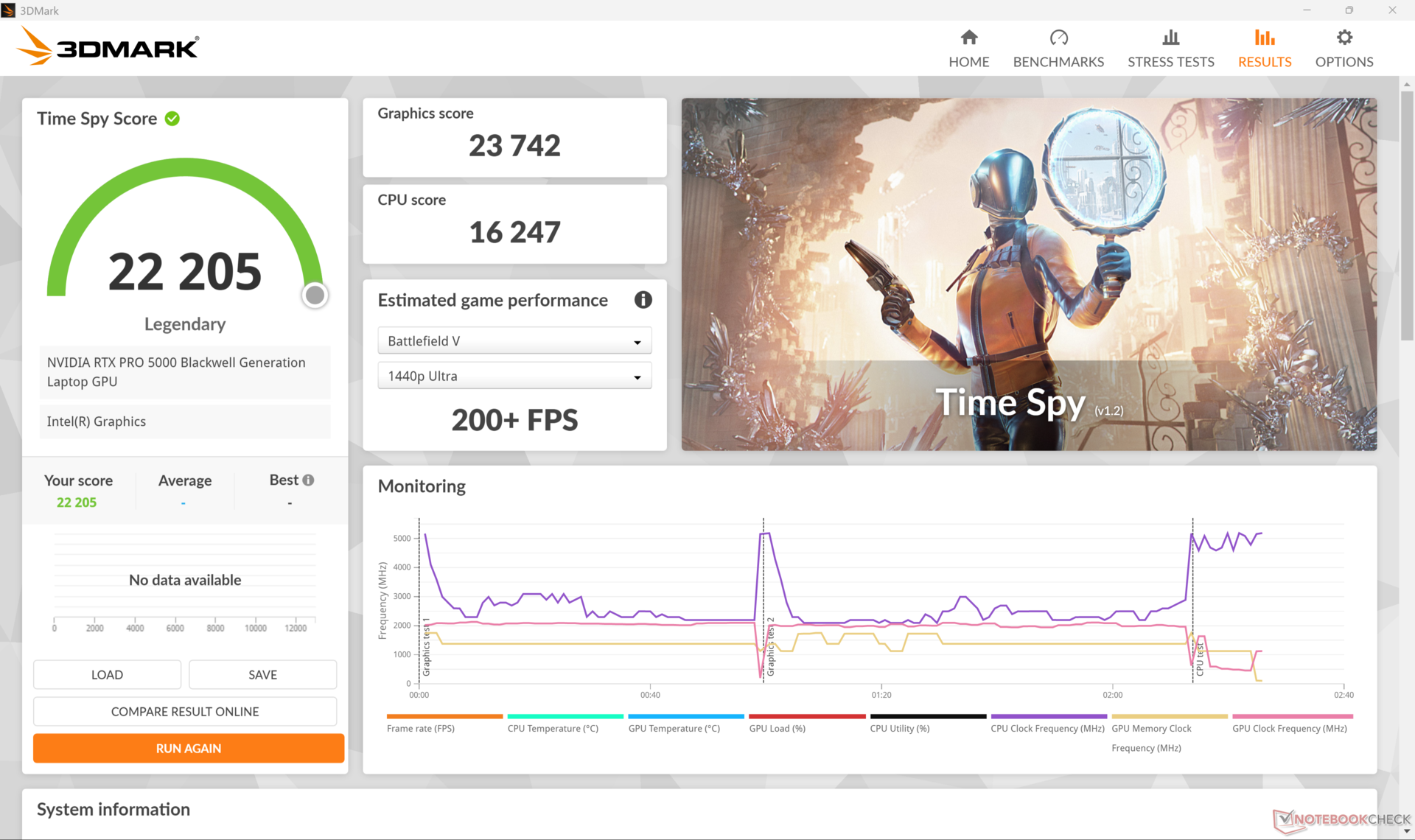

| 3DMark Time Spy Score | 22205 points | |

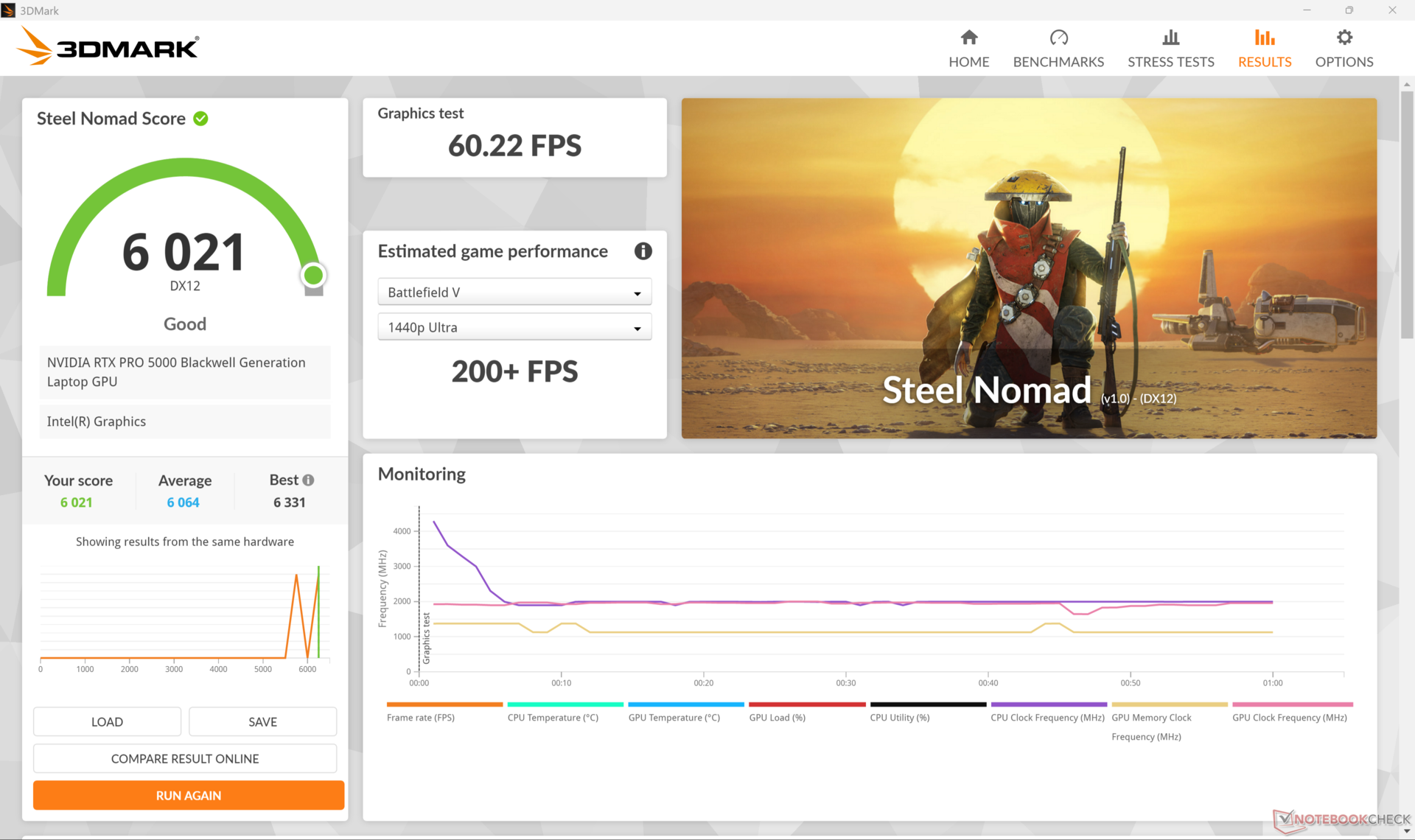

| 3DMark Steel Nomad Score | 6021 points | |
Help | ||
* ... smaller is better
游戏性能
游戏性能与 移动版GeForce RTX 5080RTX Pro 5000 Blackwell 是基于移动版 RTX 5090 的，这在意料之中。 移动 RTX 5090芯片，但没有进行游戏优化。一些游戏在 RTX Pro 5000 Blackwell 上的运行性能较差或不一致，包括《怪物猎人荒野》。
Performance rating | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | GTA V | Final Fantasy XV Benchmark | Strange Brigade | Dota 2 Reborn | X-Plane 11.11
| Performance rating - Percent | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5000 5680 -3! | |
| Dell Precision 5690 -1! | |
| HP ZBook Studio 16 G11 | |
| MSI CreatorPro Z16P B12UKST -2! | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE -1! | |
| Cyberpunk 2077 2.2 Phantom Liberty - 1920x1080 Ultra Preset (FSR off) | |
| Dell Pro Max 16 Plus | |
| Dell Precision 5690 | |
| Lenovo ThinkPad P16 Gen 2 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| HP ZBook Studio 16 G11 | |
| Baldur's Gate 3 - 1920x1080 Ultra Preset AA:T | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5000 5680 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| HP ZBook Studio 16 G11 | |
| MSI CreatorPro Z16P B12UKST | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Precision 5690 | |
| Dell Precision 5000 5680 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| MSI CreatorPro Z16P B12UKST | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Pro Max 16 Plus | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| MSI CreatorPro Z16P B12UKST | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| Dell Pro Max 16 Plus | |
| Lenovo ThinkPad P16 Gen 2 | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Precision 5000 5680 | |
| HP ZBook Studio 16 G11 | |
| Dell Precision 5690 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
| X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
| Lenovo ThinkPad P16 Gen 2 | |
| Dell Pro Max 16 Plus | |
| Dell Precision 5000 5680 | |
| MSI CreatorPro Z16P B12UKST | |
| Dell Precision 5690 | |
| HP ZBook Studio 16 G11 | |
| Lenovo ThinkPad P1 Gen 7 21KV001SGE | |
赛博朋克 2077》超 FPS 图表
Dell Pro Max 16 Plus Ultra 9 285HX, RTX PRO 5000 Blackwell Generation Laptop: Ø116.8 (107.7-121.2)
| low | med. | high | ultra | QHD DLSS | QHD | 4K DLSS | 4K | |
|---|---|---|---|---|---|---|---|---|
| GTA V (2015) | 184.7 | 183.5 | 178.1 | 142.5 | 138 | 170.3 | ||
| Dota 2 Reborn (2015) | 212 | 181 | 184.8 | 166 | 146.4 | |||
| Final Fantasy XV Benchmark (2018) | 233 | 220 | 184.2 | 162.8 | 102.2 | |||
| X-Plane 11.11 (2018) | 144.4 | 125.7 | 103.2 | 82.6 | ||||
| Strange Brigade (2018) | 382 | 285 | 261 | 288 | 300 | 177.3 | ||
| Baldur's Gate 3 (2023) | 204 | 201.8 | 155.2 | 128.1 | 80.1 | |||
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 133.9 | 121.6 | 120.6 | 119.8 | 116.3 | 105.1 | 65.3 | 51 |
| F1 24 (2024) | 251 | 243 | 231 | 131.2 | 128.1 | 94.9 | 82 | 47.2 |
| Black Myth: Wukong (2024) | 142 | 72 | 54 | 42 | 36 | 37 | 32 | 26 |
| Monster Hunter Wilds (2025) | 25.4 | 27 | 27.8 | 43.3 | 39 | 33.9 | 35.3 | |
| Assassin's Creed Shadows (2025) | 103 | 98 | 86 | 68 | 67 | 57 | 56 | 42 |
排放量
系统噪音
虽然风扇几乎始终处于活动状态，但为了减少噪音的急剧增加，脉动行为通常保持在最低水平。尽管如此，当运行高负载时，系统的噪音还是相当大，几乎达到 55 分贝（A），与我们在联想 ThinkPad P1 上记录到的噪音相似。 联想 ThinkPad P1或 HP ZBook Studio 16 G11.

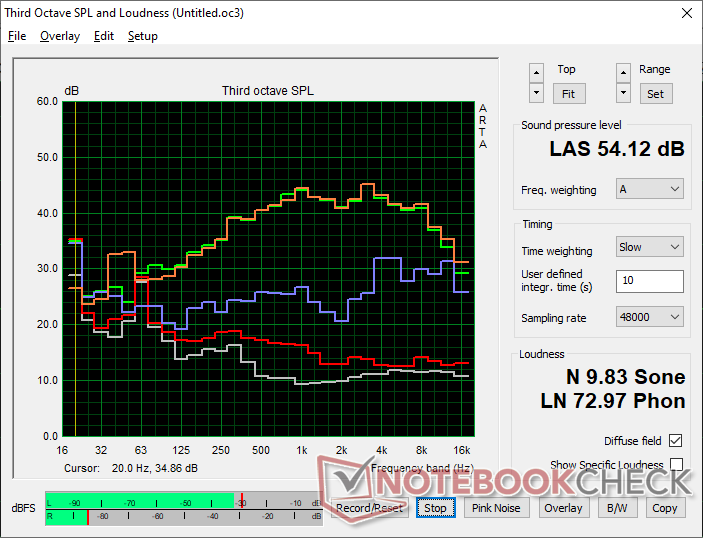

当设置为平衡模式和性能模式时，风扇噪音最高分别为 49 dB(A) 和 54.3 dB(A)。
Noise level
| Idle |
| 26.7 / 30.5 / 34 dB(A) |
| Load |
| 39.8 / 54.3 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 23.2 dB(A) | ||
| Dell Pro Max 16 Plus RTX PRO 5000 Blackwell Generation Laptop, Ultra 9 285HX, SK hynix PCB01 HFS001TFM9X186N | Dell Precision 5690 NVIDIA RTX 5000 Ada Generation Laptop GPU, Ultra 9 185H, 2x Samsung PM9A1 1TB (RAID 0) | Dell Precision 5000 5680 NVIDIA RTX 5000 Ada Generation Laptop GPU, i9-13900H, 2x SK hynix PC801 HFS512GEJ9X101N RAID 0 | Lenovo ThinkPad P16 Gen 2 NVIDIA RTX 4000 Ada Generation Laptop GPU, i7-14700HX, SK hynix PC801 HFS001TEJ9X162N | Lenovo ThinkPad P1 Gen 7 21KV001SGE NVIDIA GeForce RTX 4060 Laptop GPU, Ultra 7 155H, Kioxia XG8 KXG8AZNV1T02 | HP ZBook Studio 16 G11 NVIDIA RTX 3000 Ada Generation Laptop GPU, Ultra 9 185H, Kioxia XG8 KXG80ZNV1T02 | MSI CreatorPro Z16P B12UKST RTX A3000 Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR | |
|---|---|---|---|---|---|---|---|
| Noise | 7% | 14% | 1% | 6% | 11% | 5% | |
| off / environment * (dB) | 23.2 | 23.4 -1% | 22.8 2% | 23.9 -3% | 24.7 -6% | 23.8 -3% | 24.1 -4% |
| Idle Minimum * (dB) | 26.7 | 23.6 12% | 23 14% | 29.1 -9% | 24.7 7% | 23.8 11% | 27.1 -1% |
| Idle Average * (dB) | 30.5 | 24.9 18% | 23 25% | 29.1 5% | 24.7 19% | 26.4 13% | 27.1 11% |
| Idle Maximum * (dB) | 34 | 30.9 9% | 23 32% | 29.1 14% | 24.7 27% | 26.4 22% | 27.1 20% |
| Load Average * (dB) | 39.8 | 40.4 -2% | 37.2 7% | 41 -3% | 43.7 -10% | 33.7 15% | 42.9 -8% |
| Cyberpunk 2077 ultra * (dB) | 54.3 | 52.8 3% | 53.2 2% | 46.1 15% | |||
| Load Maximum * (dB) | 54.3 | 51.9 4% | 51 6% | 52.9 3% | 53.3 2% | 53.2 2% | 47 13% |
| Witcher 3 ultra * (dB) | 48.3 | 51 | 44 |
* ... smaller is better

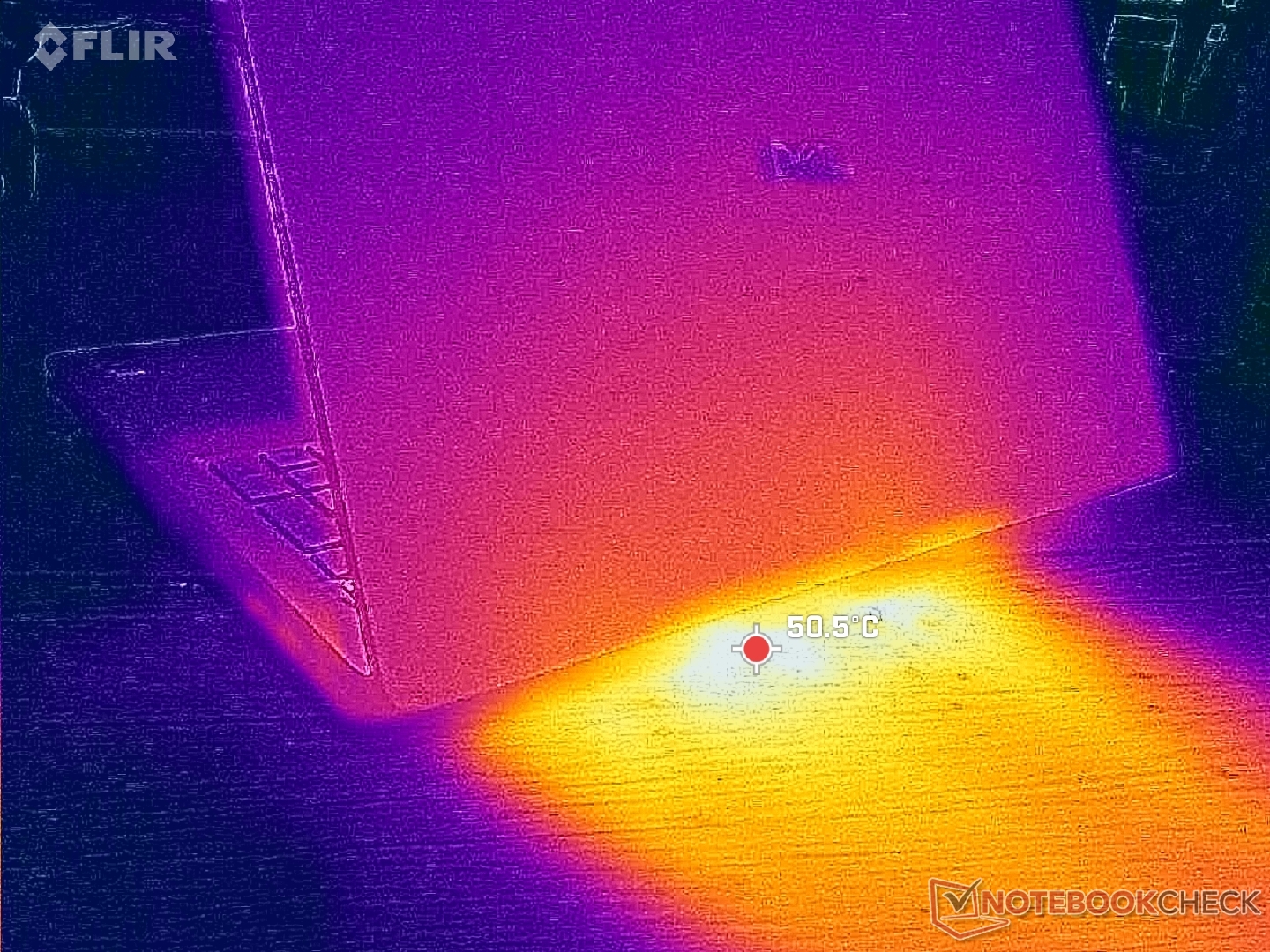

温度

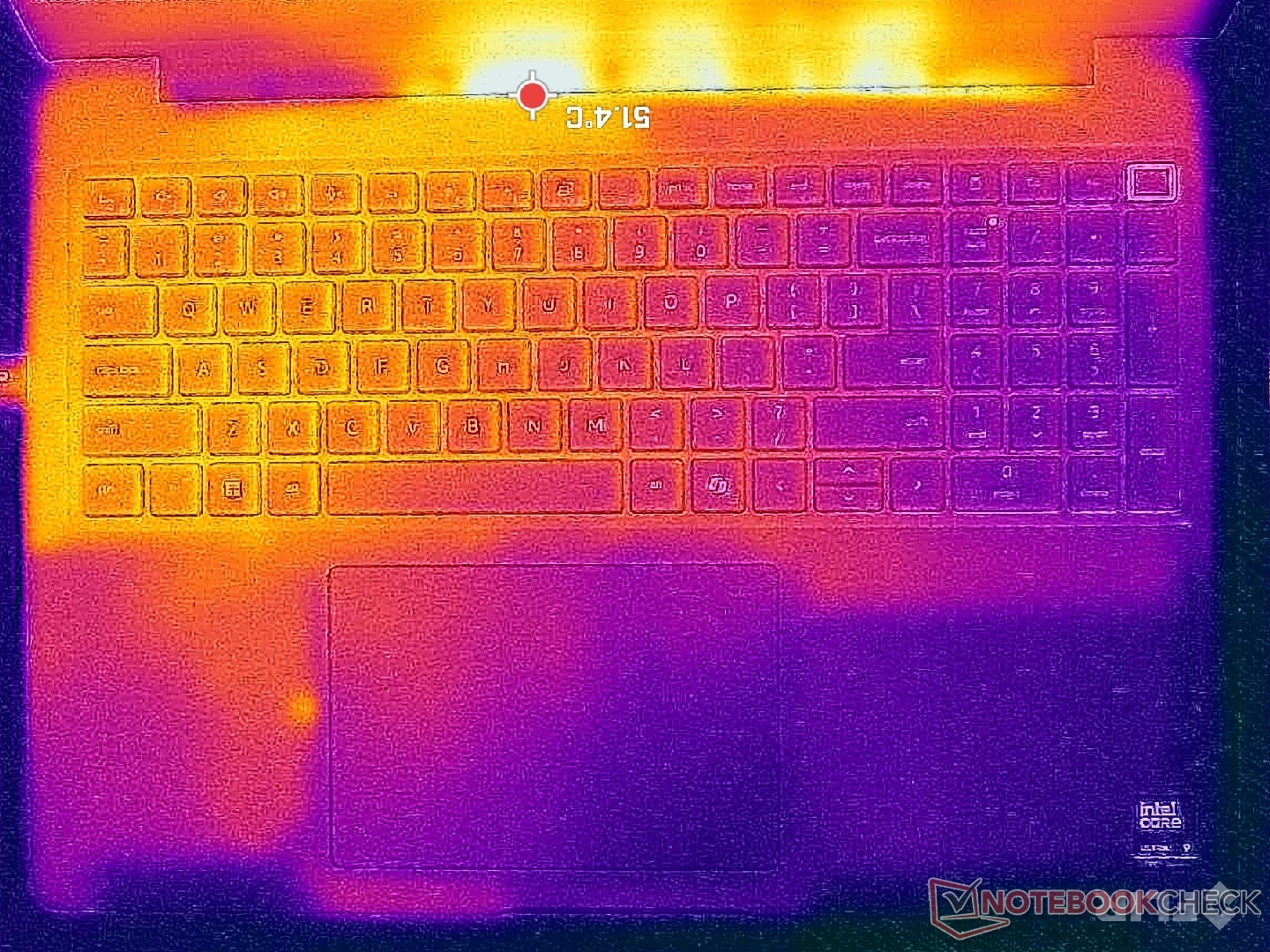

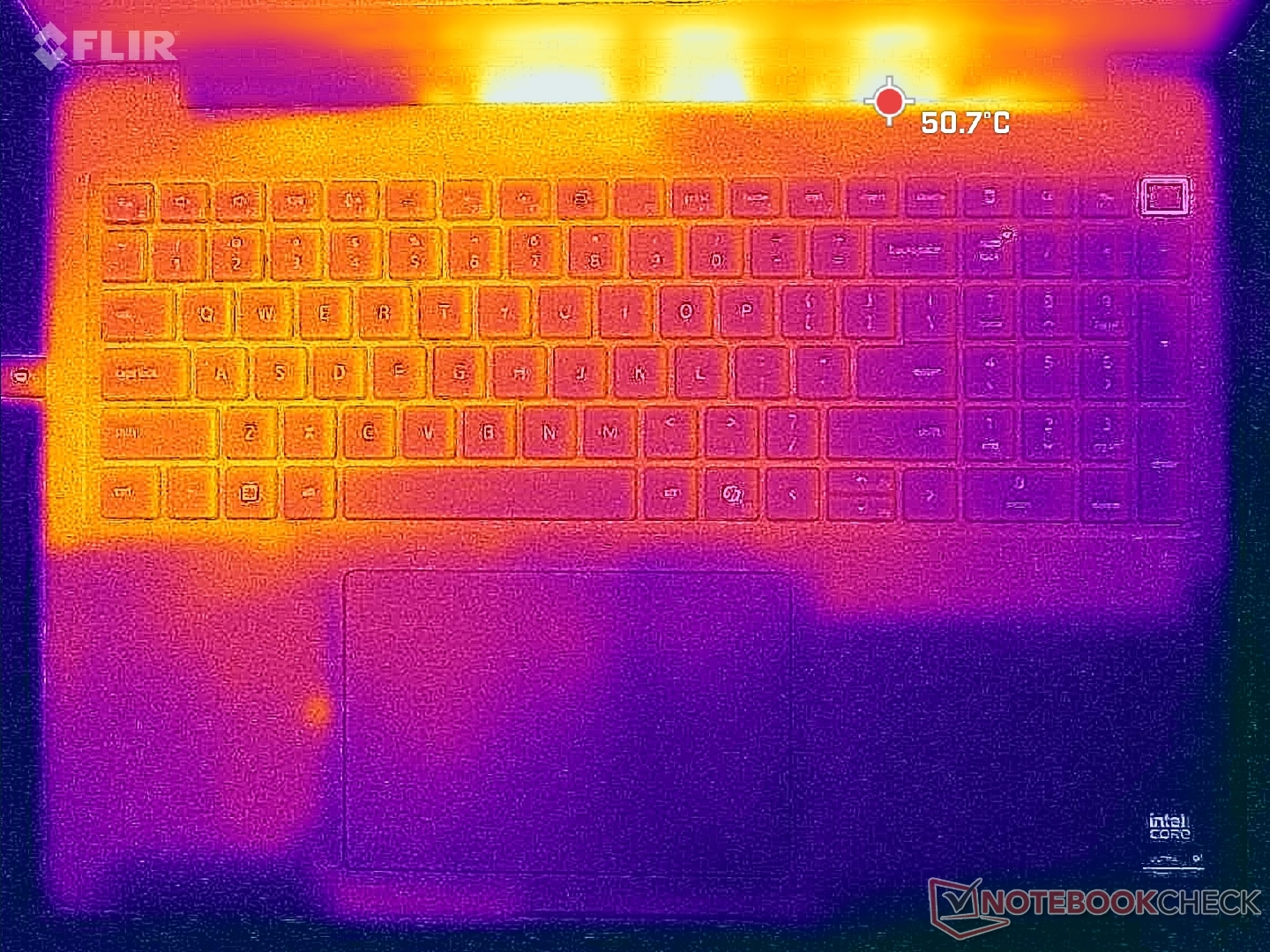

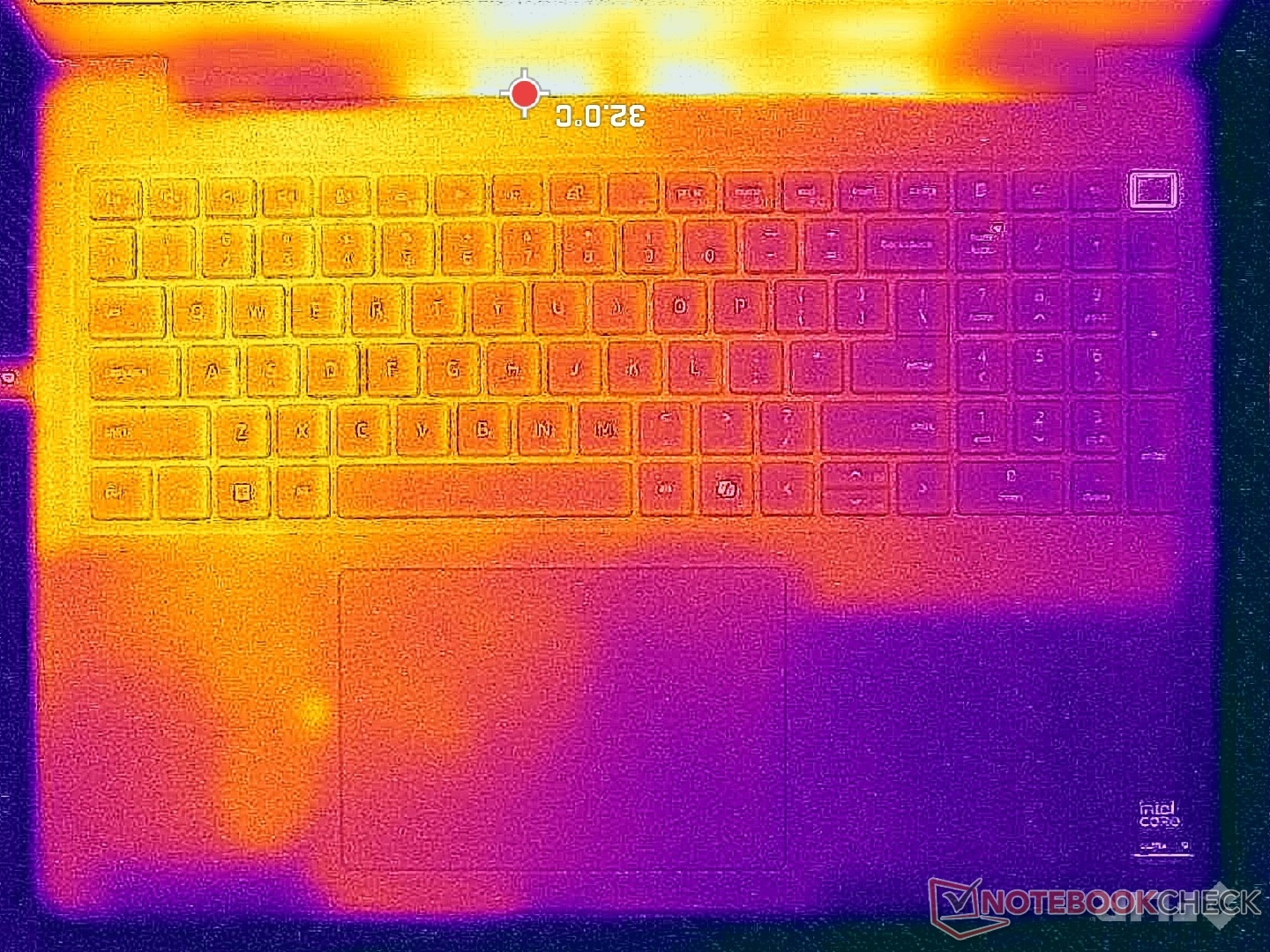

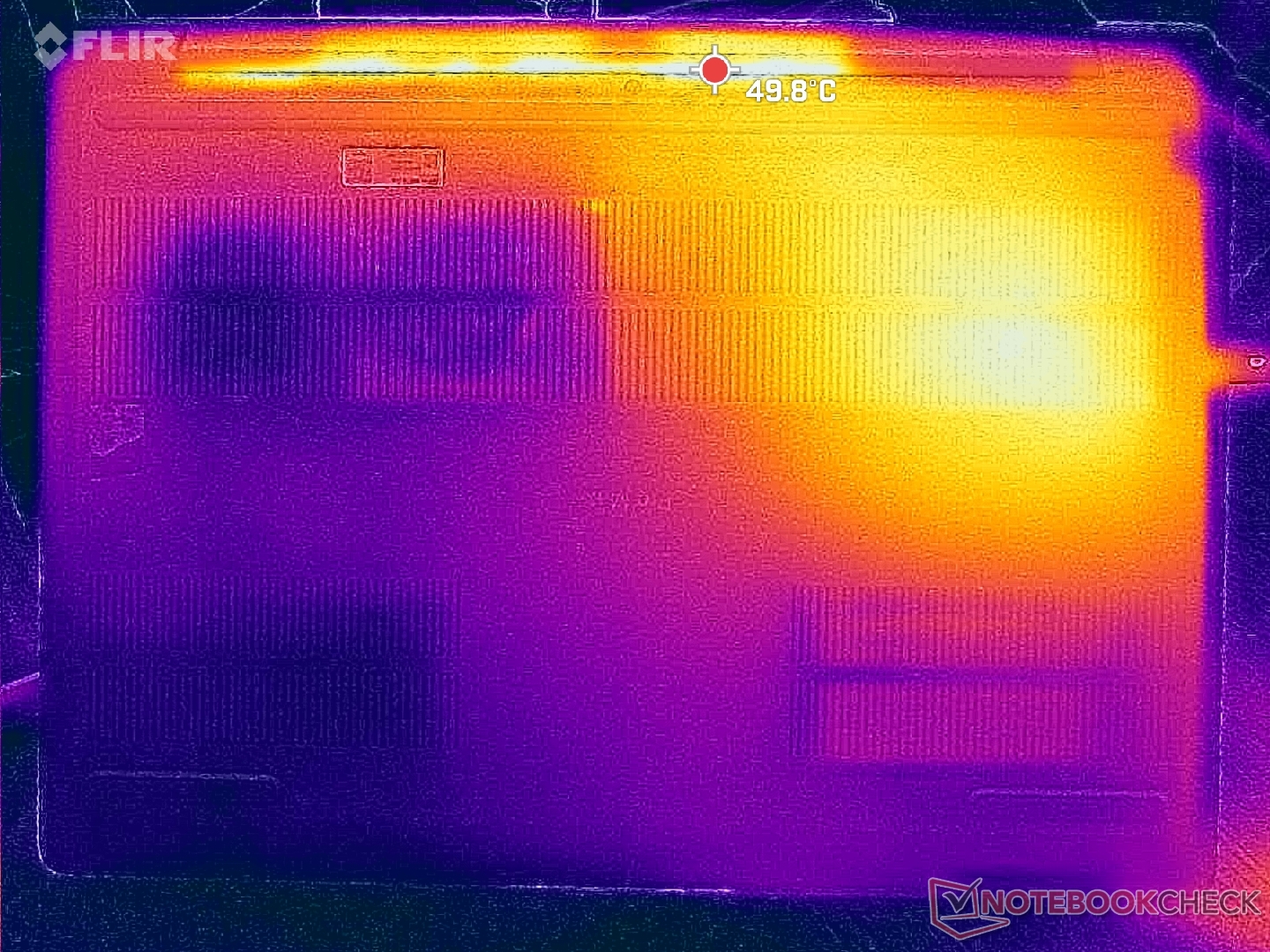

无论屏幕负载如何，机箱表面温度几乎总是很高，这可能是由于风扇和高性能部件的慵懒所致。由于采用了不对称散热解决方案，机箱左半部分的温度明显高于右半部分。
(±) The average temperature for the upper side under maximal load is 34.2 °C / 94 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(±) The maximum temperature on the upper side is 40.4 °C / 105 F, compared to the average of 38.3 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 45.6 °C / 114 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 29.5 °C / 85 F, compared to the device average of 32 °C / 90 F.
(±) 3: The average temperature for the upper side is 34.2 °C / 94 F, compared to the average of 32 °C / 90 F for the class Workstation.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.2 °C / 91.8 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-5.3 °C / -9.6 F).
(±) The maximum temperature on the upper side is 40.4 °C / 105 F, compared to the average of 38.3 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 45.6 °C / 114 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 29.5 °C / 85 F, compared to the device average of 32 °C / 90 F.
(±) 3: The average temperature for the upper side is 34.2 °C / 94 F, compared to the average of 32 °C / 90 F for the class Workstation.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.2 °C / 91.8 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-5.3 °C / -9.6 F).
| Dell Pro Max 16 Plus Intel Core Ultra 9 285HX, Nvidia RTX PRO 5000 Blackwell Generation Laptop | Dell Precision 5690 Intel Core Ultra 9 185H, Nvidia RTX 5000 Ada Generation Laptop GPU | Dell Precision 5000 5680 Intel Core i9-13900H, Nvidia RTX 5000 Ada Generation Laptop GPU | Lenovo ThinkPad P16 Gen 2 Intel Core i7-14700HX, NVIDIA RTX 4000 Ada Generation Laptop GPU | Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU | HP ZBook Studio 16 G11 Intel Core Ultra 9 185H, NVIDIA RTX 3000 Ada Generation Laptop GPU | MSI CreatorPro Z16P B12UKST Intel Core i7-12700H, NVIDIA RTX A3000 Laptop GPU | |
|---|---|---|---|---|---|---|---|
| Heat | 6% | -1% | 5% | 6% | 0% | -11% | |
| Maximum Upper Side * (°C) | 40.4 | 46.6 -15% | 50.2 -24% | 46.6 -15% | 50.3 -25% | 36.6 9% | 56.3 -39% |
| Maximum Bottom * (°C) | 45.6 | 33 28% | 32 30% | 51 -12% | 38 17% | 47.8 -5% | 68.3 -50% |
| Idle Upper Side * (°C) | 32.8 | 32.4 1% | 37.4 -14% | 24.8 24% | 28.3 14% | 31.4 4% | 25.2 23% |
| Idle Bottom * (°C) | 33 | 29.4 11% | 31.2 5% | 25.6 22% | 27.3 17% | 35.6 -8% | 25.9 22% |
* ... smaller is better
压力测试

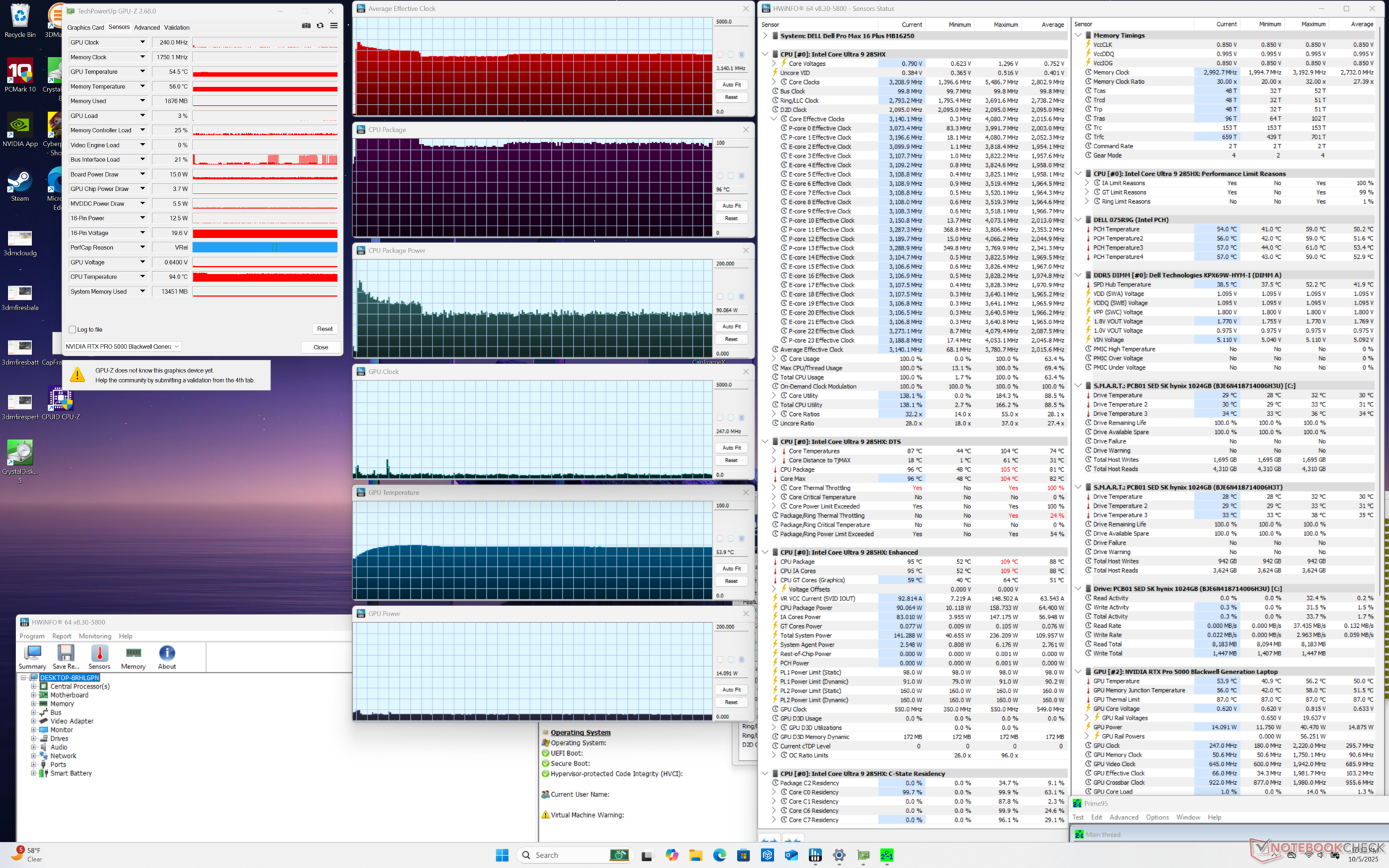

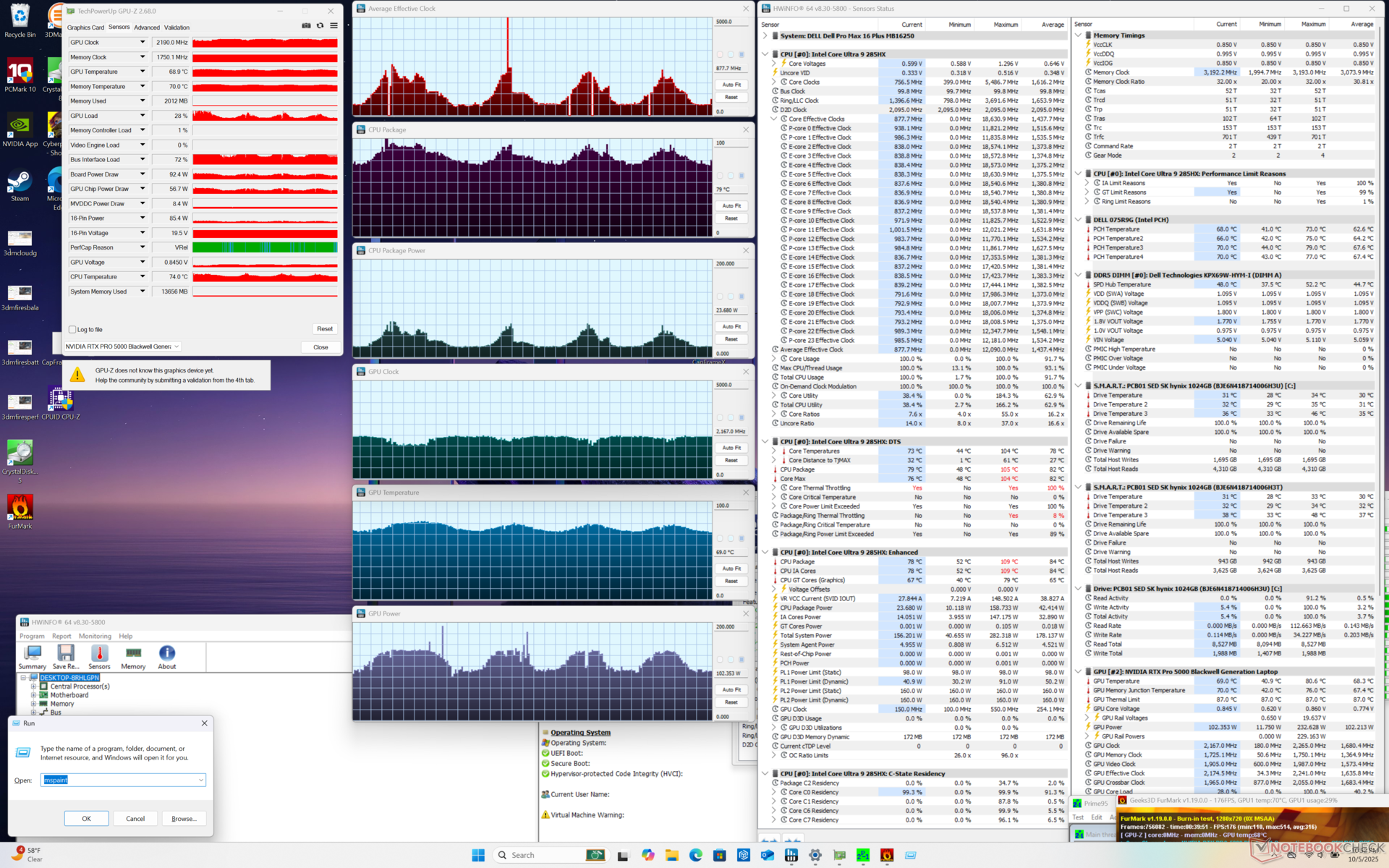

当启动 Prime95 压力模式时，CPU 的主频将提升至 3.8GHz，功耗为 159 瓦，温度为 105 摄氏度，然后迅速下降并稳定在 3.1GHz，功耗为 90 瓦，温度为 96 摄氏度。

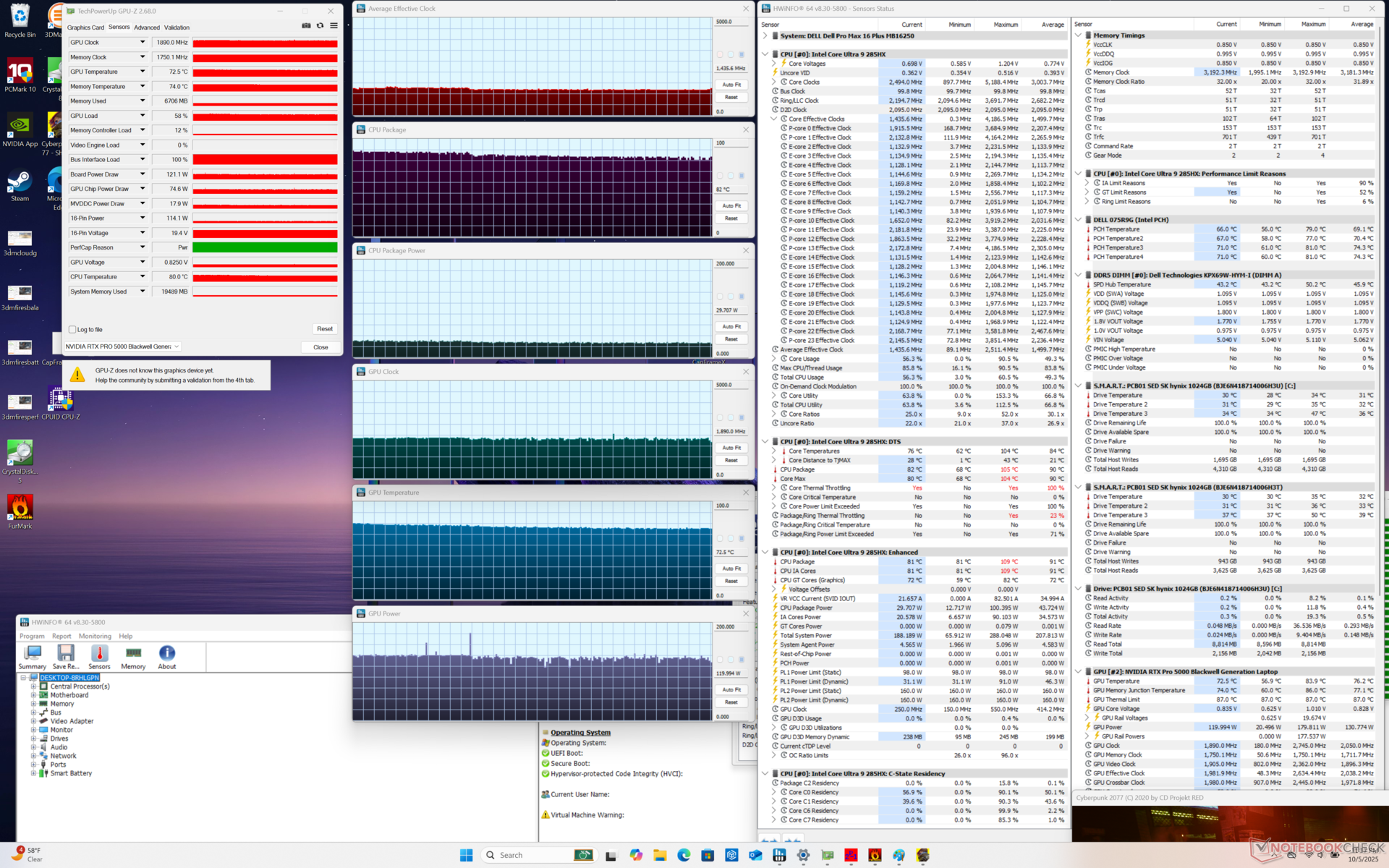

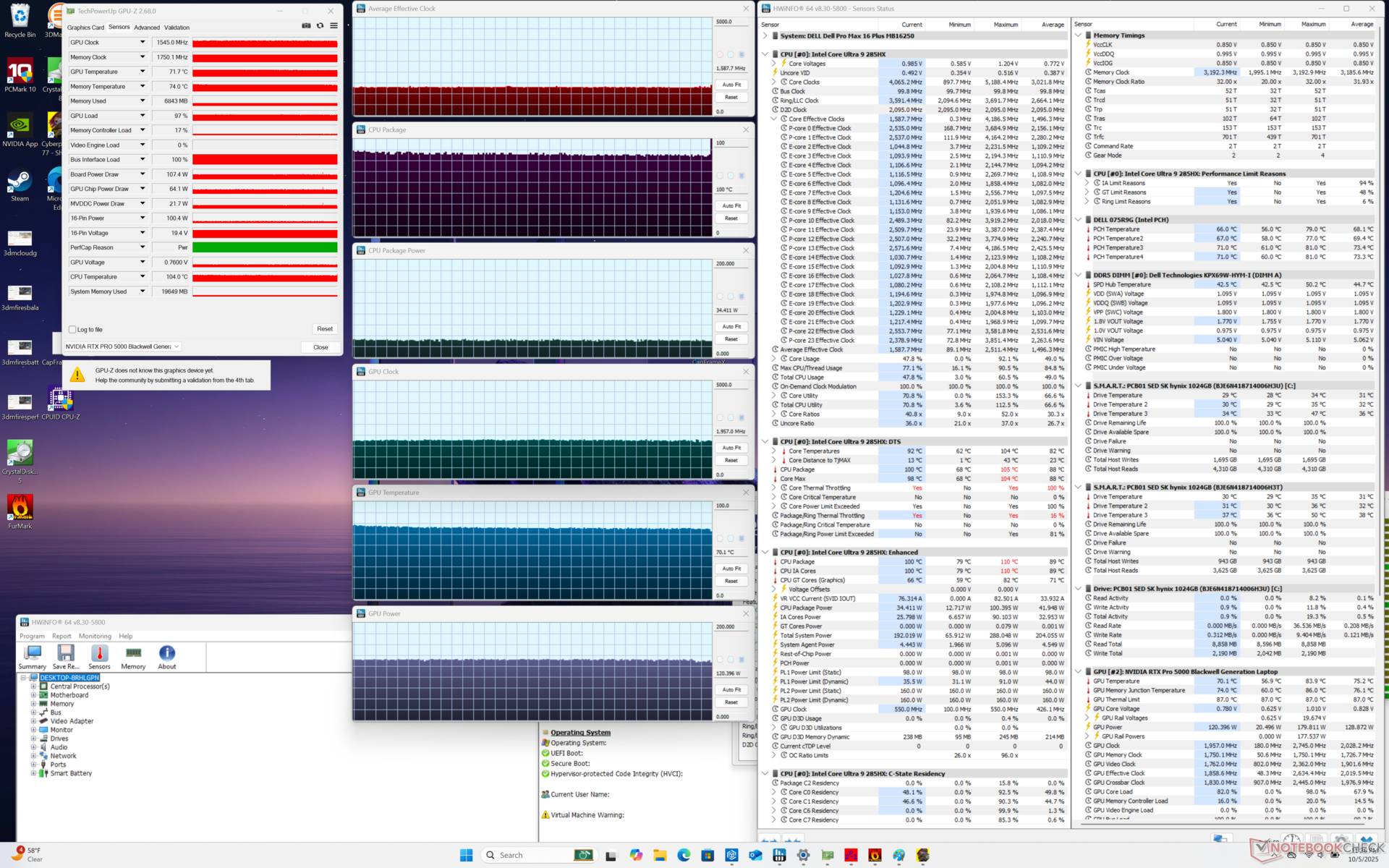

在 "性能 "模式下运行《赛博朋克 2077》，以代表更典型的压力条件，GPU 的功耗将稳定在约 121 W。
| 平均 CPU 时钟 (GHz) | GPU 时钟 (MHz) | 平均 CPU 温度 (°C) | 平均 GPU 温度 (°C) | |

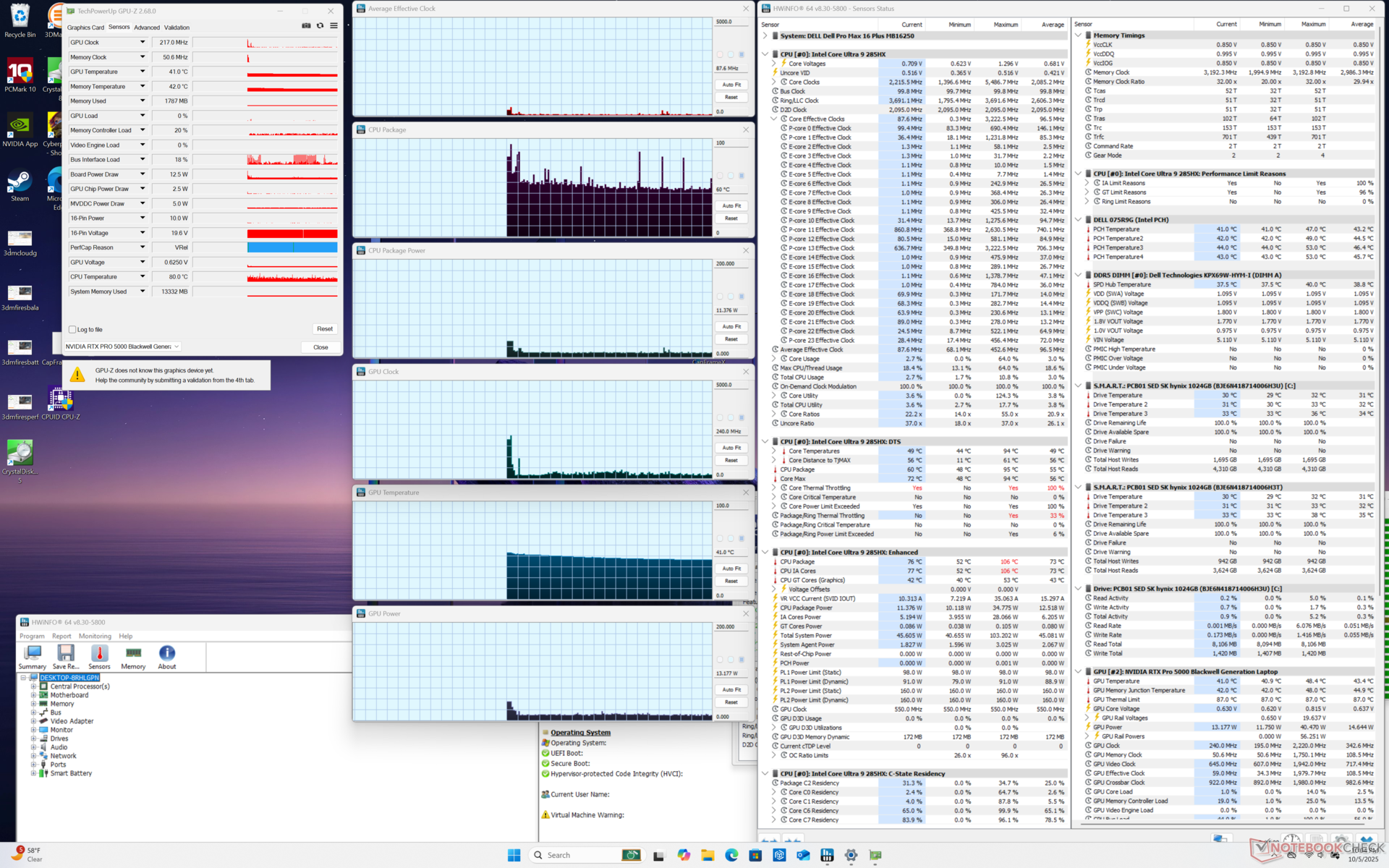

| 系统闲置 | -- | -- | 55 | 41 |
| Prime95 压力 | 3.1 | -- | 96 | 55 |
| Prime95 + FurMark 压力 | 0.5 - 2.8 | 1.7 - 2.2 | 75 - 105 | 70 - 78 |
| 赛博朋克 2077》压力（平衡模式） | ~1.6 | 1545 | 82 | 71 |
| 赛博朋克 2077》压力（性能模式） | ~1.4 | 1890 | 82 | 73 |
发言人
Frequency diagram (checkboxes can be checked and unchecked to compare devices)

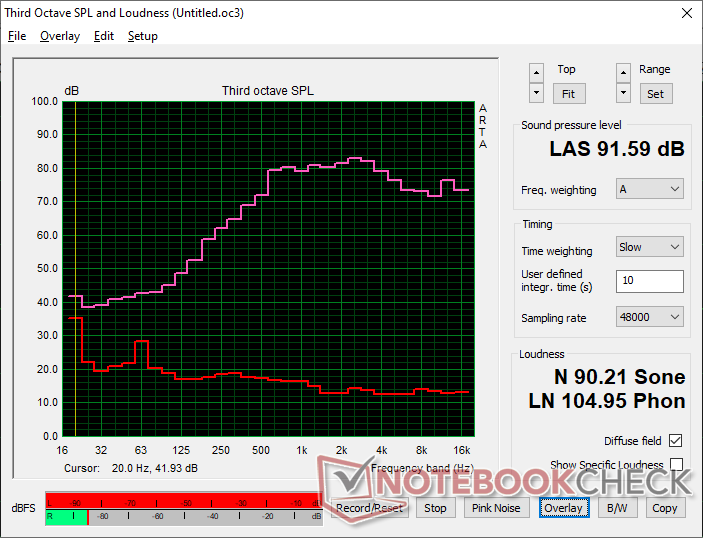

Dell Pro Max 16 Plus audio analysis
(+) | speakers can play relatively loud (91.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.9% lower than median
(+) | bass is linear (5.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.5% away from median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(+) | highs are linear (2.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.3% difference to median)
Compared to same class
» 27% of all tested devices in this class were better, 4% similar, 69% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 17% of all tested devices were better, 4% similar, 79% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 24%, worst was 134%
能源管理
耗电量
即使在桌面上闲置，消耗率也会很高，这也是电池寿命较短和表面总是发热的原因之一。与即将上市的Precision 5690 相比，该系统的要求明显更高，但性能更快、更稳定，是一种公平的权衡。

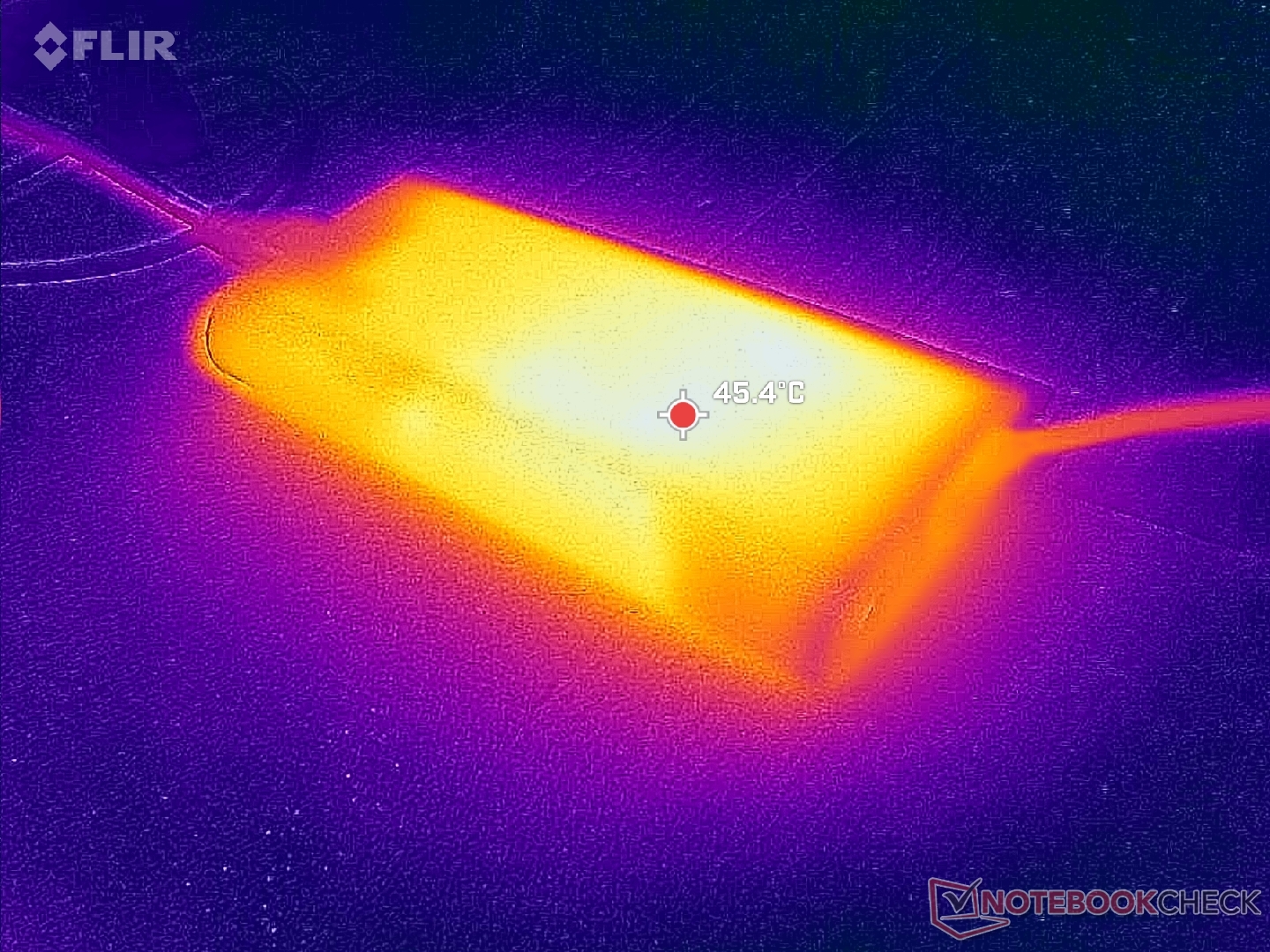

值得注意的是，这款笔记本电脑是唯一配备超薄型（约 16 x 7.8 x 2.4 厘米）280 W USB-C 交流适配器的笔记本电脑之一，因为大多数其他 USB-C 适配器的最高功率在 150 W 至 240 W 之间。
Power Consumption
| Off / Standby | 0.38 / 4.8 Watt |
| Idle | 35.1 / 39.2 / 56 Watt |
| Load |
130.2 / 285.2 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Dell Pro Max 16 Plus Ultra 9 285HX, RTX PRO 5000 Blackwell Generation Laptop, SK hynix PCB01 HFS001TFM9X186N, OLED, 3840x2400, 16" | Dell Precision 5690 Ultra 9 185H, NVIDIA RTX 5000 Ada Generation Laptop GPU, 2x Samsung PM9A1 1TB (RAID 0), OLED, 3840x2400, 16" | Dell Precision 5000 5680 i9-13900H, NVIDIA RTX 5000 Ada Generation Laptop GPU, 2x SK hynix PC801 HFS512GEJ9X101N RAID 0, OLED, 3840x2400, 16" | Lenovo ThinkPad P16 Gen 2 i7-14700HX, NVIDIA RTX 4000 Ada Generation Laptop GPU, SK hynix PC801 HFS001TEJ9X162N, IPS, 2560x1600, 16" | Lenovo ThinkPad P1 Gen 7 21KV001SGE Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU, Kioxia XG8 KXG8AZNV1T02, IPS LED, 2560x1600, 16" | HP ZBook Studio 16 G11 Ultra 9 185H, NVIDIA RTX 3000 Ada Generation Laptop GPU, Kioxia XG8 KXG80ZNV1T02, IPS, 3840x2400, 16" | MSI CreatorPro Z16P B12UKST i7-12700H, RTX A3000 Laptop GPU, Samsung PM9A1 MZVL21T0HCLR, IPS, 2560x1600, 16" | |
|---|---|---|---|---|---|---|---|
| Power Consumption | 52% | 55% | 31% | 55% | 47% | 50% | |
| Idle Minimum * (Watt) | 35.1 | 7.9 77% | 8 77% | 7.9 77% | 7.3 79% | 14 60% | 10.8 69% |
| Idle Average * (Watt) | 39.2 | 12 69% | 10.4 73% | 13.1 67% | 12.3 69% | 22.4 43% | 16.3 58% |
| Idle Maximum * (Watt) | 56 | 28.6 49% | 30.5 46% | 24.2 57% | 17.9 68% | 25.7 54% | 16.9 70% |

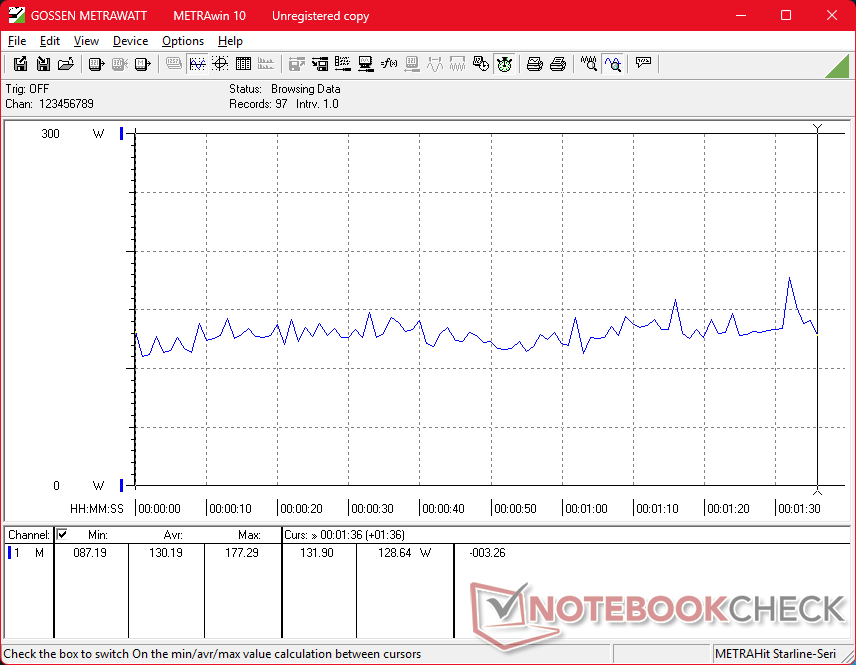

| Load Average * (Watt) | 130.2 | 98.8 24% | 75.4 42% | 127.4 2% | 78.2 40% | 90.2 31% | 111.7 14% |
| Cyberpunk 2077 ultra external monitor * (Watt) | 213 | 219 -3% | 117.7 45% | 120.3 44% | |||
| Cyberpunk 2077 ultra * (Watt) | 229 | 225 2% | 123.5 46% | 125.4 45% | |||
| Load Maximum * (Watt) | 285.2 | 174.8 39% | 175 39% | 248.5 13% | 167.5 41% | 142 50% | 177.4 38% |
| Witcher 3 ultra * (Watt) | 144.5 | 134 | 152.1 |
* ... smaller is better
功耗 赛博朋克/压力测试

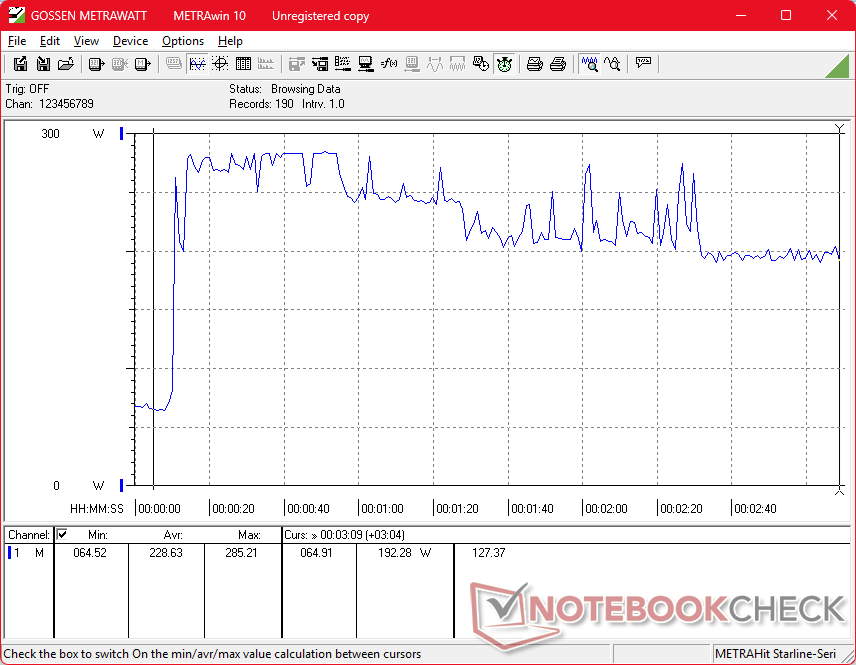

Dell Pro Max 16 Plus Ultra 9 285HX, RTX PRO 5000 Blackwell Generation Laptop; 1280x720 Prime95 28.10 and Furmark 1.25: Ø233 (190.3-285)
Dell Precision 5690 Ultra 9 185H, NVIDIA RTX 5000 Ada Generation Laptop GPU; 1280x720 Prime95 28.10 and Furmark 1.25: Ø142.6 (96.2-177.2)
Dell Pro Max 16 Plus Ultra 9 285HX, RTX PRO 5000 Blackwell Generation Laptop; Idle 150cd/m2: Ø34.3 (32.7-41.5)
Dell Precision 5690 Ultra 9 185H, NVIDIA RTX 5000 Ada Generation Laptop GPU; Idle 150cd/m2: Ø28.8 (24.8-47.6)

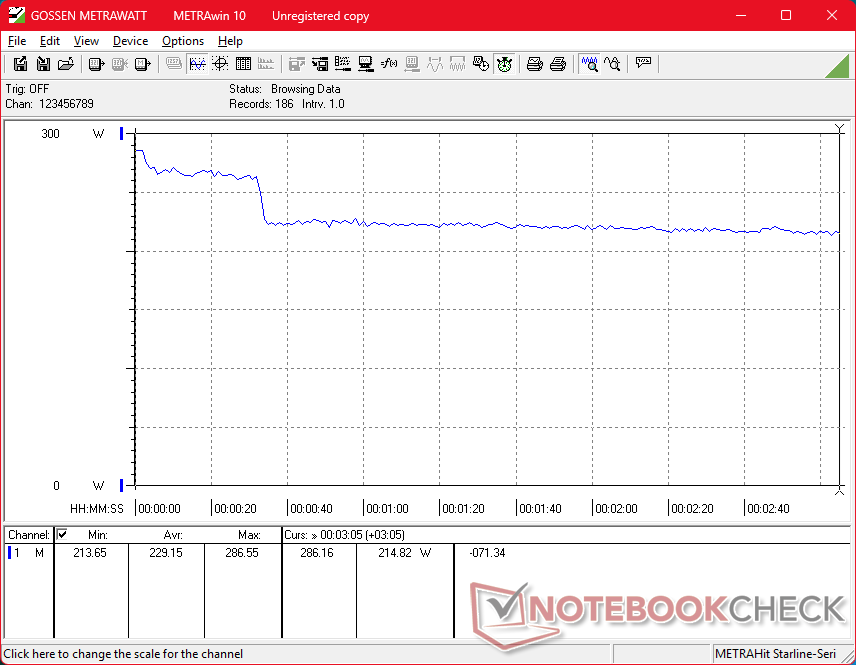

Dell Pro Max 16 Plus Ultra 9 285HX, RTX PRO 5000 Blackwell Generation Laptop; Cyberpunk 2077 FHD ultra no FSR 150cd: Ø229 (214-286)
外部显示器功耗

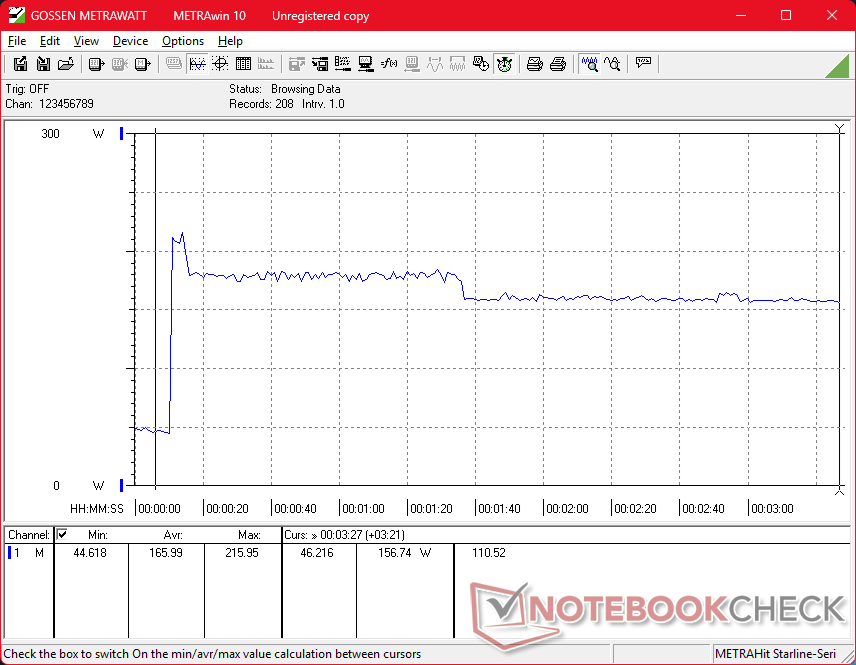

Dell Pro Max 16 Plus Ultra 9 285HX, RTX PRO 5000 Blackwell Generation Laptop; Prime95 V2810 Stress (external Monitor): Ø168.7 (156.7-216)
Dell Precision 5690 Ultra 9 185H, NVIDIA RTX 5000 Ada Generation Laptop GPU; Prime95 V2810 Stress (external Monitor): Ø125.7 (55-178.5)
Dell Pro Max 16 Plus Ultra 9 285HX, RTX PRO 5000 Blackwell Generation Laptop; Cinebench R15 Multi (external Monitor): Ø245 (213-274)
Dell Precision 5690 Ultra 9 185H, NVIDIA RTX 5000 Ada Generation Laptop GPU; Cinebench R15 Multi (external Monitor): Ø171.8 (169.9-173.3)
Dell Pro Max 16 Plus Ultra 9 285HX, RTX PRO 5000 Blackwell Generation Laptop; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø222 (208-247)
Dell Precision 5690 Ultra 9 185H, NVIDIA RTX 5000 Ada Generation Laptop GPU; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø121.1 (104.2-140.1)
Dell Pro Max 16 Plus Ultra 9 285HX, RTX PRO 5000 Blackwell Generation Laptop; Idle 1min (external Monitor): Ø35.8 (34-44.6)
Dell Precision 5690 Ultra 9 185H, NVIDIA RTX 5000 Ada Generation Laptop GPU; Idle 1min (external Monitor): Ø19.2 (8.54-35.3)
Dell Pro Max 16 Plus Ultra 9 285HX, RTX PRO 5000 Blackwell Generation Laptop; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø213 (207-220)
电池寿命
尽管电池容量很大，但 WLAN 运行时间很短，只有 3.5 小时。不过充电速度非常快，尤其是对于 USB-C 交流适配器来说，从空电到充满只需一个多小时。
| Dell Pro Max 16 Plus Ultra 9 285HX, RTX PRO 5000 Blackwell Generation Laptop, 96 Wh | Dell Precision 5690 Ultra 9 185H, NVIDIA RTX 5000 Ada Generation Laptop GPU, 98 Wh | Dell Precision 5000 5680 i9-13900H, NVIDIA RTX 5000 Ada Generation Laptop GPU, 98 Wh | Lenovo ThinkPad P16 Gen 2 i7-14700HX, NVIDIA RTX 4000 Ada Generation Laptop GPU, 94 Wh | Lenovo ThinkPad P1 Gen 7 21KV001SGE Ultra 7 155H, NVIDIA GeForce RTX 4060 Laptop GPU, 90 Wh | HP ZBook Studio 16 G11 Ultra 9 185H, NVIDIA RTX 3000 Ada Generation Laptop GPU, 86 Wh | MSI CreatorPro Z16P B12UKST i7-12700H, RTX A3000 Laptop GPU, 90 Wh | |
|---|---|---|---|---|---|---|---|
| Battery runtime | 156% | 175% | -31% | 175% | 33% | 61% | |
| WiFi v1.3 (h) | 3.6 | 9.2 156% | 9.9 175% | 2.5 -31% | 9.9 175% | 4.8 33% | 5.8 61% |
| Reader / Idle (h) | 17.9 | ||||||
| Load (h) | 1.7 | 1.9 |
笔记本检查评级
戴尔旗舰工作站，具有独特的规格，包括 CAMM2 内存、4K 120 Hz OLED、Arrow Lake-HX 处理器和 RTX 5000 Blackwell 图形处理器。
Dell Pro Max 16 Plus
- 10/14/2025 v8
Allen Ngo
Workstation - Weighted Average
Total Sustainability Score: 潜在竞争对手比较
Image | Model / Review | Price | Weight | Height | Display |
|---|---|---|---|---|---|
1. 88.4%  | Dell Pro Max 16 Plus Intel Core Ultra 9 285HX ⎘ Nvidia RTX PRO 5000 Blackwell Generation Laptop ⎘ 128 GB Memory, SSD | Amazon: 1. $1,699.99 Dell Inspiron 16 Plus Laptop... 2. $5.90 JuYuish Keyboard Skin Compat... 3. $1,414.95 Dell Pro 16 Plus PB16250 (Re... List Price: 5000 USD | 2.8 kg | 30.9 mm | 16.00" 3840x2400 283 PPI OLED |
2. 88.3% v7 (old)  | Dell Precision 5690 Intel Core Ultra 9 185H ⎘ Nvidia RTX 5000 Ada Generation Laptop GPU ⎘ 32 GB Memory, 2048 GB SSD | Amazon: $1,799.99 List Price: 5900 USD | 2.3 kg | 22.17 mm | 16.00" 3840x2400 283 PPI OLED |
3. 89% v7 (old)  | Dell Precision 5000 5680 Intel Core i9-13900H ⎘ Nvidia RTX 5000 Ada Generation Laptop GPU ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $26.59 100W USB C Laptop Charger fo... 2. $27.99 100W USB-C AC Adapter Compat... 3. $1,998.77 Dell Precision 5000 5680 16"... List Price: 6500 USD | 2.3 kg | 22.17 mm | 16.00" 3840x2400 283 PPI OLED |
4. 85.9%  | Lenovo ThinkPad P16 Gen 2 Intel Core i7-14700HX ⎘ NVIDIA RTX 4000 Ada Generation Laptop GPU ⎘ 32 GB Memory, 1024 GB SSD | Amazon: List Price: 3500 USD | 3.1 kg | 30.23 mm | 16.00" 2560x1600 189 PPI IPS |
5. 83.5%  | Lenovo ThinkPad P1 Gen 7 21KV001SGE Intel Core Ultra 7 155H ⎘ NVIDIA GeForce RTX 4060 Laptop GPU ⎘ 32 GB Memory, 1024 GB SSD | Amazon: $2,250.00 List Price: 3239 Euro | 2 kg | 20.5 mm | 16.00" 2560x1600 189 PPI IPS LED |
6. 84.2%  | HP ZBook Studio 16 G11 Intel Core Ultra 9 185H ⎘ NVIDIA RTX 3000 Ada Generation Laptop GPU ⎘ 64 GB Memory, 1024 GB SSD | Amazon: $4,148.32 List Price: 4300 USD | 1.8 kg | 19 mm | 16.00" 3840x2400 283 PPI IPS |
7. 84.3% v7 (old)  | MSI CreatorPro Z16P B12UKST Intel Core i7-12700H ⎘ NVIDIA RTX A3000 Laptop GPU ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $42.99 240W USB Tip Charger Fit for... 2. $86.39 240W 230W USB Tip Charger Co... 3. $106.50 Adamanta 16GB (1x16GB) Compa... List Price: 3500€ | 2.4 kg | 19 mm | 16.00" 2560x1600 189 PPI IPS |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
