评语：MS-S1 Max 性能和功能出众，但未能获得 90% 的评分

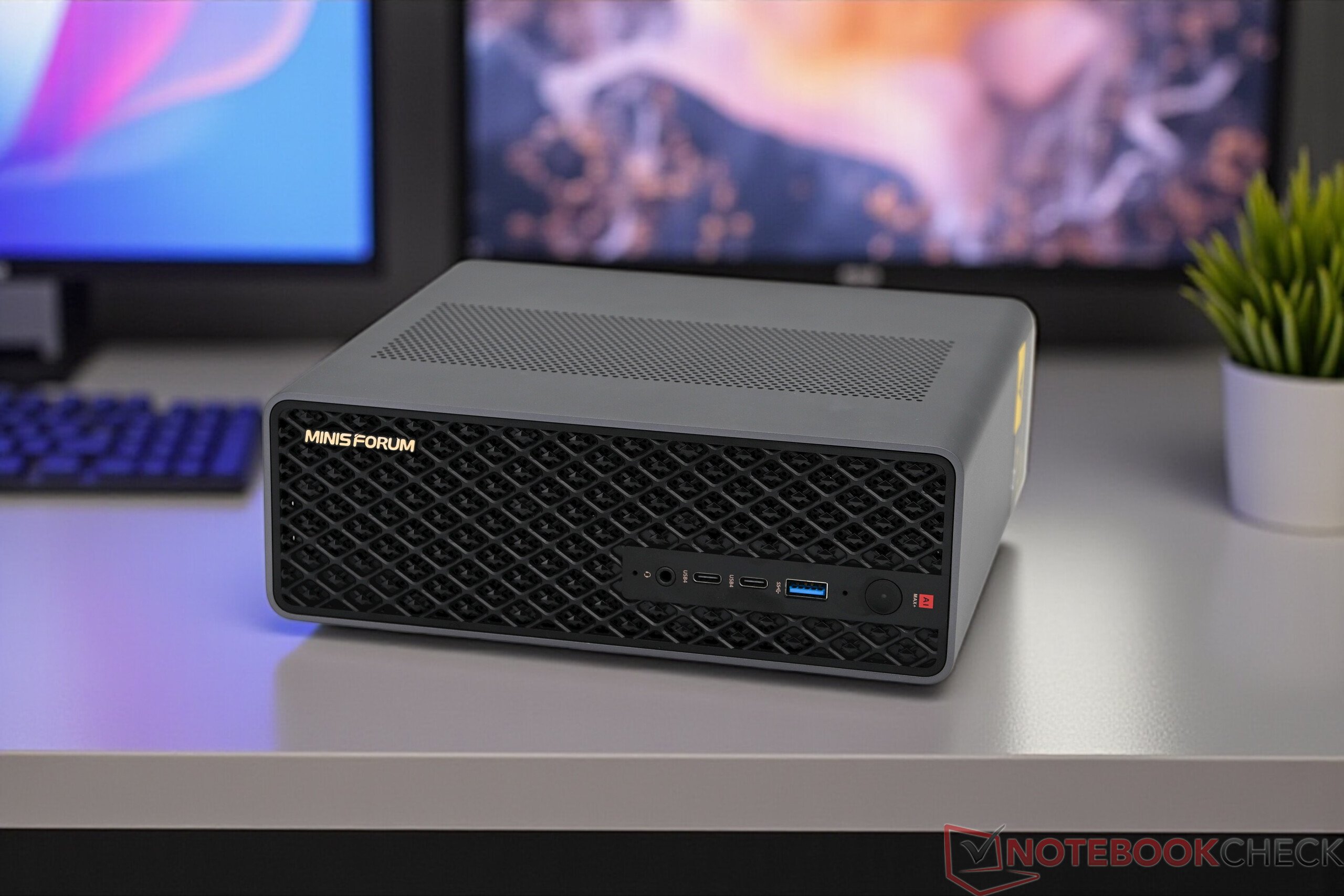

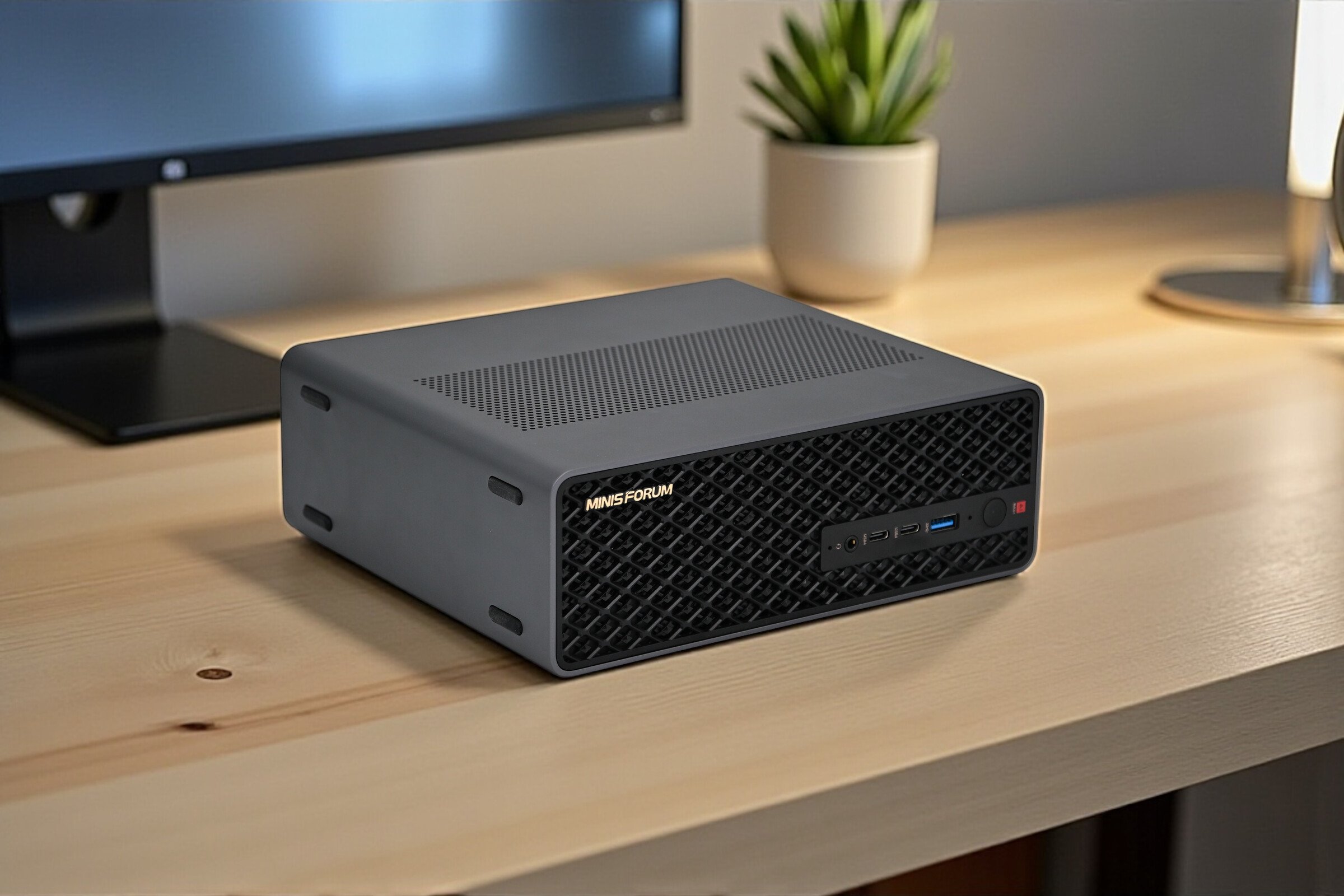

Minisforum MS-S1 Max 是一款功能强大的迷你 PC，配备现代 AMD APU、高达 128 GB 的内存和快速固态硬盘。这款迷你 PC 不仅适用于游戏、3D 渲染和专业工作负载，而且由于内存充足，还适用于本地 LLM。Minisforum 的 MS-S1 Max 在制造质量方面设立了新标准：强大的硬件安装在一个优雅、极高质量的机箱中，不仅看起来坚固耐用，而且由于其精致的设计而易于打开。连接性是一个真正的独特卖点--首先是 10G 局域网和大量 USB 端口。尤其令人印象深刻的是两个高达 80 Gbps 的 USB4 V2 端口，这使得 MS-S1 Max 成为同类产品中最面向未来的微型电脑之一。
我们对散热装置尤为挑剔；虽然它的散热能力很强，但在用户友好性方面得分不高。该设备在空闲时声音太大，因此未能获得更高的评分。不过，在 UEFI 设置中进行手动调整后，Minisforum MS-S1 Max 在相同负载下的噪音水平会更容易接受。除此之外，MS-S1 Max 没有其他重大缺陷。如果你想在最小的空间内获得最高的性能和面向未来的功能，Minisforum MS-S1 Max 不是玩具，而是真正的强者，因此也是 2025 年最值得关注的迷你 PC 之一。
Pros
+ 坚固且高质量的铝制外壳
+ 易于打开 - 简单的维护选项
+ AMD Ryzen AI Max+ 395 - 峰值性能高达 160 瓦
+ AMD Radeon 8060S
+ 128GB-LPDDR5X-RAM
+ 2× USB4 v2 (80Gbps)
+ 2× USB4（40Gbps）
+ 2× 10G-LAN + Wi-Fi 7

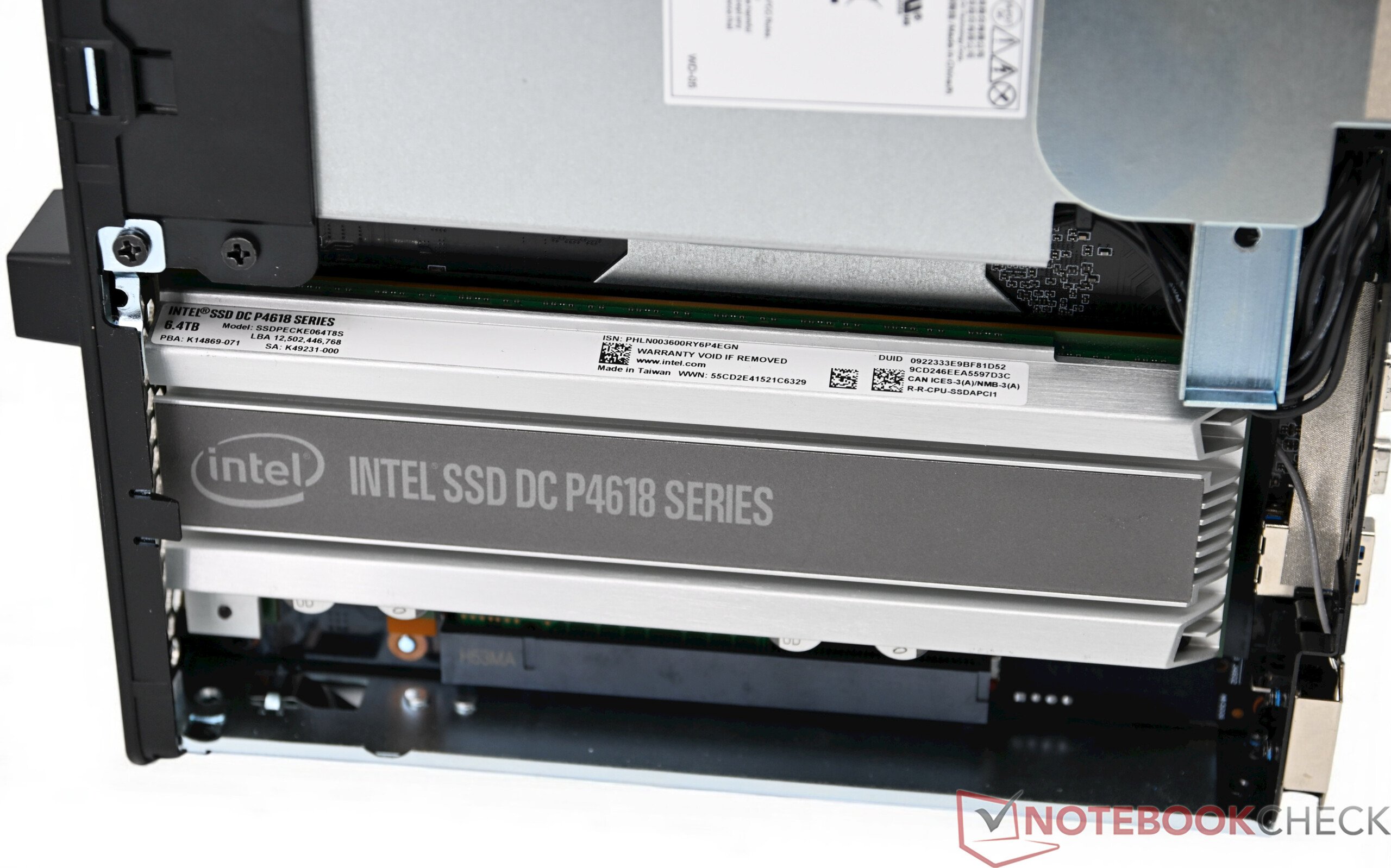

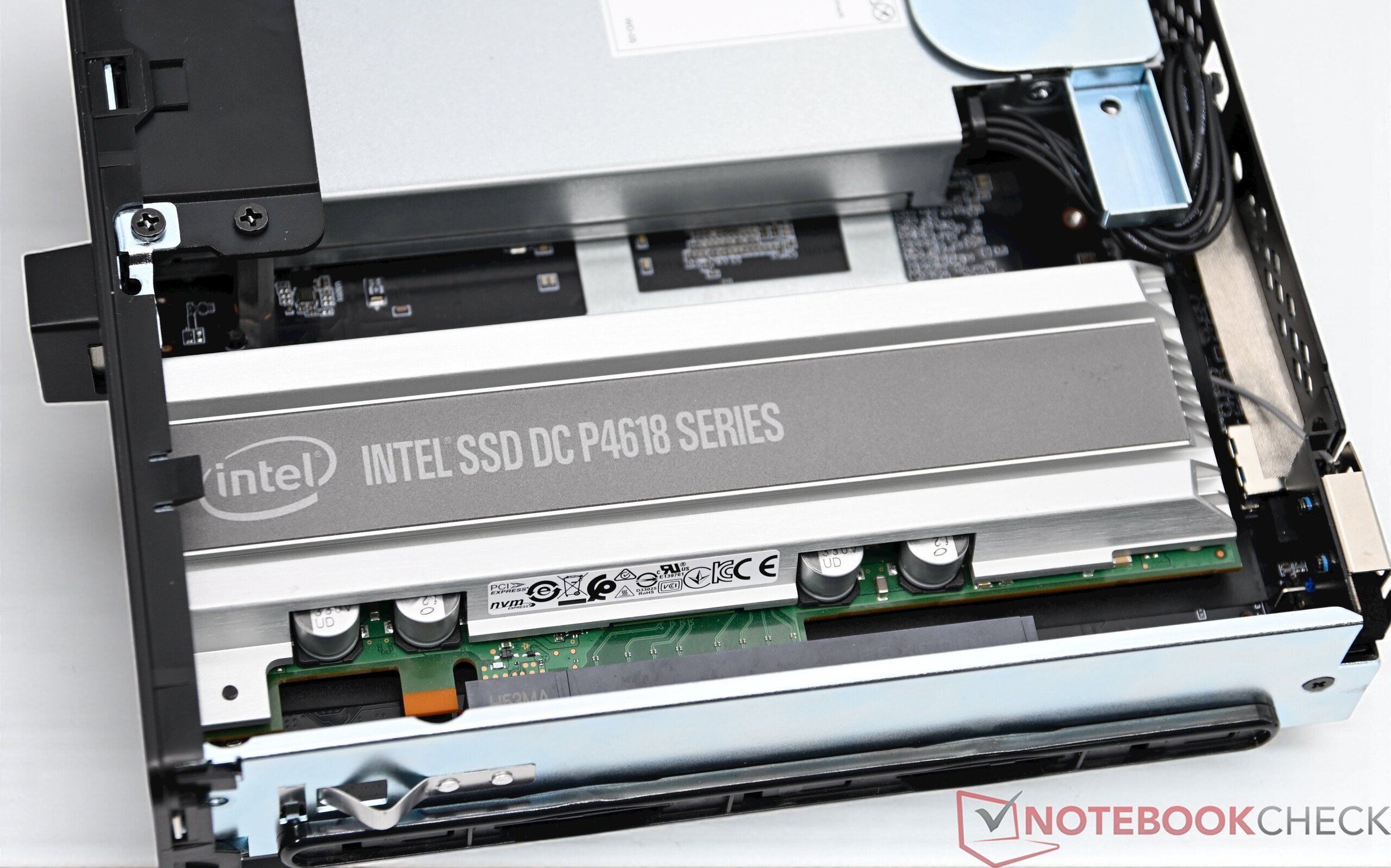

+ 内部 PCIe x16 插槽
+ 实用的 UEFI 选项（如风扇控制）
+ 4 种性能模式
+ 2 TB 固态硬盘
Cons
- 在空闲模式下声音过大（在性能模式下）
- 工作内存不可扩展
- 只有一个 HDMI 端口
- 无本地 DisplayPort 连接
- DPC 值过高
- PCIe x16 扩展卡通风不良
价格和供应情况
Minisforum MS-S1 Max 的建议零售价为 2299 美元。.该设备已经可以通过制造商的官方商店预购。.预计将于 10 月底发货。
Minisforum MS-S1 Max 是目前功能最强大的迷你 PC 之一。它结合了 AMD Ryzen AI Max+ 395与 Radeon 8060S和 128 GB LPDDR5X-8000 内存，其中 iGPU 最多可使用 96 GB，这对于本地人工智能实例来说是一大优势。

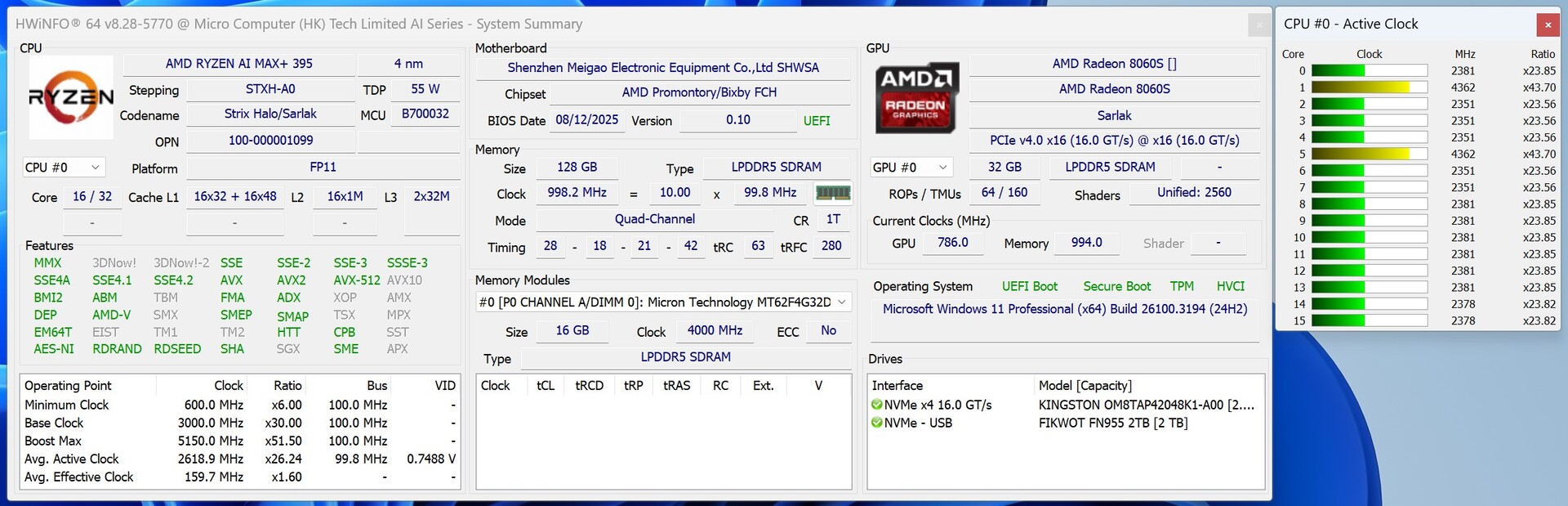

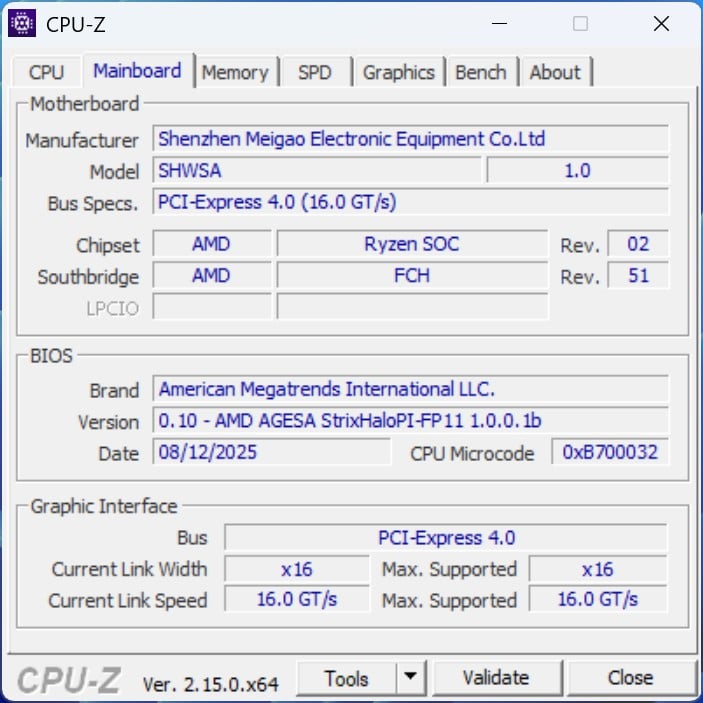

规格
Minisforum MS-S1 Max (Performance-Mode) (MS Series)
Processor
AMD Ryzen AI Max+ 395 16 x 3 - 5.1 GHz, Strix Halo
Graphics adapter
AMD Radeon 8060S - 32 GB VRAM, shared Memory, max. 96 GB möglich, Adrenalin 25.9.2

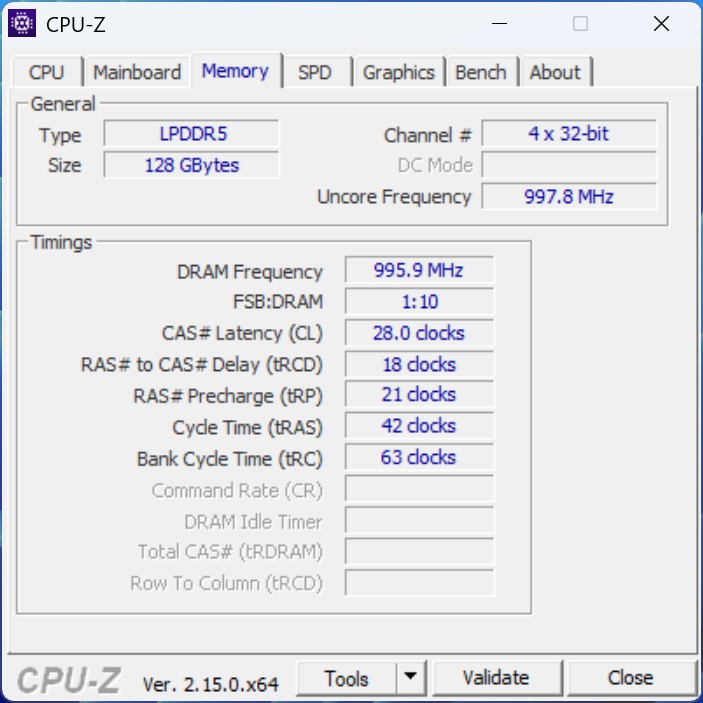

Memory
128 GB
, DDR5-8000, fest verbaut
Mainboard
AMD Promontory/Bixby FCH
Storage
Kingston OM8TAP42048K1-A00, 2048 GB
, 1800 GB free
Weight
2.847 kg
Price
2399 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

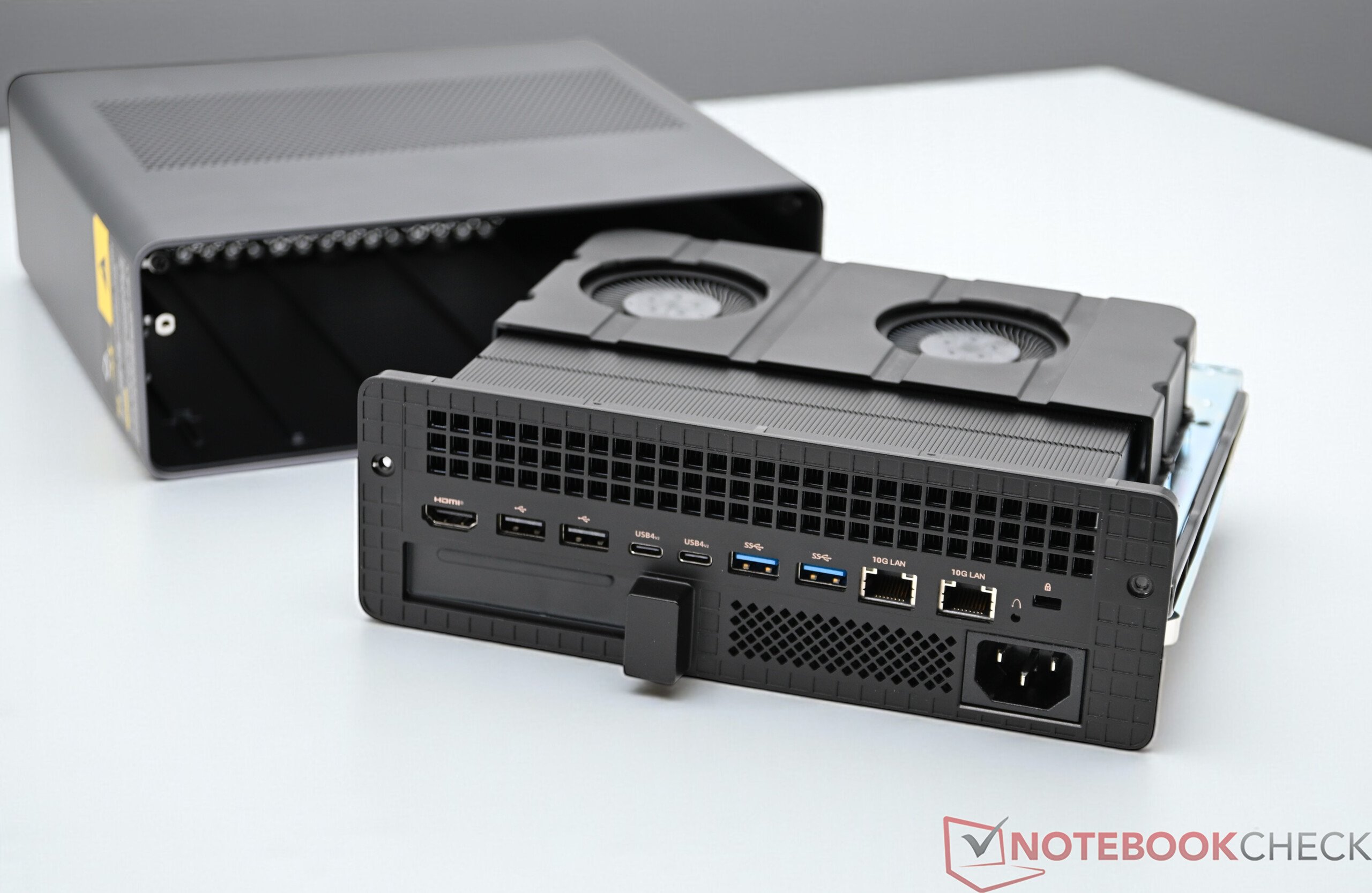

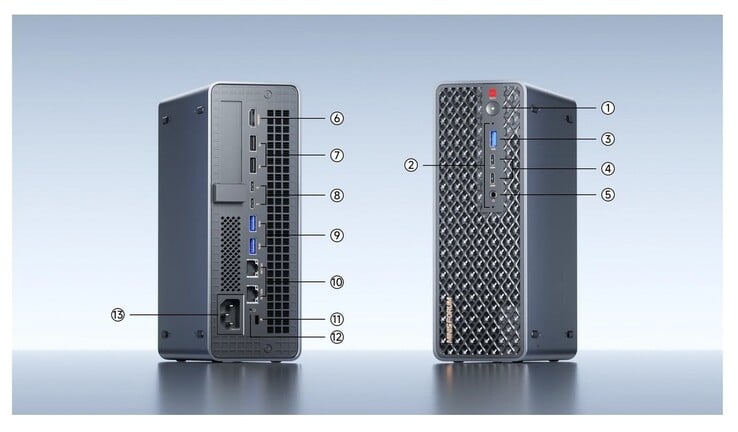

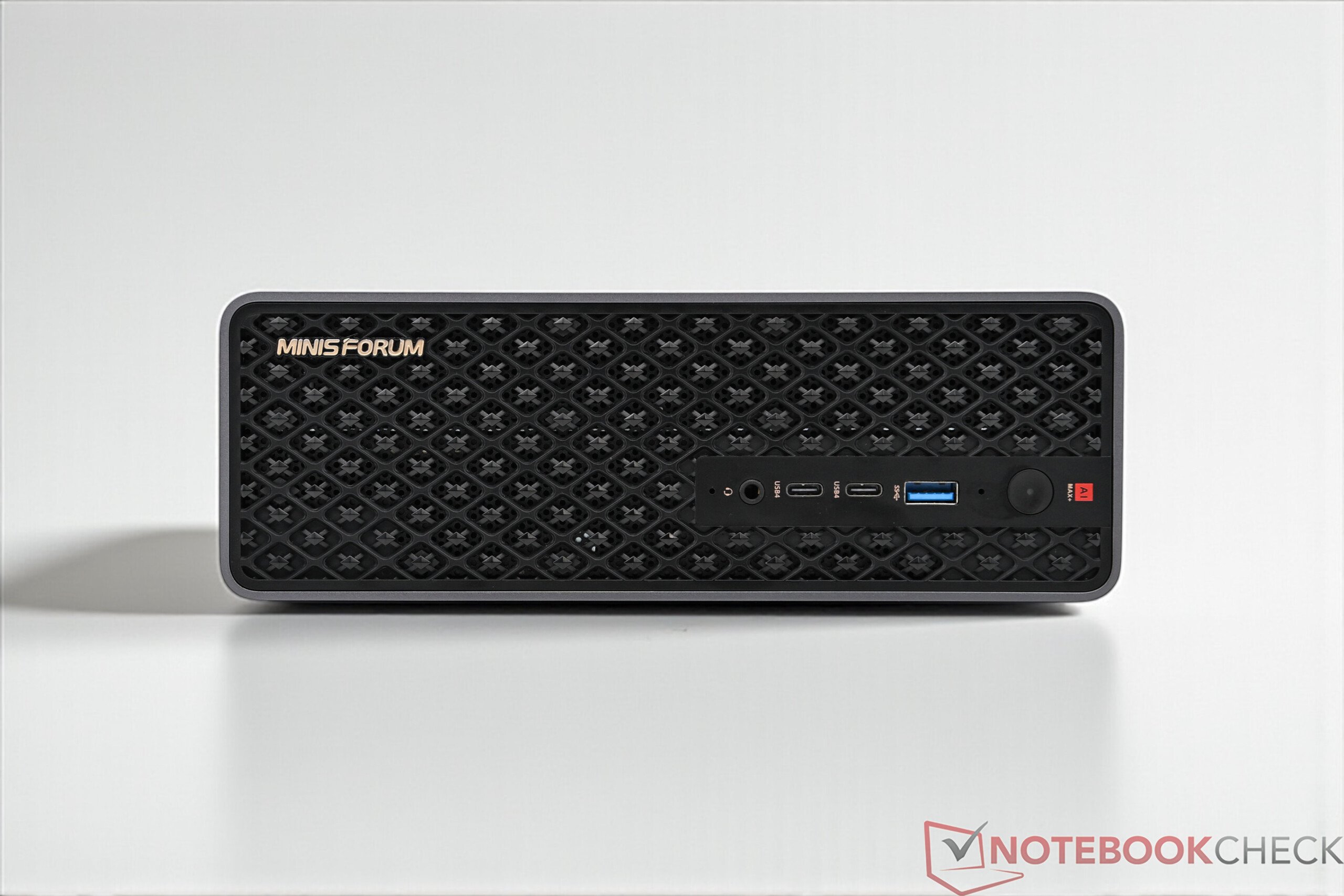

外壳与连接

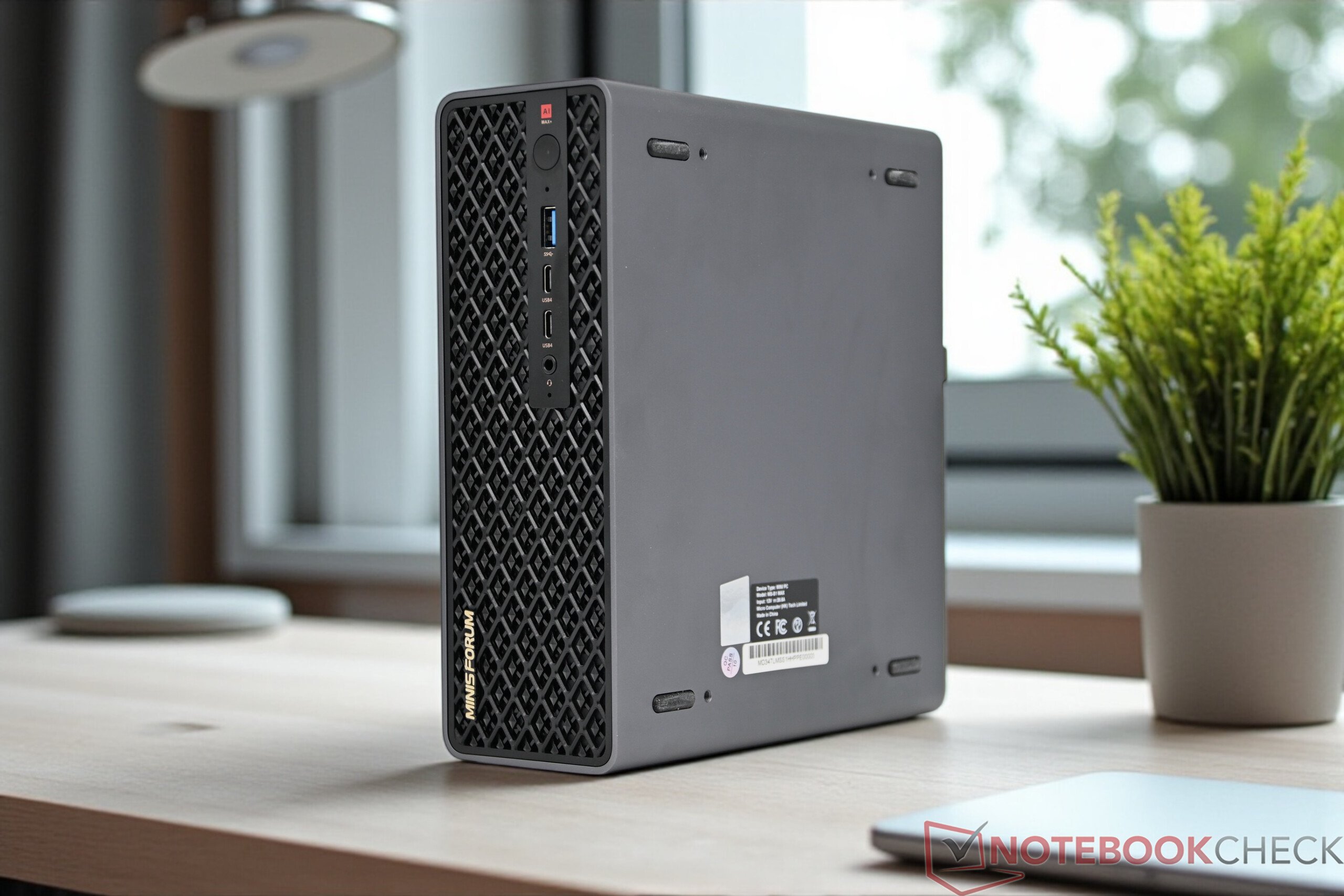

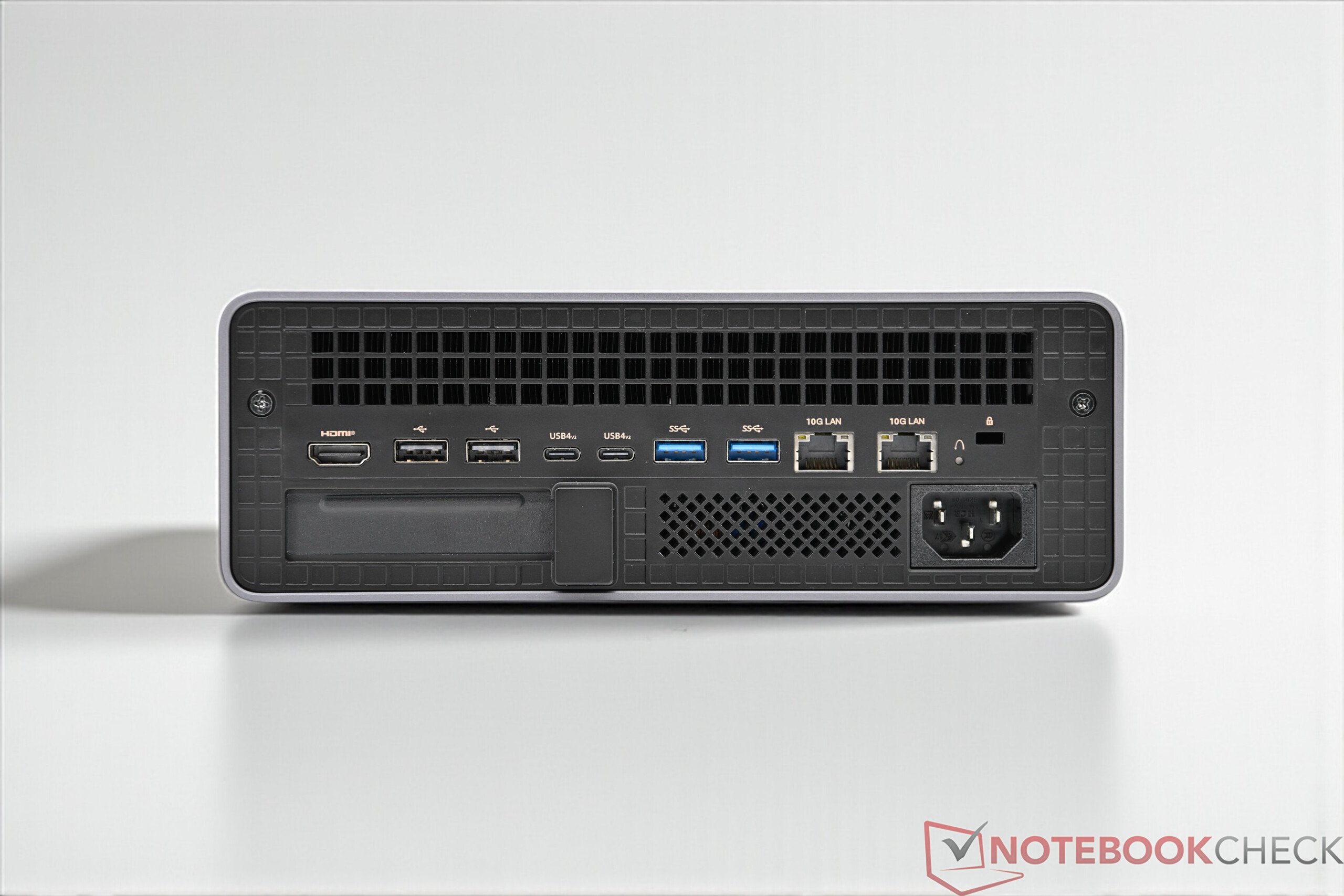

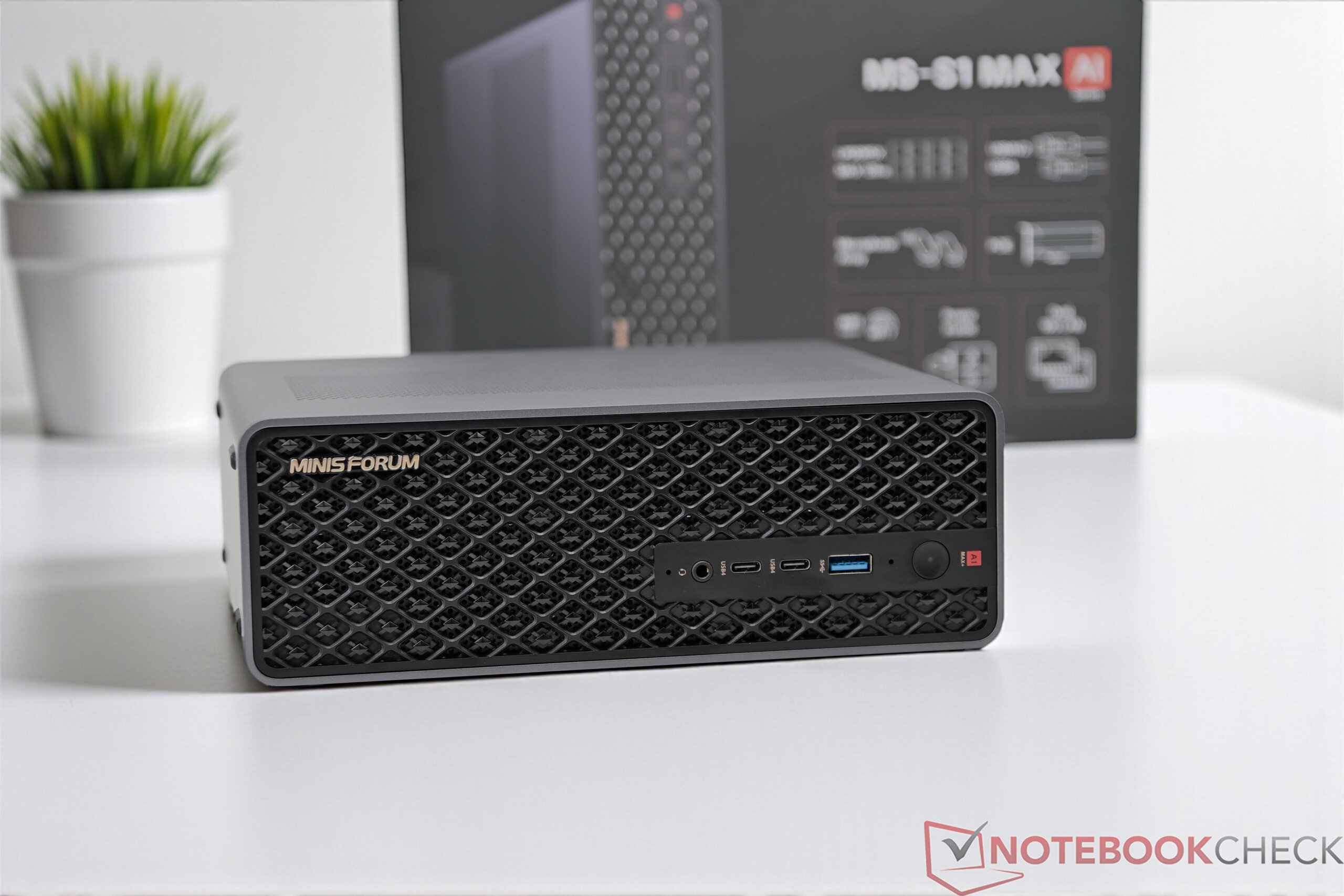

Minisforum MS-S1 Max 的一流外壳将金属和塑料成功地结合在一起，给人留下了深刻印象。在连接方面，MS-S1 Max 可提供很多功能。广泛的连接包括两个 USB4 端口和两个超快的 USB4 v2 接口。两个 10G LAN 端口保证了网络性能的最大化，使这个强大的组合更加完美。在内部，迷你 PC 还可以安装 PCIe 卡。内部 PCIe x16 插槽的速度限制为 x4。

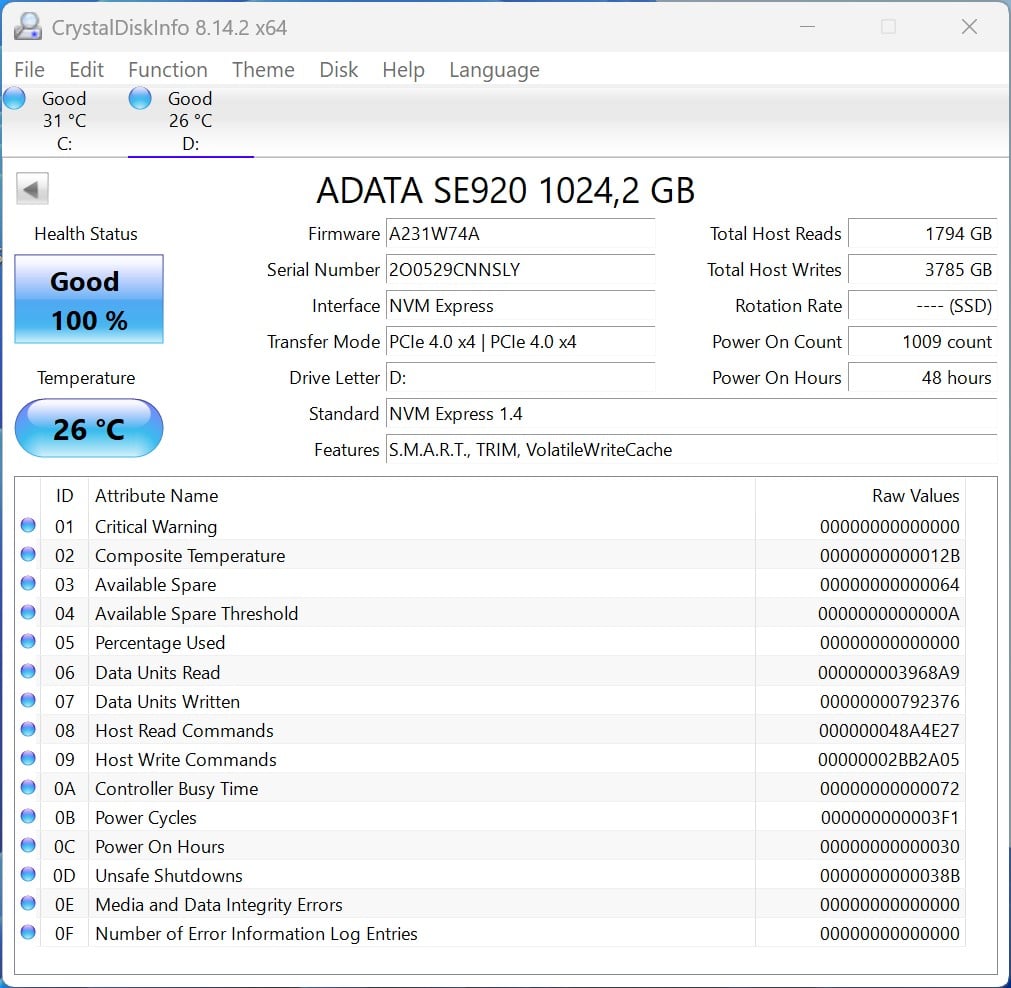

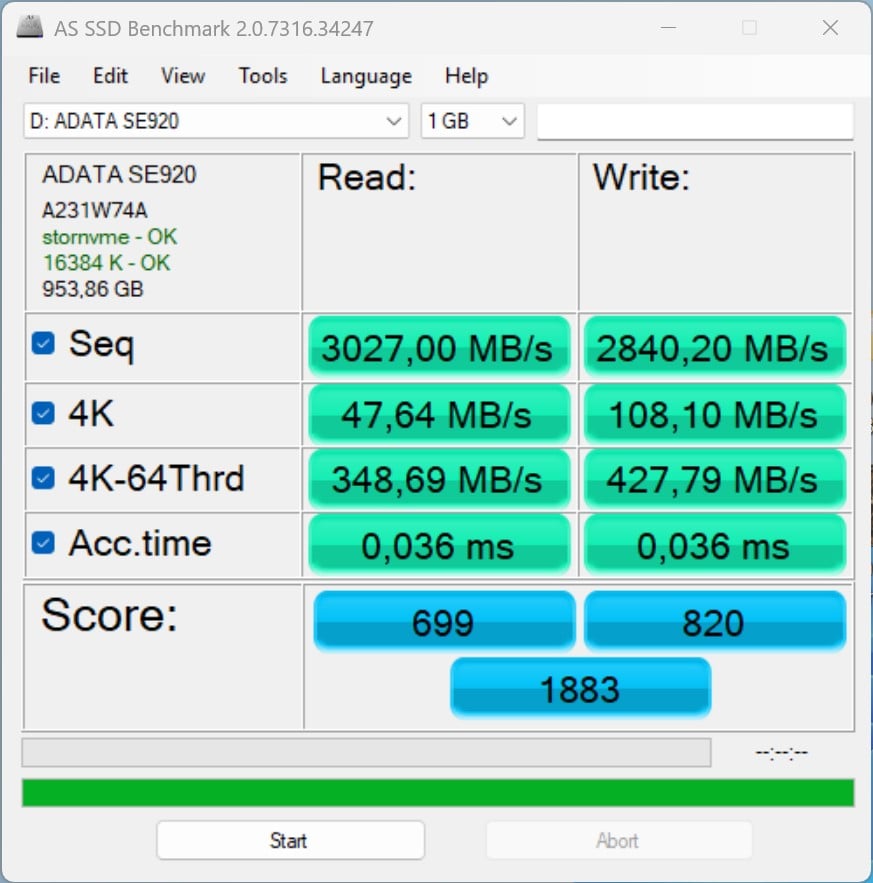

ADATA SE920 USB4-Speed
| Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB) | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Average of class Mini PC (906 - 3906, n=27, last 2 years) | |
| Minisforum AtomMan G7 Ti | |
Wi-Fi 性能
Minisforum MS-S1 Max Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1885 (1806-1971)
BOSGAME M5 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1856 (944-2019)
GMK EVO-X2 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1867 (1781-1953)
HP Z2 Mini G1a Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1644 (1478-1712)
Minisforum MS-S1 Max Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1813 (1805-1827)
BOSGAME M5 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1777 (905-1817)
GMK EVO-X2 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1766 (1745-1794)
HP Z2 Mini G1a Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1782 (1764-1809)
Minisforum MS-S1 Max Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1760 (1728-1780)
BOSGAME M5 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1759 (1744-1771)
GMK EVO-X2 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1760 (1735-1779)
HP Z2 Mini G1a Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø944 (927-961)
Minisforum MS-S1 Max Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1710 (1635-1785)
BOSGAME M5 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1811 (1705-1919)
GMK EVO-X2 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1743 (1643-1851)
HP Z2 Mini G1a Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø976 (939-1003)

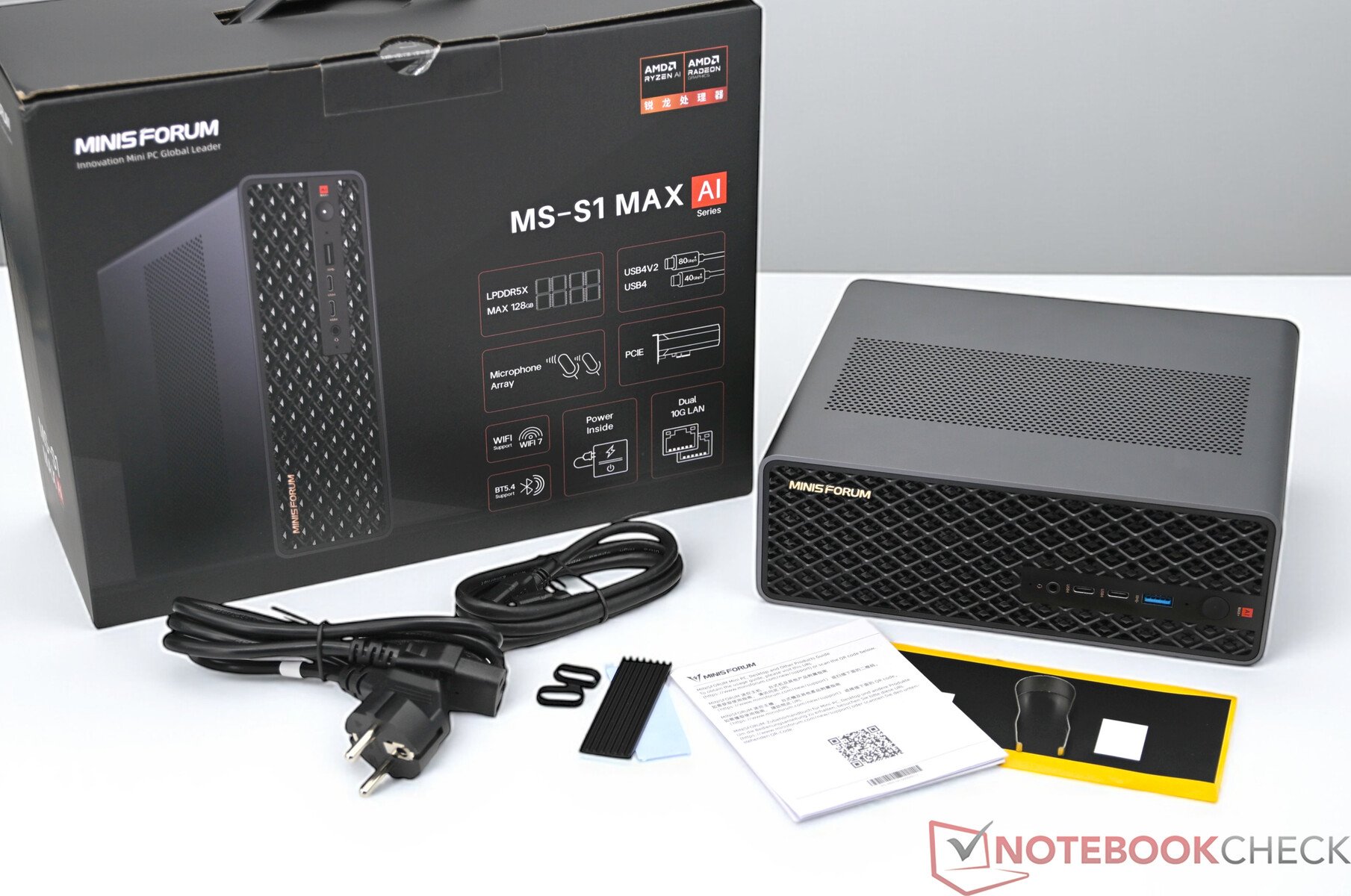

配件

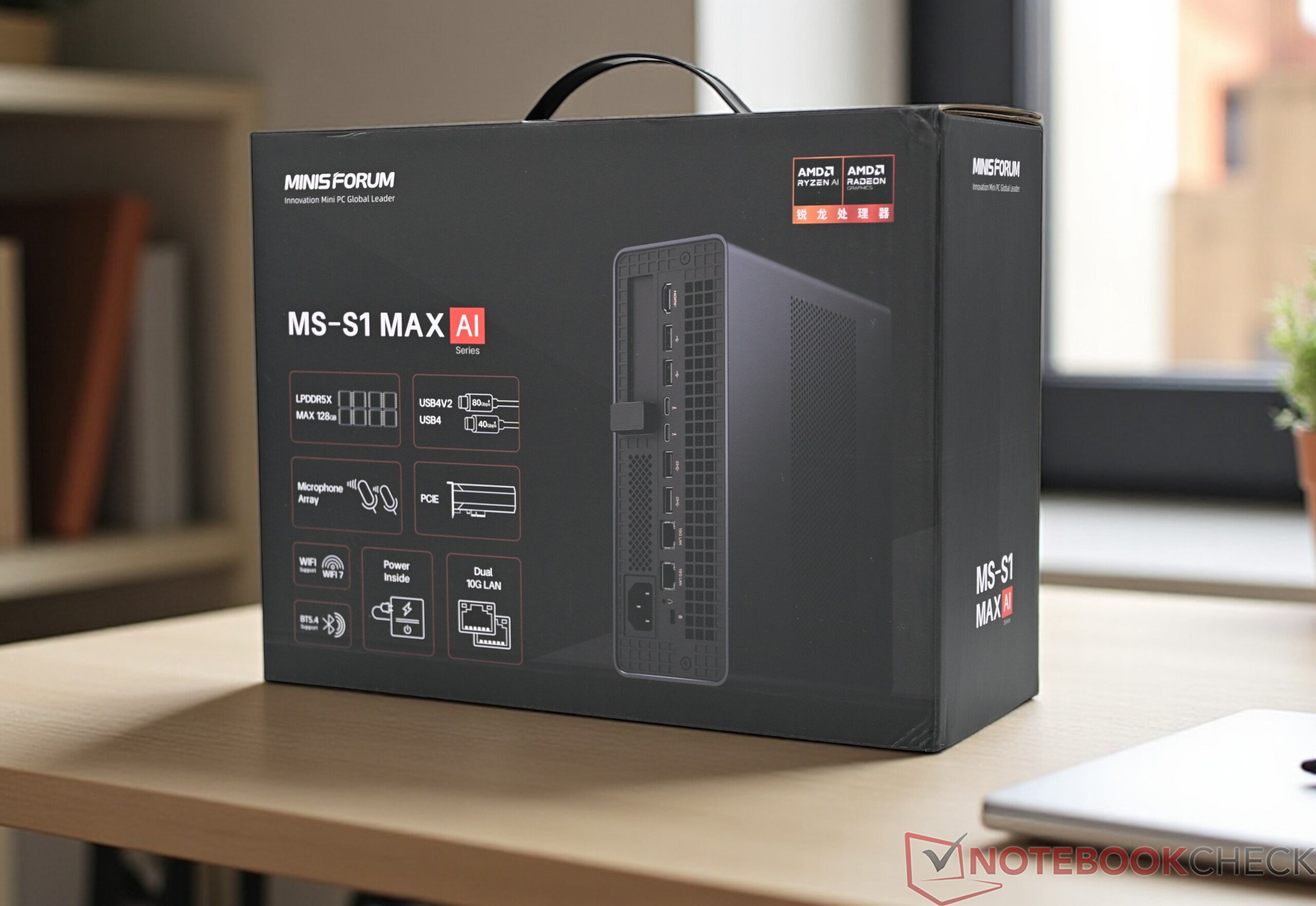

供货范围包括一个额外的固态硬盘冷却器、一个实用的打开工具和一个用于使用 PCIe 扩展卡的保护盖。

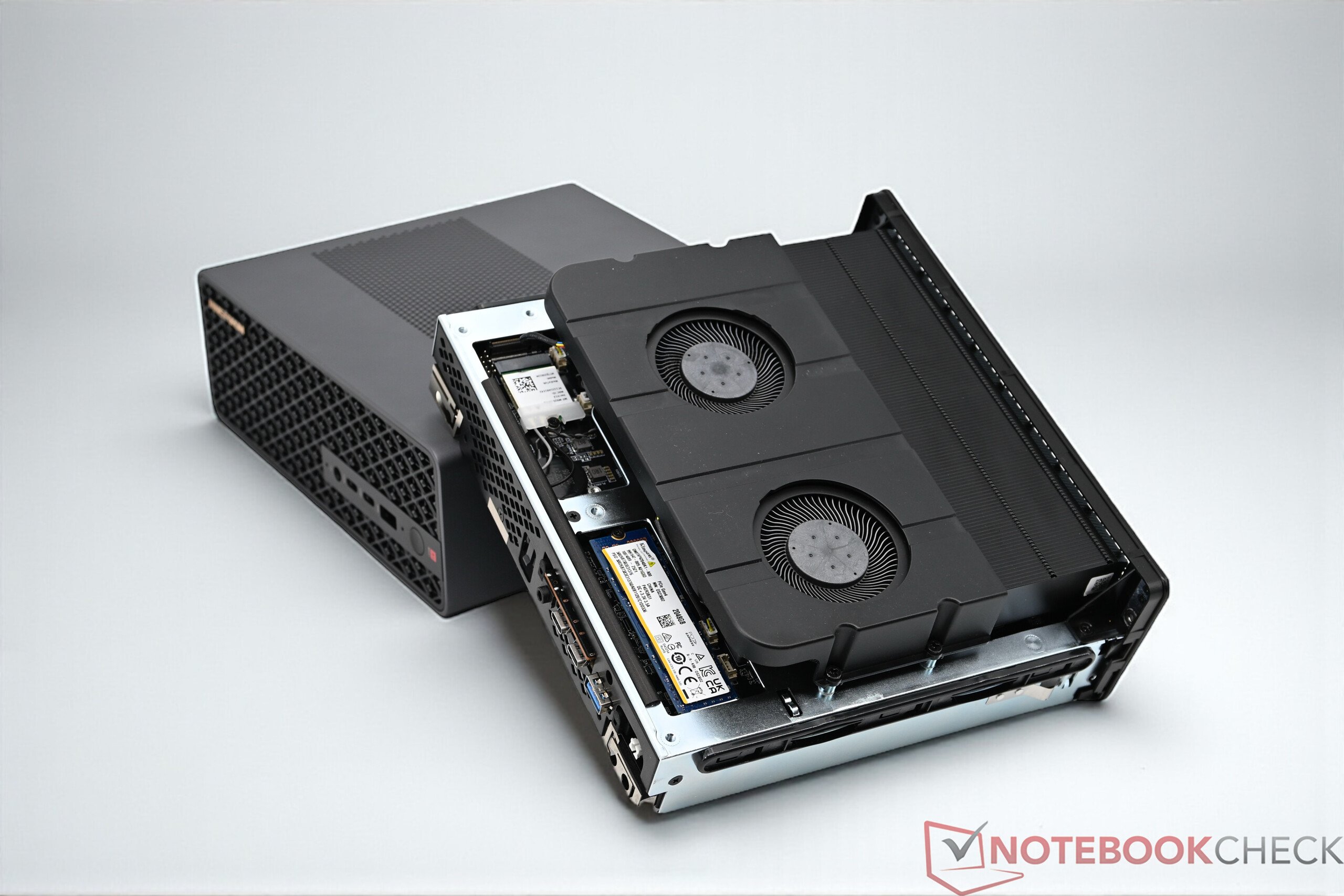

维护

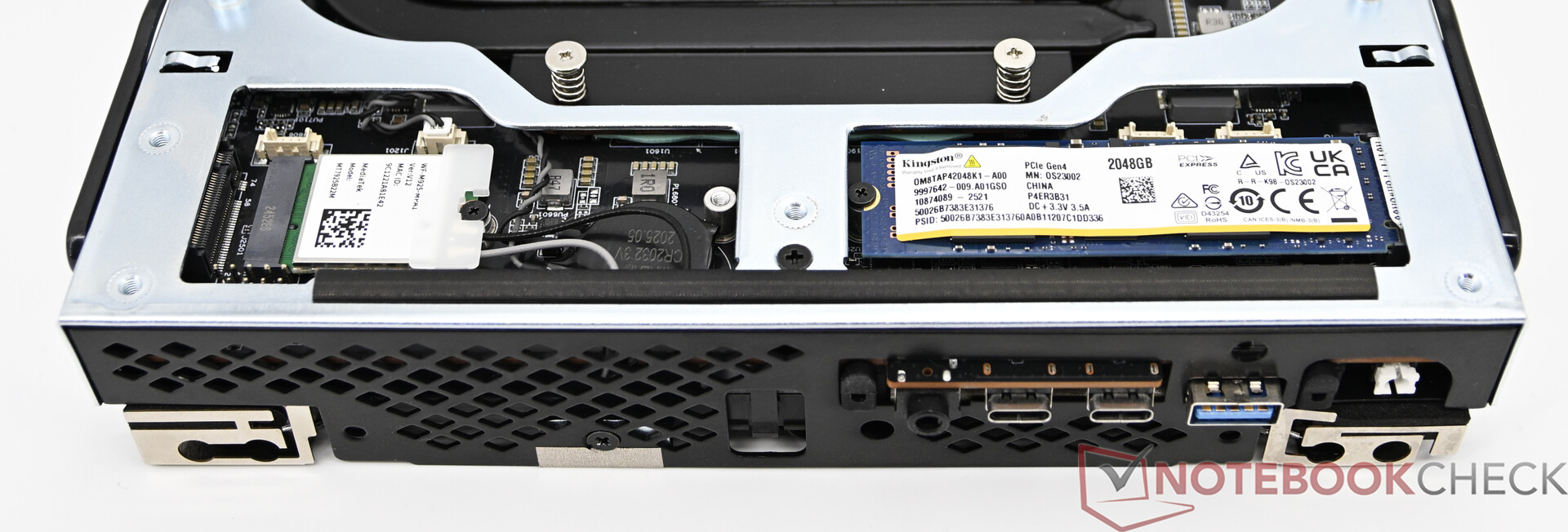

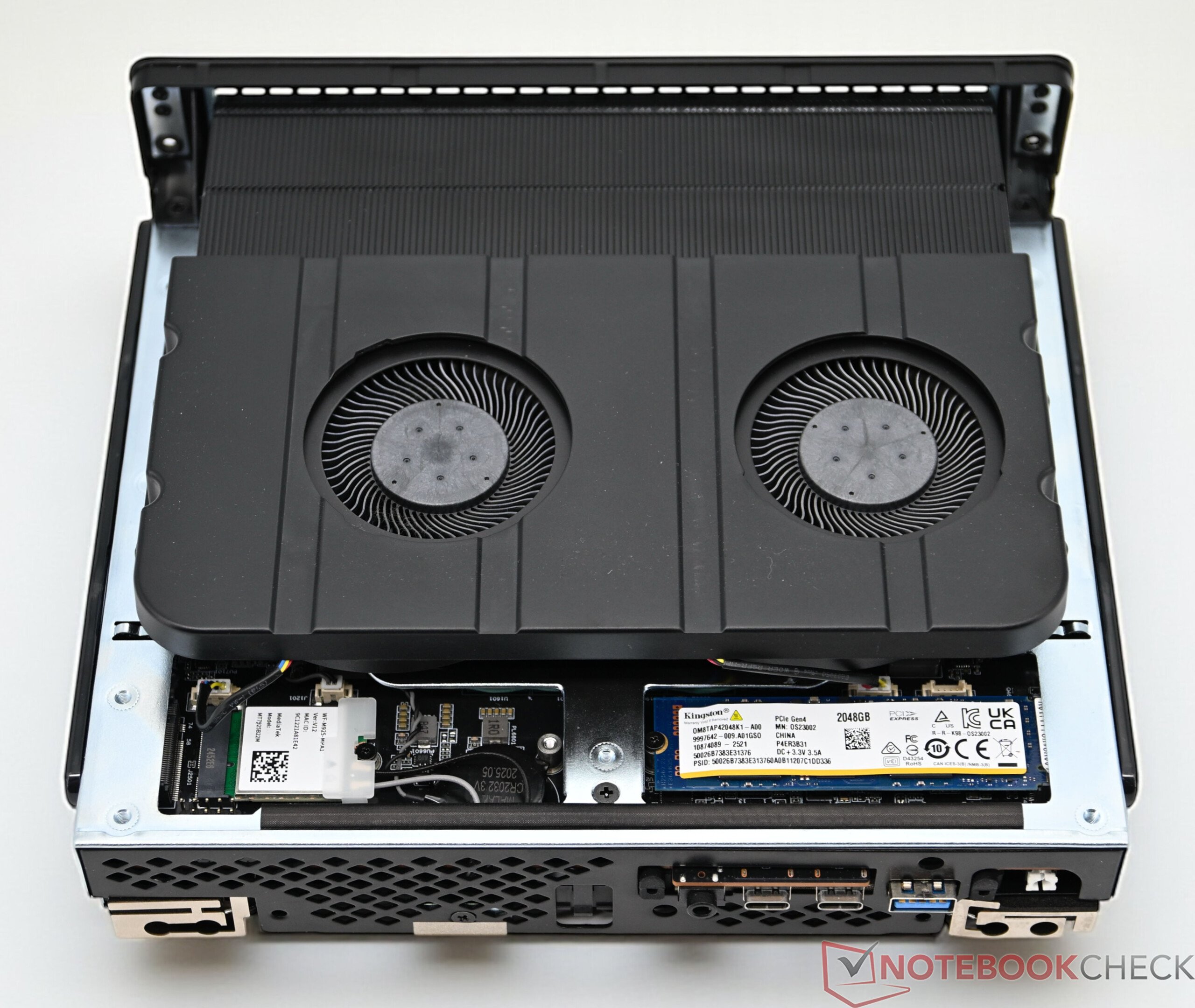

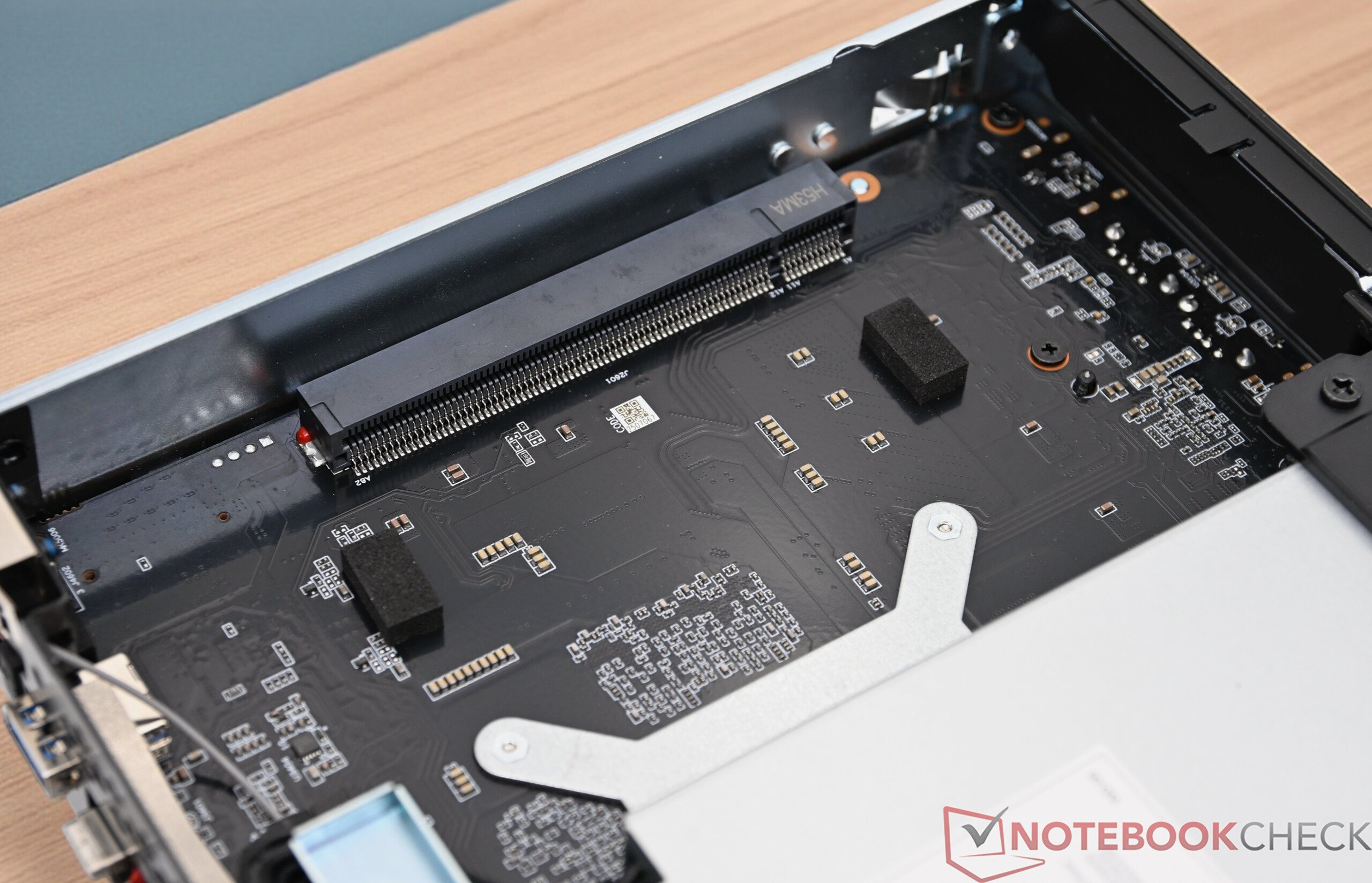

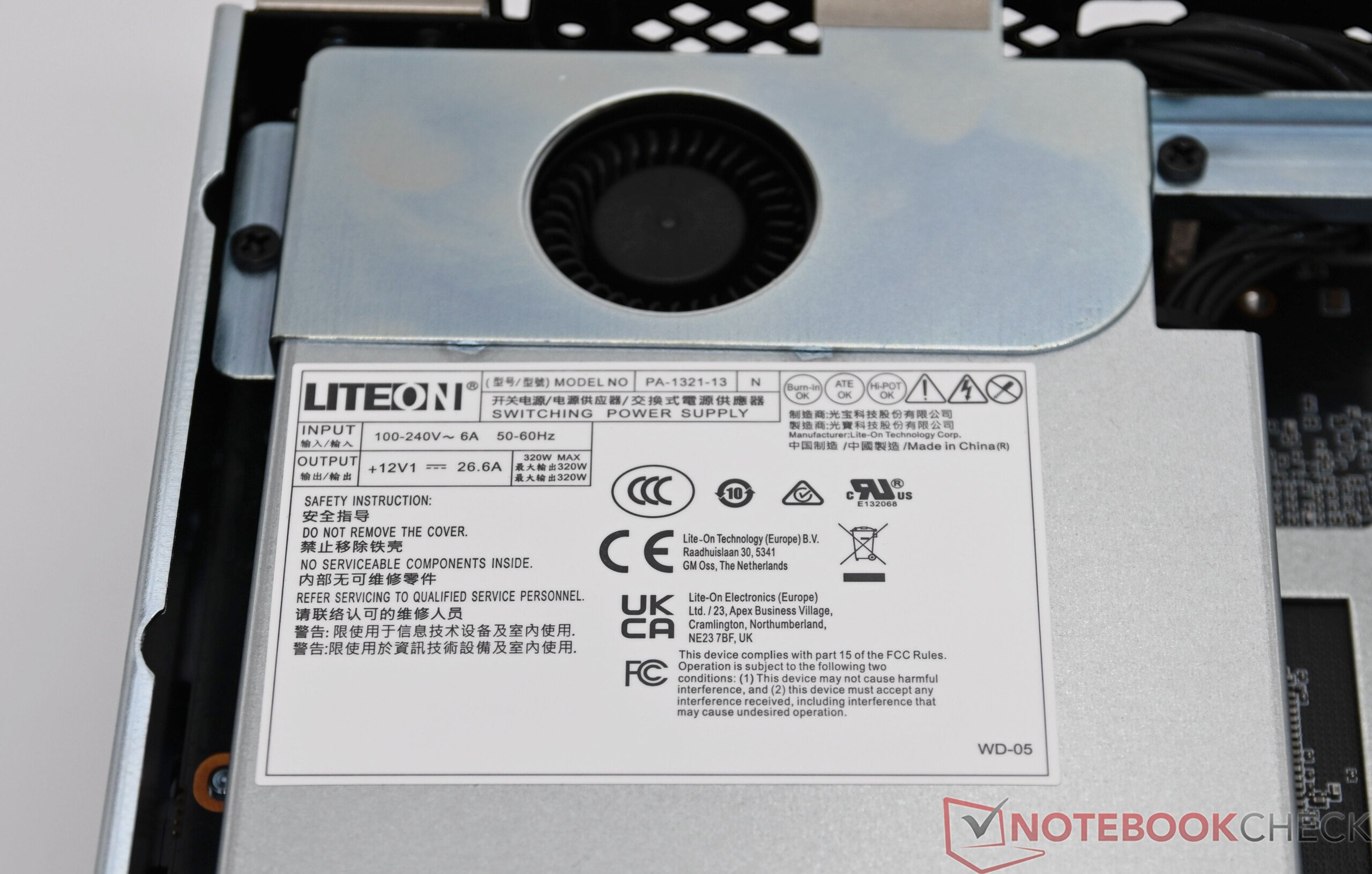

Minisforum MS-S1 Max 很容易打开。只需拧下两颗螺丝，即可将内部结构与高品质外壳分离。该设备可通过额外的 M.2 内存和低矮的 PCIe 插卡进行扩展。
可持续性
Minisforum 没有提供有关生产过程中可持续发展措施的任何具体信息。包装主要由硬纸板组成，并辅以一些泡沫元素以保护设备。
性能
AMD Ryzen AI Max+ 395 是 AMD 目前在移动领域的旗舰产品之一。凭借其强大的计算能力和强大的 iGPU，该 SoC 是超小型系统实现最高性能的完美选择。
测试条件

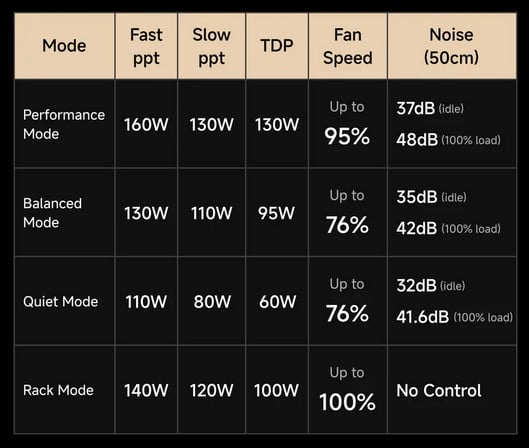

所有相关测试均在性能模式下进行。此外，该系统还提供平衡模式、静音模式和机架模式等更多配置文件，这些配置文件都会改变处理器的功率限制，并提供不同的风扇曲线。

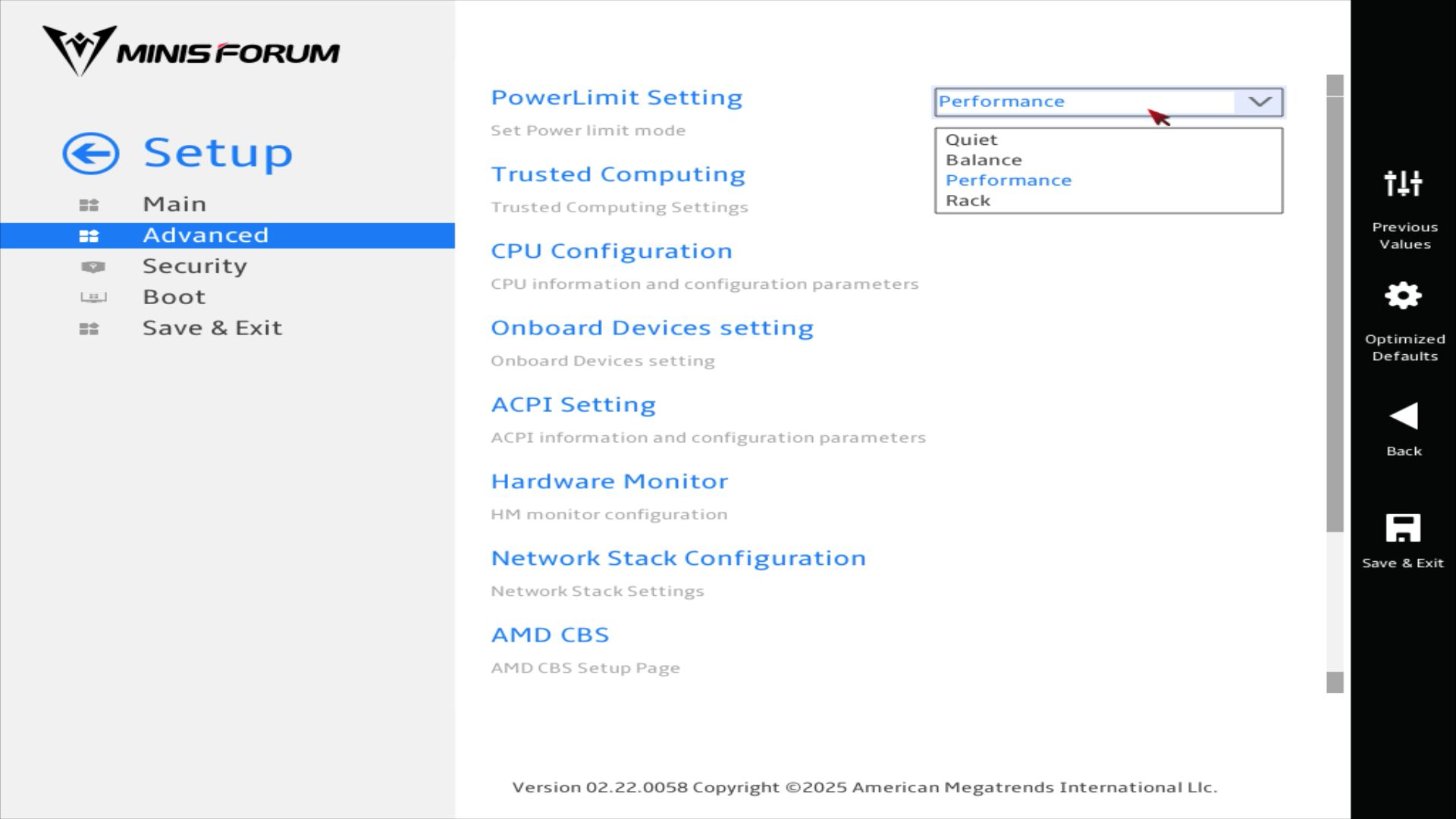

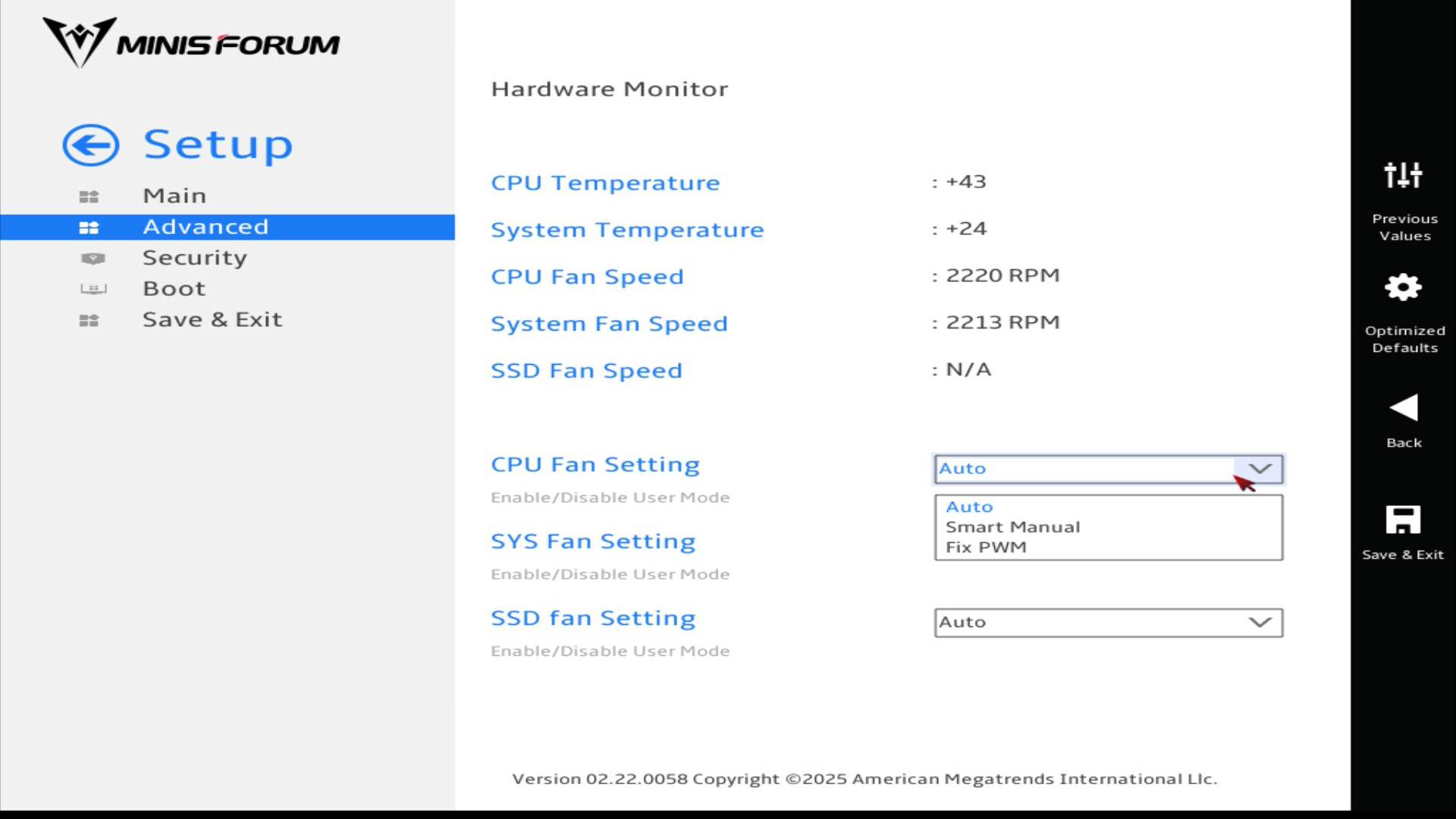

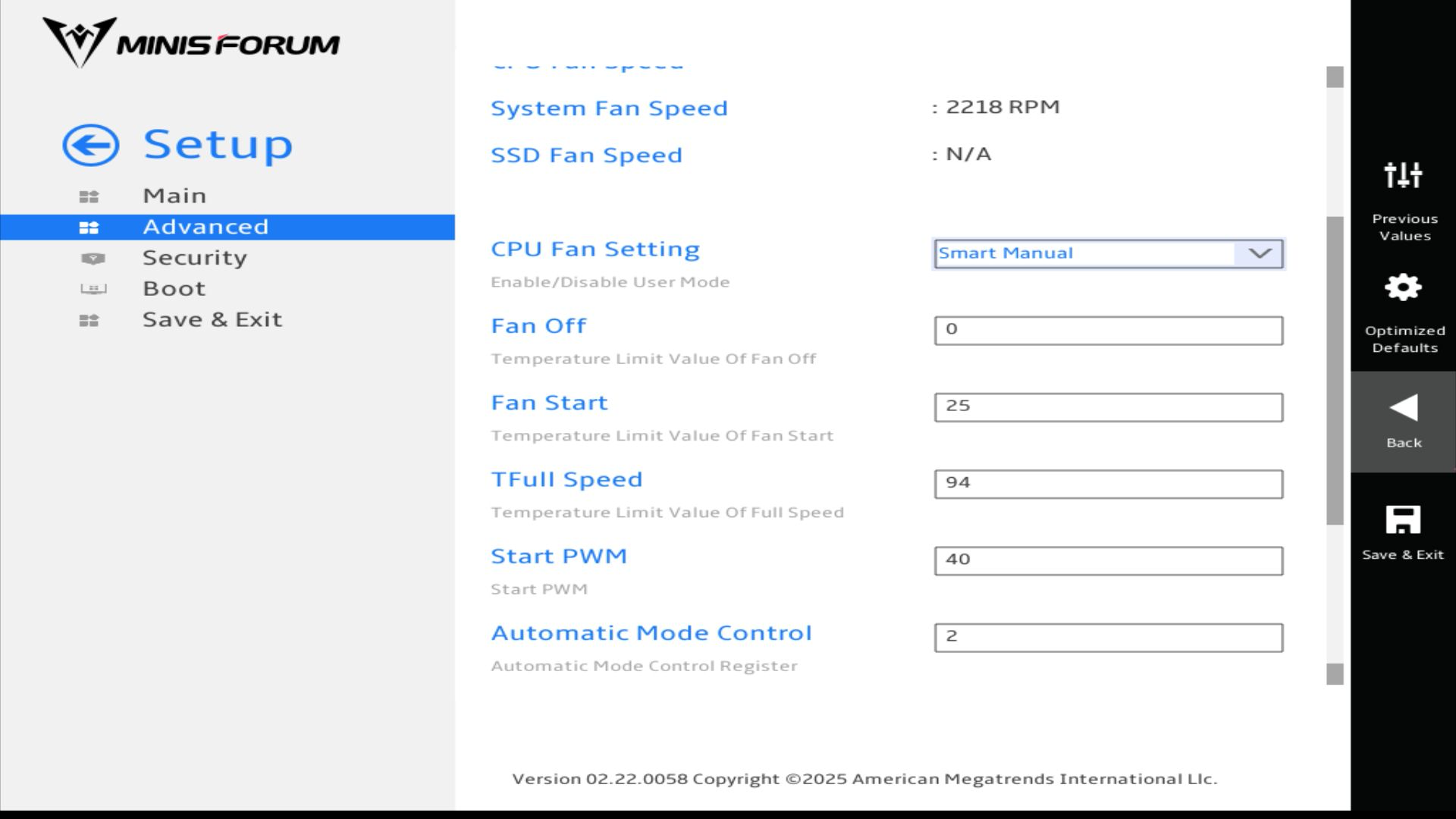

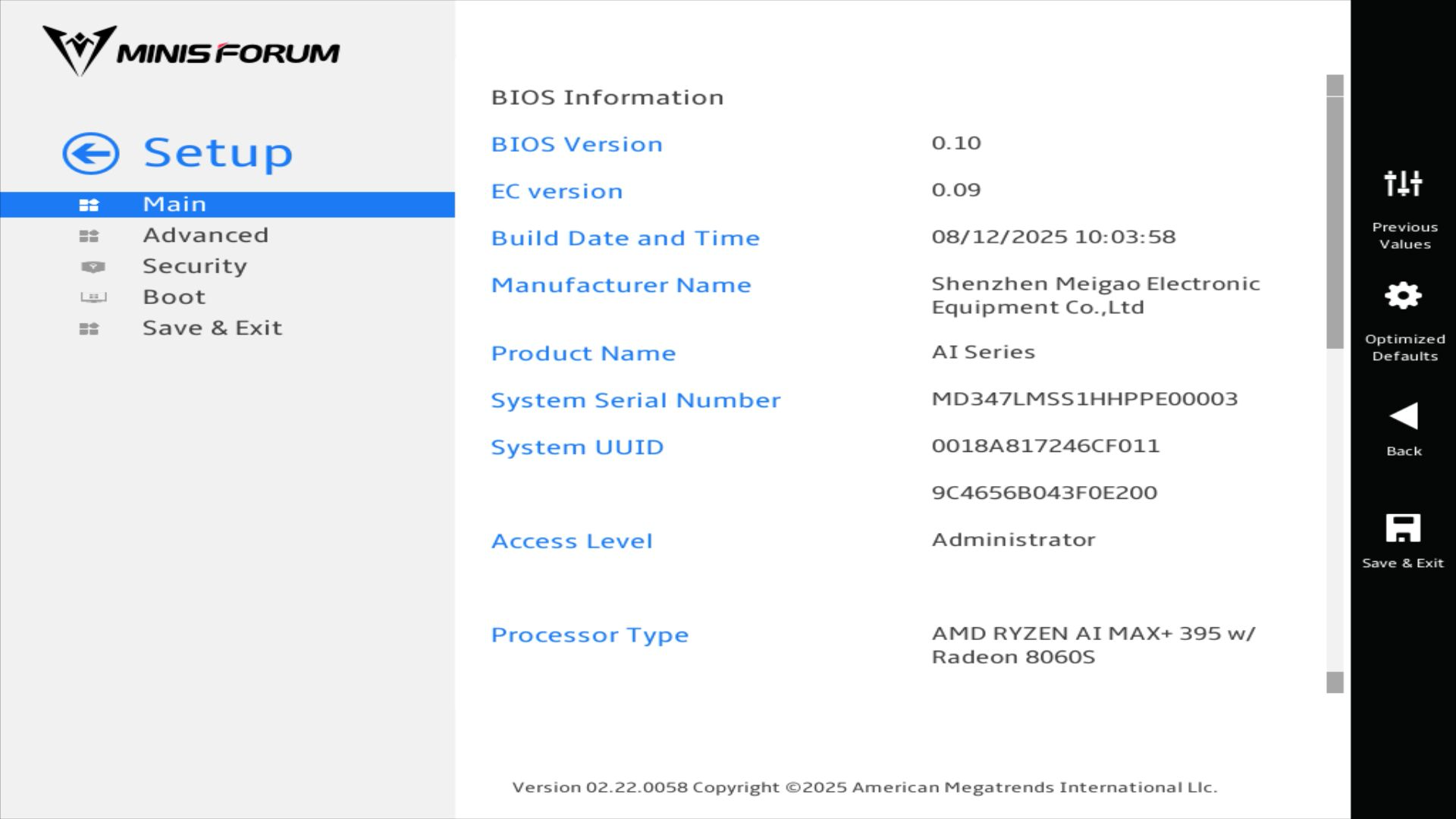

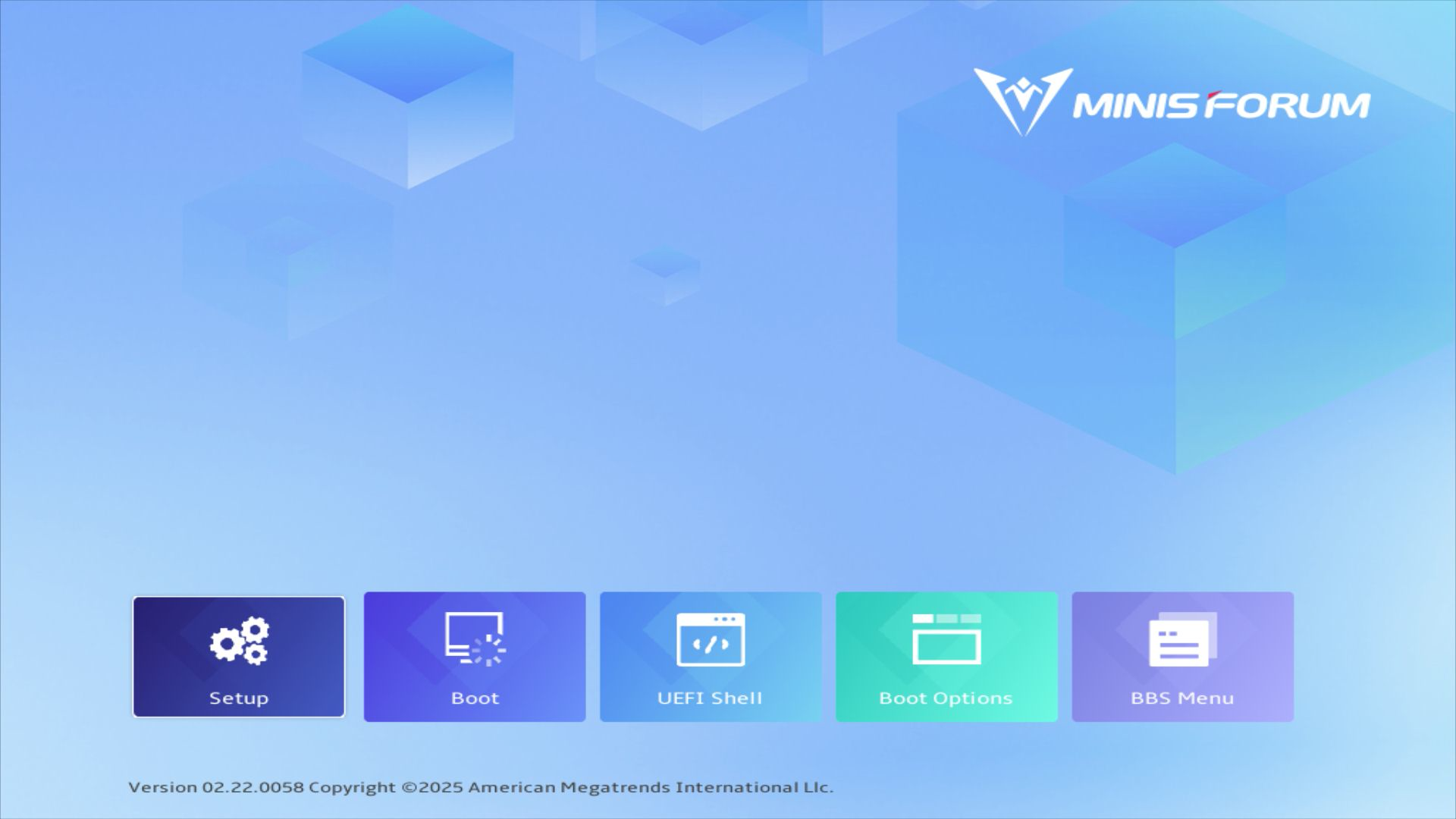

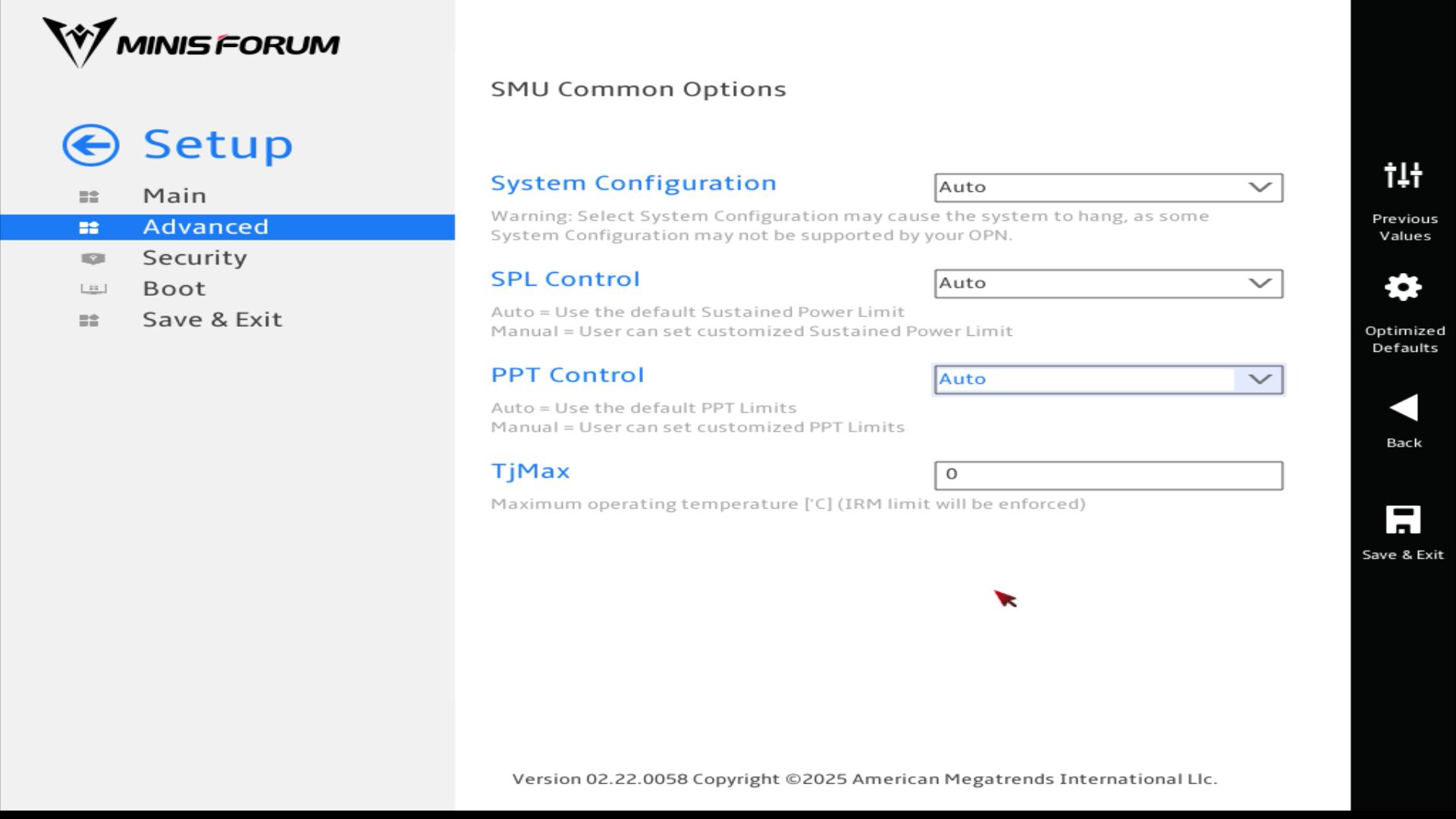

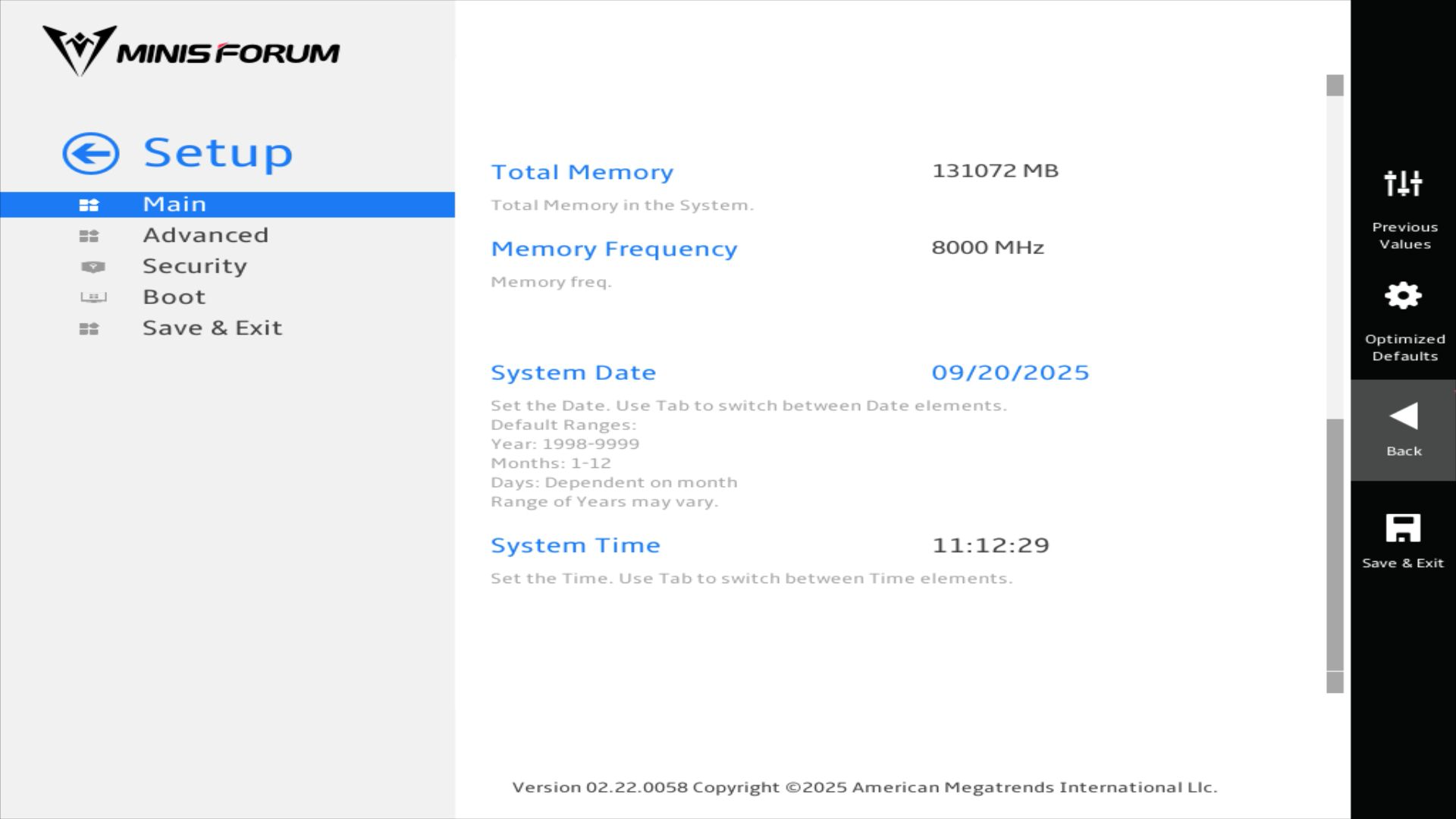

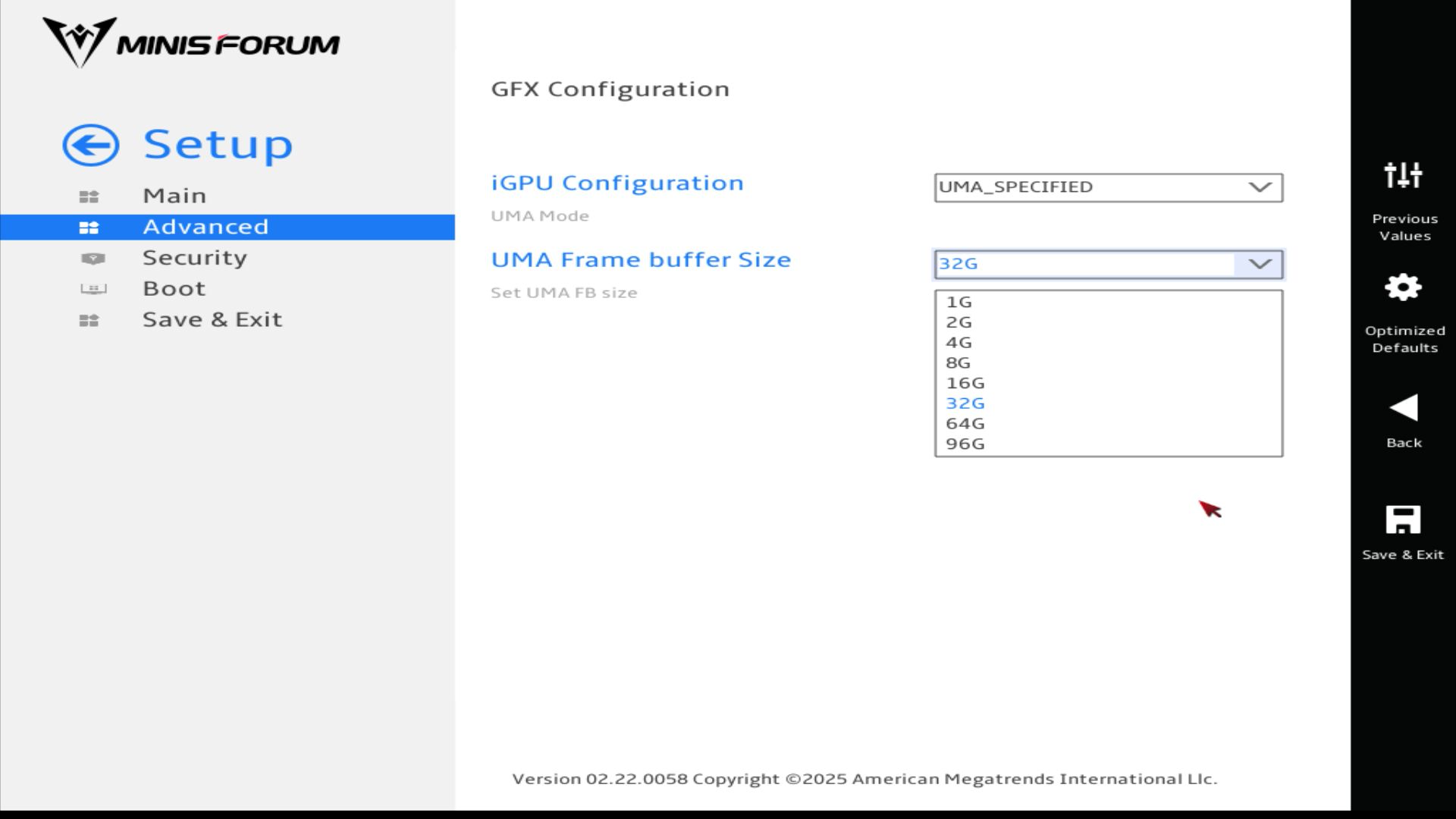

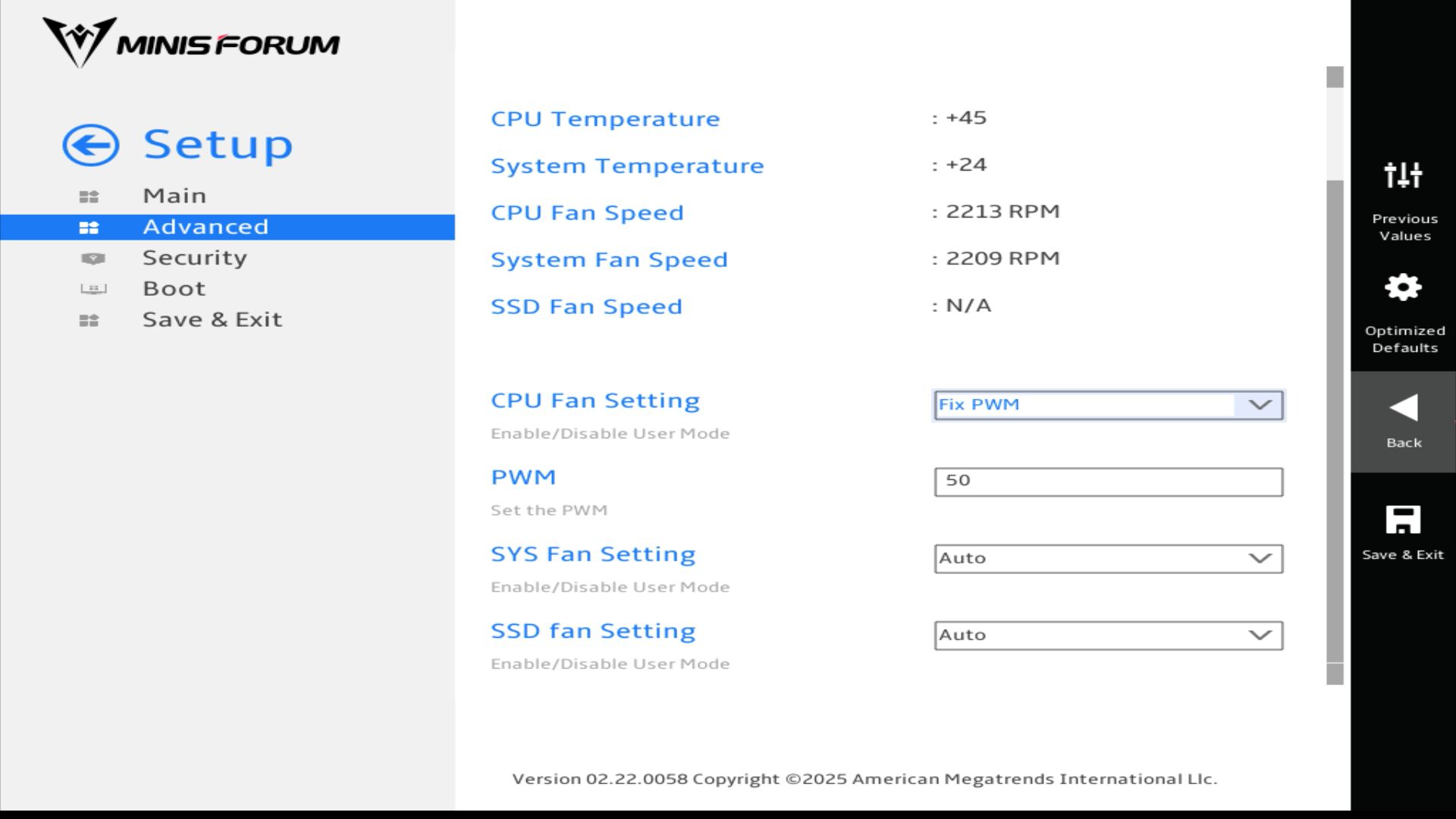

UEFI 设置

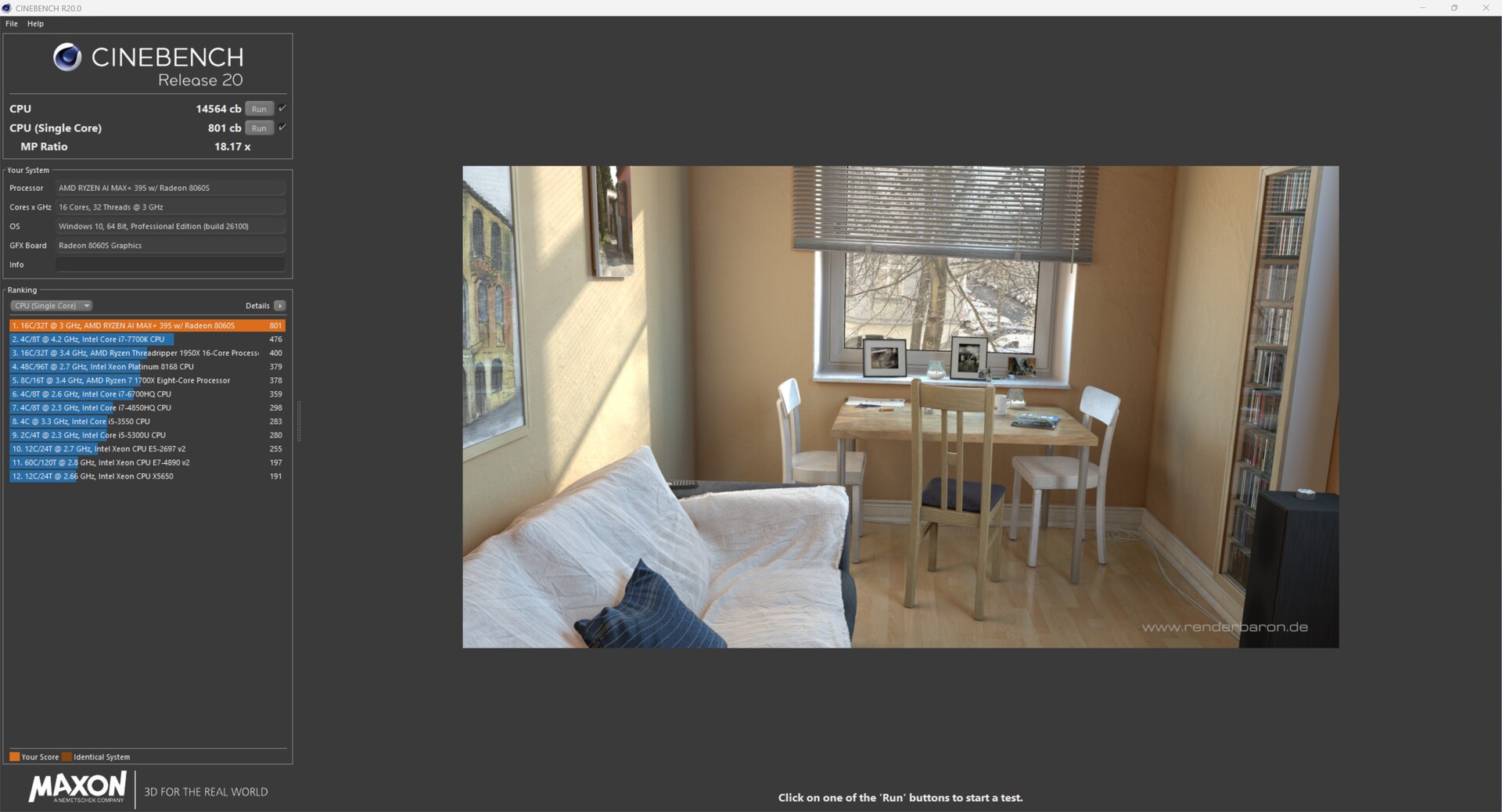

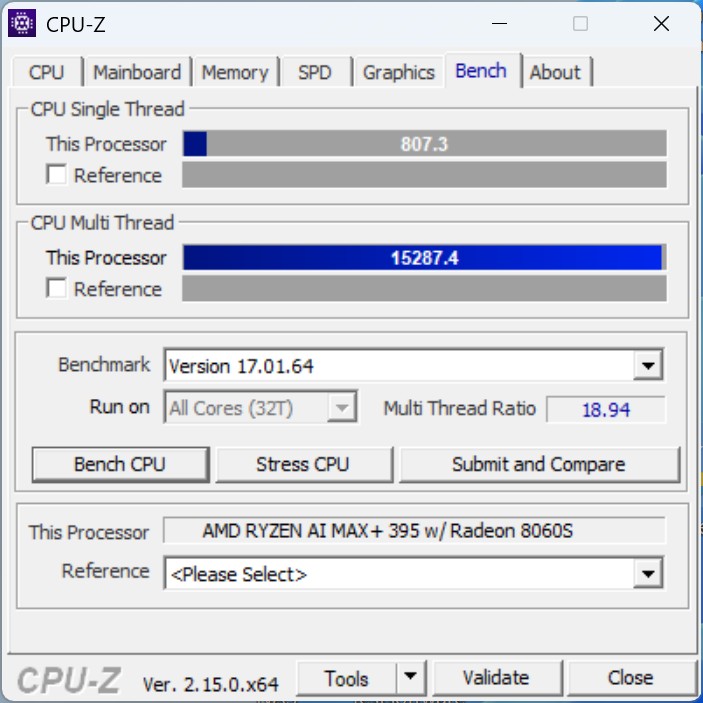

处理器
Minisforum MS-S1 Max 配备了 AMD Ryzen AI Max+ 395，这是目前 AMD 移动领域功能最强大的处理器之一。在性能模式下，SoC 的功耗可高达 160 瓦，而持续功耗为 130 瓦。这意味着 AMD Ryzen AI Max+ 395 的运行性能高于采用相同 CPU 的其他设备。与 博世游戏 M5相比，Minisforum MS-S1 Max 的性能平均高出约 10%。即使是 Minisforum MS-A2的 AMD Ryzen 9 9955HX也紧随其后，尽管 Ryzen 9 的单核性能更高。

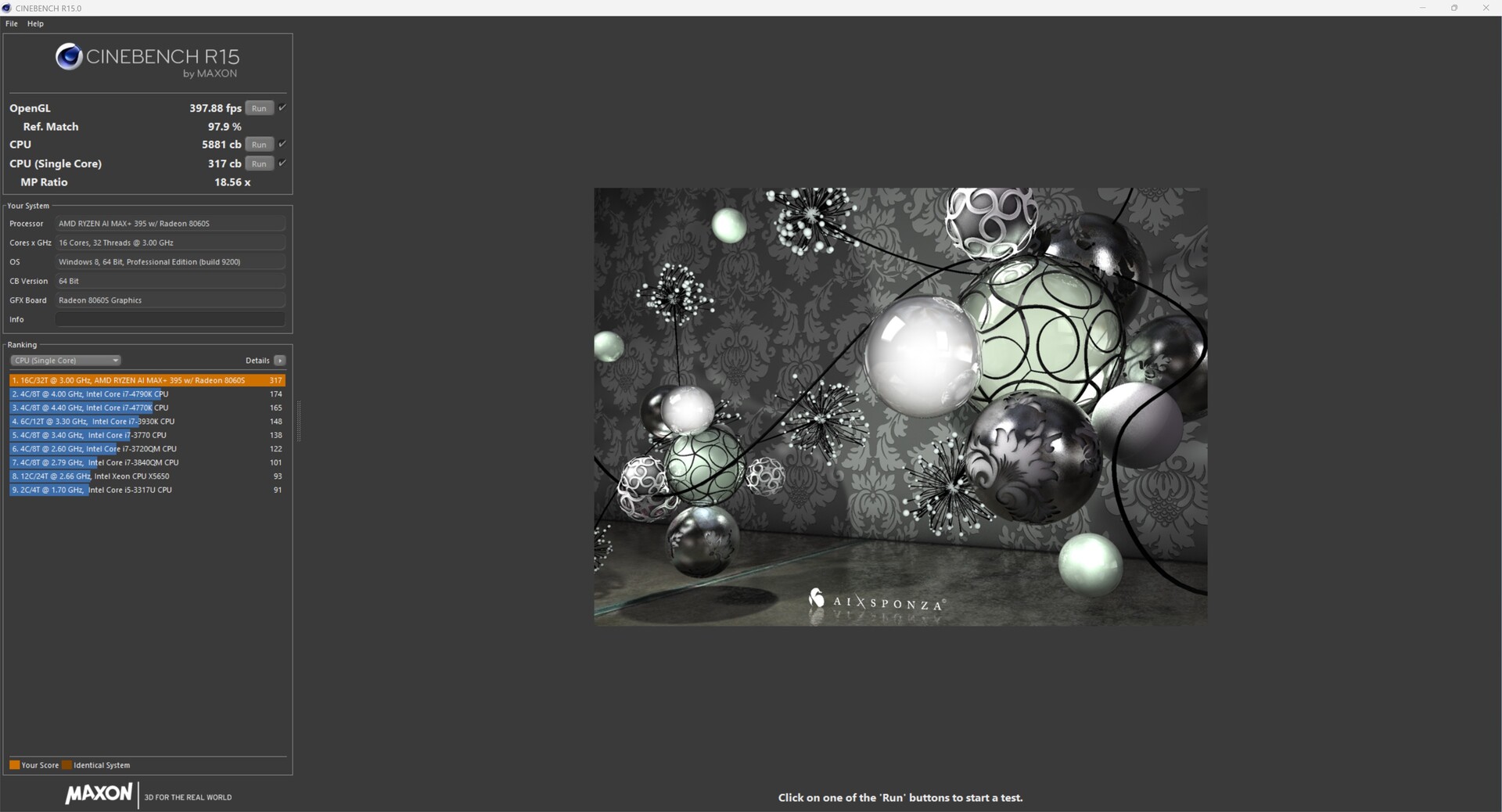

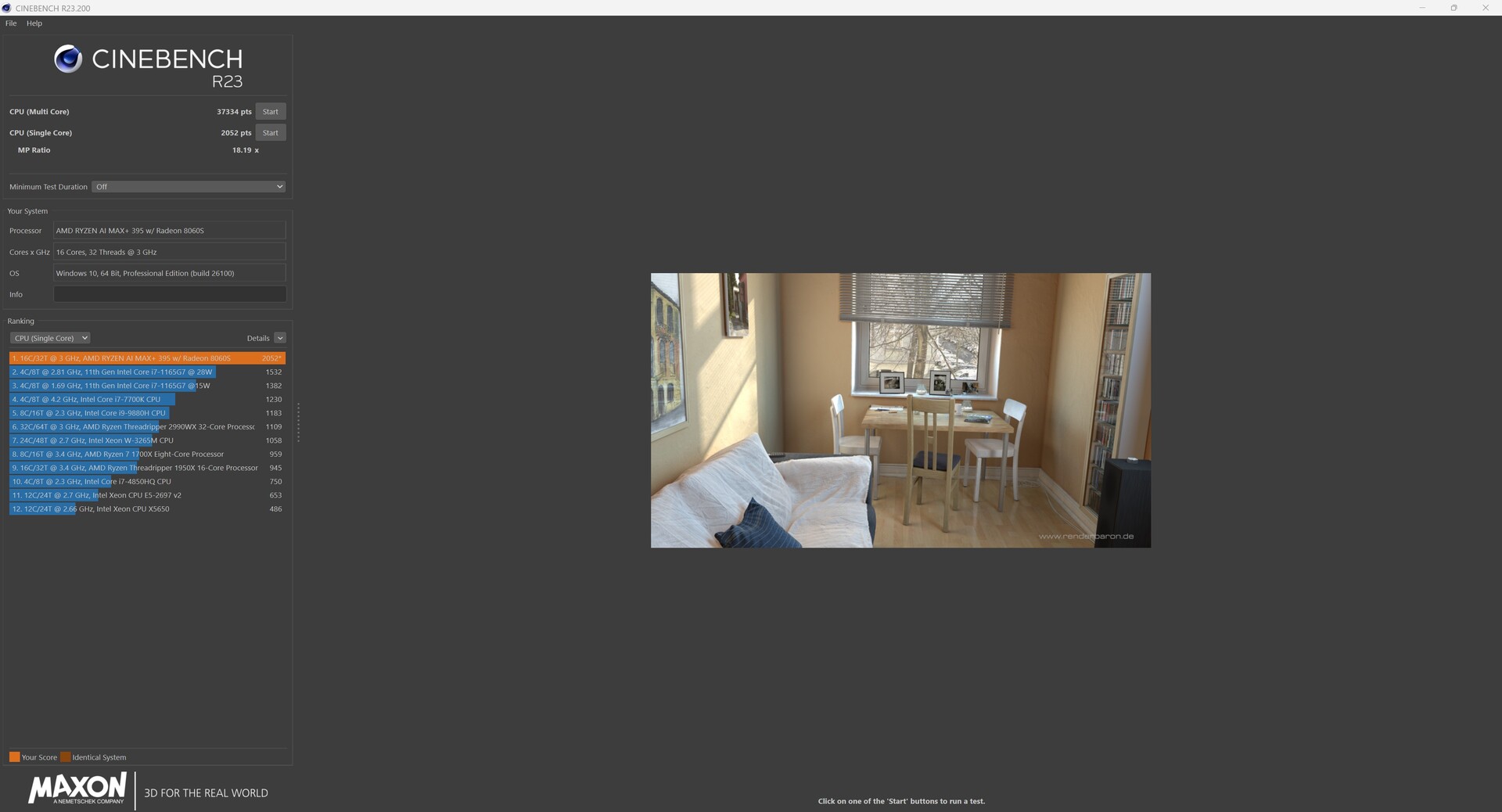

| 功率模式 | Cinebench R15 1T | Cinebench R15 nT | Cinebench R20 1T | Cinebench R20 nT | Cinebench R23 1T | Cinebench R23 nT | Cinebench 2024 1T | Cinebench 2024 nT |
|---|---|---|---|---|---|---|---|---|
| 机架（140W/120W） | 315 | 5,621 | 803 | 14,460 | 2,040 | 37,109 | 116 | 1,890 |
| 性能（160W/130W） | 317 | 5,881 | 801 | 14,564 | 2,052 | 37,334 | 116 | 1,912 |
| 平衡型 (130W/110W) | 317 | 5,488 | 803 | 14,091 | 2,049 | 35,991 | 116 | 1,823 |
| 静音（110W/80W） | 318 | 4,739 | 803 | 12,514 | 2,049 | 32,001 | 116 | 1,652 |

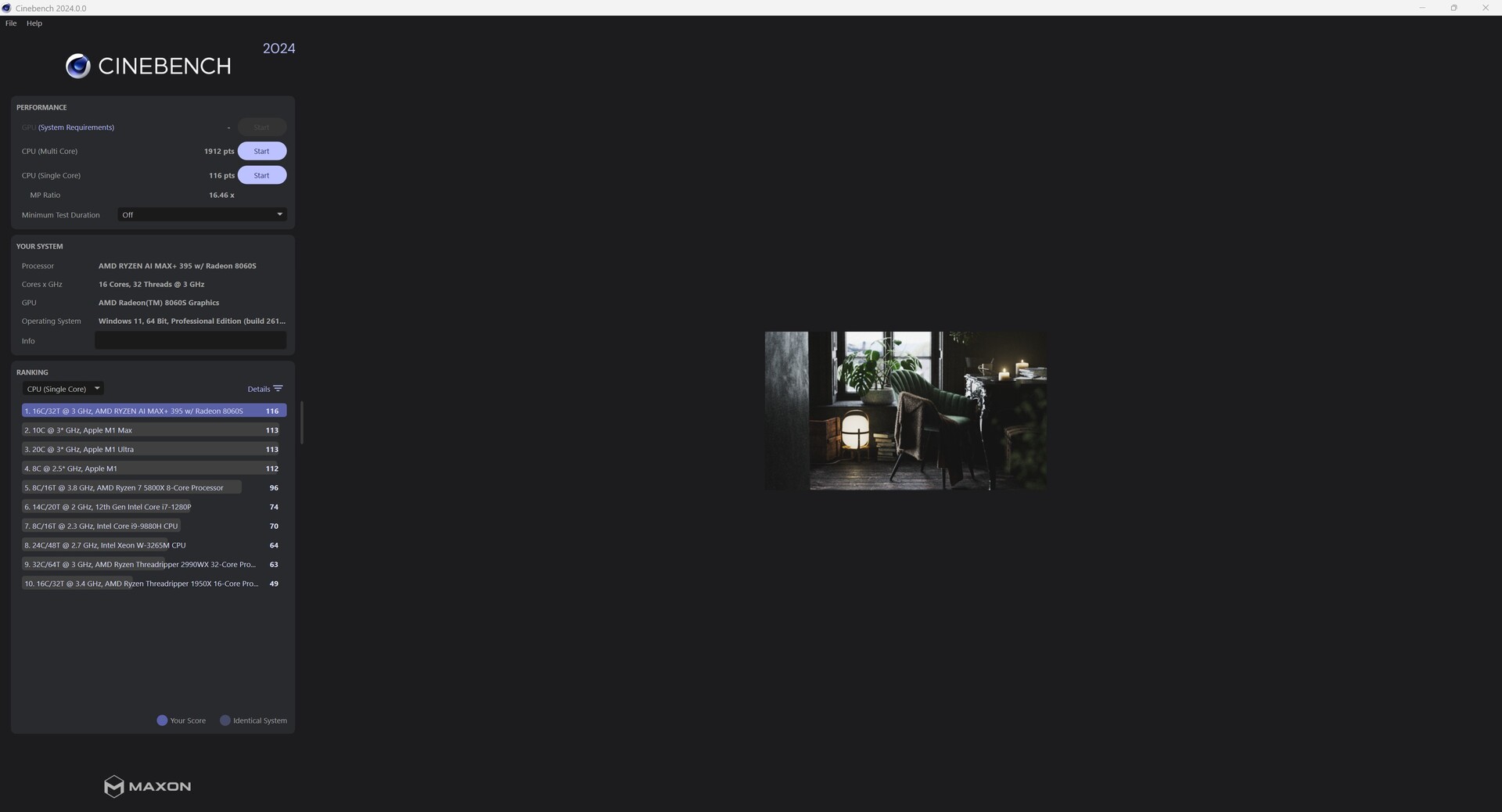

Performance Rating | Cinebench 2024 | Cinebench R23 | Cinebench R20 | Cinebench R15 | Cinebench R11.5 | Cinebench R10 | Blender | wPrime 2.10 | X264 HD Benchmark 4.0 | WinRAR | TrueCrypt | Geekbench AI | Geekbench 6.5 | Geekbench 5.5 | Geekbench 5.0 | Geekbench 4.4 | 3DMark 11 | 7-Zip 18.03 | HWBOT x265 Benchmark v2.2 | R Benchmark 2.5 | LibreOffice | 3DMark | Super Pi mod 1.5 XS 1M | Super Pi mod 1.5 XS 2M | Affinity Photo 2
| WinRAR - Result | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| GMK EVO-X2 | |
| Minisforum MS-A2 | |
| BOSGAME M5 | |
| Geekom Mini IT15, Ultra 9 285H | |
| BOSGAME M4 Neo | |
| Minisforum AI X1 Pro | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Average of class Mini PC | |
| AIDA64 / FP32 Ray-Trace | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Average of class Mini PC (770 - 82725, n=112, last 2 years) | |
| AIDA64 / FPU Julia | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| Minisforum G7 PT | |
| HP Z2 Mini G1a | |
| Minisforum AtomMan G7 Ti | |
| Average of class Mini PC (4141 - 227429, n=112, last 2 years) | |
| AIDA64 / CPU SHA3 | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| Minisforum G7 PT | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum AtomMan G7 Ti | |
| Average of class Mini PC (290 - 9475, n=112, last 2 years) | |
| AIDA64 / CPU Queen | |
| Minisforum G7 PT | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum AtomMan G7 Ti | |
| Average of class Mini PC (8208 - 184747, n=112, last 2 years) | |
| AIDA64 / FPU SinJulia | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Average of class Mini PC (408 - 31931, n=112, last 2 years) | |
| AIDA64 / FPU Mandel | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| Minisforum G7 PT | |
| HP Z2 Mini G1a | |
| Minisforum AtomMan G7 Ti | |
| Average of class Mini PC (2089 - 121827, n=112, last 2 years) | |
| AIDA64 / CPU AES | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Average of class Mini PC (7948 - 325960, n=111, last 2 years) | |
| AIDA64 / CPU ZLib | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Average of class Mini PC (1036 - 2431, n=112, last 2 years) | |
| Minisforum MS-S1 Max | |
| AIDA64 / FP64 Ray-Trace | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| HP Z2 Mini G1a | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Average of class Mini PC (432 - 43587, n=112, last 2 years) | |
| AIDA64 / CPU PhotoWorxx | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| Average of class Mini PC (5333 - 94259, n=112, last 2 years) | |

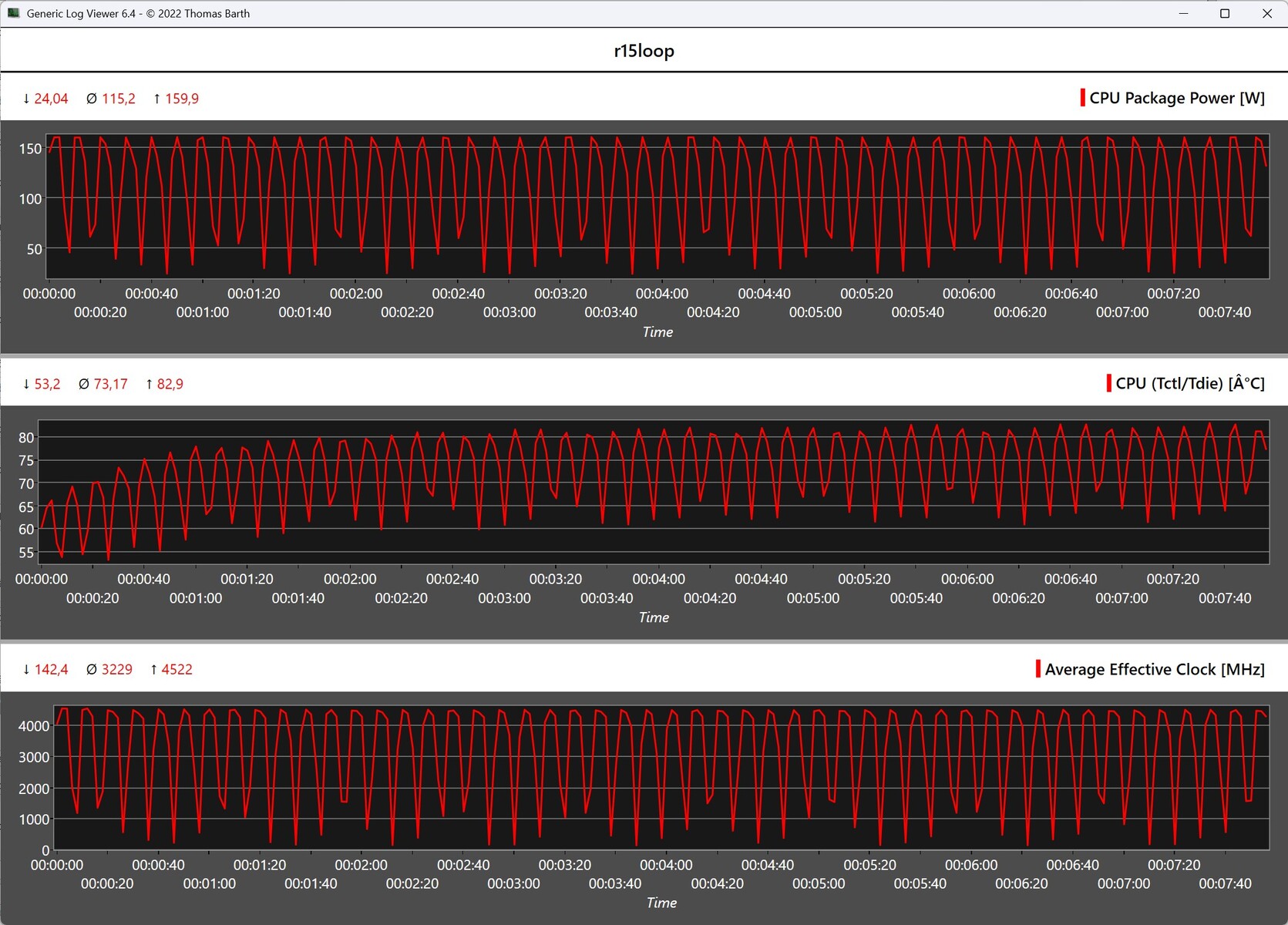

Cinebench R15 多回路运行
Minisforum MS-S1 Max 通过了第一个较长时间的负载测试，性能没有明显下降。相比之下，AMD Ryzen AI Max+ 395 在 MS-S1 Max 中表现最佳。
Minisforum MS-S1 Max AMD Ryzen AI Max+ 395, AMD Ryzen AI Max+ 395: Ø5705 (5569.48-5865.96)
BOSGAME M5 AMD Ryzen AI Max+ 395, AMD Ryzen AI Max+ 395: Ø5547 (5466.72-5591.28)
GMK EVO-X2 AMD Ryzen AI Max+ 395, AMD Ryzen AI Max+ 395: Ø5504 (5417.85-5566.38)
HP Z2 Mini G1a AMD Ryzen AI Max+ PRO 395, AMD Ryzen AI Max+ PRO 395: Ø5528 (5297.31-5713.47)
Minisforum AtomMan G7 Ti Intel Core i9-14900HX, Intel Core i9-14900HX: Ø3506 (3274.93-4091.23)
Minisforum G7 PT AMD Ryzen 9 7945HX, AMD Ryzen 9 7945HX: Ø4926 (4863.22-5192.11)
系统性能
总体而言，Minisforum MS-S1 Max 的系统性能非常出色，在单项测试中的排名与采用相同 CPU 的竞争对手相当。在 50 TOPS 的测试中，专用 NPU 明显加快了人工智能应用的速度，与 Minisforum AI X1 Pro的性能相当。
PCMark 10: Score | Essentials | Productivity
WebXPRT 4: Overall
WebXPRT 3: Overall
Mozilla Kraken 1.1: Total
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 4: Overall
WebXPRT 3: Overall
Mozilla Kraken 1.1: Total
CrossMark: Overall | Productivity | Creativity | Responsiveness
* ... smaller is better
| AIDA64 / Memory Copy | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| Minisforum AtomMan G7 Ti | |
| Average of class Mini PC (8377 - 163031, n=112, last 2 years) | |
| Minisforum G7 PT | |
| AIDA64 / Memory Read | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| Average of class Mini PC (8974 - 123769, n=112, last 2 years) | |
| AIDA64 / Memory Write | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum AtomMan G7 Ti | |
| Average of class Mini PC (8762 - 216693, n=112, last 2 years) | |
| Minisforum G7 PT | |
| AIDA64 / Memory Latency | |
| HP Z2 Mini G1a | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Average of class Mini PC (88.8 - 184.8, n=112, last 2 years) | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
* ... smaller is better
NPU 性能
| UL Procyon for Windows / Overall Score Integer NPU | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| UL Procyon for Windows / Overall Score Integer GPU | |
| Minisforum G7 PT | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
DPC 延迟
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| Minisforum G7 PT | |
* ... smaller is better

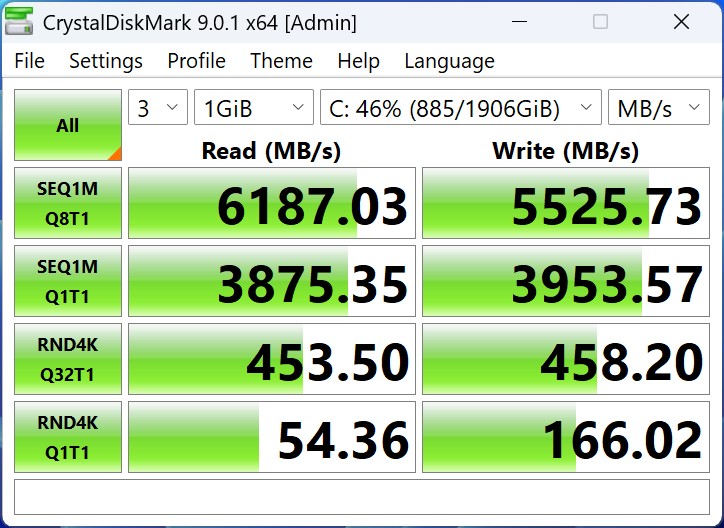

存储设备

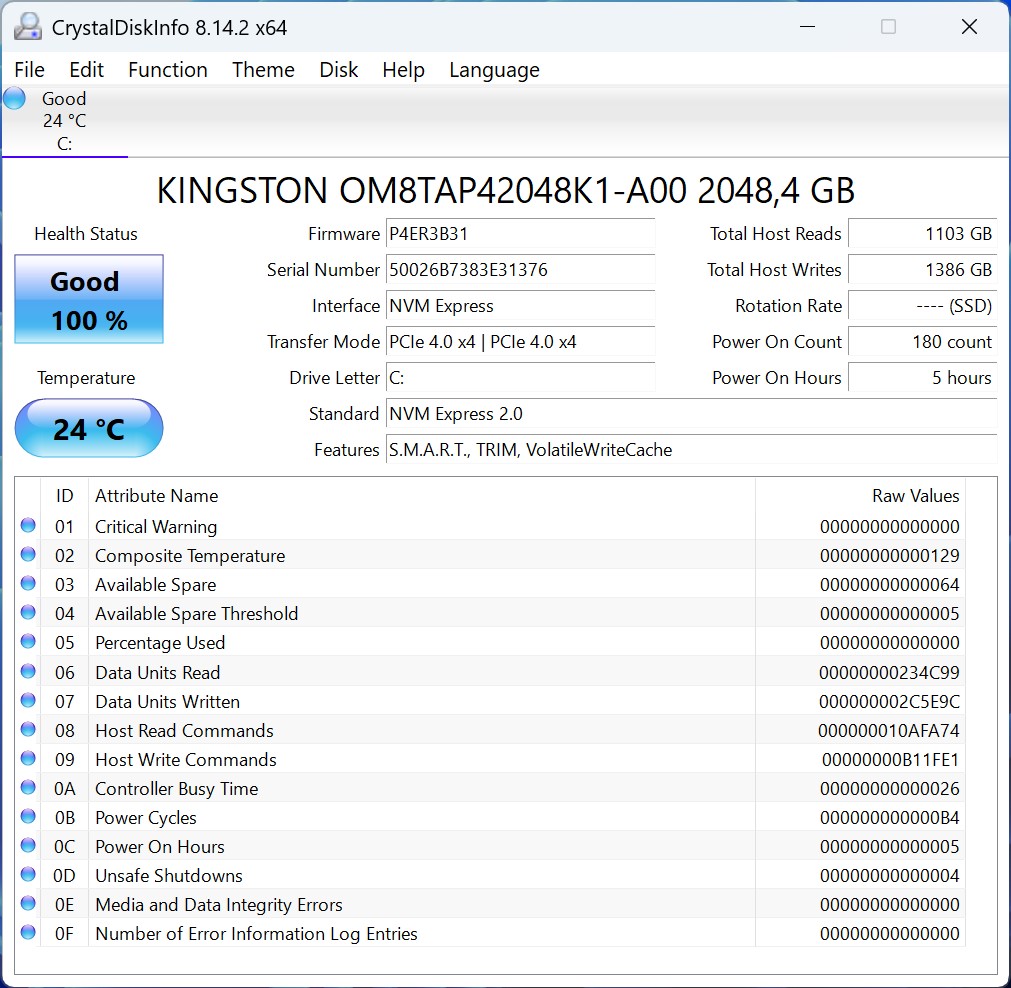

Minisforum MS-S1 Max 使用容量为 2 TB 的金士顿固态硬盘作为大容量存储器。尽管在我们的测试中性能略微落后于竞争对手，但该连接在技术上进行了优化。MS-S1 Max 最多可配备两个 M.2 2280 固态硬盘。PCIe 插槽可用于扩展额外的大容量存储。

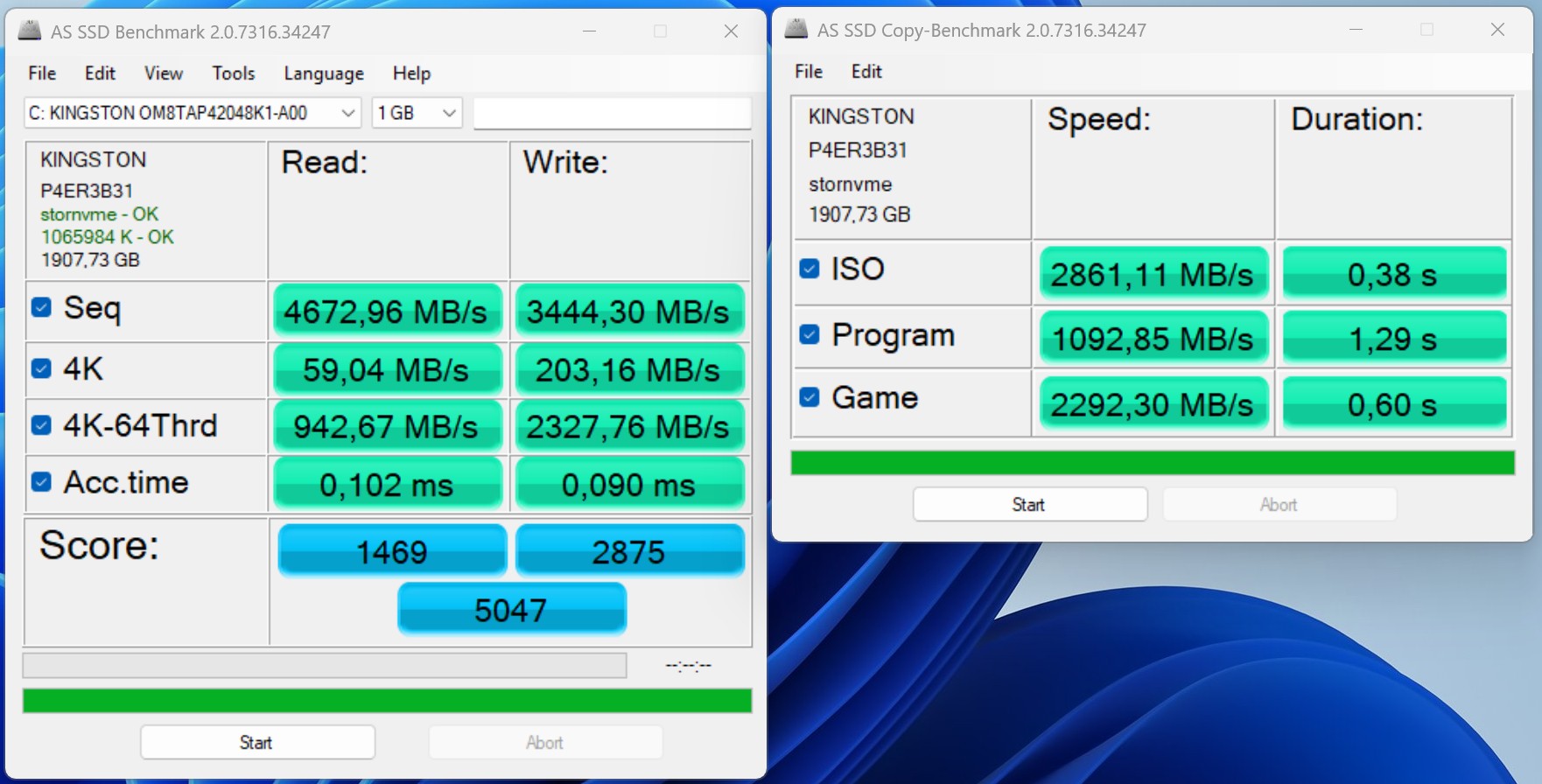

Kingston OM8TAP42048K1-A00
Sequential Read:
4672MB/s
Sequential Write:
3444MB/s
4K Read:
59MB/s
4K Write:
203MB/s
4K-64 Read:
943MB/s
4K-64 Write:
2328MB/s
Access Time Read:
0.102ms
Access Time Write:
0.09ms
Copy ISO:
2861.11MB/s
Copy Program:
1092.85MB/s
Copy Game:
2292.3MB/s
Score Read:
1469Points
Score Write:
2875Points
Score Total:
5047Points
| Drive Performance Rating - Percent | |
| GMK EVO-X2 | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| Average of class Mini PC | |
| SPECworkstation 4.0 - Storage Score | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| GMK EVO-X2 | |
| Average of class Mini PC (0.27 - 1.08, n=48, last 2 years) | |
| BOSGAME M5 | |
| Minisforum AtomMan G7 Ti | |
* ... smaller is better
磁盘节流DiskSpd 读取循环，队列深度 8
Minisforum MS-S1 Max Kingston OM8TAP42048K1-A00; diskspd 2.0.17 f: Ø6043 (5438.57-6070.44)
BOSGAME M5 Kingston OM8PGP42048N-A0; diskspd 2.0.17 f: Ø4077 (3538.58-4093.22)
GMK EVO-X2 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø4703 (4014.1-4989)
HP Z2 Mini G1a Samsung PM9A1 MZVL22T0HBLB; diskspd 2.0.17 f: Ø6308 (4899.58-6628.26)
Minisforum AtomMan G7 Ti Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø3919 (1585.03-4790.25)
Minisforum G7 PT Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4777 (4199.76-4789.69)

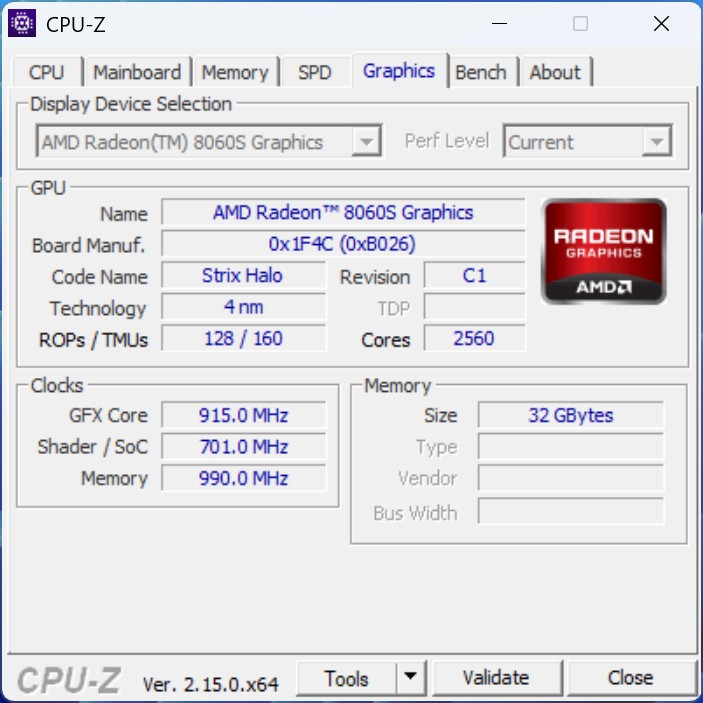

图形卡和游戏性能
迷你论坛中使用的 MS-S1 Max AMD Radeon 8060S的图形性能达到了 NvidiaGeForce RTX 4070 笔记本电脑.这使得 MS-S1 Max 与 GMKtec EVO-X2、 博弈 M5和 惠普 Z2 Mini G1、在我们目前测试过的迷你电脑中，它们都拥有最强大的 iGPU。只要主要在 1080p 下运行，当前的游戏都能流畅运行。iGPU 的最大优势在于 VRAM，在 UEFI 中最高可配置 96 GB。
| 3DMark Performance Rating - Percent | |
| Minisforum AtomMan G7 Ti | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Minisforum MS-S1 Max | |
| 3DMark 11 - 1280x720 Performance GPU | |
| HP Z2 Mini G1a | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1 | LuxMark v2.0 64Bit | Affinity Photo 2 | Geekbench AI
| Performance Rating - Percent | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Unigine Heaven 4.0 | |
| Extreme Preset OpenGL | |
| Minisforum AtomMan G7 Ti | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Extreme Preset DX11 | |
| Minisforum AtomMan G7 Ti | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| Minisforum G7 PT | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Minisforum AtomMan G7 Ti | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum G7 PT | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Minisforum AtomMan G7 Ti | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum G7 PT | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| Unigine Superposition | |
| 1280x720 720p Low | |
| Minisforum AtomMan G7 Ti | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum G7 PT | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| 1920x1080 1080p High | |
| Minisforum AtomMan G7 Ti | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Minisforum MS-S1 Max | |
| 1920x1080 1080p Extreme | |
| Minisforum AtomMan G7 Ti | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Minisforum MS-S1 Max | |
| ComputeMark v2.1 | |
| 1024x600 Normal, Score | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| 1024x600 Normal, Fluid 3DTex | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| BOSGAME M5 | |
| 1024x600 Normal, Fluid 2DTexArr | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| BOSGAME M5 | |
| 1024x600 Normal, Mandel Vector | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| 1024x600 Normal, Mandel Scalar | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| 1024x600 Normal, QJuliaRayTrace | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| LuxMark v2.0 64Bit | |
| Room GPUs-only | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Sala GPUs-only | |
| Minisforum AtomMan G7 Ti | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| HP Z2 Mini G1a | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| Geekbench AI | |
| Quantized GPU 1.4 | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Half Precision GPU 1.4 | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| Minisforum AtomMan G7 Ti | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Single Precision GPU 1.4 | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
| Performance Rating | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| SPECworkstation 4.0 / Graphics Score | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| SPECworkstation 4.0 / Accelerator Score | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum AtomMan G7 Ti | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| SPECworkstation 4.0 / Viewport Graphics | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| SPECworkstation 4.0 / HandBrake | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| Minisforum G7 PT | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum AtomMan G7 Ti | |
| SPECworkstation 4.0 / ONNX Inference | |
| Minisforum MS-S1 Max | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Minisforum MS-S1 Max, AMD Radeon 8060S Ryzen AI Max+ 395 | BOSGAME M5, AMD Radeon 8060S Ryzen AI Max+ 395 | GMK EVO-X2, AMD Radeon 8060S Ryzen AI Max+ 395 | HP Z2 Mini G1a, AMD Radeon 8060S Ryzen AI Max+ PRO 395 | Minisforum AtomMan G7 Ti, NVIDIA GeForce RTX 4070 Laptop GPU i9-14900HX | Minisforum G7 PT, AMD Radeon RX 7600M XT R9 7945HX | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | 2% | 3% | -2% | -35% | -19% | -63% | |
| 3840x2160 Medical (medical-03) (fps) | 88.2 | 90.1 2% | 89.7 2% | 87.5 -1% | 15.2 -83% | 30.8 -65% | 16.9 ? -81% |
| 3840x2160 Energy (energy-03) (fps) | 74.1 | 76 3% | 75.7 2% | 73.7 -1% | 44 -41% | 43.2 -42% | 23.5 ? -68% |
| 3840x2160 Creo (creo-03) (fps) | 95.5 | 96.2 1% | 97.3 2% | 90.9 -5% | 93.7 -2% | 97.5 2% | 41.6 ? -56% |
| 3840x2160 CATIA (catia-06) (fps) | 69.5 | 69.7 0% | 70.3 1% | 68.1 -2% | 37.3 -46% | 64.1 -8% | 27.4 ? -61% |
| 3840x2160 3ds Max (3dsmax-07) (fps) | 71.3 | 73.6 3% | 73.5 3% | 71.2 0% | 69 -3% | 63.9 -10% | 36.6 ? -49% |
| 3840x2160 Siemens NX (snx-04) (fps) | 223 | 231 4% | 233 4% | 221 -1% | 19.4 -91% | 220 -1% | 52.2 ? -77% |
| 3840x2160 Maya (maya-06) (fps) | 189 | 194 3% | 196 4% | 186 -2% | 223 18% | 171 -10% | 93.9 ? -50% |
| 3DMark 05 Standard | 79566 points | |
| 3DMark 06 Standard Score | 68778 points | |
| 3DMark Vantage P Result | 102547 points | |
| 3DMark 11 Performance | 37011 points | |
| 3DMark Ice Storm Standard Score | 237390 points | |
| 3DMark Cloud Gate Standard Score | 75011 points | |
| 3DMark Fire Strike Score | 26615 points | |
| 3DMark Fire Strike Extreme Score | 13602 points | |
| 3DMark Time Spy Score | 11284 points | |
| 3DMark Steel Nomad Score | 2187 points | |
Help | ||
| GTA V | |
| 1024x768 Lowest Settings possible | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| HP Z2 Mini G1a | |
| GMK EVO-X2 | |
| Dota 2 Reborn | |
| 1280x720 min (0/3) fastest | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| 1920x1080 high (2/3) | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| BOSGAME M5 | |
| Cyberpunk 2077 2.2 Phantom Liberty | |
| 1920x1080 Low Preset (FSR off) | |
| HP Z2 Mini G1a | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| Minisforum MS-S1 Max | |
| 1920x1080 High Preset (FSR off) | |
| HP Z2 Mini G1a | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum MS-S1 Max | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
| Baldur's Gate 3 | |
| 1280x720 Low Preset AA:SM | |
| Minisforum G7 PT | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum AtomMan G7 Ti | |
| Minisforum MS-S1 Max | |
| 1920x1080 High Preset AA:T | |
| Minisforum AtomMan G7 Ti | |
| BOSGAME M5 | |
| HP Z2 Mini G1a | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| Minisforum G7 PT | |
| F1 24 | |
| 1920x1080 Low Preset AA:T AF:16x | |
| Minisforum G7 PT | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| Minisforum AtomMan G7 Ti | |
| HP Z2 Mini G1a | |
| GMK EVO-X2 | |
| 1920x1080 High Preset AA:T AF:16x | |
| Minisforum G7 PT | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| Minisforum AtomMan G7 Ti | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
30 分钟赛博朋克 2077》帧数表（1920 x 1080，超预设，FSR 关闭）
Minisforum MS-S1 Max (Performance-Mode) Ryzen AI Max+ 395, Radeon 8060S: Ø80.6 (74.1-81.3)
Bosgame M5 Ryzen AI Max+ 395, Radeon 8060S: Ø80.7 (76.2-82.2)
GMKtec EVO-X2 Ryzen AI Max+ 395, Radeon 8060S: Ø79.9 (75.9-80.9)
HP Z2 Mini G1a Ryzen AI Max+ PRO 395, Radeon 8060S: Ø81.4 (77.9-82.6)
Minisforum AtomMan G7 Ti i9-14900HX, NVIDIA GeForce RTX 4070 Laptop GPU: Ø78.1 (74.9-78.8)
Minisforum AtomMan G7 PT R9 7945HX, Radeon RX 7600M XT: Ø75.6 (73.5-76.5)
Minisforum MS-S1 Max (Quiet-Mode) Ryzen AI Max+ 395, Radeon 8060S: Ø66.6 (62.9-69.4)
Minisforum MS-S1 Max (Balanced-Mode) Ryzen AI Max+ 395, Radeon 8060S: Ø76.8 (72.5-79)
| low | med. | high | ultra | QHD FSR | QHD | 4K FSR | 4K | |
|---|---|---|---|---|---|---|---|---|
| GTA V (2015) | 185.8 | 183.3 | 173.6 | 99.8 | 77.3 | 80.2 | ||
| The Witcher 3 (2015) | 455 | 335 | 187 | 105.2 | 84 | 59 | ||
| Dota 2 Reborn (2015) | 238.3 | 186.8 | 166 | 144.5 | 98.3 | |||
| Final Fantasy XV Benchmark (2018) | 198.3 | 126.2 | 94.7 | 70 | 38.8 | |||
| X-Plane 11.11 (2018) | 125 | 85.8 | 69 | 54.3 | ||||
| Strange Brigade (2018) | 546 | 229 | 196.8 | 122.1 | 61.9 | |||
| Anno 1800 (2019) | 137.9 | 114.3 | 91.7 | 56.8 | 51.5 | 37.4 | ||
| The Witcher 3 v4 (2023) | 194.3 | 163.1 | 141.4 | 118.2 | 76.1 | 37.2 | ||
| Baldur's Gate 3 (2023) | 138.8 | 114.8 | 101.4 | 98.6 | 68.6 | 53.4 | 33 | |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 133.9 | 119 | 97.9 | 87.3 | 54.3 | 22.1 | ||
| Avatar Frontiers of Pandora (2023) | 75 | 68 | 59 | 44 | 29 | 15 | ||
| F1 24 (2024) | 270 | 250 | 191.2 | 58.5 | 62.3 | 38.5 | 33.9 | 19.3 |
| Black Myth: Wukong (2024) | 91 | 70 | 52 | 29 | 21 | 12 | ||
| Monster Hunter Wilds (2025) | 68.4 | 60.1 | 47 | 34.2 | 18.6 | |||
| F1 25 (2025) | 236 | 207 | 168.5 |
排放量
噪音排放
在我们的测量中，Minisforum MS-S1 Max 在满载情况下声音听得见，但在空转时声音很大（46 dB(A)），这导致整体评级大幅下降。不过，可以排除散热问题。我们在公布测试结果之前通知了 Minisforum。最终，系统正常运行。UEFI 提供的选项比 博弈 M5或 GMKtec EVO-X2更多的手动调整选项。手动设置风扇速度为 50%，声压级降至 38.5 dB(A)。
| 噪音发展分贝(A) | 性能 (160/130 瓦) | 性能 (160/130 瓦 + 风扇转速 50 %) | 平衡 (130/110 瓦) | 安静 (110/80 瓦) |
|---|---|---|---|---|
| 怠速最小值 | 46.3 | 38.5 | 43.7 | 36.9 |
| 空闲平均值 | 46.3 | 38.5 | 43.9 | 37 |
| 空闲最大值 | 46.4 | 38.5 | 44.1 | 37.2 |
| 最后平均值 | 48.9 | 38.5 | 47.3 | 44.7 |
| 最近最大值 | 50.9 | 38.5 | 46.8 | 40.0 |
| 赛博朋克 2077》超 | 53.1 | 38.5 | 47.4 | 40.7 |
Noise Level
| Idle |
| 46.3 / 46.3 / 46.4 dB(A) |
| Load |
| 48.9 / 50.9 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 24.9 dB(A) | ||
| Minisforum MS-S1 Max Ryzen AI Max+ 395, Radeon 8060S | BOSGAME M5 Ryzen AI Max+ 395, Radeon 8060S | GMK EVO-X2 Ryzen AI Max+ 395, Radeon 8060S | HP Z2 Mini G1a Ryzen AI Max+ PRO 395, Radeon 8060S | Minisforum AtomMan G7 Ti i9-14900HX, NVIDIA GeForce RTX 4070 Laptop GPU | Minisforum G7 PT R9 7945HX, Radeon RX 7600M XT | |
|---|---|---|---|---|---|---|
| Noise | 21% | 19% | 2% | 12% | 21% | |
| off / environment * (dB) | 24.9 | 24.8 -0% | 24.9 -0% | 24.9 -0% | 24.7 1% | 24.4 2% |
| Idle Minimum * (dB) | 46.3 | 25 46% | 27.4 41% | 32.1 31% | 34 27% | 29.3 37% |
| Idle Average * (dB) | 46.3 | 25.1 46% | 27.5 41% | 32.4 30% | 34.1 26% | 29.4 37% |
| Idle Maximum * (dB) | 46.4 | 25.1 46% | 27.5 41% | 32.6 30% | 34.1 27% | 29.4 37% |
| Load Average * (dB) | 48.9 | 48.8 -0% | 47.5 3% | 41.1 16% | 48.6 1% | 43.5 11% |
| Witcher 3 ultra * (dB) | 52.9 | 46.5 12% | 47.4 10% | 70 -32% | ||
| Cyberpunk 2077 ultra * (dB) | 53.1 | 46.6 12% | 47.3 11% | 67 -26% | 55.2 -4% | 45.5 14% |
| Load Maximum * (dB) | 50.9 | 48.6 5% | 47.2 7% | 67.3 -32% | 48.3 5% | 45 12% |
* ... smaller is better
温度

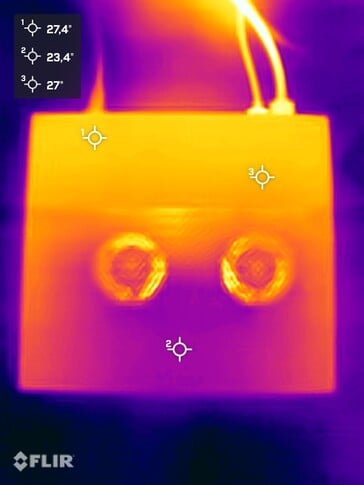

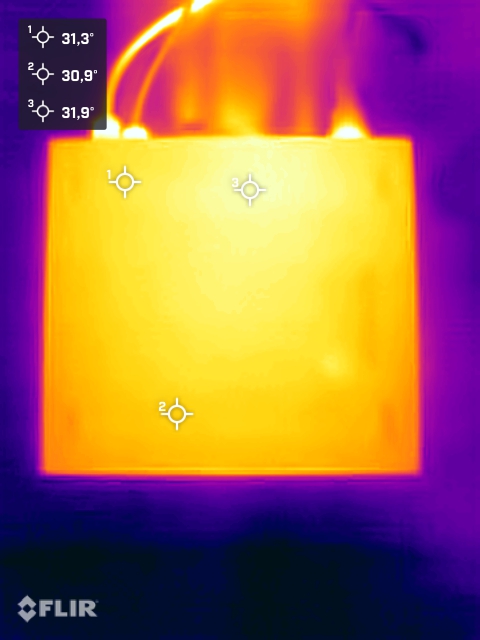

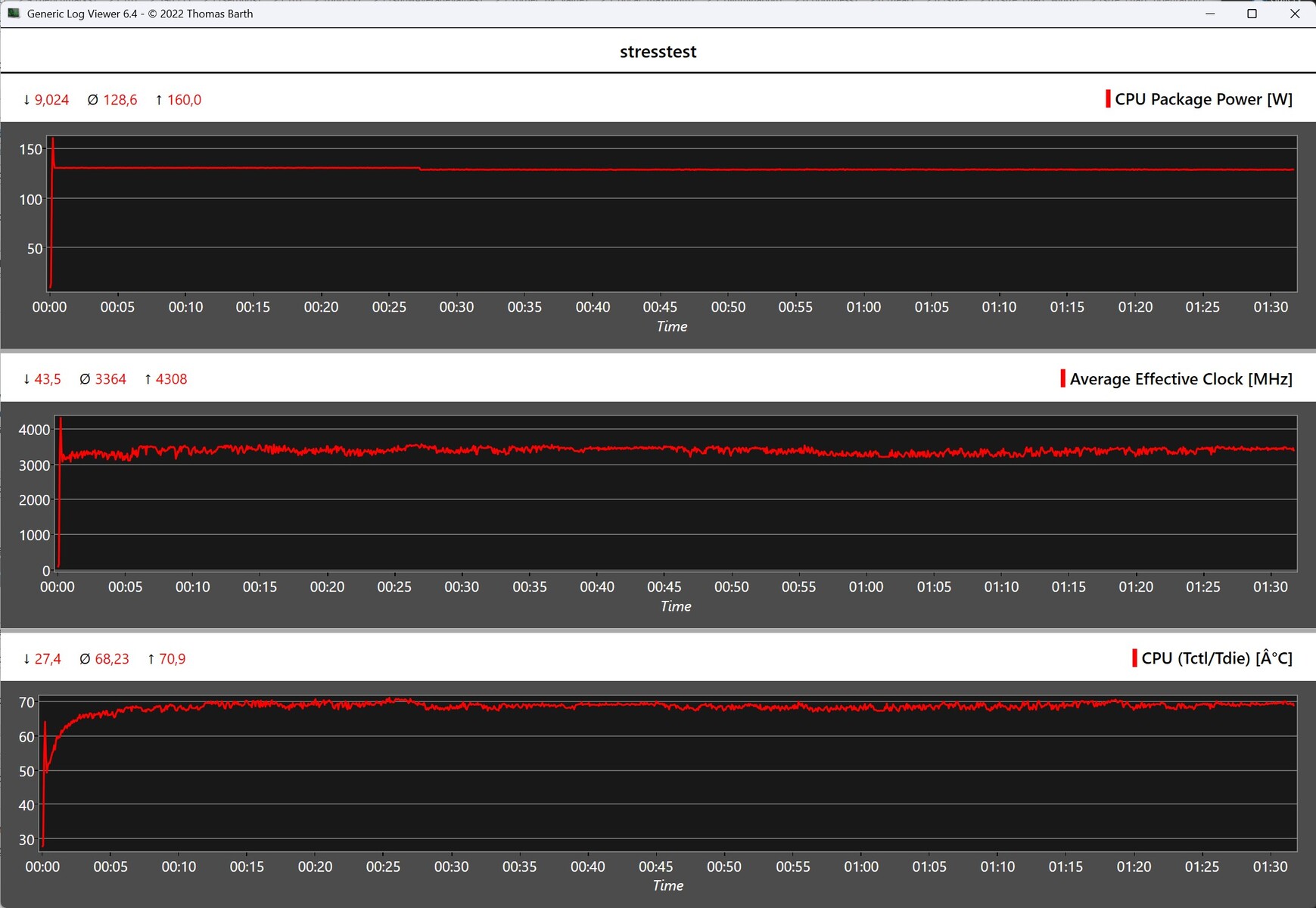

Minisforum MS-S1 Max 的外壳表面无论在空闲模式还是在负载状态下都很显眼。处理器在满载情况下仅达到 70 摄氏度，在较长时间内保持 130 瓦的指定功耗稳定没有问题。在风扇转速降低 50% 的情况下，虽然 CPU 温度上升到 98 摄氏度左右，但散热仍能维持相同的持续负载。
(+) The average temperature for the upper side under maximal load is 30 °C / 86 F, compared to the average of 32.4 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 32.1 °C / 90 F, compared to the average of 35.8 °C / 96 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 32.4 °C / 90 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 32.4 °C / 90 F.
(+) 3: The average temperature for the upper side is 27.3 °C / 81 F, compared to the average of 32.4 °C / 90 F for the class Mini PC.
(+) The maximum temperature on the upper side is 32.1 °C / 90 F, compared to the average of 35.8 °C / 96 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 32.4 °C / 90 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 32.4 °C / 90 F.
(+) 3: The average temperature for the upper side is 27.3 °C / 81 F, compared to the average of 32.4 °C / 90 F for the class Mini PC.
能源管理
Minisforum MS-S1 Max 的低功耗与其提供的计算能力相比令人印象深刻。在空闲模式下，测试设备仅需 7 至 10 瓦，与 GMKtec EVO-X2都是比较中的最低值。即使在负载情况下，MS-S1 Max 也能以相当经济的方式工作，尽管处理器功率的短暂峰值高达 160 瓦。再加上出色的测试结果，MS-S1 Max 的总体效率非常出色。
Power Consumption
| Off / Standby | 2.3 / 5.7 Watt |
| Idle | 7.2 / 8.2 / 10.2 Watt |
| Load |
77.8 / 204 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Minisforum MS-S1 Max Ryzen AI Max+ 395, Radeon 8060S | BOSGAME M5 Ryzen AI Max+ 395, Radeon 8060S | GMK EVO-X2 Ryzen AI Max+ 395, Radeon 8060S | HP Z2 Mini G1a Ryzen AI Max+ PRO 395, Radeon 8060S | Minisforum AtomMan G7 Ti i9-14900HX, NVIDIA GeForce RTX 4070 Laptop GPU | Minisforum G7 PT R9 7945HX, Radeon RX 7600M XT | Average AMD Radeon 8060S | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -24% | -2% | -15% | -150% | -157% | -14% | -11% | |
| Idle Minimum * (Watt) | 7.2 | 9.3 -29% | 6.5 10% | 7.1 1% | 21 -192% | 23 -219% | 8.2 ? -14% | 9.56 ? -33% |
| Idle Average * (Watt) | 8.2 | 11.5 -40% | 8.2 -0% | 9.5 -16% | 35.1 -328% | 28.1 -243% | 10.4 ? -27% | 11.7 ? -43% |
| Idle Maximum * (Watt) | 10.2 | 16.4 -61% | 10.5 -3% | 13.8 -35% | 39.6 -288% | 40.4 -296% | 13.4 ? -31% | 15.1 ? -48% |
| Load Average * (Watt) | 77.8 | 83.9 -8% | 84.3 -8% | 76.7 1% | 106.9 -37% | 131.2 -69% | 82.9 ? -7% | 62.4 ? 20% |
| Cyberpunk 2077 ultra external monitor * (Watt) | 165 | 174.2 -6% | 178.1 -8% | 195.1 -18% | 217 -32% | 282 -71% | ||
| Load Maximum * (Watt) | 204 | 200.9 2% | 214.9 -5% | 245.4 -20% | 249 -22% | 296 -45% | 184.8 ? 9% | 107.7 ? 47% |
* ... smaller is better
效率概览
| Performance Rating - Percent | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Power Consumption | |
| Cinebench R23 Multi Power Efficiency - external Monitor | |
| Minisforum G7 PT | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum AtomMan G7 Ti | |
| Cinebench R23 Single Power Efficiency - external Monitor | |
| Minisforum MS-S1 Max | |
| HP Z2 Mini G1a | |
| GMK EVO-X2 | |
| BOSGAME M5 | |
| Minisforum G7 PT | |
| Minisforum AtomMan G7 Ti | |
| Cinebench R15 Multi Efficiency (external Monitor) | |
| Minisforum G7 PT | |
| BOSGAME M5 | |
| Minisforum MS-S1 Max | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum AtomMan G7 Ti | |
| Cyberpunk 2077 ultra Efficiency | |
| Minisforum MS-S1 Max | |
| BOSGAME M5 | |
| GMK EVO-X2 | |
| HP Z2 Mini G1a | |
| Minisforum AtomMan G7 Ti | |
| Minisforum G7 PT | |
带外部监控器的能耗
Minisforum MS-S1 Max Ryzen AI Max+ 395, Radeon 8060S; Idle 1min (external Monitor): Ø8.3 (7.52-10.2)
BOSGAME M5 Ryzen AI Max+ 395, Radeon 8060S; Idle 1min (external Monitor): Ø11.5 (10.3-16.3)
GMK EVO-X2 Ryzen AI Max+ 395, Radeon 8060S; Idle 1min (external Monitor): Ø8.18 (6.63-10.5)
Minisforum MS-S1 Max Ryzen AI Max+ 395, Radeon 8060S; 1280x720 Prime95 28.10 and Furmark 1.25: Ø168.3 (166.1-203)
BOSGAME M5 Ryzen AI Max+ 395, Radeon 8060S; 1280x720 Prime95 28.10 and Furmark 1.25: Ø178.9 (172.7-201)
GMK EVO-X2 Ryzen AI Max+ 395, Radeon 8060S; 1280x720 Prime95 28.10 and Furmark 1.25: Ø187.6 (184.6-215)
Minisforum MS-S1 Max Ryzen AI Max+ 395, Radeon 8060S; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø165 (150.3-166.4)
BOSGAME M5 Ryzen AI Max+ 395, Radeon 8060S; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø174.2 (169.6-177.1)
GMK EVO-X2 Ryzen AI Max+ 395, Radeon 8060S; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø178.1 (174.6-184.1)
Minisforum MS-S1 Max Ryzen AI Max+ 395, Radeon 8060S; 3DMark06 Return To Proxycon: Ø77.8 (68.3-95.9)
BOSGAME M5 Ryzen AI Max+ 395, Radeon 8060S; 3DMark06 Return To Proxycon: Ø84.1 (73.8-98.6)
GMK EVO-X2 Ryzen AI Max+ 395, Radeon 8060S; 3DMark06 Return To Proxycon: Ø84.4 (76-102)
带外部监控器的能耗
Minisforum MS-S1 Max Ryzen AI Max+ 395, Radeon 8060S; Prime95 V2810 Stress (external Monitor): Ø169.9 (166.2-204)
BOSGAME M5 Ryzen AI Max+ 395, Radeon 8060S; Prime95 V2810 Stress (external Monitor): Ø177.2 (171.8-200)
GMK EVO-X2 Ryzen AI Max+ 395, Radeon 8060S; Prime95 V2810 Stress (external Monitor): Ø184.7 (180.5-210)
Minisforum MS-S1 Max Ryzen AI Max+ 395, Radeon 8060S; Cinebench R15 Multi (external Monitor): Ø199.6 (199.5-199.9)
BOSGAME M5 Ryzen AI Max+ 395, Radeon 8060S; Cinebench R15 Multi (external Monitor): Ø192.8 (191.3-193.6)
GMK EVO-X2 Ryzen AI Max+ 395, Radeon 8060S; Cinebench R15 Multi (external Monitor): Ø200 (197.4-202)
Minisforum MS-S1 Max Ryzen AI Max+ 395, Radeon 8060S; Cinebench R23 Single (external Monitor): Ø35.5 (34.3-59.7)
BOSGAME M5 Ryzen AI Max+ 395, Radeon 8060S; Cinebench R23 Single (external Monitor): Ø40.1 (35.9-58.8)
GMK EVO-X2 Ryzen AI Max+ 395, Radeon 8060S; Cinebench R23 Single (external Monitor): Ø40 (37.7-59.8)
Minisforum MS-S1 Max Ryzen AI Max+ 395, Radeon 8060S; Cinebench R23 Multi (external Monitor): Ø176.1 (163.1-200)
BOSGAME M5 Ryzen AI Max+ 395, Radeon 8060S; Cinebench R23 Multi (external Monitor): Ø178.2 (167.9-195.2)
GMK EVO-X2 Ryzen AI Max+ 395, Radeon 8060S; Cinebench R23 Multi (external Monitor): Ø187.6 (175.2-204)
Minisforum MS-S1 Max Ryzen AI Max+ 395, Radeon 8060S; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø163.8 (160.5-198.1)
BOSGAME M5 Ryzen AI Max+ 395, Radeon 8060S; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø176.3 (172.4-199.2)
GMK EVO-X2 Ryzen AI Max+ 395, Radeon 8060S; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø181.2 (176.8-206)
笔记本检查评级
Minisforum MS-S1 Max
- 09/25/2025 v8
Sebastian Bade
Mini PC - Weighted Average
Total Sustainability Score: 潜在竞争对手比较
Image | Model / Review | Price | Weight | Dimensions |
|---|---|---|---|---|
1. 78.9%  | Minisforum MS-S1 Max AMD Ryzen AI Max+ 395 ⎘ AMD Radeon 8060S ⎘ 128 GB Memory, 2048 GB SSD | Amazon: 1. $1,135.90 MINISFORUM MS-A2 Mini Workst... 2. $479.90 MINISFORUM MS-01 Mini PC Bar... 3. $639.00 MINISFORUM Mini PC MS-01-S13... List Price: 2399€ | 2.8 kg | 206.3 x 222.1 x 77.1 mm |
2. 87.7%  | BOSGAME M5 AMD Ryzen AI Max+ 395 ⎘ AMD Radeon 8060S ⎘ 128 GB Memory, 2024 GB SSD | Amazon: 1. $21.29 Mini PC Computer Protective ... 2. $21.99 UL Listed 19V 3A 3.42A AC Ad... List Price: 1469€ | 1.3 kg | 200 x 215 x 57 mm |
3. 87.5%  | GMK EVO-X2 AMD Ryzen AI Max+ 395 ⎘ AMD Radeon 8060S ⎘ 64 GB Memory, 1024 GB SSD | Amazon: $1,999.99 List Price: 1499€ | 1.6 kg | 185.8 x 193 x 77 mm |
4. 78.7%  | HP Z2 Mini G1a AMD Ryzen AI Max+ PRO 395 ⎘ AMD Radeon 8060S ⎘ 64 GB Memory, 2048 GB SSD | Amazon: 1. $2,592.04 HP Z2 Mini G1a Workstation -... 2. $1,908.40 HP Z2 Mini G1a Workstation -... 3. $2,046.52 HP Z2 Mini G1a Workstation -... List Price: 3175 EUR | 2.6 kg | 200 x 168 x 85.5 mm |
5. 80.7%  | Minisforum AtomMan G7 Ti Intel Core i9-14900HX ⎘ NVIDIA GeForce RTX 4070 Laptop GPU ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $1,287.90 AtomMan G7 Ti Mini PC Core i... 2. $1,162.32 G7 Ti Mini PC Intel Core i9-... 3. $889.00 AtomMan G7 PT MINI PC Barebo... List Price: 2049 EUR | 2.6 kg | 260 x 80 x 395 mm |
6. 84.1%  | Minisforum G7 PT AMD Ryzen 9 7945HX ⎘ AMD Radeon RX 7600M XT ⎘ 32 GB Memory, 1024 GB SSD | Amazon: List Price: 1359€ | 2.8 kg | 220 x 155 x 285 mm |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
