Intel Pentium Silver N5000

Intel Pentium N5000

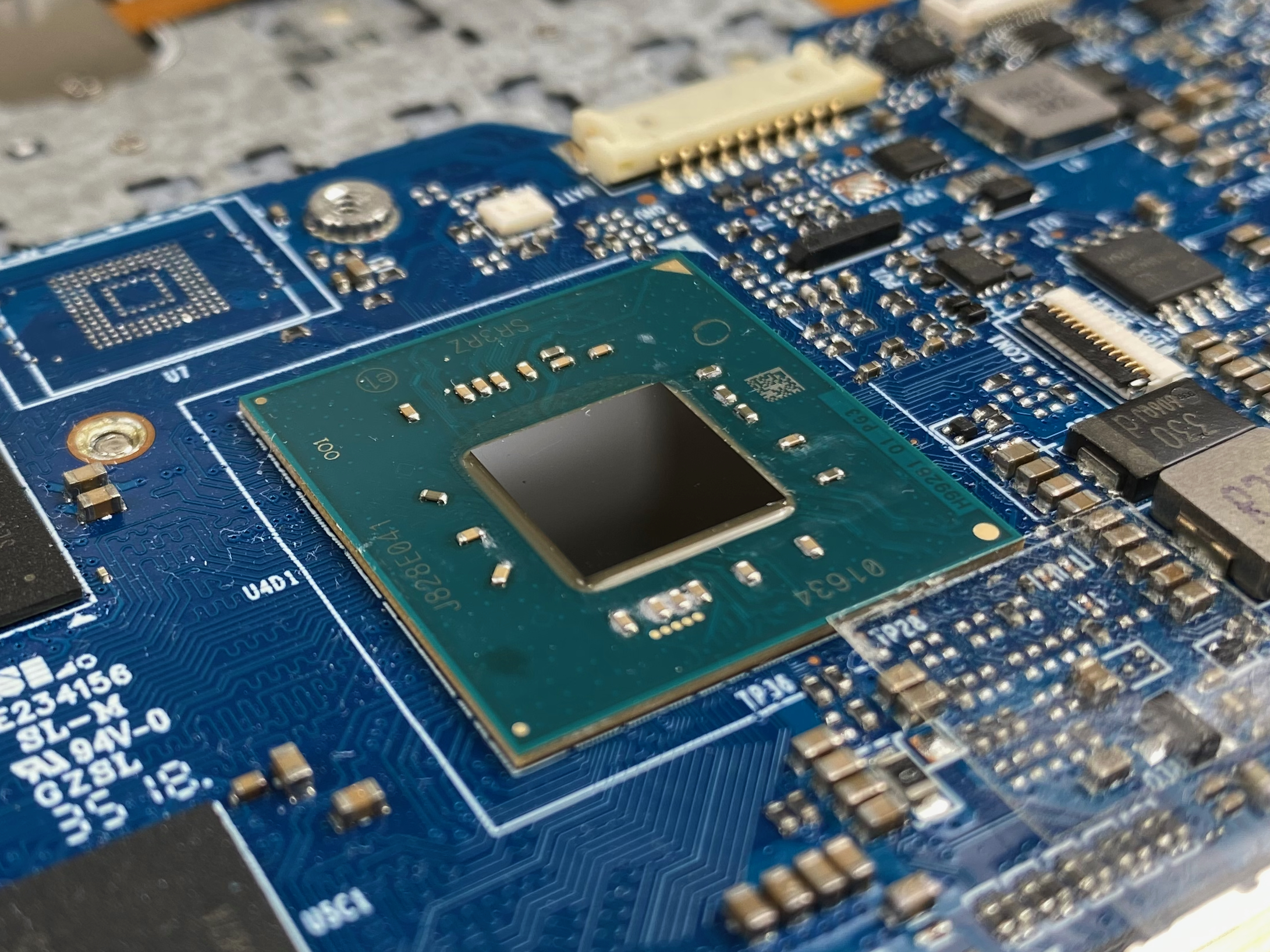

英特尔奔腾Silver N5000是主要用于廉价笔记本电脑的四核SoC,于2017年底发布。它的运行频率为1.1-2.7 GHz(单核突发,多核突发最大2.6 GHz),基于Gemini Lake平台。与Apollo Lake的前身类似,该芯片采用14nm工艺制造,采用FinFET,但处理器内核略有改进,L2缓存量增加一倍,封装尺寸更小,新一代监视器输出(Gen 10)和部分集成WiFi芯片。除了四个CPU内核外,该芯片还包括支持DirectX 12的GPU以及DDR4 / LPDDR4内存控制器(双通道,高达2400 MHz)。 SoC不可更换,因为它直接焊接到主板上。

架构

处理器架构略有改动,现在称为Goldmont Plus。它具有增加的2级缓存(至4 MB)。这意味着每时钟性能应该更好一些,但比不上Kaby Lake Y的CPU。

性能

得益于略微修改的CPU架构和200 MHz更高的升压时钟,奔腾Silver N5000的CPU性能略好于旧的Pentium N4200(1.1 - 2.5 GHz)。但与更昂贵的Core Y处理器相比,尤其是基于Gemini Lake的SoC的单线程性能要低得多。不过其仍然适用于办公等基本任务,对于多任务处理的网络浏览,性能应该没问题。

GPU性能

UHD Graphics 605(Gemini Lake)基于Intel的Gen9架构,支持DirectX 12,也用于Kaby Lake / Skylake / Apollo Lake图形适配器(如HD Graphics 520)。配备18个EU和高达750 MHz的时钟,性能应该与旧的HD Graphics 5300和HD Graphics 505(Apollo Lake)大致相当。

该芯片还包括一个先进的视频引擎,硬件支持播放VP9和H.265素材(8位色深)。

能耗

与前一代产品相似,英特尔指定TDP为6瓦(SDP 4.8瓦 场景设计功率)。因此,理论上可以对芯片进行被动散热,但也可以使用带风扇的SKU。

SeriesIntel Gemini Lake
CodenameGemini Lake
Series: Gemini Lake Gemini Lake
Intel Pentium Silver N50302000 - 3100 MHz4 / 4
Intel Celeron J41051500 - 2500 MHz4 / 4
Intel Celeron J40052000 - 2700 MHz2 / 2
» Intel Pentium Silver N50001100 - 2700 MHz4 / 4
Intel Celeron N41201100 - 2600 MHz4 / 4
Intel Celeron N41001100 - 2400 MHz4 / 4
Intel Celeron N40201100 - 2800 MHz2 / 2
Intel Celeron N40001100 - 2600 MHz2 / 2
Clock Rate1100 - 2700 MHz
Level 2 Cache4 MB
Number of Cores / Threads4 / 4
Power Consumption (TDP = Thermal Design Power)6 Watt
Manufacturing Technology14 nm
Max. Temperature105 °C
SocketFCBGA1090
FeaturesIntel UHD Graphics 605 (18 EUs, 200 - 750 MHz), Quick Sync, AES-NI, max. 8 GB Dual-Channel DDR4/LPDDR4-2400
GPUIntel UHD Graphics 605 (200 - 750 MHz)
64 Bit64 Bit support
Starting Price$161 U.S.
Announcement Date12/11/2017
Product Link (external)Intel Gemini Lake Pentium N5000

Benchmarks

Performance Rating - CB R15 + R20 + 7-Zip + X265 + Blender + 3DM11 CPU
23 pt (26%)
AMD E1-2100 -85%
...
AMD A4-5000 -38%
Intel Celeron N3350 -38%
Intel Atom x7-E3950 -32%
AMD A6-5200 -26%
AMD A4-5150M -23%
AMD A10-4600M -15%
Intel Celeron N4100 -10%
Intel Pentium Silver N5000
AMD A10-5750M 2%
Intel Core i5-4258U 28%
Intel Core i5-8210Y 37%
Intel Core i7-8500Y 42%
AMD FX-8350 50%
...
Intel Core i9-10980XE 285%
0%
100%
Cinebench R20 - CPU (Single Core)
min: 167     avg: 170     median: 170 (32%)     max: 173 Points
Cinebench R20 - CPU (Multi Core)
min: 424     avg: 469     median: 484 (5%)     max: 500 Points
Cinebench R15 - CPU Multi 64Bit
min: 210     avg: 239     median: 236.5 (5%)     max: 284 Points
0102030405060708090100110120130140150160170180190200210220230240250260270280290Tooltip
Cinebench R15 - CPU Single 64Bit
min: 73     avg: 77.5     median: 78 (35%)     max: 80 Points
Cinebench R11.5 - CPU Multi 64Bit
2.8 Points (6%)
Cinebench R11.5 - CPU Single 64Bit
0.9 Points (37%)
Cinebench R10 - Rendering Single 32Bit
min: 2260     avg: 2292     median: 2295 (24%)     max: 2310 Points
Cinebench R10 - Rendering Multiple CPUs 32Bit
min: 5730     avg: 6794     median: 6688 (11%)     max: 8195 Points
wPrime 2.0x - 1024m *
645 seconds (8%)
wPrime 2.0x - 32m *
16.8 seconds (3%)
WinRAR - Result
1245 KB/s (13%)
7-Zip 18.03 - 7z b 4
7320 MIPS (7%)
7-Zip 18.03 - 7z b 4 -mmt1
2431 MIPS (16%)
X264 HD Benchmark 4.0 - Pass 2
15.4 fps (9%)
X264 HD Benchmark 4.0 - Pass 1
76.3 fps (26%)
HWBOT x265 Benchmark v2.2 - 4k Preset
1.3 fps (5%)
010Tooltip
TrueCrypt - Serpent Mean 100MB
0.2 GB/s (8%)
TrueCrypt - Twofish Mean 100MB
0.3 GB/s (8%)
TrueCrypt - AES Mean 100MB
1.9 GB/s (10%)
Blender 2.79 - BMW27 CPU *
2707 Seconds (19%)
R Benchmark 2.5 - Overall mean *
1.5 sec (33%)
3DMark 06 - CPU
min: 3247     avg: 3320     median: 3320 (22%)     max: 3393 Points
Super Pi mod 1.5 XS 1M *
24.2 Seconds (5%)
Super Pi mod 1.5 XS 2M *
56.3 Seconds (2%)
Super Pi Mod 1.5 XS 32M *
1319 Seconds (6%)
3DMark Vantage - P CPU no PhysX 1280x1024
5882 Points (8%)
3DMark 11 - Performance Physics 1280x720
min: 2330     avg: 2619     median: 2619 (12%)     max: 2969 points
3DMark - Ice Storm Standard Physics 1280x720
min: 24195     avg: 25128     median: 24695 (16%)     max: 26493 Points
3DMark - Ice Storm Extreme Physics 1920x1080
min: 24199     avg: 24660     median: 24279 (29%)     max: 25501 Points
3DMark - Ice Storm Unlimited Physics 1280x720 offscreen
min: 26948     avg: 32002     median: 30593 (35%)     max: 38156 Points
3DMark - Cloud Gate Standard Physics 1280x720
min: 2141     avg: 2355     median: 2307 (6%)     max: 2873 Points
3DMark - Fire Strike Physics 1920x1080
min: 3193     avg: 3563     median: 3448 (11%)     max: 4263 Points
Geekbench 2 - 32 Bit - Stream
3759 Points (30%)
Geekbench 2 - 32 Bit - Memory
2847 Points (26%)
Geekbench 2 - 32 Bit - Floating Point
4823 Points (9%)
Geekbench 2 - 32 Bit - Integer
6247 Points (13%)
Geekbench 2 - 32 Bit - Total Score
4819 Points (13%)
Geekbench 3 - 32 Bit Multi-Core Score
min: 5045     avg: 5523     median: 5547.5 (10%)     max: 5868 Points
Geekbench 3 - 32 Bit Single-Core Score
min: 1707     avg: 1781     median: 1777.5 (36%)     max: 1876 Points
Geekbench 3 - 64 Bit Multi-Core Score
5789 Points (9%)
Geekbench 3 - 64 Bit Single-Core Score
1850 Points (38%)
Geekbench 4.0 - 64 Bit Single-Core Score
min: 2009     avg: 2046     median: 2045 (32%)     max: 2084 Points
Geekbench 4.0 - 64 Bit Multi-Core Score
min: 5211     avg: 5460     median: 5488 (13%)     max: 5654 Points
Geekbench 4.4 - 64 Bit Single-Core Score
min: 1975     avg: 2027     median: 2027 (32%)     max: 2054 Points
Geekbench 4.4 - 64 Bit Multi-Core Score
min: 5467     avg: 5841     median: 5790 (10%)     max: 6202 Points
Geekbench 5.1 - 64 Bit Single-Core Score
421 Points (29%)
Geekbench 5.1 - 64 Bit Multi-Core Score
1582 Points (13%)
Mozilla Kraken 1.1 - Total Score *
min: 2251     avg: 2714     median: 2796.6 (5%)     max: 2871.2 ms
Sunspider - 1.0 Total Score *
195 ms (2%)
Octane V2 - Total Score
min: 13075     avg: 13480     median: 13121 (25%)     max: 14601 Points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

v1.11
