AMD FX-9800P

AMD的FX-9800P是基于Bristol-Ridge APU（第七代）的主流笔记本处理器，发布于2016年中期。FX-9800P是Bristol Ridge系列中最快的15瓦APU，是Carrizo系列15瓦FX-8800P的后续型号。这块超低电压芯片搭配四个处理核心（2个Excavator模块 = 4个整数和2个浮点单元），一个Radeon R7显卡以及双通道DDR4-1866内存控制器。Carrizo是一个完整的系统芯片，还配备了一个集成芯片组，它提供了所有的输入输出端口。

架构

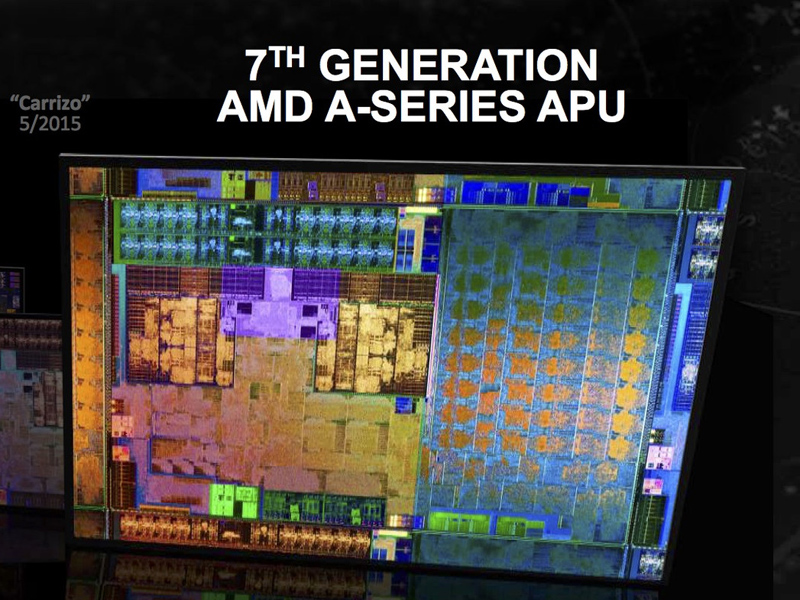

Bristol Ridge是Carrizo架构的继任者，它们的设计几乎相同。归功于优化的制造工艺和更主动的Boost加速，它的时钟频率在相同的功耗上略有提升。它的内存控制器现在也支持最高1866MHz的DDR4内存。更多的技术细节请见下列文章：

AMD's Bristol Ridge and Stoney Ridge Architecture

AMD: Bristol Ridge APUs announced

性能

由于运行于更高的频率，FX9800P稍微领先于前代15瓦顶级型号FX-8800P，可以与Intel Core i3-6100U（SKYLAKE微架构，15瓦）竞争。相较于英特尔芯片，AMD芯片在多线程运算中稍占优势，但是只调用一或两个核心时则占下风。

这意味着对于常见的办公应用和上网浏览来说它的性能绰绰有余。

显卡

集成的Radeon R7（Bristol Ridge）显卡搭配512个激活的着色单元（8个计算核心），主频最高达758MHz。由于更大的时钟频率范围以及更快的DDR4内存，这块显卡稍微领先于前代Radeon R7（Carrizo），在最好的情况下可以与GeForce 920MX竞争（双通道内存，低处理器负载）。2015/2016年的许多游戏可以在低设置下顺利运行。

功耗

AMD为FX-9800P制定了12-15瓦的热设计功率，这相当于英特尔的超低电压处理器。这意味着这块处理器适合于12寸或更大的轻薄笔记本。

Series

AMD Bristol Ridge

Codename

Bristol Ridge

Series: Bristol Ridge Bristol Ridge

AMD FX-9830P	3 - 3.7 GHz	4 / 4
AMD PRO A12-9830B	3 - 3.7 GHz	4 / 4
AMD FX-9800P «	2.7 - 3.6 GHz	4 / 4
AMD PRO A12-9800B	2.7 - 3.6 GHz	4 / 4
AMD A12-9720P	2.7 - 3.6 GHz	4 / 4
AMD A12-9700P	2.5 - 3.4 GHz	4 / 4
AMD A10-9620P	2.5 - 3.4 GHz	4 / 4
AMD A10-9600P	2.4 - 3.3 GHz	4 / 4
AMD PRO A8-9600B	2.4 - 3.3 GHz	4 / 4

Clock Rate

2700 - 3600 MHz

Level 2 Cache

2 MB

Number of Cores / Threads

4 / 4

Power Consumption (TDP = Thermal Design Power)

15 Watt

Transistor Count

3100 Million

Manufacturing Technology

28 nm

Die Size

250 mm²

Max. Temperature

90 °C

Features

Dual-Channel DDR3/DDR4-1866 Memory Controller, PCIe 3.0 x8

GPU

AMD Radeon R7 (Bristol Ridge) ( - 758 MHz)

64 Bit

64 Bit support

Architecture

x86

Announcement Date

06/01/2016

Product Link (external)

products.amd.com

Benchmarks

Cinebench R15 - Cinebench R15 CPU Multi 64 Bit

236 Points (1%)

+ 1 benchmarks and specifications - Hide comparison chart

Model	CPU	GPU	RAM	Value
HP Envy x360 15z m6-ar004dx	FX-9800P	Radeon R7 (Bristol Ridge)	8 GB	236

AMD A4-1200

31 -87%

...

Intel Core i3-7020U

227 -4%

Intel Celeron N4120

227 -4%

Intel Pentium Gold 4417U

228 -3%

Intel Core i5-4300U

229.6 -3%

AMD A10-9620P

230 -3%

Intel Core i5-7Y54

231.4 -2%

Intel Pentium Gold 5405U

233 -1%

Intel Core i5-4210U

234.4 -1%

AMD A12-9720P

234.5 -1%

AMD FX-9800P

236

Intel Core i7-4600U

238.8 1%

Intel Core i5-4260U

239 1%

Intel Pentium Gold 4415U

239.5 1%

Intel Core i3-4000M

239.8 2%

Intel Pentium Silver N5000

240.2 2%

Intel Core i3-6157U

242 3%

Intel Celeron J4115

244 3%

Intel Core m3-7Y30

244.7 4%

Intel Core i3-6100U

246.9 5%

...

AMD Ryzen 9 7945HX3D

5600 2273%

max:

AMD Ryzen Threadripper PRO 7995WX

15842 6613%

100%

Cinebench R15 - Cinebench R15 CPU Single 64 Bit

74 Points (22%)

+ 1 benchmarks and specifications - Hide comparison chart

Model	CPU	GPU	RAM	Value
HP Envy x360 15z m6-ar004dx	FX-9800P	Radeon R7 (Bristol Ridge)	8 GB	74

AMD A4-1200

19 -74%

...

AMD PRO A8-9600B

71 -4%

AMD A10-9620P

72 -3%

Intel Celeron 3865U

72 -3%

AMD A12-9720P

72.5 -2%

Intel Celeron J4125

72.5 -2%

AMD A6-9225

73 -1%

AMD Pro A12-8800B

73.3 -1%

Intel Celeron N4120

73.6 -1%

Intel Celeron N4020

73.8 0%

AMD FX-9800P

AMD FX-7600P

74.3 0%

Intel Core i5-4202Y

74.3 0%

AMD A10-9600P

74.8 1%

AMD A10-5750M

75.5 2%

AMD PRO A12-9800B

75.7 2%

AMD A9-9425

76 3%

Intel Celeron N6211

76 3%

Intel Pentium 3825U

77 4%

Intel Core i3-4158U

77 4%

...

AMD Ryzen 9 7945HX3D

311 320%

max:

Intel Core i9-14900K

332 349%

100%

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit

2.9 Points (4%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Envy x360 15z m6-ar004dx	FX-9800P	Radeon R7 (Bristol Ridge)	8 GB	2.86

Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit

0.9 Points (23%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Envy x360 15z m6-ar004dx	FX-9800P	Radeon R7 (Bristol Ridge)	8 GB	0.91

wPrime 2.10 - wPrime 2.0 32m *

14.4 s (3%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Envy x360 15z m6-ar004dx	FX-9800P	Radeon R7 (Bristol Ridge)	8 GB	14.4

Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *

33 s (7%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Envy x360 15z m6-ar004dx	FX-9800P	Radeon R7 (Bristol Ridge)	8 GB	33

3DMark 11 - 3DM11 Performance Physics

2393 Points (6%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Envy x360 15z m6-ar004dx	FX-9800P	Radeon R7 (Bristol Ridge)	8 GB	2393

Geekbench 3 - Geekbench 3 64 Bit Multi-Core

5496 points (9%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Envy x360 15z m6-ar004dx	FX-9800P	Radeon R7 (Bristol Ridge)	8 GB	5496

Geekbench 3 - Geekbench 3 64 Bit Single-Core

2057 points (31%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Envy x360 15z m6-ar004dx	FX-9800P	Radeon R7 (Bristol Ridge)	8 GB	2057

- Range of benchmark values for this graphics card

- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
