Geekom A5 2027 评测：出乎意料的安静 – 这款入门级迷你电脑的新版有何亮点

Name: Geekom A5 2027 Edition, R7 7730U
Brand: Geekom

玫瑰金色的既视感 – 同一套穿搭，再来一回。

Geekom A5 回归：2027 版究竟有多少新东西？在本次评测中，我们将这款紧凑型台式电脑与 5800H 机型进行对比。出色的做工、UHS-II 读卡器和 2.5G 以太网都是它的优势。尽管缺少 Thunderbolt，这些优点是否足以让升级变得值得？所有基准测试、实测数据和详细信息，尽在我们的深度评测中！
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 10/17/2026 🇺🇸 🇳🇱 ...
Desktop Mini PC AMD Ryzen (Zen) Radeon

结论 - 面向持续运行的低调升级

凭借 2027 款 A5，Geekom 为其广受欢迎的迷你电脑带来了一次虽不惊艳但更为完善的升级。改用 AMD Ryzen 7 7730U 后，用户主要受益于噪声和功耗的改善：与搭载 Ryzen 7 5800H 的上一代产品相比，新机运行明显更安静，能效也更高。8 个 Zen 3 核心的处理性能依然足以应对繁重的办公多任务处理、网页应用和轻度图像编辑。此外，它还保留了机身紧凑、高速 UHS-II 读卡器以及最多可安装三块存储驱动器的灵活扩展能力等一贯优势。

Test device courtesy of Geekom

Download your licensed rating image as PNG / SVG

不过，在现代连接功能方面，买家仍需接受明显的妥协：由于不支持 USB4 或 Thunderbolt，Geekom A5 无法外接显卡（eGPU）。其集成显卡也存在明显局限。虽然老旧的 Radeon RX Vega 8 完全足以应对日常显示任务和休闲游戏，但在较新的 3D 游戏中，却会严重制约追求更高游戏体验的玩家。

不过，对于确实需要更强图形性能、更新架构或更高速接口的用户来说，也不必舍近求远。Geekom 自家的 A8 就是性能更强的替代之选，凭借 AMD Ryzen 7 8745HS 和速度明显更快的 Radeon 780M 显卡，即使面对要求更高的任务也能轻松应对。

总而言之，Geekom A5（2027 Edition）仍然非常值得推荐：它是一款运行极其安静、成熟且可靠性极高的日常现代办公主力机，凭借出色的性价比脱颖而出。

Pros

+ 坚固、紧凑的机身

+ 节能高效的 AMD Ryzen 7 7730U

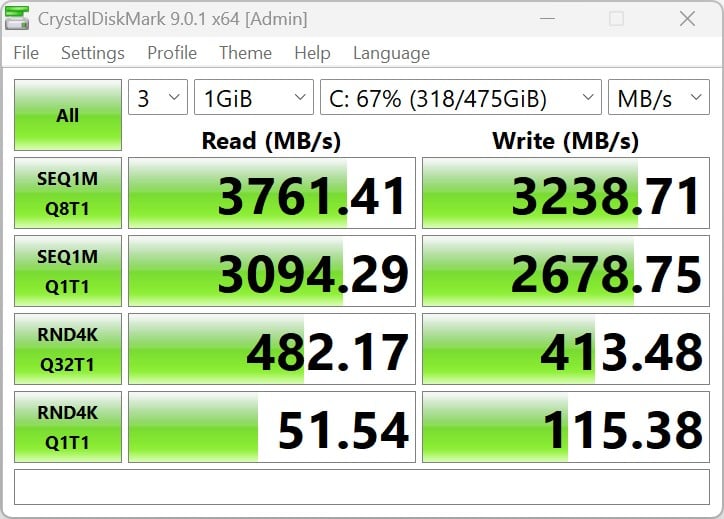

+ 稳定的性能（CPU 和 SSD）

+ 可扩展内存

+ 最多可安装三个存储驱动器

+ 始终安静运行

+ 高速 SD 读卡器

+ 物有所值

+ 36 个月保修

Cons

- 部分性能低于前代产品

- SoC 已上市数年

- 无 USB 4

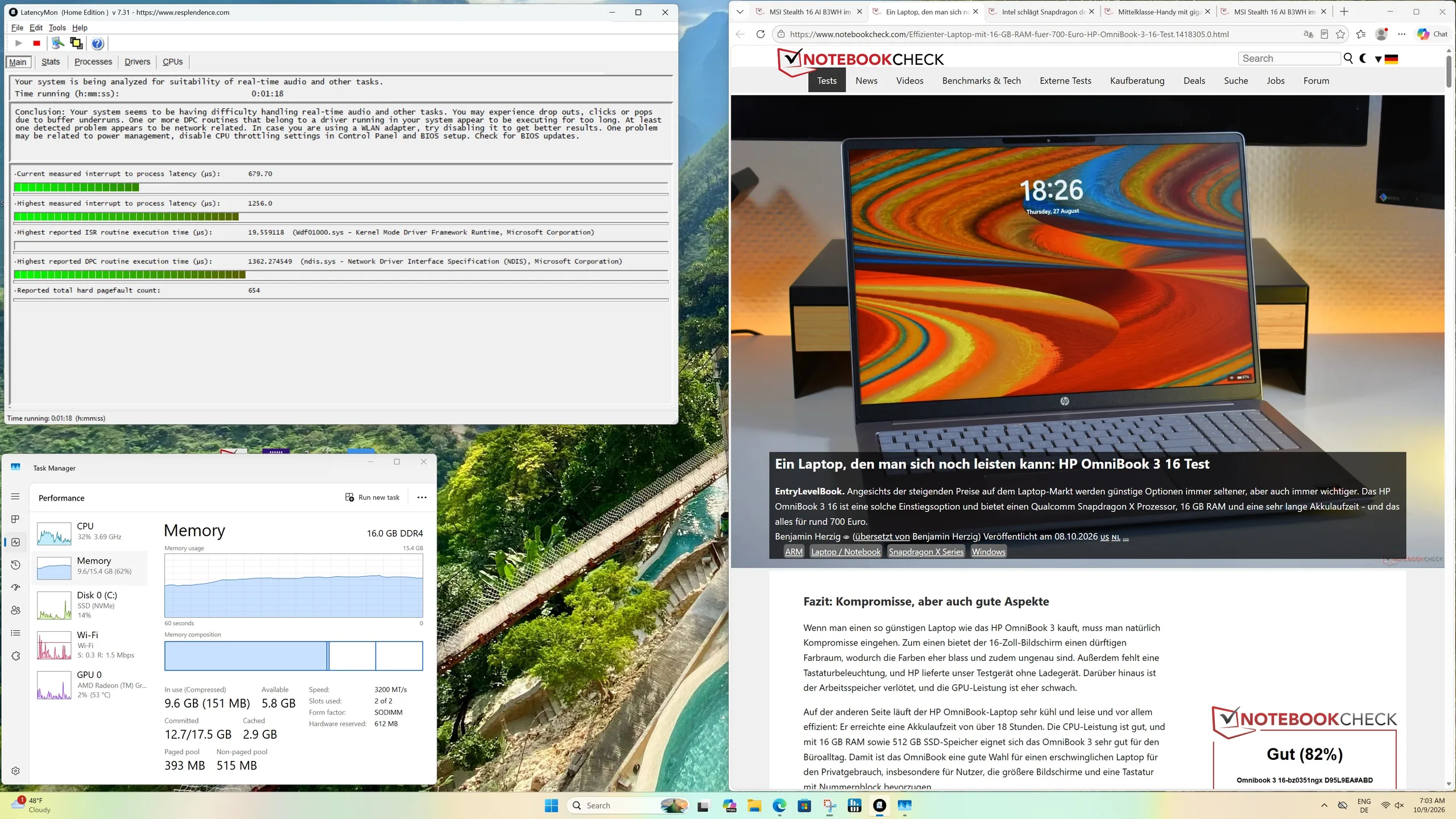

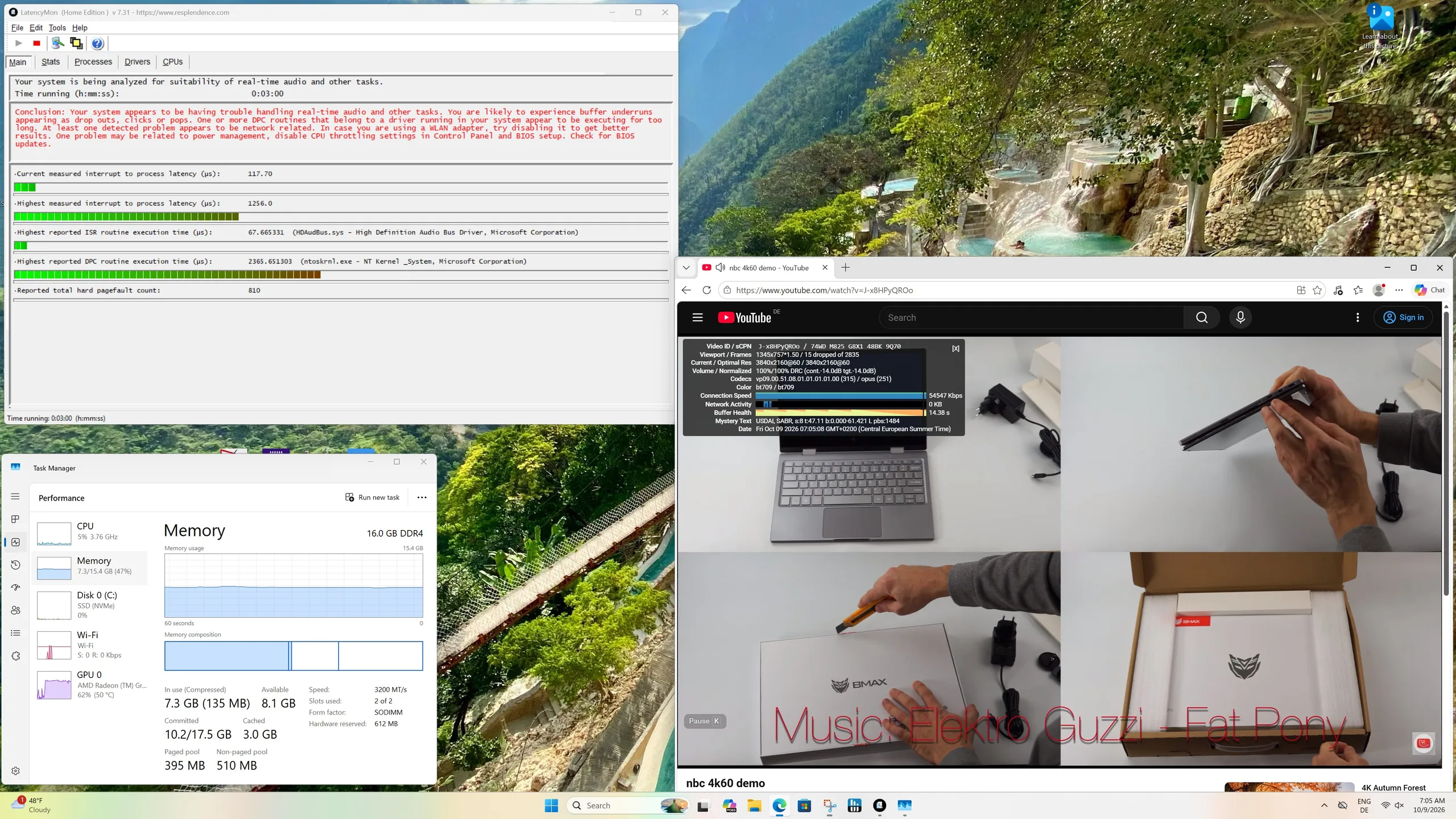

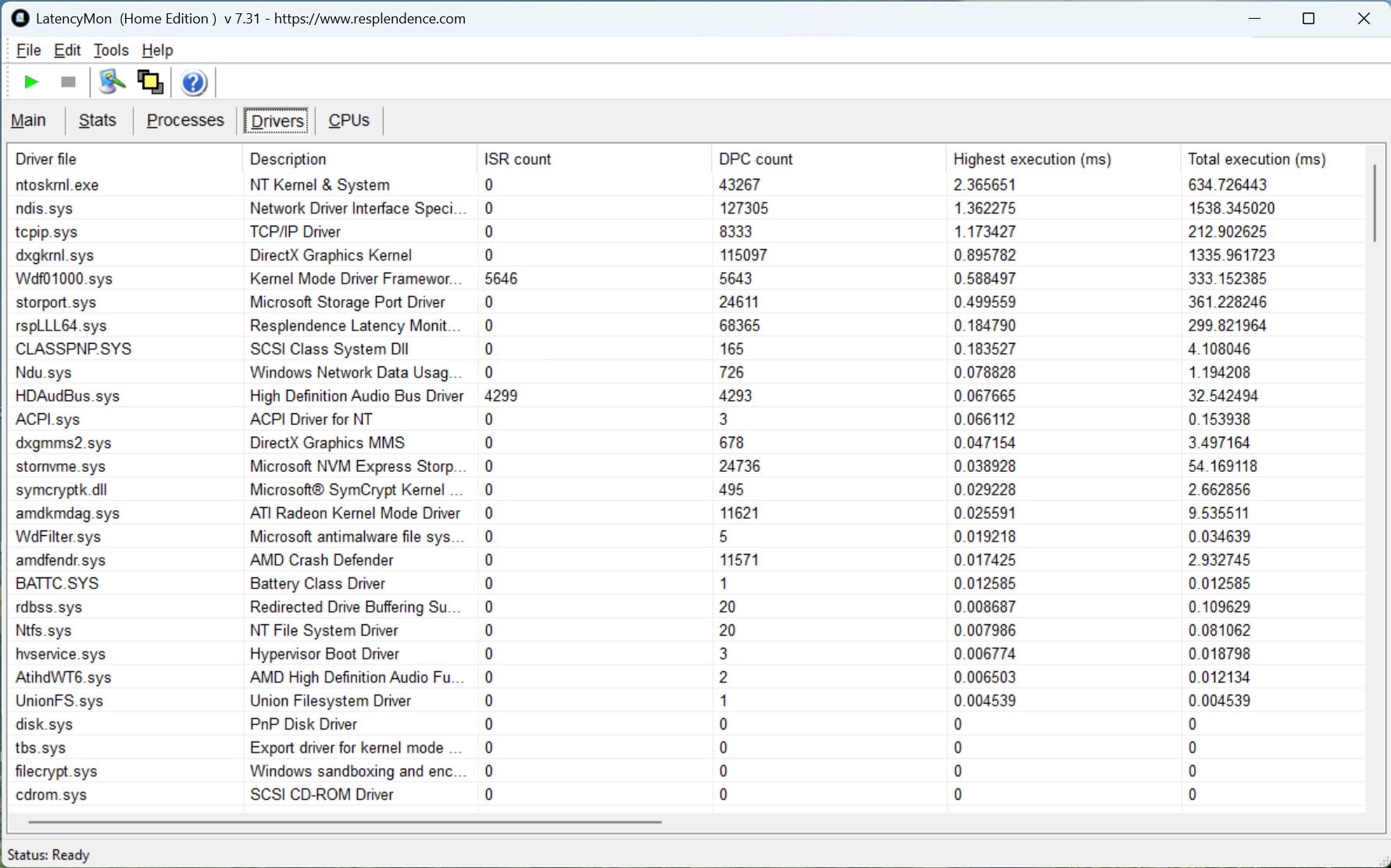

- DPC 延迟

- 仅支持 Wi‑Fi 6

价格和供货情况

Geekom A5（2027 Edition）现已在制造商官方商城上架，建议零售价为 499 美元起。这款迷你 PC 也已在 Amazon 上架，售价为 479 美元起。优惠信息：截至 2026 年 12 月 31 日，您可以使用折扣码 NCA527FF，以更低的价格购买 Geekom A5。直接从制造商处购买可享受 13% 的折扣，在 Amazon 上购买则可享受 10% 的折扣。

$479.00

GEEKOM A5 2027 Edition Mini PC, Ryzen 7 7730U, 16GB RAM, 256GB NVMe SSD

结论 - 面向持续运行的低调升级
规格
保护壳与连接性
性能

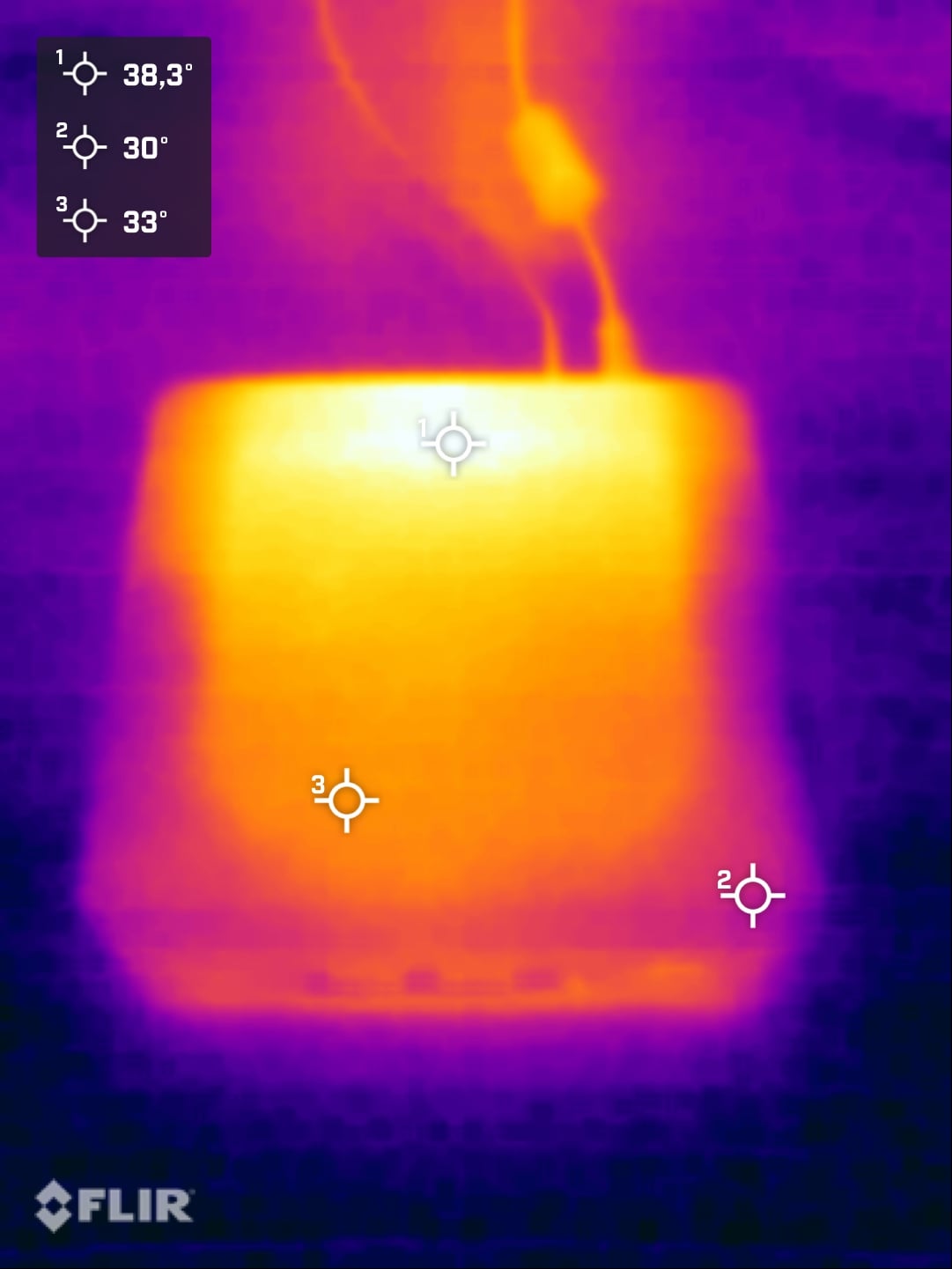

排放
电源管理
Notebookcheck 评分
可能的替代方案比较

随着 Geekom A5 (2027 Edition) 的推出，这款小巧的迷你 PC 迎来了新一轮更新。在我们此前测试过的搭载 Ryzen 7 5800H 的前代机型之后，新版本面临着来自 GMK、Acemagic 和 Ninkear 等品牌竞品的激烈竞争。Geekom 承诺以约 550 欧元的价格提供充足的日常性能——但这款沿用熟悉机身设计的产品在实际使用中表现如何，继续缺少 USB4 又是否会带来影响？

规格

Geekom A5 2027 Edition, R7 7730U (A Series)

Processor

AMD Ryzen 7 7730U 8c/16t 8 x 2 - 4.5 GHz, 25 W PL2 / Short Burst, 15 W PL1 / Sustained, Barcelo-U Refresh

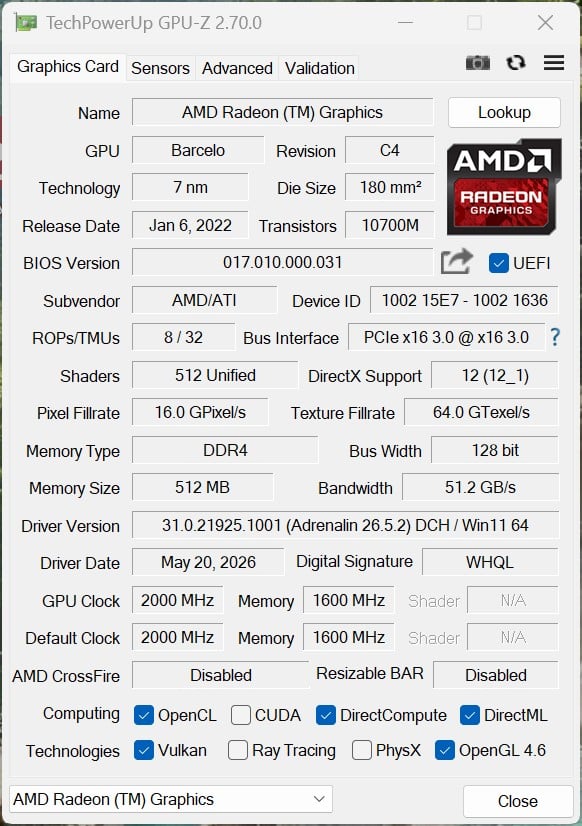

Graphics adapter

AMD Radeon RX Vega 8 (Ryzen 4000/5000), Adrenalin 26.5.2

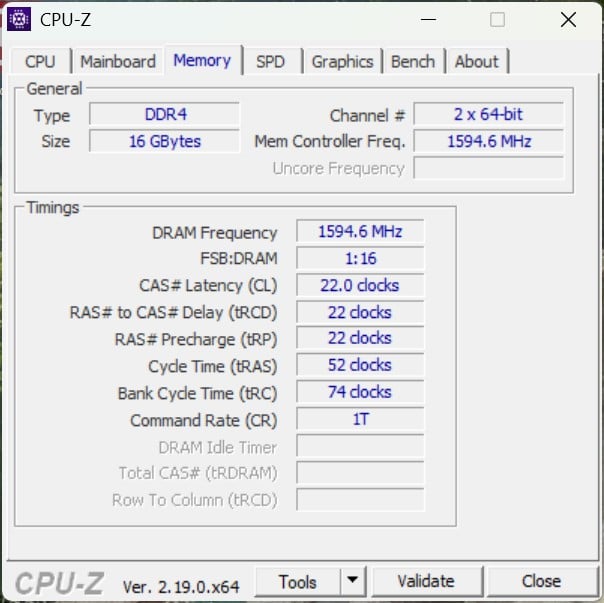

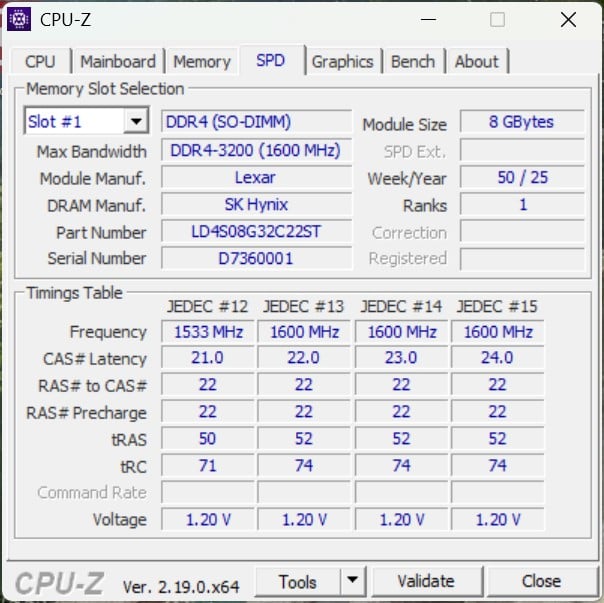

Memory

16 GB

, DDR4-3200, Dual-Channel, max. 64 GB

Mainboard

AMD Promontory/Bixby FCH

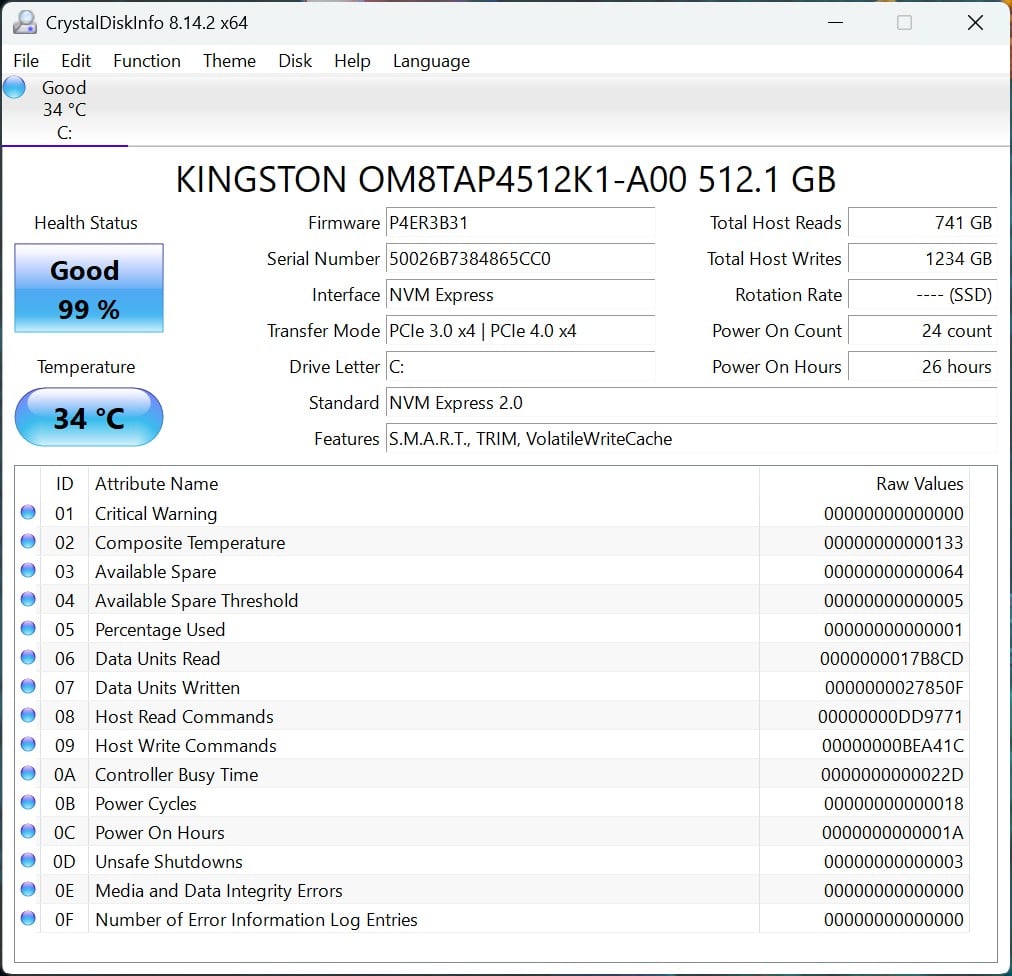

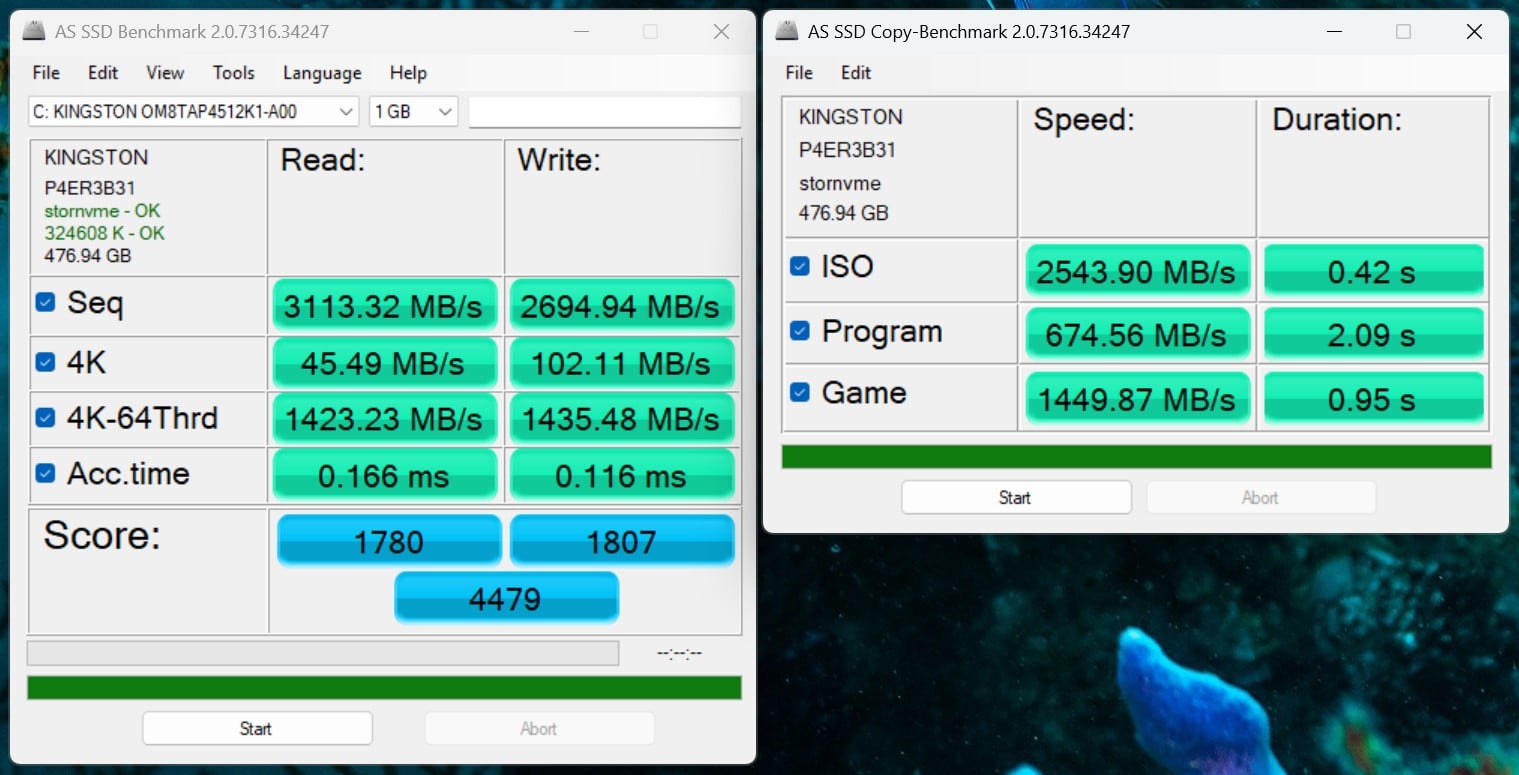

Storage

Kingston OM8TAP4512K1-A00, 512 GB

, 420 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm headphone jack, Card Reader: SD Card 4.0 Reader

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.4

Size

height x width x depth (in mm): 49.2 x 117 x 112

Operating System

Microsoft Windows 11 Pro

Additional features

120W-Power-Adapter, VEAS-Mount, 36 Months Warranty

Weight

577 g, Power Supply: 233 g

Price

639 Euro

Amazon

$479.00

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

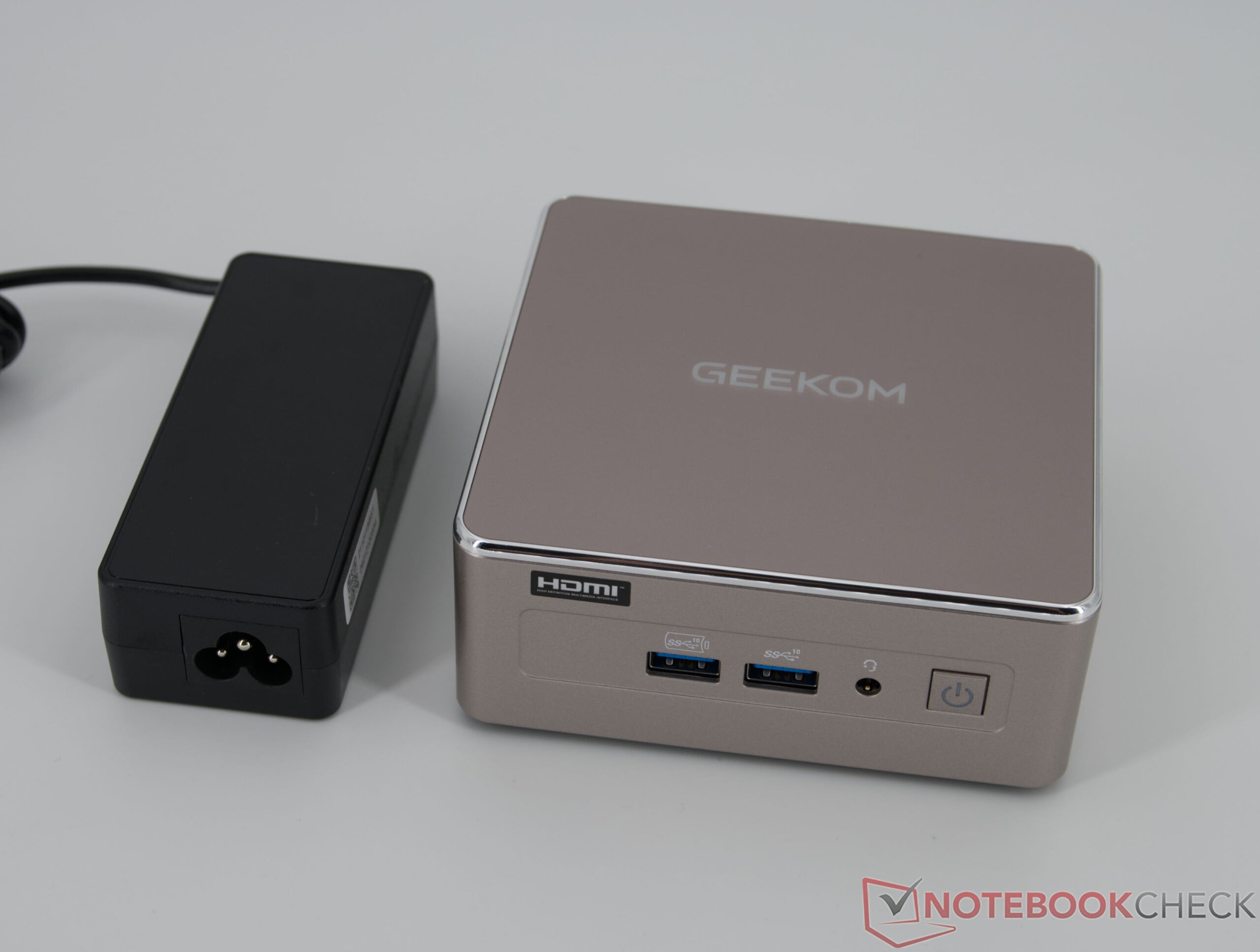

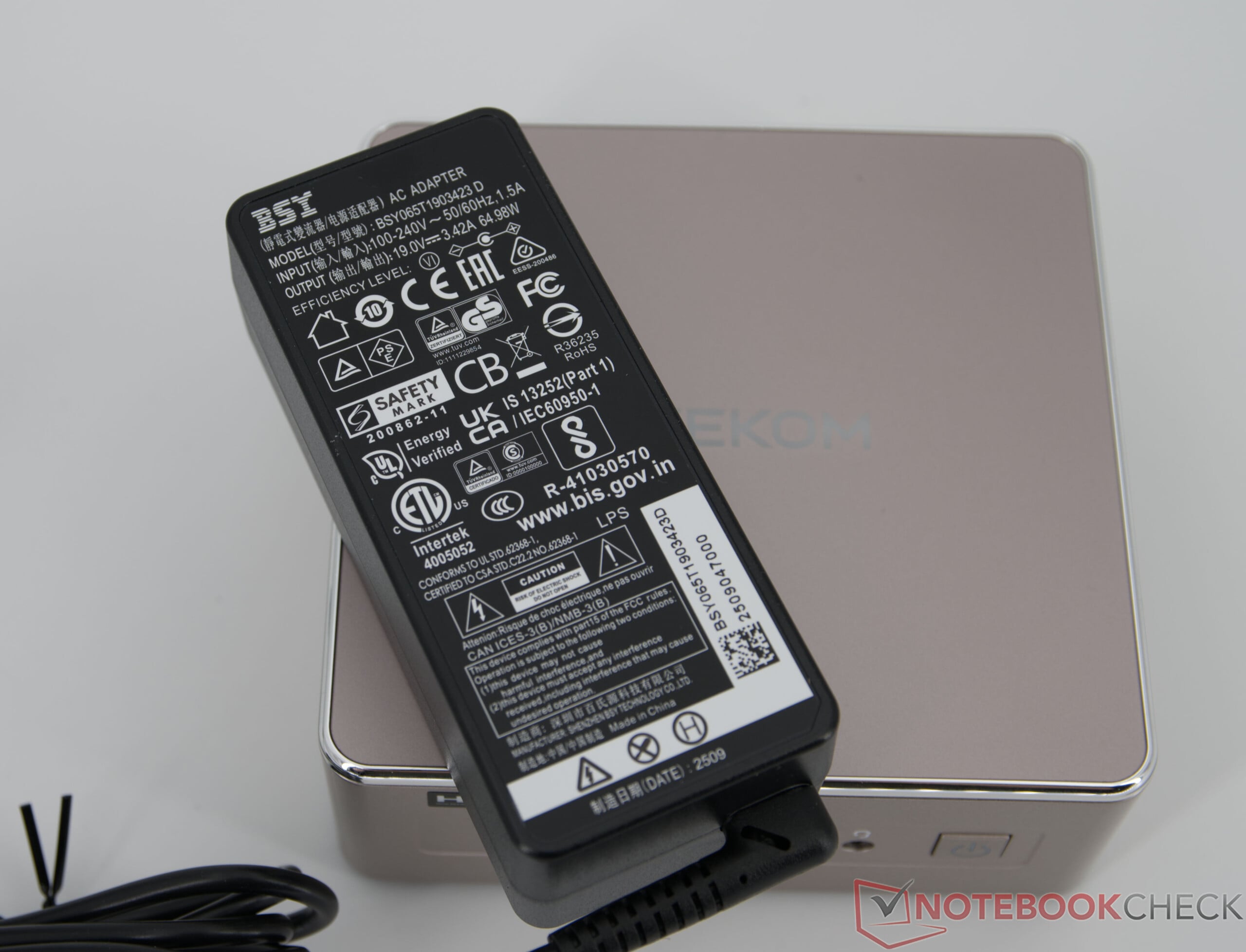

Geekom A5 2027 Edition，配备电源适配器（19 V；3.42 A）

Geekom A5 2027 Edition，附带电源适配器 (19 V; 3.42 A)

保护壳与连接性

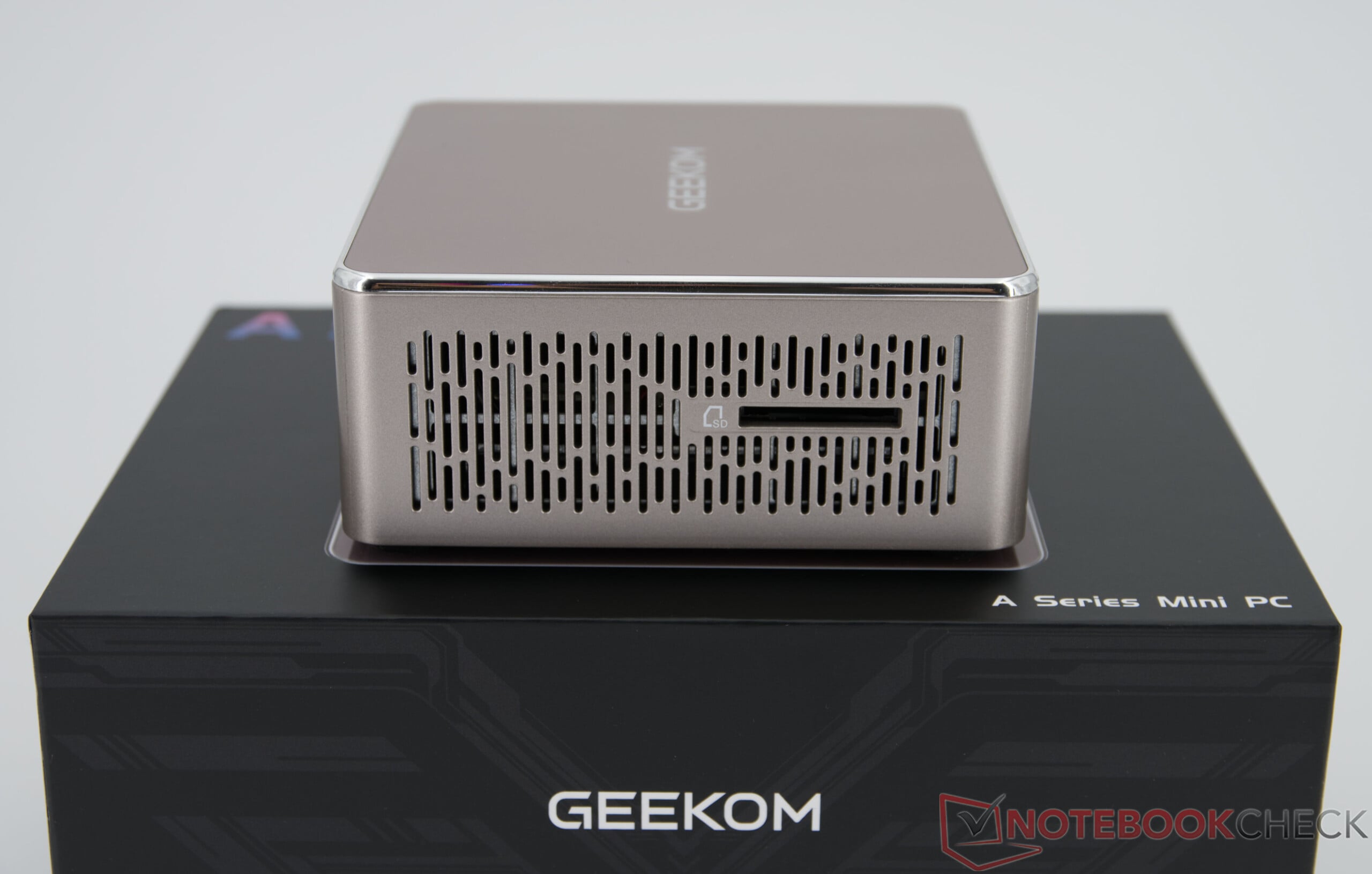

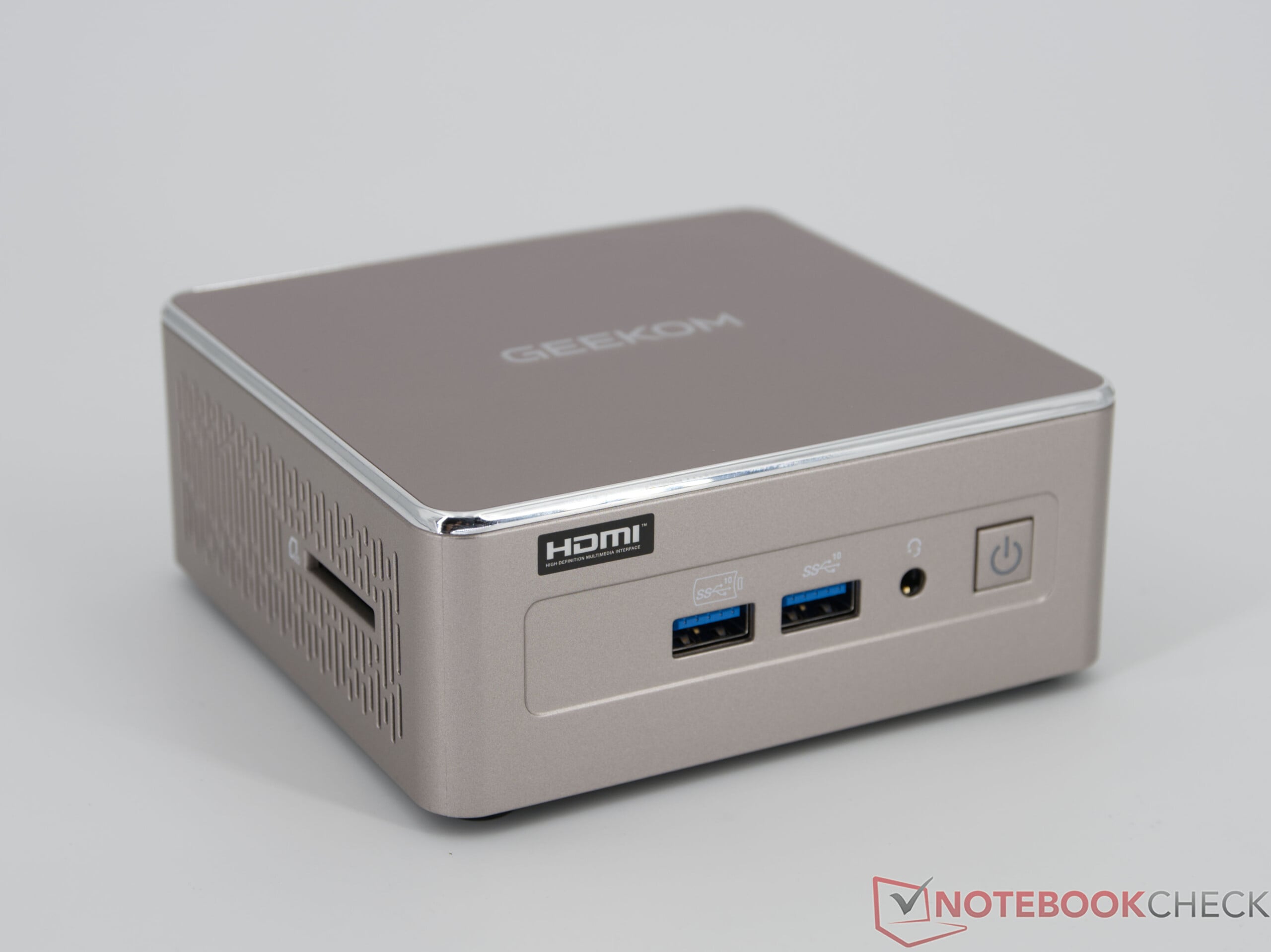

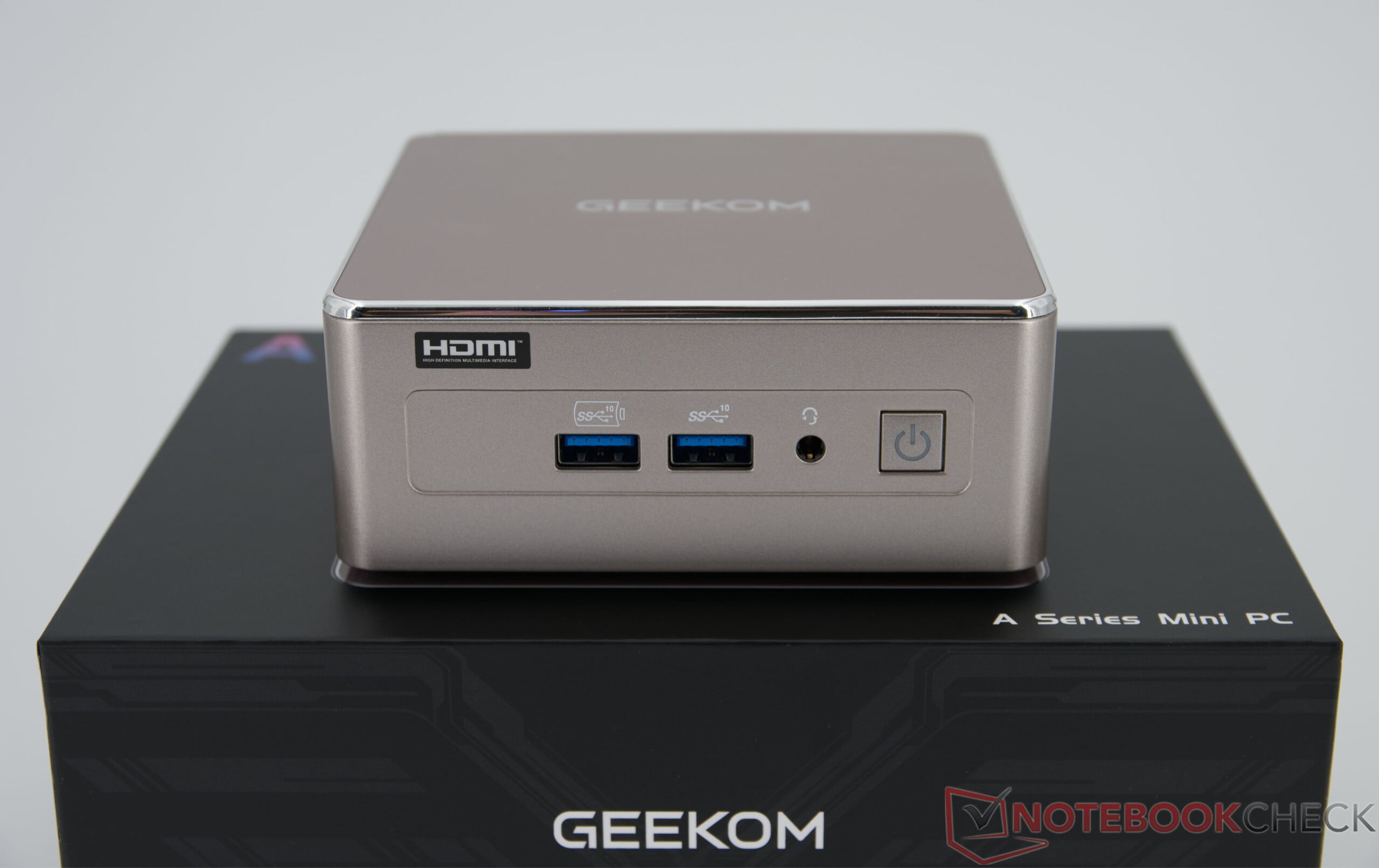

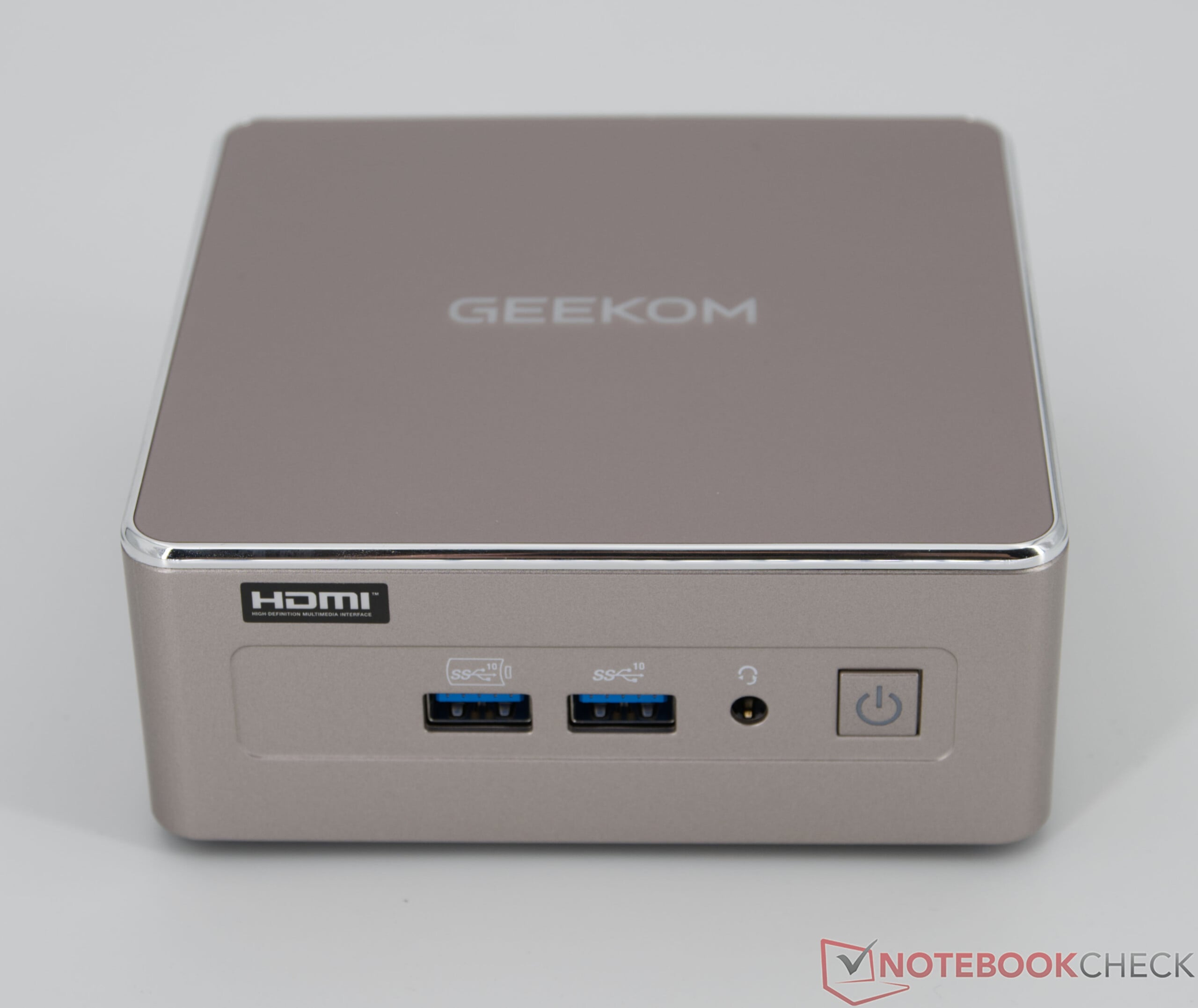

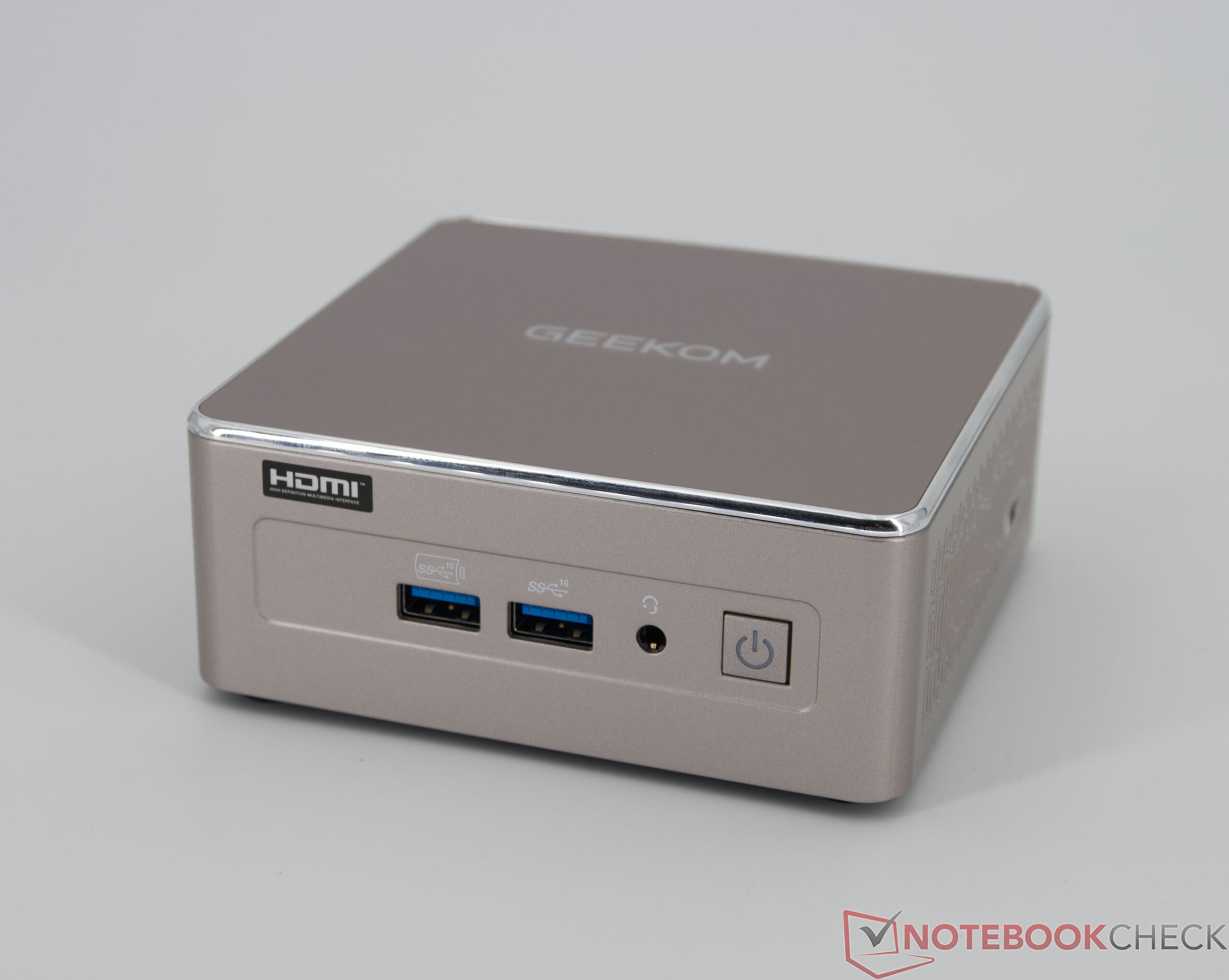

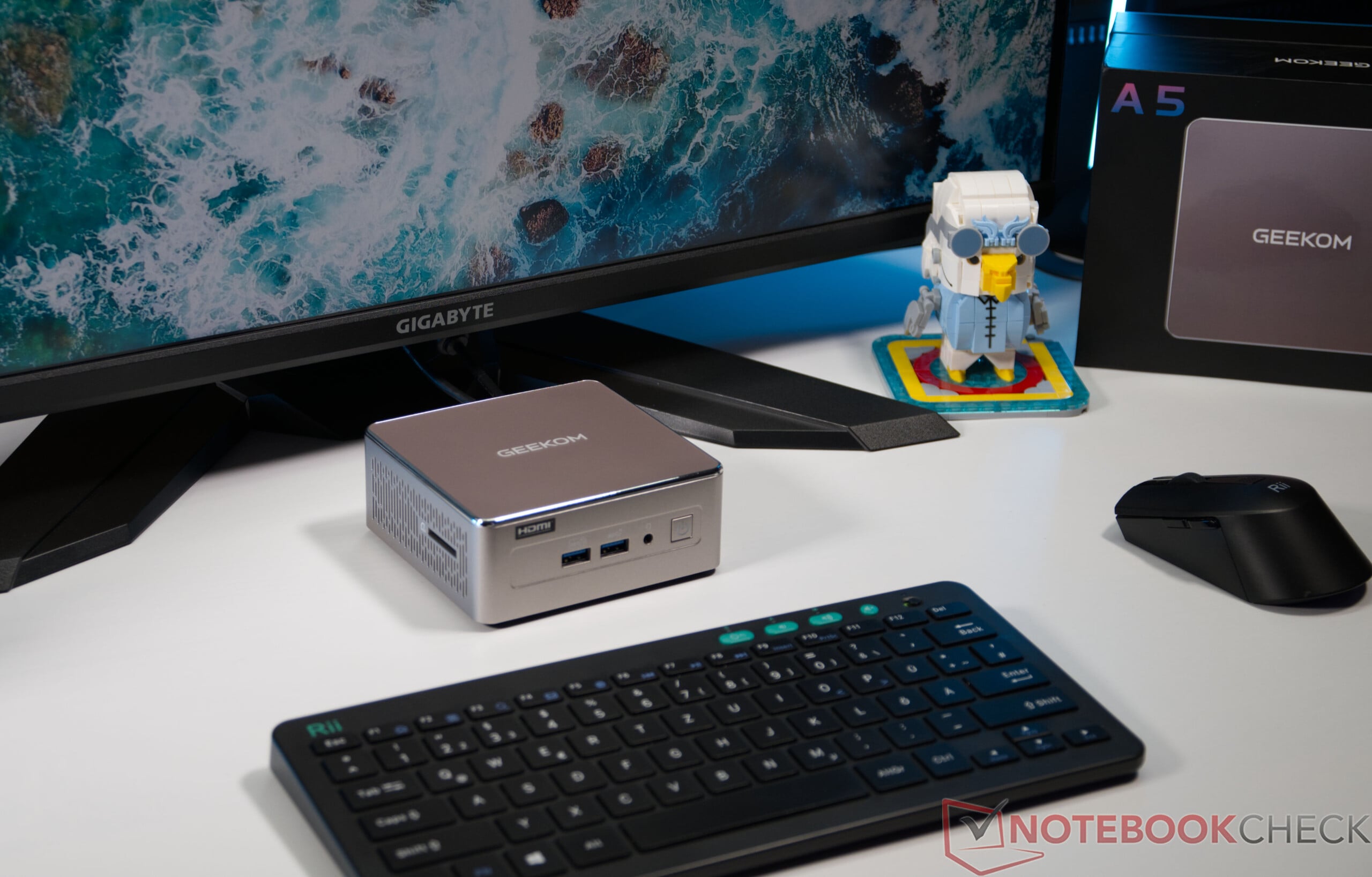

无论是外观还是触感，2027 版 Geekom A5 与搭载 AMD Ryzen 7 5800H 的型号都没有区别（参见 Geekom A5 评测）。Geekom 继续沿用 A5 和 IT 系列的机箱，尺寸和占地面积均保持不变。内部金属框架确保了较高的刚性，外部塑料外壳则采用熟悉的玫瑰金配色。做工无可挑剔，不过如果采用全金属机身，质感还会进一步提升。包装中依然附带用于将设备安装到显示器上的 VESA 支架。

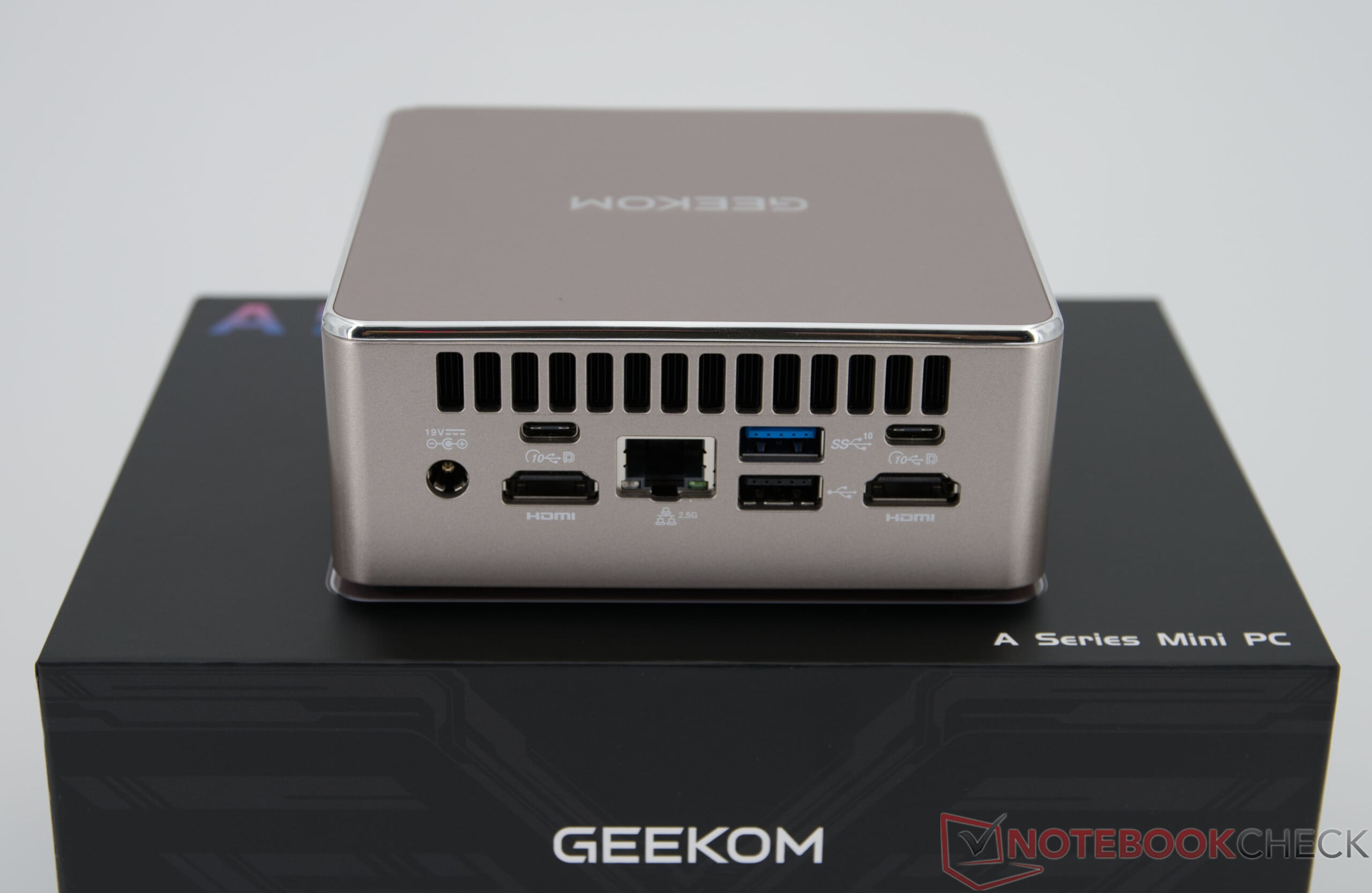

接口与上一代完全相同：总共有六个 USB 接口，其中两个为 Type-C。不过，依然不支持 USB4 和 Thunderbolt。两个 USB-C 接口均支持 DisplayPort Alt Mode，配合两个 HDMI 接口，最多可同时驱动四台显示器。高速 2.5 Gbit 网口和支持 UHS-II 速度的高性能 SD 读卡器依然是值得肯定的配置。

尺寸对比

GMK NucBox K17 Geekom IT13 Max Acemagic Retro X3 Ninkear L20, Ultra 5 226V Geekom A5 2027 Edition, R7 7730U Geekom A5 DIN A5 ❌

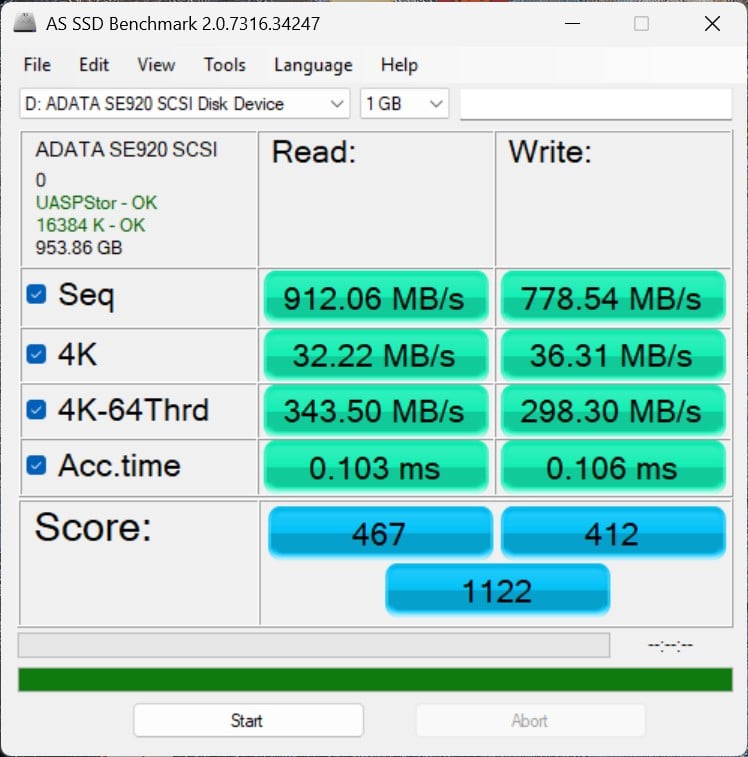

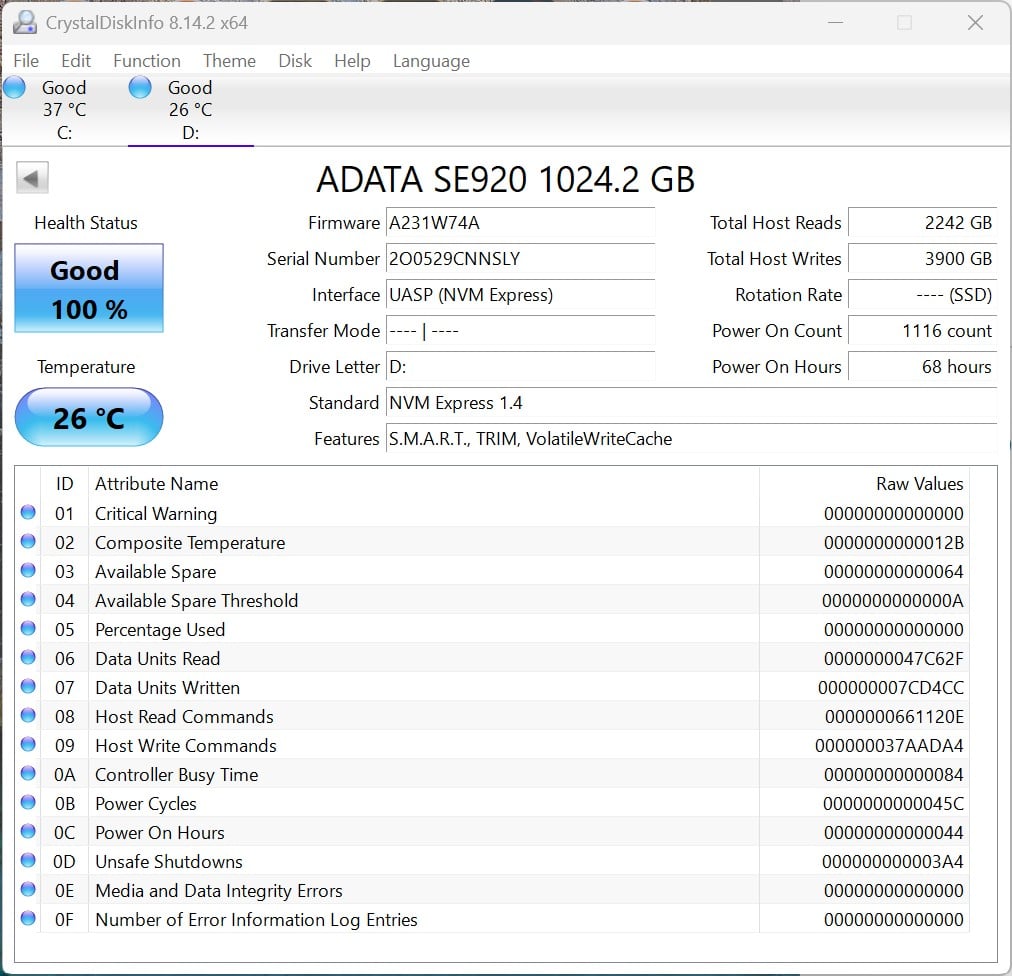

USB-C 速度 (ADATA SE920)

ADATA SE920 此处使用 UASP（USB Attached SCSI Protocol，USB 附加 SCSI 协议）通信协议

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	3128.3 MB/s
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	3118.71 MB/s
Average of class Mini PC (423 - 3906, n=48, last 2 years)	2706 MB/s
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	1639.9 MB/s
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	925.99 MB/s
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	912.06 MB/s
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	789.54 MB/s

SD 卡读卡器

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	181.79 MB/s +7%
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	176.8 MB/s +4%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U (AV Pro SD microSD 128 GB V60)	169.2 MB/s
Geekom Mini IT13 Intel Core i9-13900H	154.449 MB/s -9%
Average of class Mini PC (17.3 - 214, n=22, last 2 years)	131.6 MB/s -22%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	129.2 MB/s -24%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	65 MB/s -62%
maximum AS SSD Seq Read Test (1GB)
Khadas Mind Intel Core i7-1360P (AV Pro SD microSD 128 GB V60)	200.48 MB/s +10%
Geekom A5 AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)	182.5 MB/s +1%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U (AV Pro SD microSD 128 GB V60)	181.53 MB/s
Geekom Mini IT13 Intel Core i9-13900H	180.4 MB/s -1%
Geekom Mini IT12 Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)	176.8 MB/s -3%
Average of class Mini PC (17.9 - 250, n=22, last 2 years)	159.1 MB/s -12%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	69.9 MB/s -61%

Networking
iperf3 receive Wi-Fi6/7 RT-BE96U
Geekom IT13 Max Intel Wi-Fi 7 BE200 320MHz	2843 (2427^min - 2923^max) MBit/s +263%
GMK NucBox K17 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1827 (1808^min - 1845^max) MBit/s +133%
Average of class Mini PC (784 - 2843, n=9, last 2 years)	1784 MBit/s +128%
Ninkear L20, Ultra 5 226V Intel Wi-Fi 6E AX211	1603 (1555^min - 1633^max) MBit/s +104%
Acemagic Retro X3 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1498 (1333^min - 1556^max) MBit/s +91%
Average Realtek RTL8852BE (784 - 996, n=5)	858 MBit/s +9%
Geekom A5 Realtek RTL8852BE	785 (656^min - 898^max) MBit/s 0%
Geekom A5 2027 Edition, R7 7730U Realtek RTL8852BE	784 (638^min - 876^max) MBit/s
iperf3 transmit Wi-Fi6/7 RT-BE96U
Geekom IT13 Max Intel Wi-Fi 7 BE200 320MHz	4122 (2112^min - 4336^max) MBit/s +441%
Ninkear L20, Ultra 5 226V Intel Wi-Fi 6E AX211	2040 (1946^min - 2170^max) MBit/s +168%
Average of class Mini PC (762 - 4122, n=9, last 2 years)	1907 MBit/s +150%
Acemagic Retro X3 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1477 (725^min - 1611^max) MBit/s +94%
GMK NucBox K17 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	973 (922^min - 1011^max) MBit/s +28%
Average Realtek RTL8852BE (762 - 906, n=5)	840 MBit/s +10%
Geekom A5 Realtek RTL8852BE	776 (643^min - 855^max) MBit/s +2%
Geekom A5 2027 Edition, R7 7730U Realtek RTL8852BE	762 (633^min - 837^max) MBit/s

Geekom A5 2027 Edition, R7 7730U Realtek RTL8852BE; iperf3 receive Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø783 (638-876) MBit/s

GMK NucBox K17 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø1826 (1808-1845) MBit/s

Geekom A5 2027 Edition, R7 7730U Realtek RTL8852BE; iperf3 transmit Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø762 (633-837) MBit/s

GMK NucBox K17 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø973 (922-1011) MBit/s

配件

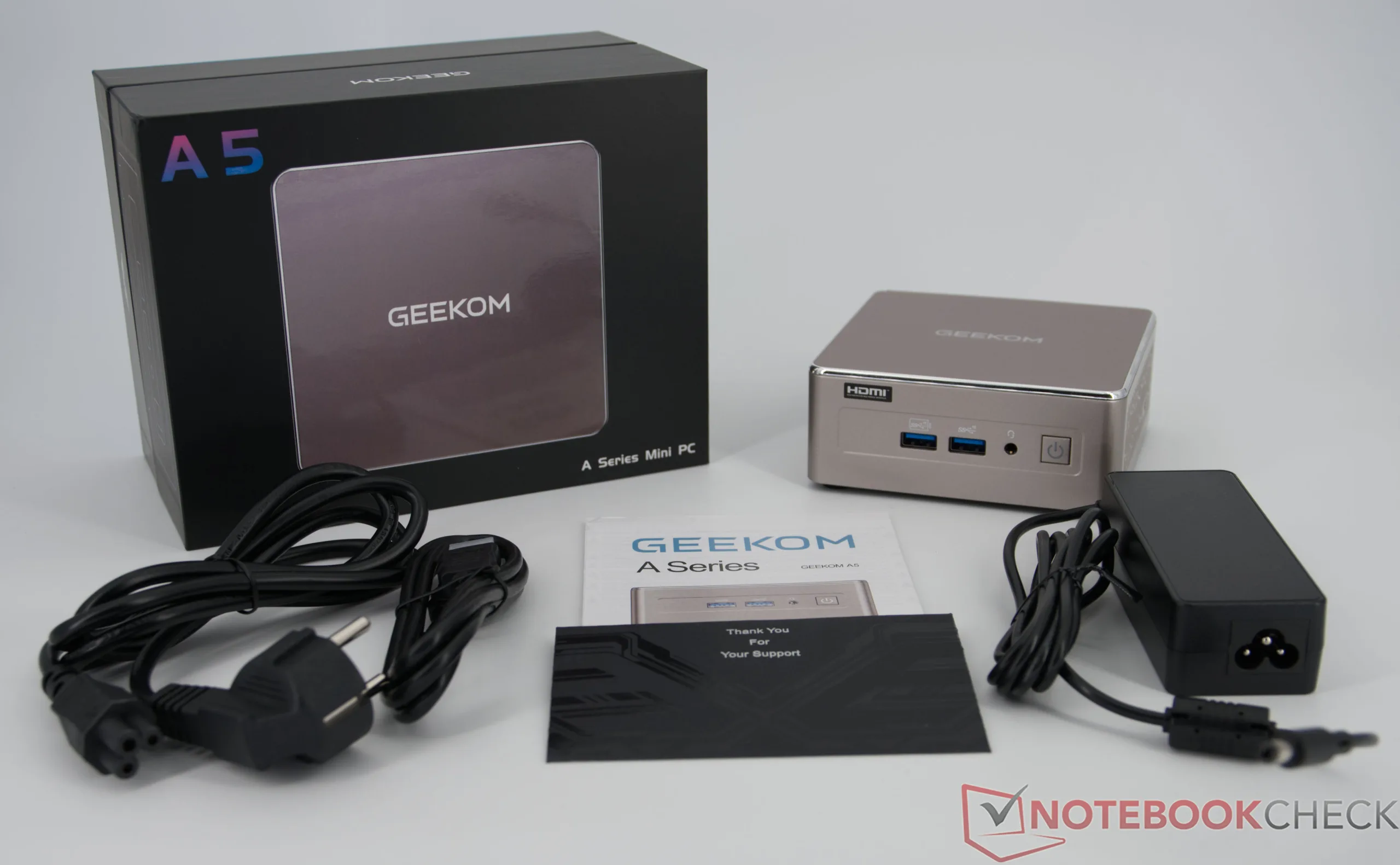

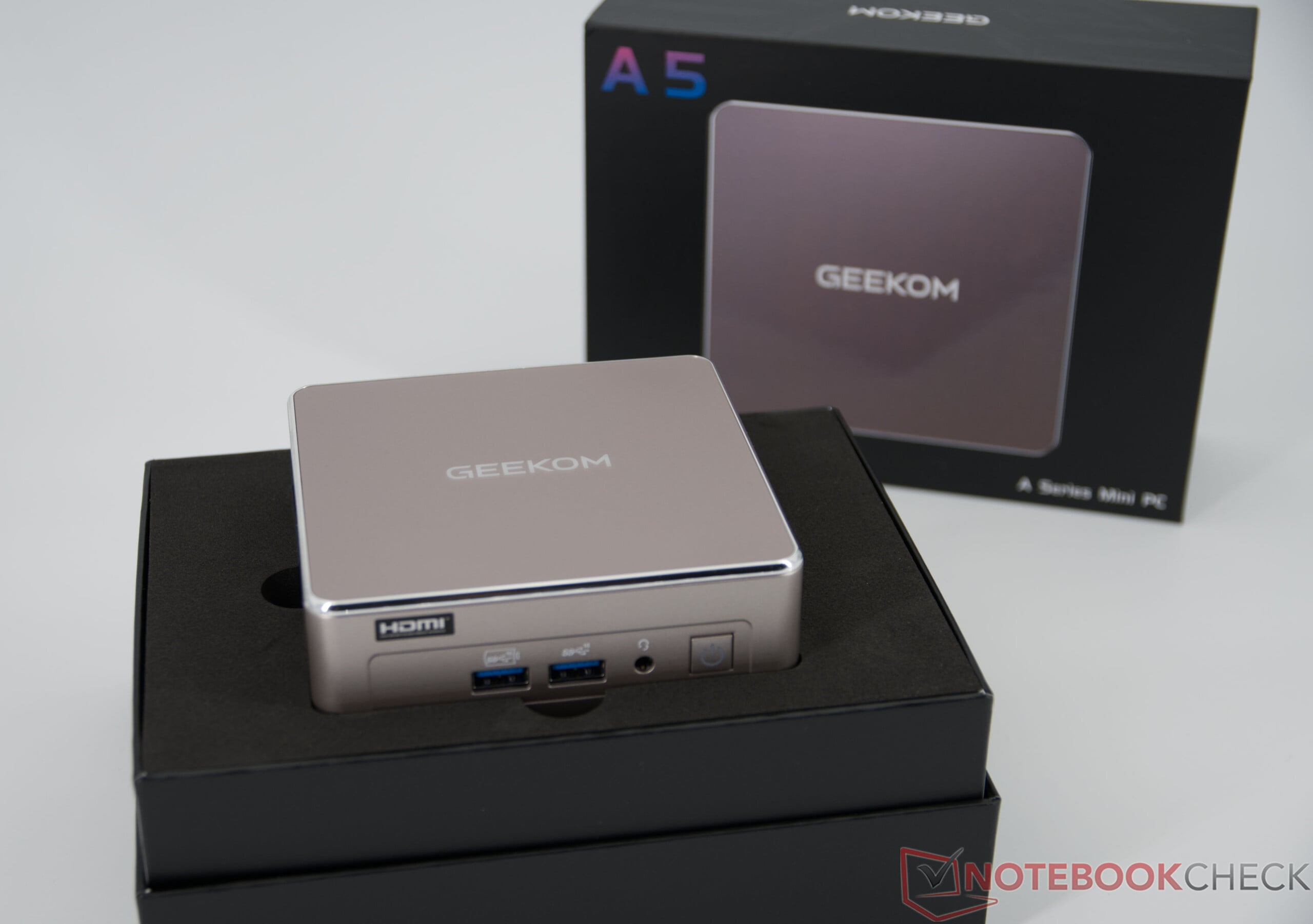

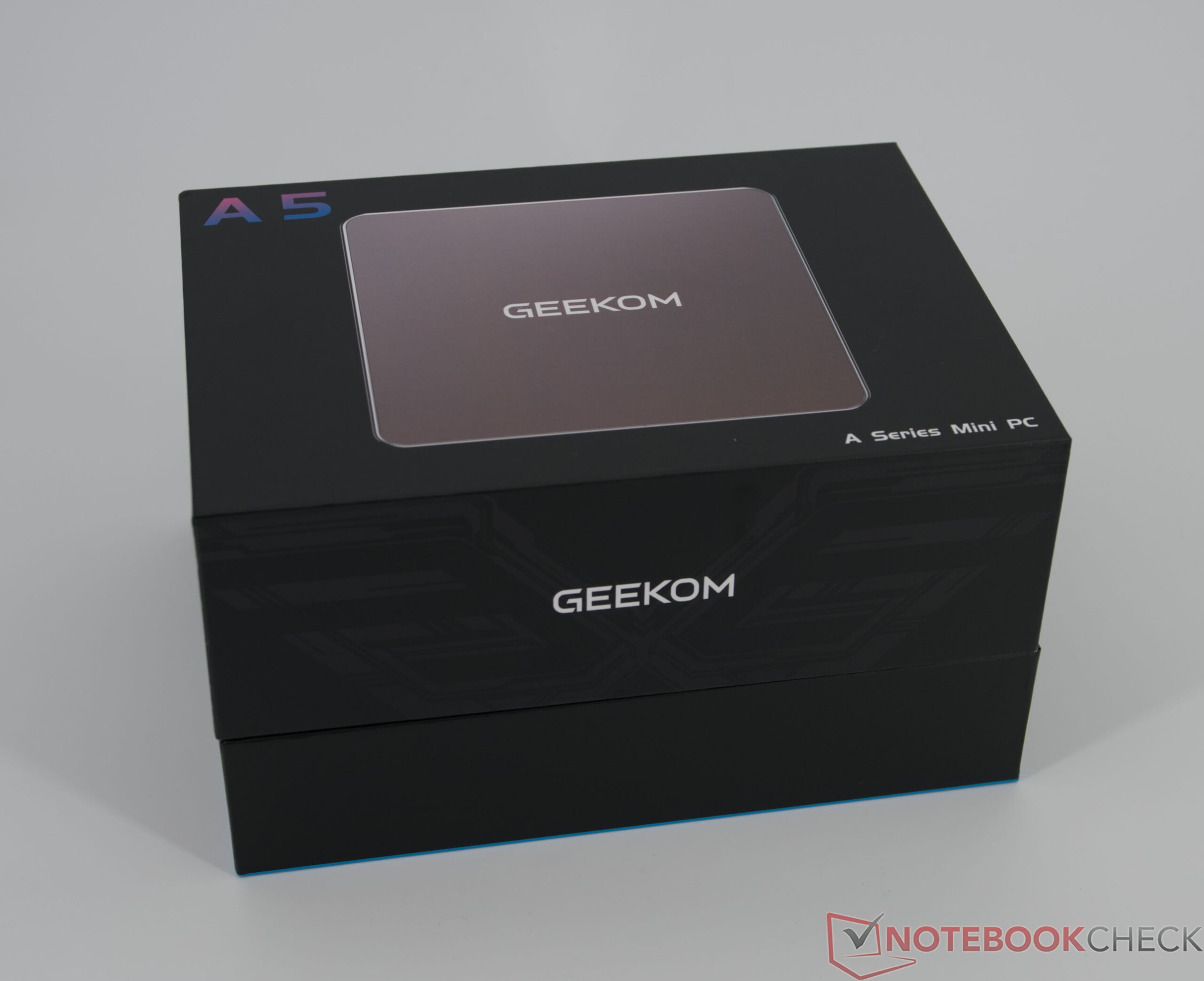

包装内配件齐全，开箱即可使用：除了设备本体，还包括一个小巧的 120 瓦电源适配器、一块 VESA 安装板、一根 HDMI 线、一份快速入门指南和一张感谢卡。

维护

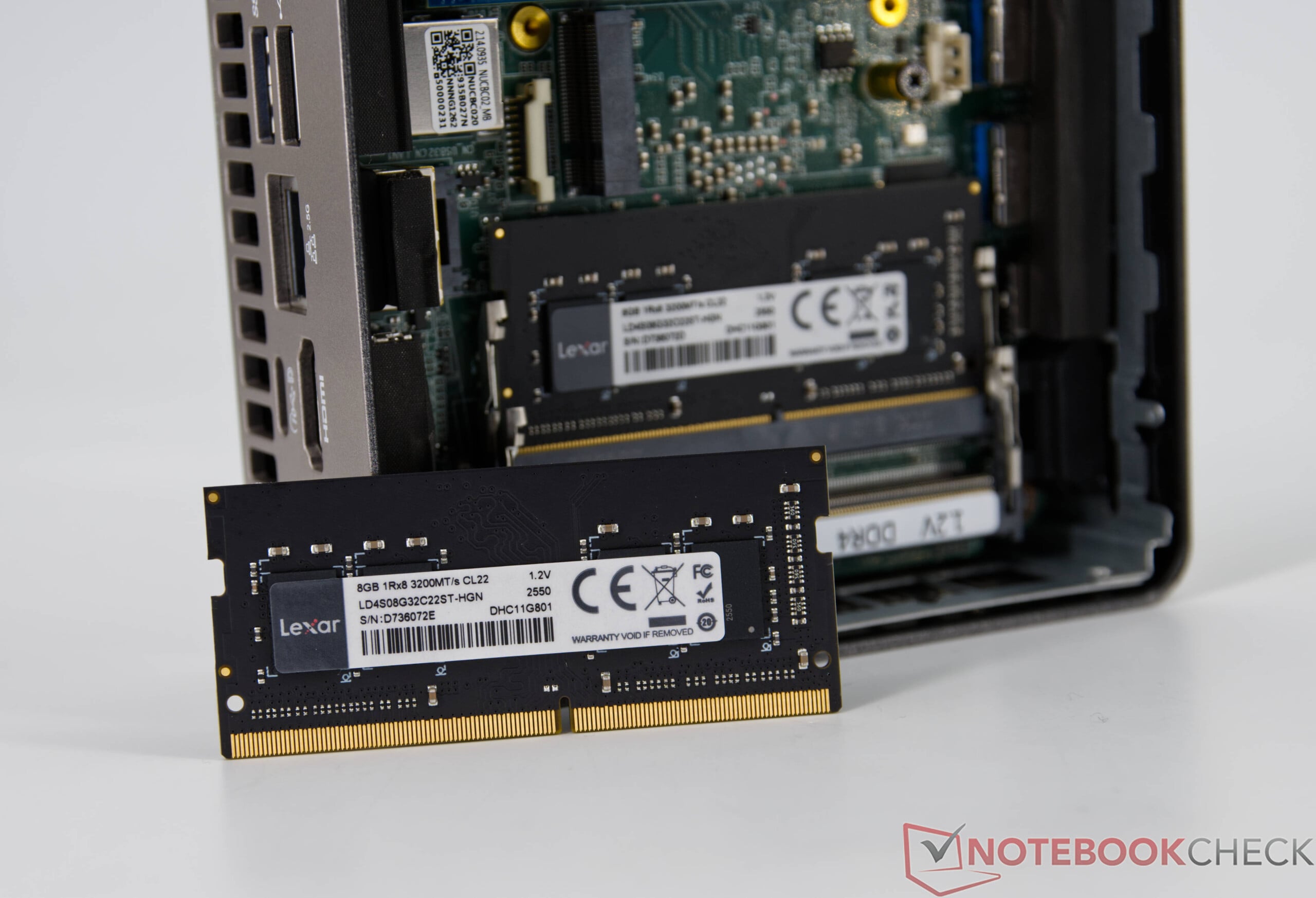

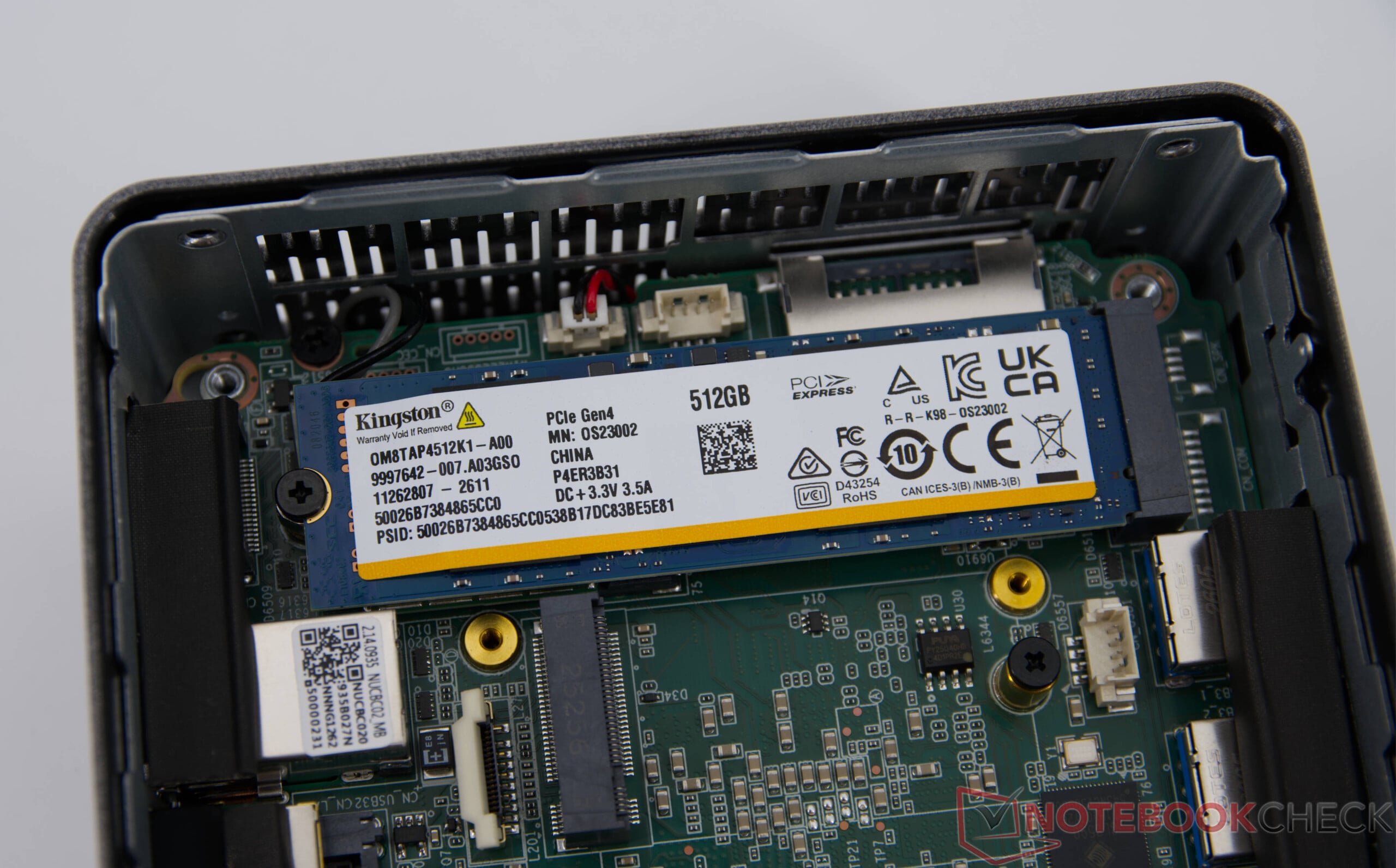

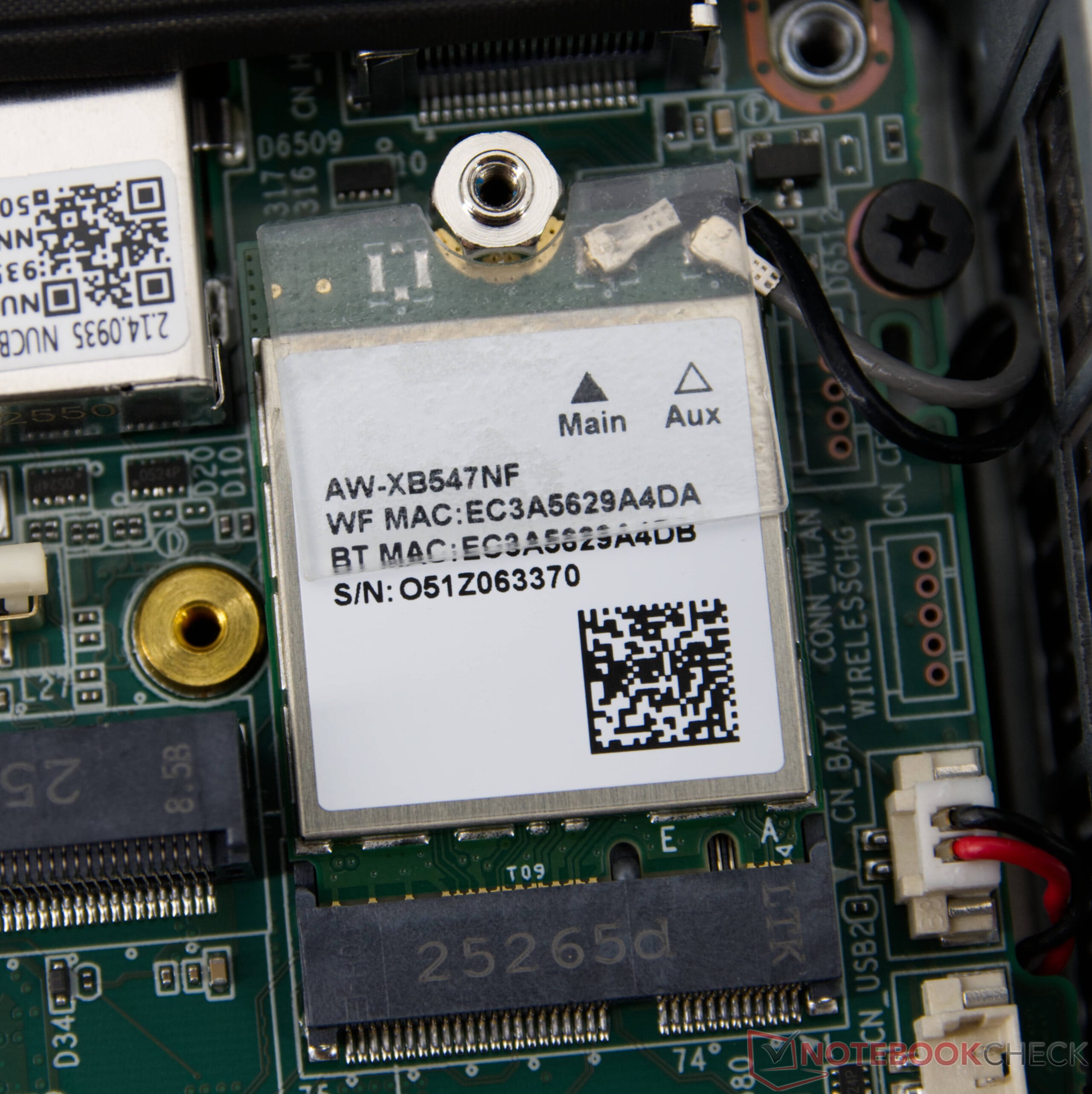

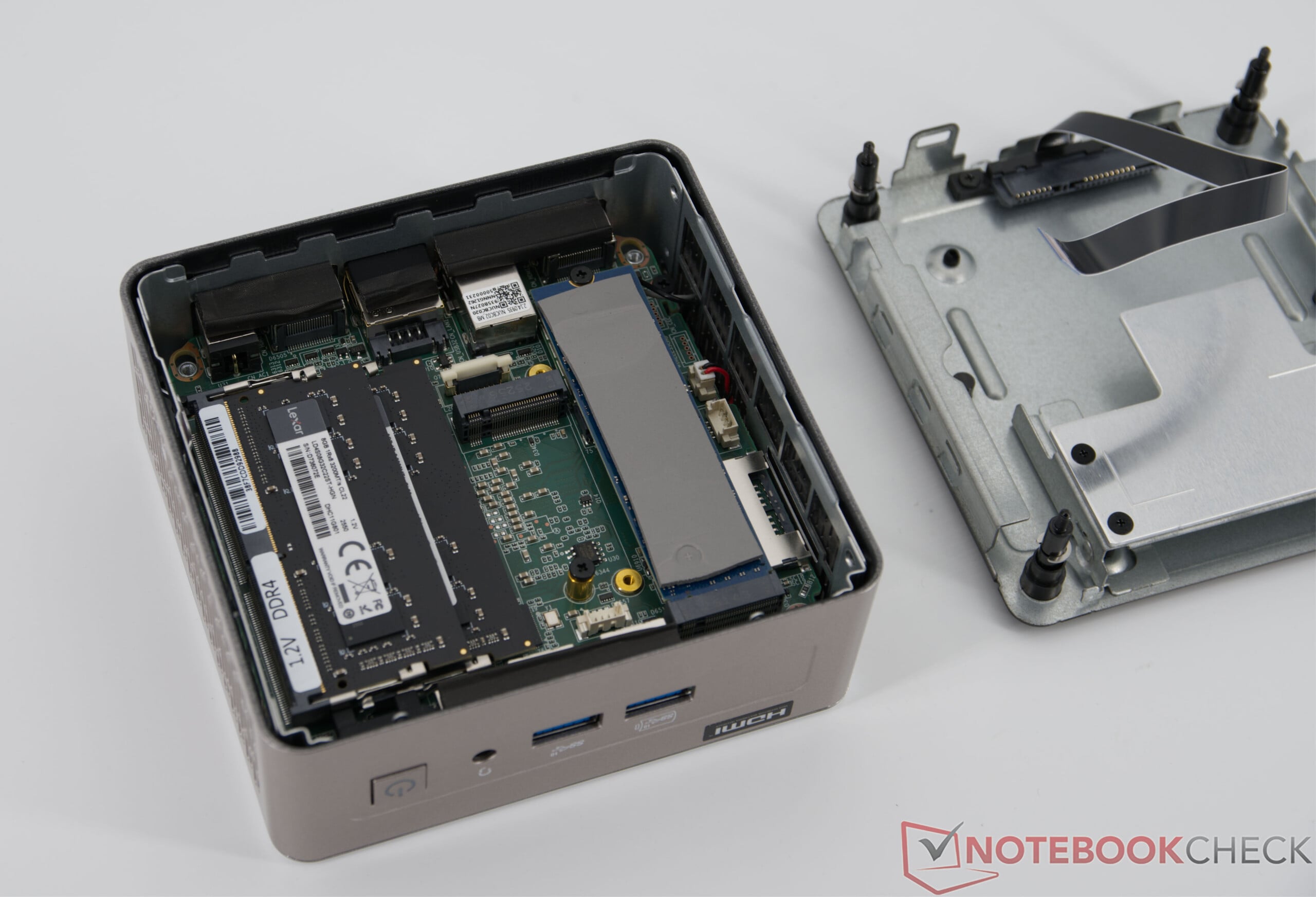

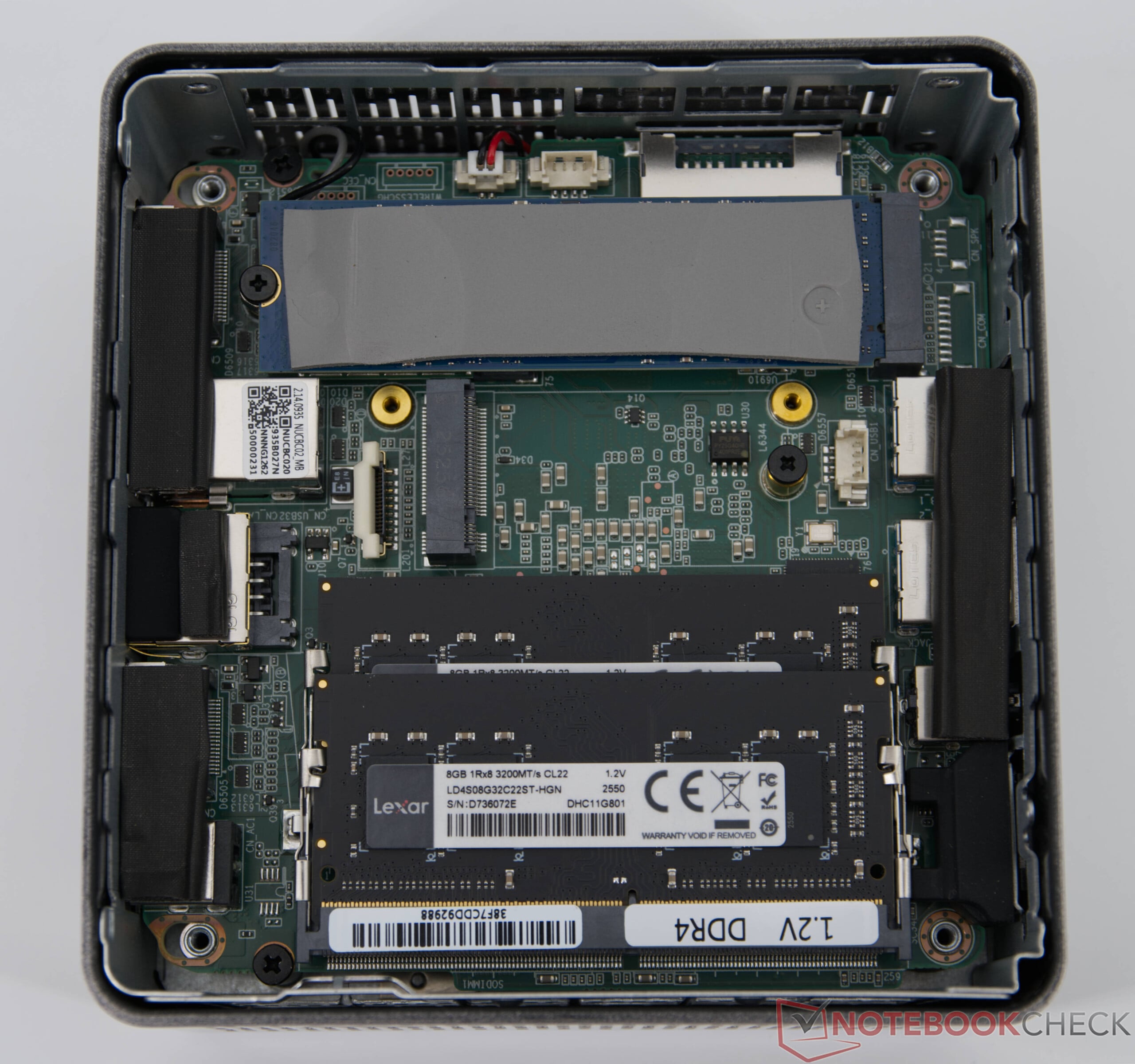

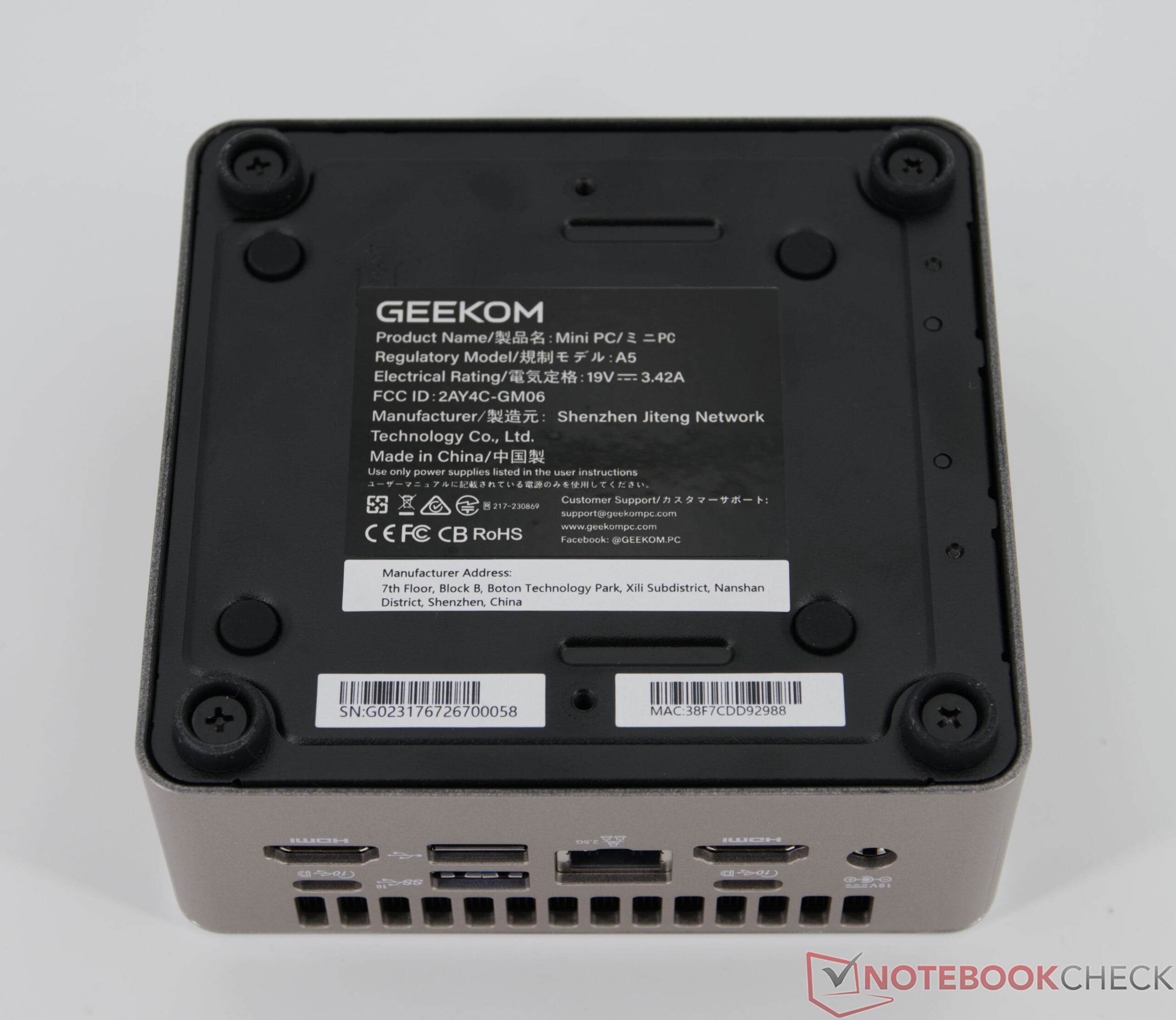

拧松底部的四颗螺丝即可轻松打开 Geekom A5，底盖同时也为 SSD 提供接触式散热。内部提供两个用于 DDR4 内存的 SO-DIMM 插槽，以及灵活的存储选项。该设备总共最多可安装三个存储驱动器。不过，清洁 CPU 风扇需要进一步拆解。

可持续发展

在可持续性方面，Geekom 仅限于依靠 AMD Ryzen 7 7730U 的节能运行。目前没有详细的碳足迹数据。在减少塑料使用方面也仍有改进空间，因为包装中仍使用了塑料部件。

性能

测试条件

所有基准测试均使用默认的“平衡”电源配置文件运行，未在 BIOS 中调整 SoC 功耗。

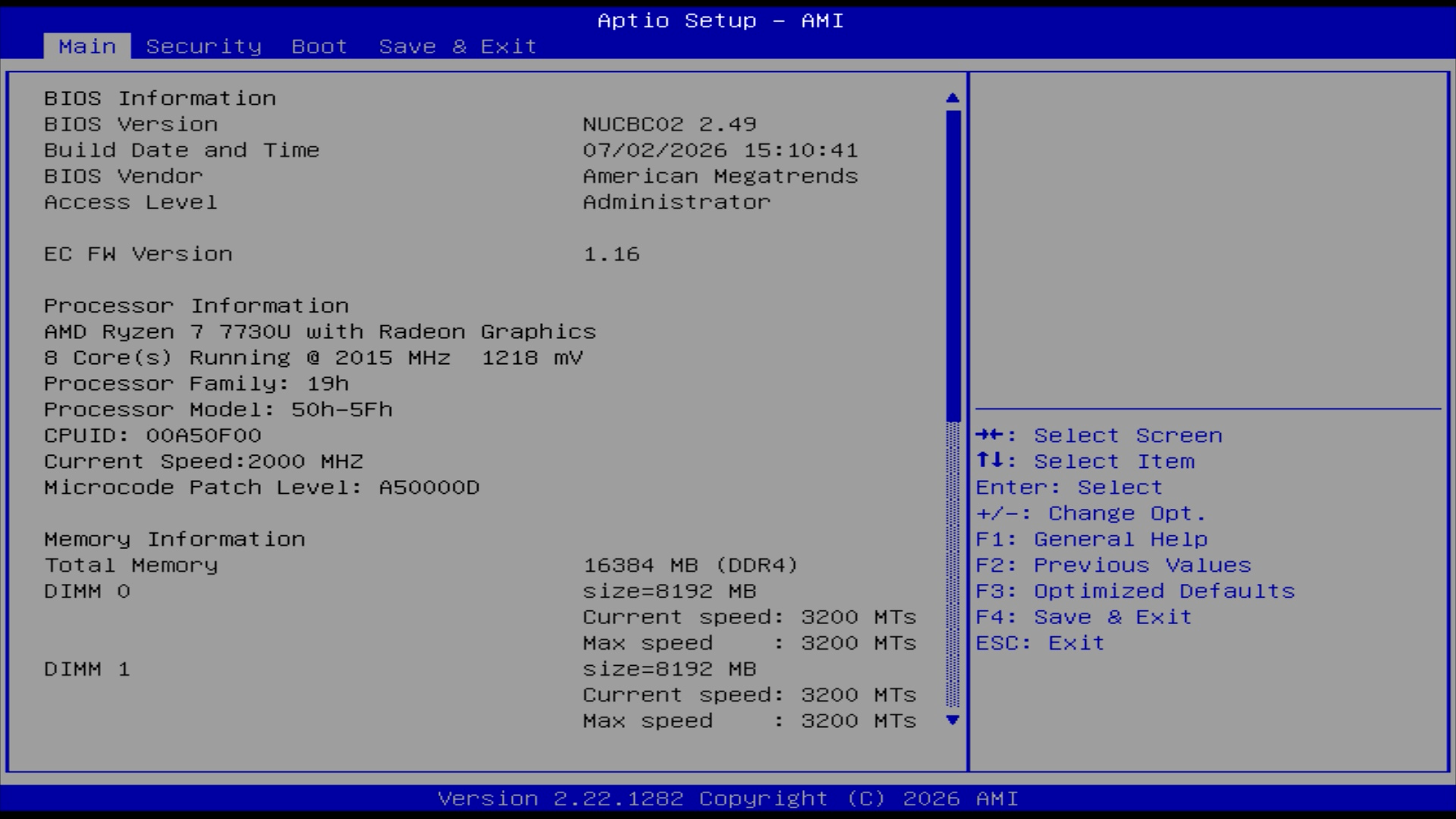

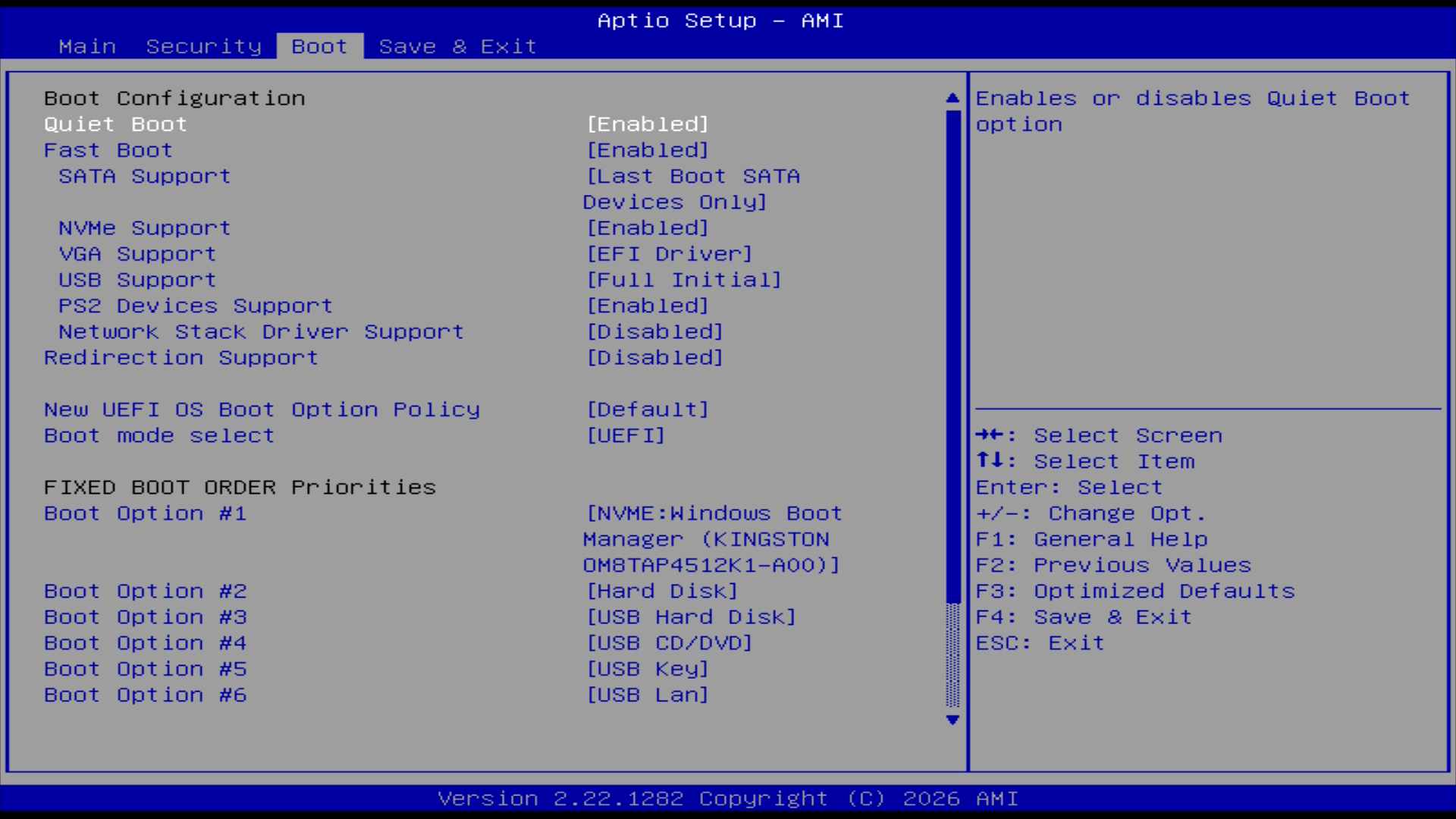

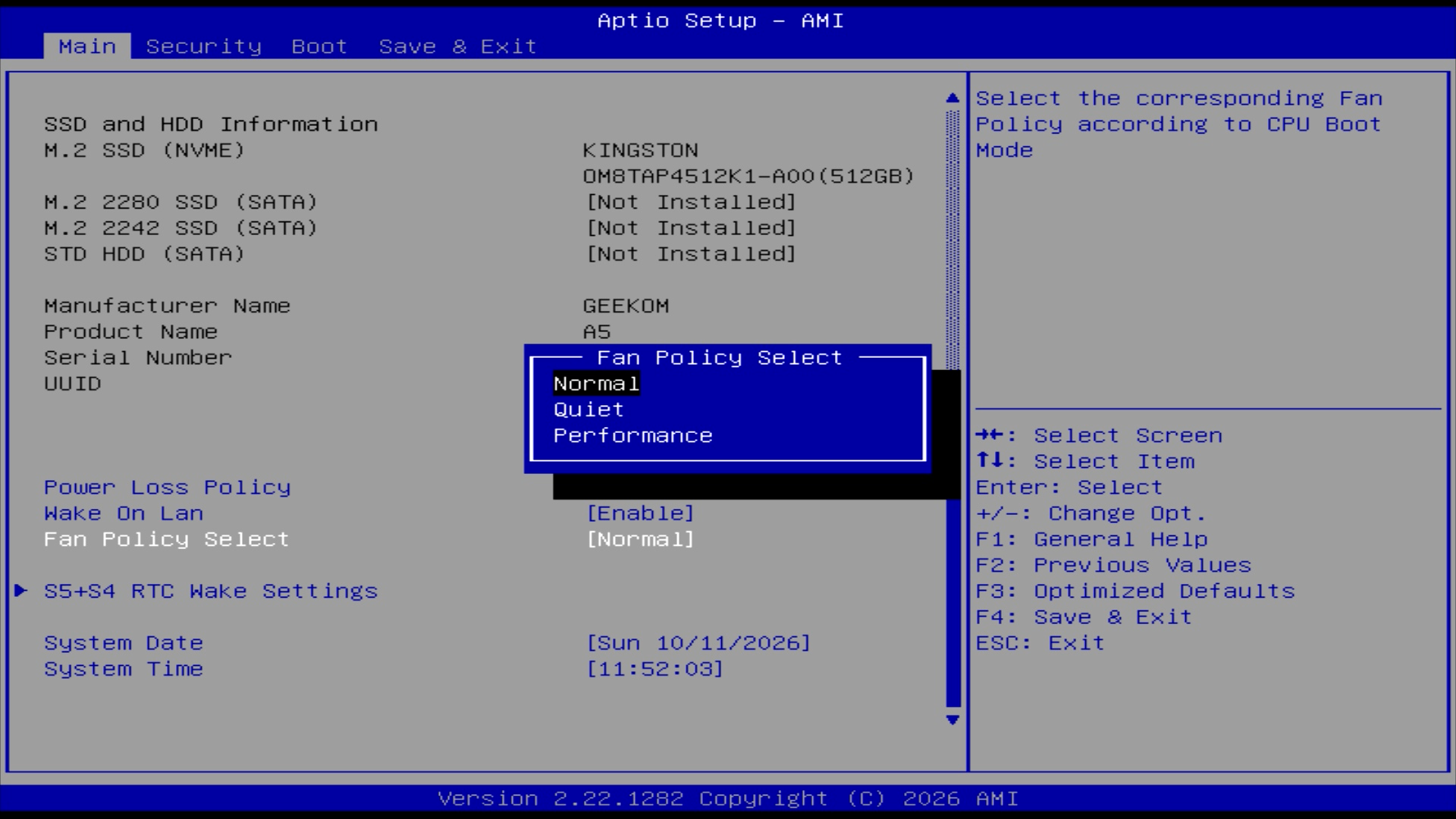

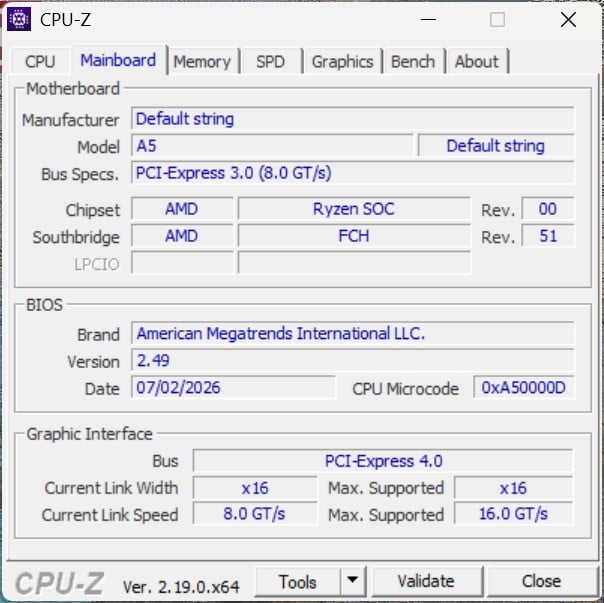

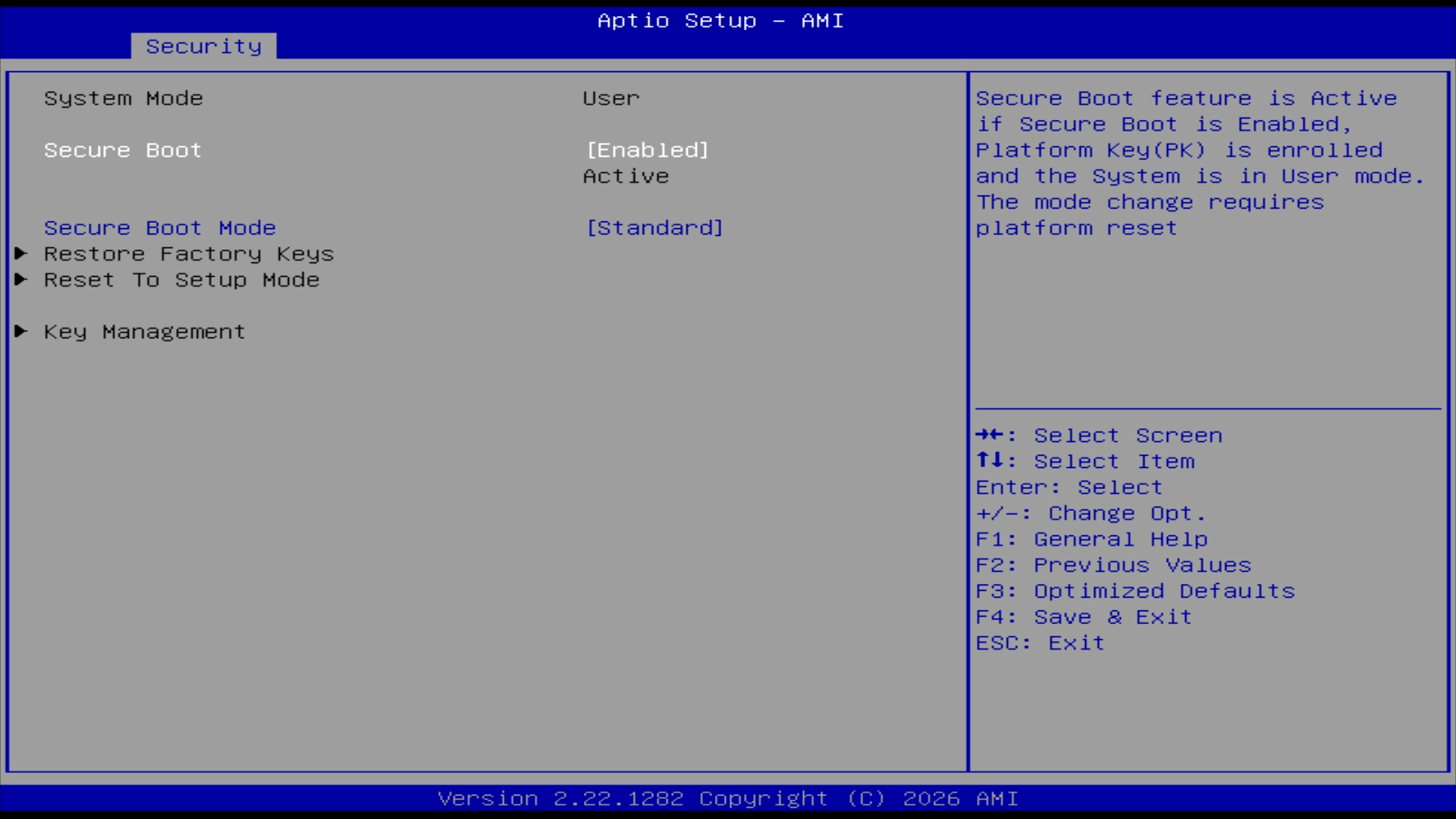

BIOS 设置

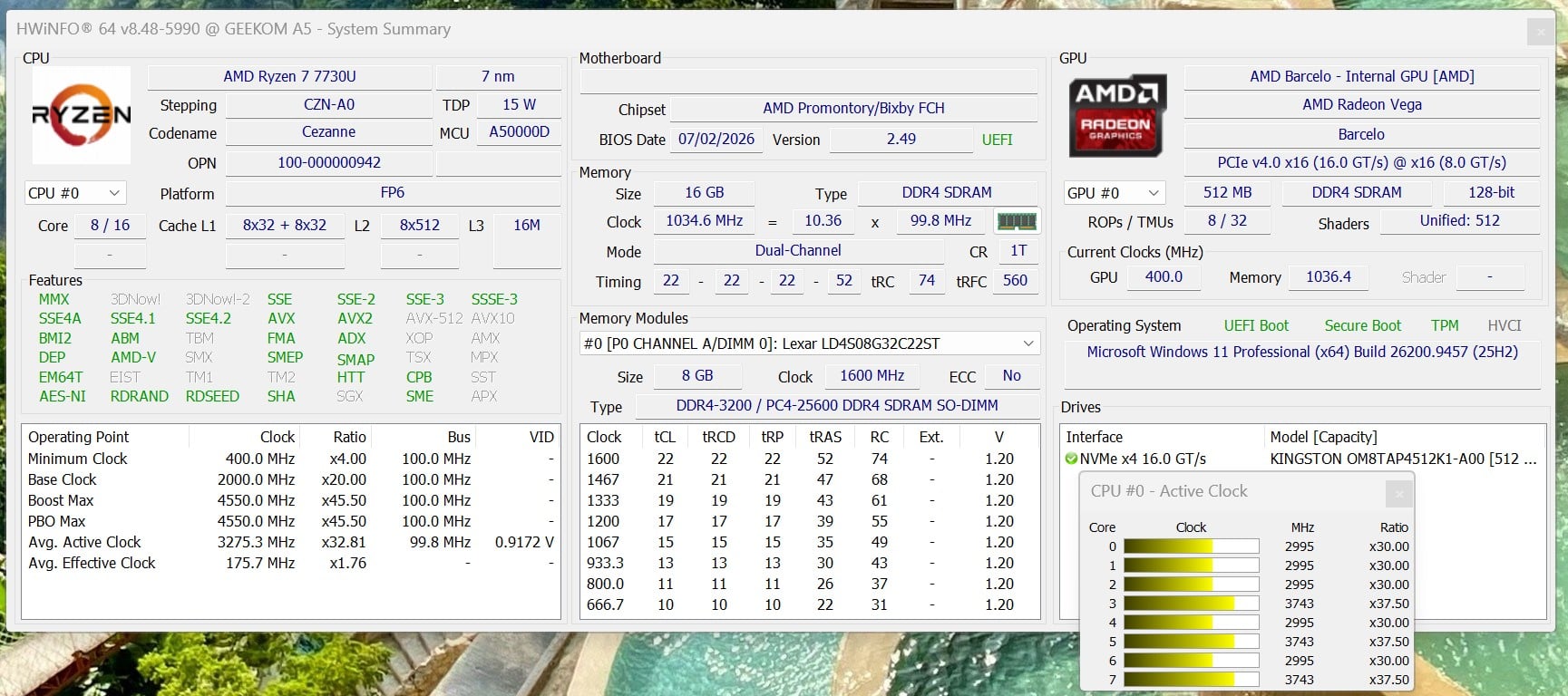

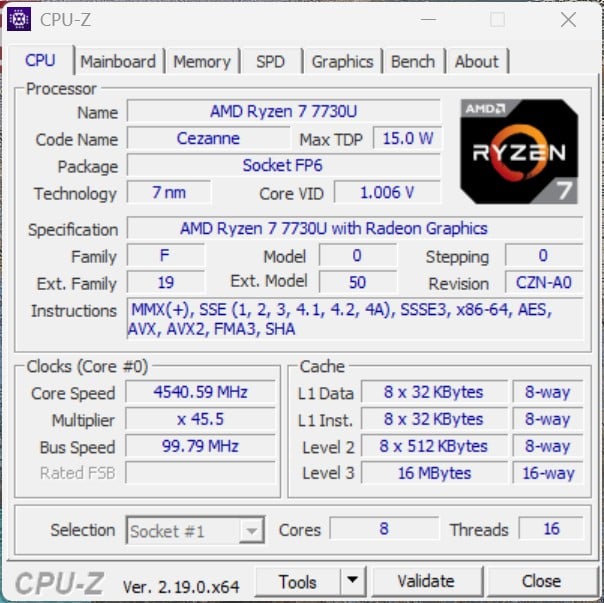

处理器

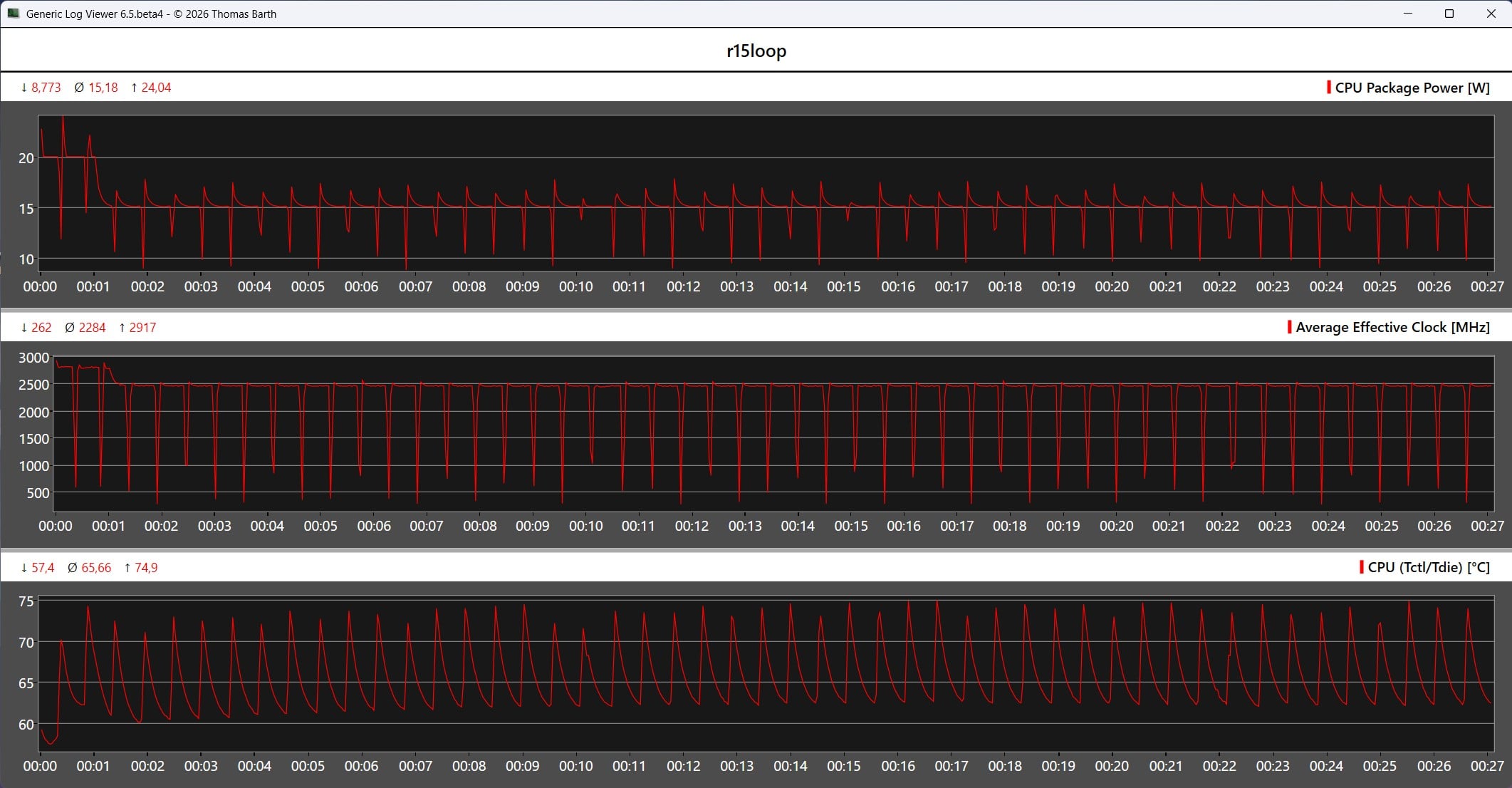

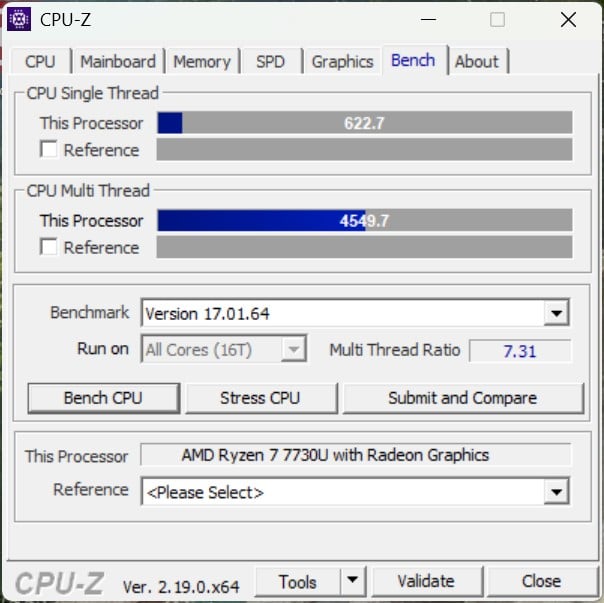

虽然 AMD Ryzen 7 7730U（8 核心、16 线程）的性能略逊于早期 Geekom A5 搭载的 Ryzen 7 5800H，但 2027 Edition 显著降低的功耗令人印象深刻：这款芯片的 TDP 仅为节能的 15–28 瓦，而非 35–54 瓦。

Performance rating - Percent
Minisforum M2 Pro Intel Core Ultra X7 358H	52.4 pt
Geekom IT13 Max Intel Core Ultra 9 185H	47.2 pt
Acemagic Retro X3 AMD Ryzen 7 255	47.1 pt
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	41.9 pt
Geekom A5 AMD Ryzen 7 5800H	40.2 pt
GMK NucBox K17 Intel Core Ultra 5 226V	39.9 pt
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	38.4 pt
Ninkear M7, (16+512) AMD Ryzen 5 7430U	35.3 pt
NiPoGi AM06 Pro AMD Ryzen 7 5700U	32.8 pt

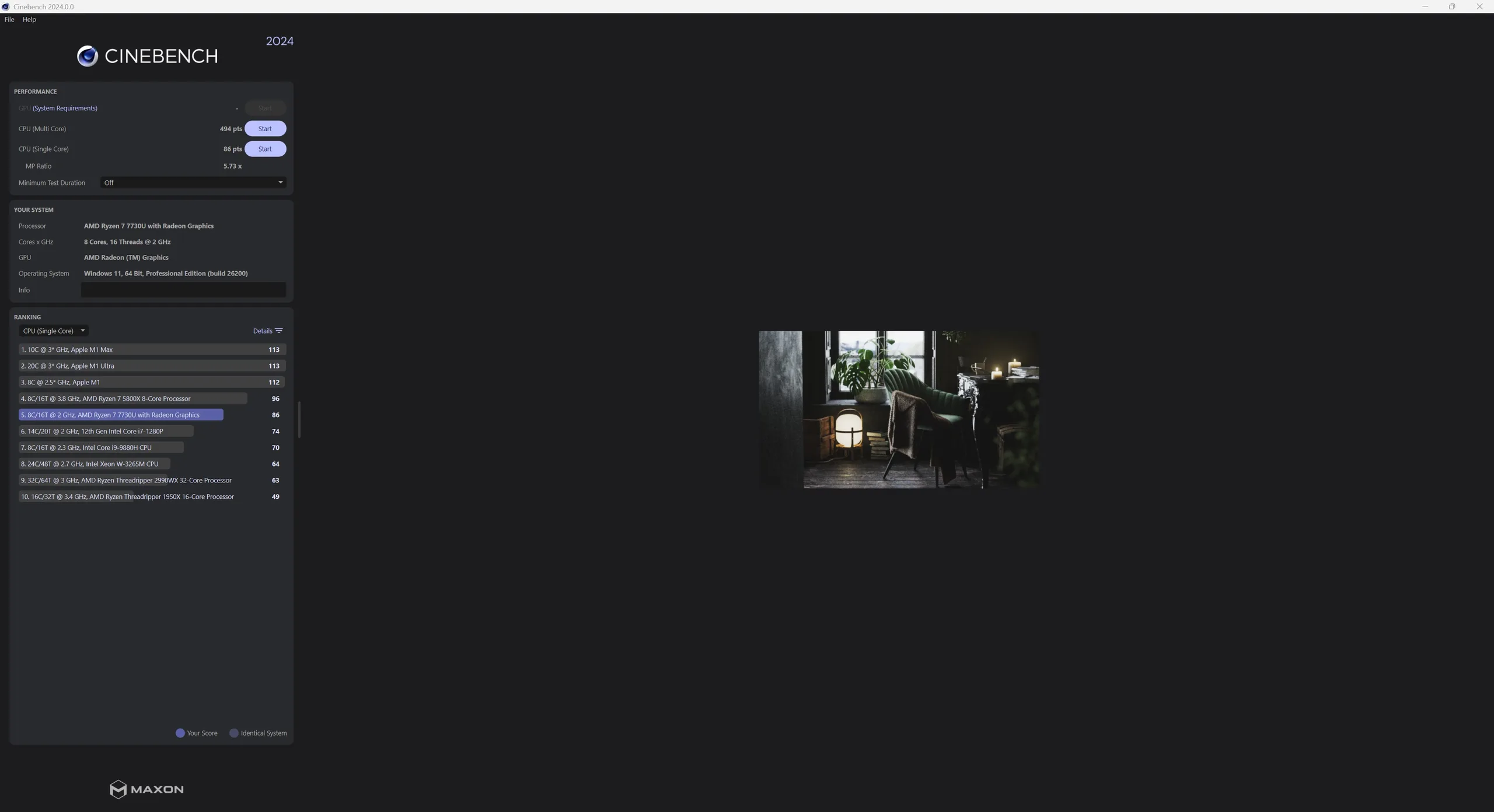

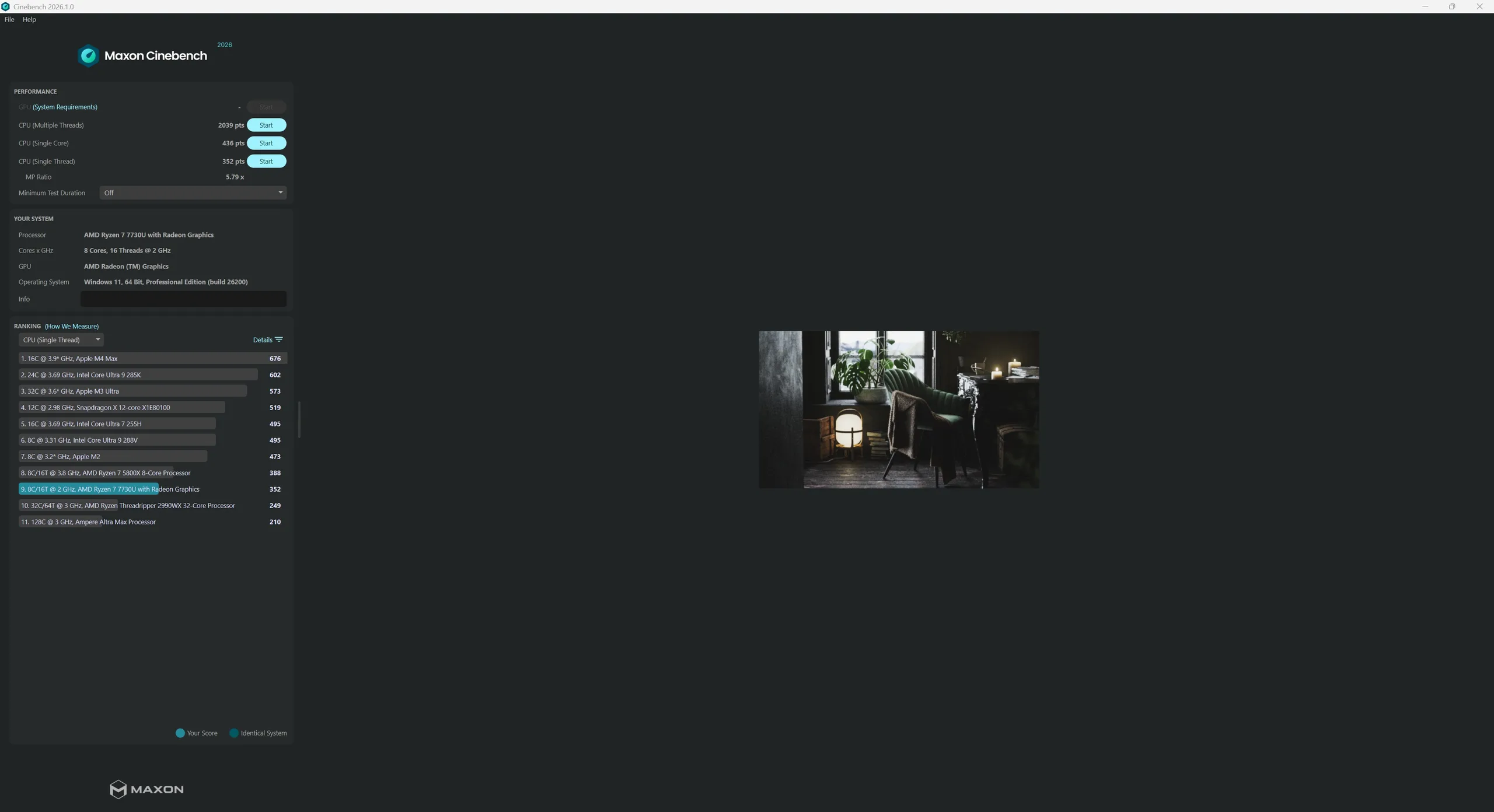

Cinebench 2024
CPU Multi Core
Minisforum M2 Pro Intel Core Ultra X7 358H	1093 Points +121%
Geekom IT13 Max Intel Core Ultra 9 185H	882 Points +79%
Acemagic Retro X3 AMD Ryzen 7 255	876 Points +77%
Geekom A5 AMD Ryzen 7 5800H	618 Points +25%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	564 Points +14%
GMK NucBox K17 Intel Core Ultra 5 226V	523 Points +6%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	494 Points
NiPoGi AM06 Pro AMD Ryzen 7 5700U	449 Points -9%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	361 Points -27%
CPU Single Core
Minisforum M2 Pro Intel Core Ultra X7 358H	123 Points +43%
GMK NucBox K17 Intel Core Ultra 5 226V	115 Points +34%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	114 Points +33%
Geekom IT13 Max Intel Core Ultra 9 185H	106 Points +23%
Acemagic Retro X3 AMD Ryzen 7 255	99 Points +15%
Geekom A5 AMD Ryzen 7 5800H	86 Points 0%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	86 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	82 Points -5%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	71 Points -17%

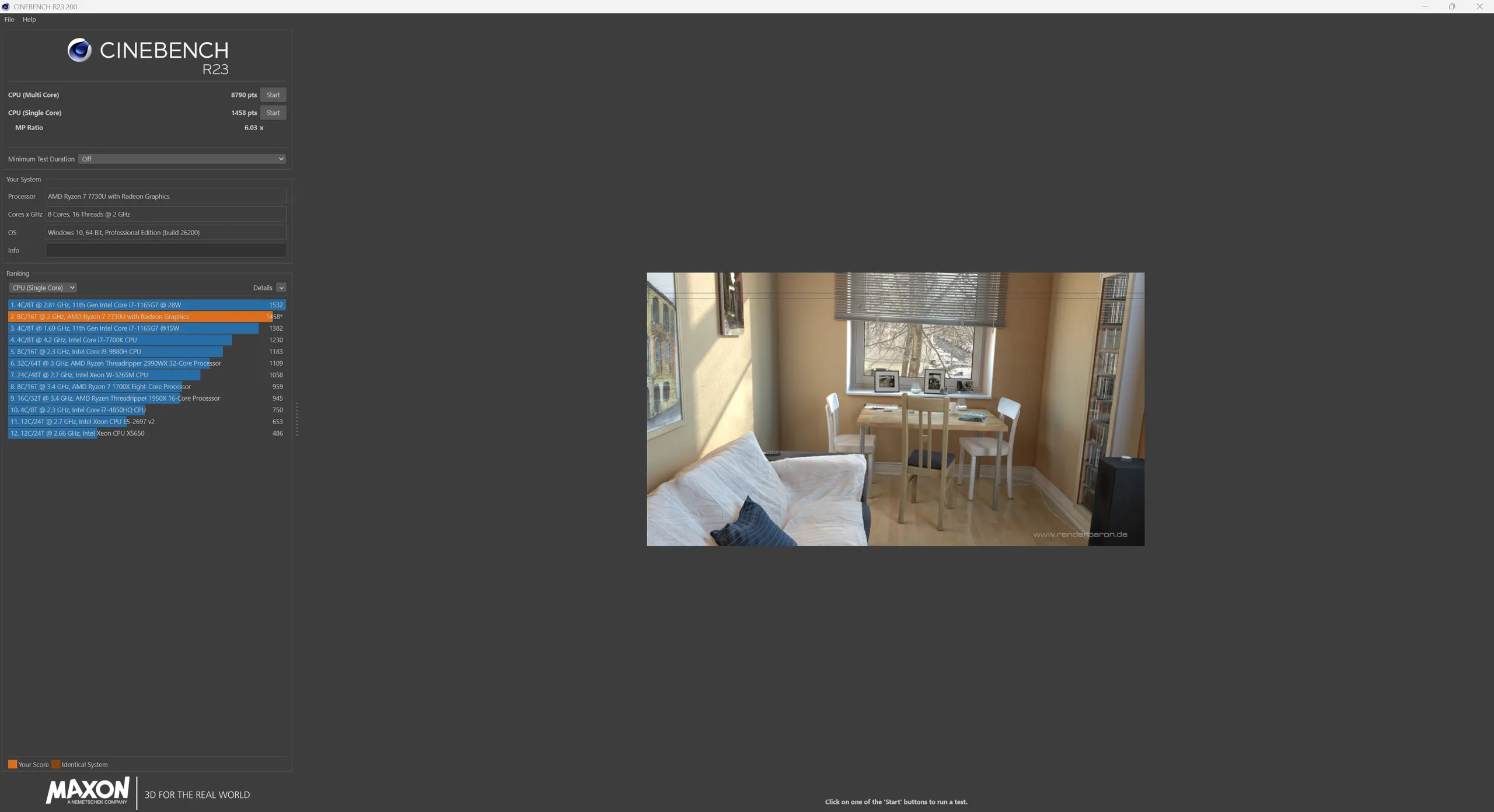

Cinebench R23
Multi Core
Minisforum M2 Pro Intel Core Ultra X7 358H	19916 Points +127%
Geekom IT13 Max Intel Core Ultra 9 185H	16775 Points +91%
Acemagic Retro X3 AMD Ryzen 7 255	16390 Points +86%
Geekom A5 AMD Ryzen 7 5800H	10819 Points +23%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	9206 Points +5%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	8790 Points
GMK NucBox K17 Intel Core Ultra 5 226V	8665 Points -1%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	7304 Points -17%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6561 Points -25%
Single Core
Minisforum M2 Pro Intel Core Ultra X7 358H	2045 Points +40%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1862 Points +28%
GMK NucBox K17 Intel Core Ultra 5 226V	1859 Points +28%
Geekom IT13 Max Intel Core Ultra 9 185H	1857 Points +27%
Acemagic Retro X3 AMD Ryzen 7 255	1741 Points +19%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	1458 Points
Geekom A5 AMD Ryzen 7 5800H	1405 Points -4%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1367 Points -6%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	1214 Points -17%

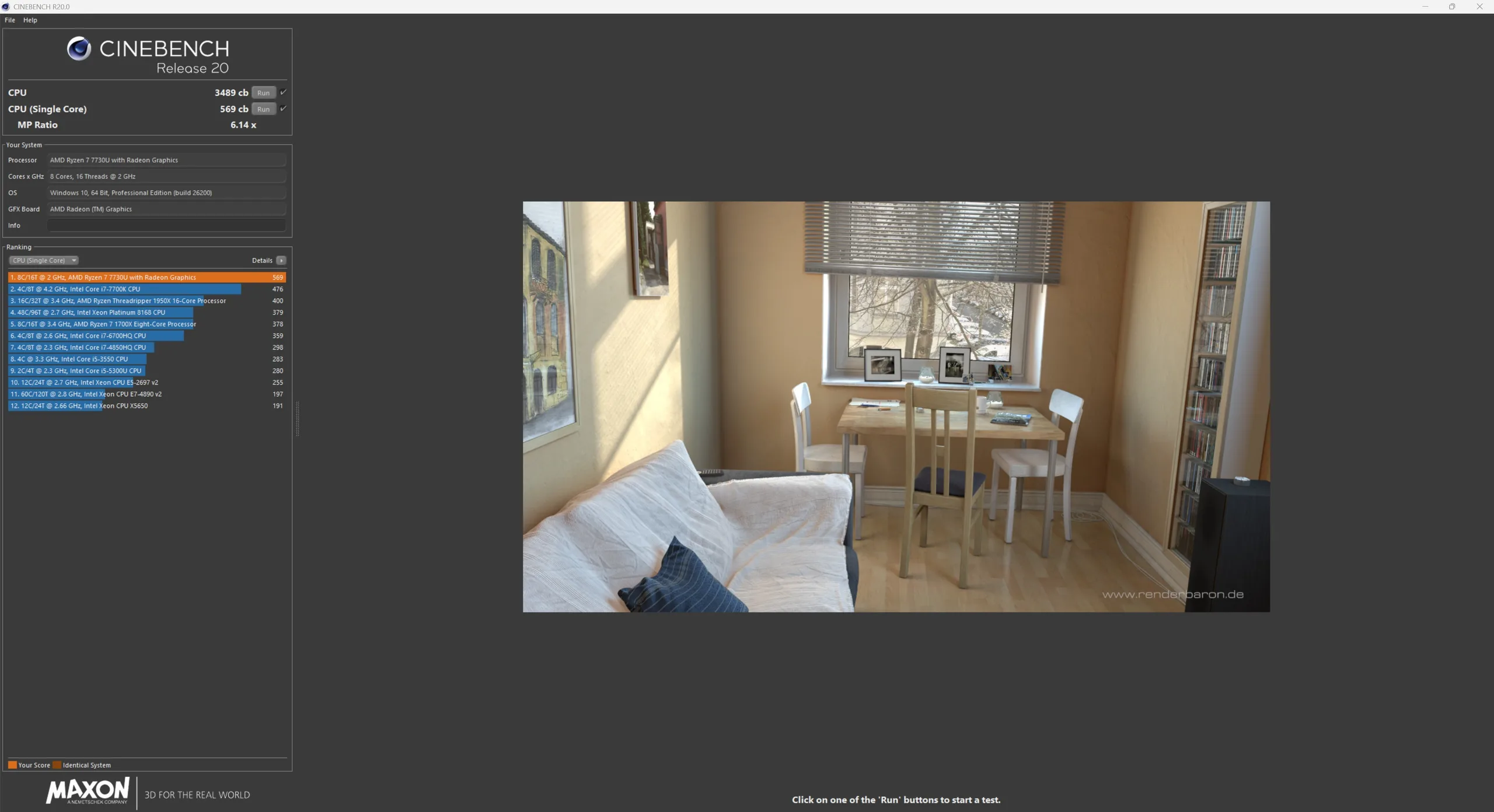

Cinebench R20
CPU (Multi Core)
Minisforum M2 Pro Intel Core Ultra X7 358H	7729 Points +122%
Geekom IT13 Max Intel Core Ultra 9 185H	6554 Points +88%
Acemagic Retro X3 AMD Ryzen 7 255	6409 Points +84%
Geekom A5 AMD Ryzen 7 5800H	4229 Points +21%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	3566 Points +2%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	3489 Points
GMK NucBox K17 Intel Core Ultra 5 226V	3380 Points -3%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2902 Points -17%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	2867 Points -18%
CPU (Single Core)
Minisforum M2 Pro Intel Core Ultra X7 358H	770 Points +35%
GMK NucBox K17 Intel Core Ultra 5 226V	714 Points +25%
Geekom IT13 Max Intel Core Ultra 9 185H	714 Points +25%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	714 Points +25%
Acemagic Retro X3 AMD Ryzen 7 255	676 Points +19%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	569 Points
Geekom A5 AMD Ryzen 7 5800H	551 Points -3%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	535 Points -6%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	471 Points -17%

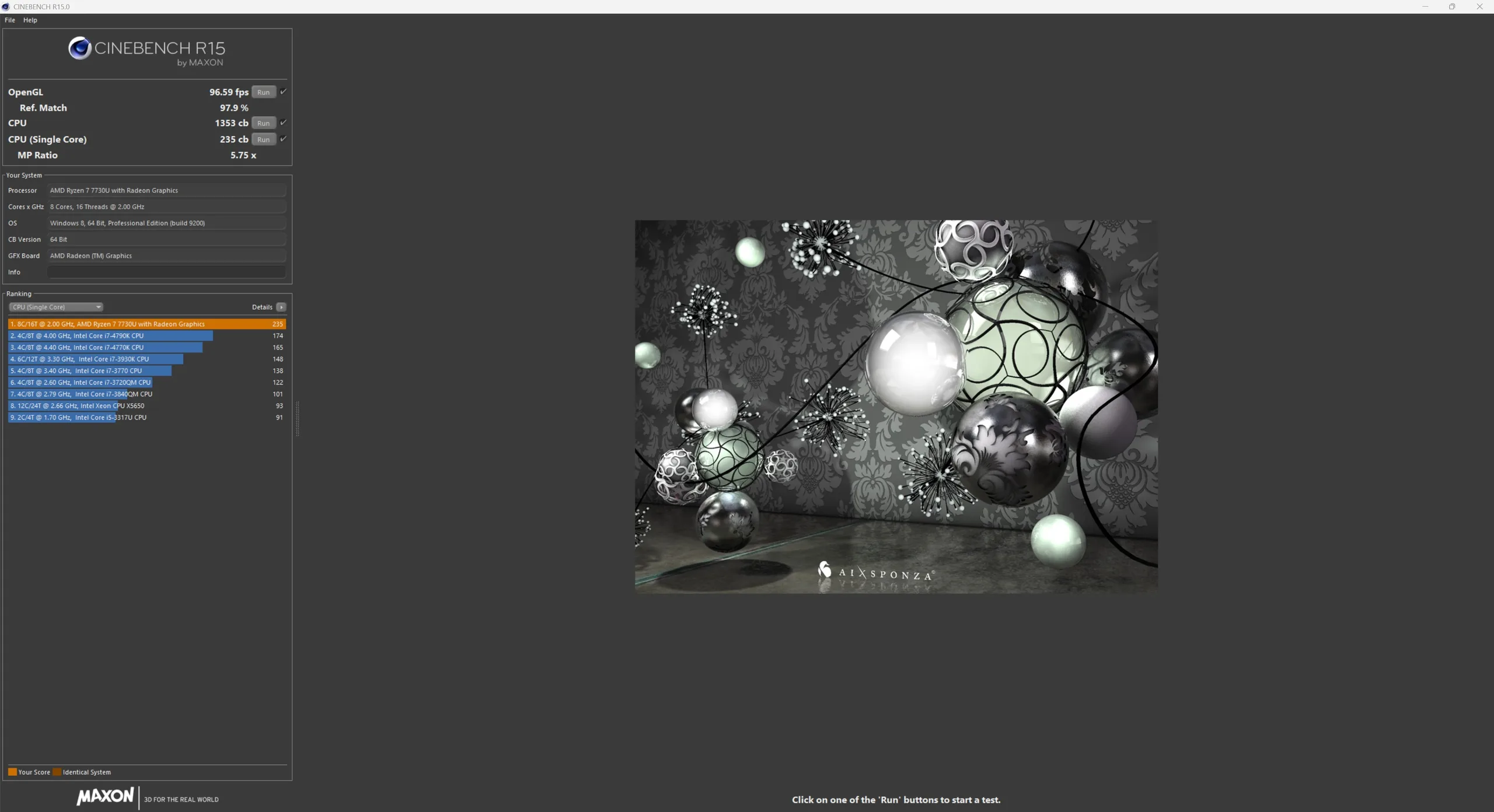

Cinebench R15
CPU Multi 64Bit
Minisforum M2 Pro Intel Core Ultra X7 358H	3058 Points +126%
Geekom IT13 Max Intel Core Ultra 9 185H	2714 Points +101%
Acemagic Retro X3 AMD Ryzen 7 255	2578 Points +91%
Geekom A5 AMD Ryzen 7 5800H	1773 Points +31%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	1353 Points
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1327 Points -2%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1271 Points -6%
GMK NucBox K17 Intel Core Ultra 5 226V	1253 Points -7%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	1228 Points -9%
CPU Single 64Bit
Minisforum M2 Pro Intel Core Ultra X7 358H	295 Points +26%
GMK NucBox K17 Intel Core Ultra 5 226V	282 Points +20%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	281 Points +20%
Acemagic Retro X3 AMD Ryzen 7 255	275 Points +17%
Geekom IT13 Max Intel Core Ultra 9 185H	266 Points +13%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	235 Points
Geekom A5 AMD Ryzen 7 5800H	227 Points -3%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	221 Points -6%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	181 Points -23%

Cinebench R11.5
CPU Multi 64Bit
Minisforum M2 Pro Intel Core Ultra X7 358H	37.94 Points +110%
Geekom IT13 Max Intel Core Ultra 9 185H	32.53 Points +80%
Acemagic Retro X3 AMD Ryzen 7 255	30.18 Points +67%
Geekom A5 AMD Ryzen 7 5800H	21.25 Points +17%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	18.8 Points +4%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	18.1 Points
GMK NucBox K17 Intel Core Ultra 5 226V	15.79 Points -13%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	14.67 Points -19%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	14.59 Points -19%
CPU Single 64Bit
Minisforum M2 Pro Intel Core Ultra X7 358H	3.54 Points +26%
GMK NucBox K17 Intel Core Ultra 5 226V	3.36 Points +20%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	3.36 Points +20%
Acemagic Retro X3 AMD Ryzen 7 255	3.25 Points +16%
Geekom IT13 Max Intel Core Ultra 9 185H	3.21 Points +15%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	2.8 Points
Geekom A5 AMD Ryzen 7 5800H	2.69 Points -4%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2.65 Points -5%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	2.1 Points -25%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum M2 Pro Intel Core Ultra X7 358H	16561 Points +40%
GMK NucBox K17 Intel Core Ultra 5 226V	15701 Points +33%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	15472 Points +31%
Geekom IT13 Max Intel Core Ultra 9 185H	14783 Points +25%
Acemagic Retro X3 AMD Ryzen 7 255	13907 Points +17%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	11837 Points
Geekom A5 AMD Ryzen 7 5800H	11378 Points -4%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	11022 Points -7%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	9558 Points -19%
Rendering Multiple CPUs 64Bit
Minisforum M2 Pro Intel Core Ultra X7 358H	111935 Points +110%
Geekom IT13 Max Intel Core Ultra 9 185H	87150 Points +63%
Acemagic Retro X3 AMD Ryzen 7 255	85088 Points +59%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	67036 Points +26%
Geekom A5 AMD Ryzen 7 5800H	62312 Points +17%
GMK NucBox K17 Intel Core Ultra 5 226V	56263 Points +5%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	53386 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	47909 Points -10%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	43374 Points -19%

Blender
v2.79 BMW27 CPU
Ninkear M7, (16+512) AMD Ryzen 5 7430U	447 Seconds * -22%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	395 Seconds * -8%
GMK NucBox K17 Intel Core Ultra 5 226V	387 Seconds * -6%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	365 Seconds *
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	354 Seconds * +3%
Geekom A5 AMD Ryzen 7 5800H	293 Seconds * +20%
Geekom IT13 Max Intel Core Ultra 9 185H	199 Seconds * +45%
Acemagic Retro X3 AMD Ryzen 7 255	196 Seconds * +46%
Minisforum M2 Pro Intel Core Ultra X7 358H	181 Seconds * +50%
v3.3 Classroom CPU
Ninkear M7, (16+512) AMD Ryzen 5 7430U	854 Seconds * -35%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	700 Seconds * -10%
GMK NucBox K17 Intel Core Ultra 5 226V	642 Seconds * -1%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	634 Seconds *
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	562 Seconds * +11%
Geekom A5 AMD Ryzen 7 5800H	513 Seconds * +19%
Geekom IT13 Max Intel Core Ultra 9 185H	344 Seconds * +46%
Acemagic Retro X3 AMD Ryzen 7 255	316 Seconds * +50%
Minisforum M2 Pro Intel Core Ultra X7 358H	299 Seconds * +53%
v4.3 Barbershop CPU
Ninkear M7, (16+512) AMD Ryzen 5 7430U	4229 Seconds * -36%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	3578 Seconds * -15%
GMK NucBox K17 Intel Core Ultra 5 226V	3291 Seconds * -5%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	3120 Seconds *
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	2937 Seconds * +6%
Geekom A5 AMD Ryzen 7 5800H	2559 Seconds * +18%
Geekom IT13 Max Intel Core Ultra 9 185H	1766 Seconds * +43%
Acemagic Retro X3 AMD Ryzen 7 255	1581 Seconds * +49%
Minisforum M2 Pro Intel Core Ultra X7 358H	1491 Seconds * +52%

wPrime 2.10
32m
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	8.18 s * -82%
GMK NucBox K17 Intel Core Ultra 5 226V	7.806 s * -73%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6.035 s * -34%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	4.5 s *
NiPoGi AM06 Pro AMD Ryzen 7 5700U	4.154 s * +8%
Geekom IT13 Max Intel Core Ultra 9 185H	4.07 s * +10%
Geekom A5 AMD Ryzen 7 5800H	3.93 s * +13%
Minisforum M2 Pro Intel Core Ultra X7 358H	3.45 s * +23%
Acemagic Retro X3 AMD Ryzen 7 255	2.991 s * +34%
1024m
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	357.358 s * -171%
GMK NucBox K17 Intel Core Ultra 5 226V	336.5 s * -156%
Minisforum M2 Pro Intel Core Ultra X7 358H	281.267 s * -114%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	156.81 s * -19%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	131.683 s *
NiPoGi AM06 Pro AMD Ryzen 7 5700U	118.528 s * +10%
Geekom A5 AMD Ryzen 7 5800H	111.714 s * +15%
Geekom IT13 Max Intel Core Ultra 9 185H	96.87 s * +26%
Acemagic Retro X3 AMD Ryzen 7 255	70.884 s * +46%

X264 HD Benchmark 4.0
Pass 1
Minisforum M2 Pro Intel Core Ultra X7 358H	330.5 (328^min - 332^max) fps +41%
Geekom IT13 Max Intel Core Ultra 9 185H	295.5 (292^min - 307^max) fps +26%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	288.5 (285^min - 290^max) fps +23%
GMK NucBox K17 Intel Core Ultra 5 226V	275.5 (274^min - 276^max) fps +17%
Acemagic Retro X3 AMD Ryzen 7 255	261 (258^min - 264^max) fps +11%
Geekom A5 AMD Ryzen 7 5800H	244 (242^min - 246^max) fps +4%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	234.5 (220^min - 241^max) fps
Ninkear M7, (16+512) AMD Ryzen 5 7430U	218 (217^min - 220^max) fps -7%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	179.8 (176.6^min - 187.2^max) fps -23%
Pass 2
Minisforum M2 Pro Intel Core Ultra X7 358H	175.85 (172.8^min - 176.6^max) fps +106%
Geekom IT13 Max Intel Core Ultra 9 185H	146.9 (145.9^min - 151.4^max) fps +72%
Acemagic Retro X3 AMD Ryzen 7 255	142.05 (141^min - 144.5^max) fps +66%
Geekom A5 AMD Ryzen 7 5800H	104.65 (104.1^min - 106.9^max) fps +22%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	91.05 (90.7^min - 91.1^max) fps +6%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	85.5 (78.5^min - 89.1^max) fps
GMK NucBox K17 Intel Core Ultra 5 226V	79.1 (79^min - 79.3^max) fps -7%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	75.15 (75^min - 75.2^max) fps -12%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	72.45 (72.2^min - 72.6^max) fps -15%

WinRAR - Result
Minisforum M2 Pro Intel Core Ultra X7 358H	7211 KB/s +10%
Geekom A5 AMD Ryzen 7 5800H	7042 KB/s +7%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	6581 KB/s
Geekom IT13 Max Intel Core Ultra 9 185H	6499 KB/s -1%
Acemagic Retro X3 AMD Ryzen 7 255	6140 KB/s -7%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6053 KB/s -8%
GMK NucBox K17 Intel Core Ultra 5 226V	4880 KB/s -26%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	4756 KB/s -28%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	3905 KB/s -41%

TrueCrypt
AES Mean 100MB
Acemagic Retro X3 AMD Ryzen 7 255	14.7 GB/s +58%
Minisforum M2 Pro Intel Core Ultra X7 358H	14.1 GB/s +52%
Geekom A5 AMD Ryzen 7 5800H	11.5 GB/s +24%
Geekom IT13 Max Intel Core Ultra 9 185H	11 GB/s +18%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	9.3 GB/s
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	7.2 GB/s -23%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6.8 GB/s -27%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	6 GB/s -35%
GMK NucBox K17 Intel Core Ultra 5 226V	5.8 GB/s -38%
Twofish Mean 100MB
Minisforum M2 Pro Intel Core Ultra X7 358H	2.5 GB/s +79%
Geekom IT13 Max Intel Core Ultra 9 185H	2.1 GB/s +50%
Acemagic Retro X3 AMD Ryzen 7 255	2 GB/s +43%
Geekom A5 AMD Ryzen 7 5800H	1.6 GB/s +14%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	1.6 GB/s +14%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	1.4 GB/s
GMK NucBox K17 Intel Core Ultra 5 226V	1.3 GB/s -7%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1.3 GB/s -7%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1 GB/s -29%
Serpent Mean 100MB
Acemagic Retro X3 AMD Ryzen 7 255	1.3 GB/s +35%
Geekom IT13 Max Intel Core Ultra 9 185H	1.2 GB/s +25%
Minisforum M2 Pro Intel Core Ultra X7 358H	1.2 GB/s +25%
Geekom A5 AMD Ryzen 7 5800H	1 GB/s +4%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	1 GB/s +4%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	0.96 GB/s
Ninkear M7, (16+512) AMD Ryzen 5 7430U	0.716 GB/s -25%
GMK NucBox K17 Intel Core Ultra 5 226V	0.657 GB/s -32%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	0.649 GB/s -32%

Geekbench AI
Quantized CPU 1.2
Minisforum M2 Pro Intel Core Ultra X7 358H	7561 Points +102%
Acemagic Retro X3 AMD Ryzen 7 255	6745 Points +80%
Geekom IT13 Max Intel Core Ultra 9 185H	6055 Points +62%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	4327 Points +16%
GMK NucBox K17 Intel Core Ultra 5 226V	4298 Points +15%
Geekom A5 AMD Ryzen 7 5800H	4199 Points +12%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	3737 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2938 Points -21%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	2301 Points -38%
Half Precision CPU 1.2
Minisforum M2 Pro Intel Core Ultra X7 358H	1818 Points +53%
Acemagic Retro X3 AMD Ryzen 7 255	1682 Points +42%
Geekom IT13 Max Intel Core Ultra 9 185H	1354 Points +14%
Geekom A5 AMD Ryzen 7 5800H	1254 Points +6%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1187 Points 0%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	1187 Points
GMK NucBox K17 Intel Core Ultra 5 226V	1184 Points 0%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1019 Points -14%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	836 Points -30%
Single Precision CPU 1.2
Minisforum M2 Pro Intel Core Ultra X7 358H	4258 Points +67%
Acemagic Retro X3 AMD Ryzen 7 255	3929 Points +54%
Geekom IT13 Max Intel Core Ultra 9 185H	3377 Points +33%
Geekom A5 AMD Ryzen 7 5800H	2696 Points +6%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	2544 Points
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	2279 Points -10%
GMK NucBox K17 Intel Core Ultra 5 226V	2243 Points -12%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1930 Points -24%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	1690 Points -34%
Quantized CPU 1.7
Minisforum M2 Pro Intel Core Ultra X7 358H	8543 Points +98%
Acemagic Retro X3 AMD Ryzen 7 255	8056 Points +87%
Geekom IT13 Max Intel Core Ultra 9 185H	6688 Points +55%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	5668 Points +32%
GMK NucBox K17 Intel Core Ultra 5 226V	5529 Points +28%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	4304 Points
Geekom A5 AMD Ryzen 7 5800H	4218 Points -2%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	3446 Points -20%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	2378 Points -45%
Half Precision CPU 1.7
Minisforum M2 Pro Intel Core Ultra X7 358H	2047 Points +67%
Acemagic Retro X3 AMD Ryzen 7 255	1895 Points +54%
Geekom IT13 Max Intel Core Ultra 9 185H	1414 Points +15%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1289 Points +5%
Geekom A5 AMD Ryzen 7 5800H	1256 Points +2%
GMK NucBox K17 Intel Core Ultra 5 226V	1253 Points +2%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	1228 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1083 Points -12%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	830 Points -32%
Single Precision CPU 1.7
Minisforum M2 Pro Intel Core Ultra X7 358H	4631 Points +68%
Acemagic Retro X3 AMD Ryzen 7 255	4111 Points +50%
Geekom IT13 Max Intel Core Ultra 9 185H	3519 Points +28%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	2872 Points +4%
Geekom A5 AMD Ryzen 7 5800H	2870 Points +4%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	2749 Points
GMK NucBox K17 Intel Core Ultra 5 226V	2621 Points -5%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2097 Points -24%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	1727 Points -37%

Geekbench 6.7
Single-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	2848 Points +42%
GMK NucBox K17 Intel Core Ultra 5 226V	2619 Points +30%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	2604 Points +30%
Acemagic Retro X3 AMD Ryzen 7 255	2505 Points +25%
Geekom IT13 Max Intel Core Ultra 9 185H	2465 Points +23%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	2009 Points
Geekom A5 AMD Ryzen 7 5800H	1991 Points -1%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1849 Points -8%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	1550 Points -23%
Multi-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	16338 Points +110%
Geekom IT13 Max Intel Core Ultra 9 185H	13160 Points +69%
Acemagic Retro X3 AMD Ryzen 7 255	11267 Points +45%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	10045 Points +29%
Geekom A5 AMD Ryzen 7 5800H	9411 Points +21%
GMK NucBox K17 Intel Core Ultra 5 226V	9100 Points +17%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	7782 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5705 Points -27%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	5342 Points -31%

Geekbench 6.0
Single-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	2720 Points +42%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	2488 Points +30%
Geekom IT13 Max Intel Core Ultra 9 185H	2319 Points +21%
Acemagic Retro X3 AMD Ryzen 7 255	2175 Points +14%
Geekom A5 AMD Ryzen 7 5800H	1912 Points 0%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	1909 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1791 Points -6%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	1473 Points -23%
GMK NucBox K17 Intel Core Ultra 5 226V	1177 Points -38%
Multi-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	15461 Points +109%
Geekom IT13 Max Intel Core Ultra 9 185H	12728 Points +72%
Acemagic Retro X3 AMD Ryzen 7 255	12046 Points +63%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	9485 Points +28%
Geekom A5 AMD Ryzen 7 5800H	8803 Points +19%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	7407 Points
GMK NucBox K17 Intel Core Ultra 5 226V	5782 Points -22%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5499 Points -26%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	5169 Points -30%

Geekbench 5.5
Multi-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	16305 Points +125%
Geekom IT13 Max Intel Core Ultra 9 185H	13184 Points +82%
Acemagic Retro X3 AMD Ryzen 7 255	10844 Points +50%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	8845 Points +22%
Geekom A5 AMD Ryzen 7 5800H	8823 Points +22%
GMK NucBox K17 Intel Core Ultra 5 226V	8063 Points +11%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	7241 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5343 Points -26%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	5312 Points -27%
Single-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	2098 Points +41%
GMK NucBox K17 Intel Core Ultra 5 226V	1914 Points +29%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1906 Points +28%
Acemagic Retro X3 AMD Ryzen 7 255	1864 Points +25%
Geekom IT13 Max Intel Core Ultra 9 185H	1822 Points +22%
Geekom A5 AMD Ryzen 7 5800H	1494 Points 0%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	1489 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1390 Points -7%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	1149 Points -23%

Geekbench 5.0
5.0 Multi-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	16268 Points +132%
Geekom IT13 Max Intel Core Ultra 9 185H	13171 Points +87%
Acemagic Retro X3 AMD Ryzen 7 255	10808 Points +54%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	8764 Points +25%
Geekom A5 AMD Ryzen 7 5800H	8568 Points +22%
GMK NucBox K17 Intel Core Ultra 5 226V	8152 Points +16%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	7027 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5310 Points -24%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	5290 Points -25%
5.0 Single-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	2064 Points +46%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1869 Points +32%
GMK NucBox K17 Intel Core Ultra 5 226V	1865 Points +32%
Geekom IT13 Max Intel Core Ultra 9 185H	1764 Points +25%
Acemagic Retro X3 AMD Ryzen 7 255	1729 Points +22%
Geekom A5 AMD Ryzen 7 5800H	1421 Points +1%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	1412 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1360 Points -4%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	1131 Points -20%

Geekbench 4.4
64 Bit Multi-Core Score
Minisforum M2 Pro Intel Core Ultra X7 358H	57634 Points +108%
Geekom IT13 Max Intel Core Ultra 9 185H	48415 Points +75%
Acemagic Retro X3 AMD Ryzen 7 255	45332 Points +63%
Geekom A5 AMD Ryzen 7 5800H	34200 Points +23%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	31756 Points +14%
GMK NucBox K17 Intel Core Ultra 5 226V	28864 Points +4%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	27737 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	21491 Points -23%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	10274 Points -63%
64 Bit Single-Core Score
Minisforum M2 Pro Intel Core Ultra X7 358H	8704 Points +41%
GMK NucBox K17 Intel Core Ultra 5 226V	8018 Points +30%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	7981 Points +30%
Acemagic Retro X3 AMD Ryzen 7 255	7667 Points +25%
Geekom IT13 Max Intel Core Ultra 9 185H	7424 Points +21%
Geekom A5 AMD Ryzen 7 5800H	6295 Points +2%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	6158 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5766 Points -6%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	4336 Points -30%

3DMark 11 - 1280x720 Performance Physics
Minisforum M2 Pro Intel Core Ultra X7 358H	21585 Points +67%
Geekom IT13 Max Intel Core Ultra 9 185H	20911 Points +62%
Acemagic Retro X3 AMD Ryzen 7 255	19506 Points +51%
Geekom A5 AMD Ryzen 7 5800H	16933 Points +31%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	14125 Points +9%
GMK NucBox K17 Intel Core Ultra 5 226V	13612 Points +5%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	12929 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	10478 Points -19%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	9656 Points -25%

7-Zip 18.03
7z b 4
Minisforum M2 Pro Intel Core Ultra X7 358H	67406 MIPS +53%
Acemagic Retro X3 AMD Ryzen 7 255	66847 MIPS +51%
Geekom IT13 Max Intel Core Ultra 9 185H	66510 MIPS +51%
Geekom A5 AMD Ryzen 7 5800H	53954 MIPS +22%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	44186 MIPS
Ninkear M7, (16+512) AMD Ryzen 5 7430U	37081 MIPS -16%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	35364 MIPS -20%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	32446 MIPS -27%
GMK NucBox K17 Intel Core Ultra 5 226V	31083 MIPS -30%
7z b 4 -mmt1
Acemagic Retro X3 AMD Ryzen 7 255	6178 MIPS +13%
Minisforum M2 Pro Intel Core Ultra X7 358H	6140 MIPS +13%
Geekom IT13 Max Intel Core Ultra 9 185H	5522 MIPS +1%
Geekom A5 AMD Ryzen 7 5800H	5486 MIPS +1%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	5453 MIPS
GMK NucBox K17 Intel Core Ultra 5 226V	5452 MIPS 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	5298 MIPS -3%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5267 MIPS -3%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	4402 MIPS -19%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum M2 Pro Intel Core Ultra X7 358H	22.4 fps +106%
Acemagic Retro X3 AMD Ryzen 7 255	19.8 fps +82%
Geekom IT13 Max Intel Core Ultra 9 185H	19.7 fps +81%
Geekom A5 AMD Ryzen 7 5800H	13.3 fps +22%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	12.7 fps +17%
GMK NucBox K17 Intel Core Ultra 5 226V	10.9 fps 0%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	10.9 fps
NiPoGi AM06 Pro AMD Ryzen 7 5700U	8.67 fps -20%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	8.47 fps -22%

R Benchmark 2.5 - Overall mean
NiPoGi AM06 Pro AMD Ryzen 7 5700U	0.614 sec * -20%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	0.598 sec * -17%
Geekom A5 AMD Ryzen 7 5800H	0.523 sec * -3%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	0.51 sec *
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	0.4882 sec * +4%
GMK NucBox K17 Intel Core Ultra 5 226V	0.4746 sec * +7%
Acemagic Retro X3 AMD Ryzen 7 255	0.4675 sec * +8%
Geekom IT13 Max Intel Core Ultra 9 185H	0.4501 sec * +12%
Minisforum M2 Pro Intel Core Ultra X7 358H	0.4237 sec * +17%

LibreOffice - 20 Documents To PDF
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	79.8 s * -53%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	75.5 s * -45%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	67 s * -28%
GMK NucBox K17 Intel Core Ultra 5 226V	62.1 s * -19%
Acemagic Retro X3 AMD Ryzen 7 255	61.1 s * -17%
Geekom A5 AMD Ryzen 7 5800H	54.3 s * -4%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	52.2 s *
Geekom IT13 Max Intel Core Ultra 9 185H	51.4 s * +2%
Minisforum M2 Pro Intel Core Ultra X7 358H	50.1 s * +4%

3DMark
1920x1080 Fire Strike Physics
Minisforum M2 Pro Intel Core Ultra X7 358H	28593 Points +63%
Geekom IT13 Max Intel Core Ultra 9 185H	28505 Points +62%
Acemagic Retro X3 AMD Ryzen 7 255	27148 Points +55%
Geekom A5 AMD Ryzen 7 5800H	22433 Points +28%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	19687 Points +12%
GMK NucBox K17 Intel Core Ultra 5 226V	18892 Points +8%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	17569 Points
NiPoGi AM06 Pro AMD Ryzen 7 5700U	15269 Points -13%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	13885 Points -21%
2560x1440 Time Spy CPU
Minisforum M2 Pro Intel Core Ultra X7 358H	14241 Points +127%
Geekom IT13 Max Intel Core Ultra 9 185H	10487 Points +67%
Acemagic Retro X3 AMD Ryzen 7 255	9227 Points +47%
Geekom A5 AMD Ryzen 7 5800H	8481 Points +35%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	7516 Points +20%
GMK NucBox K17 Intel Core Ultra 5 226V	6588 Points +5%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	6273 Points
NiPoGi AM06 Pro AMD Ryzen 7 5700U	4951 Points -21%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	4321 Points -31%

Super Pi mod 1.5 XS 1M - 1M
NiPoGi AM06 Pro AMD Ryzen 7 5700U	10.137 s * -5%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	9.623 s *
Geekom A5 AMD Ryzen 7 5800H	9.415 s * +2%
GMK NucBox K17 Intel Core Ultra 5 226V	8.517 s * +11%
Acemagic Retro X3 AMD Ryzen 7 255	8.481 s * +12%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	8.306 s * +14%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	7.672 s * +20%
Minisforum M2 Pro Intel Core Ultra X7 358H	7.248 s * +25%
Geekom IT13 Max Intel Core Ultra 9 185H	6.841 s * +29%

Super Pi mod 1.5 XS 2M - 2M
NiPoGi AM06 Pro AMD Ryzen 7 5700U	25.746 s * -24%
Acemagic Retro X3 AMD Ryzen 7 255	20.859 s * -1%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	20.688 s *
Geekom A5 AMD Ryzen 7 5800H	20.257 s * +2%
GMK NucBox K17 Intel Core Ultra 5 226V	18.695 s * +10%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	17.898 s * +13%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	16.336 s * +21%
Minisforum M2 Pro Intel Core Ultra X7 358H	15.885 s * +23%
Geekom IT13 Max Intel Core Ultra 9 185H	15.115 s * +27%

Affinity Photo 2 - Combined (Multi CPU)
Minisforum M2 Pro Intel Core Ultra X7 358H	1163 Points +147%
Geekom IT13 Max Intel Core Ultra 9 185H	868 Points +85%
Acemagic Retro X3 AMD Ryzen 7 255	774 Points +65%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	582 Points +24%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U	470 Points
Geekom A5 AMD Ryzen 7 5800H	439 Points -7%
NiPoGi AM06 Pro AMD Ryzen 7 5700U	407 Points -13%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	383 Points -19%
GMK NucBox K17 Intel Core Ultra 5 226V	348 Points -26%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

6206

Cinebench R10 Shading 64Bit

14813 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

53386 Points

Cinebench R10 Rendering Single CPUs 64Bit

11837 Points

Cinebench R10 Shading 32Bit

14005

Cinebench R10 Rendering Multiple CPUs 32Bit

29724

Cinebench R11.5 CPU Single 32Bit

2.41 Points

Cinebench R11.5 CPU Multi 32Bit

15.99 Points

Cinebench R11.5 CPU Single 64Bit

2.8 Points

Cinebench R11.5 CPU Multi 64Bit

18.1 Points

Cinebench R15 CPU Single 64Bit

235 Points

Cinebench R15 CPU Multi 64Bit

1353 Points

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 OpenGL 64Bit

96.59 fps

Cinebench R20 CPU (Multi Core)

3489 Points

Cinebench R20 CPU (Single Core)

569 Points

Cinebench R23 Single Core

1458 Points

Cinebench R23 Multi Core

8790 Points

Cinebench 2024 CPU Single Core

86 Points

Cinebench 2024 CPU Multi Core

494 Points

Cinebench 2026 CPU Multi

2039 Points

Cinebench 2026 CPU Single Thread

352 Points

Help

... in comparison

Performance rating
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	93.4 pt
Average of class Mini PC	86.2 pt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	69.5 pt
Geekom A5 ^-1! AMD Ryzen 7 5800H, Vega 8	65.6 pt
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	49.1 pt
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8	46.8 pt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	43.3 pt

AIDA64 / FP32 Ray-Trace
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	26069 KRay/s +179%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	26023 KRay/s +179%
Average of class Mini PC (974 - 82725, n=103, last 2 years)	24132 KRay/s +159%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	14620 KRay/s +57%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	13192 KRay/s +41%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	12468 KRay/s +34%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	11910 KRay/s +28%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	11902 KRay/s +28%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	9508 KRay/s +2%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	9335 KRay/s 0%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	9330 KRay/s
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	9328 KRay/s 0%

AIDA64 / FPU Julia
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	107165 Points +77%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	107056 Points +77%
Average of class Mini PC (6115 - 363782, n=103, last 2 years)	99505 Points +64%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	77847 Points +29%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75689 Points +25%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	75046 Points +24%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	60508 Points
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	60216 Points 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	60122 Points -1%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	60024 Points -1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	48424 Points -20%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	48320 Points -20%

AIDA64 / CPU SHA3
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	4716 MB/s +135%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	4716 MB/s +135%
Average of class Mini PC (385 - 9475, n=103, last 2 years)	4242 MB/s +111%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	3909 MB/s +95%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	3756 MB/s +87%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	2707 MB/s +35%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2564 MB/s +28%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	2540 MB/s +27%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2202 MB/s +10%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	2197 MB/s +10%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	2006 MB/s
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	1987 MB/s -1%

AIDA64 / CPU Queen
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	117439 Points +43%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	91846 Points +12%
Average of class Mini PC (20501 - 154404, n=79, last 2 years)	89397 Points +9%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	81960 Points
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	66907 Points -18%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	47070 Points -43%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	46930 Points -43%

AIDA64 / FPU SinJulia
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	15011 Points +56%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	15008 Points +56%
Average of class Mini PC (1116 - 31931, n=103, last 2 years)	12638 Points +32%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	10972 Points +14%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	10118 Points +5%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	10118 Points +5%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	9597 Points
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	9593 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	3921 Points -59%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	3915 Points -59%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	3916 Points -59%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	3906 Points -59%

AIDA64 / FPU Mandel
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	57596 Points +73%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	57586 Points +73%
Average of class Mini PC (3322 - 192994, n=103, last 2 years)	52399 Points +57%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	42543 Points +28%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	39227 Points +18%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	36858 Points +11%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	33274 Points
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	33170 Points 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	31788 Points -4%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	31779 Points -4%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	25349 Points -24%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	25323 Points -24%

AIDA64 / CPU AES
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	108262 MB/s +156%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	87750 MB/s +107%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	87498 MB/s +107%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	77622 MB/s +83%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	77212 MB/s +82%
Average of class Mini PC (5014 - 204742, n=102, last 2 years)	77260 MB/s +83%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	42332 MB/s
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	42275 MB/s 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	34228 MB/s -19%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	34222 MB/s -19%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	34049 MB/s -20%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	33842 MB/s -20%

AIDA64 / CPU ZLib
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	1142 MB/s +110%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	1119 MB/s +106%
Average of class Mini PC (127.2 - 2431, n=103, last 2 years)	1058 MB/s +95%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	1046 MB/s +93%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	1038 MB/s +91%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	700 MB/s +29%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	568 MB/s +5%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	559 MB/s +3%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	543 MB/s
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	542 MB/s 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	521 MB/s -4%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	516 MB/s -5%

AIDA64 / FP64 Ray-Trace
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	14090 KRay/s +184%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	13991 KRay/s +182%
Average of class Mini PC (537 - 43587, n=103, last 2 years)	12829 KRay/s +159%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	7875 KRay/s +59%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	7070 KRay/s +43%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	6611 KRay/s +33%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	6527 KRay/s +32%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	6380 KRay/s +29%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	5165 KRay/s +4%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	5133 KRay/s +4%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	4956 KRay/s
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	4935 KRay/s 0%

AIDA64 / CPU PhotoWorxx
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	54555 MPixel/s +208%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	50023 MPixel/s +183%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	51770 MPixel/s +192%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	46620 MPixel/s +163%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	50262 MPixel/s +184%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	48941 MPixel/s +176%
Average of class Mini PC (8069 - 96843, n=103, last 2 years)	41860 MPixel/s +136%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	30508 MPixel/s +72%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	30485 MPixel/s +72%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	25113 MPixel/s +42%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	17707 MPixel/s
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	17451 MPixel/s -1%

AIDA64 / CPU CheckMate
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	5903 MP/s +182%
Average of class Mini PC (1743 - 19453, n=24, last 2 years)	5292 MP/s +153%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	3258 MP/s +56%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2367 MP/s +13%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	2091 MP/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2013 MP/s -4%

Cinebench R15 多核耐久测试

Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, AMD Ryzen 7 7730U: Ø1350 (1303.23-1551.89) Points

GMK NucBox K17 Intel Core Ultra 5 226V, Intel Core Ultra 5 226V: Ø1226 (1212.75-1232.63) Points

Geekom IT13 Max Intel Core Ultra 9 185H, Intel Core Ultra 9 185H: Ø2415 (2345.08-2716.65) Points

Acemagic Retro X3 AMD Ryzen 7 255, AMD Ryzen 7 255: Ø2535 (2525.57-2578.48) Points

Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Intel Core Ultra 5 226V: Ø1358 (1296.89-1391.79) Points

Geekom A5 AMD Ryzen 7 5800H, AMD Ryzen 7 5800H: Ø1715 (1692.05-1838.74) Points

系统性能

日常使用中的性能表现几乎无可挑剔：常规应用程序运行流畅，系统响应迅速。PCMark 10 基准测试也证实了这款迷你电脑在办公场景中的出色性能。不过，DPC 延迟测试暴露出了可量化的不足，其延迟略高于理想水平，可能导致实时音频播放或录制过程中出现声音中断。

PCMark 10 / Score
Minisforum M2 Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, YMTC PC411-1TB	9288 Points +43%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	8330 Points +28%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	7736 Points +19%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	7696 Points +18%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	7481 Points +15%
Geekom A5 2027 Edition, R7 7730U, AMD Ryzen 7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8TAP4512K1-A00	6496 Points
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	6149 Points -5%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	5134 Points -21%
NiPoGi AM06 Pro, AMD Ryzen 7 5700U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AirDisk AFF 10-512G	4739 Points -27%

PCMark 10 / Essentials
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	10356 Points +13%
Minisforum M2 Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, YMTC PC411-1TB	10110 Points +10%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	9779 Points +7%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	9740 Points +6%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	9627 Points +5%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	9312 Points +2%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	9281 Points +1%
Geekom A5 2027 Edition, R7 7730U, AMD Ryzen 7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8TAP4512K1-A00	9162 Points
NiPoGi AM06 Pro, AMD Ryzen 7 5700U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AirDisk AFF 10-512G	8343 Points -9%

PCMark 10 / Productivity
Minisforum M2 Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, YMTC PC411-1TB	16213 Points +15%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	15629 Points +11%
Geekom A5 2027 Edition, R7 7730U, AMD Ryzen 7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8TAP4512K1-A00	14098 Points
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	14057 Points 0%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	13840 Points -2%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	13677 Points -3%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	9311 Points -34%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	8726 Points -38%
NiPoGi AM06 Pro, AMD Ryzen 7 5700U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AirDisk AFF 10-512G	7975 Points -43%

WebXPRT 4 / Overall
Minisforum M2 Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, YMTC PC411-1TB	287 Points +36%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	280 Points +33%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	273 Points +29%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	252 Points +19%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	249 Points +18%
Geekom A5 2027 Edition, R7 7730U, AMD Ryzen 7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8TAP4512K1-A00	211 Points
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	201 Points -5%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	186.5 Points -12%
NiPoGi AM06 Pro, AMD Ryzen 7 5700U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AirDisk AFF 10-512G	170.3 Points -19%

WebXPRT 3 / Overall
Minisforum M2 Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, YMTC PC411-1TB	313 Points +24%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	302 Points +20%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	297 Points +18%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	292 Points +16%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	285 Points +13%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	269 Points +7%
Geekom A5 2027 Edition, R7 7730U, AMD Ryzen 7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8TAP4512K1-A00	252 Points
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	230 Points -9%
NiPoGi AM06 Pro, AMD Ryzen 7 5700U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AirDisk AFF 10-512G	203 Points -19%

Mozilla Kraken 1.1 / Total
NiPoGi AM06 Pro, AMD Ryzen 7 5700U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AirDisk AFF 10-512G	825 ms * -27%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	717 ms * -10%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	653 ms * -0%
Geekom A5 2027 Edition, R7 7730U, AMD Ryzen 7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8TAP4512K1-A00	651 ms *
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	555 ms * +15%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	521 ms * +20%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	499 ms * +23%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	494 ms * +24%
Minisforum M2 Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, YMTC PC411-1TB	463 ms * +29%

CrossMark / Overall
Minisforum M2 Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, YMTC PC411-1TB	2002 Points +70%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1846 Points +57%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1605 Points +36%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	1563 Points +33%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1558 Points +32%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1429 Points +21%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	1185 Points +1%
Geekom A5 2027 Edition, R7 7730U, AMD Ryzen 7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8TAP4512K1-A00	1179 Points
NiPoGi AM06 Pro, AMD Ryzen 7 5700U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AirDisk AFF 10-512G	963 Points -18%

CrossMark / Productivity
Minisforum M2 Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, YMTC PC411-1TB	1842 Points +51%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1724 Points +41%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1564 Points +28%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1529 Points +25%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	1528 Points +25%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1408 Points +15%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	1257 Points +3%
Geekom A5 2027 Edition, R7 7730U, AMD Ryzen 7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8TAP4512K1-A00	1222 Points
NiPoGi AM06 Pro, AMD Ryzen 7 5700U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AirDisk AFF 10-512G	1012 Points -17%

CrossMark / Creativity
Minisforum M2 Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, YMTC PC411-1TB	2336 Points +84%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	2074 Points +63%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1743 Points +37%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	1711 Points +35%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1710 Points +35%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1523 Points +20%
Geekom A5 2027 Edition, R7 7730U, AMD Ryzen 7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8TAP4512K1-A00	1271 Points
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	1184 Points -7%
NiPoGi AM06 Pro, AMD Ryzen 7 5700U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AirDisk AFF 10-512G	986 Points -22%

CrossMark / Responsiveness
Minisforum M2 Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, YMTC PC411-1TB	1615 Points +92%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1601 Points +90%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1357 Points +61%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	1275 Points +51%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1244 Points +48%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1233 Points +46%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	992 Points +18%
Geekom A5 2027 Edition, R7 7730U, AMD Ryzen 7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8TAP4512K1-A00	843 Points
NiPoGi AM06 Pro, AMD Ryzen 7 5700U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AirDisk AFF 10-512G	774 Points -8%

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum M2 Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (v8.20.8100)	106460 MB/s +178%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	102045 MB/s +166%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	100830 MB/s +163%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	100903 MB/s +163%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	99145 MB/s +159%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75089 MB/s +96%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	74884 MB/s +95%
Average of class Mini PC (15933 - 163031, n=102, last 2 years)	69855 MB/s +82%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	68402 MB/s +78%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	67953 MB/s +77%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	43870 MB/s +14%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	38336 MB/s
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	38323 MB/s 0%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	21231 MB/s -45%
NiPoGi AM06 Pro AMD Ryzen 7 5700U, Vega 8 (v6.92.6600)	20442 MB/s -47%

AIDA64 / Memory Read
Minisforum M2 Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (v6.92.6600)	104382 MB/s +159%
Minisforum M2 Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (v8.20.8100)	99116 MB/s +146%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	85847 MB/s +113%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	84874 MB/s +111%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	83943 MB/s +109%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	83843 MB/s +108%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	72277 MB/s +80%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	70624 MB/s +76%
Average of class Mini PC (14143 - 123769, n=103, last 2 years)	66779 MB/s +66%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	50151 MB/s +25%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	50038 MB/s +24%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	46241 MB/s +15%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	40226 MB/s
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	40059 MB/s 0%
NiPoGi AM06 Pro AMD Ryzen 7 5700U, Vega 8 (v6.92.6600)	23738 MB/s -41%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	23386 MB/s -42%

AIDA64 / Memory Write
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	111489 MB/s +179%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	111430 MB/s +179%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	109511 MB/s +174%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	109082 MB/s +173%
Minisforum M2 Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (v8.20.8100)	106096 MB/s +165%
Minisforum M2 Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (v6.92.6600)	106005 MB/s +165%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	89387 MB/s +124%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	88683 MB/s +122%
Average of class Mini PC (10630 - 216693, n=103, last 2 years)	79808 MB/s +100%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	75225 MB/s +88%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75208 MB/s +88%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	46407 MB/s +16%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	39967 MB/s
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	39960 MB/s 0%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	23408 MB/s -41%
NiPoGi AM06 Pro AMD Ryzen 7 5700U, Vega 8 (v6.92.6600)	23359 MB/s -42%

AIDA64 / Memory Latency
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	174.6 ns * -71%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	172.1 ns * -69%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	113.3 ns * -11%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	109.1 ns * -7%
Minisforum M2 Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (v8.20.8100)	104.4 ns * -2%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v8.20.8100)	102.1 ns *
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8 (v6.92.6600)	96 ns * +6%
Average of class Mini PC (88.1 - 174.6, n=103, last 2 years)	101 ns * +1%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	99.7 ns * +2%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	96.4 ns * +6%
NiPoGi AM06 Pro AMD Ryzen 7 5700U, Vega 8 (v6.92.6600)	95.7 ns * +6%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	94.2 ns * +8%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	89.5 ns * +12%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	88.2 ns * +14%
Geekom A5 AMD Ryzen 7 5800H, Vega 8 (v6.85.6300)	81.4 ns * +20%

* ... smaller is better

DPC 延迟

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	2366 μs *
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	1849 μs * +22%
NiPoGi AM06 Pro Vega 8, R7 5700U, AirDisk AFF 10-512G	1539.38 μs * +35%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1310.5 μs * +45%
Minisforum M2 Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, YMTC PC411-1TB	1267.2 μs * +46%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	1200 μs * +49%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	960.4 μs * +59%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	781 μs * +67%

* ... smaller is better

存储设备

安装的 Kingston SSD 拥有 512 GB 存储容量，虽然支持 PCIe 4.0，却只能使用 PCIe 3.0 x4 接口。在实际使用中，得益于机身提供的有效被动散热，该 SSD 性能稳定，即使长时间持续写入也不会下降。

AS SSD

DiskSpd

Kingston OM8TAP4512K1-A00

Sequential Read: 3113MB/s

Sequential Write: 2695MB/s

4K Read: 45.5MB/s

4K Write: 102.1MB/s

4K-64 Read: 1423MB/s

4K-64 Write: 1435MB/s

Access Time Read: 0.166ms

Access Time Write: 0.116ms

Copy ISO: 2543.9MB/s

Copy Program: 674.56MB/s

Copy Game: 1449.87MB/s

Score Read: 1780Points

Score Write: 1807Points

Score Total: 4479Points

Drive Performance rating | DiskSpd | AS SSD

Drive Performance rating - Percent
Minisforum M2 Pro YMTC PC411-1TB	77.5 pt
Average of class Mini PC	76.4 pt
Acemagic Retro X3 Faspeed P9-1TB	73.6 pt
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	70.7 pt
Geekom A5 Lexar NM620 512GB	68.3 pt
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	65.6 pt
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	62.9 pt
Ninkear M7, (16+512) Faspeed P8-512G-SE	48.6 pt
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	43.6 pt
NiPoGi AM06 Pro AirDisk AFF 10-512G	23.5 pt

DiskSpd
seq read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3437 (2671.77^min - 3436.65^max) MB/s +18%
Acemagic Retro X3 Faspeed P9-1TB	3296 (2404.8^min - 3296^max) MB/s +13%
Minisforum M2 Pro YMTC PC411-1TB	3054 (3031.41^min - 3054.29^max) MB/s +5%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	2906 (2866.32^min - 2906.29^max) MB/s
Average of class Mini PC (435 - 4960, n=83, last 2 years)	2494 MB/s -14%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2476 (2339.58^min - 2475.9^max) MB/s -15%
Geekom A5 Lexar NM620 512GB	2371 (2315.68^min - 2370.91^max) MB/s -18%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1282 (1208.17^min - 1282.25^max) MB/s -56%
NiPoGi AM06 Pro AirDisk AFF 10-512G	890 (886.58^min - 889.82^max) MB/s -69%
Ninkear M7, (16+512) Faspeed P8-512G-SE	863 (860.21^min - 862.77^max) MB/s -70%
seq write
Acemagic Retro X3 Faspeed P9-1TB	3476 (3435.39^min - 3475.61^max) MB/s +30%
Average of class Mini PC (408 - 5265, n=83, last 2 years)	2958 MB/s +11%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2744 (1428.03^min - 2743.91^max) MB/s +3%
Minisforum M2 Pro YMTC PC411-1TB	2720 (2637.56^min - 2720.01^max) MB/s +2%
Geekom A5 Lexar NM620 512GB	2668 (292.6^min - 2668^max) MB/s 0%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	2667 (2615.16^min - 2666.86^max) MB/s
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1945 (1600.49^min - 1945.32^max) MB/s -27%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1126 (983.35^min - 1126.17^max) MB/s -58%
NiPoGi AM06 Pro AirDisk AFF 10-512G	752 (747.63^min - 752.42^max) MB/s -72%
Ninkear M7, (16+512) Faspeed P8-512G-SE	752 (746.8^min - 751.62^max) MB/s -72%
seq q8 t1 read
Minisforum M2 Pro YMTC PC411-1TB	6916 (6047.7^min - 6916.42^max) MB/s +87%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	6829 (5502.51^min - 6829.17^max) MB/s +85%
Acemagic Retro X3 Faspeed P9-1TB	6218 (5011.82^min - 6217.57^max) MB/s +68%
Average of class Mini PC (543 - 7117, n=83, last 2 years)	4415 MB/s +19%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	3945 (2995.45^min - 3945.37^max) MB/s +7%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	3700 (3084.4^min - 3699.74^max) MB/s
Geekom A5 Lexar NM620 512GB	3444 (2979.63^min - 3443.98^max) MB/s -7%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1766 (1490.45^min - 1765.63^max) MB/s -52%
NiPoGi AM06 Pro AirDisk AFF 10-512G	1010 (978.88^min - 1009.78^max) MB/s -73%
Ninkear M7, (16+512) Faspeed P8-512G-SE	996 (973.5^min - 996.04^max) MB/s -73%
seq q8 t1 write
Minisforum M2 Pro YMTC PC411-1TB	5772 (5501.36^min - 5772.4^max) MB/s +78%
Acemagic Retro X3 Faspeed P9-1TB	4779 (4697.87^min - 4778.87^max) MB/s +47%
Average of class Mini PC (410 - 6497, n=83, last 2 years)	3514 MB/s +8%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	3245 (3199.83^min - 3245.35^max) MB/s
Geekom A5 Lexar NM620 512GB	3117 (3075.4^min - 3117.21^max) MB/s -4%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3082 (2929.93^min - 3081.85^max) MB/s -5%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2941 (2574.88^min - 2941.05^max) MB/s -9%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1617 (1569.09^min - 1616.69^max) MB/s -50%
Ninkear M7, (16+512) Faspeed P8-512G-SE	839 (834.46^min - 839.07^max) MB/s -74%
NiPoGi AM06 Pro AirDisk AFF 10-512G	835 (830.26^min - 834.88^max) MB/s -74%
4k q1 t1 read
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	63.8 (56.54^min - 63.82^max) MB/s +26%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	62.9 (60.28^min - 62.92^max) MB/s +24%
Acemagic Retro X3 Faspeed P9-1TB	62.2 (60.24^min - 62.23^max) MB/s +23%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	61.8 (59.37^min - 61.83^max) MB/s +22%
Average of class Mini PC (6.85 - 88.3, n=83, last 2 years)	55.5 MB/s +9%
Geekom A5 Lexar NM620 512GB	54.5 (37.15^min - 54.54^max) MB/s +7%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	50.7 (49.78^min - 50.7^max) MB/s
Minisforum M2 Pro YMTC PC411-1TB	45.9 (42.73^min - 45.91^max) MB/s -9%
NiPoGi AM06 Pro AirDisk AFF 10-512G	33.1 (32.7^min - 33.06^max) MB/s -35%
Ninkear M7, (16+512) Faspeed P8-512G-SE	30.3 (30.14^min - 30.32^max) MB/s -40%
4k q1 t1 write
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	201 (158.52^min - 201.45^max) MB/s +75%
Average of class Mini PC (29.6 - 366, n=83, last 2 years)	180.2 MB/s +57%
Minisforum M2 Pro YMTC PC411-1TB	150.1 (129.91^min - 150.1^max) MB/s +31%
Geekom A5 Lexar NM620 512GB	148.4 (147.43^min - 148.38^max) MB/s +29%
Acemagic Retro X3 Faspeed P9-1TB	141.7 (140.5^min - 141.66^max) MB/s +23%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	138 (119.87^min - 137.97^max) MB/s +20%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	114.8 (114.26^min - 114.81^max) MB/s
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	103.5 (100.16^min - 103.46^max) MB/s -10%
NiPoGi AM06 Pro AirDisk AFF 10-512G	74.5 (74.03^min - 74.5^max) MB/s -35%
Ninkear M7, (16+512) Faspeed P8-512G-SE	40 (39.82^min - 40^max) MB/s -65%
4k q32 t16 read
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	2329 (2303.36^min - 2328.53^max) MB/s
Geekom A5 Lexar NM620 512GB	1960 MB/s -16%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1960 (1905.33^min - 1960.41^max) MB/s -16%
Average of class Mini PC (177.7 - 4349, n=83, last 2 years)	1492 MB/s -36%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1364 (1348.97^min - 1363.74^max) MB/s -41%
Acemagic Retro X3 Faspeed P9-1TB	977 (944.6^min - 976.53^max) MB/s -58%
Minisforum M2 Pro YMTC PC411-1TB	798 (711.52^min - 797.93^max) MB/s -66%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	581 (564.79^min - 581.34^max) MB/s -75%
Ninkear M7, (16+512) Faspeed P8-512G-SE	369 (367.06^min - 369.29^max) MB/s -84%
NiPoGi AM06 Pro AirDisk AFF 10-512G	305 (106.21^min - 304.53^max) MB/s -87%
4k q32 t16 write
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	2229 (2067.56^min - 2228.83^max) MB/s
Geekom A5 Lexar NM620 512GB	1370 (84.65^min - 1370.23^max) MB/s -39%
Average of class Mini PC (151.8 - 4088, n=83, last 2 years)	1320 MB/s -41%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	962 (435.84^min - 961.9^max) MB/s -57%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	847 (818.18^min - 846.78^max) MB/s -62%
Minisforum M2 Pro YMTC PC411-1TB	476 (374.69^min - 475.68^max) MB/s -79%
Acemagic Retro X3 Faspeed P9-1TB	427 (414.04^min - 427.39^max) MB/s -81%
Ninkear M7, (16+512) Faspeed P8-512G-SE	313 (289.5^min - 313.33^max) MB/s -86%
NiPoGi AM06 Pro AirDisk AFF 10-512G	295 (293.56^min - 295.23^max) MB/s -87%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	245 (194.02^min - 244.8^max) MB/s -89%

AS SSD
Score Total
Minisforum M2 Pro YMTC PC411-1TB	5062 Points +13%
Average of class Mini PC (507 - 10559, n=81, last 2 years)	4808 Points +7%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	4479 Points
Acemagic Retro X3 Faspeed P9-1TB	4266 Points -5%
Ninkear M7, (16+512) Faspeed P8-512G-SE	4136 Points -8%
Geekom A5 Lexar NM620 512GB	4006 Points -11%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	3550 Points -21%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3171 Points -29%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	2138 Points -52%
NiPoGi AM06 Pro AirDisk AFF 10-512G	756 Points -83%
Score Read
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1833 Points +3%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	1780 Points
Ninkear M7, (16+512) Faspeed P8-512G-SE	1771 Points -1%
Average of class Mini PC (192 - 3834, n=81, last 2 years)	1642 Points -8%
Geekom A5 Lexar NM620 512GB	1502 Points -16%
Minisforum M2 Pro YMTC PC411-1TB	1464 Points -18%
Acemagic Retro X3 Faspeed P9-1TB	1261 Points -29%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1169 Points -34%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	886 Points -50%
NiPoGi AM06 Pro AirDisk AFF 10-512G	292 Points -84%
Score Write
Minisforum M2 Pro YMTC PC411-1TB	2933 Points +62%
Acemagic Retro X3 Faspeed P9-1TB	2426 Points +34%
Average of class Mini PC (210 - 5505, n=81, last 2 years)	2356 Points +30%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	1807 Points
Geekom A5 Lexar NM620 512GB	1739 Points -4%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1494 Points -17%
Ninkear M7, (16+512) Faspeed P8-512G-SE	1471 Points -19%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	826 Points -54%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	801 Points -56%
NiPoGi AM06 Pro AirDisk AFF 10-512G	309 Points -83%
Seq Read
Minisforum M2 Pro YMTC PC411-1TB	5355 MB/s +72%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	5056 MB/s +62%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	4110 MB/s +32%
Acemagic Retro X3 Faspeed P9-1TB	3955 MB/s +27%
Average of class Mini PC (501 - 5440, n=81, last 2 years)	3730 MB/s +20%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	3113 MB/s
Ninkear M7, (16+512) Faspeed P8-512G-SE	3031 MB/s -3%
Geekom A5 Lexar NM620 512GB	3020 MB/s -3%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1495 MB/s -52%
NiPoGi AM06 Pro AirDisk AFF 10-512G	508 MB/s -84%
Seq Write
Minisforum M2 Pro YMTC PC411-1TB	3571 MB/s +33%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2998 MB/s +11%
Average of class Mini PC (437 - 5172, n=81, last 2 years)	2924 MB/s +8%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	2883 MB/s +7%
Geekom A5 Lexar NM620 512GB	2714 MB/s +1%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	2695 MB/s
Ninkear M7, (16+512) Faspeed P8-512G-SE	2676 MB/s -1%
Acemagic Retro X3 Faspeed P9-1TB	2369 MB/s -12%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1206 MB/s -55%
NiPoGi AM06 Pro AirDisk AFF 10-512G	437 MB/s -84%
4K Read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	63.9 MB/s +40%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	58.9 MB/s +29%
Average of class Mini PC (18.2 - 101.7, n=81, last 2 years)	58.2 MB/s +28%
Geekom A5 Lexar NM620 512GB	57.7 MB/s +27%
Acemagic Retro X3 Faspeed P9-1TB	55.1 MB/s +21%
Ninkear M7, (16+512) Faspeed P8-512G-SE	53.1 MB/s +17%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	45.5 MB/s
Minisforum M2 Pro YMTC PC411-1TB	43.6 MB/s -4%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	43.4 MB/s -5%
NiPoGi AM06 Pro AirDisk AFF 10-512G	25.5 MB/s -44%
4K Write
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	184.2 MB/s +80%
Average of class Mini PC (67.3 - 318, n=81, last 2 years)	174 MB/s +70%
Acemagic Retro X3 Faspeed P9-1TB	169.5 MB/s +66%
Minisforum M2 Pro YMTC PC411-1TB	161.1 MB/s +58%
Geekom A5 Lexar NM620 512GB	125.5 MB/s +23%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	118.3 MB/s +16%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	102.1 MB/s
Ninkear M7, (16+512) Faspeed P8-512G-SE	96.3 MB/s -6%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	94.4 MB/s -8%
NiPoGi AM06 Pro AirDisk AFF 10-512G	80.9 MB/s -21%
4K-64 Read
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	1423 MB/s
Ninkear M7, (16+512) Faspeed P8-512G-SE	1415 MB/s -1%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1363 MB/s -4%
Average of class Mini PC (118.5 - 3321, n=81, last 2 years)	1211 MB/s -15%
Geekom A5 Lexar NM620 512GB	1143 MB/s -20%
Minisforum M2 Pro YMTC PC411-1TB	885 MB/s -38%
Acemagic Retro X3 Faspeed P9-1TB	810 MB/s -43%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	693 MB/s -51%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	599 MB/s -58%
NiPoGi AM06 Pro AirDisk AFF 10-512G	216 MB/s -85%
4K-64 Write
Minisforum M2 Pro YMTC PC411-1TB	2415 MB/s +68%
Acemagic Retro X3 Faspeed P9-1TB	2019 MB/s +41%
Average of class Mini PC (96.3 - 4890, n=81, last 2 years)	1890 MB/s +32%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	1435 MB/s
Geekom A5 Lexar NM620 512GB	1342 MB/s -6%
Ninkear M7, (16+512) Faspeed P8-512G-SE	1107 MB/s -23%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1088 MB/s -24%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	586 MB/s -59%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	342 MB/s -76%
NiPoGi AM06 Pro AirDisk AFF 10-512G	183.9 MB/s -87%
Access Time Read
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	0.242 ms * -46%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	0.166 ms *
Acemagic Retro X3 Faspeed P9-1TB	0.147 ms * +11%
Minisforum M2 Pro YMTC PC411-1TB	0.143 ms * +14%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.137 ms * +17%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	0.135 ms * +19%
NiPoGi AM06 Pro AirDisk AFF 10-512G	0.109 ms * +34%
Average of class Mini PC (0.027 - 0.242, n=81, last 2 years)	0.09716 ms * +41%
Ninkear M7, (16+512) Faspeed P8-512G-SE	0.084 ms * +49%
Geekom A5 Lexar NM620 512GB	0.08 ms * +52%
Access Time Write
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	0.185 ms * -59%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	0.139 ms * -20%
Geekom A5 Lexar NM620 512GB	0.13 ms * -12%
NiPoGi AM06 Pro AirDisk AFF 10-512G	0.13 ms * -12%
Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00	0.116 ms *
Average of class Mini PC (0.013 - 0.706, n=81, last 2 years)	0.1041 ms * +10%
Ninkear M7, (16+512) Faspeed P8-512G-SE	0.102 ms * +12%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.084 ms * +28%
Minisforum M2 Pro YMTC PC411-1TB	0.067 ms * +42%
Acemagic Retro X3 Faspeed P9-1TB	0.062 ms * +47%

* ... smaller is better

磁盘限速：DiskSpd 读取循环，队列深度 8

Geekom A5 2027 Edition, R7 7730U Kingston OM8TAP4512K1-A00; diskspd 2.0.17 f: Ø3445 (2908.59-3460.3) MB/s

GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB; diskspd 2.0.17 f: Ø3765 (1445.94-6800.23) MB/s

Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN; diskspd 2.0.17 f: Ø2948 (2469.4-2989.49) MB/s

Acemagic Retro X3 Faspeed P9-1TB; diskspd 2.0.17 f: Ø6510 (5621.42-6619.63) MB/s

Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510; diskspd 2.0.17 f: Ø1760 (1310.3-1770.63) MB/s

Geekom A5 Lexar NM620 512GB: Ø3437 (3126.47-3454.22) MB/s

显卡和游戏性能

集成的 AMD Radeon RX Vega 8 充当 iGPU。其性能很难满足现代 3D 游戏的需求——一些要求较高的游戏只有在降低分辨率（720p）后才能流畅运行。不过，这款 iGPU 运行经典老游戏和简单的休闲游戏则绰绰有余。

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark Performance rating - Percent
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	90.6 pt
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	89.3 pt
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	86.8 pt
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	83.3 pt
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	44.6 pt
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	37.3 pt

3DMark 11 - 1280x720 Performance GPU
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	13388 Points +123%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10697 Points +78%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10312 Points +71%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	9877 Points +64%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7101 Points +18%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	6014 Points

3DMark
2560x1440 Time Spy Graphics
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3520 Points +193%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3164 Points +163%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3148 Points +162%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	2790 Points +132%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1418 Points +18%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	1201 Points
1920x1080 Fire Strike Graphics
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	8699 Points +135%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	8463 Points +128%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8350 Points +125%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	8094 Points +118%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4567 Points +23%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	3707 Points
Steel Nomad Score
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	782 Points +264%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	669 Points +211%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	686 Points +219%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	684 Points +218%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	659 Points +207%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	644 Points +200%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	477 Points +122%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	474 Points +120%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	256 Points +19%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	215 Points

Unigine Heaven 4.0
Extreme Preset OpenGL
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	37.3 fps +116%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	36 fps +108%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	36 fps +108%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	31.5 fps +82%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	22.8 fps +32%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	17.3 fps
Extreme Preset DX11
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	34.5 fps +103%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	32.4 fps +91%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	26.3 fps +55%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	22 fps +29%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	21.6 fps +27%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	17 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	24.8 fps +123%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	23.7 fps +114%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	23.1 fps +108%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	17.9 fps +61%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	14.2 fps +28%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	11.1 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	30.2 fps +165%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	26.7 fps +134%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	19.6 fps +72%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	17.7 fps +55%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	14.7 fps +29%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	11.4 fps

Unigine Superposition
1280x720 720p Low
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	11334 Points +99%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	10953 Points +92%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10697 Points +87%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	8393 Points +47%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7952 Points +39%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	5706 Points
1920x1080 1080p High
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3823 Points +170%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3751 Points +165%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3230 Points +128%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	3182 Points +125%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1949 Points +38%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	1415 Points
1920x1080 1080p Extreme
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2052 Points +209%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1694 Points +155%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1563 Points +135%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1319 Points +99%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	914 Points +38%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	664 Points

ComputeMark v2.1
1024x600 Normal, Score
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	10495 Points +192%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7704 Points +114%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6008 Points +67%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	5886 Points +64%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4020 Points +12%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	3600 Points
1024x600 Normal, Fluid 3DTex
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	929 Points +266%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	913 Points +259%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	530 Points +109%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	427 Points +68%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	296 Points +17%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	254 Points
1024x600 Normal, Fluid 2DTexArr
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	641 Points +166%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	619 Points +157%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	479 Points +99%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	427 Points +77%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	280 Points +16%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	241 Points
1024x600 Normal, Mandel Vector
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	2984 Points +167%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1905 Points +70%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1323 Points +18%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1242 Points +11%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1236 Points +10%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	1119 Points
1024x600 Normal, Mandel Scalar
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	2808 Points +191%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2005 Points +108%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1127 Points +17%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1092 Points +13%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1062 Points +10%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	964 Points
1024x600 Normal, QJuliaRayTrace
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	3849 Points +277%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2785 Points +173%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	2026 Points +98%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1983 Points +94%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1145 Points +12%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	1021 Points

LuxMark v2.0 64Bit
Room GPUs-only
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1002 Samples/s +103%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	997 Samples/s +102%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	838 Samples/s +70%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	747 Samples/s +52%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	586 Samples/s +19%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	493 Samples/s
Sala GPUs-only
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2879 Samples/s +207%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	2871 Samples/s +206%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	2698 Samples/s +188%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1513 Samples/s +61%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1383 Samples/s +48%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	937 Samples/s

Affinity Photo 2 - Combined (Single / Multi GPU)
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6894 Points +663%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6245 Points +591%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	5264 Points +482%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1683 Points +86%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1580 Points +75%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	904 Points

Geekbench AI
Quantized GPU 1.7
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	4966 Points +116%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	4773 Points +107%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	4133 Points +80%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3491 Points +52%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	2513 Points +9%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	2301 Points
Half Precision GPU 1.7
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	12935 Points +208%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	11517 Points +174%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	9167 Points +118%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7806 Points +86%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4725 Points +12%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	4205 Points
Single Precision GPU 1.7
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6947 Points +129%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	6354 Points +110%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6296 Points +108%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	4797 Points +58%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	3404 Points +12%
Geekom A5 2027 Edition, R7 7730U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	3028 Points

3DMark 06 Standard Score		22888 points
3DMark Vantage P Result		18398 points
3DMark 11 Performance		6307 points
3DMark Ice Storm Standard Score		84515 points
3DMark Cloud Gate Standard Score		20390 points
3DMark Fire Strike Score		3342 points
3DMark Fire Strike Extreme Score		1536 points
3DMark Time Spy Score		1366 points
3DMark Steel Nomad Score		215 points
Help

... in comparison

GTA V | Dota 2 Reborn | Cyberpunk 2077 | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	148.5 (4.34^min, 100^P1) fps +45%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	147.7 (4.09^min, 100^P1) fps +44%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	140.1 (17.4^min, 90.9^P1) fps +37%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	115.9 (16.7^min, 71.4^P1) fps +13%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	115 (11.8^min, 66.7^P1) fps +12%
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	102.6 (10.9^min, 66.7^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	60.4 (3.67^min, 41.7^P1) fps +136%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	57.9 (5.01^min, 41.7^P1) fps +126%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	55.5 (5.25^min, 40^P1) fps +117%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	37.2 (6.45^min, 30.3^P1) fps +45%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	35.1 (10.8^min, 25.6^P1) fps +37%
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	25.6 (6.37^min, 18.5^P1) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	131.4 (114.4^min) fps +16%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	129.5 (112.6^min) fps +14%
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	113.3 (98.9^min) fps
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	107.4 (76.3^min) fps -5%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	107 (68^min) fps -6%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	94.5 (66.9^min) fps -17%
1920x1080 high (2/3)
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	92.3 (63.5^min) fps +80%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	81.2 (52.7^min) fps +58%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	81.2 (68.7^min) fps +58%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	67.7 (59.9^min) fps +32%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	52.3 (25.3^min) fps +2%
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	51.3 (43.5^min) fps

Cyberpunk 2077
1920x1080 Low Preset (FSR off)
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	42.3 (34.7^min, 32.7^P1) fps +207%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	38.7 (32.8^min, 31.7^P1) fps +180%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	36.2 (30.3^min, 28.8^P1) fps +162%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	34 (29.7^min, 28.4^P1) fps +146%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	19.9 (15.9^min) fps +44%
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	13.8 (11.1^min, 10.4^P1) fps
1920x1080 High Preset (FSR off)
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	29.8 (24.9^min, 23.7^P1) fps +256%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	25 (21.1^min, 20.3^P1) fps +198%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	24.9 (21.1^min, 20.2^P1) fps +197%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	23.6 (20^min, 19.3^P1) fps +182%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	12.3 (10.3^min) fps +47%
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	8.38 (7.09^min, 6.79^P1) fps

Baldur's Gate 3
1280x720 Low Preset AA:SM
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	55.6 (42.4^min, 44.2^P0.1, 46.8^P1) fps +190%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	49.4 (35.6^min, 36^P0.1, 38.3^P1) fps +157%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	49.3 (29.8^min, 29.9^P0.1, 30^P1) fps +157%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	47.7 (29.8^min, 29.9^P0.1, 30^P1) fps +148%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	30.4 (17.2^min, 20.6^P0.1, 24.4^P1) fps +58%
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	19.2 (10.2^min, 10.7^P0.1, 11.8^P1) fps
1920x1080 High Preset AA:T
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	23.4 (19.4^min, 20.1^P0.1, 21.1^P1) fps +181%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	23.2 (19.5^min, 20^P0.1, 20.6^P1) fps +179%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	22.9 (19.8^min, 19.8^P0.1, 20^P1) fps +175%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	22.5 (15^min, 17.8^P0.1, 20^P1) fps +170%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	11.7 (9.29^min, 9.56^P0.1, 10.1^P1) fps +41%
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	8.32 (6.38^min, 6.41^P0.1, 6.57^P1) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	74.4 (16^min, 54^P1) fps +165%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	74.3 (65^min, 55^P1) fps +164%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	70.1 (28^min, 53^P1) fps +149%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	62.2 (53^min, 51^P1) fps +121%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	43.9 (35^min, 33^P1) fps +56%
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	28.1 (8^min, 21^P1) fps
1920x1080 High Preset AA:T AF:16x
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	49.8 (7^min, 39^P1) fps +186%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	47.1 (39^min, 37^P1) fps +171%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	45.1 (38^min, 36^P1) fps +159%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	28.8 (24^min, 21^P1) fps +66%
Geekom A5 2027 Edition, R7 7730U Vega 8, R7 7730U, Kingston OM8TAP4512K1-A00	17.4 (12^min, 13^P1) fps

FPS 图表 - 30 分钟。Cyberpunk 2077 1920 x 1080 超高预设（FSR 关闭）

Geekom A5 2027 Edition, R7 7730U R7 7730U, Vega 8: Ø7.64 (6.83-7.77) fps

GMK NucBox K17 Core Ultra 5 226V, Arc 130V: Ø16.4 (15.6-17.2) fps

Geekom IT13 Max Ultra 9 185H, Arc 8-Core: Ø18 (17.2-18.5) fps

Acemagic Retro X3 Ryzen 7 255, Radeon 780M: Ø20.2 (19.1-20.6) fps

Ninkear L20, Ultra 5 226V Core Ultra 5 226V, Arc 130V: Ø18.2 (16.8-19.4) fps

	low	med.	high	ultra
GTA V (2015)	102.6	93.9	25.6	9.45
The Witcher 3 (2015)	65.4	41.9	20.7	13.5
Dota 2 Reborn (2015)	113.3	87.9	51.3	48.2
Final Fantasy XV Benchmark (2018)	35.3	17.1	12.4
X-Plane 11.11 (2018)	37.1	28.1	25
Strange Brigade (2018)	81	31.4	26.2	22
Baldur's Gate 3 (2023)	13	9.39	8.32	7.87
Cyberpunk 2077 (2023)	13.8	10.2	8.38	7.14
F1 24 (2024)	28.1	24.3	17.4	13.3

排放

系统噪声

空闲时，Geekom A5 完全静音，因为其散热系统经常会完全停止运转。即使在压力测试中，这款迷你 PC 也表现得极为安静，噪声最高仅为 31.5 dB(A)，从未产生扰人的噪声。AMD Ryzen 7 7730U 的高能效在这里真正发挥了优势：在所有负载场景下，新版本的运行噪声都显著低于搭载 Ryzen 7 5800H、噪声明显更大的前代机型。

Noise level

Idle		26.8 / 26.8 / 26.9 dB(A)
Load		31.3 / 31.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.8 dB(A)

	Geekom A5 2027 Edition, R7 7730U R7 7730U, Vega 8	GMK NucBox K17 Core Ultra 5 226V, Arc 130V	Geekom IT13 Max Ultra 9 185H, Arc 8-Core	Acemagic Retro X3 Ryzen 7 255, Radeon 780M	Ninkear L20, Ultra 5 226V Core Ultra 5 226V, Arc 130V	Geekom A5 R7 5800H, Vega 8
Noise		7%	-30%	-24%	-23%	-20%
off / environment * (dB)	24.8	25.1 -1%	24.6 1%	24.6 1%	24.8 -0%	25 -1%
Idle Minimum * (dB)	26.8	25.3 6%	25.3 6%	25 7%	25.4 5%	28.2 -5%
Idle Average * (dB)	26.8	25.4 5%	25.6 4%	25 7%	25.8 4%	28.2 -5%
Idle Maximum * (dB)	26.9	26.1 3%	25.6 5%	25 7%	36.7 -36%	28.2 -5%
Load Average * (dB)	31.3	27.4 12%	53.3 -70%	43.6 -39%	41.4 -32%	47.8 -53%
Witcher 3 ultra * (dB)	31.6	28 11%	47.1 -49%	49.8 -58%	41.6 -32%
Cyberpunk 2077 ultra * (dB)	31.6	29.1 8%	53.4 -69%	49.9 -58%	45.6 -44%
Load Maximum * (dB)	31.5	28.6 9%	53.5 -70%	50.2 -59%	45.6 -45%	47.4 -50%

* ... smaller is better

温度

温度测量结果无可挑剔：在日常使用中，机身保持凉爽舒适。在使用 Prime95 和 FurMark 进行极限负载测试时，机身顶部温度升至适中的 39 °C。即使在长时间的压力测试中，也未出现因过热降频导致的性能损失。

Max. Load

Idle

Cyberpunk


32.3 °C	38.5 °C	35.7 °C
30.1 °C	34.3 °C	32.4 °C
31 °C	33.4 °C	32.4 °C

Maximum: 38.5 °C
Average: 33.3 °C


35.1 °C	35.4 °C	34.7 °C
34.6 °C	34.8 °C	34.1 °C
34.8 °C	34.5 °C	34.2 °C

Maximum: 35.4 °C
Average: 34.7 °C

Power Supply (max.) 42.9 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


31.2 °C	31.8 °C	31 °C
30.2 °C	30.9 °C	30.5 °C
29.7 °C	30.4 °C	29.7 °C

Maximum: 31.8 °C
Average: 30.6 °C


30 °C	30.4 °C	30.5 °C
30 °C	30.3 °C	30.4 °C
30.1 °C	30.3 °C	30.4 °C

Maximum: 30.5 °C
Average: 30.3 °C

Power Supply (max.) 29.3 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


34.5 °C	37.2 °C	34.1 °C
31.7 °C	33.8 °C	30 °C
30.9 °C	32.1 °C	30.1 °C

Maximum: 37.2 °C
Average: 32.7 °C


32.9 °C	33.3 °C	33.3 °C
33 °C	33.2 °C	32.6 °C
33.2 °C	33.1 °C	32.9 °C

Maximum: 33.3 °C
Average: 33.1 °C

Power Supply (max.) 42.5 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 33.3 °C / 92 F, compared to the average of 32.1 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 38.5 °C / 101 F, compared to the average of 35.3 °C / 96 F, ranging from 20.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 35.4 °C / 96 F, compared to the average of 35.9 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 30.6 °C / 87 F, compared to the device average of 32.1 °C / 90 F.
(±) 3: The average temperature for the upper side is 32.7 °C / 91 F, compared to the average of 32.1 °C / 90 F for the class Mini PC.

电源管理

空闲时，这款迷你 PC 的功耗仅为 6 至 9 瓦。在满载状态下，功耗会短暂升至略低于 45 瓦，但在 CPU 持续负载下会稳定在 32 瓦左右。因此，随附的 65 瓦电源适配器绰绰有余。

Power Consumption

Off / Standby	0.8 / 4 Watt
Idle	3.6 / 4.3 / 5.9 Watt
Load	31.9 / 45.5 Watt


Key: min: , med: , max: Metrahit Energy

	Geekom A5 2027 Edition, R7 7730U R7 7730U, Vega 8	GMK NucBox K17 Core Ultra 5 226V, Arc 130V	Geekom IT13 Max Ultra 9 185H, Arc 8-Core	Acemagic Retro X3 Ryzen 7 255, Radeon 780M	Ninkear L20, Ultra 5 226V Core Ultra 5 226V, Arc 130V	Geekom A5 R7 5800H, Vega 8	Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)	Average of class Mini PC
Power Consumption		-30%	-146%	-96%	-68%	-83%	-50%	-114%
Idle Minimum * (Watt)	3.6	4.7 -31%	11.8 -228%	5.7 -58%	4.4 -22%	6.9 -92%	5.27 ?(3 - 12.5, n=50) -46%	7.87 ?(2.1 - 34.9, n=82, last 2 years) -119%
Idle Average * (Watt)	4.3	6.1 -42%	12.2 -184%	6.9 -60%	11.4 -165%	7.9 -84%	7.78 ?(4.1 - 12.8, n=50) -81%	9.91 ?(2.59 - 37.1, n=80, last 2 years) -130%
Idle Maximum * (Watt)	5.9	9.6 -63%	16.1 -173%	8.2 -39%	12.3 -108%	8.9 -51%	9.24 ?(4.6 - 15.7, n=50) -57%	12.5 ?(2.4 - 44.4, n=82, last 2 years) -112%
Load Average * (Watt)	31.9	32.7 -3%	52.9 -66%	62.5 -96%	38.6 -21%	60.8 -91%	44 ?(27.1 - 98.9, n=50) -38%	59.7 ?(21.2 - 137.5, n=82, last 2 years) -87%
Cyberpunk 2077 ultra external monitor * (Watt)	26.8	39.5 -47%	54.4 -103%	81.9 -206%	44.3 -65%
Load Maximum * (Watt)	45.5	41.3 9%	100.1 -120%	99 -118%	58.1 -28%	89.7 -97%	58.7 ?(29.5 - 101.8, n=50) -29%	101.2 ?(27.9 - 347, n=82, last 2 years) -122%

* ... smaller is better

能效

Performance rating | Power Consumption

Performance rating - Percent
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	87 pt
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8	84.5 pt
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	74.3 pt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	69.2 pt
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	67.7 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8	305 Points per Watt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	223 Points per Watt -27%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	213 Points per Watt -30%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	207 Points per Watt -32%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	182.3 Points per Watt -40%
Cinebench R23 Single Power Efficiency - external Monitor
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	85.7 Points per Watt +44%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	69.5 Points per Watt +17%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	62.9 Points per Watt +6%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8	59.5 Points per Watt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	48.9 Points per Watt -18%
Cinebench R15 Multi Efficiency (external Monitor)
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8	42.7 Points per Watt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	32 Points per Watt -25%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	29.9 Points per Watt -30%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	29.9 Points per Watt -30%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	24.5 Points per Watt -43%
Cyberpunk 2077 ultra Efficiency
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	0.4152 fps per Watt +46%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	0.4108 fps per Watt +44%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	0.3309 fps per Watt +16%
Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U, Vega 8	0.2851 fps per Watt
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	0.2466 fps per Watt -14%

连接外接显示器时的功耗

Geekom A5 2027 Edition, R7 7730U; Idle 1min (external Monitor): Ø4.3 (3.8-5.88) Watt

Geekom A5 2027 Edition, R7 7730U; 1280x720 Prime95 28.10 and Furmark 1.25: Ø28.5 (27.2-39.9) Watt

Geekom A5 2027 Edition, R7 7730U; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø26.8 (25.4-27.8) Watt

Geekom A5 2027 Edition, R7 7730U; 3DMark06 Return To Proxycon: Ø31 (25.6-38.6) Watt

连接外接显示器时的功耗

Geekom A5 2027 Edition, R7 7730U; Prime95 V2810 Stress (external Monitor): Ø28.2 (26.8-39.9) Watt

Geekom A5 2027 Edition, R7 7730U; Cinebench R15 Multi (external Monitor): Ø31.7 (29.8-36) Watt

Geekom A5 2027 Edition, R7 7730U; Cinebench R23 Single (external Monitor): Ø24.5 (22.1-45.5) Watt

Geekom A5 2027 Edition, R7 7730U; Cinebench R23 Multi (external Monitor): Ø28.8 (23.4-38.4) Watt

Geekom A5 2027 Edition, R7 7730U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø28.7 (27.2-38.6) Watt

Notebookcheck 评分

Back to the verdict

Geekom A5 2027 Edition, R7 7730U - 10/14/2026 v8
Sebastian Bade

Chassis

83 / 98 → 85%

Connectivity

61 / 81 → 75%

Weight

82 / 10-100 → 80%

Games Performance

21 / 80 → 26%

Application Performance

75 / 92 → 81%

AI Performance

80%

Temperature

92%

Noise

93%

Average

54%

73%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
12.5%

Power Use
70.5%

Repairability
20%

Software Updates
83.3%

Total Sustainability Score: 31.1%

可能的替代方案比较

Image	Model / Review	Price	Weight	Dimensions
1. 72.5%	Geekom A5 2027 Edition, R7 7730U AMD Ryzen 7 7730U ⎘ AMD Radeon RX Vega 8 (Ryzen 4000/5000) ⎘ 16 GB Memory, 512 GB SSD	Amazon: List Price: 639€	577 g	112 x 117 x 49.2 mm
2. 81.9%	GMK NucBox K17 Intel Core Ultra 5 226V ⎘ Intel Arc Graphics 130V ⎘ 16 GB Memory, 1024 GB SSD	List Price: 569€	461 g	185 x 187 x 44.5 mm
3. 78.6%	Geekom IT13 Max Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 24 GB Memory, 500 GB SSD	List Price: 799€	833 g	132 x 136 x 50.1 mm
4. 77.2%	Acemagic Retro X3 AMD Ryzen 7 255 ⎘ AMD Radeon 780M ⎘ 16 GB Memory, SSD	List Price: 899€	528 g	128.2 x 128.2 x 44 mm
5. 76.5%	Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V ⎘ Intel Arc Graphics 130V ⎘ 16 GB Memory, 512 GB SSD	List Price: 699€	626 g	129 x 129 x 43 mm
6. 81.2% ^{v7 (old)}	Geekom A5 AMD Ryzen 7 5800H ⎘ AMD Radeon RX Vega 8 (Ryzen 4000/5000) ⎘ 32 GB Memory, 512 GB SSD	Amazon: 1. $479.00 GEEKOM A5 2027 Edition Mini ... 2. $479.00 GEEKOM A5 2027 Edition Mini ... 3. $549.00 GEEKOM A5 2027 Edition Mini ... List Price: 429 EUR	555 g	112 x 117 x 49.2 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Geekom A5 2027 评测：出乎意料的安静 – 这款入门级迷你电脑的新版有何亮点

玫瑰金色的既视感 – 同一套穿搭，再来一回。

结论 - 面向持续运行的低调升级

Pros

Cons

价格和供货情况

Table of Contents

规格

保护壳与连接性

尺寸对比

USB-C 速度 (ADATA SE920)

SD 卡读卡器

配件

维护

可持续发展

性能

测试条件

BIOS 设置

处理器

Cinebench R15 多核耐久测试

系统性能

DPC 延迟

存储设备

磁盘限速：DiskSpd 读取循环，队列深度 8

显卡和游戏性能

FPS 图表 - 30 分钟。Cyberpunk 2077 1920 x 1080 超高预设（FSR 关闭）

排放

系统噪声

温度

电源管理

能效

连接外接显示器时的功耗

连接外接显示器时的功耗

Notebookcheck 评分

可能的替代方案比较

Transparency

More articles related to this device

Related Articles

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Acer Nitro V 15 ANV15-52-50S2 i5-13420H, GeForce RTX 5050 Laptop	486
Lenovo ThinkPad T14 G5 21ML005JGE Ultra 7 155U, Graphics 4-Core iGPU (Arrow Lake)	487
Dell Latitude 7450 2-in-1 Ultra 7 165U, Graphics 4-Core iGPU (Arrow Lake)	492
Geekom A5 2027 Edition, R7 7730U R7 7730U, Vega 8	494
Minisforum Mercury Series EM680 R7 6800U, Radeon 680M	496
Chuwi CoreBook Air R5 6600H, Radeon 660M	497
Asus Zenbook S 14 UX5406 Core Ultra 7 258V, Arc 140V	497
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Dell Inspiron 16 7620 2-in-1 i7-1260P, Iris Xe G7 96EUs	6300
Lenovo Yoga Slim 7-14ARE R7 4800U, Vega 8	6301
HP EliteBook 830 G8-i7-1165G7 i7-1165G7, Iris Xe G7 96EUs	6302
Geekom A5 2027 Edition, R7 7730U R7 7730U, Vega 8	6307
Huawei MateBook D 14 2023, 53013PKG i5-1155G7, Iris Xe G7 80EUs	6317
Huawei MateBook D 15 2023-53013BSJ i5-1155G7, Iris Xe G7 80EUs	6328
Lenovo ThinkBook 14 2-in-1 G4 IML Ultra 5 125U, Graphics 4-Core iGPU (Arrow Lake)	6340
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
