GMK NucBox K16 迷你电脑评测：较旧的 AMD Zen 3 CPU 对大多数人来说足够好

Name: GMK NucBox K16
Brand: GMK

原始性能可圈可点。

GMKtec 在其优质 EVO-X1 型机箱中安装了经济型 Ryzen 7 7735HS CPU，并配备了面向专业人士的 Oculink 端口。
Allen Ngo, 👁 Allen Ngo (translated by DeepL / Ninh Duy) Published 04/07/2026 🇺🇸 🇳🇱 ...
AMD Mini PC Zen 3 (Vermeer)

结论 - 小巧、简单、专业

NucBox K16 由其处理器定义。虽然它采用了与备受赞誉的 EVO-X1，但 NucBox K16 采用了较旧的 Zen 3+ CPU，这意味着该系统是为预算有限的用户设计的，他们可能看重机箱的物理特性或端口，但不一定需要 Zen 5 处理器的高性能。对于更基本的办公、远程或与服务器相关的任务，NucBox K16 没有过多的功能，用户体验更简洁。

Test device courtesy of GMKtec

Download your licensed rating image as PNG / SVG

同样的 Zen 3+ 处理器也造成了系统的许多缺点。在分析功耗时，老化的 CPU 显示出了它的局限性，因为每瓦性能远不及英特尔的一些最新替代产品，包括 GMK 自己的 NucBox K13.即使对于集成解决方案而言，图形性能也比平均水平低。

如果 Oculink 端口对您的工作负载没有价值，那么价格相近的 NucBox K13 可能是比 K16 更高效的选择，因为它采用了更新的处理器，而且外观更轻薄。微星微星 Cubi NUC也具有类似的性能水平，但集成了 Thunderbolt 4 端口而非 Oculink。

Pros

+ 最多支持两个 M.2 2280 固态硬盘

+ 标配 32 GB 内存

+ 小巧的金属外形

+ 支持 Oculink

Cons

- 图形性能低于预期

- 较旧的 AMD CPU，没有集成 NPU

- 没有集成麦克风或扬声器

- 电源效率一般

- 只有一个 USB-C 端口

价格和供应情况

NucBox K16现已在亚马逊上发货，配备 32 GB 内存和 512 GB 固态硬盘，售价 900 美元，如果直接从制造商处购买，则售价 680 美元。

$679.99

GMKtec K16 Mini PC Gaming Desktop Computer AMD Ryzen 7 7735HS (8C/16T 4.75Ghz) 32GB LPDDR5 6400MT/s RAM + 512GB Hard Drive SSD, Dual NIC LAN 2.5GbE, Oculink, USB4, HDMI, USB-C

结论 - 小巧、简单、专业
规格
案例
连接性
性能
排放量
能源管理
笔记本检查评级
潜在竞争对手比较

NucBox K16 是 GMktec 最新推出的迷你 PC，由于集成了 Oculink 端口，它更适合专业人士而非 HTPC 用户。需要注意的是，虽然从技术上讲 K16 是 GMK 较新的机型之一，但它并不一定比 K15 或更早的机型更好或更快，因为 "K "这个名字与内部处理器的类型无关。

目前只有一种主要配置，即 Ryzen 7 7735HS CPU、32 GB 内存和 512 GB SSD。其他配置可能会将存储空间增加一倍，但焊接的 32 GB 内存和较旧的 Zen 3+ CPU 仍保持不变。

更多 GMKtec 评论：

规格

GMK NucBox K16

Processor

AMD Ryzen 7 7735HS 8c/16t, 8 x 4.8 GHz AMD Zen 3+, 50 W PL2 / Short Burst, 50 W PL1 / Sustained, Rembrandt-HS Refresh

Graphics adapter

AMD Radeon 680M, Core: 2200 MHz, LPDDR5, 32.0.21037.1004

Memory

32 GB

, LPDDR5, 6400 MT/s, Soldered

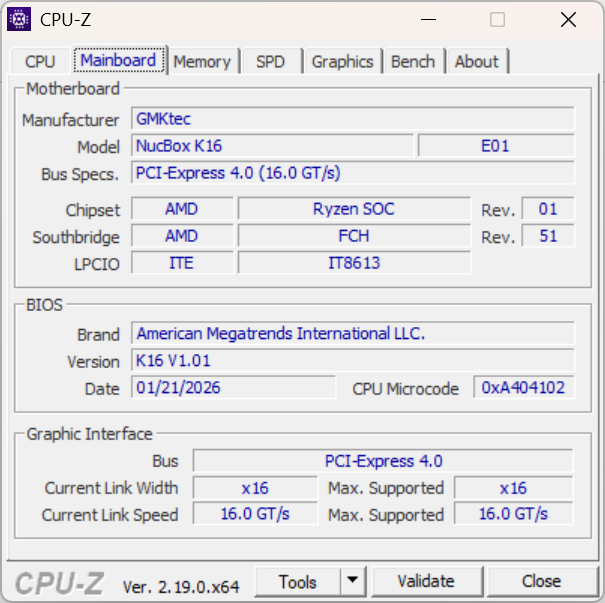

Mainboard

AMD Promontory/Bixby FCH

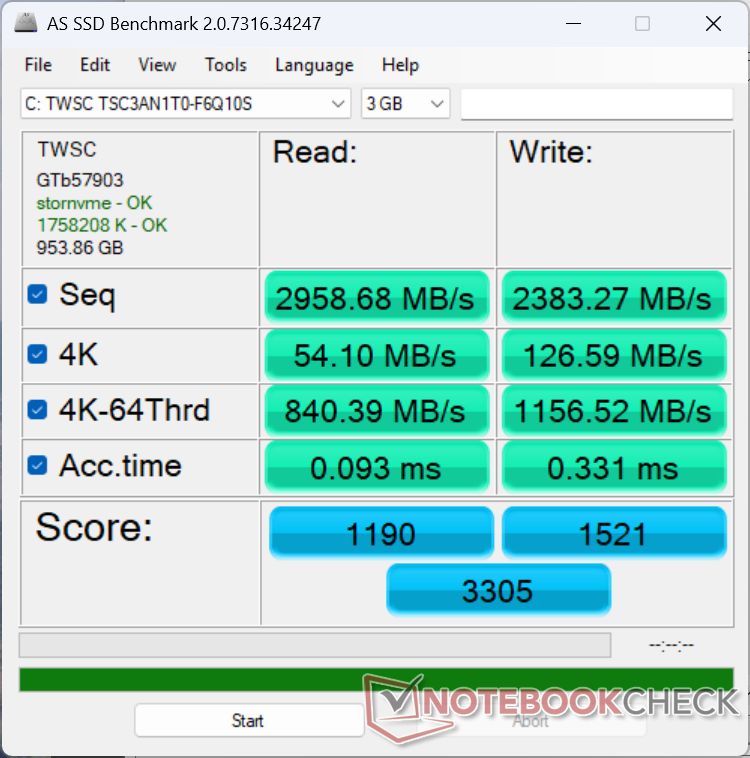

Storage

TWSC TSC3AN1T0-F6Q10S, 1024 GB

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 3 USB 3.1 Gen2, 1 USB4 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm combo

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 63 x 111 x 107

Operating System

Microsoft Windows 11 Pro

Additional features

HDMI cable, 12 Months Warranty

Weight

567 g, Power Supply: 501 g

Price

650 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

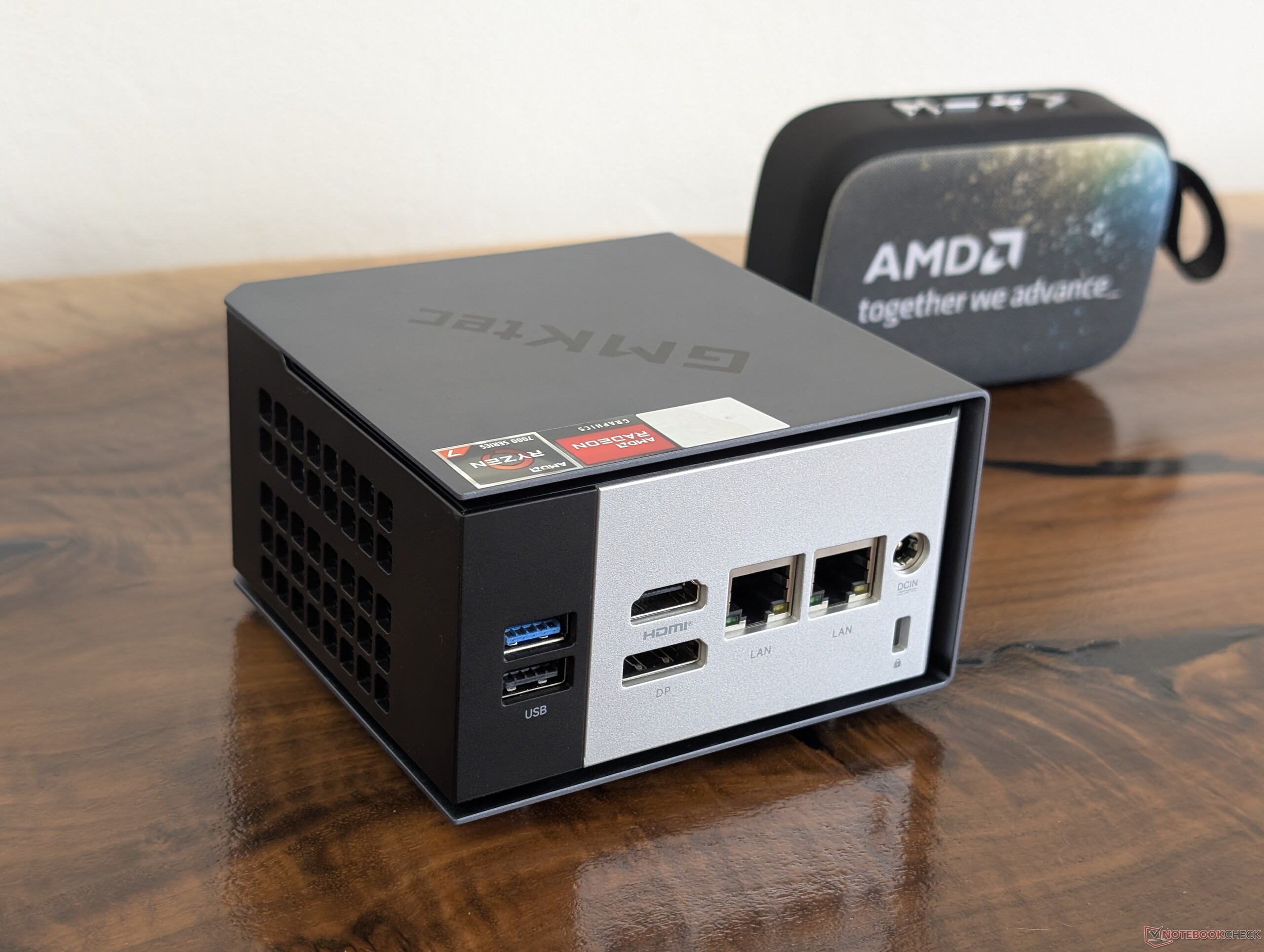

案例

该机箱与去年的 EVO-X1 完全相同，而 EVO-X1 依然是 GMKtec 产品系列中最小的迷你 PC 之一。端口选项没有变化，包括重要的 Oculink 端口，这有助于将该机型与大多数同类迷你 PC 区分开来。

尺寸比较

GMK NucBox K13 Asus NUC 15 Pro+ MSI Cubi NUC AI+ 2MG Geekom A7 Max, R9 7940HS Beelink SER9 Pro GMK NucBox K16 DIN A4 ❌

连接性

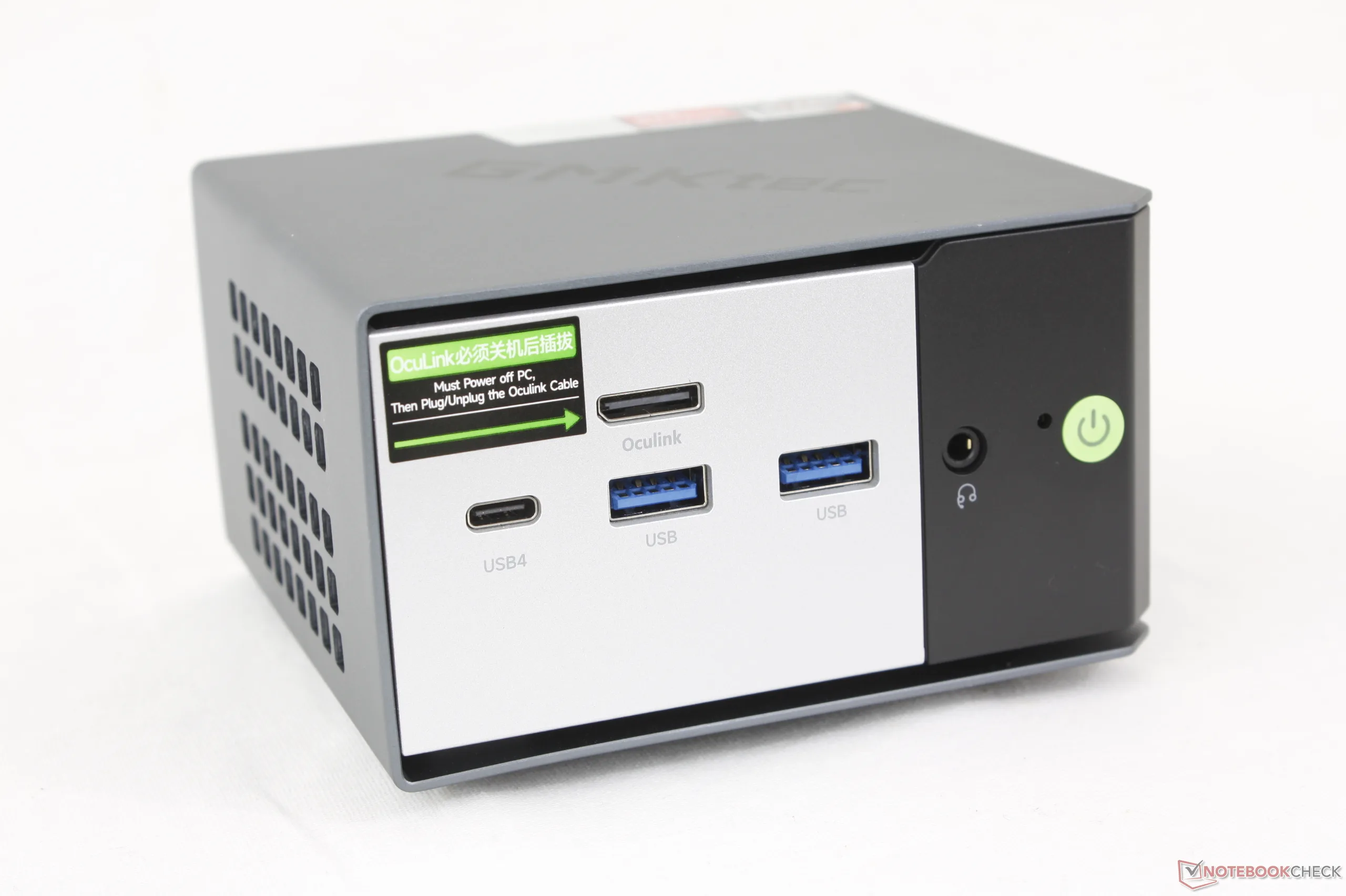

前置USB-C 4.0 w/ DisplayPort 1.4 + Power Delivery 3.0、2x USB-A 3.2 Gen. 2 (10 Gbps)、OcuLink (PCIe4 x4)、3.5 毫米耳机、电源按钮

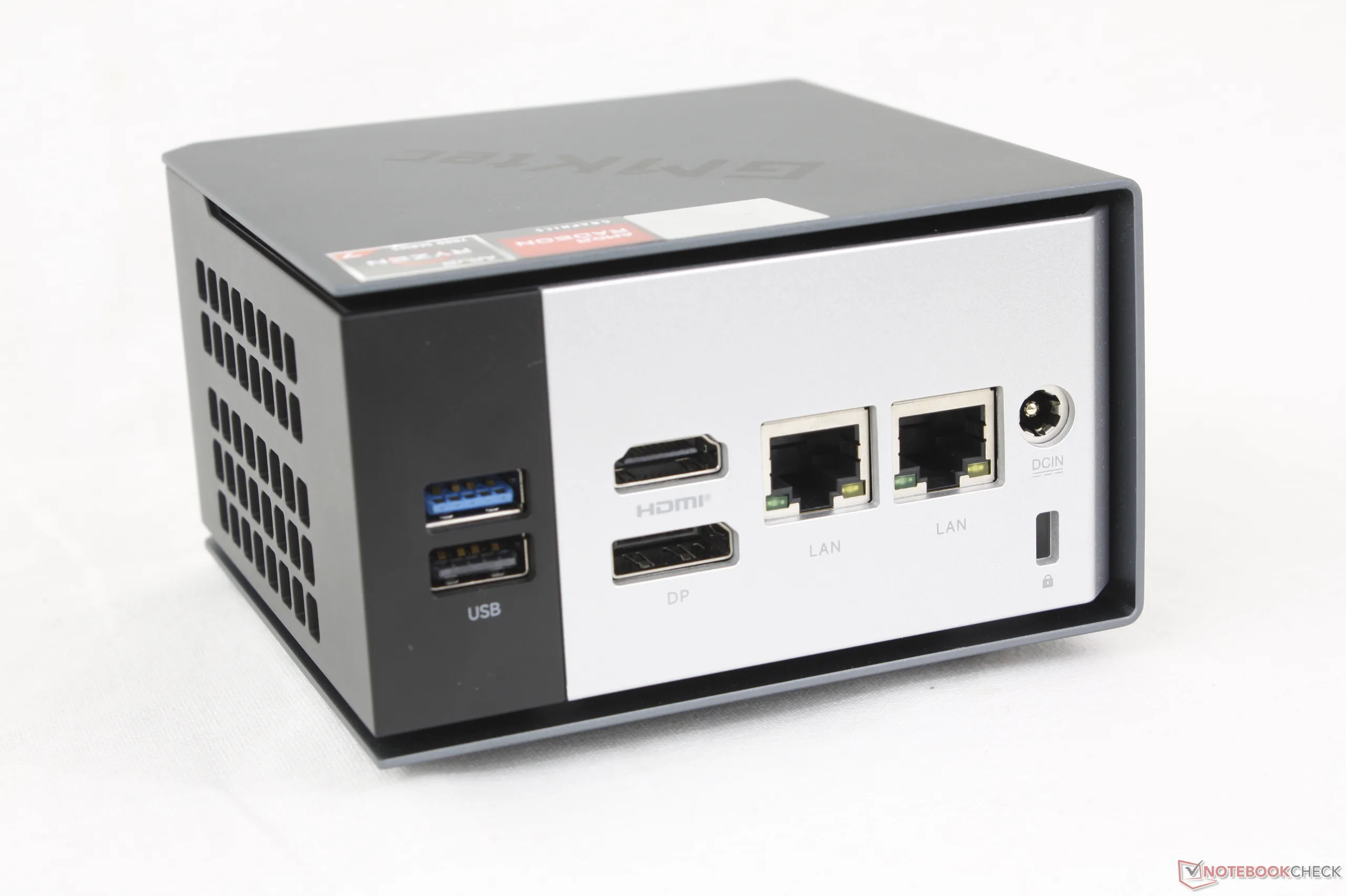

后部USB-A 3.2 Gen. 2 (10 Gbps)、USB-A 2.0 (480 Mbps)、HDMI 2.0、DisplayPort 1.3、2x RJ-45 (2.5 Gbps)、AC 适配器、Kensington 锁

交流

Networking
iperf3 transmit AXE11000
Asus NUC 15 Pro+ Intel BE201 320MHz	1636 (1200^min - 1707^max) MBit/s +92%
Geekom A7 Max, R9 7940HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1299 (1247^min - 1395^max) MBit/s +52%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1282 (1121^min - 1470^max) MBit/s +50%
GMK NucBox K16 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	853 (461^min - 916^max) MBit/s
GMK NucBox K13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	720 (559^min - 847^max) MBit/s -16%
Beelink SER9 Pro	580 (458^min - 645^max) MBit/s -32%
iperf3 receive AXE11000
Asus NUC 15 Pro+ Intel BE201 320MHz	1671 (1579^min - 1738^max) MBit/s +118%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1409 (1143^min - 1606^max) MBit/s +84%
Geekom A7 Max, R9 7940HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1340 (1308^min - 1355^max) MBit/s +75%
Beelink SER9 Pro	851 (780^min - 908^max) MBit/s +11%
GMK NucBox K13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	781 (671^min - 891^max) MBit/s +2%
GMK NucBox K16 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	765 (650^min - 892^max) MBit/s
iperf3 transmit AXE11000 6GHz
GMK NucBox K16 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1784 (1675^min - 1906^max) MBit/s
Asus NUC 15 Pro+ Intel BE201 320MHz	1605 (1475^min - 1665^max) MBit/s -10%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1101 (868^min - 1237^max) MBit/s -38%
GMK NucBox K13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1022 (518^min - 1060^max) MBit/s -43%
Geekom A7 Max, R9 7940HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	909 (878^min - 934^max) MBit/s -49%
iperf3 receive AXE11000 6GHz
GMK NucBox K16 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1779 (1759^min - 1799^max) MBit/s
GMK NucBox K13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1760 (1732^min - 1777^max) MBit/s -1%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1656 (1581^min - 1726^max) MBit/s -7%
Asus NUC 15 Pro+ Intel BE201 320MHz	1618 (1586^min - 1644^max) MBit/s -9%
Geekom A7 Max, R9 7940HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1082 (1025^min - 1148^max) MBit/s -39%

GMK NucBox K16; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1785 (1675-1906)

GMK NucBox K16; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1779 (1759-1799)

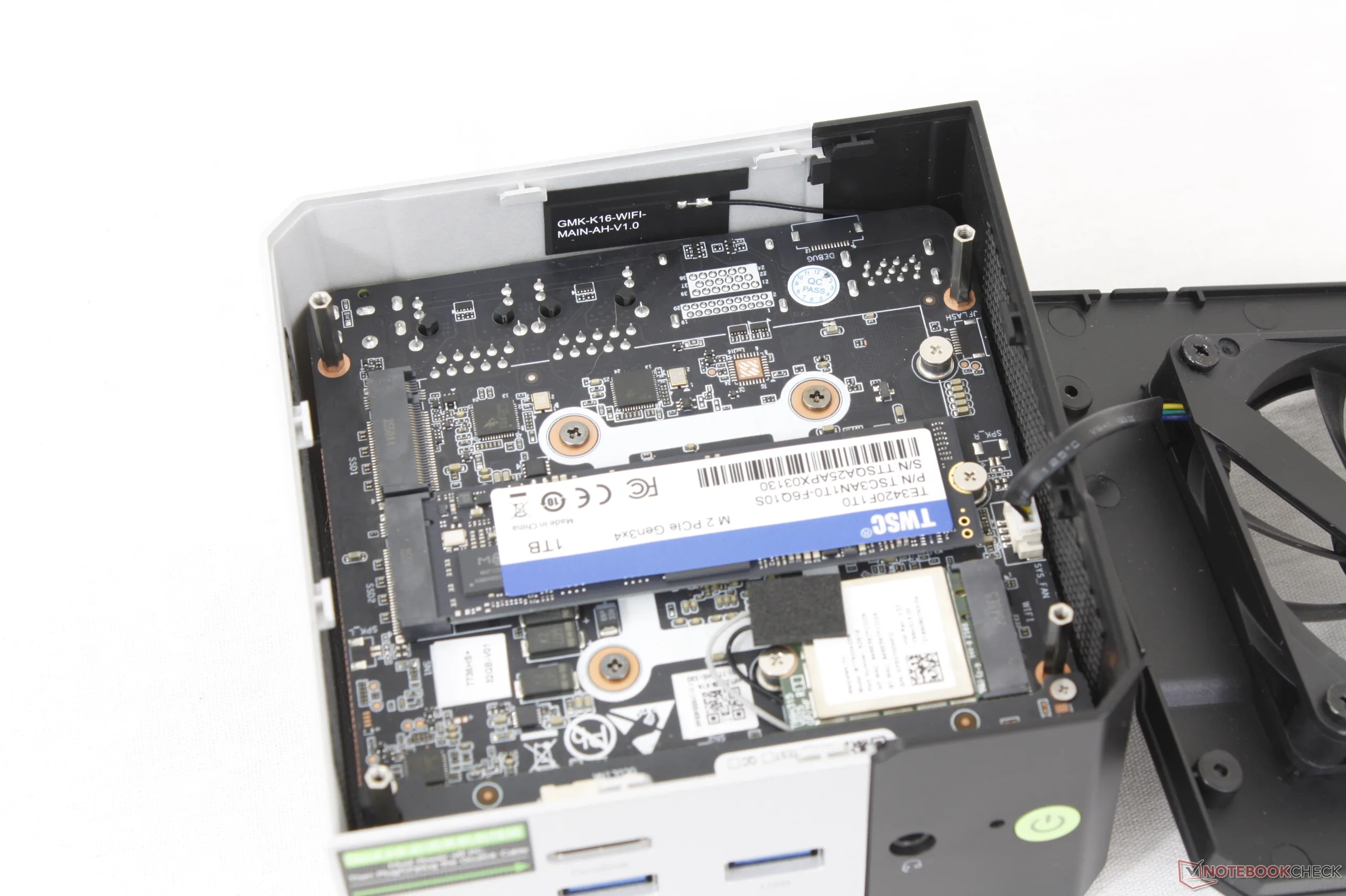

维护

系统支持可移动 WLAN 模块、不可升级 RAM 和最多两个可移动 M.2 2280 PCIe4 SSD

可持续性

制造商没有明确列出生产过程中使用的任何回收材料。除塑料外包装外，包装均为纸质和塑料。

配件和保修

零售包装盒中除了常见的交流适配器和文件外，还有一根 HDMI 电缆。

在美国购买时，制造商提供标准的一年有限保修服务。

性能

测试条件

在运行以下基准测试之前，我们通过 BIOS 将系统设置为性能模式。请注意，系统出厂时默认为平衡模式。

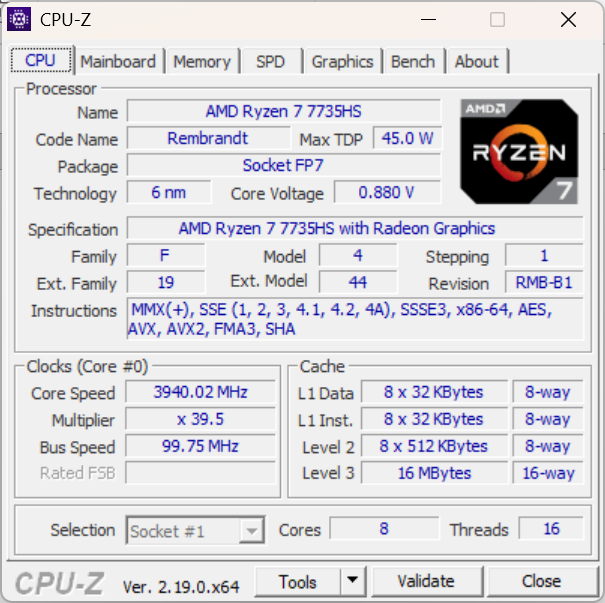

处理器

......（英文 Ryzen 7 7735HS可能已经老化，但处理器的原始性能仍然不错，其性能可与较新的 Core Ultra 5 125H或比更高效的酷睿至尊 7 256V.需要注意的是，与许多较新的 CPU 不同，Ryzen 7 7735HS Ryzen 7 7735HS没有集成 NPU，而 NPU 是实现 Co-Pilot+ 等本地 AI 功能所必需的。

Cinebench R15 多回路运行

GMK NucBox K16 AMD Ryzen 7 7735HS: Ø2017 (1972.78-2038.11)

GMK NucBox K13 Intel Core Ultra 7 256V: Ø1571 (1564.76-1609.27)

Beelink SER9 Pro AMD Ryzen 7 H 255: Ø2565 (2544.37-2588.16)

Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS: Ø2488 (2460.93-2593.7)

Asus NUC 15 Pro+ Intel Core Ultra 9 285H: Ø3009 (2951.59-3148.12)

MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V: Ø1475 (1459.06-1488.32)

CPU Performance rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.6: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance rating
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	89.3 pt
Khadas Mind Pro Intel Core Ultra X7 358H	89.2 pt
Beelink SER9 Pro AMD Ryzen 7 H 255	78.3 pt
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	76.9 pt
GMK NucBox K13 Intel Core Ultra 7 256V	68.3 pt
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	67 pt
Average AMD Ryzen 7 7735HS	65.7 pt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	64.9 pt
GMK NucBox M3 Ultra Intel Core i7-12700H	62.8 pt
GMK NucBox K16 AMD Ryzen 7 7735HS	61.2 pt
MSI Cubi NUC 1M Intel Core 7 150U	61 pt
Minix Elite EU512-AI ^-2! Intel Core Ultra 5 125H	58.6 pt
BMAX B4 Turbo Intel Processor N150	23.8 pt

Cinebench R23 / Multi Core
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	20882 Points +59%
Khadas Mind Pro Intel Core Ultra X7 358H	19830 Points +51%
Beelink SER9 Pro AMD Ryzen 7 H 255	16402 (16130.8^min - 16402.1^max) Points +25%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	16142 Points +23%
Minix Elite EU512-AI Intel Core Ultra 5 125H	13747 Points +5%
GMK NucBox K16 AMD Ryzen 7 7735HS	13106 (12766.6^min - 13106.2^max) Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	12945 Points -1%
Average AMD Ryzen 7 7735HS (10283 - 14131, n=15)	12783 Points -2%
GMK NucBox K13 Intel Core Ultra 7 256V	10864 (10591.5^min - 10864.2^max) Points -17%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	10524 (10414.4^min - 10524.2^max) Points -20%
GMK NucBox M3 Ultra Intel Core i7-12700H	10300 Points -21%
MSI Cubi NUC 1M Intel Core 7 150U	7226 (6983.97^min - 7226.42^max) Points -45%
BMAX B4 Turbo Intel Processor N150	2428 (2385.1^min - 2428.32^max) Points -81%

Cinebench R23 / Single Core
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	2166 Points +40%
Khadas Mind Pro Intel Core Ultra X7 358H	2086 Points +34%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	1957 Points +26%
GMK NucBox K13 Intel Core Ultra 7 256V	1909 Points +23%
MSI Cubi NUC 1M Intel Core 7 150U	1878 Points +21%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	1794 Points +16%
GMK NucBox M3 Ultra Intel Core i7-12700H	1793 Points +16%
Beelink SER9 Pro AMD Ryzen 7 H 255	1718 Points +11%
Minix Elite EU512-AI Intel Core Ultra 5 125H	1620 Points +4%
GMK NucBox K16 AMD Ryzen 7 7735HS	1552 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1536 Points -1%
Average AMD Ryzen 7 7735HS (1288 - 1570, n=15)	1528 Points -2%
BMAX B4 Turbo Intel Processor N150	949 Points -39%

Cinebench R20 / CPU (Multi Core)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	8172 Points +64%
Khadas Mind Pro Intel Core Ultra X7 358H	7749 Points +55%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	6486 Points +30%
Beelink SER9 Pro AMD Ryzen 7 H 255	6480 Points +30%
Minix Elite EU512-AI Intel Core Ultra 5 125H	5212 Points +4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5022 Points +1%
GMK NucBox K16 AMD Ryzen 7 7735HS	4995 Points
Average AMD Ryzen 7 7735HS (3968 - 5502, n=15)	4949 Points -1%
GMK NucBox K13 Intel Core Ultra 7 256V	4233 Points -15%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	4121 Points -17%
GMK NucBox M3 Ultra Intel Core i7-12700H	3981 Points -20%
MSI Cubi NUC 1M Intel Core 7 150U	2821 Points -44%
BMAX B4 Turbo Intel Processor N150	933 Points -81%

Cinebench R20 / CPU (Single Core)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	837 Points +41%
Khadas Mind Pro Intel Core Ultra X7 358H	782 Points +32%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	741 Points +25%
GMK NucBox K13 Intel Core Ultra 7 256V	733 Points +24%
MSI Cubi NUC 1M Intel Core 7 150U	718 Points +21%
GMK NucBox M3 Ultra Intel Core i7-12700H	691 Points +17%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	690 Points +16%
Beelink SER9 Pro AMD Ryzen 7 H 255	677 Points +14%
Minix Elite EU512-AI Intel Core Ultra 5 125H	623 Points +5%
Average AMD Ryzen 7 7735HS (502 - 613, n=15)	596 Points +1%
GMK NucBox K16 AMD Ryzen 7 7735HS	593 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	591 Points 0%
BMAX B4 Turbo Intel Processor N150	362 Points -39%

Cinebench R15 / CPU Multi 64Bit
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	3151 Points +55%
Khadas Mind Pro Intel Core Ultra X7 358H	3053 Points +50%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	2608 Points +28%
Beelink SER9 Pro AMD Ryzen 7 H 255	2588 (2544.37^min - 2588.16^max) Points +27%
Average AMD Ryzen 7 7735HS (1758 - 2355, n=17)	2116 Points +4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2092 Points +3%
Minix Elite EU512-AI Intel Core Ultra 5 125H	2077 (2026.86^min - 2076.52^max) Points +2%
GMK NucBox K16 AMD Ryzen 7 7735HS	2038 (1972.78^min - 2038.11^max) Points
GMK NucBox K13 Intel Core Ultra 7 256V	1609 (1564.76^min - 1609.27^max) Points -21%
GMK NucBox M3 Ultra Intel Core i7-12700H	1522 Points -25%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	1488 (1459.06^min - 1488.32^max) Points -27%
MSI Cubi NUC 1M Intel Core 7 150U	1040 (535.59^min - 1039.66^max) Points -49%
BMAX B4 Turbo Intel Processor N150	402 (363.55^min - 401.51^max) Points -80%

Cinebench R15 / CPU Single 64Bit
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	322 Points +32%
Khadas Mind Pro Intel Core Ultra X7 358H	312 Points +28%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	297 Points +22%
GMK NucBox K13 Intel Core Ultra 7 256V	289 Points +18%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	282 Points +16%
Beelink SER9 Pro AMD Ryzen 7 H 255	276 Points +13%
MSI Cubi NUC 1M Intel Core 7 150U	258 Points +6%
GMK NucBox M3 Ultra Intel Core i7-12700H	256 Points +5%
Average AMD Ryzen 7 7735HS (206 - 255, n=16)	246 Points +1%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	244 Points 0%
GMK NucBox K16 AMD Ryzen 7 7735HS	244 Points
Minix Elite EU512-AI Intel Core Ultra 5 125H	235 Points -4%
BMAX B4 Turbo Intel Processor N150	154.3 Points -37%

Blender / v2.79 BMW27 CPU
BMAX B4 Turbo Intel Processor N150	1233 Seconds * -403%
MSI Cubi NUC 1M Intel Core 7 150U	451 Seconds * -84%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	326 Seconds * -33%
GMK NucBox K13 Intel Core Ultra 7 256V	315 Seconds * -29%
GMK NucBox M3 Ultra Intel Core i7-12700H	299 Seconds * -22%
Average AMD Ryzen 7 7735HS (214 - 351, n=15)	250 Seconds * -2%
GMK NucBox K16 AMD Ryzen 7 7735HS	245 Seconds *
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	241 Seconds * +2%
Minix Elite EU512-AI Intel Core Ultra 5 125H	239 Seconds * +2%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	201 Seconds * +18%
Beelink SER9 Pro AMD Ryzen 7 H 255	194 Seconds * +21%
Khadas Mind Pro Intel Core Ultra X7 358H	184 Seconds * +25%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	163 Seconds * +33%

7-Zip 18.03 / 7z b 4
Beelink SER9 Pro AMD Ryzen 7 H 255	69787 MIPS +42%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	67343 MIPS +37%
Khadas Mind Pro Intel Core Ultra X7 358H	66409 MIPS +36%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	63459 MIPS +30%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	59045 MIPS +21%
Average AMD Ryzen 7 7735HS (43455 - 63698, n=15)	56794 MIPS +16%
GMK NucBox K16 AMD Ryzen 7 7735HS	48997 MIPS
GMK NucBox M3 Ultra Intel Core i7-12700H	43850 MIPS -11%
GMK NucBox K13 Intel Core Ultra 7 256V	36572 MIPS -25%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	34645 MIPS -29%
MSI Cubi NUC 1M Intel Core 7 150U	31447 MIPS -36%
BMAX B4 Turbo Intel Processor N150	11171 MIPS -77%
Minix Elite EU512-AI Intel Core Ultra 5 125H	0 MIPS -100%

7-Zip 18.03 / 7z b 4 -mmt1
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	6619 MIPS +23%
Beelink SER9 Pro AMD Ryzen 7 H 255	6237 MIPS +16%
Khadas Mind Pro Intel Core Ultra X7 358H	6220 MIPS +16%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	6111 MIPS +14%
MSI Cubi NUC 1M Intel Core 7 150U	5898 MIPS +10%
GMK NucBox M3 Ultra Intel Core i7-12700H	5838 MIPS +9%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	5816 MIPS +8%
GMK NucBox K13 Intel Core Ultra 7 256V	5763 MIPS +7%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5662 MIPS +5%
Average AMD Ryzen 7 7735HS (4779 - 5849, n=15)	5644 MIPS +5%
GMK NucBox K16 AMD Ryzen 7 7735HS	5377 MIPS
Minix Elite EU512-AI Intel Core Ultra 5 125H	4961 MIPS -8%
BMAX B4 Turbo Intel Processor N150	3859 MIPS -28%

Geekbench 6.6 / Multi-Core
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	16207 Points +130%
Khadas Mind Pro Intel Core Ultra X7 358H	15698 Points +123%
Beelink SER9 Pro AMD Ryzen 7 H 255	12825 Points +82%
GMK NucBox K13 Intel Core Ultra 7 256V	10784 Points +53%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	9922 Points +41%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9625 Points +37%
Average AMD Ryzen 7 7735HS (7046 - 11035, n=9)	9426 Points +34%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	8964 Points +27%
MSI Cubi NUC 1M Intel Core 7 150U	8756 Points +24%
GMK NucBox M3 Ultra Intel Core i7-12700H	8721 Points +24%
GMK NucBox K16 AMD Ryzen 7 7735HS	7046 Points
BMAX B4 Turbo Intel Processor N150	2980 Points -58%

Geekbench 6.6 / Single-Core
Khadas Mind Pro Intel Core Ultra X7 358H	2856 Points +47%
GMK NucBox K13 Intel Core Ultra 7 256V	2750 Points +41%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	2748 Points +41%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	2694 Points +38%
MSI Cubi NUC 1M Intel Core 7 150U	2646 Points +36%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	2607 Points +34%
Beelink SER9 Pro AMD Ryzen 7 H 255	2546 Points +31%
GMK NucBox M3 Ultra Intel Core i7-12700H	2388 Points +23%
Average AMD Ryzen 7 7735HS (1949 - 2153, n=9)	2085 Points +7%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2078 Points +7%
GMK NucBox K16 AMD Ryzen 7 7735HS	1949 Points
BMAX B4 Turbo Intel Processor N150	1249 Points -36%

Geekbench 5.5 / Multi-Core
Khadas Mind Pro Intel Core Ultra X7 358H	16310 Points +128%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	15703 Points +120%
Beelink SER9 Pro AMD Ryzen 7 H 255	11614 Points +62%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	10089 Points +41%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9241 Points +29%
Average AMD Ryzen 7 7735HS (7151 - 10258, n=15)	9104 Points +27%
Minix Elite EU512-AI Intel Core Ultra 5 125H	9069 Points +27%
GMK NucBox K13 Intel Core Ultra 7 256V	9044 Points +26%
GMK NucBox M3 Ultra Intel Core i7-12700H	8230 Points +15%
MSI Cubi NUC 1M Intel Core 7 150U	7788 Points +9%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	7574 Points +6%
GMK NucBox K16 AMD Ryzen 7 7735HS	7151 Points
BMAX B4 Turbo Intel Processor N150	2579 Points -64%

Geekbench 5.5 / Single-Core
Khadas Mind Pro Intel Core Ultra X7 358H	2097 Points +42%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	2022 Points +37%
GMK NucBox K13 Intel Core Ultra 7 256V	2001 Points +36%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	1922 Points +30%
MSI Cubi NUC 1M Intel Core 7 150U	1910 Points +29%
Beelink SER9 Pro AMD Ryzen 7 H 255	1810 Points +23%
GMK NucBox M3 Ultra Intel Core i7-12700H	1698 Points +15%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	1689 Points +14%
Minix Elite EU512-AI Intel Core Ultra 5 125H	1639 Points +11%
Average AMD Ryzen 7 7735HS (1327 - 1615, n=15)	1541 Points +4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1517 Points +3%
GMK NucBox K16 AMD Ryzen 7 7735HS	1476 Points
BMAX B4 Turbo Intel Processor N150	991 Points -33%

HWBOT x265 Benchmark v2.2 / 4k Preset
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	24.9 fps +102%
Khadas Mind Pro Intel Core Ultra X7 358H	21.7 fps +76%
Beelink SER9 Pro AMD Ryzen 7 H 255	20.4 fps +66%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	18.5 fps +50%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	16.3 fps +33%
Average AMD Ryzen 7 7735HS (10.8 - 17.9, n=15)	15.5 fps +26%
Minix Elite EU512-AI Intel Core Ultra 5 125H	14.3 fps +16%
GMK NucBox K13 Intel Core Ultra 7 256V	13.9 fps +13%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	13.3 fps +8%
GMK NucBox K16 AMD Ryzen 7 7735HS	12.3 fps
GMK NucBox M3 Ultra Intel Core i7-12700H	11.6 fps -6%
MSI Cubi NUC 1M Intel Core 7 150U	8.57 fps -30%
BMAX B4 Turbo Intel Processor N150	2.81 fps -77%

LibreOffice / 20 Documents To PDF
BMAX B4 Turbo Intel Processor N150	82.1 s * -38%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	74 s * -25%
Minix Elite EU512-AI Intel Core Ultra 5 125H	65.8 s * -11%
GMK NucBox M3 Ultra Intel Core i7-12700H	61.8 s * -4%
GMK NucBox K16 AMD Ryzen 7 7735HS	59.3 s *
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	56.1 s * +5%
Average AMD Ryzen 7 7735HS (44.3 - 63.9, n=15)	55.1 s * +7%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	54.4 s * +8%
Beelink SER9 Pro AMD Ryzen 7 H 255	51 s * +14%
GMK NucBox K13 Intel Core Ultra 7 256V	50.1 s * +16%
Khadas Mind Pro Intel Core Ultra X7 358H	46.4 s * +22%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	45.1 s * +24%
MSI Cubi NUC 1M Intel Core 7 150U	37.9 s * +36%

R Benchmark 2.5 / Overall mean
BMAX B4 Turbo Intel Processor N150	0.88 sec * -61%
Minix Elite EU512-AI Intel Core Ultra 5 125H	0.565 sec * -3%
GMK NucBox K16 AMD Ryzen 7 7735HS	0.547 sec *
Average AMD Ryzen 7 7735HS (0.4822 - 0.585, n=15)	0.507 sec * +7%
Beelink SER9 Pro AMD Ryzen 7 H 255	0.503 sec * +8%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	0.4932 sec * +10%
GMK NucBox M3 Ultra Intel Core i7-12700H	0.4733 sec * +13%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	0.4505 sec * +18%
GMK NucBox K13 Intel Core Ultra 7 256V	0.4468 sec * +18%
MSI Cubi NUC 1M Intel Core 7 150U	0.4438 sec * +19%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS	0.4429 sec * +19%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	0.4413 sec * +19%
Khadas Mind Pro Intel Core Ultra X7 358H	0.4239 sec * +23%
Khadas Mind Pro Intel Core Ultra X7 358H	0.4139 sec * +24%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

2038 Points

Cinebench R15 OpenGL 64Bit

97.5 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Single 64Bit

244 Points

Cinebench R20 CPU (Multi Core)

4995 Points

Cinebench R20 CPU (Single Core)

593 Points

Cinebench R23 Single Core

1552 Points

Cinebench R23 Multi Core

13106 Points

Cinebench 2024 CPU Single Core

84.7 Points

Cinebench 2024 CPU Multi Core

619 Points

Help

... in comparison

Performance rating
Beelink SER9 Pro ^-1! AMD Ryzen 7 H 255, Radeon 780M	92.8 pt
Geekom A7 Max, R9 7940HS ^-1! AMD Ryzen 9 7940HS, Radeon 780M	90.6 pt
Asus NUC 15 Pro+ ^-1! Intel Core Ultra 9 285H, Arc 140T	88.1 pt
Average AMD Ryzen 7 7735HS	72.5 pt
GMK NucBox K16 ^-1! AMD Ryzen 7 7735HS, Radeon 680M	69.6 pt
GMK NucBox K13 ^-1! Intel Core Ultra 7 256V, Arc 140V	62.1 pt
MSI Cubi NUC AI+ 2MG ^-1! Intel Core Ultra 7 258V, Arc 140V	50.9 pt

AIDA64 / FP32 Ray-Trace
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	26120 KRay/s +72%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M (v6.92.6600)	25759 KRay/s +69%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	23948 KRay/s +57%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M (v8.20.8100)	15228 KRay/s
Average AMD Ryzen 7 7735HS (11831 - 17161, n=16)	14827 KRay/s -3%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	12898 KRay/s -15%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	12094 KRay/s -21%

AIDA64 / FPU Julia
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	115042 Points +21%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M (v6.92.6600)	112987 Points +19%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	106590 Points +12%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M (v8.20.8100)	94932 Points
Average AMD Ryzen 7 7735HS (75370 - 105483, n=16)	92978 Points -2%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	62522 Points -34%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	60874 Points -36%

AIDA64 / CPU SHA3
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	5482 MB/s +72%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M (v6.92.6600)	4812 MB/s +51%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	4764 MB/s +49%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M (v8.20.8100)	3191 MB/s
Average AMD Ryzen 7 7735HS (2499 - 3494, n=16)	3145 MB/s -1%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	2915 MB/s -9%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	2705 MB/s -15%

AIDA64 / CPU Queen
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M (v6.92.6600)	119201 Points
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	115748 Points
Average AMD Ryzen 7 7735HS (87486 - 108729, n=15)	99871 Points
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	67363 Points
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	49605 Points

AIDA64 / FPU SinJulia
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	15123 Points +18%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M (v6.92.6600)	14903 Points +16%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M (v8.20.8100)	12842 Points
Average AMD Ryzen 7 7735HS (11233 - 13097, n=16)	12408 Points -3%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	8550 Points -33%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	4434 Points -65%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	4425 Points -66%

AIDA64 / FPU Mandel
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	60319 Points +15%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M (v6.92.6600)	60262 Points +15%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	57378 Points +9%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M (v8.20.8100)	52490 Points
Average AMD Ryzen 7 7735HS (41400 - 58232, n=16)	51119 Points -3%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	33019 Points -37%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	31593 Points -40%

AIDA64 / CPU AES
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M (v6.92.6600)	86927 MB/s +39%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	86090 MB/s +37%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	78003 MB/s +24%
Average AMD Ryzen 7 7735HS (44013 - 137629, n=16)	77976 MB/s +24%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	75938 MB/s +21%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M (v8.20.8100)	62720 MB/s
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	40408 MB/s -36%

AIDA64 / CPU ZLib
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	1271 MB/s +55%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M (v6.92.6600)	1078 MB/s +31%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	1066 MB/s +30%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M (v8.20.8100)	821 MB/s
Average AMD Ryzen 7 7735HS (651 - 906, n=16)	791 MB/s -4%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	627 MB/s -24%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	596 MB/s -27%

AIDA64 / FP64 Ray-Trace
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	13941 KRay/s +74%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M (v6.92.6600)	13761 KRay/s +71%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	12696 KRay/s +58%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M (v8.20.8100)	8029 KRay/s
Average AMD Ryzen 7 7735HS (1459 - 9094, n=16)	7416 KRay/s -8%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	6761 KRay/s -16%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	6732 KRay/s -16%

AIDA64 / CPU PhotoWorxx
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	57060 MPixel/s +226%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T (v6.92.6600)	54590 MPixel/s +212%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V (v6.92.6600)	54395 MPixel/s +210%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M (v6.92.6600)	41649 MPixel/s +138%
Average AMD Ryzen 7 7735HS (17524 - 30542, n=16)	27015 MPixel/s +54%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M (v6.92.6600)	22477 MPixel/s +28%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M (v8.20.8100)	17524 MPixel/s

AIDA64 / CPU CheckMate
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M (v8.20.8100)	2949 MP/s
Average AMD Ryzen 7 7735HS (n=1)	2949 MP/s 0%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	2805 MP/s -5%

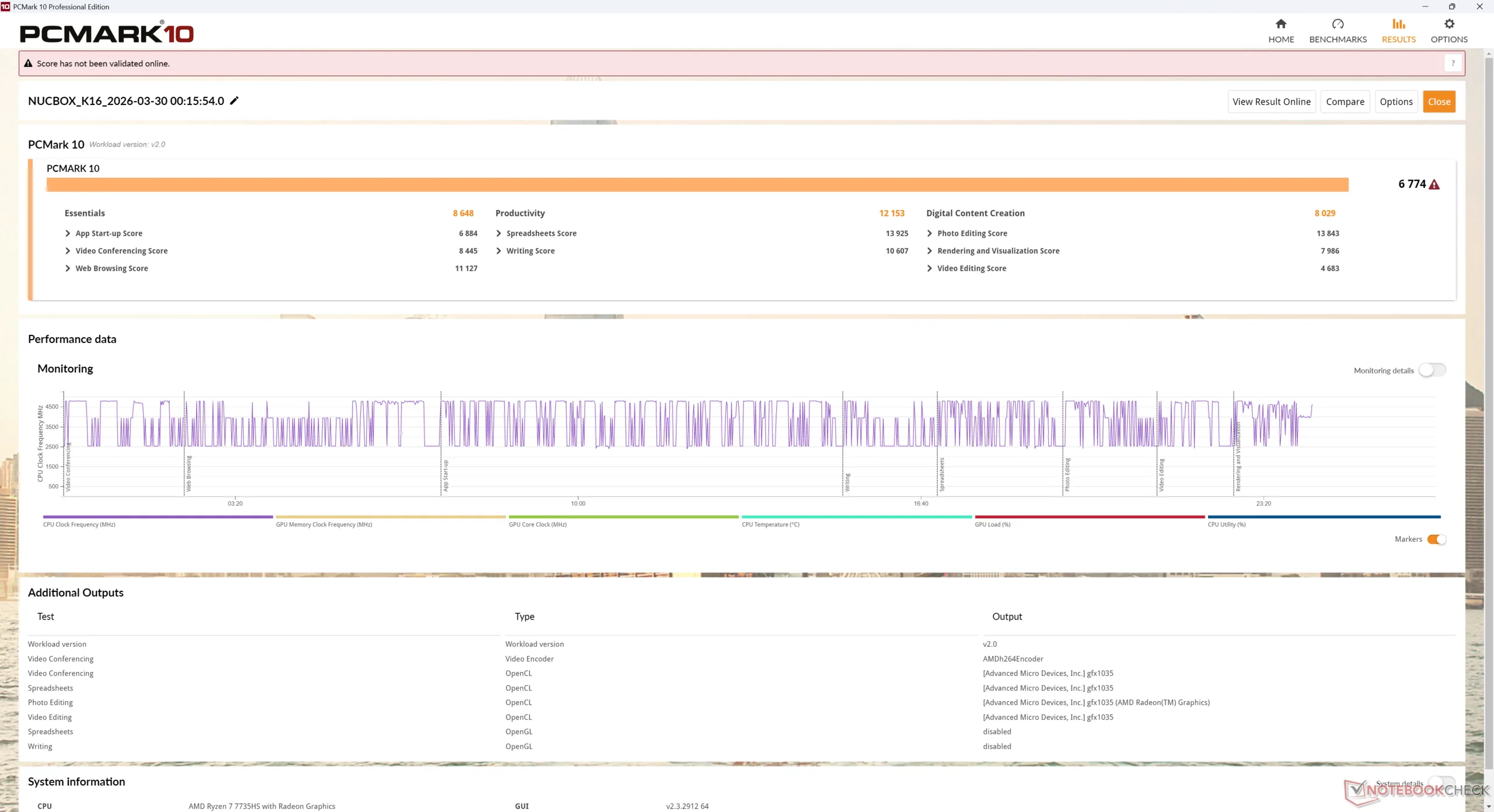

系统性能

PCMark 10 分数还算不错，但在某些子测试中开始落后，包括数字内容创建和要点测试，这两项测试分别对 GPU 性能和多任务处理最为重要

Performance rating
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	87.8 pt
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	84.2 pt
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	83.1 pt
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	81.2 pt
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	80.9 pt
Average AMD Ryzen 7 7735HS, AMD Radeon 680M	75.9 pt
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	67.9 pt

PCMark 10 / Score
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	7702 Points +14%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	7196 Points +6%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	6907 Points +2%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	6864 Points +1%
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	6774 Points
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	6724 Points -1%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (5722 - 7000, n=8)	6588 Points -3%

PCMark 10 / Essentials
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	10377 Points +20%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (8648 - 11124, n=8)	10264 Points +19%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	10176 Points +18%
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	10091 Points +17%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	10030 Points +16%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	10028 Points +16%
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	8648 Points

PCMark 10 / Productivity
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	12672 Points +4%
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	12153 Points
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (8428 - 12153, n=8)	9572 Points -21%
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	9569 Points -21%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9325 Points -23%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	8912 Points -27%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	8635 Points -29%

PCMark 10 / Digital Content Creation
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	11679 Points +45%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	9754 Points +21%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	9678 Points +21%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9243 Points +15%
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	8543 Points +6%
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	8029 Points
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (5798 - 8726, n=8)	7976 Points -1%

CrossMark / Overall
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1791 Points +40%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	1771 Points +38%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	1713 Points +34%
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	1663 Points +30%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1551 Points +21%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1280 - 1736, n=8)	1541 Points +20%
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	1280 Points

CrossMark / Productivity
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1733 Points +30%
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	1659 Points +24%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	1644 Points +23%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	1637 Points +23%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1336 - 1725, n=8)	1547 Points +16%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1479 Points +11%
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	1336 Points

CrossMark / Creativity
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	2115 Points +66%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	1924 Points +51%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1895 Points +49%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1749 Points +37%
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	1720 Points +35%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1273 - 1785, n=8)	1597 Points +25%
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	1273 Points

CrossMark / Responsiveness
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1666 Points +46%
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	1517 Points +33%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1144 - 1653, n=8)	1374 Points +20%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	1371 Points +20%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	1314 Points +15%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1246 Points +9%
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	1144 Points

WebXPRT 3 / Overall
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	317 Points +39%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	300 Points +32%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	299 Points +31%
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	291 Points +28%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (228 - 307, n=7)	280 Points +23%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	230 Points +1%
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	228 Points

WebXPRT 4 / Overall
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	285 Points +62%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	276 Points +57%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	245 Points +39%
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	244 Points +39%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	236 Points +34%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (176 - 231, n=8)	220 Points +25%
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	176 Points

Mozilla Kraken 1.1 / Total
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	655 ms *
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (580 - 655, n=8)	604 ms * +8%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	566 ms * +14%
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	536 ms * +18%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	482 ms * +26%
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	473 ms * +28%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	473 ms * +28%

* ... smaller is better

PCMark 10 Score		6774 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	107843 MB/s +204%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V	103760 MB/s +193%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T	84796 MB/s +139%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	74184 MB/s +109%
Average AMD Ryzen 7 7735HS (30324 - 52012, n=16)	47580 MB/s +34%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M	35463 MB/s
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M	35327 MB/s 0%

AIDA64 / Memory Read
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V	89848 MB/s +131%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T	89837 MB/s +131%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	87541 MB/s +125%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	58305 MB/s +50%
Average AMD Ryzen 7 7735HS (33938 - 51856, n=16)	46906 MB/s +21%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M	38890 MB/s
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M	30769 MB/s -21%

AIDA64 / Memory Write
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	117886 MB/s +169%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V	115369 MB/s +163%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	106026 MB/s +142%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T	84220 MB/s +92%
Average AMD Ryzen 7 7735HS (33175 - 55284, n=16)	51900 MB/s +18%
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M	43887 MB/s
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M	42217 MB/s -4%

AIDA64 / Memory Latency
GMK NucBox K16 AMD Ryzen 7 7735HS, Radeon 680M	108.9 ns *
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Arc 140T	106.2 ns * +2%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	103.9 ns * +5%
GMK NucBox K13 Intel Core Ultra 7 256V, Arc 140V	99.6 ns * +9%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	95.5 ns * +12%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, Radeon 780M	92 ns * +16%
Average AMD Ryzen 7 7735HS (78.2 - 109.8, n=16)	91.4 ns * +16%

* ... smaller is better

DPC 延迟

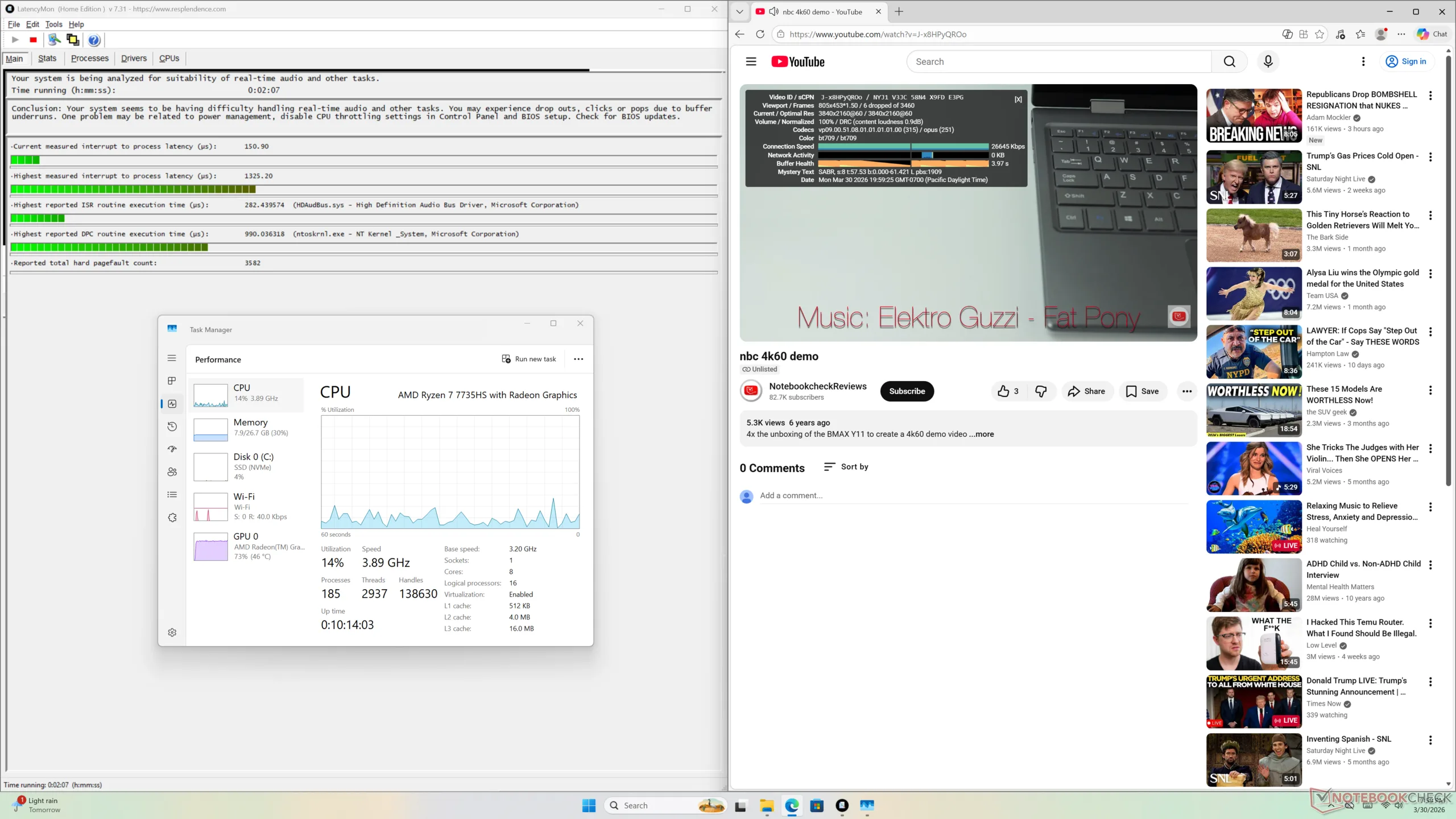

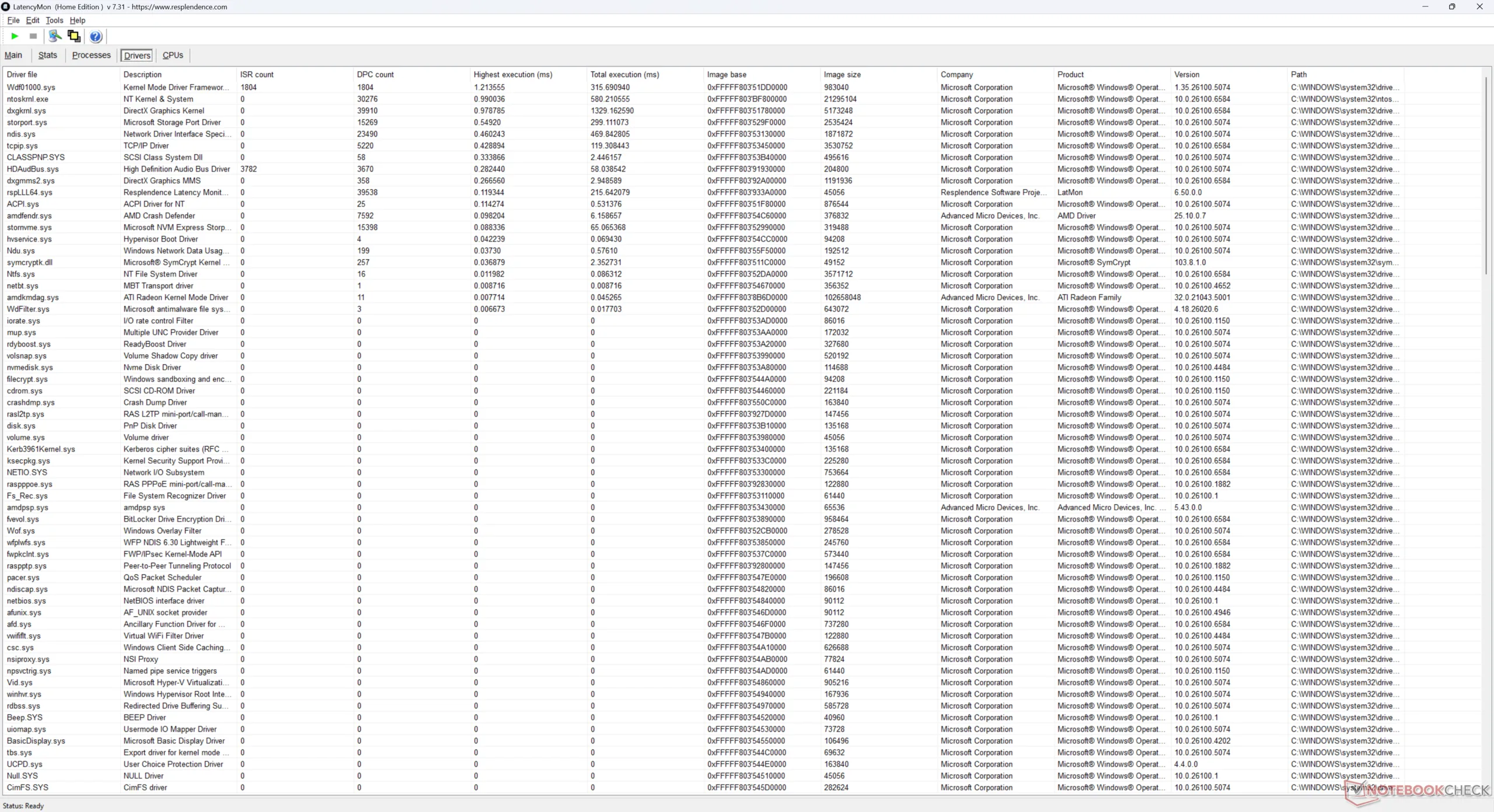

LatencyMon 显示在播放 4K60 视频时存在轻微的 DPC 问题和 6 个丢帧现象

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom A7 Max, R9 7940HS Radeon 780M, R9 7940HS, Wodposit WPBSN4M8-1TGP	1665 μs * -26%
GMK NucBox K13 Arc 140V, Core Ultra 7 256V, Huawei eKitStor Xtreme 200e 1 TB	1531.3 μs * -16%
GMK NucBox K16 Radeon 680M, R7 7735HS, TWSC TSC3AN1T0-F6Q10S	1325.2 μs *
Asus NUC 15 Pro+ Arc 140T, Ultra 9 285H, Micron 3500 1TB MTFDKBA1T0TGD	1006 μs * +24%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	844.8 μs * +36%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	790.7 μs * +40%

* ... smaller is better

存储设备

我们的测试设备配有 twsc tsc3an1t0-f6q10s而不是去年更贵的 EVO-X1 上的 Crucial P3 Plus，可能是为了节省成本。性能稍慢，传输速率可达 3500 MB/s，我们的压力测试结果如下。

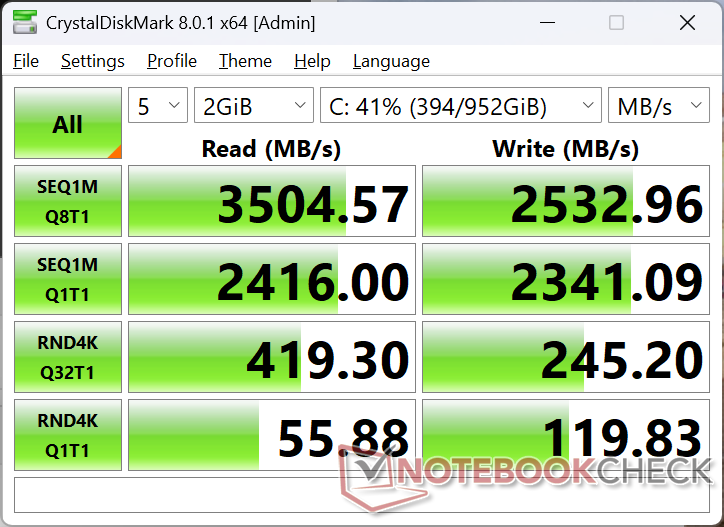

CrystalDiskMark 5.2 / 6

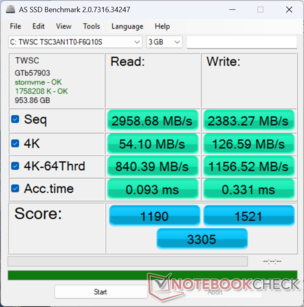

AS SSD

DiskSpd

TWSC TSC3AN1T0-F6Q10S

CDM 5/6 Read Seq Q32T1: 3522 MB/s

CDM 5/6 Write Seq Q32T1: 2579 MB/s

CDM 5/6 Read 4K Q32T1: 417.7 MB/s

CDM 5/6 Write 4K Q32T1: 246.8 MB/s

CDM 5 Read Seq: 2430 MB/s

CDM 5 Write Seq: 2394 MB/s

CDM 5/6 Read 4K: 55.72 MB/s

CDM 5/6 Write 4K: 118.9 MB/s

Drive Performance rating | DiskSpd | AS SSD

Drive Performance rating - Percent
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	87 pt
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	66.3 pt
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	60 pt
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	54.6 pt
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	52.2 pt
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	47.9 pt

DiskSpd
seq read
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	3798 (3675.89^min - 3797.73^max) MB/s +63%
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	3423 (3297.68^min - 3422.63^max) MB/s +47%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2932 (2911.11^min - 2931.83^max) MB/s +26%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	2329 (2055.5^min - 2329.47^max) MB/s
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2112 (2077.27^min - 2111.8^max) MB/s -9%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	1844 (796.16^min - 1843.9^max) MB/s -21%
seq write
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	4209 (4097.61^min - 4208.98^max) MB/s +76%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	3401 (3250.59^min - 3400.95^max) MB/s +43%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	3335 (698.84^min - 3334.89^max) MB/s +40%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2508 (2473.89^min - 2508^max) MB/s +5%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	2385 (2302.89^min - 2384.93^max) MB/s
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1808 (844.51^min - 1808.37^max) MB/s -24%
seq q8 t1 read
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	7106 (6492.57^min - 7105.99^max) MB/s +104%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	6963 (6149.34^min - 6962.54^max) MB/s +100%
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	6366 (5999.91^min - 6366.38^max) MB/s +83%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	5875 (4751.87^min - 5875.38^max) MB/s +69%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	4942 (4516.62^min - 4941.52^max) MB/s +42%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	3486 (2926.58^min - 3485.89^max) MB/s
seq q8 t1 write
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	5283 (736.31^min - 5283.36^max) MB/s +106%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	4973 (4947.14^min - 4972.98^max) MB/s +94%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	4962 (4736.84^min - 4961.79^max) MB/s +94%
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	4934 (4773.01^min - 4933.96^max) MB/s +93%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	2560 (2485.54^min - 2559.78^max) MB/s
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1803 (883.02^min - 1802.5^max) MB/s -30%
4k q1 t1 read
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	73 (67.75^min - 72.95^max) MB/s +29%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	63.5 (59.74^min - 63.47^max) MB/s +12%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	62.1 (57.4^min - 62.05^max) MB/s +10%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	57.3 (57.09^min - 57.31^max) MB/s +1%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	56.7 (40.69^min - 56.71^max) MB/s
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	50.5 (49.98^min - 50.45^max) MB/s -11%
4k q1 t1 write
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	261 (259.05^min - 260.68^max) MB/s +178%
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	241 (234.97^min - 240.75^max) MB/s +157%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	144.3 (142.64^min - 144.32^max) MB/s +54%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	130.4 (122.26^min - 130.43^max) MB/s +39%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	116.4 (60.8^min - 116.37^max) MB/s +24%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	93.9 (77.31^min - 93.94^max) MB/s
4k q32 t16 read
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	3284 (2861.81^min - 3284.05^max) MB/s +254%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	1883 (1647.29^min - 1883.42^max) MB/s +103%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	928 (920.36^min - 927.63^max) MB/s
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	781 (686.38^min - 780.77^max) MB/s -16%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	719 (619.26^min - 718.65^max) MB/s -23%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	696 (692.86^min - 696.3^max) MB/s -25%
4k q32 t16 write
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1780 (805.06^min - 1780.2^max) MB/s +20%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	1486 (1281.27^min - 1486.27^max) MB/s
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	737 (594.75^min - 736.88^max) MB/s -50%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	442 (372.74^min - 441.63^max) MB/s -70%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	413 (353.25^min - 412.63^max) MB/s -72%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	412 (409.29^min - 411.67^max) MB/s -72%

AS SSD
Score Total
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	7743 Points +134%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	5647 Points +71%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	3778 Points +14%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	3305 Points
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2362 Points -29%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	2057 Points -38%
Score Read
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	2946 Points +148%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	1396 Points +17%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	1190 Points
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	1164 Points -2%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1127 Points -5%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	911 Points -23%
Score Write
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	3655 Points +140%
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	3298 Points +117%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2146 Points +41%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	1521 Points
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	693 Points -54%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	693 Points -54%
Seq Read
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	5440 MB/s +84%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	5143.27 MB/s +74%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	5114 MB/s +73%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	4428.19 MB/s +50%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	3870.26 MB/s +31%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	2958.68 MB/s
Seq Write
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	5172 MB/s +117%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	4615.41 MB/s +94%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	2533 MB/s +6%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	2383.27 MB/s
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2329.39 MB/s -2%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2185.55 MB/s -8%
4K Read
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	80.1 MB/s +48%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	56.39 MB/s +4%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	54.1 MB/s
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	53.9 MB/s 0%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	52.09 MB/s -4%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	46.85 MB/s -13%
4K Write
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	219.87 MB/s +74%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	195.18 MB/s +54%
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	194.5 MB/s +54%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	152.4 MB/s +20%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	126.59 MB/s
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	75.97 MB/s -40%
4K-64 Read
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	2322 MB/s +176%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	840.39 MB/s
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	831 MB/s -1%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	688.04 MB/s -18%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	664.75 MB/s -21%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	349.99 MB/s -58%
4K-64 Write
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	3249 MB/s +181%
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	2586 MB/s +124%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1707.34 MB/s +48%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	1156.52 MB/s
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	264.78 MB/s -77%
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	155.91 MB/s -87%
Access Time Read
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	0.129 ms * -39%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	0.105 ms * -13%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	0.093 ms *
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	0.086 ms * +8%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	0.069 ms * +26%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	0.049 ms * +47%
Access Time Write
GMK NucBox K13 Huawei eKitStor Xtreme 200e 1 TB	0.414 ms * -25%
GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S	0.331 ms *
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	0.088 ms * +73%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	0.056 ms * +83%
Geekom A7 Max, R9 7940HS Wodposit WPBSN4M8-1TGP	0.052 ms * +84%
Asus NUC 15 Pro+ Micron 3500 1TB MTFDKBA1T0TGD	0.024 ms * +93%

* ... smaller is better

磁盘节流DiskSpd 读取循环，队列深度 8

GMK NucBox K16 TWSC TSC3AN1T0-F6Q10S; diskspd 2.0.17 f: Ø3468 (3020.99-3484.63)

GMK EVO-X1 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø4756 (3964.71-4803.91)

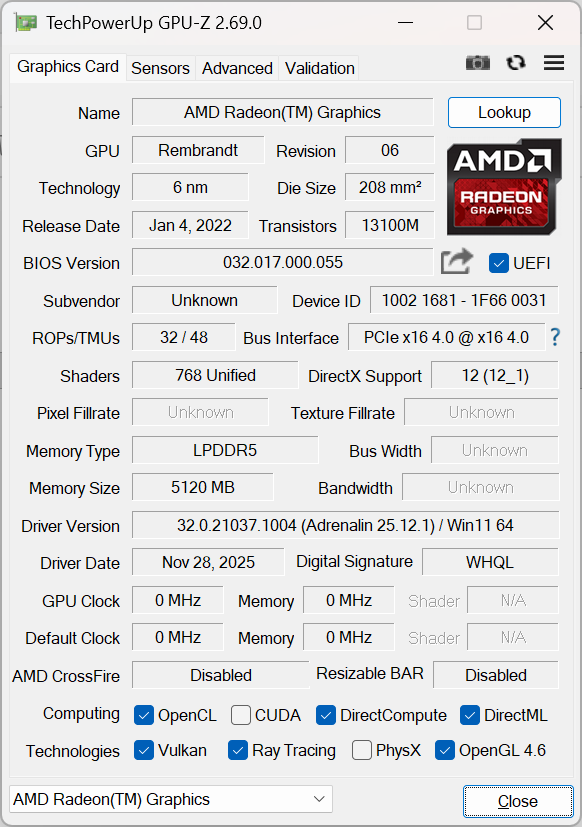

图形处理器性能

即使更新到最新的驱动程序，图形性能也比预期的要慢。3DMark 分数比我们数据库中配备相同集成 Radeon 680M图形处理器。如上文 AIDA64 基准测试结果所示，令人失望的性能可能归因于内存读取、写入和复制速度较慢。

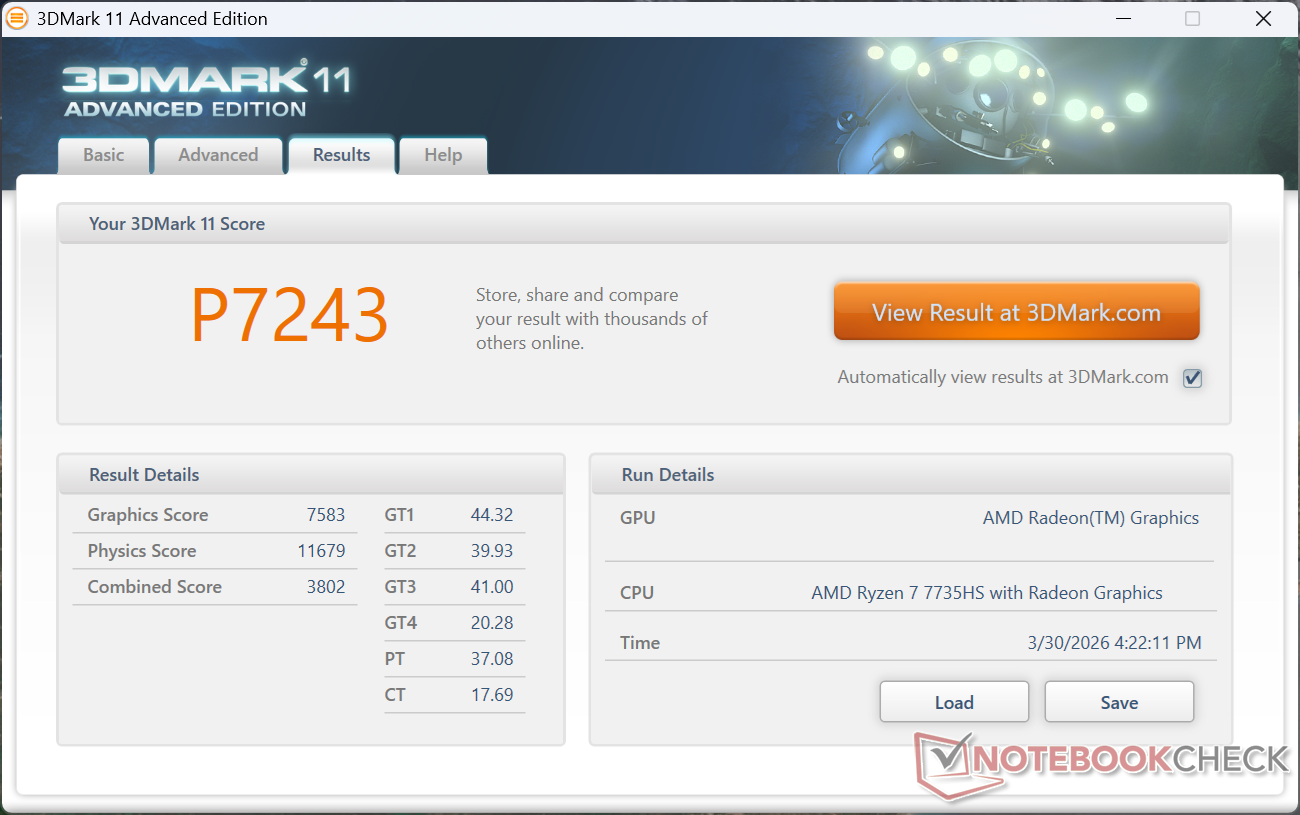

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark Performance rating - Percent
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	100 pt
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	64.7 pt
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	63.2 pt
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	48.5 pt
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	47.2 pt
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	46.5 pt
Average AMD Radeon 680M	45.9 pt
GMK NucBox M3 Ultra ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	38.7 pt
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	35 pt
GMK NucBox K16 AMD Radeon 680M, AMD Ryzen 7 7735HS	32.2 pt
Minix Elite EU512-AI Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	32.1 pt
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	31.4 pt
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	9.7 pt

3DMark 11 - 1280x720 Performance GPU
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	18261 Points +141%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	14312 Points +89%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	13067 Points +72%
Average AMD Radeon 680M (6858 - 11755, n=39)	10003 Points +32%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	9619 Points +27%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	9295 Points +23%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	8417 Points +11%
GMK NucBox K16 AMD Radeon 680M, AMD Ryzen 7 7735HS	7583 Points
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	7351 Points -3%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	6946 Points -8%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	6282 Points -17%
Minix Elite EU512-AI Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	5549 Points -27%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1872 Points -75%

3DMark

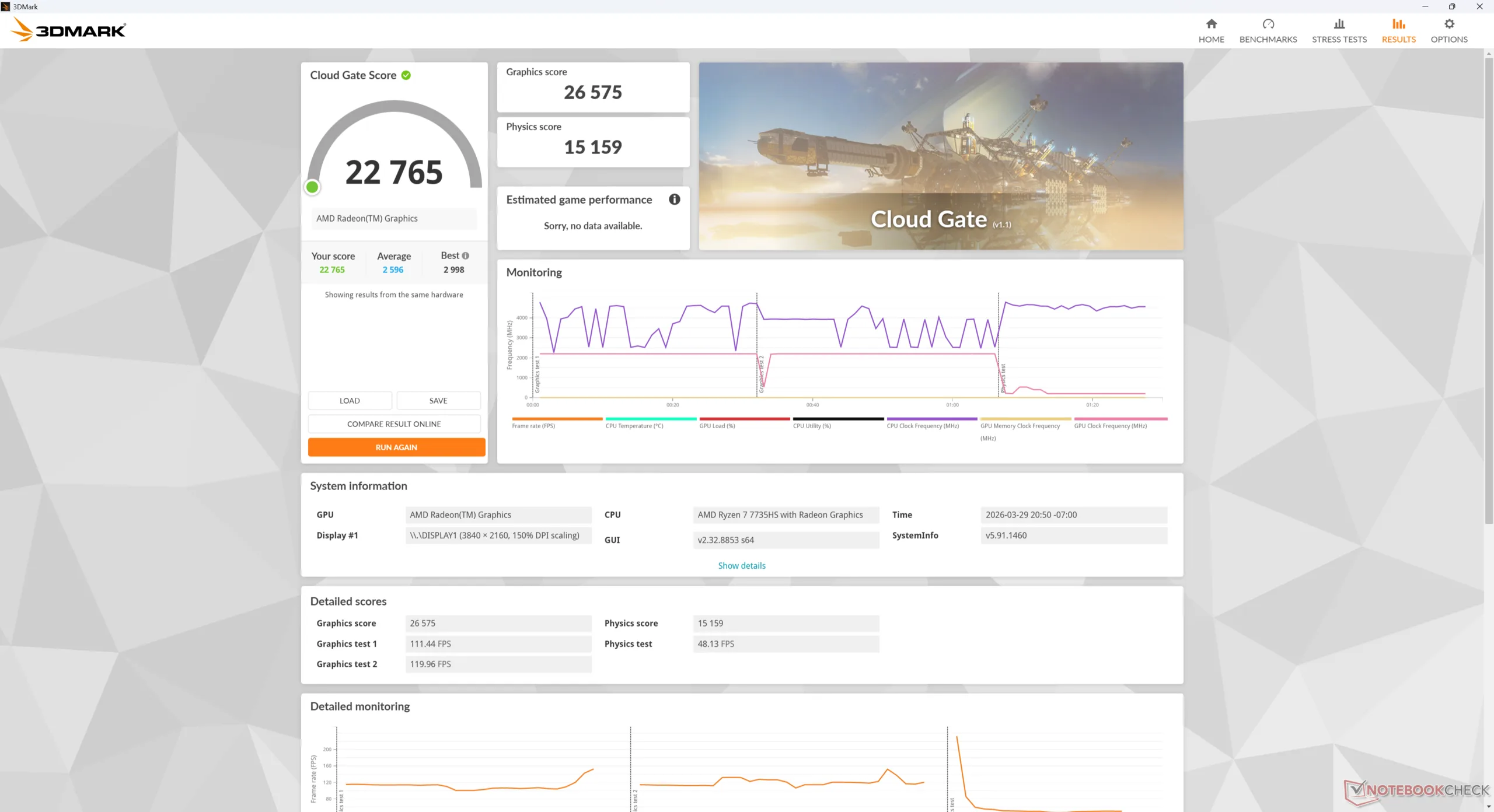

1280x720 Cloud Gate Standard Graphics
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	71453 Points +169%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	55397 Points +108%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	54549 Points +105%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	51042 Points +92%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	42305 Points +59%
Average AMD Radeon 680M (24634 - 50120, n=31)	40403 Points +52%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	38019 Points +43%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	32034 Points +21%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	29301 Points +10%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	29213 Points +10%
Minix Elite EU512-AI Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	28658 Points +8%
GMK NucBox K16 AMD Radeon 680M, AMD Ryzen 7 7735HS	26575 Points
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	10356 Points -61%

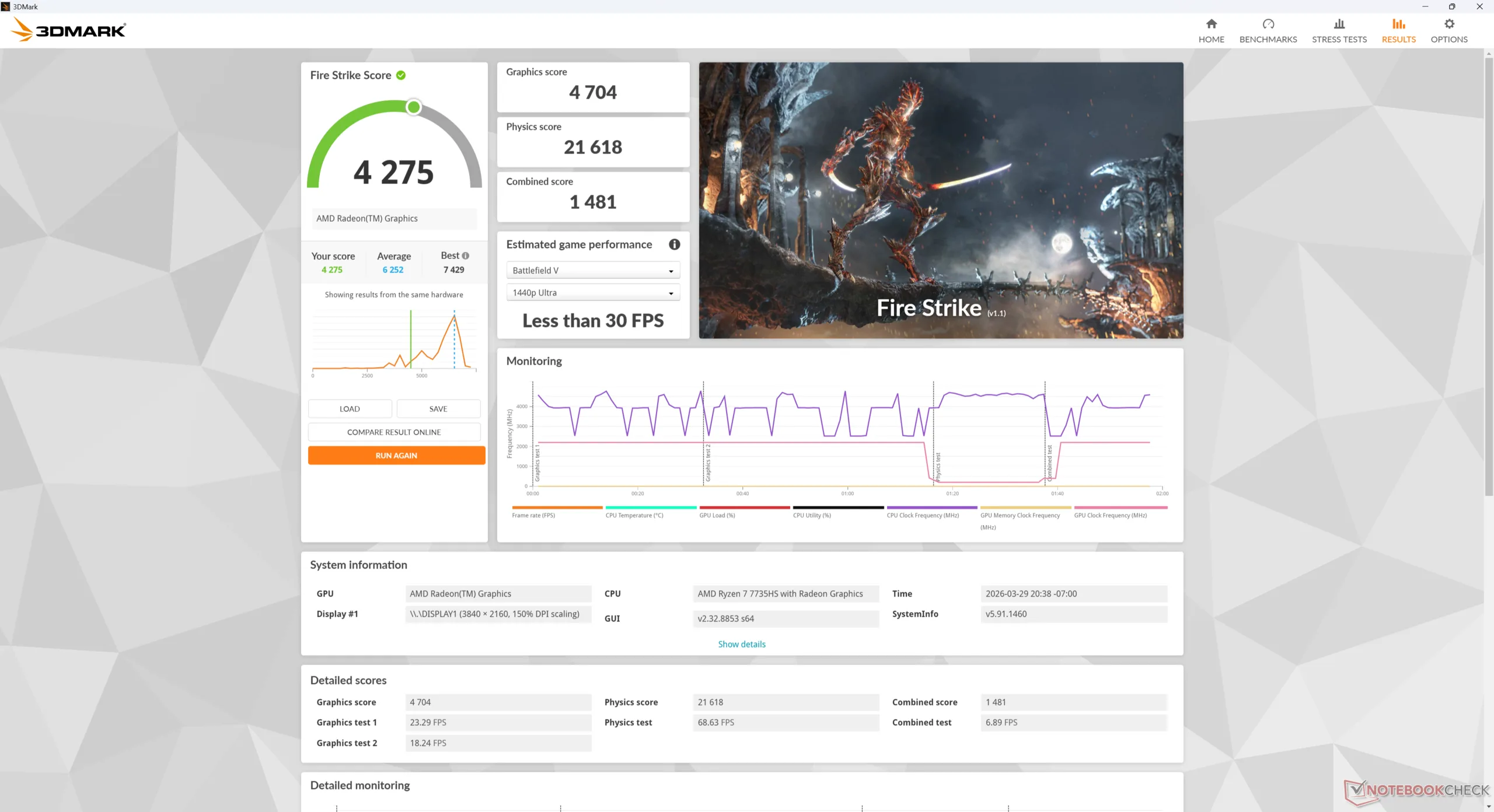

1920x1080 Fire Strike Graphics
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	16560 Points +252%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	8875 Points +89%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	8773 Points +87%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	7601 Points +62%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	6823 Points +45%
Average AMD Radeon 680M (3791 - 7706, n=41)	6672 Points +42%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	6209 Points +32%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	5511 Points +17%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	4899 Points +4%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	4892 Points +4%
GMK NucBox K16 AMD Radeon 680M, AMD Ryzen 7 7735HS	4704 Points
Minix Elite EU512-AI Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	4575 Points -3%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1367 Points -71%
2560x1440 Time Spy Graphics
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	6945 Points +358%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	3940 Points +160%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	3077 Points +103%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	2943 Points +94%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	2754 Points +81%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2404 Points +58%
Average AMD Radeon 680M (1359 - 2607, n=41)	2214 Points +46%
Minix Elite EU512-AI Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2090 Points +38%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	1635 Points +8%
GMK NucBox K16 AMD Radeon 680M, AMD Ryzen 7 7735HS	1518 Points
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	1428 Points -6%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	401 Points -74%

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark 11 Performance		7243 points
3DMark Cloud Gate Standard Score		22765 points
3DMark Fire Strike Score		4275 points
3DMark Time Spy Score		1717 points
Help

... in comparison

Blender
v3.3 Classroom CPU
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	2429 Seconds * -495%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	829 Seconds * -103%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	523 Seconds * -28%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	513 Seconds * -26%
Average AMD Radeon 680M (389 - 980, n=37)	489 Seconds * -20%
Minix Elite EU512-AI Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	417 Seconds * -2%
GMK NucBox K16 AMD Radeon 680M, AMD Ryzen 7 7735HS	408 Seconds *
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	405 Seconds * +1%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	327 Seconds * +20%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	315 Seconds * +23%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	304 Seconds * +25%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	266 Seconds * +35%
v3.3 Classroom oneAPI/Intel
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	278 Seconds *
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	255 Seconds *
v4.3 Barbershop CPU
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	12596 Seconds * -458%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	2741 Seconds * -21%
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	2657 Seconds * -18%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	2632 Seconds * -17%
GMK NucBox K16 AMD Radeon 680M, AMD Ryzen 7 7735HS	2257 Seconds *
Average AMD Radeon 680M (2038 - 2257, n=4)	2138 Seconds * +5%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2038 Seconds * +10%
Geekom A7 Max, R9 7940HS AMD Radeon 780M, AMD Ryzen 9 7940HS	1616 Seconds * +28%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	1528 Seconds * +32%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1507 Seconds * +33%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1349 Seconds * +40%
v4.3 Barbershop oneAPI
GMK NucBox K13 Intel Arc Graphics 140V, Intel Core Ultra 7 256V	975 Seconds *
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	914 Seconds *

* ... smaller is better

Performance rating - Percent
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	94 pt
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	91.6 pt
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	86.5 pt
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	82.5 pt
Geekom A7 Max, R9 7940HS ^-1! AMD Ryzen 9 7940HS, AMD Radeon 780M	58 pt
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.8 pt

Cyberpunk 2077 - 1920x1080 Ultra Preset (FSR off)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	25.6 (22^min, 21.1^P1) fps +103%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	22.6 (18.8^min, 6.53^P1) fps +79%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	21.7 (17.5^min, 15.6^P1) fps +72%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	19.4 (11^min, 10.1^P1) fps +54%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	14.3 (11.8^min, 11.1^P1) fps +13%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	12.6 (10.8^min, 10.2^P1) fps

Baldur's Gate 3 - 1920x1080 Ultra Preset AA:T
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	26.9 fps +63%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.7 fps +62%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	26 (19.7^min, 19.8^P0.1, 23.2^P1) fps +58%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	25.8 (22.3^min, 22.3^P0.1, 22.9^P1) fps +56%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	16.5 (11.1^min, 11.3^P0.1, 12.8^P1) fps
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	15.2 (13.2^min, 13.2^P0.1, 13.5^P1) fps -8%

GTA V - 1920x1080 Highest AA:4xMSAA + FX AF:16x
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	29.1 (7.19^min, 20.4^P1) fps +122%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.6 (9.34^min, 11.4^P1) fps +103%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	22.8 (5.12^min, 17.5^P1) fps +74%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	18.5 (8.68^min, 14.9^P1) fps +41%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	13.8 (2.14^min, 9.26^P1) fps +5%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	13.1 (4.12^min, 9.26^P1) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	30.9 fps +96%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	30.5 fps +93%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	28.7 fps +82%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	28.5 fps +80%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	16.3 fps +3%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	15.8 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	57.3 (18^min, 27.8^P1) fps +126%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	56.2 (40.6^min, 46.2^P1) fps +122%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	54.5 (14.8^min, 22.5^P1) fps +115%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	53.4 (33.1^min, 40.4^P1) fps +111%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	25.3 (17.7^min, 19.6^P1) fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	92.2 (50.4^min) fps +77%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	78.5 (50.7^min) fps +50%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	78.1 (66.9^min) fps +50%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	65.8 (32.9^min) fps +26%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	58.2 (51.9^min) fps +11%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.2 (44^min) fps

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	48.3 fps +61%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	37 fps +23%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36 fps +20%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	34.8 fps +16%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	30 fps
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	22.2 fps -26%

Cyberpunk 2077
1280x720 Low Preset (FSR off)
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	121.4 (102.2^min) fps +215%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	73.6 (61^min, 58^P1) fps +91%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	62.8 (53.8^min, 50.6^P1) fps +63%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	62.5 (32.9^min, 26.7^P1) fps +62%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	61 (51.4^min, 48.9^P1) fps +58%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	59.1 (48.7^min, 46.4^P1) fps +53%
Average AMD Radeon 680M (38.6 - 62.3, n=7)	52.2 fps +35%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	42.1 (35.8^min, 27.2^P1) fps +9%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	38.6 (32.5^min, 30.8^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.5 (19.8^min) fps -34%
1920x1080 Low Preset (FSR off)
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	85.6 (70.9^min) fps +267%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	44.5 (37.8^min, 36.5^P1) fps +91%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	40.5 (35.6^min, 34.1^P1) fps +74%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	38.4 (32.6^min, 30.8^P1) fps +65%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	36.4 (31.2^min, 29.7^P1) fps +56%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	33.9 (19.2^min, 16.7^P1) fps +45%
Average AMD Radeon 680M (22.9 - 37.8, n=12)	31.1 fps +33%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	25.2 (21.5^min, 18.8^P1) fps +8%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	23.3 (20.1^min, 19.1^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	15.4 (12.1^min) fps -34%
1920x1080 Medium Preset (FSR off)
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	68.6 (58.3^min) fps +269%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	34.3 (30.1^min, 28.2^P1) fps +84%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	33.7 (29.8^min, 29^P1) fps +81%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	30.2 (26.1^min, 24.6^P1) fps +62%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	28.1 (24.6^min, 18.6^P1) fps +51%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.6 (15.5^min, 13.9^P1) fps +43%
Average AMD Radeon 680M (16.1 - 28.7, n=11)	23.9 fps +28%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	21 (18^min, 16.3^P1) fps +13%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	18.6 (16.1^min, 15.7^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	12.4 (10.3^min) fps -33%
1920x1080 High Preset (FSR off)
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	57.8 (48.8^min) fps +304%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	29 (25.5^min, 24.8^P1) fps +103%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	26.4 (22.9^min, 7.08^P1) fps +85%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	23.7 (19.8^min, 18.6^P1) fps +66%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	23.2 (12.6^min, 11.3^P1) fps +62%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	21.7 (18.4^min, 15.1^P1) fps +52%
Average AMD Radeon 680M (13.1 - 23.6, n=11)	19 fps +33%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	15.9 (13.5^min, 12.6^P1) fps +11%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	14.3 (12.5^min, 12^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	10.8 (8.83^min) fps -24%
1920x1080 Ultra Preset (FSR off)
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	50.6 (40.6^min) fps +302%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	25.6 (22^min, 21.1^P1) fps +103%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	22.6 (18.8^min, 6.53^P1) fps +79%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	21.7 (17.5^min, 15.6^P1) fps +72%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	19.4 (11^min, 10.1^P1) fps +54%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	18.7 (15.9^min, 13.8^P1) fps +48%
Average AMD Radeon 680M (11 - 20.1, n=11)	16.4 fps +30%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	14.3 (11.8^min, 11.1^P1) fps +13%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	12.6 (10.8^min, 10.2^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.46 (7.99^min) fps -25%

Baldur's Gate 3
1280x720 Low Preset AA:SM
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	84.3 (65.3^min, 69.5^P0.1, 72.1^P1) fps +163%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	61 fps +90%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	58.6 (36.1^min, 40.9^P0.1, 51.3^P1) fps +83%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	57.6 fps +79%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	57.3 (43.1^min, 43.6^P0.1, 47.5^P1) fps +79%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	53 (45.6^min, 45.9^P0.1, 48^P1) fps +65%
Average AMD Radeon 680M (32.1 - 58.6, n=6)	47.2 fps +47%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	38.5 (27.4^min, 28.6^P0.1, 31.5^P1) fps +20%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	32.1 (20^min, 20.2^P0.1, 22.9^P1) fps
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	28.6 (21.1^min, 21.6^P0.1, 24.1^P1) fps -11%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	22.9 fps -29%
1920x1080 Low Preset AA:SM
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	63.8 (53.6^min, 54.8^P0.1, 56.1^P1) fps +157%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	40.8 fps +65%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	39.5 (32.2^min, 32.3^P0.1, 34^P1) fps +59%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	39.1 (32.7^min, 32.9^P0.1, 35.1^P1) fps +58%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	36.6 (33^min, 33.2^P0.1, 33.8^P1) fps +48%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36.1 fps +46%
Average AMD Radeon 680M (24.8 - 39.1, n=9)	32.6 fps +31%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	24.8 (19.5^min, 19.8^P0.1, 21^P1) fps 0%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.8 (16.1^min, 16.3^P0.1, 17.2^P1) fps
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	19.7 (17.3^min, 17.4^P0.1, 17.7^P1) fps -21%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	15.3 fps -38%
1920x1080 Medium Preset AA:T
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	47.5 (42.7^min, 42.8^P0.1, 43.4^P1) fps +129%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	33.5 fps +62%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	31.2 (25.4^min, 26^P0.1, 27.3^P1) fps +51%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	30.6 (26.9^min, 27^P0.1, 27.7^P1) fps +48%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	29.7 (20.6^min, 23.4^P0.1, 26.4^P1) fps +43%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	29.5 fps +43%
Average AMD Radeon 680M (20.7 - 32, n=9)	25.6 fps +24%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	20.7 (14^min, 14.1^P0.1, 14.6^P1) fps
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	19.4 (15.6^min, 15.8^P0.1, 16.7^P1) fps -6%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	15.1 (13.3^min, 13.3^P0.1, 13.7^P1) fps -27%
1920x1080 High Preset AA:T
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	42.7 (36.1^min, 36.7^P0.1, 39.1^P1) fps +157%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	29 fps +75%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	27.1 fps +63%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	26.5 (23.4^min, 23.5^P0.1, 24.9^P1) fps +60%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	26.2 (21.4^min, 21.4^P0.1, 23.3^P1) fps +58%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	24.5 (19.6^min, 20.4^P0.1, 21.7^P1) fps +48%
Average AMD Radeon 680M (16.6 - 26, n=9)	21.2 fps +28%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	16.6 (11^min, 11^P0.1, 12.5^P1) fps
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	15.6 (13.2^min, 13.4^P0.1, 13.7^P1) fps -6%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	13 (10.4^min, 10.8^P0.1, 11.8^P1) fps -22%
1920x1080 Ultra Preset AA:T
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	42.3 (37.3^min, 37.4^P0.1, 38.5^P1) fps +156%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	26.9 fps +63%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.7 fps +62%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	26 (19.7^min, 19.8^P0.1, 23.2^P1) fps +58%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	25.8 (22.3^min, 22.3^P0.1, 22.9^P1) fps +56%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	23.9 (20.5^min, 20.6^P0.1, 21.6^P1) fps +45%
Average AMD Radeon 680M (16.5 - 25.3, n=9)	20.6 fps +25%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	16.5 (11.1^min, 11.3^P0.1, 12.8^P1) fps
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	15.2 (13.2^min, 13.2^P0.1, 13.5^P1) fps -8%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	12.6 (11.5^min, 11.5^P0.1, 11.6^P1) fps -24%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	84.9 fps +106%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	78.7 fps +91%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	77.9 fps +89%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	71.3 fps +73%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	60 fps +46%
Average AMD Radeon 680M (34.4 - 74.7, n=39)	58.8 fps +43%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	44.4 fps +8%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	41.2 fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	40.9 fps -1%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	40.8 fps -1%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	15 fps -64%
1920x1080 Standard Quality
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	43.6 fps +97%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	42.8 fps +94%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	42.3 fps +91%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	39.1 fps +77%
Average AMD Radeon 680M (18.3 - 36.9, n=40)	30.6 fps +38%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	29.3 fps +33%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23 fps +4%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	22.2 fps 0%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.1 fps
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	21.8 fps -1%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	7.5 fps -66%
1920x1080 High Quality
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	30.9 fps +96%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	30.5 fps +93%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	28.7 fps +82%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	28.5 fps +80%
Average AMD Radeon 680M (12.9 - 26.2, n=40)	21.7 fps +37%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	17.4 fps +10%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	16.6 fps +5%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	16.3 fps +3%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	16.1 fps +2%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	15.8 fps
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	5.3 fps -66%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	134.5 (121.1^min) fps +33%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	134.4 (114.9^min) fps +33%
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	129.5 (70.9^min) fps +28%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	128.5 (114.3^min) fps +27%
Average AMD Radeon 680M (34.4 - 146.2, n=41)	114.7 fps +13%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	107.9 (57.9^min) fps +7%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	104.5 (67^min) fps +3%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	101.2 (86.7^min) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	98.1 (63.6^min) fps -3%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	97.7 (57.3^min) fps -3%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	90.4 (63.1^min) fps -11%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	58.3 (44.4^min) fps -42%
1366x768 med (1/3)
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	106.5 (89.3^min) fps +29%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	102 (87.3^min) fps +23%
Average AMD Radeon 680M (33.3 - 121.4, n=41)	95.2 fps +15%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	94.5 (55.6^min) fps +14%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	93.3 (80.9^min) fps +13%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	88.7 (53.6^min) fps +7%
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	88 (60.8^min) fps +6%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	82.8 (70.9^min) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	80.4 (44.8^min) fps -3%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	64.5 (50.7^min) fps -22%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	61.9 (45.9^min) fps -25%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	32.2 (20.1^min) fps -61%
1920x1080 high (2/3)
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	104 (71.4^min) fps +74%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	90 (79^min) fps +51%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	87.6 (52.1^min) fps +46%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	81.4 (72.4^min) fps +36%
Average AMD Radeon 680M (33.2 - 89.1, n=41)	71.5 fps +20%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	68.9 (35.5^min) fps +15%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	65 (58^min) fps +9%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	62.5 (42.1^min) fps +5%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	59.9 (22.6^min) fps 0%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	59.8 (52.1^min) fps
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	59.2 (38.7^min) fps -1%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	13.2 (4.8^min) fps -78%
1920x1080 ultra (3/3) best looking
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	101.5 (72.2^min) fps +94%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	92.2 (50.4^min) fps +77%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	78.5 (50.7^min) fps +50%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	78.1 (66.9^min) fps +50%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	70.5 (61.2^min) fps +35%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	65.8 (32.9^min) fps +26%
Average AMD Radeon 680M (33.2 - 84.9, n=41)	62.9 fps +20%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	58.2 (51.9^min) fps +11%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	57.8 (39.9^min) fps +11%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	54.5 (35.9^min) fps +4%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.2 (44^min) fps
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	22.9 (14.8^min) fps -56%

X-Plane 11.11
1280x720 low (fps_test=1)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	71.4 fps +69%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	64.5 fps +52%
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	62.3 fps +47%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	60.3 fps +43%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	55.3 fps +31%
Average AMD Radeon 680M (26.8 - 66.7, n=41)	54.9 fps +30%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	51.8 fps +22%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.3 fps
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	41 fps -3%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	31.5 fps -26%
1920x1080 med (fps_test=2)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	55.7 fps +63%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	52.1 fps +52%
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	50.3 fps +47%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	44.5 fps +30%
Average AMD Radeon 680M (21.1 - 53.1, n=41)	43.4 fps +27%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	41.7 fps +22%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	40.5 fps +18%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	34.2 fps
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	31.4 fps -8%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	28.4 fps -17%
1920x1080 high (fps_test=3)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	48.3 fps +61%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	41.9 fps +40%
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	41.7 fps +39%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	37 fps +23%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36 fps +20%
Average AMD Radeon 680M (16.6 - 44.5, n=41)	35.7 fps +19%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	34.8 fps +16%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	30 fps
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	27.8 fps -7%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	22.2 fps -26%

F1 24
1920x1080 Low Preset AA:T AF:16x
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	160.3 (137^min, 110^P1) fps +275%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	83.6 (64^min, 53^P1) fps +95%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	83 (71^min, 67^P1) fps +94%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	76.8 (63^min, 55^P1) fps +79%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	72 (52^min, 30^P1) fps +68%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	71.8 (52^min, 35^P1) fps +68%
Average AMD Radeon 680M (42.8 - 72.2, n=5)	59.8 fps +40%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	47 (37^min, 30^P1) fps +10%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.8 (33^min, 27^P1) fps
1920x1080 Medium Preset AA:T AF:16x
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	147.7 (128^min, 104^P1) fps +313%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	78.4 (53^min, 55^P1) fps +119%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	75.6 (53^min, 50^P1) fps +111%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	74.9 (65^min, 61^P1) fps +109%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	64.3 (49^min, 47^P1) fps +80%
Average AMD Radeon 680M (35.8 - 64.3, n=5)	52.2 fps +46%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	41.2 (30^min, 25^P1) fps +15%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	35.8 (14^min, 22^P1) fps
1920x1080 High Preset AA:T AF:16x
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	109.6 (95^min, 77^P1) fps +362%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	58.7 (34^min, 45^P1) fps +148%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	57.7 (51^min, 49^P1) fps +143%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	55.8 (41^min, 40^P1) fps +135%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	53.8 (38^min, 22^P1) fps +127%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	44.9 (28^min, 22^P1) fps +89%
Average AMD Radeon 680M (23.7 - 46, n=5)	37.2 fps +57%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	30.9 (10^min, 21^P1) fps +30%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	23.7 (9^P1) fps
1920x1080 Ultra High Preset AA:T AF:16x
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	38.4 (32^min, 30^P1) fps +404%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	19.2 (16^min, 16^P1) fps +152%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	17.2 (13^min, 12^P1) fps +126%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	16.6 (10^min, 7^P1) fps +118%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	13 (5^min, 9^P1) fps +71%
Average AMD Radeon 680M (7.41 - 9.53, n=4)	8.25 fps +8%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	7.62 (2^min, 4^P1) fps
1280x720 Ultra Low Preset AA:T
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	77.3 (53^min, 31^P1) fps

GTA V
1024x768 Lowest Settings possible
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	176.4 (3.08^min, 125^P1) fps +100%
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	175.9 (3.7^min, 125^P1) fps +99%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	164.2 (3.24^min, 90.9^P1) fps +86%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	160.4 (4.6^min, 100^P1) fps +82%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	158.4 (4.27^min, 90.9^P1) fps +79%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	145.3 (6.3^min, 90.9^P1) fps +65%
Average AMD Radeon 680M (67.7 - 155.4, n=35)	132.7 fps +50%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	109.7 (19^min, 66.7^P1) fps +24%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	107.9 (16.9^min, 71.4^P1) fps +22%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	100.3 (39.9^min, 62.5^P1) fps +14%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	88.3 (10.4^min, 55.6^P1) fps
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	51.6 (0.815^min, 26.3^P1) fps -42%
1920x1080 Lowest Settings possible
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	170.7 (4.32^min, 111.1^P1) fps +168%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	152.8 (5.95^min, 100^P1) fps +140%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	152.6 (4.38^min, 100^P1) fps +140%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	151 (4.26^min, 58.8^P1) fps +137%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	129.9 (25^min, 83.3^P1) fps +104%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	107.9 (24.4^min, 76.9^P1) fps +70%
Average AMD Radeon 680M (56.9 - 115.8, n=27)	100.2 fps +58%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	84.6 (18.3^min, 58.8^P1) fps +33%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	78.6 (26^min, 50^P1) fps +24%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	67.6 (18.1^min, 45.5^P1) fps +6%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	63.6 (18.5^min, 41.7^P1) fps
1366x768 Normal/Off AF:4x
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	169.3 (3.57^min, 111.1^P1) fps +106%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	168.9 (3.98^min, 125^P1) fps +105%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	157.7 (4.41^min, 90.9^P1) fps +92%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	152.4 (3.6^min, 90.9^P1) fps +85%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	144.9 (6.19^min, 83.3^P1) fps +76%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	130.2 (21^min, 76.9^P1) fps +58%
Average AMD Radeon 680M (60.7 - 143.9, n=32)	119 fps +45%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	97.4 (23.4^min, 62.5^P1) fps +18%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	97.1 (7.78^min, 62.5^P1) fps +18%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	86.1 (7.7^min, 50^P1) fps +5%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	82.2 (15.2^min, 50^P1) fps
1920x1080 Normal/Off AF:4x
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	165.2 (4.75^min, 111.1^P1) fps +153%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	147.7 (4.77^min, 90.9^P1) fps +127%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	145 (4.16^min, 58.8^P1) fps +122%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	140 (5.75^min, 100^P1) fps +115%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	127.5 (23^min, 76.9^P1) fps +96%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	107.9 (22.2^min, 71.4^P1) fps +65%
Average AMD Radeon 680M (54.9 - 117.3, n=27)	99.9 fps +53%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	74.8 (18.3^min, 47.6^P1) fps +15%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	71.8 (20.9^min, 47.6^P1) fps +10%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	71 (6.44^min, 40^P1) fps +9%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	65.2 (19.6^min, 40^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	108.8 (13.5^min, 76.9^P1) fps +270%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	69.4 (9.45^min, 47.6^P1) fps +136%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	63.6 (8.99^min, 25.6^P1) fps +116%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	57.4 (6.55^min, 45.5^P1) fps +95%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	50.9 (4.69^min, 34.5^P1) fps +73%
Average AMD Radeon 680M (25.9 - 99.1, n=37)	48.4 fps +65%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	45.3 (15.1^min, 35.7^P1) fps +54%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	33.7 (4.68^min, 22.7^P1) fps +15%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	29.4 (4.37^min, 20^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23.6 (8.96^min, 17.2^P1) fps -20%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	19.8 (5.18^min, 14.5^P1) fps -33%
1920x1080 Highest AA:4xMSAA + FX AF:16x
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	44.2 (11.9^min, 33.3^P1) fps +237%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	29.1 (7.19^min, 20.4^P1) fps +122%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.6 (9.34^min, 11.4^P1) fps +103%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Radeon 680M	23 (3.67^min, 16.7^P1) fps +76%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	22.8 (5.12^min, 17.5^P1) fps +74%
Average AMD Radeon 680M (11.3 - 25.3, n=37)	21.3 fps +63%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	18.5 (8.68^min, 14.9^P1) fps +41%
Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS, AMD Radeon 780M	13.8 (2.14^min, 9.26^P1) fps +5%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	13.1 (4.12^min, 9.26^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.98 (4.2^min, 6.21^P1) fps -24%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	8.39 (3.74^min, 7.04^P1) fps -36%

Strange Brigade
1280x720 lowest AF:1
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	374 (136.2^min, 262^P1) fps +336%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	240 (45.1^min, 113.4^P1) fps +180%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	231 (91^min, 198.8^P1) fps +170%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	198.3 (71.2^min, 167.4^P1) fps +131%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	185.2 (125.5^min, 161.9^P1) fps +116%
Average AMD Radeon 680M (72.9 - 167.5, n=38)	130.3 fps +52%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	96.5 (21.3^min, 36.4^P1) fps +13%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	88.2 (20^min, 29.9^P1) fps +3%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	85.7 (64.2^min, 73.4^P1) fps
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	31 (6.8^min, 8.12^P1) fps -64%
1920x1080 medium AA:medium AF:4
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	136.6 (82.6^min, 118^P1) fps +285%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	83.5 (55.7^min, 74^P1) fps +135%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	79.4 (59.8^min, 69.1^P1) fps +124%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	73.7 (60.8^min, 62.9^P1) fps +108%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	71.8 (20.2^min, 27^P1) fps +102%
Average AMD Radeon 680M (30 - 63, n=38)	53.4 fps +50%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	40.9 (18.9^min, 23.2^P1) fps +15%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	38.9 (14.7^min, 28.5^P1) fps +10%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	35.5 (30.1^min, 30.9^P1) fps
1920x1080 high AA:high AF:8
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	116.7 (48.5^min, 93.3^P1) fps +284%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	67 (48.2^min, 55^P1) fps +120%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	65.8 (43.1^min, 52.8^P1) fps +116%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	62.6 (43.8^min, 48.8^P1) fps +106%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	59.7 (18.9^min, 25.9^P1) fps +96%
Average AMD Radeon 680M (25.3 - 53.1, n=38)	44.3 fps +46%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	32.6 (9.2^min, 18.5^P1) fps +7%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	31.1 (8.7^min, 16.3^P1) fps +2%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	30.4 (22.8^min, 24.2^P1) fps
1920x1080 ultra AA:ultra AF:16
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Arc B390 12 Xe3 Panther Lake iGPU	101.4 (59.5^min, 78.8^P1) fps +301%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	57.3 (18^min, 27.8^P1) fps +126%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	56.2 (40.6^min, 46.2^P1) fps +122%
GMK NucBox K13 Intel Core Ultra 7 256V, Intel Arc Graphics 140V	54.5 (14.8^min, 22.5^P1) fps +115%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	53.4 (33.1^min, 40.4^P1) fps +111%
Average AMD Radeon 680M (22 - 46, n=38)	38 fps +50%
GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs	26.3 (5.9^min, 8.53^P1) fps +4%
GMK NucBox K16 AMD Ryzen 7 7735HS, AMD Radeon 680M	25.3 (17.7^min, 19.6^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.2 (5.3^min, 6.89^P1) fps 0%

赛博朋克 2077》超 FPS 图表

GMK NucBox K16 R7 7735HS, Radeon 680M: Ø12.5 (11.3-12.7)

	low	med.	high	ultra
GTA V (2015)	88.3	82.2	29.4	13.1
Dota 2 Reborn (2015)	101.2	82.8	59.8	52.2
Final Fantasy XV Benchmark (2018)	41.2	22.1	15.8
X-Plane 11.11 (2018)	42.3	34.2	30
Strange Brigade (2018)	85.7	35.5	30.4	25.3
Baldur's Gate 3 (2023)	24.8	20.7	16.6	16.5
Cyberpunk 2077 (2023)	23.3	18.6	14.3	12.6
F1 24 (2024)	42.8	35.8	23.7	7.62

排放量

系统噪音

无论屏幕负载如何，风扇始终处于工作状态。虽然声音不大，但即使在浏览网页或视频流等低负载时，也会有持续的呼呼声。游戏等较高负载时，风扇噪音可高达 50 dB(A)，比大多数超薄笔记本电脑都要大。

风扇噪音曲线（白色：背景，红色：系统空闲，蓝色：3DMark 06，橙色：《赛博朋克 2077》，绿色：《赛博朋克 2077》：赛博朋克 2077》，绿色：Prime95 压力）

Noise level

Idle		30.9 / 31.6 / 31.6 dB(A)
Load		45.3 / 51.7 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.6 dB(A)

	GMK NucBox K16 R7 7735HS, Radeon 680M	GMK NucBox K13 Core Ultra 7 256V, Arc 140V	Beelink SER9 Pro Ryzen 7 H 255, Radeon 780M	Geekom A7 Max, R9 7940HS R9 7940HS, Radeon 780M	Asus NUC 15 Pro+ Ultra 9 285H, Arc 140T	MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V
Noise		14%	15%	11%	3%	3%
off / environment * (dB)	23.6	23.3 1%	23 3%	24.7 -5%	25.3 -7%	24.8 -5%
Idle Minimum * (dB)	30.9	24.5 21%	29.1 6%	25.5 17%	25.4 18%	28 9%
Idle Average * (dB)	31.6	25 21%	30.1 5%	25.6 19%	25.5 19%	36.1 -14%
Idle Maximum * (dB)	31.6	25.1 21%	31.7 -0%	25.7 19%	37.3 -18%	36.1 -14%
Load Average * (dB)	45.3	40.1 11%	33.7 26%	43 5%	44.4 2%	38.9 14%
Cyberpunk 2077 ultra * (dB)	49.2	44.2 10%	33.8 31%	44.9 9%	46.2 6%	37 25%
Load Maximum * (dB)	51.7	45.1 13%	35.2 32%	45 13%	52.7 -2%	49.2 5%
Witcher 3 ultra * (dB)				44.9	47.7

* ... smaller is better

温度

新鲜空气从机身顶部边缘的缝隙进入，然后从机身两侧排出。相比之下，大多数其他微型 PC 设计的废热都是从机身后部排出的。因此，将 NucBox K16 放置在侧面会遮住排气格栅，可能会影响温度和性能。

Max. Load

Idle


27.2 °C	26.8 °C	27 °C
28.4 °C	27.8 °C	27.8 °C
27.8 °C	27.8 °C	26.8 °C

Maximum: 28.4 °C
Average: 27.5 °C


26.2 °C	28.2 °C	26.4 °C
26.4 °C	25.2 °C	29.4 °C
25 °C	26.2 °C	27 °C

Maximum: 29.4 °C
Average: 26.7 °C

Power Supply (max.) 39.2 °C | Room Temperature 20 °C | Fluke 62 Mini IR Thermometer

(+) The average temperature for the upper side under maximal load is 27.5 °C / 82 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 28.4 °C / 83 F, compared to the average of 35.5 °C / 96 F, ranging from 20.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 29.4 °C / 85 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 23.2 °C / 74 F, compared to the device average of 32.2 °C / 90 F.

压力测试

在运行 Prime95 时，CPU 的频率稳定在 4.1 GHz，功耗为 50 W，温度为 81 C。 EVO-X1的温度更高。运行游戏时，核心温度也会继续升高几摄氏度。在运行游戏时，核心温度也会继续升高几摄氏度。 NucBox K13配备了更高效的酷睿至尊 7 256V，不仅游戏性能更快，运行温度也更低。

	CPU 平均时钟 (GHz)	GPU 时钟 (MHz)	CPU 平均温度 (°C)
系统闲置	--	400	34
Prime95 压力	4.1	--	81
Prime95 + FurMark Stress	4.2	1763	75
赛博朋克 2077》压力	1.6	2200	76

能源管理

耗电量

功耗是 Zen 3+ 系统开始显露老态的地方。在玩游戏时，该系统的功耗接近 70 瓦，是搭载 Lunar Lake 处理器的 NucBox K13 的两倍，尽管后者的图形性能要高出 60% 至 90%。同样，在运行 Prime95 时，NucBox K16 的功耗是后者的两倍多，而处理器性能只提高了 20%。

我们测得中等尺寸（约 13.3 x 5.8 x 3.2 厘米）的 120 瓦交流适配器的最大功耗为 80 瓦。

启动 Prime95 应力时，消耗功率将飙升至 74 W，但没有出现大幅下降，这表明 Boost 具有良好的可持续性。

Power Consumption

Off / Standby	1.6 / 3.5 Watt
Idle	7.4 / 7.7 / 7.7 Watt
Load	52 / 80.1 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox K16 R7 7735HS, Radeon 680M, TWSC TSC3AN1T0-F6Q10S, , x,	GMK NucBox K13 Core Ultra 7 256V, Arc 140V, Huawei eKitStor Xtreme 200e 1 TB, , x,	Beelink SER9 Pro Ryzen 7 H 255, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Geekom A7 Max, R9 7940HS R9 7940HS, Radeon 780M, Wodposit WPBSN4M8-1TGP, , x,	Asus NUC 15 Pro+ Ultra 9 285H, Arc 140T, Micron 3500 1TB MTFDKBA1T0TGD, , x,	MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V, Phison 1 TB ESR01TBTCCZ-27J, , x,
Power Consumption		50%	-4%	-1%	-7%	24%
Idle Minimum * (Watt)	7.4	2.3 69%	7 5%	5.6 24%	3.9 47%	2.9 61%
Idle Average * (Watt)	7.7	3.6 53%	7.1 8%	7.1 8%	6.1 21%	5.7 26%
Idle Maximum * (Watt)	7.7	5.8 25%	7.5 3%	8.4 -9%	8.2 -6%	10.2 -32%
Load Average * (Watt)	52	27.3 47%	62.3 -20%	57.5 -11%	56.1 -8%	38.7 26%
Cyberpunk 2077 ultra external monitor * (Watt)	68	31.6 54%	80.1 -18%	67.4 1%	63.9 6%	41.1 40%
Load Maximum * (Watt)	80.1	39.6 51%	82.9 -3%	92.9 -16%	160.6 -100%	60 25%

* ... smaller is better

功耗赛博朋克/压力测试

GMK NucBox K16 R7 7735HS, Radeon 680M: Ø74.7 (73-80.1)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V: Ø34.5 (33.1-40.1)

外部显示器功耗

GMK NucBox K16 R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø73.8 (72.7-74.6)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; Prime95 V2810 Stress (external Monitor): Ø34.5 (33.5-39.5)

GMK NucBox K16 R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø72.1 (71.8-72.4)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; Cinebench R15 Multi (external Monitor): Ø36.7 (33.6-39.6)

GMK NucBox K16 R7 7735HS, Radeon 680M; Cinebench R23 Multi (external Monitor): Ø71.7 (71-73)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; Cinebench R23 Multi (external Monitor): Ø34.2 (33.1-38.8)

GMK NucBox K16 R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49.6 (48.4-57.2)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø27.2 (26.2-39.6)

GMK NucBox K16 R7 7735HS, Radeon 680M; Idle 1min (external Monitor): Ø7.59 (7.19-9.96)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; Idle 1min (external Monitor): Ø3.64 (2.33-5.79)

GMK NucBox K16 R7 7735HS, Radeon 680M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø68 (62.2-70.3)

GMK NucBox K13 Core Ultra 7 256V, Arc 140V; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø31.6 (30.7-32.5)

笔记本检查评级

NucBox K16 整合了较早的 AMD Zen 3+ CPU 和较新的机箱设计，配备了 Oculink 和双 RJ-45 端口，非常适合专业人士使用。

Back to the verdict

GMK NucBox K16 - 04/01/2026 v8
Allen Ngo

Chassis

82 / 98 → 84%

Connectivity

37 / 81 → 45%

Weight

82%

Games Performance

33 / 80 → 41%

Application Performance

77 / 92 → 83%

Temperature

96%

Noise

67%

Average

44%

65%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
0%

Power Use
65.1%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 21.2%

潜在竞争对手比较

Image	Model / Review	Price	Weight	Height	Display
1. 64.8%	GMK NucBox K16 AMD Ryzen 7 7735HS ⎘ AMD Radeon 680M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: List Price: 650 USD	567 g	63 mm	x
2. 77.4%	GMK NucBox K13 Intel Core Ultra 7 256V ⎘ Intel Arc Graphics 140V ⎘ 16 GB Memory, 1000 GB SSD	List Price: 670 USD	506 g	36.6 mm	x
3. 80.2%	Beelink SER9 Pro AMD Ryzen 7 H 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	List Price: 520 USD	812 g	44.7 mm	x
4. 78.2%	Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS ⎘ AMD Radeon 780M ⎘ 16 GB Memory, 1024 GB SSD	List Price: 749€	681 g	46.9 mm	x
5. 77.5%	Asus NUC 15 Pro+ Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 32 GB Memory, 1024 GB SSD	List Price: 991€	690 g	42 mm	x
6. 75.2%	MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V ⎘ Intel Arc Graphics 140V ⎘ 32 GB Memory, 1000 GB SSD	Amazon: List Price: 900 USD	669 g	50.1 mm	x

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Please share our article, every link counts!

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
GMK NucBox M3 Ultra i7-12700H, Iris Xe G7 96EUs	617
Geekom A5 R7 5800H, Vega 8	618
Microsoft Surface Pro OLED Lunar Lake Core Ultra 7 268V, Arc 140V	619
GMK NucBox K16 R7 7735HS, Radeon 680M	619
Maxtang MTN-FP750 R7 7735HS, Radeon 680M	620
Lenovo IdeaPad Slim 5-15ARP G10 R7 7735HS, Radeon 680M	620
MSI Claw A8 BZ2EM Ryzen Z2 Extreme, Radeon 890M	620
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

GMK NucBox K16 迷你电脑评测：较旧的 AMD Zen 3 CPU 对大多数人来说足够好

原始性能可圈可点。

结论 - 小巧、简单、专业

Pros

Cons

价格和供应情况

Table of Contents

规格

案例

尺寸比较

连接性

交流

维护

可持续性

配件和保修

性能

测试条件

处理器

Cinebench R15 多回路运行

系统性能

DPC 延迟

存储设备

磁盘节流DiskSpd 读取循环，队列深度 8

图形处理器性能

赛博朋克 2077》超 FPS 图表

排放量

系统噪音

温度

压力测试

能源管理

耗电量

功耗赛博朋克/压力测试

外部显示器功耗

笔记本检查评级

潜在竞争对手比较

Transparency

More articles related to this device

Related Articles

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
BMAX B9 Power i9-12900HK, Iris Xe G7 96EUs	7239
LG Gram SuperSlim (2023) i7-1360P, Iris Xe G7 96EUs	7241
Fujitsu LifeBook U9311X i7 LTE i7-1185G7, Iris Xe G7 96EUs	7243
GMK NucBox K16 R7 7735HS, Radeon 680M	7243
GPD Win Max 2 i7-1260P, Iris Xe G7 96EUs	7251
Lenovo Yoga 7 2-in-1 16IML9 Ultra 5 125U, Graphics 4-Core iGPU (Arrow Lake)	7264
Prime Computer Primestation Pulsar R7 PRO 5750G, Vega 8	7271
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642

结论 - 小巧、简单、专业

Pros

Cons

价格和供应情况

Table of Contents

规格

案例

尺寸比较

连接性

交流

维护

可持续性

配件和保修

性能

测试条件

处理器

Cinebench R15 多回路运行

系统性能

DPC 延迟

存储设备

磁盘节流DiskSpd 读取循环，队列深度 8

图形处理器性能

赛博朋克 2077》超 FPS 图表

排放量

系统噪音

温度

压力测试

能源管理

耗电量

功耗 赛博朋克/压力测试

外部显示器功耗

笔记本检查评级

潜在竞争对手比较

Transparency

More articles related to this device

Related Articles

功耗赛博朋克/压力测试
