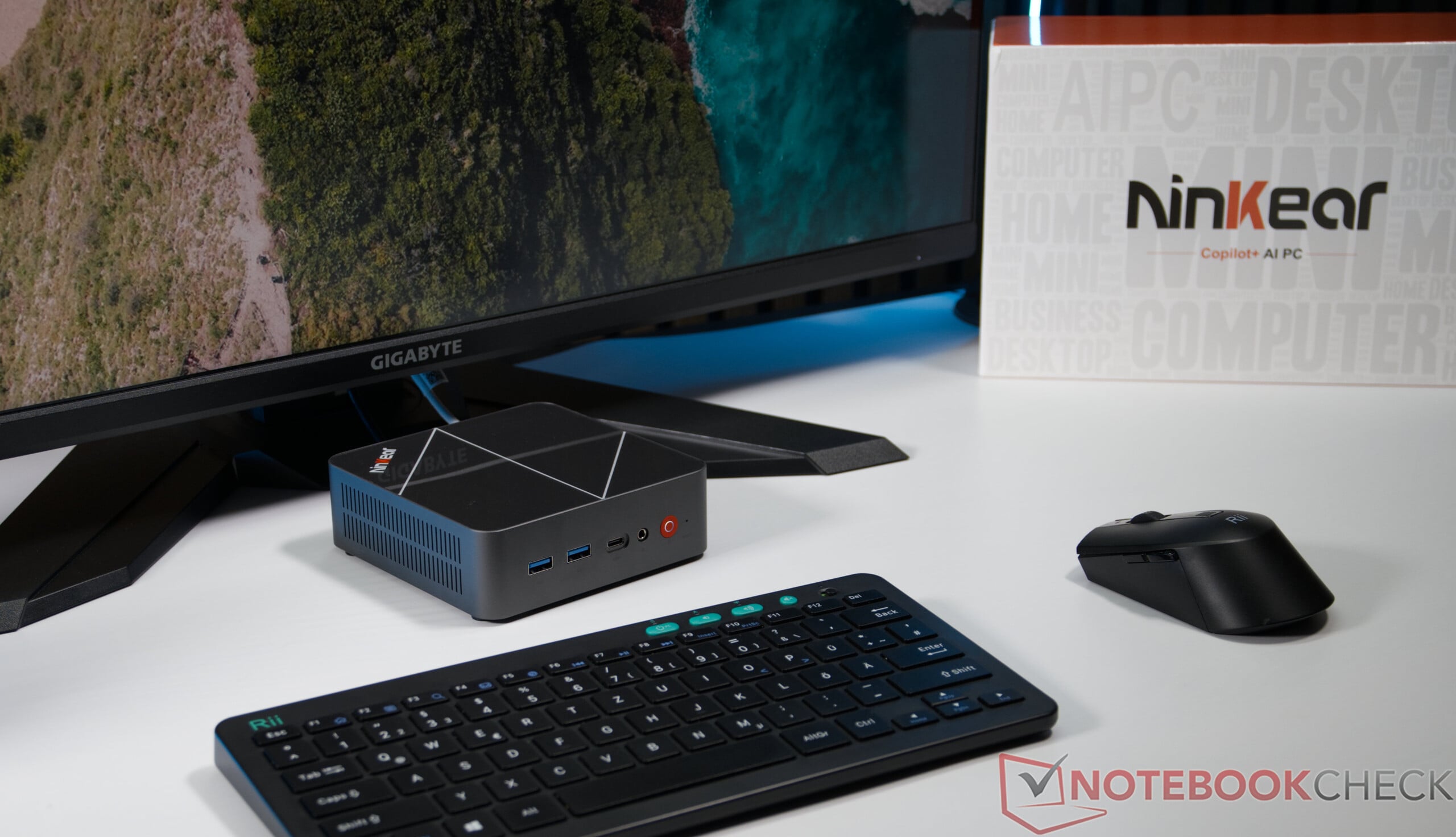

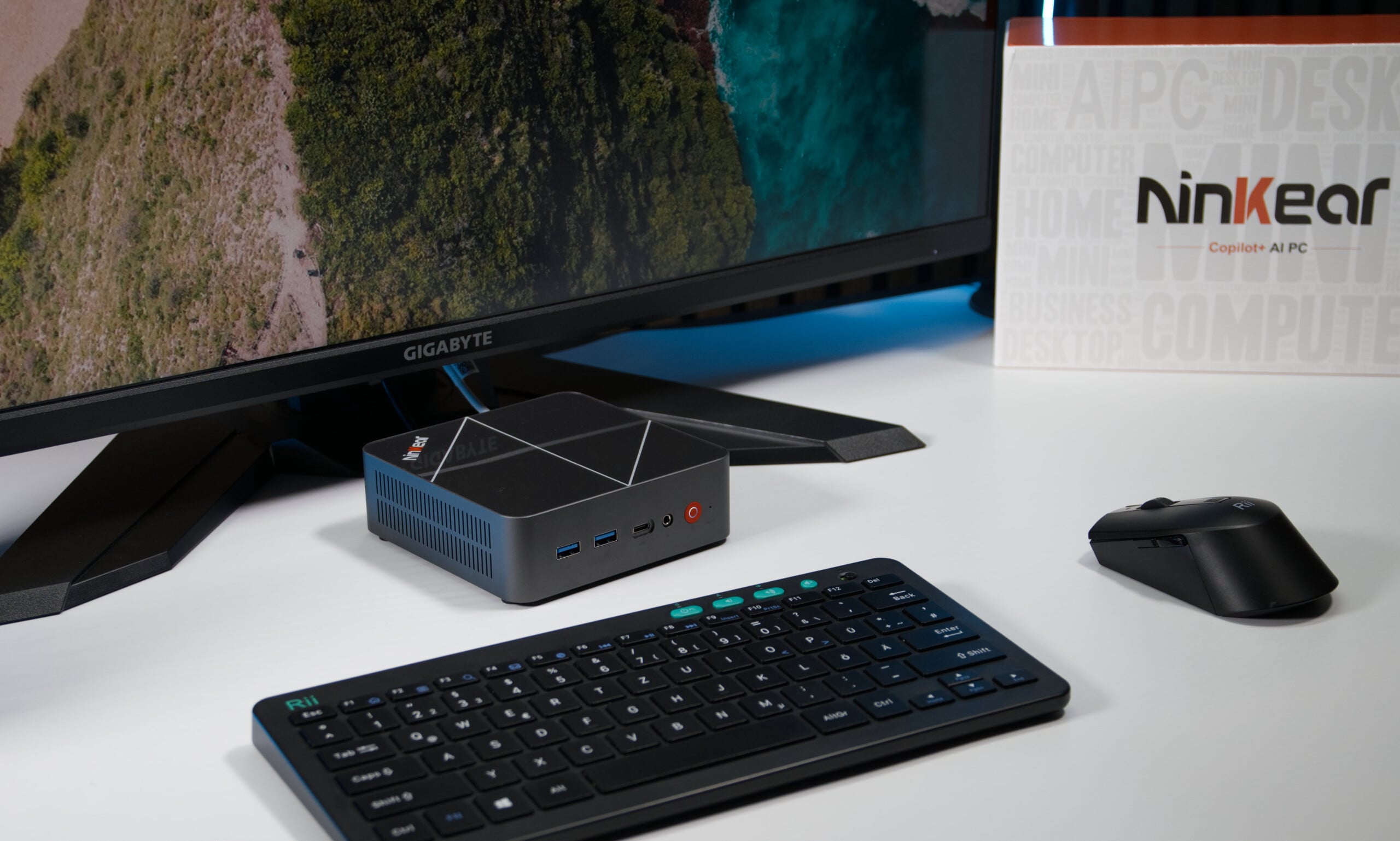

结论 - Ninkear L20 以迷你机身搭载现代硬件,令人印象深刻
Ninkear L20 在我们的评测中给人留下了良好的整体印象。凭借 Intel Core Ultra 5 226V 和运行速率为 8,533 MT/s 的 16 GB LPDDR5X 内存,这款紧凑型迷你 PC 在办公、多媒体和日常生产力任务中表现良好。其他优点包括 USB4、HDMI 和 DisplayPort 等现代化连接接口、较低的 DPC 延迟,以及持续负载下基本稳定的性能。集成的 NPU 和 Intel Arc Graphics 130V 也使 L20 成为适用于 AI 应用和多媒体的现代平台。

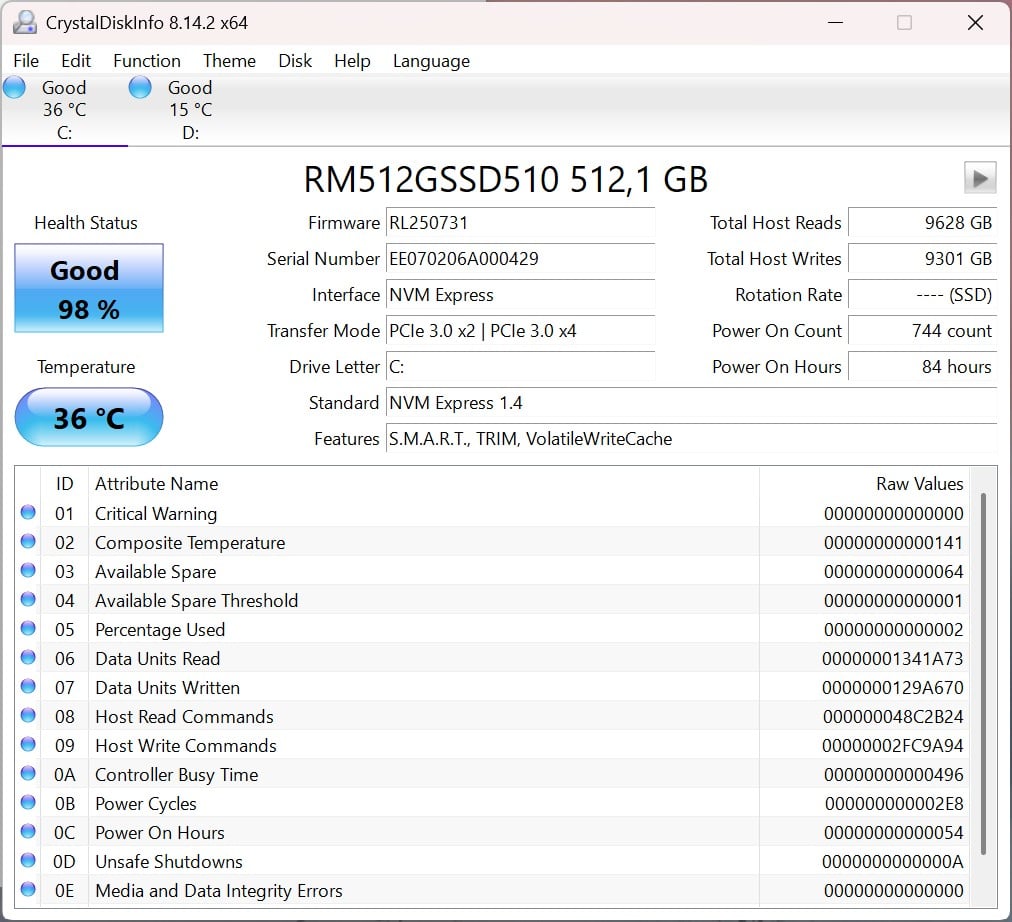

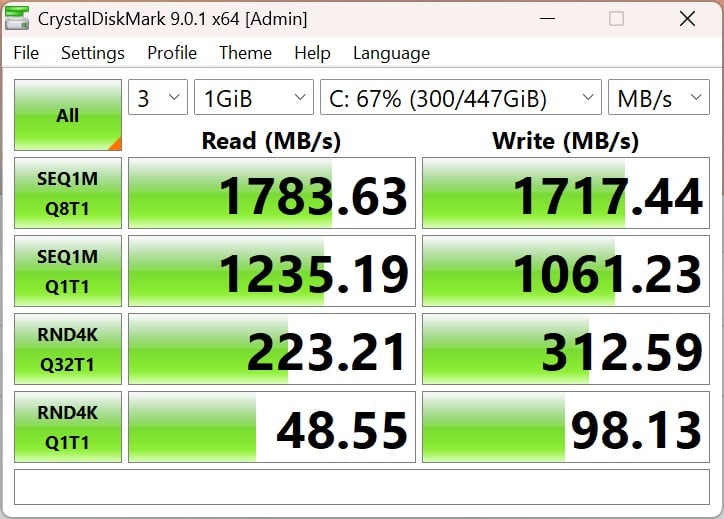

不足之处包括板载焊接内存,以及 SSD 相对较慢的连接,其仅通过 PCIe 3.0 x2 运行。待机功耗也相对较高。不过,在负载下,功耗仍保持在合理水平。虽然负载下 41.4 至最高 45.6 dB(A) 的噪声水平并不算过高,但 L20 并不是同类产品中最安静的机型之一。
需要更强图形性能和多线程性能的用户,可以在搭载新一代 Ryzen 处理器的迷你电脑中找到更强大的替代选择,例如 Minisforum AI X1。相比之下,Ninkear L20 主要面向希望获得一款紧凑型全能电脑的用户,提供现代 Intel 平台、良好的连接能力以及稳定的日常性能。在这一细分市场中,L20 的整体表现均衡,但其 SSD 和待机功耗仍有值得批评之处。
Pros
Cons
价格和供货情况
Ninkear L20 可直接从制造商商店订购,起价为 699 欧元。不过,配备 1 TB 存储空间、其他配置相同的版本售价为 799 欧元。

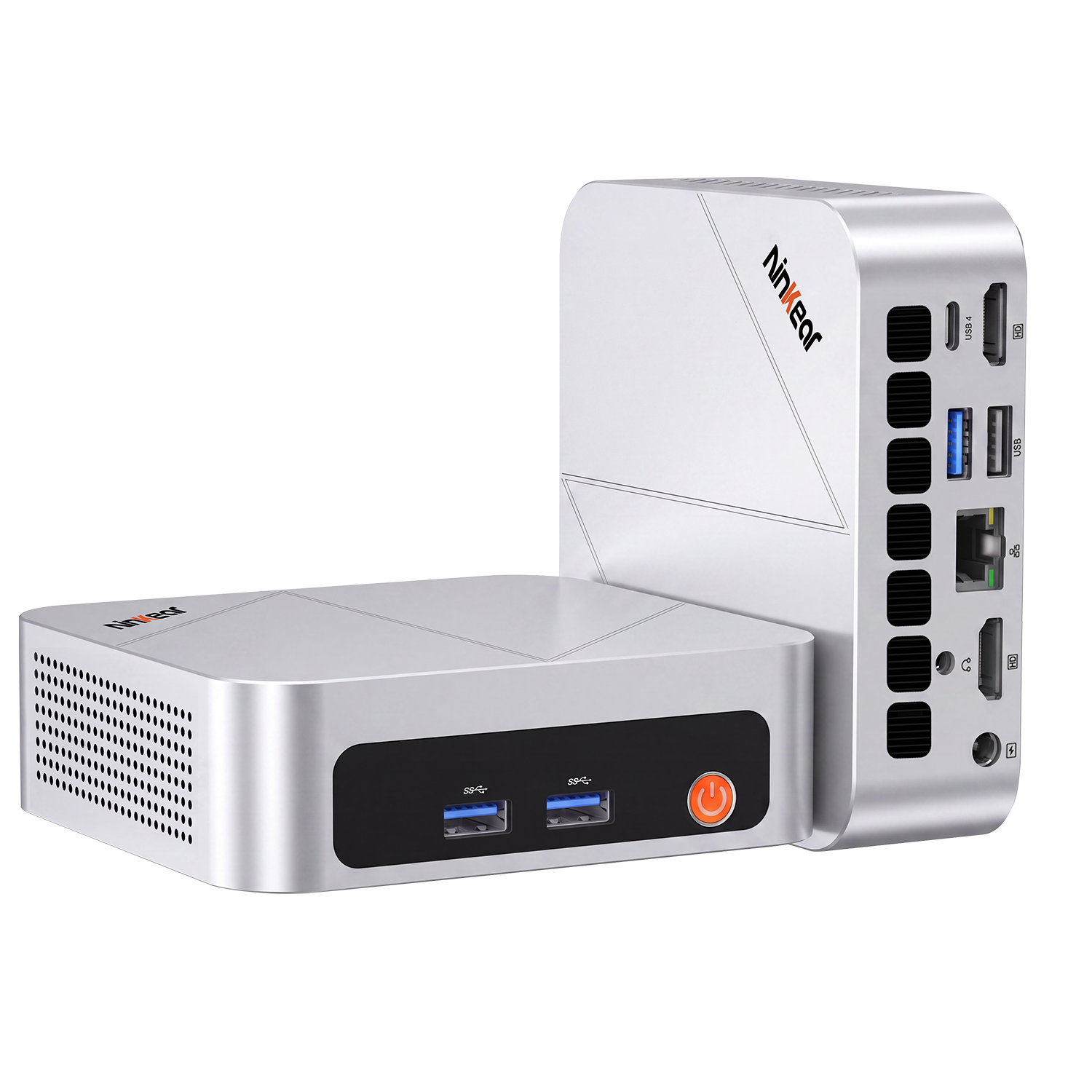

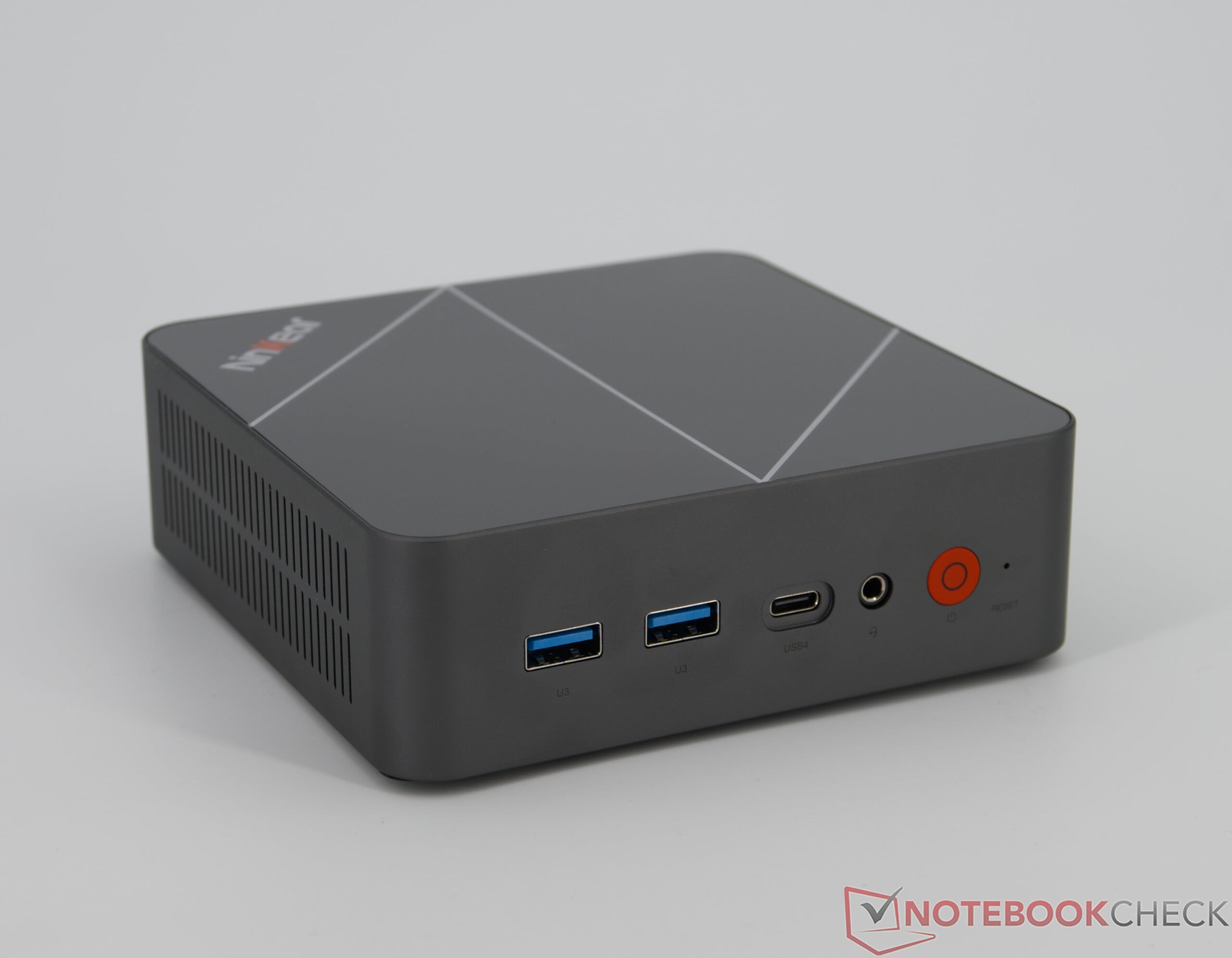

Ninkear L20 将现代硬件带入紧凑的迷你 PC 机身,搭载 Intel Core Ultra 5 226V 和 16 GB LPDDR5X 内存,传输速率为 8,533 MT/s。但这台小巧的电脑究竟能提供多强的性能——日常使用体验又如何?这正是我们在评测中要探究的问题。
规格参数
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名

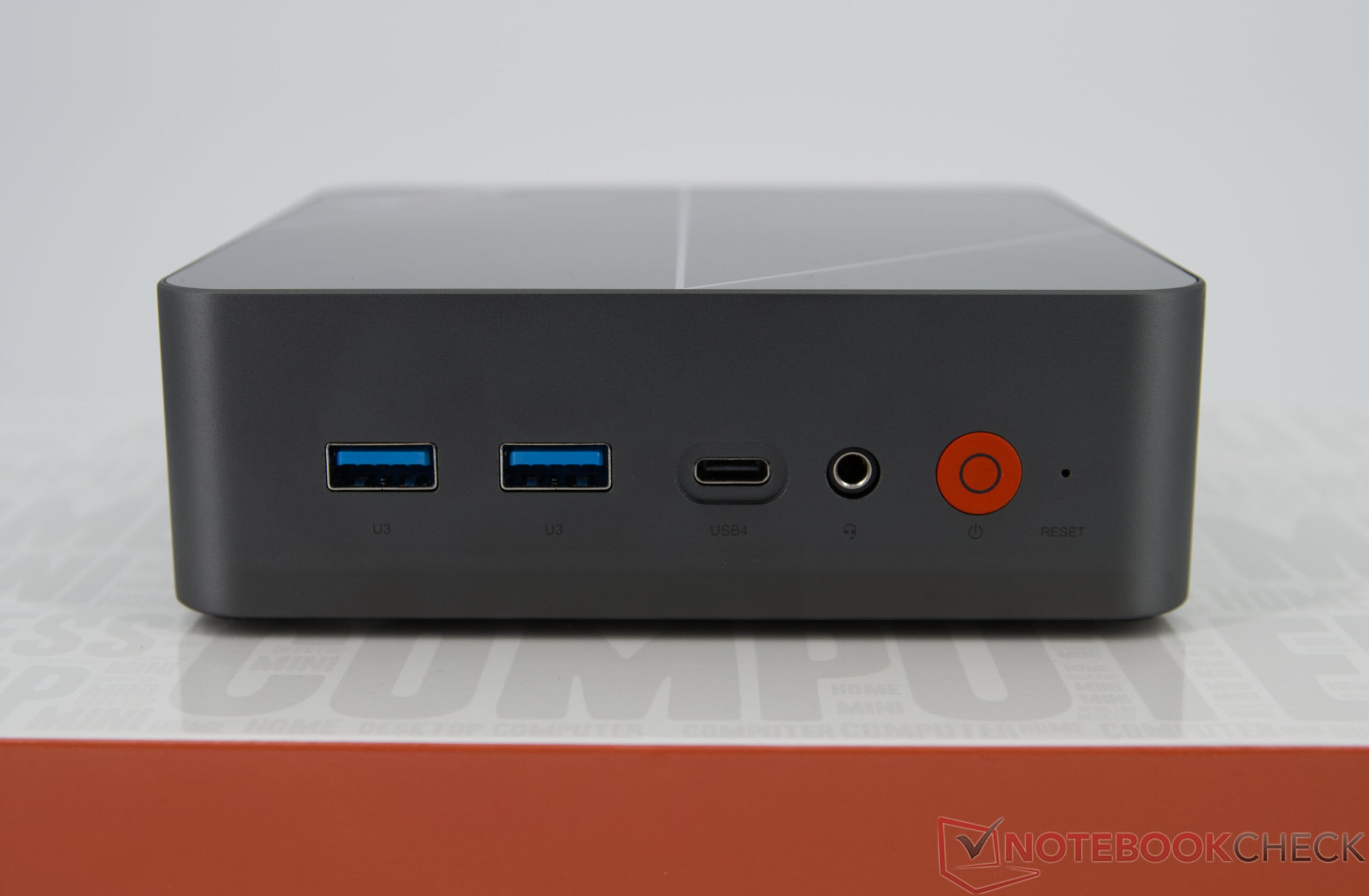

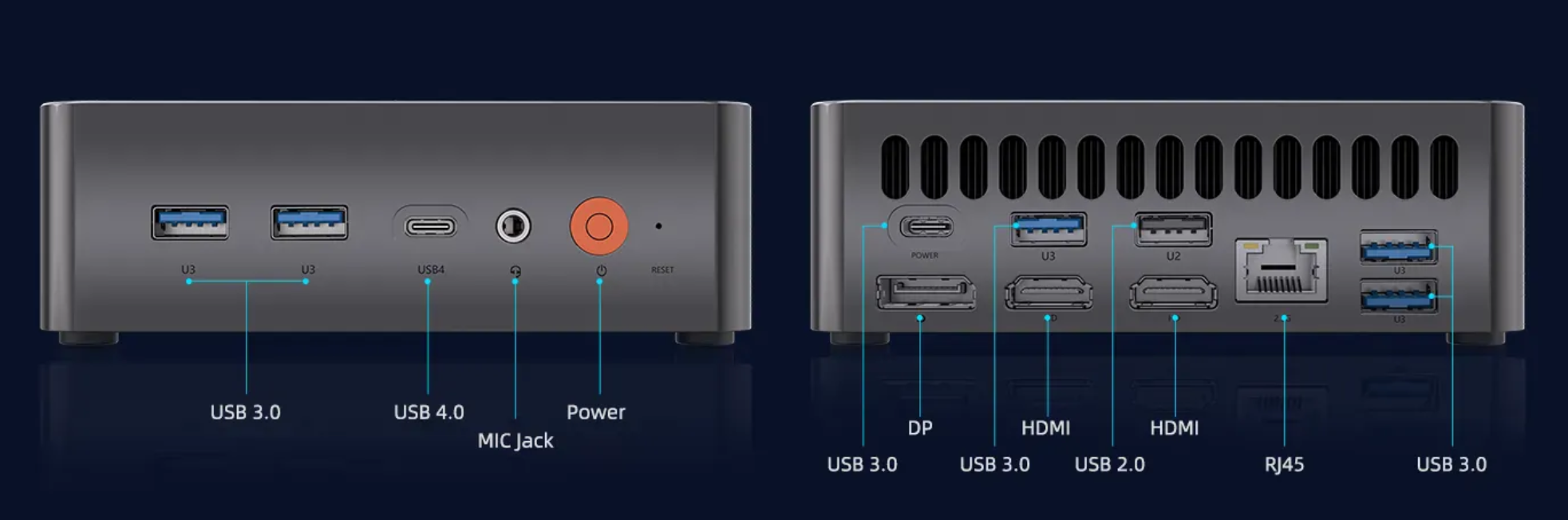

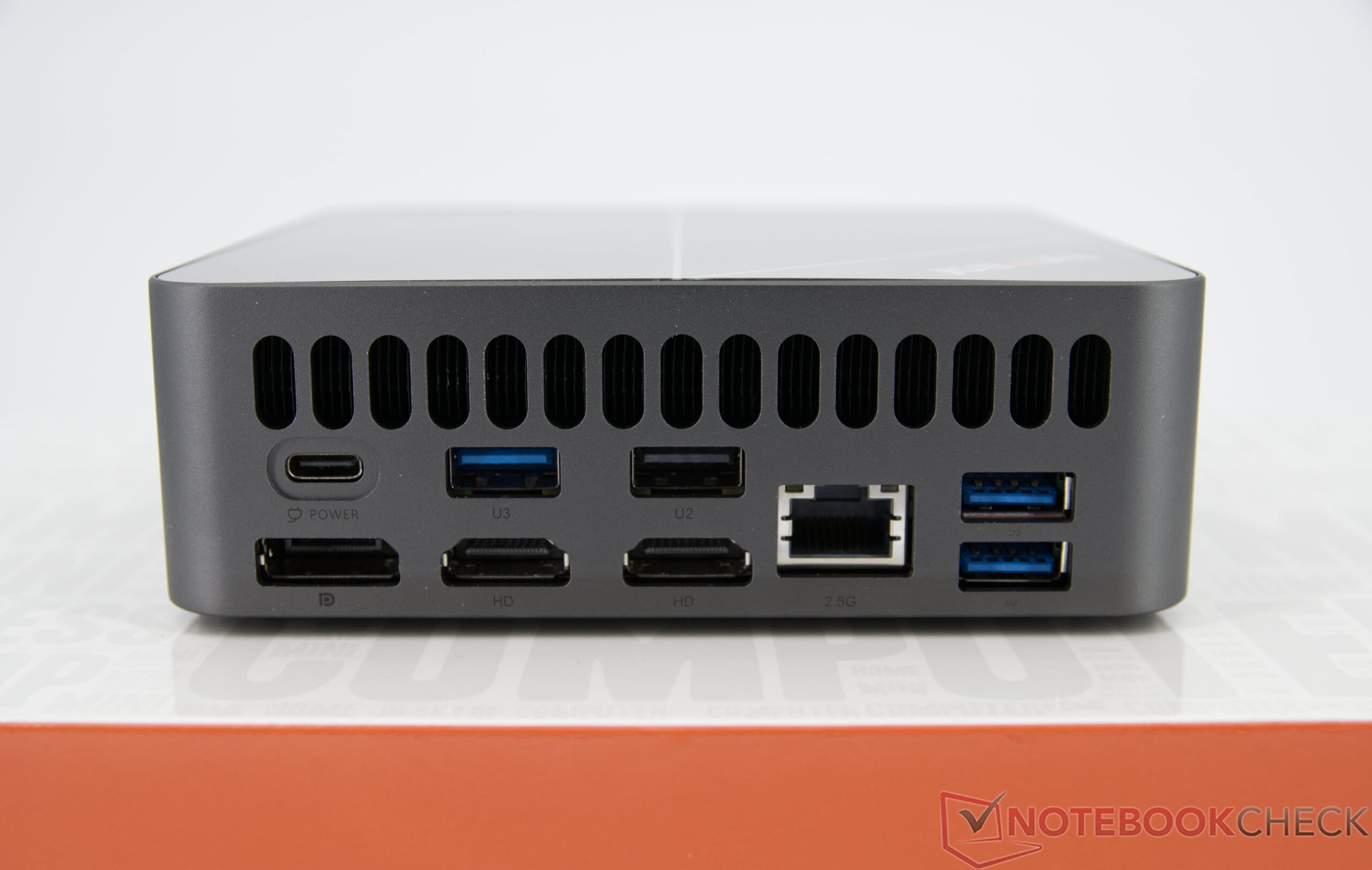

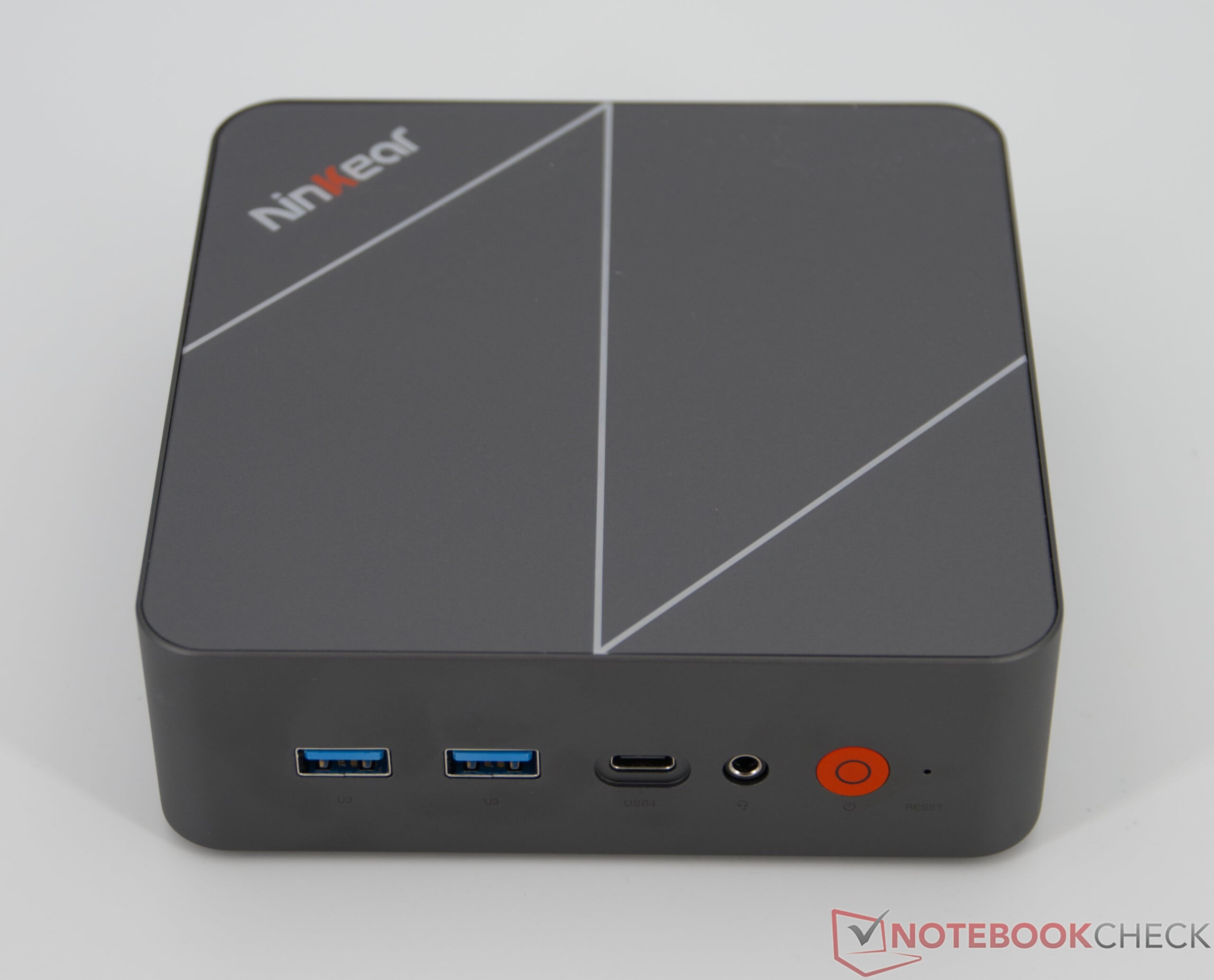

保护壳与连接性

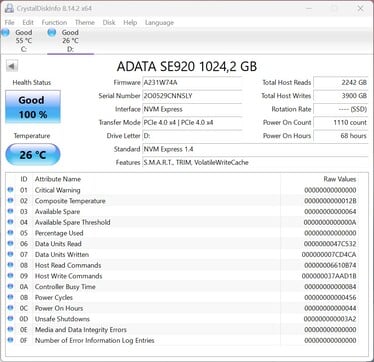

| Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Ninkear L20, Ultra 5 226V | |
| GMK NucBox K17 | |
| GMK NucBox M7 Ultra | |
| Average of class Mini PC (423 - 3906, n=48, last 2 years) | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
配件

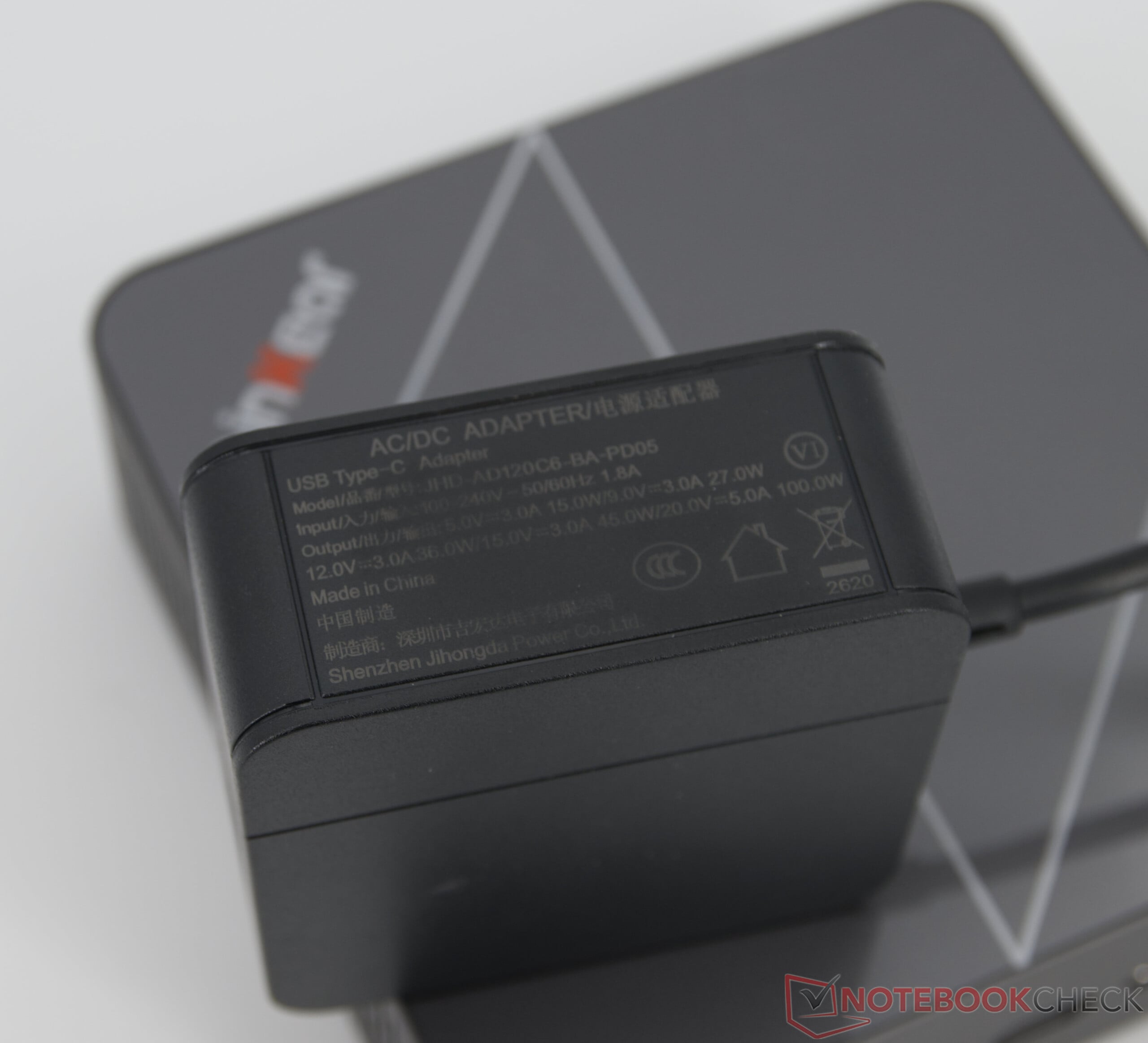

Ninkear L20 随附一个小巧的电源适配器、一根 HDMI 线缆和一个 VESA 支架,可将迷你 PC 安装在显示器背面,以节省空间。

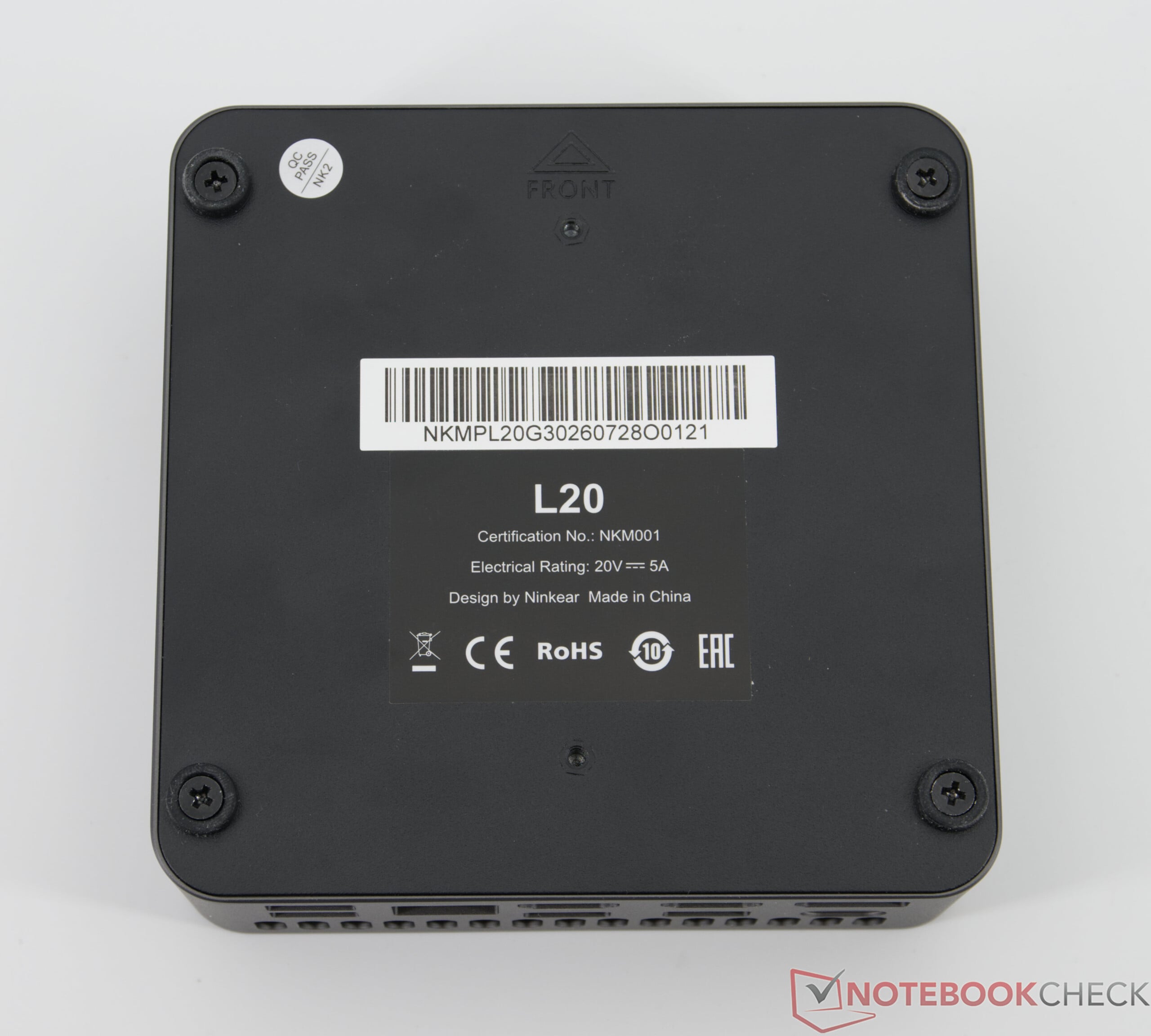

维护

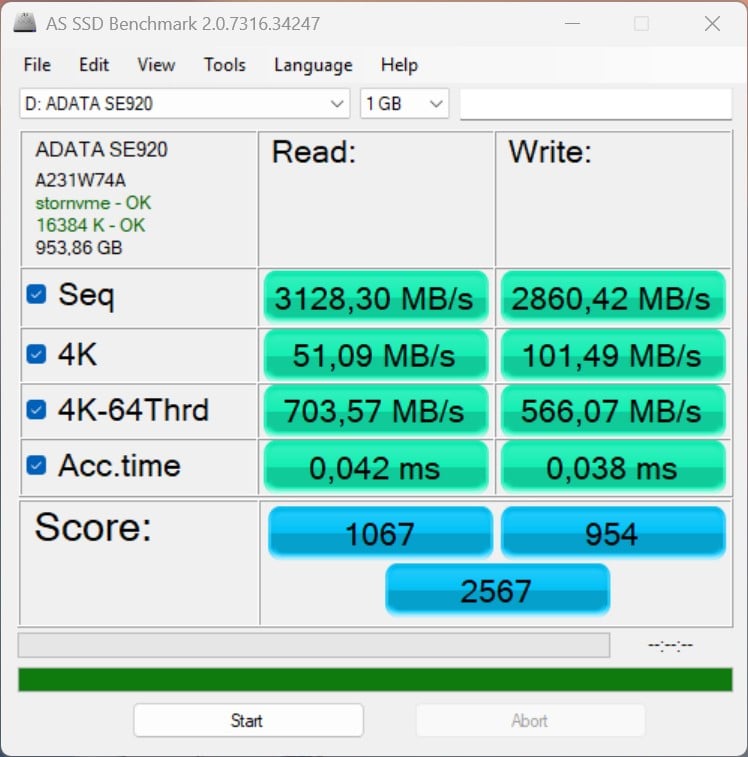

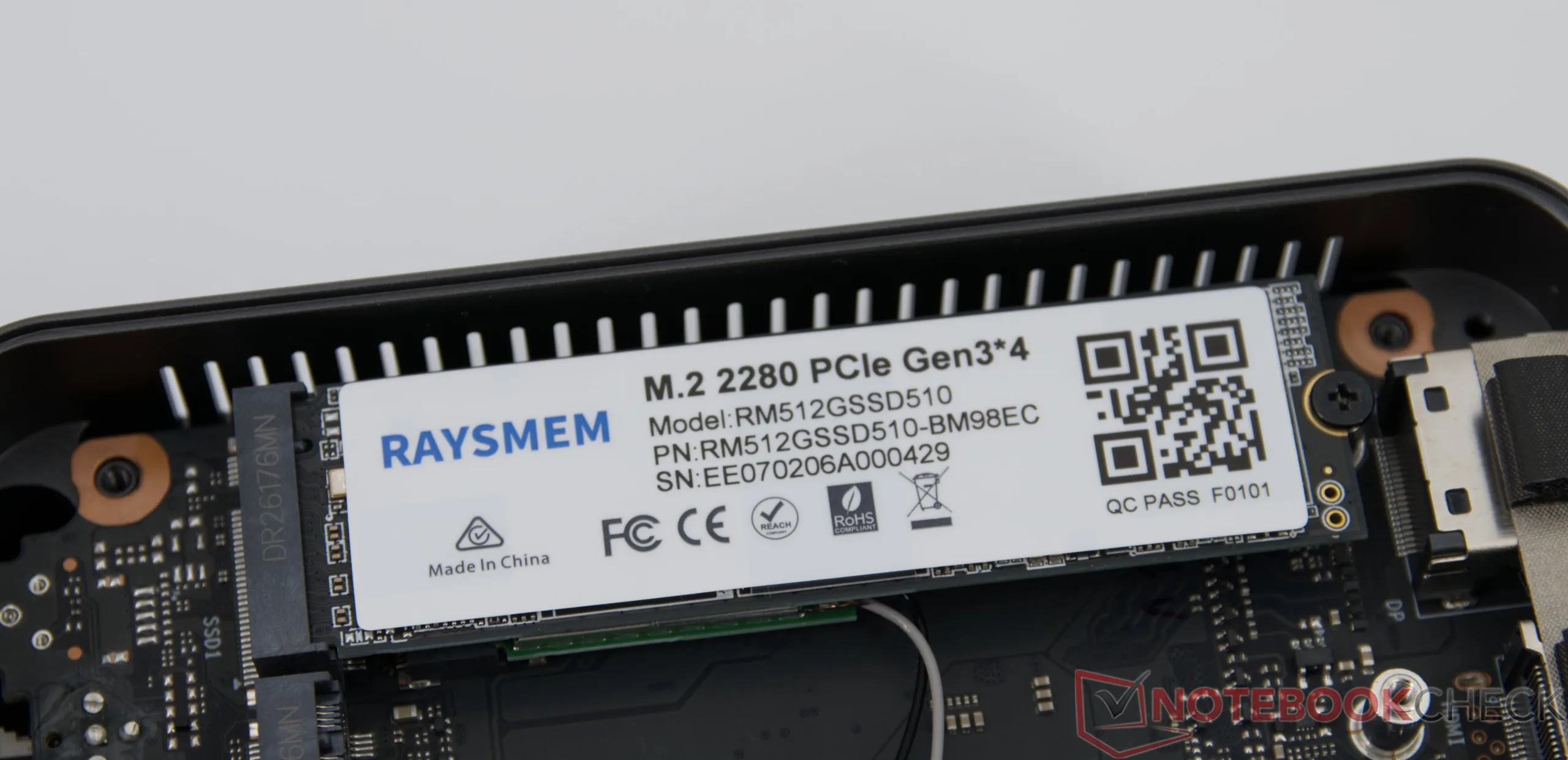

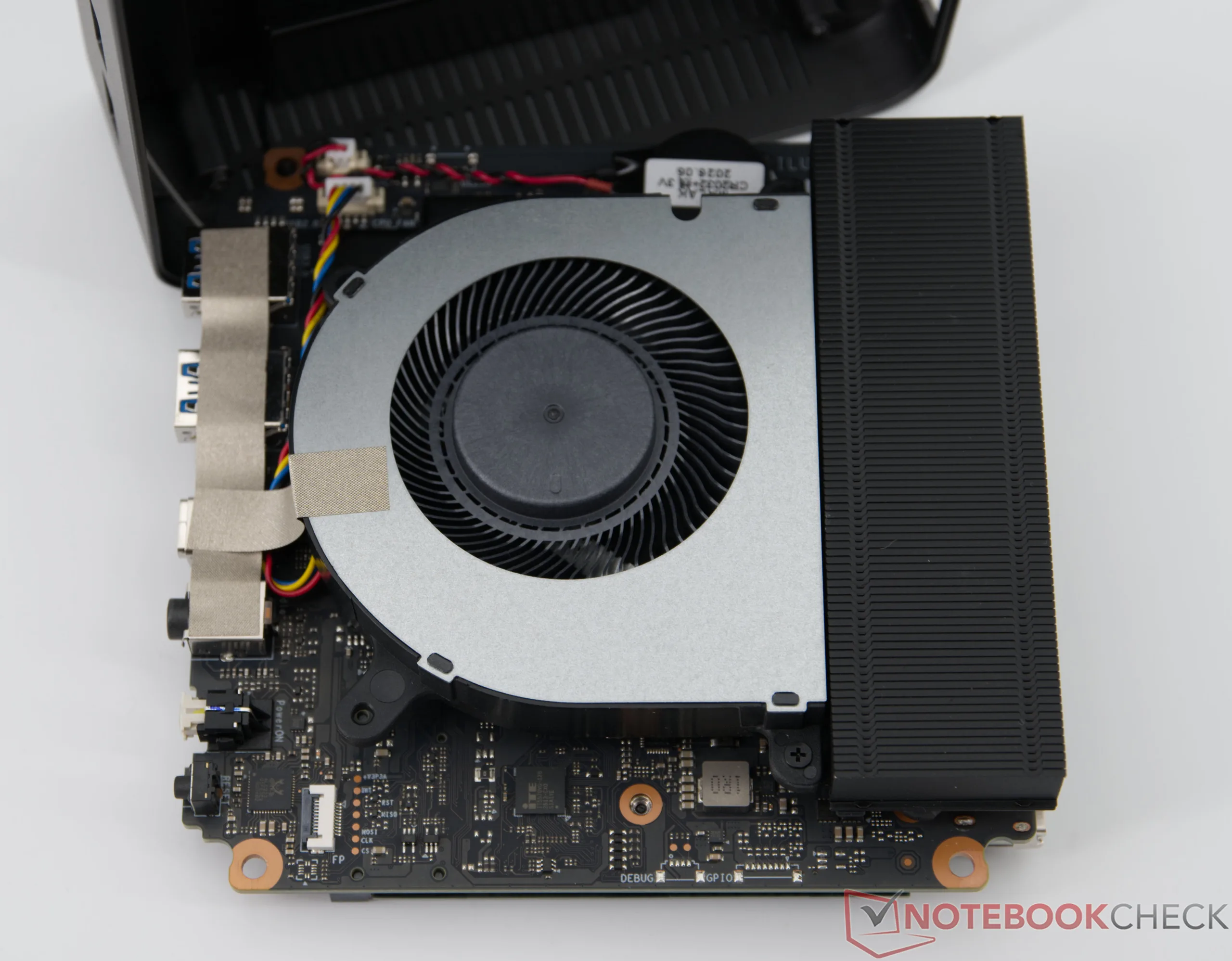

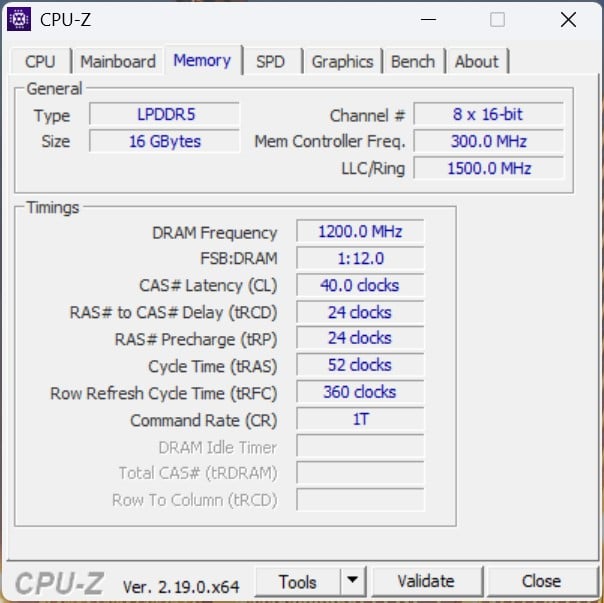

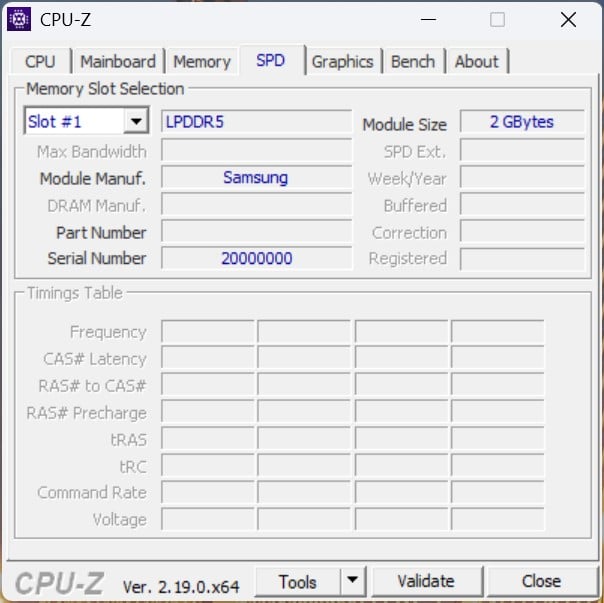

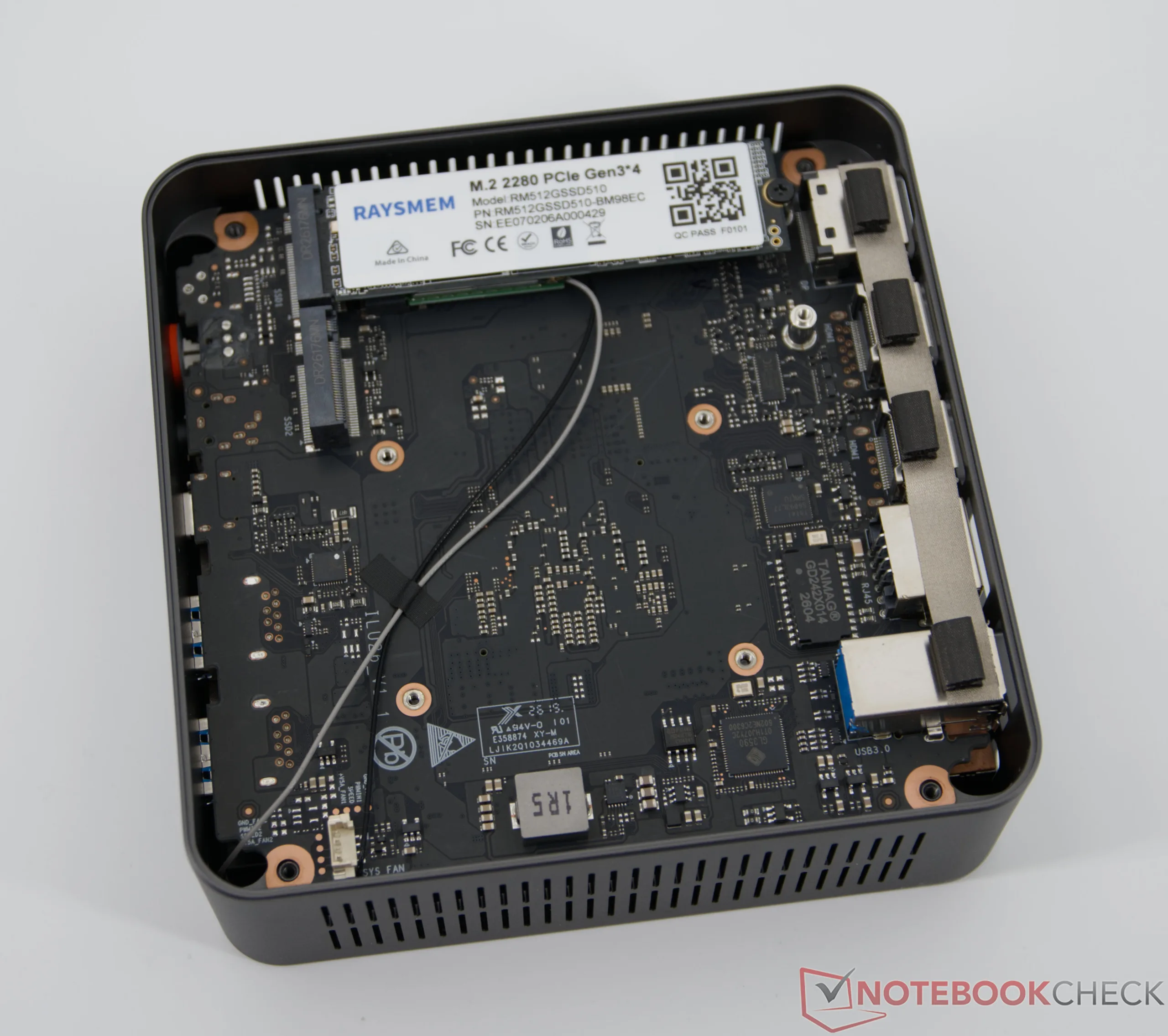

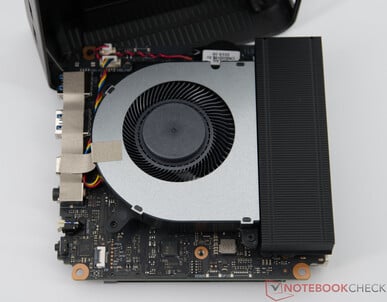

Ninkear L20 的维护相当容易。拆下底板即可接触到内部安装的组件。存储空间可通过额外的 M.2 插槽扩展,而运行速率为 8,533 MT/s 的 16 GB LPDDR5X 内存则焊接在主板上,因此无法升级。另一方面,Wi-Fi 模块采用插槽式设计,可在需要时更换。
可持续性

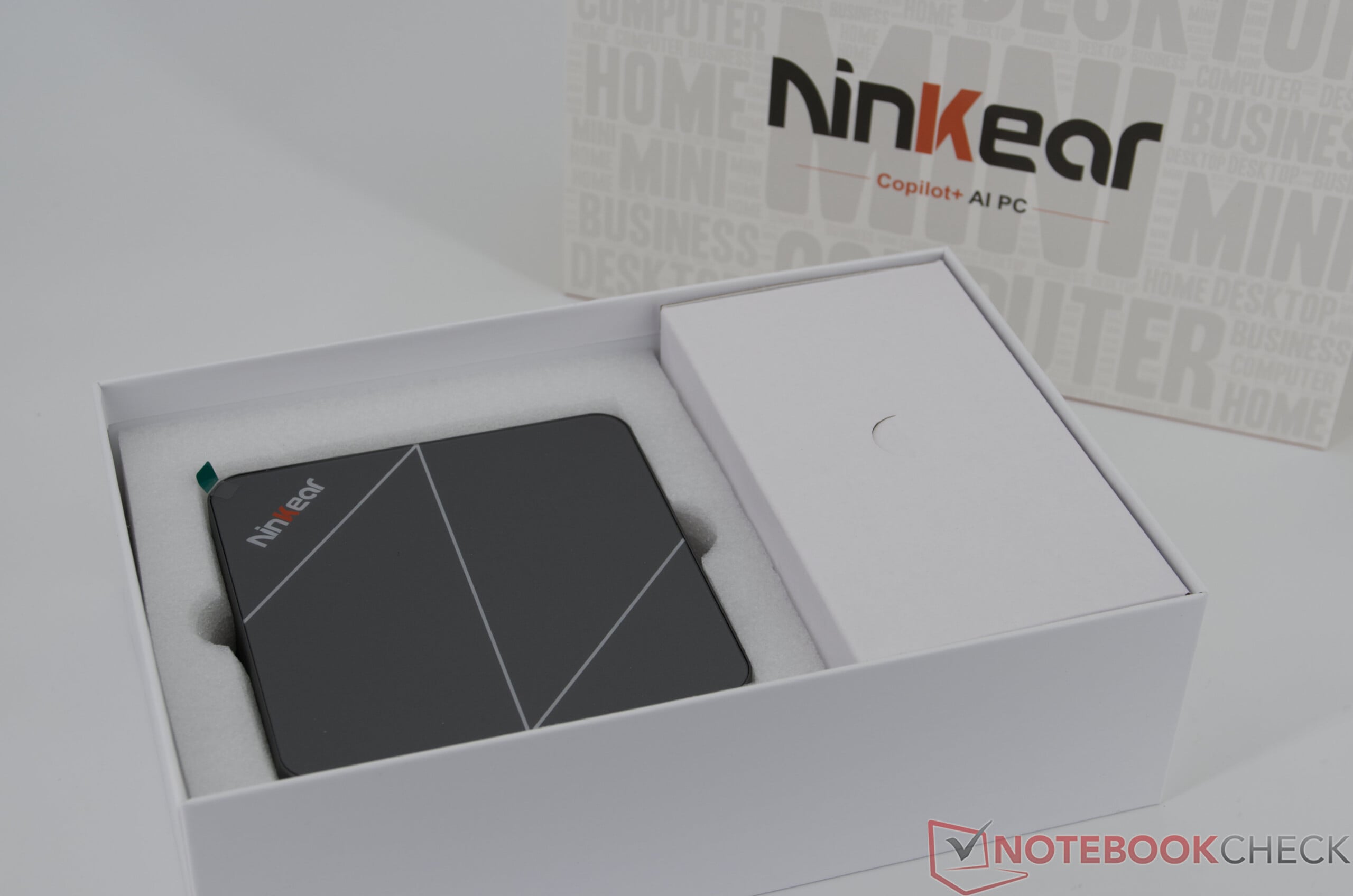

制造商未提供有关 Ninkear L20 生产过程中可持续性或环保措施的具体信息。包装主要由纸板构成,并使用相对较少的泡沫衬垫来保护迷你 PC,防止其在运输过程中受损。
测试条件

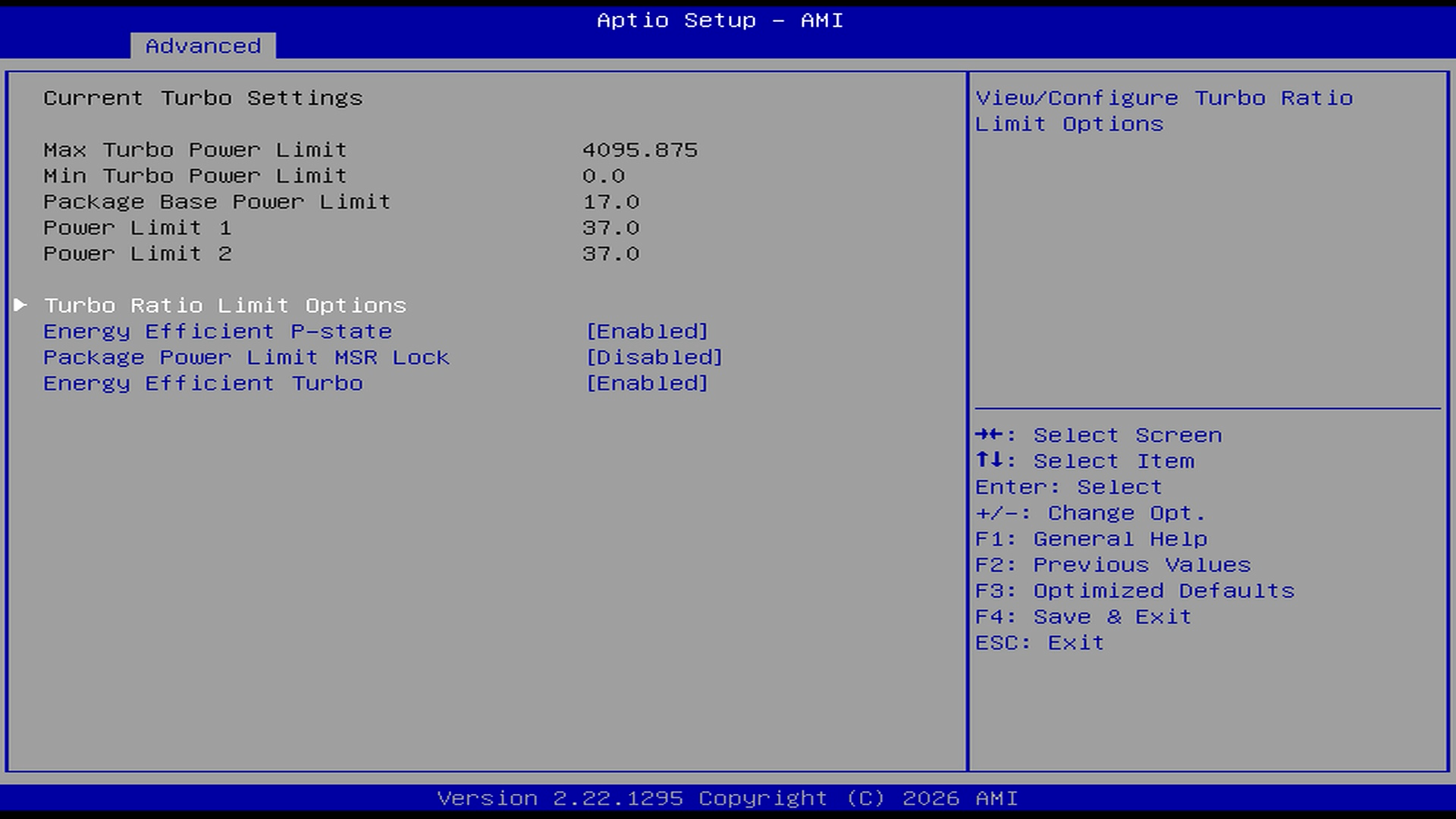

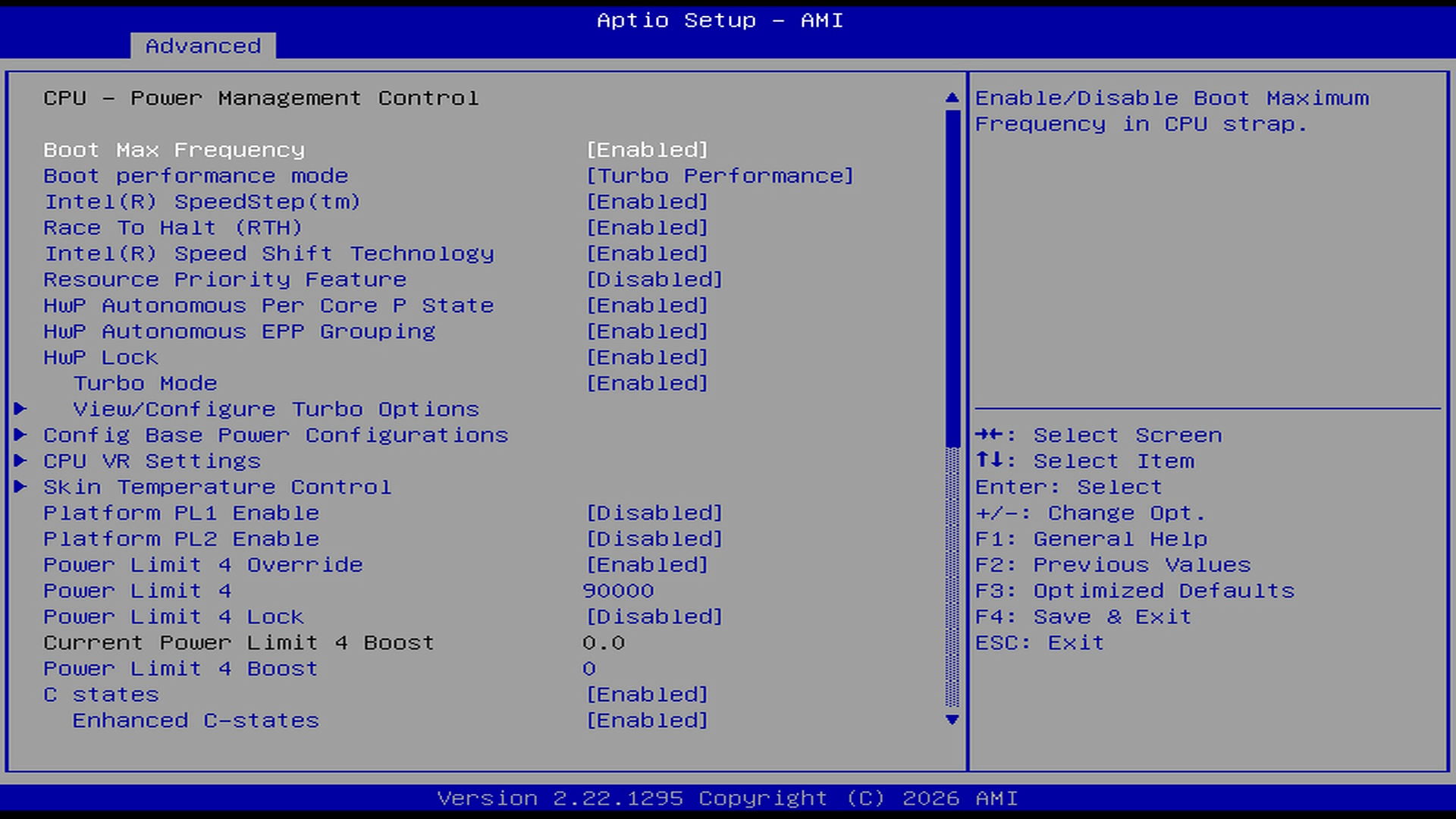

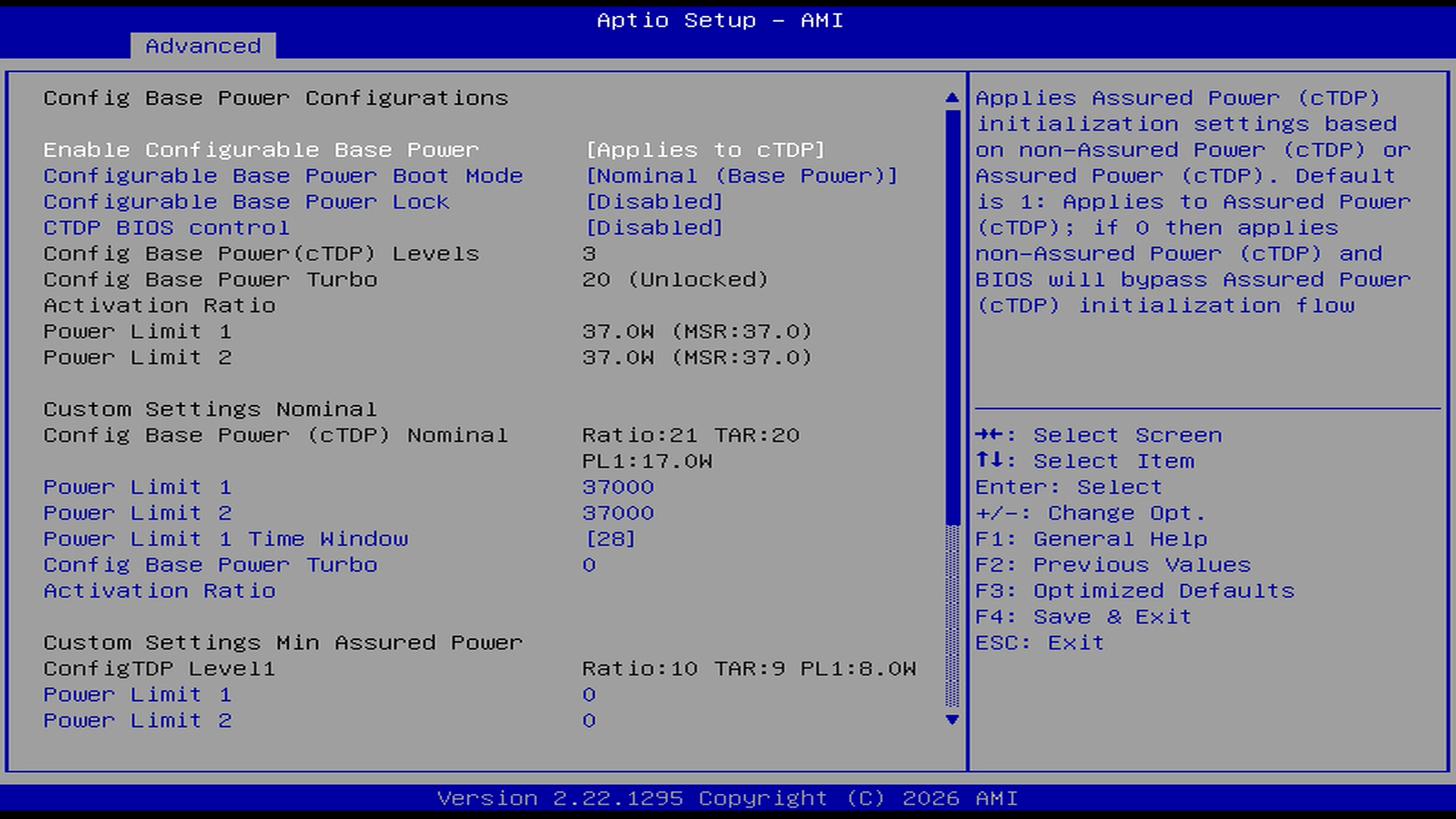

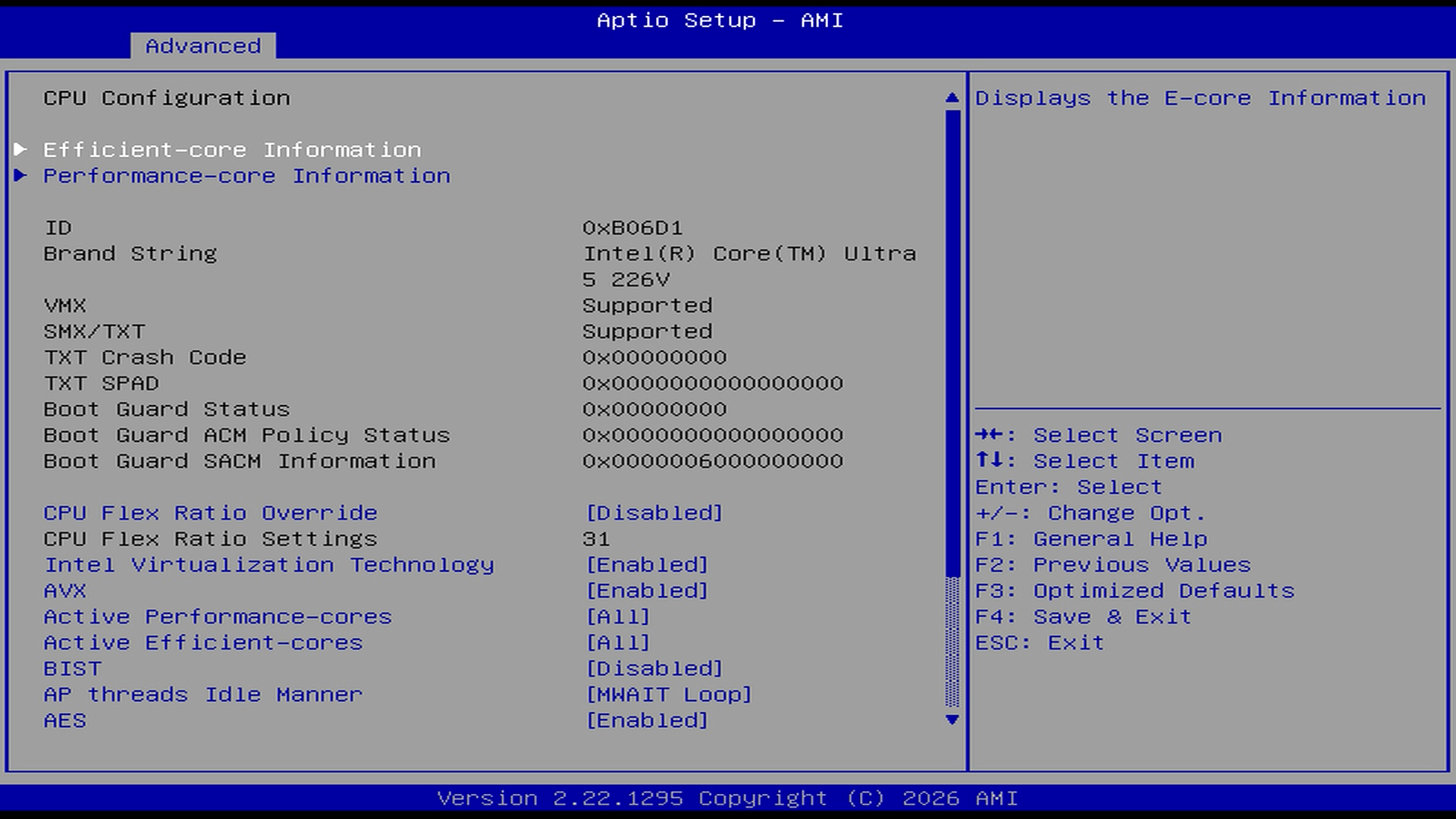

Ninkear L20 的所有基准测试均在出厂设置下进行。Intel Core Ultra 5 226V 的 TDP 为 37 瓦。

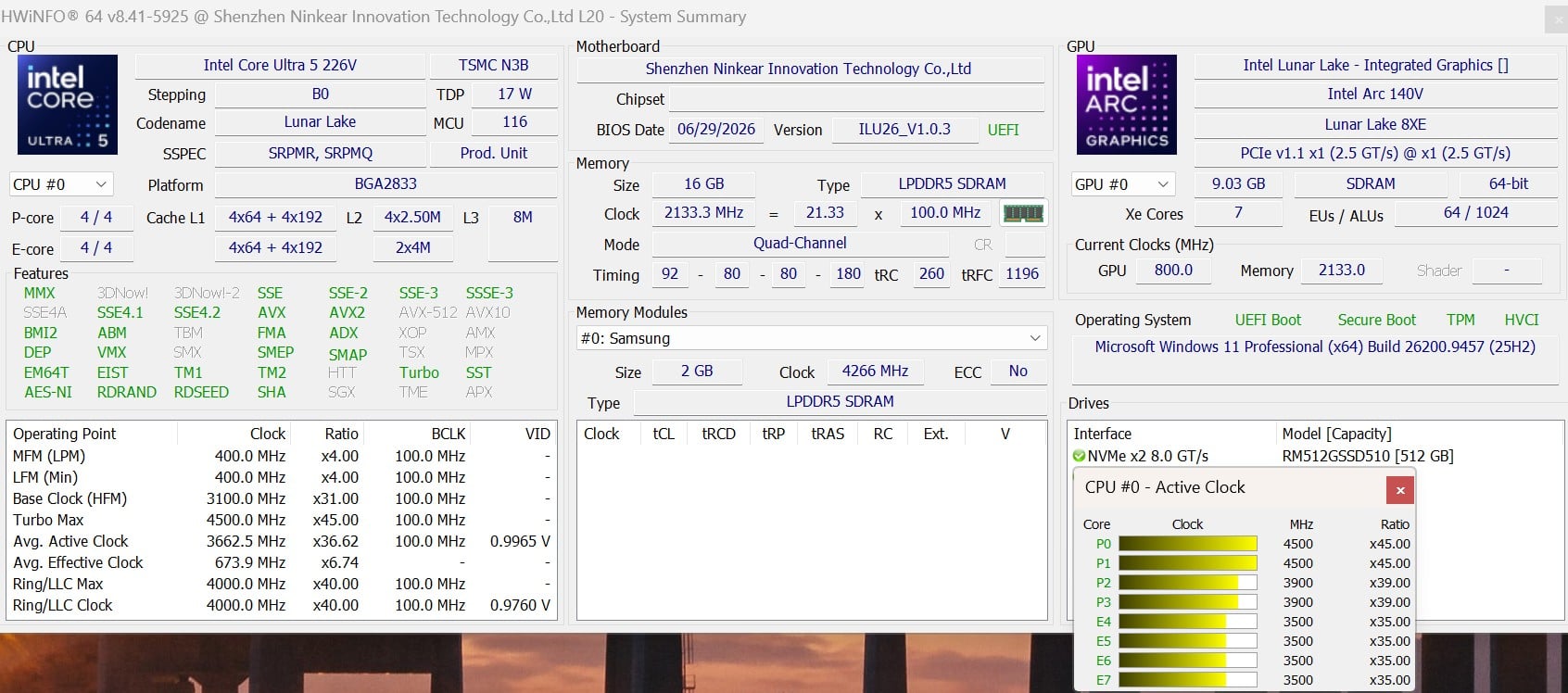

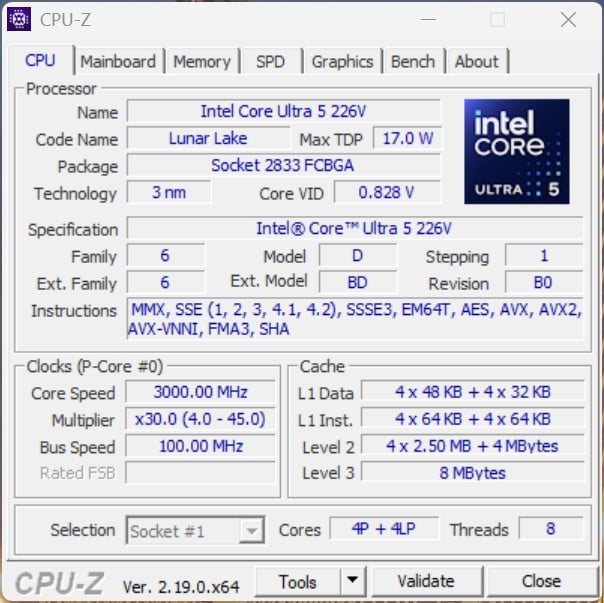

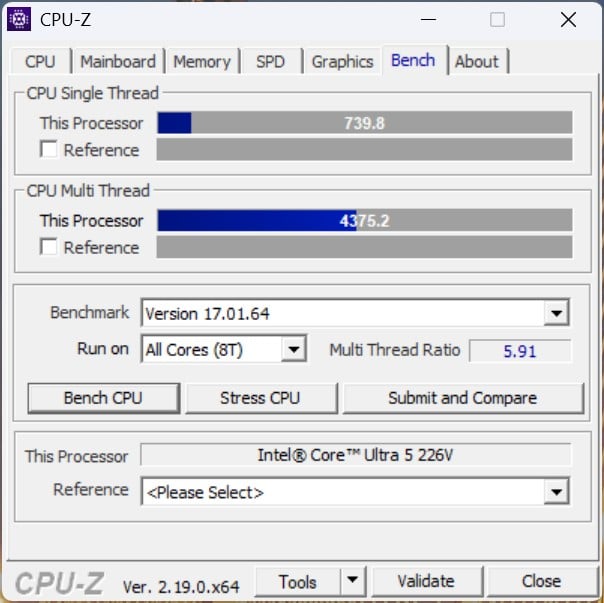

处理器

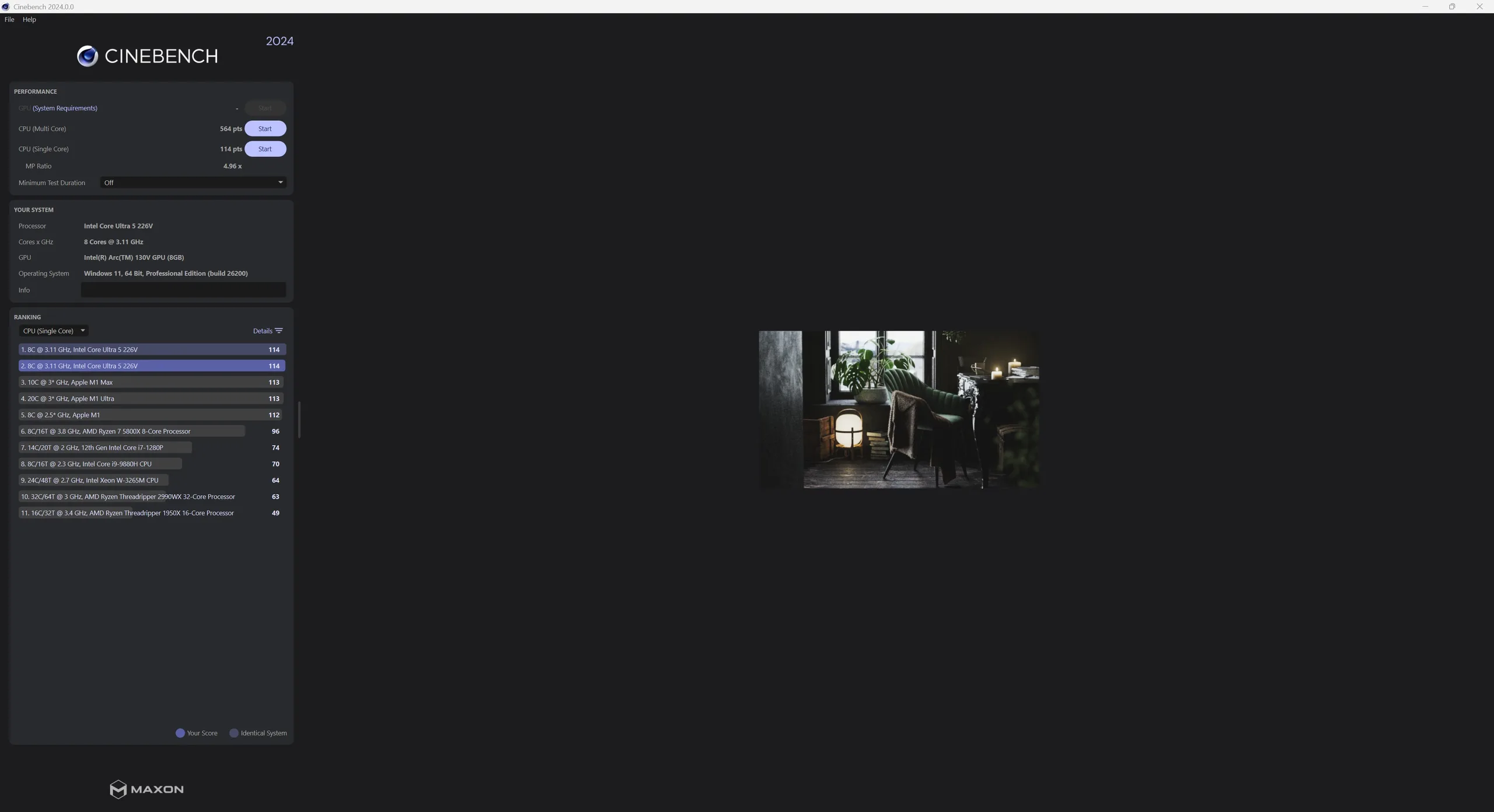

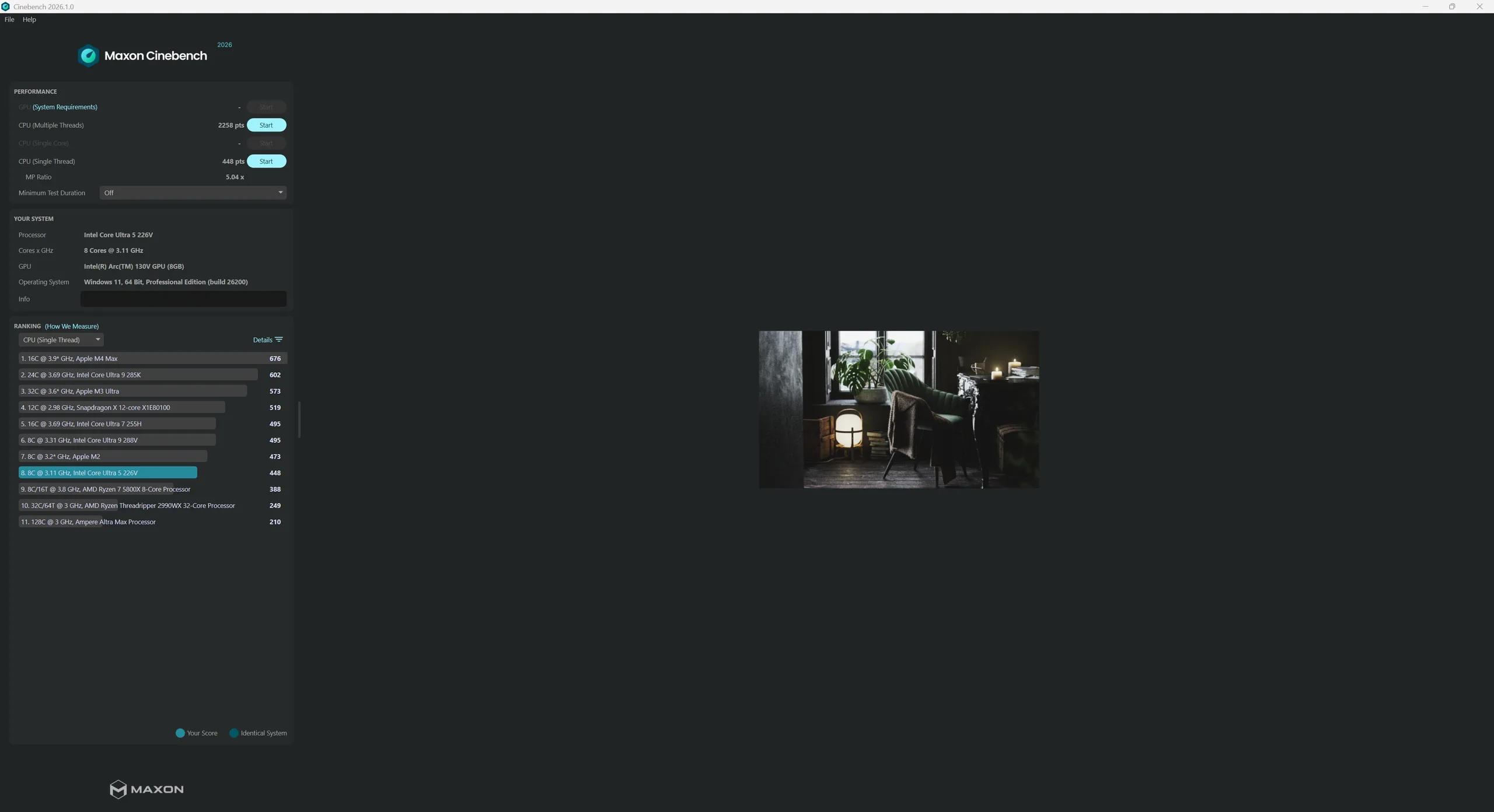

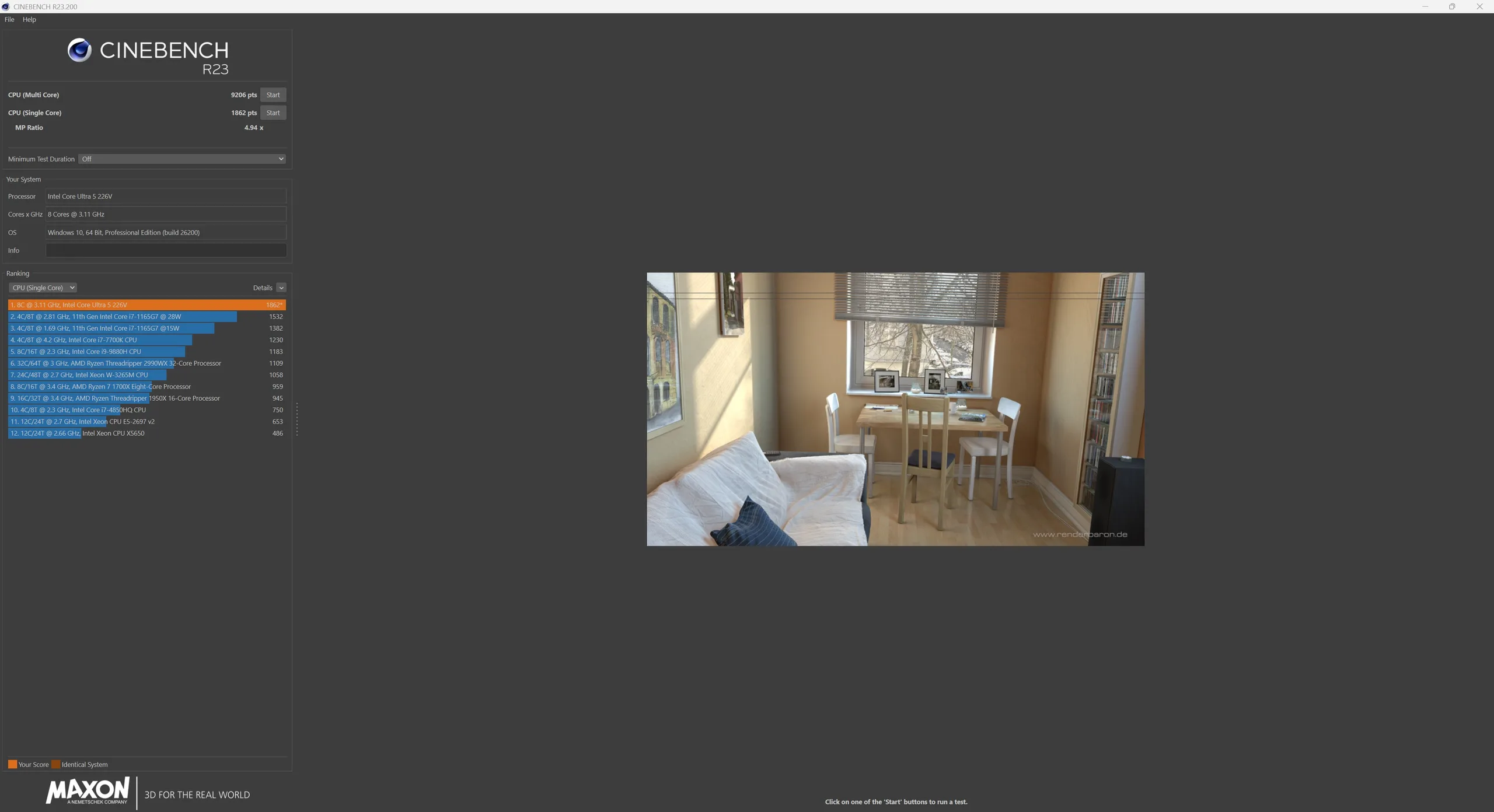

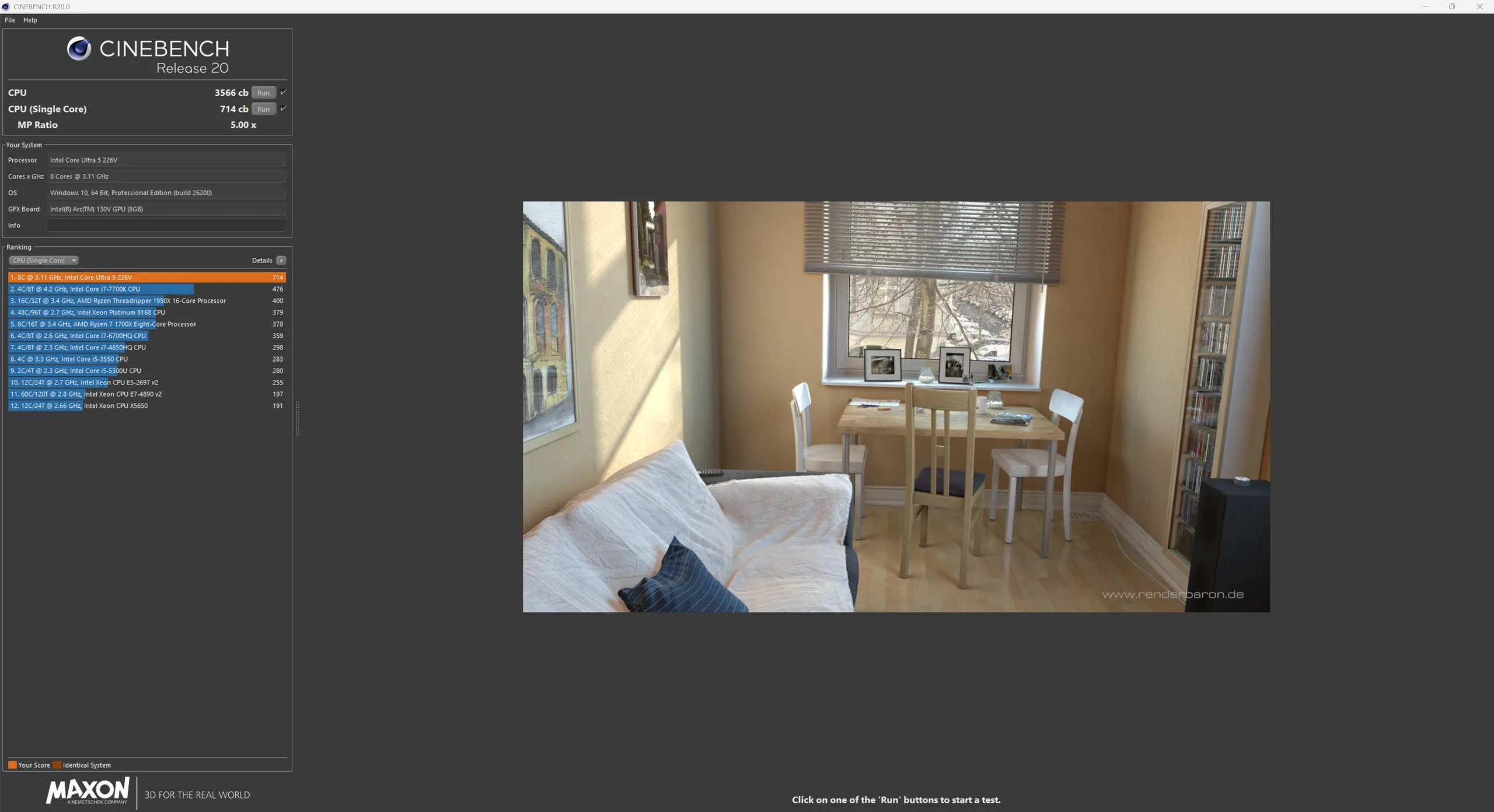

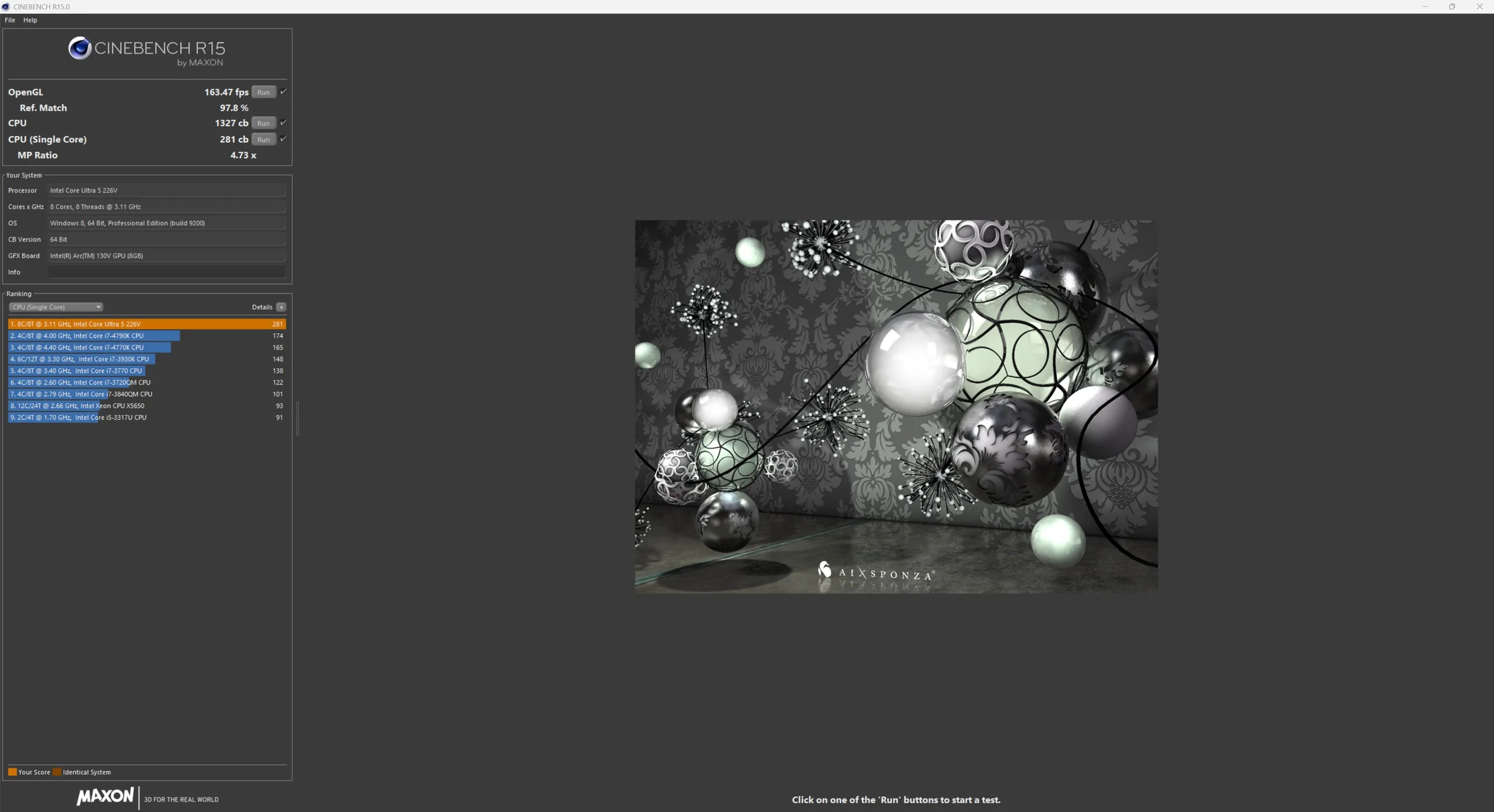

Intel Core Ultra 5 226V 与 Ninkear L20 搭配,在常规办公应用、多任务处理及其他日常任务中均能提供稳健的性能。即使是要求更高的应用,也能轻松应对。得益于高效的平台,长时间负载下的性能仍能保持基本稳定。不过,在多线程基准测试中,Core Ultra 5 226V 无法与性能更强的 Ryzen APU 相媲美。
| Performance rating - Percent | |
| Minisforum M2 Pro | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox M7 Ultra | |
| Ninkear L20, Ultra 5 226V | |
| GMK NucBox K17 | |
| Geekom A5 Pro | |
| WinRAR - Result | |
| Minisforum M2 Pro | |
| Geekom A5 Pro | |
| Geekom IT13 Max | |
| GMK NucBox M7 Ultra | |
| Acemagic Retro X3 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Ninkear L20, Ultra 5 226V | |
| 3DMark 11 - 1280x720 Performance Physics | |
| Minisforum M2 Pro | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| GMK NucBox M7 Ultra | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Ninkear L20, Ultra 5 226V | |
| GMK NucBox K17 | |
| Geekom A5 Pro | |
| R Benchmark 2.5 - Overall mean | |
| Geekom A5 Pro | |
| GMK NucBox M7 Ultra | |
| Ninkear L20, Ultra 5 226V | |
| GMK NucBox K17 | |
| Acemagic Retro X3 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Geekom IT13 Max | |
| Minisforum M2 Pro | |
| LibreOffice - 20 Documents To PDF | |
| Ninkear L20, Ultra 5 226V | |
| GMK NucBox M7 Ultra | |
| GMK NucBox K17 | |
| Acemagic Retro X3 | |
| Geekom A5 Pro | |
| Geekom IT13 Max | |
| Minisforum M2 Pro | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Super Pi mod 1.5 XS 1M - 1M | |
| Geekom A5 Pro | |
| GMK NucBox K17 | |
| Acemagic Retro X3 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox M7 Ultra | |
| Ninkear L20, Ultra 5 226V | |
| Minisforum M2 Pro | |
| Geekom IT13 Max | |
| Super Pi mod 1.5 XS 2M - 2M | |
| Acemagic Retro X3 | |
| GMK NucBox M7 Ultra | |
| Geekom A5 Pro | |
| GMK NucBox K17 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Ninkear L20, Ultra 5 226V | |
| Minisforum M2 Pro | |
| Geekom IT13 Max | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx | CPU CheckMate
| Performance rating | |
| Acemagic Retro X3 | |
| Average of class Mini PC | |
| Geekom IT13 Max | |
| GMK NucBox M7 Ultra | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Ninkear L20, Ultra 5 226V | |
| GMK NucBox K17 | |
| AIDA64 / FP32 Ray-Trace | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (974 - 82725, n=103, last 2 years) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| AIDA64 / FPU Julia | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Average of class Mini PC (6115 - 363782, n=103, last 2 years) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| AIDA64 / CPU SHA3 | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (385 - 9475, n=103, last 2 years) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| AIDA64 / CPU Queen | |
| Acemagic Retro X3 (v6.92.6600) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| Average of class Mini PC (20501 - 154404, n=80, last 2 years) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| AIDA64 / FPU SinJulia | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Average of class Mini PC (1116 - 31931, n=103, last 2 years) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| AIDA64 / FPU Mandel | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (3322 - 192994, n=103, last 2 years) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| AIDA64 / CPU AES | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (5014 - 204742, n=102, last 2 years) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| AIDA64 / CPU ZLib | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Average of class Mini PC (127.2 - 2431, n=103, last 2 years) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| AIDA64 / FP64 Ray-Trace | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Average of class Mini PC (537 - 43587, n=103, last 2 years) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| AIDA64 / CPU PhotoWorxx | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Average of class Mini PC (8069 - 96843, n=103, last 2 years) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| AIDA64 / CPU CheckMate | |
| Acemagic Retro X3 (v8.20.8100) | |
| Average of class Mini PC (1743 - 19453, n=23, last 2 years) | |
| Geekom IT13 Max (v8.20.8100) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| GMK NucBox K17 (v8.20.8100) | |

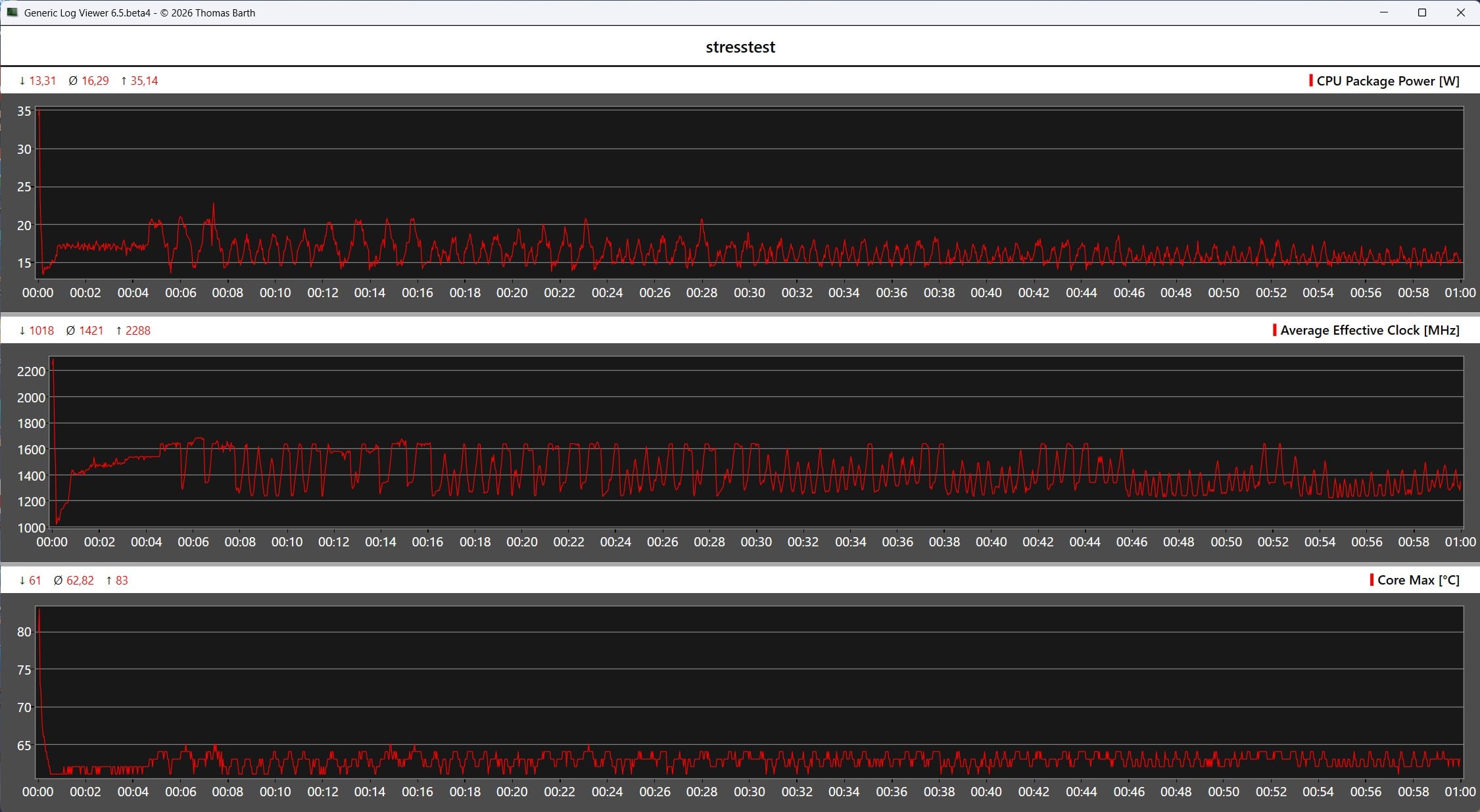

Cinebench R15 多核耐久测试
系统性能

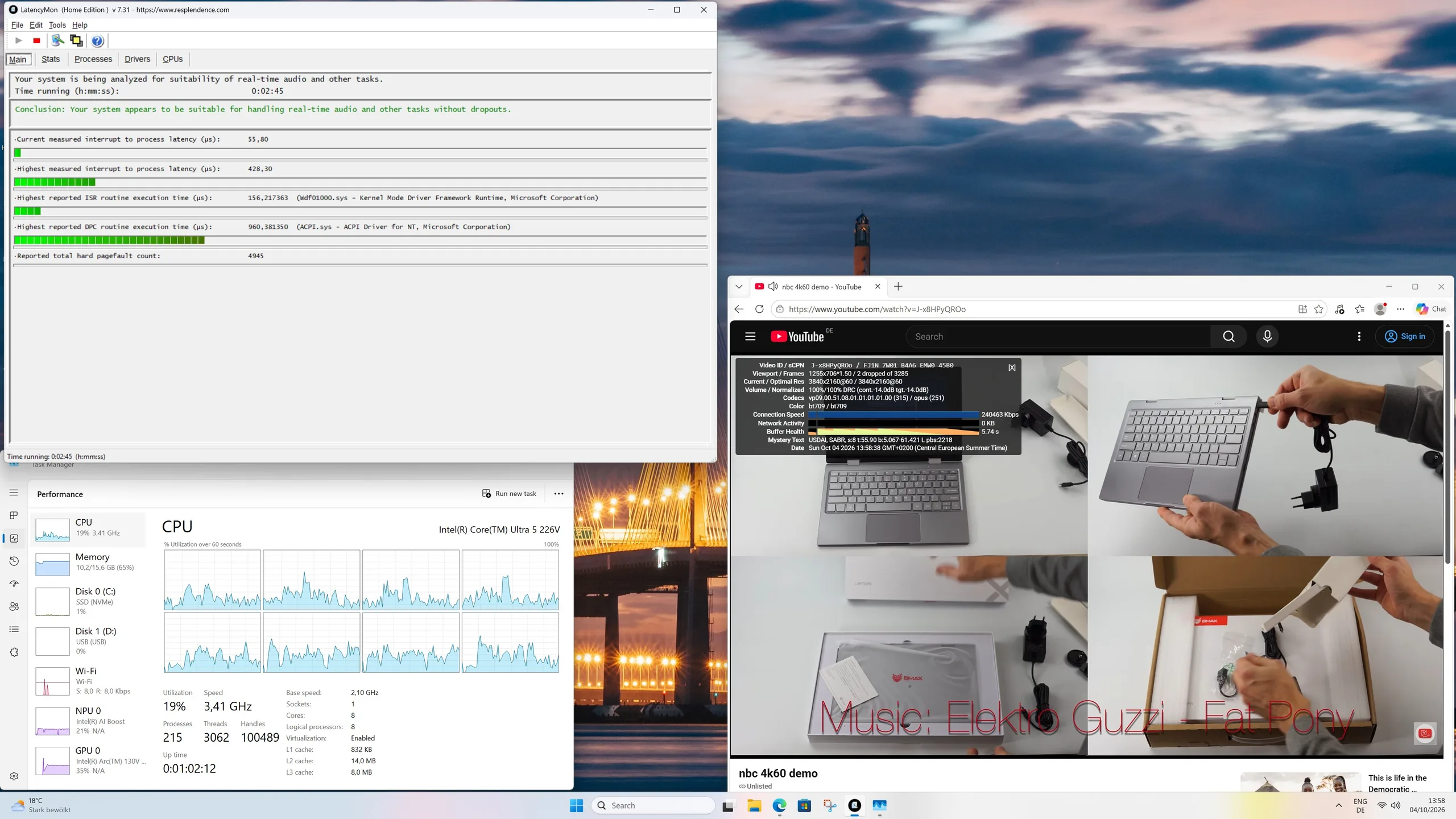

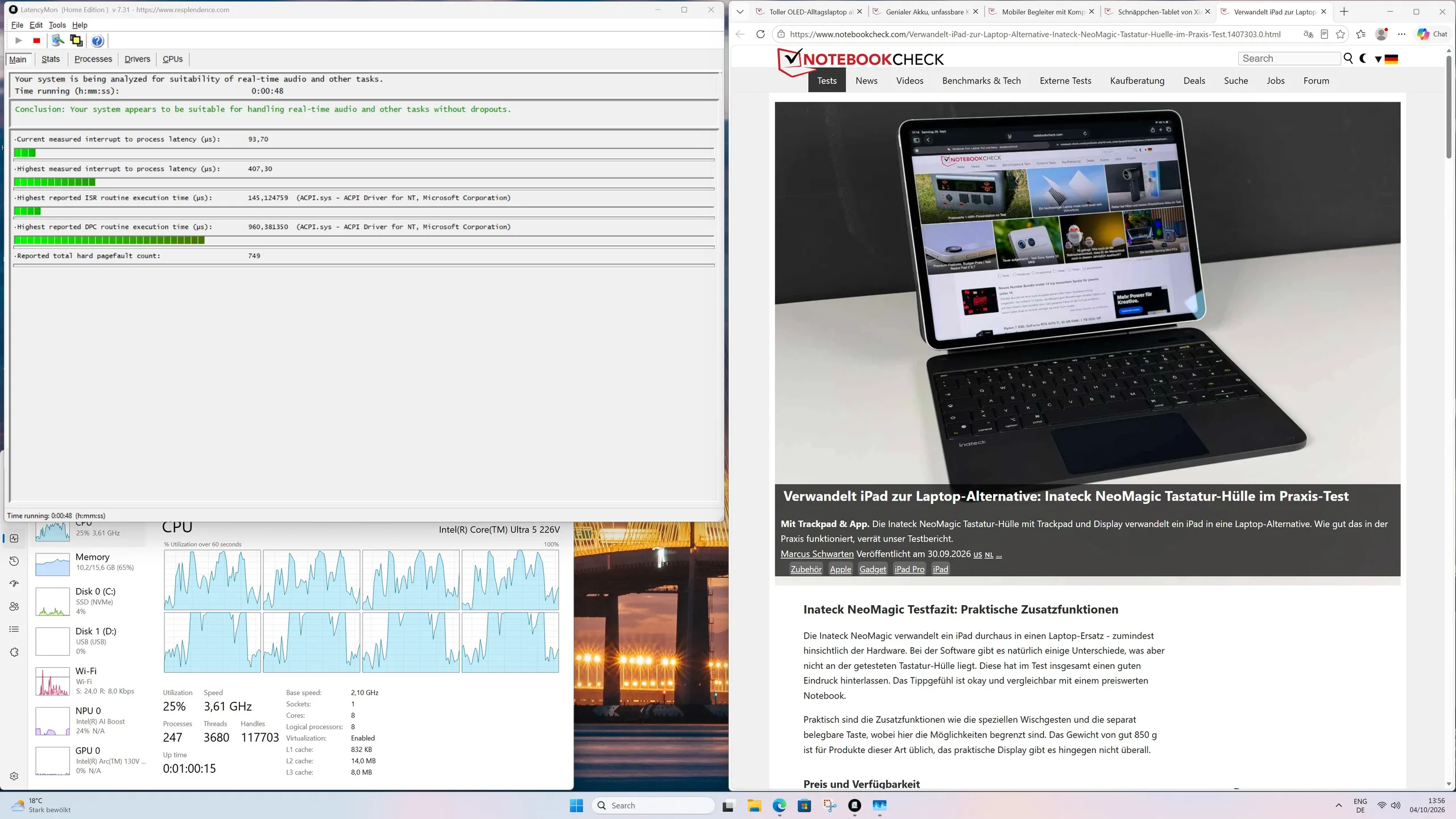

Ninkear L20 在日常使用中表现出色,系统运行流畅,响应迅速。Intel Core Ultra 5 226V 集成的 NPU 还可支持运行 AI 驱动的应用,前提是这些应用提供必要的支持。实测 DPC 延迟未见异常,因此在正常日常使用中没有明显限制。
WebXPRT 4: Overall
WebXPRT 3: Overall
Mozilla Kraken 1.1: Total
CrossMark: Overall | Productivity | Creativity | Responsiveness
* ... smaller is better
| AIDA64 / Memory Copy | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Average of class Mini PC (15933 - 163031, n=102, last 2 years) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| AIDA64 / Memory Read | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Average of class Mini PC (14143 - 123769, n=103, last 2 years) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| AIDA64 / Memory Write | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (10630 - 216693, n=103, last 2 years) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| AIDA64 / Memory Latency | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Average of class Mini PC (88.1 - 174.6, n=103, last 2 years) | |
| Ninkear L20, Ultra 5 226V (v8.20.8100) | |
| Ninkear L20, Ultra 5 226V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox M7 Ultra (v6.92.6600) | |
| GMK NucBox M7 Ultra (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
* ... smaller is better
| UL Procyon for Windows / Overall Score Integer NPU | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (OpenVINO) | |
| GMK NucBox K17 (OpenVINO) | |
| Ninkear L20, Ultra 5 226V (OpenVINO) | |
| Geekom IT13 Max (OpenVINO) | |
| UL Procyon for Windows / Overall Score Integer GPU | |
| Geekom IT13 Max (Windows ML) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (Windown ML) | |
| Ninkear L20, Ultra 5 226V (Windows ML) | |
| GMK NucBox K17 (Windows ML) | |

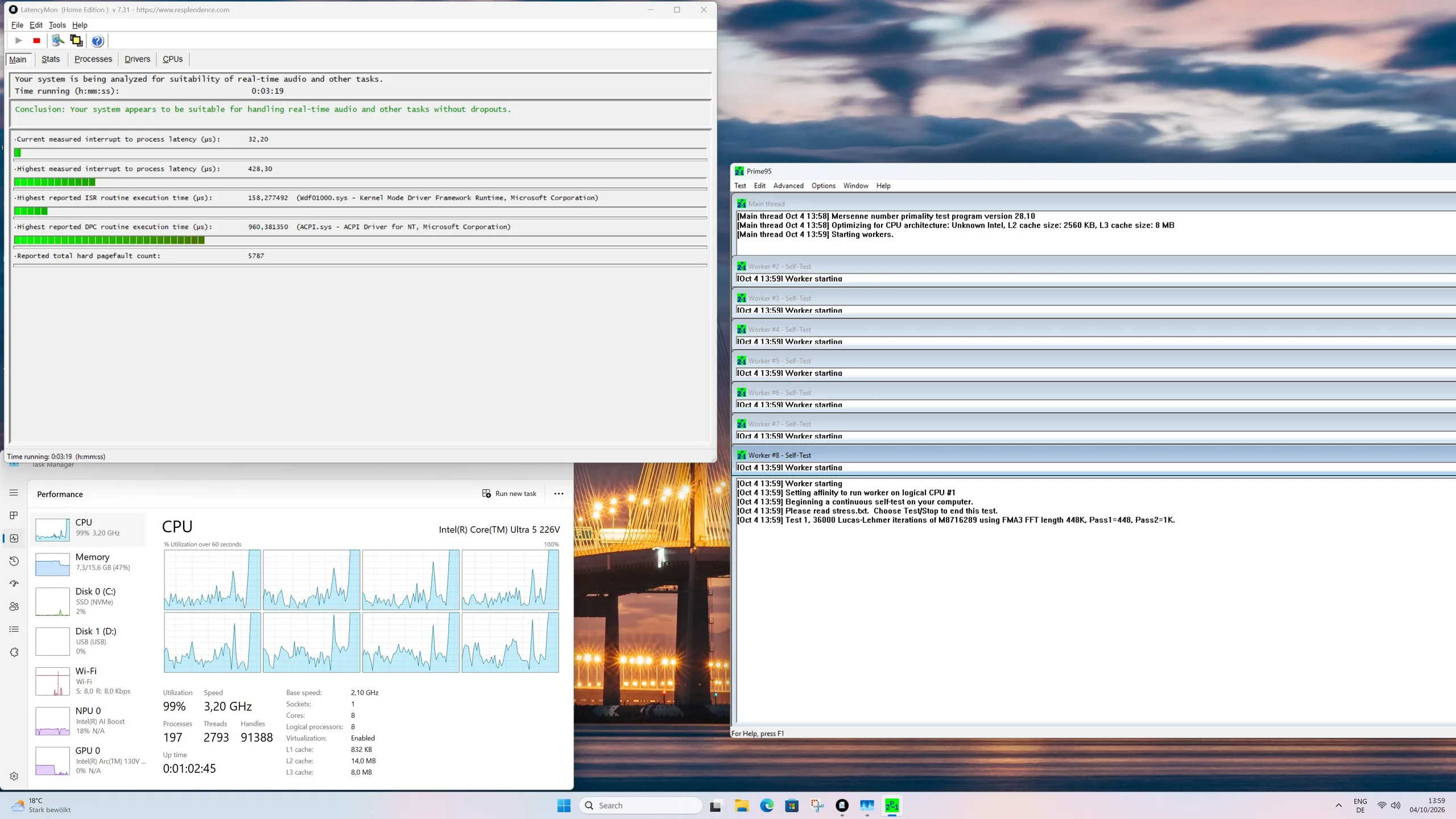

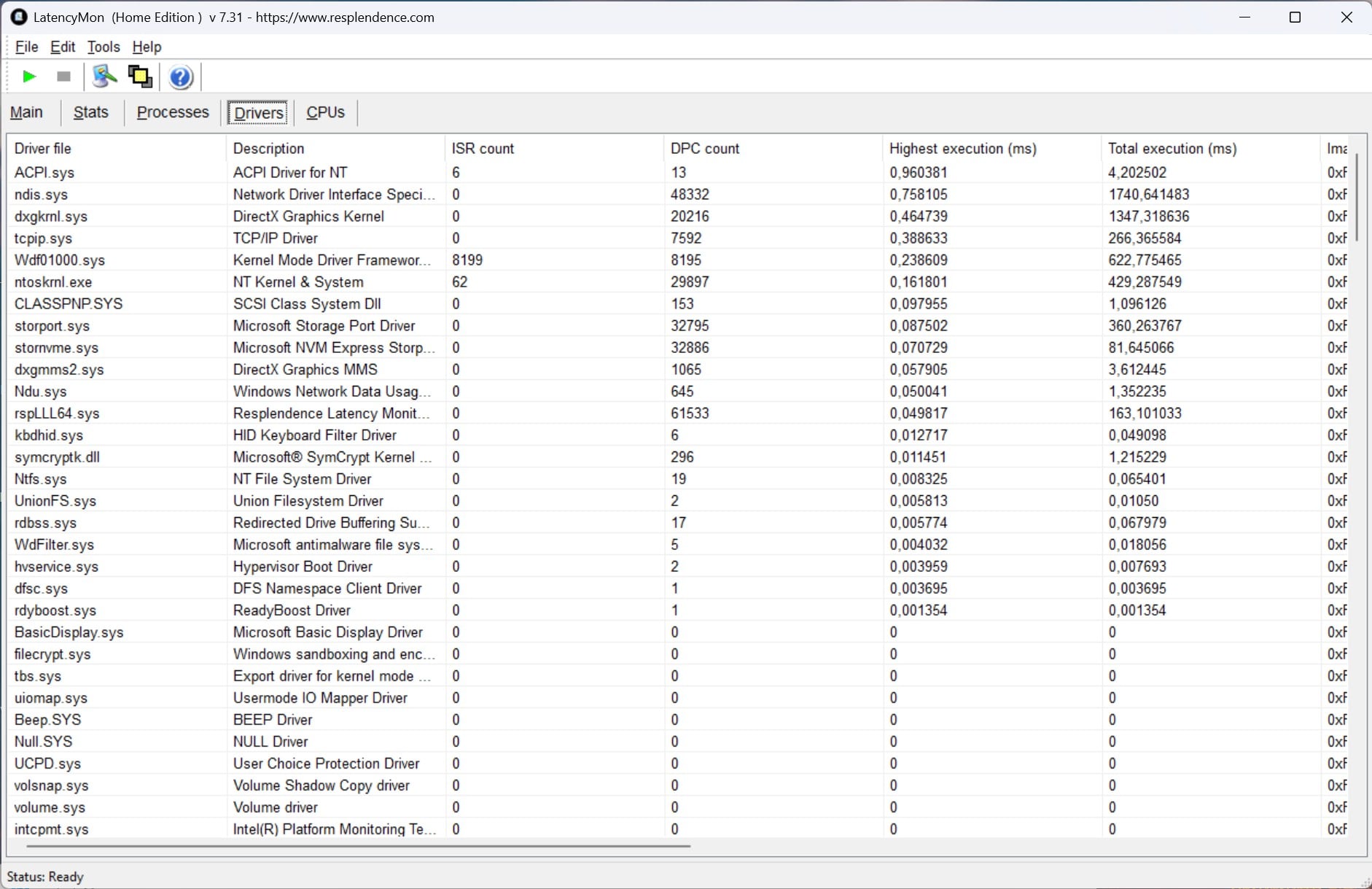

| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Acemagic Retro X3 | |
| GMK NucBox K17 | |
| Ninkear L20, Ultra 5 226V | |
| Geekom IT13 Max | |
| GMK NucBox M7 Ultra | |
* ... smaller is better
存储设备
| Drive Performance rating - Percent | |
| Average of class Mini PC | |
| Acemagic Retro X3 | |
| Geekom IT13 Max | |
| GMK NucBox M7 Ultra | |
| GMK NucBox K17 | |
| Ninkear L20, Ultra 5 226V | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
* ... smaller is better
磁盘限流:DiskSpd 读取循环,队列深度 8
iGPU 和游戏性能

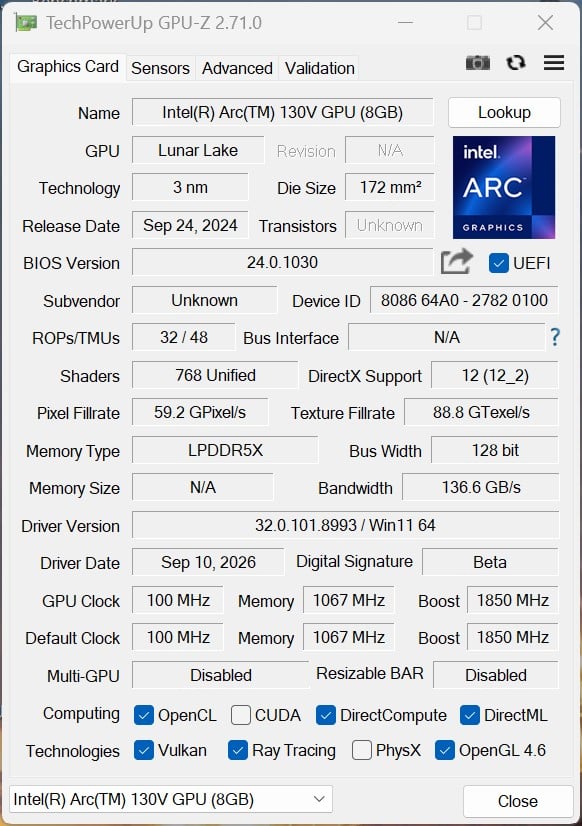

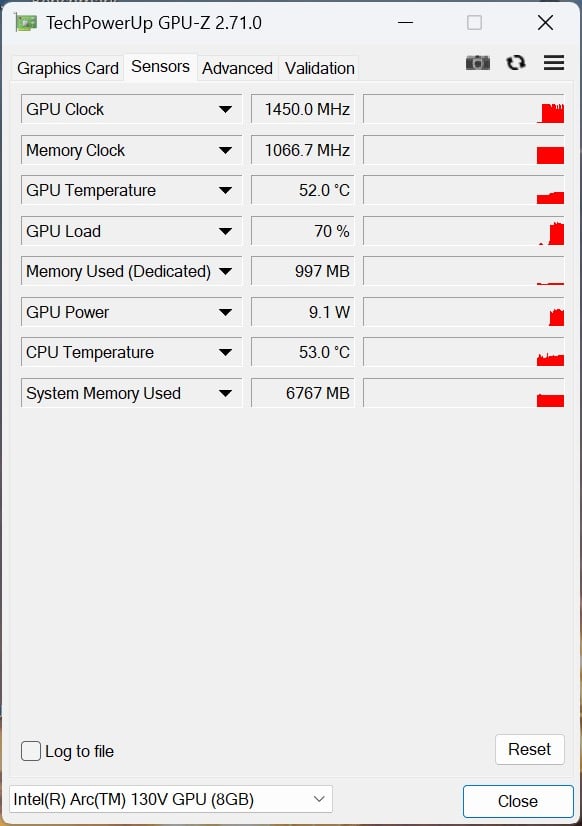

Intel Core Ultra 5 226V 采用集成式 Intel Arc Graphics 130V,配备七个 Xe2 核心。这款 iGPU 拥有充足的性能余量,可满足日常多媒体任务和高分辨率视频播放的需求。较老或要求较低的游戏也能在降低画质设置后流畅运行。不过,在基准测试中,Arc Graphics 130V 落后于 Arc Graphics 140V 以及 AMD 的 Radeon 780M 和 Radeon 890M 等更快的集成显卡。在持续负载下,Ninkear L20 的图形性能基本保持稳定。
| 3DMark Performance rating - Percent | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Ninkear L20, Ultra 5 226V | |
| Geekom IT13 Max | |
| GMK NucBox K17 | |
| Peladn HO5, AI 9 HX 370 | |
| Acemagic Retro X3 | |
| GMK NucBox M7 Ultra | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Peladn HO5, AI 9 HX 370 | |
| Acemagic Retro X3 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Ninkear L20, Ultra 5 226V | |
| GMK NucBox K17 | |
| Geekom IT13 Max | |
| GMK NucBox M7 Ultra | |
| Performance rating - Percent | |
| Peladn HO5, AI 9 HX 370 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Acemagic Retro X3 | |
| Ninkear L20, Ultra 5 226V | |
| Geekom IT13 Max | |
| GMK NucBox M7 Ultra | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Peladn HO5, AI 9 HX 370 | |
| GMK NucBox K17 | |
| Acemagic Retro X3 | |
| Geekom IT13 Max | |
| GMK NucBox M7 Ultra | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Ninkear L20, Ultra 5 226V | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Ninkear L20, Ultra 5 226V | |
| Peladn HO5, AI 9 HX 370 | |
| GMK NucBox K17 | |
| GMK NucBox M7 Ultra | |
| Acemagic Retro X3 | |
| Geekom IT13 Max | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Ninkear L20, Ultra 5 226V | |
| GMK NucBox K17 | |
| Geekom IT13 Max | |
| Peladn HO5, AI 9 HX 370 | |
| GMK NucBox M7 Ultra | |
| Acemagic Retro X3 | |
| 3DMark 06 Standard Score | 22467 points | |
| 3DMark Vantage P Result | 27681 points | |
| 3DMark 11 Performance | 11015 points | |
| 3DMark Ice Storm Standard Score | 166216 points | |
| 3DMark Cloud Gate Standard Score | 30152 points | |
| 3DMark Fire Strike Score | 8015 points | |
| 3DMark Fire Strike Extreme Score | 3773 points | |
| 3DMark Time Spy Score | 3464 points | |
| 3DMark Steel Nomad Score | 686 points | |
Help | ||
| Performance rating - Percent | |
| Peladn HO5, AI 9 HX 370 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Ninkear L20, Ultra 5 226V | |
| Acemagic Retro X3 | |
| GMK NucBox M7 Ultra | |
| Geekom IT13 Max | |
| GMK NucBox K17 | |
| GTA V | |
| 1024x768 Lowest Settings possible | |
| Peladn HO5, AI 9 HX 370 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| GMK NucBox M7 Ultra | |
| GMK NucBox K17 | |
| Ninkear L20, Ultra 5 226V | |
| 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
| Peladn HO5, AI 9 HX 370 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Ninkear L20, Ultra 5 226V | |
| GMK NucBox K17 | |
| Acemagic Retro X3 | |
| GMK NucBox M7 Ultra | |
| Geekom IT13 Max | |
FPS 图表 - 30 分钟 Cyberpunk 2077 1920 x 1080 超高预设 (FSR 关闭)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 115 | 106.5 | 60.4 | 23.4 |
| The Witcher 3 (2015) | 150.5 | 99.4 | 52.5 | 24.1 |
| Dota 2 Reborn (2015) | 107.4 | 101.1 | 92.3 | 91.6 |
| Final Fantasy XV Benchmark (2018) | 79.5 | 42.2 | 30.4 | |
| X-Plane 11.11 (2018) | 30.4 | 26.1 | 22.2 | |
| Strange Brigade (2018) | 174.8 | 70.6 | 61 | 51.1 |
| Baldur's Gate 3 (2023) | 33.8 | 26.6 | 23.2 | 23 |
| Cyberpunk 2077 (2023) | 42.3 | 32.3 | 29.8 | 26.1 |
| F1 24 (2024) | 74.4 | 65.8 | 49.8 | 16.6 |
排放
系统噪声
Ninkear L20 在日常使用中大多很安静,运行声音几乎难以察觉。在中等负载下,噪声水平升至 41.4 dB(A),而在峰值负载下测得的最高噪声为 45.6 dB(A)。总体而言,噪声水平仍属适中,尽管这款迷你 PC 在高负载下的运行声音清晰可闻。
Noise level
| Idle |
| 25.4 / 25.8 / 36.7 dB(A) |
| Load |
| 41.4 / 45.6 dB(A) |
![]() | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: | ||
| Ninkear L20, Ultra 5 226V Core Ultra 5 226V, Arc 130V | GMK NucBox K17 Core Ultra 5 226V, Arc 130V | Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V | Geekom IT13 Max Ultra 9 185H, Arc 8-Core | Acemagic Retro X3 Ryzen 7 255, Radeon 780M | GMK NucBox M7 Ultra R7 PRO 6850U, Radeon 680M | |
|---|---|---|---|---|---|---|
| Noise | 21% | 14% | -6% | -1% | -1% | |
| off / environment * (dB) | 24.8 | 25.1 -1% | 24.6 1% | 24.6 1% | 24.6 1% | 24.8 -0% |
| Idle Minimum * (dB) | 25.4 | 25.3 -0% | 24.7 3% | 25.3 -0% | 25 2% | 31.9 -26% |
| Idle Average * (dB) | 25.8 | 25.4 2% | 24.8 4% | 25.6 1% | 25 3% | 31.9 -24% |
| Idle Maximum * (dB) | 36.7 | 26.1 29% | 24.9 32% | 25.6 30% | 25 32% | 31.9 13% |
| Load Average * (dB) | 41.4 | 27.4 34% | 34.9 16% | 53.3 -29% | 43.6 -5% | 41.7 -1% |
| Witcher 3 ultra * (dB) | 41.6 | 28 33% | 35.1 16% | 47.1 -13% | 49.8 -20% | 37.8 9% |
| Cyberpunk 2077 ultra * (dB) | 45.6 | 29.1 36% | 38.9 15% | 53.4 -17% | 49.9 -9% | 39.1 14% |
| Load Maximum * (dB) | 45.6 | 28.6 37% | 35.2 23% | 53.5 -17% | 50.2 -10% | 40.8 11% |
* ... smaller is better

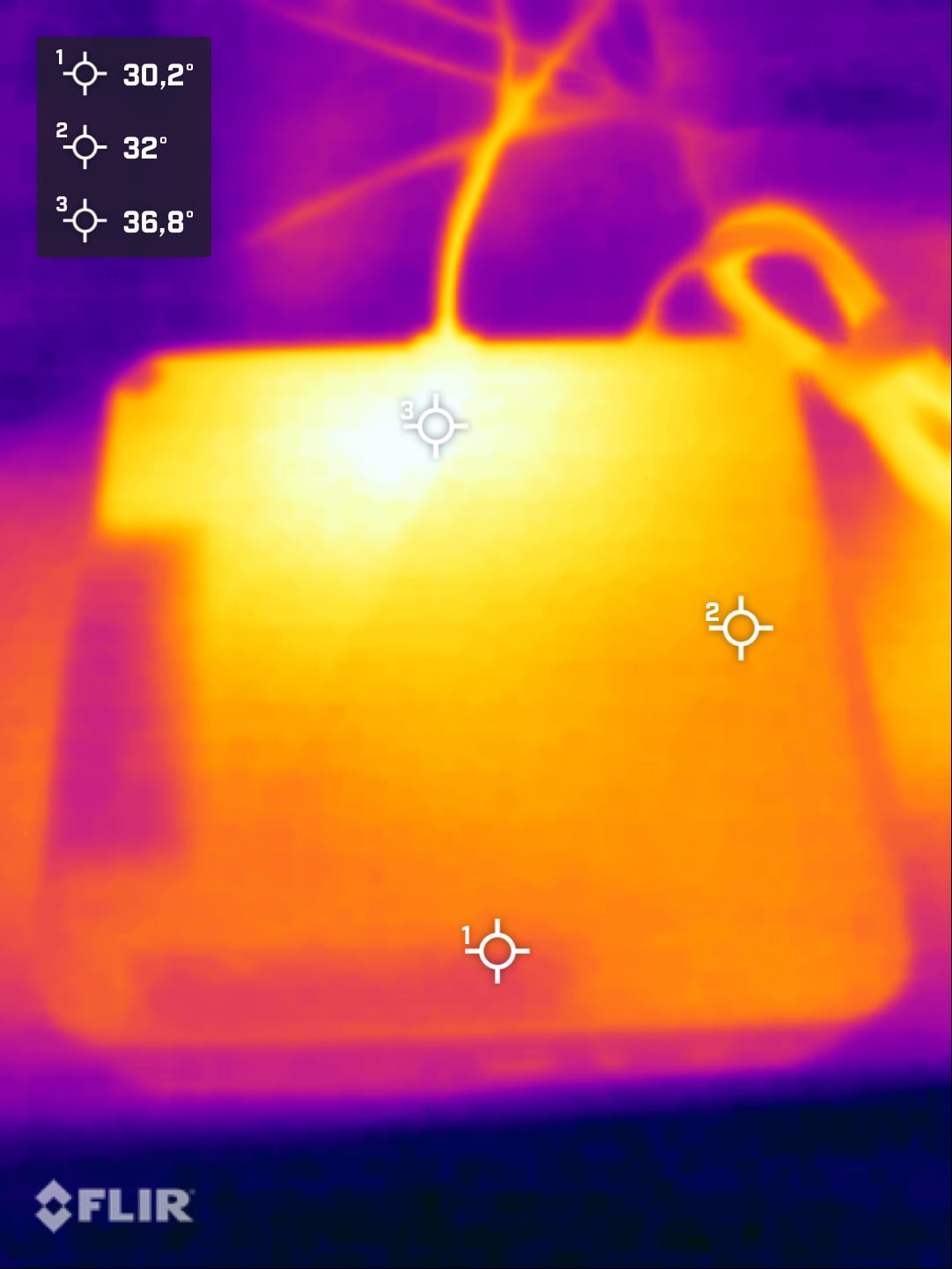

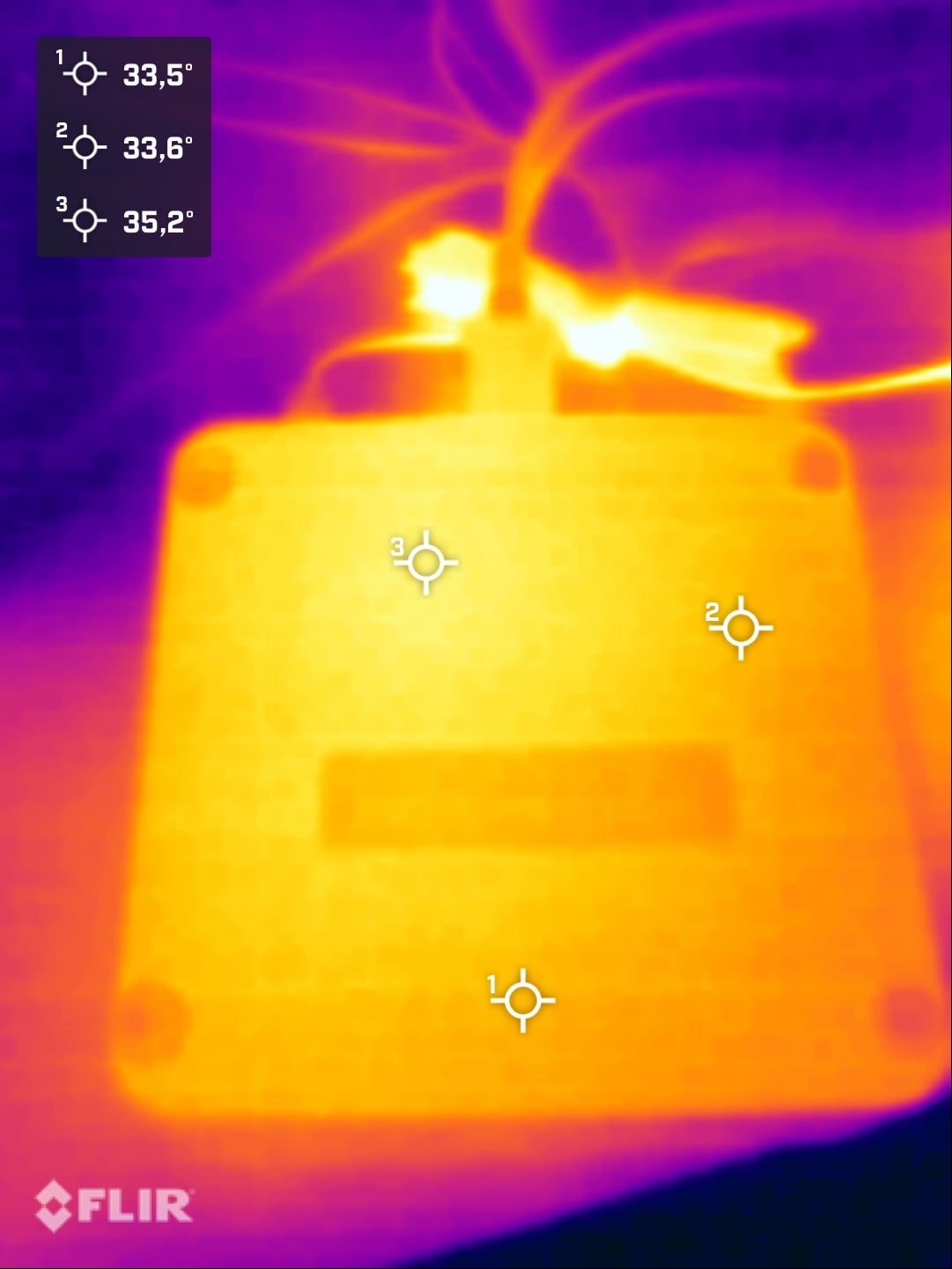

温度
(+) The maximum temperature on the upper side is 37.1 °C / 99 F, compared to the average of 35.3 °C / 96 F, ranging from 20.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 35 °C / 95 F, compared to the average of 36 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 31.4 °C / 89 F, compared to the device average of 32.1 °C / 90 F.
(+) 3: The average temperature for the upper side is 31.4 °C / 89 F, compared to the average of 32.1 °C / 90 F for the class Mini PC.
能源管理

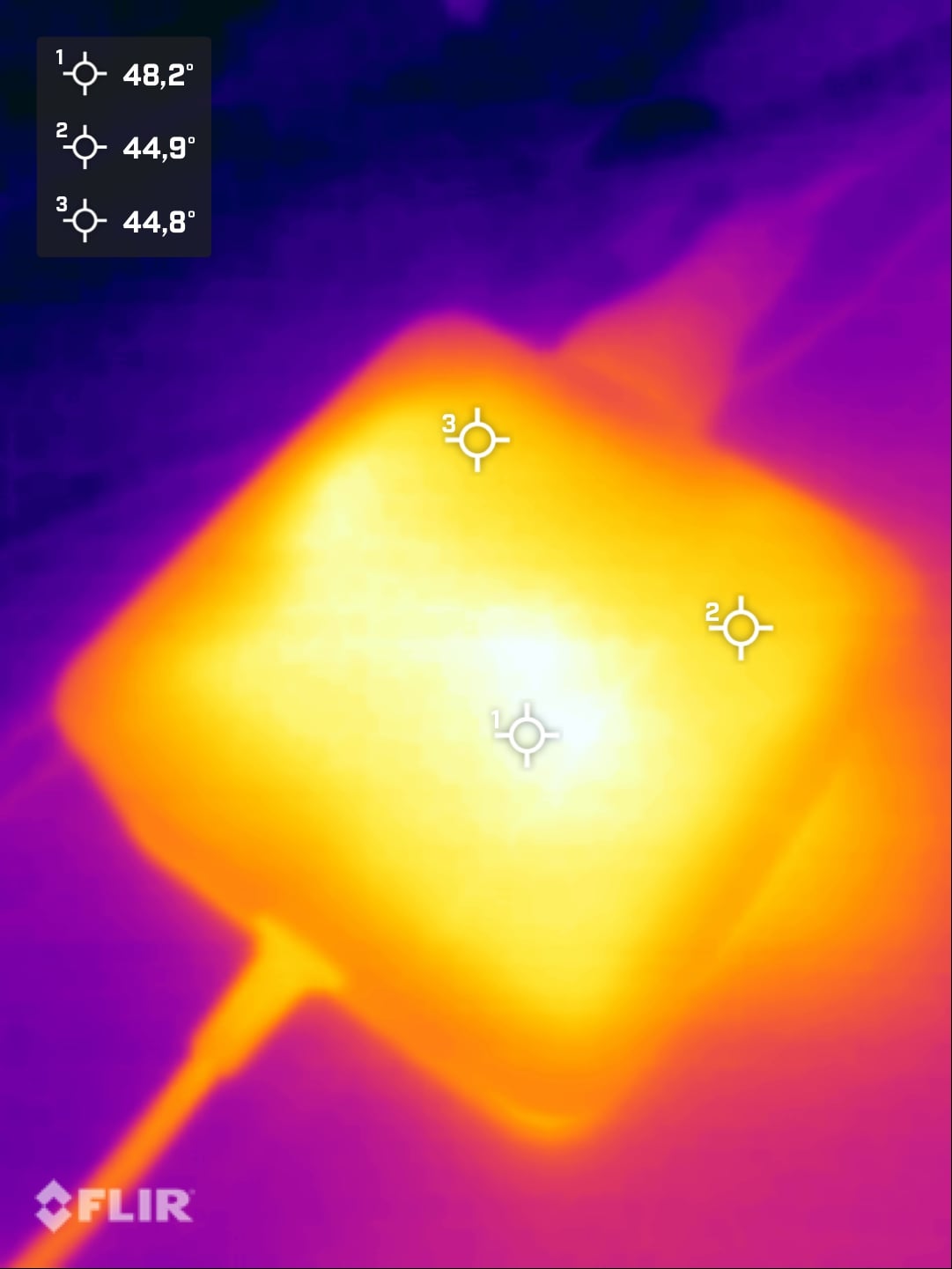

Ninkear L20 在负载下总体能效较高,但其相对较高的空闲功耗较为突出。不过,在较重的工作负载下,其功耗相对于所提供的性能而言仍属合理。随附的电源适配器留有充足的功率余量,即使在负载下也能为这台迷你电脑可靠供电。
| Off / Standby | |
| Idle | |
| Load |
|
Key:
min: | |
| Ninkear L20, Ultra 5 226V Core Ultra 5 226V, Arc 130V | GMK NucBox K17 Core Ultra 5 226V, Arc 130V | Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V | Geekom IT13 Max Ultra 9 185H, Arc 8-Core | Acemagic Retro X3 Ryzen 7 255, Radeon 780M | GMK NucBox M7 Ultra R7 PRO 6850U, Radeon 680M | Average Intel Arc Graphics 130V | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | 19% | 12% | -56% | -29% | -66% | 19% | -44% | |
| Idle Minimum * (Watt) | 4.4 | 4.7 -7% | 4.9 -11% | 11.8 -168% | 5.7 -30% | 12.5 -184% | 3.96 ? 10% | 8.27 ? -88% |
| Idle Average * (Watt) | 11.4 | 6.1 46% | 5.9 48% | 12.2 -7% | 6.9 39% | 14.4 -26% | 6.54 ? 43% | 10.3 ? 10% |
| Idle Maximum * (Watt) | 12.3 | 9.6 22% | 7.6 38% | 16.1 -31% | 8.2 33% | 15.2 -24% | 8.1 ? 34% | 12.8 ? -4% |
| Load Average * (Watt) | 38.6 | 32.7 15% | 37.7 2% | 52.9 -37% | 62.5 -62% | 66.6 -73% | 35.5 ? 8% | 60.6 ? -57% |
| Cyberpunk 2077 ultra external monitor * (Watt) | 44.3 | 39.5 11% | 46.8 -6% | 54.4 -23% | 81.9 -85% | 69.9 -58% | ||
| Load Maximum * (Watt) | 58.1 | 41.3 29% | 56.1 3% | 100.1 -72% | 99 -70% | 75.5 -30% | 58.6 ? -1% | 105.3 ? -81% |
* ... smaller is better
能效
| Performance rating - Percent | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Ninkear L20, Ultra 5 226V | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| GMK NucBox M7 Ultra | |
| Power Consumption | |
| Cinebench R23 Multi Power Efficiency - external Monitor | |
| GMK NucBox K17 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| GMK NucBox M7 Ultra | |
| Ninkear L20, Ultra 5 226V | |
| Cinebench R23 Single Power Efficiency - external Monitor | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Ninkear L20, Ultra 5 226V | |
| Acemagic Retro X3 | |
| Geekom IT13 Max | |
| GMK NucBox M7 Ultra | |
| Cinebench R15 Multi Efficiency (external Monitor) | |
| GMK NucBox K17 | |
| GMK NucBox M7 Ultra | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| Ninkear L20, Ultra 5 226V | |
| Cyberpunk 2077 ultra Efficiency | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Ninkear L20, Ultra 5 226V | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| GMK NucBox M7 Ultra | |
连接外接显示器时的功耗
连接外接显示器时的功耗
Notebookcheck 评分
Ninkear L20, Ultra 5 226V
- 10/05/2026 v8
Sebastian Bade
搭载 Intel 18A 的 0.36 升迷你电脑 - Ninkear MBOX18
现代台式电脑能有多小?Ninkear MBOX18 将基于 Intel 18A 技术的 Intel 全新 Core 3 处理器 304 与超紧凑的 0.36 升金属机身相结合,重量仅为 478 克。
它仍支持最多三台显示器、40 Gbps USB4、Wi-Fi 6 和 VESA 安装。因此,它是日常办公、居家办公和空间有限的使用环境中的紧凑之选。
可能的替代方案对比
Image | Model / Review | Price | Weight | Dimensions |
|---|---|---|---|---|
| Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V ⎘ Intel Arc Graphics 130V ⎘ 16 GB Memory, 512 GB SSD | List Price: 699€ | 626 g | 129 x 129 x 43 mm | |
| GMK NucBox K17 Intel Core Ultra 5 226V ⎘ Intel Arc Graphics 130V ⎘ 16 GB Memory, 1024 GB SSD | List Price: 569€ | 461 g | 185 x 187 x 44.5 mm | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V ⎘ Intel Arc Graphics 140V ⎘ 16 GB Memory, 1024 GB SSD | Amazon: | 438 g | 131 x 131 x 43 mm | |
| Geekom IT13 Max Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 24 GB Memory, 500 GB SSD | List Price: 799€ | 833 g | 132 x 136 x 50.1 mm | |
| Acemagic Retro X3 AMD Ryzen 7 255 ⎘ AMD Radeon 780M ⎘ 16 GB Memory, SSD | List Price: 899€ | 528 g | 128.2 x 128.2 x 44 mm | |
| GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U ⎘ AMD Radeon 680M ⎘ 32 GB Memory, 1024 GB SSD | Amazon: List Price: 469€ | 637 g | 125 x 132 x 58 mm |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
