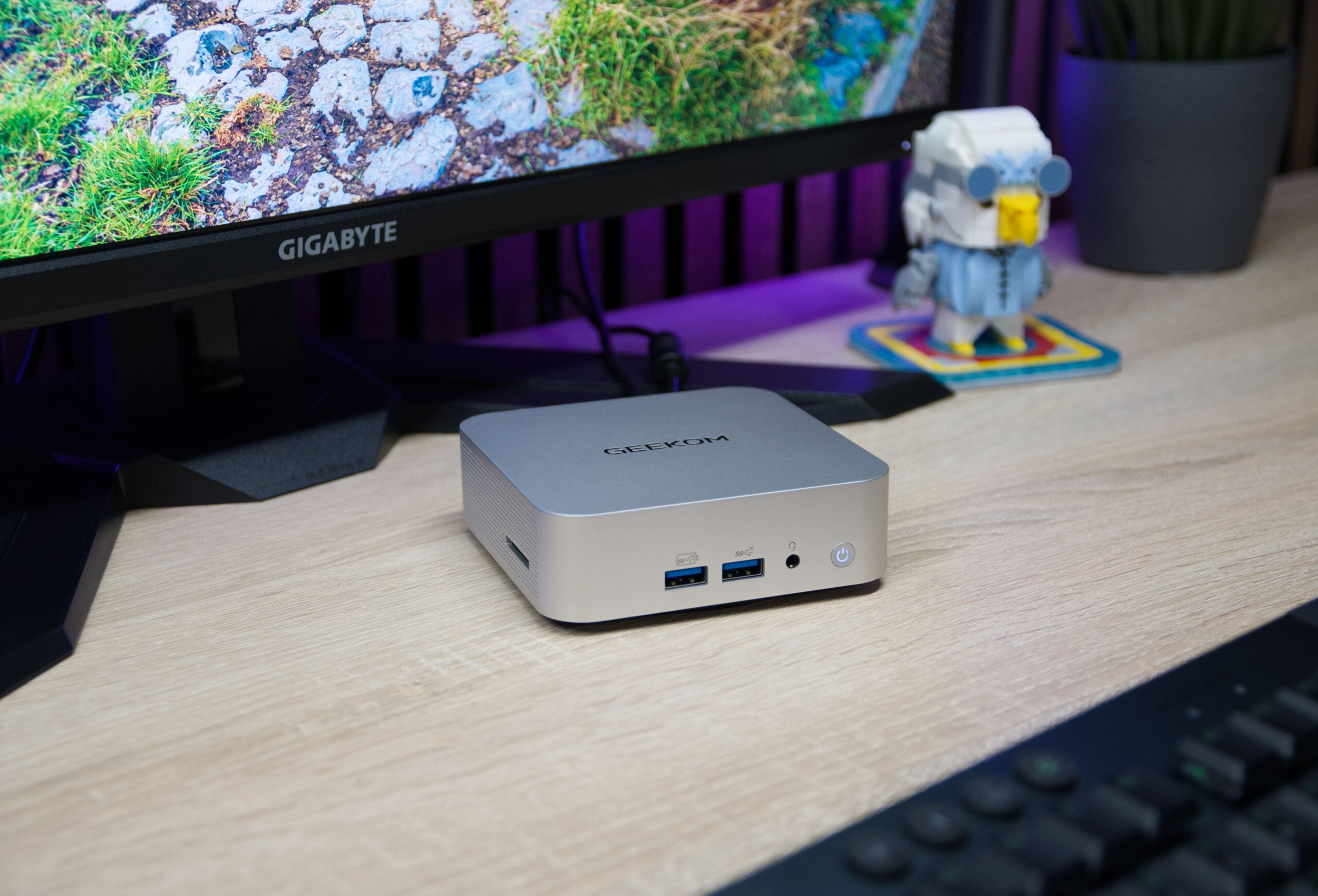

紧凑高效：配备 AMD Ryzen 处理器的 Geekom A5 Pro 2026 版迷你电脑评测

Name: Geekom A5 Pro
Brand: Geekom

日常英雄的缩影

Geekom A5 Pro 集 Ryzen 5 7530U、Radeon Vega 7、DDR4 内存和固态硬盘于一身，体积小巧，适合日常使用，价格也很吸引人。但是，与竞争对手相比，该系统的性能如何？在测试中，我们根据多项测量结果对性能进行了仔细研究。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 04/15/2026 🇺🇸 🇩🇪 ...
Mini PC Desktop AMD Ryzen (Zen) Radeon

评价：高效、经济的迷你 PC，具有 Ryzen 性能和强大的功能

Geekom A5 Pro 是一款采用高效 AMD Ryzen 5 7530U 和集成 Radeon Vega 7 的紧凑型迷你 PC，配备 16GB DDR4 内存和固态硬盘，为日常和办公应用提供了坚实的基础。各种连接功能齐全，但与更昂贵的机型相比仍有差距--缺少 USB4 等现代功能，而前置 USB-C 端口将是一个有益的补充。

Test device courtesy of Geekom

Download your licensed rating image as PNG / SVG

做工质量上乘，小巧的电脑也给人留下了深刻的视觉印象。熟悉的外壳设计依然具有典型的优缺点。A5 Pro 在运行时非常节能，怠速时也非常安静，但在负载情况下风扇的声音会变得更大。如果对风扇控制进行更精细的调整，就能改善整体效果。总的来说，这款微型电脑的日常性能不错，价格也比较诱人。

Pros

+ 极其紧凑和稳定的 0.5 升外壳

+ 最多可同时使用四个屏幕

+ 经济型 AMD Ryzen 处理器，6 核 12 线程

+ 运行安静

+ 支持 UHS 的 SD 读卡器

+ 36 个月保修

Cons

- 不支持 USB 4

- 仅支持 HDMI 2.0

- 有限的 BIOS 选项

- 胶合橡胶脚垫

价格和供应情况

Geekom A5 Pro 可直接从制造商处购买，售价 569 美元。.亚马逊也提供具有相同功能的迷你电脑。

评价：高效、经济的迷你 PC，具有 Ryzen 性能和强大的功能
规格
外壳和连接性 - 高品质做工，但不含 USB4
性能
排放量
能源管理
笔记本检查评级
可比较的替代品

小巧、强大、灵活：Geekom A5 Pro 迷你电脑（2026 版）是需要小型台式机办公和日常使用的用户的理想之选。配备 AMD Ryzen 5 7530U16 GB 内存和现代化的连接功能，在狭小的空间内提供可靠的性能。

规格

Geekom A5 Pro (A Series)

Processor

AMD Ryzen 5 7530U 6c/12t 6 x 2 - 4.5 GHz, 25 W PL2 / Short Burst, 15 W PL1 / Sustained, Barcelo-U Refresh

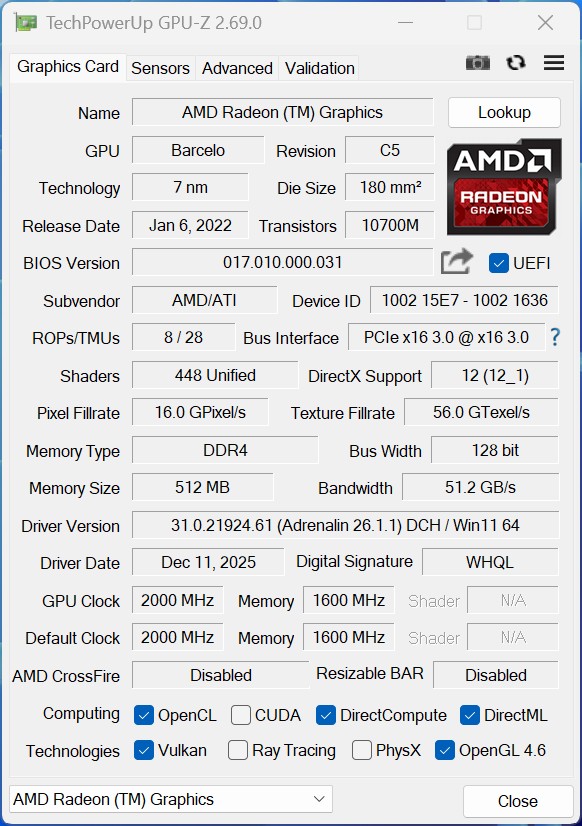

Graphics adapter

AMD Radeon RX Vega 7, Adrenalin 26.1.1

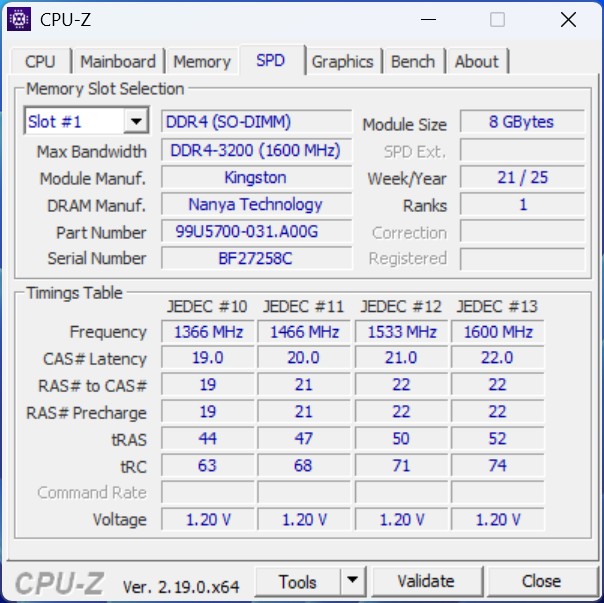

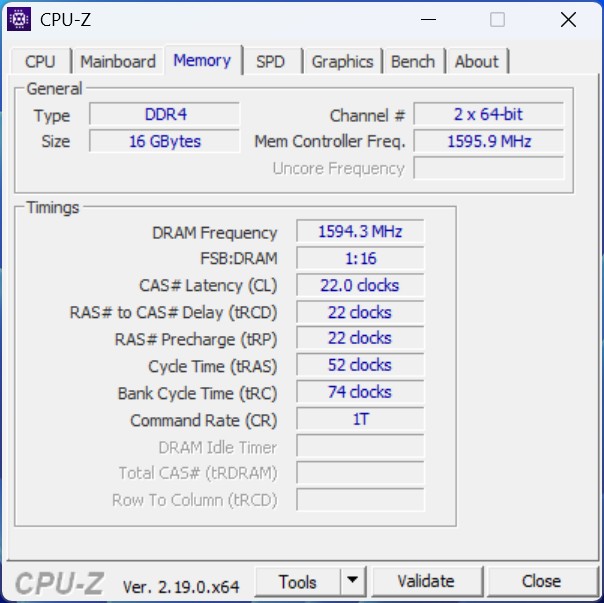

Memory

16 GB

, DDR4, 3.200 MT/s, max. 64 GB

Mainboard

AMD Promontory/Bixby FCH

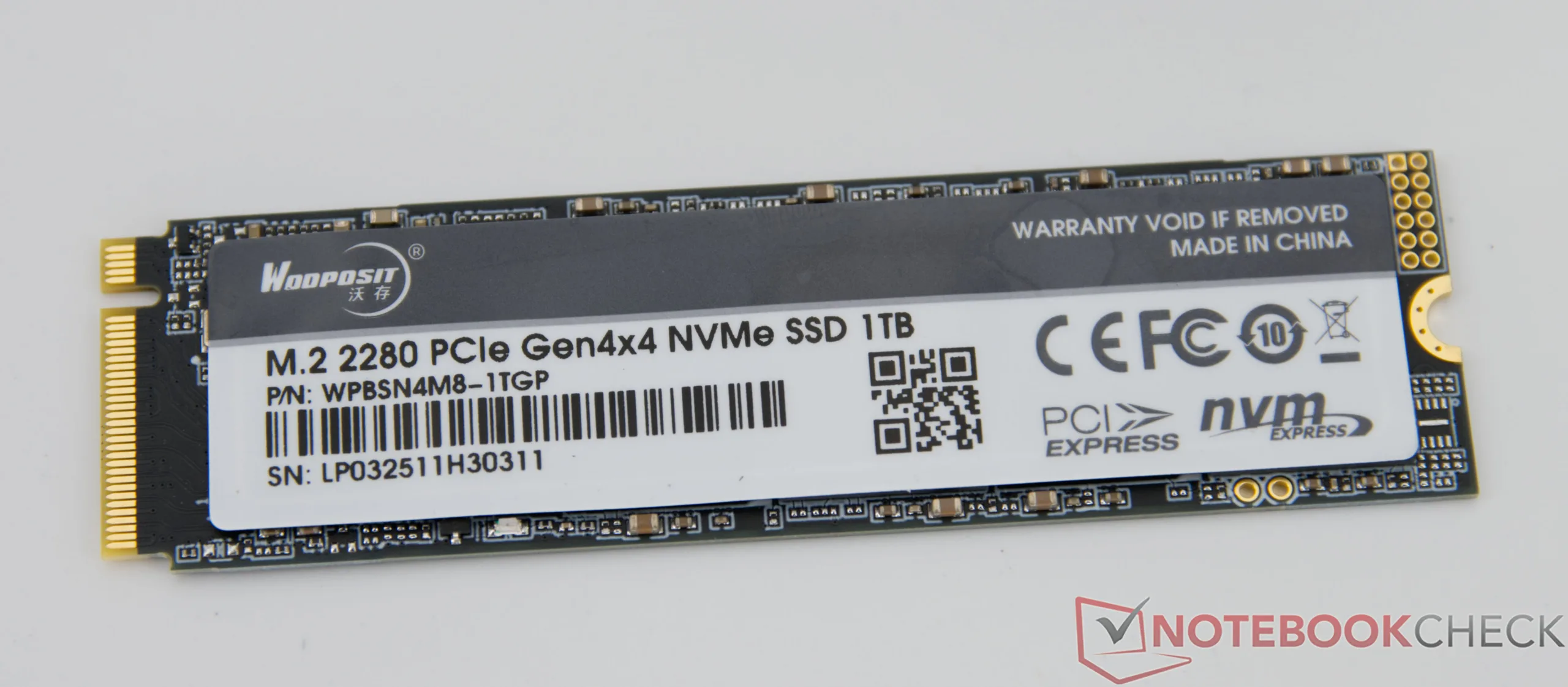

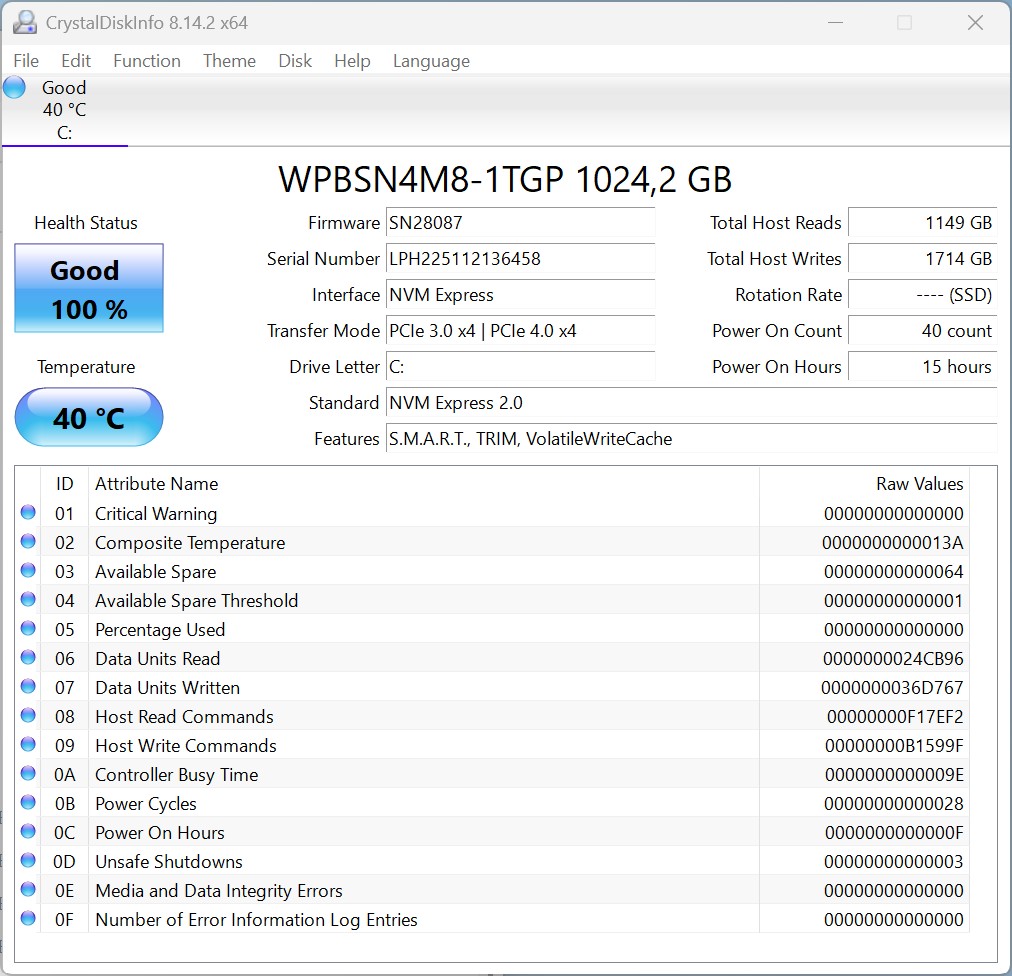

Storage

Wodposit WPBSN4M8-1TGP, 1024 GB

, 906 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 127 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, Audio Connections: 3.5mm Audio jack, Card Reader: SD-Card (Full-Size)

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 37 x 112 x 112

Operating System

Microsoft Windows 11 Pro

Additional features

36 Months Warranty

Weight

423 g, Power Supply: 231 g

Price

619 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

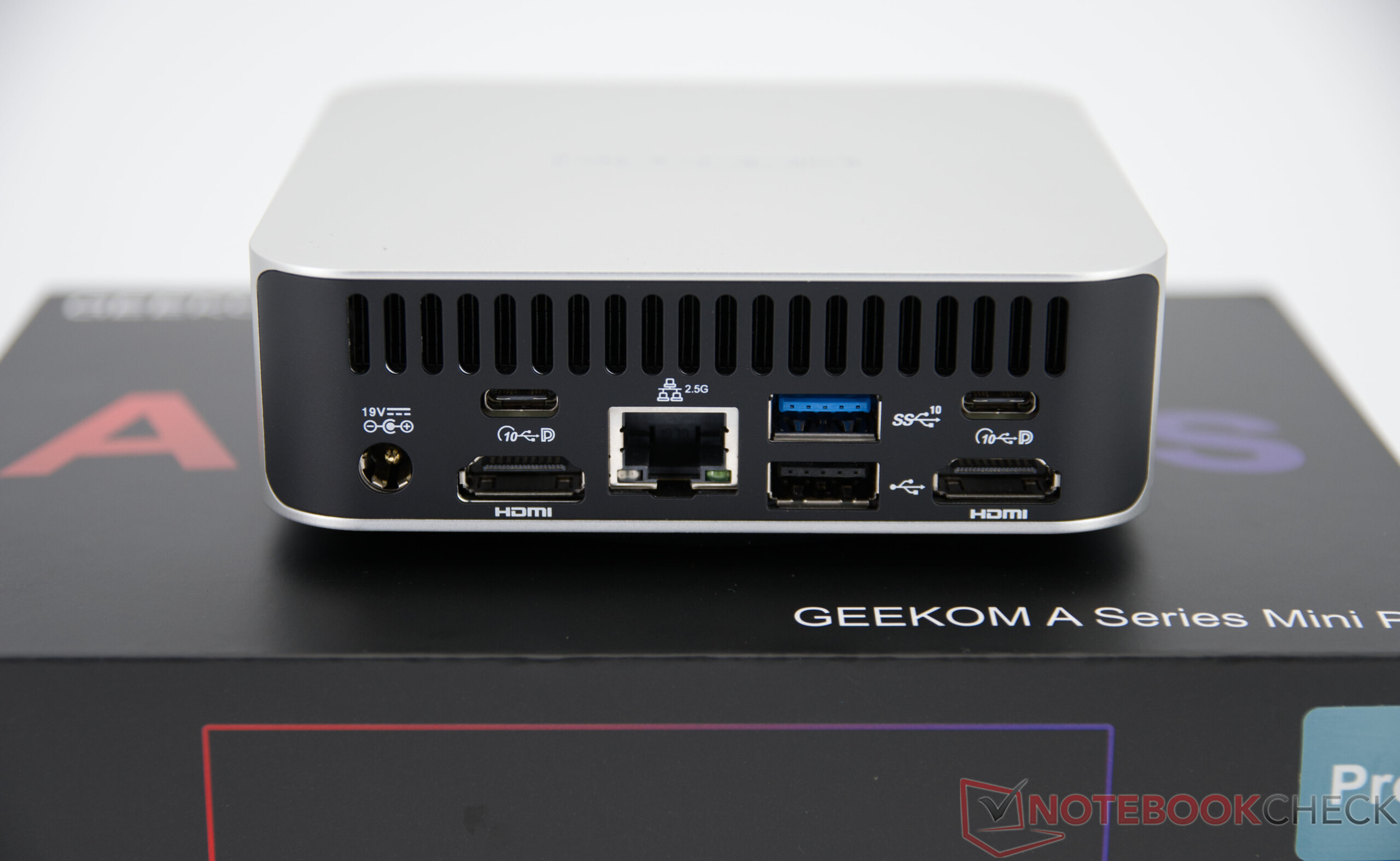

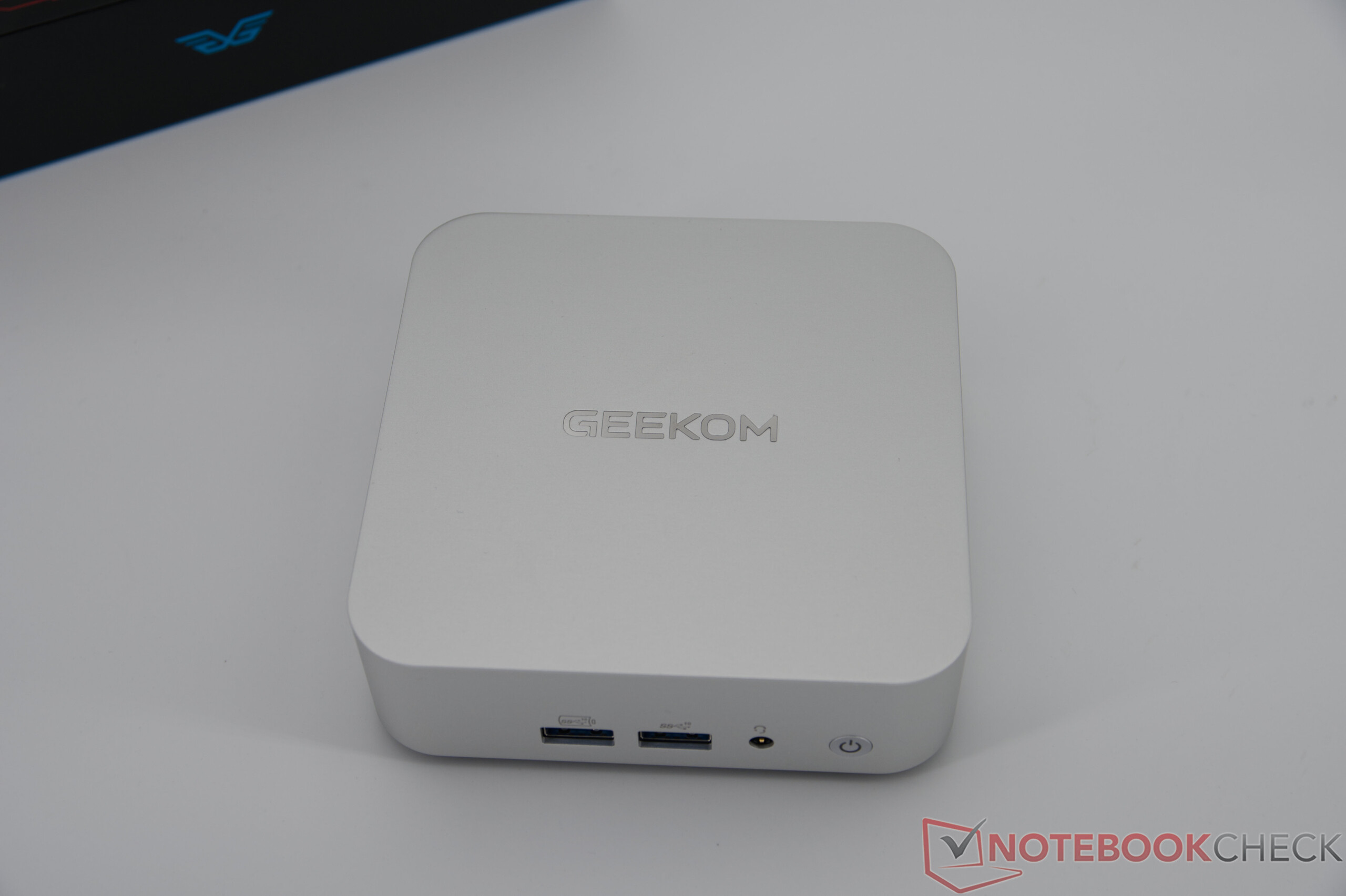

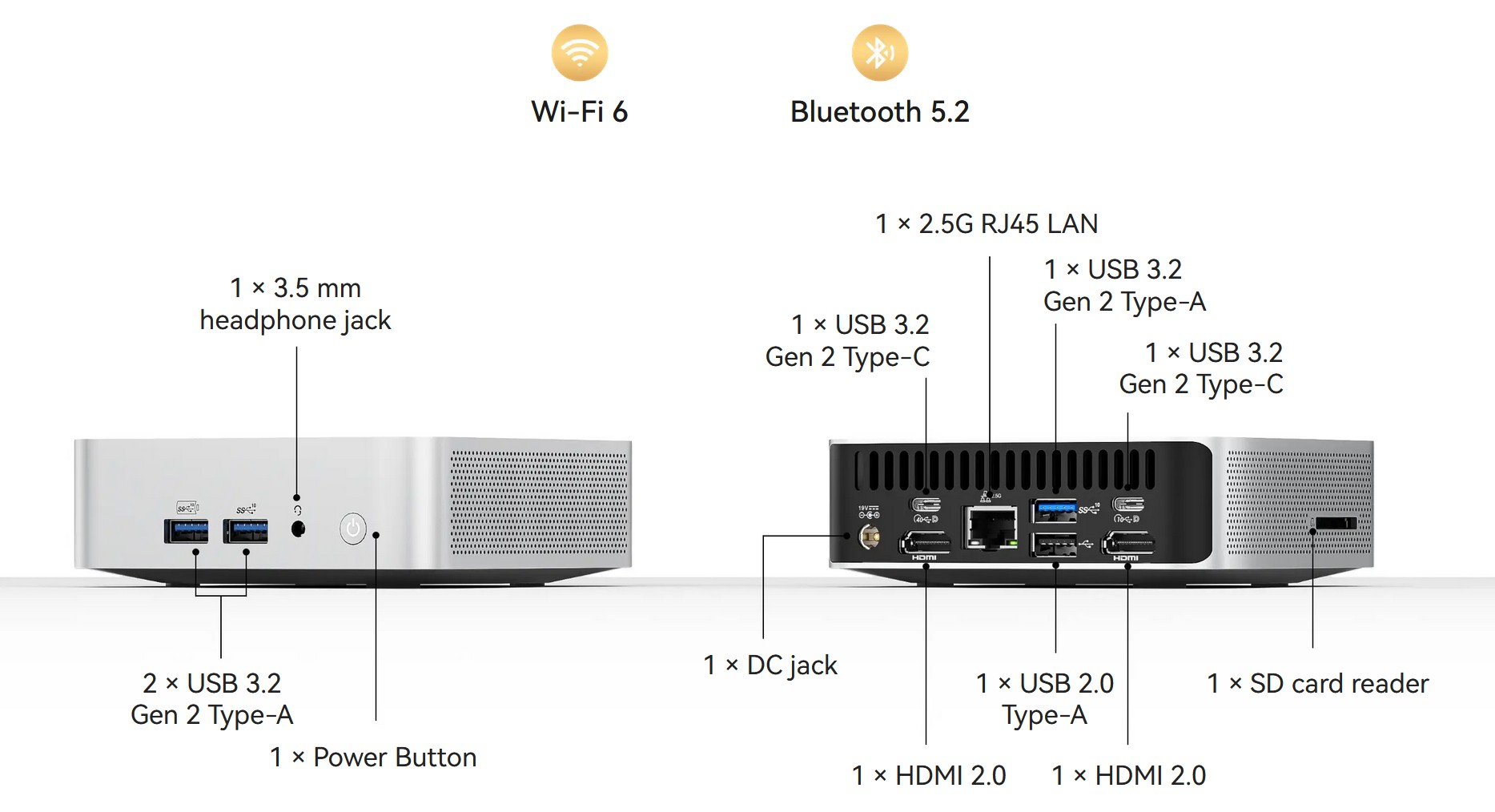

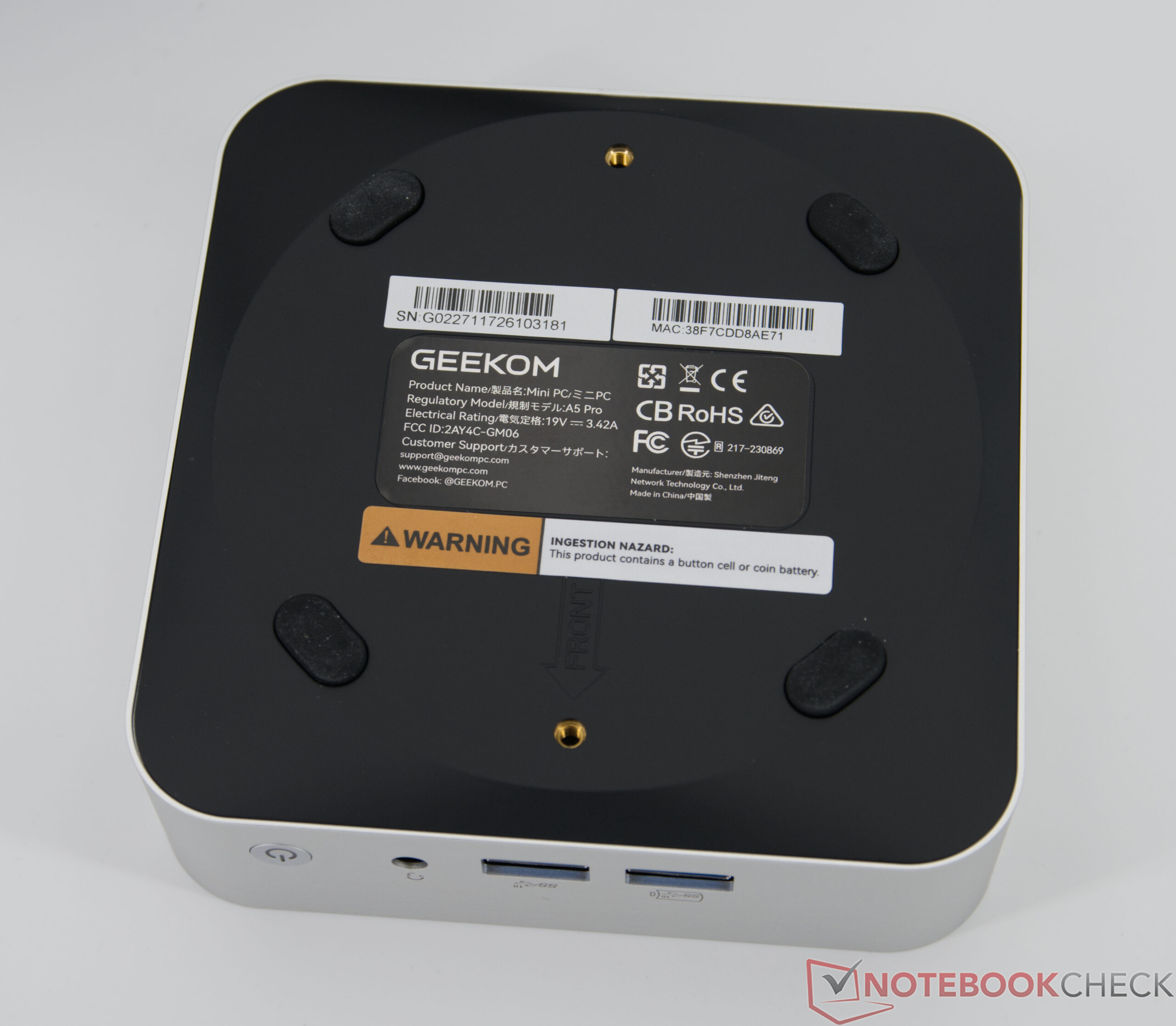

外壳和连接性 - 高品质做工，但不含 USB4

Geekom A5 Pro 的外壳已用于该制造商的多款机型。有关设计和功能的详细信息，请参阅我们之前的测试报告.与更昂贵的机型相比，Geekom A5 Pro 的连接功能略显不足。遗憾的是，它没有 USB4 等现代接口。

尺寸比较

Peladn HA-4, R7 7840HS Minisforum AI X1, Ryzen 7 255 BMAX B9 Power GMK NucBox M8 GMK NucBox M3 Ultra Geekom A5 Pro DIN A5 ❌

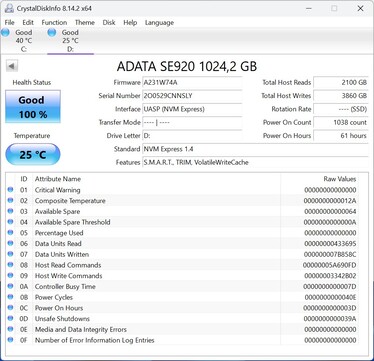

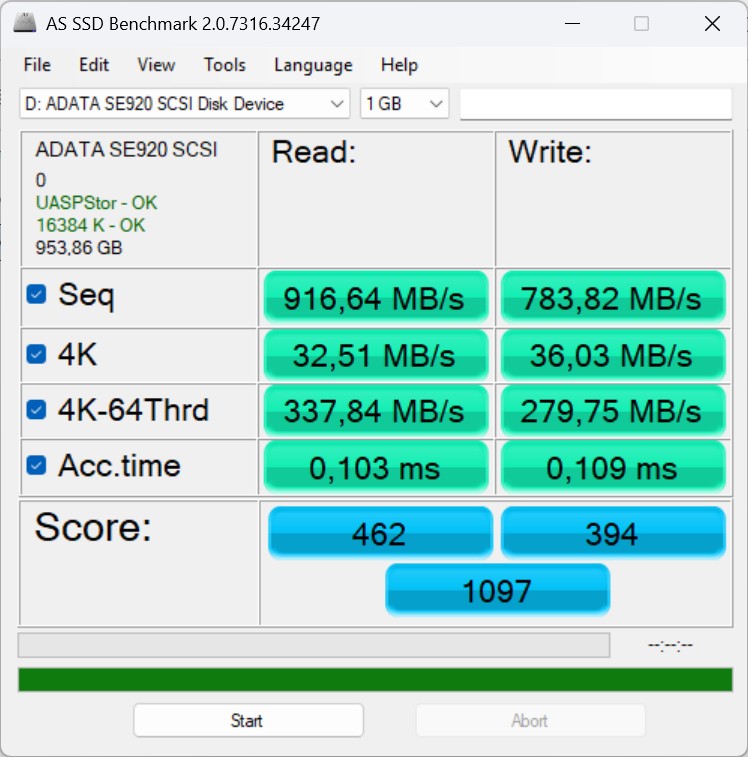

USB-C 性能

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	3086.76 MB/s
Average of class Mini PC (423 - 3906, n=42, last 2 years)	2797 MB/s
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	916.64 MB/s
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	422.62 MB/s

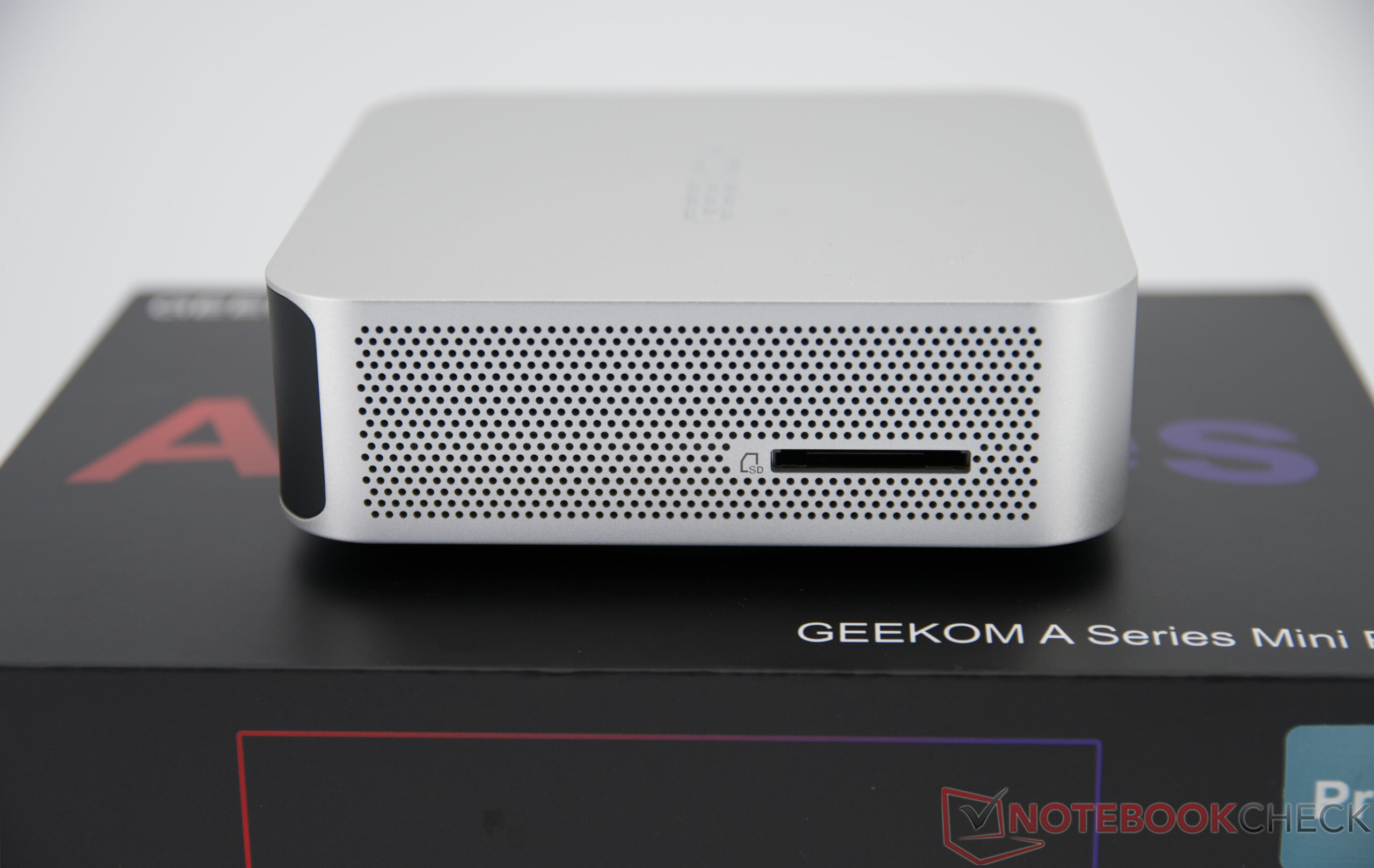

SD 读卡器

SD Card Reader
average JPG Copy Test (av. of 3 runs)
GMK EVO-X2 AMD Ryzen AI Max+ 395 (AV Pro SD microSD 128 GB V60)	204.87 MB/s +25%
Geekom A8, R7 8745HS AMD Ryzen 7 8745HS (AV Pro SD microSD 128 GB V60)	176.61 MB/s +8%
Geekom A5 Pro AMD Ryzen 5 7530U (AV Pro SD microSD 128 GB V60)	163.67 MB/s
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370 (AV Pro SD microSD 128 GB V60)	163.31 MB/s 0%
Average of class Mini PC (15.1 - 214, n=26, last 2 years)	116.6 MB/s -29%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470 (AV Pro SD microSD 128 GB V60)	25.8 MB/s -84%
maximum AS SSD Seq Read Test (1GB)
GMK EVO-X2 AMD Ryzen AI Max+ 395 (AV Pro SD microSD 128 GB V60)	239.62 MB/s +36%
Geekom A8, R7 8745HS AMD Ryzen 7 8745HS (AV Pro SD microSD 128 GB V60)	184.17 MB/s +5%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370 (AV Pro SD microSD 128 GB V60)	181.35 MB/s +3%
Geekom A5 Pro AMD Ryzen 5 7530U (AV Pro SD microSD 128 GB V60)	175.81 MB/s
Average of class Mini PC (17.9 - 250, n=26, last 2 years)	138.8 MB/s -21%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470 (AV Pro SD microSD 128 GB V60)	31.3 MB/s -82%

Wi-Fi 性能

Networking
iperf3 receive AXE11000 6GHz
Minisforum AI X1, Ryzen 7 255 Mediatek MT7925B22M	1628 (1584^min - 1674^max) MBit/s
Average of class Mini PC (684 - 1814, n=66, last 2 years)	1532 MBit/s
GMK NucBox M8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1499 (1475^min - 1518^max) MBit/s
iperf3 transmit AXE11000 6GHz
Minisforum AI X1, Ryzen 7 255 Mediatek MT7925B22M	1857 (1753^min - 1931^max) MBit/s
Average of class Mini PC (394 - 1887, n=66, last 2 years)	1461 MBit/s
GMK NucBox M8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1208 (998^min - 1395^max) MBit/s
iperf3 receive AXE11000
Minisforum AI X1, Ryzen 7 255 Mediatek MT7925B22M	1776 (1764^min - 1791^max) MBit/s +100%
Average of class Mini PC (267 - 1776, n=91, last 2 years)	1120 MBit/s +26%
GMK NucBox M3 Ultra Realtek RTL8852BE	975 (958^min - 983^max) MBit/s +10%
Peladn HA-4, R7 7840HS Intel Wi-Fi 6 AX200	917 (905^min - 930^max) MBit/s +3%
Geekom A5 Pro Realtek RTL8852BE	890 (451^min - 910^max) MBit/s
Average Realtek RTL8852BE (455 - 985, n=70)	861 MBit/s -3%
GMK NucBox M8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	686 (521^min - 769^max) MBit/s -23%
iperf3 transmit AXE11000
Minisforum AI X1, Ryzen 7 255 Mediatek MT7925B22M	1811 (1708^min - 1888^max) MBit/s +126%
Average of class Mini PC (251 - 1811, n=91, last 2 years)	1057 MBit/s +32%
GMK NucBox M3 Ultra Realtek RTL8852BE	862 (832^min - 881^max) MBit/s +8%
Geekom A5 Pro Realtek RTL8852BE	800 (685^min - 845^max) MBit/s
Average Realtek RTL8852BE (536 - 943, n=69)	785 MBit/s -2%
Peladn HA-4, R7 7840HS Intel Wi-Fi 6 AX200	757 (664^min - 793^max) MBit/s -5%
GMK NucBox M8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	593 (500^min - 684^max) MBit/s -26%

Geekom A5 Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø874 (451-910)

Geekom A5 Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø800 (685-845)

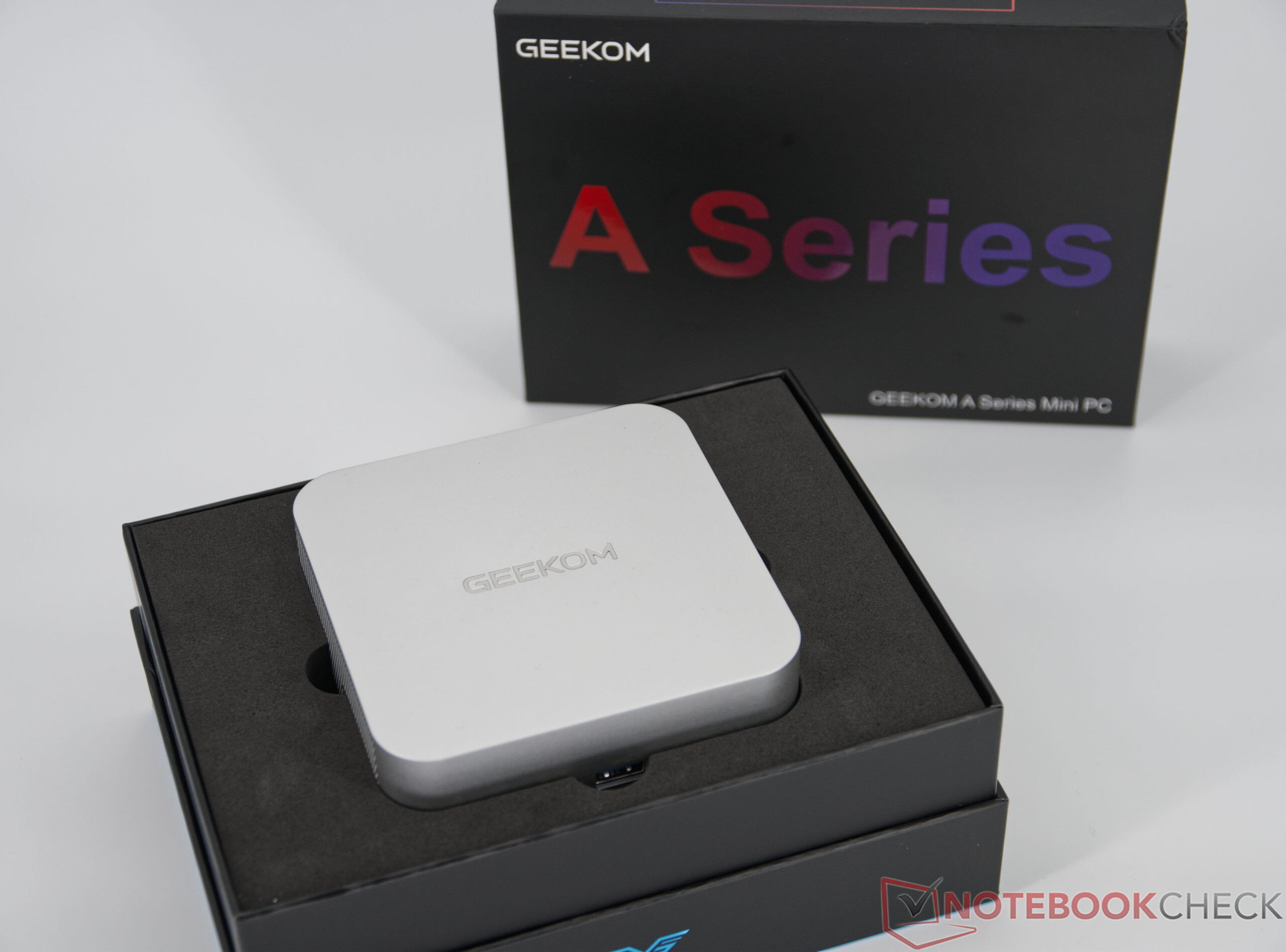

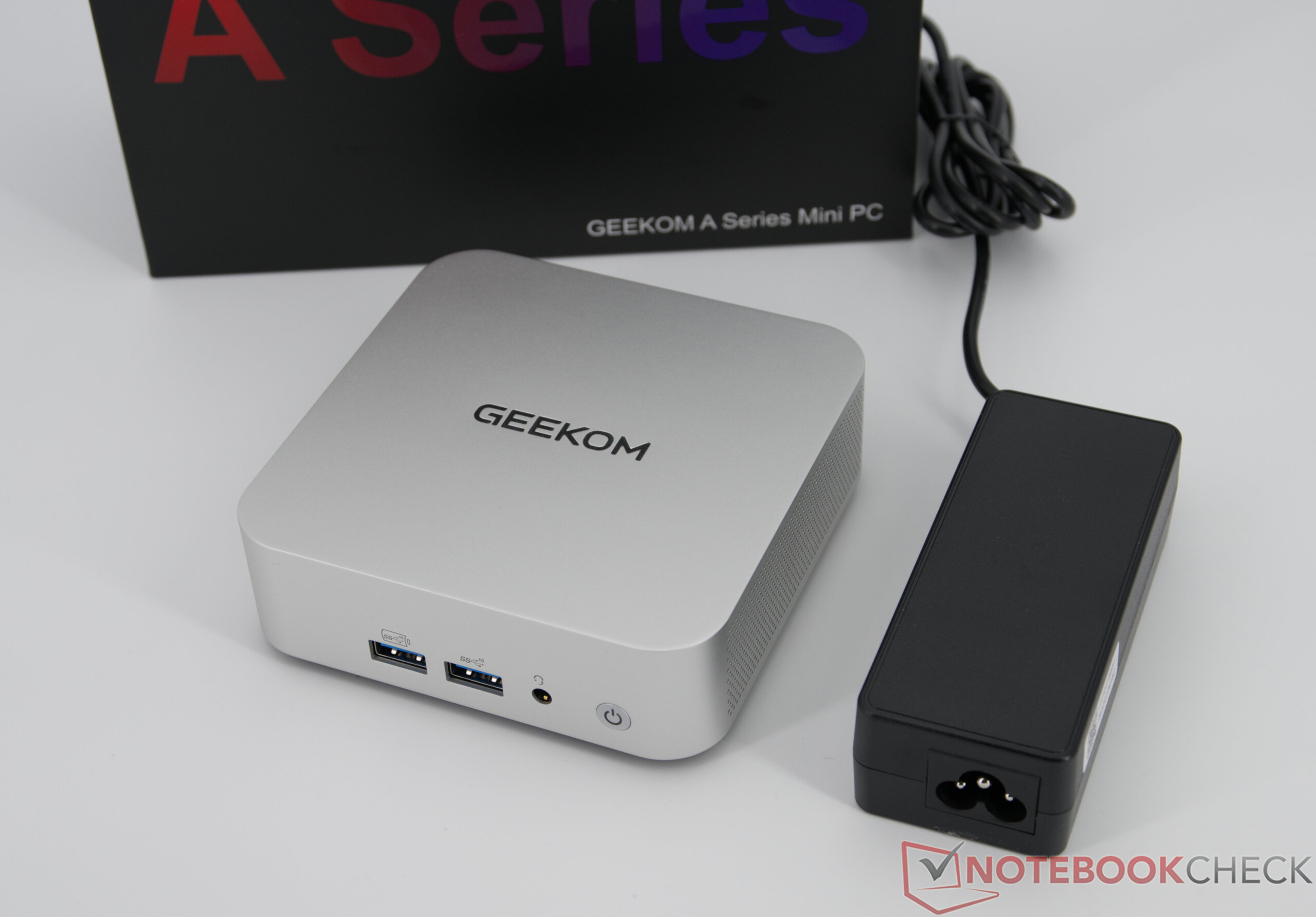

配件

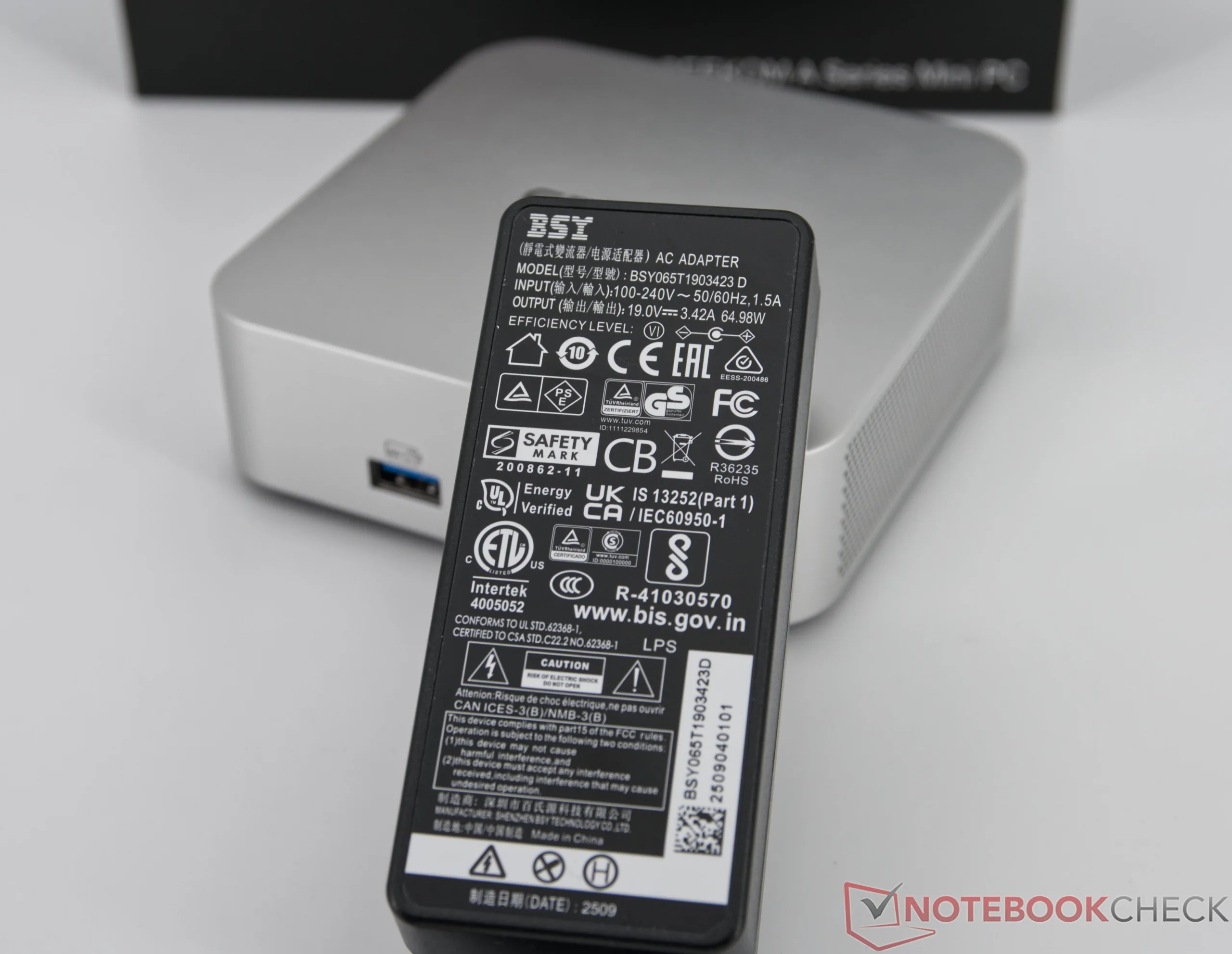

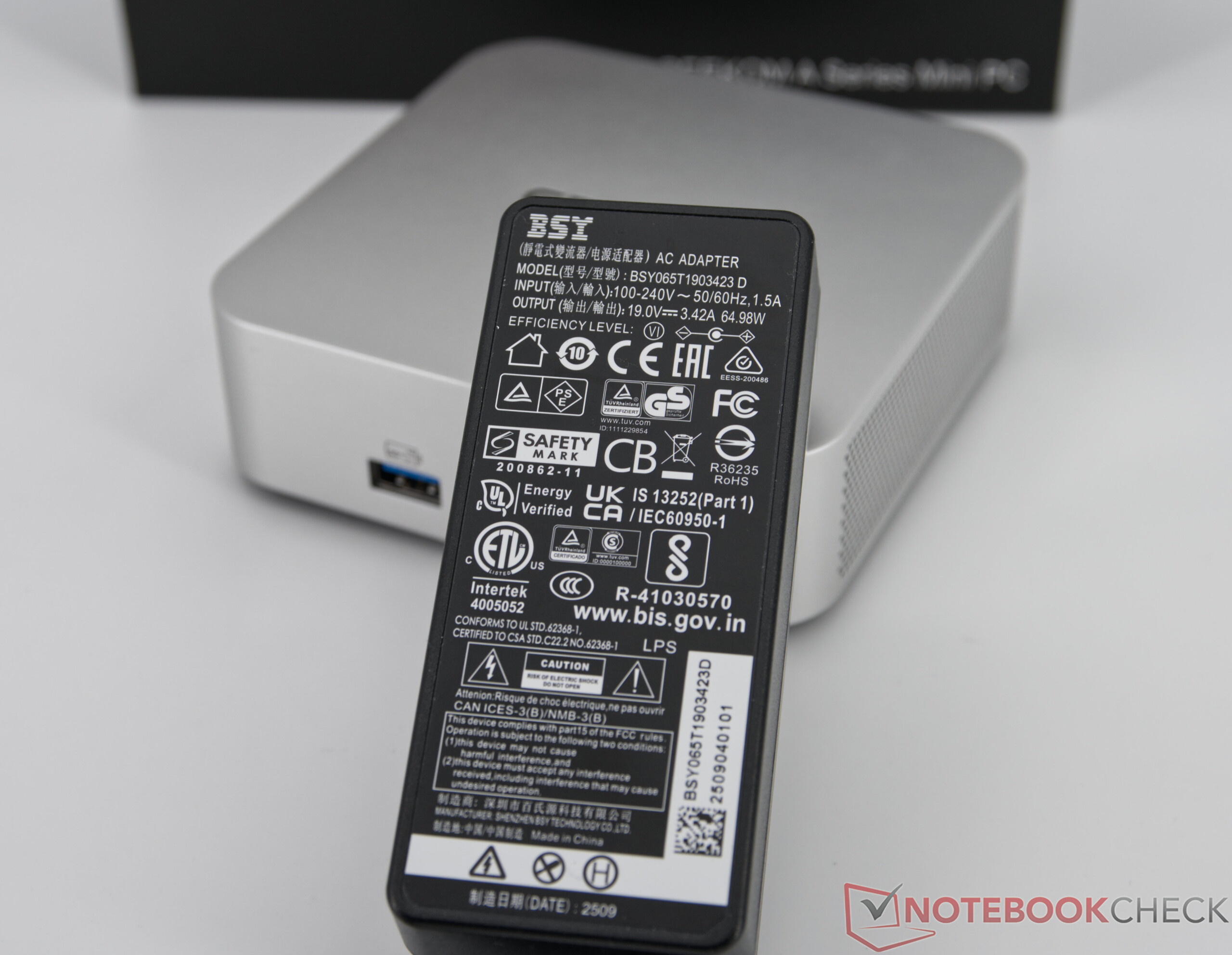

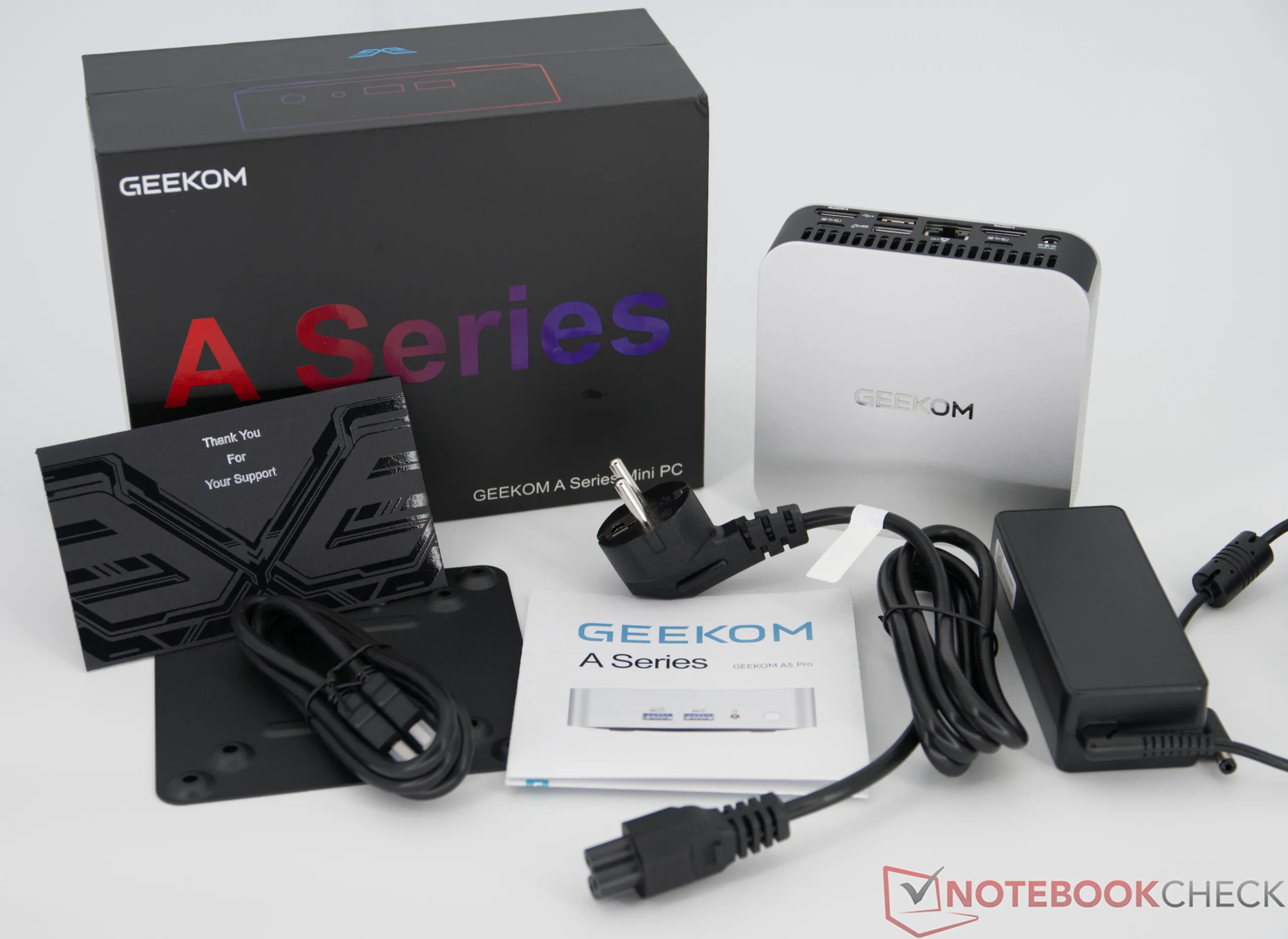

Geekom A5 Pro 随附 65 瓦电源、HDMI 缆线、用于安装在显示器后面的 VESA 支架和一本小巧的手册，其中包含有关连接、内存和固态硬盘扩展的有用信息。

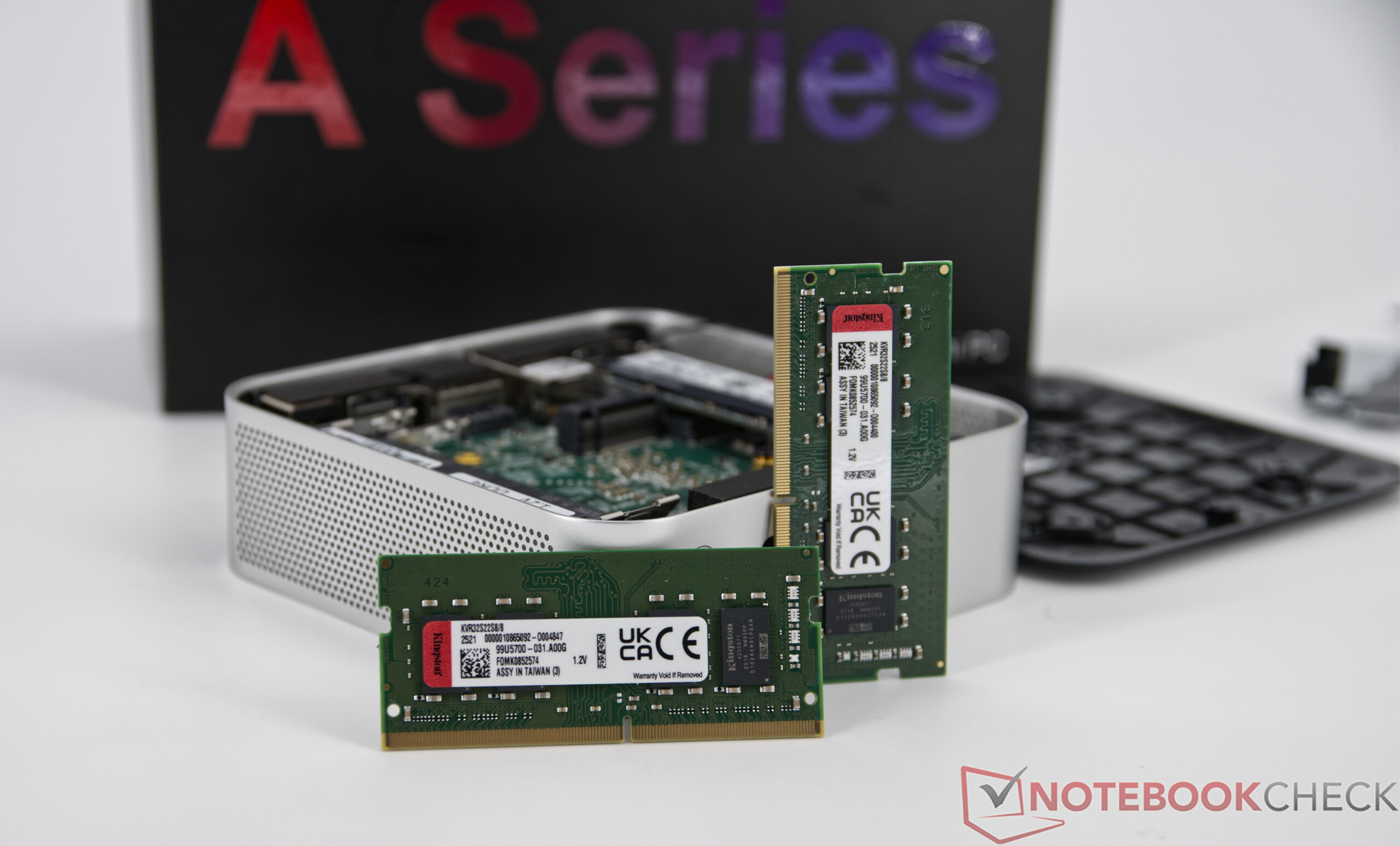

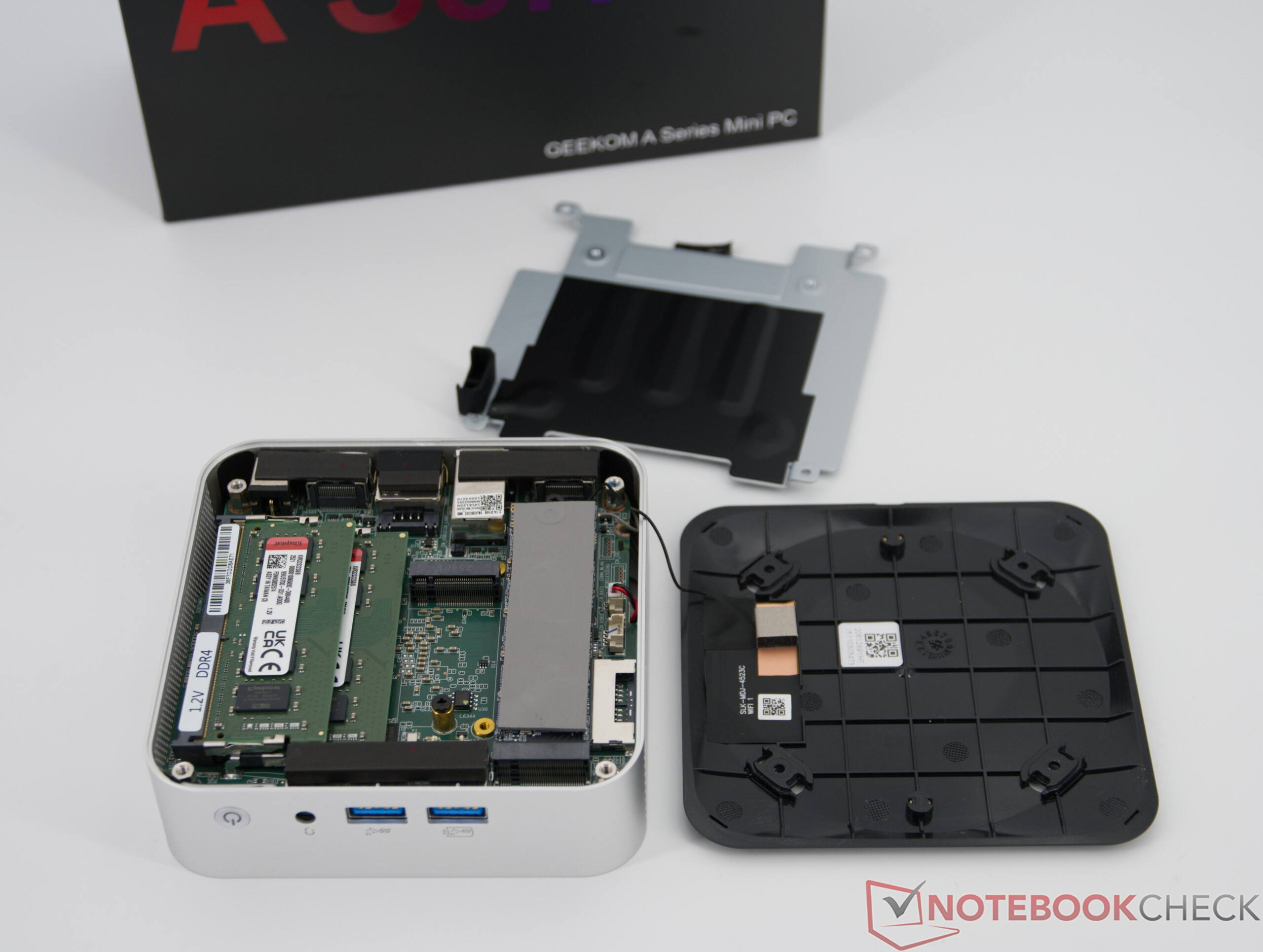

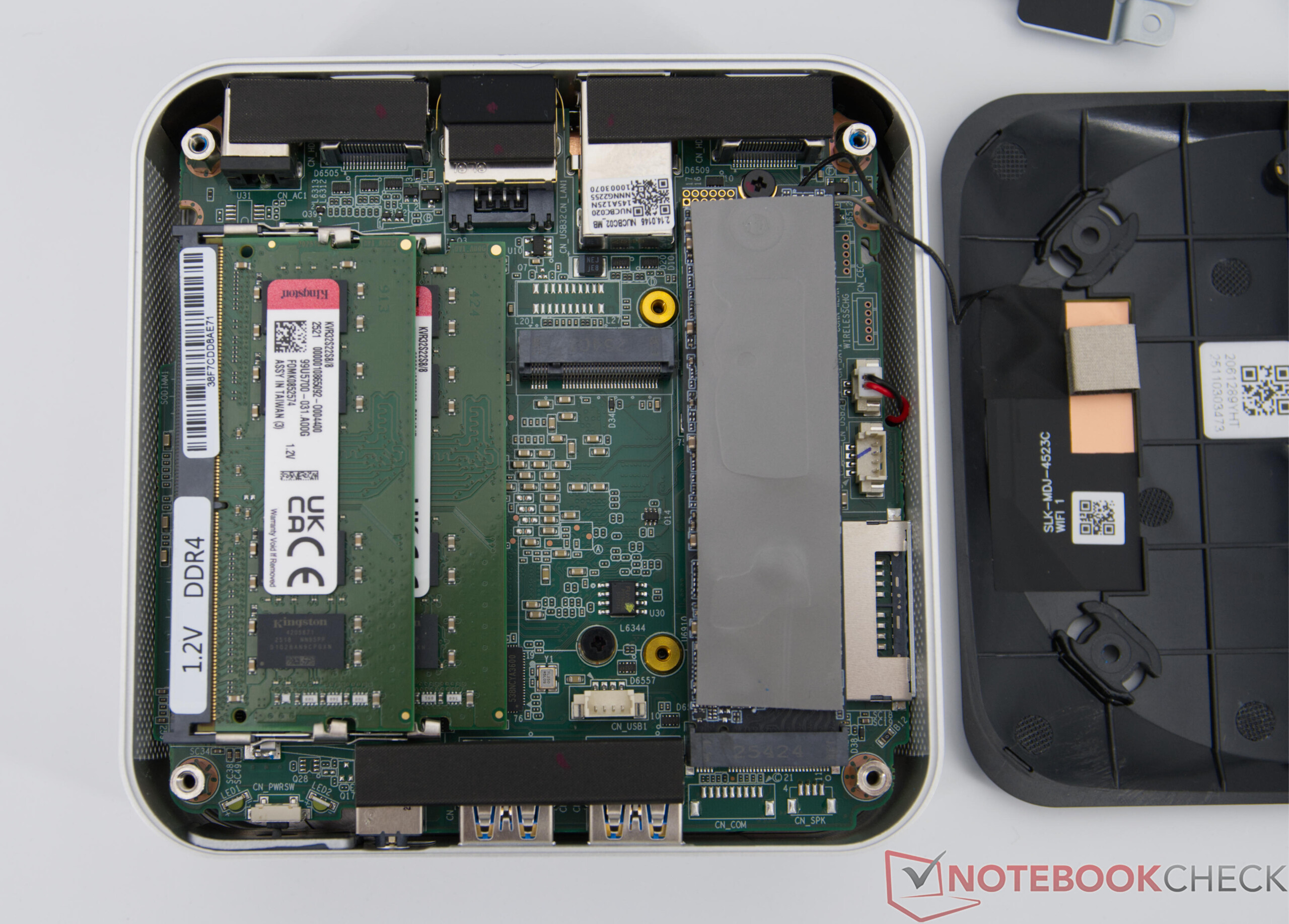

维护

Geekom A5 Pro 出厂时已安装内存和固态硬盘，因此可以直接使用。原则上可以升级，但在打开小巧的外壳时需要一定的灵活性。

可持续性

虽然 Geekom A5 Pro 只能进行有限的维修，但它提供 36 个月的保修服务，高于行业通常的标准。小巧的包装使运输安全而简便。在可持续发展方面，Geekom 强调了微型电脑的节能运行，但没有提供任何关于使用可回收材料的具体信息。据制造商称，该设备已通过 CE、FCC、CB、CCC、SRRC、PSE、TELEC、CEC 和 RoHS 认证。

性能

测试条件

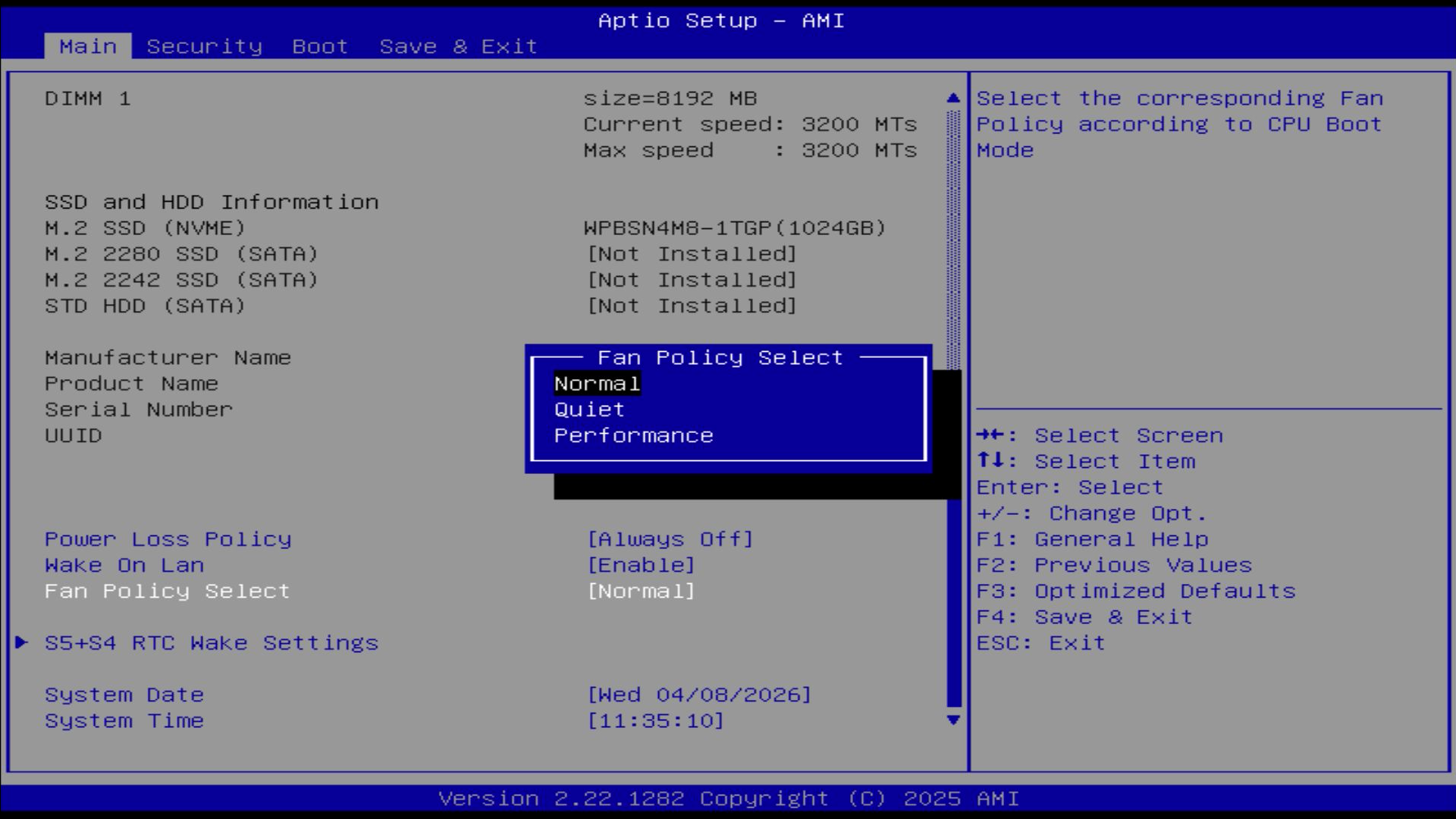

所有测试均在 "正常模式 "下进行。可在 BIOS 中选择安静和性能配置文件。

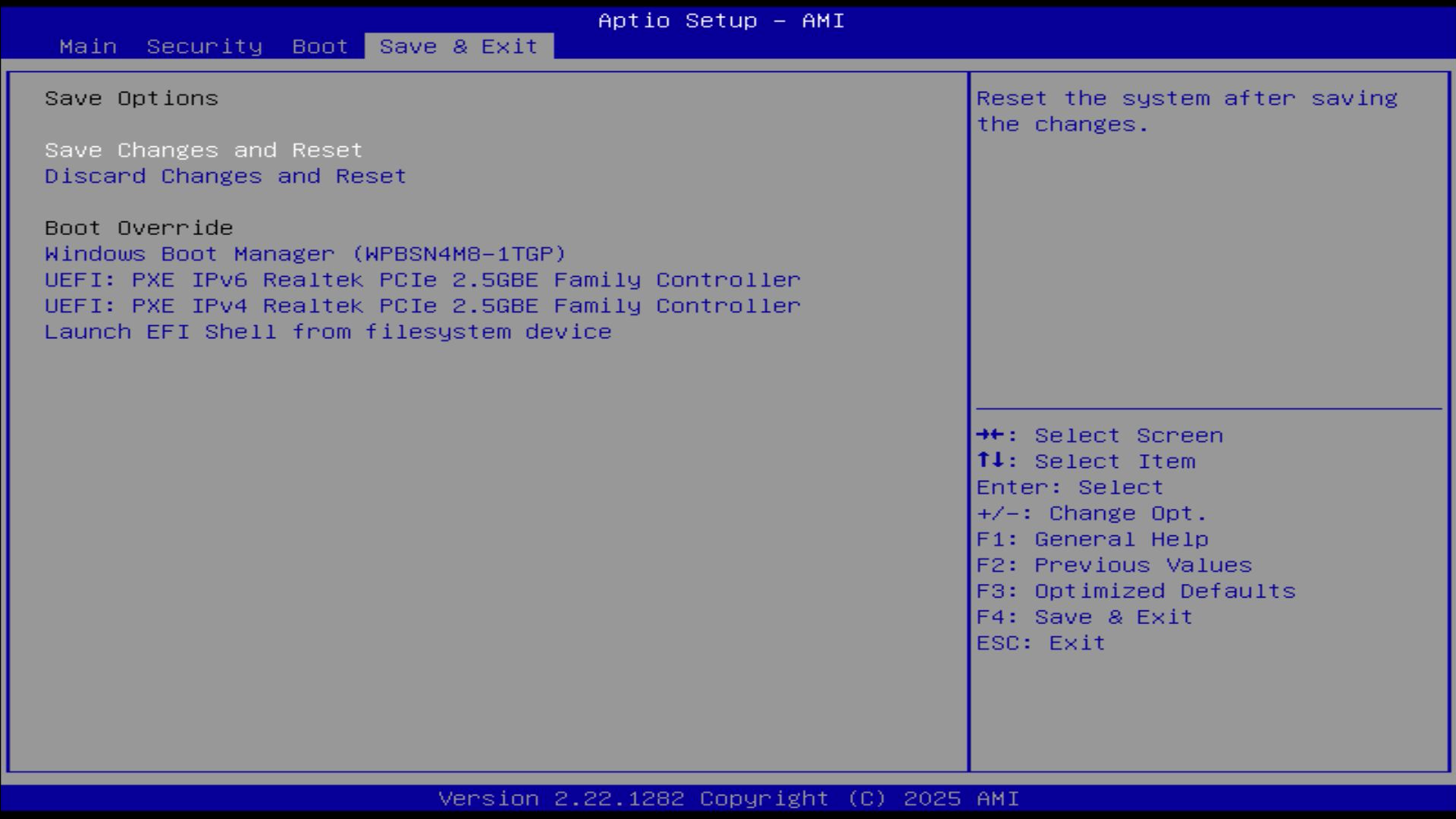

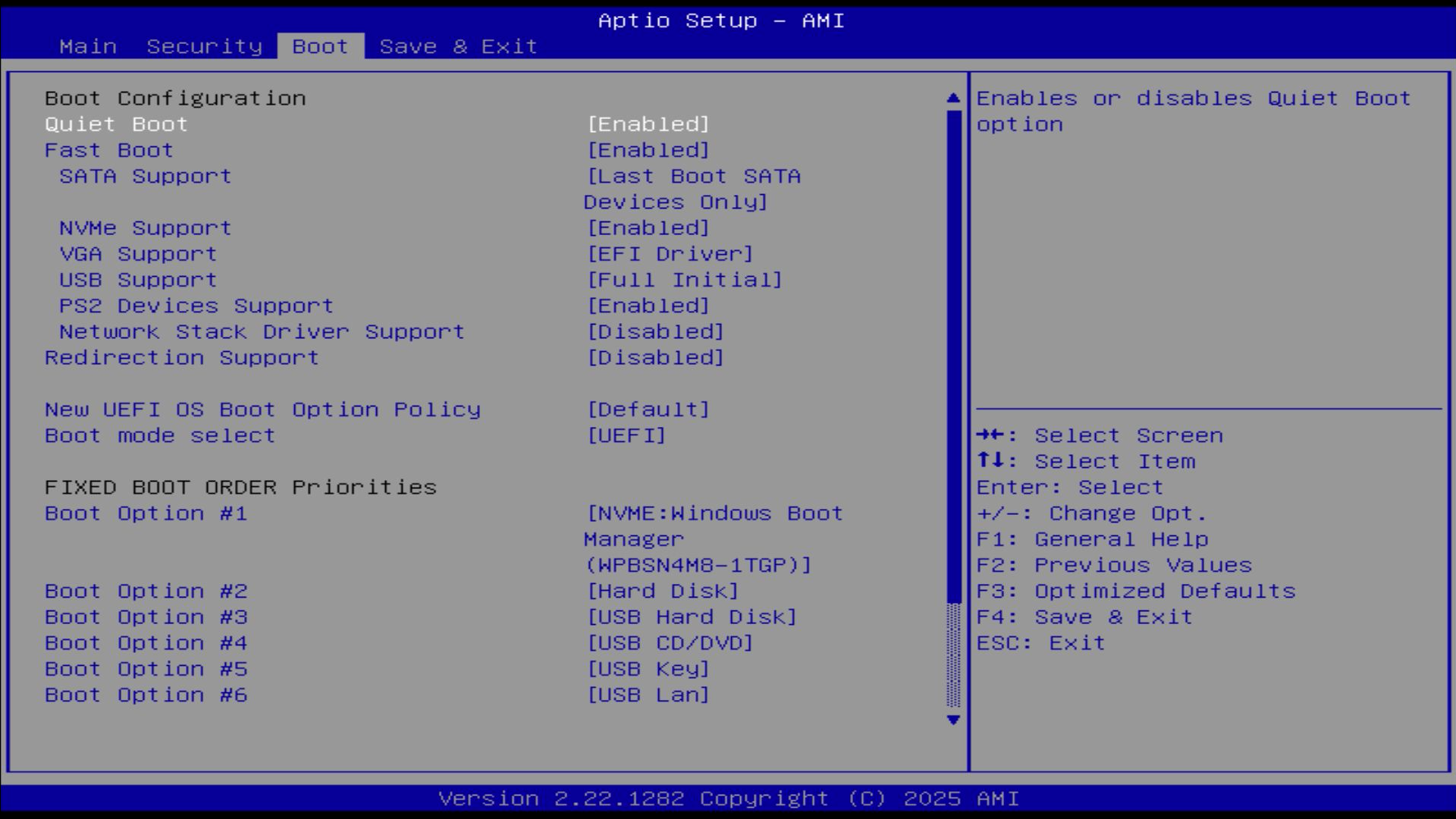

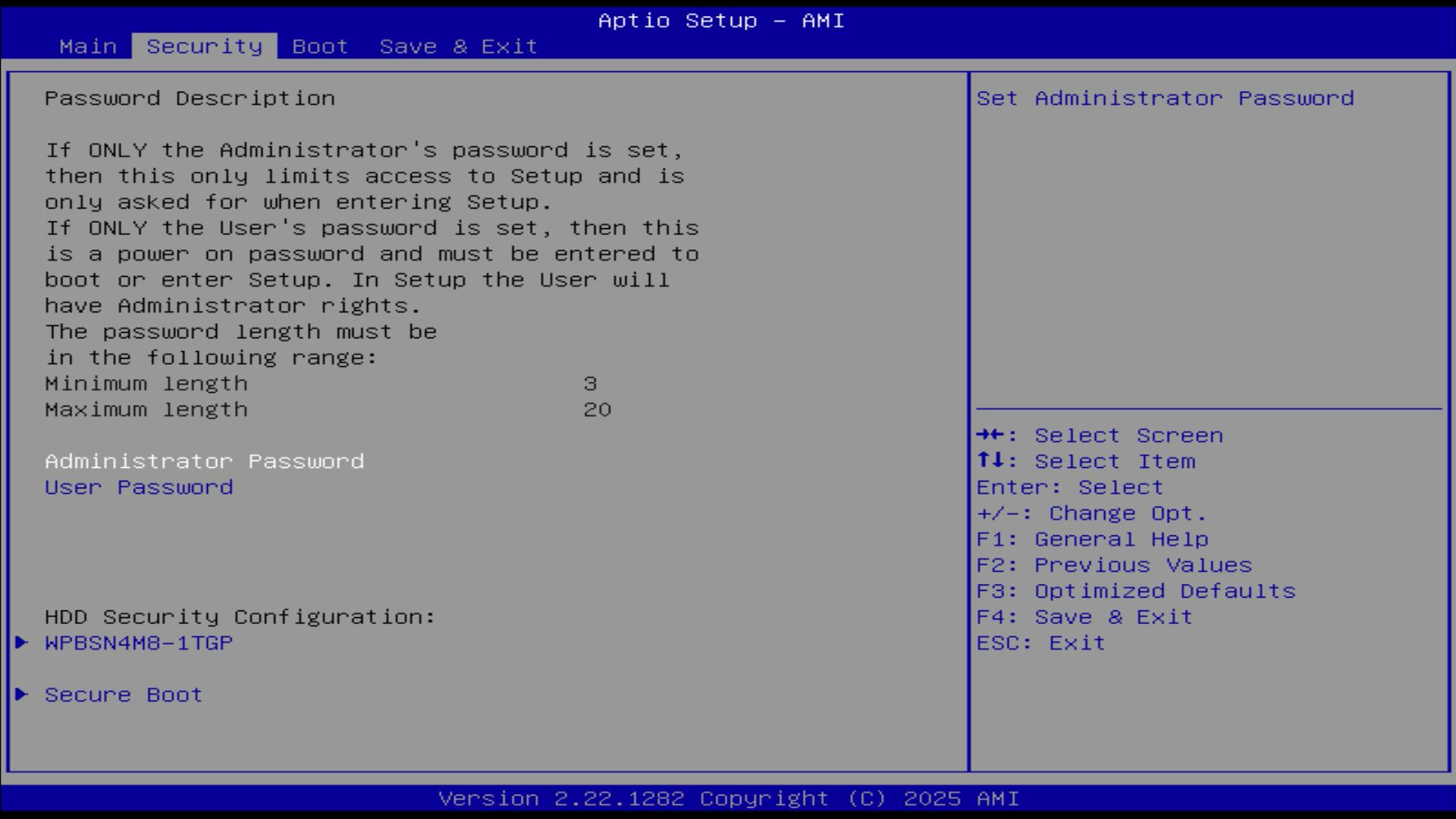

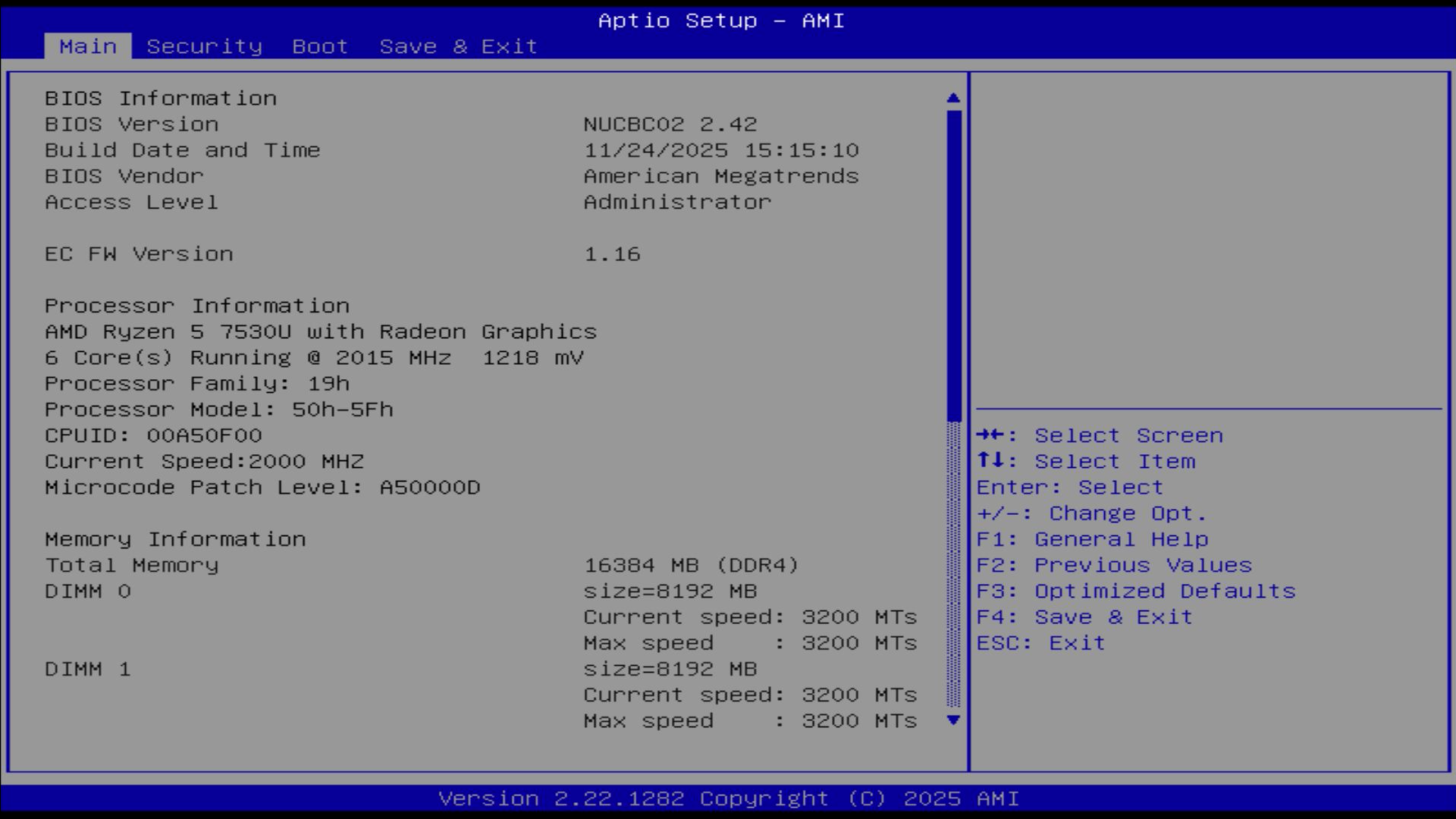

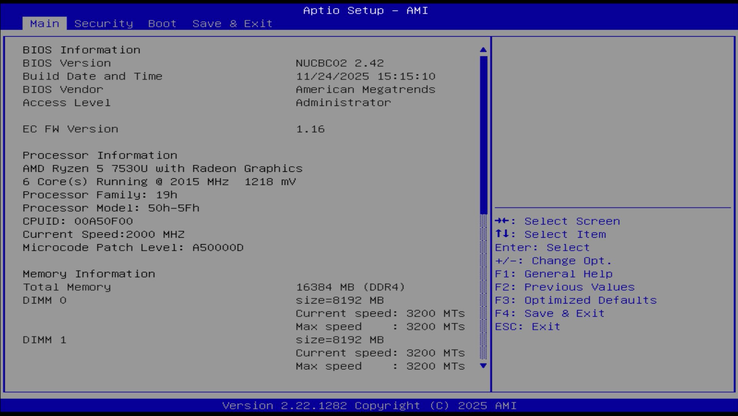

BIOS - 设置

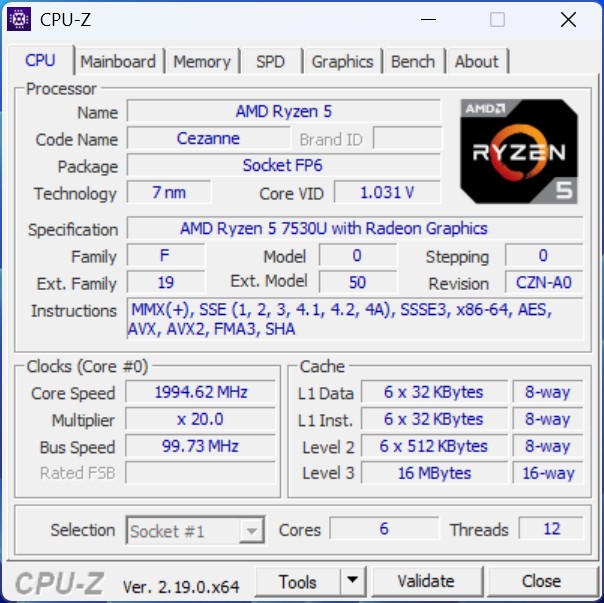

处理器

......（英文 AMD Ryzen 5 7530U为中端市场提供了稳定的 CPU 性能。它拥有六个内核和十二个线程，特别适合多任务处理、办公应用和生产性工作负载。该处理器还能可靠地处理数据处理或轻度渲染等计算密集型任务，但仍低于当前的高端型号。

Performance rating - Percent
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	50.6 pt
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	50.6 pt
GMK NucBox M3 Ultra Intel Core i7-12700H	42.2 pt
BMAX B9 Power Intel Core i9-12900HK	41.3 pt
Geekom A5 Pro AMD Ryzen 5 7530U	37.9 pt
Ninkear M7, (16+512) AMD Ryzen 5 7430U	36.4 pt

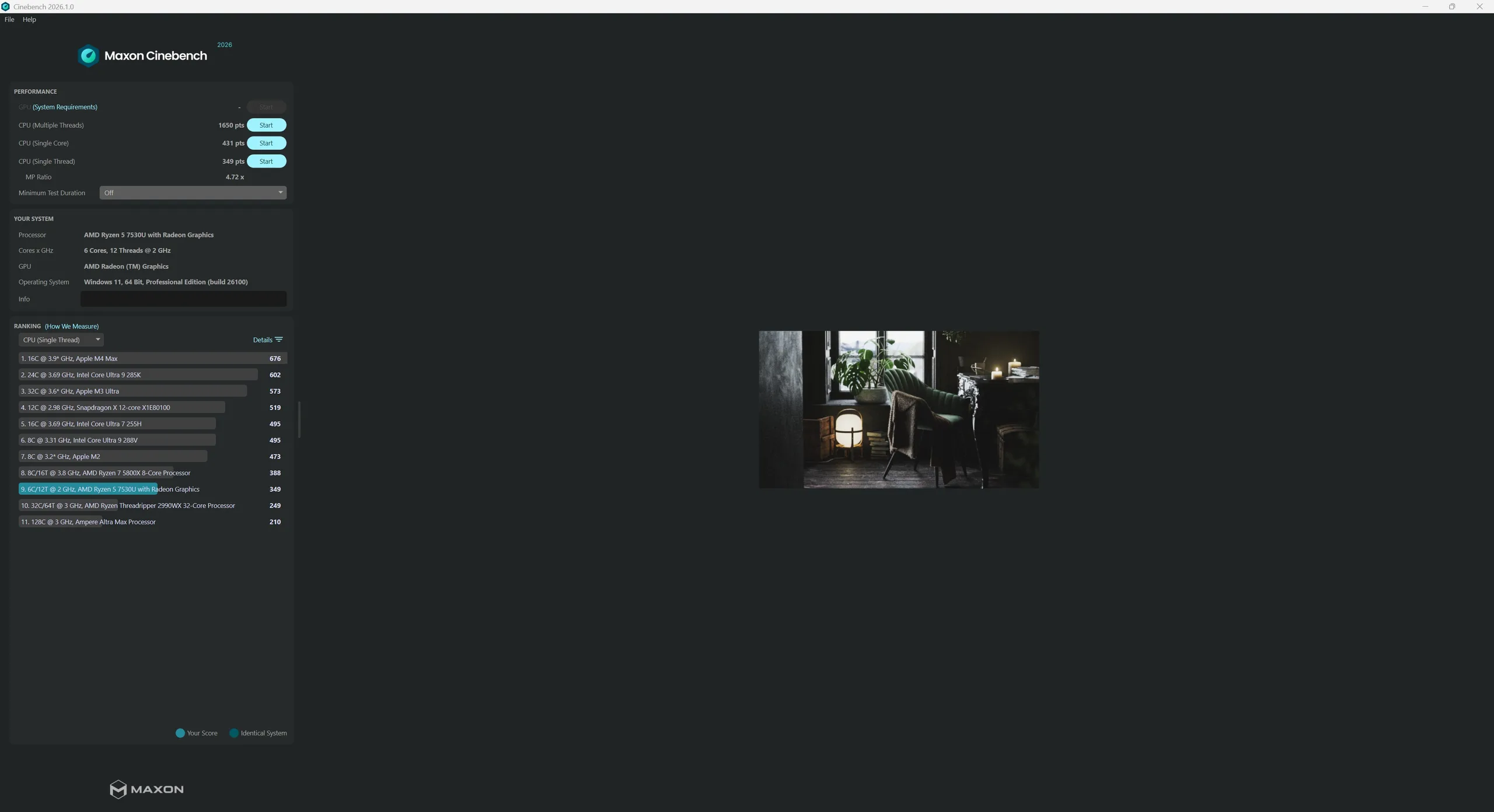

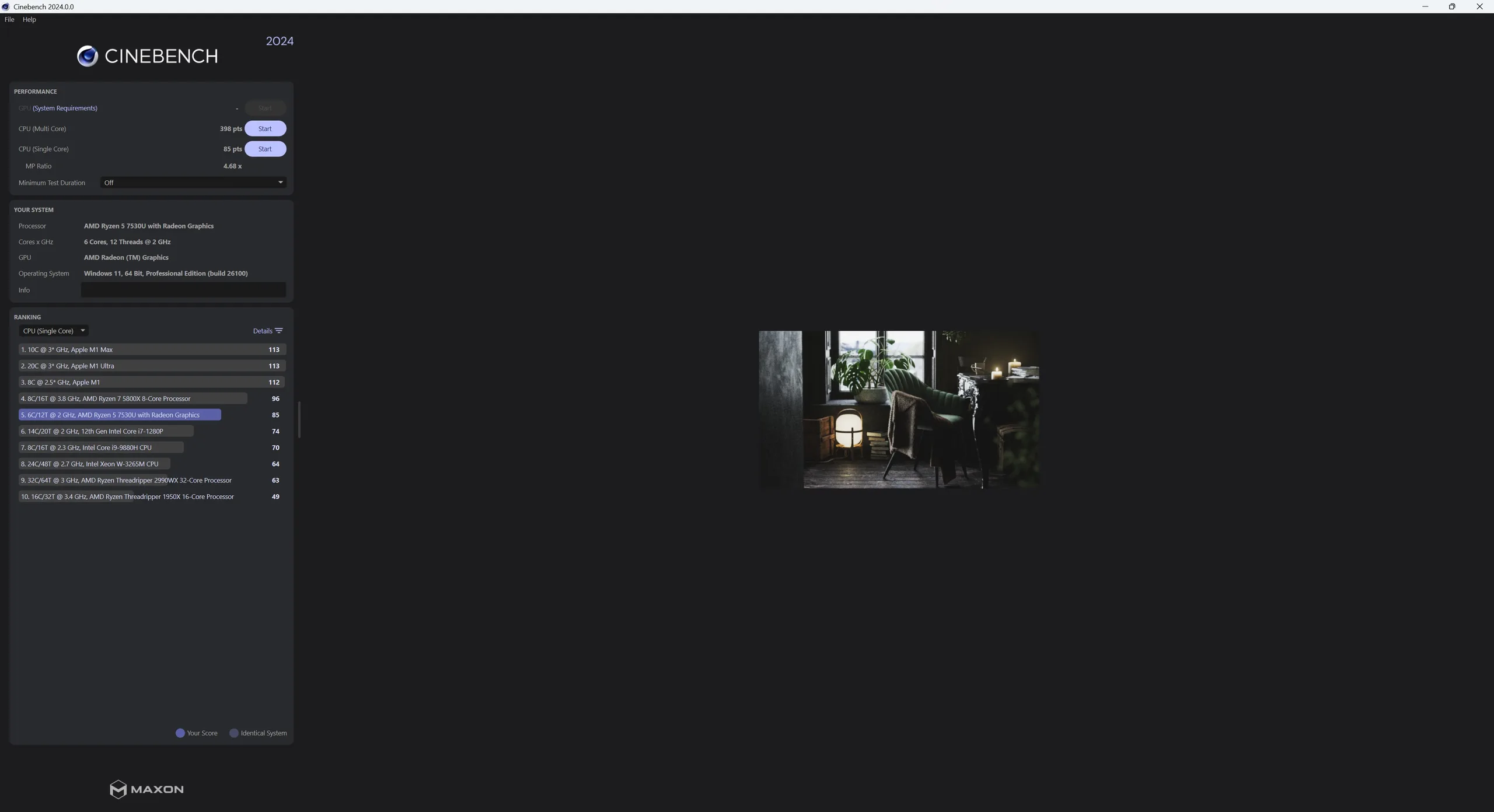

Cinebench 2024
CPU Multi Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	962 Points +142%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	868 Points +118%
BMAX B9 Power Intel Core i9-12900HK	722 Points +81%
GMK NucBox M3 Ultra Intel Core i7-12700H	617 Points +55%
Geekom A5 Pro AMD Ryzen 5 7530U	398 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	361 Points -9%
CPU Single Core
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	107 Points +26%
GMK NucBox M3 Ultra Intel Core i7-12700H	107 Points +26%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	104 Points +22%
Geekom A5 Pro AMD Ryzen 5 7530U	85 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	82 Points -4%
BMAX B9 Power Intel Core i9-12900HK	77 Points -9%

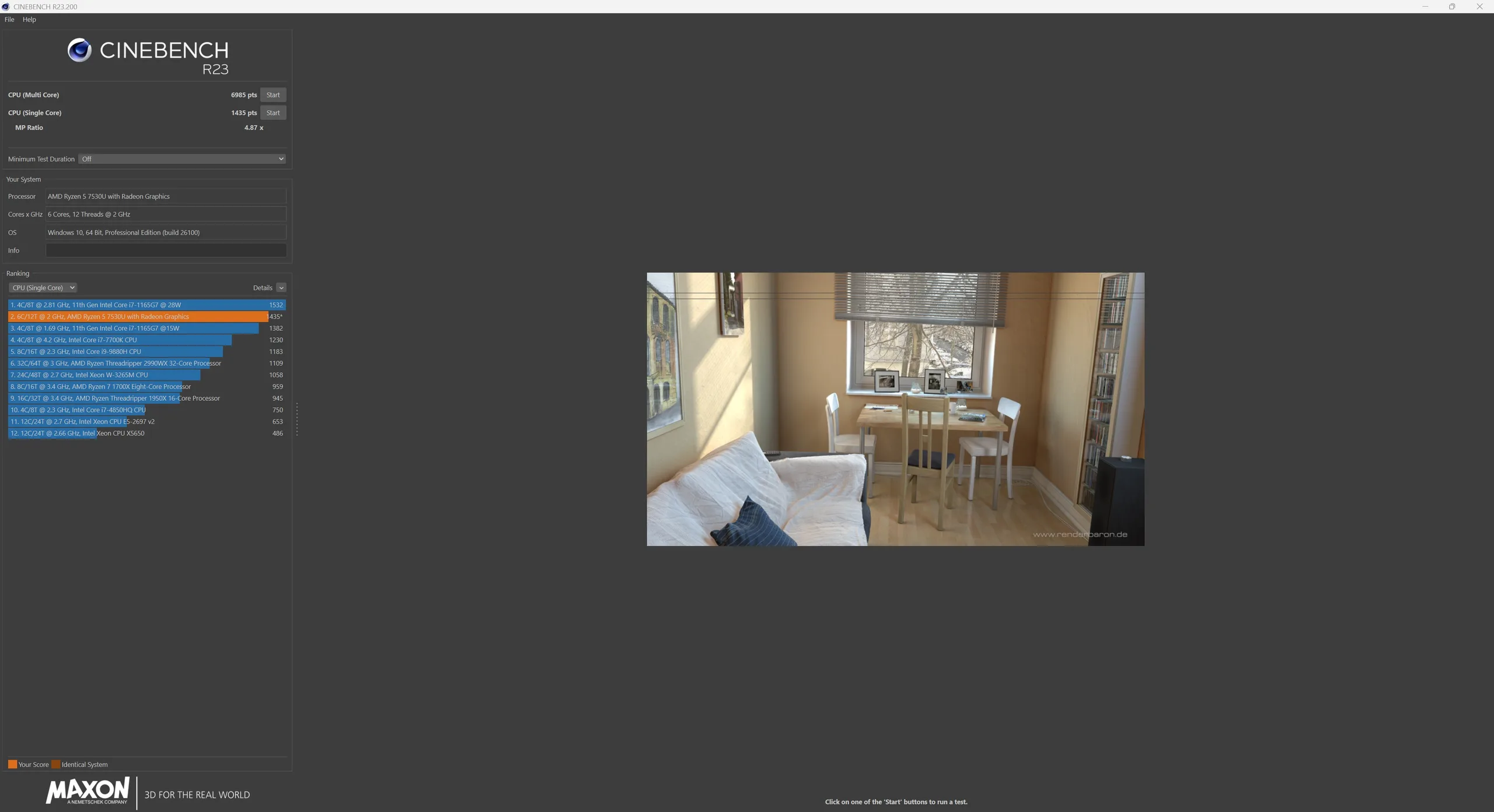

Cinebench R23
Multi Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	16876 Points +142%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	14784 Points +112%
BMAX B9 Power Intel Core i9-12900HK	13175 Points +89%
GMK NucBox M3 Ultra Intel Core i7-12700H	10300 Points +47%
Geekom A5 Pro AMD Ryzen 5 7530U	6985 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6561 Points -6%
Single Core
GMK NucBox M3 Ultra Intel Core i7-12700H	1793 Points +25%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	1788 Points +25%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1740 Points +21%
Geekom A5 Pro AMD Ryzen 5 7530U	1435 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1367 Points -5%
BMAX B9 Power Intel Core i9-12900HK	1266 Points -12%

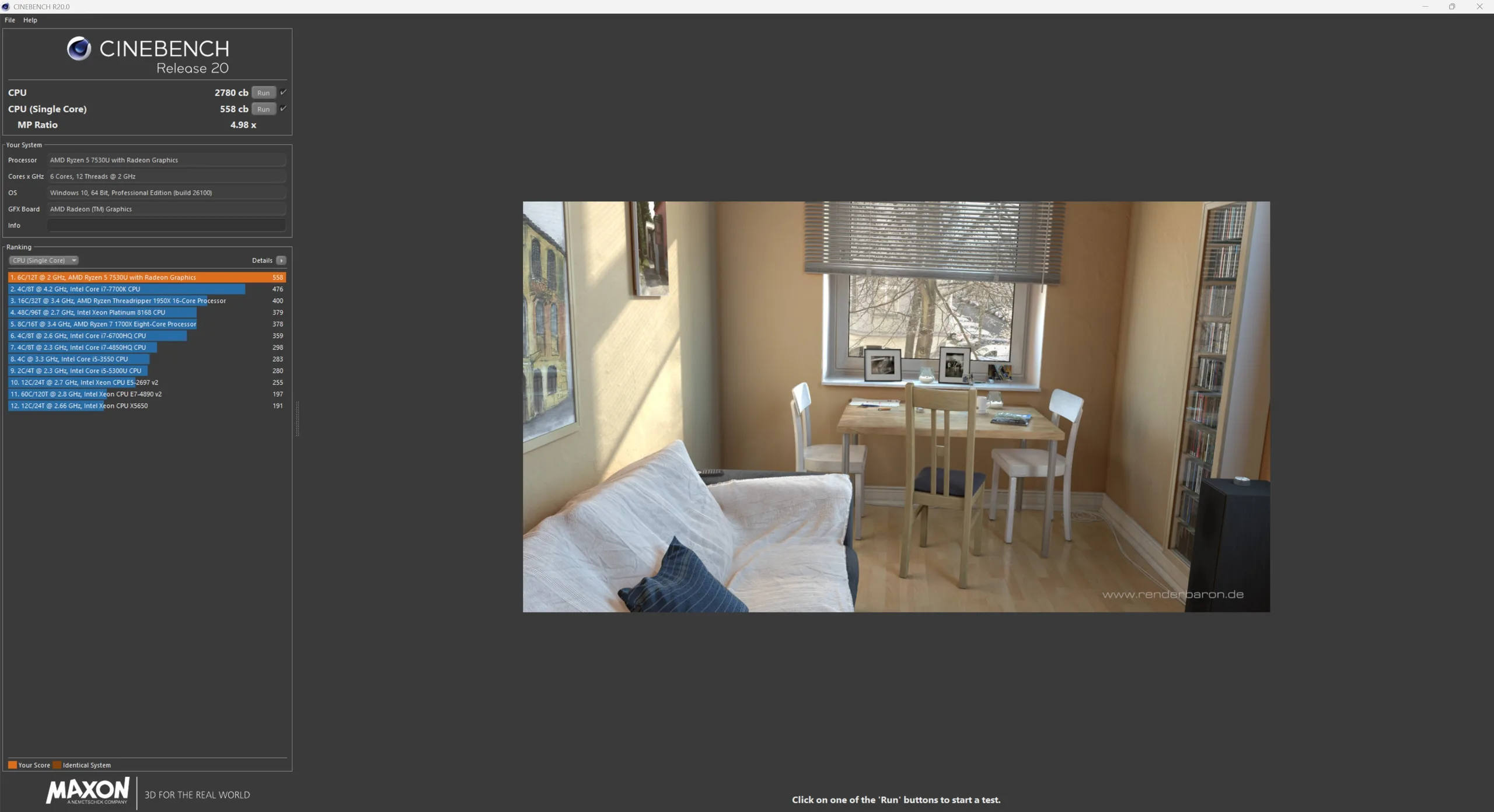

Cinebench R20
CPU (Multi Core)
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	6600 Points +137%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	5761 Points +107%
BMAX B9 Power Intel Core i9-12900HK	5068 Points +82%
GMK NucBox M3 Ultra Intel Core i7-12700H	3981 Points +43%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2902 Points +4%
Geekom A5 Pro AMD Ryzen 5 7530U	2780 Points
CPU (Single Core)
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	695 Points +25%
GMK NucBox M3 Ultra Intel Core i7-12700H	691 Points +24%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	678 Points +22%
Geekom A5 Pro AMD Ryzen 5 7530U	558 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	535 Points -4%
BMAX B9 Power Intel Core i9-12900HK	487 Points -13%

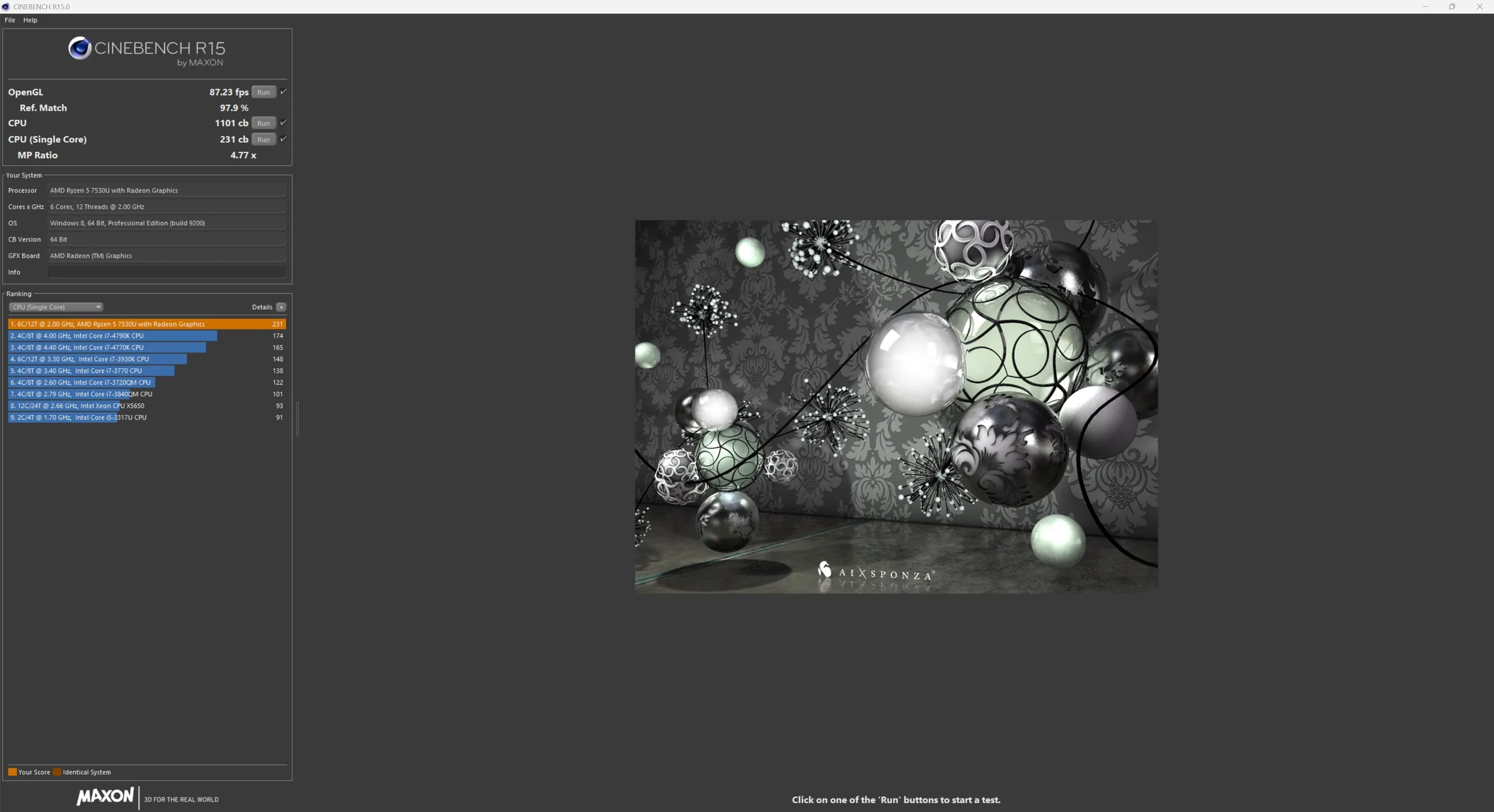

Cinebench R15
CPU Multi 64Bit
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2655 Points +141%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	2300 Points +109%
BMAX B9 Power Intel Core i9-12900HK	2099 Points +91%
GMK NucBox M3 Ultra Intel Core i7-12700H	1522 Points +38%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1271 Points +15%
Geekom A5 Pro AMD Ryzen 5 7530U	1101 Points
CPU Single 64Bit
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	284 Points +23%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	273 Points +18%
GMK NucBox M3 Ultra Intel Core i7-12700H	256 Points +11%
Geekom A5 Pro AMD Ryzen 5 7530U	231 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	221 Points -4%
BMAX B9 Power Intel Core i9-12900HK	185 Points -20%

Cinebench R11.5
CPU Multi 64Bit
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	30.14 Points +107%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	26.65 Points +83%
BMAX B9 Power Intel Core i9-12900HK	25.17 Points +73%
GMK NucBox M3 Ultra Intel Core i7-12700H	18.61 Points +28%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	14.67 Points +1%
Geekom A5 Pro AMD Ryzen 5 7530U	14.55 Points
CPU Single 64Bit
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	3.37 Points +23%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	3.23 Points +17%
GMK NucBox M3 Ultra Intel Core i7-12700H	2.97 Points +8%
Geekom A5 Pro AMD Ryzen 5 7530U	2.75 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2.65 Points -4%
BMAX B9 Power Intel Core i9-12900HK	2.22 Points -19%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	14463 Points +25%
GMK NucBox M3 Ultra Intel Core i7-12700H	14332 Points +24%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	13692 Points +18%
Geekom A5 Pro AMD Ryzen 5 7530U	11586 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	11022 Points -5%
BMAX B9 Power Intel Core i9-12900HK	10299 Points -11%
Rendering Multiple CPUs 64Bit
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	88096 Points +87%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	75752 Points +61%
BMAX B9 Power Intel Core i9-12900HK	68542 Points +46%
GMK NucBox M3 Ultra Intel Core i7-12700H	57276 Points +22%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	47909 Points +2%
Geekom A5 Pro AMD Ryzen 5 7530U	47058 Points

Blender
v2.79 BMW27 CPU
Geekom A5 Pro AMD Ryzen 5 7530U	448 Seconds *
Ninkear M7, (16+512) AMD Ryzen 5 7430U	447 Seconds * -0%
GMK NucBox M3 Ultra Intel Core i7-12700H	299 Seconds * +33%
BMAX B9 Power Intel Core i9-12900HK	246 Seconds * +45%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	231 Seconds * +48%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	190 Seconds * +58%
v3.3 Classroom CPU
Ninkear M7, (16+512) AMD Ryzen 5 7430U	854 Seconds * -8%
Geekom A5 Pro AMD Ryzen 5 7530U	792 Seconds *
GMK NucBox M3 Ultra Intel Core i7-12700H	523 Seconds * +34%
BMAX B9 Power Intel Core i9-12900HK	430 Seconds * +46%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	356 Seconds * +55%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	310 Seconds * +61%
v4.3 Barbershop CPU
Ninkear M7, (16+512) AMD Ryzen 5 7430U	4229 Seconds * -9%
Geekom A5 Pro AMD Ryzen 5 7530U	3879 Seconds *
GMK NucBox M3 Ultra Intel Core i7-12700H	2632 Seconds * +32%
BMAX B9 Power Intel Core i9-12900HK	2178 Seconds * +44%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	1735 Seconds * +55%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1505 Seconds * +61%

wPrime 2.10
32m
GMK NucBox M3 Ultra Intel Core i7-12700H	6.166 s * -12%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6.035 s * -10%
Geekom A5 Pro AMD Ryzen 5 7530U	5.509 s *
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	4.3 s * +22%
BMAX B9 Power Intel Core i9-12900HK	4.209 s * +24%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	3.851 s * +30%
1024m
GMK NucBox M3 Ultra Intel Core i7-12700H	491.806 s * -185%
BMAX B9 Power Intel Core i9-12900HK	250.324 s * -45%
Geekom A5 Pro AMD Ryzen 5 7530U	172.674 s *
Ninkear M7, (16+512) AMD Ryzen 5 7430U	156.81 s * +9%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	103.21 s * +40%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	79.227 s * +54%

X264 HD Benchmark 4.0
Pass 1
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	287.5 (287^min - 288^max) fps +26%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	285 (282^min - 289^max) fps +25%
BMAX B9 Power Intel Core i9-12900HK	250 (237^min - 250^max) fps +10%
GMK NucBox M3 Ultra Intel Core i7-12700H	242 (240^min - 244^max) fps +6%
Geekom A5 Pro AMD Ryzen 5 7530U	227.5 (213^min - 237^max) fps
Ninkear M7, (16+512) AMD Ryzen 5 7430U	218 (217^min - 220^max) fps -4%
Pass 2
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	151.55 (151.1^min - 152.1^max) fps +113%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	132.45 (132.3^min - 132.7^max) fps +86%
BMAX B9 Power Intel Core i9-12900HK	123.85 (122.9^min - 124.2^max) fps +74%
GMK NucBox M3 Ultra Intel Core i7-12700H	91 (90.7^min - 91.2^max) fps +28%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	75.15 (75^min - 75.2^max) fps +5%
Geekom A5 Pro AMD Ryzen 5 7530U	71.3 (65.3^min - 73.8^max) fps

WinRAR - Result
GMK NucBox M3 Ultra Intel Core i7-12700H	7669 KB/s +16%
BMAX B9 Power Intel Core i9-12900HK	7402 KB/s +12%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	7274 KB/s +10%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	6974 KB/s +6%
Geekom A5 Pro AMD Ryzen 5 7530U	6599 KB/s
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6053 KB/s -8%

TrueCrypt
AES Mean 100MB
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	15 GB/s +100%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	12.6 GB/s +68%
BMAX B9 Power Intel Core i9-12900HK	12.5 GB/s +67%
GMK NucBox M3 Ultra Intel Core i7-12700H	8.4 GB/s +12%
Geekom A5 Pro AMD Ryzen 5 7530U	7.5 GB/s
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6.8 GB/s -9%
Twofish Mean 100MB
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2.1 GB/s +91%
BMAX B9 Power Intel Core i9-12900HK	2 GB/s +82%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	1.8 GB/s +64%
GMK NucBox M3 Ultra Intel Core i7-12700H	1.5 GB/s +36%
Geekom A5 Pro AMD Ryzen 5 7530U	1.1 GB/s
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1 GB/s -9%
Serpent Mean 100MB
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1.3 GB/s +72%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	1.2 GB/s +59%
BMAX B9 Power Intel Core i9-12900HK	1.1 GB/s +46%
GMK NucBox M3 Ultra Intel Core i7-12700H	0.884 GB/s +17%
Geekom A5 Pro AMD Ryzen 5 7530U	0.755 GB/s
Ninkear M7, (16+512) AMD Ryzen 5 7430U	0.716 GB/s -5%

Geekbench AI
Quantized CPU 1.2
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	7281 Points +117%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	6688 Points +99%
BMAX B9 Power Intel Core i9-12900HK	4716 Points +41%
GMK NucBox M3 Ultra Intel Core i7-12700H	3978 Points +19%
Geekom A5 Pro AMD Ryzen 5 7530U	3353 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2938 Points -12%
Half Precision CPU 1.2
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	11727 Points +965%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1868 Points +70%
Geekom A5 Pro AMD Ryzen 5 7530U	1101 Points
BMAX B9 Power Intel Core i9-12900HK	1054 Points -4%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1019 Points -7%
GMK NucBox M3 Ultra Intel Core i7-12700H	949 Points -14%
Single Precision CPU 1.2
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	4003 Points +75%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	3797 Points +66%
BMAX B9 Power Intel Core i9-12900HK	2791 Points +22%
GMK NucBox M3 Ultra Intel Core i7-12700H	2350 Points +3%
Geekom A5 Pro AMD Ryzen 5 7530U	2288 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1930 Points -16%
Quantized CPU 1.7
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	8522 Points +130%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	7937 Points +114%
BMAX B9 Power Intel Core i9-12900HK	4938 Points +33%
GMK NucBox M3 Ultra Intel Core i7-12700H	4590 Points +24%
Geekom A5 Pro AMD Ryzen 5 7530U	3706 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	3446 Points -7%
Half Precision CPU 1.7
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1942 Points +66%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	1851 Points +59%
Geekom A5 Pro AMD Ryzen 5 7530U	1167 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1083 Points -7%
BMAX B9 Power Intel Core i9-12900HK	1063 Points -9%
GMK NucBox M3 Ultra Intel Core i7-12700H	974 Points -17%
Single Precision CPU 1.7
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	4324 Points +82%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	4123 Points +73%
BMAX B9 Power Intel Core i9-12900HK	2861 Points +20%
GMK NucBox M3 Ultra Intel Core i7-12700H	2399 Points +1%
Geekom A5 Pro AMD Ryzen 5 7530U	2381 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2097 Points -12%

Geekbench 6.6
Single-Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2601 Points +31%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	2591 Points +30%
GMK NucBox M3 Ultra Intel Core i7-12700H	2388 Points +20%
Geekom A5 Pro AMD Ryzen 5 7530U	1991 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1849 Points -7%
BMAX B9 Power Intel Core i9-12900HK	1797 Points -10%
Multi-Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12843 Points +82%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	11804 Points +67%
BMAX B9 Power Intel Core i9-12900HK	9804 Points +39%
GMK NucBox M3 Ultra Intel Core i7-12700H	8721 Points +23%
Geekom A5 Pro AMD Ryzen 5 7530U	7067 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5705 Points -19%

Geekbench 6.0
Single-Core
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	2575 Points +34%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2507 Points +31%
GMK NucBox M3 Ultra Intel Core i7-12700H	2255 Points +18%
Geekom A5 Pro AMD Ryzen 5 7530U	1919 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1791 Points -7%
BMAX B9 Power Intel Core i9-12900HK	1705 Points -11%
Multi-Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12573 Points +85%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	11626 Points +71%
BMAX B9 Power Intel Core i9-12900HK	9067 Points +33%
GMK NucBox M3 Ultra Intel Core i7-12700H	8625 Points +27%
Geekom A5 Pro AMD Ryzen 5 7530U	6800 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5499 Points -19%

Geekbench 5.5
Multi-Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12267 Points +95%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	10625 Points +69%
BMAX B9 Power Intel Core i9-12900HK	9969 Points +59%
GMK NucBox M3 Ultra Intel Core i7-12700H	8230 Points +31%
Geekom A5 Pro AMD Ryzen 5 7530U	6275 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5343 Points -15%
Single-Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1921 Points +27%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	1900 Points +26%
GMK NucBox M3 Ultra Intel Core i7-12700H	1698 Points +12%
Geekom A5 Pro AMD Ryzen 5 7530U	1512 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1390 Points -8%
BMAX B9 Power Intel Core i9-12900HK	1298 Points -14%

Geekbench 5.0
5.0 Multi-Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12233 Points +99%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	10744 Points +74%
BMAX B9 Power Intel Core i9-12900HK	9934 Points +61%
GMK NucBox M3 Ultra Intel Core i7-12700H	8192 Points +33%
Geekom A5 Pro AMD Ryzen 5 7530U	6158 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5310 Points -14%
5.0 Single-Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1839 Points +28%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	1830 Points +27%
GMK NucBox M3 Ultra Intel Core i7-12700H	1675 Points +17%
Geekom A5 Pro AMD Ryzen 5 7530U	1437 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1360 Points -5%
BMAX B9 Power Intel Core i9-12900HK	1257 Points -13%

Geekbench 4.4
64 Bit Multi-Core Score
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	49528 Points +97%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	42030 Points +67%
BMAX B9 Power Intel Core i9-12900HK	38751 Points +54%
GMK NucBox M3 Ultra Intel Core i7-12700H	30898 Points +23%
Geekom A5 Pro AMD Ryzen 5 7530U	25100 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	21491 Points -14%
64 Bit Single-Core Score
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	7992 Points +29%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	7946 Points +28%
GMK NucBox M3 Ultra Intel Core i7-12700H	7582 Points +22%
Geekom A5 Pro AMD Ryzen 5 7530U	6193 Points
BMAX B9 Power Intel Core i9-12900HK	5823 Points -6%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5766 Points -7%

3DMark 11 - 1280x720 Performance Physics
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	22746 Points +97%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	21426 Points +85%
BMAX B9 Power Intel Core i9-12900HK	16821 Points +45%
GMK NucBox M3 Ultra Intel Core i7-12700H	14455 Points +25%
Geekom A5 Pro AMD Ryzen 5 7530U	11575 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	10478 Points -9%

7-Zip 18.03
7z b 4
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	71883 MIPS +100%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	63143 MIPS +76%
BMAX B9 Power Intel Core i9-12900HK	53320 MIPS +48%
GMK NucBox M3 Ultra Intel Core i7-12700H	43850 MIPS +22%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	37081 MIPS +3%
Geekom A5 Pro AMD Ryzen 5 7530U	35907 MIPS
7z b 4 -mmt1
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	6467 MIPS +20%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	6107 MIPS +13%
GMK NucBox M3 Ultra Intel Core i7-12700H	5838 MIPS +8%
Geekom A5 Pro AMD Ryzen 5 7530U	5386 MIPS
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5267 MIPS -2%
BMAX B9 Power Intel Core i9-12900HK	4240 MIPS -21%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	21 fps +132%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	18.2 fps +101%
BMAX B9 Power Intel Core i9-12900HK	15 fps +65%
GMK NucBox M3 Ultra Intel Core i7-12700H	11.6 fps +28%
Geekom A5 Pro AMD Ryzen 5 7530U	9.07 fps
Ninkear M7, (16+512) AMD Ryzen 5 7430U	8.47 fps -7%

R Benchmark 2.5 - Overall mean
BMAX B9 Power Intel Core i9-12900HK	0.637 sec * -23%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	0.598 sec * -15%
Geekom A5 Pro AMD Ryzen 5 7530U	0.519 sec *
GMK NucBox M3 Ultra Intel Core i7-12700H	0.4733 sec * +9%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	0.4597 sec * +11%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	0.4568 sec * +12%

LibreOffice - 20 Documents To PDF
Ninkear M7, (16+512) AMD Ryzen 5 7430U	67 s * -14%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	63.5 s * -8%
GMK NucBox M3 Ultra Intel Core i7-12700H	61.8 s * -5%
BMAX B9 Power Intel Core i9-12900HK	60.5 s * -3%
Geekom A5 Pro AMD Ryzen 5 7530U	58.9 s *
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	49.1 s * +17%

3DMark - 1920x1080 Fire Strike Physics
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	26674 Points +75%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	25987 Points +71%
BMAX B9 Power Intel Core i9-12900HK	21092 Points +38%
GMK NucBox M3 Ultra Intel Core i7-12700H	19614 Points +29%
Geekom A5 Pro AMD Ryzen 5 7530U	15232 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	13885 Points -9%

Super Pi mod 1.5 XS 1M - 1M
BMAX B9 Power Intel Core i9-12900HK	10.896 s * -25%
Geekom A5 Pro AMD Ryzen 5 7530U	8.703 s *
Ninkear M7, (16+512) AMD Ryzen 5 7430U	8.306 s * +5%
GMK NucBox M3 Ultra Intel Core i7-12700H	7.849 s * +10%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	7.604 s * +13%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	7.401 s * +15%

Super Pi mod 1.5 XS 2M - 2M
BMAX B9 Power Intel Core i9-12900HK	24.152 s * -28%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	19.555 s * -4%
Geekom A5 Pro AMD Ryzen 5 7530U	18.825 s *
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	18.294 s * +3%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	17.898 s * +5%
GMK NucBox M3 Ultra Intel Core i7-12700H	17.324 s * +8%

Affinity Photo 2 - Combined (Multi CPU)
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	820 Points +143%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS	700 Points +107%
BMAX B9 Power Intel Core i9-12900HK	642 Points +90%
GMK NucBox M3 Ultra Intel Core i7-12700H	528 Points +56%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	383 Points +13%
Geekom A5 Pro AMD Ryzen 5 7530U	338 Points

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

6002

Cinebench R10 Shading 64Bit

15000 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

47058 Points

Cinebench R10 Rendering Single CPUs 64Bit

11586 Points

Cinebench R10 Shading 32Bit

13860

Cinebench R10 Rendering Multiple CPUs 32Bit

25286

Cinebench R11.5 CPU Single 32Bit

2.38 Points

Cinebench R11.5 CPU Multi 32Bit

12.9 Points

Cinebench R11.5 CPU Single 64Bit

2.75 Points

Cinebench R11.5 CPU Multi 64Bit

14.55 Points

Cinebench R15 CPU Single 64Bit

231 Points

Cinebench R15 CPU Multi 64Bit

1101 Points

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 OpenGL 64Bit

87.23 fps

Cinebench R20 CPU (Single Core)

558 Points

Cinebench R20 CPU (Multi Core)

2780 Points

Cinebench R23 Multi Core

6985 Points

Cinebench R23 Single Core

1435 Points

Cinebench 2024 CPU Single Core

85 Points

Cinebench 2024 CPU Multi Core

398 Points

Help

... in comparison

Performance rating
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	95.8 pt
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	90.4 pt
Average of class Mini PC	84.9 pt
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	60.5 pt
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	52.7 pt
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	48.7 pt
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	39.3 pt

AIDA64 / FP32 Ray-Trace
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	27202 KRay/s +256%
Average of class Mini PC (974 - 82725, n=110, last 2 years)	23036 KRay/s +202%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	22845 KRay/s +199%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	12660 KRay/s +66%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	10773 KRay/s +41%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	9730 KRay/s +27%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	7636 KRay/s
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	7609 KRay/s 0%

AIDA64 / FPU Julia
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	110760 Points +128%
Average of class Mini PC (6115 - 363782, n=110, last 2 years)	97246 Points +100%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	97164 Points +100%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	68498 Points +41%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	63681 Points +31%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	50058 Points +3%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	48663 Points
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	48473 Points 0%

AIDA64 / CPU SHA3
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	4831 MB/s +198%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	4401 MB/s +172%
Average of class Mini PC (385 - 9475, n=110, last 2 years)	4180 MB/s +158%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	3097 MB/s +91%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	2320 MB/s +43%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	2287 MB/s +41%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	1620 MB/s
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	1591 MB/s -2%

AIDA64 / CPU Queen
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	118448 Points +78%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	102271 Points +53%
Average of class Mini PC (20501 - 184747, n=99, last 2 years)	93391 Points +40%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	82241 Points +23%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	80221 Points +20%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	75482 Points +13%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	66646 Points

AIDA64 / FPU SinJulia
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	15213 Points +100%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	13767 Points +81%
Average of class Mini PC (1019 - 31931, n=110, last 2 years)	12493 Points +64%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	9443 Points +24%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	7926 Points +4%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	7619 Points
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	7611 Points 0%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	6731 Points -12%

AIDA64 / FPU Mandel
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	59408 Points +121%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	52084 Points +94%
Average of class Mini PC (3322 - 192994, n=110, last 2 years)	50915 Points +89%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	37770 Points +40%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	30336 Points +13%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	26914 Points
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	26912 Points 0%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	24258 Points -10%

AIDA64 / CPU AES
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	152376 MB/s +353%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	112498 MB/s +235%
Average of class Mini PC (9214 - 325960, n=109, last 2 years)	90218 MB/s +168%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	88405 MB/s +163%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	46099 MB/s +37%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	45310 MB/s +35%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	33618 MB/s
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	33497 MB/s 0%

AIDA64 / CPU ZLib
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	1088 MB/s +143%
Average of class Mini PC (127.2 - 2431, n=110, last 2 years)	1047 MB/s +134%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	944 MB/s +111%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	889 MB/s +99%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	694 MB/s +55%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	599 MB/s +34%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	447 MB/s
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	443 MB/s -1%

AIDA64 / FP64 Ray-Trace
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	13661 KRay/s +239%
Average of class Mini PC (537 - 43587, n=110, last 2 years)	12254 KRay/s +204%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	12248 KRay/s +204%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	6705 KRay/s +66%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	5719 KRay/s +42%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	5299 KRay/s +31%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	4030 KRay/s
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	4008 KRay/s -1%

AIDA64 / CPU PhotoWorxx
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	40048 MPixel/s +128%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	39932 MPixel/s +128%
Average of class Mini PC (8069 - 96843, n=110, last 2 years)	39437 MPixel/s +125%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	28106 MPixel/s +60%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	24736 MPixel/s +41%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	24446 MPixel/s +39%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	17537 MPixel/s
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	17431 MPixel/s -1%

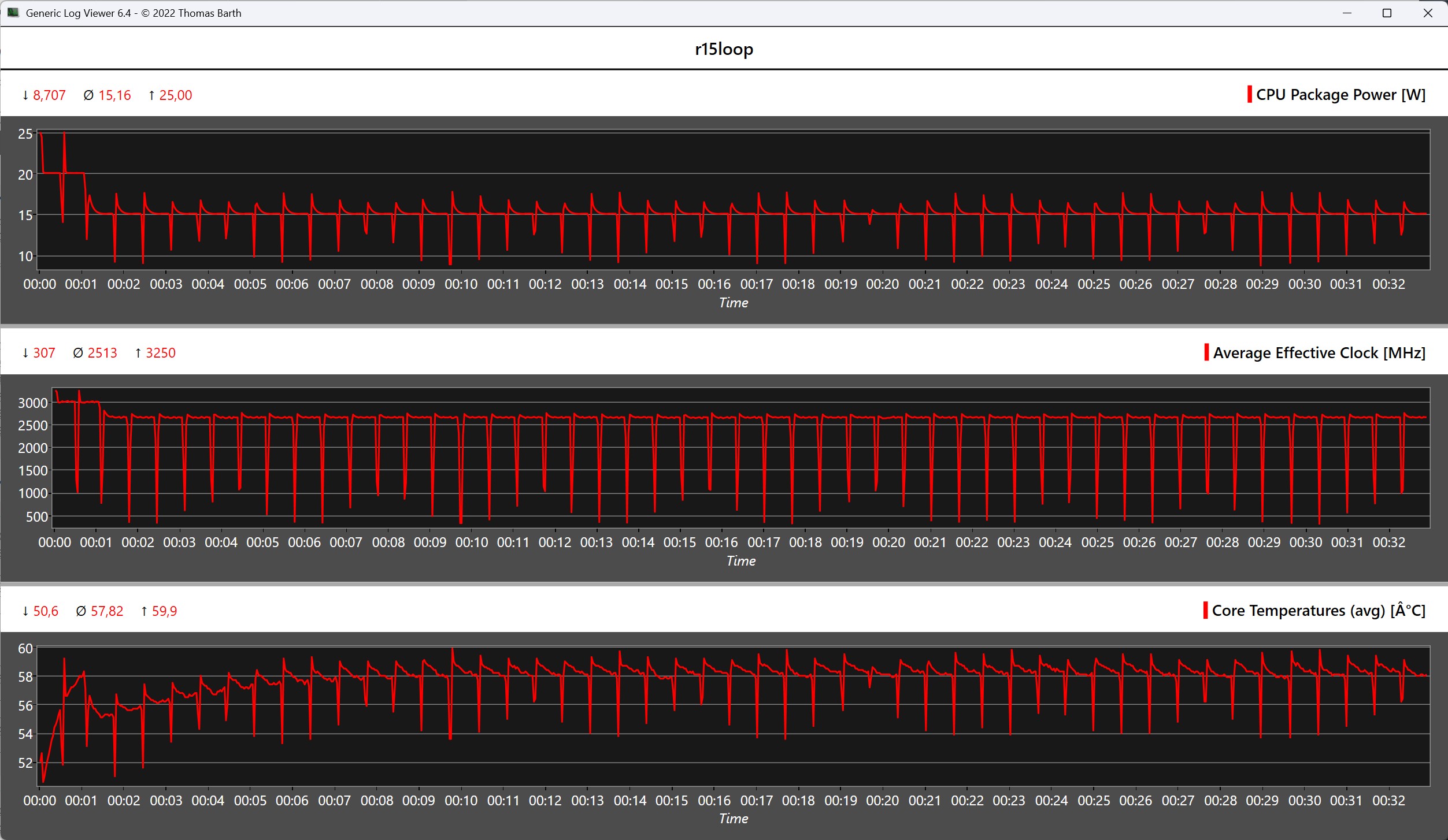

Cinebench R15 多回路运行

Geekom A5 Pro AMD Ryzen 5 7530U, AMD Ryzen 5 7530U: Ø1095 (1078.55-1234.53)

Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, AMD Ryzen 7 255: Ø2629 (2564.6-2672.19)

GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Core i7-12700H: Ø1569 (1529.93-1577.54)

Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2288 (2264.24-2301.36)

系统性能

在运行过程中，只要需求不超出常规范围，Geekom A5 Pro 就是一台可靠的微型电脑。该系统在处理日常任务时基本没有任何问题。

PCMark 10 / Score
Peladn HA-4, R7 7840HS, AMD Ryzen 7 7840HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	7186 Points +16%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	6793 Points +9%
GMK NucBox M8, AMD Ryzen 5 PRO 6650H AMD Radeon 660M, AirDisk APF 10-512G	6318 Points +2%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	6206 Points
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	5736 Points -8%

PCMark 10 / Essentials
Peladn HA-4, R7 7840HS, AMD Ryzen 7 7840HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	11023 Points +20%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	9991 Points +9%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	9919 Points +8%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	9183 Points
GMK NucBox M8, AMD Ryzen 5 PRO 6650H AMD Radeon 660M, AirDisk APF 10-512G	8991 Points -2%

PCMark 10 / Productivity
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	14037 Points
GMK NucBox M8, AMD Ryzen 5 PRO 6650H AMD Radeon 660M, AirDisk APF 10-512G	11719 Points -17%
Peladn HA-4, R7 7840HS, AMD Ryzen 7 7840HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	9985 Points -29%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	9124 Points -35%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	7355 Points -48%

WebXPRT 4 / Overall
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	247 Points +17%
Peladn HA-4, R7 7840HS, AMD Ryzen 7 7840HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	245 Points +16%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	236 Points +11%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	212 Points
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	191.4 Points -10%
GMK NucBox M8, AMD Ryzen 5 PRO 6650H AMD Radeon 660M, AirDisk APF 10-512G	172.6 Points -19%

WebXPRT 3 / Overall
Peladn HA-4, R7 7840HS, AMD Ryzen 7 7840HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	307 Points +22%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	295 Points +18%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	260 Points +4%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	251 Points
GMK NucBox M8, AMD Ryzen 5 PRO 6650H AMD Radeon 660M, AirDisk APF 10-512G	229 Points -9%
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	216 Points -14%

Mozilla Kraken 1.1 / Total
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	737 ms * -17%
GMK NucBox M8, AMD Ryzen 5 PRO 6650H AMD Radeon 660M, AirDisk APF 10-512G	663 ms * -5%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	630 ms *
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	538 ms * +15%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	511 ms * +19%
Peladn HA-4, R7 7840HS, AMD Ryzen 7 7840HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	490 ms * +22%

CrossMark / Overall
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1727 Points +40%
Peladn HA-4, R7 7840HS, AMD Ryzen 7 7840HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1681 Points +37%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	1548 Points +26%
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1418 Points +15%
GMK NucBox M8, AMD Ryzen 5 PRO 6650H AMD Radeon 660M, AirDisk APF 10-512G	1318 Points +7%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	1230 Points

CrossMark / Productivity
Peladn HA-4, R7 7840HS, AMD Ryzen 7 7840HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1662 Points +30%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1633 Points +27%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	1537 Points +20%
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1332 Points +4%
GMK NucBox M8, AMD Ryzen 5 PRO 6650H AMD Radeon 660M, AirDisk APF 10-512G	1332 Points +4%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	1281 Points

CrossMark / Creativity
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1986 Points +56%
Peladn HA-4, R7 7840HS, AMD Ryzen 7 7840HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1738 Points +37%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	1599 Points +26%
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1529 Points +20%
GMK NucBox M8, AMD Ryzen 5 PRO 6650H AMD Radeon 660M, AirDisk APF 10-512G	1414 Points +11%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	1270 Points

CrossMark / Responsiveness
Peladn HA-4, R7 7840HS, AMD Ryzen 7 7840HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1575 Points +59%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	1435 Points +45%
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1363 Points +38%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1347 Points +36%
GMK NucBox M8, AMD Ryzen 5 PRO 6650H AMD Radeon 660M, AirDisk APF 10-512G	1034 Points +4%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	991 Points

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	68160 MB/s +77%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	67909 MB/s +77%
Average of class Mini PC (15933 - 163031, n=110, last 2 years)	64888 MB/s +69%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	47652 MB/s +24%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	45910 MB/s +19%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	42967 MB/s +12%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	38448 MB/s
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	38187 MB/s -1%

AIDA64 / Memory Read
Average of class Mini PC (14143 - 123769, n=110, last 2 years)	62694 MB/s +56%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	61434 MB/s +53%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	61200 MB/s +52%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	46318 MB/s +15%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	43920 MB/s +9%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	40270 MB/s
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	40117 MB/s 0%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	39917 MB/s -1%

AIDA64 / Memory Write
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	84184 MB/s +107%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	82539 MB/s +103%
Average of class Mini PC (10630 - 216693, n=110, last 2 years)	73823 MB/s +81%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	48848 MB/s +20%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	45207 MB/s +11%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	42144 MB/s +4%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	40708 MB/s
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	40201 MB/s -1%

AIDA64 / Memory Latency
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M (v6.92.6600)	109 ns * -13%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs (v6.92.6600)	102.5 ns * -6%
Average of class Mini PC (93.4 - 184.8, n=111, last 2 years)	99.6 ns * -3%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	96.3 ns *
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	93.4 ns * +3%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M (v6.92.6600)	95.8 ns * +1%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	91.2 ns * +5%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs (v6.92.6600)	85.4 ns * +11%

* ... smaller is better

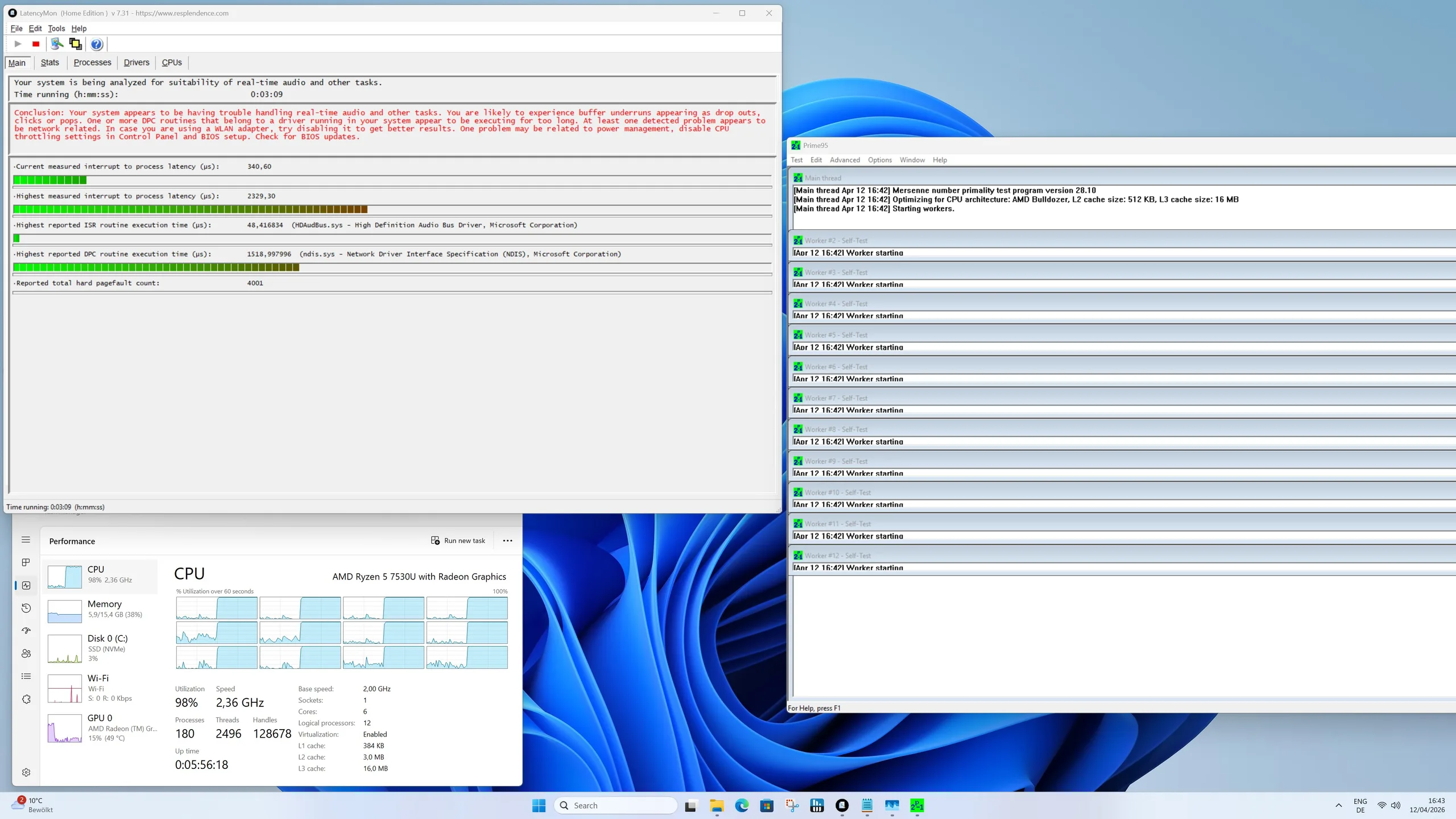

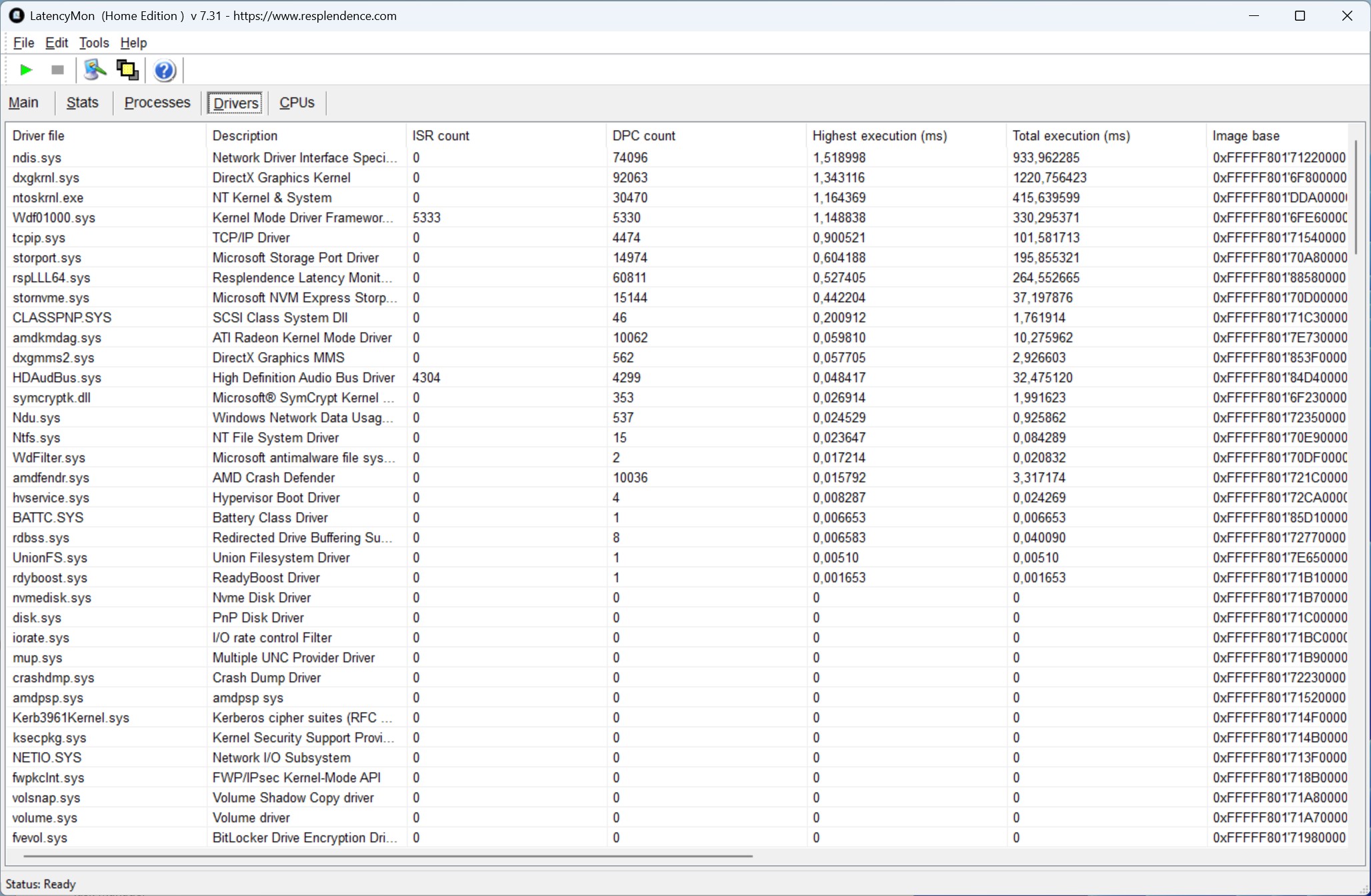

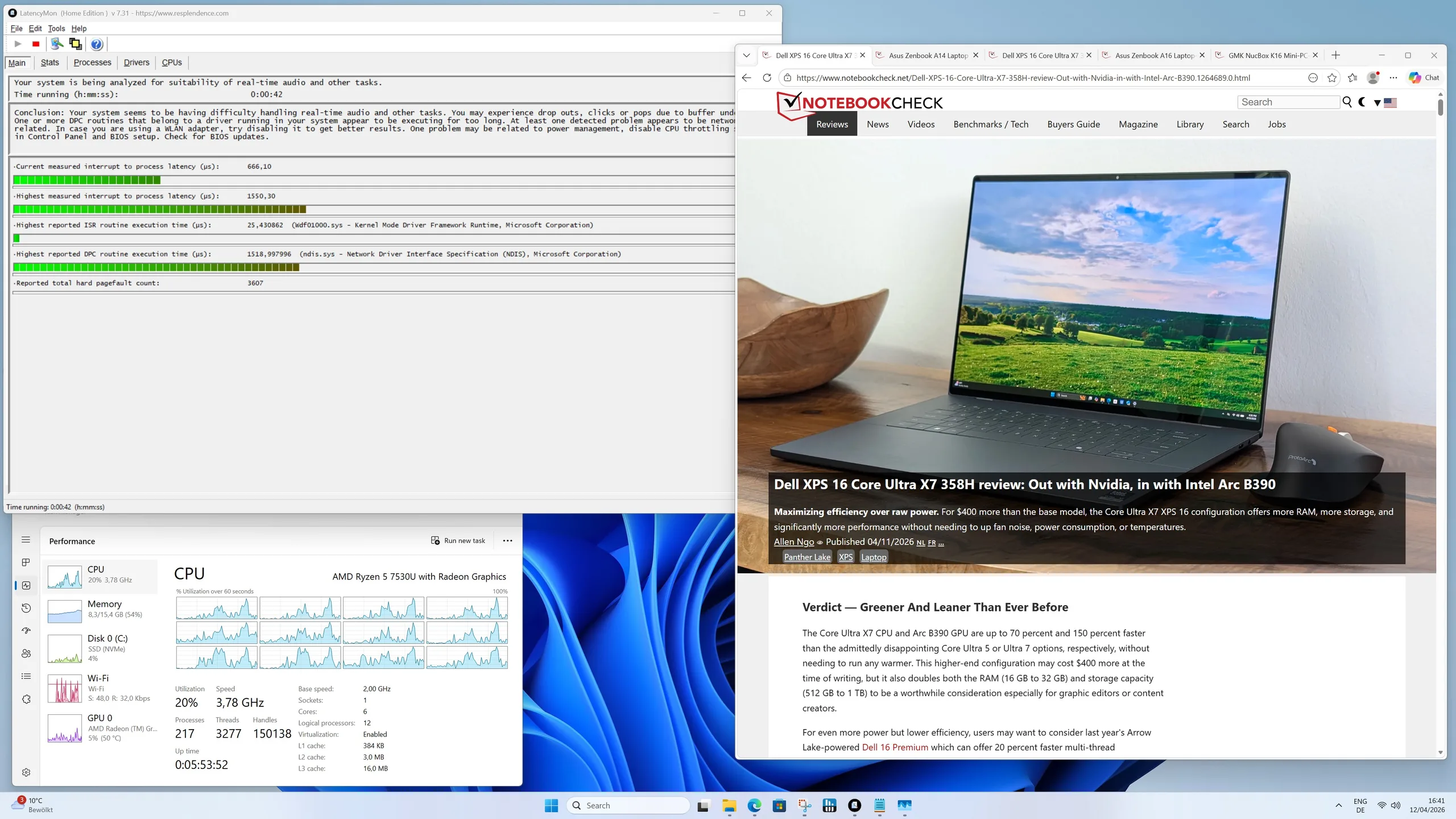

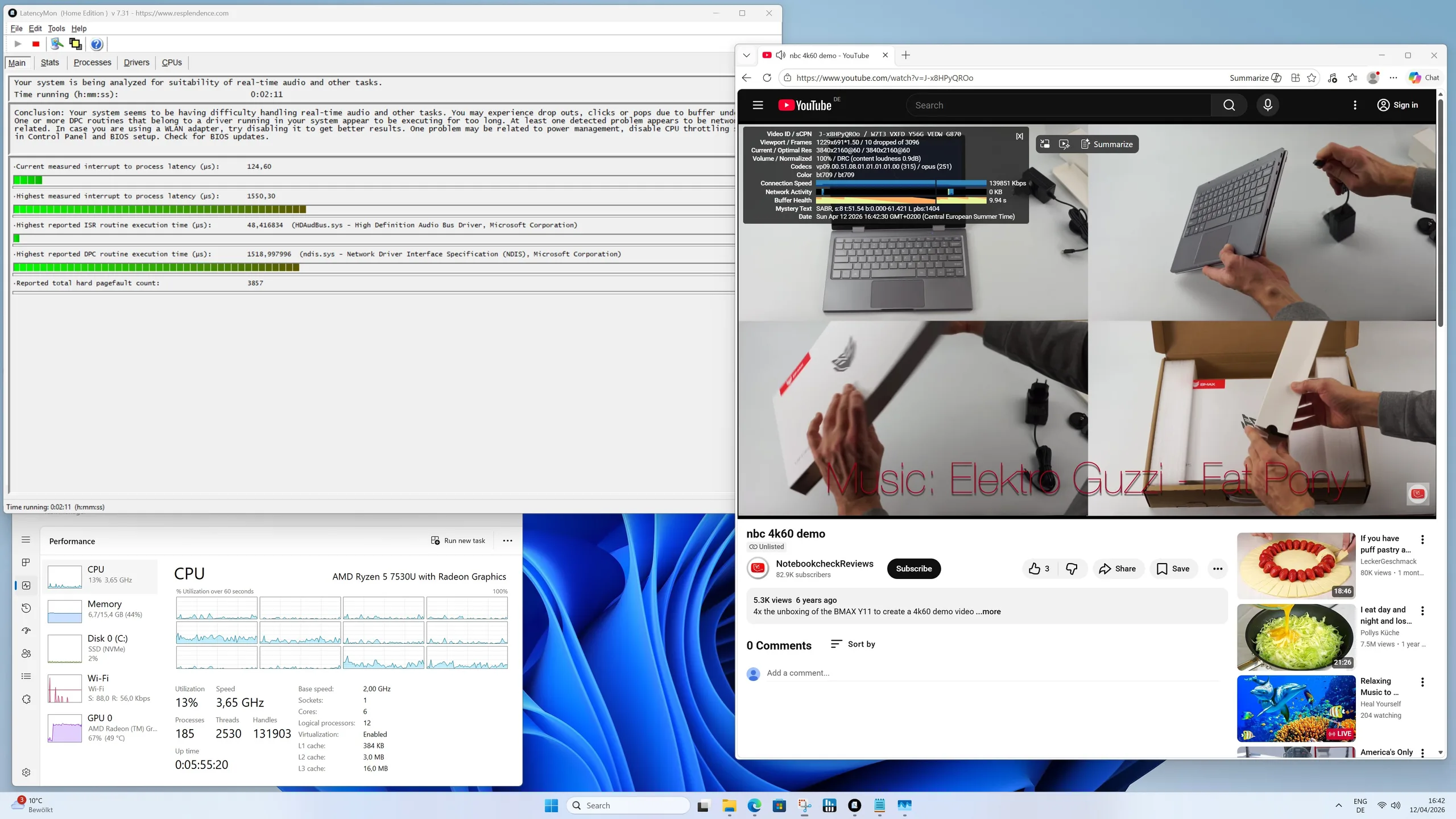

DPC 延迟

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Peladn HA-4, R7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1710.8 μs * -13%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	1519 μs *
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	1030 μs * +32%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	693 μs * +54%
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	575 μs * +62%

* ... smaller is better

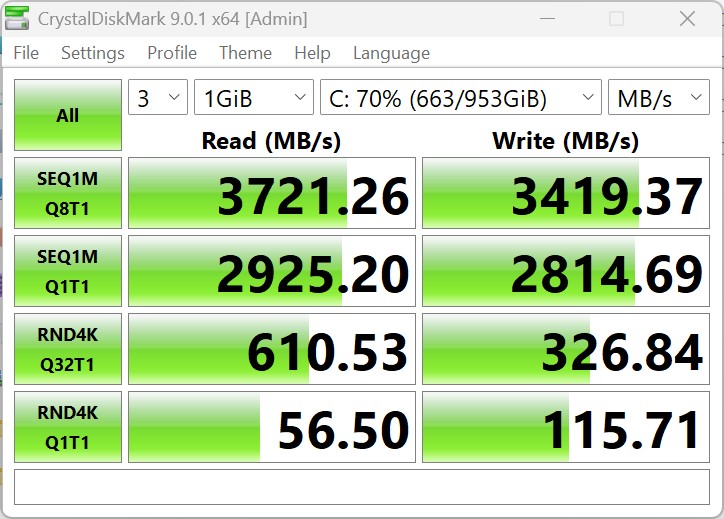

存储设备

Geekom A5 Pro 配备了 NVMe 固态硬盘，在日常使用中具有良好的传输速率和足够的访问时间。因此，这款迷你电脑可提供快速的系统和应用程序性能。被动散热也确保了性能值的稳定，即使在长时间负载的情况下也是如此。

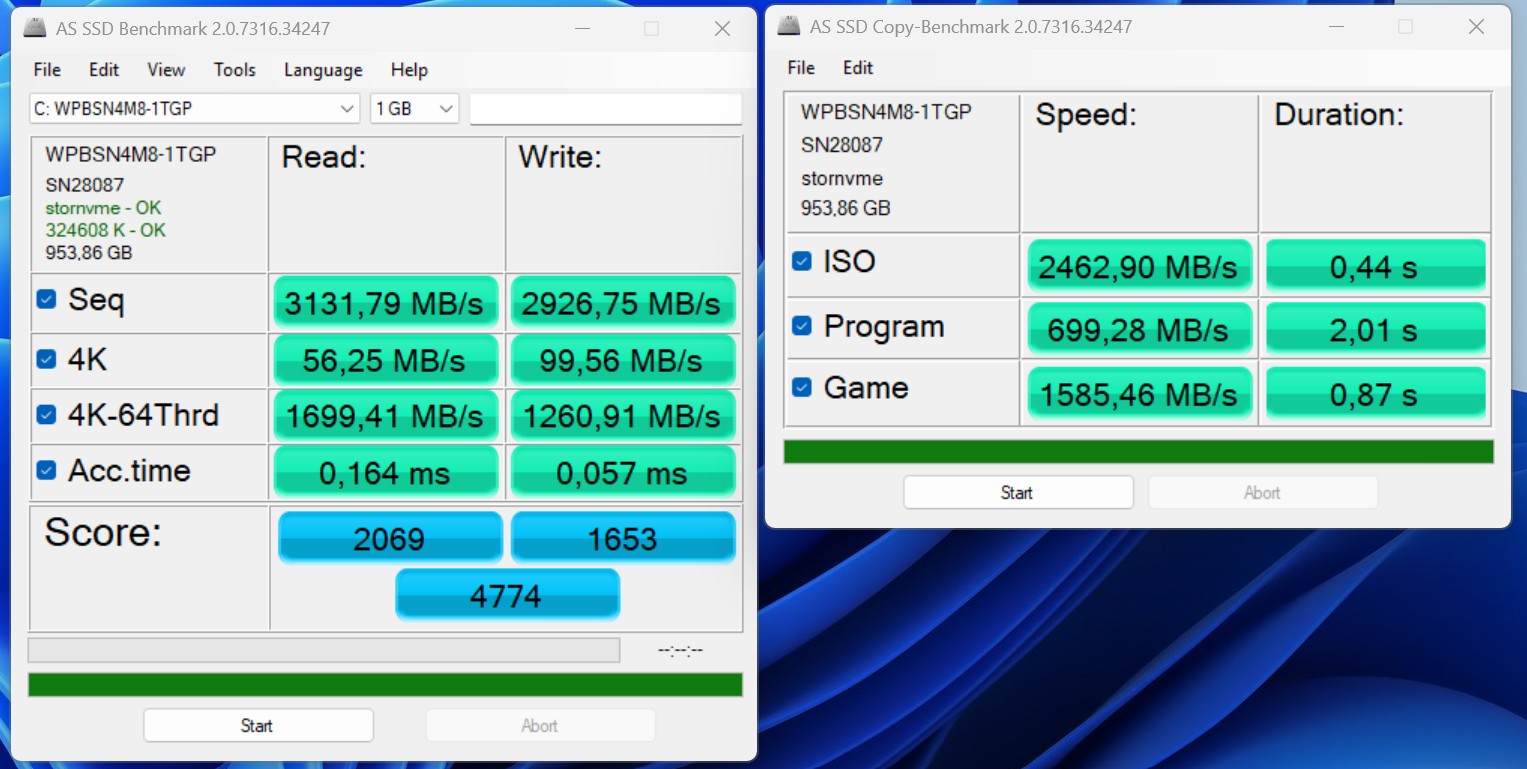

AS SSD

DiskSpd

Wodposit WPBSN4M8-1TGP

Sequential Read: 3131MB/s

Sequential Write: 2926MB/s

4K Read: 56.3MB/s

4K Write: 99.6MB/s

4K-64 Read: 1699MB/s

4K-64 Write: 1261MB/s

Access Time Read: 0.164ms

Access Time Write: 0.057ms

Copy ISO: 2462.9MB/s

Copy Program: 699.28MB/s

Copy Game: 1585.46MB/s

Score Read: 2069Points

Score Write: 1653Points

Score Total: 4774Points

Drive Performance rating | DiskSpd | AS SSD

Drive Performance rating - Percent
Average of class Mini PC	84.7 pt
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	78.5 pt
BMAX B9 Power SK Hynix HFM001TD3HX015N	76.6 pt
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	75.9 pt
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	70.1 pt
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	66.5 pt
GMK NucBox M8 AirDisk APF 10-512G	62 pt

DiskSpd
seq read
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	2715 (2702.44^min - 2714.55^max) MB/s
Average of class Mini PC (413 - 4960, n=101, last 2 years)	2583 MB/s -5%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	2076 (2038.13^min - 2075.8^max) MB/s -24%
GMK NucBox M8 AirDisk APF 10-512G	2001 (1947.09^min - 2001.29^max) MB/s -26%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1985 (1968.39^min - 1984.95^max) MB/s -27%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	1984 (1925.32^min - 1984.33^max) MB/s -27%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	1458 (1439.33^min - 1457.73^max) MB/s -46%
seq write
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	3203 (3115.53^min - 3202.98^max) MB/s +22%
Average of class Mini PC (408 - 5556, n=101, last 2 years)	3067 MB/s +17%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	2680 (1377.62^min - 2680.46^max) MB/s +2%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	2629 (2599.42^min - 2628.78^max) MB/s
BMAX B9 Power SK Hynix HFM001TD3HX015N	2293 (2231.1^min - 2292.84^max) MB/s -13%
GMK NucBox M8 AirDisk APF 10-512G	2239 (1621.63^min - 2239.47^max) MB/s -15%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	2021 (1955.88^min - 2020.61^max) MB/s -23%
seq q8 t1 read
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	4896 (4137.38^min - 4895.66^max) MB/s +32%
Average of class Mini PC (397 - 7117, n=101, last 2 years)	4512 MB/s +22%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	3709 (3283.51^min - 3708.95^max) MB/s
GMK NucBox M8 AirDisk APF 10-512G	3374 (3127.52^min - 3373.69^max) MB/s -9%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	3349 (2548.88^min - 3348.52^max) MB/s -10%
BMAX B9 Power SK Hynix HFM001TD3HX015N	3197 (2834.3^min - 3196.9^max) MB/s -14%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2691 (2471.58^min - 2691.48^max) MB/s -27%
seq q8 t1 write
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	4009 (3770.05^min - 4009.08^max) MB/s +23%
Average of class Mini PC (410 - 6647, n=101, last 2 years)	3587 MB/s +10%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	3256 (3140.69^min - 3256.03^max) MB/s
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	2846 (186.06^min - 2846.43^max) MB/s -13%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2649 (2622.07^min - 2648.65^max) MB/s -19%
GMK NucBox M8 AirDisk APF 10-512G	2534 (2433.28^min - 2533.74^max) MB/s -22%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	2345 (2297.66^min - 2345.17^max) MB/s -28%
4k q1 t1 read
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	60.9 (57.85^min - 60.88^max) MB/s +19%
Average of class Mini PC (6.85 - 88.3, n=101, last 2 years)	57.2 MB/s +12%
BMAX B9 Power SK Hynix HFM001TD3HX015N	57 (55.81^min - 57.03^max) MB/s +12%
GMK NucBox M8 AirDisk APF 10-512G	53.9 (52.92^min - 53.94^max) MB/s +5%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	51.1 (46.29^min - 51.12^max) MB/s
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	50.6 (49.92^min - 50.59^max) MB/s -1%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	43.7 (42.75^min - 43.72^max) MB/s -14%
4k q1 t1 write
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	243 (235.22^min - 243.41^max) MB/s +118%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	224 (208.99^min - 223.54^max) MB/s +101%
BMAX B9 Power SK Hynix HFM001TD3HX015N	207 (201.51^min - 207.2^max) MB/s +86%
Average of class Mini PC (29.6 - 422, n=101, last 2 years)	190.5 MB/s +71%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	142.4 (137.59^min - 142.4^max) MB/s +28%
GMK NucBox M8 AirDisk APF 10-512G	140.2 (139.31^min - 140.2^max) MB/s +26%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	111.4 (106.87^min - 111.43^max) MB/s
4k q32 t16 read
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	2768 (2575.18^min - 2767.63^max) MB/s
Average of class Mini PC (161.3 - 4349, n=101, last 2 years)	1633 MB/s -41%
GMK NucBox M8 AirDisk APF 10-512G	1440 (1433.87^min - 1440.15^max) MB/s -48%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1298 (1296.45^min - 1297.65^max) MB/s -53%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	1055 (1028.03^min - 1055.25^max) MB/s -62%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	945 (944.31^min - 945.19^max) MB/s -66%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	711 (709.67^min - 710.75^max) MB/s -74%
4k q32 t16 write
BMAX B9 Power SK Hynix HFM001TD3HX015N	2100 (1960.66^min - 2100.16^max) MB/s +54%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	1768 (427.99^min - 1767.65^max) MB/s +30%
Average of class Mini PC (151.8 - 4288, n=101, last 2 years)	1496 MB/s +10%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	1365 (1269.15^min - 1364.79^max) MB/s
GMK NucBox M8 AirDisk APF 10-512G	1118 (1090.99^min - 1118.02^max) MB/s -18%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	838 (803.74^min - 837.91^max) MB/s -39%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	404 (399.8^min - 404.26^max) MB/s -70%

AS SSD
Score Total
Average of class Mini PC (507 - 10559, n=99, last 2 years)	5029 Points +5%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	4774 Points
BMAX B9 Power SK Hynix HFM001TD3HX015N	4650 Points -3%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	4353 Points -9%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	4100 Points -14%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	3499 Points -27%
GMK NucBox M8 AirDisk APF 10-512G	3497 Points -27%
Score Read
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	2069 Points
Average of class Mini PC (172 - 3834, n=99, last 2 years)	1735 Points -16%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1507 Points -27%
GMK NucBox M8 AirDisk APF 10-512G	1488 Points -28%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	1443 Points -30%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	1219 Points -41%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	1193 Points -42%
Score Write
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2550 Points +54%
Average of class Mini PC (210 - 5505, n=99, last 2 years)	2439 Points +48%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2390 Points +45%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	1997 Points +21%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	1696 Points +3%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	1653 Points
GMK NucBox M8 AirDisk APF 10-512G	1275 Points -23%
Seq Read
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	3967 MB/s +27%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	3871 MB/s +24%
Average of class Mini PC (483 - 5766, n=99, last 2 years)	3766 MB/s +20%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	3131 MB/s
GMK NucBox M8 AirDisk APF 10-512G	3035.79 MB/s -3%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	2691 MB/s -14%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2479 MB/s -21%
Seq Write
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2929 MB/s 0%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	2926 MB/s
Average of class Mini PC (346 - 5654, n=99, last 2 years)	2895 MB/s -1%
GMK NucBox M8 AirDisk APF 10-512G	2352.51 MB/s -20%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	2263 MB/s -23%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	1987 MB/s -32%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1960 MB/s -33%
4K Read
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	70.6 MB/s +25%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	63.9 MB/s +13%
Average of class Mini PC (18.2 - 104.3, n=99, last 2 years)	60.6 MB/s +8%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	56.3 MB/s
BMAX B9 Power SK Hynix HFM001TD3HX015N	51.7 MB/s -8%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	51 MB/s -9%
GMK NucBox M8 AirDisk APF 10-512G	47.19 MB/s -16%
4K Write
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	211 MB/s +112%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	207 MB/s +108%
Average of class Mini PC (65.5 - 366, n=99, last 2 years)	181.9 MB/s +83%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	164.8 MB/s +65%
BMAX B9 Power SK Hynix HFM001TD3HX015N	137 MB/s +38%
GMK NucBox M8 AirDisk APF 10-512G	107.97 MB/s +8%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	99.6 MB/s
4K-64 Read
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	1699 MB/s
Average of class Mini PC (94.3 - 3321, n=99, last 2 years)	1298 MB/s -24%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1207 MB/s -29%
GMK NucBox M8 AirDisk APF 10-512G	1136.99 MB/s -33%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	992 MB/s -42%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	854 MB/s -50%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	772 MB/s -55%
4K-64 Write
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2093 MB/s +66%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2057 MB/s +63%
Average of class Mini PC (96.3 - 4890, n=99, last 2 years)	1968 MB/s +56%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	1588 MB/s +26%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	1262 MB/s 0%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	1261 MB/s
GMK NucBox M8 AirDisk APF 10-512G	932.26 MB/s -26%
Access Time Read
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	0.164 ms *
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	0.142 ms * +13%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	0.128 ms * +22%
Average of class Mini PC (0.027 - 0.288, n=99, last 2 years)	0.09103 ms * +44%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.07 ms * +57%
BMAX B9 Power SK Hynix HFM001TD3HX015N	0.056 ms * +66%
GMK NucBox M8 AirDisk APF 10-512G	0.044 ms * +73%
Access Time Write
GMK NucBox M8 AirDisk APF 10-512G	0.344 ms * -504%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	0.097 ms * -70%
Average of class Mini PC (0.013 - 0.706, n=99, last 2 years)	0.09202 ms * -61%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	0.092 ms * -61%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	0.057 ms *
BMAX B9 Power SK Hynix HFM001TD3HX015N	0.031 ms * +46%
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.031 ms * +46%

* ... smaller is better

磁盘节流DiskSpd 读取循环，队列深度 8

Geekom A5 Pro Wodposit WPBSN4M8-1TGP; diskspd 2.0.17 f: Ø3705 (3396.13-3713.34)

Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00; diskspd 2.0.17 f: Ø2676 (2375.73-2711.44)

GMK NucBox M8 AirDisk APF 10-512G; diskspd 2.0.17 f: Ø3392 (3019.9-3408.5)

GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S; diskspd 2.0.17 f: Ø2377 (1819.62-3369.94)

Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø4495 (3801.93-4639.53)

BMAX B9 Power SK Hynix HFM001TD3HX015N; diskspd 2.0.17 f: Ø2927 (355.39-3214.93)

图形卡和游戏性能

在 Geekom A5 Pro 中，集成的 AMD Radeon Vega 7 负责图形输出，其性能也取决于内存配置。由于采用了双通道内存，性能相对较好，不过 iGPU 的性能不足以应付要求苛刻的 3D 游戏。这款迷你电脑显然是为办公和日常应用而设计的。不过，Vega 7 为简单的图形任务和流畅播放高清内容提供了足够的性能，这意味着不需要专用显卡。

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark Performance rating - Percent
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	99.7 pt
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	94.9 pt
GMK NucBox M3 Ultra ^-2! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	58.3 pt
GMK NucBox M8 ^-1! AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	53.1 pt
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	50.6 pt
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	38.8 pt
Average AMD Radeon RX Vega 7	35 pt
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	27.9 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	13594 Points +143%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	12659 Points +127%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	6946 Points +24%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6690 Points +20%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	6350 Points +14%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	5584 Points
Average AMD Radeon RX Vega 7 (3353 - 6249, n=62)	5026 Points -10%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	4273 Points -23%

3DMark
2560x1440 Time Spy Graphics
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2874 Points +183%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2795 Points +176%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	1552 Points +53%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1550 Points +53%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1014 Points
Average AMD Radeon RX Vega 7 (496 - 1249, n=61)	980 Points -3%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	741 Points -27%
1920x1080 Fire Strike Graphics
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	8404 Points +138%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	7985 Points +126%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	5511 Points +56%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5228 Points +48%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	4935 Points +40%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	3528 Points
Average AMD Radeon RX Vega 7 (1772 - 4037, n=66)	3163 Points -10%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	2404 Points -32%
Steel Nomad Score
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	511 Points +166%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	500 Points +160%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	487 Points +154%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	477 Points +148%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	212 Points +10%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	165 Points -14%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	192 Points
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	185 Points -4%
Average AMD Radeon RX Vega 7 (130 - 192, n=4)	160.5 Points -16%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	135 Points -30%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	130 Points -32%

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	36.4 fps +118%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	30.6 fps +83%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	23 fps +38%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	21.1 fps +26%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	16.7 fps
Extreme Preset DX11
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	37.2 fps +127%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	34.3 fps +109%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	23.4 fps +43%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	21.5 fps +31%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	16.4 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	25.4 fps +137%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	22 fps +106%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	14.3 fps +34%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	13.1 fps +22%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	10.7 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	21.9 fps +97%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	17.9 fps +61%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	15.4 fps +39%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	12.1 fps +9%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	11.1 fps

Unigine Superposition
1280x720 720p Low
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	12536 Points +124%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	11474 Points +105%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	6316 Points +13%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	5585 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5380 Points -4%
1920x1080 1080p High
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	3638 Points +184%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	3534 Points +176%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	2150 Points +68%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1768 Points +38%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1280 Points
1920x1080 1080p Extreme
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1748 Points +186%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	1737 Points +184%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	1063 Points +74%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	877 Points +43%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	612 Points

ComputeMark v2.1
1024x600 Normal, Score
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	9629 Points +192%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	8592 Points +161%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	3454 Points +5%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3439 Points +4%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	3297 Points
1024x600 Normal, Fluid 3DTex
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	475 Points +107%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	449 Points +95%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	276 Points +20%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	233 Points +1%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	230 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	487 Points +122%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	477 Points +118%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	279 Points +27%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	239 Points +9%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	219 Points
1024x600 Normal, Mandel Vector
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2526 Points +149%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2207 Points +118%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1013 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	835 Points -18%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	813 Points -20%
1024x600 Normal, Mandel Scalar
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2596 Points +192%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2251 Points +153%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	889 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	881 Points -1%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	860 Points -3%
1024x600 Normal, QJuliaRayTrace
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	3546 Points +275%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	3208 Points +239%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1251 Points +32%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	1227 Points +30%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	945 Points

LuxMark v2.0 64Bit
Room GPUs-only
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	1119 Samples/s +145%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	911 Samples/s +100%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	713 Samples/s +56%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	458 Samples/s 0%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	456 Samples/s
Sala GPUs-only
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2380 Samples/s +147%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	2248 Samples/s +134%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1645 Samples/s +71%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1603 Samples/s +67%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	962 Samples/s

Affinity Photo 2 - Combined (Single / Multi GPU)
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	4078 Points +292%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3825 Points +268%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	1788 Points +72%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1649 Points +59%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1039 Points

Geekbench AI
Quantized GPU 1.7
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	5586 Points +158%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	5426 Points +150%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	3063 Points +41%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	2167 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1960 Points -10%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	1886 Points -13%
Half Precision GPU 1.7
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	11320 Points +198%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	10301 Points +171%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	4792 Points +26%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	3796 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3209 Points -15%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	3053 Points -20%
Single Precision GPU 1.7
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	7428 Points +161%
Peladn HA-4, R7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	6860 Points +141%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	3964 Points +39%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3138 Points +10%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	3045 Points +7%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	2848 Points

Performance rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference

Performance rating
Average NVIDIA GeForce RTX 4050 Laptop GPU	98.7 pt
Minisforum AI X1, Ryzen 7 255	78.7 pt
Peladn HA-4, R7 7840HS	74.8 pt
BMAX B9 Power ^-2!	57.6 pt
GMK NucBox M3 Ultra ^-2!	51.8 pt
Geekom A5 Pro	28.6 pt

SPECworkstation 4.0 / Graphics Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +326%
Minisforum AI X1, Ryzen 7 255	2.06 Points +203%
Peladn HA-4, R7 7840HS	1.97 Points +190%
Geekom A5 Pro	0.68 Points

SPECworkstation 4.0 / Accelerator Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	3.37 Points +381%
Peladn HA-4, R7 7840HS	2.16 Points +209%
Minisforum AI X1, Ryzen 7 255	2.15 Points +207%
GMK NucBox M3 Ultra	1.27 Points +81%
BMAX B9 Power	1.23 Points +76%
Geekom A5 Pro	0.7 Points

SPECworkstation 4.0 / Viewport Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +325%
Minisforum AI X1, Ryzen 7 255	2.06 Points +202%
Peladn HA-4, R7 7840HS	1.97 Points +188%
Geekom A5 Pro	0.683 Points

SPECworkstation 4.0 / HandBrake
Minisforum AI X1, Ryzen 7 255	1.37 Points +119%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.28 Points +104%
Peladn HA-4, R7 7840HS	1.26 Points +101%
BMAX B9 Power	1.17 Points +87%
GMK NucBox M3 Ultra	0.999 Points +60%
Geekom A5 Pro	0.626 Points

SPECworkstation 4.0 / ONNX Inference
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.46 Points +237%
Minisforum AI X1, Ryzen 7 255	1.28 Points +196%
Peladn HA-4, R7 7840HS	1.2 Points +177%
BMAX B9 Power	0.745 Points +72%
GMK NucBox M3 Ultra	0.652 Points +51%
Geekom A5 Pro	0.433 Points

	Geekom A5 Pro, AMD Radeon RX Vega 7 R5 7530U	Minisforum AI X1, Ryzen 7 255, AMD Radeon 780M Ryzen 7 255	GMK NucBox M3 Ultra, Intel Iris Xe Graphics G7 96EUs i7-12700H	Peladn HA-4, R7 7840HS, AMD Radeon 780M R7 7840HS	BMAX B9 Power, Intel Iris Xe Graphics G7 96EUs i9-12900HK	Ninkear M7, (16+512), AMD Radeon RX Vega 7 R5 7430U	Average of class Mini PC
SPECviewperf 2020		249%	1%	228%	-2%	-31%	518%
3840x2160 Medical (medical-03) (fps)	2.76	12.6 357%	3.38 22%	16.3 491%	3.44 25%	2.05 -26%	21.1 ?(1.32 - 90.1, n=81, last 2 years) 664%
3840x2160 Energy (energy-03) (fps)	3.05	19.1 526%	2.96 -3%	13.8 352%	2.98 -2%	2.32 -24%	31.6 ?(0.76 - 139, n=81, last 2 years) 936%
3840x2160 Creo (creo-03) (fps)	13.7	33.7 146%	14.7 7%	30 119%	14 2%	8.66 -37%	48.2 ?(7.73 - 126, n=81, last 2 years) 252%
3840x2160 3ds Max (3dsmax-07) (fps)	8.35	21.5 157%	9.48 14%	19.6 135%	9.18 10%	5.85 -30%	51.2 ?(5.53 - 213, n=81, last 2 years) 513%
3840x2160 Siemens NX (snx-04) (fps)	26.8	63.1 135%	4.21 -84%	59.9 124%	3.78 -86%	17.6 -34%	51 ?(3.78 - 233, n=79, last 2 years) 90%
3840x2160 Maya (maya-06) (fps)	17.6	47.5 170%	25.8 47%	43.7 148%	24.1 37%	11.6 -34%	132.5 ?(11.6 - 542, n=80, last 2 years) 653%

3DMark 05 Standard		32453 points
3DMark 06 Standard Score		22017 points
3DMark Vantage P Result		17388 points
3DMark 11 Performance		5887 points
3DMark Ice Storm Standard Score		92912 points
3DMark Cloud Gate Standard Score		18857 points
3DMark Fire Strike Score		3188 points
3DMark Fire Strike Extreme Score		1440 points
3DMark Time Spy Score		1150 points
3DMark Steel Nomad Score		185 points
Help

... in comparison

GTA V | Dota 2 Reborn | Cyberpunk 2077 | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
Peladn HA-4, R7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	163.3 (5.47^min, 125^P1) fps +59%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	162.3 (5.48^min, 100^P1) fps +58%
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	109.7 (19^min, 66.7^P1) fps +7%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	102.9 (11.2^min, 66.7^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Peladn HA-4, R7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	64.8 (10.1^min, 43.5^P1) fps +215%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	64.8 (5.04^min, 43.5^P1) fps +215%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	20.6 (4.68^min, 14.7^P1) fps
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	19.8 (5.18^min, 14.5^P1) fps -4%

Dota 2 Reborn
1280x720 min (0/3) fastest
Peladn HA-4, R7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	158.9 (135.5^min) fps +43%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	151.2 (131.3^min) fps +36%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	111 (91.4^min) fps
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	110.9 (96.6^min) fps 0%
BMAX B9 Power Iris Xe G7 96EUs, i9-12900HK, SK Hynix HFM001TD3HX015N	101 (70^min) fps -9%
1920x1080 high (2/3)
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	92.5 (81.6^min) fps +82%
Peladn HA-4, R7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	91 (80.5^min) fps +79%
BMAX B9 Power Iris Xe G7 96EUs, i9-12900HK, SK Hynix HFM001TD3HX015N	66.3 (47.2^min) fps +31%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	64.2 (57.2^min) fps +27%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	50.7 (44^min) fps

Cyberpunk 2077
1920x1080 Low Preset (FSR off)
Peladn HA-4, R7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	42.8 (36.6^min) fps +224%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	42.6 (36.3^min, 34.3^P1) fps +223%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	23.1 (19.6^min, 18.7^P1) fps +75%
BMAX B9 Power Iris Xe G7 96EUs, i9-12900HK, SK Hynix HFM001TD3HX015N	17.1 (13.4^min) fps +30%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	13.2 (10.6^min) fps
1920x1080 High Preset (FSR off)
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	26.9 (23.1^min, 21.5^P1) fps +221%
Peladn HA-4, R7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	25.2 (21.4^min) fps +201%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	12.9 (10.5^min, 8.54^P1) fps +54%
BMAX B9 Power Iris Xe G7 96EUs, i9-12900HK, SK Hynix HFM001TD3HX015N	11.3 (9.54^min) fps +35%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	8.37 (7.07^min) fps

Baldur's Gate 3
1280x720 Low Preset AA:SM
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	65.9 (48.5^min, 50.7^P0.1, 57.6^P1) fps +241%
Peladn HA-4, R7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	64.8 (46.7^min, 48.8^P0.1, 57.8^P1) fps +236%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	35.1 (22.6^min, 22.9^P0.1, 24.8^P1) fps +82%
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	28.6 (21.1^min, 21.6^P0.1, 24.1^P1) fps +48%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	19.3 (11.6^min, 11.6^P0.1, 12.5^P1) fps
1920x1080 High Preset AA:T
Peladn HA-4, R7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	26.3 (21.5^min, 21.7^P0.1, 22.5^P1) fps +222%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	26.3 (22.5^min, 22.6^P0.1, 23.5^P1) fps +222%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	14.7 (10.3^min, 10.4^P0.1, 11.6^P1) fps +80%
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	13 (10.4^min, 10.8^P0.1, 11.8^P1) fps +59%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	8.18 (1.909^min, 2.43^P0.1, 6.14^P1) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
Peladn HA-4, R7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	84 (67^min, 64^P1) fps +218%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	82.3 (70^min, 62^P1) fps +212%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	40.1 (19^P1) fps +52%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	26.4 (12^min, 17^P1) fps
1920x1080 High Preset AA:T AF:16x
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	54.2 (34^min, 35^P1) fps +223%
Peladn HA-4, R7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	54.1 (43^min, 36^P1) fps +222%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	26.4 (12^P1) fps +57%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	16.8 (11^min, 11^P1) fps

FPS 图表 - 30 分钟赛博朋克 2077 1920 x 1080 超预设（FSR 关闭）

Geekom A5 Pro R5 7530U, Vega 7: Ø7.09 (5.03-7.22)

Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M: Ø22.2 (21.4-22.5)

GMK NucBox M8 R5 PRO 6650H, Radeon 660M: Ø11.1 (9.52-11.3)

Peladn HA-4, R7 7840HS R7 7840HS, Radeon 780M: Ø22.3 (19.8-23.1)

	low	med.	high	ultra
GTA V (2015)	102.9	90.3	20.6	9.2
The Witcher 3 (2015)	62.6	39.7	18.8	11.9
Dota 2 Reborn (2015)	111	86.1	50.7	47.1
Final Fantasy XV Benchmark (2018)	32.7	17.2	11.8
X-Plane 11.11 (2018)	35.1	25.7	23.3
Baldur's Gate 3 (2023)	12.7	9.73	8.18
Cyberpunk 2077 (2023)	13.2	9.9	8.37	7
F1 24 (2024)	26.4	23.1	16.8

排放量

系统噪音

Geekom A5 Pro 在运行过程中表现出令人愉悦的克制，与功能更强大的机型相比，整体噪音更低。风扇对负载增加的反应很快，在早期就能听到，但运转均匀，没有恼人的脉动。

Noise level

Idle		26.6 / 26.6 / 26.7 dB(A)
Load		33.5 / 33.8 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25 dB(A)

	Geekom A5 Pro R5 7530U, Vega 7	Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M	GMK NucBox M8 R5 PRO 6650H, Radeon 660M	GMK NucBox M3 Ultra i7-12700H, Iris Xe G7 96EUs	Peladn HA-4, R7 7840HS R7 7840HS, Radeon 780M	Ninkear M7, (16+512) R5 7430U, Vega 7
Noise		-15%	-19%	-19%	-18%	4%
off / environment * (dB)	25	24.9 -0%	24.1 4%	24.8 1%	24.8 1%	24.8 1%
Idle Minimum * (dB)	26.6	31.1 -17%	24.1 9%	25.8 3%	28.5 -7%	25.3 5%
Idle Average * (dB)	26.6	31.2 -17%	24.1 9%	25.8 3%	29.1 -9%	25.7 3%
Idle Maximum * (dB)	26.7	31.2 -17%	38.5 -44%	25.8 3%	29.2 -9%	25.7 4%
Load Average * (dB)	33.5	36.7 -10%	41.1 -23%	44.5 -33%	39.6 -18%	33.6 -0%
Witcher 3 ultra * (dB)	31.2	37.9 -21%		45.6 -46%	42.3 -36%	28.8 8%
Cyberpunk 2077 ultra * (dB)	31.2	37.8 -21%	46.6 -49%	46.4 -49%	44.1 -41%	28.7 8%
Load Maximum * (dB)	33.8	38.4 -14%	47.2 -40%	44.7 -32%	42.3 -25%	34.3 -1%

* ... smaller is better

温度

Geekom A5 Pro 的外壳在空闲模式和负载状态下均保持凉爽，没有任何明显的热点。在压力测试中，所安装 Ryzen 处理器的温度短暂上升至 60 °C，但仍保持在非关键范围内。仅 15 瓦的 TDP 由冷却系统可靠地耗散，确保了性能的稳定。

Max. Load

Idle

Cyberpunk


35 °C	36.7 °C	35.1 °C
32.3 °C	33.3 °C	32.2 °C
31.7 °C	31.9 °C	31.5 °C

Maximum: 36.7 °C
Average: 33.3 °C


35.6 °C	37.4 °C	35.3 °C
33.9 °C	40.5 °C	32.5 °C
33.2 °C	33.6 °C	31 °C

Maximum: 40.5 °C
Average: 34.8 °C

Power Supply (max.) 35.7 °C | Room Temperature 22.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


22.9 °C	23.1 °C	22.6 °C
22.8 °C	22.8 °C	22.5 °C
22.7 °C	22.6 °C	22.5 °C

Maximum: 23.1 °C
Average: 22.7 °C


23.9 °C	24.7 °C	24.9 °C
24.1 °C	25.1 °C	24 °C
23.7 °C	24.1 °C	23.1 °C

Maximum: 25.1 °C
Average: 24.2 °C

Power Supply (max.) 23.4 °C | Room Temperature 22.3 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


34.1 °C	35.5 °C	34.3 °C
32.2 °C	32.3 °C	30.5 °C
30.8 °C	30.9 °C	29.9 °C

Maximum: 35.5 °C
Average: 32.3 °C


33.5 °C	35.7 °C	34.2 °C
32.8 °C	37.8 °C	32.1 °C
32 °C	33.7 °C	30.1 °C

Maximum: 37.8 °C
Average: 33.5 °C

Power Supply (max.) 34.9 °C | Room Temperature 22.9 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 33.3 °C / 92 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 36.7 °C / 98 F, compared to the average of 35.5 °C / 96 F, ranging from 20.6 to 69.5 °C for the class Mini PC.
(±) The bottom heats up to a maximum of 40.5 °C / 105 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 22.7 °C / 73 F, compared to the device average of 32.2 °C / 90 F.
(±) 3: The average temperature for the upper side is 32.3 °C / 90 F, compared to the average of 32.2 °C / 90 F for the class Mini PC.

能源管理

在日常使用中，配备 Ryzen 5 7530U 的 Geekom A5 Pro 被证明是一款高能效的迷你电脑。空闲模式下的功耗很低，即使在负载情况下也保持适中。因此，该系统非常适合在办公室或家庭办公室中连续运行。随附的电源装置功率为 65 瓦，可提供充足的电力储备。

Power Consumption

Off / Standby	0.9 / 3.6 Watt
Idle	3.2 / 4.3 / 5.1 Watt
Load	32.1 / 43.5 Watt


Key: min: , med: , max: Metrahit Energy

	Geekom A5 Pro R5 7530U, Vega 7	Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M	GMK NucBox M8 R5 PRO 6650H, Radeon 660M	GMK NucBox M3 Ultra i7-12700H, Iris Xe G7 96EUs	Peladn HA-4, R7 7840HS R7 7840HS, Radeon 780M	Ninkear M7, (16+512) R5 7430U, Vega 7	Average AMD Radeon RX Vega 7	Average of class Mini PC
Power Consumption		-91%	-75%	-133%	-114%	-86%	-50%	-155%
Idle Minimum * (Watt)	3.2	4.4 -38%	6.6 -106%	10.8 -238%	6.8 -113%	9.3 -191%	4.79 ?(2.6 - 9.3, n=56) -50%	8.91 ?(2.3 - 35.9, n=100, last 2 years) -178%
Idle Average * (Watt)	4.3	5.9 -37%	6.7 -56%	11.3 -163%	9.7 -126%	10.7 -149%	7.72 ?(4.3 - 12, n=56) -80%	11.1 ?(2.59 - 37.1, n=99, last 2 years) -158%
Idle Maximum * (Watt)	5.1	6.9 -35%	14.5 -184%	12.6 -147%	13.5 -165%	12.6 -147%	9.12 ?(5.1 - 14.1, n=56) -79%	14.2 ?(2.7 - 44.4, n=100, last 2 years) -178%
Load Average * (Watt)	32.1	70.4 -119%	33.2 -3%	56.4 -76%	62.5 -95%	37.7 -17%	38.4 ?(21.6 - 54.9, n=57) -20%	64.8 ?(15.7 - 170.6, n=100, last 2 years) -102%
Cyberpunk 2077 ultra external monitor * (Watt)	29.4	85.8 -192%	51.2 -74%		65.6 -123%	32.3 -10%
Load Maximum * (Watt)	43.5	97.4 -124%	54.6 -26%	60.7 -40%	70.8 -63%	43.4 -0%	51.7 ?(31 - 73.4, n=56) -19%	112.9 ?(27.9 - 423, n=100, last 2 years) -160%

* ... smaller is better

功率效率

Performance rating | Power Consumption

Performance rating - Percent
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	92.8 pt
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	90.6 pt
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	87.3 pt
GMK NucBox M8 ^-1! AMD Ryzen 5 PRO 6650H, Radeon 660M	81.1 pt
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	80.1 pt
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	70.1 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	242 Points per Watt +2%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	238 Points per Watt
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	208 Points per Watt -13%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	202 Points per Watt -15%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	194.3 Points per Watt -18%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	191.8 Points per Watt -19%
Cinebench R23 Single Power Efficiency - external Monitor
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	66.4 Points per Watt +18%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	56.1 Points per Watt
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	52.1 Points per Watt -7%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	46.2 Points per Watt -18%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	37.8 Points per Watt -33%
Cinebench R15 Multi Efficiency (external Monitor)
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	38 Points per Watt +12%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	33.8 Points per Watt
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	32.2 Points per Watt -5%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	31.1 Points per Watt -8%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	29.8 Points per Watt -12%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	28.2 Points per Watt -17%

带外部监控器的能耗

Geekom A5 Pro; Idle 1min (external Monitor): Ø4.27 (4-5.07)

Geekom A5 Pro; 1280x720 Prime95 28.10 and Furmark 1.25: Ø31.9 (30.4-43.5)

Geekom A5 Pro; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø29.4 (28.3-30.8)

Geekom A5 Pro; 3DMark06 Return To Proxycon: Ø32.1 (27.1-42.2)

带外部监控器的能耗

Geekom A5 Pro; Prime95 V2810 Stress (external Monitor): Ø30.6 (24.9-43.4)

Geekom A5 Pro; Cinebench R15 Multi (external Monitor): Ø32.6 (31-37.5)

Geekom A5 Pro; Cinebench R23 Single (external Monitor): Ø25.6 (24.2-37.5)

Geekom A5 Pro; Cinebench R23 Multi (external Monitor): Ø29.4 (24.7-39.1)

Geekom A5 Pro; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø31.8 (29.8-41.3)

笔记本检查评级

Back to the verdict

Geekom A5 Pro - 04/14/2026 v8
Sebastian Bade

Chassis

87 / 98 → 89%

Connectivity

60 / 81 → 74%

Weight

84%

Games Performance

20 / 80 → 25%

Application Performance

74 / 92 → 81%

Workstation

27%

AI Performance

77%

Temperature

93%

Noise

93%

Average

49%

73%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
12.5%

Power Use
70.5%

Repairability
20%

Software Updates
39%

Total Sustainability Score: 23.7%

可比较的替代品

Image	Model / Review	Price	Weight	Dimensions
1. 72.6%	Geekom A5 Pro AMD Ryzen 5 7530U ⎘ AMD Radeon RX Vega 7 ⎘ 16 GB Memory, 1024 GB SSD	List Price: 619€	423 g	112 x 112 x 37 mm
2. 81.1%	Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	List Price: 579€	658 g	126 x 128 x 52 mm
3. 70.6%	GMK NucBox M8 AMD Ryzen 5 PRO 6650H ⎘ AMD Radeon 660M ⎘ 16 GB Memory, 512 GB SSD		494 g	107 x 111 x 63 mm
4. 70.3%	GMK NucBox M3 Ultra Intel Core i7-12700H ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memory, 1024 GB SSD	List Price: 429€	437 g	106 x 114 x 42.5 mm
5.	Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ , 1024 GB SSD	List Price: 439€	965 g	128 x 136 x 52 mm
6.	BMAX B9 Power Intel Core i9-12900HK ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memory, 1024 GB SSD	List Price: 540 EUR	427 g	112 x 126 x 52 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Minisforum Mars Series MC560 R5 5600U, Vega 7	388
Alldocube iWork GT Ultra Ultra 5 125H, Arc 7-Core	394
HP Pavilion Plus 14-ew0153TU i7-1355U, Iris Xe G7 96EUs	398
Geekom A5 Pro R5 7530U, Vega 7	398
Lenovo IdeaPad Slim 3 15IRH10R Core 5 210H, UHD Graphics Xe G4 48EUs	404
Schenker Work 14 Base i5-1235U, Iris Xe G7 80EUs	406
Asus Zenbook S 14 UX5406 Core Ultra 7 258V, Arc 140V	406
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

紧凑高效：配备 AMD Ryzen 处理器的 Geekom A5 Pro 2026 版迷你电脑评测

日常英雄的缩影

评价：高效、经济的迷你 PC，具有 Ryzen 性能和强大的功能

Pros

Cons

价格和供应情况

Table of Contents

规格

外壳和连接性 - 高品质做工，但不含 USB4

尺寸比较

USB-C 性能

SD 读卡器

Wi-Fi 性能

配件

维护

可持续性

性能

测试条件

BIOS - 设置

处理器

Cinebench R15 多回路运行

系统性能

DPC 延迟

存储设备

磁盘节流DiskSpd 读取循环，队列深度 8

图形卡和游戏性能

FPS 图表 - 30 分钟赛博朋克 2077 1920 x 1080 超预设（FSR 关闭）

排放量

系统噪音

温度

能源管理

功率效率

带外部监控器的能耗

带外部监控器的能耗

笔记本检查评级

可比较的替代品

Transparency

More articles related to this device

Related Articles

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
HP EliteBook 1040 G10 818N7EA i5-1335U, Iris Xe G7 80EUs	5864
Lenovo ThinkPad X12 Detachable G2 Ultra 5 134U, Graphics 4-Core iGPU (Arrow Lake)	5868
Lenovo IdeaPad Flex 5i 14IAU7 i5-1235U, Iris Xe G7 80EUs	5885
Geekom A5 Pro R5 7530U, Vega 7	5887
Lenovo ThinkPad X1 Carbon G10 21CC001RGE i5-1250P, Iris Xe G7 80EUs	5893
Framework Laptop 13.5 i7-1165G7, Iris Xe G7 96EUs	5893
Minix Elite EU512-AI Ultra 5 125H, Arc 7-Core	5911
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
