Geekom A5 评测:玫瑰色迷你 PC,NUC 的替代品,配备 AMD Ryzen 7 APU 和 32 GB 内存
乍一看,Geekom A5 让人想起 Mini IT11 和 Mini IT12 型号。从技术和外观上看,它们与英特尔 NUC 系列迷你 PC 非常相似。但与预期不同的是,A5 采用的是 AMD CPU。它是AMD Ryzen 7 5800H可能算不上现代的 SoC,但凭借 8 核 16 线程,它目前仍能提供足够的性能。至于事实是否如此,我们稍后会有答案。此外,购买 Geekom A5 还可获得 32 GB 内存和 512 GB 固态硬盘。A5 的售价为 399 美元,与竞争对手不相上下。同时,Geekom A5 没有其他规格,甚至没有裸机可供选择。
我们选择了与 A5 性能相当、价格相同的设备进行比较。我们在下表中汇总了这些竞争设备。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Best Price |
---|---|---|---|---|---|
81.2 % | 10/2023 | Geekom A5 R7 5800H, Vega 8 | 555 g | 49.2 mm | |
83.7 % | 05/2023 | Morefine M600, 6600U R5 6600U, Radeon 660M | 768 g | 40.6 mm | |
82.3 % | 05/2023 | Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs | 572 g | 45.6 mm | |
81.9 % | 05/2023 | Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs | 616 g | 55 mm | |
81.7 % | 05/2023 | Minisforum Venus Series UM560 XT R5 5600H, Vega 7 | 652 g | 48 mm | |
78 % | 10/2023 | Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs | 545 g | 54.3 mm | |
77.8 % | 09/2023 | Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H) | 765 g | 76 mm | |
73.8 % | 08/2023 | Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H) | 678 g | 75.5 mm |
配备 AMD Ryzen 7 5800H 的 Geekom A5 详细介绍
案例 - 熟悉的面孔!

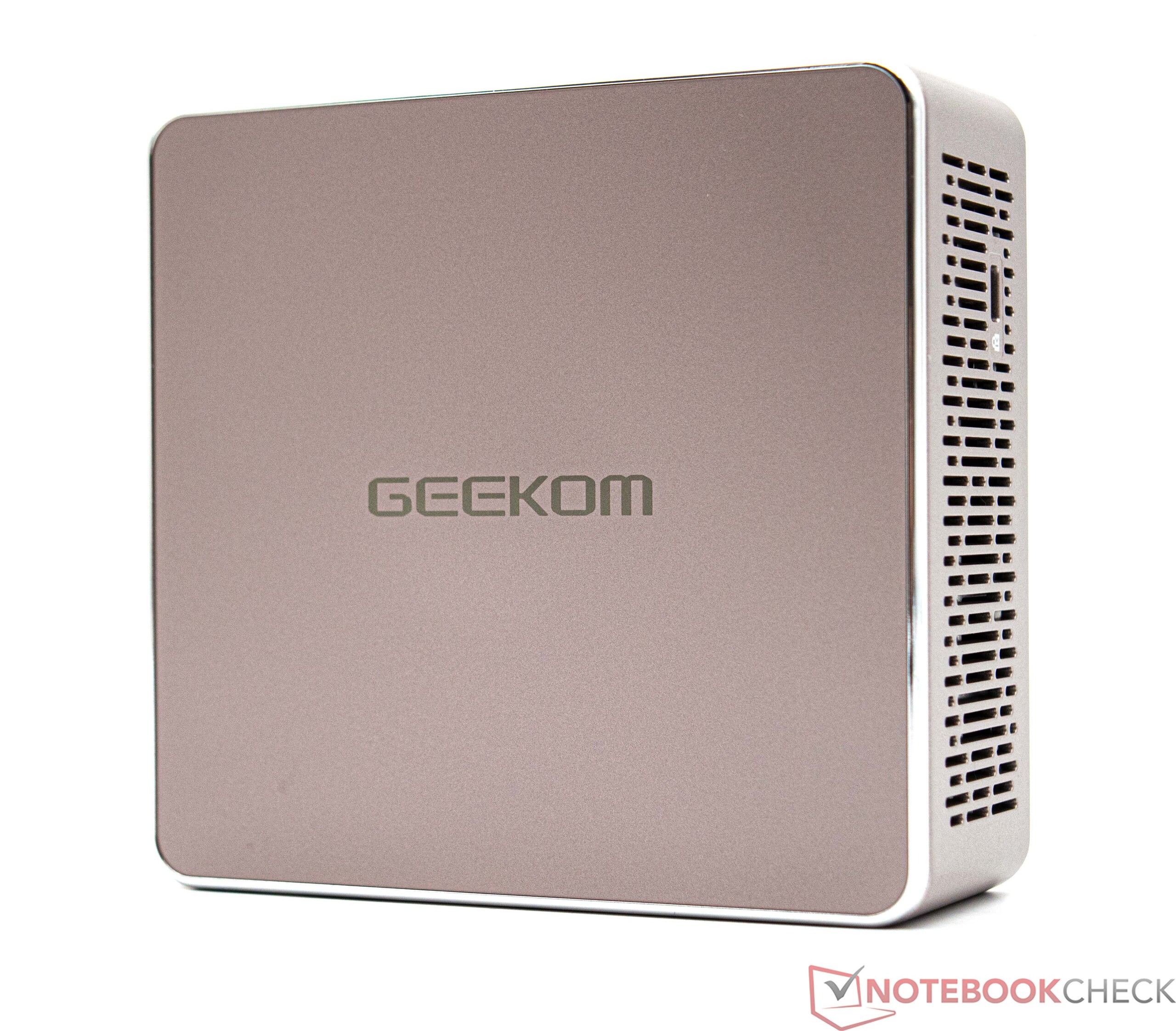

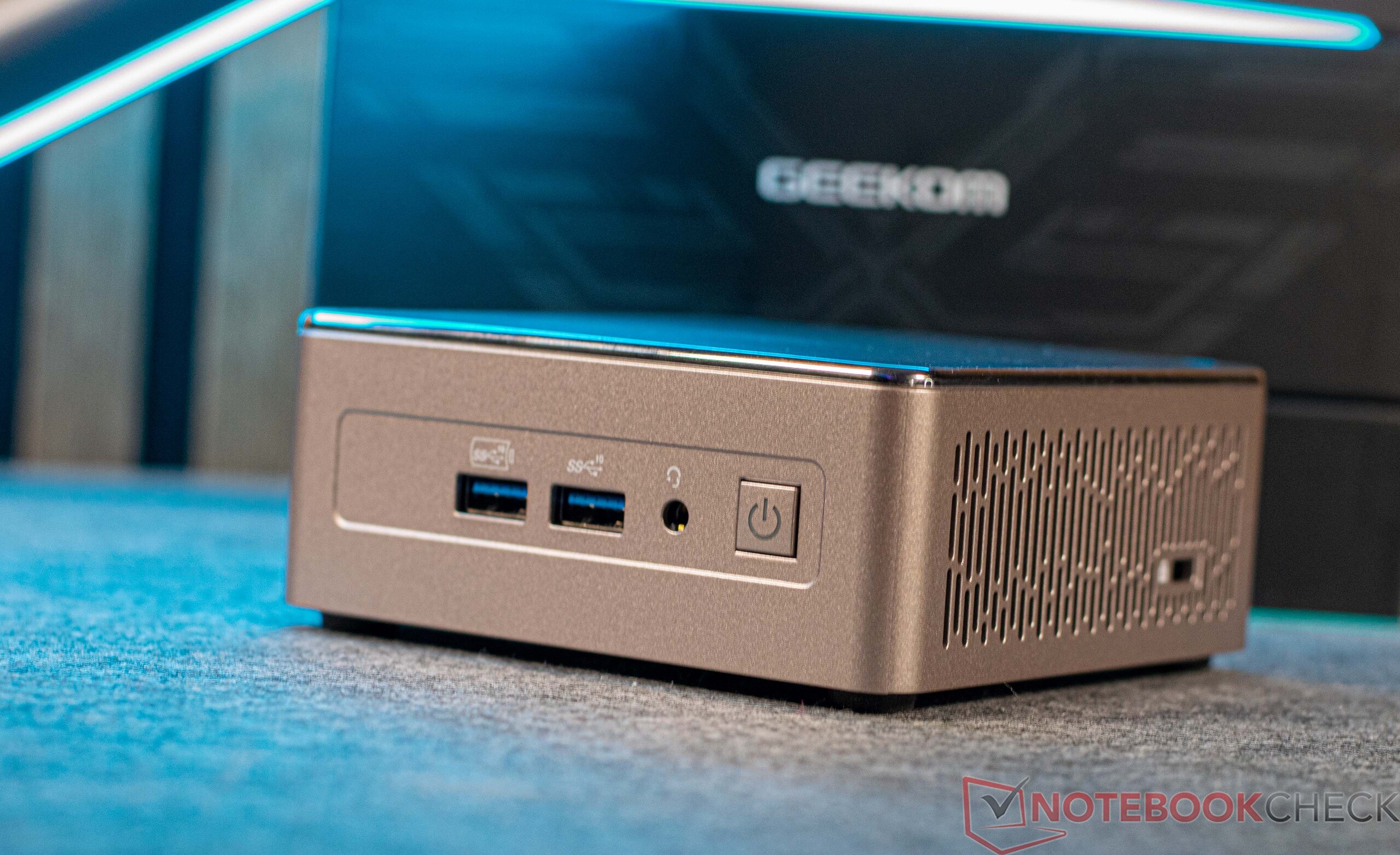

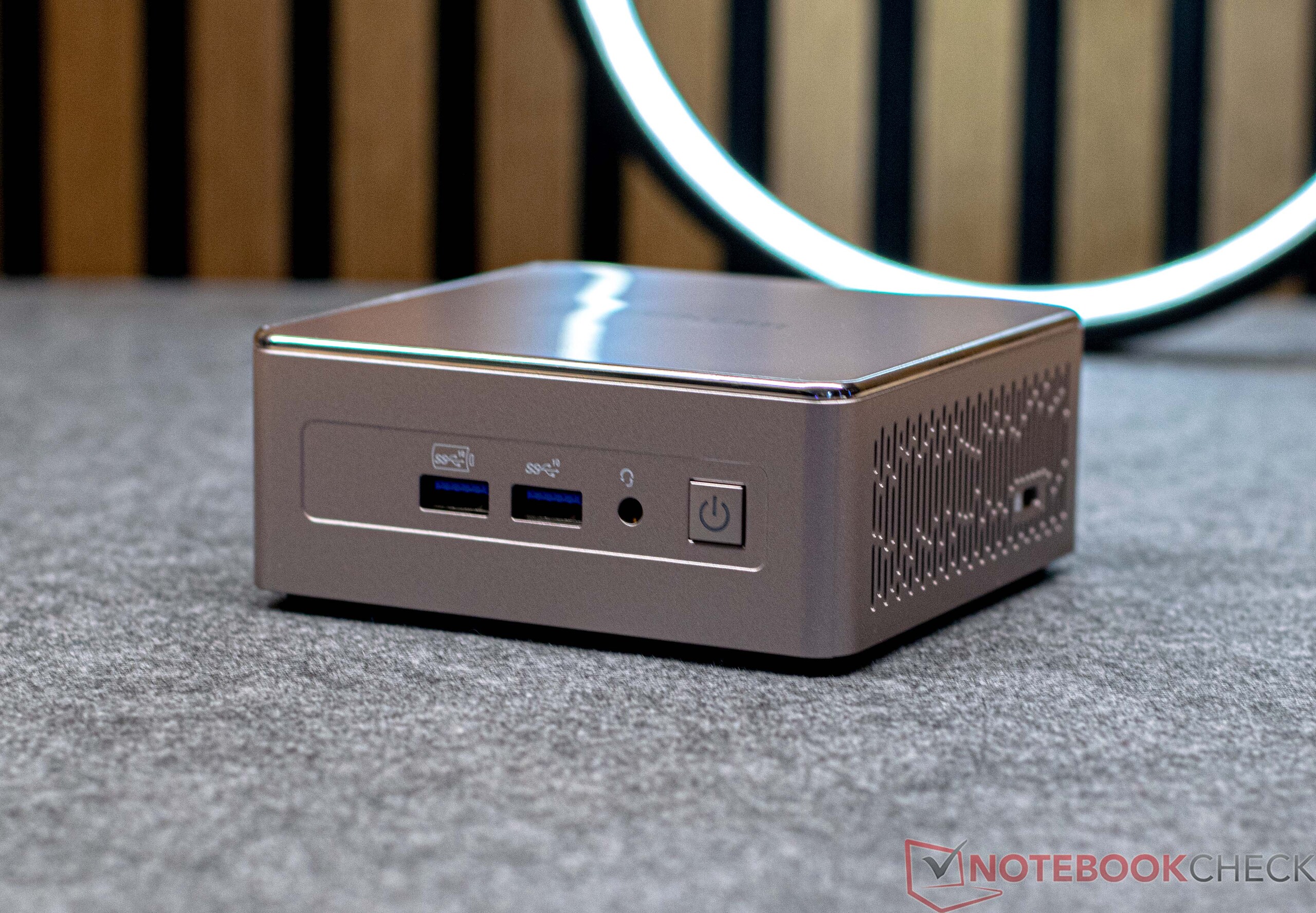

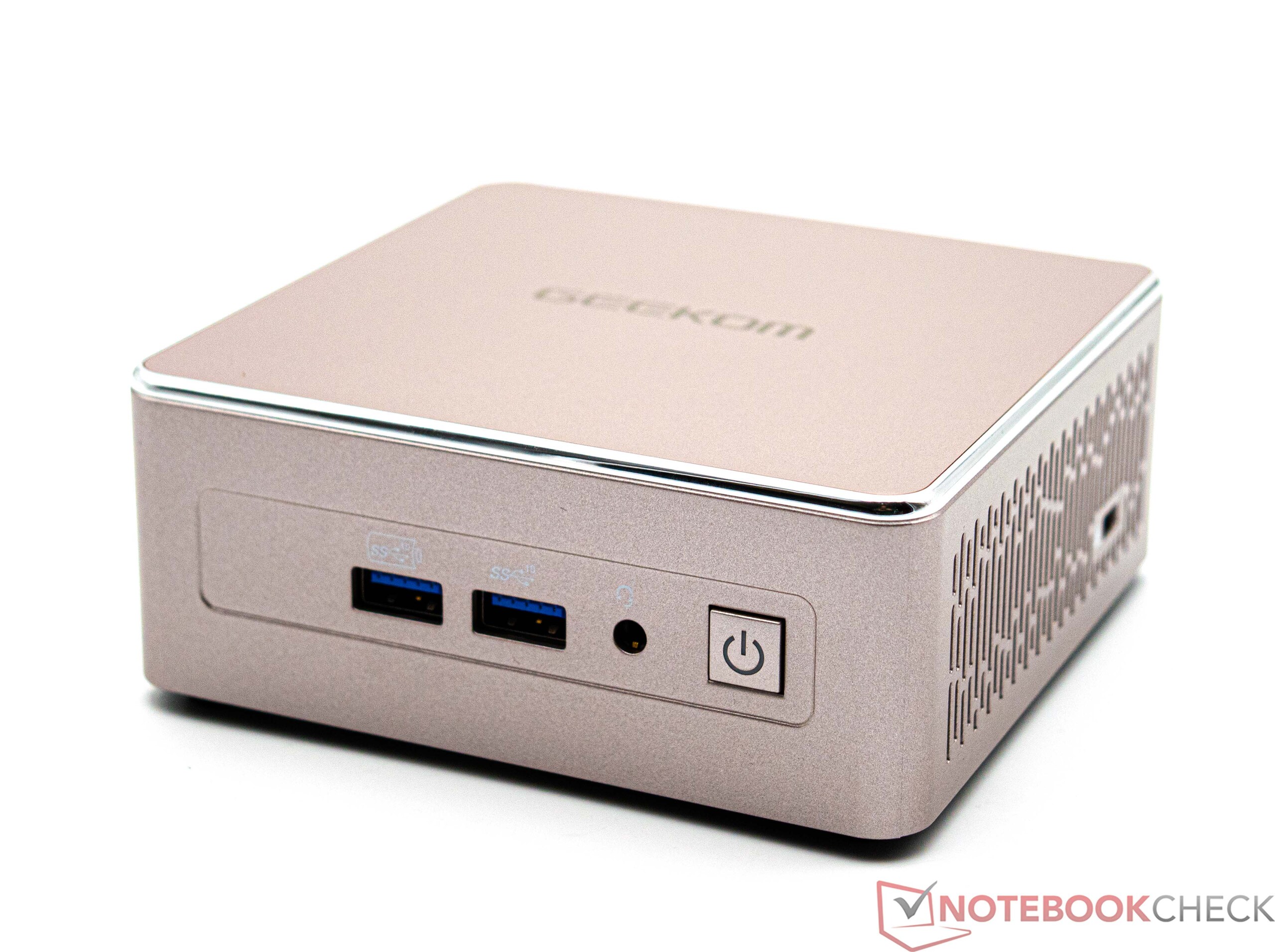

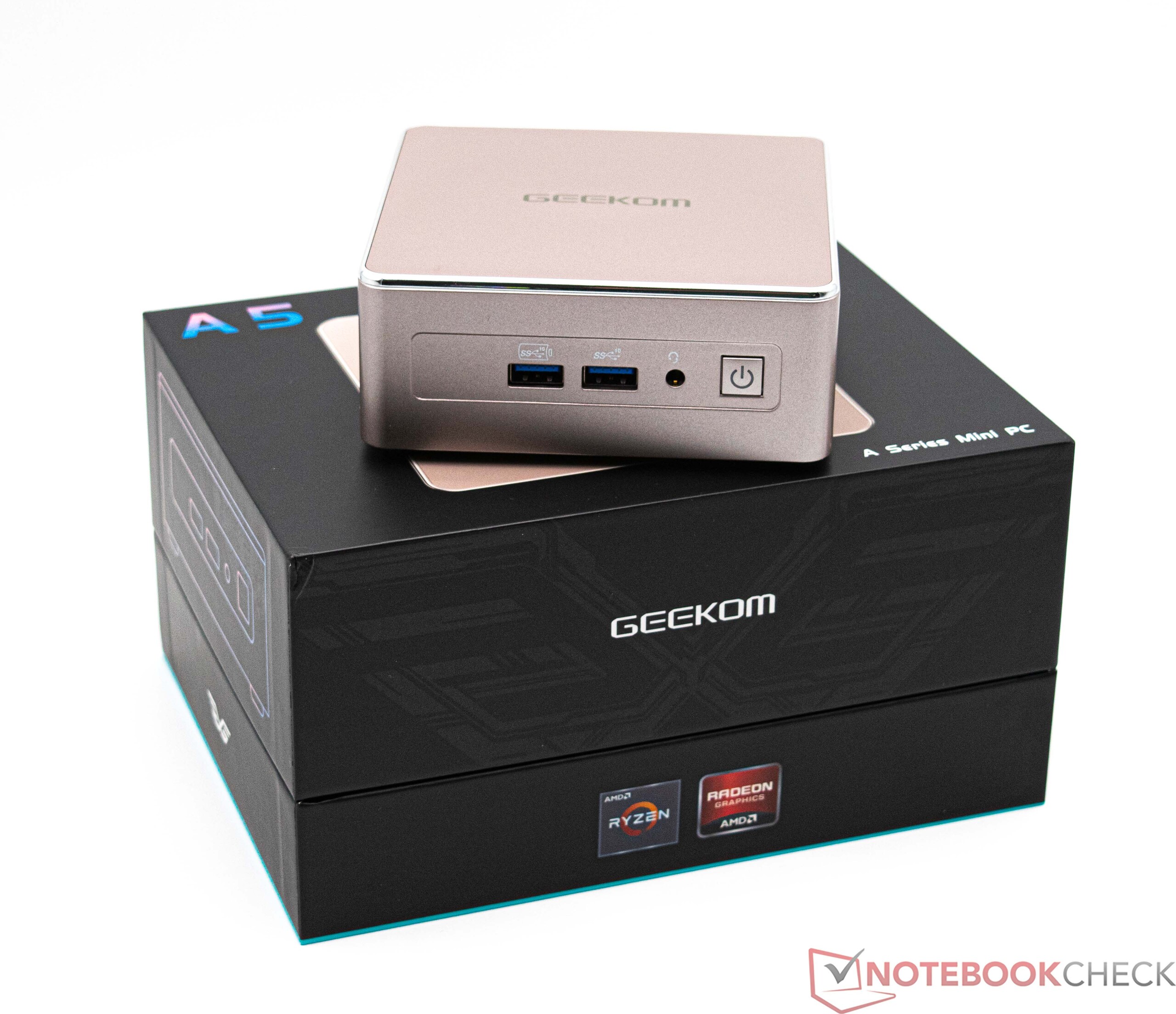

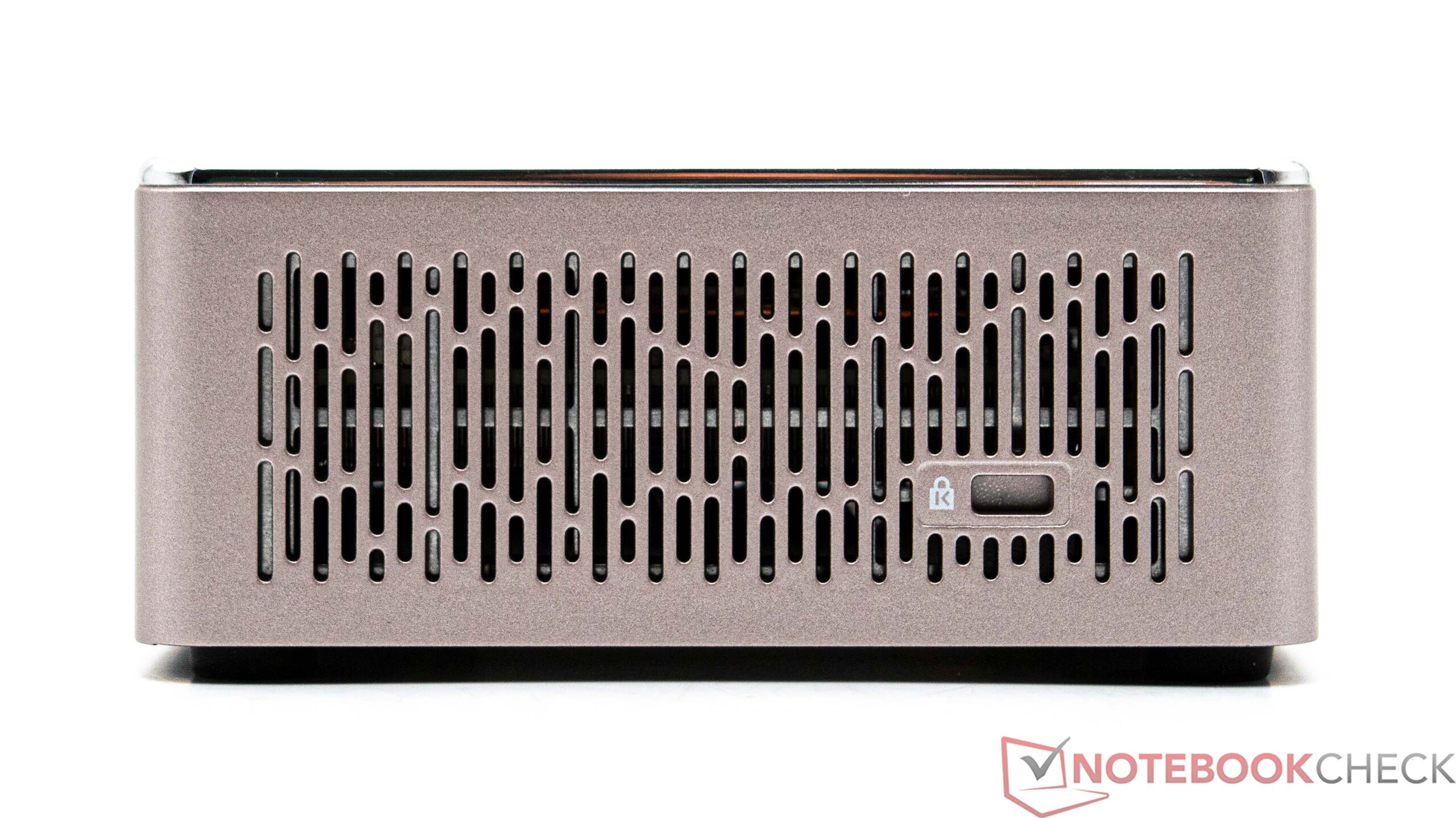

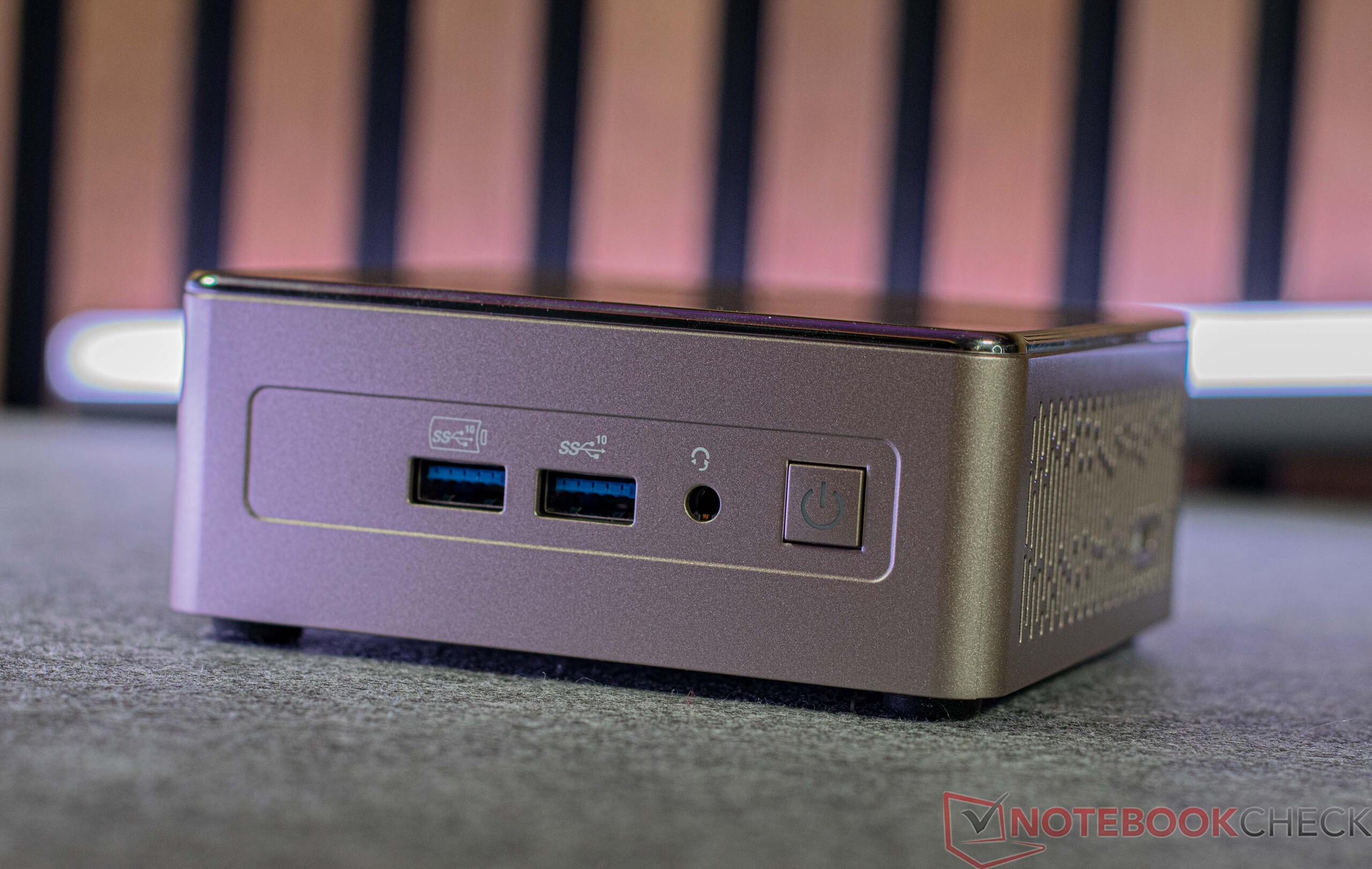

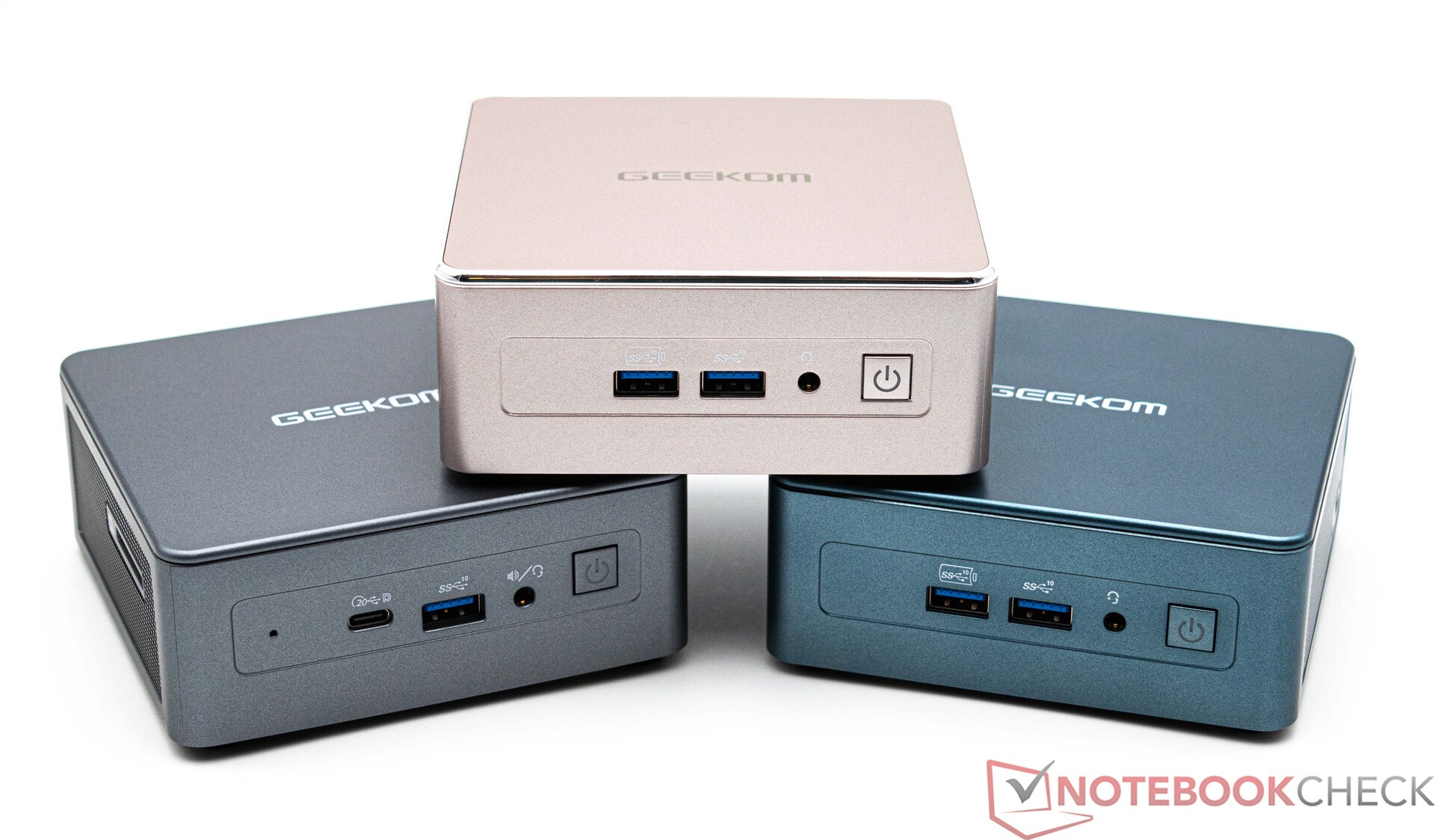

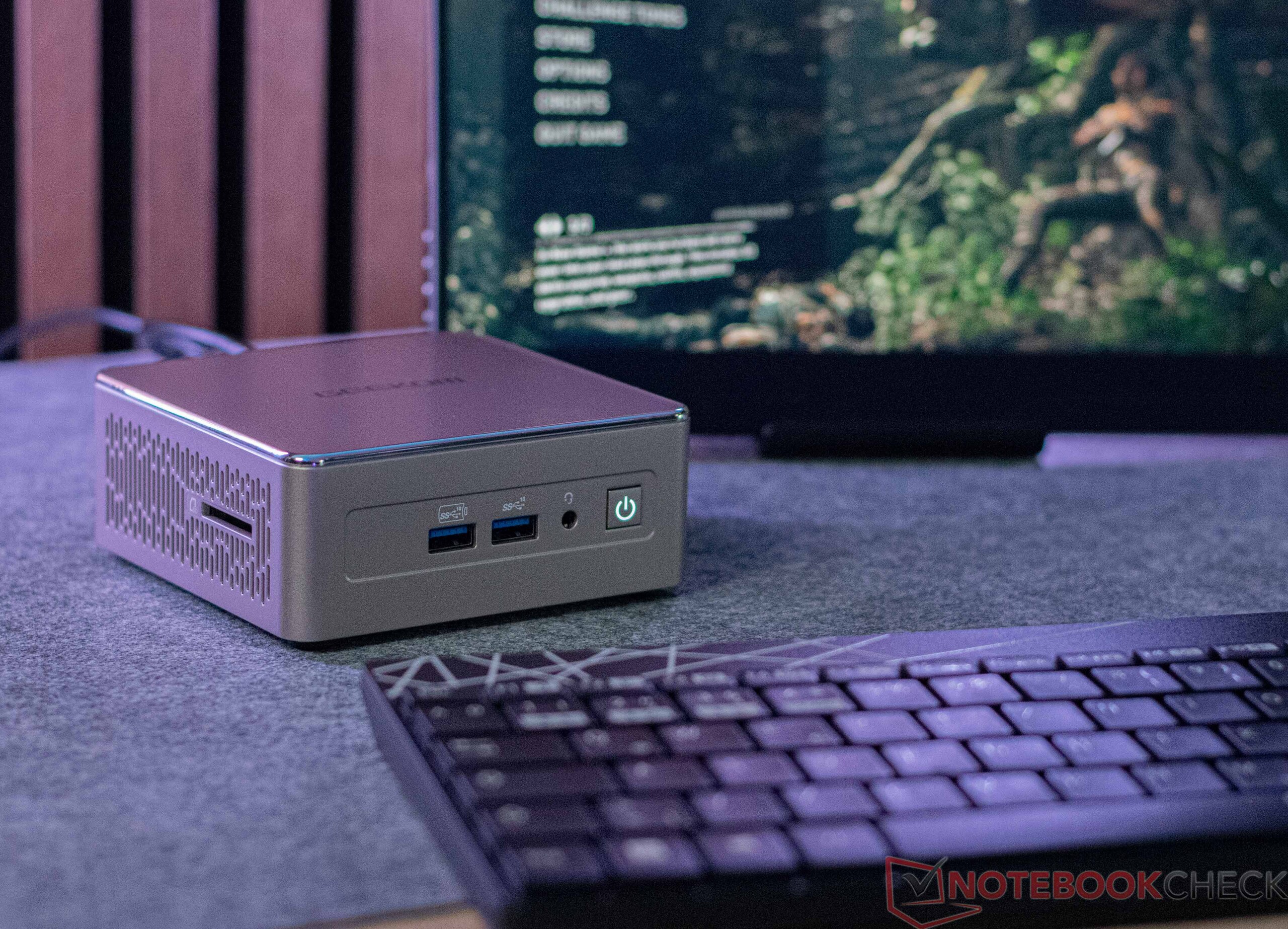

如果你快速浏览一下 Geekom A5,你会立刻觉得这款产品似曾相识。事实上,它与 GeekomIT11和IT12的相似之处,这一点在图片中可以清楚地看到。在空间需求方面,两者也没有区别,这也凸显了两者的相似之处。
在材料选择方面也没有变化:内部金属框架由塑料外壳包裹,使设备具有极佳的坚固性。在设计上,Geekom 另辟蹊径,为 A5 披上了玫瑰金色的外衣。也许不是每个人都喜欢这种颜色,但它肯定不同于单调的灰色或黑色。与白色的周边设备搭配,Geekom A5 的玫瑰金色与整体概念相得益彰。说到做工质量,A5 绝不逊色于IT11和 IT12.每个部件都配合得天衣无缝,没有明显的缝隙。唯一值得一提的批评意见是材料的选择,因为优质金属外壳可以将触觉反馈提升到更高水平。
顺便提一下,和许多其他迷你电脑一样,Geekom A5 也可以通过附带的 VESA 支架直接固定在显示器上。

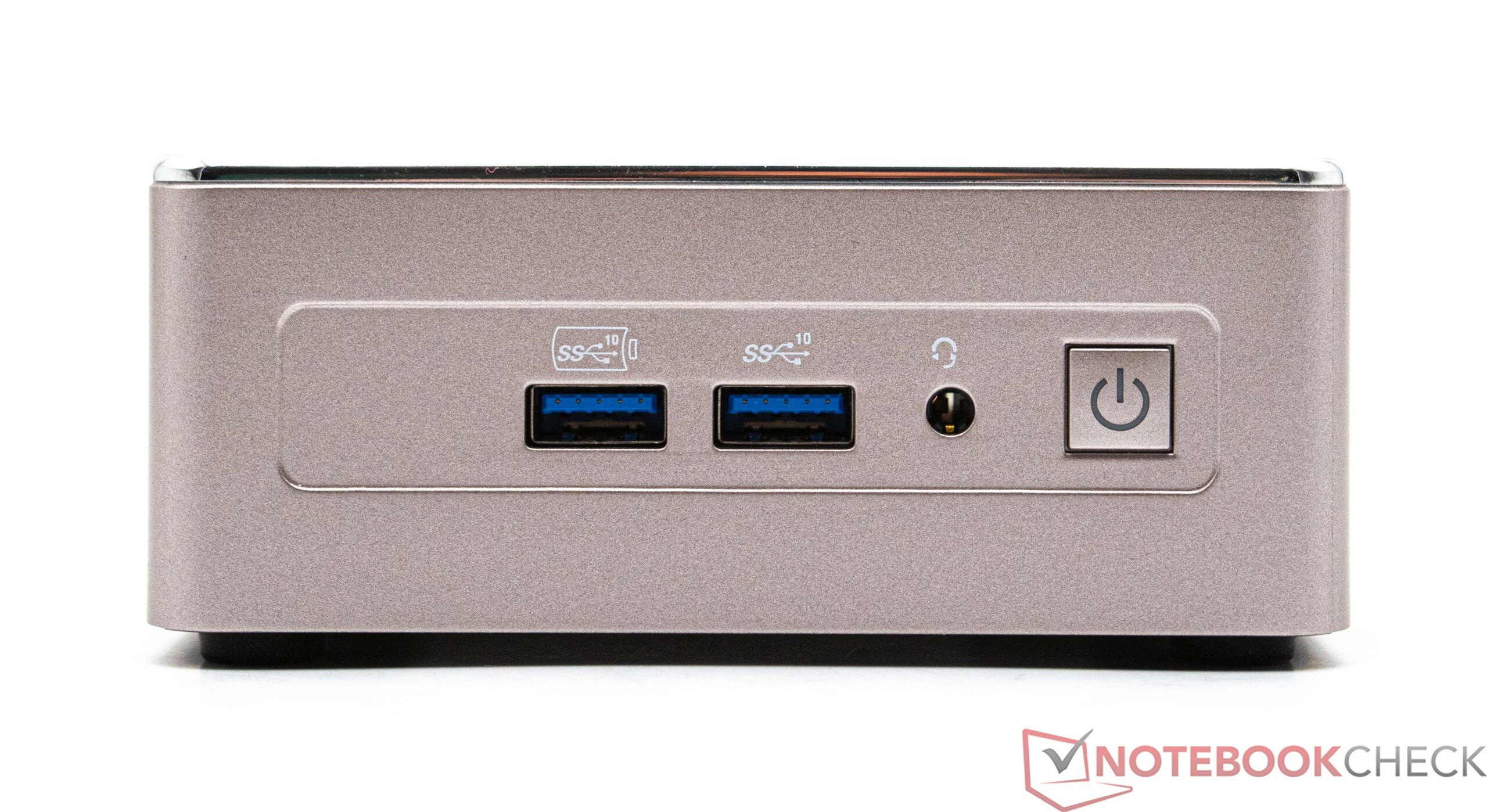

功能 - 没有 Thunderbolt

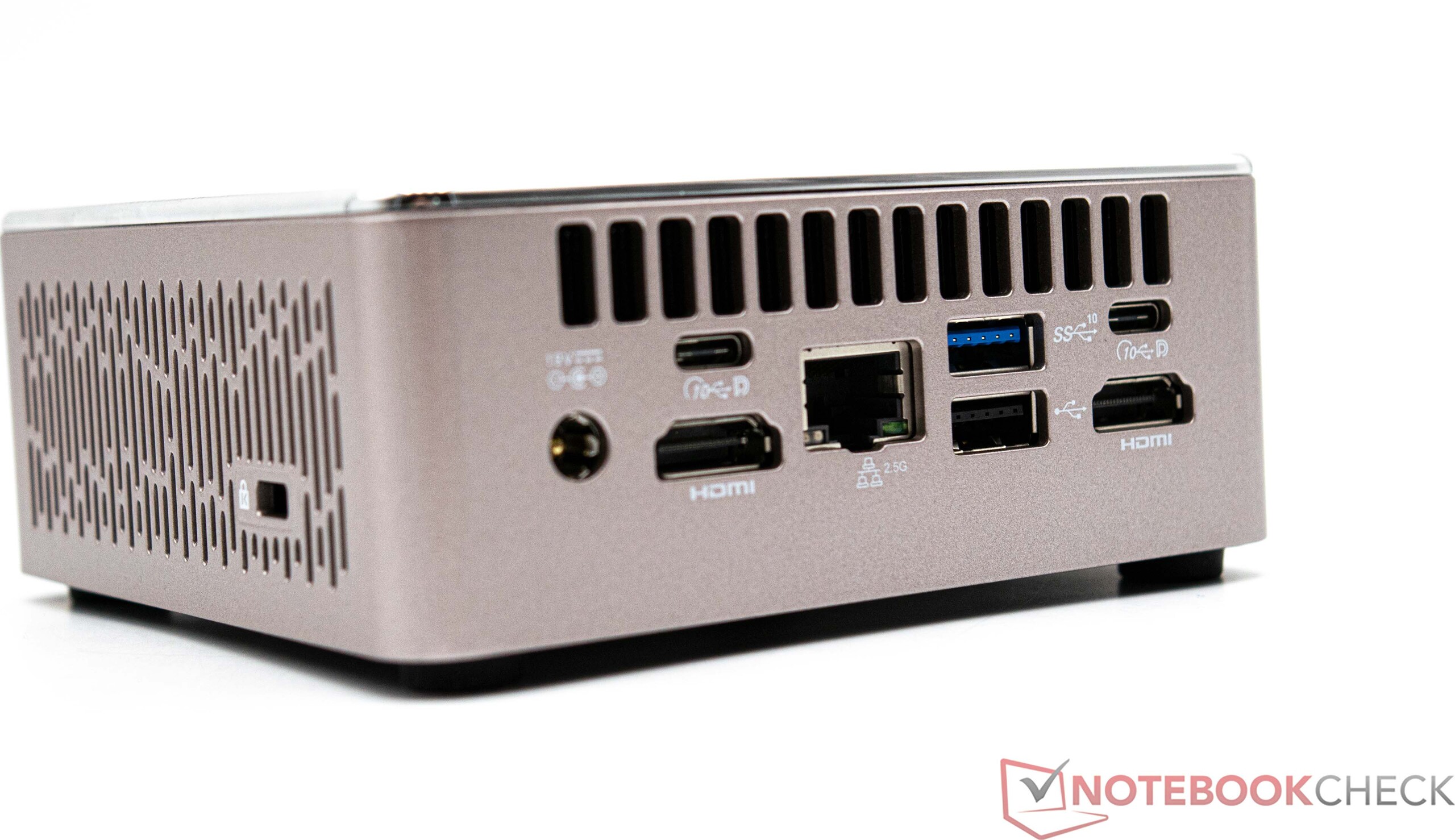

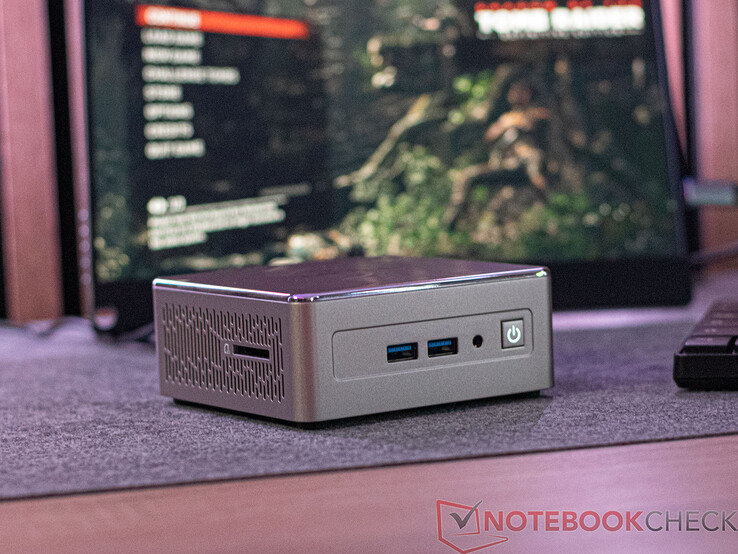

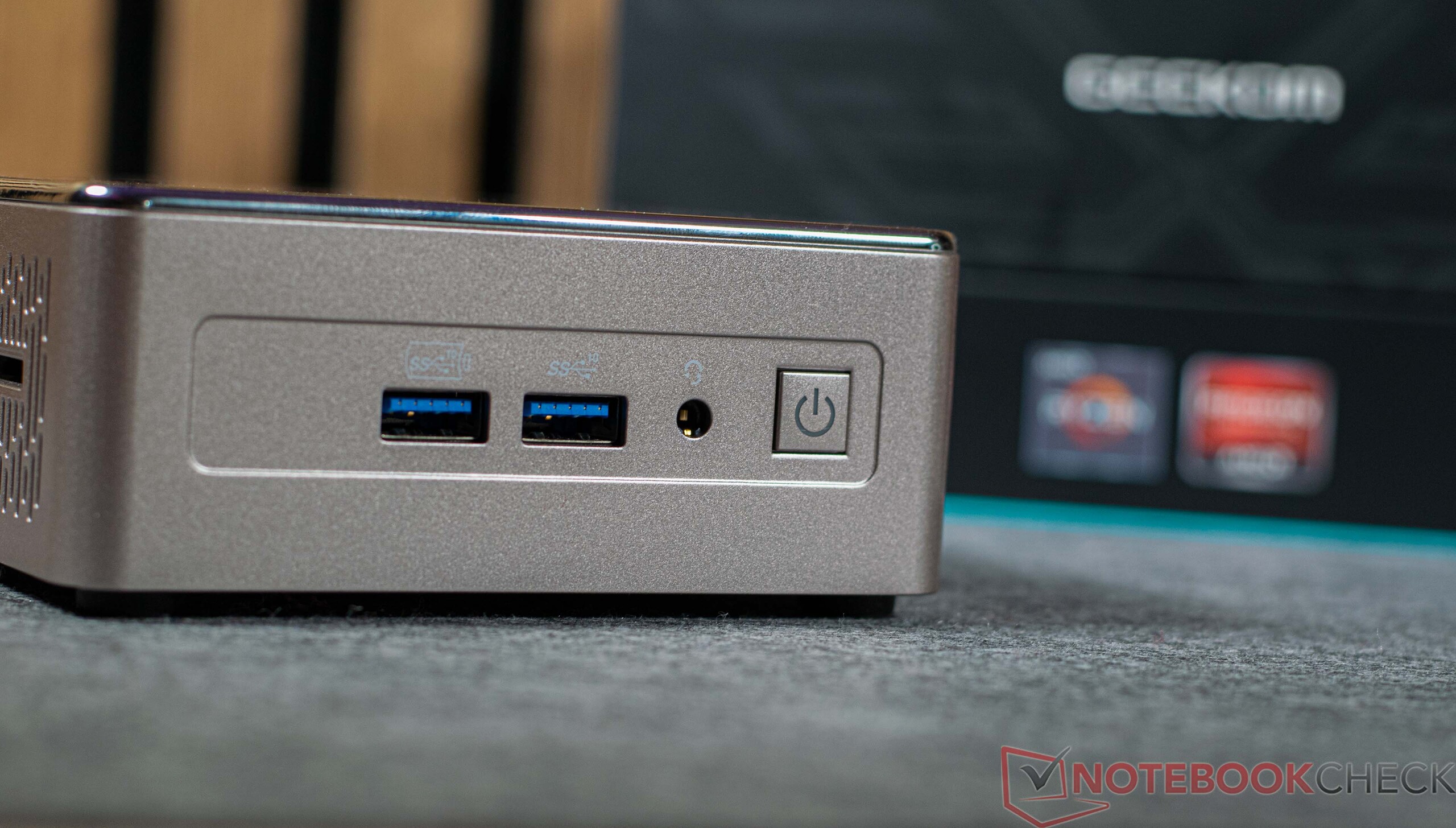

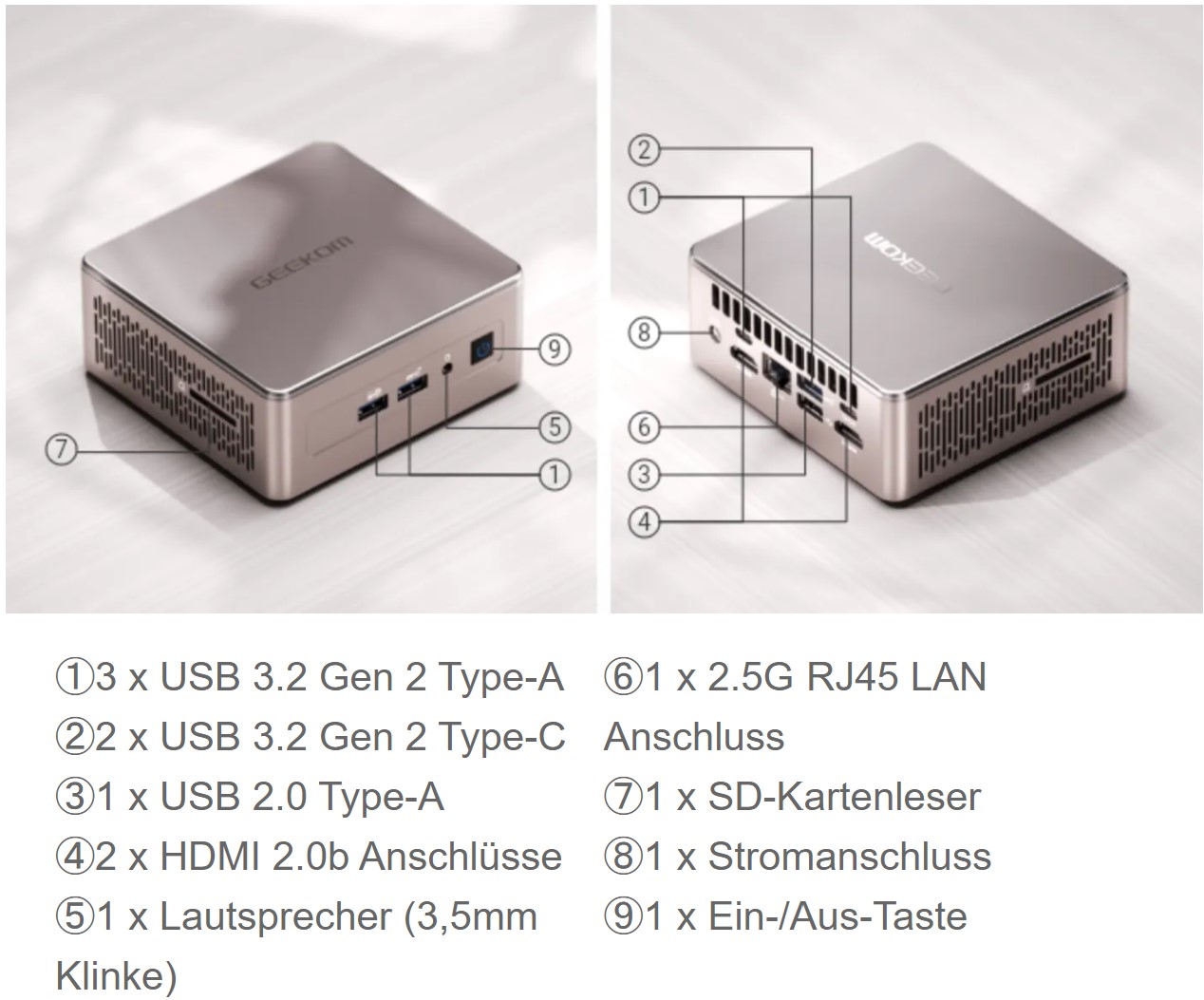

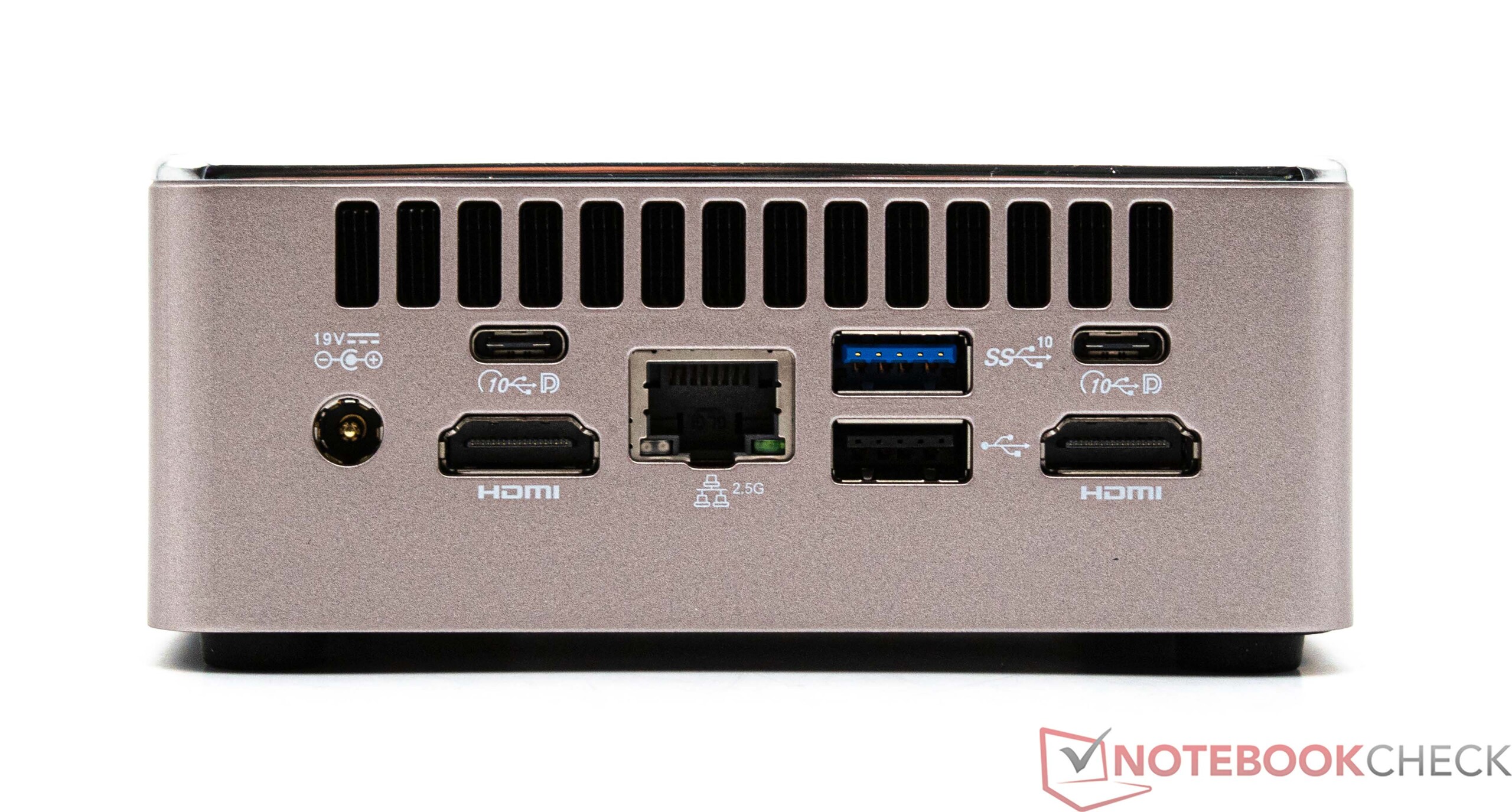

说到连接性,我们最初观察到的是该设备正面和背面的多种端口。总共有六个 USB 端口,其中两个是 Type-C 接口。不过,制造商没有提供 USB 4 Thunderbolt 接口。不过,两个 USB-C 端口中的一个可以直接控制显示器。此外,我们还不能忘记 2.5G 网络接口以及速度快、性能好的 UHS II SD 卡。
SD 读卡器

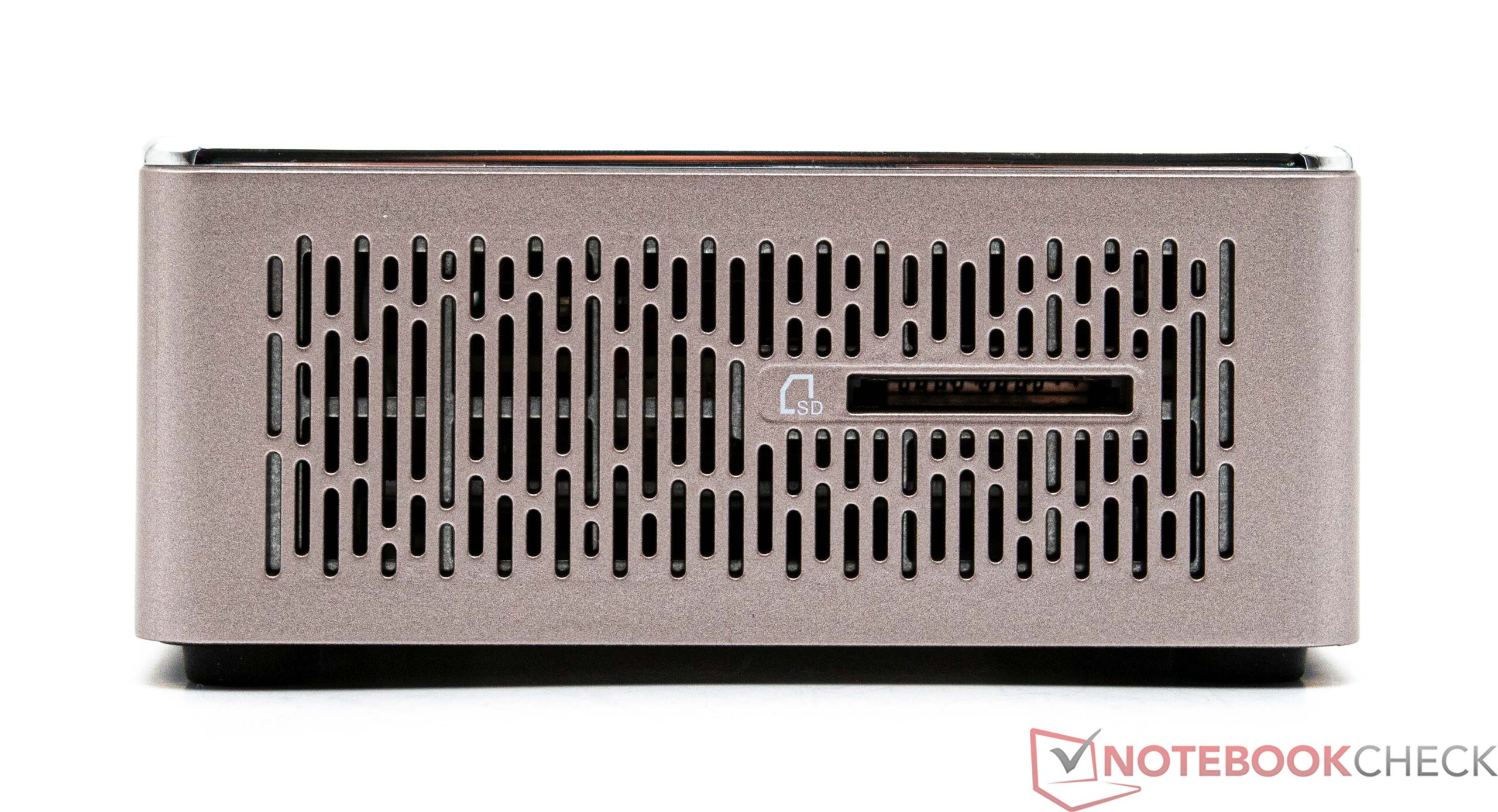

Geekom 为 A5 配备了 SD 读卡器,与我们的(Angelbird AV Pro V60)参考卡搭配使用时效果极佳。由于采用了 UHS II 接口,该读卡器还适用于传输大量数据。
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Geekom A5 (AV Pro SD microSD 128 GB V60) | |
Geekom Mini IT11, i7-11390H (AV Pro SD microSD 128 GB V60) | |
Intel Beast Canyon NUC (AV Pro SD microSD 128 GB V60) | |
Intel Dragon Canyon NUC | |
Average of class Mini PC (16.9 - 181.8, n=17, last 2 years) | |
Zotac ZBOX Magnus EN173070C (AV Pro SD microSD 128 GB V60) | |
Geekom MiniAir 11 Special Edition (AV Pro SD microSD 128 GB V60) | |
maximum AS SSD Seq Read Test (1GB) | |
Intel Beast Canyon NUC (AV Pro SD microSD 128 GB V60) | |
Intel Dragon Canyon NUC | |
Geekom A5 (AV Pro SD microSD 128 GB V60) | |
Geekom Mini IT11, i7-11390H (AV Pro SD microSD 128 GB V60) | |
Average of class Mini PC (18.2 - 200, n=17, last 2 years) | |
Zotac ZBOX Magnus EN173070C (AV Pro SD microSD 128 GB V60) | |
Geekom MiniAir 11 Special Edition (AV Pro SD microSD 128 GB V60) |
交流
Geekom A5 中的无线电模块是来自 Realtek 的 Wi-Fi 6 型号。不过,由于 Wi-Fi 模块在 2.4 或 5 GHz 频段工作,该设备缺乏现代的 6 GHz 无线电连接。尽管如此,该设备在收发数据时的传输速度还是不错的,在目前的对比中处于领先地位。无线电模块还支持蓝牙连接(5.2),这意味着可以无线连接耳机或鼠标。 在本次测试中,我们使用了华硕 ROG Rapture GT-AXE11000 测试路由器。

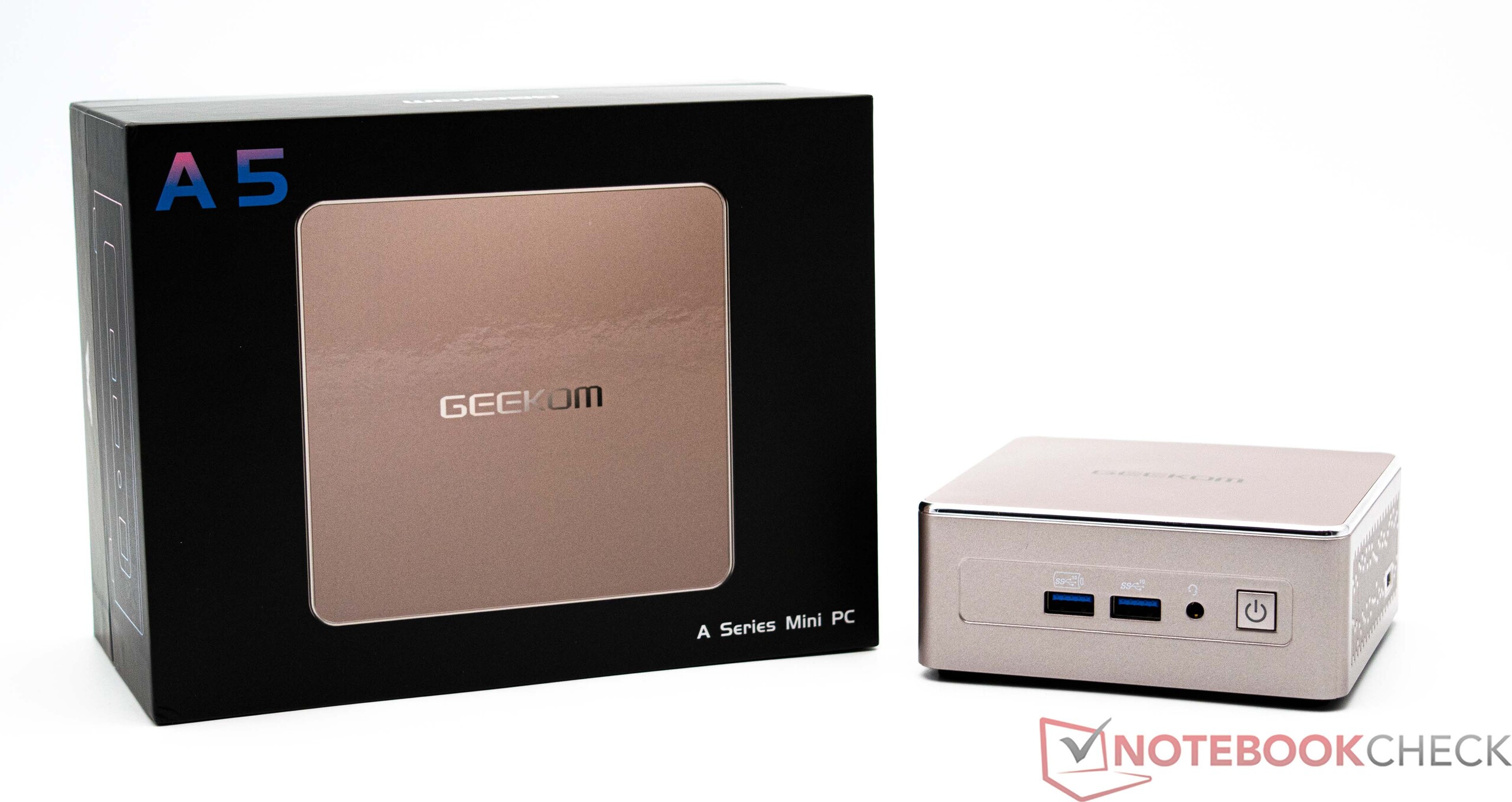

配件

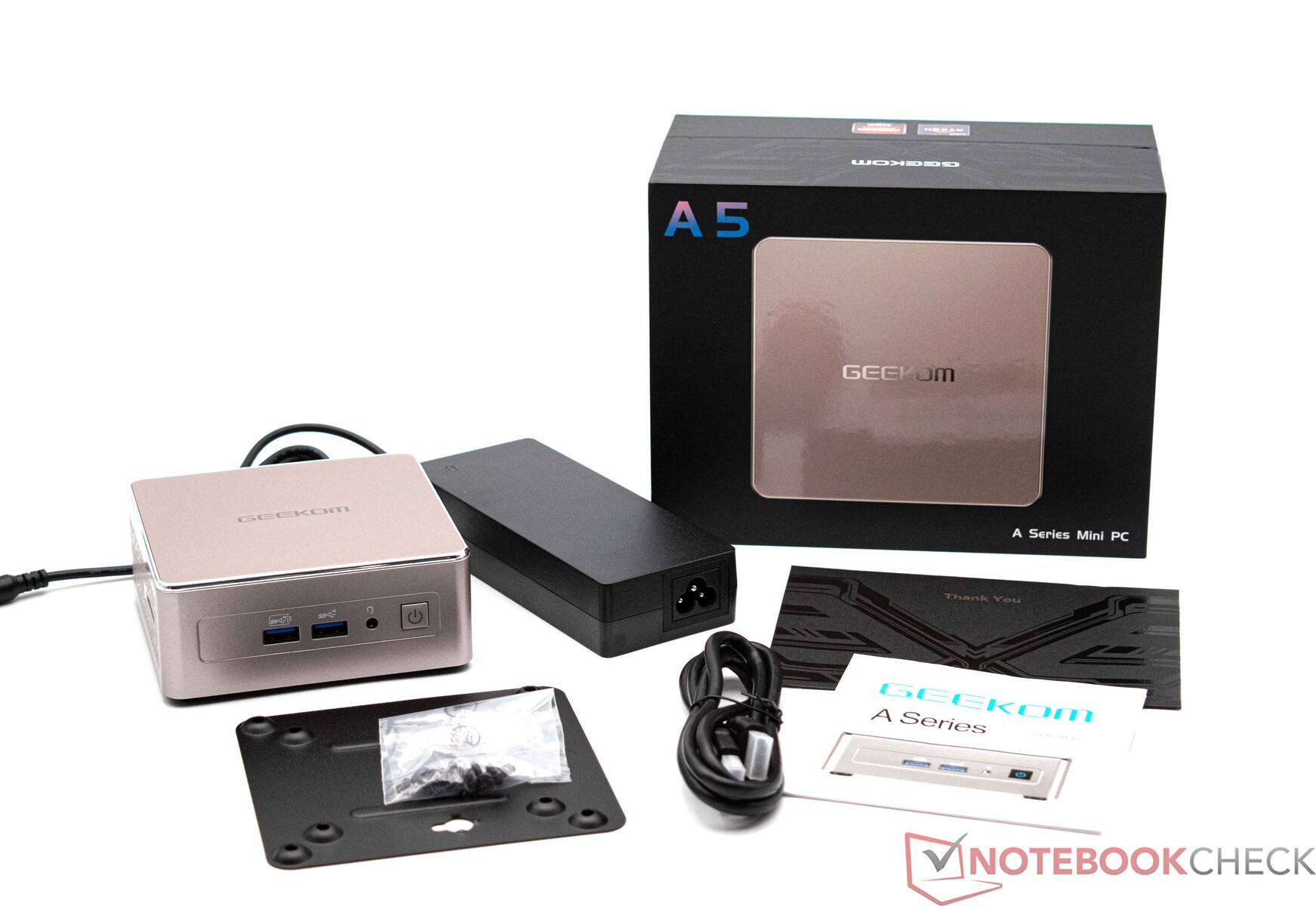

附件种类繁多,所有必需品都能帮助设备正常运行。除了设备本身,还有一个 120 瓦的 PSU 和一个用于 VESA 安装的安装板。包装盒内还包括一根 HDMI 线、一份快速指南和一张感谢卡。

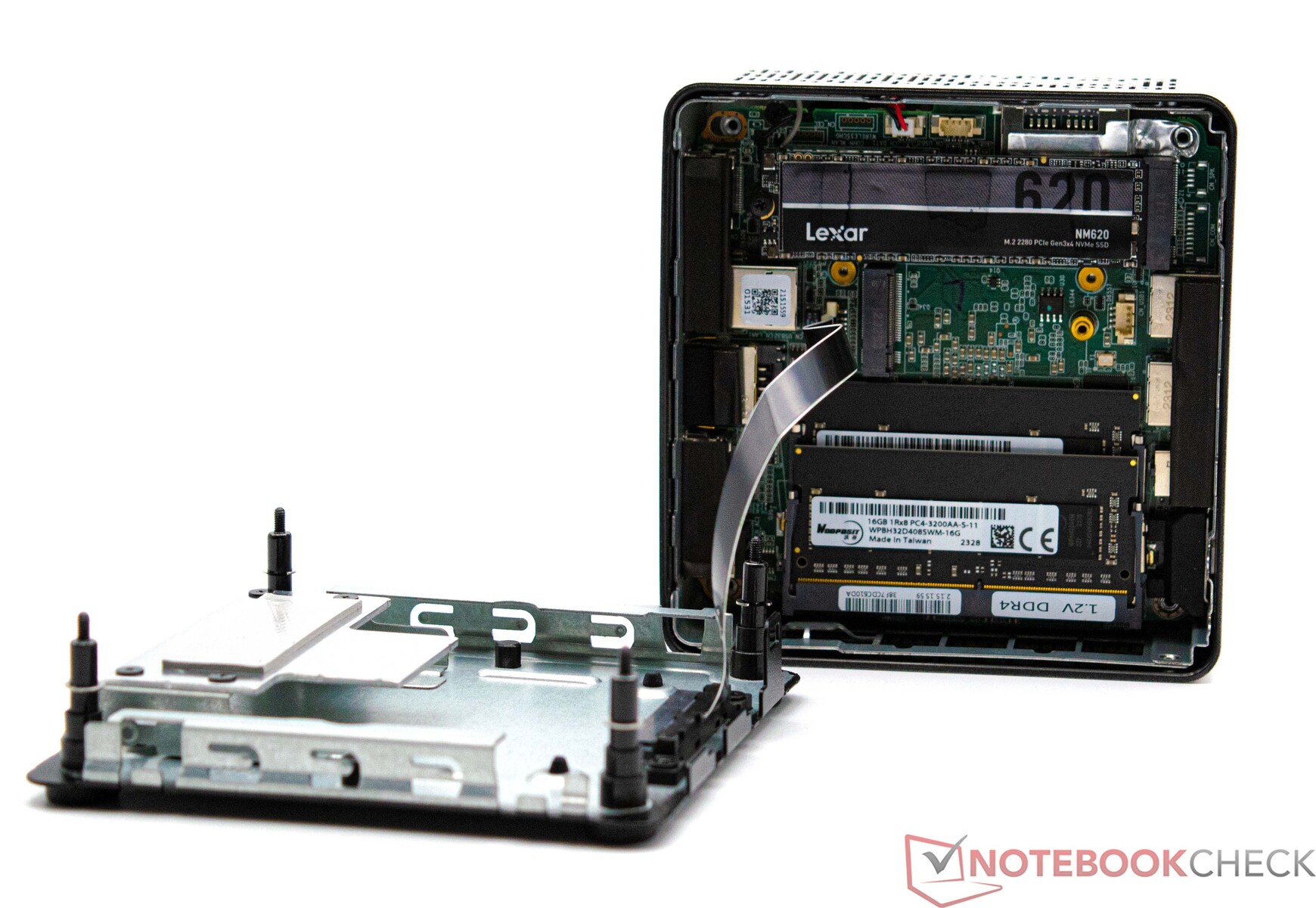

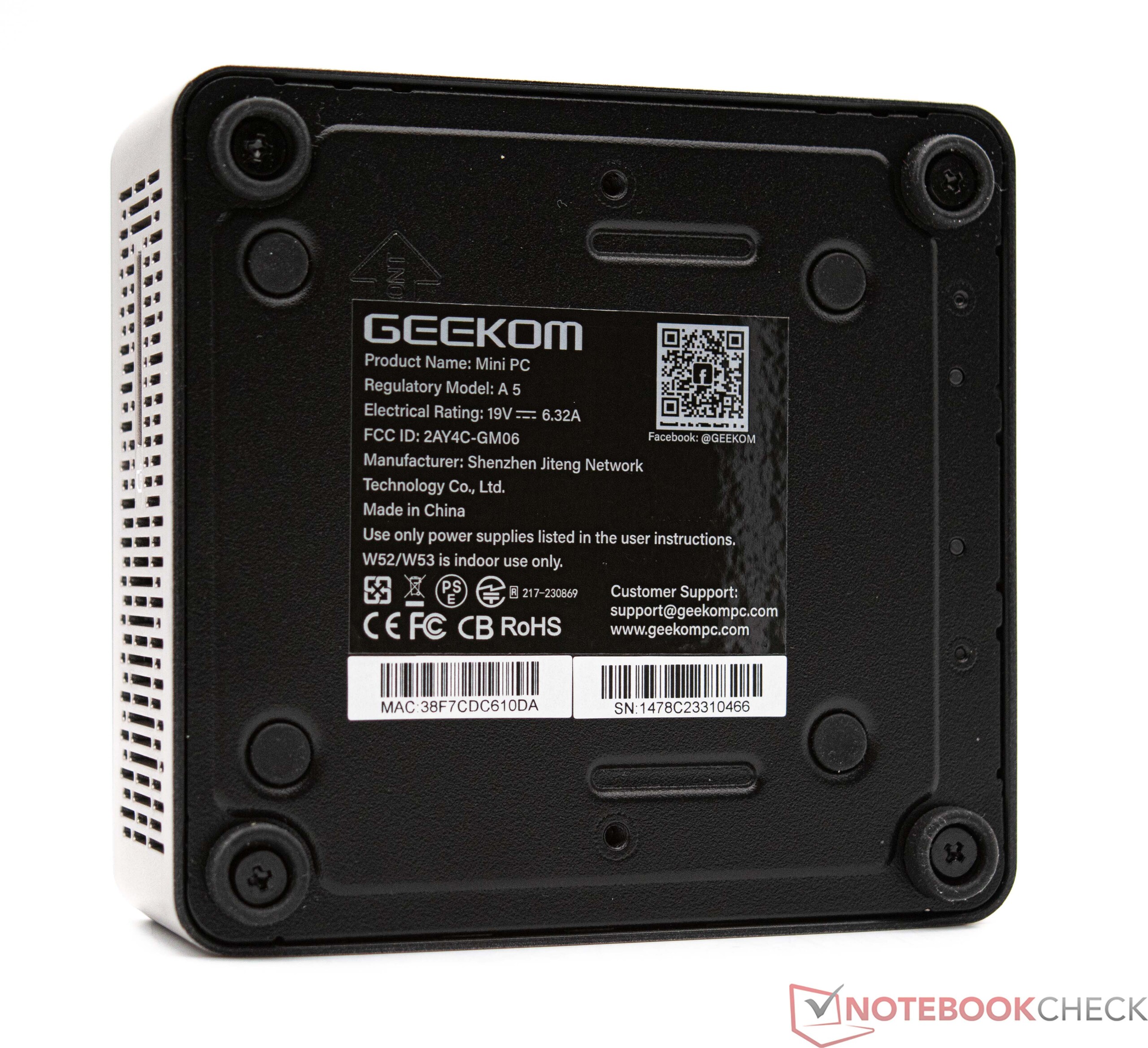

维护
性能 - AMD Ryzen 7 5800H,配备 8 个 Zen 3 内核和 16 个线程

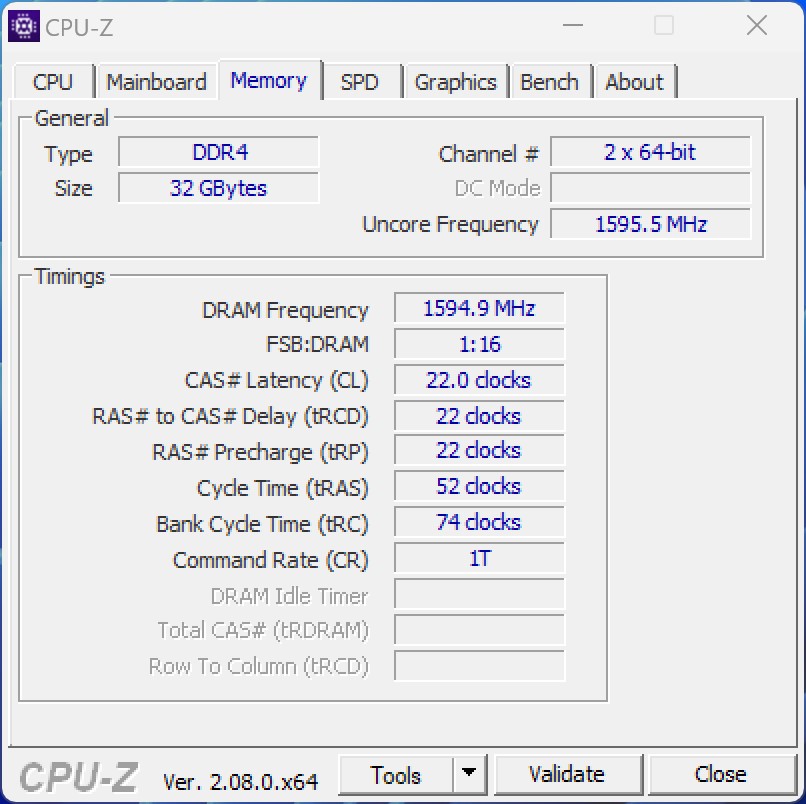

使用AMD Ryzen 7 5800H尽管 Geekom A5 已不再是最新机型之一,但它仍拥有出色的 SoC。凭借 8 个 Zen-3 核心,A5 没有理由躲躲藏藏,因为我们的测试显示其多核性能良好。Geekom A5 的 32GB RAM 和 512GB SSD 还能轻松应对内存密集型应用。
测试条件
我们使用均衡
能源配置文件进行了所有性能测试。我们没有改变 SoC 的性能,并按照出厂设置保留了 BIOS 配置。

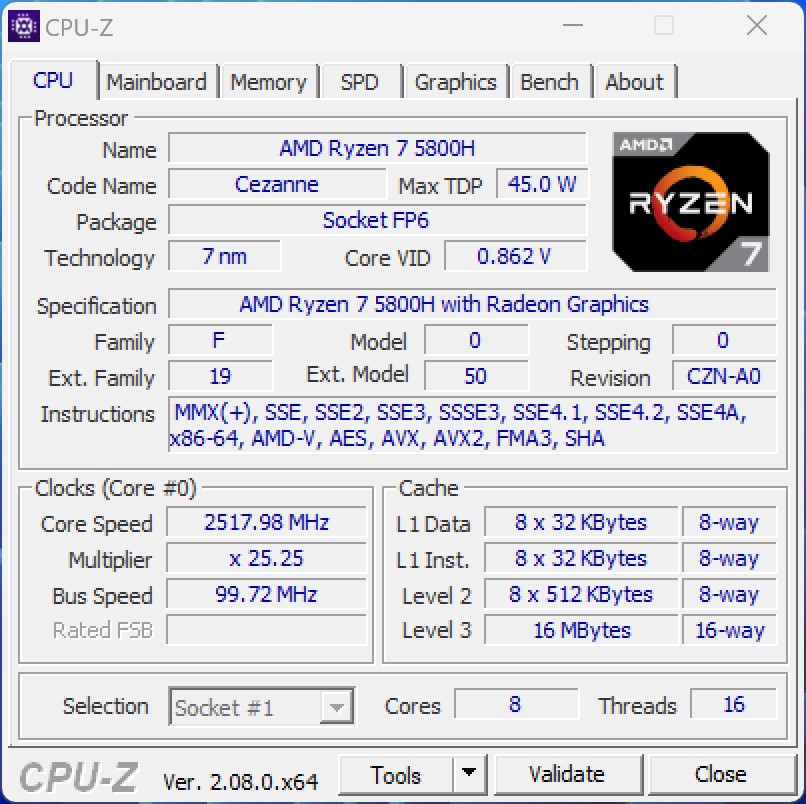

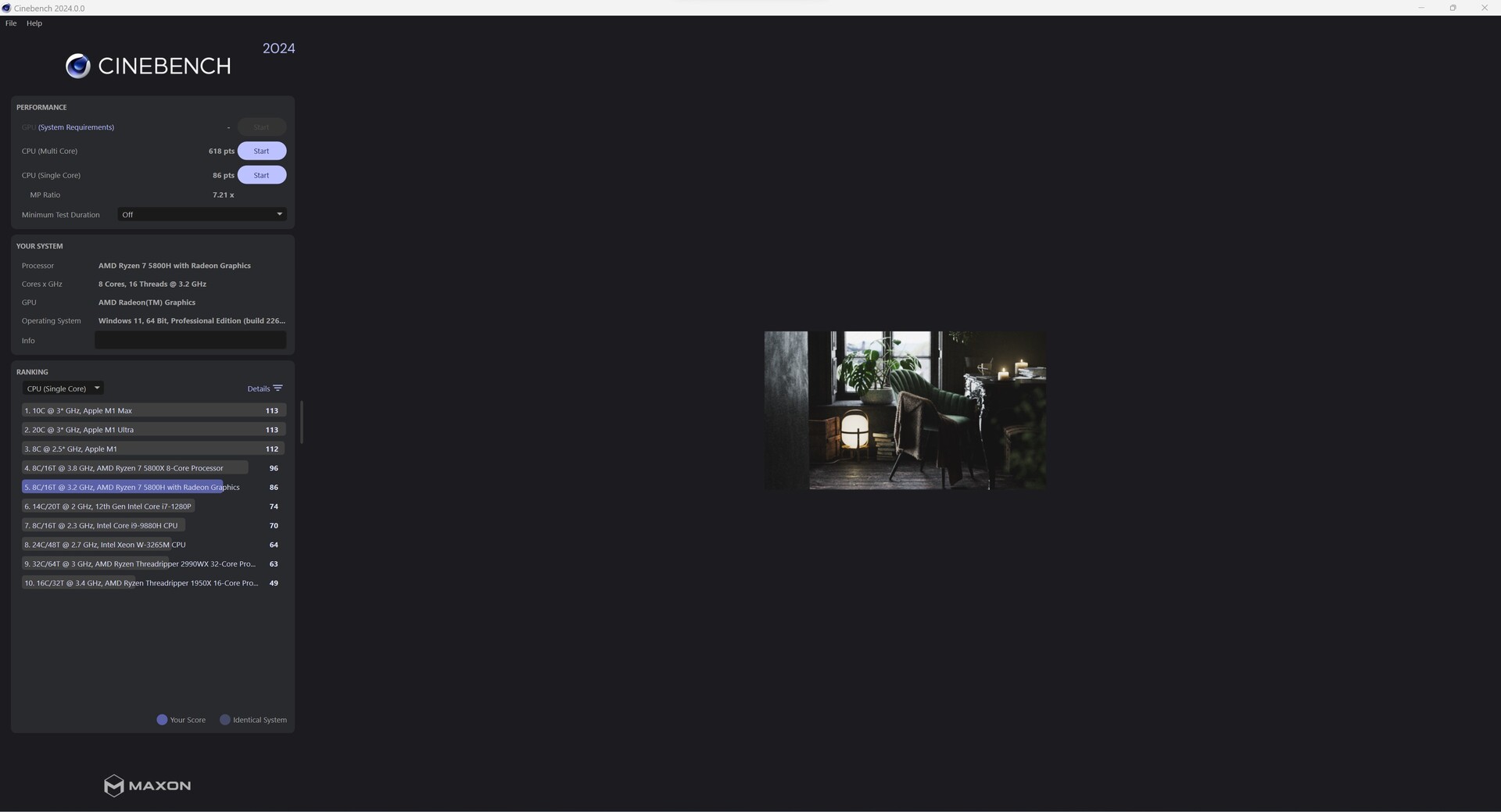

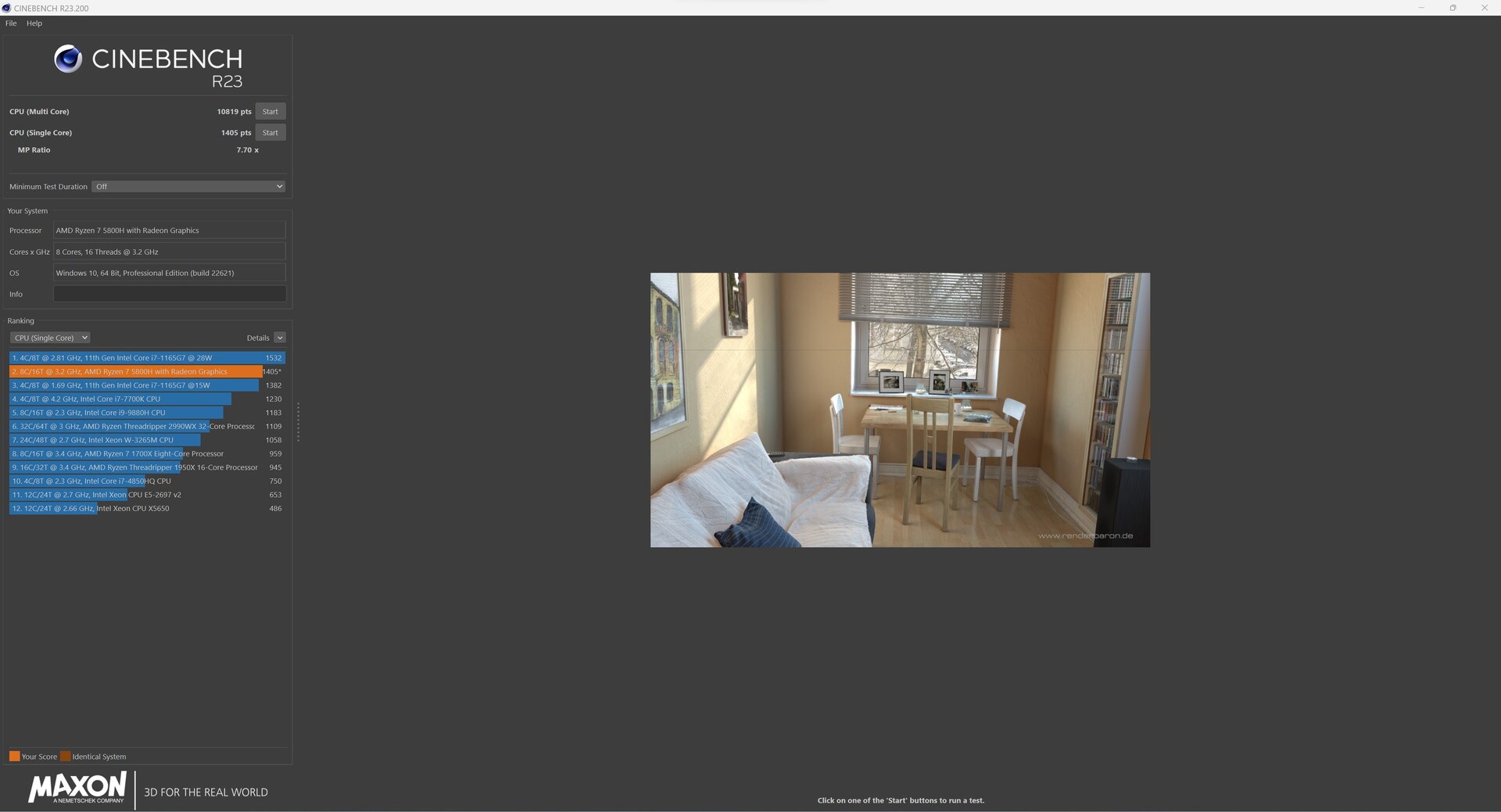

处理器

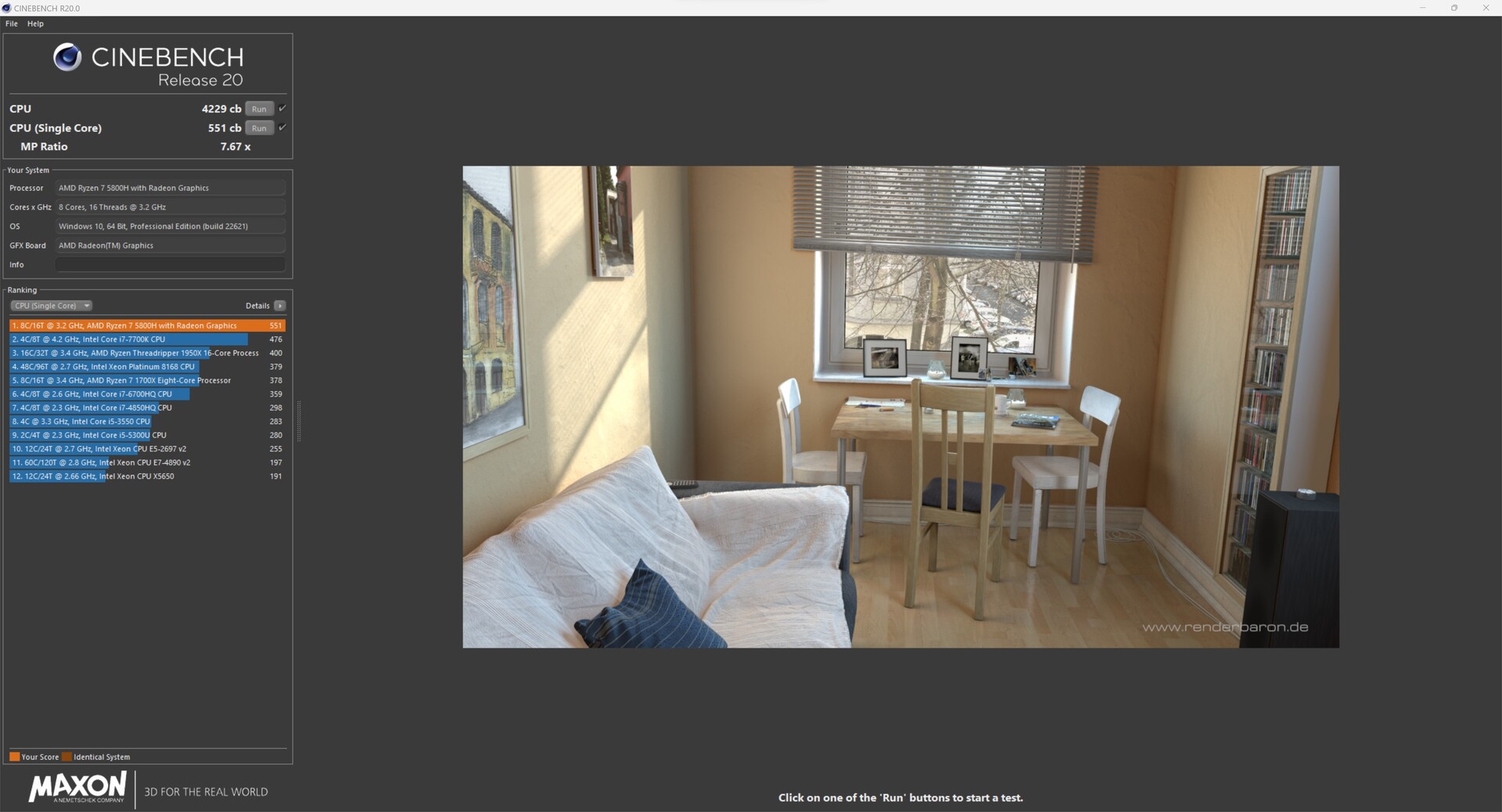

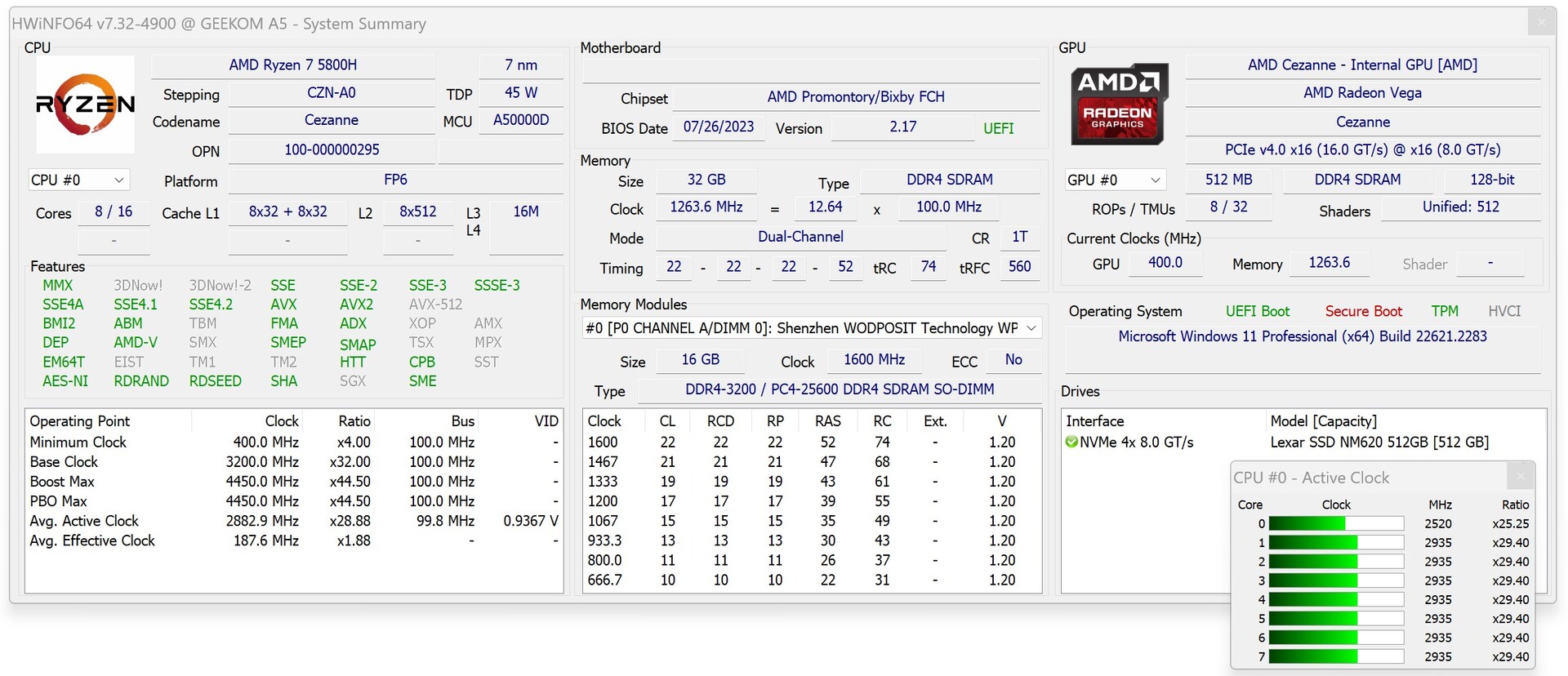

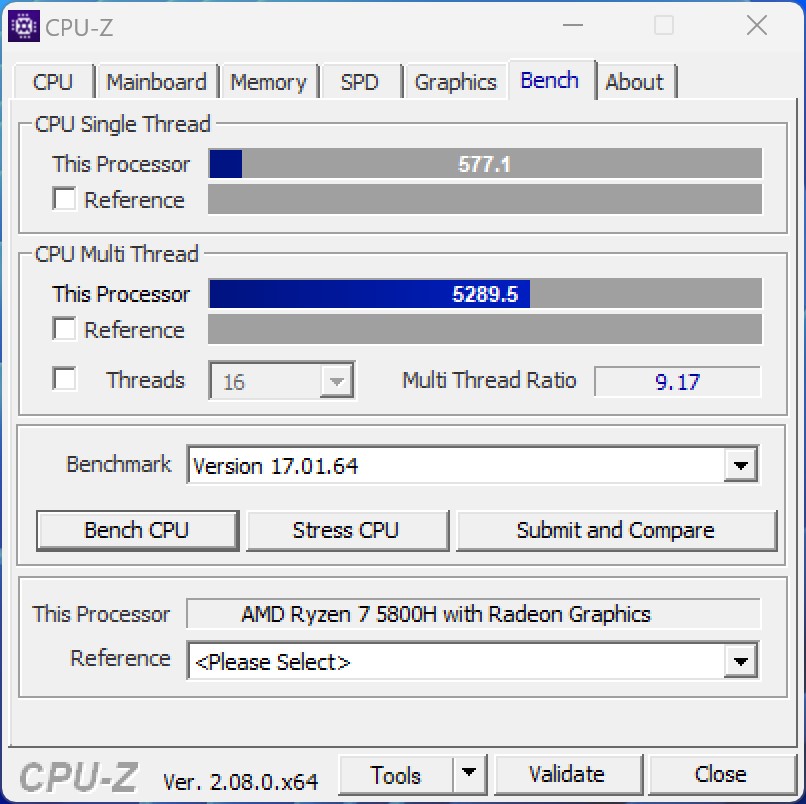

Geekom A5 配备了 AMD Ryzen 7 5800H。该 SoC 提供 8 个核心和 16 个线程,有助于实现良好的多线程性能。直接的性能对比显示,Geekom A5 与 Geekom Mini IT12 不相上下。不过,在单项性能方面,AMD Ryzen 7 5800H 在单核心性能上有一定的劣势。不过,就性能评级而言,它仍足以获得第三名,但 Geekom A5 却被以下产品甩在了后面 Minisforum 金星系列 NAB6.使用基于英特尔酷睿 i7-12650H 处理器的迷你 PC,性能可望提高约 10%。
有关更多比较和基准测试,请参阅我们的 CPU 对比表.
Performance Rating - Percent | |
Minisforum Venus Series NAB6 | |
Geekom Mini IT12 | |
Acemagic AD15 | |
Geekom A5 | |
Minisforum Venus Series UN1245 | |
Morefine M600, 6600U | |
Minisforum Venus Series UM560 XT | |
Blackview MP200 |
Blender - v2.79 BMW27 CPU | |
Morefine M600, 6600U | |
Blackview MP200 | |
Minisforum Venus Series UN1245 | |
Minisforum Venus Series UM560 XT | |
Acemagic AD15 | |
Geekom A5 | |
Minisforum Venus Series NAB6 | |
Geekom Mini IT12 |
R Benchmark 2.5 - Overall mean | |
Blackview MP200 | |
Acemagic AD15 | |
Minisforum Venus Series UM560 XT | |
Geekom A5 | |
Minisforum Venus Series UN1245 | |
Morefine M600, 6600U | |
Geekom Mini IT12 | |
Minisforum Venus Series NAB6 |
LibreOffice - 20 Documents To PDF | |
Minisforum Venus Series UM560 XT | |
Geekom A5 | |
Morefine M600, 6600U | |
Blackview MP200 | |
Geekom Mini IT12 | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Minisforum Venus Series NAB6 |
WebXPRT 3 - Overall | |
Minisforum Venus Series NAB6 | |
Geekom Mini IT12 | |
Minisforum Venus Series UN1245 | |
Morefine M600, 6600U | |
Minisforum Venus Series UM560 XT | |
Acemagic AD15 | |
Geekom A5 | |
Blackview MP200 |
Mozilla Kraken 1.1 - Total | |
Blackview MP200 | |
Geekom A5 | |
Minisforum Venus Series UM560 XT | |
Acemagic AD15 | |
Morefine M600, 6600U | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
Minisforum Venus Series NAB6 |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Geekom A5 | |
Acemagic AD15 | |
Minisforum Venus Series UM560 XT | |
Minisforum Venus Series NAB6 | |
Average of class Mini PC | |
Blackview MP200 | |
Morefine M600, 6600U | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 |
AIDA64 / FP32 Ray-Trace | |
Geekom A5 | |
Acemagic AD15 | |
Minisforum Venus Series UM560 XT | |
Minisforum Venus Series NAB6 | |
Blackview MP200 | |
Average of class Mini PC (561 - 27538, n=99, last 2 years) | |
Morefine M600, 6600U | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 |
AIDA64 / FP64 Ray-Trace | |
Acemagic AD15 | |
Geekom A5 | |
Minisforum Venus Series UM560 XT | |
Minisforum Venus Series NAB6 | |
Blackview MP200 | |
Average of class Mini PC (308 - 14722, n=99, last 2 years) | |
Morefine M600, 6600U | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 |
AIDA64 / CPU PhotoWorxx | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
Minisforum Venus Series NAB6 | |
Morefine M600, 6600U | |
Geekom A5 | |
Average of class Mini PC (4408 - 44347, n=99, last 2 years) | |
Acemagic AD15 | |
Minisforum Venus Series UM560 XT | |
Blackview MP200 |

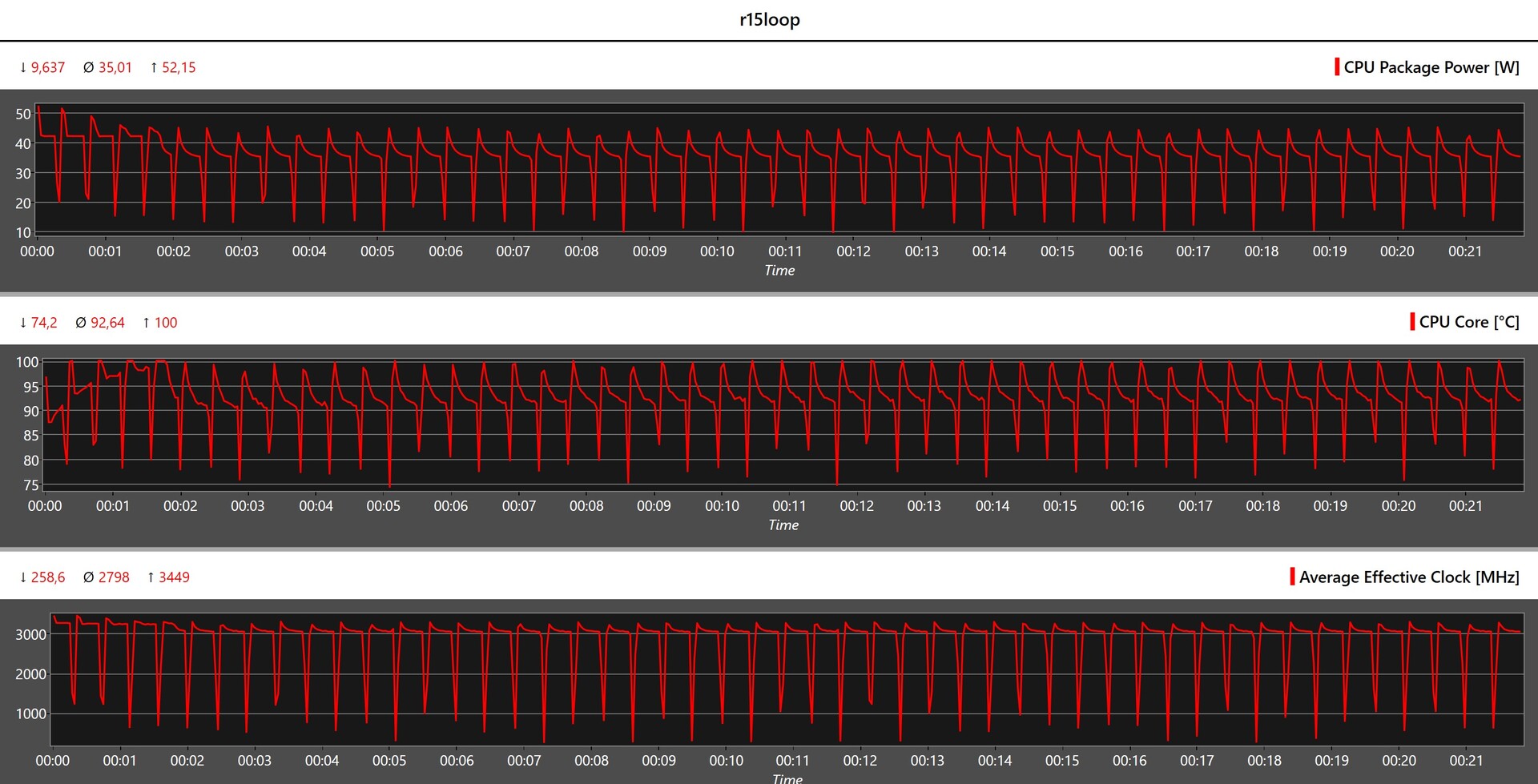

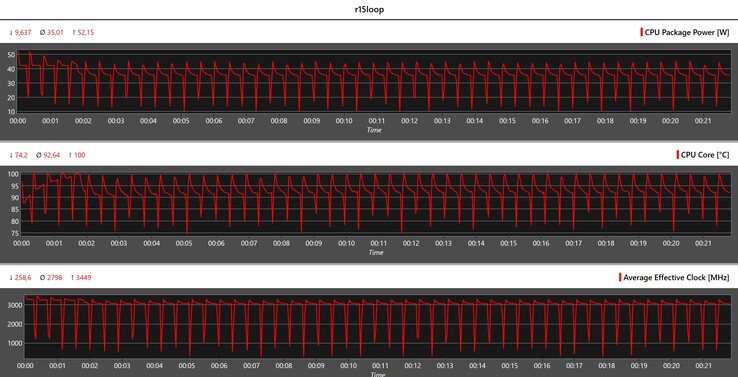

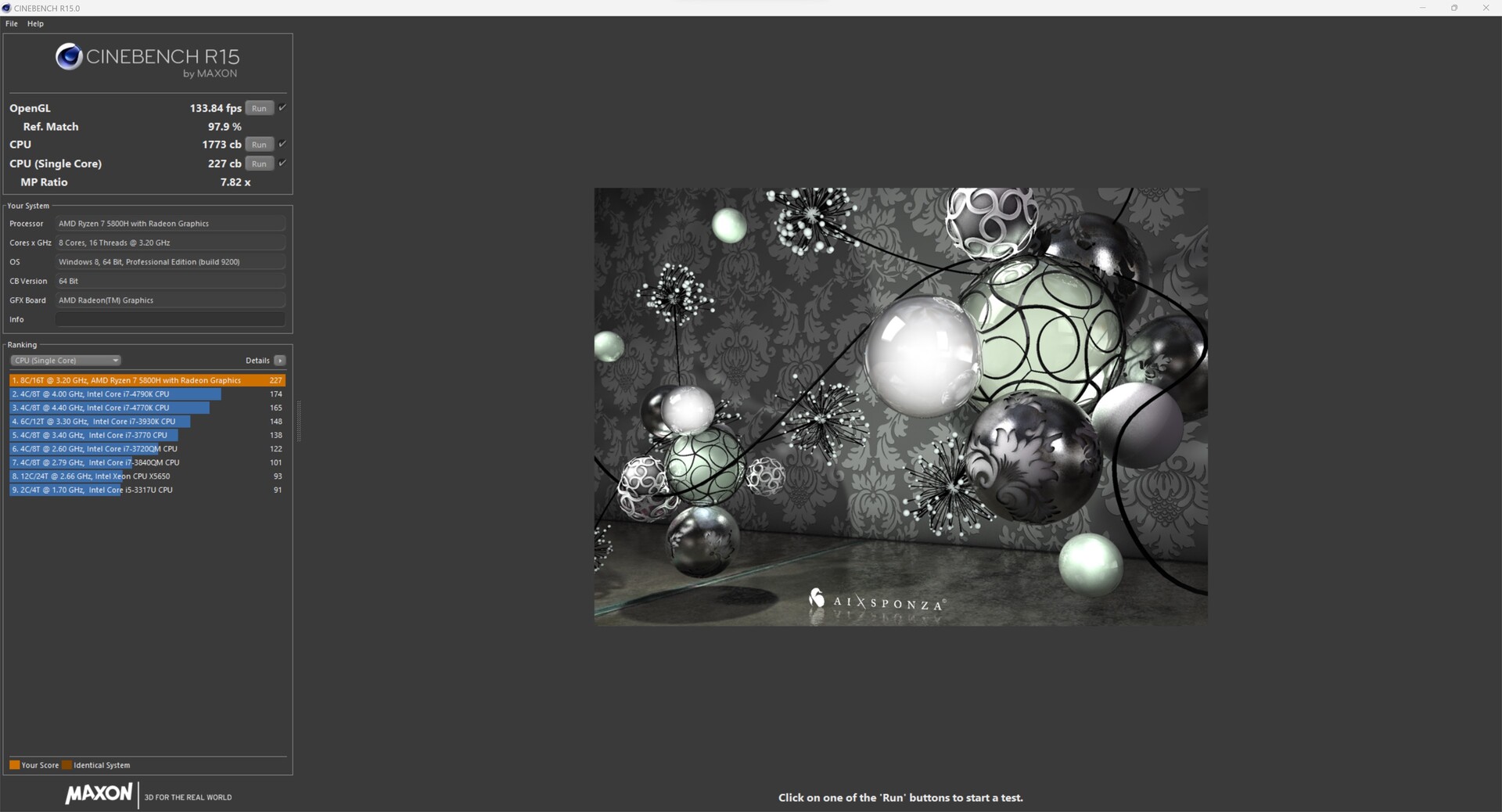

Geekom A5 与 Cinebench R15 多环对比
通过 Cinebench R15 连续循环测试,我们首次看到了所安装的冷却系统的效率,以及它与处理器功耗之间的相互作用。最初,我们观察到的最佳结果也伴随着最高的功耗。在温度方面,我们在第二次运行开始时仅记录到 100 °C。这意味着性能不得不有所降低。几乎所有在持续负载下运行的设备都会遇到这种情况。Geekom A5 的性能下降幅度要小得多,相比之下,我们的评测样品在 50 次运行中取得了最好的成绩(1715 分)。在同一测试中,MinisforumMinisforum 维纳斯系列 NAB6的平均成绩仅为 1,627 分。
系统性能
在与系统性能相关的合成基准测试中,Geekom A5 的 PCMark 10 成绩相对较好。在 Crossmark 测试中,我们的评测设备已经跟不上了,这意味着 Geekom A5 只能获得中游位置。同样,评测样本也非常成功地完成了内存测试,尽管这只够获得第四名。在这方面Morefine M600凭借其 DDR5 处理器在这一领域名列前茅。在日常使用中,我们没有发现任何限制。所有对比设备都能流畅快速地工作,Geekom A5 也不例外。
AIDA64 / Memory Latency | |
Morefine M600, 6600U | |
Average of class Mini PC (44.9 - 154.6, n=99, last 2 years) | |
Geekom A5 | |
Geekom Mini IT12 | |
Acemagic AD15 | |
Minisforum Venus Series UN1245 | |
Minisforum Venus Series UM560 XT | |
Blackview MP200 | |
Minisforum Venus Series NAB6 |
* ... smaller is better

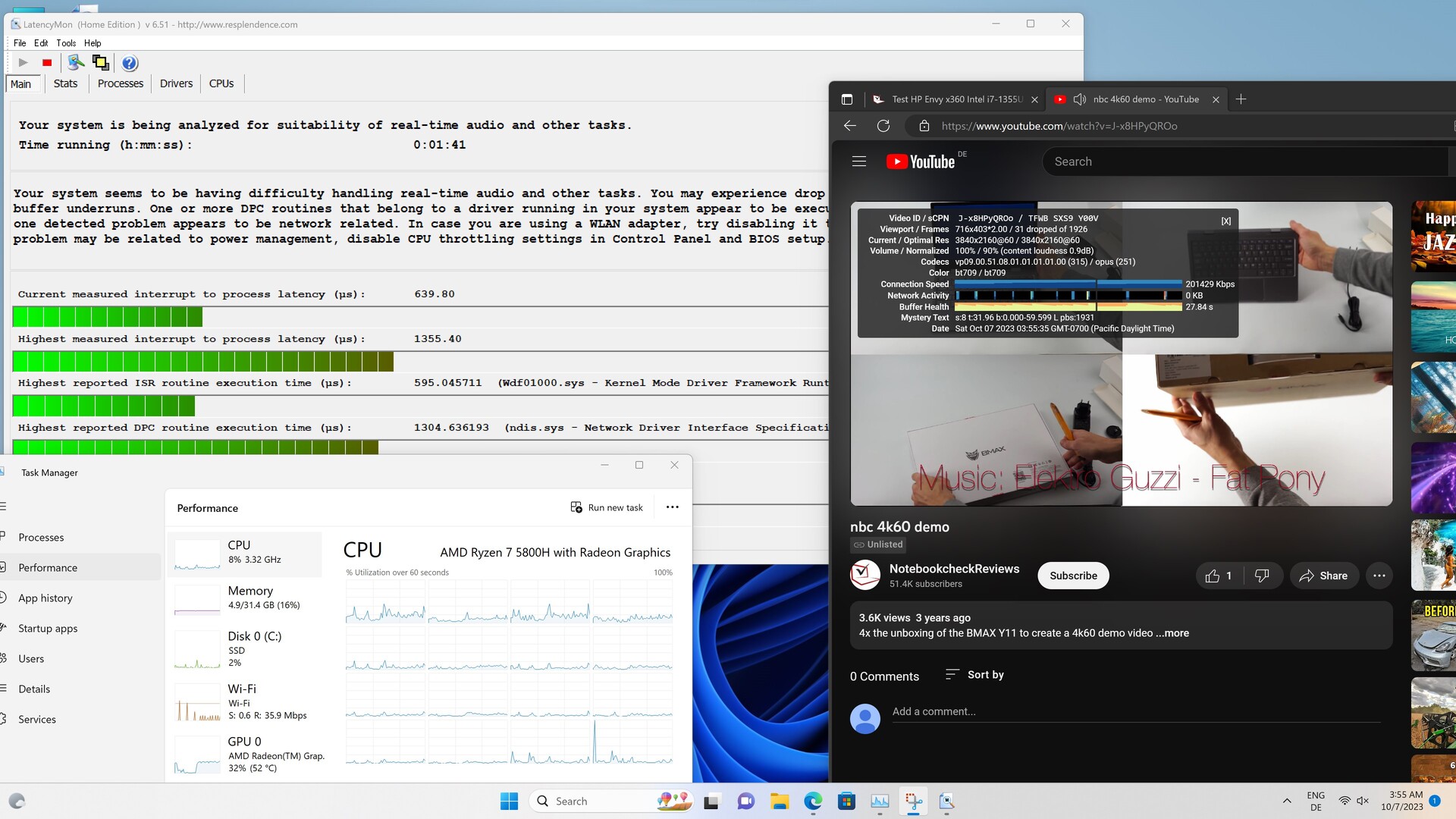

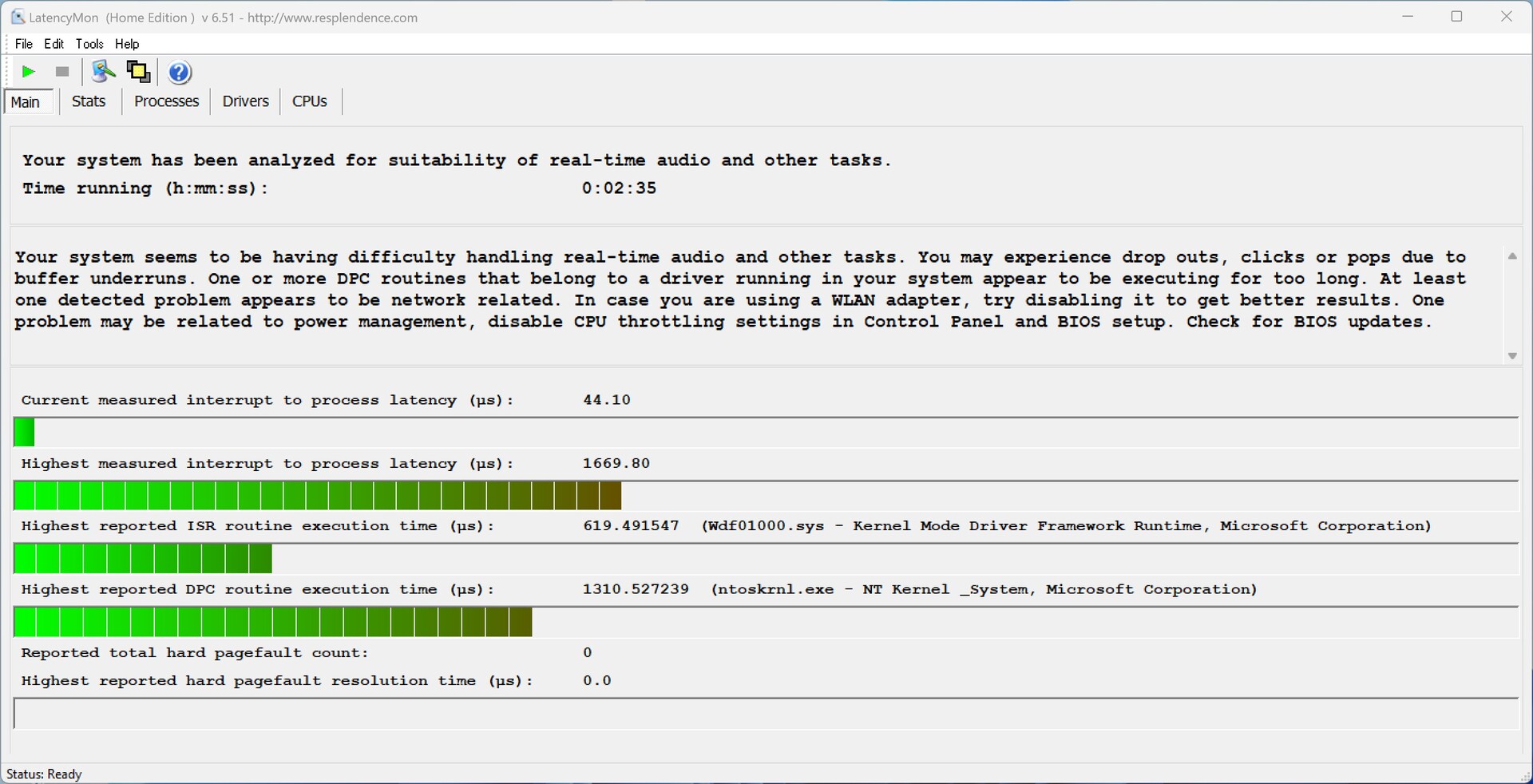

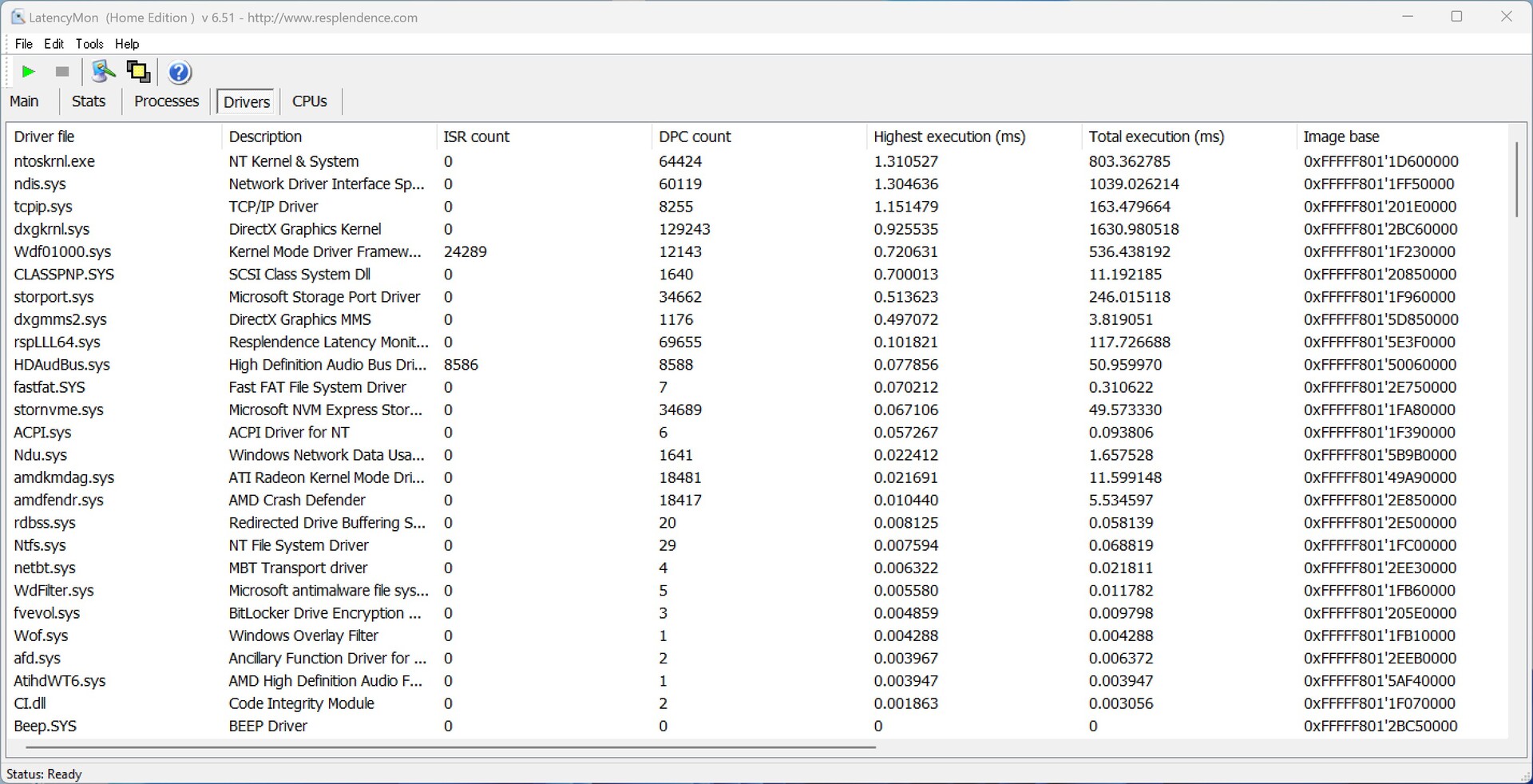

DPC 延迟
Geekom A5 测得的延迟时间并不令人信服,也不是同类产品中最好的。评测系统在打开多个 Edge 浏览器标签时已经达到了这些延迟。不过,我们认为这些数值并不重要,我们仍然推荐将 Geekom A5 用作流媒体客户端,因为播放 4K 视频并不会导致延迟增加。在播放过程中,iGPU 的使用率略高于 30%。Prime95 也没有导致延迟恶化。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Blackview MP200 | |
Geekom A5 | |
Morefine M600, 6600U | |
Geekom Mini IT12 | |
Minisforum Venus Series UM560 XT | |
Acemagic AD15 | |
Minisforum Venus Series NAB6 | |
Minisforum Venus Series UN1245 |
* ... smaller is better
大容量存储器

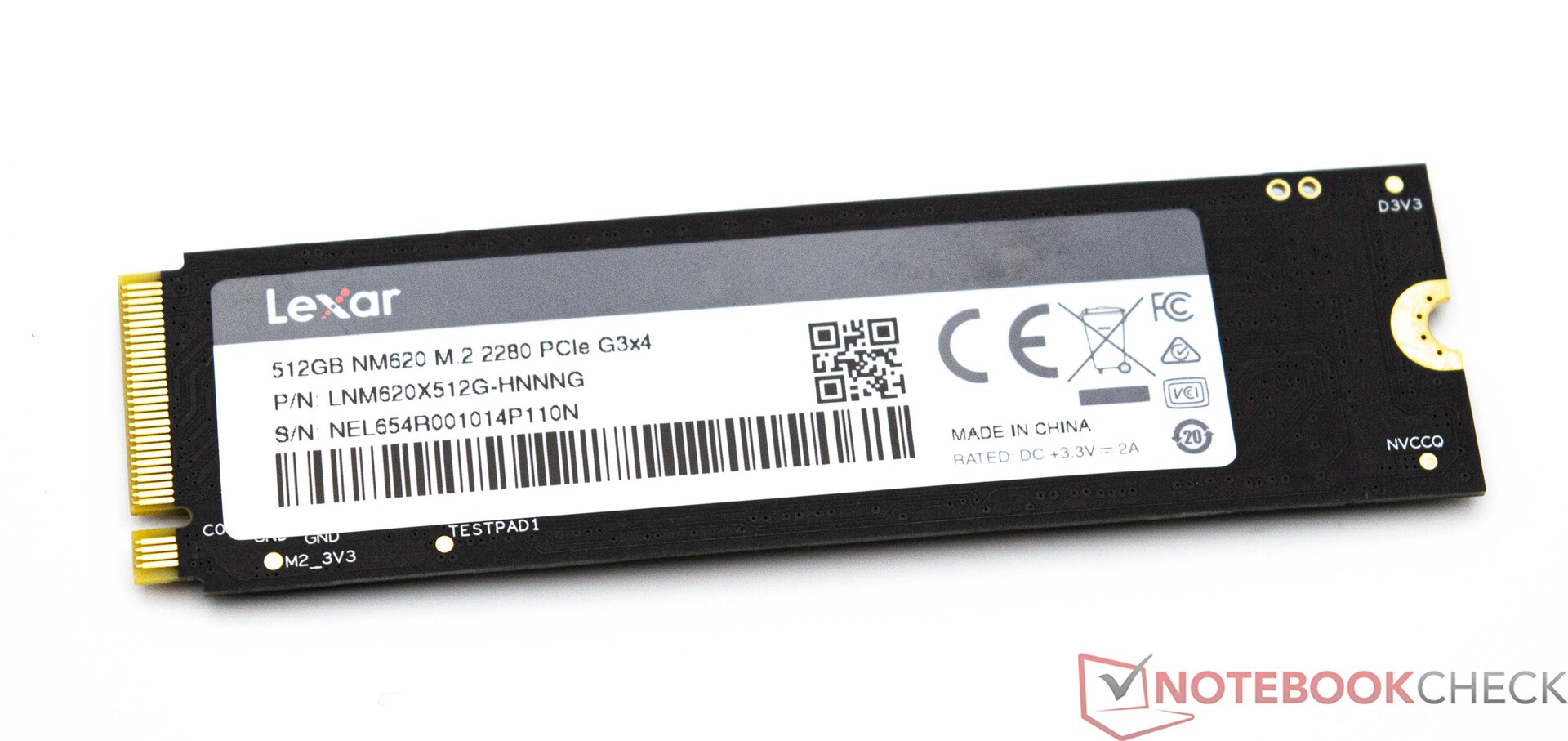

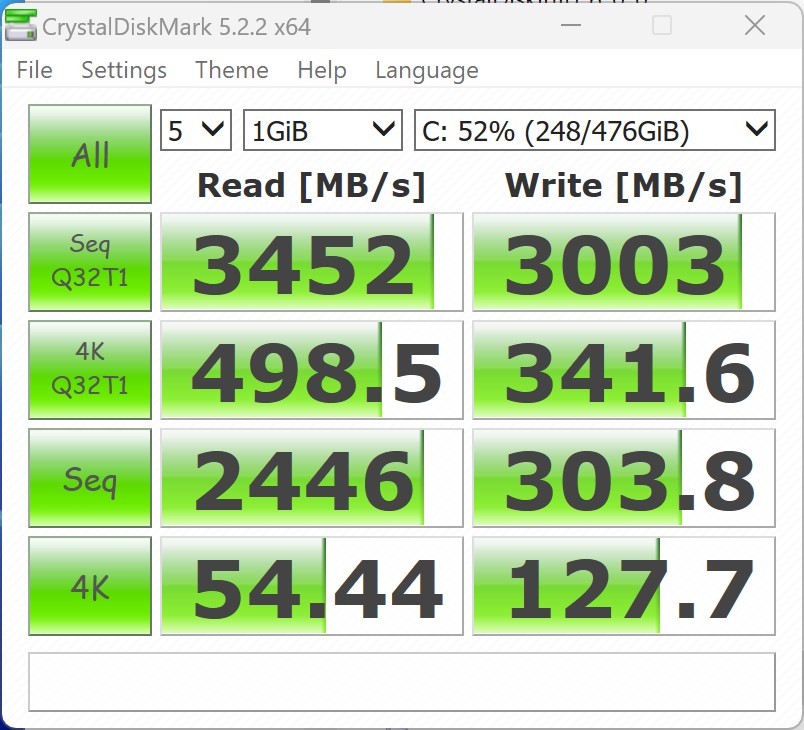

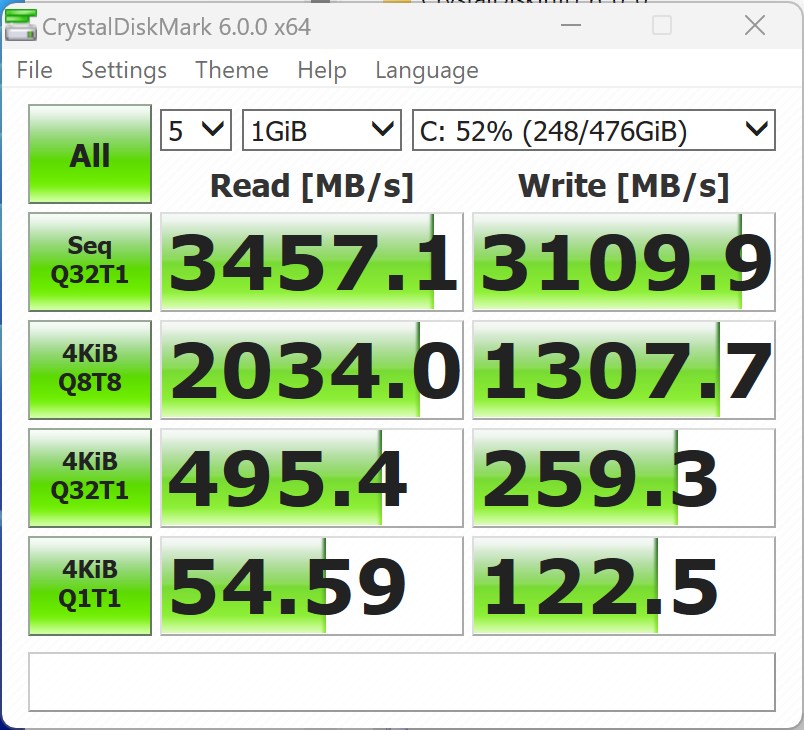

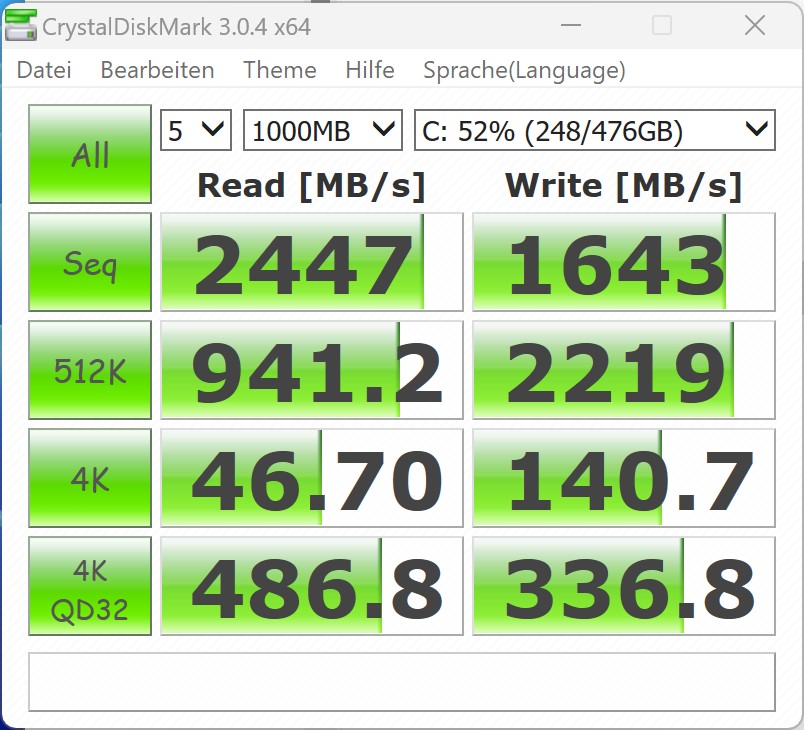

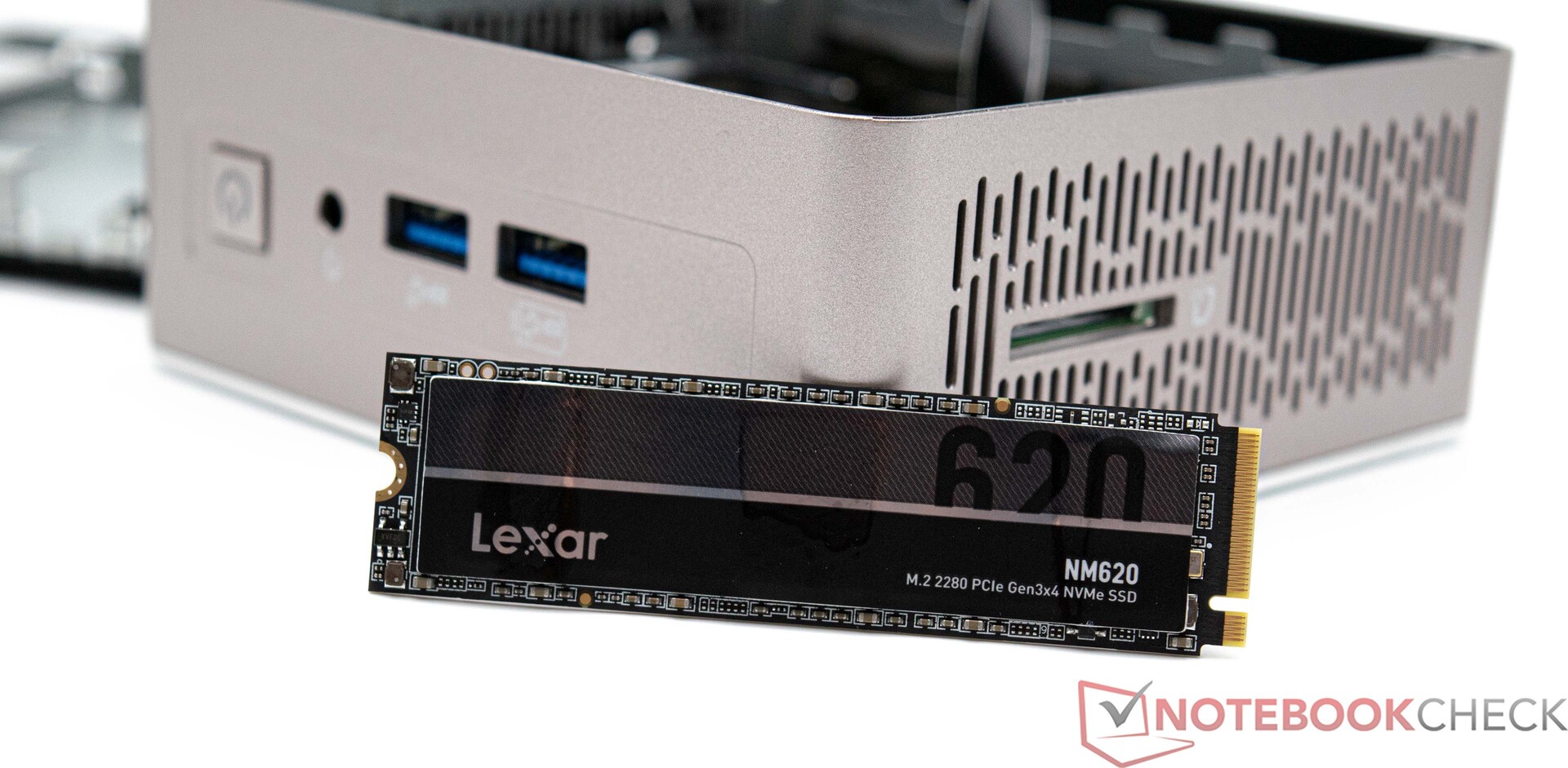

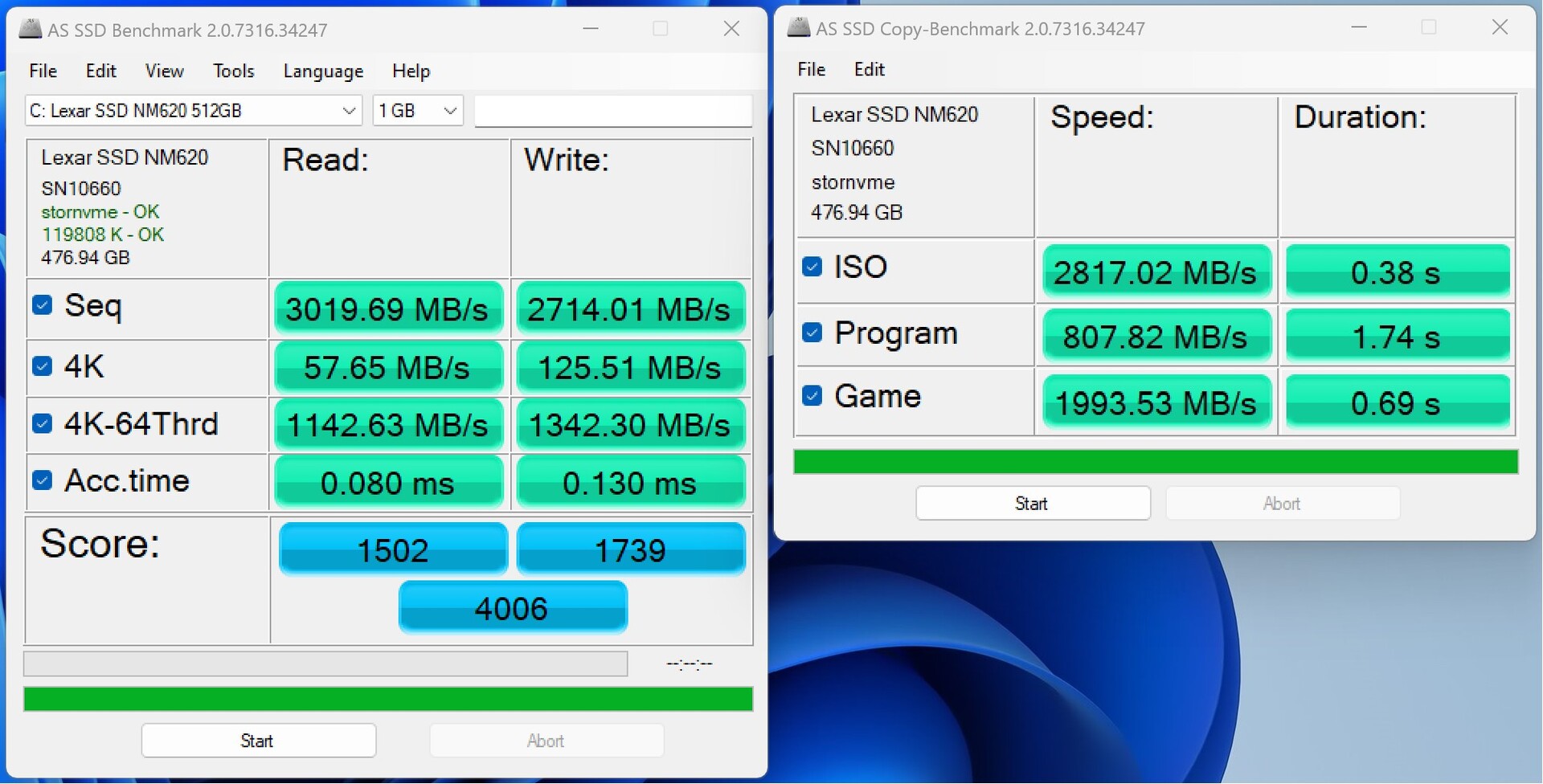

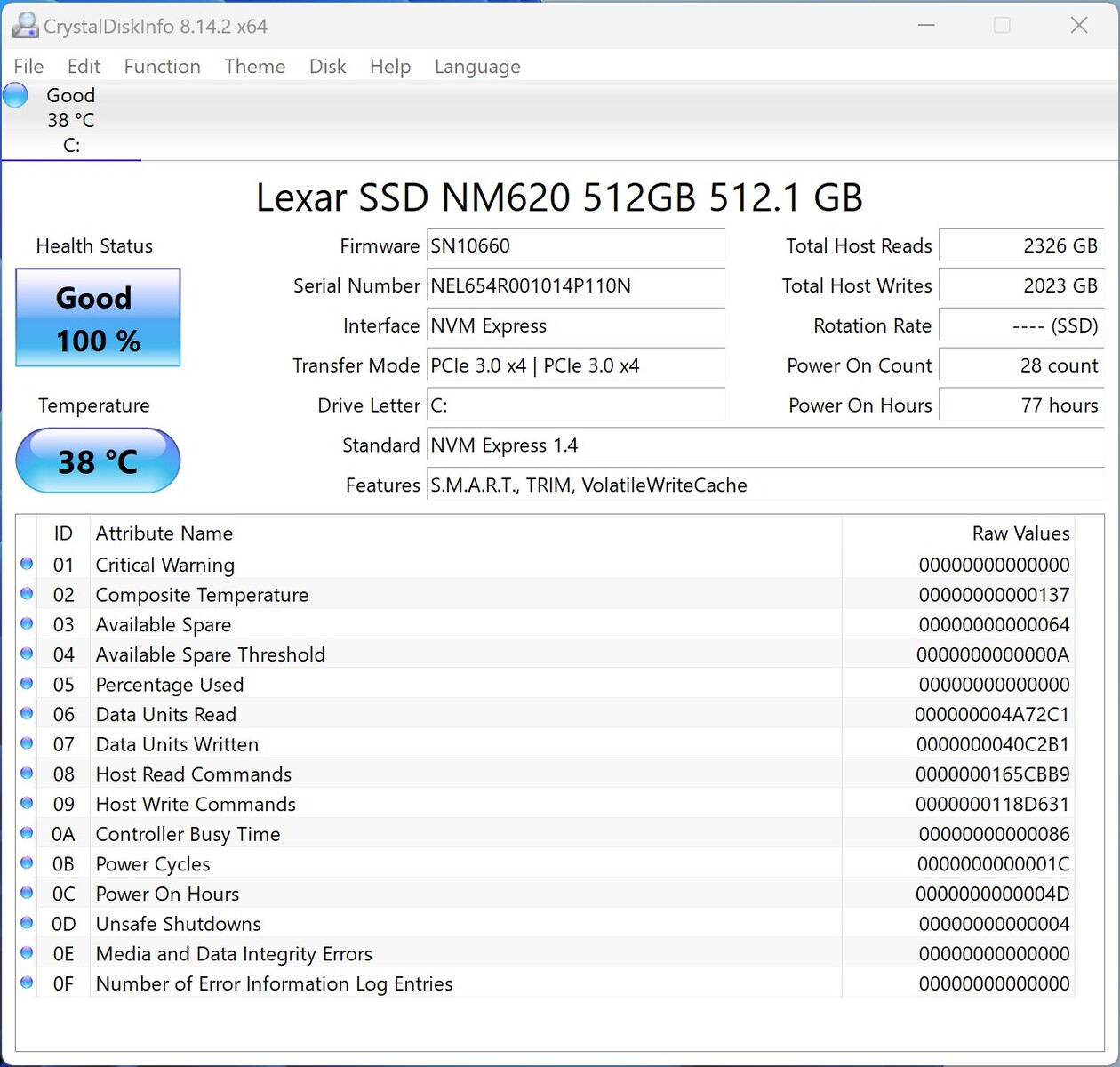

Geekom 为 A5 安装了 Lexar 512 GB NVMe 固态硬盘。安装的型号完美地利用了 NVMe 接口,因此传输速度极快。该固态硬盘 Minisfourm UN1245和 Miniforum NAB6的超强固态硬盘性能无法与我们评测设备中的型号相提并论。不过,由于在日常使用中无法察觉到性能上的差异,因此在我们的对比中稳居第三,这并不令人担忧。更重要的是持续性能,而 Geekom A5 能够自信地应对这一点。读取性能在较长时间内保持稳定。读取性能Minisfourm UN1245Minisfourm UN1245 在这方面略有不足,我们认为这是 Geekom A5 的优势所在。
Geekom A5 可配备两个 M.2 固态硬盘。除 M.2 插槽外,该设备还提供一个 2.5 英寸插槽,这意味着最多可安装三个大容量存储设备。不过,需要注意的是其最大高度为 7 毫米。
更多比较和基准测试请参见我们的 比较表.
* ... smaller is better
Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8
图形卡

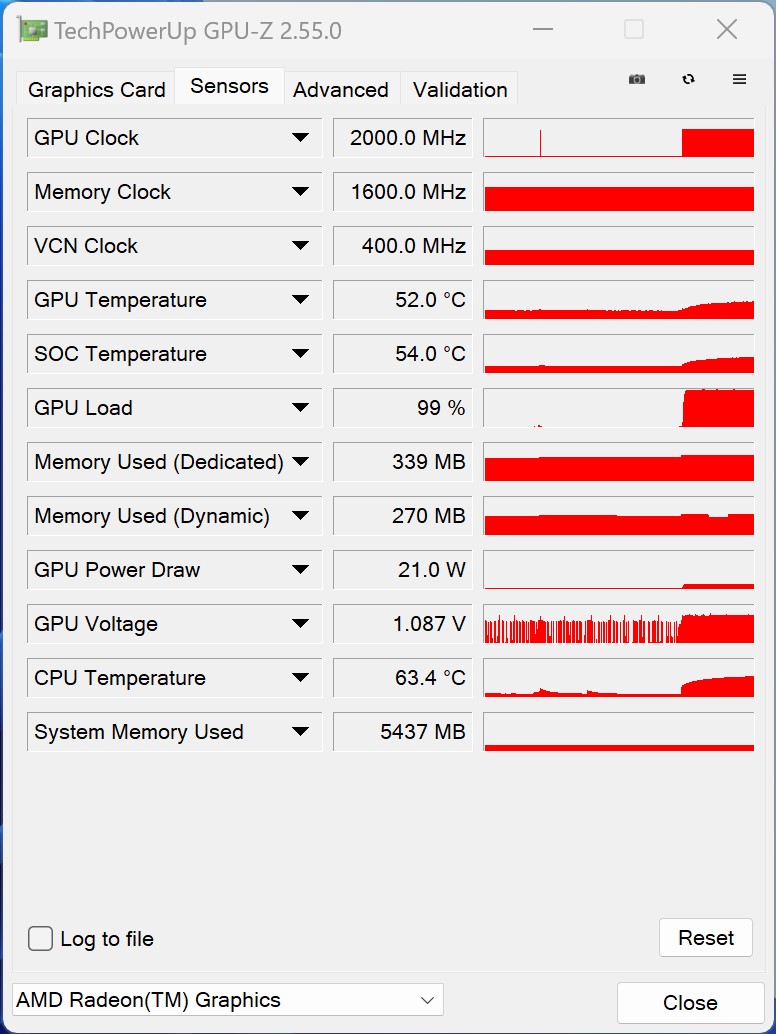

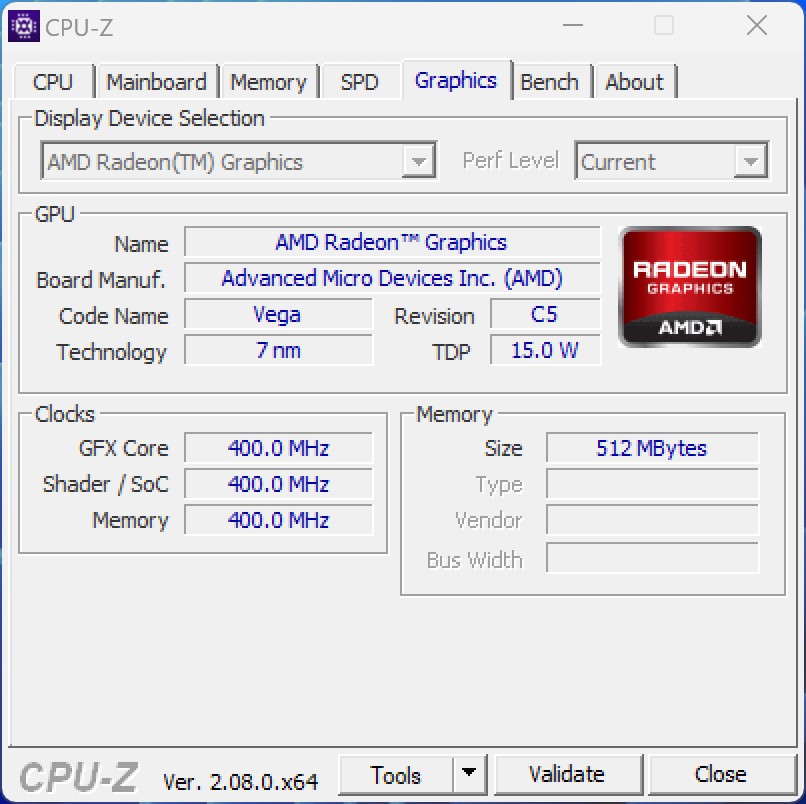

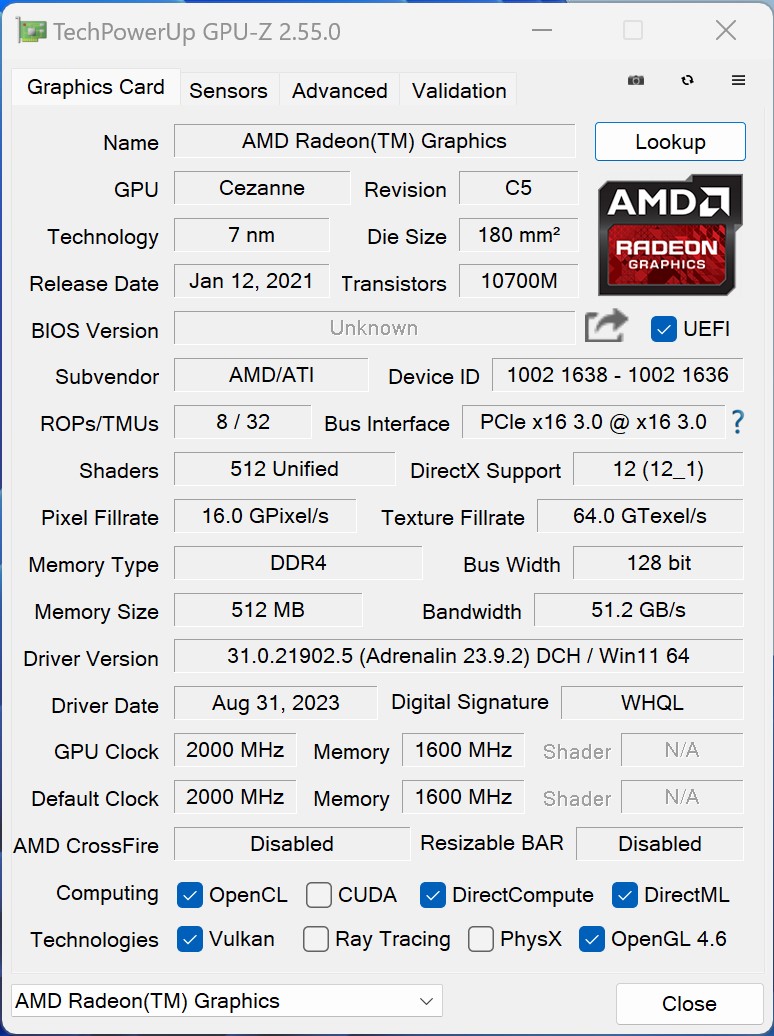

Geekom A5 依赖AMD Radeon RX Vega 8 作为其集成显卡单元,可在 AMD Ryzen 7 5800H 中找到。与所有预期相反,Geekom A5 的性能足以帮助它稳居第一。与英特尔相比,AMD 的 Vega 系列 iGPU 一直都很轻松。不过,与Morefine M600 的内部对决非常有趣,而且倾向于 Geekom 的 A5。在合成基准测试中,AMD Radeon 660M 无法达到 AMD Radeon RX Vega 8 的性能。
更多比较和基准测试可参见我们的
GPU 对比表.3DMark Performance Rating - Percent | |
Geekom A5 | |
Geekom Mini IT12 | |
Morefine M600, 6600U | |
Minisforum Venus Series UM560 XT | |
Minisforum Venus Series NAB6 | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Blackview MP200 |
3DMark 11 - 1280x720 Performance GPU | |
Geekom A5 | |
Geekom Mini IT12 | |
Minisforum Venus Series UM560 XT | |
Morefine M600, 6600U | |
Minisforum Venus Series NAB6 | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Blackview MP200 |
Performance Rating - Percent | |
Geekom A5 | |
Morefine M600, 6600U | |
Geekom Mini IT12 | |
Minisforum Venus Series UM560 XT | |
Minisforum Venus Series NAB6 | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Blackview MP200 |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Geekom A5 | |
Geekom Mini IT12 | |
Minisforum Venus Series UM560 XT | |
Minisforum Venus Series NAB6 | |
Morefine M600, 6600U | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Blackview MP200 | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Minisforum Venus Series UN1245 | |
Geekom Mini IT12 | |
Minisforum Venus Series NAB6 | |
Geekom A5 | |
Minisforum Venus Series UM560 XT | |
Morefine M600, 6600U | |
Acemagic AD15 | |
Blackview MP200 |
3DMark 05 Standard | 46183 points | |
3DMark 06 Standard Score | 29357 points | |
3DMark Vantage P Result | 23176 points | |
3DMark 11 Performance | 7471 points | |
3DMark Ice Storm Standard Score | 135264 points | |
3DMark Cloud Gate Standard Score | 27089 points | |
3DMark Fire Strike Score | 4104 points | |
3DMark Fire Strike Extreme Score | 1852 points | |
3DMark Time Spy Score | 1620 points | |
Help |
游戏性能
尽管在合成基准测试中取得了不错的 3D 性能,但你不应该对它抱有过高的期望。AMD Radeon RX Vega 8.它的核心仍然是一个简单的 iGPU。不过,在对比中,Geekom 机器再一次成功地战胜了竞争对手。由于大多数对比设备都配备了英特尔处理器,因此前三名完全被配备 AMD 处理器的迷你 PC 所占据。在这一领域,英特尔的集成显卡解决方案根本不具备竞争力。不过,虽然 Geekom A5 不能被视为游戏电脑,但我们的评测样品可以处理简单和较老的游戏。使用 HX99G以及 NUCXi7都来自 Minisforum。由于采用了专用显卡,它们能提供超强的游戏性能。
Performance Rating - Percent | |
Geekom A5 | |
Morefine M600, 6600U | |
Minisforum Venus Series UM560 XT | |
Geekom Mini IT12 | |
Minisforum Venus Series NAB6 | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Blackview MP200 |
The Witcher 3 | |
1024x768 Low Graphics & Postprocessing | |
Geekom Mini IT12 | |
Geekom A5 | |
Minisforum Venus Series NAB6 | |
Morefine M600, 6600U | |
Minisforum Venus Series UM560 XT | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Blackview MP200 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Geekom Mini IT12 | |
Minisforum Venus Series NAB6 | |
Geekom A5 | |
Minisforum Venus Series UM560 XT | |
Morefine M600, 6600U | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Blackview MP200 |
Borderlands 3 | |
1280x720 Very Low Overall Quality (DX11) | |
Geekom A5 | |
Minisforum Venus Series UM560 XT | |
Geekom Mini IT12 | |
Morefine M600, 6600U | |
Minisforum Venus Series NAB6 | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Blackview MP200 | |
1920x1080 High Overall Quality (DX11) | |
Geekom A5 | |
Minisforum Venus Series UM560 XT | |
Geekom Mini IT12 | |
Morefine M600, 6600U | |
Minisforum Venus Series NAB6 | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Blackview MP200 |
GTA V | |
1024x768 Lowest Settings possible | |
Morefine M600, 6600U | |
Minisforum Venus Series UM560 XT | |
Geekom A5 | |
Minisforum Venus Series NAB6 | |
Geekom Mini IT12 | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Blackview MP200 | |
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
Geekom A5 | |
Morefine M600, 6600U | |
Minisforum Venus Series UM560 XT | |
Geekom Mini IT12 | |
Minisforum Venus Series NAB6 | |
Minisforum Venus Series UN1245 | |
Acemagic AD15 | |
Blackview MP200 |
low | med. | high | ultra | |
GTA V (2015) | 140.1 | 122.2 | 35.1 | 15.5 |
The Witcher 3 (2015) | 85.6 | 54.1 | 26 | 17.6 |
Dota 2 Reborn (2015) | 129.5 | 108.6 | 67.7 | 63.7 |
Final Fantasy XV Benchmark (2018) | 45.3 | 22.4 | 15.9 | |
X-Plane 11.11 (2018) | 52.6 | 39.3 | 34.2 | |
Far Cry 5 (2018) | 62 | 29 | 27 | 25 |
Strange Brigade (2018) | 100.9 | 38.8 | 32.4 | 27.4 |
Shadow of the Tomb Raider (2018) | 65.9 | 24.4 | 22.4 | 19.3 |
Far Cry New Dawn (2019) | 56 | 28 | 27 | 25 |
Metro Exodus (2019) | 48 | 20.4 | 15.5 | 12.9 |
Borderlands 3 (2019) | 68 | 27.6 | 16.4 | 12.1 |
F1 2020 (2020) | 110 | 51.4 | 40.2 | 28.2 |
F1 2021 (2021) | 113 | 51.6 | 40.4 | 27 |
Far Cry 6 (2021) | 53.6 | 25.8 | 21.8 | 18.4 |
God of War (2022) | 22.1 | 18.1 | 14.4 | 10.1 |
GRID Legends (2022) | 94.8 | 48.3 | 37.1 | 28.6 |
Tiny Tina's Wonderlands (2022) | 38 | 28.9 | 18.1 | 13.3 |
F1 22 (2022) | 48.8 | 42.4 | 22.5 | |
F1 23 (2023) | 45.1 | 39.8 | 29.1 | 20.4 |
排放 - 没有限制,声音会很大
噪音排放
音量测量显示了 Geekom A5 的一个明显弱点。在没有任何负载的情况下,这款迷你电脑的运行非常安静,几乎没有任何声音。但是,如果给 Geekom A5 加载负载,它的声音就会迅速变大。高达 47.8 dB(A)的音量让人再也无法忽视这个小小的电脑伙伴。在目前的对比中,只有 Blackview MP200 的声音更大,高达 51.8 dB(A)、
Noise Level
Idle |
| 28.2 / 28.2 / 28.2 dB(A) |
Load |
| 47.8 / 47.4 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A) |
Geekom A5 R7 5800H, Vega 8 | Morefine M600, 6600U R5 6600U, Radeon 660M | Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs | Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs | Minisforum Venus Series UM560 XT R5 5600H, Vega 7 | Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs | Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H) | Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H) | |
---|---|---|---|---|---|---|---|---|
Noise | 8% | 4% | 3% | 3% | -3% | 12% | 4% | |
off / environment * | 25 | 29.4 -18% | 29.8 -19% | 29.4 -18% | 30 -20% | 25.2 -1% | 25.4 -2% | 25.1 -0% |
Idle Minimum * | 28.2 | 29.4 -4% | 29.9 -6% | 29.4 -4% | 30.3 -7% | 32 -13% | 26.2 7% | 25.3 10% |
Idle Average * | 28.2 | 29.4 -4% | 30.1 -7% | 29.5 -5% | 30.5 -8% | 32.1 -14% | 26.5 6% | 25.3 10% |
Idle Maximum * | 28.2 | 29.5 -5% | 30.2 -7% | 29.7 -5% | 30.6 -9% | 32.2 -14% | 27.3 3% | 25.3 10% |
Load Average * | 47.8 | 29.6 38% | 32.1 33% | 34.6 28% | 32.5 32% | 39.8 17% | 30.8 36% | 46 4% |
Load Maximum * | 47.4 | 29.6 38% | 32.5 31% | 36.1 24% | 33.2 30% | 43.3 9% | 37.5 21% | 51.8 -9% |
Witcher 3 ultra * | 32.6 |
* ... smaller is better
温度

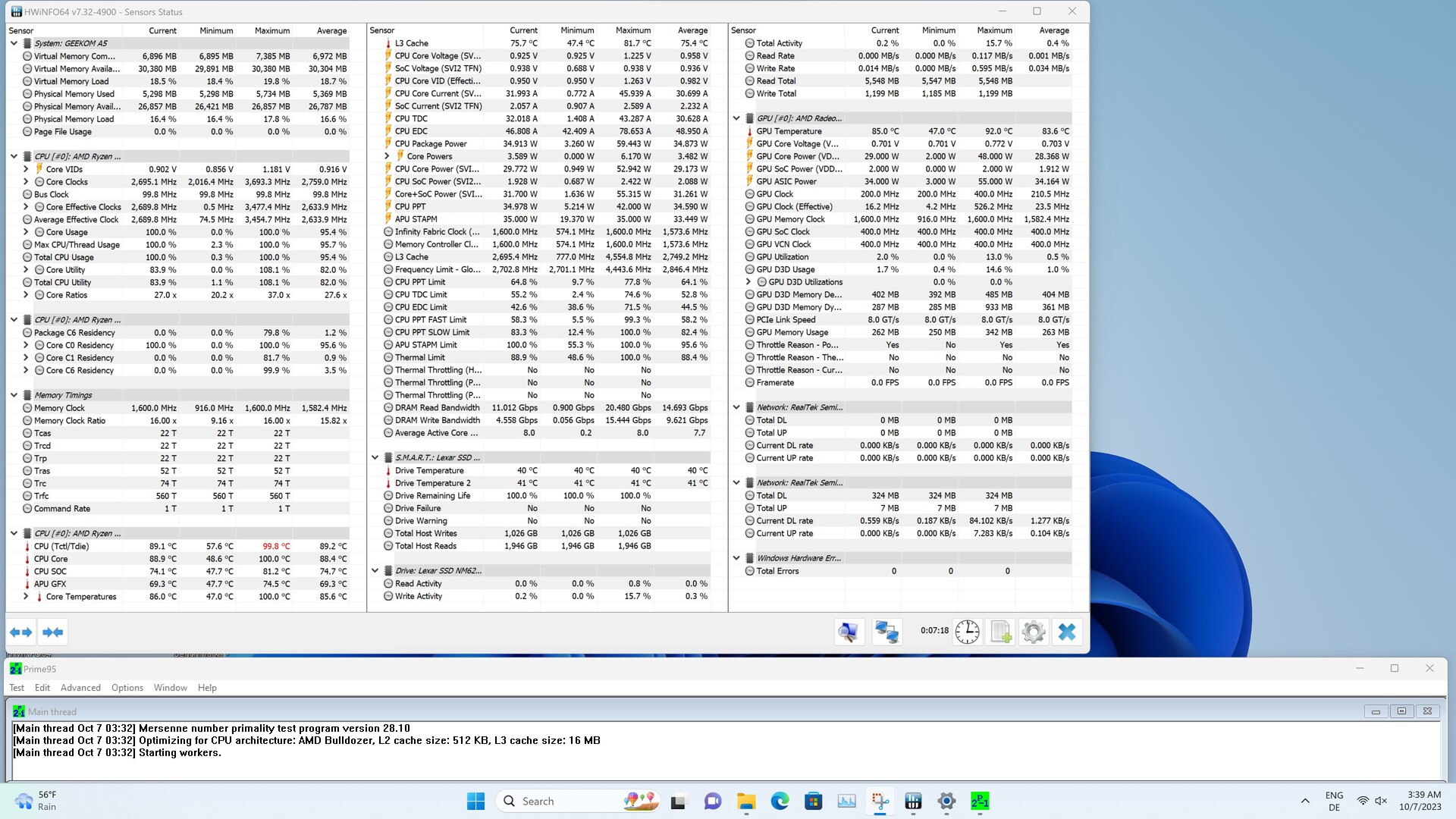

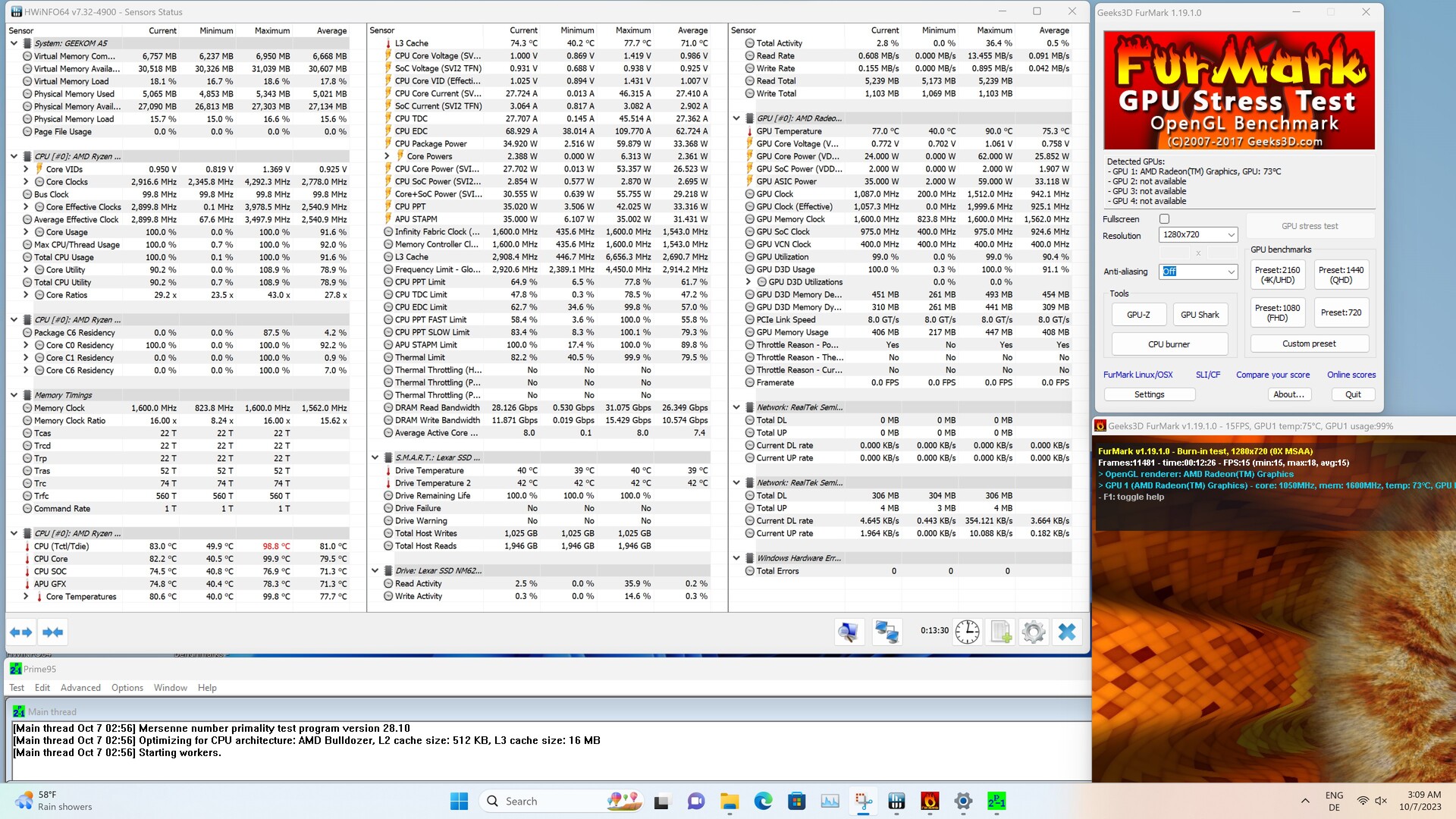

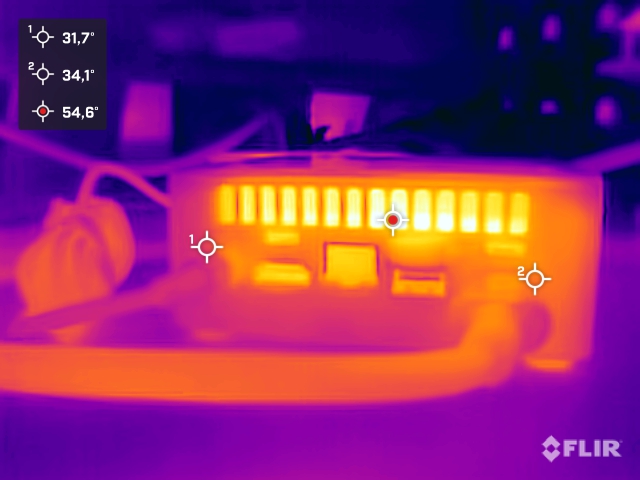

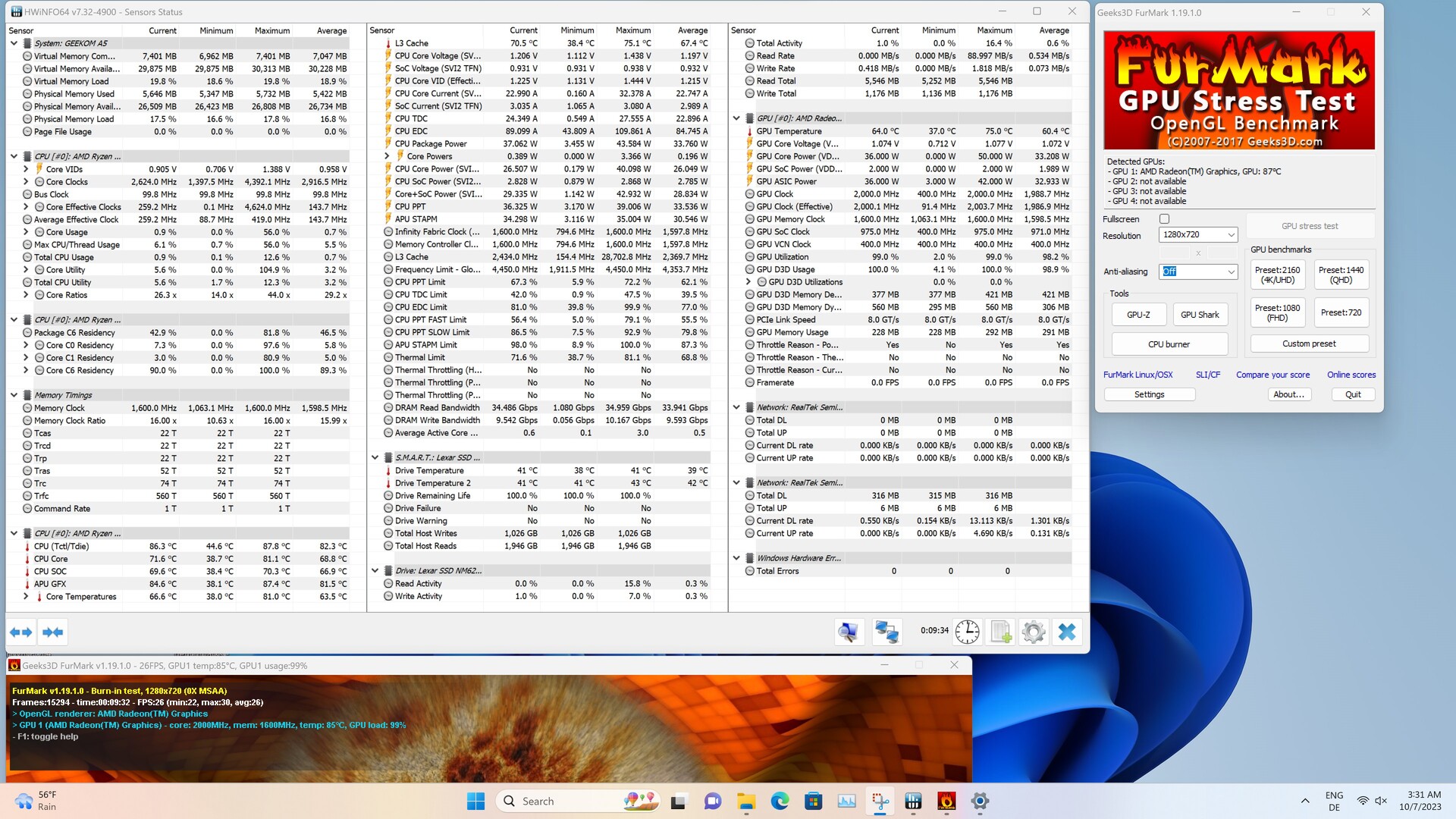

与许多其他迷你电脑一样,Geekom A5 的机箱仅会轻微发热。新鲜空气从两侧吸入,从后部排出。在 AMD Ryzen 7 5800H 的负载下,我们观察到相对较高的温度,这表明 Geekom 既没有限制 SoC 的热量,也没有限制其功耗。启动后不久,SoC 的温度就接近 100 °C。我们在分析 Cinebench R15 多循环时也观察到了这一短期升压导致的高温。在持续的压力测试过程中,CPU 温度稳定在非临界温度 89 °C。在 35 瓦的持续负载下,SoC 运行稳定。

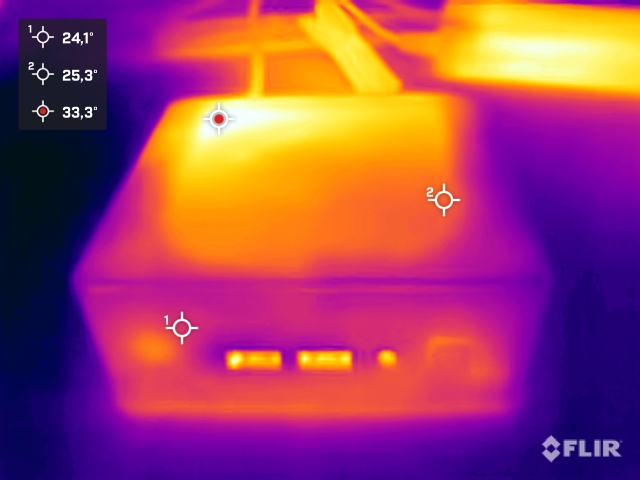

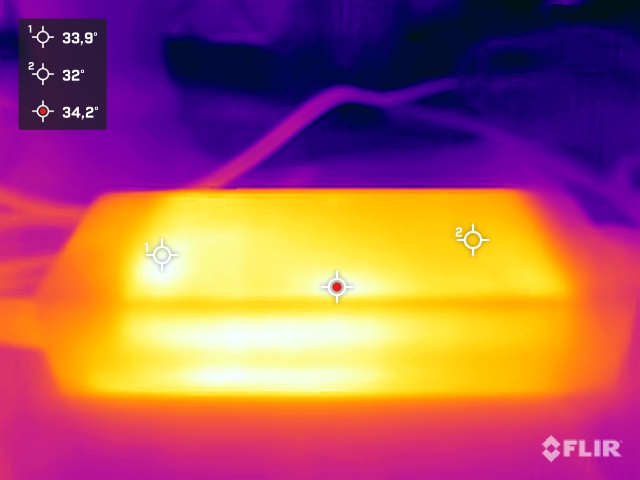

(+) The maximum temperature on the upper side is 34.7 °C / 94 F, compared to the average of 35.5 °C / 96 F, ranging from 26 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 34.3 °C / 94 F, compared to the average of 36.9 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.9 °C / 80 F, compared to the device average of 32.1 °C / 90 F.
耗电量
基本上,与传统台式电脑相比,迷你电脑非常经济。与本次评测中的竞争设备相比,我们最初观察到的是空闲运行时的低能耗要求。然而,在负载情况下,情况发生了变化,Geekom A5 的耗电量接近 90 瓦,短暂地需要比某些竞争产品更多的电力。在平均负载下,我们记录到的功率接近 61 瓦,也略高于 A5 的竞争对手。随机提供的 120 瓦 PSU 大小合适,甚至可以满足两个额外的大容量存储设备的需求。
Off / Standby | 0.6 / 5.6 Watt |
Idle | 6.9 / 7.9 / 8.9 Watt |
Load |
60.8 / 89.7 Watt |
Geekom A5 R7 5800H, Vega 8 | Morefine M600, 6600U R5 6600U, Radeon 660M | Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs | Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs | Minisforum Venus Series UM560 XT R5 5600H, Vega 7 | Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs | Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H) | Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H) | Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Average of class Mini PC | |
---|---|---|---|---|---|---|---|---|---|---|
Power Consumption | -2% | 9% | -36% | 16% | -1% | -44% | -30% | 16% | -27% | |
Idle Minimum * | 6.9 | 8 -16% | 5 28% | 10.4 -51% | 6.6 4% | 8.2 -19% | 8.7 -26% | 9 -30% | 5.25 ? 24% | 9.78 ? -42% |
Idle Average * | 7.9 | 8.7 -10% | 7 11% | 12.3 -56% | 6.8 14% | 8.6 -9% | 14.9 -89% | 10.6 -34% | 7.82 ? 1% | 11.7 ? -48% |
Idle Maximum * | 8.9 | 8.8 1% | 10.7 -20% | 12.4 -39% | 7.2 19% | 9.6 -8% | 18.9 -112% | 19.9 -124% | 9.25 ? -4% | 14.7 ? -65% |
Load Average * | 60.8 | 54.6 10% | 50.3 17% | 72.9 -20% | 45.1 26% | 52.1 14% | 49.6 18% | 30.9 49% | 45.3 ? 25% | 52.2 ? 14% |
Load Maximum * | 89.7 | 83.2 7% | 82 9% | 101.2 -13% | 73.4 18% | 73.6 18% | 97.7 -9% | 97.8 -9% | 60.1 ? 33% | 86.3 ? 4% |
Witcher 3 ultra * | 44.8 |
* ... smaller is better
Power consumption with an external monitor
Pros
Cons
评价 - 性能卓越的时尚迷你 PC
Geekom A5 是一款外观精巧的迷你电脑,在色彩设计方面有新的突破。不言而喻,乍一看,虽然玫瑰金的色调并不特别显眼,但还是需要一点时间来适应。拥有与Geekom IT11和Geekom IT12Geekom A5 的外壳几乎一模一样,优缺点也相同。为了与搭载英特尔处理器的设备区分开来,我们更希望能在这方面看到更多的冒险。如果能有一个全新的外壳就更好了,有了全新的设计,Geekom 就能摆脱其过时的设计语言。
凭借 AMD Ryzen 7 5800H,Geekom A5 没有理由躲躲藏藏。虽然没有搭载 Thunderbolt,但它的连接选项还是不错的。
在处理器的选择上,AMD Ryzen 7 5800HAMD Ryzen 7 5800H是一款能提供足够性能的 SoC。虽然该处理器不属于当前的同类机型,但其 8 核芯片可以与更先进的处理器相媲美。Geekom A5 配备了 32 GB 内存,虽然 512 GB 固态硬盘的大小比较标准,但内存容量也很充裕。Geekom 基本上设计出了一款不错的迷你电脑,其丰富的接口选择令人印象深刻,但遗憾的是没有雷电接口。在这方面,IT11 和 IT12 型号优势明显,这也反映在较高的价格上。
负载时明显可闻的背景噪音值得批评,除了设备的外观外,我们还希望看到使用更先进的 Wi-Fi 模块。
价格和供应情况
Geekom A5
-
10/09/2023 v7
Sebastian Bade
Transparency
The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
