Verfict——小巧、静音且高效——但存在一些小缺陷
在我们的测试中,宏碁 Revo Box RB102-LNL 给人的总体印象相当积极,证明它是一款适用于日常使用的多功能迷你电脑。英特尔酷睿 Ultra 7 256V 处理器为办公应用、多媒体以及更苛刻的多任务处理提供了足够的性能。 得益于运行速度达 8,533 MT/s 的高速 DDR5 内存,该系统的响应速度非常快。其他优点还包括低功耗和出色的散热管理。即使在长时间高负载运行下,性能依然保持稳定,而噪音水平则始终保持在令人愉悦的低水平。
在设计方面,这款宏碁迷你电脑具备多项实用优势。紧凑的塑料机箱可节省安装空间。此外,该设备还可通过VESA支架安装在显示器背面。接口配置丰富多样,而支持安装第二块SSD以及更换Wi-Fi模块的功能,已成为现代迷你电脑的标准配置。

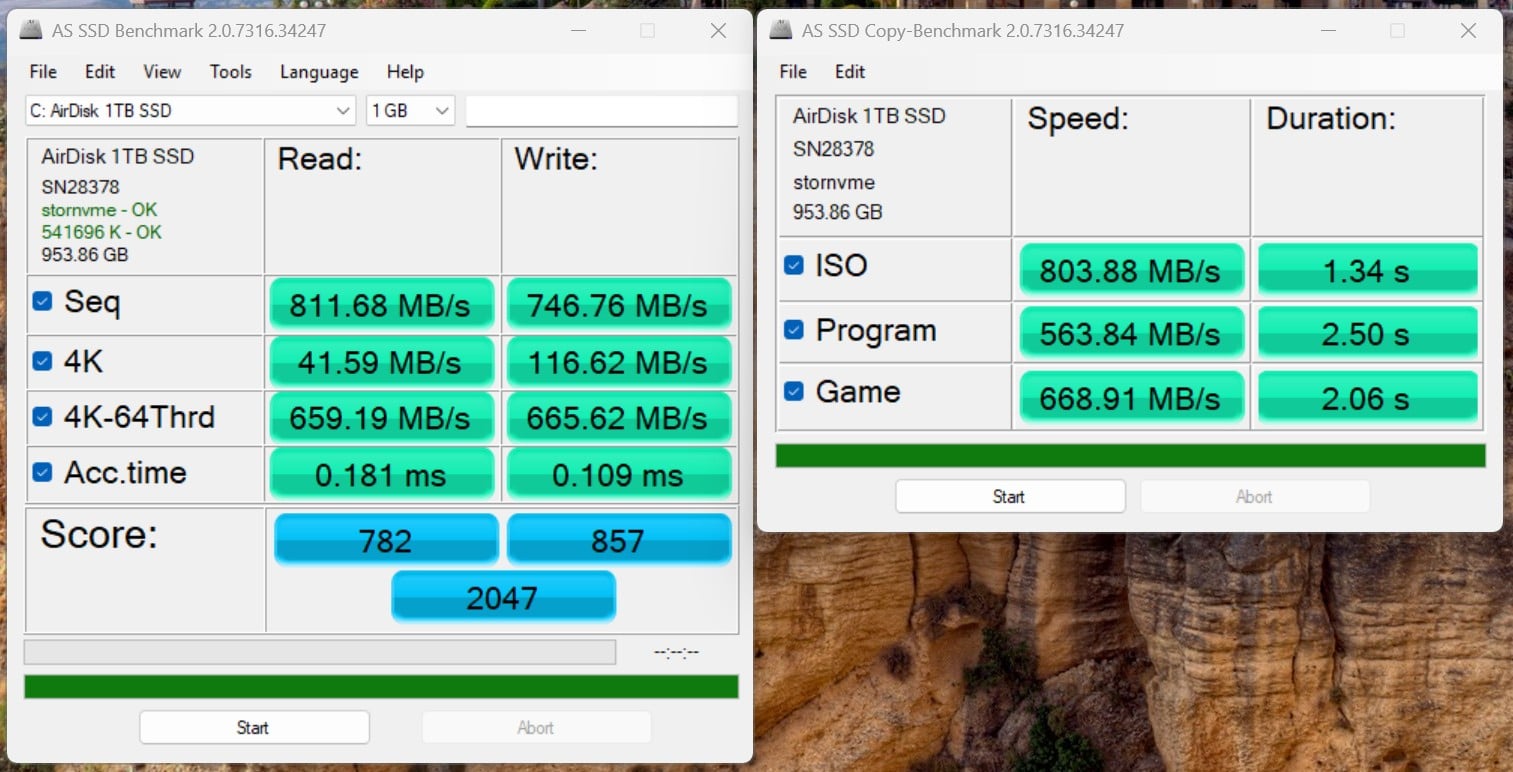

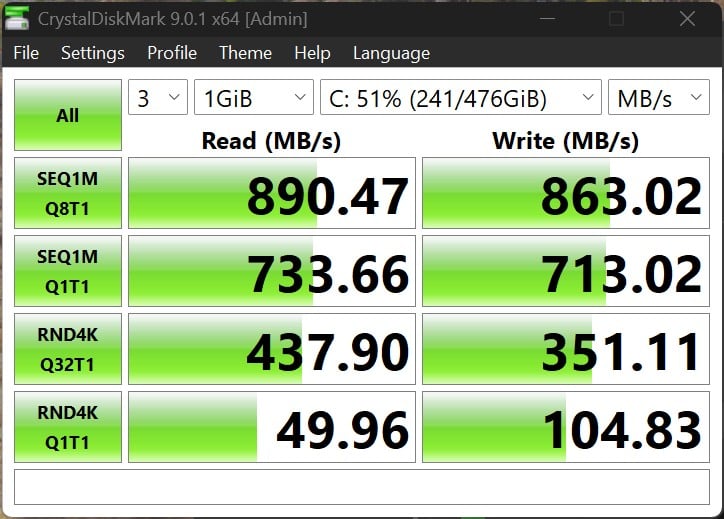

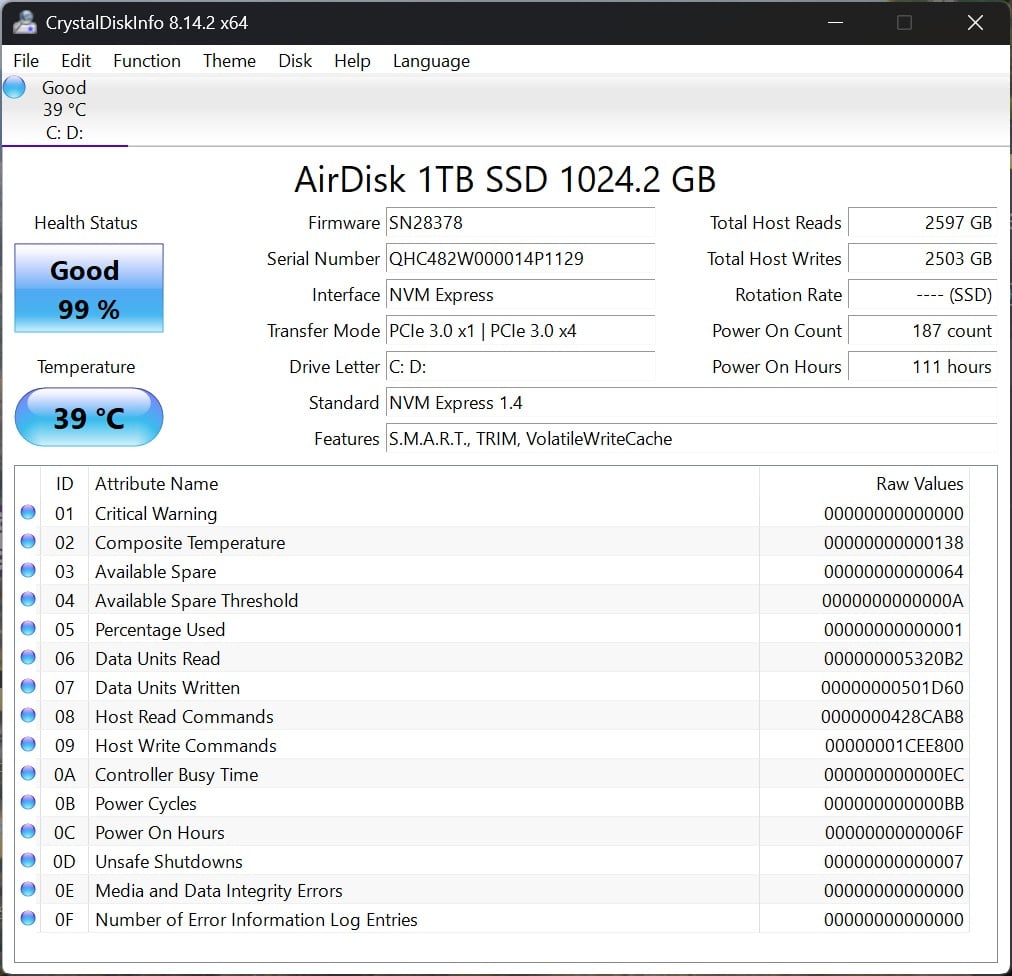

不过,这款宏碁笔记本也存在一些不足。特别是,由于采用 PCIe 3.0 x1 接口,其内置 SSD 的传输速率表现欠佳,与更先进的竞品相比会拖慢系统运行速度。此外,内存采用焊接固定设计,导致未来无法升级。 任何需要更多未来升级灵活性的人都应将这一点考虑在内。
市面上还有其他选择,特别是来自 AMD 的产品。搭载 Ryzen 处理器的机型根据配置不同可提供更高的图形性能,在某些情况下还拥有更好的内存扩展选项。 另一方面,这款宏碁迷你电脑凭借紧凑的设计、低功耗、静音运行以及均衡的日常性能而脱颖而出。对于那些正是看重这些特点,并且能够接受固态硬盘和内存方面限制的用户来说,这是一款非常适合办公、多媒体和日常使用的优秀迷你电脑。
Pros
Cons
价格与供货情况
宏碁 Revo Box RB102-LNL 提供多种配置。我们测试的这款机型搭载英特尔酷睿 Ultra 7 256V 处理器、16 GB LPDDR5X 内存和 1 TB SSD,目前起售价为 899 美元。
Acer Revo Box RB102 是一款紧凑型迷你电脑,提供搭载 AMD 或 Intel 处理器的多种配置。在本篇评测中,我们将重点介绍搭载 Intel Core Ultra 7 256V 处理器和 16 GB LPDDR5X 内存的这款迷你电脑。

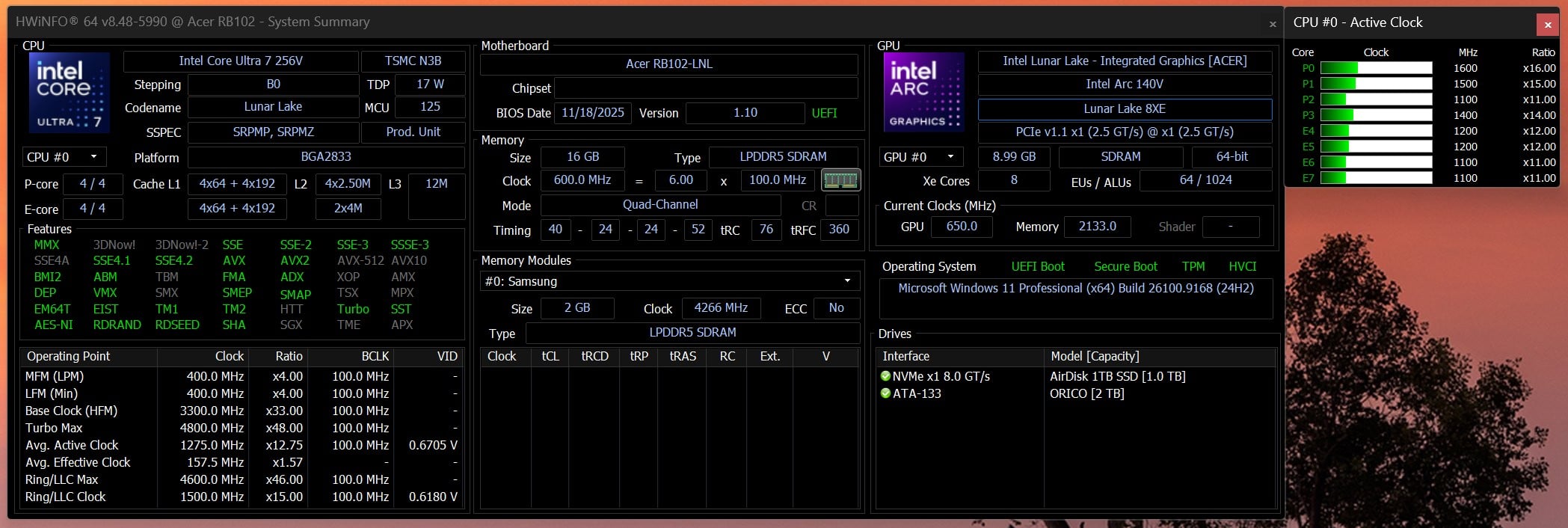

规格
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
大小写与连通性

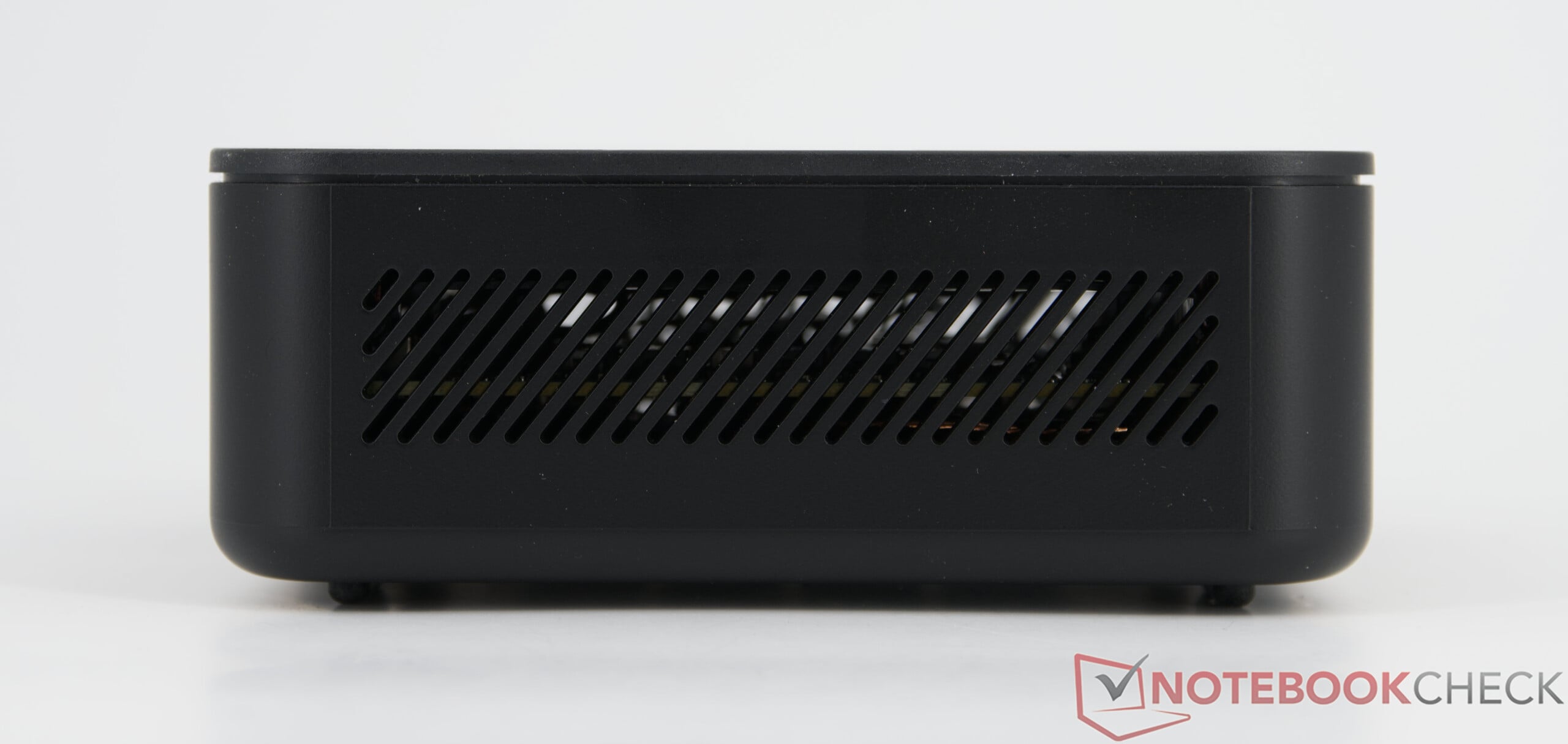

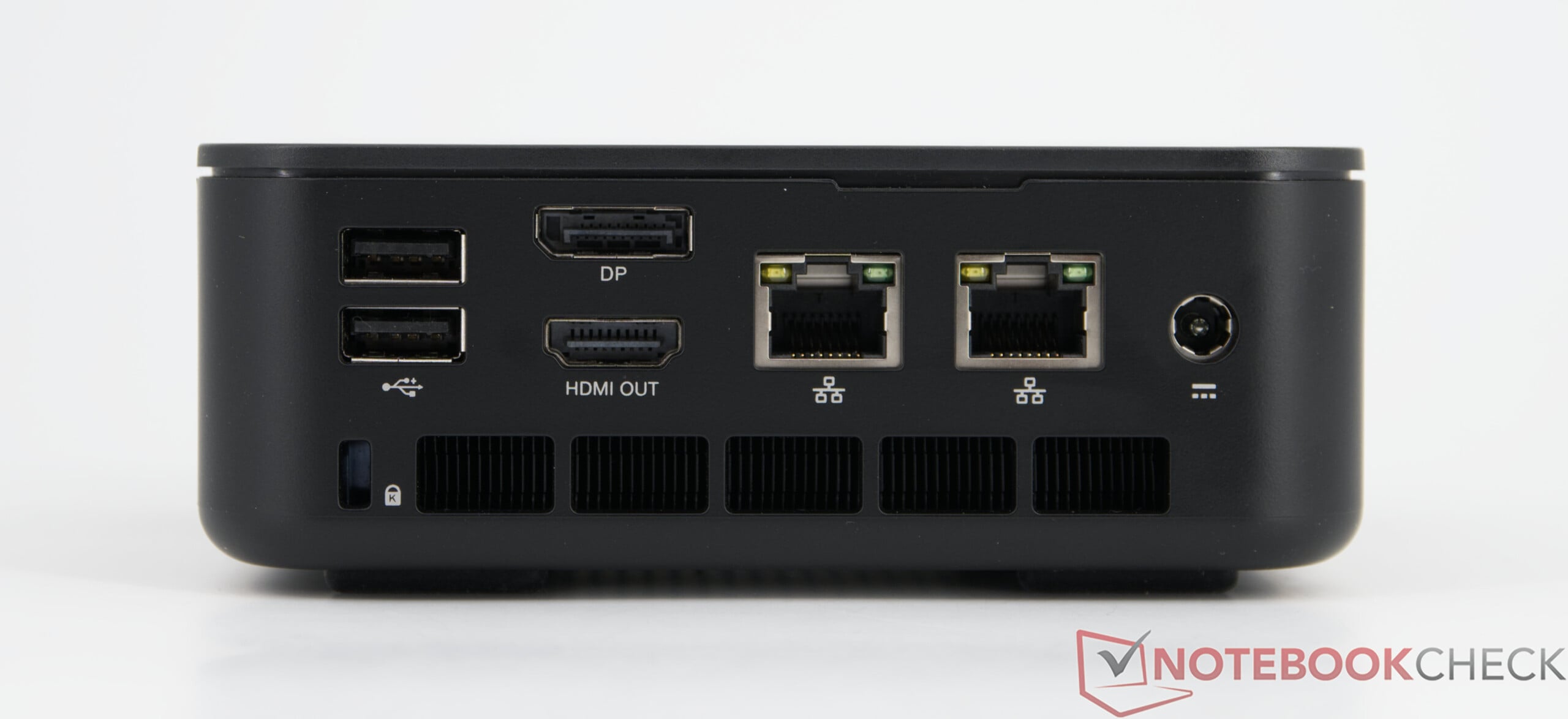

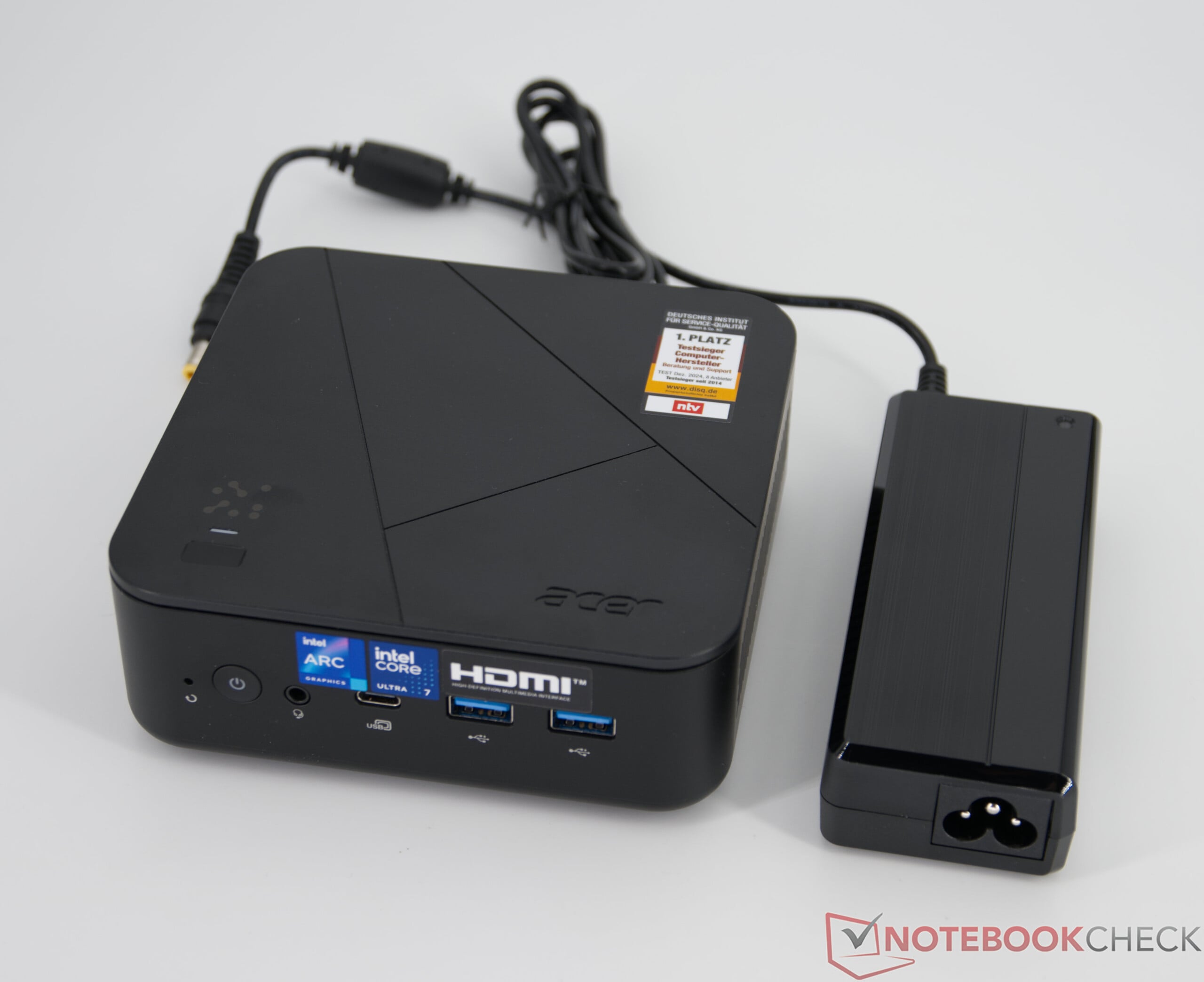

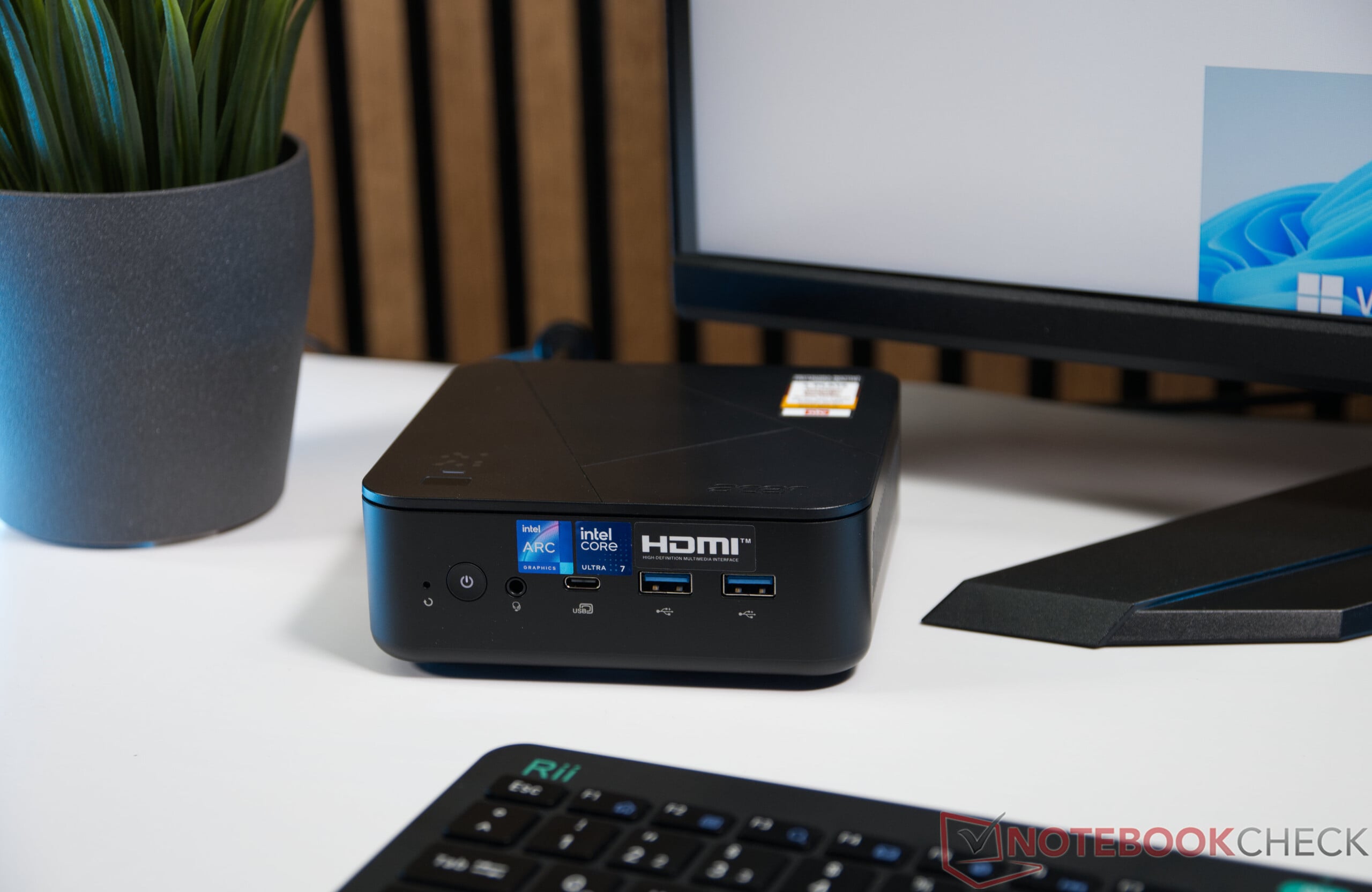

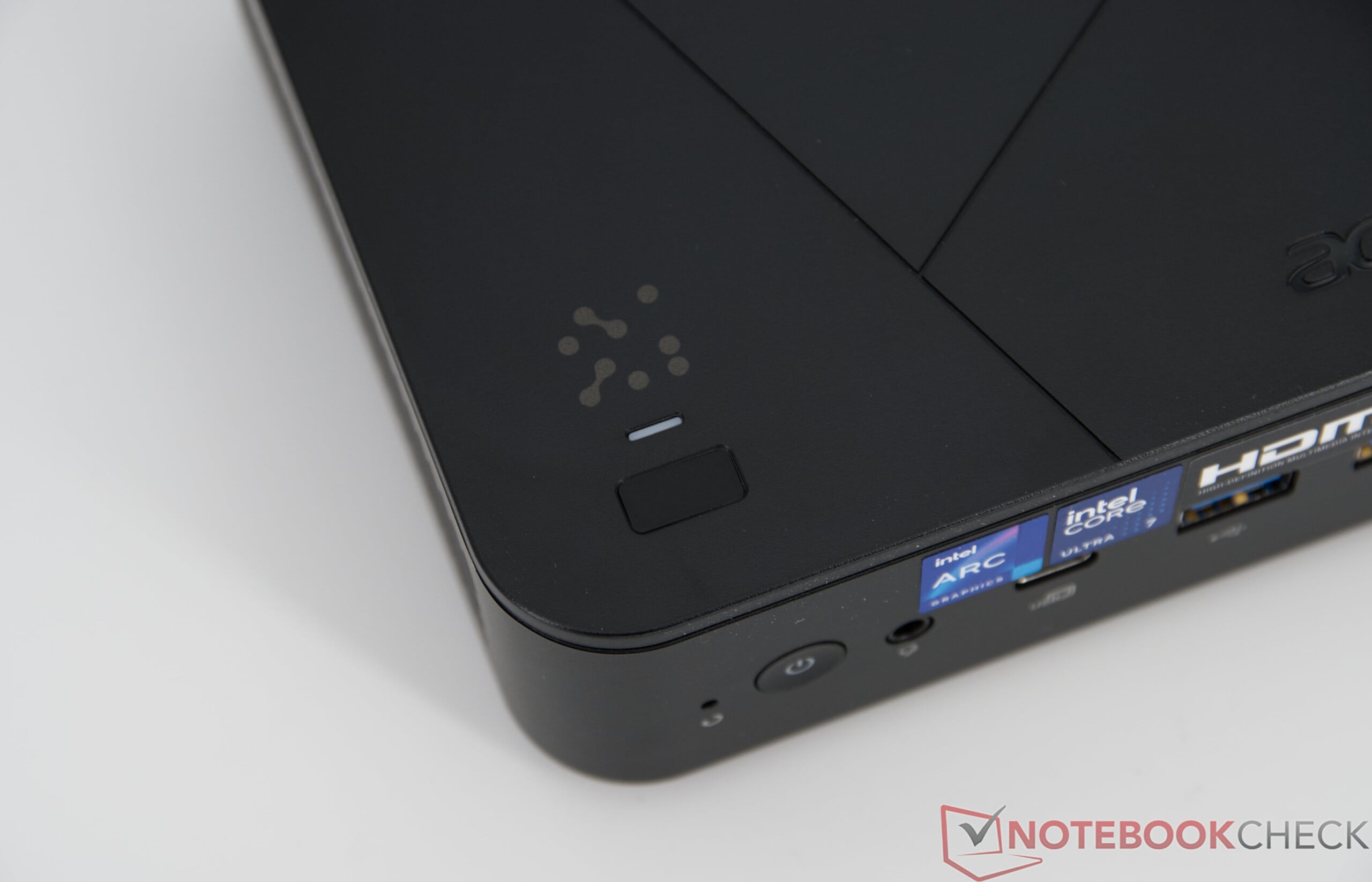

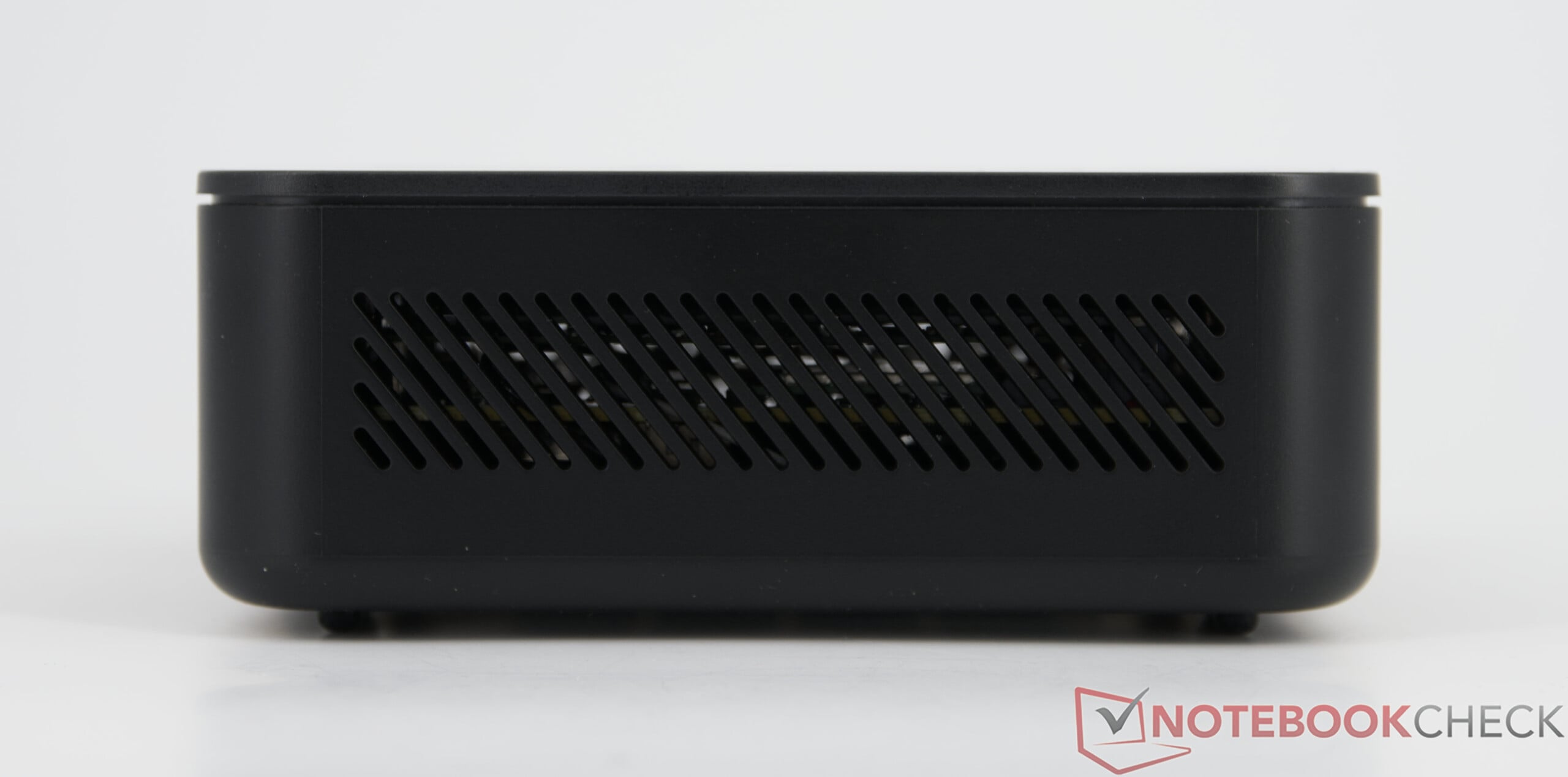

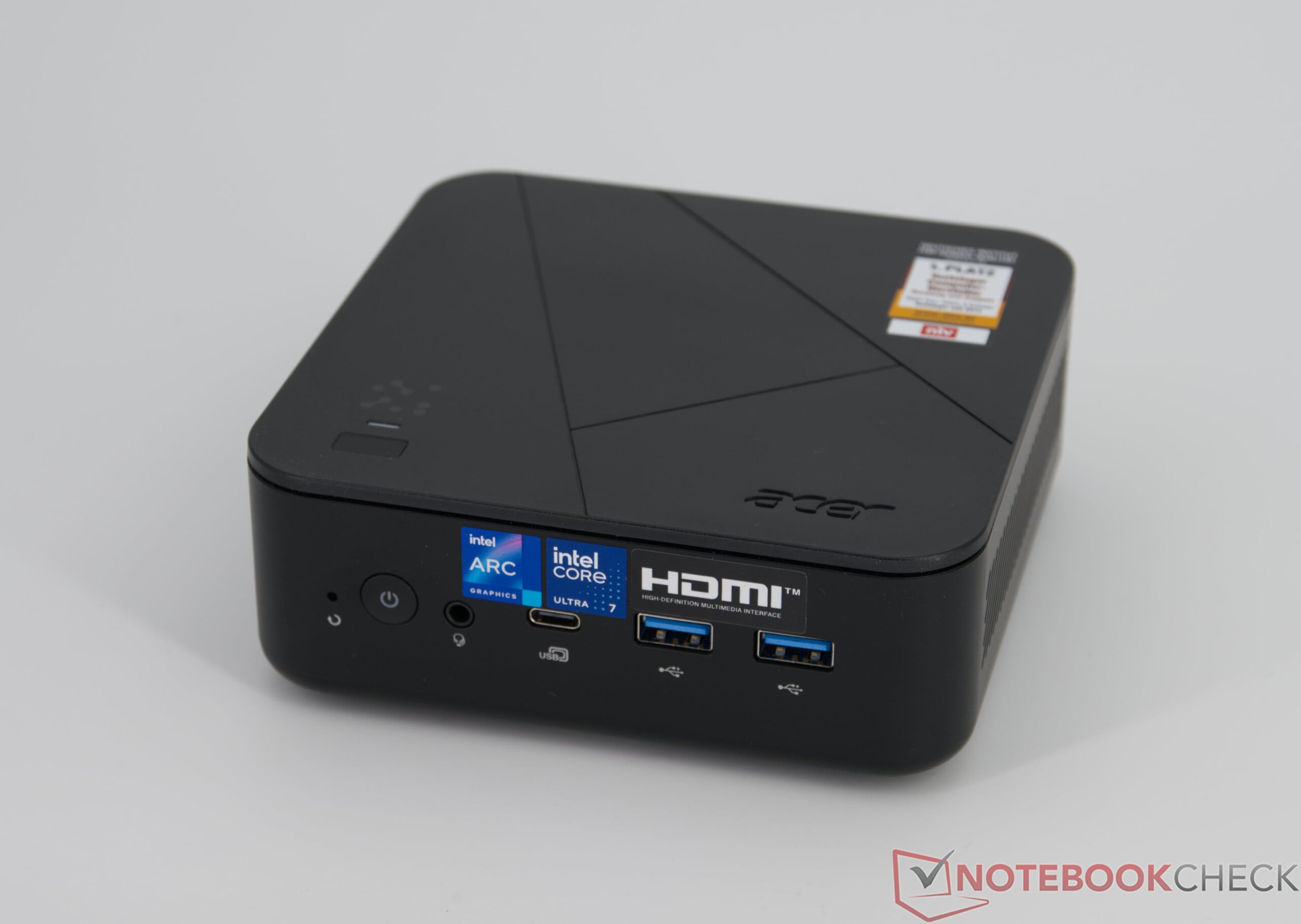

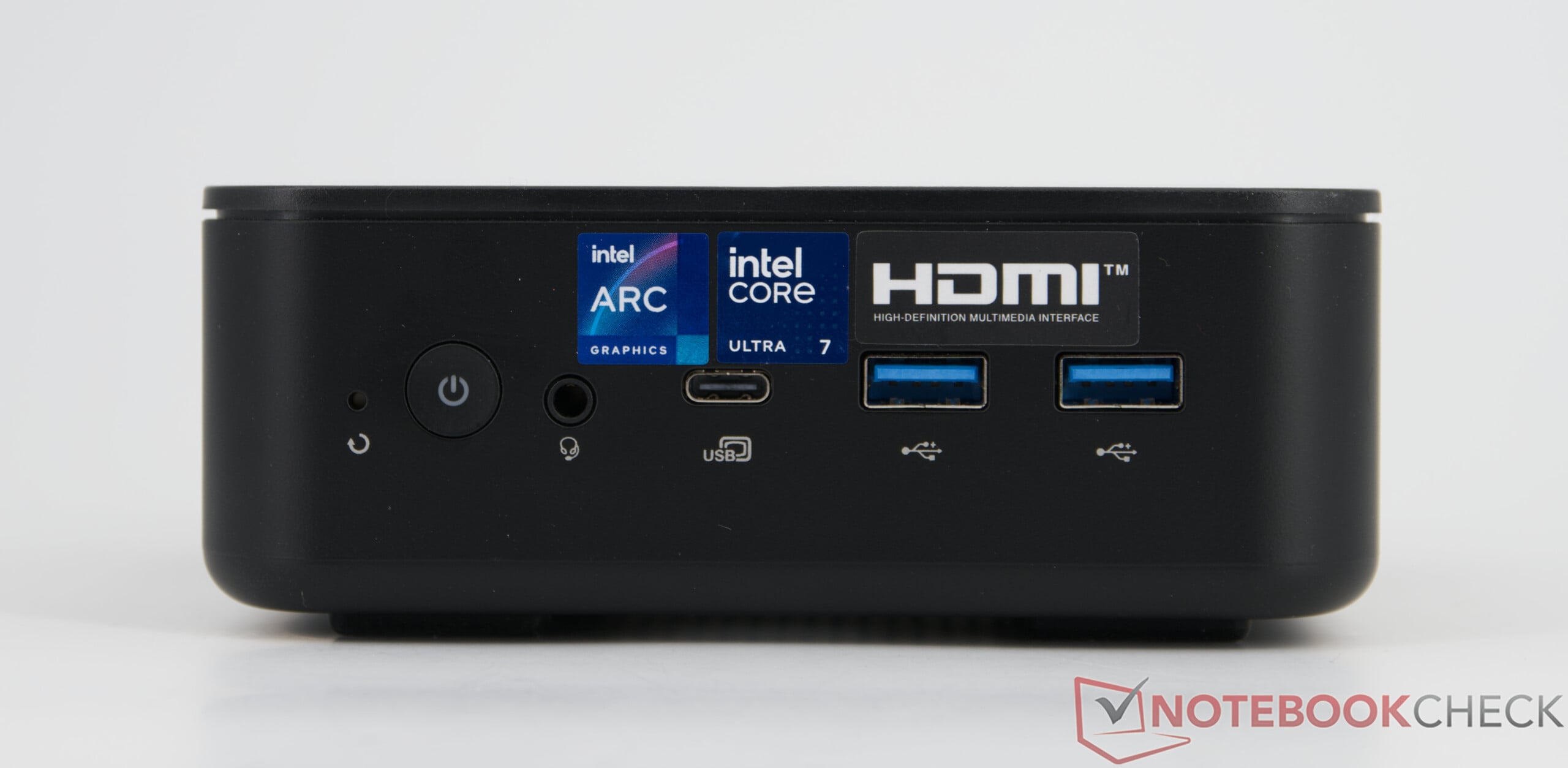

宏碁 Revo Box RB102 采用极其紧凑的机身设计,可低调地放置在桌面上。 得益于 VESA 壁挂支架,这款迷你电脑还可以安装在显示器背面以节省空间。宏碁主要采用塑料材质制作机身,这使其重量较轻。尽管如此,机身手感扎实,在日常使用中具有足够的抗扭刚性。哑光表面处理不仅不易留下指纹,还能低调地融入各种工作环境。 在接口方面,该设备提供了丰富的 USB 端口、USB4、HDMI 以及 DisplayPort。两个 2.5 Gbit/s 以太网端口同样实用,除了 Wi-Fi 6E 之外,还能提供更快的有线网络连接。

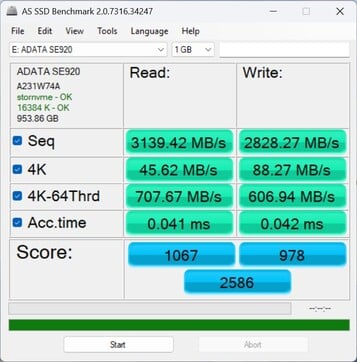

| Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB) | |
| GMK NucBox M6 Ultra | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Average of class Mini PC (423 - 3906, n=47, last 2 years) | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |

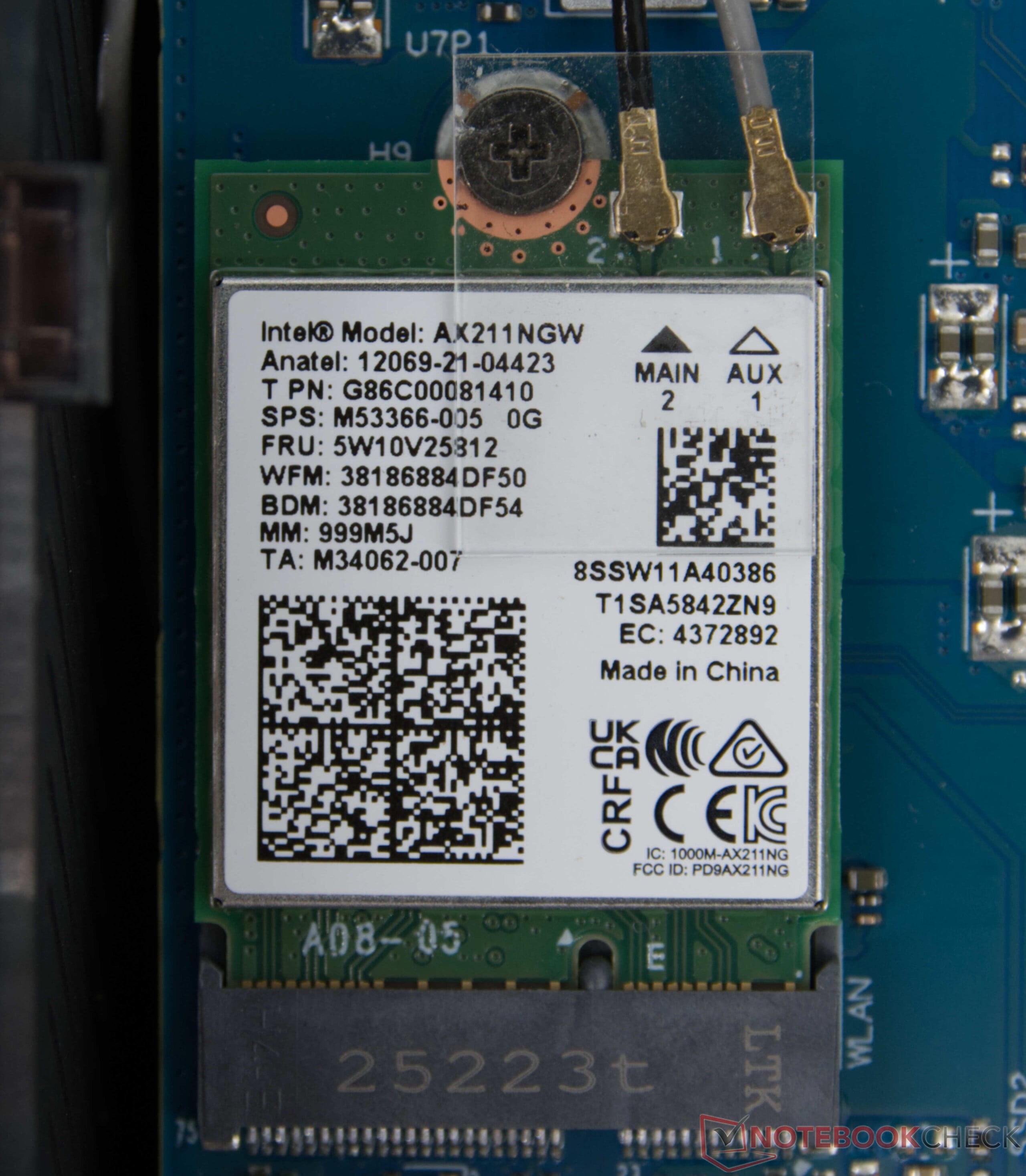

Wi-Fi 性能

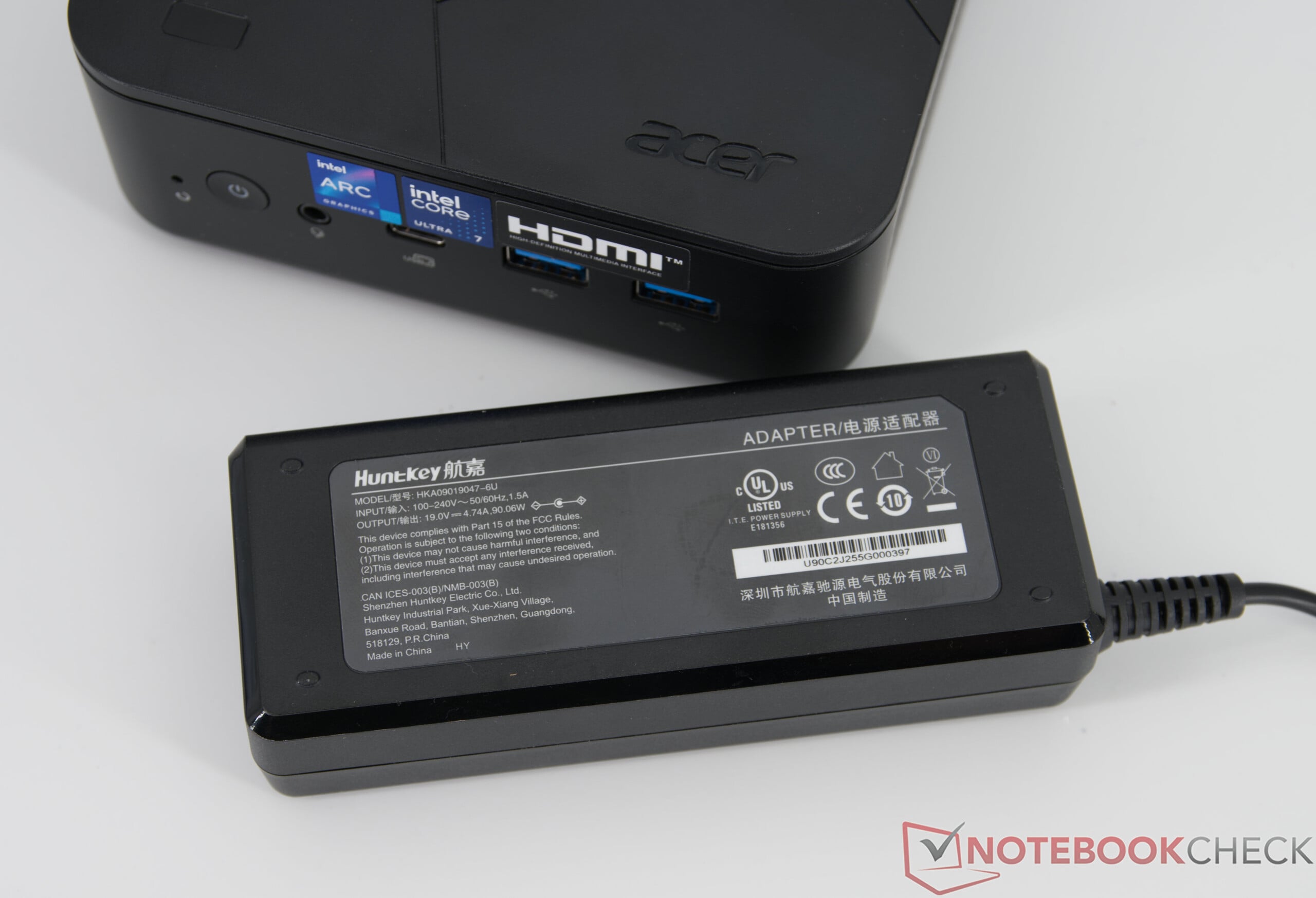

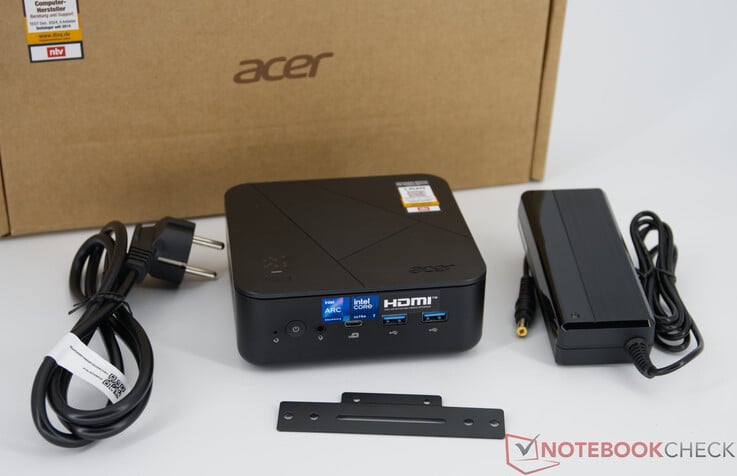

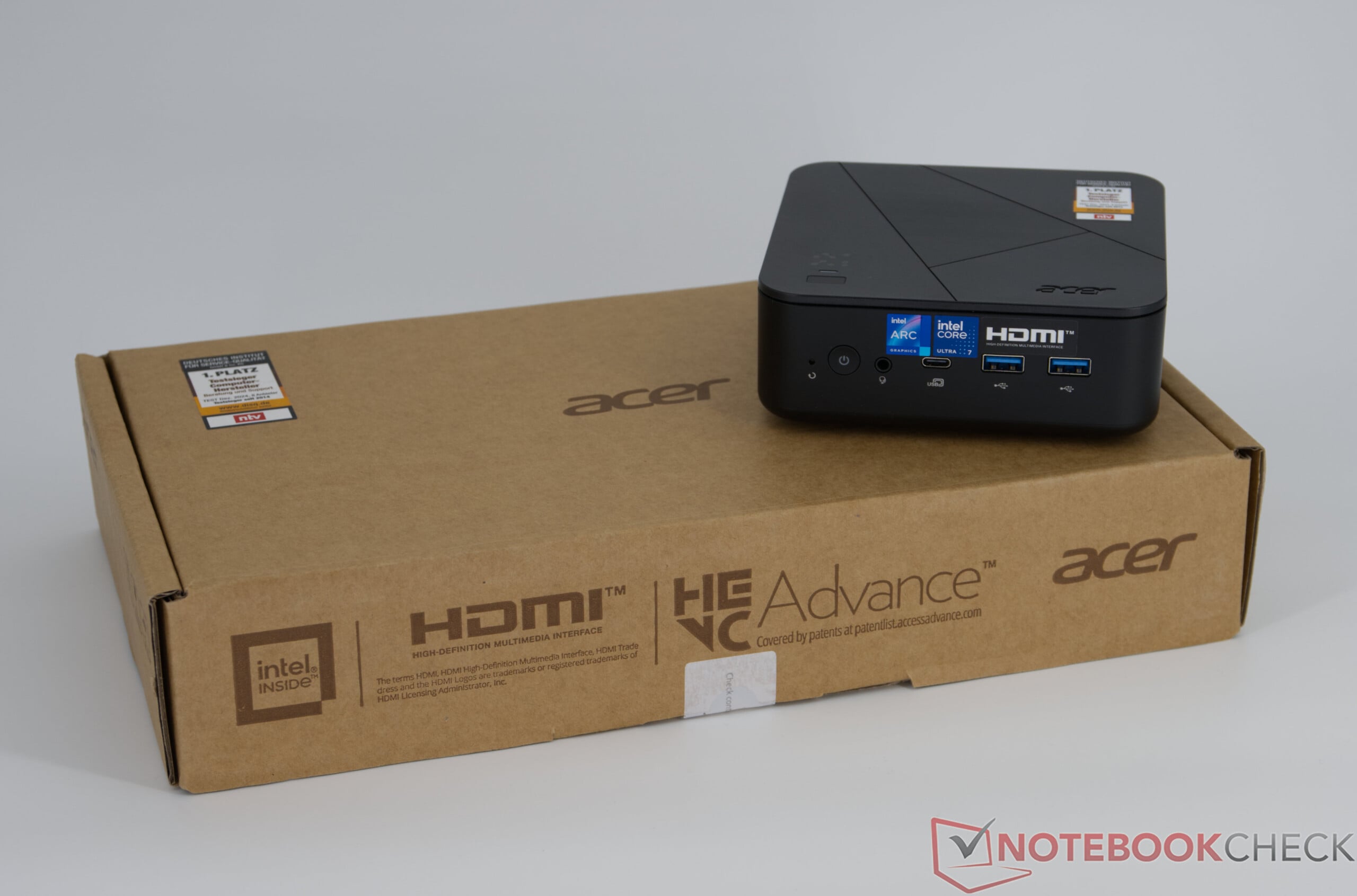

配件
维护

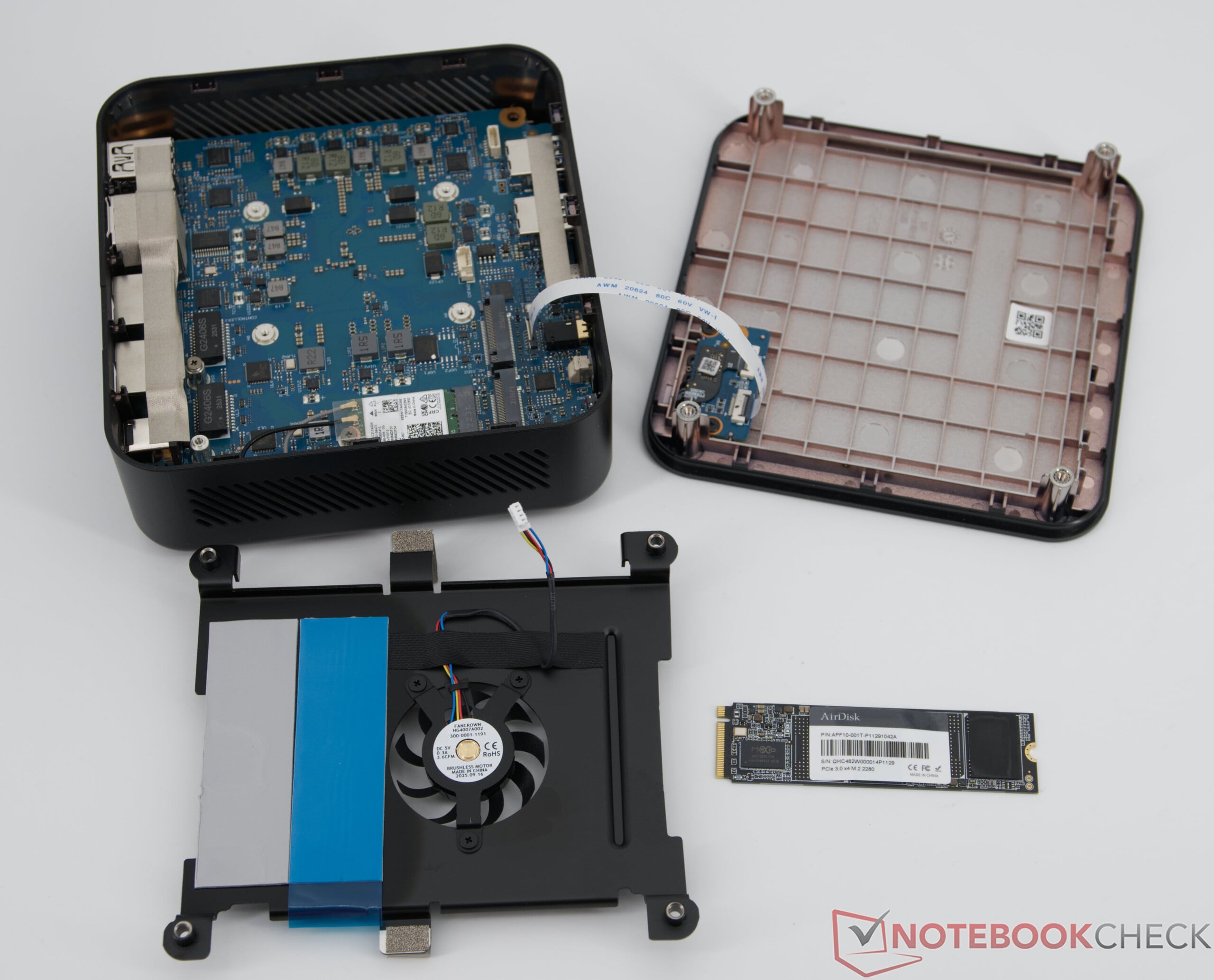

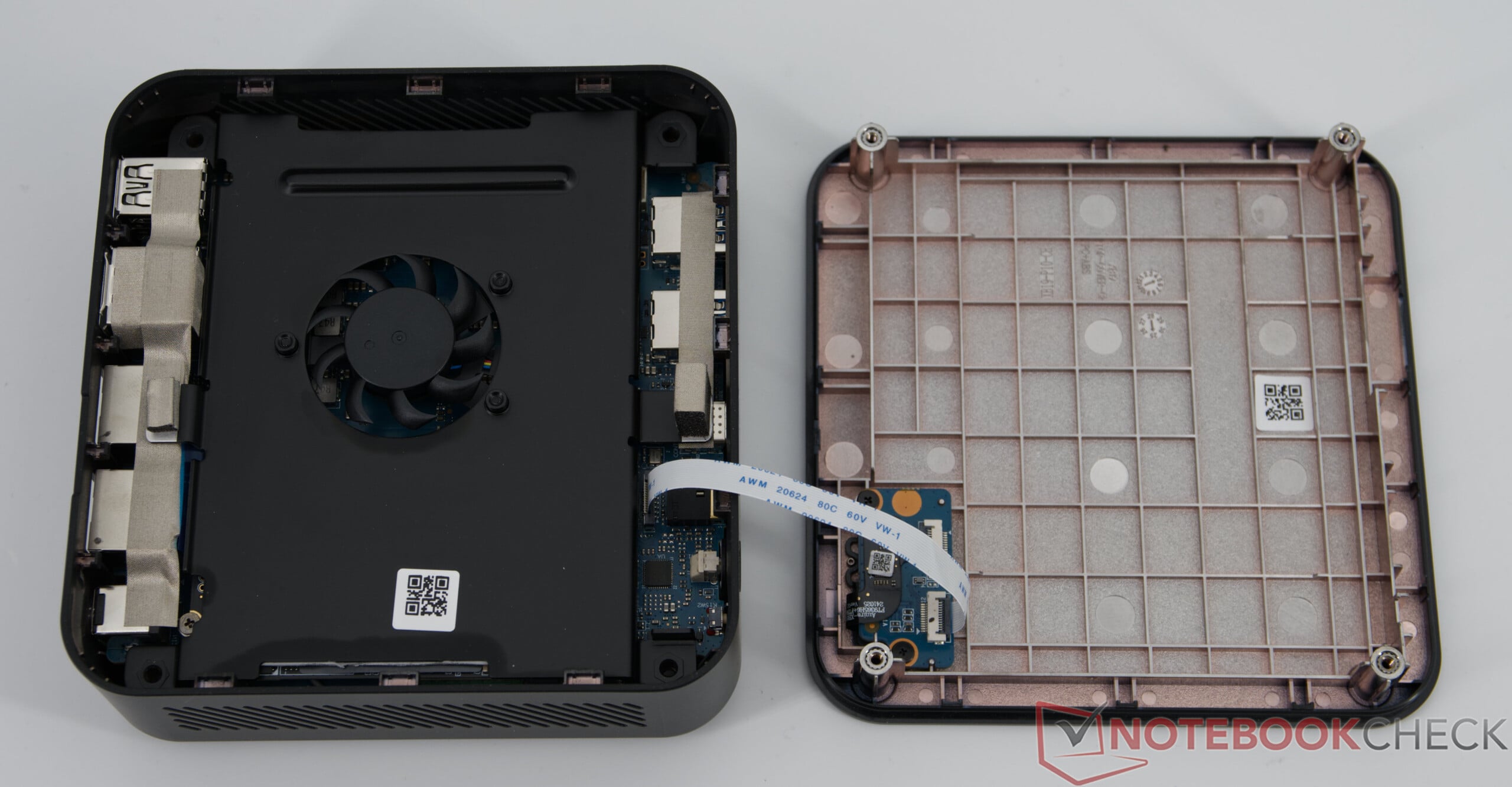

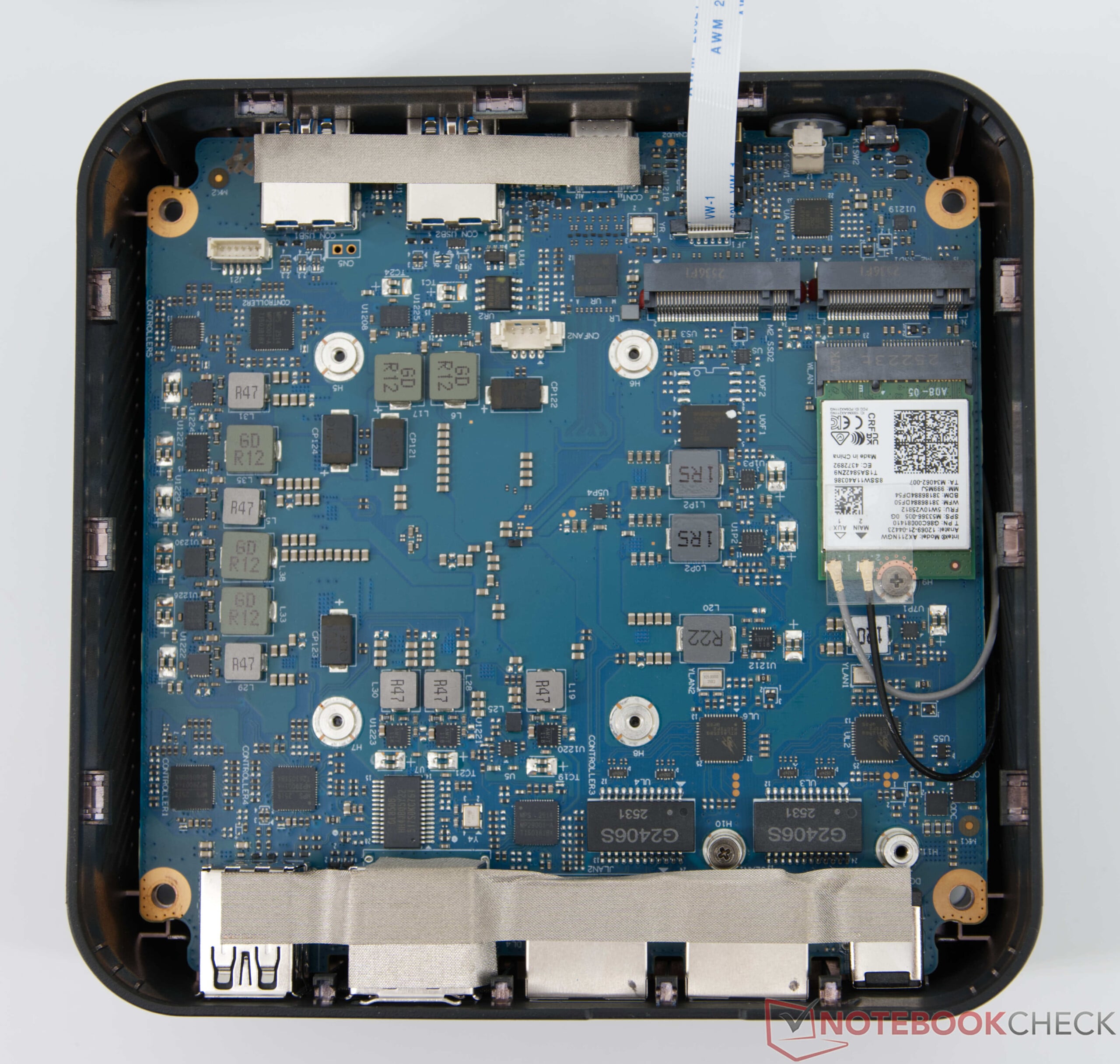

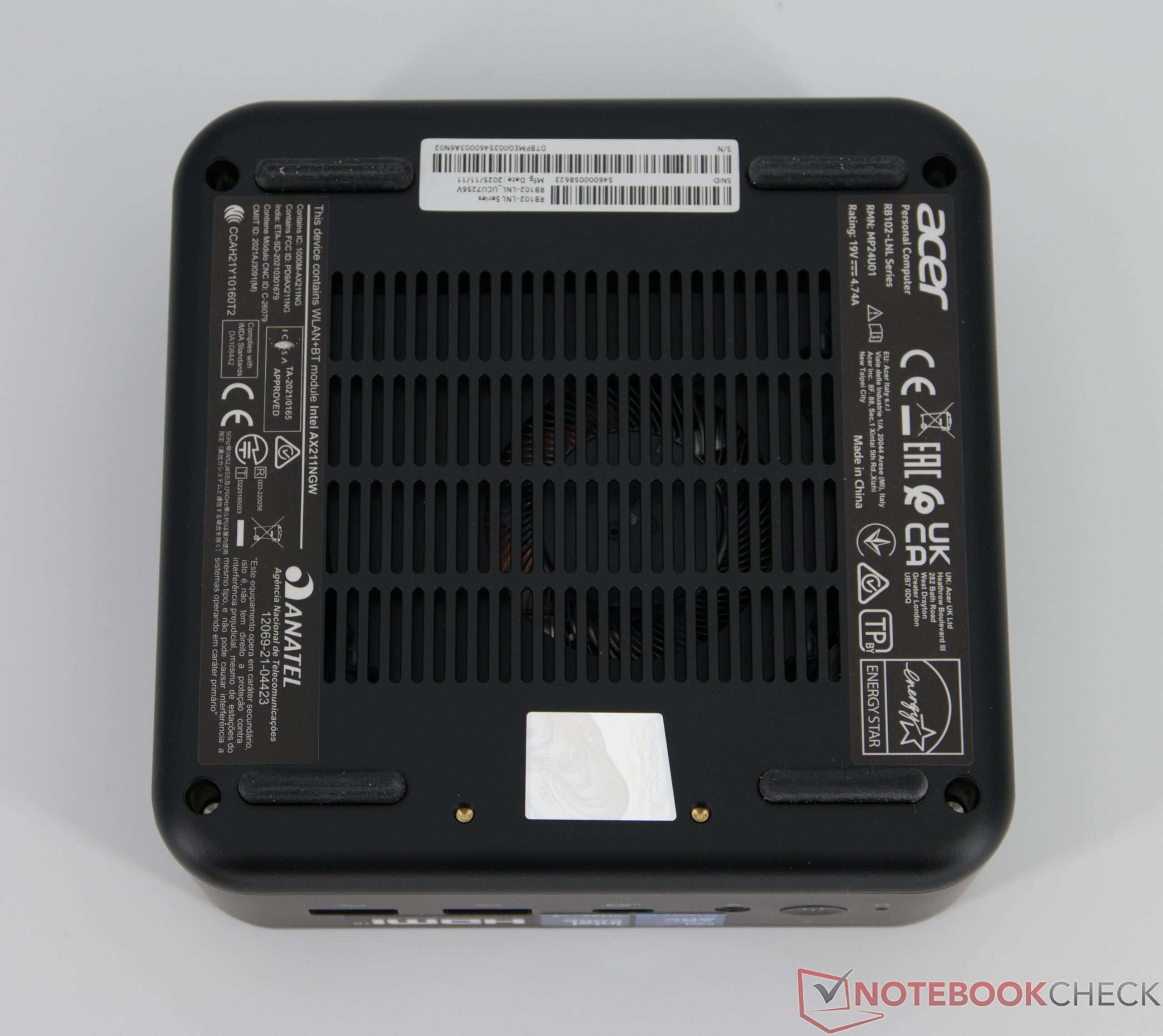

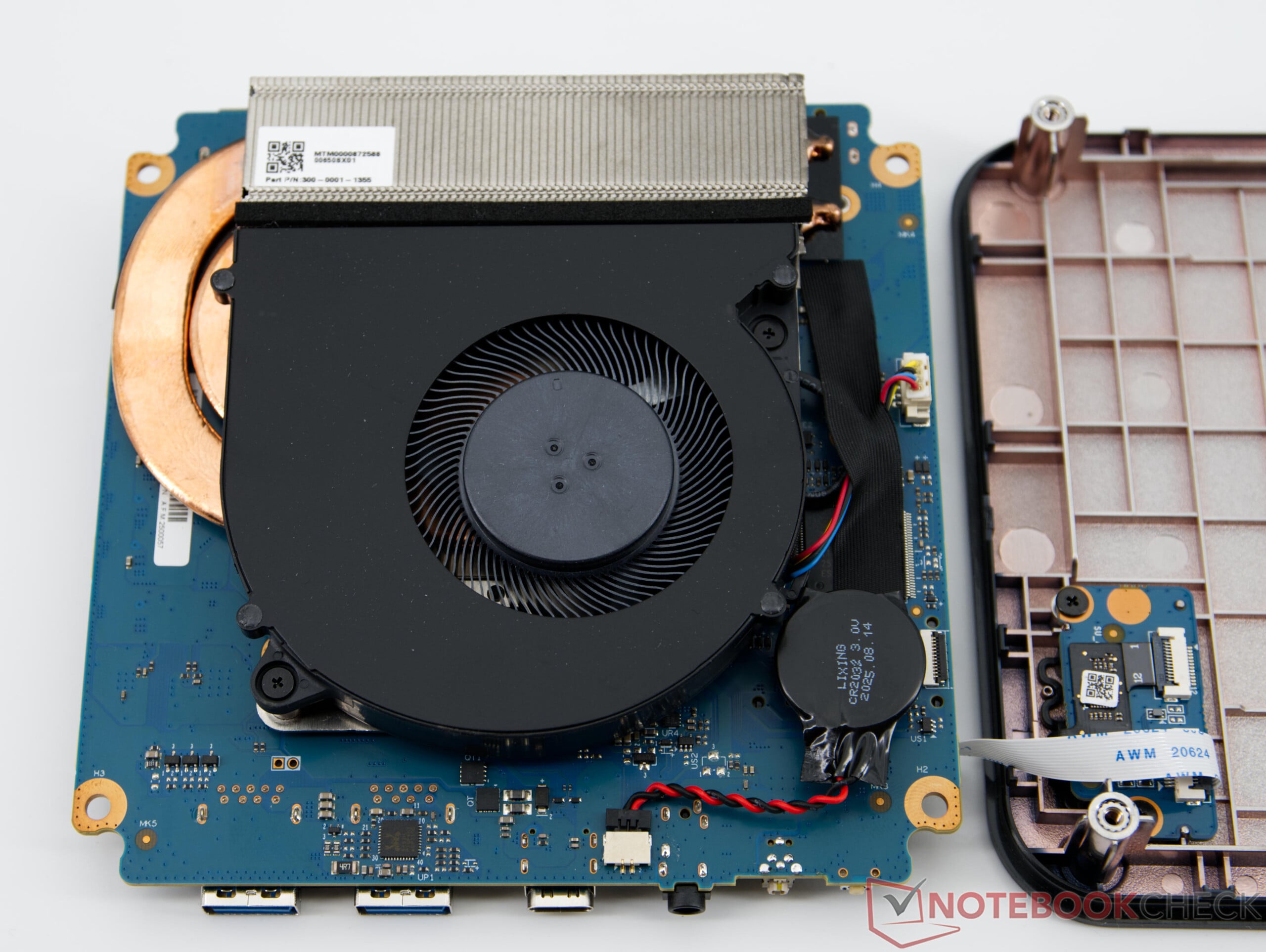

总体而言,宏碁 Revo Box RB102 的维护相当简单。 机箱可从底部打开,从而方便访问最重要的组件。不过,内存条是焊接在主板上的,无法进行扩容。仅有一个额外的插槽可用于安装额外的固态硬盘。如有必要,Wi-Fi 模块也可以更换。清洁散热系统同样非常简单。
测试条件

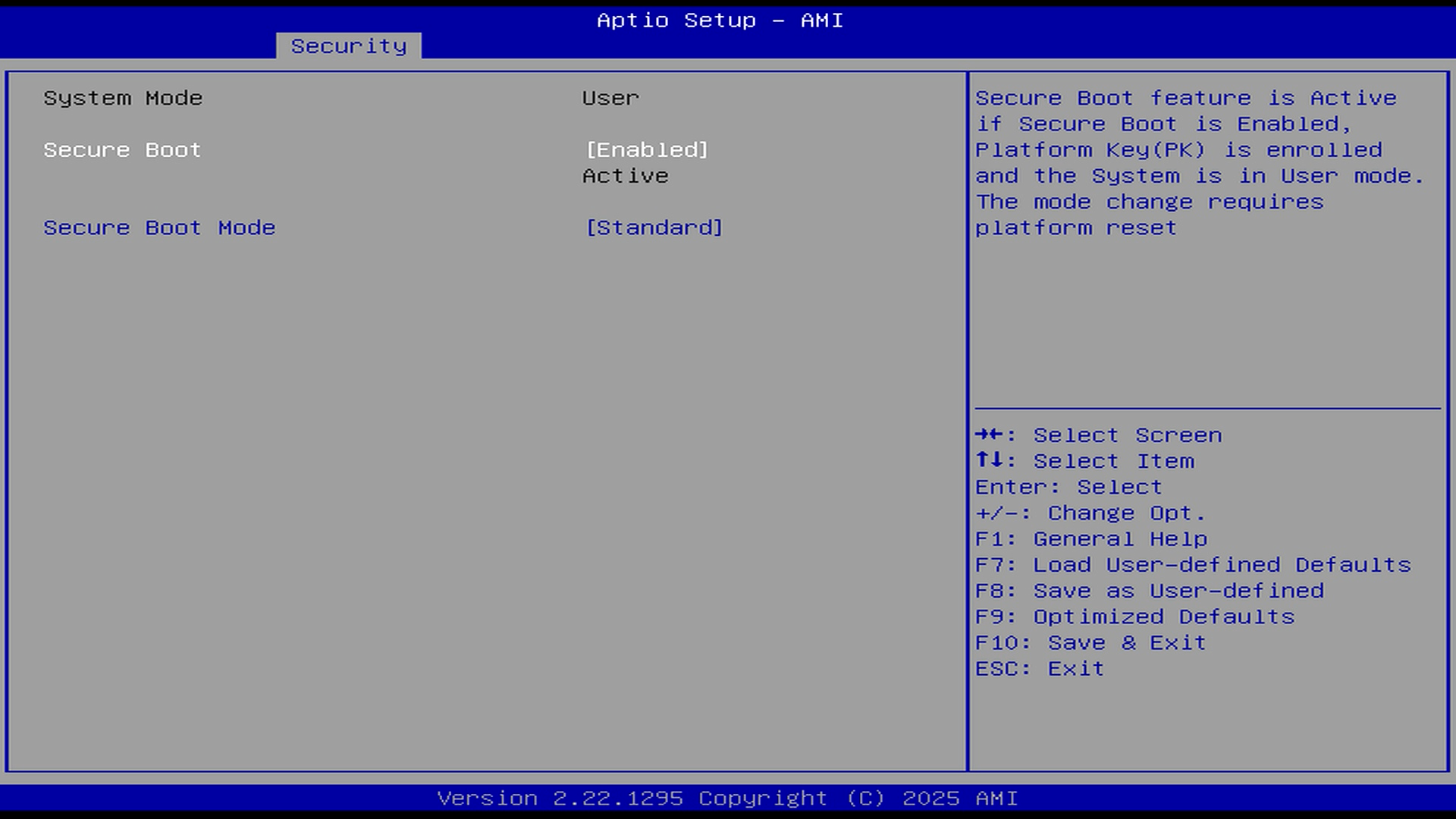

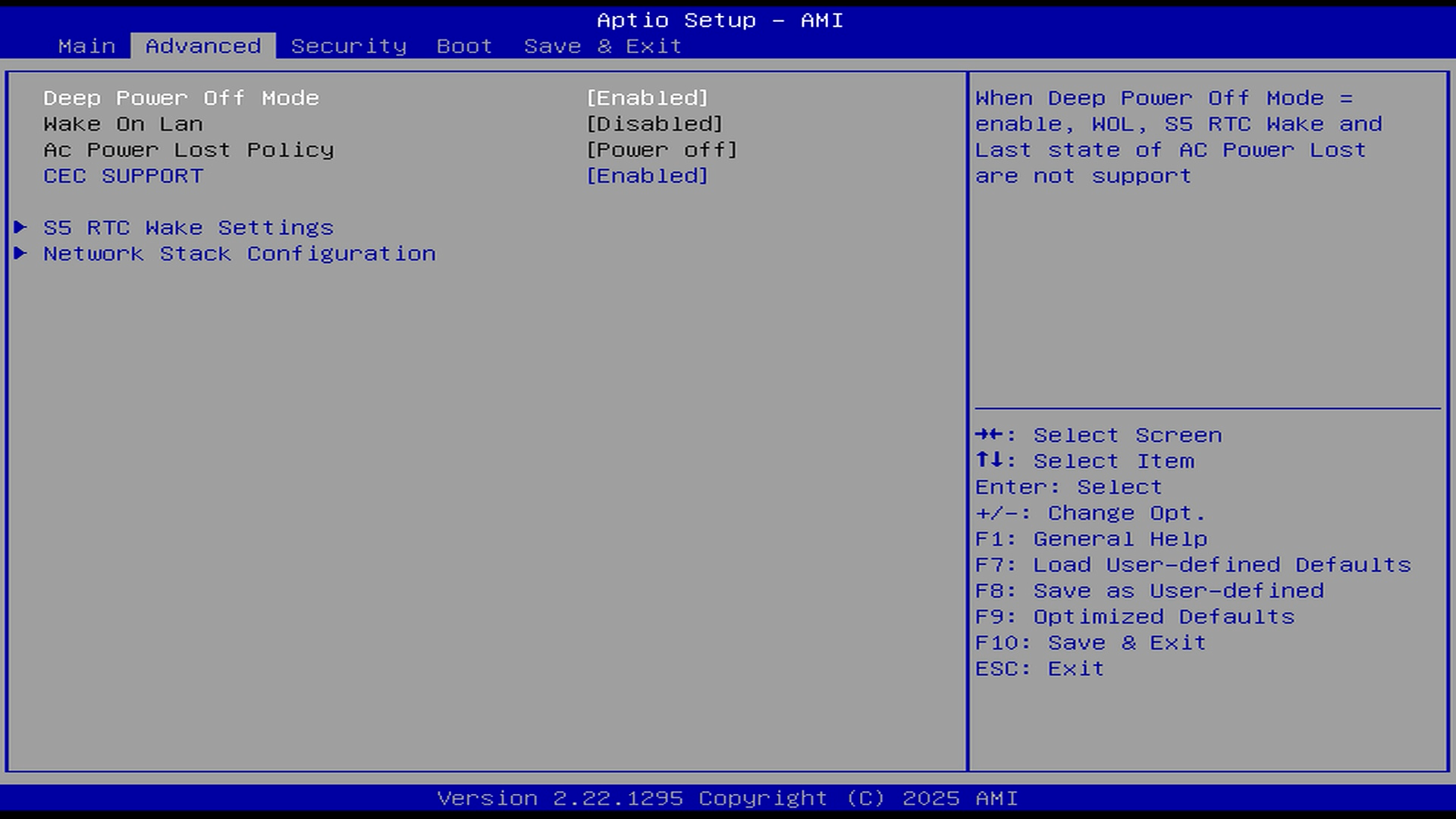

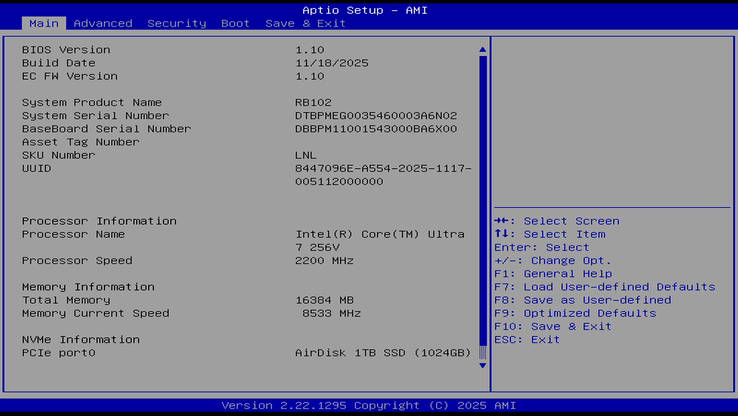

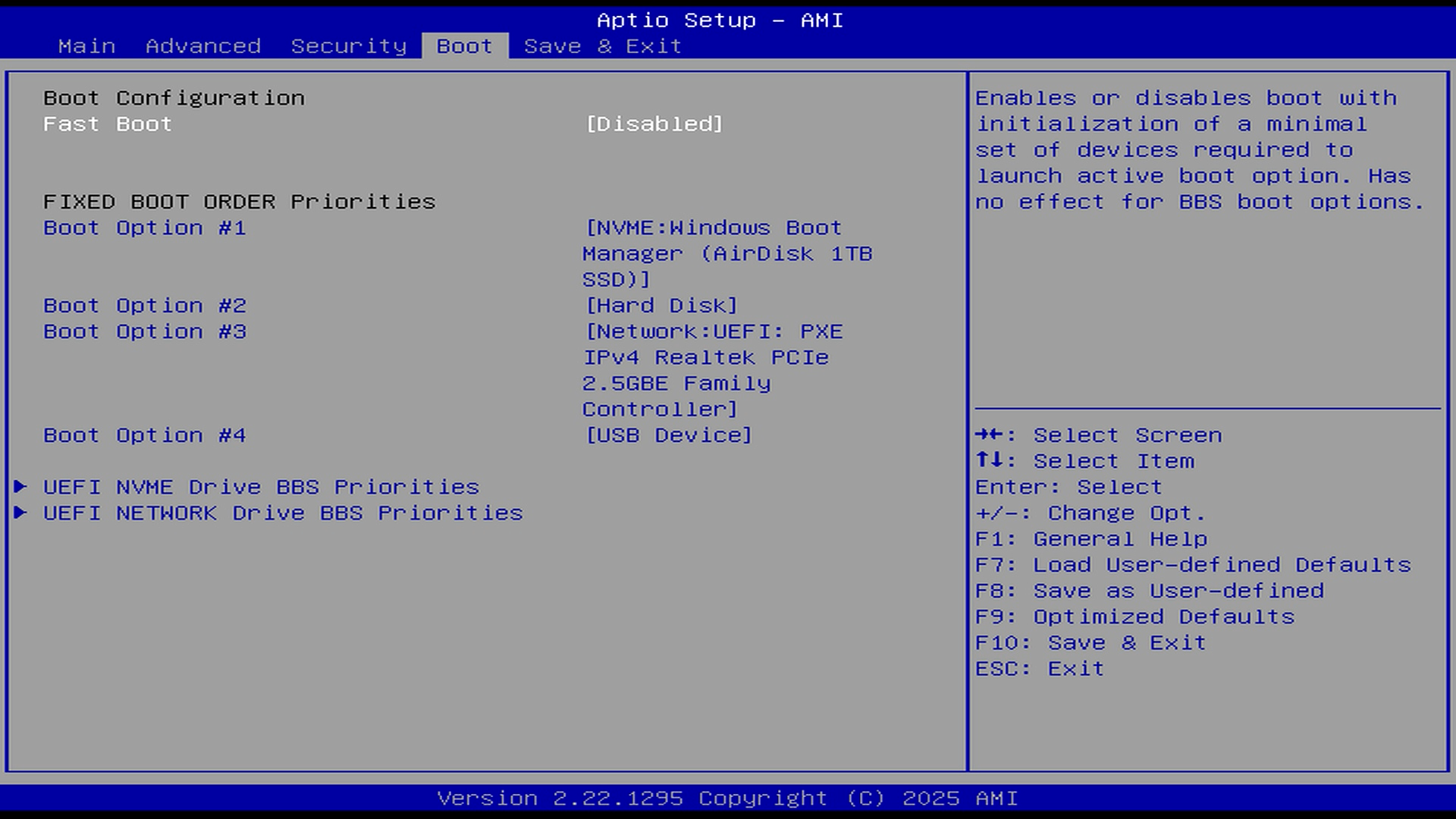

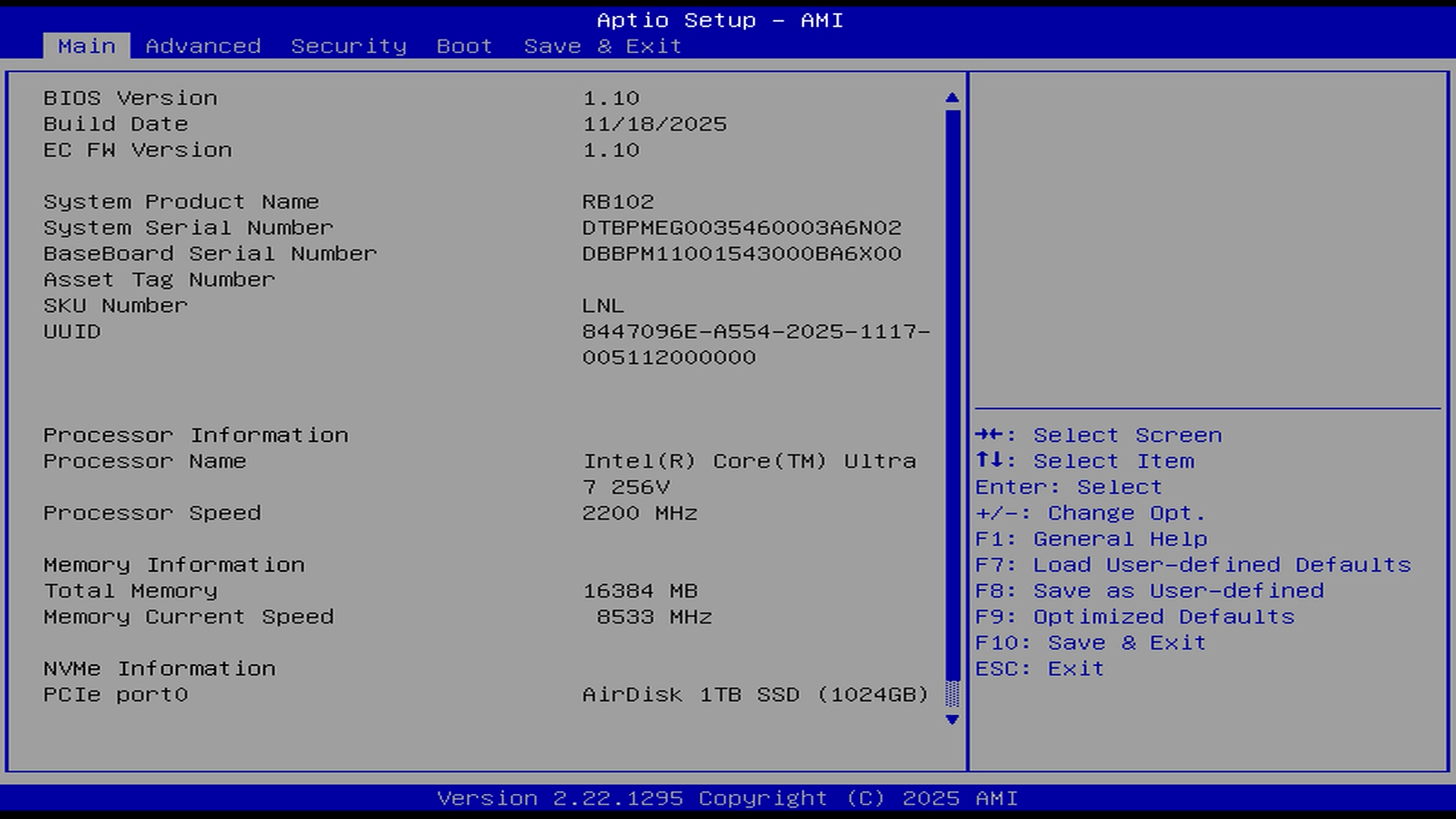

所有基准测试均在出厂设置下进行。此外,BIOS 未提供任何用于调整处理器性能的额外模式。
处理器
作为一款紧凑型迷你电脑,宏碁 Revo Box RB102 的 CPU 性能表现稳健。在性能评级中,该系统得分为 44.9 分,处于中游水平。因此,英特尔酷睿 Ultra 7 256V 处理器为典型的办公应用、多媒体以及更苛刻的多任务处理提供了充足的性能。 与 NucBox K17 中的英特尔酷睿 Ultra 5 226V 相比,其性能提高了约 11%。
| Performance rating - Percent | |
| Khadas Mind Pro | |
| Minisforum AI X1, Ryzen 7 255 | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox M6 Ultra | |
| GMK NucBox K17 | |
| WinRAR - Result | |
| GMK NucBox M6 Ultra | |
| Minisforum AI X1, Ryzen 7 255 | |
| Khadas Mind Pro | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| 3DMark 11 - 1280x720 Performance Physics | |
| Minisforum AI X1, Ryzen 7 255 | |
| Khadas Mind Pro | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| GMK NucBox M6 Ultra | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Khadas Mind Pro | |
| Minisforum AI X1, Ryzen 7 255 | |
| Acemagic Retro X3 | |
| Geekom IT13 Max | |
| GMK NucBox M6 Ultra | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| R Benchmark 2.5 - Overall mean | |
| GMK NucBox K17 | |
| GMK NucBox M6 Ultra | |
| Acemagic Retro X3 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Geekom IT13 Max | |
| Khadas Mind Pro | |
| Khadas Mind Pro | |
| LibreOffice - 20 Documents To PDF | |
| GMK NucBox M6 Ultra | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox K17 | |
| Acemagic Retro X3 | |
| Geekom IT13 Max | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Khadas Mind Pro | |
| Super Pi mod 1.5 XS 1M - 1M | |
| GMK NucBox K17 | |
| Acemagic Retro X3 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Minisforum AI X1, Ryzen 7 255 | |
| Khadas Mind Pro | |
| GMK NucBox M6 Ultra | |
| Geekom IT13 Max | |
| Super Pi mod 1.5 XS 2M - 2M | |
| Acemagic Retro X3 | |
| GMK NucBox K17 | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M6 Ultra | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Khadas Mind Pro | |
| Geekom IT13 Max | |
| Affinity Photo 2 - Combined (Multi CPU) | |
| Khadas Mind Pro | |
| Geekom IT13 Max | |
| Minisforum AI X1, Ryzen 7 255 | |
| Acemagic Retro X3 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox M6 Ultra | |
| GMK NucBox K17 | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx | CPU CheckMate
| Performance rating | |
| Minisforum AI X1, Ryzen 7 255 -1! | |
| Acemagic Retro X3 | |
| Average of class Mini PC | |
| GMK NucBox M6 Ultra -1! | |
| Geekom IT13 Max | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| AIDA64 / FP32 Ray-Trace | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (974 - 82725, n=102, last 2 years) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| AIDA64 / FPU Julia | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Average of class Mini PC (6115 - 363782, n=102, last 2 years) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| AIDA64 / CPU SHA3 | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (385 - 9475, n=102, last 2 years) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| AIDA64 / CPU Queen | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (20501 - 154404, n=81, last 2 years) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v6.92.6600) | |
| AIDA64 / FPU SinJulia | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Average of class Mini PC (1116 - 31931, n=102, last 2 years) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| AIDA64 / FPU Mandel | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (3322 - 192994, n=102, last 2 years) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| AIDA64 / CPU AES | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (9915 - 204742, n=101, last 2 years) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| AIDA64 / CPU ZLib | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| Average of class Mini PC (127.2 - 2431, n=102, last 2 years) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| AIDA64 / FP64 Ray-Trace | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| Average of class Mini PC (537 - 43587, n=102, last 2 years) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| AIDA64 / CPU PhotoWorxx | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Average of class Mini PC (8069 - 96843, n=102, last 2 years) | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| AIDA64 / CPU CheckMate | |
| Acemagic Retro X3 (v8.20.8100) | |
| Average of class Mini PC (1743 - 19453, n=21, last 2 years) | |
| Geekom IT13 Max (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| GMK NucBox K17 (v8.20.8100) | |
Cinebench R15 多核耐力测试
系统性能
在日常使用中,宏碁 Revo Box RB102 展现出响应迅速且性能强劲的迷你电脑特性。 运行速度达 8,533 MT/s 的高速 DDR5 内存,确保了流畅的运行体验和短暂的加载时间。即使在处理常规办公应用、多媒体内容和多任务处理时,这款宏碁微型电脑也配置完善,能为日常使用提供稳定的性能表现。
WebXPRT 4: Overall
WebXPRT 3: Overall
Mozilla Kraken 1.1: Total
CrossMark: Overall | Productivity | Creativity | Responsiveness
* ... smaller is better
| AIDA64 / Memory Copy | |
| Khadas Mind Pro (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Average of class Mini PC (15933 - 163031, n=102, last 2 years) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| AIDA64 / Memory Read | |
| Khadas Mind Pro (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Average of class Mini PC (14143 - 123769, n=102, last 2 years) | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| AIDA64 / Memory Write | |
| Khadas Mind Pro (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| Average of class Mini PC (10630 - 216693, n=102, last 2 years) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
| AIDA64 / Memory Latency | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Average of class Mini PC (88.1 - 174.6, n=103, last 2 years) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Khadas Mind Pro (v8.20.8100) | |
| Khadas Mind Pro (v6.92.6600) | |
| Minisforum AI X1, Ryzen 7 255 (v6.92.6600) | |
| GMK NucBox K17 (v6.92.6600) | |
| GMK NucBox K17 (v8.20.8100) | |
| GMK NucBox M6 Ultra (v6.92.6600) | |
* ... smaller is better
| UL Procyon for Windows / Overall Score Integer NPU | |
| Khadas Mind Pro (OpenVINO) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (OpenVINO) | |
| GMK NucBox K17 (OpenVINO) | |
| Geekom IT13 Max (OpenVINO) | |
| UL Procyon for Windows / Overall Score Integer GPU | |
| Khadas Mind Pro (Windows ML) | |
| Geekom IT13 Max (Windows ML) | |
| Minisforum AI X1, Ryzen 7 255 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (Windown ML) | |
| GMK NucBox K17 (Windows ML) | |
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Acemagic Retro X3 | |
| GMK NucBox K17 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Khadas Mind Pro | |
| Geekom IT13 Max | |
| GMK NucBox M6 Ultra | |
* ... smaller is better

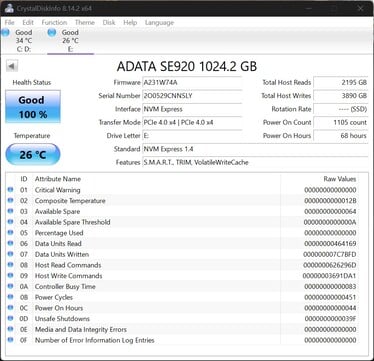

存储设备
* ... smaller is better
磁盘限速:DiskSpd 读取循环,队列深度 8
显卡与游戏性能
英特尔酷睿 Ultra 7 256V 搭载了集成式英特尔 Arc Graphics 140V 显卡,配备八个 Xe2 核心。它能提供足够的图形性能,满足日常多媒体任务、高分辨率视频播放以及硬件加速的媒体处理需求。该处理器也支持游戏运行,特别是较旧且对硬件要求较低的游戏,在中等到高画质设置下都能流畅运行。 然而,与 AMD Radeon 890M 等集成显卡解决方案相比,Arc 140V 在基准测试中表现不俗。在持续负载下,其图形性能保持了相当高的稳定性。
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Khadas Mind Pro | |
| Minisforum AI X1 Pro, HX 370 | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox K17 | |
| Acemagic Retro X3 | |
| Geekom IT13 Max | |
| GMK NucBox M6 Ultra | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Khadas Mind Pro | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Minisforum AI X1 Pro, HX 370 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Acemagic Retro X3 | |
| Geekom IT13 Max | |
| GMK NucBox M6 Ultra | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| Khadas Mind Pro | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Geekom IT13 Max | |
| Minisforum AI X1 Pro, HX 370 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Acemagic Retro X3 | |
| GMK NucBox M6 Ultra | |
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
| Performance rating | |
| Minisforum AI X1 Pro, HX 370 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Acemagic Retro X3 | |
| Khadas Mind Pro | |
| GMK NucBox M6 Ultra | |
| Geekom IT13 Max | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Arc Graphics 140V Core Ultra 7 256V | GMK NucBox K17, Intel Arc Graphics 130V Core Ultra 5 226V | Minisforum AI X1, Ryzen 7 255, AMD Radeon 780M Ryzen 7 255 | Geekom IT13 Max, Intel Arc 8-Core iGPU Ultra 9 185H | GMK NucBox M6 Ultra, AMD Radeon 760M R5 7640HS | Acemagic Retro X3, AMD Radeon 780M Ryzen 7 255 | Khadas Mind Pro, Intel Arc B390 12 Xe3 Panther Lake iGPU Ultra X7 358H | Minisforum AI X1 Pro, HX 370, AMD Radeon 890M Ryzen AI 9 HX 370 | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | -11% | 241% | 8% | 151% | 193% | 54% | 249% | 386% | |
| 3840x2160 Medical (medical-03) (fps) | 5.34 | 4.32 -19% | 12.6 136% | 7.12 33% | 11 106% | 15.9 198% | 9.48 78% | 15.2 185% | 24.1 ? 351% |
| 3840x2160 Energy (energy-03) (fps) | 4.18 | 3.32 -21% | 19.1 357% | 5.57 33% | 10.1 142% | 11.9 185% | 7.67 83% | 15.5 271% | 35.8 ? 756% |
| 3840x2160 Creo (creo-03) (fps) | 21.9 | 18.7 -15% | 33.7 54% | 19.2 -12% | 26.2 20% | 29.8 36% | 28.9 32% | 34.1 56% | 51.1 ? 133% |
| 3840x2160 CATIA (catia-06) (fps) | 11.5 | 11.5 0% | 24.6 114% | 12.3 7% | 21.1 83% | 21.2 84% | 19.5 70% | 23.1 101% | 36.3 ? 216% |
| 3840x2160 Siemens NX (snx-04) (fps) | 7.24 | 6.7 -7% | 63.1 772% | 6.23 -14% | 48.6 571% | 54.5 653% | 7.09 -2% | 68.7 849% | 52.2 ? 621% |
| 3840x2160 Maya (maya-06) (fps) | 43.3 | 42.1 -3% | 47.5 10% | 44.3 2% | 36.5 -16% | 44.9 4% | 69.4 60% | 55.9 29% | 147.6 ? 241% |
| 3DMark 05 Standard | 53943 points | |
| 3DMark 06 Standard Score | 45301 points | |
| 3DMark Vantage P Result | 46623 points | |
| 3DMark 11 Performance | 11803 points | |
| 3DMark Ice Storm Standard Score | 203823 points | |
| 3DMark Cloud Gate Standard Score | 34407 points | |
| 3DMark Fire Strike Score | 8838 points | |
| 3DMark Fire Strike Extreme Score | 3895 points | |
| 3DMark Time Spy Score | 3899 points | |
| 3DMark Steel Nomad Score | 715 points | |
Help | ||
| GTA V | |
| 1024x768 Lowest Settings possible | |
| Khadas Mind Pro | |
| Minisforum AI X1 Pro, HX 370 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox M6 Ultra | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| GMK NucBox K17 | |
| 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
| Khadas Mind Pro | |
| Minisforum AI X1 Pro, HX 370 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox K17 | |
| Acemagic Retro X3 | |
| GMK NucBox M6 Ultra | |
| Geekom IT13 Max | |
帧率图表 - 30 分钟《赛博朋克2077》1920 x 1080 超高清预设(FSR 关闭)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 161.2 | 155.6 | 67.8 | 25.7 |
| The Witcher 3 (2015) | 162.2 | 105.8 | 58.1 | 23.8 |
| Dota 2 Reborn (2015) | 106.2 | 97.3 | 68.3 | 83.2 |
| Final Fantasy XV Benchmark (2018) | 87.8 | 48.2 | 33.6 | |
| Strange Brigade (2018) | 230 | 79.4 | 67.2 | 56.3 |
| Baldur's Gate 3 (2023) | 38.9 | 31.2 | 27.4 | 26.7 |
| Cyberpunk 2077 (2023) | 48 | 37.7 | 27.1 | 23 |
| F1 24 (2024) | 79.1 | 77.2 | 54.2 | 19.6 |
排放
系统噪音
宏碁 Revo Box RB102 迷你电脑在日常使用中运行时非常安静,有时甚至完全无声。其紧凑的散热系统经过精心调校,即使在执行常规任务时也能保持较低的噪音水平。即使在长时间高负荷运行下,运行噪音也相对较低,因此从听觉上几乎察觉不到这台迷你电脑的存在。
Noise level
| Idle |
| 24.7 / 24.8 / 24.9 dB(A) |
| Load |
| 34.9 / 35.2 dB(A) |
![]() | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: | ||
| Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V | GMK NucBox K17 Core Ultra 5 226V, Arc 130V | Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M | Geekom IT13 Max Ultra 9 185H, Arc 8-Core | GMK NucBox M6 Ultra R5 7640HS, Radeon 760M | Acemagic Retro X3 Ryzen 7 255, Radeon 780M | Khadas Mind Pro Ultra X7 358H, Arc B390 Panther Lake iGPU | |
|---|---|---|---|---|---|---|---|
| Noise | 9% | -12% | -23% | -11% | -18% | -4% | |
| off / environment * (dB) | 24.6 | 25.1 -2% | 24.9 -1% | 24.6 -0% | 24.7 -0% | 24.6 -0% | 24.6 -0% |
| Idle Minimum * (dB) | 24.7 | 25.3 -2% | 31.1 -26% | 25.3 -2% | 27.5 -11% | 25 -1% | 24.9 -1% |
| Idle Average * (dB) | 24.8 | 25.4 -2% | 31.2 -26% | 25.6 -3% | 29.3 -18% | 25 -1% | 24.9 -0% |
| Idle Maximum * (dB) | 24.9 | 26.1 -5% | 31.2 -25% | 25.6 -3% | 30.1 -21% | 25 -0% | 25 -0% |
| Load Average * (dB) | 34.9 | 27.4 21% | 36.7 -5% | 53.3 -53% | 39 -12% | 43.6 -25% | 40.1 -15% |
| Witcher 3 ultra * (dB) | 35.1 | 28 20% | 37.9 -8% | 47.1 -34% | 39 -11% | 49.8 -42% | 36.2 -3% |
| Cyberpunk 2077 ultra * (dB) | 38.9 | 29.1 25% | 37.8 3% | 53.4 -37% | 39.3 -1% | 49.9 -28% | 39.7 -2% |
| Load Maximum * (dB) | 35.2 | 28.6 19% | 38.4 -9% | 53.5 -52% | 39 -11% | 50.2 -43% | 40.2 -14% |
* ... smaller is better
温度

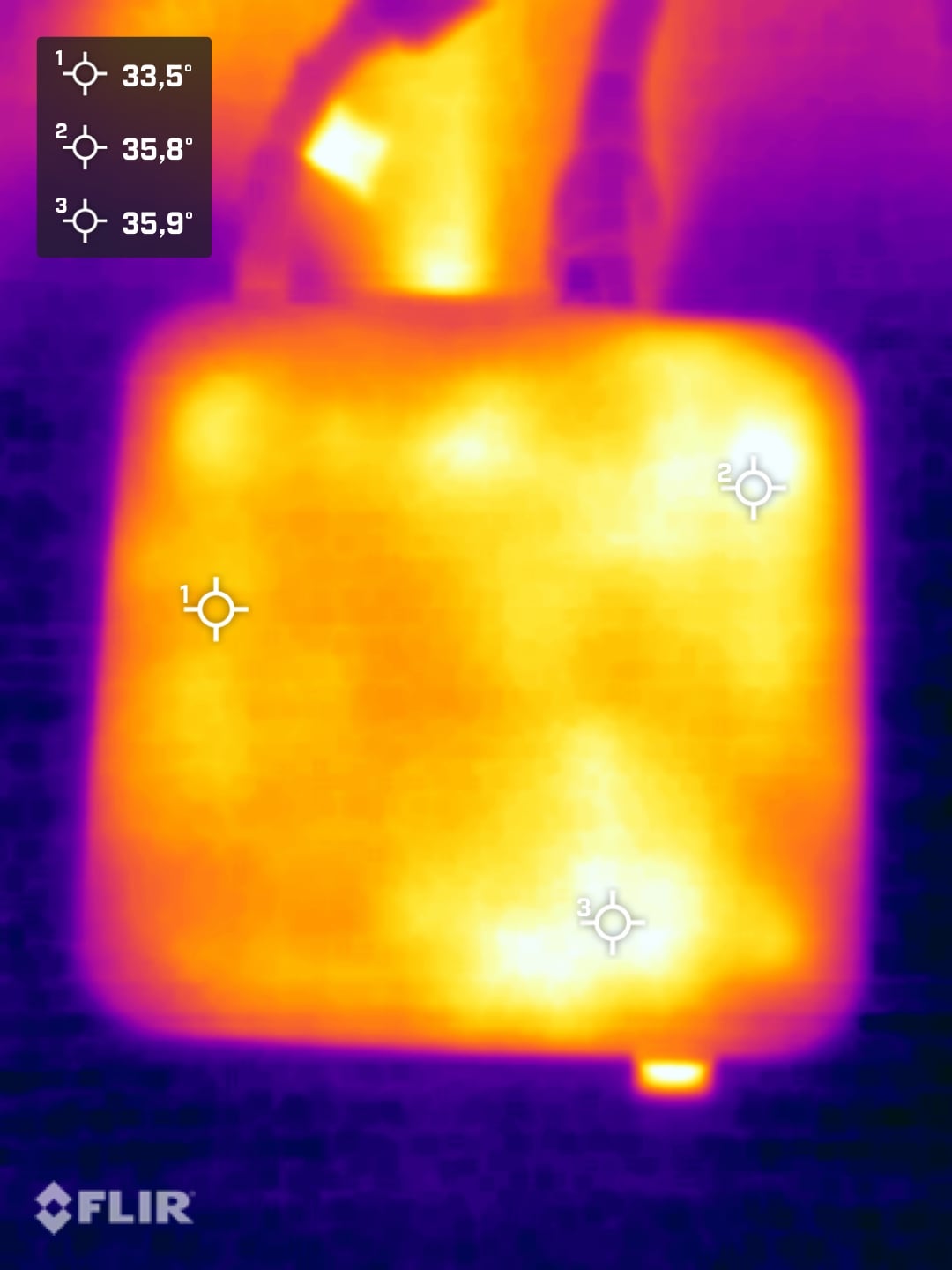

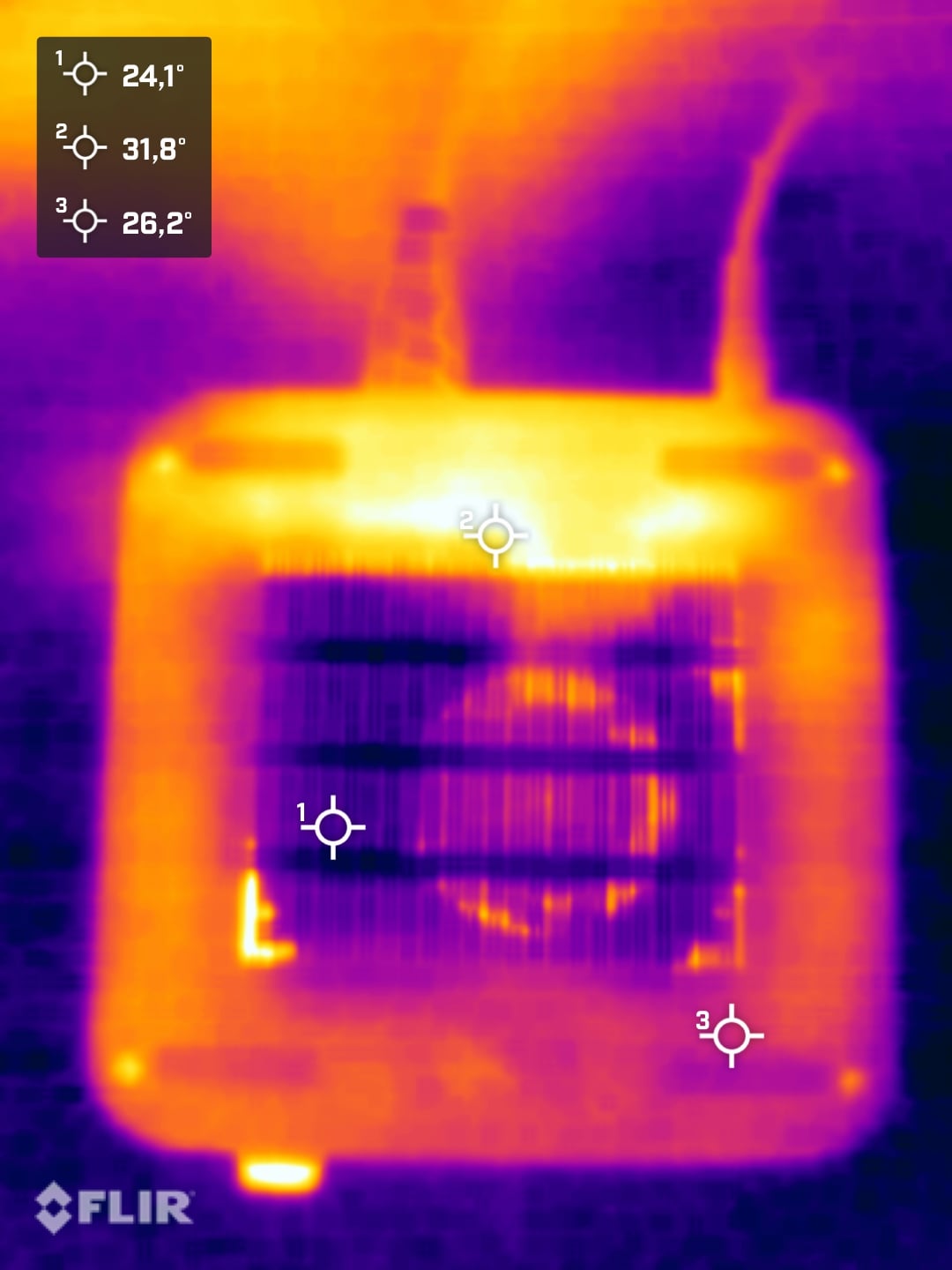

即使在持续高负载下,宏碁 Revo Box RB102 也未出现过热迹象。表面温度始终保持在安全范围内,而散热系统则能可靠地散发产生的热量。即使长时间使用,性能依然保持稳定,不会因温度升高而导致降频。
(+) The maximum temperature on the upper side is 33.1 °C / 92 F, compared to the average of 35.3 °C / 96 F, ranging from 20.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 33.9 °C / 93 F, compared to the average of 36 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 30 °C / 86 F, compared to the device average of 32.1 °C / 90 F.
(+) 3: The average temperature for the upper side is 31.6 °C / 89 F, compared to the average of 32.1 °C / 90 F for the class Mini PC.
能源管理
| Off / Standby | |
| Idle | |
| Load |
|
Key:
min: | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V | GMK NucBox K17 Core Ultra 5 226V, Arc 130V | Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M | Geekom IT13 Max Ultra 9 185H, Arc 8-Core | GMK NucBox M6 Ultra R5 7640HS, Radeon 760M | Acemagic Retro X3 Ryzen 7 255, Radeon 780M | Khadas Mind Pro Ultra X7 358H, Arc B390 Panther Lake iGPU | Average Intel Arc Graphics 140V | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|---|
| Power Consumption | 5% | -38% | -82% | -61% | -43% | -9% | 0% | -78% | |
| Idle Minimum * (Watt) | 4.9 | 4.7 4% | 4.4 10% | 11.8 -141% | 8.8 -80% | 5.7 -16% | 3.9 20% | 3.75 ? 23% | 8.54 ? -74% |
| Idle Average * (Watt) | 5.9 | 6.1 -3% | 5.9 -0% | 12.2 -107% | 9.5 -61% | 6.9 -17% | 4.7 20% | 6.19 ? -5% | 10.6 ? -80% |
| Idle Maximum * (Watt) | 7.6 | 9.6 -26% | 6.9 9% | 16.1 -112% | 11.8 -55% | 8.2 -8% | 5.2 32% | 8.13 ? -7% | 13.2 ? -74% |
| Load Average * (Watt) | 37.7 | 32.7 13% | 70.4 -87% | 52.9 -40% | 69.6 -85% | 62.5 -66% | 42.6 -13% | 39.2 ? -4% | 62.9 ? -67% |
| Cyberpunk 2077 ultra external monitor * (Watt) | 46.8 | 39.5 16% | 85.8 -83% | 54.4 -16% | 70.5 -51% | 81.9 -75% | 67.5 -44% | ||
| Load Maximum * (Watt) | 56.1 | 41.3 26% | 97.4 -74% | 100.1 -78% | 74.8 -33% | 99 -76% | 93.5 -67% | 60.2 ? -7% | 108.6 ? -94% |
* ... smaller is better
能效
| Performance rating - Percent | |
| Khadas Mind Pro | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Geekom IT13 Max | |
| Minisforum AI X1, Ryzen 7 255 | |
| Acemagic Retro X3 | |
| GMK NucBox M6 Ultra | |
| Power Consumption | |
| Cinebench R23 Multi Power Efficiency - external Monitor | |
| Khadas Mind Pro | |
| GMK NucBox K17 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M6 Ultra | |
| Cinebench R23 Single Power Efficiency - external Monitor | |
| Khadas Mind Pro | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Acemagic Retro X3 | |
| GMK NucBox M6 Ultra | |
| Geekom IT13 Max | |
| Cinebench R15 Multi Efficiency (external Monitor) | |
| Khadas Mind Pro | |
| GMK NucBox K17 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M6 Ultra | |
| Cyberpunk 2077 ultra Efficiency | |
| Khadas Mind Pro | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| GMK NucBox K17 | |
| Geekom IT13 Max | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M6 Ultra | |
| Acemagic Retro X3 | |
使用外接显示器时的能耗
使用外接显示器时的能耗
Notebookcheck 评分

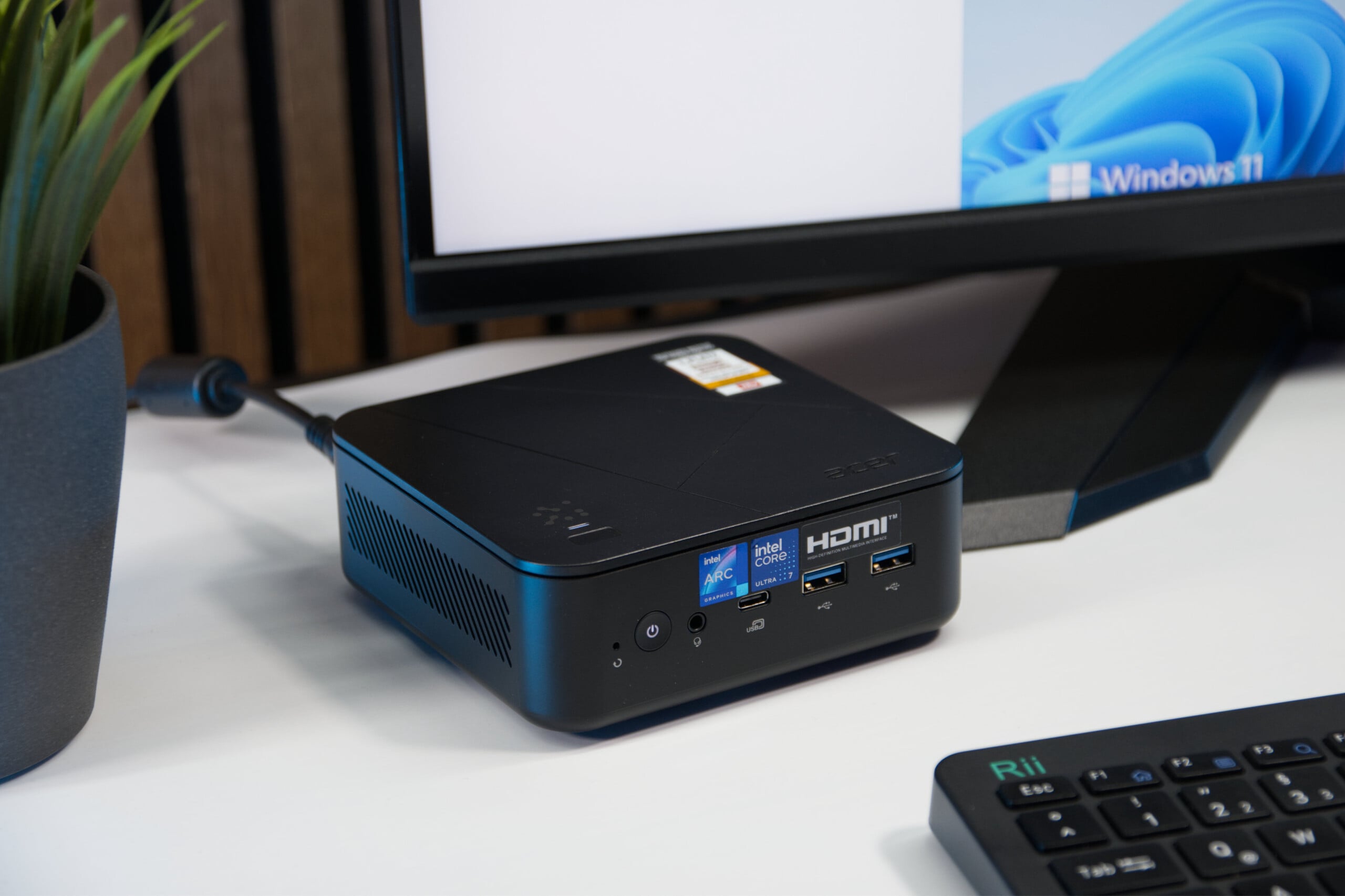

Acer Revo Box RB102-LNL, Core Ultra 7 256V
- 09/06/2026 v8
Sebastian Bade
可能替代方案的比较
Image | Model / Review | Price | Weight | Dimensions |
|---|---|---|---|---|
| Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V ⎘ Intel Arc Graphics 140V ⎘ 0 GB Memory, 1024 GB SSD | Amazon: | 438 g | 131 x 131 x 43 mm | |
| GMK NucBox K17 Intel Core Ultra 5 226V ⎘ Intel Arc Graphics 130V ⎘ 16 GB Memory, 1024 GB SSD | List Price: 569€ | 461 g | 185 x 187 x 44.5 mm | |
| Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD | List Price: 579€ | 658 g | 126 x 128 x 52 mm | |
| Geekom IT13 Max Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 24 GB Memory, 500 GB SSD | List Price: 799€ | 833 g | 132 x 136 x 50.1 mm | |
| GMK NucBox M6 Ultra AMD Ryzen 5 7640HS ⎘ AMD Radeon 760M ⎘ 32 GB Memory | Amazon: List Price: 336€ | 506 g | 127 x 128.8 x 47.8 mm | |
| Acemagic Retro X3 AMD Ryzen 7 255 ⎘ AMD Radeon 780M ⎘ 16 GB Memory, SSD | List Price: 899€ | 528 g | 128.2 x 128.2 x 44 mm |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
