结论——强劲性能与丰富功能相得益彰
在测试中，Minisforum M2 Pro 最令人印象深刻之处在于它成功地将高性能、丰富的功能以及出人意料的静音运行结合在了一起。 Core Ultra X7 358H 提供了充沛的 CPU 性能，而 Arc B390 则在图形性能方面实现了重大飞跃，其表现往往优于 AMD Radeon 890M。不过，对于要求更高的游戏而言，其性能在某些限制下未必总是足够。
值得称道的优点包括高速SSD、三个M.2插槽以及丰富的接口配置。除了10 Gbps以太网接口外，还配备了三个USB4端口，这些端口除其他用途外，也可用于连接外置显卡。总体而言，M2 Pro在扩展性方面提供了极高的灵活性。 其高效的散热系统同样令人印象深刻，即使在高性能运行下也能保持低噪音水平。但在内存方面，这款迷你电脑的灵活性较低，因为内存为焊接式设计，因此无法升级。此外，Minisforum 未配备 OCuLink 接口，不过这一点已被充足的 USB4 接口数量所弥补。
总体而言，M2 Pro 表现出色，尽管在可升级性和功能方面存在一些不足。考虑到其 1,519 欧元的售价，对于那些追求小巧机身下的高性能，并重视静音运行的用户来说，这款迷你电脑仍是一个值得考虑的选择。
Pros
+ 高品质且坚固的机箱

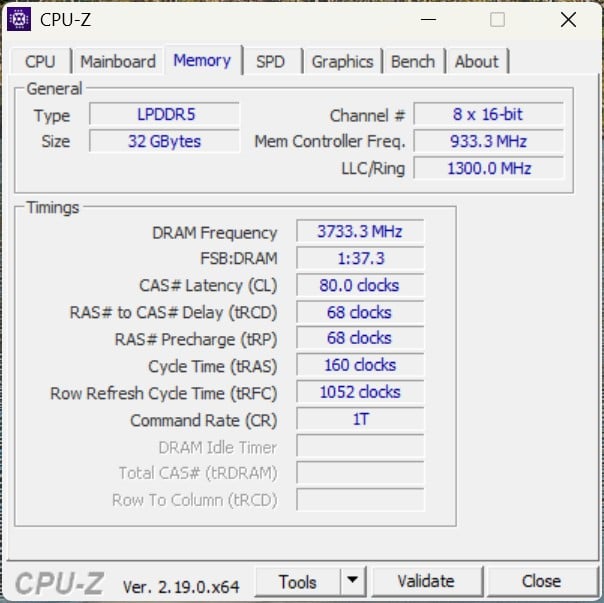

+ 高速 LPDDR5X 内存（7,467 MT/s）

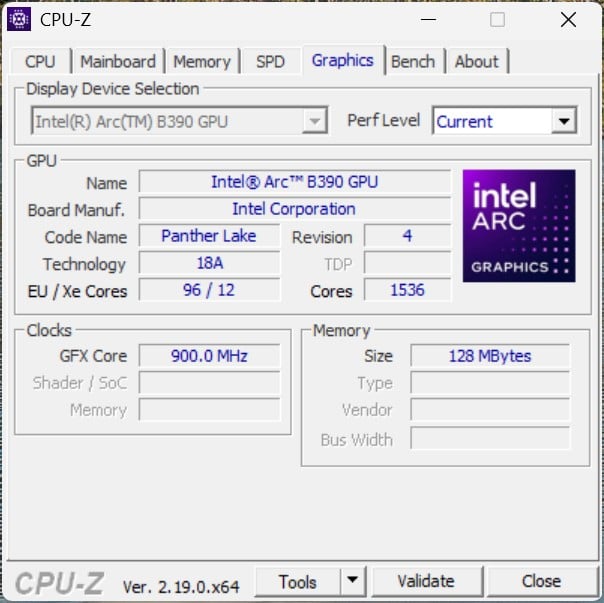

+ 强大的英特尔 Arc B390 显卡
+ 3 个支持 PD 输出功能的 USB4 接口（1 个支持最高 100W 的 PD 输入）
+ 10G 以太网 port

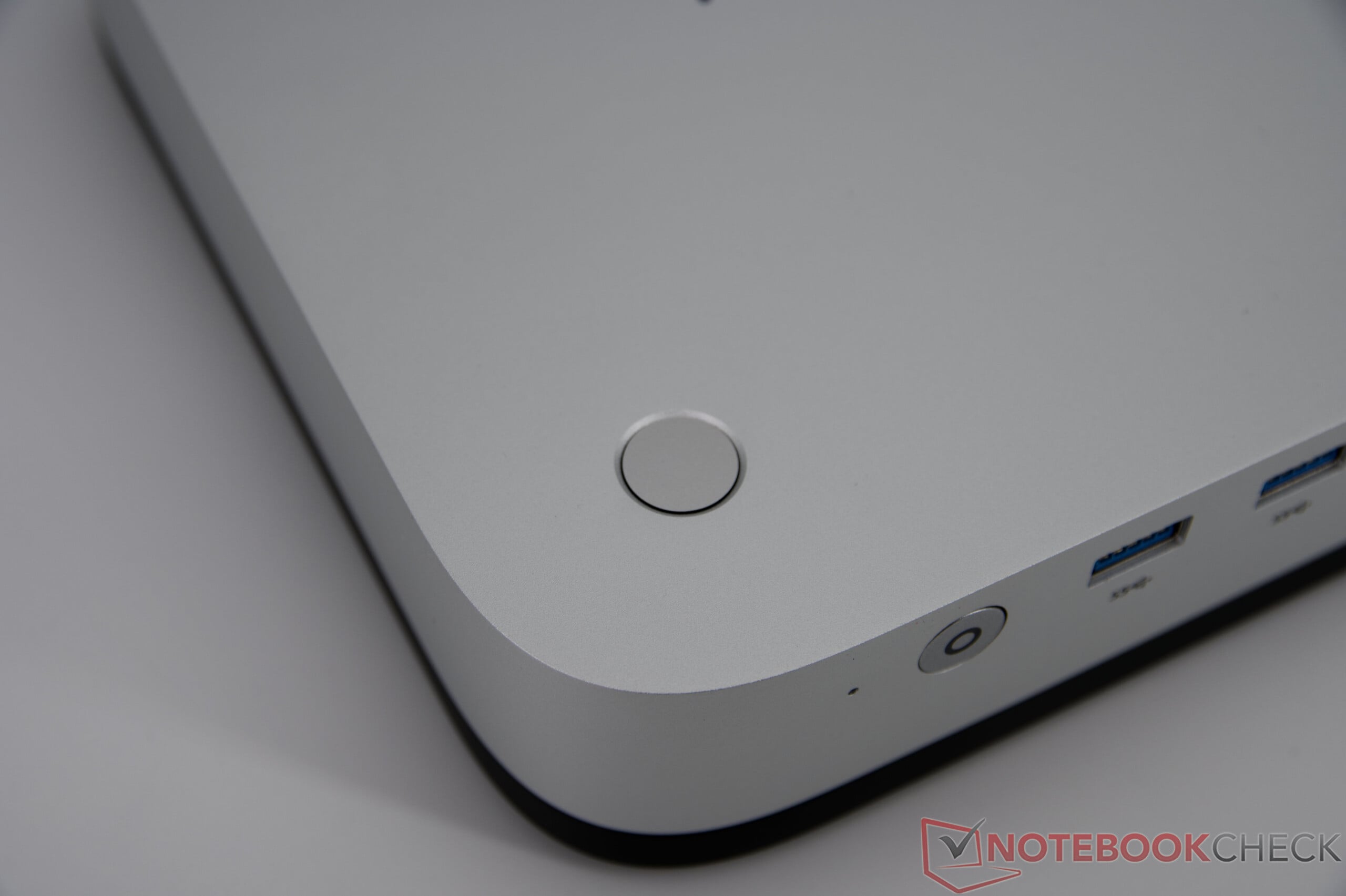

+ 指纹识别器
+ 可安装三个 SSD 的空间
+ 集成式电源
+ 支持 VESA 壁挂安装
+ 音质不错的扬声器
+ 运行始终安静
+ 运行稳定且性能无损耗
+ 高效的散热系统
Cons
- SD卡读卡器速度慢
- 仅配备3个USB-A接口
- 内存不可扩展
价格与供货情况
Minisforum M2 Pro 可直接从制造商处购买。我们测试的配置——搭载英特尔酷睿Ultra X7 358H处理器、32 GB 内存和 1 TB SSD——目前售价为 1,439 美元。这款迷你电脑可直接从 Minisforum 商店订购。
Table of Contents
凭借 M2 Pro，Minisforum 采用了英特尔最新的 Panther Lake 平台，并将 Core Ultra X7 358H 与集成 Arc 显卡相结合。32 GB 的 LPDDR5X 内存和高速 SSD 为高负载应用、游戏以及本地 AI 工作负载提供了充足的容量。 其显著特点包括内置电源和扬声器。

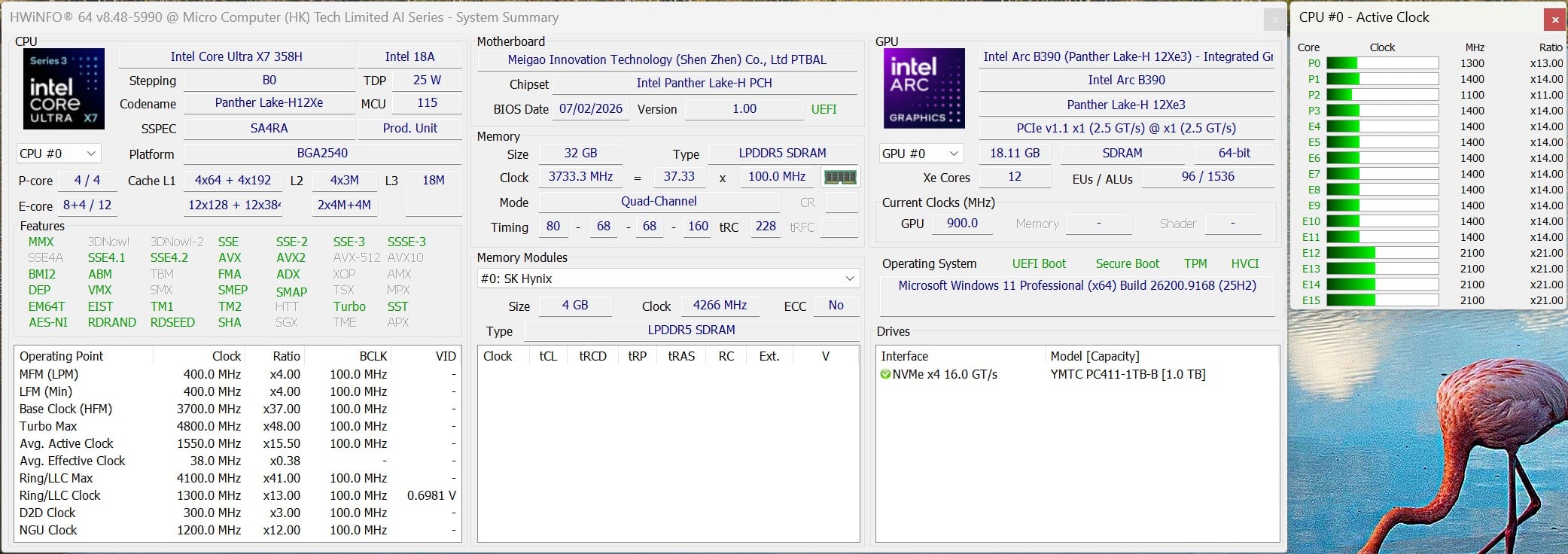

规格
Minisforum M2 Pro
Processor
Intel Core Ultra X7 358H 16c/16t, 4 x 4.8 GHz Intel Cougar Cove P-Core, 8 x 3.7 GHz Intel Darkmont E-Core, 4 x 3.3 GHz Intel Darkmont E-Core, 65 W PL2 / Short Burst, 45 W PL1 / Sustained, Panther Lake
Graphics adapter
Memory
32 GB
, LPDDR5X, 7.467 MT/s, soldered
Mainboard

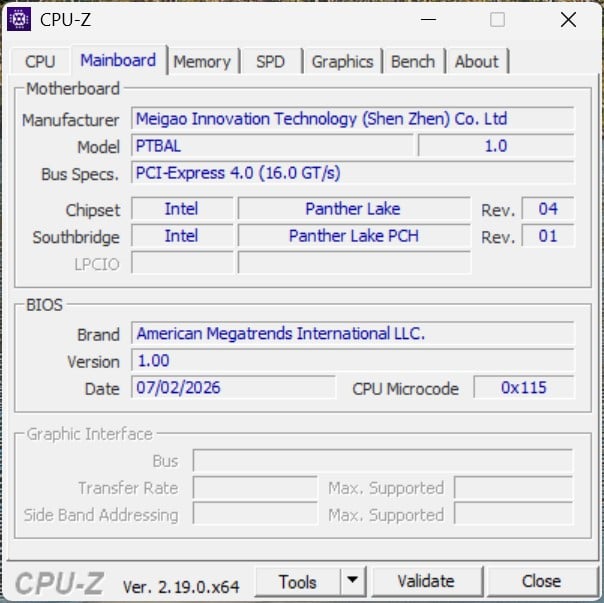

Intel Panther Lake-H PCH

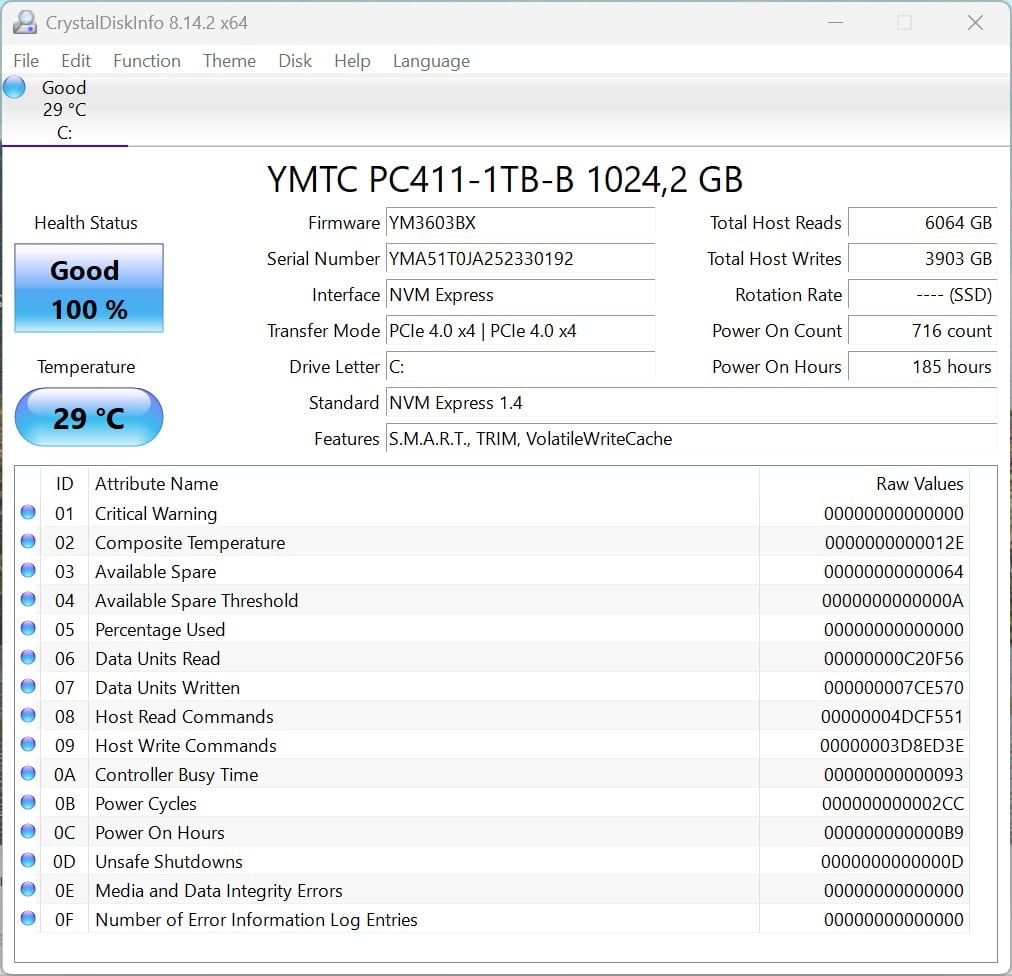

Storage

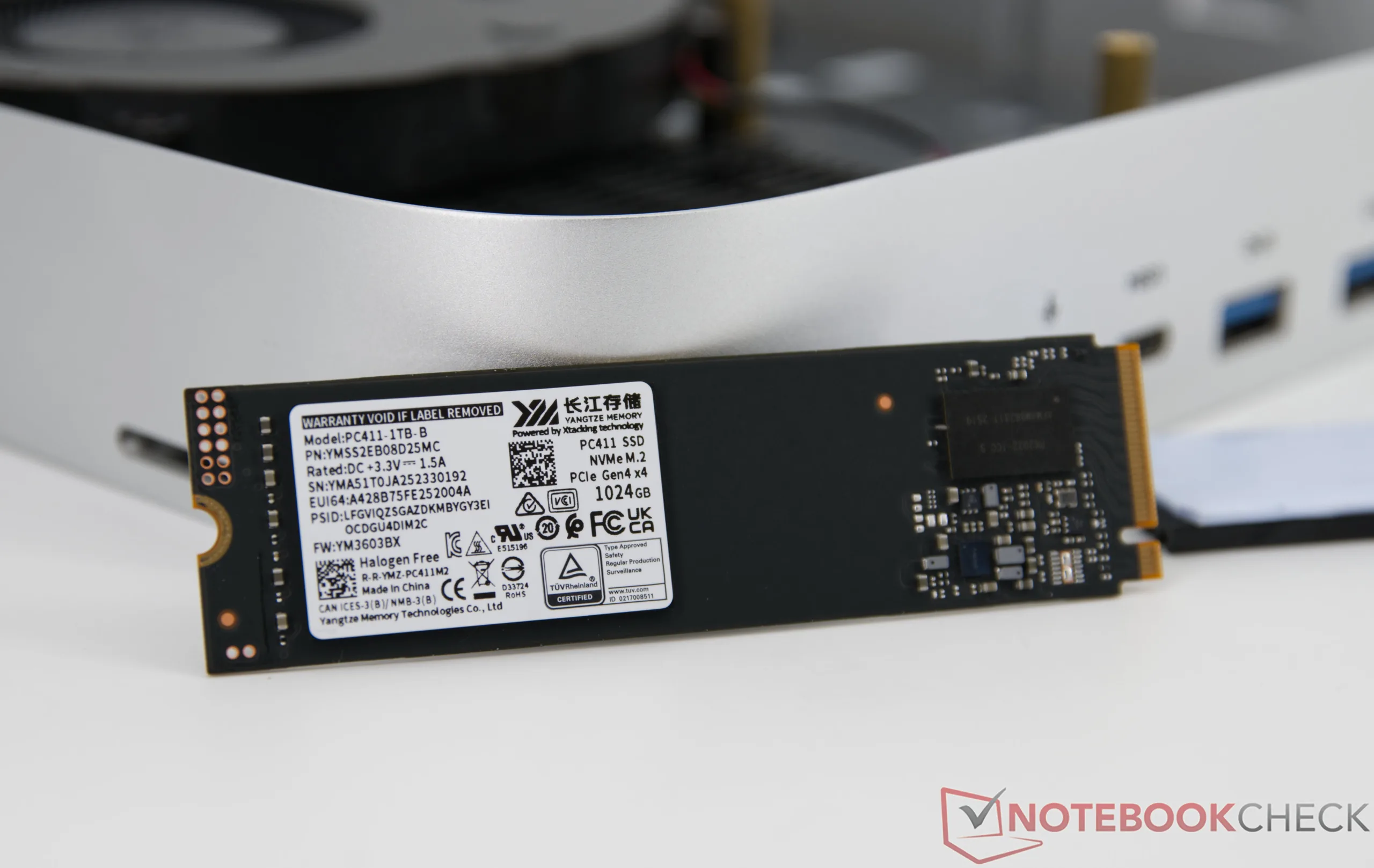

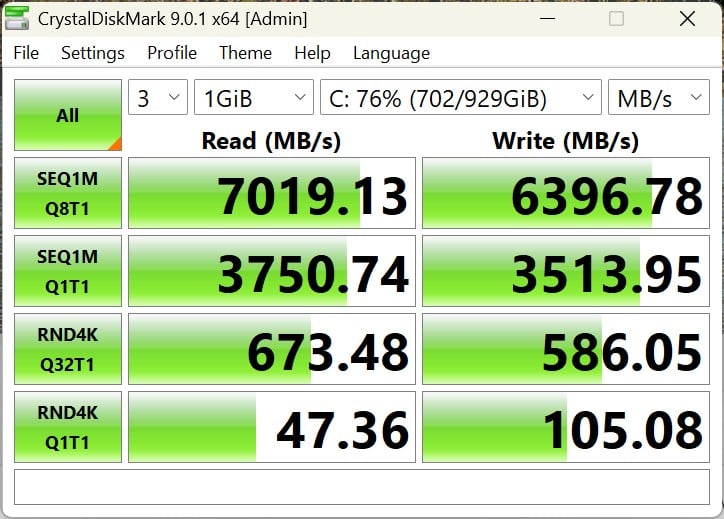

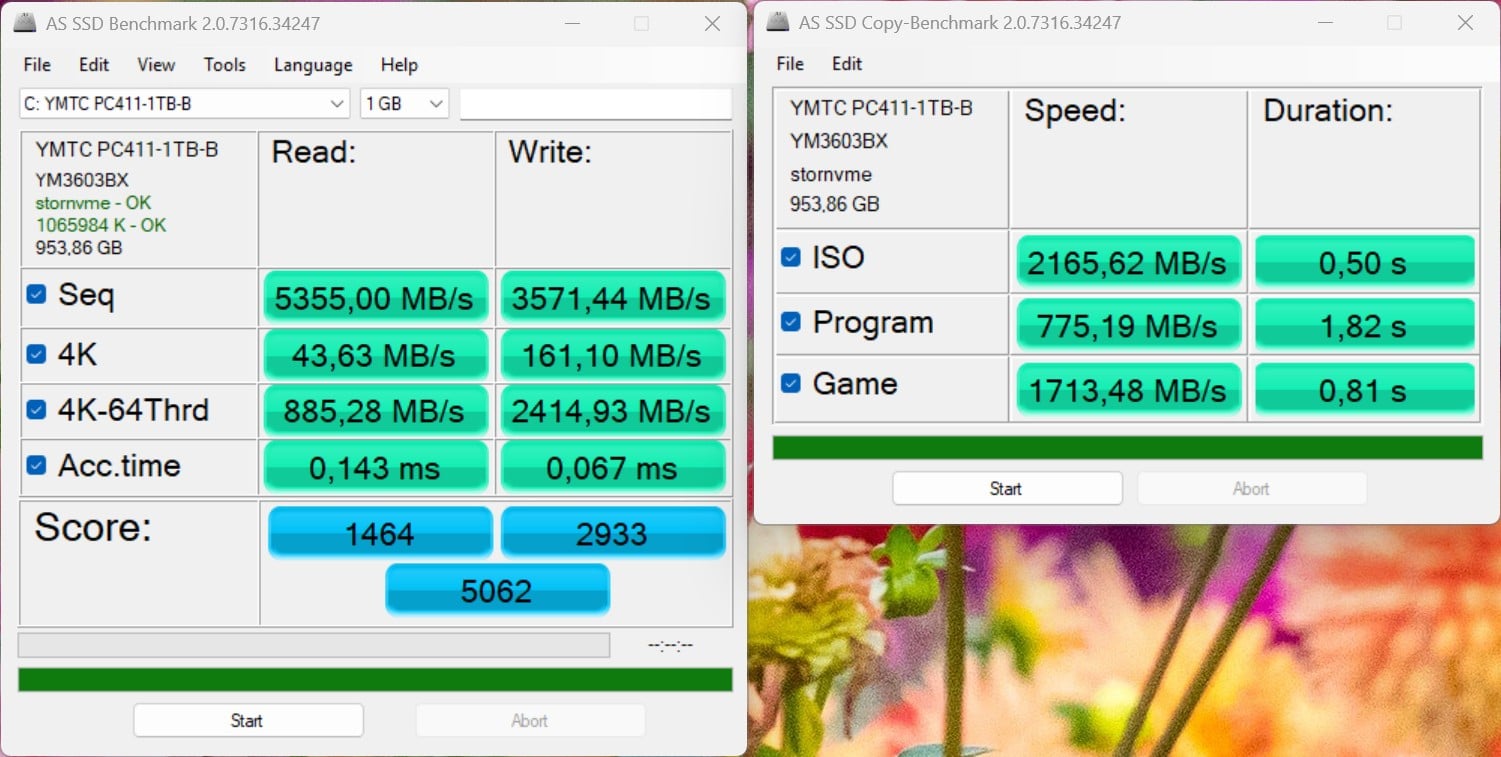

YMTC PC411-1TB, 1024 GB
, 883 GB free
Weight
1.37 kg
Price
1519 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
大小写与连写规则

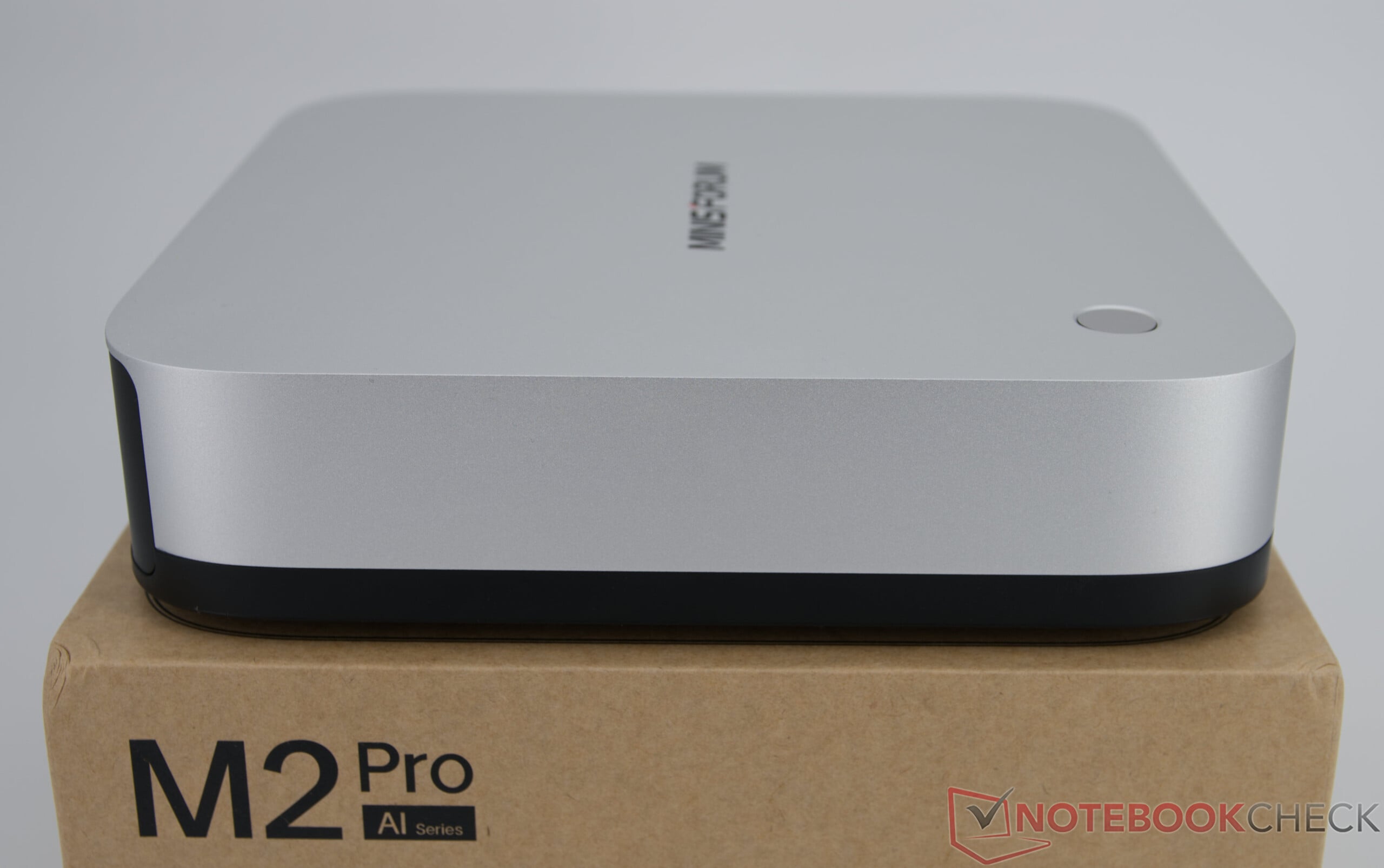

该机箱基于与 Minisforum AI X1 Pro 相同的平台——详情可参见我们对 AI X1 Pro 的评测。

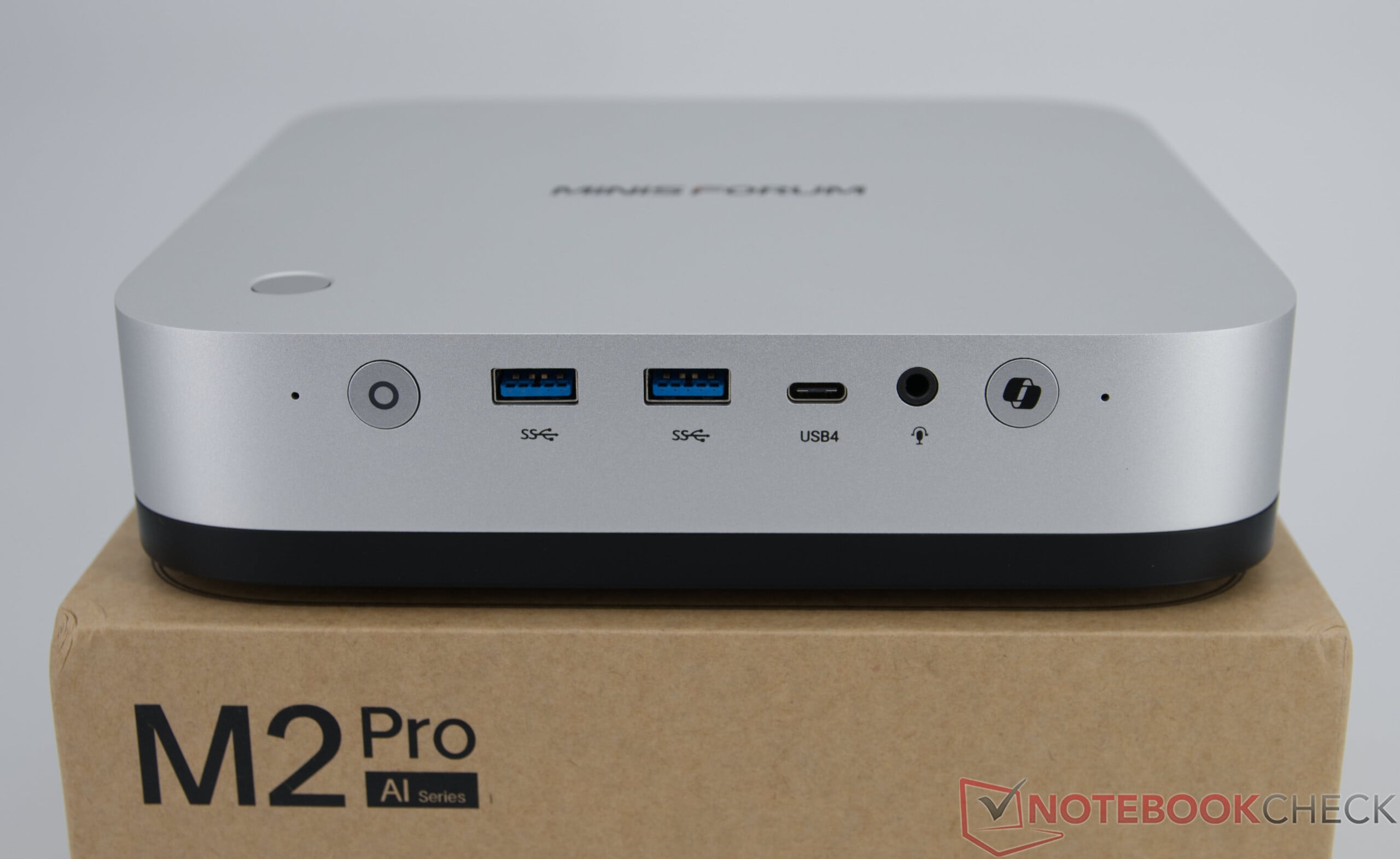

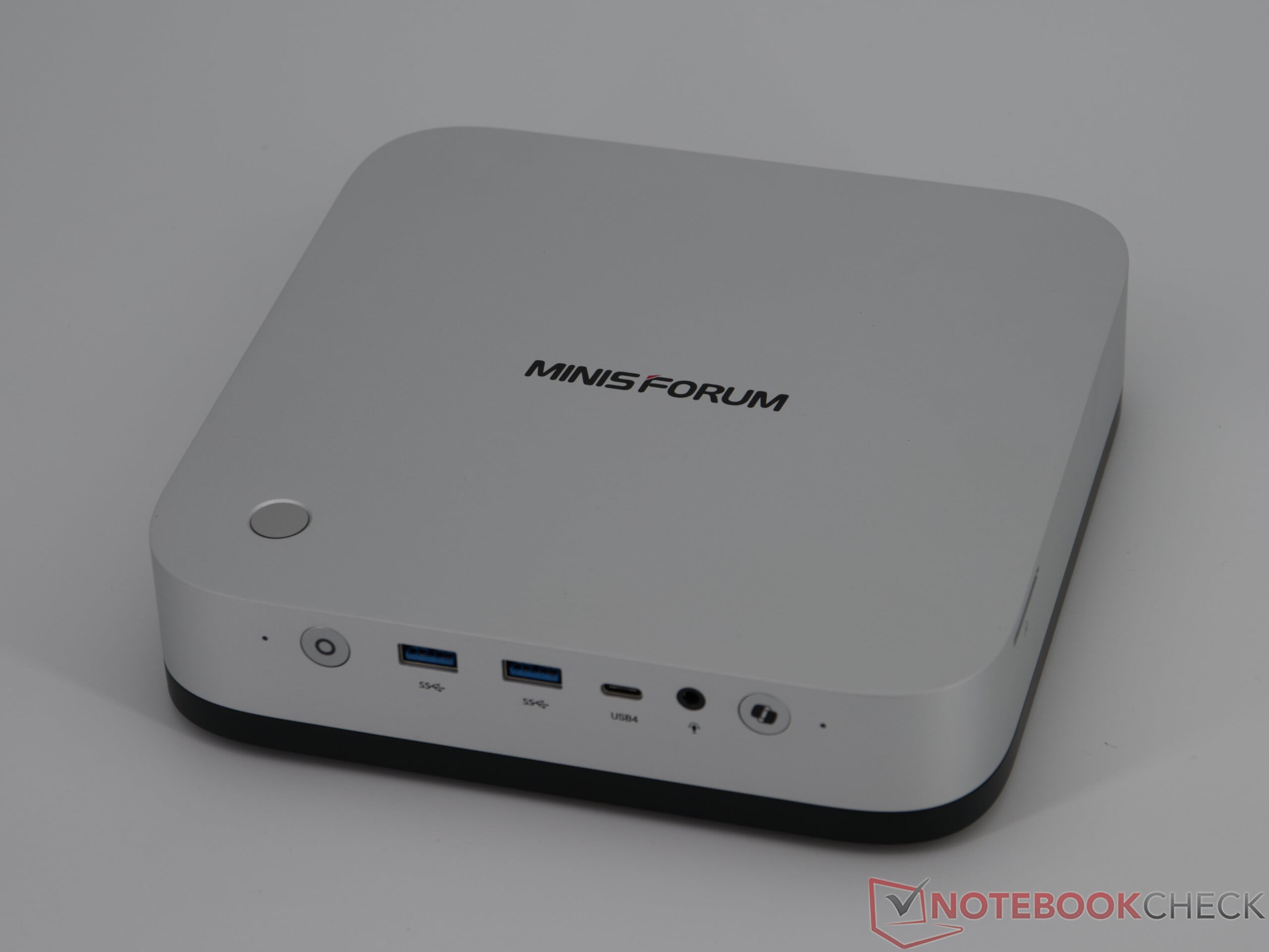

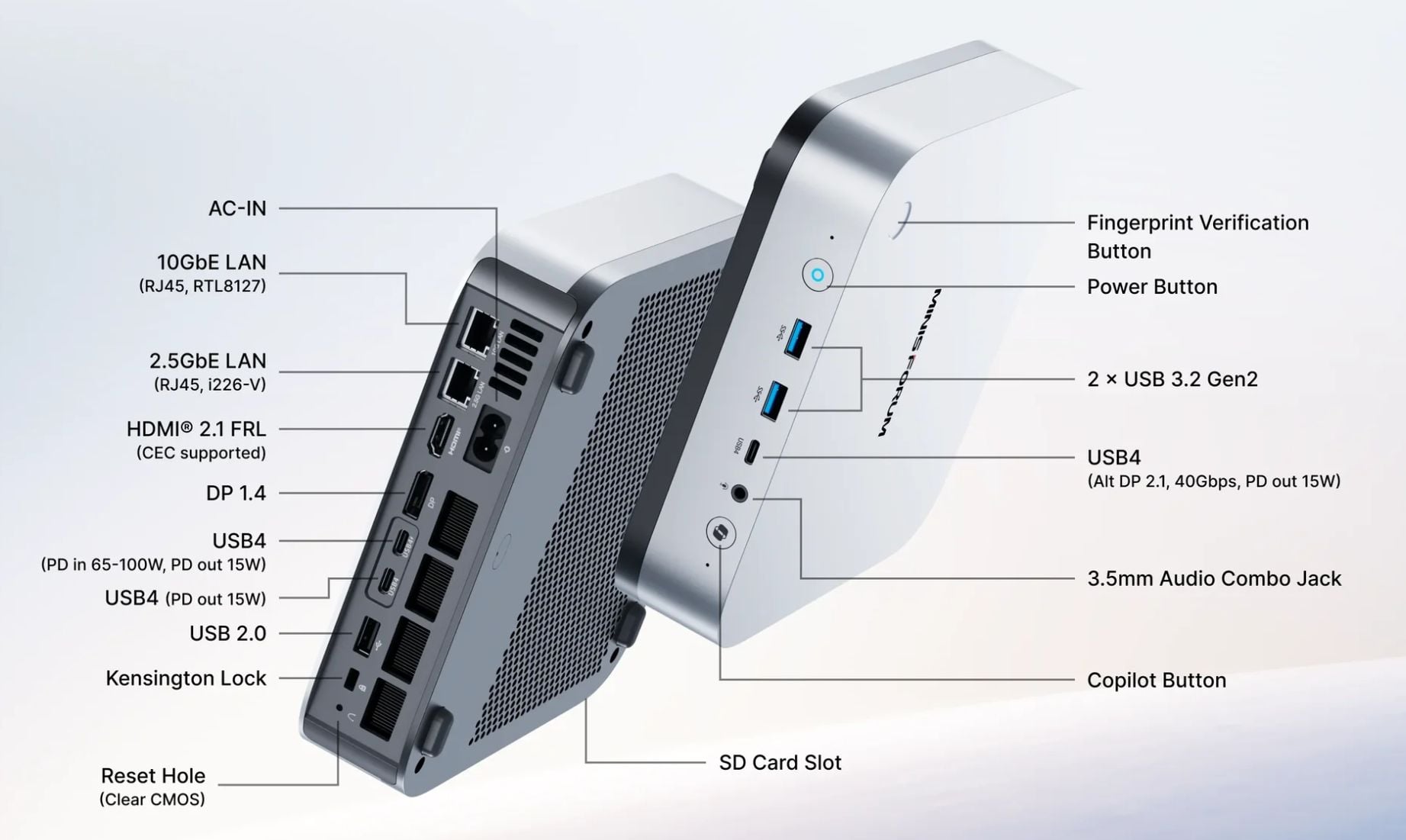

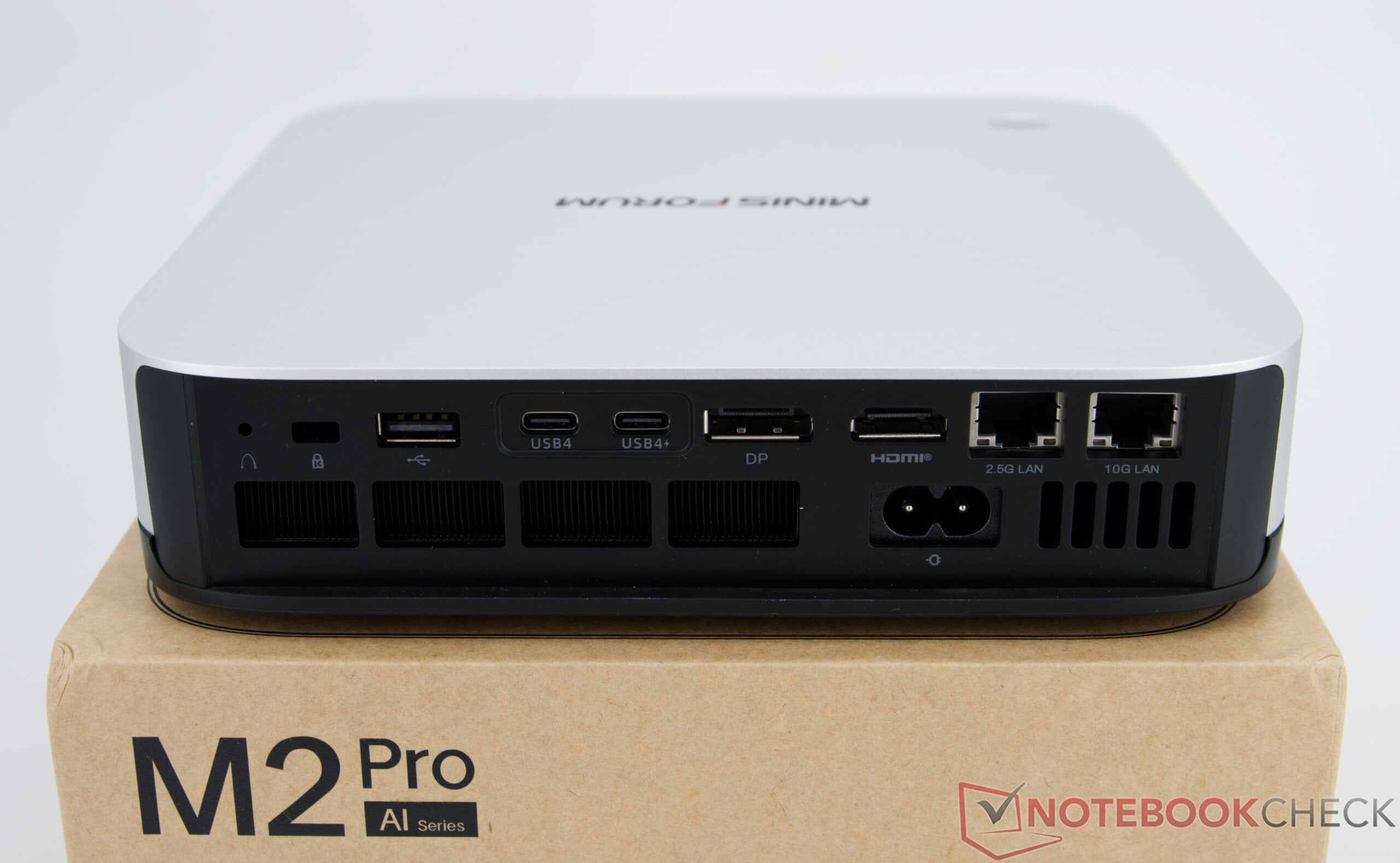

与 AI X1 Pro 相比，其连接选项有几处变化。Minisforum 取消了 OCuLink 接口；取而代之的是机身背面配备了两个 USB4 接口。此外，M2 Pro 还配备了一个速度显著提升的 10 Gbps 以太网端口。

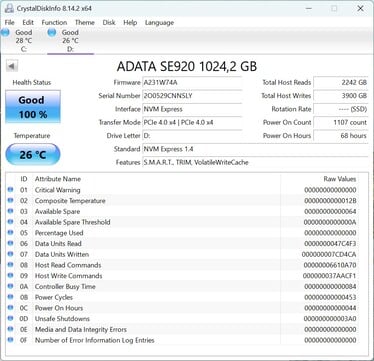

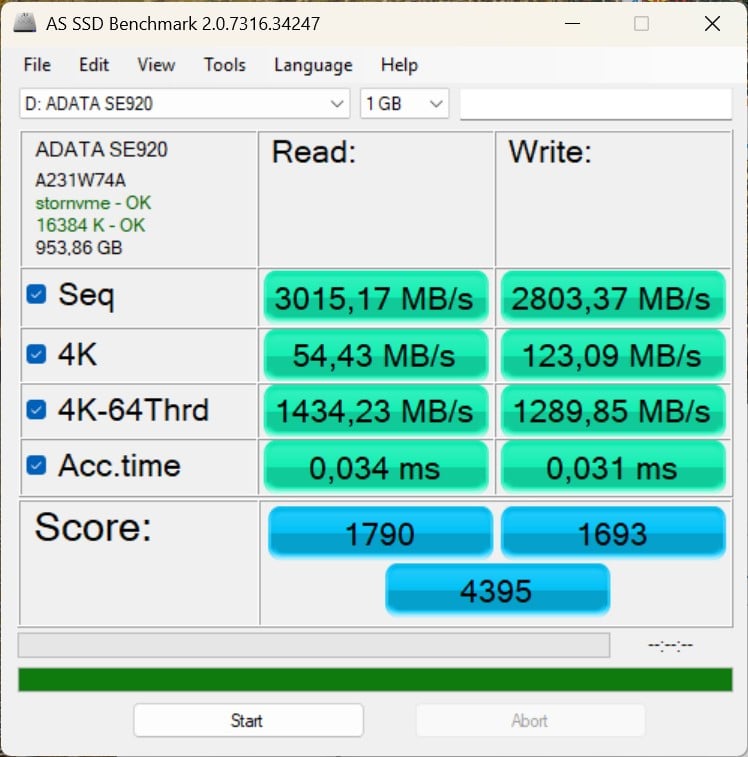

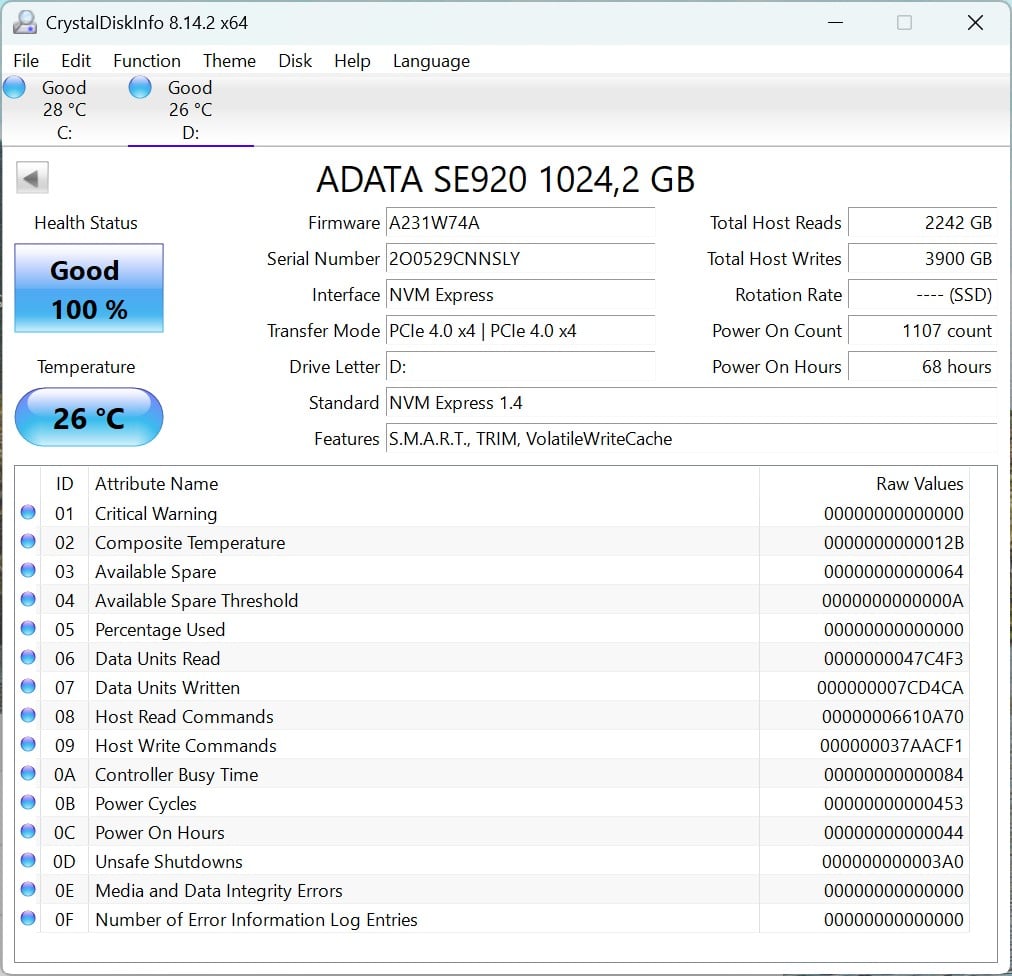

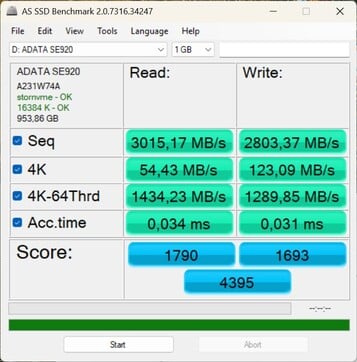

USB4 传输速率（ADATA SE920）
| Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB) | |
| Minisforum AI X1 Pro, HX 370 | |
| GMK EVO-T1 | |
| Minisforum MS-02 Ultra | |
| Minisforum M2 Pro | |
| Khadas Mind Pro | |
| Average of class Mini PC (423 - 3906, n=48, last 2 years) | |
SD卡读卡器
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Geekom IT13 Max (AV Pro SD microSD 128 GB V60) | |
| Average of class Mini PC (17.3 - 214, n=22, last 2 years) | |
| Minisforum AI X1 Pro, HX 370 (AV Pro SD microSD 128 GB V60) | |
| Minisforum M2 Pro (AV Pro SD microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Geekom IT13 Max (AV Pro SD microSD 128 GB V60) | |
| Average of class Mini PC (17.9 - 250, n=22, last 2 years) | |
| Minisforum AI X1 Pro, HX 370 (AV Pro SD microSD 128 GB V60) | |
| Minisforum M2 Pro (AV Pro SD microSD 128 GB V60) | |

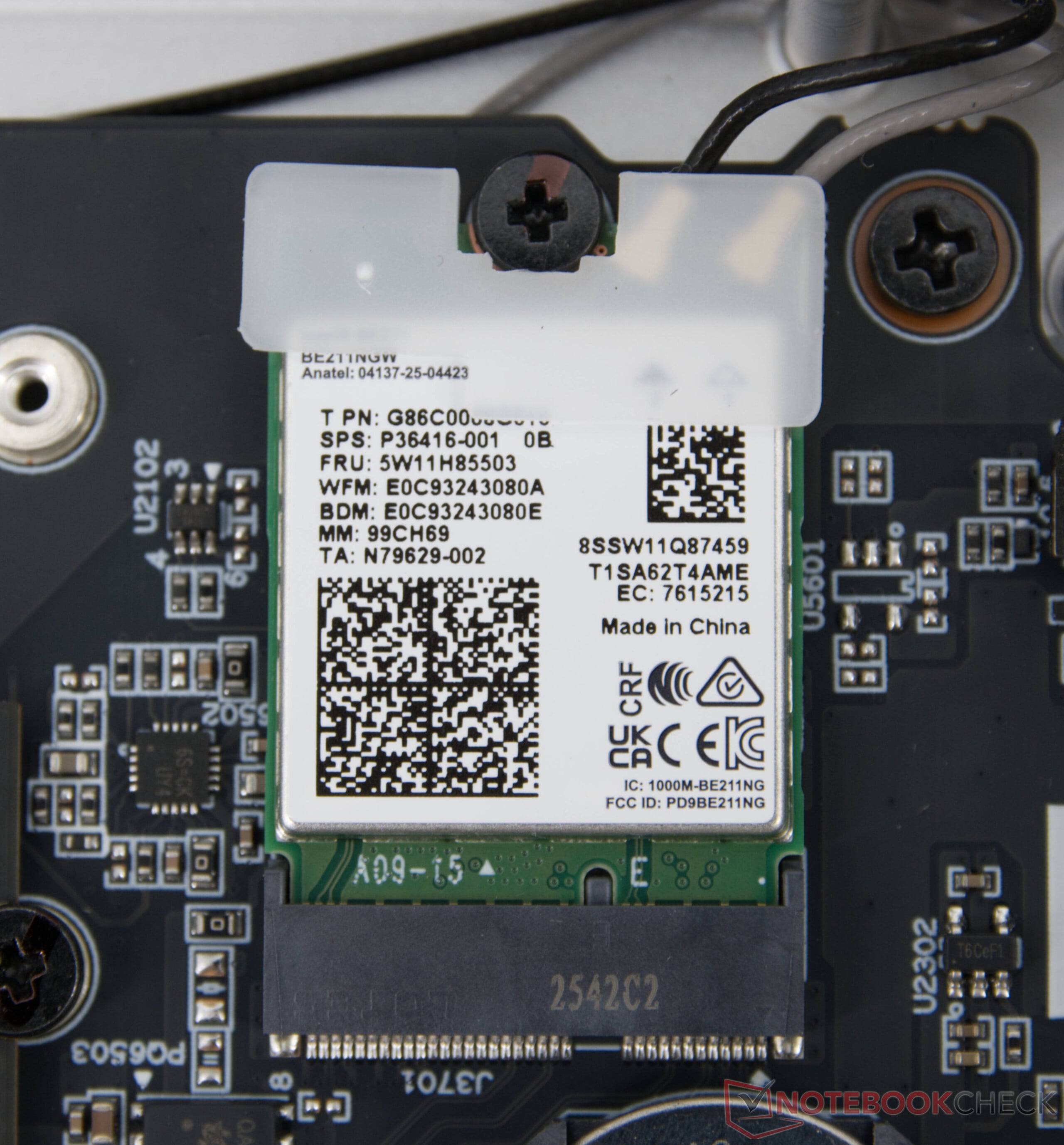

Wi-Fi 性能
Minisforum M2 Pro; iperf3 receive Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø1917 (983-1994) MBit/s
Minisforum M2 Pro; iperf3 transmit Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø2207 (1189-2461) MBit/s

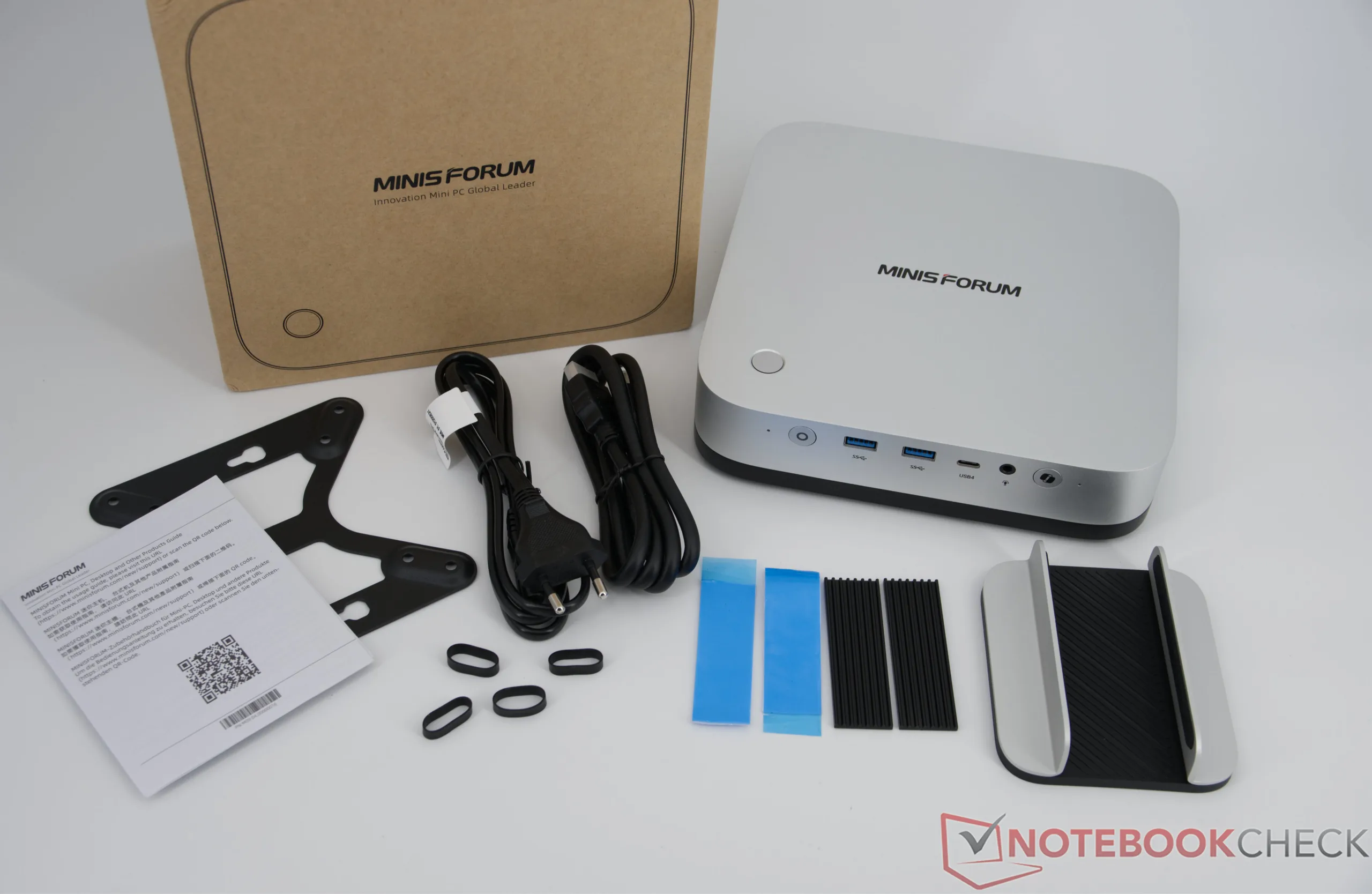

配件

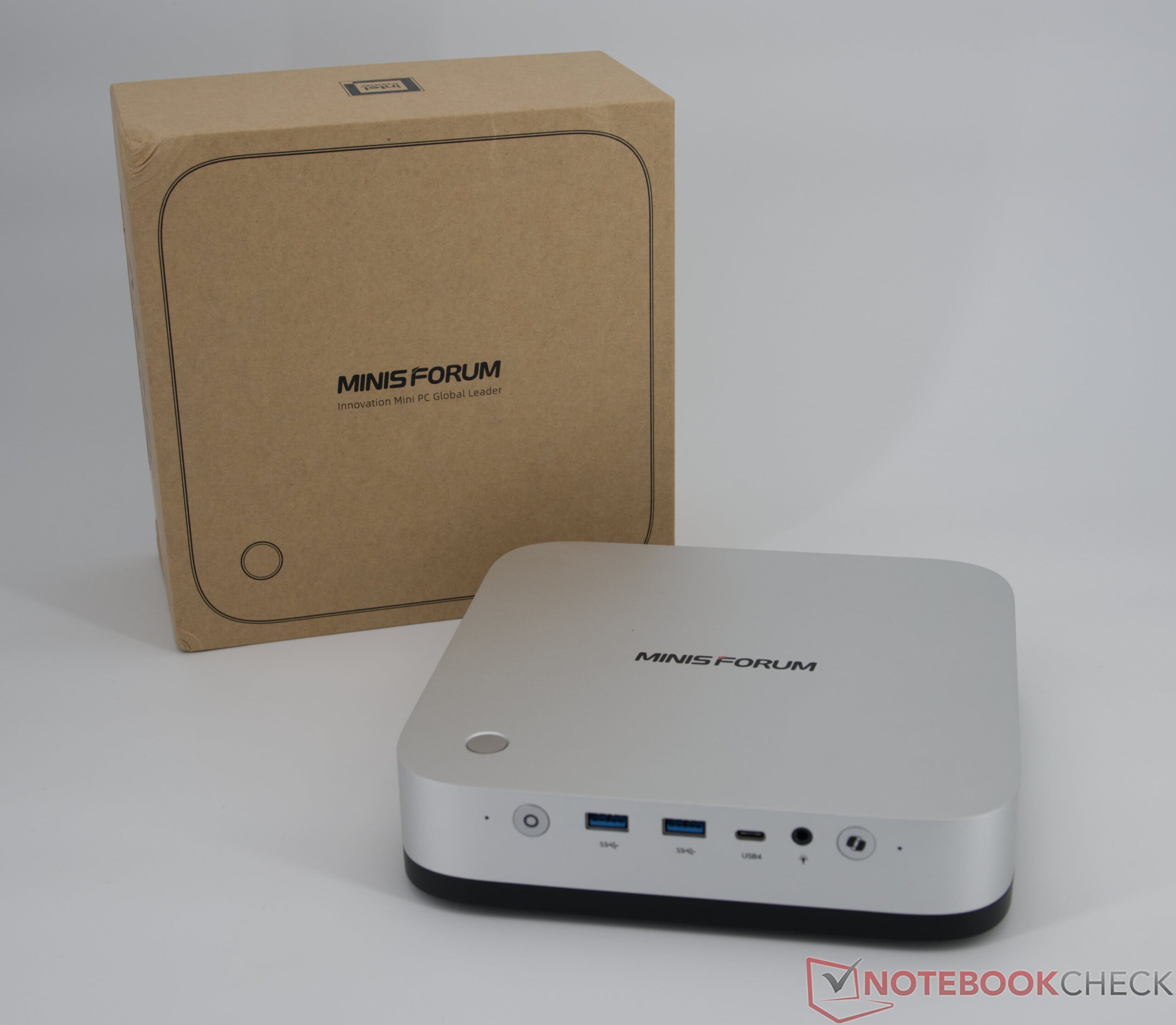

Minisforum M2 Pro 的包装内容十分实用，并包含一些有用的附加配件。除了支架和 VESA 挂架外，还附带了用于额外 SSD 的被动散热器。此外，包装中还包含一条电源线和一条 HDMI 线。

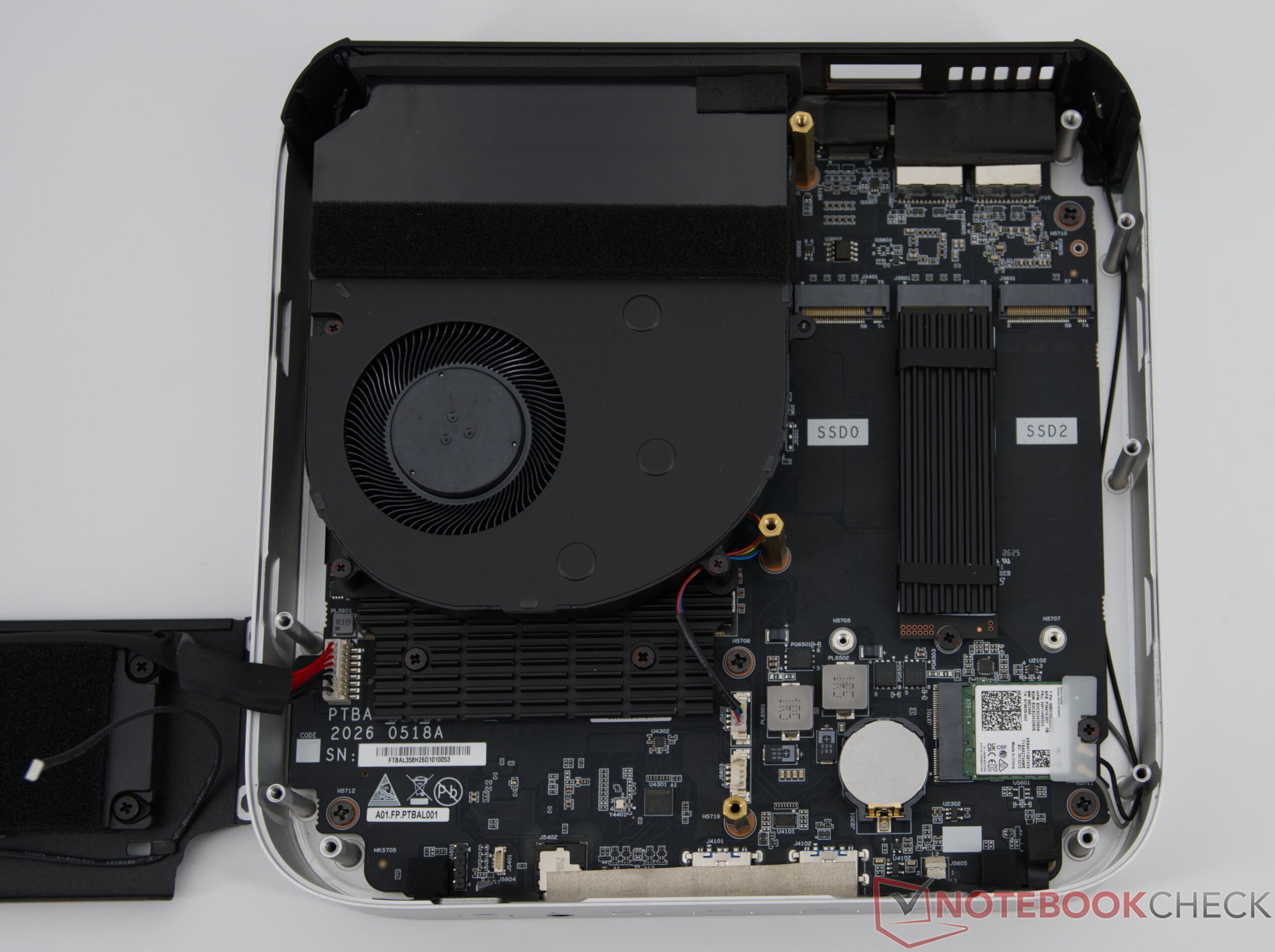

维护

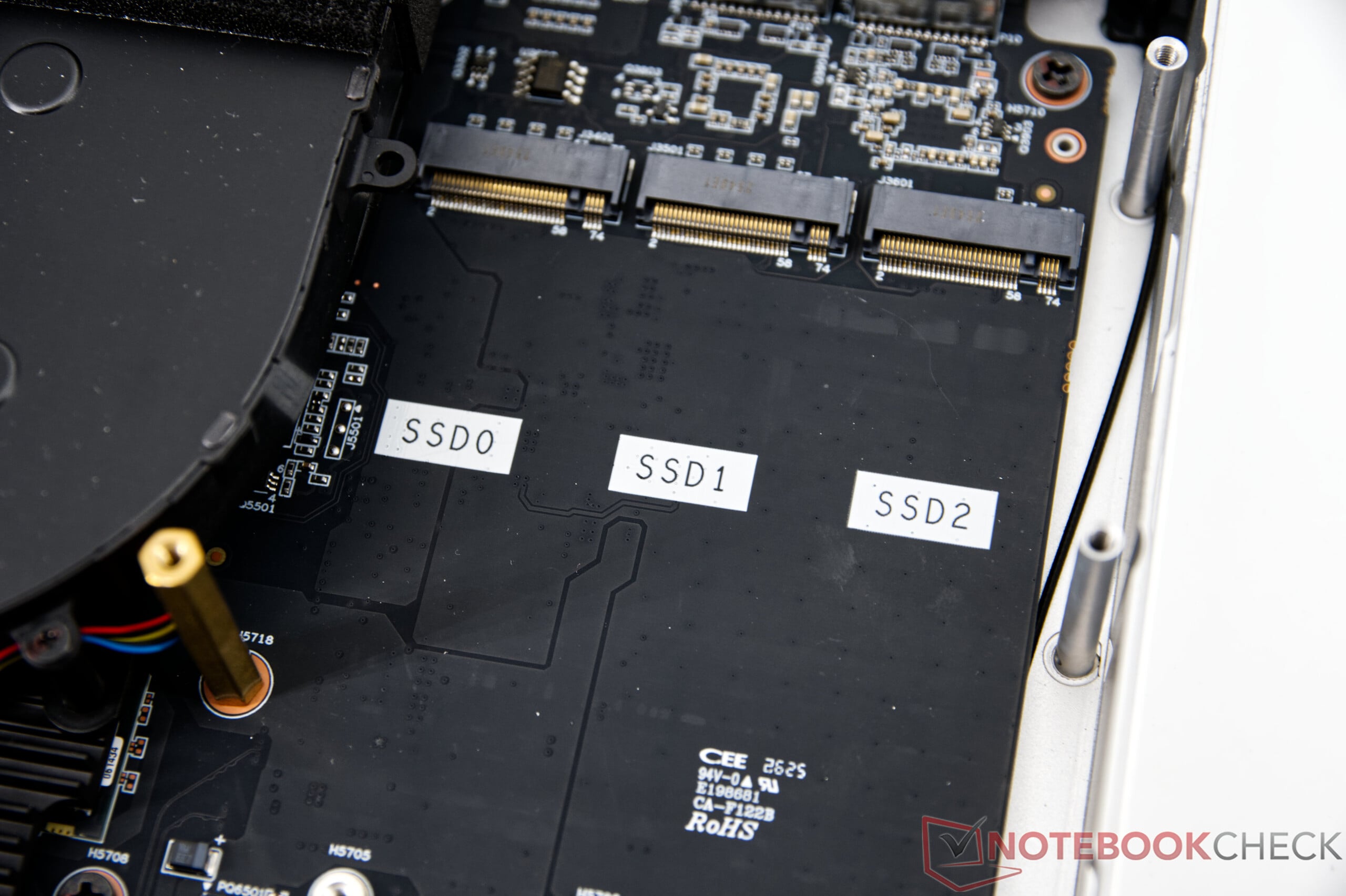

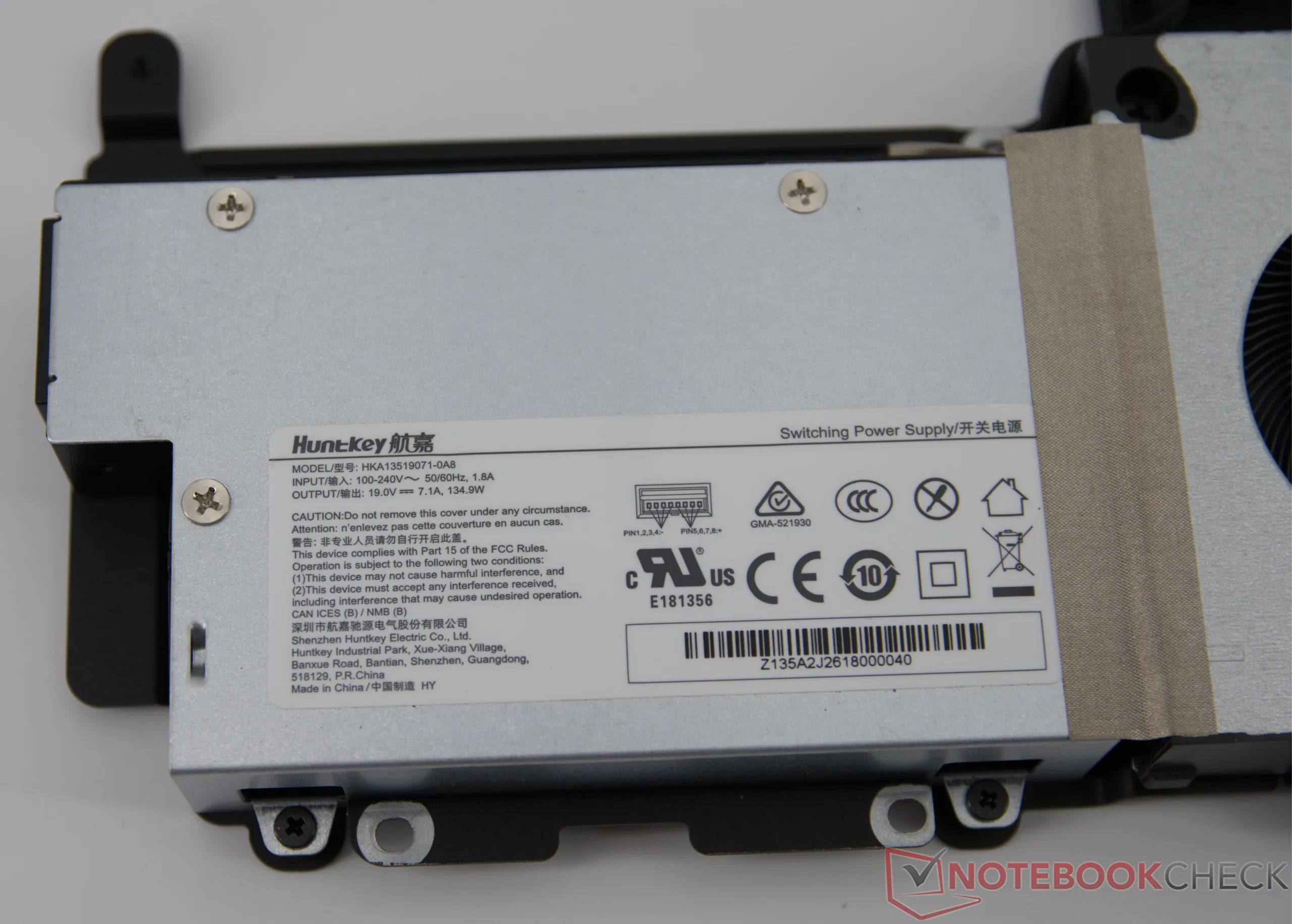

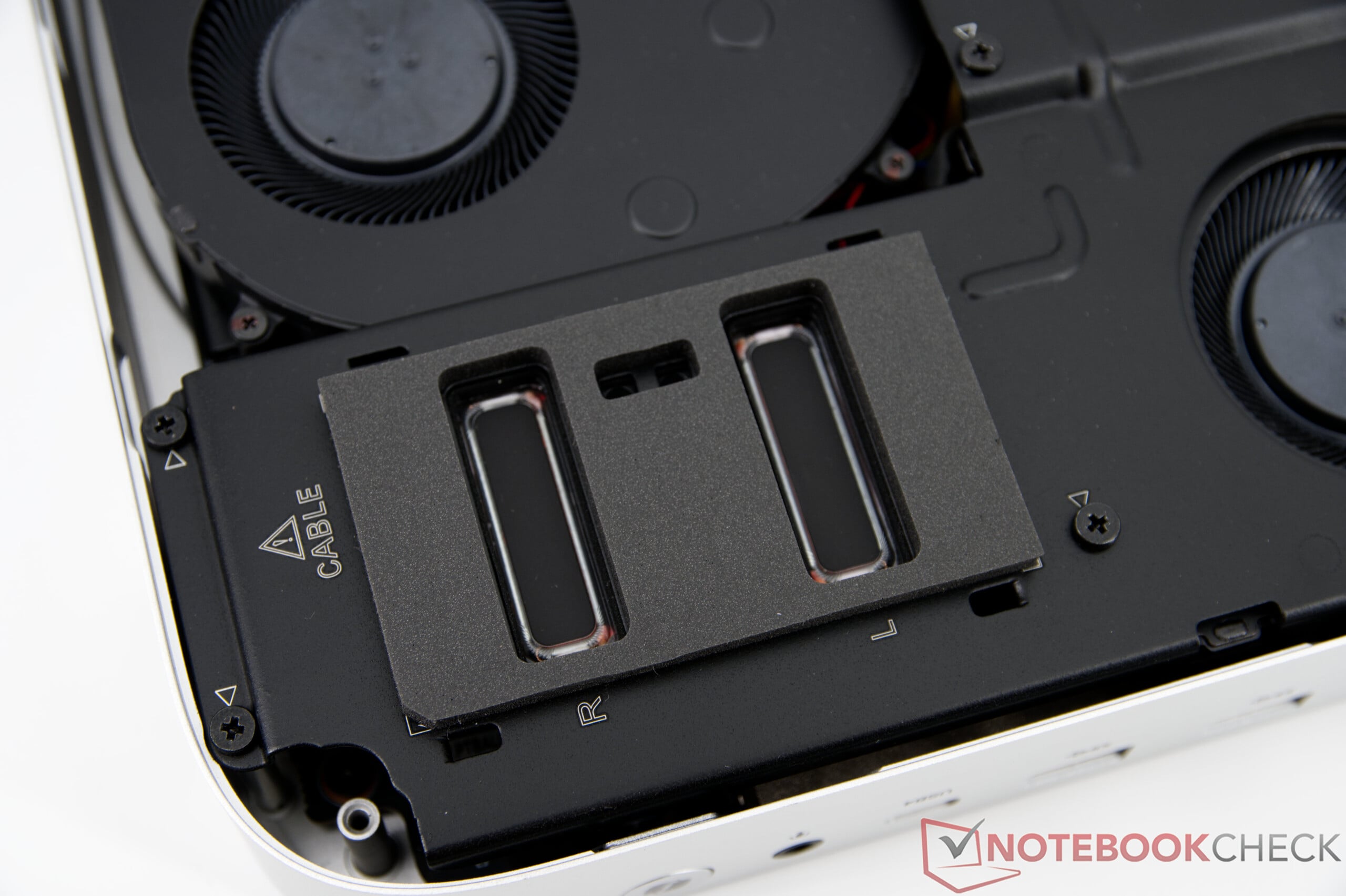

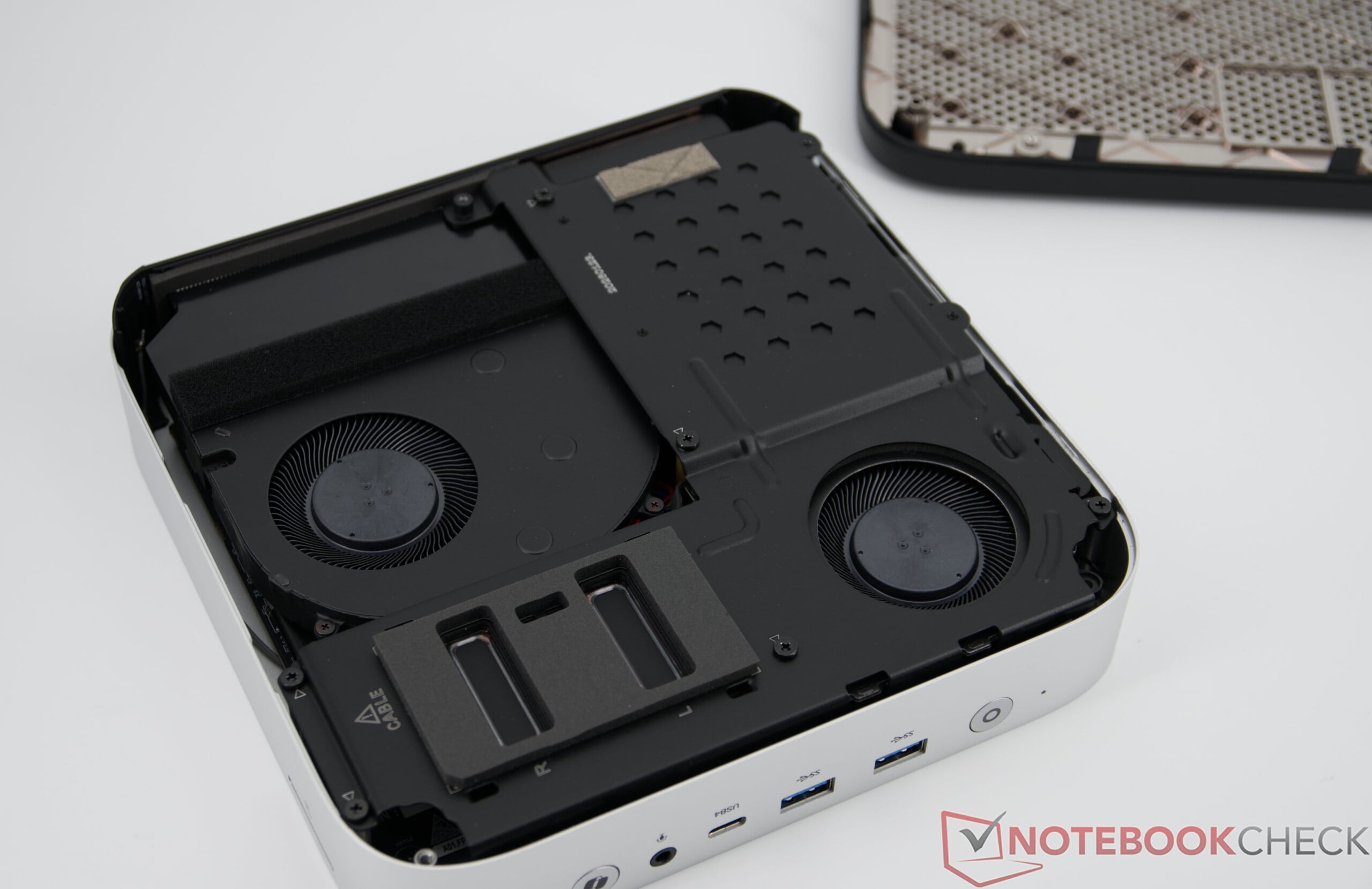

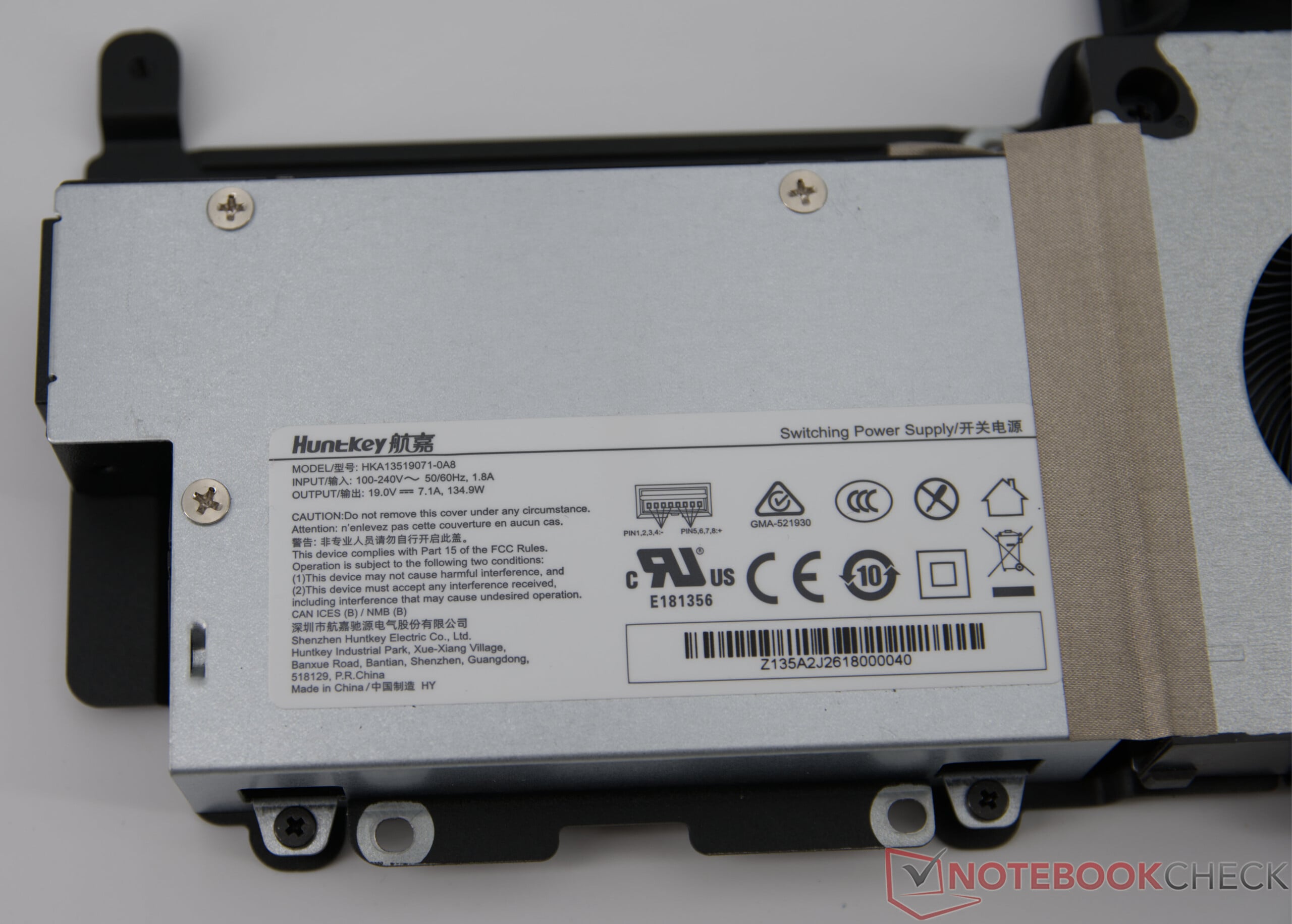

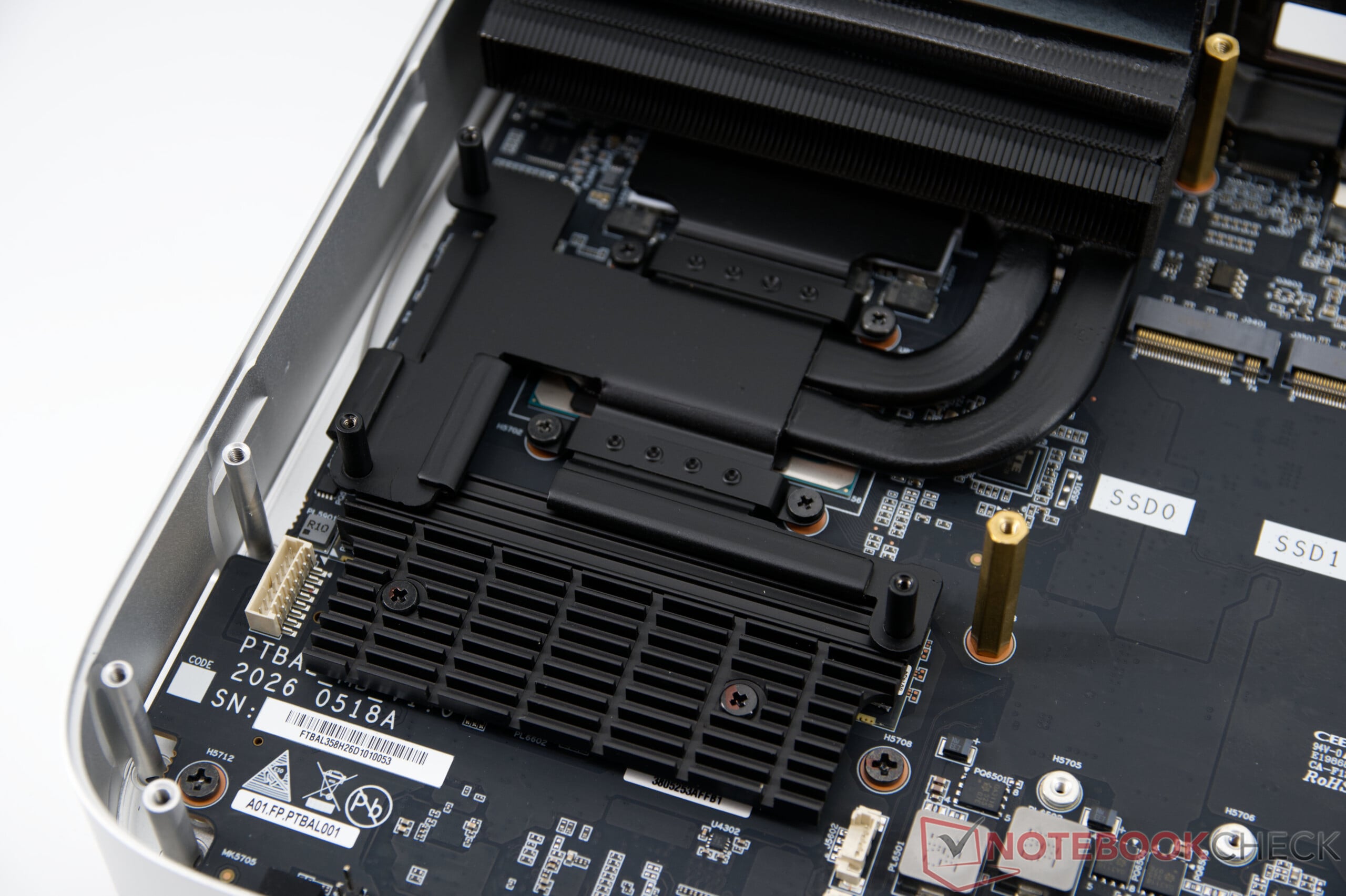

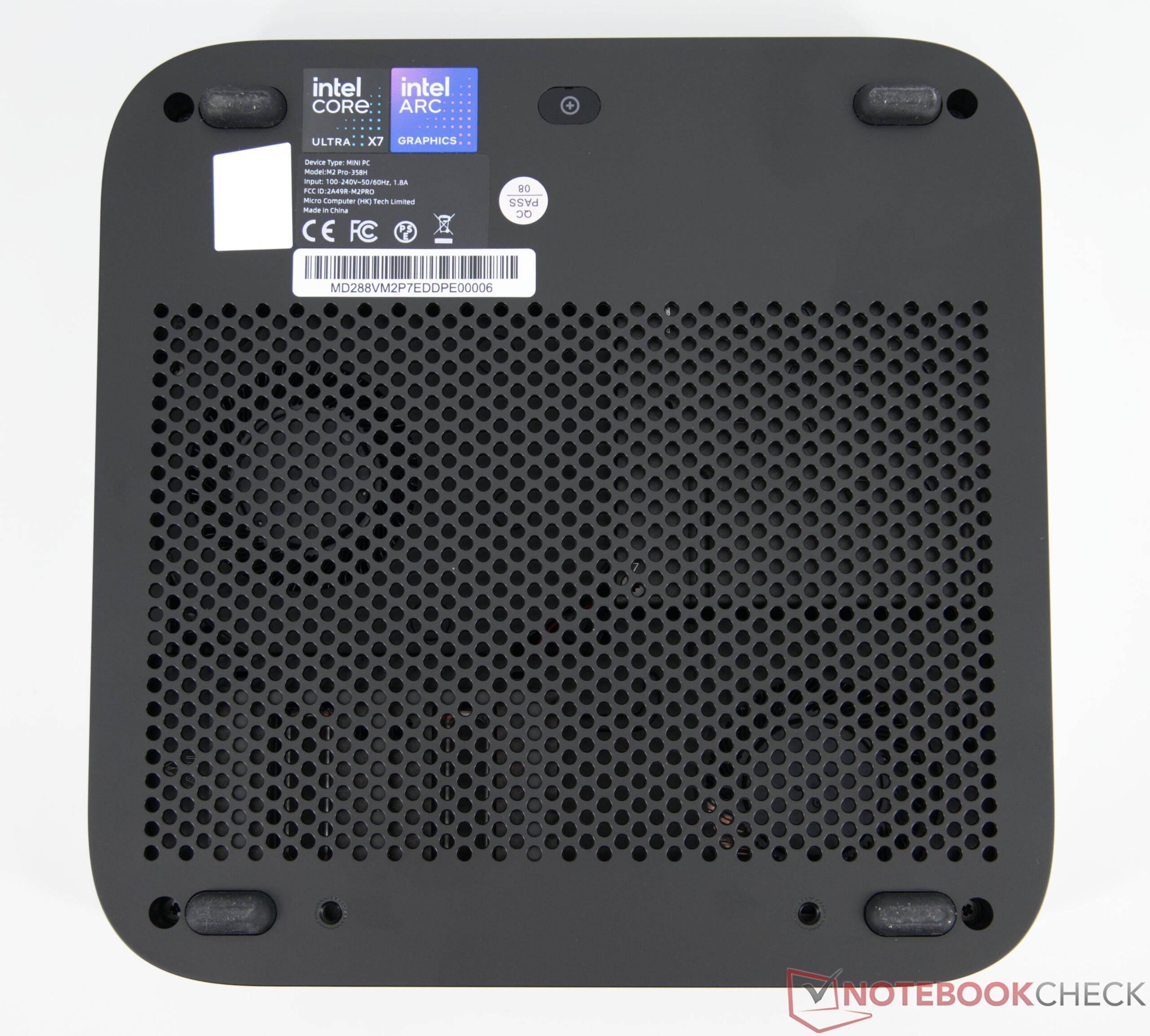

Minisforum M2 Pro 的维护和升级相对简单。底盖由几颗螺丝固定，其中一颗位于橡胶盖下方。要访问存储驱动器，必须先拆下电源和扬声器单元。 内存已焊接在主板上，无法升级。不过，Wi-Fi 模块和 SSD 均可更换。此外，还有两个空闲的 M.2-2280 插槽，可用于安装额外的 SSD。
可持续发展
值得强调的一个积极方面是，该产品最大限度地减少了塑料的使用：包装材料也很紧凑，体积仅比迷你电脑及其配件稍大一点。
性能
测试条件

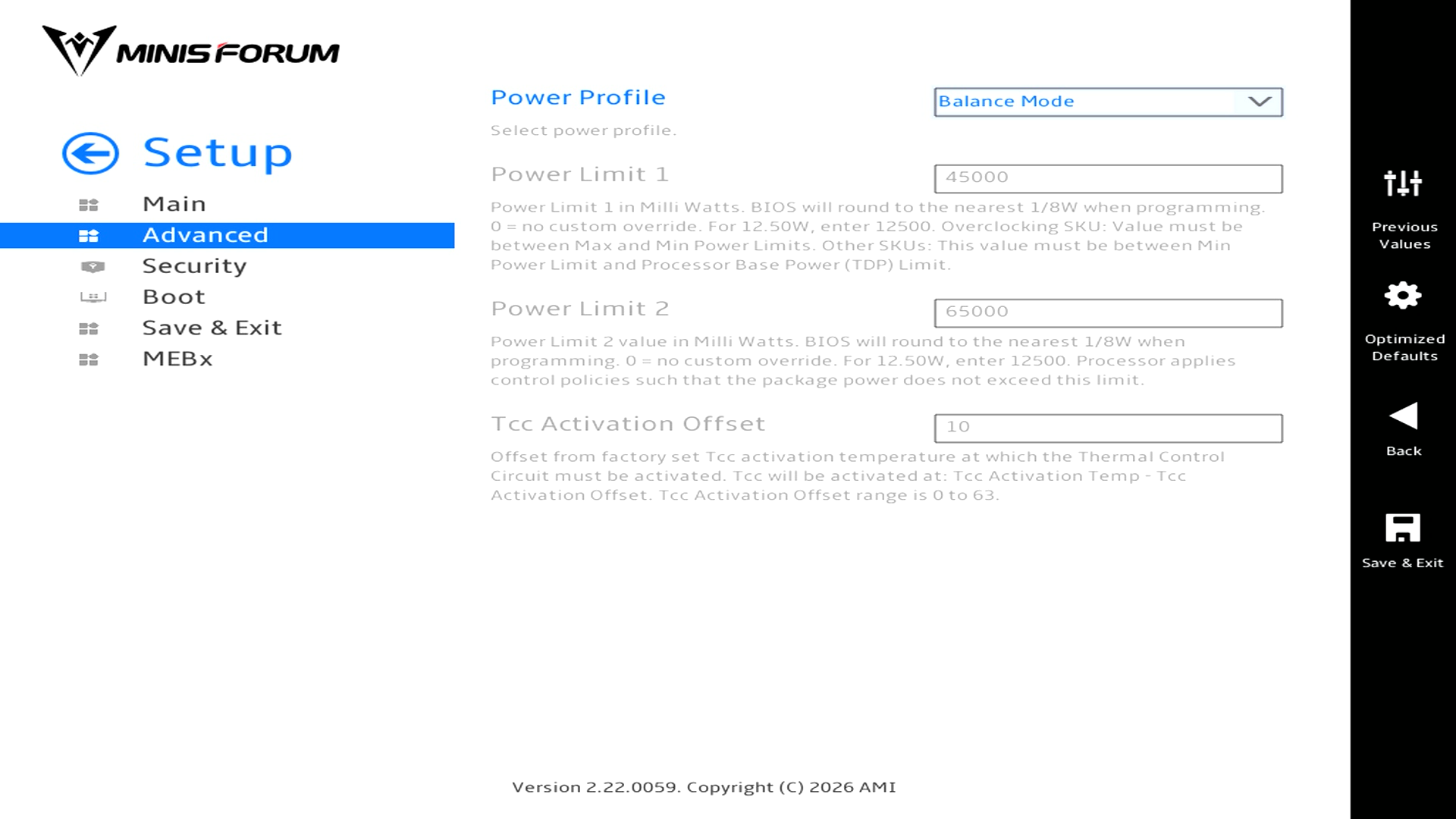

Minisforum M2 Pro 的 BIOS 提供了多种调整功耗的选项。但在测试过程中，该设备完全按照出厂默认状态运行，并遵循预设的“自动”电源配置文件。

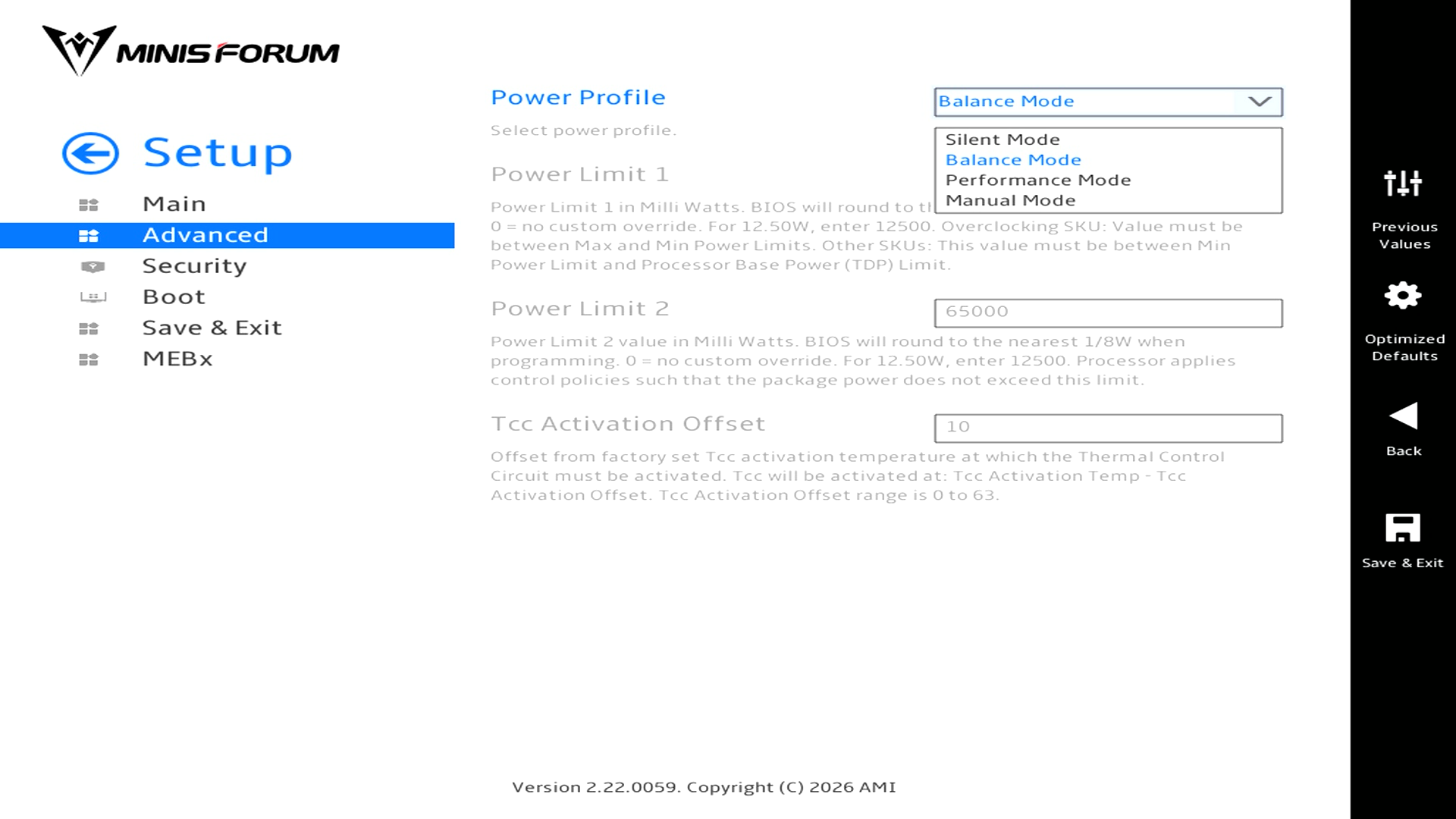

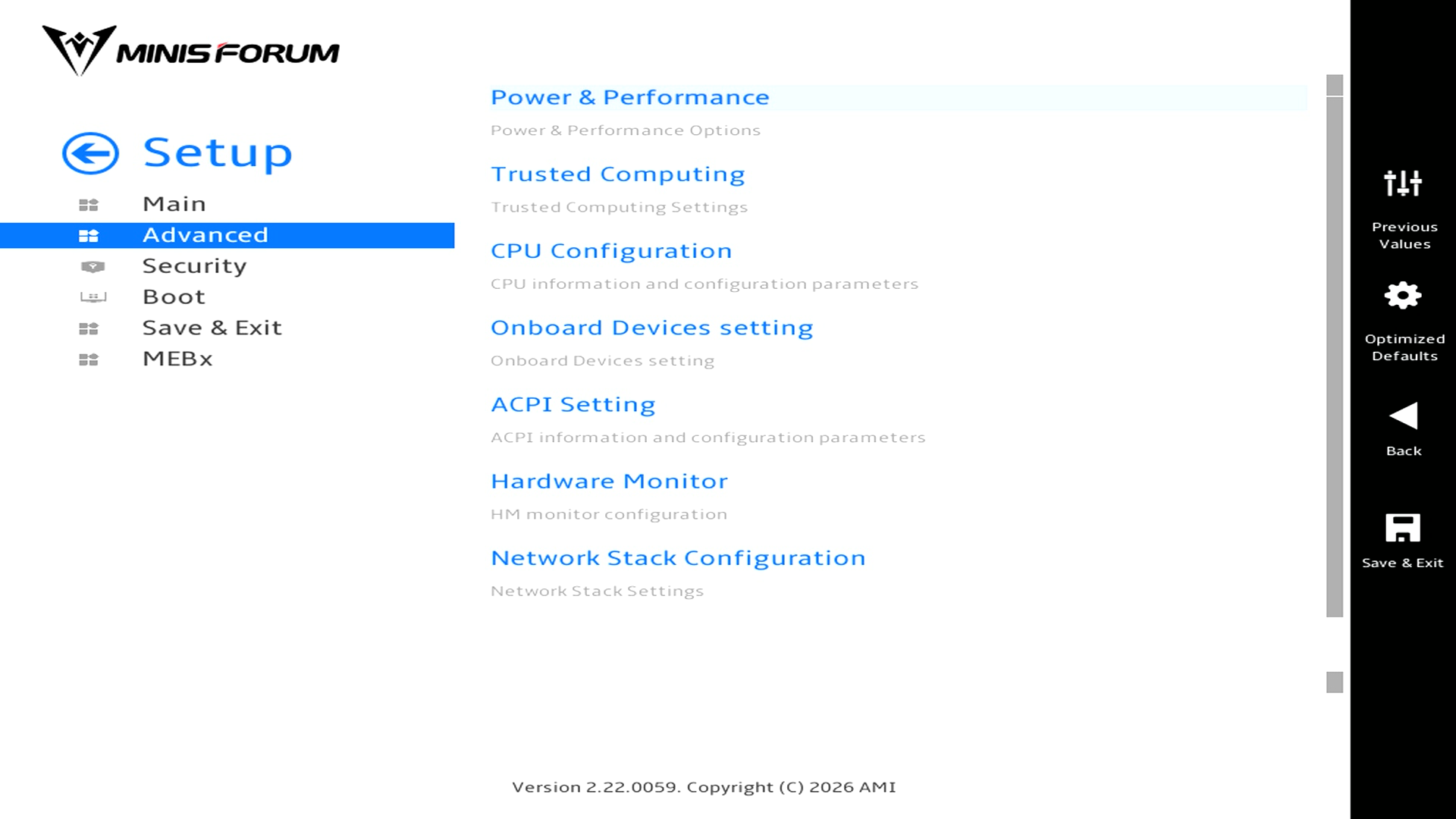

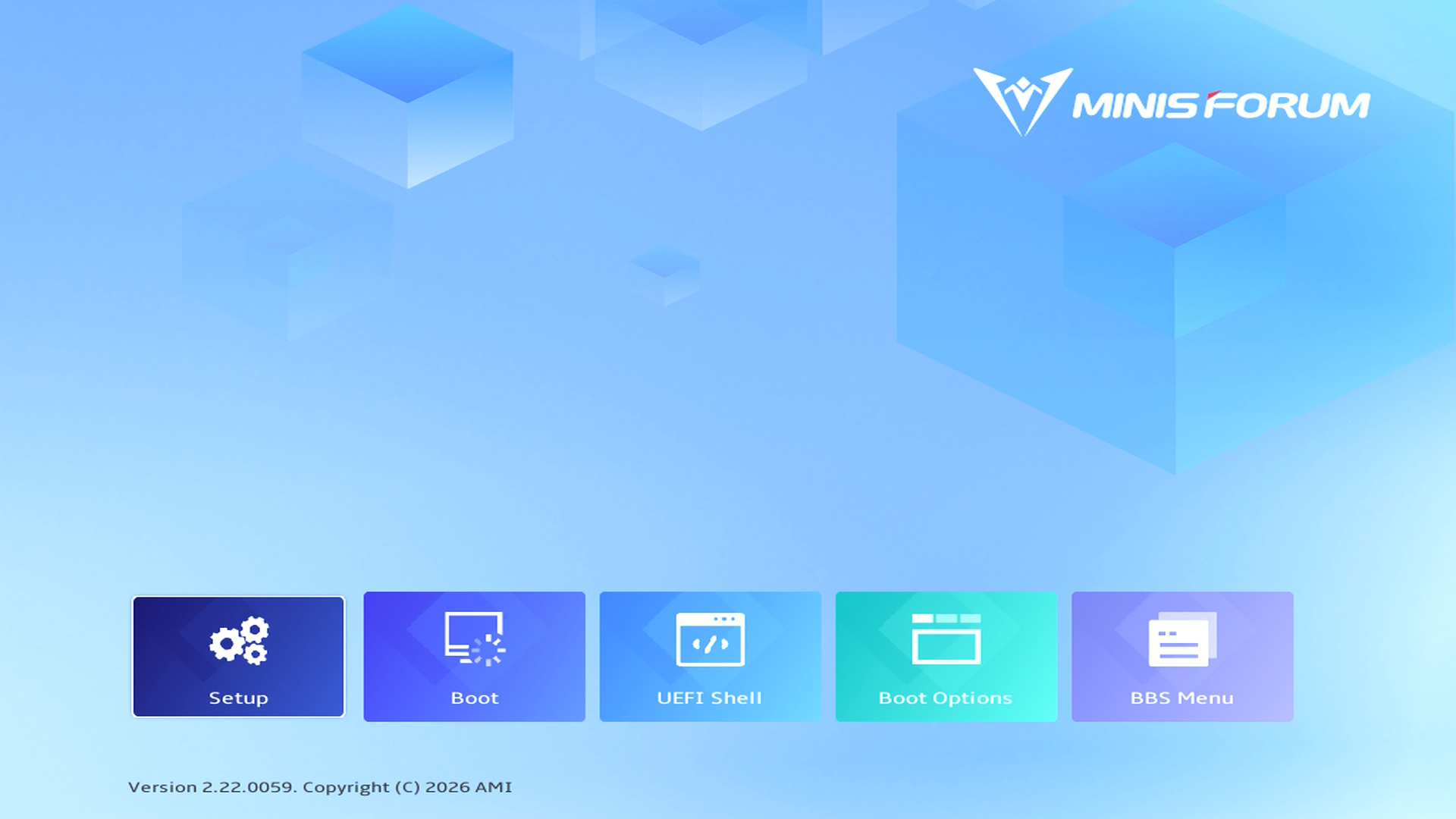

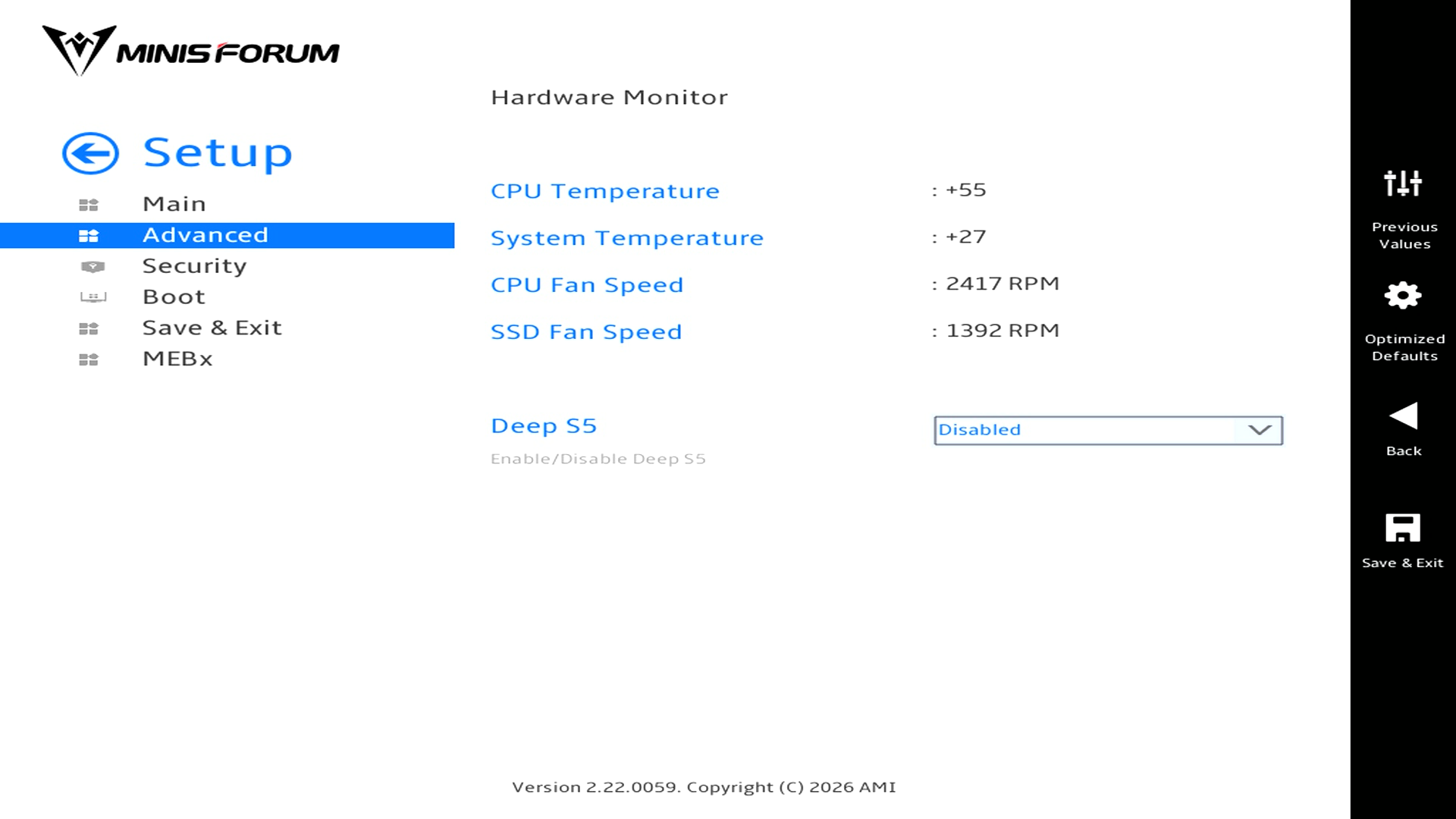

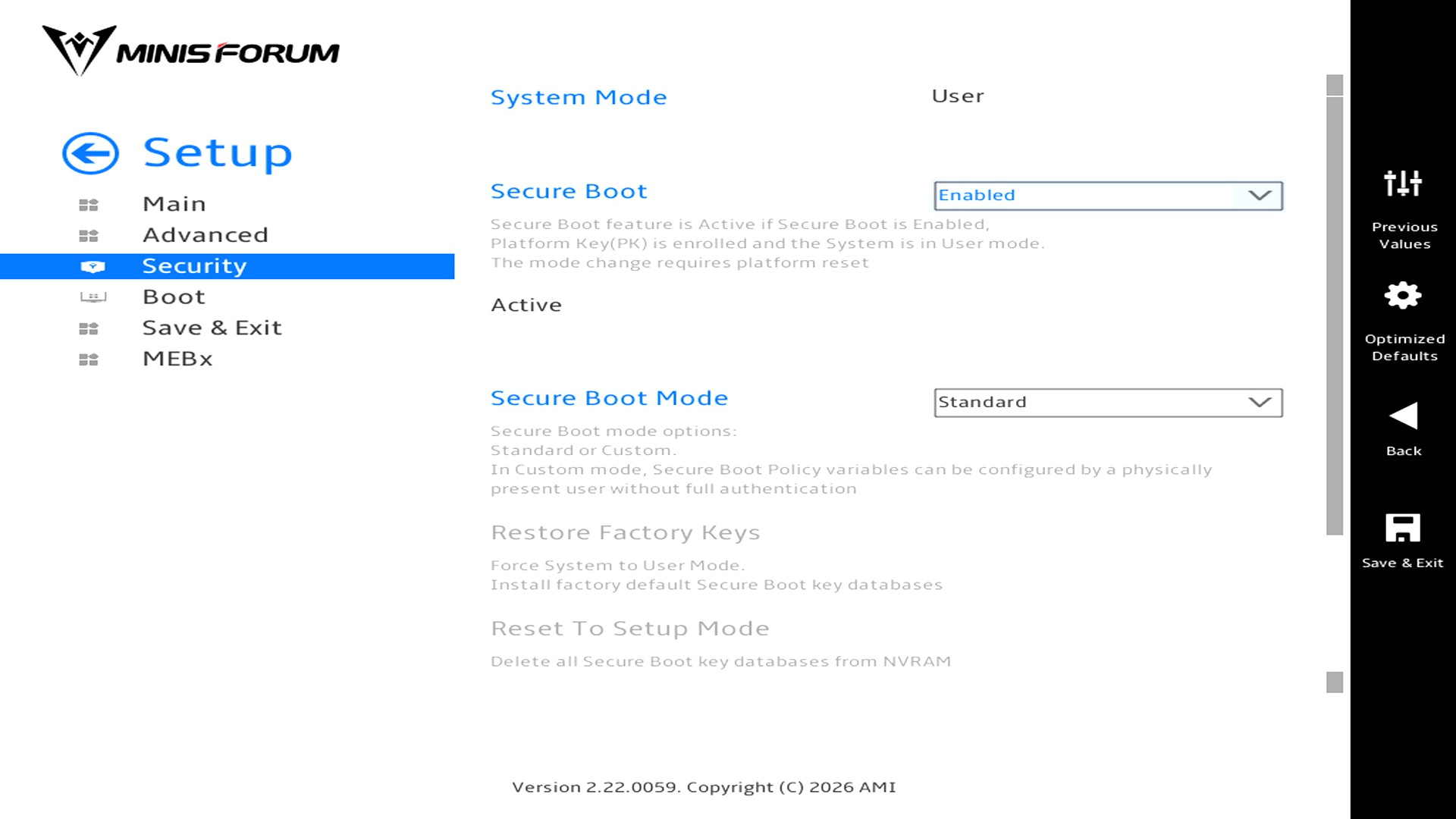

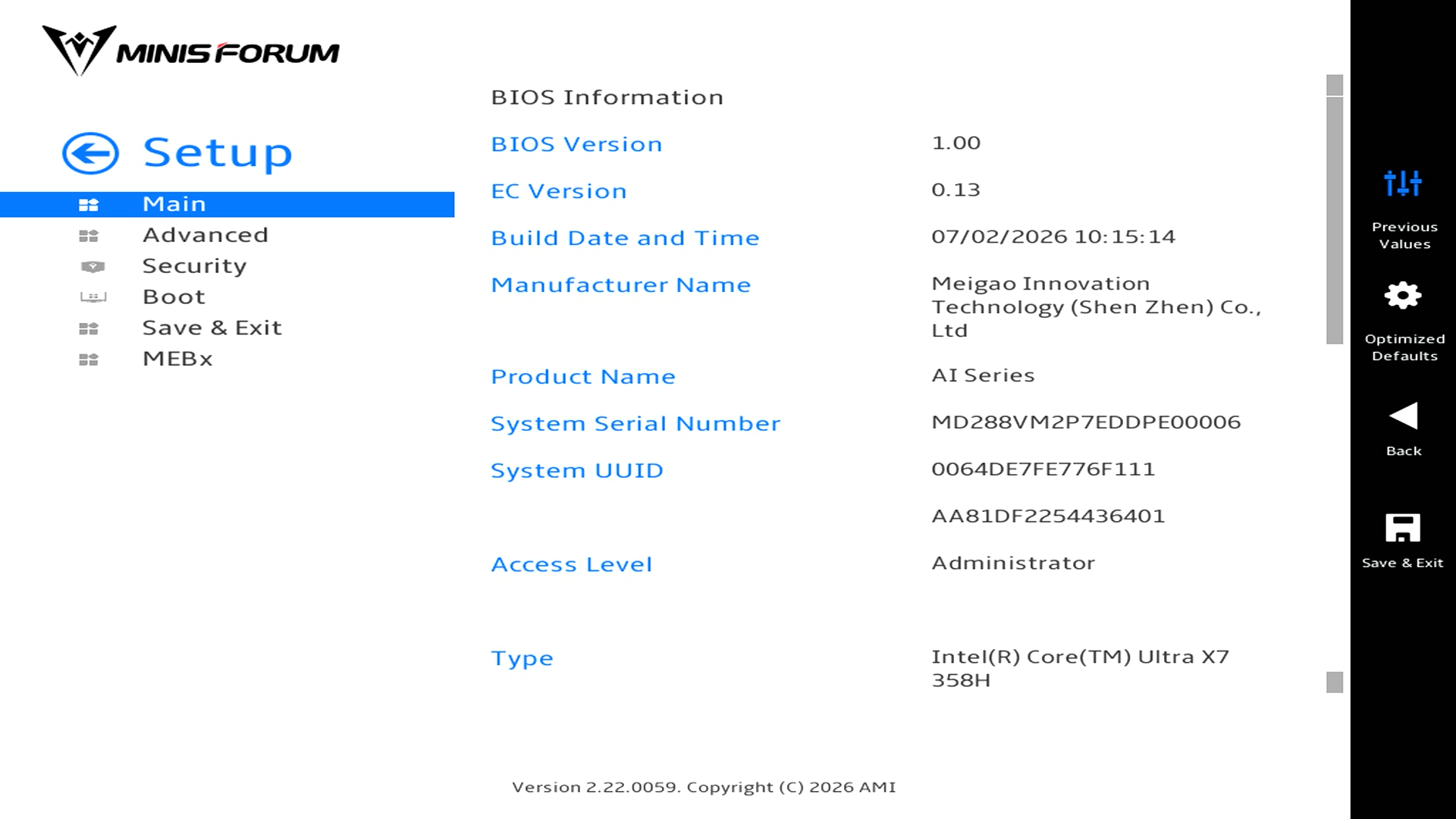

UEFI 设置
处理器

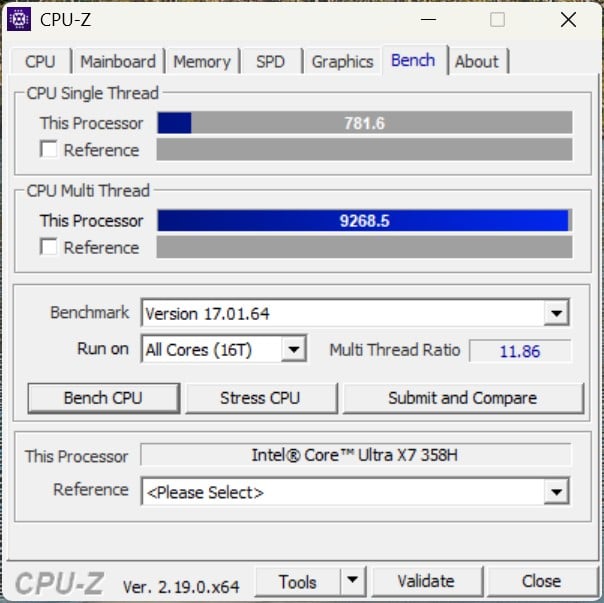

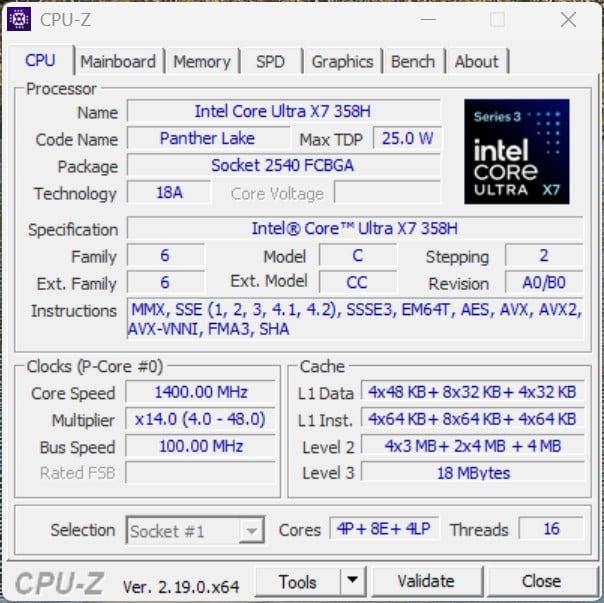

Minisforum M2 Pro 所采用的英特尔酷睿 Ultra X7 358H 是英特尔最新的移动处理器之一，基于现代混合架构。该 CPU 出厂即采用 65/45 瓦的功耗配置，既能提供短时间的高性能，又能确保在持续负载下稳定运行。 在合成基准测试中，Core Ultra X7 358H 展现出卓越的计算性能，甚至可与当前的 Ryzen AI 处理器一较高下。其多核心与高主频的组合在高度并行化的应用中表现尤为出色。

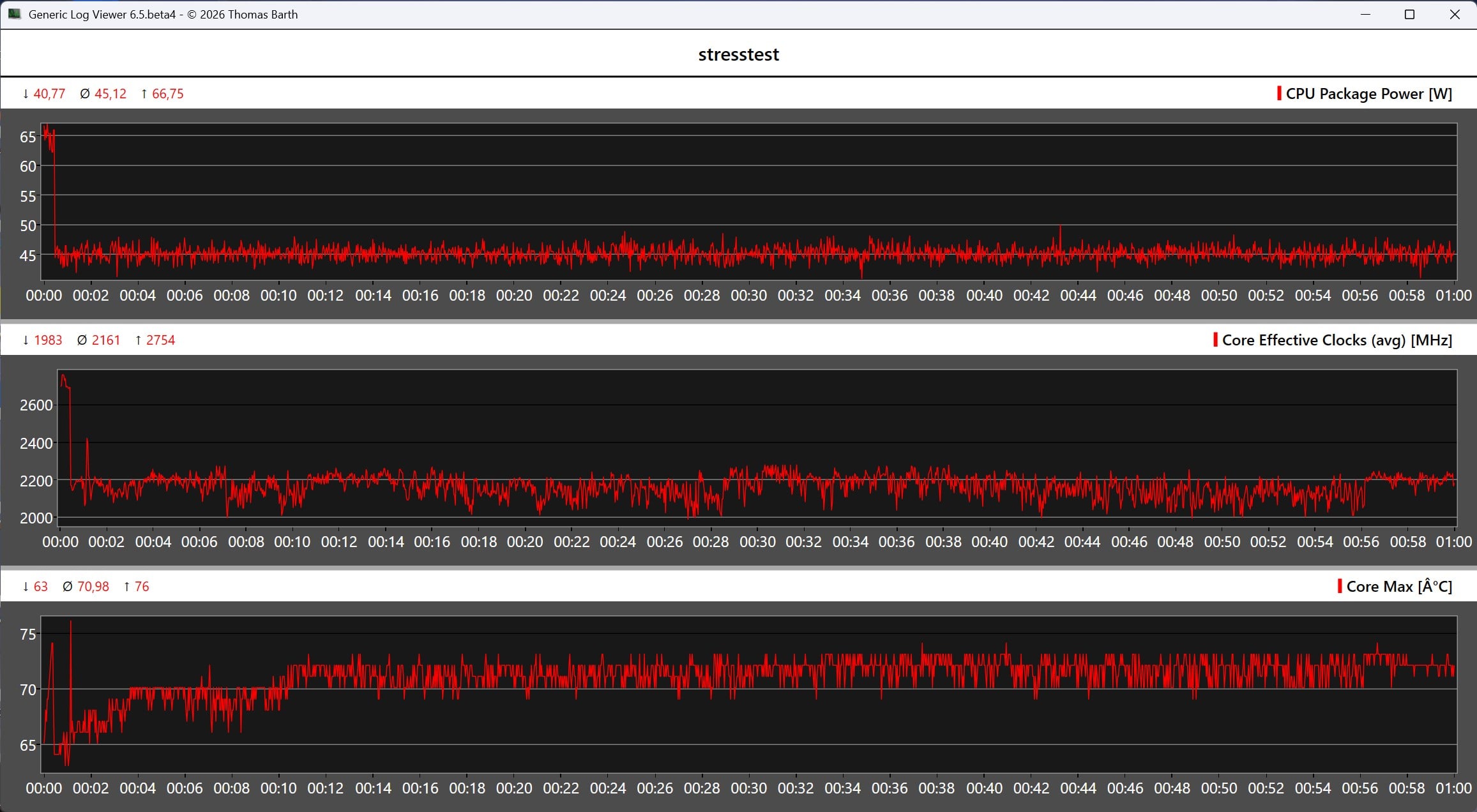

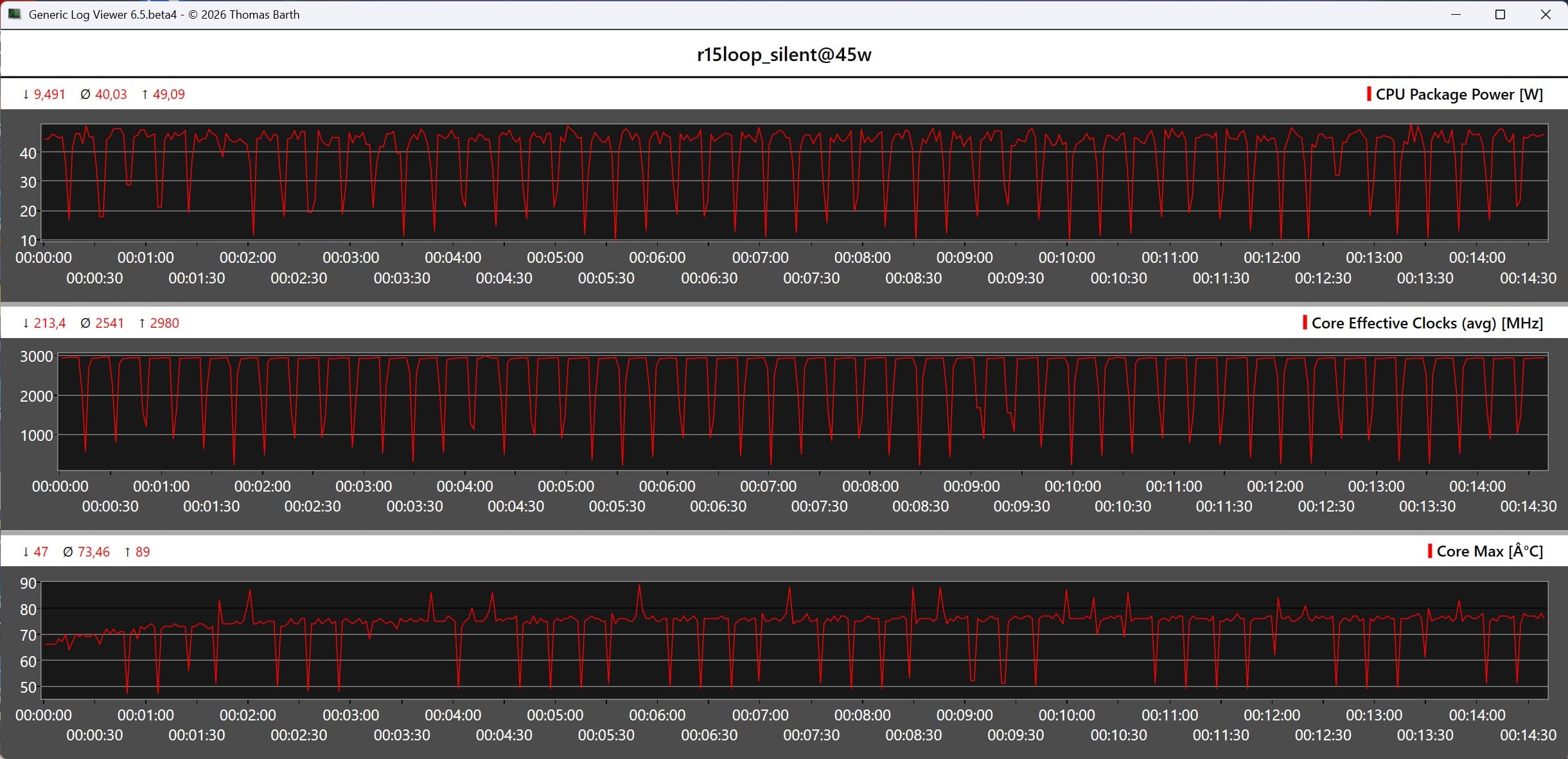

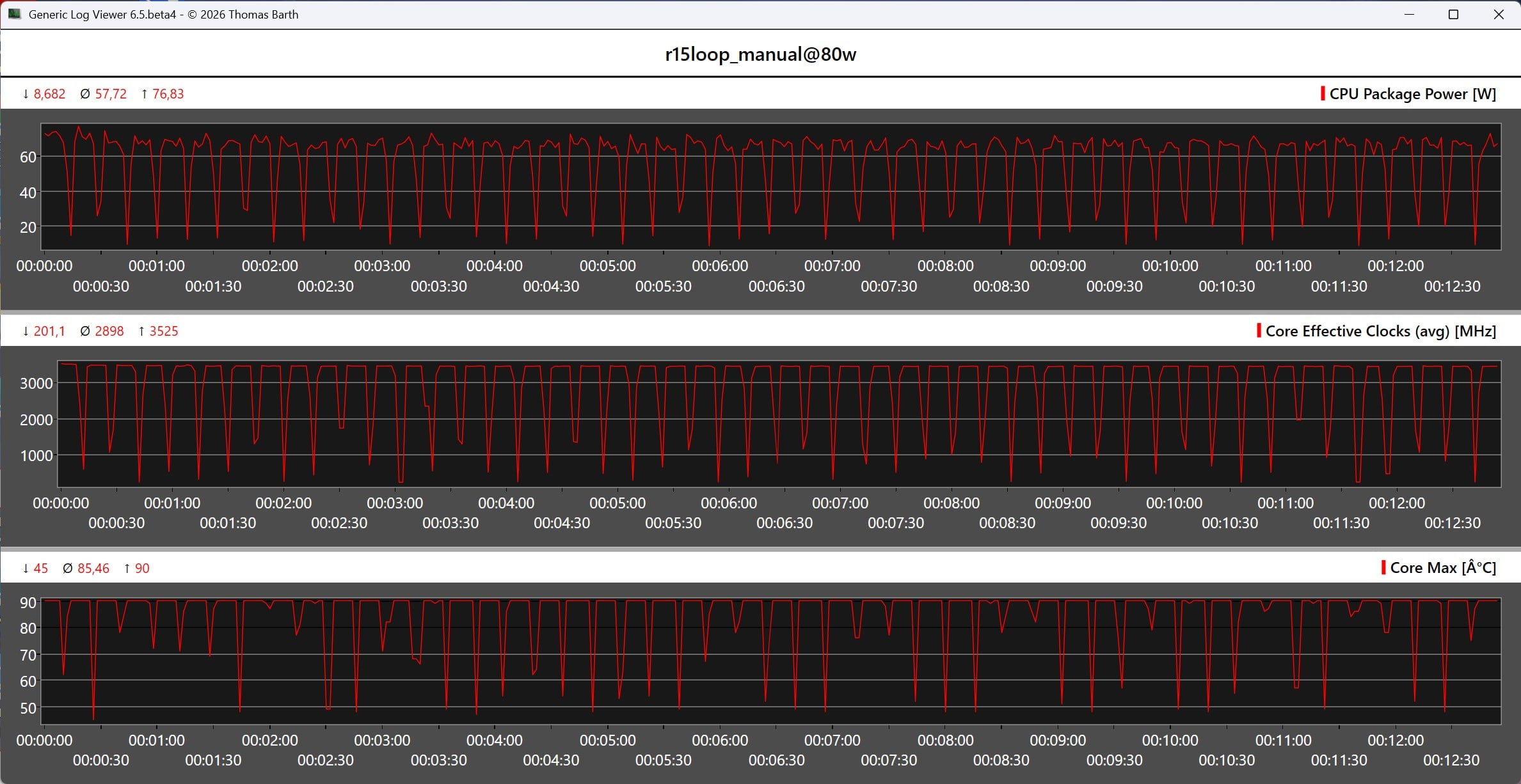

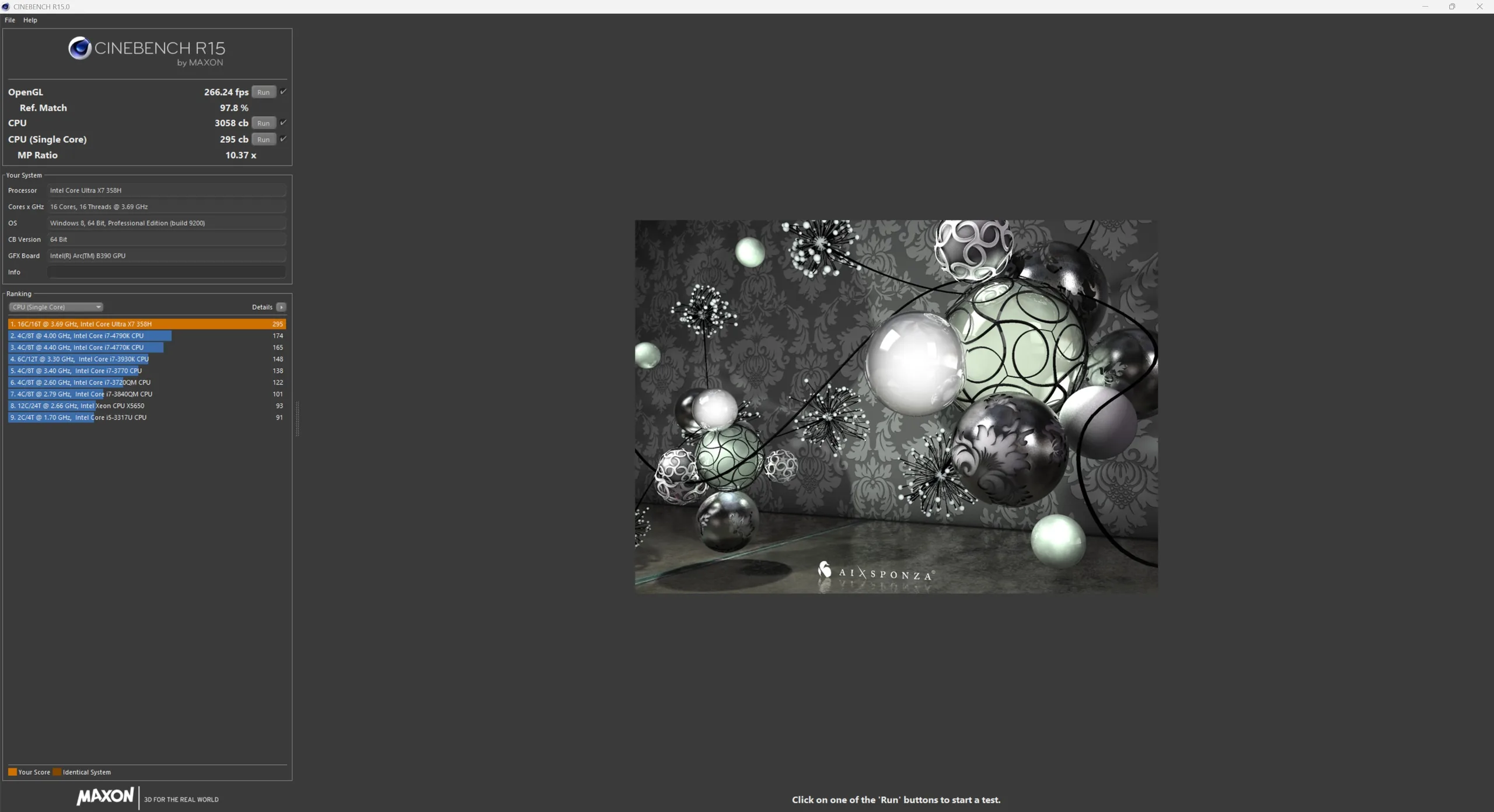

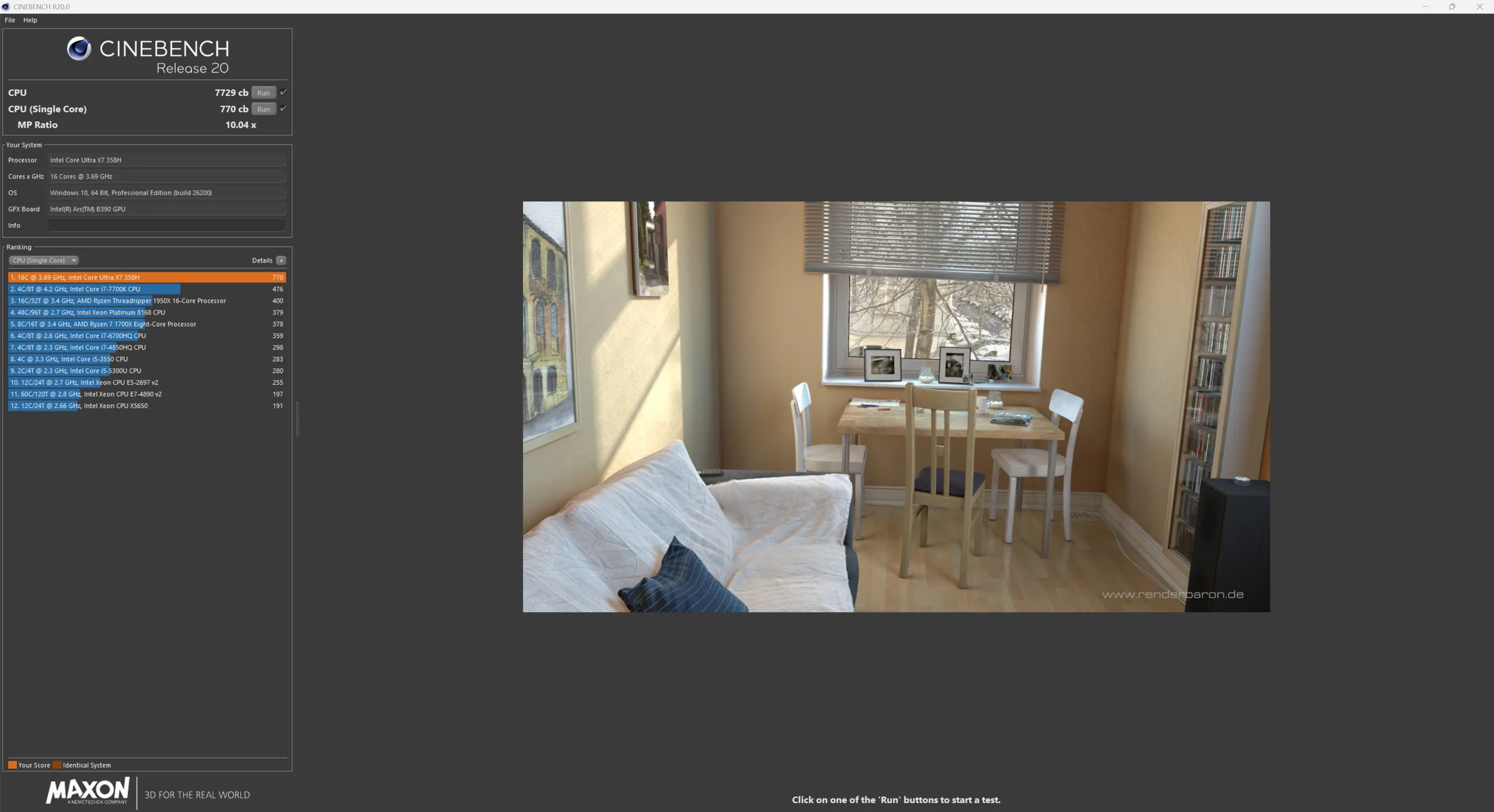

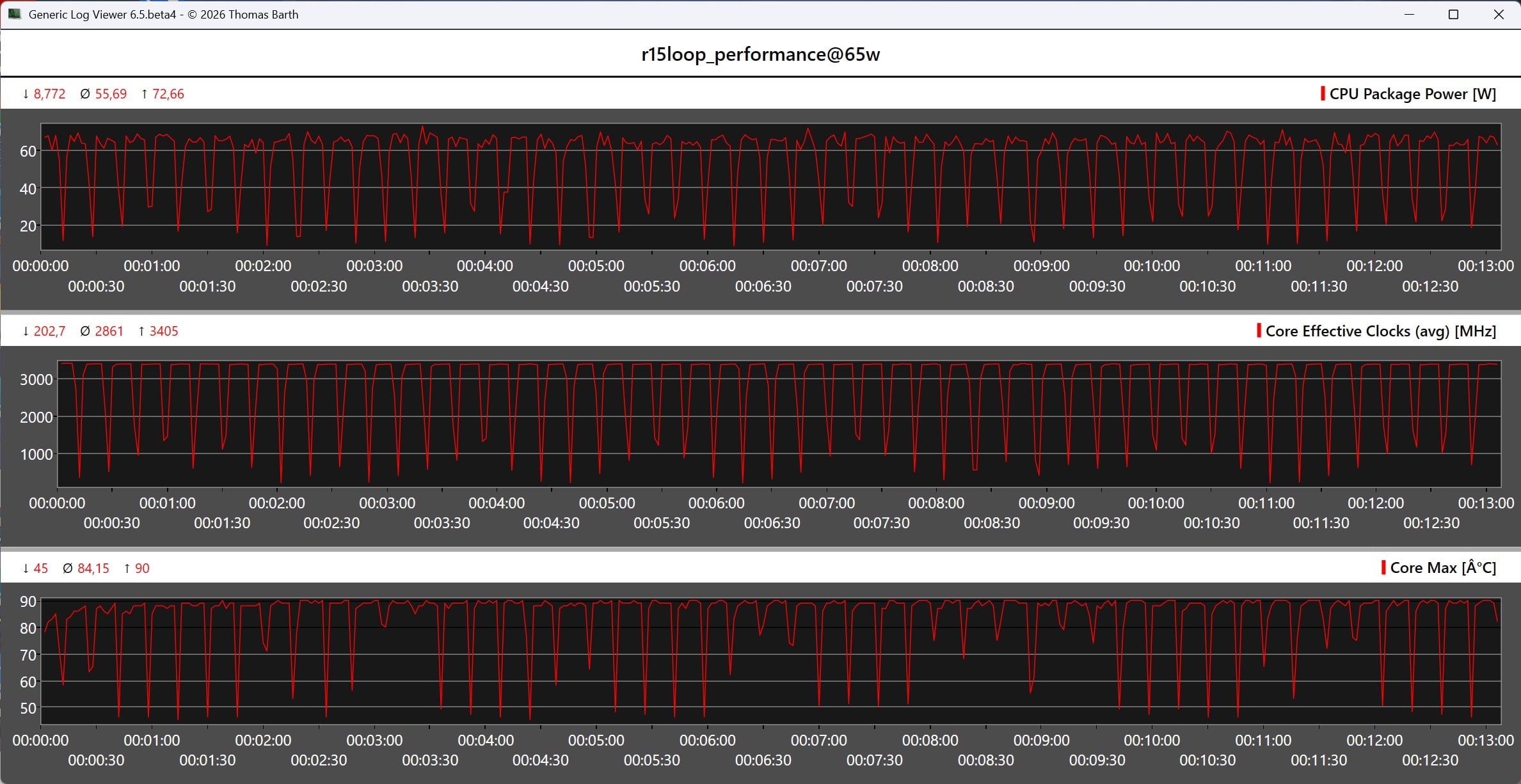

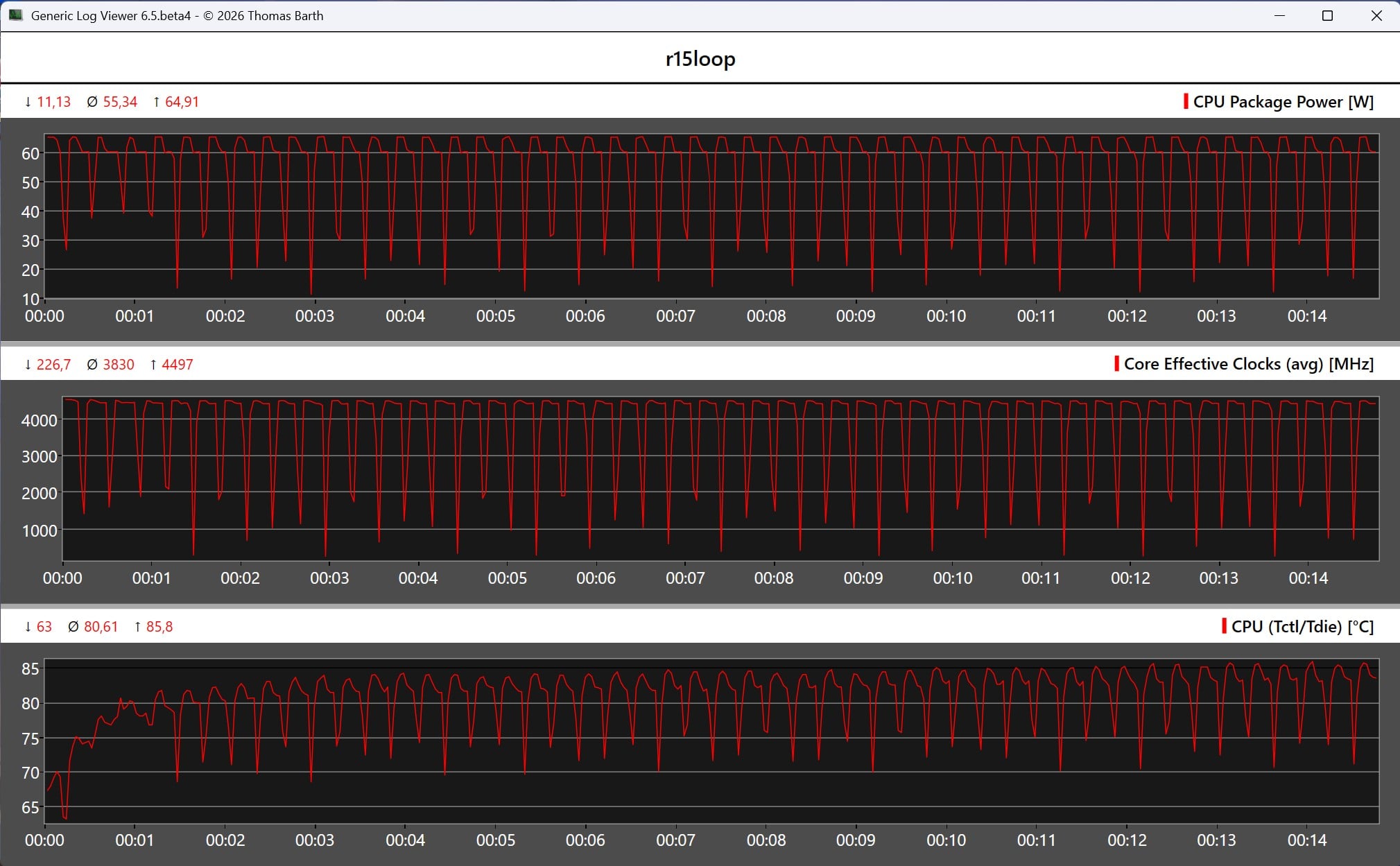

在持续满载运行时，功耗会降至规格规定的 45 瓦水平。因此，在 Cinebench R15 多循环测试过程中，性能会出现轻微下降。在此测试中，该 CPU 的最高温度可达 86 °C。
不同功率模式的比较
| Power Mode 和 Power PL2/PL1 | Cinebench R15 1T | Cinebench R15 nT | Cinebench R20 1T | Cinebench R20 nT | Cinebench R23 1T | Cinebench R23 nT | Cinebench 2024 1T | Cinebench 2024 nT | Cinebench 2026 1T | Cinebench 2026 nT |
|---|---|---|---|---|---|---|---|---|---|---|
| 手册 - 80/80 | 302 | 3.215 | 790 | 8.196 | 2,088 | 21,048 | 123 | 1,222 | 506 | 4,891 |
| 表现 - 65/65 | 304 | 3.104 | 790 | 8.106 | 2,096 | 20,788 | 123 | 1,223 | 506 | 4,902 |
| 平衡（默认） - 65/45 | 295 | 3,058 | 770 | 7,729 | 2,045 | 19,916 | 123 | 1,093 | 506 | 4.406 |
| Silent - 45/45 | 298 | 2,687 | 785 | 6,914 | 2,093 | 18.142 | 123 | 1,094 | 503 | 4,365 |

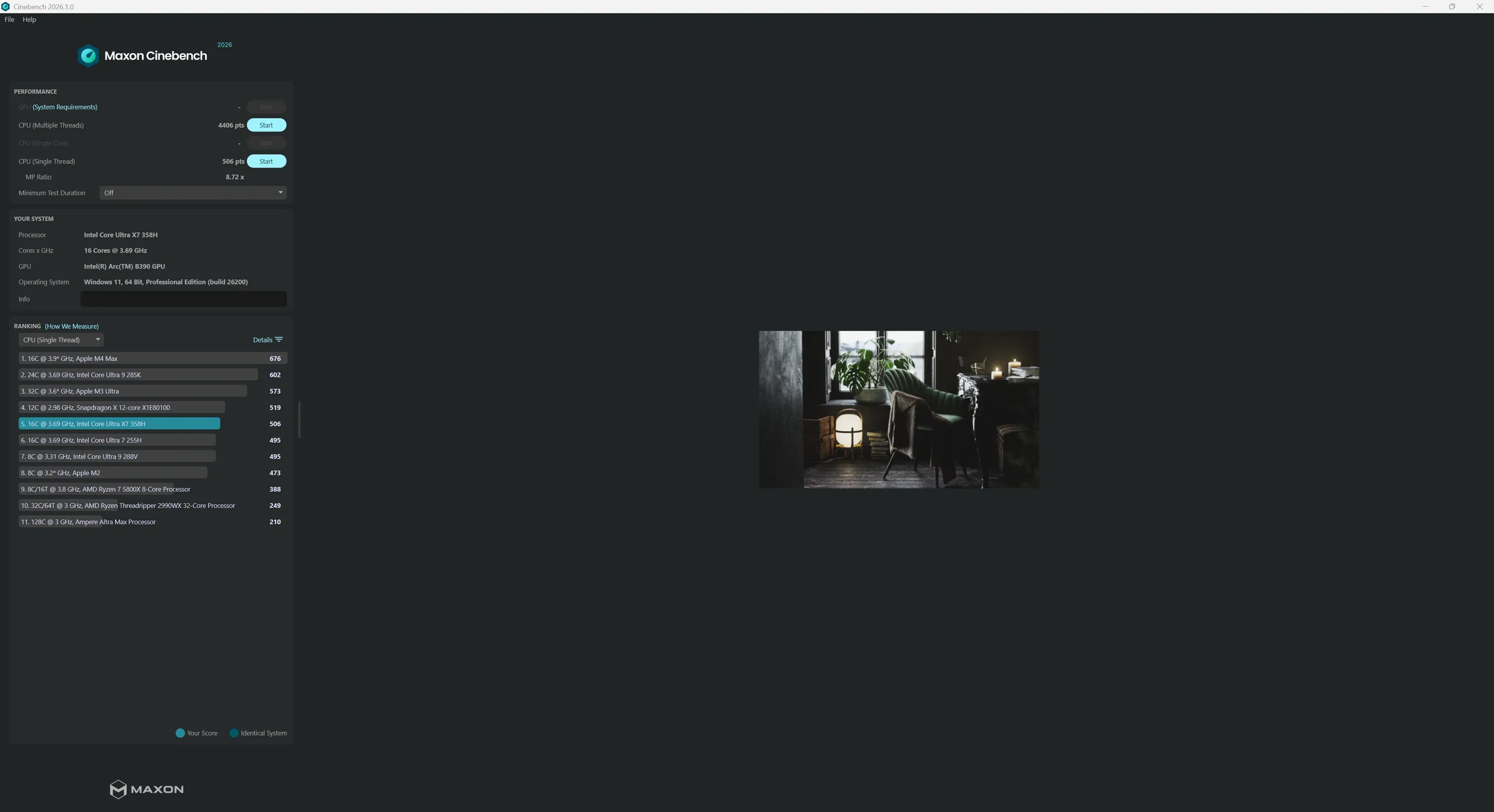

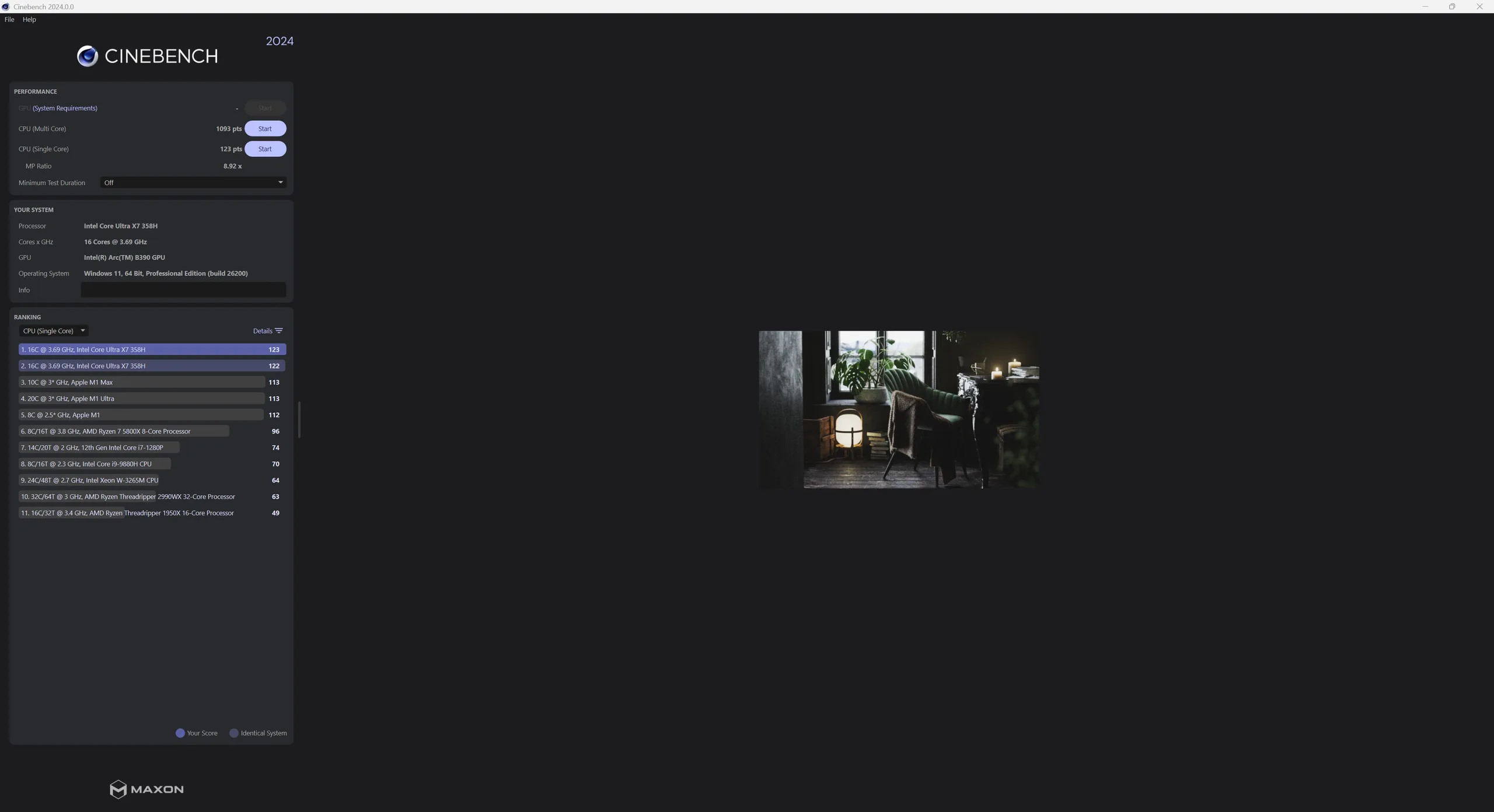

Performance rating | Cinebench 2024 | Cinebench R23 | Cinebench R20 | Cinebench R15 | Cinebench R11.5 | Cinebench R10 | Blender | wPrime 2.10 | X264 HD Benchmark 4.0 | WinRAR | TrueCrypt | Geekbench AI | Geekbench 6.7 | Geekbench 6.0 | Geekbench 5.5 | Geekbench 5.0 | Geekbench 4.4 | 3DMark 11 | 7-Zip 18.03 | HWBOT x265 Benchmark v2.2 | R Benchmark 2.5 | LibreOffice | 3DMark | Super Pi mod 1.5 XS 1M | Super Pi mod 1.5 XS 2M | Affinity Photo 2
* ... smaller is better
Performance rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| AIDA64 / FP32 Ray-Trace | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (974 - 82725, n=103, last 2 years) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Minisforum M2 Pro (v6.92.6600) | |
| Khadas Mind Pro (v8.20.8100) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| AIDA64 / FPU Julia | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Average of class Mini PC (6115 - 363782, n=103, last 2 years) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Minisforum M2 Pro (v6.92.6600) | |
| Khadas Mind Pro (v8.20.8100) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| AIDA64 / CPU SHA3 | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| GMK EVO-T1 (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Minisforum M2 Pro (v6.92.6600) | |
| Khadas Mind Pro (v8.20.8100) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Average of class Mini PC (385 - 9475, n=103, last 2 years) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| AIDA64 / CPU Queen | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Average of class Mini PC (20501 - 154404, n=81, last 2 years) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Geekom IT13 Max (v6.92.6600) | |
| Minisforum M2 Pro (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| AIDA64 / FPU SinJulia | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| Average of class Mini PC (1116 - 31931, n=103, last 2 years) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| GMK EVO-T1 (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Minisforum M2 Pro (v6.92.6600) | |
| Khadas Mind Pro (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| AIDA64 / FPU Mandel | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (3322 - 192994, n=103, last 2 years) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Minisforum M2 Pro (v6.92.6600) | |
| Khadas Mind Pro (v8.20.8100) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| AIDA64 / CPU AES | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Average of class Mini PC (5014 - 204742, n=102, last 2 years) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| GMK EVO-T1 (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Minisforum M2 Pro (v6.92.6600) | |
| Khadas Mind Pro (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| AIDA64 / CPU ZLib | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Minisforum M2 Pro (v6.92.6600) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Khadas Mind Pro (v8.20.8100) | |
| GMK EVO-T1 (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Average of class Mini PC (127.2 - 2431, n=103, last 2 years) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| AIDA64 / FP64 Ray-Trace | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Average of class Mini PC (537 - 43587, n=103, last 2 years) | |
| GMK EVO-T1 (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Minisforum M2 Pro (v6.92.6600) | |
| Khadas Mind Pro (v8.20.8100) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| AIDA64 / CPU PhotoWorxx | |
| Khadas Mind Pro (v8.20.8100) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Minisforum M2 Pro (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| GMK EVO-T1 (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Average of class Mini PC (8069 - 96843, n=103, last 2 years) | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |

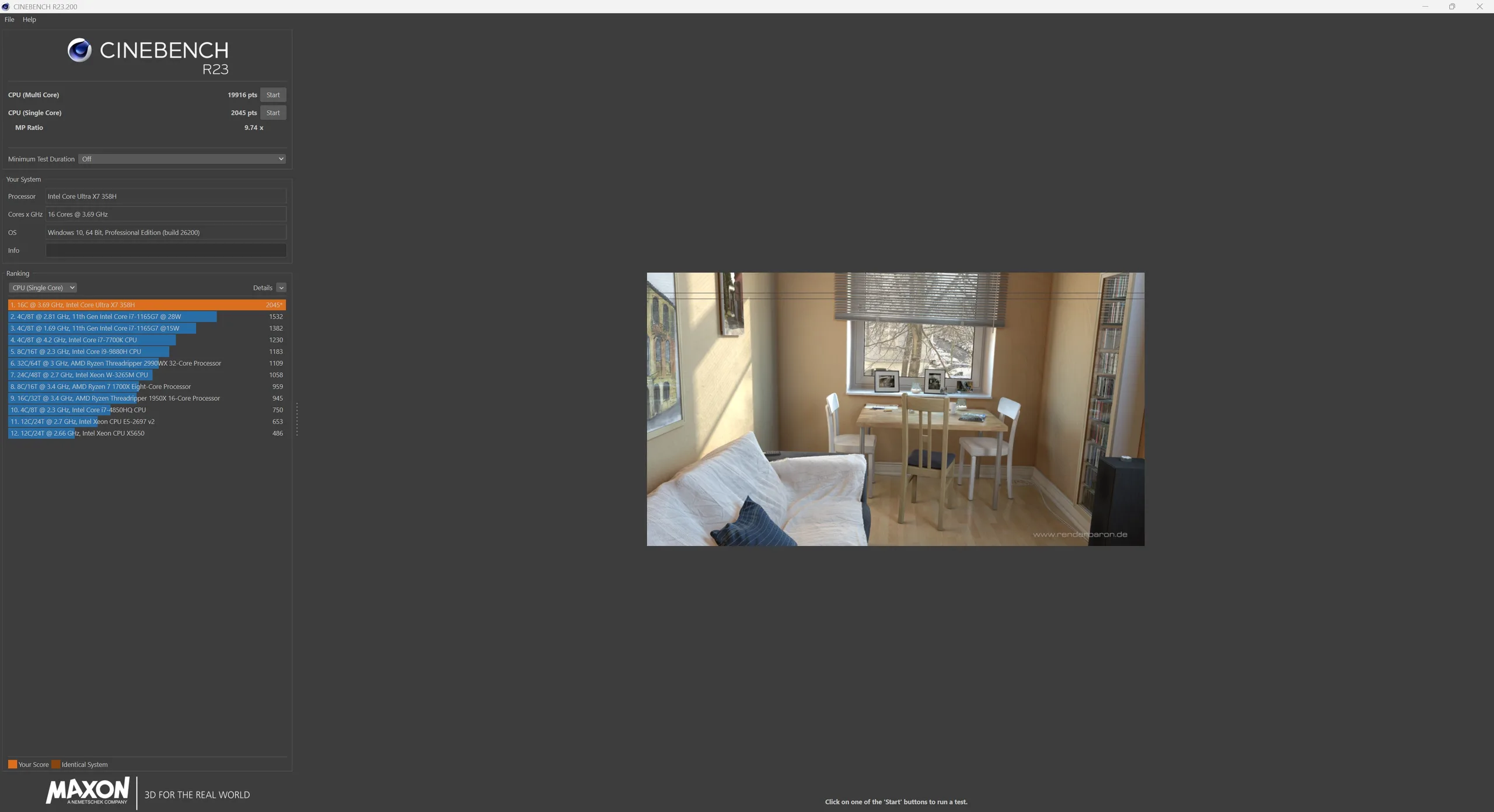

Cinebench R15 多核耐力测试
Minisforum M2 Pro Intel Core Ultra X7 358H, Intel Core Ultra X7 358H: Ø2796 (2753.68-3096.45) Points
Khadas Mind Pro Intel Core Ultra X7 358H, Intel Core Ultra X7 358H: Ø2737 (2694.51-3038.13) Points
Minisforum AI X1 Pro, HX 370 AMD Ryzen AI 9 HX 370, AMD Ryzen AI 9 HX 370: Ø3424 (3388.97-3493.45) Points
GMK EVO-T1 Intel Core Ultra 9 285H, Intel Core Ultra 9 285H: Ø3047 (3002.55-3112.11) Points
Minisforum MS-02 Ultra Intel Core Ultra 9 285HX, Intel Core Ultra 9 285HX: Ø5548 (5505.09-5671.35) Points
系统性能
这款迷你电脑的系统性能因新平台而显著提升。特别是，高速内存对整体性能产生了积极影响，AIDA64内存测试等结果便证明了这一点。与上一代产品相比，集成的NPU也得到了进一步开发，在AI应用中实现了显著更高的计算能力。
Performance rating: Percent
PCMark 10: Score | Essentials | Productivity
WebXPRT 4: Overall
WebXPRT 3: Overall
Mozilla Kraken 1.1: Total
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10: Score | Essentials | Productivity
WebXPRT 4: Overall
WebXPRT 3: Overall
Mozilla Kraken 1.1: Total
CrossMark: Overall | Productivity | Creativity | Responsiveness
* ... smaller is better
| AIDA64 / Memory Copy | |
| Khadas Mind Pro (v8.20.8100) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Average of class Mini PC (15933 - 163031, n=102, last 2 years) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| AIDA64 / Memory Read | |
| Khadas Mind Pro (v8.20.8100) | |
| Minisforum M2 Pro (v6.92.6600) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| GMK EVO-T1 (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| Geekom IT13 Max (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| Average of class Mini PC (14143 - 123769, n=103, last 2 years) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| AIDA64 / Memory Write | |
| Khadas Mind Pro (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Minisforum M2 Pro (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Average of class Mini PC (10630 - 216693, n=103, last 2 years) | |
| GMK EVO-T1 (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| AIDA64 / Memory Latency | |
| Geekom IT13 Max (v6.92.6600) | |
| Geekom IT13 Max (v8.20.8100) | |
| Minisforum MS-02 Ultra (v6.92.6600) | |
| GMK EVO-T1 (v8.20.8100) | |
| GMK EVO-T1 (v6.92.6600) | |
| Acemagic Retro X3 (v6.92.6600) | |
| Acemagic Retro X3 (v8.20.8100) | |
| Minisforum M2 Pro (v8.20.8100) | |
| Average of class Mini PC (88.1 - 174.6, n=103, last 2 years) | |
| Minisforum AI X1 Pro, HX 370 (v6.92.6600) | |
| Minisforum AI X1 Pro, HX 370 (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v8.20.8100) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Khadas Mind Pro (v8.20.8100) | |
| Khadas Mind Pro (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 470 (v8.20.8100) | |
| Geekom A9 Max, AI 9 HX 470 (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
* ... smaller is better
| UL Procyon for Windows / Overall Score Integer NPU | |
| Minisforum M2 Pro (OenVINO) | |
| Khadas Mind Pro (OpenVINO) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (OpenVINO) | |
| Minisforum AI X1 Pro, HX 370 (AMD Ryzen AI) | |
| Minisforum MS-02 Ultra (OpenVINO) | |
| GMK EVO-T1 (OpenVINO) | |
| Geekom IT13 Max (OpenVINO) | |
| UL Procyon for Windows / Overall Score Integer GPU | |
| Minisforum M2 Pro (Windows ML) | |
| Khadas Mind Pro (Windows ML) | |
| Minisforum AI X1 Pro, HX 370 (Windows ML) | |
| GMK EVO-T1 (Windows ML) | |
| Geekom IT13 Max (Windows ML) | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V (Windown ML) | |
| Alliwava GH8, R9 8945HS (Windows ML) | |
| Minisforum MS-02 Ultra (Windows ML) | |

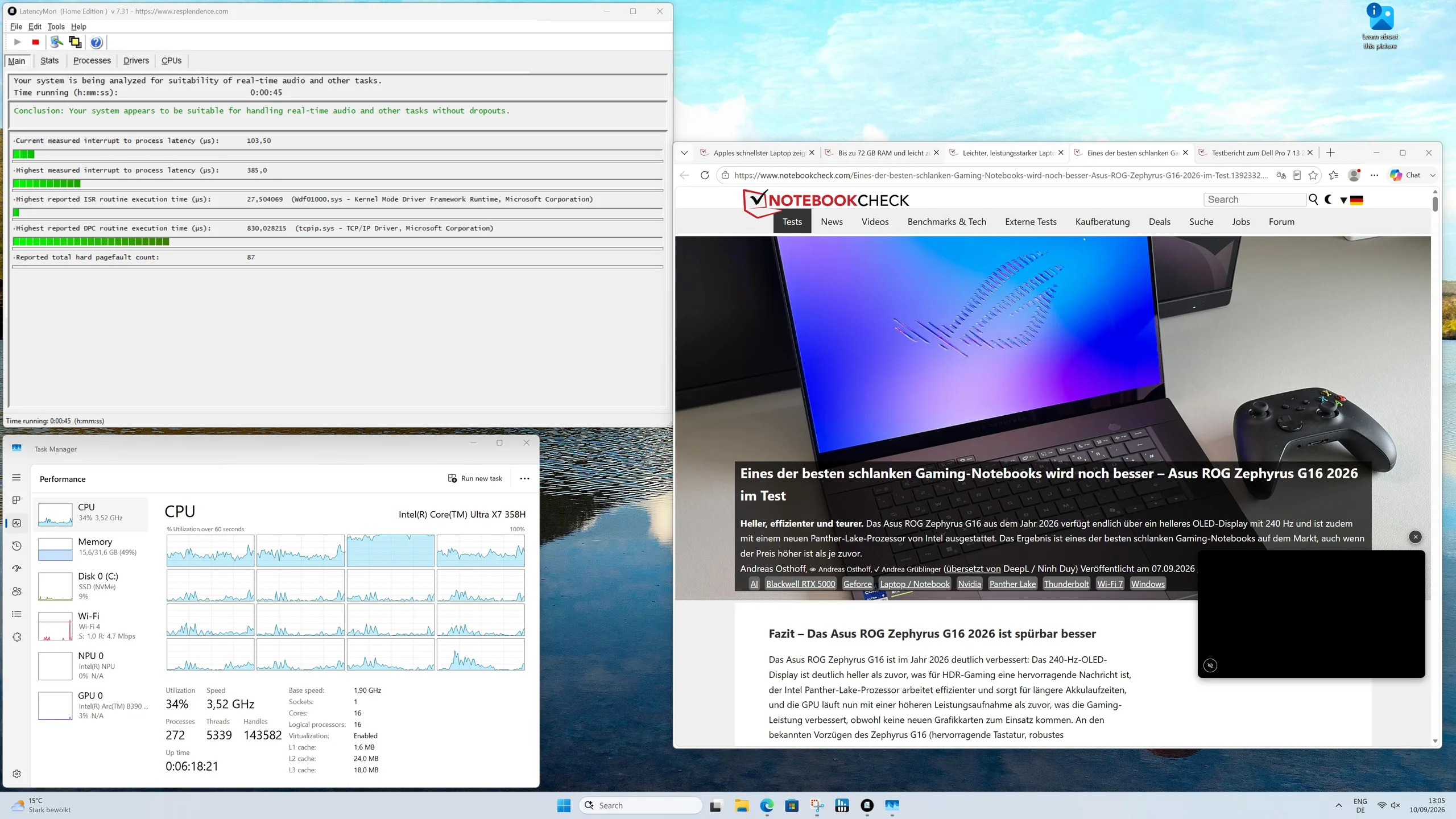

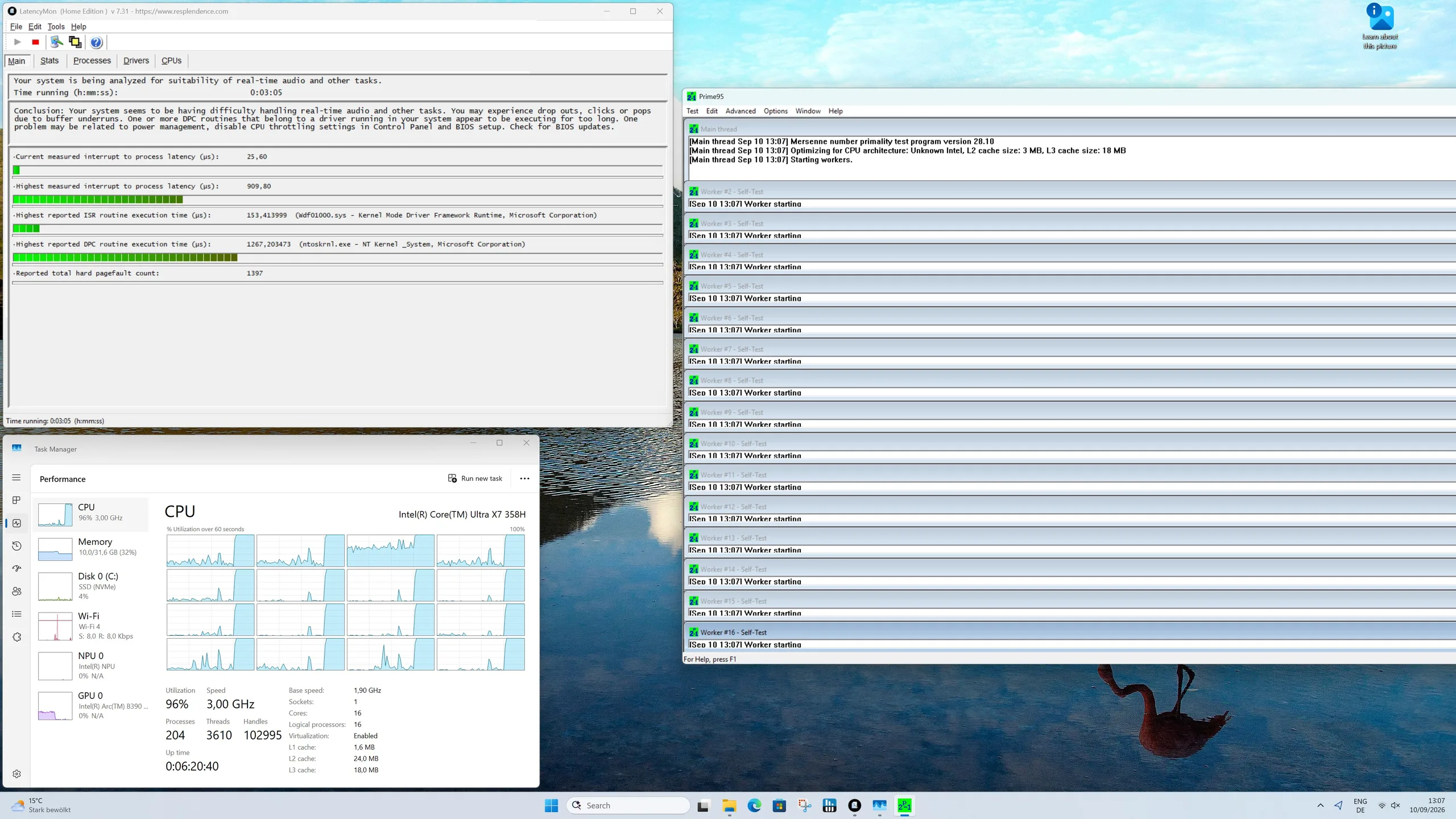

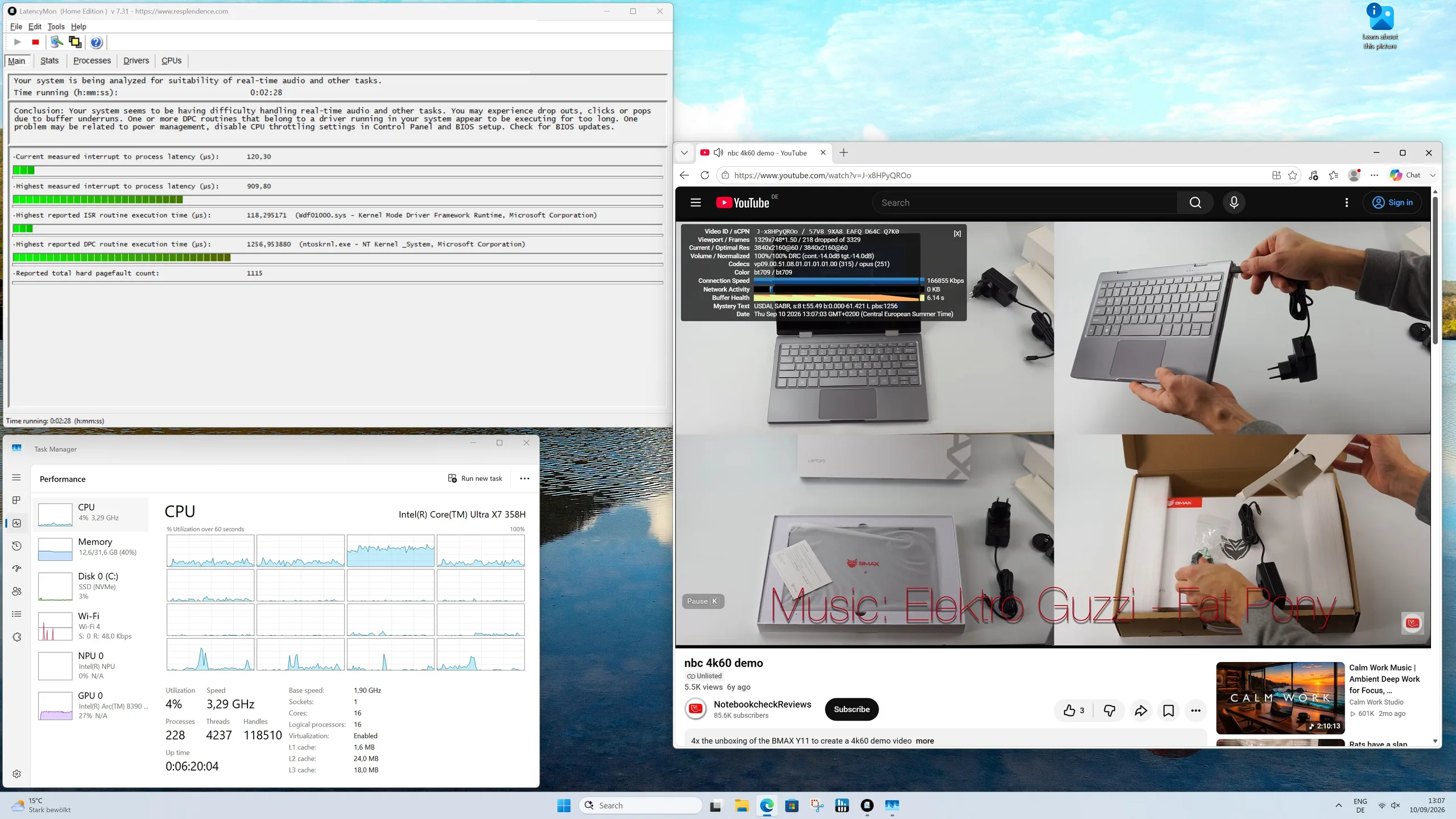

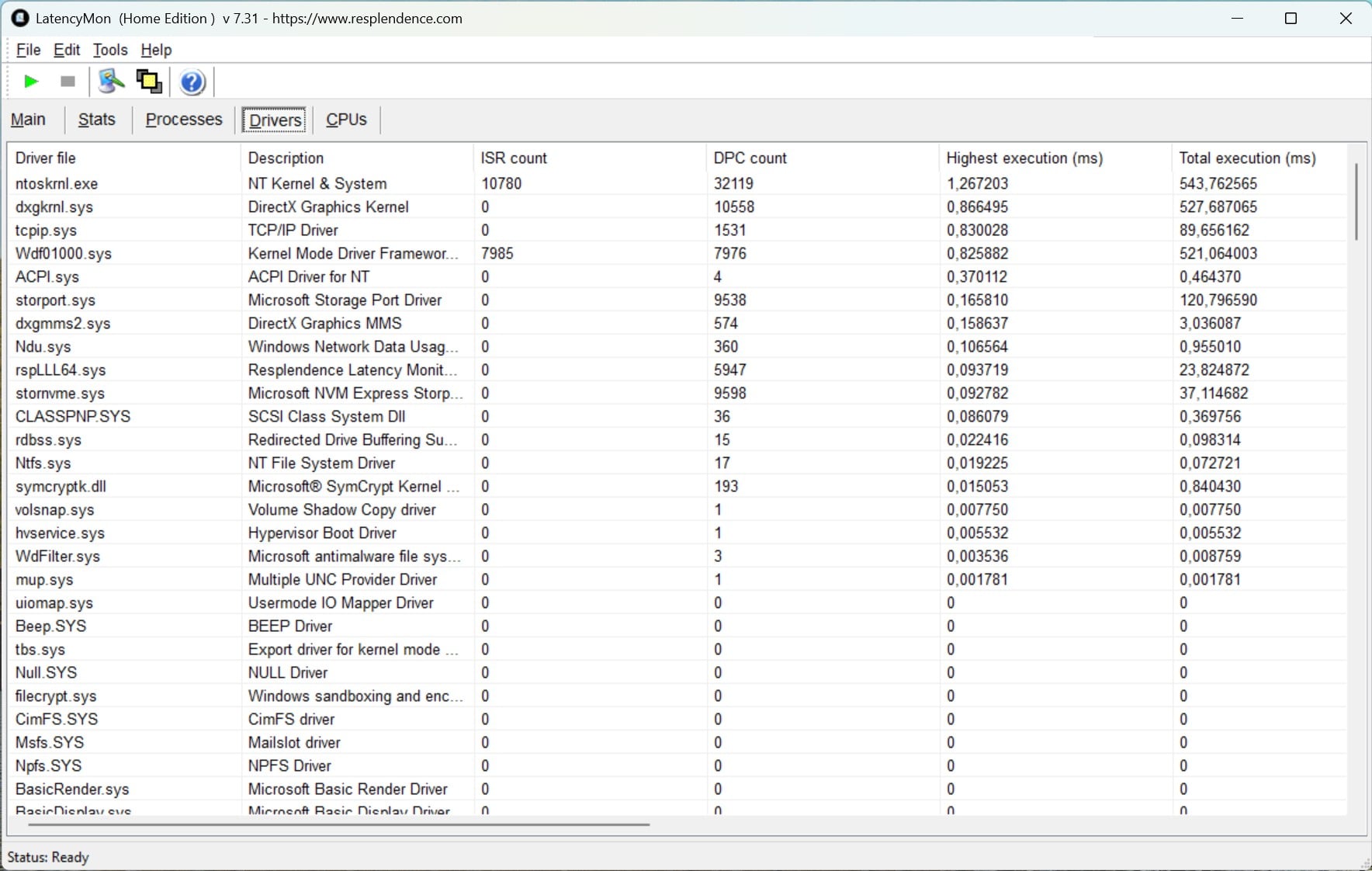

DPC 延迟
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Minisforum AI X1 Pro, HX 370 | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Acemagic Retro X3 | |
| Peladn HA-4, R7 7840HS | |
| Minisforum M2 Pro | |
| GMK EVO-T1 | |
| Minisforum MS-02 Ultra | |
| Khadas Mind Pro | |
| Geekom IT13 Max | |
| Alliwava GH8, R9 8945HS | |
* ... smaller is better
存储设备
内置的 1 TB YMTC PC411 SSD 采用 M.2-2280 规格，支持 PCIe 4.0，性能卓越。 即使在长时间高负载下，传输速率也能保持基本稳定。总体而言，Minisforum M2 Pro 最多可支持三块 M.2 SSD：其中两个插槽支持 PCIe 4.0 x4，另一个则通过 PCIe 4.0 x1 连接。
YMTC PC411-1TB
Sequential Read:
5355MB/s
Sequential Write:
3571MB/s
4K Read:
43.6MB/s
4K Write:
161.1MB/s
4K-64 Read:
885MB/s
4K-64 Write:
2415MB/s
Access Time Read:
0.143ms
Access Time Write:
0.067ms
Copy ISO:
2165.62MB/s
Copy Program:
775.19MB/s
Copy Game:
1713.48MB/s
Score Read:
1464Points
Score Write:
2933Points
Score Total:
5062Points
| Drive Performance rating - Percent | |
| GMK EVO-T1 | |
| Khadas Mind Pro | |
| Minisforum MS-02 Ultra | |
| Minisforum AI X1 Pro, HX 370 | |
| Minisforum M2 Pro | |
| Average of class Mini PC | |
| Geekom A9 Max, AI 9 HX 470 -11! | |
* ... smaller is better
磁盘限速：DiskSpd 读取循环，队列深度 8
Minisforum M2 Pro YMTC PC411-1TB; diskspd 2.0.17 f: Ø6838 (5747.49-6882.85) MB/s
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00; diskspd 2.0.17 f: Ø5230 (4692.85-5249.38) MB/s
Minisforum AI X1 Pro, HX 370 Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (4364.17-4810.03) MB/s
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø5093 (4773.96-5106.36) MB/s
Minisforum MS-02 Ultra Kingston OM8TAP41024K1-A00; diskspd 2.0.17 f: Ø4479 (3776.76-4515.8) MB/s
Geekom A9 Max, AI 9 HX 470 Kingston OM8TAP42048K1-A00; diskspd 2.0.17 f: Ø2490 (2328.63-2502.32) MB/s
显卡与游戏性能
Minisforum M2 Pro 搭载了集成于 Core Ultra X7 358H 处理器中的 Intel Arc B390。全新的 Xe3 架构带来了显著的性能提升，使这款集成显卡（iGPU）明显区别于英特尔此前推出的集成显卡。 即使与 AMD Radeon 890M 相比，Arc B390 在大多数 GPU 基准测试中也明显占据上风。只有来自 AMD Strix Halo 平台的性能显著更强的 Radeon 8060S 仍处于其难以企及的水平。
这使得 Arc B390 不仅适合日常图形处理任务，也适用于游戏。许多当前的游戏在全高清分辨率下都能流畅运行，不过对于要求更高的游戏，建议降低细节设置或使用画质增强功能。作为一款集成显卡，M2 Pro 因此提供了令人印象深刻的图形性能。
Performance rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1 | LuxMark v2.0 64Bit | Affinity Photo 2 | Geekbench AI
Performance rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
| SPECworkstation 4.0 / Graphics Score | |
| Average AMD Radeon 8060S (6.21 - 7, n=7) | |
| Minisforum AI X1 Pro, HX 370 | |
| Peladn HA-4, R7 7840HS | |
| Acemagic Retro X3 | |
| Khadas Mind Pro | |
| Alliwava GH8, R9 8945HS | |
| GMK EVO-T1 | |
| Geekom IT13 Max | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Minisforum MS-02 Ultra | |
| SPECworkstation 4.0 / Accelerator Score | |
| Average AMD Radeon 8060S (3.91 - 4.8, n=7) | |
| Minisforum AI X1 Pro, HX 370 | |
| Khadas Mind Pro | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
| Acemagic Retro X3 | |
| Geekom IT13 Max | |
| Alliwava GH8, R9 8945HS | |
| Minisforum MS-02 Ultra | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| SPECworkstation 4.0 / Viewport Graphics | |
| Average AMD Radeon 8060S (6.21 - 7, n=7) | |
| Minisforum AI X1 Pro, HX 370 | |
| Peladn HA-4, R7 7840HS | |
| Acemagic Retro X3 | |
| Khadas Mind Pro | |
| Alliwava GH8, R9 8945HS | |
| GMK EVO-T1 | |
| Geekom IT13 Max | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Minisforum MS-02 Ultra | |
| SPECworkstation 4.0 / HandBrake | |
| Average AMD Radeon 8060S (2.02 - 2.65, n=7) | |
| Minisforum MS-02 Ultra | |
| Minisforum AI X1 Pro, HX 370 | |
| GMK EVO-T1 | |
| Khadas Mind Pro | |
| Geekom IT13 Max | |
| Acemagic Retro X3 | |
| Peladn HA-4, R7 7840HS | |
| Alliwava GH8, R9 8945HS | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| SPECworkstation 4.0 / ONNX Inference | |
| Average AMD Radeon 8060S (3.16 - 3.87, n=7) | |
| Minisforum AI X1 Pro, HX 370 | |
| GMK EVO-T1 | |
| Minisforum MS-02 Ultra | |
| Khadas Mind Pro | |
| Acemagic Retro X3 | |
| Peladn HA-4, R7 7840HS | |
| Geekom IT13 Max | |
| Alliwava GH8, R9 8945HS | |
| Acer Revo Box RB102-LNL, Core Ultra 7 256V | |
| Minisforum M2 Pro, Intel Arc B390 12 Xe3 Panther Lake iGPU Ultra X7 358H | Minisforum AI X1 Pro, HX 370, AMD Radeon 890M Ryzen AI 9 HX 370 | GMK EVO-T1, Intel Arc Graphics 140T Ultra 9 285H | Minisforum MS-02 Ultra, Intel Graphics 4-Core iGPU (Meteor / Arrow Lake) Ultra 9 285HX | Geekom IT13 Max, Intel Arc 8-Core iGPU Ultra 9 185H | Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Arc Graphics 140V Core Ultra 7 256V | Acemagic Retro X3, AMD Radeon 780M Ryzen 7 255 | Alliwava GH8, R9 8945HS, AMD Radeon 780M R9 8945HS | Peladn HA-4, R7 7840HS, AMD Radeon 780M R7 7840HS | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | 127% | -32% | -61% | -34% | -36% | 89% | 64% | 105% | 197% | |
| 3840x2160 Medical (medical-03) (fps) | 10.2 | 15.2 49% | 7.02 -31% | 3.19 -69% | 7.12 -30% | 5.34 -48% | 15.9 56% | 10.4 2% | 16.3 60% | 24.1 ? 136% |
| 3840x2160 Energy (energy-03) (fps) | 8.88 | 15.5 75% | 7.4 -17% | 1.42 -84% | 5.57 -37% | 4.18 -53% | 11.9 34% | 8.17 -8% | 13.8 55% | 35.8 ? 303% |
| 3840x2160 Creo (creo-03) (fps) | 31.4 | 34.1 9% | 19.9 -37% | 14.5 -54% | 19.2 -39% | 21.9 -30% | 29.8 -5% | 24.5 -22% | 30 -4% | 50.9 ? 62% |
| 3840x2160 CATIA (catia-06) (fps) | 18.7 | 23.1 24% | 12.8 -32% | 8.2 -56% | 12.3 -34% | 11.5 -39% | 21.2 13% | 18.8 1% | 23.5 26% | 36.3 ? 94% |
| 3840x2160 3ds Max (3dsmax-07) (fps) | 26.8 | 21.9 -18% | 14.6 -46% | 8.46 -68% | 15.2 -43% | 19.2 -28% | 17.7 -34% | 19.6 -27% | 58.8 ? 119% | |
| 3840x2160 Siemens NX (snx-04) (fps) | 7.88 | 68.7 772% | 6.13 -22% | 5.03 -36% | 6.23 -21% | 7.24 -8% | 54.5 592% | 51.3 551% | 59.9 660% | 51.5 ? 554% |
| 3840x2160 Maya (maya-06) (fps) | 70.8 | 55.9 -21% | 44.9 -37% | 27.9 -61% | 44.3 -37% | 43.3 -39% | 44.9 -37% | 38.9 -45% | 43.7 -38% | 147.8 ? 109% |
| 3DMark 05 Standard | 44597 points | |
| 3DMark 06 Standard Score | 48707 points | |
| 3DMark Vantage P Result | 66715 points | |
| 3DMark 11 Performance | 19408 points | |
| 3DMark Ice Storm Standard Score | 216900 points | |
| 3DMark Cloud Gate Standard Score | 45112 points | |
| 3DMark Fire Strike Score | 14410 points | |
| 3DMark Fire Strike Extreme Score | 7057 points | |
| 3DMark Time Spy Score | 7109 points | |
| 3DMark Steel Nomad Score | 1586 points | |
Help | ||
| GTA V | |
| 1024x768 Lowest Settings possible | |
| Average AMD Radeon 8060S (182.8 - 185.8, n=7) | |
| Geekom A9 Max, AI 9 HX 470 | |
| Khadas Mind Pro | |
| Minisforum MS-02 Ultra | |
| Minisforum M2 Pro | |
| Minisforum AI X1 Pro, HX 370 | |
| GMK EVO-T1 | |
| 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
| Average AMD Radeon 8060S (164.3 - 181.5, n=8) | |
| Khadas Mind Pro | |
| Minisforum M2 Pro | |
| Geekom A9 Max, AI 9 HX 470 | |
| Minisforum AI X1 Pro, HX 370 | |
| GMK EVO-T1 | |
| Minisforum MS-02 Ultra | |
| Cyberpunk 2077 | |
| 1920x1080 Low Preset (FSR off) | |
| Average AMD Radeon 8060S (120.1 - 152.1, n=10) | |
| Khadas Mind Pro | |
| Minisforum M2 Pro | |
| Geekom A9 Max, AI 9 HX 470 | |
| Minisforum AI X1 Pro, HX 370 | |
| GMK EVO-T1 | |
| Minisforum MS-02 Ultra | |
| 1920x1080 High Preset (FSR off) | |
| Average AMD Radeon 8060S (77.9 - 101.7, n=10) | |
| Khadas Mind Pro | |
| Minisforum M2 Pro | |
| Geekom A9 Max, AI 9 HX 470 | |
| Minisforum AI X1 Pro, HX 370 | |
| GMK EVO-T1 | |
| Minisforum MS-02 Ultra | |
帧率图表 - 30 分钟《赛博朋克2077》1920 x 1080 极致预设（FSR 关闭）
Minisforum M2 Pro Ultra X7 358H, Arc B390 Panther Lake iGPU: Ø46 (43.1-47) fps
Khadas Mind Pro Ultra X7 358H, Arc B390 Panther Lake iGPU: Ø46.3 (43.6-47.2) fps
Minisforum AI X1 Pro, HX 370 Ryzen AI 9 HX 370, Radeon 890M: Ø23.8 (21.5-24.7) fps
GMK EVO-T1 Ultra 9 285H, Arc 140T: Ø23.5 (21.9-24) fps
Minisforum MS-02 Ultra Ultra 9 285HX, Graphics 4-Core iGPU (Arrow Lake): Ø12.6 (12.1-12.7) fps
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 167.9 | 162.2 | 102 | 41.6 |
| The Witcher 3 (2015) | 287 | 196.3 | 99.3 | 45.1 |
| Dota 2 Reborn (2015) | 126.7 | 94.1 | 103.9 | 100.3 |
| Final Fantasy XV Benchmark (2018) | 134.5 | 75.9 | 54.6 | |
| X-Plane 11.11 (2018) | 70.4 | 57 | 44.2 | |
| Strange Brigade (2018) | 327 | 122.6 | 102.9 | 92 |
| Baldur's Gate 3 (2023) | 64.8 | 49.5 | 44.3 | 43.3 |
| Cyberpunk 2077 (2023) | 84.1 | 68.1 | 57.1 | 49.8 |
| F1 24 (2024) | 145.1 | 132.1 | 102.1 | 35.5 |
排放
系统噪音
Minisforum M2 Pro 采用双风扇散热系统。SoC 产生的热量通过热管进行散热。在空闲状态下，这款迷你电脑几乎静音运行。 即使在满载状态下，噪音水平仍保持在令人愉悦的低水平：声压级仅略有上升，平均为 33 dB(A)。M2 Pro 的最大声压级为 34.4 dB(A)，即使在重负荷运行时也依然保持着惊人的静音表现，考虑到其提供的计算能力，这无疑是一项出色的表现。
Noise level
| Idle |
| 27.6 / 28.4 / 28.9 dB(A) |
| Load |
| 33.3 / 34.4 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 24.6 dB(A) | ||
| Minisforum M2 Pro Ultra X7 358H, Arc B390 Panther Lake iGPU | Khadas Mind Pro Ultra X7 358H, Arc B390 Panther Lake iGPU | Minisforum AI X1 Pro, HX 370 Ryzen AI 9 HX 370, Radeon 890M | GMK EVO-T1 Ultra 9 285H, Arc 140T | Minisforum MS-02 Ultra Ultra 9 285HX, Graphics 4-Core iGPU (Arrow Lake) | Geekom IT13 Max Ultra 9 185H, Arc 8-Core | Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V | Acemagic Retro X3 Ryzen 7 255, Radeon 780M | |
|---|---|---|---|---|---|---|---|---|
| Noise | -4% | -6% | -36% | -35% | -24% | 1% | -18% | |
| off / environment * (dB) | 24.6 | 24.6 -0% | 23.8 3% | 24.7 -0% | 24.7 -0% | 24.6 -0% | 24.6 -0% | 24.6 -0% |
| Idle Minimum * (dB) | 27.6 | 24.9 10% | 28 -1% | 38.7 -40% | 38.2 -38% | 25.3 8% | 24.7 11% | 25 9% |
| Idle Average * (dB) | 28.4 | 24.9 12% | 28.1 1% | 38.8 -37% | 38.8 -37% | 25.6 10% | 24.8 13% | 25 12% |
| Idle Maximum * (dB) | 28.9 | 25 13% | 28.2 2% | 38.9 -35% | 38.8 -34% | 25.6 11% | 24.9 14% | 25 13% |
| Load Average * (dB) | 33.3 | 40.1 -20% | 38.4 -15% | 51.6 -55% | 47.6 -43% | 53.3 -60% | 34.9 -5% | 43.6 -31% |
| Witcher 3 ultra * (dB) | 32 | 36.2 -13% | 38.7 -21% | 40.8 -27% | 47.1 -47% | 35.1 -10% | 49.8 -56% | |
| Cyberpunk 2077 ultra * (dB) | 34.1 | 39.7 -16% | 38.5 -13% | 52 -52% | 47.4 -39% | 53.4 -57% | 38.9 -14% | 49.9 -46% |
| Load Maximum * (dB) | 34.4 | 40.2 -17% | 41.8 -22% | 51.6 -50% | 54.6 -59% | 53.5 -56% | 35.2 -2% | 50.2 -46% |
* ... smaller is better
温度

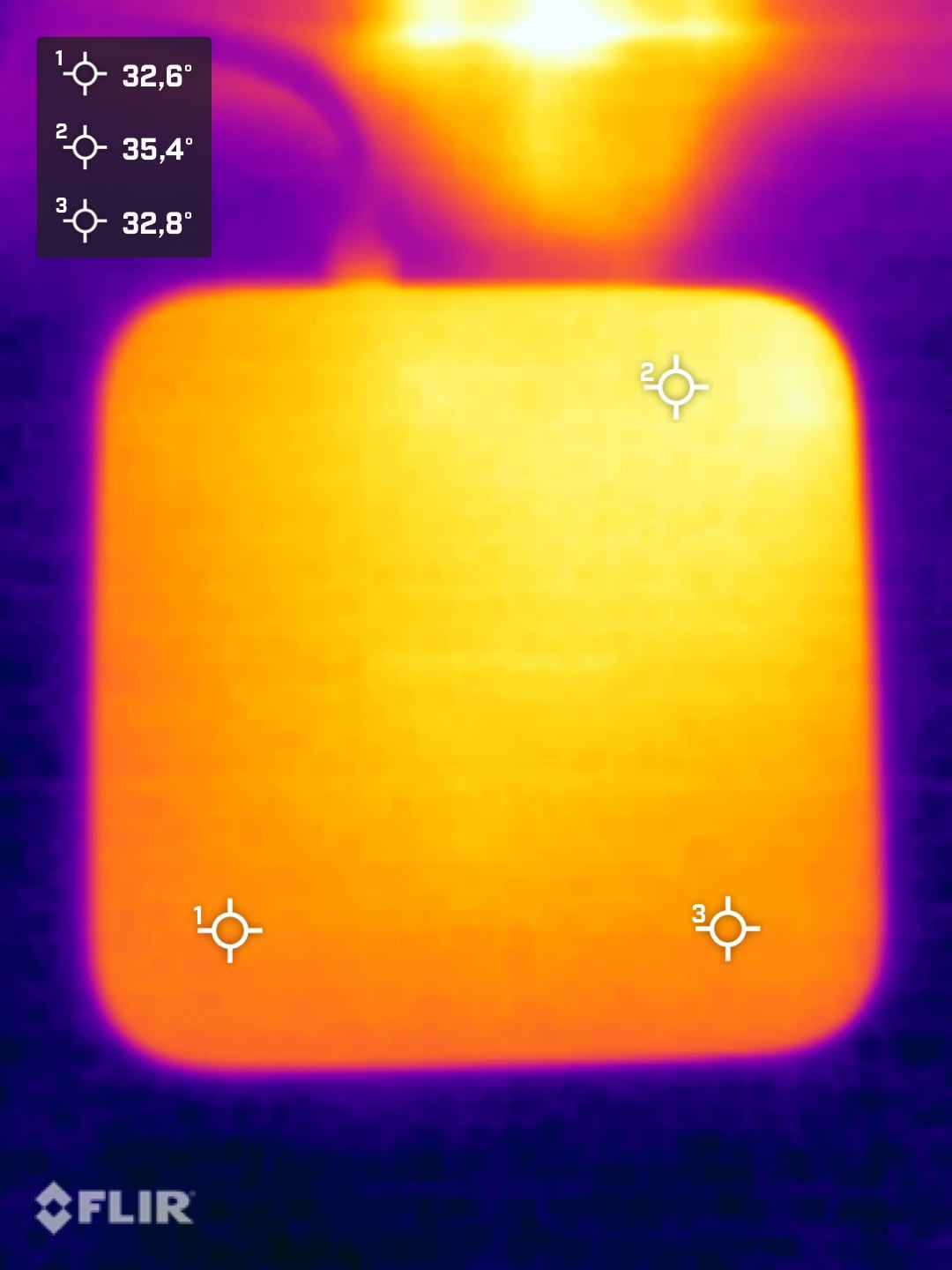

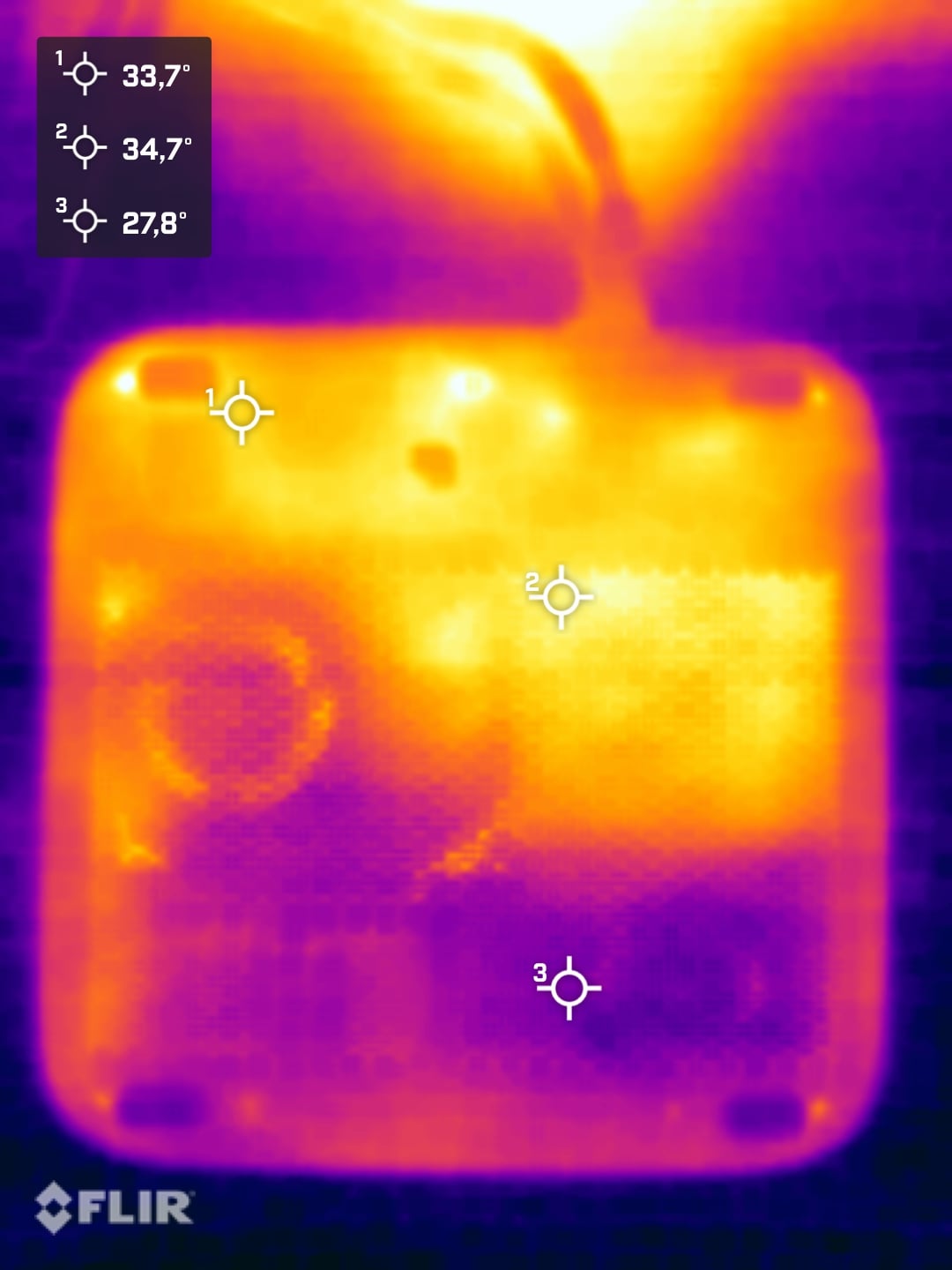

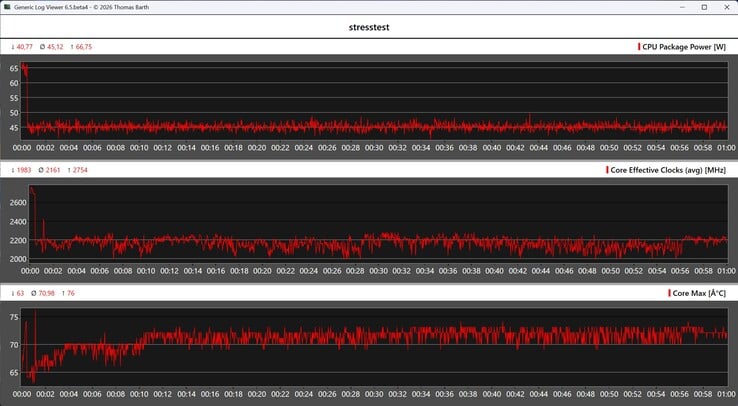

在温度方面，Minisforum M2 Pro 的表现也非常出色。即使在长时间高负载运行下，其散热系统也能将机箱温度维持在 40 °C 以下的安全水平。与此同时，Core Ultra X7 358H 的温度也相对较低，最高仅为 76 °C。 总体而言，该散热系统与这款迷你电脑的性能表现相得益彰。
(±) The average temperature for the upper side under maximal load is 37.3 °C / 99 F, compared to the average of 32.1 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 39.6 °C / 103 F, compared to the average of 35.3 °C / 96 F, ranging from 20.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 35.1 °C / 95 F, compared to the average of 36 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 29.6 °C / 85 F, compared to the device average of 32.1 °C / 90 F.
(±) 3: The average temperature for the upper side is 37.3 °C / 99 F, compared to the average of 32.1 °C / 90 F for the class Mini PC.
(+) The maximum temperature on the upper side is 39.6 °C / 103 F, compared to the average of 35.3 °C / 96 F, ranging from 20.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 35.1 °C / 95 F, compared to the average of 36 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 29.6 °C / 85 F, compared to the device average of 32.1 °C / 90 F.
(±) 3: The average temperature for the upper side is 37.3 °C / 99 F, compared to the average of 32.1 °C / 90 F for the class Mini PC.
发言人
由两个扬声器组成的扬声器单元，其音质对于一台迷你电脑而言相当出色。高音和中音的还原清晰，而低频部分则如预期般因紧凑的设计而略显不足。总体而言，其音质表现完全能够满足基本的影音需求，因此严格来说并不需要外接扬声器。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Minisforum M2 Pro audio analysis
(±) | speaker loudness is average but good (78.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.8% lower than median
(±) | linearity of bass is average (8.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.6% higher than median
(±) | linearity of mids is average (9.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(±) | linearity of highs is average (11.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.6% difference to median)
Compared to same class
» 69% of all tested devices in this class were better, 3% similar, 28% worse
» The best had a delta of 13%, average was 24%, worst was 64%
Compared to all devices tested
» 79% of all tested devices were better, 4% similar, 17% worse
» The best had a delta of 4%, average was 23%, worst was 136%
Apple Mac Mini M4 Pro audio analysis
(+) | speakers can play relatively loud (83.1 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9.6% lower than median
(±) | linearity of bass is average (13.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.1% away from median
(+) | mids are linear (5.6% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.3% higher than median
(+) | highs are linear (3.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.3% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 3% similar, 97% worse
» The best had a delta of 13%, average was 24%, worst was 64%
Compared to all devices tested
» 14% of all tested devices were better, 3% similar, 83% worse
» The best had a delta of 4%, average was 23%, worst was 136%
能源管理
尽管计算能力强劲，Minisforum M2 Pro 的能效却非常高。空闲时的功耗相应较低，而在满载时，功耗会如预期般显著增加。 内置电源提供了充足的电力储备，足以驱动这台迷你电脑及额外的固态硬盘。另一项独特功能是，可通过 USB4 端口使用外部电源为 M2 Pro 供电。这为系统的供电方案提供了更大的灵活性。
Power Consumption
| Off / Standby | 1.4 / 2.5 Watt |
| Idle | 3.3 / 5.8 / 11.4 Watt |
| Load |
41.3 / 87.2 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Minisforum M2 Pro Ultra X7 358H, Arc B390 Panther Lake iGPU | Khadas Mind Pro Ultra X7 358H, Arc B390 Panther Lake iGPU | Minisforum AI X1 Pro, HX 370 Ryzen AI 9 HX 370, Radeon 890M | GMK EVO-T1 Ultra 9 285H, Arc 140T | Minisforum MS-02 Ultra Ultra 9 285HX, Graphics 4-Core iGPU (Arrow Lake) | Geekom IT13 Max Ultra 9 185H, Arc 8-Core | Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V | Acemagic Retro X3 Ryzen 7 255, Radeon 780M | Average Intel Arc B390 12 Xe3 Panther Lake iGPU | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Consumption | 6% | -51% | -38% | -205% | -73% | 9% | -27% | 2% | -63% | |
| Idle Minimum * (Watt) | 3.3 | 3.9 -18% | 8.6 -161% | 6.1 -85% | 22.2 -573% | 11.8 -258% | 4.9 -48% | 5.7 -73% | 3.57 ? -8% | 8.43 ? -155% |
| Idle Average * (Watt) | 5.8 | 4.7 19% | 9.4 -62% | 7.9 -36% | 23.4 -303% | 12.2 -110% | 5.9 -2% | 6.9 -19% | 5.92 ? -2% | 10.3 ? -78% |
| Idle Maximum * (Watt) | 11.4 | 5.2 54% | 10 12% | 13.2 -16% | 28 -146% | 16.1 -41% | 7.6 33% | 8.2 28% | 8.4 ? 26% | 12.9 ? -13% |
| Load Average * (Watt) | 41.3 | 42.6 -3% | 70.2 -70% | 60.7 -47% | 63.4 -54% | 52.9 -28% | 37.7 9% | 62.5 -51% | 45.8 ? -11% | 61.5 ? -49% |
| Cyberpunk 2077 ultra external monitor * (Watt) | 62.4 | 67.5 -8% | 70.7 -13% | 67.4 -8% | 72.7 -17% | 54.4 13% | 46.8 25% | 81.9 -31% | ||
| Load Maximum * (Watt) | 87.2 | 93.5 -7% | 97.7 -12% | 117.1 -34% | 206.3 -137% | 100.1 -15% | 56.1 36% | 99 -14% | 81.9 ? 6% | 105.9 ? -21% |
* ... smaller is better
效率概述
使用外接显示器时的能耗
Minisforum M2 Pro; Idle 1min (external Monitor): Ø5.9 (4.08-11.4) Watt
Minisforum M2 Pro; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.6 (57.6-87.2) Watt
Minisforum M2 Pro; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø62.4 (60.5-68.5) Watt
Minisforum M2 Pro; 3DMark06 Return To Proxycon: Ø41.3 (38-53.1) Watt
使用外接显示器时的能耗
Minisforum M2 Pro; Prime95 V2810 Stress (external Monitor): Ø63.4 (58.7-86.2) Watt
Minisforum M2 Pro; Cinebench R15 Multi (external Monitor): Ø82 (81.7-82.4) Watt
Minisforum M2 Pro; Cinebench R23 Single (external Monitor): Ø24.5 (22.6-54.7) Watt
Minisforum M2 Pro; Cinebench R23 Multi (external Monitor): Ø76.9 (57.2-81.5) Watt
Minisforum M2 Pro; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø61.7 (58.5-71.4) Watt
Notebookcheck 评分
Minisforum M2 Pro
- 09/13/2026 v8
Sebastian Bade
Mini PC - Weighted Average
Total Sustainability Score: 可选替代方案
Image | Model / Review | Price | Weight | Dimensions |
|---|---|---|---|---|
1. 87.8%  | Minisforum M2 Pro Intel Core Ultra X7 358H ⎘ Intel Arc B390 12 Xe3 Panther Lake iGPU ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $1,599.00 MINISFORUM M2 Pro-358H Mini ... 2. $999.90 MINISFORUM M2-356H Mini PC I... 3. $1,799.00 MINISFORUM M2 Pro Mini PC In... List Price: 1519€ | 1.4 kg | 195 x 195 x 47.5 mm |
2. 84.5%  | Khadas Mind Pro Intel Core Ultra X7 358H ⎘ Intel Arc B390 12 Xe3 Panther Lake iGPU ⎘ 64 GB Memory, 2048 GB SSD | Amazon: List Price: 1799€ | 566 g | 105 x 146 x 58 mm |
3. 83%  | Minisforum AI X1 Pro, HX 370 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 64 GB Memory, 1024 GB SSD | Amazon: | 1.4 kg | 195 x 195 x 42.5 mm |
4. 75.4%  | GMK EVO-T1 Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 64 GB Memory, 1024 GB SSD | List Price: 999€ | 946 g | 151 x 154 x 73.6 mm |
5. 75.3%  | Minisforum MS-02 Ultra Intel Core Ultra 9 285HX ⎘ Intel Graphics 4-Core iGPU (Meteor / Arrow Lake) ⎘ 64 GB Memory, 1024 GB SSD | Amazon: List Price: 1279€ | 3.5 kg | 225 x 220 x 98 mm |
6.  | Geekom A9 Max, AI 9 HX 470 AMD Ryzen AI 9 HX 470 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 2048 GB SSD | List Price: 1549€ | 695 g | 135 x 135 x 46.9 mm |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Add as a preferred source on Google
