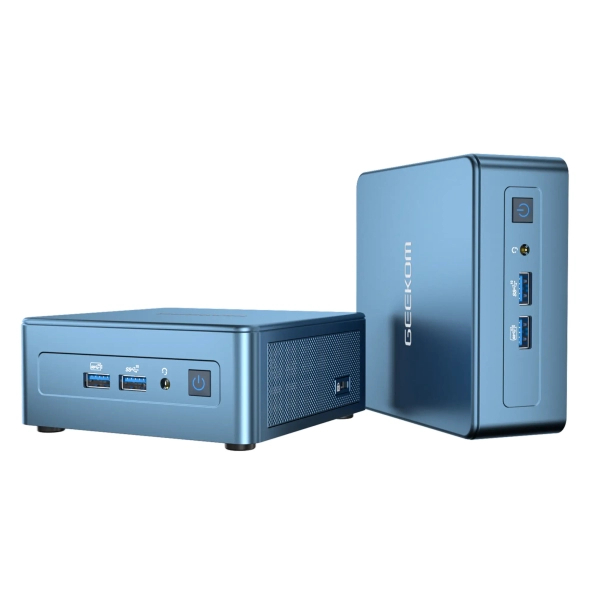

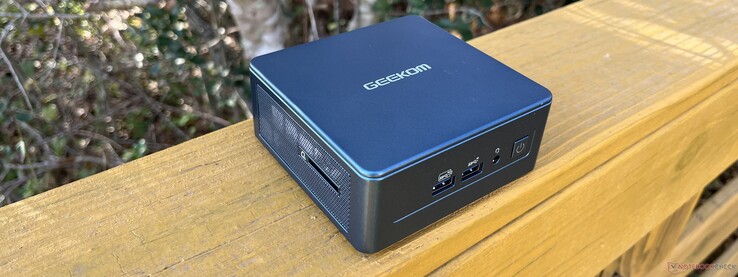

Geekom Mini IT13 迷你电脑评测 - 配备超强酷睿 i9 处理器的迷你台式机

Name: Geekom Mini IT13
Brand: Geekom

响亮而自豪。 Geekom Mini IT13 是 Geekom 最新推出的 SFF 台式机。它搭载了强大的第 13 代英特尔酷睿处理器，最高可达英特尔酷睿 i9-13900H。虽然这款台式机性能强劲，但高端 CPU 需要风扇持续高速旋转（而且声音很大）。

Sam Medley (translated by DeepL / Ninh Duy), Published 12/20/2023 🇺🇸 🇸🇪 ...

Raptor Lake Intel Windows Mini PC

Geekom 最近发布了 Mini IT13，这是其不断壮大的迷你台式电脑家族中的最新产品。顾名思义，Mini IT13 采用英特尔第 13 代（Raptor Lake）CPU。这款台式机秉承了 Geekom 一贯的易升级性、小巧的外形和极具竞争力的价格。我们的评测机型采用了英特尔酷睿 i9-13900H32 GB 内存和 2 TB NVMe 固态硬盘。在这次上手体验中，我们将看到这台小巧的 PC 能否搭载英特尔最强大的 Raptor Lake 处理器之一。

迷你 IT13 的竞争对手包括 Beelink SEi12, 英特尔蛇谷 NUC 12, 英特尔 NUC 13 Pro 套件（生动峡谷）, GMK NucBox K3 Pro和 Minisforum Venus 系列 UM790 Pro.

Test device courtesy of Geekom

Download your licensed rating image as PNG / SVG

Geekom Mini IT13

Processor

Intel Core i9-13900H 14 x 1.9 - 5.4 GHz, 65 W PL2 / Short Burst, 35 W PL1 / Sustained, Raptor Lake-H

Graphics adapter

Intel Iris Xe Graphics G7 96EUs - 1024 MB VRAM, 31.0.101.4575

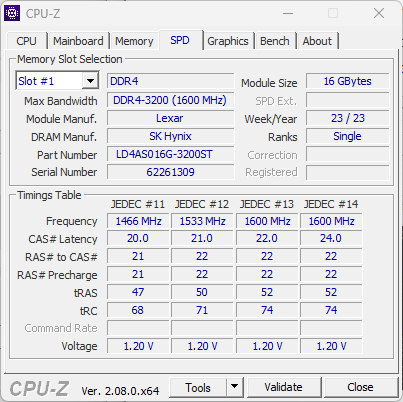

Memory

32 GB

, 2x16 GB, DDR4-3200 / PC4-25600

Mainboard

Intel Alder Lake-P PCH

Storage

Lexar SSD NM7A1 2TB, 2048 GB

, 1905 GB free

Soundcard

Intel Raptor Lake-P/U/H PCH - cAVS

Connections

1 USB 2.0, 3 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 1x 3.5 mm headphone jack, Card Reader: SD/SDHC/SDXC Card reader, 2.5 Gb LAN

Networking

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 49.2 x 117 x 112

Operating System

Microsoft Windows 11 Pro

Additional features

36 Months Warranty

Weight

652 g

Price

789 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在竞争对手的比较

Benchmark Comparison Plugin: ERROR, Layout "57" not supported!

外壳和连接

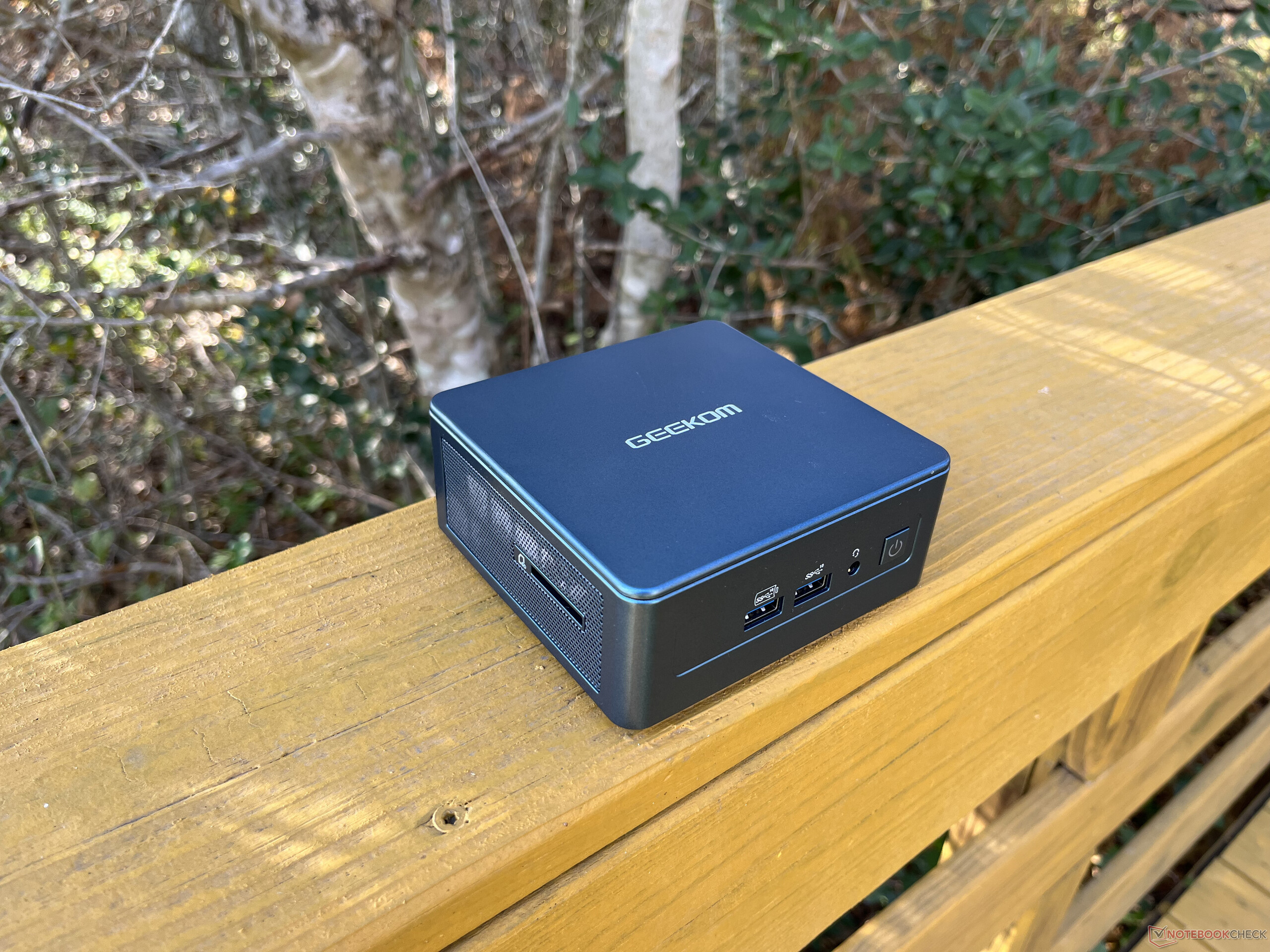

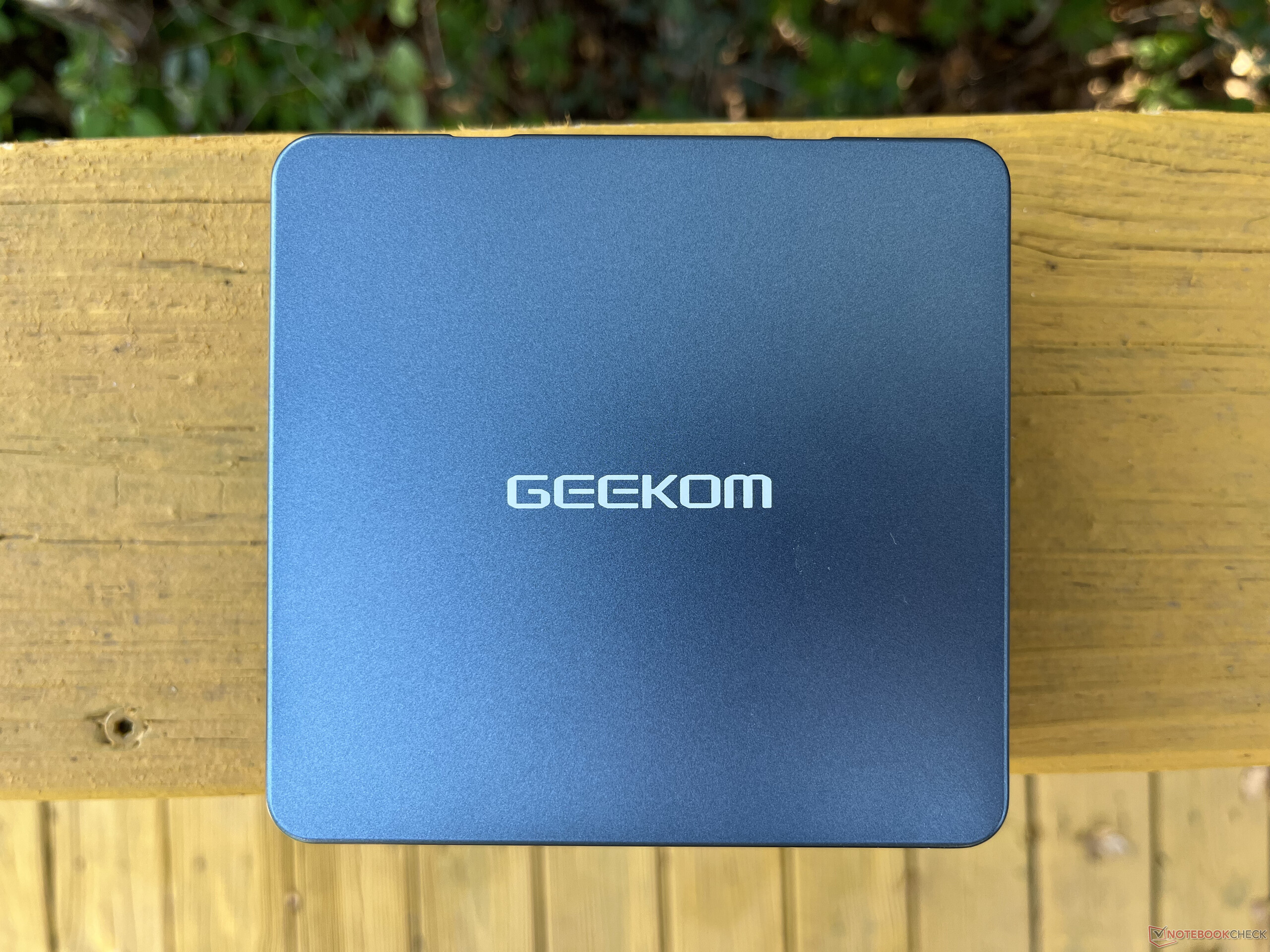

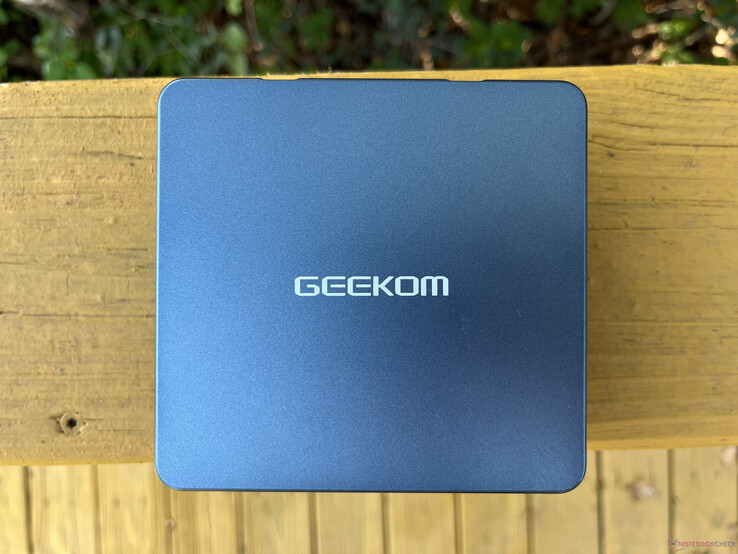

使用过 Geekom 其他英特尔迷你 PC 的用户会对 Mini IT13 感到非常熟悉，因为其机箱与 Mini IT11 和 Mini IT12 基本保持一致。我们对 Mini IT13 的制造质量没有任何质疑。我们唯一的批评是，机箱主要由塑料制成（尽管是一种厚实、高质量的塑料）。虽然用金属打造外壳肯定会给 Mini IT13 带来更高级的外观和质感，但同时也会提高成本。由于 Mini IT13 是放在桌面上不显眼的地方，因此这种材料升级的好处在很大程度上是显而易见的。

它的体积相当小巧，只有 117 x 112 x 49.2 毫米（4.6 x 4.4 x 1.9 英寸），很容易就能收在显示器下面。Mini IT13 比其他 NUC 设备略高，可容纳 2.5 英寸硬盘。Geekom 提供了一个 VESA 安装支架，用于将迷你 PC 固定在兼容显示器的背面。

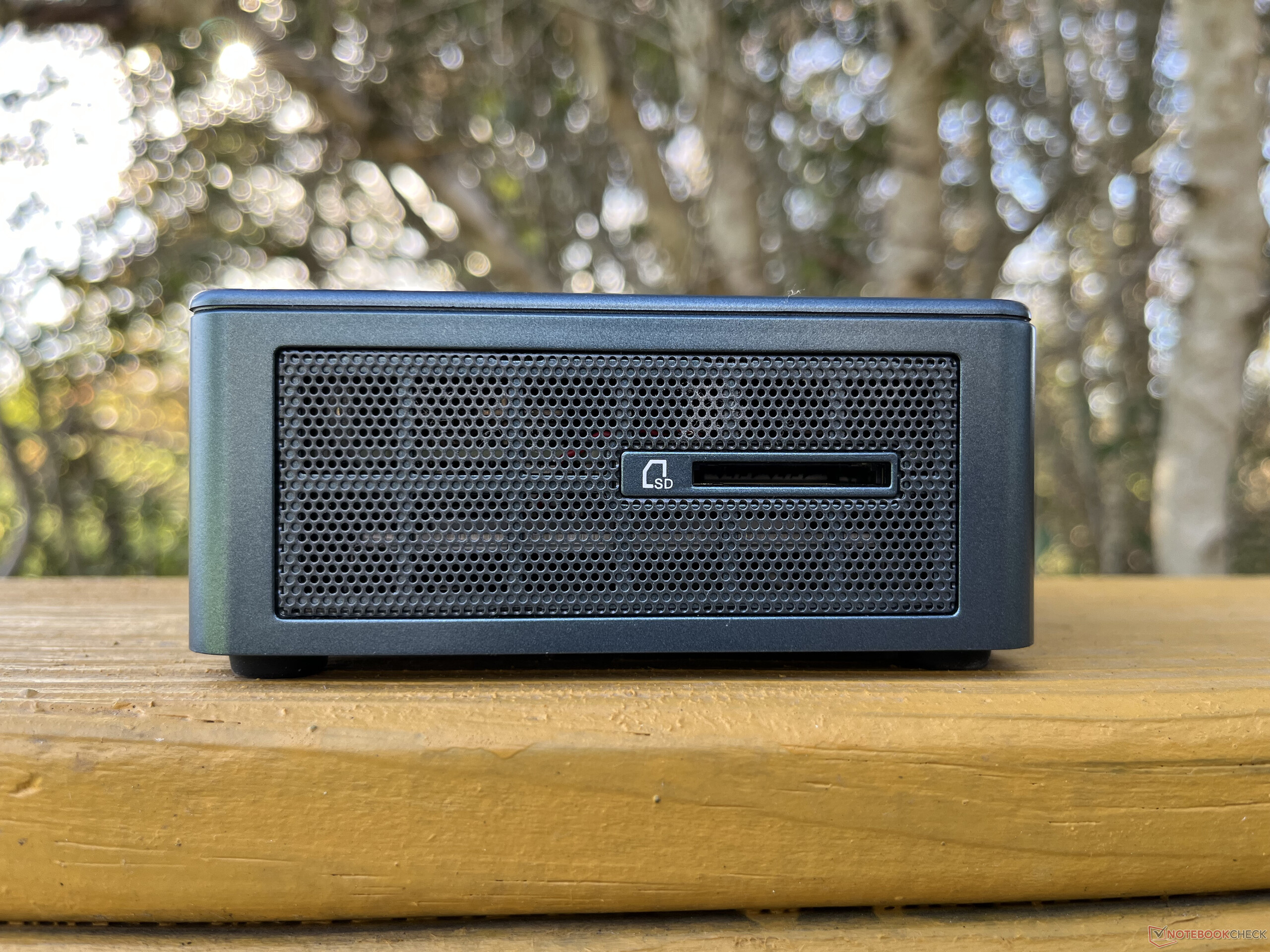

值得注意的是快如闪电的 SD 读卡器。迷你 PC 的 SD 卡读卡器（如果有的话）一般都比较普通，大多数都在 70-80 MB/s 左右，但 Mini IT13 的读卡器读取速度高达 180 MB/s，这对于需要在 SD 卡上存取大量数据的专业人士来说可能是个不错的选择。

Mini IT13 端口众多，包括背面的两个 USB4 40 Gbps 端口。加上两个 HDMI 2.0 端口，用户最多可以连接四台显示器。Mini IT13 支持两个 DDR4 SODIMM、一个 M.2 2280 PCIe Gen 4x4 SSD、一个 M.2 2242 SATA SSD（非 NVMe）和一个 2.5 英寸 SATA 硬盘。Geekom 在销售 Mini IT13 时预装了这些组件，但升级/更换非常简单；只需拧下四颗固定的十字螺丝，拉开底板，然后更换所需部件即可。

尺寸比较

Benchmark Comparison Plugin: ERROR, Layout "0" not supported!

连接性

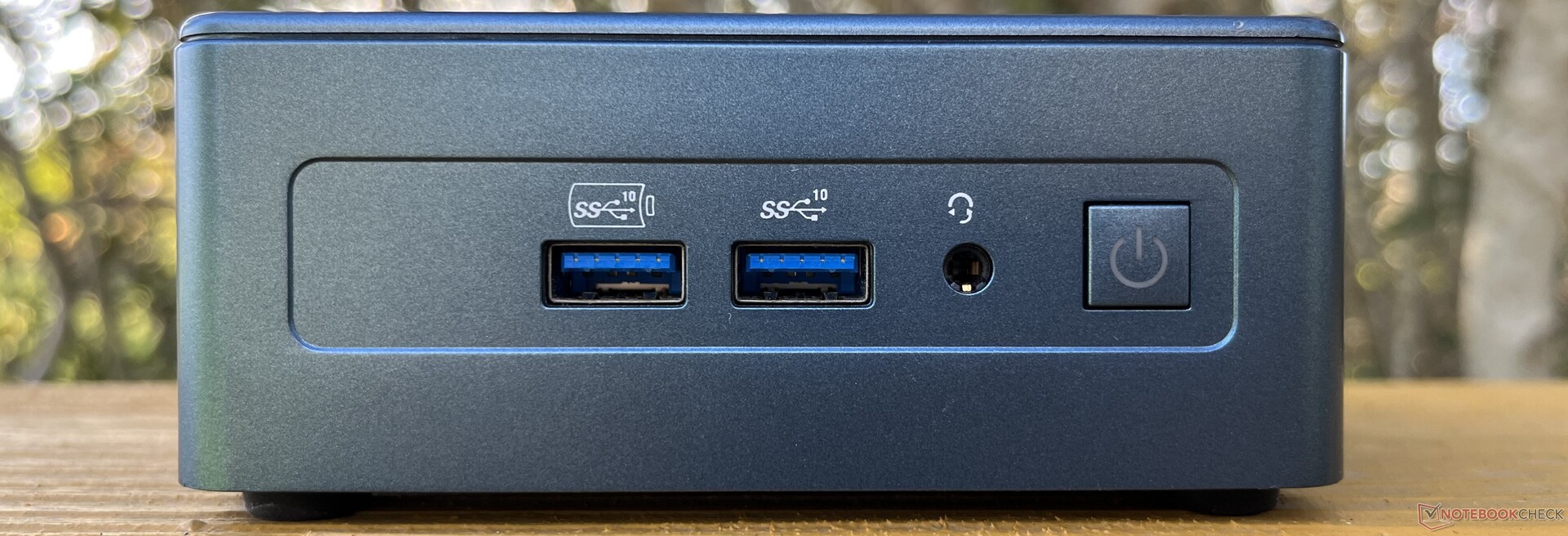

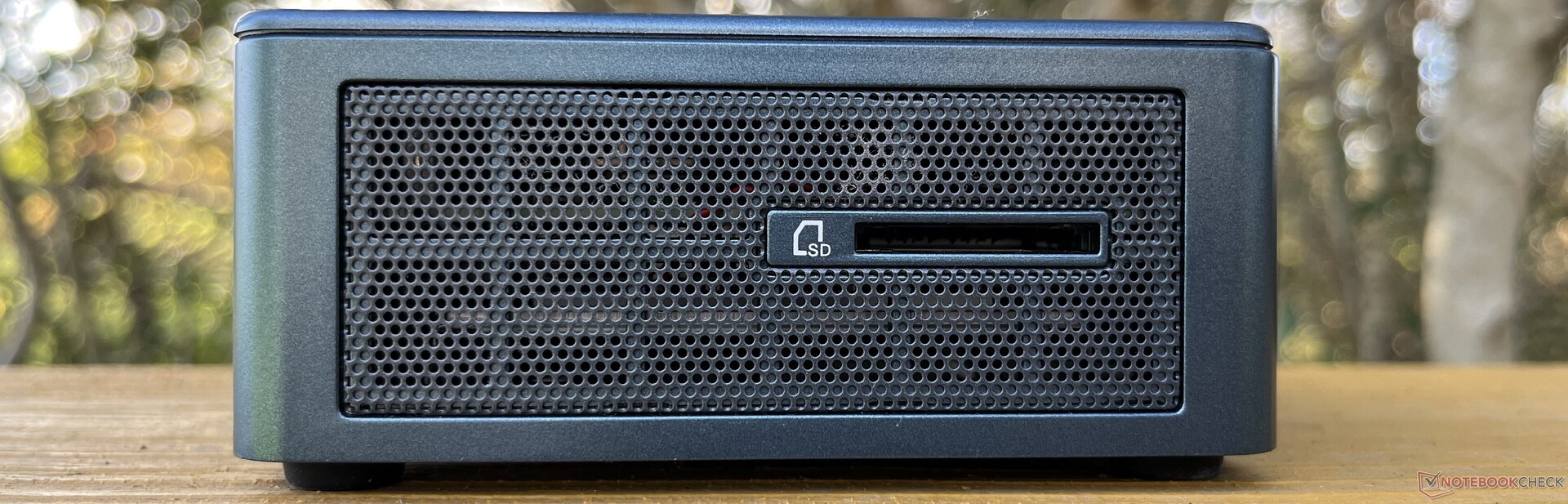

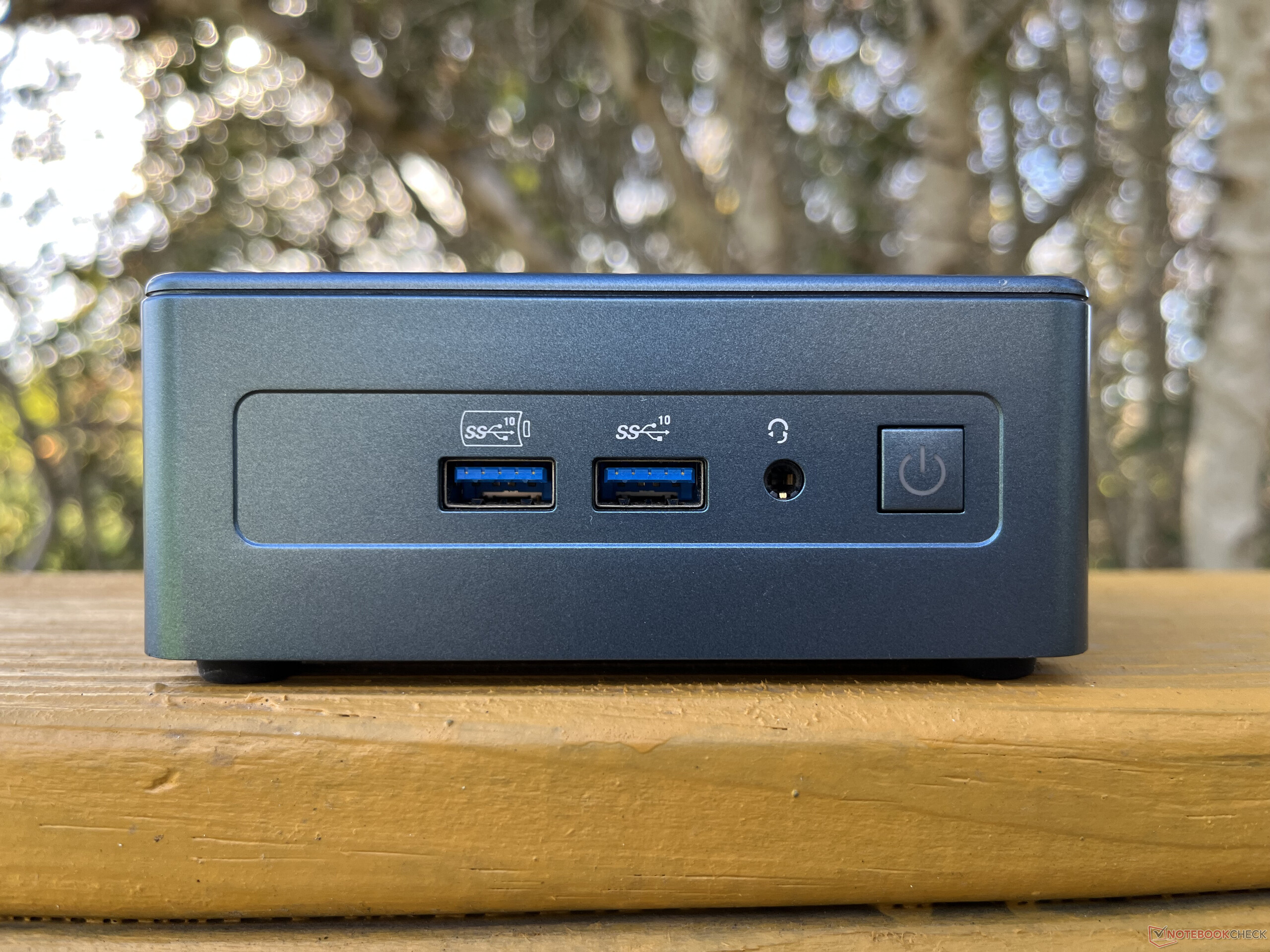

正面：2 个 USB-A 3.2 Gen 2（10 Gbps，1 个始终打开）、耳机、电源按钮

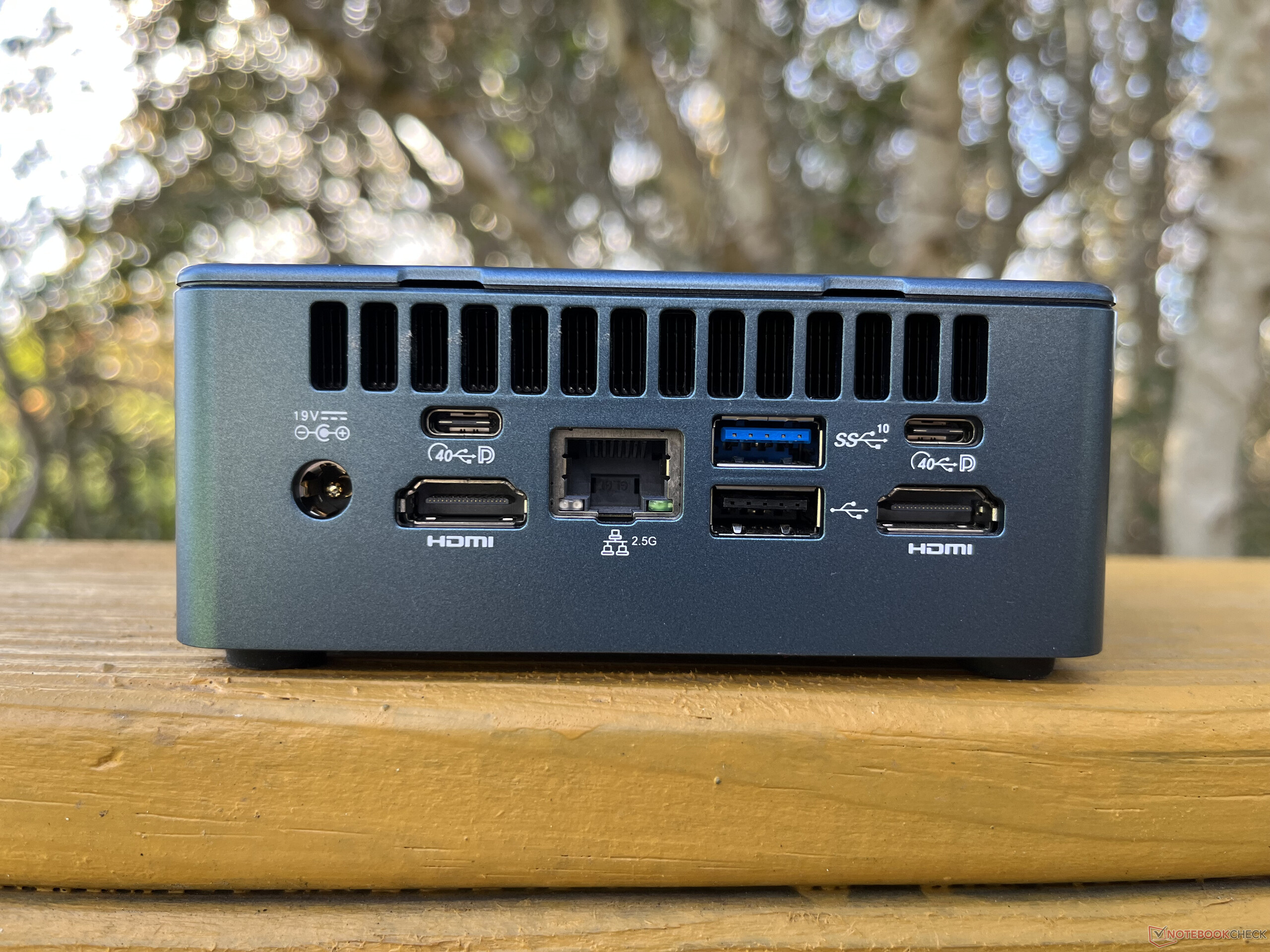

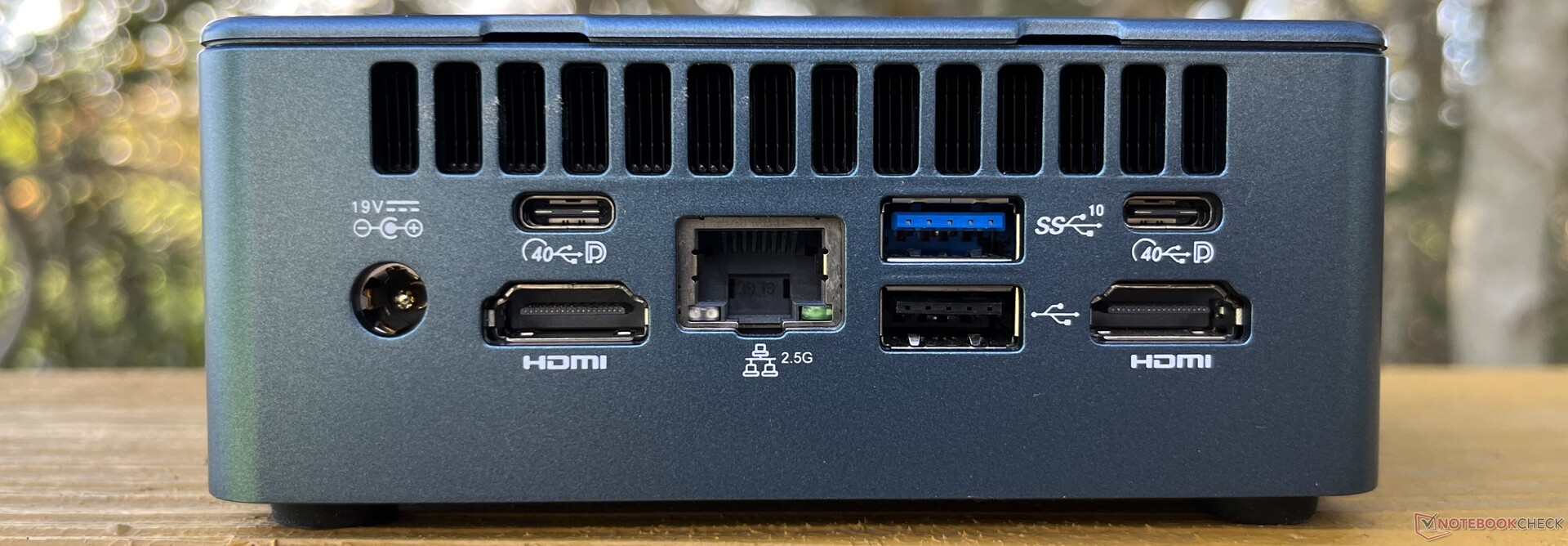

后部直流输入，2 个 USB4（40 Gbps，DisplayPort），2 个 HDMI 2.0，以太网（2.5 G），1 个 USB-A 3.2 Gen 2（10 Gbps），USB-A 2.0

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Geekom Mini IT13	154.449 MB/s
Average of class Mini PC (16.9 - 181.8, n=17, last 2 years)	84.5 MB/s -45%
Intel NUC 12, NUC12SNKi72_Serpent Canyon (AV Pro SD microSD 128 GB V60)	72.3 MB/s -53%
maximum AS SSD Seq Read Test (1GB)
Geekom Mini IT13	180.4 MB/s
Average of class Mini PC (18.2 - 200, n=17, last 2 years)	97.2 MB/s -46%
Intel NUC 12, NUC12SNKi72_Serpent Canyon (AV Pro SD microSD 128 GB V60)	83.52 MB/s -54%

Networking
iperf3 transmit AXE11000 6GHz
Intel NUC 12, NUC12SNKi72_Serpent Canyon Killer Wi-Fi 6E AX1690i 160MHz	1603 (800^min - 1682^max) MBit/s +21%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s +14%
Geekom Mini IT13 Intel Wi-Fi 6E AX211	1324 (1059^min - 1403^max) MBit/s
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	1127 (177^min - 1337^max) MBit/s -15%
iperf3 receive AXE11000 6GHz
Intel NUC 12, NUC12SNKi72_Serpent Canyon Killer Wi-Fi 6E AX1690i 160MHz	1762 (1727^min - 1780^max) MBit/s +41%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s +16%
Geekom Mini IT13 Intel Wi-Fi 6E AX211	1253 (1226^min - 1277^max) MBit/s
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	1013 (571^min - 1177^max) MBit/s -19%
iperf3 receive AXE11000
Intel NUC 12, NUC12SNKi72_Serpent Canyon Killer Wi-Fi 6E AX1690i 160MHz	1605 (791^min - 1659^max) MBit/s +176%
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s +138%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1297 (1164^min - 1393^max) MBit/s +123%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s +92%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	774 (347^min - 841^max) MBit/s +33%
Geekom Mini IT13 Intel Wi-Fi 6E AX211	582 (390^min - 796^max) MBit/s
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s +19%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Killer Wi-Fi 6E AX1690i 160MHz	1369 (1102^min - 1441^max) MBit/s +9%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +4%
Geekom Mini IT13 Intel Wi-Fi 6E AX211	1253 (1128^min - 1310^max) MBit/s
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1171 (923^min - 1342^max) MBit/s -7%
Minisforum Venus Series UM790 Pro Intel Killer Wi-Fi 6E AX1675x (210NGW)	768 (738^min - 792^max) MBit/s -39%

性能

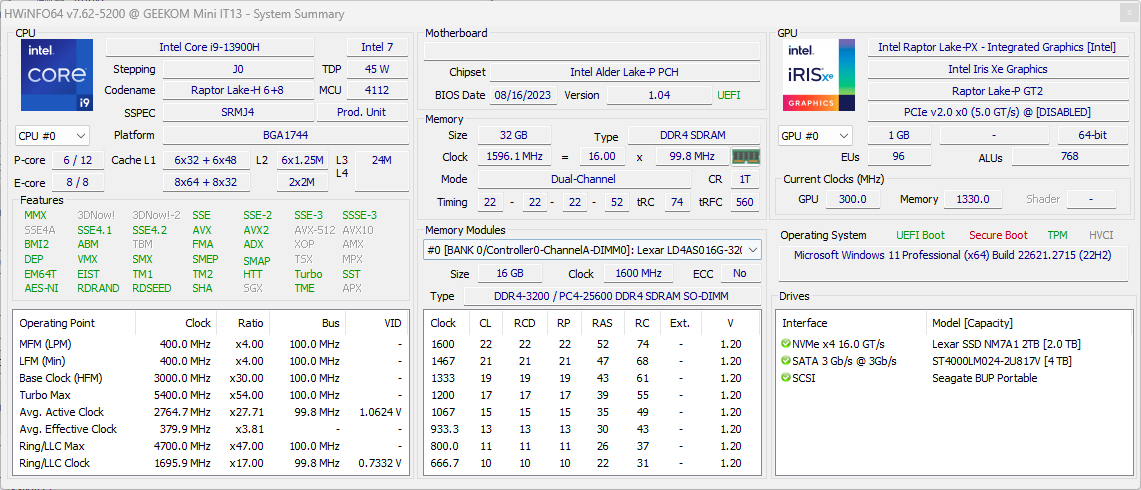

迷你 IT13 配备了第 13 代英特尔酷睿 i5-13500H, 酷睿 i7-13700H或酷睿 i9-13900H.我们的评测机型是最高配置的酷睿 i9-13900H。6 个超线程 P 核心和 8 个 E 核心构成了一个强大的软件包。遗憾的是，事实证明酷睿 i9 对 Mini IT13 来说有点过热，导致一些热节流和性能低于预期。

处理器

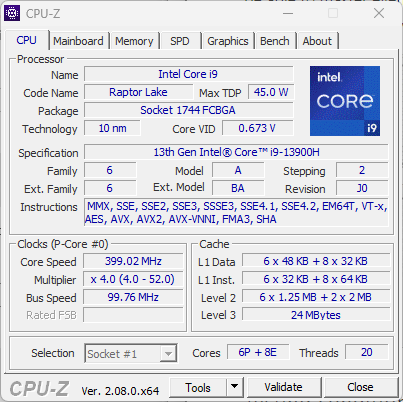

英特尔英特尔酷睿 i9-13900H是一款顶级 Raptor Lake CPU，拥有 20 个线程（6 个超线程 P 核心、8 个 E 核心），主频介于 1.9 GHz 和 5.4 GHz 之间。总体而言，13900H 是一款功能强大的 CPU，但存在一些散热问题。在充分散热的情况下，CPU 可以提供稳定和快如闪电的性能。遗憾的是，对于 Mini IT13 的机箱来说，酷睿 i9-13900H 似乎有些力不从心。

在我们的 Cinebench R15 循环测试中，性能几乎完全符合英特尔 NUC 13 中的英特尔酷睿 i7-1360P 。有趣的是，Mini IT13 远远落后于英特尔酷睿 i7-12700H （用于英特尔 Serpent Canyon NUC 12 ）和AMD Ryzen 9 7940HS （用于Minisforum Venus UM790 Pro ）；这可能是由于前者改进了散热基础设施，而后者的 CPU 架构效率更高。Mini IT13 的性能在首次运行后有所下降，但仍相当稳定。

在其他 CPU 基准测试中也是如此。Mini IT13 中的酷睿 i9-13900H 无法赶上 Ryzen 9 7940HS，但在多核基准测试中却比其前代产品（配备酷睿 i7-1260P 的 Mini IT12）高出 50%。

Cinebench R15 Multi Loop

Geekom Mini IT13 Intel Core i9-13900H: Ø1735 (1694.13-2060.69)

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H: Ø2410 (2386.63-2623.64)

GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS: Ø2646 (2612.16-2667.2)

Geekom Mini IT12 Intel Core i7-1260P: Ø1280 (1241-1619.37)

Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Single Core)
Average Intel Core i9-13900H (428 - 792, n=22)	727 Points +9%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +9%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	711 Points +7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	692 Points +4%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points +4%
Geekom Mini IT13 Intel Core i9-13900H	664 Points
Geekom Mini IT12 Intel Core i7-1260P	652 Points -2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points -7%
Average of class Mini PC (155 - 736, n=99, last 2 years)	551 Points -17%

Cinebench R20 / CPU (Multi Core)
Average Intel Core i9-13900H (4960 - 7716, n=22)	6689 Points +26%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6640 Points +25%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	6459 Points +22%
Geekom Mini IT13 Intel Core i9-13900H	5308 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points -12%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points -24%
Average of class Mini PC (293 - 7188, n=99, last 2 years)	3535 Points -33%
Geekom Mini IT12 Intel Core i7-1260P	3427 Points -35%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points -41%

Cinebench R15 / CPU Single 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	284 Points +15%
Average Intel Core i9-13900H (211 - 297, n=23)	272 Points +10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +8%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	259 Points +4%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points +3%
Geekom Mini IT13 Intel Core i9-13900H	248 Points
Geekom Mini IT13 Intel Core i9-13900H	247 Points 0%
Geekom Mini IT12 Intel Core i7-1260P	241 Points -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points -7%
Average of class Mini PC (68 - 286, n=100, last 2 years)	218 Points -12%

Cinebench R15 / CPU Multi 64Bit
Average Intel Core i9-13900H (2061 - 3100, n=23)	2713 Points +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	2663 Points +5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	2632 Points +4%
Geekom Mini IT13 Intel Core i9-13900H	2531 Points
Geekom Mini IT13 Intel Core i9-13900H	2061 (1694.13^min - 2060.69^max) Points -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points -21%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points -33%
Geekom Mini IT12 Intel Core i7-1260P	1565 Points -38%
Average of class Mini PC (148 - 2986, n=100, last 2 years)	1478 Points -42%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points -44%

Blender / v2.79 BMW27 CPU
Average of class Mini PC (178 - 3860, n=99, last 2 years)	577 Seconds * -115%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * -46%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * -23%
Geekom Mini IT12 Intel Core i7-1260P	279 Seconds * -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -0%
Geekom Mini IT13 Intel Core i9-13900H	268 Seconds *
Average Intel Core i9-13900H (166 - 268, n=21)	200 Seconds * +25%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	198 Seconds * +26%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	188 Seconds * +30%

7-Zip 18.03 / 7z b 4 -mmt1
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6683 MIPS +25%
Average Intel Core i9-13900H (3665 - 6600, n=22)	6079 MIPS +14%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	5972 MIPS +12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS +9%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS +8%
Geekom Mini IT12 Intel Core i7-1260P	5577 MIPS +4%
Geekom Mini IT13 Intel Core i9-13900H	5355 MIPS
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS -3%
Average of class Mini PC (2369 - 6749, n=98, last 2 years)	5173 MIPS -3%

7-Zip 18.03 / 7z b 4
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	70019 MIPS +55%
Average Intel Core i9-13900H (45045 - 79032, n=22)	67692 MIPS +50%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	64403 MIPS +43%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS +14%
Geekom Mini IT13 Intel Core i9-13900H	45045 MIPS
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS -4%
Average of class Mini PC (4955 - 74475, n=98, last 2 years)	39940 MIPS -11%
Geekom Mini IT12 Intel Core i7-1260P	37570 MIPS -17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS -21%

Geekbench 5.5 / Single-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1975 Points +7%
Average Intel Core i9-13900H (1140 - 2043, n=22)	1909 Points +3%
Geekom Mini IT13 Intel Core i9-13900H	1846 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points -1%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points -3%
Geekom Mini IT12 Intel Core i7-1260P	1782 Points -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points -12%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	1590 Points -14%
Average of class Mini PC (453 - 2010, n=98, last 2 years)	1477 Points -20%

Geekbench 5.5 / Multi-Core
Average Intel Core i9-13900H (9094 - 15410, n=22)	12803 Points +41%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	11564 Points +27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points +13%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	10126 Points +11%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points +8%
Geekom Mini IT13 Intel Core i9-13900H	9094 Points
Geekom Mini IT12 Intel Core i7-1260P	8918 Points -2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points -14%
Average of class Mini PC (927 - 15525, n=98, last 2 years)	7389 Points -19%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	20.7 fps +39%
Average Intel Core i9-13900H (14.7 - 22.3, n=22)	18.9 fps +27%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	18.7 fps +26%
Geekom Mini IT13 Intel Core i9-13900H	14.9 fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -7%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps -17%
Average of class Mini PC (0.95 - 21.4, n=98, last 2 years)	10.9 fps -27%
Geekom Mini IT12 Intel Core i7-1260P	10.1 fps -32%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps -37%

LibreOffice / 20 Documents To PDF
Average of class Mini PC (35.1 - 168.4, n=98, last 2 years)	58.1 s * -58%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * -32%
Average Intel Core i9-13900H (34.4 - 82.8, n=22)	48.5 s * -32%
Geekom Mini IT12 Intel Core i7-1260P	48.1 s * -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -27%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	46.3 s * -26%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	44.9 s * -22%
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * -9%
Geekom Mini IT13 Intel Core i9-13900H	36.8 s *

R Benchmark 2.5 / Overall mean
Average of class Mini PC (0.4184 - 1.565, n=98, last 2 years)	0.616 sec * -29%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * -7%
Geekom Mini IT13 Intel Core i9-13900H	0.4792 sec *
Geekom Mini IT12 Intel Core i7-1260P	0.4718 sec * +2%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * +2%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	0.4643 sec * +3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * +6%
Average Intel Core i9-13900H (0.4052 - 0.723, n=22)	0.4493 sec * +6%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	0.4192 sec * +13%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

2061 Points

Cinebench R15 OpenGL 64Bit

107.6 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

248 Points

Help

... in comparison

系统性能

系统整体性能卓越。Mini IT13 超越了采用英特尔第 12 代 CPU 和低端 Raptor Lake 处理器的竞争对手。除数字内容创建等图形要求较高的任务外，它还能与 Ryzen 9 7940HS 一决高下。考虑到后者出色的 iGPU，这也在意料之中。

在实际使用中，Mini IT13 并未受到任何抱怨，但有一点除外：应用程序在首次启动时往往需要数秒才能打开，但在随后的启动过程中几乎可以立即启动。这种情况在桌面断电后会重复出现。

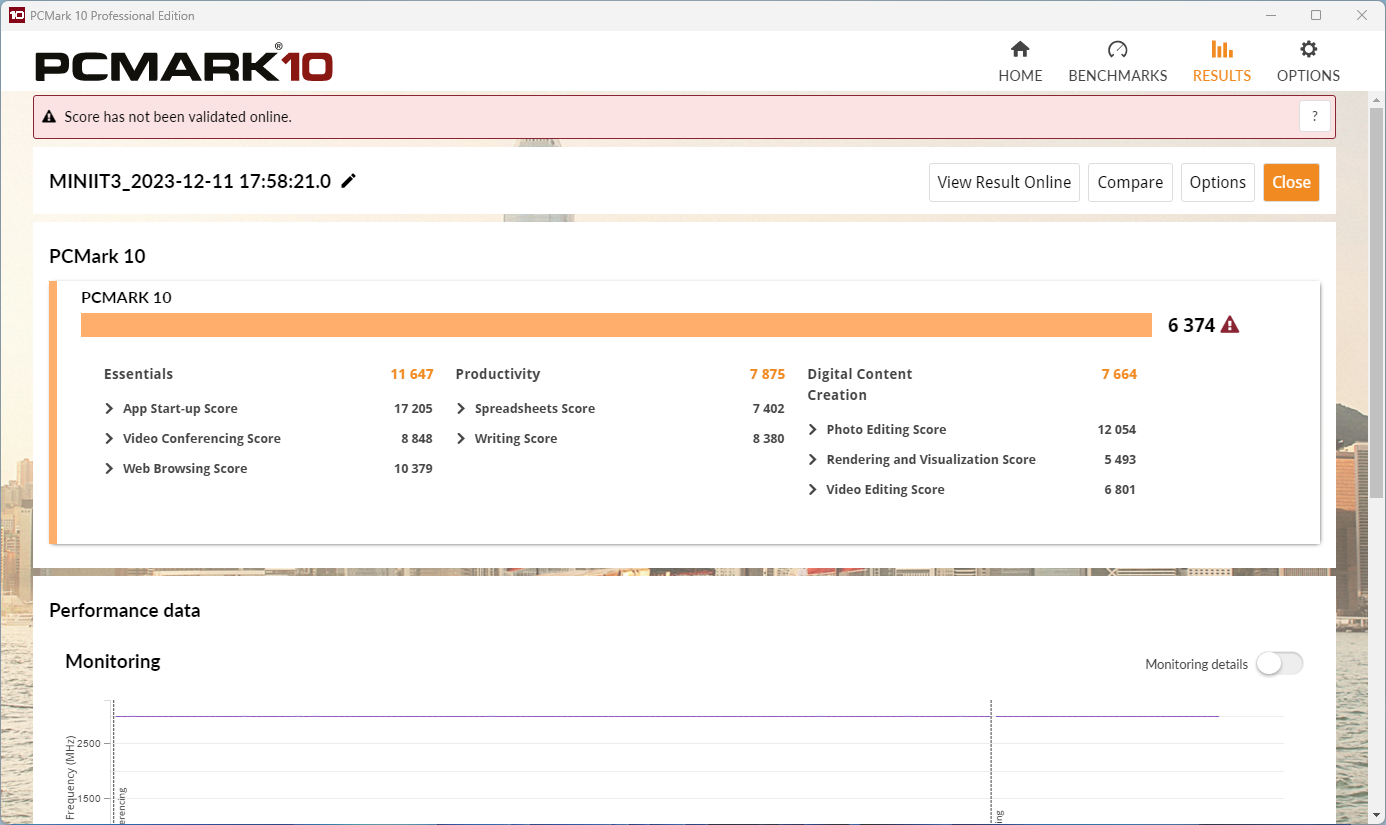

PCMark 10: Score | Essentials | Productivity | Digital Content Creation

PCMark 10 / Score
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	7208 Points +13%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	7048 Points +11%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900H, Lexar SSD NM7A1 2TB	6374 Points
Average Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs (6190 - 6472, n=5)	6354 Points 0%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -8%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	5855 Points -8%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	5658 Points -11%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points -13%
Average of class Mini PC (1461 - 7916, n=97, last 2 years)	5494 Points -14%

PCMark 10 / Essentials
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900H, Lexar SSD NM7A1 2TB	11647 Points
Average Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs (11156 - 11774, n=5)	11487 Points -1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points -5%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points -7%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	10797 Points -7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	10689 Points -8%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	10448 Points -10%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	10139 Points -13%
Average of class Mini PC (3998 - 11647, n=97, last 2 years)	9639 Points -17%

PCMark 10 / Productivity
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	9971 Points +27%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900H, Lexar SSD NM7A1 2TB	7875 Points
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	7803 Points -1%
Average Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs (7505 - 7979, n=5)	7784 Points -1%
Average of class Mini PC (2697 - 10970, n=97, last 2 years)	7668 Points -3%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	7427 Points -6%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points -7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	7096 Points -10%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -16%

PCMark 10 / Digital Content Creation
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	13402 Points +75%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	9119 Points +19%
Average Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs (7573 - 8073, n=5)	7792 Points +2%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900H, Lexar SSD NM7A1 2TB	7664 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points -1%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	6529 Points -15%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	6468 Points -16%
Average of class Mini PC (786 - 13402, n=97, last 2 years)	6280 Points -18%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points -24%

PCMark 10 Score		6374 points
Help

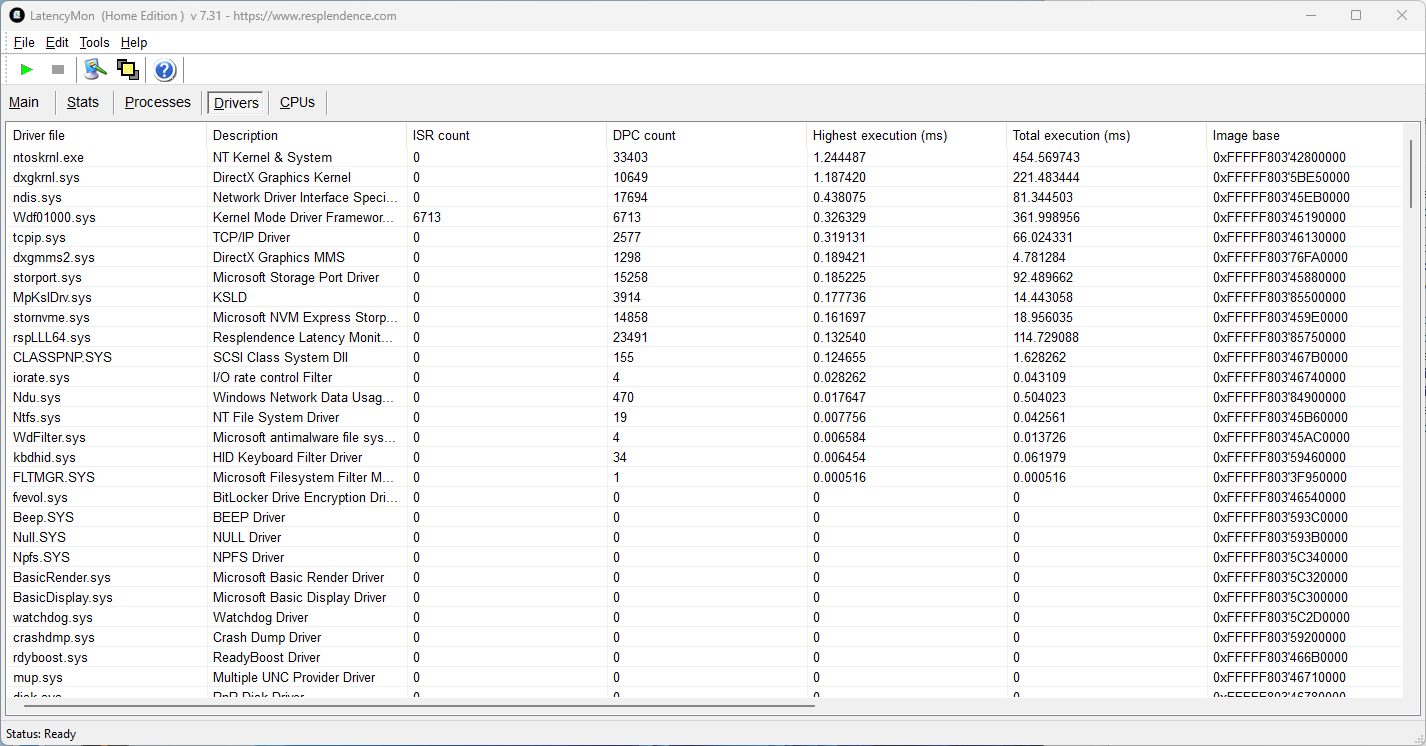

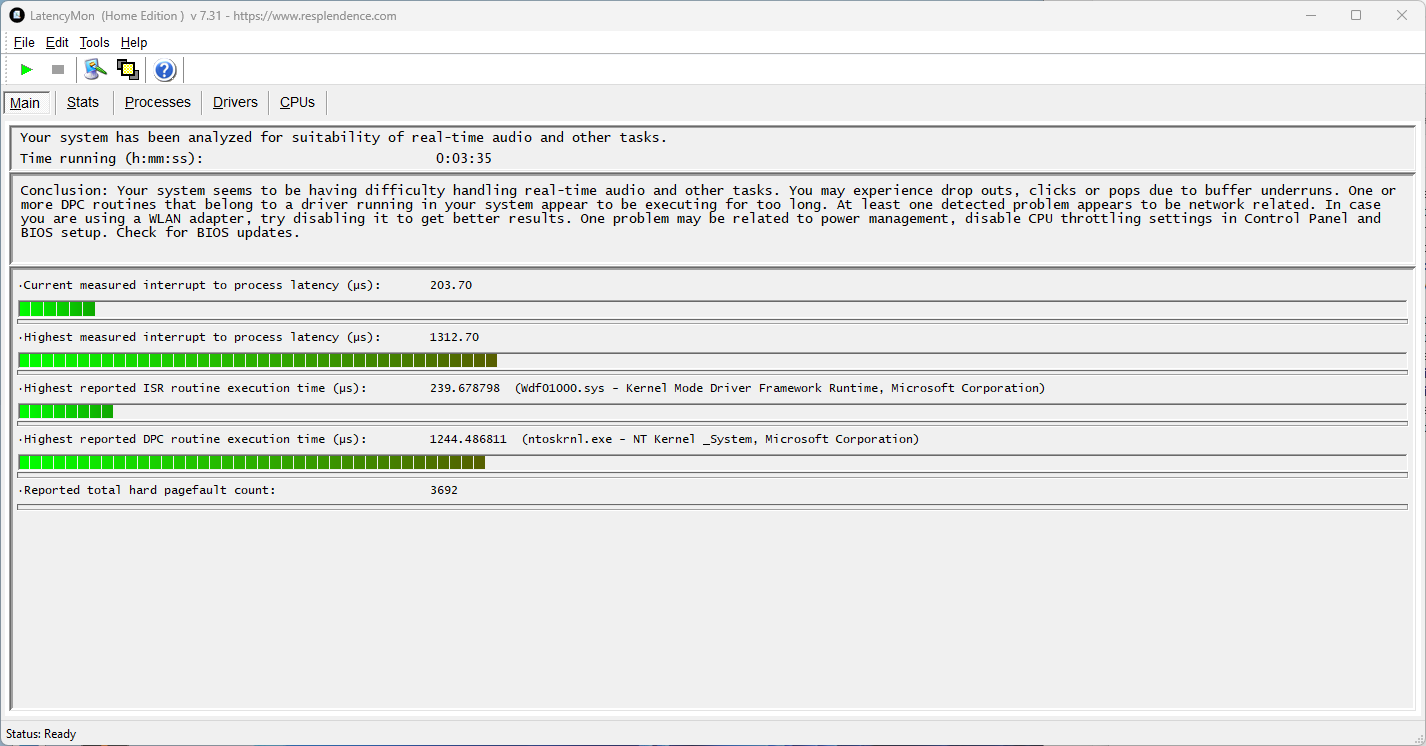

DPC 延迟

与前代产品（Mini IT11 和 Mini IT12）相比，DPC 延迟令人失望。Mini IT13 似乎刚刚达到足够的实时音频处理能力。不过，在我们的测试中，4K60 视频流的传输还是很流畅的，在 YouTube 视频的开头只出现了 11 帧的掉帧现象。

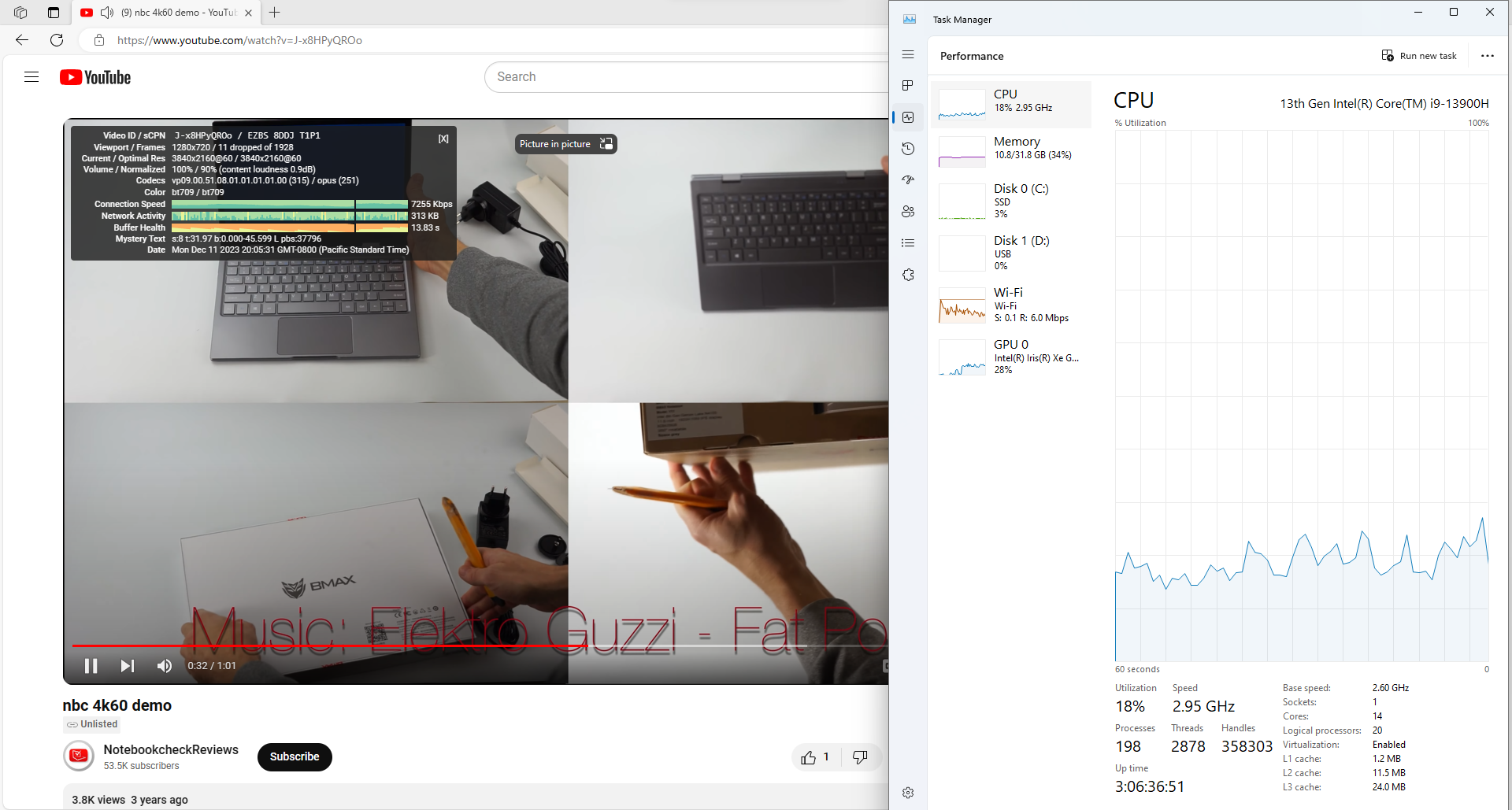

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Intel NUC 12, NUC12SNKi72_Serpent Canyon A770M, i7-12700H, Kingston Fury Renegade SFYRS500G	13890 μs * -958%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1415.8 μs * -8%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900H, Lexar SSD NM7A1 2TB	1312.7 μs *
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +19%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1063 μs * +19%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * +25%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs * +37%

* ... smaller is better

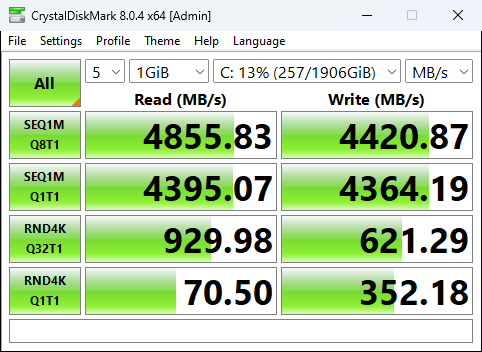

存储设备

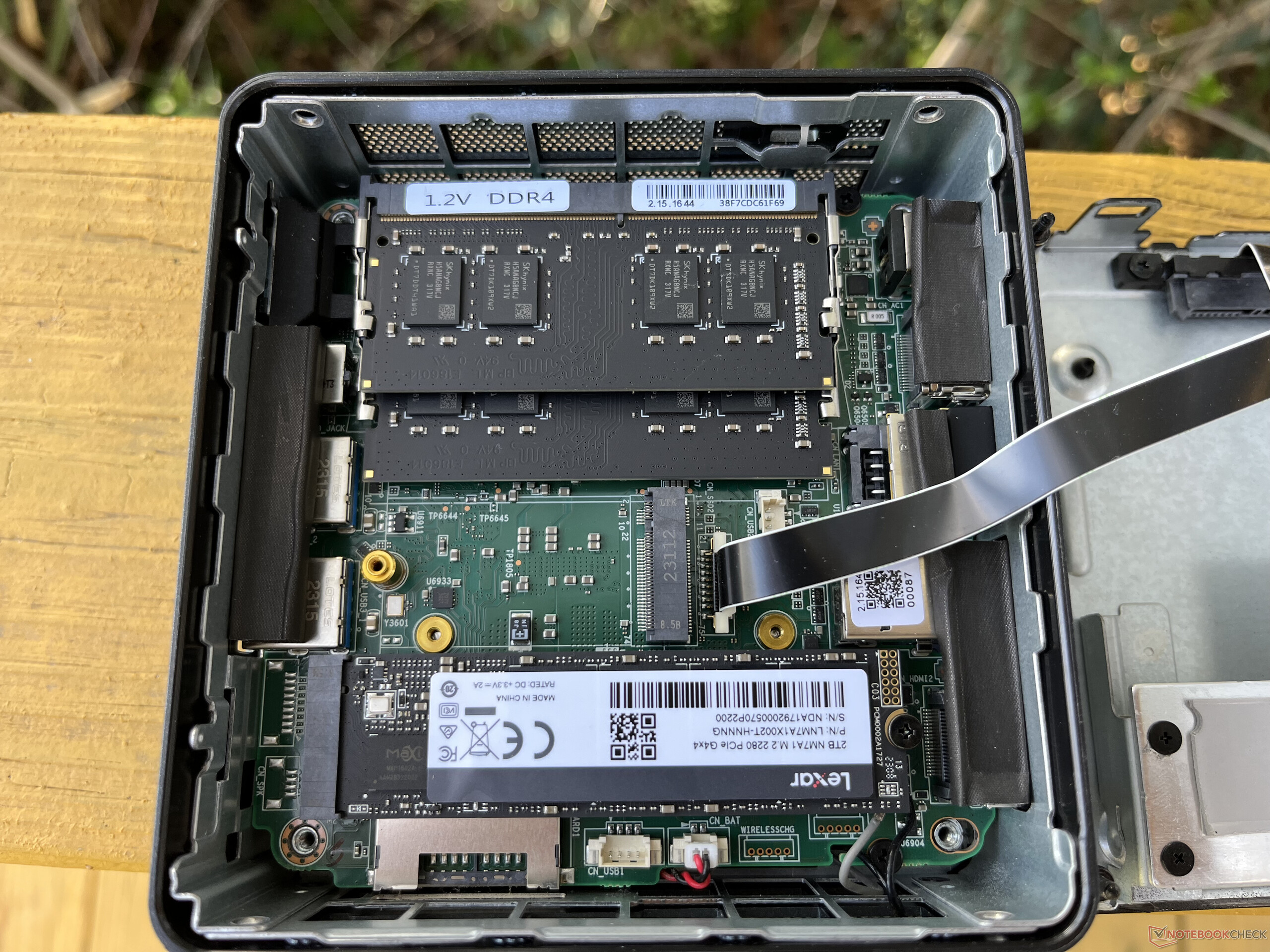

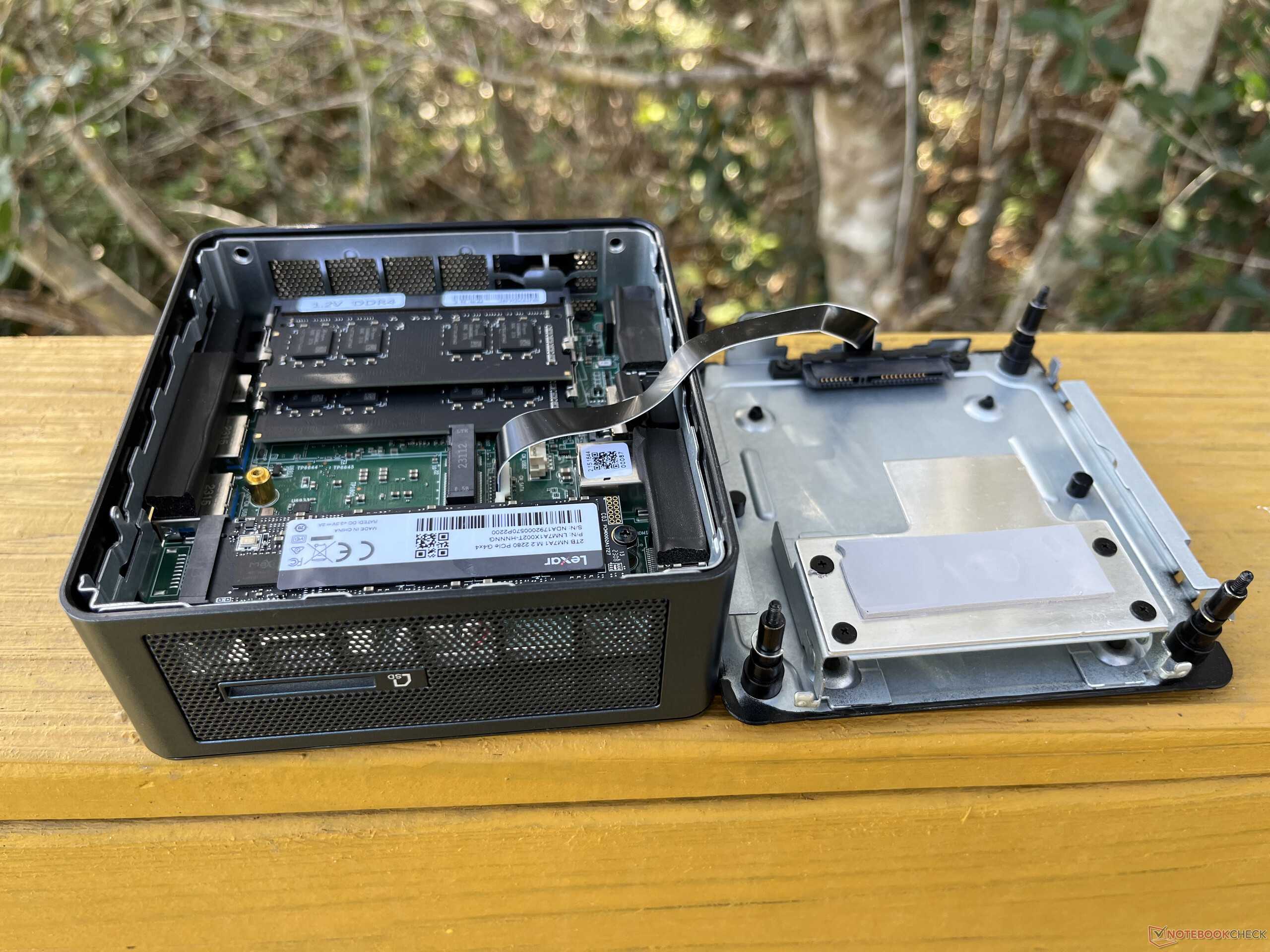

Geekom 为 Mini IT13 配备了来自 Lexar 的 2 TB M.2 2280（80 毫米）PCIe Gen4x4 SSD。该硬盘不仅存储空间充足，而且速度极快，读取速度超过 4000 MB/s。4K 读取和写入速度也非常快。有趣的是，正如 DiskSpd 读取循环测试所指出的那样，硬盘在长时间活动时性能会有所下降。

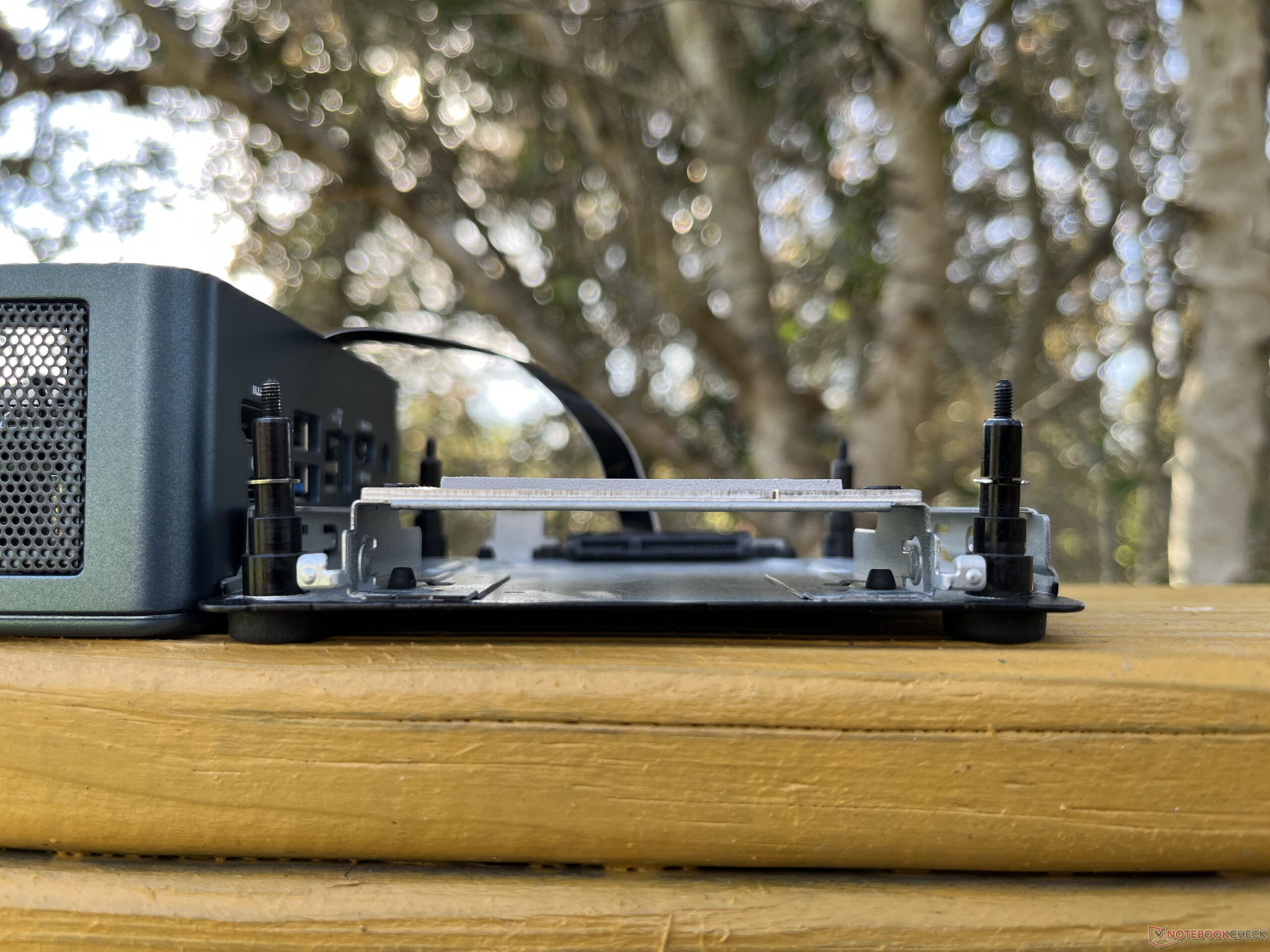

Mini IT13 还支持 M.2 2242（42 毫米）固态硬盘和 2.5 英寸硬盘。

Performance Rating | CrystalDiskMark 5.2 / 6 | AS SSD

Performance Rating - Percent
Geekom Mini IT13 Lexar SSD NM7A1 2TB	90.5 pt
Average Lexar SSD NM7A1 2TB	90.5 pt
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	84.6 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	63.9 pt
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	55.6 pt
GMK NucBox K3 Pro ^-2! Lexar NM610 Pro NM610P001T-HNNNG	51.1 pt
Beelink SEi12 Core i5-1235U ^-10! Kingston NV1 SNVS/500GCN	49.5 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	46.4 pt

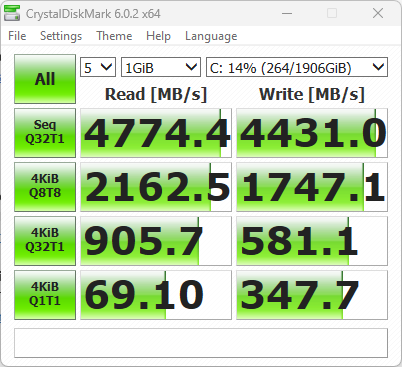

CrystalDiskMark 5.2 / 6
Write 4K
Average Lexar SSD NM7A1 2TB ()	348 MB/s 0%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	347.7 MB/s
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	256.7 MB/s -26%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	256.7 MB/s -26%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	255.8 MB/s -26%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	164.1 MB/s -53%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	154 MB/s -56%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	138.2 MB/s -60%
Read 4K
Geekom Mini IT12 Kingston OM8SEP4512N-A0	72.46 MB/s +5%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	69.1 MB/s
Average Lexar SSD NM7A1 2TB ()	69.1 MB/s 0%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	56.46 MB/s -18%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	56.46 MB/s -18%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	54.33 MB/s -21%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	53.88 MB/s -22%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	51.8 MB/s -25%
Write Seq
Geekom Mini IT13 Lexar SSD NM7A1 2TB	4453 MB/s
Average Lexar SSD NM7A1 2TB ()	4453 MB/s 0%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3849 MB/s -14%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3849 MB/s -14%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3048 MB/s -32%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2951 MB/s -34%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1783 MB/s -60%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1319 MB/s -70%
Read Seq
Geekom Mini IT13 Lexar SSD NM7A1 2TB	3433 MB/s
Average Lexar SSD NM7A1 2TB ()	3433 MB/s 0%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3029 MB/s -12%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2653 MB/s -23%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	2572 MB/s -25%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	2572 MB/s -25%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2287 MB/s -33%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1965 MB/s -43%
Write 4K Q32T1
Geekom Mini IT12 Kingston OM8SEP4512N-A0	628.3 MB/s +8%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	581.1 MB/s
Average Lexar SSD NM7A1 2TB ()	581 MB/s 0%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	511.3 MB/s -12%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	412.4 MB/s -29%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	405.5 MB/s -30%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	396.4 MB/s -32%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	396.4 MB/s -32%
Read 4K Q32T1
Average Lexar SSD NM7A1 2TB ()	906 MB/s 0%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	905.7 MB/s
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	680.2 MB/s -25%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	680.2 MB/s -25%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	596.9 MB/s -34%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	493.1 MB/s -46%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	489.8 MB/s -46%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	410.8 MB/s -55%
Write Seq Q32T1
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5045.3 MB/s +14%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	4431 MB/s
Average Lexar SSD NM7A1 2TB ()	4431 MB/s 0%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3866.7 MB/s -13%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3866.7 MB/s -13%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3386.2 MB/s -24%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2429 MB/s -45%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1331.6 MB/s -70%
Read Seq Q32T1
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	7075.5 MB/s +48%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	7075.5 MB/s +48%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	6867.3 MB/s +44%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	6827.2 MB/s +43%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	4774.4 MB/s
Average Lexar SSD NM7A1 2TB ()	4774 MB/s 0%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3484 MB/s -27%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2804.2 MB/s -41%
Write 4K Q8T8
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	1901.5 MB/s +9%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	1901.5 MB/s +9%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	1747.1 MB/s
Average Lexar SSD NM7A1 2TB ()	1747 MB/s 0%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	932.1 MB/s -47%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	438.8 MB/s -75%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	435.1 MB/s -75%
Read 4K Q8T8
Average Lexar SSD NM7A1 2TB ()	2163 MB/s 0%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	2162.5 MB/s
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1076.1 MB/s -50%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	921.8 MB/s -57%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	921.8 MB/s -57%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	813.5 MB/s -62%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	419 MB/s -81%

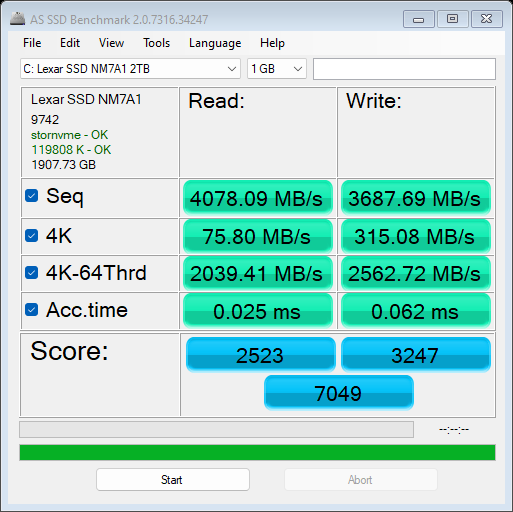

AS SSD
Seq Read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	5339 MB/s +31%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	5272 MB/s +29%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +11%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	4078.09 MB/s
Average Lexar SSD NM7A1 2TB ()	4078 MB/s 0%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s -21%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2968.96 MB/s -27%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s -32%
Seq Write
Average Lexar SSD NM7A1 2TB ()	3688 MB/s 0%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	3687.69 MB/s
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3480 MB/s -6%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3385 MB/s -8%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s -27%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1698.68 MB/s -54%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s -67%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s -87%
4K Read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	99.7 MB/s +32%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	75.8 MB/s
Average Lexar SSD NM7A1 2TB ()	75.8 MB/s 0%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s -5%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s -21%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	53.2 MB/s -30%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	51.31 MB/s -32%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -35%
4K Write
Geekom Mini IT13 Lexar SSD NM7A1 2TB	315.08 MB/s
Average Lexar SSD NM7A1 2TB ()	315 MB/s 0%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s -11%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s -13%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	239 MB/s -24%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	205.98 MB/s -35%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s -47%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	119.3 MB/s -62%
4K-64 Read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	2148 MB/s +5%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	2039.41 MB/s
Average Lexar SSD NM7A1 2TB ()	2039 MB/s 0%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s -39%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1018.3 MB/s -50%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	947 MB/s -54%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -61%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -81%
4K-64 Write
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3598 MB/s +40%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +13%
Average Lexar SSD NM7A1 2TB ()	2563 MB/s 0%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	2562.72 MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s -24%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s -59%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	906.2 MB/s -65%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	679 MB/s -74%
Access Time Read
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	0.133 ms * -432%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * -292%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	0.085 ms * -240%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.079 ms * -216%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * -140%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms * -96%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	0.025 ms *
Average Lexar SSD NM7A1 2TB ()	0.025 ms * -0%
Access Time Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.367 ms * -492%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -90%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	0.088 ms * -42%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms * -13%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	0.062 ms *
Average Lexar SSD NM7A1 2TB ()	0.062 ms * -0%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +61%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	0.017 ms * +73%
Score Read
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	2781 Points +10%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	2523 Points
Average Lexar SSD NM7A1 2TB ()	2523 Points 0%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points -35%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1528 Points -39%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1367 Points -46%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points -48%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -71%
Score Write
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	4185 Points +29%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +2%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	3247 Points
Average Lexar SSD NM7A1 2TB ()	3247 Points 0%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points -30%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points -55%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1282 Points -61%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1137 Points -65%
Score Total
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	8314 Points +18%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	7049 Points
Average Lexar SSD NM7A1 2TB ()	7049 Points 0%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points -26%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points -34%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3361 Points -52%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3294 Points -53%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -65%
Copy ISO MB/s
Geekom Mini IT13 Lexar SSD NM7A1 2TB	3808.32 MB/s
Average Lexar SSD NM7A1 2TB ()	3808 MB/s 0%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	3139.6 MB/s -18%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2898.31 MB/s -24%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2235.48 MB/s -41%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1933.58 MB/s -49%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	958.68 MB/s -75%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.99 MB/s -100%
Copy Program MB/s
Average Lexar SSD NM7A1 2TB ()	1254 MB/s 0%
Geekom Mini IT13 Lexar SSD NM7A1 2TB	1253.66 MB/s
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1006.91 MB/s -20%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	1001.9 MB/s -20%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	758.08 MB/s -40%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	703.84 MB/s -44%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	570.78 MB/s -54%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	344.18 MB/s -73%
Copy Game MB/s
Geekom Mini IT13 Lexar SSD NM7A1 2TB	2200.21 MB/s
Average Lexar SSD NM7A1 2TB ()	2200 MB/s 0%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G	2097.34 MB/s -5%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1981.21 MB/s -10%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	928.77 MB/s -58%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	880.19 MB/s -60%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	411.4 MB/s -81%
Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0)	354.68 MB/s -84%

* ... smaller is better

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Lexar SSD NM7A1 2TB

CDM 5/6 Read Seq Q32T1: 4774.4 MB/s

CDM 5/6 Write Seq Q32T1: 4431 MB/s

CDM 5/6 Read 4K Q32T1: 905.7 MB/s

CDM 5/6 Write 4K Q32T1: 581.1 MB/s

CDM 5 Read Seq: 3433 MB/s

CDM 5 Write Seq: 4453 MB/s

CDM 5/6 Read 4K: 69.1 MB/s

CDM 5/6 Write 4K: 347.7 MB/s

CDM 6 Write 4K Q8T8: 1747.1 MB/s

CDM 6 Read 4K Q8T8: 2162.5 MB/s

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Geekom Mini IT13 Lexar SSD NM7A1 2TB: Ø4115 (3763.34-4800.8)

Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN: Ø3411 (1756.47-3635.06)

Intel NUC 12, NUC12SNKi72_Serpent Canyon Kingston Fury Renegade SFYRS500G: Ø7000 (6488.14-7039.72)

GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG: Ø3380 (2828.02-3417.73)

Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ: Ø5462 (4797.39-5479.86)

Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0): Ø6430 (5686.85-6828.93)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

图形处理器性能

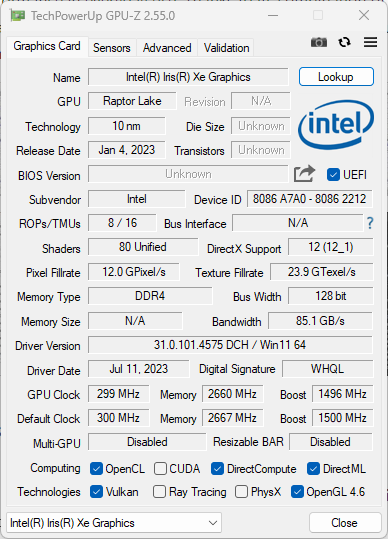

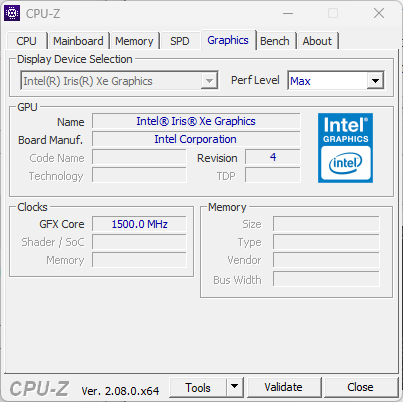

迷你 IT13 板载英特尔 Iris Xe 图形处理器（96 欧姆）用于图形处理。集成图形处理器的性能（通过 3DMark 测量）比预期的要好，大约比普通的 Intel Iris Xe Graphics iGPU 好 10%-15%。

虽然英特尔 iGPU 不适合重型图形工作（如 3D 建模），但它适合一些轻型照片和视频编辑工作。它还能轻松处理 4K 视频流。显卡 AMD Radeon 780M集成在 Ryzen 7000 系列 APU 上，速度快 50-75%。

Mini IT13 有两个 USB4 40 Gbps 端口，可支持兼容 Thunderbolt 的 eGPU。在这次评测中，我们没有使用 eGPU 来测试这种设置的可行性及其性能，但这也是一种选择。

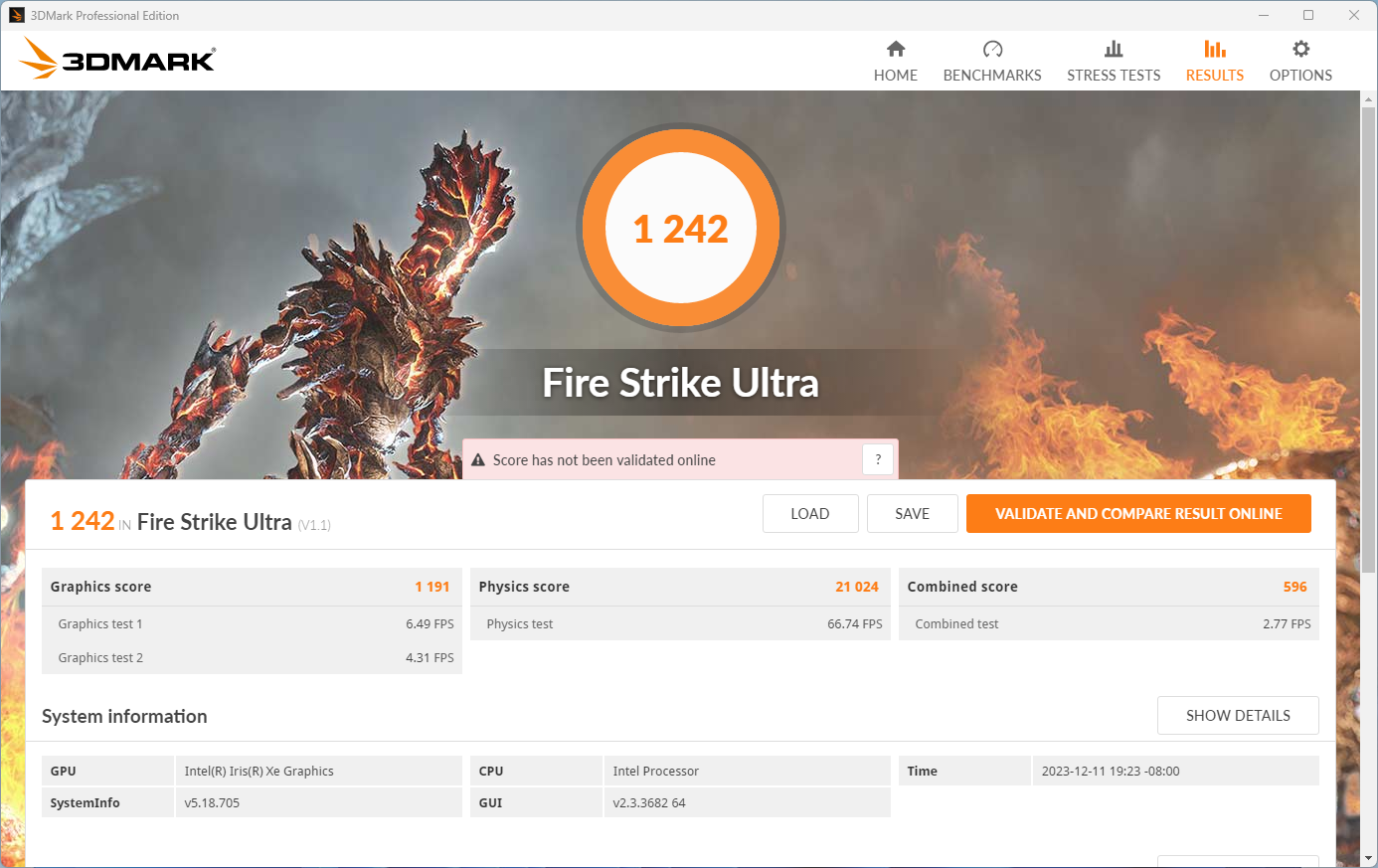

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	37375 Points +423%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	12384 Points +73%
Average of class Mini PC (574 - 37375, n=98, last 2 years)	8398 Points +18%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points +2%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7147 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points -8%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7471, n=194)	6345 Points -11%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points -22%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points -29%

3DMark
1920x1080 Fire Strike Graphics
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	28126 Points +399%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	7284 Points +29%
Average of class Mini PC (307 - 28126, n=97, last 2 years)	5869 Points +4%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5637 Points
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points 0%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6143, n=207)	4905 Points -13%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points -14%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points -19%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points -30%
1280x720 Cloud Gate Standard Graphics
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	124487 Points +310%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	47968 Points +58%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	32427 Points +7%
Average of class Mini PC (2346 - 145359, n=90, last 2 years)	31881 Points +5%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	30397 Points
Average Intel Iris Xe Graphics G7 96EUs (13162 - 38040, n=172)	26334 Points -13%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points -26%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	22363 Points -26%
2560x1440 Time Spy Graphics
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Arc A770M, Intel Core i7-12700H	10783 Points +541%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2632 Points +57%
Average of class Mini PC (179 - 10783, n=92, last 2 years)	2115 Points +26%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1681 Points
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points -1%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points -9%
Average Intel Iris Xe Graphics G7 96EUs (707 - 1871, n=204)	1494 Points -11%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points -23%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points -32%

3DMark 11 Performance		7656 points

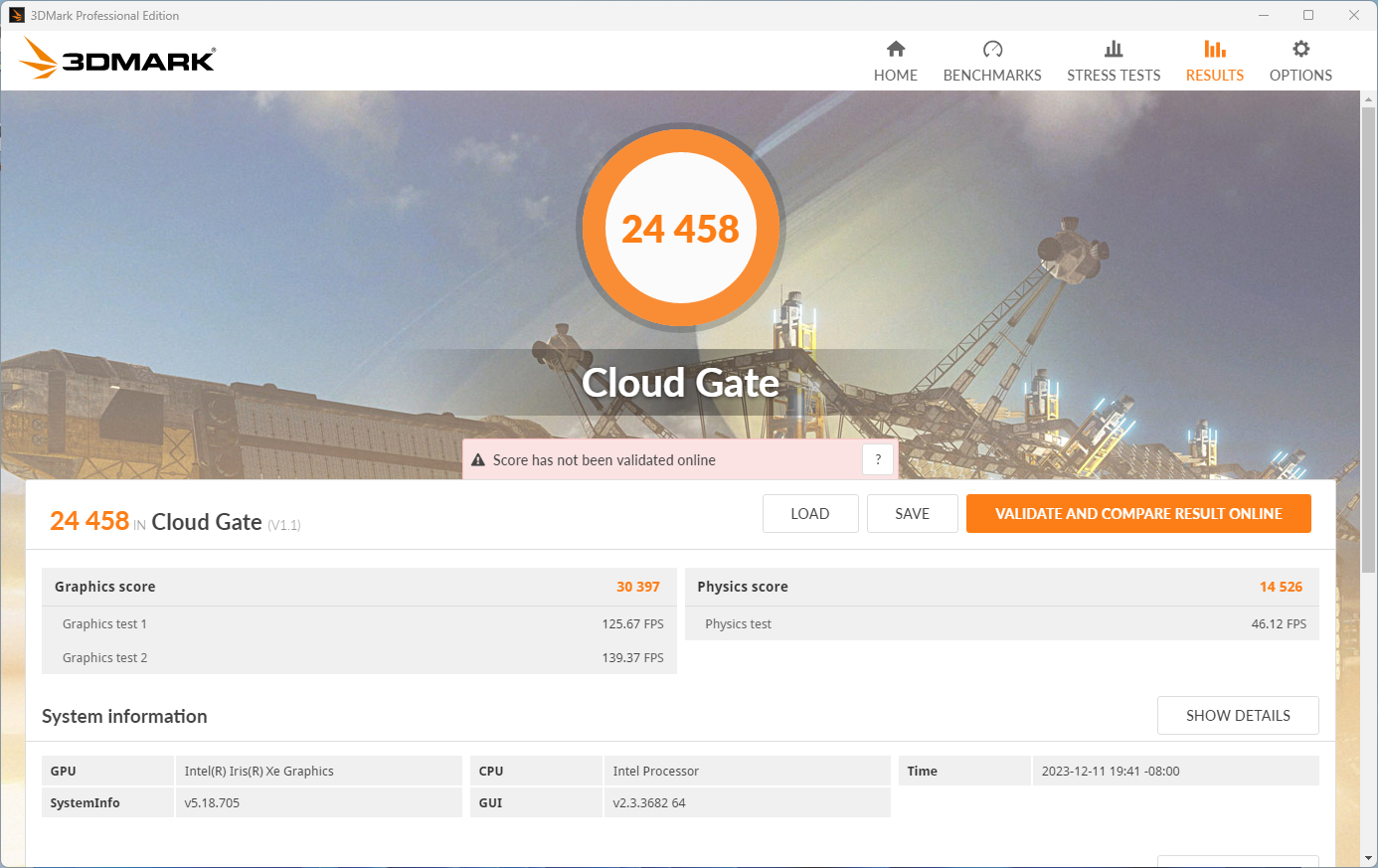

3DMark Cloud Gate Standard Score		24458 points
3DMark Fire Strike Score		5229 points
3DMark Fire Strike Extreme Score		2446 points

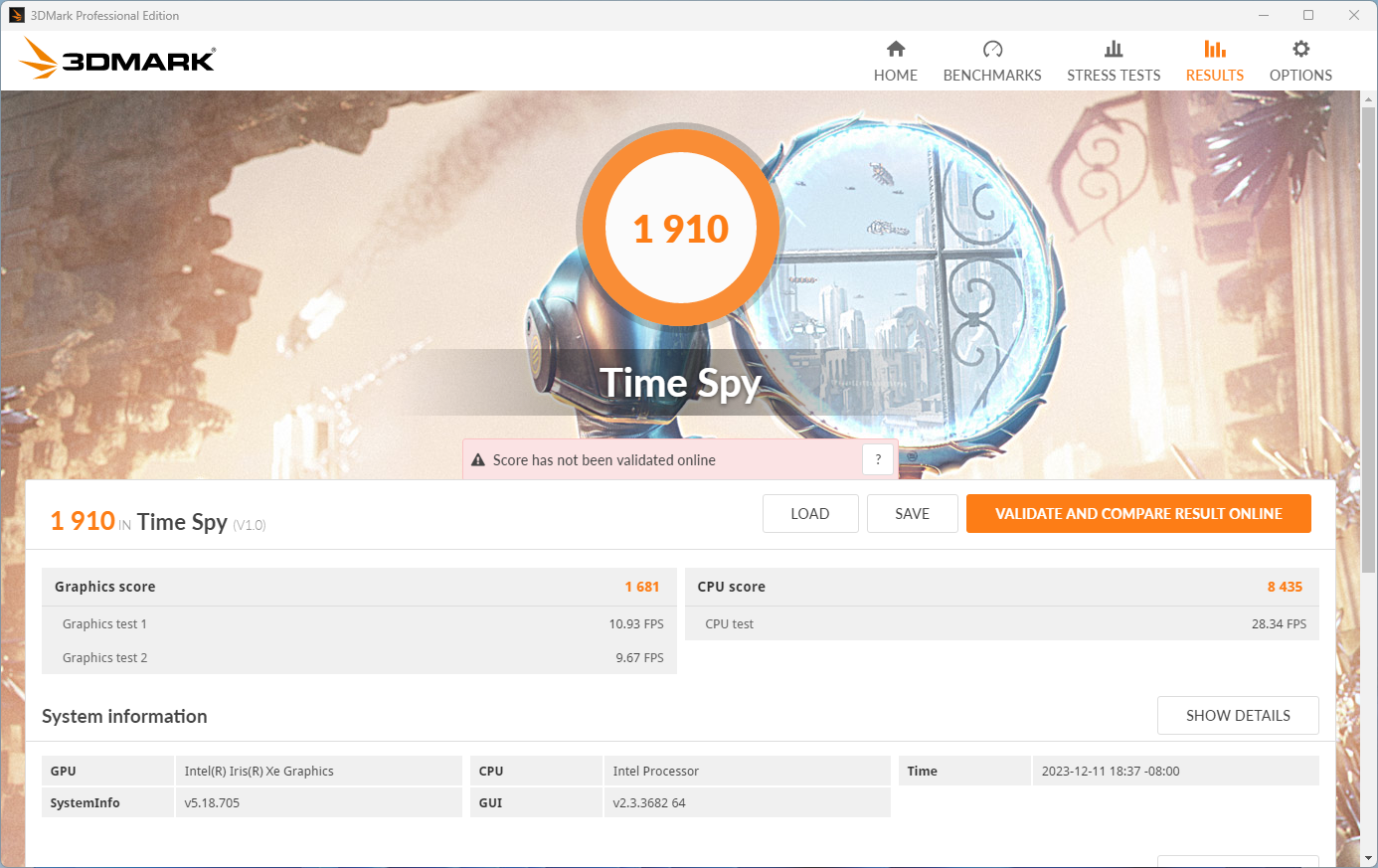

3DMark Time Spy Score		1910 points
Help

... in comparison

游戏性能

虽然英特尔 Xe iGPU 已经取得了长足的进步，但仍不适合现代 AAA 级游戏。即使在最低设置下，像Spider-Man Miles Morales这样的游戏也只能勉强达到 30 FPS，而且还会出现卡顿。像 Dota 2 Reborn等轻度游戏或旧版游戏应该可以在全高清下运行，具体取决于游戏名称。

查看英特尔 Iris Xe 图形处理器（96 欧版）查看更多游戏基准测试。

	low	med.	high	ultra	4K
Dota 2 Reborn (2015)	133.8	87.3	67.6	61.2	24.2
Final Fantasy XV Benchmark (2018)	46.1	24.7	17.7
X-Plane 11.11 (2018)	50.5	36.1	31.4
Spider-Man Miles Morales (2022)	35.1

Emissions & Power

系统噪音

Geekom Mini IT13 最薄弱的地方在于：风扇噪音。当满载时，这款迷你台式机会发出明显的啸叫，就像一把热刀，划破了标准的办公室噪音。虽然它不像顶级游戏笔记本电脑那样响亮，但风扇的高音调还是一眼就能看出来。

有趣的是，即使电脑在 Windows 桌面上处于闲置状态，风扇的转速也似乎是随机的。这些脉冲时间很短（1-2 秒），但由于其随机性，可能会令人恼火。

温度

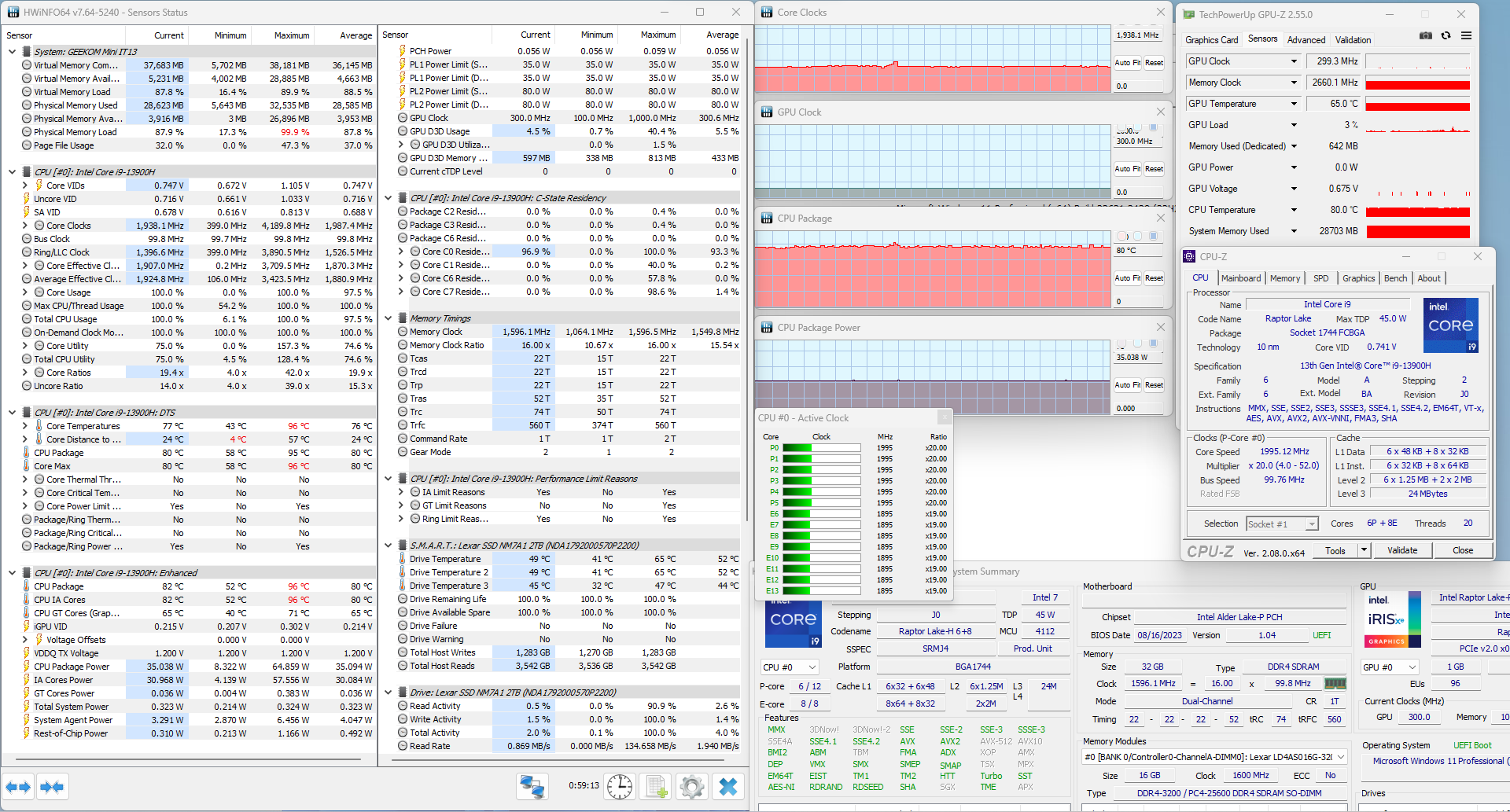

尽管 Mini IT13 的风扇声音很大，但在极端压力下仍难以保持酷睿 i9-13900H 的低温。在长达一小时的 Prime95 严酷测试中，酷睿 i9-13900H 的峰值温度为 96°C，主频为 4.2GHz，远低于 5.4GHz 的额定提升频率。测试期间，CPU 的平均主频为 2.0GHz，略高于其基本时钟频率。

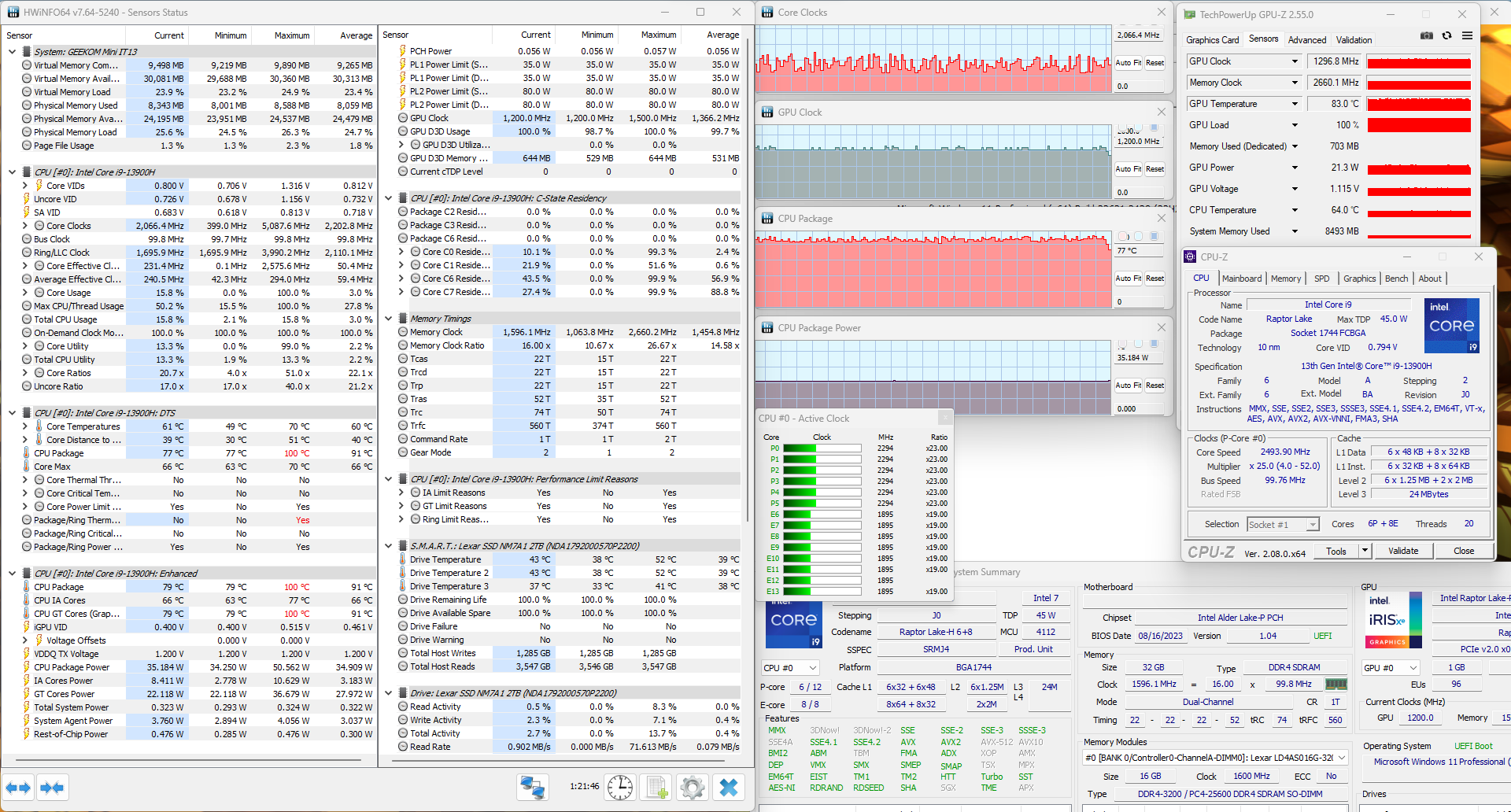

在长达一小时的 Furmark 测试中，iGPU 也出现了类似的结果，最高温度为 100 摄氏度，平均温度为 91 摄氏度。

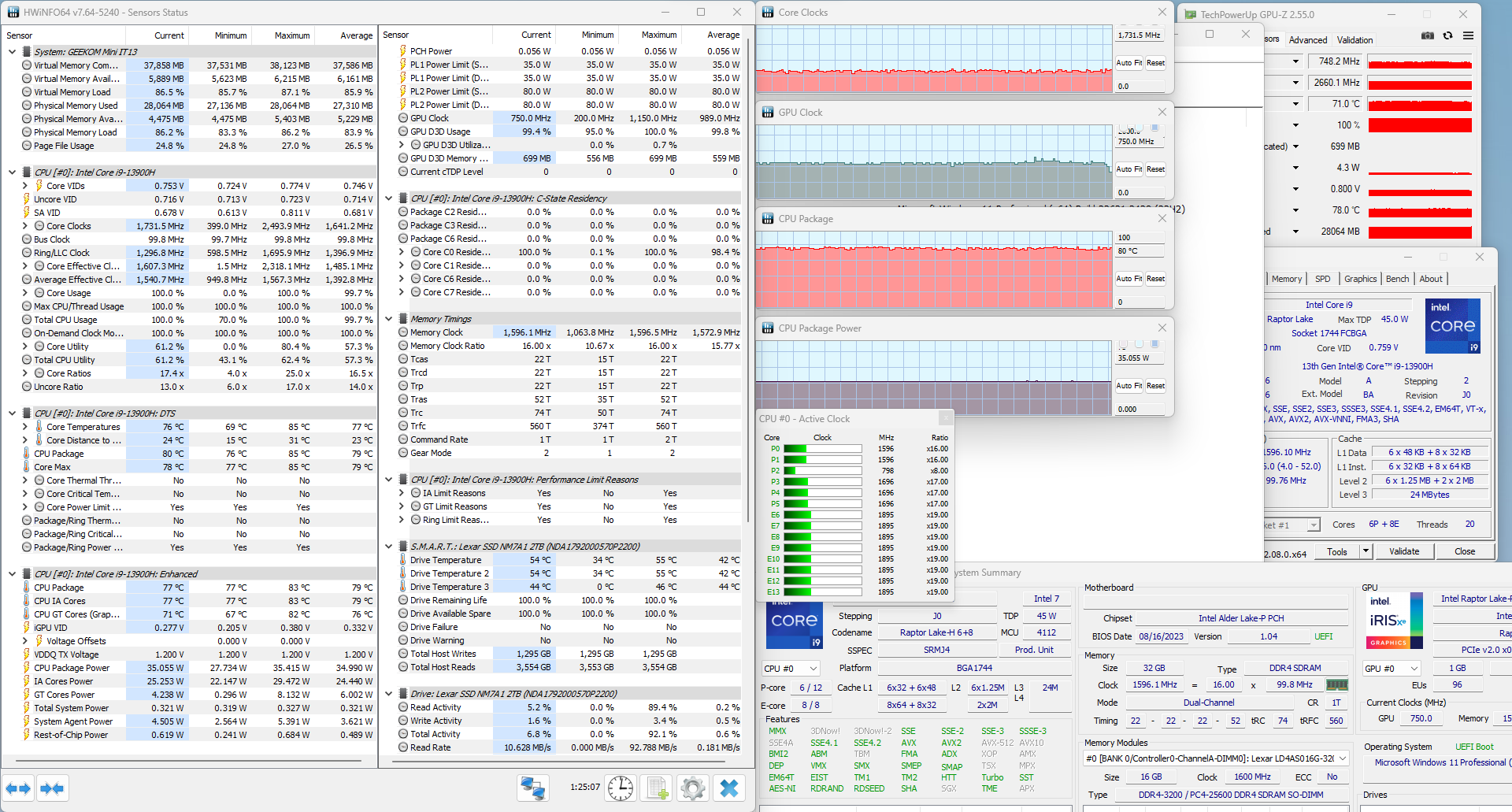

对 CPU 和 GPU 施加压力的结果是，虽然整体温度较低，但性能却保守得多。

总而言之，对于 Mini IT13 的小机箱来说，酷睿 i9-13900H 的温度似乎太高了。酷睿 i7-13700H 酷睿 i7-13700H可能是散热管理方面更好的选择。

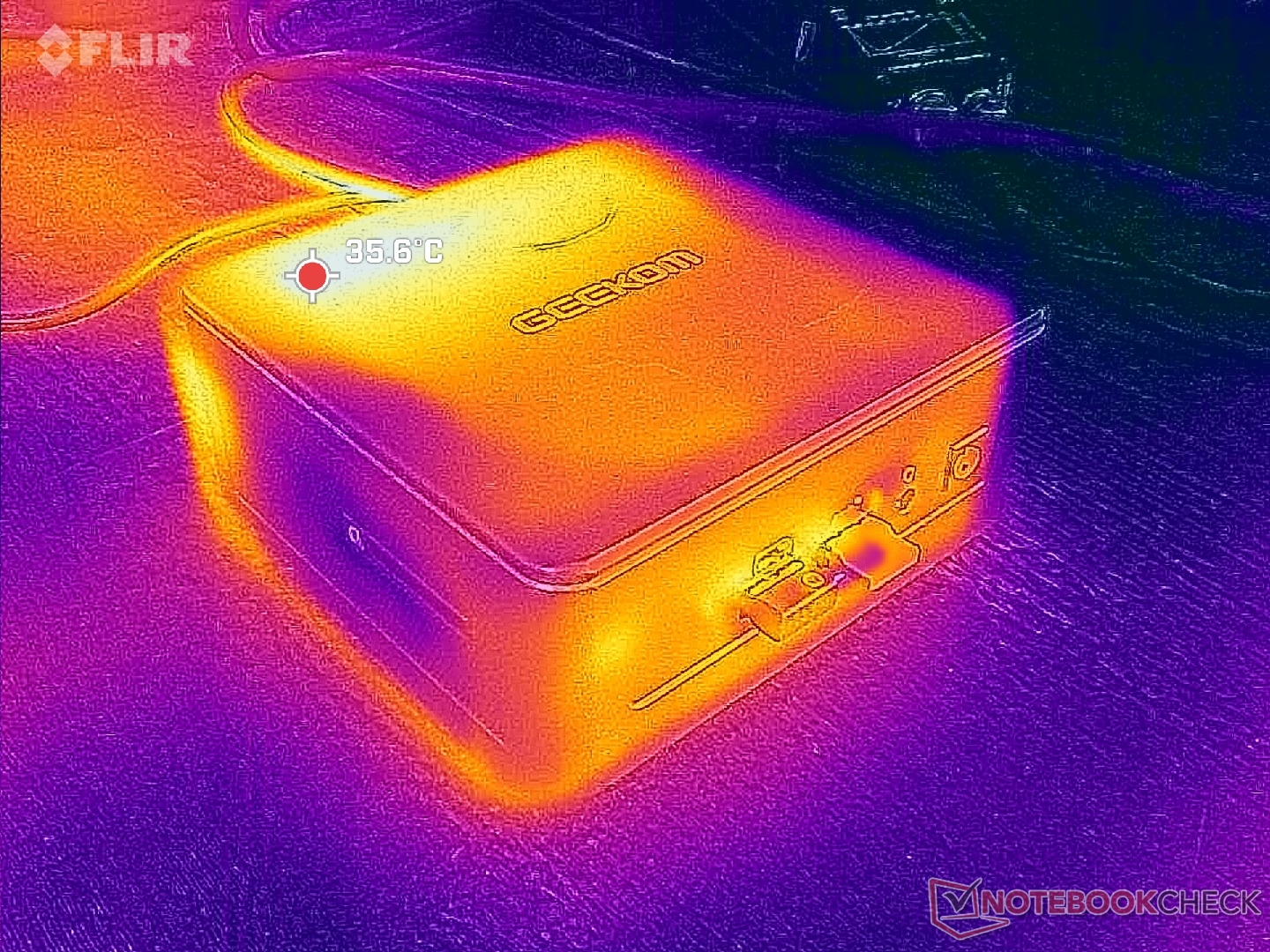

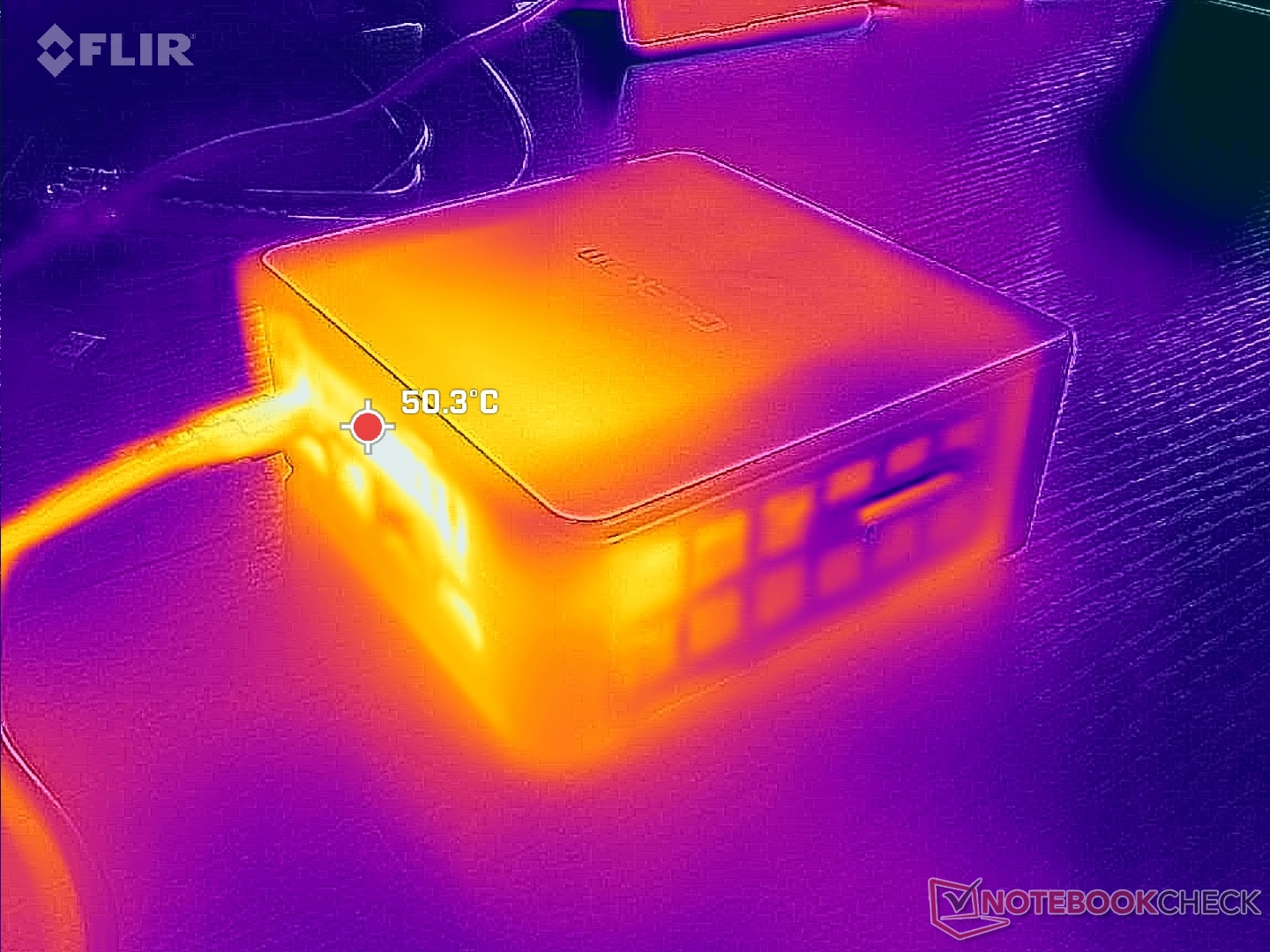

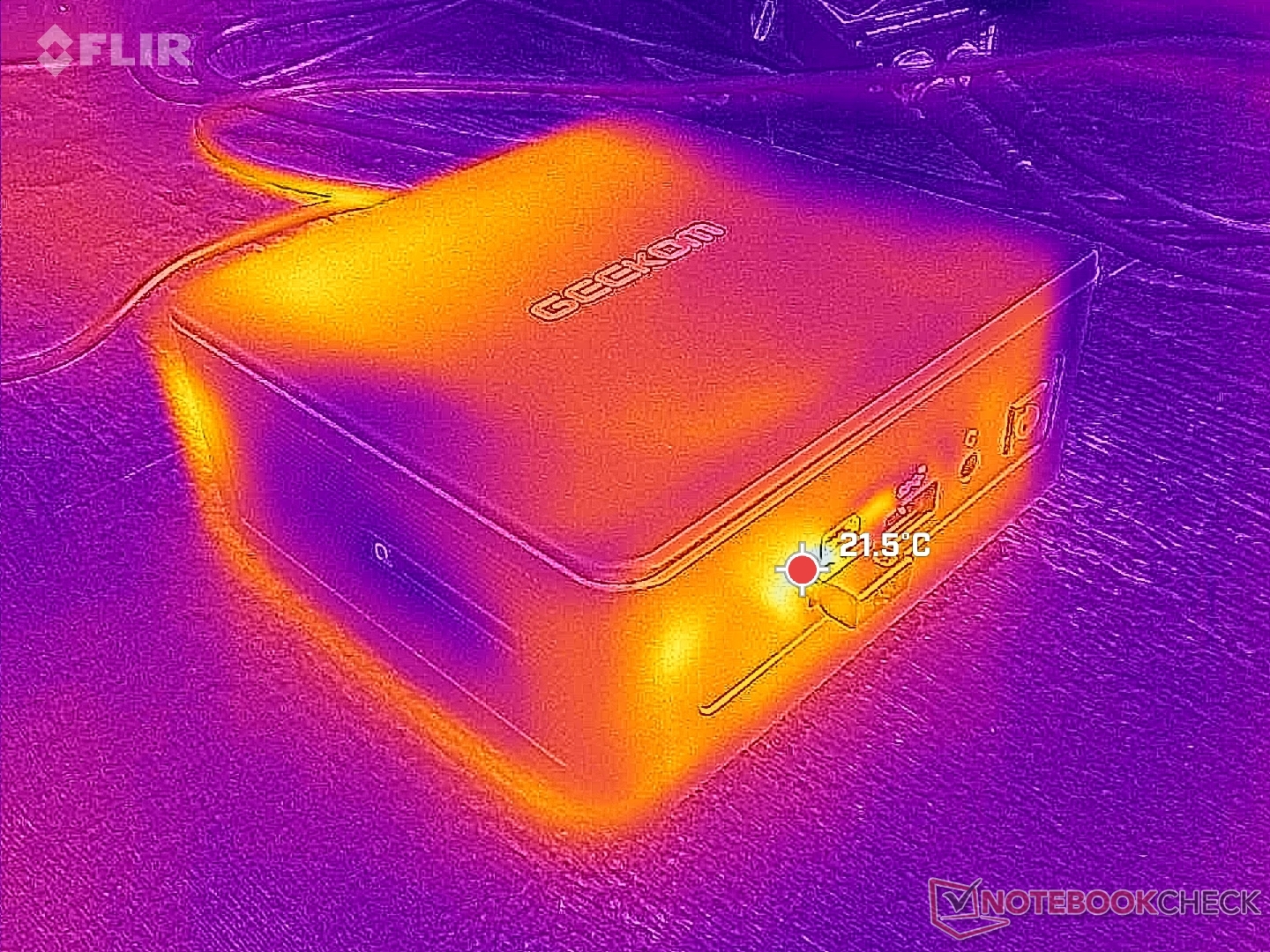

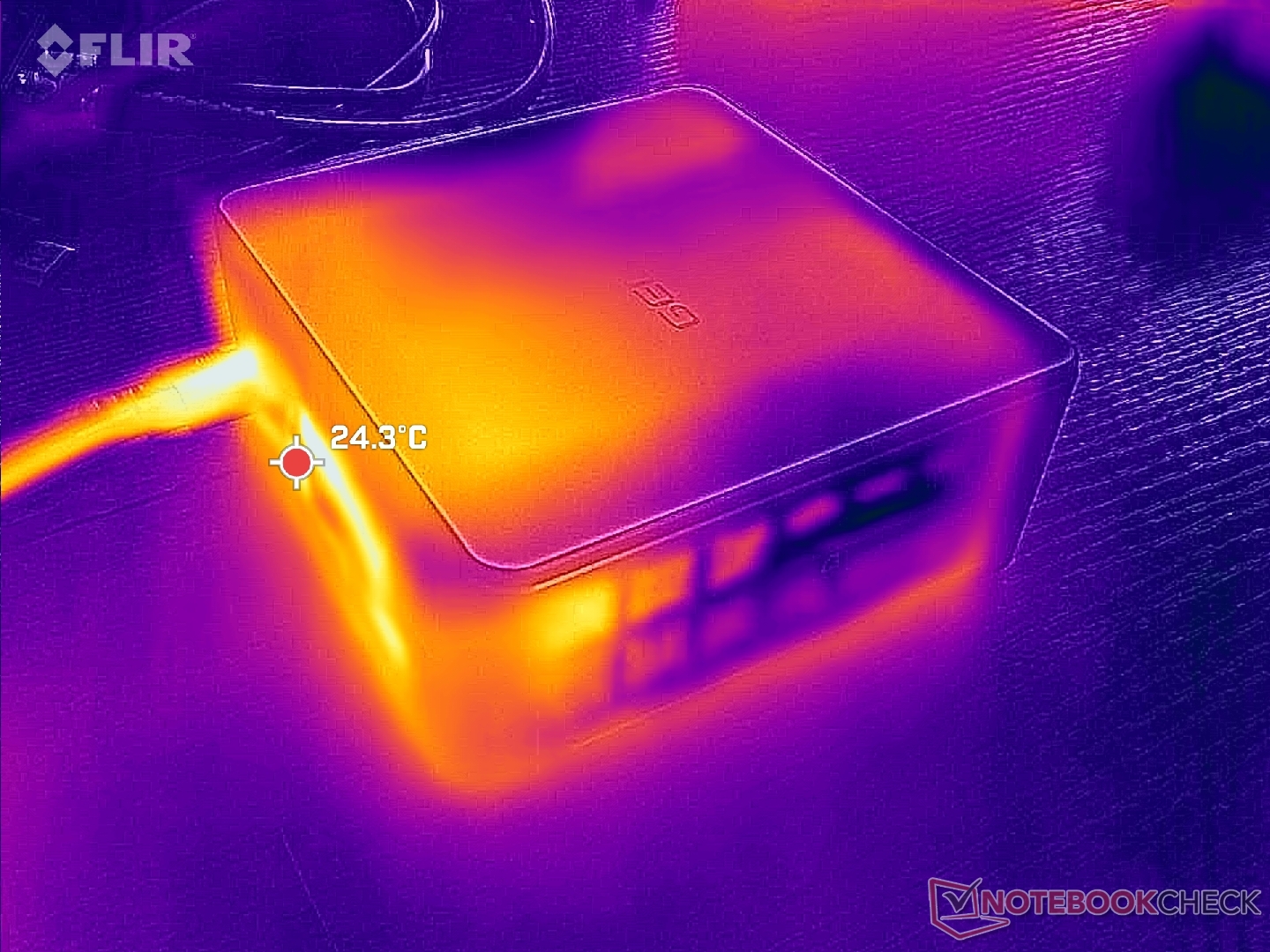

Mini IT13 的机箱即使在负载情况下也能保持相当低的温度。最热的地方是后排气口（这是意料之中的），最高温度约为 50°C。

耗电量

对于迷你 PC 来说，Mini IT13 的耗电量相当大。负载下的平均功耗约为 60 瓦。这与其他基于英特尔的迷你台式电脑基本一致。

Power Consumption

Off / Standby	1.1 / 27 Watt
Idle	6.7 / 7.8 / 9.4 Watt
Load	59.8 / 114.3 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power Consumption Witcher 3 / Stresstest

Geekom Mini IT13 i9-13900H, Iris Xe G7 96EUs; Witcher 3 ultra: Ø56.9 (54.4-66.5)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Witcher 3 ultra: Ø50.7 (49.7-63.2)

GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; Witcher 3 ultra: Ø55.2 (51.1-62.8)

Geekom Mini IT13 i9-13900H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø60.8 (55.3-98)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø78.5 (72.1-119.1)

Intel NUC 12, NUC12SNKi72_Serpent Canyon i7-12700H, A770M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø185.4 (163.1-271)

GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø59.5 (51.7-80.2)

Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø69.3 (66.2-101)

Minisforum Venus Series UM790 Pro R9 7940HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø89.4 (87.8-94.6)

Pros

+ 机箱小巧

+ 良好的多线程性能

+ 内置快速固态硬盘

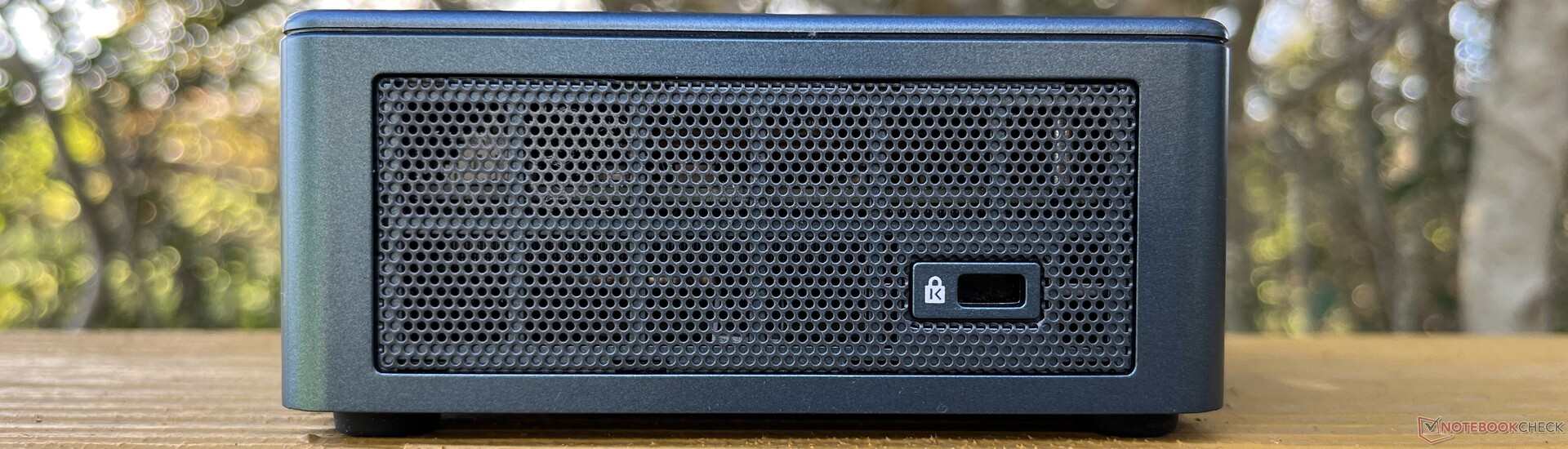

+ 出色的端口选择（包括双 USB4 40 Gbps）

+ 易于升级

Cons

- CPU 运行温度高

- 风扇声音很大

- 图形/游戏性能一般

判决

回顾：Geekom Mini IT13。评测机由 Geekom 提供。结账时使用优惠券代码 notebookcheckit13 可节省 40 美元。

迷你 IT13 是对 "迭代 "一词的具体定义。它本质上是迷你 IT12配备了更新的 CPU。虽然它提供了更好的多核和一般使用性能（主要是由于酷睿 i9-13900H 和 Mini IT12 的酷睿 i7-1260P 之间的性能差异），但它也有更高的功耗、更多的热量和更大的风扇噪音。

Mini IT13 是一款功能强大的迷你 PC，在其小巧的外壳中装入了大量的电能，但由于一些明显的热节流现象，这些电能无法完全发挥出来。不过，充足的端口选择（包括双 USB4 40 Gbps 端口）、快速的内置固态硬盘和小巧的体积还是非常吸引人的。

如果你已经拥有一台配备第 12 代英特尔酷睿 i7 处理器或更高配置的迷你 PC，那么就没有什么理由升级到 Mini IT13 了。不过，如果你想在小巧的机身中寻找强劲的动力，Mini IT13 或许能满足你的需求。只需考虑更便宜（更易于管理）的酷睿 i7-13700H 变体即可。

价格和供应情况

Geekom Mini IT13 可在 Geekom 购买。本次评测的配置（酷睿 i9-13900H、32 GB 内存、2 TB 固态硬盘）上市价格为 899 美元。使用优惠券代码 notebookcheckit13 可节省 40 美元。

Geekom Mini IT13 - 2023-12-20 12/20/2023 v7
Sam Medley

Chassis

84 / 98 → 86%

Connectivity

66 / 81 → 81%

Weight

81%

Games Performance

75%

Application Performance

98%

Noise

50%

Average

76%

79%

Mini PC - Weighted Average

Transparency

The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Pricecompare

Editor of the original article: Sam Medley - Senior Tech Writer - 1346 articles published on Notebookcheck since 2016

Translator: Ninh Ngoc Duy - Editorial Assistant - 390604 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Geekom Mini IT13 迷你电脑评测 - 配备超强酷睿 i9 处理器的迷你台式机

Sam Medley, 2023-12-20 (Update: 2023-12-20)

Cinebench R15 CPU Multi 64 Bit in comparison
Lenovo B50-30 (min) N2815, HD Graphics (Bay Trail)	49
...
HP Omen 17-ck1075ng i7-12700H, GeForce RTX 3070 Ti Laptop GPU	2518
HP ZBook Studio 16 G9 62U04EA i7-12800H, RTX A2000 Laptop GPU	2518
HP ZBook Power 15 G10 R7 PRO 7840HS, NVIDIA RTX 2000 Ada Generation Laptop GPU	2519
Geekom Mini IT13 i9-13900H, Iris Xe G7 96EUs	2531
HP Spectre x360 16-aa0074ng Ultra 7 155H, Arc 8-Cores	2531
Alienware x14 i7 RTX 3060 i7-12700H, GeForce RTX 3060 Laptop GPU	2535
GMK NucBox K6 R7 7840HS, Radeon 780M	2537
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	15842

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Acer Nitro 5 AN515-42-R6V0 R7 2700U, Radeon RX 560X (Laptop)	7640
Huawei MateBook D 16 2022 i7-12700H, Iris Xe G7 96EUs	7649
Lenovo Yoga 9i 14 2022 i7-1260P i7-1260P, Iris Xe G7 96EUs	7654
Geekom Mini IT13 i9-13900H, Iris Xe G7 96EUs	7656
HP EliteBook 840 G9 i7-1280P, Iris Xe G7 96EUs	7668
Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	7673
HP Pavilion 15t-X7P42AV i7-7700HQ, GeForce GTX 1050 Mobile	7706
...
(max) R7 7800X3D, NVIDIA GeForce RTX 4090	72163
