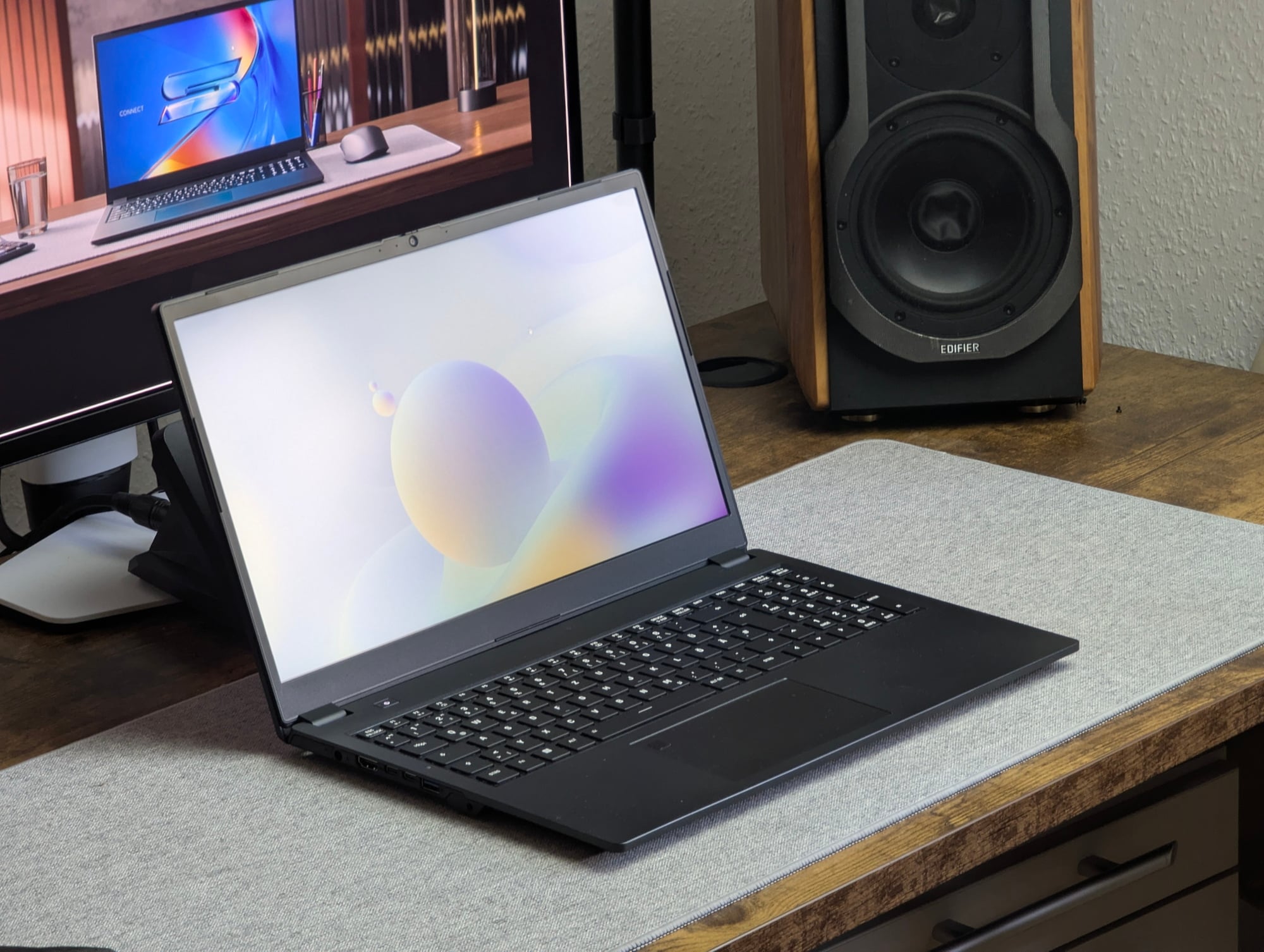

评语：功能罕见的商务笔记本电脑
全球国际货运Connect 15之所以能脱颖而出，主要是因为其出色的功能设置，特别适合商务环境使用。智能卡读卡器、可更换电池、快速 Wi-Fi 7、以太网和可选的 LTE 连接功能在这一细分市场中并不多见。
这款笔记本电脑优先考虑安静运行和负载下的能效，因此非常适合办公室使用。在默认的 "平衡 "模式下，性能有意保持稳定，完全可以满足日常工作需要。需要额外动力的用户可以切换到 "性能 "模式，在该模式下，CPU 性能将达到极具竞争力的水平。显示屏很亮，但在其他方面只是办公标准。

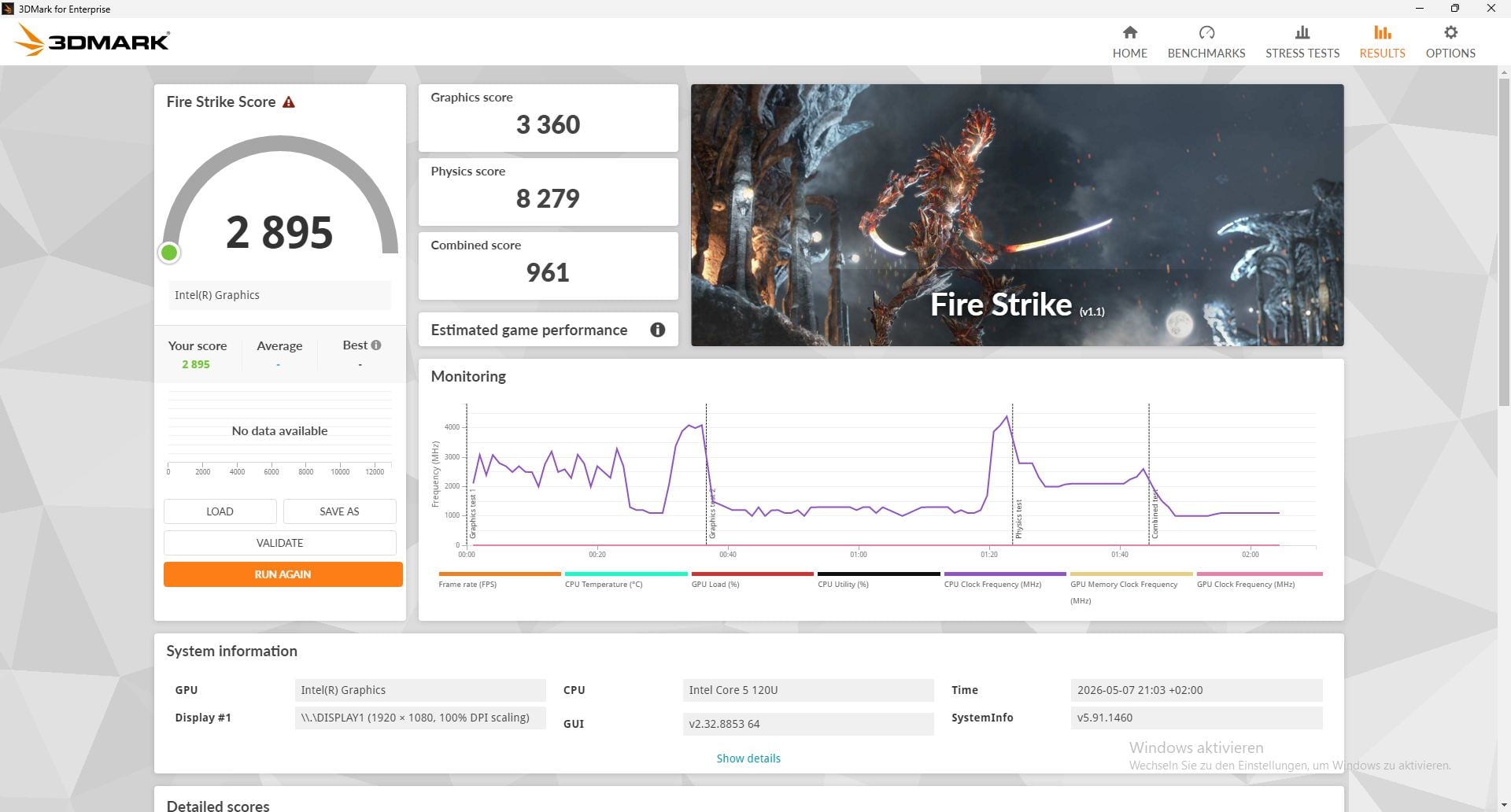

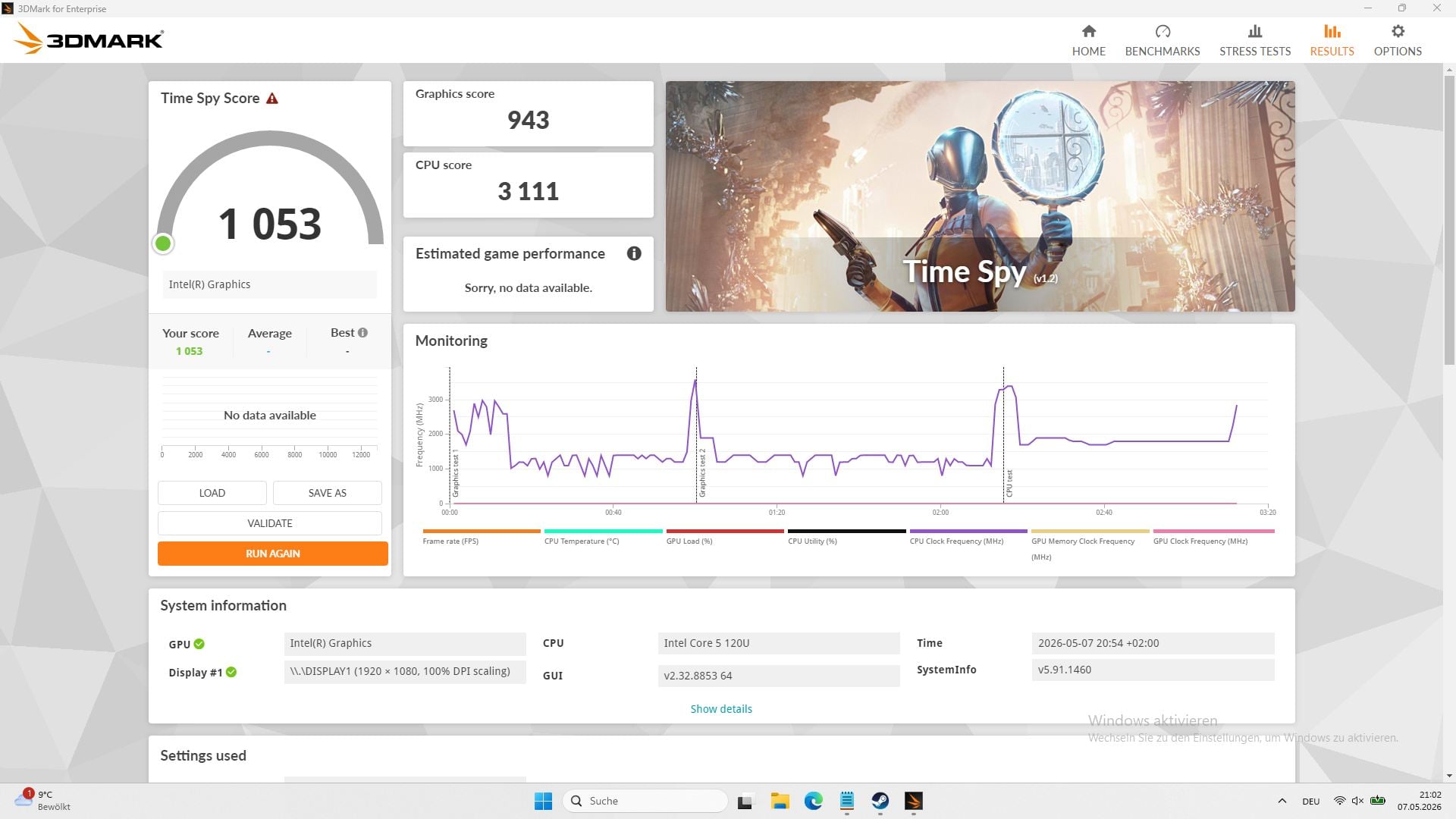

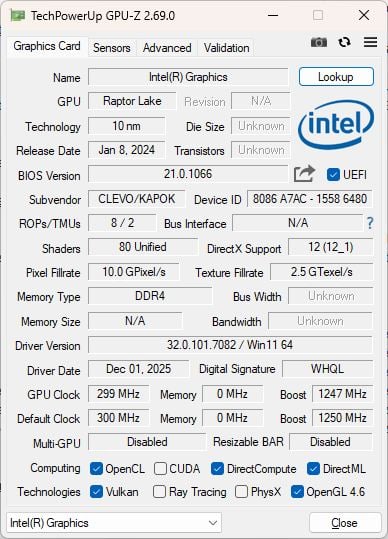

不过，GPU 性能远低于平均水平，因此 Connect 15 不适合用于人工智能工作负载或 3D 应用。申克公司还可以进一步降低闲置功耗，以实现最高效率，而与最新的基于 ARM 的竞争对手相比，电池续航时间已不再具有竞争力。
我们还发现，键盘在键入时略显过软，与许多竞争对手相比，Connect 既重又厚。
总的来说，这是一款设备非常齐全的办公笔记本电脑，具有明确的企业目标。
Pros
+ 智能卡读卡器、指纹传感器
+ 可选 LTE、以太网和 Wi-Fi 7
+ 可更换电池
+ 负载情况下的高能效
+ 快速固态硬盘
Cons
- 电源连接器安装不牢固
- 电池寿命一般
- 网络摄像头效果一般
- 集成 GPU 性能较弱
- 闲置功耗略高
规格 - Wi-Fi 7、Thunderbolt 4、以太网和 LT
Schenker Connect 15 (E26)
Processor
Intel Core 5 120U 10c/12t, 2 x 5.0 GHz Intel Golden Cove P-Core, 8 x 3.8 GHz Intel Gracemont E-Core, 44 W PL2 / Short Burst, 15 W PL1 / Sustained, Raptor Lake-U Refresh
Graphics adapter
Memory
32 GB
, 2x 16 GB Micron DDR5-5600
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, LG Philips LGD06F3, IPS, glossy: no, HDR, 60 Hz

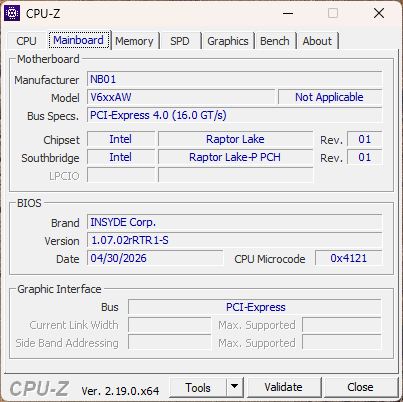

Mainboard
Intel Alder Lake-P PCH
Storage
Samsung 990 Pro 1 TB, 1024 GB
, 820 GB free
Weight
1.87 kg, Power Supply: 264 g
Price
1500 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

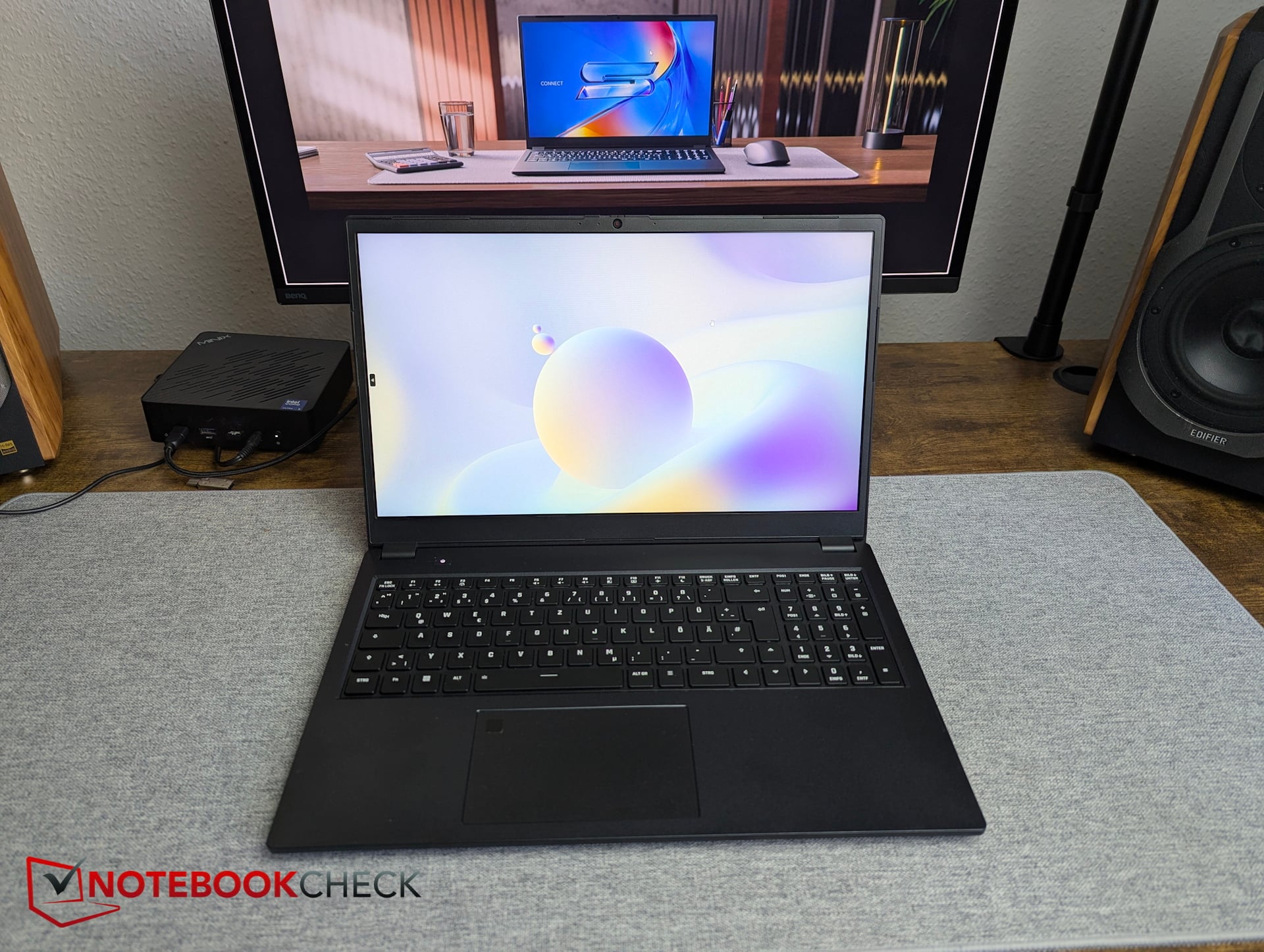

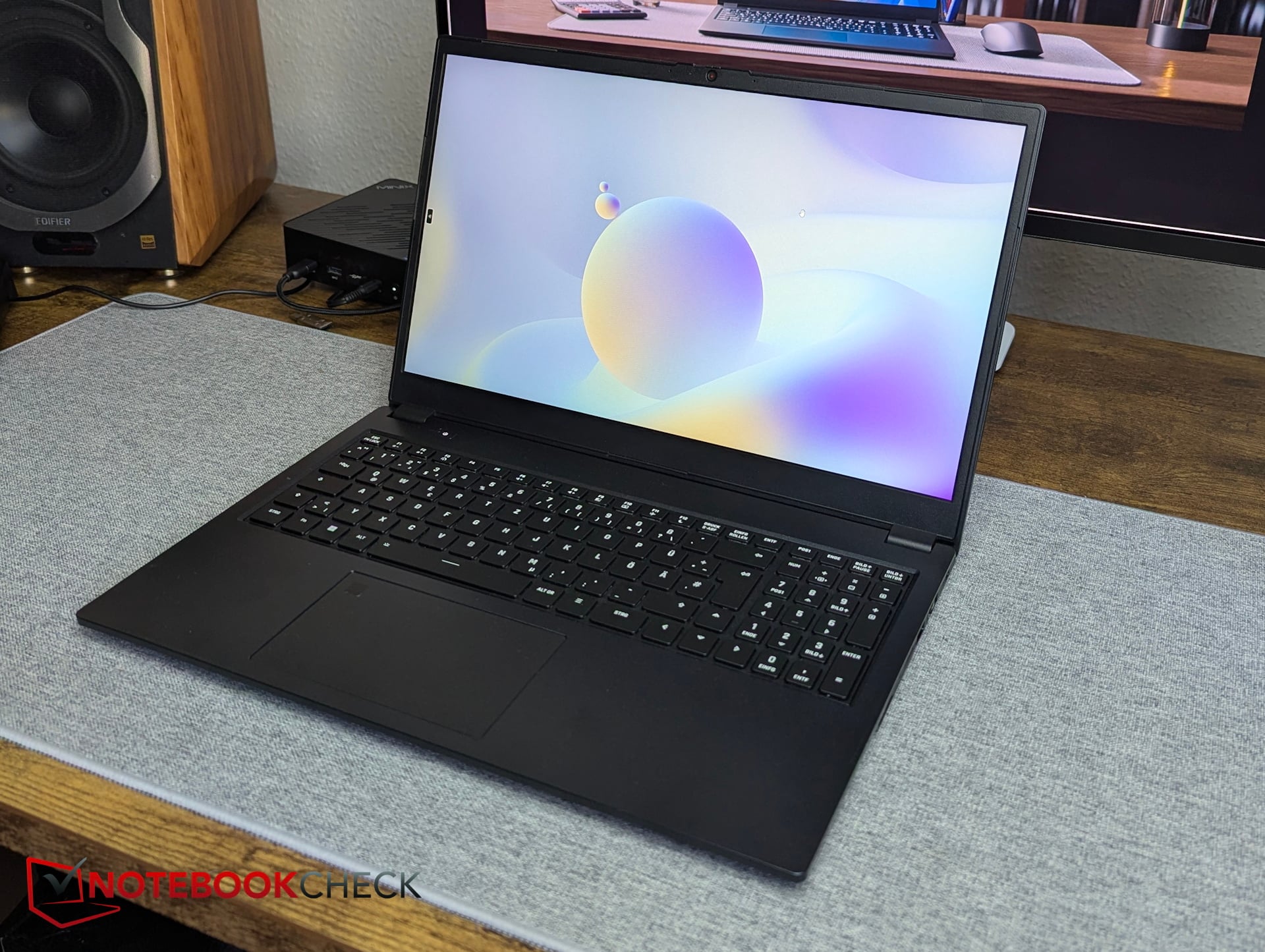

机箱和功能 - 设计简洁，连接性极佳

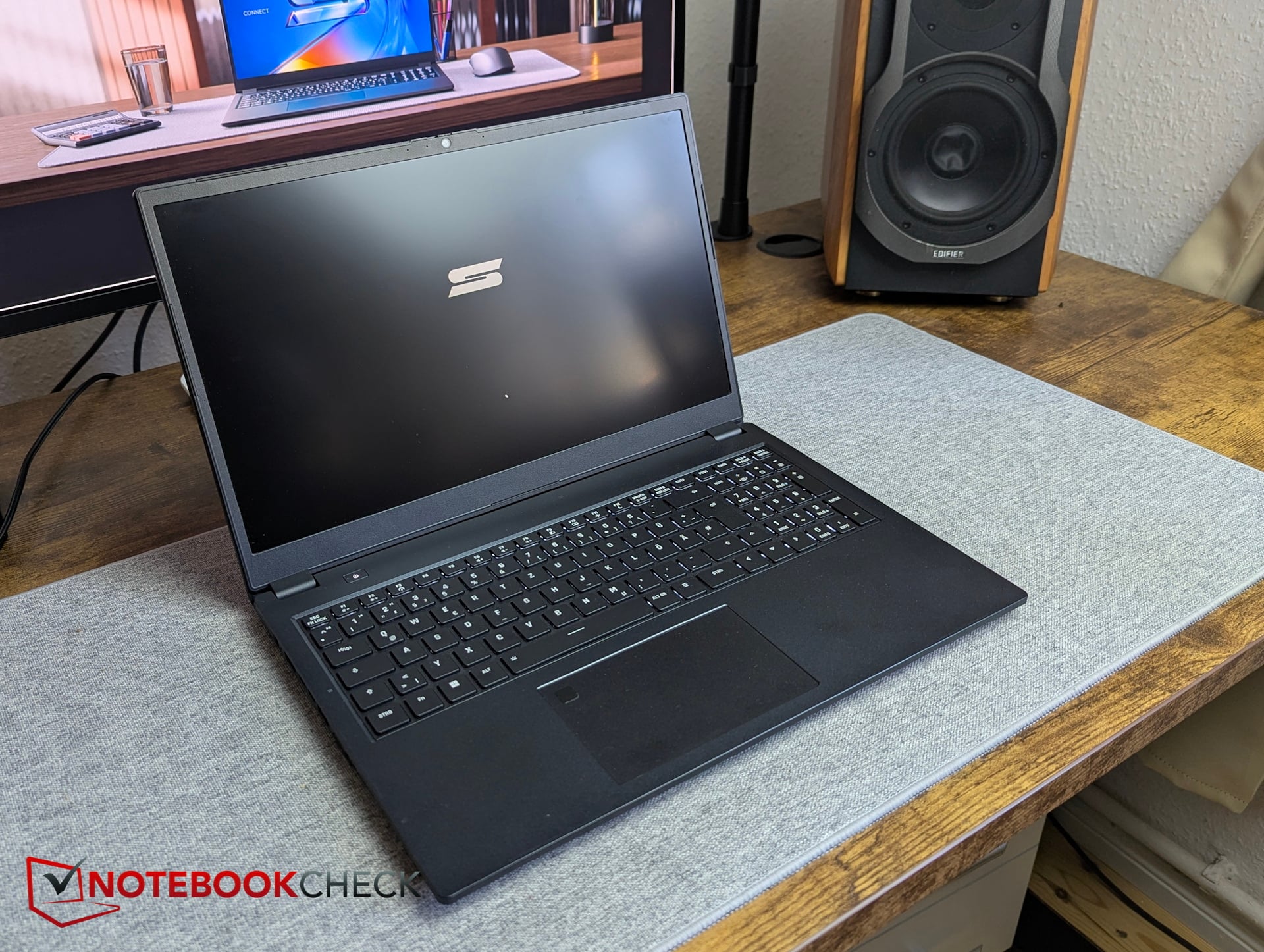

塑料机身表面为黑色，仅有一个细微的徽标，外观简洁低调。显示屏在扭动时会产生轻微的吱吱声，而底座在弯曲时则会发出轻微的破裂声。不过，面板间隙始终如一。Connect 的重量接近 1.9 千克，并不算特别轻，许多同类 15 英寸笔记本电脑的机身也明显更薄。

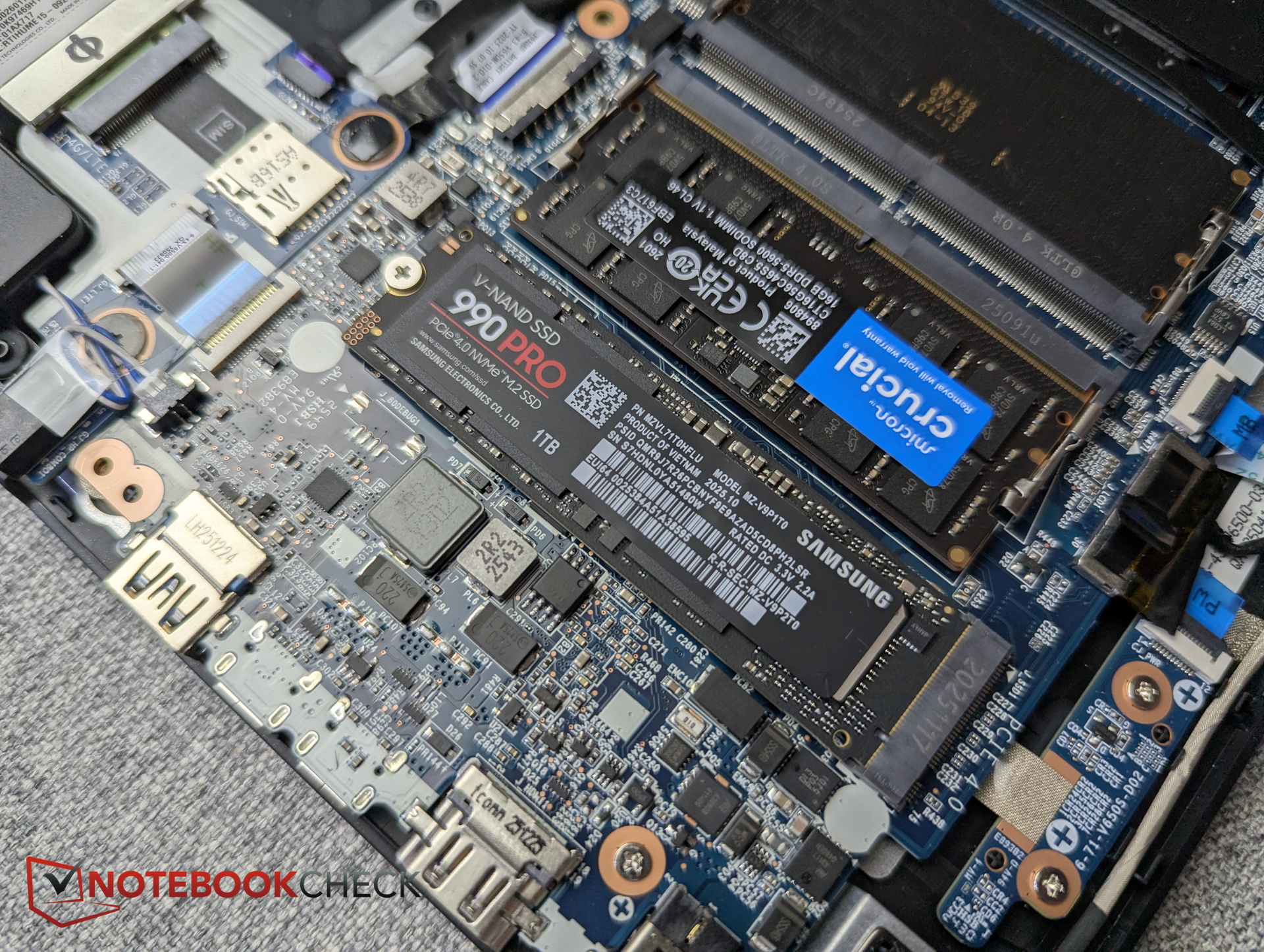

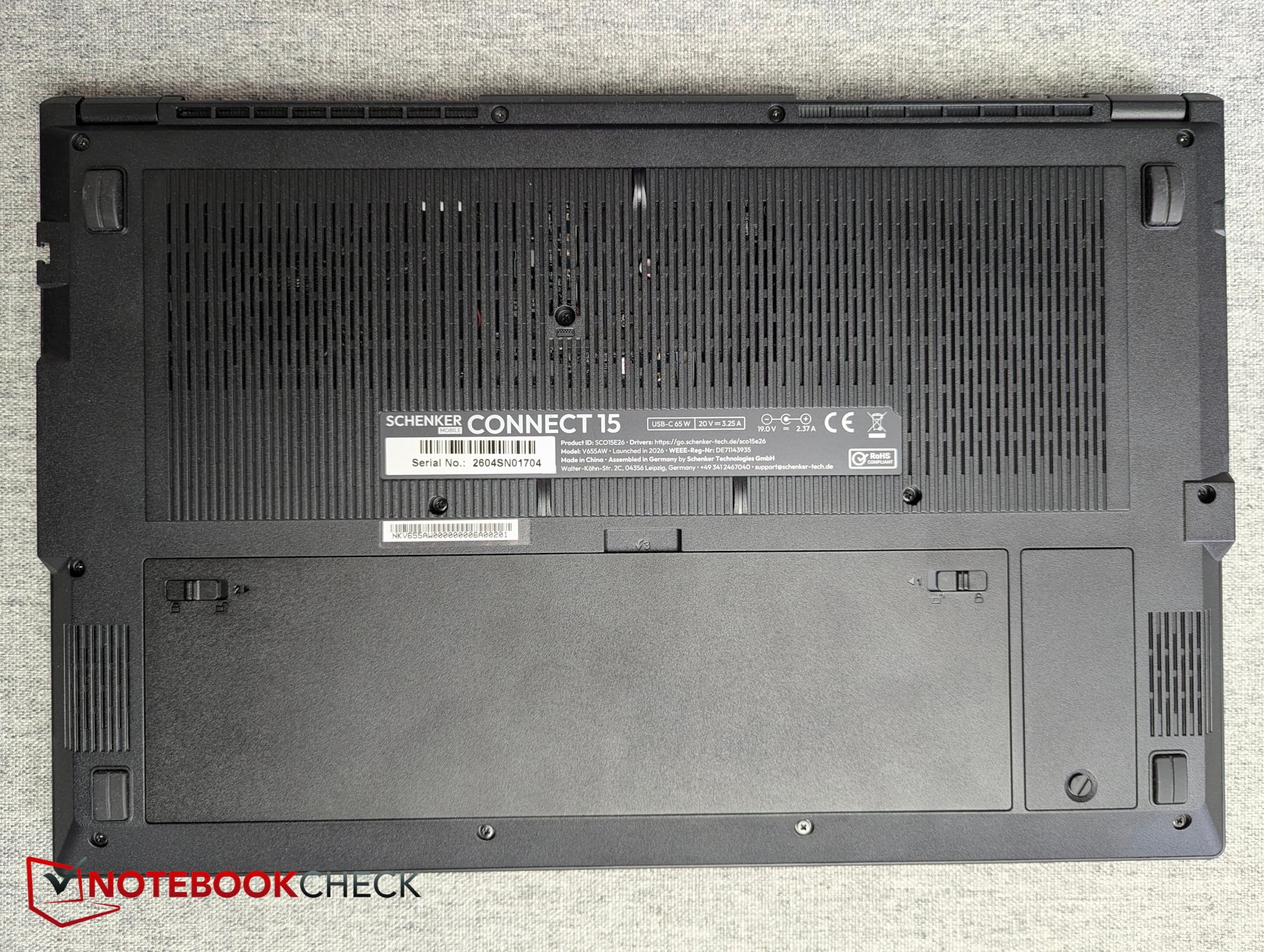

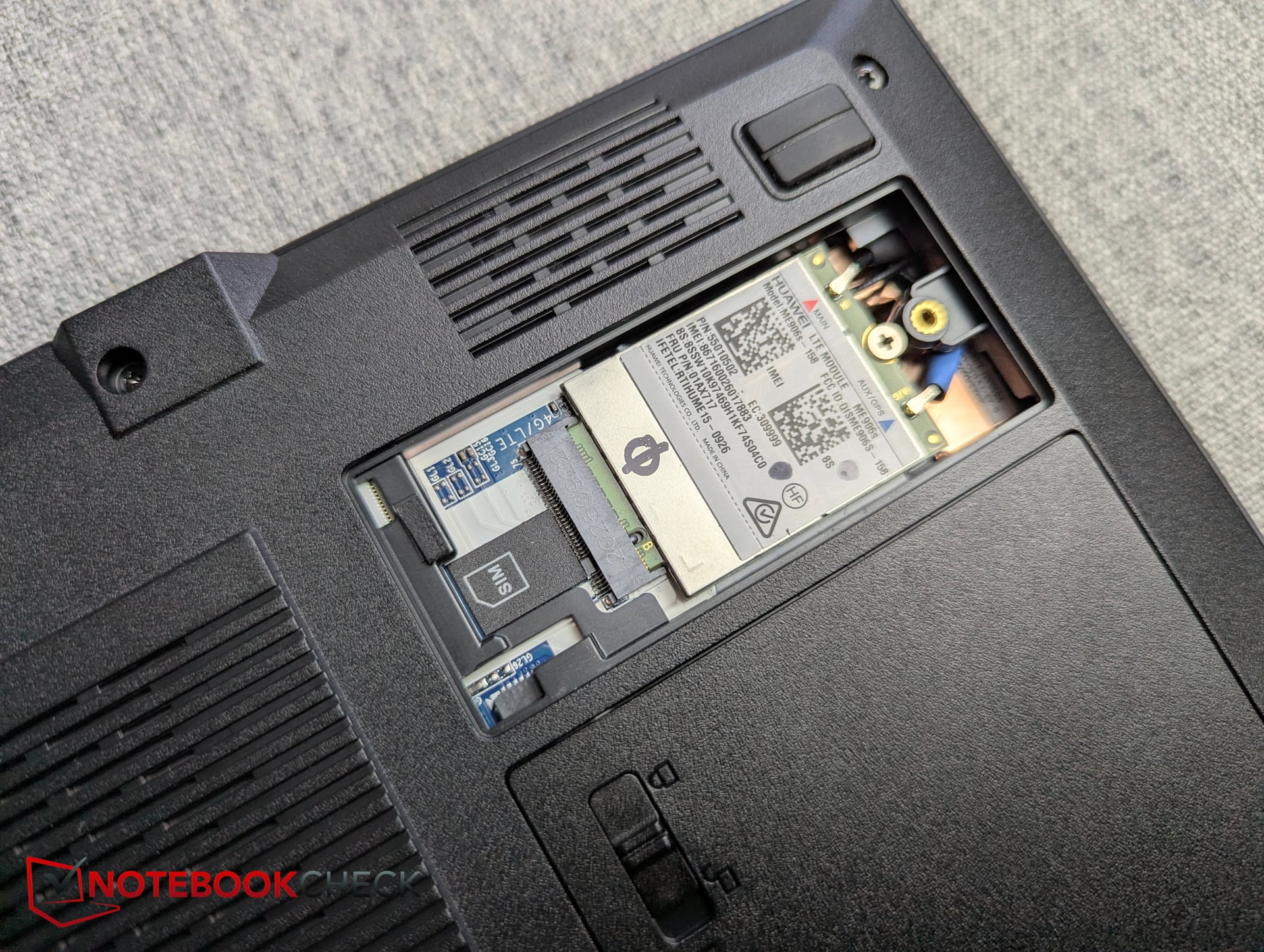

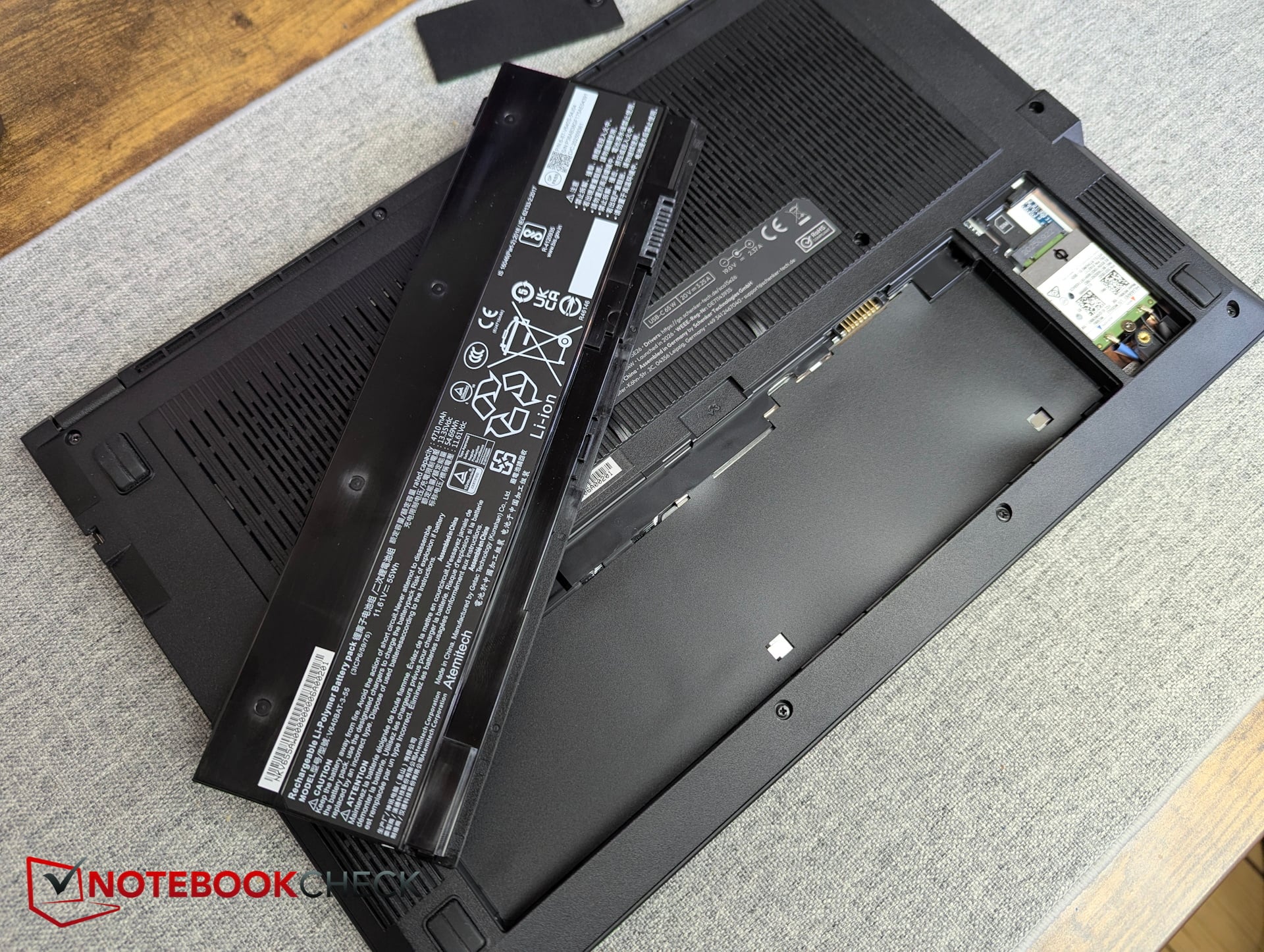

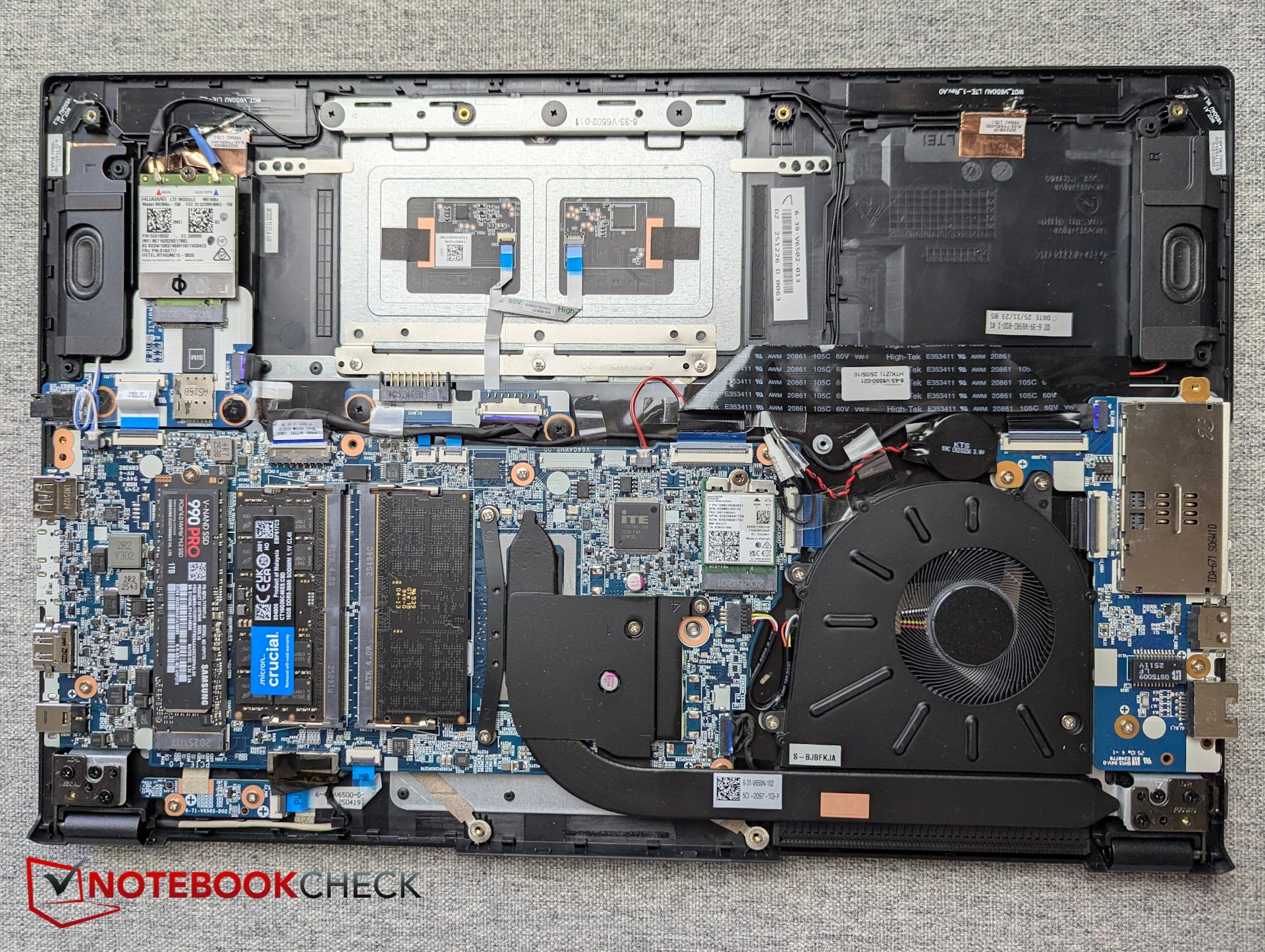

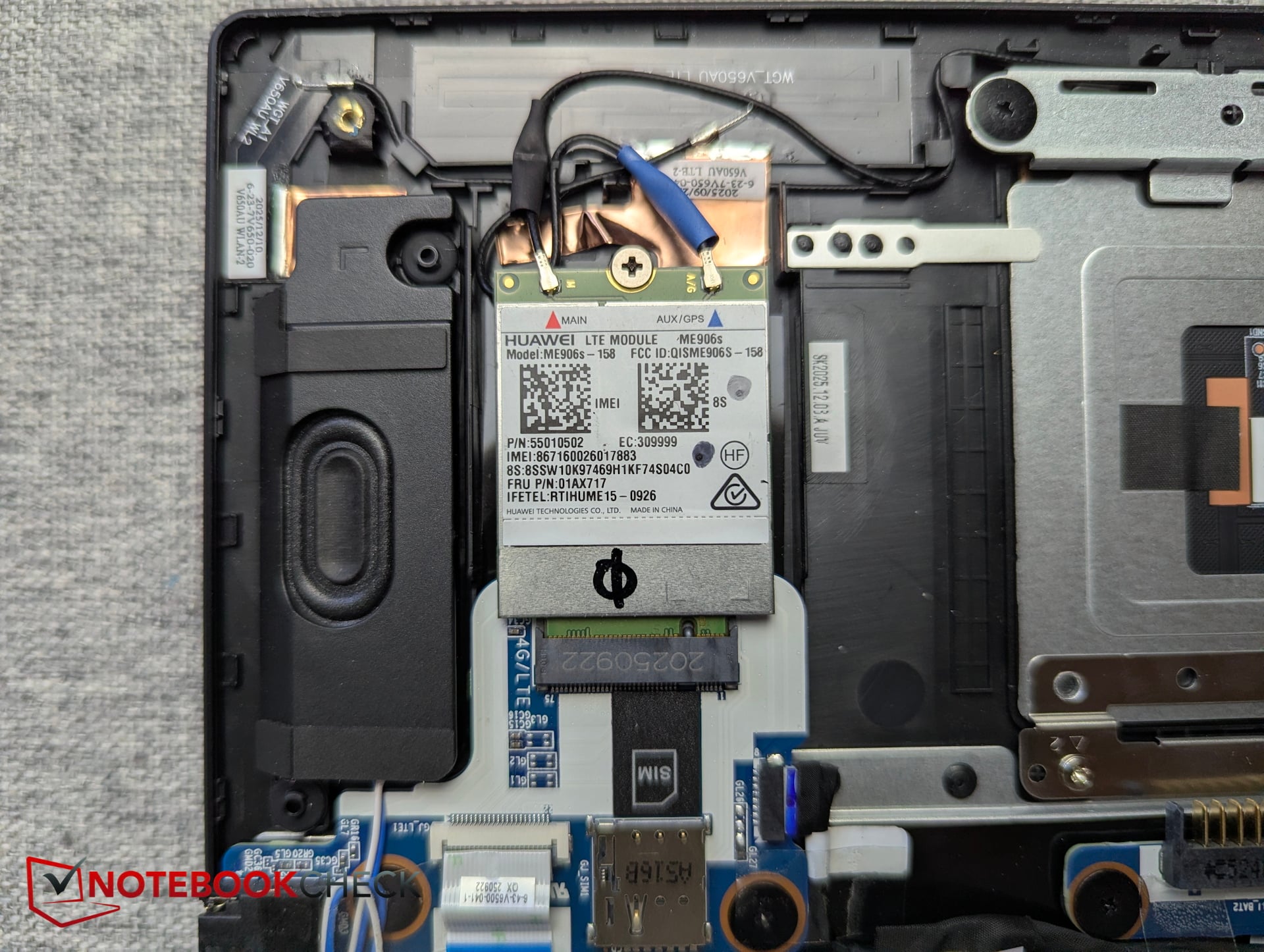

底部有一个专门的维护舱门，可以接触到 LTE SIM 卡模块，更换电池时无需完全拆卸系统。除此之外，要进入内部组件需要拧下 13 颗螺丝。

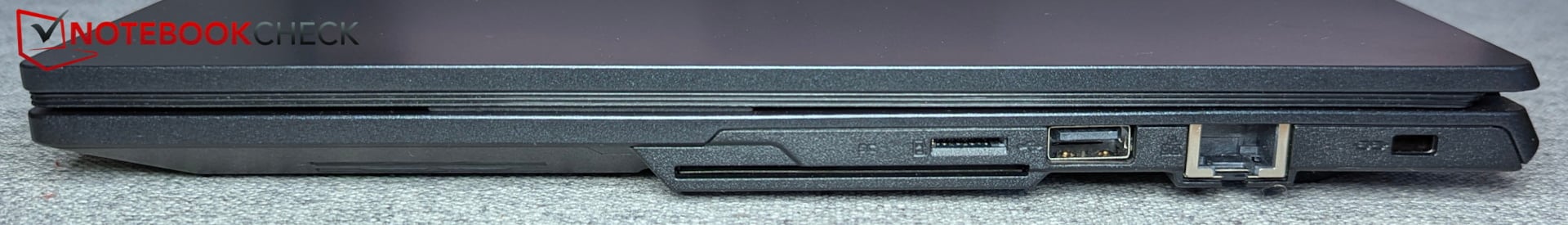

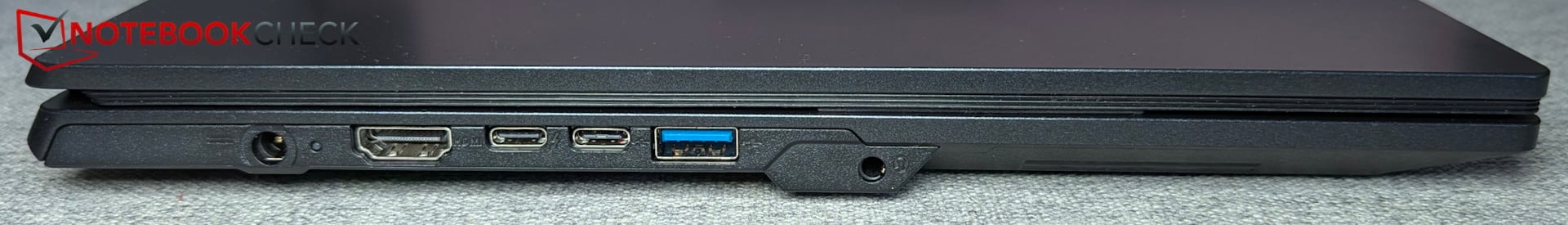

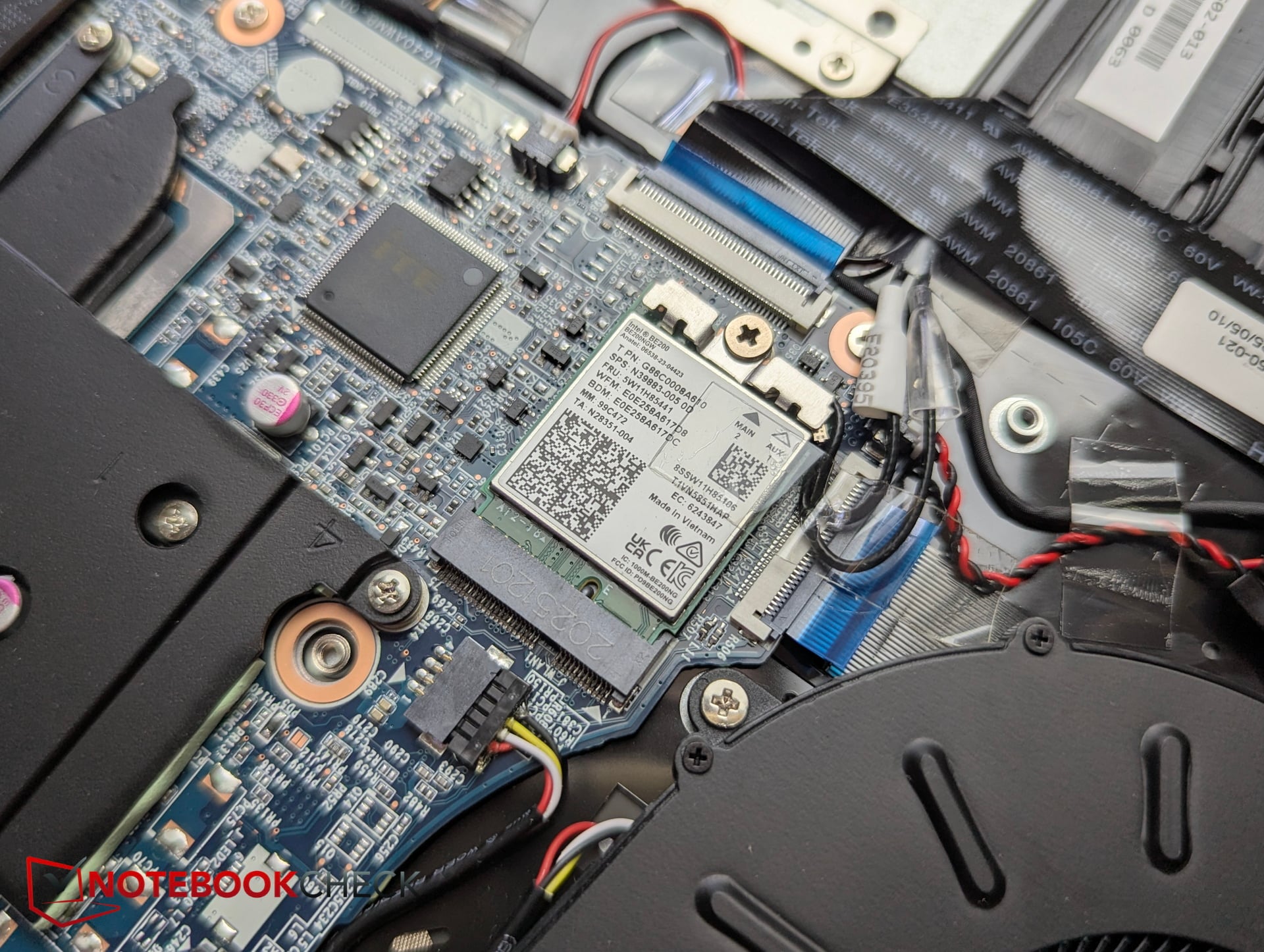

连接性是这款笔记本电脑的强项之一，它集成了智能卡读卡器、可选的 LTE 和 Wi-Fi 7。三个 USB 端口中的一个还支持高达 40 Gbps 的 Thunderbolt 4，另外还包括一个 microSD 读卡器。

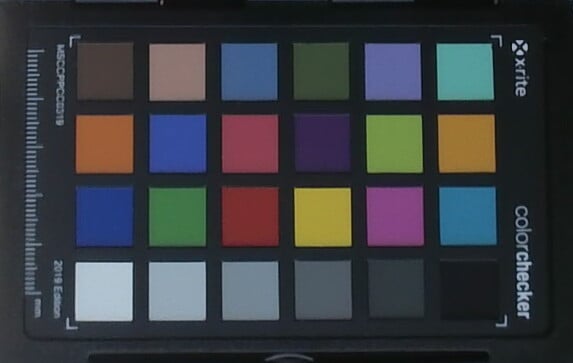

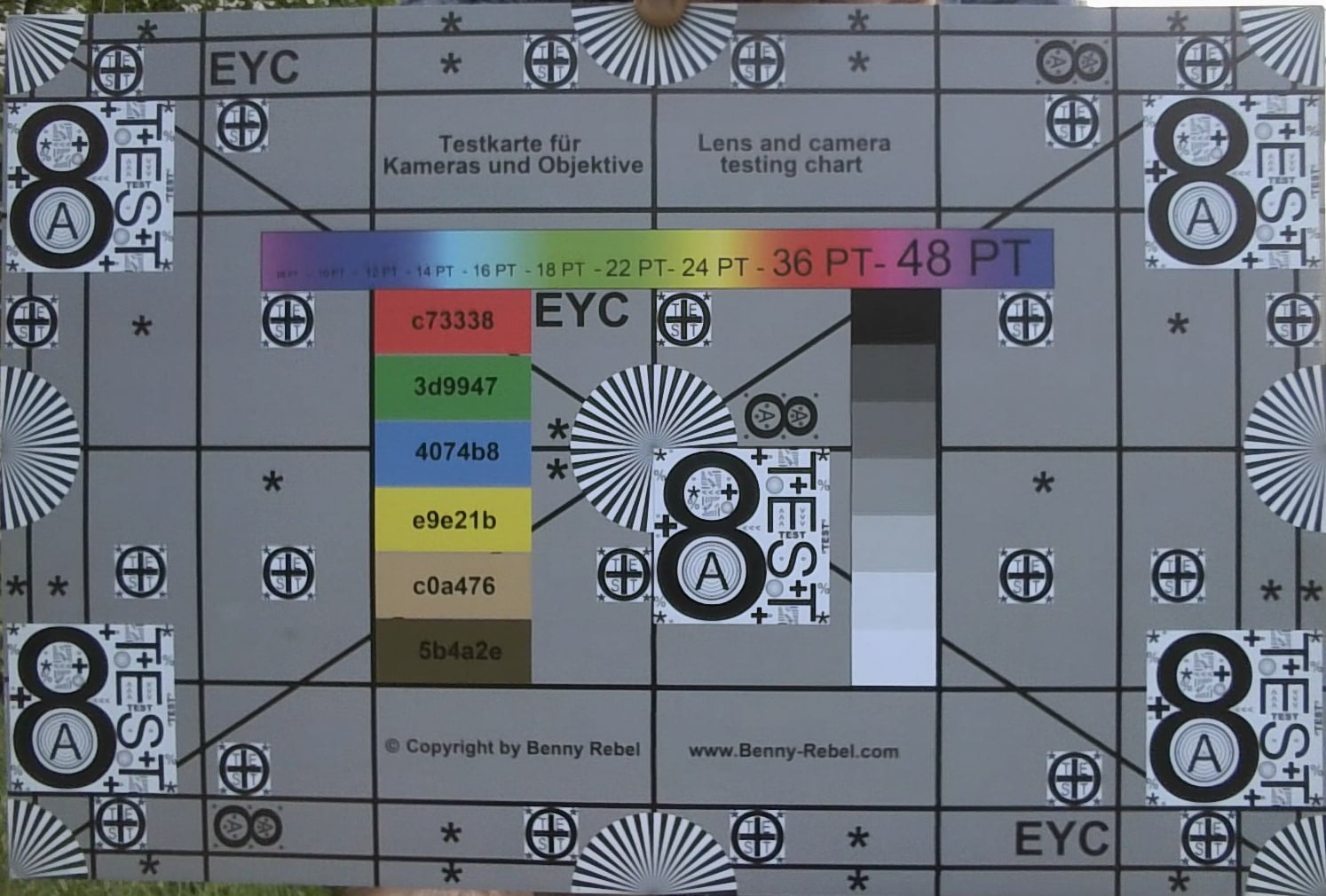

全高清网络摄像头给人的印象较差，色彩偏暗，色彩偏差相对较大，图像有点暗，细节有限。
在测试过程中，我们注意到电源接口有时很容易部分断开。这种情况从外观上看不出来，但一旦发生，笔记本电脑就会立即切换到电池供电状态。

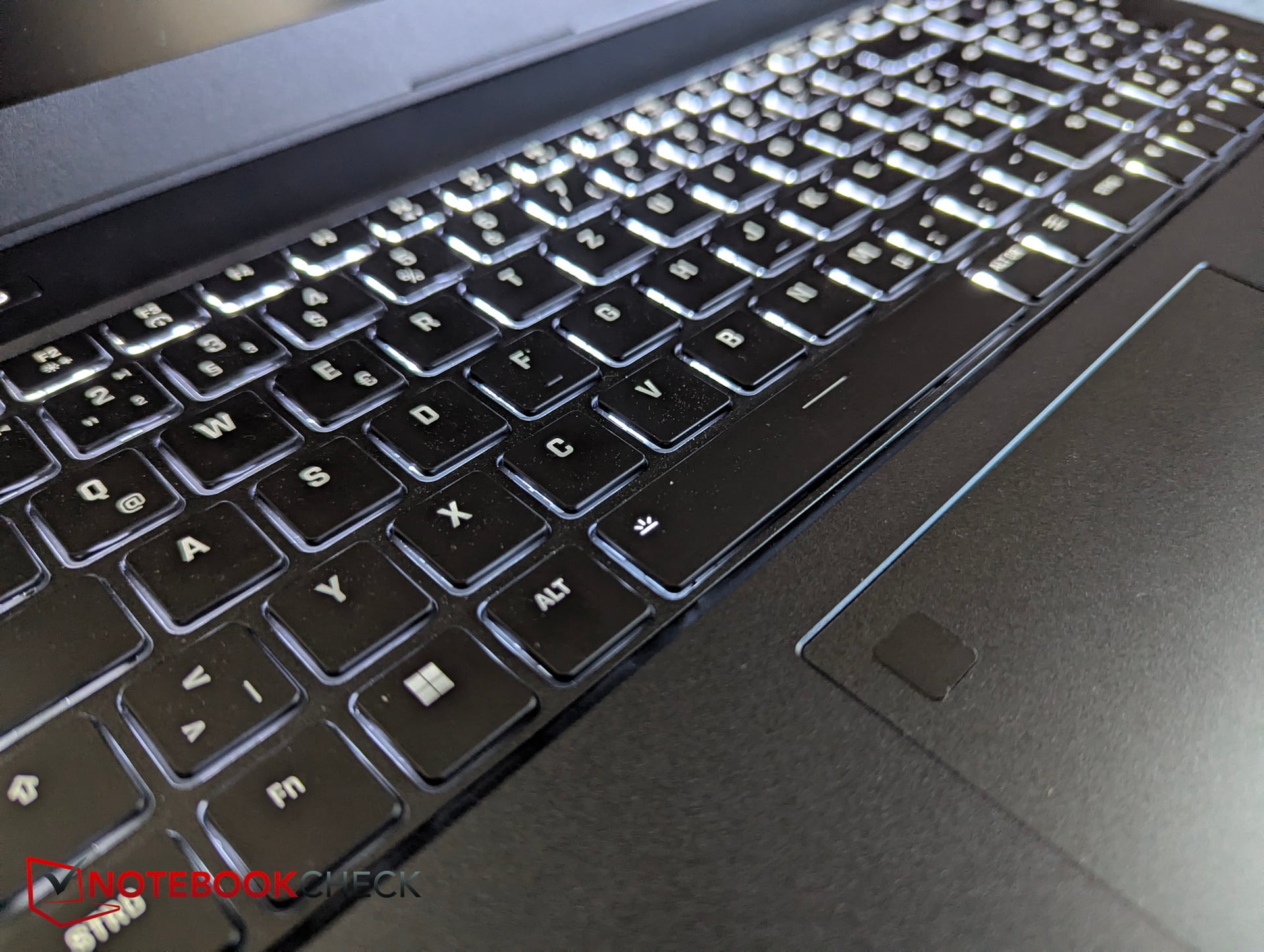

键盘采用经典、简洁的布局，配有专用数字键盘和全尺寸方向键。尽管键程相对较短，但打字还是很舒适的，只是反馈感觉有点软，触感可能会更好。
触摸板尺寸约为 12 x 7.2 厘米，具有平滑的滑动特性。左上角集成了指纹识别器。
Acer Aspire Go 15 AG15-31P-34JP Intel Wi-Fi 6 AX101; iperf3 transmit AXE11000; iperf 3.1.3: Ø505 (476-536) MBit/s
Lenovo IdeaPad Slim 3 15IRH10R Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø726 (621-775) MBit/s
Microsoft Surface Laptop 7 15 Lunar Lake Intel BE201 320MHz; iperf3 transmit AXE11000: Ø1640 (1449-1710) MBit/s
Asus ExpertBook B1 BM1503CDA-S70031X Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø794 (748-816) MBit/s
Lenovo ThinkPad X9-15 Aura Edition Intel BE201 320MHz; iperf3 transmit AXE11000; iperf 3.1.3: Ø1656 (1540-1707) MBit/s
Acer Aspire Go 15 AG15-31P-34JP Intel Wi-Fi 6 AX101; iperf3 receive AXE11000; iperf 3.1.3: Ø492 (445-516) MBit/s
Lenovo IdeaPad Slim 3 15IRH10R Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø689 (517-830) MBit/s
Microsoft Surface Laptop 7 15 Lunar Lake Intel BE201 320MHz; iperf3 receive AXE11000: Ø1562 (1469-1610) MBit/s
Asus ExpertBook B1 BM1503CDA-S70031X Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø932 (863-953) MBit/s
Lenovo ThinkPad X9-15 Aura Edition Intel BE201 320MHz; iperf3 receive AXE11000; iperf 3.1.3: Ø1567 (1525-1592) MBit/s
Schenker Connect 15 (E26) Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit Wi-Fi6/7 RT-BE96U; iperf 3.21: Ø3587 (1151-4171) MBit/s
Schenker Connect 15 (E26) Intel Wi-Fi 7 BE200 320MHz; iperf3 receive Wi-Fi6/7 RT-BE96U; iperf 3.21: Ø3459 (1655-3716) MBit/s
13.2 ∆E
14.7 ∆E
11.6 ∆E
13.4 ∆E
13 ∆E
11.4 ∆E
16.9 ∆E
6.2 ∆E
14.4 ∆E
9.9 ∆E
14.3 ∆E
17.9 ∆E
4.5 ∆E
11.6 ∆E
10.6 ∆E
15.6 ∆E
13 ∆E
9.9 ∆E
14.8 ∆E
13.6 ∆E
13 ∆E
14.3 ∆E
11.2 ∆E
9 ∆E

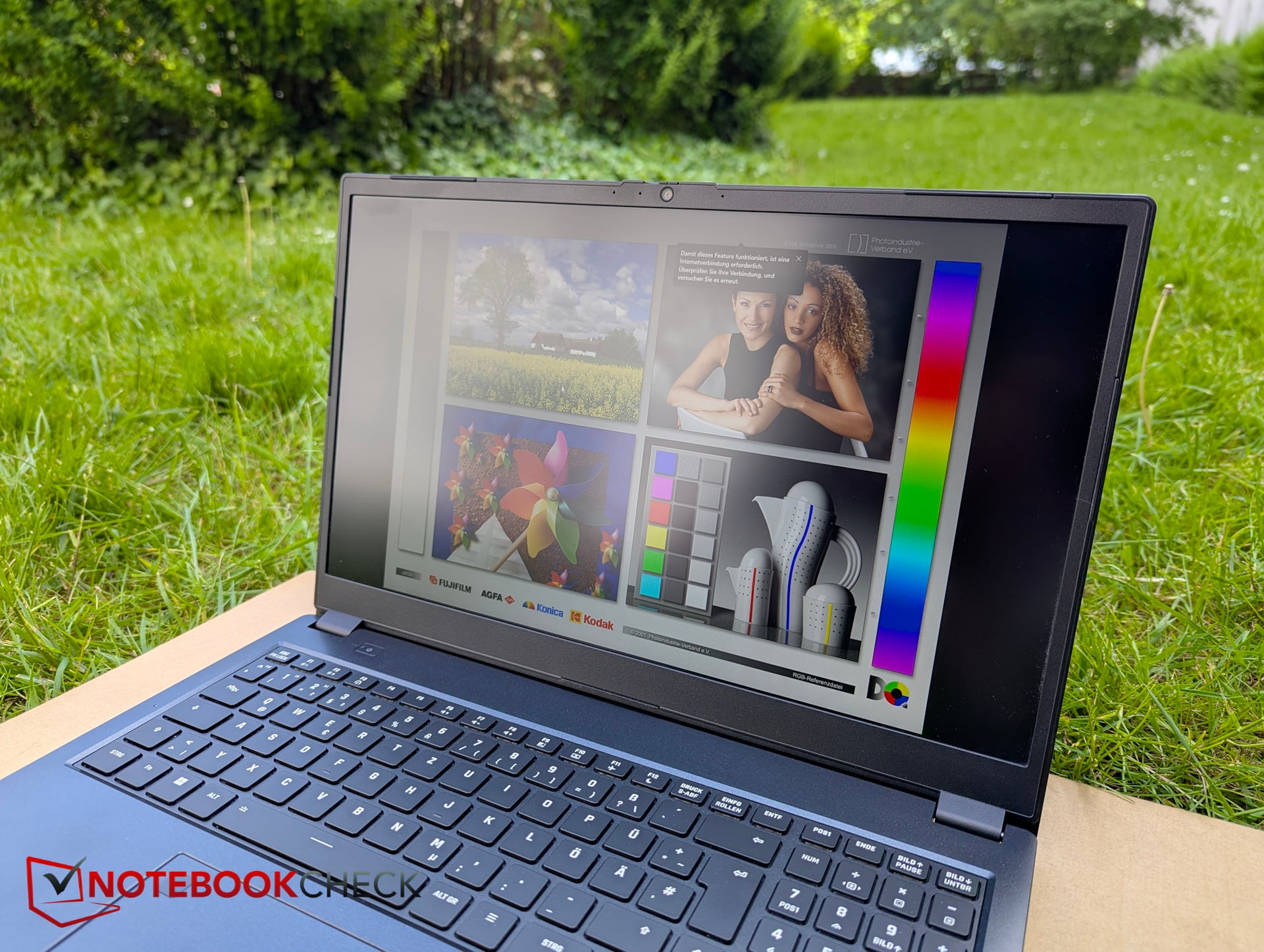

显示屏 - 400 尼特，适合日常办公使用

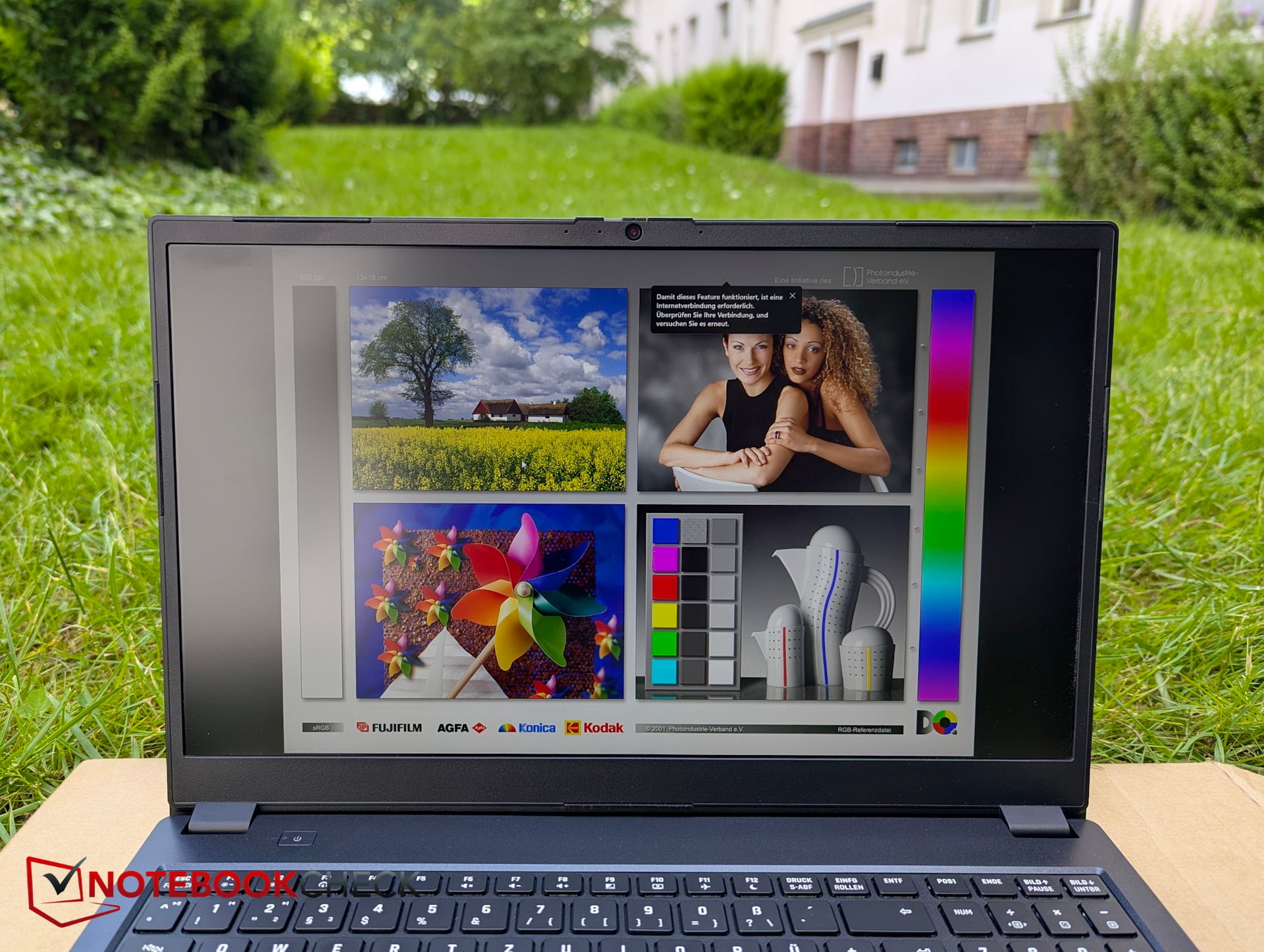

15.6 英寸哑光全高清 IPS 显示屏 "仅 "覆盖了 90% 的 sRGB 色彩空间，工作频率为 60 Hz，但亮度达到了 400 尼特。响应时间相对较慢，这对于一款面向办公的面板来说很典型。
| |||||||||||||||||||||||||
LG Philips LGD06F3 tested with X-Rite i1Pro 3
Maximum: 431 cd/m² (Nits) Average: 412 cd/m² Minimum: 55 cd/m²Brightness Distribution: 93 %
Center on Battery: 431 cd/m²
Contrast: 958:1 (Black: 0.45 cd/m²)
ΔE ColorChecker Calman: 2.04 | ∀{0.5-29.43 Ø4.73}
calibrated: 1.06
ΔE Greyscale Calman: 2.28 | ∀{0.09-98 Ø4.97}
63.4% AdobeRGB 1998 (Argyll 3D)
94.1% sRGB (Argyll 3D)
64.5% Display P3 (Argyll 3D)
Gamma: 2.48
CCT: 6627 K
| Schenker Connect 15 (E26) LG Philips LGD06F3, IPS, 1920x1080, 15.6", 60 Hz | Acer Aspire Go 15 AG15-31P-34JP AU Optronics B156HAN02.1, IPS, 1920x1080, 15.6", 60 Hz | Lenovo IdeaPad Slim 3 15IRH10R LEN153WUXGA, IPS, 1920x1200, 15.3", 60 Hz | Microsoft Surface Laptop 7 15 Lunar Lake LQ150P1JX61, IPS, 2496x1664, 15", 120 Hz | Asus ExpertBook B1 BM1503CDA-S70031X CMN1565, IPS, 1920x1080, 15.6", 60 Hz | Lenovo ThinkPad X9-15 Aura Edition ATNA53JB01-0, OLED, 2880x1800, 15.3", 120 Hz | |
|---|---|---|---|---|---|---|
| Display | -37% | -33% | 32% | -33% | 37% | |
| Display P3 Coverage (%) | 64.5 | 39.4 -39% | 42.9 -33% | 98.1 52% | 42.2 -35% | 100 55% |
| sRGB Coverage (%) | 94.1 | 58.9 -37% | 61.2 -35% | 100 6% | 62.8 -33% | 100 6% |
| AdobeRGB 1998 Coverage (%) | 63.4 | 40.7 -36% | 44.4 -30% | 87.2 38% | 43.7 -31% | 94.6 49% |
| Response Times | 15% | 29% | 33% | 22% | 97% | |
| Response Time Grey 50% / Grey 80% * (ms) | 39.8 ? | 32 ? 20% | 29.1 ? 27% | 33.4 ? 16% | 33 ? 17% | 1.46 ? 96% |
| Response Time Black / White * (ms) | 28.8 ? | 26 ? 10% | 20.2 ? 30% | 14.7 ? 49% | 21 ? 27% | 0.44 ? 98% |
| PWM Frequency (Hz) | 1200 ? | |||||
| PWM Amplitude * (%) | 22 | |||||
| Screen | -68% | -72% | 47% | -110% | 685% | |
| Brightness middle (cd/m²) | 431 | 321 -26% | 328.3 -24% | 599 39% | 281 -35% | 509 18% |
| Brightness (cd/m²) | 412 | 320 -22% | 313 -24% | 590 43% | 261 -37% | 508 23% |
| Brightness Distribution (%) | 93 | 92 -1% | 92 -1% | 93 0% | 82 -12% | 97 4% |
| Black Level * (cd/m²) | 0.45 | 0.2032 55% | 0.24 47% | 0.4 11% | 0.12 73% | 0.01 98% |
| Contrast (:1) | 958 | 1580 65% | 1368 43% | 1498 56% | 2342 144% | 50900 5213% |
| Colorchecker dE 2000 * | 2.04 | 6.11 -200% | 5.64 -176% | 0.5 75% | 6.16 -202% | 1.1 46% |
| Colorchecker dE 2000 max. * | 4.48 | 9.93 -122% | 19.24 -329% | 0.9 80% | 21.87 -388% | 2.5 44% |
| Colorchecker dE 2000 calibrated * | 1.06 | 3.65 -244% | 3.13 -195% | 4.94 -366% | ||
| Greyscale dE 2000 * | 2.28 | 4.9 -115% | 2.1 8% | 0.6 74% | 6.01 -164% | 1.5 34% |
| Gamma | 2.48 89% | 1.925 114% | 2.12 104% | 2.16 102% | 2.43 91% | 2.28 96% |
| CCT | 6627 98% | 6365 102% | 6757 96% | 6543 99% | 6316 103% | 6294 103% |
| Total Average (Program / Settings) | -30% /
-49% | -25% /
-49% | 37% /
41% | -40% /
-74% | 273% /
445% |
* ... smaller is better

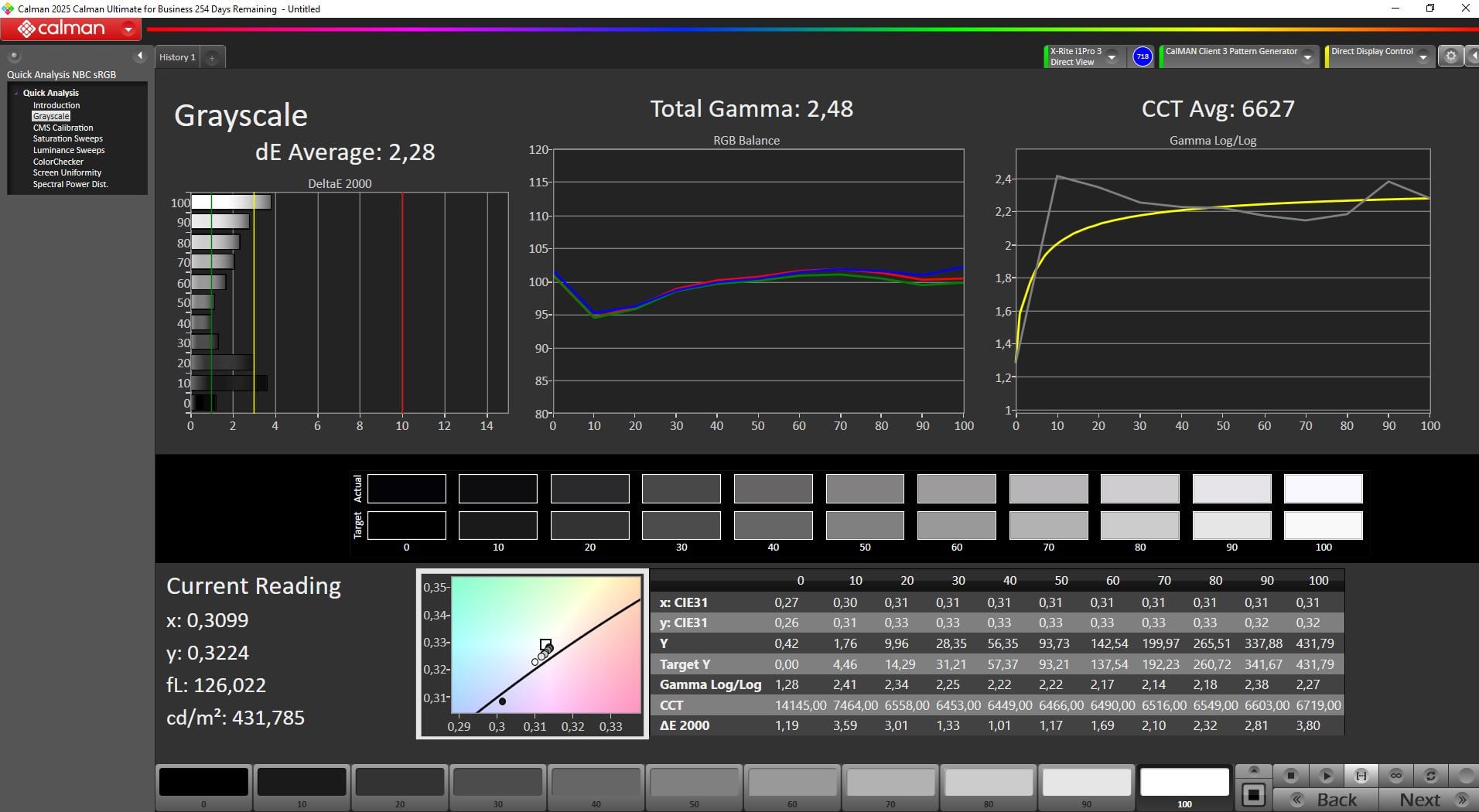

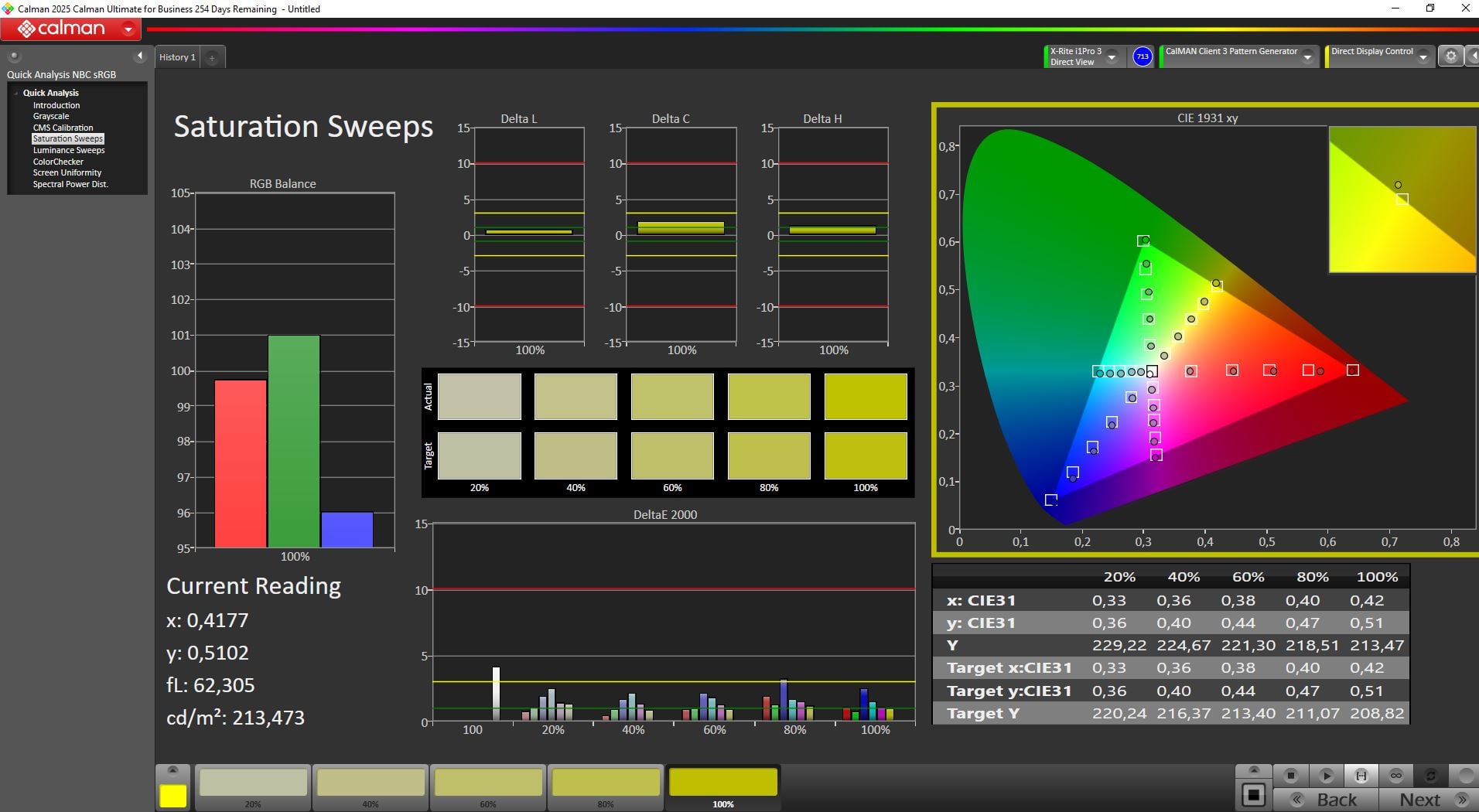

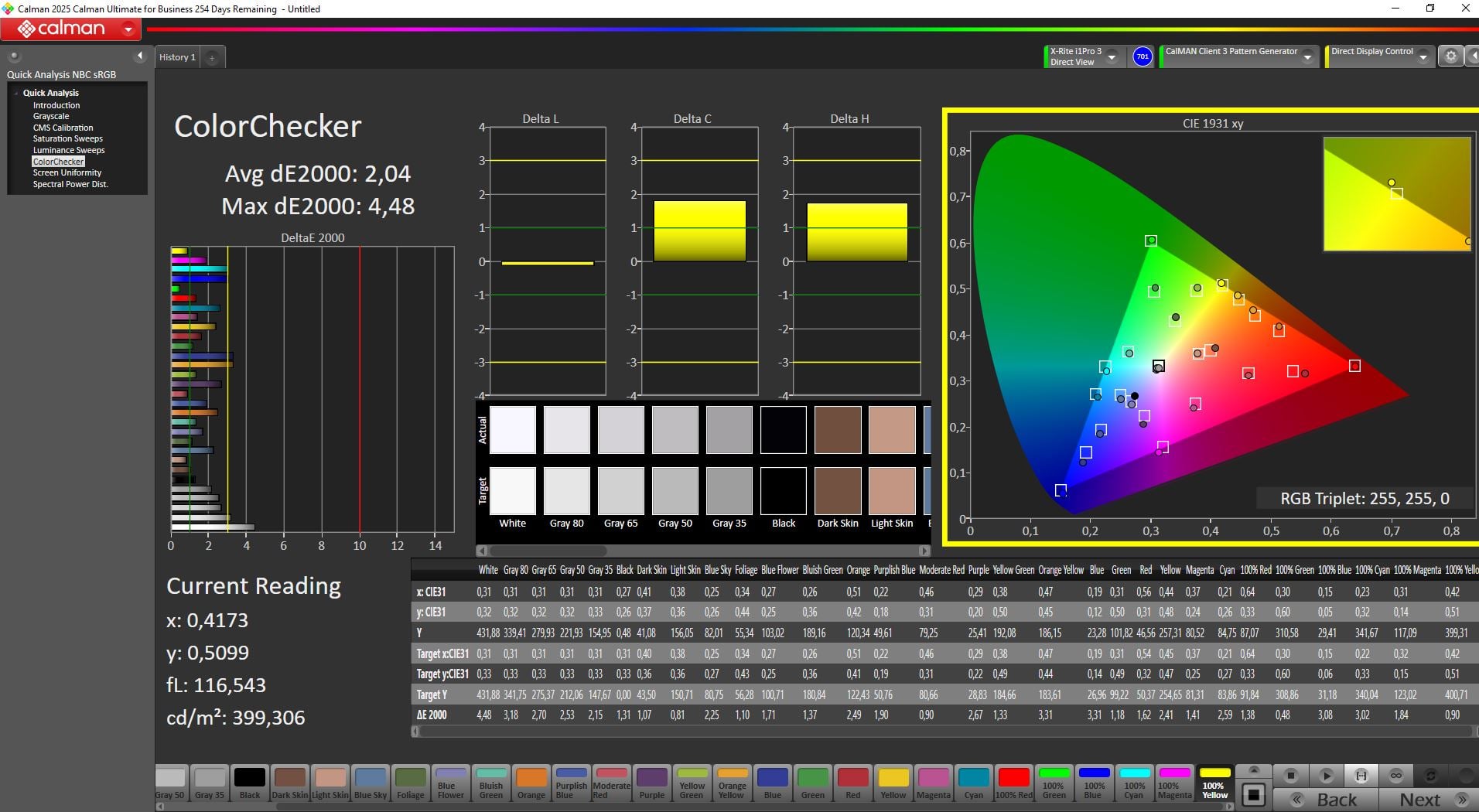

开箱后，根据 sRGB 标准测量的色彩和灰度偏差略高于 DeltaE 2。校准后，这两个值都会降至 1 左右甚至更低。

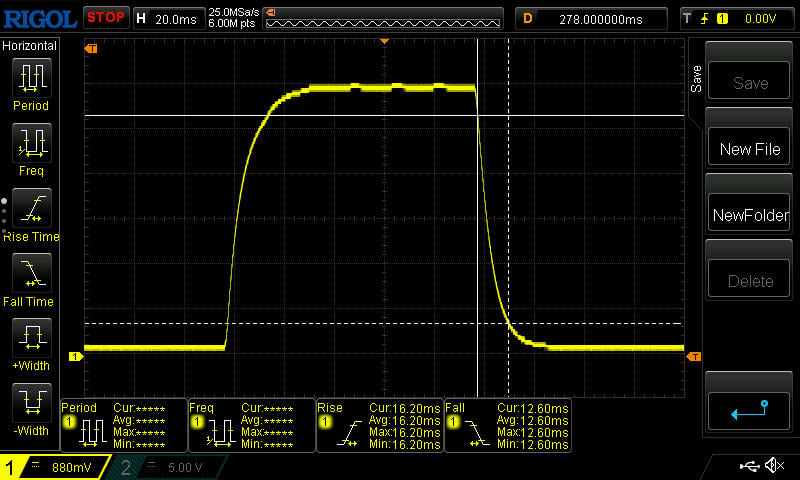

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 28.8 ms ... rise ↗ and fall ↘ combined | ↗ 16.2 ms rise |  |
| ↘ 12.6 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 76 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (19.9 ms). | ||

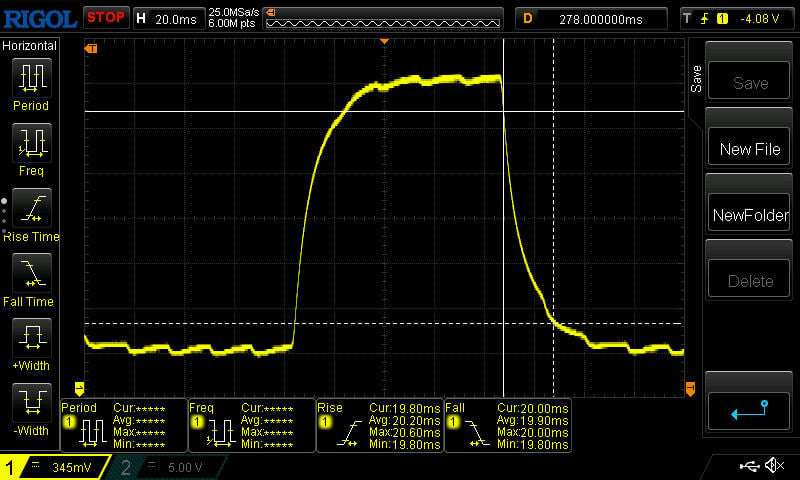

| ↔ Response Time 50% Grey to 80% Grey | ||
| 39.8 ms ... rise ↗ and fall ↘ combined | ↗ 19.8 ms rise |  |
| ↘ 20 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 61 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (31.1 ms). | ||

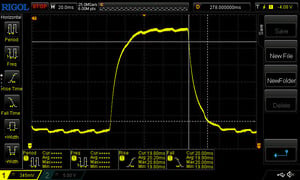

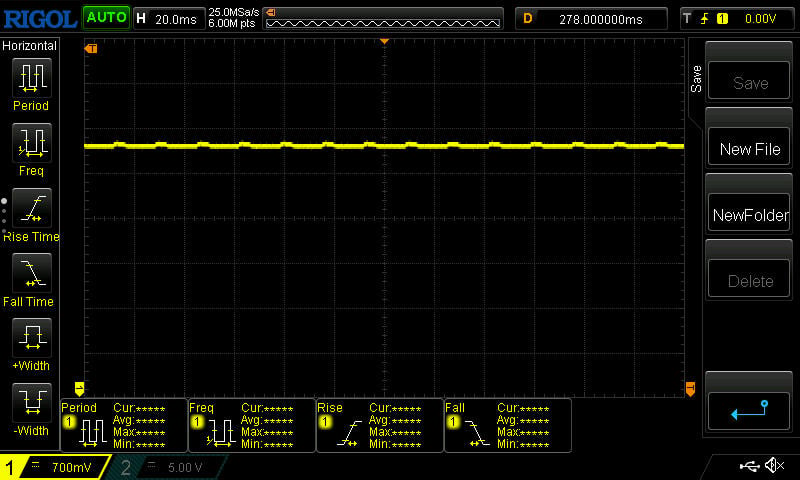

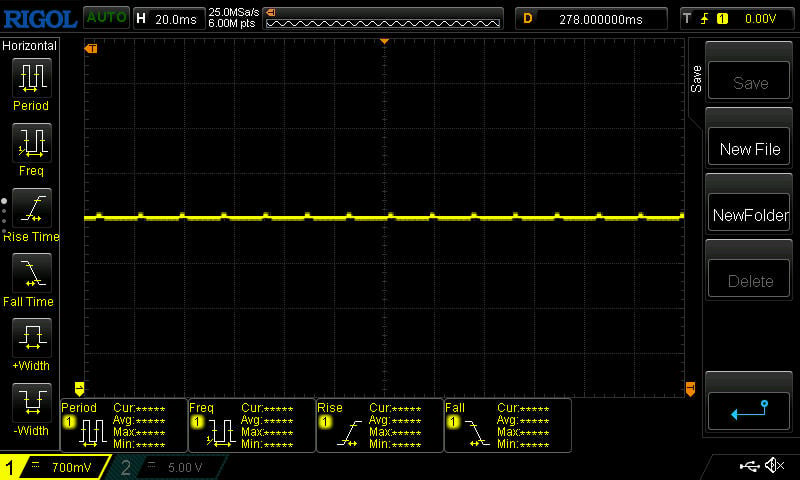

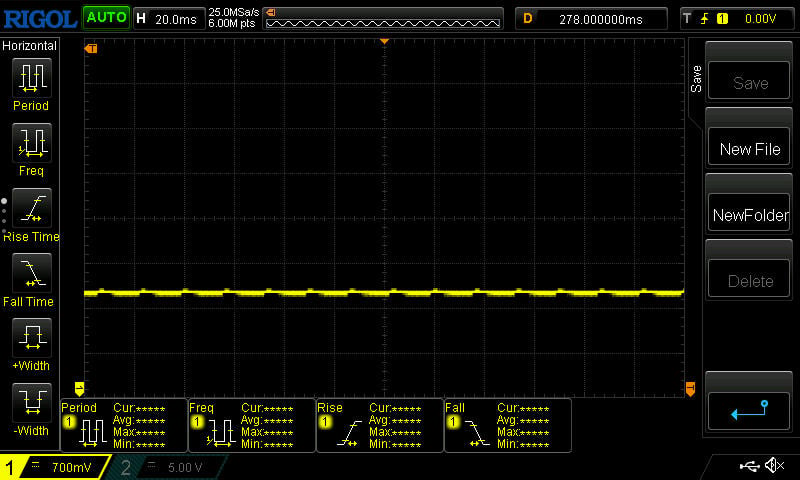

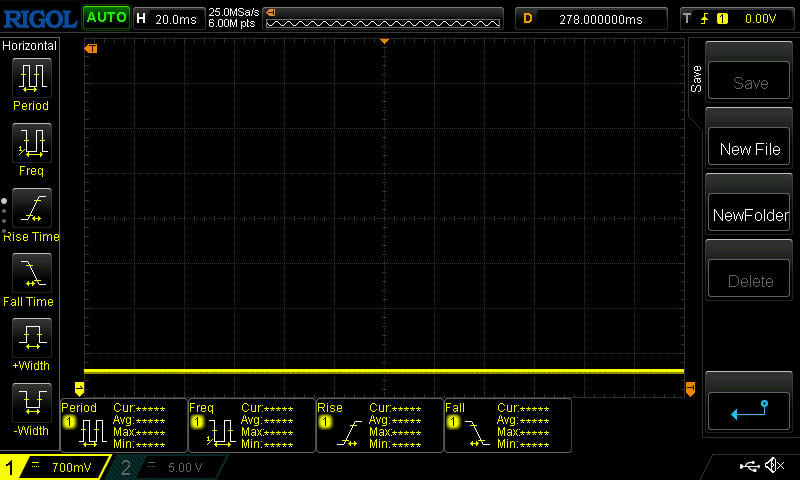

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 7816 (minimum: 5 - maximum: 343500) Hz was measured. | |||

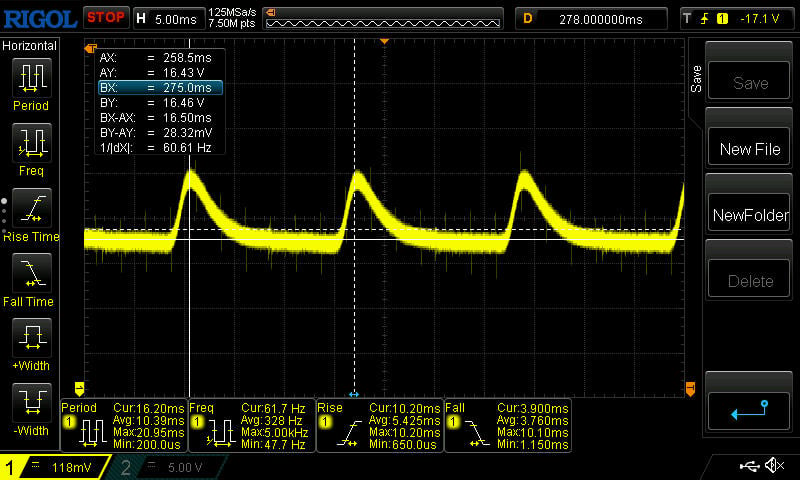

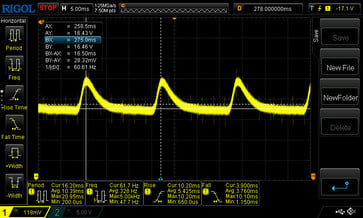

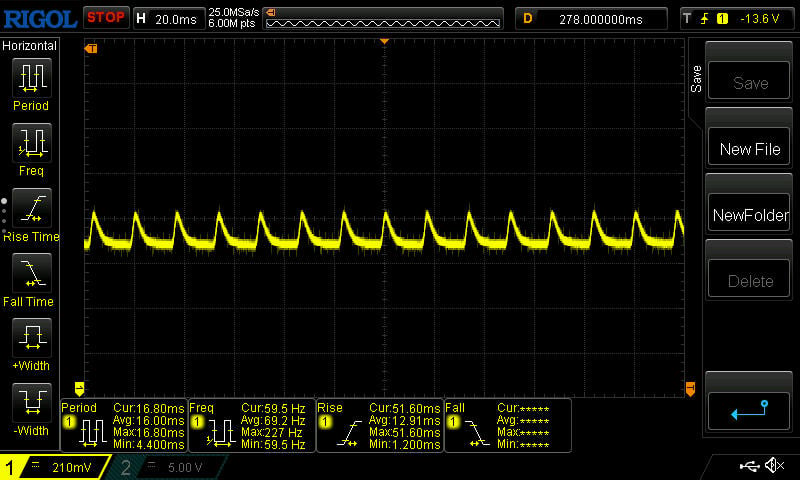

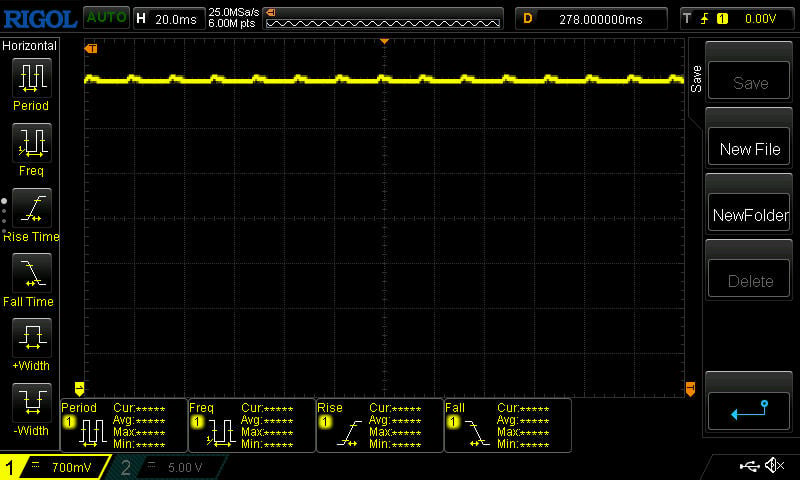

PWM 不用于亮度控制。相反，我们只观察到在面板原生 60 Hz 刷新率下有轻微波形的直流调光。这种与 LCD 有关的残余闪烁一般肉眼是看不到的。

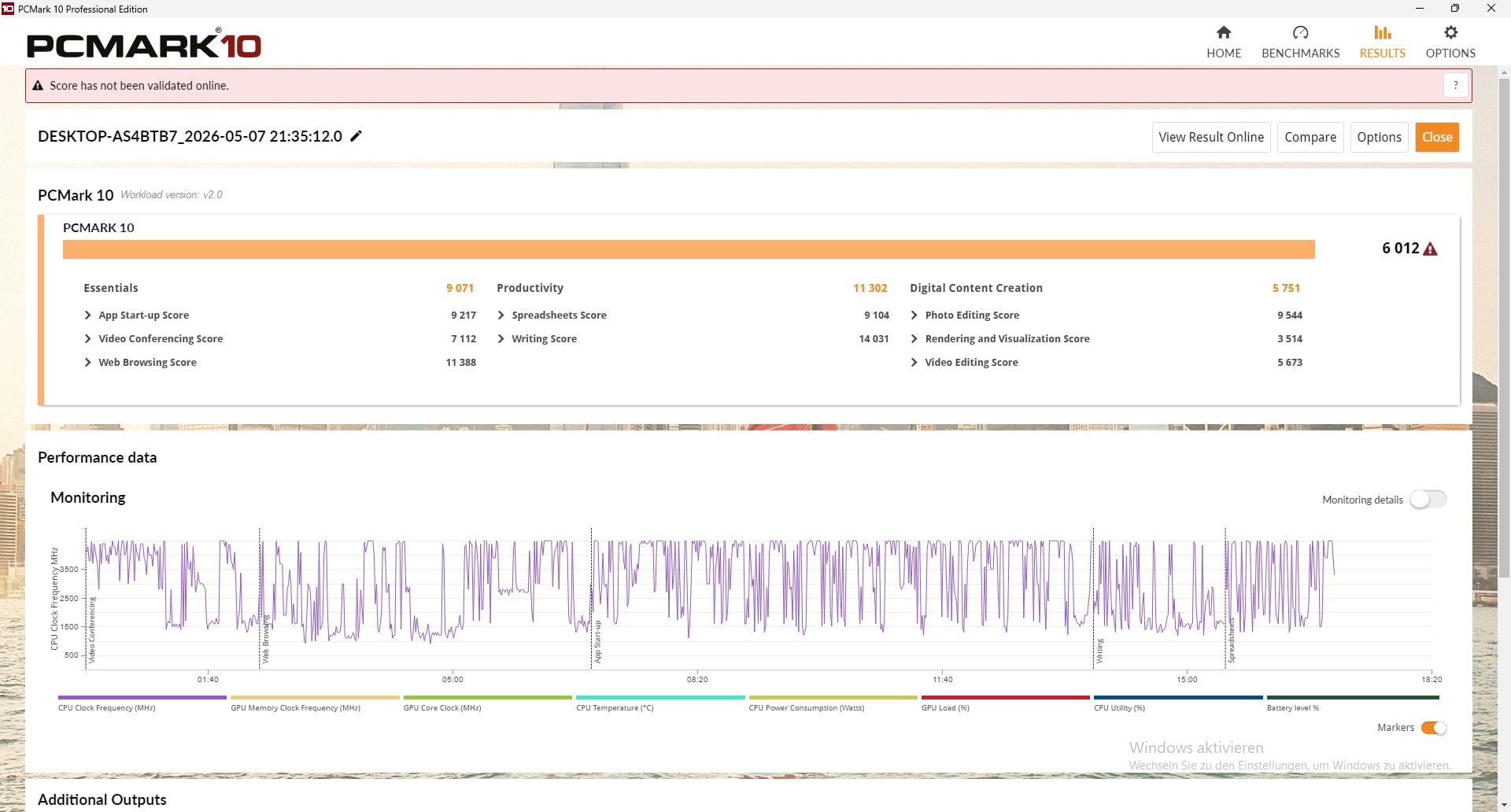

性能 - 专为提高生产率而设计，而非峰值性能

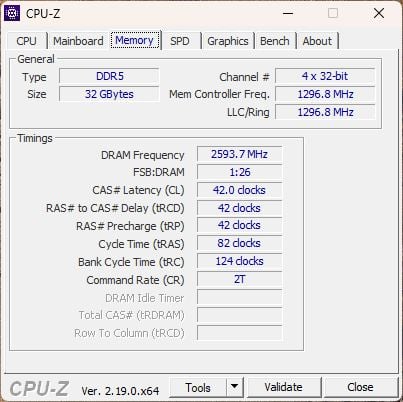

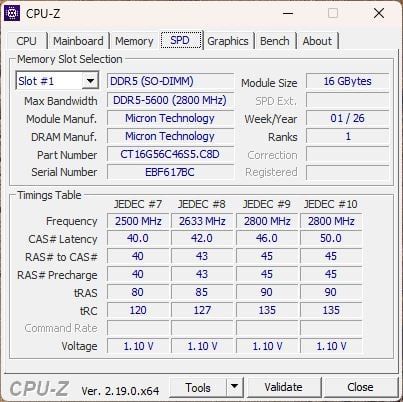

在内存价格居高不下的今天，全球国际货运为 Connect 15 标配了 32 GB 内存。再加上具有英特尔 vPro Essentials 管理功能的高效中端处理器，这就是一款值得信赖的办公主力机型。智能卡读卡器等功能进一步增加了它对企业客户的吸引力。
测试条件

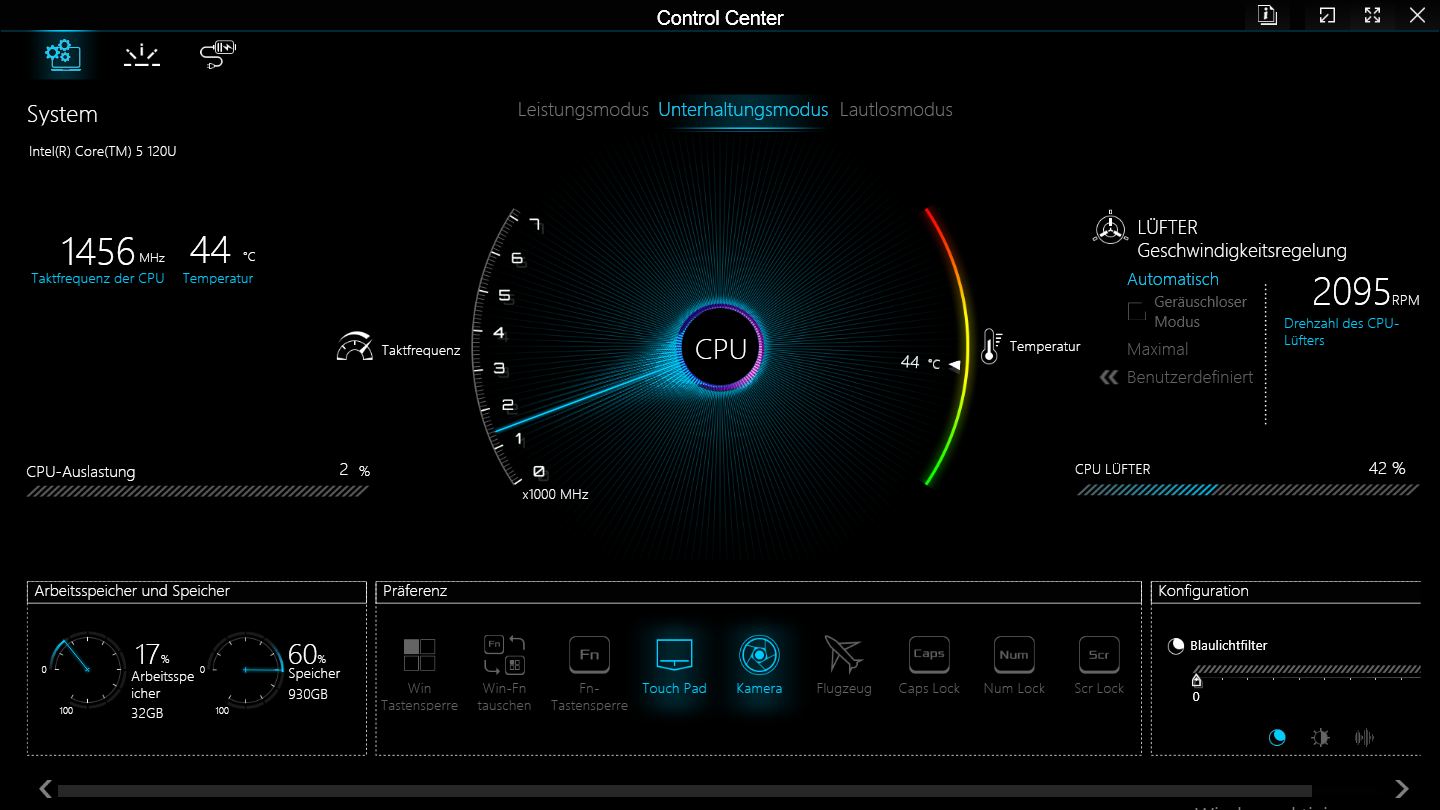

我们主要在平衡模式（静音、平衡、性能）下对 Connect 进行了测试。切换到 "性能 "模式后，CPU 的动态 PL1 限制从 15 W 倍增到 30 W。
处理器

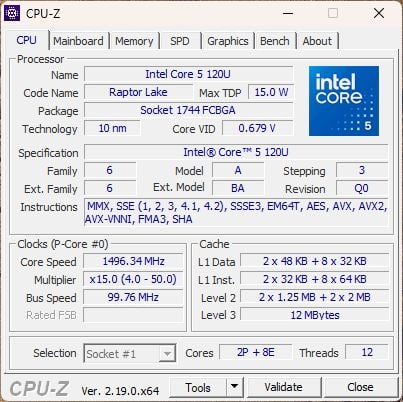

英特尔酷睿 5 120U 是一款高效处理器，额定功率为 15 W PL1，具有 10 个内核（2 个性能内核、8 个高效内核、12 个线程），时钟频率从 0.9 GHz 到 5 GHz 不等。
CPU 性能略低于市场平均水平，而Lenovo IdeaPad Slim 3i在使用相同处理器的情况下，联想 IdeaPad Slim 3i 的性能明显更高。不过，启用 "性能模式 "后，这种差异就完全消除了。
使用电池供电时，CPU 性能不会进一步降低。
Cinebench R15 多回路
Schenker Connect 15 (E26) Intel Core 5 120U: Ø777 (732.98-869.02) Points
Lenovo IdeaPad Slim 3i 15IRU9 Intel Core 5 120U: Ø1043 (1020.02-1432.1) Points
Acer Aspire Go 15 AG15-31P-34JP Intel Core i3-N305: Ø733 (725.02-829.14) Points
Lenovo IdeaPad Slim 3 15IRH10R Intel Core 5 210H: Ø1084 (990.54-1483.18) Points
Microsoft Surface Laptop 7 15 Lunar Lake Intel Core Ultra 7 268V: Ø1469 (1435.9-1615.7) Points
Asus ExpertBook B1 BM1503CDA-S70031X AMD Ryzen 5 7535U: Ø1082 (1067.78-1176.75) Points
CPU Performance rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.6: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.6: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance rating | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Average of class Office | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average Intel Core 5 120U | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Schenker Connect 15 (E26) | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Cinebench R23 / Multi Core | |
| Average of class Office (1673 - 22808, n=74, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Average Intel Core 5 120U (5456 - 7862, n=2) | |
| Schenker Connect 15 (E26) | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Cinebench R23 / Single Core | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average Intel Core 5 120U (1669 - 1844, n=2) | |
| Schenker Connect 15 (E26) | |
| Average of class Office (708 - 2130, n=74, last 2 years) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Office (648 - 8840, n=73, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Average Intel Core 5 120U (2104 - 3046, n=2) | |
| Schenker Connect 15 (E26) | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Cinebench R20 / CPU (Single Core) | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average Intel Core 5 120U (621 - 714, n=2) | |
| Average of class Office (345 - 816, n=73, last 2 years) | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Office (250 - 3380, n=75, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Average Intel Core 5 120U (869 - 1432, n=2) | |
| Schenker Connect 15 (E26) | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Cinebench R15 / CPU Single 64Bit | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average of class Office (99.5 - 312, n=75, last 2 years) | |
| Average Intel Core 5 120U (233 - 257, n=2) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Schenker Connect 15 (E26) | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Blender / v2.79 BMW27 CPU | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Schenker Connect 15 (E26) | |
| Average Intel Core 5 120U (437 - 595, n=2) | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Average of class Office (158 - 1940, n=74, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Office (7098 - 76886, n=76, last 2 years) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average Intel Core 5 120U (21624 - 33657, n=2) | |
| Schenker Connect 15 (E26) | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Average Intel Core 5 120U (5373 - 5882, n=2) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average of class Office (3387 - 6469, n=75, last 2 years) | |
| Schenker Connect 15 (E26) | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Geekbench 6.6 / Multi-Core | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Average of class Office (757 - 17846, n=83, last 2 years) | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average Intel Core 5 120U (8406 - 9733, n=2) | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Geekbench 6.6 / Single-Core | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Average Intel Core 5 120U (2367 - 2570, n=2) | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average of class Office (462 - 2894, n=84, last 2 years) | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Geekbench 5.5 / Multi-Core | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Average of class Office (1483 - 16999, n=72, last 2 years) | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average Intel Core 5 120U (7560 - 8576, n=2) | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Geekbench 5.5 / Single-Core | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Average of class Office (811 - 2128, n=72, last 2 years) | |
| Average Intel Core 5 120U (1677 - 1858, n=2) | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Average of class Office (2.21 - 26, n=74, last 2 years) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average Intel Core 5 120U (6.52 - 8.69, n=2) | |
| Schenker Connect 15 (E26) | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| LibreOffice / 20 Documents To PDF | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Average of class Office (41.5 - 102.3, n=74, last 2 years) | |
| Schenker Connect 15 (E26) | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Average Intel Core 5 120U (40.1 - 53.9, n=2) | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| R Benchmark 2.5 / Overall mean | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Average of class Office (0.4098 - 0.888, n=74, last 2 years) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Schenker Connect 15 (E26) | |
| Average Intel Core 5 120U (0.4586 - 0.521, n=2) | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
* ... smaller is better
Performance rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance rating | |
| Average of class Office | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Average Intel Core 5 120U | |
| Schenker Connect 15 (E26) | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (2083 - 31245, n=80, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake (v6.92.6600) | |
| Asus ExpertBook B1 BM1503CDA-S70031X (v6.92.6600) | |
| Lenovo IdeaPad Slim 3 15IRH10R (v6.92.6600) | |
| Lenovo IdeaPad Slim 3i 15IRU9 (v6.92.6600) | |
| Average Intel Core 5 120U (5482 - 6309, n=2) | |
| Schenker Connect 15 (E26) (v8.20.8100) | |
| Acer Aspire Go 15 AG15-31P-34JP (v6.92.6600) | |
| AIDA64 / FPU Julia | |
| Average of class Office (8191 - 125394, n=80, last 2 years) | |
| Asus ExpertBook B1 BM1503CDA-S70031X (v6.92.6600) | |
| Microsoft Surface Laptop 7 15 Lunar Lake (v6.92.6600) | |
| Lenovo IdeaPad Slim 3 15IRH10R (v6.92.6600) | |
| Lenovo IdeaPad Slim 3i 15IRU9 (v6.92.6600) | |
| Average Intel Core 5 120U (27289 - 32027, n=2) | |
| Schenker Connect 15 (E26) (v8.20.8100) | |
| Acer Aspire Go 15 AG15-31P-34JP (v6.92.6600) | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (433 - 5755, n=80, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake (v6.92.6600) | |
| Asus ExpertBook B1 BM1503CDA-S70031X (v6.92.6600) | |
| Lenovo IdeaPad Slim 3i 15IRU9 (v6.92.6600) | |
| Lenovo IdeaPad Slim 3 15IRH10R (v6.92.6600) | |
| Average Intel Core 5 120U (1448 - 1629, n=2) | |
| Schenker Connect 15 (E26) (v8.20.8100) | |
| Acer Aspire Go 15 AG15-31P-34JP (v6.92.6600) | |
| AIDA64 / FPU SinJulia | |
| Asus ExpertBook B1 BM1503CDA-S70031X (v6.92.6600) | |
| Average of class Office (1378 - 18321, n=80, last 2 years) | |
| Lenovo IdeaPad Slim 3 15IRH10R (v6.92.6600) | |
| Microsoft Surface Laptop 7 15 Lunar Lake (v6.92.6600) | |
| Lenovo IdeaPad Slim 3i 15IRU9 (v6.92.6600) | |
| Average Intel Core 5 120U (3895 - 4406, n=2) | |
| Schenker Connect 15 (E26) (v8.20.8100) | |
| Acer Aspire Go 15 AG15-31P-34JP (v6.92.6600) | |
| AIDA64 / FPU Mandel | |
| Asus ExpertBook B1 BM1503CDA-S70031X (v6.92.6600) | |
| Average of class Office (4601 - 66922, n=80, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake (v6.92.6600) | |
| Lenovo IdeaPad Slim 3 15IRH10R (v6.92.6600) | |
| Lenovo IdeaPad Slim 3i 15IRU9 (v6.92.6600) | |
| Average Intel Core 5 120U (13537 - 15922, n=2) | |
| Schenker Connect 15 (E26) (v8.20.8100) | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| AIDA64 / CPU AES | |
| Average of class Office (4854 - 155900, n=80, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake (v6.92.6600) | |
| Asus ExpertBook B1 BM1503CDA-S70031X (v6.92.6600) | |
| Lenovo IdeaPad Slim 3 15IRH10R (v6.92.6600) | |
| Lenovo IdeaPad Slim 3i 15IRU9 (v6.92.6600) | |
| Average Intel Core 5 120U (28400 - 32977, n=2) | |
| Schenker Connect 15 (E26) (v8.20.8100) | |
| Acer Aspire Go 15 AG15-31P-34JP (v6.92.6600) | |
| AIDA64 / CPU ZLib | |
| Average of class Office (114.6 - 1366, n=80, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake (v6.92.6600) | |
| Asus ExpertBook B1 BM1503CDA-S70031X (v6.92.6600) | |
| Lenovo IdeaPad Slim 3 15IRH10R (v6.92.6600) | |
| Lenovo IdeaPad Slim 3i 15IRU9 (v6.92.6600) | |
| Average Intel Core 5 120U (415 - 478, n=2) | |
| Acer Aspire Go 15 AG15-31P-34JP (v6.92.6600) | |
| Schenker Connect 15 (E26) (v8.20.8100) | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (1109 - 17834, n=80, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake (v6.92.6600) | |
| Asus ExpertBook B1 BM1503CDA-S70031X (v6.92.6600) | |
| Lenovo IdeaPad Slim 3 15IRH10R (v6.92.6600) | |
| Lenovo IdeaPad Slim 3i 15IRU9 (v6.92.6600) | |
| Average Intel Core 5 120U (2840 - 3400, n=2) | |
| Schenker Connect 15 (E26) (v8.20.8100) | |
| Acer Aspire Go 15 AG15-31P-34JP (v6.92.6600) | |
| AIDA64 / CPU PhotoWorxx | |
| Microsoft Surface Laptop 7 15 Lunar Lake (v6.92.6600) | |
| Average of class Office (11090 - 65229, n=80, last 2 years) | |
| Lenovo IdeaPad Slim 3i 15IRU9 (v6.92.6600) | |
| Lenovo IdeaPad Slim 3 15IRH10R (v6.92.6600) | |
| Average Intel Core 5 120U (32681 - 35863, n=2) | |
| Schenker Connect 15 (E26) (v8.20.8100) | |
| Asus ExpertBook B1 BM1503CDA-S70031X (v6.92.6600) | |
| Acer Aspire Go 15 AG15-31P-34JP (v6.92.6600) | |
系统性能
再次，联想 联想 IdeaPad Slim 3i速度更快，不过在性能模式下这种差距基本消失。内存性能相当强劲。
在日常使用中，系统在插入电源时感觉很流畅，但在使用电池时偶尔会发现速度变慢。
Performance rating: Percent
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| Performance rating | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs | |
| Average of class Office | |
| Schenker Connect 15 (E26) | |
| Lenovo IdeaPad Slim 3 15IRH10R -4! | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| PCMark 10 / Score | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Average of class Office (2601 - 9298, n=64, last 2 years) | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs (6012 - 6029, n=2) | |
| Schenker Connect 15 (E26) | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| PCMark 10 / Essentials | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs (9071 - 11358, n=2) | |
| Average of class Office (3245 - 11594, n=64, last 2 years) | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| PCMark 10 / Productivity | |
| Schenker Connect 15 (E26) | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs (8104 - 11302, n=2) | |
| Average of class Office (5336 - 17243, n=64, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| PCMark 10 / Digital Content Creation | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Average of class Office (2049 - 13541, n=64, last 2 years) | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs (5751 - 6464, n=2) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Schenker Connect 15 (E26) | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| CrossMark / Overall | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs (1456 - 1671, n=2) | |
| Average of class Office (381 - 2010, n=75, last 2 years) | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| CrossMark / Productivity | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs (1410 - 1642, n=2) | |
| Average of class Office (464 - 1880, n=75, last 2 years) | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| CrossMark / Creativity | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs (1565 - 1763, n=2) | |
| Average of class Office (319 - 2361, n=75, last 2 years) | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| CrossMark / Responsiveness | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs (1295 - 1499, n=2) | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Schenker Connect 15 (E26) | |
| Average of class Office (360 - 1690, n=75, last 2 years) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| WebXPRT 3 / Overall | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Average of class Office (129.9 - 455, n=73, last 2 years) | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs (251 - 291, n=2) | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| WebXPRT 4 / Overall | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs (230 - 264, n=2) | |
| Average of class Office (104.2 - 313, n=76, last 2 years) | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Mozilla Kraken 1.1 / Total | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Average of class Office (391 - 1297, n=77, last 2 years) | |
| Schenker Connect 15 (E26) | |
| Average Intel Core 5 120U, Intel Iris Xe Graphics G7 80EUs (502 - 560, n=2) | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
* ... smaller is better
| PCMark 10 Score | 6012 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Schenker Connect 15 (E26) | |
| Average of class Office (20075 - 110930, n=77, last 2 years) | |
| Average Intel Core 5 120U (57263 - 63683, n=2) | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| AIDA64 / Memory Read | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Schenker Connect 15 (E26) | |
| Average of class Office (10084 - 128030, n=78, last 2 years) | |
| Average Intel Core 5 120U (62599 - 68503, n=2) | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| AIDA64 / Memory Write | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Schenker Connect 15 (E26) | |
| Average Intel Core 5 120U (62296 - 71803, n=2) | |
| Average of class Office (20073 - 119858, n=78, last 2 years) | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Acer Aspire Go 15 AG15-31P-34JP | |
| AIDA64 / Memory Latency | |
| Average of class Office (7.6 - 162.9, n=73, last 2 years) | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Schenker Connect 15 (E26) | |
| Asus ExpertBook B1 BM1503CDA-S70031X | |
| Average Intel Core 5 120U (89 - 92, n=2) | |
| Lenovo IdeaPad Slim 3i 15IRU9 | |
| Acer Aspire Go 15 AG15-31P-34JP | |
* ... smaller is better
存储
Schenker 使用的是三星的快速 990 Pro 固态硬盘，虽然在 Connect 内部仍未充分发挥其潜力，但长期使用后仍能保持稳定的高性能。
Samsung 990 Pro 1 TB
CDM 5/6 Read Seq Q32T1:
6931 MB/s
CDM 5/6 Write Seq Q32T1:
4409 MB/s
CDM 5/6 Read 4K Q32T1:
437 MB/s
CDM 5/6 Write 4K Q32T1:
385 MB/s
CDM 5/6 Read 4K:
86.4 MB/s
CDM 5/6 Write 4K:
175 MB/s
CDM 6 Write 4K Q8T8:
335 MB/s
CDM 6 Read 4K Q8T8:
603 MB/s
连续读取性能DiskSpd 读取循环，队列深度 8
Schenker Connect 15 (E26) Samsung 990 Pro 1 TB; diskspd 2.0.17 f: Ø7094 (5832.39-7129.9) MB/s
Lenovo IdeaPad Slim 3i 15IRU9 Samsung PM9C1a MZAL81T0HDLB; diskspd 2.0.17 f: Ø5508 (2546.36-6184.92) MB/s
Acer Aspire Go 15 AG15-31P-34JP WD PC SN740 SDDQNQD-512G-1014; diskspd 2.0.17 f: Ø3393 (3006.06-3554.69) MB/s
Lenovo IdeaPad Slim 3 15IRH10R Micron 2500 1TB MTFDKBA1T0QGN; diskspd 2.0.17 f: Ø4869 (2294.28-6973.24) MB/s
Microsoft Surface Laptop 7 15 Lunar Lake Samsung PM9C1a MZ9L81T0HDLB; diskspd 2.0.17 f: Ø6146 (4937.32-6171.08) MB/s
Asus ExpertBook B1 BM1503CDA-S70031X Western Digital PC SN5000S SDEQNSJ-512G-1002; diskspd 2.0.17 f: Ø6334 (5550.34-6353.11) MB/s
图形处理器性能
即使按照办公笔记本电脑的标准，Connect 15 的 3D 性能也令人失望。性能模式几乎没有改善，这证明该系统并不适合游戏或图形密集型工作负载。

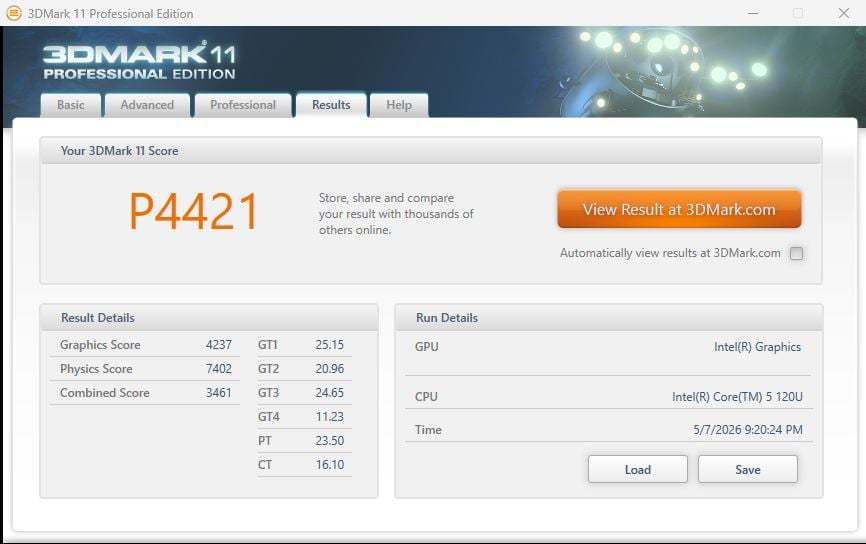

| 3DMark 11 Performance | 4421 points | |
| 3DMark Fire Strike Score | 2895 points | |
| 3DMark Time Spy Score | 1053 points | |
Help | ||
* ... smaller is better
Performance rating | Cyberpunk 2077 | Baldur's Gate 3 | GTA V | Final Fantasy XV Benchmark | Strange Brigade | Dota 2 Reborn | X-Plane 11.11
| Baldur's Gate 3 - 1920x1080 Ultra Preset AA:T | |
| Microsoft Surface Laptop 7 15 Lunar Lake | |
| Lenovo ThinkPad X9-15 Aura Edition | |
| Average of class Office (3.5 - 65.2, n=62, last 2 years) | |
| Lenovo IdeaPad Slim 3 15IRH10R | |
| Schenker Connect 15 (E26) | |
赛博朋克 2077》超 FPS 图表
Schenker Connect 15 (E26) Core 5 120U, Iris Xe G7 80EUs: Ø5.95 (5.32-7.12) fps
Lenovo IdeaPad Slim 3 15IRH10R Core 5 210H, UHD Graphics Xe G4 48EUs: Ø6.6 (5.28-7) fps
Microsoft Surface Laptop 7 15 Lunar Lake Core Ultra 7 268V, Arc 140V: Ø26.8 (25-28) fps
Asus ExpertBook B1 BM1503CDA-S70031X R5 7535U, Radeon 660M: Ø9.16 (8.37-9.33) fps
Lenovo ThinkPad X9-15 Aura Edition Core Ultra 7 258V, Arc 140V: Ø20 (19.2-21.3) fps
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 71.8 | 53.5 | 14.3 | 6.81 |
| Dota 2 Reborn (2015) | 75.1 | 37.1 | 41.7 | 38.1 |
| Final Fantasy XV Benchmark (2018) | 31.6 | 16.5 | 10.7 | |
| X-Plane 11.11 (2018) | 25.2 | 23.1 | 21.4 | |
| Strange Brigade (2018) | 74.5 | 31.4 | 25.2 | 19.9 |
| Baldur's Gate 3 (2023) | 12.3 | 9.1 | 7.6 | 7.2 |
| Cyberpunk 2077 (2023) | 11.9 | 7.22 |
排放和功耗 - 静音冷却，但电池寿命只有 6.6 小时
噪音排放
空闲时，单个冷却风扇经常关闭，但并非始终关闭。启动时，风扇会发出约 24 分贝的嗡嗡声。
在负载情况下，风扇噪音仅为 33 分贝，比许多同类系统都要安静。在赛博朋克运行模式下，我们测得的噪音为 39 分贝。
Noise level
| Idle |
| 23 / 24.77 / 26.57 dB(A) |
| Load |
| 26.9 / 33.44 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 23 dB(A) | ||
| Schenker Connect 15 (E26) Core 5 120U, Iris Xe G7 80EUs | Acer Aspire Go 15 AG15-31P-34JP i3-N305, UHD Graphics 32EUs | Lenovo IdeaPad Slim 3 15IRH10R Core 5 210H, UHD Graphics Xe G4 48EUs | Microsoft Surface Laptop 7 15 Lunar Lake Core Ultra 7 268V, Arc 140V | Asus ExpertBook B1 BM1503CDA-S70031X R5 7535U, Radeon 660M | Lenovo ThinkPad X9-15 Aura Edition Core Ultra 7 258V, Arc 140V | |
|---|---|---|---|---|---|---|
| Noise | -18% | -20% | -7% | -6% | -13% | |
| off / environment * (dB) | 23 | 24.8 -8% | 27.3 -19% | 23.9 -4% | 24 -4% | 24.4 -6% |
| Idle Minimum * (dB) | 23 | 30.5 -33% | 27.3 -19% | 23.9 -4% | 24 -4% | 24.4 -6% |
| Idle Average * (dB) | 24.77 | 30.5 -23% | 27.3 -10% | 23.9 4% | 24.2 2% | 24.4 1% |
| Idle Maximum * (dB) | 26.57 | 31 -17% | 29 -9% | 23.9 10% | 24.2 9% | 24.4 8% |
| Load Average * (dB) | 26.9 | 33.2 -23% | 42 -56% | 31.8 -18% | 35.5 -32% | 35.8 -33% |
| Cyberpunk 2077 ultra * (dB) | 33.44 | 35.1 -5% | 38 -14% | 35.5 -6% | 39.4 -18% | |
| Load Maximum * (dB) | 33.44 | 35.5 -6% | 41.5 -24% | 41.9 -25% | 35.5 -6% | 45 -35% |
* ... smaller is better
温度

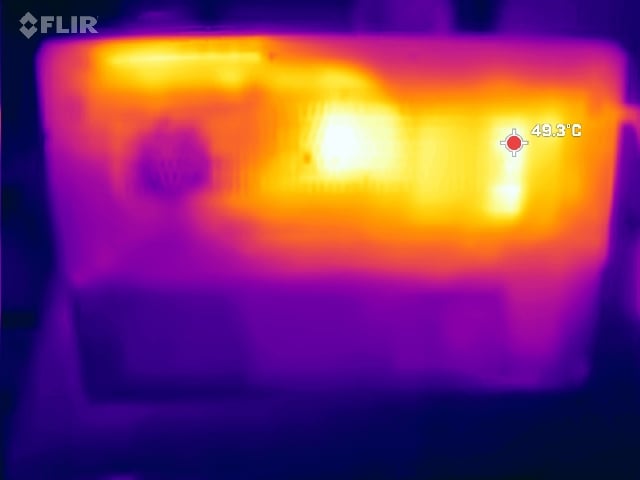

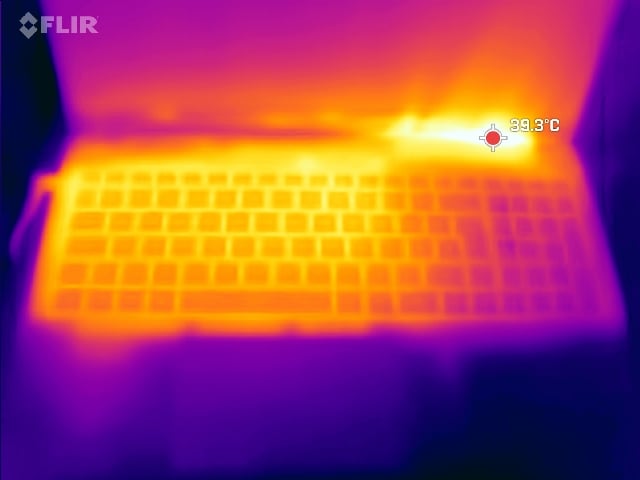

最热的区域位于机箱底部。在游戏和压力测试过程中，我们记录到显示屏铰链下方中央附近的温度高达 50°C，而笔记本电脑的其他部分则明显较低。由于采用了单风扇设计，右侧温度高于左侧。
(±) The average temperature for the upper side under maximal load is 33.6 °C / 92 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 40 °C / 104 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 50 °C / 122 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28 °C / 82 F, compared to the device average of 29.5 °C / 85 F.
(±) 3: The average temperature for the upper side is 33.6 °C / 92 F, compared to the average of 29.5 °C / 85 F for the class Office.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28 °C / 82.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.5 °C / 81.5 F (-0.5 °C / -0.9 F).
(±) The maximum temperature on the upper side is 40 °C / 104 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 50 °C / 122 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28 °C / 82 F, compared to the device average of 29.5 °C / 85 F.
(±) 3: The average temperature for the upper side is 33.6 °C / 92 F, compared to the average of 29.5 °C / 85 F for the class Office.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28 °C / 82.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.5 °C / 81.5 F (-0.5 °C / -0.9 F).
| Schenker Connect 15 (E26) Core 5 120U, Iris Xe G7 80EUs | Acer Aspire Go 15 AG15-31P-34JP i3-N305, UHD Graphics 32EUs | Lenovo IdeaPad Slim 3 15IRH10R Core 5 210H, UHD Graphics Xe G4 48EUs | Microsoft Surface Laptop 7 15 Lunar Lake Core Ultra 7 268V, Arc 140V | Asus ExpertBook B1 BM1503CDA-S70031X R5 7535U, Radeon 660M | Lenovo ThinkPad X9-15 Aura Edition Core Ultra 7 258V, Arc 140V | |
|---|---|---|---|---|---|---|
| Heat | 13% | 11% | 12% | 6% | 15% | |
| Maximum Upper Side * (°C) | 40 | 35.8 11% | 34.2 14% | 45.7 -14% | 39.8 1% | 42.1 -5% |
| Maximum Bottom * (°C) | 50 | 44.5 11% | 38.8 22% | 42.9 14% | 41.3 17% | 39.5 21% |
| Idle Upper Side * (°C) | 30 | 23.1 23% | 28.6 5% | 23.6 21% | 29.3 2% | 24.5 18% |
| Idle Bottom * (°C) | 32 | 30.1 6% | 31.4 2% | 23.1 28% | 30.8 4% | 24.4 24% |
* ... smaller is better
发言人
立体声扬声器的最大音量可能会更大，低音效果很差，整体音质一般。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Schenker Connect 15 (E26) audio analysis
(±) | speaker loudness is average but good (75.07 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20% lower than median
(±) | linearity of bass is average (8.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.8% higher than median
(+) | mids are linear (6.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.9% away from median
(±) | linearity of highs is average (8.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.1% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 9% similar, 41% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 58% of all tested devices were better, 7% similar, 35% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Lenovo IdeaPad Slim 3i 15IRU9 audio analysis
(±) | speaker loudness is average but good (78.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 30.4% lower than median
(±) | linearity of bass is average (10.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(+) | mids are linear (5.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.7% difference to median)
Compared to same class
» 87% of all tested devices in this class were better, 5% similar, 8% worse
» The best had a delta of 5%, average was 17%, worst was 45%
Compared to all devices tested
» 75% of all tested devices were better, 5% similar, 20% worse
» The best had a delta of 4%, average was 24%, worst was 134%
耗电量
在负载情况下，Connect 15 的效率相当高，仅次于速度稍快的华硕 ExpertBook B1。小巧的 45 瓦电源适配器在极端条件下的工作功率接近极限。高达 52 W 的极短时间功率峰值不成问题，但性能模式下的 Cyberpunk 可保持超过 47 W 的持续功耗。
空闲功耗仍可进一步优化。
Power Consumption
| Off / Standby | 0.2 / 2.1 Watt |
| Idle | 6.3 / 10.4 / 11 Watt |
| Load |
40 / 52 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Schenker Connect 15 (E26) Core 5 120U, Iris Xe G7 80EUs, Samsung 990 Pro 1 TB, IPS, 1920x1080, 15.6" | Acer Aspire Go 15 AG15-31P-34JP i3-N305, UHD Graphics 32EUs, WD PC SN740 SDDQNQD-512G-1014, IPS, 1920x1080, 15.6" | Lenovo IdeaPad Slim 3 15IRH10R Core 5 210H, UHD Graphics Xe G4 48EUs, Micron 2500 1TB MTFDKBA1T0QGN, IPS, 1920x1200, 15.3" | Microsoft Surface Laptop 7 15 Lunar Lake Core Ultra 7 268V, Arc 140V, Samsung PM9C1a MZ9L81T0HDLB, IPS, 2496x1664, 15" | Asus ExpertBook B1 BM1503CDA-S70031X R5 7535U, Radeon 660M, Western Digital PC SN5000S SDEQNSJ-512G-1002, IPS, 1920x1080, 15.6" | Lenovo ThinkPad X9-15 Aura Edition Core Ultra 7 258V, Arc 140V, WD PC SN740 SDDQMQD-1T00, OLED, 2880x1800, 15.3" | Average Intel Iris Xe Graphics G7 80EUs | Average of class Office | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | 35% | -16% | -4% | 16% | 17% | 13% | 10% | |
| Idle Minimum * (Watt) | 6.3 | 3.5 44% | 6.7 -6% | 3.2 49% | 5.4 14% | 2.4 62% | 4.49 ? 29% | 4.4 ? 30% |
| Idle Average * (Watt) | 10.4 | 4.6 56% | 10.1 3% | 8.7 16% | 7.4 29% | 3.9 62% | 7.4 ? 29% | 7.42 ? 29% |
| Idle Maximum * (Watt) | 11 | 8 27% | 10.2 7% | 9 18% | 8.2 25% | 5.1 54% | 9.26 ? 16% | 8.65 ? 21% |
| Load Average * (Watt) | 40 | 25.7 36% | 52.6 -32% | 44.7 -12% | 39.2 2% | 42.5 -6% | 36.6 ? 8% | 42.5 ? -6% |
| Cyberpunk 2077 ultra * (Watt) | 30 | 40.2 -34% | 51.1 -70% | 28.7 4% | 43.5 -45% | |||
| Load Maximum * (Watt) | 52 | 45 13% | 69.5 -34% | 64.6 -24% | 41.2 21% | 64.4 -24% | 61.7 ? -19% | 64.3 ? -24% |
| Witcher 3 ultra * (Watt) | 26.6 | |||||||
| Cyberpunk 2077 ultra external monitor * (Watt) | 36.9 | 49.3 | 27.4 | 40.2 |
* ... smaller is better
耗电量 赛博朋克 / Stresstest
Schenker Connect 15 (E26) Core 5 120U, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø34.3 (27.642-52.127) Watt
Acer Aspire Go 15 AG15-31P-34JP i3-N305, UHD Graphics 32EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø26.7 (25.9-43.9) Watt
Lenovo IdeaPad Slim 3 15IRH10R Core 5 210H, UHD Graphics Xe G4 48EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø50.7 (42.8-70) Watt
Microsoft Surface Laptop 7 15 Lunar Lake Core Ultra 7 268V, Arc 140V; 1280x720 Prime95 28.10 and Furmark 1.25: Ø58.4 (51.5-64.6) Watt
Asus ExpertBook B1 BM1503CDA-S70031X R5 7535U, Radeon 660M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø36.5 (31.5-41.2) Watt
Lenovo ThinkPad X9-15 Aura Edition Core Ultra 7 258V, Arc 140V; 1280x720 Prime95 28.10 and Furmark 1.25: Ø51.2 (44.2-64.4) Watt
Schenker Connect 15 (E26) Core 5 120U, Iris Xe G7 80EUs; Idle 150cd/m2: Ø9.96 (9.463-11.823) Watt
Acer Aspire Go 15 AG15-31P-34JP i3-N305, UHD Graphics 32EUs; Idle 150cd/m2: Ø5.76 (5.06-6.84) Watt
Lenovo IdeaPad Slim 3 15IRH10R Core 5 210H, UHD Graphics Xe G4 48EUs; Idle 150cd/m2: Ø8.3 (7.95-9.56) Watt
Microsoft Surface Laptop 7 15 Lunar Lake Core Ultra 7 268V, Arc 140V; Idle 150cd/m2: Ø5.18 (4.83-5.96) Watt
Asus ExpertBook B1 BM1503CDA-S70031X R5 7535U, Radeon 660M; Idle 150cd/m2: Ø5.03 (4.65-5.85) Watt
Lenovo ThinkPad X9-15 Aura Edition Core Ultra 7 258V, Arc 140V; Idle 150cd/m2: Ø3.43 (3.13-4.13) Watt
Schenker Connect 15 (E26) Core 5 120U, Iris Xe G7 80EUs; Cyberpunk 2077 FHD ultra no FSR 150cd: Ø30.3 (26.994-34.359) Watt
Lenovo IdeaPad Slim 3 15IRH10R Core 5 210H, UHD Graphics Xe G4 48EUs; Cyberpunk 2077 FHD ultra no FSR 150cd: Ø40.2 (39.4-43) Watt
Microsoft Surface Laptop 7 15 Lunar Lake Core Ultra 7 268V, Arc 140V; Cyberpunk 2077 FHD ultra no FSR 150cd: Ø51.1 (45.4-55.9) Watt
Asus ExpertBook B1 BM1503CDA-S70031X R5 7535U, Radeon 660M; Cyberpunk 2077 FHD ultra no FSR 150cd: Ø28.7 (27.9-29.6) Watt
Lenovo ThinkPad X9-15 Aura Edition Core Ultra 7 258V, Arc 140V; Cyberpunk 2077 FHD ultra no FSR 150cd: Ø43.5 (41.4-47.8) Watt
电池寿命
55 Wh 的电池容量在同类产品中处于平均水平，在我们的 Wi-Fi 测试中可持续约 6.6 小时。竞争机型的续航时间明显更长。
| Schenker Connect 15 (E26) Core 5 120U, Iris Xe G7 80EUs, 55 Wh | Acer Aspire Go 15 AG15-31P-34JP i3-N305, UHD Graphics 32EUs, 53.05 Wh | Lenovo IdeaPad Slim 3 15IRH10R Core 5 210H, UHD Graphics Xe G4 48EUs, 60 Wh | Microsoft Surface Laptop 7 15 Lunar Lake Core Ultra 7 268V, Arc 140V, 64 Wh | Asus ExpertBook B1 BM1503CDA-S70031X R5 7535U, Radeon 660M, 50 Wh | Lenovo ThinkPad X9-15 Aura Edition Core Ultra 7 258V, Arc 140V, 80 Wh | Average of class Office | |
|---|---|---|---|---|---|---|---|
| Battery runtime | 76% | 158% | 168% | 52% | 165% | 94% | |
| WiFi v1.3 (h) | 6.6 | 11.6 76% | 17 158% | 17.7 168% | 10 52% | 17.5 165% | 12.8 ? 94% |
| Reader / Idle (h) | 17.1 | 22.9 ? | |||||
| H.264 (h) | 11.5 | 23 | 15 ? | ||||
| Load (h) | 1.6 | 2.2 | 1.807 ? |
Schenker Connect 15 (E26)
- 06/04/2026 v8
Christian Hintze
Office - Weighted Average
Total Sustainability Score: 可能的替代品比较
Image | Model / Review | Price | Weight | Height | Display |
|---|---|---|---|---|---|
1. 82.5%  | Schenker Connect 15 (E26) Intel Core 5 120U ⎘ Intel Iris Xe Graphics G7 80EUs ⎘ 32 GB Memory, 1024 GB SSD | Amazon: List Price: 1500 Euro | 1.9 kg | 21 mm | 15.60" 1920x1080 141 PPI IPS |
2. 81% v7 (old)  | Acer Aspire Go 15 AG15-31P-34JP Intel Core i3-N305 ⎘ Intel UHD Graphics 32EUs (Alder Lake) ⎘ 8 GB Memory, 512 GB SSD | Amazon: List Price: 429 Euro | 1.7 kg | 18.9 mm | 15.60" 1920x1080 141 PPI IPS |
3. 73.8%  | Lenovo IdeaPad Slim 3 15IRH10R Intel Core 5 210H ⎘ Intel UHD Graphics Xe G4 48EUs ⎘ 16 GB Memory, 1024 GB SSD | Amazon: List Price: 770 USD | 1.7 kg | 18.9 mm | 15.30" 1920x1200 148 PPI IPS |
4. 87.4%  | Microsoft Surface Laptop 7 15 Lunar Lake Intel Core Ultra 7 268V ⎘ Intel Arc Graphics 140V ⎘ 32 GB Memory, 1024 GB SSD | Amazon: List Price: 2760€ | 1.7 kg | 18.3 mm | 15.00" 2496x1664 200 PPI IPS |
5. 76.3%  | Asus ExpertBook B1 BM1503CDA-S70031X AMD Ryzen 5 7535U ⎘ AMD Radeon 660M ⎘ 16 GB Memory, 512 GB SSD | Amazon: List Price: 629€ | 1.7 kg | 19.9 mm | 15.60" 1920x1080 141 PPI IPS |
6. 90.1%  | Lenovo ThinkPad X9-15 Aura Edition Intel Core Ultra 7 258V ⎘ Intel Arc Graphics 140V ⎘ 32 GB Memory, 1024 GB SSD | Amazon: List Price: 1989€ | 1.4 kg | 17.7 mm | 15.30" 2880x1800 222 PPI OLED |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Add as a preferred source on Google
