联想 B50-30 笔记本电脑简短评测

Nino Ricchizzi (translated by Yuchen Wang), 07/28/2014
Bay Trail Windows

笔记本究竟可以多便宜? 联想提的B50产品线提供了让人难以置信的自由度,因此也提供了一个非常实惠的入门笔记本选择。我们测试了它售价270欧元(约363美元)的基本配置版本,寻找它的卖点究竟在哪里。

208
cd/m²
188
cd/m²
190
cd/m²
218
cd/m²
201
cd/m²
200
cd/m²
212
cd/m²
191
cd/m²
195
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 218 cd/m² Average: 200.3 cd/m²
Brightness Distribution: 86 %
Center on Battery: 164 cd/m²
Contrast: 335:1 (Black: 0.6 cd/m²)
ΔE Color 12.23 | - Ø
ΔE Greyscale 12.29 | - Ø
38.91% AdobeRGB 1998 (Argyll)
Gamma: 2.16
Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo B50-30
HD Graphics (Bay Trail), N2815, Seagate Momentus Thin 320 GB ST320LT012
0.32 Points ∼15%
Acer Aspire E1-532
HD Graphics (Haswell), 2955U, Seagate Momentus Thin ST500LT0 12-9WS142
0.61 Points ∼28% +91%
Packard Bell EasyNote TE69HW-29574G50Mnsk
HD Graphics (Haswell), 2957U, Seagate Momentus Thin ST500LT0 12-9WS142
0.62 Points ∼28% +94%
HP Compaq 15-h024sg
Radeon HD 8210, E1-2100, Toshiba MQ01ABF050
0.23 Points ∼10% -28%
Asus F551MA-SX063H
HD Graphics (Bay Trail), N3520, Western Digital Scorpio Blue WD5000LPVX
0.44 Points ∼20% +38%
CPU Multi 64Bit (sort by value)
Lenovo B50-30
HD Graphics (Bay Trail), N2815, Seagate Momentus Thin 320 GB ST320LT012
0.62 Points ∼3%
Acer Aspire E1-532
HD Graphics (Haswell), 2955U, Seagate Momentus Thin ST500LT0 12-9WS142
1.14 Points ∼6% +84%
Packard Bell EasyNote TE69HW-29574G50Mnsk
HD Graphics (Haswell), 2957U, Seagate Momentus Thin ST500LT0 12-9WS142
1.2 Points ∼6% +94%
HP Compaq 15-h024sg
Radeon HD 8210, E1-2100, Toshiba MQ01ABF050
0.46 Points ∼2% -26%
Asus F551MA-SX063H
HD Graphics (Bay Trail), N3520, Western Digital Scorpio Blue WD5000LPVX
1.75 Points ∼9% +182%
Cinebench R11.5 CPU Single 64Bit
0.32 Points
Cinebench R11.5 CPU Multi 64Bit
0.62 Points
Cinebench R11.5 OpenGL 64Bit
5.06 fps
Cinebench R15 CPU Single 64Bit
31 Points
Cinebench R15 CPU Multi 64Bit
49 Points
Cinebench R15 OpenGL 64Bit
3.81 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
PCMark 7 - Score (sort by value)
Lenovo B50-30
787 Points ∼10%
Acer Aspire E1-532
1484 Points ∼18% +89%
Packard Bell EasyNote TE69HW-29574G50Mnsk
2043 Points ∼25% +160%
HP Compaq 15-h024sg
1051 Points ∼13% +34%
Asus F551MA-SX063H
1790 Points ∼22% +127%

Legend


Lenovo B50-30 Intel Celeron N2815, Intel HD Graphics (Bay Trail), Seagate Momentus Thin 320 GB ST320LT012

Acer Aspire E1-532 Intel Celeron 2955U, Intel HD Graphics (Haswell), Seagate Momentus Thin ST500LT0 12-9WS142

Packard Bell EasyNote TE69HW-29574G50Mnsk Intel Celeron 2957U, Intel HD Graphics (Haswell), Seagate Momentus Thin ST500LT0 12-9WS142

HP Compaq 15-h024sg AMD E1-2100, AMD Radeon HD 8210, Toshiba MQ01ABF050

Asus F551MA-SX063H Intel Pentium N3520, Intel HD Graphics (Bay Trail), Western Digital Scorpio Blue WD5000LPVX
PCMark 7 Score
787 points
Help
Seagate Momentus Thin 320 GB ST320LT012
Sequential Read: 90.48 MB/s
Sequential Write: 84.06 MB/s
512K Read: 31.69 MB/s
512K Write: 37.74 MB/s
4K Read: 0.399 MB/s
4K Write: 0.699 MB/s
4K QD32 Read: 0.926 MB/s
4K QD32 Write: 0.71 MB/s
3DMark 11 Performance
218 points
3DMark Ice Storm Standard Score
5578 points
3DMark Cloud Gate Standard Score
511 points
Help
3DMark 11 - 1280x720 Performance (sort by value)
Lenovo B50-30
HD Graphics (Bay Trail), N2815, Seagate Momentus Thin 320 GB ST320LT012
218 Points ∼1%
Acer Aspire E1-532
HD Graphics (Haswell), 2955U, Seagate Momentus Thin ST500LT0 12-9WS142
480 Points ∼2% +120%
Packard Bell EasyNote TE69HW-29574G50Mnsk
HD Graphics (Haswell), 2957U, Seagate Momentus Thin ST500LT0 12-9WS142
544 Points ∼2% +150%
HP Compaq 15-h024sg
Radeon HD 8210, E1-2100, Toshiba MQ01ABF050
369 Points ∼1% +69%
Asus F551MA-SX063H
HD Graphics (Bay Trail), N3520, Western Digital Scorpio Blue WD5000LPVX
261 Points ∼1% +20%
low med. high ultra
Anno 2070 (2011) 15fps
Fifa 14 (2013) 29.8fps

Noise Level

Idle
28 / 28 / 28 dB(A)
HDD
28.3 dB(A)
Load
28 / 28 dB(A)



30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-300 (15 cm distance)
Max. Load
 31.3 °C32.2 °C26.3 °C
 38.1 °C37.8 °C27.8 °C
 35.4 °C36.6 °C30.8 °C
Maximum: 38.1 °C
Average: 32.9 °C
26.9 °C30.9 °C32.6 °C
28.3 °C35.4 °C46.5 °C
29.1 °C36.5 °C38.6 °C
Maximum: 46.5 °C
Average: 33.9 °C
Power Supply (max.)  36.7 °C | Room Temperature 23.2 °C | Raytek Raynger ST
Power Consumption
Off / Standbydarklight 0 / 0.01 Watt
Idledarkmidlight 3.1 / 6.3 / 7.4 Watt
Load midlight 10.7 / 12.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Battery Runtime
Idle (without WLAN, min brightness)
6h 40min
WiFi Surfing
3h 37min
Load (maximum brightness)
3h 36min
Lenovo B50-30
Lenovo B50-30

我们将本篇评测在这里分为两个方面来作总结。首先,我们需要列出对这款270欧元(约363美元)的设备可以期待些什么。联想的B50-30作为一款定位于办公用途的笔记本电脑需要在这些方面有突出的表现。对输入设备的需求它可以满足。遗憾的是,它们存在一些缺点。尽管键盘提供了不错的键程,它在一些部分的设计让快速打字变得很困难。它的触控板有一些太小了,不过响应速度很快,它的按键是最大的问题,因为不同的硬度和边框的干扰让鼠标点击操作变得很不方便。它的屏幕售价的角度考虑是可以接受的,只是对比度如果再高些就好了。最主要的问题之一是它在办公和上网应用中的性能表现。由于较小的工作内存和薄弱的赛扬处理器,在这方面它的竞争者得到的分数更高。联想预装的大量不必要的第三方软件也拖低了系统的速度。这款联想笔记本的优势在于纤薄的机身设计和方便携带的重量。需要更高性能的用户,可以在这个价格找到其他更好的产品,或者等待即将发布的采用Intel Pentium N3520处理器和更大内存的B50笔记本型号。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

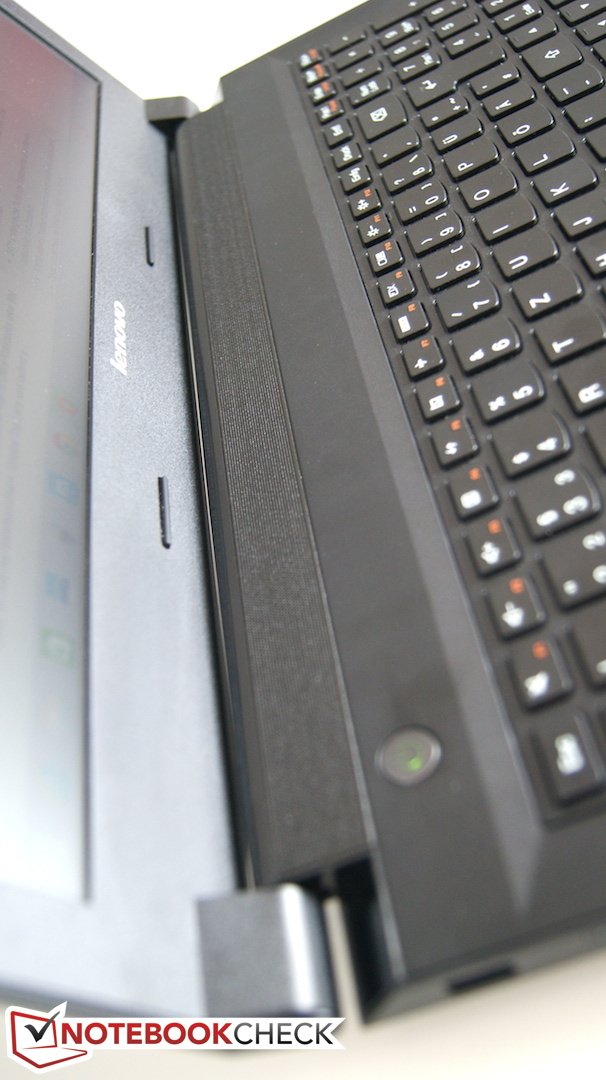

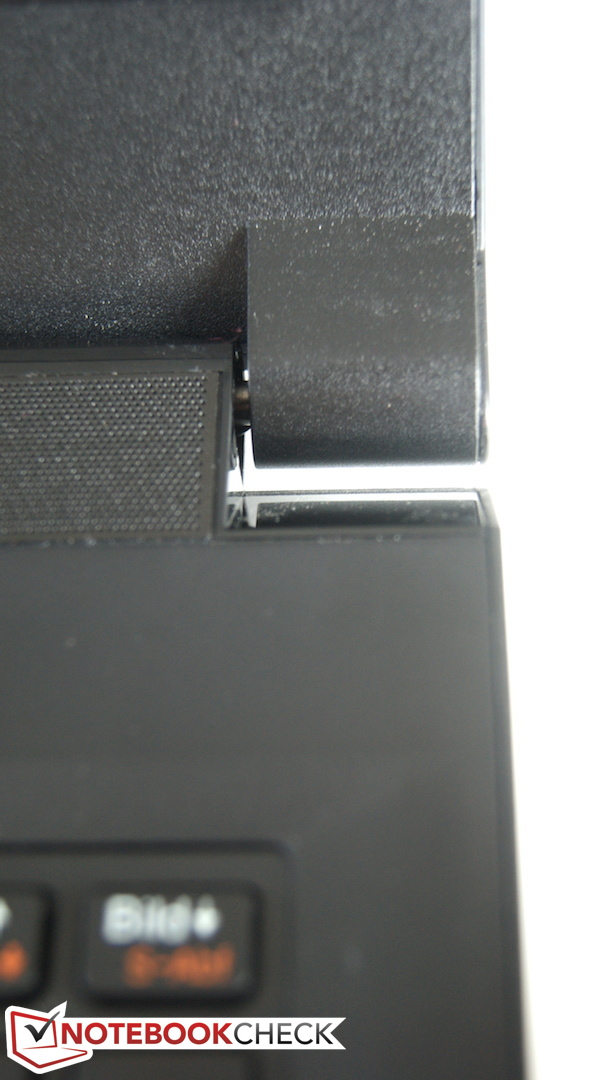

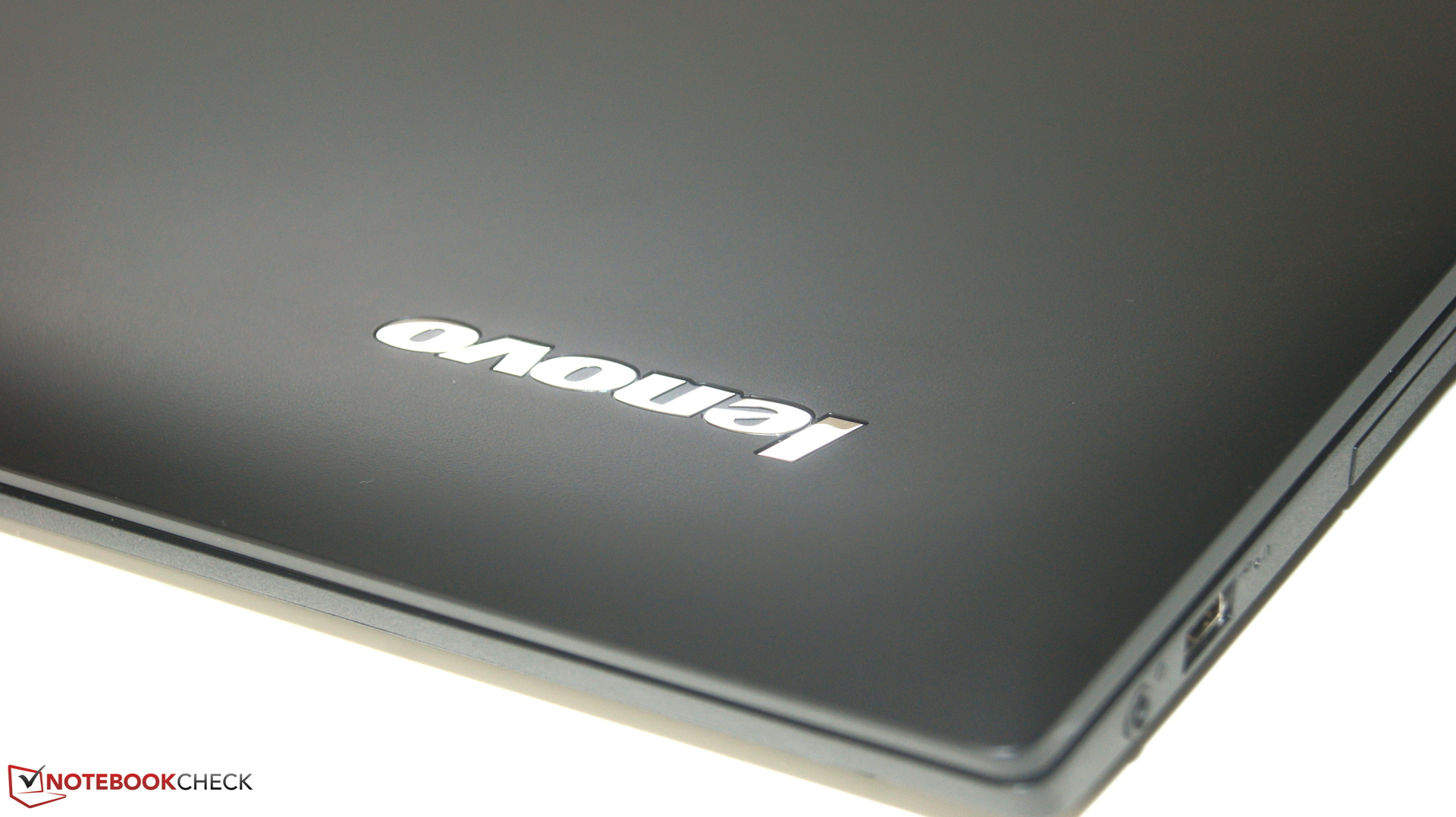

封闭的边角在有些地方有点凸出。
封闭的边角在有些地方有点凸出。

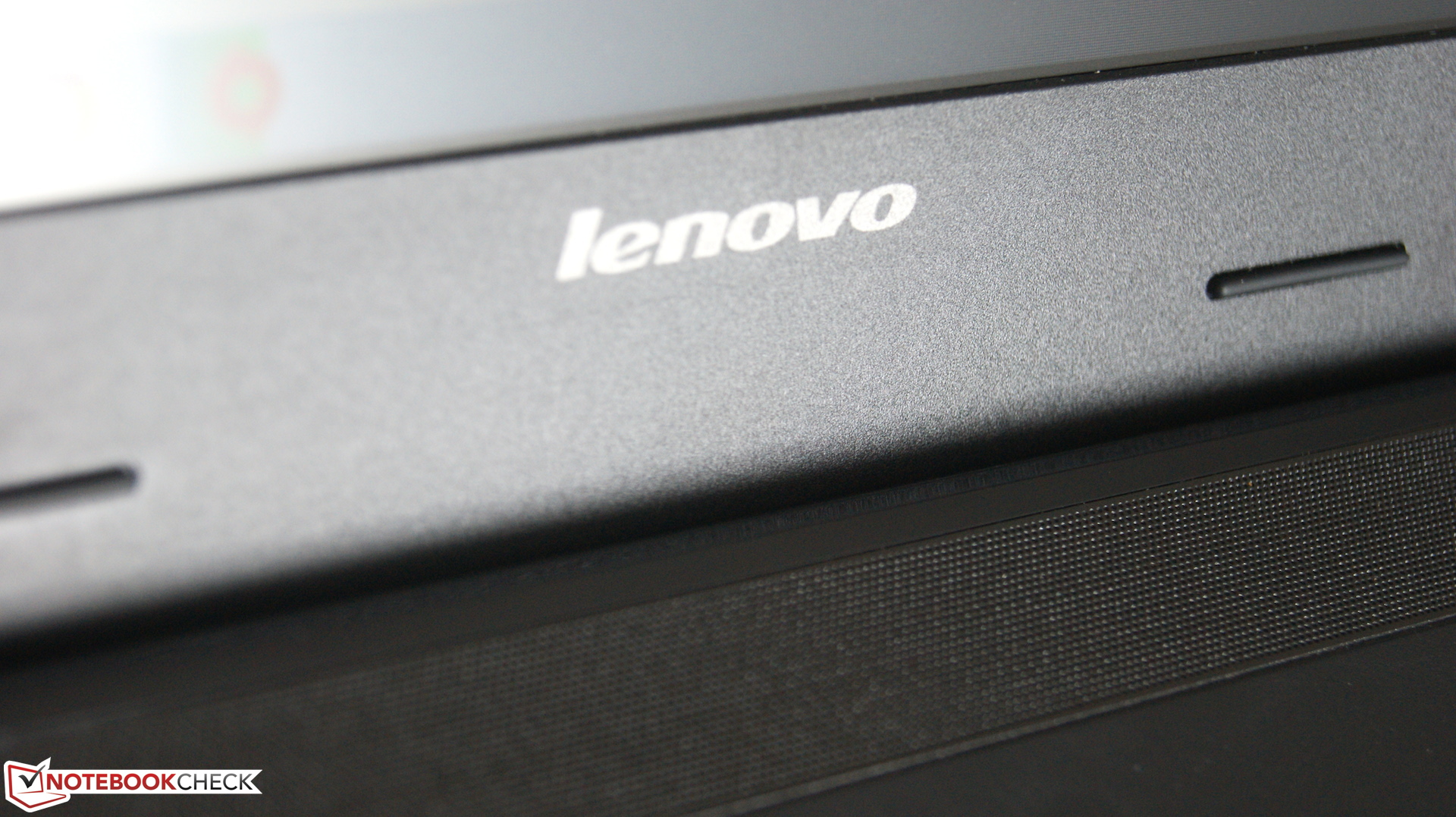

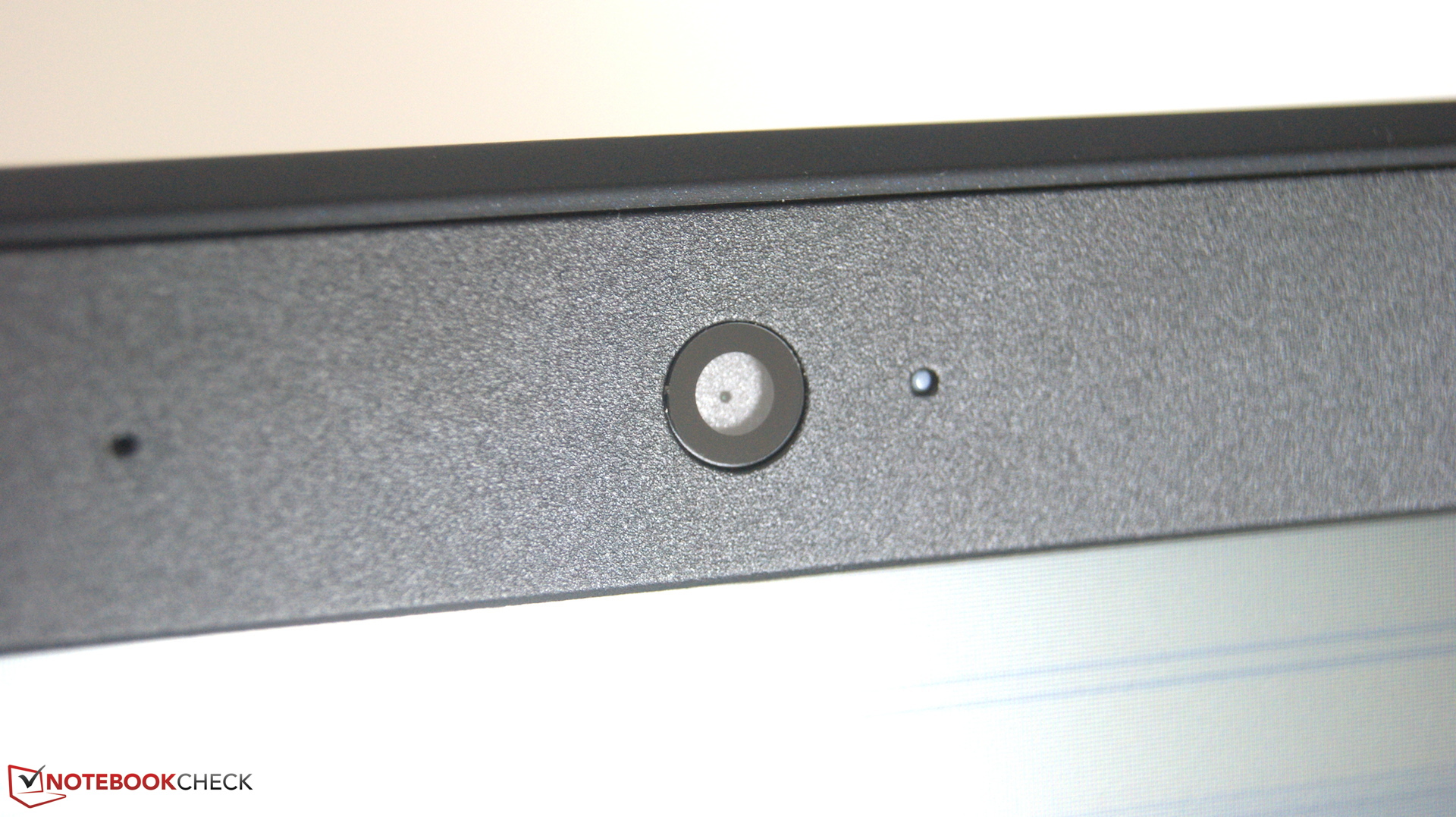

摄像头的质量非常值得质疑。
摄像头的质量非常值得质疑。

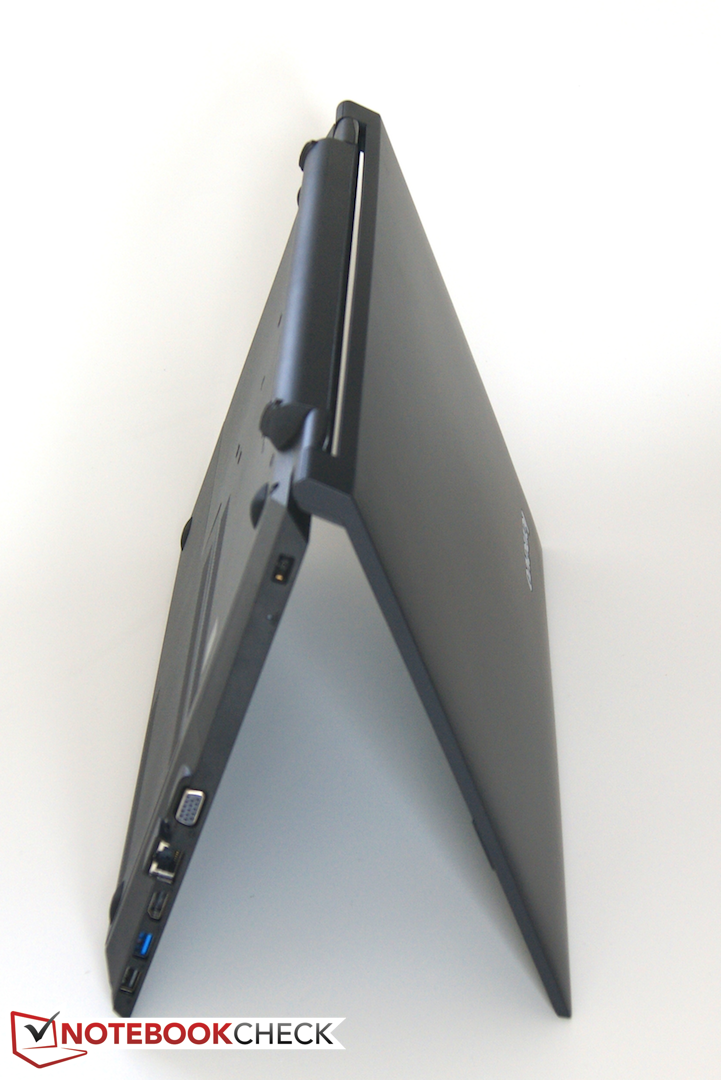

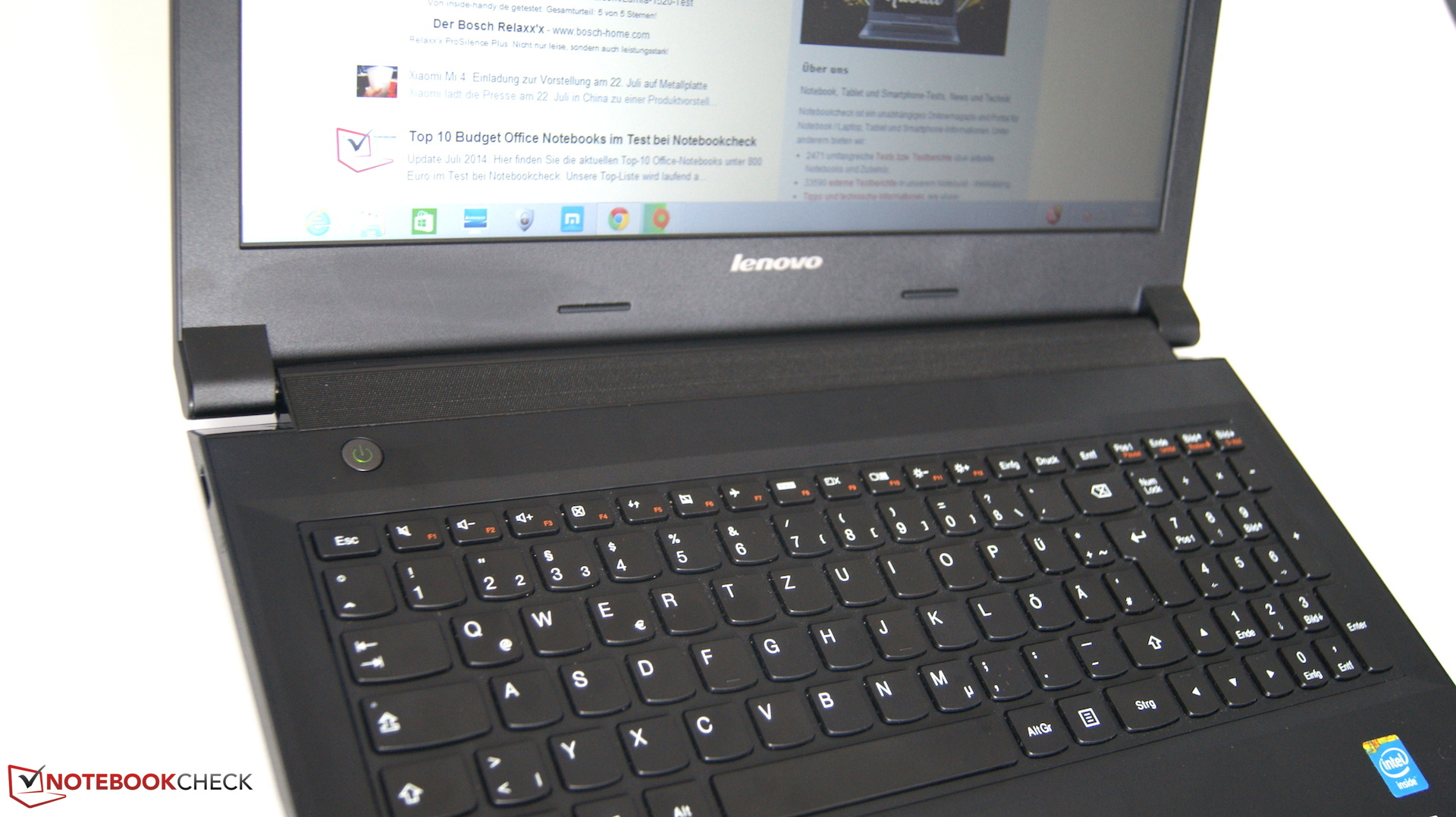

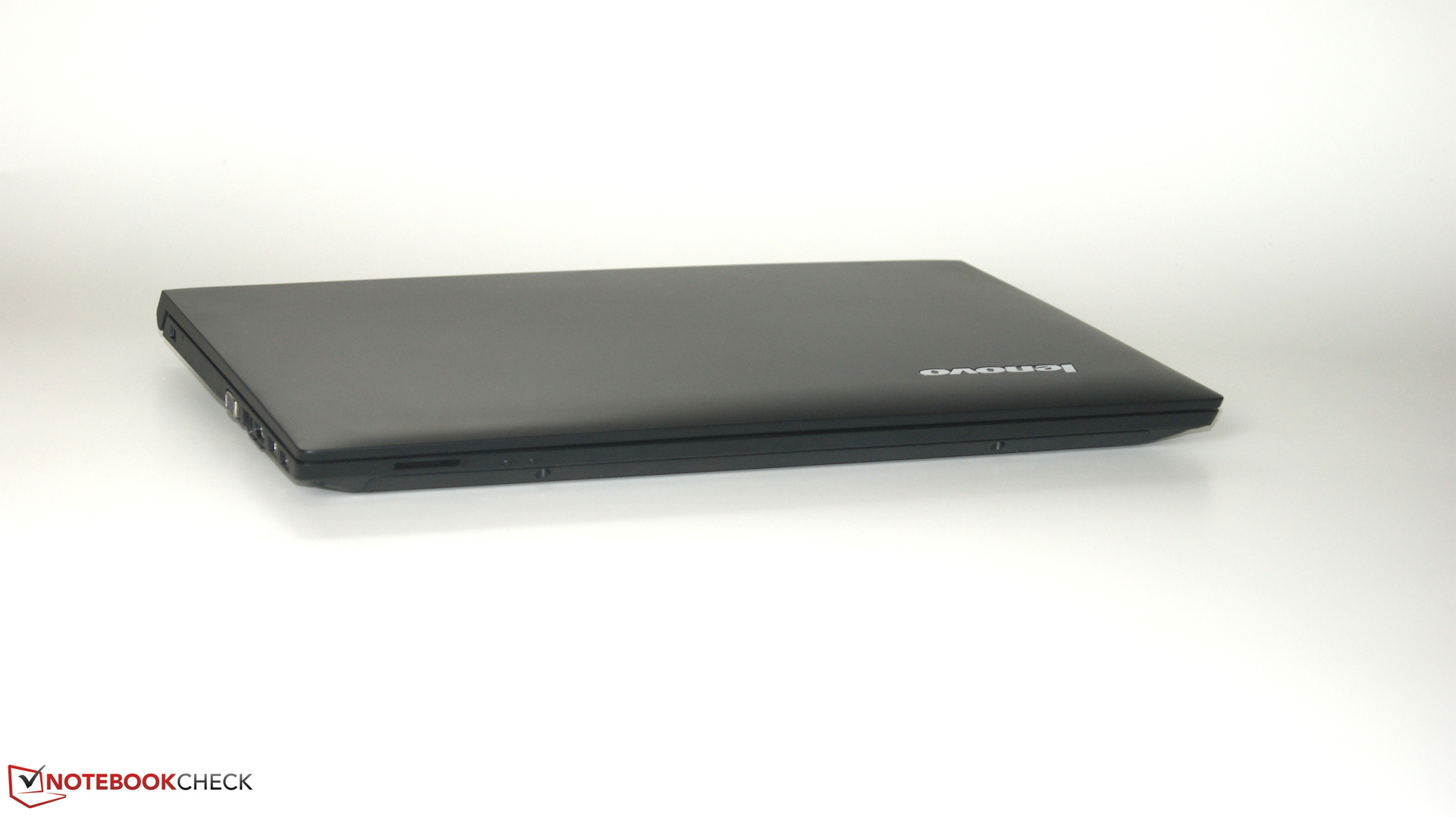

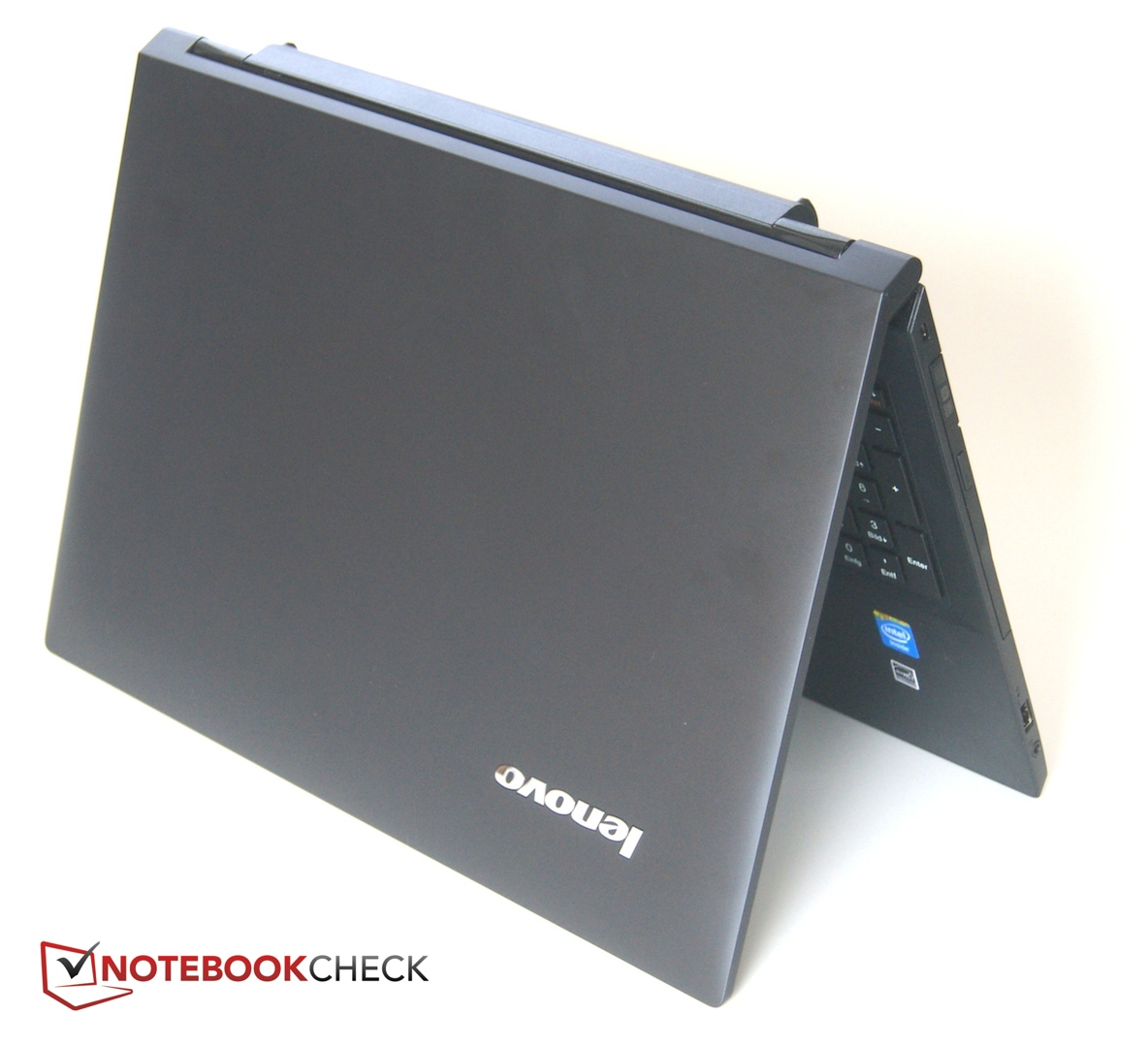

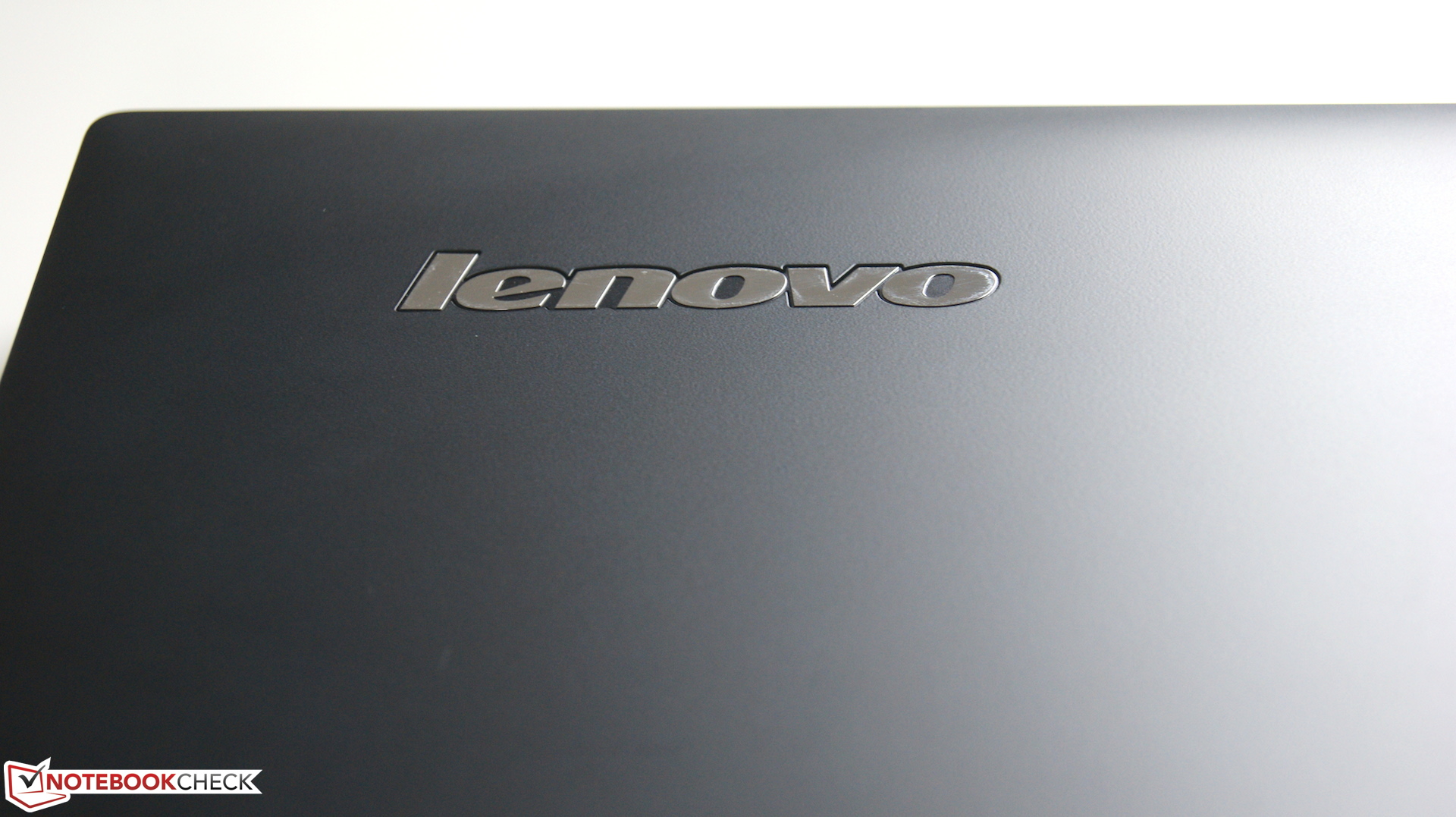

以实惠的价格可以得到纤薄雅致的设计。
以实惠的价格可以得到纤薄雅致的设计。

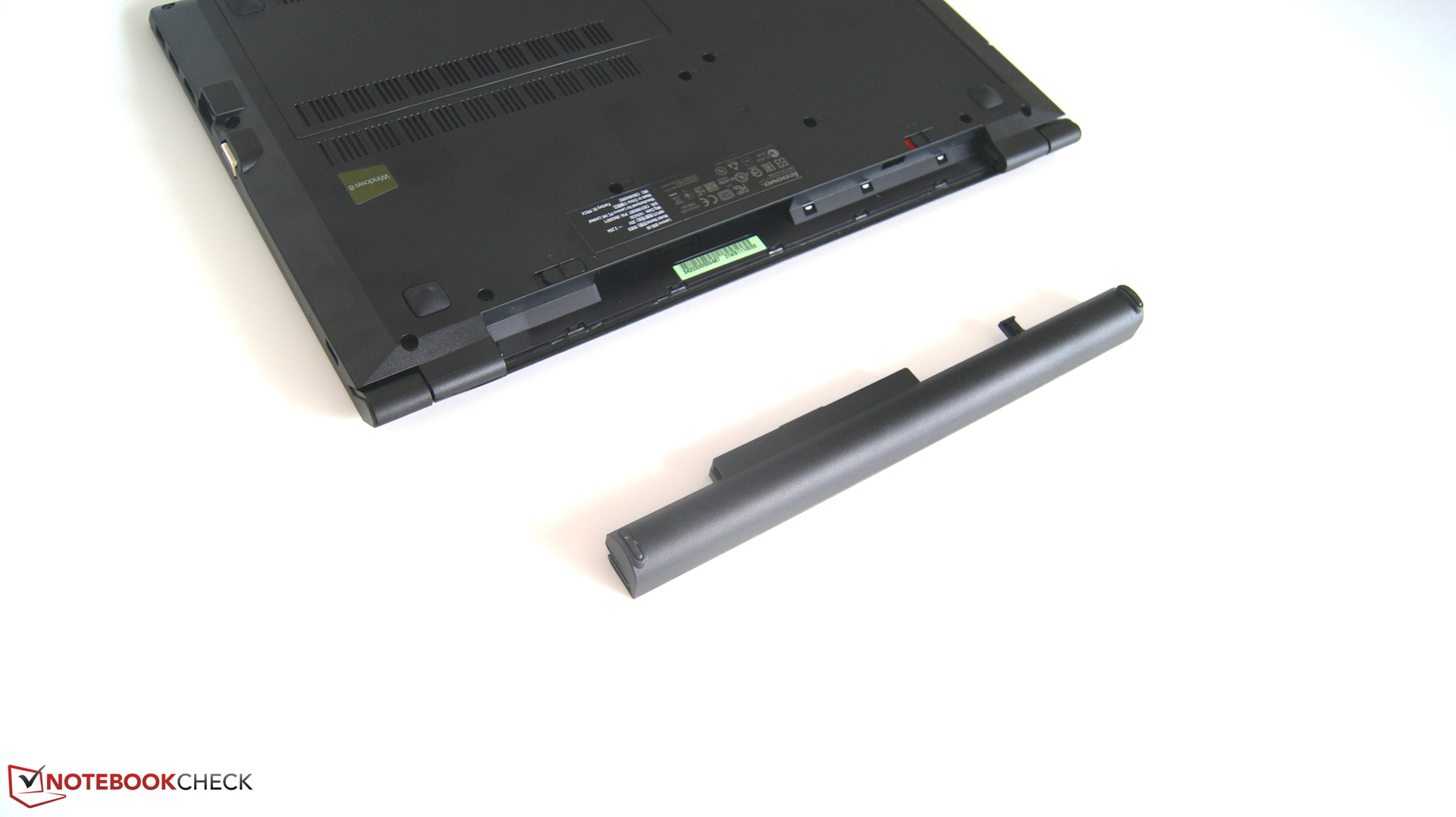

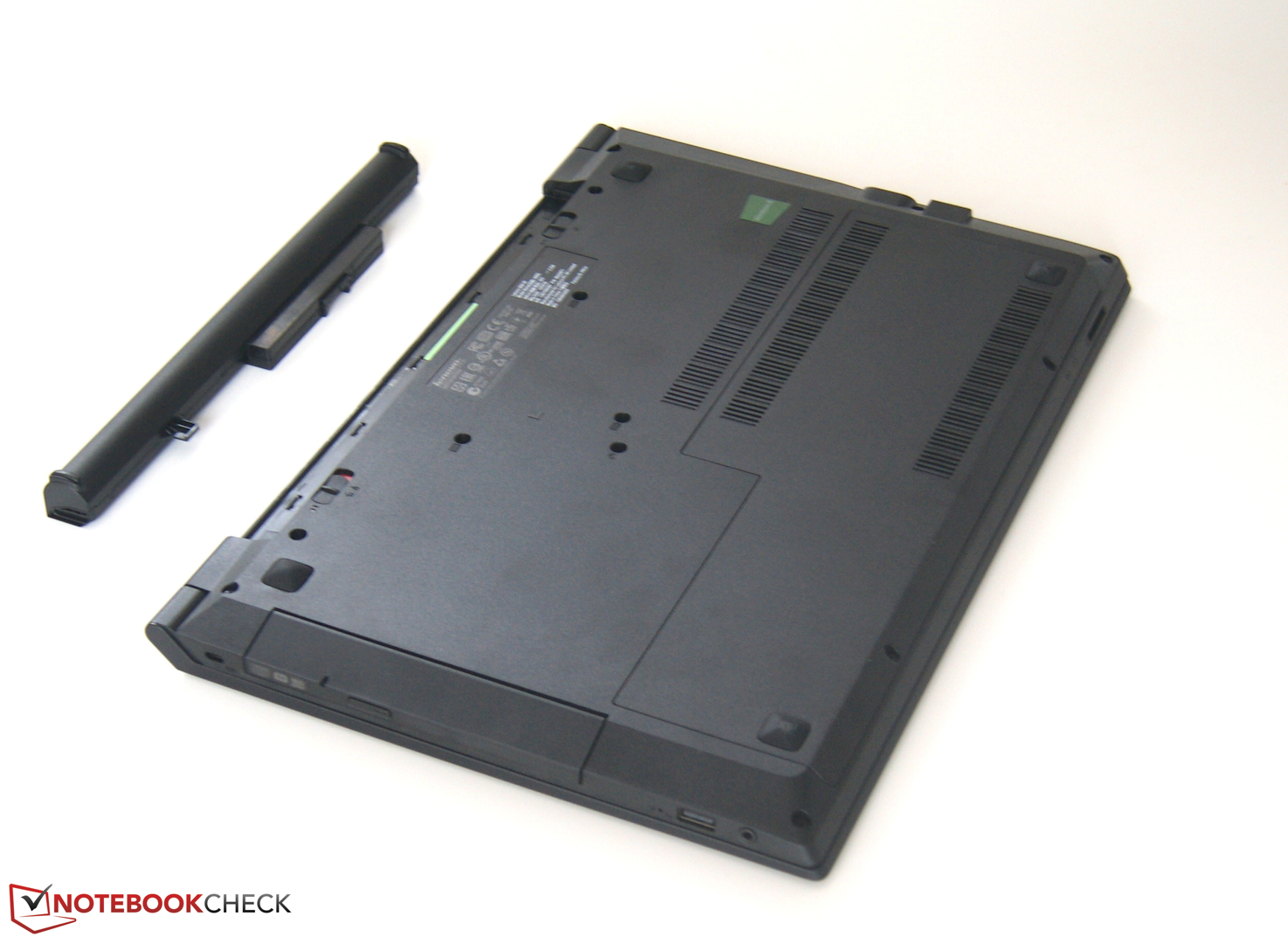

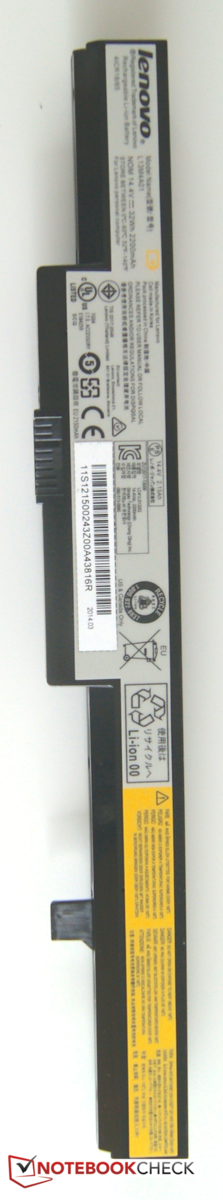

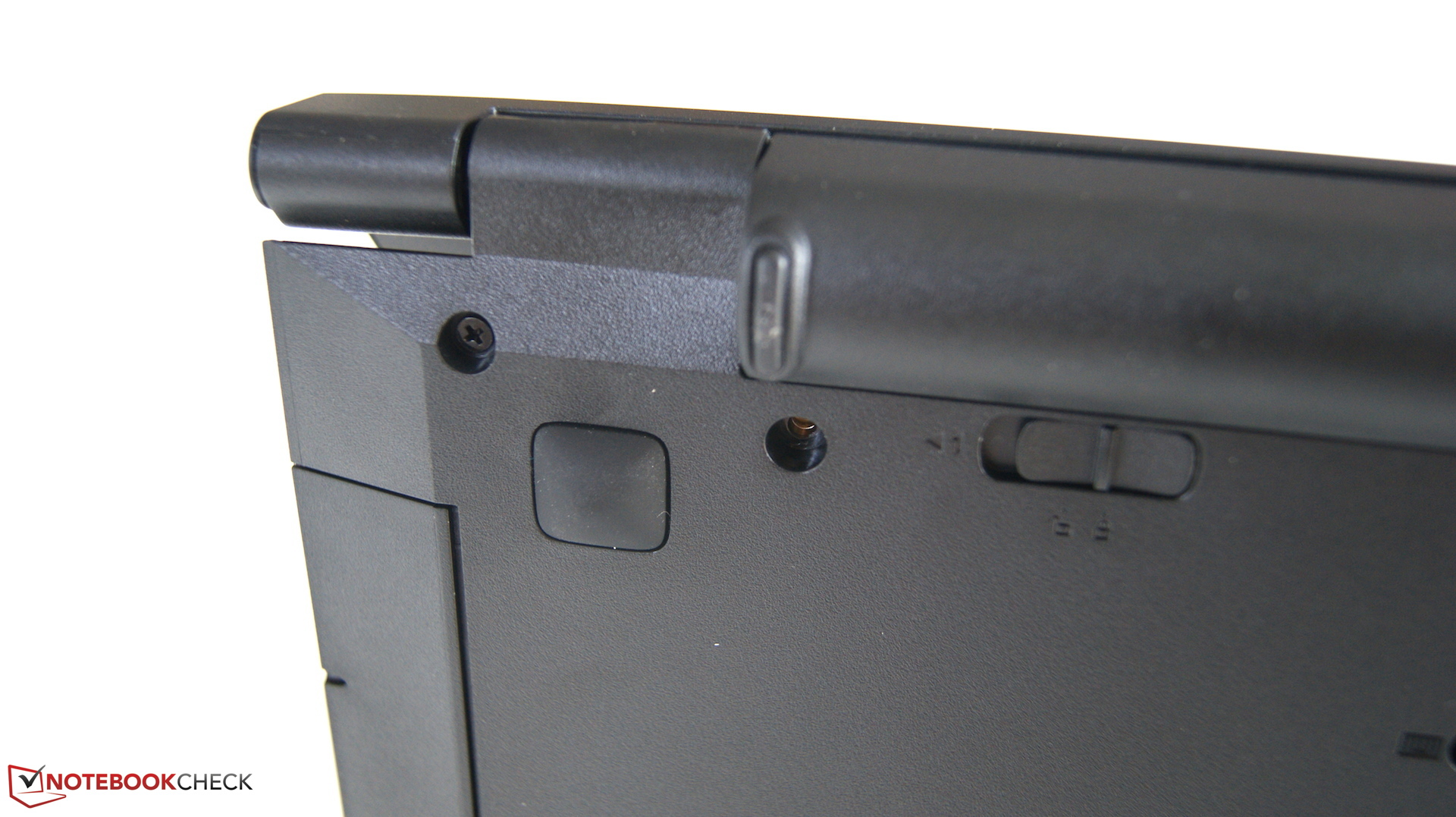

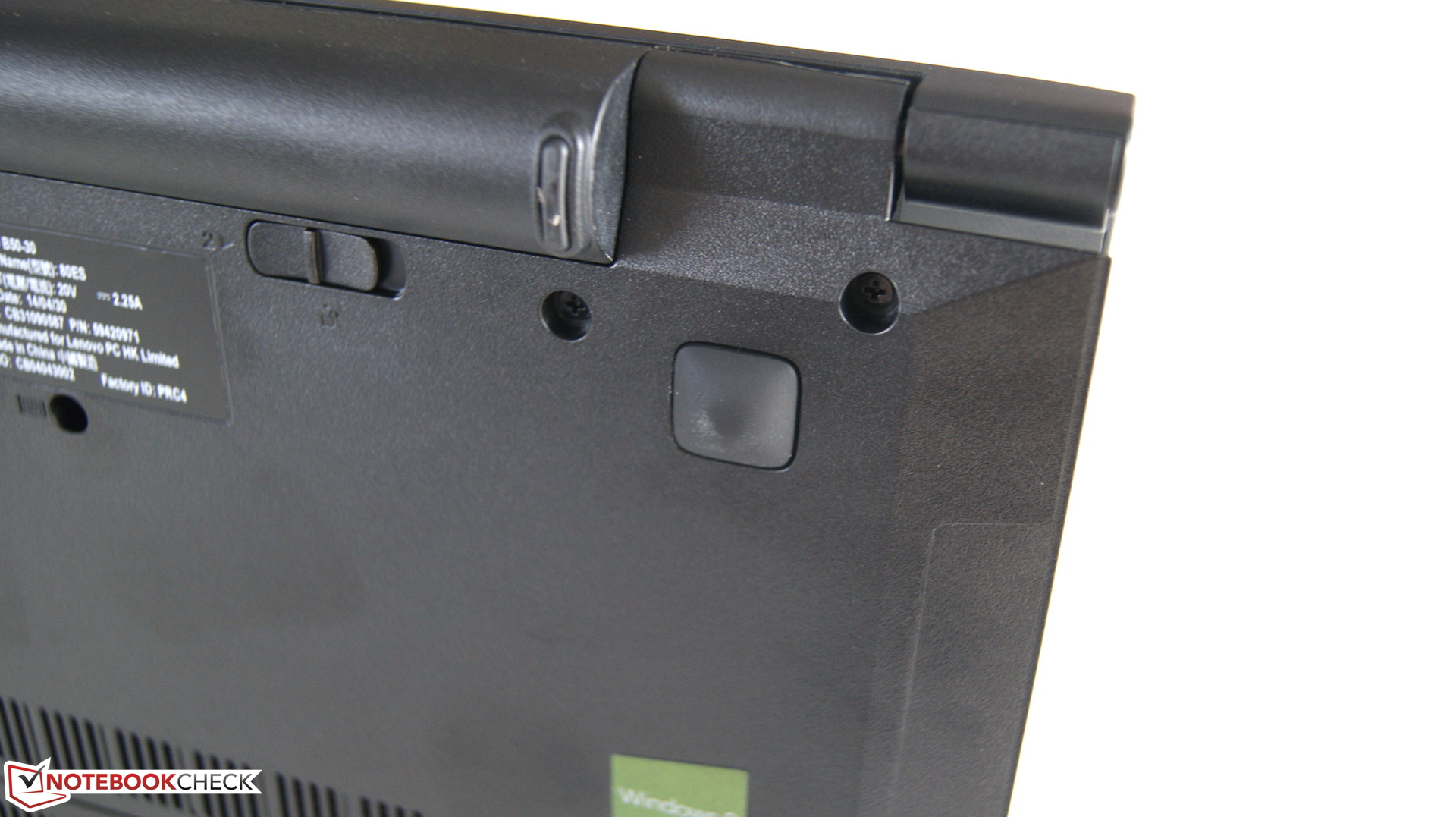

小容量的电池。
小容量的电池。

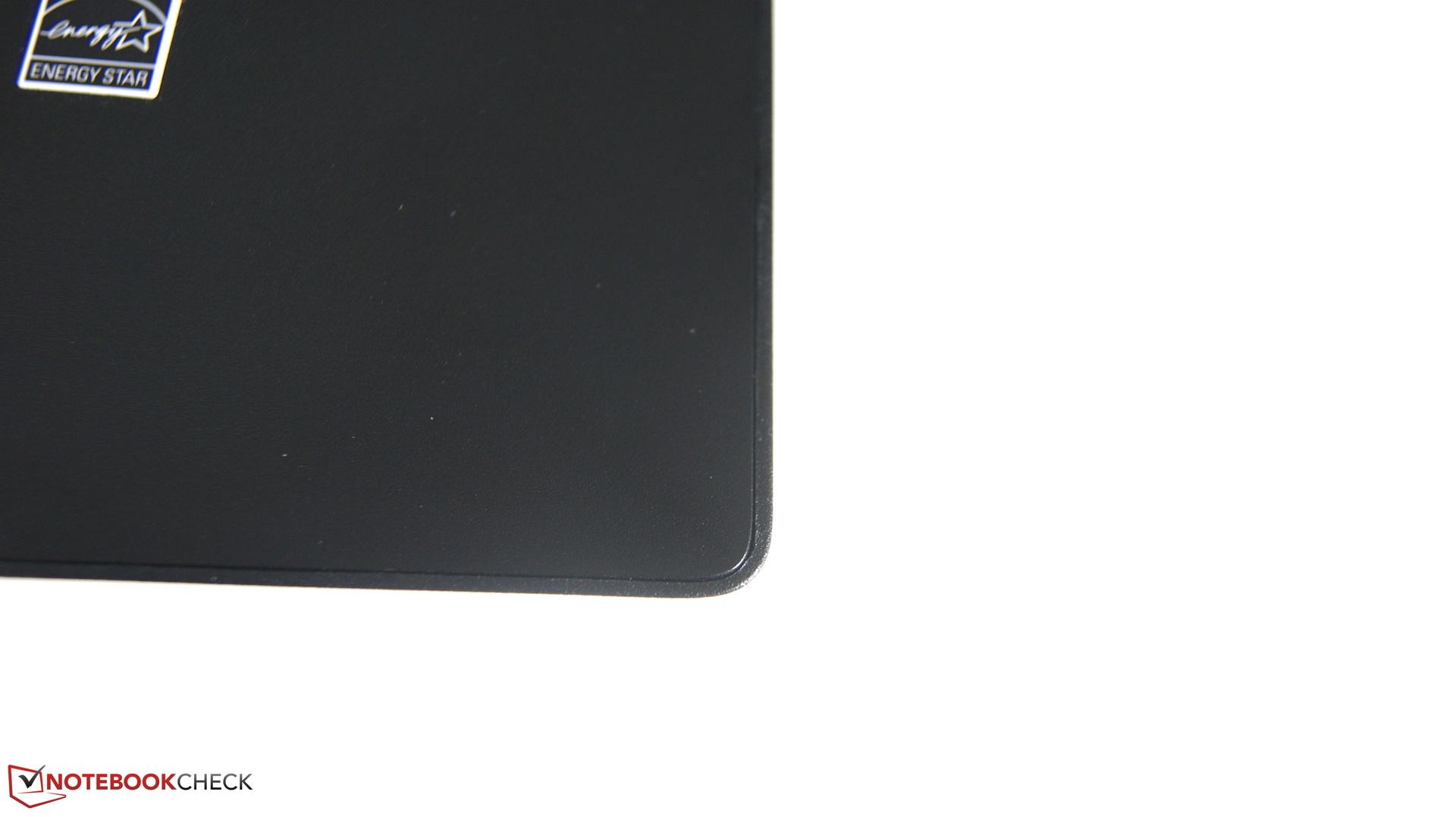

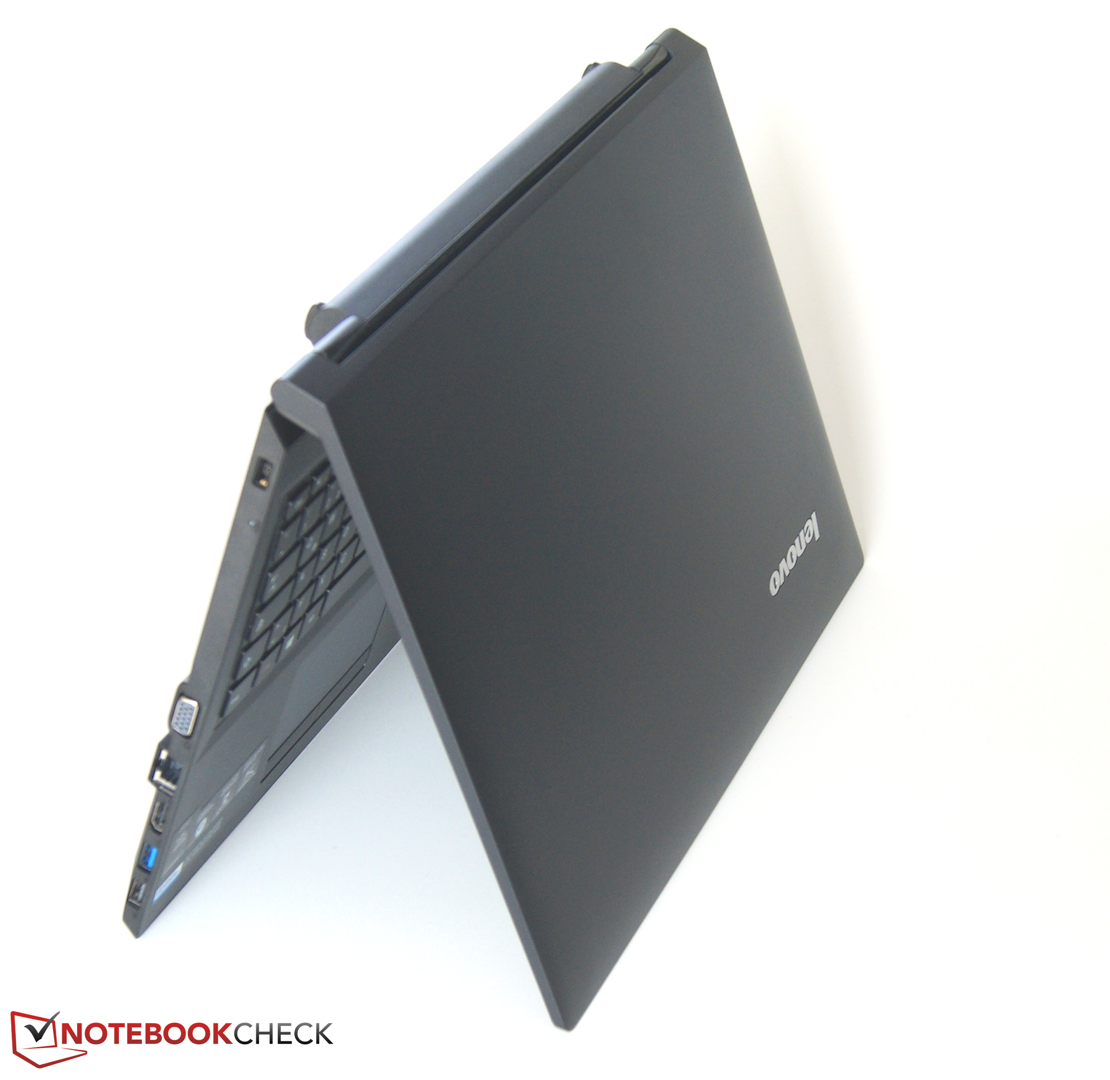

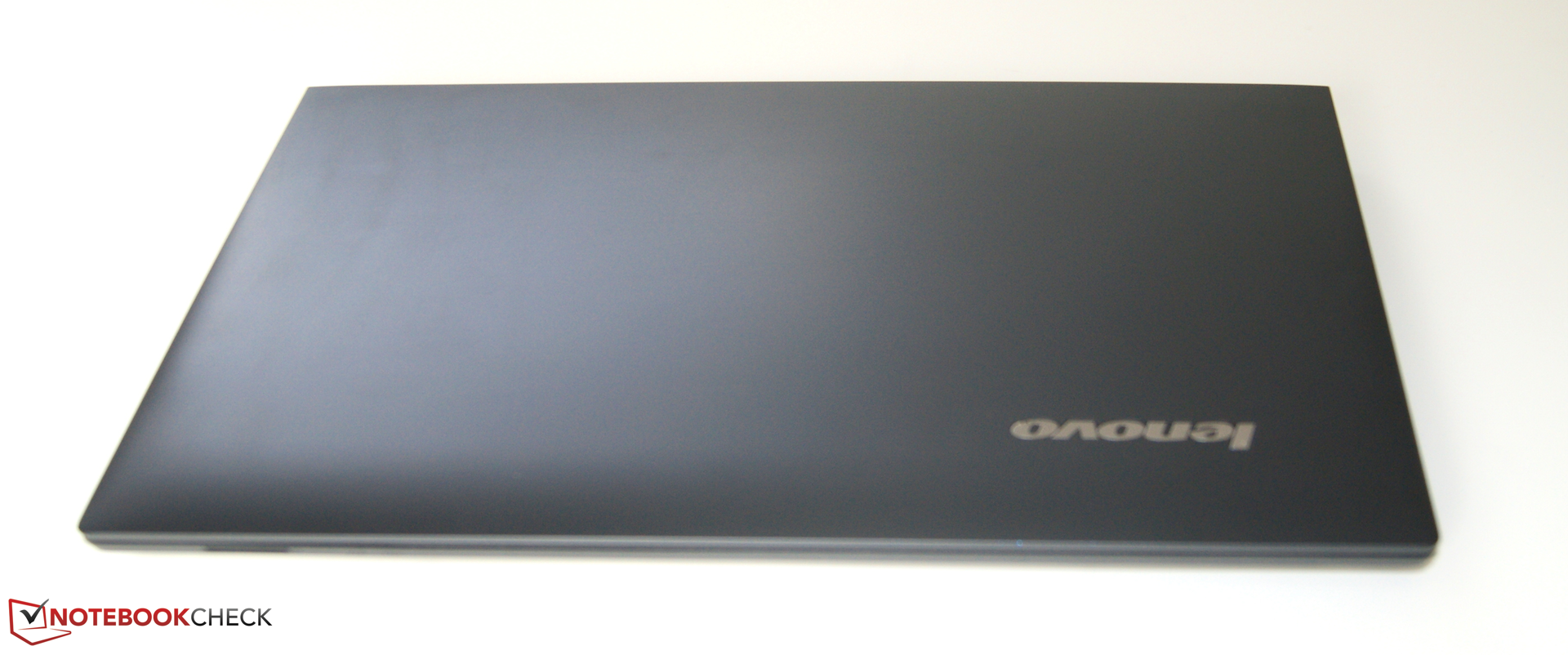

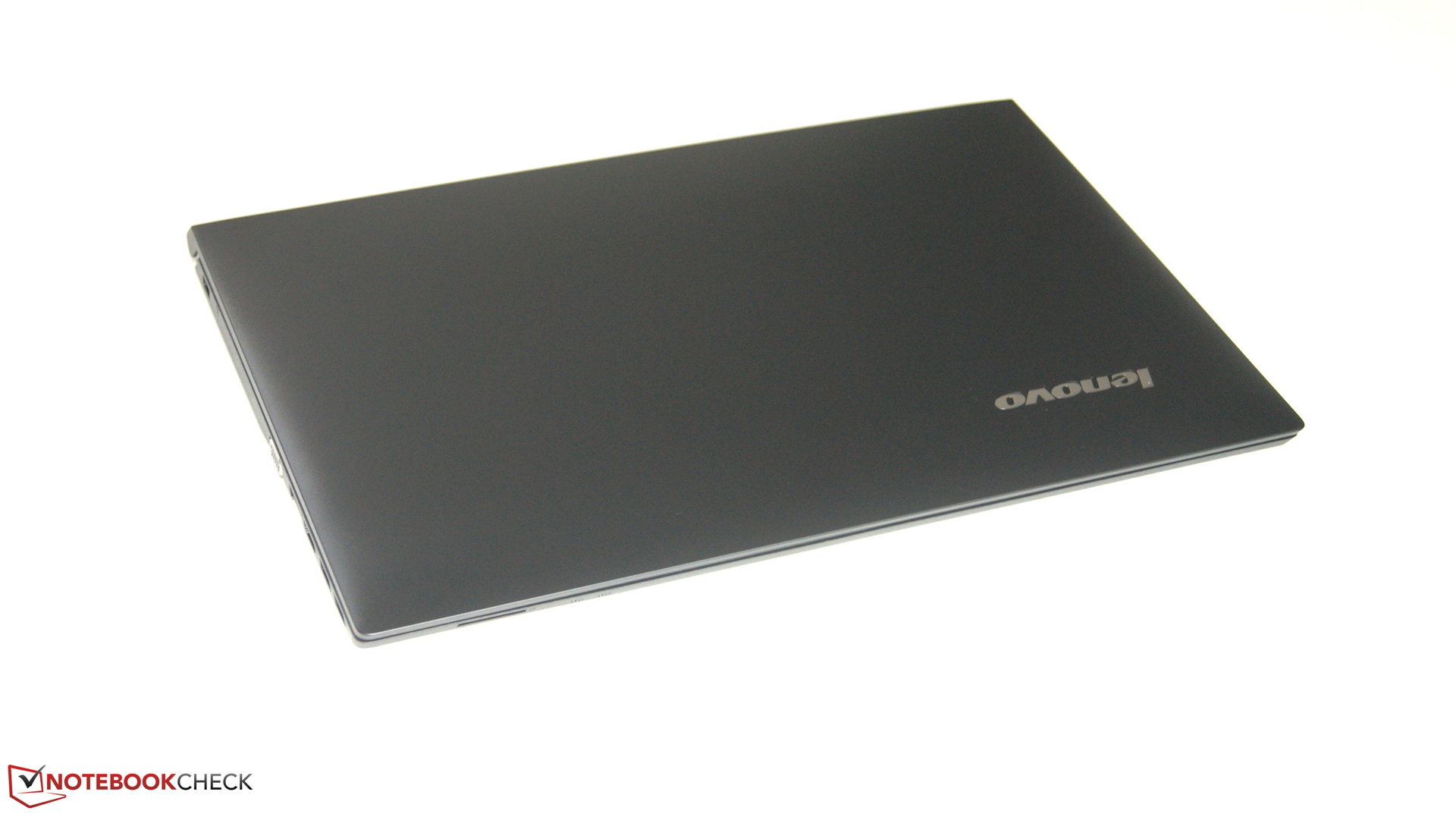

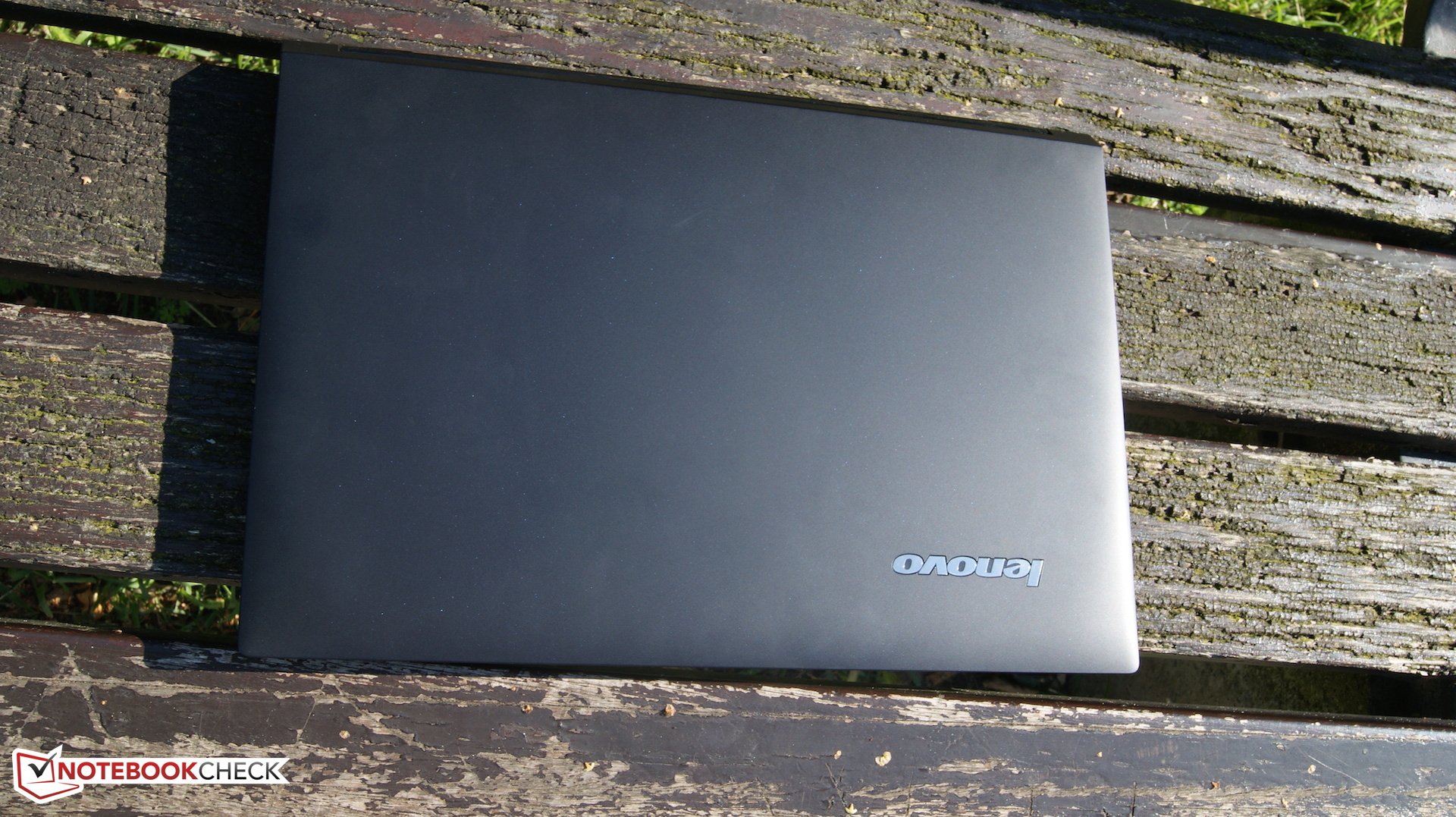

上盖有些不明显的泛蓝色调。
上盖有些不明显的泛蓝色调。


Specifications

Lenovo B50-30 (B50 Series)
Processor
Graphics adapter
Intel HD Graphics (Bay Trail), Core: 400-755.6 MHz, 10.18.10.3408
Memory
2048 MB
Display
15.6 inch 16:9, 1366x768 pixel, LG LP156WH3-TPTH, TN, glossy: no
Storage
Seagate Momentus Thin 320 GB ST320LT012, 320 GB
, 5400 rpm, 320 GB, 5400 rpm
Soundcard
Intel Valleyview SoC - HD Audio Controller
Connections
2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, Audio Connections: 3.5毫米整合耳机接口, Card Reader: SD/MMC
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Atheros AR9565 (a/b/g/n)
Optical drive
HL-DT-ST DVDRAM GUA0N
Size
height x width x depth (in mm): 28 x 380 x 262
Battery
32 Wh Lithium-Ion, 4 芯, Battery runtime (according to manufacturer): 5 h
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 30万像素
Additional features
Speakers: 立体声扬声器,支持Dolby® Advanced Audio™技术, Keyboard: AccuType (孤岛式), Keyboard Light: no
Weight
2.225 kg, Power Supply: 250 g
Price
270 Euro



Devices with Same Screen Size and/or Weight

联想 ThinkPad L570 (7200U, Full HD) 笔记本简短评测
HD Graphics 620, Core i5 7200U, 15.6", 2.38 kg
联想ThinkPad X1 Carbon 2017 (Core i7, Full-HD) 笔记本评测
HD Graphics 620, Core i7 7500U, 14", 1.144 kg
联想 IdeaPad 110-15ACL (A8-7410, 高清) 笔记本电脑简短评测
Radeon R5 (Beema/Carrizo-L), A-Series A8-7410, 15.6", 2.2 kg
联想ThinkPad T470s (Core i7, WQHD)笔记本评测
HD Graphics 620, Core i7 7600U, 14", 1.364 kg
联想 ThinkPad T470 (Core i5, Full-HD) 笔记本电脑简短评测
HD Graphics 620, Core i5 7200U, 14", 1.665 kg

Pros

+便宜的15寸笔记本
+有趣的外观色调
+重量和体积
+可维护性选项


Cons

-低于平均的性能
-预装了太多的第三方软件
-接缝处易积累尘埃
-输入设备不适合办公用土
-难以置信的低质量摄像头
-低对比度的屏幕
-仅提供12个月质保

Lenovo B50-30 - 11/02/2014 v4(old)
Nino Ricchizzi

Chassis
64 / 98 → 65%
Keyboard
62%
Pointing Device
58%
Connectivity
60 / 80 → 75%
Weight
62 / 67 → 89%
Battery
86%
Display
75%
Games Performance
20 / 68 → 29%
Application Performance
23 / 92 → 25%
Temperature
88%
Noise
100%
Camera
11 / 85 → 13%
Average
59%
69%
Office - Weighted Average
