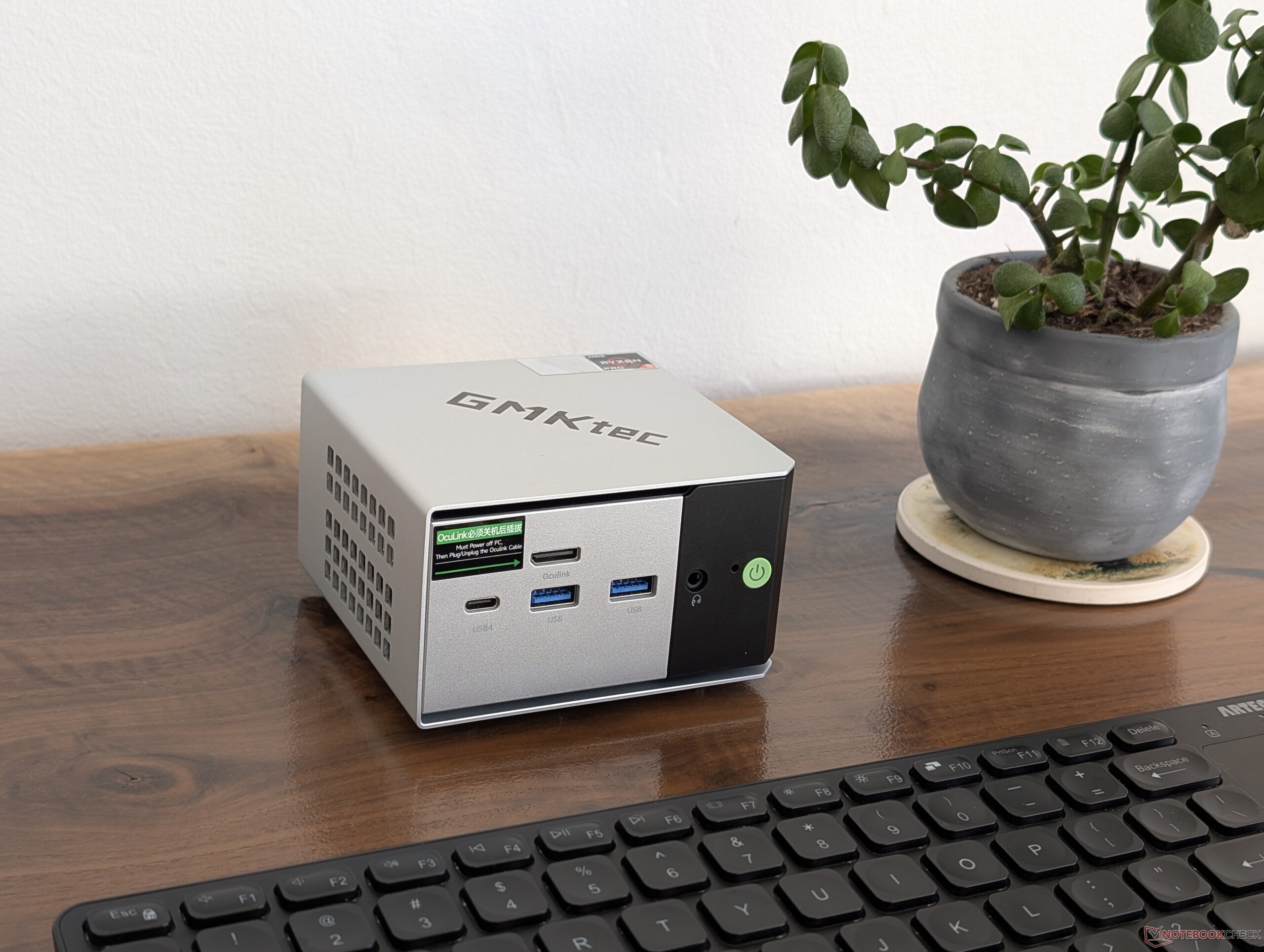

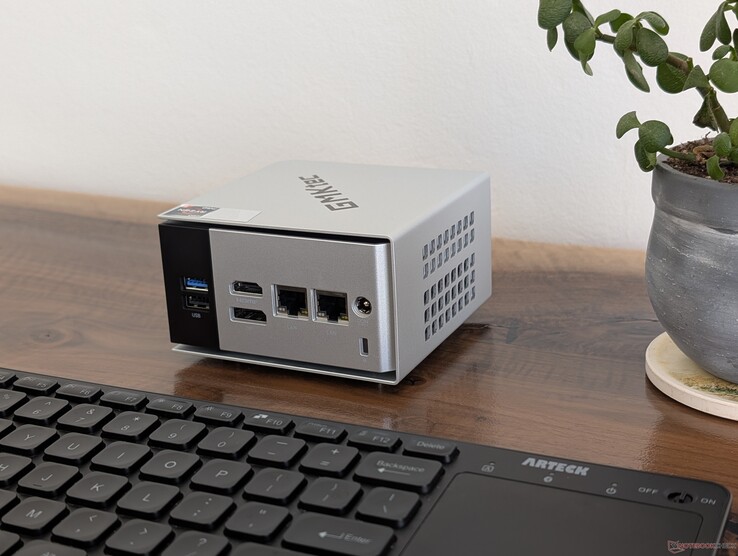

GMK NucBox M8 迷你电脑评测：小巧、专业、实惠

Name: GMK NucBox M8
Brand: GMK

中等性能，适用于大多数应用。

NucBox M8 并非要成为最快的迷你 PC，但它在性能和价格上的平衡使其更容易被推荐用于大多数普通应用。
Allen Ngo, 👁 Allen Ngo (translated by DeepL / Ninh Duy) Published 12/29/2025 🇺🇸 🇫🇷 ...
Mini PC AMD Ryzen (Zen) Radeon

结论 - 性能恰到好处，价格恰到好处

搭载酷睿 Ultra 9 或 Ryzen AI 9 处理器的迷你电脑也许不错，但它们往往标价过高，性能也超出了大多数用户的需求。GMK NucBox M8 将处理器调回较旧的 Zen 3+ 处理器，以保持较低的价格，同时维持适合普通办公任务的性能水平。这种平衡的方法使 NucBox M8 在预算有限的情况下更容易获得，也更实用。甚至连 OcuLink 端口也增加了一层多功能性，这是大多数同价位 300 美元的迷你电脑所不具备的。

Test device courtesy of GMKtec

Download your licensed rating image as PNG / SVG

NucBox M8 最受限制的方面可能是它的图形性能和没有集成 NPU。这些高级功能需要更昂贵的 CPU，如上文提到的机型，如华硕专家中心 PN54, 微星 Cubi NUC AI+ 2MG甚至 GMK 自己的 EVO 系列.在其他方面，包括制造质量、端口选项和可维护性在内的核心属性与价格相当。不过，风扇行为和 USB-C DP 兼容性还需要进一步调整。

Pros

+ 运行温度相对较低

+ 最多支持两个 M.2 2280 固态硬盘

+ 价格相对便宜

+ 易于维护

+ 支持 OcuLink

Cons

- 图形处理性能有限；AMD CPU 较老

- 每瓦最高性能一般

- 最大内存容量为 16 GB

- 风扇脉动

- 无 VESA 安装

价格和供应情况

亚马逊目前正在销售1 TB GMK NucBox M8，售价 390 美元。另外，https://www.gmktec.com/products/gmktec-m8-amd-ryzen-5-pro-6650h-mini-pc512 GB 版本的直销价格为 360 美元。

$479.99

GMKtec Mini PC M8 Desktop Computer AMD Ryzen 5 PRO 6650H (6C/12T 4.50Ghz) Dual NIC LAN 2.5GbE, 16GB LPDDR5 RAM + 512GB Hard Drive PCle SSD, Oculink, USB4, HDMI, USB-C

结论 - 性能恰到好处，价格恰到好处
规格
案例
连接性
性能
排放量

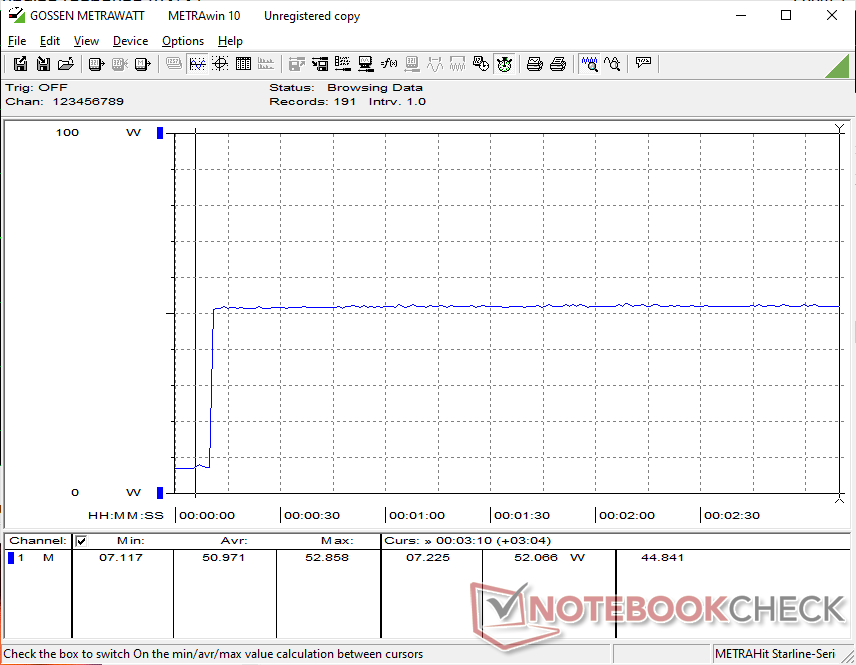

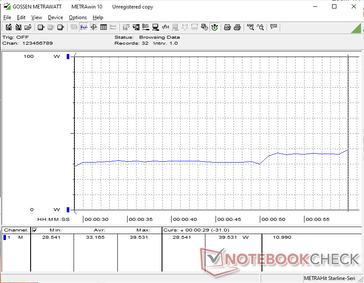

能源管理
笔记本检查评级
潜在竞争对手比较

GMKtec NucBox M8 迷你 PC 的目标用户是办公室和专业环境，在这些环境中，不显眼比原始性能更重要。它集成了 OcuLink 端口，增加了多功能性，使其有别于市场上的其他大多数迷你电脑。M8 采用了较旧但可靠的 AMD Zen 3+ Ryzen 5 Pro 6650H CPU，机箱设计与价格较高的 GMK EVO 系列类似，具有现代感和更新性。

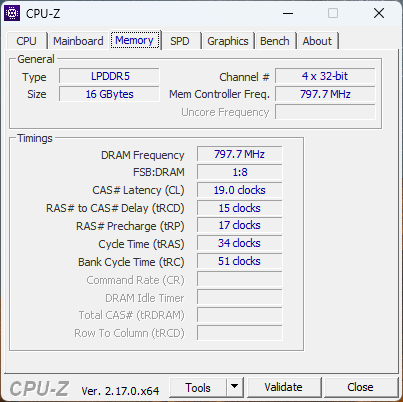

我们的测试机配备了 512 GB M.2 固态硬盘和 16 GB 焊接 LPDDR5-6400 内存，售价约 360 美元。此外还有 1 TB 配置，但 16 GB 内存保持不变。

NucBox M8 的替代产品包括其他低配置商务迷你电脑，如微星 Cubi NUC AI+, 华硕 ExpertCenter PN54或华硕 NUC 15 Pro+.

更多 GMK 评论：

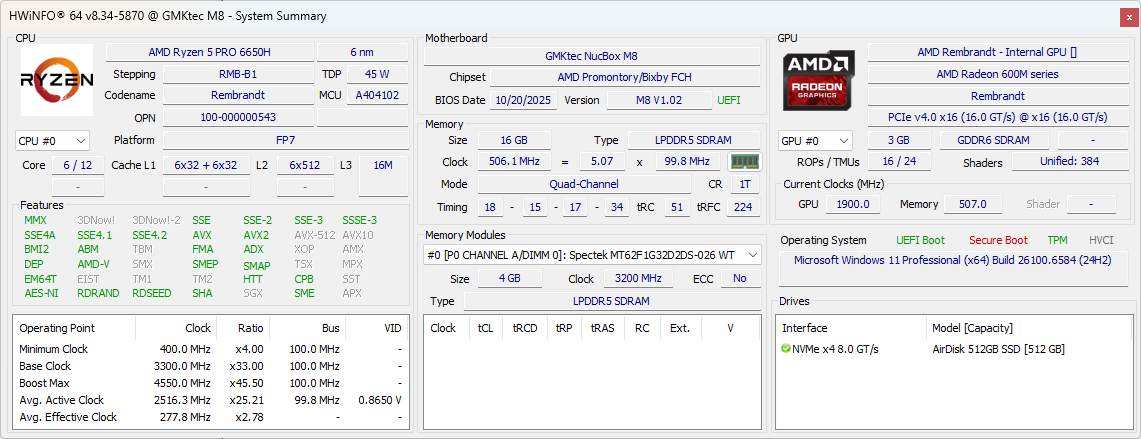

规格

GMK NucBox M8

Processor

AMD Ryzen 5 PRO 6650H 6 x 3.3 - 4.5 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Rembrandt-H PRO (Zen 3+)

Graphics adapter

AMD Radeon 660M, Core: 1900 MHz, LPDDR5, 32.0.21037.1004

Memory

16 GB

, LPDDR5, 6400 MT/s, Soldered, Dual-Channel

Mainboard

AMD Promontory/Bixby FCH

Storage

AirDisk APF 10-512G, 512 GB

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 3 USB 3.1 Gen2, 1 USB4 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm combo

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 63 x 111 x 107

Operating System

Microsoft Windows 11 Pro

Additional features

HDMI cable, 12 Months Warranty

Weight

494 g, Power Supply: 548 g

Price

0 360

Amazon

$479.99

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

案例

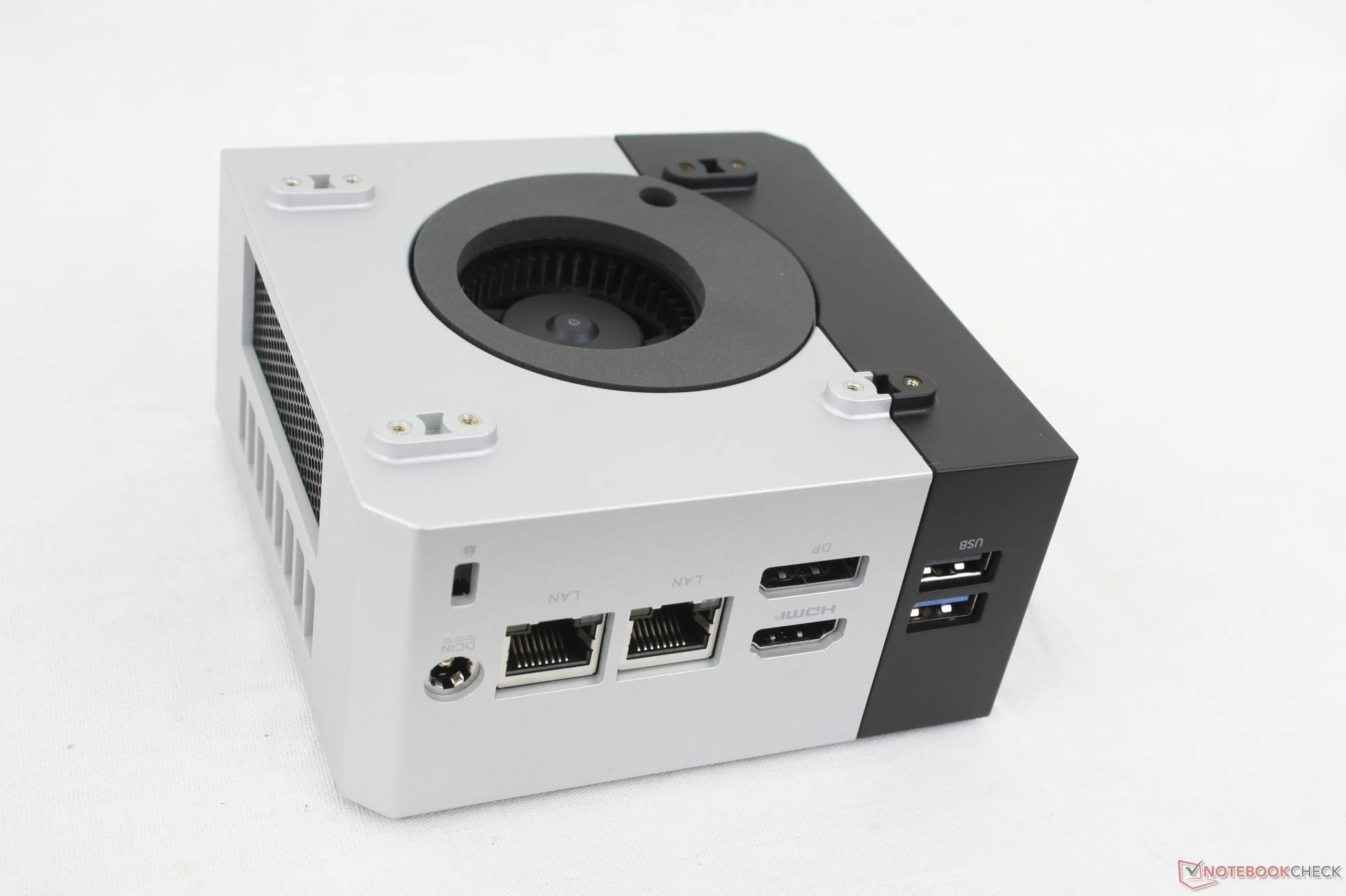

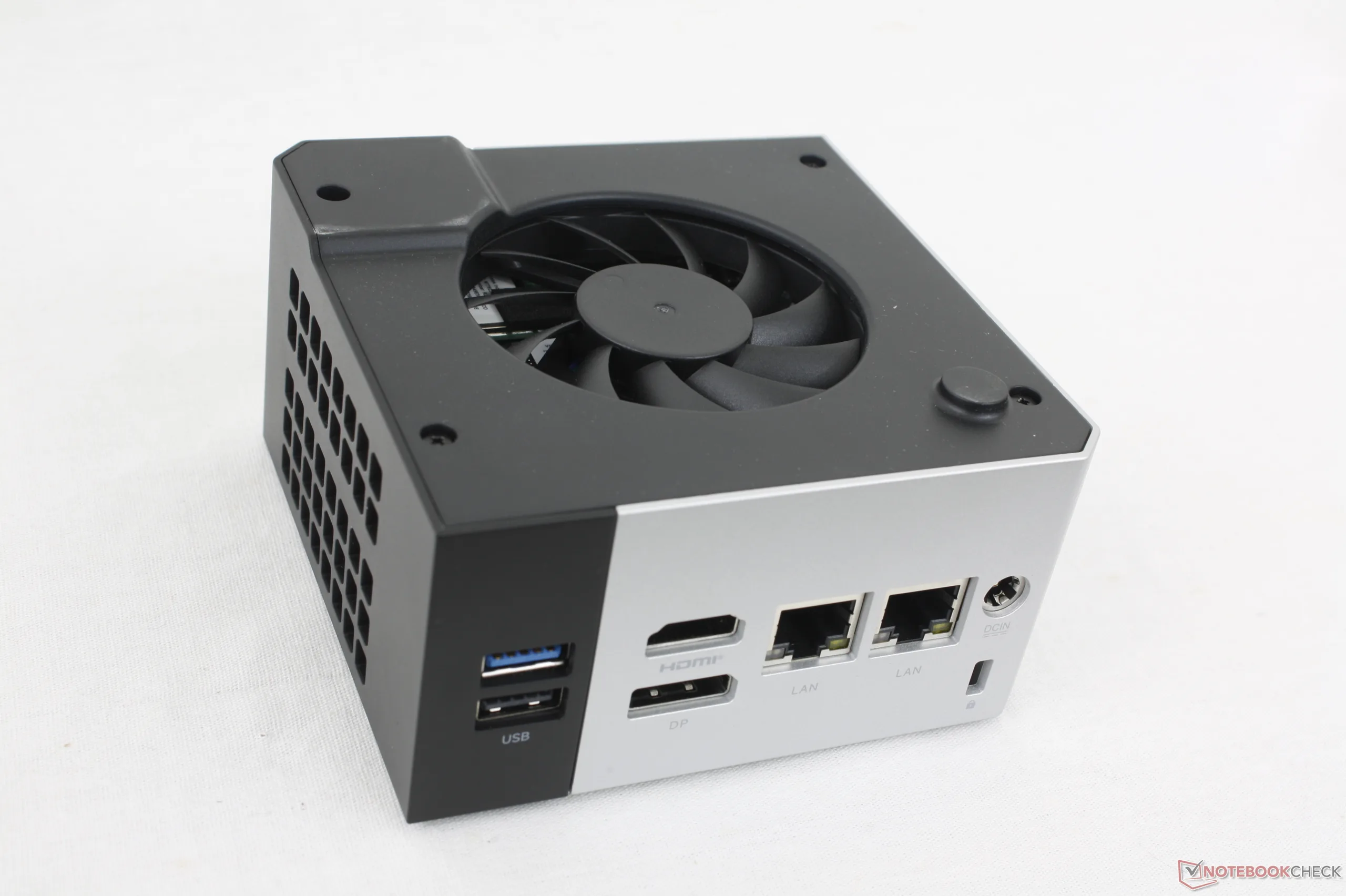

机箱设计和端口沿用了 EVO-X1而不是最近的 NucBox K12因为 NucBox M8 的专业用户群与 EVO-X1 相似。金属外壳的颜色没有 EVO-X1 那么深，但尽管价格相差悬殊，用料仍然相同。

尺寸比较

GMK NucBox K12 MSI Cubi NUC AI+ 2MG Beelink SER9 Pro GMK NucBox M8 BOSGAME M4 Neo Asus ExpertCenter PN54-S70012NN DIN A4 ❌

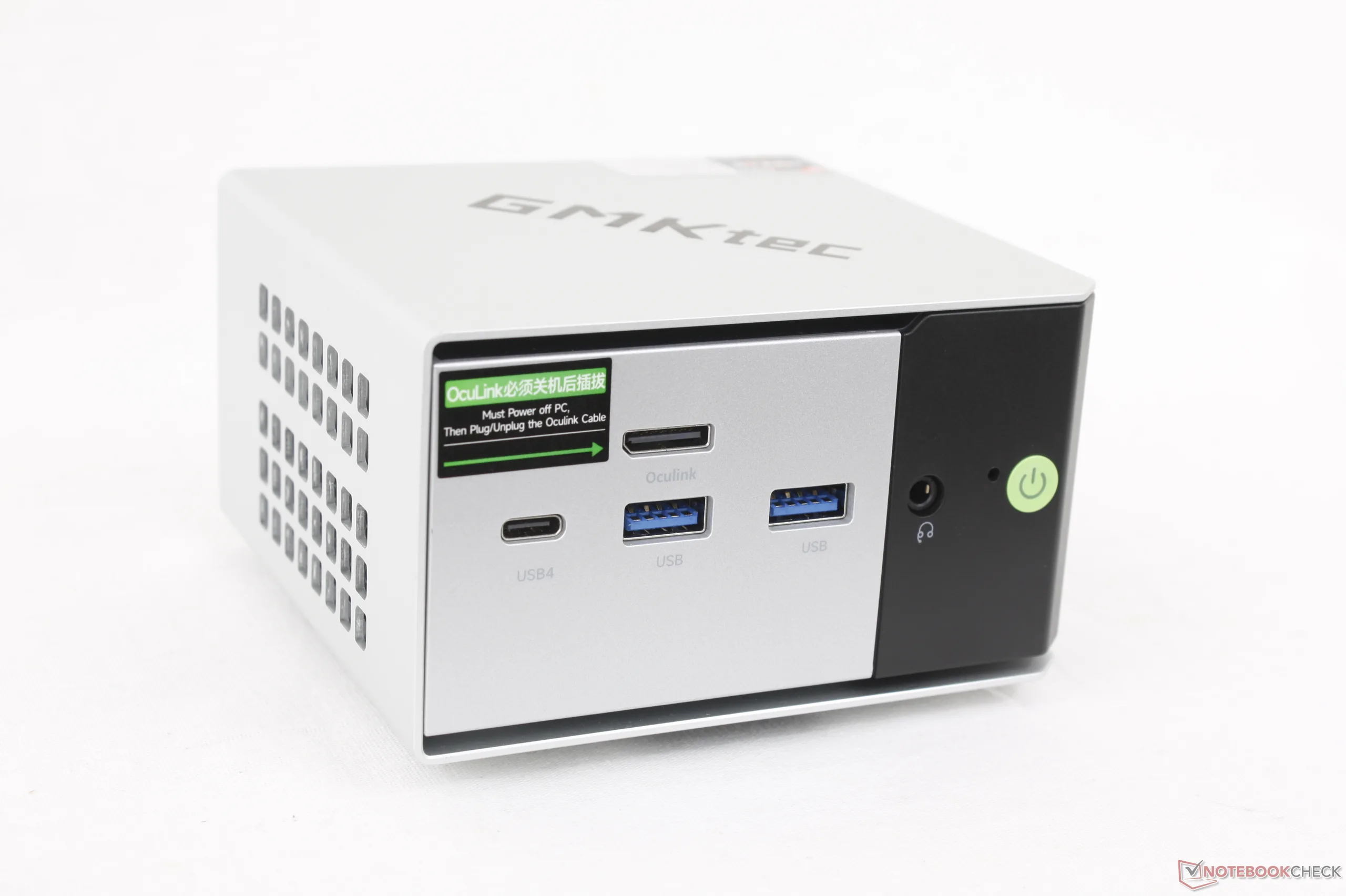

连接性

虽然制造商声称前置 USB-C 端口支持 DisplayPort 1.4，但我们在多次重试和更新驱动程序后，仍无法将其与 USB-C 外接显示器配合使用。

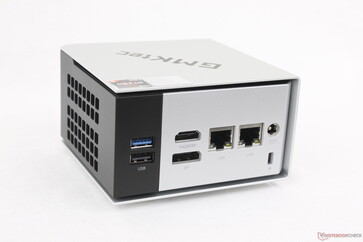

前置USB-C 4.0 w/ DisplayPort 1.4 + Power Delivery 3.0 (40 Gbps)、2x USB-A 3.2 (10 Gbps)、OcuLink (PCIe4 x4)、3.5 毫米耳机、电源按钮

交流

Networking
iperf3 transmit AXE11000
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1643 (1516^min - 1705^max) MBit/s +177%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1282 (1121^min - 1470^max) MBit/s +116%
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1193 (1001^min - 1325^max) MBit/s +101%
Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	852 (796^min - 887^max) MBit/s +44%
GMK NucBox M8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	593 (500^min - 684^max) MBit/s
Beelink SER9 Pro	580 (458^min - 645^max) MBit/s -2%
iperf3 receive AXE11000
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1716 (1642^min - 1755^max) MBit/s +150%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1409 (1143^min - 1606^max) MBit/s +105%
Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	958 (947^min - 967^max) MBit/s +40%
Beelink SER9 Pro	851 (780^min - 908^max) MBit/s +24%
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	819 (705^min - 979^max) MBit/s +19%
GMK NucBox M8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	686 (521^min - 769^max) MBit/s
iperf3 transmit AXE11000 6GHz
Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1871 (1766^min - 2000^max) MBit/s +55%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1546 (759^min - 1594^max) MBit/s +28%
GMK NucBox M8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1208 (998^min - 1395^max) MBit/s
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1101 (868^min - 1237^max) MBit/s -9%
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	999 (530^min - 1123^max) MBit/s -17%
iperf3 receive AXE11000 6GHz
Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1803 (1785^min - 1813^max) MBit/s +20%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1702 (1657^min - 1730^max) MBit/s +14%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1656 (1581^min - 1726^max) MBit/s +10%
GMK NucBox M8 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1499 (1475^min - 1518^max) MBit/s
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	860 (829^min - 889^max) MBit/s -43%

GMK NucBox M8; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1208 (998-1395)

GMK NucBox M8; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1498 (1475-1518)

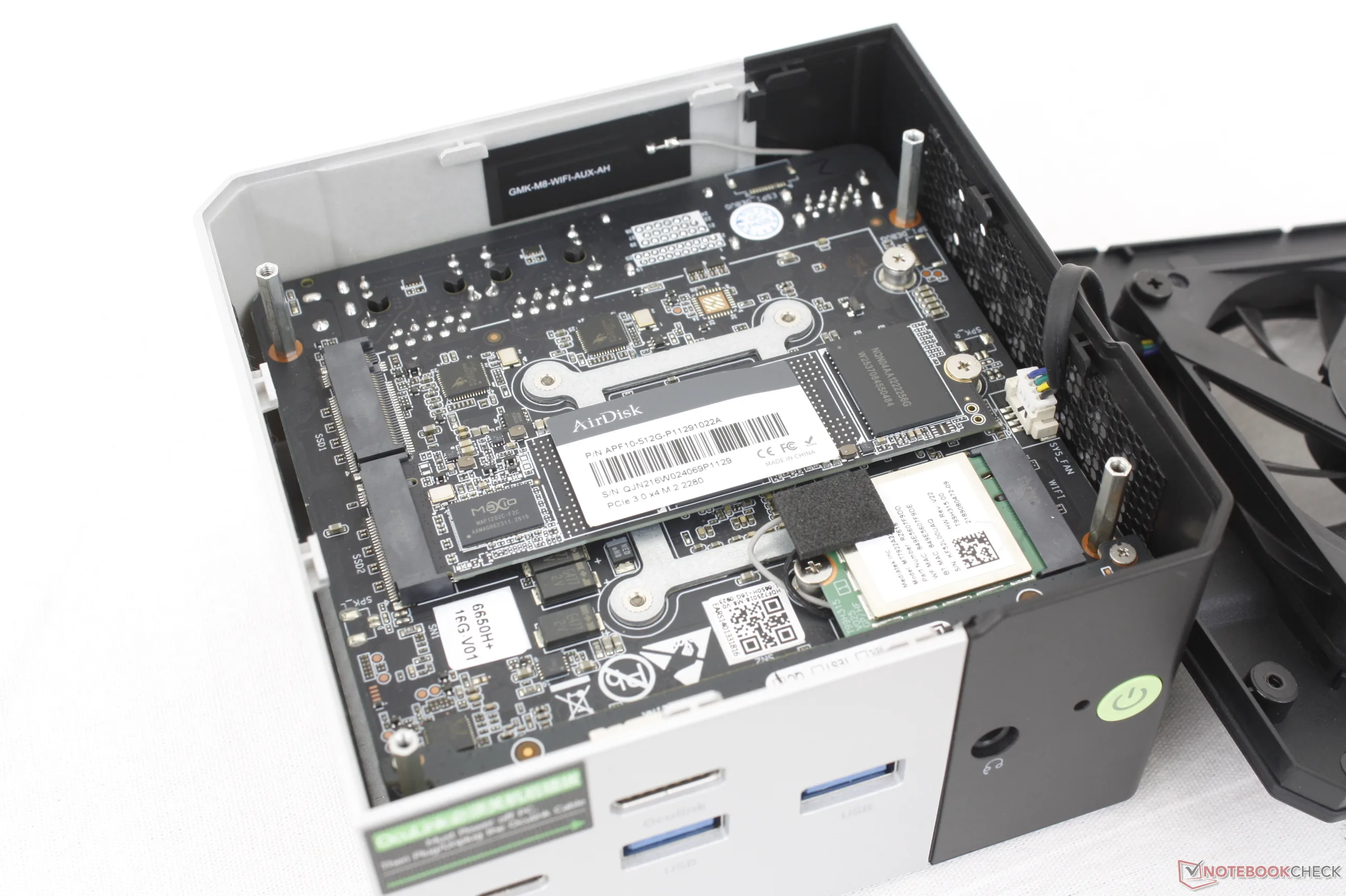

维护

外壳仅由四颗拇指螺钉固定，便于维修，但仍需要十字螺丝刀才能进入主板。系统最多支持两个 M.2 2280 PCIe4 固态硬盘和一个可拆卸的 WLAN 模块。

可持续性

GMK 并未声称在生产过程中使用了可回收材料。不过，零售包装盒主要是纸和纸板，线缆和外包装盒采用了一些塑料包装。

配件和保修

零售包装盒包括 HDMI 线、交流适配器和文件。没有 VESA 安装。

性能

测试条件

在运行以下基准测试之前，我们将 Windows 设置为性能模式。也可通过 BIOS 分别设置平衡模式和性能模式。系统出厂时预设为平衡模式。

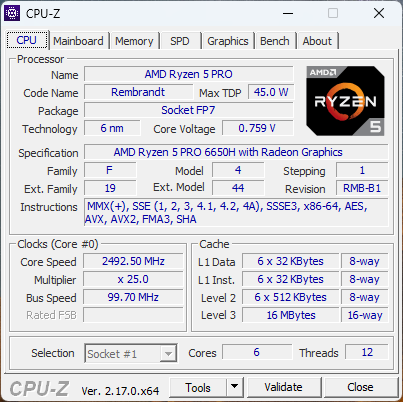

处理器

尽管运行的是较早的 Zen 3+ 平台，但 Ryzen 5 Pro 6650H仍能与较新的酷睿至尊 7 258V并驾齐驱。不过，在涉及单核心、图形或人工智能的大多数其他基准测试中，它都落在了后面。

Cinebench R15 多回路运行

GMK NucBox M8 AMD Ryzen 5 PRO 6650H: Ø1518 (1393.49-1550.03)

GMK NucBox K12 AMD Ryzen 7 H 255: Ø2505 (2493.14-2513.98)

Beelink SER9 Pro AMD Ryzen 7 H 255: Ø2565 (2544.37-2588.16)

Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350: Ø2439 (2391.2-2597.4)

MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V: Ø1475 (1459.06-1488.32)

BOSGAME M4 Neo AMD Ryzen 7 7840HS: Ø2434 (2405.58-2566.08)

CPU Performance rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.5: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance rating
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	91 pt
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	82.8 pt
BOSGAME M2 AMD Ryzen 9 7940HS	82.1 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS	80.7 pt
Beelink SER9 Pro AMD Ryzen 7 H 255	80 pt
GMK NucBox K12 AMD Ryzen 7 H 255	79.2 pt
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	68.5 pt
Beelink SER6 Pro Ryzen 7 7735HS ^-2! AMD Ryzen 7 7735HS	67.7 pt
Aoostar GEM10 AMD Ryzen 7 6800H	67.3 pt
Beelink SEi13 Pro Intel Core i9-13900HK	63.2 pt
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	58.5 pt
Average AMD Ryzen 5 PRO 6650H	58.3 pt
Trigkey Speed S ^-2! Intel Core i5-11320H	49.3 pt
Aoostar WTR Pro, N150 Intel Processor N150	21.1 pt

Cinebench R23 / Multi Core
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	20882 Points +118%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	17052 Points +78%
Beelink SER9 Pro AMD Ryzen 7 H 255	16402 (16130.8^min - 16402.1^max) Points +72%
BOSGAME M2 AMD Ryzen 9 7940HS	16148 (15722.4^min - 16148.2^max) Points +69%
GMK NucBox K12 AMD Ryzen 7 H 255	15871 (15687.6^min - 15871.1^max) Points +66%
Beelink SEi13 Pro Intel Core i9-13900HK	15746 (15036.2^min - 15746.1^max) Points +65%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	15533 Points +62%
Aoostar GEM10 AMD Ryzen 7 6800H	13117 Points +37%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	11626 (11015.5^min - 11625.6^max) Points +22%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	10524 (10414.4^min - 10524.2^max) Points +10%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	9561 (9387.18^min - 9561.21^max) Points
Average AMD Ryzen 5 PRO 6650H (n=1)	9561 Points 0%
Trigkey Speed S Intel Core i5-11320H	5724 (5641.98^min - 5723.64^max) Points -40%
Aoostar WTR Pro, N150 Intel Processor N150	2016 Points -79%

Cinebench R23 / Single Core
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	2166 Points +47%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	1990 Points +35%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	1957 Points +33%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1762 Points +20%
BOSGAME M2 AMD Ryzen 9 7940HS	1754 Points +19%
Beelink SER9 Pro AMD Ryzen 7 H 255	1718 Points +17%
GMK NucBox K12 AMD Ryzen 7 H 255	1697 Points +15%
Aoostar GEM10 AMD Ryzen 7 6800H	1542 Points +5%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1537 Points +4%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	1471 Points
Average AMD Ryzen 5 PRO 6650H (n=1)	1471 Points 0%
Trigkey Speed S Intel Core i5-11320H	1465 Points 0%
Beelink SEi13 Pro Intel Core i9-13900HK	1426 Points -3%
Aoostar WTR Pro, N150 Intel Processor N150	828 Points -44%

Cinebench R20 / CPU (Multi Core)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	8172 Points +120%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	6669 Points +79%
Beelink SER9 Pro AMD Ryzen 7 H 255	6480 Points +74%
BOSGAME M2 AMD Ryzen 9 7940HS	6293 Points +69%
GMK NucBox K12 AMD Ryzen 7 H 255	6255 Points +68%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6254 Points +68%
Beelink SEi13 Pro Intel Core i9-13900HK	6051 Points +63%
Aoostar GEM10 AMD Ryzen 7 6800H	5216 Points +40%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	4524 Points +22%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	4121 Points +11%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	3719 Points
Average AMD Ryzen 5 PRO 6650H (n=1)	3719 Points 0%
Trigkey Speed S Intel Core i5-11320H	2216 Points -40%
Aoostar WTR Pro, N150 Intel Processor N150	768 Points -79%

Cinebench R20 / CPU (Single Core)
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	837 Points +45%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	777 Points +34%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	741 Points +28%
BOSGAME M2 AMD Ryzen 9 7940HS	679 Points +17%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	677 Points +17%
Beelink SER9 Pro AMD Ryzen 7 H 255	677 Points +17%
GMK NucBox K12 AMD Ryzen 7 H 255	660 Points +14%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	598 Points +3%
Aoostar GEM10 AMD Ryzen 7 6800H	598 Points +3%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	578 Points
Average AMD Ryzen 5 PRO 6650H (n=1)	578 Points 0%
Trigkey Speed S Intel Core i5-11320H	567 Points -2%
Beelink SEi13 Pro Intel Core i9-13900HK	549 Points -5%
Aoostar WTR Pro, N150 Intel Processor N150	313 Points -46%

Cinebench R15 / CPU Multi 64Bit
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	3151 Points +103%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	2632 Points +70%
Beelink SER9 Pro AMD Ryzen 7 H 255	2588 (2544.37^min - 2588.16^max) Points +67%
BOSGAME M2 AMD Ryzen 9 7940HS	2585 (2069.54^min - 2584.65^max) Points +67%
GMK NucBox K12 AMD Ryzen 7 H 255	2514 (2493.14^min - 2513.98^max) Points +62%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2508 Points +62%
Beelink SEi13 Pro Intel Core i9-13900HK	2383 (2314.15^min - 2382.8^max) Points +54%
Aoostar GEM10 AMD Ryzen 7 6800H	2117 Points +37%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1953 (1862.98^min - 1952.55^max) Points +26%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	1550 (1393.49^min - 1550.03^max) Points
Average AMD Ryzen 5 PRO 6650H (n=1)	1550 Points 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	1488 (1459.06^min - 1488.32^max) Points -4%
Trigkey Speed S Intel Core i5-11320H	861 (839.91^min - 860.88^max) Points -44%
Aoostar WTR Pro, N150 Intel Processor N150	313 Points -80%

Cinebench R15 / CPU Single 64Bit
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	322 Points +36%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	301 Points +28%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	297 Points +26%
Beelink SER9 Pro AMD Ryzen 7 H 255	276 Points +17%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	270 Points +14%
GMK NucBox K12 AMD Ryzen 7 H 255	266 Points +13%
BOSGAME M2 AMD Ryzen 9 7940HS	258 Points +9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	247 Points +5%
Aoostar GEM10 AMD Ryzen 7 6800H	240 Points +2%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	236 Points
Average AMD Ryzen 5 PRO 6650H (n=1)	236 Points 0%
Trigkey Speed S Intel Core i5-11320H	215 Points -9%
Beelink SEi13 Pro Intel Core i9-13900HK	204 Points -14%
Aoostar WTR Pro, N150 Intel Processor N150	134 Points -43%

Blender / v2.79 BMW27 CPU
Aoostar WTR Pro, N150 Intel Processor N150	1374 Seconds * -321%
Trigkey Speed S Intel Core i5-11320H	543 Seconds * -67%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	326 Seconds * -0%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	326 Seconds *
Average AMD Ryzen 5 PRO 6650H (n=1)	326 Seconds * -0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	263 Seconds * +19%
Aoostar GEM10 AMD Ryzen 7 6800H	259 Seconds * +21%
GMK NucBox K12 AMD Ryzen 7 H 255	203 Seconds * +38%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	201 Seconds * +38%
Beelink SEi13 Pro Intel Core i9-13900HK	200 Seconds * +39%
BOSGAME M2 AMD Ryzen 9 7940HS	197 Seconds * +40%
Beelink SER9 Pro AMD Ryzen 7 H 255	194 Seconds * +40%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	194 Seconds * +40%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	163 Seconds * +50%

7-Zip 18.03 / 7z b 4
BOSGAME M4 Neo AMD Ryzen 7 7840HS	69798 MIPS +62%
Beelink SER9 Pro AMD Ryzen 7 H 255	69787 MIPS +62%
BOSGAME M2 AMD Ryzen 9 7940HS	69688 MIPS +62%
GMK NucBox K12 AMD Ryzen 7 H 255	68893 MIPS +60%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	67343 MIPS +57%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	57693 MIPS +34%
Aoostar GEM10 AMD Ryzen 7 6800H	55067 MIPS +28%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	52585 MIPS +22%
Beelink SEi13 Pro Intel Core i9-13900HK	50278 MIPS +17%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	43030 MIPS
Average AMD Ryzen 5 PRO 6650H (n=1)	43030 MIPS 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	34645 MIPS -19%
Trigkey Speed S Intel Core i5-11320H	24718 MIPS -43%
Aoostar WTR Pro, N150 Intel Processor N150	9639 MIPS -78%

7-Zip 18.03 / 7z b 4 -mmt1
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6495 MIPS +22%
BOSGAME M2 AMD Ryzen 9 7940HS	6310 MIPS +19%
GMK NucBox K12 AMD Ryzen 7 H 255	6261 MIPS +18%
Beelink SER9 Pro AMD Ryzen 7 H 255	6237 MIPS +17%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	6111 MIPS +15%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	5816 MIPS +9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	5809 MIPS +9%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	5544 MIPS +4%
Aoostar GEM10 AMD Ryzen 7 6800H	5521 MIPS +4%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	5319 MIPS
Average AMD Ryzen 5 PRO 6650H (n=1)	5319 MIPS 0%
Trigkey Speed S Intel Core i5-11320H	5119 MIPS -4%
Beelink SEi13 Pro Intel Core i9-13900HK	4461 MIPS -16%
Aoostar WTR Pro, N150 Intel Processor N150	3590 MIPS -33%

Geekbench 6.5 / Multi-Core
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	16207 Points +107%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	13470 Points +72%
BOSGAME M2 AMD Ryzen 9 7940HS	13345 Points +71%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	13020 Points +67%
Beelink SER9 Pro AMD Ryzen 7 H 255	12825 Points +64%
GMK NucBox K12 AMD Ryzen 7 H 255	12515 Points +60%
Aoostar GEM10 AMD Ryzen 7 6800H	9527 Points +22%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	8964 Points +15%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	7813 Points
Average AMD Ryzen 5 PRO 6650H (7528 - 7813, n=2)	7671 Points -2%
Beelink SEi13 Pro Intel Core i9-13900HK	7103 Points -9%
Aoostar WTR Pro, N150 Intel Processor N150	2369 Points -70%

Geekbench 6.5 / Single-Core
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	2867 Points +45%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	2748 Points +39%
BOSGAME M2 AMD Ryzen 9 7940HS	2722 Points +37%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	2694 Points +36%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2626 Points +32%
Beelink SER9 Pro AMD Ryzen 7 H 255	2546 Points +28%
GMK NucBox K12 AMD Ryzen 7 H 255	2545 Points +28%
Aoostar GEM10 AMD Ryzen 7 6800H	2049 Points +3%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	1982 Points
Average AMD Ryzen 5 PRO 6650H (1885 - 1982, n=2)	1934 Points -2%
Beelink SEi13 Pro Intel Core i9-13900HK	1849 Points -7%
Aoostar WTR Pro, N150 Intel Processor N150	1129 Points -43%

Geekbench 5.5 / Multi-Core
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	15703 Points +125%
BOSGAME M2 AMD Ryzen 9 7940HS	12244 Points +76%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	11794 Points +69%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	11791 Points +69%
Beelink SER9 Pro AMD Ryzen 7 H 255	11614 Points +67%
GMK NucBox K12 AMD Ryzen 7 H 255	11604 Points +66%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	9357 Points +34%
Aoostar GEM10 AMD Ryzen 7 6800H	8898 Points +28%
Beelink SEi13 Pro Intel Core i9-13900HK	7927 Points +14%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	7574 Points +9%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	6971 Points
Average AMD Ryzen 5 PRO 6650H (n=1)	6971 Points 0%
Trigkey Speed S Intel Core i5-11320H	4927 Points -29%
Aoostar WTR Pro, N150 Intel Processor N150	2072 Points -70%

Geekbench 5.5 / Single-Core
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	2054 Points +40%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	2022 Points +38%
BOSGAME M2 AMD Ryzen 9 7940HS	1993 Points +36%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1908 Points +30%
GMK NucBox K12 AMD Ryzen 7 H 255	1880 Points +28%
Beelink SER9 Pro AMD Ryzen 7 H 255	1810 Points +24%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	1689 Points +15%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1580 Points +8%
Aoostar GEM10 AMD Ryzen 7 6800H	1552 Points +6%
Trigkey Speed S Intel Core i5-11320H	1523 Points +4%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	1464 Points
Average AMD Ryzen 5 PRO 6650H (n=1)	1464 Points 0%
Beelink SEi13 Pro Intel Core i9-13900HK	1315 Points -10%
Aoostar WTR Pro, N150 Intel Processor N150	924 Points -37%

HWBOT x265 Benchmark v2.2 / 4k Preset
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	24.9 fps +108%
BOSGAME M2 AMD Ryzen 9 7940HS	21.2 fps +77%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	21.2 fps +77%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	20.5 fps +71%
Beelink SER9 Pro AMD Ryzen 7 H 255	20.4 fps +70%
GMK NucBox K12 AMD Ryzen 7 H 255	19.9 fps +66%
Beelink SEi13 Pro Intel Core i9-13900HK	15.6 fps +30%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	15.1 fps +26%
Aoostar GEM10 AMD Ryzen 7 6800H	14.9 fps +24%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	13.3 fps +11%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	12 fps
Average AMD Ryzen 5 PRO 6650H (n=1)	12 fps 0%
Trigkey Speed S Intel Core i5-11320H	7.25 fps -40%
Aoostar WTR Pro, N150 Intel Processor N150	2.43 fps -80%

LibreOffice / 20 Documents To PDF
Aoostar WTR Pro, N150 Intel Processor N150	106.6 s * -67%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	63.7 s *
Average AMD Ryzen 5 PRO 6650H (n=1)	63.7 s * -0%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	56.1 s * +12%
Beelink SEi13 Pro Intel Core i9-13900HK	56 s * +12%
GMK NucBox K12 AMD Ryzen 7 H 255	51.4 s * +19%
Aoostar GEM10 AMD Ryzen 7 6800H	51.2 s * +20%
Beelink SER9 Pro AMD Ryzen 7 H 255	51 s * +20%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	48.9 s * +23%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	48.7 s * +24%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	45.1 s * +29%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	44.3 s * +30%
Trigkey Speed S Intel Core i5-11320H	44 s * +31%
BOSGAME M2 AMD Ryzen 9 7940HS	42.7 s * +33%

R Benchmark 2.5 / Overall mean
Aoostar WTR Pro, N150 Intel Processor N150	0.957 sec * -78%
Beelink SEi13 Pro Intel Core i9-13900HK	0.653 sec * -22%
Trigkey Speed S Intel Core i5-11320H	0.591 sec * -10%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H	0.537 sec *
Average AMD Ryzen 5 PRO 6650H (n=1)	0.537 sec * -0%
Aoostar GEM10 AMD Ryzen 7 6800H	0.515 sec * +4%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	0.512 sec * +5%
Beelink SER9 Pro AMD Ryzen 7 H 255	0.503 sec * +6%
GMK NucBox K12 AMD Ryzen 7 H 255	0.4587 sec * +15%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	0.4513 sec * +16%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	0.4505 sec * +16%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H	0.4413 sec * +18%
BOSGAME M2 AMD Ryzen 9 7940HS	0.4293 sec * +20%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	0.4198 sec * +22%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1550 Points

Cinebench R15 OpenGL 64Bit

124.7 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Single 64Bit

236 Points

Cinebench R20 CPU (Single Core)

578 Points

Cinebench R20 CPU (Multi Core)

3719 Points

Cinebench R23 Multi Core

9561 Points

Cinebench R23 Single Core

1471 Points

Cinebench 2024 CPU Single Core

82.3 Points

Cinebench 2024 CPU Multi Core

485 Points

Help

... in comparison

Performance rating
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	97.2 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	94.8 pt
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	94.5 pt
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	90.4 pt
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	54 pt
Average AMD Ryzen 5 PRO 6650H	54 pt
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	53.6 pt

AIDA64 / FP32 Ray-Trace
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	26369 KRay/s +145%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	26120 KRay/s +142%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	25593 KRay/s +138%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	25404 KRay/s +136%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	12094 KRay/s +12%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	10773 KRay/s
Average AMD Ryzen 5 PRO 6650H (n=1)	10773 KRay/s 0%

AIDA64 / FPU Julia
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	106590 Points +56%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	105522 Points +54%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	104302 Points +52%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	101080 Points +48%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	68498 Points
Average AMD Ryzen 5 PRO 6650H (n=1)	68498 Points 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	60874 Points -11%

AIDA64 / CPU SHA3
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	4764 MB/s +108%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	4633 MB/s +103%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	4604 MB/s +101%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	4221 MB/s +85%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	2705 MB/s +18%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	2287 MB/s
Average AMD Ryzen 5 PRO 6650H (n=1)	2287 MB/s 0%

AIDA64 / CPU Queen
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	115748 Points +53%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	114337 Points +51%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	111673 Points +48%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	75482 Points
Average AMD Ryzen 5 PRO 6650H (n=1)	75482 Points 0%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	71850 Points -5%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	49605 Points -34%

AIDA64 / FPU SinJulia
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	15123 Points +60%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	14626 Points +55%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	14592 Points +55%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	13575 Points +44%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	9443 Points
Average AMD Ryzen 5 PRO 6650H (n=1)	9443 Points 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	4425 Points -53%

AIDA64 / FPU Mandel
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	57378 Points +52%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	56330 Points +49%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	56019 Points +48%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	53794 Points +42%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	37770 Points
Average AMD Ryzen 5 PRO 6650H (n=1)	37770 Points 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	31593 Points -16%

AIDA64 / CPU AES
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	86090 MB/s +90%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	83999 MB/s +85%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	83357 MB/s +84%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	81627 MB/s +80%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	45310 MB/s
Average AMD Ryzen 5 PRO 6650H (n=1)	45310 MB/s 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	40408 MB/s -11%

AIDA64 / CPU ZLib
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	1084 MB/s +81%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	1066 MB/s +78%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	1036 MB/s +73%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	1022 MB/s +71%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	599 MB/s
Average AMD Ryzen 5 PRO 6650H (n=1)	599 MB/s 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	596 MB/s -1%

AIDA64 / FP64 Ray-Trace
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	14228 KRay/s +149%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	13941 KRay/s +144%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	13745 KRay/s +140%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	13694 KRay/s +139%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	6732 KRay/s +18%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	5719 KRay/s
Average AMD Ryzen 5 PRO 6650H (n=1)	5719 KRay/s 0%

AIDA64 / CPU PhotoWorxx
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	54395 MPixel/s +120%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	43599 MPixel/s +76%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	41649 MPixel/s +68%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	40165 MPixel/s +62%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	40115 MPixel/s +62%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	24736 MPixel/s
Average AMD Ryzen 5 PRO 6650H (n=1)	24736 MPixel/s 0%

系统性能

相对落后的 Zen 3+ 集成图形处理器和较慢的 16GB LPDDR5-6400 内存拖累了 PCMark 的成绩。

Performance rating
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	87.7 pt
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	87.3 pt
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	84.7 pt
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	84 pt
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	82 pt
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	66.8 pt
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	66.8 pt

PCMark 10 / Score
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	7732 Points +22%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	6959 Points +10%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	6914 Points +9%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	6907 Points +9%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	6864 Points +9%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	6318 Points
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M (n=1)	6318 Points 0%

PCMark 10 / Essentials
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	11292 Points +26%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	10587 Points +18%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	10502 Points +17%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	10377 Points +15%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	10176 Points +13%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	8991 Points
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M (n=1)	8991 Points 0%

PCMark 10 / Productivity
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	11719 Points
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M (n=1)	11719 Points 0%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	11226 Points -4%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9440 Points -19%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	9325 Points -20%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9325 Points -20%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	8912 Points -24%

PCMark 10 / Digital Content Creation
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	9895 Points +52%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	9678 Points +49%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9243 Points +42%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9227 Points +42%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	9088 Points +40%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	6497 Points
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M (n=1)	6497 Points 0%

CrossMark / Overall
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	1862 Points +41%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1791 Points +36%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1769 Points +34%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	1762 Points +34%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1551 Points +18%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	1318 Points
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M (n=1)	1318 Points 0%

CrossMark / Productivity
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	1799 Points +35%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1733 Points +30%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1709 Points +28%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	1627 Points +22%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1479 Points +11%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	1332 Points
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M (n=1)	1332 Points 0%

CrossMark / Creativity
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	2064 Points +46%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	1969 Points +39%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1895 Points +34%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1887 Points +33%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1749 Points +24%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	1414 Points
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M (n=1)	1414 Points 0%

CrossMark / Responsiveness
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	1747 Points +69%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1666 Points +61%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1617 Points +56%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	1394 Points +35%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	1246 Points +21%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	1034 Points
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M (n=1)	1034 Points 0%

WebXPRT 3 / Overall
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	317 Points +38%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	314 Points +37%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	300 Points +31%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	290 Points +27%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	287 Points +25%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	229 Points
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M (n=1)	229 Points 0%

WebXPRT 4 / Overall
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	276 Points +60%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	264 Points +53%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	245 Points +42%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	245 Points +42%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	242 Points +40%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	172.6 Points
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M (n=1)	172.6 Points 0%

Mozilla Kraken 1.1 / Total
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	663 ms *
Average AMD Ryzen 5 PRO 6650H, AMD Radeon 660M (n=1)	663 ms * -0%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	577 ms * +13%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	566 ms * +15%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	532 ms * +20%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	519 ms * +22%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	482 ms * +27%

* ... smaller is better

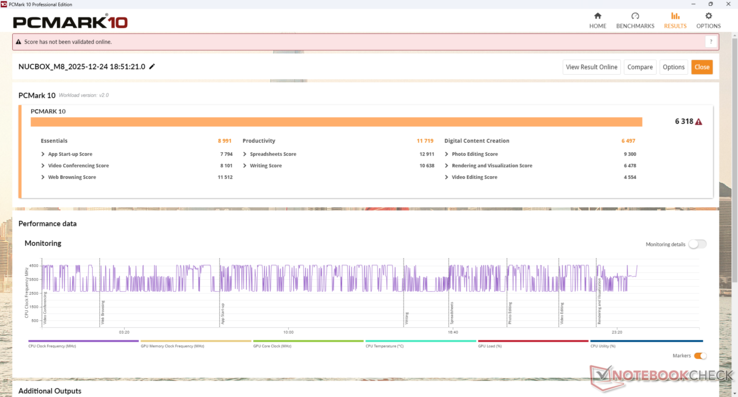

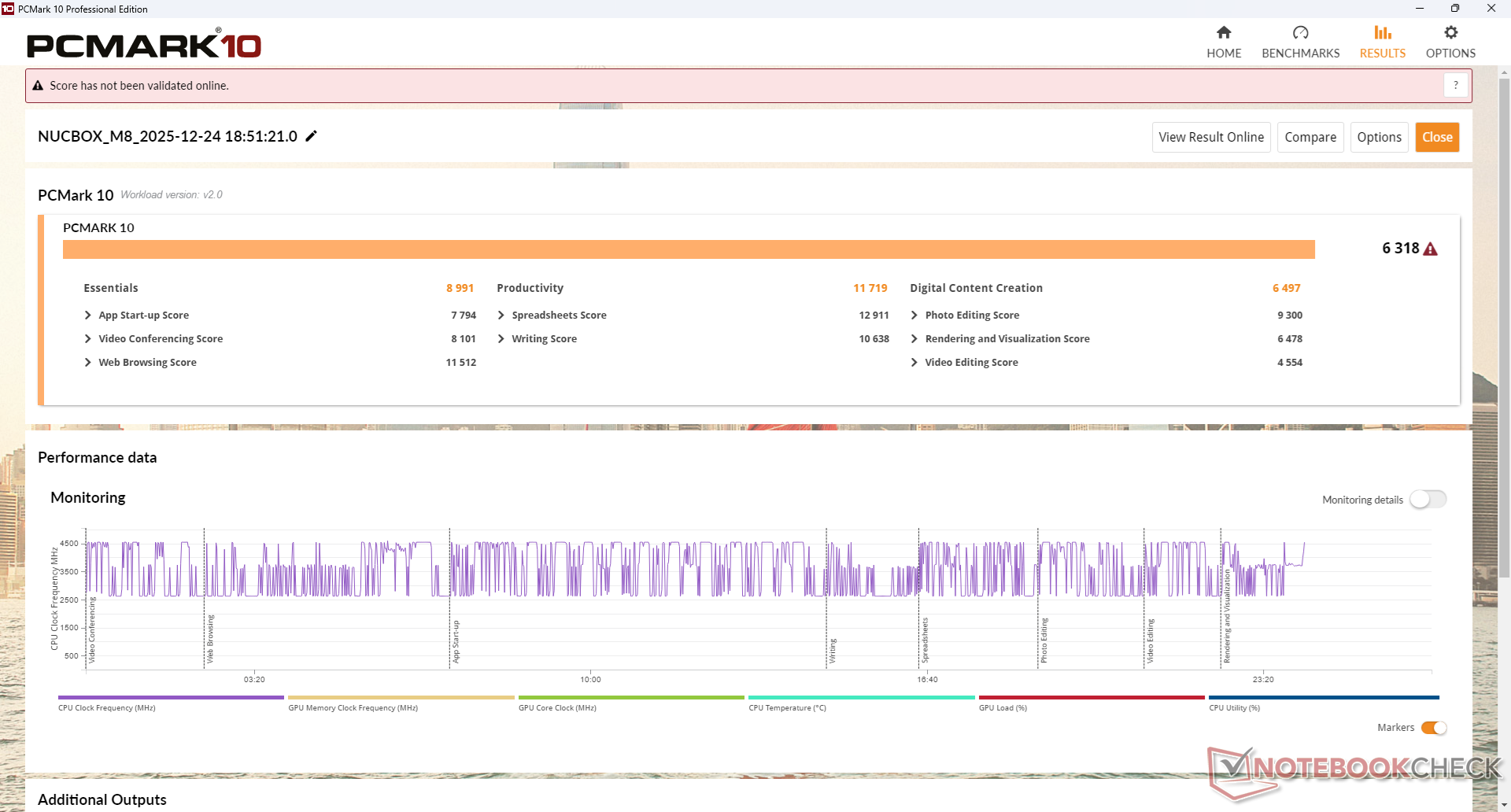

PCMark 10 Score		6318 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	107843 MB/s +126%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	74184 MB/s +56%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	73578 MB/s +54%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	67938 MB/s +43%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	67673 MB/s +42%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	47652 MB/s
Average AMD Ryzen 5 PRO 6650H (n=1)	47652 MB/s 0%

AIDA64 / Memory Read
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	87541 MB/s +119%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	62416 MB/s +56%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	61143 MB/s +53%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	61129 MB/s +53%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	58305 MB/s +46%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	39917 MB/s
Average AMD Ryzen 5 PRO 6650H (n=1)	39917 MB/s 0%

AIDA64 / Memory Write
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	117886 MB/s +141%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	106026 MB/s +117%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	86075 MB/s +76%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	85497 MB/s +75%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	84236 MB/s +72%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	48848 MB/s
Average AMD Ryzen 5 PRO 6650H (n=1)	48848 MB/s 0%

AIDA64 / Memory Latency
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, Radeon 660M	109 ns *
Average AMD Ryzen 5 PRO 6650H (n=1)	109 ns * -0%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	103.9 ns * +5%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	95.5 ns * +12%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	94.8 ns * +13%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	93.7 ns * +14%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	89.7 ns * +18%

* ... smaller is better

DPC 延迟

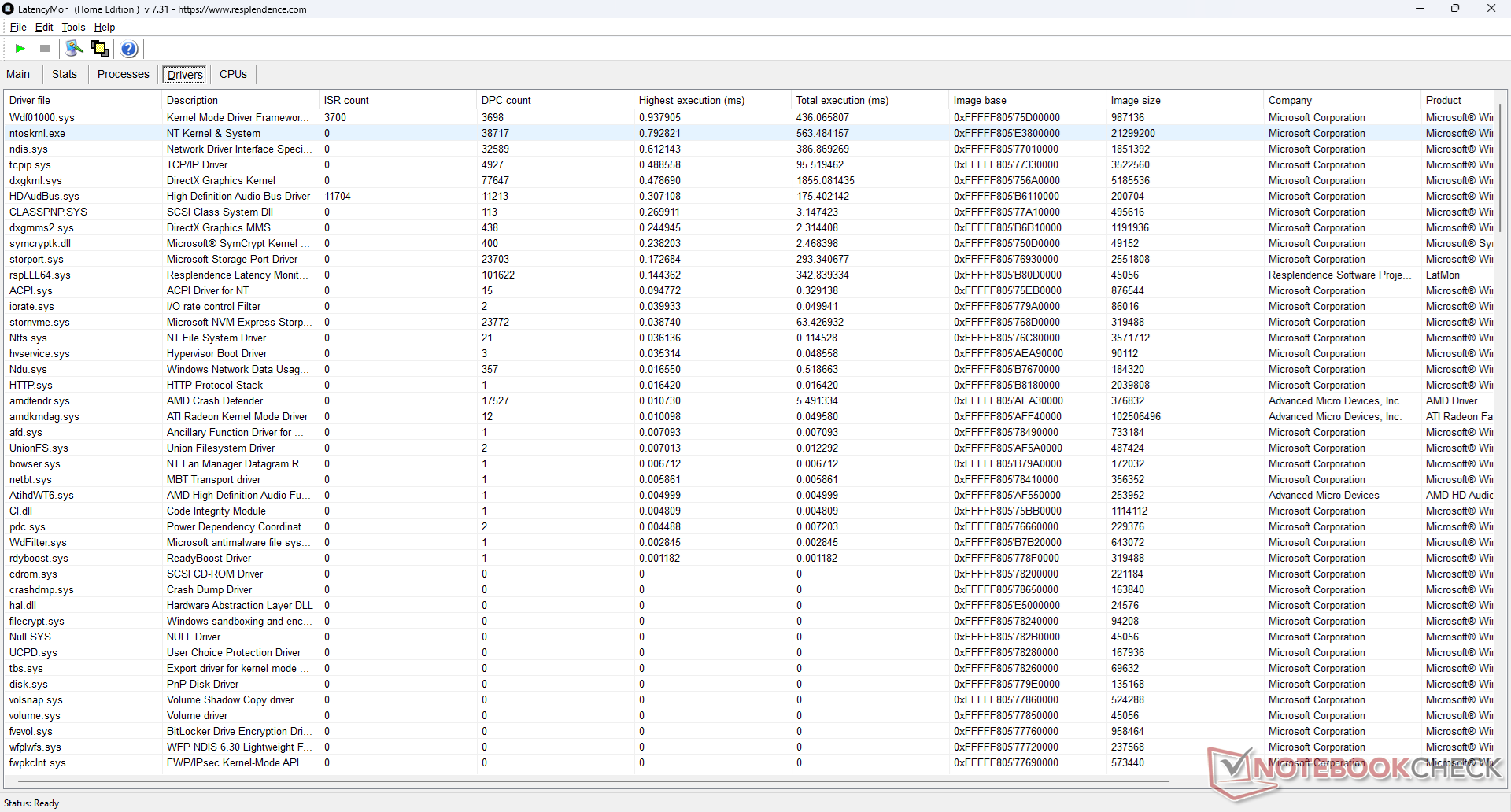

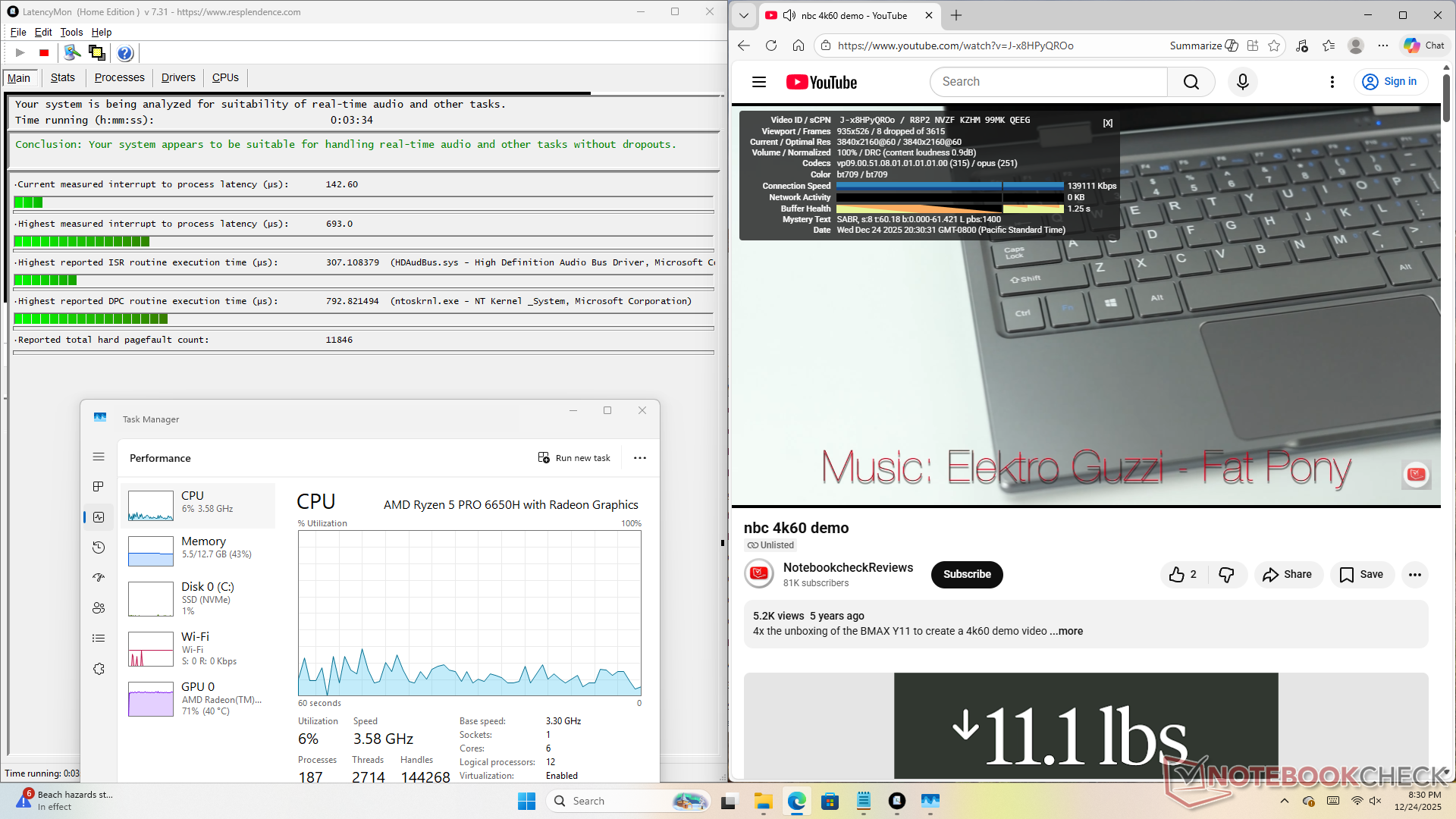

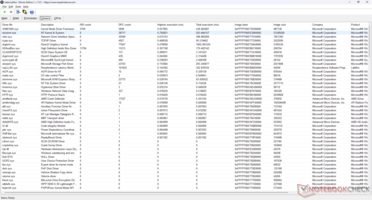

虽然 LatencyMon 没有报告重大的 DPC 问题，但 4K60 视频回放并不完美，在一个 60 秒的窗口中记录了 8 次丢帧。即使重复测试也会出现丢帧现象。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	5159 μs * -644%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1124 μs * -62%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V, Phison 1 TB ESR01TBTCCZ-27J	844.8 μs * -22%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	807.8 μs * -17%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	790.7 μs * -14%
GMK NucBox M8 Radeon 660M, R5 PRO 6650H, AirDisk APF 10-512G	693 μs *

* ... smaller is better

存储设备

最多支持两个 M.2 2280 固态硬盘。虽然它们没有散热片，但正上方有一个风扇用于冷却

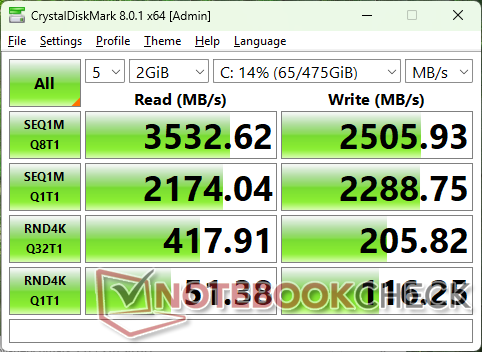

CrystalDiskMark 5.2 / 6

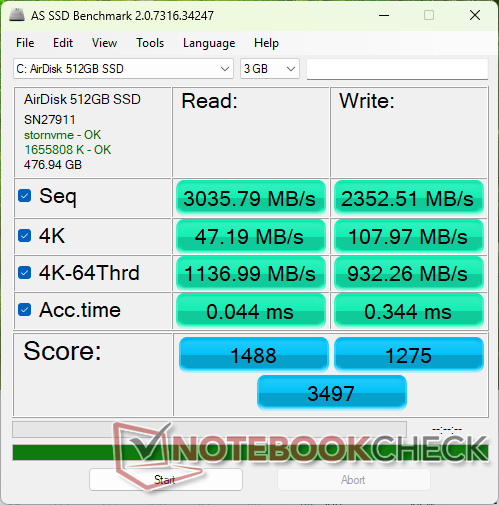

AS SSD

DiskSpd

AirDisk APF 10-512G

CDM 5/6 Read Seq Q32T1: 3525 MB/s

CDM 5/6 Write Seq Q32T1: 2653 MB/s

CDM 5/6 Read 4K Q32T1: 406.7 MB/s

CDM 5/6 Write 4K Q32T1: 205.8 MB/s

CDM 5 Read Seq: 2160 MB/s

CDM 5 Write Seq: 2329 MB/s

CDM 5/6 Read 4K: 52.15 MB/s

CDM 5/6 Write 4K: 112.6 MB/s

Drive Performance rating | DiskSpd | AS SSD

Drive Performance rating - Percent
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	84.5 pt
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	80.9 pt
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	66.5 pt
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	63.8 pt
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	62.3 pt
GMK NucBox M8 AirDisk APF 10-512G	58.7 pt

DiskSpd
seq read
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	3081 (3045.27^min - 3081.47^max) MB/s +54%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2932 (2911.11^min - 2931.83^max) MB/s +47%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2316 (2303.1^min - 2315.68^max) MB/s +16%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	2149 (2136.58^min - 2148.64^max) MB/s +7%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2112 (2077.27^min - 2111.8^max) MB/s +6%
GMK NucBox M8 AirDisk APF 10-512G	2001 (1947.09^min - 2001.29^max) MB/s
seq write
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	3446 (2266.05^min - 3446.46^max) MB/s +54%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3100 (3080.64^min - 3100.01^max) MB/s +38%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2508 (2473.89^min - 2508^max) MB/s +12%
GMK NucBox M8 AirDisk APF 10-512G	2239 (1621.63^min - 2239.47^max) MB/s
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1810 (450.26^min - 1810.21^max) MB/s -19%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1808 (844.51^min - 1808.37^max) MB/s -19%
seq q8 t1 read
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	6152 (5283.69^min - 6152.48^max) MB/s +82%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	5875 (4751.87^min - 5875.38^max) MB/s +74%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	4942 (4516.62^min - 4941.52^max) MB/s +46%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	4915 (4300^min - 4915.3^max) MB/s +46%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	4079 (3799.36^min - 4078.56^max) MB/s +21%
GMK NucBox M8 AirDisk APF 10-512G	3374 (3127.52^min - 3373.69^max) MB/s
seq q8 t1 write
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	4973 (4947.14^min - 4972.98^max) MB/s +96%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	4556 (4374.3^min - 4555.97^max) MB/s +80%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3108 (3096.75^min - 3107.85^max) MB/s +23%
GMK NucBox M8 AirDisk APF 10-512G	2534 (2433.28^min - 2533.74^max) MB/s
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1803 (883.02^min - 1802.5^max) MB/s -29%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1799 (640.89^min - 1798.7^max) MB/s -29%
4k q1 t1 read
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	64.2 (64.13^min - 64.24^max) MB/s +19%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	61.6 (58.01^min - 61.61^max) MB/s +14%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	57.3 (57.09^min - 57.31^max) MB/s +6%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	54.4 (53.83^min - 54.44^max) MB/s +1%
GMK NucBox M8 AirDisk APF 10-512G	53.9 (52.92^min - 53.94^max) MB/s
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	50.5 (49.98^min - 50.45^max) MB/s -6%
4k q1 t1 write
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	278 (273.83^min - 278.28^max) MB/s +98%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	261 (259.05^min - 260.68^max) MB/s +86%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	251 (216.59^min - 251.05^max) MB/s +79%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	144.3 (142.64^min - 144.32^max) MB/s +3%
GMK NucBox M8 AirDisk APF 10-512G	140.2 (139.31^min - 140.2^max) MB/s
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	129.9 (128.37^min - 129.94^max) MB/s -7%
4k q32 t16 read
GMK NucBox M8 AirDisk APF 10-512G	1440 (1433.87^min - 1440.15^max) MB/s
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	1048 (970.18^min - 1048.17^max) MB/s -27%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	788 (725.19^min - 788.35^max) MB/s -45%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	719 (619.26^min - 718.65^max) MB/s -50%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	698 (696.34^min - 698.49^max) MB/s -52%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	696 (692.86^min - 696.3^max) MB/s -52%
4k q32 t16 write
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2876 (1106.13^min - 2875.94^max) MB/s +157%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1786 (636.51^min - 1786.33^max) MB/s +60%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1780 (805.06^min - 1780.2^max) MB/s +59%
GMK NucBox M8 AirDisk APF 10-512G	1118 (1090.99^min - 1118.02^max) MB/s
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	471 (447.49^min - 470.76^max) MB/s -58%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	412 (409.29^min - 411.67^max) MB/s -63%

AS SSD
Score Total
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	5595 Points +60%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	5054 Points +45%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	3778 Points +8%
GMK NucBox M8 AirDisk APF 10-512G	3497 Points
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	3482 Points 0%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2362 Points -32%
Score Read
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	1643 Points +10%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1539 Points +3%
GMK NucBox M8 AirDisk APF 10-512G	1488 Points
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	1164 Points -22%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1127 Points -24%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1095 Points -26%
Score Write
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3274 Points +157%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	2627 Points +106%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2146 Points +68%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1928 Points +51%
GMK NucBox M8 AirDisk APF 10-512G	1275 Points
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	693 Points -46%
Seq Read
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	4975 MB/s +64%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	4428.19 MB/s +46%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	3916.9 MB/s +29%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	3870.26 MB/s +27%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3482 MB/s +15%
GMK NucBox M8 AirDisk APF 10-512G	3035.79 MB/s
Seq Write
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	3546 MB/s +51%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2950 MB/s +25%
GMK NucBox M8 AirDisk APF 10-512G	2352.51 MB/s
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	2329.39 MB/s -1%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2185.55 MB/s -7%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1648.2 MB/s -30%
4K Read
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	76 MB/s +61%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	69.3 MB/s +47%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	56.39 MB/s +19%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	52.09 MB/s +10%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	50 MB/s +6%
GMK NucBox M8 AirDisk APF 10-512G	47.19 MB/s
4K Write
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	219.87 MB/s +104%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	216 MB/s +100%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	195.18 MB/s +81%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	191.9 MB/s +78%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	190.38 MB/s +76%
GMK NucBox M8 AirDisk APF 10-512G	107.97 MB/s
4K-64 Read
GMK NucBox M8 AirDisk APF 10-512G	1136.99 MB/s
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1115 MB/s -2%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	1076 MB/s -5%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	688.04 MB/s -39%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	664.75 MB/s -42%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	653.44 MB/s -43%
4K-64 Write
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2763 MB/s +196%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	2080 MB/s +123%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1707.34 MB/s +83%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1572.62 MB/s +69%
GMK NucBox M8 AirDisk APF 10-512G	932.26 MB/s
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	264.78 MB/s -72%
Access Time Read
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	0.077 ms * -75%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	0.069 ms * -57%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.062 ms * -41%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	0.049 ms * -11%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	0.048 ms * -9%
GMK NucBox M8 AirDisk APF 10-512G	0.044 ms *
Access Time Write
GMK NucBox M8 AirDisk APF 10-512G	0.344 ms *
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	0.097 ms * +72%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	0.088 ms * +74%
MSI Cubi NUC AI+ 2MG Phison 1 TB ESR01TBTCCZ-27J	0.056 ms * +84%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	0.021 ms * +94%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.019 ms * +94%

* ... smaller is better

磁盘节流DiskSpd 读取循环，队列深度 8

GMK NucBox M8; diskspd 2.0.17 f: Ø3392 (3019.9-3408.5)

图形处理器性能

集成Radeon 660M 已经落后了好几代，因此其原始性能与较早的英特尔 Iris Xe Graphics G7 96 EUs.配备较新 Radeon 890M 显卡的昂贵迷你电脑，如 N5 Pro的图形性能比我们的 NucBox M8 快 70% 到 110%。

即使重新安装 Windows 和驱动程序，3DMark 06和GTA V在启动时也会出错，因此我们省略了它们的结果。

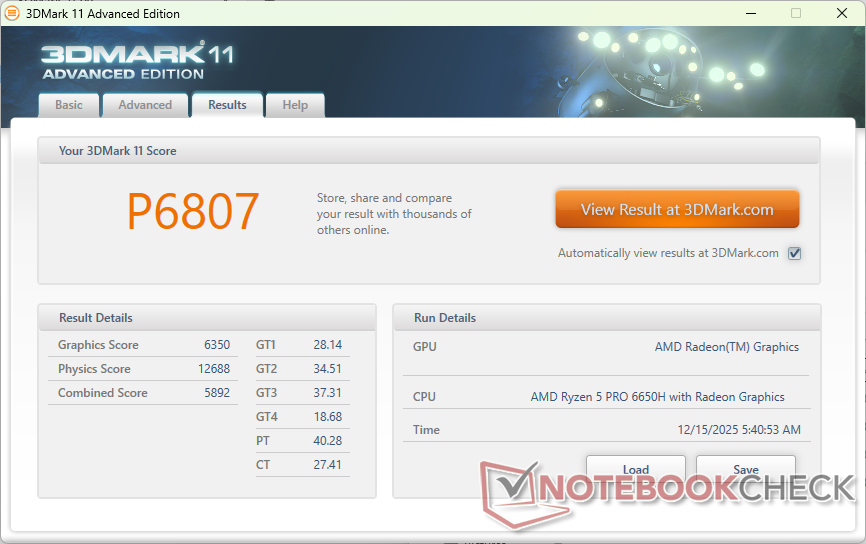

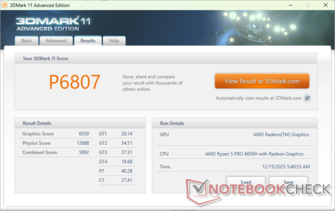

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark Performance rating - Percent
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	97.5 pt
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	94.1 pt
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	94 pt
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	90.3 pt
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	87.8 pt
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	78.2 pt
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	73.6 pt
Beelink SER6 Pro Ryzen 7 7735HS ^-1! AMD Radeon 680M, AMD Ryzen 7 7735HS	72.1 pt
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	70.8 pt
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	49.8 pt
Average AMD Radeon 660M	46.7 pt
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	45.5 pt
Beelink SEi13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	38.8 pt
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	14.5 pt

3DMark 11 - 1280x720 Performance GPU
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	14312 Points +125%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	14274 Points +125%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	13783 Points +117%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	13279 Points +109%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	13067 Points +106%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	11668 Points +84%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	11080 Points +74%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	10734 Points +69%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	7351 Points +16%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6423 Points +1%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	6350 Points
Average AMD Radeon 660M (4636 - 7184, n=12)	6262 Points -1%
Beelink SEi13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	6066 Points -4%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1919 Points -70%

3DMark

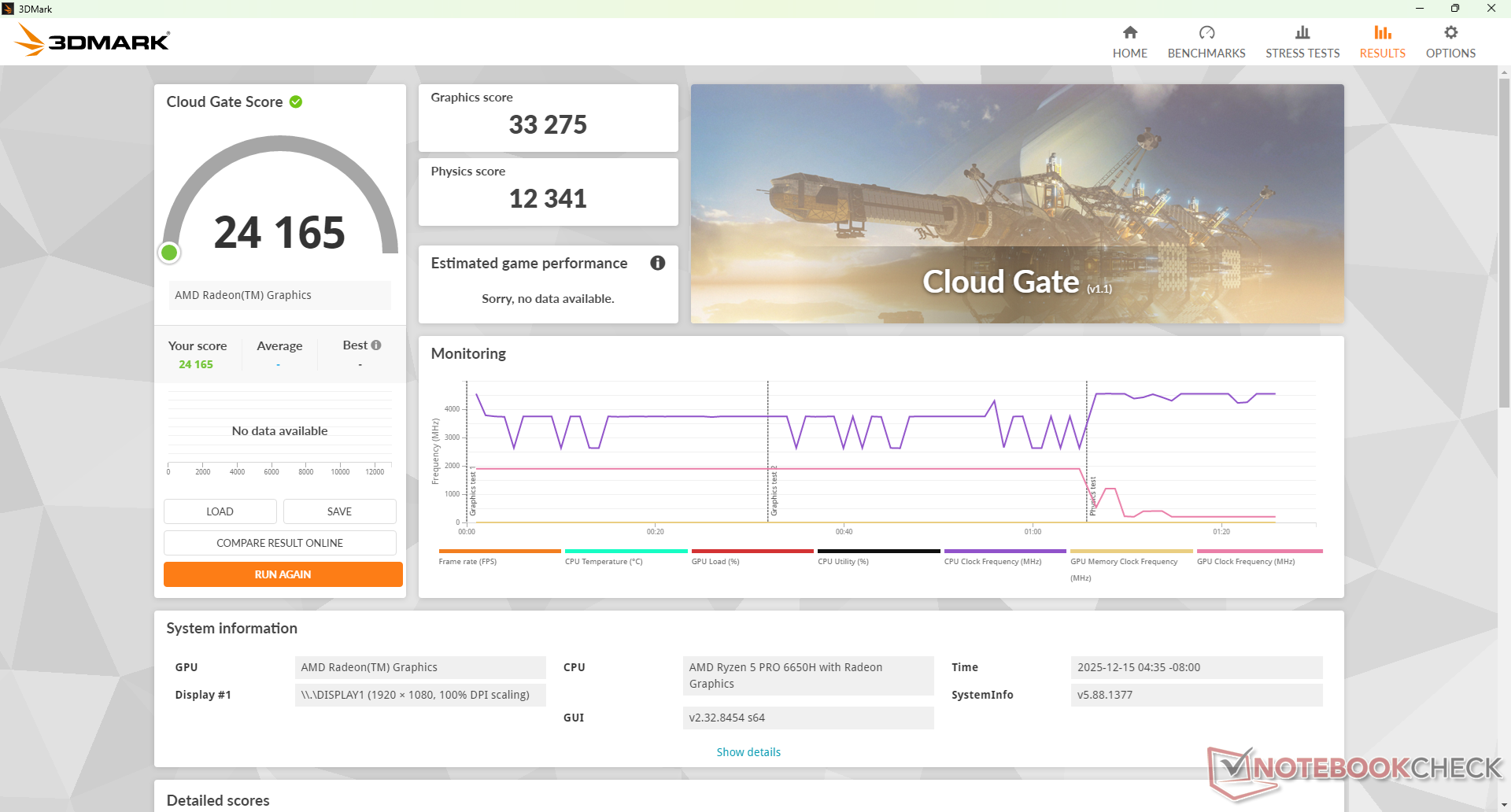

1280x720 Cloud Gate Standard Graphics
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	55397 Points +66%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	54549 Points +64%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	53089 Points +60%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	52736 Points +58%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	51042 Points +53%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	50524 Points +52%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	45116 Points +36%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	39271 Points +18%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	33275 Points
Average AMD Radeon 660M (21857 - 33949, n=11)	30661 Points -8%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	26412 Points -21%
Beelink SEi13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	23706 Points -29%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	10141 Points -70%

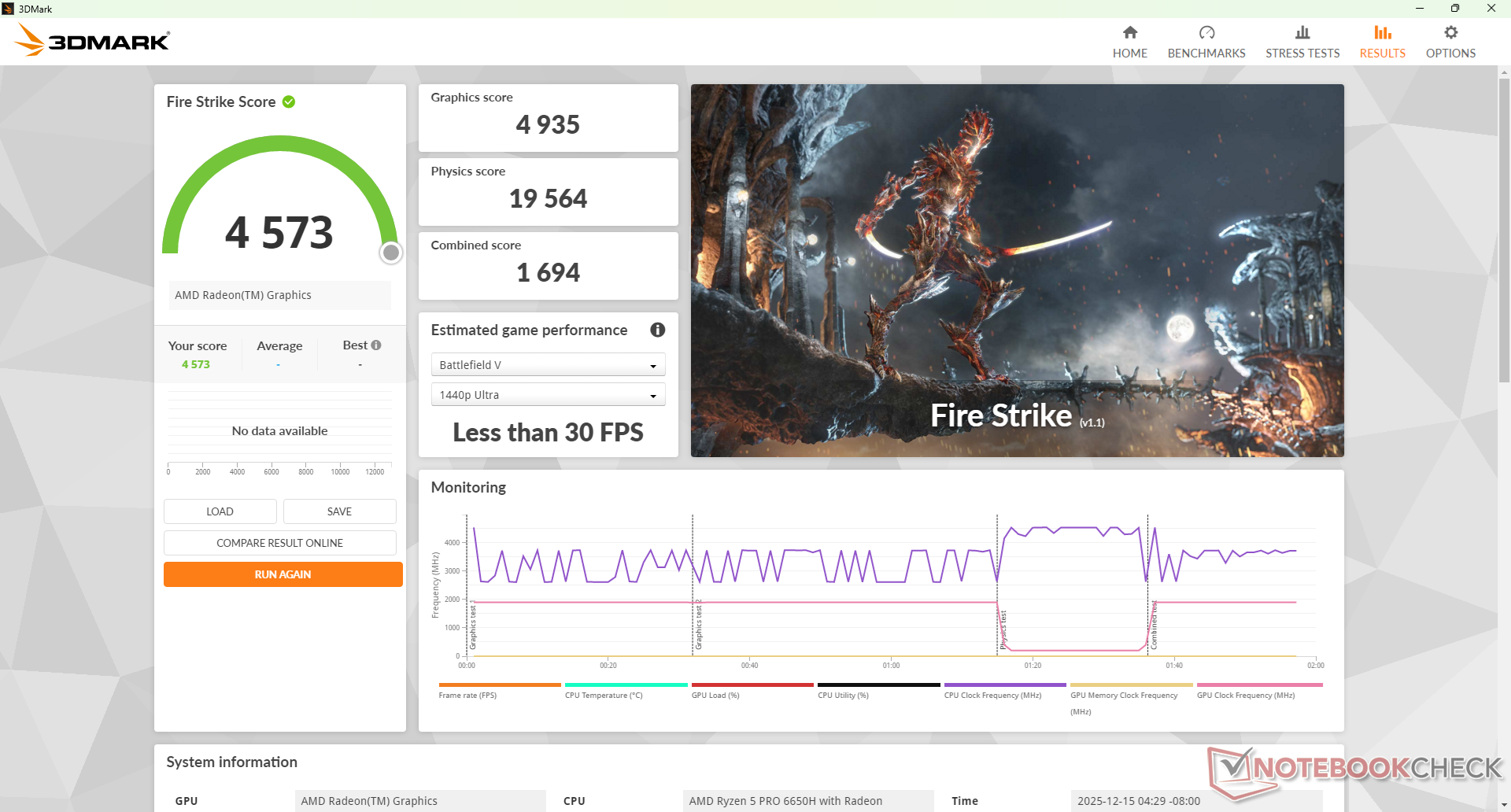

1920x1080 Fire Strike Graphics
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	8904 Points +80%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	8875 Points +80%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	8773 Points +78%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	8423 Points +71%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	8408 Points +70%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	7653 Points +55%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	7180 Points +45%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	7054 Points +43%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	6209 Points +26%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	4935 Points
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4568 Points -7%
Average AMD Radeon 660M (3447 - 4993, n=12)	4549 Points -8%
Beelink SEi13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	3817 Points -23%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1434 Points -71%
2560x1440 Time Spy Graphics
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	3940 Points +154%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	3167 Points +104%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	3077 Points +98%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2953 Points +90%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	2863 Points +84%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	2754 Points +77%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	2632 Points +70%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2518 Points +62%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	2395 Points +54%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	1552 Points
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1508 Points -3%
Average AMD Radeon 660M (1016 - 1588, n=12)	1445 Points -7%
Beelink SEi13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	1067 Points -31%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	404 Points -74%

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark 11 Performance		6807 points
3DMark Cloud Gate Standard Score		24165 points
3DMark Fire Strike Score		4573 points
3DMark Time Spy Score		1747 points
Help

... in comparison

Blender
v3.3 Classroom HIP/AMD
Average AMD Radeon 660M (438 - 755, n=8)	554 Seconds *
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	314 Seconds *
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	306 Seconds *
v3.3 Classroom CPU
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	2707 Seconds * -383%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1010 Seconds * -80%
Average AMD Radeon 660M (323 - 968, n=12)	658 Seconds * -18%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	560 Seconds *
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	445 Seconds * +21%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	438 Seconds * +22%
Beelink SEi13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	346 Seconds * +38%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	328 Seconds * +41%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	324 Seconds * +42%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	315 Seconds * +44%
BOSGAME M2 AMD Radeon 780M, AMD Ryzen 9 7940HS	314 Seconds * +44%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	306 Seconds * +45%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	266 Seconds * +52%
v3.3 Classroom oneAPI/Intel
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	278 Seconds *
v4.3 Barbershop CPU
Average AMD Radeon 660M (2828 - 3797, n=3)	3297 Seconds * -17%
GMK NucBox M8 AMD Radeon 660M, AMD Ryzen 5 PRO 6650H	2828 Seconds *
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	2741 Seconds * +3%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2165 Seconds * +23%
Beelink SEi13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	1779 Seconds * +37%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	1635 Seconds * +42%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1601 Seconds * +43%
GMK NucBox K12 AMD Radeon 780M, AMD Ryzen 7 H 255	1557 Seconds * +45%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	1528 Seconds * +46%
Asus NUC 15 Pro+ Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1349 Seconds * +52%

* ... smaller is better

Performance rating - Percent
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	92.7 pt
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	91.6 pt
BOSGAME M4 Neo ^-1! AMD Ryzen 7 7840HS, AMD Radeon 780M	88.2 pt
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	87.7 pt
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	85.7 pt
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	54.9 pt

Cyberpunk 2077 - 1920x1080 Ultra Preset (FSR off)
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	23.6 (19.9^min, 16.3^P1) fps +119%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	22.6 (18.8^min, 6.53^P1) fps +109%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	19.4 (11^min, 10.1^P1) fps +80%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	19 (15.5^min) fps +76%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	18.6 (12.7^min) fps +72%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	10.8 (8.97^min, 7.48^P1) fps

Baldur's Gate 3 - 1920x1080 Ultra Preset AA:T
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	27 (21.6^min, 23.3^P0.1, 24.7^P1) fps +86%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	26.9 fps +86%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	26.7 fps +84%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.7 fps +84%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	21.3 (16.9^min, 17.5^P0.1, 18.6^P1) fps +47%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	14.5 (10.8^min, 10.8^P0.1, 11.1^P1) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	30.5 fps +79%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	28.7 fps +69%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27.6 fps +62%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	25.6 fps +51%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	24.8 fps +46%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	17 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	57.3 (18^min, 27.8^P1) fps +98%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	53.4 (33.1^min, 40.4^P1) fps +85%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	49.5 (33.1^min, 38.6^P1) fps +71%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	42.8 (28.6^min, 33.1^P1) fps +48%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	28.9 (14.4^min, 18.9^P1) fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	83.1 (71.2^min) fps +52%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	81.5 (71.5^min) fps +49%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	79.7 (71.6^min) fps +46%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	78.1 (66.9^min) fps +43%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	65.8 (32.9^min) fps +21%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	54.6 (48.9^min) fps

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	50.2 fps +73%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	40.6 fps +40%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	38 fps +31%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	37 fps +28%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36 fps +24%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	29 fps

Baldur's Gate 3
1280x720 Low Preset AA:SM
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	67.6 (49.8^min, 50.9^P0.1, 59.7^P1) fps +93%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	65.8 fps +87%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	61 fps +74%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	59.8 fps +70%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	58 (20.6^min, 23^P0.1, 48.4^P1) fps +65%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	57.6 fps +64%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	57.3 (43.1^min, 43.6^P0.1, 47.5^P1) fps +63%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	48.9 (16.6^min, 29.1^P0.1, 36.8^P1) fps +39%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	35.1 (22.6^min, 22.9^P0.1, 24.8^P1) fps
Average AMD Radeon 660M (26.6 - 38, n=4)	34.3 fps -2%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	17.5 fps -50%
1920x1080 Low Preset AA:SM
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	44.1 fps +100%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	43 (28.7^min, 33.6^P0.1, 37.2^P1) fps +95%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	40.8 fps +85%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	39.9 fps +81%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	39.5 (32.2^min, 32.3^P0.1, 34^P1) fps +80%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	36.9 (23.7^min, 25.2^P0.1, 27.4^P1) fps +68%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36.1 fps +64%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	35.3 (27.2^min, 27.6^P0.1, 30.2^P1) fps +60%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	22 (15.6^min, 15.7^P0.1, 16.2^P1) fps
Average AMD Radeon 660M (16.5 - 22.9, n=6)	20.8 fps -5%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	12.9 fps -41%
1920x1080 Medium Preset AA:T
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	36.5 fps +145%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	33.6 (29^min, 29.1^P0.1, 30.4^P1) fps +126%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	33.5 fps +125%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	32.9 fps +121%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	31.2 (25.4^min, 26^P0.1, 27.3^P1) fps +109%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	29.5 fps +98%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	28.3 (8.76^min, 14.9^P0.1, 21.7^P1) fps +90%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	26.8 (23.4^min, 23.6^P0.1, 24.5^P1) fps +80%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	14.9 (11.4^min, 11.5^P0.1, 12.7^P1) fps
Average AMD Radeon 660M (12.8 - 15.1, n=6)	14.1 fps -5%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	10.7 fps -28%
1920x1080 High Preset AA:T
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	30.6 fps +108%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	29 fps +97%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	27.6 (23.1^min, 23.9^P0.1, 25.1^P1) fps +88%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	27.1 fps +84%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27 fps +84%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	26.2 (21.4^min, 21.4^P0.1, 23.3^P1) fps +78%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	23.3 (16.6^min, 16.7^P0.1, 18.3^P1) fps +59%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	21.6 (18.7^min, 19^P0.1, 19.8^P1) fps +47%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	14.7 (10.3^min, 10.4^P0.1, 11.6^P1) fps
Average AMD Radeon 660M (10.2 - 14.7, n=6)	12.5 fps -15%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	9.2 fps -37%
1920x1080 Ultra Preset AA:T
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	29.6 fps +104%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	27 (21.6^min, 23.3^P0.1, 24.7^P1) fps +86%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	26.9 fps +86%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	26.7 fps +84%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.7 fps +84%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	26 (19.7^min, 19.8^P0.1, 23.2^P1) fps +79%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	22.8 (15.6^min, 15.9^P0.1, 17.6^P1) fps +57%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	21.3 (16.9^min, 17.5^P0.1, 18.6^P1) fps +47%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	14.5 (10.8^min, 10.8^P0.1, 11.1^P1) fps
Average AMD Radeon 660M (9.97 - 14.5, n=5)	12.2 fps -16%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	9.2 fps -37%

Dota 2 Reborn
1280x720 min (0/3) fastest
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	173.6 (147.3^min) fps +57%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	161.5 (136.9^min) fps +46%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	155.8 (134.9^min) fps +40%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	154 (134.7^min) fps +39%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	142.2 (123.6^min) fps +28%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	134.5 (121.1^min) fps +21%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	124 (8.9^min) fps +12%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	121 (109.7^min) fps +9%
Average AMD Radeon 660M (93.7 - 144.9, n=12)	113.8 fps +3%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	110.9 (96.6^min) fps
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	107.9 (57.9^min) fps -3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	98.1 (63.6^min) fps -12%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	84.4 (63.3^min) fps -24%
1366x768 med (1/3)
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	136.5 (119.2^min) fps +48%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	122.7 (101.9^min) fps +33%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps +23%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	108.9 (90.2^min) fps +18%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	108.8 (88.2^min) fps +18%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	104 (89^min) fps +13%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	102 (87.3^min) fps +11%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	94.5 (55.6^min) fps +2%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	92.3 (81^min) fps
Average AMD Radeon 660M (72.2 - 107.9, n=12)	90.7 fps -2%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	80.4 (44.8^min) fps -13%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.4 (61.1^min) fps -14%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	68 (27.7^min) fps -26%
1920x1080 high (2/3)
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	98.9 (83.7^min) fps +54%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	98.4 (87.5^min) fps +53%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	93.2 (82^min) fps +45%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	90 (79^min) fps +40%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	90 (76.5^min) fps +40%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	89.1 (74.5^min) fps +39%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	87.6 (52.1^min) fps +36%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	81.6 (72.3^min) fps +27%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	64.2 (57.2^min) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	59.9 (22.6^min) fps -7%
Average AMD Radeon 660M (37.4 - 70, n=12)	57.8 fps -10%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.6 (42.5^min) fps -21%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	46.1 (32.6^min) fps -28%
1920x1080 ultra (3/3) best looking
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	92.2 (50.4^min) fps +69%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	88.1 (78.3^min) fps +61%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	83.1 (71.2^min) fps +52%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	81.5 (71.5^min) fps +49%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	79.7 (71.6^min) fps +46%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	78.1 (66.9^min) fps +43%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	72.8 (65.3^min) fps +33%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	70.2 (61.6^min) fps +29%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	65.8 (32.9^min) fps +21%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	54.6 (48.9^min) fps
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	52.3 (43.7^min) fps -4%
Average AMD Radeon 660M (32.8 - 60.8, n=12)	49.6 fps -9%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	44 (33.4^min) fps -19%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	84.9 fps +85%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	83.8 fps +82%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	81.1 fps +76%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	78.4 fps +70%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	77.9 fps +69%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	75.7 fps +65%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	71.3 fps +55%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	67.6 fps +47%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	62.2 fps +35%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	46 fps
Average AMD Radeon 660M (33.1 - 53.4, n=12)	43.6 fps -5%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	39.8 fps -13%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	30.2 fps -34%
1920x1080 Standard Quality
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	43.6 fps +81%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	42.3 fps +76%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	41.5 fps +72%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	39.1 fps +62%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	39.1 fps +62%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	37.4 fps +55%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	36.4 fps +51%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	35.8 fps +49%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps +37%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	24.1 fps
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	21.3 fps -12%
Average AMD Radeon 660M (16 - 24.7, n=12)	21 fps -13%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	14.9 fps -38%
1920x1080 High Quality
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	30.9 fps +82%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	30.5 fps +79%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	30.1 fps +77%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	28.7 fps +69%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27.6 fps +62%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	26.2 fps +54%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	25.6 fps +51%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	24.8 fps +46%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	24.7 fps +45%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	17 fps
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.4 fps -9%
Average AMD Radeon 660M (11.1 - 17.9, n=12)	15.1 fps -11%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	10.7 fps -37%

X-Plane 11.11
1280x720 low (fps_test=1)
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	79 fps +73%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	71.4 fps +56%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	66.8 fps +46%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	66.1 fps +45%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	65.2 fps +43%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	61.1 fps +34%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	60.3 fps +32%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	57.1 fps +25%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	51.8 fps +13%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	51.1 fps +12%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	45.7 fps
Average AMD Radeon 660M (34.8 - 51.8, n=13)	44.4 fps -3%
1920x1080 med (fps_test=2)
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	61.9 fps +82%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	55.7 fps +63%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	52.3 fps +53%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	49.1 fps +44%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	48.1 fps +41%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	45.3 fps +33%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	45 fps +32%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	44.5 fps +30%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	43.7 fps +28%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	41.7 fps +22%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	34.1 fps
Average AMD Radeon 660M (24.2 - 38.5, n=13)	31.9 fps -6%
1920x1080 high (fps_test=3)
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	50.2 fps +73%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	48.3 fps +67%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	42.2 fps +46%
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	41.4 fps +43%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	40.6 fps +40%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.7 fps +33%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	38 fps +31%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	37 fps +28%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	37 fps +28%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36 fps +24%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	29 fps
Average AMD Radeon 660M (22.1 - 33.8, n=13)	28.2 fps -3%

Cyberpunk 2077
1280x720 Low Preset (FSR off)
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	77.9 (64.8^min) fps +128%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	74.4 (61.9^min) fps +118%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	73.6 (61^min, 58^P1) fps +116%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	72.2 (60.8^min, 57.6^P1) fps +112%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	64.6 (53^min) fps +89%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	62.8 (53.8^min, 50.6^P1) fps +84%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	62.5 (32.9^min, 26.7^P1) fps +83%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	58.8 (48.8^min) fps +72%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	34.1 (28.5^min, 27.2^P1) fps
Average AMD Radeon 660M (27.5 - 38, n=4)	33.4 fps -2%
1920x1080 Low Preset (FSR off)
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	46.3 (39.5^min) fps +100%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	44.7 (38.6^min) fps +94%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	44.5 (37.8^min, 36.5^P1) fps +93%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	43.5 (37.6^min, 35.5^P1) fps +88%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	40.5 (35.6^min, 34.1^P1) fps +75%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	38.7 (32.5^min) fps +68%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	34.8 (29.9^min) fps +51%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	33.9 (19.2^min, 16.7^P1) fps +47%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	23.1 (19.6^min, 18.7^P1) fps
Average AMD Radeon 660M (14.9 - 24.3, n=6)	20.7 fps -10%
1920x1080 Medium Preset (FSR off)
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	36.3 (31.7^min) fps +110%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	35 (30.5^min) fps +102%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	34.3 (30.1^min, 28.2^P1) fps +98%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	33.9 (29.5^min, 20.2^P1) fps +96%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	33.7 (29.8^min, 29^P1) fps +95%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	29.5 (25.2^min) fps +71%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	27.2 (23.6^min) fps +57%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.6 (15.5^min, 13.9^P1) fps +54%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	17.3 (15.1^min, 14.5^P1) fps
Average AMD Radeon 660M (11.5 - 18.1, n=6)	15.6 fps -10%
1920x1080 High Preset (FSR off)
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	29.2 (25.2^min) fps +126%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	29 (25.5^min, 24.8^P1) fps +125%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27.1 (23.1^min, 20.3^P1) fps +110%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	26.4 (22.9^min, 7.08^P1) fps +105%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	23.2 (12.6^min, 11.3^P1) fps +80%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	23.1 (15.8^min) fps +79%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	22.8 (18.7^min) fps +77%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	21.3 (18.4^min) fps +65%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	12.9 (10.5^min, 8.54^P1) fps
Average AMD Radeon 660M (8.85 - 13.2, n=7)	11.7 fps -9%
1920x1080 Ultra Preset (FSR off)
BOSGAME M2 AMD Ryzen 9 7940HS, AMD Radeon 780M	25.8 (21.9^min) fps +139%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	25.6 (22^min, 21.1^P1) fps +137%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	23.6 (19.9^min, 16.3^P1) fps +119%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	22.6 (18.8^min, 6.53^P1) fps +109%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	19.4 (11^min, 10.1^P1) fps +80%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	19 (15.5^min) fps +76%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	18.6 (12.7^min) fps +72%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	18.1 (15.3^min) fps +68%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	10.8 (8.97^min, 7.48^P1) fps
Average AMD Radeon 660M (7.77 - 11.2, n=5)	9.97 fps -8%

F1 24
1920x1080 Low Preset AA:T AF:16x
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	87.2 (71^min, 63^P1) fps +117%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	83.6 (64^min, 53^P1) fps +108%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	83.4 (63^min, 42^P1) fps +108%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	83 (71^min, 67^P1) fps +107%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	73.9 (61^min, 53^P1) fps +84%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	72.2 (57^min, 50^P1) fps +80%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	72 (52^min, 30^P1) fps +80%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	40.1 (19^P1) fps
Average AMD Radeon 660M (31.6 - 42.2, n=5)	36.7 fps -8%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	25.7 (21^min, 17^P1) fps -36%
1920x1080 Medium Preset AA:T AF:16x
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	77 (61^min, 56^P1) fps +103%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	75.6 (53^min, 50^P1) fps +99%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	74.9 (65^min, 61^P1) fps +97%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	73.3 (48^min, 47^P1) fps +93%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	66 (54^min, 47^P1) fps +74%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	63 (55^min, 43^P1) fps +66%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	38 (29^min, 17^P1) fps
Average AMD Radeon 660M (26.8 - 38, n=5)	32.2 fps -15%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	23.8 (19^min, 16^P1) fps -37%
1920x1080 High Preset AA:T AF:16x
BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Radeon 780M	57.7 (45^min, 42^P1) fps +119%
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	57.7 (51^min, 49^P1) fps +119%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	55.8 (41^min, 40^P1) fps +111%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	55.4 (38^min, 30^P1) fps +110%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	53.8 (38^min, 22^P1) fps +104%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	48.2 (41^min, 35^P1) fps +83%
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	46 (34^min, 31^P1) fps +74%
GMK NucBox M8 AMD Ryzen 5 PRO 6650H, AMD Radeon 660M	26.4 (12^P1) fps
Average AMD Radeon 660M (19.8 - 26.4, n=4)	23.9 fps -9%
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	18 (14^min, 12^P1) fps -32%
1920x1080 Ultra High Preset AA:T AF:16x
Asus NUC 15 Pro+ Intel Core Ultra 9 285H, Intel Arc Graphics 140T	19.2 (16^min, 16^P1) fps
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	16.6 (10^min, 7^P1) fps
Beelink SEi13 Pro Intel Core i9-13900HK, Intel Iris Xe Graphics G7 96EUs	14.8 (10^min, 10^P1) fps
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	13 (5^min, 9^P1) fps
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	12.3 (1^min, 3^P1) fps
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Radeon 860M	11.4 (8^min, 7^P1) fps
Aoostar GEM10 AMD Ryzen 7 6800H, AMD Radeon 680M	9.53 (6^min, 7^P1) fps
Average AMD Radeon 660M (n=1)	5.6 fps

赛博朋克 2077》超 FPS 图表

GMK NucBox M8 R5 PRO 6650H, Radeon 660M: Ø11.1 (9.52-11.3)

	low	med.	high	ultra
Dota 2 Reborn (2015)	110.9	92.3	64.2	54.6
Final Fantasy XV Benchmark (2018)	46	24.1	17
X-Plane 11.11 (2018)	45.7	34.1	29
Strange Brigade (2018)	123	44.2	35.6	28.9
Baldur's Gate 3 (2023)	22	14.9	14.7	14.5
Cyberpunk 2077 (2023)	23.1	17.3	12.9	10.8
F1 24 (2024)	40.1	38	26.4

排放量

系统噪音

遗憾的是，即使设置为平衡模式或运行浏览器或视频等要求不高的负载时，风扇也会从 24 dB(A) 的静音背景噪声中频繁跳动，最高可达 38 dB(A)。

风扇噪音曲线（白色：背景，红色：系统空闲，蓝色：3DMark 11，橙色：Cyberpunk 2077，绿色：3DMark 11：赛博朋克 2077》，绿色：Prime95 压力）

Noise level

Idle		24.1 / 24.1 / 38.5 dB(A)
Load		41.1 / 47.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24.1 dB(A)

	GMK NucBox M8 R5 PRO 6650H, Radeon 660M	GMK NucBox K12 Ryzen 7 H 255, Radeon 780M	Beelink SER9 Pro Ryzen 7 H 255, Radeon 780M	Asus ExpertCenter PN54-S70012NN Ryzen AI 7 350, Radeon 860M	MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V	BOSGAME M4 Neo R7 7840HS, Radeon 780M
Noise		-10%	7%	4%	-6%	-12%
off / environment * (dB)	24.1	23.5 2%	23 5%	24.7 -2%	24.8 -3%	24.3 -1%
Idle Minimum * (dB)	24.1	35.4 -47%	29.1 -21%	25 -4%	28 -16%	37.6 -56%
Idle Average * (dB)	24.1	35.4 -47%	30.1 -25%	25.2 -5%	36.1 -50%	37.9 -57%
Idle Maximum * (dB)	38.5	39 -1%	31.7 18%	25.3 34%	36.1 6%	38 1%
Load Average * (dB)	41.1	42.4 -3%	33.7 18%	42.6 -4%	38.9 5%	40.8 1%
Cyberpunk 2077 ultra * (dB)	46.6	40.4 13%	33.8 27%	42.6 9%	37 21%	40.18 14%
Load Maximum * (dB)	47.2	41.4 12%	35.2 25%	47.1 -0%	49.2 -4%	40.2 15%
Witcher 3 ultra * (dB)				42.5

* ... smaller is better

温度

表面温度不是问题，因为外壳与内部组件几乎没有接触。不过，要确保机箱底部和右侧的气流畅通。

压力测试

运行 Prime95 时，CPU 稳定在 3.4 GHz、35 W 和 69 C；运行游戏等高负载时，CPU 稳定在 1900 MHz 和 67 C。温度比微星 Cubi NUC AI+ 2MG 稍高，后者使用的是速度更快、更新的英特尔 Lunar Lake-V CPU。

	CPU 平均时钟 (GHz)	GPU 时钟 (MHz)	CPU 平均温度 (°C)
系统闲置	--	--	30
Prime95 压力	3.4	--	69
Prime95 + FurMark Stress	3.3	1239	66
赛博朋克 2077》压力	1.3	1900	67

能源管理

耗电量

总体功耗高于配备更新、更高效酷睿至尊 7 258V 的微星 Cubi NUC AI+ 2MG。Zen 3+ 架构的每瓦性能相对较弱。

需要注意的是，尽管迷你 PC 体积不大，但 100 瓦交流适配器却相当大（约 13.3 x 5.7 x 3.2 厘米）。

Power Consumption

Off / Standby	1.11 / 4 Watt
Idle	6.6 / 6.7 / 14.5 Watt
Load	33.2 / 54.6 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox M8 R5 PRO 6650H, Radeon 660M, AirDisk APF 10-512G, , x,	GMK NucBox K12 Ryzen 7 H 255, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Beelink SER9 Pro Ryzen 7 H 255, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Asus ExpertCenter PN54-S70012NN Ryzen AI 7 350, Radeon 860M, Western Digital PC SN5000S SDEQNSJ-1T00, , x,	MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V, Phison 1 TB ESR01TBTCCZ-27J, , x,	BOSGAME M4 Neo R7 7840HS, Radeon 780M, Kingston OM8PGP41024N-A0, , x,
Power Consumption		-57%	-27%	-8%	16%	-45%
Idle Minimum * (Watt)	6.6	9.9 -50%	7 -6%	2.6 61%	2.9 56%	7.6 -15%
Idle Average * (Watt)	6.7	10.1 -51%	7.1 -6%	4.6 31%	5.7 15%	9.1 -36%
Idle Maximum * (Watt)	14.5	13.1 10%	7.5 48%	6.4 56%	10.2 30%	11.1 23%
Load Average * (Watt)	33.2	69.8 -110%	62.3 -88%	68.5 -106%	38.7 -17%	67.2 -102%
Cyberpunk 2077 ultra external monitor * (Watt)	51.2	86.3 -69%	80.1 -56%	60.2 -18%	41.1 20%	81.3 -59%
Load Maximum * (Watt)	54.6	92.8 -70%	82.9 -52%	94 -72%	60 -10%	98.4 -80%

* ... smaller is better

功耗赛博朋克/压力测试

GMK NucBox M8 R5 PRO 6650H, Radeon 660M: Ø53.8 (53.2-54.6)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs: Ø40.2 (37.4-52.6)

外部显示器功耗

GMK NucBox M8 R5 PRO 6650H, Radeon 660M; Prime95 V2810 Stress (external Monitor): Ø52.1 (51.2-52.9)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø40.6 (37.7-53.5)

GMK NucBox M8 R5 PRO 6650H, Radeon 660M; Cinebench R15 Multi (external Monitor): Ø49.8 (49-50.2)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø45 (33.5-48.5)

GMK NucBox M8 R5 PRO 6650H, Radeon 660M; Cinebench R23 Multi (external Monitor): Ø49.2 (48.2-50.9)

GMK NucBox M8 R5 PRO 6650H, Radeon 660M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø41 (39-49.5)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.6 (32.5-49.3)

GMK NucBox M8 R5 PRO 6650H, Radeon 660M; Idle 1min (external Monitor): Ø6.68 (6.38-7.61)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø10.5 (6.41-13.6)

GMK NucBox M8 R5 PRO 6650H, Radeon 660M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø51.2 (44.8-52.9)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø36.1 (35.5-37.1)

笔记本检查评级

这是一款相对简陋的迷你 PC，以办公为中心，采用了公司最新的机箱设计，但为了保持价格的吸引力，采用了较旧的 AMD Zen 3+ CPU。

Back to the verdict

GMK NucBox M8 - 12/28/2025 v8
Allen Ngo

Chassis

82 / 98 → 84%

Connectivity

65 / 81 → 80%

Weight

83%

Games Performance

31 / 80 → 38%

Application Performance

76 / 92 → 83%

AI Performance

84%

Temperature

98%

Noise

70%

Average

53%

71%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
50%

Power Use
66.6%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 29.8%

潜在竞争对手比较

Image	Model / Review	Price	Weight	Height	Display
1. 70.6%	GMK NucBox M8 AMD Ryzen 5 PRO 6650H ⎘ AMD Radeon 660M ⎘ 16 GB Memory, 512 GB SSD	Amazon: $479.99	494 g	63 mm	x
2. 73.7%	GMK NucBox K12 AMD Ryzen 7 H 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $749.99	938 g	78 mm	x
3. 80.2%	Beelink SER9 Pro AMD Ryzen 7 H 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: List Price: 520 USD	812 g	44.7 mm	x
4. 80.9%	Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350 ⎘ AMD Radeon 860M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $1,095.99 List Price: 1249€	650 g	34 mm	x
5. 75.2%	MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V ⎘ Intel Arc Graphics 140V ⎘ 32 GB Memory, 1000 GB SSD	Amazon: $899.99 List Price: 900 USD	669 g	50.1 mm	x
6. 74%	BOSGAME M4 Neo AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $549.99 BOSGAME M4 Neo Mini PC, Mini... 2. $579.99 BOSGAME M4 Neo Mini PC, Mini... 3. $569.99 BOSGAME Mini PC M4 AMD Ryzen... List Price: 389 EUR	560 g	42 mm	x

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Geekom Mini IT12 i5-12450H, UHD Graphics 64EUs	478
Lenovo ThinkPad T14s Gen 5 21LS001PGE Ultra 5 125U, Graphics 4-Core iGPU (Arrow Lake)	478
Lenovo ThinkPad E14 Gen 7 21U2002QGE Core Ultra 5 228V, Arc 130V	482
GMK NucBox M8 R5 PRO 6650H, Radeon 660M	485
Lenovo ThinkPad T14 G5 21ML005JGE Ultra 7 155U, Graphics 4-Core iGPU (Arrow Lake)	487
Dell Latitude 7450 2-in-1 Ultra 7 165U, Graphics 4-Core iGPU (Arrow Lake)	492
Minisforum Mercury Series EM680 R7 6800U, Radeon 680M	496
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

GMK NucBox M8 迷你电脑评测：小巧、专业、实惠

中等性能，适用于大多数应用。

结论 - 性能恰到好处，价格恰到好处

Pros

Cons

价格和供应情况

Table of Contents

规格

案例

尺寸比较

连接性

交流

维护

可持续性

配件和保修

性能

测试条件

处理器

Cinebench R15 多回路运行

系统性能

DPC 延迟

存储设备

磁盘节流DiskSpd 读取循环，队列深度 8

图形处理器性能

赛博朋克 2077》超 FPS 图表

排放量

系统噪音

温度

压力测试

能源管理

耗电量

功耗赛博朋克/压力测试

外部显示器功耗

笔记本检查评级

潜在竞争对手比较

More articles related to this device

Transparency

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Lenovo V17 G2 ITL-82NX00EUGE i7-1165G7, GeForce MX350	6781
LG UltraPC 14 14U70Q-G.AA79G R7 5825U, Vega 8	6800
Asus Vivobook 16 M1606K Ryzen AI 7 350, Radeon 860M	6804
GMK NucBox M8 R5 PRO 6650H, Radeon 660M	6807
HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs	6809
HP Envy x360 15-fh0077ng R7 7730U, Vega 8	6816
Acer Aspire Vero AV14-51-72DL i7-1255U, Iris Xe G7 96EUs	6823
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642

结论 - 性能恰到好处，价格恰到好处

Pros

Cons

价格和供应情况

Table of Contents

规格

案例

尺寸比较

连接性

交流

维护

可持续性

配件和保修

性能

测试条件

处理器

Cinebench R15 多回路运行

系统性能

DPC 延迟

存储设备

磁盘节流DiskSpd 读取循环，队列深度 8

图形处理器性能

赛博朋克 2077》超 FPS 图表

排放量

系统噪音

温度

压力测试

能源管理

耗电量

功耗 赛博朋克/压力测试

外部显示器功耗

笔记本检查评级

潜在竞争对手比较

More articles related to this device

Transparency

功耗赛博朋克/压力测试
