微星 Cubi NUC AI+ 2MG 评测：适用于商务的简单迷你 PC

Name: MSI Cubi NUC AI+ 2MG
Brand: MSI

没什么太花哨的。

Cubi 2MG 将可靠性放在首位，功能普遍少于竞争对手。不过，对于近 900 美元的价格来说，性价比并不是它的最大优势。
Allen Ngo, 👁 Allen Ngo (translated by DeepL / Ninh Duy) Published 10/09/2025 🇺🇸 🇫🇷 ...
Business Mini PC Lunar Lake

结论--简单，但也许太简单了

作为一款面向企业的迷你 PC，Cubi NUC 2MG 朴实可靠，没有华而不实的美感。它集成了扬声器、麦克风、Co-Pilot+ 支持和 Power Link 功能，在某些条件或使用场景下可以派上用场，而 Lunar Lake-V CPU 通常比目前的 AMD 替代产品更酷、更高效。我们尤其欣赏快速集成的 MicroSD 读卡器，因为许多其他微型电脑都没有读卡器。

Test device courtesy of MSI

Download your licensed rating image as PNG / SVG

我们对 Cubi 2MG 的主要不满在于其 900 美元的高昂售价，而更快的 AMD 微型电脑（如 Beelink SER9 Pro或 GMK NucBox K12等速度更快的 AMD 迷你电脑，价格却低了数百美元。这些替代产品还具有可移动内存和支持更多内部固态硬盘等实用功能。微星表示，它提供更好的客户支持和更长的三年保修作为标准配置，以证明要价的合理性，但每美元性能相对较弱。

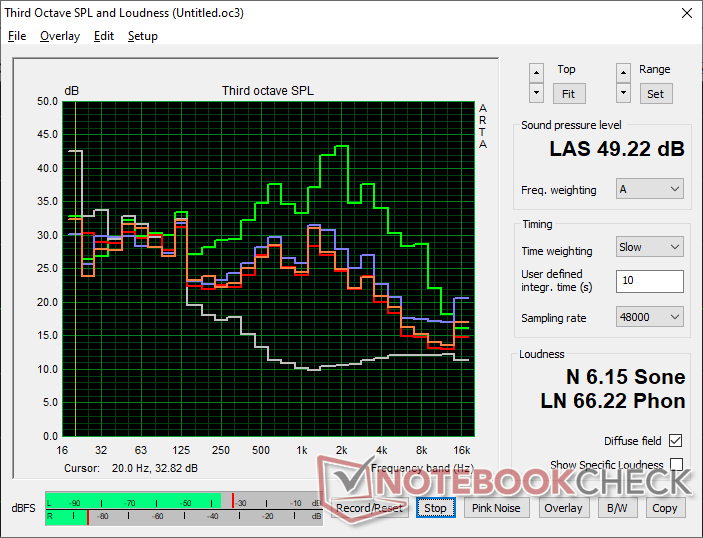

风扇性能也需要改进。除非开启静音模式，否则风扇会出现脉冲，即使在运行要求不高的负载时也会更加明显。循环的 GPU 时钟速率虽然在大多数专业设置中不是问题，但在大多数其他迷你 PC 没有出现同样问题的情况下，还是让人感到奇怪。

Pros

+ 制造商提供 3 年标准保修

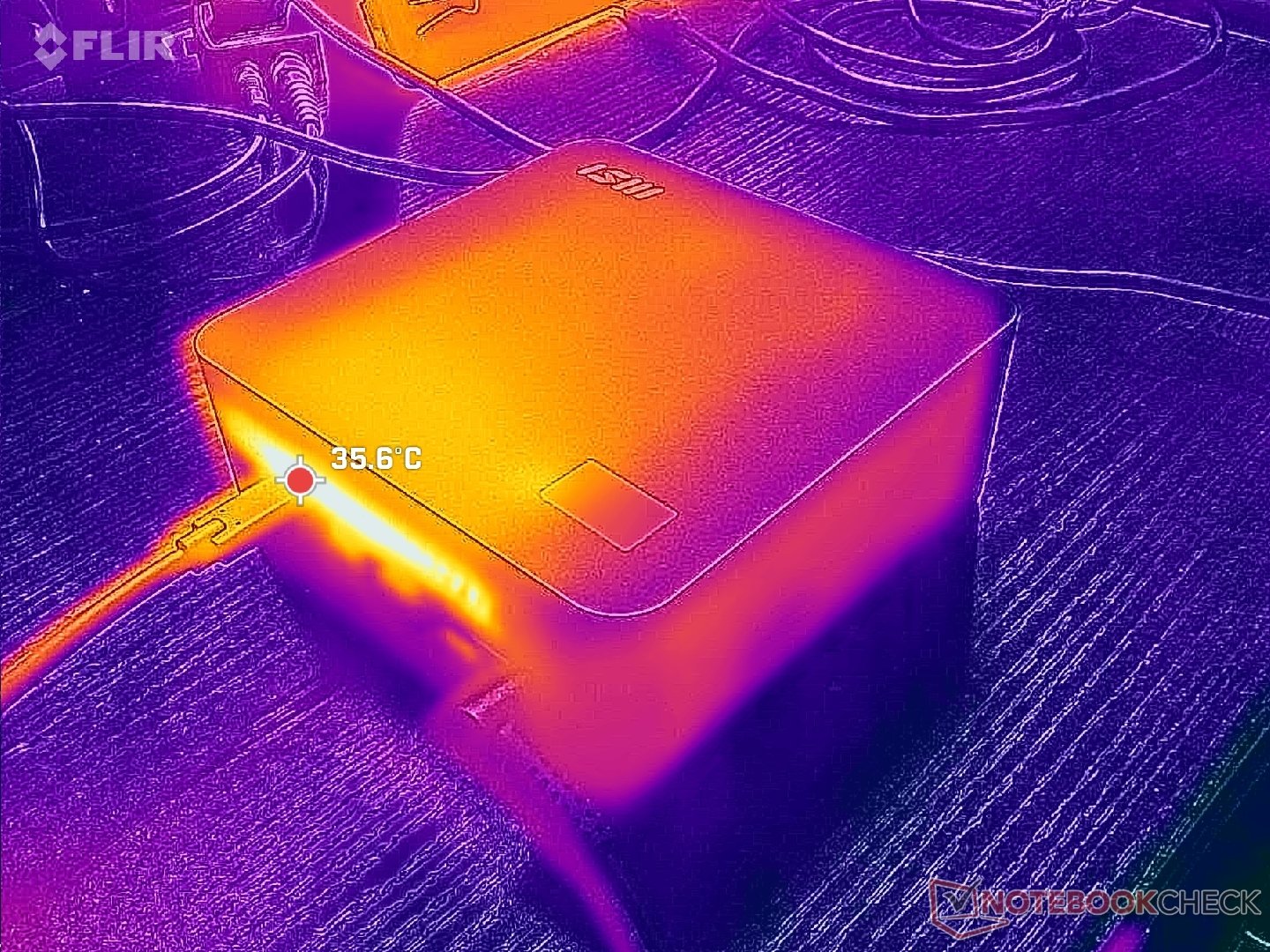

+ 相对较低的运行温度

+ 双 2.5 Gbps RJ-45

+ 快速 microSD 读卡器

+ 易于维修

Cons

- 集成的 CoPilot 按钮不一定总是很方便

- 风扇噪音明显，并有脉冲倾向

- 仅支持一个内置 M.2 固态硬盘

- 就性能而言价格昂贵

- 集成扬声器较弱

价格和供应情况

微星 Cubi NUC AI+ 2MG现已在亚马逊上发货，售价 900 美元。

$899.00

MSI Cubi NUC AI+ Barebones Mini PC: Intel Core Ultra 7-258V, 32GB Memory, WiFi 6E, BT 5.3, Thunderbolt 4, Type-C, Copilot Button: Black 2MG-003BUS

结论--简单，但也许太简单了
规格
案例
连接性
性能
排放量
能源管理
笔记本检查评级
潜在竞争对手比较

Cubi NUC 2MG 继去年的 Cubi NUC 1M.它用较新的 Lunar Lake-V 选件取代了较旧的 Raptor Lake-U Core Ultra 7 150U CPU，同时还做了其他小的辅助改动。Cubi 系列针对企业和零售环境进行了优化，而非家庭办公或 HTPC 应用。

我们的测试机是中端配置，配备酷睿 Ultra 7 258V CPU、32 GB 焊接内存和 1 TB SSD，售价约 900 美元。较低配置的处理器为 Core Ultra 5 226V，最高配置的处理器为 Core Ultra 9 288V。部分地区提供白色版本。

更多微星评论：

规格

MSI Cubi NUC AI+ 2MG

Processor

Intel Core Ultra 7 258V 8 x 2.2 - 4.8 GHz, 40 W PL2 / Short Burst, 38 W PL1 / Sustained, Lunar Lake

Graphics adapter

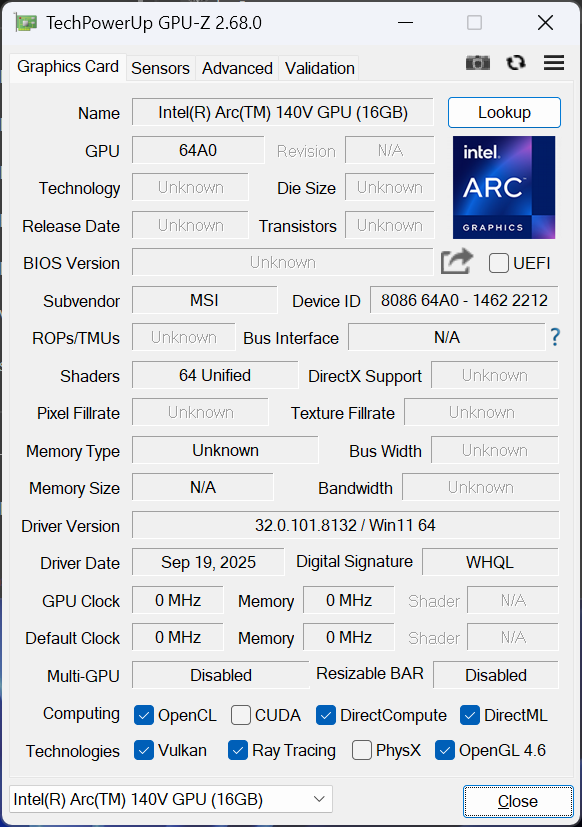

Intel Arc Graphics 140V, Core: 1950 MHz

Memory

32 GB

, LPDDR5x-8533, Soldered

Soundcard

Intel Lunar Lake SOC - cAVS (Audio, Voice, Speech)

Connections

2 USB 2.0, 2 USB 3.1 Gen2, 2 USB4 40 Gbps, 2 Thunderbolt 4, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm combo, 1 Fingerprint Reader

Networking

Intel Ethernet Controller I226-V (10/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 50.1 x 135.6 x 132.5

Operating System

Microsoft Windows 11 Pro

Additional features

MSI Center, 36 Months Warranty

Weight

669 g, Power Supply: 494 g

Price

900 USD

Amazon

$899.00

Links

MSI homepage
MSI notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

案例

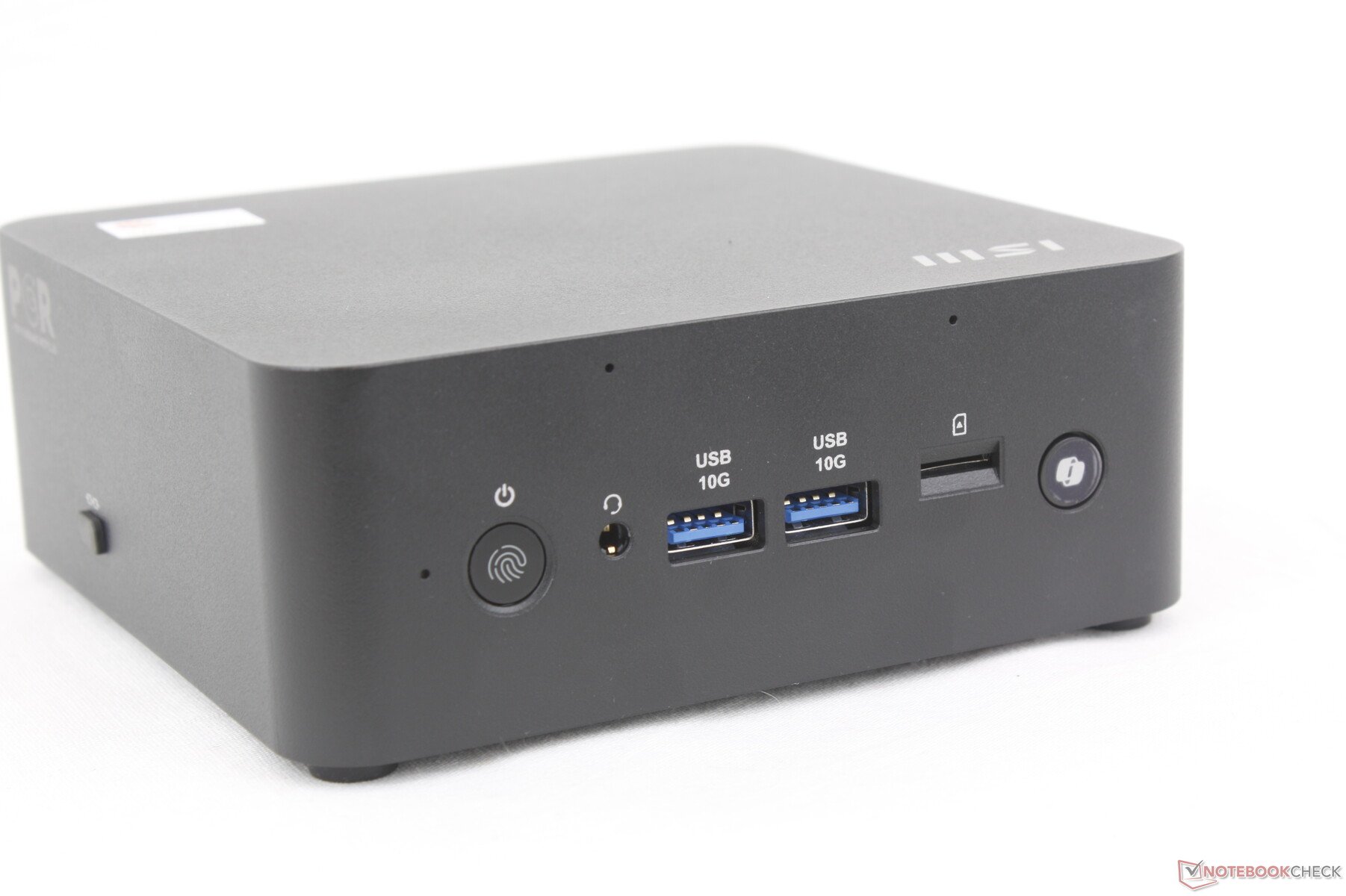

底盘和尺寸与 Cubi 1M 基本保持一致。不过，Cubi 2MG 的新功能是在设备前部设置了专用的 CoPilot 按钮。该功能的问题在于，根据您在桌面上的摆放位置，很难接触到物理按钮。

为方便起见，Power Link 支持通过某些微星显示器启动设备。兼容显示器列表可在找到。.遗憾的是，Power Link 仍然需要为迷你 PC 配备交流适配器，因此不是真正的 "单线 "解决方案。

尺寸比较

连接性

与 Cubi 1M 相比，端口选项略有变化。现在只有一个 HDMI 端口，而不是两个，同时减少了 USB 3.0 端口。

需要注意的是，虽然有两个 USB-C Thunderbolt 4 端口，但其中只有一个端口在主交流适配器不可用时支持高达 100 W 的电源输入。

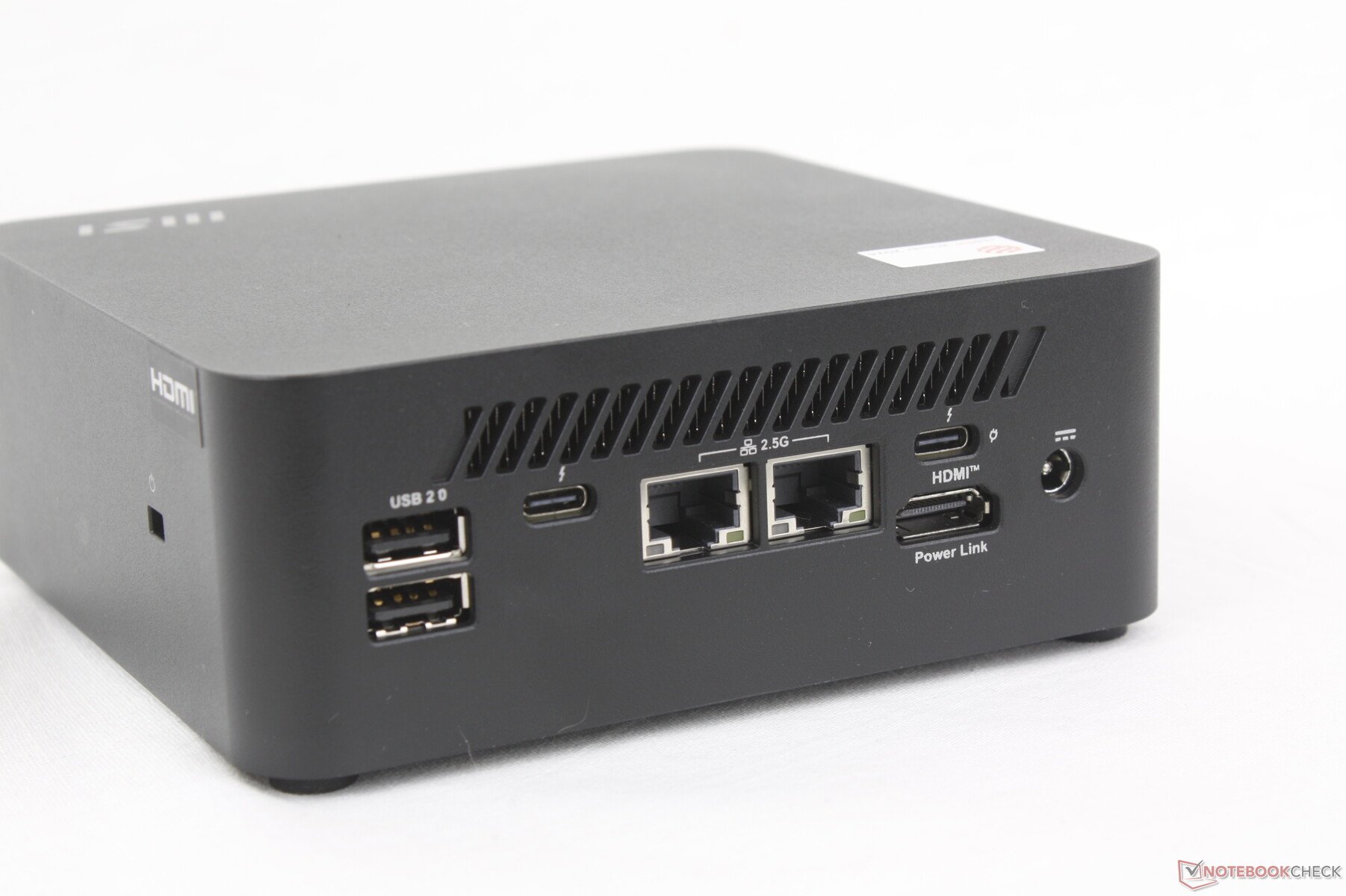

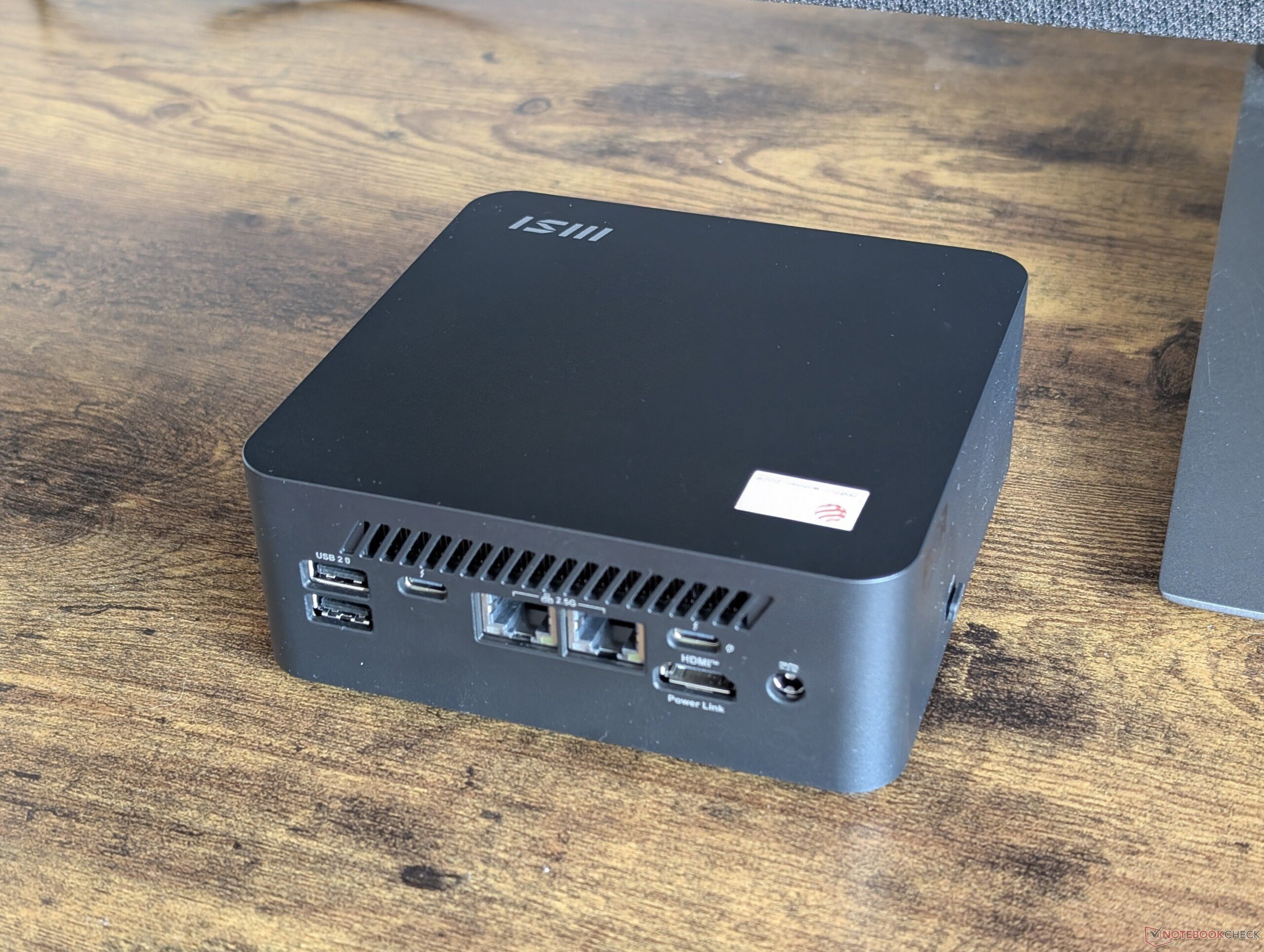

后部：2x USB-A 2.0、USB-C Thunderbolt 4 w/ DisplayPort 2.1 + Power Delivery (15W)、2x RJ-45 (2.5Gbps)、USB-C Thunderbolt 4 w/ DisplayPort 2.1 + Power Delivery (100W)、HDMI 2.1 w/ MSI Power Link、AC 适配器

SD 读卡器

SD Card Reader
average JPG Copy Test (av. of 3 runs)
MSI Cubi NUC 1M Intel Core 7 150U (Angelbird AV Pro V60)	53 MB/s +13%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V (Angelbird AV Pro V60)	47.1 MB/s
maximum AS SSD Seq Read Test (1GB)
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V (Angelbird AV Pro V60)	207.2 MB/s
MSI Cubi NUC 1M Intel Core 7 150U (Angelbird AV Pro V60)	196.9 MB/s -5%

交流

Networking
iperf3 transmit AXE11000
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1282 (1121^min - 1470^max) MBit/s
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1193 (1001^min - 1325^max) MBit/s -7%
Minisforum MS-A1 Intel Wi-Fi 6E AX210	855 (438^min - 894^max) MBit/s -33%
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	636 (430^min - 784^max) MBit/s -50%
Beelink SER9 Pro	580 (458^min - 645^max) MBit/s -55%
iperf3 receive AXE11000
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1409 (1143^min - 1606^max) MBit/s
Minisforum MS-A1 Intel Wi-Fi 6E AX210	941 (873^min - 964^max) MBit/s -33%
Beelink SER9 Pro	851 (780^min - 908^max) MBit/s -40%
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	819 (705^min - 979^max) MBit/s -42%
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	692 (506^min - 872^max) MBit/s -51%
iperf3 transmit AXE11000 6GHz
Minisforum MS-A1 Intel Wi-Fi 6E AX210	1597 (1554^min - 1657^max) MBit/s +45%
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	1400 (1199^min - 1463^max) MBit/s +27%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1101 (868^min - 1237^max) MBit/s
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	999 (530^min - 1123^max) MBit/s -9%
iperf3 receive AXE11000 6GHz
Minisforum MS-A1 Intel Wi-Fi 6E AX210	1749 (1702^min - 1767^max) MBit/s +6%
MSI Cubi NUC AI+ 2MG Intel Wi-Fi 6E AX211	1656 (1581^min - 1726^max) MBit/s
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	1560 (1528^min - 1585^max) MBit/s -6%
GMK NucBox K12 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	860 (829^min - 889^max) MBit/s -48%

MSI Cubi NUC AI+ 2MG; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1102 (868-1237)

MSI Cubi NUC AI+ 2MG; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1656 (1581-1726)

维护

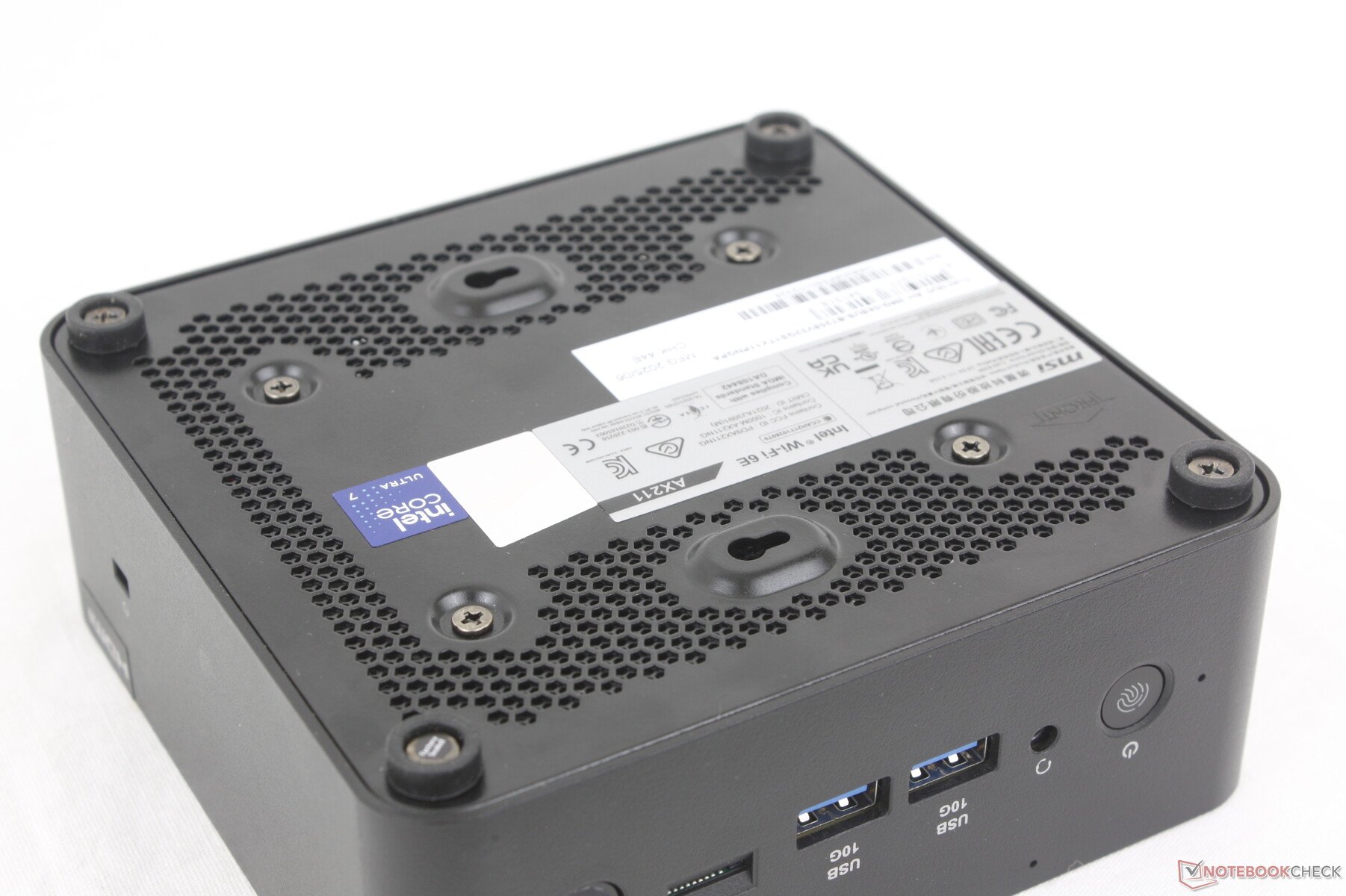

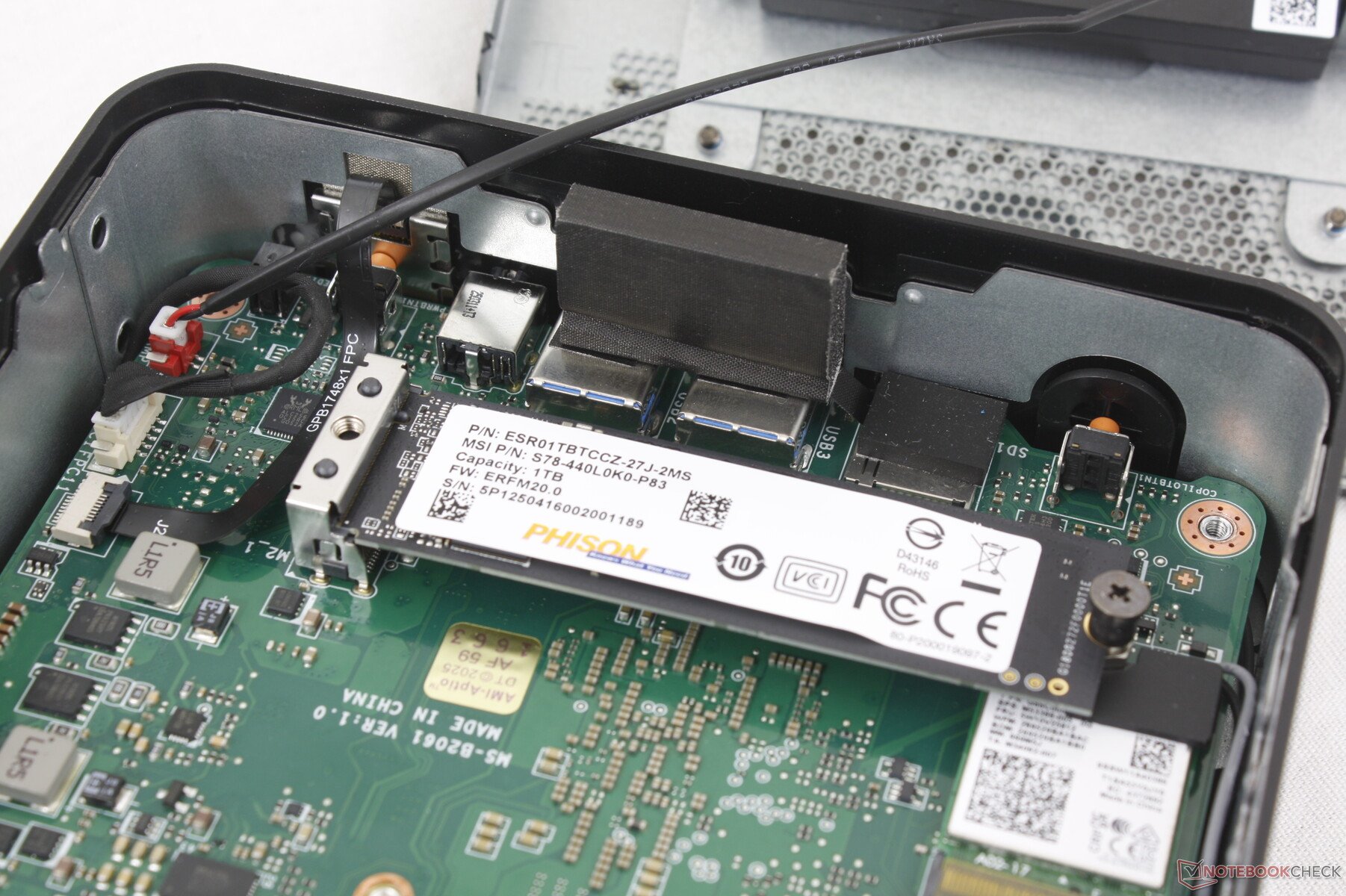

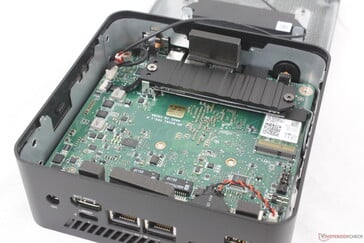

只需一把十字螺丝刀就能轻松拆下底部面板，以便快速维修。遗憾的是，该机仅支持一个内置 PCIe4 x4 M.2 2280 固态硬盘，没有可移动内存。相比之下 NucBox K12迷你 PC 支持多达三个 M.2 固态硬盘和两个可移动 SODIMM 内存模块。

可持续性

底盘由 37.25% 的消费后再生塑料组成，内包装则由 FSC 认证的纸箱组成，纸箱由可持续采购的木浆制成。

配件和保修

零售包装盒包括一个可拆卸的 VESA 安装支架和一个方便的 19 英寸有线电源按钮，用于在难以触及的地方打开电脑。

制造商提供标准的三年有限保修服务，而美国其他大多数微型 PC 的保修期仅为一年。

性能

测试条件

在运行以下基准测试之前，我们将 MSI Center 设置为性能模式。

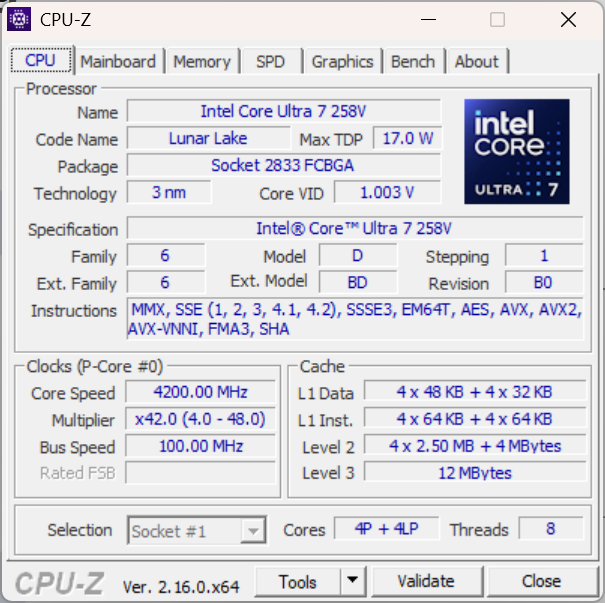

处理器

酷睿 Ultra 7 258V 酷睿至尊 7 258V比老式的酷睿 7 150U在原始多线程性能方面，它比去年 Cubi NUC 1M 中的老款 Core 7 150U 快了近 100%。此外，它还集成了 NPU，而 Nuc 1M 则不支持 Co-Pilot+。

升级到酷睿至尊 9 288V预计性能不会有明显提升，而降级到酷睿至尊 5 226V性能只会降低几个百分点。

Cinebench R15 多回路运行

MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V: Ø1475 (1459.06-1488.32)

MSI Cubi NUC 1M Intel Core 7 150U: Ø971 (535.59-1039.66)

GMK NucBox K12 AMD Ryzen 7 H 255: Ø2505 (2493.14-2513.98)

Beelink SER9 Pro AMD Ryzen 7 H 255: Ø2565 (2544.37-2588.16)

Minisforum MS-A1 AMD Ryzen 7 8700G: Ø2666 (2561.48-2691.07)

CPU Performance rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.5: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance rating
Minisforum MS-A1 AMD Ryzen 7 8700G	90.4 pt
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	86.8 pt
Beelink SER9 Pro AMD Ryzen 7 H 255	84.6 pt
Intel NUC 13 Pro Kit NUC13ANK ^-2! Intel Core i7-1360P	76.4 pt
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	72.1 pt
Average Intel Core Ultra 7 258V	72 pt
MSI Cubi NUC 1M Intel Core 7 150U	65.4 pt
Ninkear M7, (16+512) AMD Ryzen 5 7430U	52.5 pt
GMK NucBox M5 AMD Ryzen 7 5700U	49.9 pt
Asus NUC 14 Essential Intel Core 3 N355	37.8 pt
BMAX B4 Turbo Intel Processor N150	26 pt

Cinebench R23 / Multi Core
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	17615 Points +67%
Minisforum MS-A1 AMD Ryzen 7 8700G	17128 Points +63%
Beelink SER9 Pro AMD Ryzen 7 H 255	16402 (16130.8^min - 16402.1^max) Points +56%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	12637 Points +20%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	10524 (10414.4^min - 10524.2^max) Points
Average Intel Core Ultra 7 258V (7920 - 11097, n=21)	10159 Points -3%
MSI Cubi NUC 1M Intel Core 7 150U	7226 (6983.97^min - 7226.42^max) Points -31%
GMK NucBox M5 AMD Ryzen 7 5700U	6649 (6519.7^min - 6648.75^max) Points -37%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6561 Points -38%
Asus NUC 14 Essential Intel Core 3 N355	5262 Points -50%
BMAX B4 Turbo Intel Processor N150	2428 (2385.1^min - 2428.32^max) Points -77%

Cinebench R23 / Single Core
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	1957 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1909 Points -2%
MSI Cubi NUC 1M Intel Core 7 150U	1878 Points -4%
Average Intel Core Ultra 7 258V (1664 - 1957, n=21)	1857 Points -5%
Minisforum MS-A1 AMD Ryzen 7 8700G	1817 Points -7%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	1764 Points -10%
Beelink SER9 Pro AMD Ryzen 7 H 255	1718 Points -12%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1367 Points -30%
GMK NucBox M5 AMD Ryzen 7 5700U	1267 Points -35%
Asus NUC 14 Essential Intel Core 3 N355	1039 Points -47%
BMAX B4 Turbo Intel Processor N150	949 Points -52%

Cinebench R20 / CPU (Multi Core)
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	6997 Points +70%
Minisforum MS-A1 AMD Ryzen 7 8700G	6736 Points +63%
Beelink SER9 Pro AMD Ryzen 7 H 255	6480 Points +57%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	4887 Points +19%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	4121 Points
Average Intel Core Ultra 7 258V (3130 - 4314, n=21)	3945 Points -4%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2902 Points -30%
MSI Cubi NUC 1M Intel Core 7 150U	2821 Points -32%
GMK NucBox M5 AMD Ryzen 7 5700U	2580 Points -37%
Asus NUC 14 Essential Intel Core 3 N355	2015 Points -51%
BMAX B4 Turbo Intel Processor N150	933 Points -77%

Cinebench R20 / CPU (Single Core)
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	741 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	736 Points -1%
MSI Cubi NUC 1M Intel Core 7 150U	718 Points -3%
Average Intel Core Ultra 7 258V (643 - 749, n=21)	711 Points -4%
Minisforum MS-A1 AMD Ryzen 7 8700G	705 Points -5%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	702 Points -5%
Beelink SER9 Pro AMD Ryzen 7 H 255	677 Points -9%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	535 Points -28%
GMK NucBox M5 AMD Ryzen 7 5700U	495 Points -33%
Asus NUC 14 Essential Intel Core 3 N355	393 Points -47%
BMAX B4 Turbo Intel Processor N150	362 Points -51%

Cinebench R15 / CPU Multi 64Bit
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	2863 Points +92%
Minisforum MS-A1 AMD Ryzen 7 8700G	2693 Points +81%
Beelink SER9 Pro AMD Ryzen 7 H 255	2588 (2544.37^min - 2588.16^max) Points +74%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	2030 Points +36%
Average Intel Core Ultra 7 258V (1280 - 1656, n=21)	1568 Points +5%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	1488 (1459.06^min - 1488.32^max) Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1271 Points -15%
GMK NucBox M5 AMD Ryzen 7 5700U	1130 (1041.59^min - 1129.53^max) Points -24%
MSI Cubi NUC 1M Intel Core 7 150U	1040 (535.59^min - 1039.66^max) Points -30%
Asus NUC 14 Essential Intel Core 3 N355	822 Points -45%
BMAX B4 Turbo Intel Processor N150	402 (363.55^min - 401.51^max) Points -73%

Cinebench R15 / CPU Single 64Bit
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	297 Points
Minisforum MS-A1 AMD Ryzen 7 8700G	286 Points -4%
Average Intel Core Ultra 7 258V (258 - 298, n=21)	284 Points -4%
Beelink SER9 Pro AMD Ryzen 7 H 255	276 Points -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	271 Points -9%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	262 Points -12%
MSI Cubi NUC 1M Intel Core 7 150U	258 Points -13%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	221 Points -26%
GMK NucBox M5 AMD Ryzen 7 5700U	188.1 Points -37%
Asus NUC 14 Essential Intel Core 3 N355	168 Points -43%
BMAX B4 Turbo Intel Processor N150	154.3 Points -48%

Blender / v2.79 BMW27 CPU
BMAX B4 Turbo Intel Processor N150	1233 Seconds * -278%
Asus NUC 14 Essential Intel Core 3 N355	574 Seconds * -76%
MSI Cubi NUC 1M Intel Core 7 150U	451 Seconds * -38%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	447 Seconds * -37%
GMK NucBox M5 AMD Ryzen 7 5700U	427 Seconds * -31%
Average Intel Core Ultra 7 258V (315 - 452, n=21)	358 Seconds * -10%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	326 Seconds *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	275 Seconds * +16%
Beelink SER9 Pro AMD Ryzen 7 H 255	194 Seconds * +40%
Minisforum MS-A1 AMD Ryzen 7 8700G	186 Seconds * +43%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	184 Seconds * +44%

7-Zip 18.03 / 7z b 4
Minisforum MS-A1 AMD Ryzen 7 8700G	75427 MIPS +118%
Beelink SER9 Pro AMD Ryzen 7 H 255	69787 MIPS +101%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	69720 MIPS +101%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	52959 MIPS +53%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	37081 MIPS +7%
Average Intel Core Ultra 7 258V (28482 - 36724, n=21)	34715 MIPS 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	34645 MIPS
GMK NucBox M5 AMD Ryzen 7 5700U	34172 MIPS -1%
MSI Cubi NUC 1M Intel Core 7 150U	31447 MIPS -9%
Asus NUC 14 Essential Intel Core 3 N355	23225 MIPS -33%
BMAX B4 Turbo Intel Processor N150	11171 MIPS -68%

7-Zip 18.03 / 7z b 4 -mmt1
Minisforum MS-A1 AMD Ryzen 7 8700G	6665 MIPS +15%
Beelink SER9 Pro AMD Ryzen 7 H 255	6237 MIPS +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	5961 MIPS +2%
MSI Cubi NUC 1M Intel Core 7 150U	5898 MIPS +1%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	5816 MIPS
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	5713 MIPS -2%
Average Intel Core Ultra 7 258V (5265 - 5869, n=21)	5690 MIPS -2%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5267 MIPS -9%
GMK NucBox M5 AMD Ryzen 7 5700U	4599 MIPS -21%
Asus NUC 14 Essential Intel Core 3 N355	4044 MIPS -30%
BMAX B4 Turbo Intel Processor N150	3859 MIPS -34%

Geekbench 6.5 / Multi-Core
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	13848 Points +54%
Minisforum MS-A1 AMD Ryzen 7 8700G	13741 Points +53%
Beelink SER9 Pro AMD Ryzen 7 H 255	12825 Points +43%
Average Intel Core Ultra 7 258V (8964 - 11334, n=21)	10785 Points +20%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	8964 Points
MSI Cubi NUC 1M Intel Core 7 150U	8756 Points -2%
GMK NucBox M5 AMD Ryzen 7 5700U	6260 Points -30%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5705 Points -36%
Asus NUC 14 Essential Intel Core 3 N355	5088 Points -43%
BMAX B4 Turbo Intel Processor N150	2980 Points -67%

Geekbench 6.5 / Single-Core
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	2748 Points
Average Intel Core Ultra 7 258V (2593 - 2795, n=21)	2740 Points 0%
Minisforum MS-A1 AMD Ryzen 7 8700G	2711 Points -1%
MSI Cubi NUC 1M Intel Core 7 150U	2646 Points -4%
Beelink SER9 Pro AMD Ryzen 7 H 255	2546 Points -7%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	2465 Points -10%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1849 Points -33%
GMK NucBox M5 AMD Ryzen 7 5700U	1625 Points -41%
Asus NUC 14 Essential Intel Core 3 N355	1344 Points -51%
BMAX B4 Turbo Intel Processor N150	1249 Points -55%

Geekbench 5.5 / Multi-Core
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	13566 Points +79%
Minisforum MS-A1 AMD Ryzen 7 8700G	12618 Points +67%
Beelink SER9 Pro AMD Ryzen 7 H 255	11614 Points +53%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	10574 Points +40%
Average Intel Core Ultra 7 258V (7574 - 9864, n=21)	9422 Points +24%
MSI Cubi NUC 1M Intel Core 7 150U	7788 Points +3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	7574 Points
GMK NucBox M5 AMD Ryzen 7 5700U	5593 Points -26%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5343 Points -29%
Asus NUC 14 Essential Intel Core 3 N355	4903 Points -35%
BMAX B4 Turbo Intel Processor N150	2579 Points -66%

Geekbench 5.5 / Single-Core
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	2022 Points
Minisforum MS-A1 AMD Ryzen 7 8700G	2012 Points 0%
Average Intel Core Ultra 7 258V (1891 - 2046, n=21)	1997 Points -1%
MSI Cubi NUC 1M Intel Core 7 150U	1910 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1850 Points -9%
Beelink SER9 Pro AMD Ryzen 7 H 255	1810 Points -10%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	1743 Points -14%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1390 Points -31%
GMK NucBox M5 AMD Ryzen 7 5700U	1203 Points -41%
Asus NUC 14 Essential Intel Core 3 N355	1082 Points -46%
BMAX B4 Turbo Intel Processor N150	991 Points -51%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum MS-A1 AMD Ryzen 7 8700G	22.3 fps +68%
Beelink SER9 Pro AMD Ryzen 7 H 255	20.4 fps +53%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	19.7 fps +48%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	14.2 fps +7%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	13.3 fps
Average Intel Core Ultra 7 258V (9.65 - 14.2, n=21)	12.4 fps -7%
MSI Cubi NUC 1M Intel Core 7 150U	8.57 fps -36%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	8.47 fps -36%
GMK NucBox M5 AMD Ryzen 7 5700U	8.44 fps -37%
Asus NUC 14 Essential Intel Core 3 N355	5.85 fps -56%
BMAX B4 Turbo Intel Processor N150	2.81 fps -79%

LibreOffice / 20 Documents To PDF
Asus NUC 14 Essential Intel Core 3 N355	86.4 s * -92%
BMAX B4 Turbo Intel Processor N150	82.1 s * -82%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	67 s * -49%
GMK NucBox M5 AMD Ryzen 7 5700U	58 s * -29%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	51.8 s * -15%
Beelink SER9 Pro AMD Ryzen 7 H 255	51 s * -13%
Average Intel Core Ultra 7 258V (41.1 - 59.3, n=21)	48.3 s * -7%
Minisforum MS-A1 AMD Ryzen 7 8700G	45.5 s * -1%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	45.1 s *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	43.7 s * +3%
MSI Cubi NUC 1M Intel Core 7 150U	37.9 s * +16%

R Benchmark 2.5 / Overall mean
BMAX B4 Turbo Intel Processor N150	0.88 sec * -95%
Asus NUC 14 Essential Intel Core 3 N355	0.801 sec * -78%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	0.598 sec * -33%
GMK NucBox M5 AMD Ryzen 7 5700U	0.584 sec * -30%
Beelink SER9 Pro AMD Ryzen 7 H 255	0.503 sec * -12%
Average Intel Core Ultra 7 258V (0.443 - 0.4852, n=21)	0.4572 sec * -1%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V	0.4505 sec *
Asus NUC 14 Pro+ Intel Core Ultra 9 185H	0.4504 sec * -0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	0.445 sec * +1%
MSI Cubi NUC 1M Intel Core 7 150U	0.4438 sec * +1%
Minisforum MS-A1 AMD Ryzen 7 8700G	0.4285 sec * +5%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1488 Points

Cinebench R15 OpenGL 64Bit

181.9 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

297 Points

Cinebench R20 CPU (Multi Core)

4121 Points

Cinebench R20 CPU (Single Core)

741 Points

Cinebench R23 Single Core

1957 Points

Cinebench R23 Multi Core

10524 Points

Cinebench 2024 CPU Single Core

120.8 Points

Cinebench 2024 CPU Multi Core

623 Points

Help

... in comparison

Performance rating
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	97.4 pt
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	88.4 pt
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	85.9 pt
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	49.4 pt
Average Intel Core Ultra 7 258V	47.3 pt
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	36.9 pt
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	34.6 pt

AIDA64 / FP32 Ray-Trace
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	27384 KRay/s +126%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	26120 KRay/s +116%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	25404 KRay/s +110%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	12094 KRay/s
Average Intel Core Ultra 7 258V (8454 - 12781, n=21)	11448 KRay/s -5%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	7219 KRay/s -40%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	6306 KRay/s -48%

AIDA64 / FPU Julia
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	116071 Points +91%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	106590 Points +75%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	104302 Points +71%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	60874 Points
Average Intel Core Ultra 7 258V (40875 - 63401, n=21)	57031 Points -6%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	54504 Points -10%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	32582 Points -46%

AIDA64 / CPU SHA3
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	5092 MB/s +88%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	4764 MB/s +76%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	4604 MB/s +70%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	2705 MB/s
Average Intel Core Ultra 7 258V (1930 - 2817, n=21)	2564 MB/s -5%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	1838 MB/s -32%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	1656 MB/s -39%

AIDA64 / CPU Queen
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	120159 Points +142%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	115748 Points +133%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	111673 Points +125%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	63855 Points +29%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	62280 Points +26%
Average Intel Core Ultra 7 258V (49084 - 49818, n=21)	49682 Points 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	49605 Points

AIDA64 / FPU SinJulia
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	15698 Points +255%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	15123 Points +242%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	14626 Points +231%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	7413 Points +68%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	4425 Points
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	4387 Points -1%
Average Intel Core Ultra 7 258V (3817 - 4440, n=21)	4343 Points -2%

AIDA64 / FPU Mandel
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	62263 Points +97%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	57378 Points +82%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	56019 Points +77%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	31593 Points
Average Intel Core Ultra 7 258V (21670 - 33565, n=21)	29966 Points -5%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	27917 Points -12%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	16042 Points -49%

AIDA64 / CPU AES
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	176002 MB/s +336%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	86090 MB/s +113%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	83999 MB/s +108%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	40408 MB/s
Average Intel Core Ultra 7 258V (30957 - 40753, n=21)	38523 MB/s -5%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	37339 MB/s -8%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	33007 MB/s -18%

AIDA64 / CPU ZLib
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	1097 MB/s +84%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	1066 MB/s +79%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	1036 MB/s +74%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	596 MB/s
Average Intel Core Ultra 7 258V (422 - 632, n=21)	582 MB/s -2%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	491 MB/s -18%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	491 MB/s -18%

AIDA64 / FP64 Ray-Trace
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	14519 KRay/s +116%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	13941 KRay/s +107%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	13694 KRay/s +103%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	6732 KRay/s
Average Intel Core Ultra 7 258V (4258 - 6930, n=21)	6073 KRay/s -10%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	3768 KRay/s -44%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	3417 KRay/s -49%

AIDA64 / CPU PhotoWorxx
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	54395 MPixel/s
Average Intel Core Ultra 7 258V (44223 - 54971, n=21)	53150 MPixel/s -2%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	41649 MPixel/s -23%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	40404 MPixel/s -26%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	40115 MPixel/s -26%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	37889 MPixel/s -30%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	12161 MPixel/s -78%

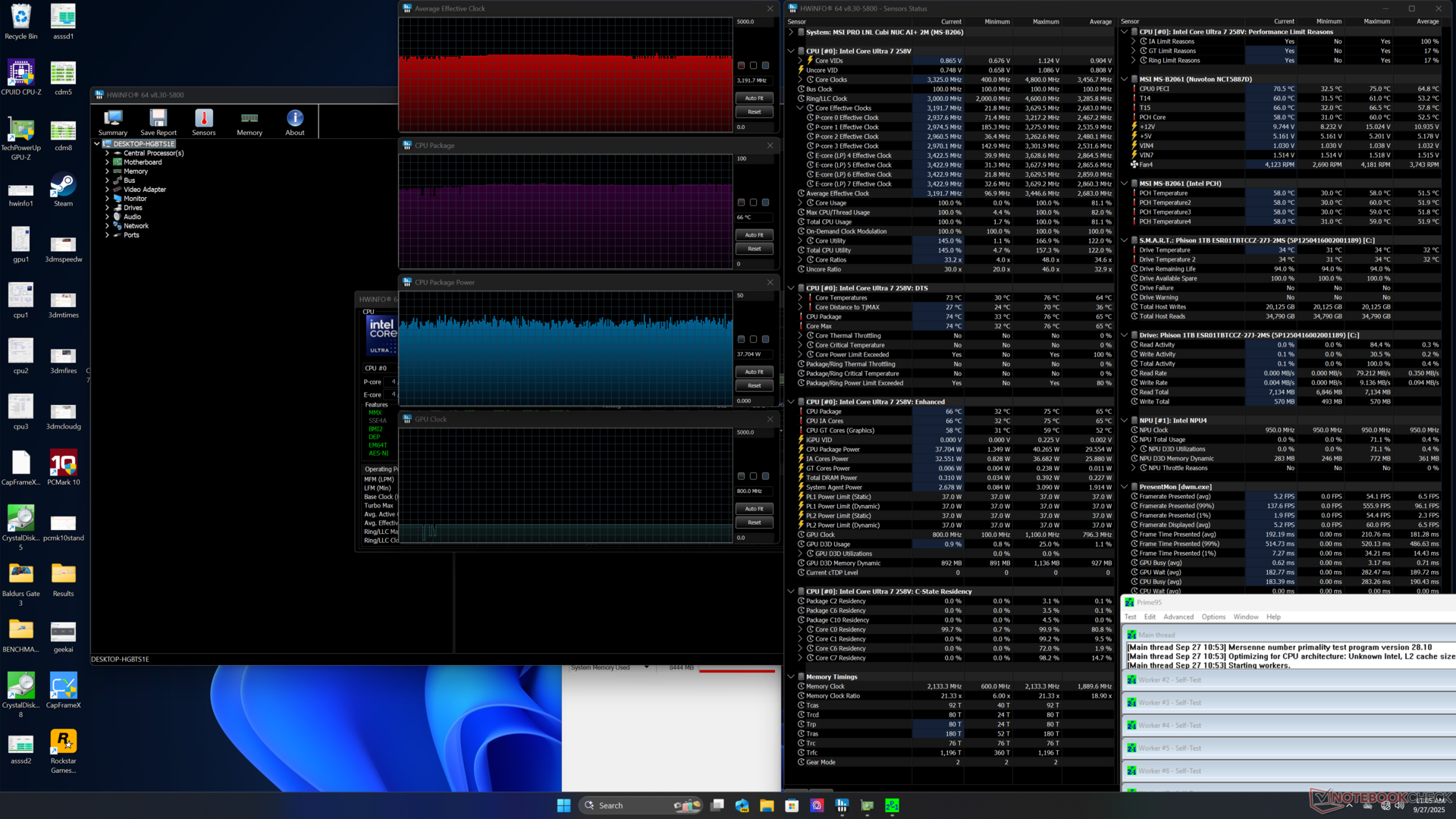

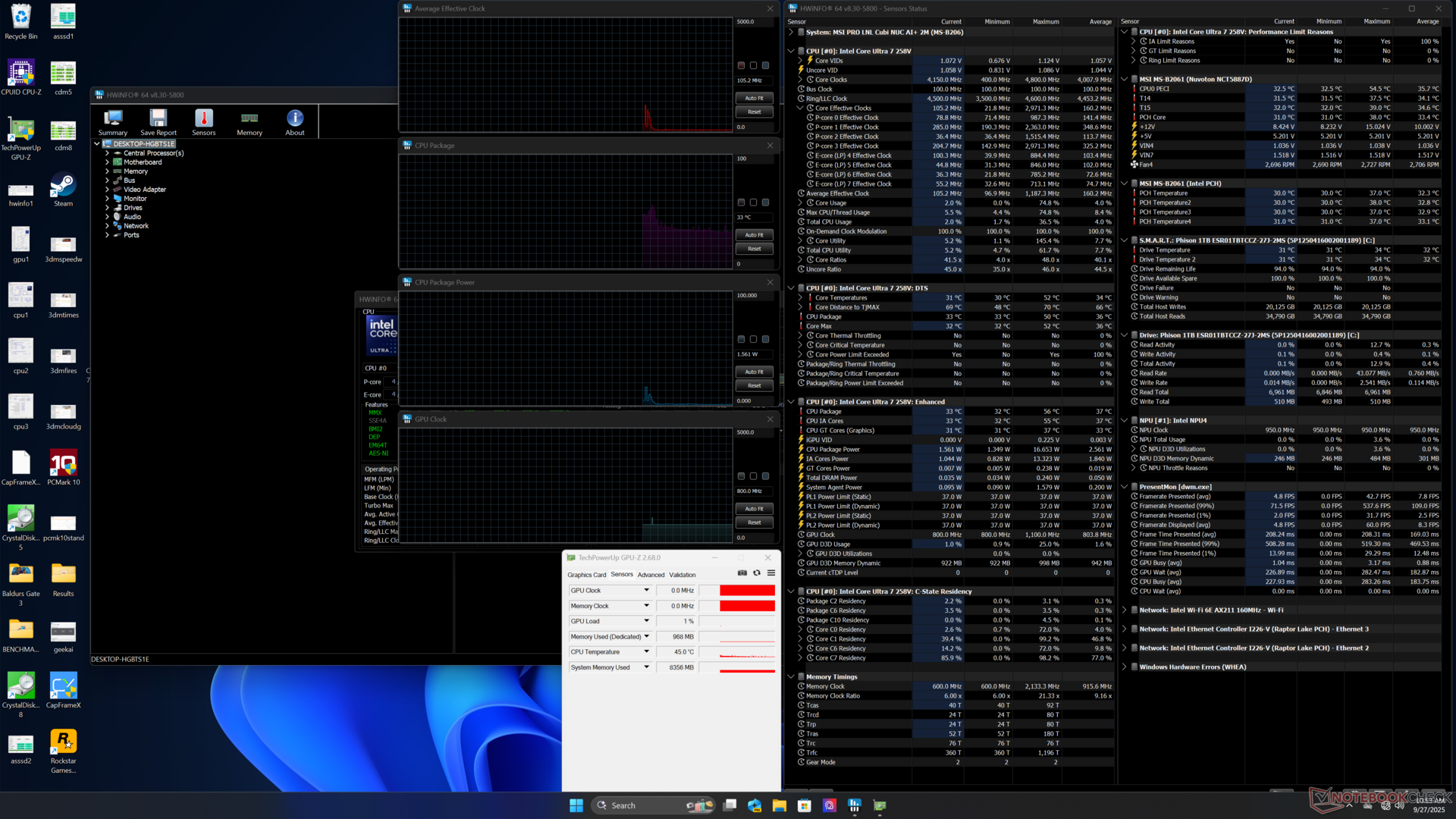

压力测试

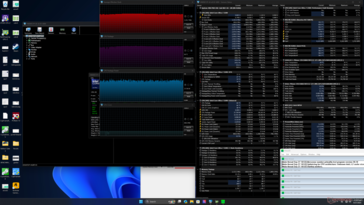

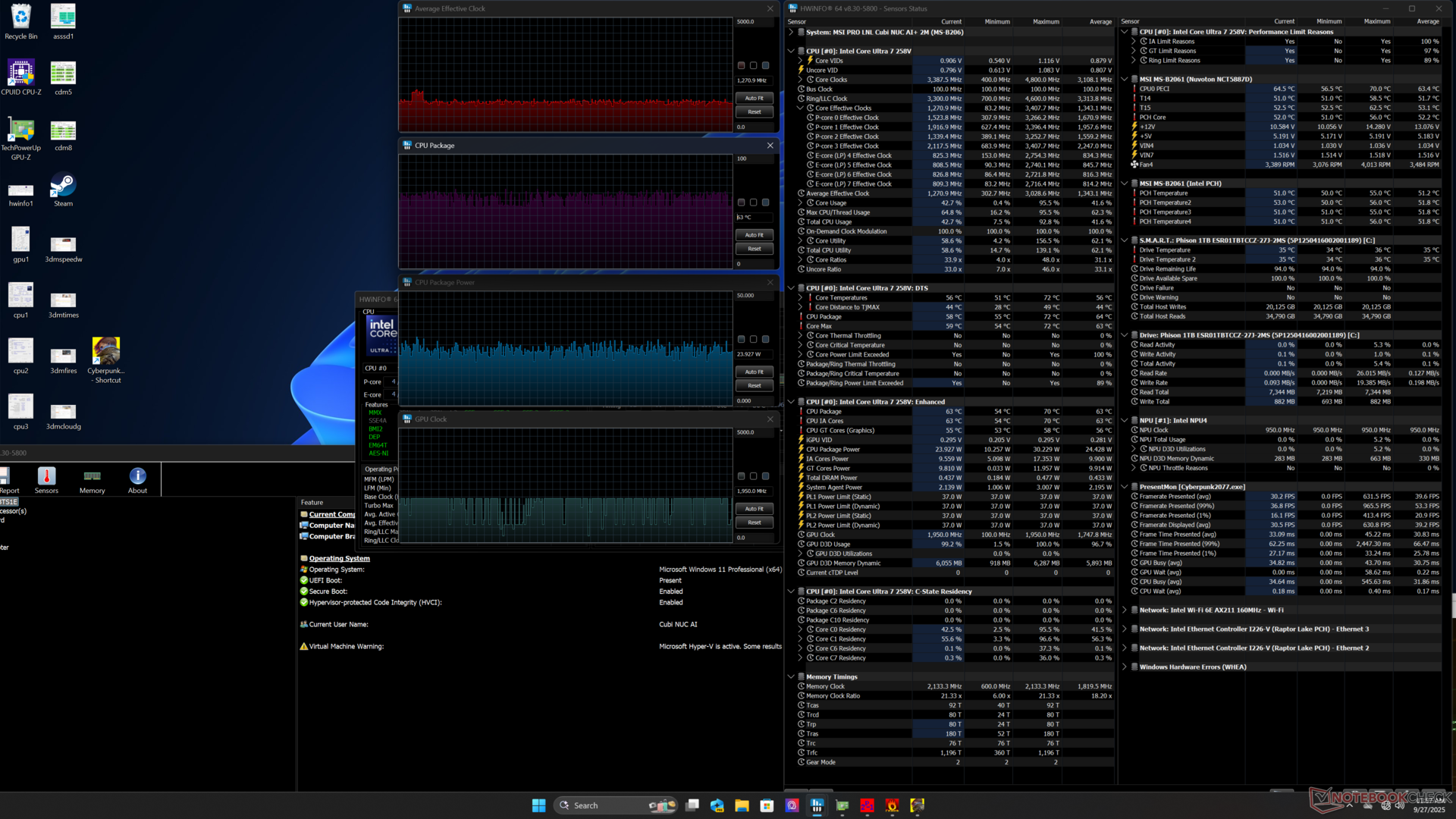

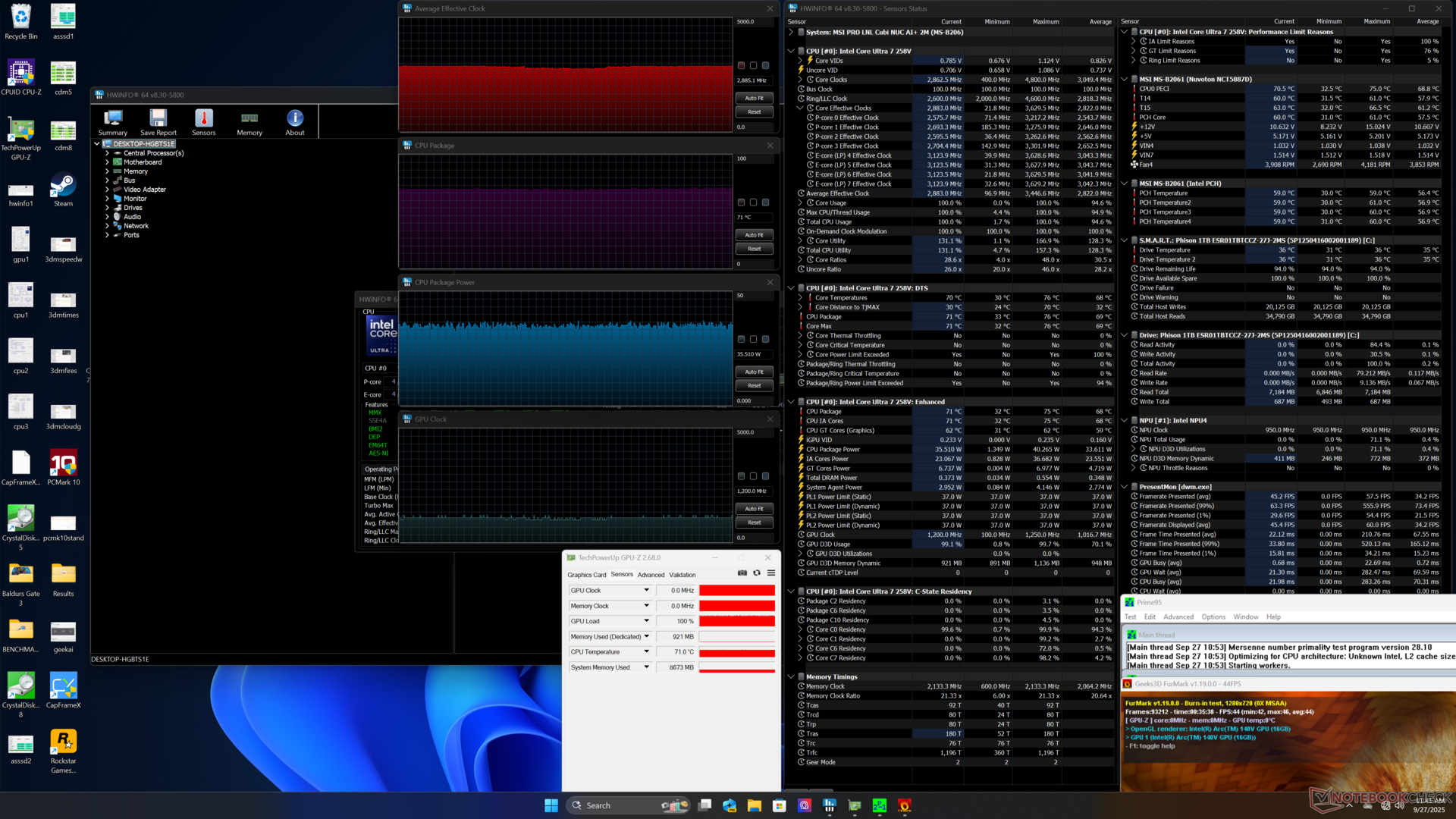

运行 Prime95 压力测试时，CPU 将稳定在 3.2 GHz、66 C 和约 38 W。然而，在运行《赛博朋克 2077》（Cyberpunk 2077）以代表典型的游戏压力时，GPU 时钟频率会在 800 MHz 和 1950 MHz 之间循环，导致游戏帧数不稳定，如下文 GPU 性能部分所示，即使平均帧数正常。这种卡顿现象在平衡模式或性能模式下都会出现。

	CPU 平均时钟 (GHz)	GPU 时钟 (MHz)	CPU 平均温度 (°C)
系统闲置	--	--	33
Prime95 压力	3.2	--	66
Prime95 + FurMark Stress	2.9	1200	71
赛博朋克 2077》压力	1.3	800 - 1950	63

系统性能

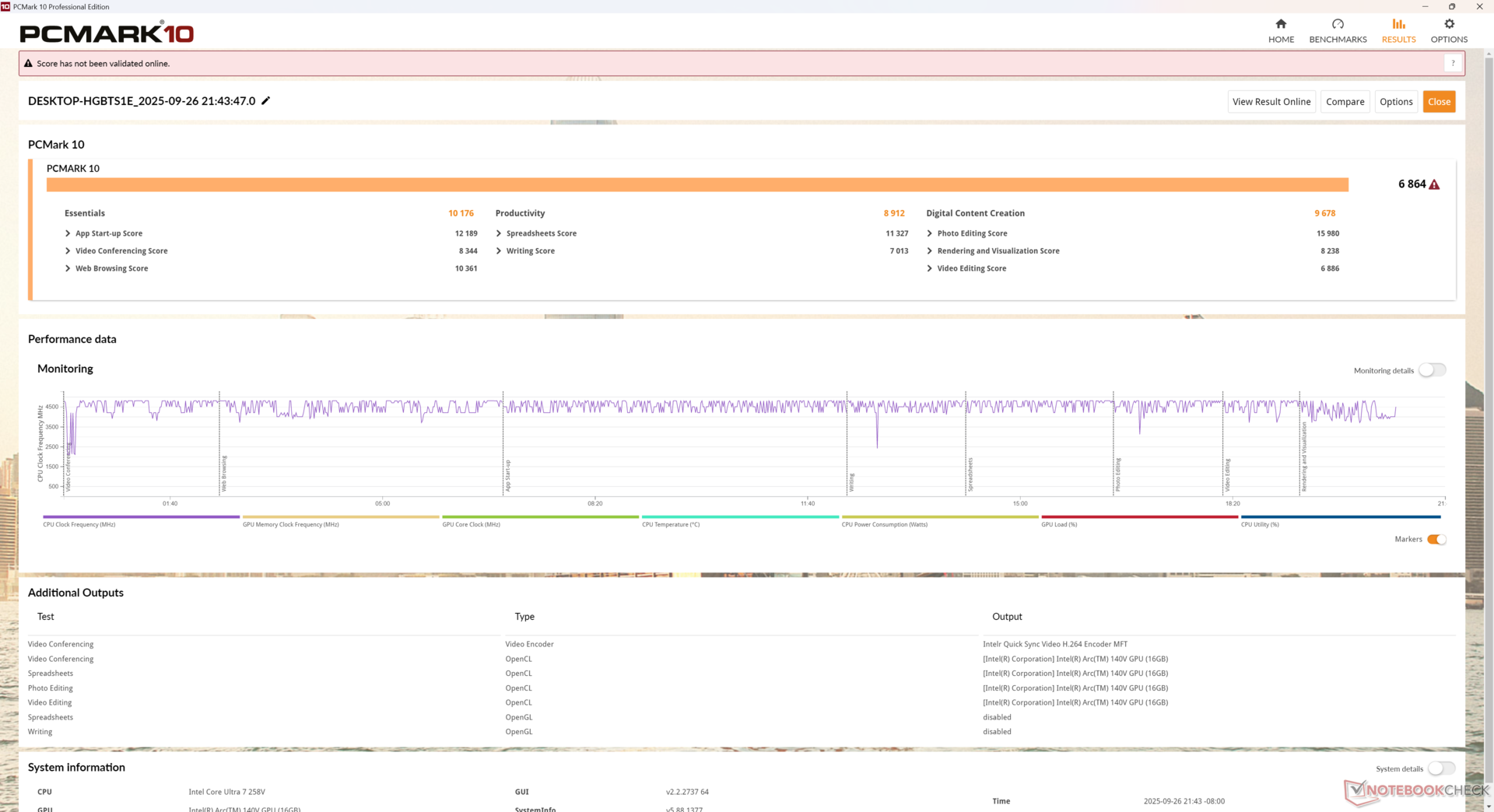

PCMark 10 标准得分高于 Cubi NUC 1M，尤其是在 GPU 功能较强的数字内容创建子测试中

Performance rating
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	93.5 pt
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	84.8 pt
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	84.1 pt
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V	83.5 pt
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	82.5 pt
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	81.9 pt
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	59.5 pt

PCMark 10 / Score
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	7795 Points +14%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	6959 Points +1%
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V (6265 - 7314, n=20)	6941 Points +1%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	6907 Points +1%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	6864 Points
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	6080 Points -11%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	5134 Points -25%

PCMark 10 / Essentials
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	11450 Points +13%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	10856 Points +7%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	10502 Points +3%
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V (9295 - 11467, n=20)	10401 Points +2%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	10377 Points +2%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	10176 Points
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	9627 Points -5%

PCMark 10 / Productivity
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	11045 Points +24%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9440 Points +6%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9325 Points +5%
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V (7357 - 9619, n=20)	8924 Points 0%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	8912 Points
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	8726 Points -2%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	8387 Points -6%

PCMark 10 / Digital Content Creation
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	10164 Points +5%
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V (8914 - 10216, n=20)	9796 Points +1%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	9678 Points
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9243 Points -4%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	9227 Points -5%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	6701 Points -31%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	4372 Points -55%

CrossMark / Overall
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	1902 Points +23%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1791 Points +15%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1769 Points +14%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1734 Points +12%
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V (1551 - 1742, n=19)	1682 Points +8%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	1551 Points
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	1185 Points -24%

CrossMark / Productivity
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	1812 Points +23%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1778 Points +20%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1733 Points +17%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1709 Points +16%
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V (1479 - 1684, n=19)	1624 Points +10%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	1479 Points
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	1257 Points -15%

CrossMark / Creativity
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	2095 Points +20%
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V (1727 - 1977, n=19)	1898 Points +9%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1895 Points +8%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1887 Points +8%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	1749 Points
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1708 Points -2%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	1184 Points -32%

CrossMark / Responsiveness
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1685 Points +35%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1666 Points +34%
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	1646 Points +32%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1617 Points +30%
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V (1246 - 1411, n=19)	1300 Points +4%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	1246 Points
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	992 Points -20%

WebXPRT 3 / Overall
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	336 Points +6%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	317 Points
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	311 Points -2%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	300 Points -5%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	290 Points -9%
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V (219 - 317, n=19)	286 Points -10%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	230 Points -27%

WebXPRT 4 / Overall
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	276 Points
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	271 Points -2%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	271 Points -2%
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V (199.5 - 291, n=19)	270 Points -2%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	245 Points -11%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	245 Points -11%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	186.5 Points -32%

Mozilla Kraken 1.1 / Total
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	717 ms * -49%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	577 ms * -20%
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	566 ms * -17%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	489 ms * -1%
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	486 ms * -1%
Average Intel Core Ultra 7 258V, Intel Arc Graphics 140V (468 - 559, n=21)	484 ms * -0%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	482 ms *

* ... smaller is better

PCMark 10 Score		6864 points
Help

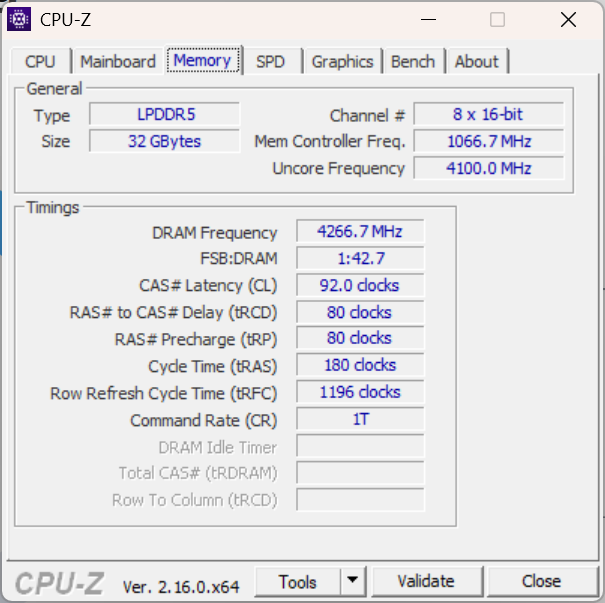

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average Intel Core Ultra 7 258V (104408 - 114336, n=21)	108286 MB/s 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	107843 MB/s
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	74184 MB/s -31%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	67673 MB/s -37%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	64990 MB/s -40%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	59609 MB/s -45%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	21231 MB/s -80%

AIDA64 / Memory Read
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	87541 MB/s
Average Intel Core Ultra 7 258V (82846 - 89417, n=21)	87197 MB/s 0%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	68780 MB/s -21%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	61504 MB/s -30%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	61129 MB/s -30%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	58305 MB/s -33%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	23386 MB/s -73%

AIDA64 / Memory Write
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	117886 MB/s
Average Intel Core Ultra 7 258V (108842 - 117935, n=21)	116823 MB/s -1%
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	106026 MB/s -10%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	85497 MB/s -27%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	79329 MB/s -33%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	60626 MB/s -49%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	23408 MB/s -80%

AIDA64 / Memory Latency
Beelink SER9 Pro AMD Ryzen 7 H 255, Radeon 780M	103.9 ns * -9%
Average Intel Core Ultra 7 258V (95 - 101.1, n=21)	97.7 ns * -2%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Arc 140V	95.5 ns *
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	94.2 ns * +1%
GMK NucBox K12 AMD Ryzen 7 H 255, Radeon 780M	93.7 ns * +2%
Minisforum MS-A1 AMD Ryzen 7 8700G, Radeon 780M	88.5 ns * +7%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	74.5 ns * +22%

* ... smaller is better

DPC 延迟

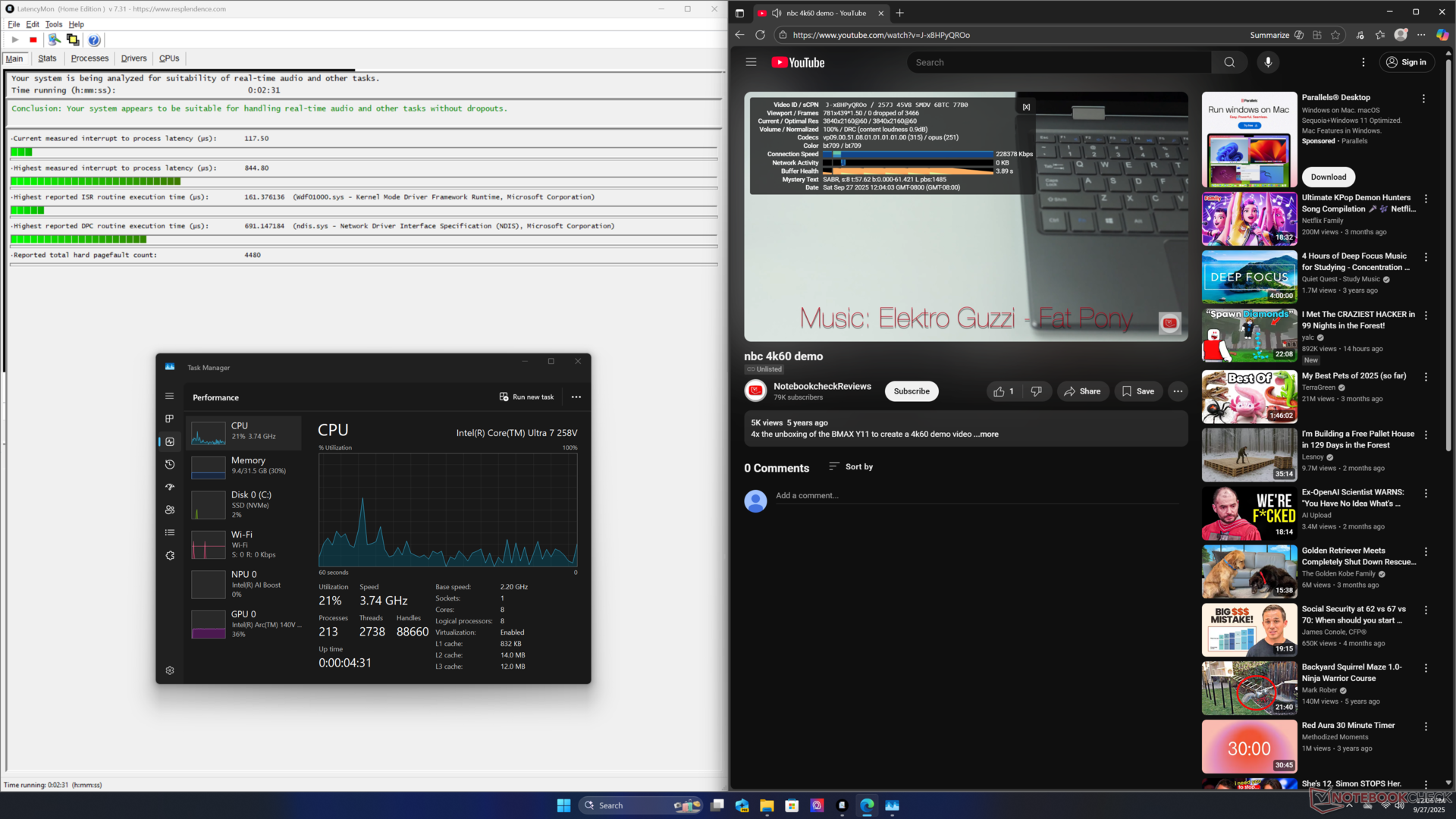

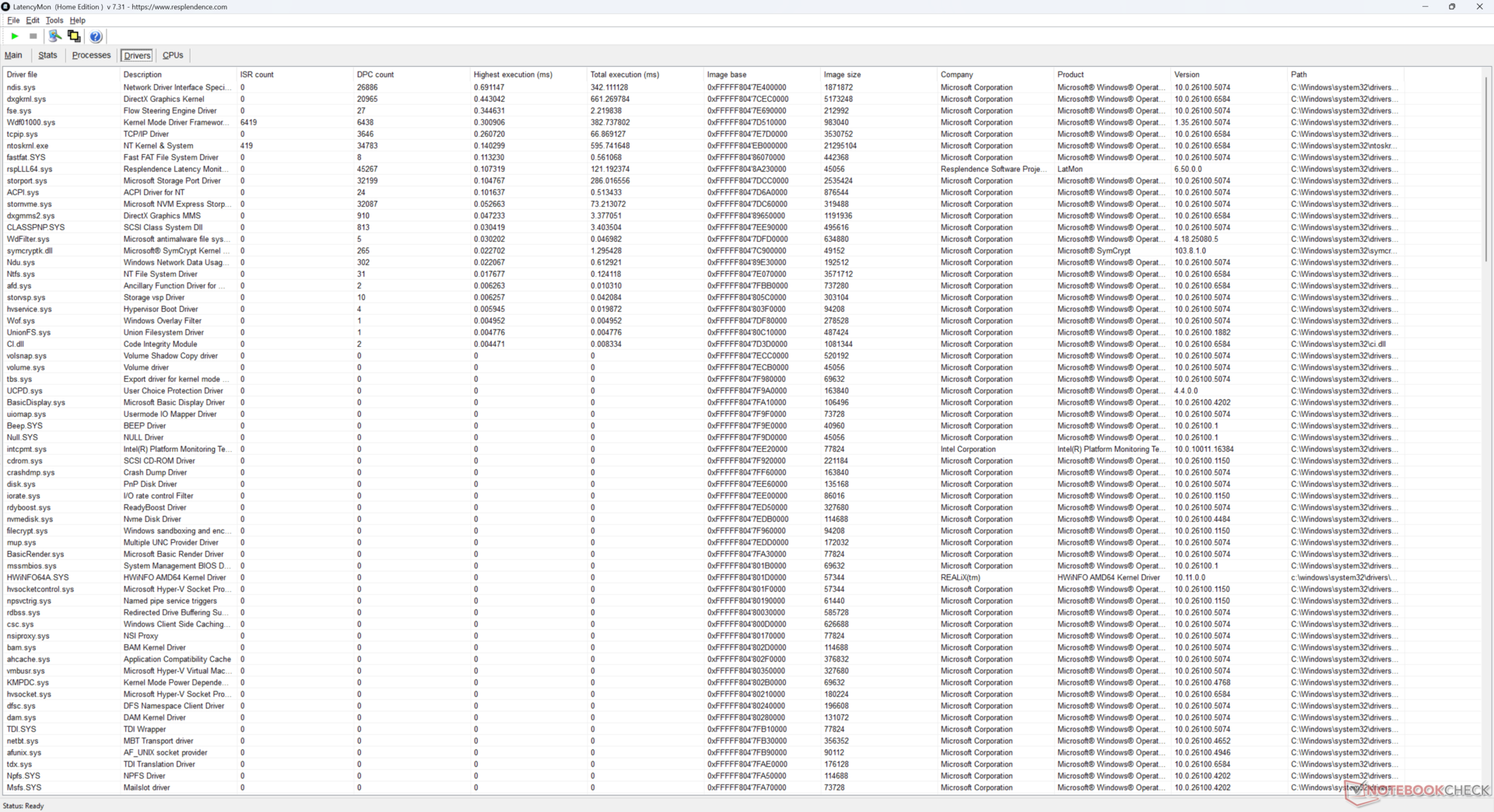

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	4103.1 μs * -386%
Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0	1806 μs * -114%
GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	1124 μs * -33%
MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	844.8 μs *
Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	790.7 μs * +6%

* ... smaller is better

存储设备

固态硬盘传输速率主 1 TB Phison即使在长时间的压力下，传输速率也稳定在 5900 MB/s，比最初 Cubi 1M 中的 WD SSD 略有提高。

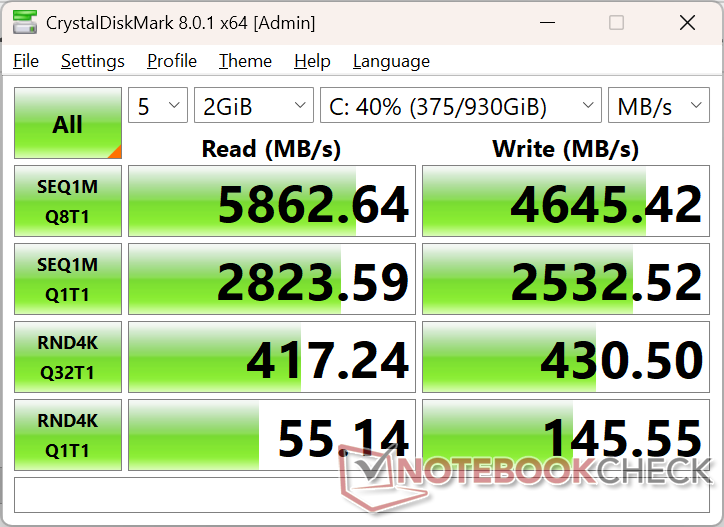

CrystalDiskMark 5.2 / 6

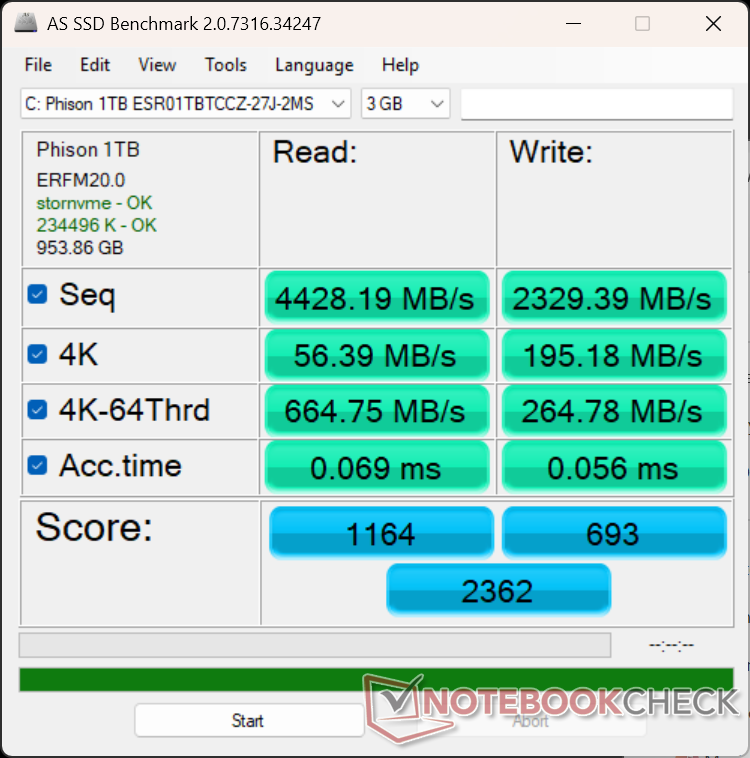

AS SSD

DiskSpd

CDM 5/6 Read Seq Q32T1: 5844 MB/s

CDM 5/6 Write Seq Q32T1: 4229 MB/s

CDM 5/6 Read 4K Q32T1: 419.9 MB/s

CDM 5/6 Write 4K Q32T1: 434.7 MB/s

CDM 5 Read Seq: 2704 MB/s

CDM 5 Write Seq: 2485 MB/s

CDM 5/6 Read 4K: 57.3 MB/s

CDM 5/6 Write 4K: 145.9 MB/s

Drive Performance rating | DiskSpd | AS SSD

Drive Performance rating - Percent
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	86.8 pt
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	59.6 pt
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	54.5 pt
MSI Cubi NUC AI+ 2MG	53.1 pt
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	51.8 pt
Ninkear M7, (16+512) Faspeed P8-512G-SE	33.8 pt

DiskSpd
seq read
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	4128 (4092.8^min - 4128.38^max) MB/s +41%
MSI Cubi NUC AI+ 2MG	2932 (2911.11^min - 2931.83^max) MB/s
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	2596 (2580.13^min - 2596.06^max) MB/s -11%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	2149 (2136.58^min - 2148.64^max) MB/s -27%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2112 (2077.27^min - 2111.8^max) MB/s -28%
Ninkear M7, (16+512) Faspeed P8-512G-SE	863 (860.21^min - 862.77^max) MB/s -71%
seq write
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	3913 (3872.62^min - 3912.8^max) MB/s +56%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	3215 (3133.8^min - 3214.8^max) MB/s +28%
MSI Cubi NUC AI+ 2MG	2508 (2473.89^min - 2508^max) MB/s
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1810 (450.26^min - 1810.21^max) MB/s -28%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1808 (844.51^min - 1808.37^max) MB/s -28%
Ninkear M7, (16+512) Faspeed P8-512G-SE	752 (746.8^min - 751.62^max) MB/s -70%
seq q8 t1 read
MSI Cubi NUC AI+ 2MG	5875 (4751.87^min - 5875.38^max) MB/s
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	4987 (4558.37^min - 4987.33^max) MB/s -15%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	4942 (4516.62^min - 4941.52^max) MB/s -16%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	4915 (4300^min - 4915.3^max) MB/s -16%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	4819 (3762.53^min - 4819.05^max) MB/s -18%
Ninkear M7, (16+512) Faspeed P8-512G-SE	996 (973.5^min - 996.04^max) MB/s -83%
seq q8 t1 write
MSI Cubi NUC AI+ 2MG	4973 (4947.14^min - 4972.98^max) MB/s
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	3927 (3923.26^min - 3927.45^max) MB/s -21%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	3308 (3211.45^min - 3307.84^max) MB/s -33%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1803 (883.02^min - 1802.5^max) MB/s -64%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1799 (640.89^min - 1798.7^max) MB/s -64%
Ninkear M7, (16+512) Faspeed P8-512G-SE	839 (834.46^min - 839.07^max) MB/s -83%
4k q1 t1 read
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	73.3 (72.01^min - 73.31^max) MB/s +28%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	63.3 (62.78^min - 63.25^max) MB/s +10%
MSI Cubi NUC AI+ 2MG	57.3 (57.09^min - 57.31^max) MB/s
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	54.4 (53.83^min - 54.44^max) MB/s -5%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	50.5 (49.98^min - 50.45^max) MB/s -12%
Ninkear M7, (16+512) Faspeed P8-512G-SE	30.3 (30.14^min - 30.32^max) MB/s -47%
4k q1 t1 write
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	282 (265.11^min - 281.58^max) MB/s +95%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	261 (259.05^min - 260.68^max) MB/s +81%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	251 (216.59^min - 251.05^max) MB/s +74%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	206 (204.82^min - 206.03^max) MB/s +43%
MSI Cubi NUC AI+ 2MG	144.3 (142.64^min - 144.32^max) MB/s
Ninkear M7, (16+512) Faspeed P8-512G-SE	40 (39.82^min - 40^max) MB/s -72%
4k q32 t16 read
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	2980 (2975.03^min - 2979.83^max) MB/s +314%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	1533 (1419.74^min - 1533.25^max) MB/s +113%
MSI Cubi NUC AI+ 2MG	719 (619.26^min - 718.65^max) MB/s
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	698 (696.34^min - 698.49^max) MB/s -3%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	696 (692.86^min - 696.3^max) MB/s -3%
Ninkear M7, (16+512) Faspeed P8-512G-SE	369 (367.06^min - 369.29^max) MB/s -49%
4k q32 t16 write
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	3784 (3750.18^min - 3783.56^max) MB/s +818%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	2010 (1622.95^min - 2010.14^max) MB/s +388%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1786 (636.51^min - 1786.33^max) MB/s +333%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1780 (805.06^min - 1780.2^max) MB/s +332%
MSI Cubi NUC AI+ 2MG	412 (409.29^min - 411.67^max) MB/s
Ninkear M7, (16+512) Faspeed P8-512G-SE	313 (289.5^min - 313.33^max) MB/s -24%

AS SSD
Score Total
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	8405 Points +256%
Ninkear M7, (16+512) Faspeed P8-512G-SE	4136 Points +75%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	3778 Points +60%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	3482 Points +47%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	2750 Points +16%
MSI Cubi NUC AI+ 2MG	2362 Points
Score Read
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	2901 Points +149%
Ninkear M7, (16+512) Faspeed P8-512G-SE	1771 Points +52%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	1443 Points +24%
MSI Cubi NUC AI+ 2MG	1164 Points
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1127 Points -3%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1095 Points -6%
Score Write
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	4040 Points +483%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2146 Points +210%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1928 Points +178%
Ninkear M7, (16+512) Faspeed P8-512G-SE	1471 Points +112%
MSI Cubi NUC AI+ 2MG	693 Points
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	651 Points -6%
Seq Read
MSI Cubi NUC AI+ 2MG	4428.19 MB/s
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	4327.67 MB/s -2%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	4159 MB/s -6%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	3916.9 MB/s -12%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	3870.26 MB/s -13%
Ninkear M7, (16+512) Faspeed P8-512G-SE	3031 MB/s -32%
Seq Write
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	3688 MB/s +58%
Ninkear M7, (16+512) Faspeed P8-512G-SE	2676 MB/s +15%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	2606.84 MB/s +12%
MSI Cubi NUC AI+ 2MG	2329.39 MB/s
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	2185.55 MB/s -6%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1648.2 MB/s -29%
4K Read
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	75.7 MB/s +34%
MSI Cubi NUC AI+ 2MG	56.39 MB/s
Ninkear M7, (16+512) Faspeed P8-512G-SE	53.1 MB/s -6%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	52.09 MB/s -8%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	50 MB/s -11%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	42.24 MB/s -25%
4K Write
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	219.87 MB/s +13%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	217.48 MB/s +11%
MSI Cubi NUC AI+ 2MG	195.18 MB/s
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	190.38 MB/s -2%
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	178.8 MB/s -8%
Ninkear M7, (16+512) Faspeed P8-512G-SE	96.3 MB/s -51%
4K-64 Read
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	2409 MB/s +262%
Ninkear M7, (16+512) Faspeed P8-512G-SE	1415 MB/s +113%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	967.82 MB/s +46%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	688.04 MB/s +4%
MSI Cubi NUC AI+ 2MG	664.75 MB/s
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	653.44 MB/s -2%
4K-64 Write
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	3492 MB/s +1219%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	1707.34 MB/s +545%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	1572.62 MB/s +494%
Ninkear M7, (16+512) Faspeed P8-512G-SE	1107 MB/s +318%
MSI Cubi NUC AI+ 2MG	264.78 MB/s
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	172.85 MB/s -35%
Access Time Read
Ninkear M7, (16+512) Faspeed P8-512G-SE	0.084 ms * -22%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	0.072 ms * -4%
MSI Cubi NUC AI+ 2MG	0.069 ms *
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	0.066 ms * +4%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	0.049 ms * +29%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	0.048 ms * +30%
Access Time Write
Ninkear M7, (16+512) Faspeed P8-512G-SE	0.102 ms * -82%
GMK NucBox K12 Crucial P3 Plus CT1000P3PSSD8	0.097 ms * -73%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	0.088 ms * -57%
Beelink SER9 Pro Crucial P3 Plus CT1000P3PSSD8	0.088 ms * -57%
MSI Cubi NUC AI+ 2MG	0.056 ms *
Minisforum MS-A1 Kingston OM8PGP41024Q-A0	0.032 ms * +43%

* ... smaller is better

磁盘节流DiskSpd 读取循环，队列深度 8

MSI Cubi NUC AI+ 2MG ; diskspd 2.0.17 f: Ø5848 (4659.57-5878.32)

MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00; diskspd 2.0.17 f: Ø4962 (4554.8-4986.07)

图形处理器性能

弧形电弧 140V根据 3DMark 基准测试，Cubi 2MG 中的 Arc 140V 性能低于平均水平约 35%。令人失望的结果是由于上文压力测试部分提到的循环 GPU 时钟速率和卡顿。

在帧速率稳定并不重要的 GPU 工作负载中，如使用渲染器或 oneAPI，Cubi 2MG 的表现与采用相同 CPU 和 GPU 的其他 PC 的表现不相上下。因此，对于大多数专业目标用户来说，卡顿应该不是问题。

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark Performance rating - Percent
Average Intel Arc Graphics 140V	94.2 pt
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	93 pt
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	88.8 pt
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	85.1 pt
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	70.2 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	49.5 pt
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	46.4 pt
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	37.9 pt
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	26.2 pt
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	21.2 pt
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	14.2 pt

3DMark 11 - 1280x720 Performance GPU
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	14312 Points +95%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	13248 Points +80%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	13163 Points +79%
Average Intel Arc Graphics 140V (7351 - 12772, n=34)	11309 Points +54%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	7351 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points -3%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	6282 Points -15%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5388 Points -27%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	4273 Points -42%
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	2901 Points -61%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1872 Points -75%

3DMark
1280x720 Cloud Gate Standard Graphics
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	54549 Points +7%
Average Intel Arc Graphics 140V (38542 - 61591, n=17)	53397 Points +5%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	51042 Points
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	48717 Points -5%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	47040 Points -8%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	29301 Points -43%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points -46%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	25003 Points -51%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	16820 Points -67%
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	14227 Points -72%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	10356 Points -80%
1920x1080 Fire Strike Graphics
Average Intel Arc Graphics 140V (6209 - 10476, n=34)	9484 Points +53%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	8875 Points +43%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8396 Points +35%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	8061 Points +30%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	6209 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points -16%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	4899 Points -21%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3653 Points -41%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	2404 Points -61%
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	2139 Points -66%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1367 Points -78%
2560x1440 Time Spy Graphics
Average Intel Arc Graphics 140V (2754 - 4415, n=37)	3922 Points +42%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3476 Points +26%
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	3077 Points +12%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	2890 Points +5%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	2754 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points -39%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	1428 Points -48%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1162 Points -58%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	741 Points -73%
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	625 Points -77%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	401 Points -85%

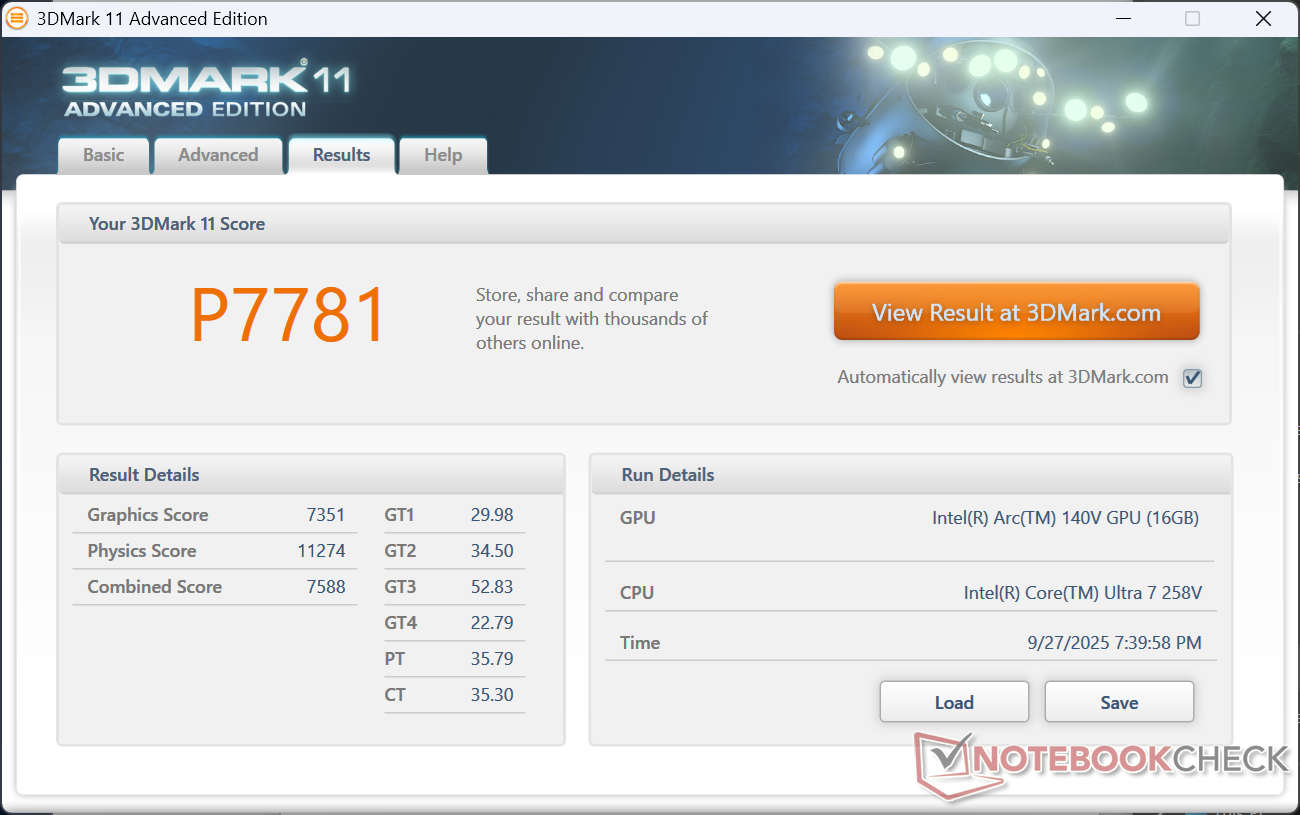

3DMark 11 Performance		7781 points
3DMark Cloud Gate Standard Score		31534 points

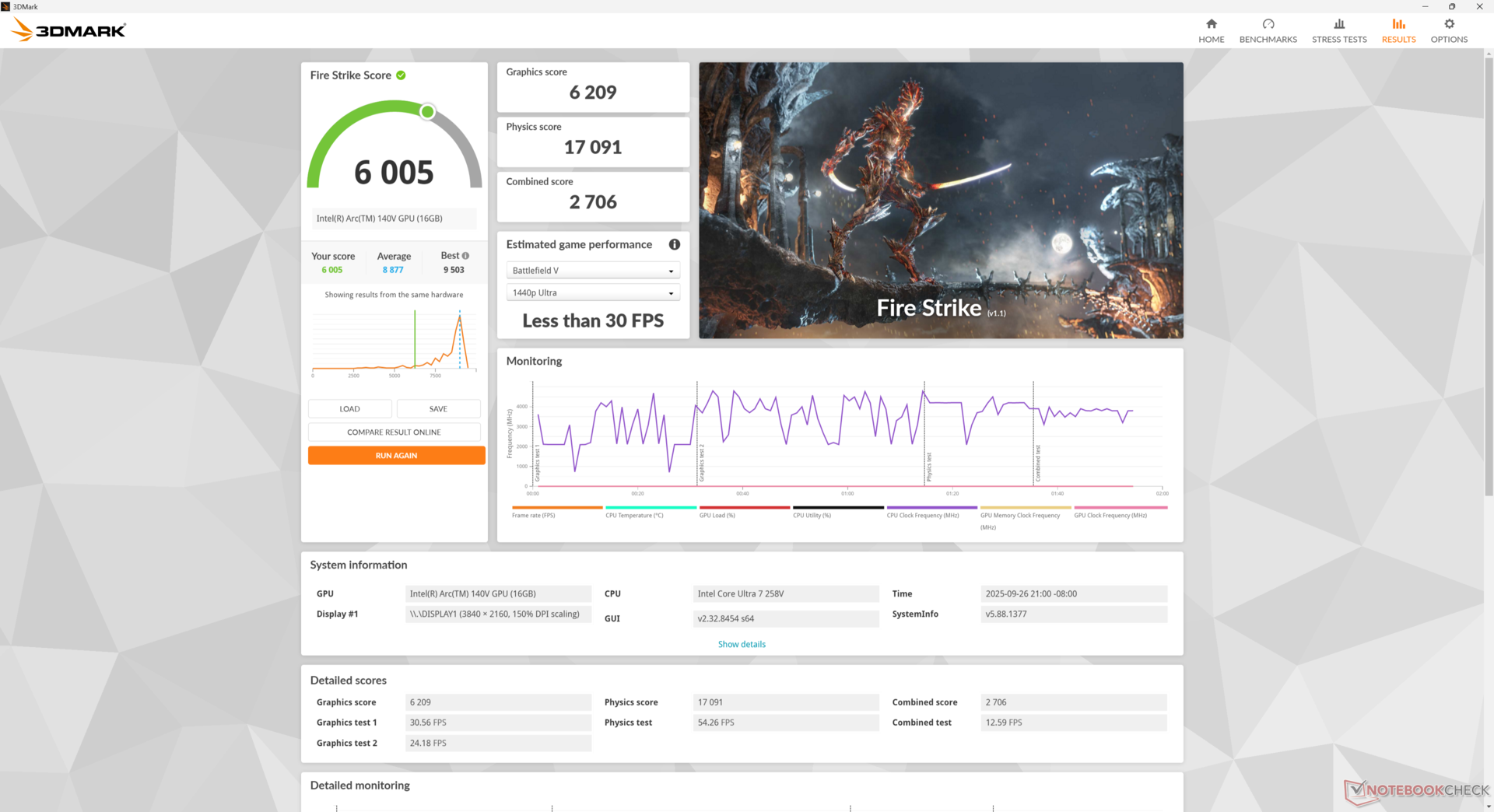

3DMark Fire Strike Score		6005 points

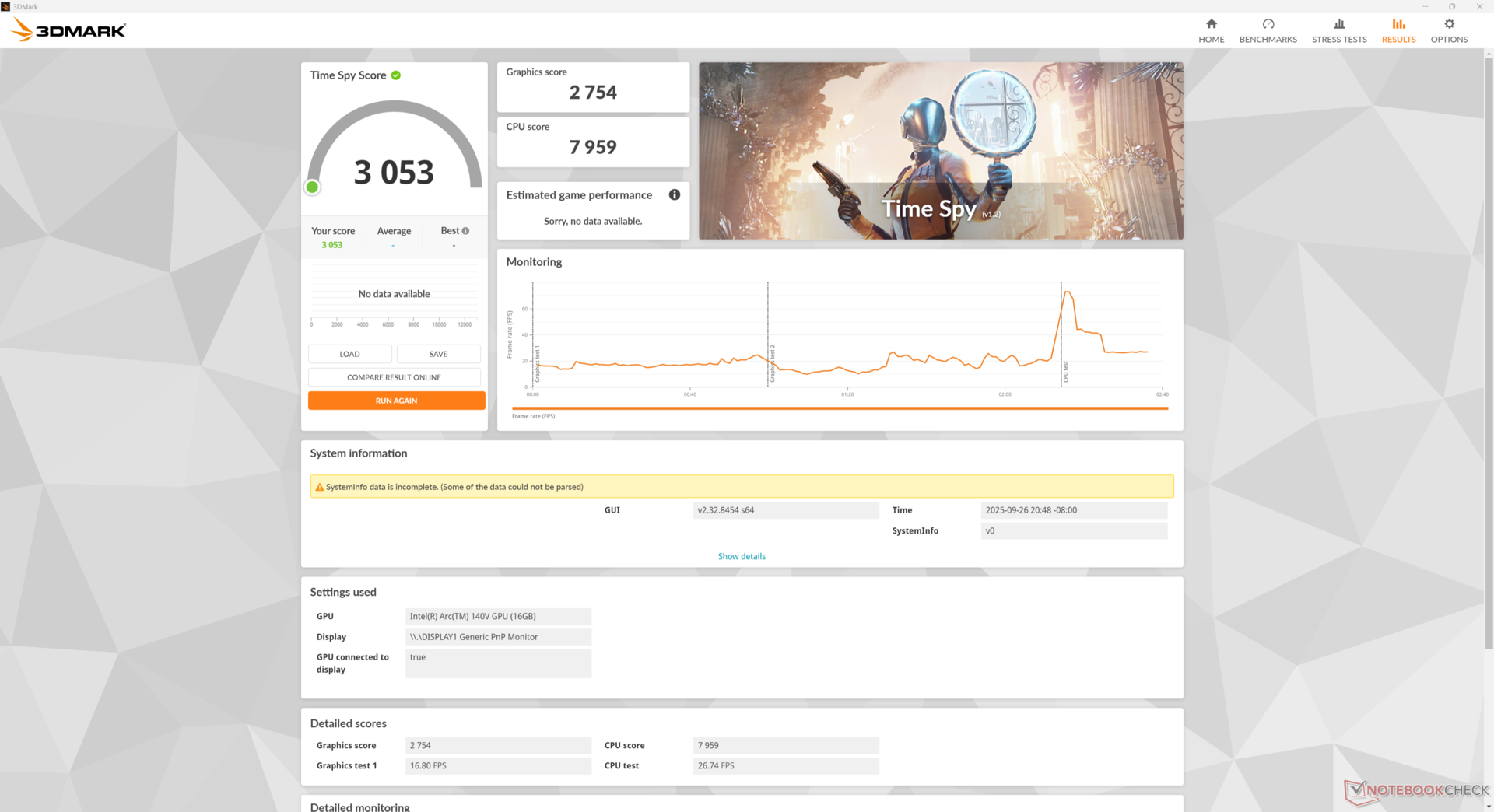

3DMark Time Spy Score		3053 points
Help

... in comparison

Blender
v3.3 Classroom CPU
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	2429 Seconds *
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	1121 Seconds *
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	854 Seconds *
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	829 Seconds *
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	758 Seconds *
Average Intel Arc Graphics 140V (506 - 772, n=33)	592 Seconds *
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	464 Seconds *
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	326 Seconds *
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	315 Seconds *
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	300 Seconds *
v3.3 Classroom oneAPI/Intel
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	278 Seconds *
Average Intel Arc Graphics 140V (195 - 405, n=21)	246 Seconds * +12%
Asus NUC 14 Pro+ Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	215 Seconds * +23%
v4.3 Barbershop CPU
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	12596 Seconds * -360%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	4229 Seconds * -54%
Average Intel Arc Graphics 140V (2608 - 3811, n=12)	3060 Seconds * -12%
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	2741 Seconds *
Beelink SER9 Pro AMD Radeon 780M, AMD Ryzen 7 H 255	1528 Seconds * +44%
Minisforum MS-A1 AMD Radeon 780M, AMD Ryzen 7 8700G	1449 Seconds * +47%
v4.3 Barbershop oneAPI
MSI Cubi NUC AI+ 2MG Intel Arc Graphics 140V, Intel Core Ultra 7 258V	914 Seconds *
Average Intel Arc Graphics 140V (760 - 962, n=16)	862 Seconds * +6%

* ... smaller is better

Performance rating - Percent
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	95.5 pt
Minisforum MS-A1 ^-1! AMD Ryzen 7 8700G, AMD Radeon 780M	95.1 pt
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	93.9 pt
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	90 pt
MSI Cubi NUC 1M ^-2! Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	47.9 pt
Ninkear M7, (16+512) ^-2! AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	30.4 pt

Cyberpunk 2077 2.2 Phantom Liberty - 1920x1080 Ultra Preset (FSR off)
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	23.6 (19.9^min, 16.3^P1) fps +22%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	23.4 (19.7^min) fps +21%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	22.6 (18.8^min, 6.53^P1) fps +16%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	19.4 (11^min, 10.1^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.46 (7.99^min) fps -51%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	4.95 (4.26^min) fps -74%

Baldur's Gate 3 - 1920x1080 Ultra Preset AA:T
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	26.9 fps +1%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	26.7 fps 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.7 fps
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	26 (13.8^min, 14.3^P0.1, 22.5^P1) fps -3%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	29.1 (7.19^min, 20.4^P1) fps +9%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27.8 (3.22^min, 18.9^P1) fps +5%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.6 (9.34^min, 11.4^P1) fps
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	24.6 (1.758^min, 16.9^P1) fps -8%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.98 (4.2^min, 6.21^P1) fps -62%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	7.06 (4.22^min, 5.1^P1) fps -73%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	30.5 fps +6%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	28.7 fps
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	27.6 fps -4%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	27.6 fps -4%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	16.6 fps -42%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	7.62 fps -73%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	57.3 (18^min, 27.8^P1) fps
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	53.4 (33.1^min, 40.4^P1) fps -7%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	49.5 (33.1^min, 38.6^P1) fps -14%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.2 (5.3^min, 6.89^P1) fps -56%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	86.5 (77.2^min) fps +31%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	81.5 (71.5^min) fps +24%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	78.1 (66.9^min) fps +19%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	65.8 (32.9^min) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	57.8 (39.9^min) fps -12%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	32.5 (29.2^min) fps -51%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	41.5 fps +15%
GMK NucBox K12 AMD Ryzen 7 H 255, AMD Radeon 780M	38 fps +6%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	37 fps +3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36 fps
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	18.3 fps -49%

Baldur's Gate 3
1280x720 Low Preset AA:SM
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	65.9 (33.4^min, 33.9^P0.1, 36.6^P1) fps +14%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	61 fps +6%
Average Intel Arc Graphics 140V (49.3 - 73.3, n=17)	59.6 fps +3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	57.6 fps
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	56.4 (29^min, 30.5^P0.1, 37.9^P1) fps -2%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	22.9 fps -60%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.5 fps -61%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	16.1 (11.9^min, 12.3^P0.1, 13.1^P1) fps -72%
1920x1080 Low Preset AA:SM
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	42.5 (20.1^min, 21.1^P0.1, 35.7^P1) fps +18%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	40.8 fps +13%
Average Intel Arc Graphics 140V (23.7 - 47, n=34)	39.2 fps +9%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	37.9 (22.7^min, 23.2^P0.1, 26.9^P1) fps +5%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36.1 fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	15.3 fps -58%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.2 fps -61%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	9.77 (7.8^min, 7.81^P0.1, 8.12^P1) fps -73%
1920x1080 Medium Preset AA:T
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	33.5 fps +14%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	32.7 (16.3^min, 16.7^P0.1, 17.9^P1) fps +11%
Average Intel Arc Graphics 140V (19.6 - 37, n=35)	31.5 fps +7%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	29.7 (17.5^min, 18.4^P0.1, 19.7^P1) fps +1%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	29.5 fps
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	7.12 (5.44^min, 5.53^P0.1, 5.83^P1) fps -76%
1920x1080 High Preset AA:T
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	29 fps
Average Intel Arc Graphics 140V (17 - 32.9, n=35)	28 fps -3%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	27.1 fps -7%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	27 (14^min, 14.4^P0.1, 22.7^P1) fps -7%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	25.2 (14.5^min, 14.6^P0.1, 16.2^P1) fps -13%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	5.93 (4.67^min, 4.68^P0.1, 4.95^P1) fps -80%
1920x1080 Ultra Preset AA:T
Average Intel Arc Graphics 140V (16.6 - 32.2, n=35)	27 fps +1%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	26.9 fps +1%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.7 fps
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	26 (13.8^min, 14.3^P0.1, 22.5^P1) fps -3%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	24.4 (8.14^min, 11.8^P0.1, 15.7^P1) fps -9%

GTA V
1024x768 Lowest Settings possible
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	164.1 (4.56^min, 100^P1) fps +2%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	162.9 (3.78^min, 111.1^P1) fps +2%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	160.4 (4.6^min, 100^P1) fps
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	158.4 (4.27^min, 90.9^P1) fps -1%
Average Intel Arc Graphics 140V (110.5 - 167.4, n=31)	149.2 fps -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	126.2 (50.6^min, 76.9^P1) fps -21%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	100.3 (39.9^min, 62.5^P1) fps -37%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	69.6 (9.06^min, 41.7^P1) fps -57%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	66.5 (14.7^min, 45.5^P1) fps -59%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	51.6 (0.815^min, 26.3^P1) fps -68%
1920x1080 Lowest Settings possible
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	151 (4.26^min, 58.8^P1) fps
Average Intel Arc Graphics 140V (110.7 - 158.4, n=16)	140.1 fps -7%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	129.9 (25^min, 83.3^P1) fps -14%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	124.8 (38.5^min, 83.3^P1) fps -17%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	119.9 (4.07^min, 76.9^P1) fps -21%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (9.46^min, 58.8^P1) fps -43%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	78.6 (26^min, 50^P1) fps -48%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	44.2 (9.37^min, 32.3^P1) fps -71%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	36.7 (11.9^min, 25.6^P1) fps -76%
1366x768 Normal/Off AF:4x
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	154.1 (4.46^min, 100^P1) fps +1%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	152.6 (5.62^min, 100^P1) fps 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	152.4 (3.6^min, 90.9^P1) fps
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	144.9 (6.19^min, 83.3^P1) fps -5%
Average Intel Arc Graphics 140V (91.1 - 155.6, n=30)	139.2 fps -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	107.3 (19^min, 62.5^P1) fps -30%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	86.1 (7.7^min, 50^P1) fps -44%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	59.8 (12.2^min, 35.7^P1) fps -61%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	57.5 (12.1^min, 37^P1) fps -62%
1920x1080 Normal/Off AF:4x
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	145 (4.16^min, 58.8^P1) fps
Average Intel Arc Graphics 140V (104.4 - 152, n=17)	130 fps -10%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	127.5 (23^min, 76.9^P1) fps -12%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	124 (11.3^min, 83.3^P1) fps -14%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	112.9 (17.1^min, 76.9^P1) fps -22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	75.9 (6.19^min, 50^P1) fps -48%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	71 (6.44^min, 40^P1) fps -51%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	41 (9.08^min, 30.3^P1) fps -72%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	38.2 (11.4^min, 26.3^P1) fps -74%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	69.4 (9.45^min, 47.6^P1) fps +9%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	63.6 (8.99^min, 25.6^P1) fps
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	61.9 (2.97^min, 41.7^P1) fps -3%
Average Intel Arc Graphics 140V (32 - 76.3, n=28)	60.9 fps -4%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	40.6 (3.3^min, 30.3^P1) fps -36%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23.6 (8.96^min, 17.2^P1) fps -63%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.7 (9.05^min, 15.9^P1) fps -67%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	14.6 (4.62^min, 10.3^P1) fps -77%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	9.86 (3.77^min, 7.52^P1) fps -84%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	29.1 (7.19^min, 20.4^P1) fps +9%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.6 (9.34^min, 11.4^P1) fps
Average Intel Arc Graphics 140V (15.4 - 29, n=29)	25.9 fps -3%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	24.6 (1.758^min, 16.9^P1) fps -8%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	15.8 (3.06^min, 12^P1) fps -41%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.98 (4.2^min, 6.21^P1) fps -62%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	7.06 (4.22^min, 5.1^P1) fps -73%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	4.42 (2.04^min, 2.78^P1) fps -83%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	164.8 (145.3^min) fps +68%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	134.5 (121.1^min) fps +37%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	123.8 (98^min) fps +26%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	104.7 (61.7^min) fps +7%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	101.5 (86.1^min) fps +3%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99.7 (85.3^min) fps +2%
Average Intel Arc Graphics 140V (86.2 - 116.9, n=38)	99.1 fps +1%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	98.1 (63.6^min) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	97.7 (57.3^min) fps 0%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	70.4 (52.2^min) fps -28%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	58.3 (44.4^min) fps -41%
1366x768 med (1/3)
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	130.2 (106.6^min) fps +62%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	102 (87.3^min) fps +27%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	93.9 (77.2^min) fps +17%
Average Intel Arc Graphics 140V (55.8 - 101.7, n=38)	82.2 fps +2%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.6 (61.8^min) fps 0%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	80.4 (44.8^min) fps
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	78 (58.5^min) fps -3%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	71.6 (59.8^min) fps -11%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	61.9 (45.9^min) fps -23%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	39.7 (26.3^min) fps -51%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	32.2 (20.1^min) fps -60%
1920x1080 high (2/3)
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	95.9 (85.7^min) fps +60%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	90 (79^min) fps +50%
Average Intel Arc Graphics 140V (41.1 - 88.5, n=38)	71 fps +19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (59.9^min) fps +13%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	62.5 (42.1^min) fps +4%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	59.9 (22.6^min) fps
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	54.8 (35.3^min) fps -9%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.5 (43.1^min) fps -16%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	36 (32.1^min) fps -40%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	34.9 (23.4^min) fps -42%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	13.2 (4.8^min) fps -78%
1920x1080 ultra (3/3) best looking
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	86.5 (77.2^min) fps +31%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	78.1 (66.9^min) fps +19%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	76 (33.1^min) fps +16%
Average Intel Arc Graphics 140V (33.3 - 93, n=38)	75.4 fps +15%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	65.8 (32.9^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (54.6^min) fps -6%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	57.8 (39.9^min) fps -12%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.6 (40.4^min) fps -28%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	32.5 (29.2^min) fps -51%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	32.1 (21.7^min) fps -51%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	22.9 (14.8^min) fps -65%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	84.9 fps +19%
Average Intel Arc Graphics 140V (54.1 - 97.1, n=37)	82 fps +15%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	75.8 fps +6%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	75.3 fps +6%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	71.3 fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	40.9 fps -43%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.2 fps -51%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	22.3 fps -69%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	21.6 fps -70%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	15 fps -79%
1920x1080 Standard Quality
Average Intel Arc Graphics 140V (31.6 - 87.6, n=38)	46.5 fps +19%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	42.3 fps +8%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	40.2 fps +3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	39.1 fps
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	37.4 fps -4%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23 fps -41%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18 fps -54%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	11.6 fps -70%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	11.2 fps -71%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	7.5 fps -81%
1920x1080 High Quality
Average Intel Arc Graphics 140V (23 - 37.2, n=37)	32.9 fps +15%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	30.5 fps +6%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	28.7 fps
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	28.6 fps 0%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	27.6 fps -4%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	16.6 fps -42%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.1 fps -54%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	7.81 fps -73%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	7.62 fps -73%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	5.3 fps -82%

X-Plane 11.11
1280x720 low (fps_test=1)
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	69.1 fps +33%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	65.5 fps +26%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	60.3 fps +16%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	51.8 fps
Average Intel Arc Graphics 140V (38.9 - 57, n=39)	47.4 fps -8%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.4 fps -22%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	29.2 fps -44%
1920x1080 med (fps_test=2)
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	49.8 fps +19%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	48.9 fps +17%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	44.5 fps +7%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	41.7 fps
Average Intel Arc Graphics 140V (34.1 - 44.3, n=39)	38.3 fps -8%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 fps -35%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	21.1 fps -49%
1920x1080 high (fps_test=3)
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	42.2 fps +17%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	41.5 fps +15%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	37 fps +3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	36 fps
Average Intel Arc Graphics 140V (28.5 - 37.9, n=39)	33.7 fps -6%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.1 fps -30%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	18.3 fps -49%

Strange Brigade
1280x720 lowest AF:1
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	240 (45.1^min, 113.4^P1) fps
Average Intel Arc Graphics 140V (138.1 - 251, n=34)	218 fps -9%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	185.2 (125.5^min, 161.9^P1) fps -23%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	95.4 (19.5^min, 37.2^P1) fps -60%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	88.2 (20^min, 29.9^P1) fps -63%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.8 (20.7^min, 69.9^P1) fps -67%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	31 (6.8^min, 8.12^P1) fps -87%
1920x1080 medium AA:medium AF:4
Average Intel Arc Graphics 140V (55.5 - 87, n=34)	78.1 fps +9%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	73.7 (60.8^min, 62.9^P1) fps +3%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	71.8 (20.2^min, 27^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	38.9 (14.7^min, 28.5^P1) fps -46%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	37.3 (12^min, 16.1^P1) fps -48%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.4 (15.3^min, 28.3^P1) fps -55%
1920x1080 high AA:high AF:8
Average Intel Arc Graphics 140V (45.3 - 73.2, n=34)	65.8 fps +10%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	62.6 (43.8^min, 48.8^P1) fps +5%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	59.7 (18.9^min, 25.9^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	31.1 (8.7^min, 16.3^P1) fps -48%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31 (8.5^min, 12^P1) fps -48%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.8 (14.8^min, 19.1^P1) fps -55%
1920x1080 ultra AA:ultra AF:16
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	57.3 (18^min, 27.8^P1) fps
Average Intel Arc Graphics 140V (39 - 62.5, n=34)	56.8 fps -1%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	53.4 (33.1^min, 40.4^P1) fps -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 (5.1^min, 6.91^P1) fps -56%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.2 (5.3^min, 6.89^P1) fps -56%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.7 (11.3^min, 12.5^P1) fps -60%

Cyberpunk 2077 2.2 Phantom Liberty
1280x720 Low Preset (FSR off)
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	73.6 (61^min, 58^P1) fps +18%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	69.1 (58.9^min) fps +11%
Average Intel Arc Graphics 140V (51 - 77.2, n=22)	65.2 fps +4%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	62.5 (32.9^min, 26.7^P1) fps
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	48.5 (39.4^min) fps -22%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.5 (19.8^min) fps -59%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.4 (12.7^min) fps -61%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	15.9 (12.9^min) fps -75%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	13.8 (10.8^min) fps -78%
1920x1080 Low Preset (FSR off)
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	44.5 (37.8^min, 36.5^P1) fps +31%
Average Intel Arc Graphics 140V (30.5 - 49.1, n=39)	43.4 fps +28%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	41 (35.2^min) fps +21%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	34.7 (30.4^min) fps +2%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	33.9 (19.2^min, 16.7^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	15.4 (12.1^min) fps -55%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 (6.57^min) fps -59%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	9.3 (7.42^min) fps -73%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	7.81 (5.93^min) fps -77%
1920x1080 Medium Preset (FSR off)
Average Intel Arc Graphics 140V (24.3 - 39.7, n=38)	35.7 fps +34%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	34.3 (30.1^min, 28.2^P1) fps +29%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	33.4 (29.1^min) fps +26%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	28.9 (25.6^min) fps +9%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	26.6 (15.5^min, 13.9^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	12.4 (10.3^min) fps -53%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.9 (8.08^min) fps -59%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	7.07 (6.05^min) fps -73%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	6 (4.82^min) fps -77%
1920x1080 High Preset (FSR off)
Average Intel Arc Graphics 140V (20 - 34.4, n=39)	30.2 fps +30%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	26.7 (22.9^min) fps +15%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	26.4 (22.9^min, 7.08^P1) fps +14%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	24.1 (21.1^min) fps +4%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	23.2 (12.6^min, 11.3^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	10.8 (8.83^min) fps -53%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9.17 (6.25^min) fps -60%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	5.82 (5.02^min) fps -75%
1920x1080 Ultra Preset (FSR off)
Average Intel Arc Graphics 140V (17.5 - 30.1, n=39)	26 fps +34%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	23.4 (19.7^min) fps +21%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	22.6 (18.8^min, 6.53^P1) fps +16%
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	22 (18.9^min) fps +13%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	19.4 (11^min, 10.1^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.46 (7.99^min) fps -51%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	4.95 (4.26^min) fps -74%

F1 24
1280x720 Ultra Low Preset AA:T
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	77.3 (53^min, 31^P1) fps
Average Intel Arc Graphics 140V (n=1)	77.3 fps 0%
1920x1080 Low Preset AA:T AF:16x
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	92.1 (76^min, 65^P1) fps +28%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	83.6 (64^min, 53^P1) fps +16%
Average Intel Arc Graphics 140V (54 - 99, n=24)	82 fps +14%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	72 (52^min, 30^P1) fps
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	71.8 (59^min, 46^P1) fps 0%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	18.1 (13^min, 13^P1) fps -75%
1920x1080 Medium Preset AA:T AF:16x
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	78.2 (65^min, 62^P1) fps
Average Intel Arc Graphics 140V (49.2 - 88.2, n=23)	76.2 fps
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	75.6 (53^min, 50^P1) fps
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	64.7 (52^min, 41^P1) fps
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	16.4 (12^P1) fps
1920x1080 High Preset AA:T AF:16x
Average Intel Arc Graphics 140V (34.4 - 66.4, n=25)	57.3 fps +7%
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	57 (47^min, 39^P1) fps +6%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	55.8 (41^min, 40^P1) fps +4%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	53.8 (38^min, 22^P1) fps
Asus NUC 14 Pro+ Intel Core Ultra 9 185H, Intel Arc 8-Core iGPU	48.4 (40^min, 36^P1) fps -10%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, AMD Radeon RX Vega 7	11.8 (1^min, 9^P1) fps -78%
1920x1080 Ultra High Preset AA:T AF:16x
Average Intel Arc Graphics 140V (15.3 - 22, n=23)	19 fps +14%
MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Intel Arc Graphics 140V	16.6 (10^min, 7^P1) fps
Minisforum MS-A1 AMD Ryzen 7 8700G, AMD Radeon 780M	13.9 (9^min, 9^P1) fps -16%
Beelink SER9 Pro AMD Ryzen 7 H 255, AMD Radeon 780M	13 (5^min, 9^P1) fps -22%

在《赛博朋克 2077》的 1080p 超高设置下，空闲时的帧速率在 18 到 26 之间循环，而在 NucBox K12的平均帧速率则稳定在 23 帧。在我们的测试中，运行其他游戏时也会出现这种卡顿现象。

赛博朋克 2077》超 FPS 图表

MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V: Ø23.1 (15.7-27.6)

GMK NucBox K12 Ryzen 7 H 255, Radeon 780M: Ø22.8 (21.4-23.2)

	low	med.	high	ultra
GTA V (2015)	160.4	152.4	63.6	26.6
Dota 2 Reborn (2015)	98.1	80.4	59.9	65.8
Final Fantasy XV Benchmark (2018)	71.3	39.1	28.7
X-Plane 11.11 (2018)	51.8	41.7	36
Strange Brigade (2018)	240	71.8	59.7	57.3
Baldur's Gate 3 (2023)	36.1	29.5	29	26.7
Cyberpunk 2077 2.2 Phantom Liberty (2023)	33.9	26.6	23.2	19.4
F1 24 (2024)	72		53.8	16.6

排放量

系统噪音

在静音模式下，风扇噪音徘徊在 25 dB(A)左右，而在性能模式下，噪音则相对较大，达到 36 dB(A)。该系统的噪音普遍高于我们在旧版 Cubi 1M 上观察到的噪音。

风扇噪音曲线（白色：背景，红色：系统空闲，蓝色：3DMark 06，橙色：《赛博朋克 2077》，绿色：《赛博朋克 2077》：赛博朋克 2077》，绿色：Prime95 压力）

Noise level

Idle		28 / 36.1 / 36.1 dB(A)
Load		38.9 / 49.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24.8 dB(A)

	MSI Cubi NUC AI+ 2MG Arc 140V, Core Ultra 7 258V	MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	GMK NucBox K12 Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	Beelink SER9 Pro Radeon 780M, Ryzen 7 H 255, Crucial P3 Plus CT1000P3PSSD8	Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	Minisforum MS-A1 Radeon 780M, R7 8700G, Kingston OM8PGP41024Q-A0
Noise		7%	-4%	12%	19%	-3%
off / environment * (dB)	24.8	23.5 5%	23.5 5%	23 7%	24.8 -0%	24.8 -0%
Idle Minimum * (dB)	28	29.9 -7%	35.4 -26%	29.1 -4%	25.3 10%	33.9 -21%
Idle Average * (dB)	36.1	29.9 17%	35.4 2%	30.1 17%	25.7 29%	34 6%
Idle Maximum * (dB)	36.1	32 11%	39 -8%	31.7 12%	25.7 29%	34 6%
Load Average * (dB)	38.9	33.5 14%	42.4 -9%	33.7 13%	33.6 14%	41.1 -6%
Cyberpunk 2077 ultra * (dB)	37	39.1 -6%	40.4 -9%	33.8 9%	28.7 22%	42.2 -14%
Load Maximum * (dB)	49.2	40.5 18%	41.4 16%	35.2 28%	34.3 30%	46.2 6%
Witcher 3 ultra * (dB)					28.8

* ... smaller is better

温度

主要由于采用了塑料结构和低功耗的英特尔 CPU，即使在运行要求较高的应用程序时，表面温度也只有 31 摄氏度。

小型 120 瓦交流适配器在负载情况下也能保持相对低温，温度低于 35 摄氏度。

发言人

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

MSI Cubi NUC AI+ 2MG audio analysis

(-) | not very loud speakers (70.5 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.4% lower than median
(-) | bass is not linear (16% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.9% higher than median
(-) | mids are not linear (19.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(±) | linearity of highs is average (12.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (29.5% difference to median)
Compared to same class
» 70% of all tested devices in this class were better, 13% similar, 17% worse
» The best had a delta of 13%, average was 25%, worst was 64%
Compared to all devices tested
» 87% of all tested devices were better, 3% similar, 10% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Apple MacBook Pro 16 2021 M1 Pro audio analysis

(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 24%, worst was 134%

能源管理

耗电量

总体消耗量明显低于 AMD H 系列迷你电脑，如 GMK NucBox K12尽管我们的集成 Arc 140V 在游戏时与竞争对手的集成 Radeon 780M 大致相当。与 AMD Zen 4 或 Zen 5 处理器相比，微星 Cubi 的每瓦性能普遍较高，但这是以牺牲处理器的原始性能为代价的。

在运行《赛博朋克 2077》时，功耗会在 28 瓦到 49 瓦之间循环，似乎没有任何原因，这与我们上面提到的不稳定帧速率和 GPU 时钟速率是一致的。

赛博朋克 2077》1080p 超高清耗电量。请注意，即使只是在游戏中空闲时，需求也在波动

在启动 Prime95 应力时，消耗功率会骤增至 60 W，然后下降，大约 50 秒后稳定在 49 W。

Power Consumption

Off / Standby	0.63 / 2.1 Watt
Idle	2.9 / 5.7 / 10.2 Watt
Load	38.7 / 60 Watt


Key: min: , med: , max: Metrahit Energy

	MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V, , , x,	MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs, WD PC SN560 SDDPNQE-1T00, , x,	GMK NucBox K12 Ryzen 7 H 255, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Beelink SER9 Pro Ryzen 7 H 255, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Ninkear M7, (16+512) R5 7430U, Vega 7, Faspeed P8-512G-SE, , x,	Minisforum MS-A1 R7 8700G, Radeon 780M, Kingston OM8PGP41024Q-A0, , x,
Power Consumption		-24%	-99%	-56%	-47%	-121%
Idle Minimum * (Watt)	2.9	6.4 -121%	9.9 -241%	7 -141%	9.3 -221%	8.8 -203%
Idle Average * (Watt)	5.7	8.3 -46%	10.1 -77%	7.1 -25%	10.7 -88%	12.6 -121%
Idle Maximum * (Watt)	10.2	10.4 -2%	13.1 -28%	7.5 26%	12.6 -24%	14 -37%
Load Average * (Watt)	38.7	38.5 1%	69.8 -80%	62.3 -61%	37.7 3%	93.2 -141%
Cyberpunk 2077 ultra external monitor * (Watt)	41.1	36.1 12%	86.3 -110%	80.1 -95%	32.3 21%	102.1 -148%
Load Maximum * (Watt)	60	52.5 12%	92.8 -55%	82.9 -38%	43.4 28%	105.4 -76%

* ... smaller is better

功耗赛博朋克/压力测试

MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V: Ø52.6 (47.9-57.4)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs: Ø40.2 (37.4-52.6)

外部显示器功耗

MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V; Prime95 V2810 Stress (external Monitor): Ø49.7 (36.7-60)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø40.6 (37.7-53.5)

MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V; Cinebench R15 Multi (external Monitor): Ø54 (32.3-58)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø45 (33.5-48.5)

MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø34 (20.7-43)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.6 (32.5-49.3)

MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V; Idle 1min (external Monitor): Ø5.74 (2.88-10.2)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø10.5 (6.41-13.6)

MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø41.1 (26.8-58.9)

MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø36.1 (35.5-37.1)

笔记本检查评级

基本、可靠的商务迷你电脑，但考虑到其高昂的售价，可以说过于基本。

Back to the verdict

MSI Cubi NUC AI+ 2MG - 09/29/2025 v8
Allen Ngo

Chassis

76 / 98 → 77%

Connectivity

68 / 81 → 84%

Weight

80%

Games Performance

52 / 80 → 65%

Application Performance

83 / 92 → 90%

AI Performance

90%

Temperature

95%

Noise

65%

Audio

48%

Average

63%

75%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
50%

Packaging
100%

Power Use
72.9%

Repairability
40%

Software Updates
39%

Total Sustainability Score: 50.3%

潜在竞争对手比较

Image	Model / Review	Price	Weight	Height	Display
1. 75.2%	MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V ⎘ Intel Arc Graphics 140V ⎘ 32 GB Memory	Amazon: $899.00 List Price: 900 USD	669 g	50.1 mm	x
2. 66.1%	MSI Cubi NUC 1M Intel Core 7 150U ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 16 GB Memory, 1024 GB SSD	Amazon: $599.00 List Price: 950 USD	660 g	50.1 mm	x
3. 73.7%	GMK NucBox K12 AMD Ryzen 7 H 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $549.98	938 g	78 mm	x
4. 80.2%	Beelink SER9 Pro AMD Ryzen 7 H 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $649.00 List Price: 520 USD	812 g	44.7 mm	x
5.	Ninkear M7, (16+512) AMD Ryzen 5 7430U ⎘ AMD Radeon RX Vega 7 ⎘ 16 GB Memory, 512 GB SSD	Amazon: $349.99 List Price: 399€	400 g	36 mm	x
6. 76.7%	Minisforum MS-A1 AMD Ryzen 7 8700G ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $239.99 MINISFORUM MS-A1 Mini Workst... 2. $687.90 MINISFORUM MS-A1 Mini Workst... 3. $638.00 MINISFORUM Mini PC MS-01-S13... List Price: 829 EUR	1.7 kg	48 mm	x

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Lenovo IdeaPad Slim 5-15ARP G10 R7 7735HS, Radeon 680M	620
Lenovo ThinkPad E16 G3-21SSS00F00 Ultra 5 225U, Graphics 4-Core	621
Samsung Galaxy Book4 Edge 14 SD X Elite X1E-80-100, Adreno X1-85 3.8 TFLOPS	621
MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V	623
Lenovo Yoga 9 14 2in1 G10 Core Ultra 7 258V, Arc 140V	628
HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770	630
Lenovo Yoga Slim 7 15ILL9 Aura Core Ultra 7 256V, Arc 140V	630
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	7752
Samsung Galaxy Book4 Pro 14 Ultra 7 155H, Arc 8-Core	7756
SCHENKER Vision 14 2023 i7-13700H, Iris Xe G7 96EUs	7781
MSI Cubi NUC AI+ 2MG Core Ultra 7 258V, Arc 140V	7781
HP Pavilion 17t-ab200 i7-7700HQ, GeForce GTX 1050 Mobile	7794
HP EliteBook 865 G10 R9 PRO 7940HS, Radeon 780M	7807
Acer Swift Go SFG16-71 i7-13700H, Iris Xe G7 96EUs	7865
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642

结论--简单，但也许太简单了

Pros

Cons

价格和供应情况

Table of Contents

规格

案例

尺寸比较

连接性

SD 读卡器

交流

维护

可持续性

配件和保修

性能

测试条件

处理器

Cinebench R15 多回路运行

压力测试

系统性能

DPC 延迟

存储设备

磁盘节流DiskSpd 读取循环，队列深度 8

图形处理器性能

赛博朋克 2077》超 FPS 图表

排放量

系统噪音

温度

发言人

MSI Cubi NUC AI+ 2MG audio analysis

Apple MacBook Pro 16 2021 M1 Pro audio analysis

能源管理

耗电量

功耗 赛博朋克/压力测试

外部显示器功耗

笔记本检查评级

潜在竞争对手比较

More articles related to this device

Transparency

功耗赛博朋克/压力测试
