结论：多功能迷你服务器，配备功能强大的 AMD Ryzen AI 9 SoC
Minisforum N5 Pro 是一款强大而现代的 NAS/迷你服务器，采用 Zen 5 架构的 AMD Ryzen AI 9 HX PRO 370 带来了令人印象深刻的计算能力。该系统拥有 12 个内核，支持 DDR5 和 Radeon 890M 图形处理器，同样适用于多媒体、虚拟化和基于人工智能的应用。两个快速 LAN 端口、广泛的扩展选项和易于维护的特性凸显了专业标准。尽管设计紧凑，但冷却系统的低温和适中的噪音水平给人留下了深刻印象。
即使在负载情况下，N5 Pro 也能保持高效的能耗，在功耗和效率之间取得了极佳的平衡。一些微小的瑕疵，如敏感、光洁的正面，几乎没有人注意到。总体而言，Minisforum N5 Pro 集性能、功能和效率于一身，令人印象深刻，是要求苛刻的电力用户和专业 NAS 应用的理想之选。
Pros
+ AMD Ryzen AI 9 PRO 370
+ 带 ECC 的 32 GB 内存
+ AMD Radeon 890M
+ 2x LAN（10G + 5G）
+ 负载下温度低
+ 2 个 USB4
+ PCIe X16 插槽
+ MinisCloud OS 独立操作系统
Cons
- 空闲模式下的功耗
- 无 WLAN ex 工作
- 内部固态硬盘只能以 PCIe 4.0 x2/x1 速度运行
价格和供应情况
$1,019.90
MINISFORUM 5 Bay NAS N5 Pro P370 Network Attached Storage, AMD Ryzen AI 9 HX PRO 370 Processor(12C/24T,up to 5.1GHz),Cloud Storage, DDR5 Channel, 1 * 10Gbe,1 * 5Gbe, 3*M.2 NVMe Slots, HDMI/Type-C
Minisforum N5 Pro 是最先进的 NAS 系统，配备功能强大的 AMD Ryzen AI 9 HX PRO 370 处理器。在此基础上，Minisforum 推出了 AI-NAS，它也可用作传统的迷你 PC。结合 32 GB ECC RAM，测试装置达到了我们的要求，并与同类迷你 PC 竞争，从而能够对系统的性能进行分类。
规格
Minisforum N5 Pro
Processor
AMD Ryzen AI 9 HX PRO 370 12 x 2 - 5.1 GHz, 55 W PL2 / Short Burst, 45 W PL1 / Sustained, Strix Point-HX PRO (Zen 5/5c)
Graphics adapter

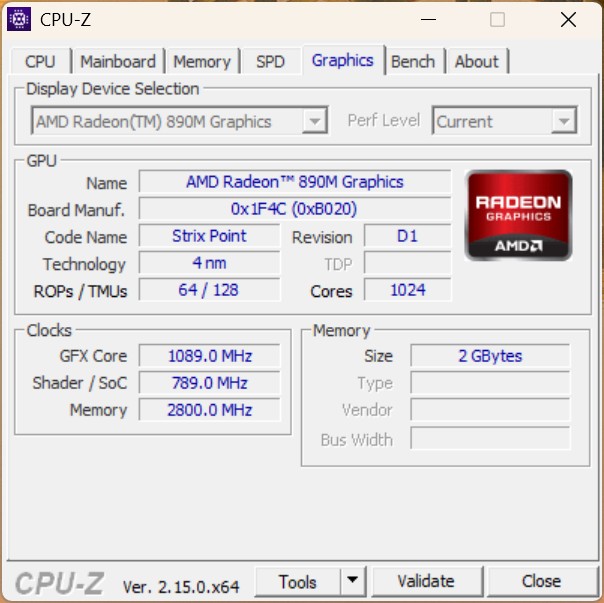

AMD Radeon 890M, RAM: 2800 MHz, Adrenalin 25.9.1

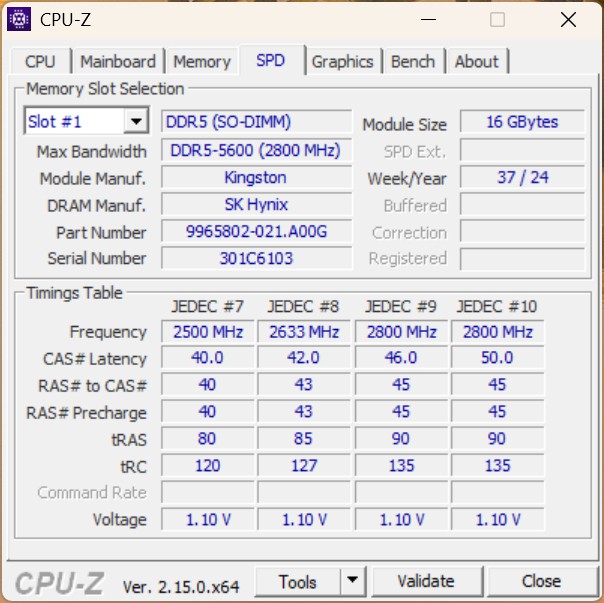

Memory
32 GB

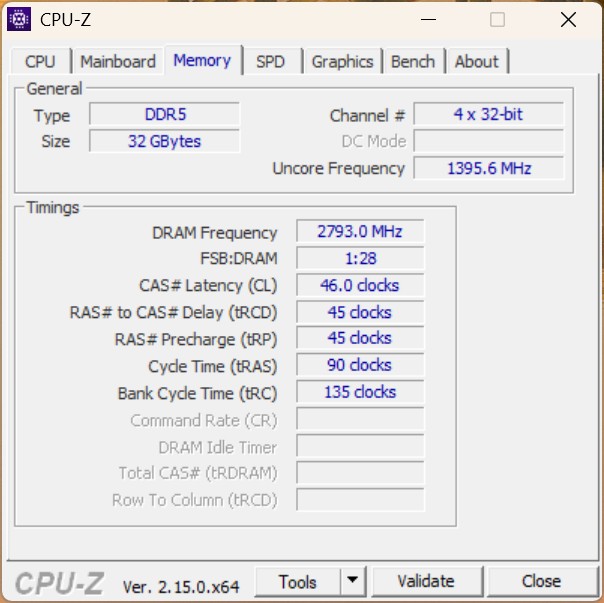

, DDR5 5.600 MT/S, ECC-RAM, max. 96 GB
Mainboard
AMD Promontory/Bixby FCH
Storage
Kingston OM8PGP41024Q-A0, 1024 GB
, 908 GB free
Weight
4.998 kg, Power Supply: 666 g
Price
1119 Euro
Amazon
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

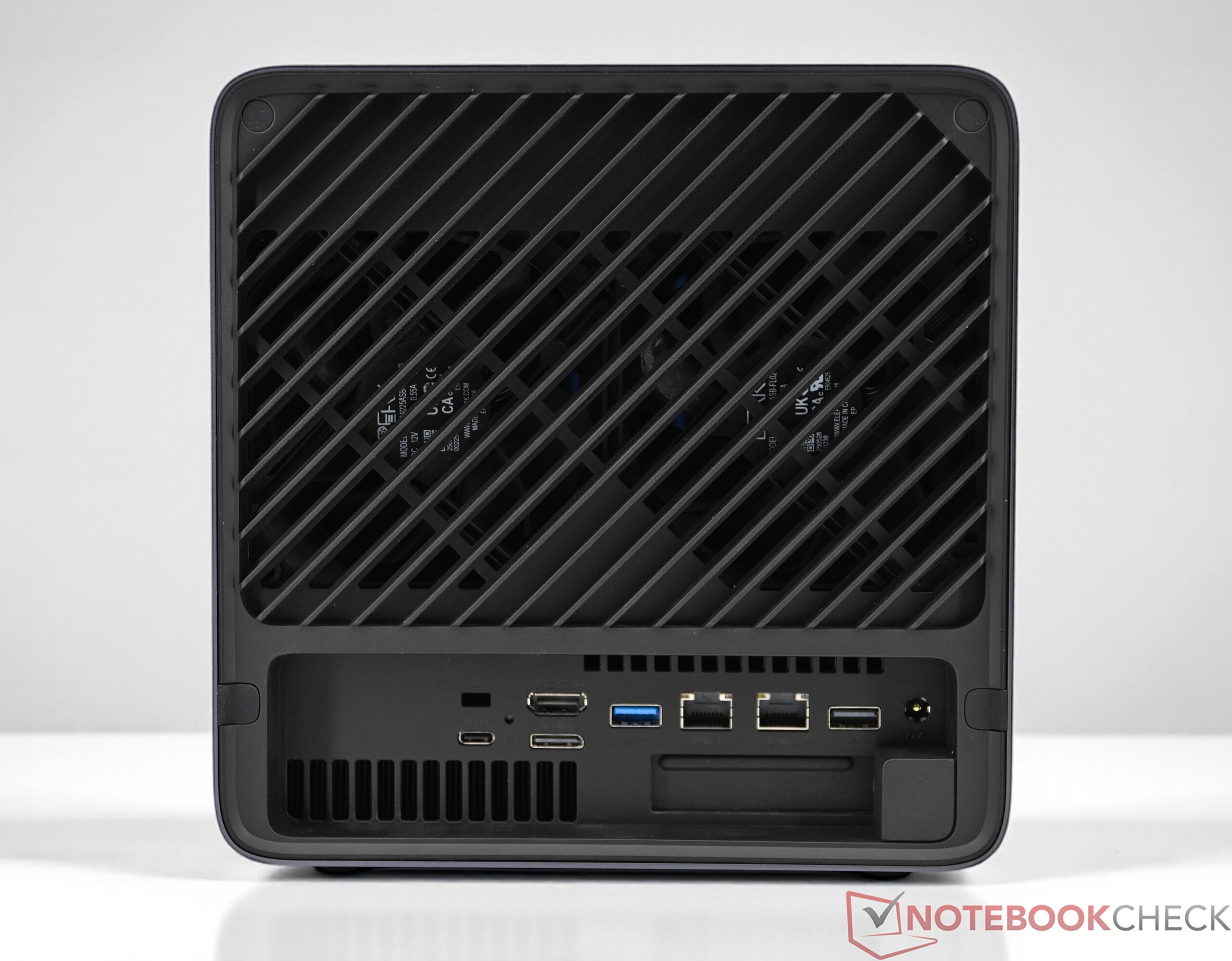

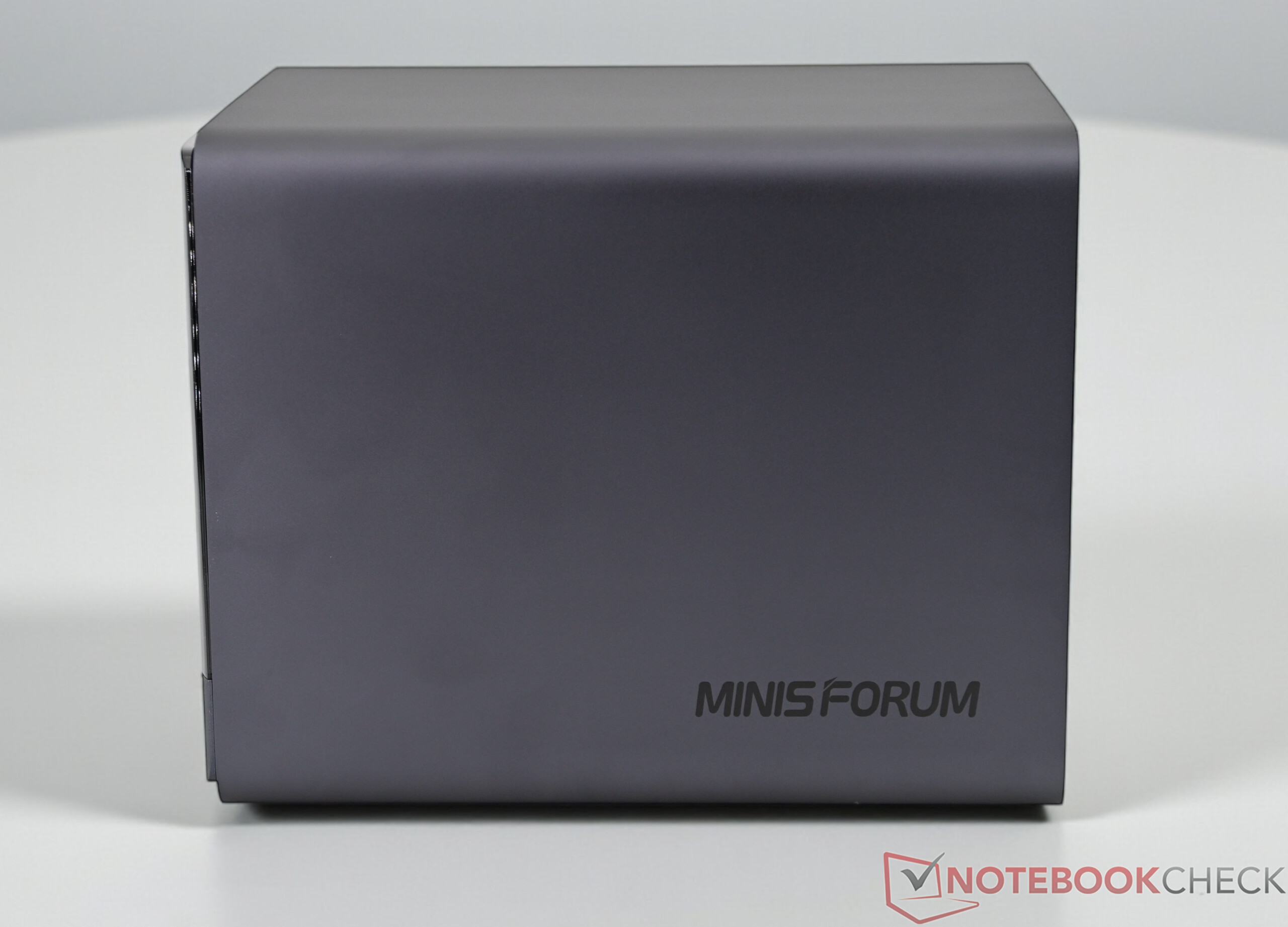

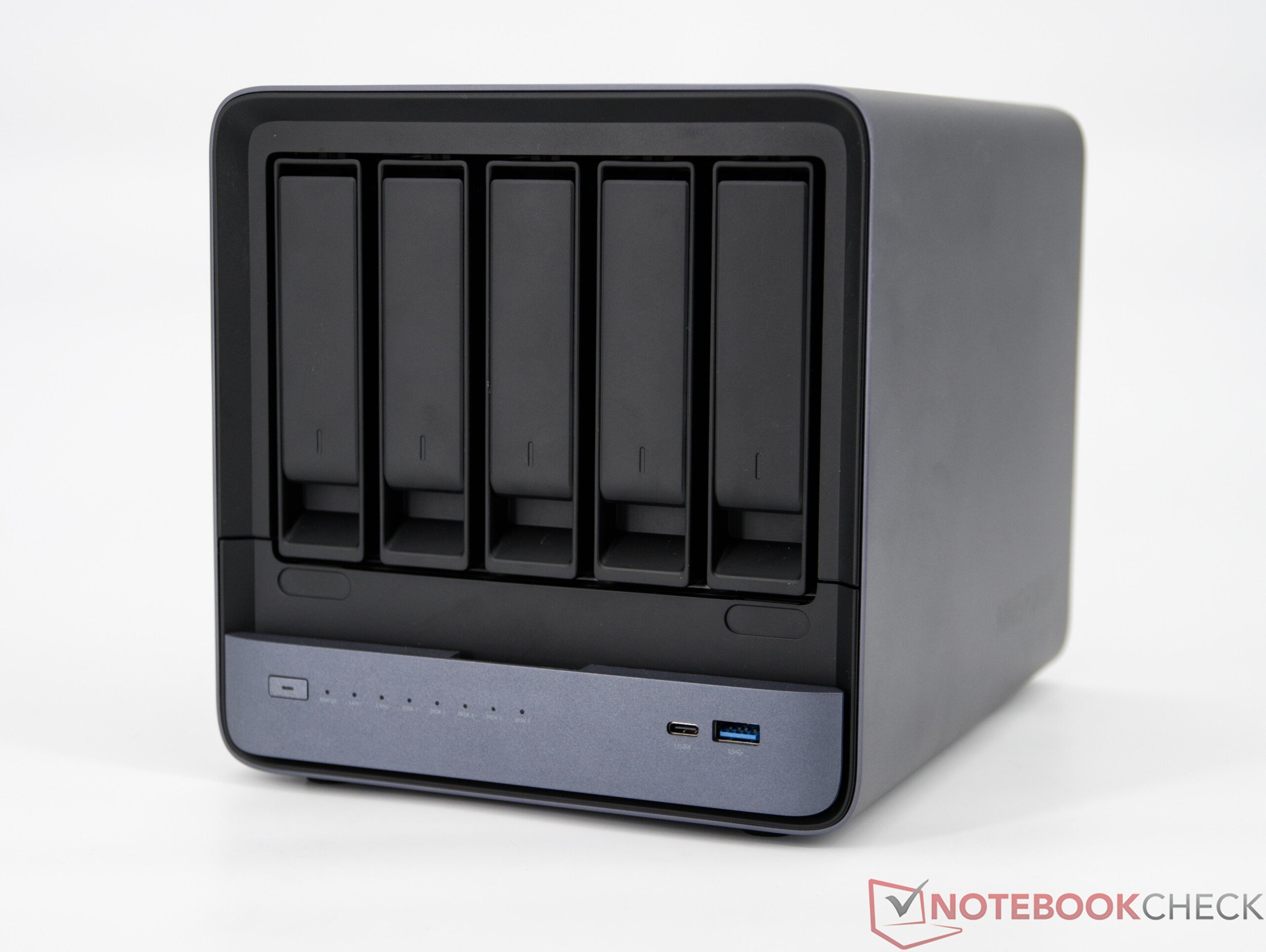

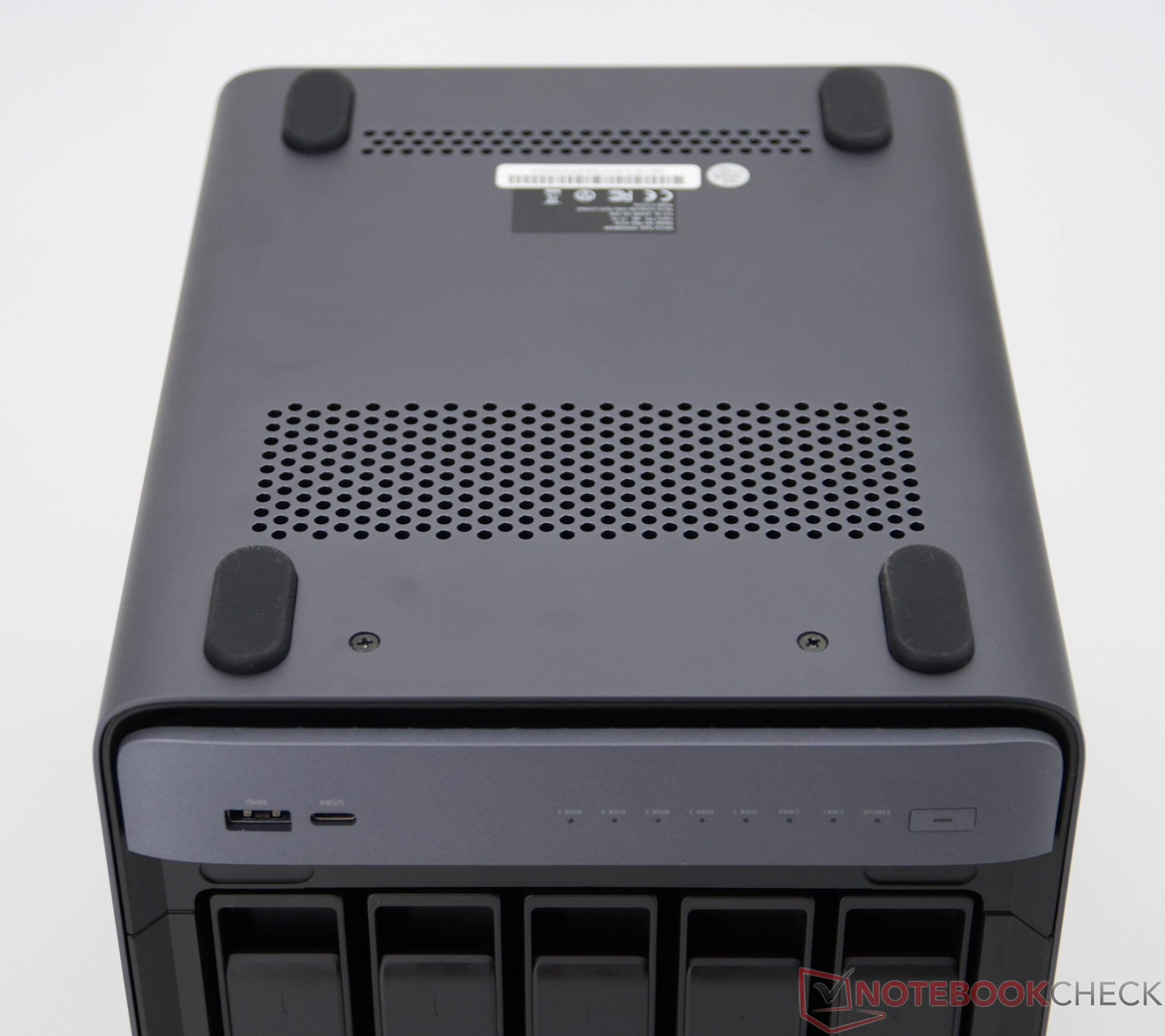

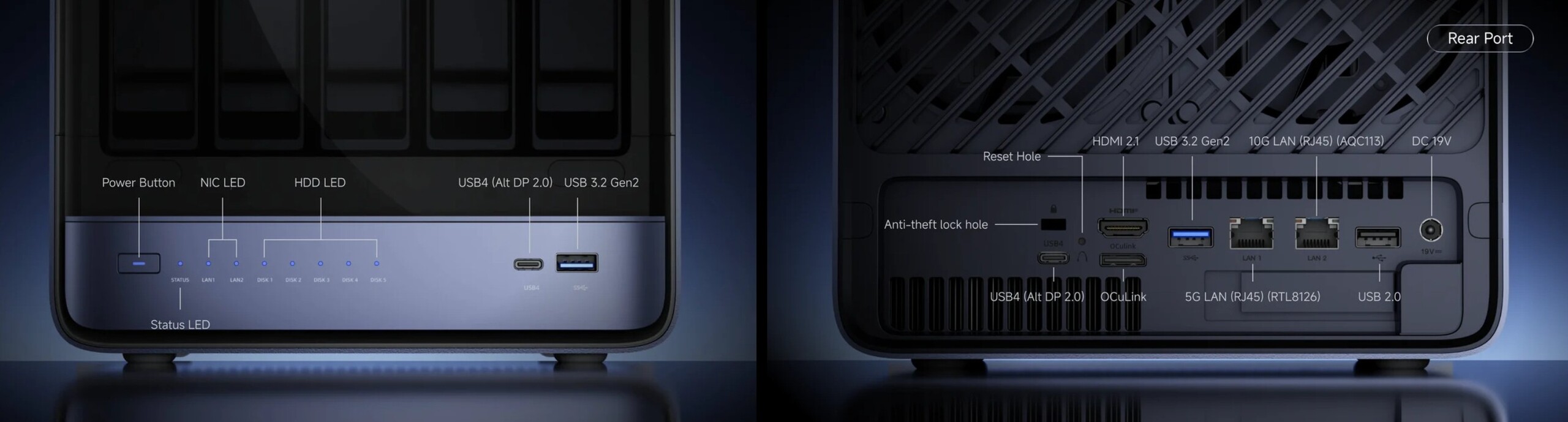

外壳与连接
Minisforum N5 Pro 主要由金属制成，辅以少量塑料元件，无论从视觉还是触感上都给人留下了非常优质的印象。有一点值得批评的是，光面前面板很容易沾染指纹，时间长了还会因细微划痕而失去外观。在功能方面，Minisforum N5 Pro 没有什么可隐藏的。该 NAS 可容纳 5 个 3.5 英寸硬盘和 3 个固态硬盘。得益于众多的外部接口，NAS 提供了广泛的扩展和连接选项。网络连接尤其成功，两个快速 LAN 端口（1 × 10 Gbit，1 × 5 Gbit）实现了极高的数据传输速率和可靠性。此外，我们还想提及 OCuLink 连接和内部 PCIe x16 插槽，它允许系统配置专用显卡等。

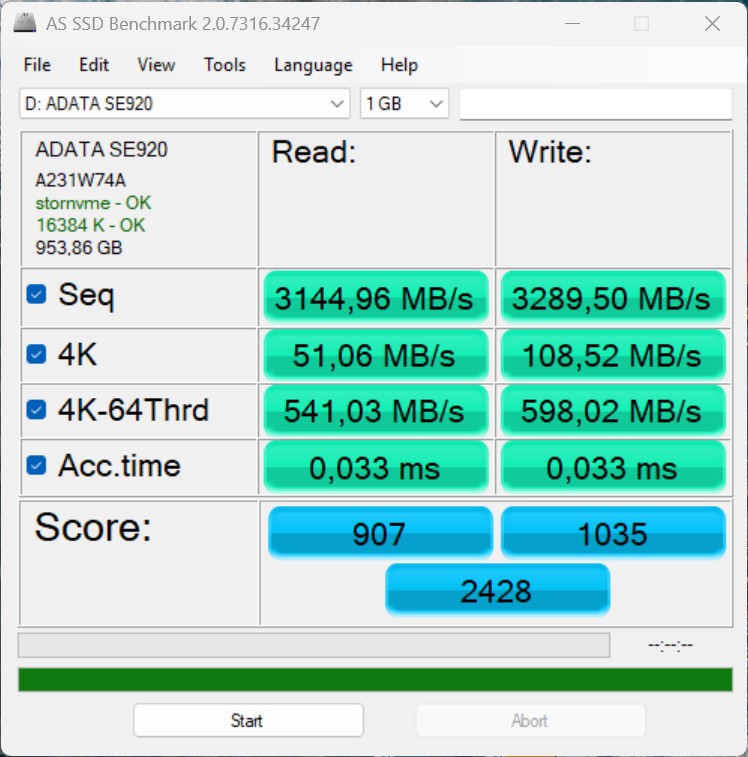

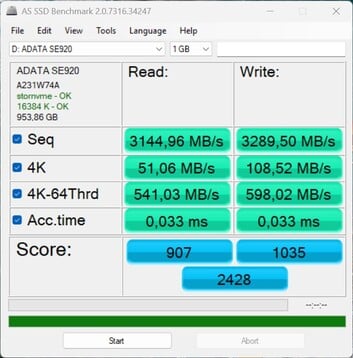

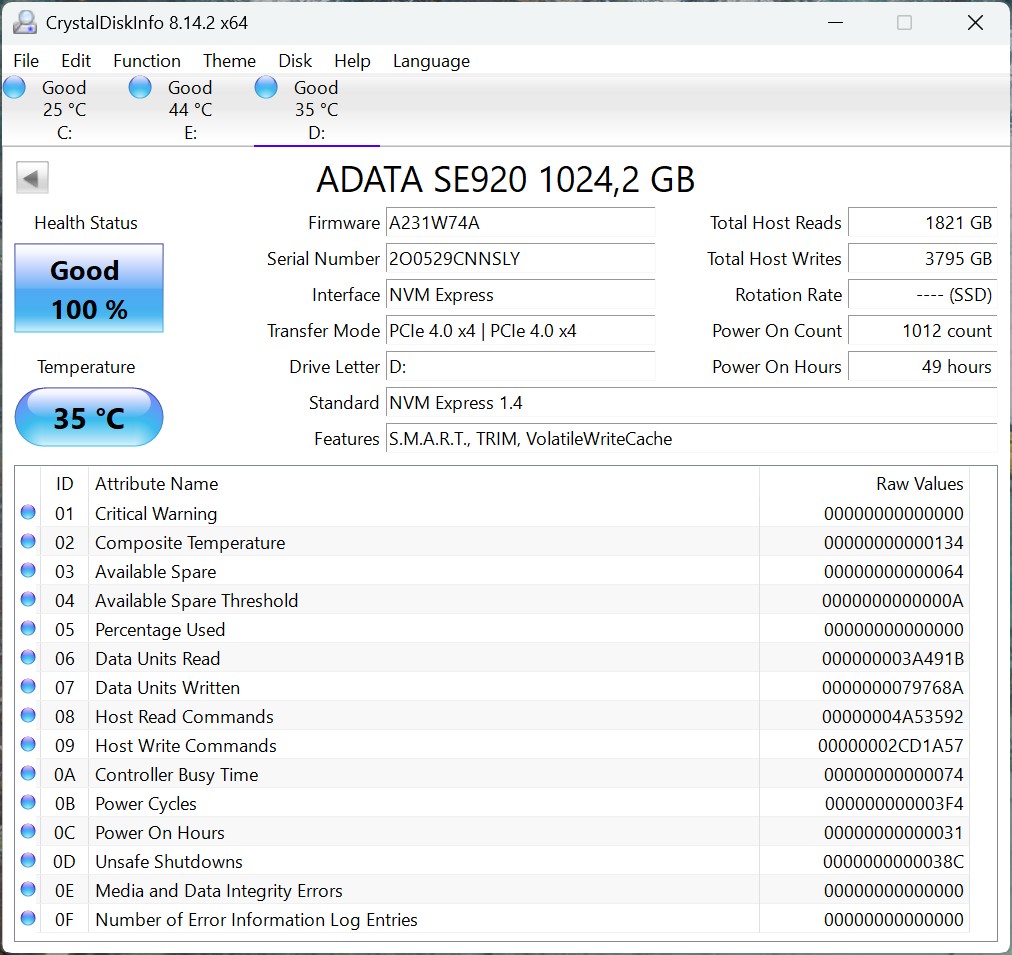

ADATA SE920 USB4-Speed
| Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB) | |
| Minisforum MS-A1 | |
| Average of class Desktop (n=1last 2 years) | |
| Minisforum N5 Pro | |
配件和 MinisCloud OS

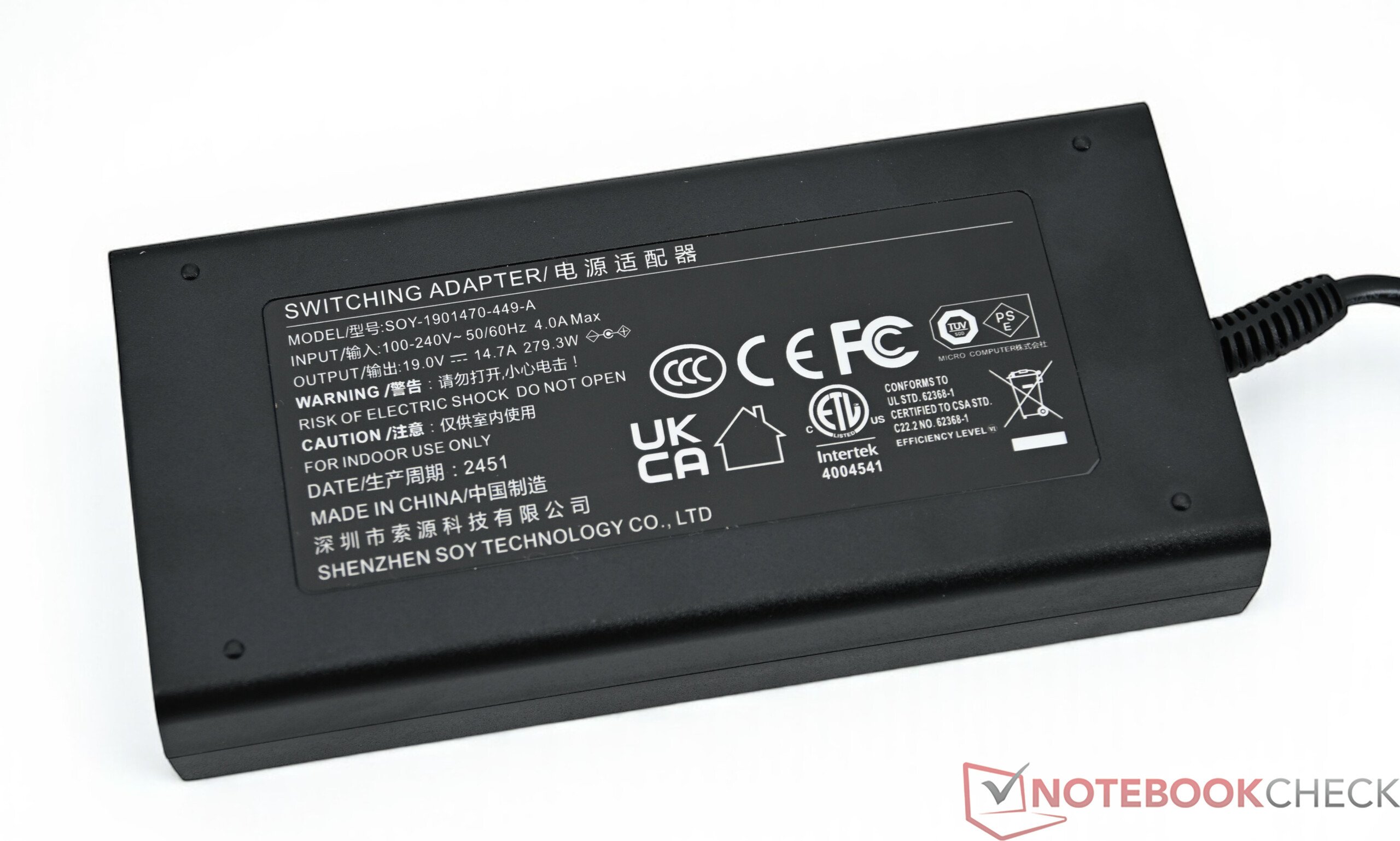

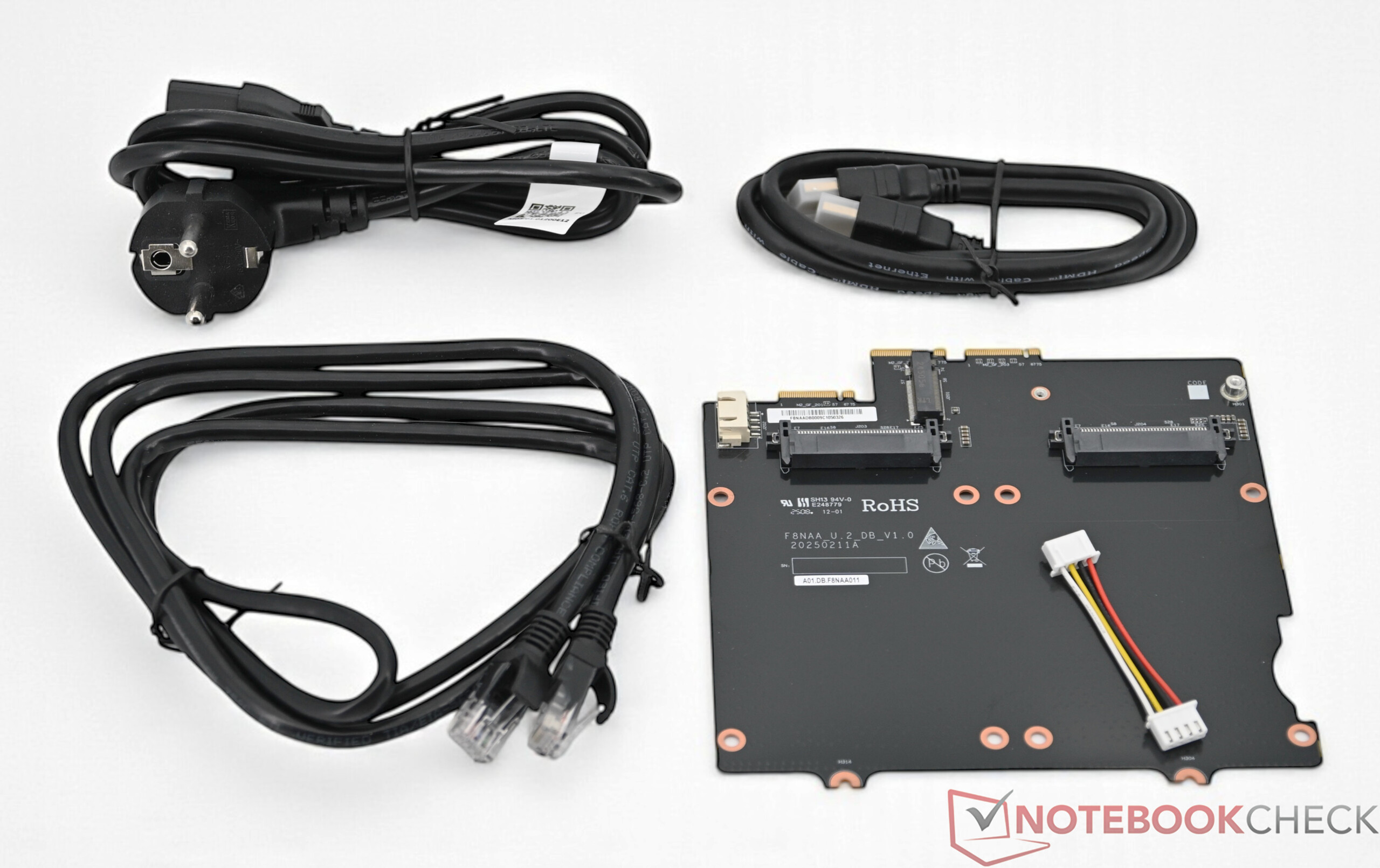

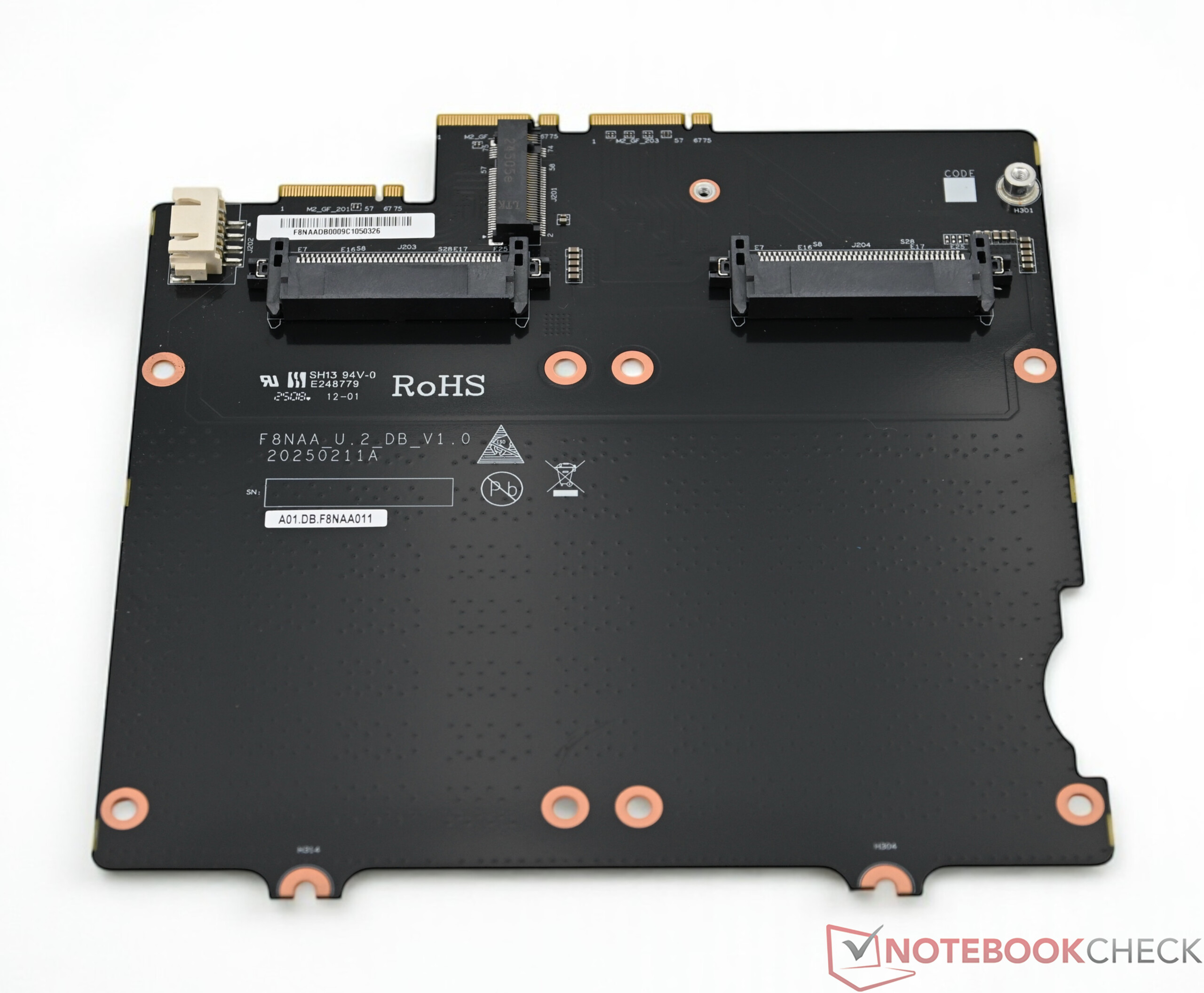

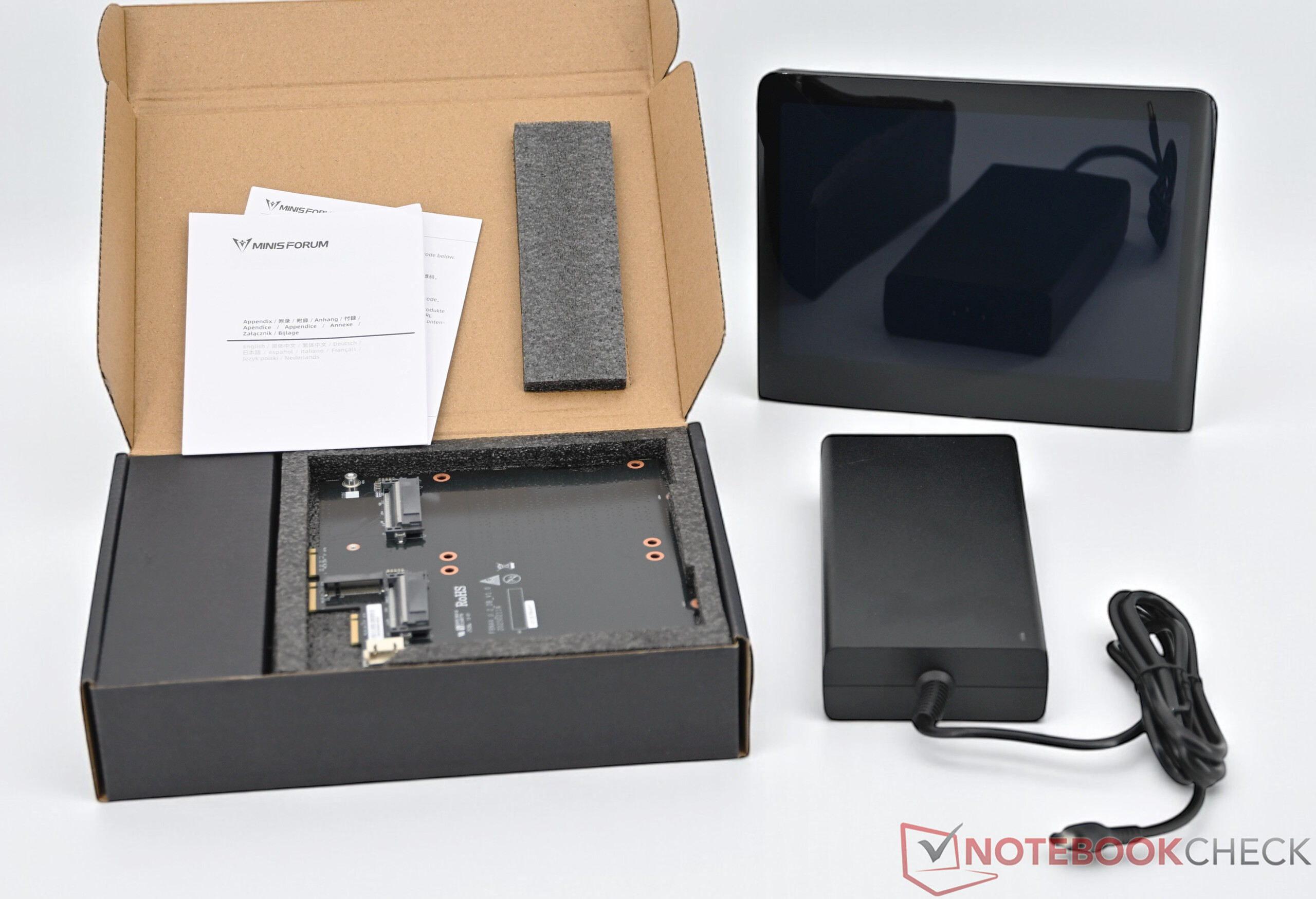

Minisforum 在供货范围内提供了丰富的配件选择。其中包括一个用于安装 U.2 固态硬盘的适配器板、一个强大的 280 瓦电源装置和必要的连接电缆，以便立即启动和运行设备。Minisforum 还提供专门开发的操作系统 MinisCloud OS。这种方法有利于将 NAS 集成到网络中。一些程序已经预装，而且可以选择集成 Docker 容器，几乎所有的可能性都是开放的。

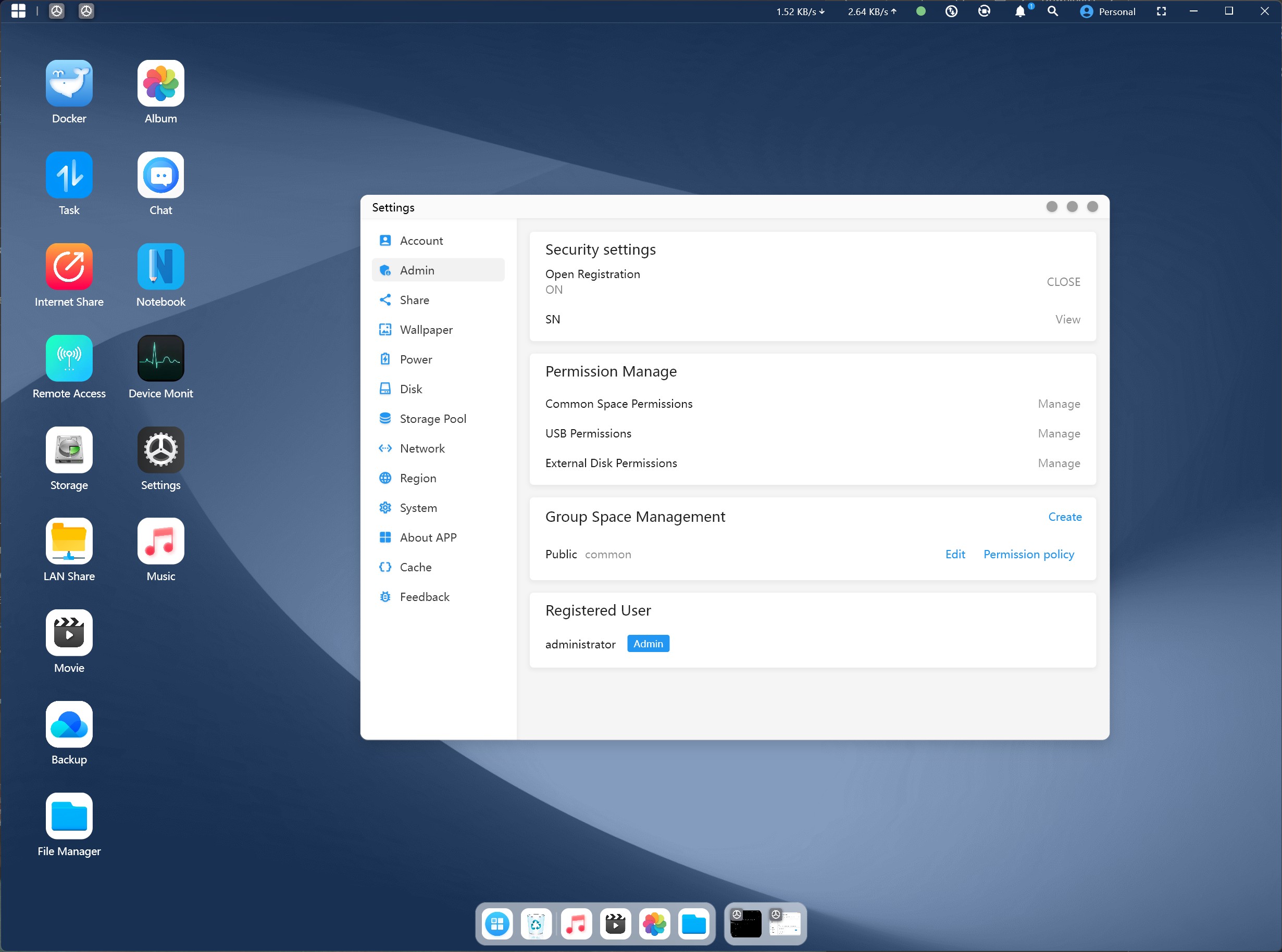

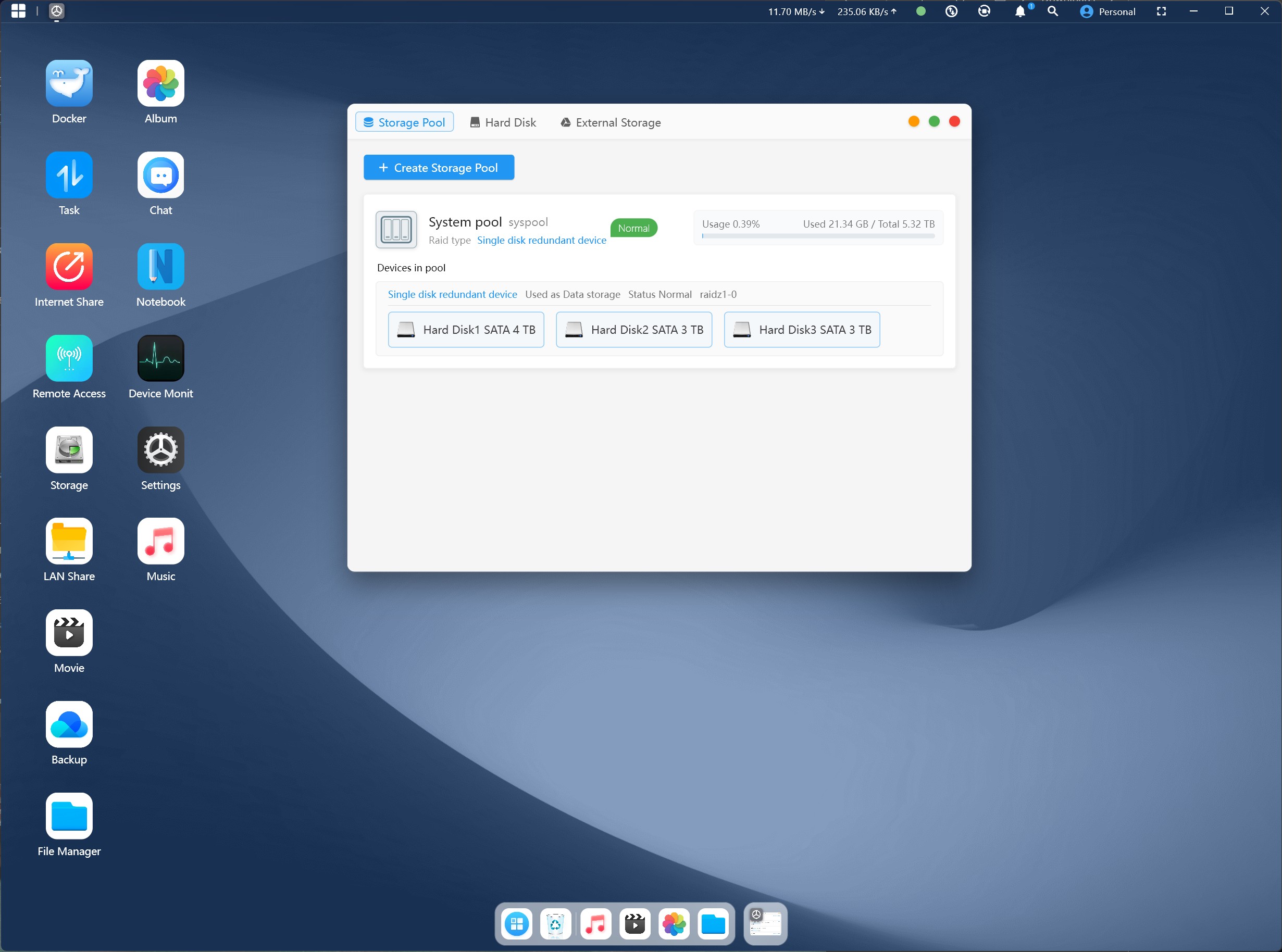

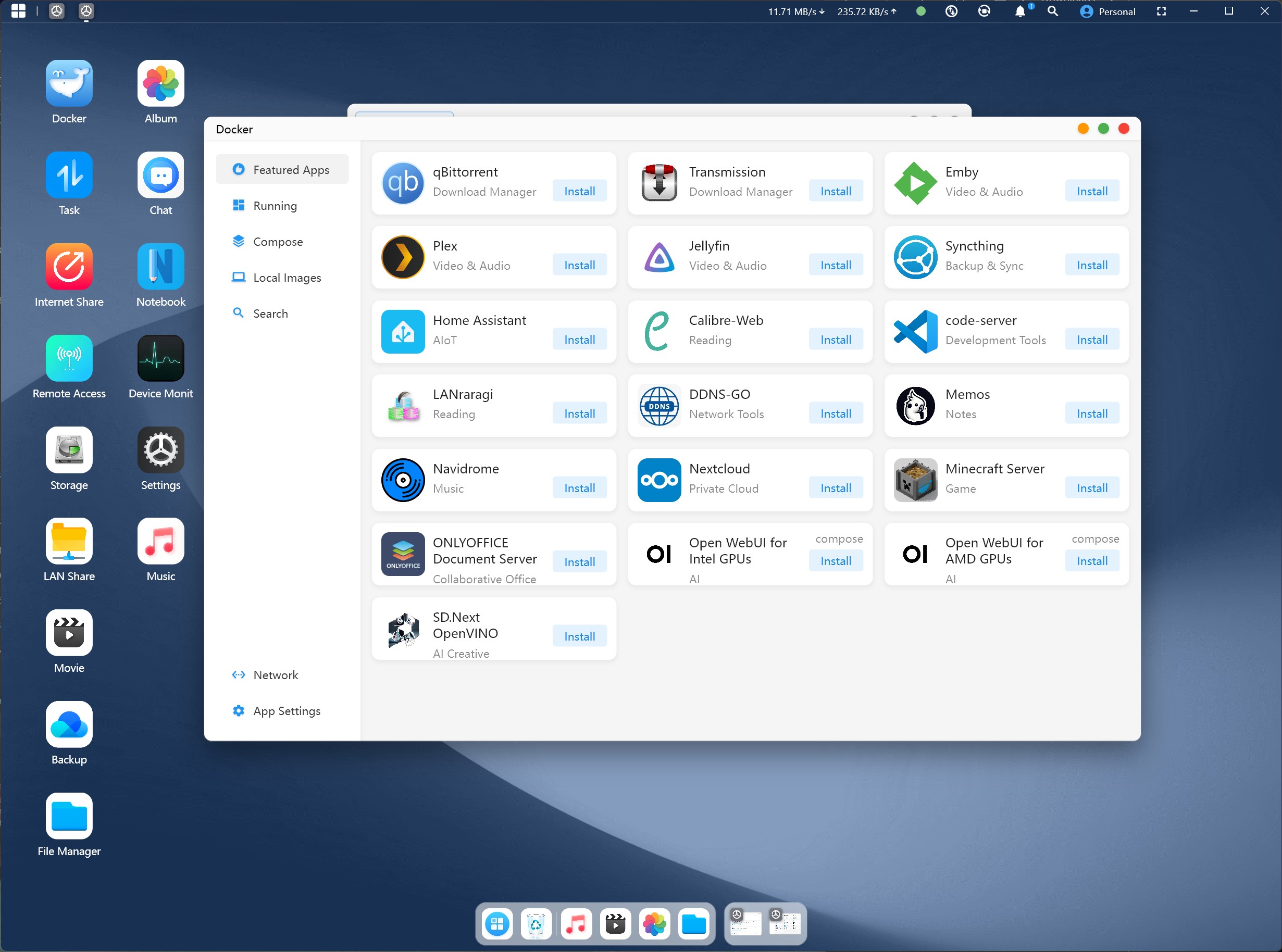

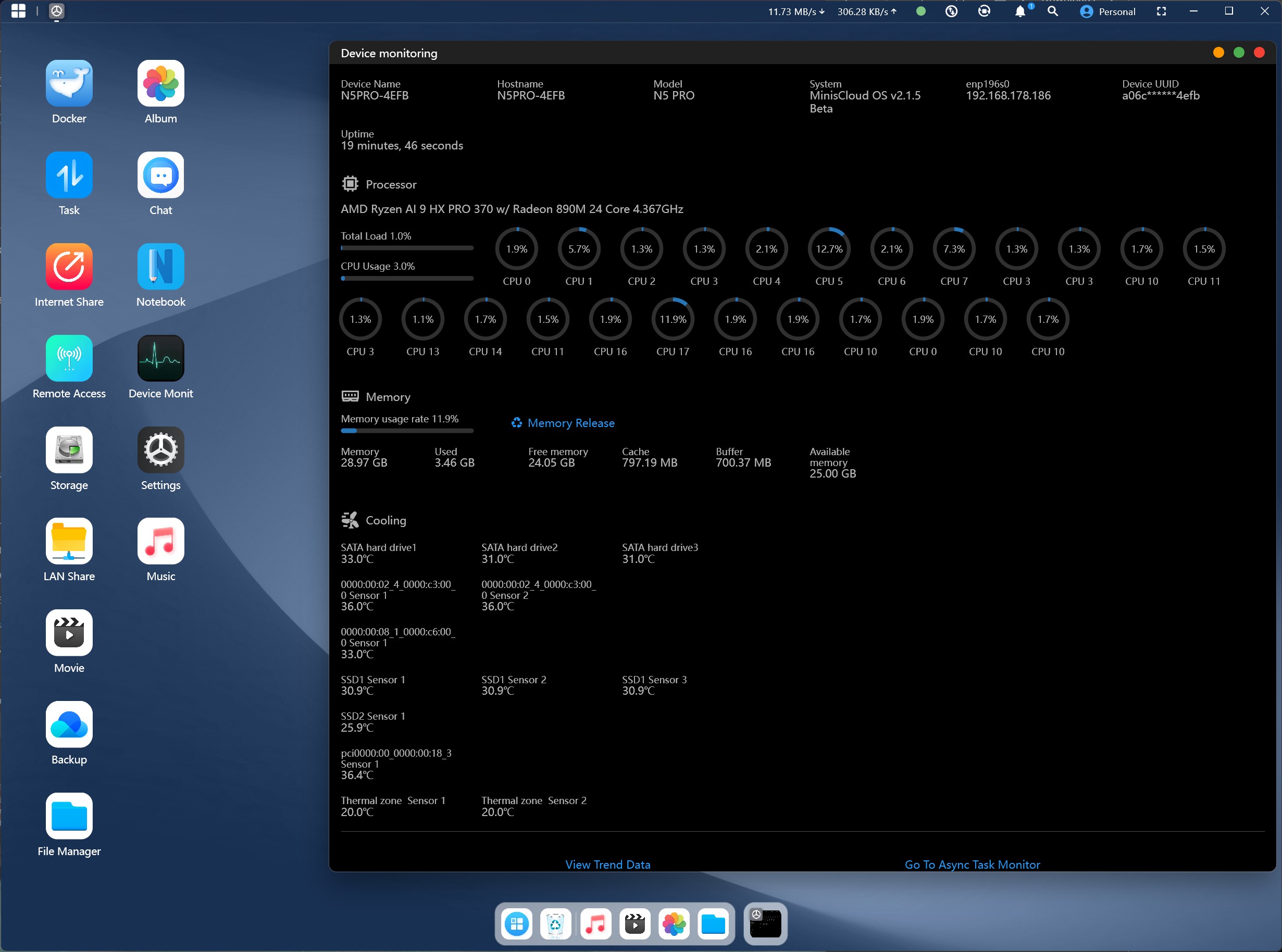

迷你云操作系统

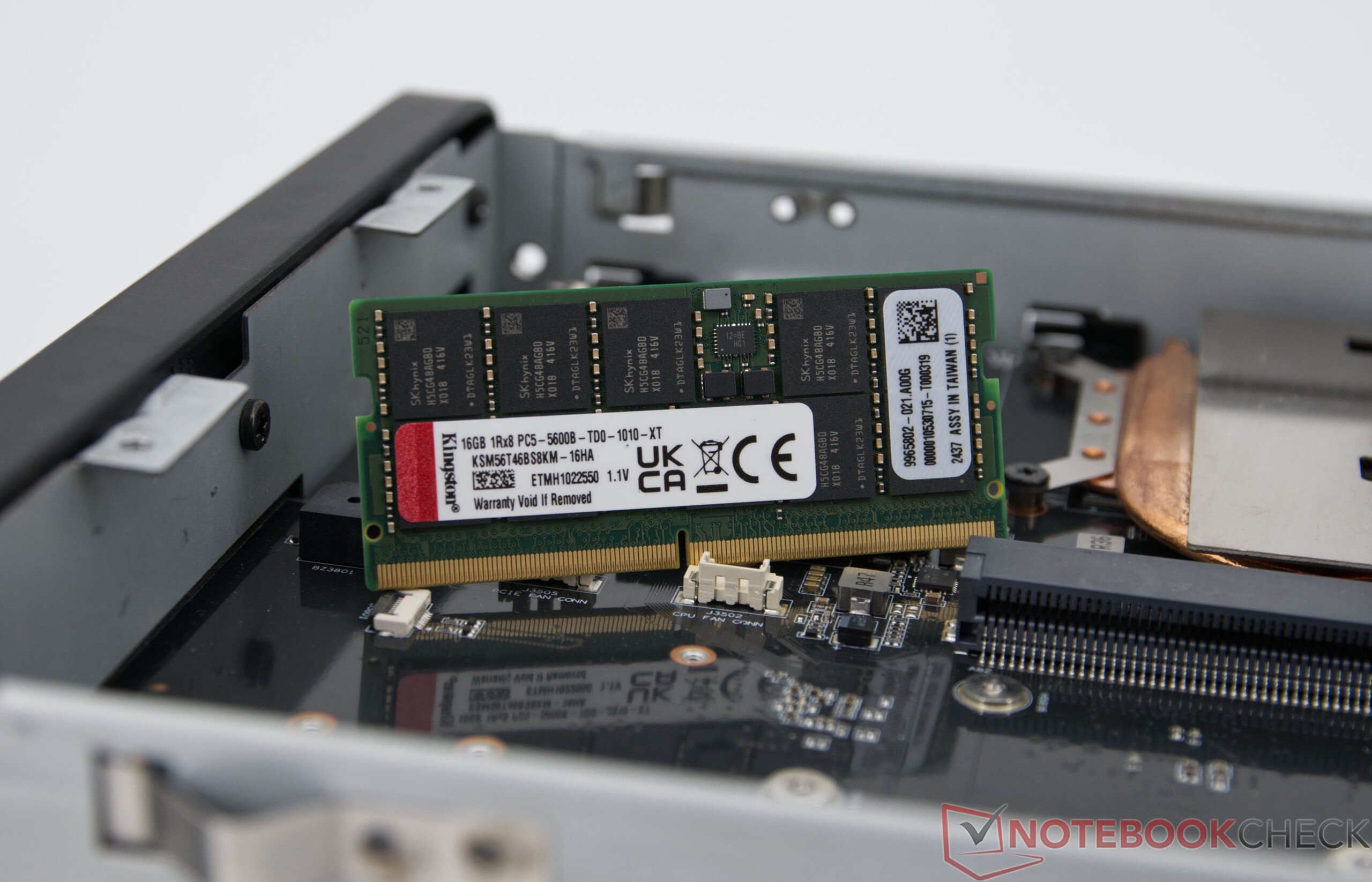

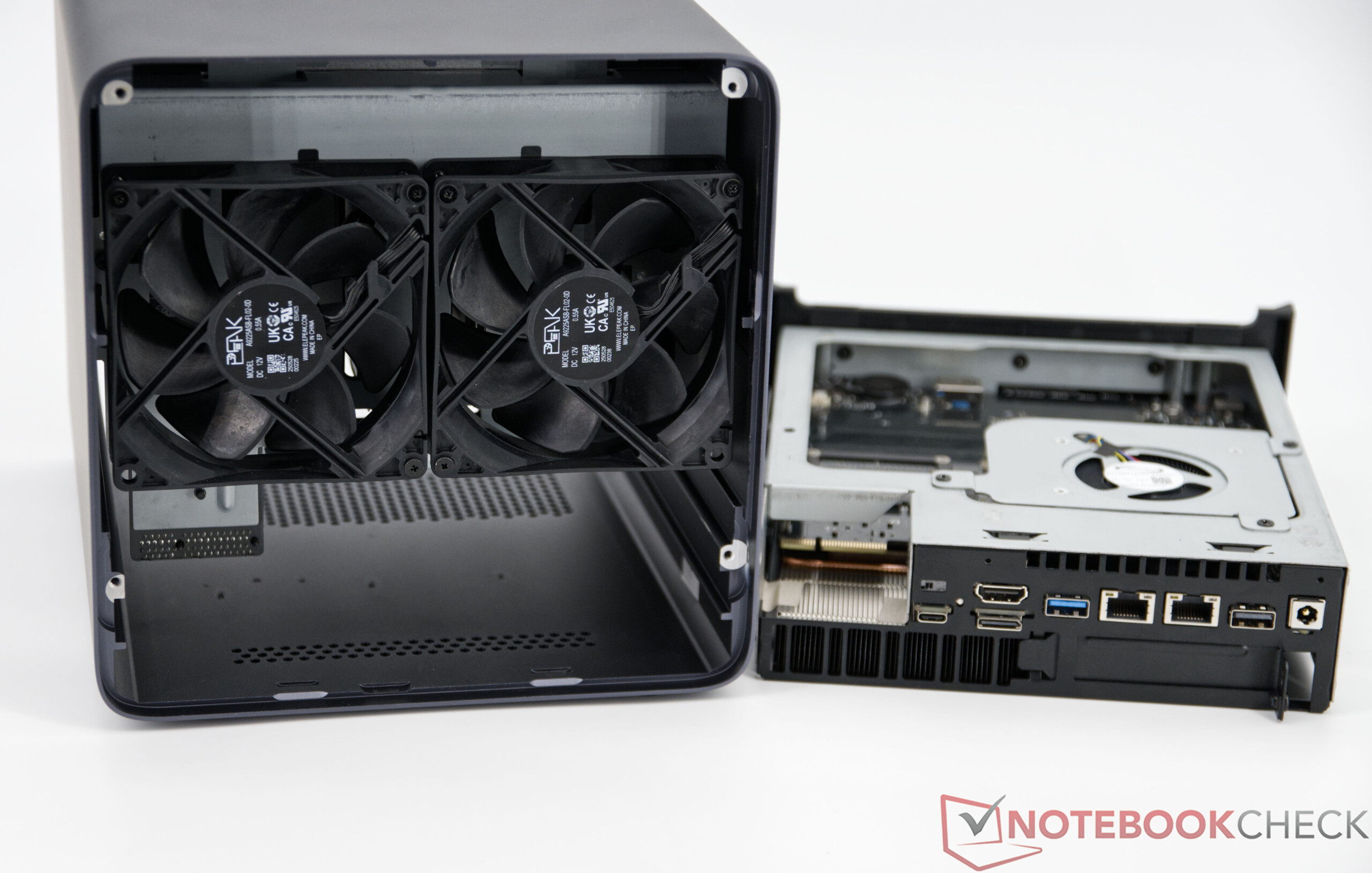

维护

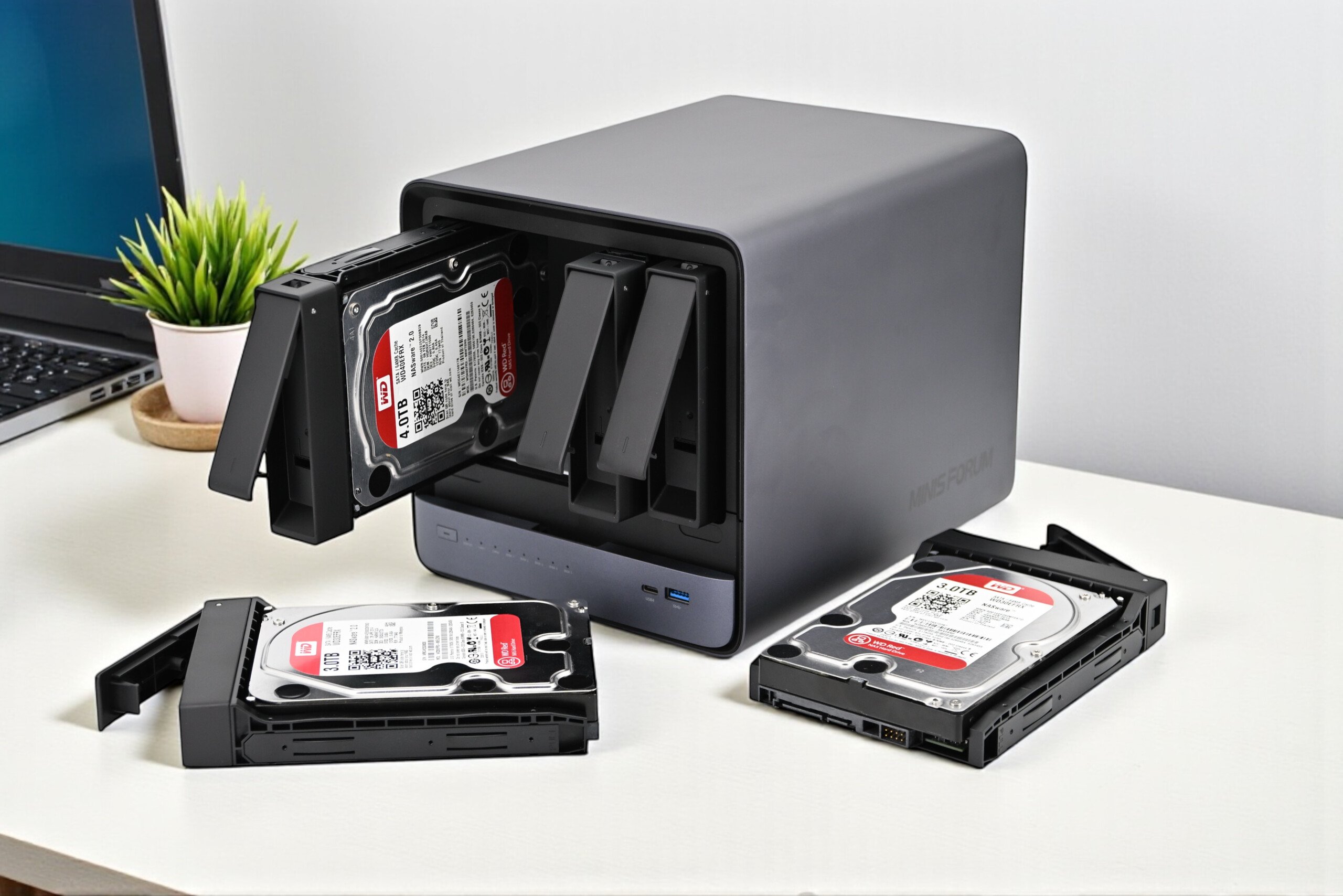

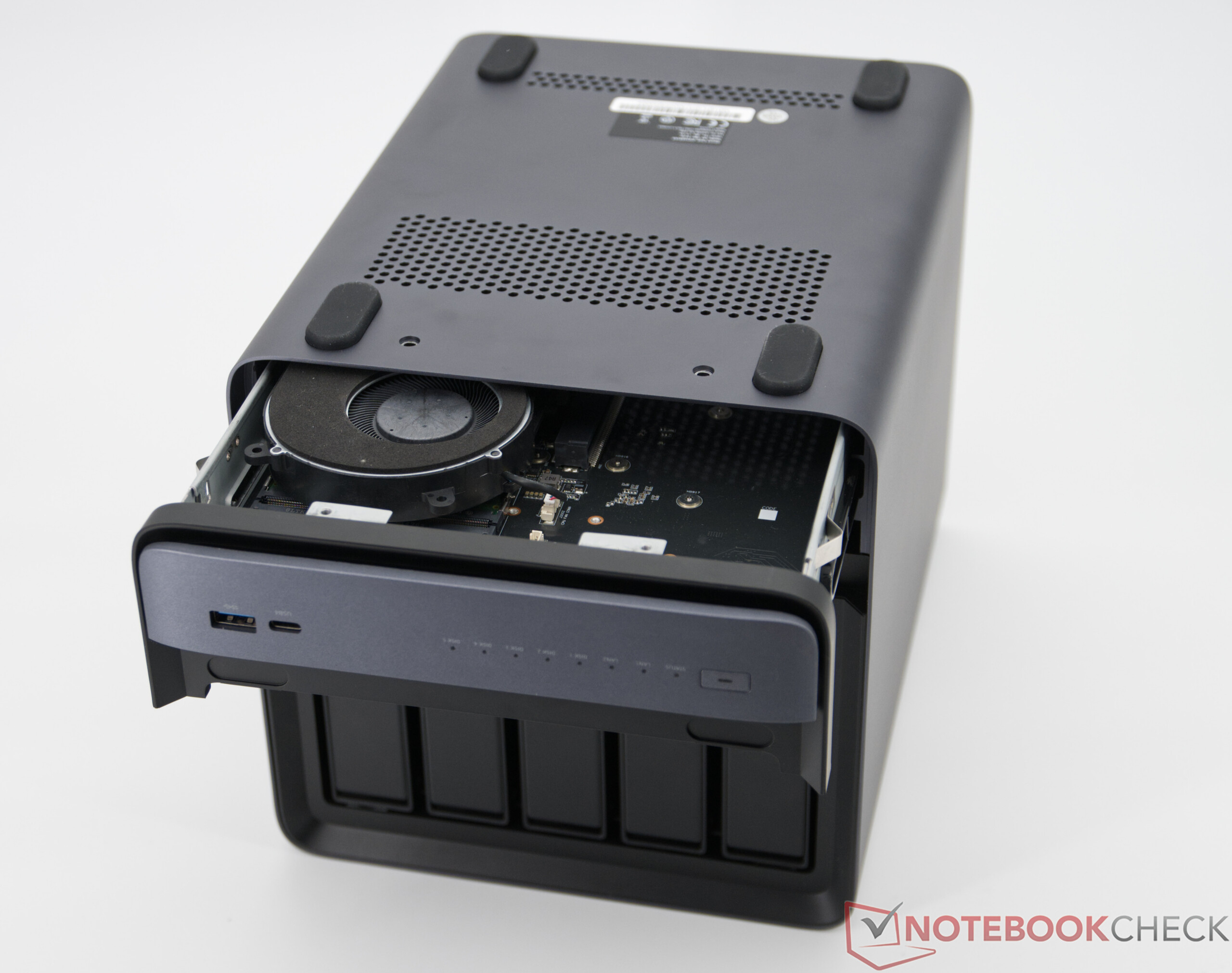

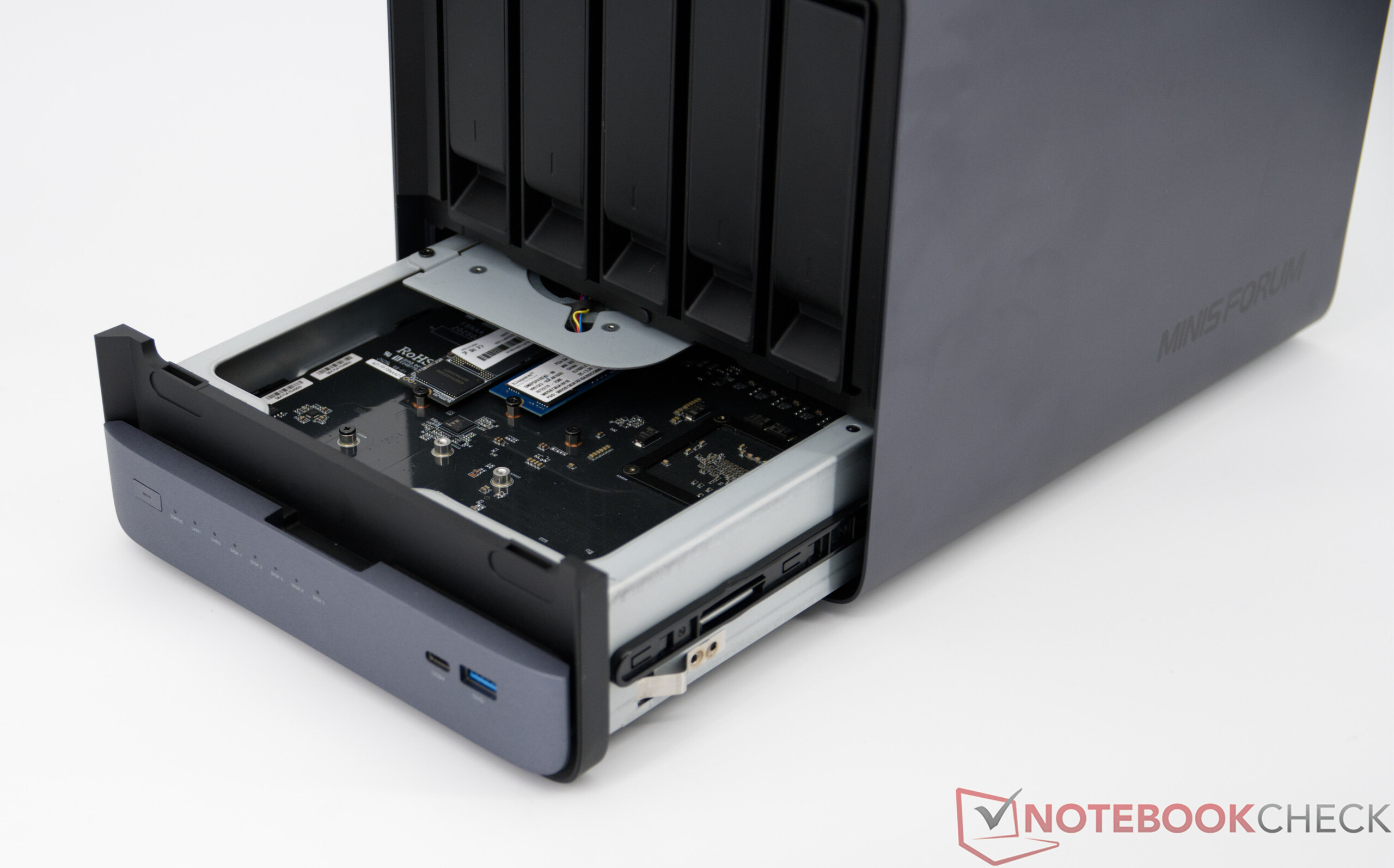

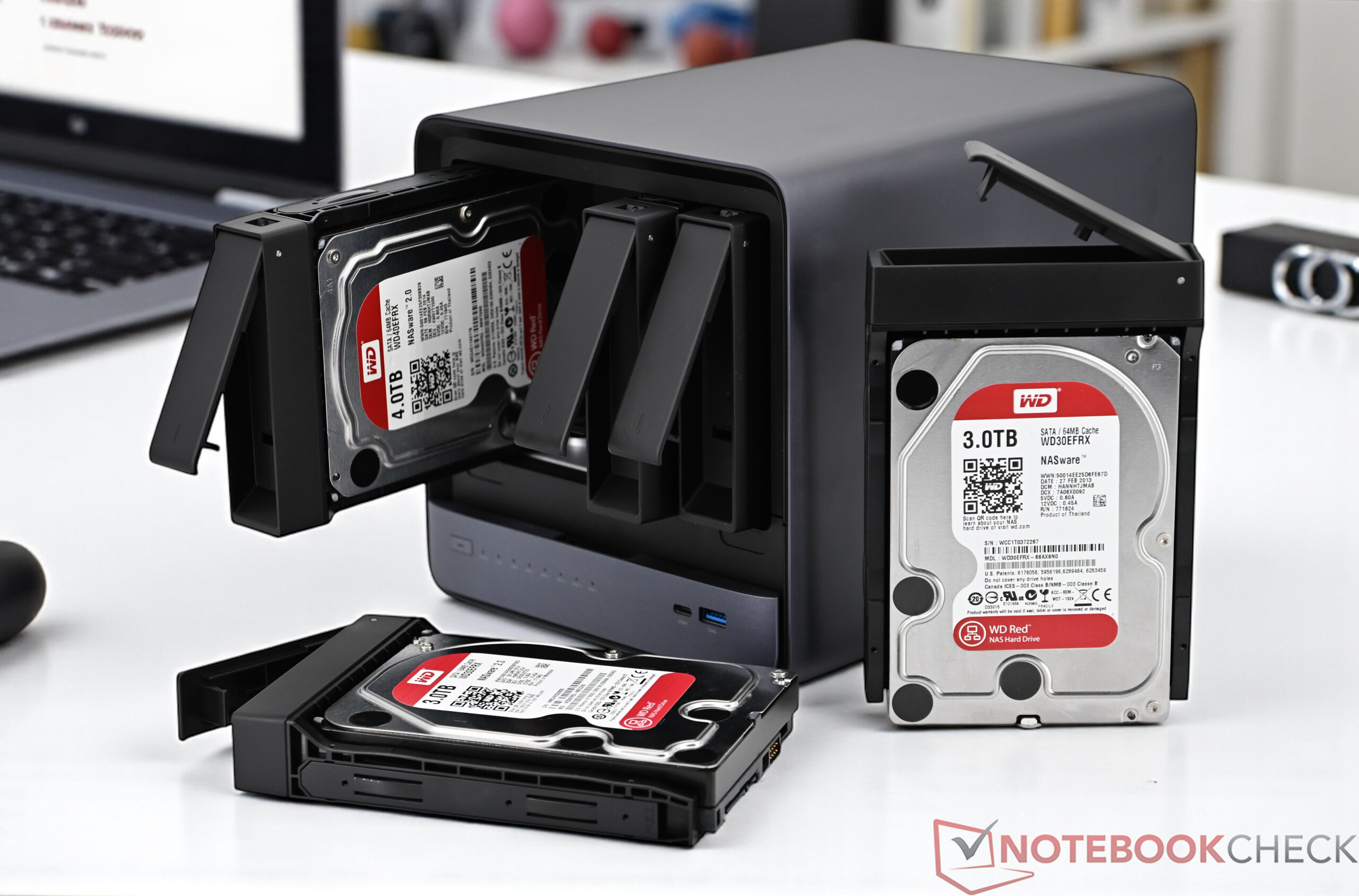

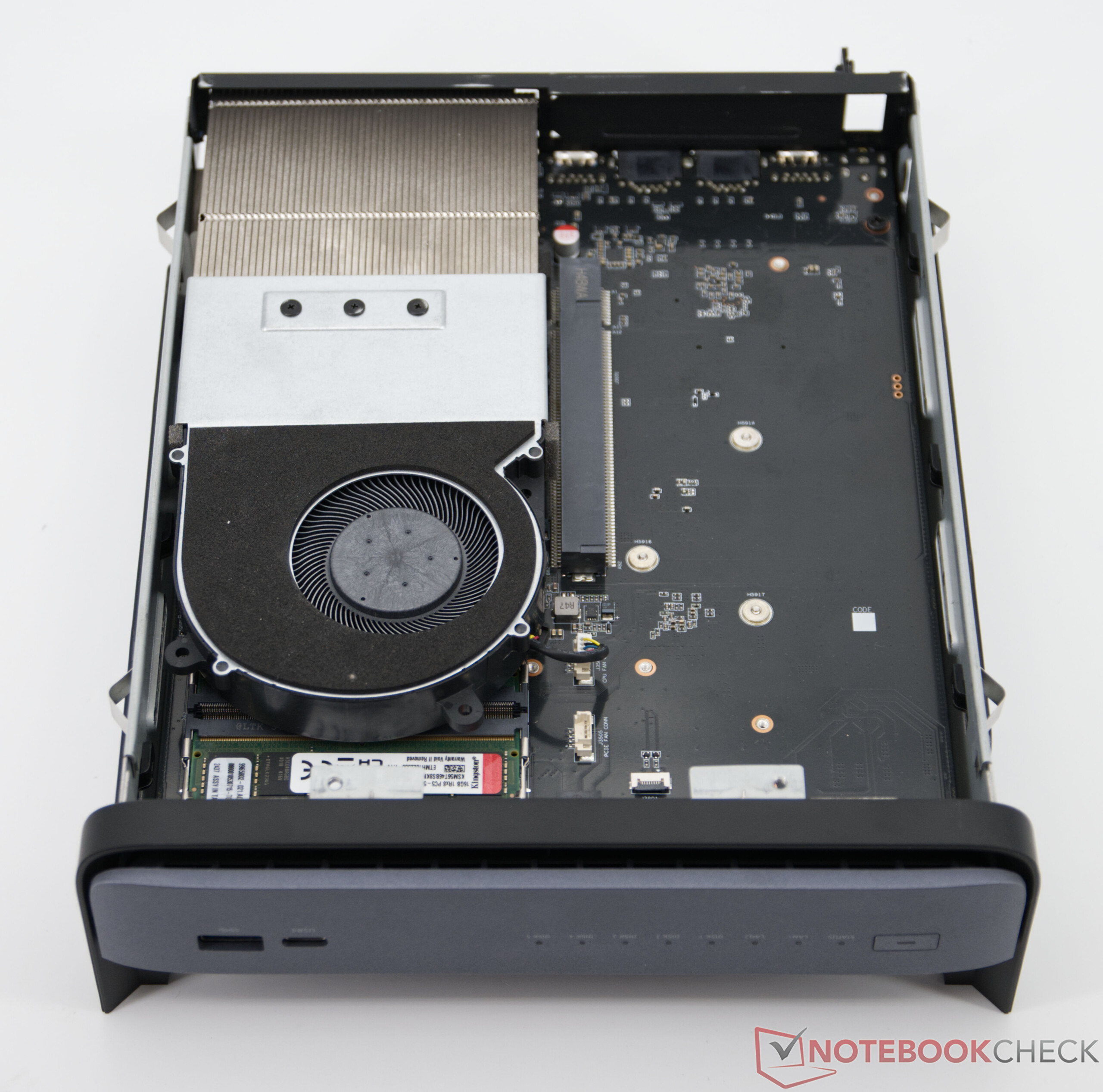

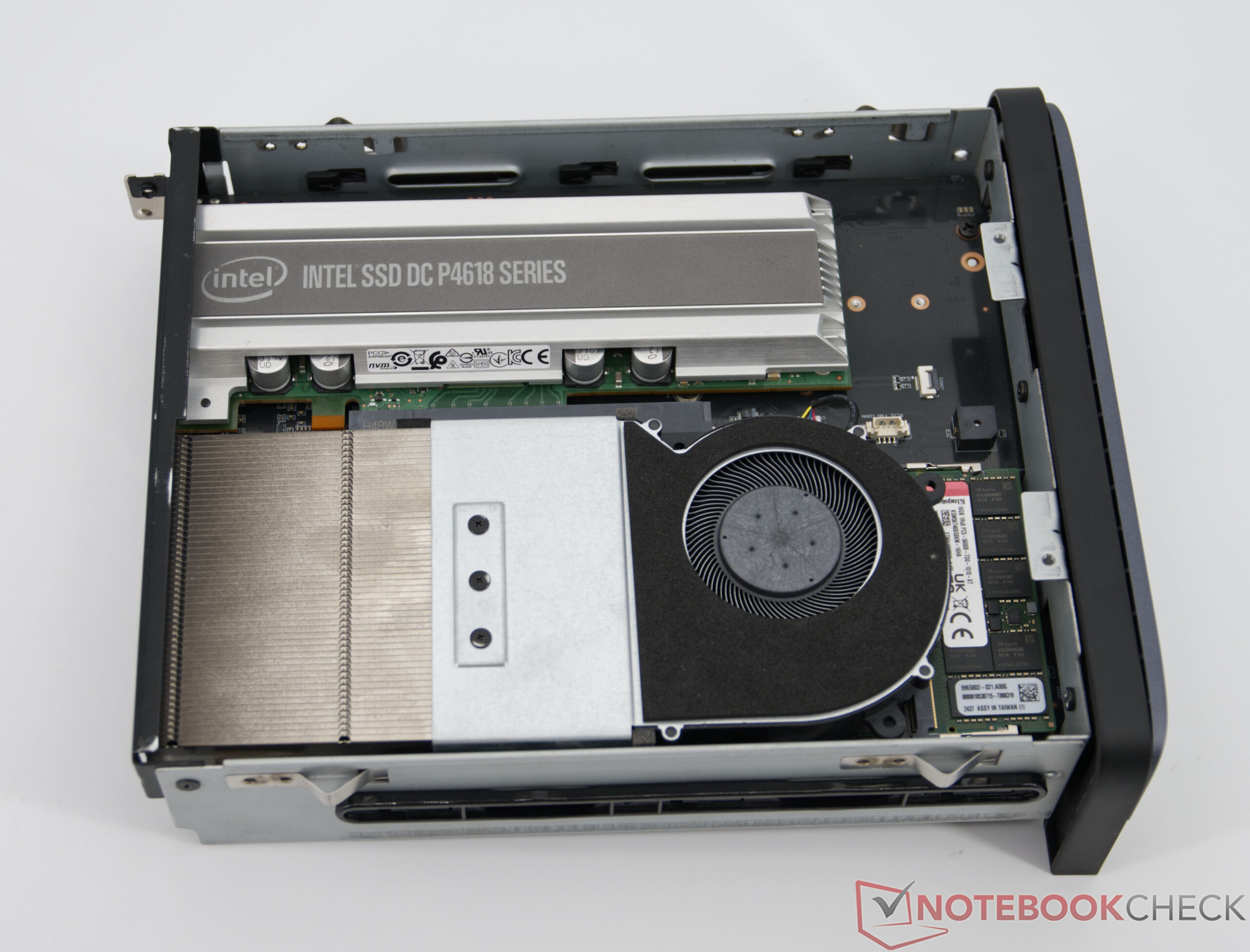

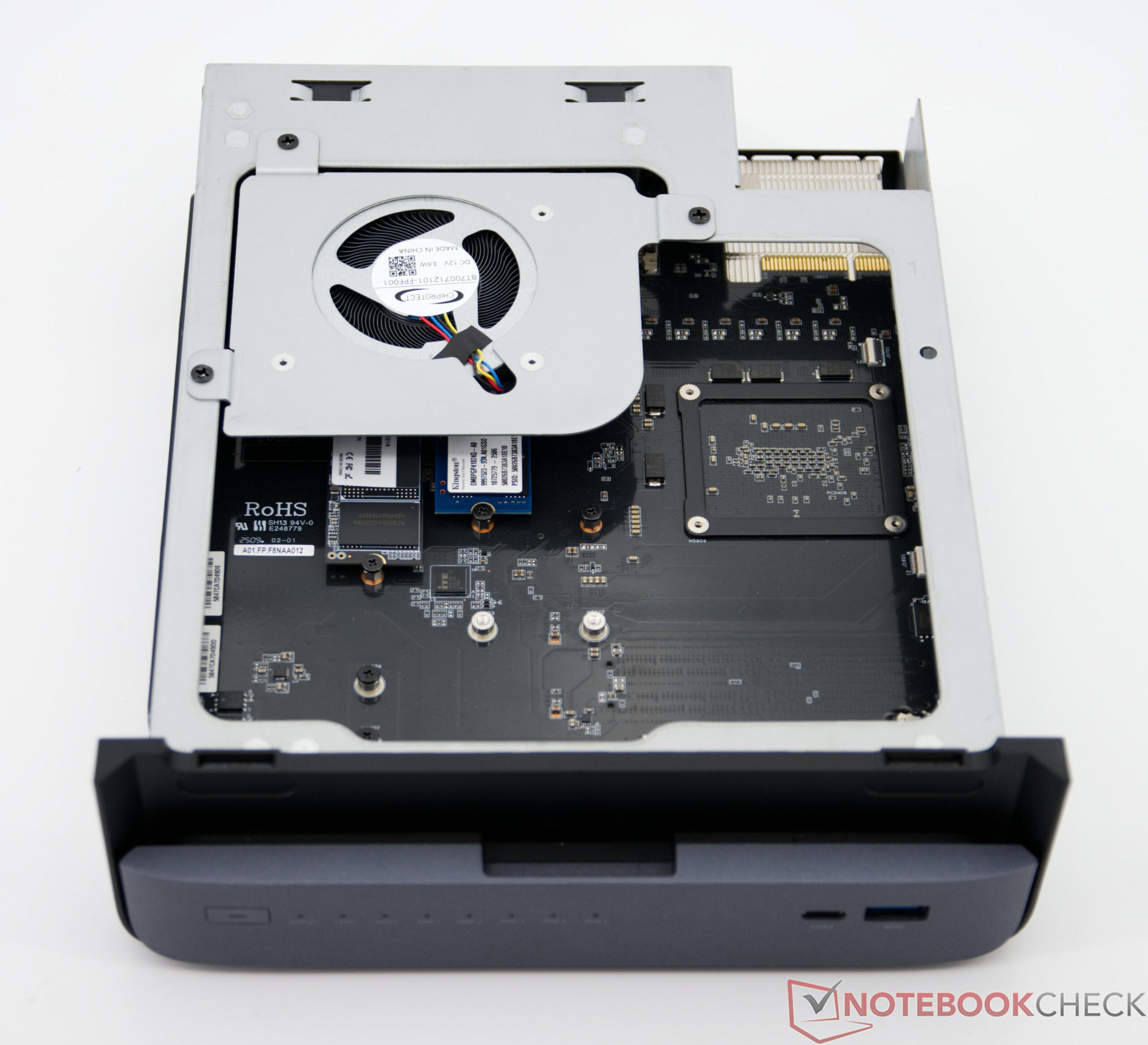

Minisforum N5 Pro 的维护工作非常简单。硬盘托架无需工具即可拆卸，安装也很方便。实际的 Mini PC 单元只用两颗螺钉固定，拆下后很容易拉出。因此，扩展或清洁工作也不费吹灰之力。
可持续性

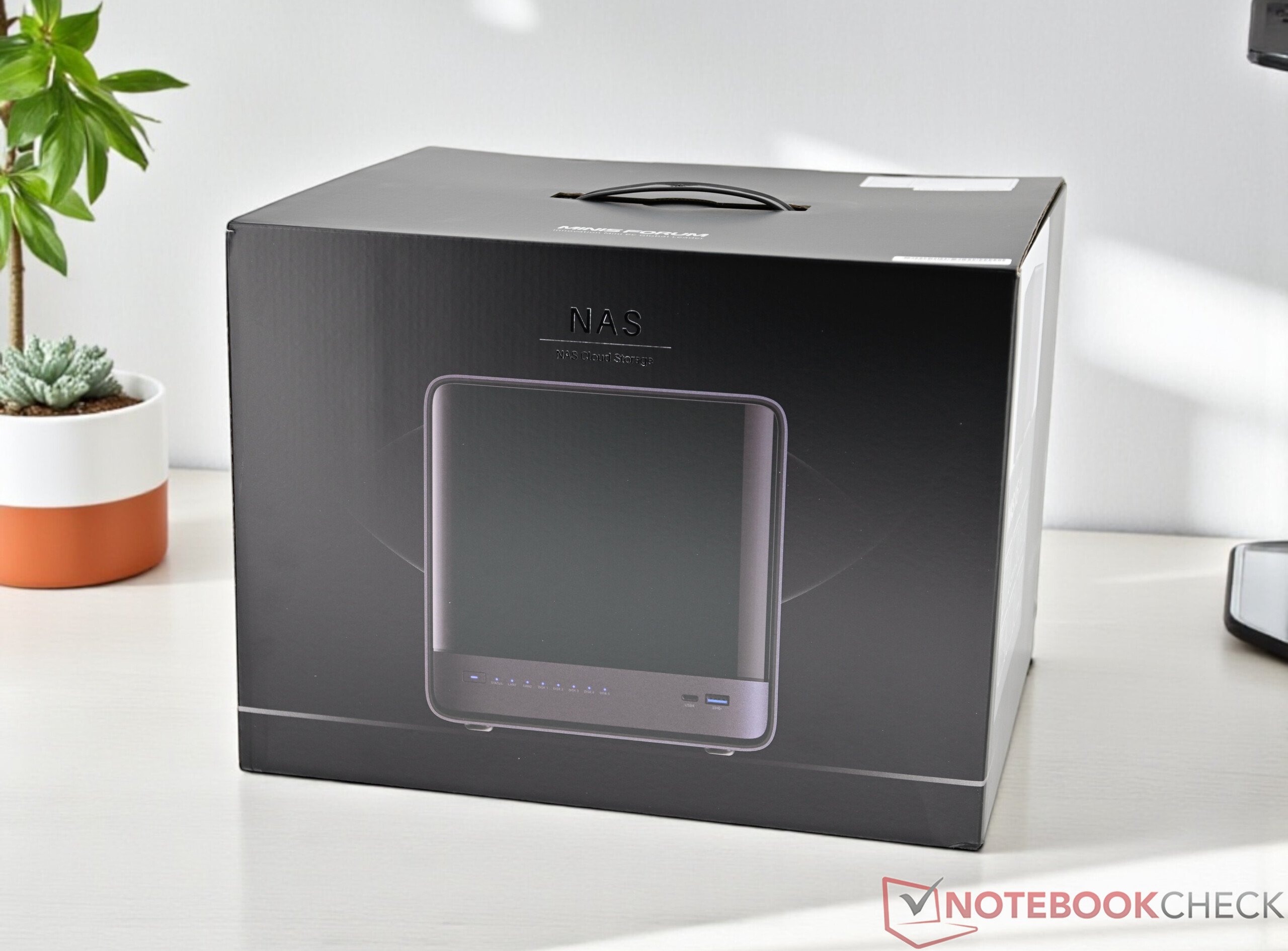

Minisforum 没有就 N5 Pro 生产过程中可能存在的可持续发展问题提供更多细节。包装主要由硬纸板组成，仅辅以一些泡沫塑料元素，以便在运输过程中保护设备。
性能
该 NAS 配备了 AMD Ryzen AI 9 HX PRO 370，提供了一个功能强大的 SoC，其中有一个独立的 NPU。Minisforum N5 Pro 还可配备高达 96 GB 的 ECC 内存。
测试条件
所有性能测试均在平衡模式下进行，这也符合 Minisforum N5 Pro 的交付状态。

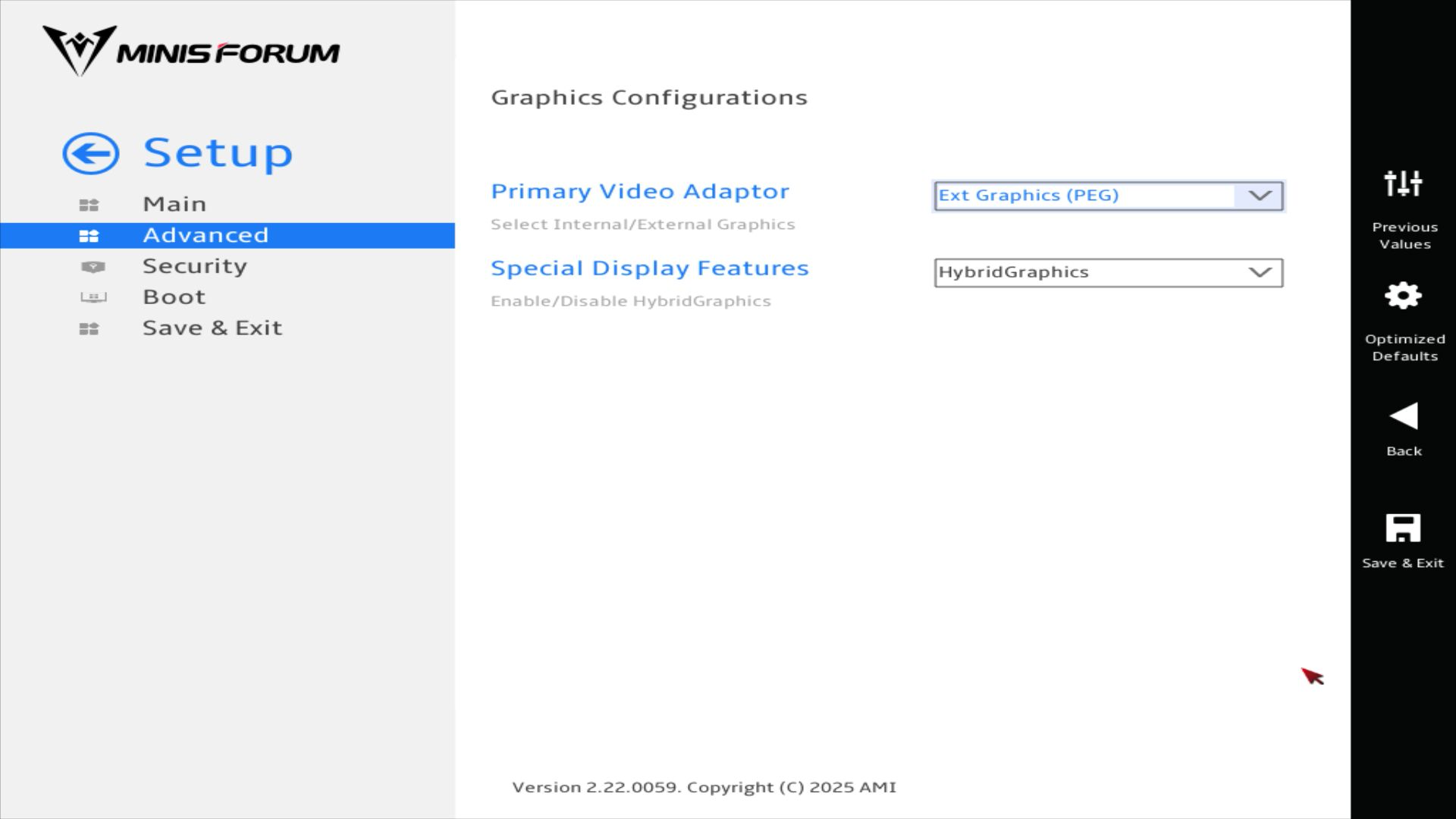

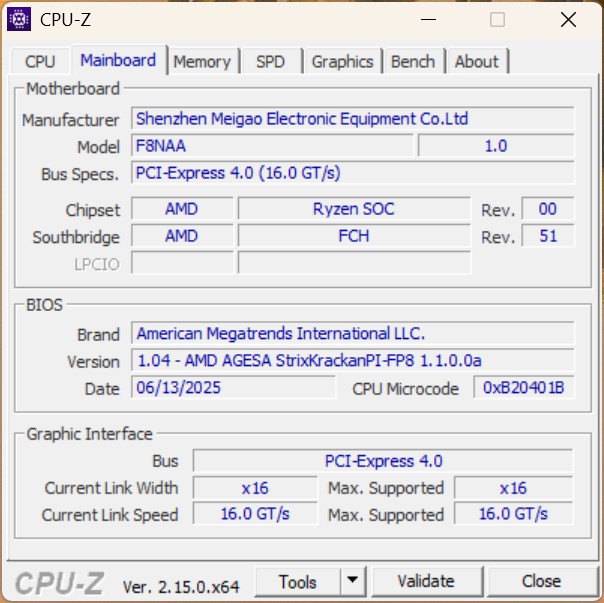

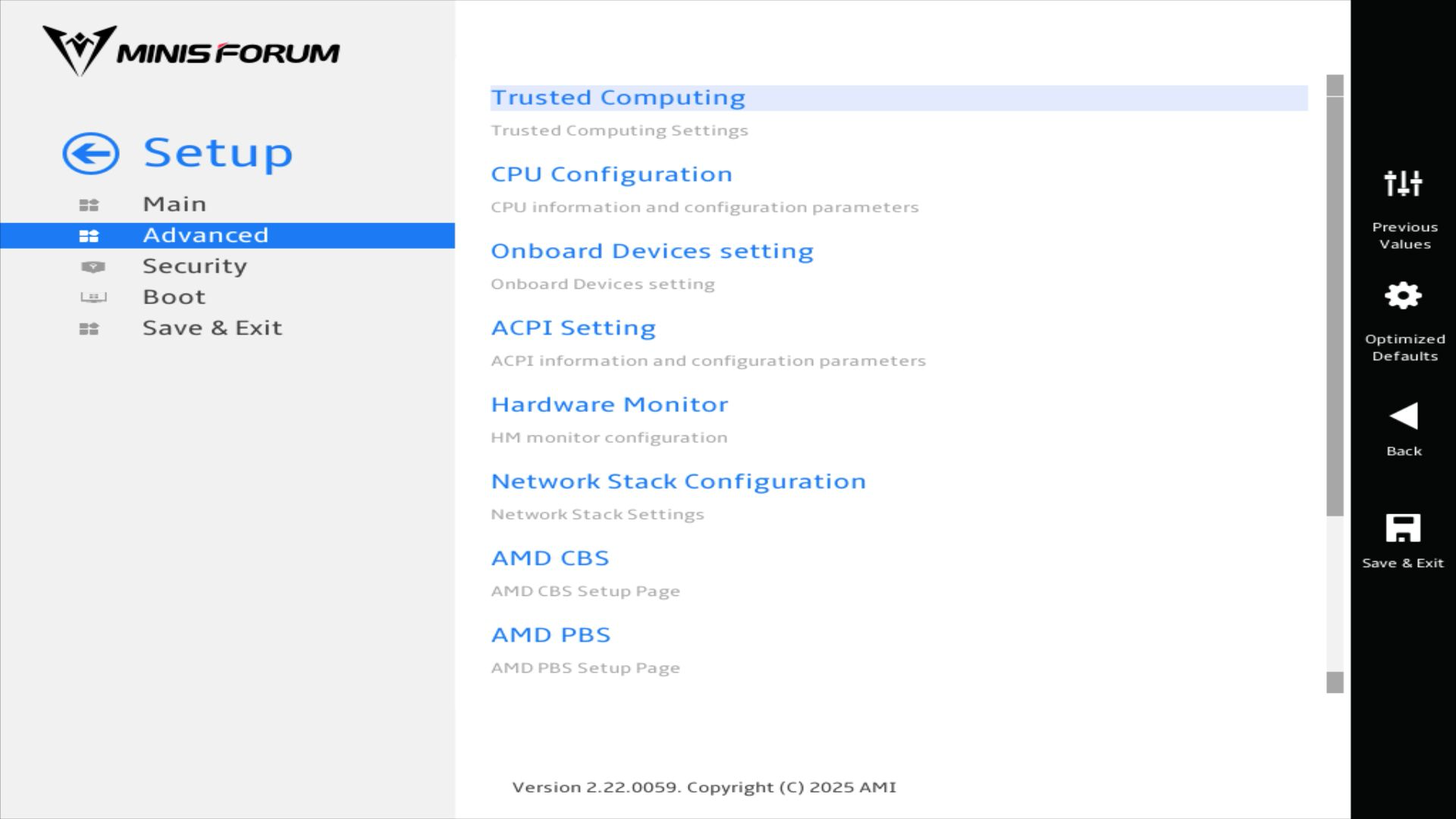

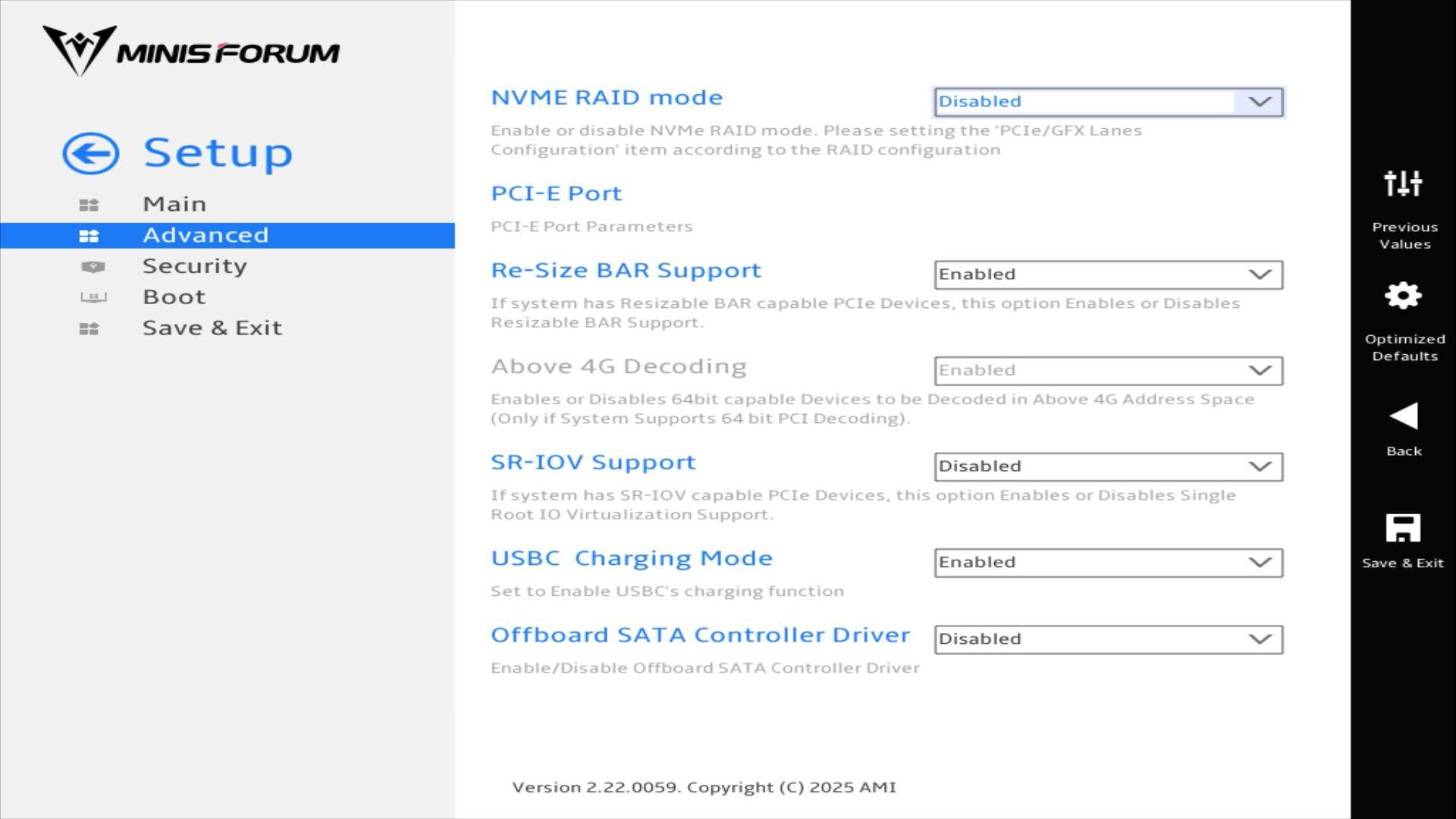

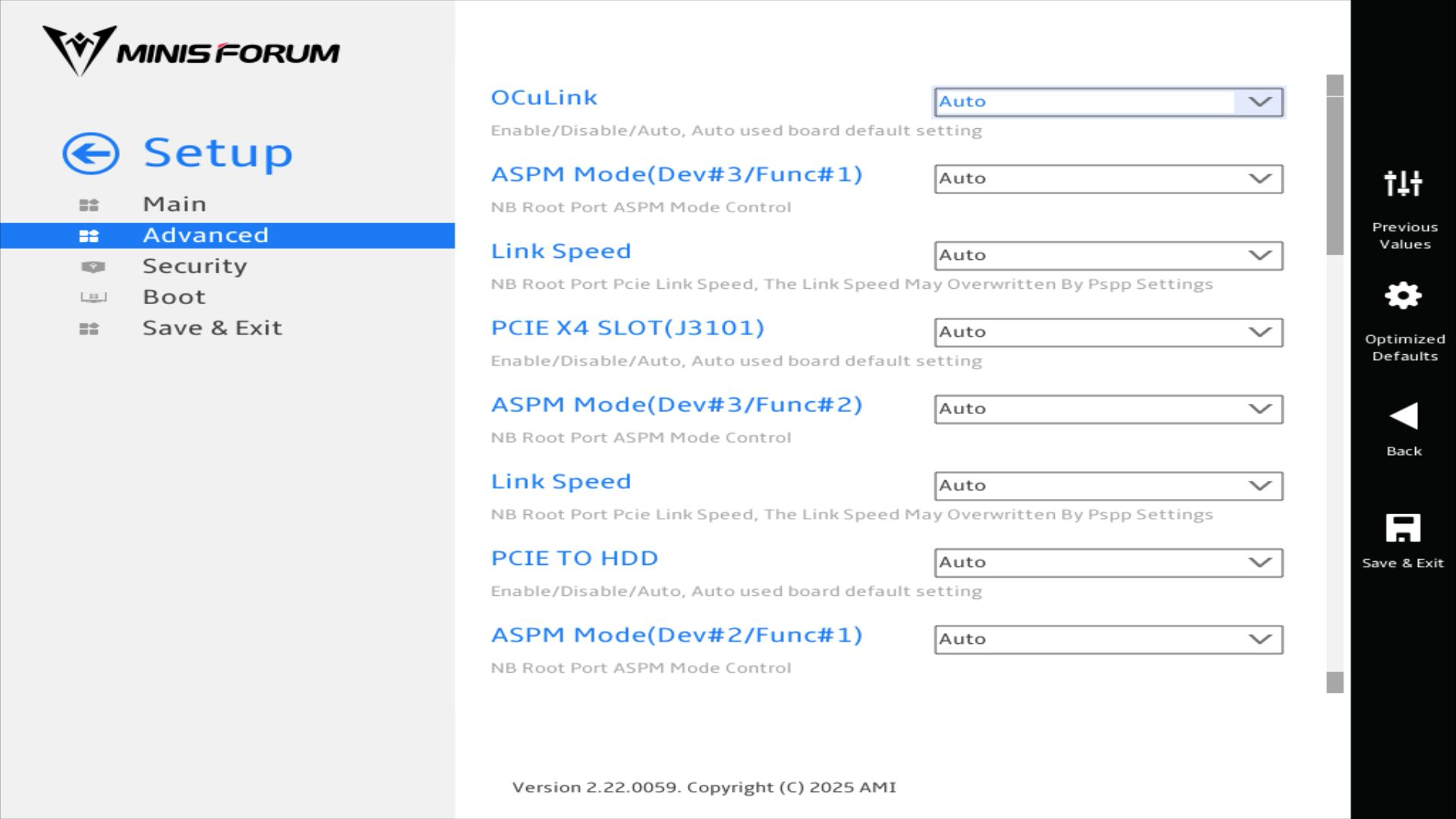

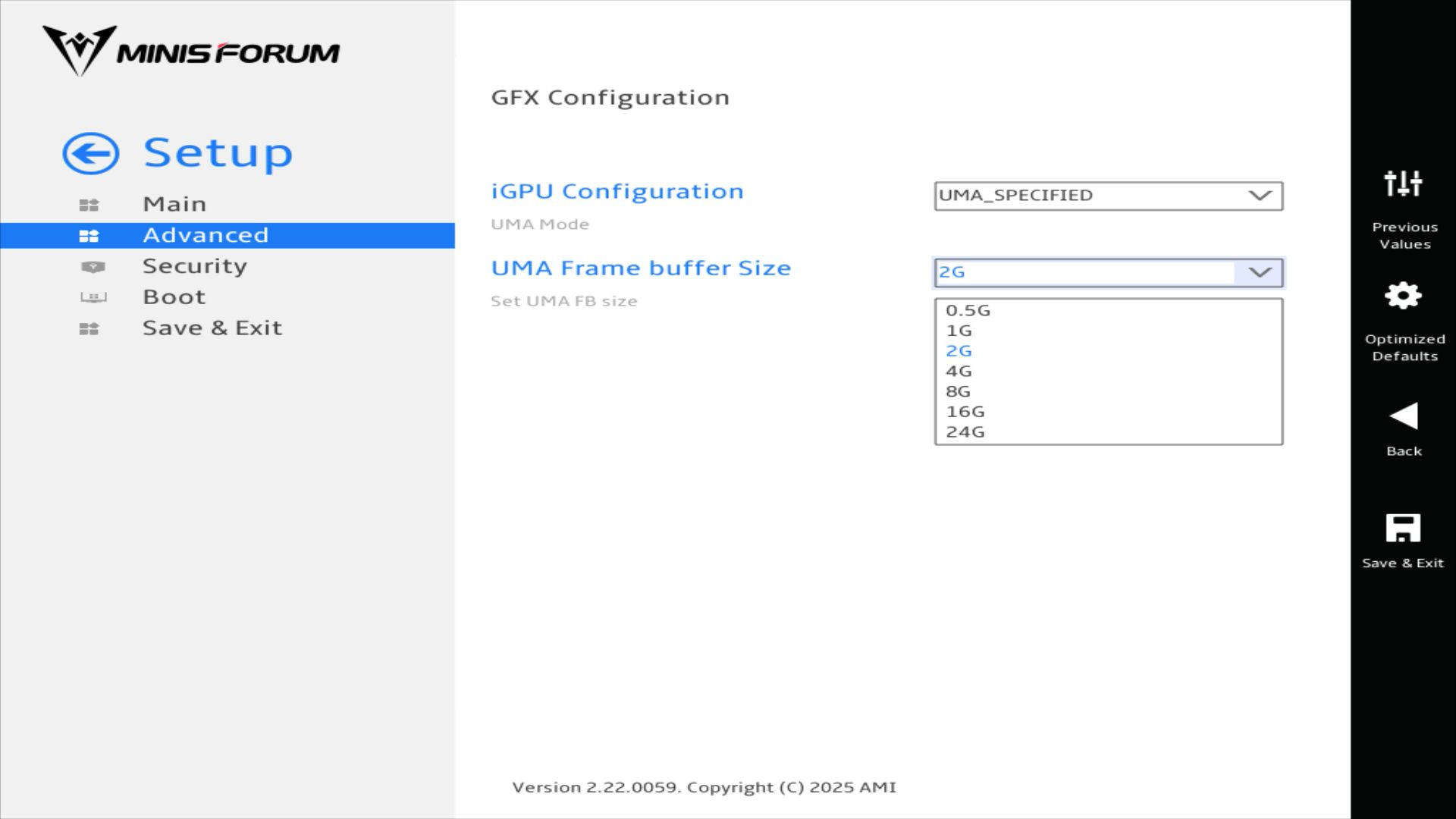

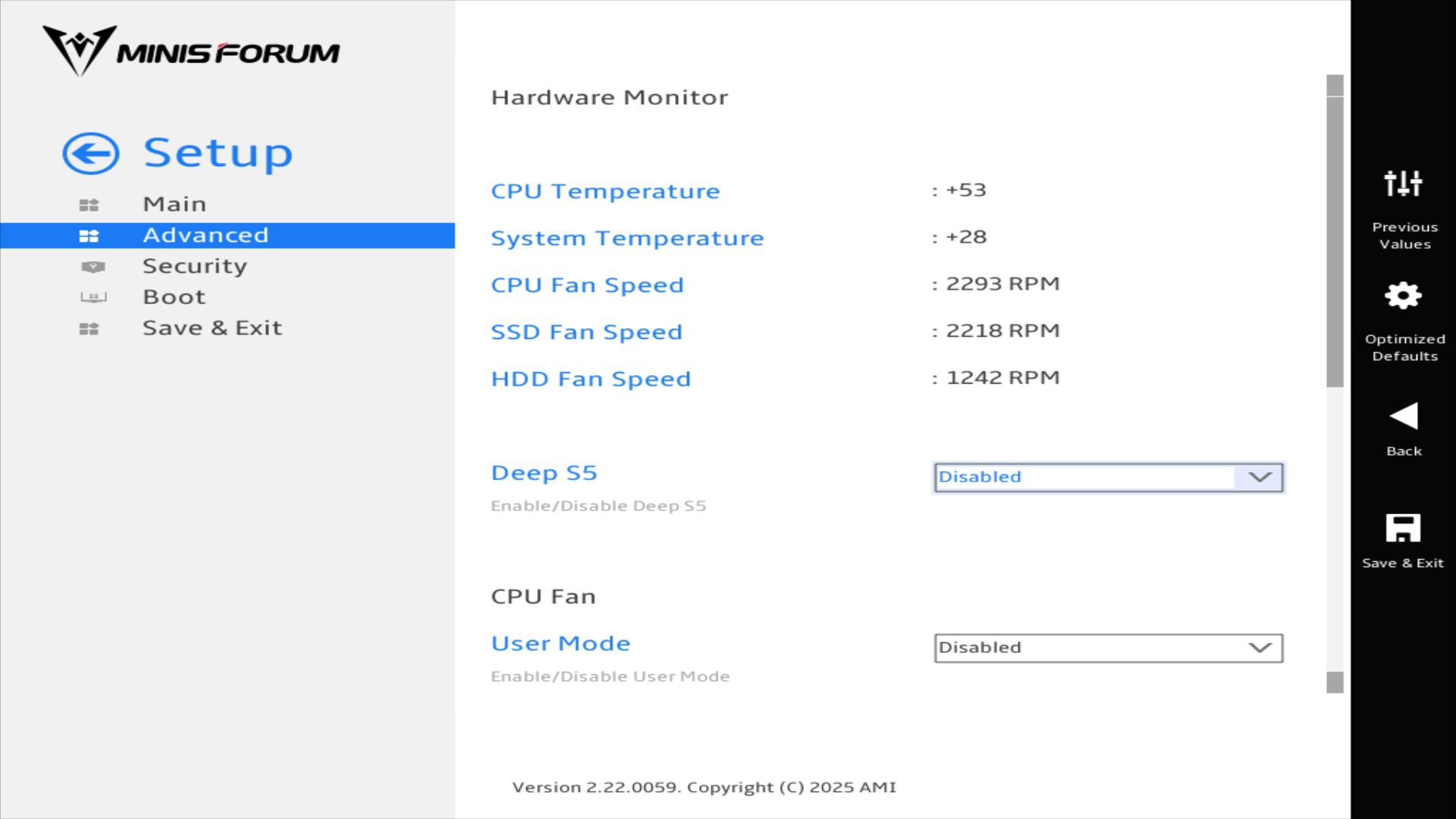

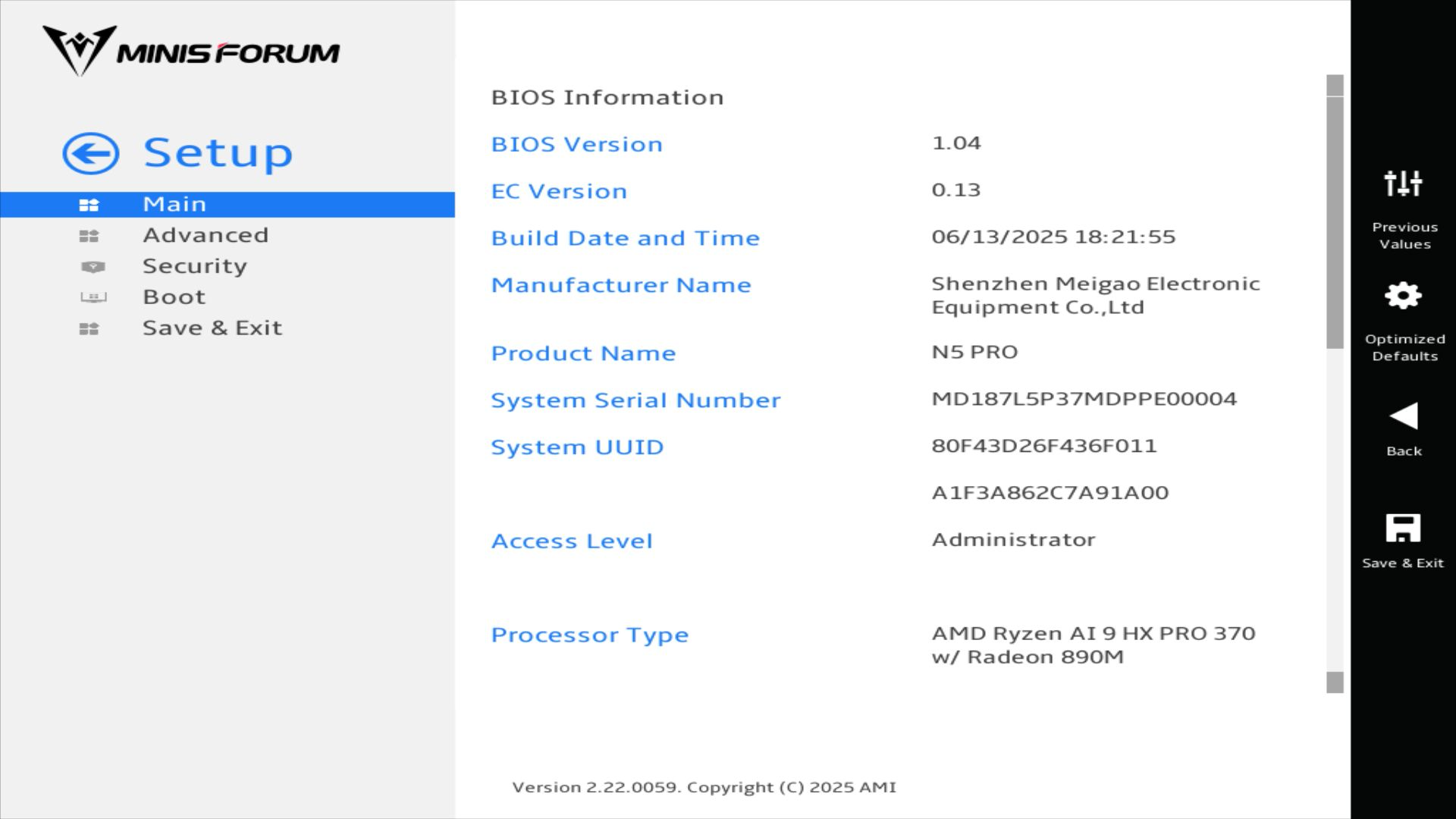

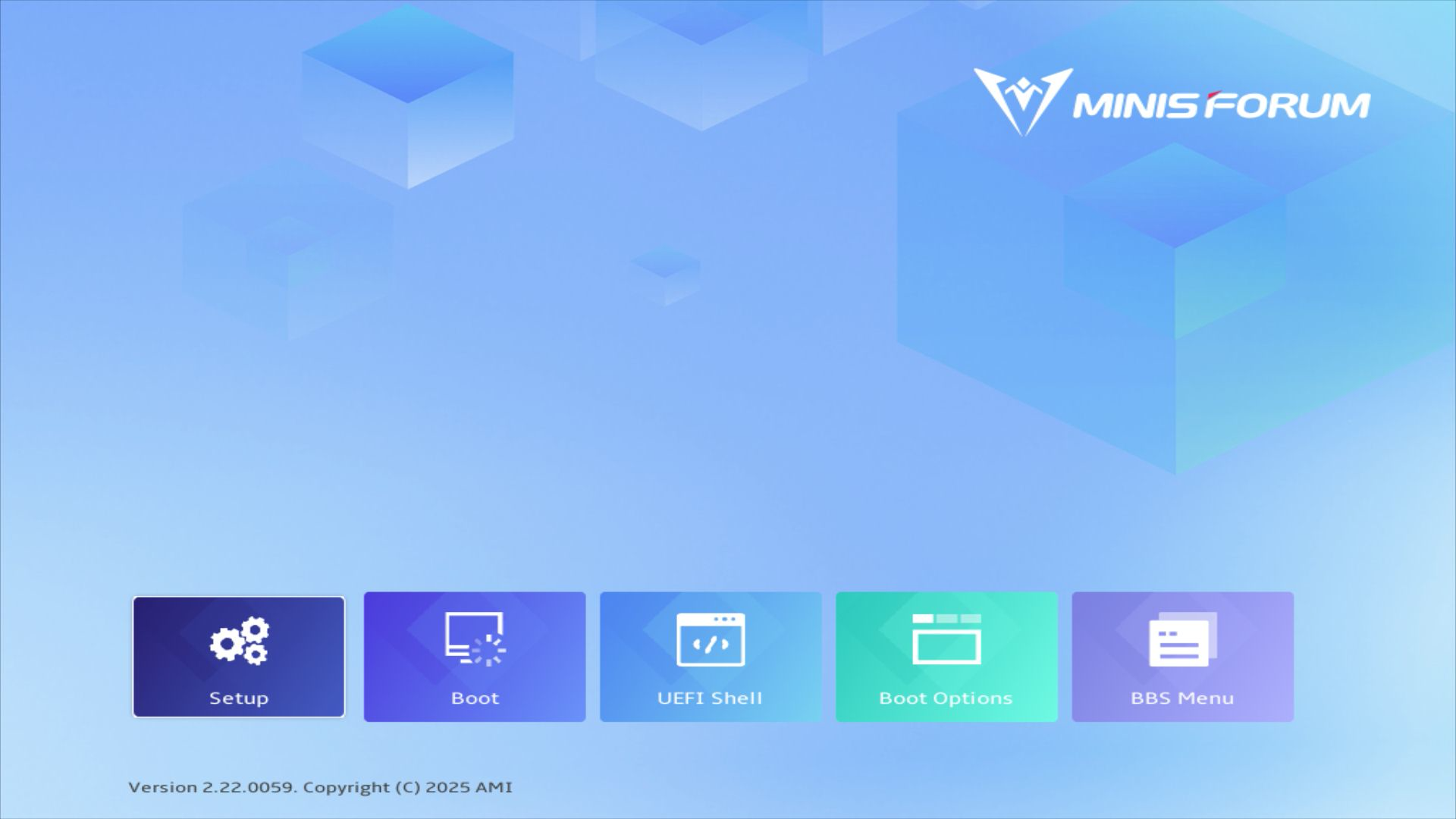

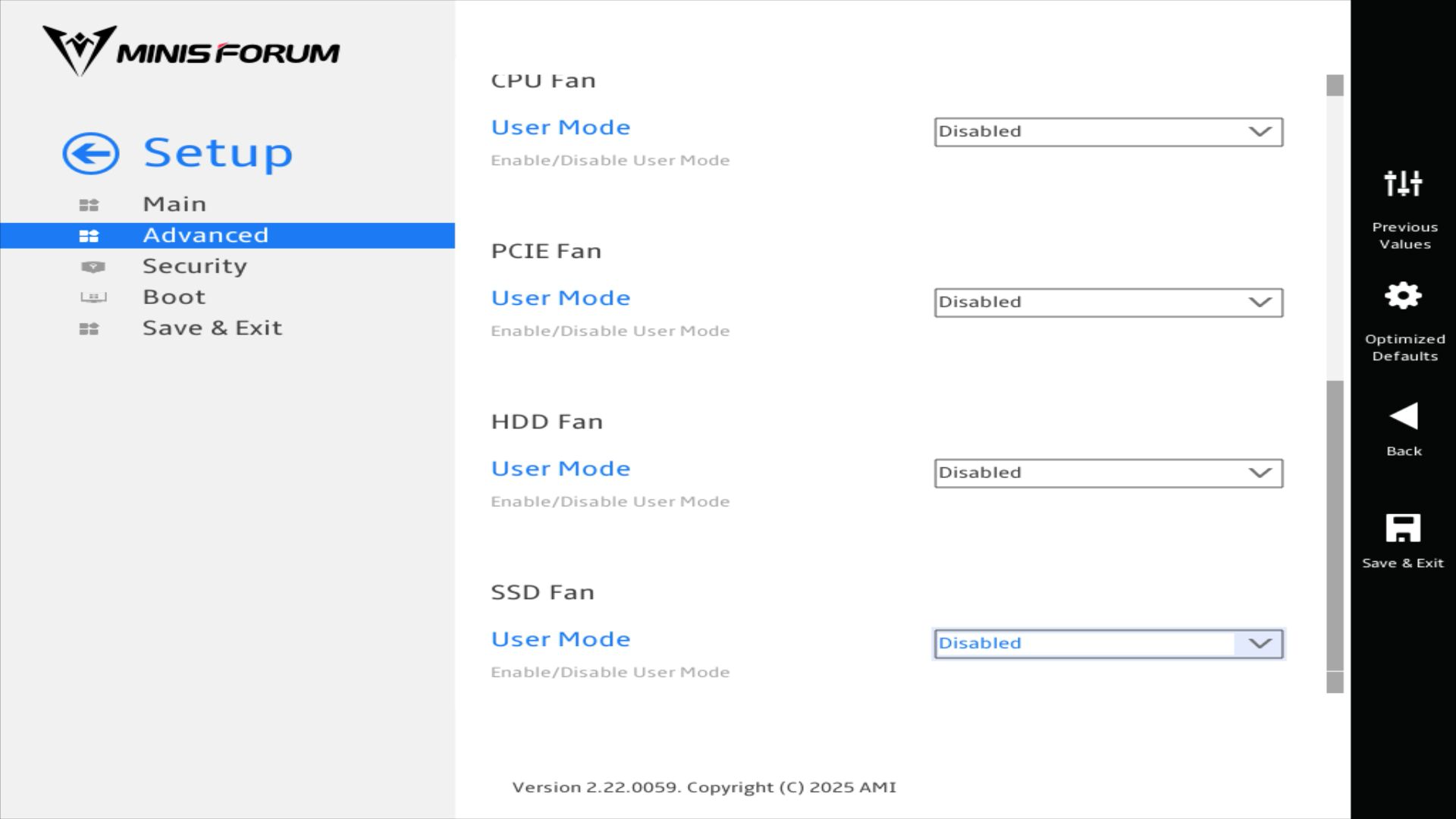

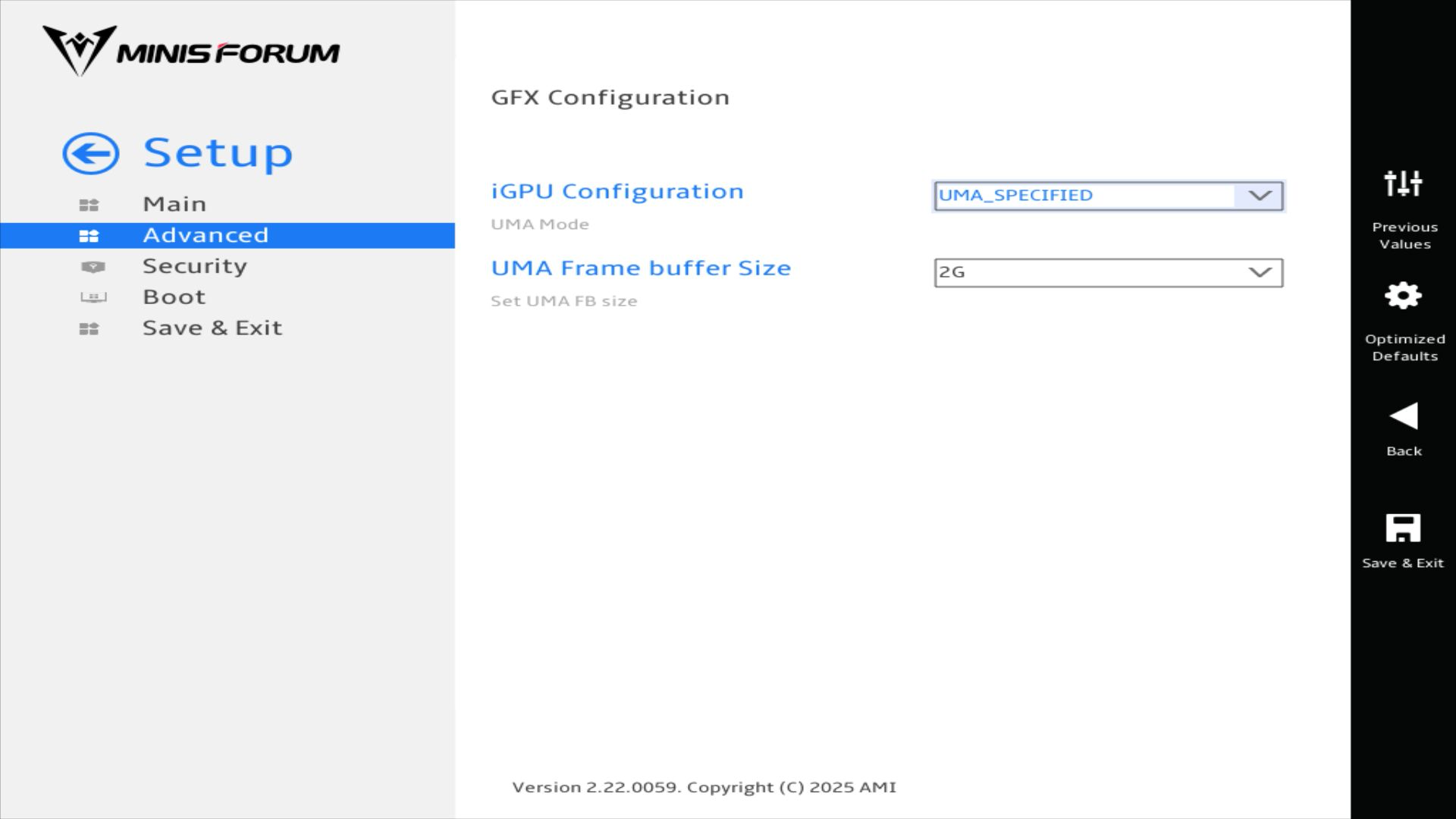

UEFI 设置
处理器

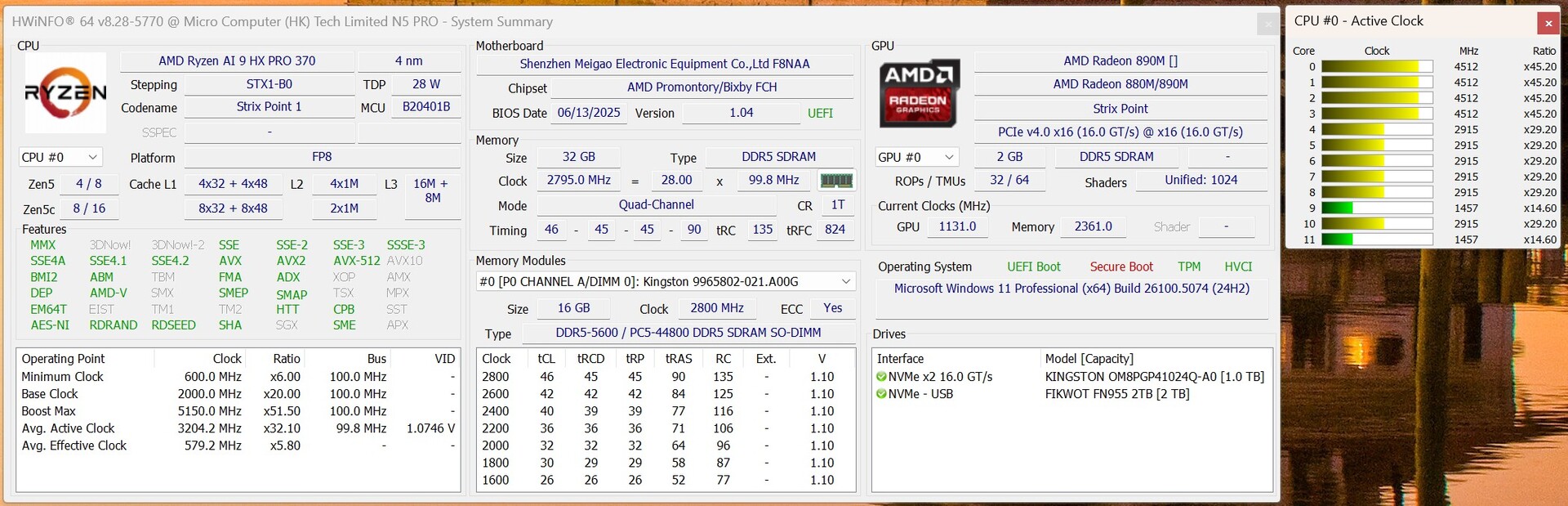

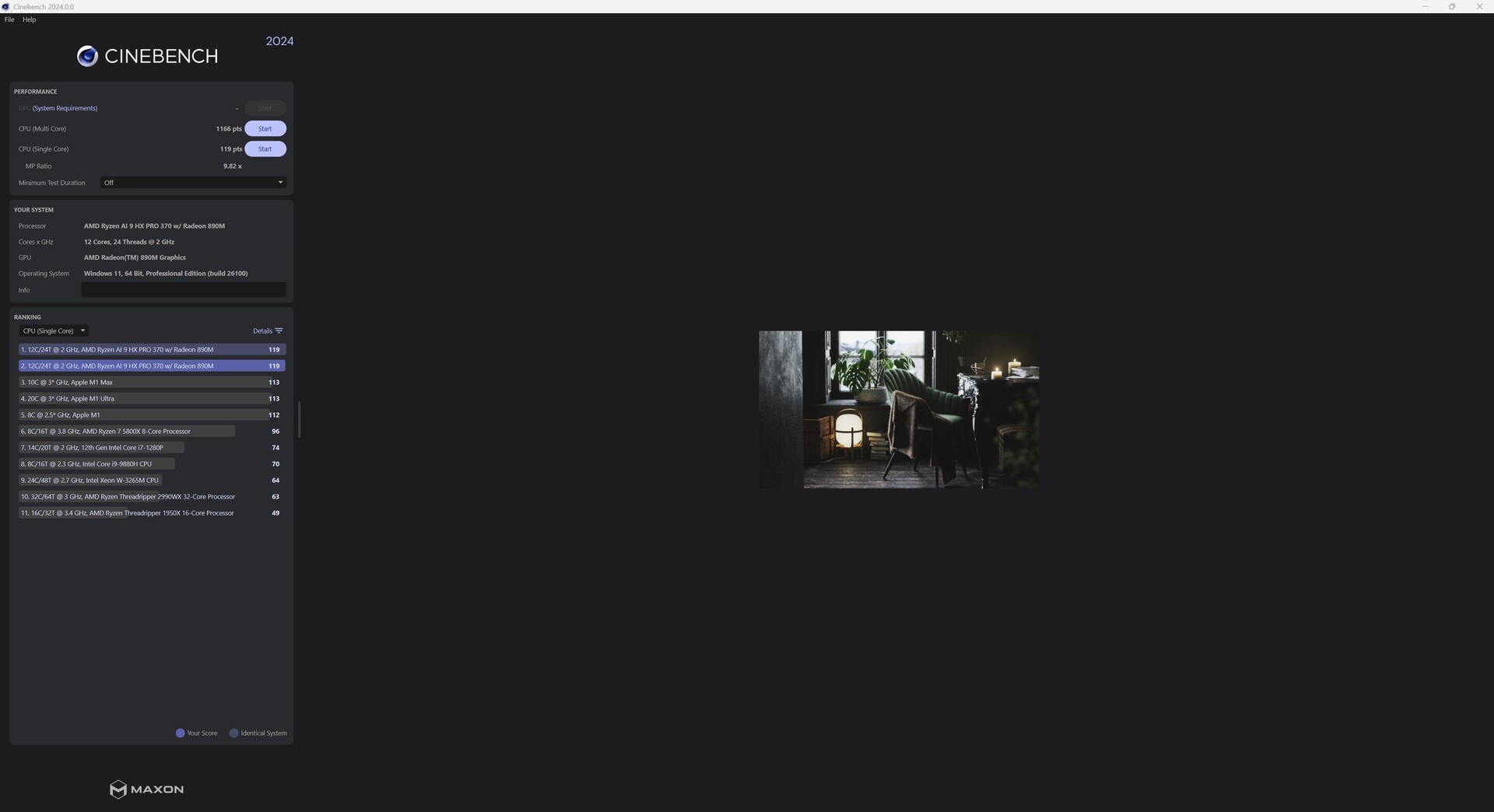

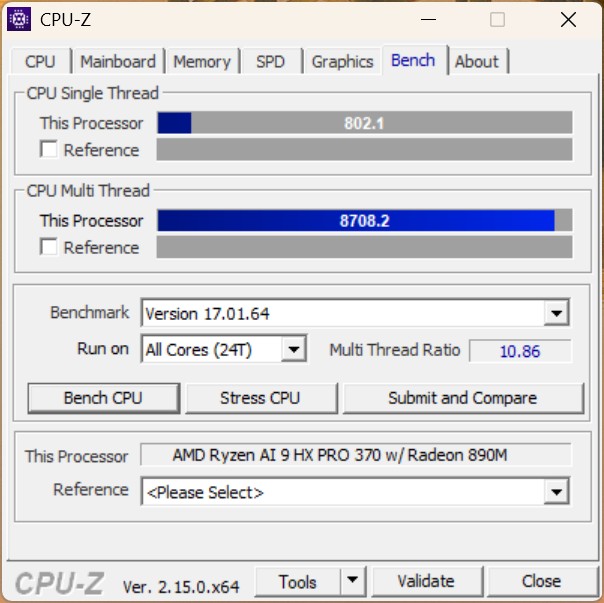

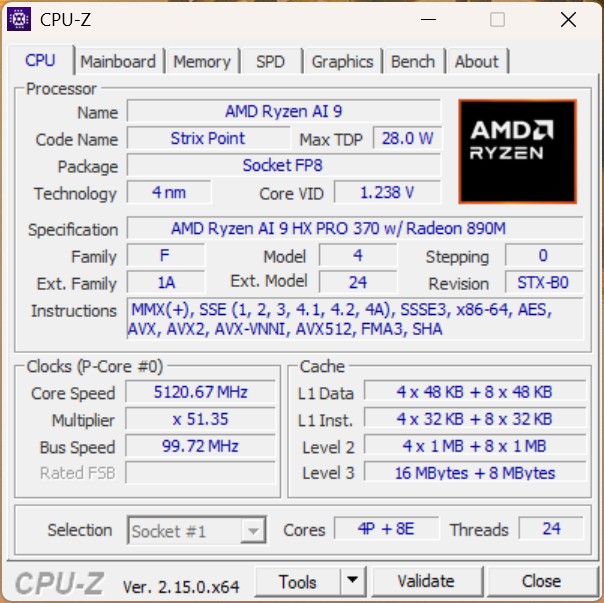

Minisforum N5 Pro 中的 AMD Ryzen AI 9 HX PRO 370 是最新 Zen 5 架构的 12 核处理器，在单核和多核任务中均表现出色。得益于该 CPU，NAS 实现了与 GMKtec EVO-T1 中的英特尔酷睿 Ultra 9 285H 不相上下的超强计算能力。 GMKtec EVO-T1移动。在直接比较中，Minisforum N5 Pro NAS 的性能优于 Aoostar WTR Pro在性能方面有明显的提升。

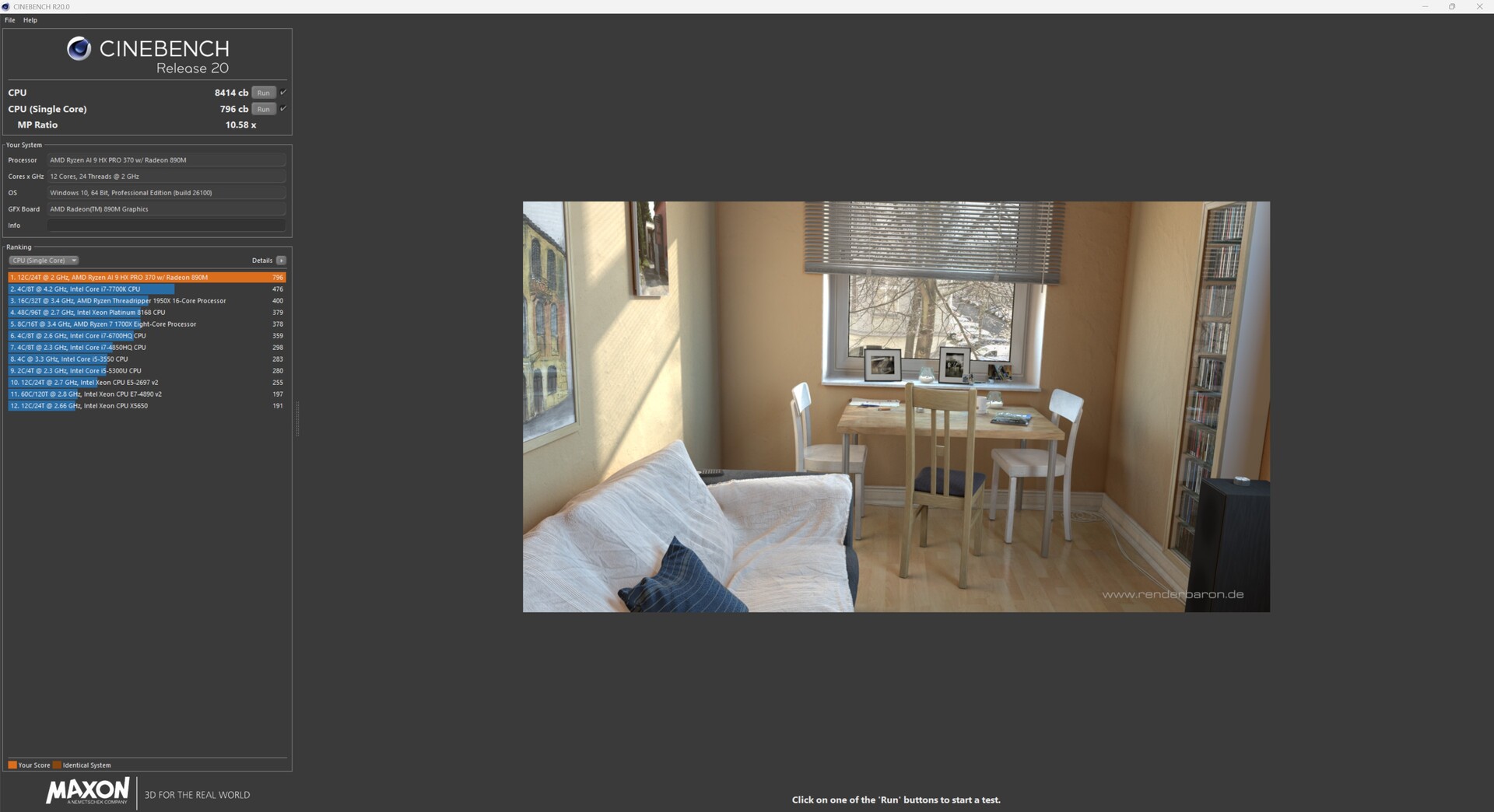

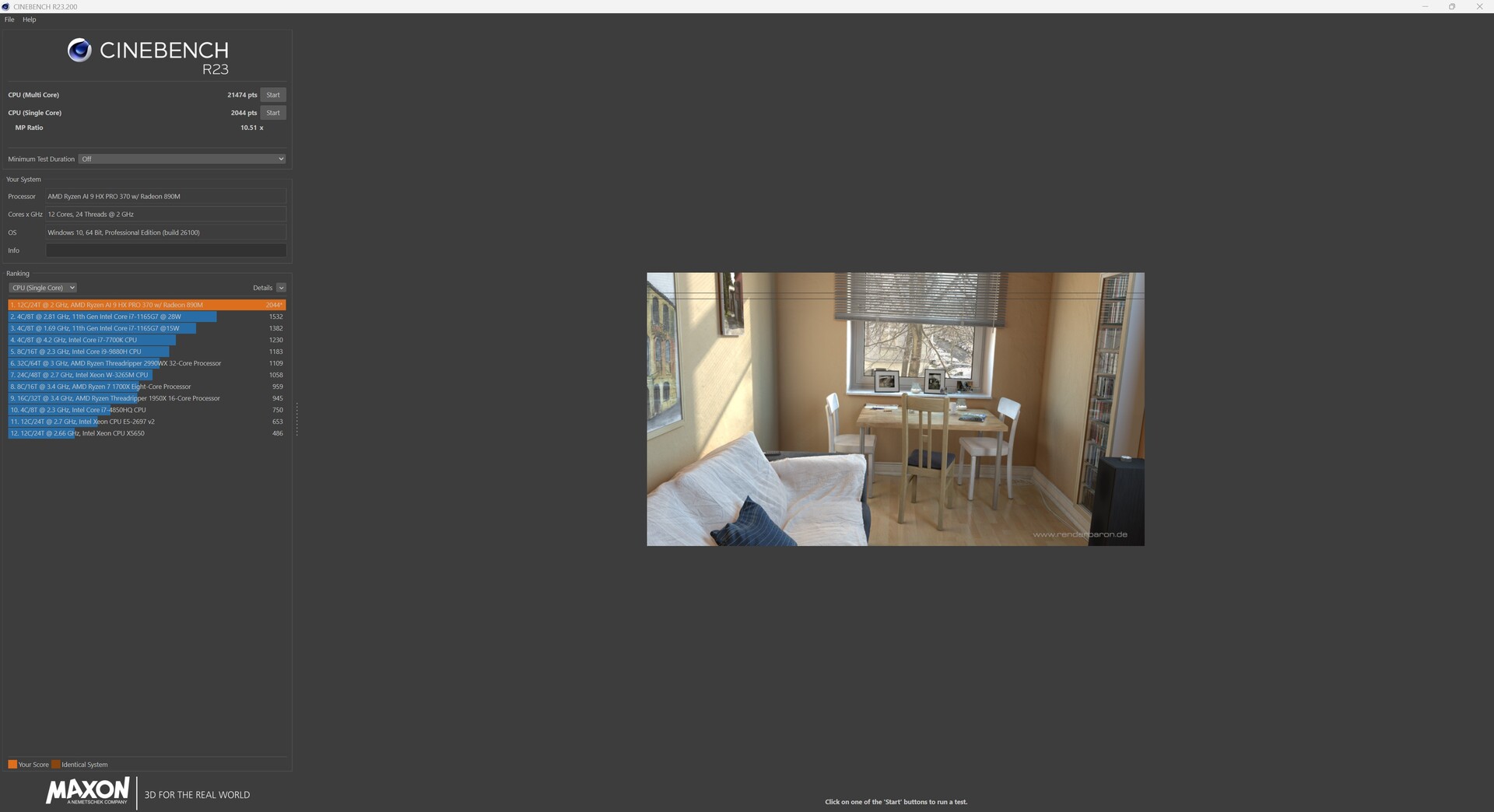

Performance rating | Cinebench 2024 | Cinebench R23 | Cinebench R20 | Cinebench R15 | Cinebench R11.5 | Cinebench R10 | Blender | wPrime 2.10 | X264 HD Benchmark 4.0 | WinRAR | TrueCrypt | Geekbench AI | Geekbench 6.5 | Geekbench 6.0 | Geekbench 5.5 | Geekbench 5.0 | Geekbench 4.4 | 3DMark 11 | 7-Zip 18.03 | HWBOT x265 Benchmark v2.2 | R Benchmark 2.5 | LibreOffice | 3DMark | Super Pi mod 1.5 XS 1M | Super Pi mod 1.5 XS 2M | Affinity Photo 2 | SPECworkstation 4.0
| Performance rating - Percent | |
| GMK EVO-T1 | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| Cinebench R10 | |
| Rendering Single CPUs 64Bit | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| Rendering Multiple CPUs 64Bit | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| WinRAR - Result | |
| Geekom Mini IT15, Ultra 9 285H | |
| Aoostar WTR Pro, R7 5825U | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| 3DMark 11 - 1280x720 Performance Physics | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Aoostar WTR Pro, R7 5825U | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| R Benchmark 2.5 - Overall mean | |
| Aoostar WTR Pro, R7 5825U | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
| Minisforum N5 Pro | |
| Geekom Mini IT15, Ultra 9 285H | |
| Geekom A9 Max, AI 9 HX 370 | |
| LibreOffice - 20 Documents To PDF | |
| Aoostar WTR Pro, R7 5825U | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| GMK EVO-T1 | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| Super Pi mod 1.5 XS 1M - 1M | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Aoostar WTR Pro, R7 5825U | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Super Pi mod 1.5 XS 2M - 2M | |
| Peladn HA-4, R7 7840HS | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Aoostar WTR Pro, R7 5825U | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Affinity Photo 2 - Combined (Multi CPU) | |
| GMK EVO-T1 | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| SPECworkstation 4.0 - CPU Score | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
* ... smaller is better
Performance rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance rating | |
| Average of class Desktop | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Aoostar WTR Pro, R7 5825U | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Desktop (12248 - 84577, n=17, last 2 years) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| Aoostar WTR Pro, R7 5825U | |
| AIDA64 / FPU Julia | |
| Average of class Desktop (65152 - 246125, n=17, last 2 years) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| Aoostar WTR Pro, R7 5825U | |
| AIDA64 / CPU SHA3 | |
| Average of class Desktop (2982 - 10804, n=17, last 2 years) | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| GMK EVO-T1 | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| Aoostar WTR Pro, R7 5825U | |
| AIDA64 / CPU Queen | |
| Average of class Desktop (76512 - 187912, n=17, last 2 years) | |
| Peladn HA-4, R7 7840HS | |
| Geekom A9 Max, AI 9 HX 370 | |
| Aoostar WTR Pro, R7 5825U | |
| Minisforum N5 Pro | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| AIDA64 / FPU SinJulia | |
| Average of class Desktop (6443 - 35251, n=17, last 2 years) | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| AIDA64 / FPU Mandel | |
| Average of class Desktop (31697 - 129745, n=17, last 2 years) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| Geekom Mini IT15, Ultra 9 285H | |
| AIDA64 / CPU AES | |
| Average of class Desktop (57777 - 513073, n=17, last 2 years) | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| GMK EVO-T1 | |
| Aoostar WTR Pro, R7 5825U | |
| AIDA64 / CPU ZLib | |
| Average of class Desktop (887 - 2674, n=17, last 2 years) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Desktop (6471 - 44013, n=17, last 2 years) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| Aoostar WTR Pro, R7 5825U | |
| AIDA64 / CPU PhotoWorxx | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Average of class Desktop (33304 - 55966, n=17, last 2 years) | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |

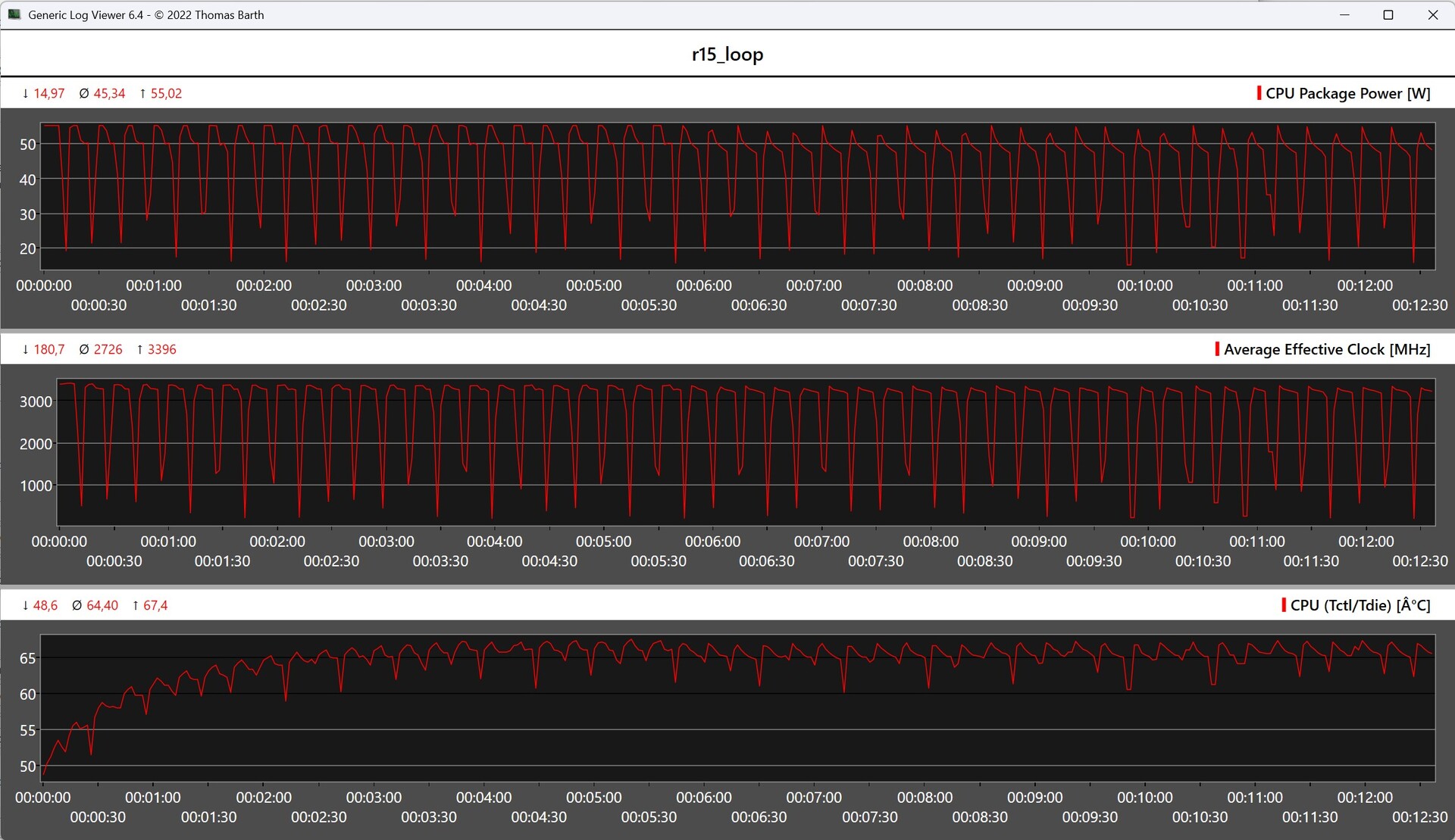

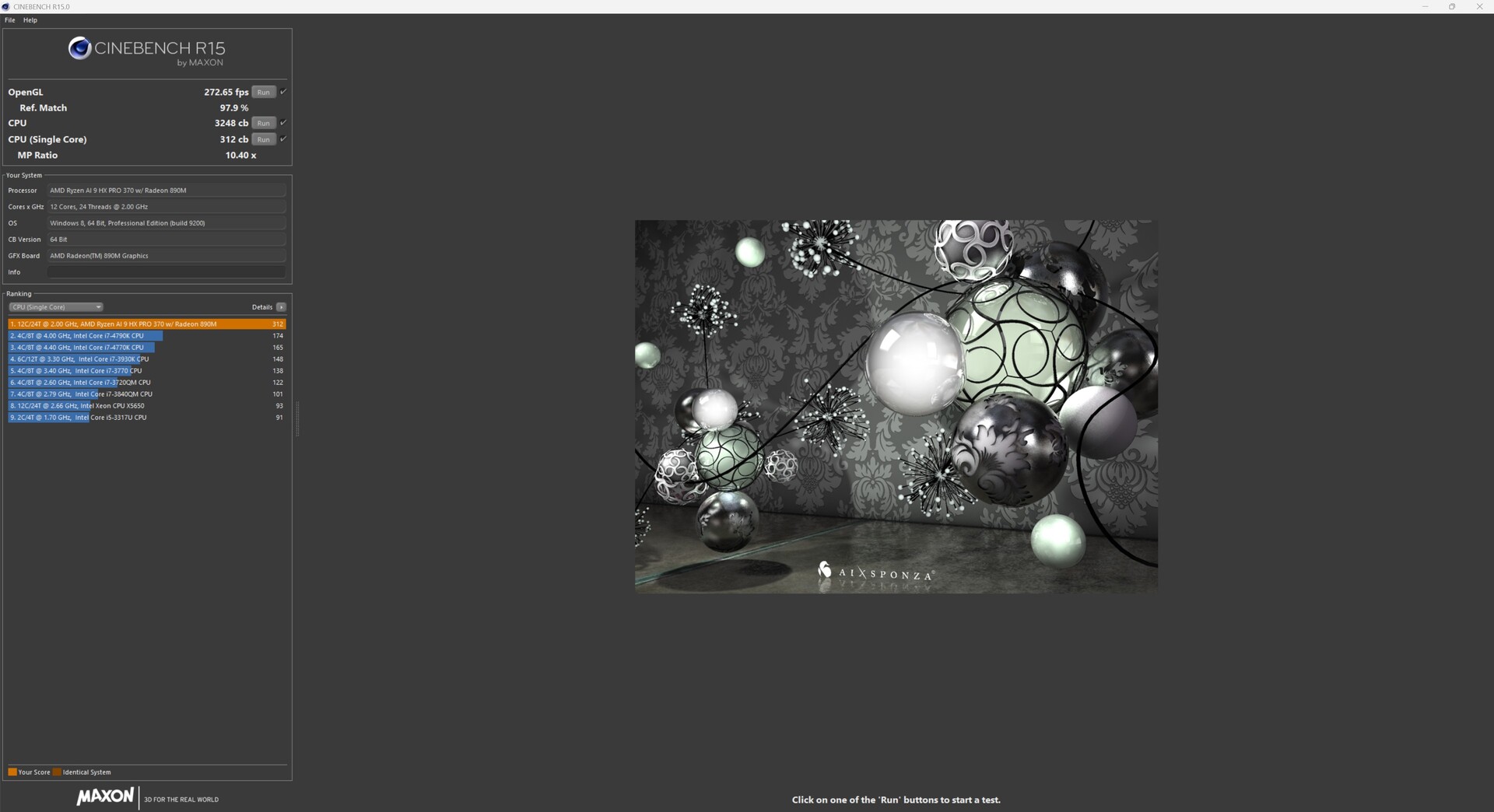

Cinebench R15 多回路运行
Cinebench R15 耐用性测试表明，Minisforum N5 Pro 的散热系统非常紧凑，但效率极高。即使在持续满载的情况下，性能也没有明显下降。AMD Ryzen AI 9 HX PRO 370 的性能峰值可达 55 瓦，而持续性能则在 45 瓦左右。最高温度保持在令人愉悦的 67.4 摄氏度左右。
Minisforum N5 Pro AMD Ryzen AI 9 HX PRO 370, AMD Ryzen AI 9 HX PRO 370: Ø3156 (3115.51-3267.71)
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, AMD Ryzen AI 9 HX 370: Ø3181 (3063.96-3259.61)
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Intel Core Ultra 9 285H: Ø2208 (2111.49-2954.21)
GMK EVO-T1 Intel Core Ultra 9 285H, Intel Core Ultra 9 285H: Ø3047 (3002.55-3112.11)
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2288 (2264.24-2301.36)
系统性能
配备 Ryzen AI 9 HX PRO 370 的 Minisforum N5 Pro 在日常使用中凭借强大的计算能力和全面流畅的工作体验给人留下深刻印象。快速 DDR5 内存、高性能 PCIe 固态硬盘和集成的 NPU（可有效加速本地 AI 应用程序）为此做出了贡献。
PCMark 10: Score | Essentials | Productivity
WebXPRT 4: Overall
WebXPRT 3: Overall
Mozilla Kraken 1.1: Total
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 4: Overall
WebXPRT 3: Overall
Mozilla Kraken 1.1: Total
CrossMark: Overall | Productivity | Creativity | Responsiveness
* ... smaller is better
| AIDA64 / Memory Copy | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| Average of class Desktop (53867 - 88386, n=17, last 2 years) | |
| Aoostar WTR Pro, R7 5825U | |
| AIDA64 / Memory Read | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| Average of class Desktop (54278 - 94830, n=17, last 2 years) | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| AIDA64 / Memory Write | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| Average of class Desktop (60635 - 85195, n=17, last 2 years) | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| Aoostar WTR Pro, R7 5825U | |
| AIDA64 / Memory Latency | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Minisforum N5 Pro | |
| Aoostar WTR Pro, R7 5825U | |
| Peladn HA-4, R7 7840HS | |
| Average of class Desktop (68.5 - 168, n=17, last 2 years) | |
| Geekom A9 Max, AI 9 HX 370 | |
* ... smaller is better
| UL Procyon for Windows / Overall Score Integer NPU | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| UL Procyon for Windows / Overall Score Integer GPU | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |

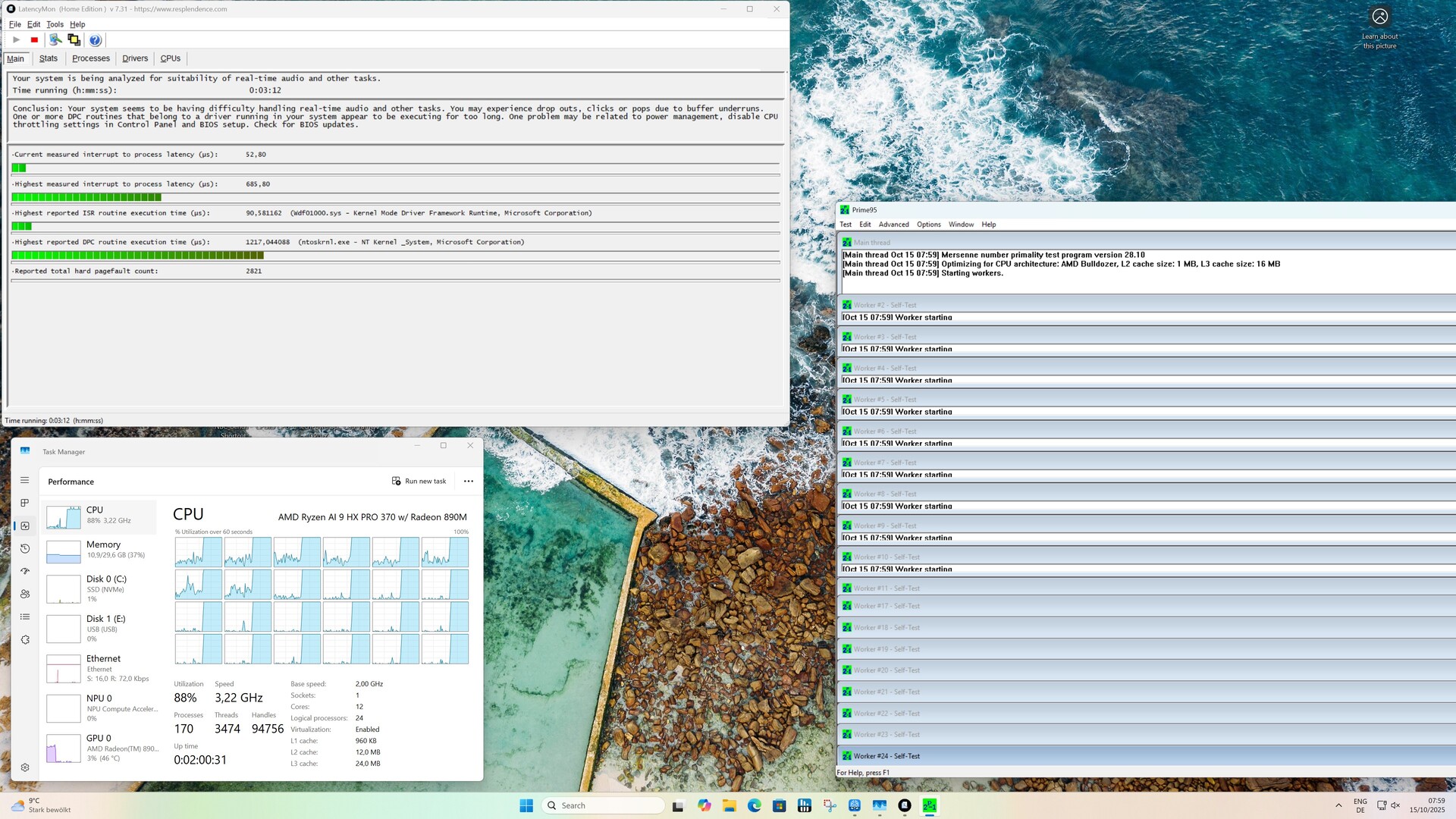

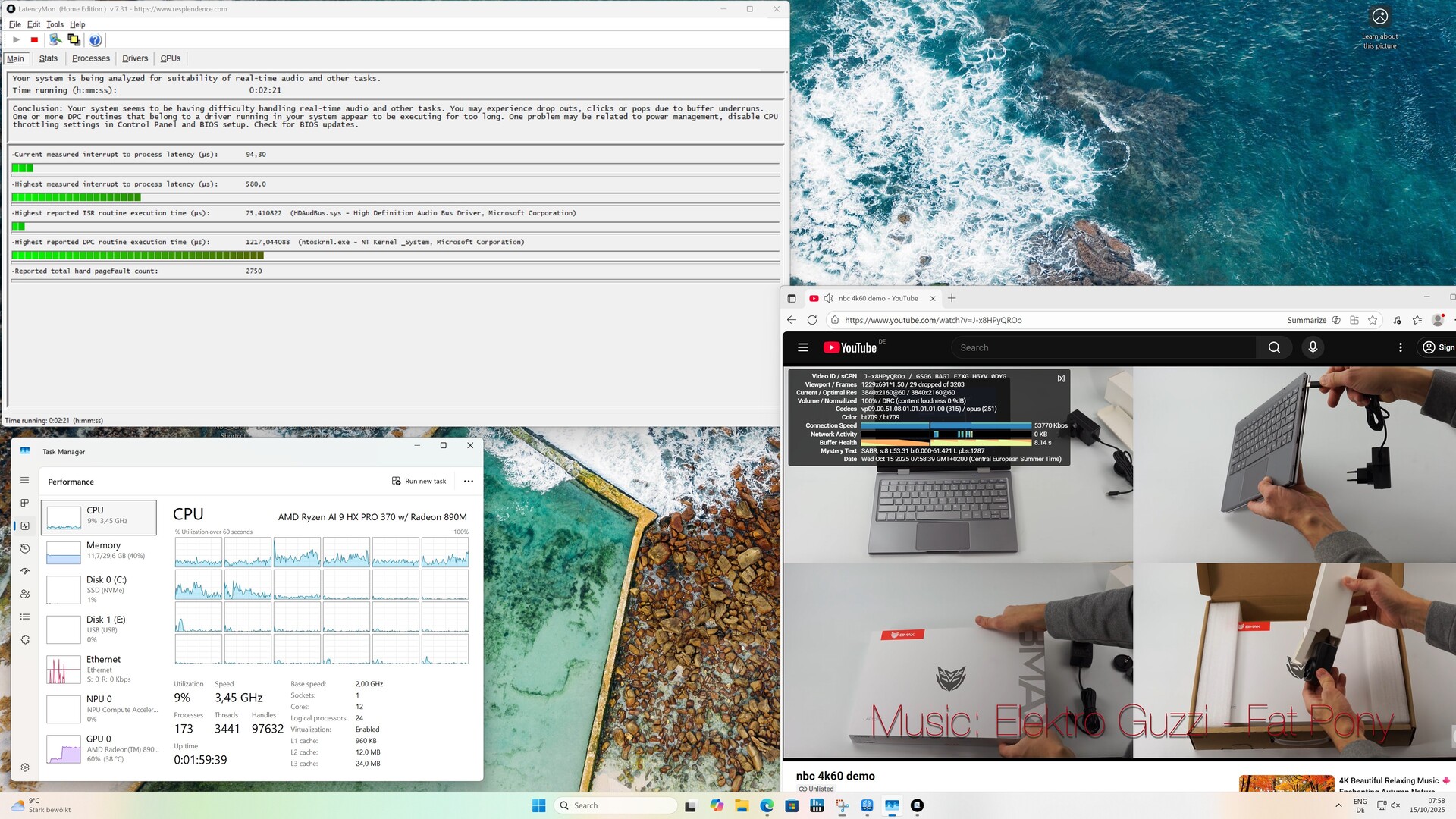

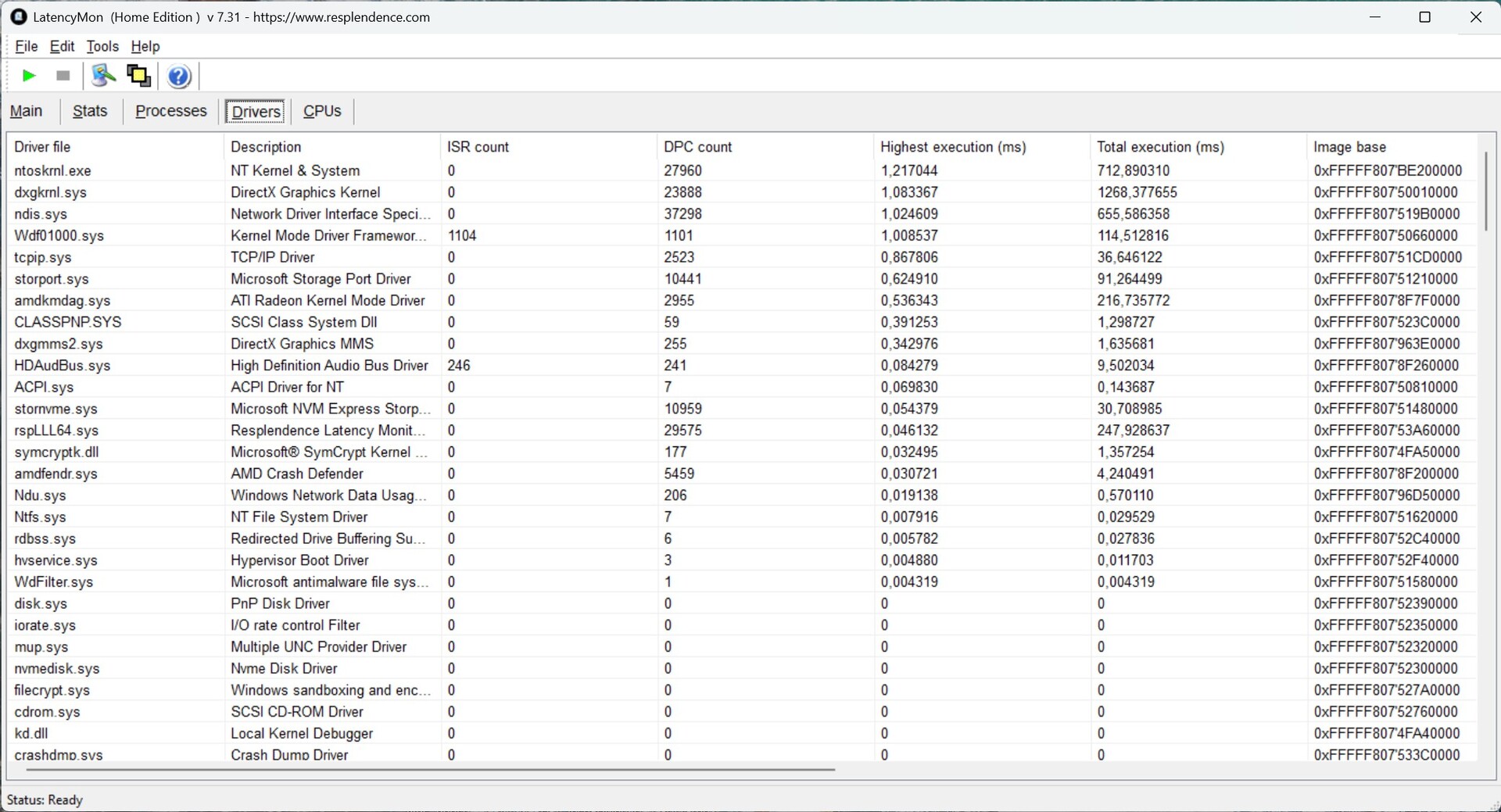

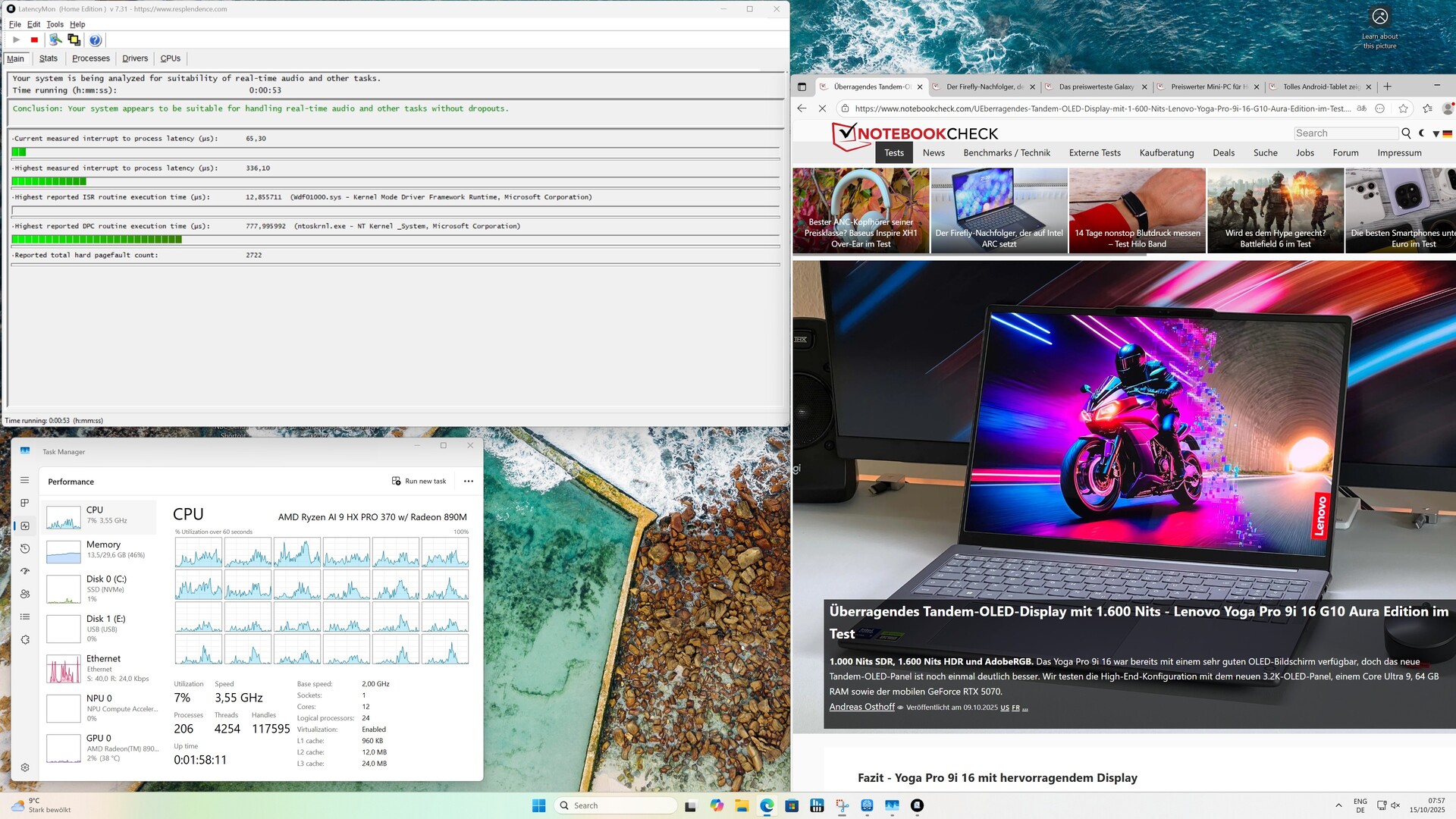

DPC 延迟
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HA-4, R7 7840HS | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
* ... smaller is better

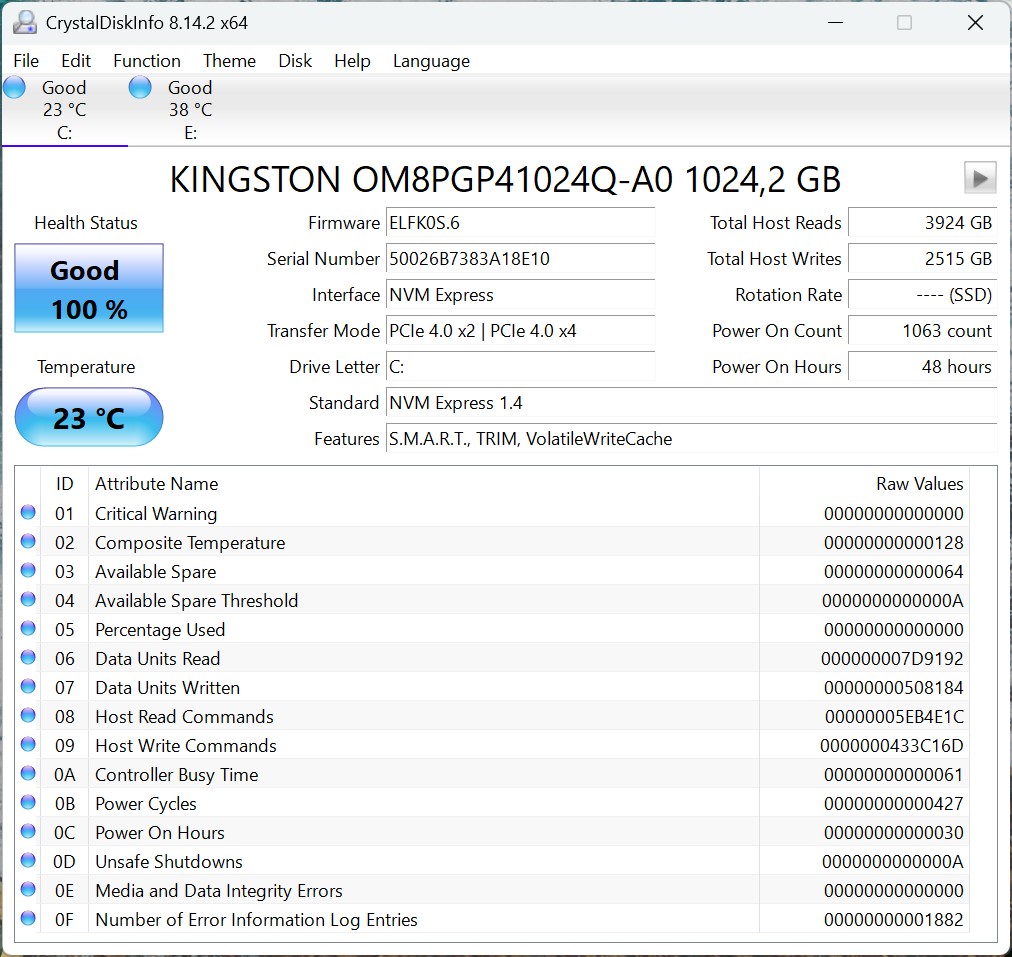

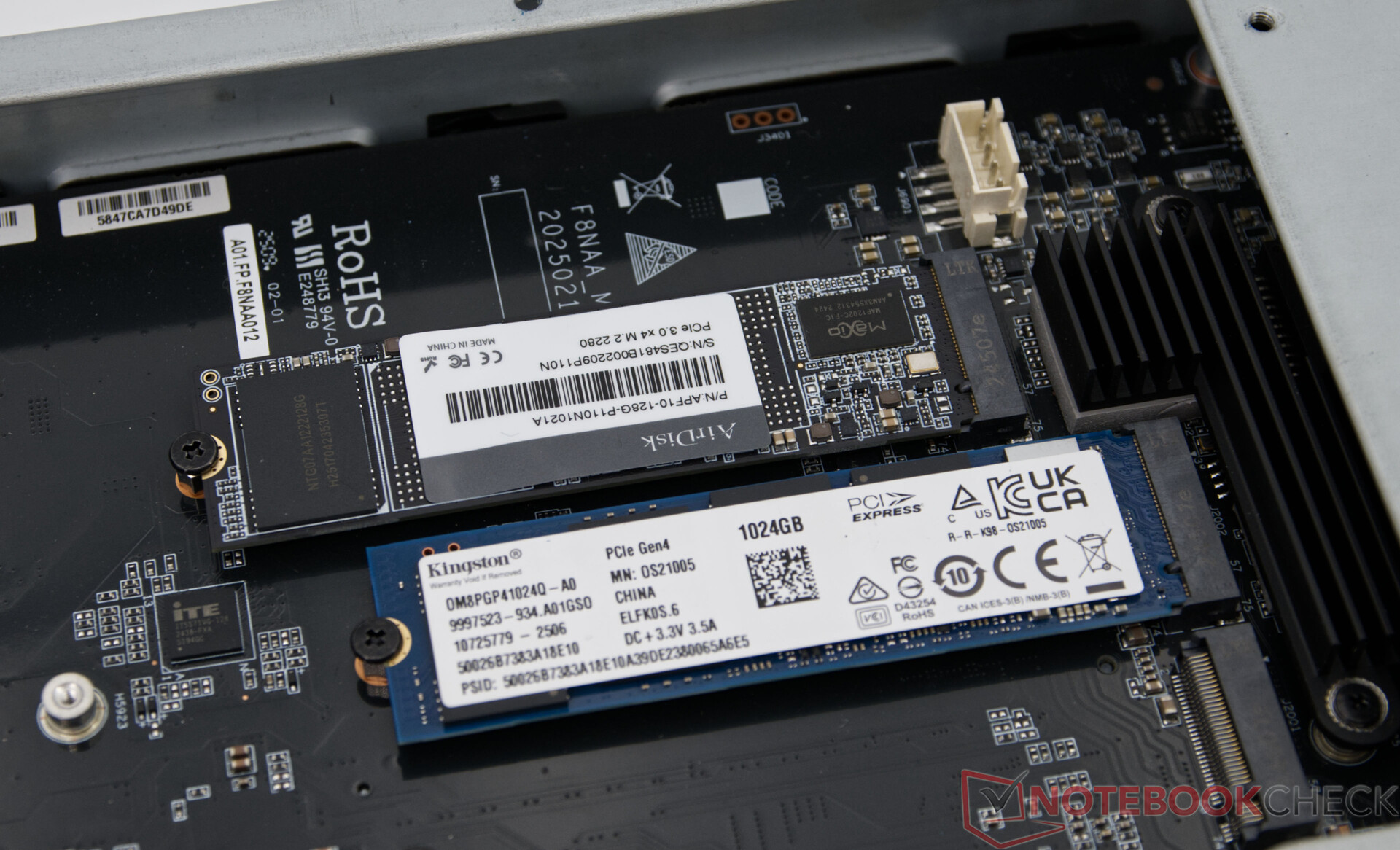

存储设备
我们的测试系统中有两个大容量存储设备。一个是 128 GB SSD，它始终存在并提供 MinisCloud 作为操作系统。还有一个 1 TB SSD，用于安装 Windows 操作系统。由于带宽限制（PCIe 4.0 x2），固态硬盘无法发挥全部性能，但在日常使用中仍能提供良好的性能。作为 NAS，Minisforum N5 Pro 可配备 5 个硬盘和 3 个固态硬盘。原生 PCIe x16 插槽也可用于大容量存储。

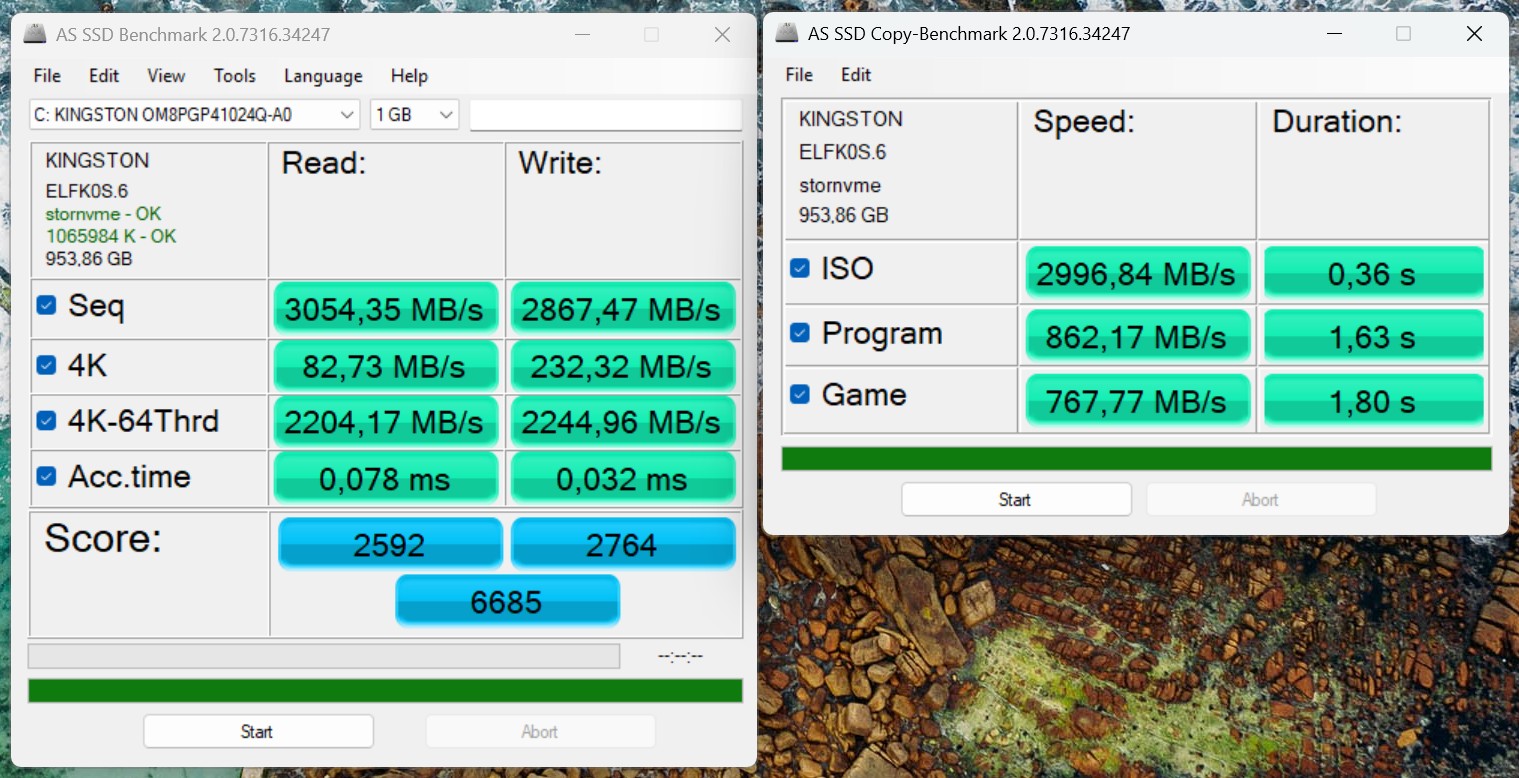

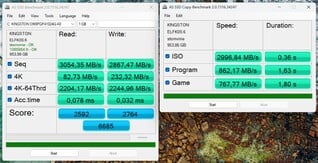

Kingston OM8PGP41024Q-A0
Sequential Read:
3054MB/s
Sequential Write:
2867MB/s
4K Read:
82.7MB/s
4K Write:
232MB/s
4K-64 Read:
2204MB/s
4K-64 Write:
2245MB/s
Access Time Read:
0.078ms
Access Time Write:
0.032ms
Copy ISO:
2996.84MB/s
Copy Program:
862.17MB/s
Copy Game:
767.77MB/s
Score Read:
2592Points
Score Write:
2764Points
Score Total:
6685Points
| Drive Performance rating - Percent | |
| Average of class Desktop | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
* ... smaller is better
磁盘节流DiskSpd 读取循环，队列深度 8
Minisforum N5 Pro Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø3263 (1894.55-3507.7)
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1; diskspd 2.0.17 f: Ø5828 (4289.72-5883.96)
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8 ; diskspd 2.0.17 f: Ø5050 (4375.76-5065.67)
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø5093 (4773.96-5106.36)
Peladn HA-4, R7 7840HS Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø4495 (3801.93-4639.53)
Aoostar WTR Pro, R7 5825U ASint AS806; diskspd 2.0.17 f: Ø1887 (1755.53-3199.52)
图形卡和游戏性能

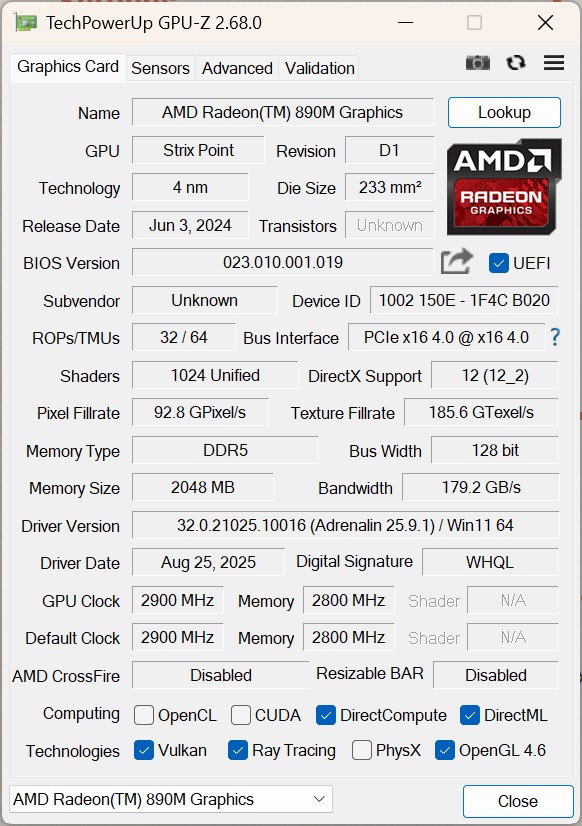

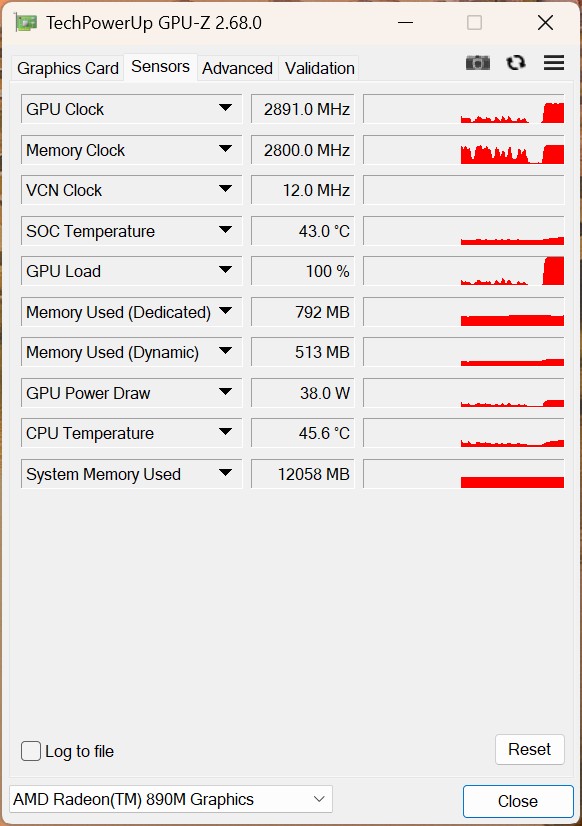

通过集成 AMD Radeon 890M，Minisforum N5 Pro 在 iGPU 领域提供了强大的图形性能。相比之下，Minisforum N5 Pro 的性能与当前的 iGPU 不相上下。 GMK EVO-T1或 Geekom Mini IT15.
| 3DMark Performance rating - Percent | |
| Average AMD Radeon 8060S | |
| GMK EVO-T1 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average AMD Radeon 8060S (39130 - 49668, n=9) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
Performance rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1 | LuxMark v2.0 64Bit | Affinity Photo 2 | Geekbench AI
| Performance rating - Percent | |
| Average AMD Radeon 8060S | |
| GMK EVO-T1 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Average AMD Radeon 8060S (77.4 - 111.1, n=6) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Average AMD Radeon 8060S (79 - 100.3, n=6) | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Average AMD Radeon 8060S (3630 - 4212, n=6) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
Performance rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
| Performance rating | |
| Average AMD Radeon 8060S | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Aoostar WTR Pro, R7 5825U | |
| SPECworkstation 4.0 / Graphics Score | |
| Average AMD Radeon 8060S (6.21 - 6.96, n=6) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| Aoostar WTR Pro, R7 5825U | |
| SPECworkstation 4.0 / Accelerator Score | |
| Average AMD Radeon 8060S (3.91 - 4.8, n=6) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| Aoostar WTR Pro, R7 5825U | |
| SPECworkstation 4.0 / Viewport Graphics | |
| Average AMD Radeon 8060S (6.21 - 6.96, n=6) | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| Aoostar WTR Pro, R7 5825U | |
| SPECworkstation 4.0 / HandBrake | |
| Average AMD Radeon 8060S (2.02 - 2.65, n=6) | |
| GMK EVO-T1 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Geekom Mini IT15, Ultra 9 285H | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| SPECworkstation 4.0 / ONNX Inference | |
| Average AMD Radeon 8060S (3.16 - 3.87, n=6) | |
| GMK EVO-T1 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| Minisforum N5 Pro, AMD Radeon 890M Ryzen AI 9 HX PRO 370 | Geekom A9 Max, AI 9 HX 370, AMD Radeon 890M Ryzen AI 9 HX 370 | Geekom Mini IT15, Ultra 9 285H, Intel Arc Graphics 140T Ultra 9 285H | GMK EVO-T1, Intel Arc Graphics 140T Ultra 9 285H | Peladn HA-4, R7 7840HS, AMD Radeon 780M R7 7840HS | Aoostar WTR Pro, R7 5825U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) R7 5825U | Average of class Desktop | |
|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | 8% | -43% | -51% | -16% | -64% | 339% | |
| 3840x2160 Medical (medical-03) (fps) | 25.1 | 26.1 4% | 7.08 -72% | 7.02 -72% | 16.3 -35% | 3.38 -87% | 46 ? 83% |
| 3840x2160 Energy (energy-03) (fps) | 15.6 | 18 15% | 7.94 -49% | 7.4 -53% | 13.8 -12% | 6.11 -61% | 90.9 ? 483% |
| 3840x2160 Creo (creo-03) (fps) | 32.3 | 36.2 12% | 26.7 -17% | 19.9 -38% | 30 -7% | 15.5 -52% | 118.9 ? 268% |
| 3840x2160 CATIA (catia-06) (fps) | 25.1 | 26 4% | 14.6 -42% | 12.8 -49% | 23.5 -6% | 76.7 ? 206% | |
| 3840x2160 3ds Max (3dsmax-07) (fps) | 23.3 | 25.2 8% | 17.8 -24% | 14.6 -37% | 19.6 -16% | 9.01 -61% | 165.6 ? 611% |
| 3840x2160 Siemens NX (snx-04) (fps) | 69.3 | 70.6 2% | 6.81 -90% | 6.13 -91% | 59.9 -14% | 28.3 -59% | 96.9 ? 40% |
| 3840x2160 Maya (maya-06) (fps) | 54.4 | 59.3 9% | 51.3 -6% | 44.9 -17% | 43.7 -20% | 19.8 -64% | 427 ? 685% |
| 3DMark 05 Standard | 61887 points | |
| 3DMark 06 Standard Score | 49473 points | |
| 3DMark Vantage P Result | 43767 points | |
| 3DMark 11 Performance | 13897 points | |
| 3DMark Ice Storm Standard Score | 163856 points | |
| 3DMark Cloud Gate Standard Score | 38945 points | |
| 3DMark Fire Strike Score | 8085 points | |
| 3DMark Fire Strike Extreme Score | 4427 points | |
| 3DMark Time Spy Score | 3506 points | |
| 3DMark Steel Nomad Score | 520 points | |
Help | ||
| GTA V | |
| 1024x768 Lowest Settings possible | |
| Geekom Mini IT15, Ultra 9 285H | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Peladn HA-4, R7 7840HS | |
| 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Dota 2 Reborn | |
| 1280x720 min (0/3) fastest | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| Geekom A9 Max, AI 9 HX 370 | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| 1920x1080 high (2/3) | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Cyberpunk 2077 2.2 Phantom Liberty | |
| 1920x1080 Low Preset (FSR off) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| 1920x1080 High Preset (FSR off) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
| Baldur's Gate 3 | |
| 1280x720 Low Preset AA:SM | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| 1920x1080 High Preset AA:T | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| F1 24 | |
| 1920x1080 Low Preset AA:T AF:16x | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| GMK EVO-T1 | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| 1920x1080 High Preset AA:T AF:16x | |
| GMK EVO-T1 | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
30 分钟赛博朋克 2077》帧数表（1920 x 1080，超预设，FSR 关闭）
Minisforum N5 Pro Ryzen AI 9 HX PRO 370, Radeon 890M: Ø23.8 (22-24.6)
Geekom A9 Max, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M: Ø25.4 (23.2-26.6)
Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T: Ø21.7 (18.5-22.9)
GMK EVO-T1 Ultra 9 285H, Arc 140T: Ø23.5 (21.9-24)
Peladn HA-4, R7 7840HS R7 7840HS, Radeon 780M: Ø22.3 (19.8-23.1)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 170.4 | 162.6 | 70.8 | 29.5 |
| The Witcher 3 (2015) | 158.4 | 104.5 | 53.3 | 32.7 |
| Dota 2 Reborn (2015) | 165.2 | 133.2 | 99.5 | 83.4 |
| Final Fantasy XV Benchmark (2018) | 85.5 | 42.1 | 30.1 | |
| X-Plane 11.11 (2018) | 82.2 | 64.9 | 50.6 | |
| Strange Brigade (2018) | 170.3 | 68.1 | 56.1 | 48.3 |
| Baldur's Gate 3 (2023) | 45.4 | 35.6 | 27.9 | 27.5 |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 43 | 34.9 | 27.3 | 23.9 |
| F1 24 (2024) | 86.6 | 76.4 | 56.9 | 14.3 |
通过 OCuLink 使用 NvidiaGeForce RTX 4090 检查 Minisforum N5 Pro 性能
借助 OCuLink 接口，Minisforum N5 Pro 可以连接外部显卡（eGPU），从而显著提高图形性能。在测试中，该系统与 NvidiaGeForce RTX 4090 和Minisforum DEG1eGPU 底座结合使用。
Performance rating | 3DMark 11 | 3DMark | Unigine Superposition | Unigine Valley 1.0 | Unigine Heaven 4.0 | ComputeMark v2.1
| Performance rating - Percent | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 3DMark | |
| 2560x1440 Time Spy Graphics | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| 1920x1080 Fire Strike Graphics | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 3840x2160 Fire Strike Ultra Graphics | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Unigine Superposition | |
| 1280x720 720p Low | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 1080p High | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 1080p Extreme | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 3840x2160 4k Optimized | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 7680x4320 8k Optimized | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Unigine Heaven 4.0 | |
| Extreme Preset OpenGL | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Extreme Preset DX11 | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| ComputeMark v2.1 | |
| 1024x600 Normal, Score | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, Fluid 3DTex | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, Fluid 2DTexArr | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, Mandel Vector | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, Mandel Scalar | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, QJuliaRayTrace | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Performance rating - Percent | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Cyberpunk 2077 2.2 Phantom Liberty | |
| 1280x720 Low Preset (FSR off) | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Medium Preset (FSR off) | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Ultra Preset (FSR off) | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Baldur's Gate 3 | |
| 1920x1080 Low Preset AA:SM | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| 1920x1080 Medium Preset AA:T | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Ultra Preset AA:T | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| F1 24 | |
| 1920x1080 Low Preset AA:T AF:16x | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Medium Preset AA:T AF:16x | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 High Preset AA:T AF:16x | |
| Minisforum MS-A2 (Nvidia GeForce RTX 4090 @OCuLink) | |
| GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum N5 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum N5 Pro, AMD Radeon 890M Ryzen AI 9 HX PRO 370 | Minisforum N5 Pro, Ryzen AI 9 HX PRO 370 | Minisforum MS-A2, R9 9955HX | Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) , Ultra 9 185H | GMK EVO-T1, Ultra 9 285H | Average of class Desktop | |
|---|---|---|---|---|---|---|
| SPECviewperf 2020 | 353% | 435% | 296% | 379% | 339% | |
| 3840x2160 Medical (medical-03) (fps) | 25.1 | 42.2 68% | 43.1 72% | 42.1 68% | 43.1 72% | 46 ? 83% |
| 3840x2160 Energy (energy-03) (fps) | 15.6 | 92.9 496% | 139 791% | 92.8 495% | 93.7 501% | 90.9 ? 483% |
| 3840x2160 Creo (creo-03) (fps) | 32.3 | 118 265% | 126 290% | 91.1 182% | 109 237% | 118.9 ? 268% |
| 3840x2160 CATIA (catia-06) (fps) | 25.1 | 86.5 245% | 89.8 258% | 77.3 208% | 82.1 227% | 76.7 ? 206% |
| 3840x2160 3ds Max (3dsmax-07) (fps) | 23.3 | 191 720% | 213 814% | 158 578% | 212 810% | 165.6 ? 611% |
| 3840x2160 Siemens NX (snx-04) (fps) | 69.3 | 35.9 -48% | 43.7 -37% | 31.9 -54% | 38.8 -44% | 96.9 ? 40% |
| 3840x2160 Maya (maya-06) (fps) | 54.4 | 447 722% | 522 860% | 378 595% | 517 850% | 427 ? 685% |
| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| The Witcher 3 (2015) | 429 | 387 | 380 | 269 | 240 | 266 |
| Dota 2 Reborn (2015) | 186 | 165 | 149.5 | 142.3 | 138.4 | |
| Final Fantasy XV Benchmark (2018) | 190.7 | 178.8 | 157.2 | 154 | 141.4 | |
| X-Plane 11.11 (2018) | 95.7 | 94.9 | 72.3 | 68.5 | ||
| Baldur's Gate 3 (2023) | 184.3 | 175 | 173.6 | 171.1 | 169.7 | 131.8 |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 138.2 | 138.8 | 131.4 | 120.6 | 117.4 | 72.2 |
| F1 24 (2024) | 221 | 235 | 227 | 125 | 127.8 | 90.5 |
排放量
系统噪音
Minisforum N5 Pro 在未安装硬盘的情况下，空闲时产生的噪音为 37 dB(A)。这主要是硬盘区域的两个风扇造成的。CPU 风扇在正常运行时并不明显，只有在负载情况下才会发出声音，最大噪音水平仅为 40.7 dB(A)。
Noise level
| Idle |
| 37.5 / 37.7 / 37.7 dB(A) |
| Load |
| 40.7 / 40.7 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 24.8 dB(A) | ||
| Minisforum N5 Pro Ryzen AI 9 HX PRO 370, Radeon 890M | Geekom A9 Max, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M | Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T | GMK EVO-T1 Ultra 9 285H, Arc 140T | Peladn HA-4, R7 7840HS R7 7840HS, Radeon 780M | Aoostar WTR Pro, R7 5825U R7 5825U, Vega 8 | |
|---|---|---|---|---|---|---|
| Noise | 1% | -3% | -11% | 7% | -0% | |
| off / environment * (dB) | 24.8 | 24.8 -0% | 24.3 2% | 24.7 -0% | 24.8 -0% | 23.8 4% |
| Idle Minimum * (dB) | 37.5 | 25.4 32% | 33.7 10% | 38.7 -3% | 28.5 24% | 37 1% |
| Idle Average * (dB) | 37.7 | 25.4 33% | 33.7 11% | 38.8 -3% | 29.1 23% | 37.3 1% |
| Idle Maximum * (dB) | 37.7 | 25.5 32% | 33.8 10% | 38.9 -3% | 29.2 23% | 37.8 -0% |
| Load Average * (dB) | 40.7 | 49.8 -22% | 47.6 -17% | 51.6 -27% | 39.6 3% | 41.5 -2% |
| Witcher 3 ultra * (dB) | 40.6 | 49.7 -22% | 38.7 5% | 42.3 -4% | ||
| Cyberpunk 2077 ultra * (dB) | 40.2 | 49.6 -23% | 47.7 -19% | 52 -29% | 44.1 -10% | |
| Load Maximum * (dB) | 40.7 | 49.8 -22% | 47.9 -18% | 51.6 -27% | 42.3 -4% | 42.9 -5% |
* ... smaller is better

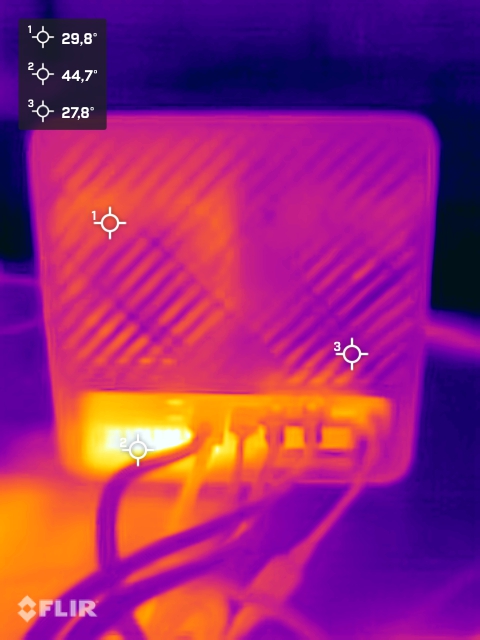

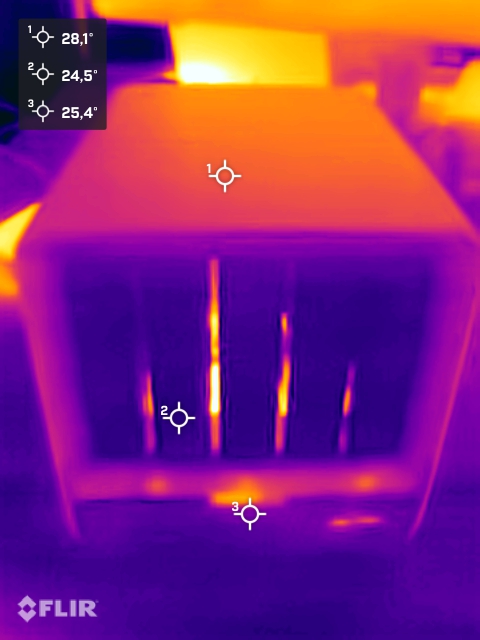

温度

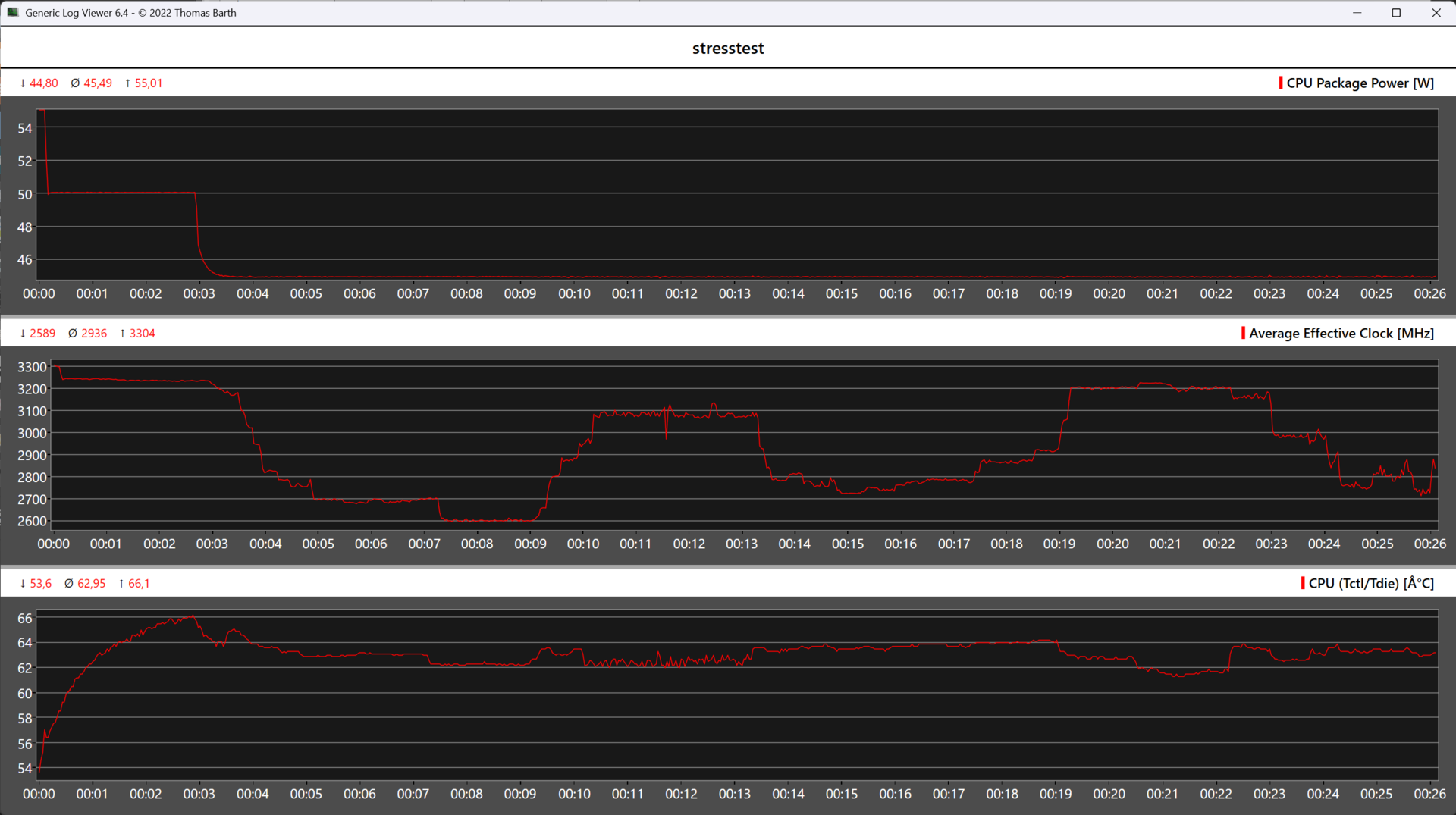

坚固的金属外壳仅在空转和负载时略微发热。SoC 按照制造商的规格要求稳定工作，在负载情况下温度仅略高于 66 °C，温度之低令人惊讶。
(+) The average temperature for the upper side under maximal load is 28.2 °C / 83 F, compared to the average of 29.5 °C / 85 F for the devices in the class Desktop.
(+) The maximum temperature on the upper side is 28.5 °C / 83 F, compared to the average of 33.9 °C / 93 F, ranging from 25 to 47 °C for the class Desktop.
(+) The bottom heats up to a maximum of 31.5 °C / 89 F, compared to the average of 33.6 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The maximum temperature on the upper side is 28.5 °C / 83 F, compared to the average of 33.9 °C / 93 F, ranging from 25 to 47 °C for the class Desktop.
(+) The bottom heats up to a maximum of 31.5 °C / 89 F, compared to the average of 33.6 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
能源管理
Minisforum N5 Pro 的出色能效给人留下了深刻印象，丝毫不逊色于 Geekom A9 Max 或 Geekom Mini IT15。空闲模式下的功耗可能会稍好一些。不过，NAS 的负载功耗略低于 88 瓦，仍然很节俭。因此，280 瓦的电源装置仍然为大容量存储或专用显卡等附加硬件提供了足够的空间。
Power Consumption
| Off / Standby | 1.3 / Watt |
| Idle | 11.8 / 12.3 / 15.9 Watt |
| Load |
72.7 / 87.9 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Minisforum N5 Pro Ryzen AI 9 HX PRO 370, Radeon 890M | Geekom A9 Max, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M | Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T | GMK EVO-T1 Ultra 9 285H, Arc 140T | Peladn HA-4, R7 7840HS R7 7840HS, Radeon 780M | Aoostar WTR Pro, R7 5825U R7 5825U, Vega 8 | Average AMD Radeon 890M | Average of class Desktop | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | 27% | 38% | 15% | 20% | 32% | 27% | -102% | |
| Idle Minimum * (Watt) | 11.8 | 2.4 80% | 3.8 68% | 6.1 48% | 6.8 42% | 5.5 53% | 6.06 ? 49% | 17.9 ? -52% |
| Idle Average * (Watt) | 12.3 | 4.6 63% | 5.2 58% | 7.9 36% | 9.7 21% | 8.7 29% | 8.19 ? 33% | 37.2 ? -202% |
| Idle Maximum * (Watt) | 15.9 | 9.2 42% | 8.4 47% | 13.2 17% | 13.5 15% | 13 18% | 9.82 ? 38% | 41.3 ? -160% |
| Load Average * (Watt) | 72.7 | 78.4 -8% | 50.1 31% | 60.7 17% | 62.5 14% | 46.2 36% | 67.2 ? 8% | 96.7 ? -33% |
| Cyberpunk 2077 ultra external monitor * (Watt) | 72.4 | 77.8 -7% | 51.6 29% | 67.4 7% | 65.6 9% | |||
| Load Maximum * (Watt) | 87.9 | 95.1 -8% | 91.9 -5% | 117.1 -33% | 70.8 19% | 67.5 23% | 80.7 ? 8% | 141.6 ? -61% |
* ... smaller is better
功率效率
| Performance rating - Percent | |
| Geekom Mini IT15, Ultra 9 285H | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| GMK EVO-T1 | |
| Aoostar WTR Pro, R7 5825U -1! | |
| Power Consumption | |
| Cinebench R23 Multi Power Efficiency - external Monitor | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| Aoostar WTR Pro, R7 5825U | |
| GMK EVO-T1 | |
| Cinebench R23 Single Power Efficiency - external Monitor | |
| Geekom Mini IT15, Ultra 9 285H | |
| Geekom A9 Max, AI 9 HX 370 | |
| GMK EVO-T1 | |
| Minisforum N5 Pro | |
| Peladn HA-4, R7 7840HS | |
| Aoostar WTR Pro, R7 5825U | |
| Cinebench R15 Multi Efficiency (external Monitor) | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| Aoostar WTR Pro, R7 5825U | |
| GMK EVO-T1 | |
| Cyberpunk 2077 ultra Efficiency | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| Peladn HA-4, R7 7840HS | |
| Minisforum N5 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
耗电量 - 外部监视器
Minisforum N5 Pro; Idle 1min (external Monitor): Ø12.3 (11.9-15.9)
Minisforum N5 Pro; 1280x720 Prime95 28.10 and Furmark 1.25: Ø77.2 (74.4-87.9)
Minisforum N5 Pro; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø72.4 (69.4-83.6)
Minisforum N5 Pro; 3DMark06 Return To Proxycon: Ø72.7 (55.7-80.2)
耗电量 - 外部监视器
Minisforum N5 Pro; Prime95 V2810 Stress (external Monitor): Ø75.3 (70.2-87.5)
Minisforum N5 Pro; Cinebench R15 Multi (external Monitor): Ø78.9 (74.2-79.7)
Minisforum N5 Pro; Cinebench R23 Single (external Monitor): Ø33.3 (30.8-48.7)
Minisforum N5 Pro; Cinebench R23 Multi (external Monitor): Ø74.4 (71.3-79.3)
Minisforum N5 Pro; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø74.8 (71.1-84.1)
潜在竞争对手比较
Image | Model / Review | Price | Weight | Dimensions |
|---|---|---|---|---|
1.  | Minisforum N5 Pro AMD Ryzen AI 9 HX PRO 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 1024 GB SSD | Amazon: $1,019.90 List Price: 1119€ | 5 kg | 252 x 199 x 202 mm |
2. 81.7%  | Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 2048 GB SSD | Amazon: $999.00 List Price: 999€ | 709 g | 132 x 135 x 46.9 mm |
3. 76.5%  | Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 32 GB Memory, 2048 GB SSD | Amazon: $1,199.00 List Price: 1099€ | 595 g | 112 x 117 x 49.2 mm |
4. 75.4%  | GMK EVO-T1 Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 64 GB Memory, 1024 GB SSD | Amazon: $999.99 List Price: 999€ | 946 g | 151 x 154 x 73.6 mm |
5.  | Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ , 1024 GB SSD | List Price: 439€ | 965 g | 128 x 136 x 52 mm |
6.  | Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U ⎘ AMD Radeon RX Vega 8 (Ryzen 4000/5000) ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $369.00 AOOSTAR WTR PRO AMD R7 5825U... 2. $589.00 AOOSTAR WTR PRO 4 Bays NAS M... 3. $459.00 AOOSTAR WTR PRO AMD R7 5825U... List Price: 519 EUR | 4.6 kg | 228 x 180 x 185 mm |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
