结论 - 体面的最后一搏图形增强功能
蝠蜩∫音濶イ Radeon RX 7600M XT不常见是有道理的。遗憾的是，与现代经济型 Nvidia GPU（如 GeForce RTX 4050 相比，RTX 4050 的性能往往超过 AMD 解决方案，而功耗却只有后者的一半。它的目标是 1080p 游戏，但最新的游戏已经证明其性能不堪一击。如果不是因为 AD-GP1 昂贵的 400 至 500 美元零售价，我们还能接受它的这些缺点。
尽管如此，AD-GP1 与集成了英特尔或 AMD 图形处理器的笔记本电脑或迷你 PC 搭配使用时，即使底层的 Radeon RX 7600M XT GPU 不是最新或最高效的，也会有所改进。如果没有其他办法提升现有 PC 的图形性能，它可以被视为便携式的最后解决方案。
Pros
Cons

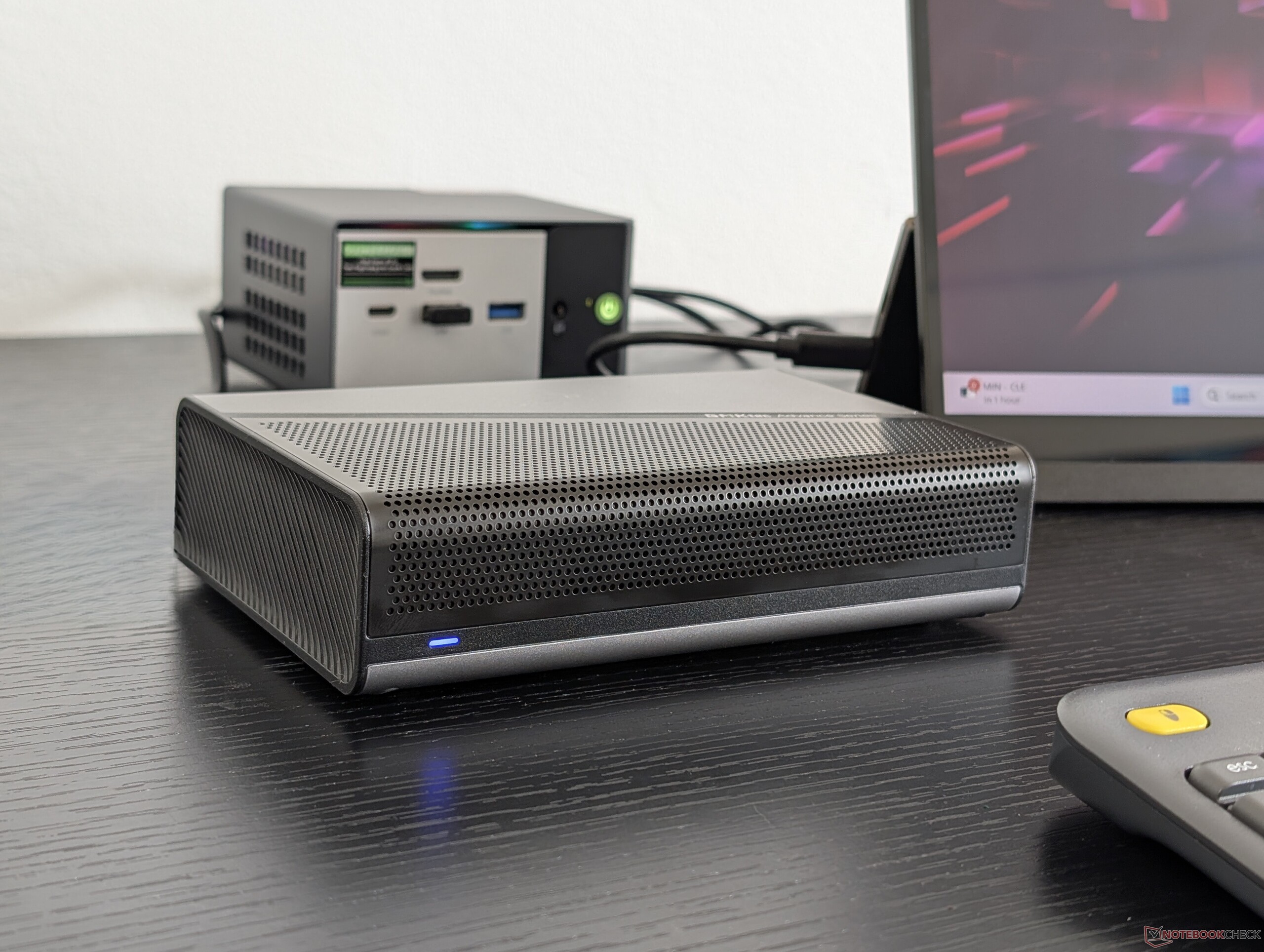

GMK AD-GP1 是一款集成 Radeon 7600M XT 的小型外置 GPU（eGPU）解决方案。它与其他小型 eGPU 直接竞争，包括 GPD G1也采用了相同的 AMD 图形处理器。
规格
案例
由于通风栅的设计，该设备应水平放置。虽然该设备本身相当小巧，大小与英特尔 NUC Canyon 差不多，但其笨重的 240 W 电源模块也同样大，可以说非常碍眼。
连接性

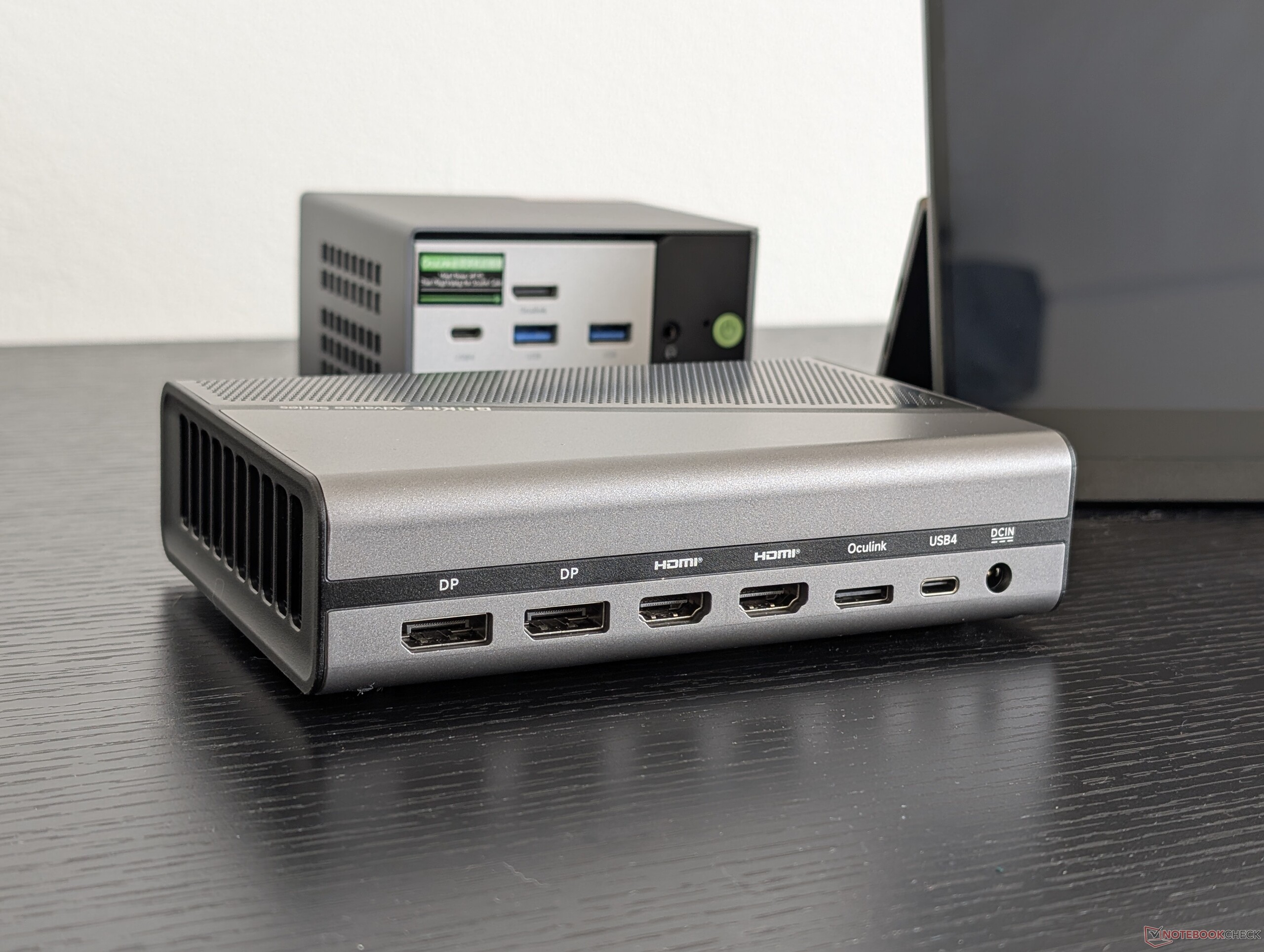

该底座最多可通过 DisplayPort 2.0 或 HDMI 2.1 输出四个外部显示器。请注意，单个 USB-C 4.0 端口不能用作 DisplayPort，因为它主要用于连接主机 PC（如果不兼容 OcuLink）或 100 W Power Delivery 充电。
性能
测试条件
系统性能
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| CrossMark / Overall | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| Beelink GTI12 Ultra EX Docking Station | |
| HP ZBook Ultra G1a 14 | |
| GMK EVO-X1 | |
| CrossMark / Productivity | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| Beelink GTI12 Ultra EX Docking Station | |
| GMK EVO-X1 | |
| HP ZBook Ultra G1a 14 | |
| CrossMark / Creativity | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| HP ZBook Ultra G1a 14 | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| Beelink GTI12 Ultra EX Docking Station | |
| GMK EVO-X1 | |
| CrossMark / Responsiveness | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| Beelink GTI12 Ultra EX Docking Station | |
| GMK EVO-X1 | |
| HP ZBook Ultra G1a 14 | |
| WebXPRT 3 / Overall | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| GMK EVO-X1 | |
| Beelink GTI12 Ultra EX Docking Station | |
| HP ZBook Ultra G1a 14 | |
| WebXPRT 4 / Overall | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| Beelink GTI12 Ultra EX Docking Station | |
| GMK EVO-X1 | |
| HP ZBook Ultra G1a 14 | |
| Mozilla Kraken 1.1 / Total | |
| Beelink GTI12 Ultra EX Docking Station | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| HP ZBook Ultra G1a 14 | |
| GMK EVO-X1 | |
* ... smaller is better

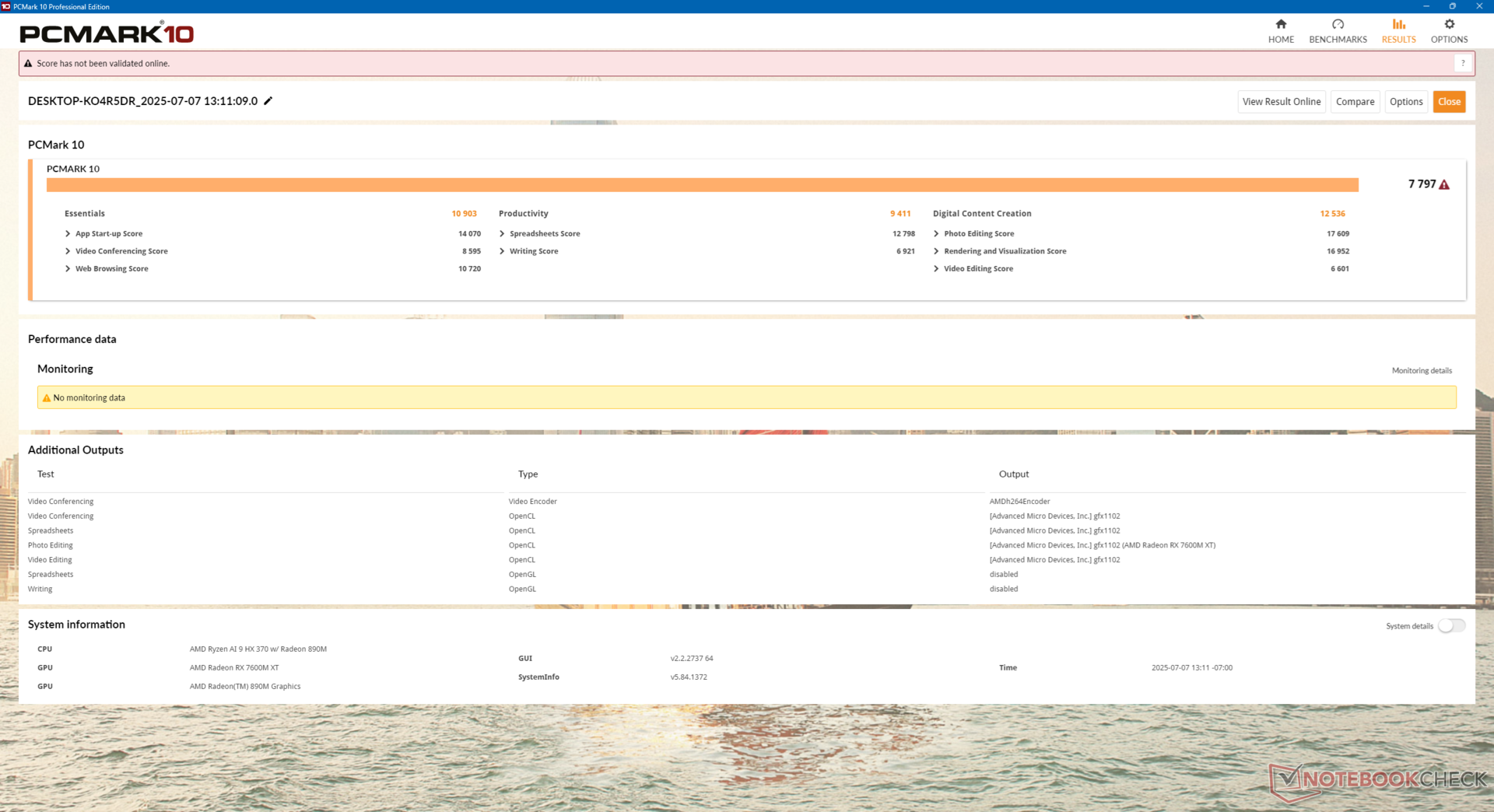

| PCMark 10 Score | 7797 points | |
Help | ||
图形处理器性能

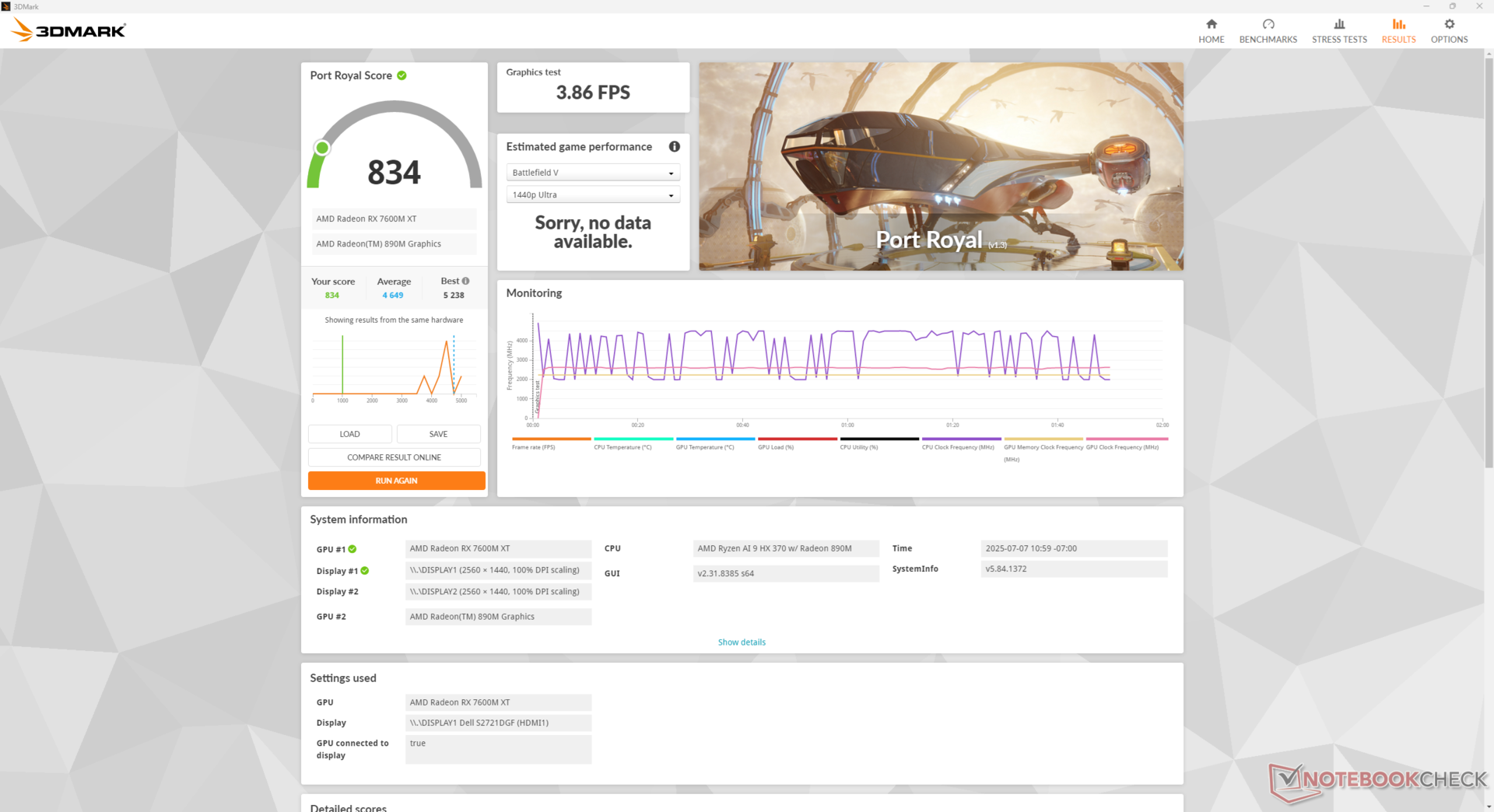

原始性能介于GeForce RTX 4050 和RTX 4060.不过，如果运行要求更高的带有光线追踪功能的 DX12 游戏，Radeon RX 7600M XT 就会因其较 Nvidia 弱的 RT 内核而明显落后。我们在针对 RT 的 Port Royal 基准测试中获得的极低分数就说明了这一点。
总体性能仍比集成的 Radeon 890M快 2 倍到 2.5 倍。

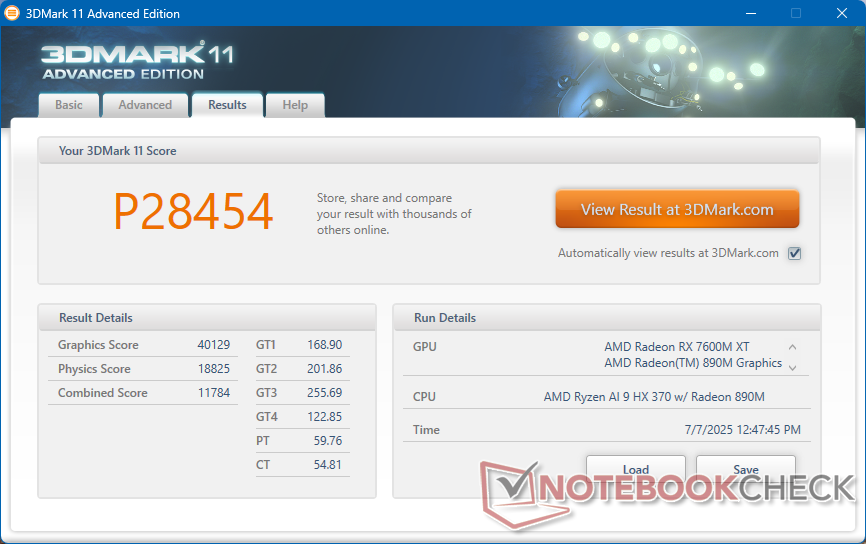

| 3DMark 11 Performance | 28454 points | |

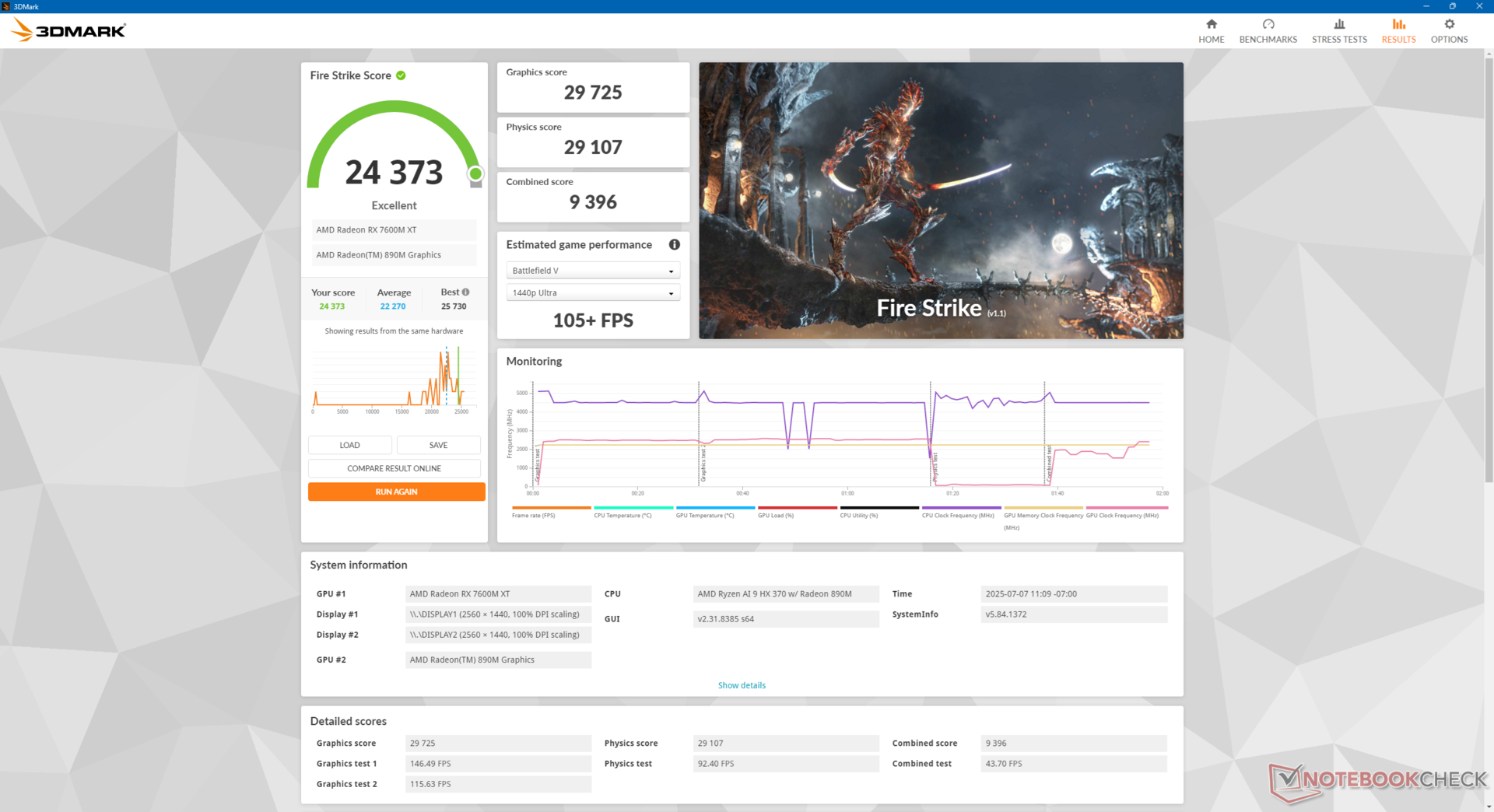

| 3DMark Fire Strike Score | 24373 points | |

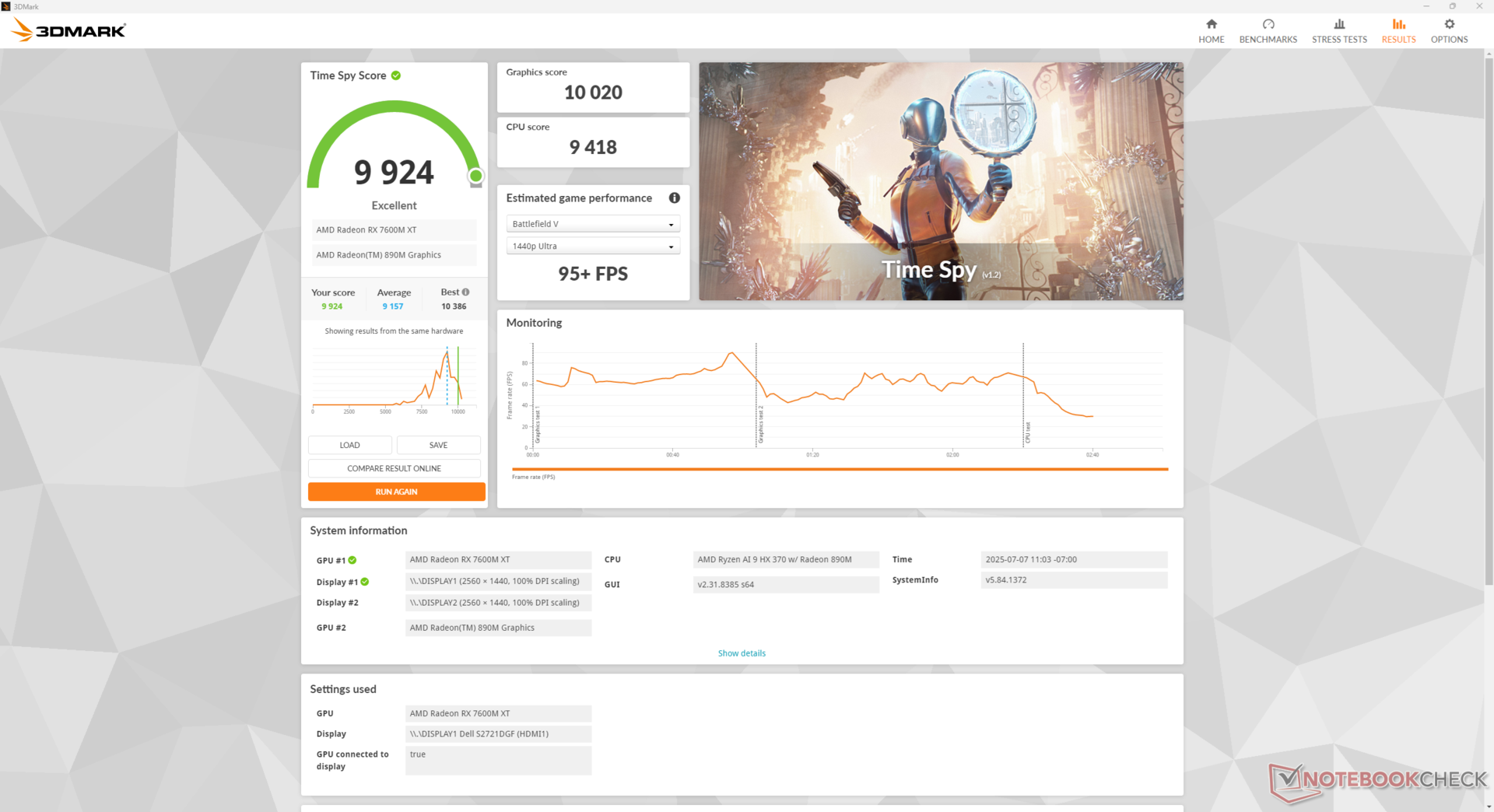

| 3DMark Time Spy Score | 9924 points | |

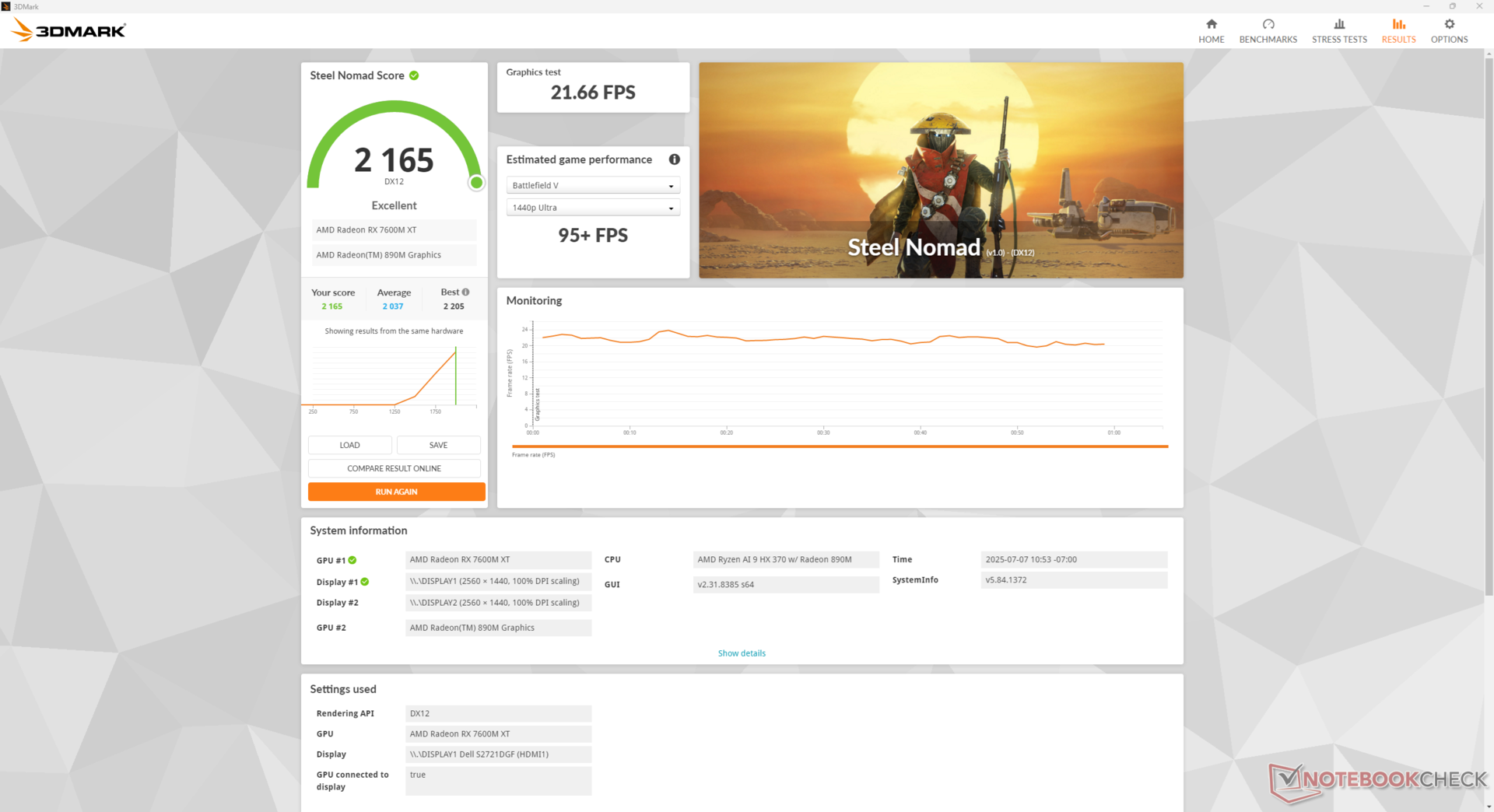

| 3DMark Steel Nomad Score | 2165 points | |
Help | ||
游戏性能
旧版 DX11 游戏在 Radeon RX 7600M XT 上运行良好。然而，较新的游戏即使在 1080p 的低设置下，AD-GP1 也很难跟上。例如，《怪物猎人荒野》（Monster Hunter Wilds）在最低 1080p 设置下，如果没有 FSR 或帧生成功能的帮助，平均帧数也无法达到 60 FPS。依赖或强制使用光线追踪技术的游戏，如《夺宝奇兵》（Indiana Jones and the Great Circle），基本上无法运行。其他要求苛刻的游戏，如《惊奇对决》（Marvel Rivals），在 1080p 设置下很难保持 60 FPS，当角色和特效充满屏幕时，即使启用 FSR 也会带来非常不稳定的体验。
| Monster Hunter Wilds | |
| 1920x1080 lowest, FSR Quality, Frame Generation | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| HP ZBook Ultra G1a 14 | |
| 1920x1080 lowest, no upscaling | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| HP ZBook Ultra G1a 14 | |
| HP OmniStudio X 32-c0077ng | |
| 1920x1080 medium, no upscaling | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| HP ZBook Ultra G1a 14 | |
| HP OmniStudio X 32-c0077ng | |
| 1920x1080 ultra, RT: high, no upscaling | |
| HP ZBook Ultra G1a 14 | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| HP OmniStudio X 32-c0077ng | |
| 2560x1440 ultra, RT: high, no upscaling | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| F1 24 | |
| 1920x1080 High Preset AA:T AF:16x | |
| Minisforum G7 PT | |
| Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) | |
| GMK AD-GP1 Radeon 7600M XT | |
| GMK AD-GP1 Radeon 7600M XT | |
| HP OmniStudio X 32-c0077ng | |
| Average AMD Radeon RX 7600M XT (27.7 - 195.3, n=5) | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| HP OmniStudio X 32-c0077ng | |
| Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (23.5 - 33.9, n=3) | |
| Minisforum G7 PT | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| HP OmniStudio X 32-c0077ng | |
| Minisforum G7 PT | |
| Average AMD Radeon RX 7600M XT (7.32 - 17.7, n=4) | |
| Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) | |
| GMK AD-GP1 Radeon 7600M XT | |
| 2560x1440 Ultra High Preset + Quality FSR AF:16x | |
| Minisforum G7 PT | |
| Average AMD Radeon RX 7600M XT (10.9 - 21.8, n=2) | |
| GMK AD-GP1 Radeon 7600M XT | |
| Indiana Jones and the Great Circle - 1920x1080 Low Preset | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| Assassin's Creed Shadows | |
| 1920x1080 High | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| 1920x1080 Ultra High | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| 2560x1440 Ultra High | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| 2560x1440 Ultra High + FSR Quality | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
Cyberpunk 2077 ultra FPS Chart
| low | med. | high | ultra | QHD FSR | QHD | |
|---|---|---|---|---|---|---|
| Dota 2 Reborn (2015) | 149.8 | 122.6 | 131.8 | 109.1 | ||
| Final Fantasy XV Benchmark (2018) | 130 | 125.3 | 89.6 | 66.5 | ||
| X-Plane 11.11 (2018) | 83.1 | 63.3 | 45.7 | |||
| Strange Brigade (2018) | 327 | 238 | 196.6 | 167.7 | 112.4 | |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 91.8 | 80.3 | 71.3 | 45.6 | ||
| F1 24 (2024) | 215 | 203 | 159.4 | 29.9 | 10.9 | 7.32 |
| Indiana Jones and the Great Circle (2024) | 19 | 9.6 | 8.4 | |||
| Monster Hunter Wilds (2025) | 56.4 | 51.7 | 20.8 | 19.5 | ||
| Assassin's Creed Shadows (2025) | 55 | 51 | 44 | 17 | 14 | 14 |
排放量
系统噪音

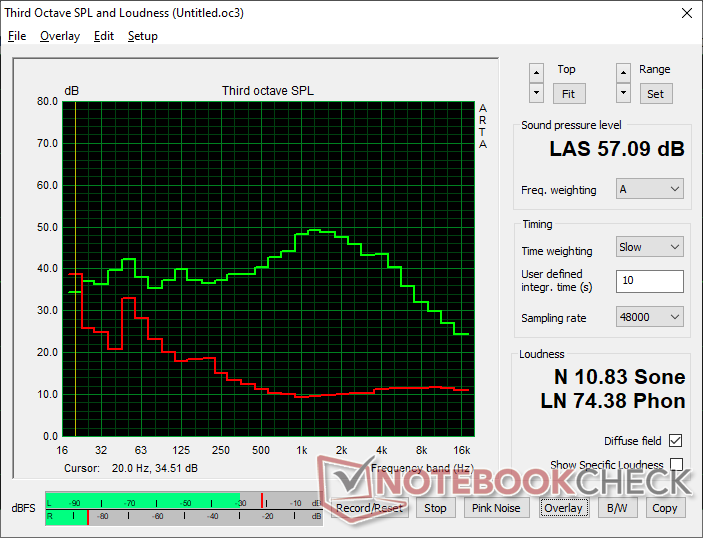

AD-GP1 在运行低负载时非常安静，一般不会引起注意。不过，在游戏时，风扇噪音会逐渐增大，然后稳定在 57 分贝（A），与许多游戏笔记本电脑的噪音不相上下。
Noise Level
| Idle |
| 30.2 / / dB(A) |
| Load |
| / dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 28 dB(A) | ||
| GMK AD-GP1 Radeon 7600M XT Radeon RX 7600M XT, Ryzen AI 9 HX 370 | Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0 | HP ZBook Ultra G1a 14 Radeon 8060S, Ryzen AI Max+ PRO 395, WDC PC SN810 2TB | Beelink GTI12 Ultra EX Docking Station NVIDIA GeForce RTX 3070, i9-12900H, Crucial P3 Plus CT1000P3PSSD8 | XFX Speedster QICK 308 Radeon RX 7600 Black Edition Radeon RX 7600, R9 7950X, Corsair MP600 | GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8 | |
|---|---|---|---|---|---|---|
| Noise | 8% | 17% | 8% | 11% | 16% | |
| off / environment * | 28 | 24.7 12% | 23.9 15% | 22.8 19% | 25.4 9% | 23.3 17% |
| Idle Minimum * | 30.2 | 30.7 -2% | 23.9 21% | 32.7 -8% | 26.3 13% | 27.8 8% |
| Cyberpunk 2077 ultra * | 57.1 | 49.6 13% | 49.1 14% | 50.3 12% | 44.2 23% | |
| Idle Average * | 30.8 | 23.9 | 32.7 | 26.3 | 30.3 | |
| Idle Maximum * | 30.8 | 26.8 | 35.3 | 26.3 | 30.4 | |
| Load Average * | 39.8 | 42.2 | 36.8 | 29.6 | 44.6 | |
| Load Maximum * | 48.8 | 49.2 | 52.9 | 39.4 | 46.1 | |
| Witcher 3 ultra * | 39.6 |
* ... smaller is better

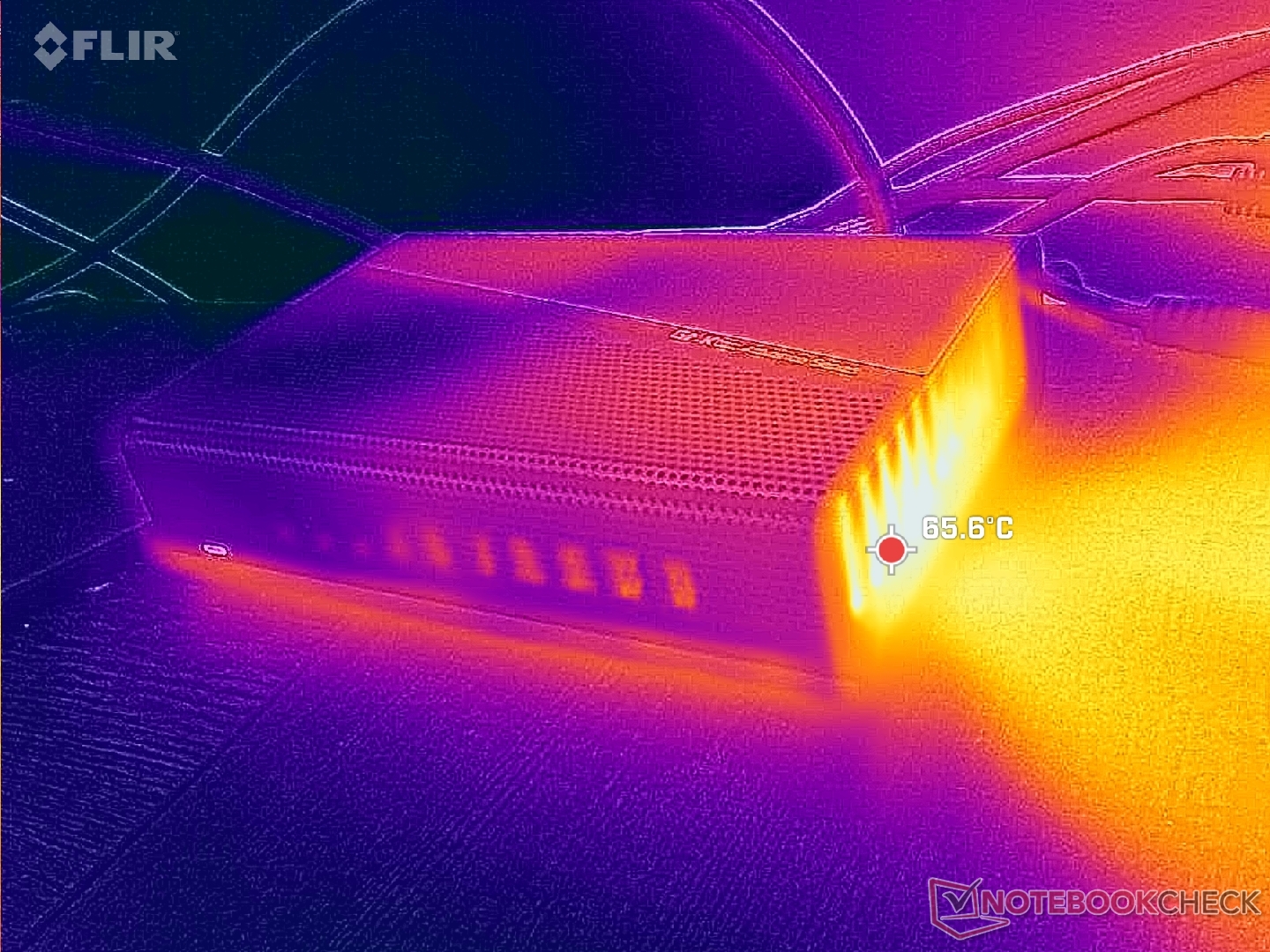

温度

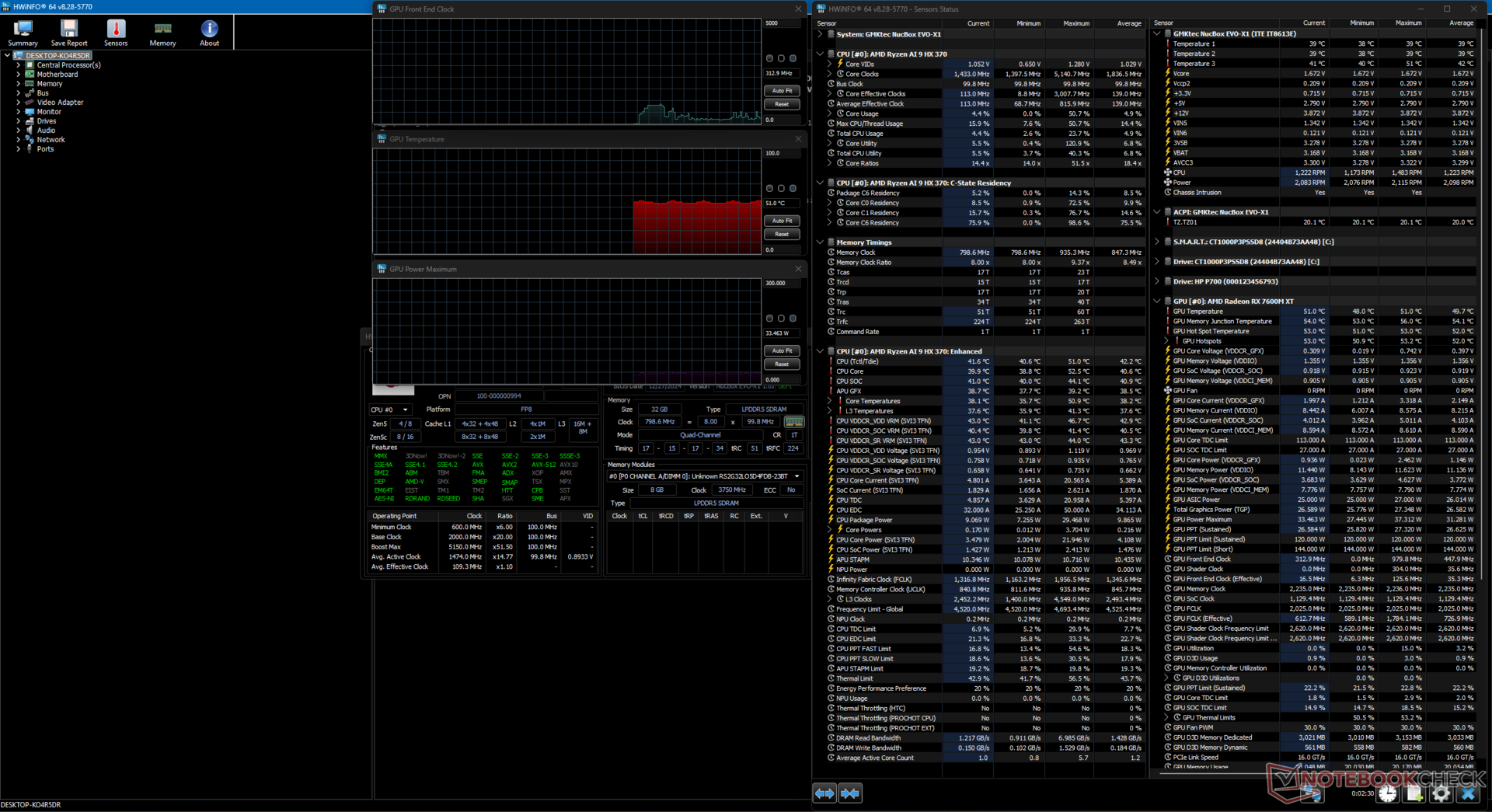

压力测试
在运行《赛博朋克 2077》时，GPU 的频率稳定在 2341 MHz、72 C 和 156 W，代表了典型的游戏条件。在运行 FurMark 时，可记录的暂时最大功率为 200 W，这意味着 240 W 的交流适配器足以为底座供电，此外还能为通过 USB-C PD 连接的大多数设备供电。
请记住，大多数笔记本电脑中的GeForce RTX 4050 GPU 仅需 80 W 或更低，但却能提供与 AD-GP1 类似的性能。
| GPU 时钟 (MHz) | CPU 平均温度 (°C) | GPU 平均温度 (°C) | |
| 系统闲置 | 353 | 40 | 51 |
| FurMark Stress | 2148 | 56 | 75 |
| 赛博朋克 2077》压力测试 | 2431 | 75 | 72 |
潜在竞争对手比较
