性价比高的迷你 PC？

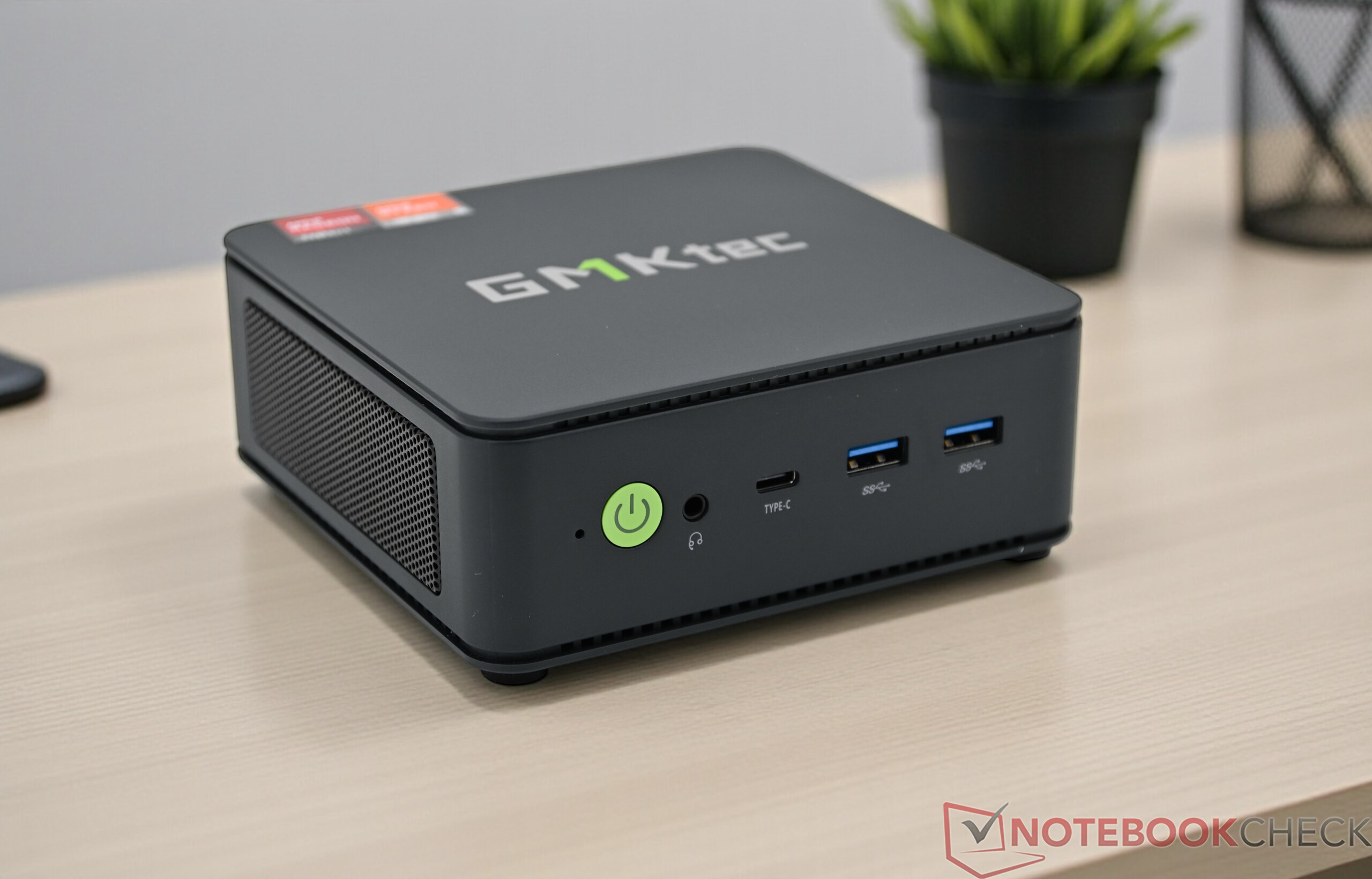

GMKtec NucBox M6 Ultra 将 AMD Ryzen 5 7640HS 与小巧、时尚的机箱和广泛的连接功能结合在一起。尤其令人感兴趣的是，冷却系统在负载情况下对处理器性能的控制有多好，以及迷你 PC 在日常使用中的能效有多高。我们在测试中通过详细的基准测试和测量给出了答案。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 09/23/2025 🇺🇸 🇩🇪 ...
Mini PC Desktop AMD Ryzen (Zen) Radeon

评价：配备 USB4 的坚固迷你 PC，物超所值

与 GMKtec 的其他型号一样，NucBox M6 Ultra 也具有很高的性价比。NucBox M6 Ultra 配备了 AMD Ryzen 5 7640HS，性能轻松超越该价位的许多入门级 CPU，因此非常适合作为紧凑型多用途电脑或 HTPC。尽管价格低廉，该设备的构造却完美无瑕。不过，NucBox M6 Ultra 无法弥补铝制外壳的昂贵型号在质量上的明显优势。特别令人高兴的是，由于升级到 USB4，连接范围扩大了，与上一代产品相比有了更多的使用选择。

Test device courtesy of GMKtec

Download your licensed rating image as PNG / SVG

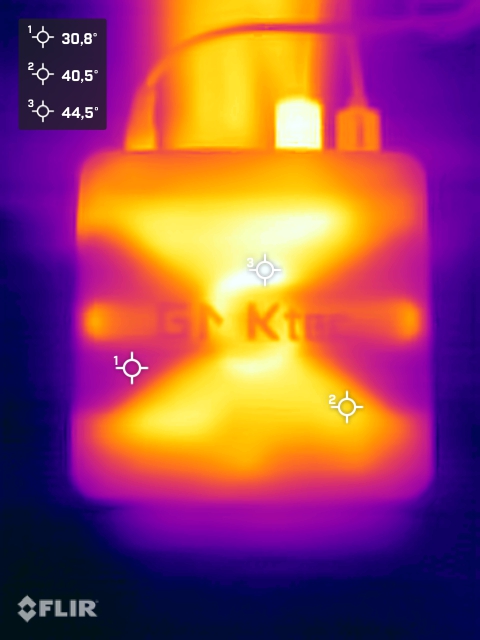

不过，该设备在散热方面存在弱点：迷你 PC 在负载情况下会发出明显的声音，而且风扇控制仍不成熟。虽然它没有用于密集型游戏的专用图形处理器，但集成的 Radeon 图形处理器完全可以满足多媒体、流媒体和休闲游戏的需求。总之，GMKtec NucBox M6 Ultra 作为一款小巧的全能型电脑给人留下了深刻印象，它集强大的性能和良好的连接性于一身，性价比极高。

Pros

+ 小巧玲珑

+ 工艺精湛

+ 维护简单

+ 支持 USB4 和 eGPU

+ 双 2.5G LAN

+ 物有所值

Cons

- 只有一个 USB-C

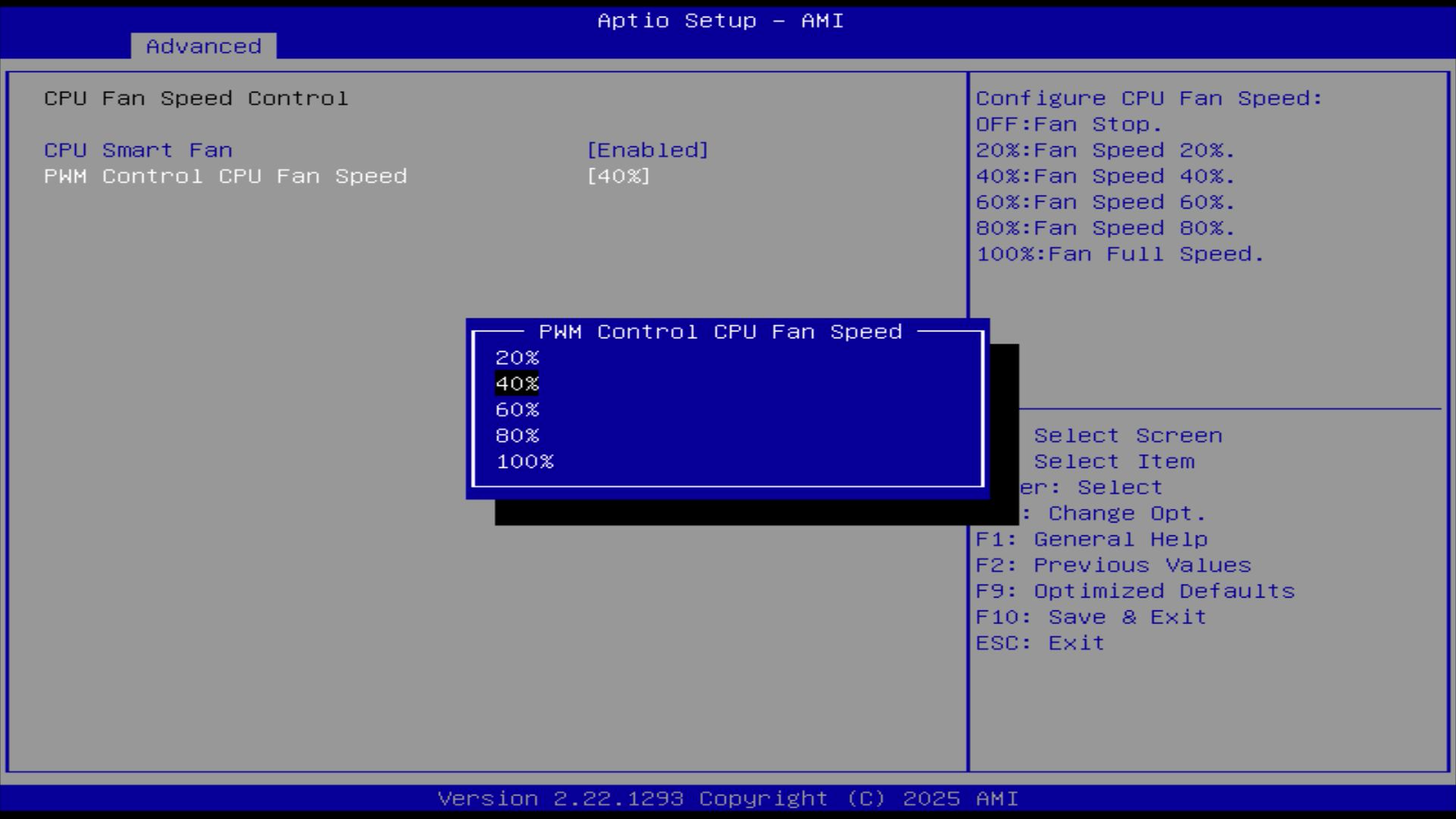

- 风扇控制似乎不成熟

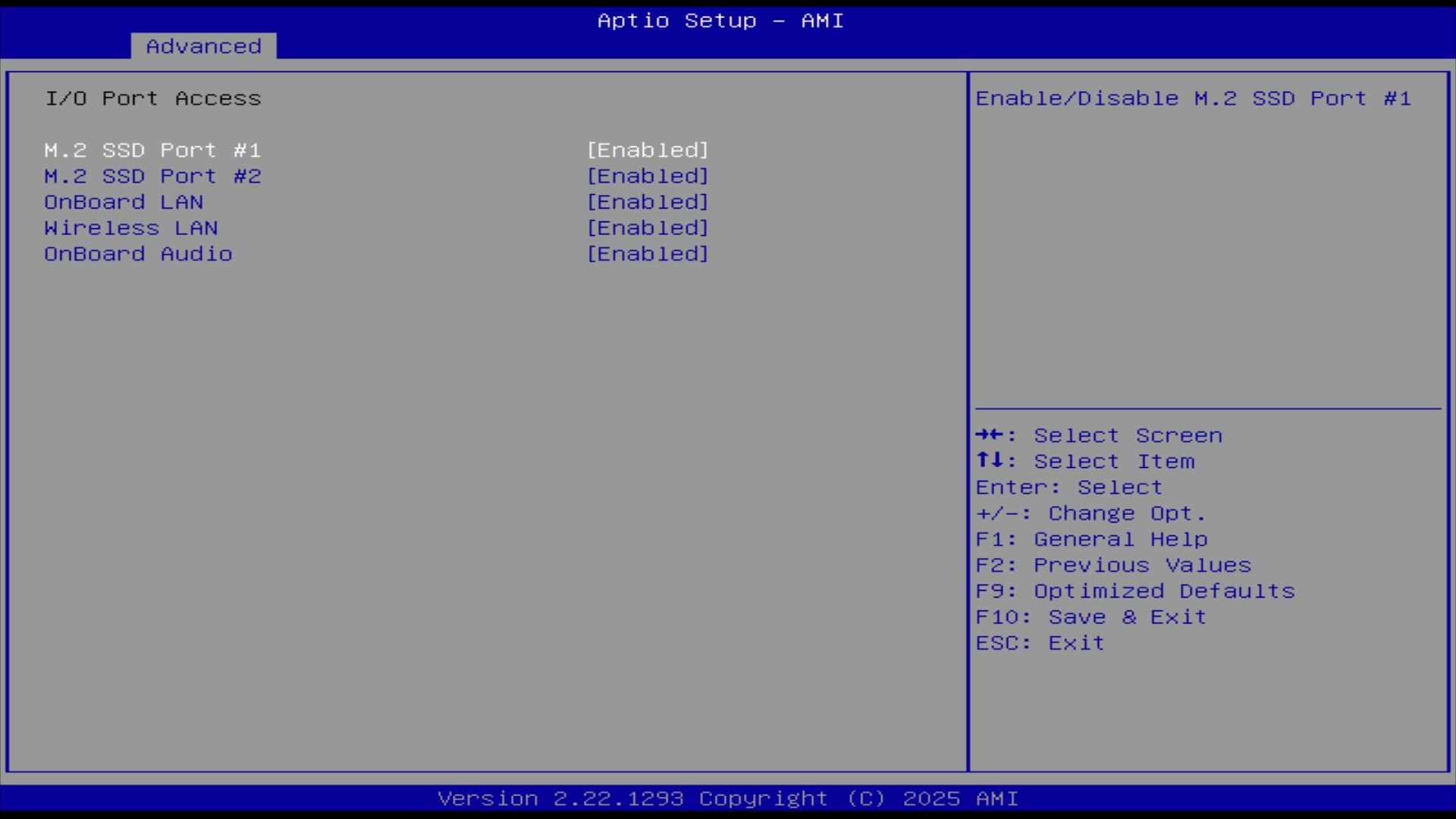

- BIOS 选项有限

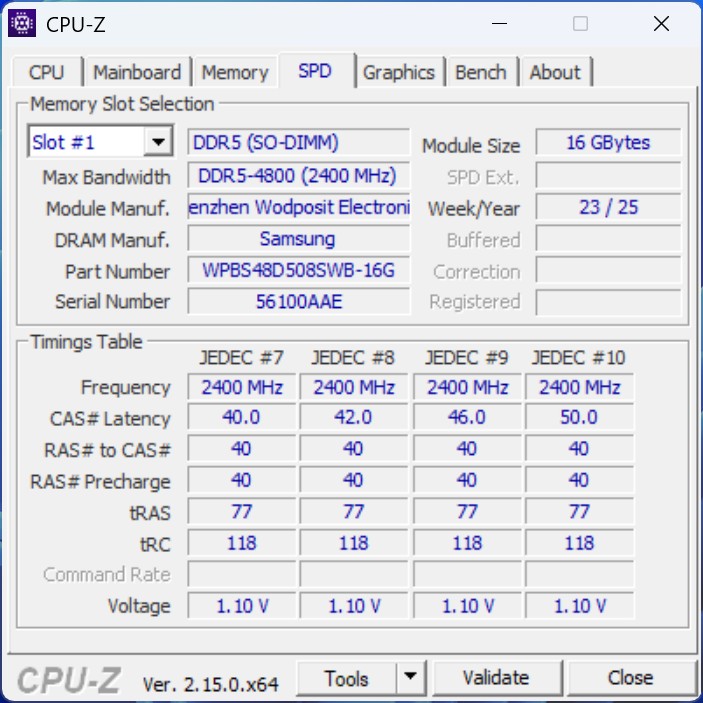

- 缓慢的 DDR5 内存（4,800 MTs）

价格和供应情况

GMKtec NucBox M6 Ultra 可在官方在线商店购买起价为 259 美元为裸机版本。配备 32 GB 内存和 1 TB SSD 的测试版售价 389 美元。顶级型号（32 GB RAM + 1 TB SSD）在亚马逊上的售价也是389 美元。

$519.99

GMKtec M6 Ultra Gaming Mini PC Ryzen 7640HS (Upgraded 6600H/ 6800U), 32GB RAM DDR5 1TB SSD Dual NIC LAN 2.5GbE Desktop Computers Office Home, Triple 4K Display, WiFi 6, USB4, BT 5.2, DP, HDMI 2.0

评价：配备 USB4 的坚固迷你 PC，物超所值
规格
外壳和功能
性能
排放量
能源管理
笔记本检查评级
可比较的替代品

GMKtec NucBox M6 Ultra 结合了强大的性能和超紧凑的设计。它的核心是 AMD Ryzen 5 7640HS，这是一款主频高达 5.0 GHz 的 6 核/12 线程处理器，由集成的 Radeon 760M 提供支持。尽管尺寸不大，但这款迷你 PC 允许使用高达 128 GB DDR5 内存和高达 8 TB SSD 存储器。我们测试的是配备 32 GB 内存和 1 TB SSD 的机型，目前售价仅为 389 美元起。

规格

GMK NucBox M6 Ultra

Processor

AMD Ryzen 5 7640HS 6 x 4.3 - 5 GHz, Phoenix-HS (Zen 4)

Graphics adapter

AMD Radeon 760M, Adrenalin 25.9.1

Memory

32 GB

, DDR5 4.800 MT/s, Quad-Channel, max 128 GB

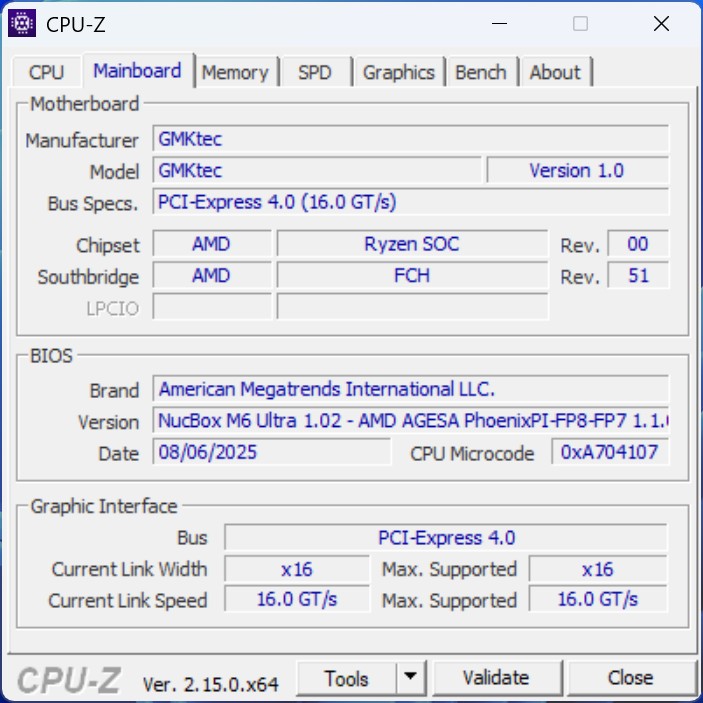

Mainboard

AMD Promontory/Bixby FCH

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 3 USB 3.1 Gen2, 1 USB4 40 Gbps, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: Audio Jack: 3.5mm, CTIA standard, 2nd Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s)

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 47.8 x 128.8 x 127

Operating System

Microsoft Windows 11 Pro

Weight

506 g, Power Supply: 404 g

Price

336 Euro

Amazon

$519.99

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

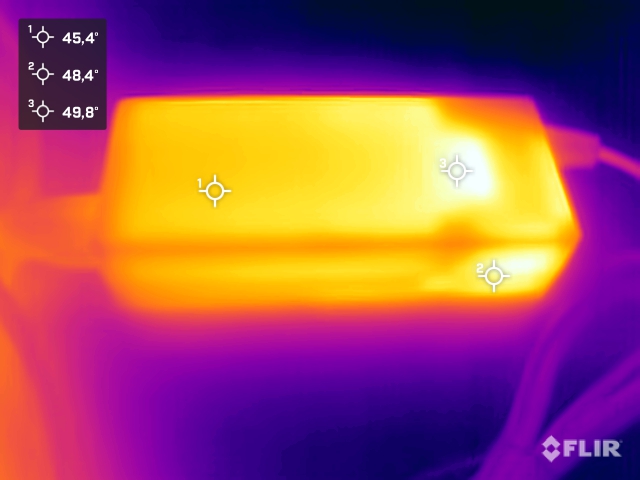

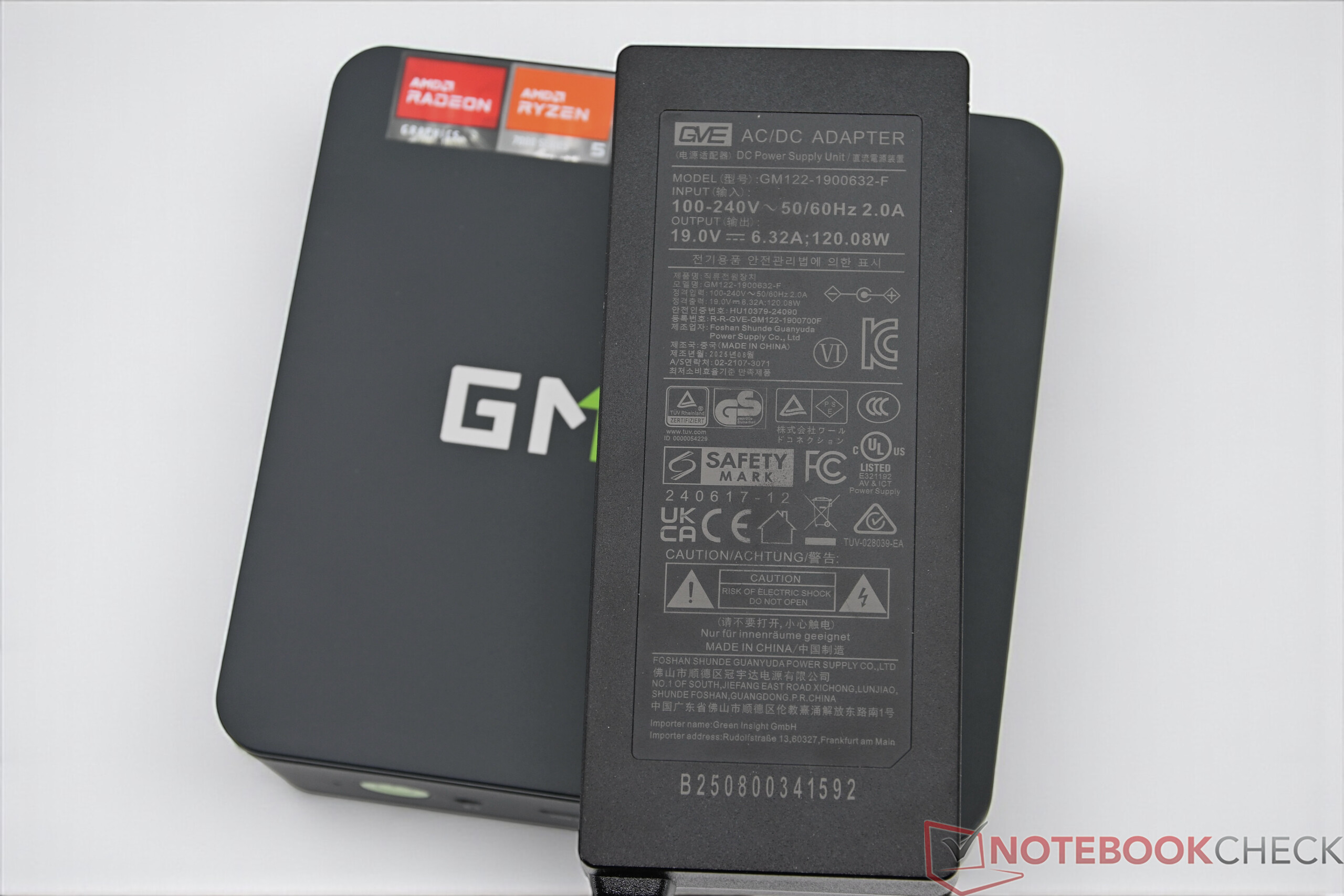

带电源装置的 GMKtec NucBox M6 Ultra（19 V；6.32 A）

外壳和功能

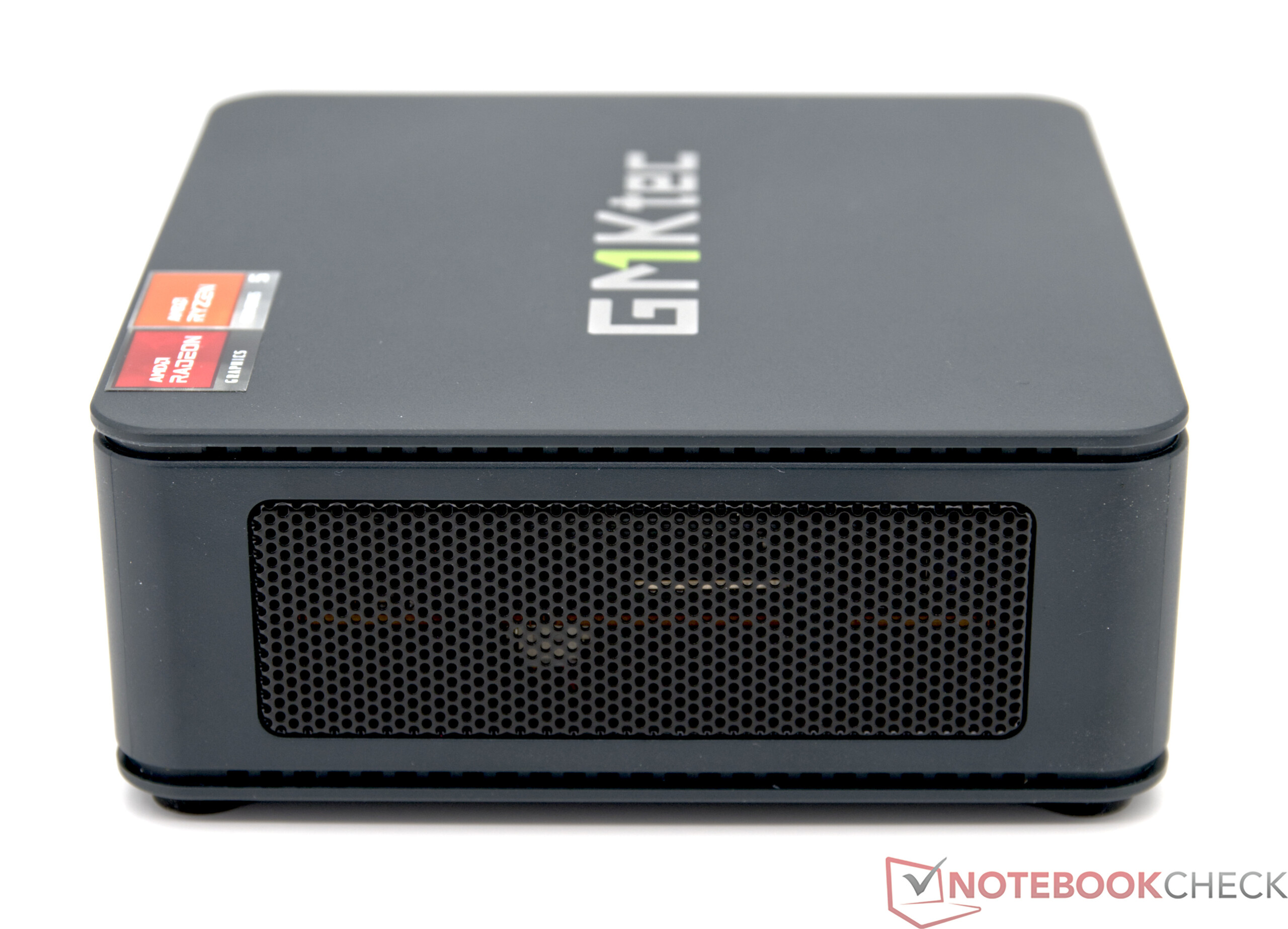

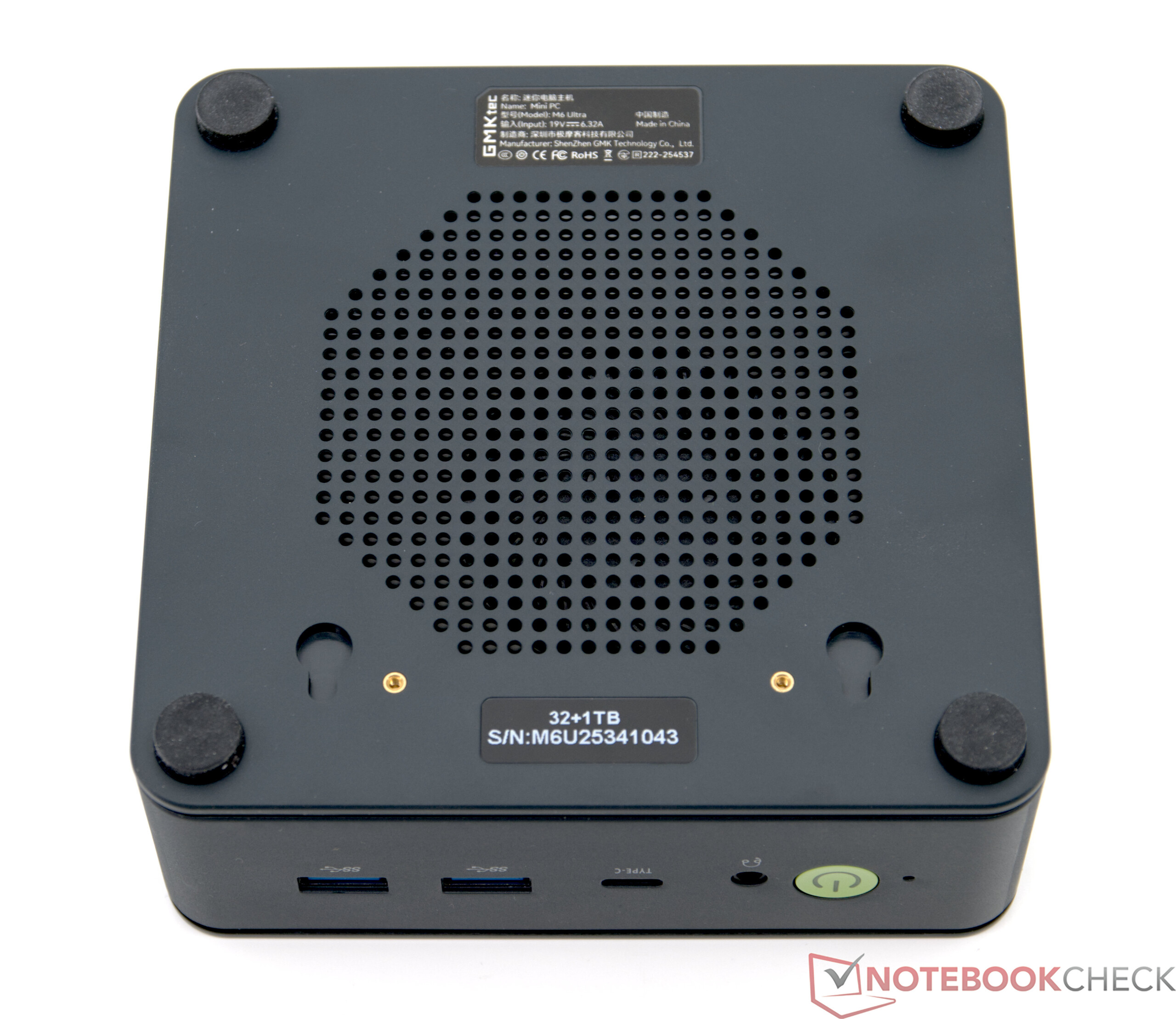

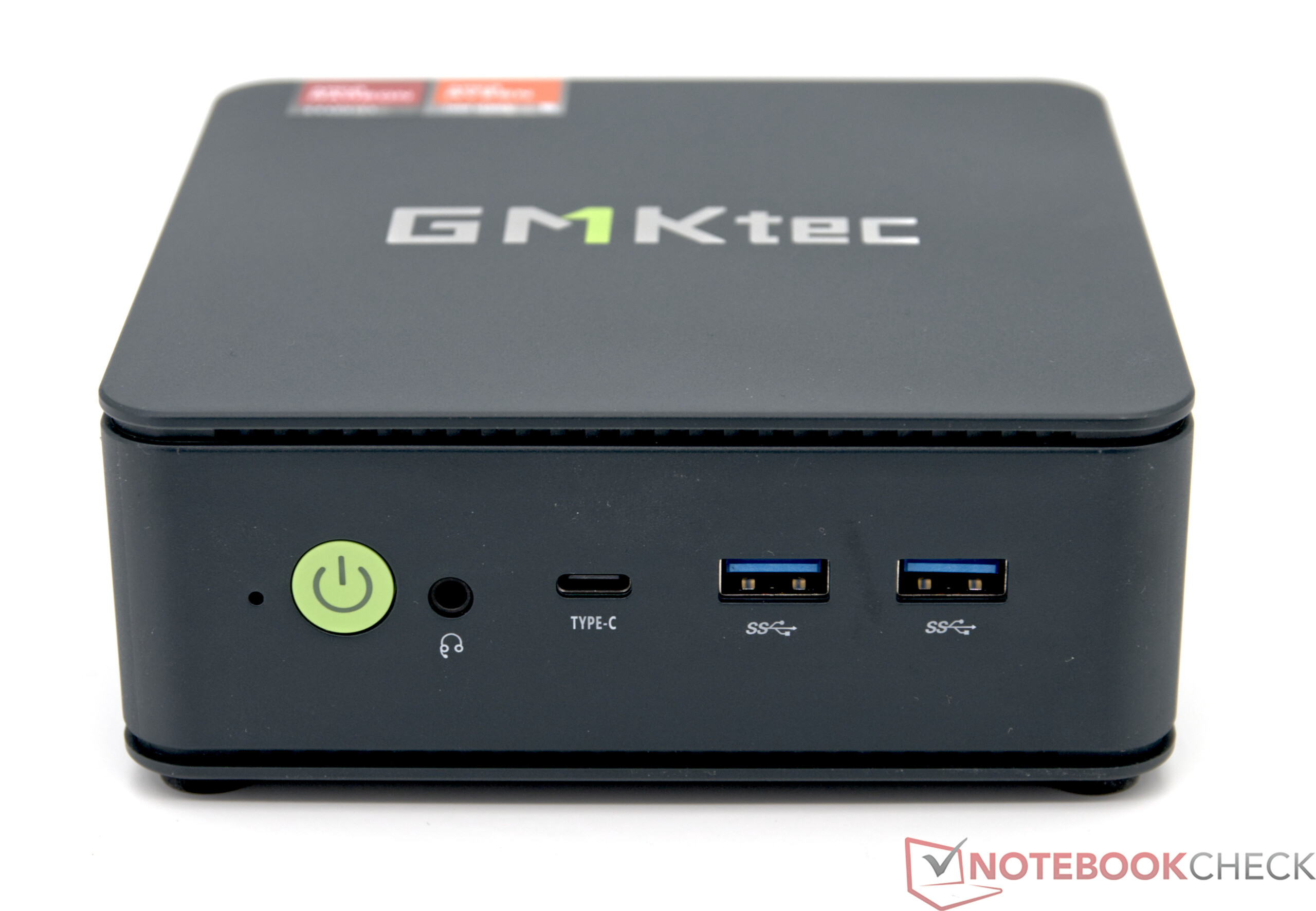

GMKtec NucBox M6 Ultra 采用小巧的迷你 PC 机壳，在外观和功能上都与前代产品保持一致。连接方面只有一个小变化：正面增加了一个 USB4 端口，其他端口保持不变。

尺寸比较

Minisforum EliteMini UM890 Pro Ninkear M8, 32+1TB Geekom A9 Max, AI 9 HX 370 BMAX B9 Power GMK NucBox M6 Ultra BOSGAME M4 Neo DIN A5 ❌

USB 4 性能

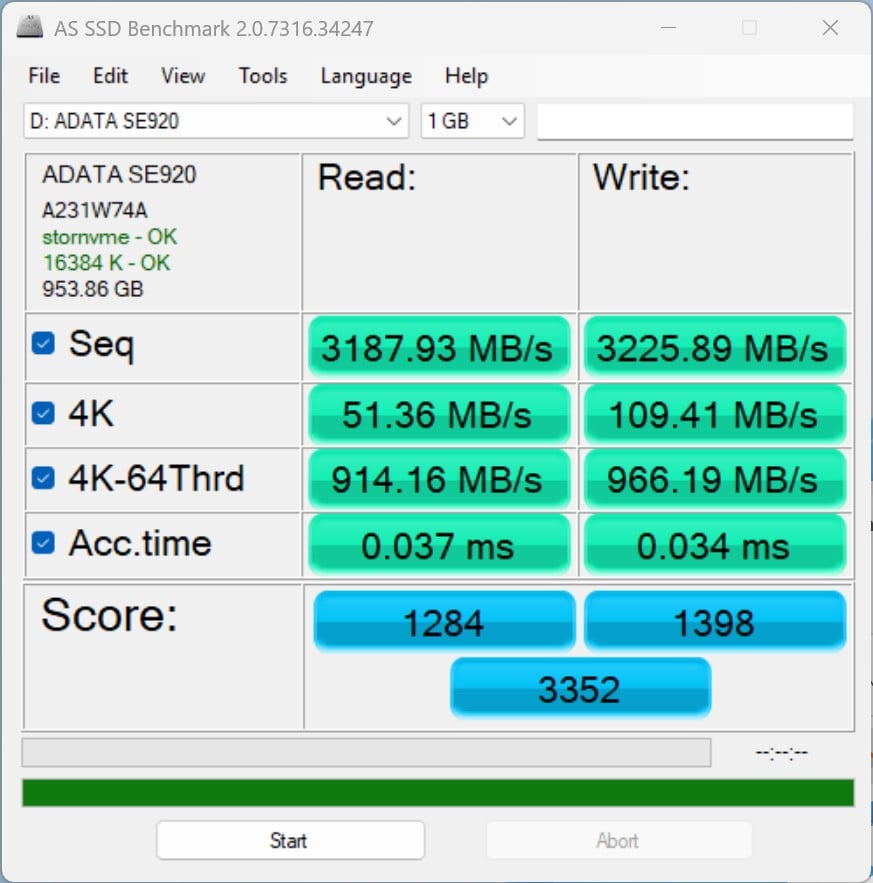

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	3187.93 MB/s
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	3161.47 MB/s
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	3133.6 MB/s
Average of class Mini PC (906 - 3906, n=27, last 2 years)	2807 MB/s
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	1622.04 MB/s

Networking
iperf3 receive AXE11000 6GHz
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1750 (1725^min - 1761^max) MBit/s +8%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1702 (1657^min - 1730^max) MBit/s +5%

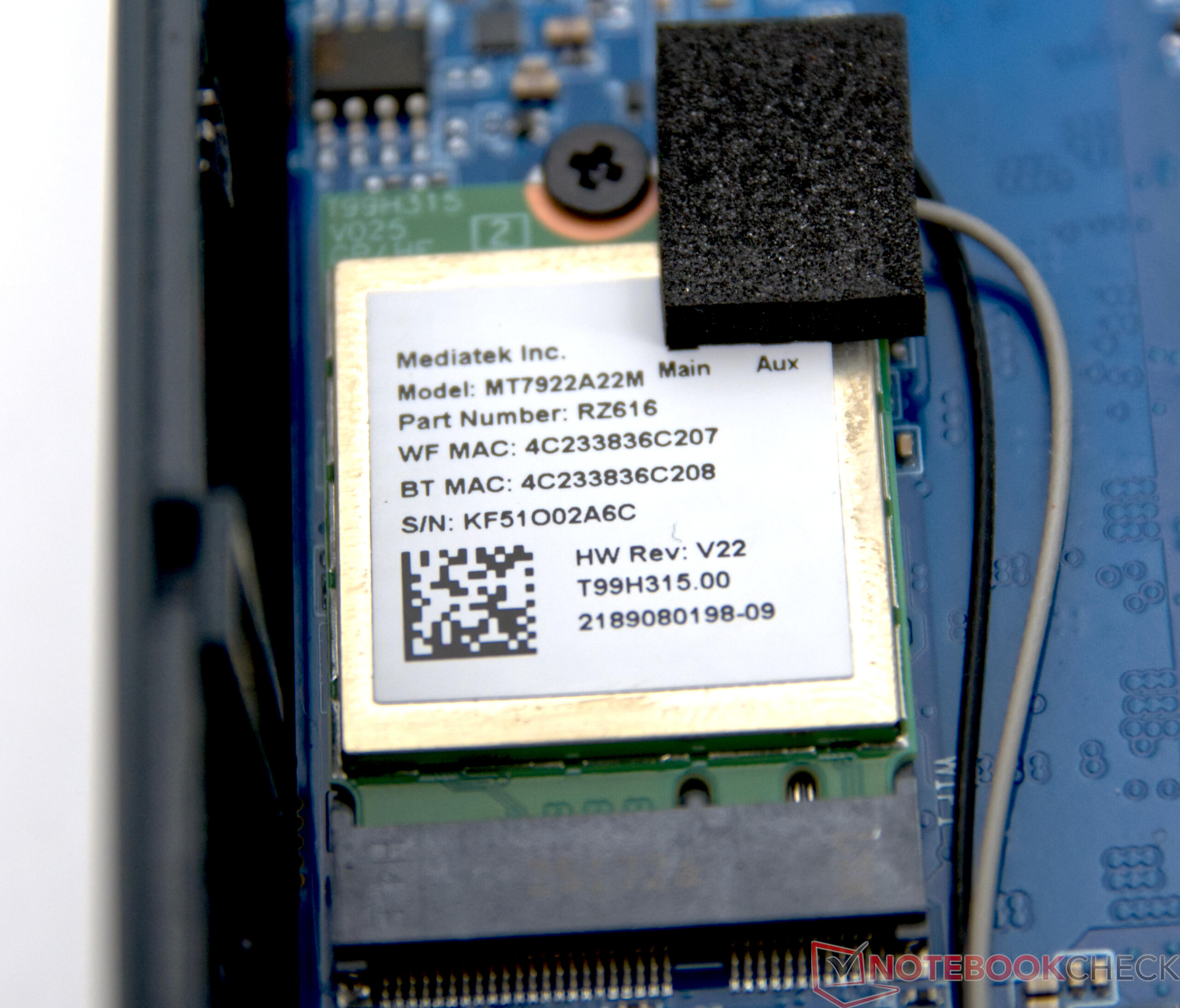

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1626 (1604^min - 1640^max) MBit/s
Geekom A9 Max, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1607 (1584^min - 1625^max) MBit/s -1%
Average of class Mini PC (684 - 1814, n=55, last 2 years)	1499 MBit/s -8%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (684 - 1771, n=50)	1475 MBit/s -9%
iperf3 transmit AXE11000 6GHz
Geekom A9 Max, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1690 (1636^min - 1761^max) MBit/s +3%
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1640 (1517^min - 1760^max) MBit/s
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1546 (759^min - 1594^max) MBit/s -6%
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1518 (1353^min - 1599^max) MBit/s -7%
Average of class Mini PC (394 - 1887, n=56, last 2 years)	1446 MBit/s -12%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (394 - 1890, n=48)	1433 MBit/s -13%
iperf3 receive AXE11000
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (644 - 1775, n=70)	1386 MBit/s +50%
Average of class Mini PC (267 - 1771, n=100, last 2 years)	1006 MBit/s +9%
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	977 (954^min - 984^max) MBit/s +6%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	954 (920^min - 962^max) MBit/s +3%
Geekom A9 Max, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	949 (923^min - 961^max) MBit/s +3%
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	922 (856^min - 937^max) MBit/s
iperf3 transmit AXE11000
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (358 - 1785, n=69)	1274 MBit/s +47%
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	964 (499^min - 1002^max) MBit/s +11%
Average of class Mini PC (251 - 1811, n=100, last 2 years)	925 MBit/s +7%
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	868 (822^min - 908^max) MBit/s
Geekom A9 Max, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	797 (405^min - 824^max) MBit/s -8%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	729 (701^min - 766^max) MBit/s -16%

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1640 (1517-1760)

Geekom A9 Max, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1690 (1636-1761)

Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1518 (1353-1599)

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1626 (1604-1640)

Geekom A9 Max, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1607 (1584-1625)

Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1750 (1725-1761)

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø922 (856-937)

Geekom A9 Max, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø949 (923-961)

Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø976 (954-984)

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø868 (822-908)

Geekom A9 Max, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø783 (405-824)

Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø947 (499-1002)

配件

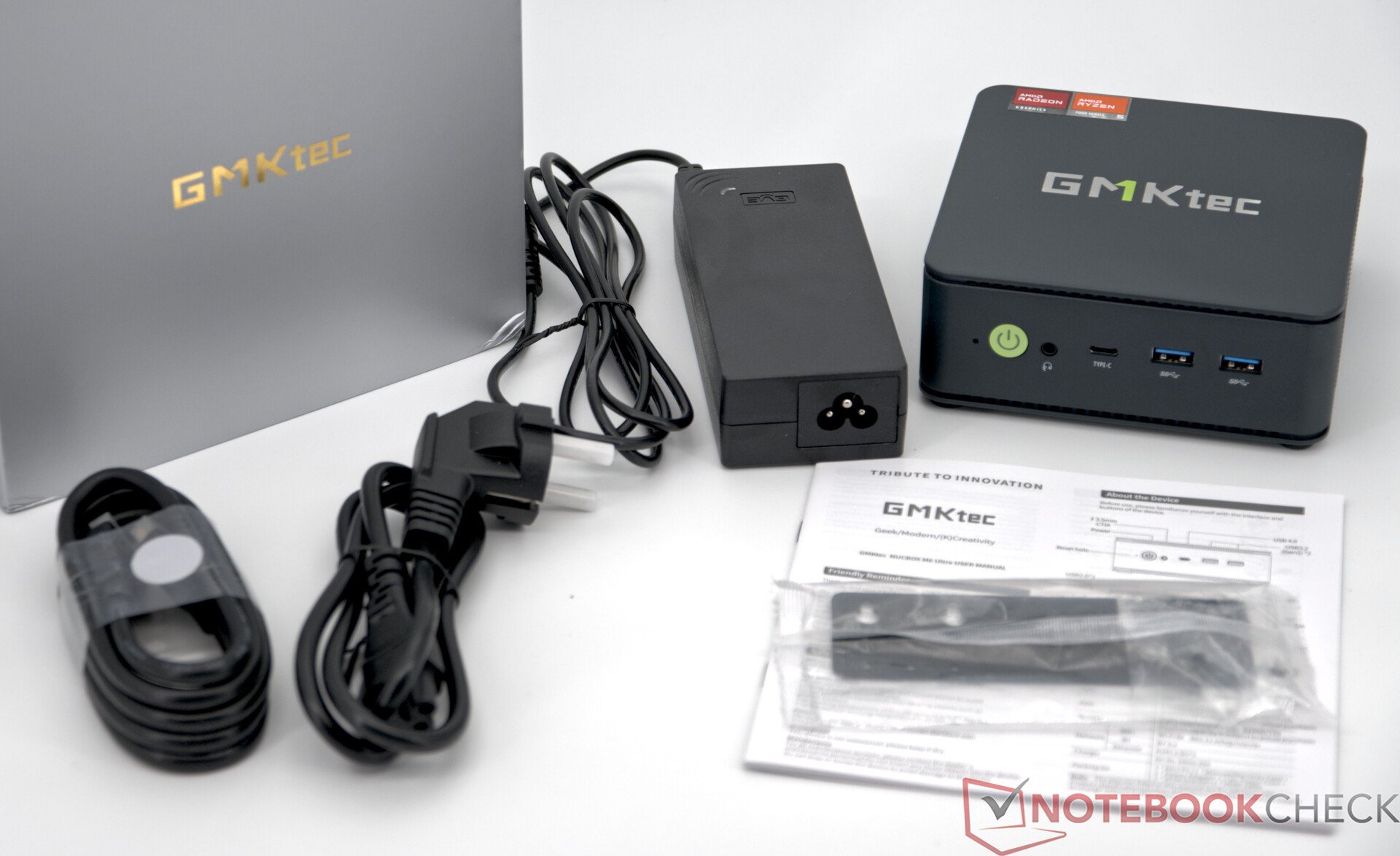

供货范围包括一个 120 W 电源装置、一条 HDMI 电缆、一个 VESA 支架和一本小巧的手册，其中包含有关连接和扩展选项的信息。

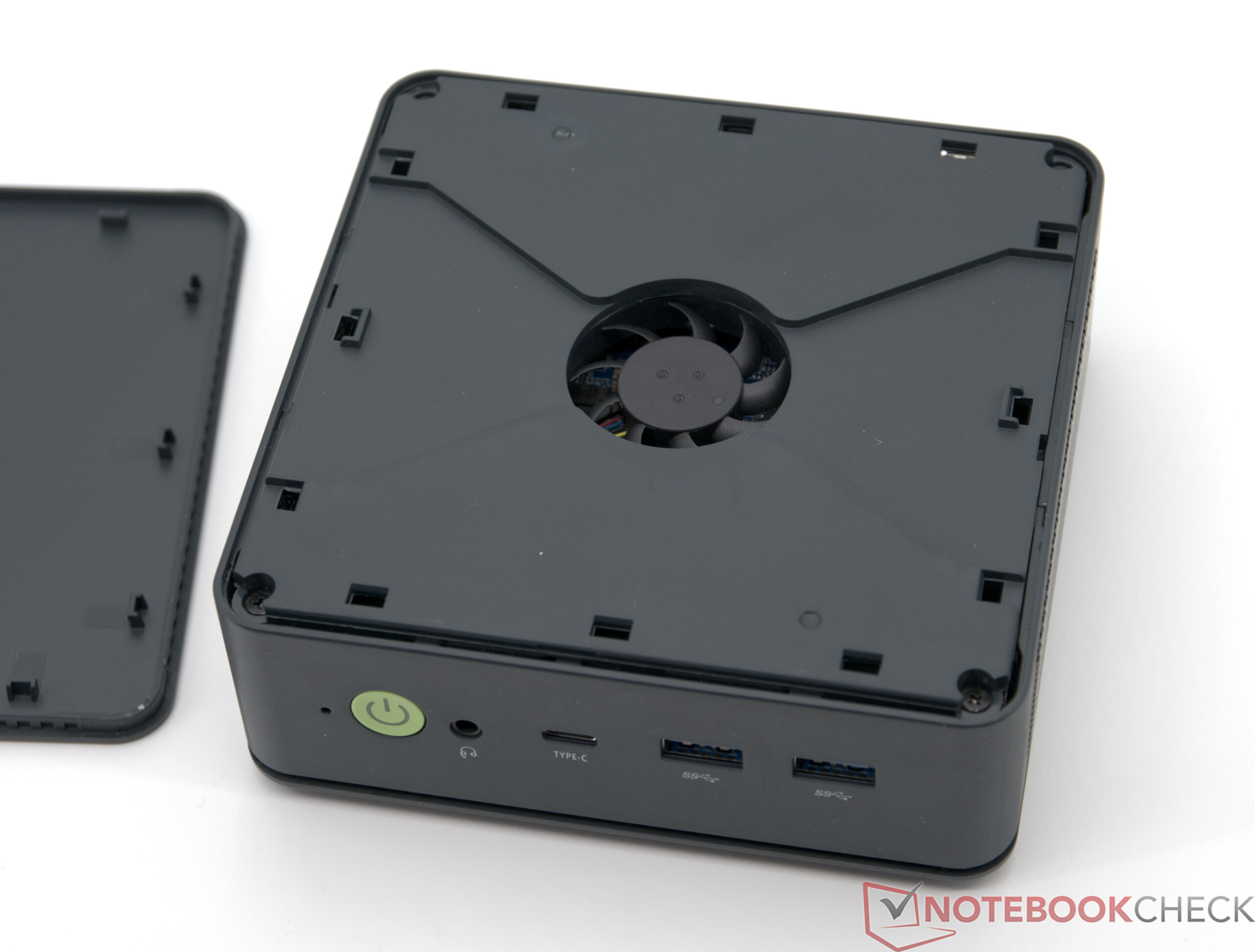

维护

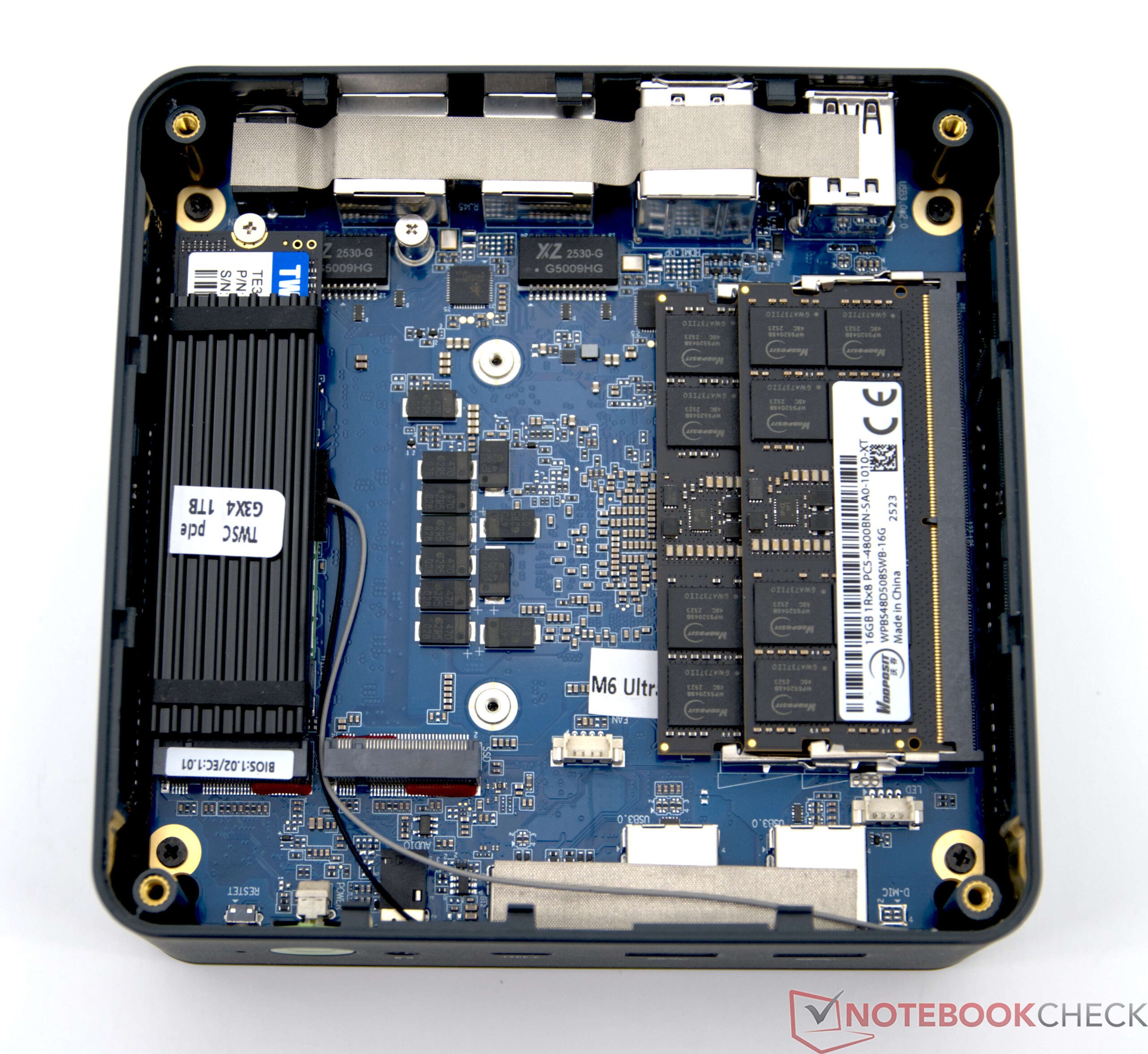

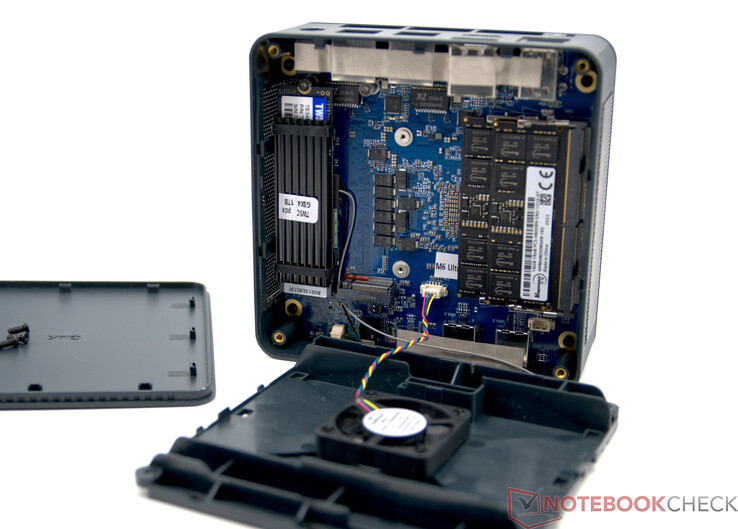

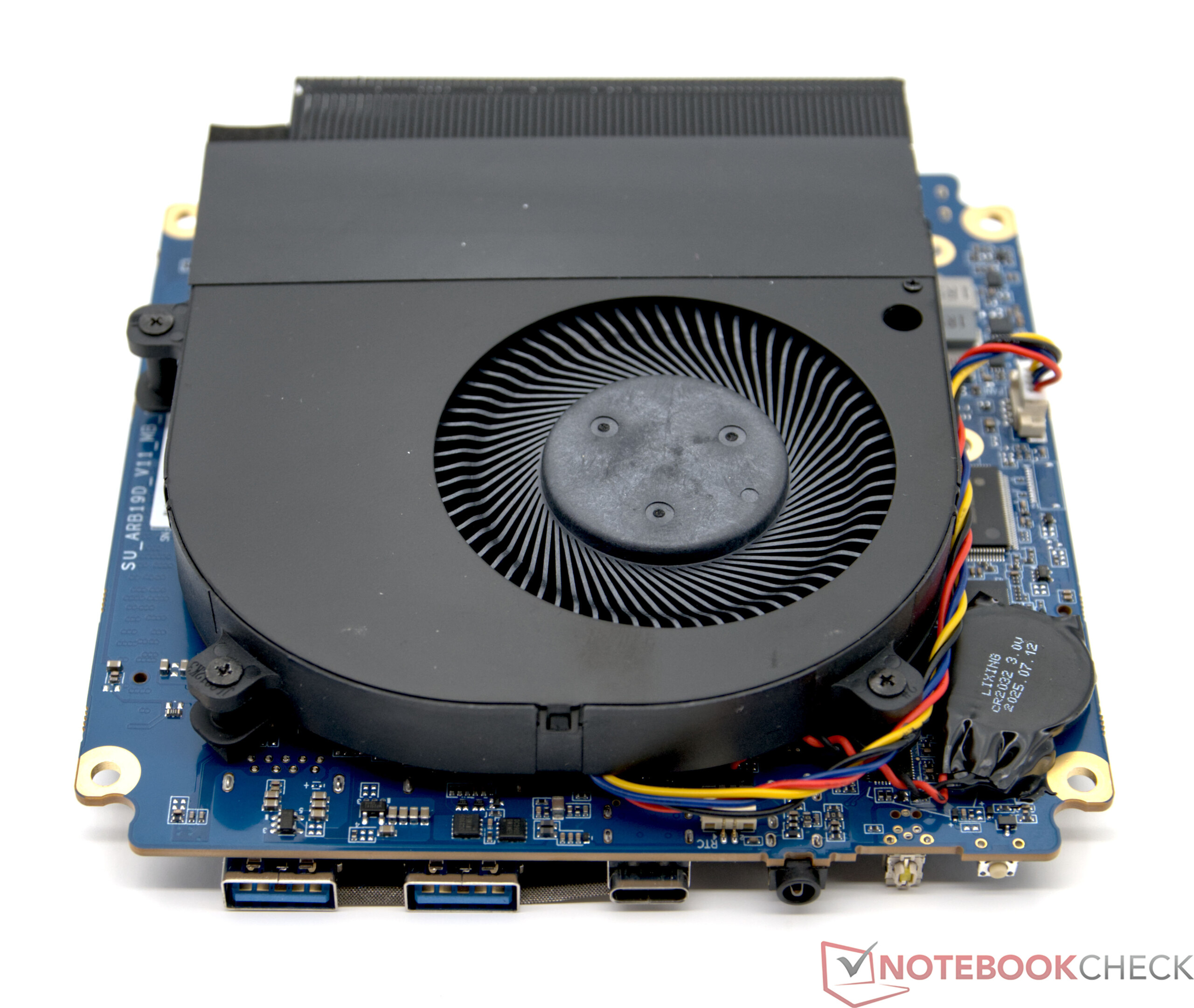

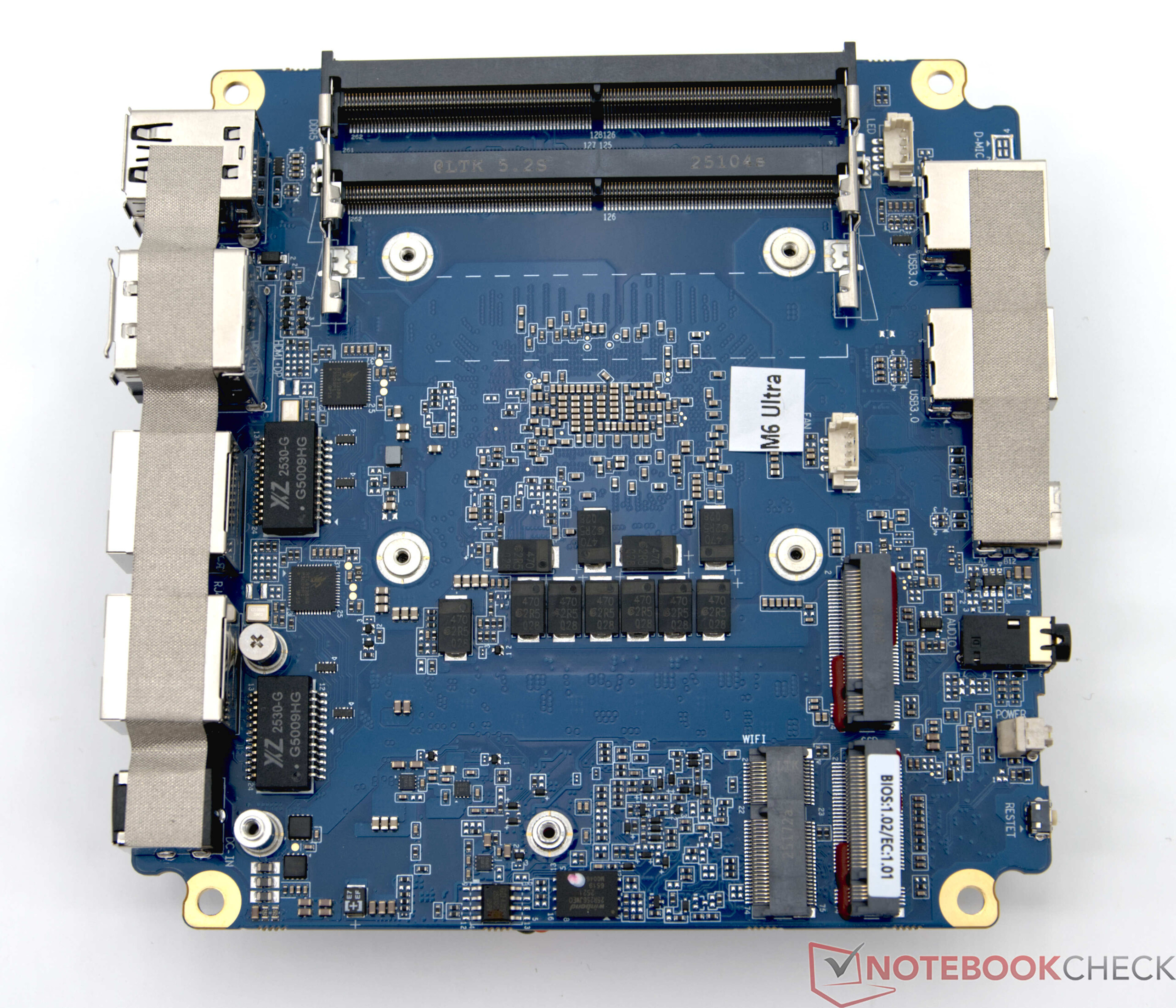

要打开设备，必须取下外壳盖。然后可以取下下面用四颗螺钉固定的外壳顶部。必要时可以更换某些部件。

可持续性

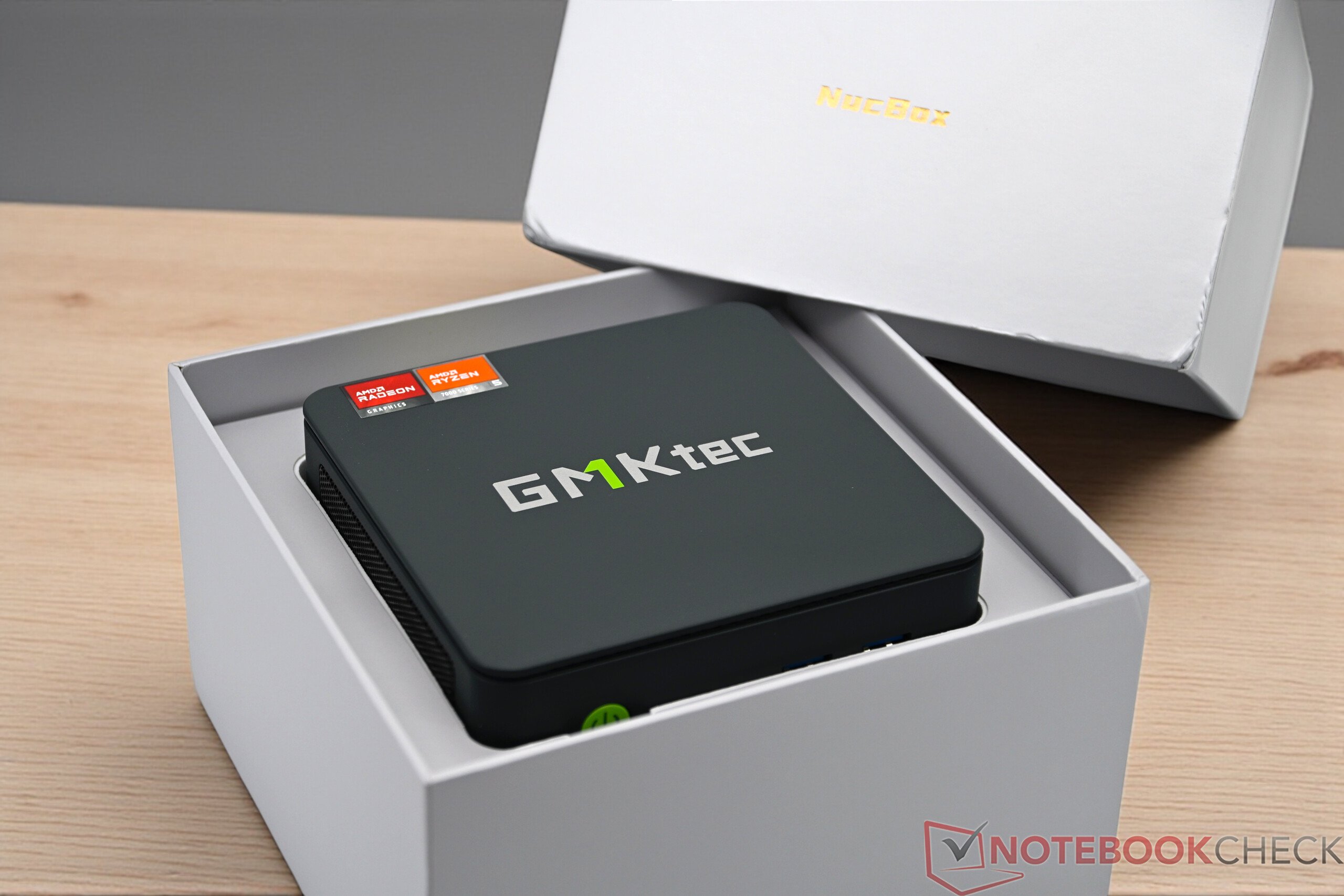

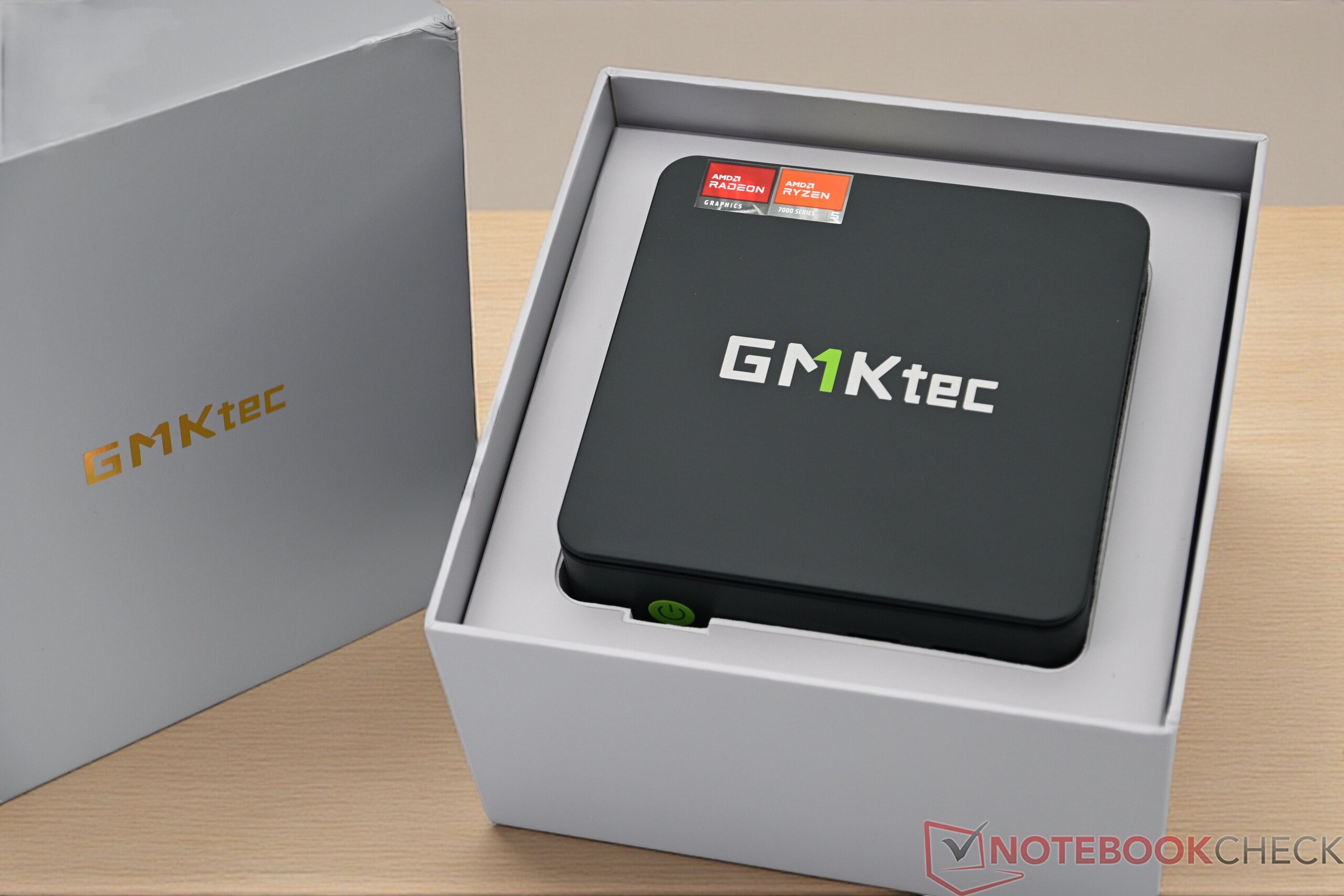

GMK 没有提供任何有关生产过程可持续性方面的信息。包装主要由硬纸板组成，并辅以一些泡沫塑料以保护设备。

性能

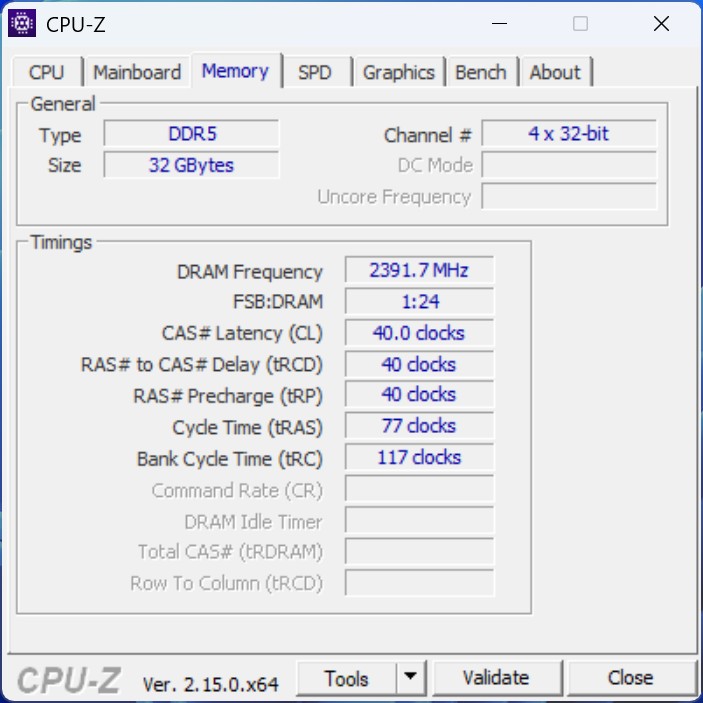

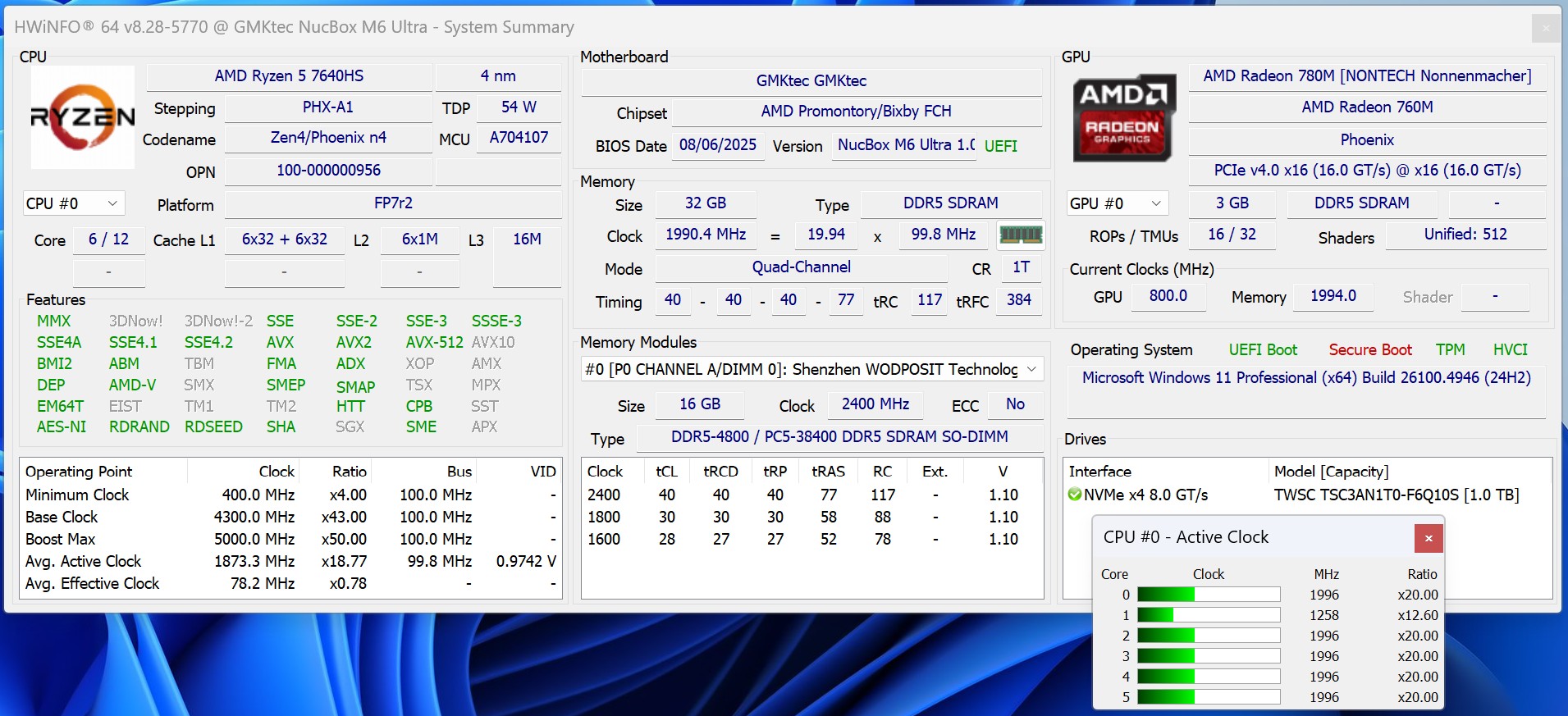

GMKtec NucBox M6 Ultra 配备了 AMD Ryzen 5 7640HS，提供 6 个内核和 12 个线程。该设备出厂时配备 16 或 32 GB DDR5 内存，目前尚未计划处理器的其他配置。

测试条件

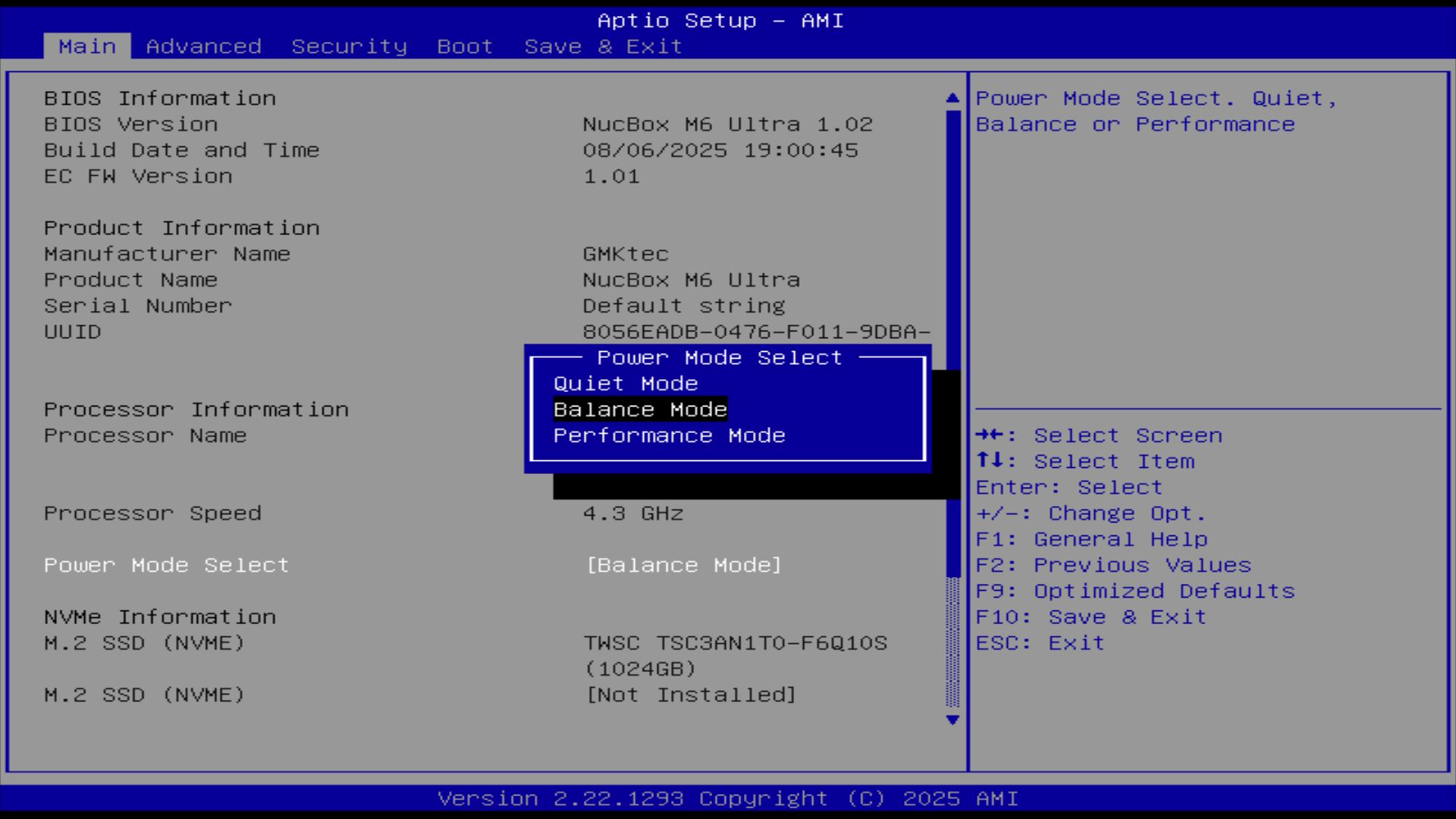

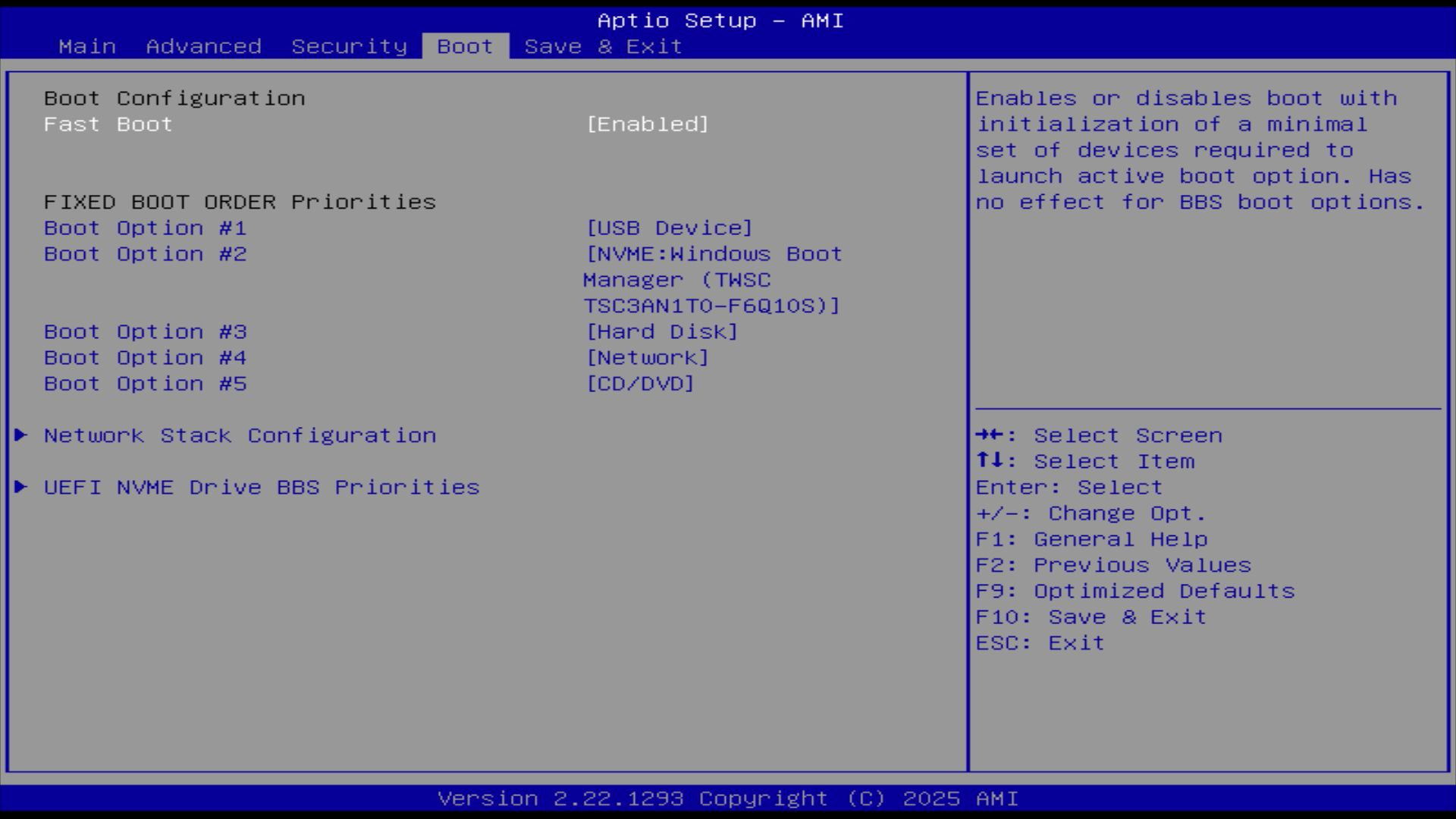

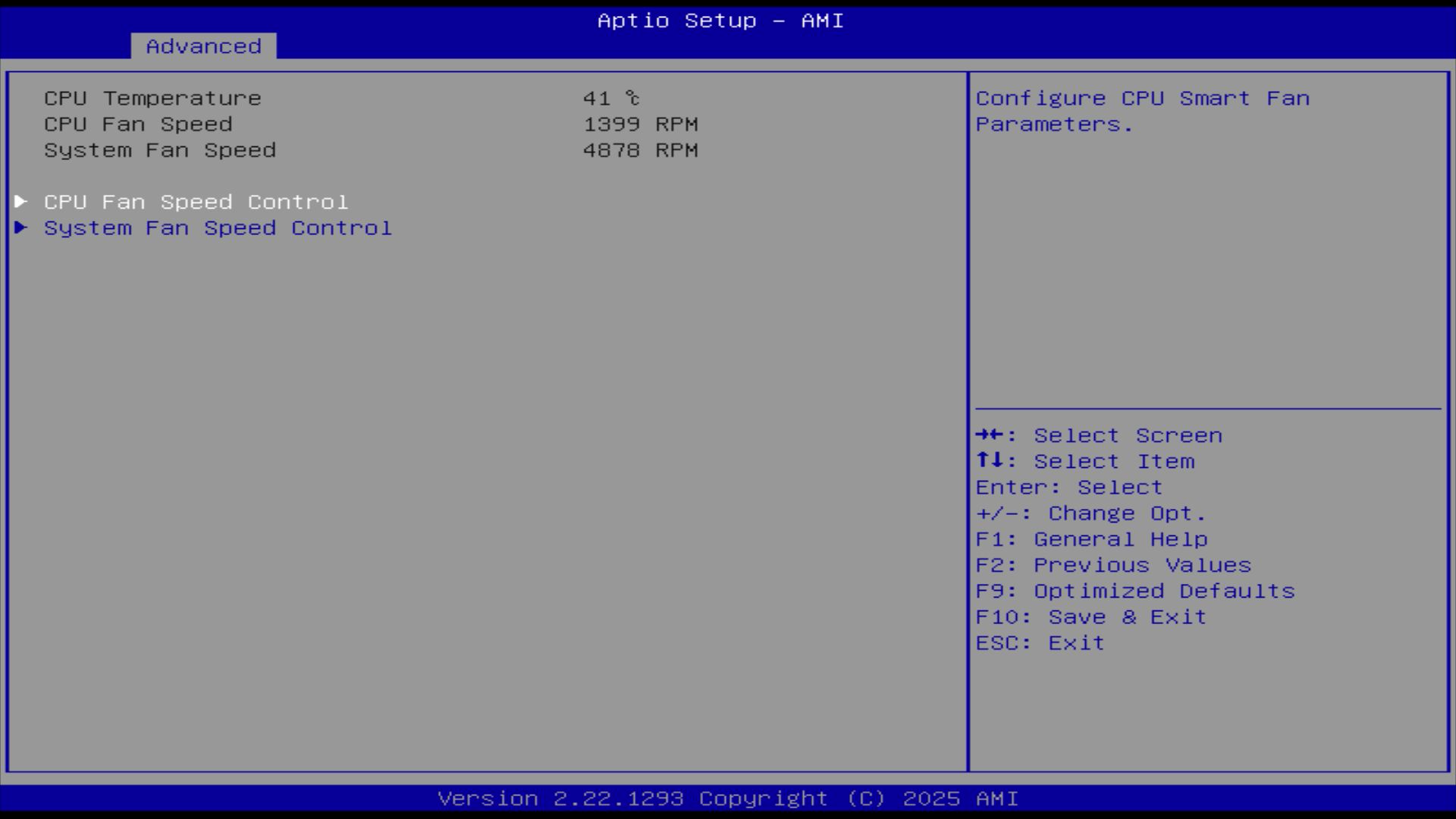

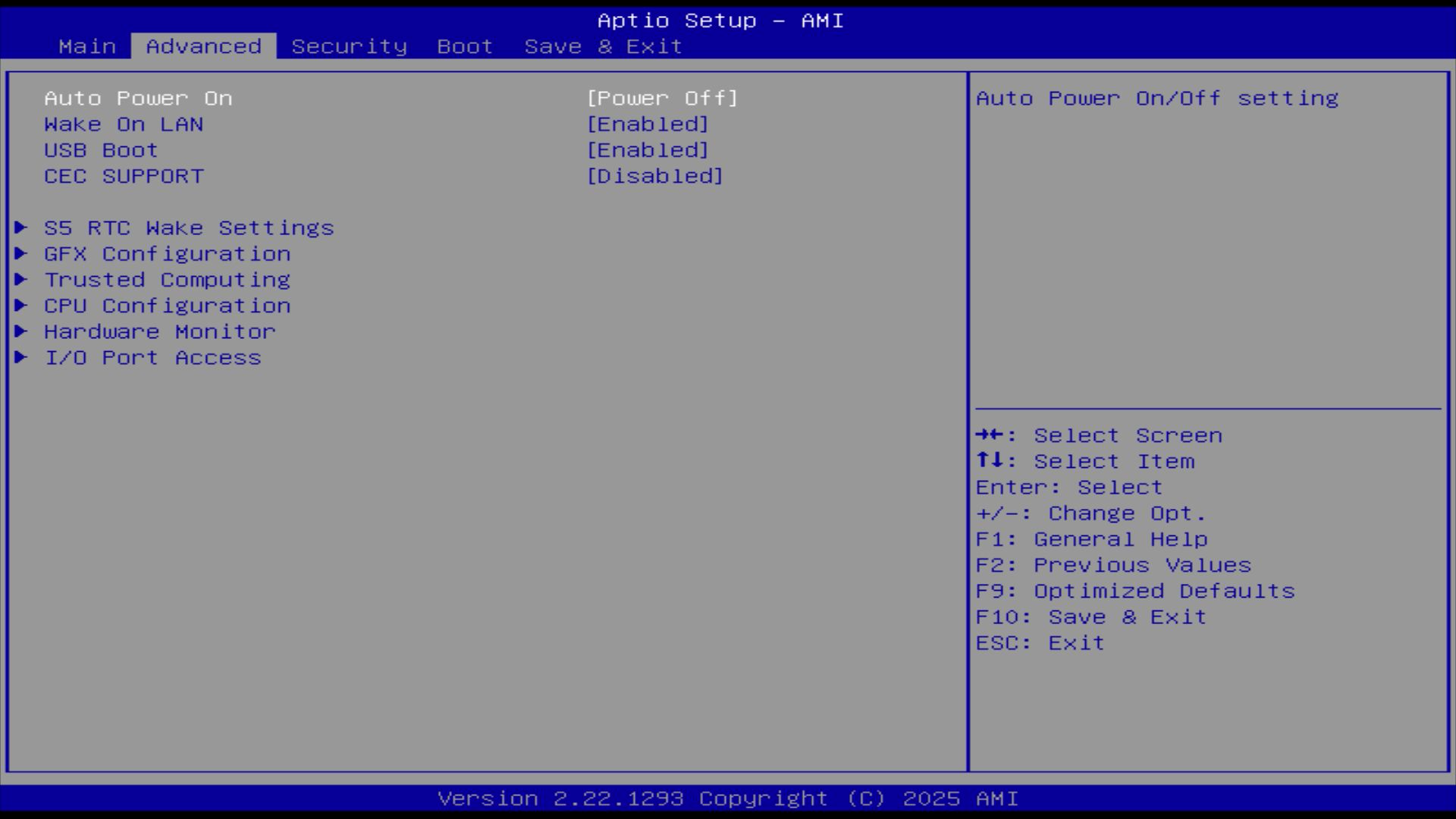

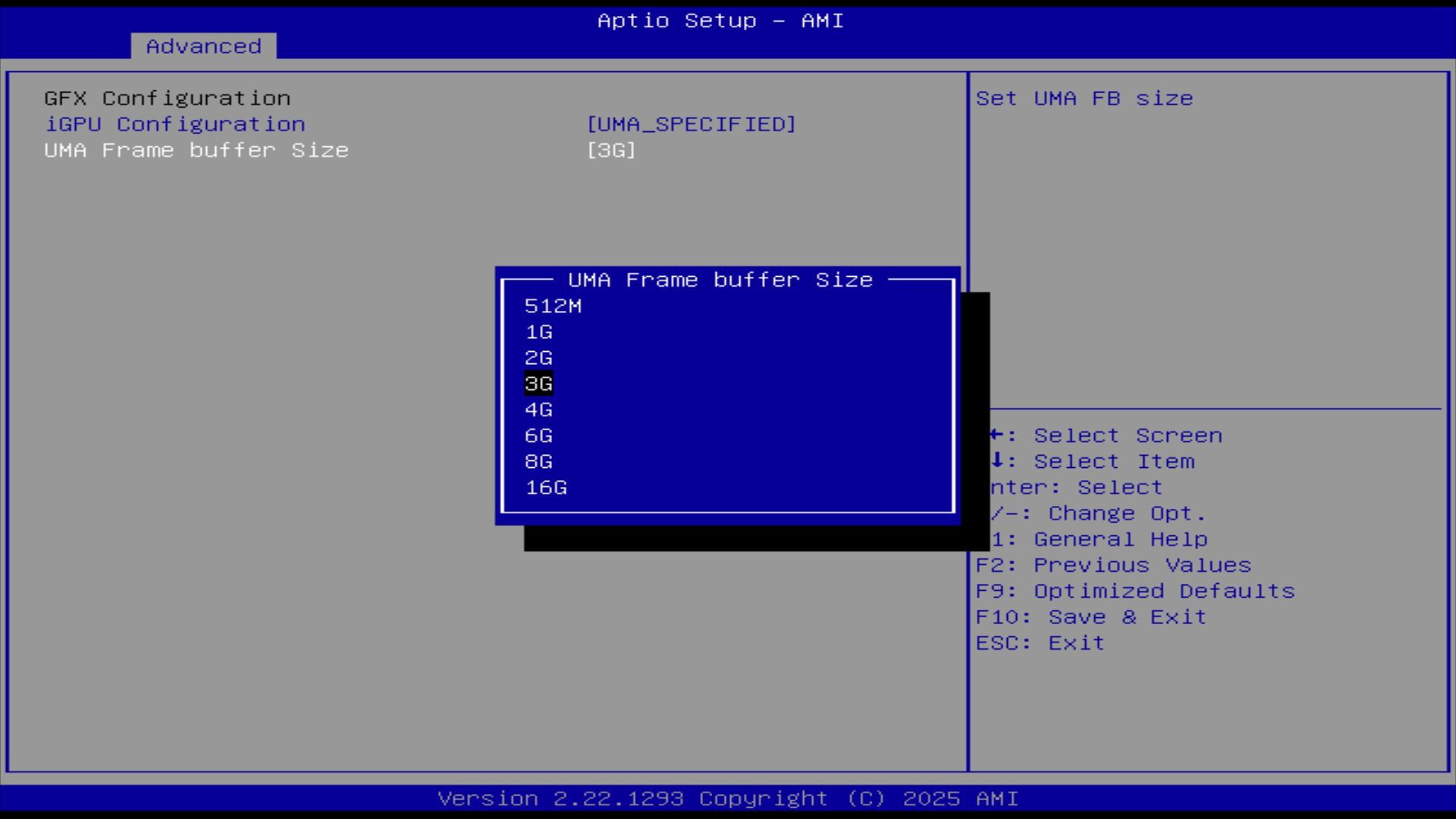

测试运行在出厂设置的平衡模式（45 瓦）下进行。BIOS 中还提供性能模式（50 瓦）和静音模式（35 瓦）。

处理器

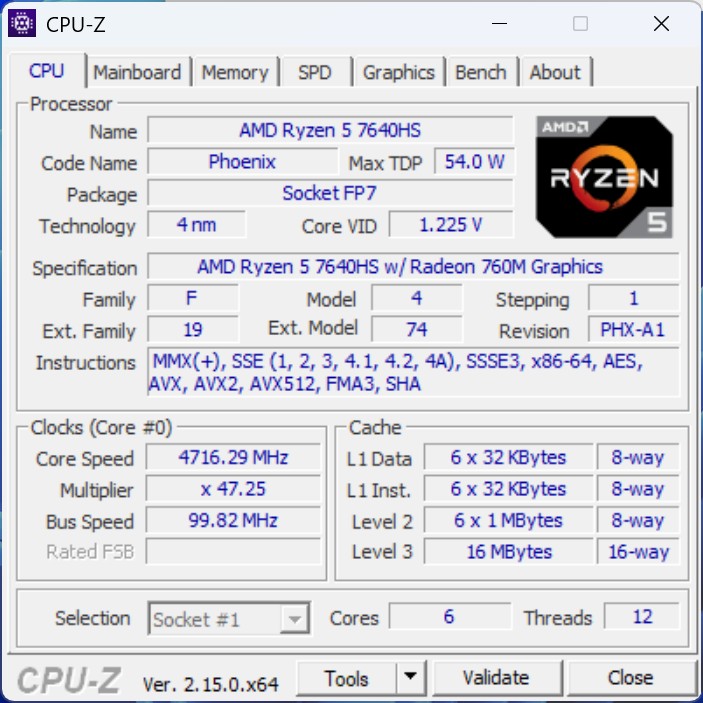

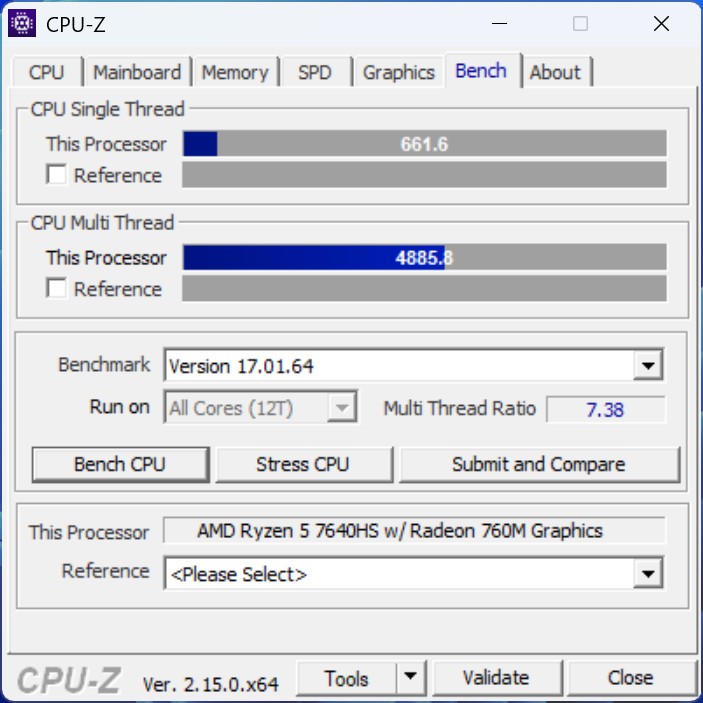

GMKtec NucBox M6 Ultra 中的 AMD Ryzen 5 7640HS 是一款基于 Zen 4 架构的 6 核处理器，在单核和多核情况下都能提供稳定的性能。凭借这款处理器，GMKtec 将其 Mini-PC 定位在中低端市场，其性能可与 BMAX B9 Power 中的英特尔酷睿 i9-12900HK 相媲美。 BMAX B9 Power的性能，但可以超越它。

Performance Rating - Percent
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	56.2 pt
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	52.9 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS	51.5 pt
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	47.8 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	47.6 pt
BMAX B9 Power Intel Core i9-12900HK	43 pt

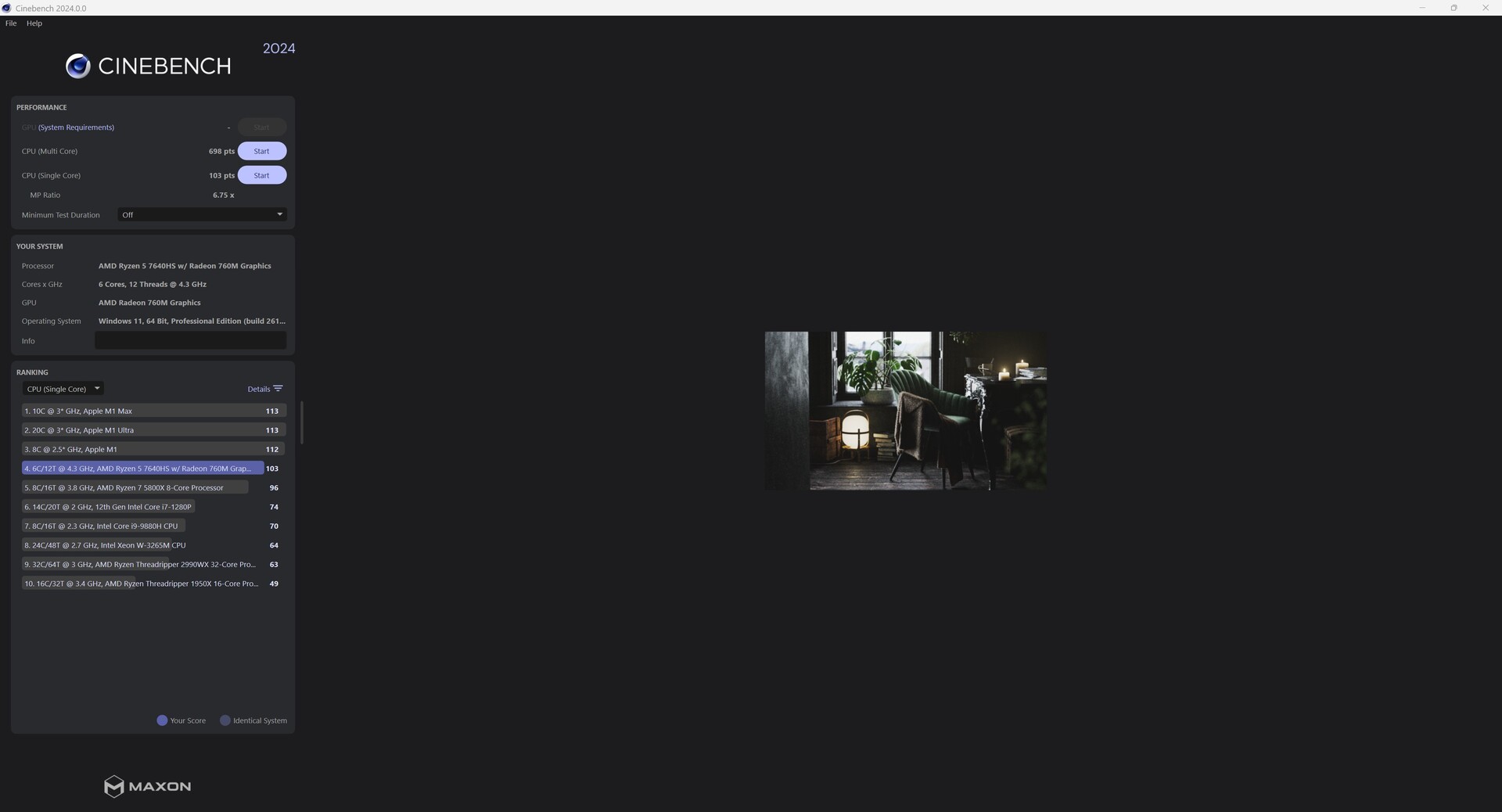

Cinebench 2024
CPU Multi Core
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1203 Points +72%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	978 Points +40%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	888 Points +27%
BMAX B9 Power Intel Core i9-12900HK	722 Points +3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	698 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	696 Points 0%
CPU Single Core
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	119 Points +16%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	107 Points +4%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	105 Points +2%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	103 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	96 Points -7%
BMAX B9 Power Intel Core i9-12900HK	77 Points -25%

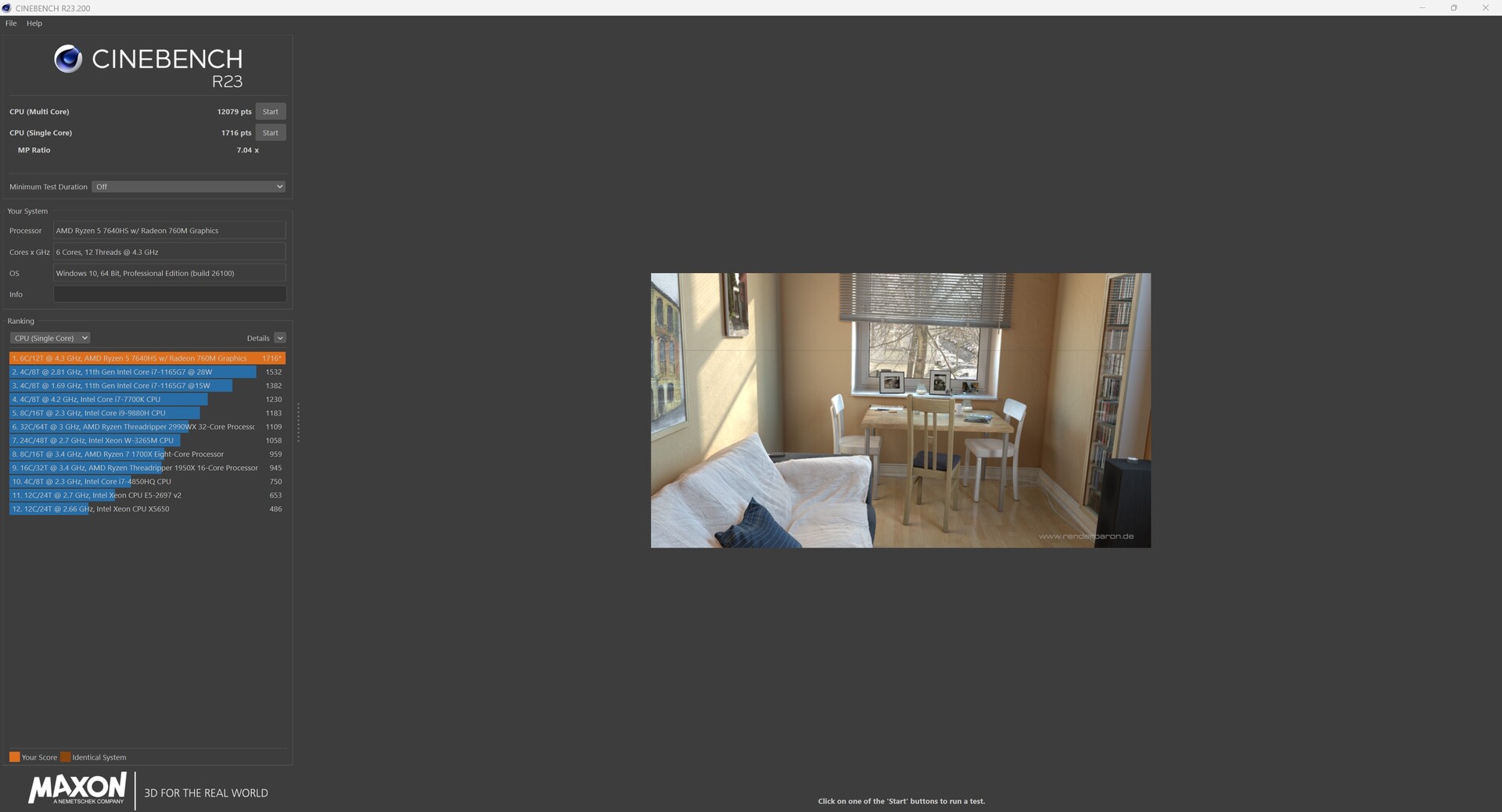

Cinebench R23
Multi Core
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	21529 Points +78%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	17131 Points +42%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	15533 Points +29%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	13928 Points +15%
BMAX B9 Power Intel Core i9-12900HK	13175 Points +9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	12079 Points
Single Core
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1989 Points +16%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1815 Points +6%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1762 Points +3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1716 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1598 Points -7%
BMAX B9 Power Intel Core i9-12900HK	1266 Points -26%

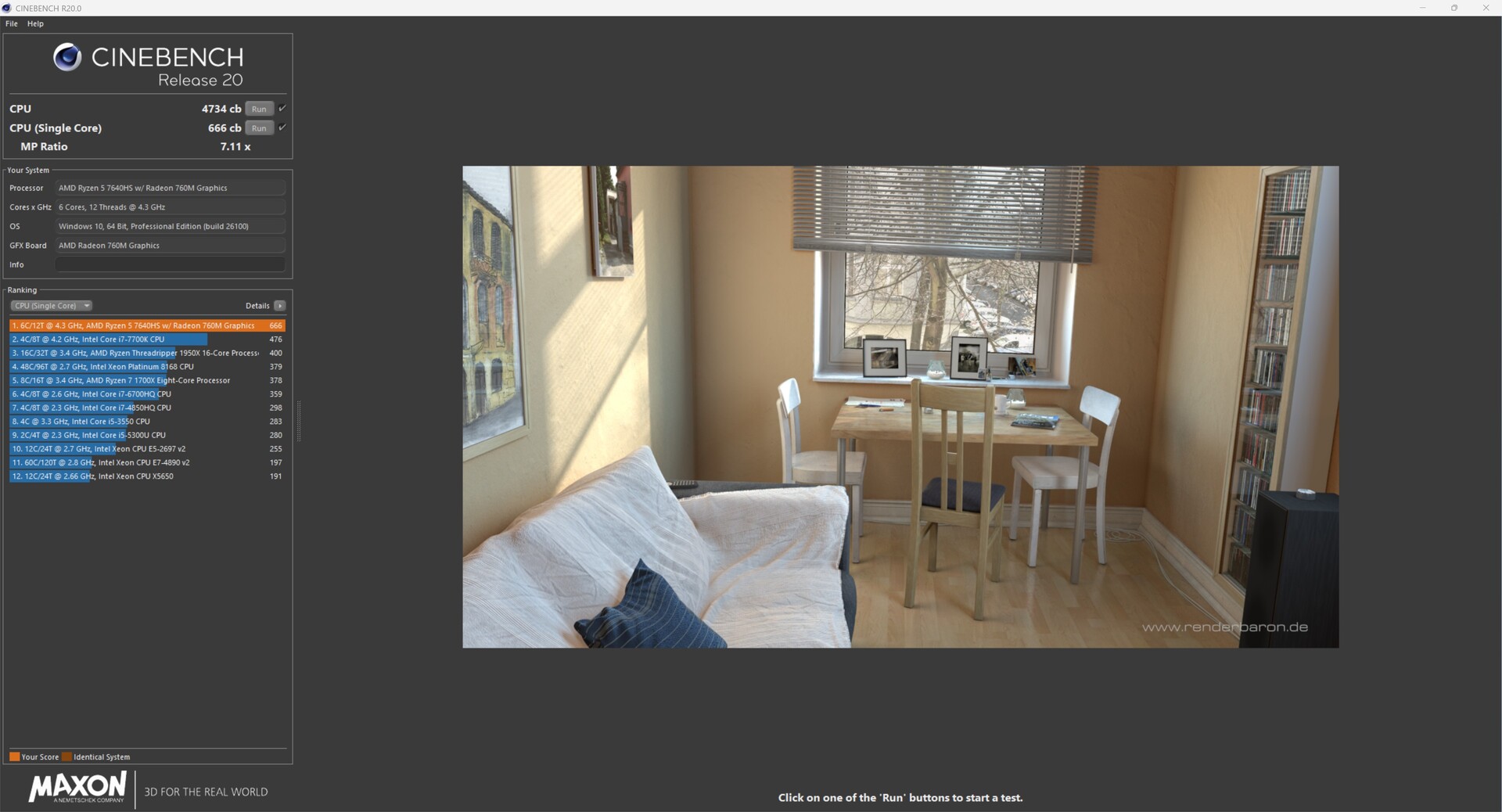

Cinebench R20
CPU (Multi Core)
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	8435 Points +78%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6762 Points +43%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6254 Points +32%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	5546 Points +17%
BMAX B9 Power Intel Core i9-12900HK	5068 Points +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	4734 Points
CPU (Single Core)
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	778 Points +17%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	704 Points +6%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	677 Points +2%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	666 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	623 Points -6%
BMAX B9 Power Intel Core i9-12900HK	487 Points -27%

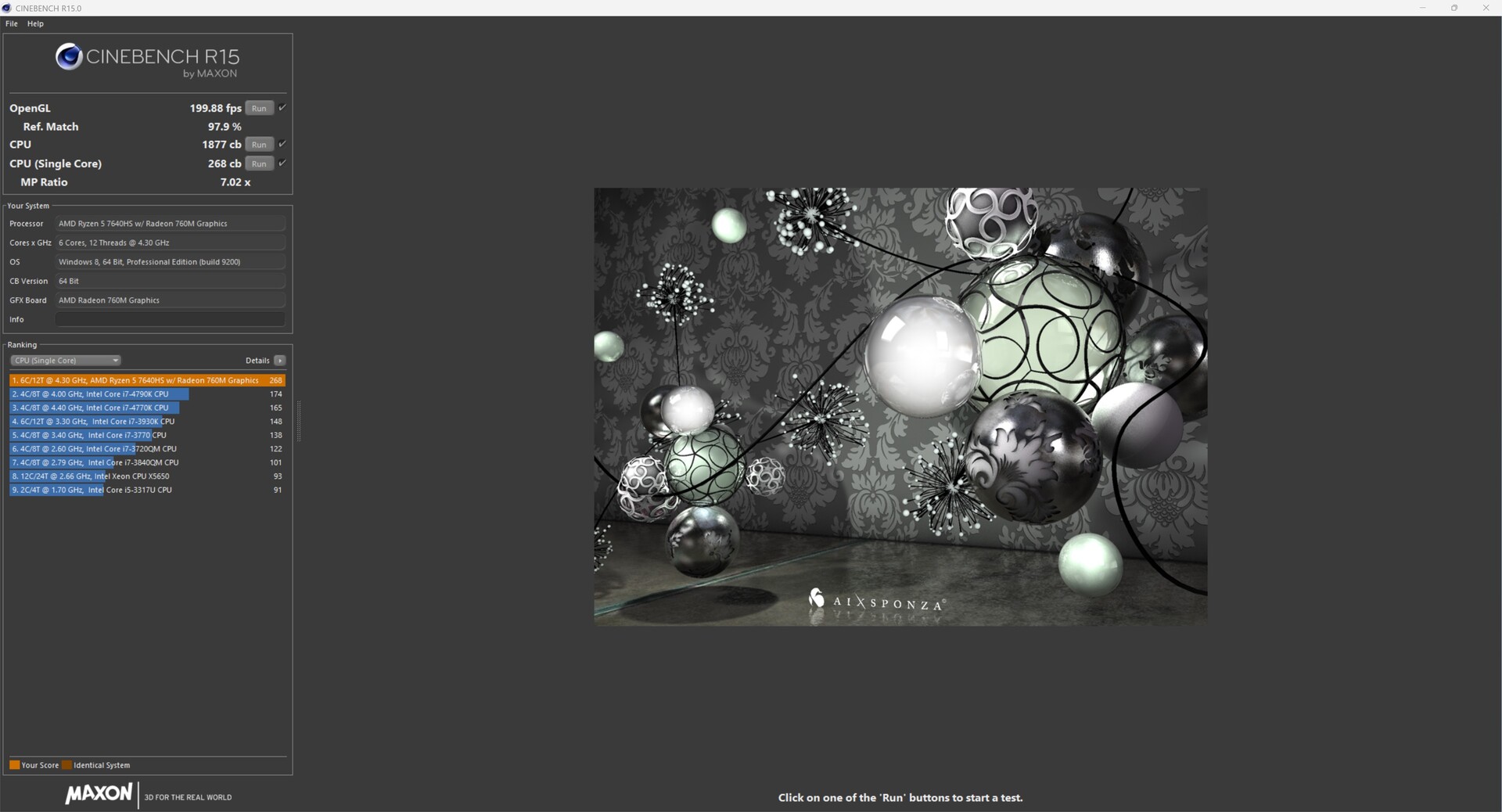

Cinebench R15
CPU Multi 64Bit
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	3237 Points +72%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2741 Points +46%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2508 Points +34%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	2120 Points +13%
BMAX B9 Power Intel Core i9-12900HK	2099 Points +12%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1877 Points
CPU Single 64Bit
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	303 Points +13%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	284 Points +6%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	270 Points +1%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	268 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	254 Points -5%
BMAX B9 Power Intel Core i9-12900HK	185 Points -31%

Cinebench R11.5
CPU Multi 64Bit
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	39.5 Points +77%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	31.77 Points +42%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	29.59 Points +33%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	26.63 Points +19%
BMAX B9 Power Intel Core i9-12900HK	25.17 Points +13%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	22.33 Points
CPU Single 64Bit
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	3.59 Points +12%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	3.42 Points +7%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3.29 Points +3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3.2 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	3.01 Points -6%
BMAX B9 Power Intel Core i9-12900HK	2.22 Points -31%

Cinebench R10
Rendering Single CPUs 64Bit
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	15381 Points +10%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	14593 Points +4%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	14197 Points +2%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	13966 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	13252 Points -5%
BMAX B9 Power Intel Core i9-12900HK	10299 Points -26%
Rendering Multiple CPUs 64Bit
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	98125 Points +36%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	89478 Points +24%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	84973 Points +18%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	73346 Points +2%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	71955 Points
BMAX B9 Power Intel Core i9-12900HK	68542 Points -5%

Blender
v2.79 BMW27 CPU
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	265 Seconds *
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	249 Seconds * +6%
BMAX B9 Power Intel Core i9-12900HK	246 Seconds * +7%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	201 Seconds * +24%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	189 Seconds * +29%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	153 Seconds * +42%
v3.3 Classroom CPU
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	434 Seconds *
BMAX B9 Power Intel Core i9-12900HK	430 Seconds * +1%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	412 Seconds * +5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	328 Seconds * +24%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	300 Seconds * +31%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	235 Seconds * +46%
v4.3 Barbershop CPU
BMAX B9 Power Intel Core i9-12900HK	2178 Seconds * -3%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	2132 Seconds * -1%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2112 Seconds *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1601 Seconds * +24%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1472 Seconds * +30%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1258 Seconds * +40%

wPrime 2.10
32m
BMAX B9 Power Intel Core i9-12900HK	4.209 s * -24%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3.406 s *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3.244 s * +5%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	3.168 s * +7%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	2.721 s * +20%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2.672 s * +22%
1024m
BMAX B9 Power Intel Core i9-12900HK	250.324 s * -165%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	95.473 s * -1%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	94.412 s *
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	86.762 s * +8%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	84.476 s * +11%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	75.535 s * +20%

X264 HD Benchmark 4.0
Pass 1
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	300 (298^min - 303^max) fps +6%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	297 (292^min - 299^max) fps +5%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	282.5 (279^min - 287^max) fps
BOSGAME M4 Neo AMD Ryzen 7 7840HS	280 (278^min - 288^max) fps -1%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	253.5 (240^min - 256^max) fps -10%
BMAX B9 Power Intel Core i9-12900HK	250 (237^min - 250^max) fps -12%
Pass 2
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	164.85 (164.2^min - 167.2^max) fps +48%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	155 (154.8^min - 155.3^max) fps +39%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	142.85 (140.6^min - 147.6^max) fps +28%
BMAX B9 Power Intel Core i9-12900HK	123.85 (122.9^min - 124.2^max) fps +11%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	116.3 (115.5^min - 120.9^max) fps +4%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	111.6 (111^min - 113.5^max) fps

WinRAR - Result
BMAX B9 Power Intel Core i9-12900HK	7402 KB/s 0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7397 KB/s
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7332 KB/s -1%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7271 KB/s -2%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	6832 KB/s -8%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	4806 KB/s -35%

TrueCrypt
AES Mean 100MB
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	15.3 GB/s +46%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	14.6 GB/s +39%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	12.9 GB/s +23%
BMAX B9 Power Intel Core i9-12900HK	12.5 GB/s +19%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10.5 GB/s
BOSGAME M4 Neo AMD Ryzen 7 7840HS	10.2 GB/s -3%
Twofish Mean 100MB
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	2.8 GB/s +87%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2.1 GB/s +40%
BMAX B9 Power Intel Core i9-12900HK	2 GB/s +33%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1.9 GB/s +27%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1.8 GB/s +20%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1.5 GB/s
Serpent Mean 100MB
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1.6 GB/s +63%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1.3 GB/s +32%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1.2 GB/s +22%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1.2 GB/s +22%
BMAX B9 Power Intel Core i9-12900HK	1.1 GB/s +12%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	0.984 GB/s

Geekbench AI
Quantized CPU 1.2
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	7807 Points +26%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7384 Points +19%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6838 Points +10%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	6189 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	4728 Points -24%
BMAX B9 Power Intel Core i9-12900HK	4716 Points -24%
Half Precision CPU 1.2
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1863 Points +20%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1862 Points +20%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1713 Points +11%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1549 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1437 Points -7%
BMAX B9 Power Intel Core i9-12900HK	1054 Points -32%
Single Precision CPU 1.2
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	4167 Points +28%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	4117 Points +26%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3912 Points +20%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3260 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	3259 Points 0%
BMAX B9 Power Intel Core i9-12900HK	2791 Points -14%
Quantized CPU 1.4
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	7824 Points +8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7545 Points +4%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7536 Points +4%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7221 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	5501 Points -24%
BMAX B9 Power Intel Core i9-12900HK	4938 Points -32%
Half Precision CPU 1.4
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	2063 Points +24%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1919 Points +15%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1799 Points +8%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1664 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1597 Points -4%
BMAX B9 Power Intel Core i9-12900HK	1063 Points -36%
Single Precision CPU 1.4
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	4400 Points +35%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	4185 Points +29%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	4106 Points +26%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	3765 Points +16%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3250 Points
BMAX B9 Power Intel Core i9-12900HK	2861 Points -12%

Geekbench 6.4
Single-Core
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	2877 Points +13%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2626 Points +3%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2598 Points +2%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2545 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	2439 Points -4%
BMAX B9 Power Intel Core i9-12900HK	1797 Points -29%
Multi-Core
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	14949 Points +40%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	13290 Points +25%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	13020 Points +22%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	11675 Points +10%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10642 Points
BMAX B9 Power Intel Core i9-12900HK	9804 Points -8%

Geekbench 5.5
Multi-Core
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	14994 Points +59%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	11820 Points +25%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	11794 Points +25%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	10601 Points +12%
BMAX B9 Power Intel Core i9-12900HK	9969 Points +5%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	9453 Points
Single-Core
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	2085 Points +11%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1908 Points +2%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1879 Points
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1873 Points 0%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1802 Points -4%
BMAX B9 Power Intel Core i9-12900HK	1298 Points -31%

Geekbench 5.0
5.0 Multi-Core
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	15009 Points +59%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	12184 Points +29%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	11775 Points +24%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	10531 Points +11%
BMAX B9 Power Intel Core i9-12900HK	9934 Points +5%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	9462 Points
5.0 Single-Core
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1918 Points +9%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1841 Points +4%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1841 Points +4%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1765 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1733 Points -2%
BMAX B9 Power Intel Core i9-12900HK	1257 Points -29%

Geekbench 4.4
64 Bit Multi-Core Score
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	55688 Points +50%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	48762 Points +31%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	46366 Points +25%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	42524 Points +14%
BMAX B9 Power Intel Core i9-12900HK	38751 Points +4%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	37145 Points
64 Bit Single-Core Score
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7933 Points +2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7879 Points +1%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	7804 Points 0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7790 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	7336 Points -6%
BMAX B9 Power Intel Core i9-12900HK	5823 Points -25%

3DMark 11 - 1280x720 Performance Physics
BOSGAME M4 Neo AMD Ryzen 7 7840HS	22199 Points +23%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	20920 Points +15%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	19770 Points +9%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	18750 Points +3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	18116 Points
BMAX B9 Power Intel Core i9-12900HK	16821 Points -7%

7-Zip 18.03
7z b 4
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	79915 MIPS +51%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	73742 MIPS +39%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	69798 MIPS +32%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	61021 MIPS +15%
BMAX B9 Power Intel Core i9-12900HK	53320 MIPS +1%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	53012 MIPS
7z b 4 -mmt1
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6648 MIPS +3%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6495 MIPS 0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	6463 MIPS
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	6280 MIPS -3%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	6058 MIPS -6%
BMAX B9 Power Intel Core i9-12900HK	4240 MIPS -34%

HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	26.5 fps +69%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	21.8 fps +39%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	20.5 fps +31%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	16.3 fps +4%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	15.7 fps
BMAX B9 Power Intel Core i9-12900HK	15 fps -4%

R Benchmark 2.5 - Overall mean
BMAX B9 Power Intel Core i9-12900HK	0.637 sec * -36%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	0.4824 sec * -3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	0.4683 sec *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	0.4513 sec * +4%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	0.431 sec * +8%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	0.4064 sec * +13%

LibreOffice - 20 Documents To PDF
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	83.3 s *
BMAX B9 Power Intel Core i9-12900HK	60.5 s * +27%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	56 s * +33%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	50.1 s * +40%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	48.7 s * +42%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	46.9 s * +44%

3DMark
1920x1080 Fire Strike Physics
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	30750 Points +38%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	26934 Points +21%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	26481 Points +19%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	22958 Points +3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	22281 Points
BMAX B9 Power Intel Core i9-12900HK	21092 Points -5%
2560x1440 Time Spy CPU
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	11093 Points +46%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	10953 Points +44%
BMAX B9 Power Intel Core i9-12900HK	9663 Points +27%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	9532 Points +25%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	9408 Points +24%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7608 Points

Super Pi mod 1.5 XS 1M - 1M
BMAX B9 Power Intel Core i9-12900HK	10.896 s * -52%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	8.482 s * -18%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	7.767 s * -8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7.193 s * -0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7.159 s *
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6.993 s * +2%

Super Pi mod 1.5 XS 2M - 2M
BMAX B9 Power Intel Core i9-12900HK	24.152 s * -35%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	19.501 s * -9%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	17.914 s * -0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	17.869 s *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	17.676 s * +1%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	17.31 s * +3%

Affinity Photo 2 - Combined (Multi CPU)
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370	957 Points +72%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	826 Points +49%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	781 Points +41%
BMAX B9 Power Intel Core i9-12900HK	642 Points +16%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	555 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	511 Points -8%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

7273

Cinebench R10 Shading 64Bit

20133 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

71955 Points

Cinebench R10 Rendering Single CPUs 64Bit

13966 Points

Cinebench R10 Shading 32Bit

16135

Cinebench R10 Rendering Multiple CPUs 32Bit

38444

Cinebench R11.5 CPU Single 32Bit

2.79 Points

Cinebench R11.5 CPU Multi 32Bit

19.73 Points

Cinebench R11.5 CPU Single 64Bit

3.2 Points

Cinebench R11.5 CPU Multi 64Bit

22.33 Points

Cinebench R15 CPU Single 64Bit

268 Points

Cinebench R15 CPU Multi 64Bit

1877 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

199.88 fps

Cinebench R20 CPU (Single Core)

666 Points

Cinebench R20 CPU (Multi Core)

4734 Points

Cinebench R23 Multi Core

12079 Points

Cinebench R23 Single Core

1716 Points

Cinebench 2024 CPU Single Core

103 Points

Cinebench 2024 CPU Multi Core

698 Points

Help

... in comparison

Performance Rating
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	95 pt
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	86 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	79.7 pt
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	66.8 pt
Average of class Mini PC	64.4 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	61.7 pt
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	54.4 pt

AIDA64 / FP32 Ray-Trace
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	34273 KRay/s +78%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	27793 KRay/s +44%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	25593 KRay/s +33%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	20253 KRay/s +5%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	19264 KRay/s
Average of class Mini PC (770 - 82725, n=112, last 2 years)	18943 KRay/s -2%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	12660 KRay/s -34%

AIDA64 / FPU Julia
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	130172 Points +64%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	118156 Points +49%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	105522 Points +33%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	82211 Points +4%
Average of class Mini PC (4141 - 227429, n=112, last 2 years)	81269 Points +3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	79194 Points
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	63681 Points -20%

AIDA64 / CPU SHA3
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	5554 MB/s +59%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	4972 MB/s +43%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	4633 MB/s +33%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	3887 MB/s +11%
Average of class Mini PC (290 - 9475, n=112, last 2 years)	3579 MB/s +3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	3489 MB/s
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	3097 MB/s -11%

AIDA64 / CPU Queen
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	121347 Points +38%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	114337 Points +30%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	102380 Points +16%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	99232 Points +12%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	88231 Points
Average of class Mini PC (8208 - 184747, n=112, last 2 years)	86809 Points -2%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	80221 Points -9%

AIDA64 / FPU SinJulia
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	18551 Points +69%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	15581 Points +42%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	14592 Points +33%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	12833 Points +17%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	10946 Points
Average of class Mini PC (408 - 31931, n=112, last 2 years)	10891 Points -1%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	7926 Points -28%

AIDA64 / FPU Mandel
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	69833 Points +65%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	63135 Points +49%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	56330 Points +33%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	43419 Points +2%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	42413 Points
Average of class Mini PC (2089 - 121827, n=112, last 2 years)	42301 Points 0%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	30336 Points -28%

AIDA64 / CPU AES
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	112498 MB/s +86%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	91472 MB/s +51%
Average of class Mini PC (7948 - 325960, n=111, last 2 years)	90439 MB/s +50%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	83357 MB/s +38%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	77074 MB/s +28%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	69141 MB/s +14%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	60442 MB/s

AIDA64 / CPU ZLib
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	1440 MB/s +91%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	1117 MB/s +49%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	1022 MB/s +36%
Average of class Mini PC (0 - 2431, n=112, last 2 years)	905 MB/s +20%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	889 MB/s +18%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	843 MB/s +12%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	752 MB/s

AIDA64 / FP64 Ray-Trace
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	18371 KRay/s +78%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	14859 KRay/s +44%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	13745 KRay/s +33%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	10518 KRay/s +2%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	10317 KRay/s
Average of class Mini PC (432 - 43587, n=112, last 2 years)	10108 KRay/s -2%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	6705 KRay/s -35%

AIDA64 / CPU PhotoWorxx
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	47512 MPixel/s +20%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	40354 MPixel/s +2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	40165 MPixel/s +2%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	39563 MPixel/s 0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	39444 MPixel/s
Average of class Mini PC (5333 - 94259, n=112, last 2 years)	34596 MPixel/s -12%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	24446 MPixel/s -38%

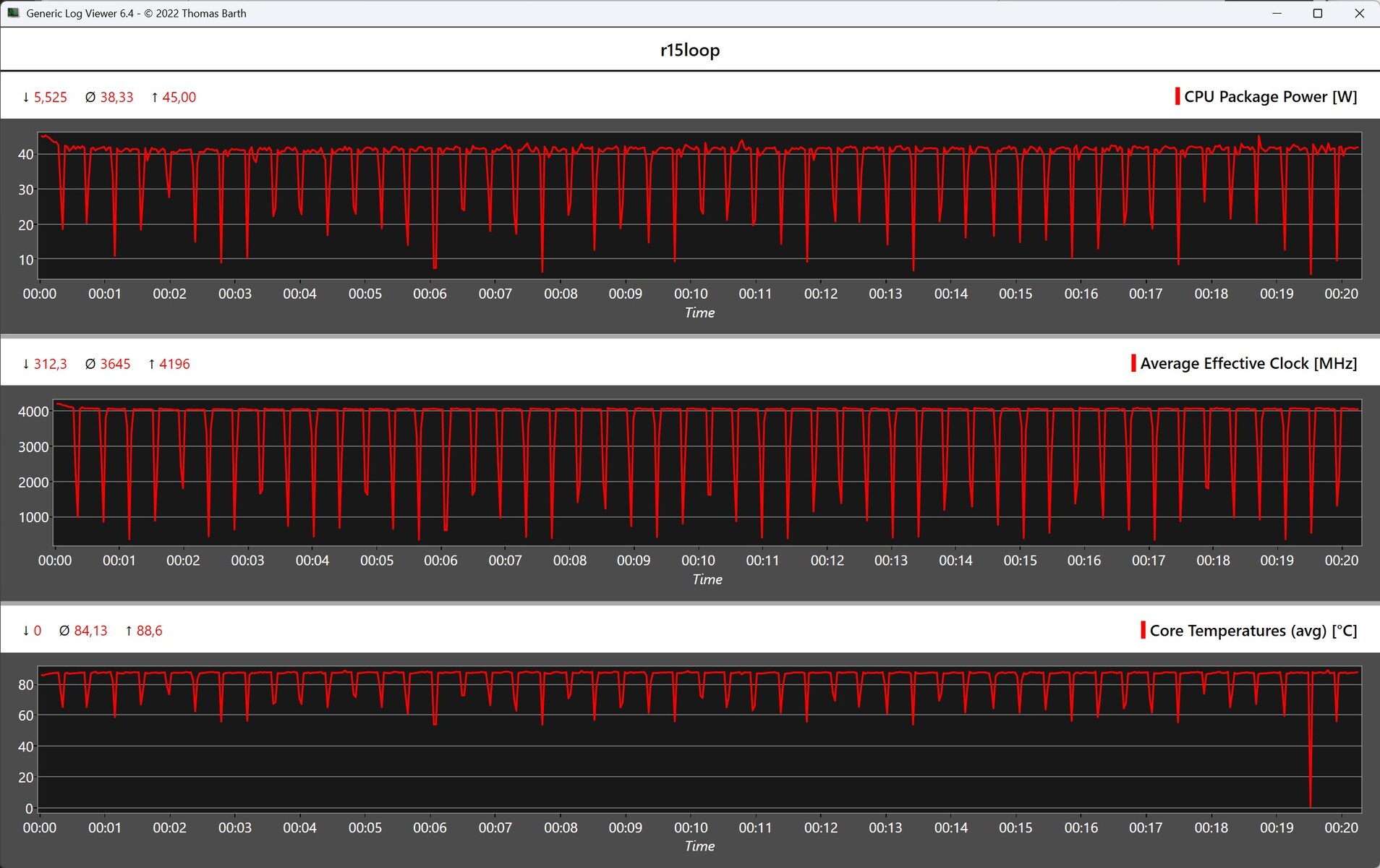

Cinebench R15 多耐久性测试

在 Cinebench R15 耐用性测试中，GMKtec NucBox M6 Ultra 显示出稳定的性能，没有明显的功耗损失。在满载情况下，处理器温度升至约 89 °C。

GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, AMD Ryzen 5 7640HS: Ø1844 (1829.49-1885.73)

Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, AMD Ryzen AI 9 HX 370: Ø3181 (3063.96-3259.61)

Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, AMD Ryzen 9 8945HS: Ø2711 (2695.6-2739.73)

BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2434 (2405.58-2566.08)

系统性能

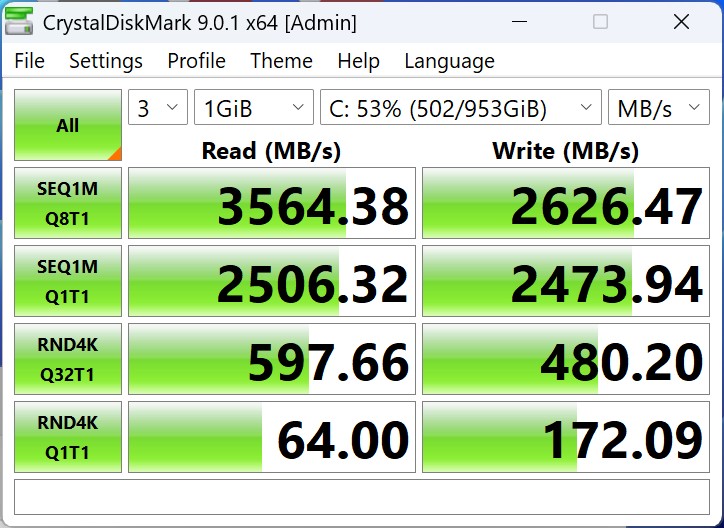

GMKtec NucBox M6 Ultra 可在日常使用中提供稳定的计算能力，结合 DDR5 内存和快速 PCIe 固态硬盘，可确保流畅运行。它还集成了用于人工智能加速的 NPU，但只有 10 TOPS，属于入门级机型。

PCMark 10 / Score
Geekom A9 Max, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Lexar NQ7A1	7500 Points +16%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	7099 Points +10%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	6914 Points +7%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	6448 Points
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	6331 Points -2%

PCMark 10 / Essentials
Geekom A9 Max, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Lexar NQ7A1	10639 Points +7%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	10587 Points +7%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	10451 Points +5%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	9933 Points
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	9902 Points 0%

PCMark 10 / Productivity
Geekom A9 Max, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Lexar NQ7A1	9827 Points +5%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	9518 Points +2%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	9353 Points
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	9325 Points 0%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	9300 Points -1%

WebXPRT 4 / Overall
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	271 Points
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	264 Points
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	233 Points
Geekom A9 Max, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Lexar NQ7A1	225 Points
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	191.4 Points

WebXPRT 3 / Overall
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	329 Points
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	314 Points
Geekom A9 Max, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Lexar NQ7A1	287 Points
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	282 Points
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	216 Points

Mozilla Kraken 1.1 / Total
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	737 ms * -25%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	591 ms *
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	589 ms * -0%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	532 ms * +10%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	519 ms * +12%
Geekom A9 Max, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Lexar NQ7A1	431 ms * +27%

CrossMark / Overall
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1862 Points +12%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1849 Points +11%
Geekom A9 Max, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Lexar NQ7A1	1739 Points +5%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1661 Points
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	1599 Points -4%
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1418 Points -15%

CrossMark / Productivity
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1799 Points +10%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1773 Points +8%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1641 Points
Geekom A9 Max, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Lexar NQ7A1	1572 Points -4%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	1521 Points -7%
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1332 Points -19%

CrossMark / Creativity
Geekom A9 Max, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Lexar NQ7A1	2135 Points +21%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1998 Points +13%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1969 Points +12%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	1809 Points +3%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1764 Points
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1529 Points -13%

CrossMark / Responsiveness
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1747 Points +22%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1662 Points +16%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1435 Points
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1363 Points -5%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	1286 Points -10%
Geekom A9 Max, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Lexar NQ7A1	1271 Points -11%

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	74207 MB/s +18%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	68719 MB/s +9%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	67938 MB/s +8%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	63022 MB/s
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	59378 MB/s -6%
Average of class Mini PC (8377 - 163031, n=112, last 2 years)	57614 MB/s -9%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	42967 MB/s -32%

AIDA64 / Memory Read
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	86541 MB/s +41%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	61475 MB/s 0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	61294 MB/s
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	61288 MB/s 0%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	61143 MB/s 0%
Average of class Mini PC (8974 - 123769, n=112, last 2 years)	56423 MB/s -8%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	46318 MB/s -24%

AIDA64 / Memory Write
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	87356 MB/s +17%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	85851 MB/s +15%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	84236 MB/s +13%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	74661 MB/s
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	74418 MB/s 0%
Average of class Mini PC (8762 - 216693, n=112, last 2 years)	65486 MB/s -12%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	42144 MB/s -44%

AIDA64 / Memory Latency
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	102.5 ns * -15%
Average of class Mini PC (88.8 - 184.8, n=112, last 2 years)	96.1 ns * -8%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	91.4 ns * -3%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	89.7 ns * -1%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	89.4 ns * -1%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	88.8 ns *
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	0 ns * +100%

* ... smaller is better

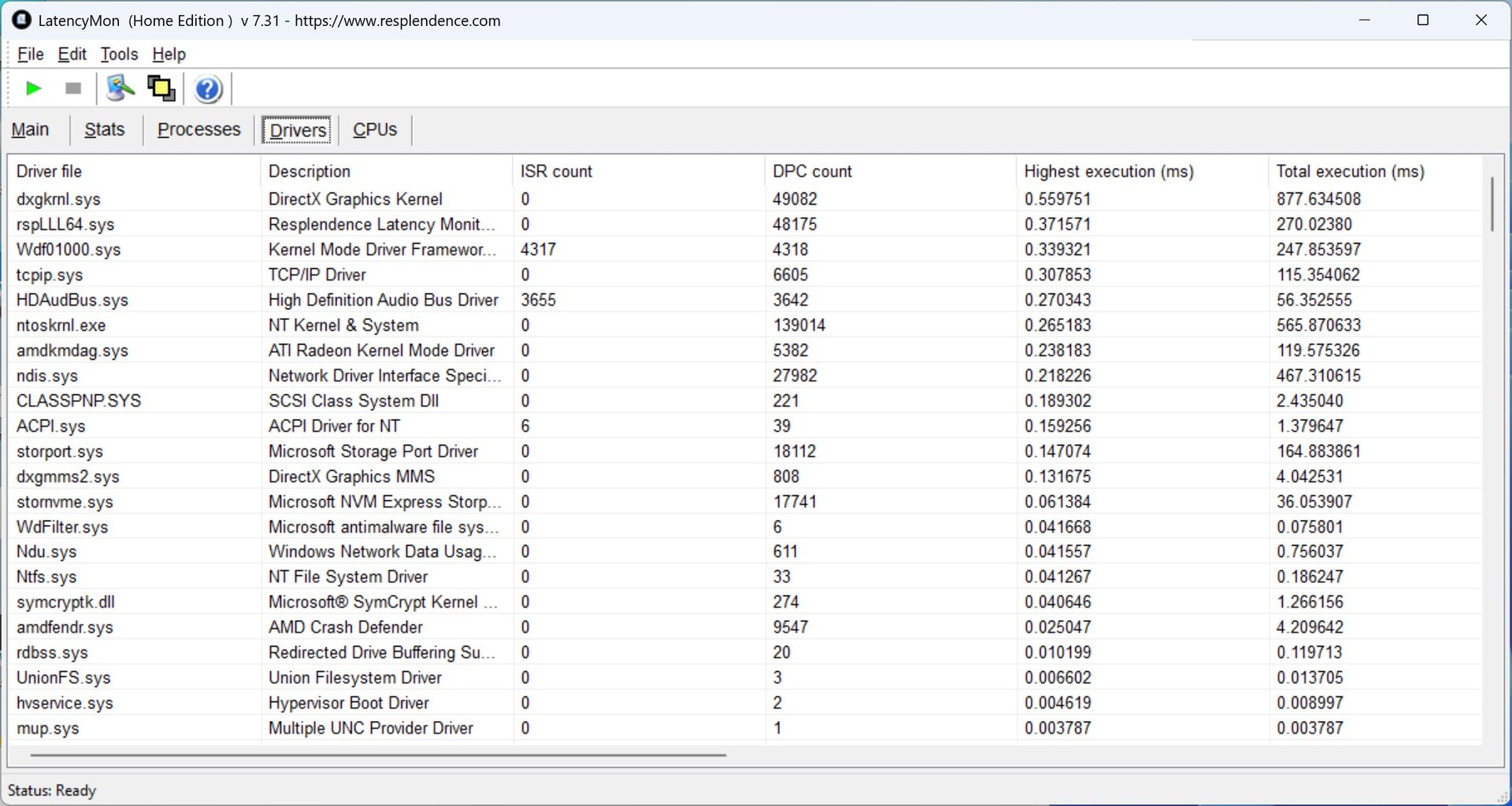

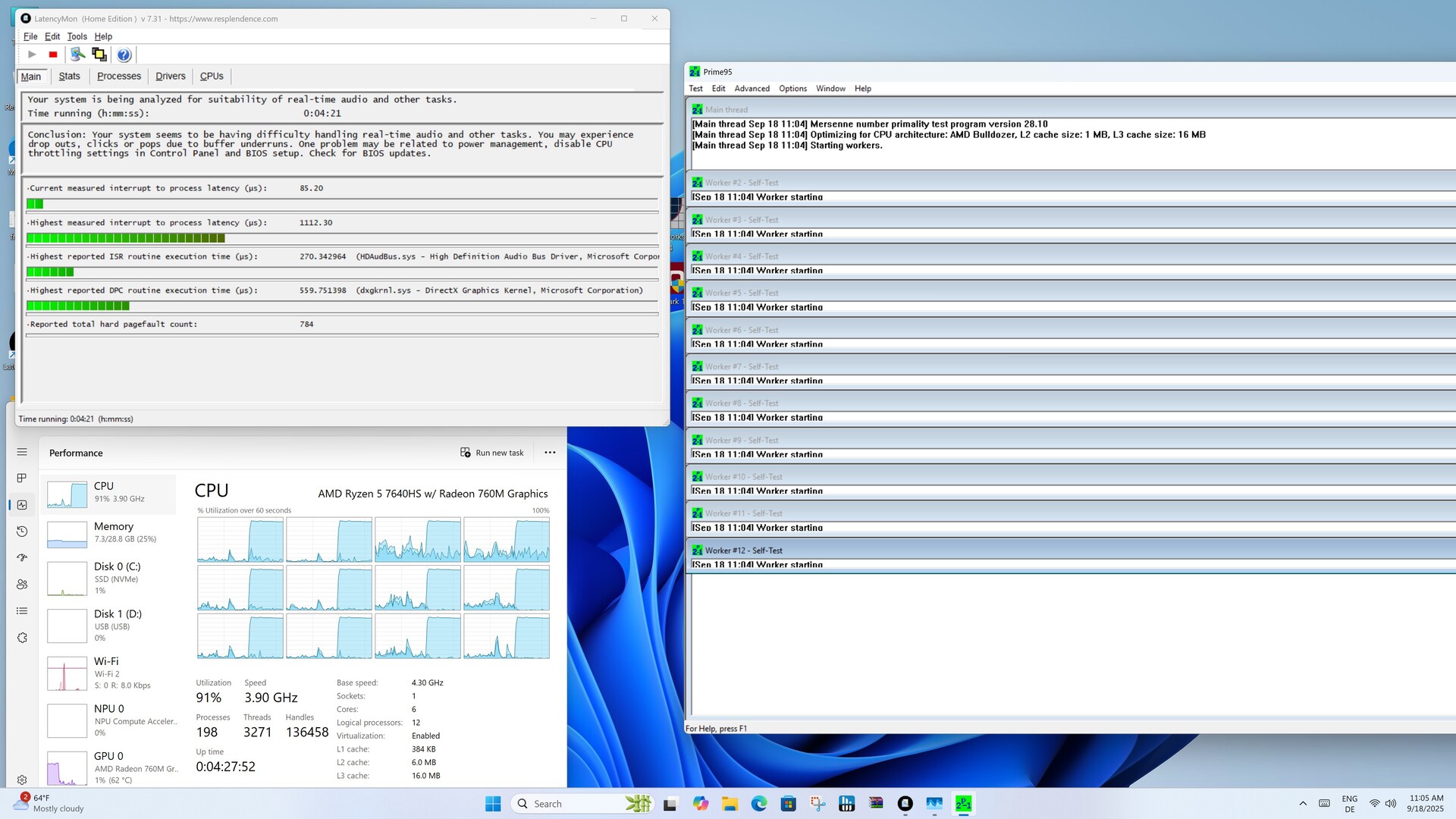

DPC 延迟

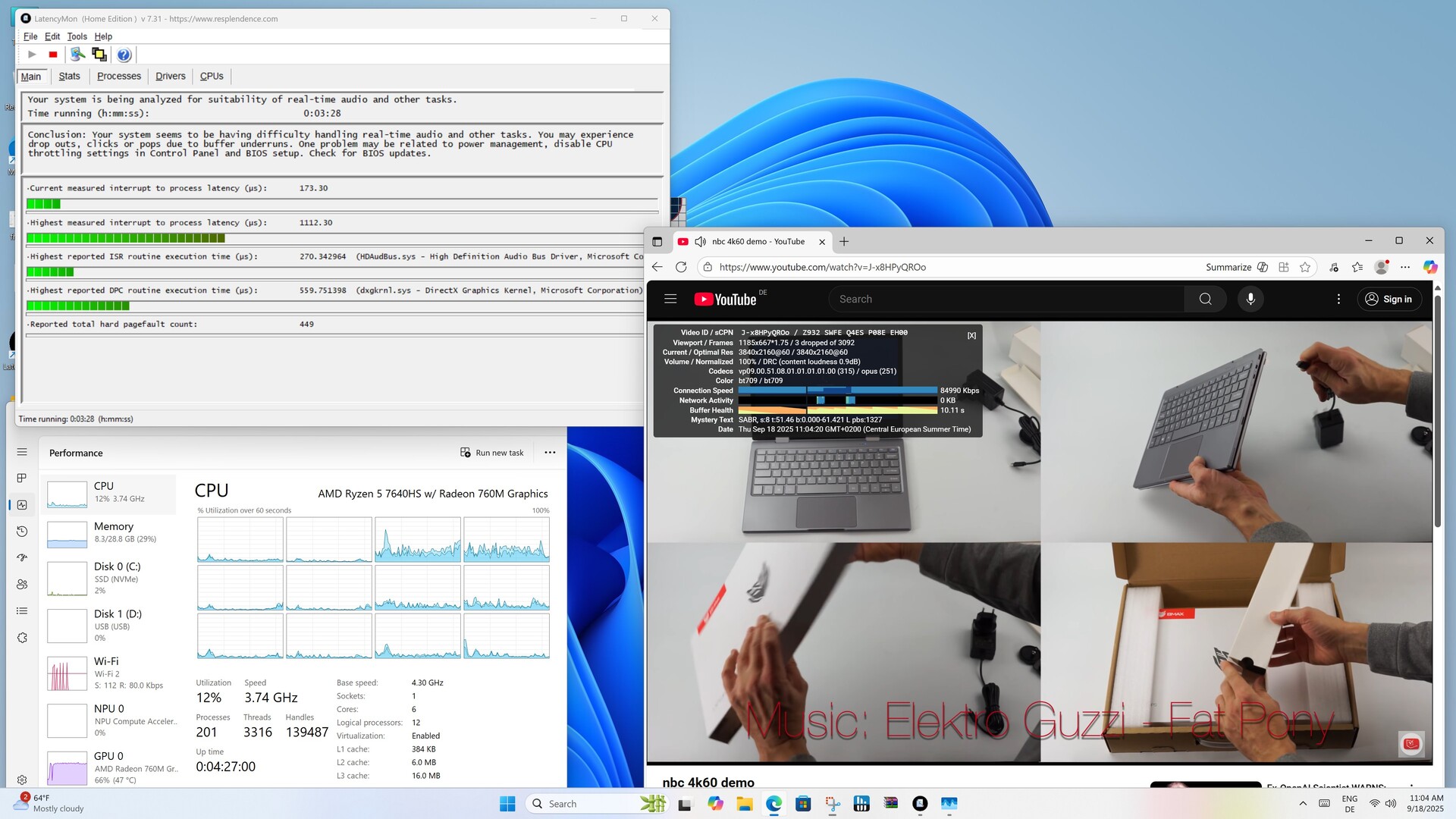

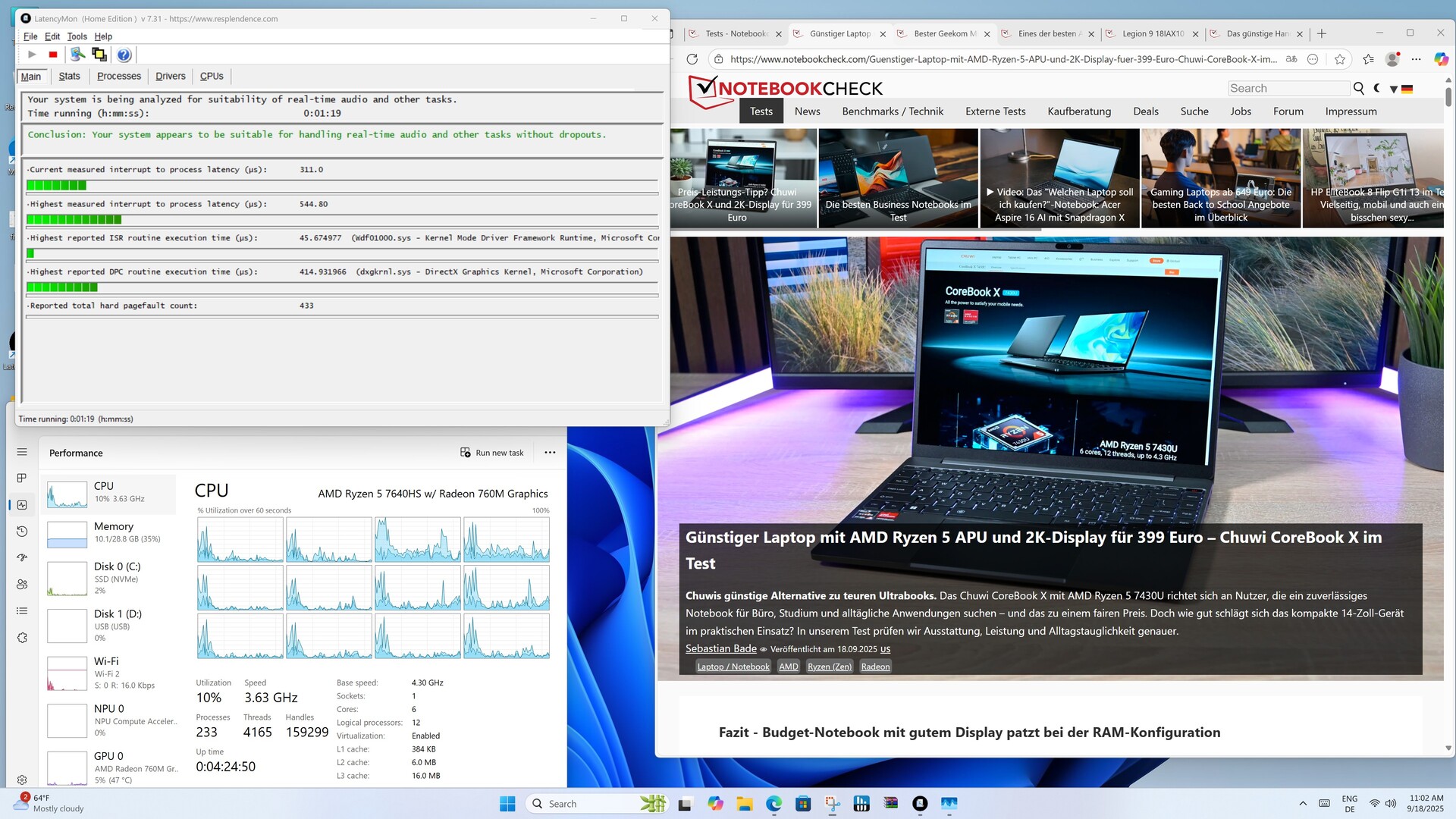

与竞争对手的机型相比，我们的测试样本显示出较低的 DPC 延迟，大致相当于 Minisforum UM890 Pro.在播放 4K 测试视频时没有出现明显的掉帧现象，因此该设备是流媒体客户端的理想选择。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	2121 μs * -279%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	807.8 μs * -44%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	559.7 μs *
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	509 μs * +9%

* ... smaller is better

存储设备

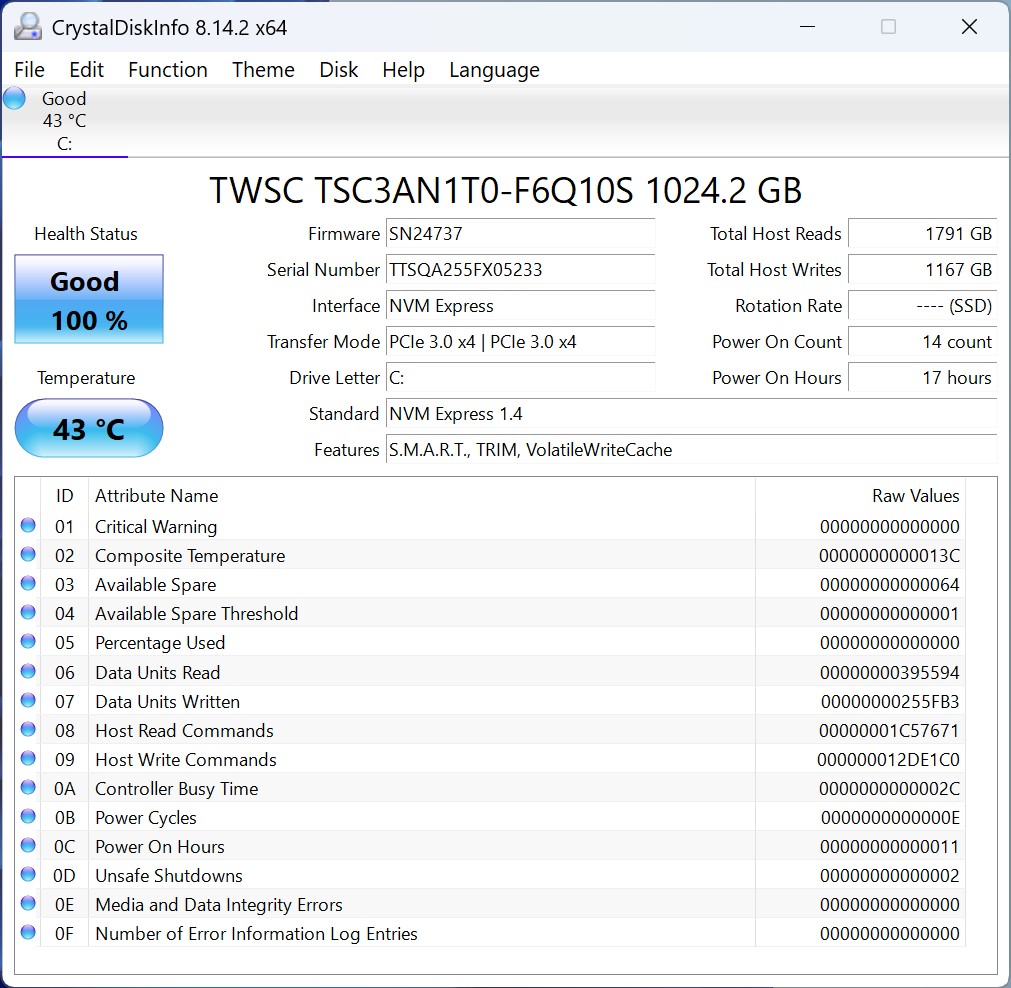

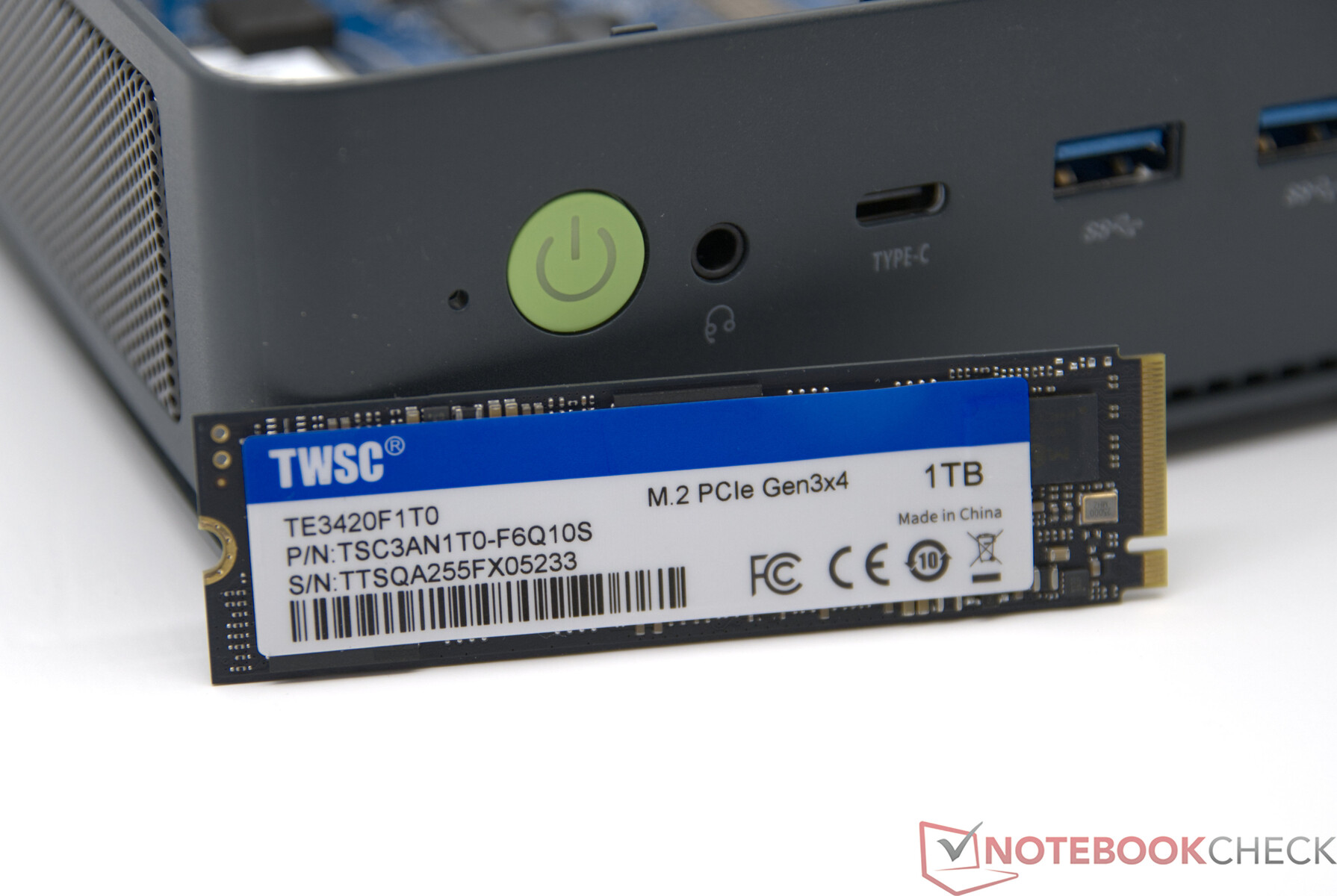

GMKtec NucBox M6 Ultra 配备了来自 TWSC 的 1 TB 固态硬盘。该大容量存储设备采用 PCIe 3.0 x4 接口，传输速率可观，足以满足日常使用需求。主动式散热装置可确保在负载情况下充分散热，从而不会降低性能。Mini-PC 还为额外的 M.2 2280 SSD 提供了空间。

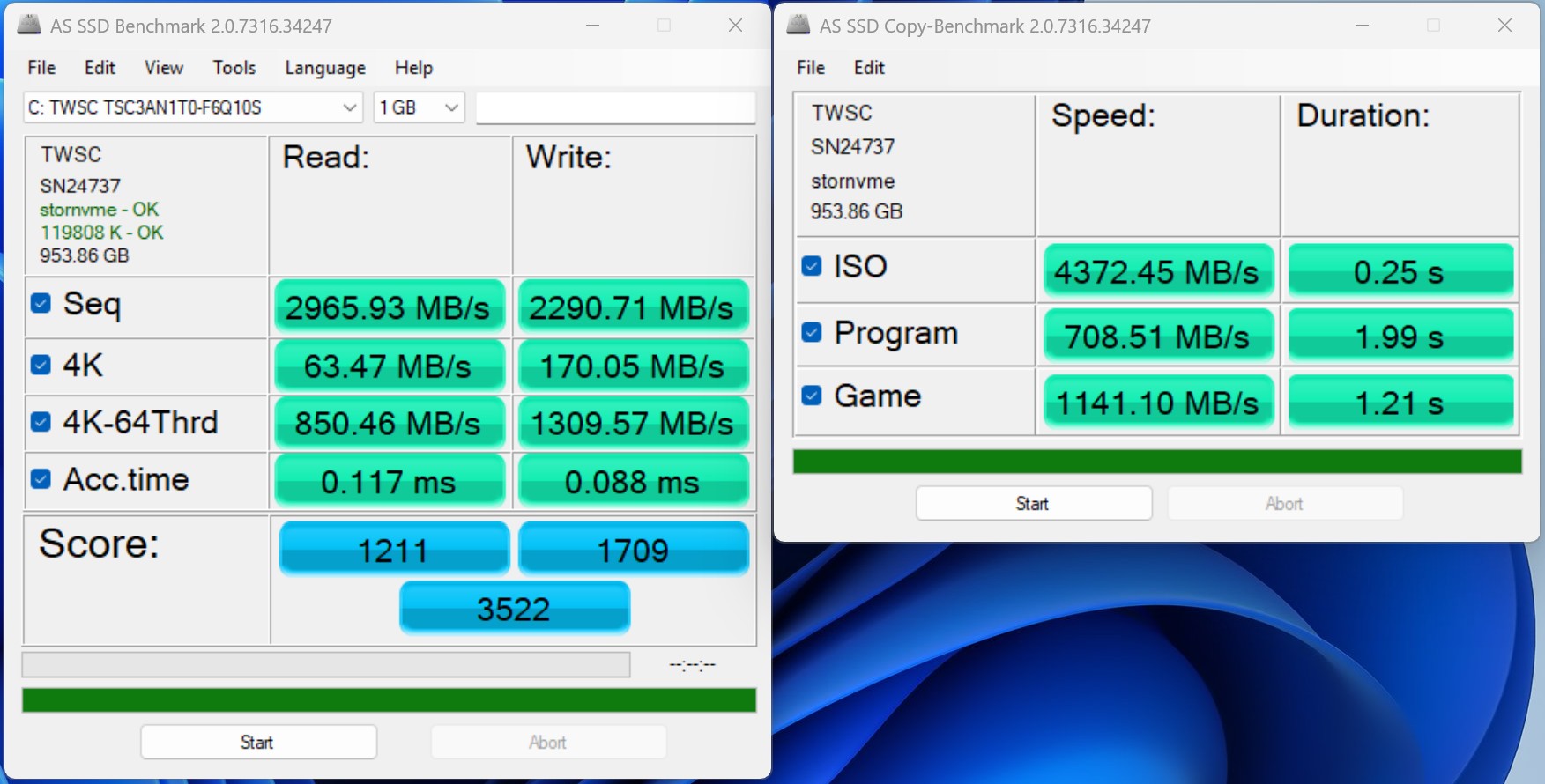

AS SSD

DiskSpd

Sequential Read: 2966MB/s

Sequential Write: 2291MB/s

4K Read: 63.5MB/s

4K Write: 170.1MB/s

4K-64 Read: 850MB/s

4K-64 Write: 1310MB/s

Access Time Read: 0.117ms

Access Time Write: 0.088ms

Copy ISO: 4372.45MB/s

Copy Program: 708.51MB/s

Copy Game: 1141.1MB/s

Score Read: 1211Points

Score Write: 1709Points

Score Total: 3522Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	88 pt
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	74.6 pt
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	72.3 pt
BMAX B9 Power SK Hynix HFM001TD3HX015N	58.5 pt
Average of class Mini PC	58.5 pt
GMK NucBox M6 Ultra	48 pt
Ninkear M8, 32+1TB	45.5 pt

DiskSpd
seq read
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	3103 (3055.1^min - 3102.74^max) MB/s +40%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2801 (2793.48^min - 2800.96^max) MB/s +26%
Average of class Mini PC (413 - 4960, n=112, last 2 years)	2449 MB/s +10%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2316 (2303.1^min - 2315.68^max) MB/s +4%
GMK NucBox M6 Ultra	2218 (2191.96^min - 2217.5^max) MB/s
Ninkear M8, 32+1TB	2150 (2145.71^min - 2150.1^max) MB/s -3%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1985 (1968.39^min - 1984.95^max) MB/s -11%
seq write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4556 (4547.39^min - 4555.85^max) MB/s +107%
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	3887 (3872.8^min - 3887.48^max) MB/s +76%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3100 (3080.64^min - 3100.01^max) MB/s +41%
Average of class Mini PC (339 - 5595, n=112, last 2 years)	2836 MB/s +29%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2293 (2231.1^min - 2292.84^max) MB/s +4%
Ninkear M8, 32+1TB	2225 (1973.42^min - 2224.61^max) MB/s +1%
GMK NucBox M6 Ultra	2205 (2009.88^min - 2204.95^max) MB/s
seq q8 t1 read
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	5850 (4672.78^min - 5850.22^max) MB/s +77%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4590 (4094.26^min - 4590.04^max) MB/s +39%
Average of class Mini PC (397 - 8430, n=112, last 2 years)	4147 MB/s +26%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	4079 (3799.36^min - 4078.56^max) MB/s +24%
Ninkear M8, 32+1TB	3554 (3014.08^min - 3553.62^max) MB/s +8%
GMK NucBox M6 Ultra	3301 (2507.56^min - 3301.34^max) MB/s
BMAX B9 Power SK Hynix HFM001TD3HX015N	3197 (2834.3^min - 3196.9^max) MB/s -3%
seq q8 t1 write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4631 (4481.46^min - 4630.69^max) MB/s +94%
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	4555 (4184.87^min - 4555.01^max) MB/s +91%
Average of class Mini PC (346 - 6669, n=112, last 2 years)	3241 MB/s +36%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3108 (3096.75^min - 3107.85^max) MB/s +30%
Ninkear M8, 32+1TB	2895 (2856.11^min - 2894.99^max) MB/s +21%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2649 (2622.07^min - 2648.65^max) MB/s +11%
GMK NucBox M6 Ultra	2384 (2320.5^min - 2383.89^max) MB/s
4k q1 t1 read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	71.4 (70.76^min - 71.35^max) MB/s +21%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	64.2 (64.13^min - 64.24^max) MB/s +9%
GMK NucBox M6 Ultra	58.8 (57.48^min - 58.79^max) MB/s
BMAX B9 Power SK Hynix HFM001TD3HX015N	57 (55.81^min - 57.03^max) MB/s -3%
Average of class Mini PC (6.85 - 87.3, n=112, last 2 years)	56.4 MB/s -4%
Ninkear M8, 32+1TB	52.4 (51.38^min - 52.41^max) MB/s -11%
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	36.7 (35.91^min - 36.73^max) MB/s -38%
4k q1 t1 write
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	278 (273.83^min - 278.28^max) MB/s +60%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	212 (210.85^min - 212.37^max) MB/s +22%
BMAX B9 Power SK Hynix HFM001TD3HX015N	207 (201.51^min - 207.2^max) MB/s +19%
Average of class Mini PC (29.6 - 435, n=112, last 2 years)	195.1 MB/s +13%
GMK NucBox M6 Ultra	173.4 (162.83^min - 173.44^max) MB/s
Ninkear M8, 32+1TB	136.4 (133.14^min - 136.36^max) MB/s -21%
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	134 (109.11^min - 133.97^max) MB/s -23%
4k q32 t16 read
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	3576 (3272.77^min - 3576.2^max) MB/s +277%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2330 (2326.23^min - 2330.42^max) MB/s +146%
Average of class Mini PC (102.3 - 4158, n=112, last 2 years)	1531 MB/s +61%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1298 (1296.45^min - 1297.65^max) MB/s +37%
GMK NucBox M6 Ultra	948 (936.95^min - 947.59^max) MB/s
Ninkear M8, 32+1TB	913 (896.47^min - 912.89^max) MB/s -4%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	788 (725.19^min - 788.35^max) MB/s -17%
4k q32 t16 write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4088 (4061.99^min - 4088.46^max) MB/s +419%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2876 (1106.13^min - 2875.94^max) MB/s +265%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2100 (1960.66^min - 2100.16^max) MB/s +166%
Average of class Mini PC (70.3 - 4288, n=112, last 2 years)	1439 MB/s +83%
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	1345 (1335.2^min - 1345.18^max) MB/s +71%
GMK NucBox M6 Ultra	788 (750.91^min - 787.75^max) MB/s
Ninkear M8, 32+1TB	433 (398.85^min - 432.62^max) MB/s -45%

AS SSD
Score Total
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	7055 Points +100%
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	6785 Points +93%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	5595 Points +59%
Average of class Mini PC (507 - 10559, n=110, last 2 years)	4700 Points +33%
BMAX B9 Power SK Hynix HFM001TD3HX015N	4650 Points +32%
GMK NucBox M6 Ultra	3522 Points
Ninkear M8, 32+1TB	3374 Points -4%
Score Read
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	2641 Points +118%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2178 Points +80%
Average of class Mini PC (172 - 3834, n=110, last 2 years)	1674 Points +38%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1539 Points +27%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1507 Points +24%
GMK NucBox M6 Ultra	1211 Points
Ninkear M8, 32+1TB	1044 Points -14%
Score Write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3735 Points +119%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3274 Points +92%
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	2813 Points +65%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2390 Points +40%
Average of class Mini PC (210 - 4770, n=110, last 2 years)	2200 Points +29%
Ninkear M8, 32+1TB	1830 Points +7%
GMK NucBox M6 Ultra	1709 Points
Seq Read
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	5043 MB/s +70%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3862 MB/s +30%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3482 MB/s +17%
Average of class Mini PC (483 - 6620, n=110, last 2 years)	3436 MB/s +16%
GMK NucBox M6 Ultra	2966 MB/s
Ninkear M8, 32+1TB	2895 MB/s -2%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2479 MB/s -16%
Seq Write
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	4813 MB/s +110%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4073 MB/s +78%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2950 MB/s +29%
Average of class Mini PC (326 - 5783, n=110, last 2 years)	2623 MB/s +14%
GMK NucBox M6 Ultra	2291 MB/s
Ninkear M8, 32+1TB	1971 MB/s -14%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1960 MB/s -14%
4K Read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	85.3 MB/s +34%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	76 MB/s +20%
GMK NucBox M6 Ultra	63.5 MB/s
Average of class Mini PC (18.2 - 104.3, n=110, last 2 years)	60.4 MB/s -5%
BMAX B9 Power SK Hynix HFM001TD3HX015N	51.7 MB/s -19%
Ninkear M8, 32+1TB	47.7 MB/s -25%
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	43.9 MB/s -31%
4K Write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	225 MB/s +32%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	216 MB/s +27%
Average of class Mini PC (40.8 - 366, n=110, last 2 years)	178.5 MB/s +5%
GMK NucBox M6 Ultra	170.1 MB/s
Ninkear M8, 32+1TB	138.7 MB/s -18%
BMAX B9 Power SK Hynix HFM001TD3HX015N	137 MB/s -19%
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	100.2 MB/s -41%
4K-64 Read
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	2093 MB/s +146%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	1706 MB/s +101%
Average of class Mini PC (94.3 - 3321, n=110, last 2 years)	1270 MB/s +49%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1207 MB/s +42%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1115 MB/s +31%
GMK NucBox M6 Ultra	850 MB/s
Ninkear M8, 32+1TB	707 MB/s -17%
4K-64 Write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3102 MB/s +137%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2763 MB/s +111%
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	2231 MB/s +70%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2057 MB/s +57%
Average of class Mini PC (96.3 - 4103, n=110, last 2 years)	1759 MB/s +34%
Ninkear M8, 32+1TB	1494 MB/s +14%
GMK NucBox M6 Ultra	1310 MB/s
Access Time Read
GMK NucBox M6 Ultra	0.117 ms *
Average of class Mini PC (0.027 - 0.288, n=110, last 2 years)	0.09078 ms * +22%
Ninkear M8, 32+1TB	0.082 ms * +30%
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	0.077 ms * +34%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.062 ms * +47%
BMAX B9 Power SK Hynix HFM001TD3HX015N	0.056 ms * +52%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	0.045 ms * +62%
Access Time Write
Ninkear M8, 32+1TB	0.102 ms * -16%
Average of class Mini PC (0.013 - 0.706, n=110, last 2 years)	0.1005 ms * -14%
GMK NucBox M6 Ultra	0.088 ms *
Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1	0.074 ms * +16%
BMAX B9 Power SK Hynix HFM001TD3HX015N	0.031 ms * +65%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	0.026 ms * +70%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.019 ms * +78%

* ... smaller is better

持续读取负载DiskSpd 读取循环，队列深度 8

GMK NucBox M6 Ultra ; diskspd 2.0.17 f: Ø3300 (2878.04-3339.75)

Geekom A9 Max, AI 9 HX 370 Lexar NQ7A1; diskspd 2.0.17 f: Ø5828 (4289.72-5883.96)

Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0; diskspd 2.0.17 f: Ø4546 (3995.05-4560.99)

BOSGAME M4 Neo Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4063 (3587.97-4077.52)

Ninkear M8, 32+1TB ; diskspd 2.0.17 f: Ø2074 (1825.07-3560.76)

BMAX B9 Power SK Hynix HFM001TD3HX015N; diskspd 2.0.17 f: Ø2927 (355.39-3214.93)

图形卡和游戏性能

GMKtec NucBox M6 Ultra 依靠集成的 AMD Radeon 760M，在日常使用中提供了不错的 iGPU 性能。它在合成基准测试中取得了不错的成绩，位居中游。在实际的游戏测试中，iGPU 的表现也相当不错，不过这主要取决于游戏。不过，Radeon 760M 显然比不上 AMD Radeon 890M 甚至 Radeon 8060S 等更强大的集成图形处理器。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average AMD Radeon 8060S	100 pt
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	31.7 pt
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	28.5 pt
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	28.4 pt
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	21.6 pt
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	21.1 pt
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	15.5 pt

3DMark 11 - 1280x720 Performance GPU
Average AMD Radeon 8060S (39596 - 49668, n=7)	45504 Points +354%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	15553 Points +55%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	13783 Points +38%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	13721 Points +37%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	10018 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	9933 Points -1%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6690 Points -33%

3DMark
2560x1440 Time Spy Graphics
Average AMD Radeon 8060S (10224 - 11601, n=7)	11076 Points +386%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3325 Points +46%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2953 Points +29%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	2934 Points +29%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2281 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	2200 Points -4%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1550 Points -32%
1920x1080 Fire Strike Graphics
Average AMD Radeon 8060S (25992 - 31461, n=7)	29539 Points +350%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9161 Points +40%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	8447 Points +29%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	8423 Points +28%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6558 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	6370 Points -3%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5228 Points -20%

Performance Rating - Percent
Average AMD Radeon 8060S	100 pt
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	39.9 pt
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	35.8 pt
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	34.2 pt
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	27 pt
Ninkear M8, 32+1TB ^-2! AMD Radeon 780M, AMD Ryzen 7 8745HS	22.7 pt
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	19.4 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Average AMD Radeon 8060S (142 - 145.1, n=4)	144 fps +400%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	41.8 fps +45%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	33.3 fps +16%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	33.1 fps +15%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	28.8 fps
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	21.1 fps -27%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	17.2 fps -40%
Extreme Preset DX11
Average AMD Radeon 8060S (137.4 - 140.4, n=4)	138.9 fps +374%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	42.8 fps +46%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	37.4 fps +28%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	35.4 fps +21%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	29.3 fps
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	24.3 fps -17%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	21.5 fps -27%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Average AMD Radeon 8060S (108.6 - 111.1, n=4)	109.9 fps +464%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	28.6 fps +47%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	25.4 fps +30%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	19.5 fps
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	19.1 fps -2%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	13.1 fps -33%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	11.8 fps -39%
1920x1080 Extreme HD Preset OpenGL AA:x8
Average AMD Radeon 8060S (97.6 - 100.3, n=4)	99.1 fps +476%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	24.7 fps +44%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	22.1 fps +28%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	17.2 fps
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	15.3 fps -11%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	12.1 fps -30%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	9.2 fps -47%

Unigine Superposition
1280x720 720p Low
Average AMD Radeon 8060S (36121 - 42122, n=4)	40095 Points +336%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	12978 Points +41%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	12567 Points +37%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	11962 Points +30%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	9195 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	6276 Points -32%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5380 Points -41%
1920x1080 1080p High
Average AMD Radeon 8060S (14855 - 14959, n=4)	14897 Points +426%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	4289 Points +52%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	3665 Points +30%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	3644 Points +29%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2830 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	2718 Points -4%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1768 Points -38%
1920x1080 1080p Extreme
Average AMD Radeon 8060S (6859 - 7006, n=4)	6963 Points +421%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2130 Points +59%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1810 Points +35%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1777 Points +33%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1336 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	1237 Points -7%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	877 Points -34%

ComputeMark v2.1
1024x600 Normal, Score
Average AMD Radeon 8060S (16820 - 18520, n=5)	17795 Points +173%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	10857 Points +67%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	10276 Points +58%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	9589 Points +47%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6520 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	5738 Points -12%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3439 Points -47%
1024x600 Normal, Fluid 3DTex
Average AMD Radeon 8060S (1209 - 1500, n=5)	1399 Points +232%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	509 Points +21%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	479 Points +14%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	469 Points +11%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	422 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	412 Points -2%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	233 Points -45%
1024x600 Normal, Fluid 2DTexArr
Average AMD Radeon 8060S (1180 - 1398, n=5)	1341 Points +203%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	524 Points +18%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	505 Points +14%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	491 Points +11%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	443 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	416 Points -6%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	239 Points -46%
1024x600 Normal, Mandel Vector
Average AMD Radeon 8060S (4232 - 4790, n=5)	4638 Points +170%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2904 Points +69%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	2676 Points +56%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2506 Points +46%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1720 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	1533 Points -11%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	835 Points -51%
1024x600 Normal, Mandel Scalar
Average AMD Radeon 8060S (4239 - 4972, n=5)	4702 Points +191%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2891 Points +79%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	2800 Points +73%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2594 Points +61%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1616 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	1429 Points -12%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	881 Points -45%
1024x600 Normal, QJuliaRayTrace
Average AMD Radeon 8060S (5377 - 6023, n=5)	5714 Points +146%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	4030 Points +74%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	3816 Points +65%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	3529 Points +52%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2319 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	1948 Points -16%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1251 Points -46%

LuxMark v2.0 64Bit
Room GPUs-only
Average AMD Radeon 8060S (2396 - 3563, n=5)	3059 Samples/s +247%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1075 Samples/s +22%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1058 Samples/s +20%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	957 Samples/s +9%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	882 Samples/s
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	458 Samples/s -48%
Sala GPUs-only
Average AMD Radeon 8060S (6893 - 9180, n=5)	8295 Samples/s +426%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1882 Samples/s +19%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1763 Samples/s +12%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1733 Samples/s +10%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1603 Samples/s +2%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1576 Samples/s

Affinity Photo 2 - Combined (Single / Multi GPU)
Average AMD Radeon 8060S (3630 - 4212, n=4)	3932 Points +163%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3825 Points +156%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2670 Points +79%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1624 Points +9%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1534 Points +3%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1495 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	1268 Points -15%

Geekbench AI
Quantized GPU 1.4
Average AMD Radeon 8060S (16801 - 20292, n=6)	19118 Points +298%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	5771 Points +20%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	5636 Points +17%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	5563 Points +16%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	4807 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	4233 Points -12%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1960 Points -59%
Half Precision GPU 1.4
Average AMD Radeon 8060S (28415 - 35666, n=6)	33234 Points +259%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13035 Points +41%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	11732 Points +27%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	11710 Points +26%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	9269 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	5757 Points -38%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3209 Points -65%
Single Precision GPU 1.4
Average AMD Radeon 8060S (21089 - 25758, n=6)	24291 Points +288%
Geekom A9 Max, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	7873 Points +26%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	7648 Points +22%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	7638 Points +22%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6253 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	5533 Points -12%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3138 Points -50%

SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference

SPECworkstation 4.0 / Graphics Score
Average AMD Radeon 8060S (6.83 - 6.96, n=4)	6.93 Points +341%
Geekom A9 Max, AI 9 HX 370	2.52 Points +61%
Minisforum EliteMini UM890 Pro	2.13 Points +36%
BOSGAME M4 Neo	2.11 Points +34%
GMK NucBox M6 Ultra	1.57 Points
Ninkear M8, 32+1TB	1.3 Points -17%

SPECworkstation 4.0 / Accelerator Score
Average AMD Radeon 8060S (4.16 - 4.8, n=4)	4.52 Points +158%
Geekom A9 Max, AI 9 HX 370	2.35 Points +34%
Minisforum EliteMini UM890 Pro	2.24 Points +28%
BOSGAME M4 Neo	2.23 Points +27%
GMK NucBox M6 Ultra	1.75 Points
Ninkear M8, 32+1TB	1.4 Points -20%
BMAX B9 Power	1.23 Points -30%

SPECworkstation 4.0 / Viewport Graphics
Average AMD Radeon 8060S (6.83 - 6.96, n=4)	6.93 Points +341%
Geekom A9 Max, AI 9 HX 370	2.52 Points +61%
Minisforum EliteMini UM890 Pro	2.13 Points +36%
BOSGAME M4 Neo	2.11 Points +34%
GMK NucBox M6 Ultra	1.57 Points
Ninkear M8, 32+1TB	1.3 Points -17%

SPECworkstation 4.0 / HandBrake
Average AMD Radeon 8060S (2.02 - 2.65, n=4)	2.23 Points +99%
Geekom A9 Max, AI 9 HX 370	1.51 Points +35%
Minisforum EliteMini UM890 Pro	1.46 Points +30%
BOSGAME M4 Neo	1.32 Points +18%
BMAX B9 Power	1.17 Points +4%
GMK NucBox M6 Ultra	1.12 Points
Ninkear M8, 32+1TB	1.06 Points -5%

SPECworkstation 4.0 / ONNX Inference
Average AMD Radeon 8060S (3.5 - 3.87, n=4)	3.65 Points +287%
Minisforum EliteMini UM890 Pro	1.54 Points +63%
BOSGAME M4 Neo	1.46 Points +55%
Geekom A9 Max, AI 9 HX 370	1.43 Points +51%
Ninkear M8, 32+1TB	0.949 Points +1%
GMK NucBox M6 Ultra	0.944 Points
BMAX B9 Power	0.745 Points -21%

	GMK NucBox M6 Ultra, AMD Radeon 760M R5 7640HS	Geekom A9 Max, AI 9 HX 370, AMD Radeon 890M Ryzen AI 9 HX 370	Minisforum EliteMini UM890 Pro, AMD Radeon 780M R9 8945HS	BOSGAME M4 Neo, AMD Radeon 780M R7 7840HS	Ninkear M8, 32+1TB, AMD Radeon 780M R7 8745HS	BMAX B9 Power, Intel Iris Xe Graphics G7 96EUs i9-12900HK	Average of class Mini PC
SPECviewperf 2020		63%	40%	44%	-13%	-60%	81%
3840x2160 Medical (medical-03) (fps)	11	26.1 137%	13.3 21%	17.4 58%	9.8 -11%	3.44 -69%	16.8 ?(0.78 - 90.1, n=71, last 2 years) 53%
3840x2160 Energy (energy-03) (fps)	10.1	18 78%	19.7 95%	22.5 123%	12.1 20%	2.98 -70%	23.4 ?(0.52 - 139, n=71, last 2 years) 132%
3840x2160 Creo (creo-03) (fps)	26.2	36.2 38%	34.9 33%	31.1 19%	18.4 -30%	14 -47%	41.4 ?(7.73 - 126, n=71, last 2 years) 58%
3840x2160 CATIA (catia-06) (fps)	21.1	26 23%	24.2 15%	24.9 18%	15.9 -25%	7.55 -64%	27.3 ?(4.61 - 89.8, n=69, last 2 years) 29%
3840x2160 3ds Max (3dsmax-07) (fps)	15.8	25.2 59%	21.3 35%	20.9 32%	15.6 -1%	9.18 -42%	36.3 ?(5.53 - 213, n=71, last 2 years) 130%
3840x2160 Siemens NX (snx-04) (fps)	48.6	70.6 45%	67 38%	61.9 27%	37.1 -24%	3.78 -92%	52.4 ?(3.78 - 233, n=69, last 2 years) 8%
3840x2160 Maya (maya-06) (fps)	36.5	59.3 62%	51.2 40%	47.6 30%	29.7 -19%	24.1 -34%	93.2 ?(11.6 - 522, n=70, last 2 years) 155%

3DMark 05 Standard		44915 points
3DMark 06 Standard Score		34113 points
3DMark Vantage P Result		33435 points
3DMark 11 Performance		10245 points
3DMark Ice Storm Standard Score		165413 points
3DMark Cloud Gate Standard Score		28897 points
3DMark Fire Strike Score		6166 points
3DMark Fire Strike Extreme Score		3222 points
3DMark Time Spy Score		2548 points
3DMark Steel Nomad Score		395 points
Help

... in comparison

GTA V | Dota 2 Reborn | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
Average AMD Radeon 8060S (182.8 - 185.8, n=6)	184.6 fps +18%
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	172.7 (4.85^min, 100^P1) fps +10%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	163.9 (5.26^min, 111.1^P1) fps +4%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	163.8 (5.05^min, 111.1^P1) fps +4%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	157 (5.72^min, 100^P1) fps
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	153.4 (4.3^min, 111.1^P1) fps -2%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Average AMD Radeon 8060S (164.3 - 181.5, n=7)	170.6 fps +211%
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	76.2 (12^min, 52.6^P1) fps +39%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	65.8 (10.4^min, 45.5^P1) fps +20%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	64.1 (7.34^min, 43.5^P1) fps +17%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	54.8 (8.67^min, 38.5^P1) fps
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	54.6 (7.41^min, 38.5^P1) fps 0%

Dota 2 Reborn
1280x720 min (0/3) fastest
Average AMD Radeon 8060S (210 - 238, n=7)	223 fps +39%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	161.5 (136.9^min) fps 0%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	160.8 (137.9^min) fps
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	157.8 (132.4^min) fps -2%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	149.8 (130.2^min) fps -7%
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	149.4 (130.2^min) fps -7%
BMAX B9 Power Iris Xe G7 96EUs, i9-12900HK, SK Hynix HFM001TD3HX015N	101 (70^min) fps -37%
1920x1080 high (2/3)
Average AMD Radeon 8060S (147.7 - 184.7, n=7)	164.9 fps +83%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	100.9 (84.1^min) fps +12%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	98.9 (83.7^min) fps +10%
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	93.2 (83.3^min) fps +3%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	90.3 (75.3^min) fps
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	81.5 (72.8^min) fps -10%
BMAX B9 Power Iris Xe G7 96EUs, i9-12900HK, SK Hynix HFM001TD3HX015N	66.3 (47.2^min) fps -27%

Cyberpunk 2077 2.2 Phantom Liberty
1920x1080 Low Preset (FSR off)
Average AMD Radeon 8060S (124.8 - 152.1, n=7)	141.9 fps +331%
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	50.6 (42.5^min) fps +54%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	44.7 (38.6^min) fps +36%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	42 (36.1^min) fps +28%
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	34 (29^min) fps +3%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	32.9 (28.4^min) fps
BMAX B9 Power Iris Xe G7 96EUs, i9-12900HK, SK Hynix HFM001TD3HX015N	17.1 (13.4^min) fps -48%
1920x1080 High Preset (FSR off)
Average AMD Radeon 8060S (85 - 101.7, n=7)	96 fps +359%
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	29.9 (25.9^min) fps +43%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	26.5 (22.1^min) fps +27%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	23.1 (15.8^min) fps +11%
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	21.4 (18.5^min) fps +2%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	20.9 (17.7^min) fps
BMAX B9 Power Iris Xe G7 96EUs, i9-12900HK, SK Hynix HFM001TD3HX015N	11.3 (9.54^min) fps -46%

Baldur's Gate 3
1280x720 Low Preset AA:SM
Average AMD Radeon 8060S (173.8 - 205, n=5)	190.7 fps +266%
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	76.6 (52.1^min, 55.4^P0.1, 66.1^P1) fps +47%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	67.6 (49.8^min, 50.9^P0.1, 59.7^P1) fps +30%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	62.3 (42.8^min, 47.8^P0.1, 54.2^P1) fps +20%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	52.1 (39.1^min, 40.9^P0.1, 44.6^P1) fps
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	50.1 (39.8^min, 41.5^P0.1, 44.4^P1) fps -4%
1920x1080 High Preset AA:T
Average AMD Radeon 8060S (87.9 - 103.7, n=7)	99.9 fps +400%
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	31.8 (26.2^min, 26.3^P0.1, 28.2^P1) fps +59%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	27.6 (23.1^min, 23.9^P0.1, 25.1^P1) fps +38%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	24.9 (21.7^min, 21.8^P0.1, 22.4^P1) fps +25%
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	20.6 (17.8^min, 17.9^P0.1, 18.5^P1) fps +3%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	20 (17.9^min, 17.9^P0.1, 18.3^P1) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
Average AMD Radeon 8060S (207 - 282, n=6)	260 fps +293%
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	87.3 (65^min, 47^P1) fps +32%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	87.2 (71^min, 63^P1) fps +32%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	82.8 (64^min, 48^P1) fps +25%
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	68 (55^min, 53^P1) fps +3%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	66.1 (48^min, 37^P1) fps
1920x1080 High Preset AA:T AF:16x
Average AMD Radeon 8060S (147.7 - 194, n=6)	183.9 fps +324%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	57.7 (45^min, 42^P1) fps +33%
Geekom A9 Max, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Lexar NQ7A1	55.8 (44^min, 34^P1) fps +29%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	51.7 (41^min, 33^P1) fps +19%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	43.4 (32^min, 27^P1) fps
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	43.2 (37^min, 32^P1) fps 0%

30 分钟赛博朋克 2077》帧数表（1920 x 1080，超预设，FSR 关闭）

GMK NucBox M6 Ultra R5 7640HS, Radeon 760M: Ø17.5 (14-17.8)

Geekom A9 Max, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M: Ø25.4 (23.2-26.6)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M: Ø22.9 (22-23.2)

BOSGAME M4 Neo R7 7840HS, Radeon 780M: Ø21.1 (16.4-23.9)

Ninkear M8, 32+1TB R7 8745HS, Radeon 780M: Ø17.7 (16-18.9)

	low	med.	high	ultra
GTA V (2015)	157	144.5	54.8	22.6
The Witcher 3 (2015)	127.3	78.4	39.9	25.4
Dota 2 Reborn (2015)	160.8	106.4	90.3	75.1
Final Fantasy XV Benchmark (2018)	66.3	32.3	23.6
X-Plane 11.11 (2018)	54.2	38.9	33.5
Strange Brigade (2018)	140.1	55.2	46.2	38.4
The Witcher 3 v4 (2023)	45.2	35.3	30.3	25.6
Baldur's Gate 3 (2023)	31.8	24.2	20	19.6
Cyberpunk 2077 2.2 Phantom Liberty (2023)	32.9	22.3	20.9	18.1
F1 24 (2024)	66.1	58.1	43.4	10.4

排放量

系统噪音

GMKtec NucBox M6 Ultra 采用紧凑型冷却系统，并为固态硬盘和内存配备了额外的风扇。虽然这款迷你 PC 并非完全静音，但在空闲时仍能保持 30 dB(A) 左右的噪音水平。在负载情况下，噪音水平会上升到 39 dB(A)，在静音模式下会略微降低到 37 dB(A)左右。风扇控制似乎仍不成熟--最好能通过软件提供更多的设置选项。

Noise Level

Idle		27.5 / 29.3 / 30.1 dB(A)
Load		39 / 39 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.7 dB(A)

	GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	Geekom A9 Max, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M	Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M	BOSGAME M4 Neo R7 7840HS, Radeon 780M	Ninkear M8, 32+1TB R7 8745HS, Radeon 780M
Noise		-9%	8%	-14%	-1%
off / environment * (dB)	24.7	24.8 -0%	23.7 4%	24.3 2%	24.7 -0%
Idle Minimum * (dB)	27.5	25.4 8%	27.2 1%	37.6 -37%	26.2 5%
Idle Average * (dB)	29.3	25.4 13%	27.3 7%	37.9 -29%	26.4 10%
Idle Maximum * (dB)	30.1	25.5 15%	27.3 9%	38 -26%	26.4 12%
Load Average * (dB)	39	49.8 -28%	33.6 14%	40.8 -5%	42.4 -9%
Witcher 3 ultra * (dB)	39	49.7 -27%			40.1 -3%
Cyberpunk 2077 ultra * (dB)	39.3	49.6 -26%	34.4 12%	40.18 -2%	43.9 -12%
Load Maximum * (dB)	39	49.8 -28%	34.4 12%	40.2 -3%	42.9 -10%

* ... smaller is better

温度

在负载情况下，GMKtec NucBox M6 Ultra 的外壳会明显发热，但不会达到临界温度。在压力测试中，AMD Ryzen 5 7640HS 的温度最初略高于 86 °C，但随后稳定在 80 °C左右。功耗保持在 45 瓦的极限。

Max. Load

Idle

Cyberpunk


40.3 °C	40.5 °C	37.1 °C
35 °C	43.6 °C	34.6 °C
34.8 °C	41 °C	37.2 °C

Maximum: 43.6 °C
Average: 38.2 °C


36.2 °C	40.2 °C	41.8 °C
34.6 °C	27.6 °C	39.7 °C
31.1 °C	31 °C	38.9 °C

Maximum: 41.8 °C
Average: 35.7 °C

Power Supply (max.) 44.9 °C | Room Temperature 23.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


31.8 °C	31.7 °C	30.5 °C
31.6 °C	32.4 °C	28.1 °C
30.1 °C	32.4 °C	29.6 °C

Maximum: 32.4 °C
Average: 30.9 °C


30.7 °C	33 °C	31.7 °C
28.9 °C	28.2 °C	31.5 °C
28.4 °C	28.9 °C	31.3 °C

Maximum: 33 °C
Average: 30.3 °C

Power Supply (max.) 35.9 °C | Room Temperature 23.9 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


40.7 °C	42.1 °C	40.6 °C
32.4 °C	43.1 °C	35.4 °C
37.1 °C	39.5 °C	36.6 °C

Maximum: 43.1 °C
Average: 38.6 °C


35.3 °C	40.8 °C	40.2 °C
34.4 °C	27.6 °C	39.6 °C
31.4 °C	31.8 °C	38.3 °C

Maximum: 40.8 °C
Average: 35.5 °C

Power Supply (max.) 45.6 °C | Room Temperature 23.9 °C | Fluke t3000FC (calibrated)

(-) The average temperature for the upper side under maximal load is 38.2 °C / 101 F, compared to the average of 32.4 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 43.6 °C / 110 F, compared to the average of 35.9 °C / 97 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(±) The bottom heats up to a maximum of 41.8 °C / 107 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 30.9 °C / 88 F, compared to the device average of 32.4 °C / 90 F.
(-) 3: The average temperature for the upper side is 38.6 °C / 101 F, compared to the average of 32.4 °C / 90 F for the class Mini PC.

能源管理

在测试中，配备 Ryzen 5 7640HS 的 GMKtec NucBox M6 Ultra 被证明相对经济。在空闲模式下，功耗处于中等水平。在满载情况下，测得的平均功耗约为 70 瓦，短暂峰值可达 75 瓦。不过，与较新的处理器直接比较，Ryzen 5 7640HS 的能效在某些情况下明显落后。

Power Consumption

Off / Standby	1.3 / 1.5 Watt
Idle	8.8 / 9.5 / 11.8 Watt
Load	69.6 / 74.8 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	Geekom A9 Max, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M	Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M	BOSGAME M4 Neo R7 7840HS, Radeon 780M	Ninkear M8, 32+1TB R7 8745HS, Radeon 780M	Average AMD Radeon 760M	Average of class Mini PC
Power Consumption		16%	-14%	-3%	10%	19%	-18%
Idle Minimum * (Watt)	8.8	2.4 73%	9.8 -11%	7.6 14%	7.1 19%	6.05 ?(3 - 8.8, n=4) 31%	9.57 ?(2.4 - 35.9, n=111, last 2 years) -9%
Idle Average * (Watt)	9.5	4.6 52%	10.5 -11%	9.1 4%	8.4 12%	7.18 ?(4 - 10, n=4) 24%	11.7 ?(2.59 - 36.3, n=110, last 2 years) -23%
Idle Maximum * (Watt)	11.8	9.2 22%	13.6 -15%	11.1 6%	10.5 11%	11.2 ?(8 - 15, n=4) 5%	15.2 ?(2.7 - 49, n=111, last 2 years) -29%
Load Average * (Watt)	69.6	78.4 -13%	67 4%	67.2 3%	59.7 14%	55 ?(42 - 69.6, n=4) 21%	62.1 ?(12.9 - 170.6, n=111, last 2 years) 11%
Cyberpunk 2077 ultra external monitor * (Watt)	70.5	77.8 -10%	85.9 -22%	81.3 -15%	63.6 10%
Load Maximum * (Watt)	74.8	95.1 -27%	96.2 -29%	98.4 -32%	78 -4%	64.2 ?(49 - 74.8, n=4) 14%	106.5 ?(27.9 - 423, n=111, last 2 years) -42%

* ... smaller is better

功率效率

Performance Rating | Power Consumption

Performance Rating - Percent
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	95.1 pt
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	94.7 pt
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	75.5 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	73.8 pt
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	72.5 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	66.9 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	306 Points per Watt +57%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	282 Points per Watt +45%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	215 Points per Watt +10%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	210 Points per Watt +8%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	205 Points per Watt +5%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	195.1 Points per Watt
Cinebench R23 Single Power Efficiency - external Monitor
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	72.1 Points per Watt +42%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	61.9 Points per Watt +22%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	61.5 Points per Watt +22%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	57.8 Points per Watt +14%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	55.5 Points per Watt +10%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	50.6 Points per Watt
Cinebench R15 Multi Efficiency (external Monitor)
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	42 Points per Watt +49%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	38.6 Points per Watt +37%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	30.9 Points per Watt +10%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	30.5 Points per Watt +9%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	29.6 Points per Watt +5%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	28.1 Points per Watt

带外部监控器的能耗

GMK NucBox M6 Ultra; Idle 1min (external Monitor): Ø9.5 (9-11.8)

GMK NucBox M6 Ultra; 1280x720 Prime95 28.10 and Furmark 1.25: Ø74.2 (73.3-74.8)

GMK NucBox M6 Ultra; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø70.5 (69.1-71.6)

GMK NucBox M6 Ultra; 3DMark06 Return To Proxycon: Ø69.6 (60.4-71.9)

带外部监控器的能耗

GMK NucBox M6 Ultra; Prime95 V2810 Stress (external Monitor): Ø69.6 (56.1-73.4)

GMK NucBox M6 Ultra; Cinebench R15 Multi (external Monitor): Ø66.8 (62.8-68.9)

GMK NucBox M6 Ultra; Cinebench R23 Single (external Monitor): Ø33.9 (31.4-67.4)

GMK NucBox M6 Ultra; Cinebench R23 Multi (external Monitor): Ø61.9 (59.4-66.9)

GMK NucBox M6 Ultra; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø71.7 (70.8-73.1)

笔记本检查评级

GMKtec NucBox M6 Ultra 作为一款紧凑型迷你 PC，凭借 Ryzen 5 7640HS、DDR5 内存和快速 PCIe 固态硬盘实现了稳定的日常性能，给人留下了深刻印象。它的弱点在于散热，在负载情况下会发出声音，而且风扇控制似乎仍不成熟。不过，只要对 BIOS 稍作调整，NucBox M6 Ultra 就能成为办公、多媒体和轻型创意任务的多面手。

Back to the verdict

GMK NucBox M6 Ultra - 09/18/2025 v8
Sebastian Bade

Chassis

82 / 98 → 84%

Connectivity

67 / 81 → 83%

Weight

83%

Games Performance

46 / 80 → 58%

Application Performance

81 / 92 → 88%

Workstation

51%

AI Performance

89%

Temperature

87%

Noise

80%

Average

51%

77%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
0%

Power Use
68.5%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 21.8%

可比较的替代品

Image	Model / Review	Price	Weight	Dimensions
1. 76.9%	GMK NucBox M6 Ultra AMD Ryzen 5 7640HS ⎘ AMD Radeon 760M ⎘ 32 GB Memory	Amazon: $519.99 List Price: 336€	506 g	127 x 128.8 x 47.8 mm
2. 81.7%	Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 2048 GB SSD	Amazon: $999.00 List Price: 999€	709 g	132 x 135 x 46.9 mm
3. 81.3%	Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $647.00 MINISFORUM UM890 Pro Mini PC... 2. $479.90 MINISFORUM UM890 Pro Mini PC... 3. $639.90 MINISFORUM UM890 Pro Ryzen 9... List Price: 739 EUR	709 g	127 x 130 x 60.6 mm
4. 74%	BOSGAME M4 Neo AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $599.99 BOSGAME M4 Neo Mini PC, Mini... 2. $559.00 BOSGAME M4 Neo Mini PC, Mini... 3. $599.99 BOSGAME Mini PC M4 AMD Ryzen... List Price: 389 EUR	560 g	127 x 127 x 42 mm
5.	Ninkear M8, 32+1TB AMD Ryzen 7 8745HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory	List Price: 415 EUR	507 g	127.5 x 130 x 52 mm
6.	BMAX B9 Power Intel Core i9-12900HK ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $519.99 Bmax B9 Power Mini PC, Intel... 2. $359.99 Bmax B9 Plus Mini PC, Intel ... 3. $22.99 PWR+ 19V Power Supply for Bm... List Price: 540 EUR	427 g	112 x 126 x 52 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

价格超值的迷你 PC，配备 AMD Ryzen 处理器和 USB4 多功能 - GMKtec NucBox M6 Ultra 评测

性价比高的迷你 PC？

评价：配备 USB4 的坚固迷你 PC，物超所值

Pros

Cons

价格和供应情况

Table of Contents

规格

外壳和功能

尺寸比较

USB 4 性能

配件

维护

可持续性

性能

测试条件

处理器

Cinebench R15 多耐久性测试

系统性能

DPC 延迟

存储设备

持续读取负载DiskSpd 读取循环，队列深度 8

图形卡和游戏性能

30 分钟赛博朋克 2077》帧数表（1920 x 1080，超预设，FSR 关闭）

排放量

系统噪音

温度

能源管理

功率效率

带外部监控器的能耗

带外部监控器的能耗

笔记本检查评级

可比较的替代品

Transparency

More articles related to this device

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Geekom XT13 Pro i9-13900H, Iris Xe G7 96EUs	680
Lenovo LOQ 15IRH8 Core i7 i7-13620H, NVIDIA GeForce RTX 4050 Laptop GPU	691
Ninkear M8, 32+1TB R7 8745HS, Radeon 780M	696
GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	698
Lenovo ThinkPad X1 Carbon G12 Ultra 7 155H, Arc 8-Core	698
Asus Vivobook S16 S3607QA SD X1-26-100, Adreno X1-45 1.7 TFLOPS	698
Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	703
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
HP Spectre x360 14-eu0078ng Ultra 7 155H, Arc 8-Core	10180
Lenovo ThinkPad P1 2019-20QT000RGE i7-9850H, Quadro T1000 (Laptop)	10211
GPD Win 4 R7 6800U, Radeon 680M	10232
GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	10245
HP EliteBook 845 G10 5Z4X0ES R7 7840U, Radeon 780M	10253
Ninkear M8, 32+1TB R7 8745HS, Radeon 780M	10257
Acer TravelMate P6 TMP614-54-TCO-553Z Core Ultra 5 226V, Arc 130V	10260
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
