适用于家庭办公和多媒体的经济型迷你 PC - GMKtec NucBox M3 Ultra（配备 Intel Core i7）评测

Name: GMK NucBox M3 Ultra
Brand: GMK

有弱点的迷你电脑

GMKtec 推出的 NucBox M3 Ultra 是一款采用英特尔酷睿 i7 处理器的新型迷你 PC。它既可作为裸机，也可作为完整系统，性能强劲，价格公道--但在当前的迷你 PC 市场上，这款较老的 SoC 是否足以独当一面？我们的评测将给出答案。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 10/14/2025 🇺🇸 🇩🇪 ...
Mini PC Desktop Intel Alder Lake

评价：适合办公和多媒体使用的可靠迷你 PC

与 GMKtec 系列的其他机型一样，NucBox M3 Ultra 具有很高的性价比。NucBox M3 Ultra 采用英特尔酷睿 i7-12700H，运算能力强劲，远远超过许多入门级 CPU。这使得这款迷你 PC 成为紧凑型全能电脑、办公系统或 HTPC 的理想之选，同时它还具有较低的 DPC 延迟。尽管裸机版本的价格相对较低，但其铝合金和塑料的高品质组合给人留下了深刻印象。

Test device courtesy of GMKtec

Download your licensed rating image as PNG / SVG

不过，该系统在散热方面略显薄弱：微型 PC 在负载情况下会发出声音，风扇控制似乎仍不成熟。最好能对风扇曲线进行更精细的调整。虽然没有专用图形处理器，但集成的英特尔 Iris Xe 图形处理器可为多媒体、流媒体和偶尔的休闲游戏提供足够的性能。同时，连接功能只提供了简单的标准配置，没有 USB4 或 OCuLink。对手如 Minisforum UM890 Pro或 Geekom A8在这方面具有优势。

Pros

+ 英特尔酷睿 i7-12700H（14 个核心，20 个线程）

+ 高品质铝合金和塑料外壳

+ 良好的做工

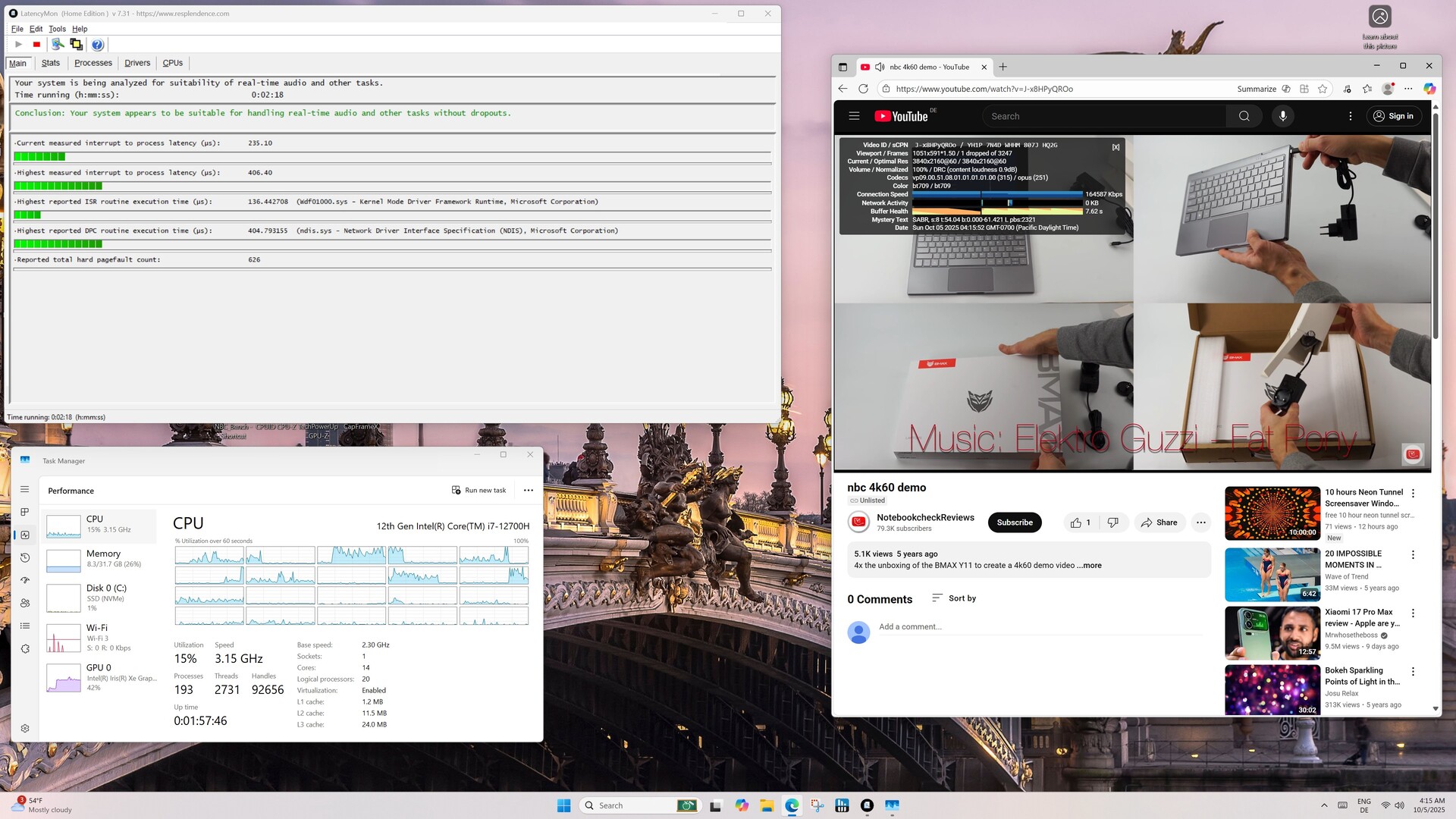

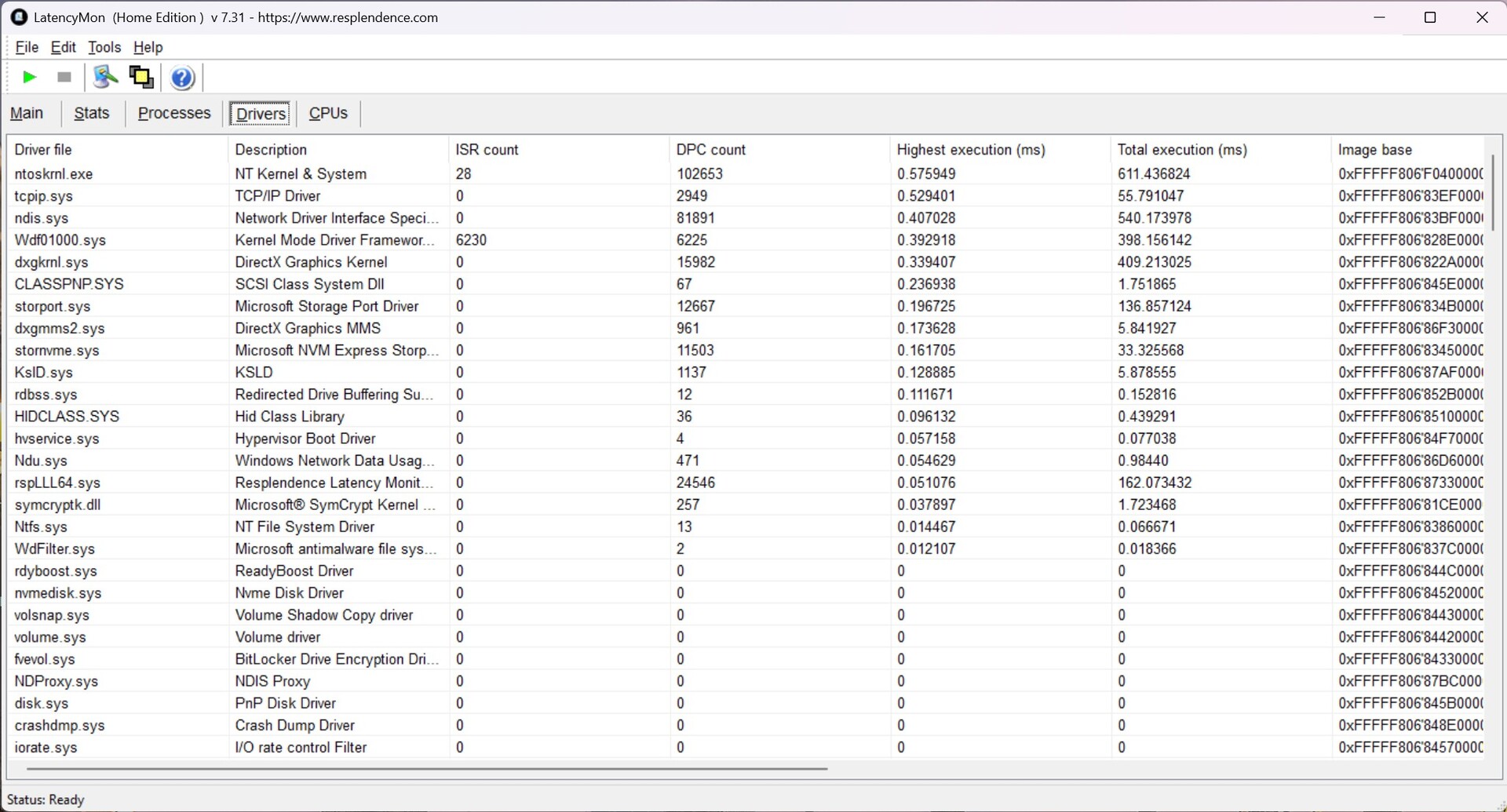

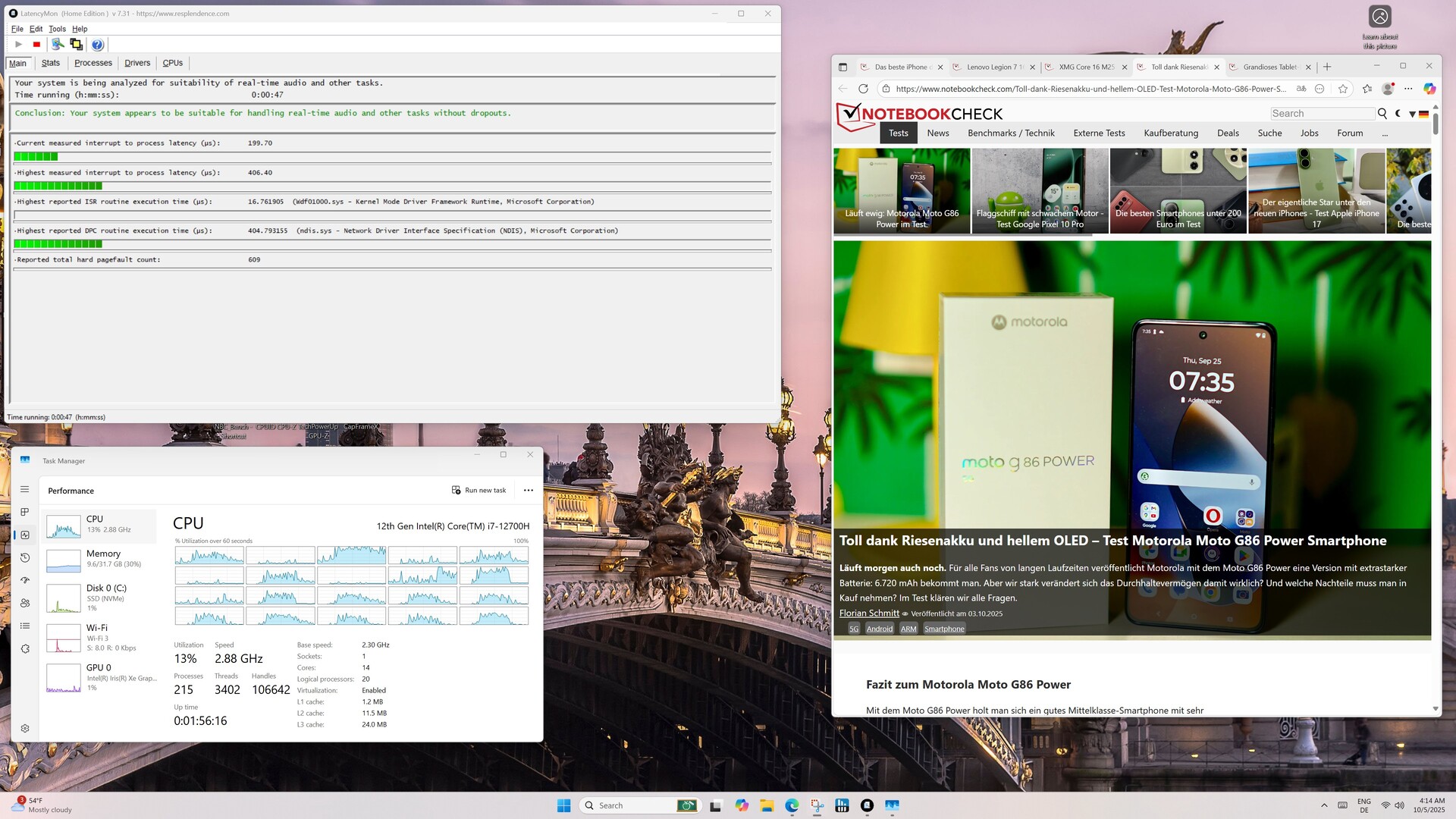

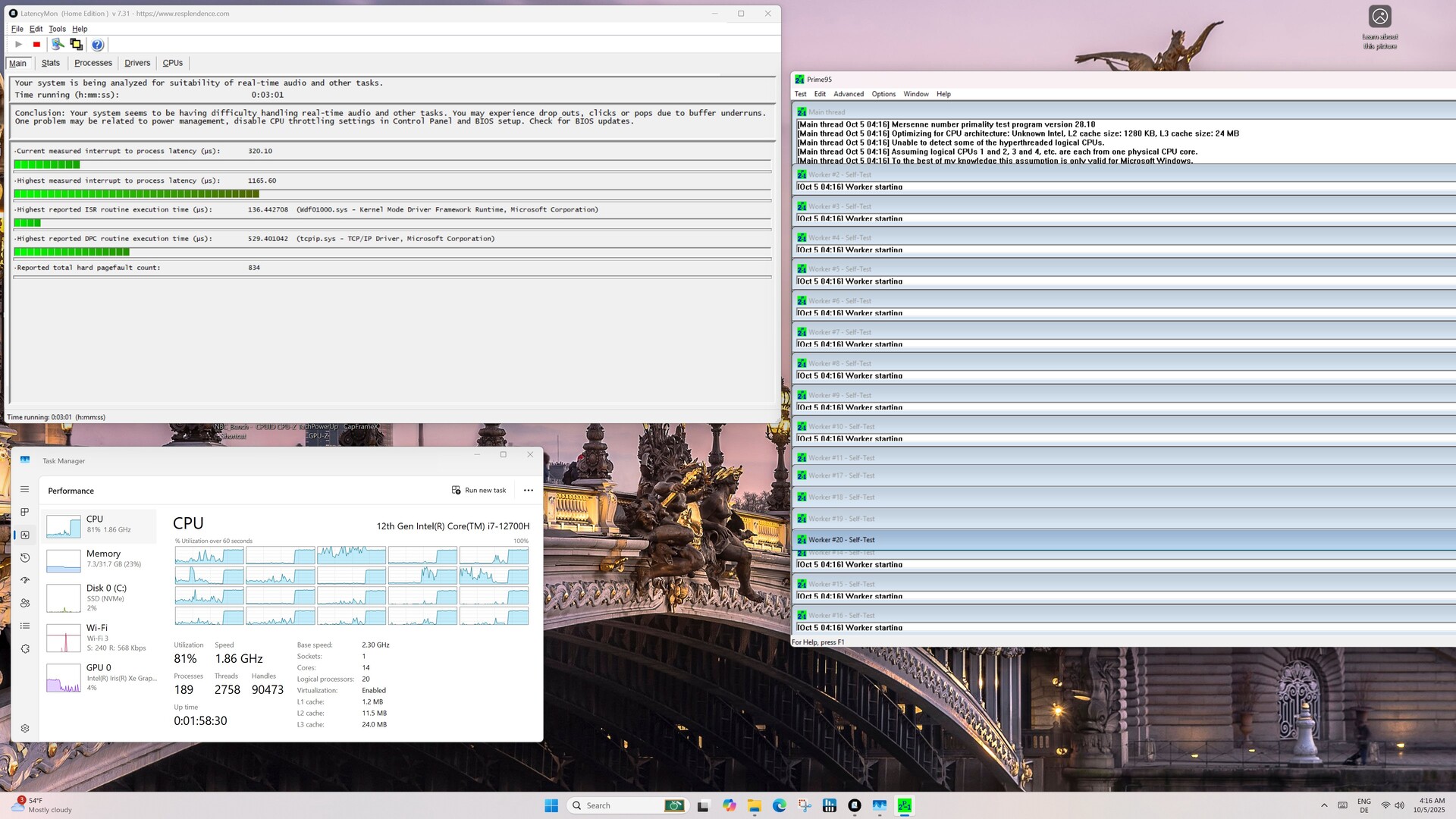

+ 低 DPC 延迟

+ 负载情况下 CPU 性能稳定

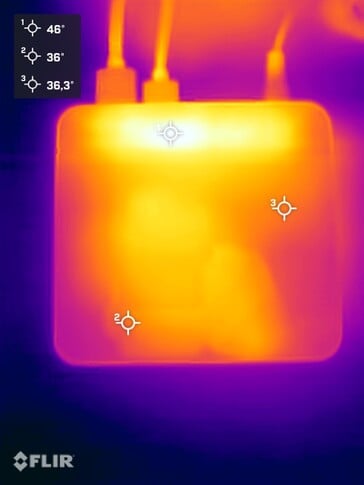

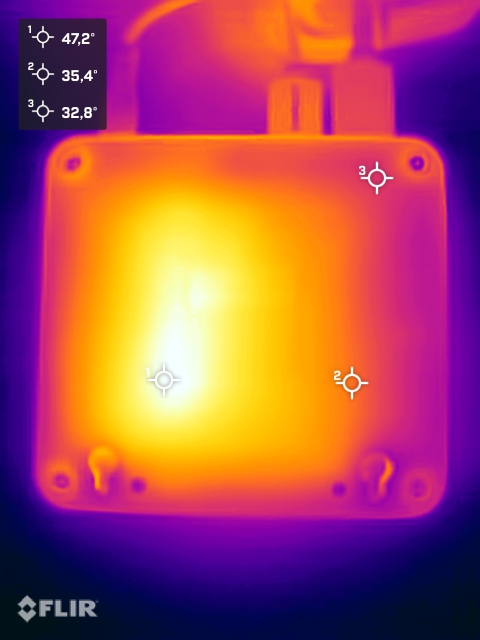

+ 无温度问题

Cons

- iGPU 性能较弱

- 只有一个 USB-C 端口

- 风扇控制似乎不成熟

- 维护选项简单

价格和供应情况

GMKtec NucBox M3 Ultra 裸机版的起价为美元，可直接从 GMKtec 订购。美元，可直接向 GMKtec 订购。不过，我们的测试配置价格为 429 美元。预订。

$609.99

GMKtec Mini PC M3 Ultra with Intel Core i7-12700H(14C/20T 4.7 GHz), 16GB DDR4 RAM+1TB NVMe SSD, Mini Desktop Computer Triple 4K Display, WiFi 6, BT5.2, USB-C

评价：适合办公和多媒体使用的可靠迷你 PC
规格
外壳与连接
性能
排放量
能源管理
笔记本检查评级
可比较的替代品

GMKtec NucBox M3 Ultra 将高计算能力与超紧凑外形相结合。它内置英特尔酷睿 i7-12700H，这是一款原生 14 核处理器，主频最高可达 4.7 GHz，并由集成的英特尔 Iris Xe 图形处理器提供支持。尽管这款迷你电脑体积很小，但却提供了最高 64 GB DDR4 内存和最高 8 TB SSD 存储空间。我们测试的是配备 32 GB 内存和 1 TB SSD 的机型，目前的售价约为 429 美元。

规格

GMK NucBox M3 Ultra

Processor

Intel Core i7-12700H 14 x 1.7 - 4.7 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Alder Lake-H

Graphics adapter

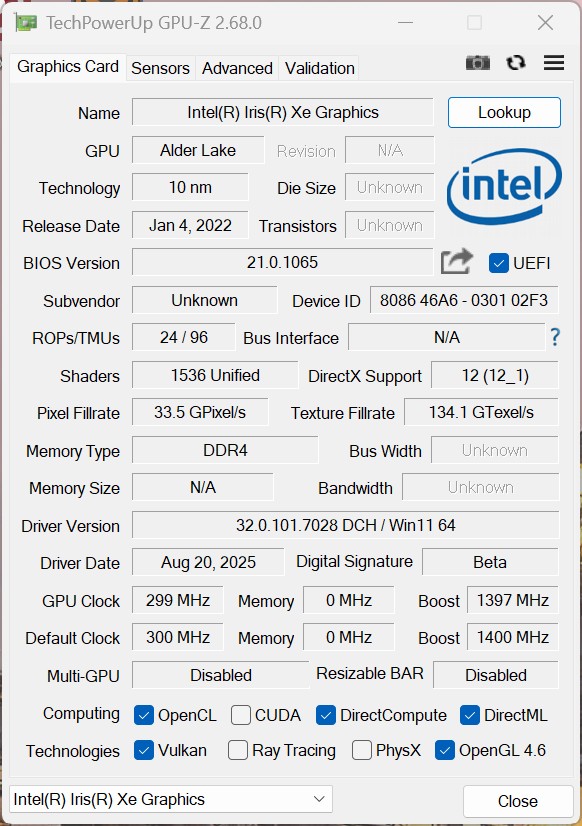

Intel Iris Xe Graphics G7 96EUs, Core: 1400 MHz, 32.0.101.7028 DCHH

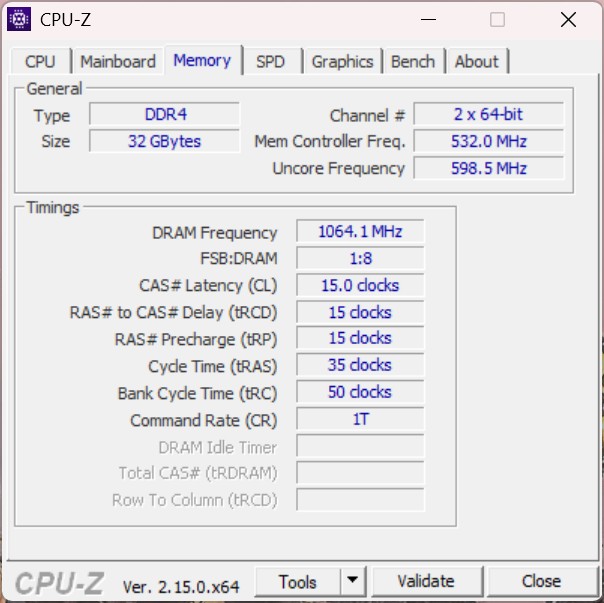

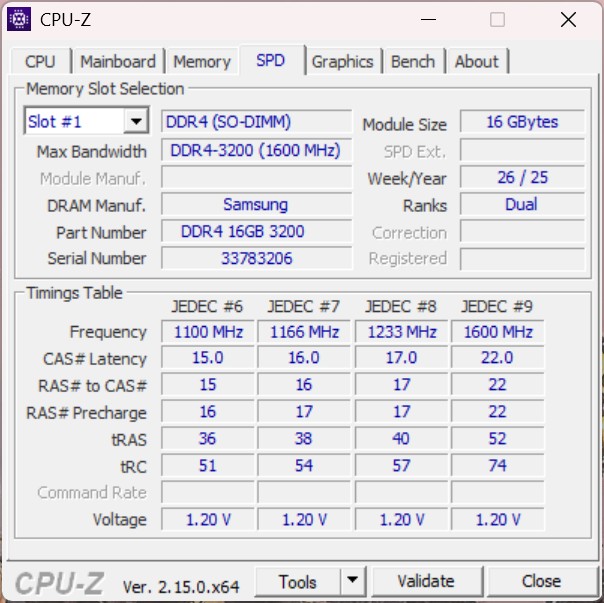

Memory

32 GB

, DDR4 3.200 MT/s, max. 64 GB

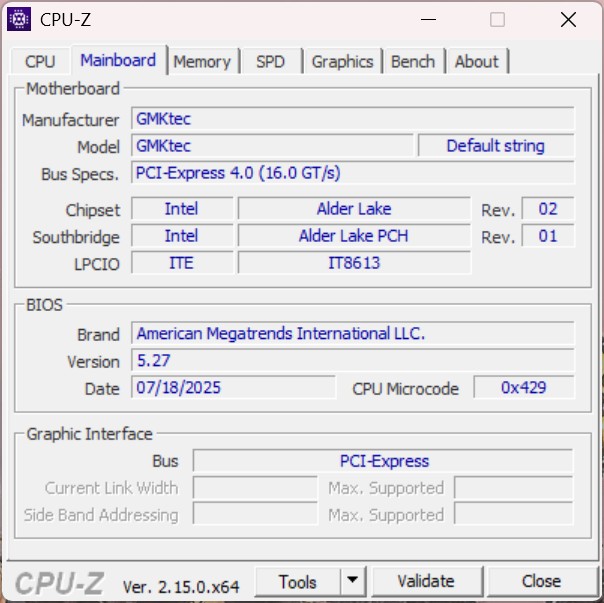

Mainboard

Intel Alder Lake-P PCH

Storage

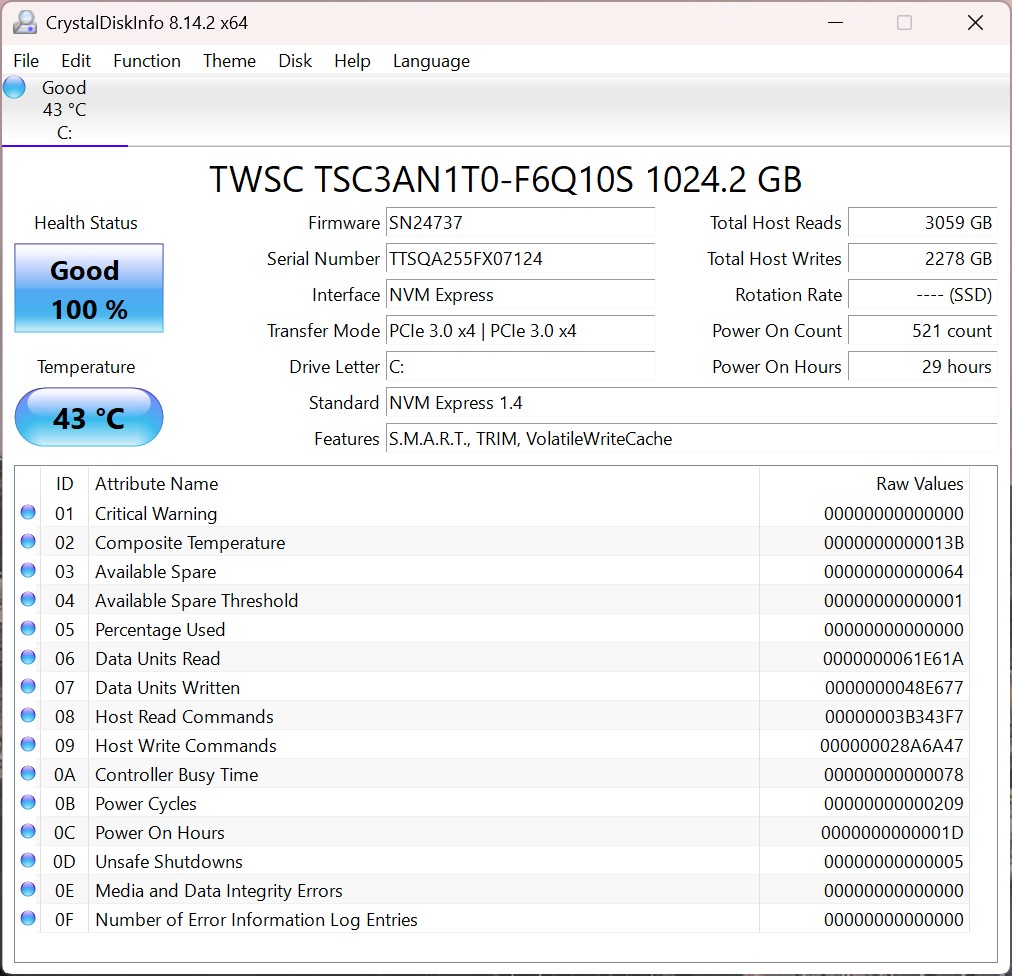

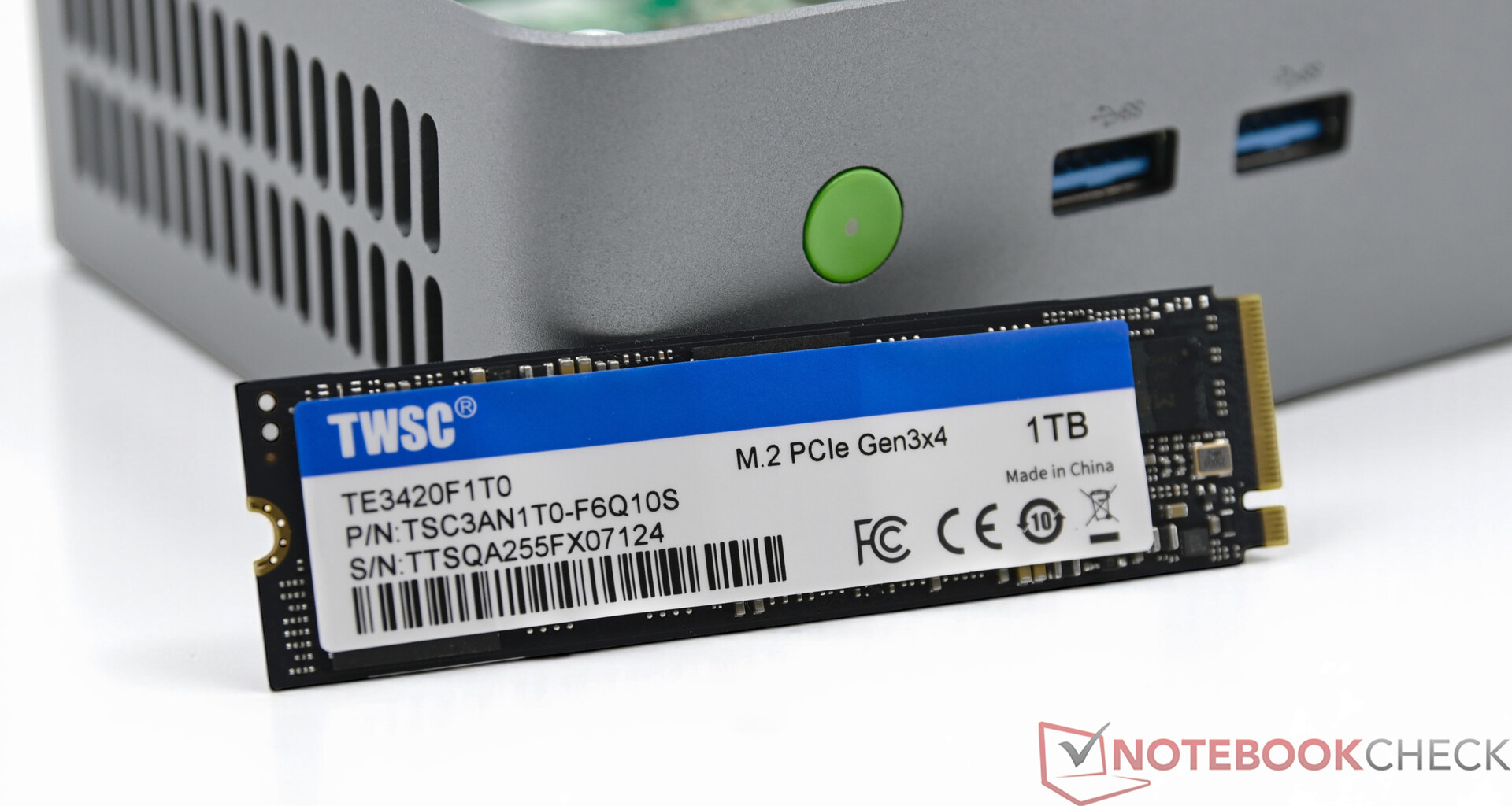

TWSC TSC3AN1T0-F6Q10S, 1024 GB

, 893 GB free

Soundcard

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Connections

1 USB 2.0, 4 USB 3.1 Gen2, 2 HDMI, 1 DisplayPort

Networking

Intel Ethernet Controller I226-V (10/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 42.5 x 114 x 106

Operating System

Microsoft Windows 11 Pro

Additional features

100-Watt-Netzteil

Weight

437 g, Power Supply: 404 g

Price

429 Euro

Amazon

$609.99

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

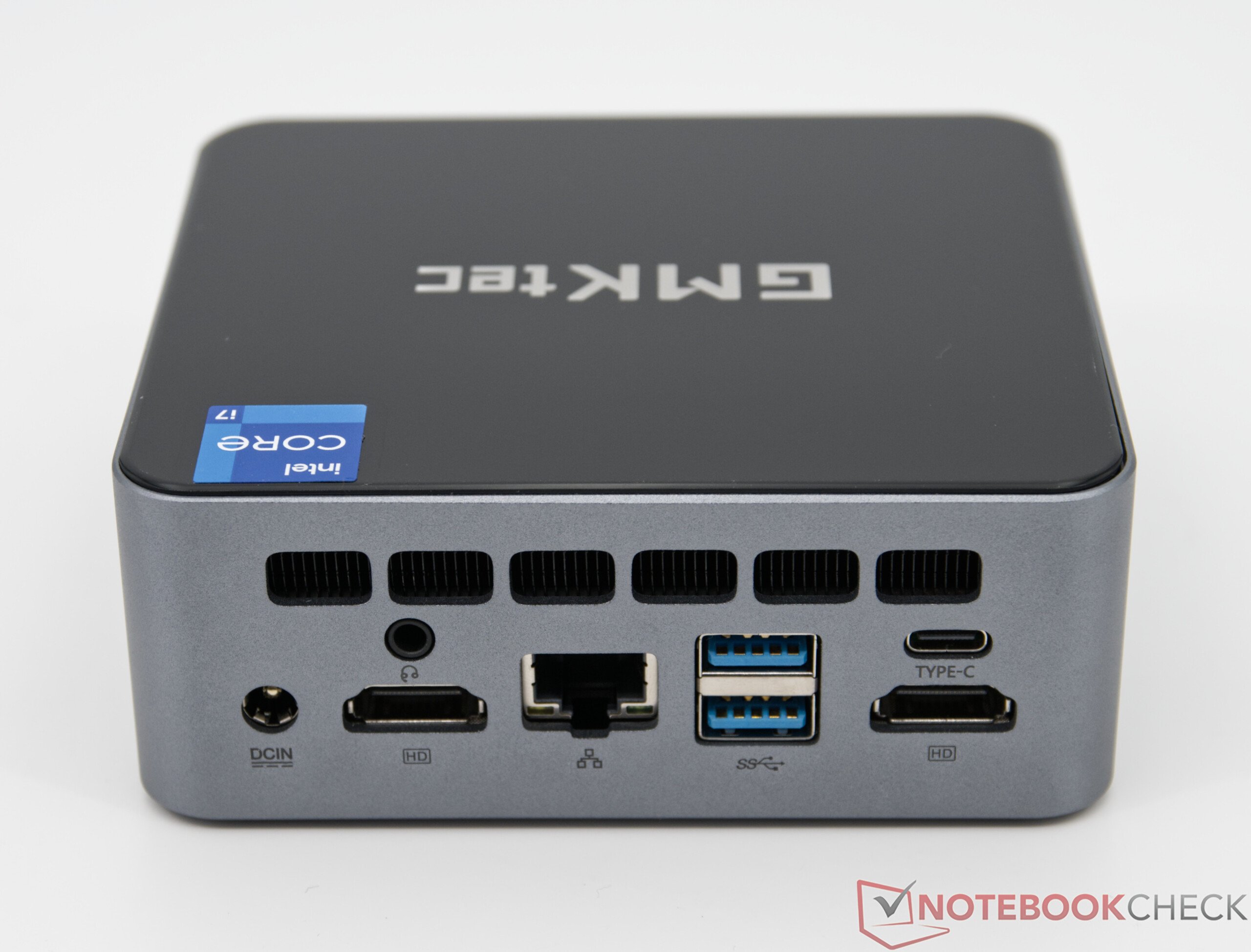

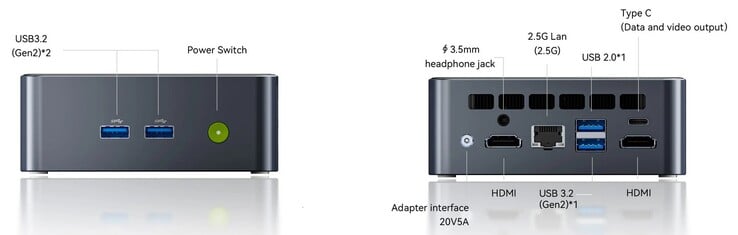

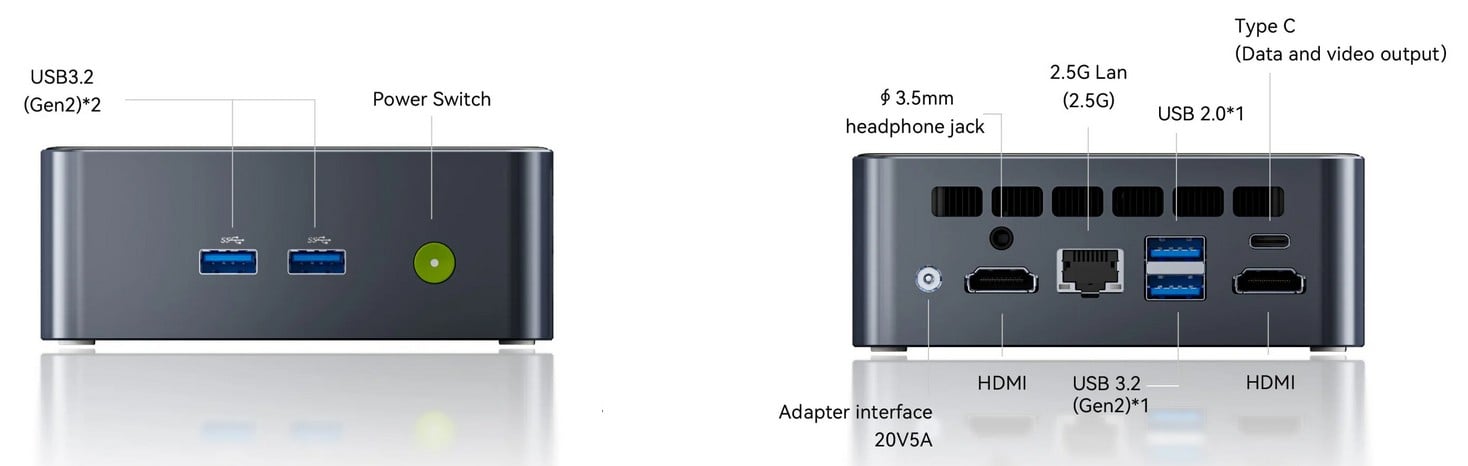

外壳与连接

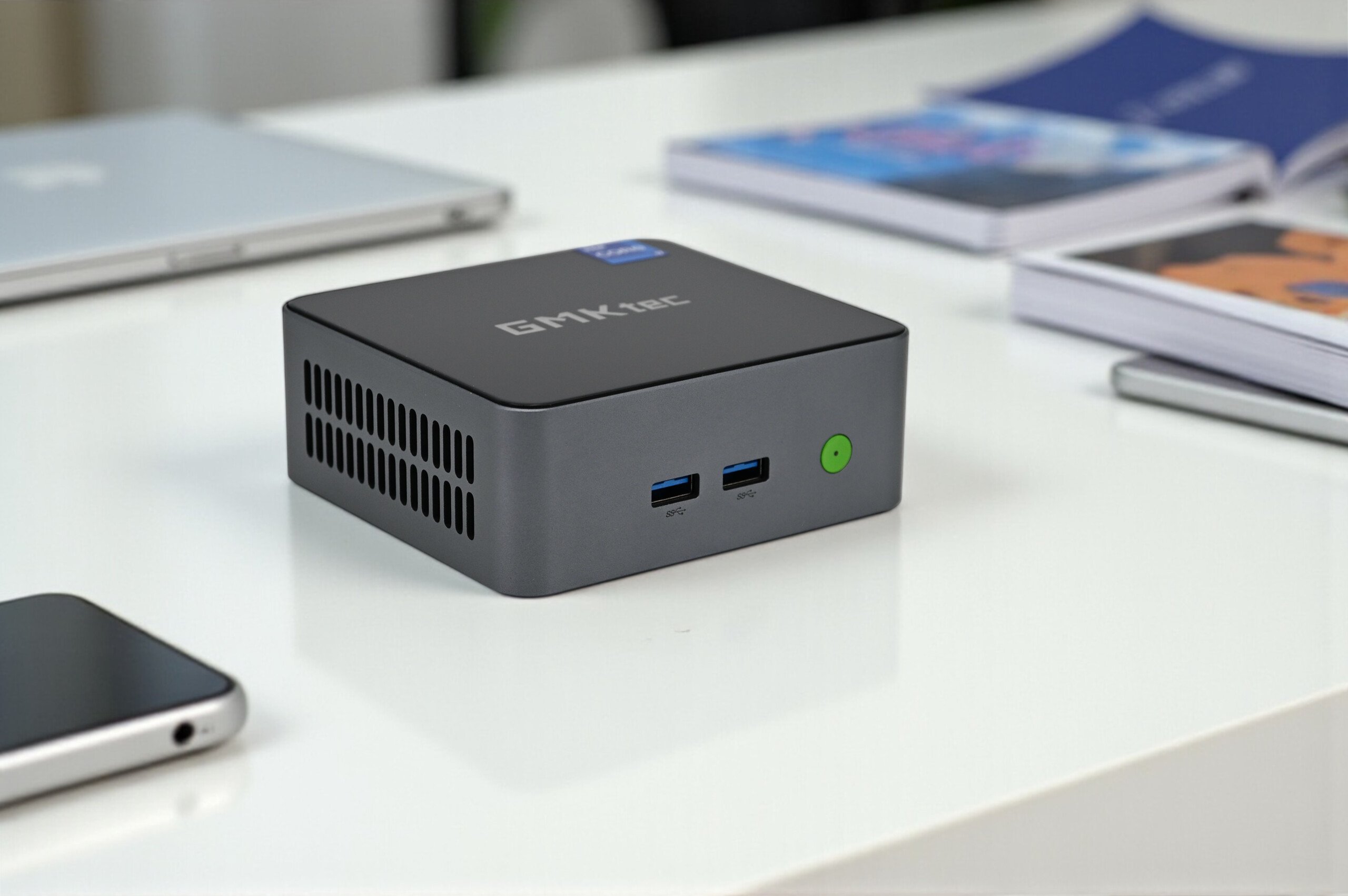

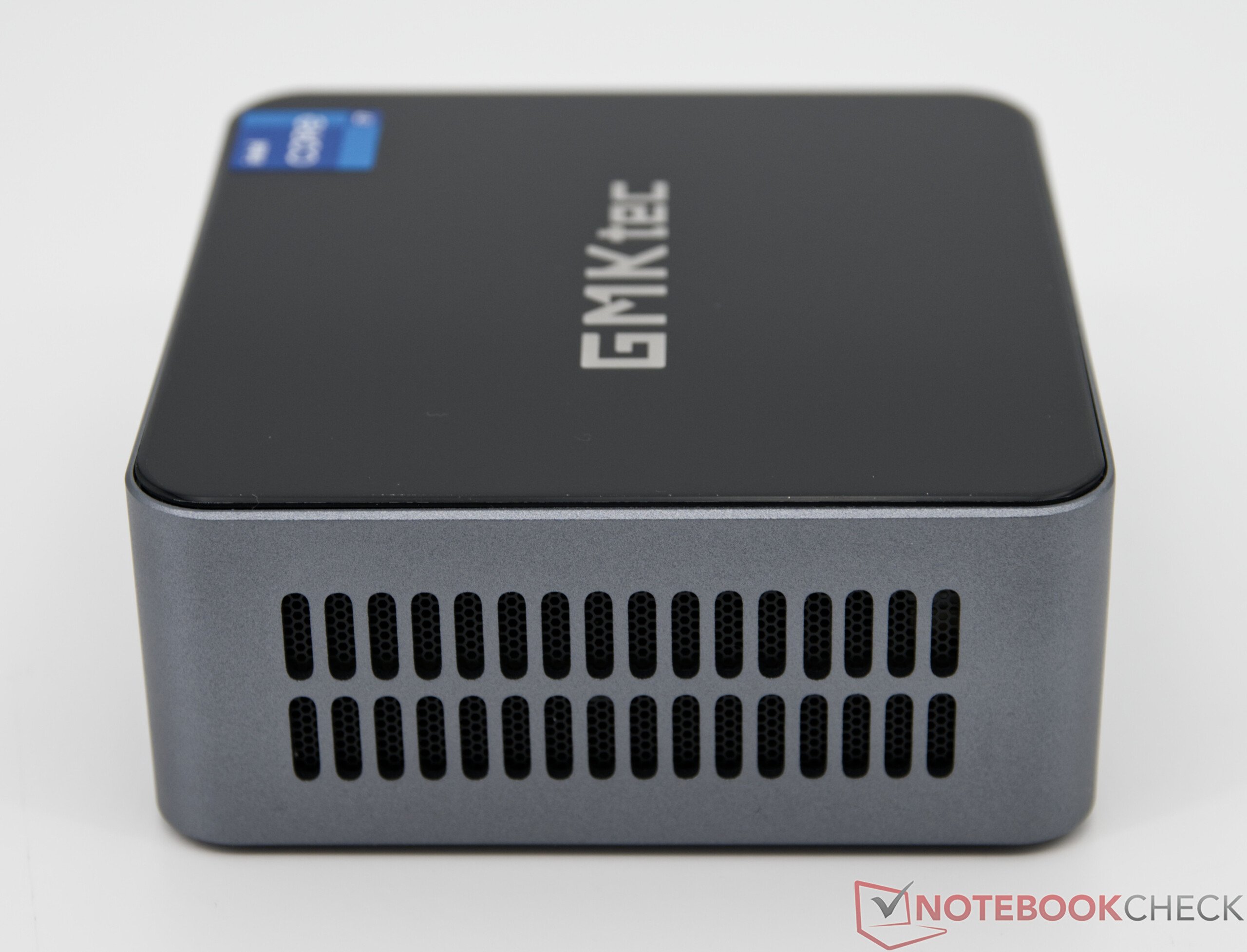

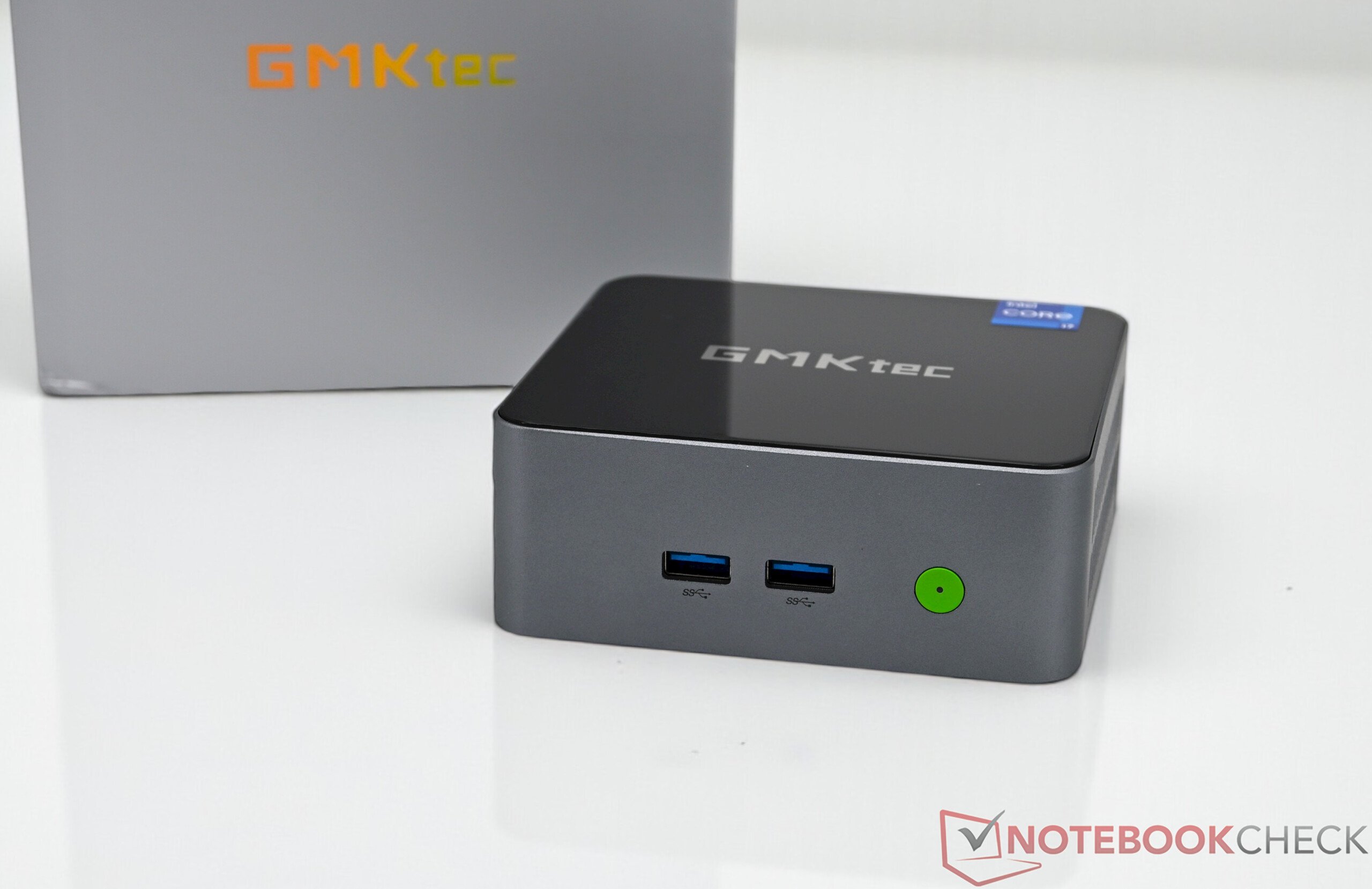

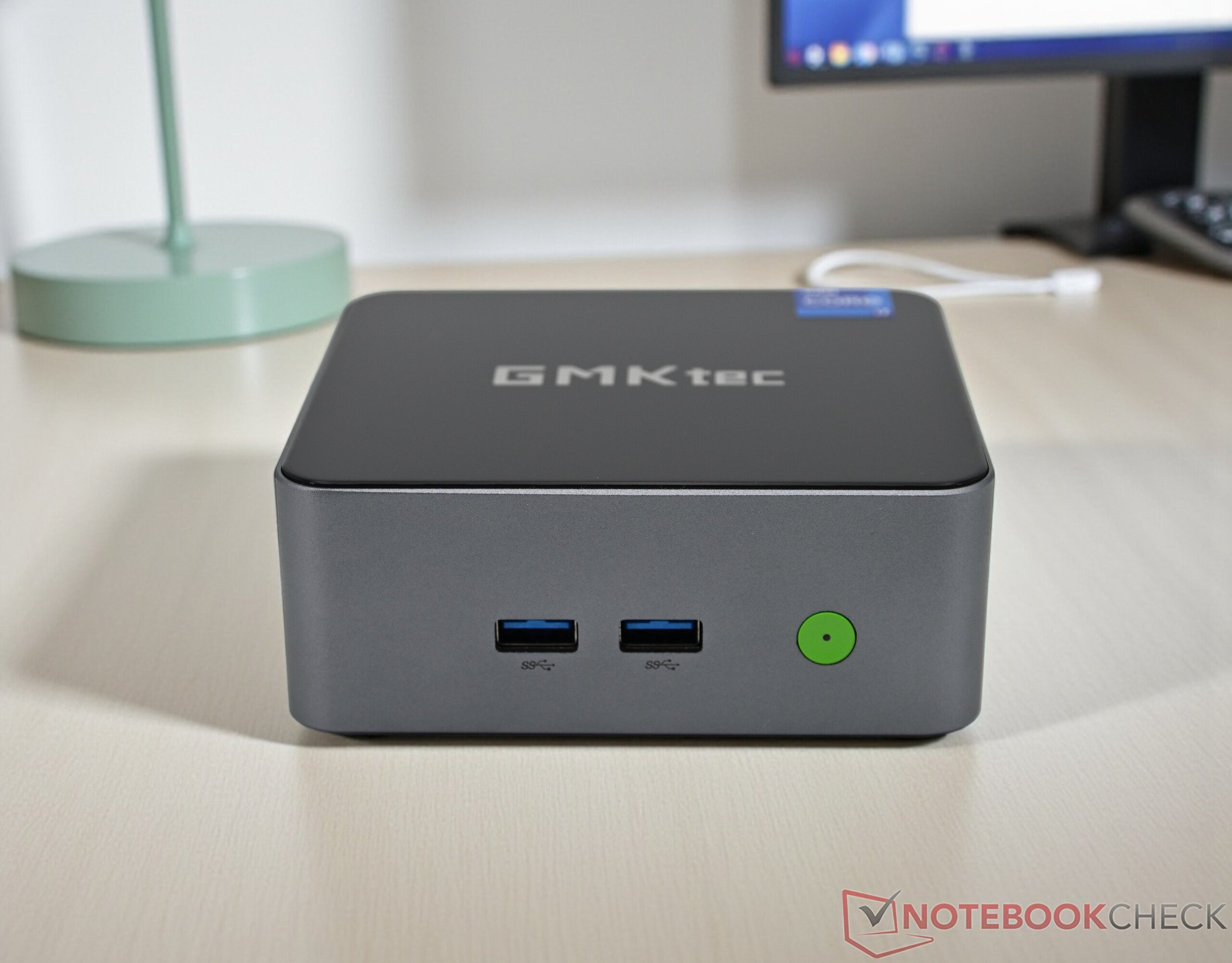

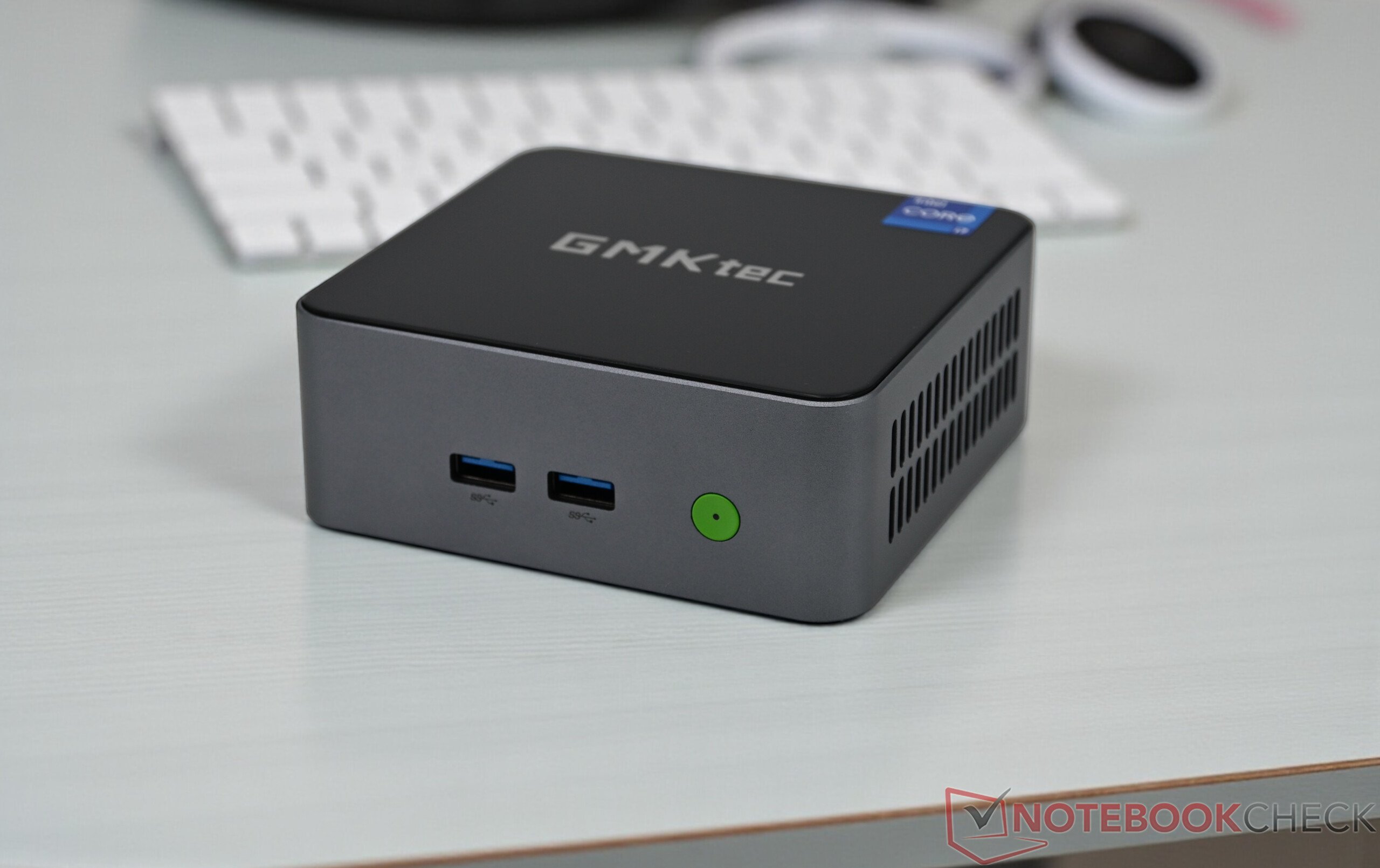

GMKtec NucBox M3 Ultra 采用紧凑型迷你 PC 机箱，在视觉和功能上都沿用了 GMKtec 设备的设计。尽管购买价格低廉，但制造商还是选择了金属和塑料的组合。连接方式为标准连接，这对大多数用户来说已经足够。NucBox M3 Ultra 不提供 USB4 或 OCuLink 等更现代的接口。

尺寸比较

Minisforum EliteMini UM890 Pro Ninkear M8, 32+1TB Geekom A8 Max, R7 8845HS BMAX B9 Power GMK NucBox M6 Ultra GMK NucBox M3 Ultra DIN A5 ❌

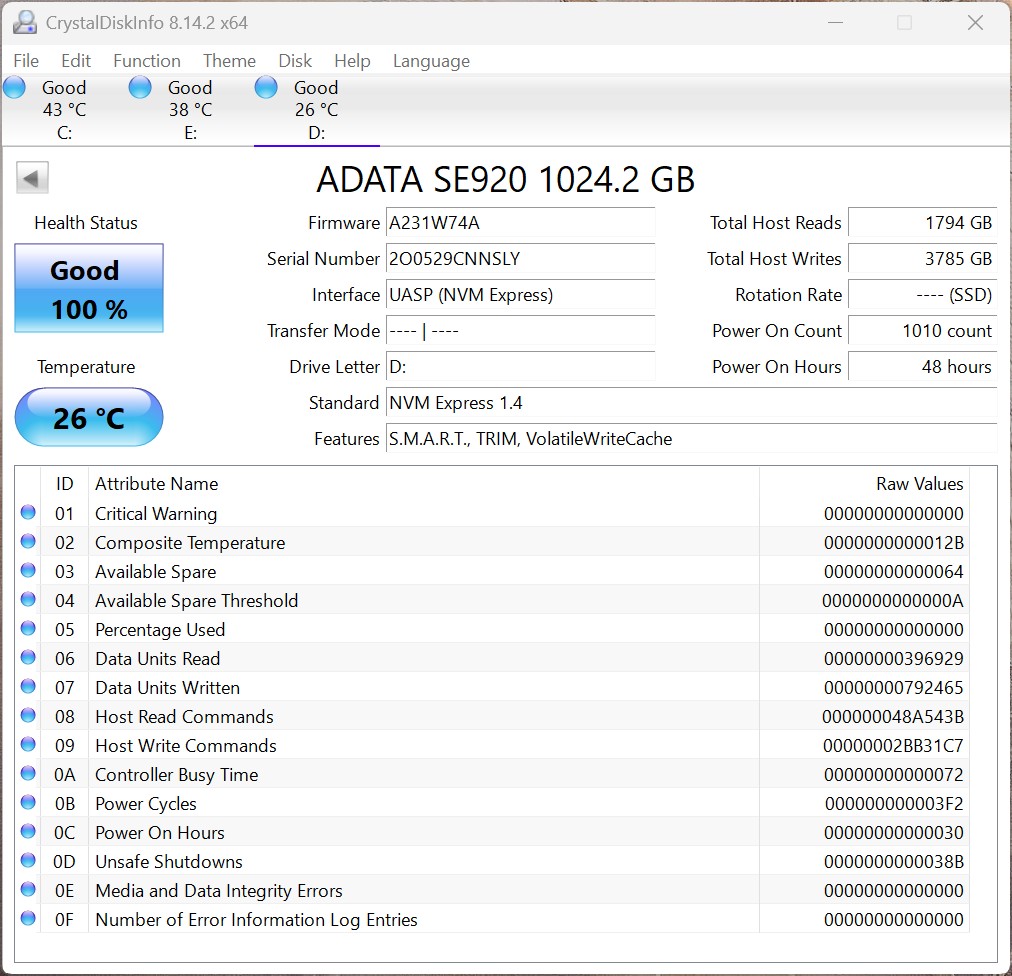

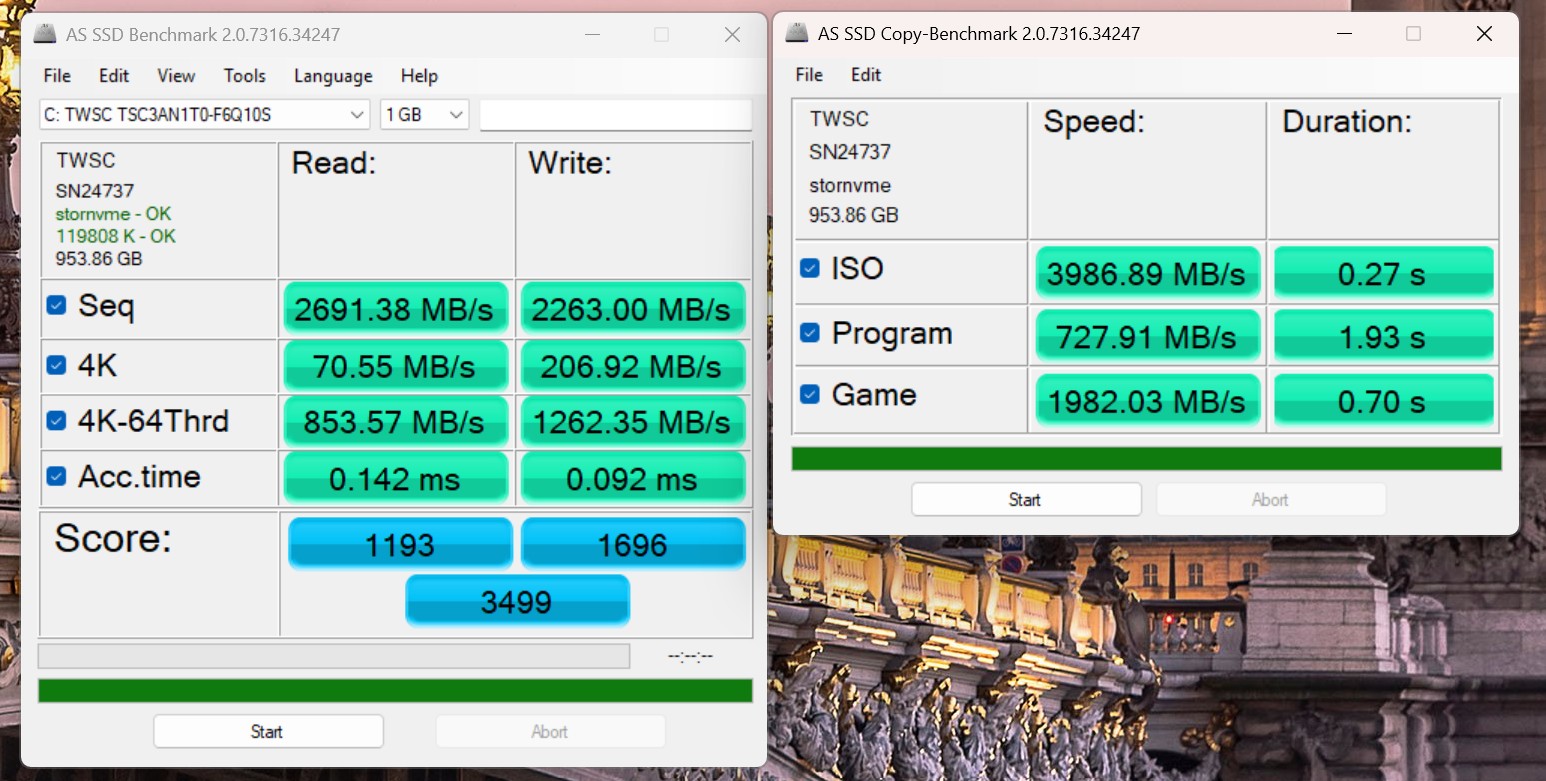

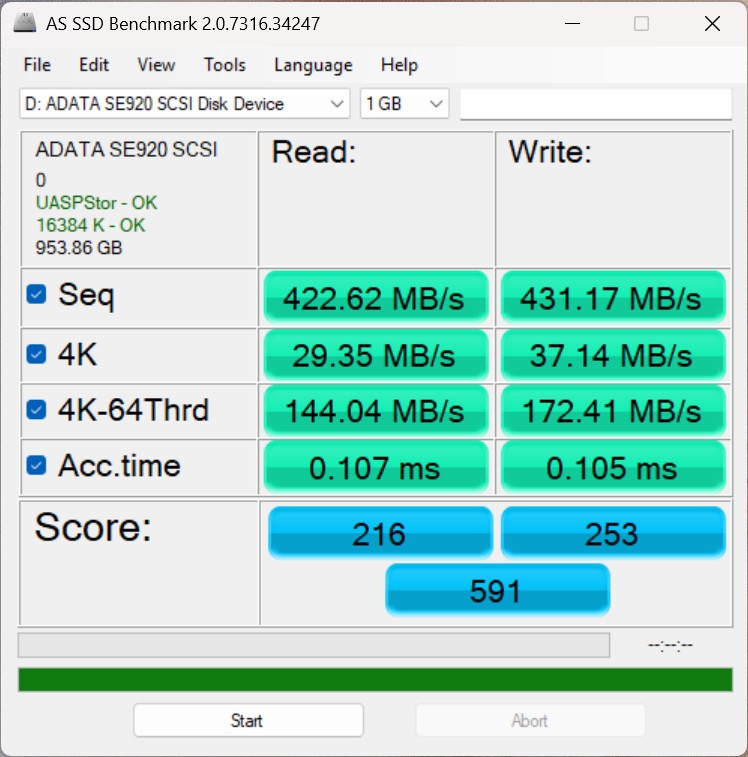

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	3187.93 MB/s
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	3158.19 MB/s
Average of class Mini PC (423 - 3906, n=28, last 2 years)	2722 MB/s
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	1622.04 MB/s
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	422.62 MB/s

Wi-Fi 性能

Networking
iperf3 receive AXE11000
Average of class Mini PC (267 - 1771, n=97, last 2 years)	1014 MBit/s +4%
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	977 (954^min - 984^max) MBit/s 0%
GMK NucBox M3 Ultra Realtek RTL8852BE	975 (958^min - 983^max) MBit/s
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	922 (856^min - 937^max) MBit/s -5%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	902 (793^min - 943^max) MBit/s -7%
Average Realtek RTL8852BE (455 - 985, n=64)	860 MBit/s -12%
iperf3 transmit AXE11000
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	964 (499^min - 1002^max) MBit/s +12%
Average of class Mini PC (251 - 1811, n=97, last 2 years)	939 MBit/s +9%
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	868 (822^min - 908^max) MBit/s +1%
GMK NucBox M3 Ultra Realtek RTL8852BE	862 (832^min - 881^max) MBit/s
Average Realtek RTL8852BE (536 - 943, n=63)	787 MBit/s -9%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	771 (742^min - 814^max) MBit/s -11%

Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1479 (1351-1551)

Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1484 (1435-1510)

GMK NucBox M3 Ultra Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø975 (958-983)

Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø901 (793-943)

GMK NucBox M3 Ultra Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø862 (832-881)

Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø771 (742-814)

配件

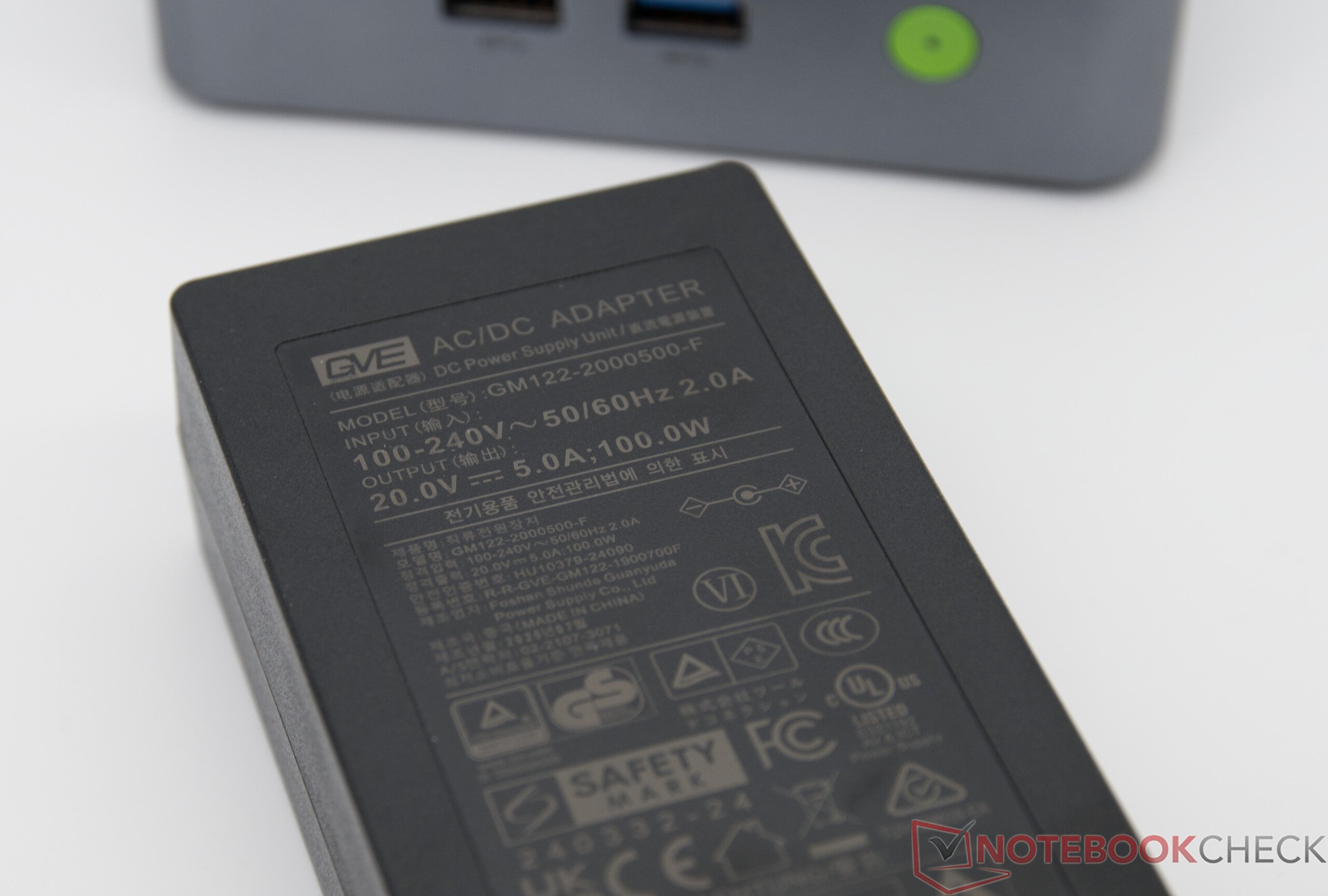

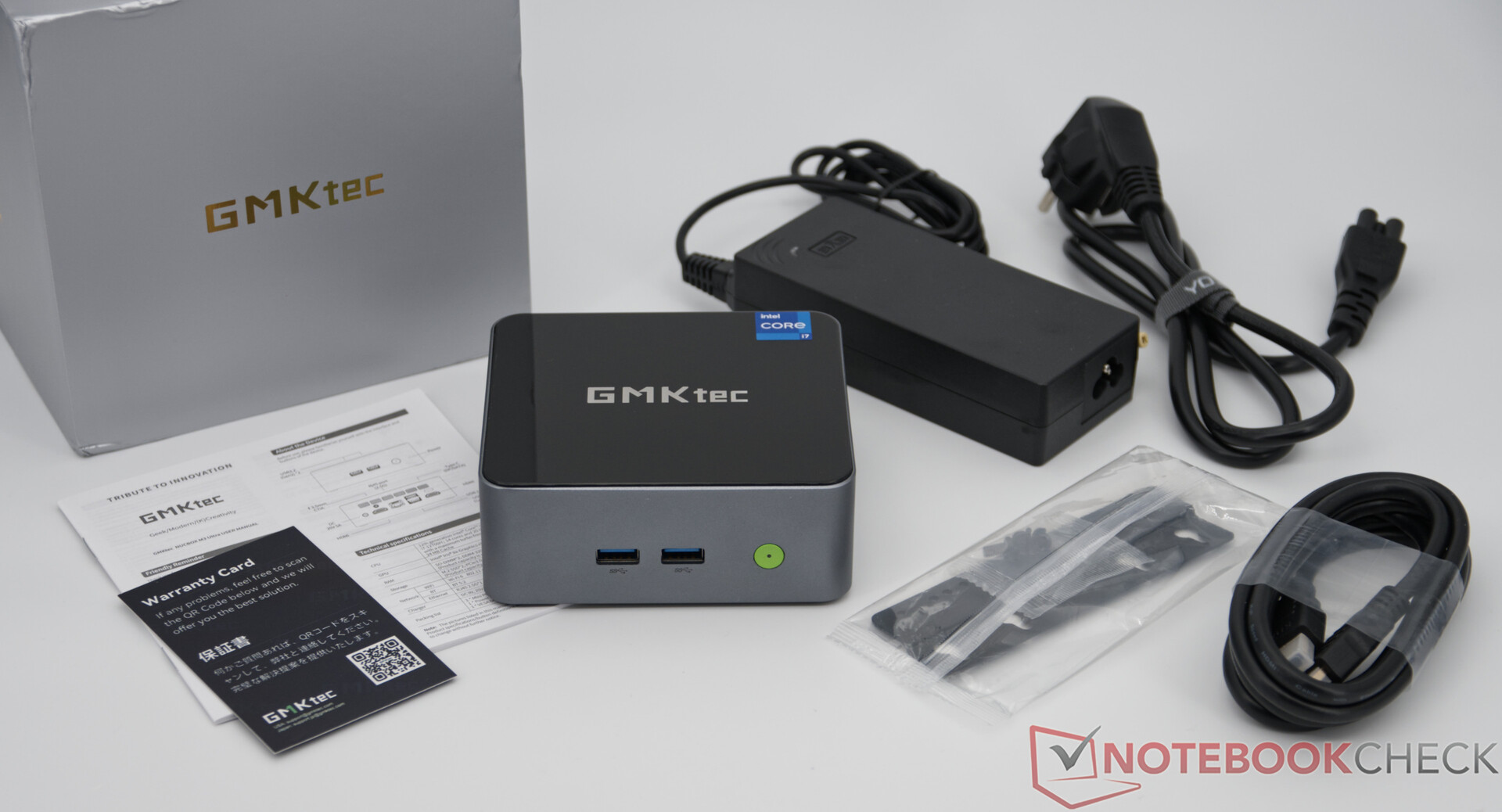

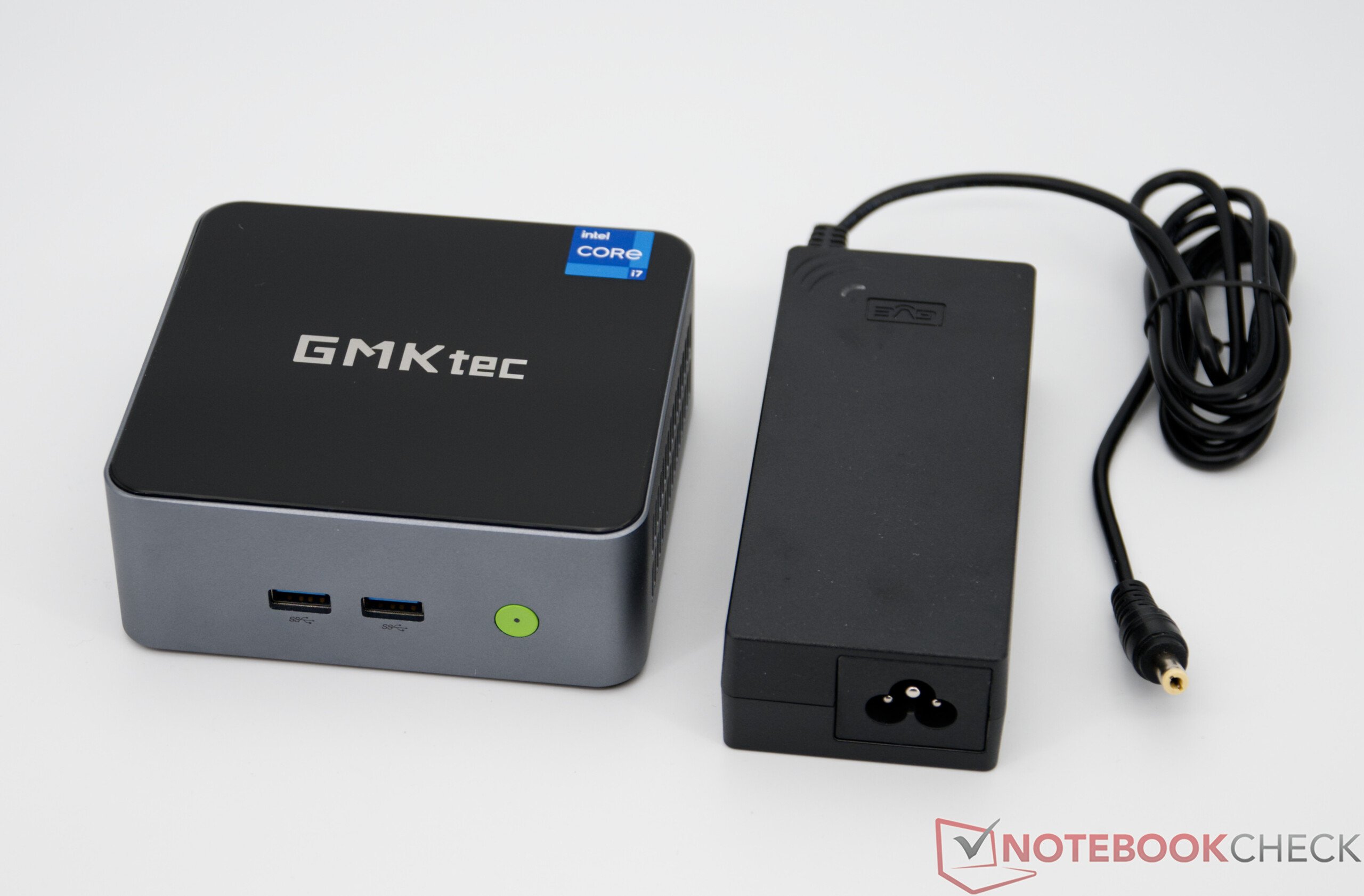

GMKtec NucBox M3 Ultra 附带一个 VESA 安装套件和一个 100 瓦的电源装置。

维护

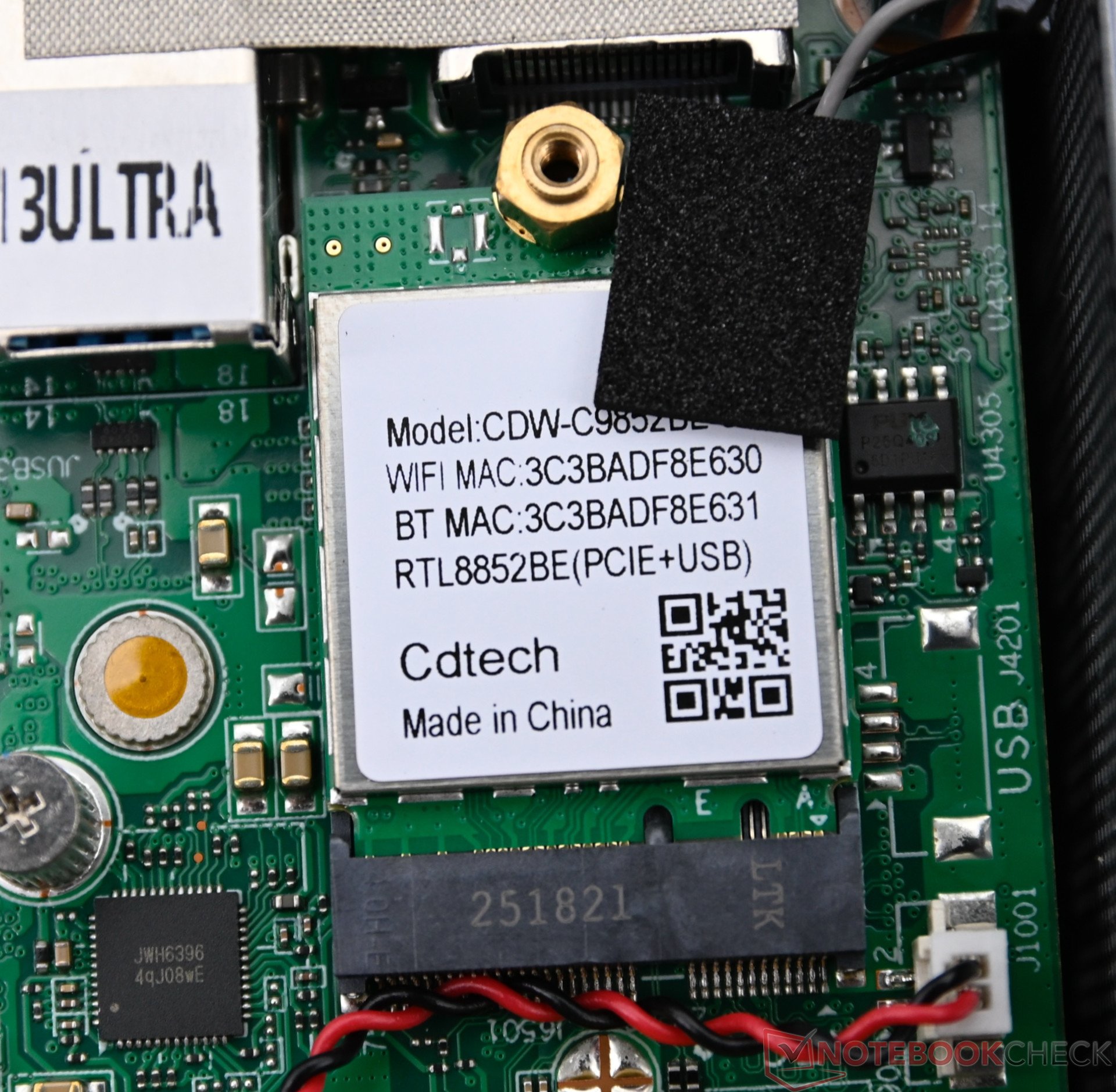

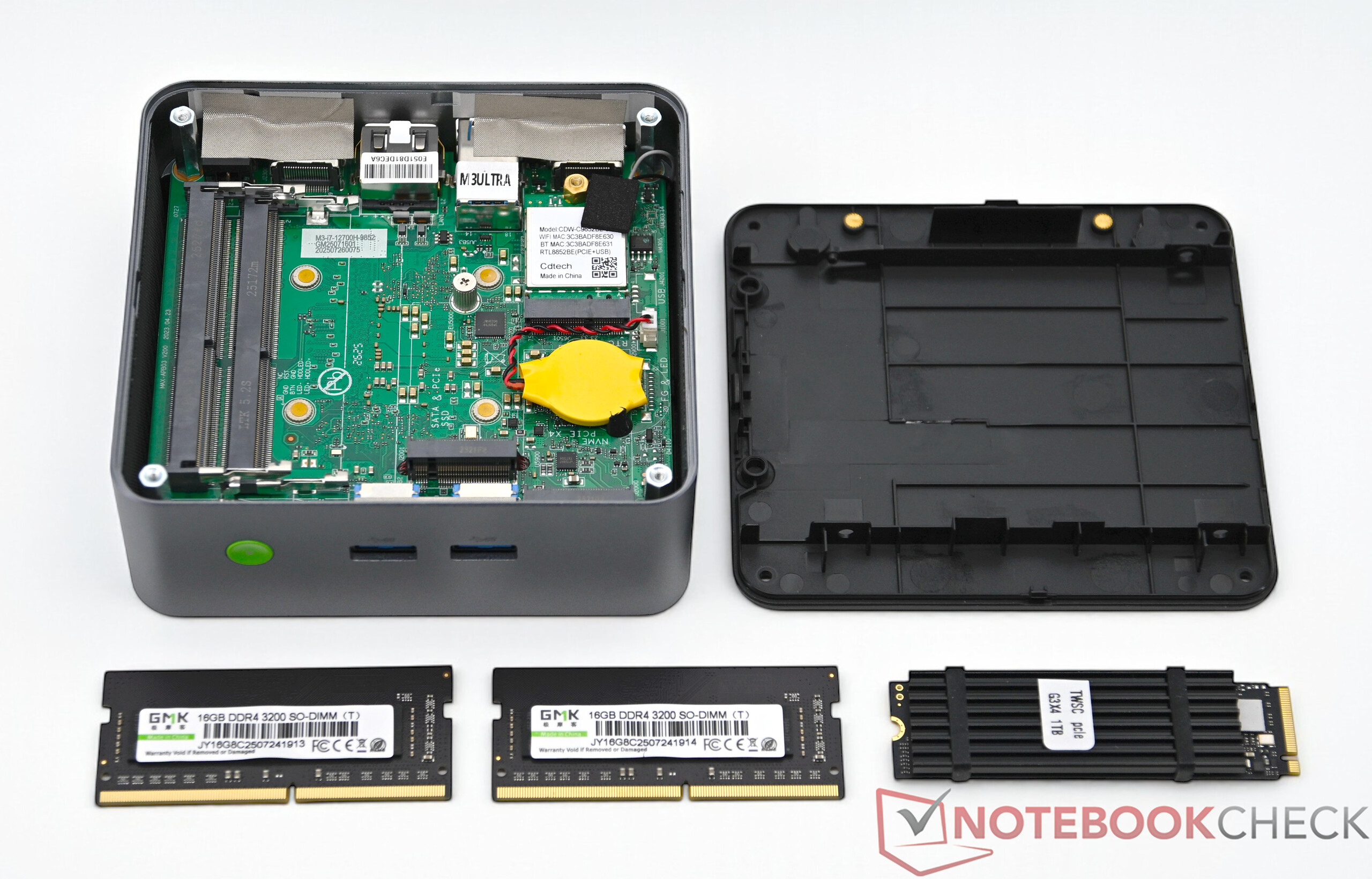

要打开 GMKtec NucBox M3 Ultra，首先要卸下外壳底部。必要时，可以更换或升级内部的一些组件。

可持续性

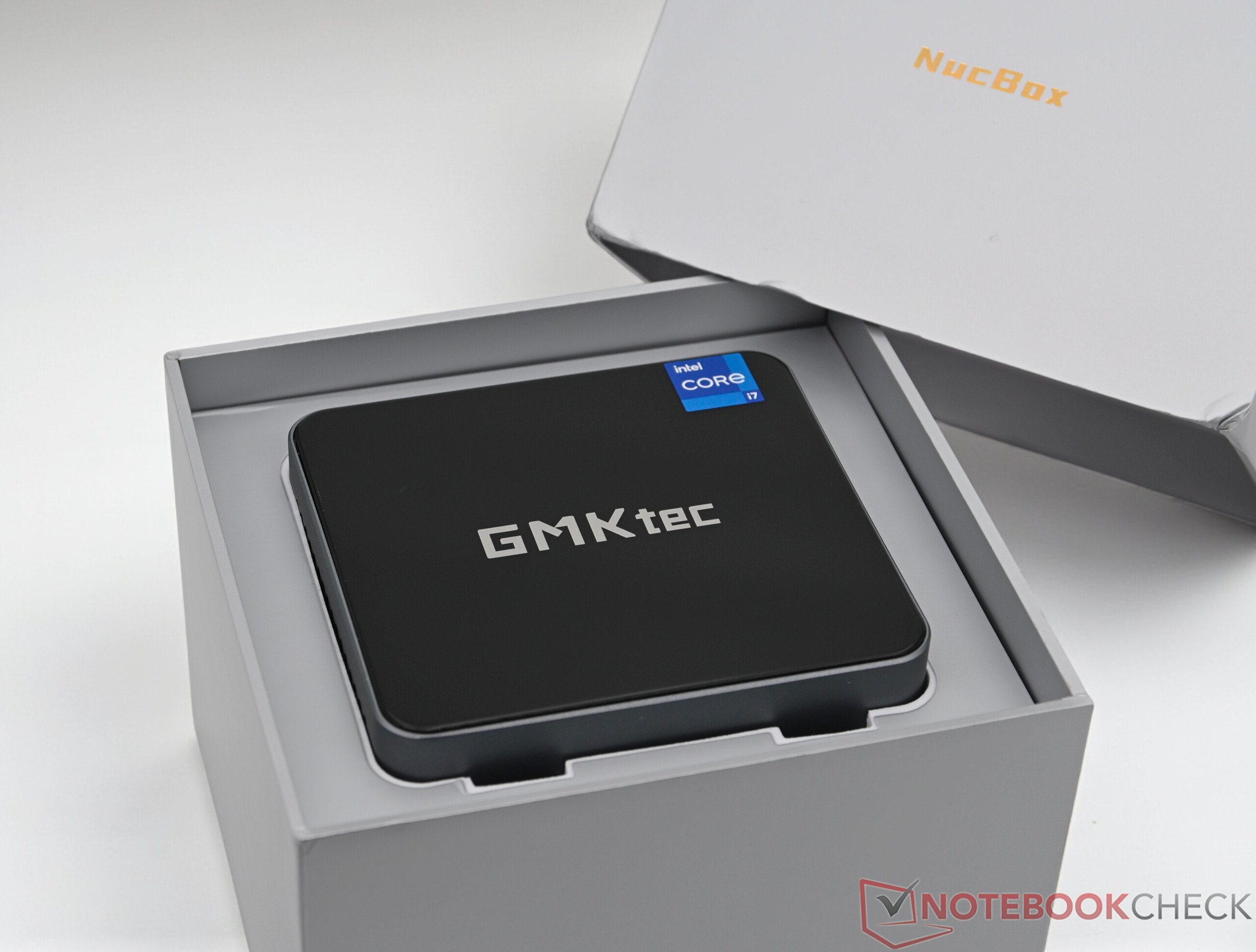

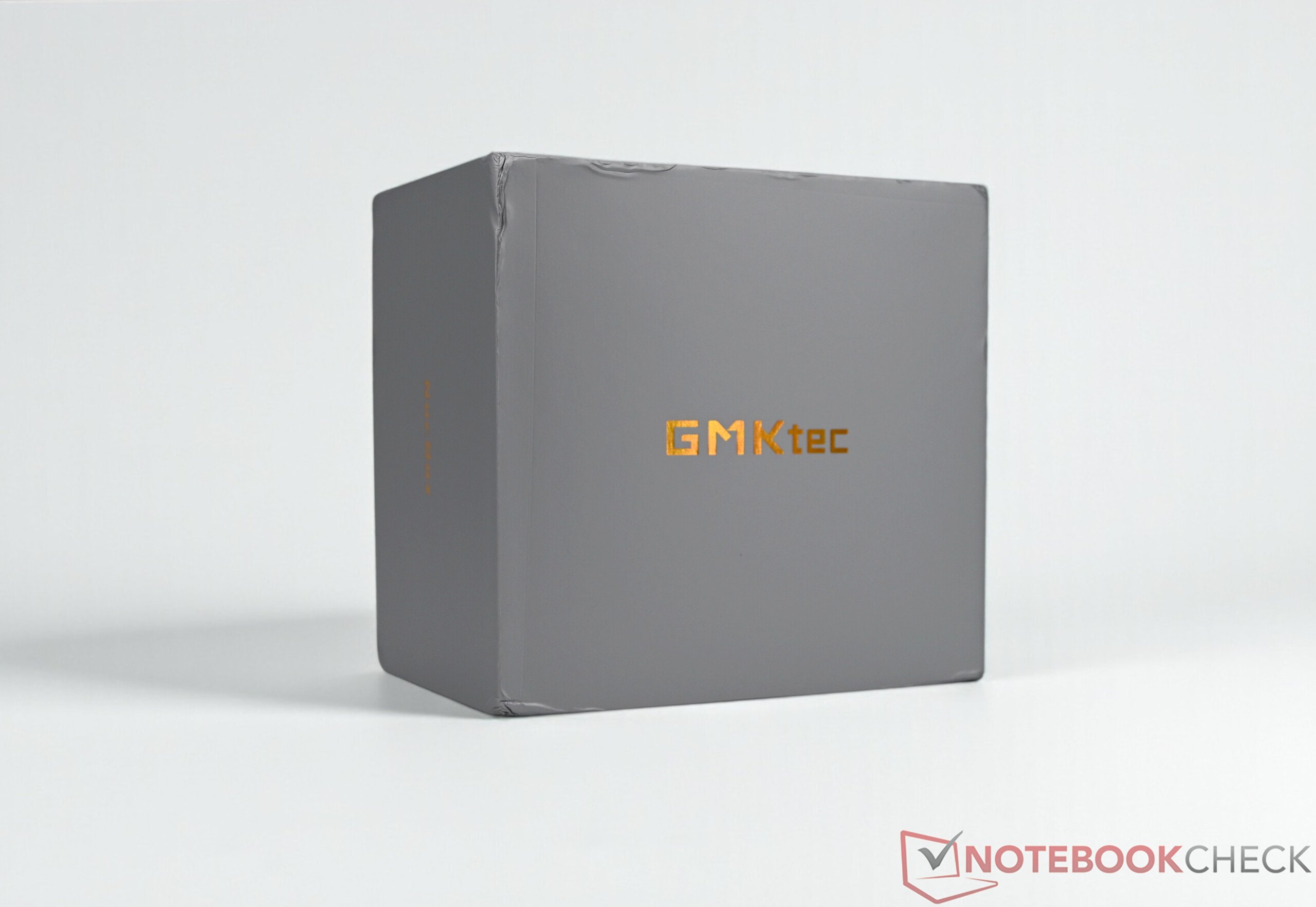

GMKtec 没有就制造过程中可能存在的可持续性问题提供任何具体信息。包装主要由硬纸板组成，仅辅以一些泡沫塑料元素来保护 Mini PC。

性能

GMKtec NucBox M3 Ultra 采用了英特尔酷睿 i7-12700H，就其众多原生计算单元而言，这是一款可靠的 SoC。

测试条件

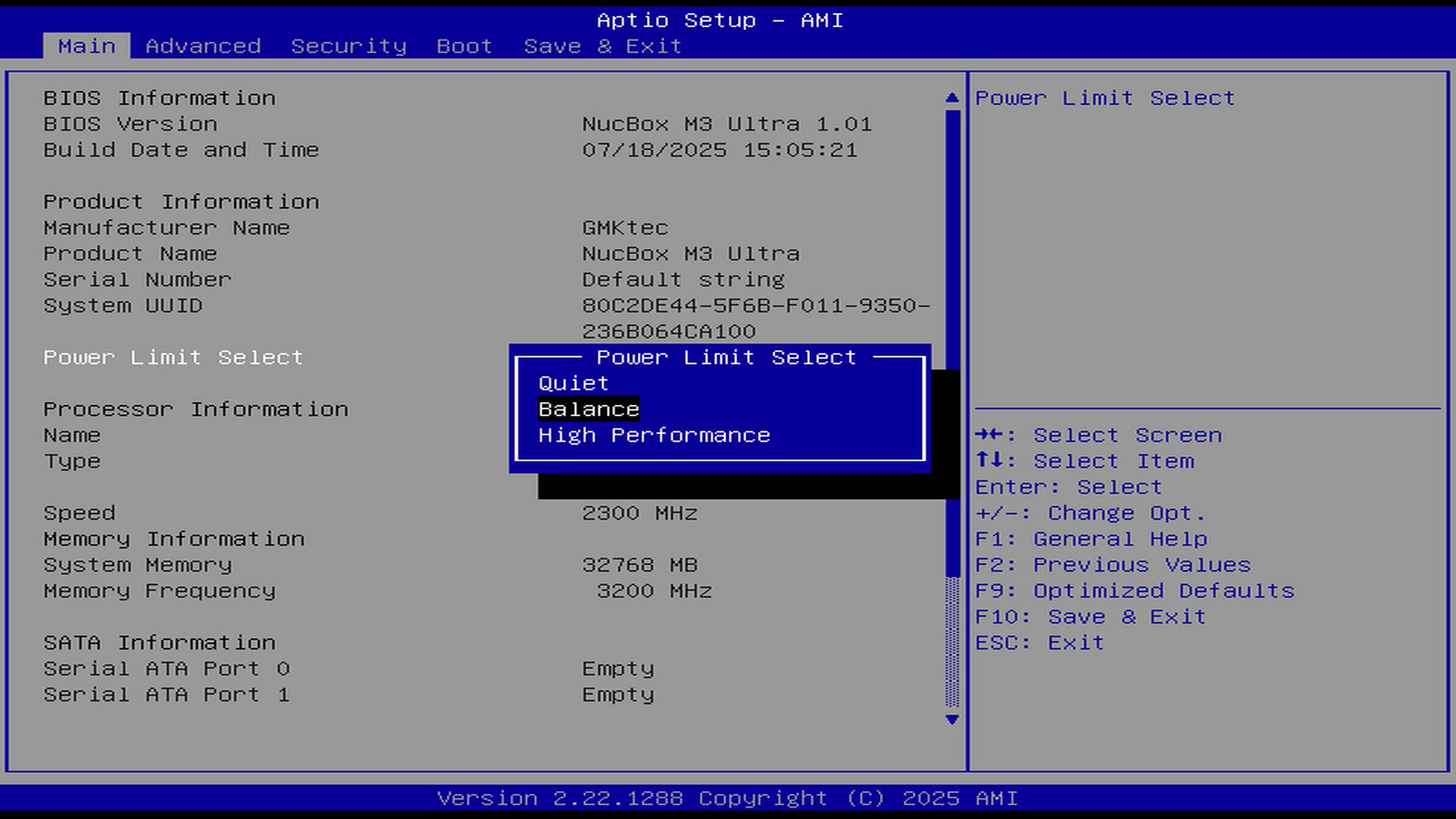

测试运行是在 TDP 为 35 瓦的交付状态下进行的。BIOS 中还提供性能模式（45 瓦）和静音模式（28 瓦）。

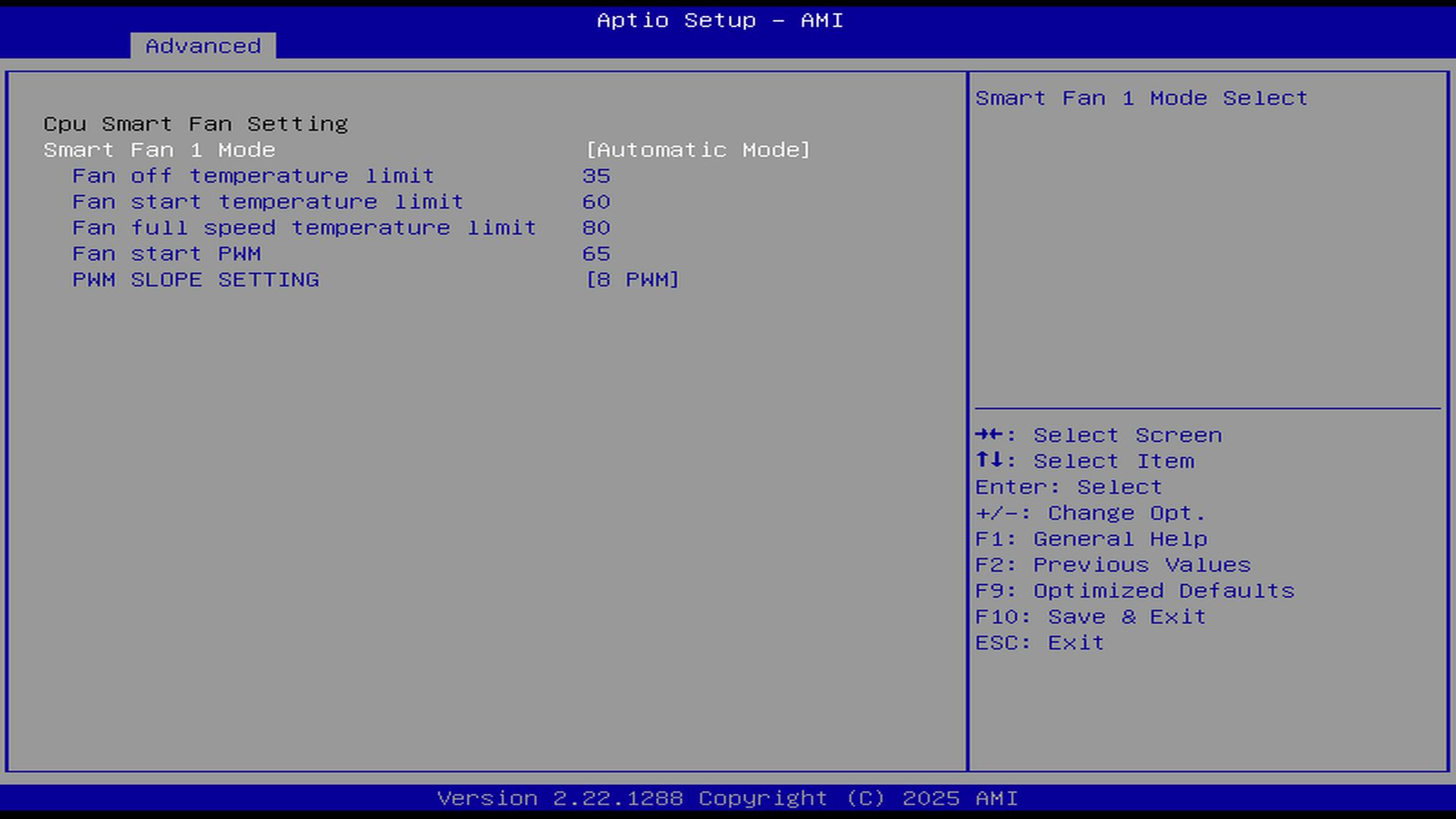

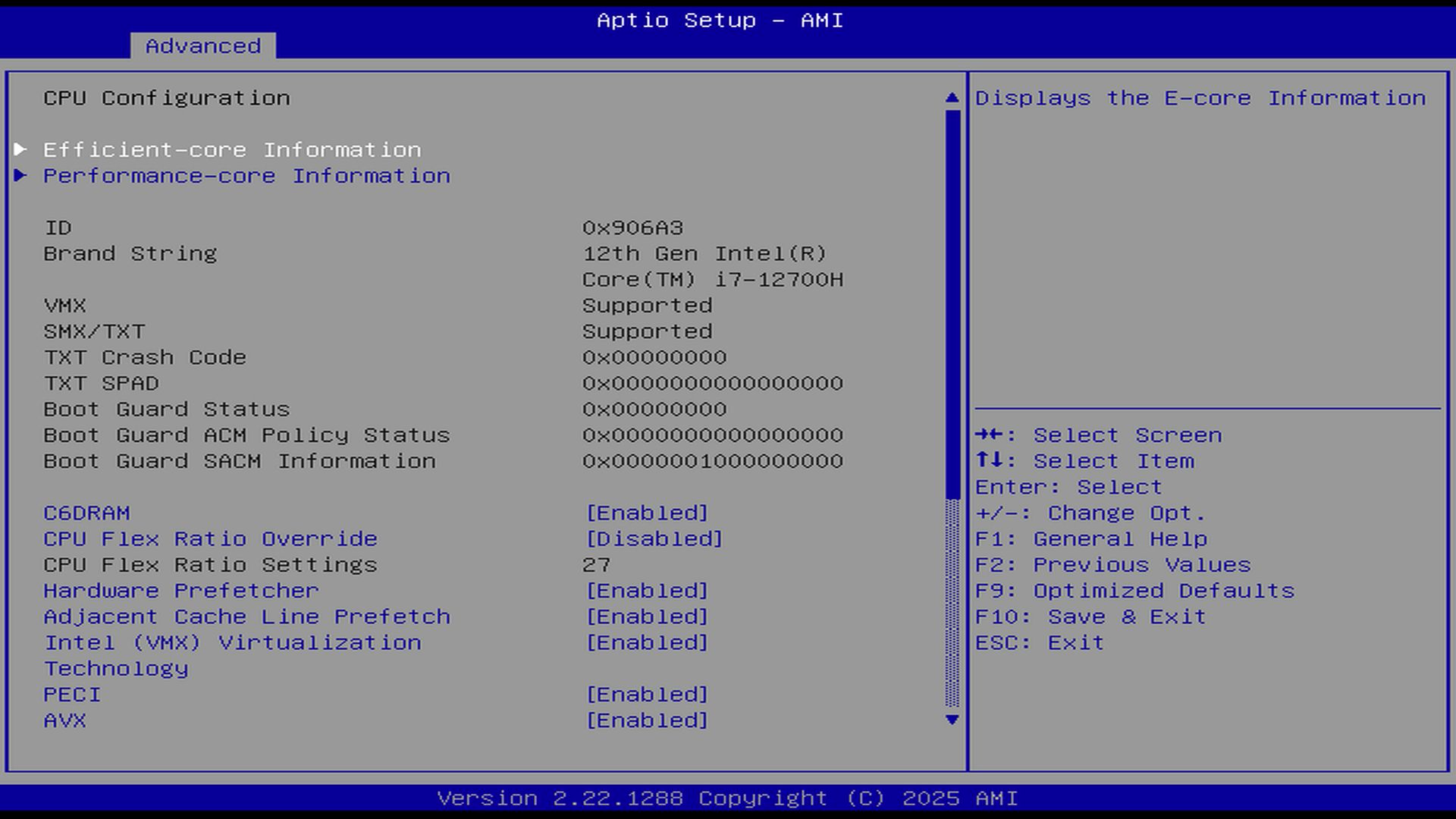

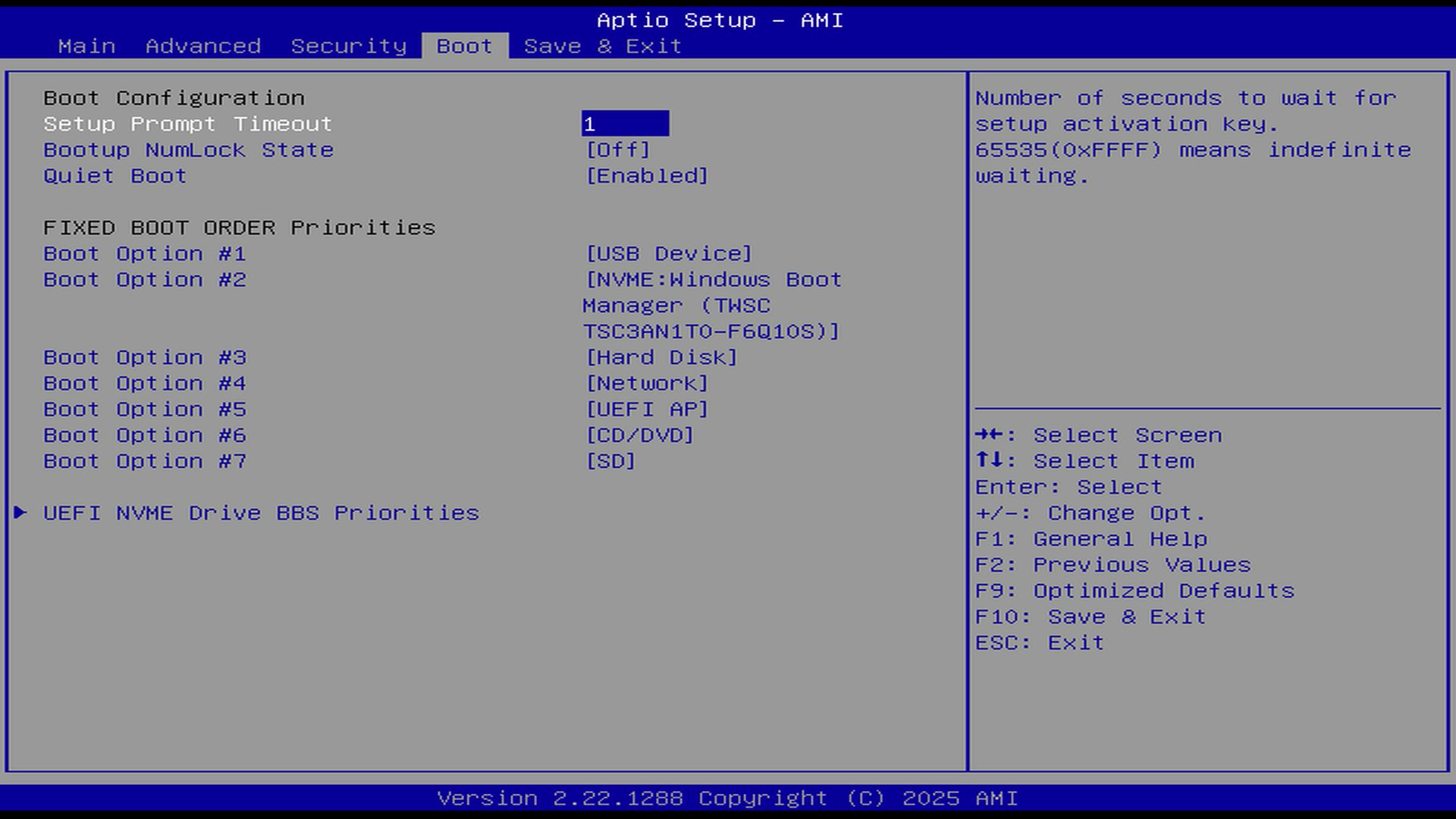

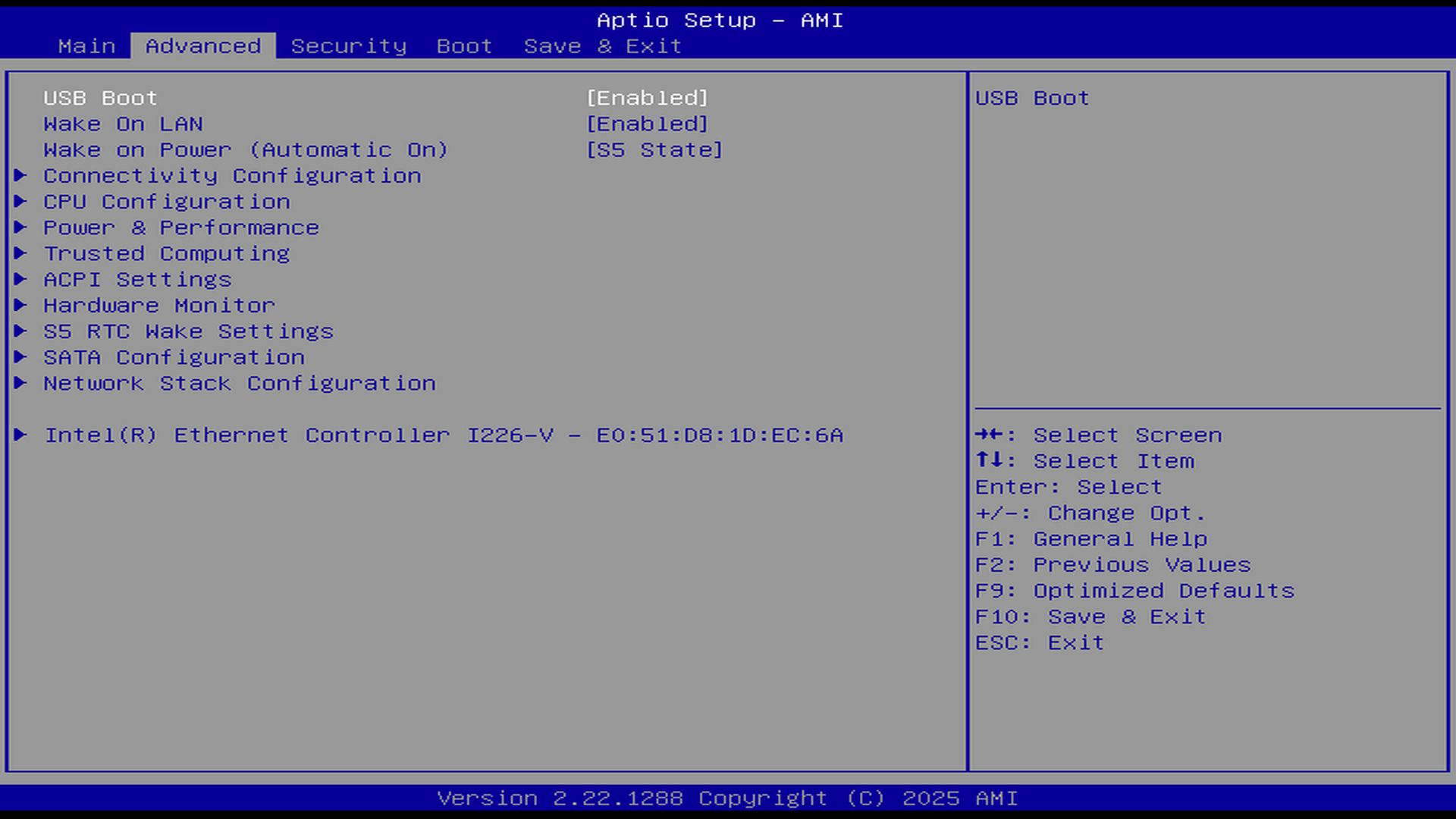

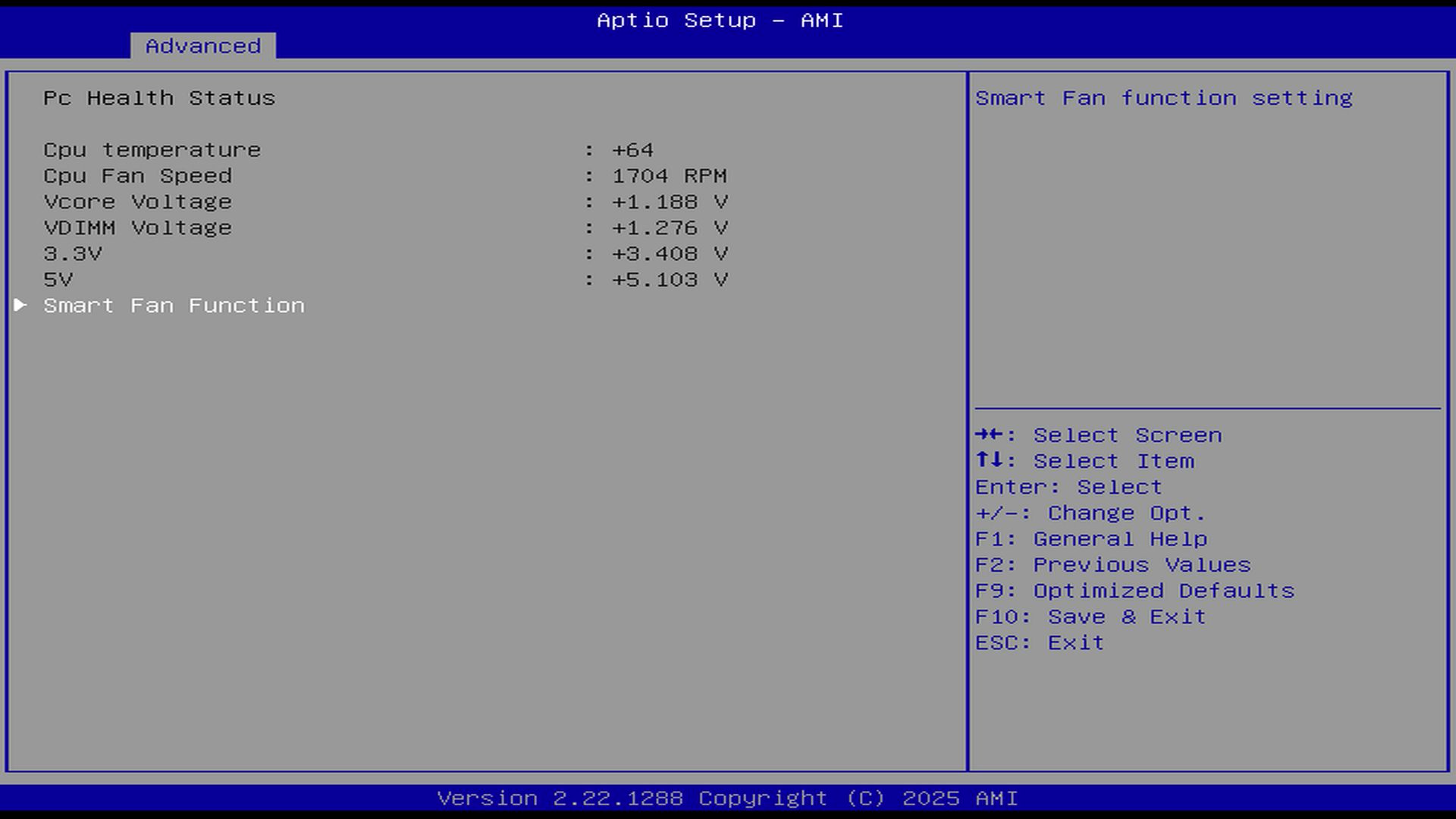

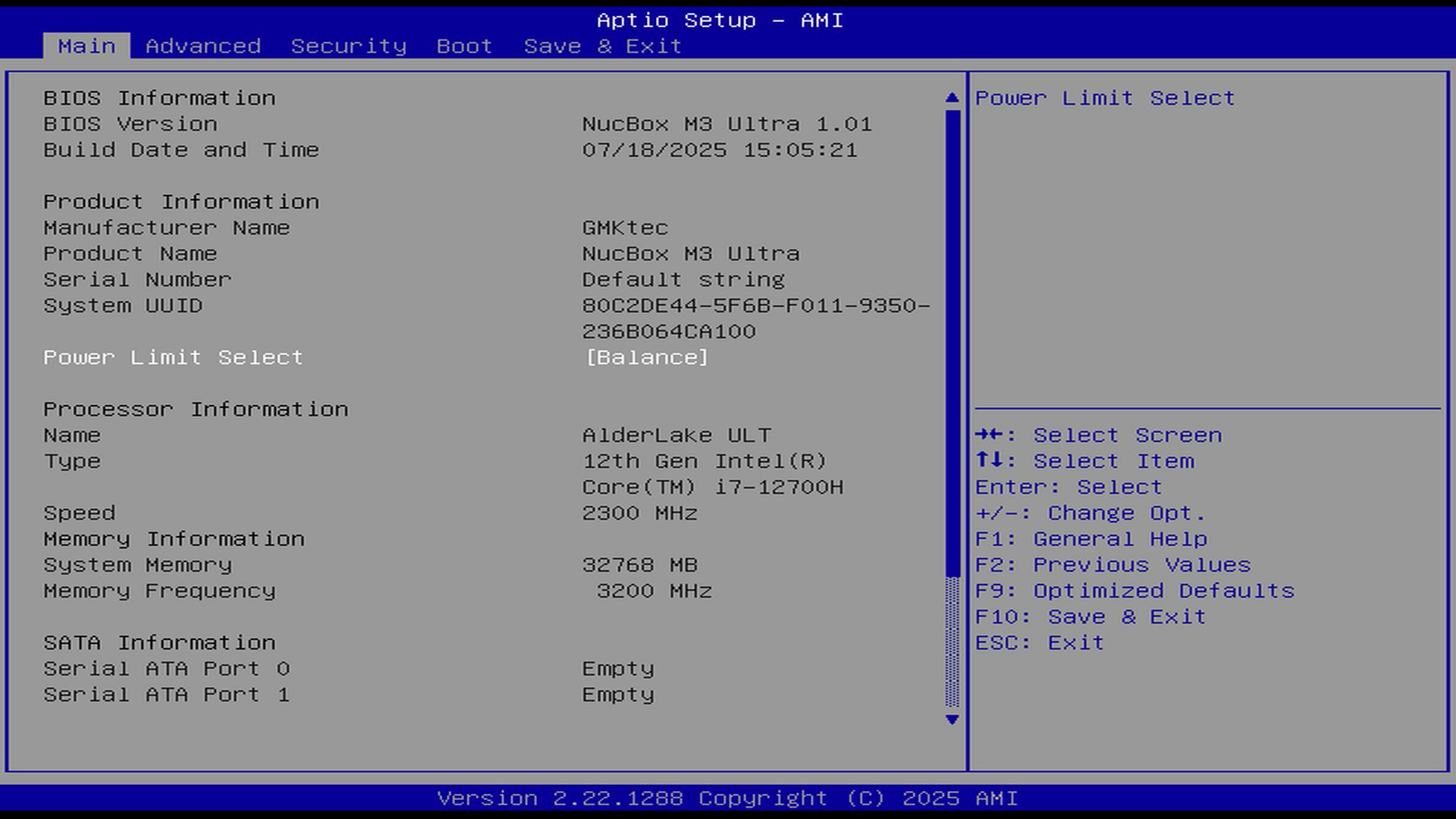

BIOS - 设置

处理器

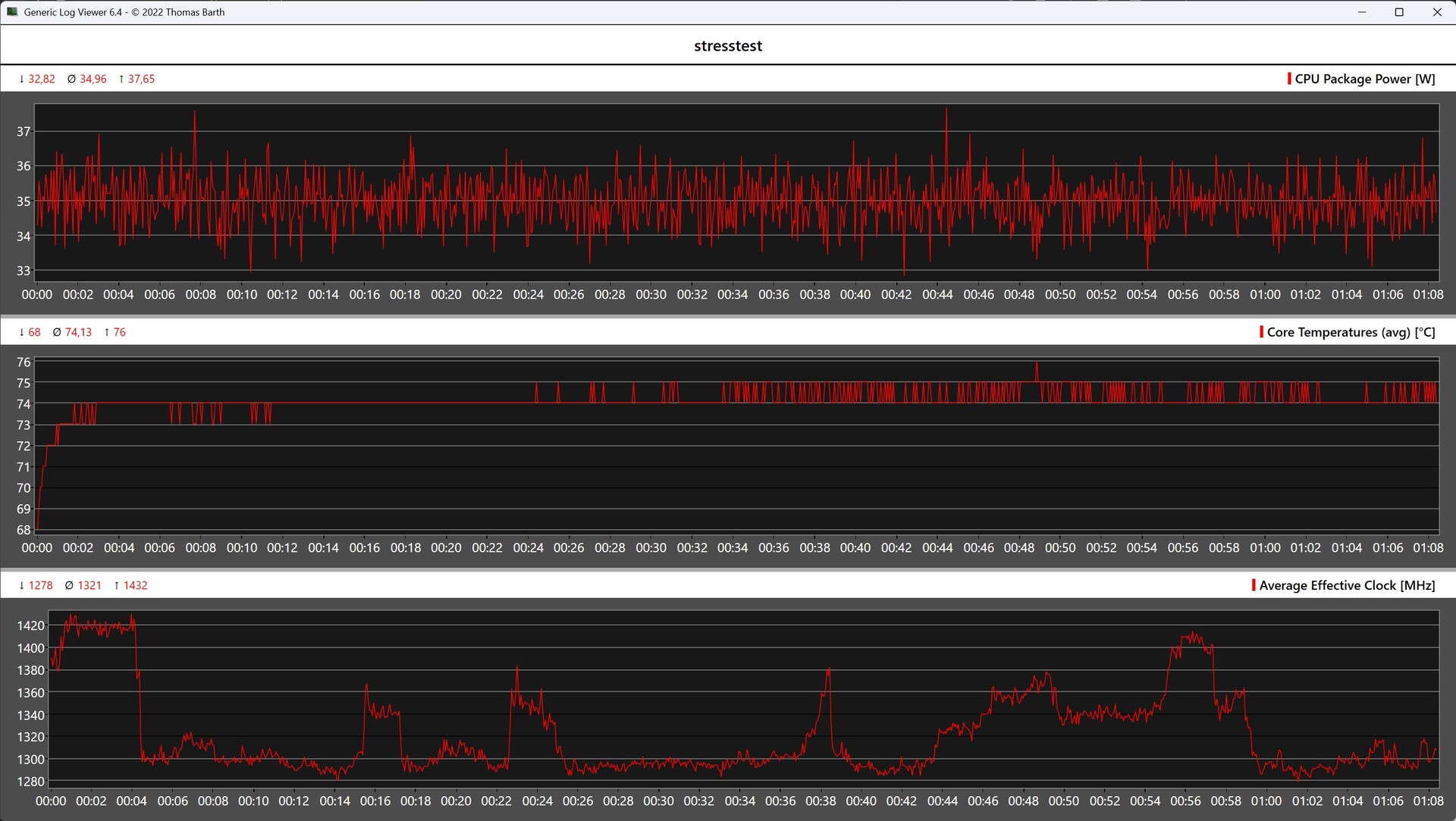

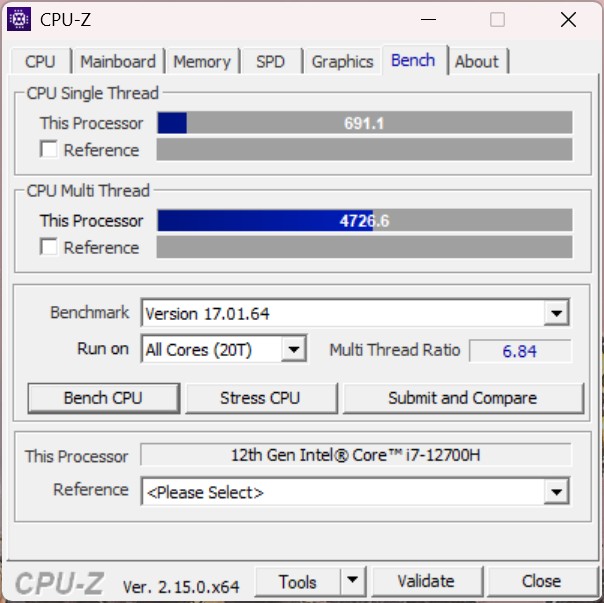

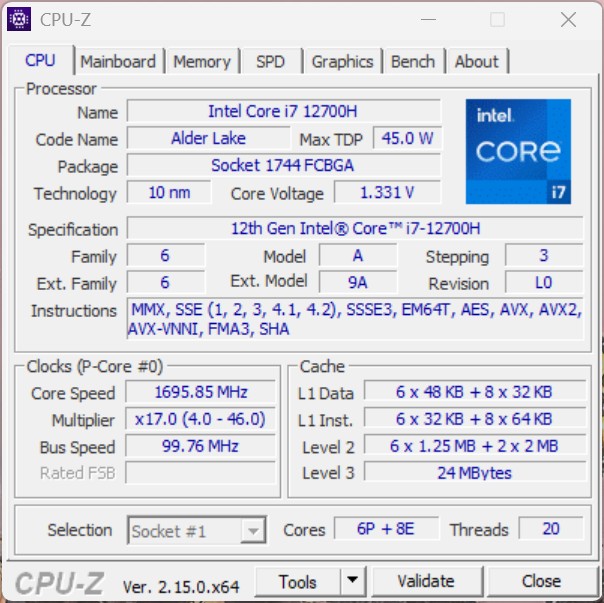

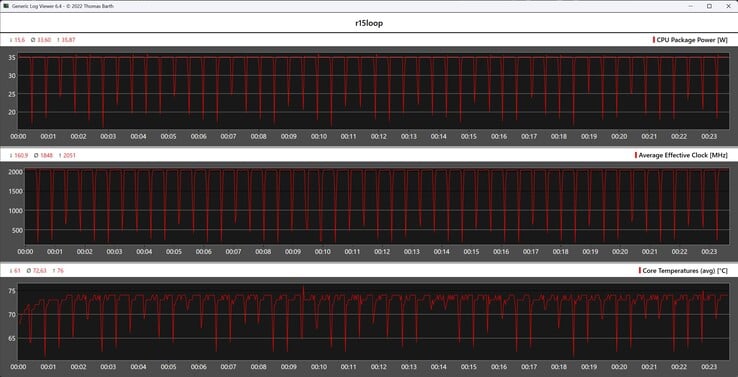

英特尔英特尔酷睿 i7-12700H拥有 14 个内核（6P + 8E），性能稳定。在功耗方面，该系统芯片的工作功耗仅为 35 瓦，这是英特尔公司规定的最低性能保证。这意味着该处理器在多线程任务中无法与竞争对手相提并论。

Performance rating - Percent
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	53.5 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	53.3 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	48.4 pt
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	48.4 pt
GMK NucBox M3 Ultra Intel Core i7-12700H	44.4 pt
BMAX B9 Power Intel Core i9-12900HK	43.1 pt

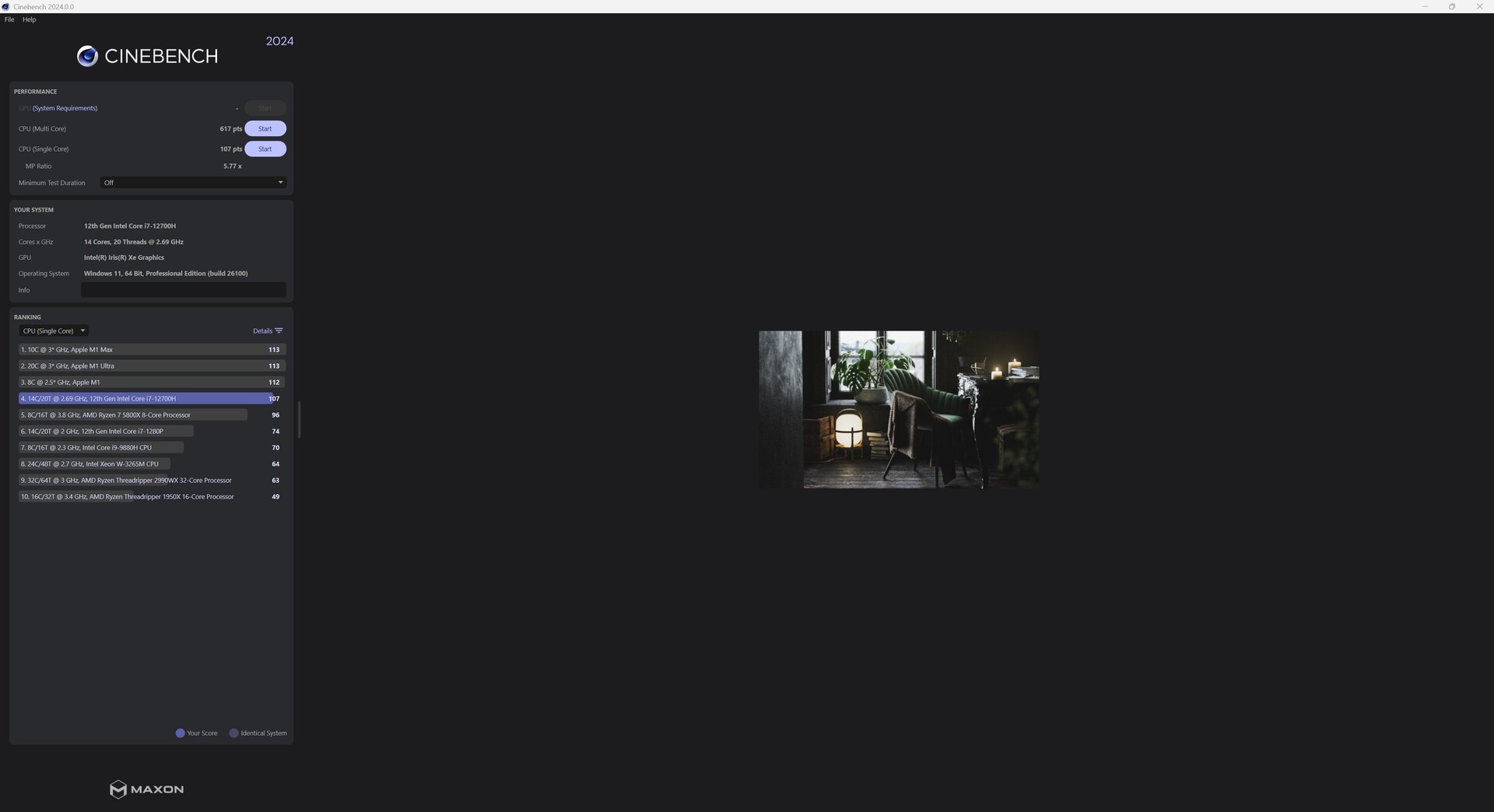

Cinebench 2024
CPU Multi Core
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	978 Points +59%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	943 Points +53%
BMAX B9 Power Intel Core i9-12900HK	722 Points +17%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	698 Points +13%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	696 Points +13%
GMK NucBox M3 Ultra Intel Core i7-12700H	617 Points
CPU Single Core
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	107 Points 0%
GMK NucBox M3 Ultra Intel Core i7-12700H	107 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	106 Points -1%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	103 Points -4%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	96 Points -10%
BMAX B9 Power Intel Core i9-12900HK	77 Points -28%

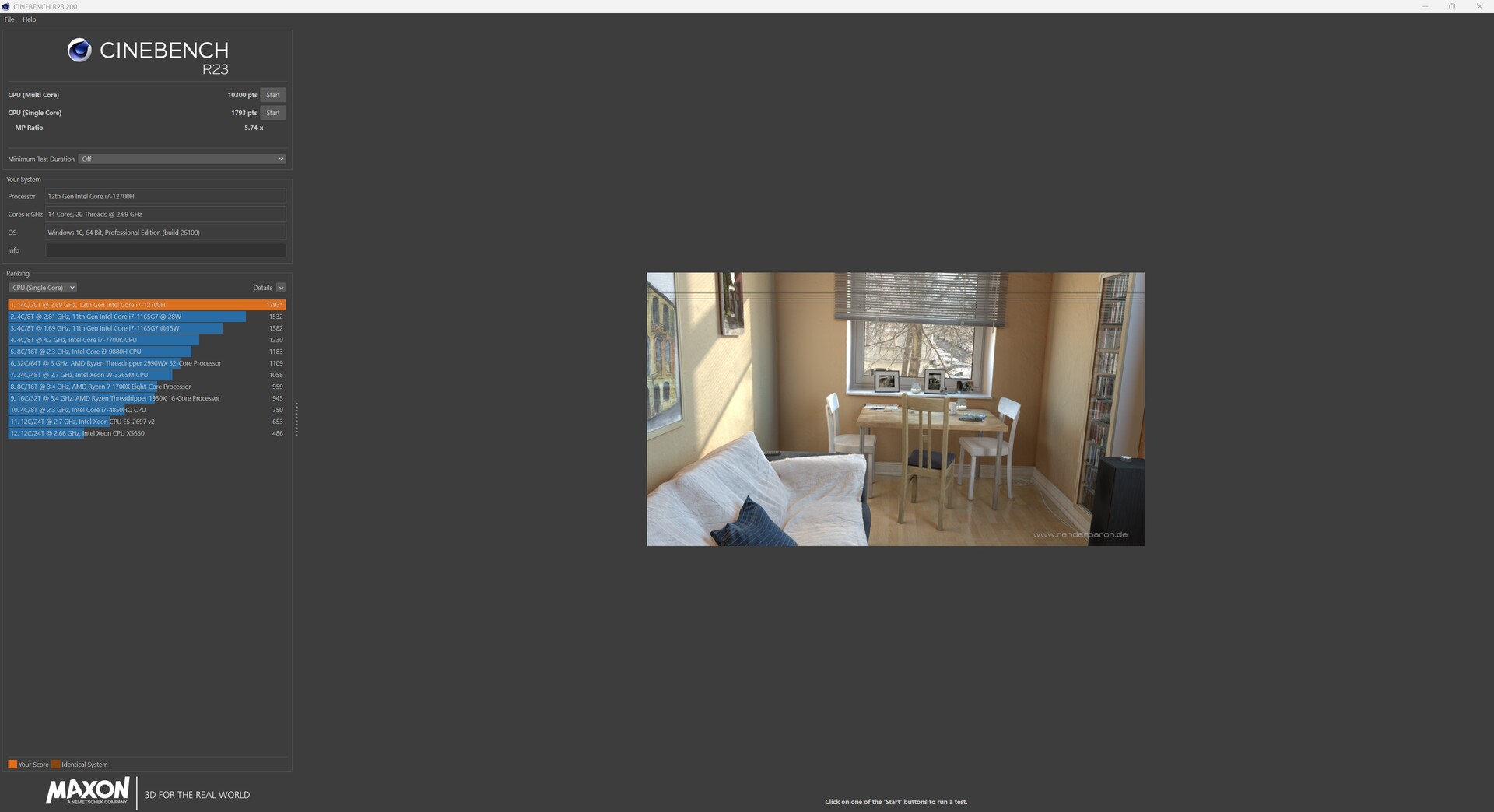

Cinebench R23
Multi Core
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	17131 Points +66%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	16350 Points +59%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	13928 Points +35%
BMAX B9 Power Intel Core i9-12900HK	13175 Points +28%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	12079 Points +17%
GMK NucBox M3 Ultra Intel Core i7-12700H	10300 Points
Single Core
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1815 Points +1%
GMK NucBox M3 Ultra Intel Core i7-12700H	1793 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1779 Points -1%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1716 Points -4%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1598 Points -11%
BMAX B9 Power Intel Core i9-12900HK	1266 Points -29%

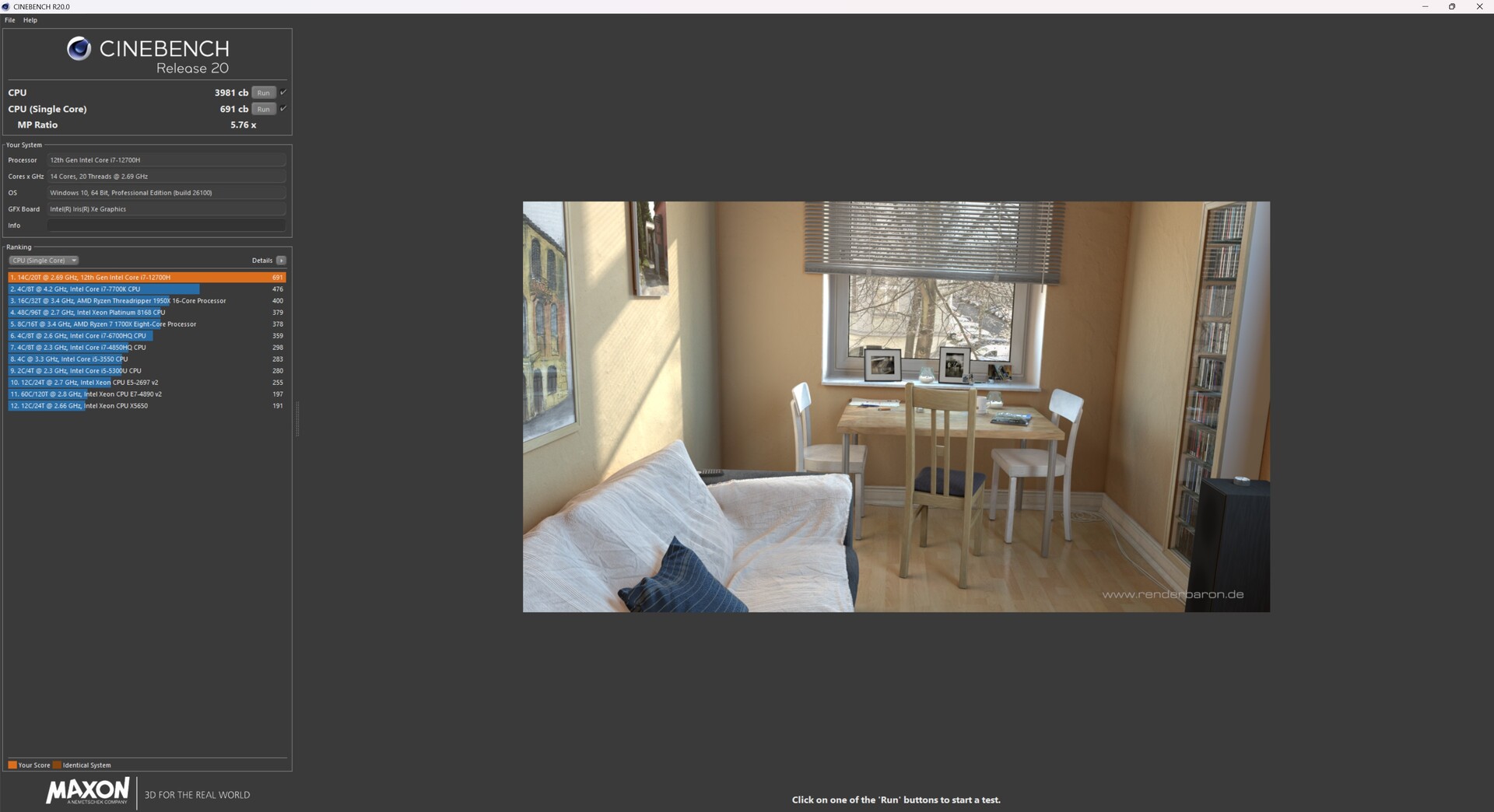

Cinebench R20
CPU (Multi Core)
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6762 Points +70%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	6428 Points +61%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	5546 Points +39%
BMAX B9 Power Intel Core i9-12900HK	5068 Points +27%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	4734 Points +19%
GMK NucBox M3 Ultra Intel Core i7-12700H	3981 Points
CPU (Single Core)
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	704 Points +2%
GMK NucBox M3 Ultra Intel Core i7-12700H	691 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	690 Points 0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	666 Points -4%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	623 Points -10%
BMAX B9 Power Intel Core i9-12900HK	487 Points -30%

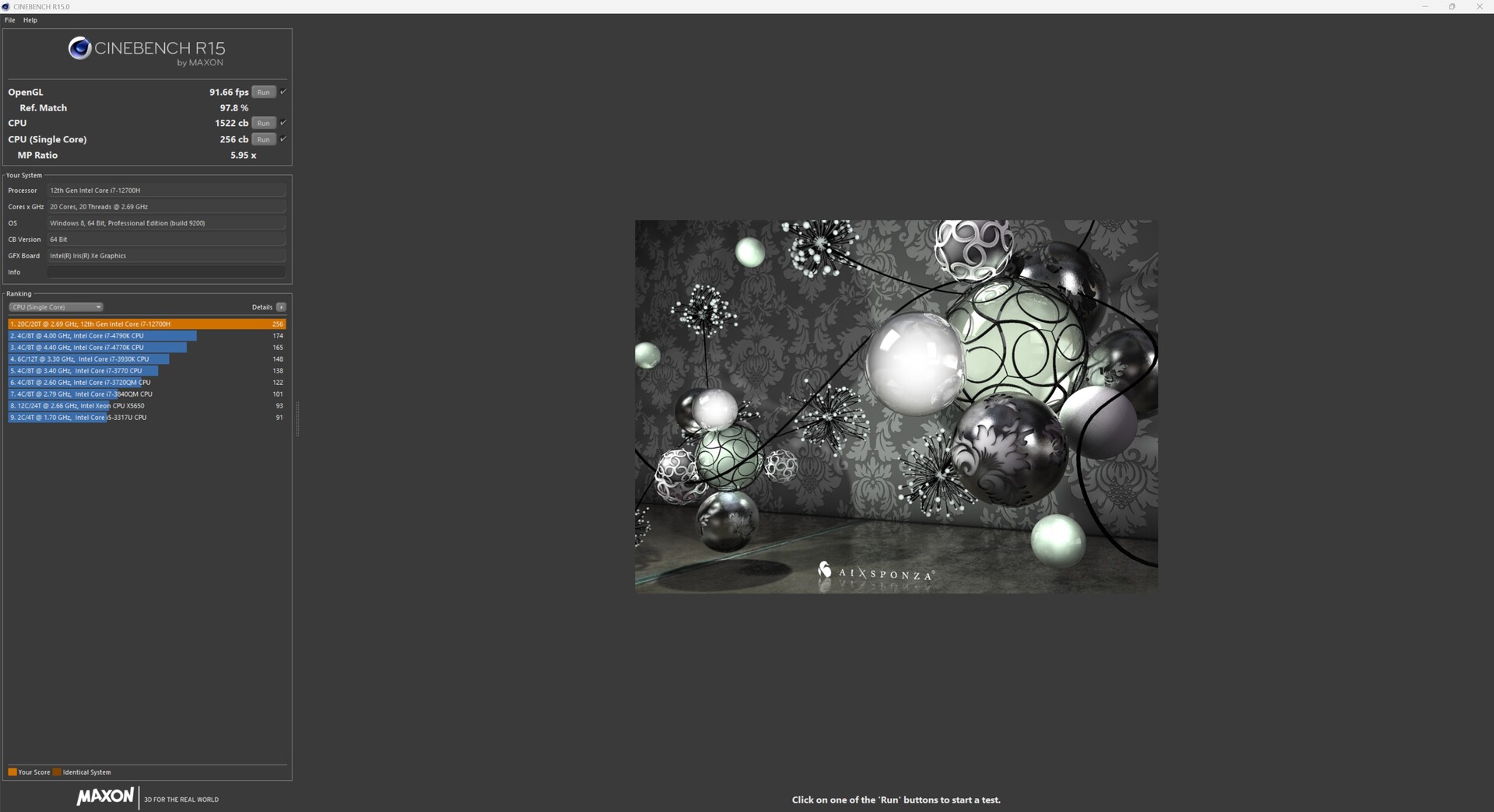

Cinebench R15
CPU Multi 64Bit
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2741 Points +80%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2615 Points +72%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	2120 Points +39%
BMAX B9 Power Intel Core i9-12900HK	2099 Points +38%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1877 Points +23%
GMK NucBox M3 Ultra Intel Core i7-12700H	1522 Points
CPU Single 64Bit
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	284 Points +11%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	278 Points +9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	268 Points +5%
GMK NucBox M3 Ultra Intel Core i7-12700H	256 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	254 Points -1%
BMAX B9 Power Intel Core i9-12900HK	185 Points -28%

Cinebench R11.5
CPU Multi 64Bit
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	31.77 Points +71%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	30.3 Points +63%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	26.63 Points +43%
BMAX B9 Power Intel Core i9-12900HK	25.17 Points +35%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	22.33 Points +20%
GMK NucBox M3 Ultra Intel Core i7-12700H	18.61 Points
CPU Single 64Bit
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	3.42 Points +15%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	3.34 Points +12%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3.2 Points +8%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	3.01 Points +1%
GMK NucBox M3 Ultra Intel Core i7-12700H	2.97 Points
BMAX B9 Power Intel Core i9-12900HK	2.22 Points -25%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	14593 Points +2%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	14557 Points +2%
GMK NucBox M3 Ultra Intel Core i7-12700H	14332 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	13966 Points -3%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	13252 Points -8%
BMAX B9 Power Intel Core i9-12900HK	10299 Points -28%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	89478 Points +56%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	87782 Points +53%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	73346 Points +28%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	71955 Points +26%
BMAX B9 Power Intel Core i9-12900HK	68542 Points +20%
GMK NucBox M3 Ultra Intel Core i7-12700H	57276 Points

Blender
v2.79 BMW27 CPU
GMK NucBox M3 Ultra Intel Core i7-12700H	299 Seconds *
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	265 Seconds * +11%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	249 Seconds * +17%
BMAX B9 Power Intel Core i9-12900HK	246 Seconds * +18%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	194 Seconds * +35%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	189 Seconds * +37%
v3.3 Classroom CPU
GMK NucBox M3 Ultra Intel Core i7-12700H	523 Seconds *
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	434 Seconds * +17%
BMAX B9 Power Intel Core i9-12900HK	430 Seconds * +18%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	412 Seconds * +21%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	316 Seconds * +40%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	300 Seconds * +43%
v4.3 Barbershop CPU
GMK NucBox M3 Ultra Intel Core i7-12700H	2632 Seconds *
BMAX B9 Power Intel Core i9-12900HK	2178 Seconds * +17%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	2132 Seconds * +19%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2112 Seconds * +20%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1566 Seconds * +41%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1472 Seconds * +44%

wPrime 2.10
32m
GMK NucBox M3 Ultra Intel Core i7-12700H	6.166 s *
BMAX B9 Power Intel Core i9-12900HK	4.209 s * +32%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3.406 s * +45%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	3.168 s * +49%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2.81 s * +54%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2.672 s * +57%
1024m
GMK NucBox M3 Ultra Intel Core i7-12700H	491.806 s *
BMAX B9 Power Intel Core i9-12900HK	250.324 s * +49%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	95.473 s * +81%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	94.412 s * +81%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	86.762 s * +82%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	70.718 s * +86%

X264 HD Benchmark 4.0
Pass 1
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	297 (292^min - 299^max) fps +23%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	286.5 (284^min - 289^max) fps +18%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	282.5 (279^min - 287^max) fps +17%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	253.5 (240^min - 256^max) fps +5%
BMAX B9 Power Intel Core i9-12900HK	250 (237^min - 250^max) fps +3%
GMK NucBox M3 Ultra Intel Core i7-12700H	242 (240^min - 244^max) fps
Pass 2
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	155 (154.8^min - 155.3^max) fps +70%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	149.8 (149.4^min - 151.1^max) fps +65%
BMAX B9 Power Intel Core i9-12900HK	123.85 (122.9^min - 124.2^max) fps +36%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	116.3 (115.5^min - 120.9^max) fps +28%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	111.6 (111^min - 113.5^max) fps +23%
GMK NucBox M3 Ultra Intel Core i7-12700H	91 (90.7^min - 91.2^max) fps

WinRAR - Result
GMK NucBox M3 Ultra Intel Core i7-12700H	7669 KB/s
BMAX B9 Power Intel Core i9-12900HK	7402 KB/s -3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7397 KB/s -4%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7332 KB/s -4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7275 KB/s -5%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	6832 KB/s -11%

TrueCrypt
AES Mean 100MB
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	14.9 GB/s +77%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	14.6 GB/s +74%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	12.9 GB/s +54%
BMAX B9 Power Intel Core i9-12900HK	12.5 GB/s +49%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10.5 GB/s +25%
GMK NucBox M3 Ultra Intel Core i7-12700H	8.4 GB/s
Twofish Mean 100MB
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2.1 GB/s +40%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2.1 GB/s +40%
BMAX B9 Power Intel Core i9-12900HK	2 GB/s +33%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1.8 GB/s +20%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1.5 GB/s 0%
GMK NucBox M3 Ultra Intel Core i7-12700H	1.5 GB/s
Serpent Mean 100MB
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1.3 GB/s +47%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1.3 GB/s +47%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1.2 GB/s +36%
BMAX B9 Power Intel Core i9-12900HK	1.1 GB/s +24%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	0.984 GB/s +11%
GMK NucBox M3 Ultra Intel Core i7-12700H	0.884 GB/s

Geekbench AI
Quantized CPU 1.2
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7384 Points +86%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7226 Points +82%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	6189 Points +56%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	4728 Points +19%
BMAX B9 Power Intel Core i9-12900HK	4716 Points +19%
GMK NucBox M3 Ultra Intel Core i7-12700H	3978 Points
Half Precision CPU 1.2
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1863 Points +96%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1814 Points +91%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1549 Points +63%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1437 Points +51%
BMAX B9 Power Intel Core i9-12900HK	1054 Points +11%
GMK NucBox M3 Ultra Intel Core i7-12700H	949 Points
Single Precision CPU 1.2
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	4167 Points +77%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	4066 Points +73%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3260 Points +39%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	3259 Points +39%
BMAX B9 Power Intel Core i9-12900HK	2791 Points +19%
GMK NucBox M3 Ultra Intel Core i7-12700H	2350 Points
Quantized CPU 1.5
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7617 Points +66%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7536 Points +64%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7221 Points +57%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	5501 Points +20%
BMAX B9 Power Intel Core i9-12900HK	4938 Points +8%
GMK NucBox M3 Ultra Intel Core i7-12700H	4590 Points
Half Precision CPU 1.5
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1919 Points +97%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1853 Points +90%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1664 Points +71%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1597 Points +64%
BMAX B9 Power Intel Core i9-12900HK	1063 Points +9%
GMK NucBox M3 Ultra Intel Core i7-12700H	974 Points
Single Precision CPU 1.5
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	4400 Points +83%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	4202 Points +75%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	3765 Points +57%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3250 Points +35%
BMAX B9 Power Intel Core i9-12900HK	2861 Points +19%
GMK NucBox M3 Ultra Intel Core i7-12700H	2399 Points

Geekbench 6.5
Single-Core
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2642 Points +11%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2598 Points +9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2545 Points +7%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	2439 Points +2%
GMK NucBox M3 Ultra Intel Core i7-12700H	2388 Points
BMAX B9 Power Intel Core i9-12900HK	1797 Points -25%
Multi-Core
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	13290 Points +52%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	13239 Points +52%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	11675 Points +34%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10642 Points +22%
BMAX B9 Power Intel Core i9-12900HK	9804 Points +12%
GMK NucBox M3 Ultra Intel Core i7-12700H	8721 Points

Geekbench 6.0
Single-Core
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2568 Points +14%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2523 Points +12%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2447 Points +9%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	2343 Points +4%
GMK NucBox M3 Ultra Intel Core i7-12700H	2255 Points
BMAX B9 Power Intel Core i9-12900HK	1705 Points -24%
Multi-Core
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	12715 Points +47%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	12556 Points +46%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	11033 Points +28%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10295 Points +19%
BMAX B9 Power Intel Core i9-12900HK	9067 Points +5%
GMK NucBox M3 Ultra Intel Core i7-12700H	8625 Points

Geekbench 5.5
Multi-Core
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	12207 Points +48%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	11820 Points +44%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	10601 Points +29%
BMAX B9 Power Intel Core i9-12900HK	9969 Points +21%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	9453 Points +15%
GMK NucBox M3 Ultra Intel Core i7-12700H	8230 Points
Single-Core
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1949 Points +15%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1879 Points +11%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1873 Points +10%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1802 Points +6%
GMK NucBox M3 Ultra Intel Core i7-12700H	1698 Points
BMAX B9 Power Intel Core i9-12900HK	1298 Points -24%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	12184 Points +49%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	12057 Points +47%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	10531 Points +29%
BMAX B9 Power Intel Core i9-12900HK	9934 Points +21%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	9462 Points +16%
GMK NucBox M3 Ultra Intel Core i7-12700H	8192 Points
5.0 Single-Core
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1869 Points +12%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1841 Points +10%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1765 Points +5%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	1733 Points +3%
GMK NucBox M3 Ultra Intel Core i7-12700H	1675 Points
BMAX B9 Power Intel Core i9-12900HK	1257 Points -25%

Geekbench 4.4
64 Bit Multi-Core Score
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	49452 Points +60%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	46366 Points +50%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	42524 Points +38%
BMAX B9 Power Intel Core i9-12900HK	38751 Points +25%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	37145 Points +20%
GMK NucBox M3 Ultra Intel Core i7-12700H	30898 Points
64 Bit Single-Core Score
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	8092 Points +7%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7933 Points +5%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7790 Points +3%
GMK NucBox M3 Ultra Intel Core i7-12700H	7582 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	7336 Points -3%
BMAX B9 Power Intel Core i9-12900HK	5823 Points -23%

3DMark 11 - 1280x720 Performance Physics
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	22207 Points +54%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	19770 Points +37%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	18750 Points +30%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	18116 Points +25%
BMAX B9 Power Intel Core i9-12900HK	16821 Points +16%
GMK NucBox M3 Ultra Intel Core i7-12700H	14455 Points

7-Zip 18.03
7z b 4
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	73742 MIPS +68%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	71161 MIPS +62%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	61021 MIPS +39%
BMAX B9 Power Intel Core i9-12900HK	53320 MIPS +22%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	53012 MIPS +21%
GMK NucBox M3 Ultra Intel Core i7-12700H	43850 MIPS
7z b 4 -mmt1
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6648 MIPS +14%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	6582 MIPS +13%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	6463 MIPS +11%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	6058 MIPS +4%
GMK NucBox M3 Ultra Intel Core i7-12700H	5838 MIPS
BMAX B9 Power Intel Core i9-12900HK	4240 MIPS -27%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	21.8 fps +88%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	20.7 fps +78%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	16.3 fps +41%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	15.7 fps +35%
BMAX B9 Power Intel Core i9-12900HK	15 fps +29%
GMK NucBox M3 Ultra Intel Core i7-12700H	11.6 fps

R Benchmark 2.5 - Overall mean
BMAX B9 Power Intel Core i9-12900HK	0.637 sec * -35%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	0.4824 sec * -2%
GMK NucBox M3 Ultra Intel Core i7-12700H	0.4733 sec *
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	0.4683 sec * +1%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	0.4435 sec * +6%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	0.431 sec * +9%

LibreOffice - 20 Documents To PDF
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	83.3 s * -35%
GMK NucBox M3 Ultra Intel Core i7-12700H	61.8 s *
BMAX B9 Power Intel Core i9-12900HK	60.5 s * +2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	50.1 s * +19%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	50.1 s * +19%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	46.9 s * +24%

3DMark - 1920x1080 Fire Strike Physics
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	26934 Points +37%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	26420 Points +35%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	22958 Points +17%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	22281 Points +14%
BMAX B9 Power Intel Core i9-12900HK	21092 Points +8%
GMK NucBox M3 Ultra Intel Core i7-12700H	19614 Points

Super Pi mod 1.5 XS 1M - 1M
BMAX B9 Power Intel Core i9-12900HK	10.896 s * -39%
GMK NucBox M3 Ultra Intel Core i7-12700H	7.849 s *
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	7.767 s * +1%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7.159 s * +9%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7.103 s * +10%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6.993 s * +11%

Super Pi mod 1.5 XS 2M - 2M
BMAX B9 Power Intel Core i9-12900HK	24.152 s * -39%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	19.501 s * -13%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	17.869 s * -3%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	17.746 s * -2%
GMK NucBox M3 Ultra Intel Core i7-12700H	17.324 s *
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	17.31 s * -0%

Affinity Photo 2 - Combined (Multi CPU)
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	826 Points +56%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	787 Points +49%
BMAX B9 Power Intel Core i9-12900HK	642 Points +22%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	555 Points +5%
GMK NucBox M3 Ultra Intel Core i7-12700H	528 Points
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS	511 Points -3%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

8857

Cinebench R10 Shading 64Bit

10373 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

57276 Points

Cinebench R10 Rendering Single CPUs 64Bit

14332 Points

Cinebench R10 Shading 32Bit

8749

Cinebench R10 Rendering Multiple CPUs 32Bit

36361

Cinebench R11.5 CPU Single 32Bit

2.6 Points

Cinebench R11.5 CPU Multi 32Bit

16.89 Points

Cinebench R11.5 OpenGL 32Bit

89.48 fps

Cinebench R11.5 CPU Single 64Bit

2.97 Points

Cinebench R11.5 CPU Multi 64Bit

18.61 Points

Cinebench R11.5 OpenGL 64Bit

93.32 fps

Cinebench R15 CPU Single 64Bit

256 Points

Cinebench R15 CPU Multi 64Bit

1522 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

91.66 fps

Cinebench R20 CPU (Single Core)

691 Points

Cinebench R20 CPU (Multi Core)

3981 Points

Cinebench R23 Multi Core

10300 Points

Cinebench R23 Single Core

1793 Points

Cinebench 2024 CPU Single Core

107 Points

Cinebench 2024 CPU Multi Core

617 Points

Help

... in comparison

Performance rating
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	98.1 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	92.5 pt
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	76.2 pt
Average of class Mini PC	73.2 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	70.5 pt
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	61.2 pt
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	48.2 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	27793 KRay/s +186%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	26038 KRay/s +168%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	20253 KRay/s +108%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	19264 KRay/s +98%
Average of class Mini PC (770 - 82725, n=112, last 2 years)	19031 KRay/s +96%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	12660 KRay/s +30%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	9730 KRay/s

AIDA64 / FPU Julia
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	118156 Points +136%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	107039 Points +114%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	82211 Points +64%
Average of class Mini PC (4141 - 227429, n=112, last 2 years)	81344 Points +62%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	79194 Points +58%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	63681 Points +27%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	50058 Points

AIDA64 / CPU SHA3
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	4972 MB/s +114%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	4709 MB/s +103%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	3887 MB/s +68%
Average of class Mini PC (290 - 9475, n=112, last 2 years)	3590 MB/s +55%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	3489 MB/s +50%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	3097 MB/s +33%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	2320 MB/s

AIDA64 / CPU Queen
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	121347 Points +48%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	117545 Points +43%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	102380 Points +24%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	88231 Points +7%
Average of class Mini PC (8208 - 184747, n=112, last 2 years)	86648 Points +5%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	82241 Points
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	80221 Points -2%

AIDA64 / FPU SinJulia
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	15581 Points +131%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	14943 Points +122%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	12833 Points +91%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	10946 Points +63%
Average of class Mini PC (408 - 31931, n=112, last 2 years)	10879 Points +62%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	7926 Points +18%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	6731 Points

AIDA64 / FPU Mandel
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	63135 Points +160%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	57314 Points +136%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	43419 Points +79%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	42413 Points +75%
Average of class Mini PC (2089 - 121827, n=112, last 2 years)	42370 Points +75%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	30336 Points +25%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	24258 Points

AIDA64 / CPU AES
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	112498 MB/s +144%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	91472 MB/s +98%
Average of class Mini PC (7948 - 325960, n=111, last 2 years)	88478 MB/s +92%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	82828 MB/s +80%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	69141 MB/s +50%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	60442 MB/s +31%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	46099 MB/s

AIDA64 / CPU ZLib
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	1117 MB/s +61%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	1063 MB/s +53%
Average of class Mini PC (127.2 - 2431, n=112, last 2 years)	906 MB/s +31%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	889 MB/s +28%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	843 MB/s +21%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	752 MB/s +8%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	694 MB/s

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	14859 KRay/s +180%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	14040 KRay/s +165%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	10518 KRay/s +98%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	10317 KRay/s +95%
Average of class Mini PC (432 - 43587, n=112, last 2 years)	10158 KRay/s +92%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	6705 KRay/s +27%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	5299 KRay/s

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	40354 MPixel/s +44%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	39905 MPixel/s +42%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	39563 MPixel/s +41%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	39444 MPixel/s +40%
Average of class Mini PC (5333 - 94259, n=112, last 2 years)	34607 MPixel/s +23%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	28106 MPixel/s
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	24446 MPixel/s -13%

Cinebench R15 多回路运行

在 Cinebench R15 耐用性测试中，GMKtec NucBox M3 Ultra 表现稳定，性能没有明显下降。在满载情况下，CPU 温度达到 76 摄氏度左右，但仍保持在无害范围内。

GMK NucBox M3 Ultra Intel Core i7-12700H, Intel Core i7-12700H: Ø1569 (1529.93-1577.54)

Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, AMD Ryzen 7 8845HS: Ø2547 (2492.52-2619.34)

Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, AMD Ryzen 9 8945HS: Ø2711 (2695.6-2739.73)

GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, AMD Ryzen 5 7640HS: Ø1844 (1829.49-1885.73)

系统性能

GMKtec NucBox M3 Ultra 为日常办公和多媒体使用提供了足够的计算能力。由于采用的是 DDR4 内存，我们的测试样品落后于采用 DDR5 内存的更快机型。

PCMark 10 / Score
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	7099 Points +24%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	6993 Points +22%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	6448 Points +12%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	6331 Points +10%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	5736 Points

PCMark 10 / Essentials
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	10451 Points +5%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	10286 Points +3%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	9991 Points
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	9933 Points -1%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	9902 Points -1%

PCMark 10 / Productivity
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	9742 Points +32%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	9518 Points +29%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	9353 Points +27%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	9300 Points +26%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	7355 Points

WebXPRT 4 / Overall
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	271 Points +10%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	264 Points +7%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	247 Points
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	233 Points -6%
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	191.4 Points -23%

WebXPRT 3 / Overall
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	329 Points +27%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	301 Points +16%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	282 Points +8%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	260 Points
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	216 Points -17%

Mozilla Kraken 1.1 / Total
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	737 ms * -37%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	591 ms * -10%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	589 ms * -9%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	538 ms *
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	527 ms * +2%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	519 ms * +4%

CrossMark / Overall
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1849 Points +19%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1816 Points +17%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1661 Points +7%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	1599 Points +3%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	1548 Points
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1418 Points -8%

CrossMark / Productivity
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1773 Points +15%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1714 Points +12%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1641 Points +7%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	1537 Points
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	1521 Points -1%
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1332 Points -13%

CrossMark / Creativity
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	2052 Points +28%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1998 Points +25%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	1809 Points +13%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1764 Points +10%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	1599 Points
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1529 Points -4%

CrossMark / Responsiveness
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1662 Points +16%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1496 Points +4%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1435 Points 0%
GMK NucBox M3 Ultra, Intel Core i7-12700H Intel Iris Xe Graphics G7 96EUs, TWSC TSC3AN1T0-F6Q10S	1435 Points
BMAX B9 Power, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, SK Hynix HFM001TD3HX015N	1363 Points -5%
Ninkear M8, 32+1TB, AMD Ryzen 7 8745HS AMD Radeon 780M,	1286 Points -10%

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	68719 MB/s +50%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	67607 MB/s +47%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	63022 MB/s +37%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	59378 MB/s +29%
Average of class Mini PC (8377 - 163031, n=112, last 2 years)	57869 MB/s +26%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	45910 MB/s
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	42967 MB/s -6%

AIDA64 / Memory Read
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	61475 MB/s +40%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	61294 MB/s +40%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	61288 MB/s +40%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	60996 MB/s +39%
Average of class Mini PC (8974 - 123769, n=112, last 2 years)	56396 MB/s +28%
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	46318 MB/s +5%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	43920 MB/s

AIDA64 / Memory Write
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	87356 MB/s +93%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	86747 MB/s +92%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	74661 MB/s +65%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	74418 MB/s +65%
Average of class Mini PC (8762 - 216693, n=112, last 2 years)	65925 MB/s +46%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	45207 MB/s
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	42144 MB/s -7%

AIDA64 / Memory Latency
BMAX B9 Power Intel Core i9-12900HK, Iris Xe G7 96EUs	102.5 ns * -20%
Average of class Mini PC (82.3 - 184.8, n=112, last 2 years)	96 ns * -12%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	91.4 ns * -7%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	90.3 ns * -6%
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	89.4 ns * -5%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	88.8 ns * -4%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	85.4 ns *

* ... smaller is better

DPC 延迟

测得的 DPC 延迟总体上并不明显。在 Prime95 负载下，延迟值仅略有增加，但仍处于非关键范围内。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	1273 μs * -121%
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	575 μs *
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	559.7 μs * +3%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	509 μs * +11%

* ... smaller is better

存储设备

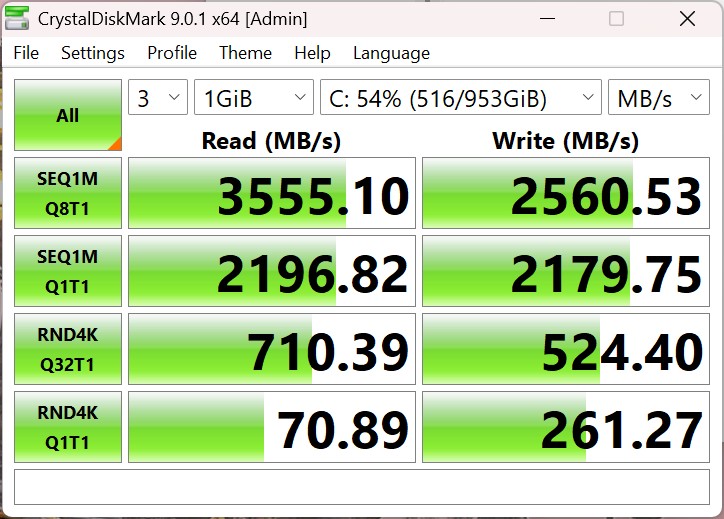

GMKtec NucBox M3 Ultra 安装了 TWSC 的 1 TB SSD。该大容量存储设备使用 PCIe 3.0 x4 接口，传输速率稳定，完全满足日常使用需求。由于没有主动散热装置，因此在连续负载情况下性能会略有下降。此外，还有第二个 M.2-2280 插槽，用于安装额外的固态硬盘。

AS SSD

DiskSpd

TWSC TSC3AN1T0-F6Q10S

Sequential Read: 2691MB/s

Sequential Write: 2263MB/s

4K Read: 70.6MB/s

4K Write: 207MB/s

4K-64 Read: 854MB/s

4K-64 Write: 1262MB/s

Access Time Read: 0.142ms

Access Time Write: 0.092ms

Copy ISO: 3986.89MB/s

Copy Program: 727.91MB/s

Copy Game: 1982.03MB/s

Score Read: 1193Points

Score Write: 1696Points

Score Total: 3499Points

Drive Performance rating | DiskSpd | AS SSD | SPECworkstation 4.0

Drive Performance rating - Percent
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	96.6 pt
Average of class Mini PC	66.8 pt
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	66.7 pt
BMAX B9 Power SK Hynix HFM001TD3HX015N	65.3 pt
GMK NucBox M6 Ultra	54.3 pt
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	54 pt
Ninkear M8, 32+1TB	51.4 pt

DiskSpd
seq read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2801 (2793.48^min - 2800.96^max) MB/s +41%
Average of class Mini PC (413 - 4960, n=111, last 2 years)	2458 MB/s +24%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	2368 (2316.29^min - 2367.68^max) MB/s +19%
GMK NucBox M6 Ultra	2218 (2191.96^min - 2217.5^max) MB/s +12%
Ninkear M8, 32+1TB	2150 (2145.71^min - 2150.1^max) MB/s +8%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1985 (1968.39^min - 1984.95^max) MB/s 0%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	1984 (1925.32^min - 1984.33^max) MB/s
seq write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4556 (4547.39^min - 4555.85^max) MB/s +125%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3044 (2966.57^min - 3044.22^max) MB/s +51%
Average of class Mini PC (339 - 5595, n=111, last 2 years)	2826 MB/s +40%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2293 (2231.1^min - 2292.84^max) MB/s +13%
Ninkear M8, 32+1TB	2225 (1973.42^min - 2224.61^max) MB/s +10%
GMK NucBox M6 Ultra	2205 (2009.88^min - 2204.95^max) MB/s +9%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	2021 (1955.88^min - 2020.61^max) MB/s
seq q8 t1 read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4590 (4094.26^min - 4590.04^max) MB/s +37%
Average of class Mini PC (397 - 8430, n=111, last 2 years)	4187 MB/s +25%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	4087 (3505.93^min - 4087.35^max) MB/s +22%
Ninkear M8, 32+1TB	3554 (3014.08^min - 3553.62^max) MB/s +6%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	3349 (2548.88^min - 3348.52^max) MB/s
GMK NucBox M6 Ultra	3301 (2507.56^min - 3301.34^max) MB/s -1%
BMAX B9 Power SK Hynix HFM001TD3HX015N	3197 (2834.3^min - 3196.9^max) MB/s -5%
seq q8 t1 write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4631 (4481.46^min - 4630.69^max) MB/s +97%
Average of class Mini PC (346 - 6669, n=111, last 2 years)	3254 MB/s +39%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3205 (3185.7^min - 3204.75^max) MB/s +37%
Ninkear M8, 32+1TB	2895 (2856.11^min - 2894.99^max) MB/s +23%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2649 (2622.07^min - 2648.65^max) MB/s +13%
GMK NucBox M6 Ultra	2384 (2320.5^min - 2383.89^max) MB/s +2%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	2345 (2297.66^min - 2345.17^max) MB/s
4k q1 t1 read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	71.4 (70.76^min - 71.35^max) MB/s +17%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	60.9 (57.85^min - 60.88^max) MB/s
GMK NucBox M6 Ultra	58.8 (57.48^min - 58.79^max) MB/s -3%
BMAX B9 Power SK Hynix HFM001TD3HX015N	57 (55.81^min - 57.03^max) MB/s -6%
Average of class Mini PC (6.85 - 87.3, n=111, last 2 years)	55.6 MB/s -9%
Ninkear M8, 32+1TB	52.4 (51.38^min - 52.41^max) MB/s -14%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	51.4 (51.17^min - 51.36^max) MB/s -16%
4k q1 t1 write
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	224 (208.99^min - 223.54^max) MB/s
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	212 (210.85^min - 212.37^max) MB/s -5%
BMAX B9 Power SK Hynix HFM001TD3HX015N	207 (201.51^min - 207.2^max) MB/s -8%
Average of class Mini PC (29.6 - 435, n=111, last 2 years)	192.9 MB/s -14%
GMK NucBox M6 Ultra	173.4 (162.83^min - 173.44^max) MB/s -23%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	167.6 (165.24^min - 167.62^max) MB/s -25%
Ninkear M8, 32+1TB	136.4 (133.14^min - 136.36^max) MB/s -39%
4k q32 t16 read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2330 (2326.23^min - 2330.42^max) MB/s +147%
Average of class Mini PC (102.3 - 4158, n=111, last 2 years)	1498 MB/s +59%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1298 (1296.45^min - 1297.65^max) MB/s +37%
GMK NucBox M6 Ultra	948 (936.95^min - 947.59^max) MB/s 0%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	945 (944.31^min - 945.19^max) MB/s
Ninkear M8, 32+1TB	913 (896.47^min - 912.89^max) MB/s -3%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	492 (451.66^min - 492.1^max) MB/s -48%
4k q32 t16 write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4088 (4061.99^min - 4088.46^max) MB/s +388%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2100 (1960.66^min - 2100.16^max) MB/s +151%
Average of class Mini PC (70.3 - 4288, n=111, last 2 years)	1430 MB/s +71%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	838 (803.74^min - 837.91^max) MB/s
GMK NucBox M6 Ultra	788 (750.91^min - 787.75^max) MB/s -6%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	502 (104.07^min - 502.15^max) MB/s -40%
Ninkear M8, 32+1TB	433 (398.85^min - 432.62^max) MB/s -48%

AS SSD
Score Total
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	7055 Points +102%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	4748 Points +36%
Average of class Mini PC (507 - 10559, n=109, last 2 years)	4680 Points +34%
BMAX B9 Power SK Hynix HFM001TD3HX015N	4650 Points +33%
GMK NucBox M6 Ultra	3522 Points +1%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	3499 Points
Ninkear M8, 32+1TB	3374 Points -4%
Score Read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2178 Points +83%
Average of class Mini PC (172 - 3834, n=109, last 2 years)	1663 Points +39%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1507 Points +26%
GMK NucBox M6 Ultra	1211 Points +2%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	1193 Points
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	1072 Points -10%
Ninkear M8, 32+1TB	1044 Points -12%
Score Write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3735 Points +120%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3177 Points +87%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2390 Points +41%
Average of class Mini PC (210 - 4770, n=109, last 2 years)	2197 Points +30%
Ninkear M8, 32+1TB	1830 Points +8%
GMK NucBox M6 Ultra	1709 Points +1%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	1696 Points
Seq Read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3862 MB/s +44%
Average of class Mini PC (483 - 6620, n=109, last 2 years)	3466 MB/s +29%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3200 MB/s +19%
GMK NucBox M6 Ultra	2966 MB/s +10%
Ninkear M8, 32+1TB	2895 MB/s +8%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	2691 MB/s
BMAX B9 Power SK Hynix HFM001TD3HX015N	2479 MB/s -8%
Seq Write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4073 MB/s +80%
Average of class Mini PC (326 - 5783, n=109, last 2 years)	2626 MB/s +16%
GMK NucBox M6 Ultra	2291 MB/s +1%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	2263 MB/s
Ninkear M8, 32+1TB	1971 MB/s -13%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	1965 MB/s -13%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1960 MB/s -13%
4K Read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	85.3 MB/s +21%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	70.6 MB/s
GMK NucBox M6 Ultra	63.5 MB/s -10%
Average of class Mini PC (18.2 - 104.3, n=109, last 2 years)	60 MB/s -15%
BMAX B9 Power SK Hynix HFM001TD3HX015N	51.7 MB/s -27%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	48.4 MB/s -31%
Ninkear M8, 32+1TB	47.7 MB/s -32%
4K Write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	225 MB/s +9%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	207 MB/s
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	205 MB/s -1%
Average of class Mini PC (40.8 - 366, n=109, last 2 years)	177.7 MB/s -14%
GMK NucBox M6 Ultra	170.1 MB/s -18%
Ninkear M8, 32+1TB	138.7 MB/s -33%
BMAX B9 Power SK Hynix HFM001TD3HX015N	137 MB/s -34%
4K-64 Read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	1706 MB/s +100%
Average of class Mini PC (94.3 - 3321, n=109, last 2 years)	1257 MB/s +47%
BMAX B9 Power SK Hynix HFM001TD3HX015N	1207 MB/s +41%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	854 MB/s
GMK NucBox M6 Ultra	850 MB/s 0%
Ninkear M8, 32+1TB	707 MB/s -17%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	704 MB/s -18%
4K-64 Write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3102 MB/s +146%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	2776 MB/s +120%
BMAX B9 Power SK Hynix HFM001TD3HX015N	2057 MB/s +63%
Average of class Mini PC (96.3 - 4103, n=109, last 2 years)	1757 MB/s +39%
Ninkear M8, 32+1TB	1494 MB/s +18%
GMK NucBox M6 Ultra	1310 MB/s +4%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	1262 MB/s
Access Time Read
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	0.142 ms *
GMK NucBox M6 Ultra	0.117 ms * +18%
Average of class Mini PC (0.027 - 0.288, n=109, last 2 years)	0.09141 ms * +36%
Ninkear M8, 32+1TB	0.082 ms * +42%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.068 ms * +52%
BMAX B9 Power SK Hynix HFM001TD3HX015N	0.056 ms * +61%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	0.045 ms * +68%
Access Time Write
Ninkear M8, 32+1TB	0.102 ms * -11%
Average of class Mini PC (0.013 - 0.706, n=109, last 2 years)	0.0979 ms * -6%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	0.092 ms *
GMK NucBox M6 Ultra	0.088 ms * +4%
BMAX B9 Power SK Hynix HFM001TD3HX015N	0.031 ms * +66%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	0.026 ms * +72%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.019 ms * +79%

SPECworkstation 4.0 - Storage Score
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.81 Points +125%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	0.76 Points +111%
Average of class Mini PC (0.27 - 1.08, n=48, last 2 years)	0.704 Points +96%
BMAX B9 Power SK Hynix HFM001TD3HX015N	0.63 Points +75%
Ninkear M8, 32+1TB	0.5 Points +39%
GMK NucBox M6 Ultra	0.47 Points +31%
GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S	0.36 Points

* ... smaller is better

磁盘节流DiskSpd 读取循环，队列深度 8

GMK NucBox M3 Ultra TWSC TSC3AN1T0-F6Q10S; diskspd 2.0.17 f: Ø2377 (1819.62-3369.94)

Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4071 (3634.85-4086.93)

Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0; diskspd 2.0.17 f: Ø4546 (3995.05-4560.99)

GMK NucBox M6 Ultra ; diskspd 2.0.17 f: Ø3300 (2878.04-3339.75)

Ninkear M8, 32+1TB ; diskspd 2.0.17 f: Ø2074 (1825.07-3560.76)

BMAX B9 Power SK Hynix HFM001TD3HX015N; diskspd 2.0.17 f: Ø2927 (355.39-3214.93)

图形卡和游戏性能

GMKtec NucBox M3 Ultra 的集成英特尔 Iris Xe 图形处理器为日常工作（如办公、媒体播放或简单的照片和视频编辑）提供了坚实的基础。不过，目前的图形基准测试表明，iGPU 的性能无法与更新的集成解决方案相媲美，例如采用最新一代 AMD 或 Intel 处理器的机型。对于要求苛刻的游戏或图形密集型应用来说，其性能只能满足部分需求。GMKtec NucBox M3 Ultra 不提供通过 USB4 或 OCuLink 使用外部 GPU 的选项。

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark Performance rating - Percent
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	100 pt
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	97.6 pt
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	77.7 pt
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	76.1 pt
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	60.3 pt
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	57.9 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	13721 Points +98%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	13437 Points +93%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	10018 Points +44%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	9933 Points +43%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	6946 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6690 Points -4%

3DMark
1920x1080 Fire Strike Graphics
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	8447 Points +53%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	8344 Points +51%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6558 Points +19%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	6370 Points +16%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	5511 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5228 Points -5%
1280x720 Cloud Gate Standard Graphics
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	49287 Points +54%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	47386 Points +48%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	40602 Points +27%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	39667 Points +24%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	32034 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	31127 Points -3%

Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	36.4 fps +58%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	33.3 fps +45%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	28.8 fps +25%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	23 fps
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	21.1 fps -8%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	17.2 fps -25%
Extreme Preset DX11
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	37.4 fps +60%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	36.8 fps +57%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	29.3 fps +25%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	24.3 fps +4%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	23.4 fps
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	21.5 fps -8%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	25.4 fps +78%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	25.4 fps +78%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	19.5 fps +36%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	14.3 fps
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	13.1 fps -8%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	11.8 fps -17%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	22.1 fps +44%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	21.8 fps +42%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	17.2 fps +12%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	15.4 fps
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	12.1 fps -21%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	9.2 fps -40%

Unigine Superposition
1280x720 720p Low
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	12625 Points +100%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	12567 Points +99%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	9195 Points +46%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	6316 Points
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	6276 Points -1%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5380 Points -15%
1920x1080 1080p High
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	3699 Points +72%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	3644 Points +69%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2830 Points +32%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	2718 Points +26%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	2150 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1768 Points -18%
1920x1080 1080p Extreme
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1808 Points +70%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1777 Points +67%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1336 Points +26%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	1237 Points +16%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	1063 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	877 Points -17%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	10276 Points +198%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	9568 Points +177%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6520 Points +89%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	5738 Points +66%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	3454 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3439 Points 0%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	479 Points +74%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	477 Points +73%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	422 Points +53%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	412 Points +49%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	276 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	233 Points -16%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	505 Points +81%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	498 Points +78%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	443 Points +59%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	416 Points +49%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	279 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	239 Points -14%
1024x600 Normal, Mandel Vector
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	2676 Points +229%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2519 Points +210%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1720 Points +112%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	1533 Points +89%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	835 Points +3%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	813 Points
1024x600 Normal, Mandel Scalar
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	2800 Points +226%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2598 Points +202%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1616 Points +88%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	1429 Points +66%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	881 Points +2%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	860 Points
1024x600 Normal, QJuliaRayTrace
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	3816 Points +211%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	3476 Points +183%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2319 Points +89%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	1948 Points +59%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1251 Points +2%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	1227 Points

LuxMark v2.0 64Bit
Room GPUs-only
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	957 Samples/s +34%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	931 Samples/s +31%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	882 Samples/s +24%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	713 Samples/s
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	458 Samples/s -36%
Sala GPUs-only
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	2248 Samples/s
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1763 Samples/s -22%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1649 Samples/s -27%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1603 Samples/s -29%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1576 Samples/s -30%

Affinity Photo 2 - Combined (Single / Multi GPU)
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	4078 Points
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3825 Points -6%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1624 Points -60%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1596 Points -61%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1495 Points -63%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	1268 Points -69%

Geekbench AI
Quantized GPU 1.5
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	5636 Points +199%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	5470 Points +190%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	4807 Points +155%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	4233 Points +124%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1960 Points +4%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	1886 Points
Half Precision GPU 1.5
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	11710 Points +284%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	11332 Points +271%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	9269 Points +204%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	5757 Points +89%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3209 Points +5%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	3053 Points
Single Precision GPU 1.5
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	7648 Points +151%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	7199 Points +136%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6253 Points +105%
Ninkear M8, 32+1TB AMD Radeon 780M, AMD Ryzen 7 8745HS	5533 Points +82%
BMAX B9 Power Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3138 Points +3%
GMK NucBox M3 Ultra Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H	3045 Points

Performance rating: Percent | SPECworkstation 4.0: Accelerator Score | HandBrake | ONNX Inference

Performance rating
Average NVIDIA GeForce RTX 4050 Laptop GPU	94.2 pt
Minisforum EliteMini UM890 Pro	88.8 pt
Geekom A8 Max, R7 8845HS	85 pt
GMK NucBox M6 Ultra	63.3 pt
Ninkear M8, 32+1TB	58.6 pt
BMAX B9 Power	55 pt
GMK NucBox M3 Ultra	49.5 pt

SPECworkstation 4.0 / Accelerator Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	3.37 Points +165%
Minisforum EliteMini UM890 Pro	2.24 Points +76%
Geekom A8 Max, R7 8845HS	2.21 Points +74%
GMK NucBox M6 Ultra	1.75 Points +38%
Ninkear M8, 32+1TB	1.4 Points +10%
GMK NucBox M3 Ultra	1.27 Points
BMAX B9 Power	1.23 Points -3%

SPECworkstation 4.0 / HandBrake
Minisforum EliteMini UM890 Pro	1.46 Points +46%
Geekom A8 Max, R7 8845HS	1.37 Points +37%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.28 Points +28%
BMAX B9 Power	1.17 Points +17%
GMK NucBox M6 Ultra	1.12 Points +12%
Ninkear M8, 32+1TB	1.06 Points +6%
GMK NucBox M3 Ultra	0.999 Points

SPECworkstation 4.0 / ONNX Inference
Minisforum EliteMini UM890 Pro	1.54 Points +136%
Geekom A8 Max, R7 8845HS	1.47 Points +125%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.46 Points +124%
Ninkear M8, 32+1TB	0.949 Points +46%
GMK NucBox M6 Ultra	0.944 Points +45%
BMAX B9 Power	0.745 Points +14%
GMK NucBox M3 Ultra	0.652 Points

	GMK NucBox M3 Ultra, Intel Iris Xe Graphics G7 96EUs i7-12700H	Geekom A8 Max, R7 8845HS, AMD Radeon 780M R7 8845HS	Minisforum EliteMini UM890 Pro, AMD Radeon 780M R9 8945HS	GMK NucBox M6 Ultra, AMD Radeon 760M R5 7640HS	Ninkear M8, 32+1TB, AMD Radeon 780M R7 8745HS	BMAX B9 Power, Intel Iris Xe Graphics G7 96EUs i9-12900HK	Average of class Mini PC
SPECviewperf 2020		418%	415%	266%	211%	-4%	471%
3840x2160 Medical (medical-03) (fps)	3.38	12.7 276%	13.3 293%	11 225%	9.8 190%	3.44 2%	17.4 ?(1.32 - 90.1, n=68, last 2 years) 415%
3840x2160 Energy (energy-03) (fps)	2.96	21.2 616%	19.7 566%	10.1 241%	12.1 309%	2.98 1%	24.2 ?(0.76 - 139, n=68, last 2 years) 718%
3840x2160 Creo (creo-03) (fps)	14.7	34.9 137%	34.9 137%	26.2 78%	18.4 25%	14 -5%	42.4 ?(7.73 - 126, n=68, last 2 years) 188%
3840x2160 CATIA (catia-06) (fps)	8.14	25 207%	24.2 197%	21.1 159%	15.9 95%	7.55 -7%	28 ?(4.61 - 89.8, n=66, last 2 years) 244%
3840x2160 3ds Max (3dsmax-07) (fps)	9.48	21.4 126%	21.3 125%	15.8 67%	15.6 65%	9.18 -3%	37.4 ?(5.53 - 213, n=68, last 2 years) 295%
3840x2160 Siemens NX (snx-04) (fps)	4.21	66.2 1472%	67 1491%	48.6 1054%	37.1 781%	3.78 -10%	53.1 ?(3.78 - 233, n=66, last 2 years) 1161%
3840x2160 Maya (maya-06) (fps)	25.8	50.2 95%	51.2 98%	36.5 41%	29.7 15%	24.1 -7%	96.2 ?(11.6 - 522, n=67, last 2 years) 273%

3DMark 05 Standard		30782 points
3DMark 06 Standard Score		28930 points
3DMark Vantage P Result		26126 points
3DMark 11 Performance		7438 points
3DMark Ice Storm Standard Score		144510 points
3DMark Cloud Gate Standard Score		24067 points
3DMark Fire Strike Score		5103 points
3DMark Fire Strike Extreme Score		2438 points
Help

... in comparison

GTA V | Dota 2 Reborn | Baldur's Gate 3 | The Witcher 3

GTA V
1024x768 Lowest Settings possible
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	165.6 (4.4^min, 111.1^P1) fps +51%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	163.8 (5.05^min, 111.1^P1) fps +49%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	157 (5.72^min, 100^P1) fps +43%
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	153.4 (4.3^min, 111.1^P1) fps +40%
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	109.7 (19^min, 66.7^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	65.4 (10.1^min, 45.5^P1) fps +230%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	64.1 (7.34^min, 43.5^P1) fps +224%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	54.8 (8.67^min, 38.5^P1) fps +177%
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	54.6 (7.41^min, 38.5^P1) fps +176%
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	19.8 (5.18^min, 14.5^P1) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	160.8 (137.9^min) fps
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	155.1 (135.8^min) fps
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	149.8 (130.2^min) fps
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	149.4 (130.2^min) fps
BMAX B9 Power Iris Xe G7 96EUs, i9-12900HK, SK Hynix HFM001TD3HX015N	101 (70^min) fps
1920x1080 high (2/3)
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	100.9 (84.1^min) fps
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	91.7 (79.2^min) fps
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	90.3 (75.3^min) fps
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	81.5 (72.8^min) fps
BMAX B9 Power Iris Xe G7 96EUs, i9-12900HK, SK Hynix HFM001TD3HX015N	66.3 (47.2^min) fps

Baldur's Gate 3
1280x720 Low Preset AA:SM
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	62.3 (42.8^min, 47.8^P0.1, 54.2^P1) fps +118%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	61.2 (47.4^min, 49.5^P0.1, 53.8^P1) fps +114%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	52.1 (39.1^min, 40.9^P0.1, 44.6^P1) fps +82%
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	50.1 (39.8^min, 41.5^P0.1, 44.4^P1) fps +75%
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	28.6 (21.1^min, 21.6^P0.1, 24.1^P1) fps
1920x1080 High Preset AA:T
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	26 (21.5^min, 21.8^P0.1, 23.1^P1) fps +100%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	24.9 (21.7^min, 21.8^P0.1, 22.4^P1) fps +92%
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	20.6 (17.8^min, 17.9^P0.1, 18.5^P1) fps +58%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	20 (17.9^min, 17.9^P0.1, 18.3^P1) fps +54%
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	13 (10.4^min, 10.8^P0.1, 11.8^P1) fps

The Witcher 3
1024x768 Low Graphics & Postprocessing
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	150.5 (6.07^min, 33.7^P0.1, 128.1^P1) fps +189%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	143.1 (5.97^min, 22.1^P0.1, 98.8^P1) fps +175%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	127.3 (17^min, 38.4^P0.1, 110.1^P1) fps +145%
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	122.5 (5.49^min, 32.3^P0.1, 95.5^P1) fps +136%
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	52 (5.21^min, 21.1^P0.1, 39.2^P1) fps
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	49.4 (18.5^min, 39.8^P0.1, 43^P1) fps +44%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	46.8 (37^min, 37.8^P0.1, 41.7^P1) fps +36%
Ninkear M8, 32+1TB Radeon 780M, R7 8745HS	40 (30.1^min, 31.2^P0.1, 34.6^P1) fps +16%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	39.9 (31.1^min, 31.7^P0.1, 34.9^P1) fps +16%
GMK NucBox M3 Ultra Iris Xe G7 96EUs, i7-12700H, TWSC TSC3AN1T0-F6Q10S	34.4 (25.3^min, 25.7^P0.1, 29.7^P1) fps

	low	med.	high	ultra
GTA V (2015)	109.7	97.4	19.8	8.39
The Witcher 3 (2015)	52		34.4	16.8
Strange Brigade (2018)	96.5	40.9	32.6	26.3
Baldur's Gate 3 (2023)	19.7	15.1	13	12.6

排放量

系统噪音

GMKtec NucBox M3 Ultra 超小型电脑依赖于带主动风扇的紧凑型冷却系统。不过，即使在空转时只能听到极低的噪音，迷你电脑也不会安静地工作。但是，在负载情况下，风扇的转速会明显提高，最大声压级达到 45.6 dB(A)。风扇控制仍不成熟，最好能通过软件增加设置选项。

Noise level

Idle		25.8 / 25.8 / 25.8 dB(A)
Load		44.5 / 44.7 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.8 dB(A)

	GMK NucBox M3 Ultra i7-12700H, Iris Xe G7 96EUs	Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M	Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M	GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	Ninkear M8, 32+1TB R7 8745HS, Radeon 780M
Noise		6%	9%	2%	3%
off / environment * (dB)	24.8	23.8 4%	23.7 4%	24.7 -0%	24.7 -0%
Idle Minimum * (dB)	25.8	24 7%	27.2 -5%	27.5 -7%	26.2 -2%
Idle Average * (dB)	25.8	24.1 7%	27.3 -6%	29.3 -14%	26.4 -2%
Idle Maximum * (dB)	25.8	24.1 7%	27.3 -6%	30.1 -17%	26.4 -2%
Load Average * (dB)	44.5	42.7 4%	33.6 24%	39 12%	42.4 5%
Witcher 3 ultra * (dB)	45.6			39 14%	40.1 12%
Cyberpunk 2077 ultra * (dB)	46.4	42.5 8%	34.4 26%	39.3 15%	43.9 5%
Load Maximum * (dB)	44.7	42.6 5%	34.4 23%	39 13%	42.9 4%

* ... smaller is better

温度

在负载情况下，GMKtec NucBox M3 Ultra 的外壳会明显发热，底部的峰值接近 50 摄氏度。在压力测试中，英特尔酷睿 i7-12700H 最初升至 76 摄氏度左右，然后稳定在 74 摄氏度左右。SoC 的功耗在 33 至 37 瓦之间小幅波动，但平均功耗达到 35 瓦。

Max. Load

Idle


38.9 °C	45.5 °C	40.4 °C
35.4 °C	40.3 °C	33.6 °C
33.4 °C	37 °C	37.2 °C

Maximum: 45.5 °C
Average: 38 °C


38.8 °C	39.6 °C	36.4 °C
38.5 °C	49.5 °C	35.3 °C
36.7 °C	37.2 °C	33.5 °C

Maximum: 49.5 °C
Average: 38.4 °C

Power Supply (max.) 45.2 °C | Room Temperature 23.9 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 38 °C / 100 F, compared to the average of 32.4 °C / 90 F for the devices in the class Mini PC.
(-) The maximum temperature on the upper side is 45.5 °C / 114 F, compared to the average of 35.8 °C / 96 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(-) The bottom heats up to a maximum of 49.5 °C / 121 F, compared to the average of 36.5 °C / 98 F
(±) In idle usage, the average temperature for the upper side is 37 °C / 99 F, compared to the device average of 32.4 °C / 90 F.

能源管理

在测试中，采用英特尔酷睿 i7-12700H 处理器的 GMKtec NucBox M3 Ultra 的能效不如采用更先进 SoC 的对比设备。由于保守的 TDP，我们的测试样品在满载情况下的最大工作功率仅为 60.7 瓦。这意味着 100 瓦的电源规格足够，可以为性能模式等提供足够的储备。

Power Consumption

Off / Standby	0.95 / 1 Watt
Idle	10.8 / 11.3 / 12.6 Watt
Load	56.4 / 60.7 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox M3 Ultra i7-12700H, Iris Xe G7 96EUs	Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M	Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M	GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	Ninkear M8, 32+1TB R7 8745HS, Radeon 780M	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		15%	-14%	-1%	8%	18%	-21%
Idle Minimum * (Watt)	10.8	3.1 71%	9.8 9%	8.8 19%	7.1 34%	5.51 ?(2.2 - 46.5, n=199) 49%	9.54 ?(2.4 - 35.9, n=110, last 2 years) 12%
Idle Average * (Watt)	11.3	5.7 50%	10.5 7%	9.5 16%	8.4 26%	8.66 ?(3.8 - 63, n=199) 23%	11.7 ?(2.59 - 36.3, n=109, last 2 years) -4%
Idle Maximum * (Watt)	12.6	8.3 34%	13.6 -8%	11.8 6%	10.5 17%	10.9 ?(5.8 - 68.9, n=199) 13%	15.2 ?(2.7 - 49, n=110, last 2 years) -21%
Load Average * (Watt)	56.4	68.3 -21%	67 -19%	69.6 -23%	59.7 -6%	45.6 ?(12.5 - 87.3, n=199) 19%	62.7 ?(12.9 - 170.6, n=110, last 2 years) -11%
Load Maximum * (Watt)	60.7	97.7 -61%	96.2 -58%	74.8 -23%	78 -29%	67.8 ?(30.1 - 123.3, n=199) -12%	108.5 ?(27.9 - 423, n=110, last 2 years) -79%
Cyberpunk 2077 ultra external monitor * (Watt)		78.7	85.9	70.5	63.6

* ... smaller is better

功率效率

Performance rating | Power Consumption

Performance rating - Percent
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	100 pt
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	84.8 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	80.4 pt
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	76.9 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	71 pt
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	63.8 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	306 Points per Watt +60%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	242 Points per Watt +26%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	211 Points per Watt +10%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	205 Points per Watt +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	195.1 Points per Watt +2%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	191.8 Points per Watt
Cinebench R23 Single Power Efficiency - external Monitor
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	61.5 Points per Watt +63%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	60.1 Points per Watt +59%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	55.5 Points per Watt +47%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	52.1 Points per Watt +38%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	50.6 Points per Watt +34%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	37.8 Points per Watt
Cinebench R15 Multi Efficiency (external Monitor)
Ninkear M8, 32+1TB AMD Ryzen 7 8745HS, Radeon 780M	42 Points per Watt +49%
Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	38 Points per Watt +35%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	31.3 Points per Watt +11%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	30.9 Points per Watt +10%
GMK NucBox M3 Ultra Intel Core i7-12700H, Iris Xe G7 96EUs	28.2 Points per Watt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	28.1 Points per Watt 0%

带外部监控器的能耗

GMK NucBox M3 Ultra; Idle 1min (external Monitor): Ø11.4 (10.9-12.6)

GMK NucBox M3 Ultra; 1280x720 Prime95 28.10 and Furmark 1.25: Ø58.8 (56.8-60.4)

GMK NucBox M3 Ultra; 3DMark06 Return To Proxycon: Ø56.4 (55.3-61.7)

带外部监控器的能耗

GMK NucBox M3 Ultra; Prime95 V2810 Stress (external Monitor): Ø59.3 (55.7-60.7)

GMK NucBox M3 Ultra; Cinebench R15 Multi (external Monitor): Ø54 (53.3-54.5)

GMK NucBox M3 Ultra; Cinebench R23 Single (external Monitor): Ø47.4 (45.4-58)

GMK NucBox M3 Ultra; Cinebench R23 Multi (external Monitor): Ø53.7 (52.3-55.5)

GMK NucBox M3 Ultra; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø55.4 (53.9-63.4)

笔记本检查评级

Back to the verdict

GMK NucBox M3 Ultra - 10/11/2025 v8
Sebastian Bade

Chassis

80 / 98 → 82%

Connectivity

56 / 81 → 69%

Weight

84%

Games Performance

25 / 80 → 32%

Application Performance

80 / 92 → 87%

Workstation

22%

AI Performance

76%

Temperature

83%

Noise

83%

Average

47%

70%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
12.5%

Power Use
71.4%

Repairability
30%

Software Updates
22.3%

Total Sustainability Score: 22.7%

可比较的替代品

Image	Model / Review	Price	Weight	Dimensions
1. 70.3%	GMK NucBox M3 Ultra Intel Core i7-12700H ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $609.99 List Price: 429€	437 g	106 x 114 x 42.5 mm
2. 82%	Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	List Price: 899 EUR	681 g	132 x 135 x 46.9 mm
3. 81.3%	Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $727.00 MINISFORUM UM890 Pro Mini PC... 2. $479.90 MINISFORUM UM890 Pro Mini PC... 3. $725.00 MINISFORUM UM890 Pro Ryzen 9... List Price: 739 EUR	709 g	127 x 130 x 60.6 mm
4. 76.9%	GMK NucBox M6 Ultra AMD Ryzen 5 7640HS ⎘ AMD Radeon 760M ⎘ 32 GB Memory	Amazon: $389.98 List Price: 336€	506 g	127 x 128.8 x 47.8 mm
5.	Ninkear M8, 32+1TB AMD Ryzen 7 8745HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory	List Price: 415 EUR	507 g	127.5 x 130 x 52 mm
6.	BMAX B9 Power Intel Core i9-12900HK ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $519.99 Bmax B9 Power Mini PC with 1... 2. $359.99 Bmax B9 Plus Mini PC with 12... 3. $22.99 PWR+ 19V Power Supply for Bm... List Price: 540 EUR	427 g	112 x 126 x 52 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

适用于家庭办公和多媒体的经济型迷你 PC - GMKtec NucBox M3 Ultra（配备 Intel Core i7）评测

有弱点的迷你电脑

评价：适合办公和多媒体使用的可靠迷你 PC

Pros

Cons

价格和供应情况

Table of Contents

规格

外壳与连接

尺寸比较

Wi-Fi 性能

配件

维护

可持续性

性能

测试条件

BIOS - 设置

处理器

Cinebench R15 多回路运行

系统性能

DPC 延迟

存储设备

磁盘节流DiskSpd 读取循环，队列深度 8

图形卡和游戏性能

排放量

系统噪音

温度

能源管理

功率效率

带外部监控器的能耗

带外部监控器的能耗

笔记本检查评级

可比较的替代品

Transparency

More articles related to this device

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	614
HP ZBook Firefly 14 G11 Ultra 7 165H, RTX A500 Laptop GPU	616
Acemagic AM20 R7 7735H, Radeon 680M	617
GMK NucBox M3 Ultra i7-12700H, Iris Xe G7 96EUs	617
Geekom A5 R7 5800H, Vega 8	618
Microsoft Surface Pro OLED Lunar Lake Core Ultra 7 268V, Arc 140V	619
Maxtang MTN-FP750 R7 7735HS, Radeon 680M	620
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
HP Envy x360 15 fe1071cl Ultra 7 155U, Graphics 4-Core	7424
Beelink GTR5 R9 5900HX, Vega 8	7425
Acer Swift 3 SF316-51 i7-11370H, Iris Xe G7 96EUs	7431
GMK NucBox M3 Ultra i7-12700H, Iris Xe G7 96EUs	7438
Lenovo ThinkPad E16 Gen 2 21M5002VGE R5 7535HS, Radeon 660M	7442
Morefine S500+ R9 5900HX, Vega 8	7449
MSI WE72 7RJ i7-7700HQ, Quadro M2200	7453
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
