测试中的 88 TB 存储怪物：集 NAS 和迷你 PC 于一身的 Aoostar WTR Pro

花很少的钱买很多 NAS。

功能强大的 NAS 和 Mini-PC 混合设备，可灵活使用，既适用于简单的任务，也适用于高要求的任务--这正是 Aoostar WTR Pro 所承诺的。该设备采用两种处理器，分别是经济实惠的英特尔 N100 和功能强大的 AMD Ryzen 7 5825U，面向不同的用户群。我们对 Aoostar WTR Pro 进行了测试，检查了它的性能、噪音水平和能效。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 05/30/2025 🇺🇸 🇩🇪 ...
Desktop Intel AMD NAS Mini PC Storage

结论 - 适合小型办公室和家庭使用的多功能网络存储设备

作为一款多功能 NAS 服务器，Aoostar WTR Pro 性能稳定、能效高，给人留下了深刻印象。根据喜好和预算，Aoostar WTR Pro 有两个版本。不过，测试表明，英特尔 N150 型号在性能方面的劣势明显大于 AMD Ryzen 7 5825U 型号，而性能更强的 AMD Ryzen 7 5825U 型号才是更好的选择。经济实惠的英特尔 N150 可以完成基本的 NAS 任务，而性能更强的 AMD Ryzen 7 5825U 则适用于虚拟化和 4K 流媒体等要求更高的应用。

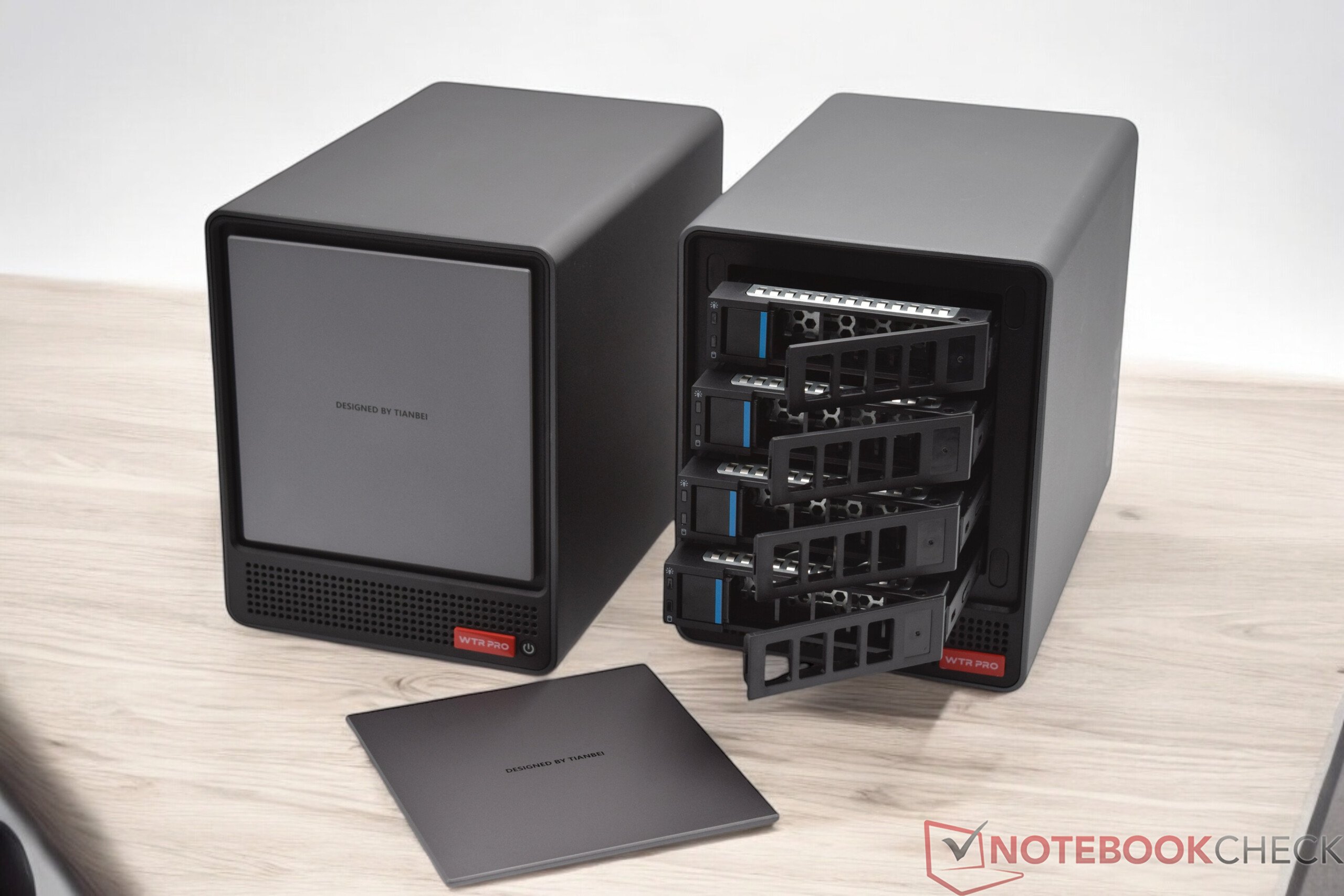

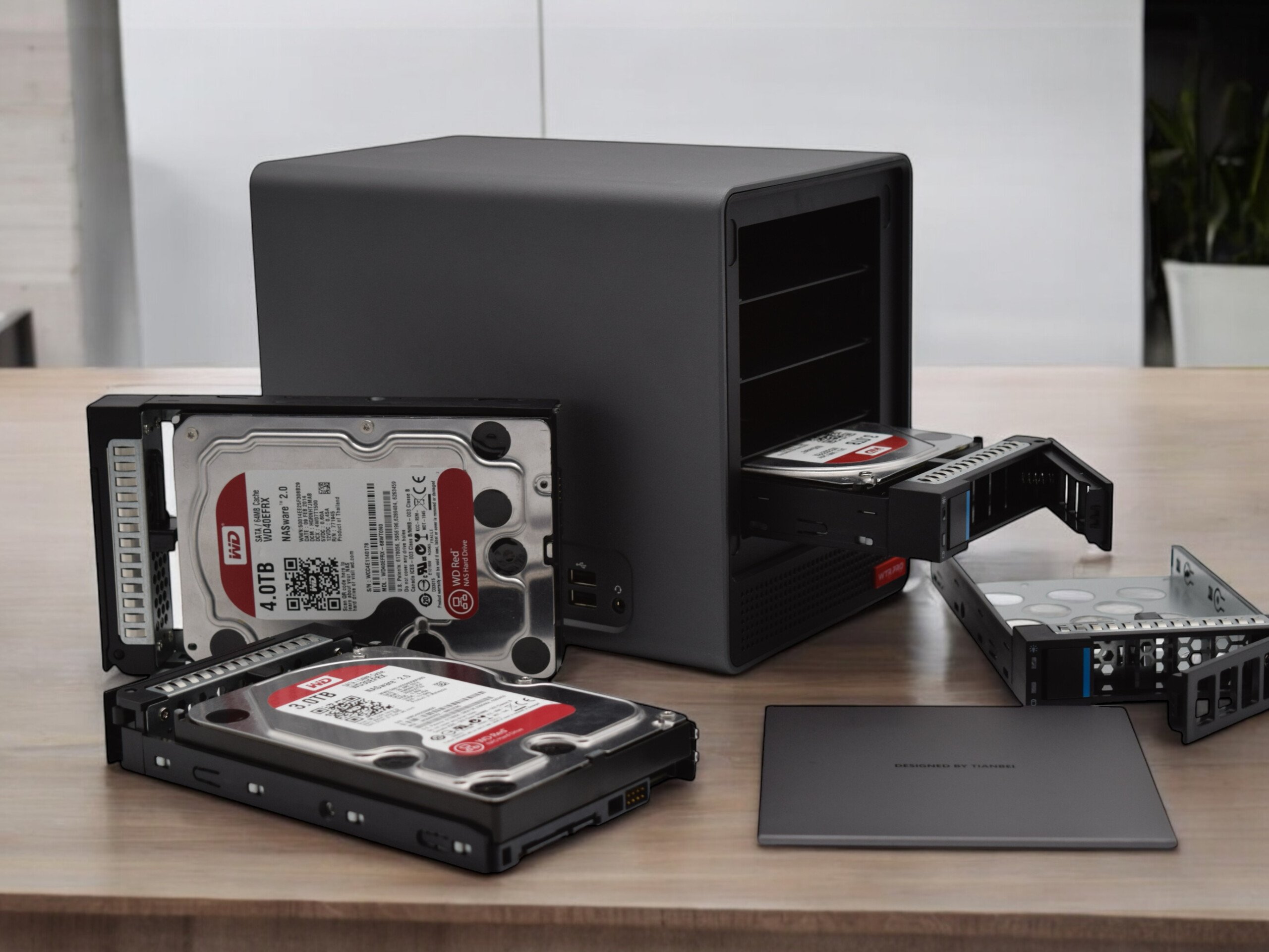

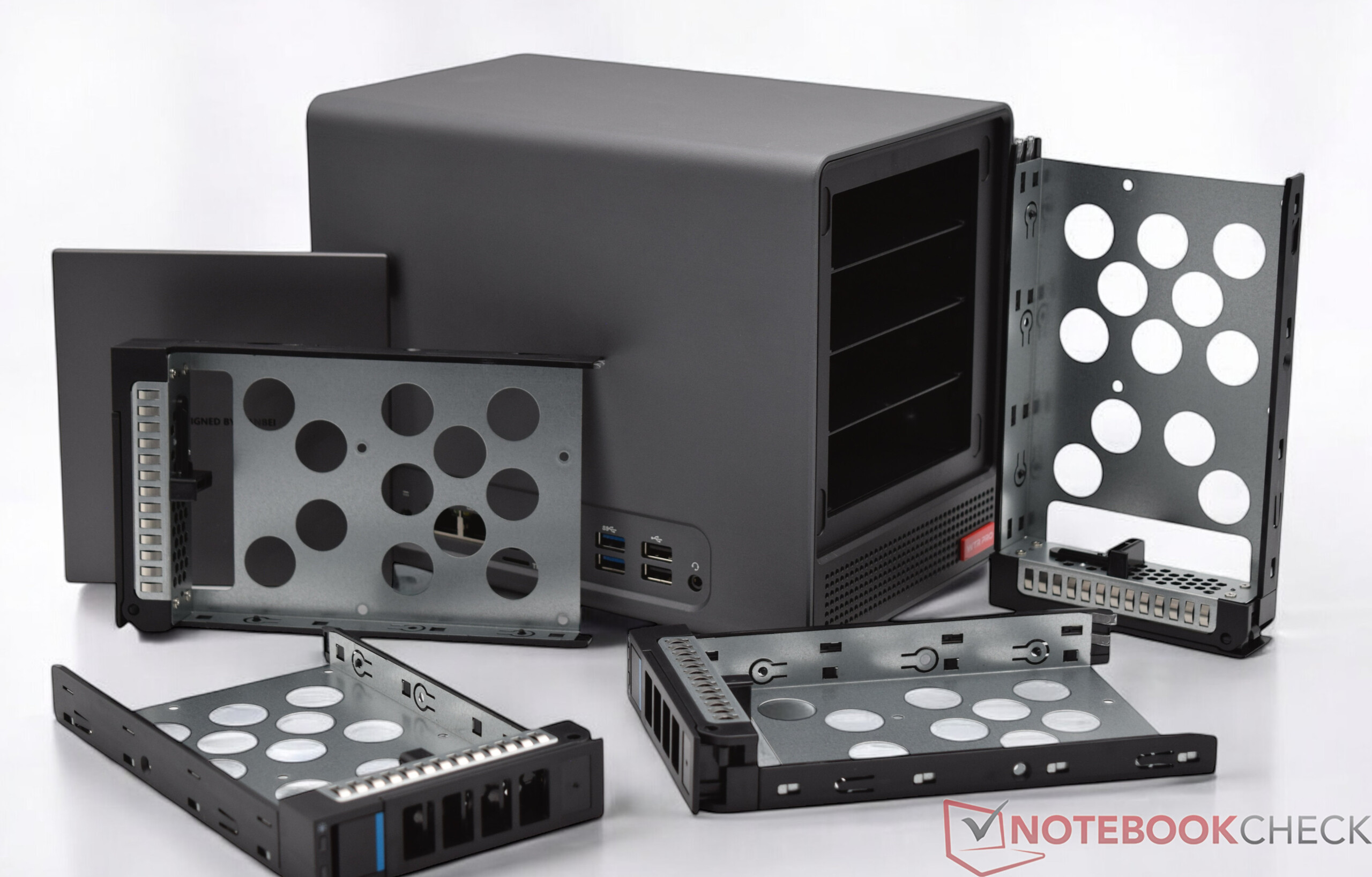

这两款机型都提供了灵活的存储解决方案，配有四个 3.5 英寸 SATA 插槽和两个 M.2 SSD 插槽，可快速访问数据。不过，缺乏软件支持给人留下了矛盾的印象。不过，WTR Pro 允许 Aoostar 自由选择软件，尽管这需要一定的知识。TerraMaster 也采用了类似的方法。 TerraMaster 的 F4-424 Pro 也采用了类似的方法为用户提供了自己的操作系统，但用户可以选择安装自己的操作系统。总之，两款 Aoostar WTR Pro NAS 系统都为小型网络提供了良好的基础，而且价格也不贵。

Pros

+ 2x 2.5G 局域网

+ 支持三显示器

+ 多个 USB 端口

+ 支持多达四个 22 TB 硬盘

+ 可自由选择操作系统

Cons

- 没有预装 NAS 操作系统 - 可能需要付出更多努力

- 处理器性能限制较低

- 噪音比传统迷你 PC 大

价格和供应情况

制造商本身也在其在线商店销售这些设备。.不过，供货情况不佳。您也可以从 Geekbuying 购买。配备英特尔 N150 的 Aoostar WTR Pro 售价449 欧元，而配备 AMD Ryzen 7 5825U 的 Aoostar WTR Pro 售价579 欧元。

$429.00

AOOSTAR WTR PRO Intel Twin Lake N150(Upgraded N100) 4 Bay NAS Mini PC, NO RAM NO SSD, 4K HDMI, 2 * M.2 NVMe Slots, 2.5/3.5 SATAx 4 Storage(Up to 4 * 22TB)

结论 - 适合小型办公室和家庭使用的多功能网络存储设备
Specifications
性能 - 强大的 8 核或经济的 4 核
处理器 - AMD 8 核或 Intel 4 核
排放--房屋是一个共鸣体
能源管理

Aoostar WTR Pro 是一款功能强大、用途广泛的 NAS 服务器，有两种不同的处理器可供选择：配备英特尔 N100 处理器的 WTR Pro；配备英特尔 N100 处理器的 WTR Pro。英特尔 N100或 AMD Ryzen 7 5825U.这些设备提供灵活的存储解决方案，适用于各种应用场景--从简单的操作到要求苛刻的多媒体和虚拟化任务。

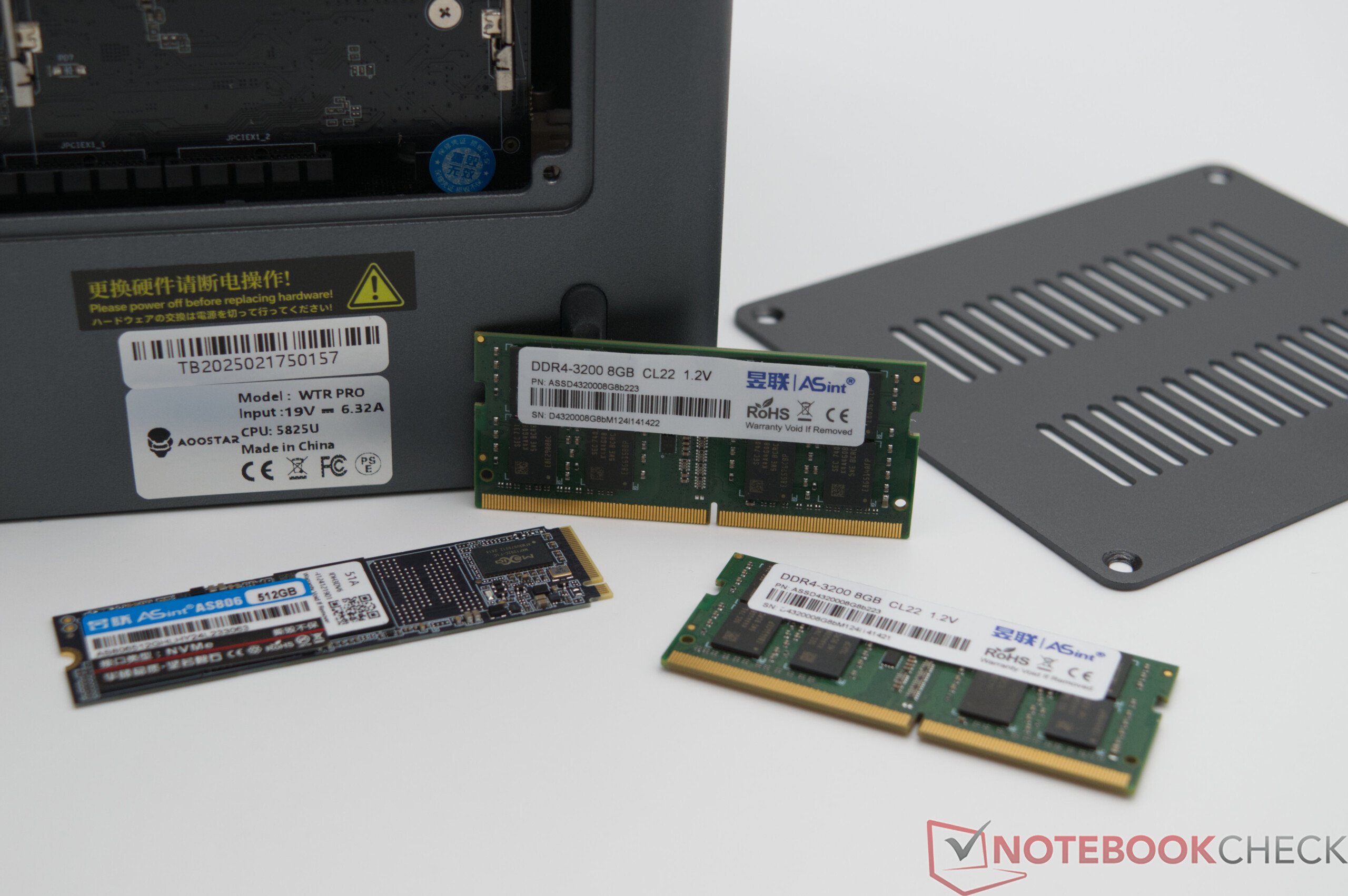

英特尔 N100 版本配备经济型四核处理器，最高主频为 3.4 GHz。它最高支持 32 GB DDR4-3200 内存，并为 NVMe 固态硬盘提供了一个 M.2 插槽。该配置有四个 3.5 英寸 SATA 硬盘插槽，特别适合需要文件存储和媒体流等基本 NAS 功能的家庭和小型办公网络。

功能更强大的 AMD Ryzen 7 5825U 变体提供 8 个内核和 16 个线程，最高主频为 4.5 GHz。它支持高达 64 GB 的内存，并有两个 M.2 插槽用于快速 NVMe SSD。由于集成了 Radeon 显卡，该机型适用于计算密集型任务，如虚拟化、4K 媒体流甚至轻型图像和视频编辑。

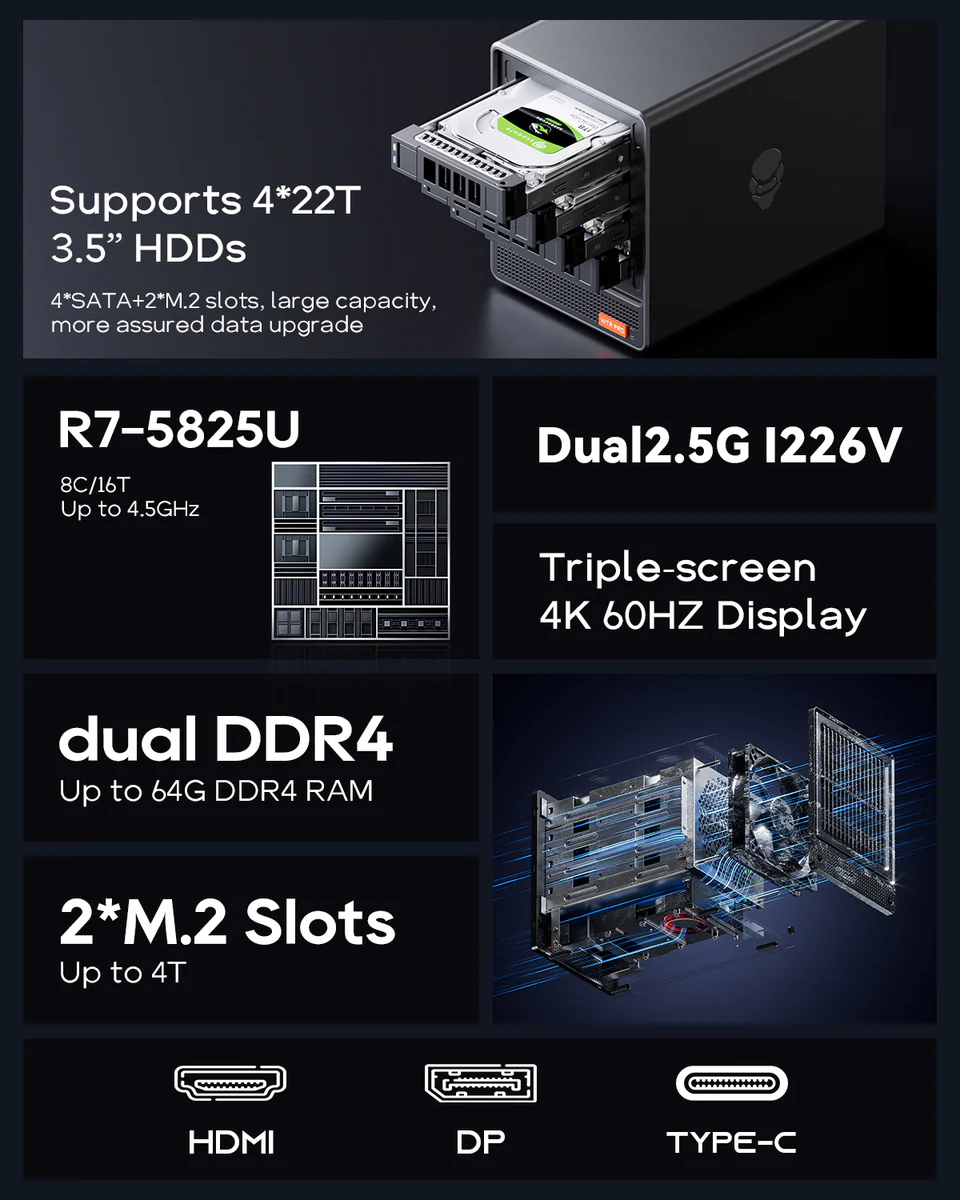

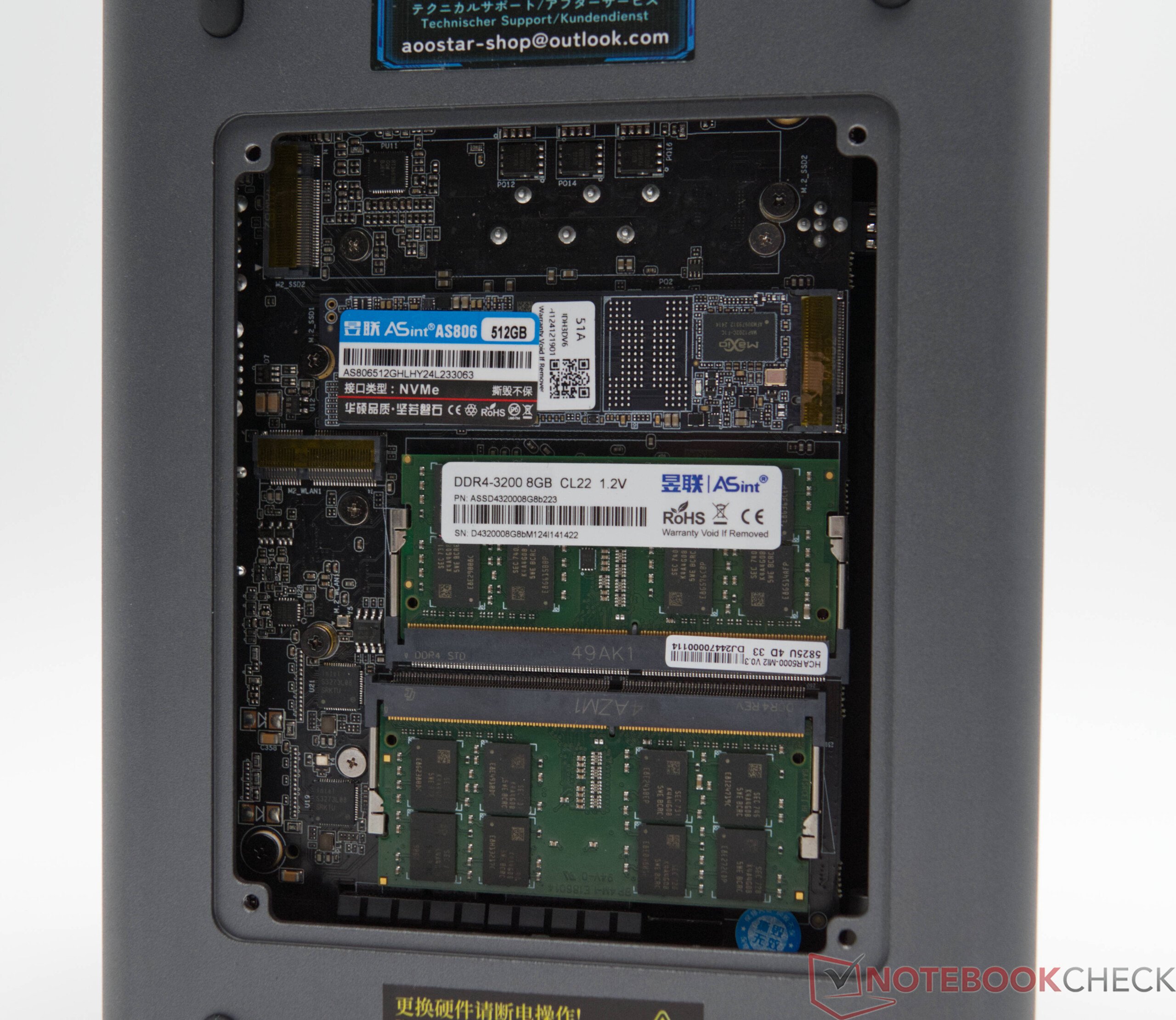

Aoostar WTR Pro - AMD Ryzen 7 5825U（图片来源：Aoostar）

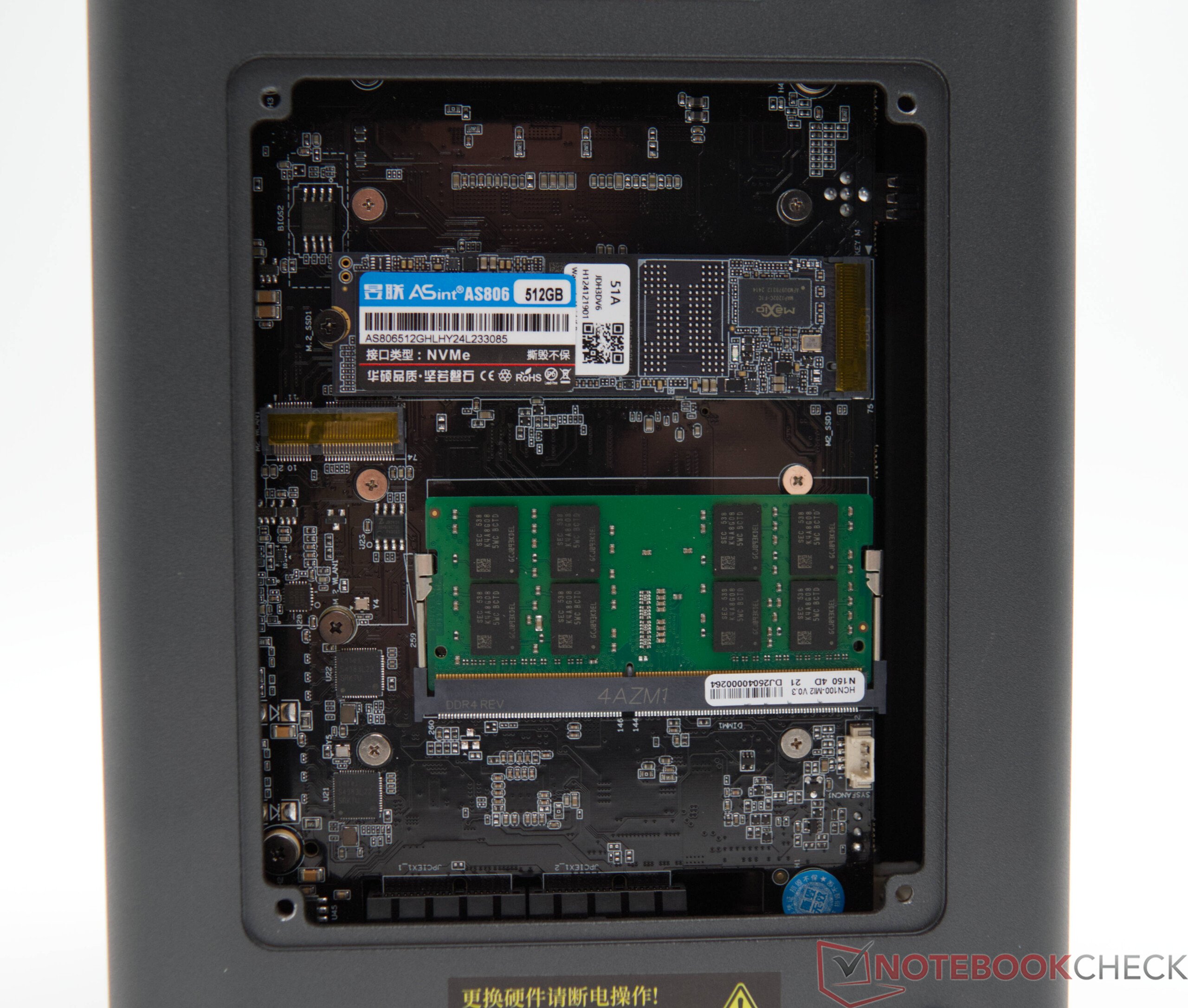

Aoostar WTR Pro - Intel N150（图片来源：Aoostar）

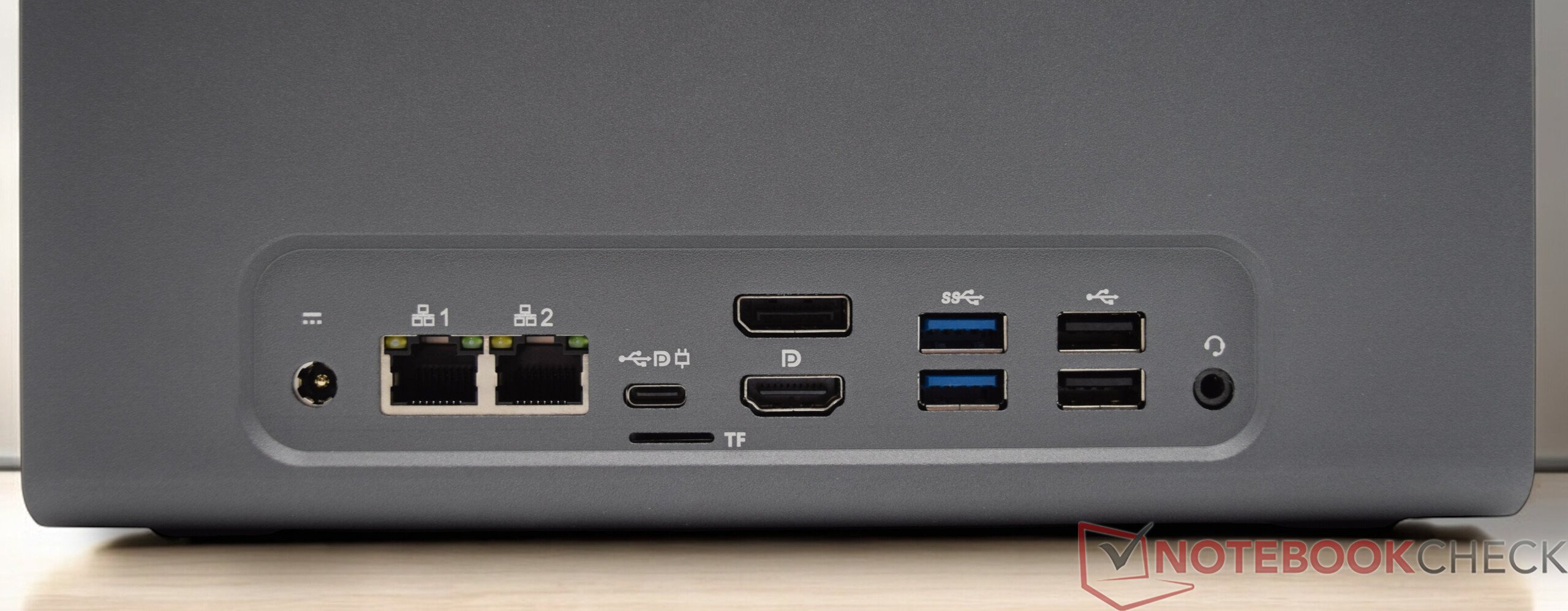

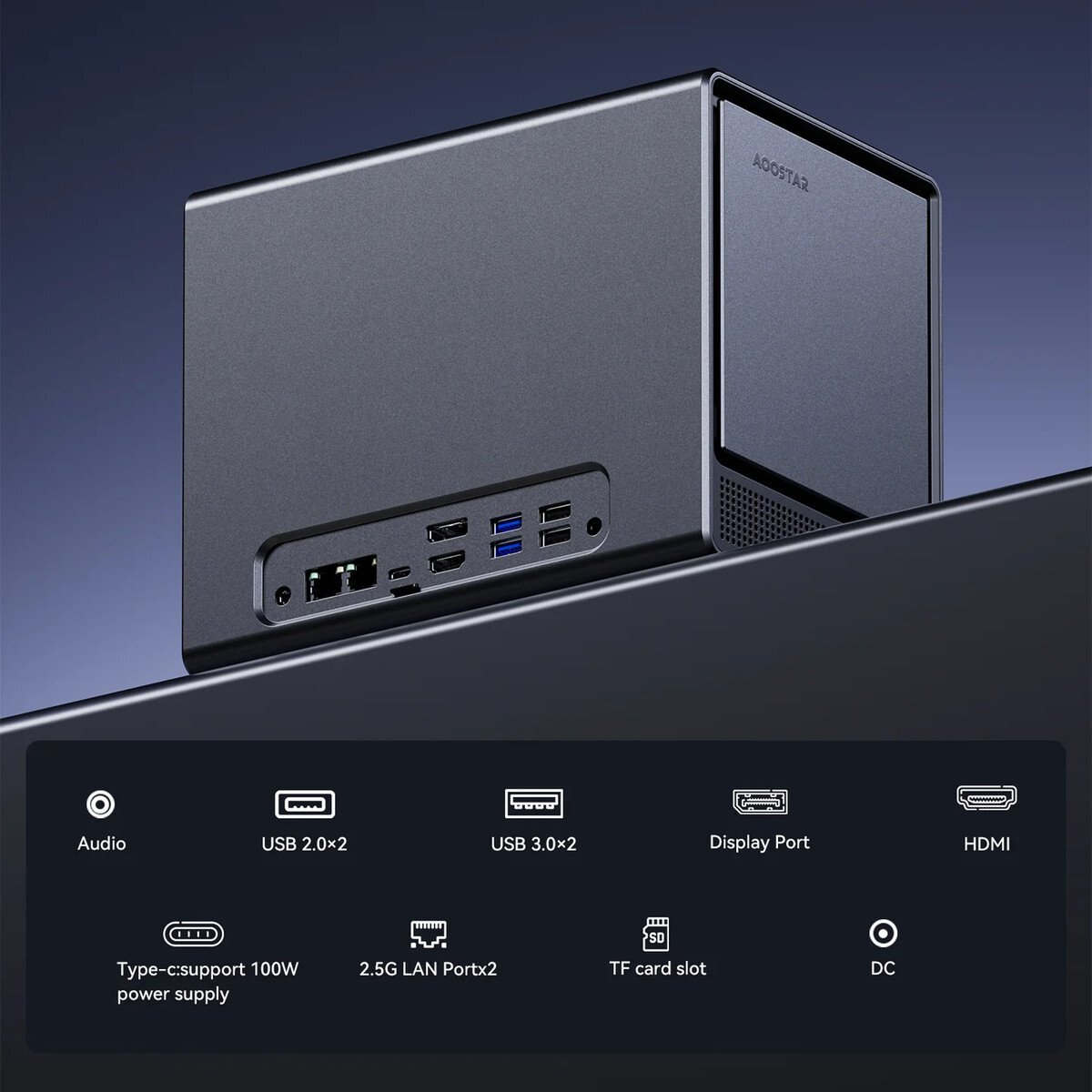

两种型号都配备了两个 2.5 Gbit LAN 端口、HDMI、DisplayPort 和多个 USB 端口。选择哪种型号取决于个人需求。不过，Aoostar 没有为其 NAS 系统提供自己的软件解决方案，因此价格略低于 Synology、Qnap 或 Ugreen 等其他 NAS 制造商。我们的测试样品预装了 Windows 11 Professional。以 Windows 作为 NAS 系统的基础并非最佳选择，但它使我们更容易比较其性能。Linux 发行版或开源 NAS 操作系统（TrueNAS 或 Unraid）等替代系统更适合在家庭网络中用作 NAS 服务器。

Specifications

Aoostar WTR Pro, R7 5825U

Processor

AMD Ryzen 7 5825U 8 x 2 - 4.5 GHz, 30 W PL2 / Short Burst, 15 W PL1 / Sustained, Barcelo-U (Zen 3)

Graphics adapter

AMD Radeon RX Vega 8 (Ryzen 4000/5000)

Memory

16 GB

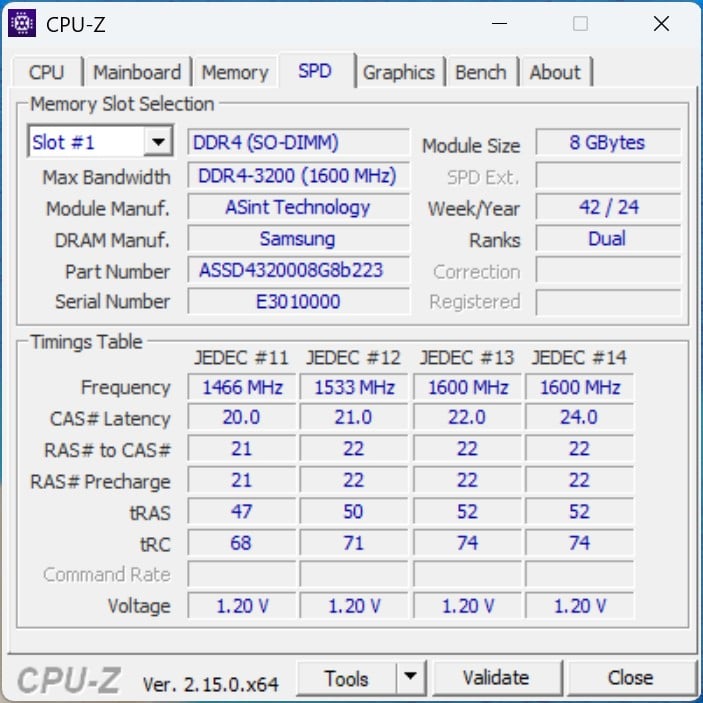

, DDR4-3200, 2x SO-DIMM

Mainboard

AMD Promontory/Bixby FCH

Storage

ASint AS806, 512 GB

, 420 GB free

Soundcard

AMD Raven/Renoir/Van Gogh/Cezanne/Rembrandt/Raphael - HD Audio Controller

Connections

2 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 HDMI, 2 DisplayPort, Card Reader: microSD, 2nd Intel Ethernet Controller I226-V (10/2500MBit/s)

Networking

Intel Ethernet Controller I226-V (10/2500MBit/s)

Size

height x width x depth (in mm): 185 x 180 x 228

Operating System

Microsoft Windows 11 Pro

Additional features

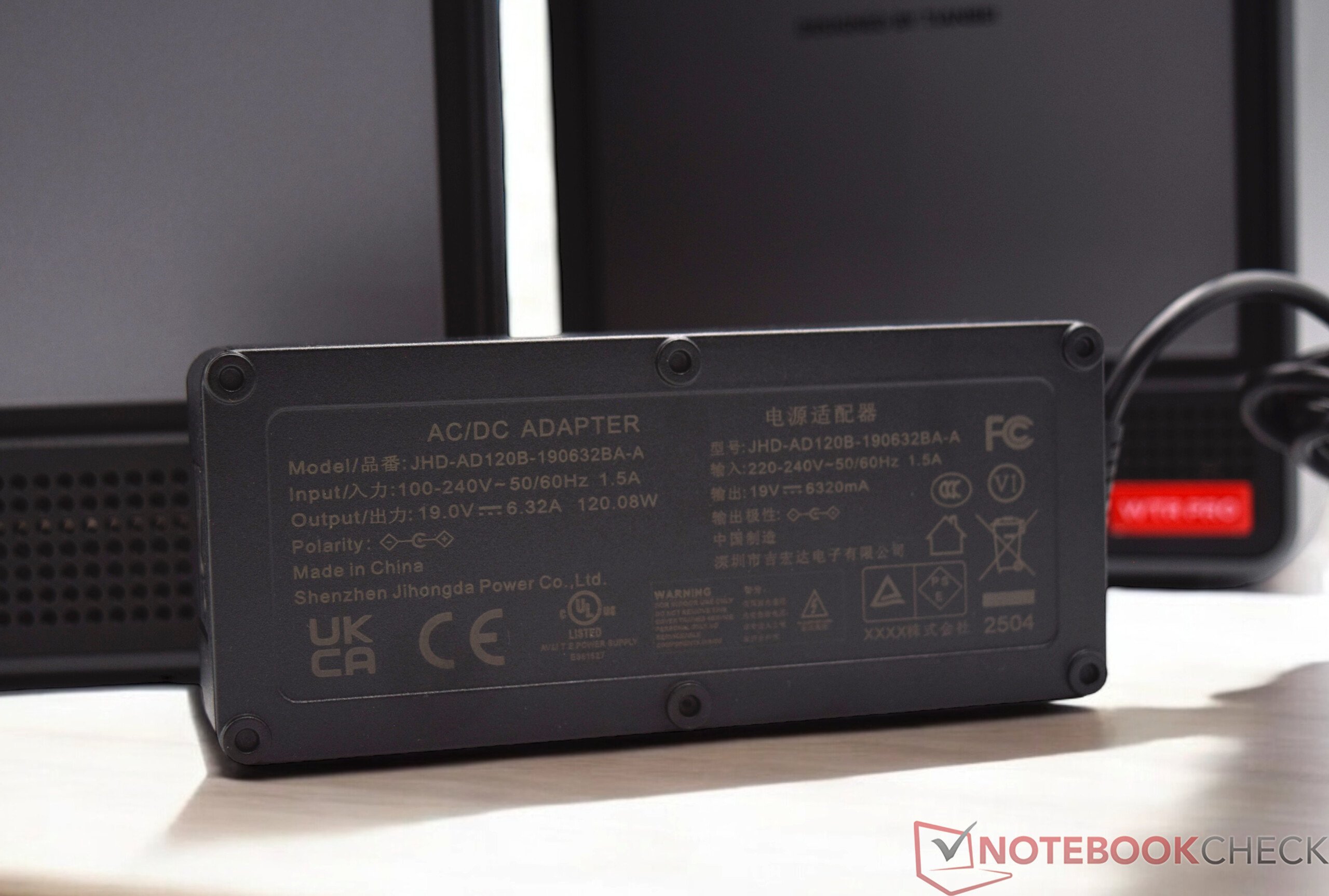

120-Watt-Power-Adapter

Weight

4.593 kg, Power Supply: 331 g

Price

519 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Aoostar WTR Pro, N150

Processor

Intel Processor N150 4 x - 3.6 GHz, 12 W PL2 / Short Burst, 12 W PL1 / Sustained, Twin Lake

Graphics adapter

Intel UHD Graphics 24EUs (Alder Lake-N)

Memory

16 GB

, DDR4-3200, 1x SO-DIMM

Mainboard

Intel Alder Lake-N PCH

Storage

ASint AS806, 512 GB

, 420 GB free

Soundcard

Intel Alder Lake-N PCH - cAVS

Connections

2 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 HDMI, 2 DisplayPort, Card Reader: microSD, 2nd Intel Ethernet Controller I226-V (10/2500MBit/s)

Networking

Intel Ethernet Controller I226-V (10/2500MBit/s)

Size

height x width x depth (in mm): 185 x 180 x 228

Operating System

Microsoft Windows 11 Pro

Additional features

120-Watt-Power-Adapter

Weight

3.833 kg, Power Supply: 331 g

Price

449 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

性能 - 强大的 8 核或经济的 4 核

功能更强大的网络存储版本配备了基于 AMD 的 8 核处理器，而便宜的版本只配备了英特尔 N150。因此，在性能方面，这两种型号有着本质的区别，所以在购买之前，你需要问自己一个关键问题：NAS 应该提供什么。

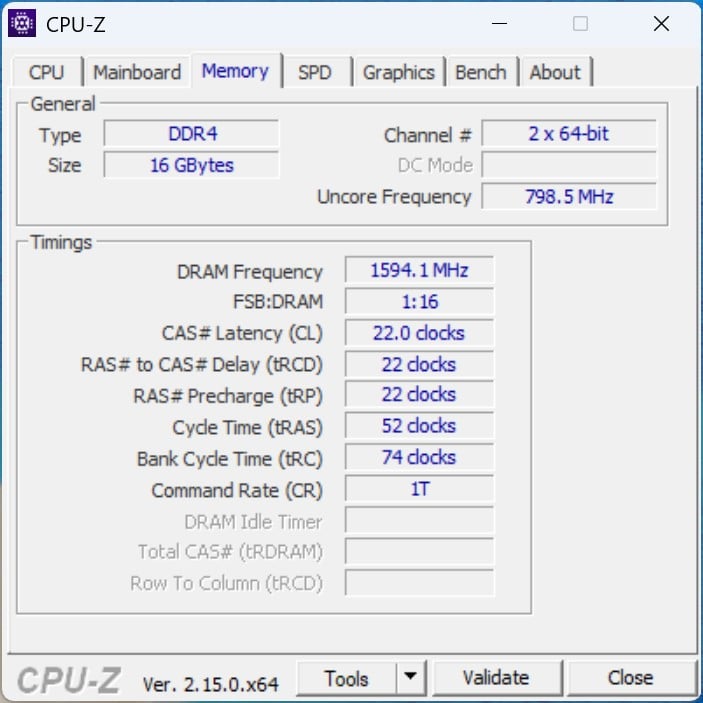

配备 AMD Ryzen 7 5825U 的 Aoostar WTR Pro

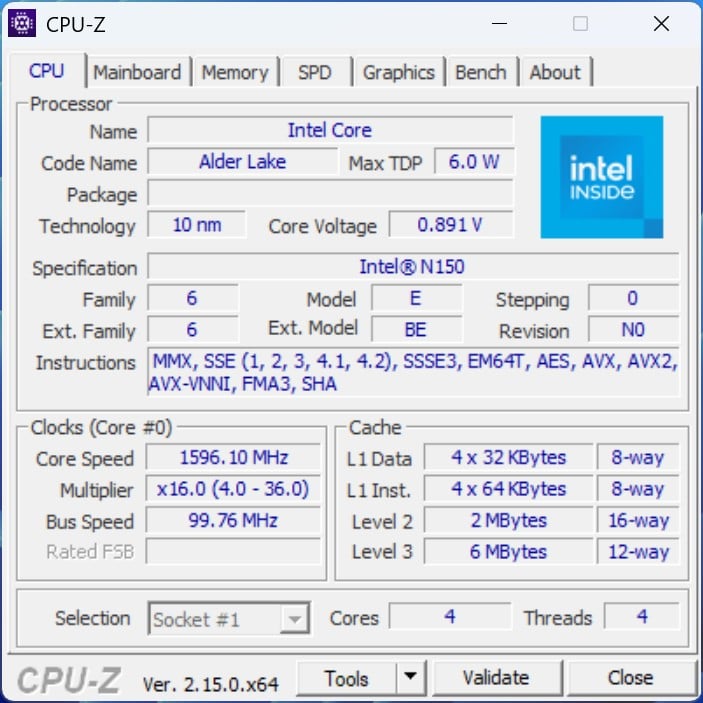

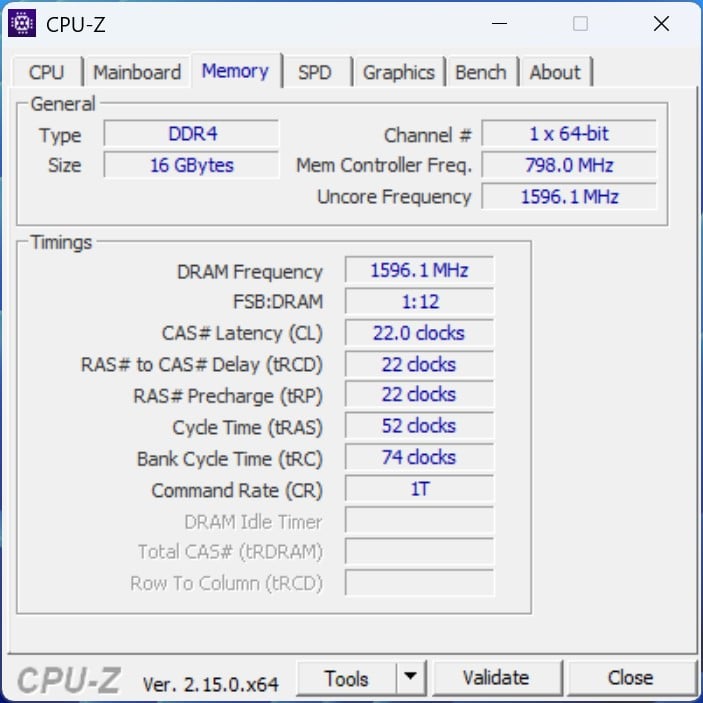

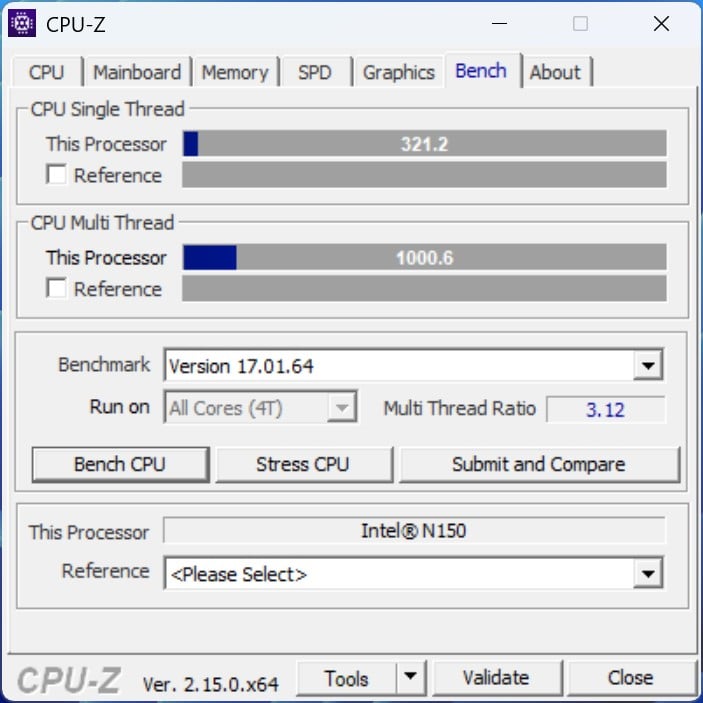

配备英特尔 N150 的 Aoostar WTR Pro

处理器 - AMD 8 核或 Intel 4 核

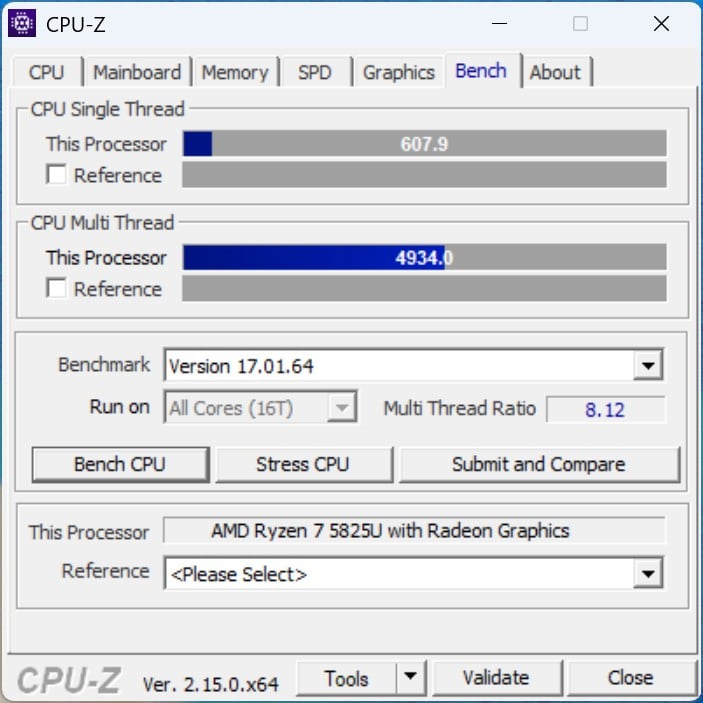

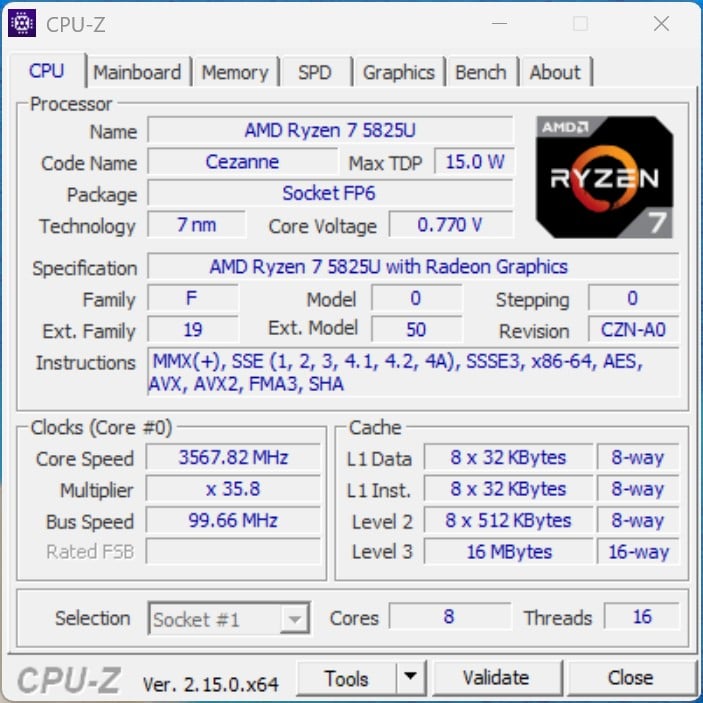

我们测试了两种不同配置的 Aoostar WTR Pro。在价格更高但功能更强大的版本中，安装了 AMD Ryzen 7 5825U，这对于在 NAS 中执行任务来说是个不错的选择。这颗 8 核 SoC 提供了稳定的性能，甚至为在 NAS 上运行各种虚拟机实例提供了足够的储备。便宜的配置只配备了性能较弱的英特尔 N150，从技术上讲，它是基于英特尔 N95 的。从性能评级中可以非常清楚地看出两者之间的差异，这意味着配备英特尔 N150 的 Aoostar WTR Pro 只能执行轻量级任务。

与 Aoostar GEM12与 AMD Ryzen 7 8845HS 的比较，旨在说明与 Aoostar WTR Max 相比在性能上的差异，后者最多可配备 11 个数据载体。

Performance Rating - Percent
Aoostar GEM12 AMD Ryzen 7 8845HS	56.9 pt
Geekom A5 AMD Ryzen 7 5800H	49 pt
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	48.4 pt
Trigkey G4 Intel Processor N100	34.7 pt
Aoostar WTR Pro, N150 Intel Processor N150	31.5 pt

Cinebench 2024
CPU Multi Core
Aoostar GEM12 AMD Ryzen 7 8845HS	933 Points +618%
Geekom A5 AMD Ryzen 7 5800H	618 Points +375%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	577 Points +344%
Trigkey G4 Intel Processor N100	194 Points +49%
Aoostar WTR Pro, N150 Intel Processor N150	130 Points
CPU Single Core
Aoostar GEM12 AMD Ryzen 7 8845HS	107 Points +102%
Geekom A5 AMD Ryzen 7 5800H	86 Points +62%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	86 Points +62%
Trigkey G4 Intel Processor N100	61 Points +15%
Aoostar WTR Pro, N150 Intel Processor N150	53 Points

Cinebench R23
Multi Core
Aoostar GEM12 AMD Ryzen 7 8845HS	16130 Points +700%
Geekom A5 AMD Ryzen 7 5800H	10819 Points +437%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	10103 Points +401%
Trigkey G4 Intel Processor N100	2983 Points +48%
Aoostar WTR Pro, N150 Intel Processor N150	2016 Points
Single Core
Aoostar GEM12 AMD Ryzen 7 8845HS	1783 Points +115%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	1454 Points +76%
Geekom A5 AMD Ryzen 7 5800H	1405 Points +70%
Trigkey G4 Intel Processor N100	942 Points +14%
Aoostar WTR Pro, N150 Intel Processor N150	828 Points

Cinebench R20
CPU (Multi Core)
Aoostar GEM12 AMD Ryzen 7 8845HS	6346 Points +726%
Geekom A5 AMD Ryzen 7 5800H	4229 Points +451%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	3938 Points +413%
Trigkey G4 Intel Processor N100	1138 Points +48%
Aoostar WTR Pro, N150 Intel Processor N150	768 Points
CPU (Single Core)
Aoostar GEM12 AMD Ryzen 7 8845HS	691 Points +121%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	567 Points +81%
Geekom A5 AMD Ryzen 7 5800H	551 Points +76%
Trigkey G4 Intel Processor N100	358 Points +14%
Aoostar WTR Pro, N150 Intel Processor N150	313 Points

Cinebench R15
CPU Multi 64Bit
Aoostar GEM12 AMD Ryzen 7 8845HS	2537 Points +711%
Geekom A5 AMD Ryzen 7 5800H	1773 Points +466%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	1691 Points +440%
Trigkey G4 Intel Processor N100	477 Points +52%
Aoostar WTR Pro, N150 Intel Processor N150	313 Points
CPU Single 64Bit
Aoostar GEM12 AMD Ryzen 7 8845HS	279 Points +108%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	235 Points +75%
Geekom A5 AMD Ryzen 7 5800H	227 Points +69%
Trigkey G4 Intel Processor N100	155 Points +16%
Aoostar WTR Pro, N150 Intel Processor N150	134 Points

Cinebench R11.5
CPU Multi 64Bit
Aoostar GEM12 AMD Ryzen 7 8845HS	29.76 Points +590%
Geekom A5 AMD Ryzen 7 5800H	21.25 Points +393%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	19.72 Points +358%
Trigkey G4 Intel Processor N100	5.99 Points +39%
Aoostar WTR Pro, N150 Intel Processor N150	4.31 Points
CPU Single 64Bit
Aoostar GEM12 AMD Ryzen 7 8845HS	3.32 Points +99%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	2.78 Points +66%
Geekom A5 AMD Ryzen 7 5800H	2.69 Points +61%
Trigkey G4 Intel Processor N100	1.87 Points +12%
Aoostar WTR Pro, N150 Intel Processor N150	1.67 Points

Cinebench R10
Rendering Single CPUs 64Bit
Aoostar GEM12 AMD Ryzen 7 8845HS	14163 Points +95%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	11823 Points +63%
Geekom A5 AMD Ryzen 7 5800H	11378 Points +57%
Trigkey G4 Intel Processor N100	8227 Points +13%
Aoostar WTR Pro, N150 Intel Processor N150	7251 Points
Rendering Multiple CPUs 64Bit
Aoostar GEM12 AMD Ryzen 7 8845HS	85872 Points +403%
Geekom A5 AMD Ryzen 7 5800H	62312 Points +265%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	59300 Points +248%
Trigkey G4 Intel Processor N100	24225 Points +42%
Aoostar WTR Pro, N150 Intel Processor N150	17063 Points

Blender
v2.79 BMW27 CPU
Aoostar WTR Pro, N150 Intel Processor N150	1374 Seconds *
Trigkey G4 Intel Processor N100	1017 Seconds * +26%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	297 Seconds * +78%
Geekom A5 AMD Ryzen 7 5800H	293 Seconds * +79%
Aoostar GEM12 AMD Ryzen 7 8845HS	197 Seconds * +86%
v3.3 Classroom CPU
Aoostar WTR Pro, N150 Intel Processor N150	2707 Seconds *
Trigkey G4 Intel Processor N100	1992 Seconds * +26%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	555 Seconds * +79%
Geekom A5 AMD Ryzen 7 5800H	513 Seconds * +81%
Aoostar GEM12 AMD Ryzen 7 8845HS	320 Seconds * +88%

wPrime 2.10
32m
Aoostar WTR Pro, N150 Intel Processor N150	30.658 s *
Trigkey G4 Intel Processor N100	15.795 s * +48%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	4.018 s * +87%
Geekom A5 AMD Ryzen 7 5800H	3.93 s * +87%
Aoostar GEM12 AMD Ryzen 7 8845HS	2.703 s * +91%
1024m
Aoostar WTR Pro, N150 Intel Processor N150	1021.518 s *
Trigkey G4 Intel Processor N100	481.652 s * +53%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	116.561 s * +89%
Geekom A5 AMD Ryzen 7 5800H	111.714 s * +89%
Aoostar GEM12 AMD Ryzen 7 8845HS	98.896 s * +90%

X264 HD Benchmark 4.0
Pass 1
Aoostar GEM12 AMD Ryzen 7 8845HS	289 (286^min - 292^max) fps +141%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	251.5 (250^min - 259^max) fps +110%
Geekom A5 AMD Ryzen 7 5800H	244 (242^min - 246^max) fps +104%
Trigkey G4 Intel Processor N100	172.55 (171.6^min - 175.2^max) fps +44%
Aoostar WTR Pro, N150 Intel Processor N150	119.8 (118.8^min - 120.9^max) fps
Pass 2
Aoostar GEM12 AMD Ryzen 7 8845HS	143.7 (143^min - 145.2^max) fps +490%
Geekom A5 AMD Ryzen 7 5800H	104.65 (104.1^min - 106.9^max) fps +330%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	98.05 (97.8^min - 98.4^max) fps +303%
Trigkey G4 Intel Processor N100	33.85 (33.7^min - 35^max) fps +39%
Aoostar WTR Pro, N150 Intel Processor N150	24.35 (24.3^min - 24.5^max) fps

WinRAR - Result
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	7439 KB/s +291%
Aoostar GEM12 AMD Ryzen 7 8845HS	7327 KB/s +285%
Geekom A5 AMD Ryzen 7 5800H	7042 KB/s +270%
Trigkey G4 Intel Processor N100	2431 KB/s +28%
Aoostar WTR Pro, N150 Intel Processor N150	1901 KB/s

TrueCrypt
AES Mean 100MB
Aoostar GEM12 AMD Ryzen 7 8845HS	14.4 GB/s +620%
Geekom A5 AMD Ryzen 7 5800H	11.5 GB/s +475%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	11 GB/s +450%
Trigkey G4 Intel Processor N100	2.9 GB/s +45%
Aoostar WTR Pro, N150 Intel Processor N150	2 GB/s
Twofish Mean 100MB
Aoostar GEM12 AMD Ryzen 7 8845HS	2 GB/s +391%
Geekom A5 AMD Ryzen 7 5800H	1.6 GB/s +293%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	1.4 GB/s +244%
Trigkey G4 Intel Processor N100	0.538 GB/s +32%
Aoostar WTR Pro, N150 Intel Processor N150	0.407 GB/s
Serpent Mean 100MB
Aoostar GEM12 AMD Ryzen 7 8845HS	1.3 GB/s +499%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	1.1 GB/s +407%
Geekom A5 AMD Ryzen 7 5800H	1 GB/s +361%
Trigkey G4 Intel Processor N100	0.262 GB/s +21%
Aoostar WTR Pro, N150 Intel Processor N150	0.217 GB/s

Geekbench 5.5
Multi-Core
Aoostar GEM12 AMD Ryzen 7 8845HS	12143 Points +486%
Geekom A5 AMD Ryzen 7 5800H	8823 Points +326%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	8330 Points +302%
Trigkey G4 Intel Processor N100	2796 Points +35%
Aoostar WTR Pro, N150 Intel Processor N150	2072 Points
Single-Core
Aoostar GEM12 AMD Ryzen 7 8845HS	1958 Points +112%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	1520 Points +65%
Geekom A5 AMD Ryzen 7 5800H	1494 Points +62%
Trigkey G4 Intel Processor N100	1014 Points +10%
Aoostar WTR Pro, N150 Intel Processor N150	924 Points

Geekbench 5.0
5.0 Multi-Core
Aoostar GEM12 AMD Ryzen 7 8845HS	12086 Points +481%
Geekom A5 AMD Ryzen 7 5800H	8568 Points +312%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	8264 Points +297%
Trigkey G4 Intel Processor N100	2753 Points +32%
Aoostar WTR Pro, N150 Intel Processor N150	2079 Points
5.0 Single-Core
Aoostar GEM12 AMD Ryzen 7 8845HS	1900 Points +109%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	1447 Points +60%
Geekom A5 AMD Ryzen 7 5800H	1421 Points +57%
Trigkey G4 Intel Processor N100	1008 Points +11%
Aoostar WTR Pro, N150 Intel Processor N150	907 Points

Geekbench 4.4
64 Bit Multi-Core Score
Aoostar GEM12 AMD Ryzen 7 8845HS	47777 Points +434%
Geekom A5 AMD Ryzen 7 5800H	34200 Points +282%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	33719 Points +277%
Trigkey G4 Intel Processor N100	10938 Points +22%
Aoostar WTR Pro, N150 Intel Processor N150	8942 Points
64 Bit Single-Core Score
Aoostar GEM12 AMD Ryzen 7 8845HS	8034 Points +77%
Geekom A5 AMD Ryzen 7 5800H	6295 Points +39%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	6279 Points +39%
Aoostar WTR Pro, N150 Intel Processor N150	4527 Points
Trigkey G4 Intel Processor N100	4518 Points 0%

3DMark 11 - 1280x720 Performance Physics
Aoostar GEM12 AMD Ryzen 7 8845HS	21762 Points +393%
Geekom A5 AMD Ryzen 7 5800H	16933 Points +283%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	15153 Points +243%
Trigkey G4 Intel Processor N100	6129 Points +39%
Aoostar WTR Pro, N150 Intel Processor N150	4416 Points

7-Zip 18.03
7z b 4
Aoostar GEM12 AMD Ryzen 7 8845HS	70733 MIPS +634%
Geekom A5 AMD Ryzen 7 5800H	53954 MIPS +460%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	50524 MIPS +424%
Trigkey G4 Intel Processor N100	13255 MIPS +38%
Aoostar WTR Pro, N150 Intel Processor N150	9639 MIPS
7z b 4 -mmt1
Aoostar GEM12 AMD Ryzen 7 8845HS	6644 MIPS +85%
Geekom A5 AMD Ryzen 7 5800H	5486 MIPS +53%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	5383 MIPS +50%
Trigkey G4 Intel Processor N100	3908 MIPS +9%
Aoostar WTR Pro, N150 Intel Processor N150	3590 MIPS

HWBOT x265 Benchmark v2.2 - 4k Preset
Aoostar GEM12 AMD Ryzen 7 8845HS	20.5 fps +744%
Geekom A5 AMD Ryzen 7 5800H	13.3 fps +447%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	12.1 fps +398%
Trigkey G4 Intel Processor N100	3.49 fps +44%
Aoostar WTR Pro, N150 Intel Processor N150	2.43 fps

R Benchmark 2.5 - Overall mean
Aoostar WTR Pro, N150 Intel Processor N150	0.957 sec *
Trigkey G4 Intel Processor N100	0.824 sec * +14%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	0.524 sec * +45%
Geekom A5 AMD Ryzen 7 5800H	0.523 sec * +45%
Aoostar GEM12 AMD Ryzen 7 8845HS	0.4392 sec * +54%

LibreOffice - 20 Documents To PDF
Aoostar WTR Pro, N150 Intel Processor N150	106.6 s *
Trigkey G4 Intel Processor N100	67 s * +37%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	58.5 s * +45%
Geekom A5 AMD Ryzen 7 5800H	54.3 s * +49%
Aoostar GEM12 AMD Ryzen 7 8845HS	47.5 s * +55%

WebXPRT 3 - Overall
Aoostar GEM12 AMD Ryzen 7 8845HS	300 Points +106%
Geekom A5 AMD Ryzen 7 5800H	269 Points +85%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	254 Points +75%
Trigkey G4 Intel Processor N100	187.4 Points +29%
Aoostar WTR Pro, N150 Intel Processor N150	145.3 Points

Mozilla Kraken 1.1 - Total
Aoostar WTR Pro, N150 Intel Processor N150	1186 ms *
Trigkey G4 Intel Processor N100	1004 ms * +15%
Geekom A5 AMD Ryzen 7 5800H	653 ms * +45%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	619 ms * +48%
Aoostar GEM12 AMD Ryzen 7 8845HS	517 ms * +56%

3DMark
1920x1080 Fire Strike Physics
Aoostar GEM12 AMD Ryzen 7 8845HS	26194 Points +404%
Geekom A5 AMD Ryzen 7 5800H	22433 Points +331%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	19952 Points +284%
Trigkey G4 Intel Processor N100	6522 Points +25%
Aoostar WTR Pro, N150 Intel Processor N150	5201 Points
2560x1440 Time Spy CPU
Aoostar GEM12 AMD Ryzen 7 8845HS	10824 Points +535%
Geekom A5 AMD Ryzen 7 5800H	8481 Points +398%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	7124 Points +318%
Trigkey G4 Intel Processor N100	2516 Points +48%
Aoostar WTR Pro, N150 Intel Processor N150	1704 Points

Super Pi mod 1.5 XS 1M - 1M
Aoostar WTR Pro, N150 Intel Processor N150	19.293 s *
Trigkey G4 Intel Processor N100	19.264 s * -0%
Geekom A5 AMD Ryzen 7 5800H	9.415 s * +51%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	7.912 s * +59%
Aoostar GEM12 AMD Ryzen 7 8845HS	7.331 s * +62%

Super Pi mod 1.5 XS 2M - 2M
Aoostar WTR Pro, N150 Intel Processor N150	40.809 s *
Trigkey G4 Intel Processor N100	40.386 s * +1%
Geekom A5 AMD Ryzen 7 5800H	20.257 s * +50%
Aoostar GEM12 AMD Ryzen 7 8845HS	18.138 s * +56%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U	17.124 s * +58%

* ... smaller is better

Performance Rating
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	97.9 pt
Geekom A5 AMD Ryzen 7 5800H, Vega 8	67.7 pt
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	61 pt
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	12.3 pt
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	6 pt

AIDA64 / FP32 Ray-Trace
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	25916 KRay/s +1366%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	12468 KRay/s +605%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	12123 KRay/s +586%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	1768 KRay/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s -53%

AIDA64 / FPU Julia
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	109747 Points +1118%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	77847 Points +764%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	76475 Points +749%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	9008 Points
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4397 Points -51%

AIDA64 / CPU SHA3
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	4695 MB/s +704%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	2707 MB/s +364%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	2536 MB/s +334%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	584 MB/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	308 MB/s -47%

AIDA64 / CPU Queen
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	116083 Points +466%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	93569 Points +356%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	91846 Points +348%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	20501 Points
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8663 Points -58%

AIDA64 / FPU SinJulia
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	14876 Points +1231%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	11222 Points +904%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	10972 Points +881%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	1118 Points
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	432 Points -61%

AIDA64 / FPU Mandel
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	58597 Points +1194%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	42543 Points +840%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	42201 Points +832%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	4528 Points
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2220 Points -51%

AIDA64 / CPU AES
Geekom A5 AMD Ryzen 7 5800H, Vega 8	108262 MB/s +983%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	85572 MB/s +756%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	51153 MB/s +412%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	9998 MB/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8421 MB/s -16%

AIDA64 / CPU ZLib
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	1048 MB/s +509%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	700 MB/s +307%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	674 MB/s +291%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	172.2 MB/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	81.9 MB/s -52%

AIDA64 / FP64 Ray-Trace
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	13875 KRay/s +1359%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	6380 KRay/s +571%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	6329 KRay/s +566%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	951 KRay/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s -51%

AIDA64 / CPU PhotoWorxx
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	40245 MPixel/s +230%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	25113 MPixel/s +106%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	21703 MPixel/s +78%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	12201 MPixel/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	5384 MPixel/s -56%

系统性能

两个 NAS 系统的总体系统性能有本质区别。两个 NAS 系统中性能较弱的只能执行最简单的任务。以 Windows 为基础还能确保一定的基本负载，而这往往会让性能较弱的英特尔 N150 很快超负荷。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	7431 Points +175%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	6149 Points +127%
Aoostar WTR Pro, R7 5825U, AMD Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), ASint AS806	5551 Points +105%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	3207 Points +19%
Aoostar WTR Pro, N150, Intel Processor N150 Intel UHD Graphics 24EUs (Alder Lake-N), ASint AS806	2706 Points

PCMark 10 / Essentials
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	10822 Points +87%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	10356 Points +79%
Aoostar WTR Pro, R7 5825U, AMD Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), ASint AS806	9969 Points +72%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	7123 Points +23%
Aoostar WTR Pro, N150, Intel Processor N150 Intel UHD Graphics 24EUs (Alder Lake-N), ASint AS806	5796 Points

PCMark 10 / Productivity
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	10482 Points +138%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	9311 Points +112%
Aoostar WTR Pro, R7 5825U, AMD Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), ASint AS806	7818 Points +78%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	5033 Points +14%
Aoostar WTR Pro, N150, Intel Processor N150 Intel UHD Graphics 24EUs (Alder Lake-N), ASint AS806	4398 Points

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1939 Points +173%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1429 Points +101%
Aoostar WTR Pro, R7 5825U, AMD Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), ASint AS806	1387 Points +95%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	735 Points +4%
Aoostar WTR Pro, N150, Intel Processor N150 Intel UHD Graphics 24EUs (Alder Lake-N), ASint AS806	710 Points

CrossMark / Responsiveness
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1849 Points +159%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1233 Points +73%
Aoostar WTR Pro, R7 5825U, AMD Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), ASint AS806	1159 Points +63%
Aoostar WTR Pro, N150, Intel Processor N150 Intel UHD Graphics 24EUs (Alder Lake-N), ASint AS806	713 Points
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	710 Points 0%

CrossMark / Creativity
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	2040 Points +220%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1523 Points +139%
Aoostar WTR Pro, R7 5825U, AMD Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), ASint AS806	1471 Points +131%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	676 Points +6%
Aoostar WTR Pro, N150, Intel Processor N150 Intel UHD Graphics 24EUs (Alder Lake-N), ASint AS806	637 Points

CrossMark / Productivity
Aoostar GEM12, AMD Ryzen 7 8845HS AMD Radeon 780M, Crucial P3 Plus CT1000P3PSSD8	1872 Points +137%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1408 Points +78%
Aoostar WTR Pro, R7 5825U, AMD Ryzen 7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), ASint AS806	1389 Points +76%
Trigkey G4, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N),	808 Points +2%
Aoostar WTR Pro, N150, Intel Processor N150 Intel UHD Graphics 24EUs (Alder Lake-N), ASint AS806	790 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	67777 MB/s +200%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	43870 MB/s +94%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	39086 MB/s +73%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	22582 MB/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8377 MB/s -63%

AIDA64 / Memory Read
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	61006 MB/s +176%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46241 MB/s +110%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	40789 MB/s +85%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	22068 MB/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8974 MB/s -59%

AIDA64 / Memory Write
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	86677 MB/s +281%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46407 MB/s +104%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	42007 MB/s +85%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	22738 MB/s
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8762 MB/s -61%

AIDA64 / Memory Latency
Trigkey G4 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	120.6 ns * -140%
Aoostar WTR Pro, R7 5825U AMD Ryzen 7 5825U, Vega 8	97 ns * -93%
Aoostar GEM12 AMD Ryzen 7 8845HS, Radeon 780M	88.6 ns * -76%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	81.4 ns * -62%
Aoostar WTR Pro, N150 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	50.2 ns *

* ... smaller is better

存储设备

两款 Aoostar WTR Pro 系统都配备了相同的大容量存储设备，其中包含操作系统。不知名的 ASint AS806 型号是一个简单的固态硬盘，存储空间为 512 GB，工作速度也是 PCIe 3.0 x4。在我们的测试中，大容量存储没有出现任何问题。配备 AMD Ryzen 7 5825U 的 Aoostar WTR Pro 还提供安装额外 M.2 固态硬盘的选项。

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	95.2 pt
Average of class Mini PC	53.5 pt
Geekom A5 Lexar NM620 512GB	50.7 pt
Aoostar WTR Pro, R7 5825U ASint AS806	45.2 pt
Aoostar WTR Pro, N150 ASint AS806	26.7 pt
Trigkey G4	23.1 pt

DiskSpd
seq read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3108 (3065.99^min - 3107.56^max) MB/s +143%
Average of class Mini PC (413 - 4357, n=110, last 2 years)	2407 MB/s +88%
Geekom A5 Lexar NM620 512GB	2371 (2315.68^min - 2370.91^max) MB/s +86%
Aoostar WTR Pro, R7 5825U ASint AS806	2288 (2265.64^min - 2288.03^max) MB/s +79%
Aoostar WTR Pro, N150 ASint AS806	1277 (1249.06^min - 1276.5^max) MB/s
Trigkey G4	729 (705.12^min - 729.18^max) MB/s -43%
seq write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4619 (4584.79^min - 4619.39^max) MB/s +245%
Average of class Mini PC (259 - 5595, n=110, last 2 years)	2696 MB/s +101%
Geekom A5 Lexar NM620 512GB	2668 (292.6^min - 2668^max) MB/s +99%
Aoostar WTR Pro, R7 5825U ASint AS806	2505 (2395.37^min - 2505.05^max) MB/s +87%
Aoostar WTR Pro, N150 ASint AS806	1338 (1320.03^min - 1338.14^max) MB/s
Trigkey G4	339 (329.88^min - 338.64^max) MB/s -75%
seq q8 t1 read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	5213 (4500.71^min - 5212.95^max) MB/s +195%
Average of class Mini PC (397 - 8430, n=110, last 2 years)	3963 MB/s +124%
Geekom A5 Lexar NM620 512GB	3444 (2979.63^min - 3443.98^max) MB/s +95%
Aoostar WTR Pro, R7 5825U ASint AS806	3204 (2781.76^min - 3203.7^max) MB/s +81%
Aoostar WTR Pro, N150 ASint AS806	1767 (1573.07^min - 1767.3^max) MB/s
Trigkey G4	864 (619.52^min - 864.45^max) MB/s -51%
seq q8 t1 write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4754 (4738.27^min - 4754.03^max) MB/s +183%
Geekom A5 Lexar NM620 512GB	3117 (3075.4^min - 3117.21^max) MB/s +85%
Aoostar WTR Pro, R7 5825U ASint AS806	3047 (2974.18^min - 3046.53^max) MB/s +81%
Average of class Mini PC (271 - 6669, n=110, last 2 years)	3036 MB/s +80%
Aoostar WTR Pro, N150 ASint AS806	1682 (1671.86^min - 1681.7^max) MB/s
Trigkey G4	346 (322.53^min - 346.45^max) MB/s -79%
4k q1 t1 read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	78.7 (78.09^min - 78.69^max) MB/s +86%
Average of class Mini PC (6.85 - 87.3, n=110, last 2 years)	56.1 MB/s +33%
Geekom A5 Lexar NM620 512GB	54.5 (37.15^min - 54.54^max) MB/s +29%
Aoostar WTR Pro, N150 ASint AS806	42.2 (38.45^min - 42.17^max) MB/s
Aoostar WTR Pro, R7 5825U ASint AS806	35.8 (35.59^min - 35.84^max) MB/s -15%
Trigkey G4	8.85 (2.72^min - 8.85^max) MB/s -79%
4k q1 t1 write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	274 (271.38^min - 273.89^max) MB/s +200%
Average of class Mini PC (40.4 - 435, n=110, last 2 years)	194.9 MB/s +113%
Geekom A5 Lexar NM620 512GB	148.4 (147.43^min - 148.38^max) MB/s +62%
Trigkey G4	128.4 (124.08^min - 128.36^max) MB/s +40%
Aoostar WTR Pro, R7 5825U ASint AS806	123.1 (122.04^min - 123.09^max) MB/s +35%
Aoostar WTR Pro, N150 ASint AS806	91.4 (87.04^min - 91.44^max) MB/s
4k q32 t16 read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3197 (3174.44^min - 3196.85^max) MB/s +358%
Geekom A5 Lexar NM620 512GB	1960 MB/s +181%
Average of class Mini PC (102.3 - 4158, n=110, last 2 years)	1469 MB/s +110%
Aoostar WTR Pro, R7 5825U ASint AS806	1383 (1380.72^min - 1382.79^max) MB/s +98%
Aoostar WTR Pro, N150 ASint AS806	698 (667.65^min - 698.09^max) MB/s
Trigkey G4	581 (553.76^min - 581.49^max) MB/s -17%
4k q32 t16 write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3639 (3534.46^min - 3639.09^max) MB/s +534%
Aoostar WTR Pro, R7 5825U ASint AS806	1520 (769.14^min - 1519.53^max) MB/s +165%
Average of class Mini PC (70.3 - 4288, n=110, last 2 years)	1382 MB/s +141%
Geekom A5 Lexar NM620 512GB	1370 (84.65^min - 1370.23^max) MB/s +139%
Aoostar WTR Pro, N150 ASint AS806	574 (570.12^min - 574.4^max) MB/s
Trigkey G4	70.3 (60.61^min - 70.32^max) MB/s -88%

AS SSD
Score Total
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	10021 Points +456%
Average of class Mini PC (507 - 10021, n=109, last 2 years)	4329 Points +140%
Geekom A5 Lexar NM620 512GB	4006 Points +122%
Aoostar WTR Pro, R7 5825U ASint AS806	3770 Points +109%
Trigkey G4	1857 Points +3%
Aoostar WTR Pro, N150 ASint AS806	1803 Points
Score Read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3741 Points +387%
Average of class Mini PC (172 - 3741, n=109, last 2 years)	1574 Points +105%
Geekom A5 Lexar NM620 512GB	1502 Points +96%
Aoostar WTR Pro, R7 5825U ASint AS806	1372 Points +79%
Trigkey G4	934 Points +22%
Aoostar WTR Pro, N150 ASint AS806	768 Points
Score Write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4371 Points +593%
Average of class Mini PC (210 - 4371, n=109, last 2 years)	1981 Points +214%
Geekom A5 Lexar NM620 512GB	1739 Points +176%
Aoostar WTR Pro, R7 5825U ASint AS806	1686 Points +167%
Aoostar WTR Pro, N150 ASint AS806	631 Points
Trigkey G4	458 Points -27%
Seq Read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4317 MB/s +205%
Average of class Mini PC (483 - 6620, n=109, last 2 years)	3267 MB/s +131%
Geekom A5 Lexar NM620 512GB	3020 MB/s +113%
Aoostar WTR Pro, R7 5825U ASint AS806	2697 MB/s +90%
Aoostar WTR Pro, N150 ASint AS806	1417 MB/s
Trigkey G4	794 MB/s -44%
Seq Write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	4188 MB/s +202%
Geekom A5 Lexar NM620 512GB	2714 MB/s +96%
Aoostar WTR Pro, R7 5825U ASint AS806	2688 MB/s +94%
Average of class Mini PC (277 - 5783, n=109, last 2 years)	2429 MB/s +75%
Aoostar WTR Pro, N150 ASint AS806	1387 MB/s
Trigkey G4	326 MB/s -76%
4K Read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	89.3 MB/s +102%
Average of class Mini PC (18.2 - 104.3, n=109, last 2 years)	59 MB/s +34%
Geekom A5 Lexar NM620 512GB	57.7 MB/s +31%
Aoostar WTR Pro, R7 5825U ASint AS806	51.2 MB/s +16%
Trigkey G4	44.4 MB/s +1%
Aoostar WTR Pro, N150 ASint AS806	44.1 MB/s
4K Write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	221 MB/s +190%
Average of class Mini PC (40.8 - 366, n=109, last 2 years)	175.7 MB/s +131%
Geekom A5 Lexar NM620 512GB	125.5 MB/s +65%
Trigkey G4	113.5 MB/s +49%
Aoostar WTR Pro, R7 5825U ASint AS806	110.3 MB/s +45%
Aoostar WTR Pro, N150 ASint AS806	76.1 MB/s
4K-64 Read
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3220 MB/s +453%
Average of class Mini PC (94.3 - 3220, n=109, last 2 years)	1188 MB/s +104%
Geekom A5 Lexar NM620 512GB	1143 MB/s +96%
Aoostar WTR Pro, R7 5825U ASint AS806	1051 MB/s +81%
Trigkey G4	810 MB/s +39%
Aoostar WTR Pro, N150 ASint AS806	582 MB/s
4K-64 Write
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	3731 MB/s +797%
Average of class Mini PC (96.3 - 3731, n=109, last 2 years)	1562 MB/s +275%
Geekom A5 Lexar NM620 512GB	1342 MB/s +223%
Aoostar WTR Pro, R7 5825U ASint AS806	1307 MB/s +214%
Aoostar WTR Pro, N150 ASint AS806	416 MB/s
Trigkey G4	312 MB/s -25%
Access Time Read
Average of class Mini PC (0.025 - 0.288, n=109, last 2 years)	0.09572 ms * -14%
Aoostar WTR Pro, R7 5825U ASint AS806	0.09 ms * -7%
Aoostar WTR Pro, N150 ASint AS806	0.084 ms *
Geekom A5 Lexar NM620 512GB	0.08 ms * +5%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	0.076 ms * +10%
Trigkey G4	0.064 ms * +24%
Access Time Write
Aoostar WTR Pro, N150 ASint AS806	0.146 ms *
Aoostar WTR Pro, R7 5825U ASint AS806	0.133 ms * +9%
Geekom A5 Lexar NM620 512GB	0.13 ms * +11%
Average of class Mini PC (0.014 - 0.706, n=109, last 2 years)	0.109 ms * +25%
Trigkey G4	0.061 ms * +58%
Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8	0.017 ms * +88%

* ... smaller is better

Sustained reads: DiskSpd Read Loop, Queue Depth 8

Aoostar WTR Pro, N150 ASint AS806; diskspd 2.0.17 f: Ø1759 (1565.31-1766.67)

Aoostar WTR Pro, R7 5825U ASint AS806; diskspd 2.0.17 f: Ø1887 (1755.53-3199.52)

Trigkey G4 : Ø839 (658.14-865.55)

Geekom A5 Lexar NM620 512GB: Ø3437 (3126.47-3454.22)

Aoostar GEM12 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø5121 (4152.57-5218.34)

图形处理器性能

两款 Aoostar WTR Pro 的 3D 性能非常低。即使是 AMD Radeon RX Vega 8 也赶不上当前系统中更强大的 iGPU。而只能用于简单图像输出的英特尔UHD Graphics 24EU 更是明显较弱。

Performance Rating - Percent
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	100 pt
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	59.9 pt
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	50.3 pt
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	23.2 pt
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	19.4 pt

3DMark
1920x1080 Fire Strike Graphics
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	8007 Points +458%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4567 Points +218%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	4139 Points +189%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1434 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1184 Points -17%
1280x720 Ice Storm Standard Graphics
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	221079 Points +285%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	172114 Points +200%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	123621 Points +115%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	57451 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	48252 Points -16%
1920x1080 Ice Storm Extreme Graphics
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	173295 Points +350%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	134315 Points +248%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	104719 Points +172%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	38552 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	32229 Points -16%
1280x720 Sky Diver Graphics
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	26420 Points +441%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	14496 Points +197%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	13004 Points +166%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	4888 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	3841 Points -21%

3DMark 11 - 1280x720 Performance GPU
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	13410 Points +599%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7101 Points +270%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	6768 Points +253%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1919 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1492 Points -22%

Unigine Heaven 4.0
Extreme Preset OpenGL
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	34.6 fps +322%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	22.8 fps +178%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	15.2 fps +85%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	8.2 fps
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6.9 fps -16%
Extreme Preset DX11
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	36.3 fps +348%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	22 fps +172%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	16.2 fps +100%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	8.1 fps
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.2 fps -11%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	24.5 fps +380%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	14.2 fps +178%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	11.8 fps +131%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	5.1 fps
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	4.6 fps -10%
1920x1080 Extreme HD Preset OpenGL AA:x8
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	21 fps +275%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	14.7 fps +163%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	12 fps +114%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	5.6 fps
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	5.1 fps -9%

Unigine Superposition
1280x720 720p Low
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	12174 Points +407%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7952 Points +231%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	5581 Points +133%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	2400 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2141 Points -11%
1920x1080 1080p High
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	3592 Points +478%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1949 Points +214%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	1522 Points +145%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	621 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	500 Points -19%
1920x1080 1080p Extreme
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	1737 Points +558%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	914 Points +246%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	754 Points +186%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	264 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	218 Points -17%

ComputeMark v2.1
1024x600 Normal, Score
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	9494 Points +1084%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4020 Points +401%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	3862 Points +382%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	802 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	638 Points -20%
1024x600 Normal, Fluid 3DTex
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	483 Points +255%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	296 Points +118%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	241 Points +77%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	136 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	122 Points -10%
1024x600 Normal, Fluid 2DTexArr
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	481 Points +322%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	280 Points +146%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	239 Points +110%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	114 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	109 Points -4%
1024x600 Normal, Mandel Vector
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	2477 Points +1585%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1236 Points +741%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	1210 Points +723%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	147 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	120 Points -18%
1024x600 Normal, Mandel Scalar
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	2519 Points +1614%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1062 Points +622%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	1044 Points +610%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	147 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	101 Points -31%
1024x600 Normal, QJuliaRayTrace
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	3535 Points +1270%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1145 Points +344%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	1127 Points +337%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	258 Points
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	186 Points -28%

LuxMark v2.0 64Bit
Room GPUs-only
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	801 Samples/s +235%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	760 Samples/s +218%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	596 Samples/s +149%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	586 Samples/s +145%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	239 Samples/s
Sala GPUs-only
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	1496 Samples/s +190%
Trigkey G4 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1386 Samples/s +169%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1383 Samples/s +168%
Aoostar WTR Pro, R7 5825U AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5825U	1141 Samples/s +121%
Aoostar WTR Pro, N150 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	516 Samples/s

排放--房屋是一个共鸣体

噪音排放

Aoostar WTR Pro 的噪音排放因硬件和硬盘而异。英特尔 N150 机型在满载时比 Ryzen 7 机型更安静，而 Ryzen 7 机型在空载时也略微安静一些。噪音水平是在不使用硬盘的情况下测定的。机械硬盘会明显增加噪音水平，具体取决于硬盘的数量和型号。

Aoostar WTR Pro - AMD Ryzen 7 5825U

Noise Level

Idle		37 / 37.3 / 37.8 dB(A)
Load		41.5 / 42.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 23.8 dB(A)

Aoostar WTR Pro - Intel N150

Noise Level

Idle		37.6 / 38 / 38 dB(A)
Load		38 / 38.3 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 23.8 dB(A)

温度

我们在两个 NAS 系统中都没有看到过高的温度。即使为 Ryzen 7 提供了更大的功率，SoC 也始终保持低温。两款 Aoostar WTR Pro 系统的功率限制都非常保守，这意味着生产商会放弃一些性能。

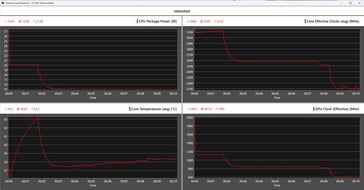

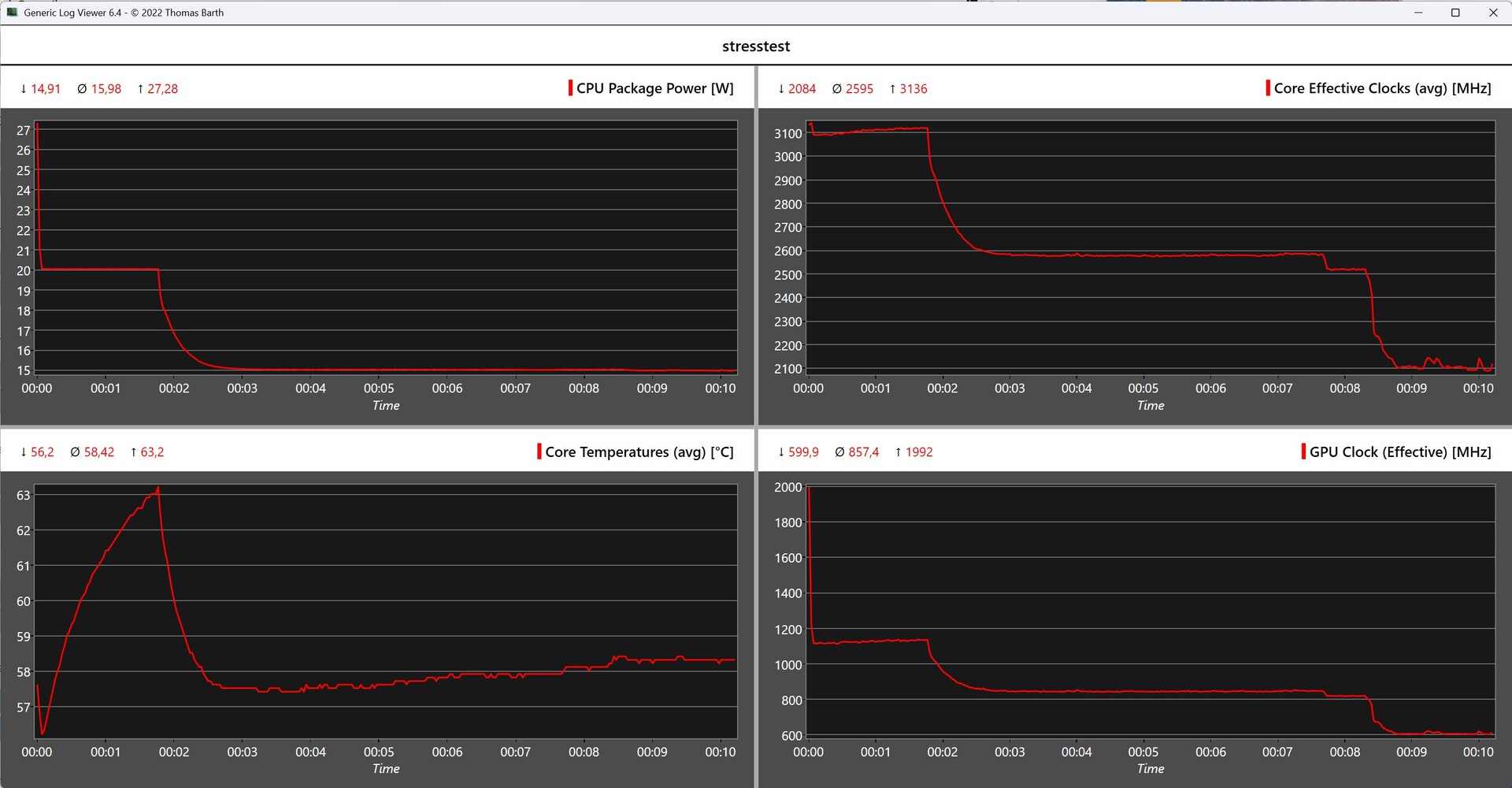

Aoostar WTR Pro - AMD Ryzen 7 5825U 压力测试

能源管理

Aoostar WTR Pro 的功耗设计高效、稳定。两种型号都采用了保守的功耗限制，这略微限制了性能，但保持了较低的温度。英特尔 N150 型号特别经济，适合在功耗极低的情况下连续运行。AMD Ryzen 7 5825U 变体在负载情况下所需的能耗要高得多。两款系统都支持硬盘自动关机，以进一步优化功耗。在这两种情况下，都由一个 120 瓦的外置电源装置提供电源。

Aoostar WTR Pro - AMD Ryzen 7 5825U

Power Consumption

Off / Standby	1.2 / 1.47 Watt
Idle	5.5 / 8.7 / 13 Watt
Load	46.2 / 67.5 Watt


Key: min: , med: , max: Metrahit Energy

Aoostar WTR Pro - Intel N150

Power Consumption

Off / Standby	2.1 / 2.5 Watt
Idle	9.3 / 14.3 / 18.7 Watt
Load	24.6 / 27.9 Watt


Key: min: , med: , max: Metrahit Energy

Power consumption - external monitor

Aoostar WTR Pro, N150 Processor N150, UHD Graphics 24EUs (Alder Lake-N); Idle 1min (external Monitor): Ø14.3 (9.34-18.7)

Aoostar WTR Pro, R7 5825U R7 5825U, Vega 8; Idle 1min (external Monitor): Ø8.73 (5.48-13)

Aoostar WTR Pro, N150 Processor N150, UHD Graphics 24EUs (Alder Lake-N); 1280x720 Prime95 28.10 and Furmark 1.25: Ø24.9 (24.4-25.5)

Aoostar WTR Pro, R7 5825U R7 5825U, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø44.3 (40.8-64.4)

Aoostar WTR Pro, N150 Processor N150, UHD Graphics 24EUs (Alder Lake-N); 3DMark06 Return To Proxycon: Ø24.6 (23.6-25.8)

Aoostar WTR Pro, R7 5825U R7 5825U, Vega 8; 3DMark06 Return To Proxycon: Ø46.2 (37.2-56.5)

Power consumption - external monitor

Aoostar WTR Pro, R7 5825U R7 5825U, Vega 8; Prime95 V2810 Stress (external Monitor): Ø42.6 (37.6-67.5)

Aoostar WTR Pro, N150 Processor N150, UHD Graphics 24EUs (Alder Lake-N); Cinebench R15 Multi (external Monitor): Ø24.1 (23.5-27.9)

Aoostar WTR Pro, R7 5825U R7 5825U, Vega 8; Cinebench R15 Multi (external Monitor): Ø50.3 (45.6-65.2)

Aoostar WTR Pro, N150 Processor N150, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Single (external Monitor): Ø23.1 (21.8-25.1)

Aoostar WTR Pro, R7 5825U R7 5825U, Vega 8; Cinebench R23 Single (external Monitor): Ø28.8 (26.1-57.4)

Aoostar WTR Pro, N150 Processor N150, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Multi (external Monitor): Ø23.2 (22.3-24.4)

Aoostar WTR Pro, R7 5825U R7 5825U, Vega 8; Cinebench R23 Multi (external Monitor): Ø46.9 (45.1-65)

Aoostar WTR Pro, N150 Processor N150, UHD Graphics 24EUs (Alder Lake-N); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø24.3 (23.6-25.9)

Aoostar WTR Pro, R7 5825U R7 5825U, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø46 (40-50.2)

Back to the verdict

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
