华硕 ExpertCenter PN54 - 配备 AMD Ryzen AI 7 和现代功能的商用迷你电脑评测

Name: Asus ExpertCenter PN54-S70012NN
Brand: Asus

设施一流，服务友善。

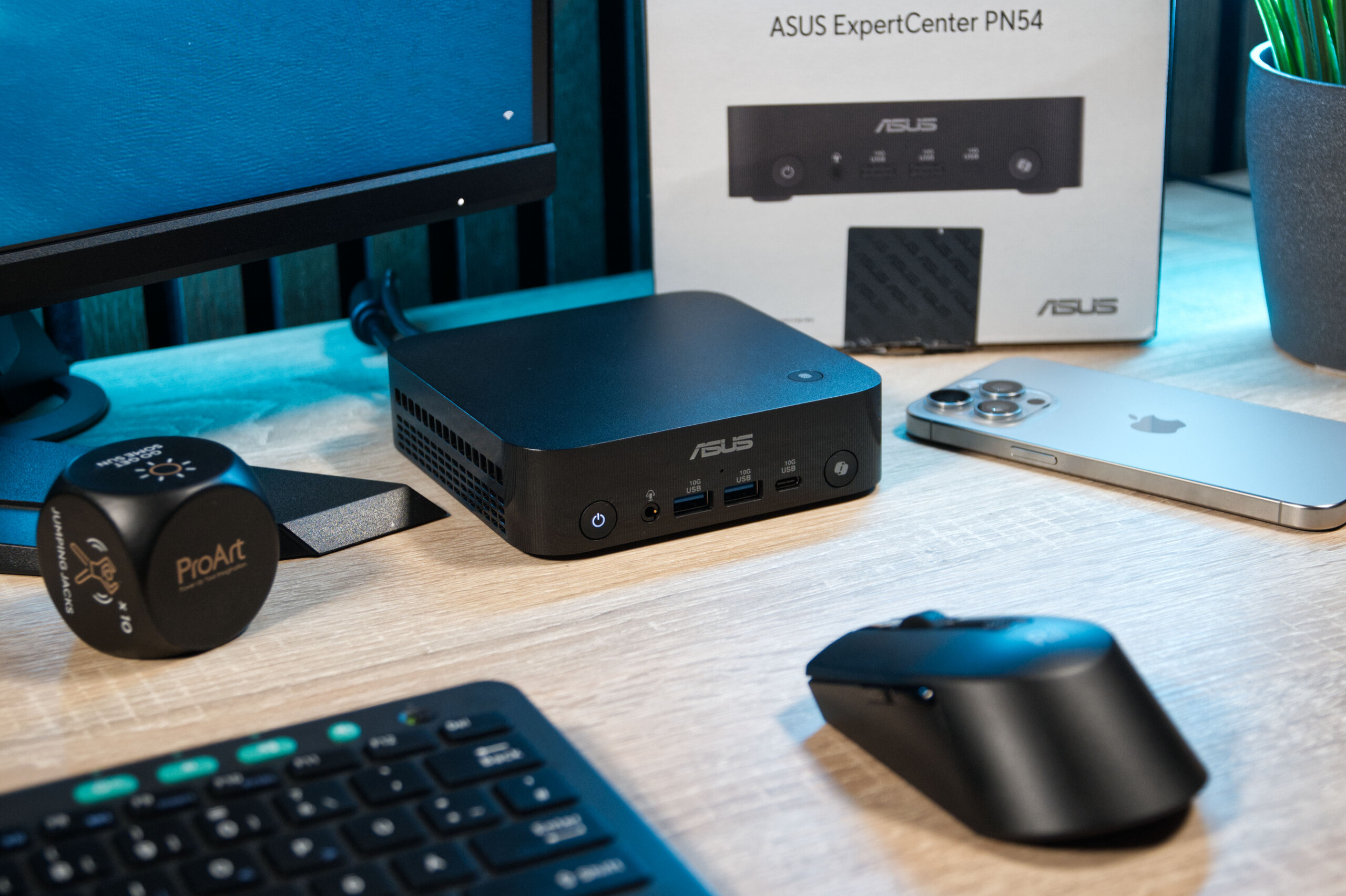

华硕 ExpertCenter PN54 是一款采用现代 AMD Ryzen AI 300 平台的紧凑型迷你 PC。在测试中，我们检验了它的性能、噪音水平、能效和可扩展性。这表明该设备是只适合办公任务，还是也能轻松驾驭要求更高的应用。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 08/28/2025 🇺🇸 🇩🇪 ...
Mini PC Desktop AMD Ryzen (Zen) Radeon AI

结论华硕 ExpertCenter PN54 - 紧凑型工作站的多功能解决方案

在测试中，华硕 ExpertCenter PN54 被证明是一款小巧、多功能的迷你 PC，既适合日常办公使用，也适合要求更高的场景。凭借 AMD Ryzen AI 7 350，它将 CPU、GPU 和 NPU 性能稳固地结合在一起，为多任务处理、媒体播放和支持 AI 的工作流程提供了充足的储备。支持 DDR5 内存、快速 PCIe 固态硬盘和 USB4 等现代接口，在扩展和连接外部设备时具有高度灵活性，这一点尤其值得肯定。

在日常使用中，PN54 的稳定性能给人留下了深刻印象。集成的 Radeon 860M 足以满足办公应用、多媒体甚至轻度游戏的需求。但在现代游戏中，它很快就达到了极限。在这种情况下，USB4 接口至少可以提供连接外置 GPU 的选项，从而大大提高图形处理性能。

Test device courtesy of Asus Deutschland

Download your licensed rating image as PNG / SVG

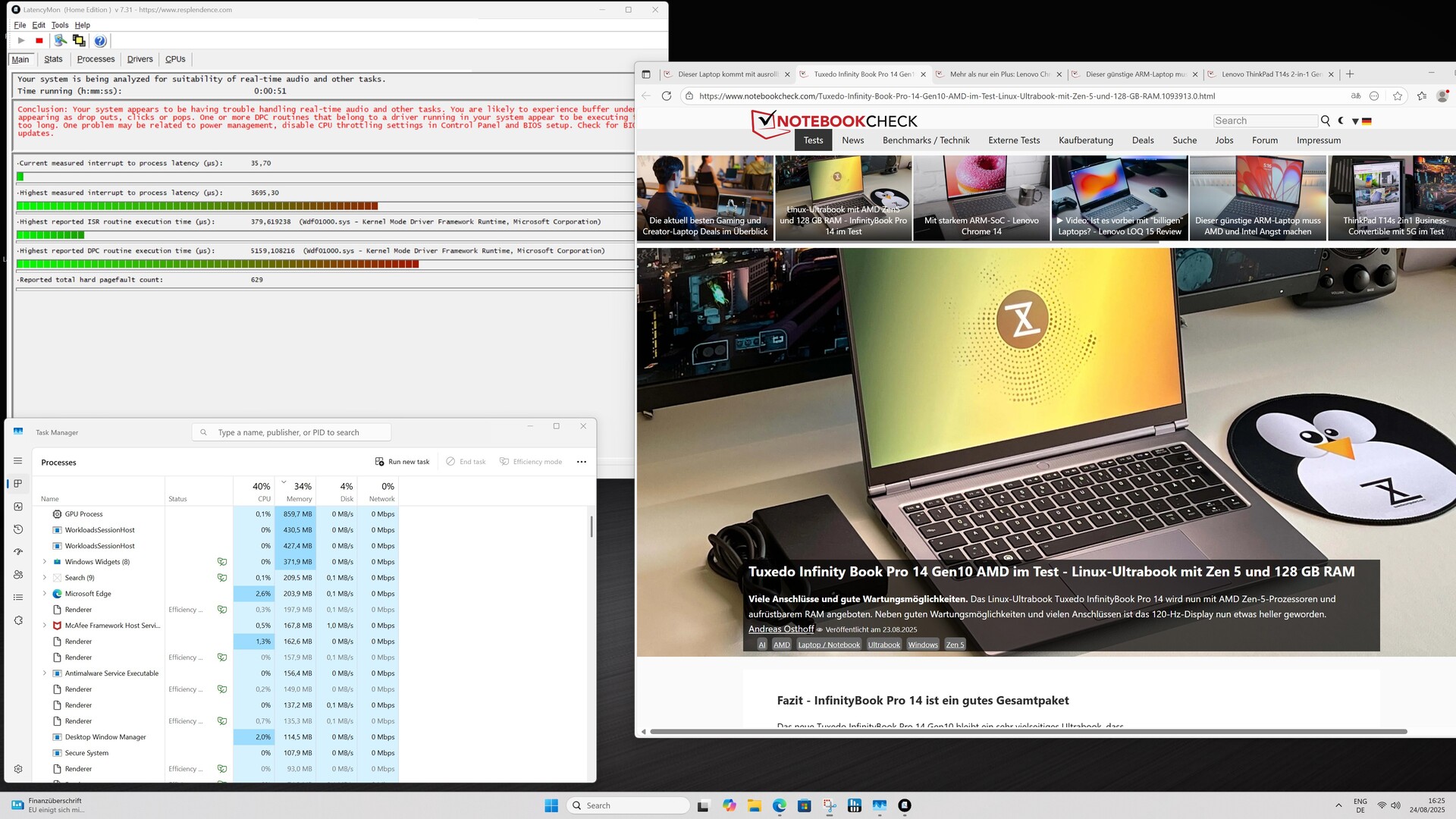

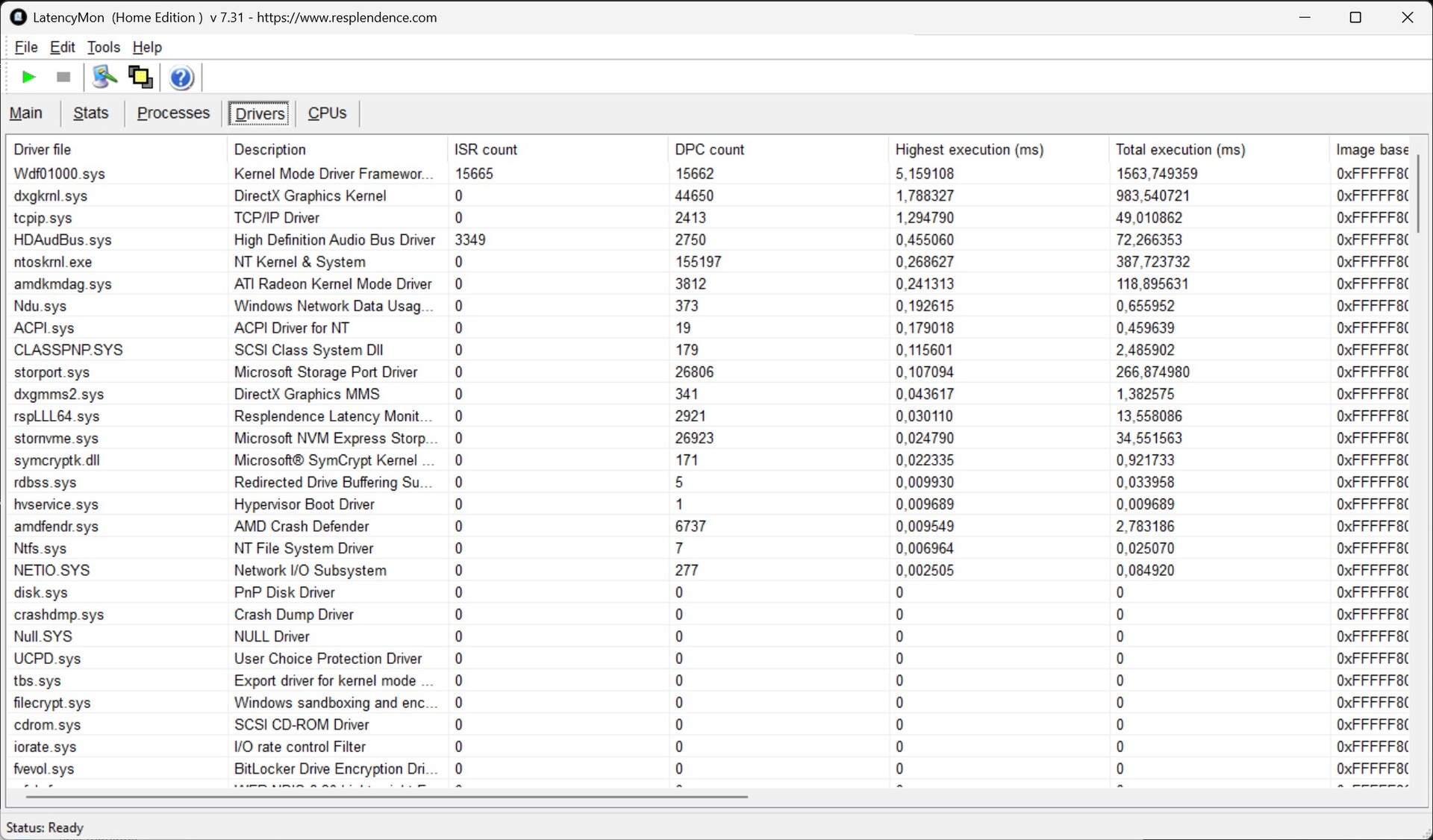

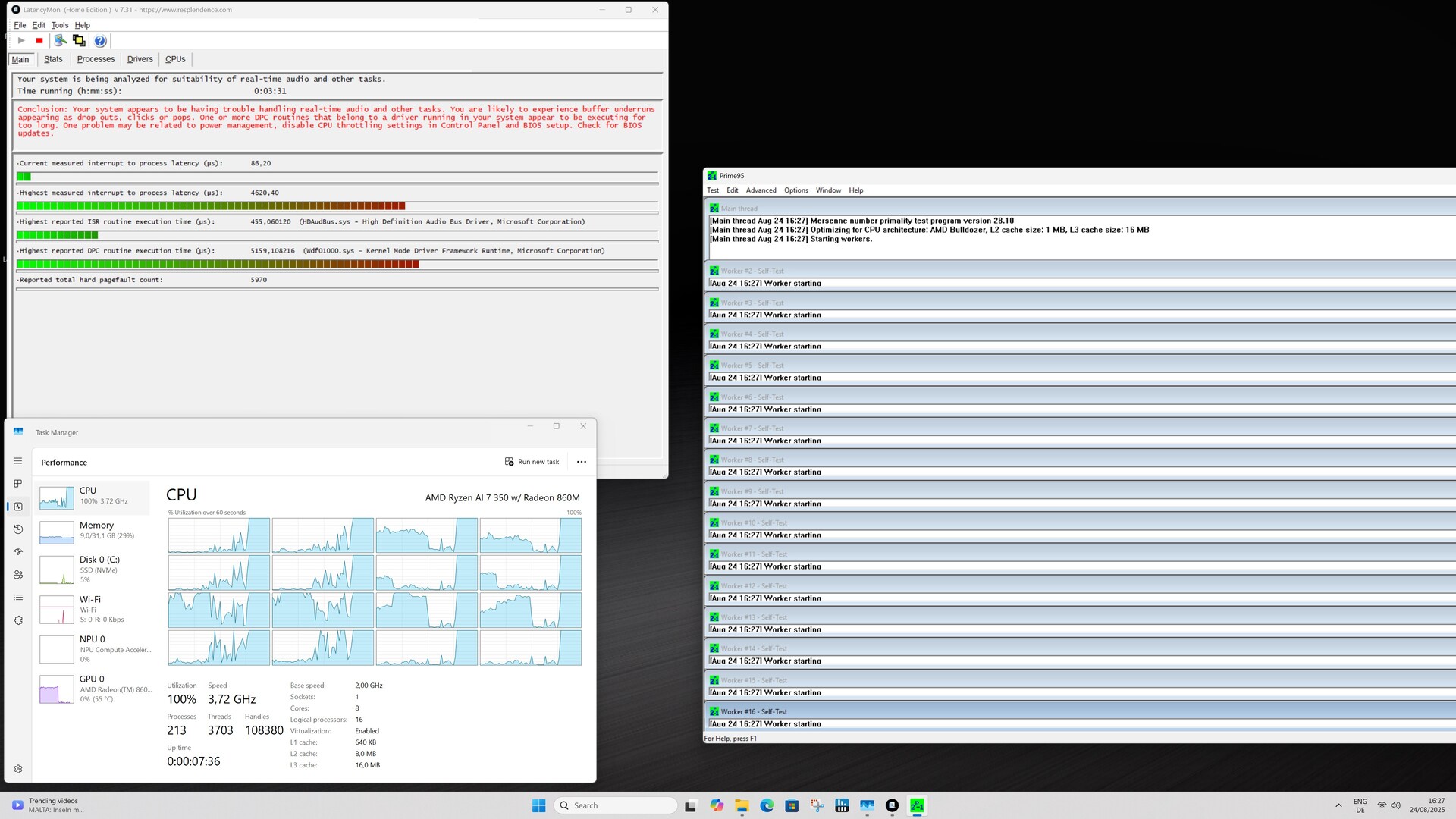

主要的批评意见是 DPC 延迟。此外，在负载情况下还会听到风扇噪音，不过在日常使用中不会造成干扰。另一方面，适中的能耗、稳定的外壳结构和 VESA 安装选项的扎实做工都是值得肯定的。不容忽视的是华硕良好的更新供应。在这方面，来自远东的多功能竞争对手往往跟不上。不过，华硕 ExpertCenter PN54 的建议零售价为 1,100 美元，比本次测试中的大多数同类设备都要贵得多。

Pros

+ 紧凑坚固的外壳

+ 无需工具即可打开

+ CPU 和 NPU 性能卓越

+ 功耗低

+ 多种 UEFI 选项

+ 快速无线局域网（Wi-Fi 7）

+ 指纹扫描仪

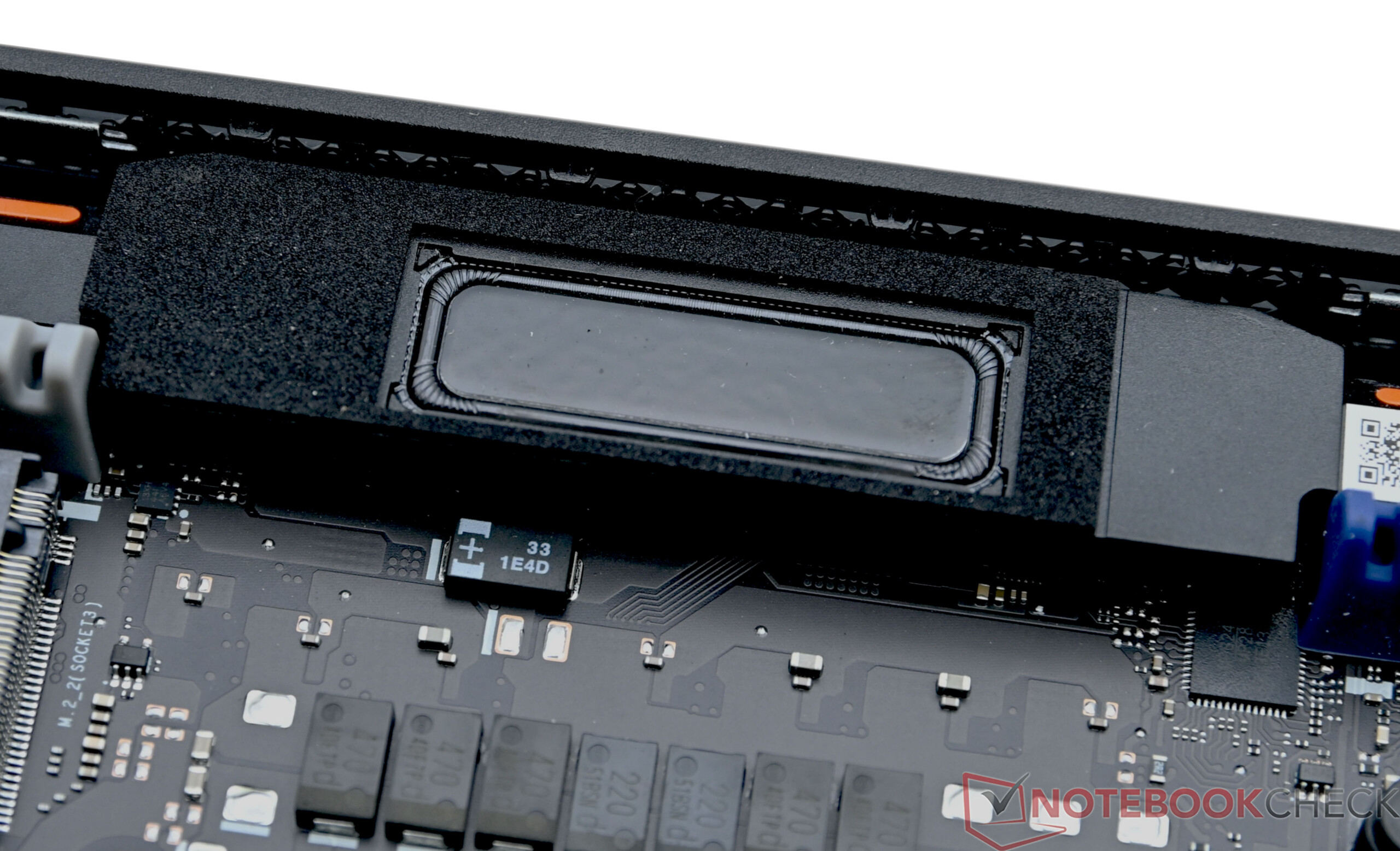

+ 集成扬声器

Cons

- 高 DPC 延迟

- iGPU 性能稍弱

- 无读卡器

- 无 OCuLink 接口

- 价格昂贵

价格和供应情况

华硕 ExpertCenter PN54 的建议零售价为 1100 美元，可直接从华硕商店订购。.亚马逊上市的裸骨版本起价为 699 美元。

$1,100.00

ASUS ExpertCenter PN54 Full System Copilot+ PC with AMD Ryzen AI 7 350 Processor, 16GB DDR5 RAM, 1TB NVME SSD, WiFi 7 & BT 5.4, Win 11 Pro Next Gen, Voice Command, Toolless Chassis Access, VESA Mount

$589.00

ASUS ExpertCenter PN54 Barebone Mini PC with AMD RyzenTM AI 5 340 Processor, DDR5 RAM, Dual Storage Design, WiFi 7 & BT 5.4, Voice Command, Toolless Chassis Access, USB-C, Hardware TPM, & VESA Mount

结论华硕 ExpertCenter PN54 - 紧凑型工作站的多功能解决方案
规格
外壳和功能
性能
排放量
能源管理
Notebookcheck 总体评分
可比较的替代品

华硕 ExpertCenter PN54 的目标用户是那些希望拥有一台小巧但功能强大的迷你 PC 的用户。该设备基于 AI-300 系列的 AMD Ryzen 处理器。尽管尺寸不大，但 PN54 提供了许多接口和快速的 DDR5 内存。在本测试中，我们将了解配备 AMD Ryzen AI 7 350 和 32 GB DDR5 内存的 ExpertCenter PN54 的主要功能。此外，PN54 还可配备 AMD Ryzen AI 5 340 和 16 GB DDR5 内存。

规格

Asus ExpertCenter PN54-S70012NN

Processor

AMD Ryzen AI 7 350 8 x 2 - 5 GHz, 65 W PL2 / Short Burst, 40 W PL1 / Sustained, Krackan Point (Zen 5)

Graphics adapter

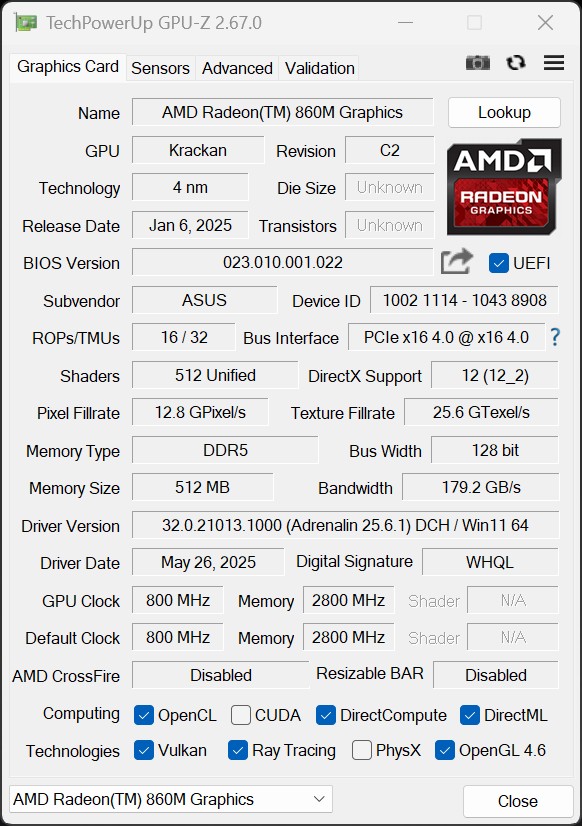

AMD Radeon 860M, Adrenalin 25.6.1

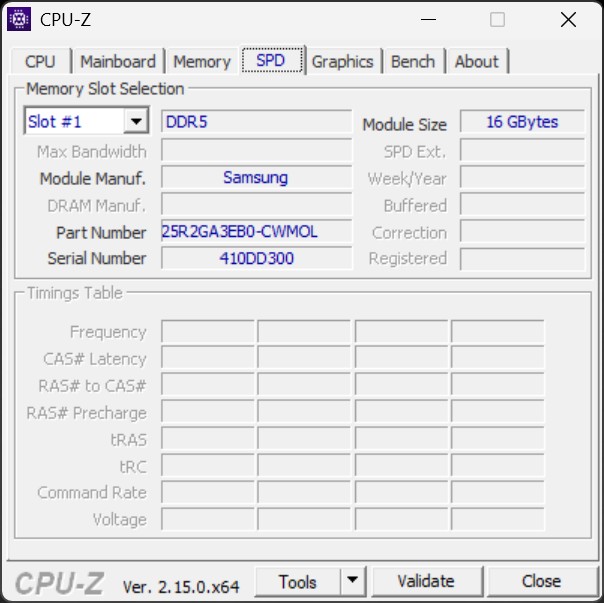

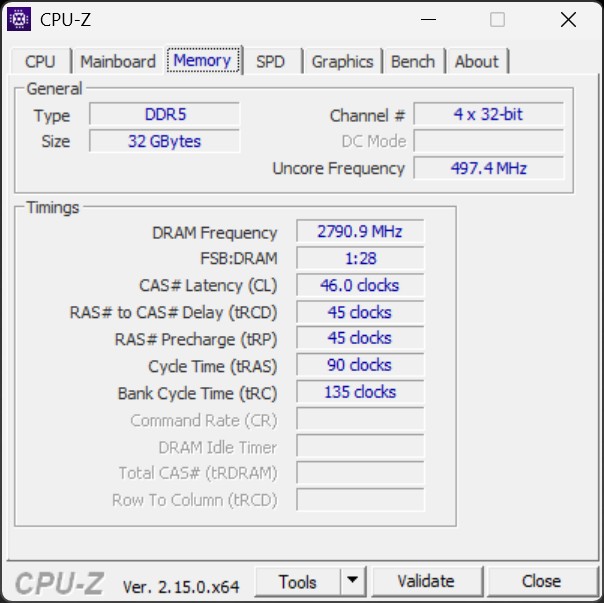

Memory

32 GB

, DDR5 5.600 MT/s, 2x SO-DIMM, Quad-Channel

Mainboard

AMD Promontory/Bixby FCH

Storage

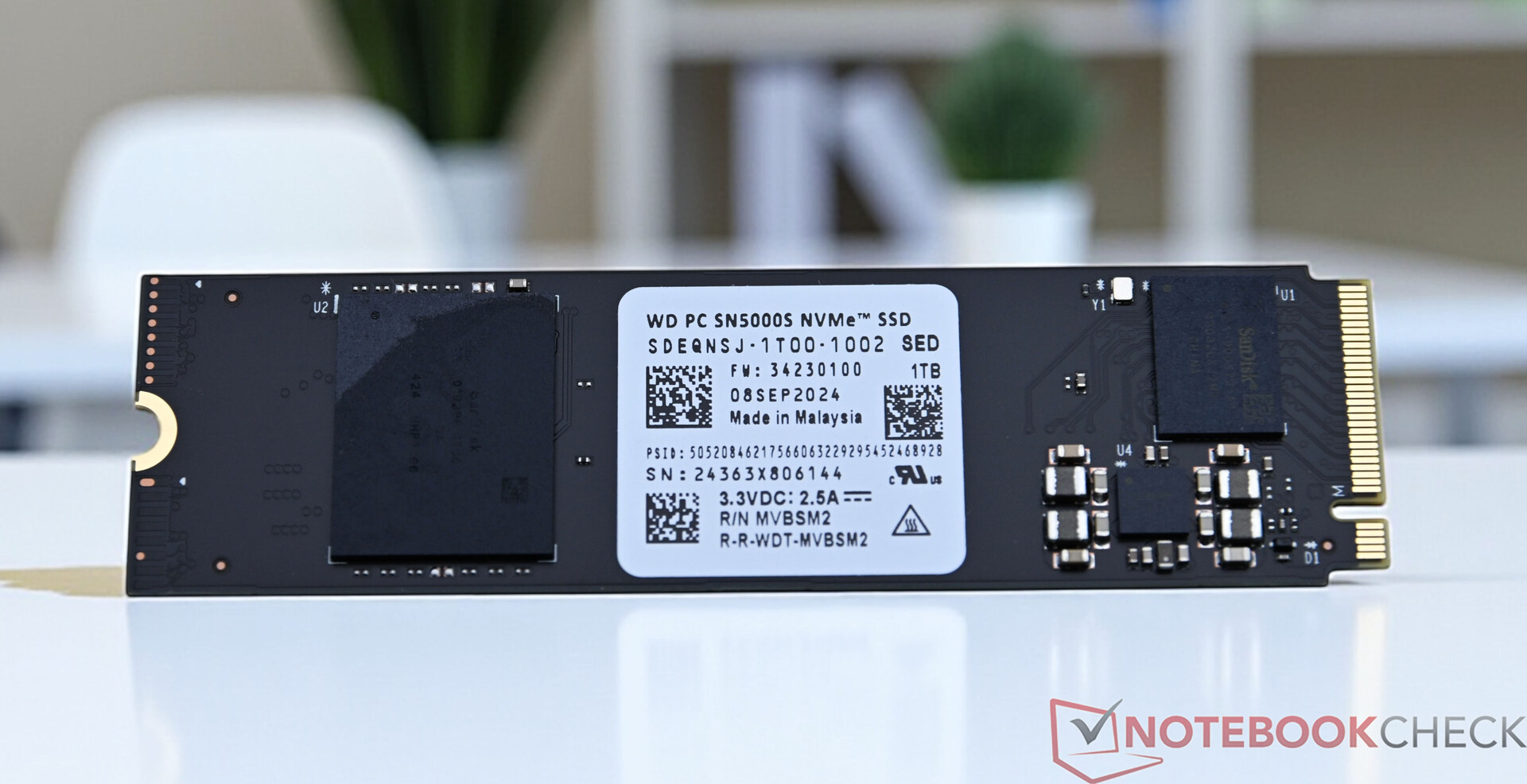

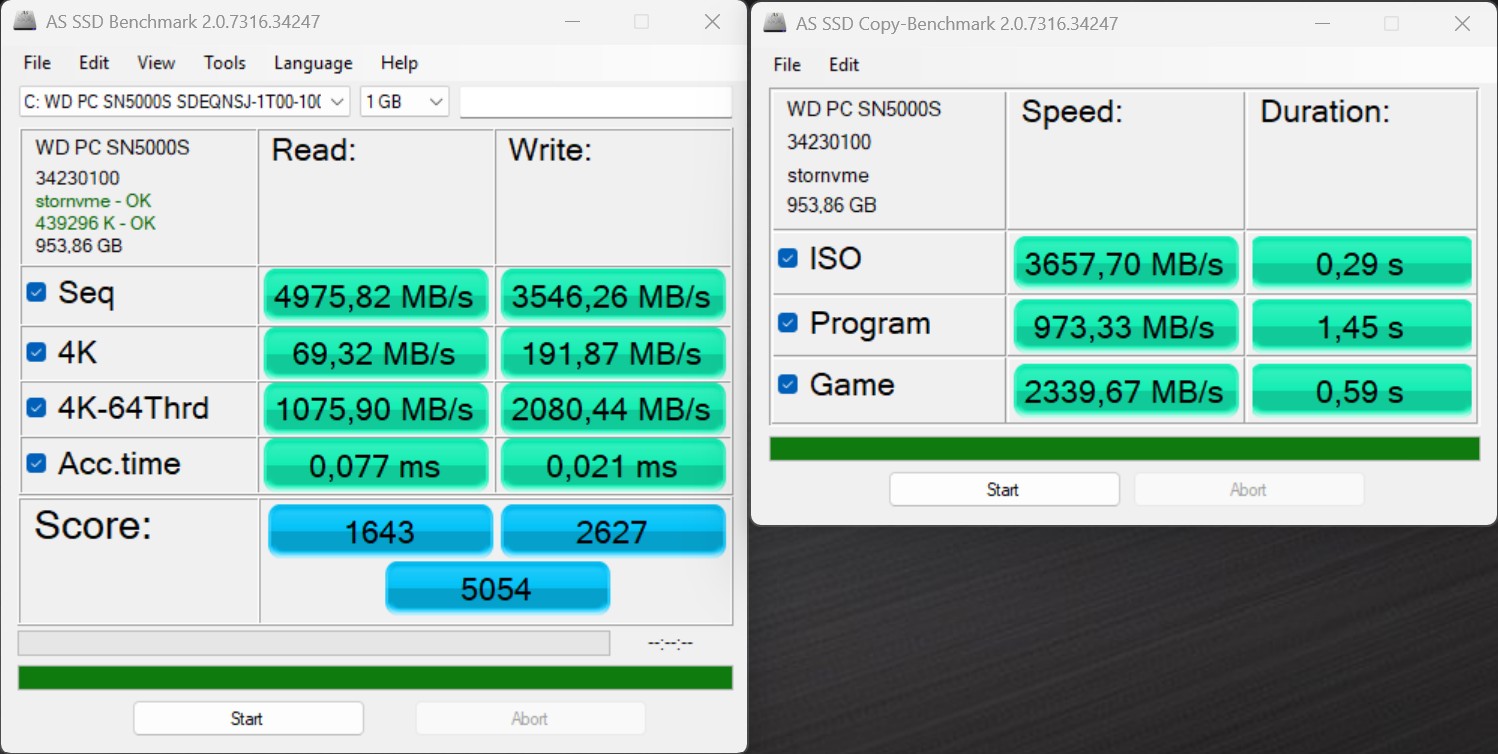

Western Digital PC SN5000S SDEQNSJ-1T00, 1024 GB

, 887 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 4 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 HDMI, 3 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5mm combo, 1 Fingerprint Reader, 2nd Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s)

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Mediatek Wi-Fi 7 MT7925 Wireless LAN Card (a/b/g/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz be = Wi-Fi 7), Bluetooth 5.4

Size

height x width x depth (in mm): 34 x 130 x 130

Operating System

Microsoft Windows 11 Pro

Additional features

Speakers: mono, 24 Months Warranty

Weight

650 g, Power Supply: 350 g

Price

1249 Euro

Amazon

$1,100.00

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

外壳和功能

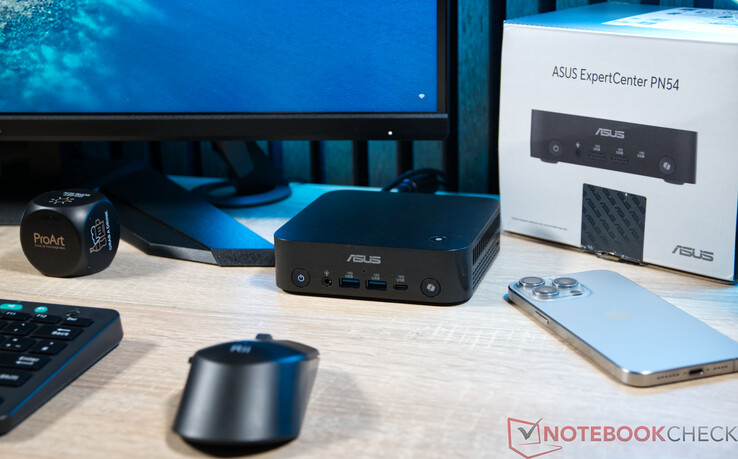

华硕 ExpertCenter PN54 采用简洁的矩形设计，看起来既现代又实用。它的高度约为 34 毫米，结构紧凑，与大多数同类产品相比甚至略小。外壳由塑料和金属组合而成。底部用作维护挡板，由金属制成，而塑料外壳则由内部金属框架加固。

华硕 ExpertCenter PN54 配备了众多外部接口，分布在机身前后。尤其是 USB 端口的数量非常多。显示器连接有 HDMI、DisplayPort 和 USB-C，每种接口都支持 4K（3,840 × 2,160），最低 120 Hz。如果通过 USB-C 使用 DisplayPort，还能以 144 Hz 的频率使用 4K。

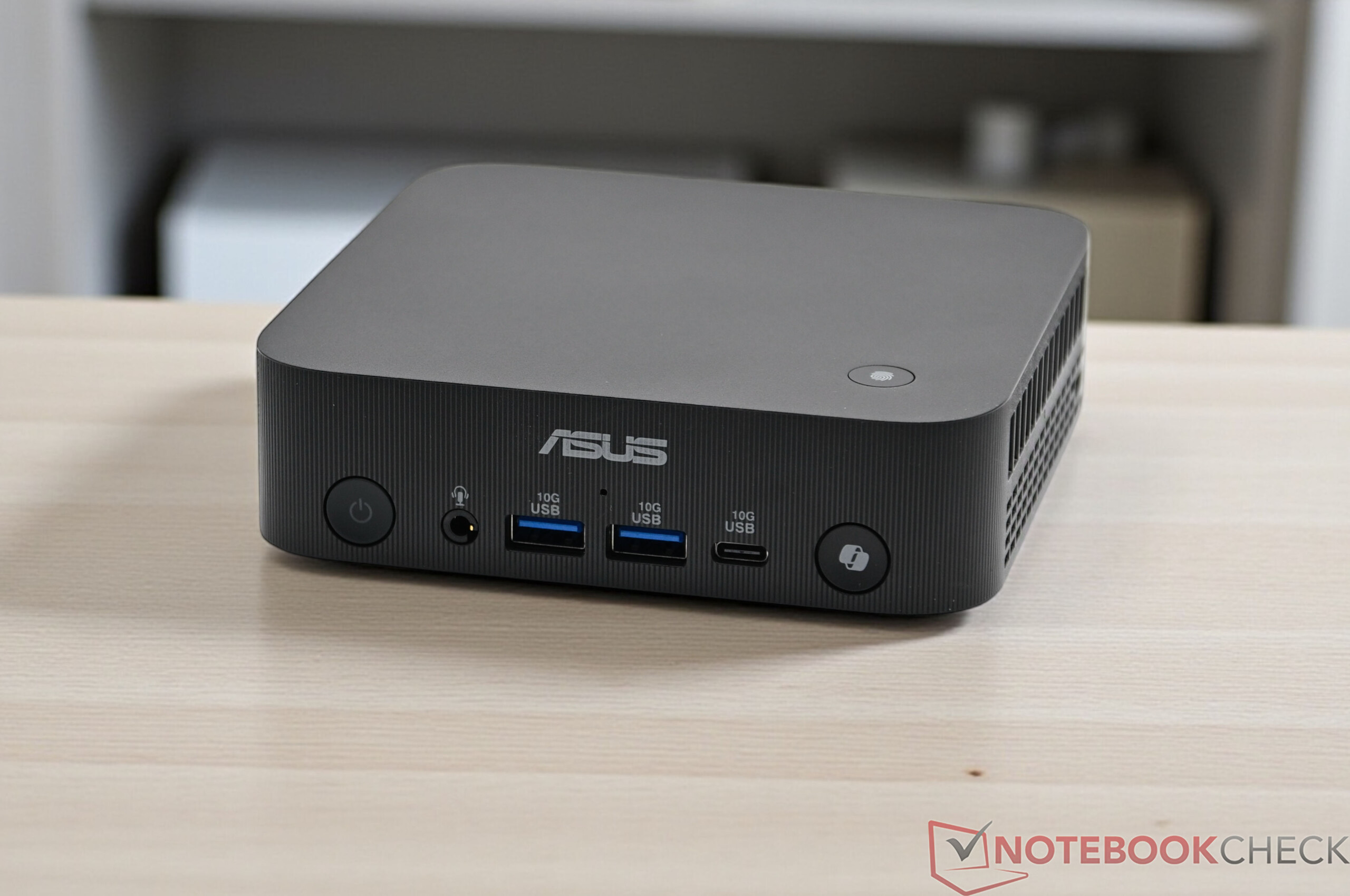

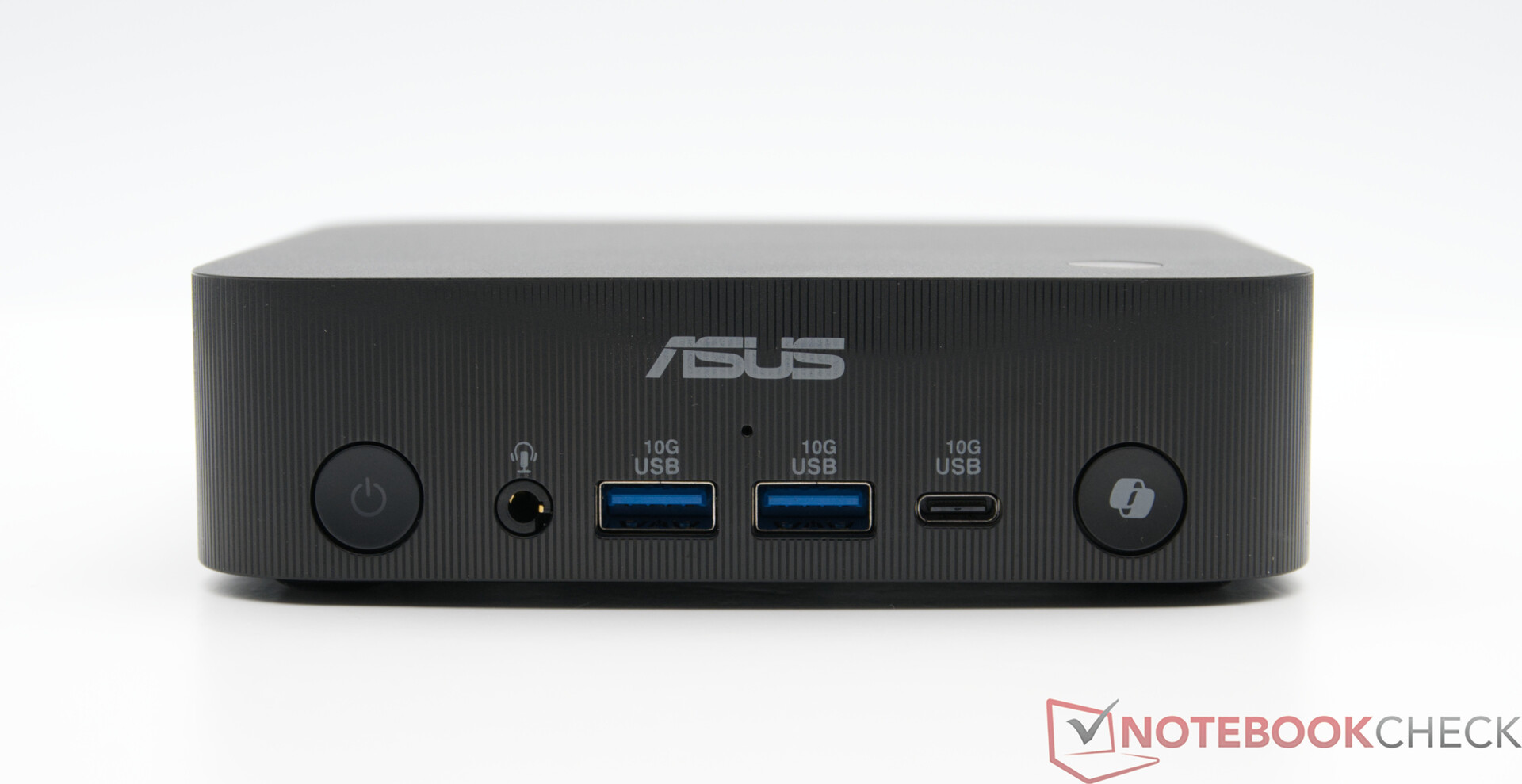

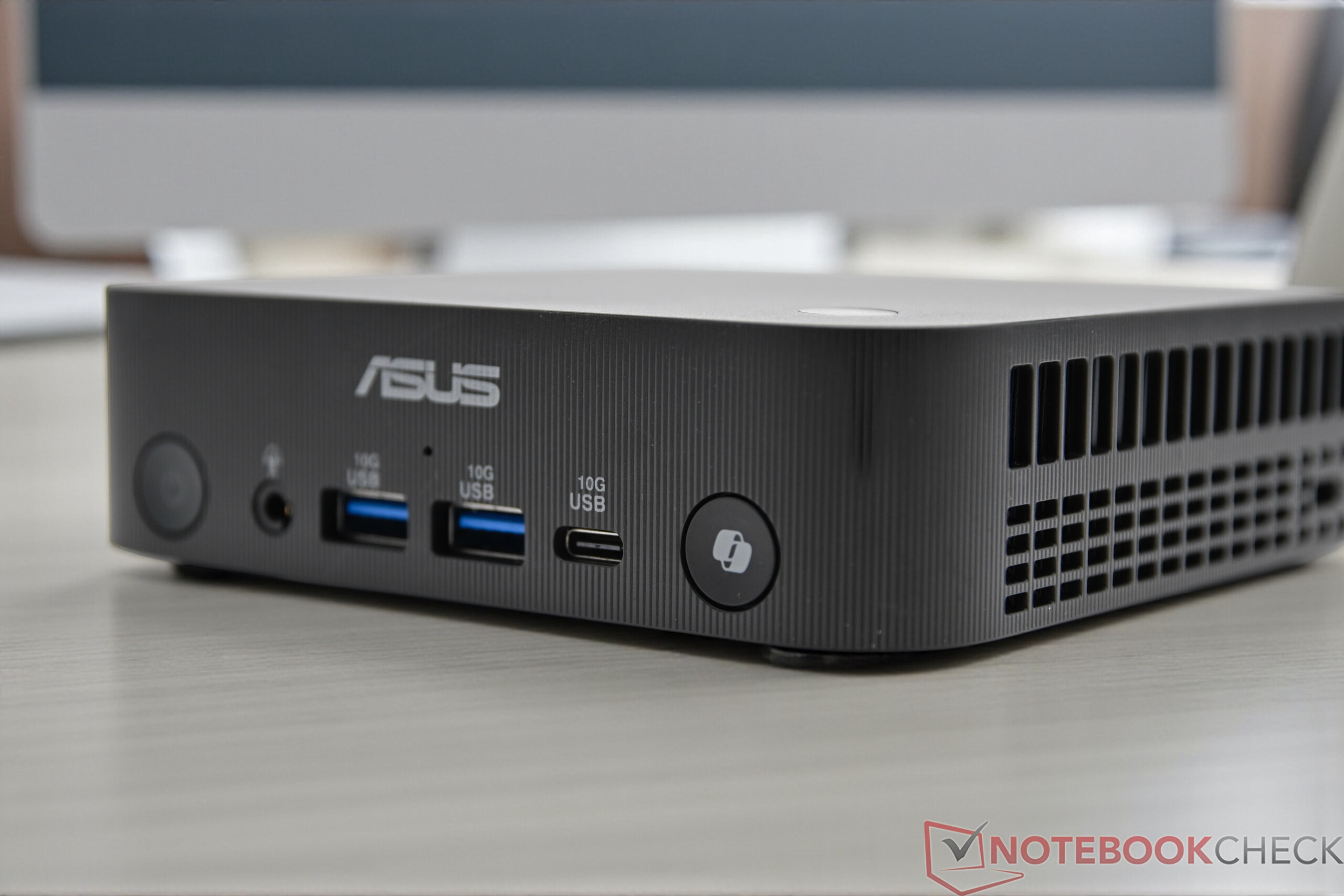

正面电源按钮、3.5 毫米组合音响、2 个 USB TypeA 10Gbps、USB TypeC 10Gbps、Copilot 快捷按钮

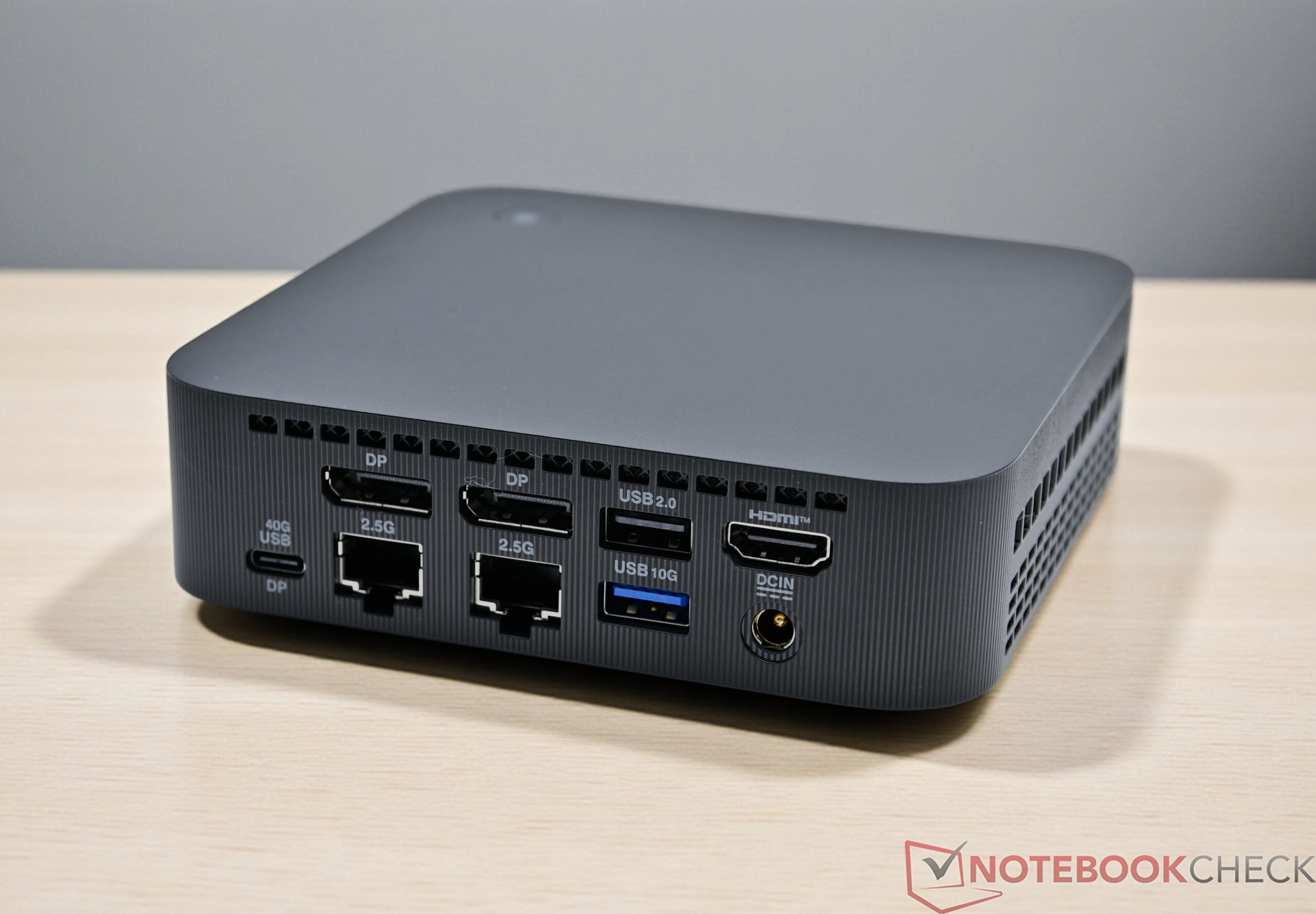

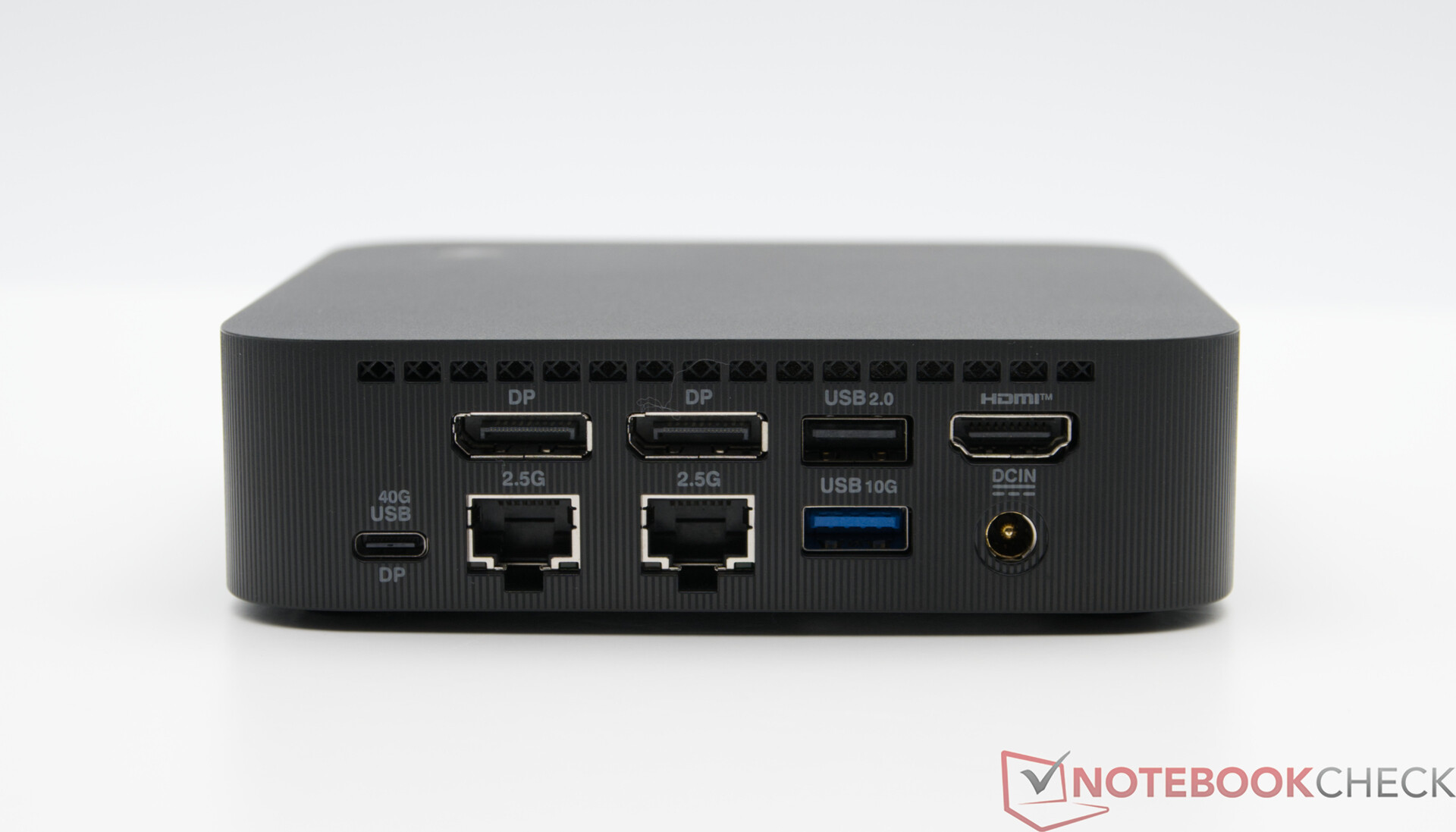

后部带 DisplayPort 的 USB TypeC 40Gbps、2x LAN 2.5G、2x DisplayPort、USB 2.0、USB TypeA 10Gbps HDMI、DC 输入

尺寸比较

Minisforum AI X1 Pro GMK EVO-T1 Geekom A8 Max, R7 8845HS BOSGAME M4 Neo Geekom Mini IT15, Ultra 9 285H Asus ExpertCenter PN54-S70012NN DIN A4 ❌

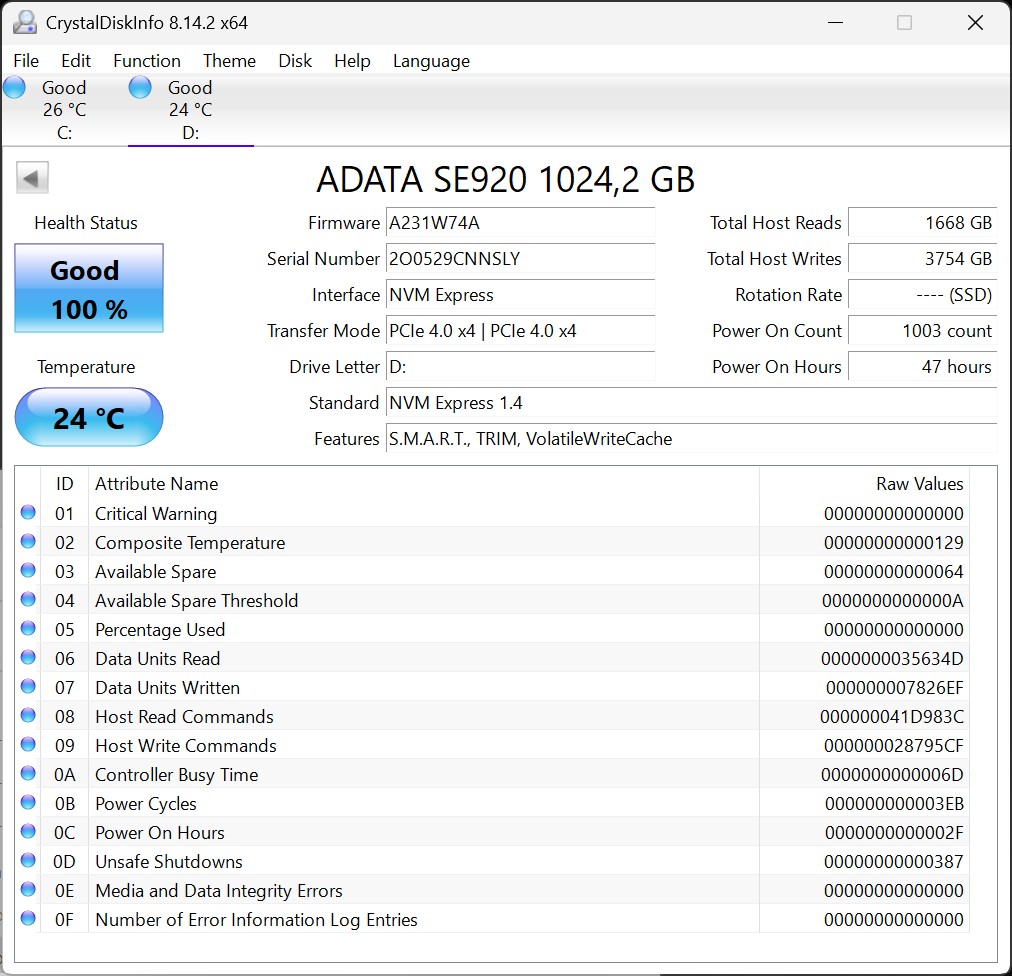

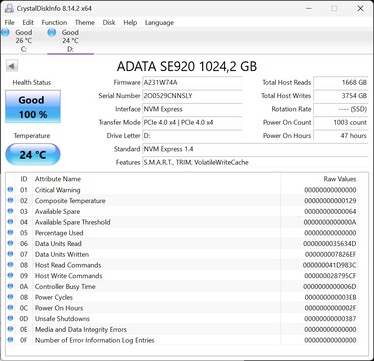

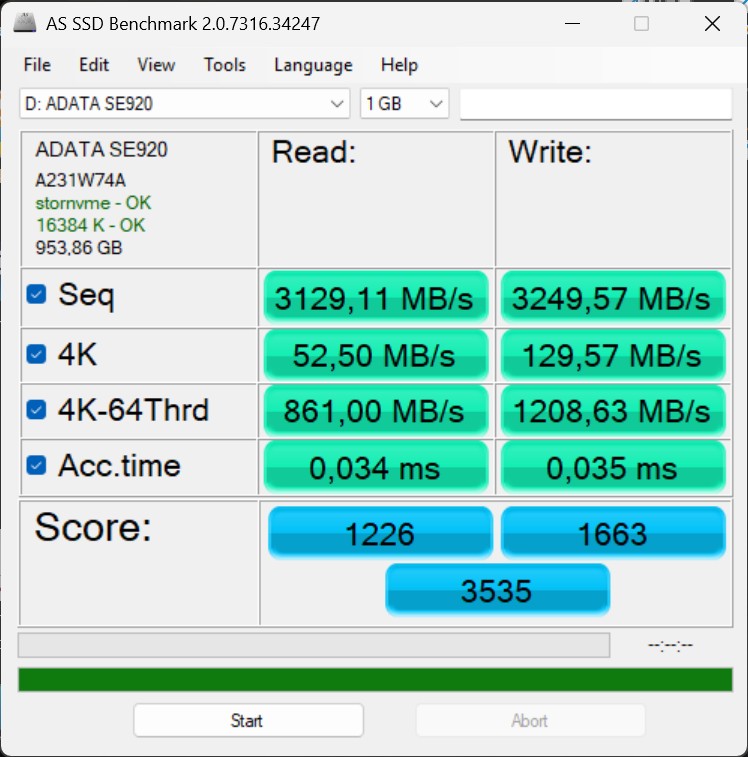

ADATA SE920 USB4-Speed

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	3906.41 MB/s
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	3167.46 MB/s
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	3161.47 MB/s
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	3158.19 MB/s
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	3129.11 MB/s
Average of class Mini PC (906 - 3906, n=24, last 2 years)	2755 MB/s
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	1592.32 MB/s

Networking
iperf3 receive AXE11000 6GHz
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1806 (1779^min - 1816^max) MBit/s 0%
Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1803 (1785^min - 1813^max) MBit/s
Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz	1729 (817^min - 1746^max) MBit/s -4%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1702 (1657^min - 1730^max) MBit/s -6%
Average Mediatek Wi-Fi 7 MT7925 Wireless LAN Card (1452 - 1806, n=14)	1687 MBit/s -6%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1485 (1435^min - 1510^max) MBit/s -18%
Average of class Mini PC (684 - 1809, n=53, last 2 years)	1473 MBit/s -18%
iperf3 transmit AXE11000 6GHz
Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1871 (1766^min - 2000^max) MBit/s
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1787 (1743^min - 1853^max) MBit/s -4%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1546 (759^min - 1594^max) MBit/s -17%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1480 (1351^min - 1551^max) MBit/s -21%
Average of class Mini PC (394 - 1887, n=53, last 2 years)	1406 MBit/s -25%
Average Mediatek Wi-Fi 7 MT7925 Wireless LAN Card (604 - 1871, n=13)	1360 MBit/s -27%
Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz	1300 (906^min - 1503^max) MBit/s -31%
iperf3 receive AXE11000
Average Mediatek Wi-Fi 7 MT7925 Wireless LAN Card (812 - 1770, n=31)	1505 MBit/s +57%
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	973 (491^min - 984^max) MBit/s +2%
Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	958 (947^min - 967^max) MBit/s
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	954 (920^min - 962^max) MBit/s 0%
Average of class Mini PC (267 - 1771, n=101, last 2 years)	942 MBit/s -2%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	902 (793^min - 943^max) MBit/s -6%
Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz	883 (876^min - 893^max) MBit/s -8%
GMK EVO-T1 Intel Wi-Fi 6 AX201	881 (818^min - 890^max) MBit/s -8%
iperf3 transmit AXE11000
Average Mediatek Wi-Fi 7 MT7925 Wireless LAN Card (496 - 1862, n=30)	1392 MBit/s +63%
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	967 (917^min - 1020^max) MBit/s +13%
GMK EVO-T1 Intel Wi-Fi 6 AX201	874 (788^min - 931^max) MBit/s +3%
Average of class Mini PC (251 - 1732, n=101, last 2 years)	873 MBit/s +2%
Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	852 (796^min - 887^max) MBit/s
Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz	830 (533^min - 938^max) MBit/s -3%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	771 (742^min - 814^max) MBit/s -10%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	729 (701^min - 766^max) MBit/s -14%

Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1871 (1766-2000)

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1788 (1743-1853)

Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1300 (906-1503)

Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1802 (1785-1813)

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1805 (1779-1816)

Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1702 (817-1746)

Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø957 (947-967)

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø956 (491-984)

Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000; iperf 3.1.3: Ø883 (876-893)

GMK EVO-T1 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø881 (818-890)

Asus ExpertCenter PN54-S70012NN Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø852 (796-887)

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø967 (917-1020)

Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000; iperf 3.1.3: Ø830 (533-938)

GMK EVO-T1 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø874 (788-931)

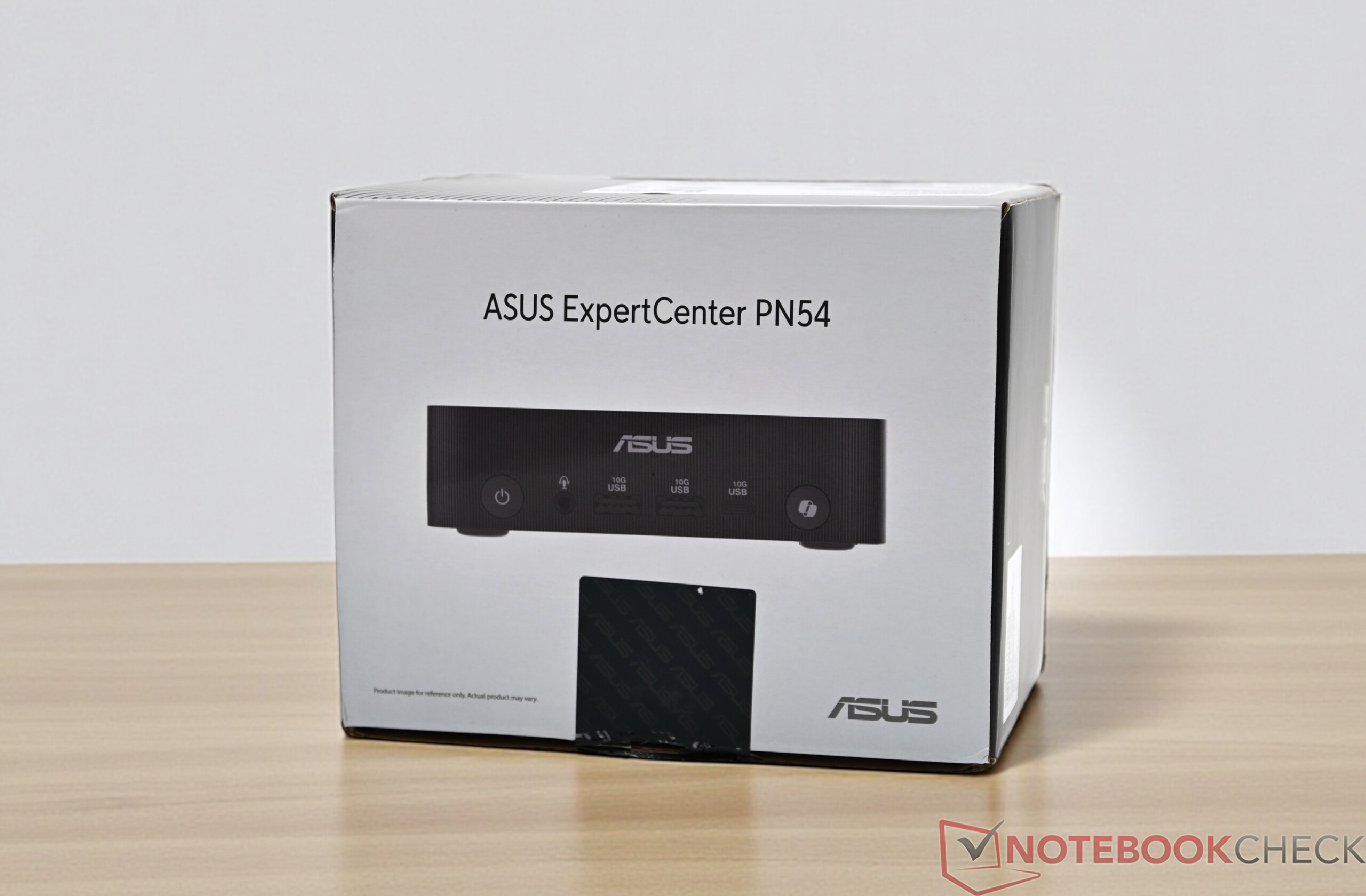

配件

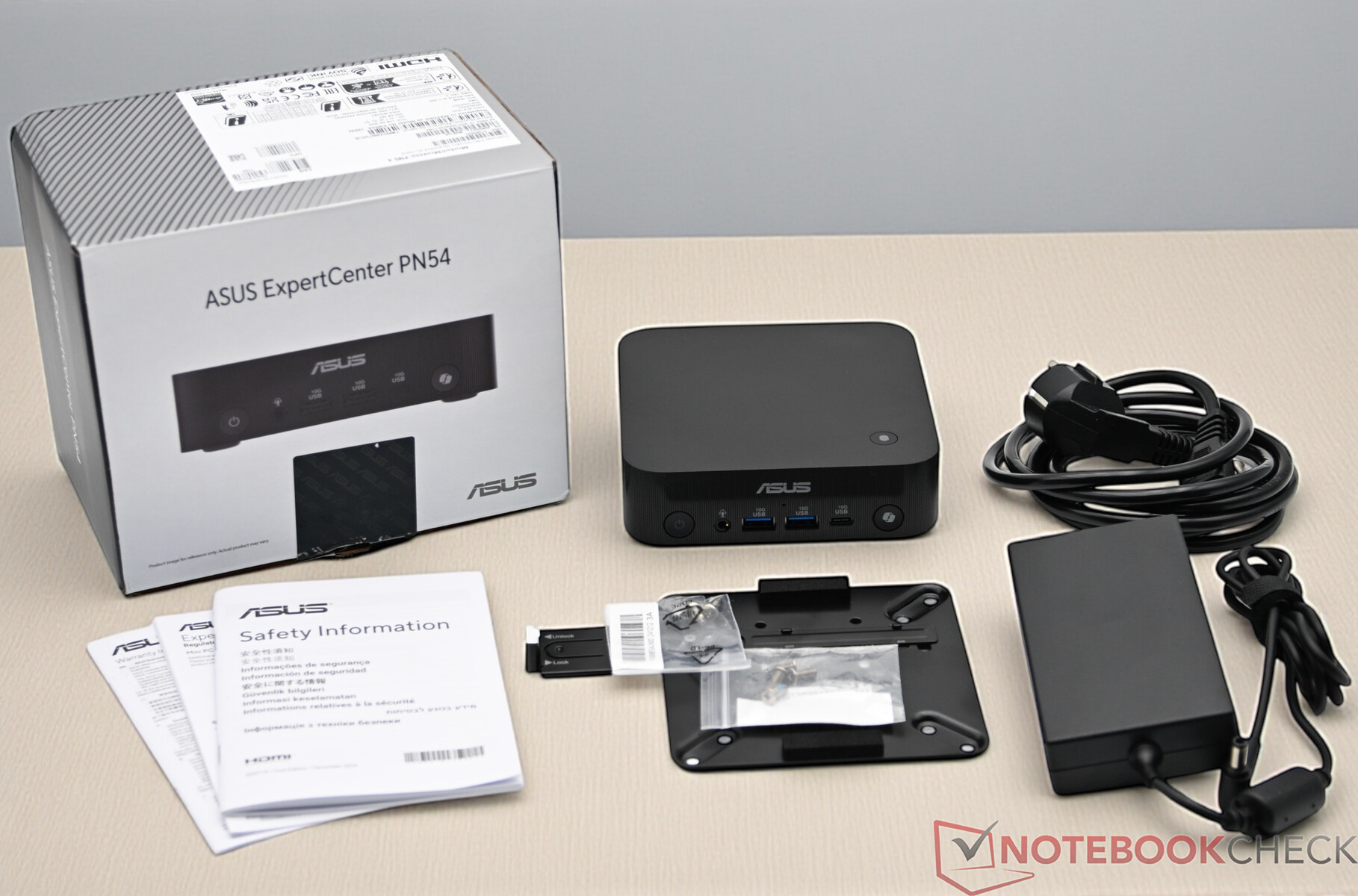

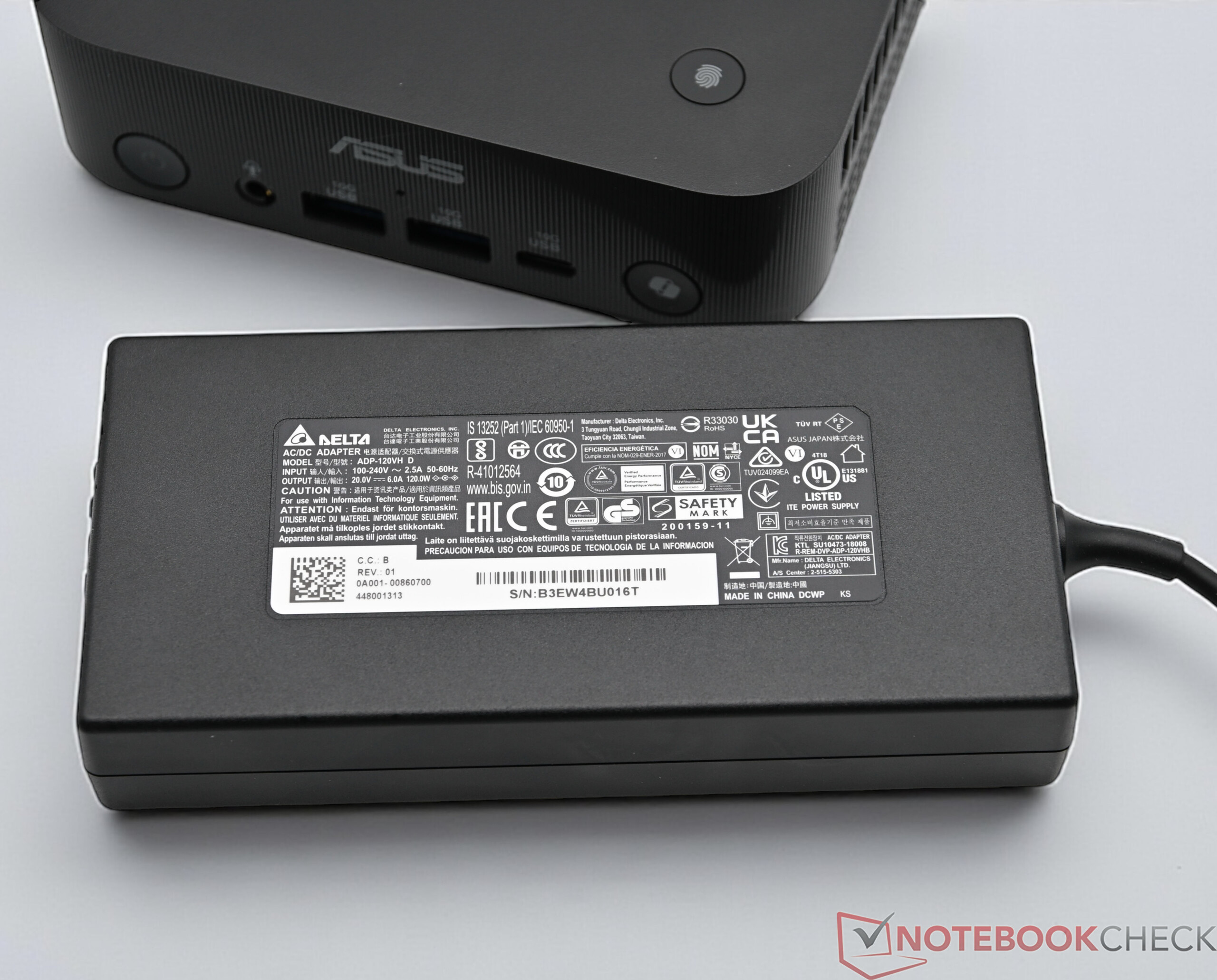

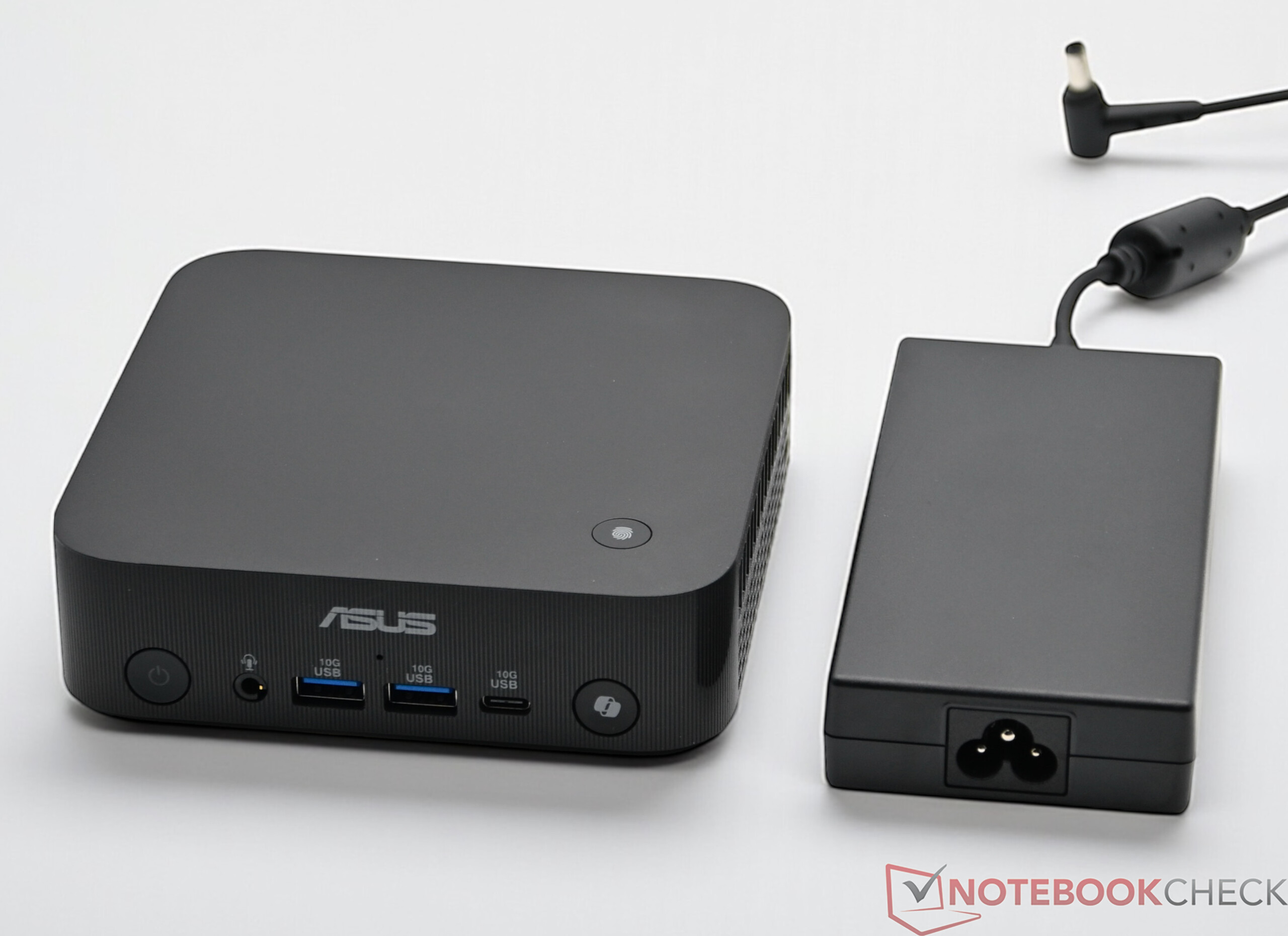

除电源装置外，供货范围还包括一个带安装材料的 VESA 支架，可将 PN54 直接安装到显示器上。

维护

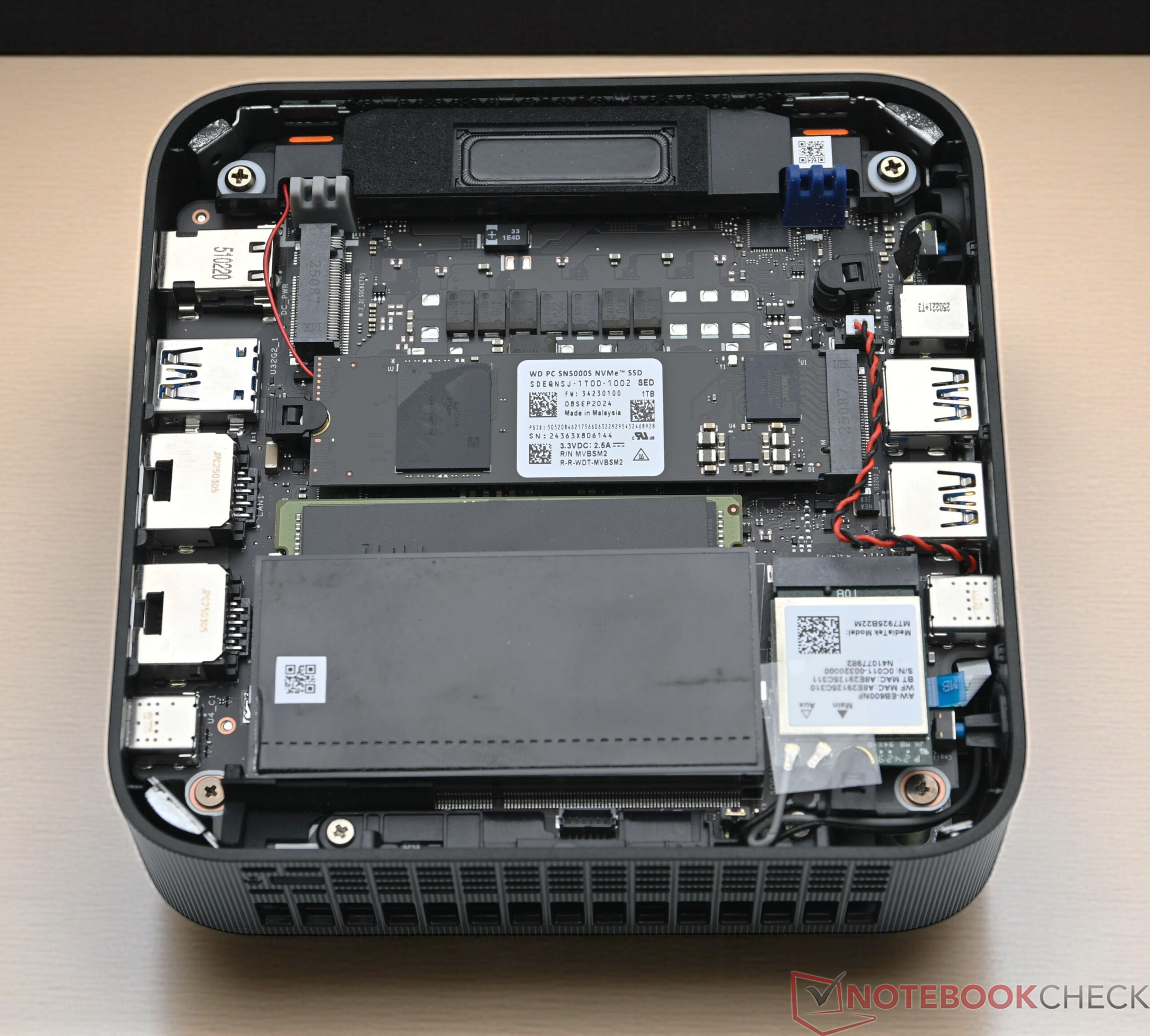

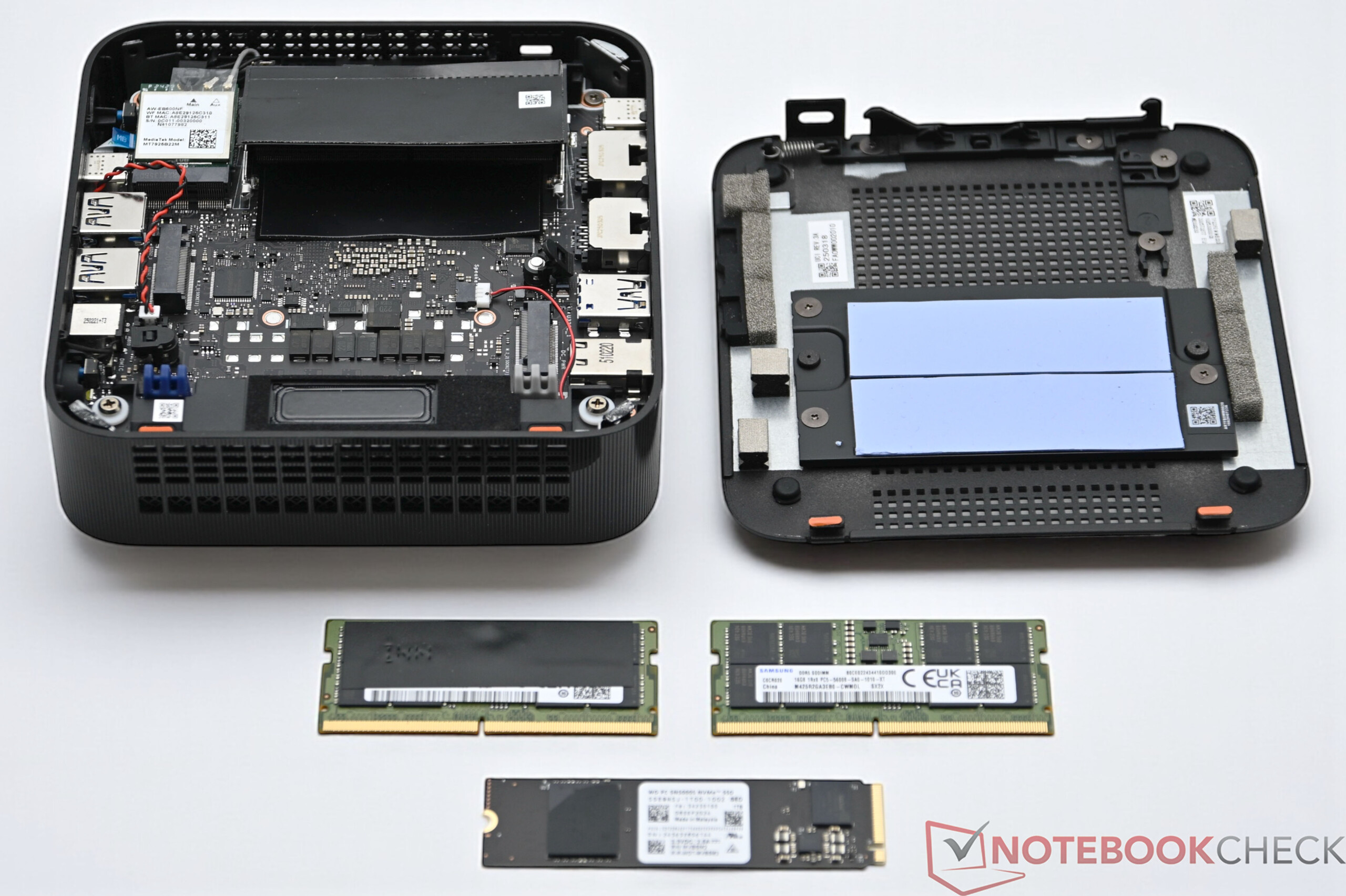

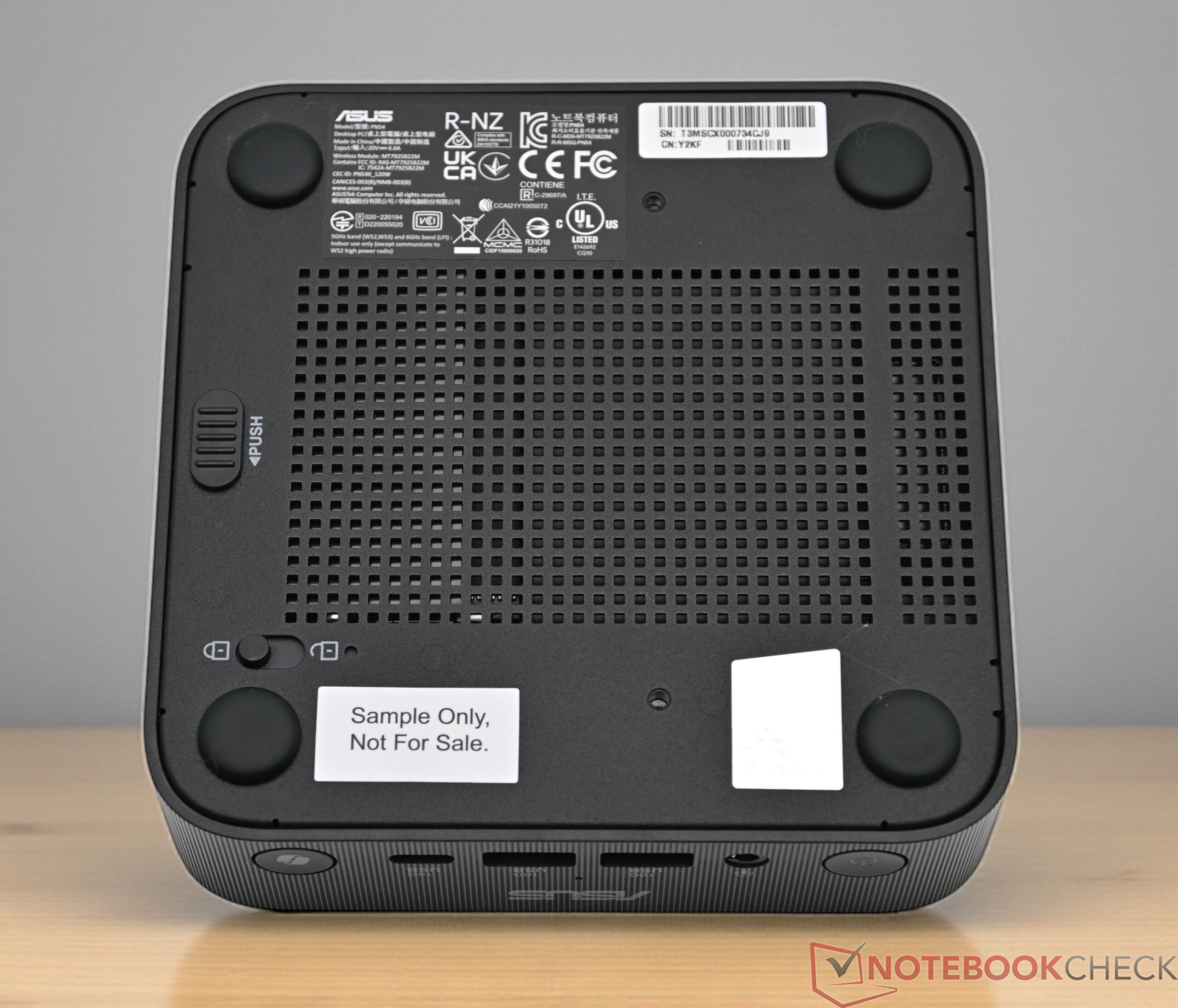

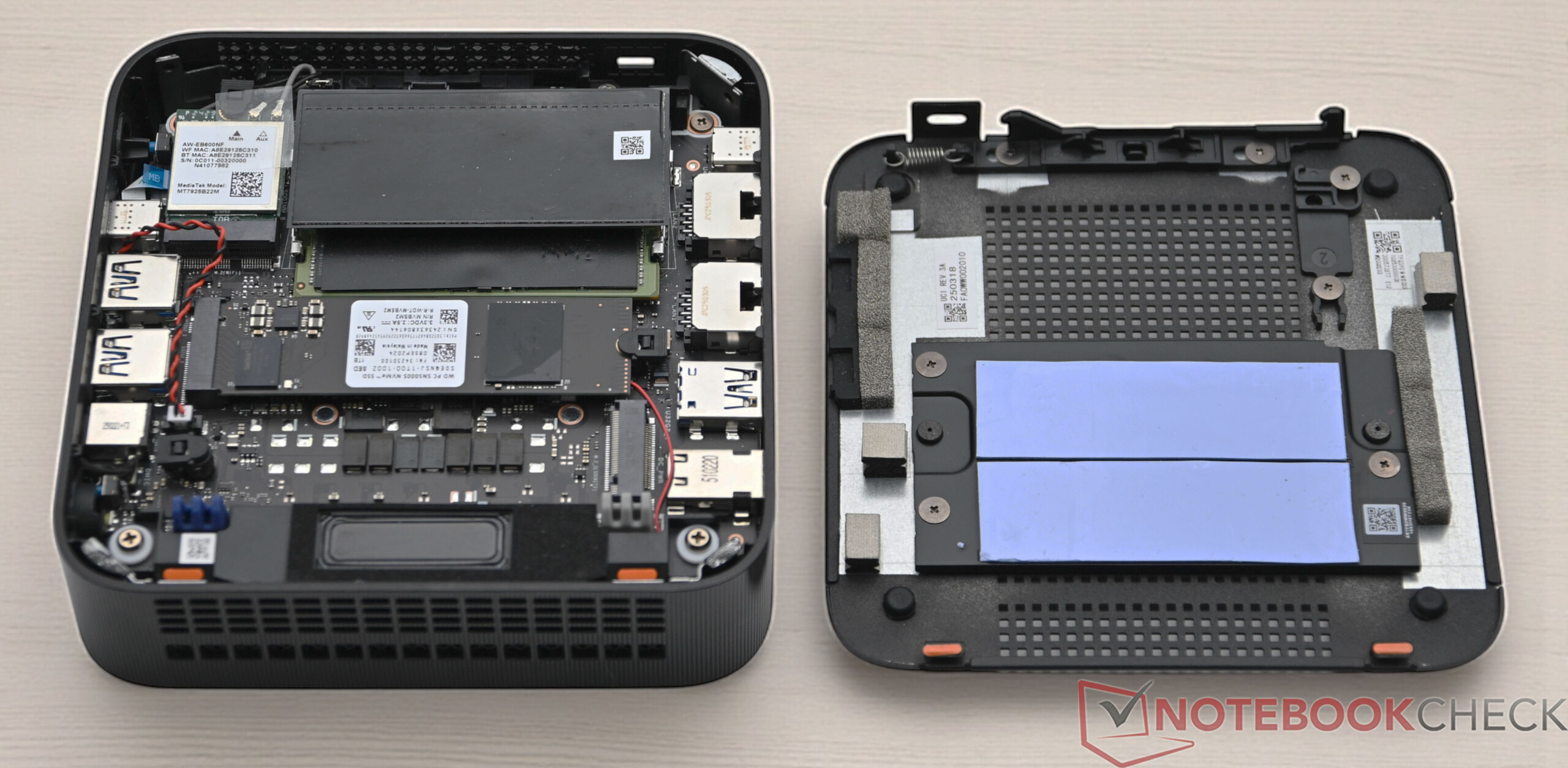

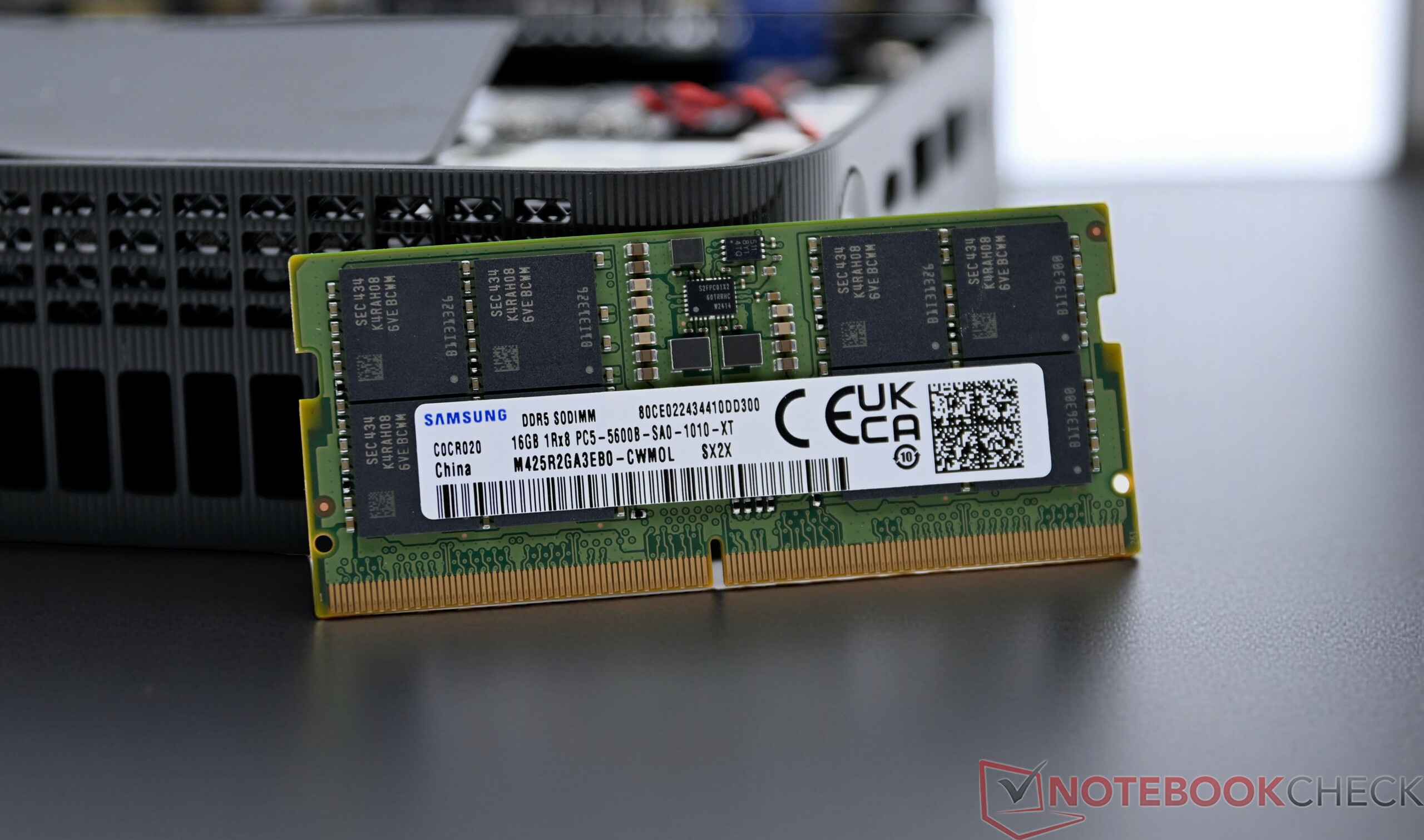

华硕 PN54 可以在不使用工具的情况下打开，这样就可以快速安装内存和固态硬盘。在我们的测试样品中，还有空间安装 M.2-2280 格式的额外数据载体。散热垫已经包含在内，这也为设置硬件节省了一些时间。

可持续性

制造商没有提供有关 CO₂ 足迹的详细信息。不过，可向制造商索取 CO₂ 报告。华硕 PN54 将获得 EPEAT Gold 和能源之星标准认证。

性能

配备 AMD Ryzen AI 7 350 的华硕 ExpertCenter PN54 可为多任务处理和业务应用提供强大的计算性能。由于集成了人工智能加速功能，它还适用于图像和数据处理等现代工作流程。

测试条件

对华硕 ExpertCenter PN54 的所有测试都是在交货状态下进行的，这意味着没有对处理器的 TDP 限制或风扇控制进行任何更改。不过，华硕提供了大量选项，可根据自己的需求定制 PN54。

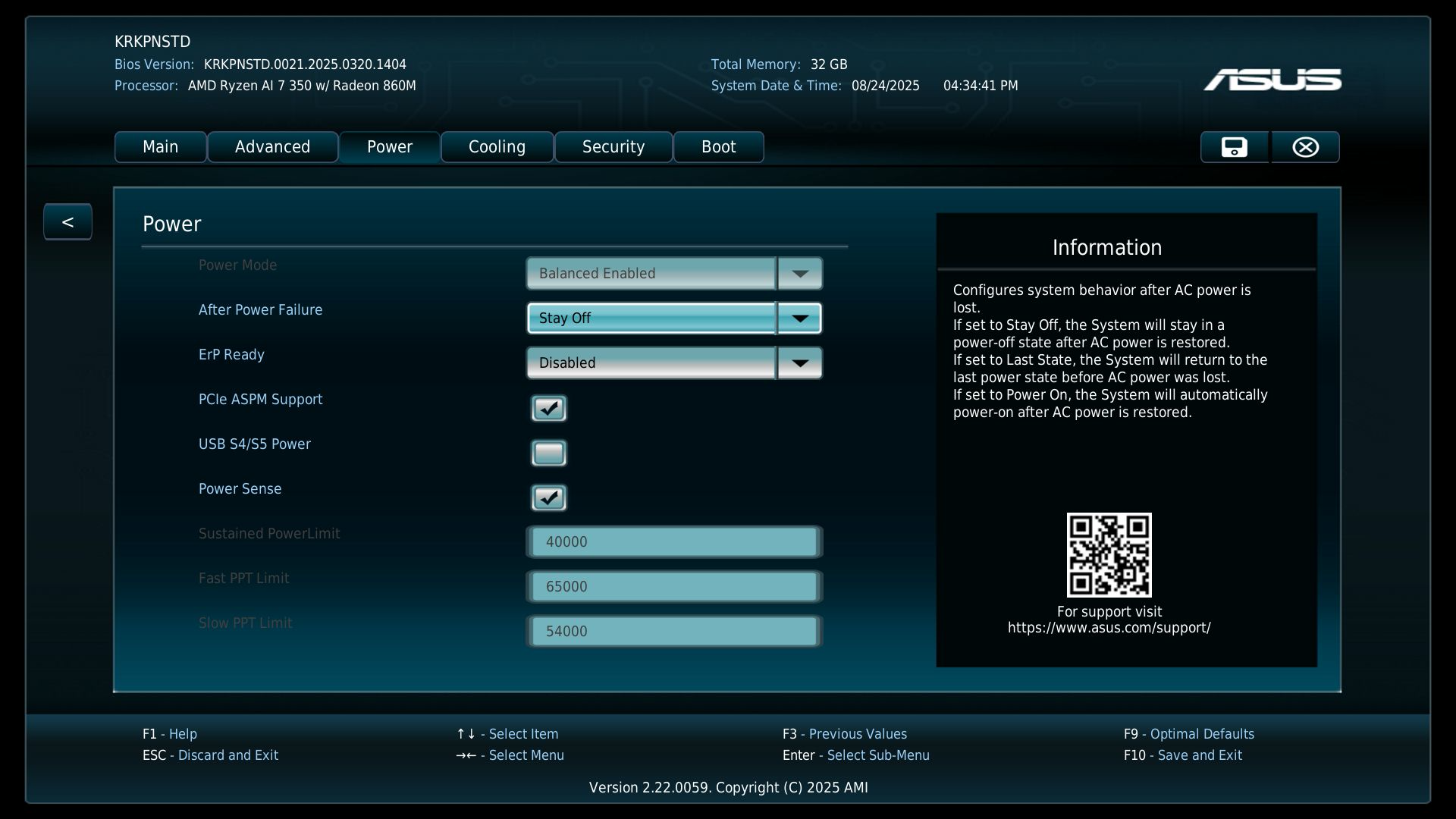

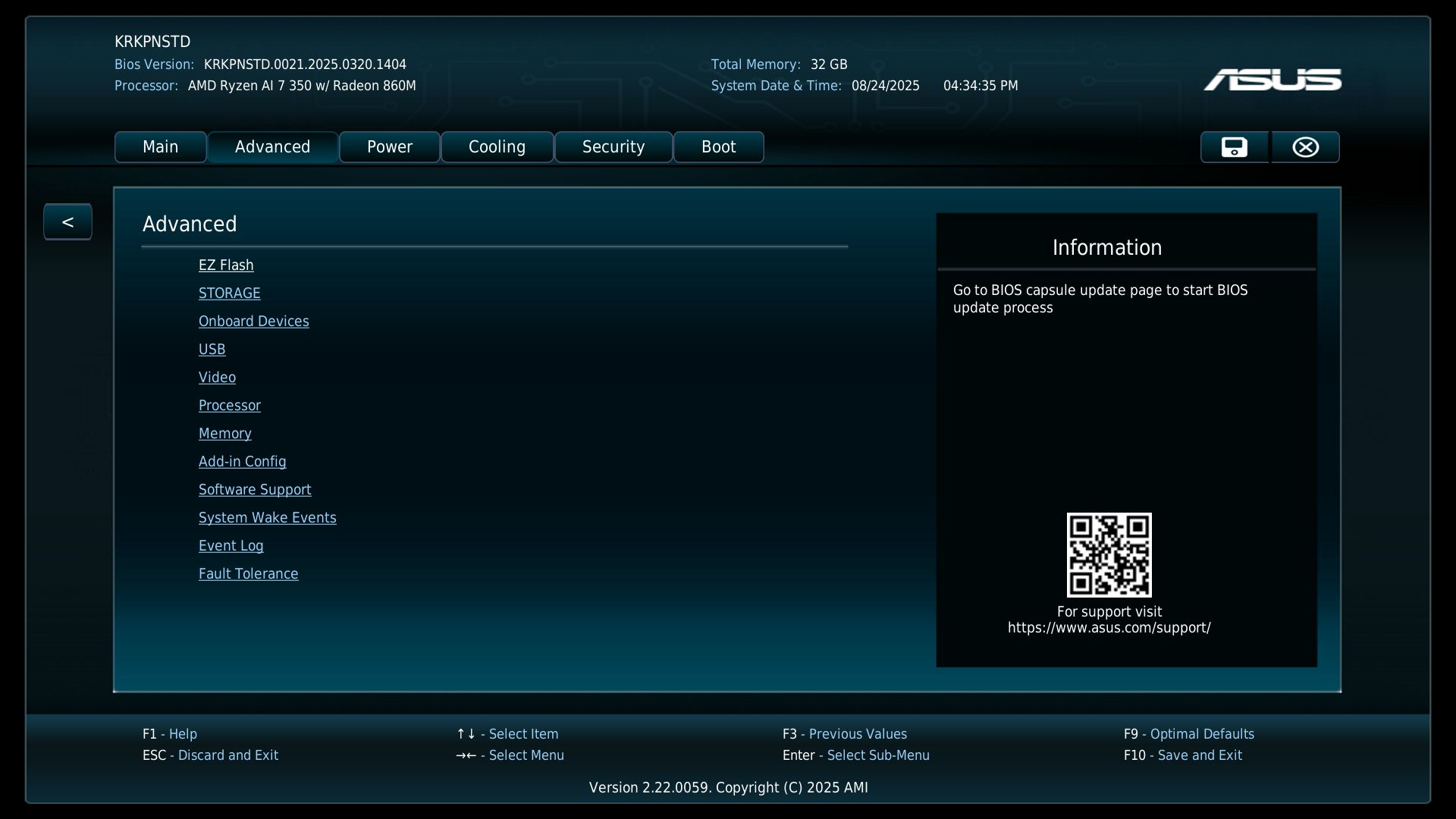

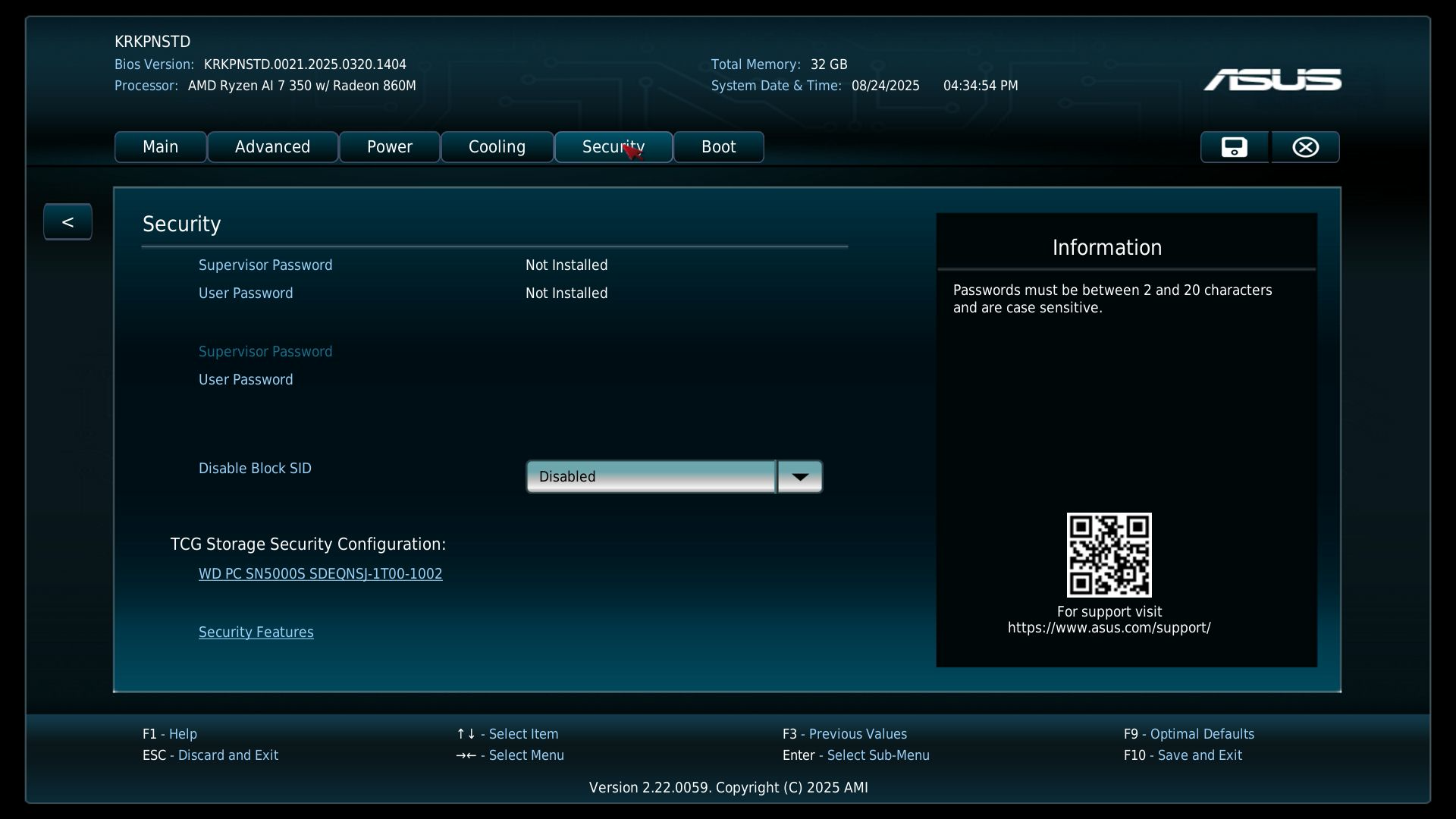

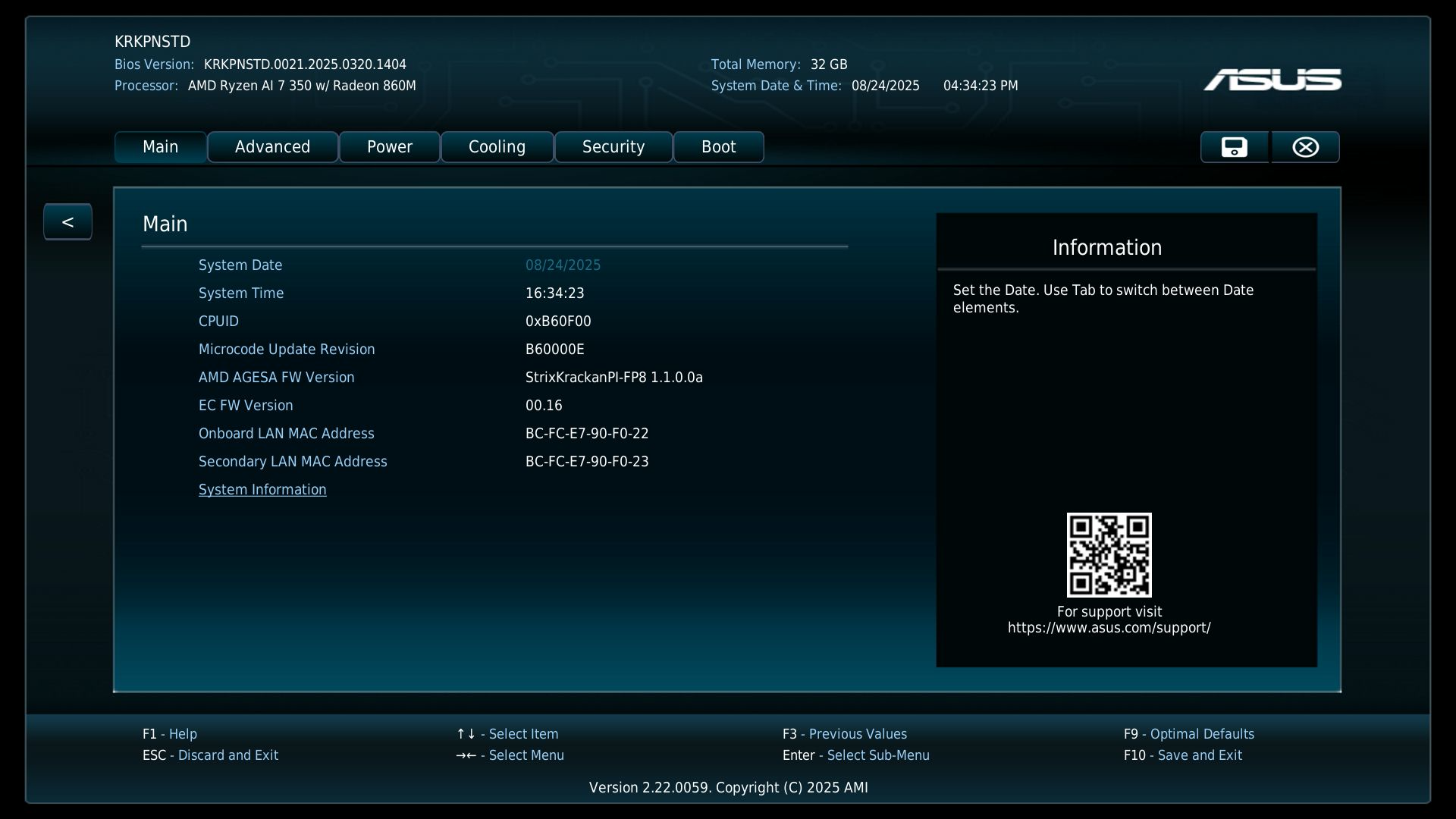

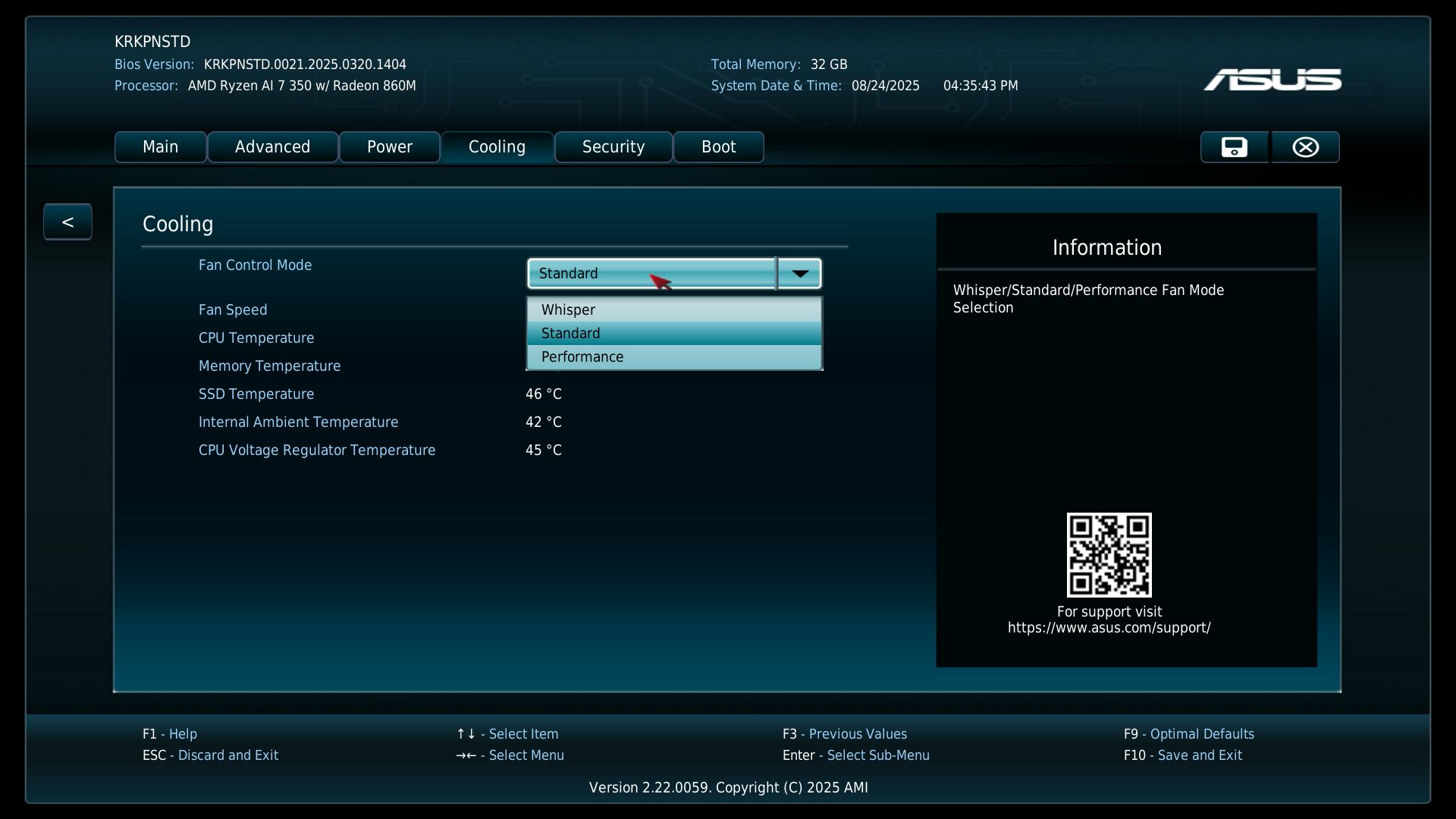

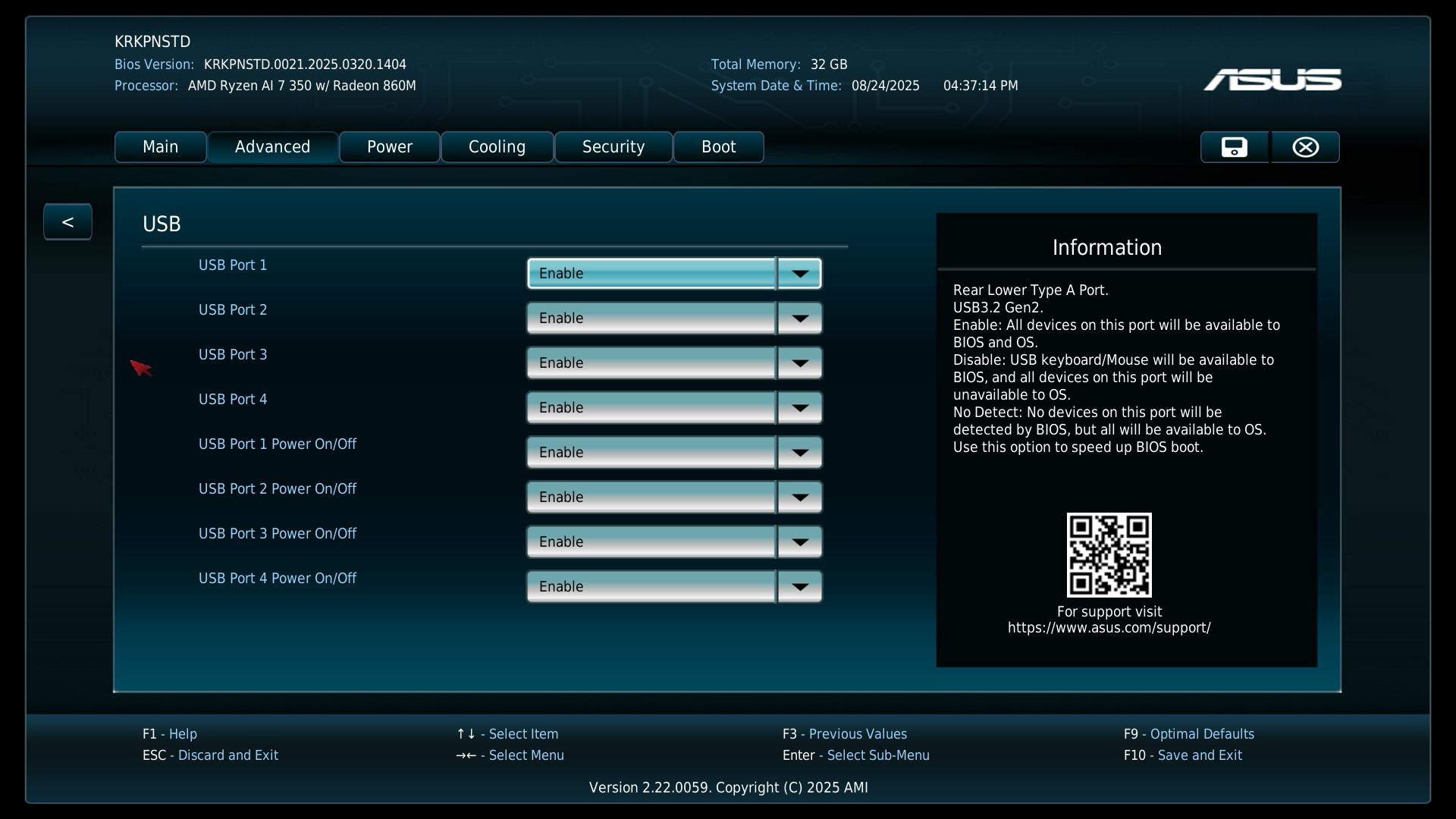

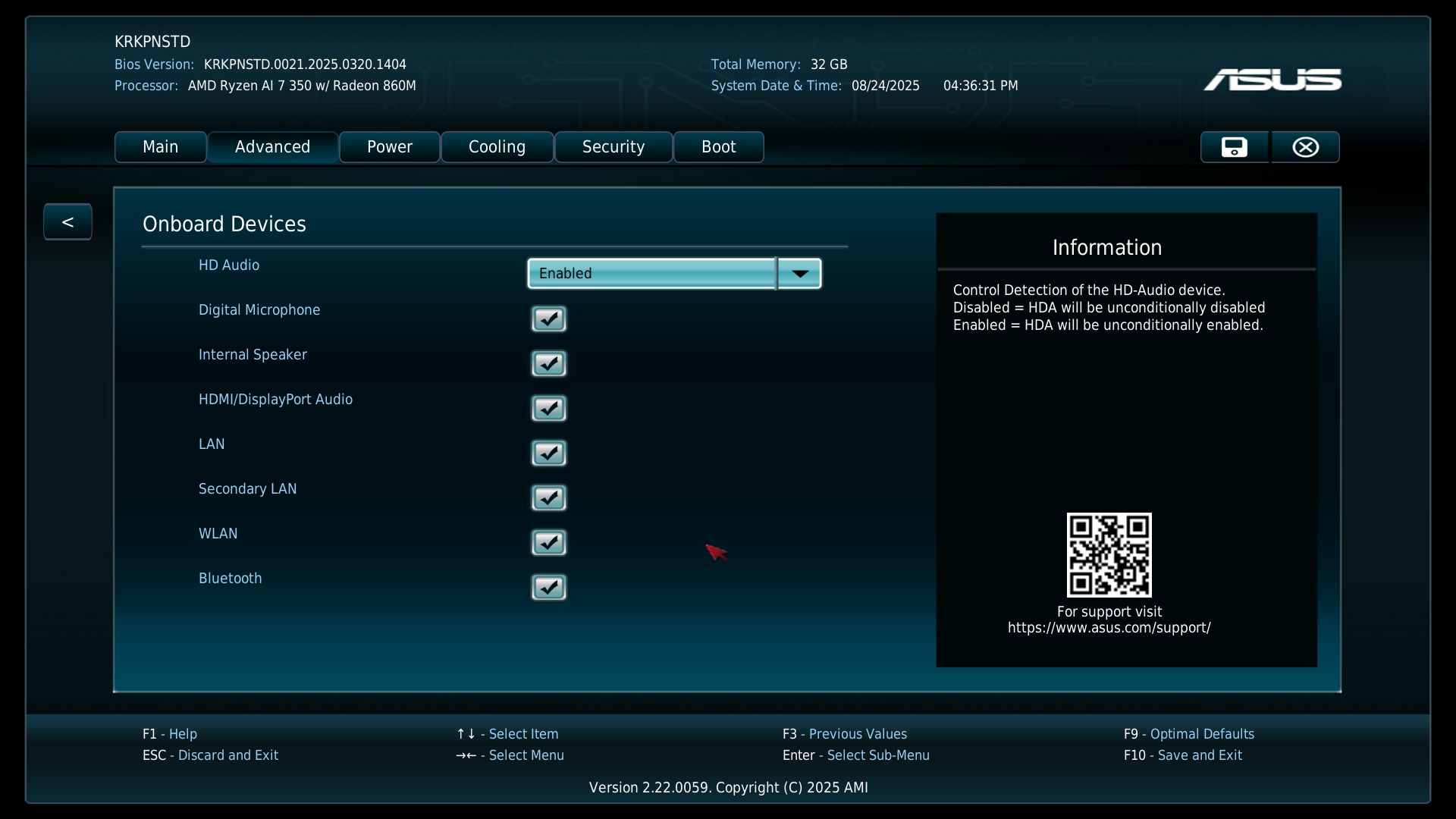

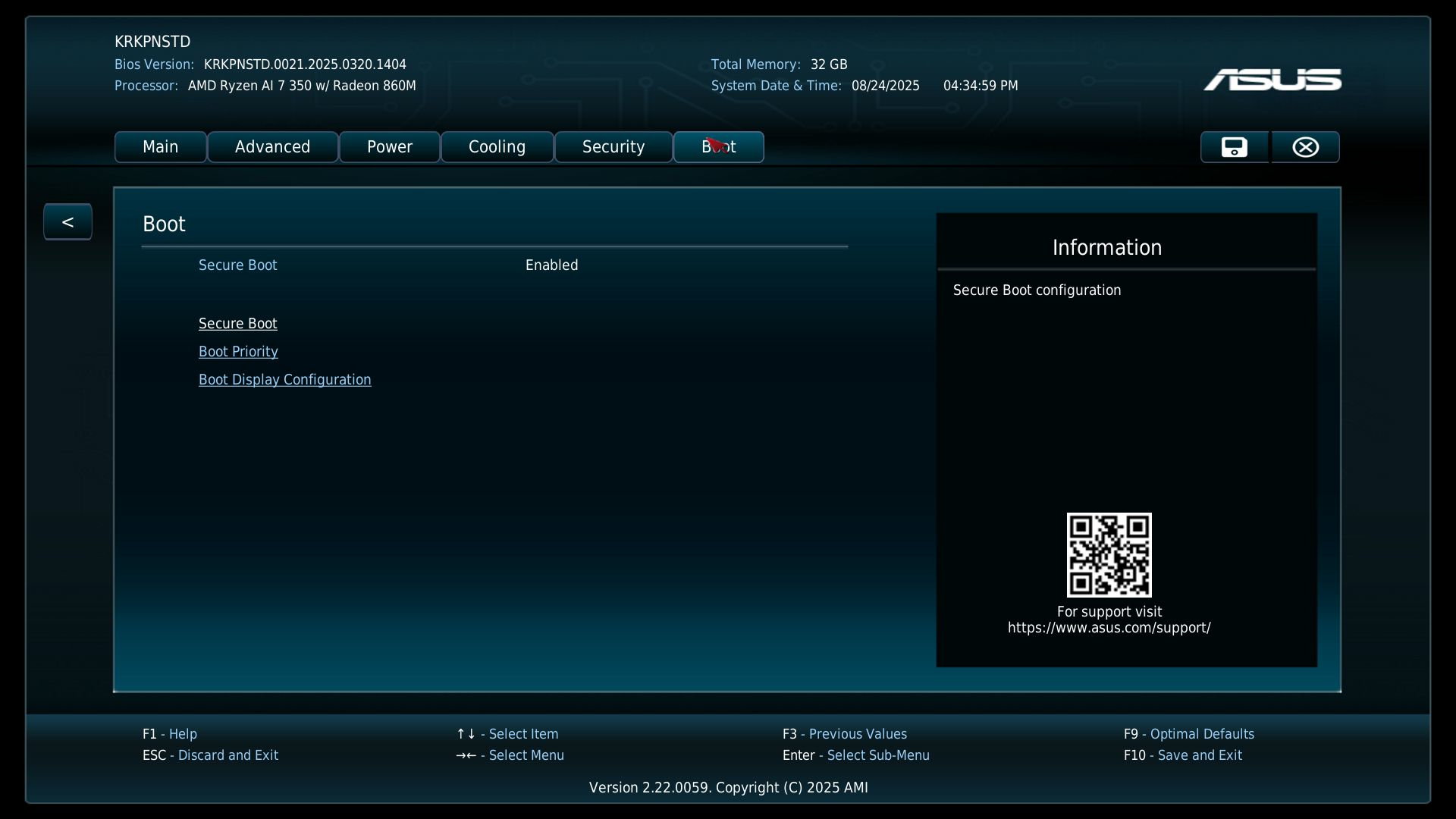

UEFI 设置

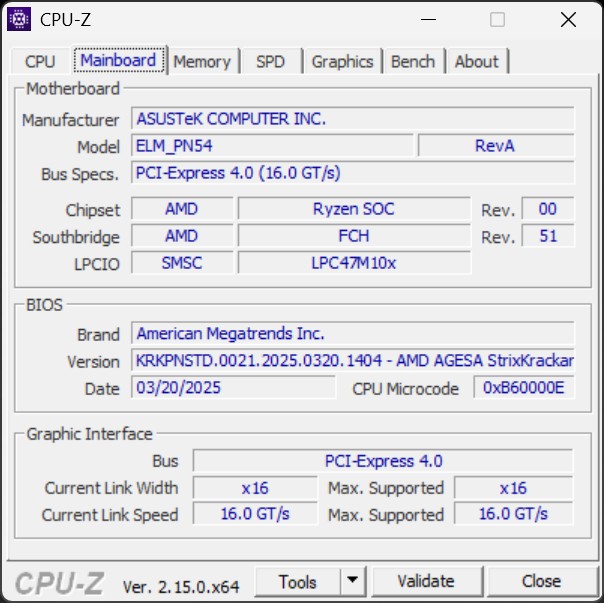

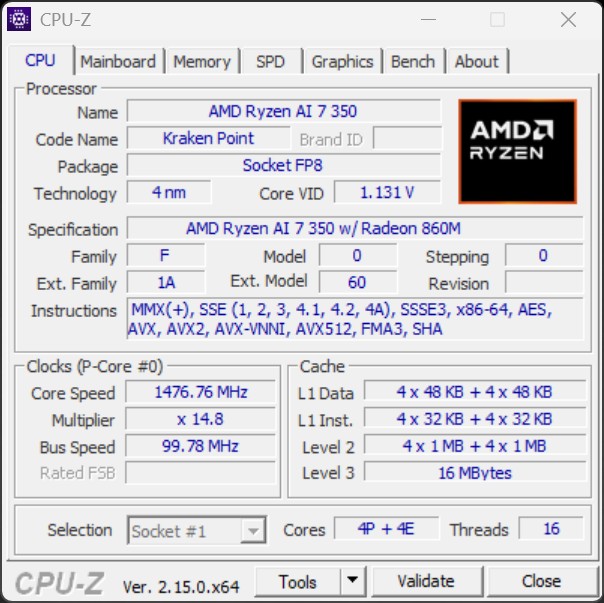

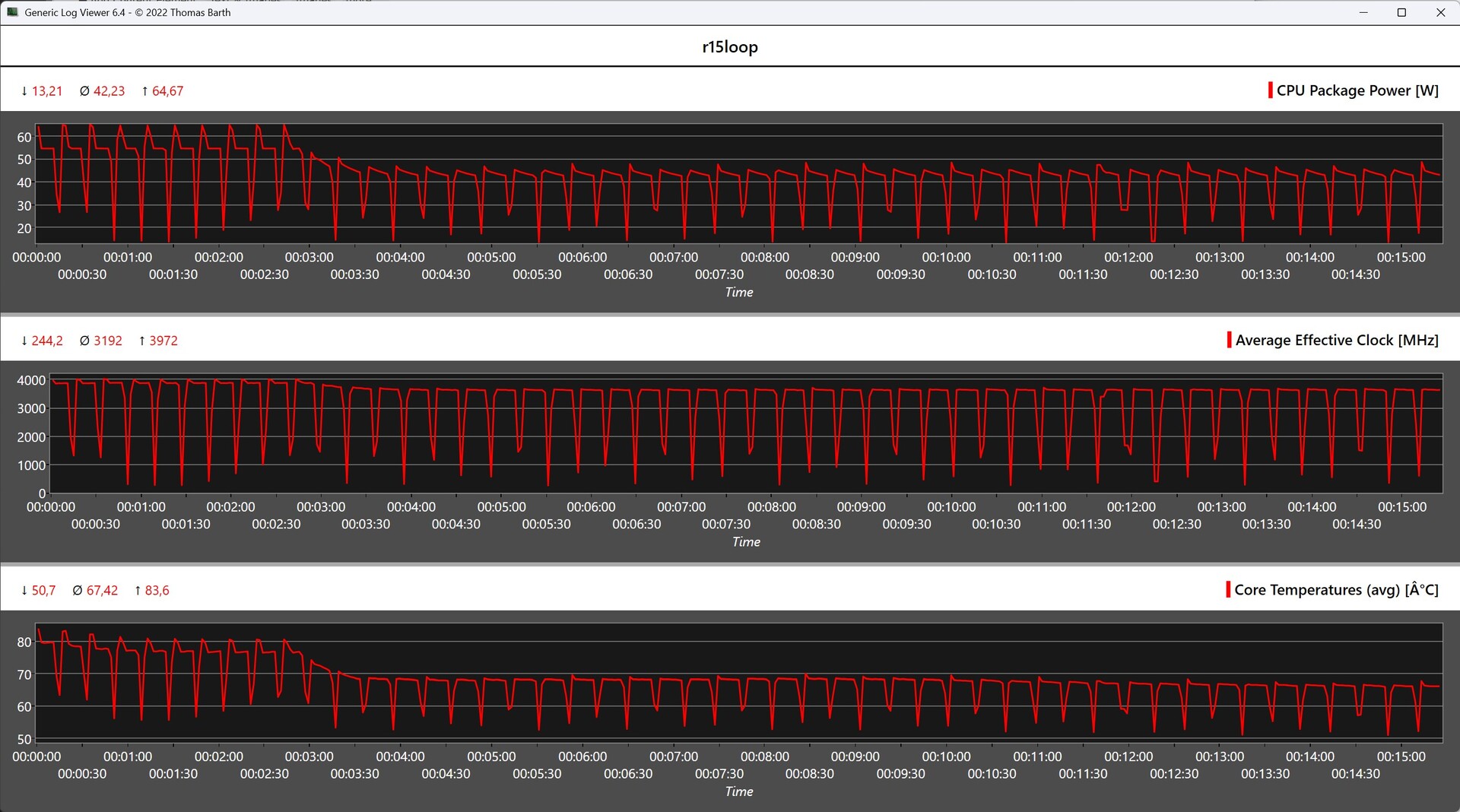

处理器

由于采用了 Zen 5 架构，华硕 ExpertCenter PN54 中的 AMD Ryzen AI 7 350 可提供较高的单核心和多核心性能。在性能比较中，AMD Ryzen AI 7 350 的性能大约相当于华硕专家中心 PN54 中的 AMD Ryzen 7 8845HS。 Geekom A8 Max.英特尔酷睿 Ultra 9 285H 的性能略高，这可以从 GMK EVO-T1可以看出。

Performance Rating - Percent
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	62.2 pt
GMK EVO-T1 Intel Core Ultra 9 285H	61.8 pt
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	61 pt
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	58 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	57.6 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS	56.4 pt

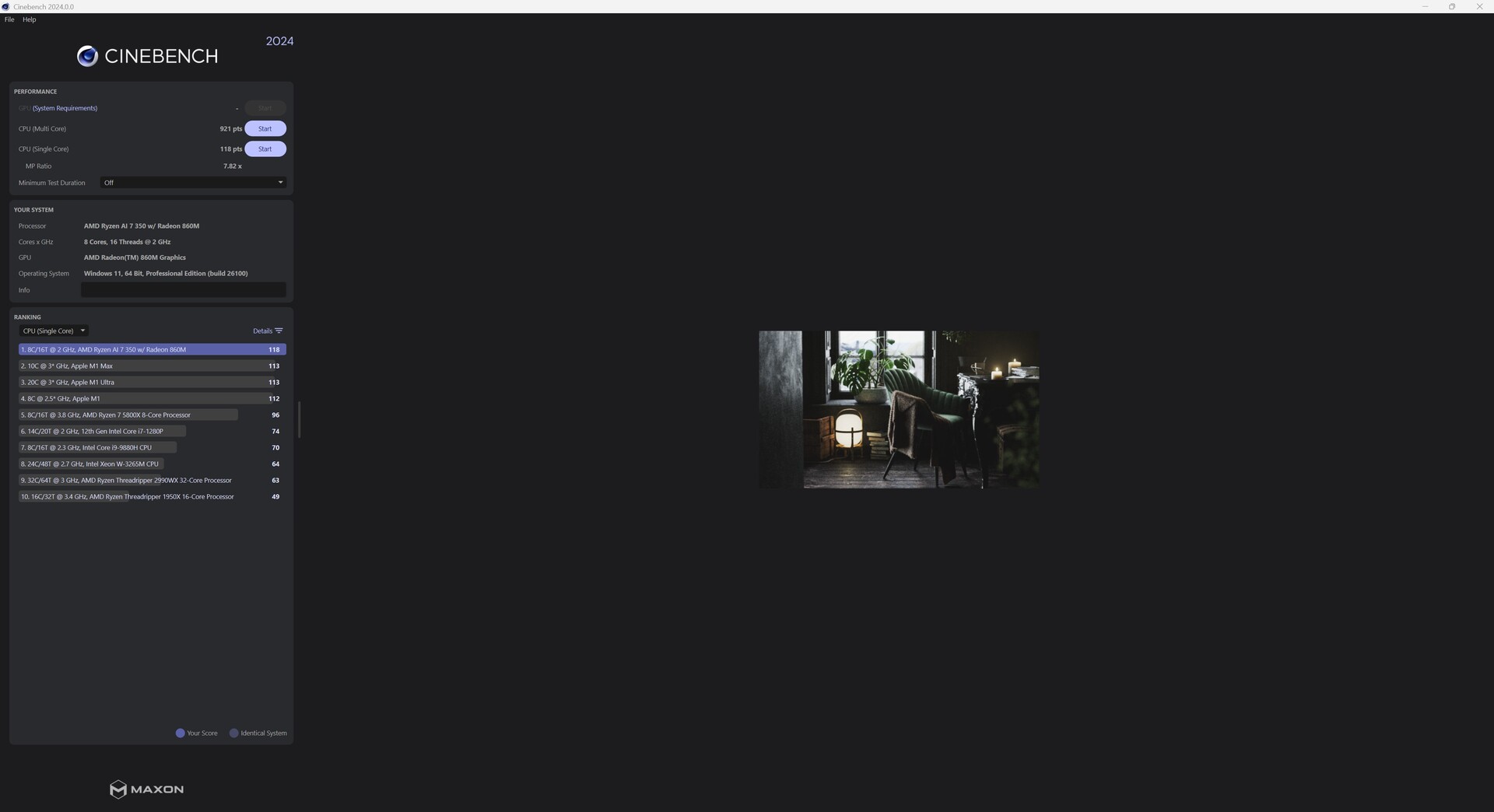

Cinebench 2024
CPU Multi Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1267 Points +38%
GMK EVO-T1 Intel Core Ultra 9 285H	1142 Points +24%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	943 Points +2%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	921 Points
BOSGAME M4 Neo AMD Ryzen 7 7840HS	888 Points -4%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	865 Points -6%
CPU Single Core
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	130 Points +10%
GMK EVO-T1 Intel Core Ultra 9 285H	126 Points +7%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	121 Points +3%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	118 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	106 Points -10%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	105 Points -11%

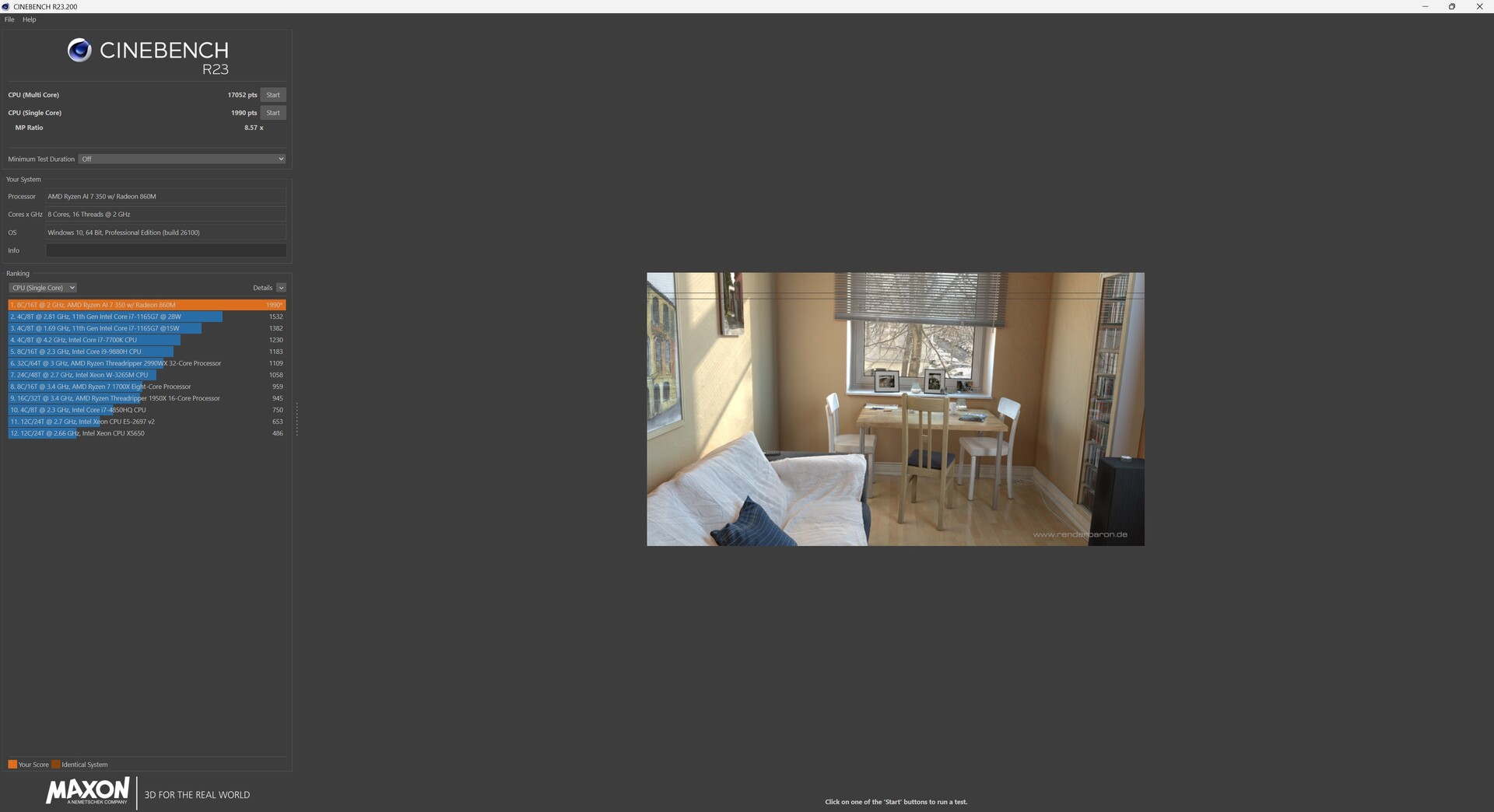

Cinebench R23
Multi Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	22836 Points +34%
GMK EVO-T1 Intel Core Ultra 9 285H	20681 Points +21%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	18253 Points +7%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	17052 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	16350 Points -4%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	15533 Points -9%
Single Core
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	2157 Points +8%
GMK EVO-T1 Intel Core Ultra 9 285H	2105 Points +6%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2040 Points +3%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	1990 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1779 Points -11%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1762 Points -11%

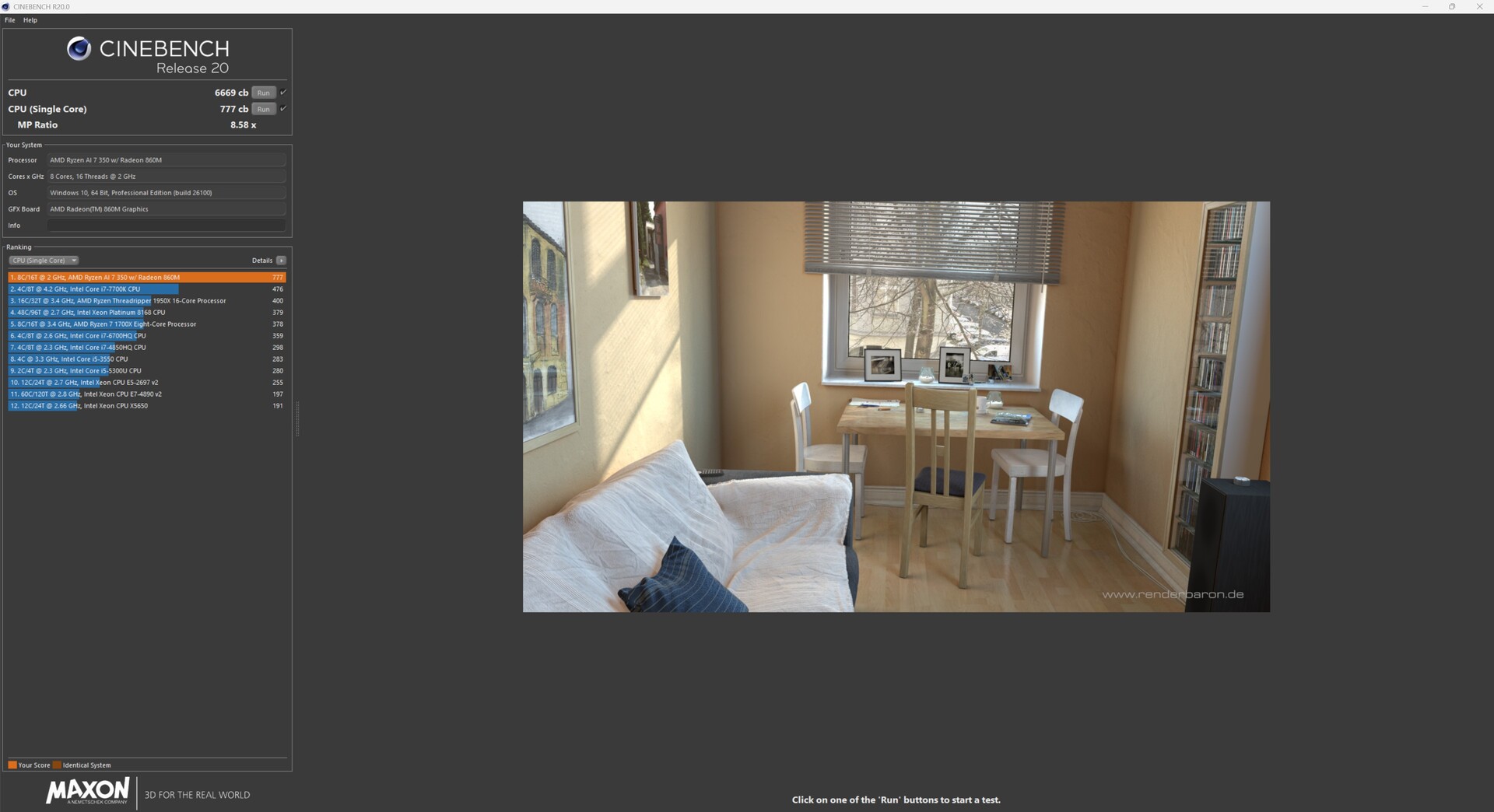

Cinebench R20
CPU (Multi Core)
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8969 Points +34%
GMK EVO-T1 Intel Core Ultra 9 285H	8068 Points +21%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	7410 Points +11%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	6669 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	6428 Points -4%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6254 Points -6%
CPU (Single Core)
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	830 Points +7%
GMK EVO-T1 Intel Core Ultra 9 285H	809 Points +4%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	798 Points +3%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	777 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	690 Points -11%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	677 Points -13%

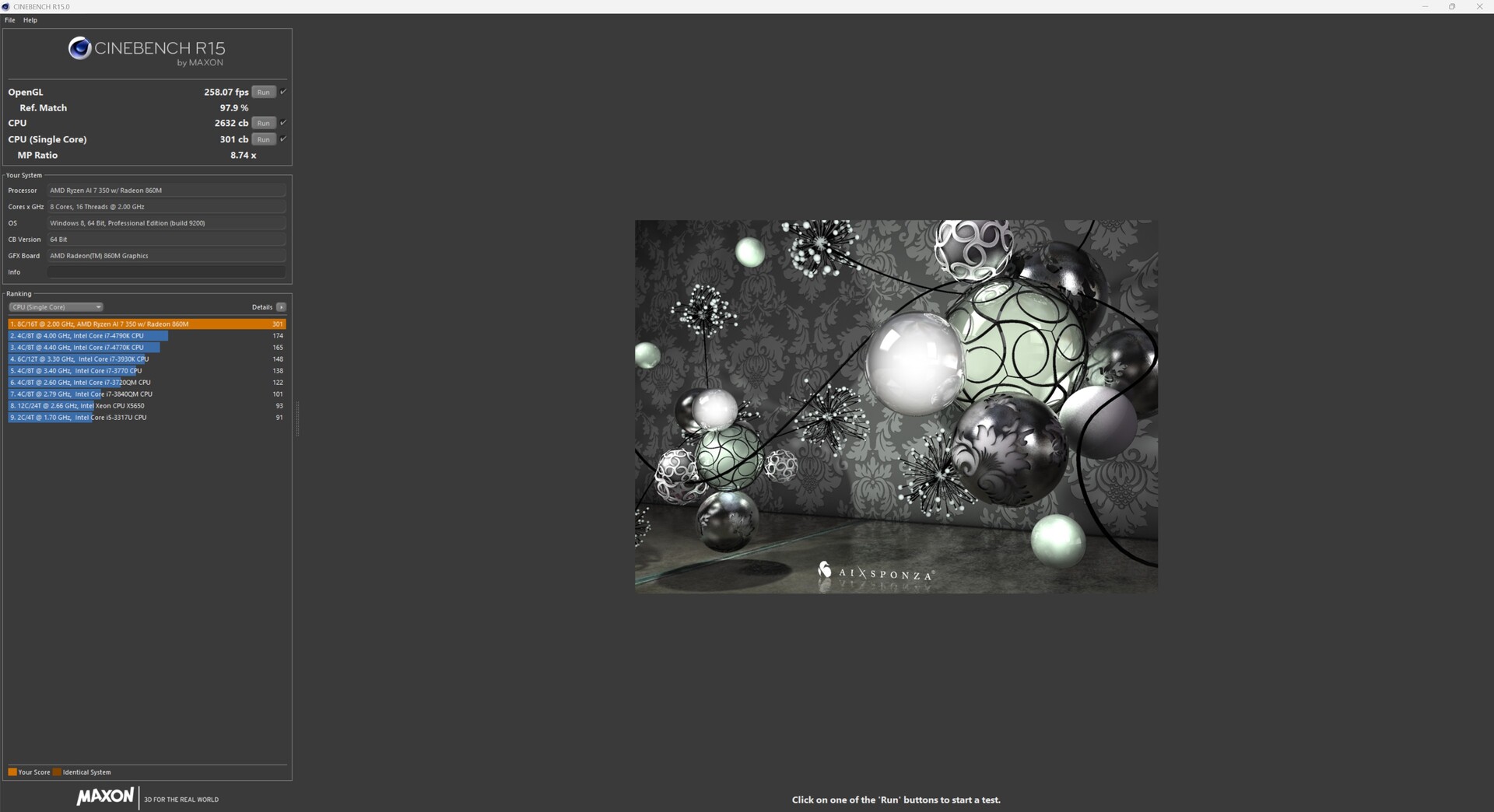

Cinebench R15
CPU Multi 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	3478 Points +32%
GMK EVO-T1 Intel Core Ultra 9 285H	3137 Points +19%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	2876 Points +9%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	2632 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2615 Points -1%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2508 Points -5%
CPU Single 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	311 Points +3%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	311 Points +3%
GMK EVO-T1 Intel Core Ultra 9 285H	309 Points +3%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	301 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	278 Points -8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	270 Points -10%

Cinebench R11.5
CPU Multi 64Bit
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	41.17 Points +34%
GMK EVO-T1 Intel Core Ultra 9 285H	38.65 Points +26%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	35.99 Points +17%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	30.75 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	30.3 Points -1%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	29.59 Points -4%
CPU Single 64Bit
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	3.72 Points +4%
GMK EVO-T1 Intel Core Ultra 9 285H	3.7 Points +3%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	3.69 Points +3%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	3.59 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	3.34 Points -7%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3.29 Points -8%

Cinebench R10
Rendering Single CPUs 64Bit
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	17515 Points +13%
GMK EVO-T1 Intel Core Ultra 9 285H	17328 Points +12%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	15935 Points +3%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	15483 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	14557 Points -6%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	14197 Points -8%
Rendering Multiple CPUs 64Bit
GMK EVO-T1 Intel Core Ultra 9 285H	116185 Points +30%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	111175 Points +25%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	100569 Points +13%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	89153 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	87782 Points -2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	84973 Points -5%

Blender
v2.79 BMW27 CPU
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	209 Seconds * -8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	201 Seconds * -4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	194 Seconds * -0%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	194 Seconds *
GMK EVO-T1 Intel Core Ultra 9 285H	166 Seconds * +14%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	143 Seconds * +26%
v3.3 Classroom CPU
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	359 Seconds * -17%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	328 Seconds * -7%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	316 Seconds * -3%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	306 Seconds *
GMK EVO-T1 Intel Core Ultra 9 285H	268 Seconds * +12%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	221 Seconds * +28%
v4.3 Barbershop CPU
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	1798 Seconds * -10%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	1635 Seconds *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1601 Seconds * +2%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1566 Seconds * +4%
GMK EVO-T1 Intel Core Ultra 9 285H	1355 Seconds * +17%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1151 Seconds * +30%

wPrime 2.10
32m
GMK EVO-T1 Intel Core Ultra 9 285H	3.375 s * -10%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	3.3 s * -8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3.244 s * -6%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	3.069 s *
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2.81 s * +8%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2.701 s * +12%
1024m
GMK EVO-T1 Intel Core Ultra 9 285H	275.558 s * -304%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	104.802 s * -54%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	75.535 s * -11%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	70.718 s * -4%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	68.229 s *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	50.536 s * +26%

X264 HD Benchmark 4.0
Pass 1
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	363 (357^min - 371^max) fps +14%
GMK EVO-T1 Intel Core Ultra 9 285H	356.5 (340^min - 365^max) fps +12%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	330 (327^min - 331^max) fps +3%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	319 (314^min - 324^max) fps
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	286.5 (284^min - 289^max) fps -10%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	280 (278^min - 288^max) fps -12%
Pass 2
GMK EVO-T1 Intel Core Ultra 9 285H	185.15 (183.8^min - 186.9^max) fps +19%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	185.1 (184.7^min - 185.4^max) fps +19%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	176.05 (149.7^min - 176.1^max) fps +14%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	155.05 (154.4^min - 157.4^max) fps
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	149.8 (149.4^min - 151.1^max) fps -3%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	142.85 (140.6^min - 147.6^max) fps -8%

WinRAR - Result
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	7690 KB/s +21%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7275 KB/s +15%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7271 KB/s +15%
GMK EVO-T1 Intel Core Ultra 9 285H	6751 KB/s +6%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	6347 KB/s
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	4759 KB/s -25%

TrueCrypt
AES Mean 100MB
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	15.3 GB/s +46%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	14.9 GB/s +42%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	10.5 GB/s
BOSGAME M4 Neo AMD Ryzen 7 7840HS	10.2 GB/s -3%
GMK EVO-T1 Intel Core Ultra 9 285H	9.5 GB/s -10%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	8.9 GB/s -15%
Twofish Mean 100MB
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2.6 GB/s +37%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2.1 GB/s +11%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	2 GB/s +5%
GMK EVO-T1 Intel Core Ultra 9 285H	2 GB/s +5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1.9 GB/s 0%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	1.9 GB/s
Serpent Mean 100MB
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1.6 GB/s +45%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1.3 GB/s +18%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1.2 GB/s +9%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	1.1 GB/s 0%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	1.1 GB/s
GMK EVO-T1 Intel Core Ultra 9 285H	1 GB/s -9%

Geekbench AI
Quantized CPU 1.4
GMK EVO-T1 Intel Core Ultra 9 285H	9169 Points +2%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	8968 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	7725 Points -14%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	7698 Points -14%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7617 Points -15%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7545 Points -16%
Half Precision CPU 1.4
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	2124 Points
GMK EVO-T1 Intel Core Ultra 9 285H	2027 Points -5%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1853 Points -13%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1799 Points -15%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	1795 Points -15%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1757 Points -17%
Single Precision CPU 1.4
GMK EVO-T1 Intel Core Ultra 9 285H	5018 Points +27%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	4654 Points +18%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	4202 Points +7%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	4185 Points +6%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	4098 Points +4%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	3937 Points

Geekbench 6.4
Single-Core
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	3075 Points +7%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2911 Points +2%
GMK EVO-T1 Intel Core Ultra 9 285H	2878 Points 0%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	2867 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2642 Points -8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2626 Points -8%
Multi-Core
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	15673 Points +16%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	15381 Points +14%
GMK EVO-T1 Intel Core Ultra 9 285H	15339 Points +14%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	13470 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	13239 Points -2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	13020 Points -3%

Geekbench 6.0
Single-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	3105 Points 0%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	3105 Points 0%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3105 Points 0%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	3105 Points 0%
GMK EVO-T1 Intel Core Ultra 9 285H	3105 Points 0%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	3105 Points
Multi-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	21003 Points 0%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	21003 Points 0%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	21003 Points 0%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	21003 Points 0%
GMK EVO-T1 Intel Core Ultra 9 285H	21003 Points 0%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	21003 Points

Geekbench 5.5
Multi-Core
GMK EVO-T1 Intel Core Ultra 9 285H	15175 Points +29%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	14998 Points +27%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	14859 Points +26%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	12207 Points +4%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	11794 Points 0%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	11791 Points
Single-Core
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	2256 Points +10%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2076 Points +1%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	2054 Points
GMK EVO-T1 Intel Core Ultra 9 285H	2024 Points -1%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1949 Points -5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1908 Points -7%

Geekbench 5.0
5.0 Multi-Core
GMK EVO-T1 Intel Core Ultra 9 285H	15225 Points +29%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	14890 Points +27%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	14828 Points +26%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	12057 Points +2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	11775 Points 0%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	11769 Points
5.0 Single-Core
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	2196 Points +11%
GMK EVO-T1 Intel Core Ultra 9 285H	2027 Points +3%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	1970 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1952 Points -1%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1869 Points -5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1841 Points -7%

Geekbench 4.4
64 Bit Multi-Core Score
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	57060 Points +27%
GMK EVO-T1 Intel Core Ultra 9 285H	56593 Points +26%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	54076 Points +20%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	49452 Points +10%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	48762 Points +8%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	44985 Points
64 Bit Single-Core Score
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	9220 Points +11%
GMK EVO-T1 Intel Core Ultra 9 285H	8530 Points +3%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	8281 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8277 Points 0%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	8092 Points -2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7879 Points -5%

3DMark 11 - 1280x720 Performance Physics
GMK EVO-T1 Intel Core Ultra 9 285H	22488 Points +14%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	22207 Points +13%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	22199 Points +13%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	21664 Points +10%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	21286 Points +8%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	19672 Points

7-Zip 18.03
7z b 4
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	82854 MIPS +58%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	71161 MIPS +35%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	69798 MIPS +33%
GMK EVO-T1 Intel Core Ultra 9 285H	65478 MIPS +25%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	58346 MIPS +11%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	52585 MIPS
7z b 4 -mmt1
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	6582 MIPS +19%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6495 MIPS +17%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	6419 MIPS +16%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	6337 MIPS +14%
GMK EVO-T1 Intel Core Ultra 9 285H	6039 MIPS +9%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	5544 MIPS

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	27.9 fps +32%
GMK EVO-T1 Intel Core Ultra 9 285H	23.6 fps +11%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	21.2 fps
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	21.1 fps 0%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	20.7 fps -2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	20.5 fps -3%

R Benchmark 2.5 - Overall mean
BOSGAME M4 Neo AMD Ryzen 7 7840HS	0.4513 sec * -8%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	0.4435 sec * -6%
GMK EVO-T1 Intel Core Ultra 9 285H	0.4428 sec * -5%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	0.4198 sec *
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	0.4111 sec * +2%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	0.3892 sec * +7%

LibreOffice - 20 Documents To PDF
GMK EVO-T1 Intel Core Ultra 9 285H	54.3 s * -11%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	52.3 s * -7%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	50.1 s * -2%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	48.9 s *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	48.7 s * -0%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	39.7 s * +19%

3DMark
1920x1080 Fire Strike Physics
GMK EVO-T1 Intel Core Ultra 9 285H	33232 Points +18%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	32489 Points +16%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	28765 Points +2%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	28124 Points
BOSGAME M4 Neo AMD Ryzen 7 7840HS	26481 Points -6%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	26420 Points -6%
2560x1440 Time Spy CPU
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	11598 Points +10%
GMK EVO-T1 Intel Core Ultra 9 285H	11598 Points +10%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	10990 Points +4%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	10795 Points +2%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	10569 Points
BOSGAME M4 Neo AMD Ryzen 7 7840HS	9532 Points -10%

Super Pi mod 1.5 XS 1M - 1M
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	8.541 s *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8.224 s * +4%
GMK EVO-T1 Intel Core Ultra 9 285H	7.338 s * +14%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7.193 s * +16%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7.103 s * +17%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	7.084 s * +17%

Super Pi mod 1.5 XS 2M - 2M
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	18.179 s *
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	17.746 s * +2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	17.676 s * +3%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	17.504 s * +4%
GMK EVO-T1 Intel Core Ultra 9 285H	16.138 s * +11%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	15.516 s * +15%

Affinity Photo 2 - Combined (Multi CPU)
GMK EVO-T1 Intel Core Ultra 9 285H	1105 Points +44%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1050 Points +37%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	787 Points +2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	781 Points +2%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	769 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	747 Points -3%

SPECworkstation 4.0 - CPU Score
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1.28 Points +24%
GMK EVO-T1 Intel Core Ultra 9 285H	1.13 Points +10%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350	1.03 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1.02 Points -1%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	0.97 Points -6%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	0.96 Points -7%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

8478

Cinebench R10 Shading 64Bit

26922 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

89153 Points

Cinebench R10 Rendering Single CPUs 64Bit

15483 Points

Cinebench R10 Shading 32Bit

22880

Cinebench R10 Rendering Multiple CPUs 32Bit

50939

Cinebench R11.5 CPU Single 32Bit

3.21 Points

Cinebench R11.5 CPU Multi 32Bit

27.31 Points

Cinebench R11.5 CPU Single 64Bit

3.59 Points

Cinebench R11.5 CPU Multi 64Bit

30.75 Points

Cinebench R15 CPU Single 64Bit

301 Points

Cinebench R15 CPU Multi 64Bit

2632 Points

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 OpenGL 64Bit

258.07 fps

Cinebench R20 CPU (Single Core)

777 Points

Cinebench R20 CPU (Multi Core)

6669 Points

Cinebench R23 Multi Core

17052 Points

Cinebench R23 Single Core

1990 Points

Cinebench 2024 CPU Single Core

118 Points

Cinebench 2024 CPU Multi Core

921 Points

Help

... in comparison

Performance Rating
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	93.9 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	77.5 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	76.2 pt
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	72 pt
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	71.3 pt
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	61.7 pt
Average of class Mini PC	57.8 pt

AIDA64 / FP32 Ray-Trace
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	36304 KRay/s +38%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	26369 KRay/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	26038 KRay/s -1%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	25593 KRay/s -3%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	23041 KRay/s -13%
Average of class Mini PC (769 - 82725, n=111, last 2 years)	16833 KRay/s -36%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	15858 KRay/s -40%

AIDA64 / FPU Julia
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	138264 Points +37%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	114534 Points +13%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	107039 Points +6%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	105522 Points +4%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	101080 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	78830 Points -22%
Average of class Mini PC (4140 - 227429, n=111, last 2 years)	75667 Points -25%

AIDA64 / CPU SHA3
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	5698 MB/s +35%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	5093 MB/s +21%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	4709 MB/s +12%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	4633 MB/s +10%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	4221 MB/s
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	3818 MB/s -10%
Average of class Mini PC (290 - 9413, n=111, last 2 years)	3377 MB/s -20%

AIDA64 / CPU Queen
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	117545 Points +64%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	114337 Points +59%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	87574 Points +22%
Average of class Mini PC (8186 - 184747, n=111, last 2 years)	84045 Points +17%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	71850 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	63556 Points -12%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	58606 Points -18%

AIDA64 / FPU SinJulia
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	18988 Points +40%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	14943 Points +10%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	14592 Points +7%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	13575 Points
Average of class Mini PC (408 - 31563, n=111, last 2 years)	10119 Points -25%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	8074 Points -41%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	7269 Points -46%

AIDA64 / FPU Mandel
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	74000 Points +38%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	60511 Points +12%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	57314 Points +7%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	56330 Points +5%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	53794 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	41370 Points -23%
Average of class Mini PC (2088 - 121827, n=111, last 2 years)	39378 Points -27%

AIDA64 / CPU AES
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	117613 MB/s +44%
Average of class Mini PC (3691 - 325960, n=111, last 2 years)	89358 MB/s +9%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	83357 MB/s +2%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	82828 MB/s +1%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	81627 MB/s
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	79852 MB/s -2%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	72638 MB/s -11%

AIDA64 / CPU ZLib
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	1513 MB/s +40%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	1167 MB/s +8%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	1084 MB/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	1063 MB/s -2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	1022 MB/s -6%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	980 MB/s -10%
Average of class Mini PC (77.4 - 2431, n=111, last 2 years)	873 MB/s -19%

AIDA64 / FP64 Ray-Trace
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	19666 KRay/s +38%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	14228 KRay/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	14040 KRay/s -1%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	13745 KRay/s -3%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	12576 KRay/s -12%
Average of class Mini PC (432 - 42272, n=111, last 2 years)	8995 KRay/s -37%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	8347 KRay/s -41%

AIDA64 / CPU PhotoWorxx
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	53330 MPixel/s +22%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	51727 MPixel/s +19%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	49874 MPixel/s +14%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	43599 MPixel/s
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	40165 MPixel/s -8%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	39905 MPixel/s -8%
Average of class Mini PC (5333 - 94026, n=111, last 2 years)	32316 MPixel/s -26%

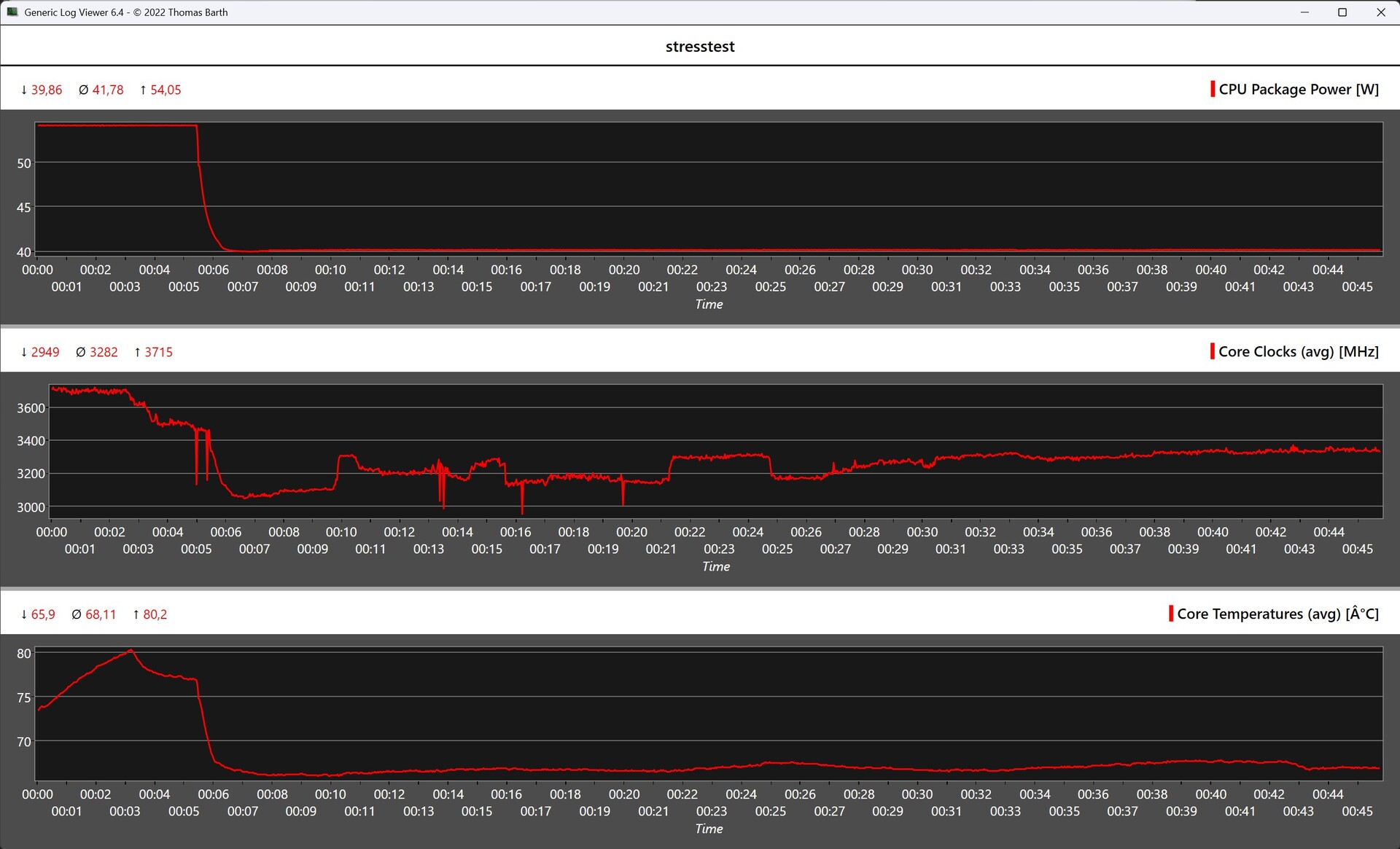

Cinebench R15 多耐久性测试

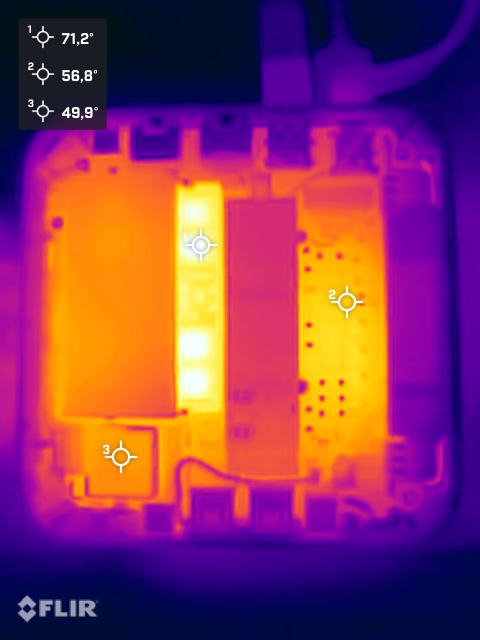

压力测试表明，散热装置无法完全维持 AMD Ryzen AI 7 350 的性能。在第 10 次运行后，性能略有下降，这在最终结果中仅略有体现。

Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, AMD Ryzen AI 7 350: Ø2439 (2391.2-2597.4)

Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, AMD Ryzen AI 9 HX 370: Ø3424 (3388.97-3493.45)

Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, AMD Ryzen 7 8845HS: Ø2547 (2492.52-2619.34)

Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Intel Core Ultra 9 285H: Ø2208 (2111.49-2954.21)

GMK EVO-T1 Intel Core Ultra 9 285H, Intel Core Ultra 9 285H: Ø3047 (3002.55-3112.11)

BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2434 (2405.58-2566.08)

系统性能

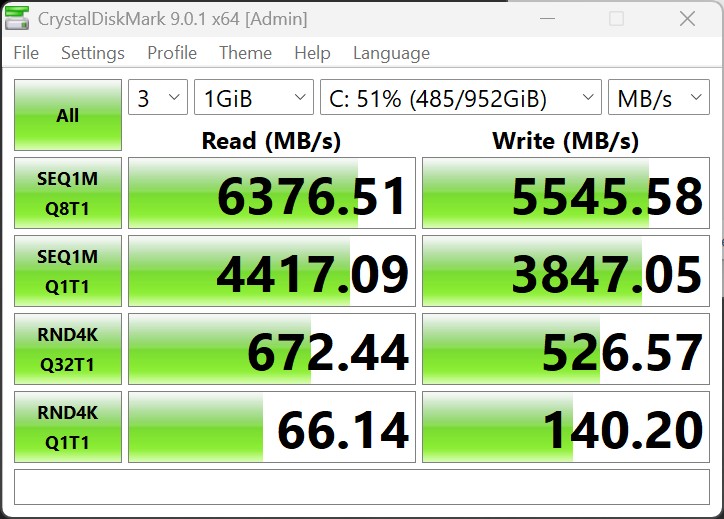

华硕 ExpertCenter PN54 在日常使用中性能卓越。凭借 DDR5 内存和快速 PCIe 固态硬盘，系统运行流畅，几乎没有明显的延迟。与竞争对手相比，该设备性能稳定，只有在人工智能性能方面，配备专用 NPU 的芯片才具有优势。

PCMark 10 / Score
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	7873 Points +2%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	7798 Points +1%
Asus ExpertCenter PN54-S70012NN, AMD Ryzen AI 7 350 AMD Radeon 860M, Western Digital PC SN5000S SDEQNSJ-1T00	7732 Points
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	7577 Points -2%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	6993 Points -10%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	6914 Points -11%

PCMark 10 / Essentials
Asus ExpertCenter PN54-S70012NN, AMD Ryzen AI 7 350 AMD Radeon 860M, Western Digital PC SN5000S SDEQNSJ-1T00	11292 Points
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	10957 Points -3%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	10587 Points -6%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	10438 Points -8%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	10307 Points -9%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	10286 Points -9%

PCMark 10 / Productivity
Asus ExpertCenter PN54-S70012NN, AMD Ryzen AI 7 350 AMD Radeon 860M, Western Digital PC SN5000S SDEQNSJ-1T00	11226 Points
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	10667 Points -5%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	10422 Points -7%
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	10167 Points -9%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	9742 Points -13%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	9325 Points -17%

WebXPRT 4 / Overall
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	317 Points +31%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	287 Points +19%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	269 Points +11%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	264 Points +9%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	264 Points +9%
Asus ExpertCenter PN54-S70012NN, AMD Ryzen AI 7 350 AMD Radeon 860M, Western Digital PC SN5000S SDEQNSJ-1T00	242 Points

WebXPRT 3 / Overall
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	336 Points +17%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	324 Points +13%
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	322 Points +12%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	314 Points +9%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	301 Points +5%
Asus ExpertCenter PN54-S70012NN, AMD Ryzen AI 7 350 AMD Radeon 860M, Western Digital PC SN5000S SDEQNSJ-1T00	287 Points

Mozilla Kraken 1.1 / Total
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	532 ms * -3%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	527 ms * -2%
Asus ExpertCenter PN54-S70012NN, AMD Ryzen AI 7 350 AMD Radeon 860M, Western Digital PC SN5000S SDEQNSJ-1T00	519 ms *
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	465 ms * +10%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	419 ms * +19%
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	418 ms * +19%

CrossMark / Overall
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	2227 Points +26%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	2000 Points +14%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1862 Points +6%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1816 Points +3%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1771 Points +1%
Asus ExpertCenter PN54-S70012NN, AMD Ryzen AI 7 350 AMD Radeon 860M, Western Digital PC SN5000S SDEQNSJ-1T00	1762 Points

CrossMark / Productivity
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	2170 Points +33%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	1927 Points +18%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1799 Points +11%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1714 Points +5%
Asus ExpertCenter PN54-S70012NN, AMD Ryzen AI 7 350 AMD Radeon 860M, Western Digital PC SN5000S SDEQNSJ-1T00	1627 Points
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1605 Points -1%

CrossMark / Creativity
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	2269 Points +10%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	2211 Points +7%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	2161 Points +5%
Asus ExpertCenter PN54-S70012NN, AMD Ryzen AI 7 350 AMD Radeon 860M, Western Digital PC SN5000S SDEQNSJ-1T00	2064 Points
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	2052 Points -1%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1969 Points -5%

CrossMark / Responsiveness
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	2191 Points +57%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	1772 Points +27%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1747 Points +25%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1496 Points +7%
Asus ExpertCenter PN54-S70012NN, AMD Ryzen AI 7 350 AMD Radeon 860M, Western Digital PC SN5000S SDEQNSJ-1T00	1394 Points
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1222 Points -12%

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	79203 MB/s +8%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	76816 MB/s +4%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	73578 MB/s
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	72702 MB/s -1%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	67938 MB/s -8%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	67607 MB/s -8%
Average of class Mini PC (8377 - 154332, n=111, last 2 years)	54163 MB/s -26%

AIDA64 / Memory Read
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	84635 MB/s +36%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	82022 MB/s +31%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	75428 MB/s +21%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	62416 MB/s
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	61143 MB/s -2%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	60996 MB/s -2%
Average of class Mini PC (8974 - 123483, n=111, last 2 years)	53888 MB/s -14%

AIDA64 / Memory Write
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	87827 MB/s +2%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	86747 MB/s +1%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	86075 MB/s
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	84236 MB/s -2%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	77742 MB/s -10%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	77625 MB/s -10%
Average of class Mini PC (8762 - 216693, n=111, last 2 years)	60587 MB/s -30%

AIDA64 / Memory Latency
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	128.3 ns * -35%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	118.6 ns * -25%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	99.8 ns * -5%
Average of class Mini PC (44.9 - 184.8, n=111, last 2 years)	95.4 ns * -1%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	94.8 ns *
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	90.3 ns * +5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	89.7 ns * +5%

* ... smaller is better

UL Procyon for Windows / Overall Score Integer NPU
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M (AMD Ryzen AI)	1781 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M (AMD Ryzen AI)	1757 Points -1%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (OpenVINO)	718 Points -60%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T (OpenVINO)	676 Points -62%

UL Procyon for Windows / Overall Score Integer GPU
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M (Windows ML)	95 Points +64%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T (Windows ML)	92 Points +59%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T (Windows ML)	89 Points +53%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M (Windows ML)	84 Points +45%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M (Windows ML)	58 Points

DPC 延迟

在测试中，华硕 ExpertCenter PN54 显示出非常高的 DPC 延迟。在 4K 测试视频中出现了极少的丢帧现象，但这并不影响日常使用中的媒体播放。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	12282 μs * -138%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	5159 μs *
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	1273 μs * +75%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	978.6 μs * +81%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	807.8 μs * +84%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	735 μs * +86%

* ... smaller is better

存储设备

华硕在我们的测试设备中安装了一块来自西部数据的 1 TB SSD。尽管传输速率不错，但相比之下，它只能在中场占据一席之地。不过，大容量存储器的性能非常出色，完全可以满足日常工作的需要。华硕 ExpertCenter PN54 可容纳两个大容量存储设备。在我们的测试中没有出现温度问题。

AS SSD

DiskSpd

Western Digital PC SN5000S SDEQNSJ-1T00

Sequential Read: 4975MB/s

Sequential Write: 3546MB/s

4K Read: 69.3MB/s

4K Write: 191.9MB/s

4K-64 Read: 1076MB/s

4K-64 Write: 2080MB/s

Access Time Read: 0.077ms

Access Time Write: 0.021ms

Copy ISO: 3657.7MB/s

Copy Program: 973.33MB/s

Copy Game: 2339.67MB/s

Score Read: 1643Points

Score Write: 2627Points

Score Total: 5054Points

Drive Performance Rating | DiskSpd | AS SSD | SPECworkstation 4.0

Drive Performance Rating - Percent
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	95.6 pt
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	82.6 pt
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	65.4 pt
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	63 pt
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	59.4 pt
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	55 pt
Average of class Mini PC	52.3 pt

DiskSpd
seq read
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	3214 (3187.76^min - 3213.81^max) MB/s +4%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3100 (3048.82^min - 3099.89^max) MB/s +1%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	3081 (3045.27^min - 3081.47^max) MB/s
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	2914 (2870.58^min - 2913.74^max) MB/s -5%
Average of class Mini PC (413 - 4960, n=111, last 2 years)	2430 MB/s -21%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	2368 (2316.29^min - 2367.68^max) MB/s -23%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2316 (2303.1^min - 2315.68^max) MB/s -25%
seq write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4571 (3844.08^min - 4571.08^max) MB/s +33%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	4563 (4113.52^min - 4563.08^max) MB/s +32%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3689 (3523.22^min - 3688.64^max) MB/s +7%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	3446 (2266.05^min - 3446.46^max) MB/s
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3100 (3080.64^min - 3100.01^max) MB/s -10%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3044 (2966.57^min - 3044.22^max) MB/s -12%
Average of class Mini PC (339 - 5595, n=111, last 2 years)	2809 MB/s -18%
seq q8 t1 read
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	6152 (5283.69^min - 6152.48^max) MB/s
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	5103 (4471.34^min - 5103.21^max) MB/s -17%
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	5061 (4382.63^min - 5061.32^max) MB/s -18%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	4803 (3979.98^min - 4803.15^max) MB/s -22%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	4087 (3505.93^min - 4087.35^max) MB/s -34%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	4079 (3799.36^min - 4078.56^max) MB/s -34%
Average of class Mini PC (397 - 8430, n=111, last 2 years)	4056 MB/s -34%
seq q8 t1 write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4734 (4724.25^min - 4734.32^max) MB/s +4%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	4599 (4437.99^min - 4599.05^max) MB/s +1%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	4556 (4374.3^min - 4555.97^max) MB/s
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3905 (3865.08^min - 3905.27^max) MB/s -14%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3205 (3185.7^min - 3204.75^max) MB/s -30%
Average of class Mini PC (346 - 6669, n=111, last 2 years)	3160 MB/s -31%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3108 (3096.75^min - 3107.85^max) MB/s -32%
4k q1 t1 read
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	81.3 (21.01^min - 81.27^max) MB/s +32%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	77 (75.54^min - 77.03^max) MB/s +25%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	64.2 (64.13^min - 64.24^max) MB/s +4%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	61.6 (58.01^min - 61.61^max) MB/s
Average of class Mini PC (6.85 - 87.3, n=111, last 2 years)	56.1 MB/s -9%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	55.6 (50.92^min - 55.64^max) MB/s -10%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	51.4 (51.17^min - 51.36^max) MB/s -17%
4k q1 t1 write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	347 (342.94^min - 346.86^max) MB/s +167%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	278 (273.83^min - 278.28^max) MB/s +114%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	242 (231.04^min - 241.7^max) MB/s +86%
Average of class Mini PC (29.6 - 435, n=111, last 2 years)	197 MB/s +52%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	167.6 (165.24^min - 167.62^max) MB/s +29%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	135.3 (124.1^min - 135.25^max) MB/s +4%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	129.9 (128.37^min - 129.94^max) MB/s
4k q32 t16 read
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	3843 (3831.45^min - 3842.87^max) MB/s +267%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3548 (3523.05^min - 3547.64^max) MB/s +239%
Average of class Mini PC (102.3 - 4158, n=111, last 2 years)	1550 MB/s +48%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	1048 (970.18^min - 1048.17^max) MB/s
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	788 (725.19^min - 788.35^max) MB/s -25%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	650 (624.87^min - 649.57^max) MB/s -38%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	492 (451.66^min - 492.1^max) MB/s -53%
4k q32 t16 write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4003 (3942.76^min - 4002.9^max) MB/s +750%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3304 (3139.17^min - 3304.42^max) MB/s +601%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2876 (1106.13^min - 2875.94^max) MB/s +511%
Average of class Mini PC (70.3 - 4288, n=111, last 2 years)	1464 MB/s +211%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	502 (104.07^min - 502.15^max) MB/s +7%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	471 (447.49^min - 470.76^max) MB/s
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	323 (291.38^min - 323.31^max) MB/s -31%

AS SSD
Score Total
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	9618 Points +90%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	8193 Points +62%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	5595 Points +11%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	5180 Points +2%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	5054 Points
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	4748 Points -6%
Average of class Mini PC (507 - 10021, n=108, last 2 years)	4575 Points -9%
Score Read
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	3649 Points +122%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3001 Points +83%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	1643 Points
Average of class Mini PC (172 - 3741, n=108, last 2 years)	1631 Points -1%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1539 Points -6%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	1127 Points -31%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	1072 Points -35%
Score Write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4091 Points +56%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3662 Points +39%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3520 Points +34%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3274 Points +25%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3177 Points +21%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	2627 Points
Average of class Mini PC (210 - 4371, n=108, last 2 years)	2138 Points -19%
Seq Read
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	4975 MB/s
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	4229 MB/s -15%
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4027 MB/s -19%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3927 MB/s -21%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3482 MB/s -30%
Average of class Mini PC (483 - 6620, n=108, last 2 years)	3344 MB/s -33%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3200 MB/s -36%
Seq Write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4068 MB/s +15%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3985 MB/s +12%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	3546 MB/s
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2950 MB/s -17%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	2741 MB/s -23%
Average of class Mini PC (326 - 5783, n=108, last 2 years)	2564 MB/s -28%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	1965 MB/s -45%
4K Read
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	101.7 MB/s +47%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	84.6 MB/s +22%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	76 MB/s +10%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	69.3 MB/s
Average of class Mini PC (18.2 - 104.3, n=108, last 2 years)	59.5 MB/s -14%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	57.6 MB/s -17%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	48.4 MB/s -30%
4K Write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	318 MB/s +66%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	216 MB/s +13%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	211 MB/s +10%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	205 MB/s +7%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	193.2 MB/s +1%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	191.9 MB/s
Average of class Mini PC (40.8 - 366, n=108, last 2 years)	178.7 MB/s -7%
4K-64 Read
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	3145 MB/s +192%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	2493 MB/s +132%
Average of class Mini PC (94.3 - 3220, n=108, last 2 years)	1237 MB/s +15%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1115 MB/s +4%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	1076 MB/s
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	704 MB/s -35%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	677 MB/s -37%
4K-64 Write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	3367 MB/s +62%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3052 MB/s +47%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3052 MB/s +47%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	2776 MB/s +33%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2763 MB/s +33%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	2080 MB/s
Average of class Mini PC (96.3 - 3731, n=108, last 2 years)	1703 MB/s -18%
Access Time Read
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	0.125 ms * -62%
Average of class Mini PC (0.025 - 0.288, n=108, last 2 years)	0.09033 ms * -17%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	0.077 ms *
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	0.071 ms * +8%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.068 ms * +12%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.062 ms * +19%
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	0.048 ms * +38%
Access Time Write
Average of class Mini PC (0.013 - 0.706, n=108, last 2 years)	0.1043 ms * -397%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	0.023 ms * -10%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	0.021 ms *
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.019 ms * +10%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.019 ms * +10%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	0.019 ms * +10%
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	0.013 ms * +38%

SPECworkstation 4.0 - Storage Score
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	1.08 Points +104%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	1.02 Points +92%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.81 Points +53%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.76 Points +43%
Average of class Mini PC (0.27 - 1.08, n=40, last 2 years)	0.71 Points +34%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	0.6 Points +13%
Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00	0.53 Points

* ... smaller is better

持续读取负载DiskSpd 读取循环，队列深度 8

Asus ExpertCenter PN54-S70012NN Western Digital PC SN5000S SDEQNSJ-1T00; diskspd 2.0.17 f: Ø6127 (5204.37-6147.88)

Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (4364.17-4810.03)

Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4071 (3634.85-4086.93)

Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8 ; diskspd 2.0.17 f: Ø5050 (4375.76-5065.67)

GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø5093 (4773.96-5106.36)

BOSGAME M4 Neo Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4063 (3587.97-4077.52)

图形处理器和游戏性能

AMD 已明显改善了当前一代 Ryzen 的集成显卡。配备 512 个着色器单元的 Radeon 860M 可在华硕 ExpertCenter PN54 中运行。在 TDP 允许的情况下，Radeon 780M 和 890M 以及英特尔的 Arc Graphics 140T 可以提供更高的性能。860M 只能满足分辨率和细节水平较低的现代游戏的需求。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	96 pt
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	93.7 pt
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	92.4 pt
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	90 pt
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	88.5 pt
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	75.7 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	14293 Points +29%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	13783 Points +24%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	13437 Points +21%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	12740 Points +15%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	12626 Points +14%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	11080 Points

3DMark
2560x1440 Time Spy Graphics
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	3872 Points +47%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	3561 Points +35%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3144 Points +19%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2953 Points +12%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2904 Points +10%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	2632 Points
1920x1080 Fire Strike Graphics
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	8647 Points +23%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	8630 Points +22%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	8423 Points +19%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	8344 Points +18%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	8307 Points +18%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	7054 Points

Performance Rating - Percent
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	93.3 pt
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	91 pt
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	90 pt
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	84.8 pt
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	83 pt
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	67.3 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	40.1 fps +37%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	39.1 fps +34%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	38.1 fps +30%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	36.4 fps +25%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	33.1 fps +13%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	29.2 fps
Extreme Preset DX11
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	41.1 fps +46%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	40.2 fps +43%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	38.9 fps +38%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	36.8 fps +31%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	35.4 fps +26%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	28.1 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	27.7 fps +45%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	26.2 fps +37%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	25.4 fps +33%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	25.4 fps +33%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	19.1 fps 0%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	19.1 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	27.2 fps +42%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	25.3 fps +32%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	23.6 fps +24%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	21.8 fps +14%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	19.1 fps
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	15.3 fps -20%

Unigine Superposition
1280x720 720p Low
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	12793 Points +55%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	12737 Points +55%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	12625 Points +53%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	12281 Points +49%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	11962 Points +45%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	8232 Points
1920x1080 1080p High
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	4074 Points +56%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	4052 Points +55%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3976 Points +53%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	3699 Points +42%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	3665 Points +41%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	2607 Points
1920x1080 1080p Extreme
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2263 Points +80%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2243 Points +79%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1960 Points +56%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1810 Points +44%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1808 Points +44%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	1256 Points

ComputeMark v2.1
1024x600 Normal, Score
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	9589 Points +36%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	9568 Points +36%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9395 Points +34%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7751 Points +10%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7612 Points +8%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	7026 Points
1024x600 Normal, Fluid 3DTex
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	577 Points +23%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	547 Points +17%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	494 Points +6%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	477 Points +2%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	469 Points 0%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	468 Points
1024x600 Normal, Fluid 2DTexArr
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	556 Points +20%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	520 Points +12%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	507 Points +9%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	498 Points +7%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	491 Points +6%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	465 Points
1024x600 Normal, Mandel Vector
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2519 Points +35%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2512 Points +35%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2506 Points +34%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1894 Points +1%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1892 Points +1%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	1867 Points
1024x600 Normal, Mandel Scalar
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2598 Points +45%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2594 Points +45%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2531 Points +41%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1984 Points +11%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1950 Points +9%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	1795 Points
1024x600 Normal, QJuliaRayTrace
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	3529 Points +45%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	3476 Points +43%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3351 Points +38%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2737 Points +13%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2704 Points +11%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	2430 Points

LuxMark v2.0 64Bit
Room GPUs-only
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1058 Samples/s +50%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1013 Samples/s +43%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	975 Samples/s +38%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	965 Samples/s +36%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	931 Samples/s +32%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	707 Samples/s
Sala GPUs-only
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	3809 Samples/s +179%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	3657 Samples/s +168%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1882 Samples/s +38%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1649 Samples/s +21%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1570 Samples/s +15%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	1363 Samples/s

Affinity Photo 2 - Combined (Single / Multi GPU)
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7470 Points +161%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7456 Points +161%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2944 Points +3%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	2858 Points
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1596 Points -44%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1534 Points -46%

Geekbench AI
Single Precision GPU 1.4
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	8093 Points +33%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7954 Points +31%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7892 Points +30%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	7638 Points +26%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	7199 Points +18%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	6084 Points
Half Precision GPU 1.4
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13247 Points +37%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	11969 Points +24%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	11903 Points +23%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	11732 Points +21%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	11332 Points +17%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	9664 Points
Quantized GPU 1.4
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	5896 Points +32%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	5771 Points +29%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	5470 Points +23%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	5289 Points +19%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	5244 Points +18%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	4461 Points

Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference

Performance Rating
Average NVIDIA GeForce RTX 4050 Laptop GPU	91.5 pt
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	85.1 pt
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	74.5 pt
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	74.3 pt
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	63 pt
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	62.3 pt
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	58.3 pt

SPECworkstation 4.0 / Graphics Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +60%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2.21 Points +22%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2.11 Points +17%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2.08 Points +15%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	1.81 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1.13 Points -38%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1.08 Points -40%

SPECworkstation 4.0 / Accelerator Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	3.37 Points +90%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2.46 Points +39%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2.23 Points +26%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2.21 Points +25%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2.15 Points +21%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2.1 Points +19%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	1.77 Points

SPECworkstation 4.0 / Viewport Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +60%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2.21 Points +22%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2.11 Points +17%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2.08 Points +15%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	1.81 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1.13 Points -38%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1.08 Points -40%

SPECworkstation 4.0 / HandBrake
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1.77 Points +35%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1.61 Points +23%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1.38 Points +5%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1.37 Points +5%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1.32 Points +1%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	1.31 Points
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.28 Points -2%

SPECworkstation 4.0 / ONNX Inference
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1.71 Points +66%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1.49 Points +45%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1.47 Points +43%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1.46 Points +42%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.46 Points +42%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1.23 Points +19%
Asus ExpertCenter PN54-S70012NN AMD Radeon 860M, AMD Ryzen AI 7 350	1.03 Points

	Asus ExpertCenter PN54-S70012NN, AMD Radeon 860M Ryzen AI 7 350	Minisforum AI X1 Pro, AMD Radeon 890M Ryzen AI 9 HX 370	Geekom A8 Max, R7 8845HS, AMD Radeon 780M R7 8845HS	Geekom Mini IT15, Ultra 9 285H, Intel Arc Graphics 140T Ultra 9 285H	GMK EVO-T1, Intel Arc Graphics 140T Ultra 9 285H	BOSGAME M4 Neo, AMD Radeon 780M R7 7840HS	Average of class Mini PC
SPECviewperf 2020		16%	18%	-29%	-40%	19%	39%
3840x2160 Medical (medical-03)	14.8	15.2 3%	12.7 -14%	7.08 -52%	7.02 -53%	17.4 18%	13.5 ?(0.78 - 90.1, n=65, last 2 years) -9%
3840x2160 Energy (energy-03)	15.6	15.5 -1%	21.2 36%	7.94 -49%	7.4 -53%	22.5 44%	22.1 ?(0.52 - 139, n=65, last 2 years) 42%
3840x2160 Creo (creo-03)	26.8	34.1 27%	34.9 30%	26.7 0%	19.9 -26%	31.1 16%	39.4 ?(7.73 - 126, n=65, last 2 years) 47%
3840x2160 CATIA (catia-06)	20.1	23.1 15%	25 24%	14.6 -27%	12.8 -36%	24.9 24%	25.2 ?(4.61 - 89.8, n=64, last 2 years) 25%
3840x2160 3ds Max (3dsmax-07)	18	21.9 22%	21.4 19%	17.8 -1%	14.6 -19%	20.9 16%	35.5 ?(5.53 - 213, n=65, last 2 years) 97%
3840x2160 Siemens NX (snx-04)	53.4	68.7 29%	66.2 24%	6.81 -87%	6.13 -89%	61.9 16%	43.5 ?(3.78 - 231, n=63, last 2 years) -19%
3840x2160 Maya (maya-06)	46.5	55.9 20%	50.2 8%	51.3 10%	44.9 -3%	47.6 2%	89.9 ?(11.8 - 522, n=65, last 2 years) 93%

3DMark 05 Standard		68868 points
3DMark 06 Standard Score		40809 points
3DMark Vantage P Result		39142 points
3DMark 11 Performance		11140 points
3DMark Ice Storm Standard Score		168030 points
3DMark Cloud Gate Standard Score		31650 points
3DMark Fire Strike Score		6419 points
3DMark Fire Strike Extreme Score		3476 points
3DMark Time Spy Score		2966 points
3DMark Steel Nomad Score		424 points
Help

... in comparison

GTA V | Dota 2 Reborn | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	176.6 (5.36^min, 125^P1) fps +3%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	170.9 (4.27^min, 100^P1) fps
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	166.2 (4.23^min, 71.4^P1) fps -3%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	165.6 (4.4^min, 111.1^P1) fps -3%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	164 (3.82^min, 100^P1) fps -4%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	163.9 (5.26^min, 111.1^P1) fps -4%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	71.9 (6.03^min, 47.6^P1) fps +8%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	66.6 (10.3^min, 45.5^P1) fps
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	65.8 (10.4^min, 45.5^P1) fps -1%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	65.4 (10.1^min, 45.5^P1) fps -2%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	44.2 (13.2^min, 33.3^P1) fps -34%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	41.7 (10^min, 32.3^P1) fps -37%

Dota 2 Reborn
1280x720 min (0/3) fastest
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	173.6 (147.3^min) fps
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	167.6 (135.7^min) fps -3%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	161.5 (136.9^min) fps -7%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	155.1 (135.8^min) fps -11%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	107.3 (62.5^min) fps -38%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	104.7 (56.4^min) fps -40%
1920x1080 high (2/3)
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	98.9 (83.7^min) fps +10%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	91.7 (79.2^min) fps +2%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	91.6 (79.1^min) fps +2%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	90 (76.5^min) fps
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	84.8 (52.1^min) fps -6%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	53.1 (31.9^min) fps -41%

Cyberpunk 2077 2.2 Phantom Liberty
1920x1080 Low Preset (FSR off)
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	48.1 (41.3^min) fps +24%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	44.7 (38.6^min) fps +16%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	42.9 (36.7^min) fps +11%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	38.8 (34.1^min) fps 0%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	38.7 (32.5^min) fps
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	35.8 (30.4^min) fps -7%
1920x1080 High Preset (FSR off)
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	28.9 (24.5^min) fps +27%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	26.9 (22.2^min) fps +18%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	26.7 (23.2^min) fps +17%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	25.2 (20.4^min) fps +11%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	23.1 (15.8^min) fps +1%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	22.8 (18.7^min) fps

Baldur's Gate 3
1280x720 Low Preset AA:SM
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	67.9 (43.2^min, 47.8^P0.1, 55.8^P1) fps +17%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	67.6 (49.8^min, 50.9^P0.1, 59.7^P1) fps +17%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	61.2 (47.4^min, 49.5^P0.1, 53.8^P1) fps +6%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	58 (36.9^min, 38^P0.1, 47.4^P1) fps 0%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	58 (20.6^min, 23^P0.1, 48.4^P1) fps
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	57.4 (40.9^min, 41.5^P0.1, 46.6^P1) fps -1%
1920x1080 High Preset AA:T
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	28.8 (15.7^min, 23.2^P0.1, 26.3^P1) fps +33%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	27.6 (23.1^min, 23.9^P0.1, 25.1^P1) fps +28%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	26.1 (22.3^min, 22.3^P0.1, 23.4^P1) fps +21%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	26 (21.5^min, 21.8^P0.1, 23.1^P1) fps +20%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	26 (21.6^min, 21.6^P0.1, 22.4^P1) fps +20%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	21.6 (18.7^min, 19^P0.1, 19.8^P1) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	87.2 (71^min, 63^P1) fps +18%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	86.4 (75^min, 67^P1) fps +17%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	82.4 (57^min, 52^P1) fps +12%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	82 (62^min, 54^P1) fps +11%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	78.7 (62^min, 57^P1) fps +6%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	73.9 (61^min, 53^P1) fps
1920x1080 High Preset AA:T AF:16x
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	59.6 (53^min, 51^P1) fps +24%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	57.7 (45^min, 42^P1) fps +20%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	55.2 (43^min, 41^P1) fps +15%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	54.4 (46^min, 42^P1) fps +13%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	53.4 (40^min, 32^P1) fps +11%
Asus ExpertCenter PN54-S70012NN Radeon 860M, Ryzen AI 7 350, Western Digital PC SN5000S SDEQNSJ-1T00	48.2 (41^min, 35^P1) fps

30 分钟赛博朋克 2077》帧数表（1920 x 1080，超预设，FSR 关闭）

Asus ExpertCenter PN54-S70012NN Ryzen AI 7 350, Radeon 860M: Ø17.9 (16.8-18.1)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M: Ø23.8 (21.5-24.7)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M: Ø23 (20.6-23.4)

Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T: Ø21.7 (18.5-22.9)

GMK EVO-T1 Ultra 9 285H, Arc 140T: Ø23.5 (21.9-24)

BOSGAME M4 Neo R7 7840HS, Radeon 780M: Ø21.1 (16.4-23.9)

	low	med.	high	ultra
GTA V (2015)	170.9	164.3	66.6	27.5
The Witcher 3 (2015)	143.3	90.9	45.6	28.4
Dota 2 Reborn (2015)	173.6	136.5	90	79.7
Final Fantasy XV Benchmark (2018)	75.7	36.4	25.6
X-Plane 11.11 (2018)	79	61.9	50.2
Strange Brigade (2018)	153	60.3	50.7	42.8
The Witcher 3 v4 (2023)	52.1	40.2	33.9	28.1
Baldur's Gate 3 (2023)	35.3	26.8	21.6	21.3
Cyberpunk 2077 2.2 Phantom Liberty (2023)	38.7	29.5	22.8	19
F1 24 (2024)	73.9	66	48.2	11.4
F1 25 (2025)	68.1	52.9	41.9

使用 NvidiaGeForce RTX 4090 通过 USB4 对华硕 ExpertCenter PN54 进行性能检查

华硕 ExpertCenter PN54 支持 USB4，因此可以连接外置显卡。与 RTX 4090 等功能强大的 eGPU 相结合，图形性能可显著提高。

Performance Rating - Percent
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	98.5 pt
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	94.2 pt
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	93.8 pt
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	88.4 pt
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	87.6 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	103919 Points +838%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	95980 Points +766%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	95015 Points +758%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	80206 Points +624%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	72075 Points +550%
	11080 Points

3DMark
2560x1440 Time Spy Graphics
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	34859 Points +1224%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	33371 Points +1168%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	31852 Points +1110%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	29928 Points +1037%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	27973 Points +963%
	2632 Points
1920x1080 Fire Strike Graphics
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	77809 Points +1003%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	73143 Points +937%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	63395 Points +799%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	59428 Points +742%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	54011 Points +666%
	7054 Points
3840x2160 Fire Strike Ultra Graphics
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	24254 Points +1199%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	24093 Points +1190%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	24022 Points +1187%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	21221 Points +1037%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	20297 Points +987%
	1867 Points

Unigine Superposition
1280x720 720p Low
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	37409 Points +354%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	36708 Points +346%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	34704 Points +322%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	32677 Points +297%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	32561 Points +296%
	8232 Points
1920x1080 1080p High
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	34258 Points +1214%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	33491 Points +1185%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	32868 Points +1161%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	31209 Points +1097%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	30811 Points +1082%
	2607 Points
1920x1080 1080p Extreme
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	21878 Points +1642%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	21576 Points +1618%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	21164 Points +1585%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	19969 Points +1490%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	19735 Points +1471%
	1256 Points
3840x2160 4k Optimized
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	30290 Points
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	30138 Points
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	29134 Points
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	28282 Points
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	28109 Points
7680x4320 8k Optimized
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	12463 Points
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	12172 Points
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	12056 Points
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	11651 Points
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	11493 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	271.1 fps +1319%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	233.9 fps +1125%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	210.2 fps +1001%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	204.8 fps +972%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	190.5 fps +897%
	19.1 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	286.7 fps +1401%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	224.4 fps +1075%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	218.2 fps +1042%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	212.8 fps +1014%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	212.5 fps +1013%
	19.1 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	449.2 fps +1438%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	420.6 fps +1340%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	406.5 fps +1292%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	404.7 fps +1286%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	372 fps +1174%
	29.2 fps
Extreme Preset DX11
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	454.1 fps +1516%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	397.6 fps +1315%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	397.2 fps +1314%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	353.4 fps +1158%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	335.2 fps +1093%
	28.1 fps

ComputeMark v2.1
1024x600 Normal, Score
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	90416 Points +1187%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	90036 Points +1181%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	89912 Points +1180%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	87165 Points +1141%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	84878 Points +1108%
	7026 Points
1024x600 Normal, Fluid 3DTex
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	10635 Points +2172%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	10604 Points +2166%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	10558 Points +2156%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	10348 Points +2111%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	10124 Points +2063%
	468 Points
1024x600 Normal, Fluid 2DTexArr
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	6869 Points +1377%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	6865 Points +1376%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	6790 Points +1360%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	6782 Points +1358%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	6627 Points +1325%
	465 Points
1024x600 Normal, Mandel Vector
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	16952 Points +808%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	16899 Points +805%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	16857 Points +803%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	16306 Points +773%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	15894 Points +751%
	1867 Points
1024x600 Normal, Mandel Scalar
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	22493 Points +1153%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	22391 Points +1147%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	22338 Points +1144%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	21557 Points +1101%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	20898 Points +1064%
	1795 Points
1024x600 Normal, QJuliaRayTrace
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	33497 Points +1278%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	33320 Points +1271%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	33294 Points +1270%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	32171 Points +1224%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	31334 Points +1189%
	2430 Points

Performance Rating | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3

Performance Rating - Percent
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	99.3 pt
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	98.3 pt
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	91.8 pt
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	83.5 pt
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	71.2 pt

Cyberpunk 2077 2.2 Phantom Liberty
1280x720 Low Preset (FSR off)
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	152.1 (125.7^min - 177.4^max) fps +135%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	145.6 (111.5^min - 170.8^max) fps +125%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	138.5 (109.3^min - 170.9^max) fps +114%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	125.4 (94.1^min - 164.8^max) fps +94%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	104.2 (81^min - 131.8^max) fps +61%
	64.6 (53^min - 80.6^max) fps
1920x1080 Medium Preset (FSR off)
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	154.5 (123.8^min - 177.8^max) fps +424%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	153.4 (128.4^min - 177.5^max) fps +420%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	143.1 (113^min - 169.5^max) fps +385%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	124.2 (91.5^min - 164.2^max) fps +321%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	101.3 (78^min - 134.1^max) fps +243%
	29.5 (25.2^min - 36^max) fps
1920x1080 Ultra Preset (FSR off)
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	143.9 (113.9^min - 166.8^max) fps +657%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	135.2 (98.6^min - 164.2^max) fps +612%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	135.7 (96.5^min - 162.3^max) fps +614%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	125.3 (85.8^min - 157.1^max) fps +559%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	105.7 (68.3^min - 147.3^max) fps +456%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	89.1 (63.4^min - 121.6^max) fps +369%
	19 (15.5^min - 25.4^max) fps

Baldur's Gate 3
1920x1080 Low Preset AA:SM
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	204 (58.1^min, 92.9^P0.1, 143.5^P1 - 364^max) fps +478%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	204 (62.5^min, 104.4^P0.1, 143.3^P1 - 392^max) fps +478%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	194.8 (55^min, 89.1^P0.1, 138.7^P1 - 268^max) fps +452%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	187.3 (23^min, 74.9^P0.1, 125.7^P1 - 610^max) fps +431%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	173.8 (46.5^min, 79.2^P0.1, 122.4^P1 - 832^max) fps +392%
	35.3 (27.2^min, 27.6^P0.1, 30.2^P1 - 38.6^max) fps
1920x1080 Medium Preset AA:T
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	195.9 (61.9^min, 93.7^P0.1, 136.5^P1 - 304^max) fps +631%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	195.4 (67.2^min, 99^P0.1, 135.8^P1 - 306^max) fps +629%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	185.4 (6.25^min, 62.7^P0.1, 115.5^P1 - 864^max) fps +592%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	171.8 (51.3^min, 84.7^P0.1, 127.5^P1 - 285^max) fps +541%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	146.2 (60.8^min, 82.2^P0.1, 108.3^P1 - 420^max) fps +446%
	26.8 (23.4^min, 23.6^P0.1, 24.5^P1 - 29.3^max) fps
1920x1080 Ultra Preset AA:T
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	184.4 (90.1^min, 101.6^P0.1, 129.5^P1 - 265^max) fps +766%
Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 7 7840HS	183.8 (79.4^min, 87.6^P0.1, 130^P1 - 276^max) fps +763%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	172.2 (46.8^min, 84.2^P0.1, 117.9^P1 - 435^max) fps +708%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	150.2 (61.1^min, 89^P0.1, 121.5^P1 - 198.7^max) fps +605%
Asus ExpertCenter PN54 (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen AI 7 350	131.3 (41.6^min, 68^P0.1, 105.1^P1 - 771^max) fps +516%
	21.3 (16.9^min, 17.5^P0.1, 18.6^P1 - 23.7^max) fps

	Asus ExpertCenter PN54-S70012NN, AMD Radeon 860M Ryzen AI 7 350	Asus ExpertCenter PN54-S70012NN, Ryzen AI 7 350	Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) , R7 8845HS	GMK EVO-T1, Ultra 9 285H	Bosgame M4 (Nvidia GeForce RTX 4090 @OCuLink) , R7 7840HS	Average of class Mini PC
SPECviewperf 2020		405%	441%	481%	527%	39%
3840x2160 Medical (medical-03)	14.8	41.3 179%	42 184%	43.1 191%	43 191%	13.5 ?(0.78 - 90.1, n=65, last 2 years) -9%
3840x2160 Energy (energy-03)	15.6	138 785%	138 785%	93.7 501%	138 785%	22.1 ?(0.52 - 139, n=65, last 2 years) 42%
3840x2160 Creo (creo-03)	26.8	103 284%	112 318%	109 307%	117 337%	39.4 ?(7.73 - 126, n=65, last 2 years) 47%
3840x2160 CATIA (catia-06)	20.1	81 303%	82.2 309%	82.1 308%	84.6 321%	25.2 ?(4.61 - 89.8, n=64, last 2 years) 25%
3840x2160 3ds Max (3dsmax-07)	18	137 661%	153 750%	212 1078%	211 1072%	35.5 ?(5.53 - 213, n=65, last 2 years) 97%
3840x2160 Siemens NX (snx-04)	53.4	29.4 -45%	33 -38%	38.8 -27%	38.5 -28%	43.5 ?(3.78 - 231, n=63, last 2 years) -19%
3840x2160 Maya (maya-06)	46.5	356 666%	410 782%	517 1012%	518 1014%	89.9 ?(11.8 - 522, n=65, last 2 years) 93%

	low	med.	high	ultra	QHD	4K
Dota 2 Reborn (2015)	176.3	152.9	148.1	136.3		128.7
Final Fantasy XV Benchmark (2018)	205	191.8	156		146	112
X-Plane 11.11 (2018)	88.9	85.3	74			64.4
The Witcher 3 v4 (2023)	173.9	147.3	129.7	111.8	107.7	87.4
Baldur's Gate 3 (2023)	173.8	146.2	134.9	131.3	118.9	86.2
Cyberpunk 2077 2.2 Phantom Liberty (2023)	105	101.3	93.1	89.1	78.5	48.9

排放量

噪音排放

闲置时，华硕 ExpertCenter PN54 几乎不会发出任何声音。在负载情况下，噪音水平会增加到 42.6 至 47.1 dB(A)，但仍不会造成干扰。Minisforum (AI X1 Pro) 和 Bosgame (M4).

Noise Level

Idle		25 / 25.2 / 25.3 dB(A)
Load		42.6 / 47.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.7 dB(A)

	Asus ExpertCenter PN54-S70012NN Ryzen AI 7 350, Radeon 860M	Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M	Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M	Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T	GMK EVO-T1 Ultra 9 285H, Arc 140T	BOSGAME M4 Neo R7 7840HS, Radeon 780M
Noise		0%	4%	-18%	-26%	-18%
off / environment *	24.7	23.8 4%	23.8 4%	24.3 2%	24.7 -0%	24.3 2%
Idle Minimum *	25	28 -12%	24 4%	33.7 -35%	38.7 -55%	37.6 -50%
Idle Average *	25.2	28.1 -12%	24.1 4%	33.7 -34%	38.8 -54%	37.9 -50%
Idle Maximum *	25.3	28.2 -11%	24.1 5%	33.8 -34%	38.9 -54%	38 -50%
Load Average *	42.6	38.4 10%	42.7 -0%	47.6 -12%	51.6 -21%	40.8 4%
Witcher 3 ultra *	42.5				38.7 9%
Cyberpunk 2077 ultra *	42.6	38.5 10%	42.5 -0%	47.7 -12%	52 -22%	40.18 6%
Load Maximum *	47.1	41.8 11%	42.6 10%	47.9 -2%	51.6 -10%	40.2 15%

* ... smaller is better

温度

在负载情况下，华硕 ExpertCenter PN54 的外壳仅有轻微发热。在压力测试中，Ryzen AI 7 350 的温度短暂达到 80°C 左右，仍处于非临界状态。APU 的平均功耗约为 41 瓦，但在开始时达到了 54 瓦。

Max. Load

Idle

Cyberpunk


27.7 °C	30.5 °C	38.4 °C
26.7 °C	31.5 °C	40.4 °C
31.1 °C	30.6 °C	32 °C

Maximum: 40.4 °C
Average: 32.1 °C


36.1 °C	32.1 °C	29.1 °C
36.6 °C	29.8 °C	26.1 °C
31.6 °C	29.3 °C	28.2 °C

Maximum: 36.6 °C
Average: 31 °C

Power Supply (max.) 39.4 °C | Room Temperature 23.5 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


36.3 °C	36.1 °C	38.3 °C
34.4 °C	34.9 °C	37.1 °C
36.2 °C	34.1 °C	37.3 °C

Maximum: 38.3 °C
Average: 36.1 °C


39.4 °C	39.3 °C	38.2 °C
40 °C	38.8 °C	37.2 °C
39.6 °C	38.8 °C	37.7 °C

Maximum: 40 °C
Average: 38.8 °C

Power Supply (max.) 29.2 °C | Room Temperature 24.5 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


28.6 °C	29.2 °C	36.8 °C
25.7 °C	30.2 °C	38.5 °C
29.3 °C	29.2 °C	32.7 °C

Maximum: 38.5 °C
Average: 31.1 °C


33.9 °C	30.3 °C	27.7 °C
34.1 °C	28.2 °C	25.6 °C
30.3 °C	28.6 °C	27.6 °C

Maximum: 34.1 °C
Average: 29.6 °C

Power Supply (max.) 42.9 °C | Room Temperature 23.8 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 32.1 °C / 90 F, compared to the average of 32.4 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 40.4 °C / 105 F, compared to the average of 36 °C / 97 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 36.6 °C / 98 F, compared to the average of 36.6 °C / 98 F
(±) In idle usage, the average temperature for the upper side is 36.1 °C / 97 F, compared to the device average of 32.4 °C / 90 F.
(+) 3: The average temperature for the upper side is 31.1 °C / 88 F, compared to the average of 32.4 °C / 90 F for the class Mini PC.

发言人

华硕在 ExpertCenter PN54 中安装了一个小型扬声器，可在工作时播放低调的背景音乐。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Asus ExpertCenter PN54-S70012NN audio analysis

(-) | not very loud speakers (68.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16% lower than median
(±) | linearity of bass is average (10.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.8% higher than median
(±) | linearity of mids is average (10.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (4.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.8% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 9% similar, 41% worse
» The best had a delta of 13%, average was 25%, worst was 64%
Compared to all devices tested
» 60% of all tested devices were better, 7% similar, 33% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Minisforum AI X1 Pro audio analysis

(±) | speaker loudness is average but good (80.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.1% lower than median
(±) | linearity of bass is average (9.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.9% away from median
(±) | linearity of mids is average (7.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | reduced highs - on average 6.5% lower than median
(±) | linearity of highs is average (11.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.3% difference to median)
Compared to same class
» 32% of all tested devices in this class were better, 18% similar, 50% worse
» The best had a delta of 13%, average was 25%, worst was 64%
Compared to all devices tested
» 51% of all tested devices were better, 8% similar, 41% worse
» The best had a delta of 4%, average was 24%, worst was 134%

能源管理

华硕 ExpertCenter PN54 在空闲模式下非常经济。在平均负载下，功耗升至 68 瓦左右，峰值功耗为 94 瓦。随机附带的 120 瓦电源装置设计合理，在测试中工作稳定。

Power Consumption

Off / Standby	0.08 / 1 Watt
Idle	2.6 / 4.6 / 6.4 Watt
Load	68.5 / 94 Watt


Key: min: , med: , max: Metrahit Energy

	Asus ExpertCenter PN54-S70012NN Ryzen AI 7 350, Radeon 860M	Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M	Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M	Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T	GMK EVO-T1 Ultra 9 285H, Arc 140T	BOSGAME M4 Neo R7 7840HS, Radeon 780M	Average AMD Radeon 860M	Average of class Mini PC
Power Consumption		-69%	-18%	-8%	-57%	-67%	-23%	-113%
Idle Minimum *	2.6	8.6 -231%	3.1 -19%	3.8 -46%	6.1 -135%	7.6 -192%	4.54 ?(2.6 - 5.4, n=7) -75%	9.55 ?(2.54 - 35.9, n=111, last 2 years) -267%
Idle Average *	4.6	9.4 -104%	5.7 -24%	5.2 -13%	7.9 -72%	9.1 -98%	6.74 ?(4.6 - 8.2, n=7) -47%	11.8 ?(2.59 - 36.3, n=110, last 2 years) -157%
Idle Maximum *	6.4	10 -56%	8.3 -30%	8.4 -31%	13.2 -106%	11.1 -73%	7.43 ?(6.4 - 9, n=7) -16%	15.3 ?(2.7 - 49, n=111, last 2 years) -139%
Load Average *	68.5	70.2 -2%	68.3 -0%	50.1 27%	60.7 11%	67.2 2%	60.9 ?(40.8 - 71.7, n=7) 11%	60.8 ?(12.9 - 170.6, n=111, last 2 years) 11%
Cyberpunk 2077 ultra external monitor *	60.2	70.7 -17%	78.7 -31%	51.6 14%	67.4 -12%	81.3 -35%
Load Maximum *	94	97.7 -4%	97.7 -4%	91.9 2%	117.1 -25%	98.4 -5%	81.6 ?(59.3 - 105.1, n=7) 13%	104.9 ?(26.2 - 423, n=111, last 2 years) -12%

* ... smaller is better

功率效率

Performance Rating | Power Consumption

Performance Rating - Percent
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	93.2 pt
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	91.6 pt
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	87.6 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	79.2 pt
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	79 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	77.4 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	265 Points per Watt +18%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	239 Points per Watt +7%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	224 Points per Watt
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	215 Points per Watt -4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	211 Points per Watt -6%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	210 Points per Watt -6%
Cinebench R23 Single Power Efficiency - external Monitor
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	79 Points per Watt +6%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	74.3 Points per Watt
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	61.9 Points per Watt -17%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	60.1 Points per Watt -19%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	59 Points per Watt -21%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	57.8 Points per Watt -22%
Cinebench R15 Multi Efficiency (external Monitor)
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	38.2 Points per Watt +19%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	34.2 Points per Watt +6%
Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350, Radeon 860M	32.2 Points per Watt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	31.3 Points per Watt -3%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	30.5 Points per Watt -5%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	29.6 Points per Watt -8%

耗电量 - 外部监视器

Asus ExpertCenter PN54-S70012NN; Idle 1min (external Monitor): Ø4.69 (3.49-6.37)

Asus ExpertCenter PN54-S70012NN; 1280x720 Prime95 28.10 and Furmark 1.25: Ø65.9 (60.2-94)

Asus ExpertCenter PN54-S70012NN; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø60.2 (59.1-62.1)

Asus ExpertCenter PN54-S70012NN; 3DMark06 Return To Proxycon: Ø68.5 (54.8-77.4)

耗电量 - 外部监视器

Asus ExpertCenter PN54-S70012NN; Prime95 V2810 Stress (external Monitor): Ø72.4 (58.2-90.3)

Asus ExpertCenter PN54-S70012NN; Cinebench R15 Multi (external Monitor): Ø81.8 (74.1-86.9)

Asus ExpertCenter PN54-S70012NN; Cinebench R23 Single (external Monitor): Ø26.8 (24.5-40.8)

Asus ExpertCenter PN54-S70012NN; Cinebench R23 Multi (external Monitor): Ø76 (73.4-87.4)

Asus ExpertCenter PN54-S70012NN; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø69.2 (61.1-82)

Notebookcheck 总体评分

Back to the verdict

Asus ExpertCenter PN54-S70012NN - 08/25/2025 v8
Sebastian Bade

Chassis

82 / 98 → 84%

Connectivity

73 / 81 → 90%

Weight

81%

Games Performance

49 / 80 → 61%

Application Performance

85 / 92 → 92%

Workstation

53%

AI Performance

89%

Temperature

90%

Noise

84%

Audio

51%

Average

58%

81%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
12.5%

Packaging
50%

Power Use
85.5%

Repairability
50%

Software Updates
22.3%

Total Sustainability Score: 36.7%

可比较的替代品

Image	Model / Review	Price	Weight	Dimensions
1. 80.9%	Asus ExpertCenter PN54-S70012NN AMD Ryzen AI 7 350 ⎘ AMD Radeon 860M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $1,100.00 List Price: 1249€	650 g	130 x 130 x 34 mm
2. 82.9%	Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 64 GB Memory, 1024 GB SSD	Amazon: 1. $1,129.90 MINISFORUM AI X1 Pro-370 Min... 2. $999.90 MINISFORUM Mini PC AI X1 Pro... 3. $1,199.00 MINISFORUM N5 Pro 5-Bay Desk...	1.4 kg	195 x 195 x 42.5 mm
3. 82%	Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	List Price: 899 EUR	681 g	132 x 135 x 46.9 mm
4. 76.5%	Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 32 GB Memory, 2048 GB SSD	Amazon: $1,199.00 List Price: 1099€	595 g	112 x 117 x 49.2 mm
5. 75.2%	GMK EVO-T1 Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 64 GB Memory, 1024 GB SSD	Amazon: $1,299.99 List Price: 999€	946 g	151 x 154 x 73.6 mm
6. 74%	BOSGAME M4 Neo AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $599.99 BOSGAME M4 Neo Mini PC, Mini... 2. $598.99 BOSGAME M4 Oculink Mini PC R... 3. $619.00 BOSGAME Mini PC M4 AMD Ryzen... List Price: 389 EUR	560 g	127 x 127 x 42 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Editor of the original article: Sebastian Bade - Senior Tech Writer - 658 articles published on Notebookcheck since 2012

contact me via: Bluesky, Threads, Facebook, nbc.basti, LinkedIn, Xing

Translator: Ninh Ngoc Duy - Editorial Assistant - 602393 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 华硕 ExpertCenter PN54 - 配备 AMD Ryzen AI 7 和现代功能的商用迷你电脑评测

Sebastian Bade, 2025-08-28 (Update: 2025-08-28)

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Asus Zenbook S 16 UM5606-RK333W Ryzen AI 9 HX 370, Radeon 890M	921
Asus Zenbook S 16 UM5606-RK333W Ryzen AI 9 HX 370, Radeon 890M	921
Asus Zenbook S 16 UM5606-RK333W Ryzen AI 9 HX 370, Radeon 890M	921
Asus ExpertCenter PN54-S70012NN Ryzen AI 7 350, Radeon 860M	921
Geekom A7 R9 7940HS, Radeon 780M	922
Acemagic AM18 R7 7840HS, Radeon 780M	923
Beelink SER9 Pro Ryzen 7 H 255, Radeon 780M	923
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
MSI Prestige 13 AI Plus Evo A2VMG Core Ultra 7 258V, Arc 140V	11114
Alienware 17 R2 4980HQ, GeForce GTX 980M	11122
Razer Blade (2016) 6700HQ, GeForce GTX 1060 Mobile	11139
Asus ExpertCenter PN54-S70012NN Ryzen AI 7 350, Radeon 860M	11140
Asus Zenbook Duo OLED UX8406MA Ultra 9 185H, Arc 8-Core	11153
Asus GL702VM-GC102D 6700HQ, GeForce GTX 1060 Mobile	11159
Samsung Galaxy Book4 Pro 360 Ultra 5 125H, Arc 7-Core	11161
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642

结论华硕 ExpertCenter PN54 - 紧凑型工作站的多功能解决方案

Pros

Cons

价格和供应情况

Table of Contents

规格

外壳和功能

尺寸比较

ADATA SE920 USB4-Speed

配件

维护

可持续性

性能

测试条件

UEFI 设置

处理器

Cinebench R15 多耐久性测试

系统性能

DPC 延迟

存储设备

持续读取负载DiskSpd 读取循环，队列深度 8

图形处理器和游戏性能

30 分钟赛博朋克 2077》帧数表（1920 x 1080，超预设，FSR 关闭）

使用 NvidiaGeForce RTX 4090 通过 USB4 对华硕 ExpertCenter PN54 进行性能检查

排放量

噪音排放

温度

发言人

Asus ExpertCenter PN54-S70012NN audio analysis

Minisforum AI X1 Pro audio analysis

能源管理

功率效率

耗电量 - 外部监视器

耗电量 - 外部监视器

Notebookcheck 总体评分

可比较的替代品

Transparency
