英特尔赛扬N5095 Jasper Lake基准测试。Beelink U59迷你电脑评测

像样的酷睿i3替代品。 英特尔最新的10纳米赛扬处理器在整体处理器性能方面正在取得进展。特别是多线程性能可与酷睿i3-1005G1相媲美,但集成GPU仍然令人失望。
Desktop Chinese Tech Jasper Lake

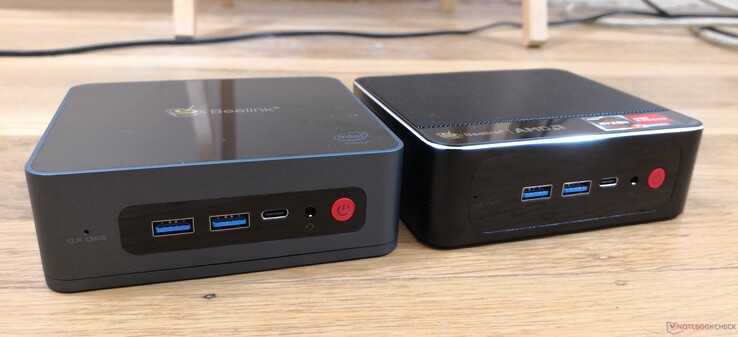

左:Beelink U59,右:Beelink SER3。Beelink SER3
左:Beelink U59,右:Beelink SER3。Beelink SER3

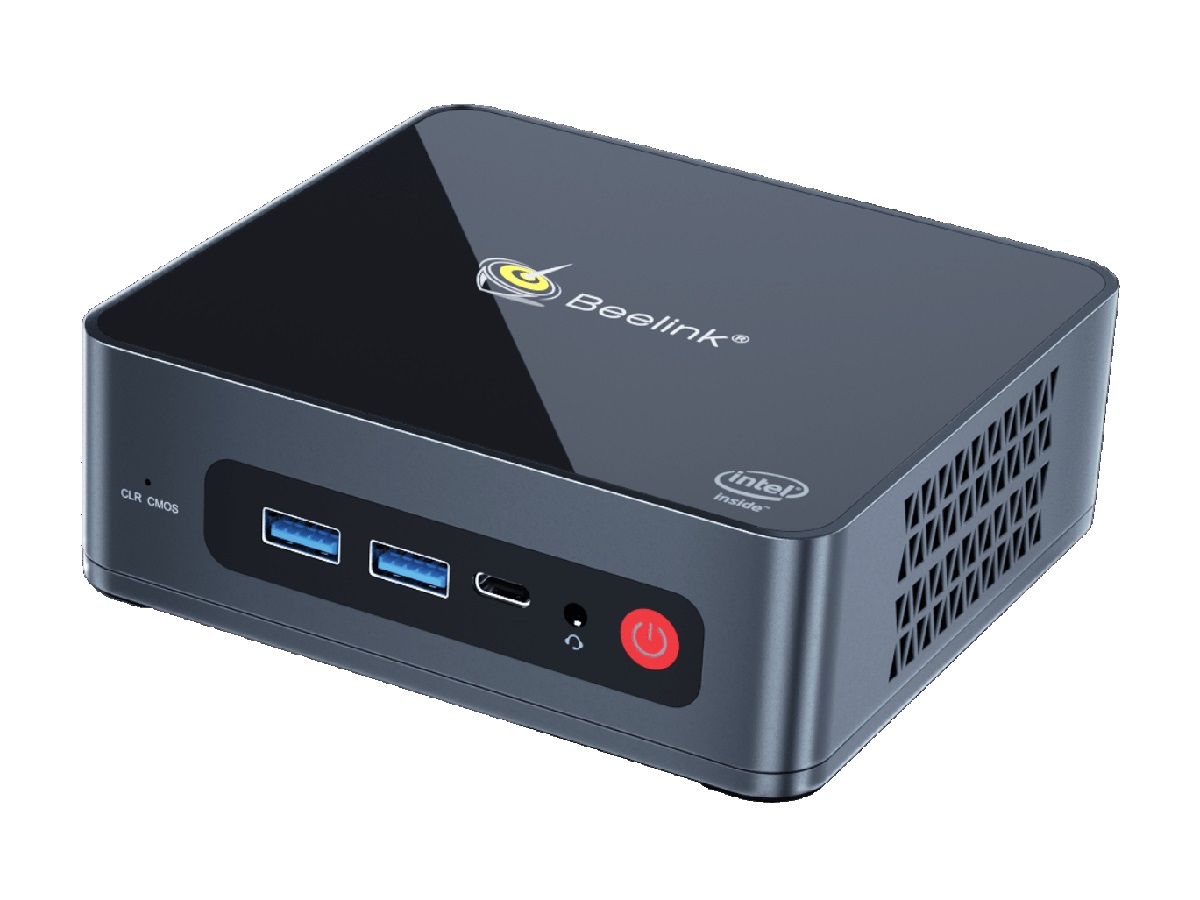

Beelink最近推出了其U59迷你电脑,以接替其上一代U55。该系统搭载了英特尔新的四核赛扬N5095,以取代同样在300美元价格范围内的其他迷你PC上常见的旧赛扬N4500、J4125或N4120。

我们的具体测试配置是16GB双通道内存和512GB M.2固态硬盘,可以在网上找到,价格为349美元,而较少的配置是一半的内存和存储,价格仅为279美元。关于U59的其他规格可以在其官方产品页面.

更多Beelink的评论。

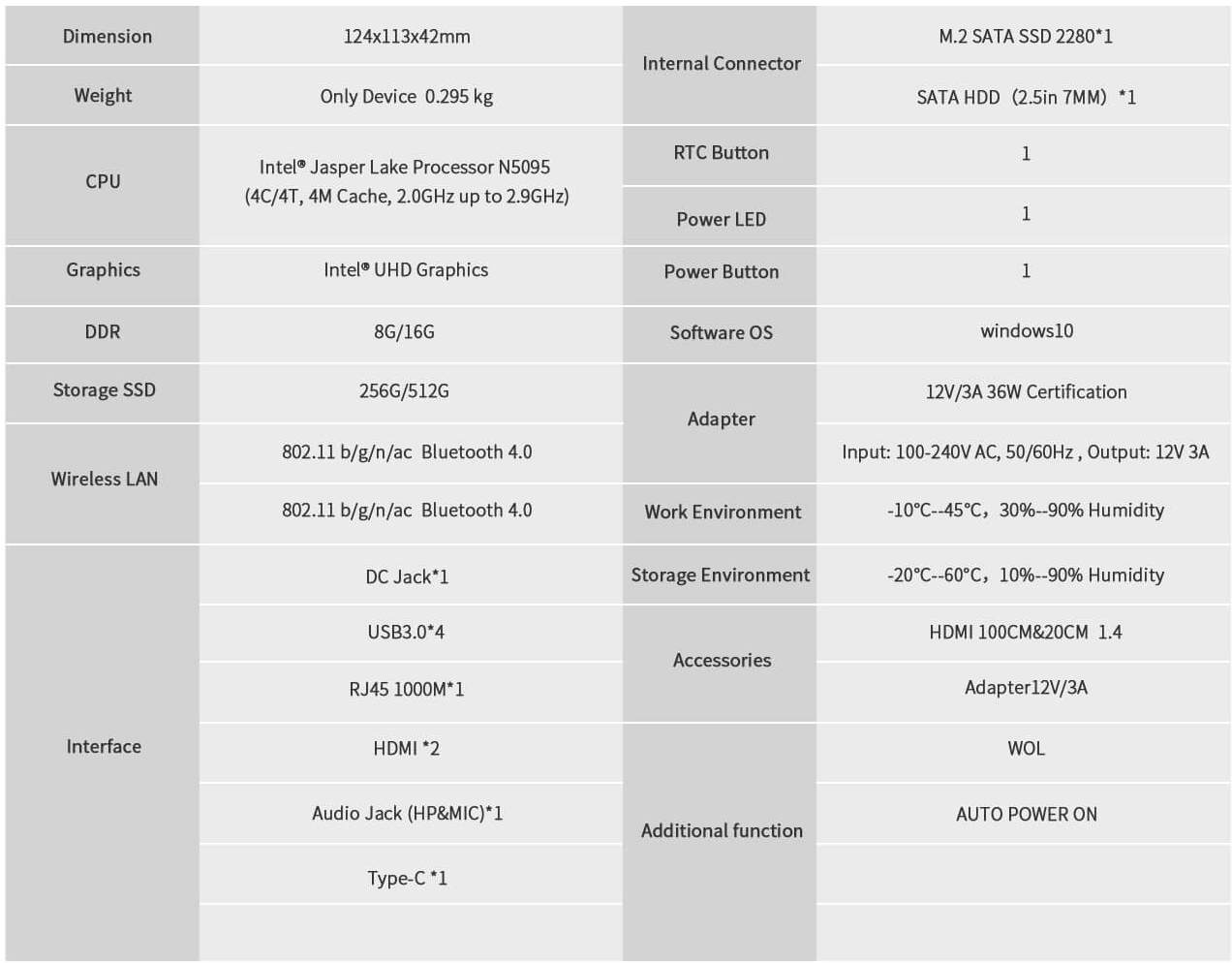

制造商提供的Beelink U59的规格
制造商提供的Beelink U59的规格
Beelink U59
Processor
Intel Celeron N5095 4 x 2 - 2.9 GHz, 25 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake
Graphics adapter
Memory
16384 MB
, DDR4-2666, Crucial, Dual-Channel, 19-19-19-43
Storage
Silicon Motion AZW 512G NV428, 512 GB
Soundcard
Intel Jasper Lake PCH - cAVS Controller
Connections
5 USB 3.0 / 3.1 Gen1, 2 HDMI, 1 DisplayPort, Audio Connections: 3.5 mm combo
Networking
Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4
Size
height x width x depth (in mm): 42 x 124 x 113
Operating System
Microsoft Windows 10 Pro 64 Bit
Additional features
2x HDMI, AC adapter, 12 Months Warranty
Weight
329 g, Power Supply: 156 g
Price
319 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Potential Competitors in Comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
11/2021
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
329 g42 mmx
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 g37 mmx
Intel NUC8i7BE
i7-8559U, Iris Plus Graphics 655
683 g51 mmx
Beelink SEi10
i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)
350 g41 mmx
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620
472 g51 mmx
GMK NucBox K1
Celeron J4125, UHD Graphics 600
130 g42 mmx

案例

Beelink在其U59和基于AMD的SER3迷你PC系列之间采用了类似的机箱设计。然而,在U59上,顶部是简单的光面塑料,没有SER3上的金属格栅或铬合金切割的周边,看起来更加柔和。塑料顶部一开始看起来不错,但即使是最微弱的划痕或指纹也很难隐藏。与其他较厚的迷你电脑相比,它的中心也更容易弯曲,如 GMK NucBox 2英特尔NUC系列。

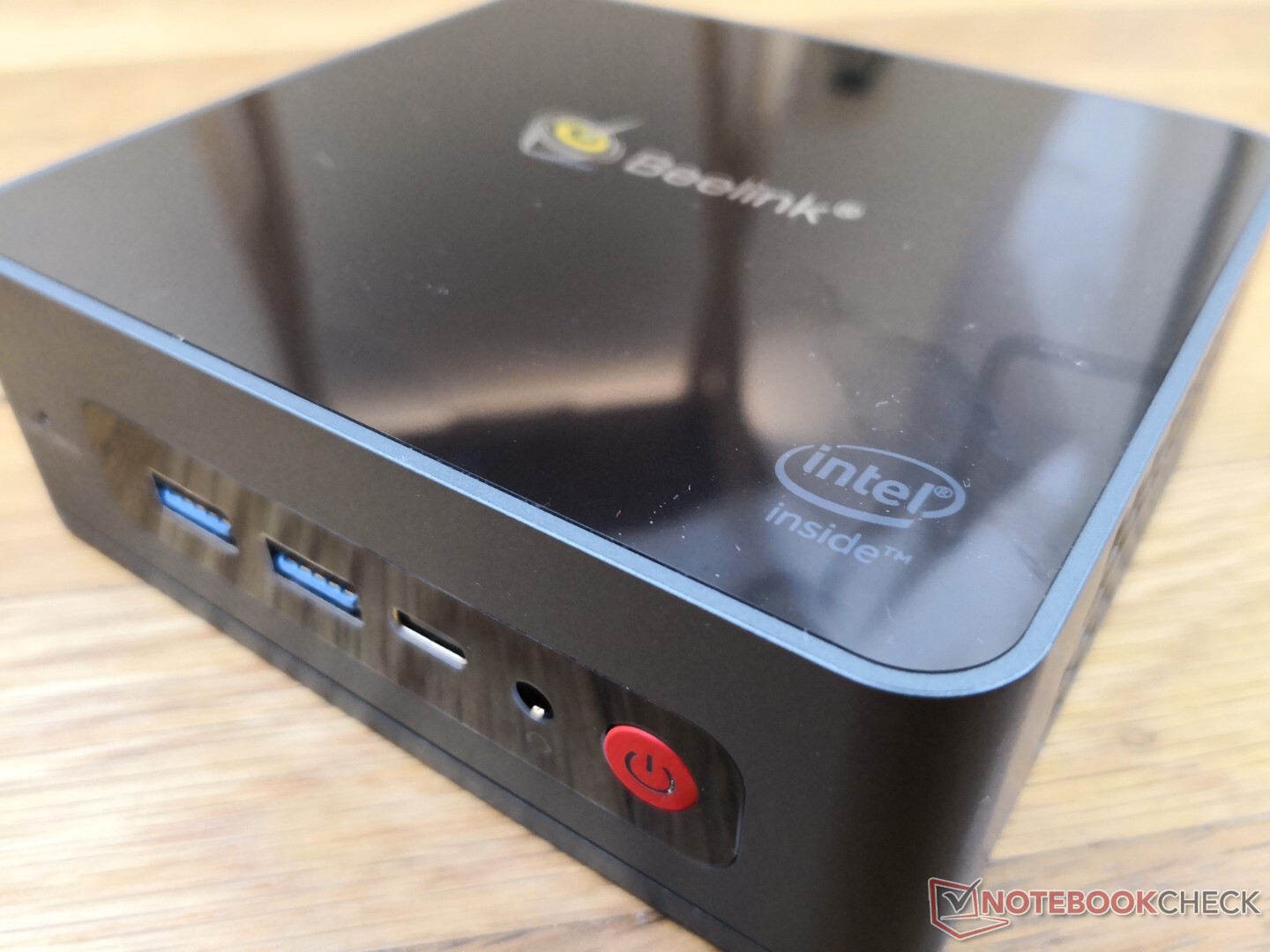

塑料顶部是有光泽的,随着时间的推移非常容易出现难看的划痕
塑料顶部是有光泽的,随着时间的推移非常容易出现难看的划痕

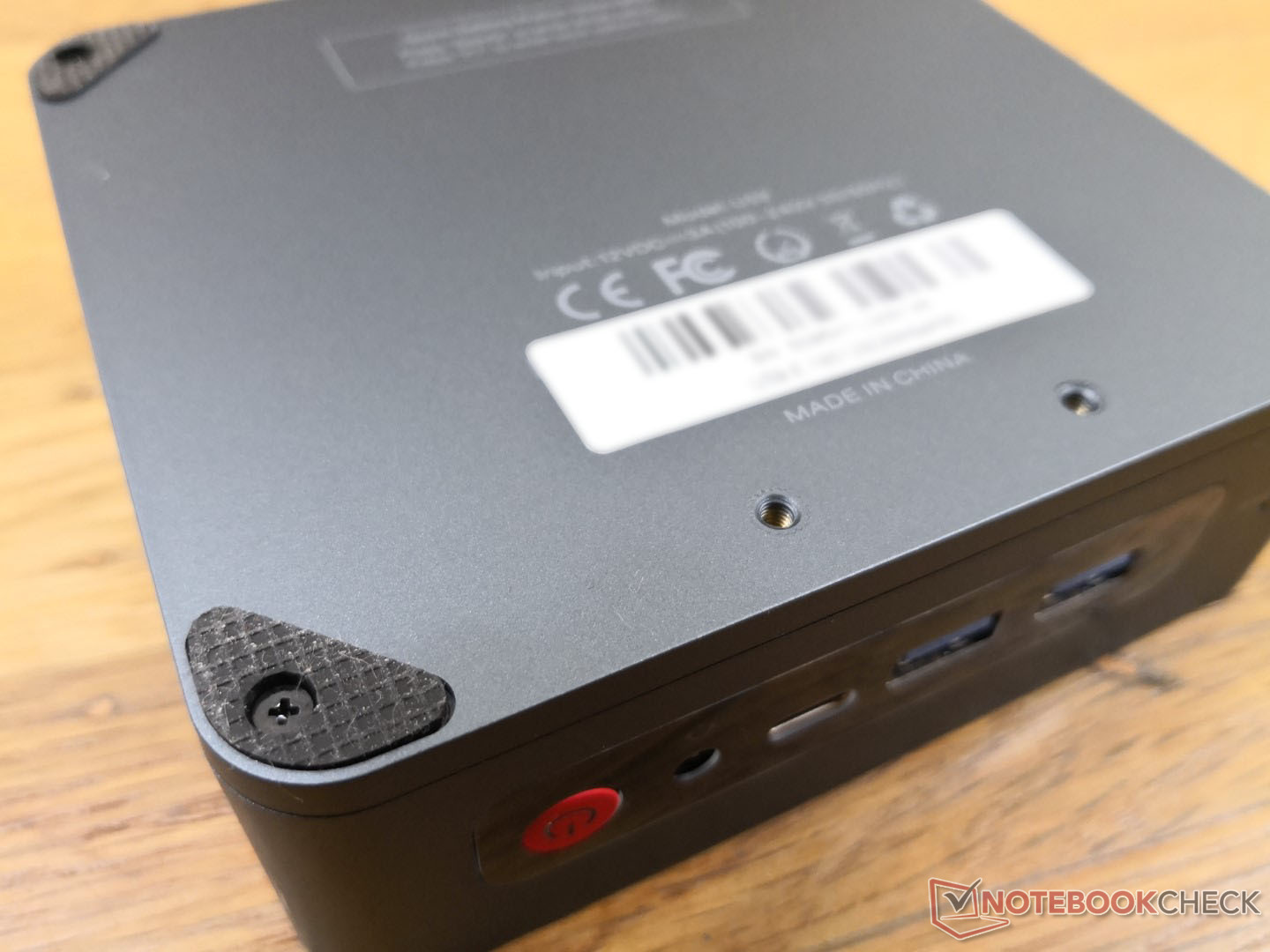

橡胶脚、螺丝和系统底面的VESA安装凹槽
橡胶脚、螺丝和系统底面的VESA安装凹槽

Size Comparison

128 mm 126 mm 51 mm 472 g124 mm 113 mm 42 mm 329 g115 mm 111 mm 51 mm 683 g124 mm 113 mm 41 mm 350 g117 mm 112 mm 37 mm 504 g62 mm 62 mm 42 mm 130 g

连接性

物理端口选项与 的物理端口选项相同。但对Thunderbolt的支持除外。DisplayPort-over-USB-C和4K60输出都得到支持。

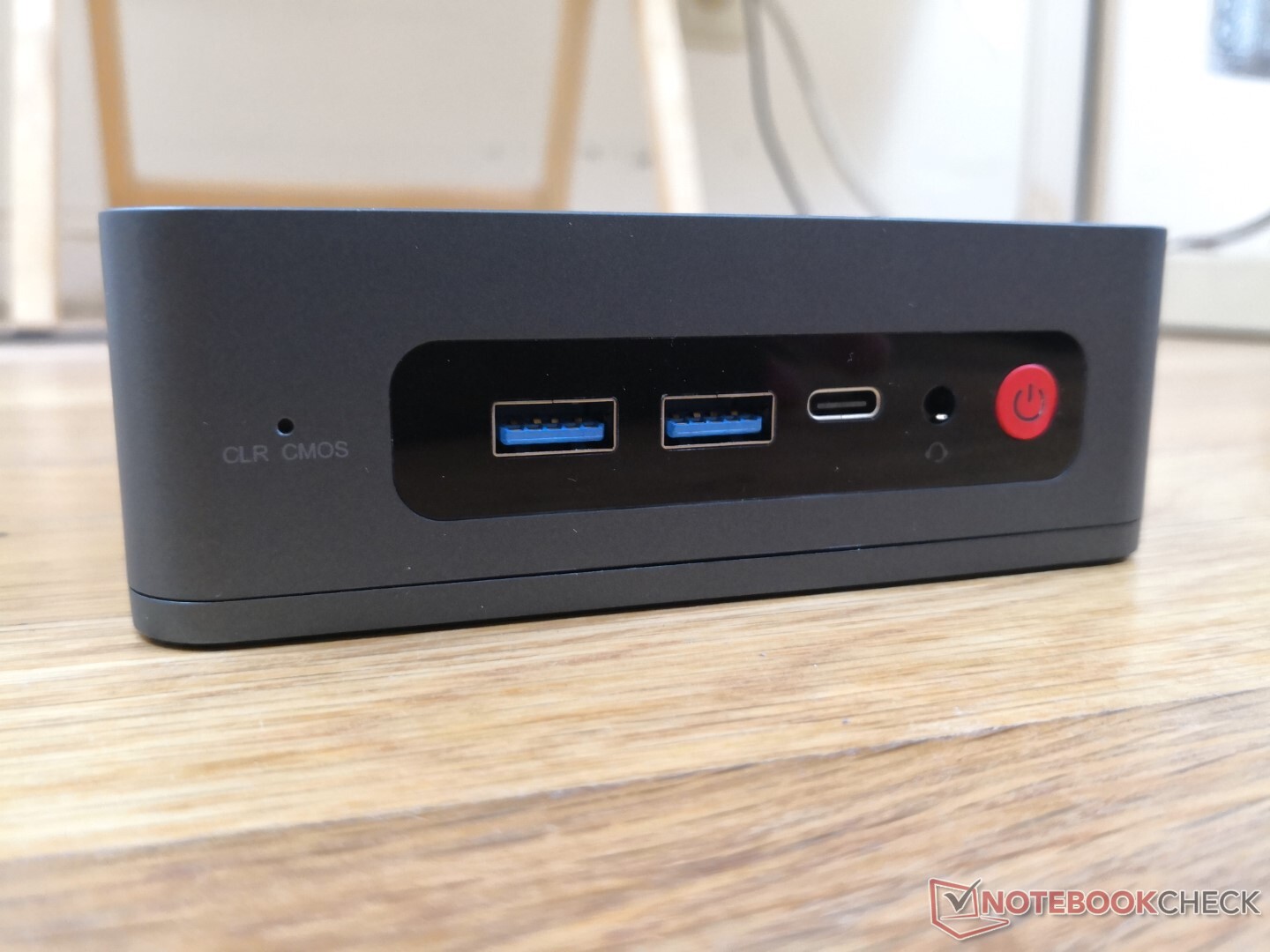

前面。USB-A 3.0,USB-C和DisplayPort,3.5毫米组合音频,电源按钮
前面。USB-A 3.0,USB-C和DisplayPort,3.5毫米组合音频,电源按钮

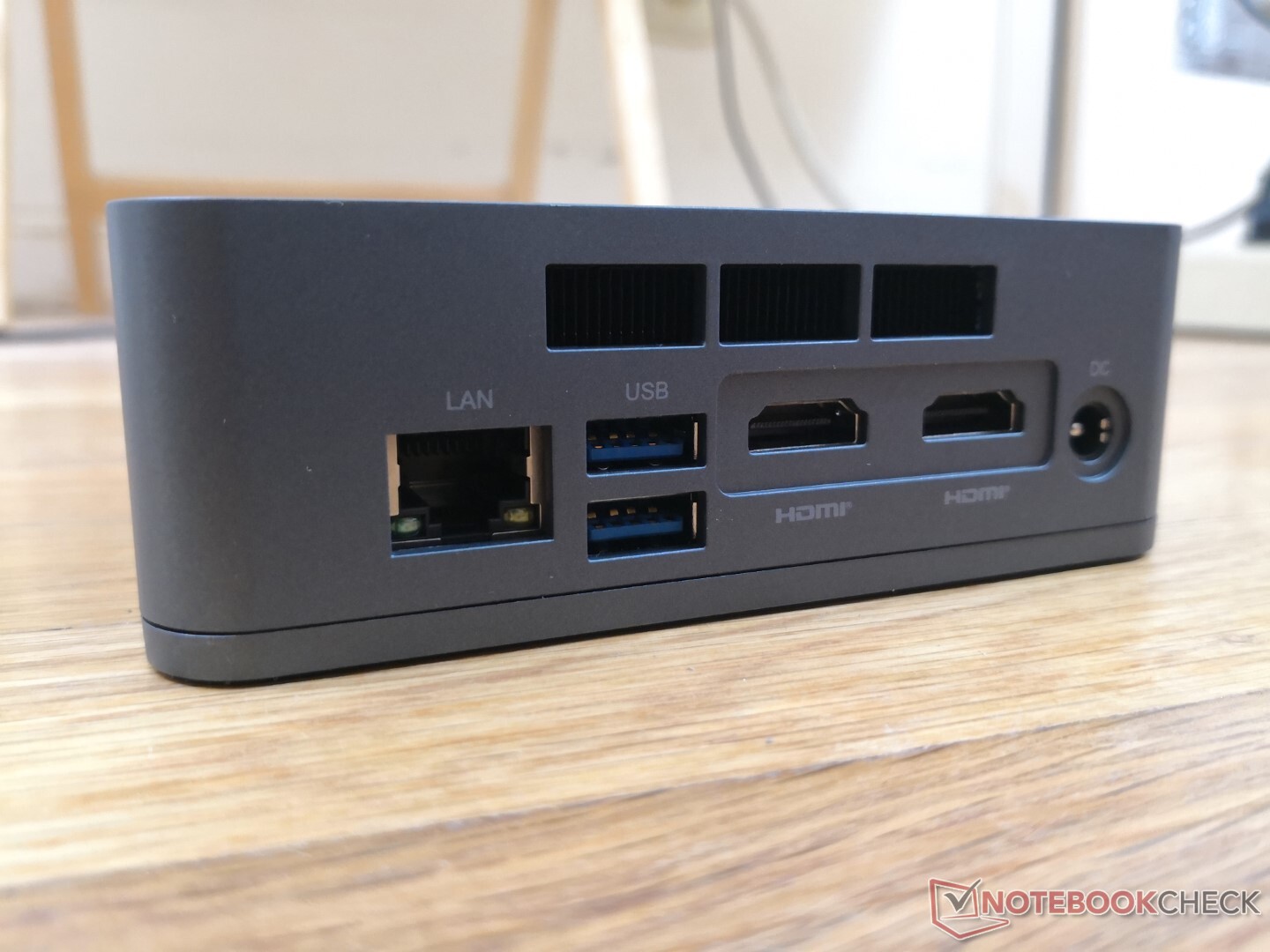

后部。千兆RJ-45,2个USB-A 3.0,2个HDMI 2.0,AC适配器
后部。千兆RJ-45,2个USB-A 3.0,2个HDMI 2.0,AC适配器

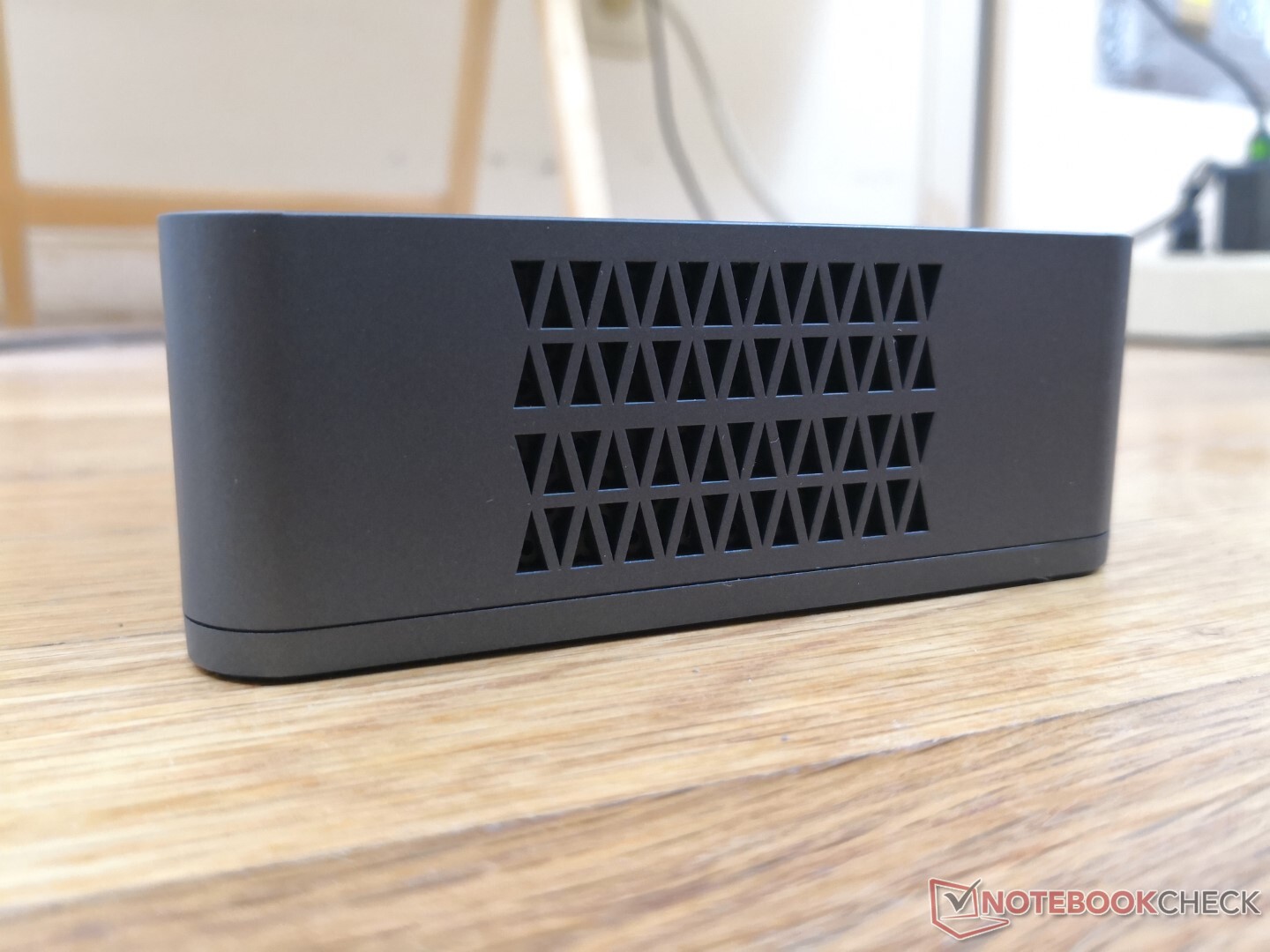

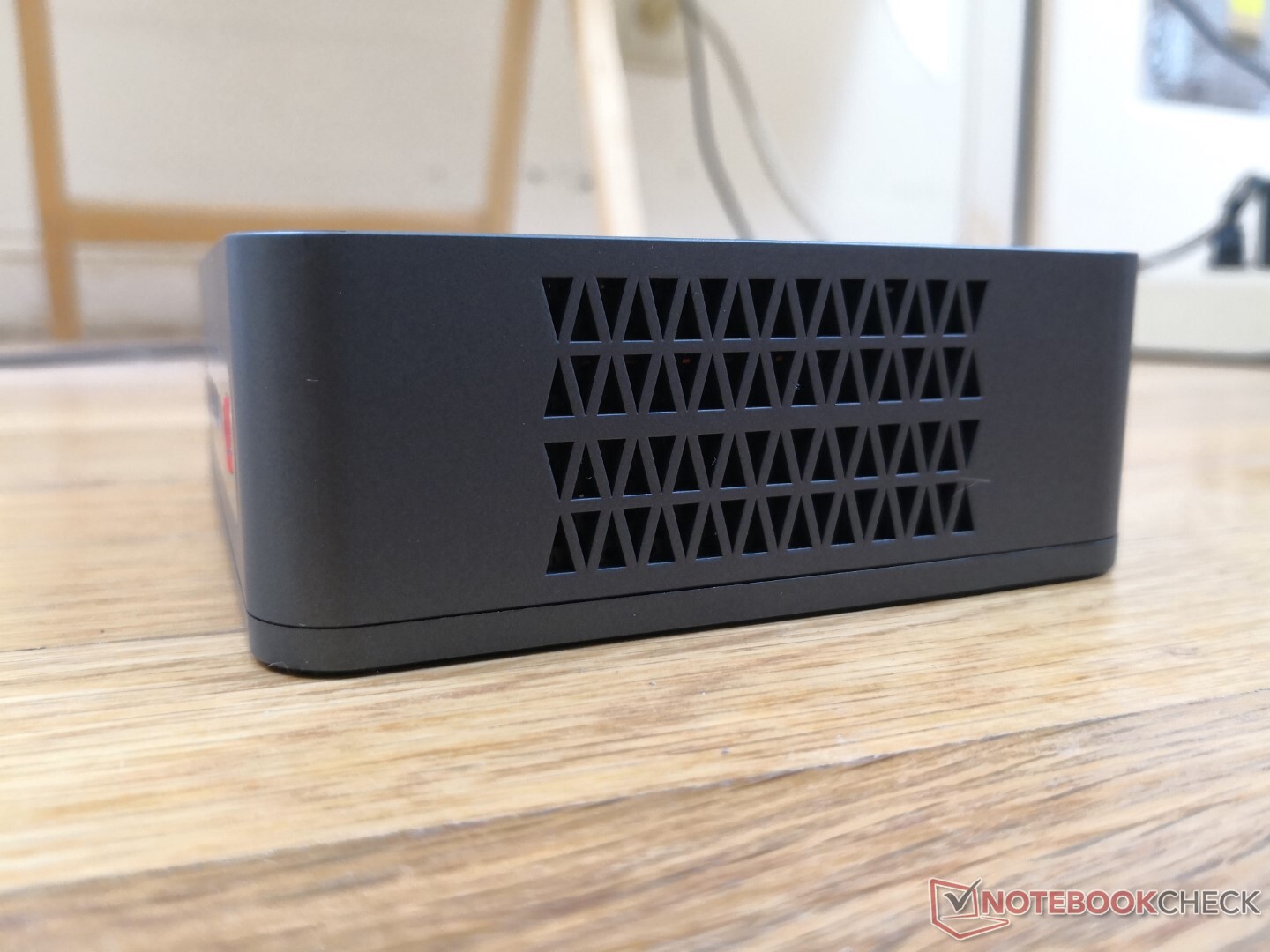

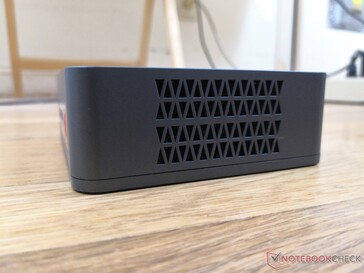

左边:没有端口
左边:没有端口
对。没有端口
对。没有端口

沟通

有7年历史的英特尔3165标配了Wi-Fi 5连接,理论上可达433 Mbps。尽管比现代Wi-Fi 6模块慢得多,但性能稳定,超过千兆。

Networking
iperf3 transmit AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s ∼100% +803%
Beelink SEi10
Intel Wi-Fi 6 AX201
742 (470min - 902max) MBit/s ∼46% +312%
Intel NUC8i7BE
Intel Wireless-AC 9560
553 MBit/s ∼34% +207%
Beelink U59
Intel Dual Band Wireless-AC 3165
180 (157min - 201max) MBit/s ∼11%
GMK NucBox K1
Intel Dual Band Wireless-AC 7265
172 (126min - 188max) MBit/s ∼11% -4%
iperf3 receive AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s ∼100% +340%
Beelink SEi10
Intel Wi-Fi 6 AX201
1212 (1060min - 1309max) MBit/s ∼80% +250%
Intel NUC8i7BE
Intel Wireless-AC 9560
602 MBit/s ∼40% +74%
GMK NucBox K1
Intel Dual Band Wireless-AC 7265
441 (403min - 464max) MBit/s ∼29% +27%
Beelink U59
Intel Dual Band Wireless-AC 3165
346 (336min - 355max) MBit/s ∼23%
050100150200250300350Tooltip
; iperf3 receive AX12; iperf 3.1.3: Ø346 (336-355)
; iperf3 transmit AX12; iperf 3.1.3: Ø180.3 (157-201)

维护

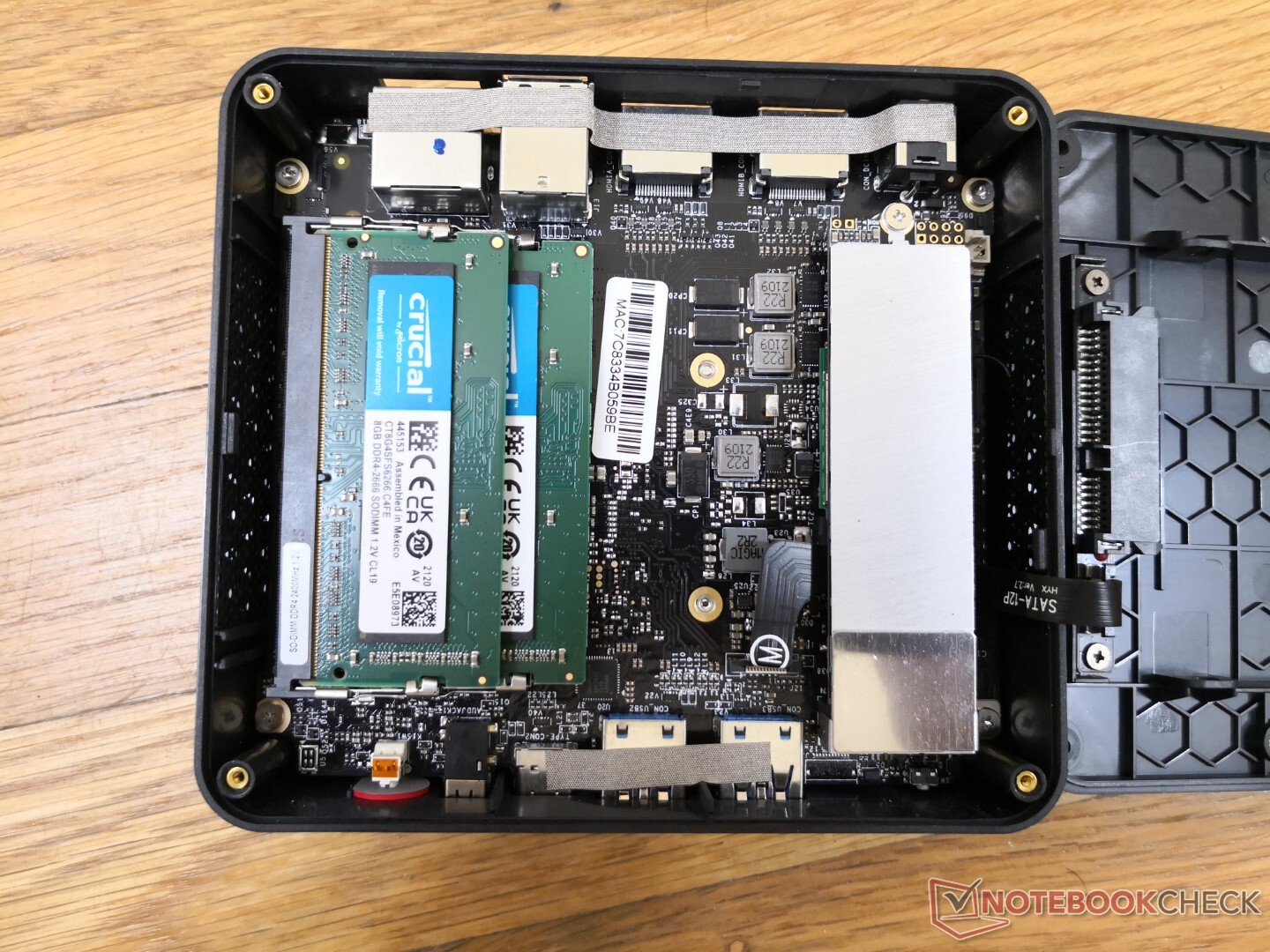

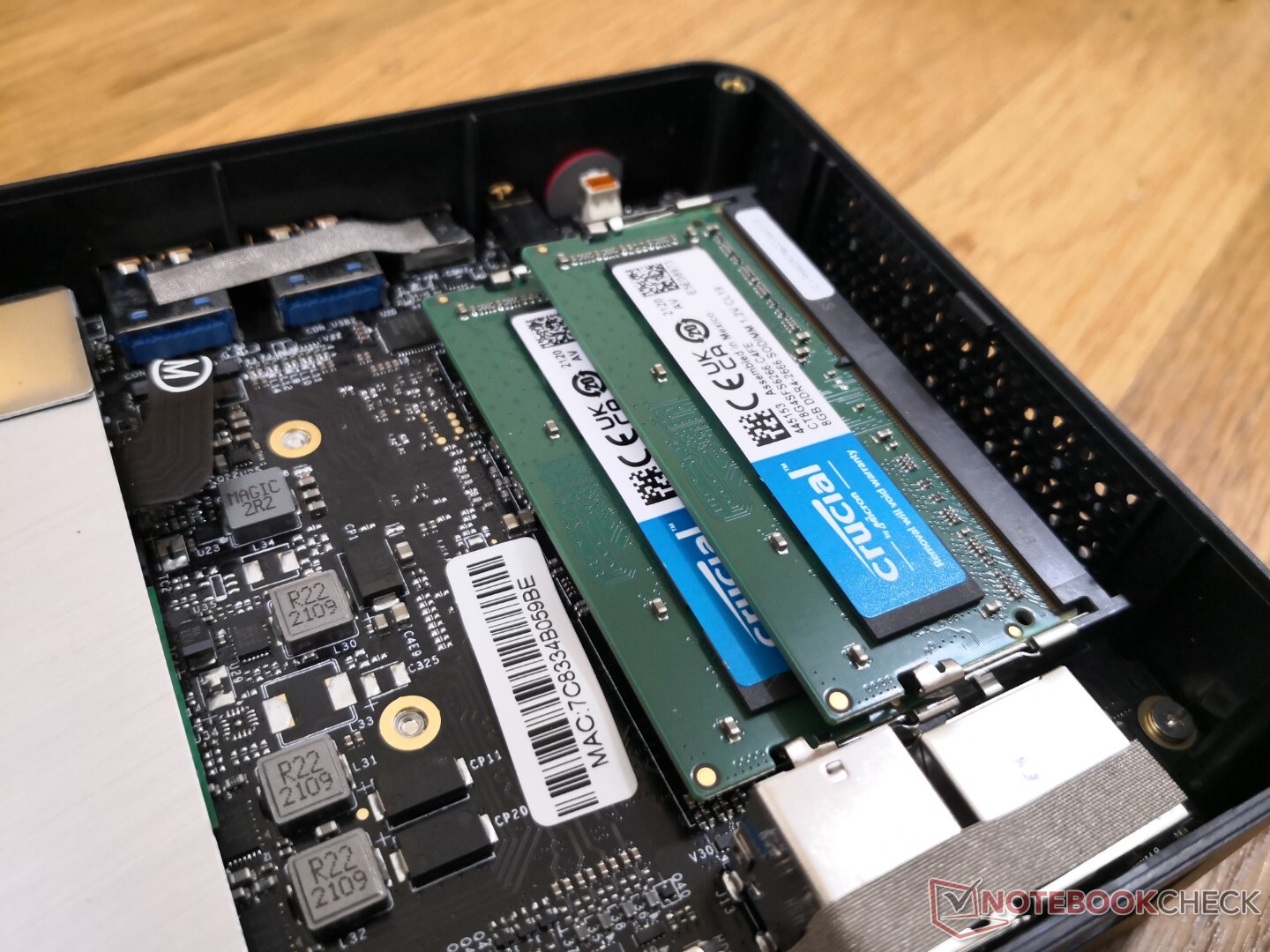

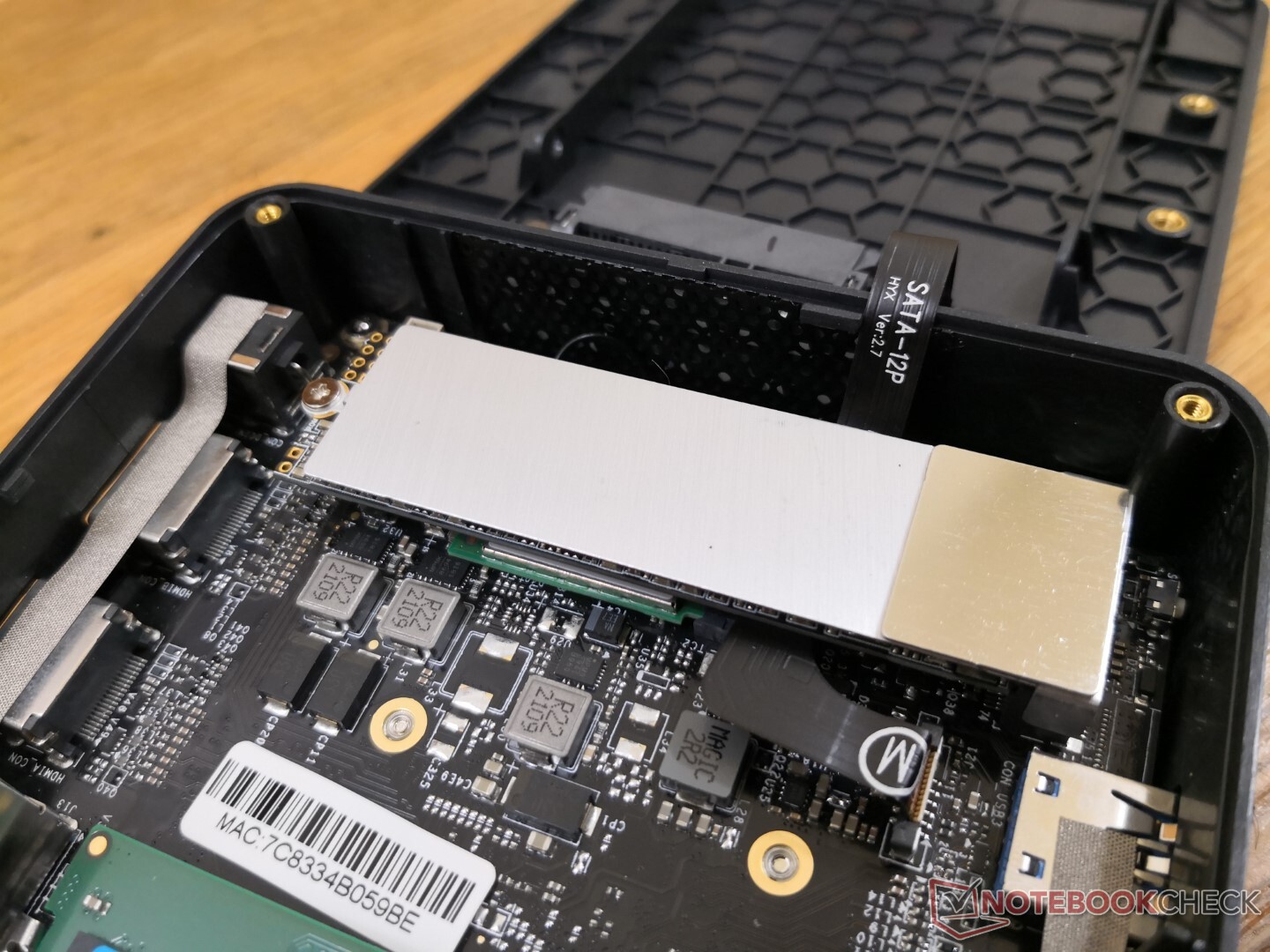

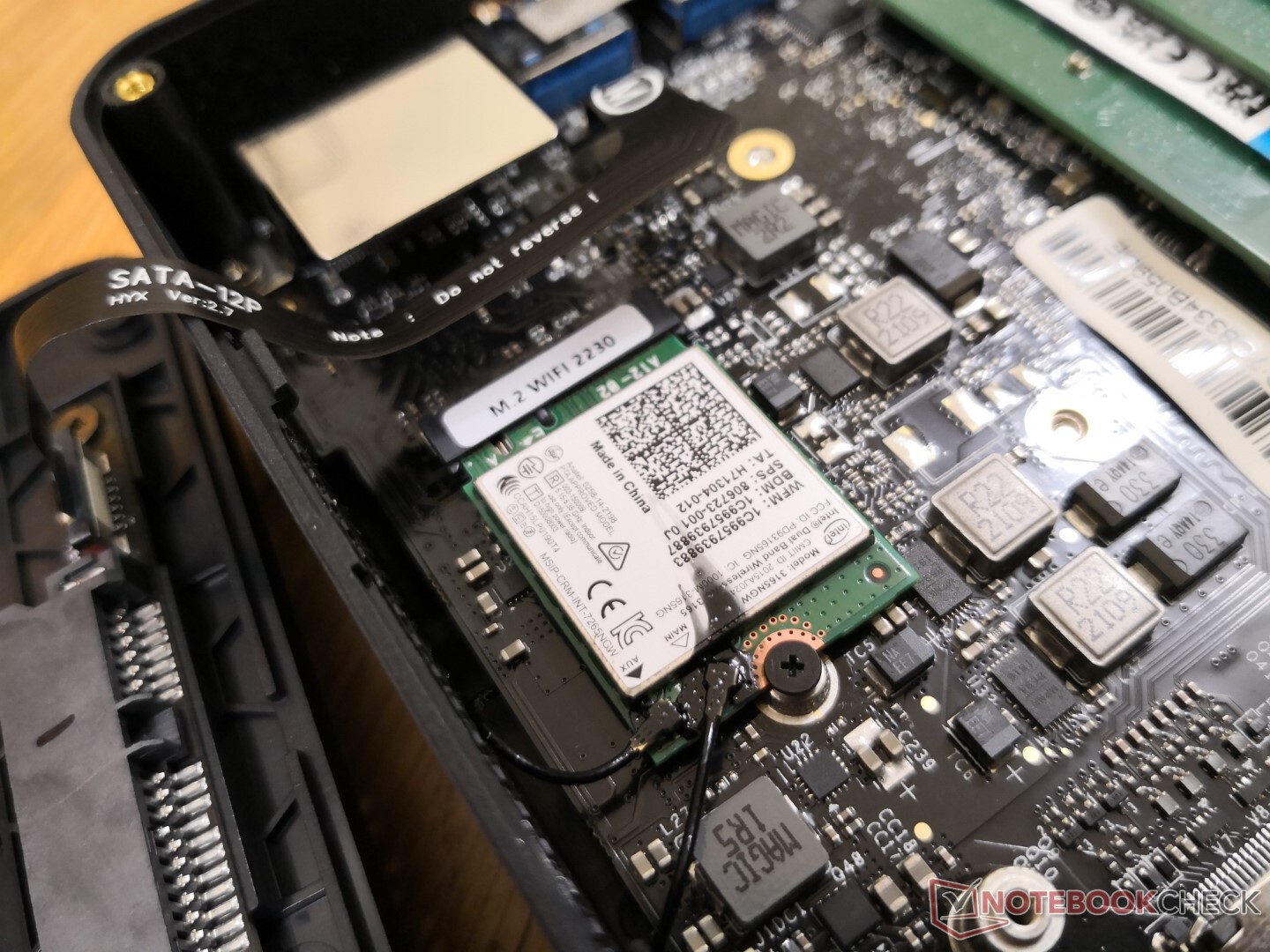

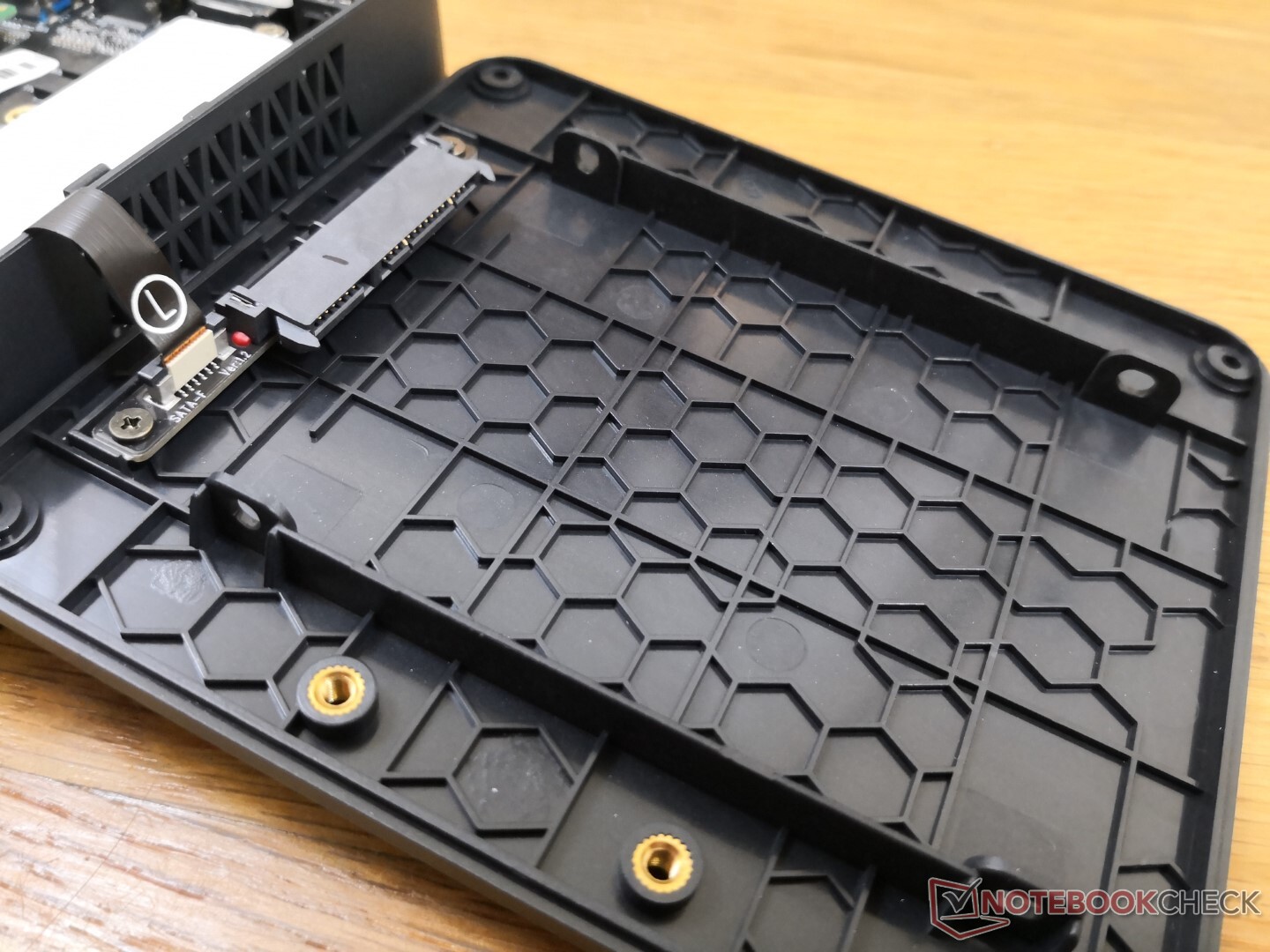

底部面板仅由四个飞利浦螺钉固定,便于拆卸。用户可以直接访问2个SODIMM插槽,可拆卸的M.2 WLAN模块,以及两个存储托架(M.2 2280 SATA III + 2.5英寸SATA III)。不幸的是,处理器和风扇需要额外拆卸,因为两者都在主板的另一侧。

配件和保修

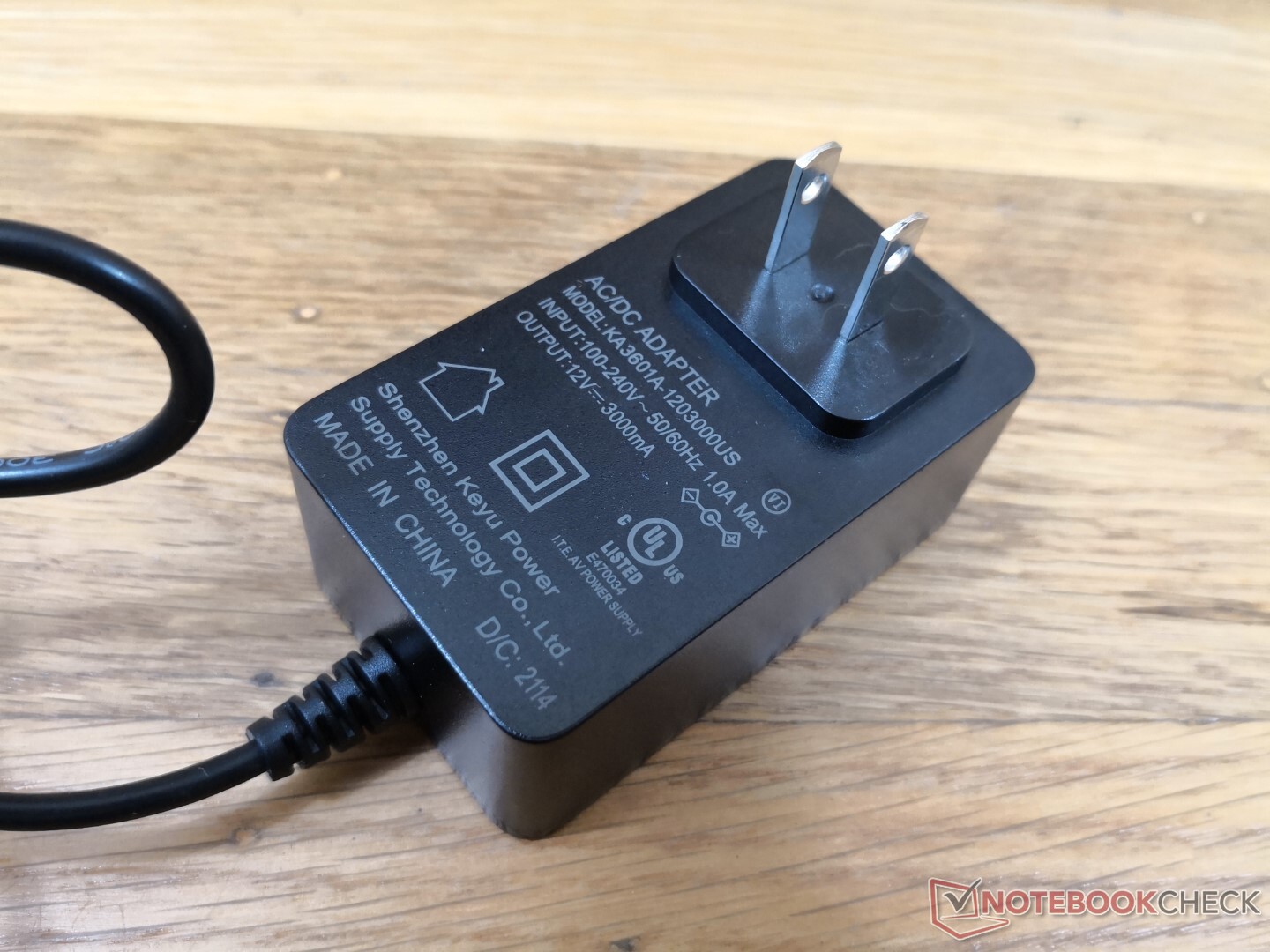

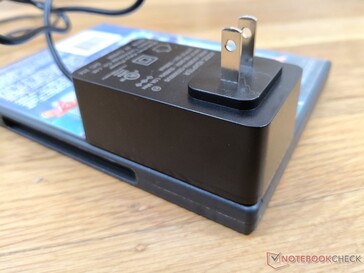

零售包装盒包括两条HDMI线、AC适配器、文件和一个可拆卸的VESA安装支架。标准的一年有限保修期适用。

业绩

处理器

多线程CPU的性能令人惊讶地与Ice Lake ,相当接近。酷睿i3-1005G1.相反,单线程性能要慢得多,约为30%至40%。赛扬N5095有四个物理核心,没有超线程,而i3-1005G1有两个物理核心,有超线程,因此在核心较少的处理器上看到更快的单线程性能并不奇怪。在循环运行CineBench R15 xT时,随着时间的推移,性能的可持续性非常好。

Cinebench R15 Multi Loop

0255075100125150175200225250275300325350375400Tooltip
Beelink U59 Intel Celeron N5095: Ø377 (375.08-378.57)
GMK NucBox K1 Intel Celeron J4125: Ø238 (199.13-242.53)
Beelink SEi10 Intel Core i3-1005G1: Ø405 (402.55-406.84)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.3: 64 Bit Multi-Core Score | 64 Bit Single-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Intel NUC11TNKi5
Intel Core i5-1135G7
91.5 pt ∼92%
Intel NUC8i7BE -3!
Intel Core i7-8559U
83.7 pt ∼84%
Zotac ZBOX MI642 Nano -2!
Intel Core i5-10210U
71 pt ∼71%
Beelink SEi10 -2!
Intel Core i3-1005G1
61.6 pt ∼62%
Beelink U59 -2!
Intel Celeron N5095
46.3 pt ∼46%
Average Intel Celeron N5095

44.6 pt ∼45%
GMK NucBox K1 -2!
Intel Celeron J4125
30.3 pt ∼30%
Blackview AceBook 1 -2!
Intel Celeron N4120
26.7 pt ∼27%
Jumper Tech Ez Book X3 Air -2!
Intel Celeron N4100
26.4 pt ∼26%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
20.7 pt ∼21%
Chuwi LapBook Plus -6!
Intel Atom x7-E3950
15.2 pt ∼15%
Cinebench R23 / Multi Core
Intel NUC11TNKi5
Intel Core i5-1135G7
5098 (4930.91min - 5098.17max) Points ∼100% +130%
Beelink U59
Intel Celeron N5095
2219 (2211.53min - 2219.25max) Points ∼44%
Average Intel Celeron N5095
  (2159 - 2219, n=2)
2189 Points ∼43% -1%
Blackview AceBook 1
Intel Celeron N4120
965 (915.042min - 964.764max) Points ∼19% -57%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
709 Points ∼14% -68%
Cinebench R23 / Single Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1369 Points ∼100% +120%
Beelink U59
Intel Celeron N5095
621 Points ∼45%
Average Intel Celeron N5095
  (615 - 621, n=2)
618 Points ∼45% 0%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
452 Points ∼33% -27%
Blackview AceBook 1
Intel Celeron N4120
409 Points ∼30% -34%
Cinebench R20 / CPU (Multi Core)
Intel NUC11TNKi5
Intel Core i5-1135G7
1974 Points ∼100% +134%
Intel NUC8i7BE
Intel Core i7-8559U
1691 Points ∼86% +100%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1183 Points ∼60% +40%
Beelink SEi10
Intel Core i3-1005G1
848 Points ∼43% 0%
Beelink U59
Intel Celeron N5095
844 Points ∼43%
Average Intel Celeron N5095
  (804 - 844, n=2)
824 Points ∼42% -2%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
451 Points ∼23% -47%
Blackview AceBook 1
Intel Celeron N4120
376 Points ∼19% -55%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
332 Points ∼17% -61%
GMK NucBox K1
Intel Celeron J4125
304 Points ∼15% -64%
Chuwi LapBook Plus
Intel Atom x7-E3950
272 Points ∼14% -68%
Cinebench R20 / CPU (Single Core)
Intel NUC11TNKi5
Intel Core i5-1135G7
503 Points ∼100% +110%
Intel NUC8i7BE
Intel Core i7-8559U
466 Points ∼93% +95%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
418 Points ∼83% +75%
Beelink SEi10
Intel Core i3-1005G1
403 Points ∼80% +69%
Beelink U59
Intel Celeron N5095
239 Points ∼48%
Average Intel Celeron N5095
  (228 - 239, n=2)
234 Points ∼47% -2%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
188 Points ∼37% -21%
GMK NucBox K1
Intel Celeron J4125
161 Points ∼32% -33%
Blackview AceBook 1
Intel Celeron N4120
159 Points ∼32% -33%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
152 Points ∼30% -36%
Chuwi LapBook Plus
Intel Atom x7-E3950
93 Points ∼18% -61%
Cinebench R15 / CPU Multi 64Bit
Intel NUC8i7BE
Intel Core i7-8559U
798 (671.37min - 798.44max) Points ∼100% +111%
Intel NUC11TNKi5
Intel Core i5-1135G7
794 (772.57min - 794.38max) Points ∼99% +109%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
522 (504.41min - 521.83max) Points ∼65% +38%
Beelink SEi10
Intel Core i3-1005G1
406.8 (402.55min - 406.84max) Points ∼51% +7%
Beelink U59
Intel Celeron N5095
379 (375.08min - 378.57max) Points ∼47%
Average Intel Celeron N5095
  (221 - 379, n=3)
319 Points ∼40% -16%
GMK NucBox K1
Intel Celeron J4125
243 (199.13min - 242.53max) Points ∼30% -36%
Blackview AceBook 1
Intel Celeron N4120
234 (225.47min - 233.66max) Points ∼29% -38%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
211 (208min - 211.45max) Points ∼26% -44%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
171 (60.18min - 170.9max) Points ∼21% -55%
Chuwi LapBook Plus
Intel Atom x7-E3950
125 Points ∼16% -67%
Cinebench R15 / CPU Single 64Bit
Intel NUC11TNKi5
Intel Core i5-1135G7
201 Points ∼100% +84%
Intel NUC8i7BE
Intel Core i7-8559U
188 Points ∼94% +72%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
167 Points ∼83% +53%
Beelink SEi10
Intel Core i3-1005G1
158 Points ∼79% +45%
Beelink U59
Intel Celeron N5095
109 Points ∼54%
Average Intel Celeron N5095
  (95.4 - 109, n=2)
102.2 Points ∼51% -6%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
82 Points ∼41% -25%
GMK NucBox K1
Intel Celeron J4125
75.3 Points ∼37% -31%
Blackview AceBook 1
Intel Celeron N4120
74.5 Points ∼37% -32%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
68.4 Points ∼34% -37%
Chuwi LapBook Plus
Intel Atom x7-E3950
41 Points ∼20% -62%
Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus
Intel Atom x7-E3950
4564 Seconds * ∼100% -201%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
4249 Seconds * ∼93% -180%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
2801 Seconds * ∼61% -85%
Blackview AceBook 1
Intel Celeron N4120
2583 Seconds * ∼57% -70%
GMK NucBox K1
Intel Celeron J4125
2391 Seconds * ∼52% -58%
Average Intel Celeron N5095
  (1516 - 1624, n=2)
1570 Seconds * ∼34% -4%
Beelink U59
Intel Celeron N5095
1516 Seconds * ∼33%
Beelink SEi10
Intel Core i3-1005G1
1126 Seconds * ∼25% +26%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
892 Seconds * ∼20% +41%
Intel NUC8i7BE
Intel Core i7-8559U
682 Seconds * ∼15% +55%
Intel NUC8i7BE
Intel Core i7-8559U
650 Seconds * ∼14% +57%
Intel NUC11TNKi5
Intel Core i5-1135G7
600 Seconds * ∼13% +60%
7-Zip 18.03 / 7z b 4
Intel NUC8i7BE
Intel Core i7-8559U
30570 MIPS ∼100% +174%
Intel NUC8i7BE
Intel Core i7-8559U
22033 MIPS ∼72% +97%
Intel NUC11TNKi5
Intel Core i5-1135G7
23280 MIPS ∼76% +108%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
16971 MIPS ∼56% +52%
Beelink U59
Intel Celeron N5095
11168 MIPS ∼37%
Average Intel Celeron N5095
  (11013 - 11168, n=2)
11091 MIPS ∼36% -1%
Beelink SEi10
Intel Core i3-1005G1
10536 MIPS ∼34% -6%
GMK NucBox K1
Intel Celeron J4125
7494 MIPS ∼25% -33%
Blackview AceBook 1
Intel Celeron N4120
7436 MIPS ∼24% -33%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
6873 MIPS ∼22% -38%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
5394 MIPS ∼18% -52%
Chuwi LapBook Plus
Intel Atom x7-E3950
4569 MIPS ∼15% -59%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC8i7BE
Intel Core i7-8559U
6171 MIPS ∼100% +98%
Intel NUC8i7BE
Intel Core i7-8559U
4826 MIPS ∼78% +55%
Intel NUC11TNKi5
Intel Core i5-1135G7
4738 MIPS ∼77% +52%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4303 MIPS ∼70% +38%
Beelink SEi10
Intel Core i3-1005G1
4041 MIPS ∼65% +30%
Average Intel Celeron N5095
  (3111 - 3124, n=2)
3118 MIPS ∼51% 0%
Beelink U59
Intel Celeron N5095
3111 MIPS ∼50%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
2853 MIPS ∼46% -8%
Blackview AceBook 1
Intel Celeron N4120
2412 MIPS ∼39% -22%
GMK NucBox K1
Intel Celeron J4125
2361 MIPS ∼38% -24%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
2155 MIPS ∼35% -31%
Chuwi LapBook Plus
Intel Atom x7-E3950
1454 MIPS ∼24% -53%
Geekbench 5.3 / 64 Bit Multi-Core Score
Intel NUC11TNKi5
Intel Core i5-1135G7
4593 Points ∼100%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
3877 Points ∼84%
Intel NUC8i7BE
Intel Core i7-8559U
3660 Points ∼80%
Beelink SEi10
Intel Core i3-1005G1
2153 Points ∼47%
Average Intel Celeron N5095

1933 Points ∼42%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
1407 Points ∼31%
GMK NucBox K1
Intel Celeron J4125
1394 Points ∼30%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
707 Points ∼15%
Geekbench 5.3 / 64 Bit Single-Core Score
Intel NUC11TNKi5
Intel Core i5-1135G7
1396 Points ∼100%
Beelink SEi10
Intel Core i3-1005G1
1118 Points ∼80%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1111 Points ∼80%
Intel NUC8i7BE
Intel Core i7-8559U
723 Points ∼52%
Average Intel Celeron N5095

644 Points ∼46%
GMK NucBox K1
Intel Celeron J4125
435 Points ∼31%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
404 Points ∼29%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
401 Points ∼29%
HWBOT x265 Benchmark v2.2 / 4k Preset
Intel NUC11TNKi5
Intel Core i5-1135G7
6.63 fps ∼100% +223%
Intel NUC8i7BE
Intel Core i7-8559U
5.9 fps ∼89% +188%
Intel NUC8i7BE
Intel Core i7-8559U
5.523 fps ∼83% +169%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4.15 fps ∼63% +102%
Beelink SEi10
Intel Core i3-1005G1
3.48 fps ∼52% +70%
Beelink U59
Intel Celeron N5095
2.05 fps ∼31%
Average Intel Celeron N5095
  (2 - 2.05, n=2)
2.03 fps ∼31% -1%
GMK NucBox K1
Intel Celeron J4125
1.46 fps ∼22% -29%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
1.24 fps ∼19% -40%
Blackview AceBook 1
Intel Celeron N4120
1.02 fps ∼15% -50%
Chuwi LapBook Plus
Intel Atom x7-E3950
0.98 fps ∼15% -52%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
0.74 fps ∼11% -64%
LibreOffice / 20 Documents To PDF
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
175 s * ∼100% -80%
Blackview AceBook 1
Intel Celeron N4120
157 s * ∼90% -62%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
155 s * ∼89% -60%
GMK NucBox K1
Intel Celeron J4125
124 s * ∼71% -28%
Average Intel Celeron N5095
  (97 - 106.5, n=2)
101.8 s * ∼58% -5%
Beelink U59
Intel Celeron N5095
97 s * ∼55%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
68.8 s * ∼39% +29%
Beelink SEi10
Intel Core i3-1005G1
55.8 s * ∼32% +42%
Intel NUC11TNKi5
Intel Core i5-1135G7
51.3 s * ∼29% +47%
R Benchmark 2.5 / Overall mean
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
2.12 sec * ∼100% -82%
Jumper Tech Ez Book X3 Air
Intel Celeron N4100
1.756 sec * ∼83% -50%
Blackview AceBook 1
Intel Celeron N4120
1.649 sec * ∼78% -41%
GMK NucBox K1
Intel Celeron J4125
1.577 sec * ∼74% -35%
Average Intel Celeron N5095
  (1.168 - 1.178, n=2)
1.173 sec * ∼55% -0%
Beelink U59
Intel Celeron N5095
1.168 sec * ∼55%
Beelink SEi10
Intel Core i3-1005G1
0.763 sec * ∼36% +35%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
0.695 sec * ∼33% +40%
Intel NUC8i7BE
Intel Core i7-8559U
0.6275 sec * ∼30% +46%
Intel NUC11TNKi5
Intel Core i5-1135G7
0.622 sec * ∼29% +47%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
379 Points
Cinebench R15 OpenGL 64Bit
26.8 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
109 Points
Help
Performance Rating
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
97.1 pt ∼97%
Intel NUC8i7BE -1!
Intel Core i7-8559U, Iris Plus Graphics 655
84.4 pt ∼84%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
64.4 pt ∼64%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30.6 pt ∼31%
AIDA64 / FP32 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s ∼100% +438%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
5312 KRay/s ∼79% +327%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
3775 KRay/s ∼56% +203%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1245 KRay/s ∼19%
AIDA64 / FPU Julia
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points ∼100% +273%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
26770 Points ∼96% +259%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
20498 Points ∼74% +175%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7466 Points ∼27%
AIDA64 / CPU SHA3
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s ∼100% +260%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
919 MB/s ∼50% +78%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
515 MB/s ∼28%
AIDA64 / CPU Queen
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
50056 Points ∼100% +128%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
47528 Points ∼95% +116%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points ∼93% +112%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21959 Points ∼44%
AIDA64 / FPU SinJulia
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
4677 Points ∼100% +366%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points ∼95% +343%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
3766 Points ∼81% +275%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1003 Points ∼21%
AIDA64 / FPU Mandel
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points ∼100% +327%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
13435 Points ∼79% +239%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
10030 Points ∼59% +153%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3967 Points ∼23%
AIDA64 / CPU AES
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s ∼100% +249%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19099 MB/s ∼29%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
18649 MB/s ∼28% -2%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
14698 MB/s ∼22% -23%
AIDA64 / CPU ZLib
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s ∼100% +96%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
366 MB/s ∼98% +93%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
258 MB/s ∼69% +36%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
190 MB/s ∼51%
AIDA64 / FP64 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s ∼100% +437%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
2870 KRay/s ∼79% +325%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
2058 KRay/s ∼57% +204%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s ∼19%
AIDA64 / CPU PhotoWorxx
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
20296 MPixel/s ∼100% +118%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s ∼83% +82%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
16602 MPixel/s ∼82% +79%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9294 MPixel/s ∼46%

系统性能

PCMark 10的分数一直高于GMK NucBox K1而比搭载酷睿i3处理器的 Beelink SEi10.

PCMark 10 / Score
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4580 Points ∼100% +90%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points ∼99% +87%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3791 Points ∼83% +57%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
3420 Points ∼75% +42%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
2410 Points ∼53%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (2386 - 2410, n=2)
2398 Points ∼52% 0%
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
1831 Points ∼40% -24%
PCMark 10 / Essentials
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points ∼100% +53%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
8994 Points ∼100% +53%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
7787 Points ∼87% +33%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
7766 Points ∼86% +32%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
5874 Points ∼65%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (5778 - 5874, n=2)
5826 Points ∼65% -1%
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
4900 Points ∼54% -17%
PCMark 10 / Productivity
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
7236 Points ∼100% +100%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
6333 Points ∼88% +75%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points ∼86% +71%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
5353 Points ∼74% +48%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
3623 Points ∼50%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (3591 - 3623, n=2)
3607 Points ∼50% 0%
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
2948 Points ∼41% -19%
PCMark 10 / Digital Content Creation
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points ∼100% +150%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4007 Points ∼90% +124%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3000 Points ∼67% +68%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
2614 Points ∼58% +46%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
1787 Points ∼40%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (1779 - 1787, n=2)
1783 Points ∼40% 0%
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
1155 Points ∼26% -35%

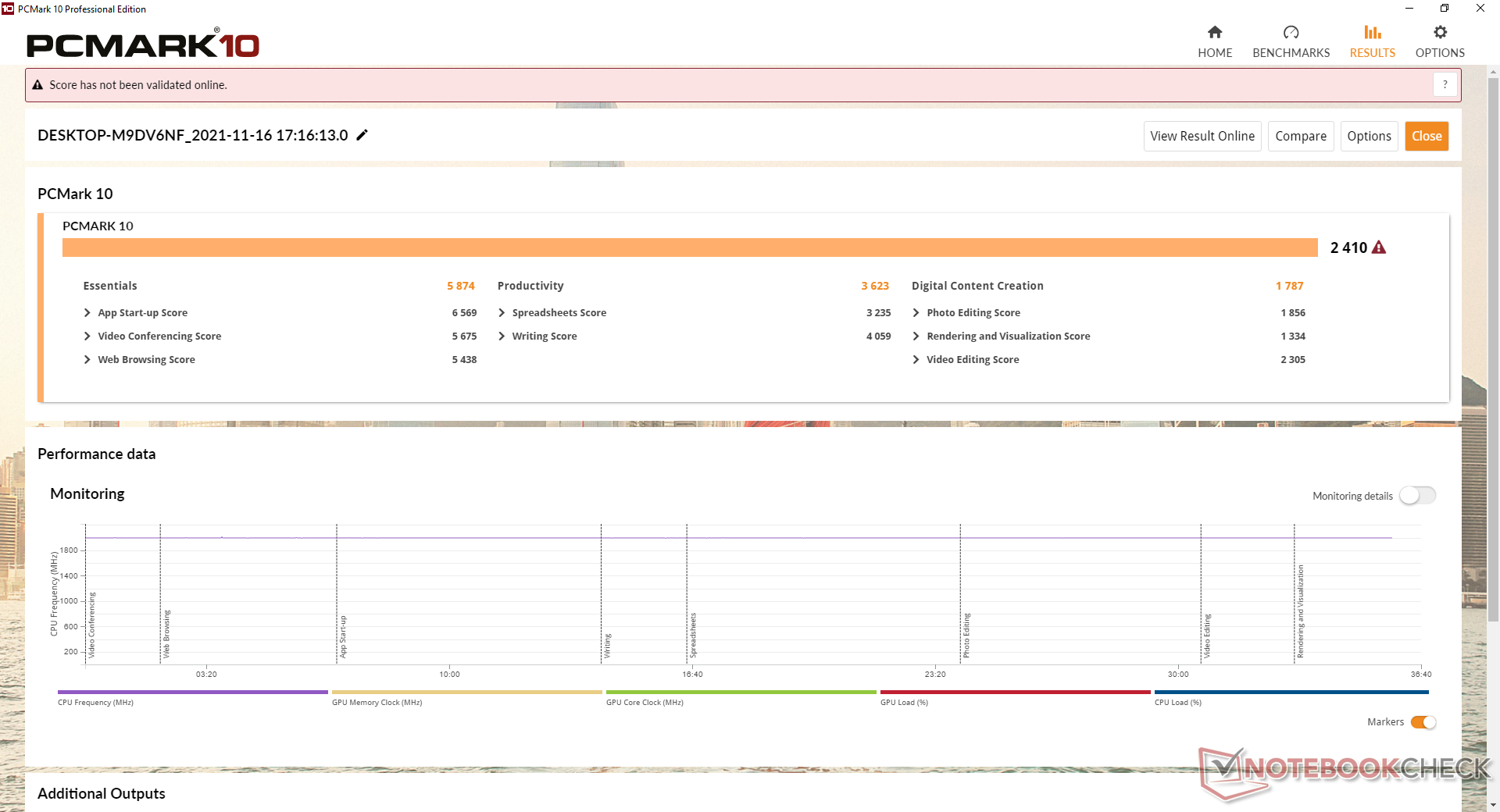

PCMark 10 Score
2410 points
Help
AIDA64 / Memory Copy
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
65321 MB/s ∼100% +184%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
26641 MB/s ∼41% +16%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
23009 MB/s ∼35%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s ∼35% 0%
AIDA64 / Memory Read
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
45290 MB/s ∼100% +176%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
30907 MB/s ∼68% +88%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s ∼55% +52%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16406 MB/s ∼36%
AIDA64 / Memory Write
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
55236 MB/s ∼100% +81%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
34480 MB/s ∼62% +13%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30499 MB/s ∼55%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s ∼42% -23%
AIDA64 / Memory Latency
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
94.4 ns * ∼100% -57%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * ∼92% -45%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
60.2 ns * ∼64%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
48.9 ns * ∼52% +19%

* ... smaller is better

DPC延时

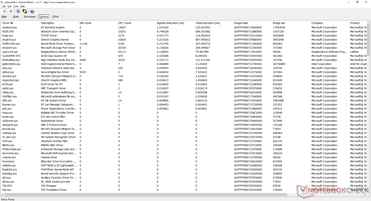

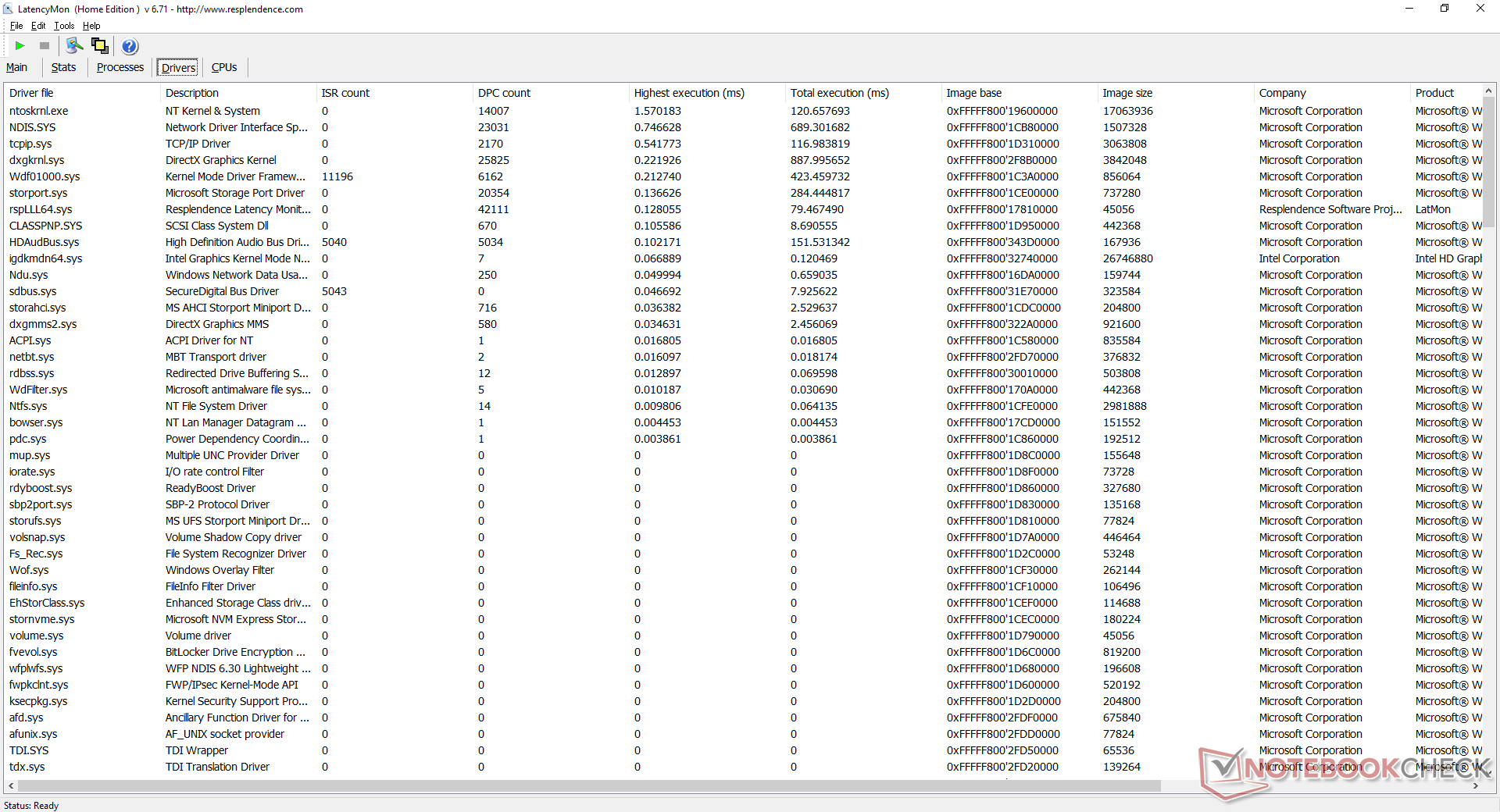

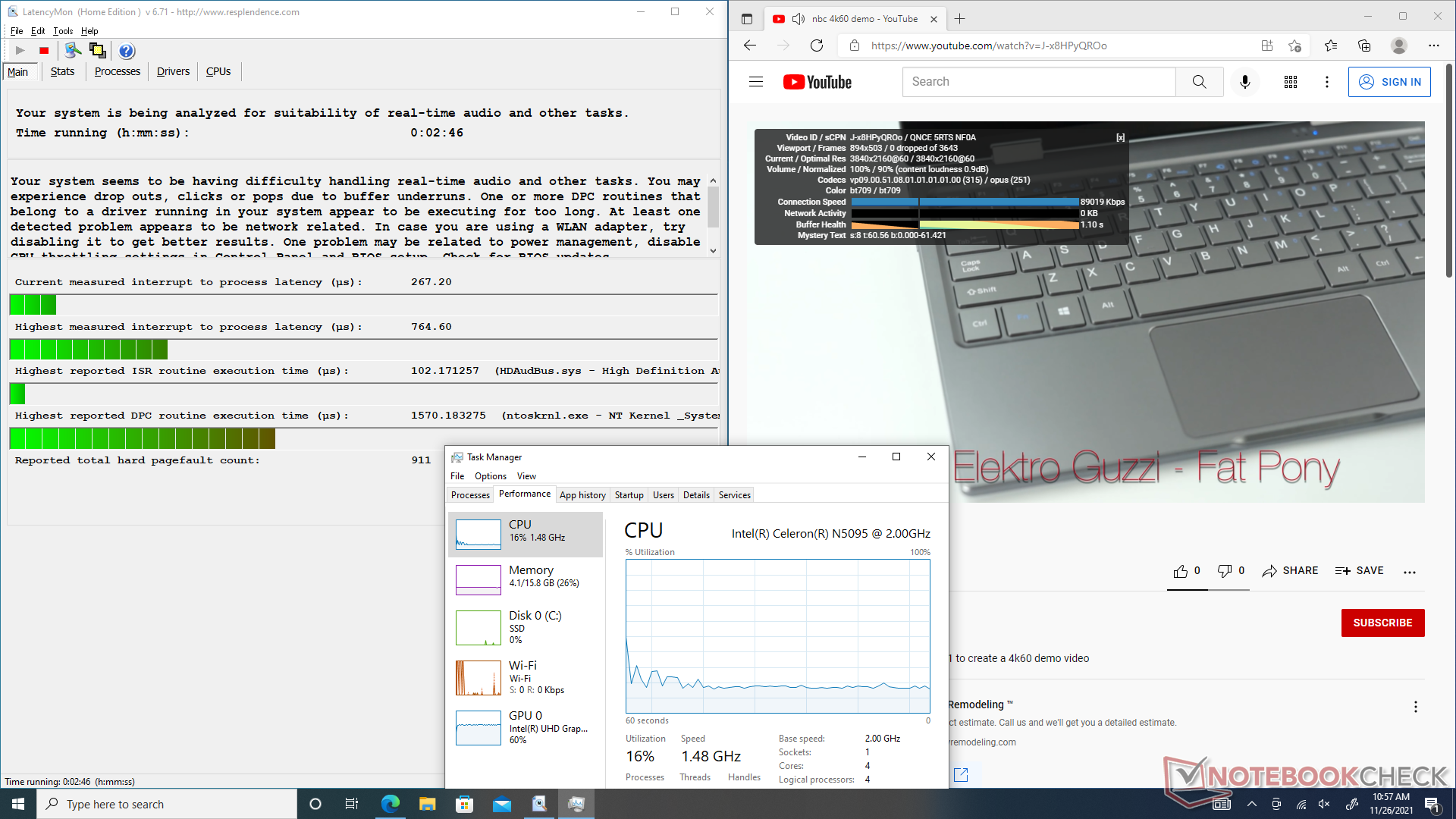

LatencyMon显示,在我们的主页上打开多个浏览器标签时,存在轻微的DPC延时问题。4K视频的播放非常好,在我们长达1分钟的测试中没有丢帧。GPU利用率相对较高,为60%。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
1717 μs * ∼100% -124%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
1231 μs * ∼72% -61%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
765 μs * ∼45%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * ∼31% +31%

* ... smaller is better

存储设备

我们的测试装置配备了一个 512 GB AZW M.2 2280 SATA III SD卡这是一个相对不知名的品牌,可能是为了节省成本。大多数其他PC使用更知名的SSD品牌,如三星、英特尔、金士顿或其他。然而,对于一个SATA III驱动器来说,传输率是非常好的,连续读写率大约为500MB/s。

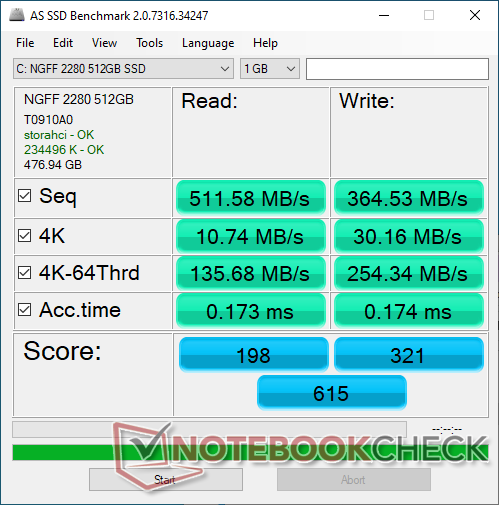

AS SSD
AS SSD

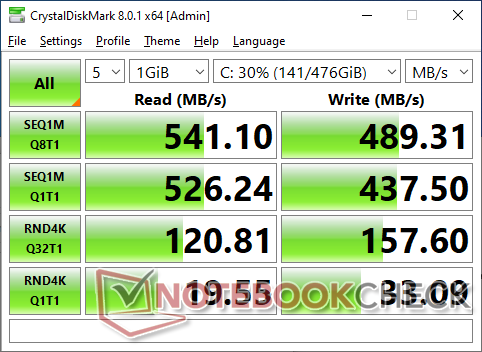

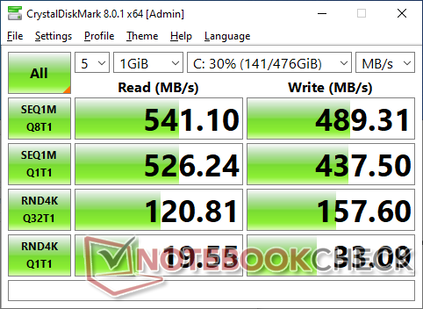

CDM 8
CDM 8
M.2 2280 SATA III插槽不支持NVMe SSD。我们的测试装置中包括一个非常薄的铝制散热片
M.2 2280 SATA III插槽不支持NVMe SSD。我们的测试装置中包括一个非常薄的铝制散热片
可以添加一个7毫米的2.5英寸SATA III驱动器作为辅助或主驱动器
可以添加一个7毫米的2.5英寸SATA III驱动器作为辅助或主驱动器
Silicon Motion AZW 512G NV428
CDM 5/6 Read Seq Q32T1: 523 MB/s
CDM 5/6 Write Seq Q32T1: 426.6 MB/s
CDM 5/6 Read 4K Q32T1: 117.4 MB/s
CDM 5/6 Write 4K Q32T1: 159.7 MB/s
CDM 5 Read Seq: 492.6 MB/s
CDM 5 Write Seq: 432.9 MB/s
CDM 5/6 Read 4K: 18.85 MB/s
CDM 5/6 Write 4K: 32.99 MB/s
Drive Performance Rating - Percent
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
85.4 pt ∼85%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
73.5 pt ∼74%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
60.2 pt ∼60%
Beelink U59
Silicon Motion AZW 512G NV428
43.5 pt ∼44%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
31.4 pt ∼31%
DiskSpd
seq read
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
1341 (1340.13min - 1341.17max) MB/s ∼100% +234%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s ∼38% +27%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
490 (487.59min - 489.62max) MB/s ∼37% +22%
Beelink U59
Silicon Motion AZW 512G NV428
402 (394.68min - 401.6max) MB/s ∼30%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
289 (229.6min - 289.25max) MB/s ∼22% -28%
seq write
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
953 (144min - 952.51max) MB/s ∼100% +213%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
470 (456.41min - 470.18max) MB/s ∼49% +55%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s ∼49% +54%
Beelink U59
Silicon Motion AZW 512G NV428
304 (291.46min - 304.28max) MB/s ∼32%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
298 (15.07min - 297.62max) MB/s ∼31% -2%
seq q8 t1 read
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
1709 (1493.54min - 1709.12max) MB/s ∼100% +281%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
561 (469.24min - 560.5max) MB/s ∼33% +25%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
544 (436.87min - 543.62max) MB/s ∼32% +21%
Beelink U59
Silicon Motion AZW 512G NV428
448 (407.08min - 448.01max) MB/s ∼26%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
396 (341.78min - 395.94max) MB/s ∼23% -12%
seq q8 t1 write
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
964 (326.08min - 964.44max) MB/s ∼100% +227%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
515 (462.09min - 515.25max) MB/s ∼53% +75%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
504 (500.38min - 503.53max) MB/s ∼52% +71%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
354 (350.57min - 354.13max) MB/s ∼37% +20%
Beelink U59
Silicon Motion AZW 512G NV428
295 (288.36min - 294.82max) MB/s ∼31%
4k q1 t1 read
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
48.3 (47.16min - 48.29max) MB/s ∼100% +272%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
40.1 (39.9min - 40.06max) MB/s ∼83% +208%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
21.6 (20.05min - 21.62max) MB/s ∼45% +66%
Beelink U59
Silicon Motion AZW 512G NV428
13 (11.34min - 13.03max) MB/s ∼27%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
8.76 (4.86min - 8.76max) MB/s ∼18% -33%
4k q1 t1 write
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
176 (148.72min - 175.53max) MB/s ∼100% +326%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
104 (103.95min - 104.38max) MB/s ∼59% +152%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
54.6 (11.92min - 54.62max) MB/s ∼31% +32%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
46.4 (45.57min - 46.37max) MB/s ∼26% +12%
Beelink U59
Silicon Motion AZW 512G NV428
41.3 (26.85min - 41.32max) MB/s ∼23%
4k q32 t16 read
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
395 (393.42min - 394.82max) MB/s ∼100% +190%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
394 (375.15min - 393.85max) MB/s ∼100% +190%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285 (283.99min - 284.61max) MB/s ∼72% +110%
Beelink U59
Silicon Motion AZW 512G NV428
136 (135.53min - 136max) MB/s ∼34%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
67.3 (64.67min - 67.3max) MB/s ∼17% -51%
4k q32 t16 write
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
503 (76.08min - 503.17max) MB/s ∼100% +345%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
330 (329.53min - 329.95max) MB/s ∼66% +192%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
307 (253.88min - 307.24max) MB/s ∼61% +172%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
160 (12.07min - 160.1max) MB/s ∼32% +42%
Beelink U59
Silicon Motion AZW 512G NV428
113 (106.48min - 113.38max) MB/s ∼22%

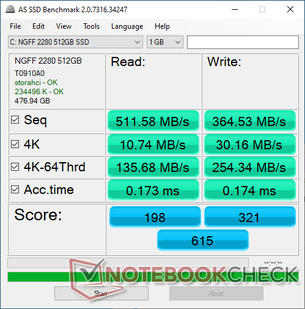

AS SSD
Score Total
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
1023 Points ∼100% +66%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
983 Points ∼96% +60%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
839 Points ∼82% +36%
Beelink U59
Silicon Motion AZW 512G NV428
615 Points ∼60%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
326 Points ∼32% -47%
Score Read
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
501 Points ∼100% +153%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
457 Points ∼91% +131%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
304 Points ∼61% +54%
Beelink U59
Silicon Motion AZW 512G NV428
198 Points ∼40%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
126 Points ∼25% -36%
Score Write
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
375 Points ∼100% +17%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
324 Points ∼86% +1%
Beelink U59
Silicon Motion AZW 512G NV428
321 Points ∼86%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
253 Points ∼67% -21%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
134 Points ∼36% -58%
Seq Read
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
1111 MB/s ∼100% +117%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
527 MB/s ∼47% +3%
Beelink U59
Silicon Motion AZW 512G NV428
512 MB/s ∼46%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
507 MB/s ∼46% -1%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
432.5 MB/s ∼39% -16%
Seq Write
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
469 MB/s ∼100% +29%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
413.8 MB/s ∼88% +14%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
404 MB/s ∼86% +11%
Beelink U59
Silicon Motion AZW 512G NV428
364.5 MB/s ∼78%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
323.5 MB/s ∼69% -11%
4K Read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
36.75 MB/s ∼100% +242%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
33.1 MB/s ∼90% +208%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
20.41 MB/s ∼56% +90%
Beelink U59
Silicon Motion AZW 512G NV428
10.74 MB/s ∼29%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
9.18 MB/s ∼25% -15%
4K Write
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
88.5 MB/s ∼100% +193%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
66.2 MB/s ∼75% +119%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
52.8 MB/s ∼60% +75%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
42.52 MB/s ∼48% +41%
Beelink U59
Silicon Motion AZW 512G NV428
30.16 MB/s ∼34%
4K-64 Read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
369.4 MB/s ∼100% +172%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
357.3 MB/s ∼97% +163%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
231.4 MB/s ∼63% +71%
Beelink U59
Silicon Motion AZW 512G NV428
135.7 MB/s ∼37%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
73.4 MB/s ∼20% -46%
4K-64 Write
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285.3 MB/s ∼100% +12%
Beelink U59
Silicon Motion AZW 512G NV428
254.3 MB/s ∼89%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
193.7 MB/s ∼68% -24%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
154.8 MB/s ∼54% -39%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
41.03 MB/s ∼14% -84%
Access Time Read
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
0.251 ms * ∼100% -45%
Beelink U59
Silicon Motion AZW 512G NV428
0.173 ms * ∼69%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.124 ms * ∼49% +28%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
0.103 ms * ∼41% +40%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
0.066 ms * ∼26% +62%
Access Time Write
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
0.616 ms * ∼100% -254%
GMK NucBox K1
HIKVision C100 NGFF SSD 128GB
0.308 ms * ∼50% -77%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.269 ms * ∼44% -55%
Beelink U59
Silicon Motion AZW 512G NV428
0.174 ms * ∼28%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
0.095 ms * ∼15% +45%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0255075100125150175200225250275300325350375400425450Tooltip
: Ø458 (414.62-460.83)

GPU性能

图形性能比普通的要慢40%到50%左右。 UHD Graphics 620的出现之前,在老式笔记本电脑和迷你PC上发现的 虹膜Xe.虽然能够进行流媒体传输,但不要指望大多数原生游戏能够运行良好。

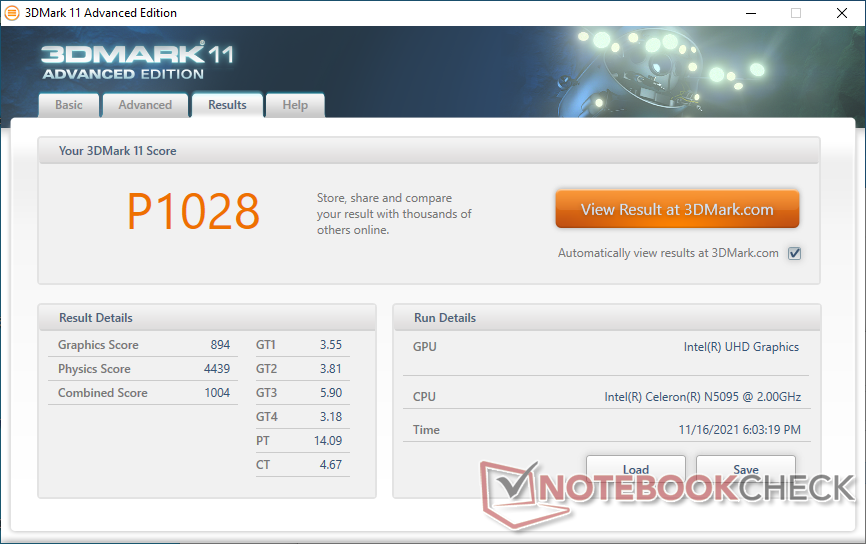

3DMark 11
3DMark 11
Cloud Gate
Cloud Gate

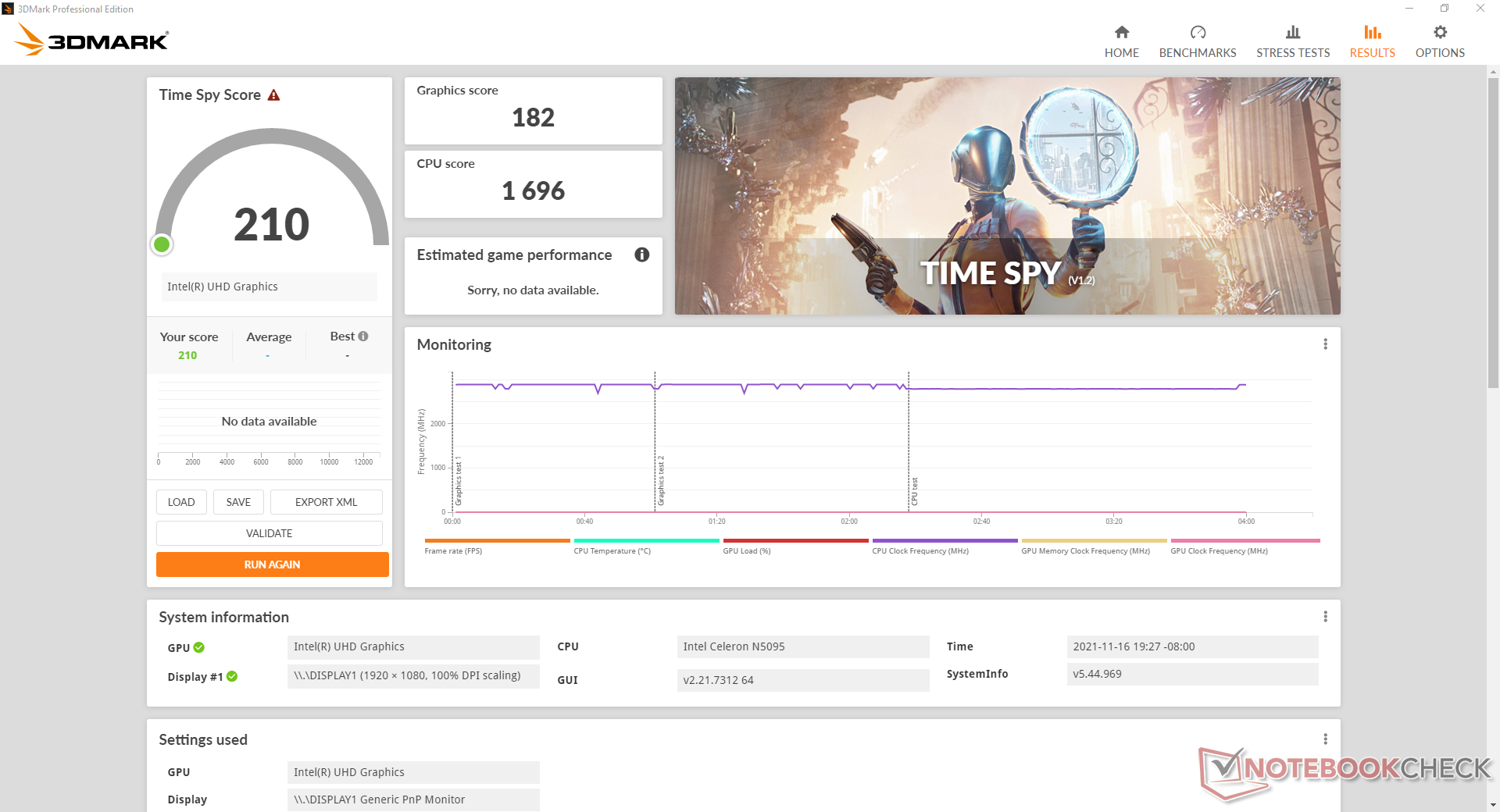

Time Spy
Time Spy
Fire Strike
Fire Strike

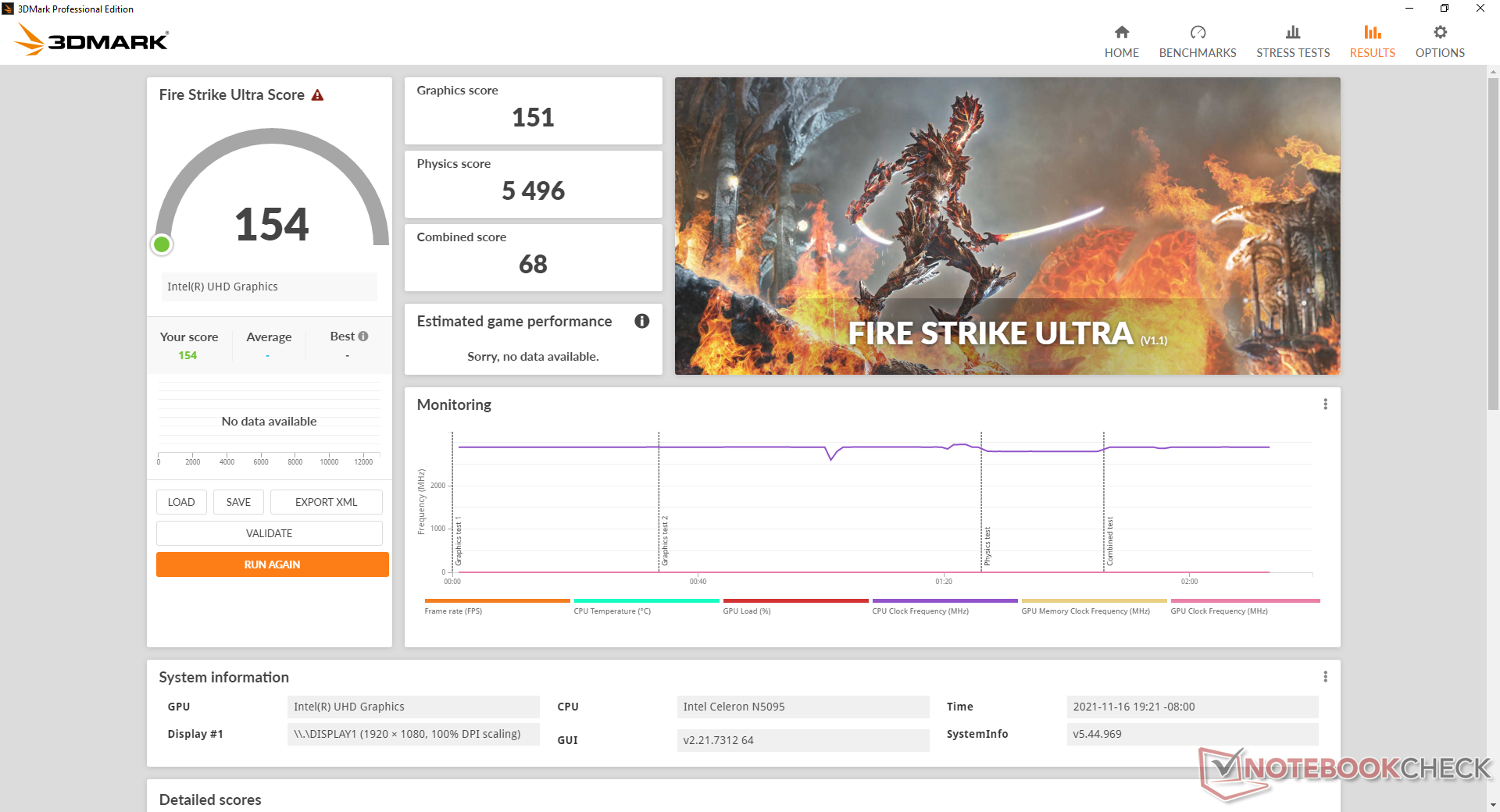

Fire Strike Ultra
Fire Strike Ultra

3DMark Performance Rating - Percent
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
100 pt ∼100%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
68.1 pt ∼68%
Zotac ZBOX MI642 Nano -3!
Intel UHD Graphics 620, Intel Core i5-10210U
45.6 pt ∼46%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel UHD Graphics 620, Intel Core i7-8665U
38.9 pt ∼39%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
32.8 pt ∼33%
Beelink U59
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
20.3 pt ∼20%
Average Intel UHD Graphics (Jasper Lake 16 EU)

18 pt ∼18%
Chuwi LapBook Plus -1!
Intel HD Graphics 505, Intel Atom x7-E3950
15.7 pt ∼16%
Blackview AceBook 1 -2!
Intel UHD Graphics 600, Intel Celeron N4120
14.3 pt ∼14%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
14 pt ∼14%
GMK NucBox K1
Intel UHD Graphics 600, Intel Celeron J4125
13.2 pt ∼13%
Jumper Tech Ez Book X3 Air -1!
Intel UHD Graphics 600, Intel Celeron N4100
12.8 pt ∼13%
3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
19330 Points ∼100% +271%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
16698 Points ∼86% +220%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, Intel Core i5-10210U
10057 Points ∼52% +93%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel UHD Graphics 620, Intel Core i7-8665U
9413 Points ∼49% +81%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
7448 Points ∼39% +43%
Beelink U59
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
5212 Points ∼27%
Average Intel UHD Graphics (Jasper Lake 16 EU)
  (4210 - 5212, n=4)
4789 Points ∼25% -8%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
4210 Points ∼22% -19%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
3997 Points ∼21% -23%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
3441 Points ∼18% -34%
GMK NucBox K1
Intel UHD Graphics 600, Intel Celeron J4125
3366 Points ∼17% -35%
1920x1080 Fire Strike Graphics
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3152 Points ∼100% +364%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
2260 Points ∼72% +233%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, Intel Core i5-10210U
1232 Points ∼39% +81%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel UHD Graphics 620, Intel Core i7-8665U
1228 Points ∼39% +81%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
960 Points ∼30% +41%
Beelink U59
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
679 Points ∼22%
Average Intel UHD Graphics (Jasper Lake 16 EU)
  (392 - 679, n=4)
582 Points ∼18% -14%
Jumper Tech Ez Book X3 Air
Intel UHD Graphics 600, Intel Celeron N4100
486 Points ∼15% -28%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
436 Points ∼14% -36%
GMK NucBox K1
Intel UHD Graphics 600, Intel Celeron J4125
433 Points ∼14% -36%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
392 Points ∼12% -42%
2560x1440 Time Spy Graphics
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1031 Points ∼100% +466%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
633 Points ∼61% +248%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel UHD Graphics 620, Intel Core i7-8665U
377 Points ∼37% +107%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
320 Points ∼31% +76%
Beelink U59
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
182 Points ∼18%
Average Intel UHD Graphics (Jasper Lake 16 EU)
  (129 - 182, n=3)
161.3 Points ∼16% -11%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
142 Points ∼14% -22%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
129 Points ∼13% -29%
Jumper Tech Ez Book X3 Air
Intel UHD Graphics 600, Intel Celeron N4100
123 Points ∼12% -32%
GMK NucBox K1
Intel UHD Graphics 600, Intel Celeron J4125
120 Points ∼12% -34%
2560x1440 Time Spy Score
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1161 Points ∼100% +453%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
722 Points ∼62% +244%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel UHD Graphics 620, Intel Core i7-8665U
432 Points ∼37% +106%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
367 Points ∼32% +75%
Beelink U59
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
210 Points ∼18%
Average Intel UHD Graphics (Jasper Lake 16 EU)
  (145 - 210, n=3)
184.7 Points ∼16% -12%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
161 Points ∼14% -23%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
145 Points ∼12% -31%
Jumper Tech Ez Book X3 Air
Intel UHD Graphics 600, Intel Celeron N4100
141 Points ∼12% -33%
GMK NucBox K1
Intel UHD Graphics 600, Intel Celeron J4125
138 Points ∼12% -34%
3DMark 11 - 1280x720 Performance GPU
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5221 Points ∼100% +484%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
3081 Points ∼59% +245%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel UHD Graphics 620, Intel Core i7-8665U
1717 Points ∼33% +92%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
1684 Points ∼32% +88%
Beelink U59
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
894 Points ∼17%
Average Intel UHD Graphics (Jasper Lake 16 EU)
  (554 - 894, n=4)
792 Points ∼15% -11%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
765 Points ∼15% -14%
Jumper Tech Ez Book X3 Air
Intel UHD Graphics 600, Intel Celeron N4100
603 Points ∼12% -33%
GMK NucBox K1
Intel UHD Graphics 600, Intel Celeron J4125
589 Points ∼11% -34%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
583 Points ∼11% -35%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
554 Points ∼11% -38%
3DMark 11 Performance
1028 points

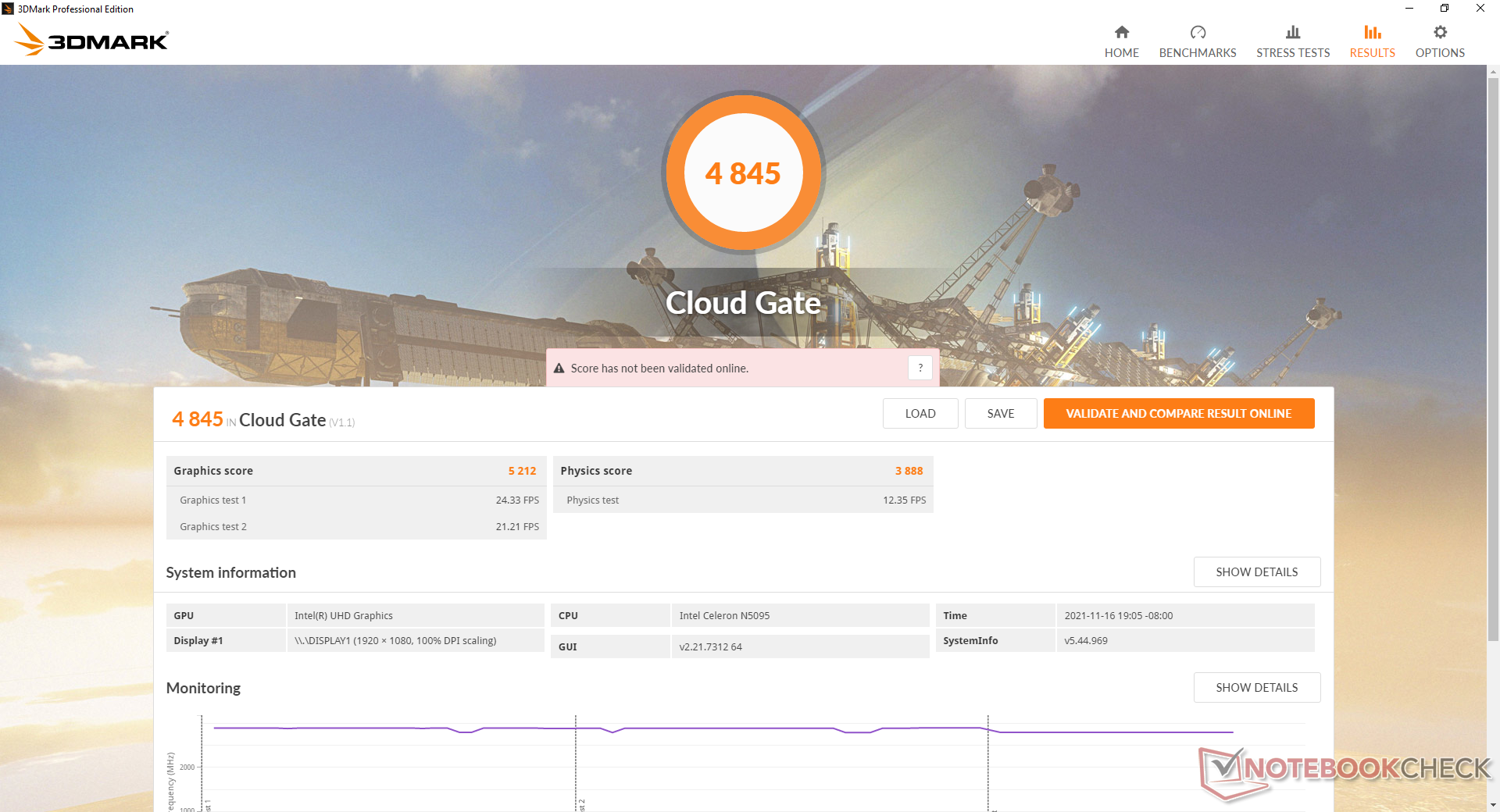

3DMark Cloud Gate Standard Score
4845 points

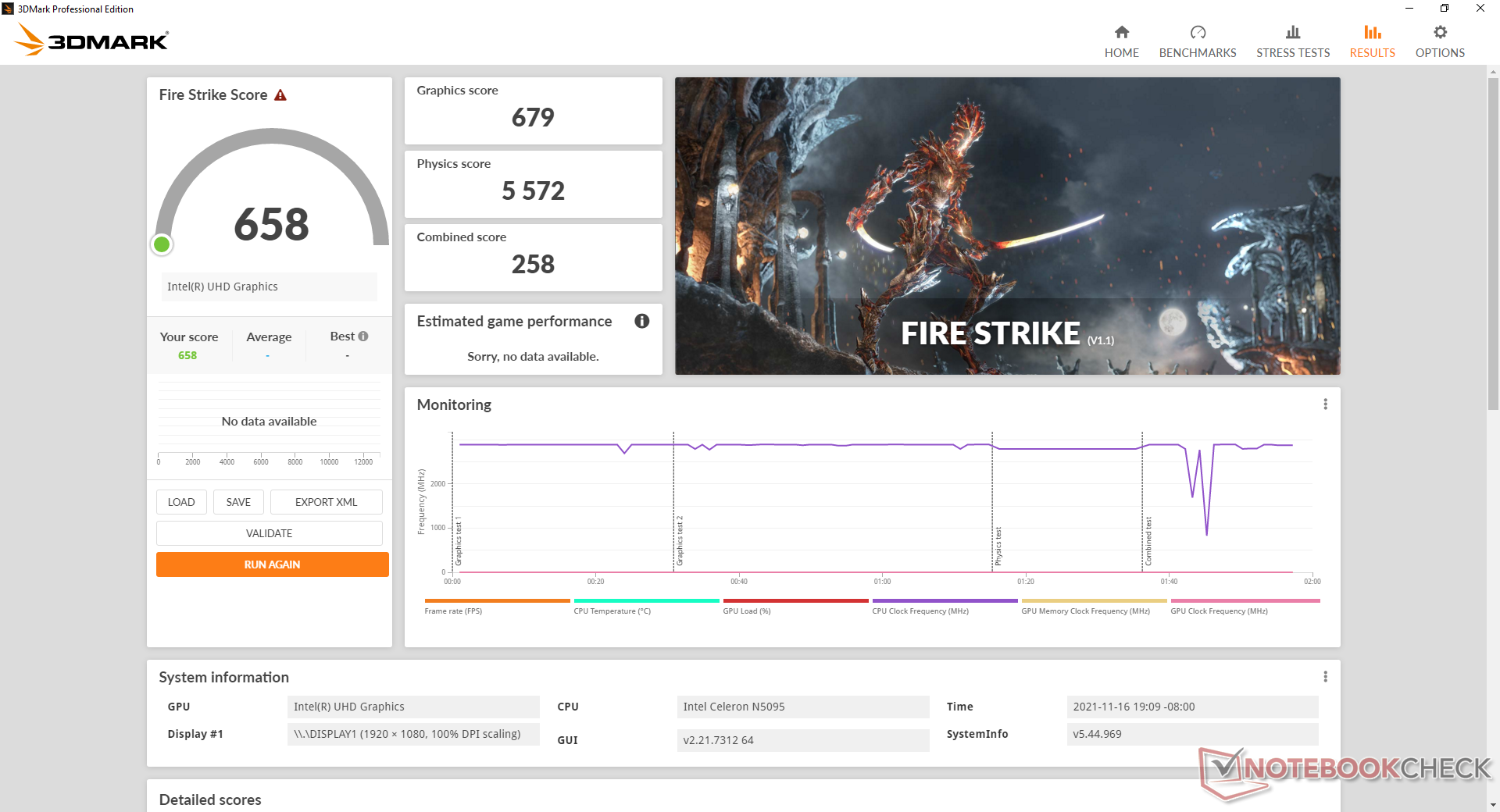

3DMark Fire Strike Score
658 points
3DMark Time Spy Score
210 points
Help

Witcher 3 FPS Chart

0123456789101112131415Tooltip
: Ø14.4 (13-15)
low med. high ultra
The Witcher 3 (2015) 14
Dota 2 Reborn (2015) 57.3 26.6 12 11.2
Final Fantasy XV Benchmark (2018) 7.17
X-Plane 11.11 (2018) 10.8 9.18 8.62

排放

系统噪音

当系统不运行任何应用程序时,内部风扇的噪音为24.5 dB(A)。然而,更多的时候,用户可能会进行视频流或网络浏览,所以风扇偶尔会跳到28.6分贝(A)或30.4分贝(A)。其他迷你电脑的声音要大得多,包括Beelink自己的SEi10。

运行Prime95诱发的最大风扇噪音为37.6 dB(A),在HTPC环境中是明显的,但不会分散注意力。

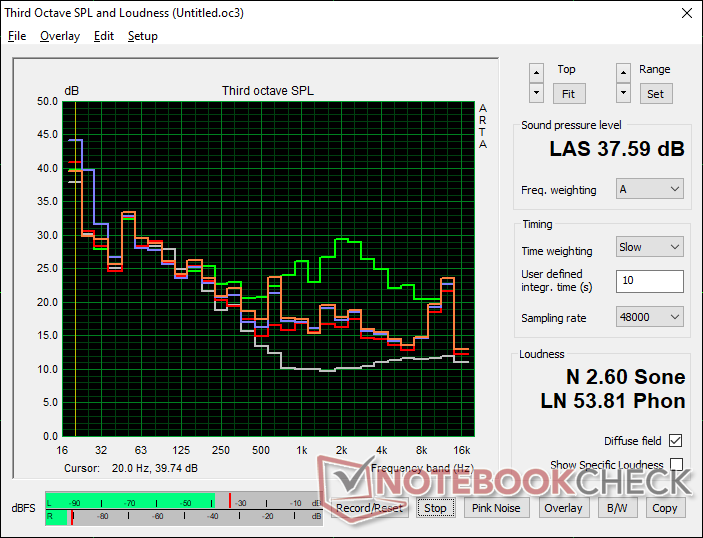

风扇噪音曲线(白色。背景,红色。系统空闲,蓝色:3DMark 06,橙色:Witcher 3 ,绿色。Prime95压力)
风扇噪音曲线(白色。背景,红色。系统空闲,蓝色:3DMark 06,橙色:Witcher 3 ,绿色。Prime95压力)

Noise Level

Idle
24.5 / 24.5 / 28.6 dB(A)
Load
29.7 / 37.6 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 24.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2039.644.240.93839.72529.839.730.730.130.23129.431.728.328.327.94025.726.724.62524.75033.432.932.732.732.46329.52828.428.329.68028.827.829.128.328.910026.225.725.927.92612524.223.623.924.924.216026.325.325.325.324.620023.622.923.121.625.325020.920.720.318.822.631522.121.119.419.62340018.717.117.515.720.750017.416.31513.520.863023.721.316.512.422.480017.617.215.910.224100017.517.116.99.926.1125015.416.215.51022.9160019.519.116.89.726.8200017.817.316.310.229.5250018.718.617.510.129315015.915.614.610.526.4400015.615.314.41124.9500014.514.313.611.322.1630013.513.512.911.722.6800014.814.714.611.520.51000019.719.318.511.620.41250023.622.721.711.923.616000131312.21113SPL30.429.728.624.537.6N1.41.31.10.62.6median 18.7median 17.3median 16.8median 11.6median 23.6Delta3.42.83.13.81.9hearing rangehide median Fan NoiseBeelink U59
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
Noise
-27%
-19%
-27%
-24%
-20%
off / environment *
24.5
24.8
-1%
28.7
-17%
27.5
-12%
27.8
-13%
27.8
-13%
Idle Minimum *
24.5
35.6
-45%
28.7
-17%
30.9
-26%
27.8
-13%
27.8
-13%
Idle Average *
24.5
35.6
-45%
29.3
-20%
33.5
-37%
33.9
-38%
27.8
-13%
Idle Maximum *
28.6
35.6
-24%
31.8
-11%
33.5
-17%
33.9
-19%
27.8
3%
Load Average *
29.7
36.2
-22%
39
-31%
38.5
-30%
43.7
-47%
46.8
-58%
Witcher 3 ultra *
30.4
38
-25%
39
-28%
Load Maximum *
37.6
47.6
-27%
41.4
-10%
51.6
-37%
43.7
-16%
46.8
-24%

* ... smaller is better

温度

温度在U59上不是一个问题。即使在系统完全受压的情况下,热点也几乎没有任何温度升高。

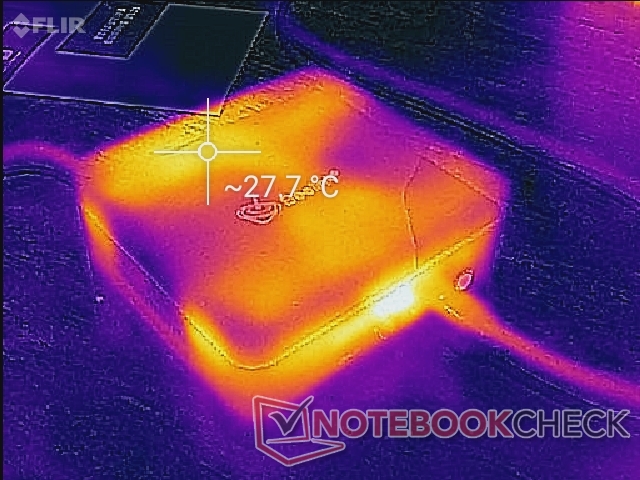

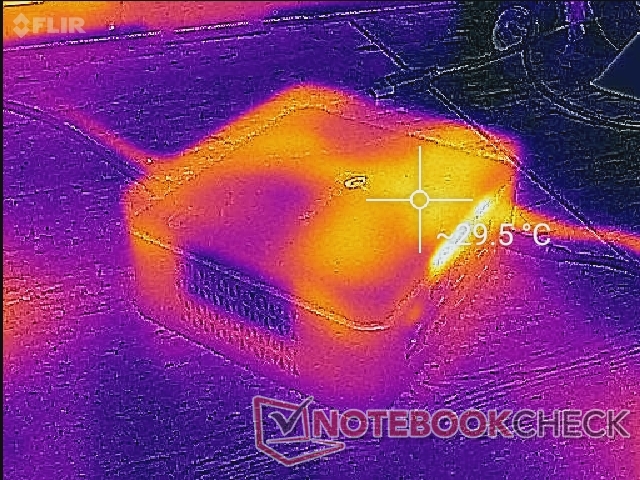

系统空闲(正面)
系统空闲(正面)
系统空闲(背面)
系统空闲(背面)

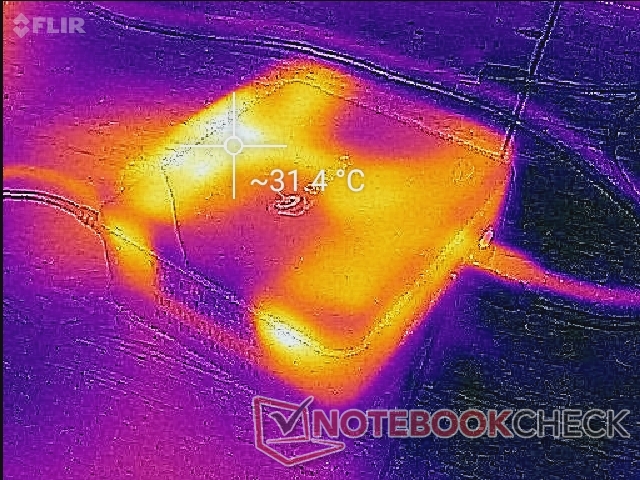

Prime95压力(前)。
Prime95压力(前)。
Prime95压力(背部)
Prime95压力(背部)

压力测试

在Prime95压力下,CPU将稳定在2.8 GHz和69 C。该系统利用主动式风扇进行冷却,这可能是温度低于预期和性能长期稳定的原因。HWiNFO报告的PL1和PL2水平分别为15W和25W,但我们在运行这种极端负载时只能达到稳定的15W。在采用酷睿i3处理器的电脑上运行这个相同的测试 贝玲珑SEi10进行同样的测试,会导致核心温度明显升高到90℃。

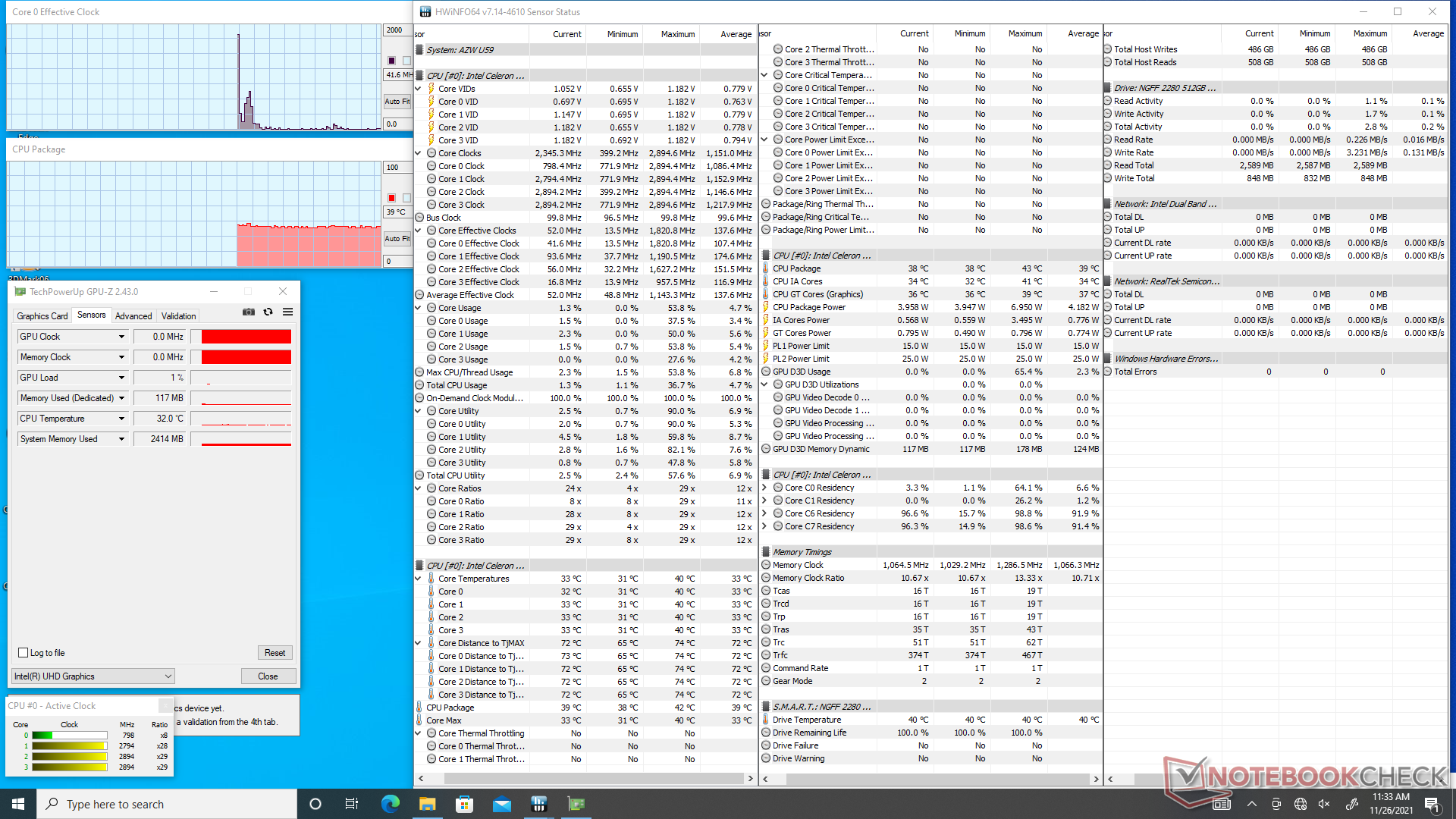

系统空闲
系统空闲

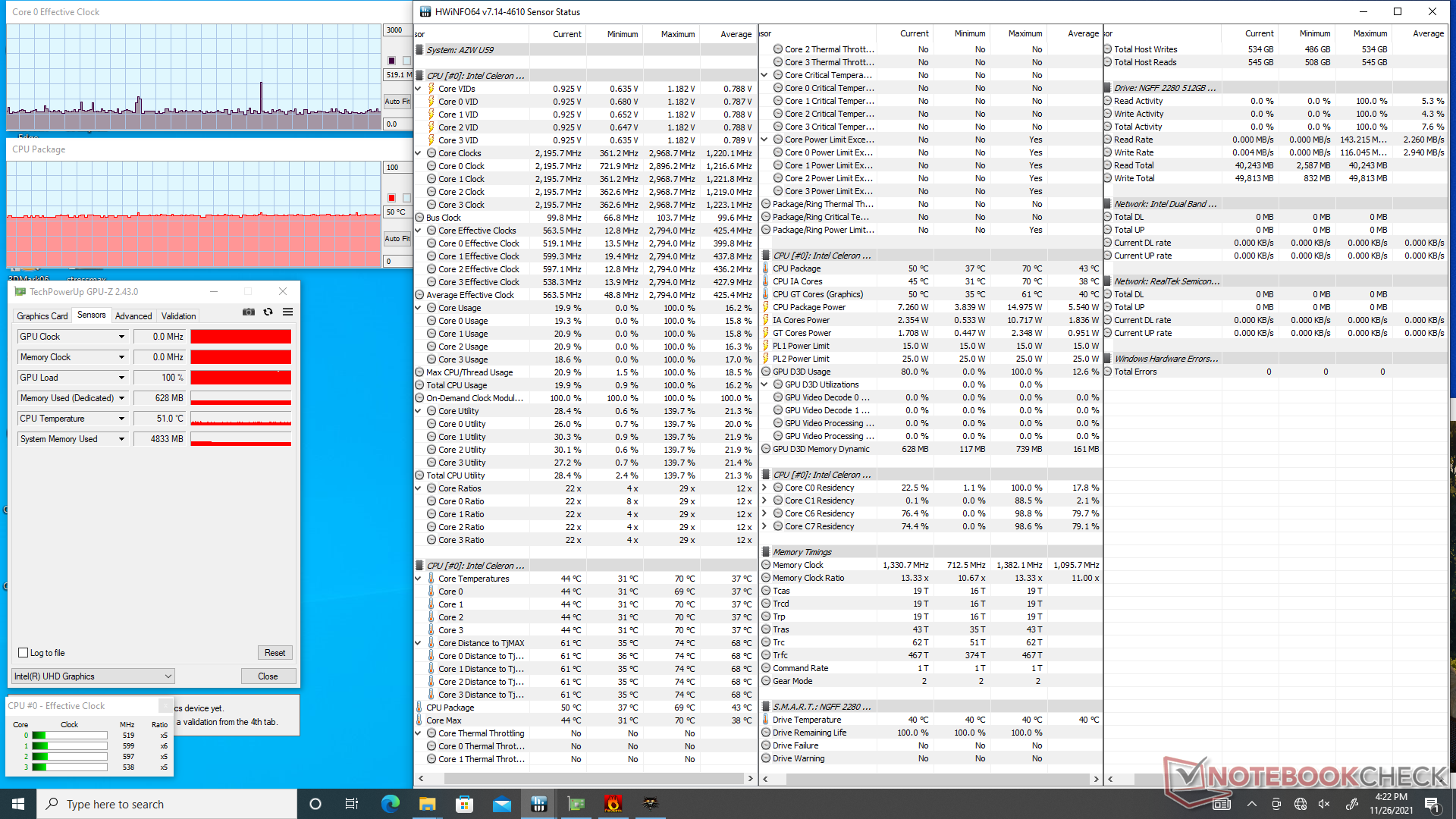

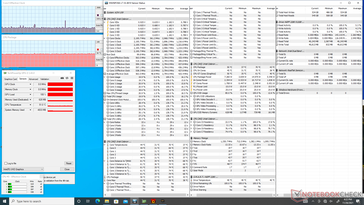

Witcher 3 压力
Witcher 3 压力

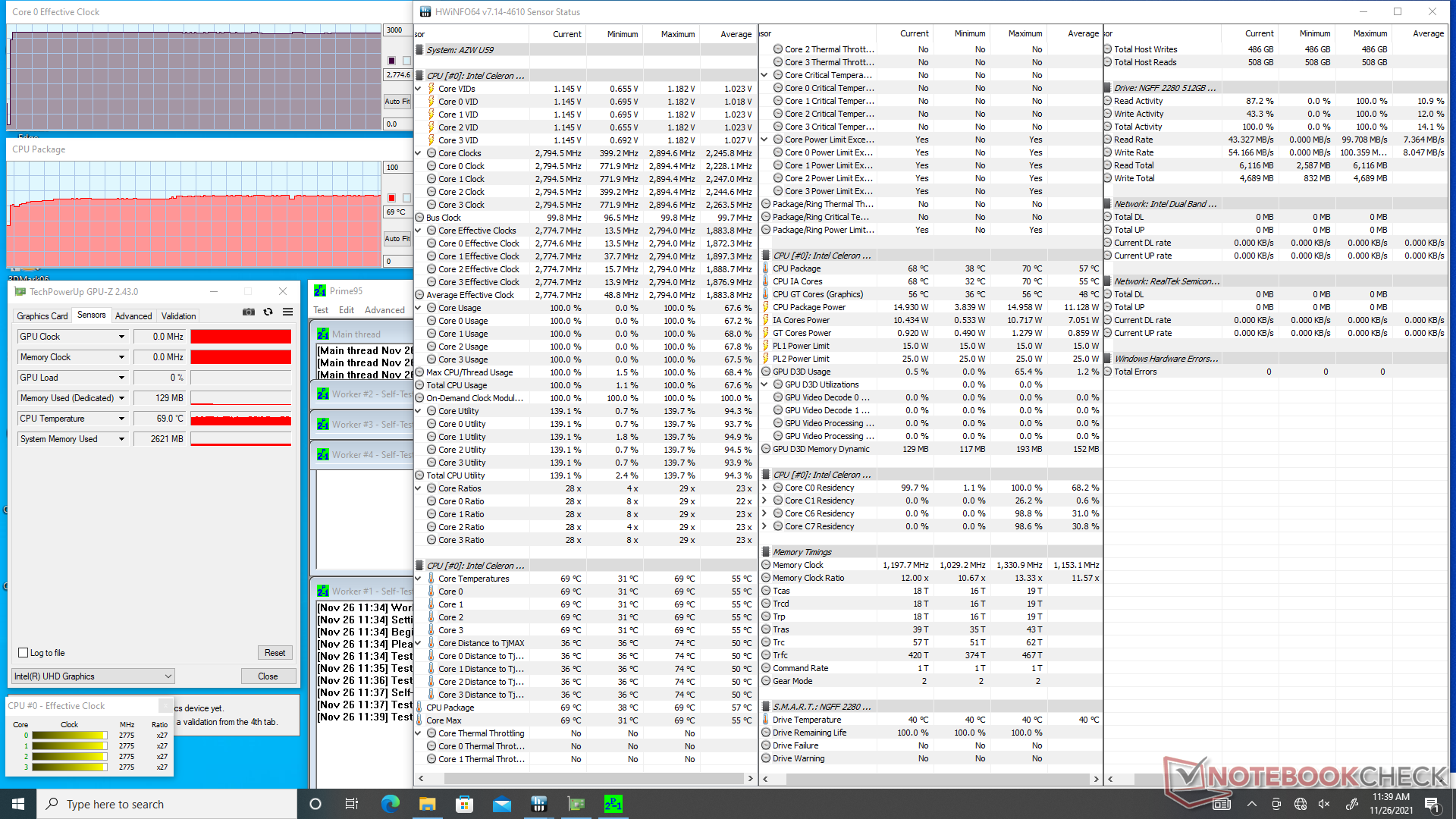

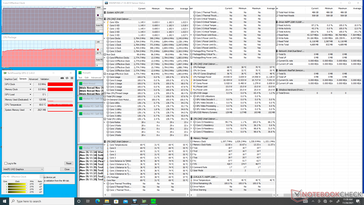

Prime95压力
Prime95压力

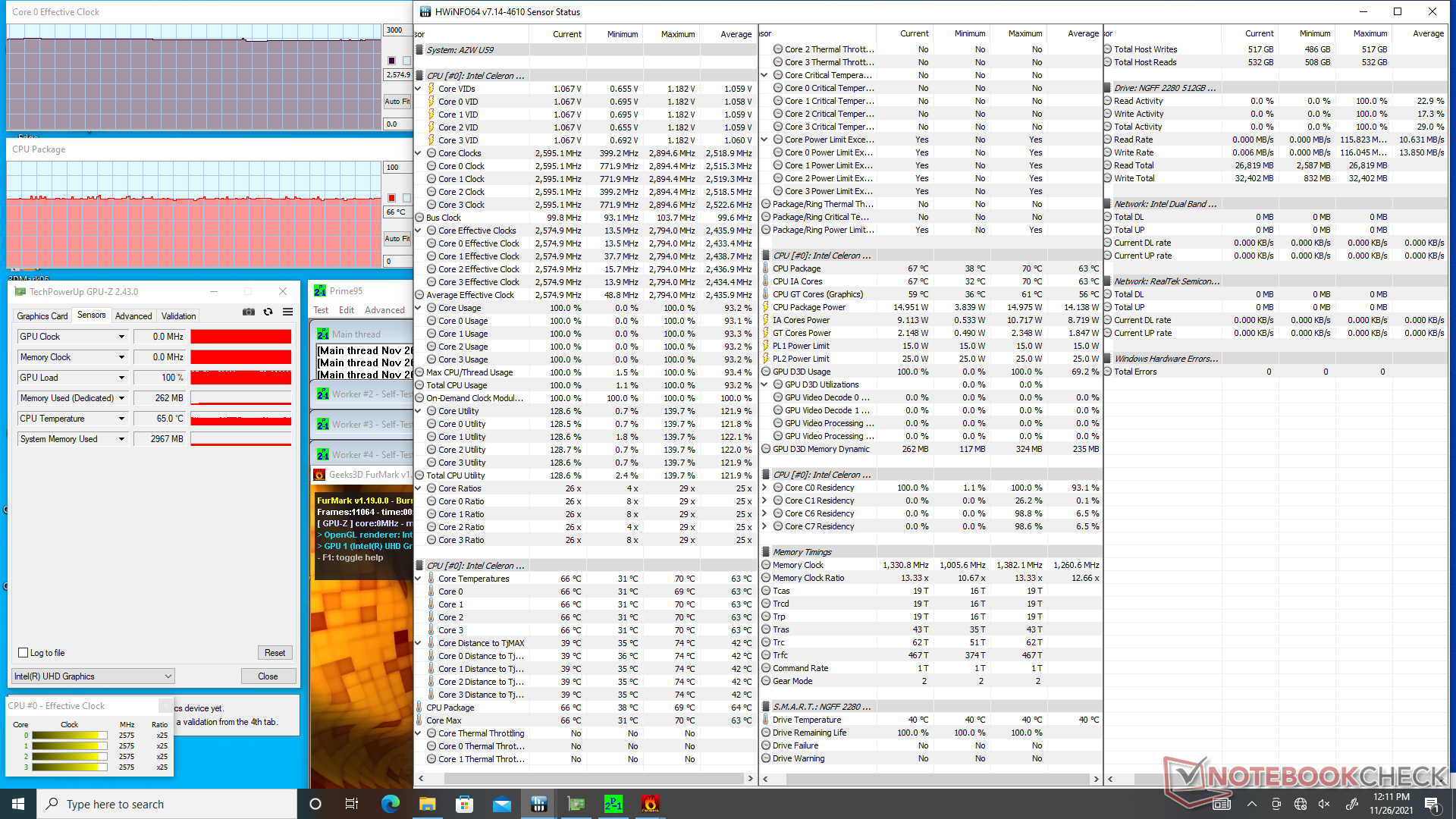

Prime95+FurMark压力
Prime95+FurMark压力
CPU时钟(GHz) GPU时钟(MHz) CPU平均温度(℃)
系统空闲 -- -- 39
Prime95压力 2.8 -- 69
Prime95 + FurMark压力 2.6 -- 66
Witcher 3 压力 0.5 -- 50

能源管理

消耗功率

在没有运行任何应用程序的情况下,在桌面上空转会消耗更多的电量,大约为7W,而英特尔NUC8或GMK NucBox K1的电量可低至3W。更高的负载,如游戏,在我们的U59上的消耗要少得多,平均只有13W到16W,而在配备更快的UHD Graphics 620或Iris Xe GPU的迷你PC上则是2倍甚至更高。

壁挂式交流电适配器(~7.9 x 4.8 x 3.4厘米,不包括插头)可以输出高达36瓦的功率。
壁挂式交流电适配器(~7.9 x 4.8 x 3.4厘米,不包括插头)可以输出高达36瓦的功率。
该系统只能由专有的AC适配器供电,因为一般的USB-C适配器无法工作。
该系统只能由专有的AC适配器供电,因为一般的USB-C适配器无法工作。

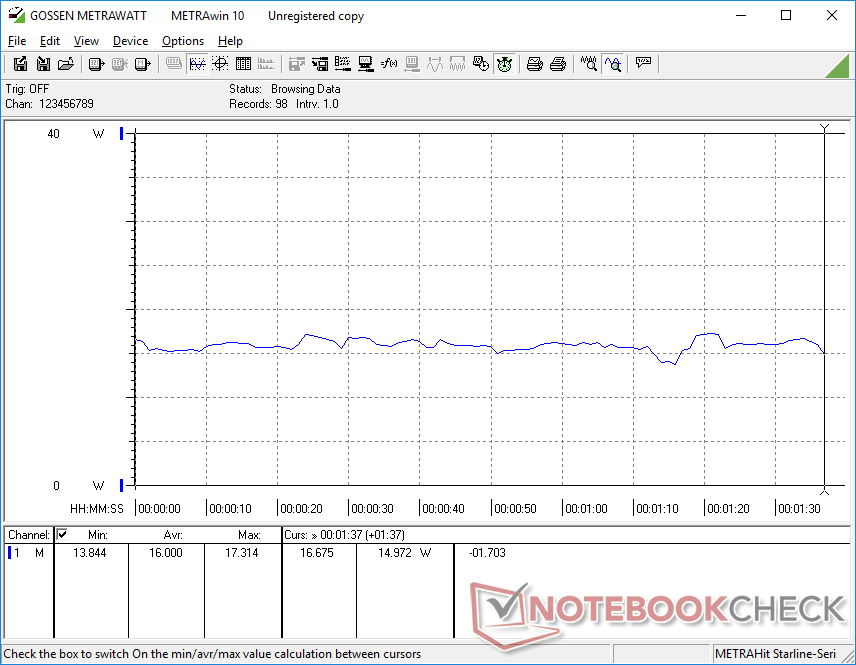

运行3DMark 06时的耗电量
运行3DMark 06时的耗电量

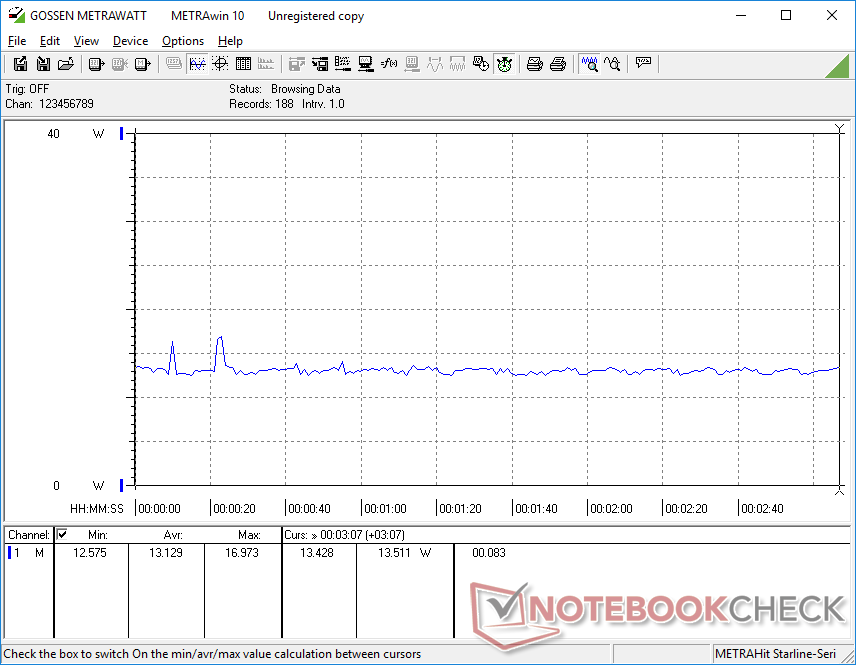

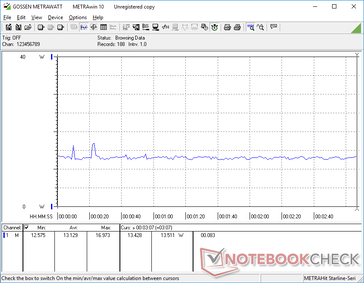

运行时的功率消耗Witcher 3
运行时的功率消耗Witcher 3

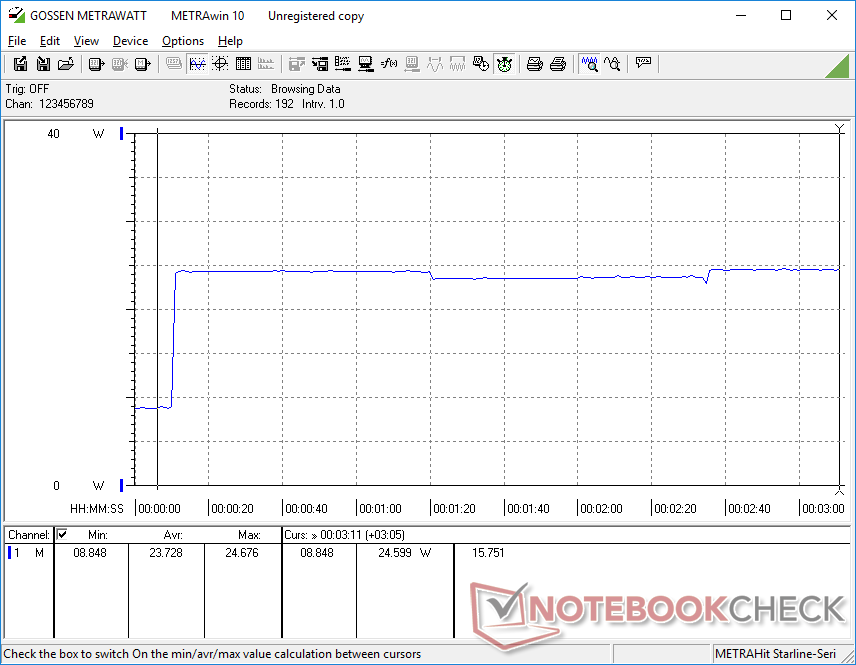

Prime95导致消耗量激增至24.7瓦。 该系统能够长期保持这一消耗量。
Prime95导致消耗量激增至24.7瓦。 该系统能够长期保持这一消耗量。

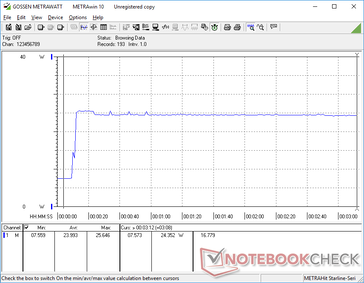

Prime95+FurMark的压力在10秒时开始。
Prime95+FurMark的压力在10秒时开始。
Power Consumption
Off / Standbydarklight 0.87 / 0.7 Watt
Idledarkmidlight 6.7 / 6.7 / 7.4 Watt
Load midlight 16 / 25.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 512G NV428, , x,
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,
Intel NUC8i7BE
i7-8559U, Iris Plus Graphics 655, , , x,
Beelink SEi10
i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU), Silicon Motion AZW 256G M.228 NVMe 4X 200725 D, , x,
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620, Western Digital WD Blue 3D WDBNCE5000PNC, , x,
GMK NucBox K1
Celeron J4125, UHD Graphics 600, HIKVision C100 NGFF SSD 128GB, , x,
Power Consumption
-135%
-102%
-26%
-67%
34%
Idle Minimum *
6.7
11.5
-72%
2.7
60%
6.3
6%
8.9
-33%
3.4
49%
Idle Average *
6.7
12.4
-85%
3.1
54%
6.6
1%
9
-34%
3.8
43%
Idle Maximum *
7.4
12.9
-74%
6.3
15%
6.7
9%
9.9
-34%
3.9
47%
Load Average *
16
40.7
-154%
59.7
-273%
25.9
-62%
33
-106%
12.5
22%
Witcher 3 ultra *
13.1
43.9
-235%
47.2
-260%
Load Maximum *
25.6
73.5
-187%
78
-205%
46.7
-82%
58
-127%
22.7
11%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest
