配备快速AMD Ryzen APU的MINISFORUM EliteMini HM90台式电脑评测

办公电脑还是多媒体电脑？ Minisforum推出了EliteMiniHM90迷你电脑，这是一款基于AMD Ryzen 9 4900H的快速台式电脑。我们将在这篇评论中谈一谈这台小型PC的优势，以及它是否值得购买。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 12/01/2021 🇺🇸 🇩🇪 ...

AMD Desktop Mini PC Renoir Radeon

到目前为止，MINISFORUM在这个国家并不出名。然而，这家中国制造商提供用于办公的迷你电脑已经有相当长的一段时间了。随着EliteMini HX90的推出，Minicforum现在在其产品组合中拥有一个小型游戏PC。然而，该制造商在这个产品上受到了很多抨击。

Minisforum EliteMini HM90主要用于办公和多媒体用途。然而，根据制造商的网站，它也应该能够在或多或少的现代游戏中达到可玩的帧率。我们稍后将讨论这个问题。这款 AMD Ryzen 9 4900H是这台迷你PC的核心，提供了一个体面的性能水平。总而言之，EliteMini HM90中的AMD Ryzen 9 4900H表现得相当好。这款迷你电脑可以作为裸机套件购买，也可以用内存和固态硬盘进行预配置。目前，你将不得不掏出419欧元（约合475美元）购买裸机系统。另一方面，配备32GB内存和512GB固态硬盘的配置需要659欧元（约765美元）。该系统是直接从中国免费运送的。然而，19%的进口税适用于任何进口到德国的产品。Minisforum EliteMini HM90还列出了一个 AMD Ryzen 5 4600H虽然这款产品目前已经售罄，而且价格也不比我们评测的配备Ryzen 9 APU的版本好很多。

我们的评测设备有16GB的内存和256GB的SSD。这台电脑配备了Windows 10专业版（裸机套件没有）。所有东西都装在一个小箱子里，有以下权限。149 x 55 x 149（宽x高x深）毫米。因此，MINISFORUM EliteMini HM90比微星的Cubi 5 M10要大一些。但英特尔NUC 10在尺寸上更紧凑一些。

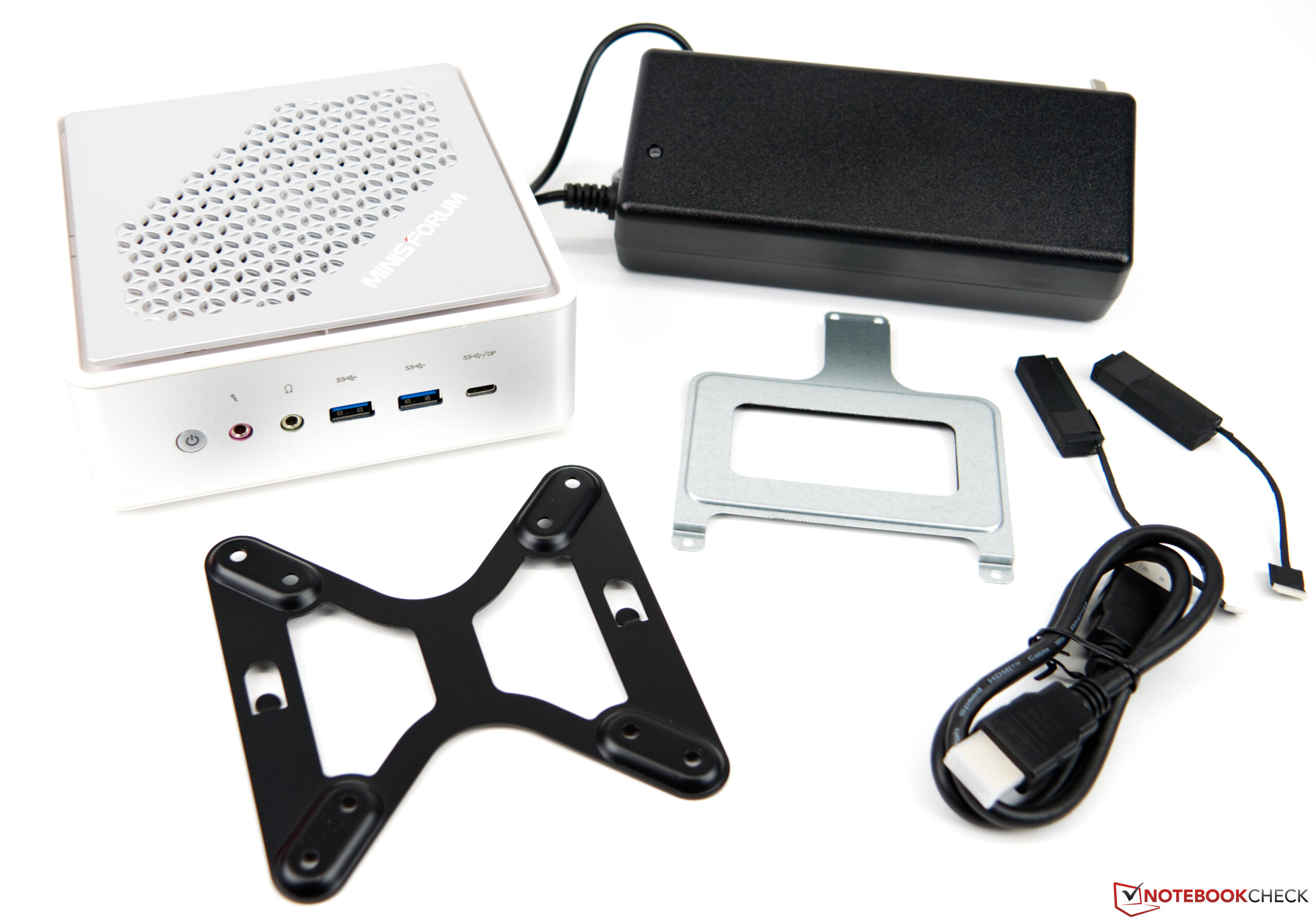

Minisforum EliteMini HM90被装在一个坚固的盒子里，里面有所有配件，可以让系统启动和运行。相对较大的USB-C电源是非常明显的。此外，在盒子里有两个转接板，用于在EliteMini HM90中安装两个额外的2.5英寸SSD。还有一个用于安装在显示器上的Vesa支架，这几乎是这类迷你PC的标准配置。在制造商的网站，在Elitemini这个名字下可以找到更多的配置。.如果EliteMini HM90不是你的第一选择，那就值得去看看。

Minisforum EliteMini HM90

Processor

AMD Ryzen 9 4900H 8 x 3.3 - 4.4 GHz, 45 W PL2 / Short Burst, 35 W PL1 / Sustained, Renoir-H (Zen 2)

Graphics adapter

AMD Radeon RX Vega 8 (Ryzen 4000/5000)

Memory

16 GB

, DDR4-3200 Dual-Channel 2 von 2 belegt

Mainboard

AMD Promontory/Bixby FCH

Storage

Kingston OM8PDP3256B, 256 GB

Soundcard

AMD Rave/Renoir - Audio Processor - HD Audio Controller

Connections

4 USB 3.0 / 3.1 Gen1, 3 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, Audio Connections: 3.5mm Audio Jack

Networking

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1

Size

height x width x depth (in mm): 55.5 x 149.6 x 149.6

Operating System

Microsoft Windows 10 Pro 64 Bit

Price

650 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

外壳和连接

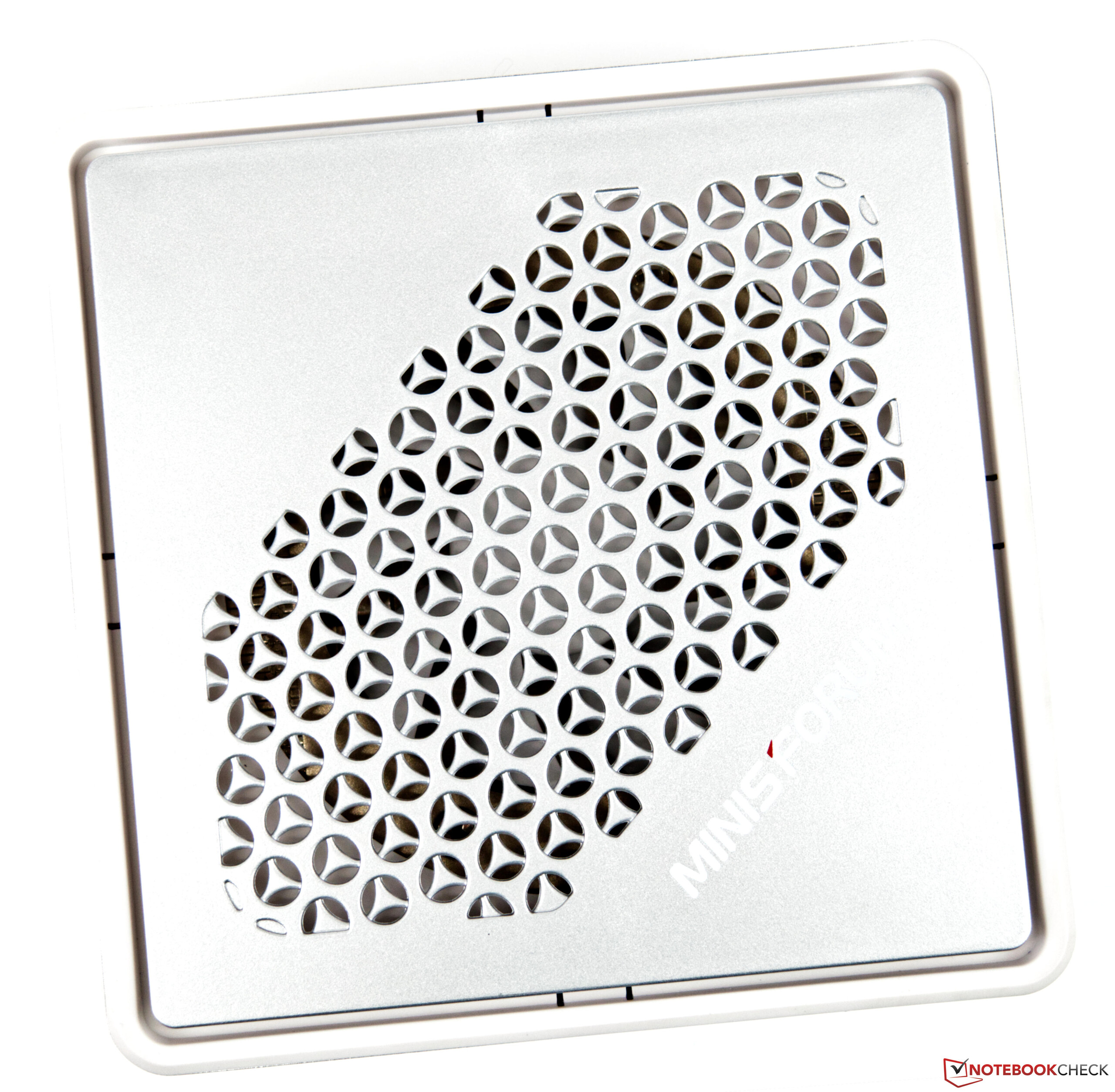

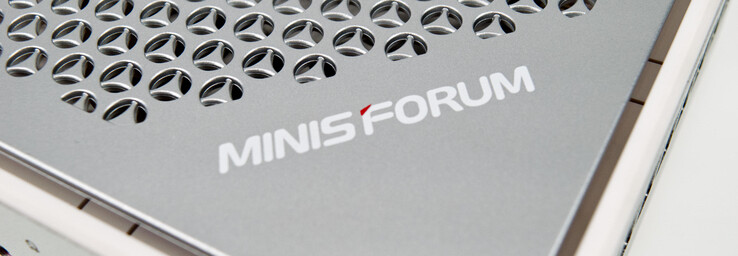

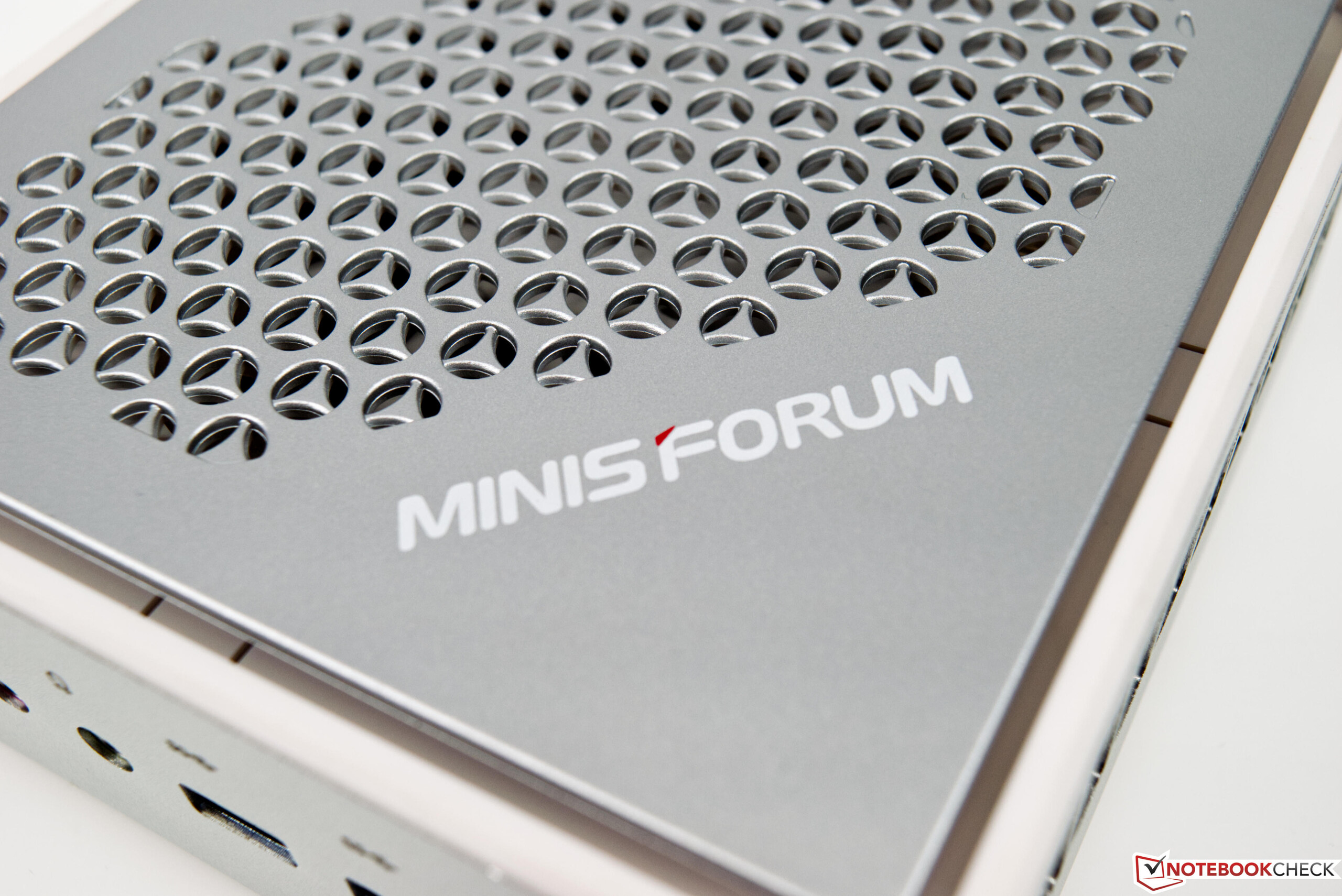

箱子是由铝制成的。然而，顶部和底部是由塑料制成的。Minisforum EliteMini HM90在刚度上没有任何问题。然而，为了获得更好的感觉，如果上侧也是铝制的就更好了。不过这只是吹毛求疵，因为没有明显的缺陷。在颜色方面，顶部的塑料盖与铝制机身相匹配。白色和银色占主导地位，这是件好事，因为灰尘不会立即显示在浅色上。而深色则不是这样。

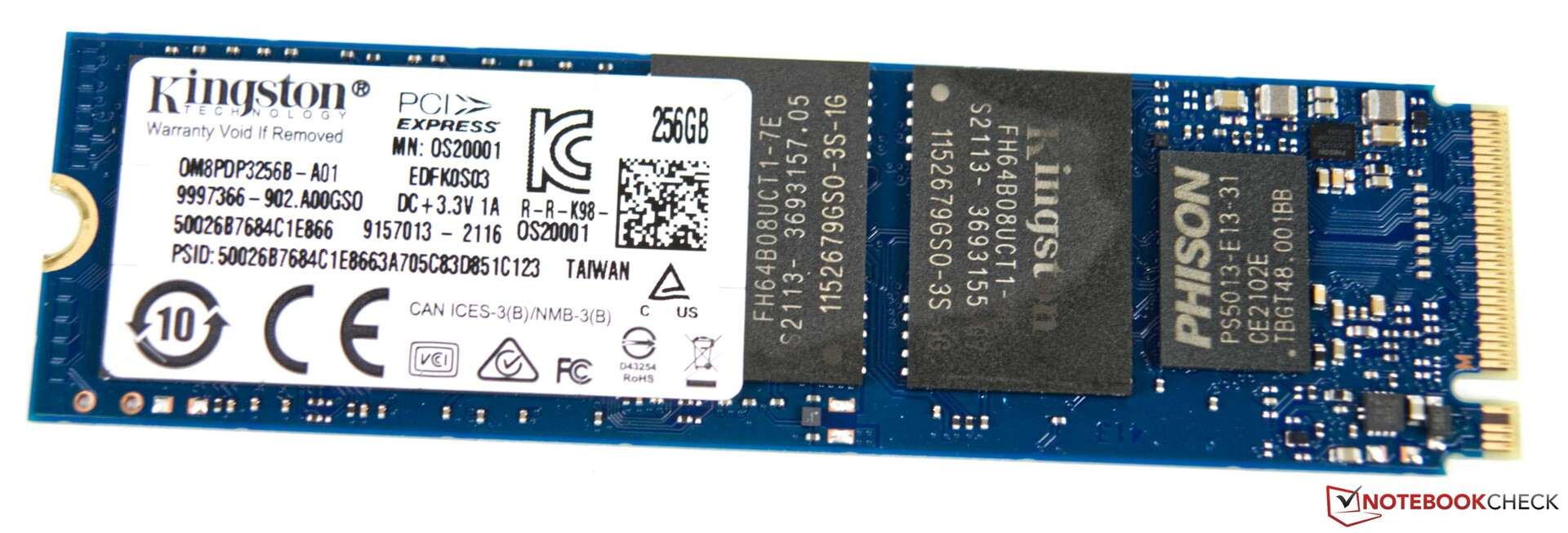

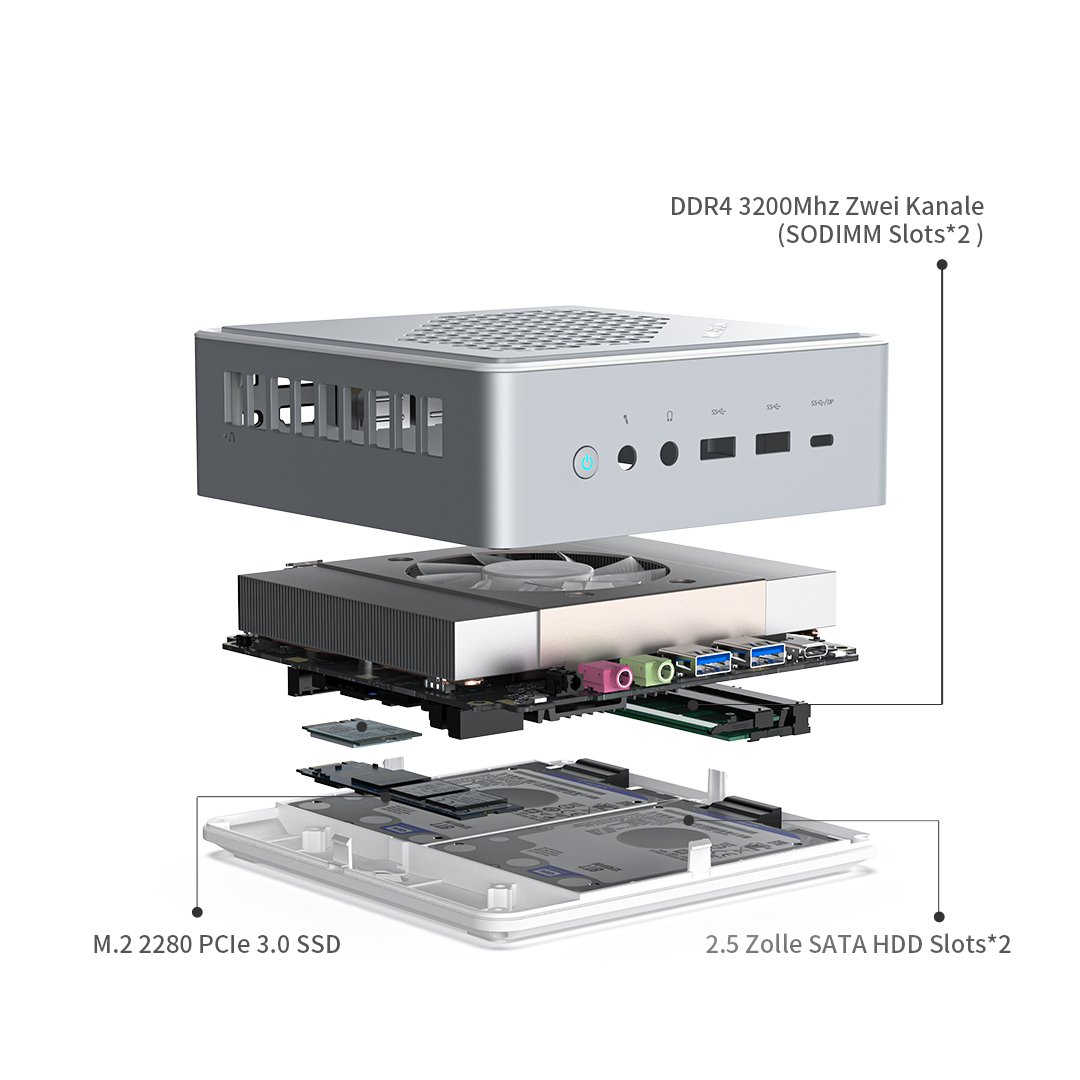

该设备可以通过移除底板来打开。四个小螺钉将底板与机箱连接起来。一旦底板被卸下，就可以很容易地接触到内存、固态硬盘和Wi-Fi模块。进一步拆卸是可能的，尽管制造商用一种胶水覆盖了Wi-Fi模块上的天线电缆，必须先将其去除。有撕裂电缆的风险，这就是为什么我们在这种情况下不这样做。进一步拆卸也是没有必要的，因为根据制造商的说法，CPU冷却器不应该被拆除，因为这可能会损坏APU。盒子里有一个说明，说是使用了液态金属，我们猜测散热片是用胶水粘住的。

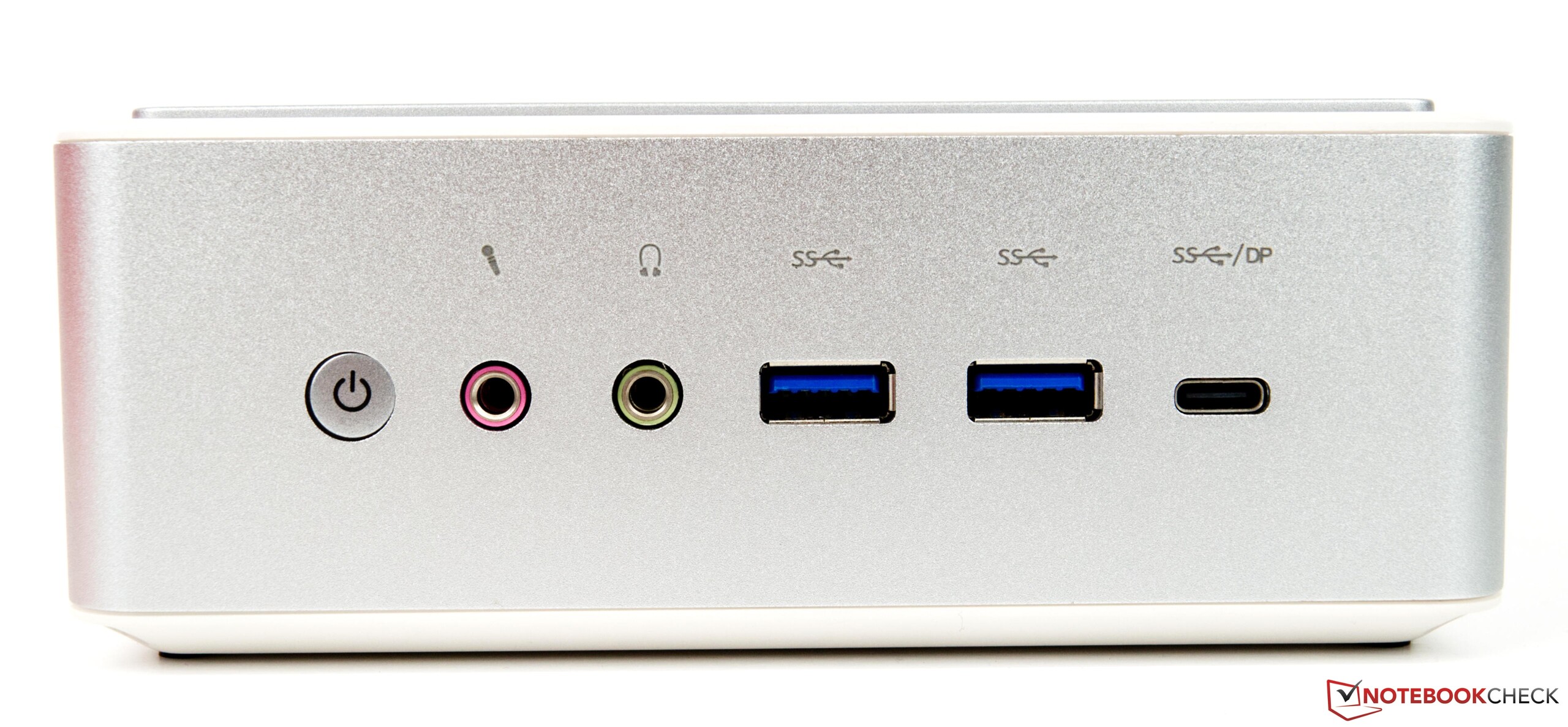

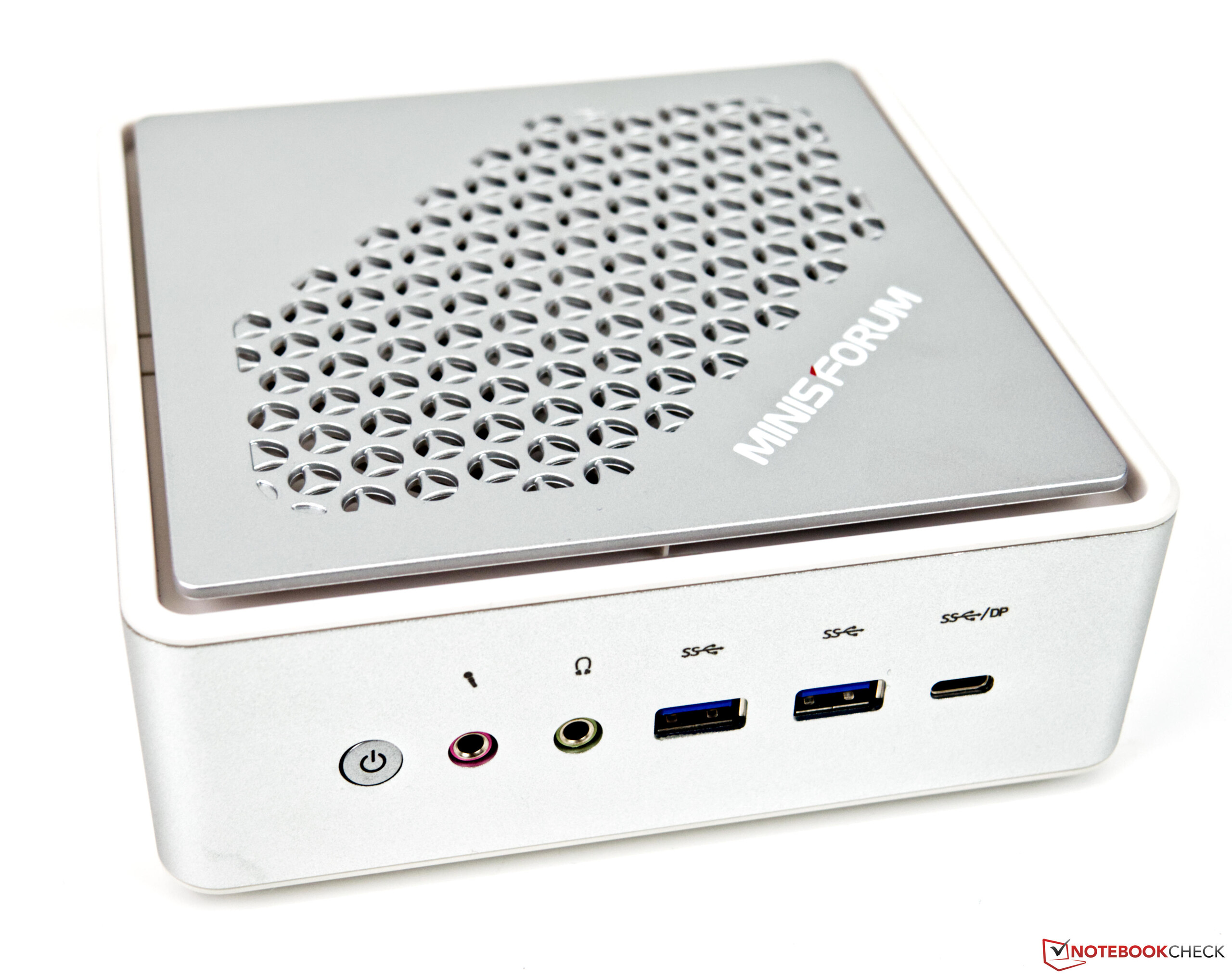

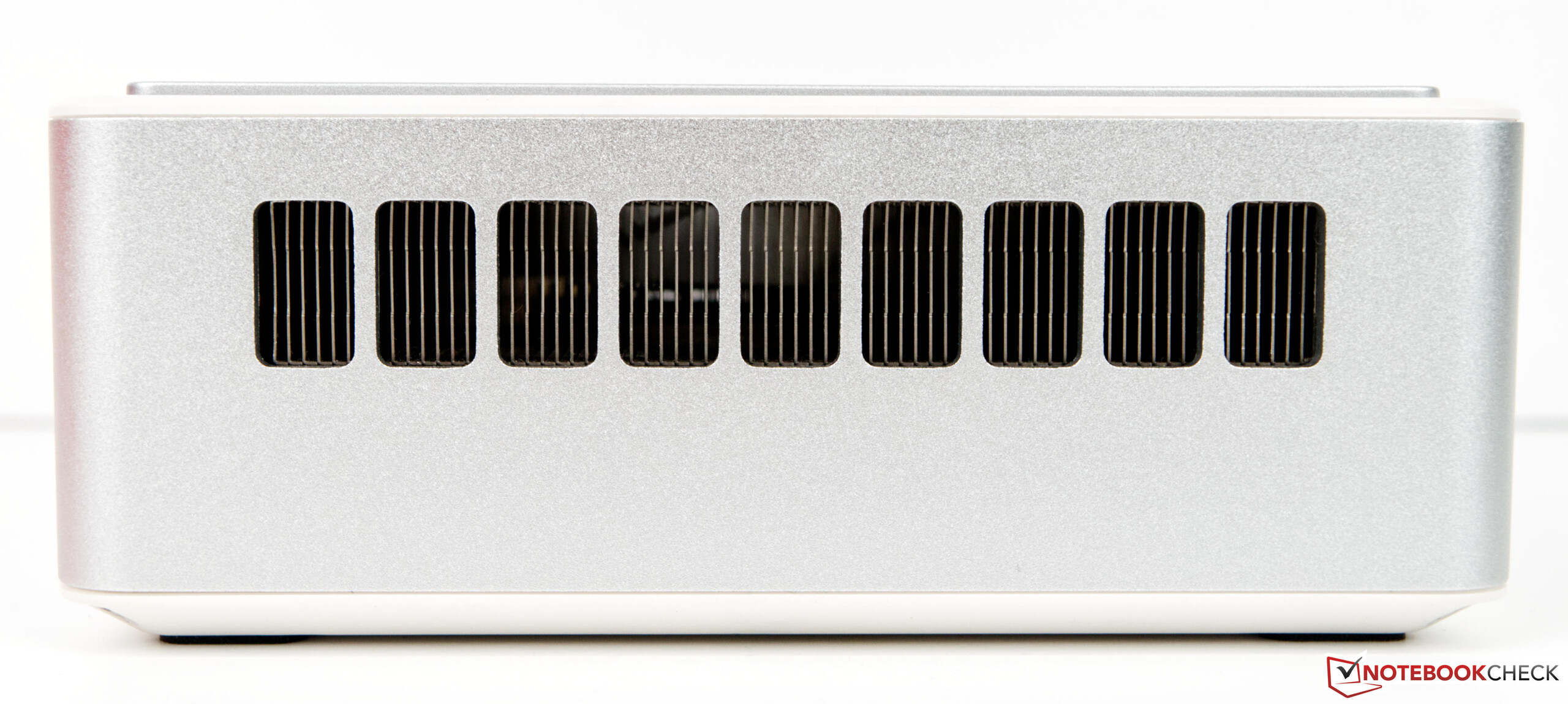

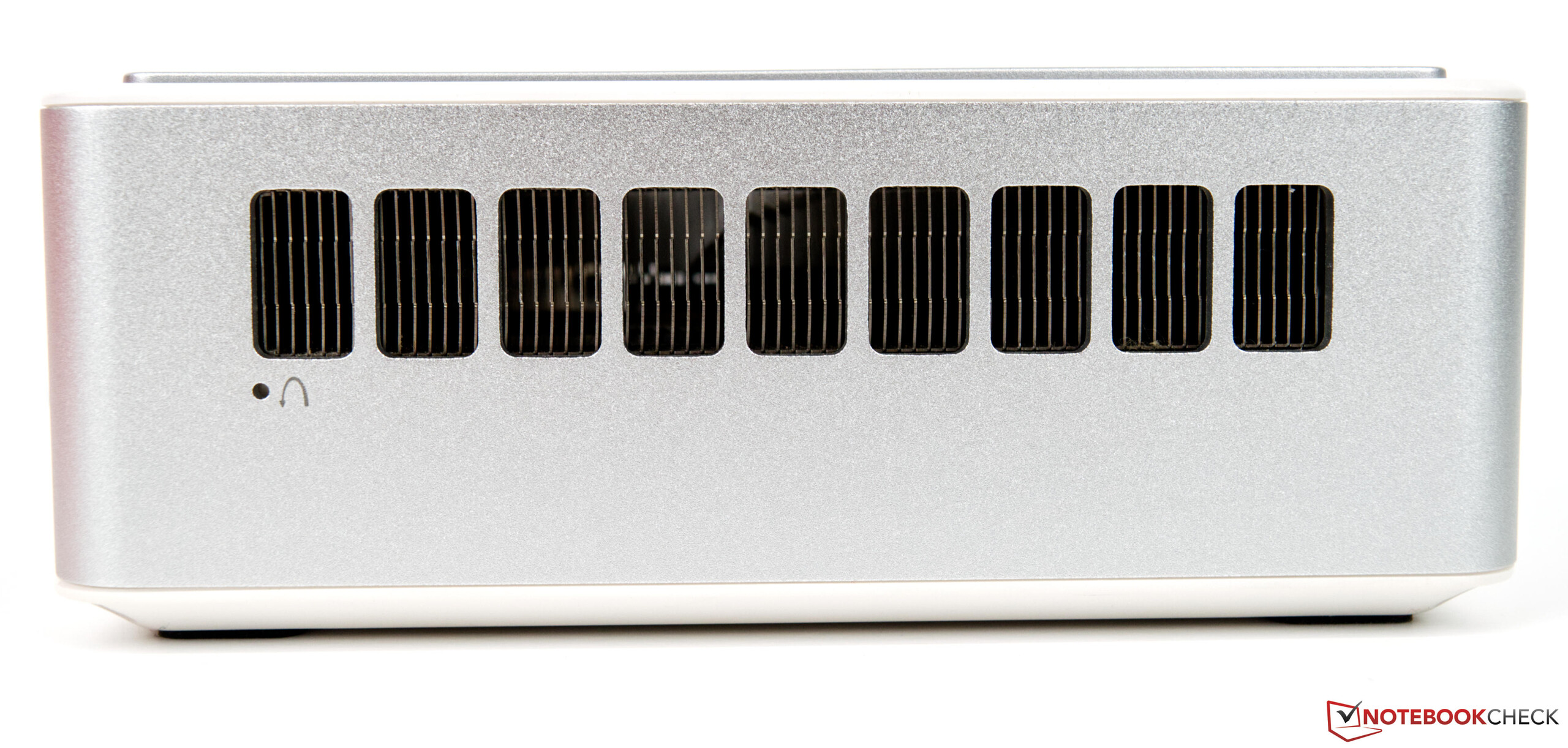

在外部端口方面，EliteMini HM90提供了许多连接额外设备的选择。总共5个USB-A端口是绰绰有余的。更重要的是，前面还有一个Type-C接口。外部显示器可以通过DisplayPort或HDMI连接。但USB-C端口也提供了在适当的适配器帮助下进行图像输出的选择。因此，你可以同时连接三个显示器到MINISFORUM EliteMini HM90。

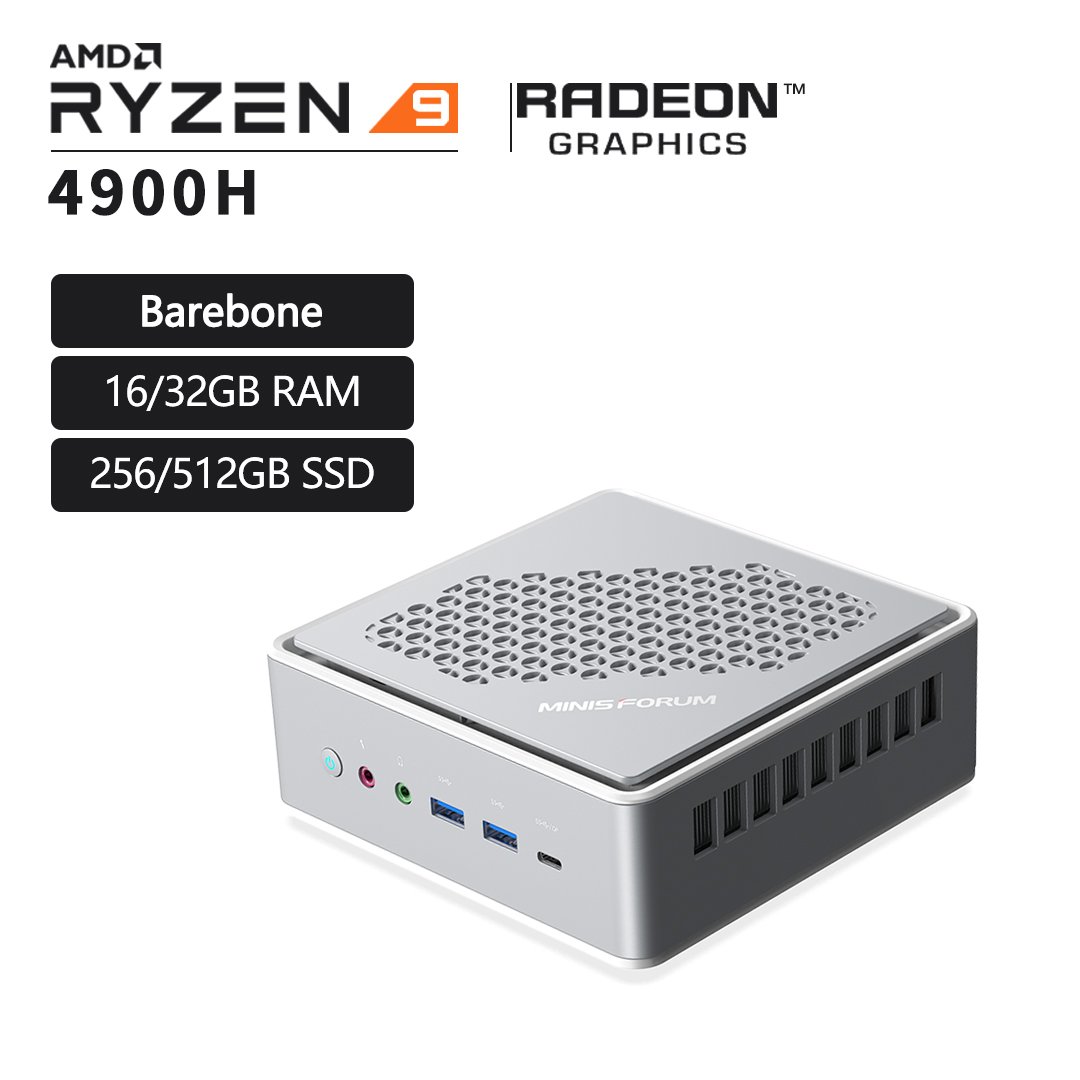

Minisforum EliteMini HM90 (来源: Minisforum)

性能 - 大量的储备

正如已经提到的，EliteMini HM90迷你论坛配备了一个 AMD Ryzen 9 4900H，这是一款节能的笔记本APU，可以毫无问题地进行冷却。8核的性能在各方面完全可以满足日常办公或多媒体使用。事实上，该APU可以非常轻松地处理简单的任务。不过，正如俗话所说，拥有总比需要好，我们都知道。16GB的双通道DDR4内存很适合该系统，并提供最佳的性能水平。你可以对固态硬盘进行划分，但是256GB对于一个入门级的产品来说已经足够了。由于预装了操作系统，Minisforum EliteMini HM90在几分钟的设置和个性化之后就可以开始使用了。

处理器

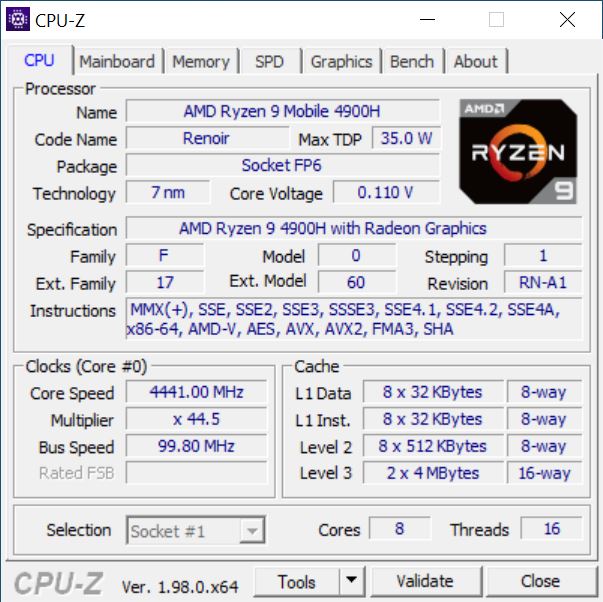

淘宝网 AMD Ryzen 9 4900H属于Renoir系列，以Zen2为基础。该SoC提供总共8个核心，16个线程，这对多线程应用特别有用。在CPU基准测试中，Ryzen 9 4900H能够胜过大多数竞争对手。单核性能与英特尔酷睿i7-10710U的性能大致处于同一水平。英特尔酷睿i7-10710U在英特尔NUC 10中发现。我们的评测样本在CPU性能方面也能出乎意料地与Zotac Magnus One保持一致，因为这款紧凑的游戏笔记本配备了台式机CPU。

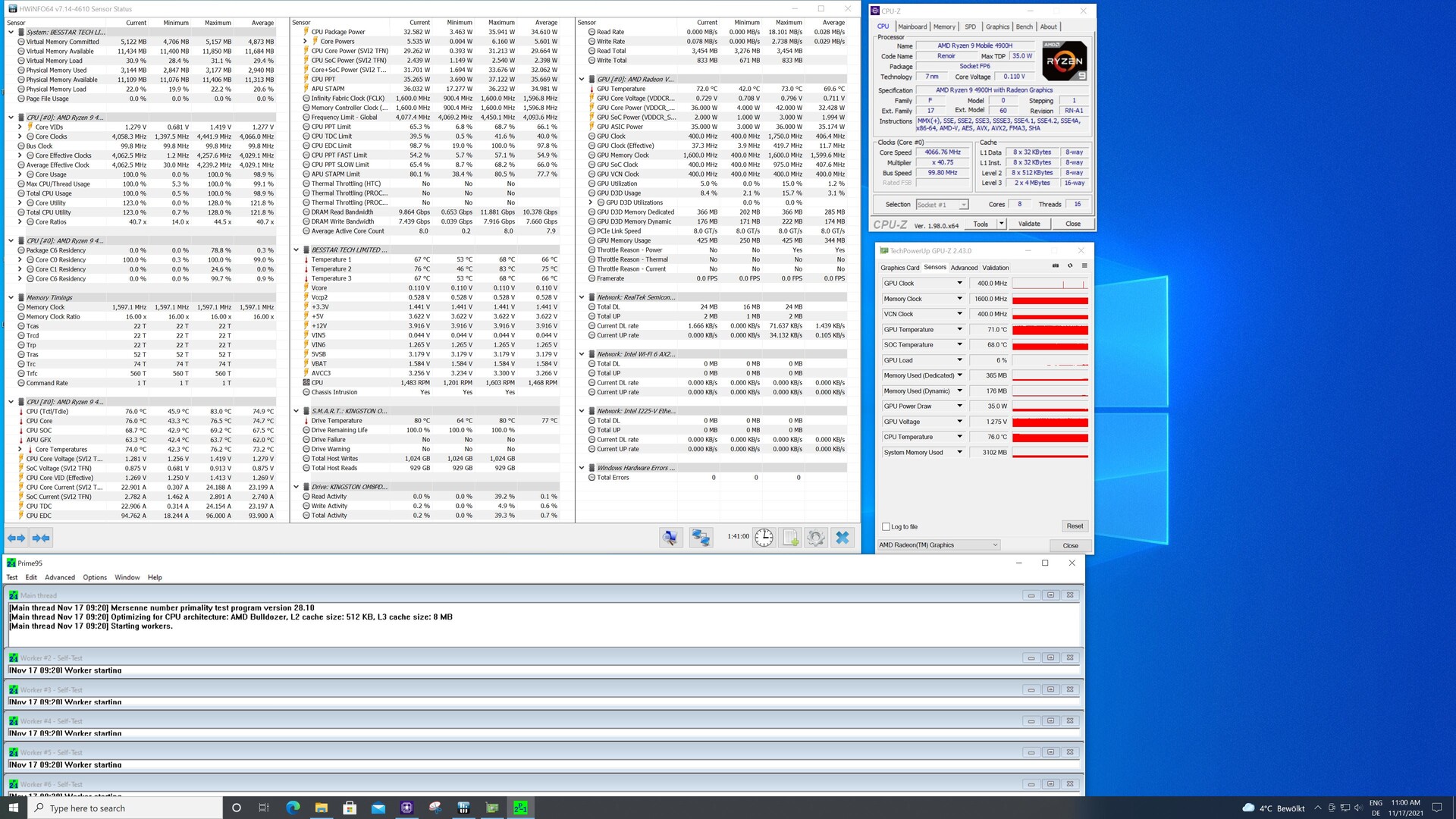

AMD Ryzen 9 4900H的TDP为45瓦。然而，在迷你论坛EliteMini HM90的BIOS中，功率限制可以提高到54瓦。也就是说，在我们的审查中，切换到更高的功率限制后，我们没有看到任何明显的性能改善。

如需进一步的比较和基准，请查看我们的CPU比较表.

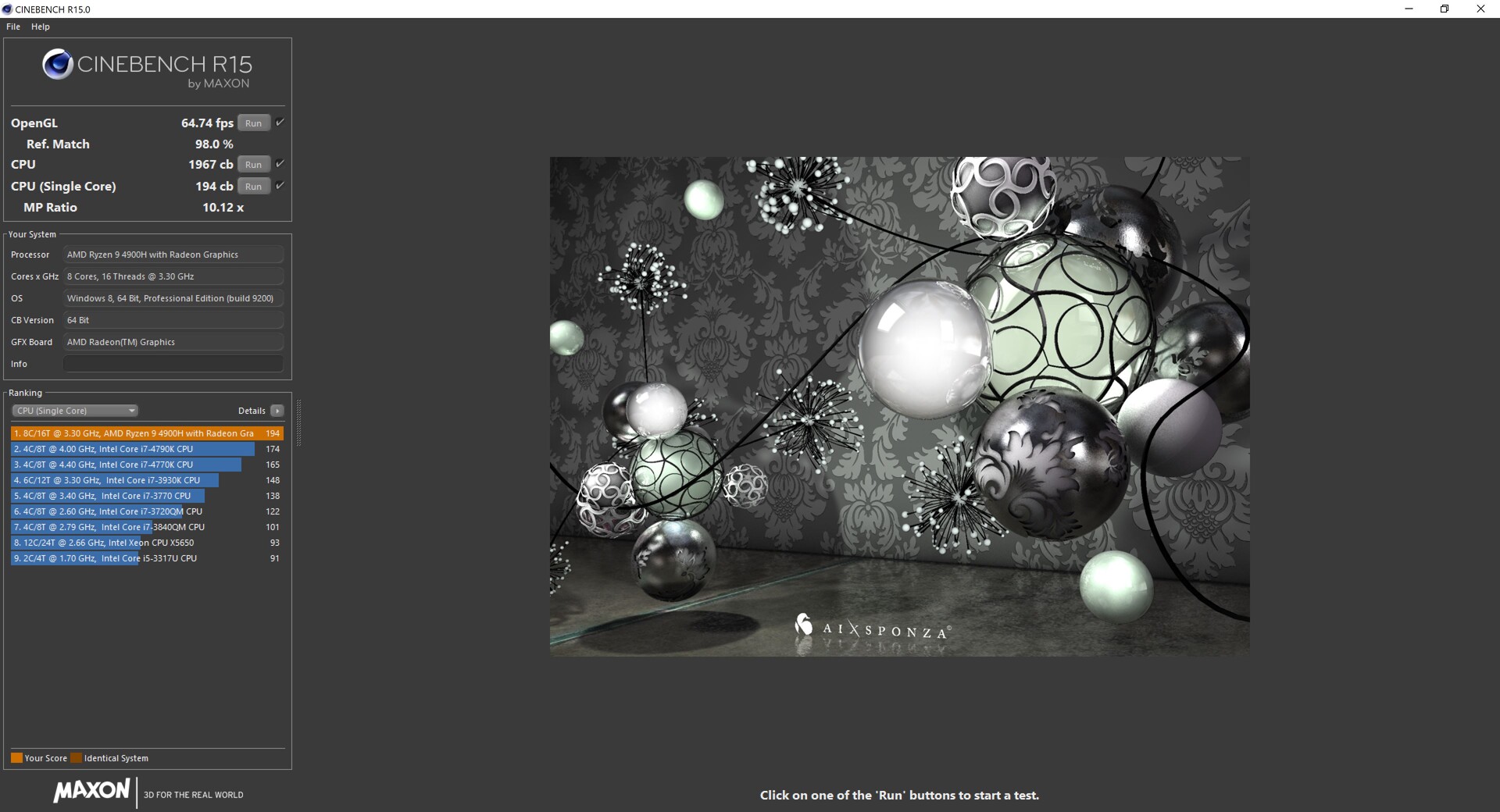

Cinebench R15
CPU Single 64Bit
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	215 Points +11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	196 Points +1%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	194 Points 0%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	194 Points
Average AMD Ryzen 9 4900H (192 - 194, n=2)	193 Points -1%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	168 Points -13%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	162 Points -16%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	117 Points -40%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	108 Points -44%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	84 Points -57%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	77 Points -60%
CPU Multi 64Bit
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1967 Points
Average AMD Ryzen 9 4900H (1886 - 1967, n=2)	1927 Points -2%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	1607 Points -18%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1455 Points -26%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1067 Points -46%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	790 Points -60%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	316 Points -84%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	298 Points -85%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	261 Points -87%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	248 Points -87%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	220 Points -89%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	211 (209.9^min - 211.39^max) Points -89%

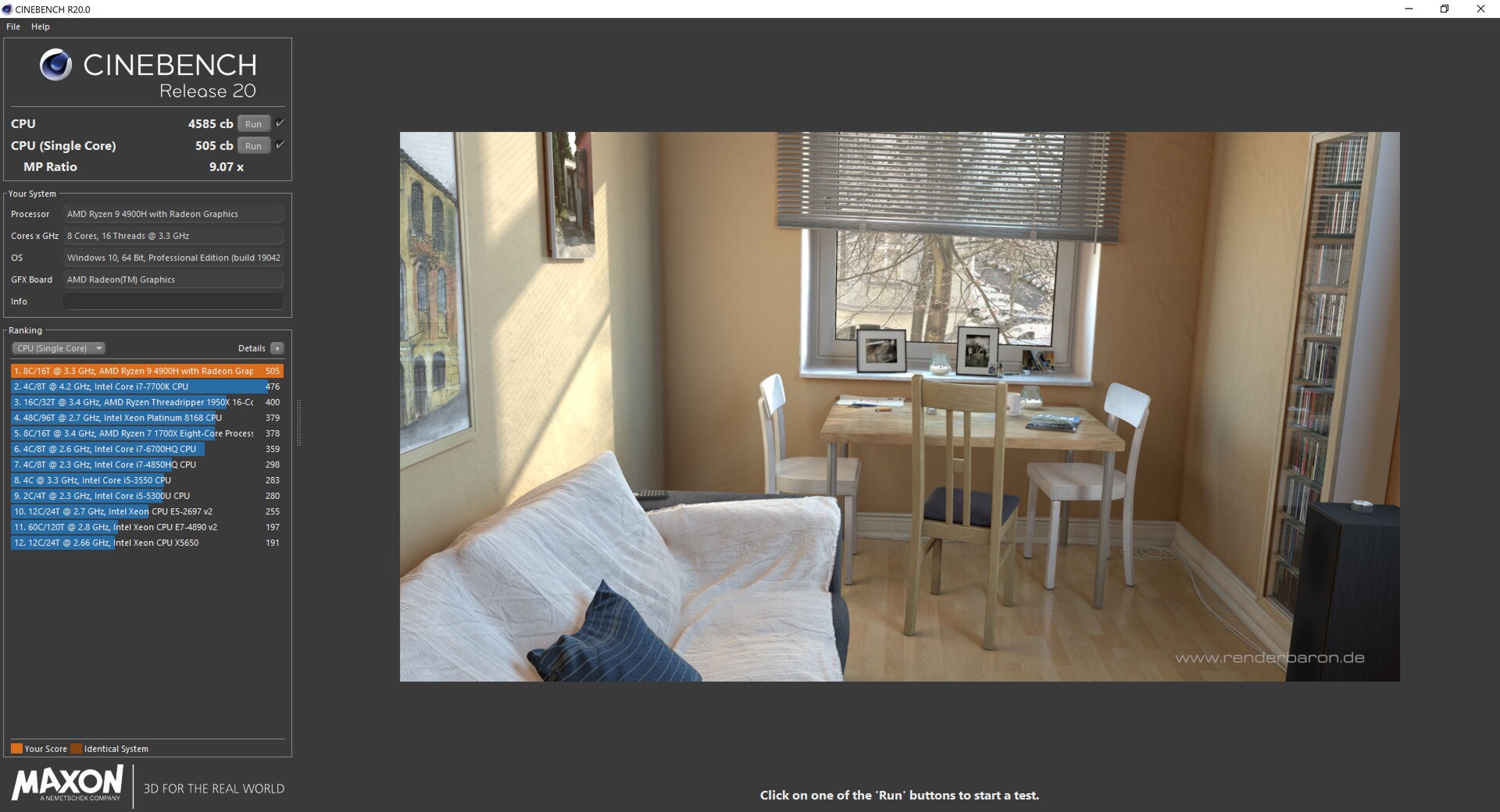

Cinebench R20
CPU (Single Core)
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	505 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	504 Points 0%
Average AMD Ryzen 9 4900H (482 - 505, n=2)	494 Points -2%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	480 Points -5%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	428 Points -15%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	401 Points -21%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	200 Points -60%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	171 Points -66%
CPU (Multi Core)
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4585 Points
Average AMD Ryzen 9 4900H (4233 - 4585, n=2)	4409 Points -4%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	3357 Points -27%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2303 Points -50%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1820 Points -60%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	743 Points -84%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	556 Points -88%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	491 Points -89%

Cinebench R23
Single Core
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1298 Points
Average AMD Ryzen 9 4900H (1290 - 1298, n=2)	1294 Points 0%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1234 Points -5%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1031 Points -21%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	660 Points -49%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	411 Points -68%
Multi Core
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11792 Points
Average AMD Ryzen 9 4900H (11416 - 11792, n=2)	11604 Points -2%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	8532 Points -28%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1910 Points -84%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1529 (1521.41^min - 1529.3^max) Points -87%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	834 (768.67^min - 833.537^max) Points -93%

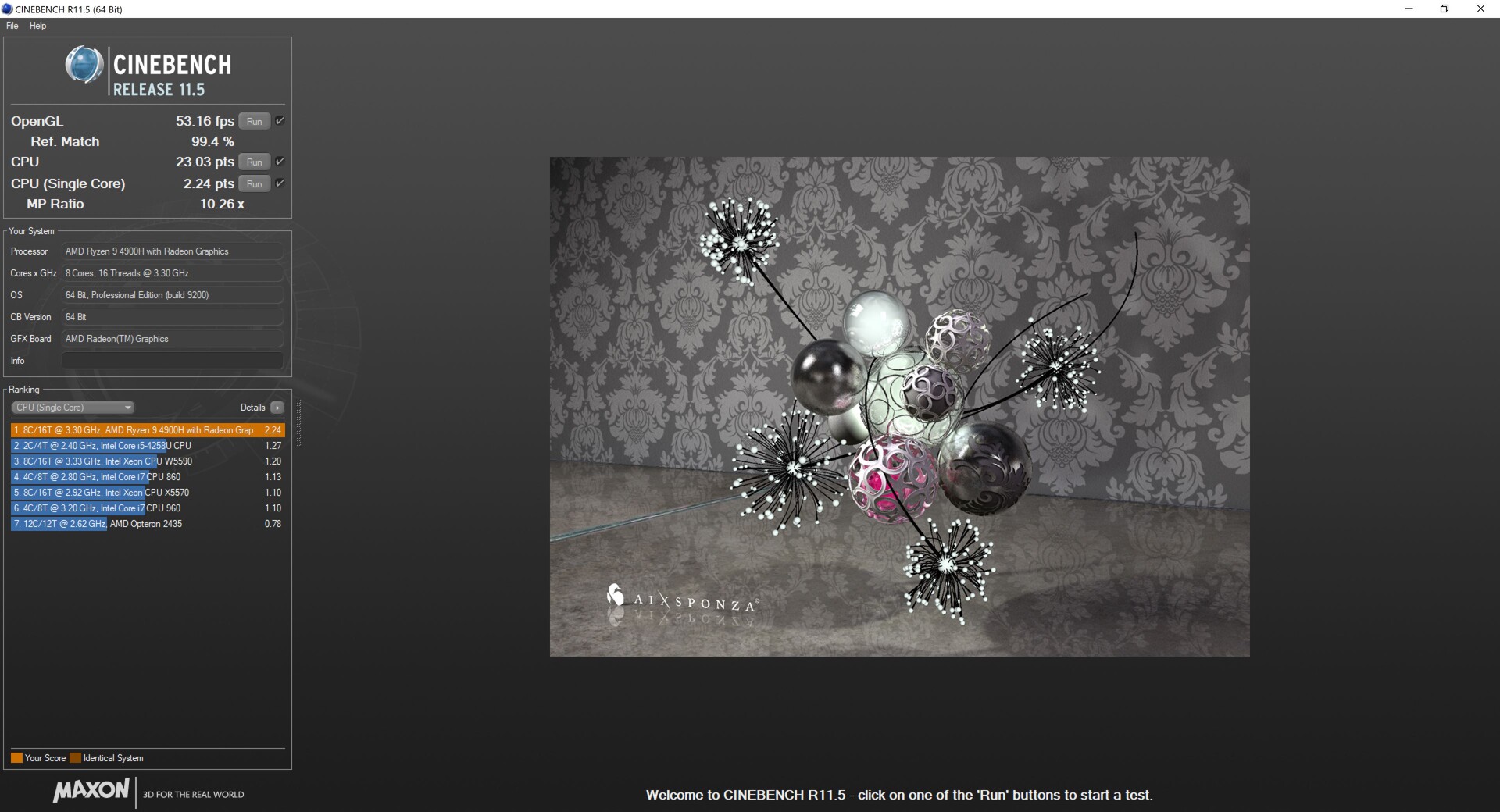

Cinebench R11.5
CPU Single 64Bit
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	2.4 Points +7%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	2.26 Points +1%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2.24 Points
Average AMD Ryzen 9 4900H ()	2.24 Points 0%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.19 Points -2%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1.91 Points -15%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1.87 Points -17%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.33 Points -41%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.28 Points -43%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.92 Points -59%
CPU Multi 64Bit
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.03 Points
Average AMD Ryzen 9 4900H ()	23 Points 0%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	18.04 Points -22%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	16.7 Points -27%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	10.89 Points -53%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	8.66 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	3.59 Points -84%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3.26 Points -86%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3.09 Points -87%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.86 Points -88%

Blender - v2.79 BMW27 CPU
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2379 Seconds * -862%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	585 Seconds * -137%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	468.3 Seconds * -89%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	317.4 Seconds * -28%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	315.4 Seconds * -28%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	247.3 Seconds *
Average AMD Ryzen 9 4900H ()	247 Seconds * -0%

wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	732 s * -783%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	620 s * -648%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	566 s * -583%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	558 s * -573%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	543 s * -555%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	217.8 s * -163%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	177.4 s * -114%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	120.2 s * -45%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	119.5 s * -44%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.9 s *
Average AMD Ryzen 9 4900H ()	82.9 s * -0%
32m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	23.1 s * -623%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	19.5 s * -511%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	18 s * -464%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	17.62 s * -452%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	17.37 s * -444%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.78 s * -112%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	5.103 s * -60%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	3.788 s * -19%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	3.257 s * -2%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3.194 s *
Average AMD Ryzen 9 4900H ()	3.19 s * -0%

X264 HD Benchmark 4.0
Pass 2
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	111 (111^min - 112^max) fps
Average AMD Ryzen 9 4900H ()	111 fps 0%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	92.8 (89.1^min - 100^max) fps -16%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	84.8 (84.6^min - 105^max) fps -24%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	60.5 (60.4^min - 73.5^max) fps -45%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	49.35 (49.1^min - 51.6^max) fps -56%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	20.55 (20.4^min - 20.7^max) fps -81%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	19.3 fps -83%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	16.75 (16.7^min - 16.9^max) fps -85%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.46 fps -85%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	13.75 fps -88%
Pass 1
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	237.5 (236^min - 239^max) fps +10%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	236 (235^min - 257^max) fps +10%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	215 (213^min - 217^max) fps
Average AMD Ryzen 9 4900H ()	215 fps 0%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	206 (204^min - 208^max) fps -4%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	184.5 (184^min - 186^max) fps -14%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	106.5 (106^min - 109^max) fps -50%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	105 fps -51%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	88.5 fps -59%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	78.9 (77.1^min - 81.7^max) fps -63%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	74 fps -66%

TrueCrypt
Serpent Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.2 GB/s
Average AMD Ryzen 9 4900H ()	1.2 GB/s 0%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1.1 GB/s -8%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	1 GB/s -17%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	0.57 GB/s -52%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.48 GB/s -60%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	0.21 GB/s -82%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.182 GB/s -85%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.166 GB/s -86%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.142 GB/s -88%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.133 GB/s -89%
Twofish Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2 GB/s
Average AMD Ryzen 9 4900H ()	2 GB/s 0%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1.8 GB/s -10%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	1.7 GB/s -15%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1 GB/s -50%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.79 GB/s -60%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	0.346 GB/s -83%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.283 GB/s -86%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.266 GB/s -87%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.245 GB/s -88%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.199 GB/s -90%
AES Mean 100MB
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	10.3 GB/s +39%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	10.1 GB/s +36%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7.4 GB/s
Average AMD Ryzen 9 4900H ()	7.4 GB/s 0%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4.7 GB/s -36%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	4.6 GB/s -38%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.9 GB/s -74%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1.9 GB/s -74%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.7 GB/s -77%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.5 GB/s -80%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1.3 GB/s -82%

Geekbench 4.4
64 Bit Multi-Core Score
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	32174 Points +13%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	29385 Points +3%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28402 Points
Average AMD Ryzen 9 4900H ()	28402 Points 0%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	22969 Points -19%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	13949 Points -51%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	5468 Points -81%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5066 Points -82%
64 Bit Single-Core Score
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	5969 Points +13%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	5726 Points +8%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5287 Points
Average AMD Ryzen 9 4900H ()	5287 Points 0%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	5271 Points 0%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	3680 Points -30%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2613 Points -51%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1922 Points -64%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12.9 fps
Average AMD Ryzen 9 4900H ()	12.9 fps 0%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	11.6 fps -10%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	11.4 fps -12%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	7.95 fps -38%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.28 fps -51%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.48 fps -89%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0 fps -100%

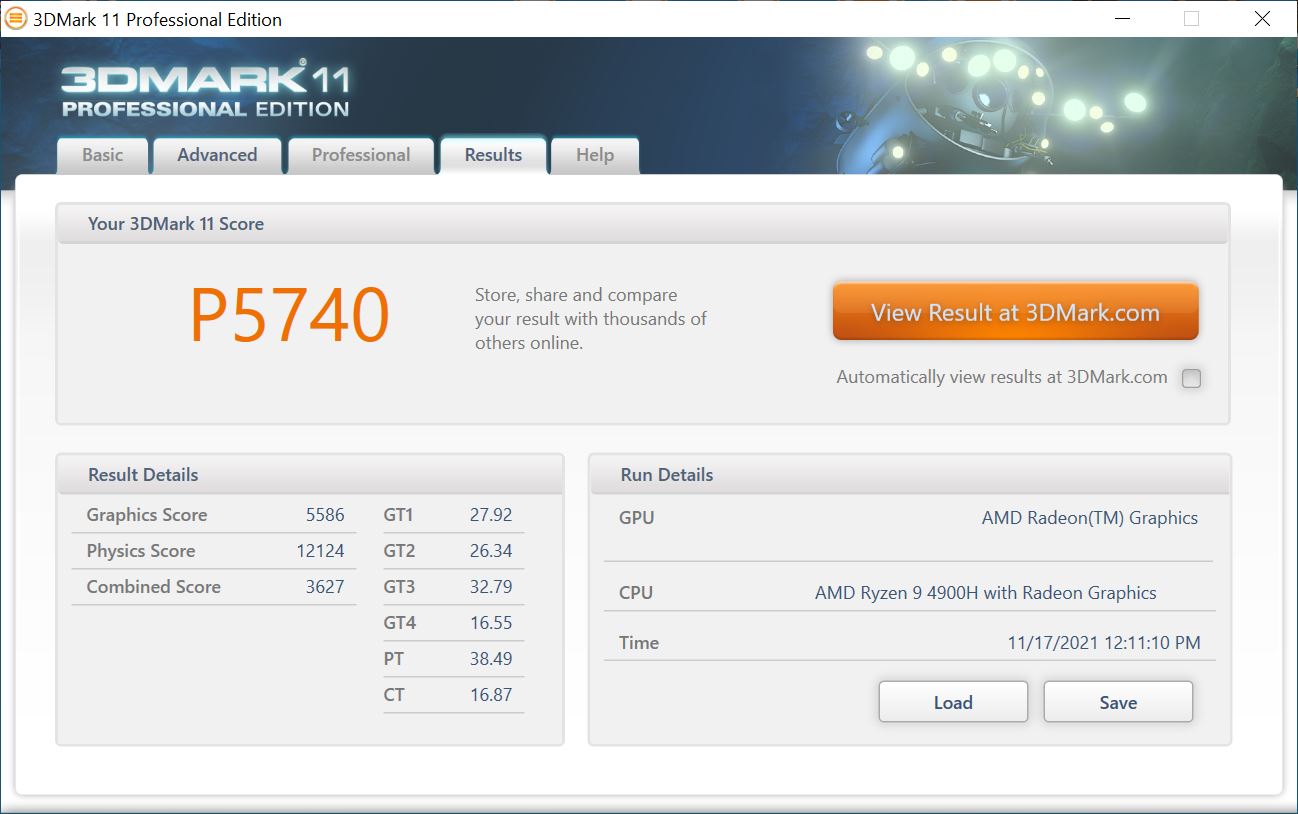

3DMark 11 - 1280x720 Performance Physics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	16422 Points +35%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	15497 Points +27%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12199 Points
Average AMD Ryzen 9 4900H ()	12199 Points 0%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	11443 Points -6%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	7679 Points -37%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	4420 Points -64%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	3863 Points -68%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	3765 Points -69%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	3072 Points -75%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2794 Points -77%

LibreOffice - 20 Documents To PDF
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	143 s * -117%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	66 s *
Average AMD Ryzen 9 4900H ()	66 s * -0%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	59.5 s * +10%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	45.23 s * +31%

* ... smaller is better

Cinebench R15多循环

在Cinebench R15多核循环中，Minicforum EliteMini HM90能够很好地处理AMD Ryzen 9 4900H并提供良好的性能水平。平均得分1880分，我们的评测设备表现得相当好。与一次性的基准运行相比，结果要差100分左右。在这种情况下英特尔Ghost Canyon NUC的性能差距要大一些，为130分。

Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)

Intel NUC10i5FNK Intel Core i5-10210U, Intel Core i5-10210U: Ø755 (749.68-790.62)

Intel NUC10i7FNH Intel Core i7-10710U, Intel Core i7-10710U: Ø946 (834.01-1067.02)

Intel Ghost Canyon NUC (RTX 2070) Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1463 (1410.79-1593.44)

系统性能

Minisforum EliteMini HM90在合成基准中揭示了它有多强大。我们的评测设备轻松击败了英特尔NUC 10与英特尔酷睿i7-10710U.与英特尔鬼谷子NUC和 Zotac Magnus One我们的评测设备做得不是很好。这里的原因是缺少专用显卡，这就是为什么在合成基准测试中性能较低。Minisforum EliteMini HM90在负载和播放4K视频时没有表现出延迟峰值。不过，在启动4K视频后，延迟略有增加。尽管如此，由于性能的原因，我们认为结果会稍好一些。驱动程序在这里似乎还没有得到完美的优化。

PCMark 10
Score
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	6939 Points +25%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	6499 Points +17%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5565 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	4418 Points -21%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4019 Points -28%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	2958 Points -47%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2391 Points -57%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1806 Points -68%
Productivity
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	8581 Points +4%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	8277 Points
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	7447 Points -10%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	6876 Points -17%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6494 Points -22%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	5397 Points -35%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	4084 Points -51%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2928 Points -65%
Essentials
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	10797 Points +20%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	9846 Points +9%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9026 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	9013 Points 0%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	8235 Points -9%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	6210 Points -31%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5419 Points -40%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	4693 Points -48%
Digital Content Creation
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	10161 Points +62%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	9785 Points +56%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6262 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	3777 Points -40%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	3296 Points -47%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	2097 Points -67%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1677 Points -73%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1165 Points -81%

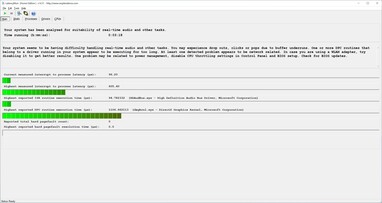

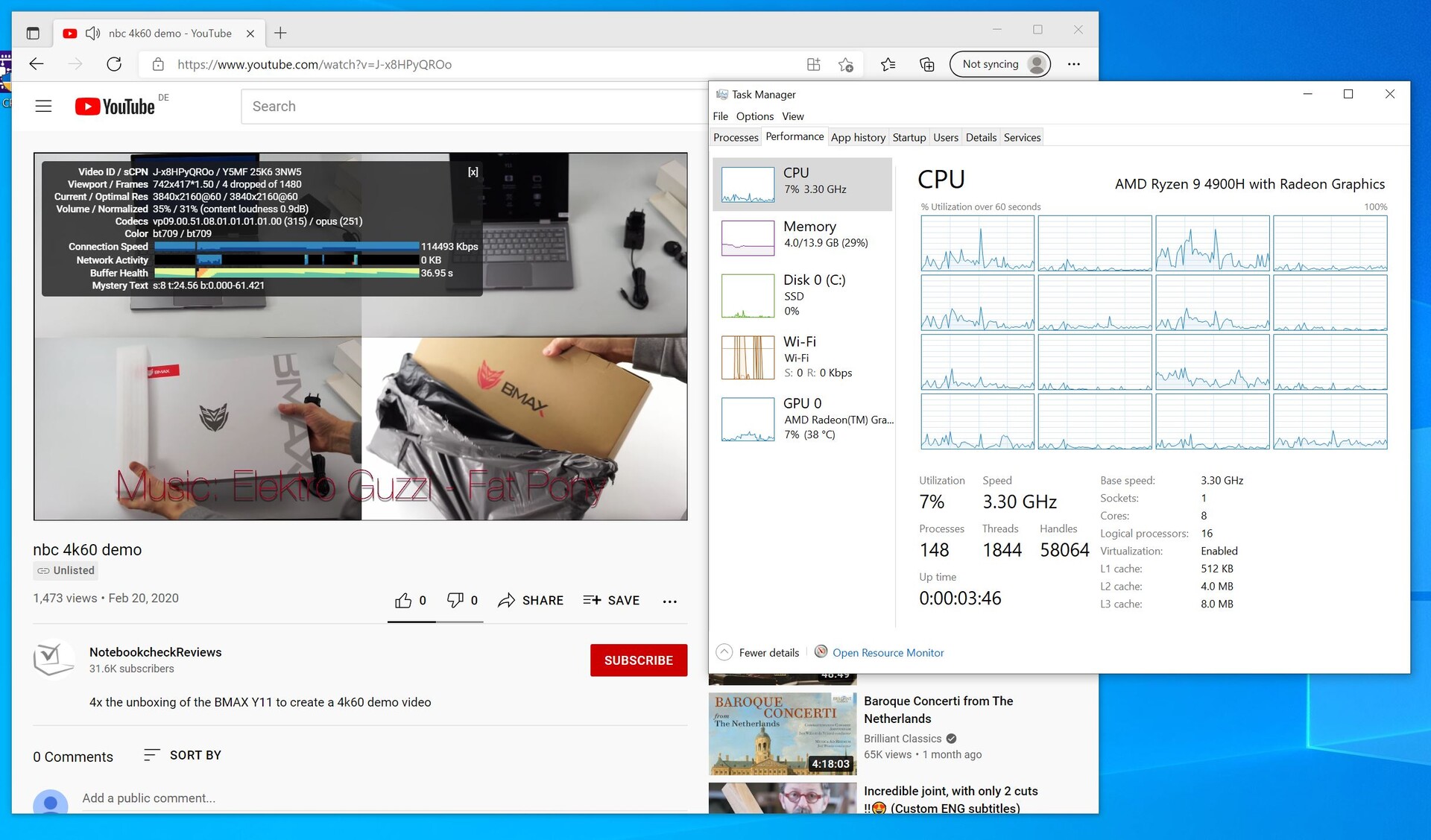

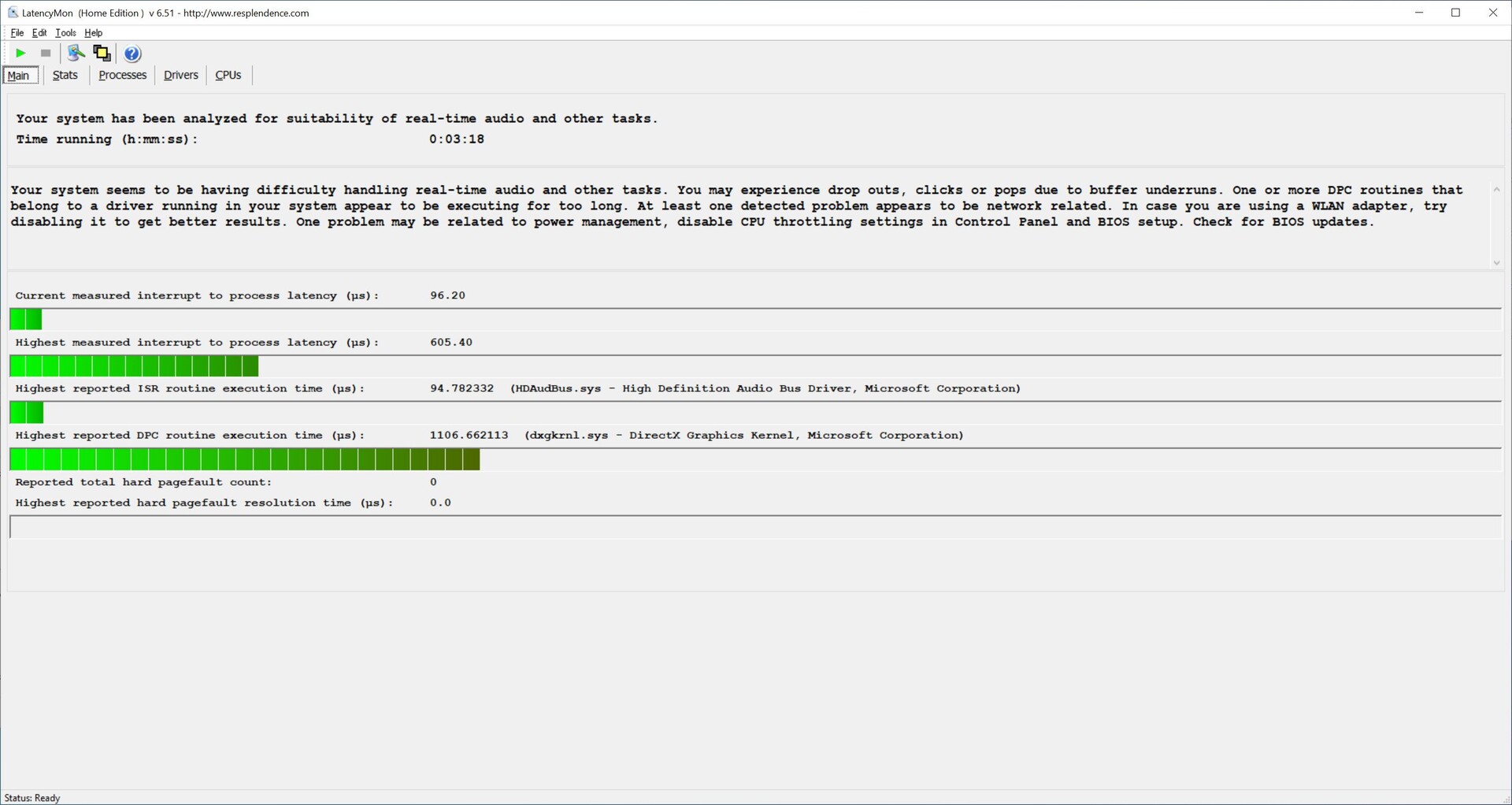

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3767 μs * -241%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1581 μs * -43%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1106 μs *

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	82.3 fps +67%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	59.2 fps +20%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	49.3 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	28.71 fps -42%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	26.2 fps -47%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	23.86 fps -52%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.55 fps -66%
1900x1060 Siemens NX (snx-02)
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.4 fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	12 fps -27%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	9.08 fps -45%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.98 fps -82%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	2.67 fps -84%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2.6 fps -84%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.48 fps -85%
1900x1060 Showcase (showcase-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	165 fps +1141%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	118.5 fps +791%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.3 fps
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	8.8 fps -34%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	8.35 fps -37%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.81 fps -49%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	5.56 fps -58%
1900x1060 Medical (medical-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	49 fps +319%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	40.14 fps +243%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11.7 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.91 fps -75%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2.7 fps -77%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	2.62 fps -78%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.61 fps -86%
1900x1060 Maya (maya-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	200 fps +652%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	171 fps +543%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.6 fps
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	17 fps -36%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	15.71 fps -41%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	13.02 fps -51%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	3.33 fps -87%
1900x1060 Energy (energy-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	13.1 fps +2520%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	11.49 fps +2198%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	0.5 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	0.28 fps -44%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.23 fps -54%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.09 fps -82%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.08 fps -84%
1900x1060 Creo (creo-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	61.5 fps +106%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	52.2 fps +75%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.9 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	14.42 fps -52%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	12.93 fps -57%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	10.8 fps -64%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	9.89 fps -67%
1900x1060 Catia (catia-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	117 fps +258%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	78.3 fps +139%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.7 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	16.55 fps -49%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	15.5 fps -53%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	14.12 fps -57%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	11.3 fps -65%
1900x1060 3ds Max (3dsmax-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	213 fps +470%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	180.8 fps +383%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.4 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	15.22 fps -59%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	12.92 fps -65%

SPECviewperf 13
Solidworks (sw-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	114 fps +99%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	85.4 fps +49%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	57.4 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	37.6 fps -34%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	31.48 fps -45%
Siemens NX (snx-03)
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.6 fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	21.9 fps -26%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	16.33 fps -45%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	5.37 fps -82%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4.8 fps -84%
Showcase (showcase-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	165 fps +1122%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	118.5 fps +778%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.5 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	8.34 fps -38%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.81 fps -50%
Medical (medical-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	78.3 fps +377%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	56.4 fps +244%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.4 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.23 fps -86%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	2.12 fps -87%
Maya (maya-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	367 fps +946%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	281 fps +701%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.1 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	22.97 fps -35%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	18.97 fps -46%
Energy (energy-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	28.2 fps +3339%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	21.83 fps +2562%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1.42 fps +73%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	0.82 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	0.73 fps -11%
Creo (creo-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	241 fps +539%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	183.8 fps +388%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.7 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	18.88 fps -50%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	16.77 fps -56%
Catia (catia-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	171 fps +269%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	113.7 fps +145%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46.4 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	23.37 fps -50%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	19.97 fps -57%
3ds Max (3dsmax-06)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	213 fps +463%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	178.6 fps +372%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.8 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	15.01 fps -60%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	12.71 fps -66%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3499 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1476 Points -58%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1134 Points -68%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	964 Points -72%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	964 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	696 Points -80%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	631 Points -82%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	337 Points -90%
1024x600 Normal, Fluid 3DTex
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	235 Points
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	128 Points -46%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	128 Points -46%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	86 Points -63%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	86 Points -63%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	67 Points -71%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	54 Points -77%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	44 Points -81%
1024x600 Normal, Fluid 2DTexArr
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	231 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	126 Points -45%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	105 Points -55%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	105 Points -55%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	103 Points -55%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	83 Points -64%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	63 Points -73%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	42 Points -82%
1024x600 Normal, Mandel Vector
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1066 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	250 Points -77%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	211 Points -80%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	189 Points -82%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	189 Points -82%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	147 Points -86%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	140 Points -87%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	79 Points -93%
1024x600 Normal, Mandel Scalar
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	964 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	428 Points -56%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	262 Points -73%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	223 Points -77%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	223 Points -77%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	137 Points -86%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	135 Points -86%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	54 Points -94%
1024x600 Normal, QJuliaRayTrace
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1002 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	543 Points -46%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	430 Points -57%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	362 Points -64%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	362 Points -64%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	272 Points -73%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	230 Points -77%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	118 Points -88%

LuxMark v2.0 64Bit
Room GPUs-only
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	451 Samples/s
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	306 Samples/s -32%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	291 Samples/s -35%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	291 Samples/s -35%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	188 Samples/s -58%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	146 Samples/s -68%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	109 Samples/s -76%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	76 Samples/s -83%
Sala GPUs-only
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	939 Samples/s
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	736 Samples/s -22%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	736 Samples/s -22%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	702 Samples/s -25%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	404 Samples/s -57%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	379 Samples/s -60%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	266 Samples/s -72%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	129 Samples/s -86%

* ... smaller is better

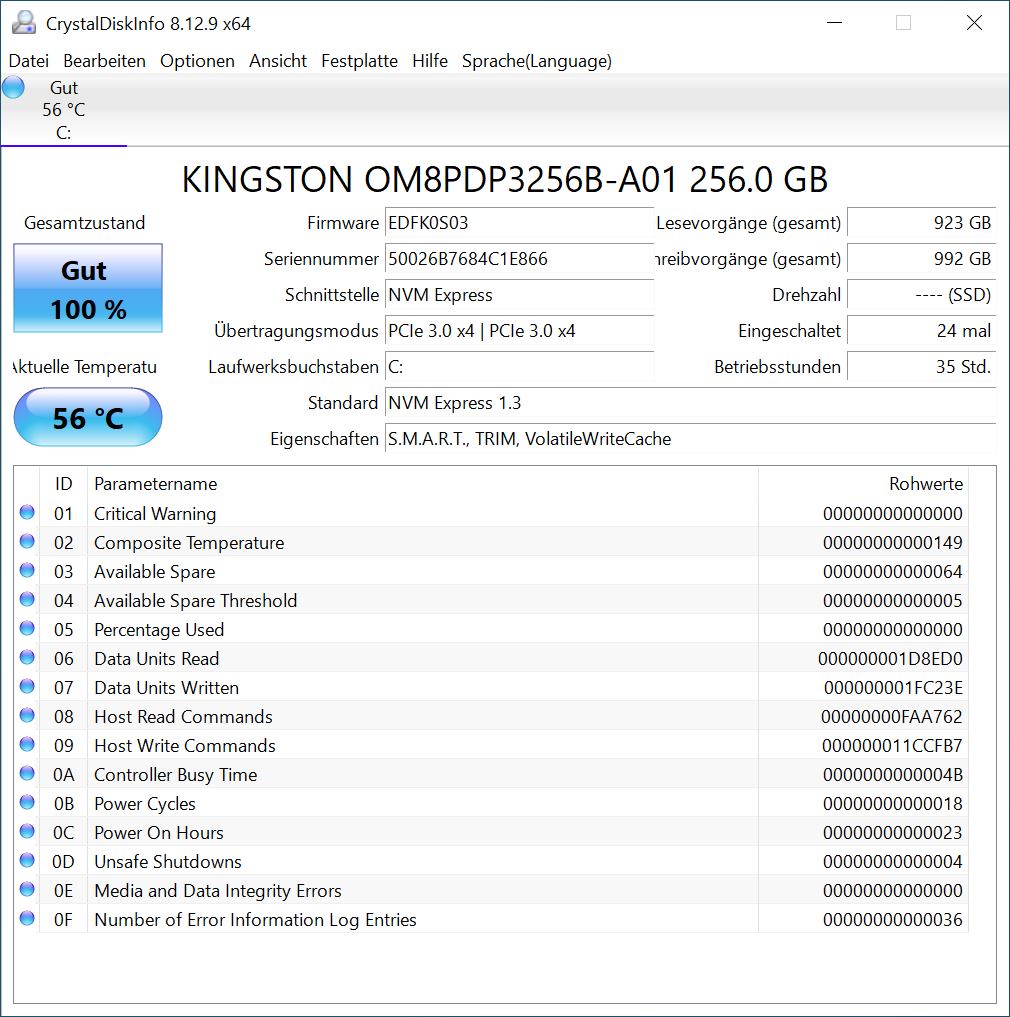

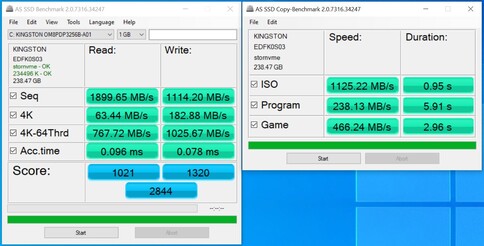

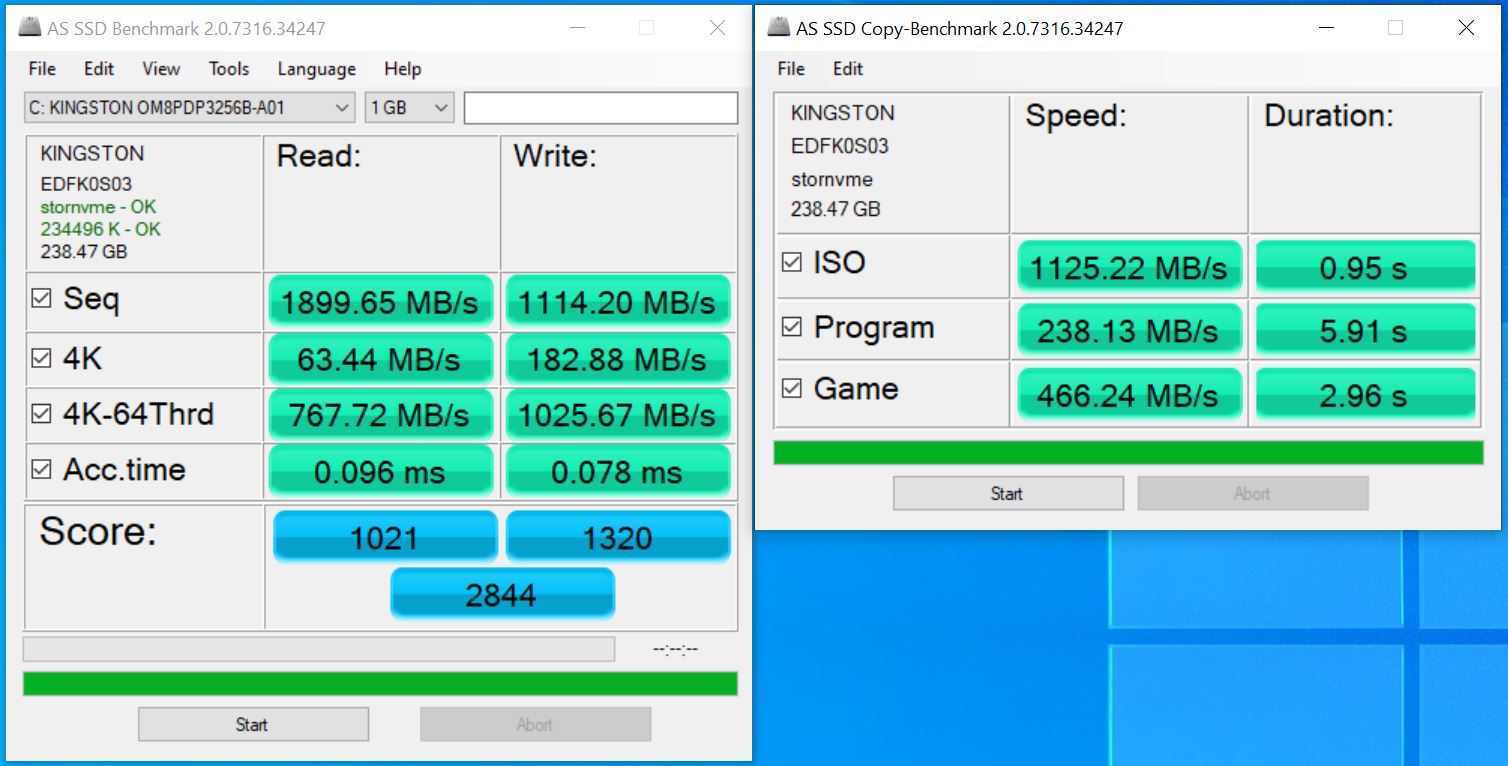

大容量存储

我们的测试系统与制造商商店页面上的预配置系统有些不同，它有一个256GB的NVMe SSD。如果你不订购裸机系统，你将总是得到一个512GB的固态硬盘，这对现在的大多数用户来说应该是足够的。我们的256GB型号对于大多数使用场景来说是没有问题的。在审查中，我们配备金士顿固态硬盘的型号取得了不错的成绩。迷你论坛EliteMini HM90中最多可以安装三块固态硬盘。你可以使用一个M.2 2280驱动器，这已经安装在我们的系统中。或者，你可以安装两个2.5英寸的固态硬盘，它们被拧在底板上，用电缆直接连接到主板上。所有支架、螺丝和电缆都包括在内。

图形卡

AMD Ryzen 9 4900H的集成图形单元被称为 AMD Radeon RX Vega 8.移动Ryzen APU的iGPU已经有几年的历史了，这也反映在性能上。虽然AMD的iGPU最初与英特尔的iGPU非常有竞争力，但AMD的集成GPU被目前的英特尔Iris Xe iGPU击败，后者出现在最新的Tiger Lake SoC中。不幸的是，MINISFORUM只能使用市场上广泛存在的硬件。当涉及到GPU性能时， AMD Ryzen 9 4900H是最棒的。

更多关于AMD Radeon RX Vega 8的基准测试可以在下面找到这里.

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	40950 Points +636%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	28828 Points +418%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7471, n=193)	6342 Points +14%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3459 - 7591, n=54)	5910 Points +6%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5567 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2322 Points -58%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1983 Points -64%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1853 Points -67%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1458 Points -74%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1316 Points -76%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1175 Points -79%

3DMark
1280x720 Ice Storm Standard Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	441161 Points +339%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	286573 Points +185%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (96941 - 231980, n=18)	154016 Points +53%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100414 Points
Average Intel Iris Xe Graphics G7 96EUs (35195 - 214326, n=39)	90880 Points -9%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	79747 Points -21%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	61979 Points -38%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	58199 Points -42%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	41037 Points -59%
1920x1080 Ice Storm Extreme Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	376770 Points +347%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	284001 Points +237%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (84227 - 147236, n=14)	111810 Points +33%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84227 Points
Average Intel Iris Xe Graphics G7 96EUs (35612 - 144112, n=25)	70045 Points -17%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	48446 Points -42%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	40670 Points -52%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	40532 Points -52%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	26409 Points -69%
1920x1080 Fire Strike Graphics
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	30090 Points +781%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	20775 Points +509%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6143, n=206)	4903 Points +44%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1694 - 5041, n=54)	3676 Points +8%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3414 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1479 Points -57%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1418 Points -58%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1202 Points -65%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1033 Points -70%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	772 Points -77%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	770 Points -77%

3DMark 05 Standard		30964 points
3DMark 06 Score 1366x768		34940 points
3DMark Vantage P Result		19152 points
3DMark 11 Performance		5732 points
3DMark Ice Storm Standard Score		88824 points
3DMark Cloud Gate Standard Score		21321 points
3DMark Fire Strike Score		3166 points
3DMark Fire Strike Extreme Score		1445 points
3DMark Time Spy Score		1243 points
Help

... in comparison

	low	med.	high	ultra	4K
GTA V (2015)	92.8	82.4	23.6	9.85
The Witcher 3 (2015)	61.6	39.5	19.6	13.6
Dota 2 Reborn (2015)	100.5	80.4	50.1	46	12.6
Final Fantasy XV Benchmark (2018)	34.2	17.4	12.3
X-Plane 11.11 (2018)	44.8	35.2	31.8
Far Cry 5 (2018)	46	21	20	19
Strange Brigade (2018)	72.6	29.1	24.7	21.1
Far Cry New Dawn (2019)	41	21	19	18
F1 2020 (2020)	79.7	38.6	28.6	21.2
F1 2021 (2021)	84.8	37.1	28.1	19.5

排放与能源

温度

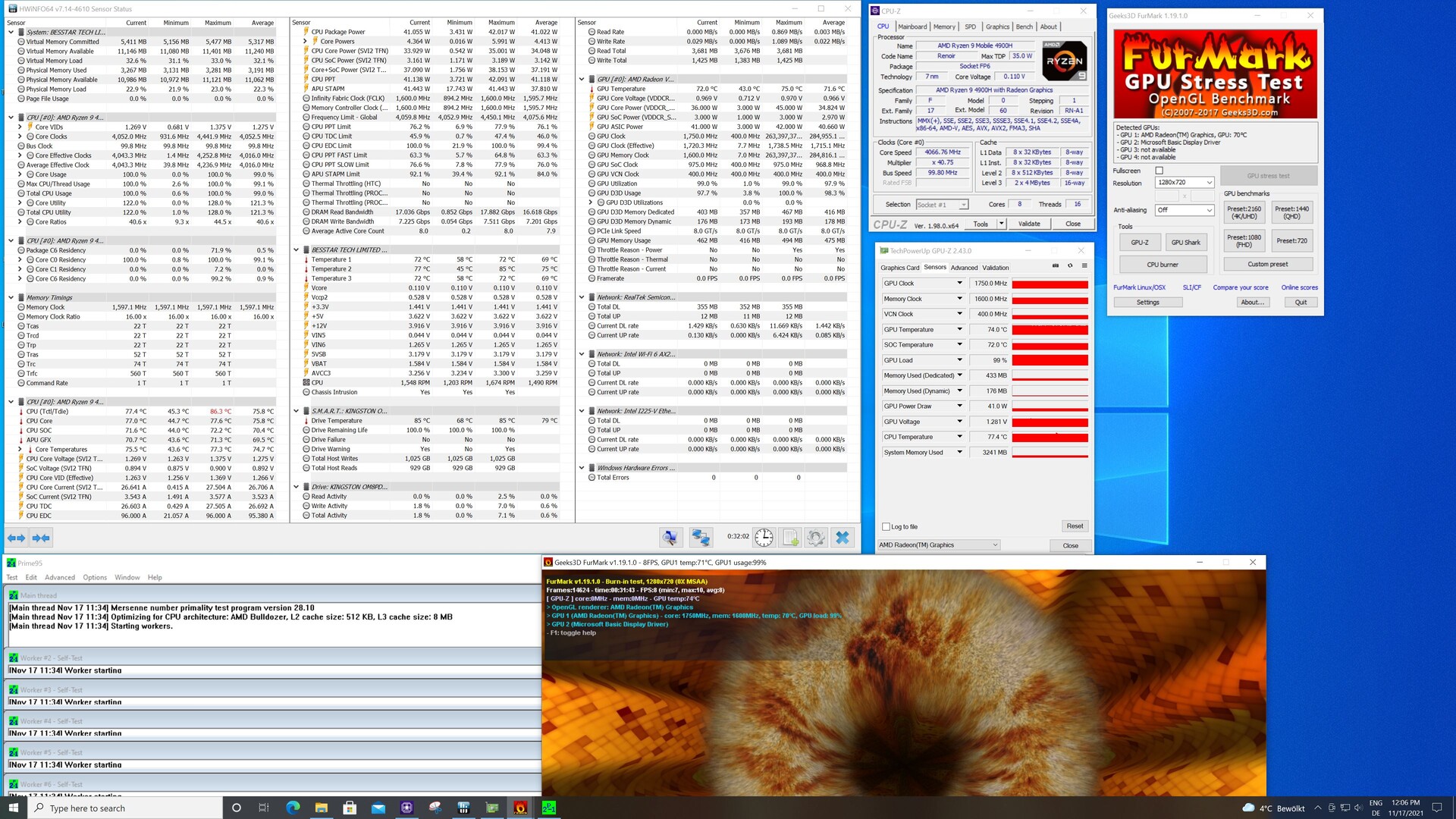

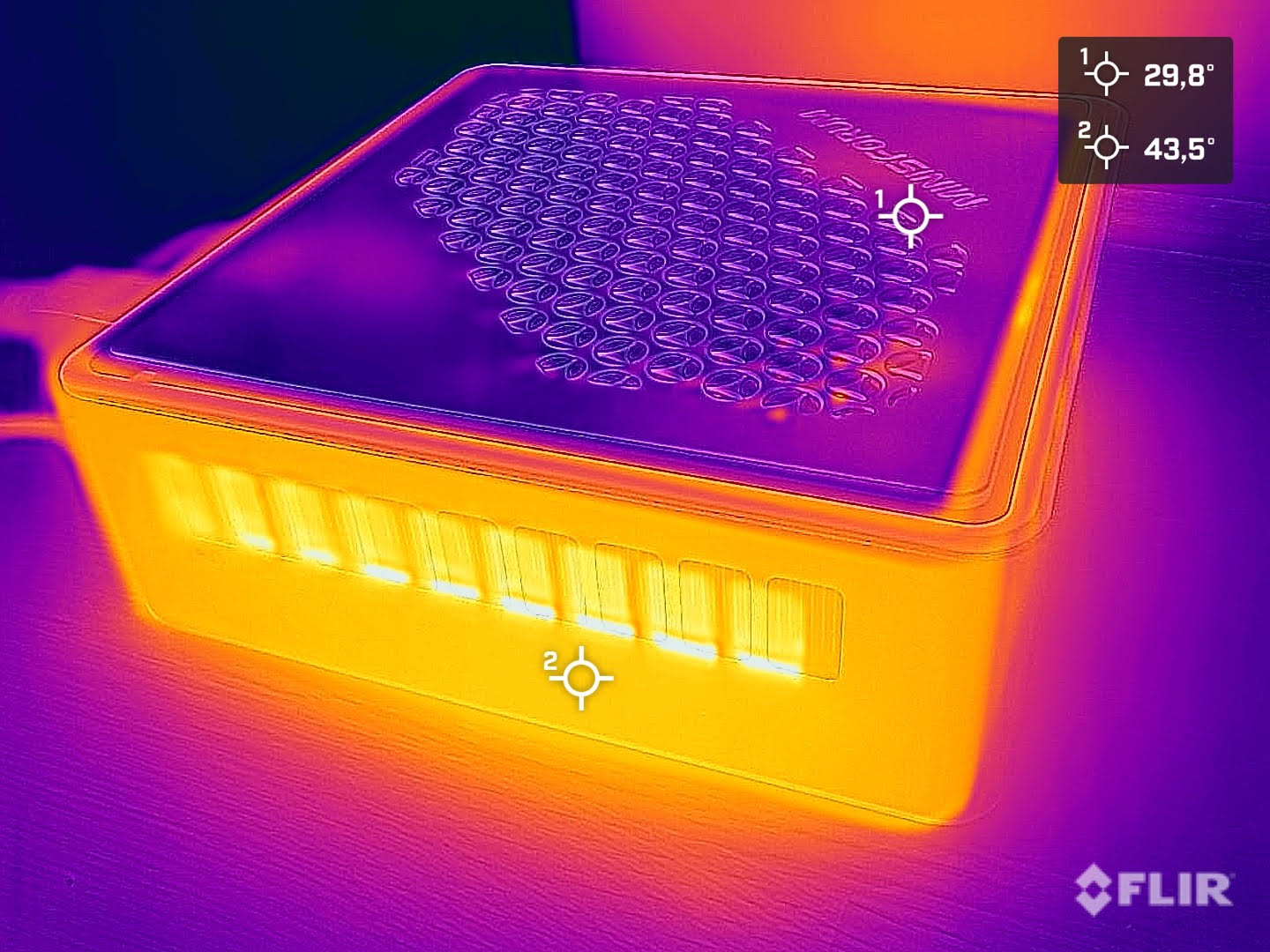

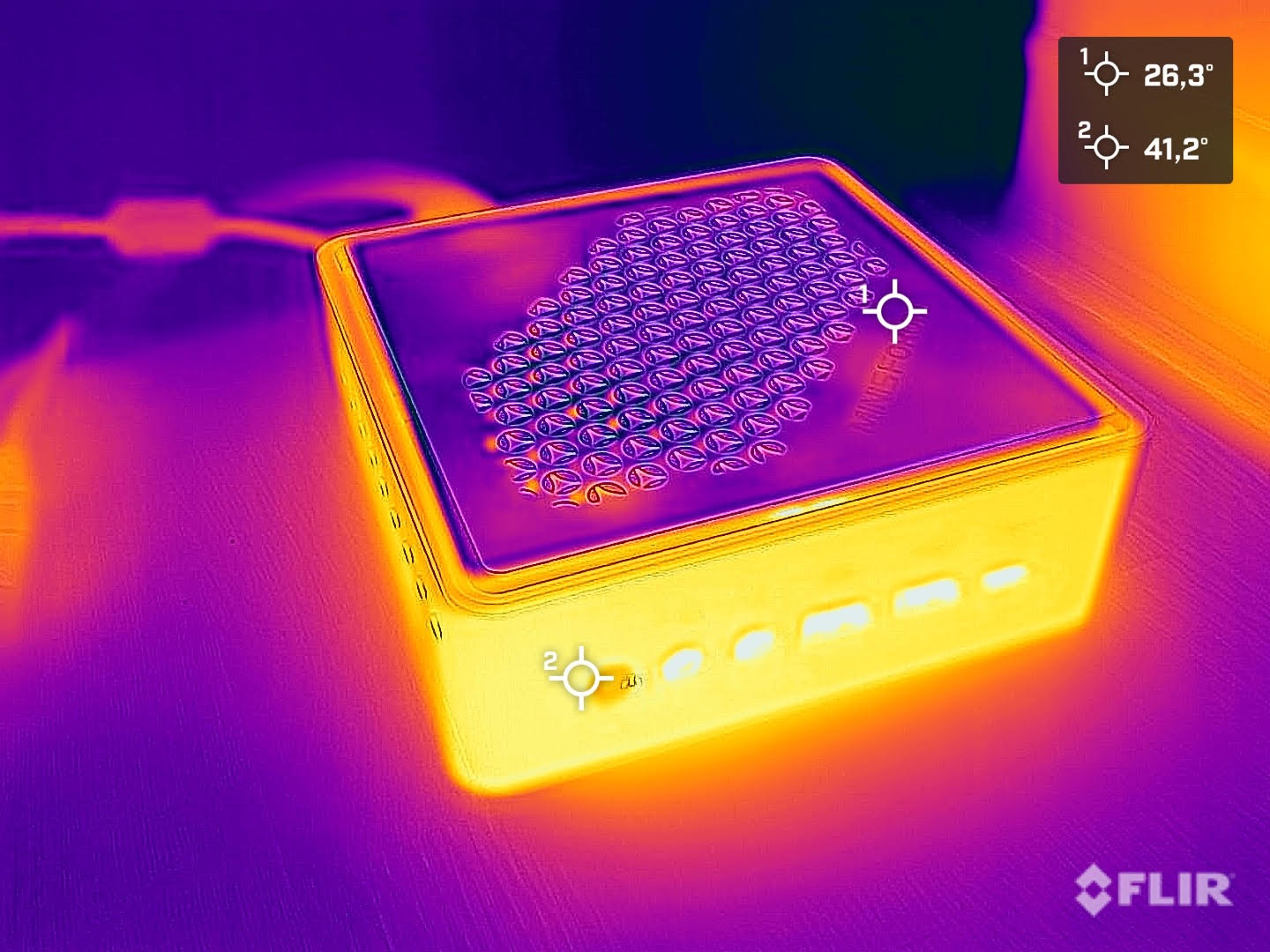

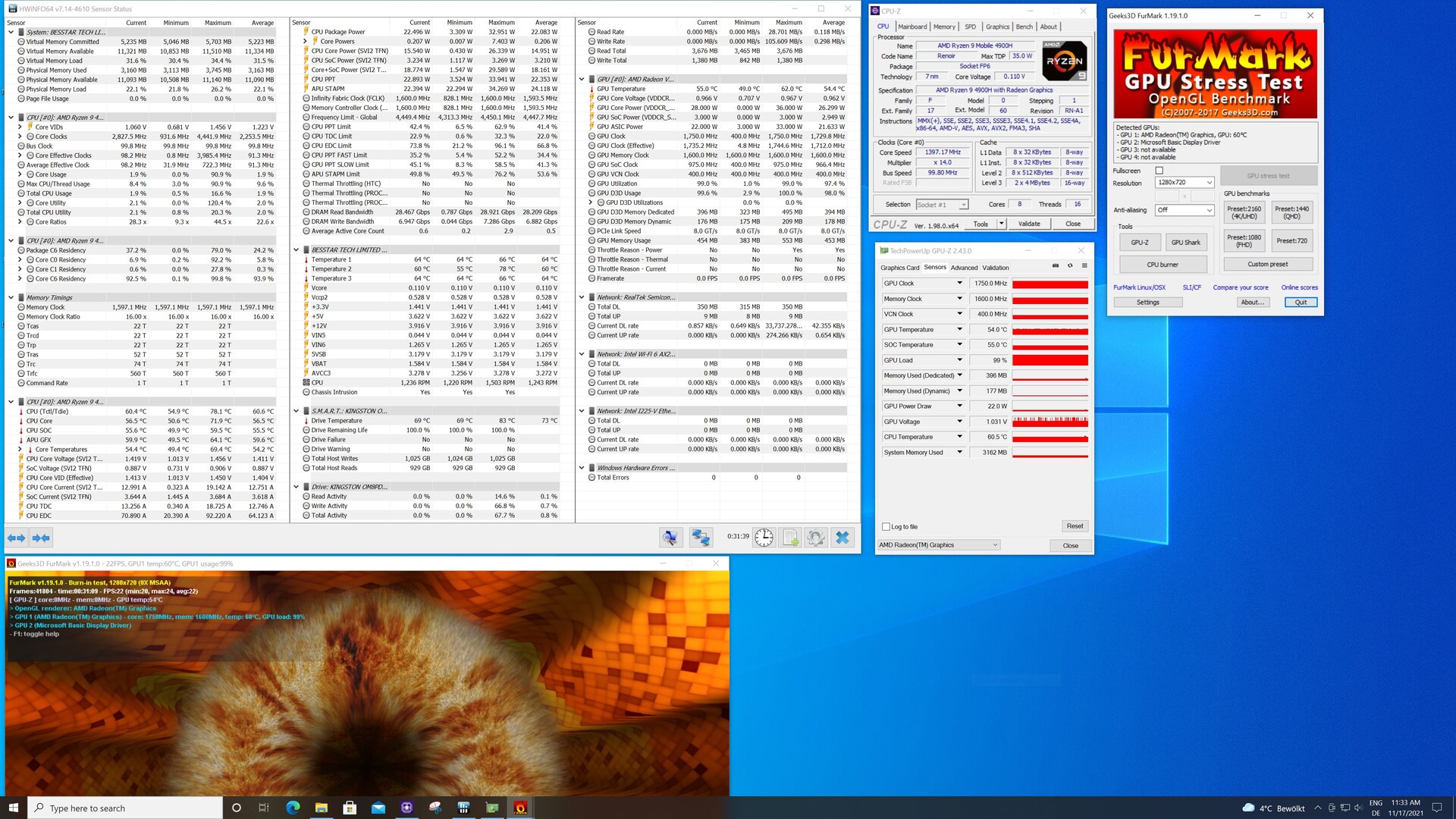

Minisforum为EliteMini HM90使用了一个轴流风扇，它从上面吸入冷空气，并将其向下引导到散热器上，这样暖空气就可以从机箱的侧面排出。该系统运行良好，在我们的审查中没有出现因热限制而导致的性能下降。在桌面上操作时，用户应注意不要在设备顶部放置任何东西，以便能够吸入足够的新鲜空气。制造商声称使用液态金属来冷却CPU。然而，我们无法证实这一点，因为拆卸系统会导致对SoC的损害。在满负荷状态下，CPU温度达到86.3℃（187.34°F），尽管iGPU的温度略低，为74℃（165.2°F）。这意味着SoC从未变得太热。如果SoC处于中等负荷状态，温度甚至更低。在持续负载下，性能保持稳定。3DMark11基准测试的结果与冷启动时几乎相同，只在测量公差范围内有几个点的差异。

系统噪音

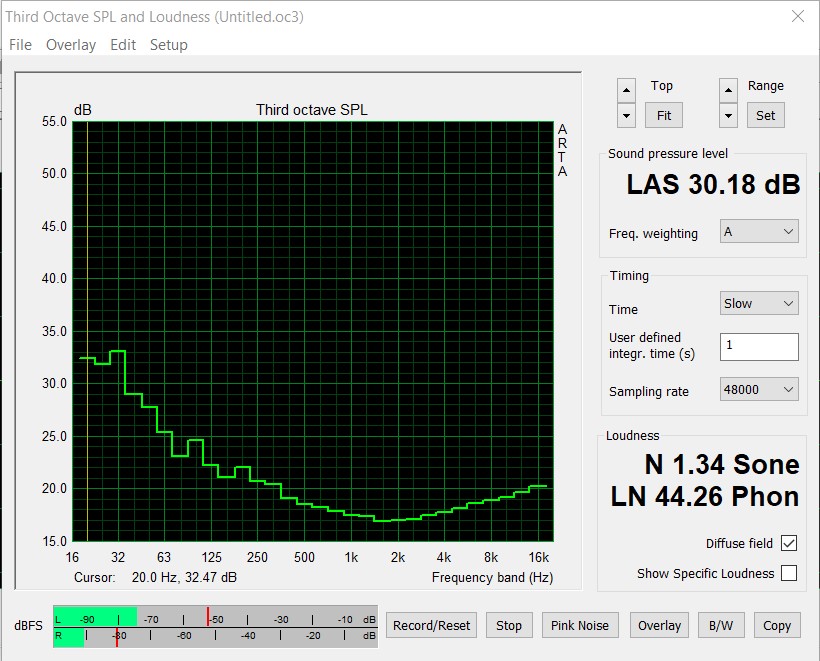

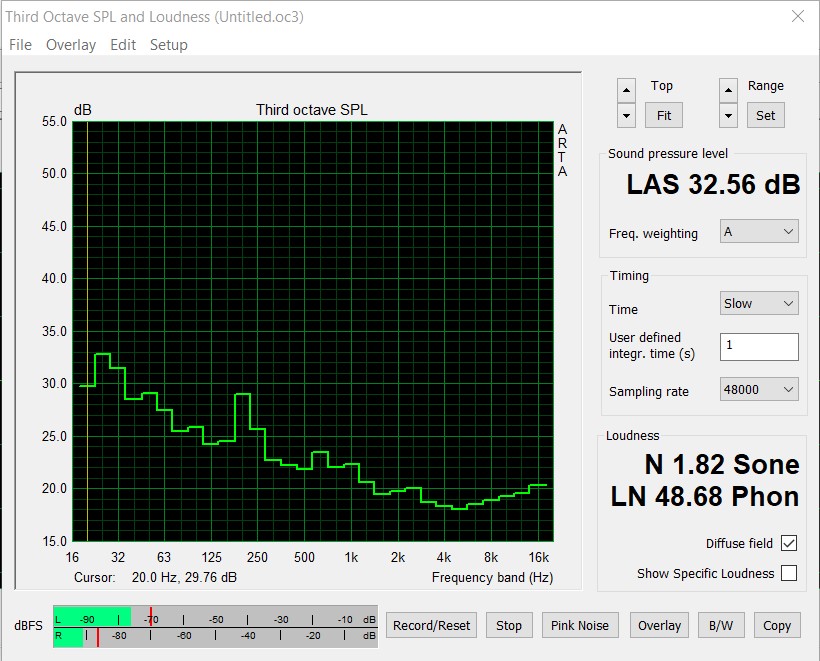

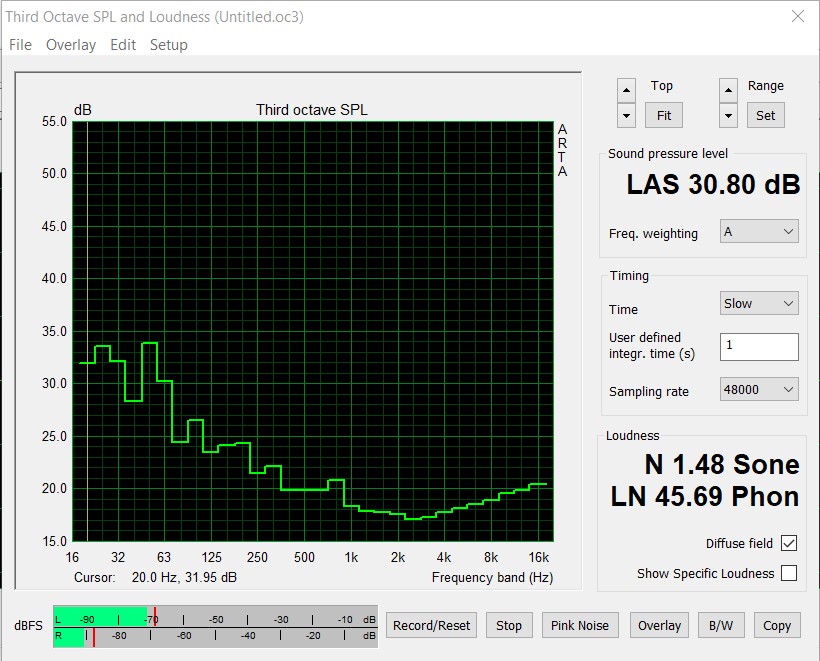

在工作设备中，不管是笔记本还是台式电脑，我们都希望有一个低噪音水平，因为没有什么比巨大的风扇噪音更糟糕的了。Minisforum在这方面做得非常好。唯一的风扇尺寸为75毫米，以低转速运行。闲置时，除非你把耳朵贴得很近，否则风扇是听不见的。在这里，我们的声压级为30.8 dB(A)。但是，即使在压力测试期间的满负荷情况下，我们也无法真正感知到任何恼人的噪音。在32.5 dB(A)时，Minisforum EliteMini HM90现在的声音有点大，但这仍然是一台非常安静的PC。风扇速度的调节非常平稳，没有因为高速运转而出现间歇性的嚎叫。

能源消耗

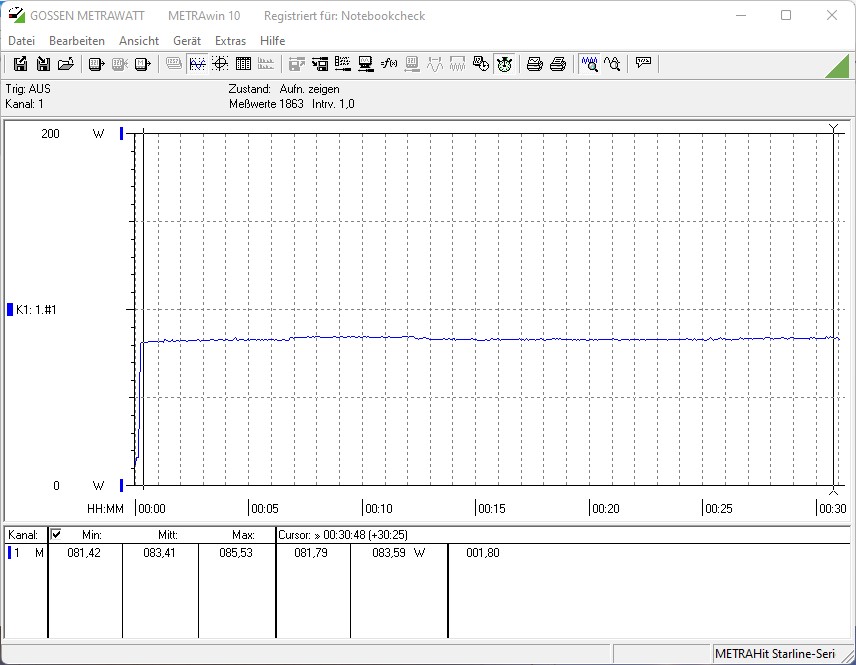

在能耗方面，MINISFORUM EliteMini HM90相当节俭，尽管英特尔可以在其NUC上做得更好一些。底线是EliteMini HM90的8核心提供了明显更多的性能。在GPU压力测试中， Zotac Magus One和英特尔鬼谷子NUC由于采用了专用显卡，在不平等的条件下挣扎，所以我们不应该过多地解读这一点。然而，我们只能从我们的测试系统中提取最大的85瓦，相对较大的120瓦电源可以轻松处理。由于我们的配置不包括2.5英寸的驱动器，所以仍有足够的空间进行操作。

Power Consumption

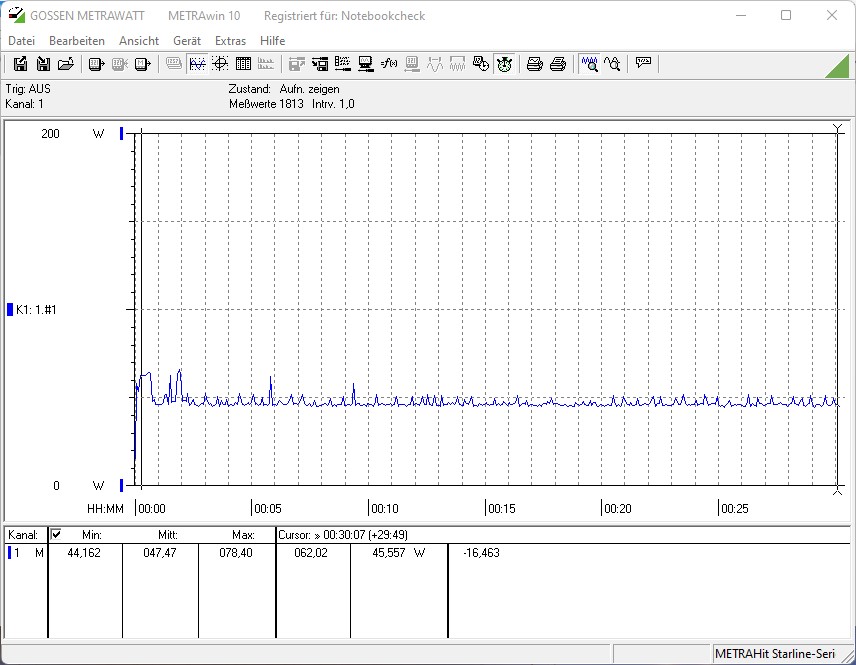

1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)	326.2 (316^min - 333^max) Watt * -587%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)	251.9 (242^min - 270^max) Watt * -431%

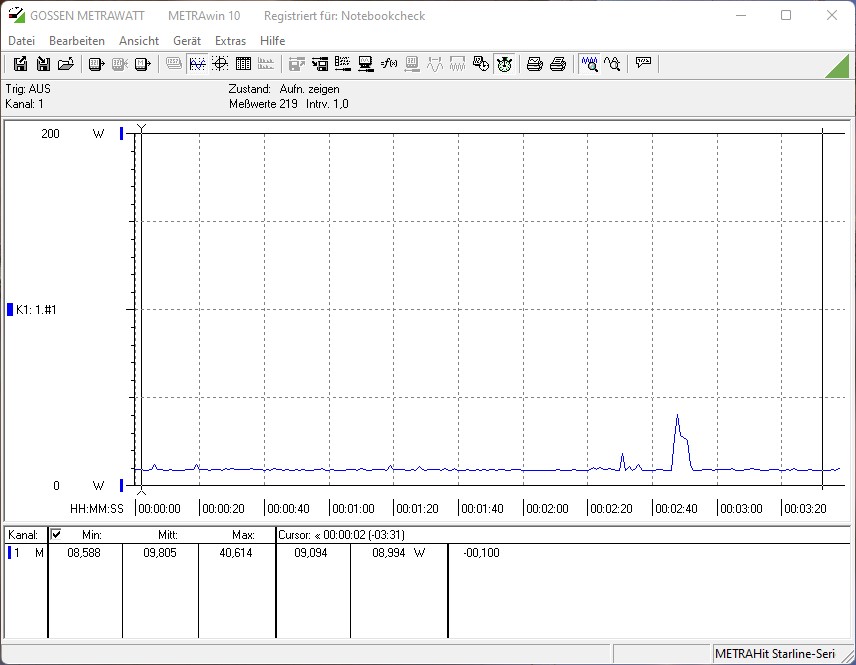

Minisforum HM90 (Idle: 9.8 W)	47.47 (44^min - 78^max) Watt *
Intel NUC10i7FNH (Idle: 8.4 W)	46.6 (45^min - 68^max) Watt * +2%
Intel NUC10i5FNK (Idle: 15.7 W)	37.8 (35^min - 63^max) Watt * +20%
MSI Cubi 5 10M (Idle: 8 W)	25.17 (25^min - 26^max) Watt * +47%

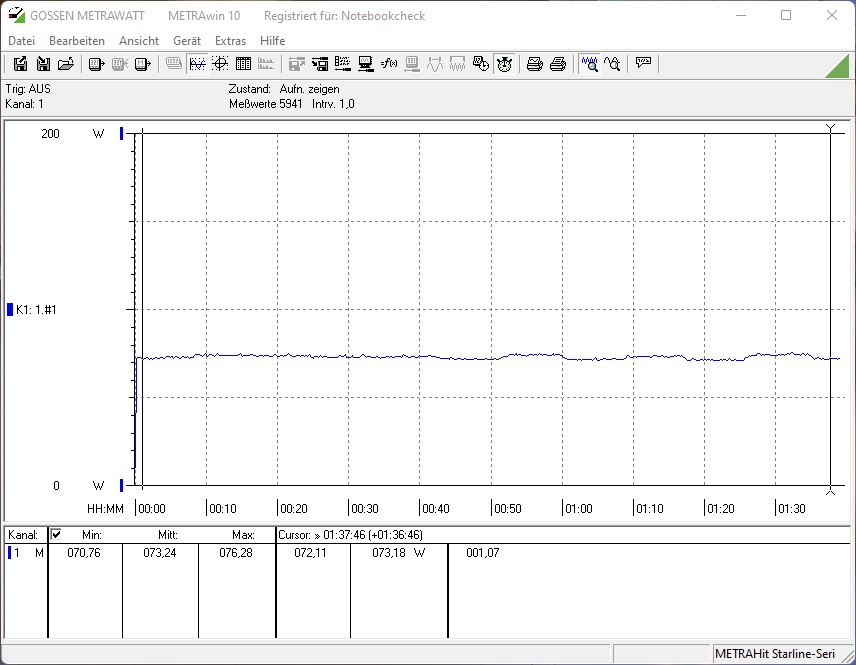

Prime95 V2810 Stress (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)	116.3 (110^min - 238^max) Watt * -59%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)	109.4 (107^min - 151^max) Watt * -49%
Minisforum HM90 (Idle: 9.8 W)	73.2 (71^min - 76^max) Watt *
Intel NUC10i7FNH (Idle: 8.4 W)	60 (52^min - 86^max) Watt * +18%
Intel NUC10i5FNK (Idle: 15.7 W)	58.5 (56^min - 69^max) Watt * +20%
MSI Cubi 5 10M (Idle: 8 W)	46.72 (40^min - 66^max) Watt * +36%
AC6-M Mini-PC	17.4 (15.8^min, 16.8^P1 - 18^max) Watt * +76%

* ... smaller is better

Pros

+ 非常好的系统性能

+ 8个核心和16个线程

+ 稳定的外壳

+ 尺寸紧凑

+ 任何时候都很安静

+ 许多USB接口

+ 最多可以有三个大容量存储设备

Cons

- 没有SD卡读卡器

评语 - 表现出色，但浪费了潜力

Minisforum EliteMini HM90的评论，由Minisforum提供。

Minisforum EliteMini HM90是一个非常紧凑的迷你电脑，由于其功能，它更像是一个全能型的办公电脑。凭借AMD Ryzen 9 4900H，这台小型PC在多线程应用中提供了非常好的性能水平。由于Zen2的优势，其单核性能也处于良好水平，可以与英特尔Comet Lake-U SoCs.我们的评测设备有16GB的内存和256GB的固态硬盘，它为日常办公提供了足够多的性能。事实上，在大多数情况下，该SoC几乎没有被利用。然而，拥有一个非常有利于未来的系统是件好事。如果配上专用显卡，Minisforum EliteMini HM90作为一个紧凑的游戏PC会做得相当好。这就是为什么缺乏Thunderbolt端口在一定程度上限制了它的可用性。

Minisforum EliteMini HM90是一个非常强大的全能型产品，可以处理很多事情，而不仅仅是简单的办公任务。AMD Ryzen 9 4900H被该系统充分使用。

那些想把这台小电脑作为客厅里的流媒体盒子使用的人，会对它的安静程度感到积极的惊讶。此外，SoC确保了高水准的多媒体性能。即使只有一个iGPU，Minicforum EliteMini HM90也可以用来玩一两个游戏。然而，在较新的游戏中，你必须接受在分辨率或视觉设置方面的一些牺牲。然而，AMD Ryzen APU处理休闲游戏很轻松。

从纯粹的审美角度来看，银色和白色的颜色组合会很有吸引力。Minisforum没有为EliteMini HM90提供替代的外壳颜色。总的来说，我们对该系统的外观没有什么不好的评价。因为没有光亮的黑色塑料，EliteMini HM90不会有很多明显的微划痕。

价格和可用性

Minisforum EliteMini HM90可直接从制造商的网站上以419欧元（约合475美元）的价格提供裸机套件。.然而，那些腰缠万贯的人可以以659欧元（约合746美元）的价格买到带有32GB内存和512GB固态硬盘的版本。

Editor of the original article: Ninh Ngoc Duy - Editorial Assistant - 388017 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 配备快速AMD Ryzen APU的MINISFORUM EliteMini HM90台式电脑评测

Sebastian Bade, 2021-12- 1 (Update: 2021-12- 1)
