Magyar宏碁Aspire 5 A515-45回顾。一个具有AMD Ryzen 7功能的笔记本电脑，但...

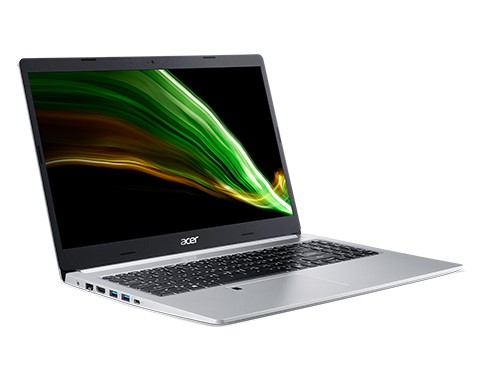

宏碁Aspire 5 A515-45-R4R1（NX.A82EV.00H）是一款外观高质量的笔记本电脑，建议零售价约为600欧元（约687美元），但这个价格不包括预装的操作系统。不过，你可以很容易地得到并安装这个。该设备配备的是 AMD Ryzen 7 5700U处理器，提供高达4.3 GHz的时钟速度，包括AMD Radeon RX Vega 8 (Ryzen 4000)板载图形。伴随着的是微薄的8GB内存和512GB固态硬盘。
另外，宏碁还提供Aspire 5 A515-45的其他各种配置，例如拥有较弱的CPU（AMD Ryzen 3 5300U或AMD Ryzen 5500U）或更多的工作内存（16GB）和额外的存储配置（256GB和1TB）。
在我们的测试中，宏碁Aspire 5 A515-45在NX.A82EV.00H配置中，还需要与它的200欧元（约229美元）更昂贵的兄弟姐妹竞争，即 Acer Aspire 5 A515-56-511A与英特尔Tiger Lake i5-1135G7 CPU模型与Iris Xe G7 80EUs和两倍的内存。哪个版本能带来更多的钱的力量？测试中的其他竞争对手包括华硕VivoBook S15 D533UA和HP Envy x360 15-eu0097nr具有相同的CPU/iGPU组合。
NX.A82EV.00H (Aspire 5 A515 Series)
Processor
AMD Ryzen 7 5700U 8 x 1.8 - 4.3 GHz, 27 W PL2 / Short Burst, 16 W PL1 / Sustained, Lucienne-U (Zen 2)
Graphics adapter
AMD Radeon RX Vega 8 (Ryzen 4000/5000) - 512 MB VRAM, Memory: 1200 MHz
Memory
8 GB
, DDR4 SDRAM single-channel
Display
15.60 inch 16:9, 1920 x 1080 pixel, CEC PANDA LM156LF-CL13, IPS, glossy: no, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
Micron 2210 MTFDHBA512QFD, 512 GB
, 410 GB free
Weight
1.724 kg, Power Supply: 273 g
Price
629 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
Possible Competitors in Comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
|---|---|---|---|---|---|---|---|
| 81 % | 02/2022 | Acer Aspire 5 A515-45-R4R1 R7 5700U, Vega 8 | 1.7 kg | 18 mm | 15.60" | 1920x1080 | |
| 81.4 % | 12/2020 | Acer Aspire 5 A515-56-511A i5-1135G7, Iris Xe G7 80EUs | 1.9 kg | 18 mm | 15.60" | 1920x1080 | |
| 78.4 % | Acer Aspire 5 A515-43-R6WW R5 3500U, Vega 8 | 1.8 kg | 18 mm | 15.60" | 1920x1080 | ||
| 82.1 % | Asus VivoBook S15 D533UA R7 5700U, Vega 8 | 1.8 kg | 16.1 mm | 15.60" | 1920x1080 | ||
| 84.8 % | 11/2021 | Asus ExpertBook B1 B1500CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs | 1.7 kg | 19.4 mm | 15.60" | 1920x1080 | |
| 86.4 % | 08/2021 | HP Envy x360 15-eu0097nr R7 5700U, Vega 8 | 1.9 kg | 18.4 mm | 15.60" | 1920x1080 | |
| 76.9 % | 09/2021 | HP 14s-fq1357ng R5 5500U, Vega 7 | 1.5 kg | 17.9 mm | 14.00" | 1920x1080 |

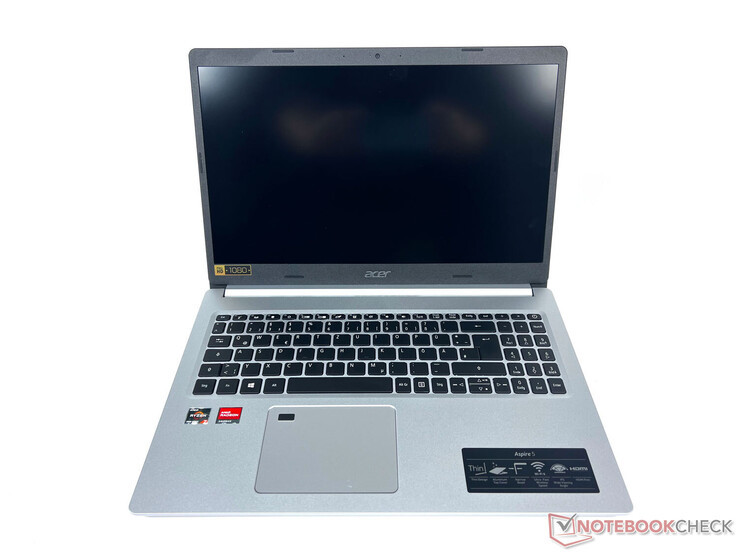

外壳。一个优雅的笔记本电脑，具有坚实的重量
银色的外壳显示出良好的做工，由铝和高质量塑料混合制成。尽管其价格相对较低，但它提供了一个优雅和触觉上令人满意的印象。该设计与 Acer Aspire 5 A515-56-511A采用英特尔CPU。
由于底座有足够的重量和合适的铰链，盖子可以用一只手打开。显示屏只在设备被摇晃后短暂地晃动。
宏碁Aspire 5 A515-45带来了1.7公斤（约3.7磅）的好成绩，这对于一台15.6英寸的笔记本电脑来说是完全可以的。电源又增加了300克（约0.7磅），结果是总共约2公斤（约4.4磅），可以带在路上。
凭借其18毫米（约0.7英寸）的厚度，该测试设备处于我们测试领域的中间位置，宽度测量也是如此。只有在深度方面，我们看到所有其他选定的15.6英寸对比设备都短了1或2厘米（约0.4-0.8英寸）。然而，对于大多数买家来说，这可能不会成为一个决定性因素。
设备。LAN和HDMI，但没有Thunderbolt

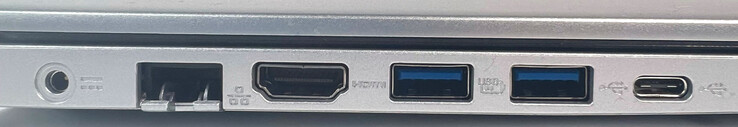

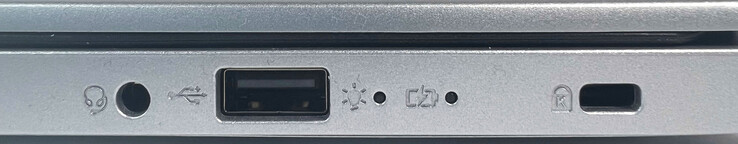

虽然连接的数量并不充足，但对大多数用户来说可能已经足够。外部显示器只能通过HDMI连接，左侧只有一个USB-C连接（USB 3.2 Gen 1 Type C）。我们希望这里能多一点，但至少这个端口仍然可用，因为设备是通过一个单独的电源连接充电的。
连接包由三个USB-A端口组成，尽管其中只有两个支持更快的USB 3.2 Gen 1标准，一个只支持USB 2.0标准。除了无线局域网，千兆网络连接是一个实用的功能。与前辈们一样，宏碁在Aspire 5 A515中继续放弃了任何一种存储卡读卡器。
沟通
虽然宏碁Aspire 5的英特尔型号包括英特尔Wi-Fi 6 AX201模块，但我们配备AMD CPU的测试装置使用几乎相同的英特尔Wi-Fi 6 AX200，没有CRF模块。这也提供了一个非常好的性能，明显高于平均水平。它甚至在下载测试中排名第一，在上传测试中获得了对比领域的第三名。因此，毫无疑问，采用2x2 Wi-Fi 6技术的快速WLAN连接是必然的。
| Networking | |
| iperf3 transmit AX12 | |
| Acer Aspire 5 A515-56-511A | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus VivoBook S15 D533UA | |
| Average Intel Wi-Fi 6 AX200 (447 - 1645, n=127) | |
| HP Envy x360 15-eu0097nr | |
| Average of class Multimedia (285 - 1446, n=12, last 2 years) | |
| Acer Aspire 5 A515-43-R6WW | |
| HP 14s-fq1357ng | |
| iperf3 receive AX12 | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Asus VivoBook S15 D533UA | |
| Average Intel Wi-Fi 6 AX200 (523 - 1684, n=128) | |
| HP Envy x360 15-eu0097nr | |
| Average of class Multimedia (183 - 1684, n=12, last 2 years) | |
| Acer Aspire 5 A515-43-R6WW | |
| HP 14s-fq1357ng | |
Acer Aspire 5 A515-45-R4R1 Intel Wi-Fi 6 AX200; iperf3 receive AX12; iperf 3.1.3: Ø1684 (1604-1725)
Acer Aspire 5 A515-56-511A Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1328 (778-1391)
Asus VivoBook S15 D533UA Intel Wi-Fi 6 AX200; iperf3 receive AX12; iperf 3.1.3: Ø1276 (1239-1312)
Acer Aspire 5 A515-45-R4R1 Intel Wi-Fi 6 AX200; iperf3 transmit AX12; iperf 3.1.3: Ø1256 (677-1303)
Acer Aspire 5 A515-56-511A Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1422 (1330-1712)
Asus VivoBook S15 D533UA Intel Wi-Fi 6 AX200; iperf3 transmit AX12; iperf 3.1.3: Ø1139 (844-1286)
网络摄像头
与其他许多笔记本电脑一样，宏碁Aspire 5 A515-45也只使用了一个分辨率为0.9MP/720p的网络摄像头，它被放置在顶部显示屏边缘的中心。图像质量很一般，Delta-E为16，颜色再现得很差，而且太亮。
15.1 ∆E
19.7 ∆E
19 ∆E
15.9 ∆E
17 ∆E
17.2 ∆E
15.9 ∆E
23.2 ∆E
17.9 ∆E
16.7 ∆E
14.9 ∆E
10.1 ∆E
19.7 ∆E
16.9 ∆E
21 ∆E
10.2 ∆E
19.4 ∆E
22.1 ∆E
2.7 ∆E
12.5 ∆E
19 ∆E
18.6 ∆E
17.1 ∆E
9.9 ∆E
14.7 ∆E
16.5 ∆E
18.5 ∆E
14.3 ∆E
17.6 ∆E
17.9 ∆E
11.3 ∆E
23.4 ∆E
16.1 ∆E
12.4 ∆E
10.4 ∆E
7.5 ∆E
16.7 ∆E
12.7 ∆E
21.2 ∆E
6.5 ∆E
17.7 ∆E
19.1 ∆E
3.3 ∆E
11.5 ∆E
17.8 ∆E
13.4 ∆E
10.8 ∆E
4.6 ∆E
安全问题
除了Kensington锁连接和触摸板上的指纹传感器，没有其他安全设备。
辅料
除了45瓦的电源外，宏碁还包括一个硬盘升级套件。使用这个插入框及其连接线，你可以插入一个2.5英寸的硬盘或固态硬盘来扩大可用的存储空间。该制造商还在其网站上销售各种其他配件。
维护

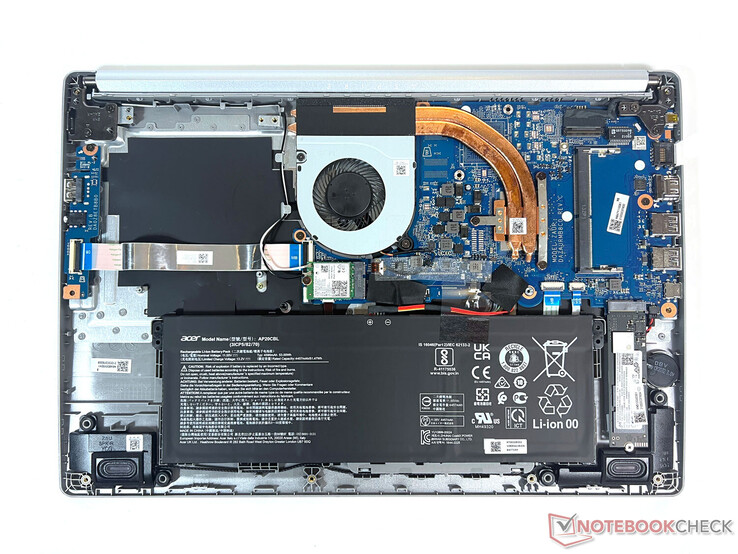

卸下11颗小飞利浦螺钉和机箱底部后，你就可以进入机箱内部，在这里你不仅可以轻松地清洁风扇，还可以使用我们已经提到的插入框架插入内存模块（最大16GB）或额外的存储介质。
担保
宏碁为德国的买家提供Aspire系列笔记本电脑通常的24个月保修。另外，你还可以选择购买三年的邮寄保修。
输入设备。一台带有数字键盘和指纹传感器的笔记本电脑

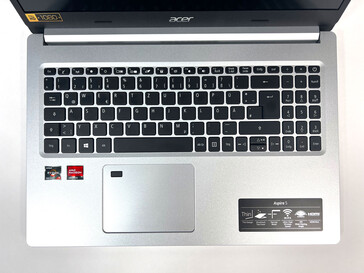

宏碁Aspire 5 A515-45-R4R1配备的键盘包括一个数字键盘和一个触摸板，触摸板的位置在侧面，几乎就在空格键的下面。
键盘
除了左右两边2厘米（约0.8英寸）的边缘外，键盘占据了设备的整个宽度。键盘尺寸为17 x 15毫米（约0.7 x 0.6英寸），有足够的尺寸，可以迅速建立一个相当舒适和快速的打字体验。噪音的发展是适度的。
在常规键盘的右边，宏碁还挤进了一个数字键盘。在13毫米（约0.5英寸）的宽度上，数字键盘的按键明显变小。

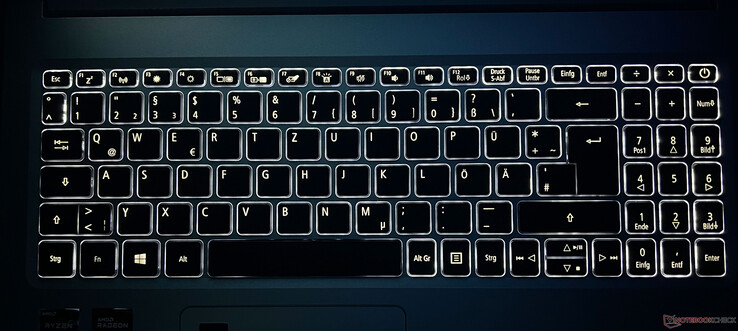

背景照明均匀地分布在整个键盘上，可以通过F8功能键打开或关闭。没有调光。此外，F1至F12键上还有更多常见的特殊功能，如调整亮度和关闭显示器的功能。
触摸板

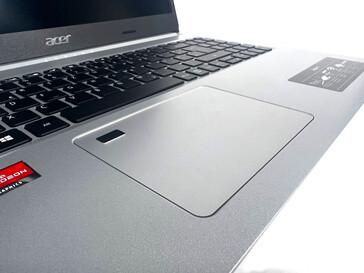

触摸板的尺寸约为10.5 x 8厘米（约4.1 x 3.1英寸）。再加上其舒适的触觉，这一尺寸足以确保流畅的操作。触摸板的底部是两个 "鼠标键"，触觉上没有分开，产生的点击声不是特别大。
在左上角是指纹识别器。虽然用手指穿越它时很明显，但鼠标光标的移动不会被打断。然而，这个位置对于用拇指解锁笔记本电脑来说仍然不理想。
显示。不幸的是，不是特别明亮

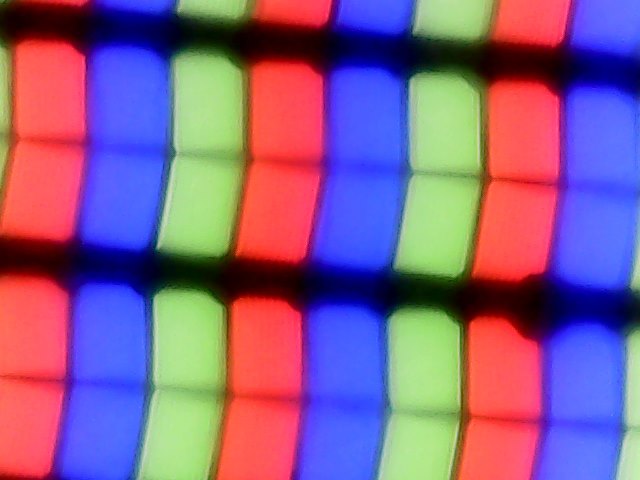

宏碁Aspire 5 A515-45-R4R1的15.6英寸显示屏的分辨率为1920 x 1080像素（全高清）。这是一块IPS面板，一如既往地提供稳定的视角，因此即使从非常陡峭的视角也能阅读。虽然在测试宏碁Aspire 5 A515-45-R4R1时的纯主观印象还可以，但测量结果显示有几个薄弱的地方。
其中，亮度不是特别亮，约为230cd/m²。亮度分布也不是很均匀，我们在测试装置的左上角和右下角之间测量到了大约70cd/m²的差异。我们的测试设备的图像亮度在某些地方明显落后于其他对比笔记本电脑。此外，还有一些轻微的混浊和IPS发光，但这只有在显示非常暗的图像和仔细观察时才会明显。
内置面板在再现黑值方面做得明显更好。在这个领域--和对比度一样--该设备超过了竞争对手。
| |||||||||||||||||||||||||
CEC PANDA LM156LF-CL13 tested with X-Rite i1Pro 2
Maximum: 254 cd/m² (Nits) Average: 224 cd/m² Minimum: 17.8 cd/m²Brightness Distribution: 73 %
Center on Battery: 230 cd/m²
Contrast: 1908:1 (Black: 0.12 cd/m²)
ΔE Color 3.76 | 0.5-29.43 Ø5.1, calibrated: 4.44

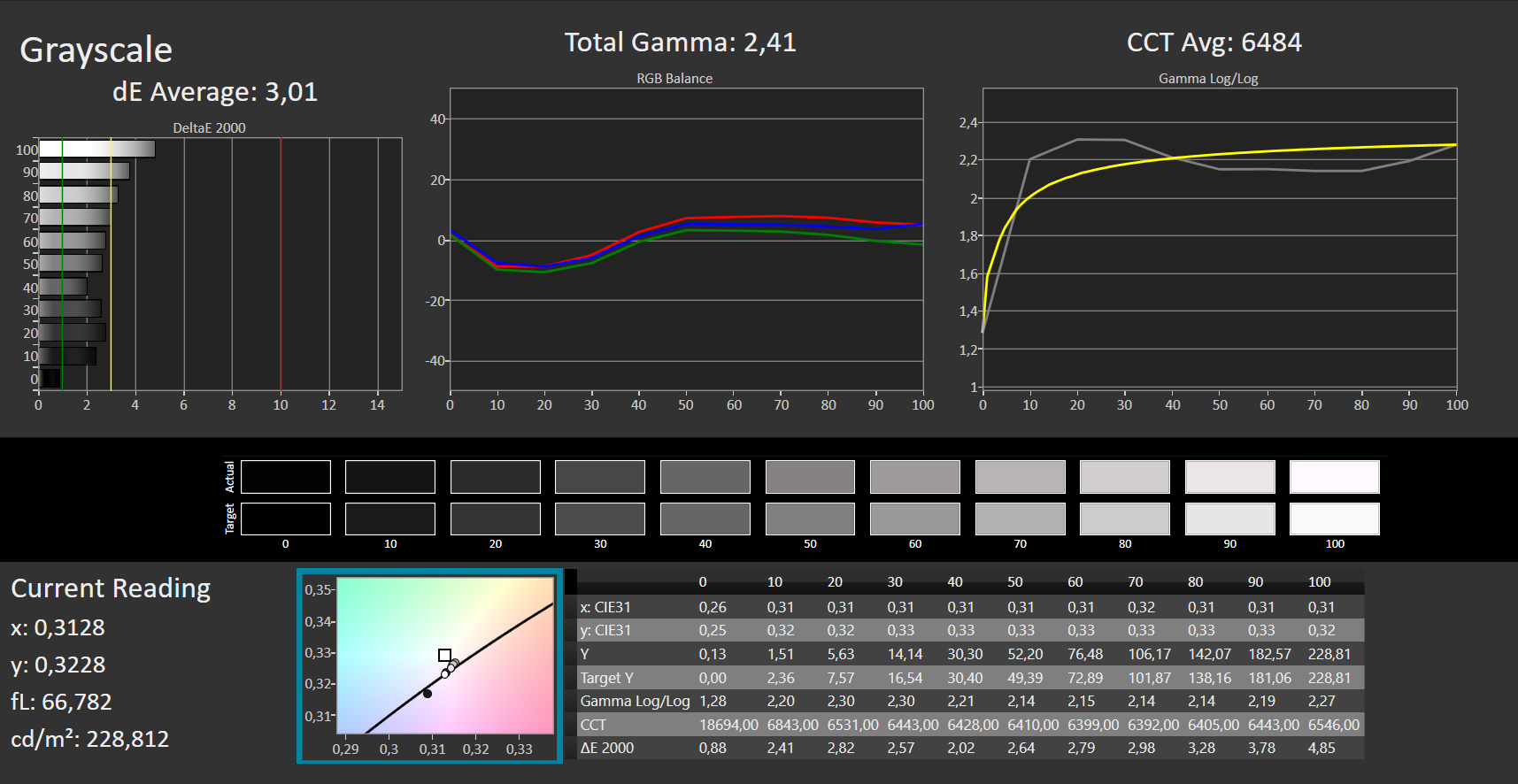

ΔE Greyscale 3.01 | 0.57-98 Ø5.3

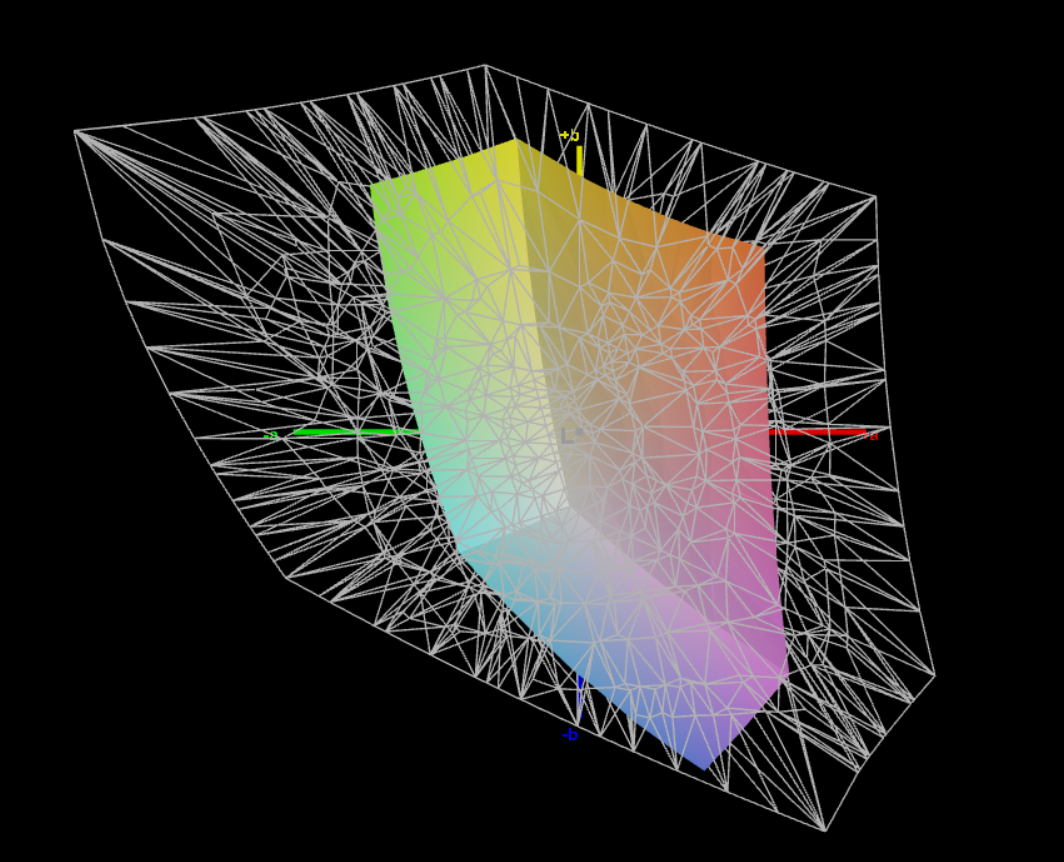

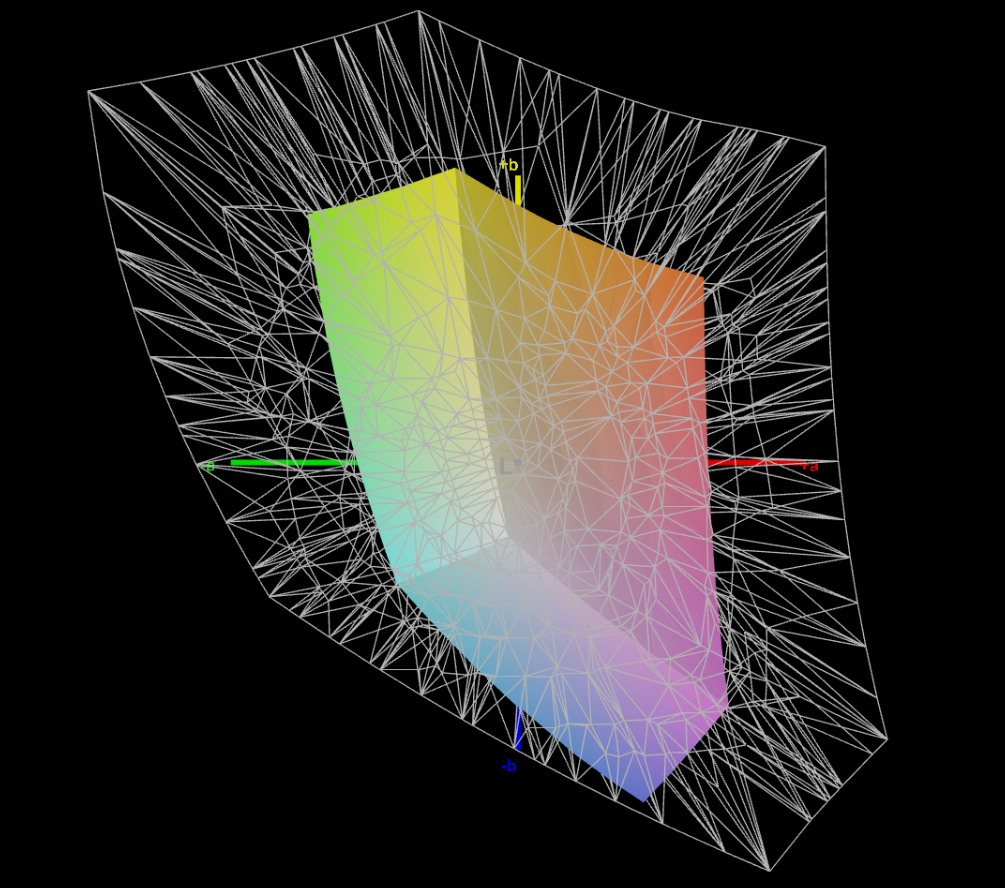

39.35% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.3% sRGB (Argyll 2.2.0 3D)
38.09% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.41
| Acer Aspire 5 A515-45-R4R1 CEC PANDA LM156LF-CL13, IPS, 1920x1080, 15.60 | Acer Aspire 5 A515-56-511A LG Philips LGD065A, IPS, 1920x1080, 15.60 | Acer Aspire 5 A515-43-R6WW CEC PANDA LM156LF-CL07, IPS, 1920x1080, 15.60 | Asus VivoBook S15 D533UA Chi Mei N156HCA-EAB, IPS, 1920x1080, 15.60 | Asus ExpertBook B1 B1500CEAE, i5-1135G7 CEC Panda LM156LF-5L06, IPS, 1920x1080, 15.60 | HP Envy x360 15-eu0097nr AUOA08B, IPS, 1920x1080, 15.60 | HP 14s-fq1357ng AUO403D, IPS, 1920x1080, 14.00 | |
|---|---|---|---|---|---|---|---|
| Display | 1% | 4% | 14% | 9% | 77% | -0% | |
| Display P3 Coverage | 38.09 | 38.32 1% | 39.53 4% | 43.6 14% | 41.6 9% | 69 81% | 38.11 0% |
| sRGB Coverage | 57.3 | 57.5 0% | 59.5 4% | 65.2 14% | 62.3 9% | 99.1 73% | 57 -1% |
| AdobeRGB 1998 Coverage | 39.35 | 39.6 1% | 40.84 4% | 45 14% | 43 9% | 70.1 78% | 39.37 0% |
| Response Times | -1% | 6% | 42% | -19% | -55% | -4% | |
| Response Time Grey 50% / Grey 80% * | 38 ? | 37 ? 3% | 36 ? 5% | 18 ? 53% | 44.8 ? -18% | 60.4 ? -59% | 41 ? -8% |
| Response Time Black / White * | 27 ? | 28 ? -4% | 25 ? 7% | 19 ? 30% | 32 ? -19% | 40.8 ? -51% | 27 ? -0% |
| PWM Frequency | 178 ? | ||||||
| Screen | -21% | -46% | -51% | -26% | 19% | -17% | |
| Brightness middle | 229 | 285 24% | 250 9% | 289 26% | 304 33% | 337.2 47% | 220 -4% |
| Brightness | 224 | 255 14% | 228 2% | 267 19% | 285 27% | 337 50% | 223 0% |
| Brightness Distribution | 73 | 84 15% | 83 14% | 85 16% | 89 22% | 87 19% | 85 16% |
| Black Level * | 0.12 | 0.325 -171% | 0.205 -71% | 0.56 -367% | 0.19 -58% | 0.24 -100% | 0.225 -88% |
| Contrast | 1908 | 877 -54% | 1220 -36% | 516 -73% | 1600 -16% | 1405 -26% | 978 -49% |
| Colorchecker dE 2000 * | 3.76 | 4.23 -13% | 5.65 -50% | 3.96 -5% | 5.2 -38% | 1.73 54% | 4.16 -11% |
| Colorchecker dE 2000 max. * | 5.97 | 7.94 -33% | 13.7 -129% | 6.76 -13% | 18.5 -210% | 3.69 38% | 7.43 -24% |
| Colorchecker dE 2000 calibrated * | 4.44 | 3.75 16% | 4.5 -1% | 1.61 64% | |||
| Greyscale dE 2000 * | 3.01 | 2.51 17% | 6.32 -110% | 3.43 -14% | 2.9 4% | 2.3 24% | 2.35 22% |
| Gamma | 2.41 91% | 2.57 86% | 2.45 90% | 2.28 96% | 2.14 103% | 2.19 100% | 2.62 84% |
| CCT | 6484 100% | 6626 98% | 7287 89% | 7191 90% | 6639 98% | 6872 95% | 6389 102% |
| Color Space (Percent of AdobeRGB 1998) | 36 | 38 | 42 | 64.1 | |||
| Color Space (Percent of sRGB) | 57 | 59 | 65 | 99.6 | |||
| Total Average (Program / Settings) | -7% /
-13% | -12% /
-27% | 2% /
-22% | -12% /
-18% | 14% /
21% | -7% /
-11% |
* ... smaller is better

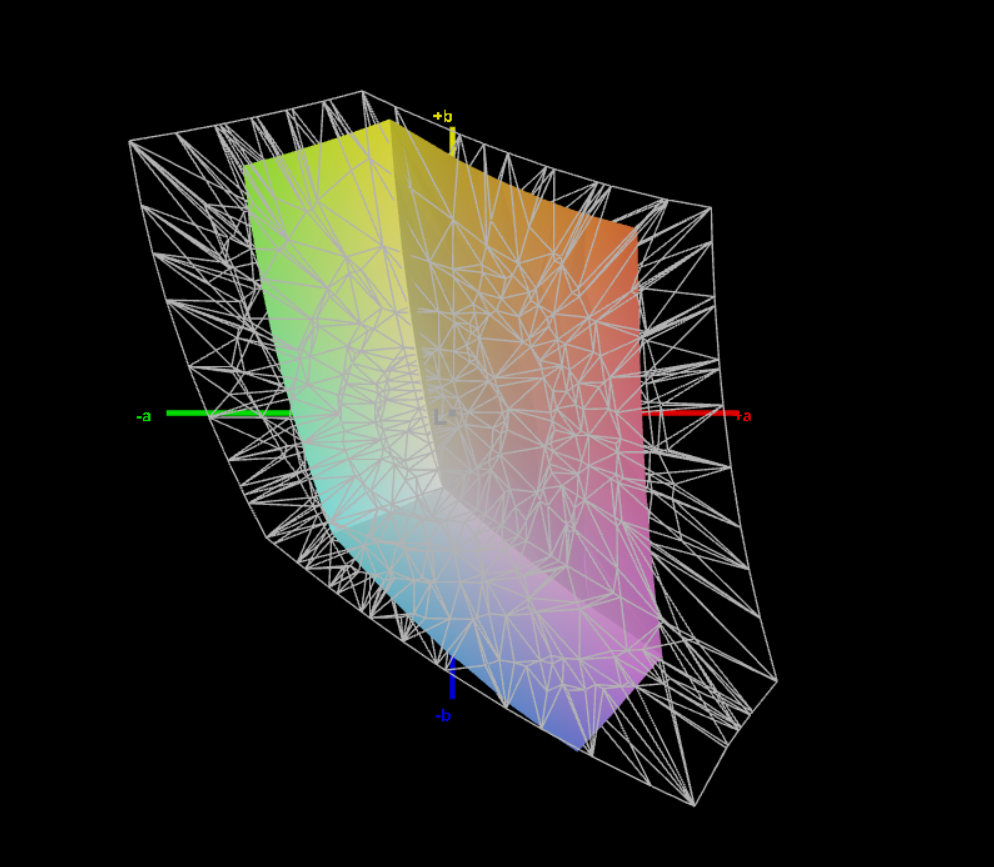

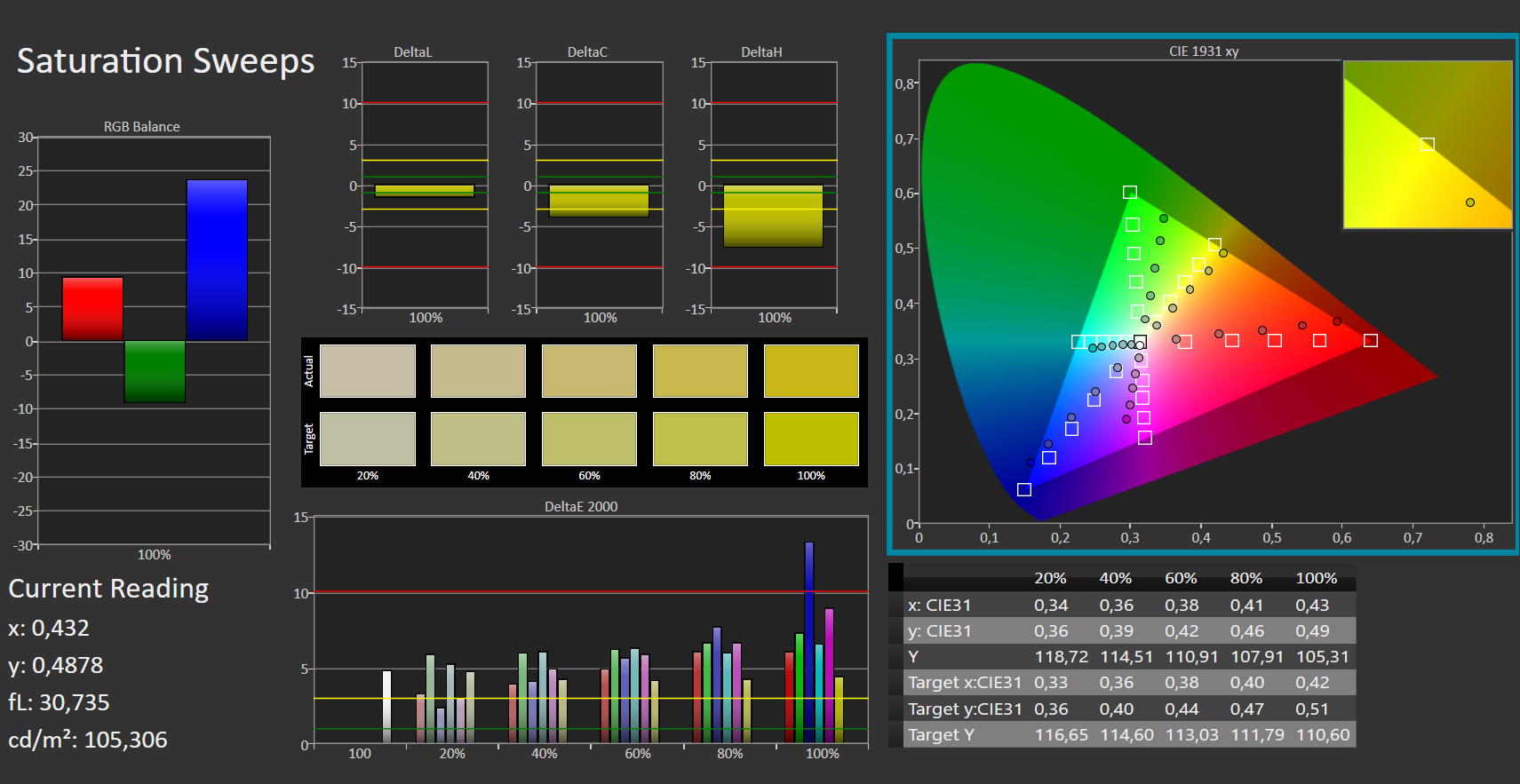

宏碁Aspire 5 A515-45-R4R1显示屏的色彩空间覆盖率仅达到低值，与竞争对手相比低于平均水平。有了这个，该设备不适合专业图形处理，但硬件的低性能无论如何也不允许这样做。

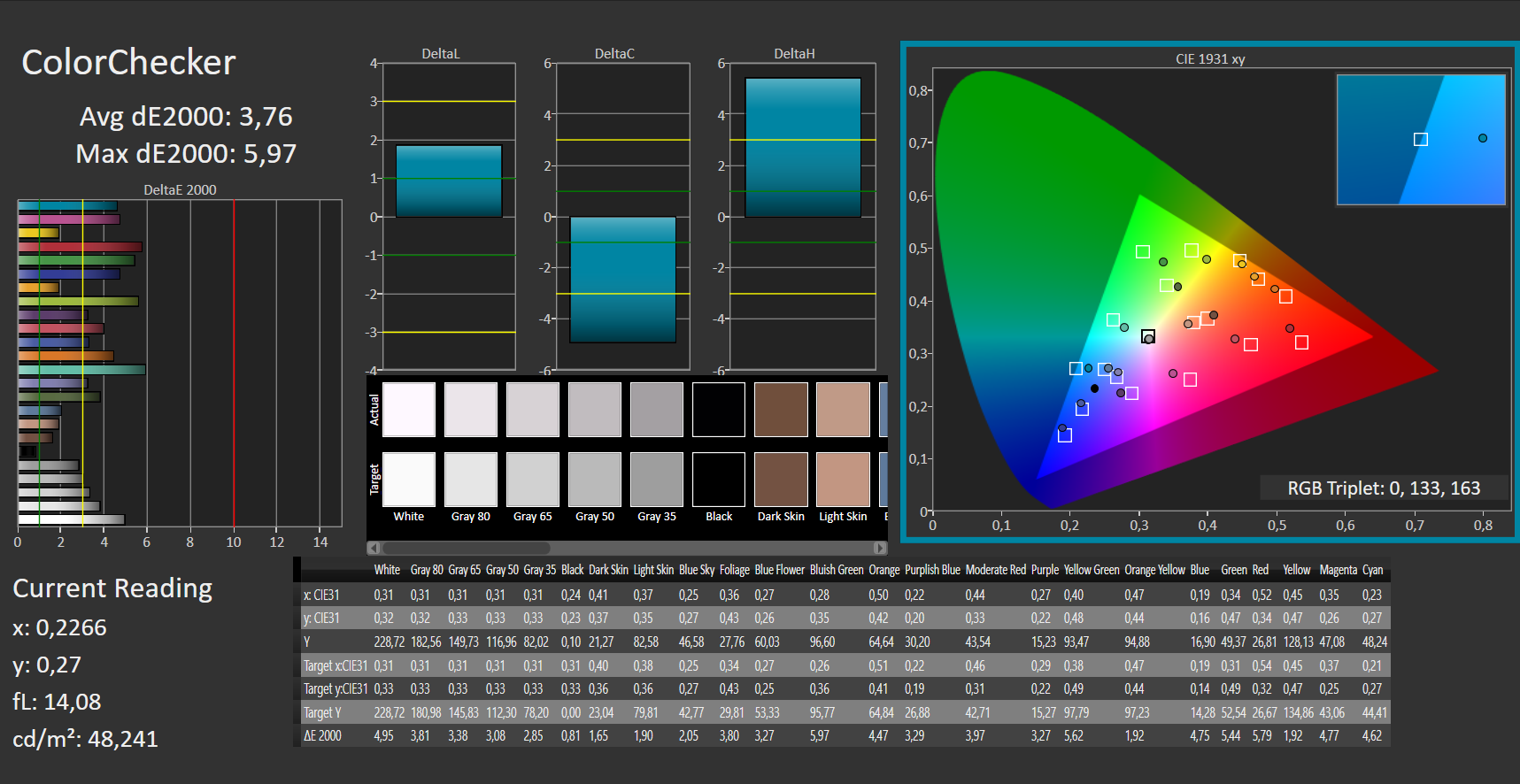

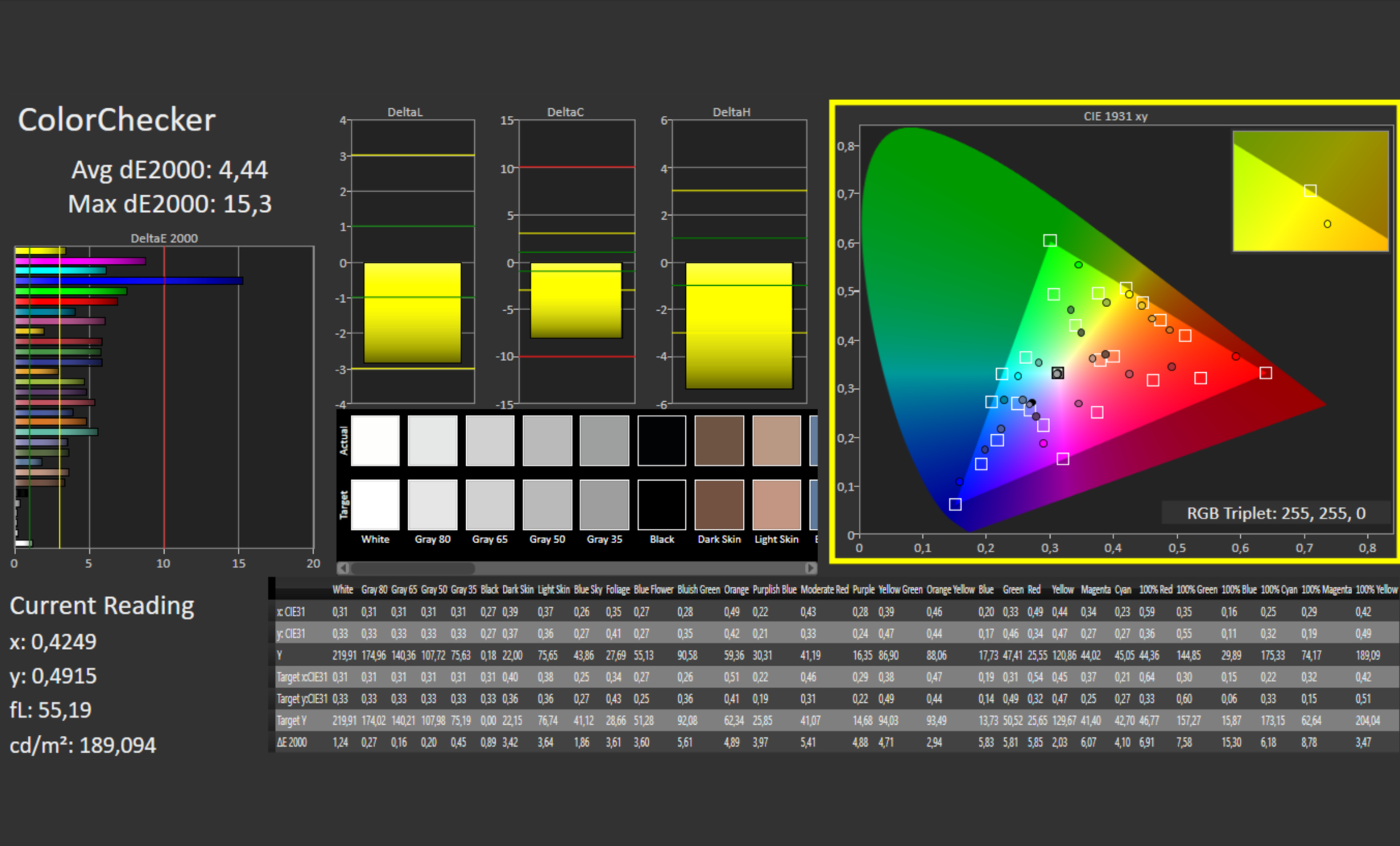

另一方面，颜色精度相对较好，如Delta E小于4所示。在这一领域，该设备比许多对比设备要好，特别是因为可以通过校准进一步优化再现。

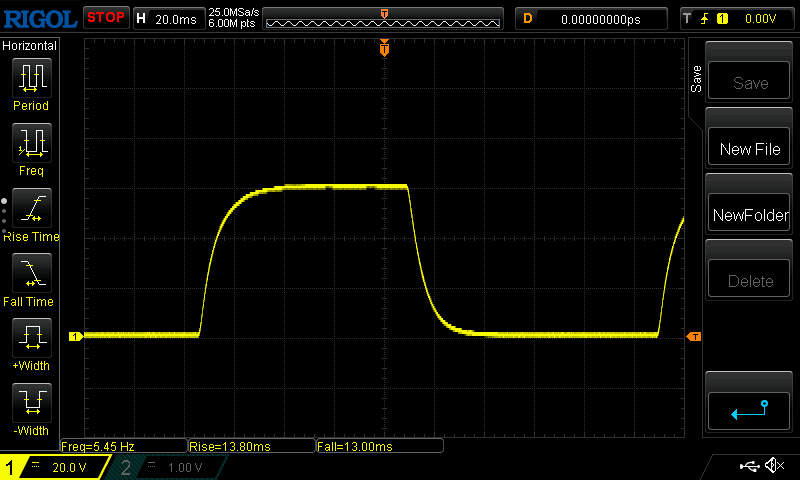

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 27 ms ... rise ↗ and fall ↘ combined | ↗ 14 ms rise |  |
| ↘ 13 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 62 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.8 ms). | ||

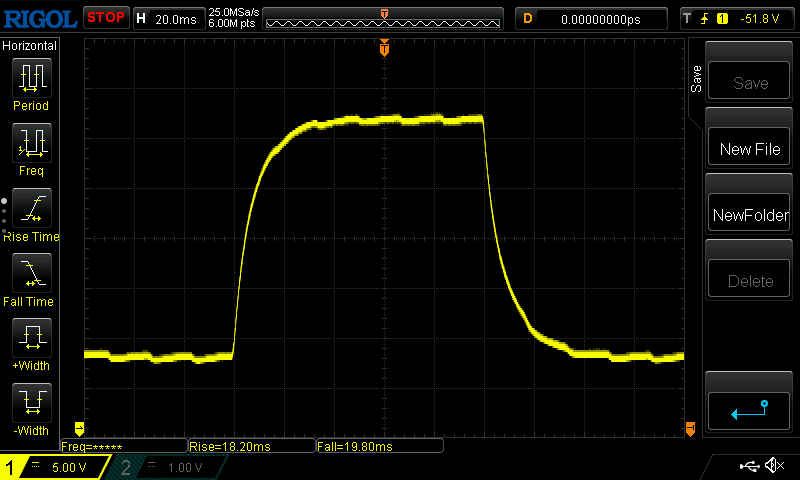

| ↔ Response Time 50% Grey to 80% Grey | ||
| 38 ms ... rise ↗ and fall ↘ combined | ↗ 18 ms rise |  |
| ↘ 20 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 48 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (34.3 ms). | ||

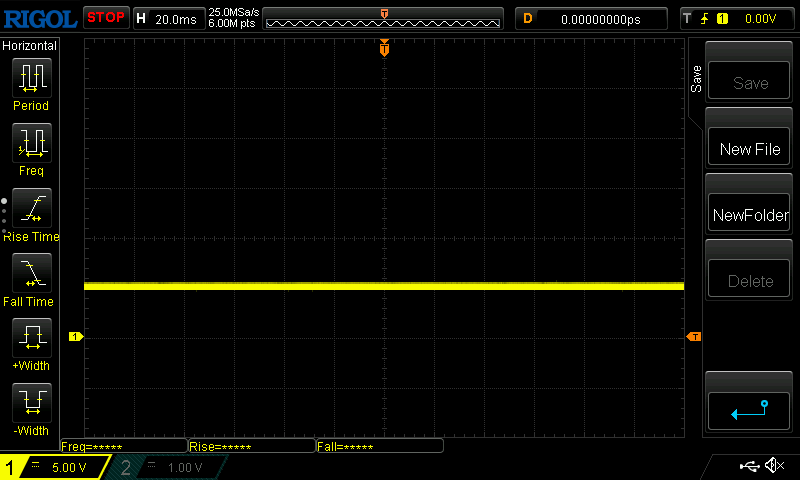

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18704 (minimum: 5 - maximum: 3846000) Hz was measured. | |||

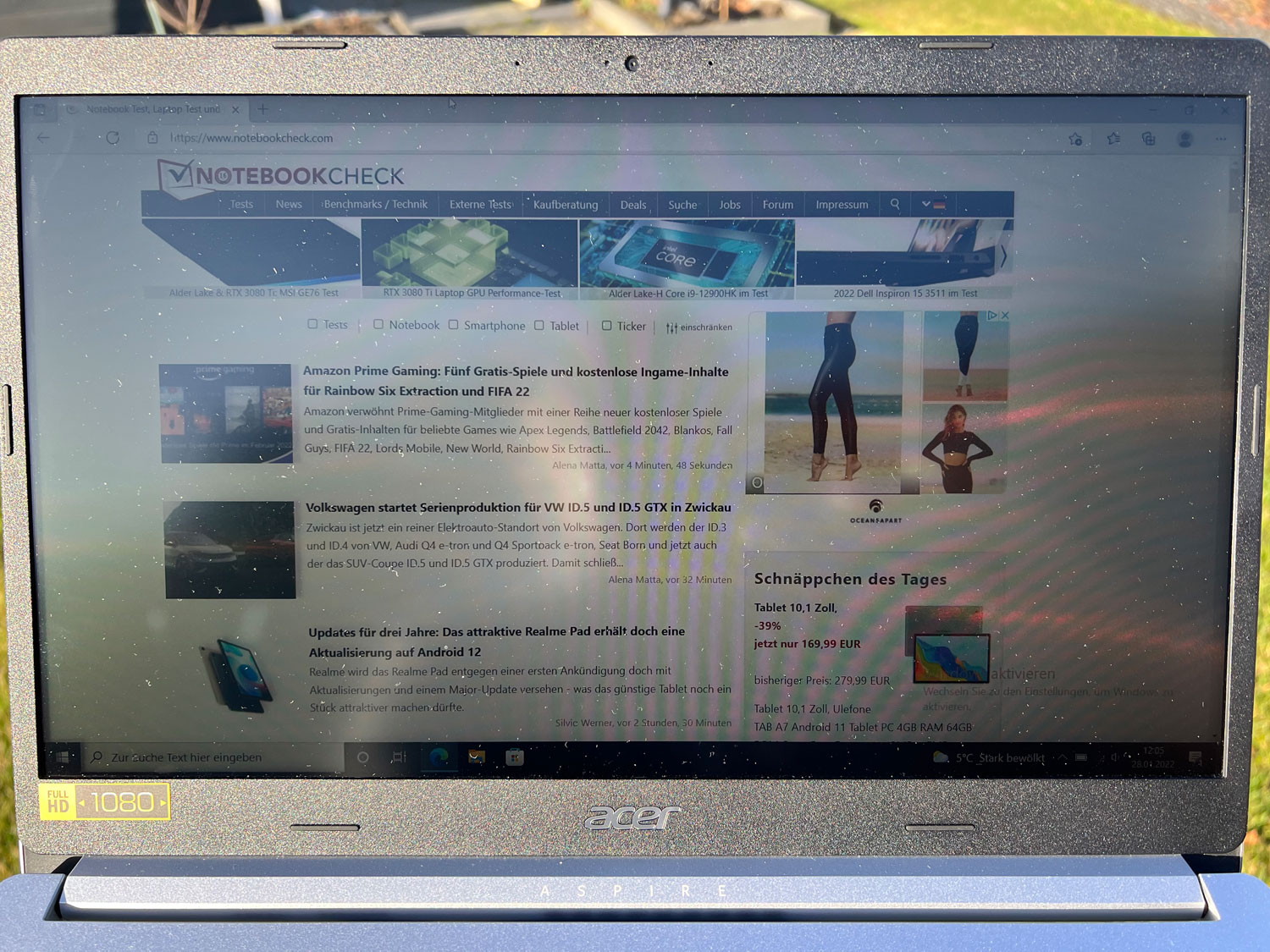

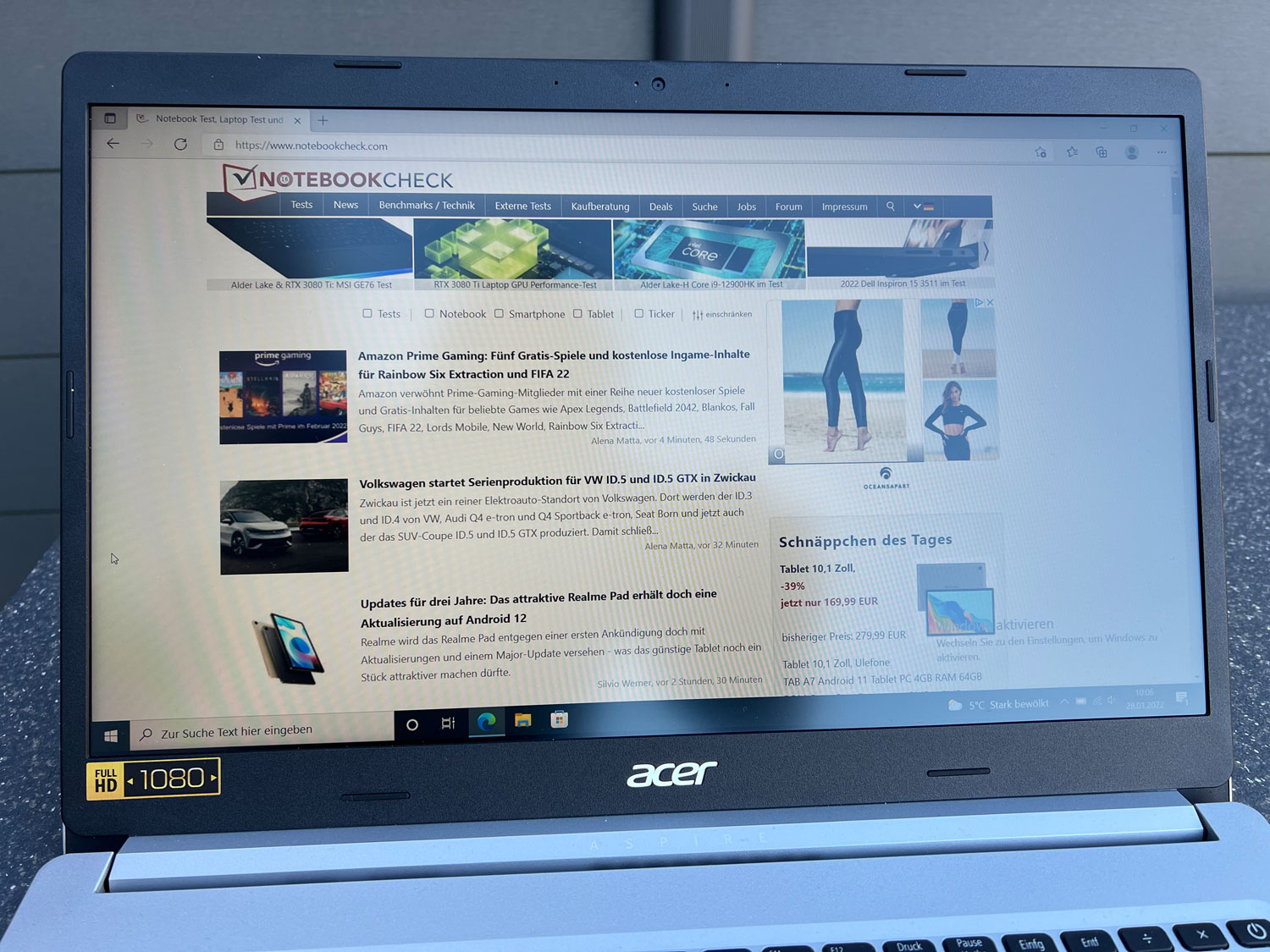

尽管显示屏产生的亮度有限，只有230cd/m²，但在室外使用时，它的表现相当不错。在阴凉处，显示的内容可以很容易被识别。即使在阳光直射下，由于哑光显示和高对比度，这款产品的效果仍然相当好。
性能。坚实的CPU和令人失望的iGPU性能

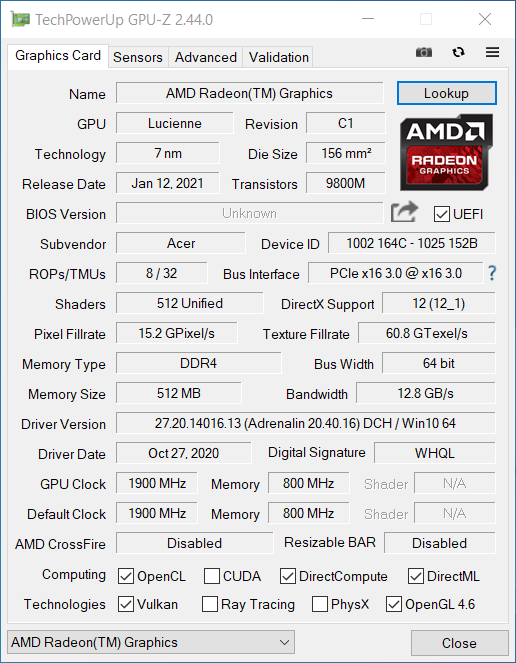

我们在这里测试的配置使用AMD Ryzen 7 5700U处理器，与 AMD Radeon RX Vega 8 (Ryzen 4000) iGPU。它们配有 8 GB 的焊接 RAM。作为选择，工作内存可以增加到最大24GB。内置的512-GB固态硬盘也可以被另一个驱动器取代或扩展。
我们的Aspire 5 A515-45评论的以下部分显示了该配置及其独立组件在负载和日常操作中的表现。
测试条件
宏碁在主电源和电池操作中保持处理器的短链，有27瓦的PL2（短脉冲）和16瓦的PL1（持续）。这明显低于华硕，例如，提供给CPU在Vivobook S15 D533UA(35 W PL2/短脉冲，28 W PL1/持续)。
Acer Care软件不包括不同的性能模式。我们的测试主要是使用Windows的 "最佳性能 "模式和AMD Radeon软件的 "标准 "来运行。
处理器

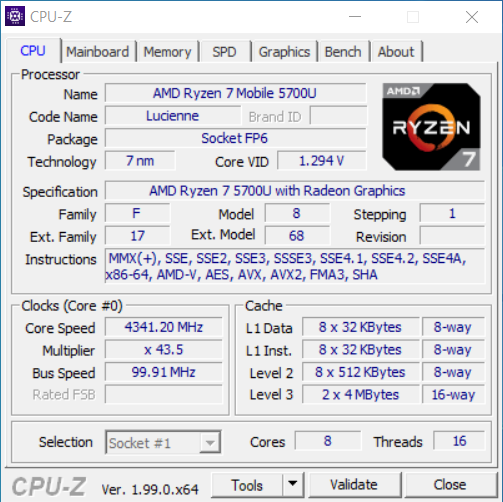

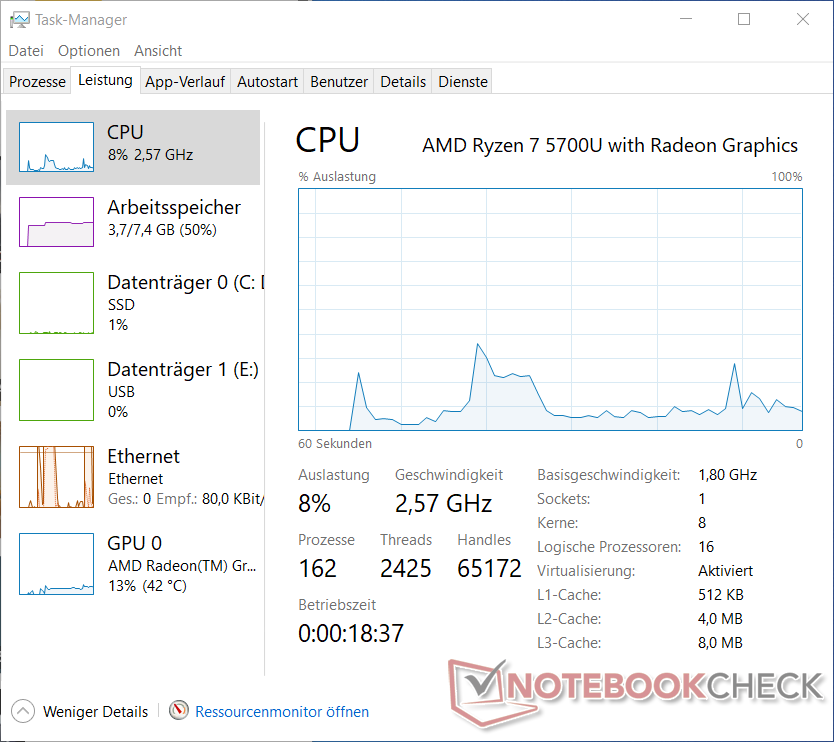

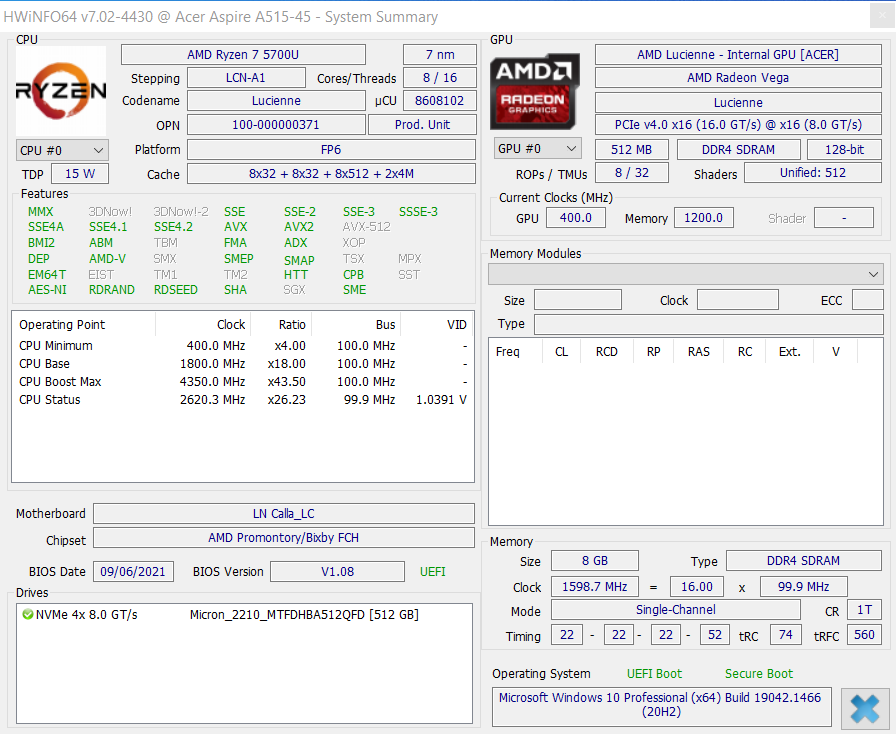

内置的AMD Ryzen 7 5700U CPU还没有使用新的Zen 3架构，而是带来了八个Zen 2内核（八核CPU）。该处理器采用7纳米工艺制造，运行的基本时钟速度为1.8GHz。它支持高达4.3 GHz（涡轮）的时钟速度和SMT/超线程（16个线程）。
在我们这里的配置中，笔记本电脑并没有充分利用CPU的能力，它确实相当强大。大多数时候，它仍然是轻微的，但有时也明显落后于我们以前测试的所有配备该处理器的设备的平均值。
在大多数基准测试中，AMD版本的性能仍然足以击败 Acer Aspire 5 A515-56-511A配备英特尔酷睿i5-1135G7，特别是在多核基准测试中。在单核测量中，配备Ryzen的设备仍然是最小的落后。在电池运行中，CPU的性能只略微降低了10%。
Cinebench R15 Multi Constant Load Test
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U: Ø1338 (1241.5-1374.76)
Acer Aspire 5 A515-56-511A Intel Core i5-1135G7: Ø636 (630.73-668.34)
Acer Aspire 5 A515-43-R6WW AMD Ryzen 5 3500U: Ø508 (460.33-641.41)
Acer Aspire 5 A515-43-R6WW AMD Ryzen 5 3500U: Ø505 (498.72-514.09)
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U: Ø1437 (1387.54-1534.27)
Asus ExpertBook B1 B1500CEAE, i5-1135G7 Intel Core i5-1135G7: Ø687 (670.58-787.77)
HP Envy x360 15-eu0097nr AMD Ryzen 7 5700U: Ø1445 (1359.3-1484.95)
HP 14s-fq1357ng AMD Ryzen 5 5500U: Ø996 (940.2-1110.59)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Multimedia | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-56-511A -2! | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-43-R6WW -12! | |
| Cinebench R23 / Multi Core | |
| Average of class Multimedia (3127 - 30789, n=96, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (7438 - 10139, n=16) | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Cinebench R23 / Single Core | |
| Average of class Multimedia (819 - 2110, n=93, last 2 years) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus VivoBook S15 D533UA | |
| HP Envy x360 15-eu0097nr | |
| Average AMD Ryzen 7 5700U (1177 - 1267, n=16) | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Multimedia (1192 - 11768, n=93, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| HP Envy x360 15-eu0097nr | |
| Average AMD Ryzen 7 5700U (2309 - 3877, n=17) | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Multimedia (316 - 812, n=93, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (478 - 494, n=17) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| HP Envy x360 15-eu0097nr | |
| HP 14s-fq1357ng | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Multimedia (570 - 4703, n=101, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| HP Envy x360 15-eu0097nr | |
| Average AMD Ryzen 7 5700U (1196 - 1691, n=16) | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Acer Aspire 5 A515-43-R6WW | |
| Acer Aspire 5 A515-43-R6WW | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Multimedia (119 - 308, n=95, last 2 years) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (184 - 190, n=15) | |
| HP Envy x360 15-eu0097nr | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-43-R6WW | |
| Blender / v2.79 BMW27 CPU | |
| Acer Aspire 5 A515-56-511A | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-45-R4R1 | |
| Average AMD Ryzen 7 5700U (292 - 402, n=16) | |
| Asus VivoBook S15 D533UA | |
| HP Envy x360 15-eu0097nr | |
| Average of class Multimedia (107 - 956, n=90, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Multimedia (11813 - 119900, n=88, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (32529 - 47501, n=16) | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average of class Multimedia (2898 - 7163, n=88, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (4476 - 4620, n=16) | |
| HP 14s-fq1357ng | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Multimedia (3307 - 23059, n=96, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (4254 - 7635, n=15) | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-45-R4R1 | |
| Acer Aspire 5 A515-56-511A | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Geekbench 5.5 / Single-Core | |
| Average of class Multimedia (843 - 2342, n=96, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Acer Aspire 5 A515-45-R4R1 | |
| Average AMD Ryzen 7 5700U (1105 - 1205, n=15) | |
| HP 14s-fq1357ng | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Multimedia (4.12 - 30.5, n=85, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (6.97 - 12.1, n=16) | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| LibreOffice / 20 Documents To PDF | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-45-R4R1 | |
| Average AMD Ryzen 7 5700U (52.4 - 66.2, n=16) | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Average of class Multimedia (6.7 - 89.1, n=88, last 2 years) | |
| R Benchmark 2.5 / Overall mean | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-45-R4R1 | |
| Average AMD Ryzen 7 5700U (0.567 - 0.641, n=16) | |
| Asus VivoBook S15 D533UA | |
| HP Envy x360 15-eu0097nr | |
| Average of class Multimedia (0.3826 - 0.994, n=87, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Multimedia | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-56-511A -9! | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Multimedia (2677 - 27340, n=85, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (5798 - 12346, n=16) | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-45-R4R1 | |
| AIDA64 / FPU Julia | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average of class Multimedia (12762 - 136048, n=85, last 2 years) | |
| Average AMD Ryzen 7 5700U (49225 - 69580, n=16) | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / CPU SHA3 | |
| Average of class Multimedia (841 - 6681, n=85, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (1103 - 2231, n=16) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-45-R4R1 | |
| AIDA64 / CPU Queen | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (57016 - 99178, n=16) | |
| Average of class Multimedia (31314 - 134321, n=85, last 2 years) | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / FPU SinJulia | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (6837 - 14169, n=16) | |
| HP 14s-fq1357ng | |
| Average of class Multimedia (3099 - 15484, n=85, last 2 years) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / FPU Mandel | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average of class Multimedia (7417 - 68591, n=85, last 2 years) | |
| Average AMD Ryzen 7 5700U (25889 - 36523, n=16) | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / CPU AES | |
| Average of class Multimedia (23702 - 151546, n=85, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (34176 - 64646, n=16) | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-45-R4R1 | |
| AIDA64 / CPU ZLib | |
| Average of class Multimedia (228 - 1901, n=85, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (540 - 776, n=16) | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| AIDA64 / FP64 Ray-Trace | |
| HP Envy x360 15-eu0097nr | |
| Average of class Multimedia (1501 - 14155, n=85, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (3247 - 6784, n=16) | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-45-R4R1 | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Multimedia (7419 - 52727, n=85, last 2 years) | |
| HP 14s-fq1357ng | |
| HP Envy x360 15-eu0097nr | |
| Average AMD Ryzen 7 5700U (6903 - 24627, n=16) | |
| Asus VivoBook S15 D533UA | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
系统性能
最后，CPU性能没有得到充分利用的事实，低量的RAM设备，以及相对较慢的SSD，导致系统基准测试中的结果处于比较领域的下半部分。我们的测试装置仍然低于CPU/存储的平均水平，有时较大，有时较小。然而，它仍然足以与英特尔版本的Aspire 5直接竞争。
另一方面，在日常操作中，在低要求的情况下，相当平庸的基准测试结果通常很难被注意到。但是如果你通过同时运行或启动两个或更多的程序来提出更高的要求，操作可能会开始出现一些明显的停顿。这意味着该设备更适合于冲浪和流媒体，但不太适合于要求更高的和广泛的工作任务。
| PCMark 10 / Score | |
| Average of class Multimedia (4039 - 8083, n=80, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4775 - 5518, n=11) | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-56-511A | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-43-R6WW | |
| PCMark 10 / Essentials | |
| Average of class Multimedia (8448 - 12144, n=80, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| Acer Aspire 5 A515-56-511A | |
| Asus VivoBook S15 D533UA | |
| HP 14s-fq1357ng | |
| Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8347 - 10091, n=11) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-45-R4R1 | |
| Acer Aspire 5 A515-43-R6WW | |
| PCMark 10 / Productivity | |
| Average of class Multimedia (5462 - 11186, n=80, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| HP Envy x360 15-eu0097nr | |
| Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7001 - 8112, n=11) | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-56-511A | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-43-R6WW | |
| PCMark 10 / Digital Content Creation | |
| Average of class Multimedia (3861 - 11777, n=80, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4583 - 5964, n=11) | |
| HP 14s-fq1357ng | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Acer Aspire 5 A515-43-R6WW | |
| PCMark 8 Home Score Accelerated v2 | 4159 points | |
| PCMark 8 Creative Score Accelerated v2 | 5443 points | |
| PCMark 8 Work Score Accelerated v2 | 5304 points | |
| PCMark 10 Score | 4861 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Multimedia (20513 - 92447, n=85, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| HP 14s-fq1357ng | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (15867 - 39326, n=16) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / Memory Read | |
| Average of class Multimedia (22917 - 79656, n=85, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| HP 14s-fq1357ng | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (17632 - 47190, n=16) | |
| Acer Aspire 5 A515-45-R4R1 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / Memory Write | |
| Average of class Multimedia (20226 - 95196, n=85, last 2 years) | |
| HP Envy x360 15-eu0097nr | |
| HP 14s-fq1357ng | |
| Asus VivoBook S15 D533UA | |
| Average AMD Ryzen 7 5700U (11554 - 45188, n=16) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-45-R4R1 | |
| AIDA64 / Memory Latency | |
| HP 14s-fq1357ng | |
| Average AMD Ryzen 7 5700U (84.9 - 113, n=16) | |
| Asus VivoBook S15 D533UA | |
| HP Envy x360 15-eu0097nr | |
| Average of class Multimedia (75 - 133.9, n=84, last 2 years) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-45-R4R1 | |
| Acer Aspire 5 A515-56-511A | |
* ... smaller is better

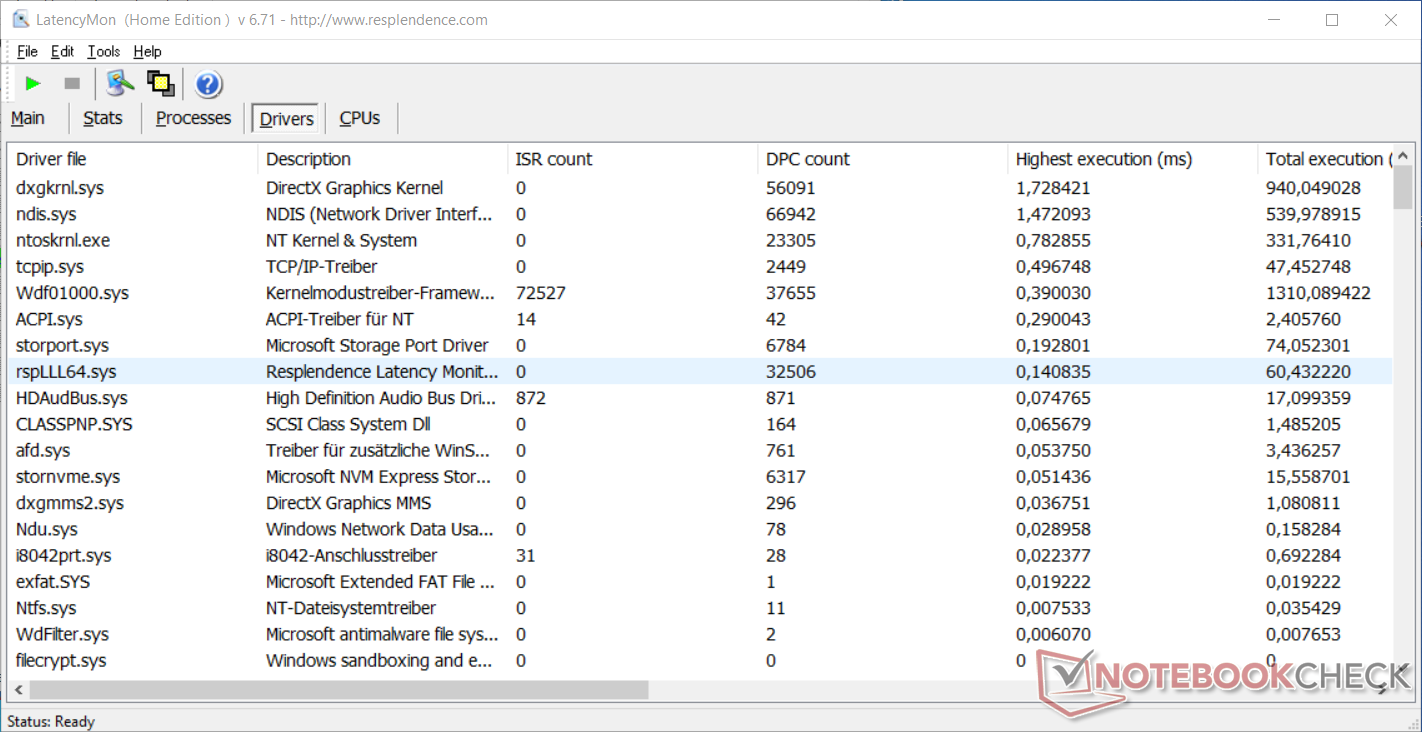

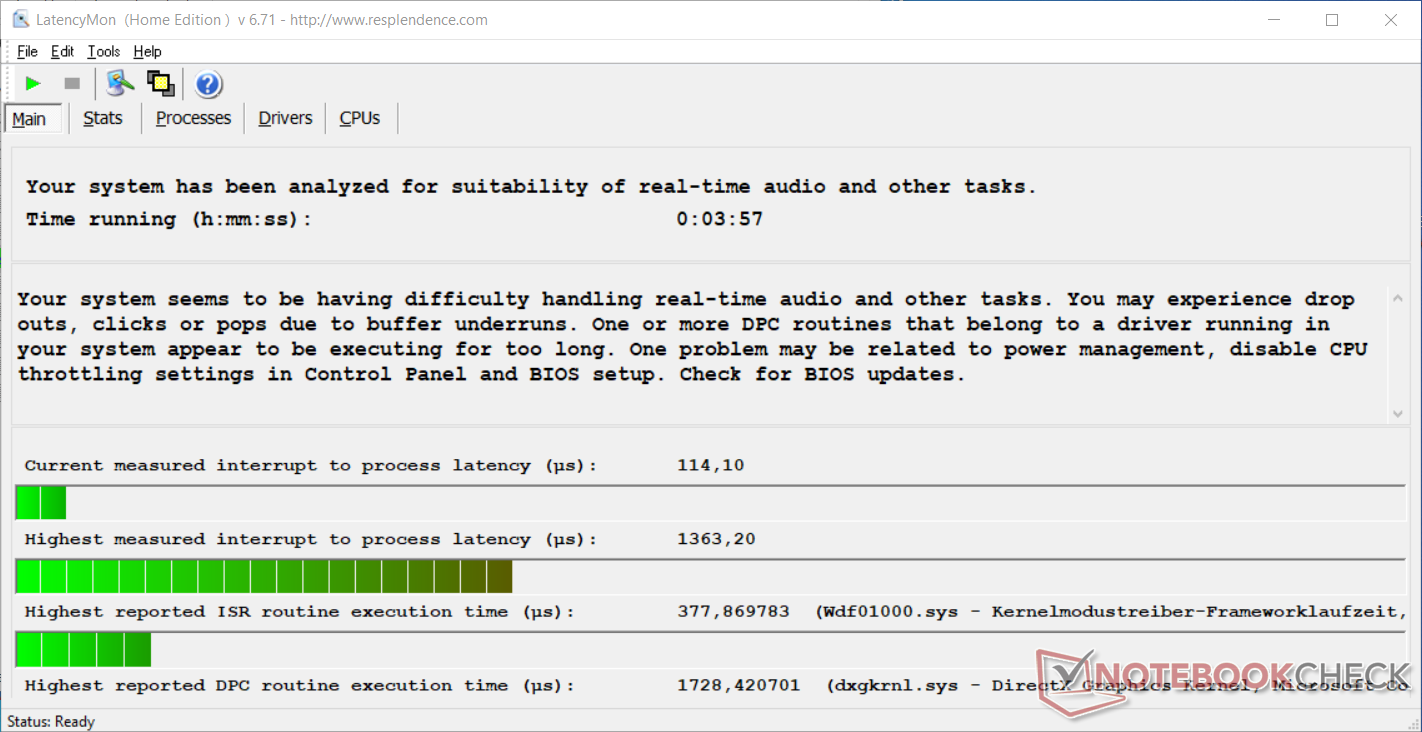

DPC延迟
在我们的标准化测试中，总是只代表一个瞬间的快照，最大的DPC延迟变成了固体。实时音频不应该有任何问题，而且该设备无论如何都不适合用于视频编辑。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| HP 14s-fq1357ng | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP Envy x360 15-eu0097nr | |
| Acer Aspire 5 A515-56-511A | |
| Asus VivoBook S15 D533UA | |
* ... smaller is better
存储解决方案
来自美光的内置512GB M.2固态硬盘并不是同类产品中速度更快的代表。读取和写入率以及访问时间只够在各种基准测试中处于比较领域的下半部分，而且它们也始终保持在存储模块的平均水平之下。
Micron 2210 MTFDHBA512QFD
CDM 5/6 Read Seq Q32T1:
1859 MB/s
CDM 5/6 Write Seq Q32T1:
1158 MB/s
CDM 5/6 Read 4K Q32T1:
534 MB/s
CDM 5/6 Write 4K Q32T1:
391.6 MB/s
CDM 5 Read Seq:
1663 MB/s
CDM 5 Write Seq:
1154 MB/s
CDM 5/6 Read 4K:
62.6 MB/s
CDM 5/6 Write 4K:
149 MB/s
| Drive Performance Rating - Percent | |
| Average of class Multimedia | |
| Asus VivoBook S15 D533UA | |
| Acer Aspire 5 A515-56-511A | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| HP 14s-fq1357ng | |
| Average Micron 2210 MTFDHBA512QFD | |
| Acer Aspire 5 A515-43-R6WW -8! | |
| Acer Aspire 5 A515-45-R4R1 | |
| HP Envy x360 15-eu0097nr | |
