结论——ExpertBook PM5 G2 似乎存在性能不平衡的问题
在我们的测试中，新款华硕 ExpertBook PM5 G2 给人的印象褒贬不一。这款 16 英寸的大尺寸商务笔记本外观时尚，但其铝制机身会发出轻微的吱吱声，铰链也略显松动。键盘手感舒适且带有背光，但大型 ClickPad 发出的机械点击声听起来有些廉价。 其连接性和安全功能尚可，除了以太网端口外，还配备了现代的 Wi-Fi 7 模块。
内置的 AMD Ryzen AI 9 HX 470 处理器提供了出色且稳定的多核性能，但该处理器较高的 TDP 给单散热器带来了沉重负担，因此散热器运行时可能会产生很大噪音。好在华硕提供了更安静的电源配置文件，如果需要，设备在满载运行时仍能保持非常安静。
内置的哑光WQHD显示屏具备144 Hz刷新率，画质出色，在这方面优于许多商务竞品。该面板非常适合办公使用，且电池续航表现依然出色。

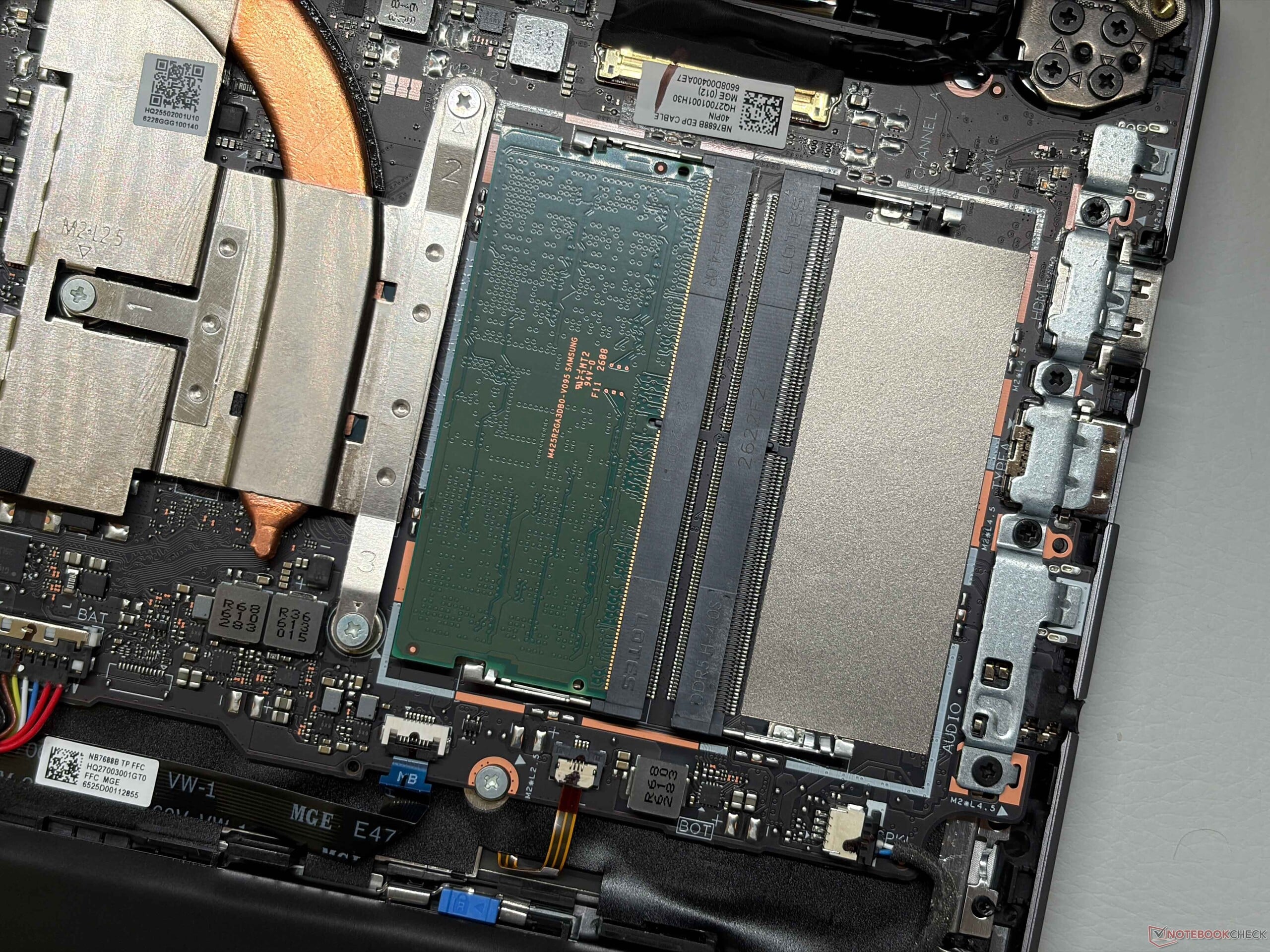

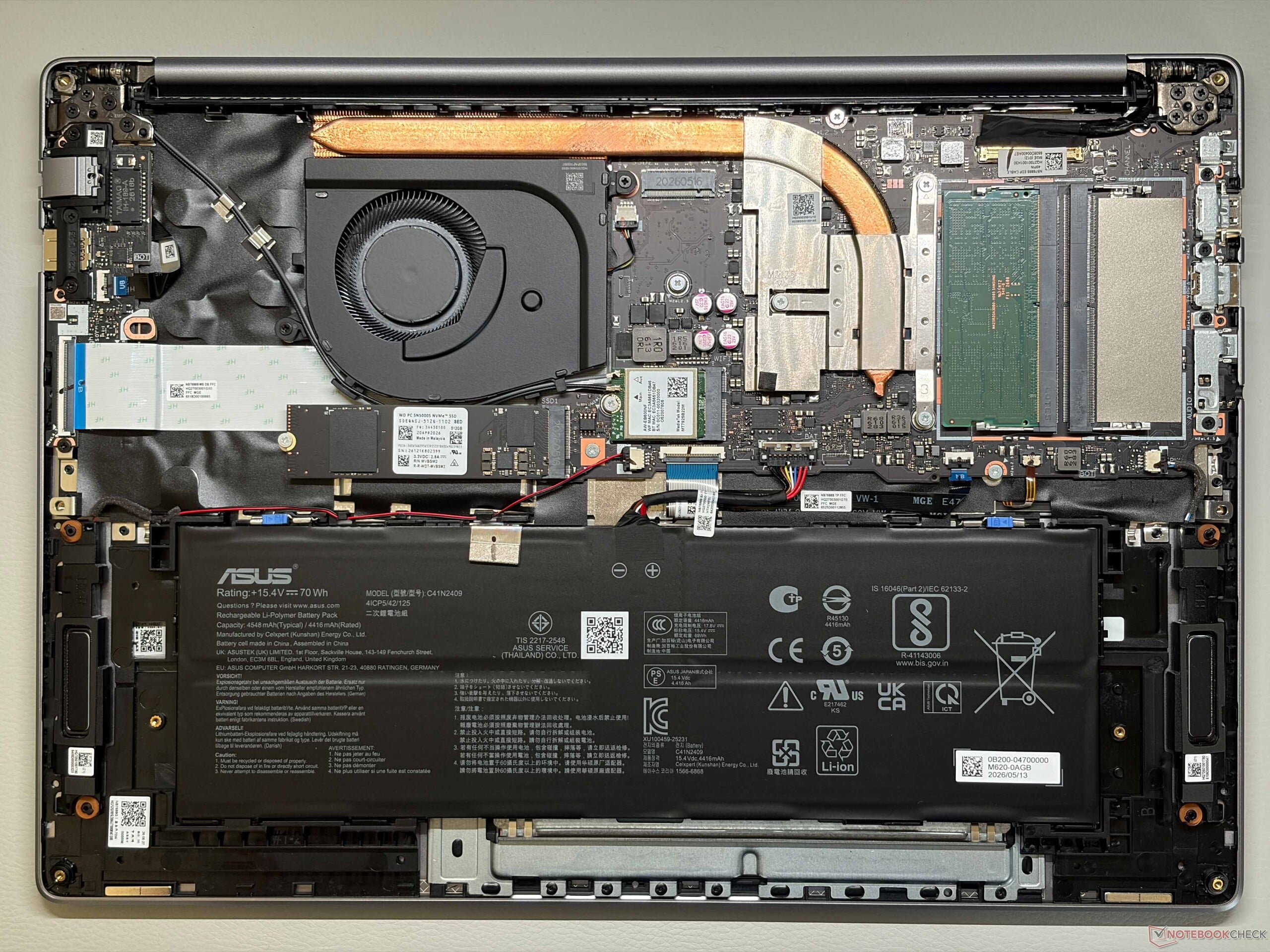

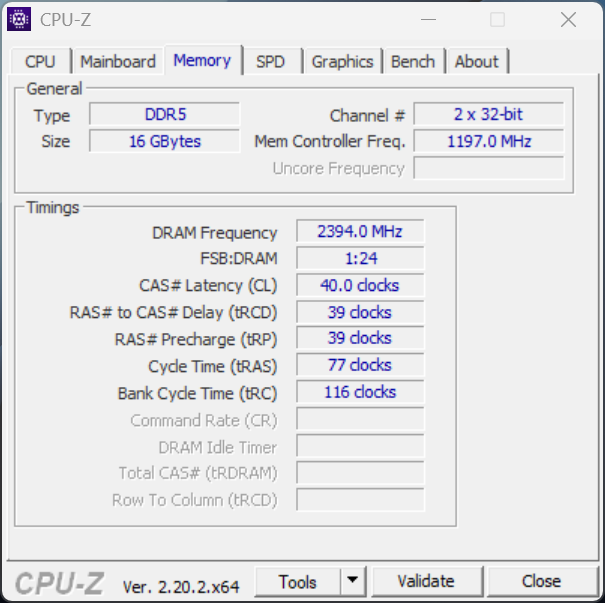

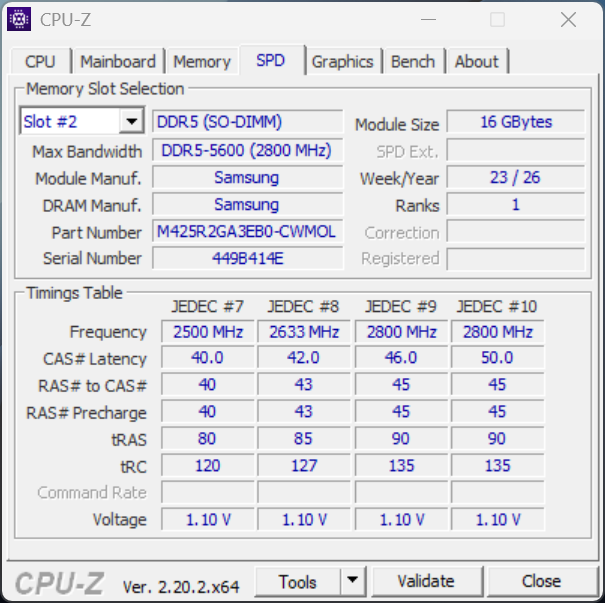

另一个问题是内存配置偏低，仅配备16 GB RAM，不过至少可以通过添加内存条轻松升级。总而言之，ExpertBook PM5 G2是一款不错的商务笔记本，但考虑到其起售价约为1,700欧元，这些质量问题本不该出现。
Pros
Cons
价格与供货情况
搭载 Ryzen AI 9 HX 470 处理器的 ExpertBook PM5 G2 目前在德国仅提供 64 GB 内存和 1 TB SSD 的配置，售价约为 2,250 欧元。 亚马逊还提供搭载性能较低的 Ryzen AI 7 445 处理器的版本，起售价约为 1,800 欧元。
- $110.16ASUS ExpertWiFi EBA63 AX3000 Dual-Band WiFi 6 (802.11ax) PoE Access Point, Support up to 5 SSIDs and VLAN, Self-Defined Network, Support PoE & PoE+, Easy Management app, AiMesh Compatible
- $111.32ASUS ExpertWiFi EBR63 AX3000 WiFi 6 Business Router - Custom Guest Portal & SDN, Easy Setup & Remote Management, Scalable with ExpertWiFi AIMesh, Free Commercial-Grade Security, VPN, VLAN
- $102.37ASUS ZenWiFi BD5 WiFi 7 Mesh Router - 2,500 sq. ft., 5Gbps (1 Pack)

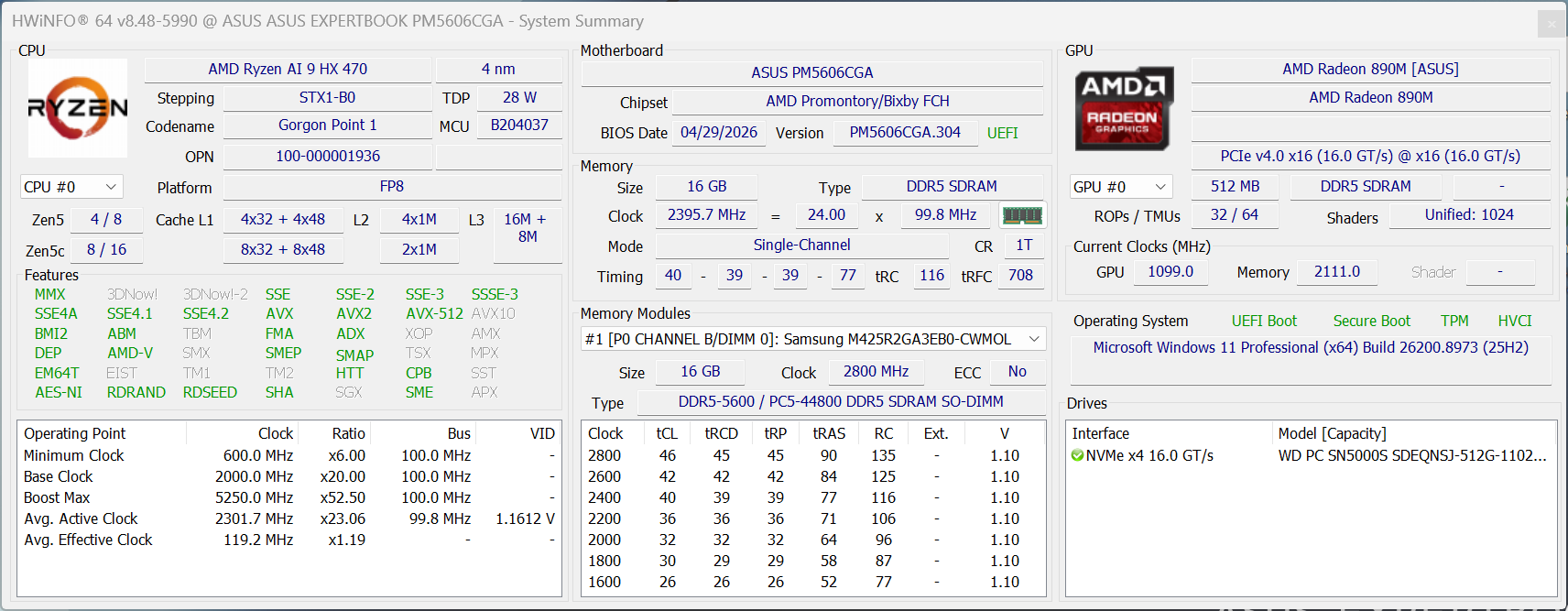

规格

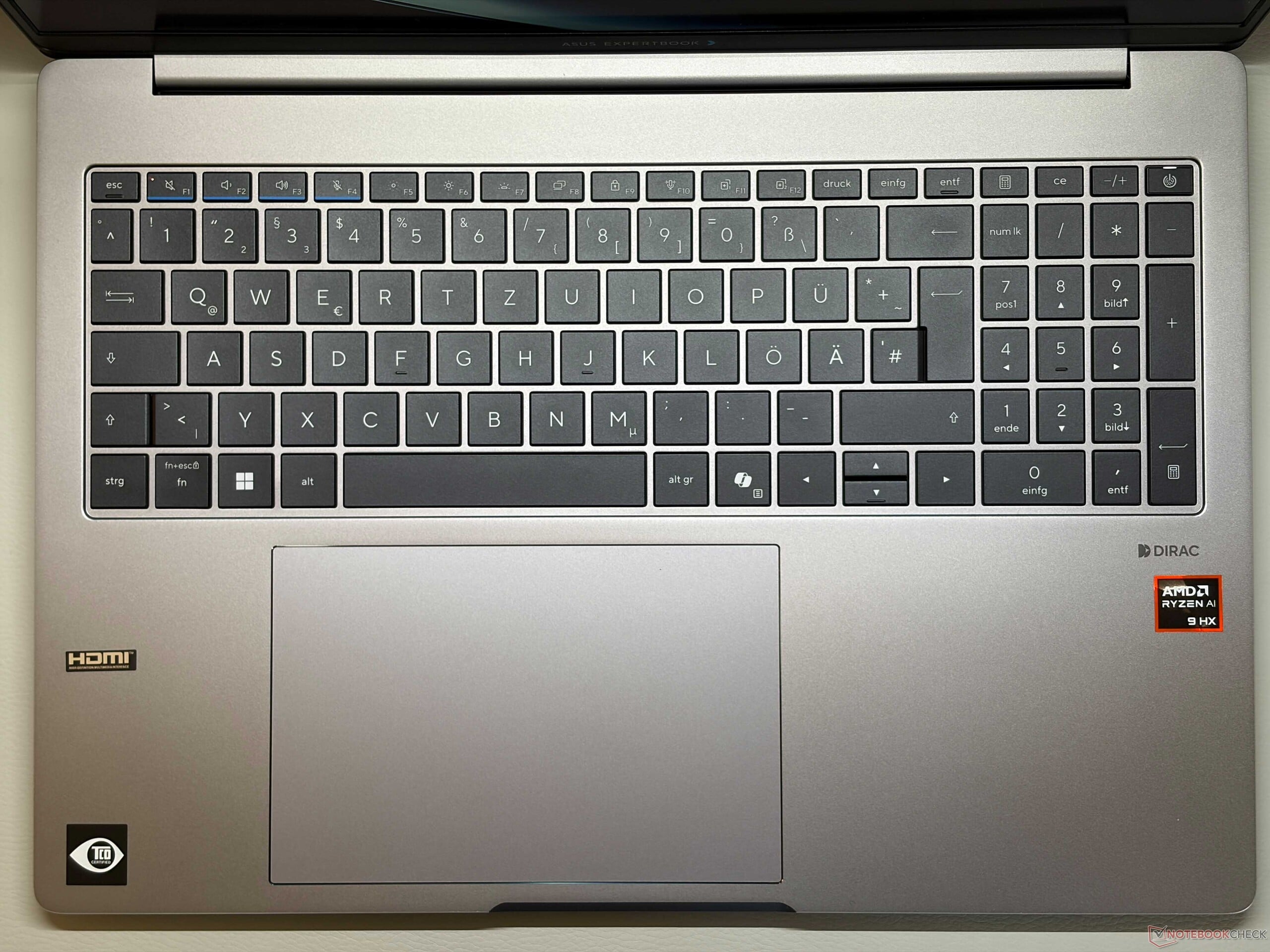

机箱、功能和输入设备

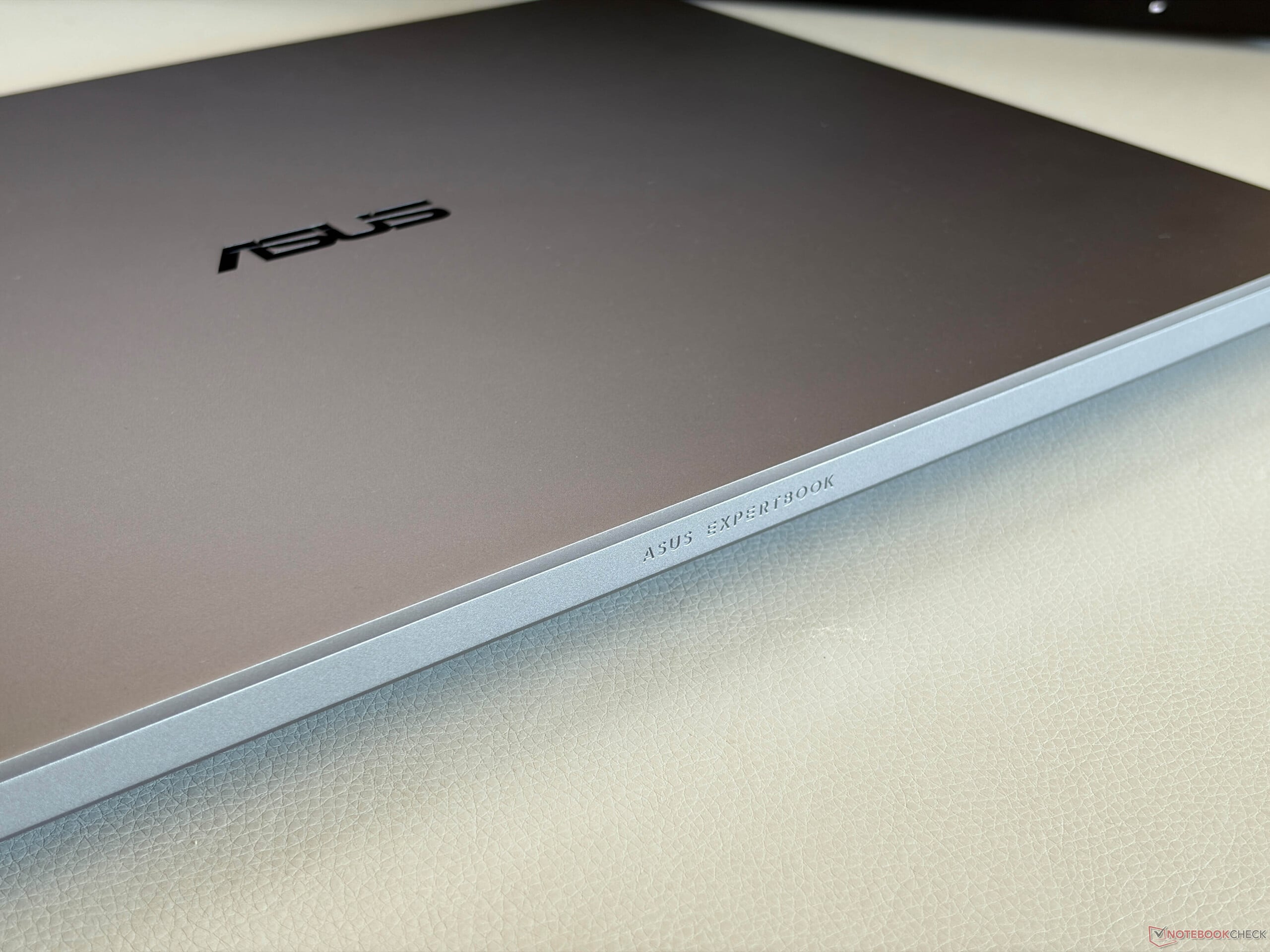

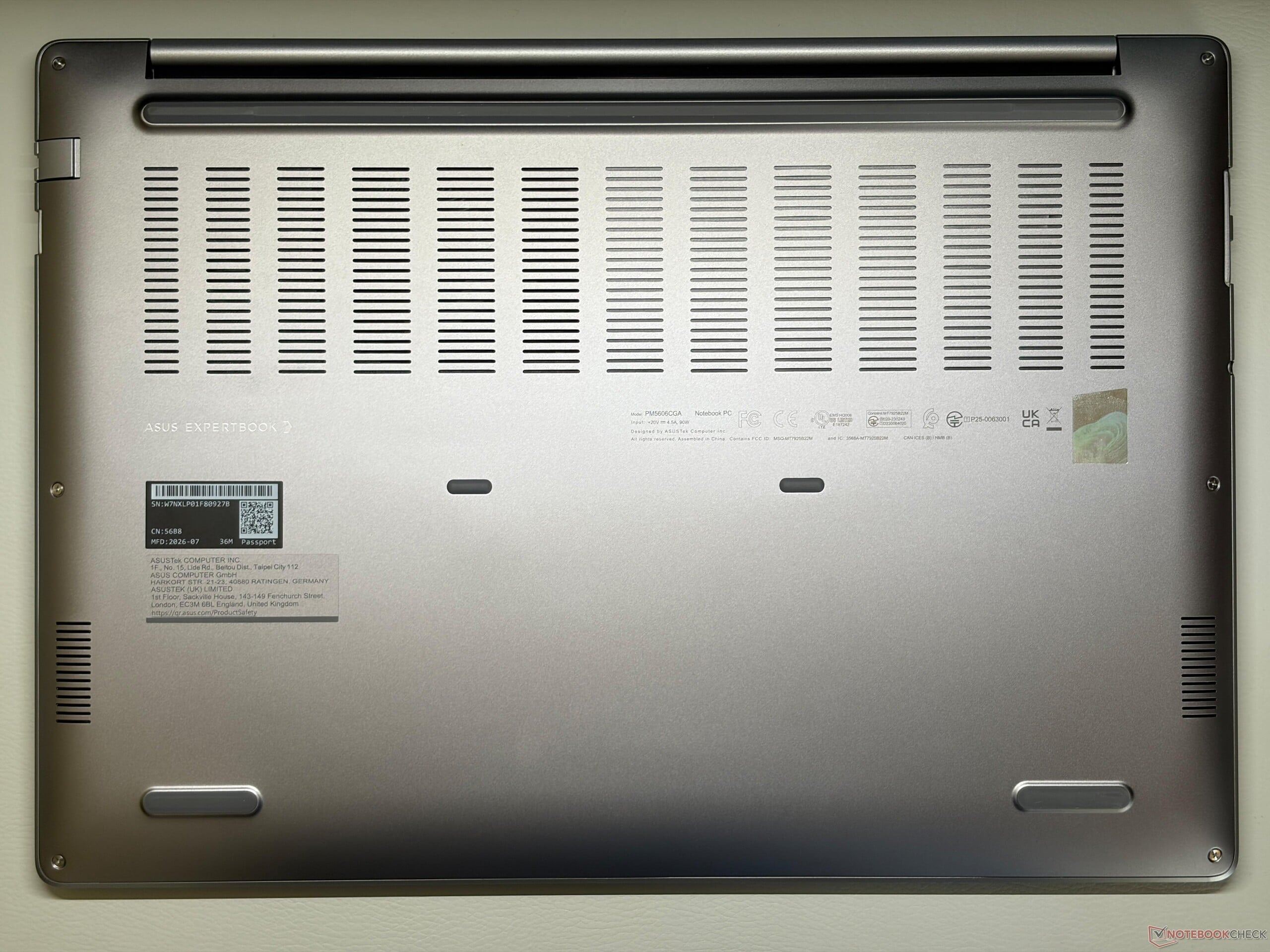

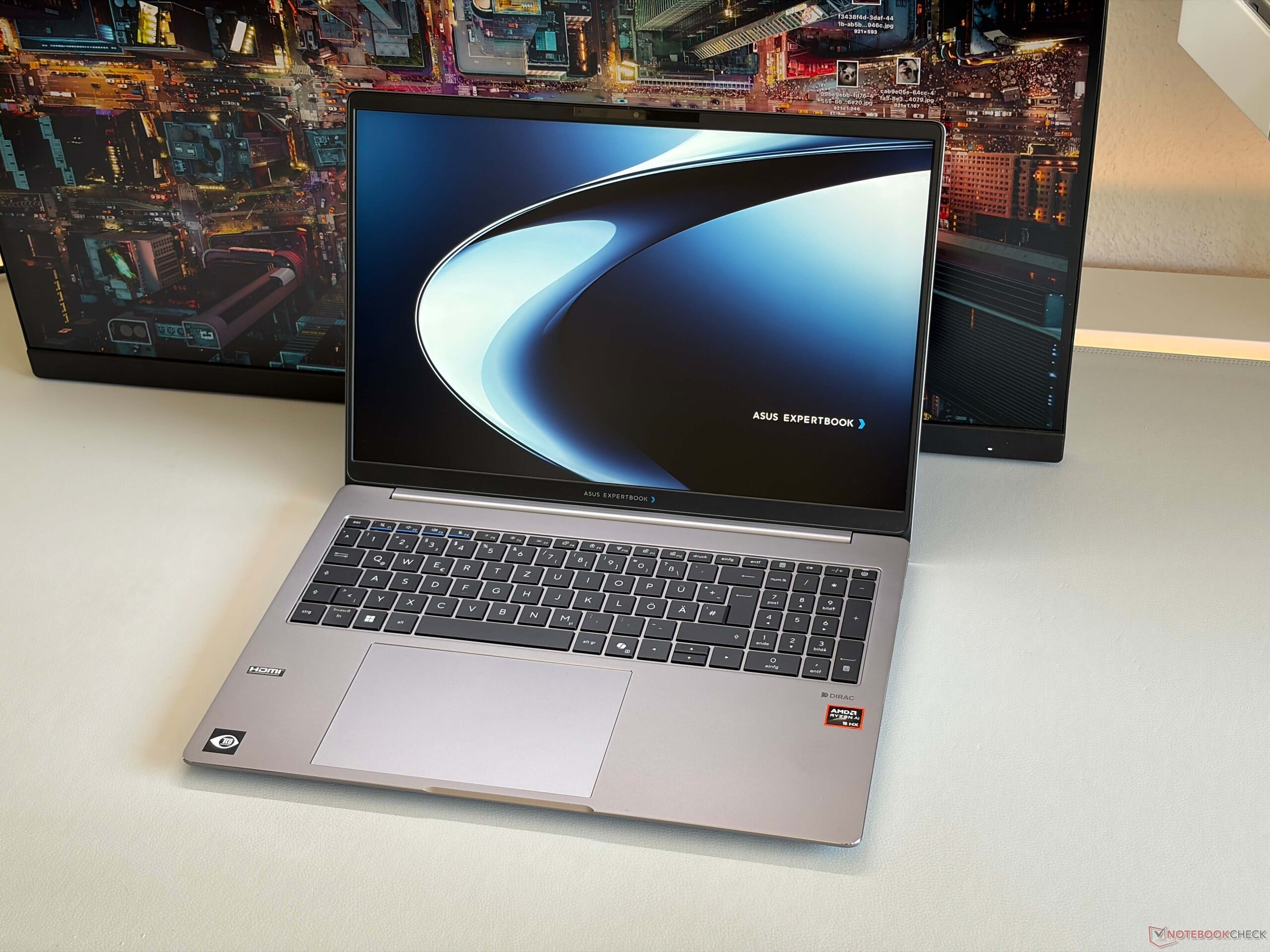

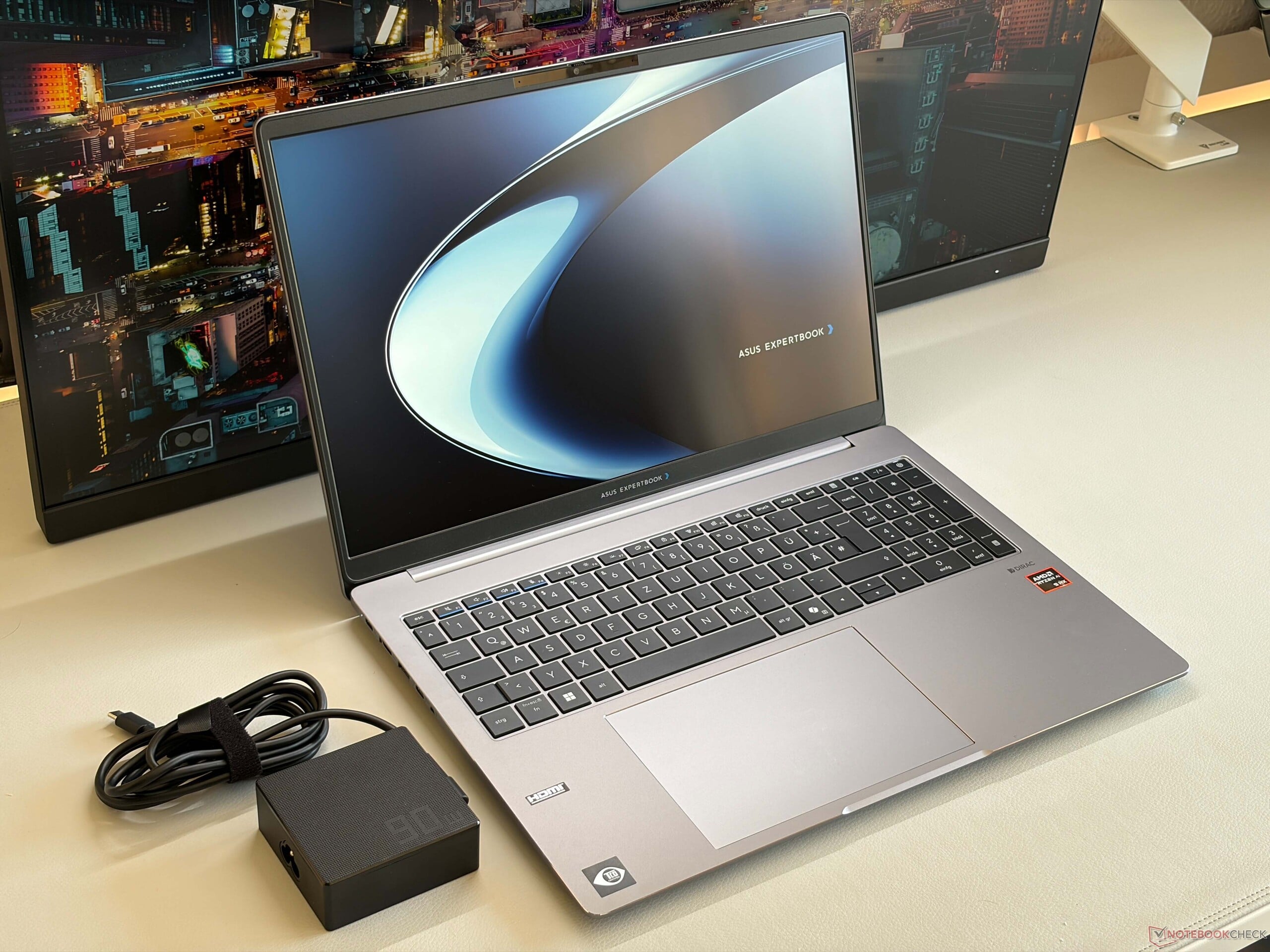

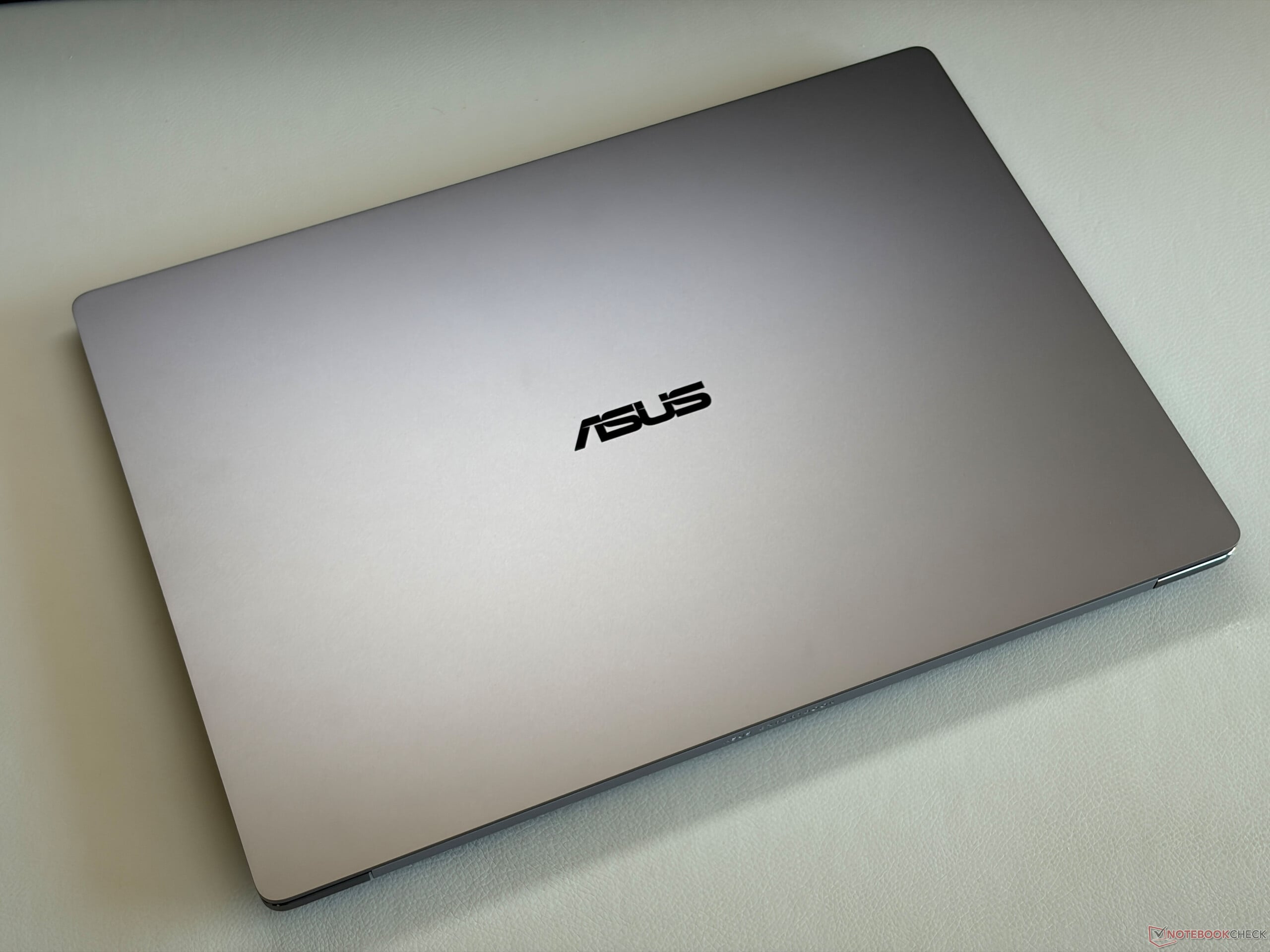

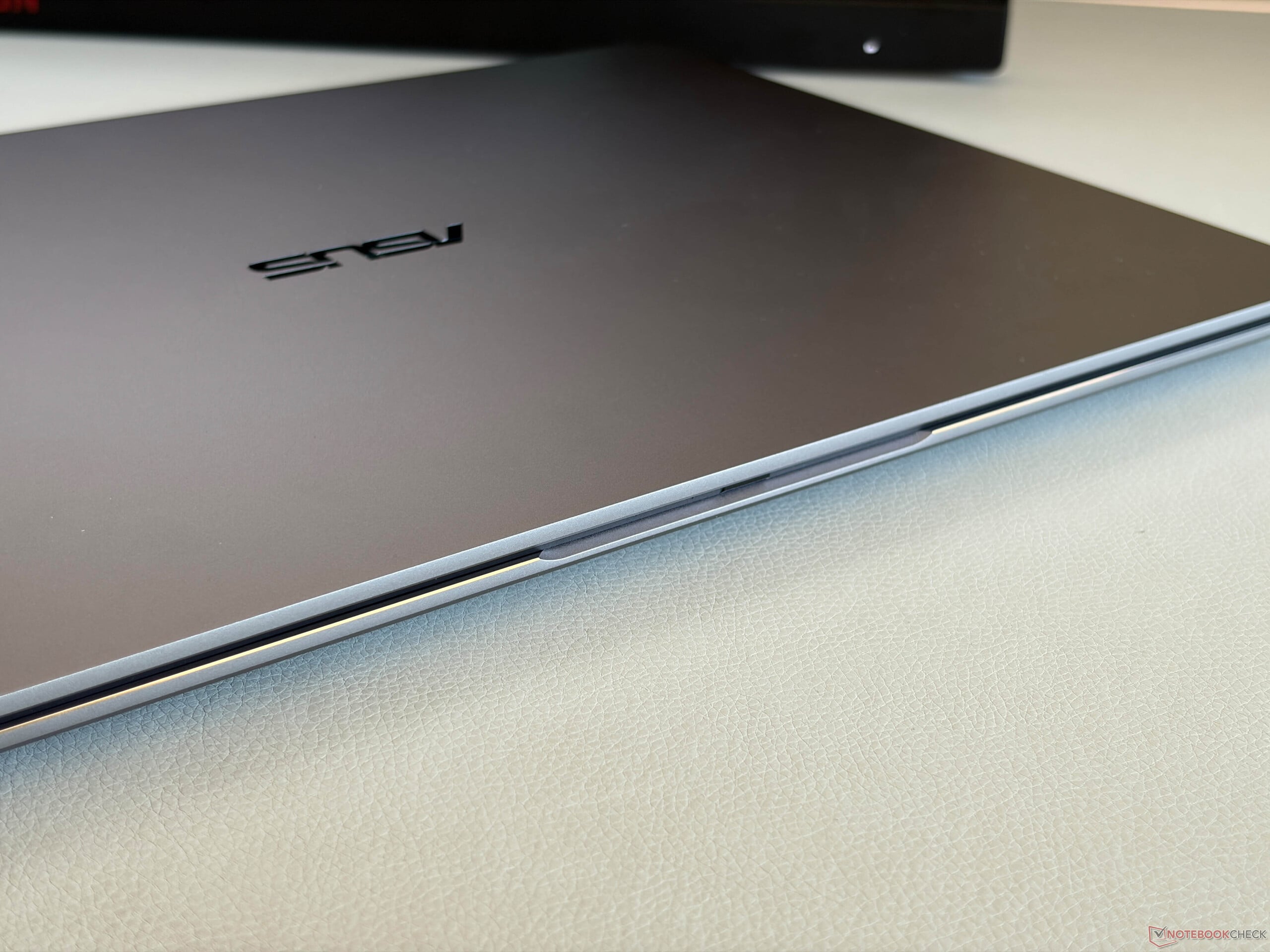

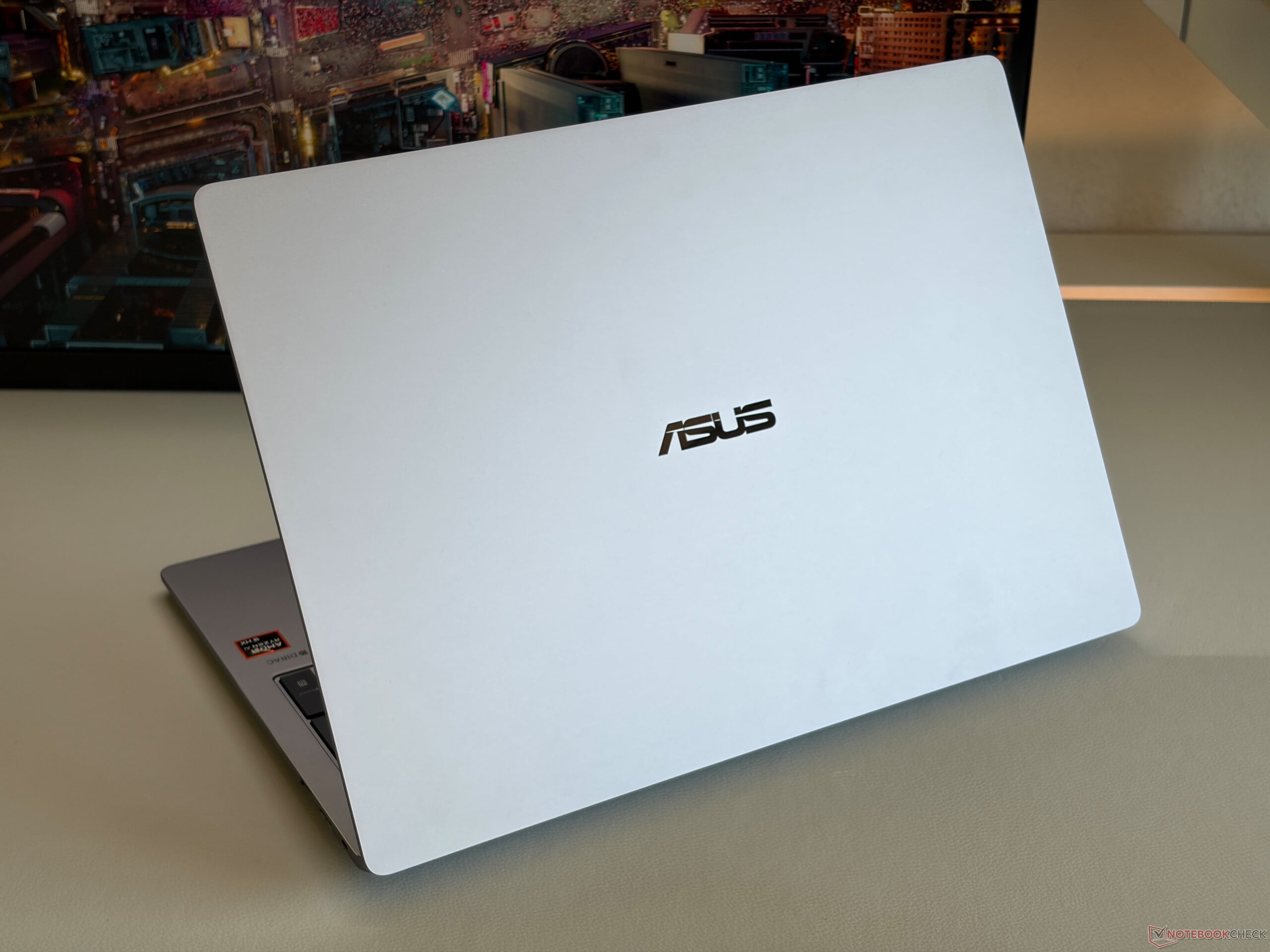

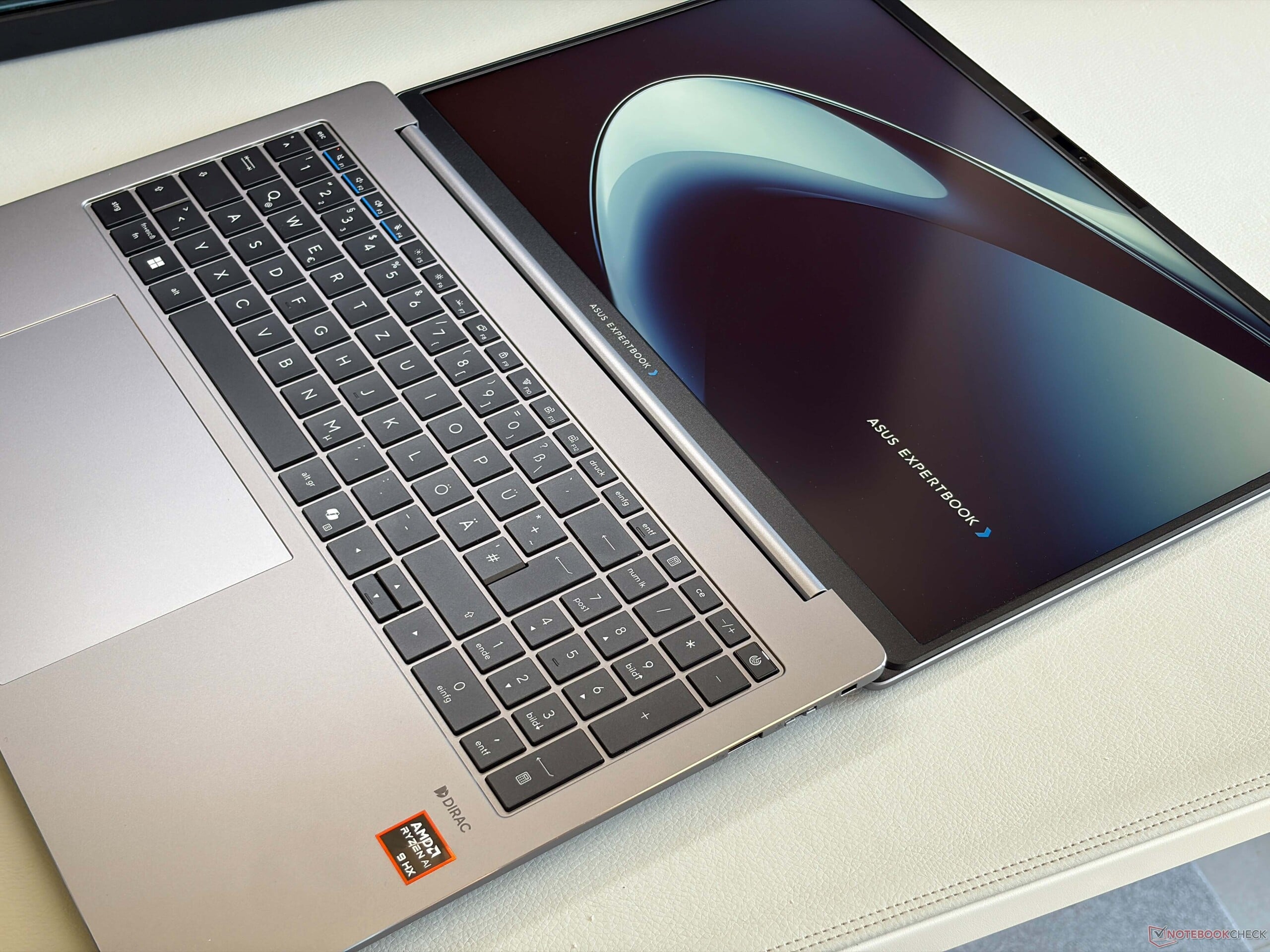

ExpertBook PM5 G2 采用深灰色铝制机身，具有防指纹特性。设计外观高端，但由于铰链松动，且操作时（无论是主机身还是铰链）会发出轻微的吱吱声，因此品质感稍显不足。 在这方面，ExpertBook 稍逊于 ThinkPad T16 或 EliteBook 8 等竞争对手。不过，其可维护性非常出色（2 个 SO-DIMM 插槽、M.2-2280 SSD、Wi-Fi）。 键盘配备三档背光和全尺寸数字小键盘。其按键行程为 1.5 毫米，打字手感舒适，但尚未达到华硕多媒体/游戏本的水平。 ClickPad 触控板尺寸巨大（15 x 10 厘米），滑动顺畅，但位置略向左偏移，且下方的机械点击手感略显廉价。
在接口方面，该机型配备了丰富的 USB 接口，包括 USB 4.0，以及一个 HDMI 输出端口。 网络方面，配备了一个千兆以太网端口和一个 Wi-Fi 7 模块，不过后者的工作频率仅为 160 MHz。因此，传输速率最高可达约 2–2.2 Gbit/s，但非常稳定。配备机械快门的 1080p 网络摄像头，其视频画质仅处于平均水平以下。
| Networking | |
| Asus ExpertBook PM5 G2 PM5606 | |
| iperf3 transmit Wi-Fi6/7 RT-BE96U | |
| iperf3 receive Wi-Fi6/7 RT-BE96U | |
| Dell Pro 5 16 P516265 | |
| iperf3 receive AXE11000 6GHz | |
| iperf3 transmit AXE11000 6GHz | |
| iperf3 transmit AXE11000 | |
| iperf3 receive AXE11000 | |
| Dynabook Tecra A60 A65-M | |
| iperf3 receive AXE11000 6GHz | |
| iperf3 transmit AXE11000 6GHz | |
| iperf3 transmit AXE11000 | |
| iperf3 receive AXE11000 | |
| HP EliteBook 8 G1a 16 AI | |
| iperf3 receive AXE11000 6GHz | |
| iperf3 transmit AXE11000 6GHz | |
| iperf3 transmit AXE11000 | |
| iperf3 receive AXE11000 | |
显示屏 - 144 Hz WQHD IPS

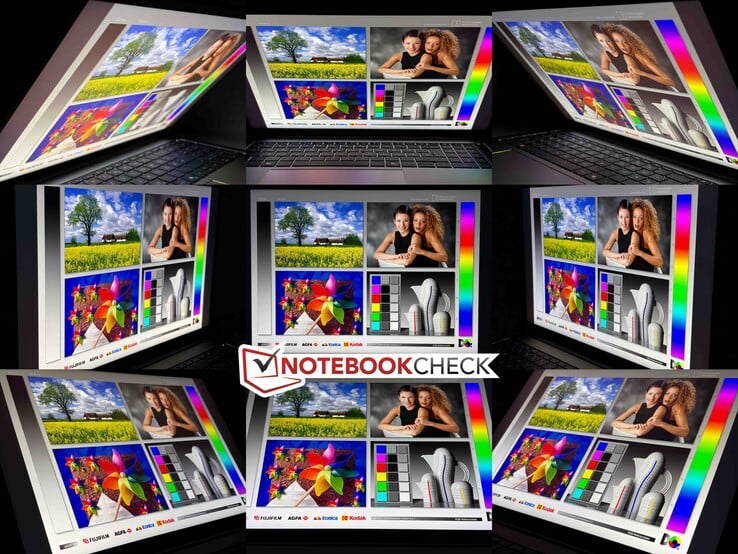

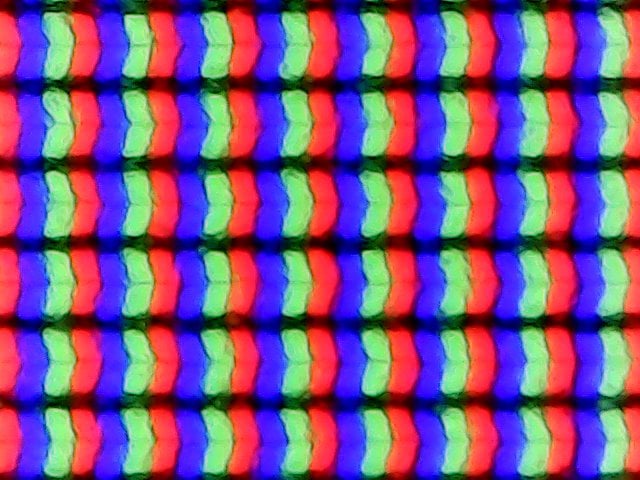

华硕这款笔记本搭载了一块哑光 IPS 显示屏，分辨率为 2,560 x 1,600 像素（16:10），刷新率为 144 Hz。 主观画质非常出色，这也是 ExpertBook 相较于许多竞争对手的优势所在——后者通常仅提供 60 Hz 的全高清面板。屏幕无 PWM 闪烁，即使是高亮内容也仅出现极轻微的颗粒感——不过这几乎难以察觉。这使得该面板非常适合办公使用。
最大亮度平均约为 425 cd/m²，黑位水平较低，仅为 0.28 cd/m²，从而实现了 1,500:1 的极佳最大对比度。在我们使用专业 CalMAN 软件进行的分析中，出厂配置文件显示存在轻微的蓝偏，且色温偏冷。 我们可以通过自行校准（校准配置文件可在上方框中免费下载）来纠正这一问题，并改善色彩偏差；只有100%蓝色仍显示出较高的偏差。sRGB色域几乎被完全覆盖。
| |||||||||||||||||||||||||
Brightness Distribution: 93 %
Center on Battery: 421 cd/m²
Contrast: 1504:1 (Black: 0.28 cd/m²)

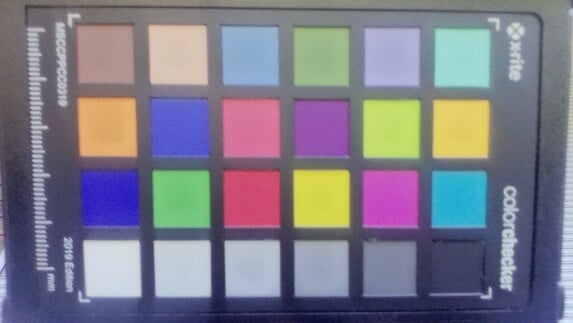

ΔE ColorChecker Calman: 3.1 | ∀{0.5-29.43 Ø4.71}
calibrated: 1.3
ΔE Greyscale Calman: 3.9 | ∀{0.09-98 Ø4.95}

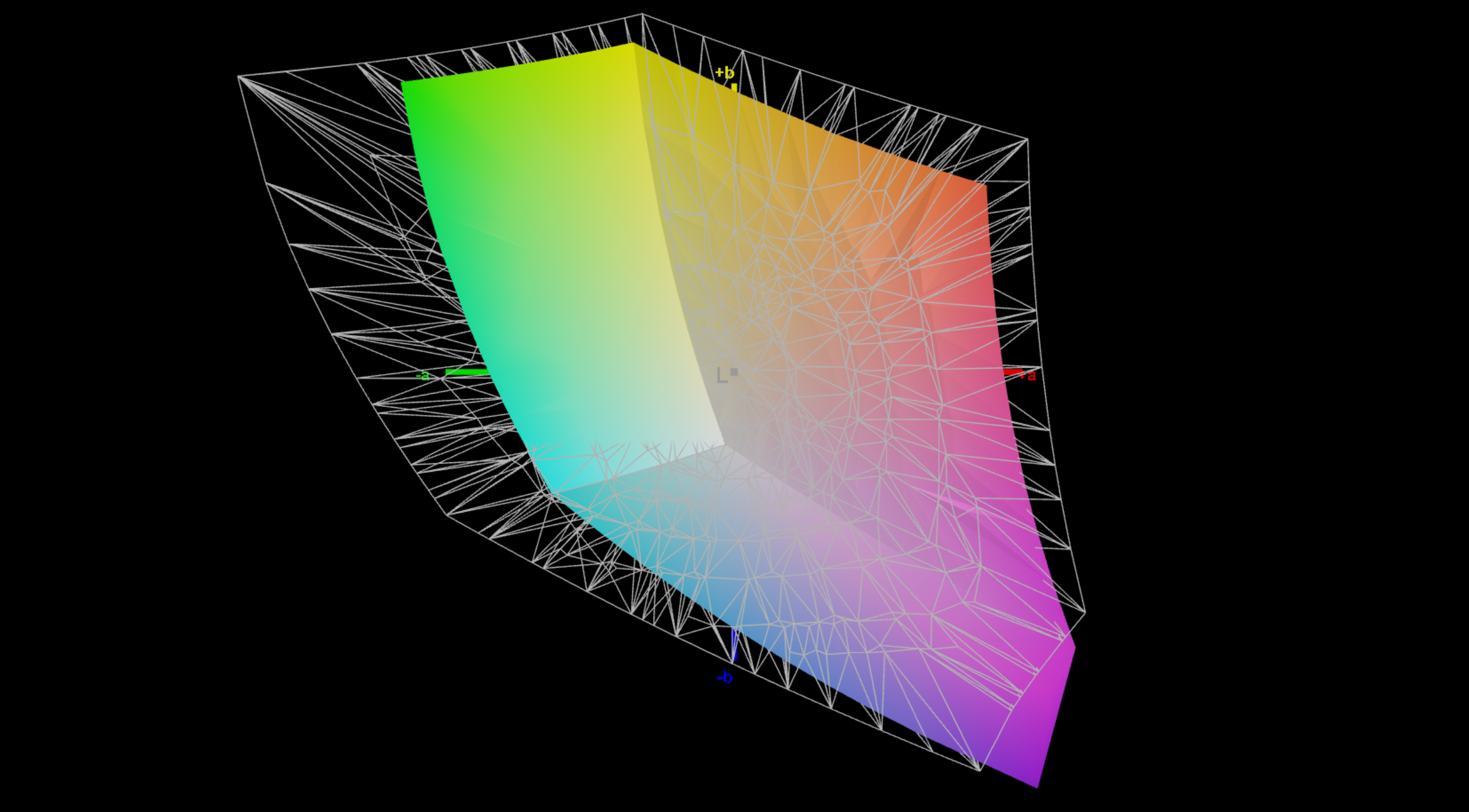

69.5% AdobeRGB 1998 (Argyll 3D)

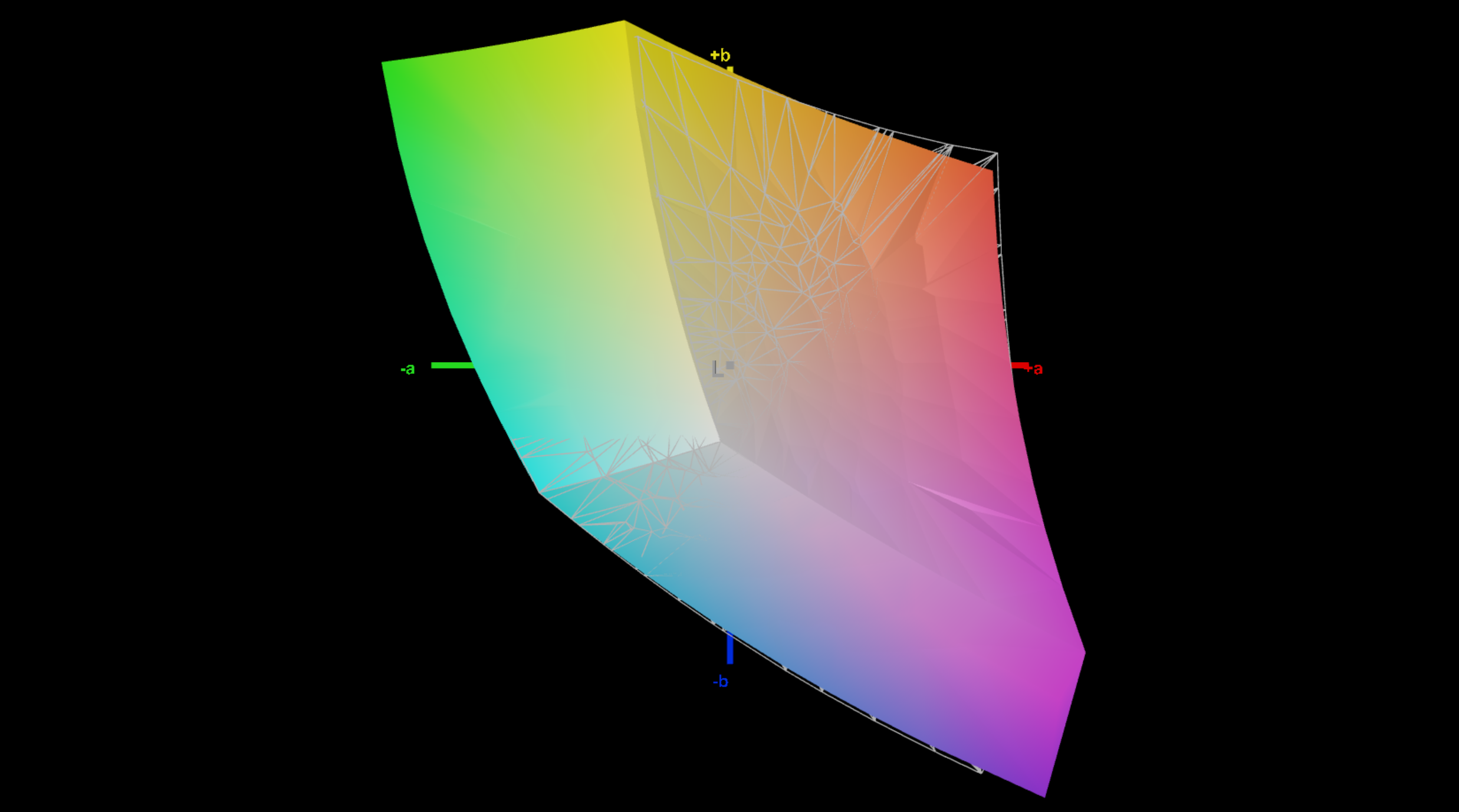

98.5% sRGB (Argyll 3D)

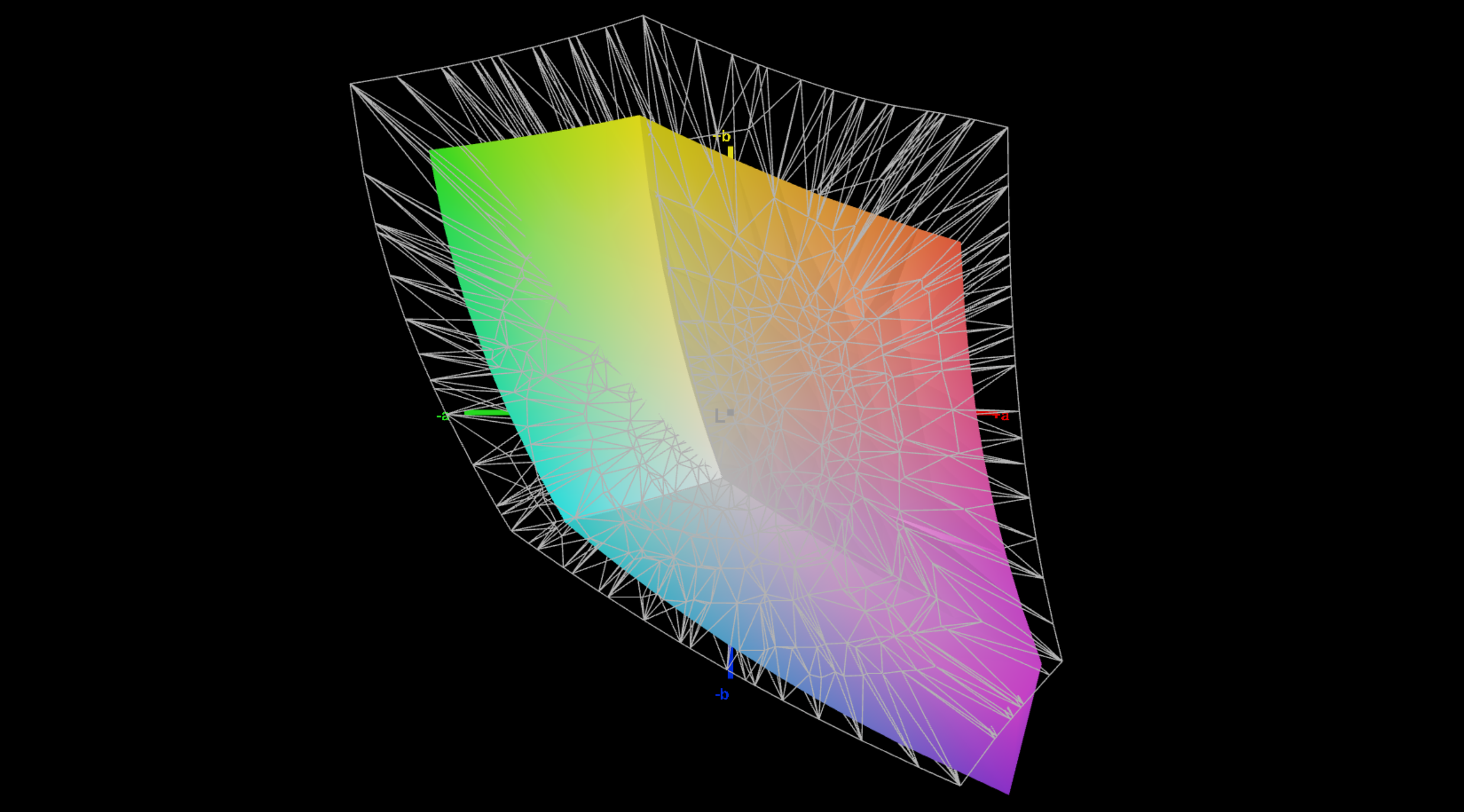

68.6% Display P3 (Argyll 3D)
Gamma: 2.28
CCT: 7365 K
| Asus ExpertBook PM5 G2 PM5606 NE160QDM-NX4, IPS, 2560x1600, 16", 120 Hz | Dell Pro 5 16 P516265 BOE NS16M30, IPS, 2560x1600, 16", 120 Hz | Lenovo ThinkPad T16 Gen 5 22AN001WGE N160JCA-ELN, IPS, 1920x1200, 16", 60 Hz | Dynabook Tecra A60 A65-M BOE NV160WUM-N43, IPS, 1920x1200, 16", 60 Hz | HP EliteBook 8 G1a 16 AI IPS, 1920x1200, 16", 60 Hz | |
|---|---|---|---|---|---|
| Display | 3% | -40% | -41% | 0% | |
| Display P3 Coverage (%) | 68.6 | 71 3% | 40.7 -41% | 39.9 -42% | 68.5 0% |
| sRGB Coverage (%) | 98.5 | 100 2% | 61.1 -38% | 58 -41% | 98.6 0% |
| AdobeRGB 1998 Coverage (%) | 69.5 | 72.4 4% | 42 -40% | 41 -41% | 70.4 1% |
| Response Times | -13% | 19% | -3% | -48% | |
| Response Time Grey 50% / Grey 80% * (ms) | 36.2 ? | 38.3 ? -6% | 32.6 ? 10% | 33.7 ? 7% | 50.2 ? -39% |
| Response Time Black / White * (ms) | 19.6 ? | 23.4 ? -19% | 14.2 ? 28% | 22.1 ? -13% | 30.7 ? -57% |
| PWM Frequency (Hz) | |||||
| Screen | -5% | -52% | -68% | 12% | |
| Brightness middle (cd/m²) | 421 | 470.3 12% | 479 14% | 362.3 -14% | 439.2 4% |
| Brightness (cd/m²) | 425 | 464 9% | 452 6% | 342 -20% | 405 -5% |
| Brightness Distribution (%) | 93 | 94 1% | 89 -4% | 88 -5% | 88 -5% |
| Black Level * (cd/m²) | 0.28 | 0.17 39% | 0.51 -82% | 0.5 -79% | 0.31 -11% |
| Contrast (:1) | 1504 | 2766 84% | 939 -38% | 725 -52% | 1417 -6% |
| Colorchecker dE 2000 * | 3.1 | 4.45 -44% | 4.1 -32% | 5.63 -82% | 2.2 29% |
| Colorchecker dE 2000 max. * | 5.6 | 11.13 -99% | 16.8 -200% | 18.23 -226% | 4.31 23% |
| Colorchecker dE 2000 calibrated * | 1.3 | 0.6 54% | 3.8 -192% | 3.39 -161% | 0.49 62% |
| Greyscale dE 2000 * | 3.9 | 7.8 -100% | 1.7 56% | 2.7 31% | 3.2 18% |
| Gamma | 2.28 96% | 2.15 102% | 2.25 98% | 2.19 100% | 2.3 96% |
| CCT | 7365 88% | 7237 90% | 6777 96% | 6147 106% | 6438 101% |
| Total Average (Program / Settings) | -5% /
-4% | -24% /
-40% | -37% /
-53% | -12% /
1% |
* ... smaller is better

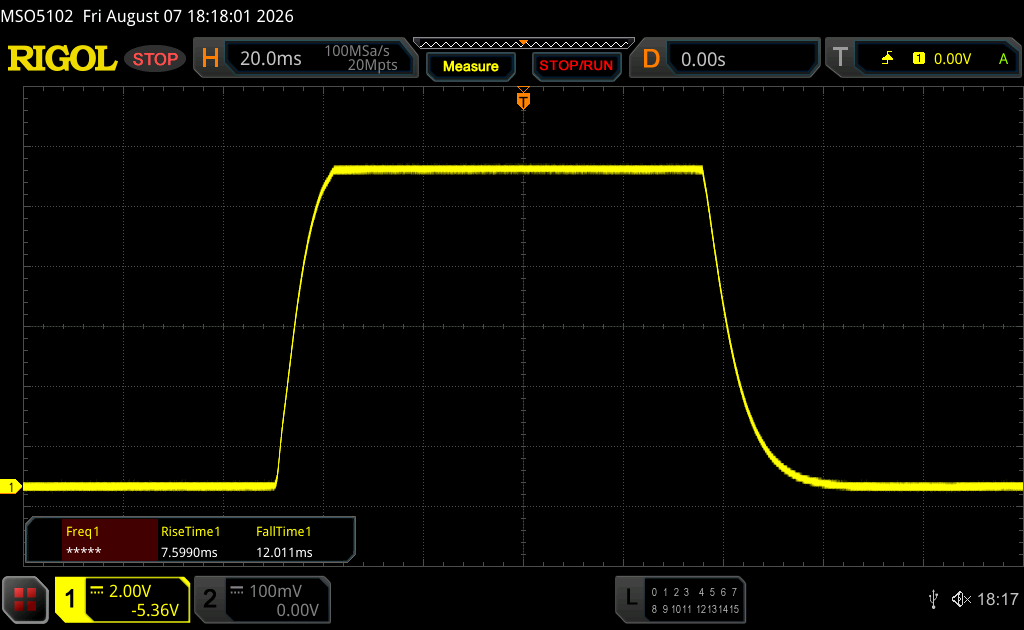

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 19.6 ms ... rise ↗ and fall ↘ combined | ↗ 7.6 ms rise |  |
| ↘ 12 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 44 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (19.7 ms). | ||

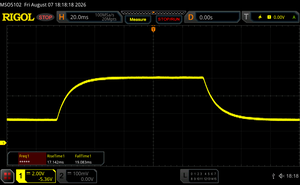

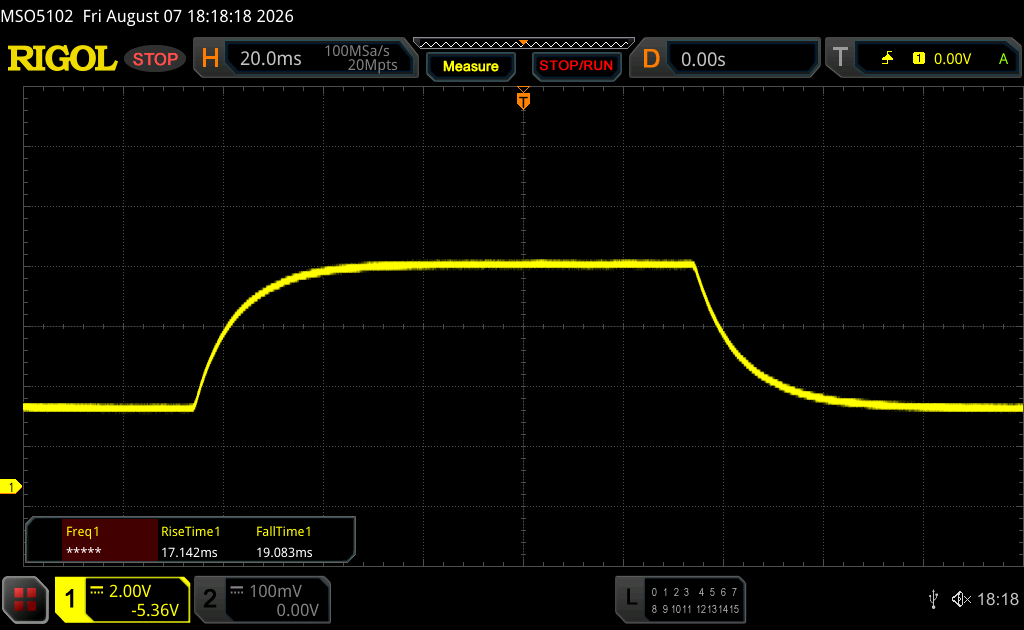

| ↔ Response Time 50% Grey to 80% Grey | ||
| 36.2 ms ... rise ↗ and fall ↘ combined | ↗ 17.1 ms rise |  |
| ↘ 19.1 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.13 (minimum) to 636 (maximum) ms. » 53 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (30.9 ms). | ||

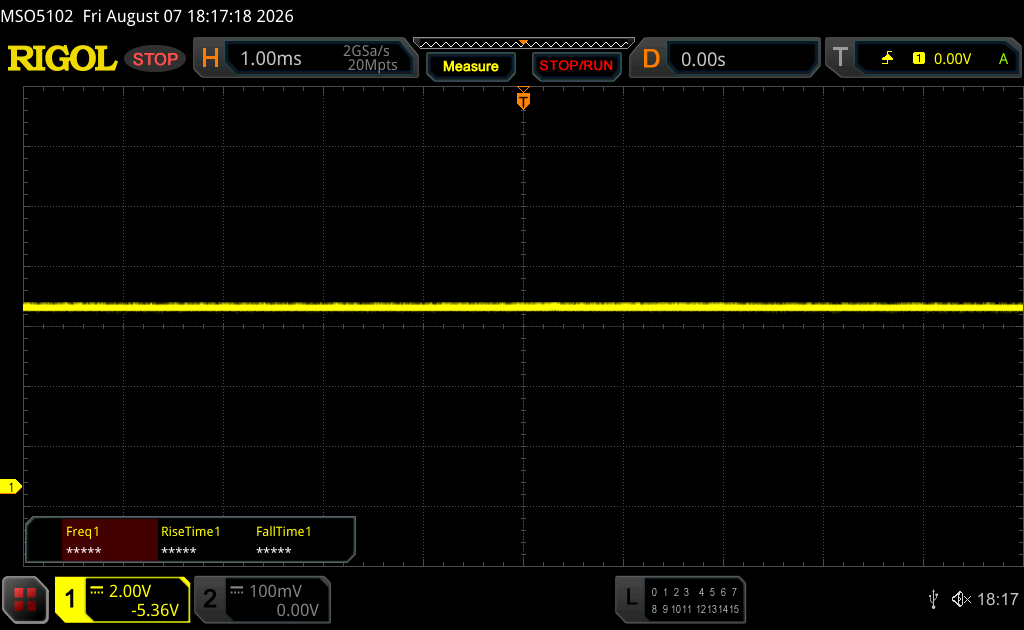

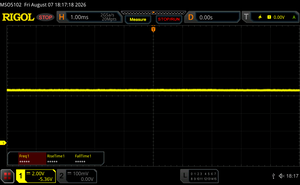

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 7707 (minimum: 5 - maximum: 343500) Hz was measured. | |||
性能 - Ryzen AI 9 HX 470
测试条件
我们在“性能”模式下运行了基准测试，因为这是实现 CPU 最大性能的唯一方法。
处理器性能

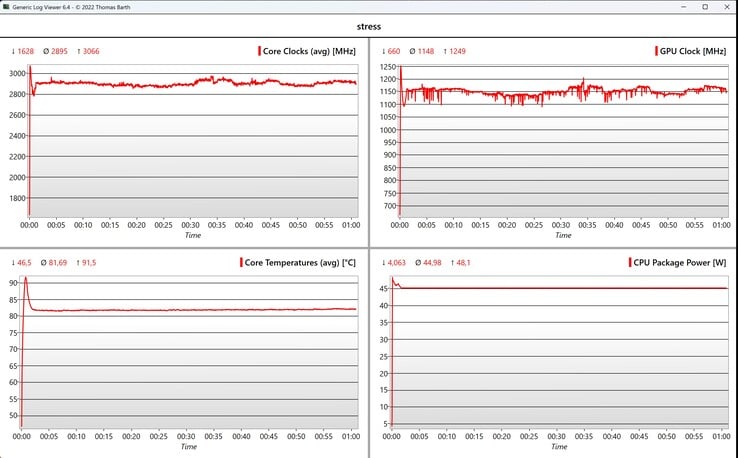

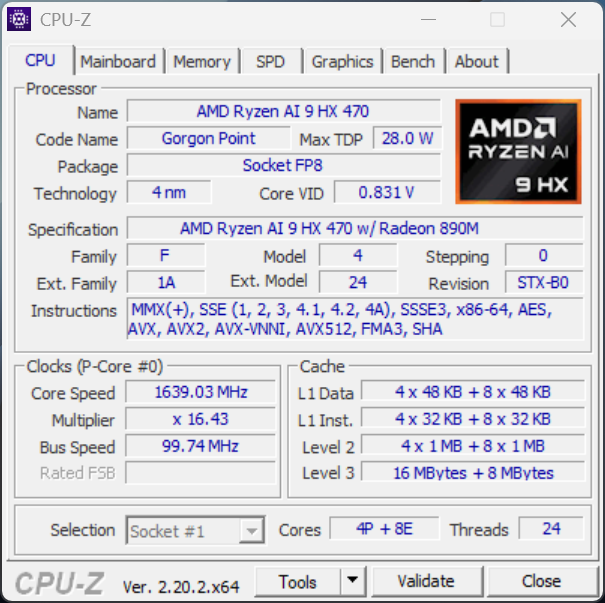

AMD Ryzen AI 9 HX 470（Zen 5）功耗为52/48瓦，可提供出色且稳定的多核性能。 在电池供电模式下，CPU 的功耗上限为 32/28 瓦（标准模式），因此在此情况下性能会降低约 20%。
Cinebench R15 多核循环测试
Cinebench 2024: CPU Multi Core | CPU Single Core
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.7: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance rating | |
| Average AMD Ryzen AI 9 HX 470 | |
| Dell Pro 5 16 P516265 | |
| Asus ExpertBook PM5 G2 PM5606 | |
| HP EliteBook 8 G1a 16 AI | |
| Dynabook Tecra A60 A65-M | |
| Average of class Office | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE -1! | |
| Cinebench 2024 / CPU Multi Core | |
| Average AMD Ryzen AI 9 HX 470 (1045 - 1247, n=6) | |
| Dell Pro 5 16 P516265 | |
| Asus ExpertBook PM5 G2 PM5606 | |
| HP EliteBook 8 G1a 16 AI | |
| Dynabook Tecra A60 A65-M | |
| Average of class Office (100 - 1168, n=48, last 2 years) | |
| Cinebench 2024 / CPU Single Core | |
| Average of class Office (58 - 821, n=50, last 2 years) | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470 (117 - 122, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| HP EliteBook 8 G1a 16 AI | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Dynabook Tecra A60 A65-M | |
| Cinebench R23 / Multi Core | |
| Average AMD Ryzen AI 9 HX 470 (20813 - 23997, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Dynabook Tecra A60 A65-M | |
| Average of class Office (1673 - 22808, n=80, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Cinebench R23 / Single Core | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470 (2011 - 2091, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| HP EliteBook 8 G1a 16 AI | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Dynabook Tecra A60 A65-M | |
| Average of class Office (708 - 2130, n=80, last 2 years) | |
| Cinebench R20 / CPU (Multi Core) | |
| Average AMD Ryzen AI 9 HX 470 (8104 - 9354, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Dynabook Tecra A60 A65-M | |
| Average of class Office (648 - 8840, n=79, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Cinebench R20 / CPU (Single Core) | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470 (793 - 822, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| HP EliteBook 8 G1a 16 AI | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Average of class Office (345 - 816, n=79, last 2 years) | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average AMD Ryzen AI 9 HX 470 (3348 - 3607, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Dynabook Tecra A60 A65-M | |
| Average of class Office (250 - 3380, n=81, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Cinebench R15 / CPU Single 64Bit | |
| Dell Pro 5 16 P516265 | |
| Asus ExpertBook PM5 G2 PM5606 | |
| HP EliteBook 8 G1a 16 AI | |
| Average AMD Ryzen AI 9 HX 470 (192.7 - 322, n=6) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Average of class Office (99.5 - 316, n=81, last 2 years) | |
| Blender / v2.79 BMW27 CPU | |
| Average of class Office (154 - 1940, n=80, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Dynabook Tecra A60 A65-M | |
| HP EliteBook 8 G1a 16 AI | |
| Dell Pro 5 16 P516265 | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Average AMD Ryzen AI 9 HX 470 (140 - 154, n=6) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average AMD Ryzen AI 9 HX 470 (73258 - 84545, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Dynabook Tecra A60 A65-M | |
| Average of class Office (7098 - 76886, n=81, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average AMD Ryzen AI 9 HX 470 (6244 - 6562, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (3387 - 6469, n=81, last 2 years) | |
| Geekbench 6.7 / Multi-Core | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470 (11437 - 16116, n=8) | |
| HP EliteBook 8 G1a 16 AI | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Average of class Office (757 - 17846, n=86, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Geekbench 6.7 / Single-Core | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470 (2872 - 3000, n=8) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| HP EliteBook 8 G1a 16 AI | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Average of class Office (462 - 2988, n=87, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Geekbench 5.5 / Multi-Core | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470 (12418 - 16002, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (1483 - 16999, n=74, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Geekbench 5.5 / Single-Core | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average AMD Ryzen AI 9 HX 470 (1950 - 2193, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Average of class Office (811 - 2175, n=74, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average AMD Ryzen AI 9 HX 470 (23.6 - 28.5, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Dynabook Tecra A60 A65-M | |
| Average of class Office (2.21 - 26, n=80, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| LibreOffice / 20 Documents To PDF | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (39.9 - 102.3, n=80, last 2 years) | |
| Average AMD Ryzen AI 9 HX 470 (53.8 - 59.9, n=6) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| R Benchmark 2.5 / Overall mean | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (0.393 - 0.888, n=80, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Average AMD Ryzen AI 9 HX 470 (0.3848 - 0.4157, n=6) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx | CPU CheckMate
| Performance rating | |
| Average AMD Ryzen AI 9 HX 470 | |
| Asus ExpertBook PM5 G2 PM5606 -1! | |
| Dell Pro 5 16 P516265 -1! | |
| HP EliteBook 8 G1a 16 AI -1! | |
| Dynabook Tecra A60 A65-M -1! | |
| Average of class Office | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE -1! | |
| AIDA64 / FP32 Ray-Trace | |
| Average AMD Ryzen AI 9 HX 470 (31969 - 38491, n=9) | |
| Asus ExpertBook PM5 G2 PM5606 (v6.92.6600) | |
| Dell Pro 5 16 P516265 (v8.20.8100) | |
| HP EliteBook 8 G1a 16 AI (v6.92.6600) | |
| Dynabook Tecra A60 A65-M (v6.92.6600) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE (v8.20.8100) | |
| Average of class Office (2083 - 34130, n=88, last 2 years) | |
| AIDA64 / FPU Julia | |
| Average AMD Ryzen AI 9 HX 470 (117908 - 152422, n=9) | |
| Asus ExpertBook PM5 G2 PM5606 (v6.92.6600) | |
| Dell Pro 5 16 P516265 (v8.20.8100) | |
| HP EliteBook 8 G1a 16 AI (v6.92.6600) | |
| Dynabook Tecra A60 A65-M (v6.92.6600) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE (v8.20.8100) | |
| Average of class Office (8191 - 128729, n=88, last 2 years) | |
| AIDA64 / CPU SHA3 | |
| Average AMD Ryzen AI 9 HX 470 (5073 - 5821, n=9) | |
| Asus ExpertBook PM5 G2 PM5606 (v6.92.6600) | |
| Dell Pro 5 16 P516265 (v8.20.8100) | |
| Dynabook Tecra A60 A65-M (v6.92.6600) | |
| HP EliteBook 8 G1a 16 AI (v6.92.6600) | |
| Average of class Office (433 - 5755, n=88, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE (v8.20.8100) | |
| AIDA64 / CPU Queen | |
| Dynabook Tecra A60 A65-M (v6.92.6600) | |
| Asus ExpertBook PM5 G2 PM5606 (v6.92.6600) | |
| Average AMD Ryzen AI 9 HX 470 (89114 - 100242, n=4) | |
| HP EliteBook 8 G1a 16 AI (v6.92.6600) | |
| Average of class Office (22784 - 115197, n=68, last 2 years) | |
| AIDA64 / FPU SinJulia | |
| Average AMD Ryzen AI 9 HX 470 (17747 - 19320, n=9) | |
| Asus ExpertBook PM5 G2 PM5606 (v6.92.6600) | |
| Dell Pro 5 16 P516265 (v8.20.8100) | |
| Dynabook Tecra A60 A65-M (v6.92.6600) | |
| HP EliteBook 8 G1a 16 AI (v6.92.6600) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE (v8.20.8100) | |
| Average of class Office (1357 - 18575, n=88, last 2 years) | |
| AIDA64 / FPU Mandel | |
| Average AMD Ryzen AI 9 HX 470 (66324 - 78045, n=9) | |
| Asus ExpertBook PM5 G2 PM5606 (v6.92.6600) | |
| Dell Pro 5 16 P516265 (v8.20.8100) | |
| HP EliteBook 8 G1a 16 AI (v6.92.6600) | |
| Dynabook Tecra A60 A65-M (v6.92.6600) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE (v8.20.8100) | |
| Average of class Office (4601 - 67977, n=88, last 2 years) | |
| AIDA64 / CPU AES | |
| Asus ExpertBook PM5 G2 PM5606 (v6.92.6600) | |
| Dell Pro 5 16 P516265 (v8.20.8100) | |
| Average AMD Ryzen AI 9 HX 470 (78626 - 117375, n=9) | |
| HP EliteBook 8 G1a 16 AI (v6.92.6600) | |
| Dynabook Tecra A60 A65-M (v6.92.6600) | |
| Average of class Office (4854 - 155900, n=88, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE (v8.20.8100) | |
| AIDA64 / CPU ZLib | |
| Average AMD Ryzen AI 9 HX 470 (1407 - 1549, n=9) | |
| Asus ExpertBook PM5 G2 PM5606 (v6.92.6600) | |
| Dell Pro 5 16 P516265 (v8.20.8100) | |
| HP EliteBook 8 G1a 16 AI (v6.92.6600) | |
| Dynabook Tecra A60 A65-M (v6.92.6600) | |
| Average of class Office (114.6 - 1407, n=88, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE (v8.20.8100) | |
| AIDA64 / FP64 Ray-Trace | |
| Average AMD Ryzen AI 9 HX 470 (16687 - 20313, n=9) | |
| Asus ExpertBook PM5 G2 PM5606 (v6.92.6600) | |
| Dell Pro 5 16 P516265 (v8.20.8100) | |
| HP EliteBook 8 G1a 16 AI (v6.92.6600) | |
| Dynabook Tecra A60 A65-M (v6.92.6600) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE (v8.20.8100) | |
| Average of class Office (1109 - 18334, n=88, last 2 years) | |
| AIDA64 / CPU PhotoWorxx | |
| Dell Pro 5 16 P516265 (v8.20.8100) | |
| HP EliteBook 8 G1a 16 AI (v6.92.6600) | |
| Average of class Office (11090 - 65229, n=88, last 2 years) | |
| Average AMD Ryzen AI 9 HX 470 (23851 - 54302, n=9) | |
| Asus ExpertBook PM5 G2 PM5606 (v6.92.6600) | |
| Dynabook Tecra A60 A65-M (v6.92.6600) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE (v8.20.8100) | |
| AIDA64 / CPU CheckMate | |
| Average AMD Ryzen AI 9 HX 470 (7688 - 8080, n=5) | |
| Dell Pro 5 16 P516265 (v8.20.8100) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE (v8.20.8100) | |
| Average of class Office (377 - 7017, n=19, last 2 years) | |
系统与存储性能

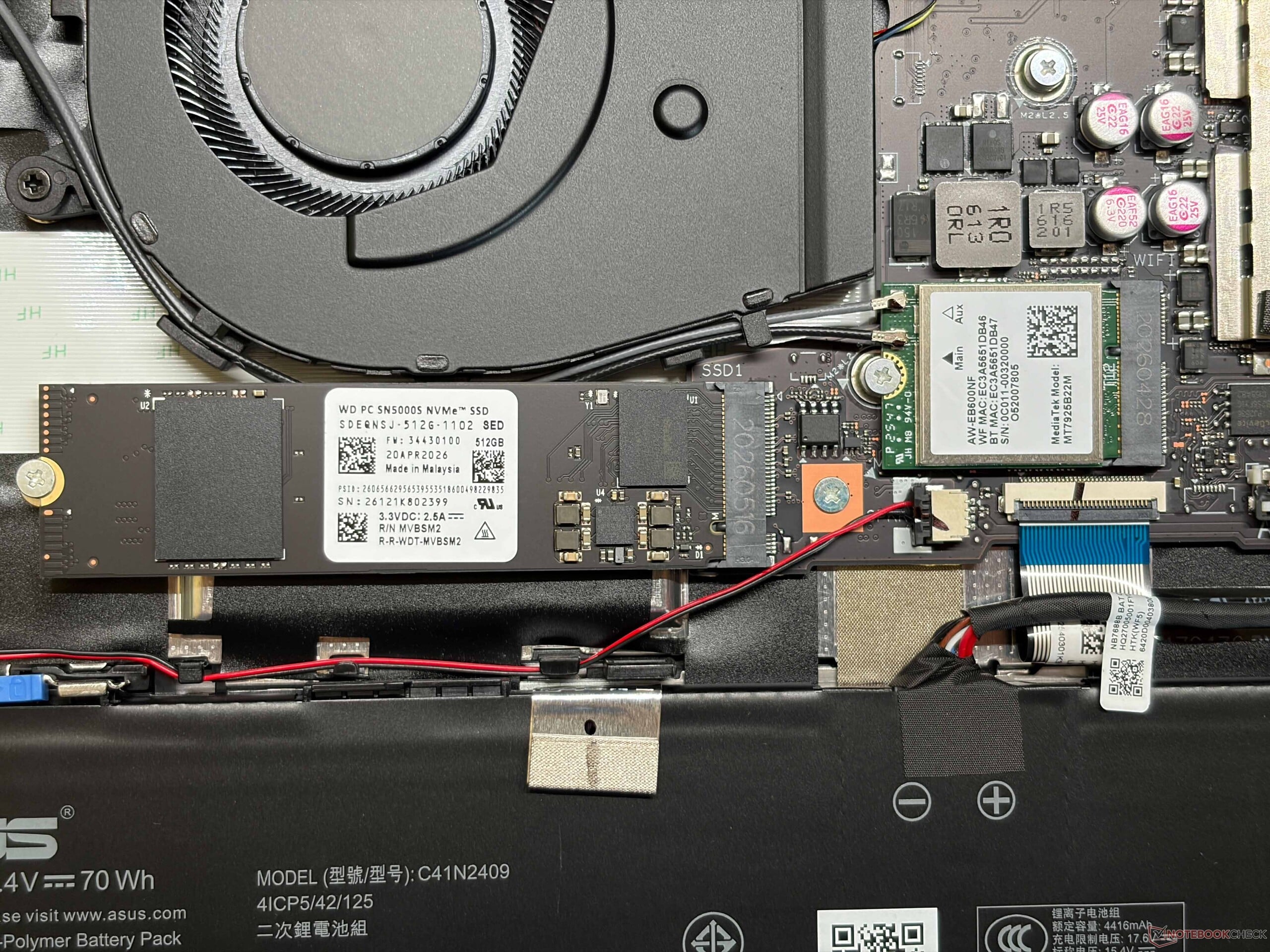

华硕配备了一块 PCIe 4.0 固态硬盘（M.2-2280），在我们的测试机型中，该硬盘由西部数据制造，仅提供 512 GB 的存储空间（可用空间 398 GB）。 性能表现不错且稳定，因此系统响应迅速。不过，在运行复杂应用程序或同时运行多个应用程序时，16 GB 内存可能会很快成为性能瓶颈。
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| Performance rating | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M | |
| Asus ExpertBook PM5 G2 PM5606 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| PCMark 10 / Score | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M (7221 - 8791, n=5) | |
| HP EliteBook 8 G1a 16 AI | |
| Dynabook Tecra A60 A65-M | |
| Average of class Office (2601 - 9298, n=70, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| PCMark 10 / Essentials | |
| HP EliteBook 8 G1a 16 AI | |
| Dell Pro 5 16 P516265 | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M (10035 - 10841, n=5) | |
| Average of class Office (3245 - 11594, n=70, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| PCMark 10 / Productivity | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M (9899 - 16696, n=5) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (5336 - 17243, n=70, last 2 years) | |
| PCMark 10 / Digital Content Creation | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M (9999 - 12005, n=5) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (2049 - 13541, n=70, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| CrossMark / Overall | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M (1371 - 1869, n=5) | |
| Average of class Office (381 - 2010, n=79, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Dynabook Tecra A60 A65-M | |
| Asus ExpertBook PM5 G2 PM5606 | |
| CrossMark / Productivity | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M (1212 - 1703, n=5) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Average of class Office (464 - 1880, n=79, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Asus ExpertBook PM5 G2 PM5606 | |
| CrossMark / Creativity | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M (1689 - 2211, n=5) | |
| HP EliteBook 8 G1a 16 AI | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Average of class Office (319 - 2361, n=79, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Dynabook Tecra A60 A65-M | |
| CrossMark / Responsiveness | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M (942 - 1500, n=5) | |
| Average of class Office (360 - 1820, n=79, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Asus ExpertBook PM5 G2 PM5606 | |
| WebXPRT 3 / Overall | |
| Dell Pro 5 16 P516265 | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M (285 - 331, n=5) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Average of class Office (129.9 - 444, n=80, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| HP EliteBook 8 G1a 16 AI | |
| WebXPRT 4 / Overall | |
| Dell Pro 5 16 P516265 | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M (241 - 279, n=4) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Average of class Office (104.2 - 313, n=81, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| HP EliteBook 8 G1a 16 AI | |
| Mozilla Kraken 1.1 / Total | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (391 - 1297, n=82, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470, AMD Radeon 890M (414 - 442, n=5) | |
* ... smaller is better
| PCMark 10 Score | 8765 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (20075 - 110930, n=85, last 2 years) | |
| Average AMD Ryzen AI 9 HX 470 (38489 - 86767, n=9) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| AIDA64 / Memory Read | |
| Dell Pro 5 16 P516265 | |
| Average of class Office (10084 - 128030, n=86, last 2 years) | |
| HP EliteBook 8 G1a 16 AI | |
| Average AMD Ryzen AI 9 HX 470 (39901 - 93860, n=9) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Dynabook Tecra A60 A65-M | |
| AIDA64 / Memory Write | |
| HP EliteBook 8 G1a 16 AI | |
| Dell Pro 5 16 P516265 | |
| Average of class Office (20073 - 119858, n=86, last 2 years) | |
| Average AMD Ryzen AI 9 HX 470 (40283 - 118364, n=9) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Asus ExpertBook PM5 G2 PM5606 | |
| AIDA64 / Memory Latency | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (7.6 - 162.9, n=80, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Dell Pro 5 16 P516265 | |
| Average AMD Ryzen AI 9 HX 470 (87.4 - 104.5, n=9) | |
| Asus ExpertBook PM5 G2 PM5606 | |
* ... smaller is better

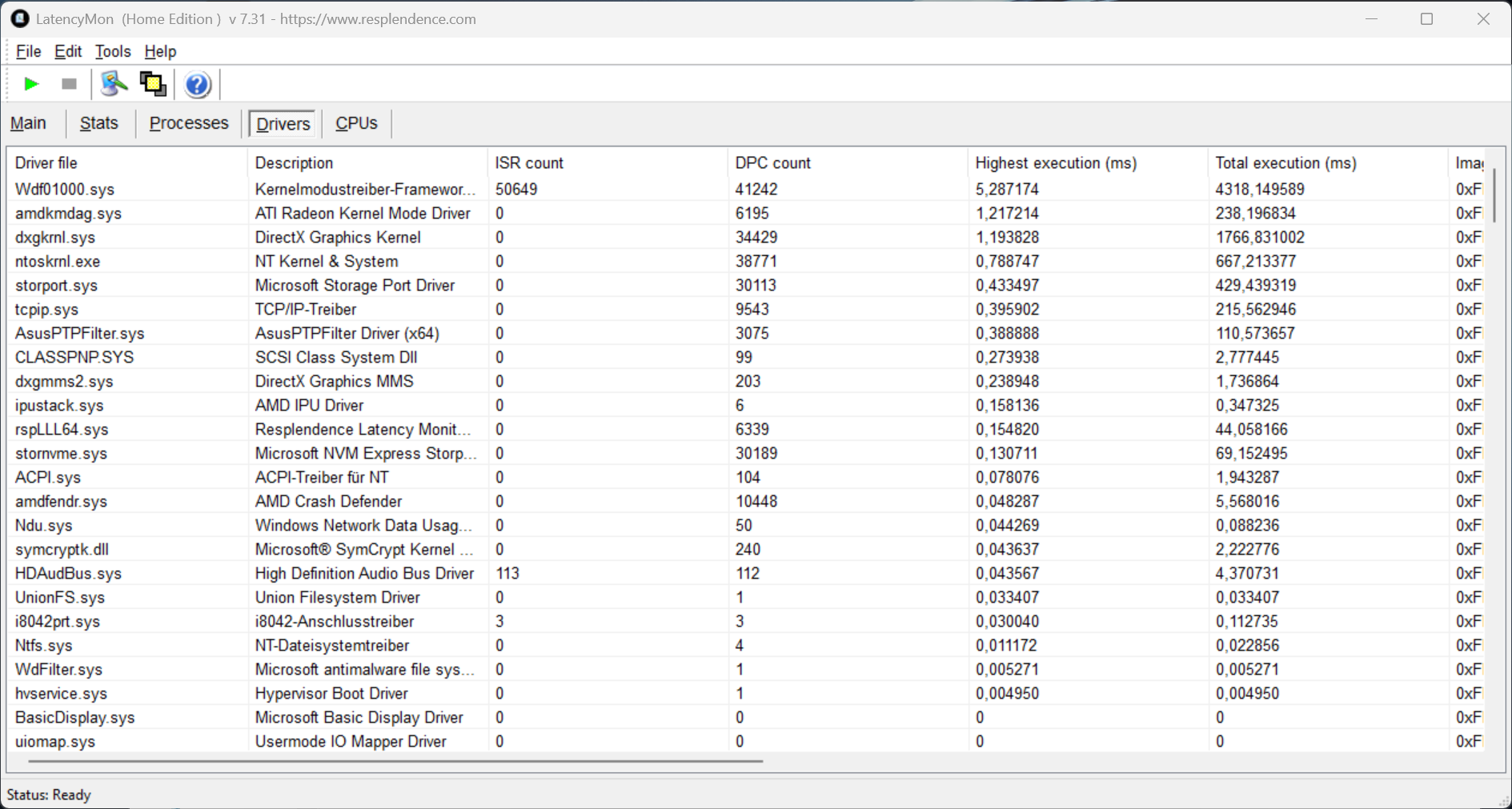

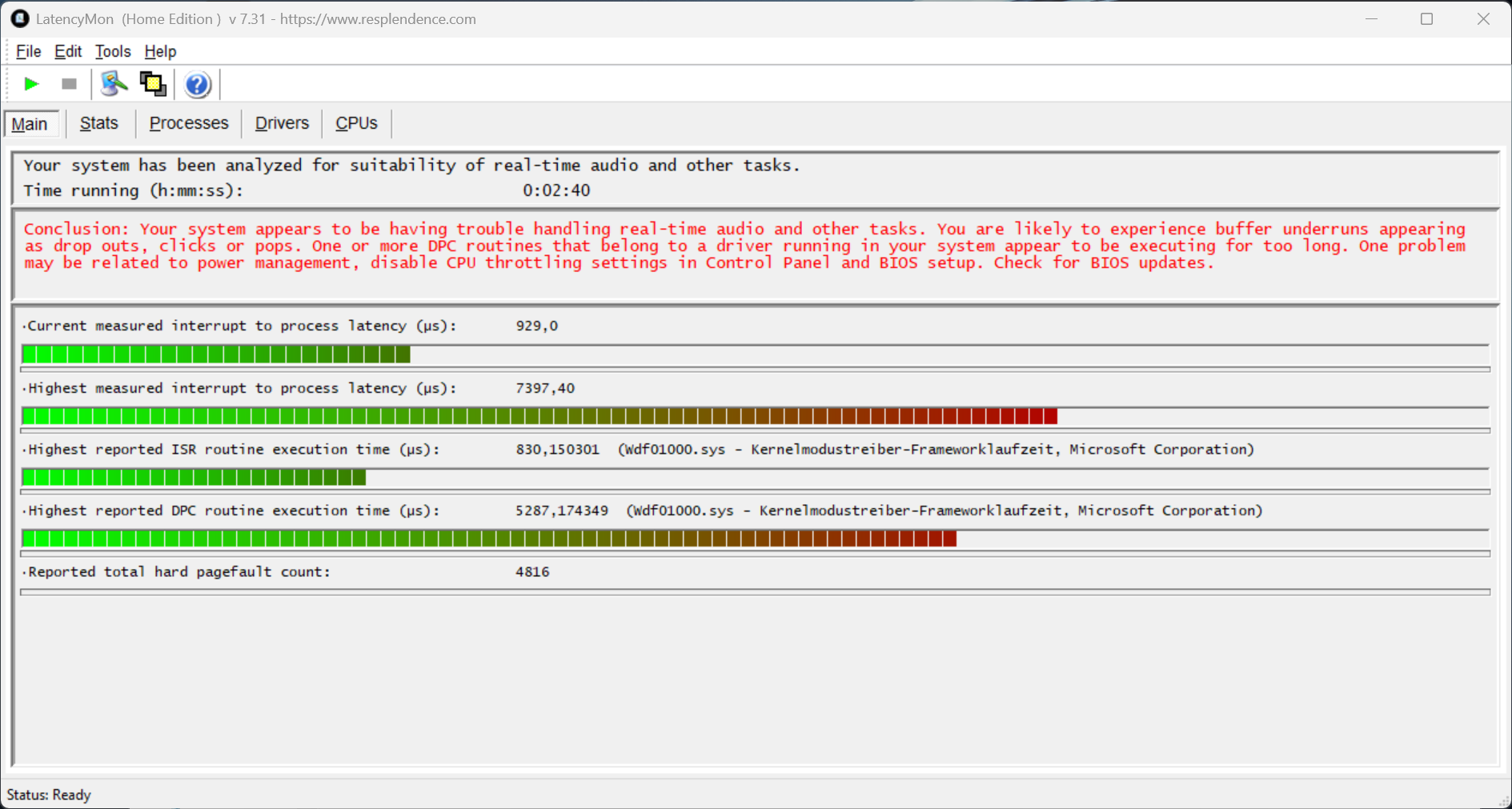

| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (365 - 98089, n=64, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
* ... smaller is better
* ... smaller is better
持续读取性能：DiskSpd 读取循环，队列深度 8

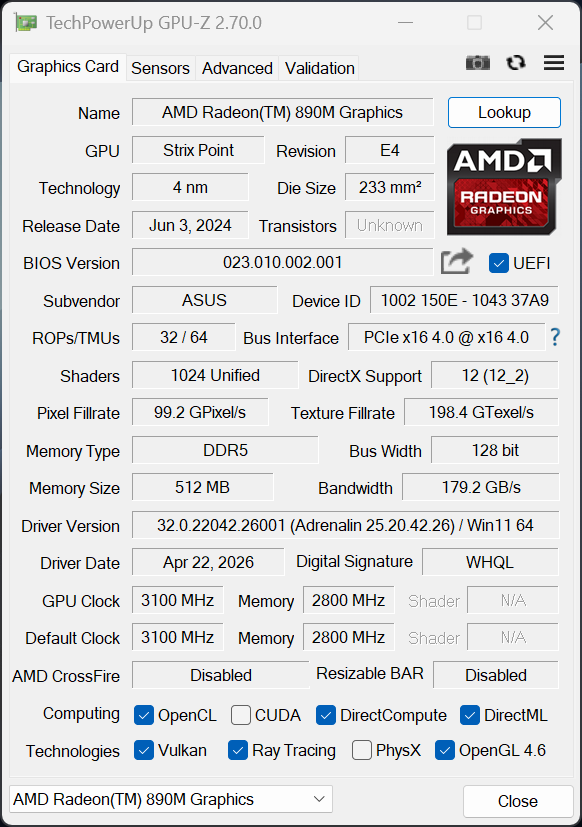

GPU 与游戏性能
Radeon 890M 实际上是一款性能强劲的集成显卡，但在测试机型上，其性能受限于单通道内存配置。当然，这对于日常办公使用已经足够，但下班后喜欢玩几局游戏的人，建议安装一块额外的内存条。
| 3DMark 11 Performance | 9030 points | |
| 3DMark Fire Strike Score | 4953 points | |
| 3DMark Time Spy Score | 2331 points | |
| 3DMark Steel Nomad Score | 343 points | |
| 3DMark Steel Nomad Light Score | 2082 points | |
Help | ||
| Blender / v3.3 Classroom CPU | |
| Average of class Office (233 - 3219, n=79, last 2 years) | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Dynabook Tecra A60 A65-M | |
| HP EliteBook 8 G1a 16 AI | |
| Average AMD Radeon 890M (211 - 475, n=30) | |
| Dell Pro 5 16 P516265 | |
| Asus ExpertBook PM5 G2 PM5606 | |
* ... smaller is better
| Performance rating - Percent | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Cyberpunk 2077 - 1920x1080 Ultra Preset (FSR off) | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (3.1 - 61.5, n=74, last 2 years) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Baldur's Gate 3 - 1920x1080 Ultra Preset AA:T | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (3.5 - 65.2, n=69, last 2 years) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| GTA V - 1920x1080 Highest AA:4xMSAA + FX AF:16x | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (5.77 - 45.3, n=71, last 2 years) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (8.09 - 79.5, n=74, last 2 years) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (12.9 - 142.1, n=55, last 2 years) | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| Dell Pro 5 16 P516265 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (14.6 - 135, n=81, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Asus ExpertBook PM5 G2 PM5606 | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
| X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
| Dell Pro 5 16 P516265 | |
| Asus ExpertBook PM5 G2 PM5606 | |
| HP EliteBook 8 G1a 16 AI | |
| Average of class Office (12 - 82.4, n=73, last 2 years) | |
| Dynabook Tecra A60 A65-M | |
| Lenovo ThinkPad T16 Gen 5 22AN001WGE | |
《赛博朋克2077》极致画质帧率图表
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 139.9 | 119.5 | 36.4 | 14.4 |
| Dota 2 Reborn (2015) | 162.8 | 113.8 | 61.8 | 55.6 |
| Final Fantasy XV Benchmark (2018) | 46.8 | 24.1 | 17.8 | |
| X-Plane 11.11 (2018) | 67.8 | 51.4 | 41.4 | |
| Strange Brigade (2018) | 98.9 | 34.3 | 29.9 | 26 |
| Baldur's Gate 3 (2023) | 29.2 | 21.1 | 17.6 | 17.3 |
| Cyberpunk 2077 (2023) | 27.1 | 22.5 | 17 | 15 |
排放与能源
噪声排放
单风扇在空闲时非常安静，但在负载下会迅速提速，尤其是在“性能模式”下。此时，较高的TDP上限成为问题，噪音水平会迅速达到约48 dB(A)的峰值——对于办公设备而言，这已经相当吵闹。 在标准模式下，最大噪音为39 dB(A)；而在“静音”模式下，即使在压力测试期间，ExpertBook的噪音也仅为29.1 dB(A)，几乎听不见。测试机型未产生其他电子噪音。
Noise level
| Idle |
| 24.7 / 24.7 / 24.7 dB(A) |
| Load |
| 47.8 / 47.8 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24.7 dB(A) | ||
| Asus ExpertBook PM5 G2 PM5606 Ryzen AI 9 HX 470, Radeon 890M | Dell Pro 5 16 P516265 Ryzen AI 9 HX PRO 470, Radeon 890M | Lenovo ThinkPad T16 Gen 5 22AN001WGE R5 PRO 215, Radeon 740M | Dynabook Tecra A60 A65-M R7 250, Radeon 780M | HP EliteBook 8 G1a 16 AI Ryzen AI 7 PRO 350, Radeon 860M | |
|---|---|---|---|---|---|
| Noise | 6% | 13% | 12% | 3% | |
| off / environment * (dB) | 24.7 | 23 7% | 24.6 -0% | 22.6 9% | 22.7 8% |
| Idle Minimum * (dB) | 24.7 | 23.2 6% | 24.6 -0% | 22.8 8% | 22.8 8% |
| Idle Average * (dB) | 24.7 | 23.2 6% | 24.6 -0% | 22.9 7% | 22.8 8% |
| Idle Maximum * (dB) | 24.7 | 27 -9% | 26.4 -7% | 23.5 5% | 24.7 -0% |
| Load Average * (dB) | 47.8 | 34.1 29% | 28.6 40% | 35 27% | 46 4% |
| Cyberpunk 2077 ultra * (dB) | 47.8 | 46.5 3% | 34.2 28% | 41.1 14% | 48.7 -2% |
| Load Maximum * (dB) | 47.8 | 46.7 2% | 34.2 28% | 41.3 14% | 49.5 -4% |
* ... smaller is better
温度

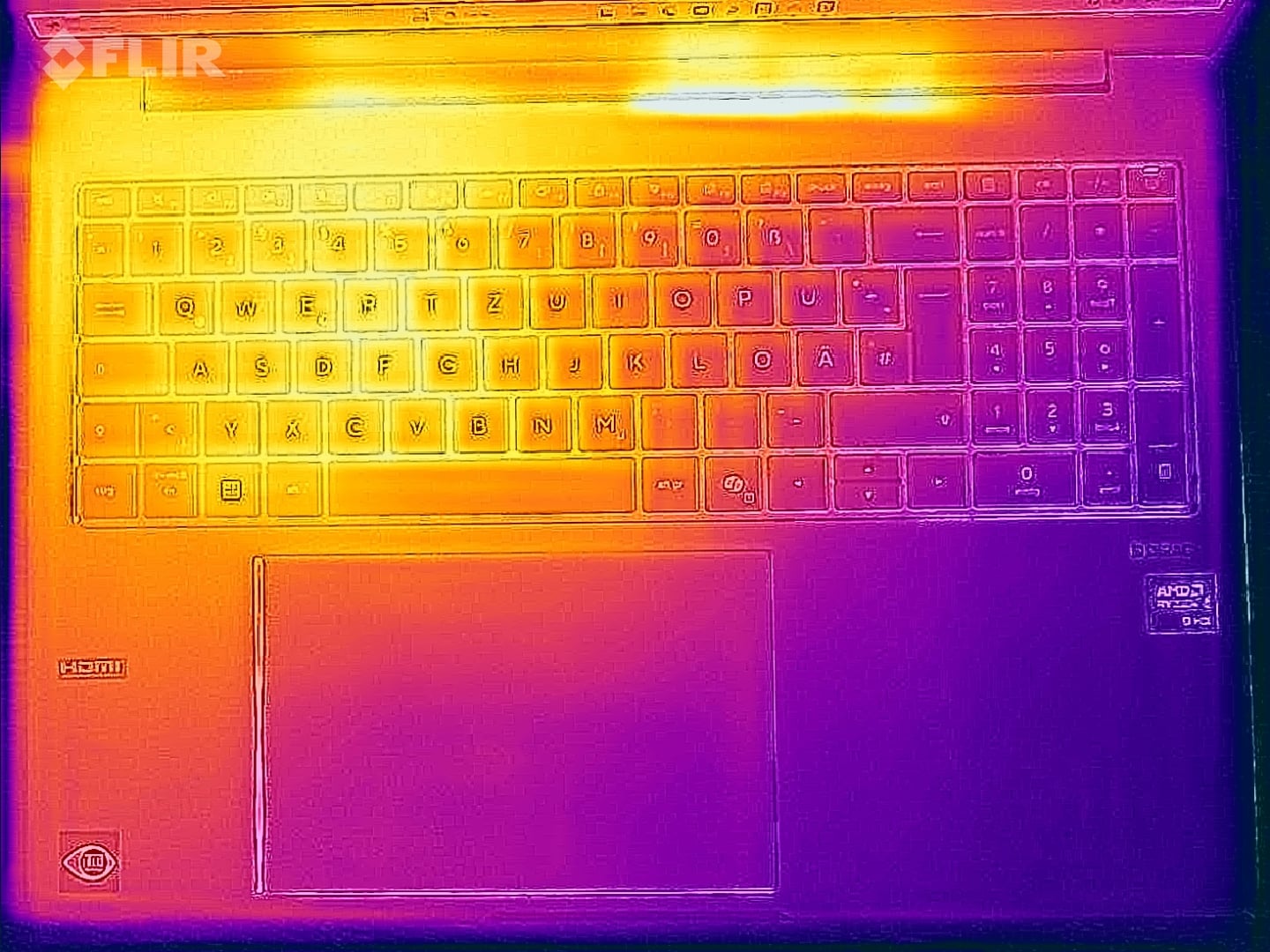

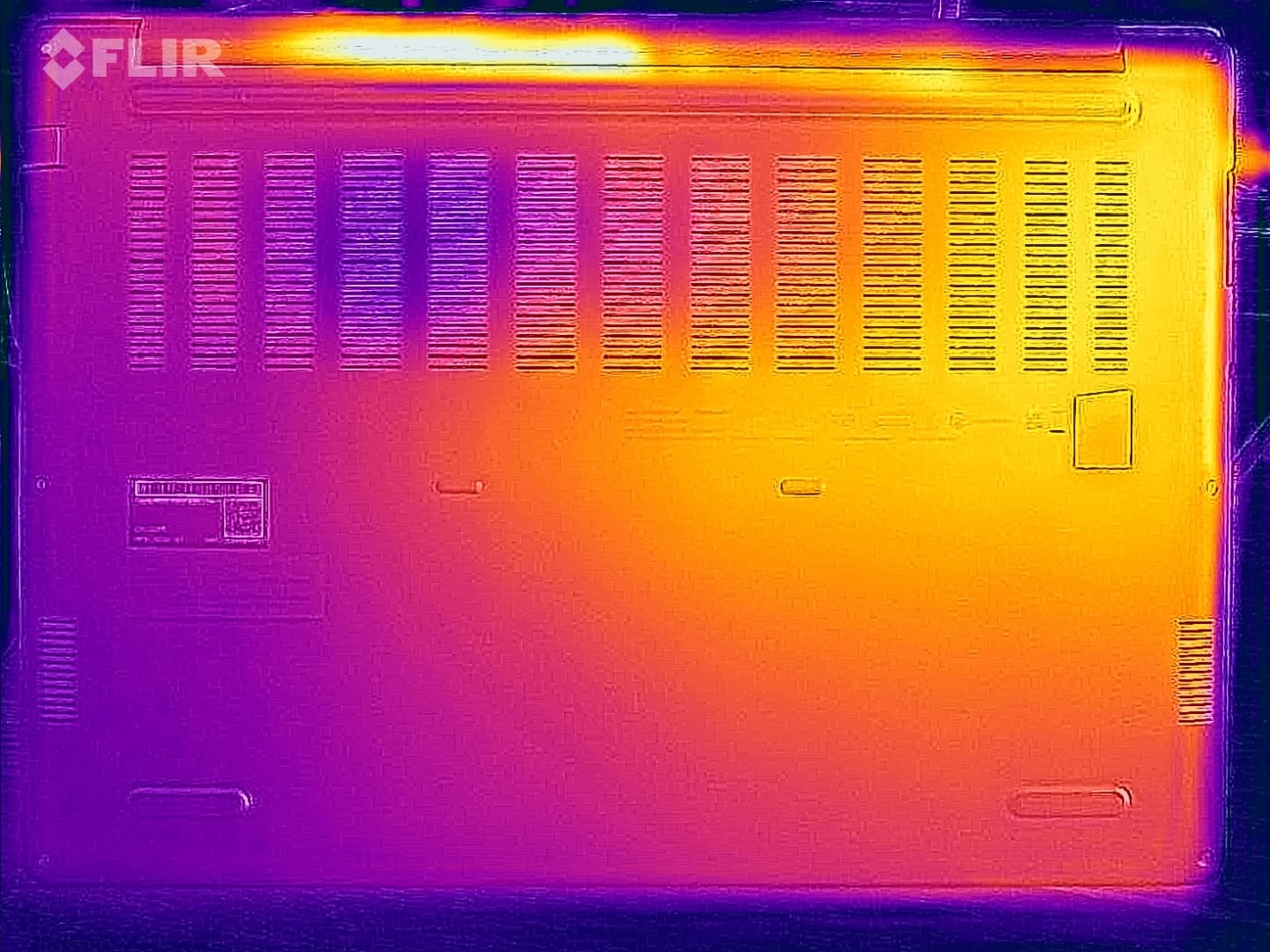

由于仅配备一个风扇，主机左侧的发热最为明显；在“性能”模式下的压力测试中，我们在底面（后部中央）某处测得的温度略低于48 °C；因此应避免皮肤直接接触该区域。 不过，除此之外，温度方面并无其他问题。在压力测试期间，处理器短暂运行在48瓦特，随后稳定在45瓦特（约82 °C）。
(±) The maximum temperature on the upper side is 42.7 °C / 109 F, compared to the average of 34.4 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 47.8 °C / 118 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.1 °C / 75 F, compared to the device average of 29.5 °C / 85 F.
(±) 3: The average temperature for the upper side is 35.8 °C / 96 F, compared to the average of 29.5 °C / 85 F for the class Office.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.4 °C / 93.9 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-6.8 °C / -12.2 F).
| Asus ExpertBook PM5 G2 PM5606 Ryzen AI 9 HX 470, Radeon 890M | Dell Pro 5 16 P516265 Ryzen AI 9 HX PRO 470, Radeon 890M | Lenovo ThinkPad T16 Gen 5 22AN001WGE R5 PRO 215, Radeon 740M | Dynabook Tecra A60 A65-M R7 250, Radeon 780M | HP EliteBook 8 G1a 16 AI Ryzen AI 7 PRO 350, Radeon 860M | |
|---|---|---|---|---|---|
| Heat | -2% | 5% | 8% | 4% | |
| Maximum Upper Side * (°C) | 42.7 | 41 4% | 37 13% | 35.8 16% | 38 11% |
| Maximum Bottom * (°C) | 47.8 | 39.2 18% | 40.9 14% | 36 25% | 33.4 30% |
| Idle Upper Side * (°C) | 24.9 | 28.4 -14% | 24.9 -0% | 25.6 -3% | 28 -12% |
| Idle Bottom * (°C) | 24.9 | 28.6 -15% | 26.4 -6% | 26.6 -7% | 28.2 -13% |
* ... smaller is better
发言人
这款立体声扬声器的音质出乎意料地好，尤其是对于一款商务设备而言。不过，其直接竞争对手的音质也处于同样高的水平。
Asus ExpertBook PM5 G2 PM5606 audio analysis
(±) | speaker loudness is average but good (76.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.3% lower than median
(±) | linearity of bass is average (7.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.9% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 1% similar, 94% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 9% of all tested devices were better, 3% similar, 88% worse
» The best had a delta of 4%, average was 23%, worst was 134%
Dell Pro 5 16 P516265 audio analysis
(+) | speakers can play relatively loud (85.1 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.1% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.9% away from median
(+) | mids are linear (5.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.6% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.7% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 86% worse
» The best had a delta of 4%, average was 23%, worst was 134%
Lenovo ThinkPad T16 Gen 5 22AN001WGE audio analysis
(±) | speaker loudness is average but good (80.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9.3% lower than median
(±) | linearity of bass is average (8.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(+) | mids are linear (3.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.8% away from median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 96% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 6% of all tested devices were better, 2% similar, 92% worse
» The best had a delta of 4%, average was 23%, worst was 134%
Dynabook Tecra A60 A65-M audio analysis
(+) | speakers can play relatively loud (82.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.3% lower than median
(±) | linearity of bass is average (11.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (3.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(+) | highs are linear (1.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.5% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 93% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 11% of all tested devices were better, 2% similar, 86% worse
» The best had a delta of 4%, average was 23%, worst was 134%
HP EliteBook 8 G1a 16 AI audio analysis
(+) | speakers can play relatively loud (86.7 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.4% lower than median
(±) | linearity of bass is average (10.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.4% away from median
(+) | mids are linear (4.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3% away from median
(+) | highs are linear (3.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.2% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 0% similar, 99% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 3% of all tested devices were better, 1% similar, 96% worse
» The best had a delta of 4%, average was 23%, worst was 134%
功耗与电池续航时间
功耗测试结果不出所料：在待机模式下，该设备的功耗在4.3至10.7瓦之间，具体取决于亮度。在满载状态下，我们测得最高功耗为78瓦，因此随附的90瓦电源适配器功率完全足够。 在我们的 Wi-Fi 测试中，70-Wh 电池可提供 10.5 至 12.5 小时的续航时间（具体取决于亮度）；只有配备性能较弱显示屏的竞品在此项测试中的续航时间略长于此。
| Off / Standby | 0.37 / 0.58 Watt |
| Idle | 4.3 / 10.2 / 10.7 Watt |
| Load |
75.8 / 78.4 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
《赛博朋克》中的功耗 / 压力测试
连接外接显示器时的功耗
Notebookcheck 综合评分
Asus ExpertBook PM5 G2 PM5606
- 08/13/2026 v8
Andreas Osthoff
Total Sustainability Score: 可能的替代方案比较
Image | Model / Review | Price | Weight | Height | Display |
|---|---|---|---|---|---|
1. 84.7%  | Asus ExpertBook PM5 G2 PM5606 AMD Ryzen AI 9 HX 470 ⎘ AMD Radeon 890M ⎘ 16 GB Memory, 512 GB SSD | Amazon: List Price: 1700€ | 1.8 kg | 18 mm | 16.00" 2560x1600 189 PPI IPS |
2. 83.4%  | Dell Pro 5 16 P516265 AMD Ryzen AI 9 HX PRO 470 ⎘ AMD Radeon 890M ⎘ 64 GB Memory, 1024 GB SSD | Amazon: List Price: 4500 USD | 2 kg | 18.95 mm | 16.00" 2560x1600 189 PPI IPS |
3. 86.9%  | Lenovo ThinkPad T16 Gen 5 22AN001WGE AMD Ryzen 5 PRO 215 ⎘ AMD Radeon 740M ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $1,329.95 Lenovo ThinkPad T16 Gen 4 Bu... 2. $1,099.99 Lenovo ThinkPad T16 Gen 4 La... 3. $1,299.99 Lenovo ThinkPad T16 Gen 4 Co... List Price: 1640€ | 1.9 kg | 18.2 mm | 16.00" 1920x1200 142 PPI IPS |
4. 83.7%  | Dynabook Tecra A60 A65-M AMD Ryzen 7 250 ⎘ AMD Radeon 780M ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $123.00 16.0" WUXGA 1920(RGB)*1200 f... 2. $129.00 Replacement Screen 16.0" for... 3. $1,209.00 dynabook Tecra A45-M 14” B... List Price: 1300 USD | 1.7 kg | 19.9 mm | 16.00" 1920x1200 142 PPI IPS |
5. 87%  | HP EliteBook 8 G1a 16 AI AMD Ryzen AI 7 PRO 350 ⎘ AMD Radeon 860M ⎘ 32 GB Memory, 512 GB SSD | Amazon: List Price: 4400 USD | 1.9 kg | 15.5 mm | 16.00" 1920x1200 142 PPI IPS |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Add as a preferred source on Google
