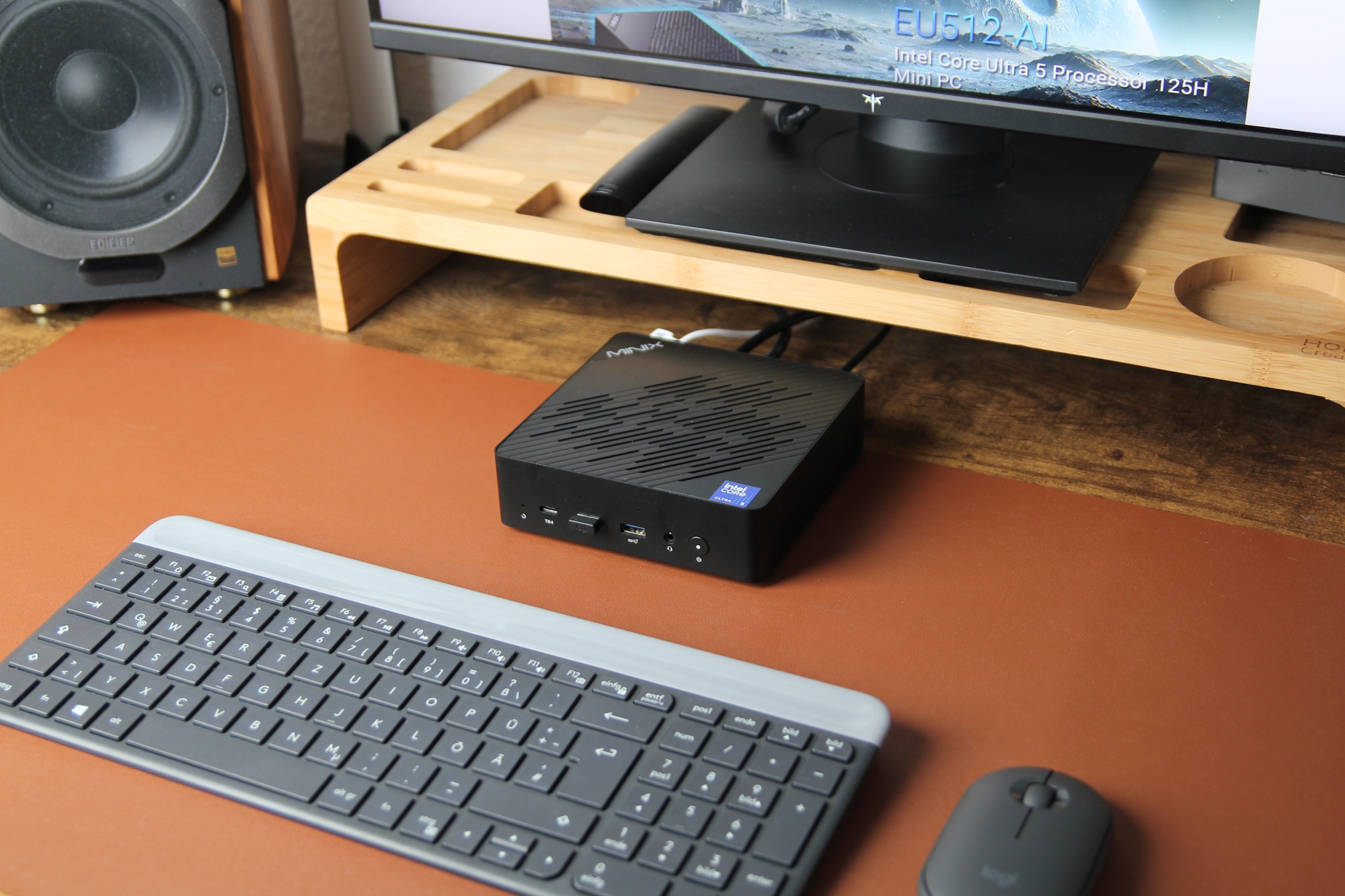

Minix Elite EU512-AI 评测：超节能酷睿迷你 PC

涡轮在哪里？

来自远东的迷你电脑往往标榜低价，却配备了英特尔 N100 等性能不强的处理器。Minix 的 Elite 系列却不是这种情况--这些机型配备了英特尔酷睿 Ultra CPU，但起价仅为 668 欧元（约合人民币 780 元）或 829 欧元（约合人民币 967 元）。我们将对这款搭载人工智能的微型电脑进行评测，看看它到底能提供什么。
Christian Hintze, 👁 Christian Hintze (translated by DeepL / Ninh Duy) Published 07/19/2025 🇺🇸 🇩🇪 ...
AI Arc Benchmark CPU Gadget Meteor Lake Mini PC Intel

结论 - 高能效，但 Core Ultra 令人失望

理论上，酷睿至尊 5 125H 在 Turbo 模式下的功耗为 115 瓦，但 Minix Elite EU512-AI 的功耗上限为 50 瓦。这一限制在所有 CPU 和 GPU 基准测试中都表现得非常明显，在这些测试中，配置类似的竞争对手往往表现得更好。

另一方面，Minix 的能效远高于许多具有类似规格的竞争对手，无需更多电力即可轻松处理日常办公任务。虽然有一些价格更低廉、CPU 功耗更低的迷你 PC，但它们通常缺乏用于人工智能工作负载的内置 NPU。

Pros

+ 坚固的金属外壳

+ 第二个 M.2 固态硬盘插槽

+ TB4、双以太网和 Wi-Fi 6E

+ 安静、省电

Cons

- 高度节流的 Ultra CPU

- 固态硬盘在负载情况下会快速节流

- 背面只有 1 个 USB-A

价格和供应情况

在制造商网站上，我们的配置价格为 829 欧元（967 美元）。在我们的借贷商Geekmaxi，该机型的价格为 659 欧元（约合人民币 768 元），折扣代码为"CKDI8P1Q"。

$639.90

MINIX EU512-AI Mini PC Intel Core Ultra 5 125H 16GB DDR5/512GB SSD 8K Quad Output/Thunderbolt 4/Whisper-Quiet Office Design/AI Boost NPU/Dual 2.5G/Wi-Fi 6E Windows 11 Pro Home & Business Computer

结论 - 高能效，但 Core Ultra 令人失望
规格
箱子和设备
性能
处理器 - Intel Core Ultra 5 125H

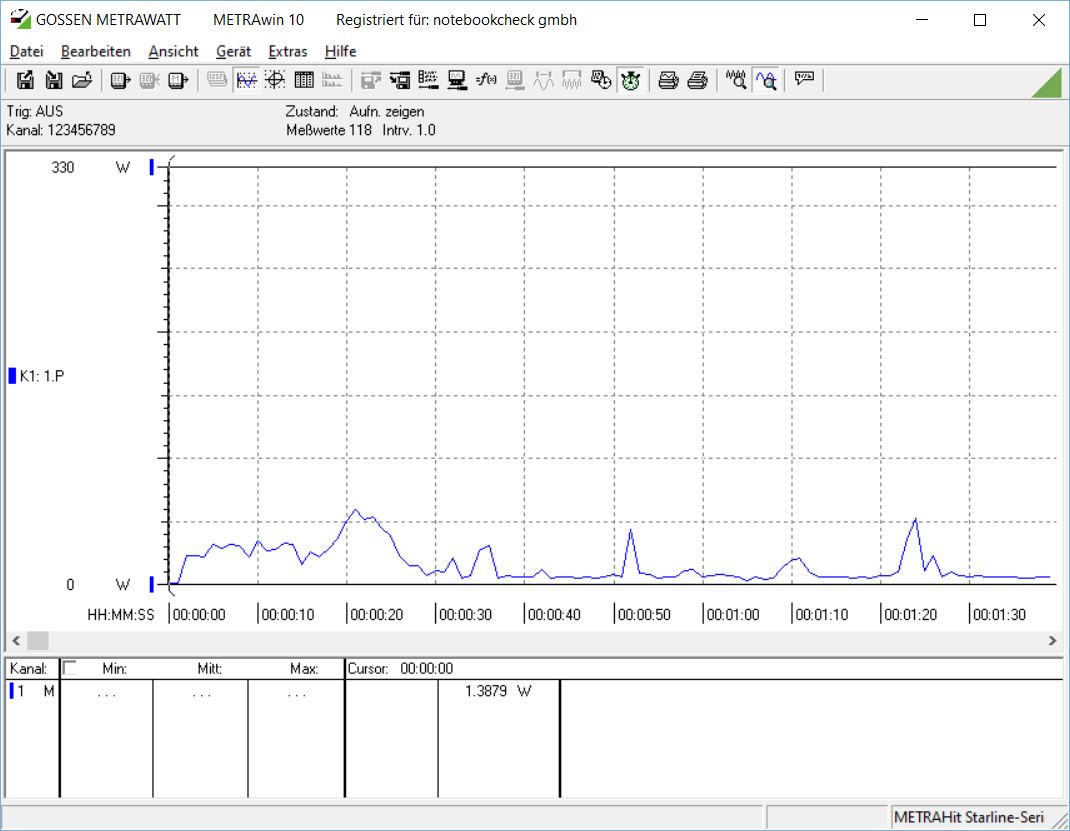

能源管理
简要概述
可能的替代品比较

根据其网站，Minix 集团成立于 2004 年，以生产微型电脑而闻名。随着时间的推移，该公司的产品范围已扩展到消费电子产品、汽车技术、旅行配件和家庭办公解决方案。该网站的德语版本包含一些翻译错误和一些 "有趣的 "人工智能图片。Minix 设备在亚马逊上也有销售。

Minix Elite 系列目前有两种型号。我们评测的是低端配置，配备英特尔酷睿 5 125H，亚马逊起价 639 美元。高端型号配备酷睿至尊 7 155H，售价约为 999 美元。我们的评测机配备了一个 16 GB 内存模块，而更昂贵的机型则配备了 2×16 GB 的双通道性能。

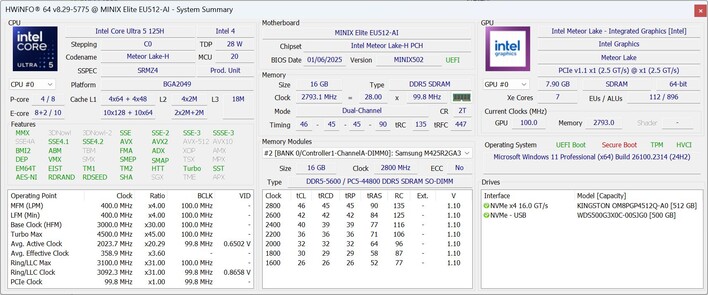

规格

Minix Elite EU512-AI

Processor

Intel Core Ultra 5 125H 14 x 3.6 - 4.5 GHz, 75 W PL2 / Short Burst, 45 W PL1 / Sustained, Meteor Lake-H

Graphics adapter

Intel Arc 7-Core iGPU

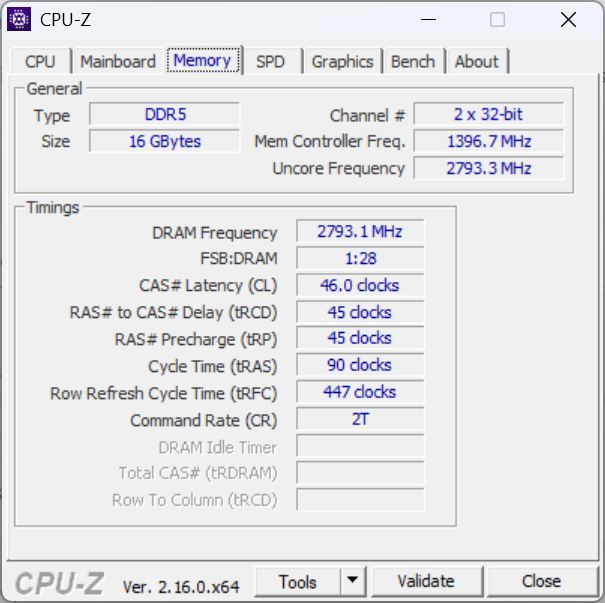

Memory

16 GB

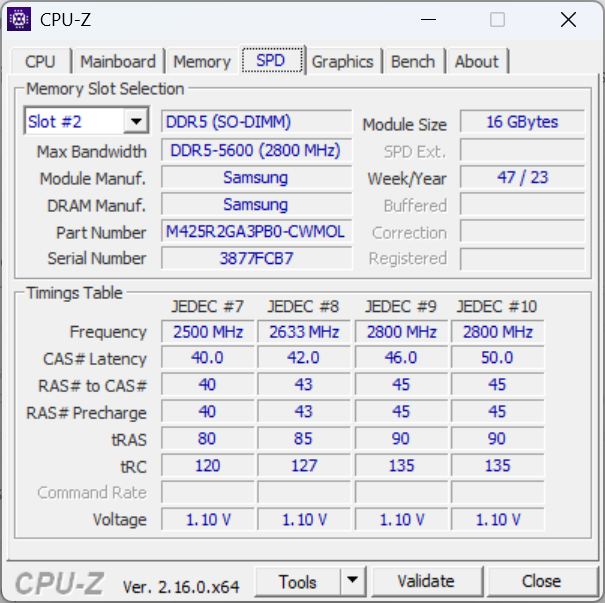

, 1x 16 GB Samsung DDR5-5600, 1 free slot

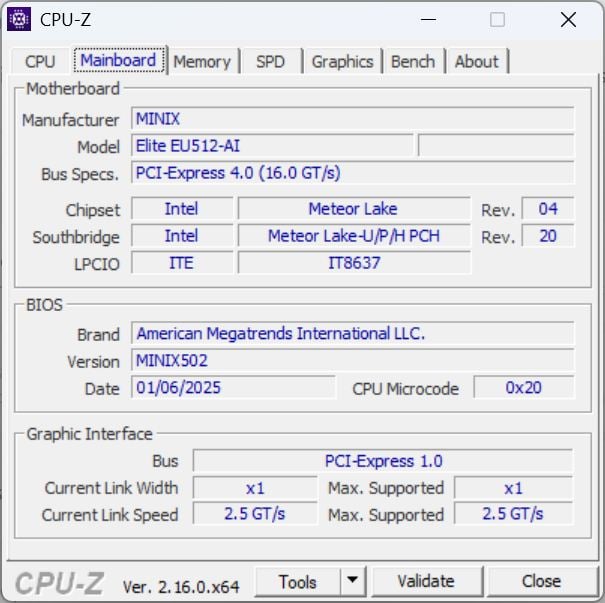

Mainboard

Intel Arrow Lake-H PCH

Storage

Kingston OM8PGP4512Q-A0, 512 GB

, Partitioned, 450 GB free

Soundcard

Intel Meteor Lake-U/P/H PCH - cAVS (Audio, Voice, Speech)

Connections

3 USB 3.1 Gen2, 1 USB 3.2 Gen 2x2 20Gbps, 1 USB 4.0 40 Gbps, 1 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: Headset jack

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth Bluetooth 5.3

Size

height x width x depth (in mm): 39.5 x 140 x 139.7

Operating System

Microsoft Windows 11 Pro

Additional features

12 Months Warranty

Weight

772 g

Price

829 Euro

Links

Minix homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

箱子和设备

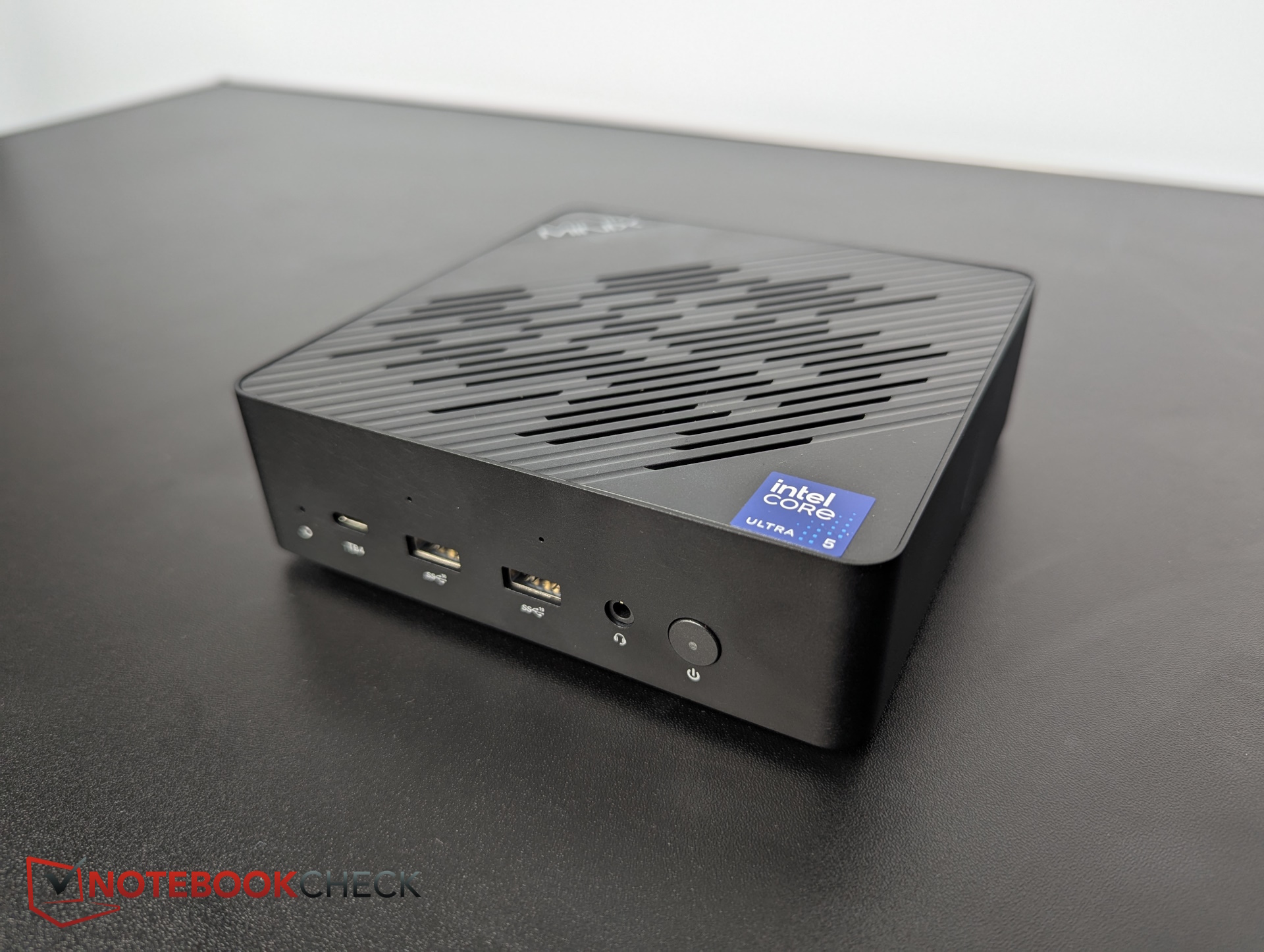

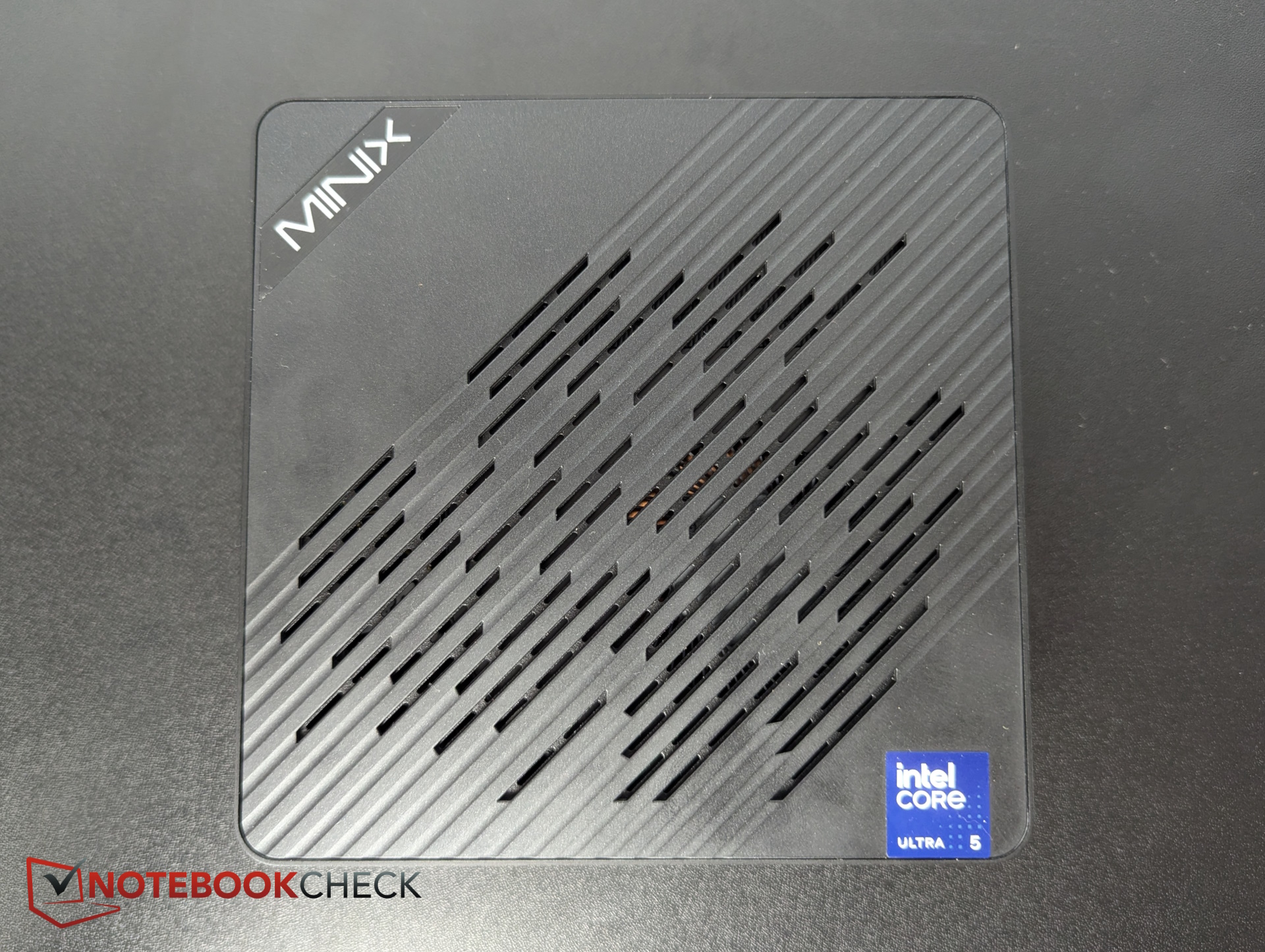

机箱四周均由金属制成，质量上乘，这在一定程度上要归功于它的重量。

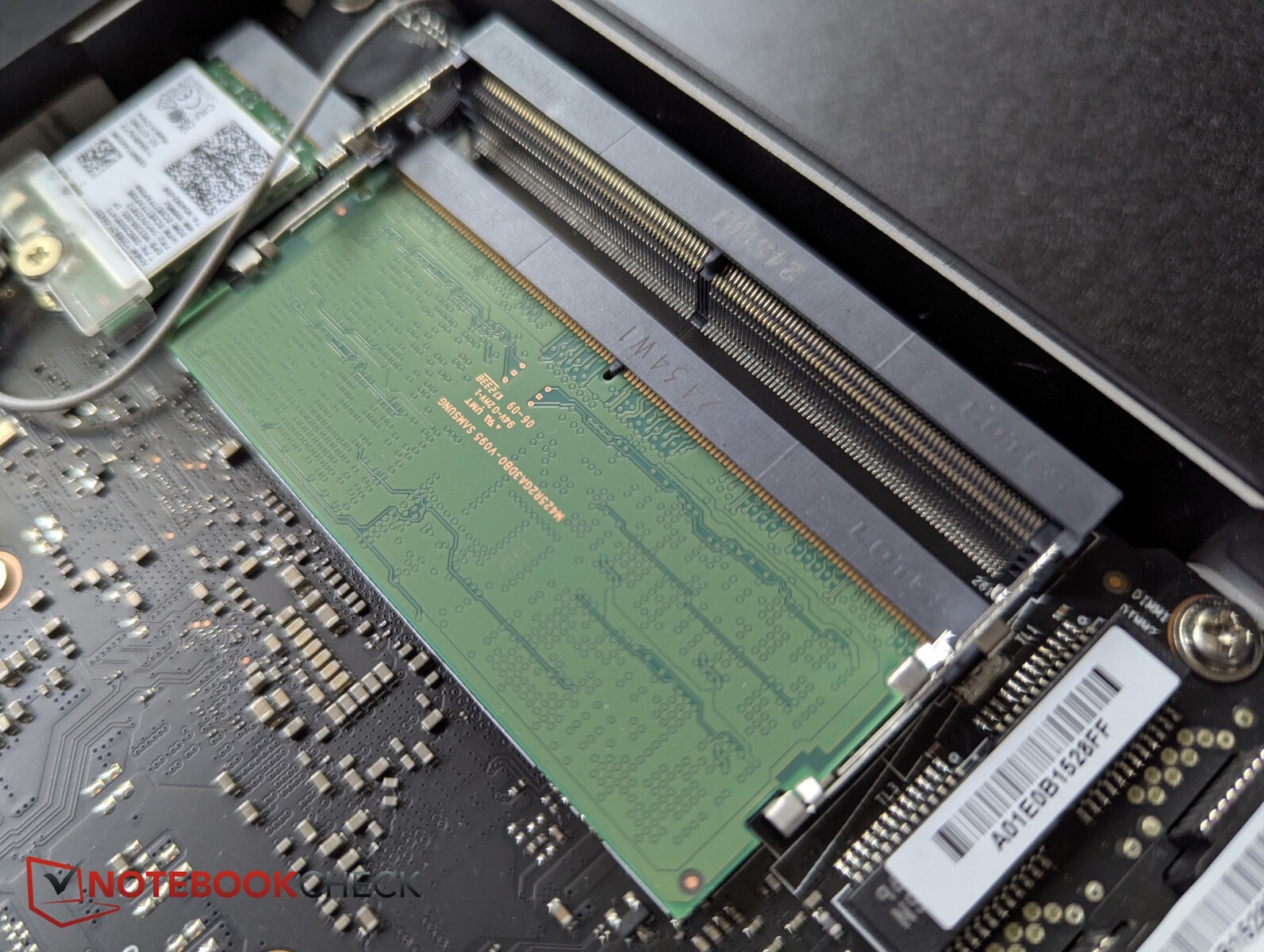

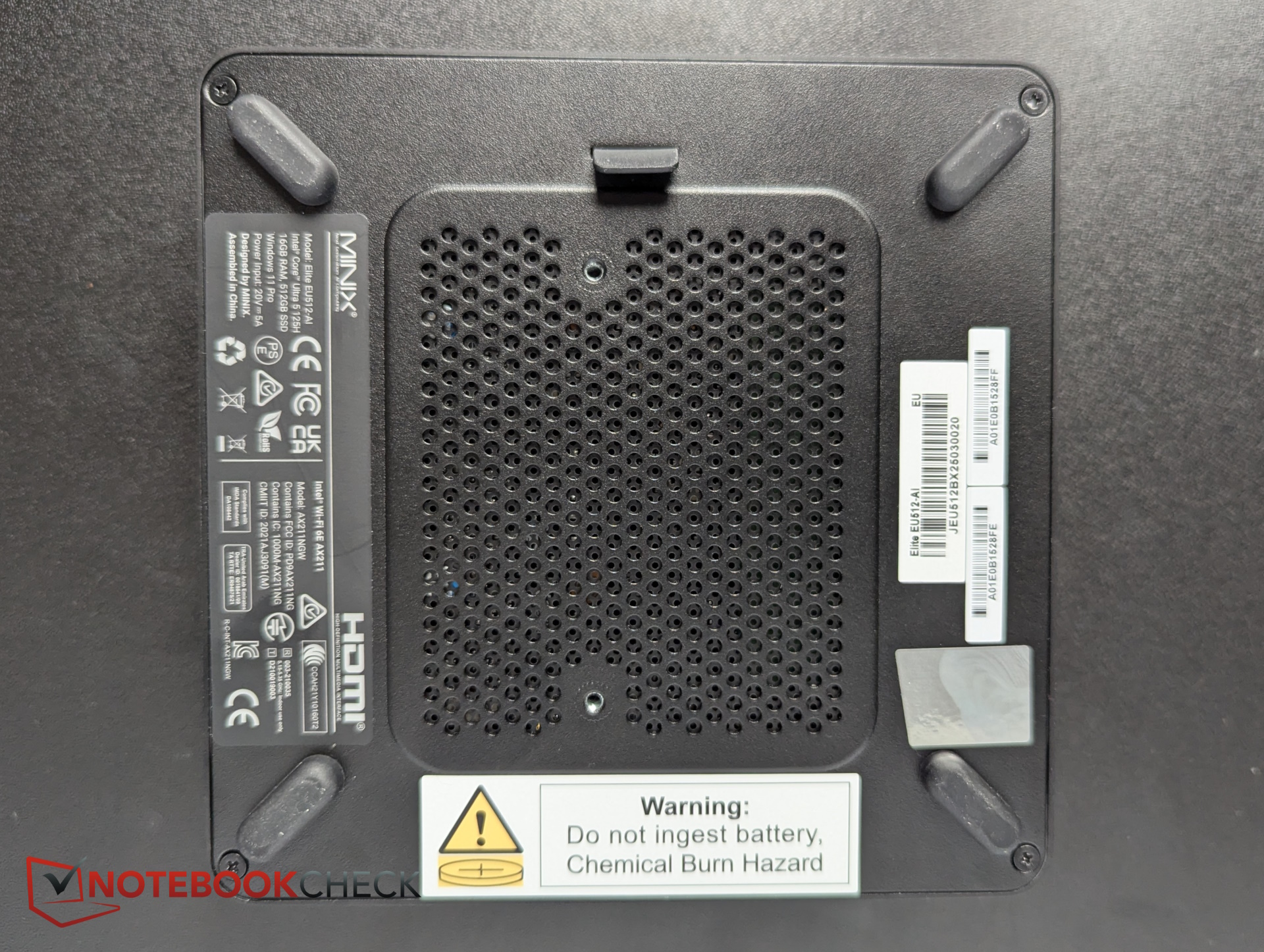

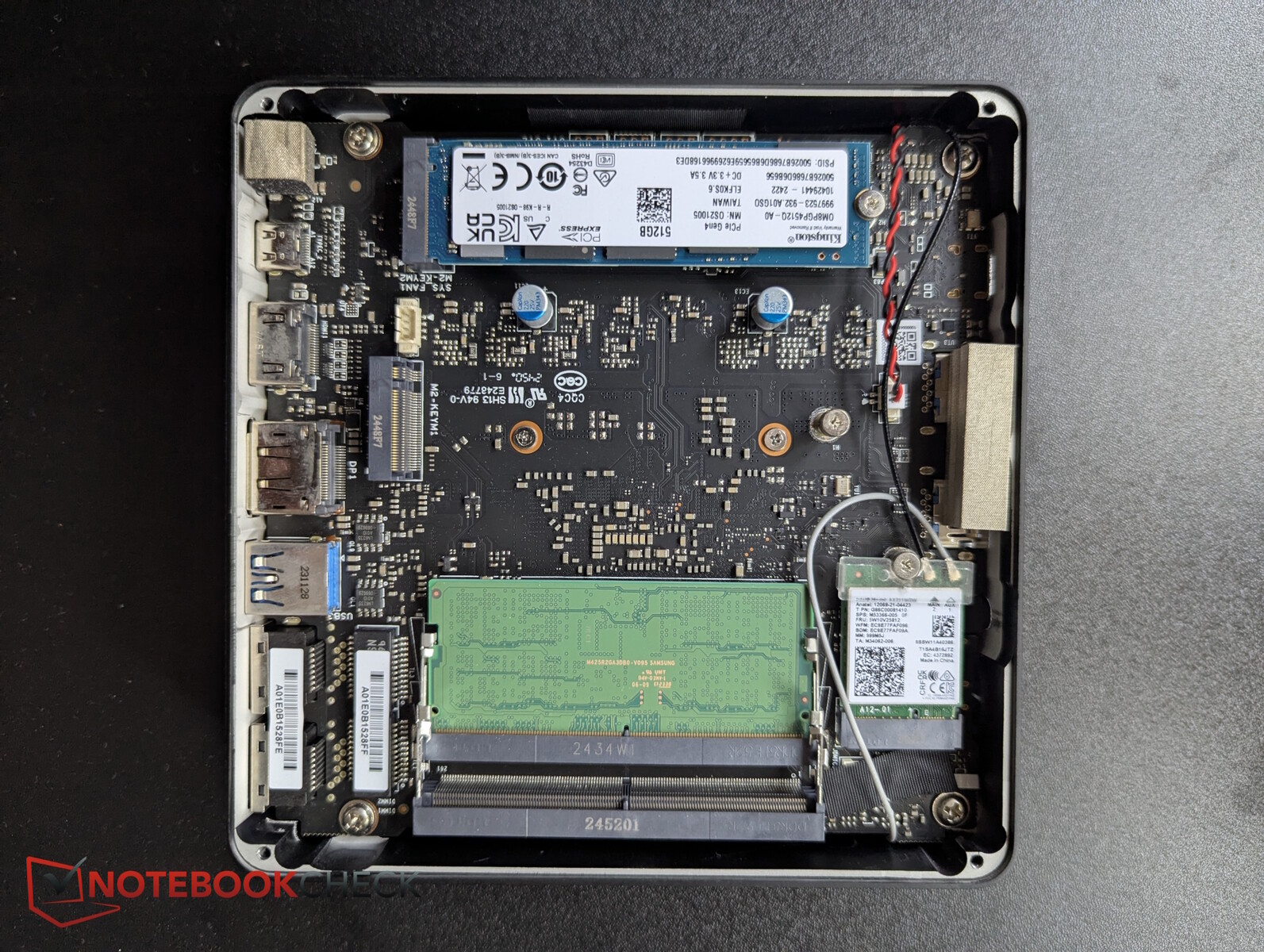

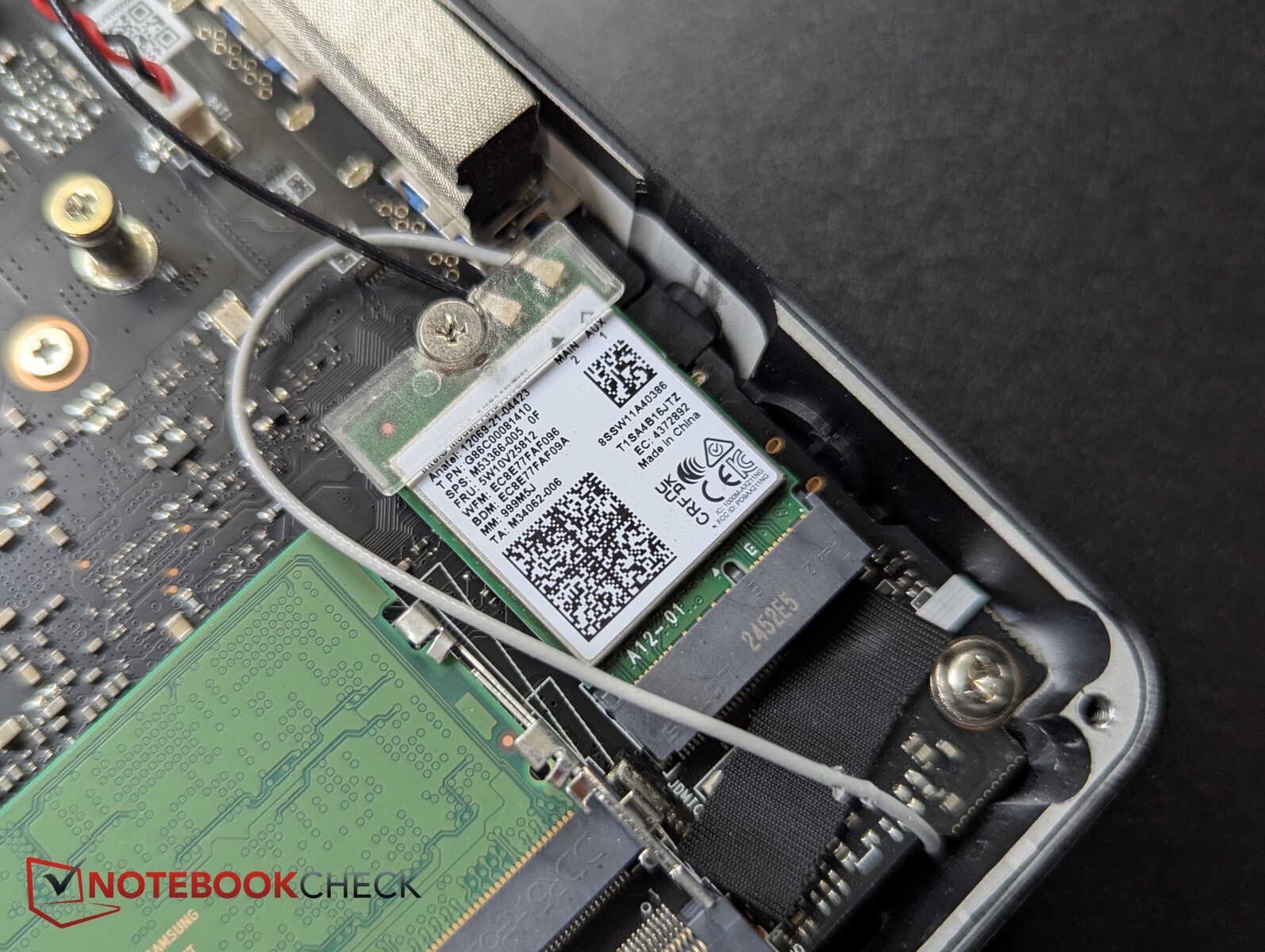

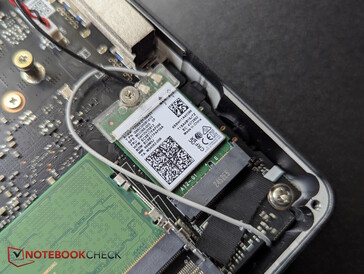

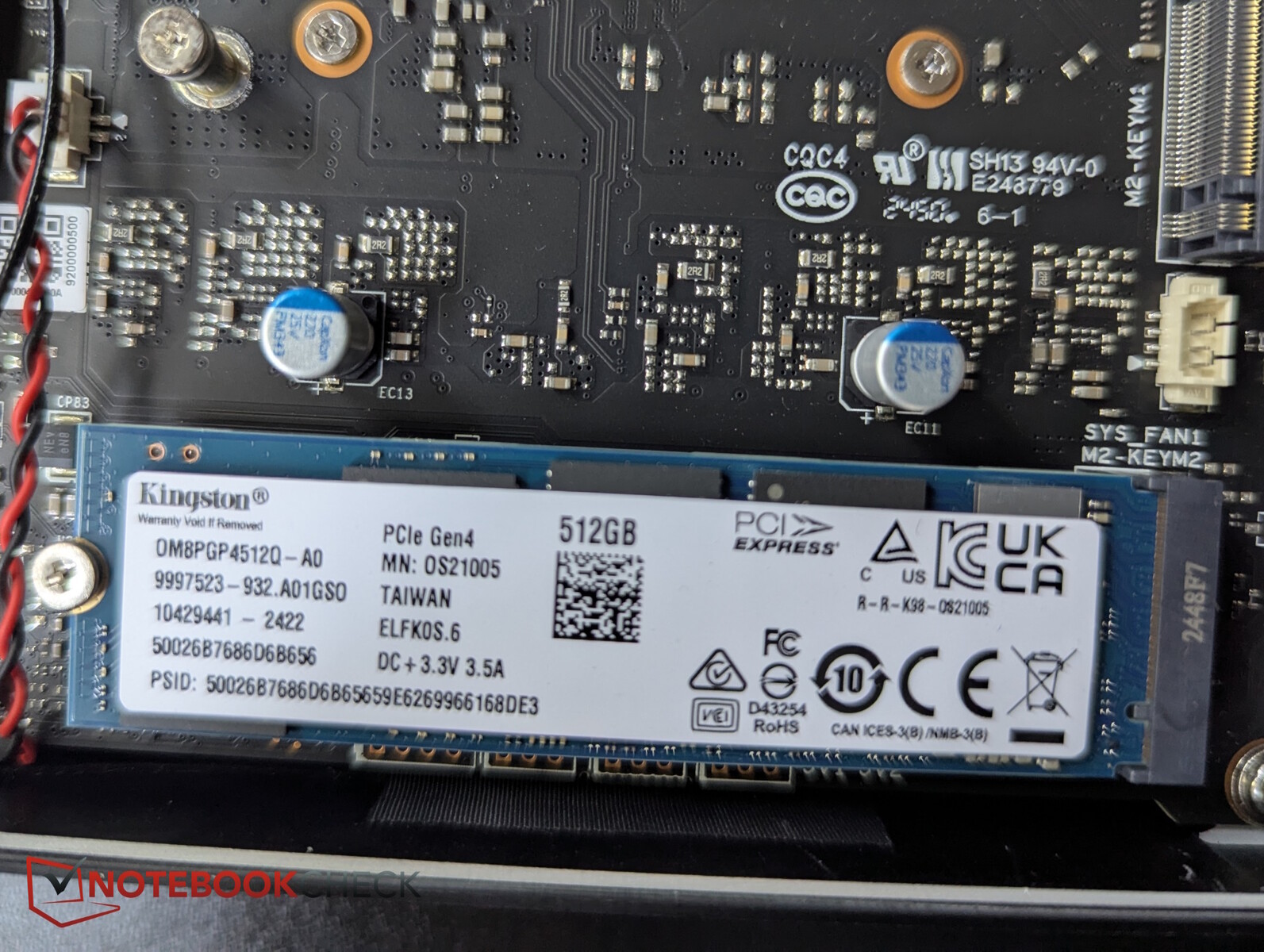

只需拧下底部的四颗十字螺丝，就能进入内部，其中包括一个已填充的 M.2 插槽和一个空的 M.2 插槽。此外，还有两个内存插槽，其中一个已装入 16 GB 内存，另一个仍然是空的。

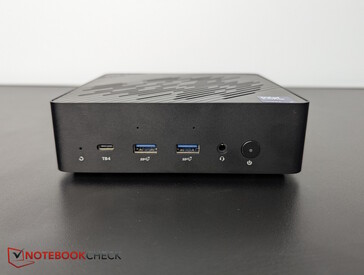

Minix Elite 配备了 Thunderbolt 4、2x 2.5G LAN、完整的 DisplayPort 1.4 和 HDMI 2.1，配置非常齐全。不过，我们希望背面能有更多的 USB-A 端口，因为键盘或鼠标都必须连接到前面。与正面不同，背面的 USB-A 端口也是 "倒置 "的。

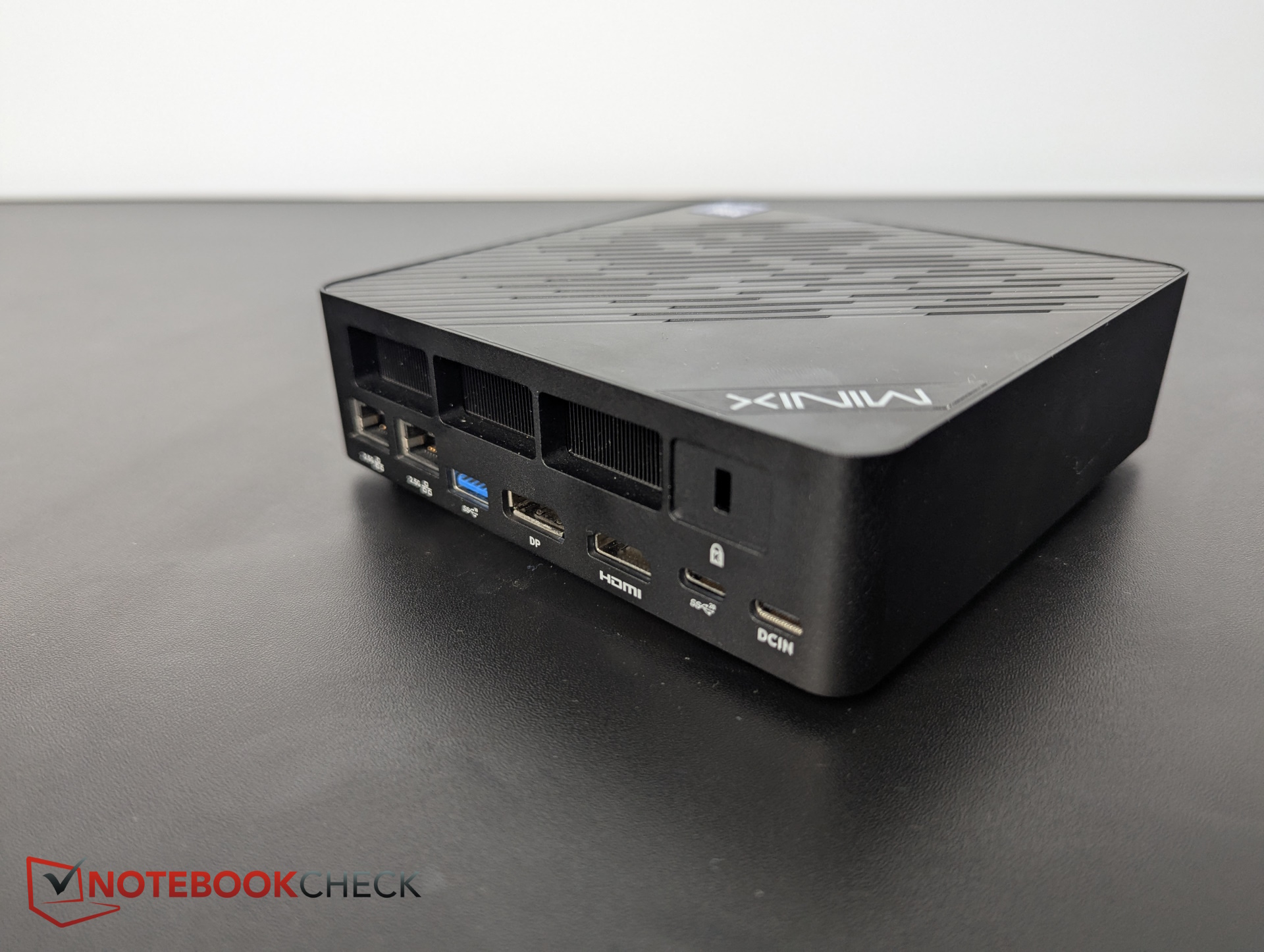

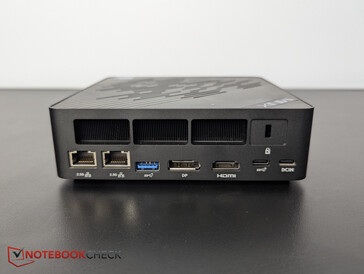

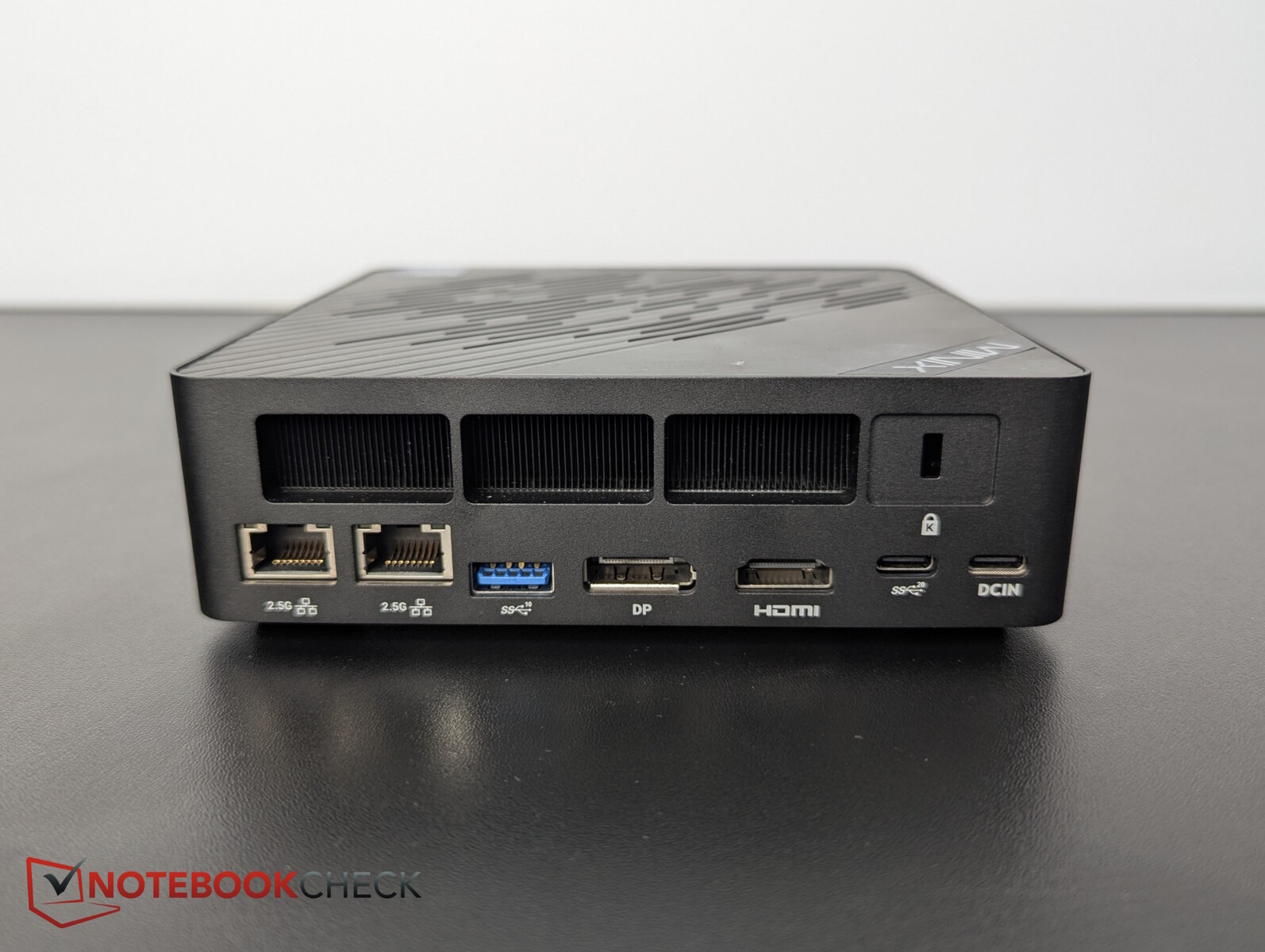

后置双 2.5G 以太网、USB-A 3.2 Gen2、DP 1.4、HDMI 2.1、USB-C 3.2 Gen2x2、Kensington

性能

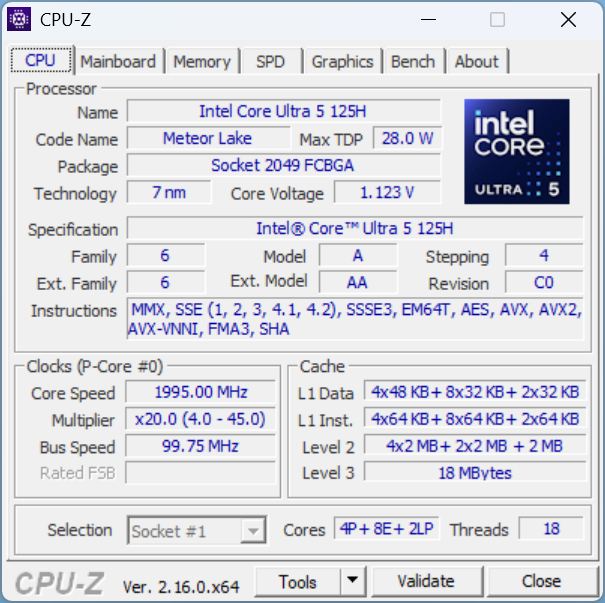

处理器 - Intel Core Ultra 5 125H

安装的英特尔酷睿 5 125H是一款中高档 CPU。在我们的 CPU 基准测试中，Elite 的性能与预期水平相近或最多低于 2%。尤其是单核性能，往往略低于平均水平。

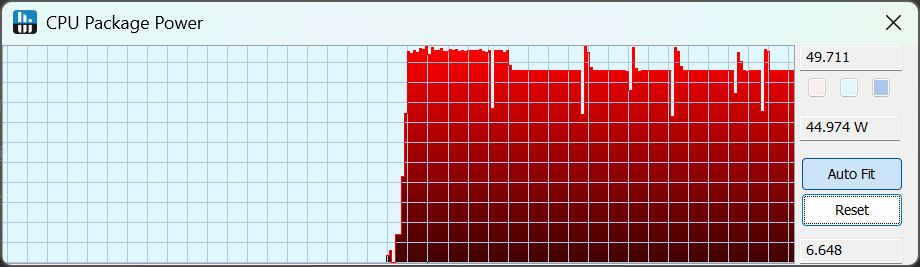

Cinebench R23 的功耗显示，CPU 在 Turbo 模式下的功耗仅为 50W，随后甚至降至 45W。理论上，短时功耗可高达 115 瓦，因此很明显，CPU 并没有发挥出全部潜能。

Cinebench R15 Multi endurance test

Minix Elite EU512-AI Intel Core Ultra 5 125H: Ø2061 (2026.86-2076.52)

Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS: Ø2600 (2571.19-2630.19)

Acemagic F3A AMD Ryzen AI 9 HX 370: Ø3239 (3154.08-3427.89)

Asus NUC 14 Pro Intel Core Ultra 5 125H: Ø2021 (1900.15-2203.13)

Minisforum UH125 Pro Intel Core Ultra 5 125H: Ø2186 (2040.4-2248.33)

GMK NucBox K9 Intel Core Ultra 5 125H: Ø1902 (1827.4-1965.8)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Acemagic F3A AMD Ryzen AI 9 HX 370	86.3 pt
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	68.1 pt
GMK NucBox K9 ^-1! Intel Core Ultra 5 125H	60.8 pt
Asus NUC 14 Pro Intel Core Ultra 5 125H	57.6 pt
Average of class Mini PC	56.8 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H	55 pt
Average Intel Core Ultra 5 125H	53.6 pt
Minix Elite EU512-AI Intel Core Ultra 5 125H	52.5 pt

Cinebench R23 / Multi Core
Acemagic F3A AMD Ryzen AI 9 HX 370	22461 Points +63%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	16236 Points +18%
Minisforum UH125 Pro Intel Core Ultra 5 125H	14564 Points +6%
Asus NUC 14 Pro Intel Core Ultra 5 125H	14516 Points +6%
Minix Elite EU512-AI Intel Core Ultra 5 125H	13747 Points
Average of class Mini PC (1406 - 36078, n=116, last 2 years)	13039 Points -5%
GMK NucBox K9 Intel Core Ultra 5 125H	12989 (12625.3^min - 12989.4^max) Points -6%
Average Intel Core Ultra 5 125H (9194 - 14564, n=7)	12514 Points -9%

Cinebench R23 / Single Core
Acemagic F3A AMD Ryzen AI 9 HX 370	2035 Points +26%
GMK NucBox K9 Intel Core Ultra 5 125H	1735 Points +7%
Asus NUC 14 Pro Intel Core Ultra 5 125H	1721 Points +6%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1701 Points +5%
Average Intel Core Ultra 5 125H (1549 - 1735, n=7)	1661 Points +3%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1640 Points +1%
Average of class Mini PC (513 - 2269, n=114, last 2 years)	1629 Points +1%
Minix Elite EU512-AI Intel Core Ultra 5 125H	1620 Points

Cinebench R20 / CPU (Multi Core)
Acemagic F3A AMD Ryzen AI 9 HX 370	8817 Points +69%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6351 Points +22%
Minisforum UH125 Pro Intel Core Ultra 5 125H	5618 Points +8%
Asus NUC 14 Pro Intel Core Ultra 5 125H	5617 Points +8%
Minix Elite EU512-AI Intel Core Ultra 5 125H	5212 Points
Average of class Mini PC (542 - 14166, n=114, last 2 years)	5006 Points -4%
GMK NucBox K9 Intel Core Ultra 5 125H	4948 Points -5%
Average Intel Core Ultra 5 125H (3673 - 5618, n=7)	4830 Points -7%

Cinebench R20 / CPU (Single Core)
Acemagic F3A AMD Ryzen AI 9 HX 370	801 Points +29%
GMK NucBox K9 Intel Core Ultra 5 125H	664 Points +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	658 Points +6%
Average Intel Core Ultra 5 125H (622 - 664, n=7)	640 Points +3%
Minisforum UH125 Pro Intel Core Ultra 5 125H	629 Points +1%
Minix Elite EU512-AI Intel Core Ultra 5 125H	623 Points
Asus NUC 14 Pro Intel Core Ultra 5 125H	622 Points 0%
Average of class Mini PC (195 - 849, n=114, last 2 years)	621 Points 0%

Cinebench R15 / CPU Multi 64Bit
Acemagic F3A AMD Ryzen AI 9 HX 370	3478 Points +67%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2578 Points +24%
Minisforum UH125 Pro Intel Core Ultra 5 125H	2245 Points +8%
Asus NUC 14 Pro Intel Core Ultra 5 125H	2141 Points +3%
Minix Elite EU512-AI Intel Core Ultra 5 125H	2077 (2026.86^min - 2076.52^max) Points
Average of class Mini PC (219 - 5671, n=115, last 2 years)	2052 Points -1%
Average Intel Core Ultra 5 125H (1700 - 2245, n=7)	1996 Points -4%
GMK NucBox K9 Intel Core Ultra 5 125H	1966 (1827.4^min - 1965.8^max) Points -5%

Cinebench R15 / CPU Single 64Bit
Acemagic F3A AMD Ryzen AI 9 HX 370	315 Points +34%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	263 Points +12%
GMK NucBox K9 Intel Core Ultra 5 125H	251 Points +7%
Asus NUC 14 Pro Intel Core Ultra 5 125H	248 Points +6%
Average Intel Core Ultra 5 125H (235 - 251, n=7)	243 Points +3%
Average of class Mini PC (85 - 337, n=115, last 2 years)	243 Points +3%
Minisforum UH125 Pro Intel Core Ultra 5 125H	235 Points 0%
Minix Elite EU512-AI Intel Core Ultra 5 125H	235 Points

Blender / v2.79 BMW27 CPU
Average of class Mini PC (91 - 2150, n=112, last 2 years)	394 Seconds * -65%
Average Intel Core Ultra 5 125H (228 - 364, n=7)	279 Seconds * -17%
GMK NucBox K9 Intel Core Ultra 5 125H	248 Seconds * -4%
Minix Elite EU512-AI Intel Core Ultra 5 125H	239 Seconds *
Minisforum UH125 Pro Intel Core Ultra 5 125H	230 Seconds * +4%
Asus NUC 14 Pro Intel Core Ultra 5 125H	228 Seconds * +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	197 Seconds * +18%
Acemagic F3A AMD Ryzen AI 9 HX 370	142 Seconds * +41%

7-Zip 18.03 / 7z b 4
Acemagic F3A AMD Ryzen AI 9 HX 370	79910 MIPS
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	63912 MIPS
Average of class Mini PC (58346 - 132435, n=110, last 2 years)	51239 MIPS
Minisforum UH125 Pro Intel Core Ultra 5 125H	0 MIPS
Asus NUC 14 Pro Intel Core Ultra 5 125H	0 MIPS
Minix Elite EU512-AI Intel Core Ultra 5 125H	0 MIPS
Average Intel Core Ultra 5 125H (0 - 0, n=3)	0 MIPS

7-Zip 18.03 / 7z b 4 -mmt1
Acemagic F3A AMD Ryzen AI 9 HX 370	6497 MIPS +31%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6334 MIPS +28%
Average of class Mini PC (2403 - 7609, n=111, last 2 years)	5578 MIPS +12%
Asus NUC 14 Pro Intel Core Ultra 5 125H	5136 MIPS +4%
GMK NucBox K9 Intel Core Ultra 5 125H	5004 MIPS +1%
Minix Elite EU512-AI Intel Core Ultra 5 125H	4961 MIPS
Average Intel Core Ultra 5 125H (4663 - 5136, n=7)	4950 MIPS 0%
Minisforum UH125 Pro Intel Core Ultra 5 125H	4699 MIPS -5%

Geekbench 5.5 / Multi-Core
Acemagic F3A AMD Ryzen AI 9 HX 370	13125 Points +45%
Asus NUC 14 Pro Intel Core Ultra 5 125H	10856 Points +20%
Minisforum UH125 Pro Intel Core Ultra 5 125H	10788 Points +19%
Average Intel Core Ultra 5 125H (9069 - 10856, n=7)	10217 Points +13%
GMK NucBox K9 Intel Core Ultra 5 125H	10025 Points +11%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	9864 Points +9%
Average of class Mini PC (1540 - 20576, n=112, last 2 years)	9685 Points +7%
Minix Elite EU512-AI Intel Core Ultra 5 125H	9069 Points

Geekbench 5.5 / Single-Core
Acemagic F3A AMD Ryzen AI 9 HX 370	2073 Points +26%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1865 Points +14%
Asus NUC 14 Pro Intel Core Ultra 5 125H	1685 Points +3%
Average of class Mini PC (626 - 2395, n=112, last 2 years)	1673 Points +2%
GMK NucBox K9 Intel Core Ultra 5 125H	1668 Points +2%
Average Intel Core Ultra 5 125H (1593 - 1699, n=7)	1657 Points +1%
Minix Elite EU512-AI Intel Core Ultra 5 125H	1639 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	1593 Points -3%

HWBOT x265 Benchmark v2.2 / 4k Preset
Acemagic F3A AMD Ryzen AI 9 HX 370	27.5 fps +92%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	18.4 fps +29%
Minisforum UH125 Pro Intel Core Ultra 5 125H	16.7 fps +17%
Asus NUC 14 Pro Intel Core Ultra 5 125H	15.7 fps +10%
Average of class Mini PC (1.52 - 38.9, n=111, last 2 years)	15.1 fps +6%
Minix Elite EU512-AI Intel Core Ultra 5 125H	14.3 fps
GMK NucBox K9 Intel Core Ultra 5 125H	13.8 fps -3%
Average Intel Core Ultra 5 125H (9.7 - 16.7, n=7)	13.5 fps -6%

LibreOffice / 20 Documents To PDF
Minisforum UH125 Pro Intel Core Ultra 5 125H	70.9 s * -8%
Minix Elite EU512-AI Intel Core Ultra 5 125H	65.8 s *
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	64.3 s * +2%
Acemagic F3A AMD Ryzen AI 9 HX 370	61.3 s * +7%
Asus NUC 14 Pro Intel Core Ultra 5 125H	55.7 s * +15%
Average Intel Core Ultra 5 125H (42.7 - 70.9, n=7)	55.2 s * +16%
Average of class Mini PC (33.1 - 134, n=111, last 2 years)	54.5 s * +17%
GMK NucBox K9 Intel Core Ultra 5 125H	44 s * +33%

R Benchmark 2.5 / Overall mean
Minix Elite EU512-AI Intel Core Ultra 5 125H	0.565 sec *
Average of class Mini PC (0.3517 - 1.333, n=111, last 2 years)	0.538 sec * +5%
Average Intel Core Ultra 5 125H (0.4898 - 0.565, n=7)	0.515 sec * +9%
Minisforum UH125 Pro Intel Core Ultra 5 125H	0.513 sec * +9%
Asus NUC 14 Pro Intel Core Ultra 5 125H	0.4982 sec * +12%
GMK NucBox K9 Intel Core Ultra 5 125H	0.4898 sec * +13%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	0.4716 sec * +17%
Acemagic F3A AMD Ryzen AI 9 HX 370	0.3927 sec * +30%

* ... smaller is better

Performance Rating
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	90.3 pt
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	77.5 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	56.8 pt
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	56.3 pt
Average of class Mini PC	56.3 pt
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	55.5 pt
Average Intel Core Ultra 5 125H	50.6 pt
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	48.7 pt

AIDA64 / FP32 Ray-Trace
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	35454 KRay/s +190%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	27379 KRay/s +124%
Average of class Mini PC (769 - 66596, n=111, last 2 years)	15029 KRay/s +23%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	13639 KRay/s +11%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	13347 KRay/s +9%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	12234 KRay/s
Average Intel Core Ultra 5 125H (8430 - 13639, n=7)	11096 KRay/s -9%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	10755 KRay/s -12%

AIDA64 / FPU Julia
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	139919 Points +116%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	111817 Points +72%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	70880 Points +9%
Average of class Mini PC (4140 - 214250, n=111, last 2 years)	70490 Points +9%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	68551 Points +6%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	64912 Points
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	58422 Points -10%
Average Intel Core Ultra 5 125H (43652 - 70880, n=7)	58250 Points -10%

AIDA64 / CPU SHA3
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	5518 MB/s +72%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	4783 MB/s +49%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	3404 MB/s +6%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	3323 MB/s +3%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	3211 MB/s
Average of class Mini PC (290 - 9399, n=111, last 2 years)	3180 MB/s -1%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	2922 MB/s -9%
Average Intel Core Ultra 5 125H (2047 - 3404, n=7)	2818 MB/s -12%

AIDA64 / CPU Queen
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	116988 Points +52%
Average of class Mini PC (8186 - 184747, n=111, last 2 years)	82097 Points +7%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	79866 Points +4%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	78797 Points +2%
Average Intel Core Ultra 5 125H (76983 - 79986, n=7)	78544 Points +2%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	78098 Points +1%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	76983 Points
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	41793 Points -46%

AIDA64 / FPU SinJulia
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	18824 Points +148%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	14785 Points +95%
Average of class Mini PC (408 - 29876, n=111, last 2 years)	9453 Points +25%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	7851 Points +4%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	7842 Points +3%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	7780 Points +3%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	7577 Points
Average Intel Core Ultra 5 125H (6588 - 7851, n=7)	7423 Points -2%

AIDA64 / FPU Mandel
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	74928 Points +128%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	60018 Points +83%
Average of class Mini PC (2088 - 113499, n=111, last 2 years)	36565 Points +11%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	35321 Points +7%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	34225 Points +4%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	32869 Points
Average Intel Core Ultra 5 125H (21210 - 35321, n=7)	28634 Points -13%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	27972 Points -15%

AIDA64 / CPU AES
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	108402 MB/s +87%
Average of class Mini PC (3691 - 325960, n=111, last 2 years)	87987 MB/s +51%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	84231 MB/s +45%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	72870 MB/s +25%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	65304 MB/s +12%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	64107 MB/s +10%
Average Intel Core Ultra 5 125H (45524 - 108402, n=7)	64008 MB/s +10%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	58117 MB/s

AIDA64 / CPU ZLib
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	1462 MB/s +62%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	1068 MB/s +18%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	994 MB/s +10%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	969 MB/s +7%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	903 MB/s
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	844 MB/s -7%
Average of class Mini PC (77.4 - 2186, n=111, last 2 years)	825 MB/s -9%
Average Intel Core Ultra 5 125H (594 - 994, n=7)	820 MB/s -9%

AIDA64 / FP64 Ray-Trace
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	19551 KRay/s +201%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	14561 KRay/s +124%
Average of class Mini PC (432 - 35252, n=111, last 2 years)	8044 KRay/s +24%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	7221 KRay/s +11%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	6786 KRay/s +4%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	6494 KRay/s
Average Intel Core Ultra 5 125H (4345 - 7221, n=7)	5793 KRay/s -11%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	5657 KRay/s -13%

AIDA64 / CPU PhotoWorxx
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	47377 MPixel/s +102%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	47364 MPixel/s +102%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	46296 MPixel/s +97%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	45789 MPixel/s +95%
Average Intel Core Ultra 5 125H (23499 - 49844, n=7)	43697 MPixel/s +86%
Average of class Mini PC (5333 - 62963, n=111, last 2 years)	30500 MPixel/s +30%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	23499 MPixel/s
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	22324 MPixel/s -5%

系统性能

主观而言，一切运行都很流畅。不过，相比之下，我们的 Minix 在 PCMark 10 和 CrossMark 中的表现比平均水平低 4 - 5%；而采用相同 CPU 的其他大多数迷你 PC 的速度更快。这可能也是内存造成的，因为它在我们的 AIDA 测试中表现得特别慢。

Performance Rating
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	89.4 pt
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	87 pt
Average of class Mini PC	83.9 pt
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	83.5 pt
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	82.5 pt
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	82.3 pt
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	82.1 pt
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	80 pt

PCMark 10 / Score
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	6577 Points +9%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	6564 Points +9%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	6463 Points +7%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	6282 Points +4%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (6024 - 6463, n=7)	6278 Points +4%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	6194 Points +3%
Average of class Mini PC (2363 - 9326, n=111, last 2 years)	6157 Points +2%
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	6024 Points

PCMark 10 / Essentials
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	10697 Points +12%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (9427 - 10697, n=7)	10088 Points +6%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	10050 Points +5%
Average of class Mini PC (5435 - 12286, n=111, last 2 years)	9953 Points +4%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	9891 Points +4%
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	9546 Points
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	9427 Points -1%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	9277 Points -3%

PCMark 10 / Productivity
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	9315 Points +22%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	8497 Points +11%
Average of class Mini PC (2733 - 12260, n=111, last 2 years)	8319 Points +9%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	7715 Points +1%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (7042 - 8000, n=7)	7682 Points +1%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	7659 Points 0%
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	7625 Points
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	7042 Points -8%

PCMark 10 / Digital Content Creation
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	9792 Points +20%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	9506 Points +17%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	8940 Points +10%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	8868 Points +9%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (8149 - 9506, n=7)	8685 Points +7%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	8330 Points +2%
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	8149 Points
Average of class Mini PC (2111 - 16674, n=111, last 2 years)	7900 Points -3%

CrossMark / Overall
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	1638 Points +11%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1633 Points +10%
Average of class Mini PC (529 - 2244, n=113, last 2 years)	1559 Points +5%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1480 - 1633, n=6)	1558 Points +5%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	1533 Points +4%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	1522 Points +3%
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	1480 Points
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1402 Points -5%

CrossMark / Productivity
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	1643 Points +12%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1594 Points +9%
Average of class Mini PC (529 - 2170, n=113, last 2 years)	1523 Points +4%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1432 - 1594, n=6)	1503 Points +2%
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	1467 Points
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	1463 Points 0%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	1432 Points -2%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1253 Points -15%

CrossMark / Creativity
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	1765 Points +16%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1714 Points +13%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1707 Points +12%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1520 - 1765, n=6)	1695 Points +12%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	1694 Points +11%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	1683 Points +11%
Average of class Mini PC (513 - 2610, n=113, last 2 years)	1661 Points +9%
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	1520 Points

CrossMark / Responsiveness
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1520 Points +8%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	1465 Points +4%
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	1405 Points
Average of class Mini PC (523 - 2205, n=113, last 2 years)	1403 Points 0%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1171 - 1520, n=6)	1359 Points -3%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	1332 Points -5%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	1171 Points -17%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1085 Points -23%

WebXPRT 3 / Overall
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	290 Points +17%
Average of class Mini PC (104.3 - 557, n=112, last 2 years)	278 Points +12%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	262 Points +6%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	254 Points +2%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	254 Points +2%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (245 - 263, n=7)	254 Points +2%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	252 Points +2%
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	248 Points

WebXPRT 4 / Overall
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	251 Points +13%
Average of class Mini PC (118.3 - 364, n=94, last 2 years)	240 Points +8%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	231 Points +4%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	231 Points +4%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (222 - 240, n=6)	231 Points +4%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	227 Points +2%
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	222 Points
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	210 Points -5%

Mozilla Kraken 1.1 / Total
Average of class Mini PC (255 - 1638, n=115, last 2 years)	620 ms * -2%
Minix Elite EU512-AI Arc 7-Core, Ultra 5 125H, Kingston OM8PGP4512Q-A0	607 ms *
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	595 ms * +2%
Average Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (560 - 607, n=7)	580 ms * +4%
Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G	567 ms * +7%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	566 ms * +7%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	537 ms * +12%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	456 ms * +25%

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	74350 MB/s +97%
Average Intel Core Ultra 5 125H (37664 - 87473, n=7)	72192 MB/s +92%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	69592 MB/s +85%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	69264 MB/s +84%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	67482 MB/s +79%
Average of class Mini PC (8377 - 94438, n=111, last 2 years)	50931 MB/s +35%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	37664 MB/s
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	35054 MB/s -7%

AIDA64 / Memory Read
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	85928 MB/s +106%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	74415 MB/s +78%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	72711 MB/s +74%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	70520 MB/s +69%
Average Intel Core Ultra 5 125H (41700 - 76803, n=7)	69643 MB/s +67%
Average of class Mini PC (8974 - 100086, n=111, last 2 years)	51847 MB/s +24%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	41700 MB/s
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	30630 MB/s -27%

AIDA64 / Memory Write
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	85887 MB/s +140%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	72443 MB/s +103%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	71514 MB/s +100%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	71218 MB/s +99%
Average Intel Core Ultra 5 125H (35730 - 72443, n=7)	65139 MB/s +82%
Average of class Mini PC (8762 - 100538, n=111, last 2 years)	55777 MB/s +56%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	42154 MB/s +18%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	35730 MB/s

AIDA64 / Memory Latency
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	184.8 ns * -36%
Average Intel Core Ultra 5 125H (127.3 - 184.8, n=7)	144.1 ns * -6%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	140.2 ns * -3%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Arc 7-Core	135.6 ns *
Asus NUC 14 Pro Intel Core Ultra 5 125H, Arc 7-Core	127.3 ns * +6%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	94 ns * +31%
Average of class Mini PC (44.9 - 184.8, n=111, last 2 years)	93.1 ns * +31%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	87.2 ns * +36%

* ... smaller is better

人工智能性能

当我们使用 Geekbench AI 在 CPU 上运行人工智能工作负载时，结果略低于平均水平，这与其他比较结果一致。幸运的是，集成的 NPU 性能明显优于 CPU。不过，与我们在其他采用相同 CPU/NPU 组合的迷你 PC 中看到的情况相比，它的性能仍然较弱。不过，酷睿 5 125H 应该能够很好地计算本地人工智能任务。

Geekbench AI
Quantized CPU 1.4
Khadas Mind 2s	7306 Points +43%
Chuwi Aubox, R7 8745HS	6522 Points +28%
Khadas Mind 2	5612 Points +10%
Minisforum UH125 Pro	5560 Points +9%
Acemagic F3A	5326 Points +4%
Minix Elite EU512-AI	5109 Points
Half Precision CPU 1.4
Chuwi Aubox, R7 8745HS	1634 Points +36%
Khadas Mind 2s	1464 Points +22%
Minisforum UH125 Pro	1302 Points +8%
Acemagic F3A	1302 Points +8%
Minix Elite EU512-AI	1201 Points
Khadas Mind 2	1075 Points -10%
Single Precision CPU 1.4
Khadas Mind 2s	3862 Points +43%
Chuwi Aubox, R7 8745HS	3581 Points +32%
Khadas Mind 2	2958 Points +9%
Minisforum UH125 Pro	2951 Points +9%
Acemagic F3A	2907 Points +7%
Minix Elite EU512-AI	2708 Points
Quantized Core ML Neural Engine 1.4
Khadas Mind 2s	15115 Points +34%
Khadas Mind 2	14143 Points +25%
Minisforum UH125 Pro	13679 Points +21%
Minix Elite EU512-AI	11277 Points
Half Precision Core ML Neural Engine 1.4
Khadas Mind 2s	9827 Points +32%
Khadas Mind 2	9068 Points +21%
Minisforum UH125 Pro	8759 Points +17%
Minix Elite EU512-AI	7473 Points
Single Precision Core ML Neural Engine 1.4
Khadas Mind 2s	4132 Points +51%
Minisforum UH125 Pro	2924 Points +7%
Minix Elite EU512-AI	2735 Points
Khadas Mind 2	2483 Points -9%

Legend

Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU, Kingston OM8PGP4512Q-A0

Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, AMD Radeon 780M, AirDisk AFF 10-512G

Acemagic F3A AMD Ryzen AI 9 HX 370, AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe

Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU, Kingston KC3000 2048G SKC3000D2048G

Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0

GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU, MasonSemi 1TB MC7000

Khadas Mind 2s Intel Core Ultra 7 255H, Intel Arc Graphics 140T, WD PC SN740 SDDPNQE-2T00

Khadas Mind 2 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU, WD PC SN740 SDDPTQD-1T00

存储设备

512GB 金士顿固态硬盘是分区的。如今，120GB 的系统分区几乎不够用，因为它很快就会被填满。最好的办法是删除现有分区，然后在完整的 512GB 硬盘上重新安装 Windows。

内存在比较中表现一般，但运行速度比其潜力低约 10%，而且不幸的是，在长时间使用过程中，内存会迅速跳动。

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K9 MasonSemi 1TB MC7000	83.6 pt
Average Kingston OM8PGP4512Q-A0	75.8 pt
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	68.2 pt
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	62.8 pt
Average of class Mini PC	55.4 pt
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	52.4 pt
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	49.2 pt
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	37.8 pt

DiskSpd
seq read
GMK NucBox K9 MasonSemi 1TB MC7000	3783 (3597.81^min - 3782.84^max) MB/s +17%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	3706 (3594.04^min - 3706.37^max) MB/s +15%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	3220 (2712.48^min - 3220.39^max) MB/s
Average Kingston OM8PGP4512Q-A0 (2549 - 3372, n=11)	2924 MB/s -9%
Average of class Mini PC (413 - 4960, n=111, last 2 years)	2443 MB/s -24%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	2351 (2320.68^min - 2350.61^max) MB/s -27%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2230 (2208.5^min - 2230.06^max) MB/s -31%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1711 (1699.16^min - 1711.28^max) MB/s -47%
seq write
GMK NucBox K9 MasonSemi 1TB MC7000	5556 (1352.45^min - 5556.19^max) MB/s +61%
Average Kingston OM8PGP4512Q-A0 (3385 - 3553, n=11)	3491 MB/s +1%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	3449 (1457.1^min - 3449.21^max) MB/s
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3331 (3244.92^min - 3330.75^max) MB/s -3%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3017 (2911.9^min - 3016.54^max) MB/s -13%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	2928 (1958.53^min - 2927.62^max) MB/s -15%
Average of class Mini PC (339 - 5595, n=111, last 2 years)	2784 MB/s -19%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2593 (2497.12^min - 2592.77^max) MB/s -25%
seq q8 t1 read
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	7110 (6058.21^min - 7110.02^max) MB/s +48%
GMK NucBox K9 MasonSemi 1TB MC7000	7066 (6607.49^min - 7066.35^max) MB/s +47%
Average Kingston OM8PGP4512Q-A0 (4788 - 4822, n=11)	4805 MB/s 0%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	4804 (4319.88^min - 4804.16^max) MB/s
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	4802 (4169.19^min - 4801.68^max) MB/s 0%
Average of class Mini PC (397 - 8430, n=111, last 2 years)	4004 MB/s -17%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	3227 (2874.36^min - 3227.1^max) MB/s -33%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3179 (2681.09^min - 3179.42^max) MB/s -34%
seq q8 t1 write
GMK NucBox K9 MasonSemi 1TB MC7000	6647 (1260.59^min - 6647.13^max) MB/s +92%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	4712 (3064.99^min - 4711.88^max) MB/s +36%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3902 (3839.68^min - 3901.75^max) MB/s +13%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3781 (3521.62^min - 3780.75^max) MB/s +9%
Average Kingston OM8PGP4512Q-A0 (3368 - 3545, n=11)	3491 MB/s +1%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	3461 (3448.11^min - 3461.14^max) MB/s
Average of class Mini PC (346 - 6669, n=111, last 2 years)	3123 MB/s -10%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2768 (2664.64^min - 2767.61^max) MB/s -20%
4k q1 t1 read
GMK NucBox K9 MasonSemi 1TB MC7000	79.5 (78.92^min - 79.5^max) MB/s +20%
Average Kingston OM8PGP4512Q-A0 (65.1 - 82.8, n=11)	75.7 MB/s +14%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	66.4 (45.6^min - 66.42^max) MB/s
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	60 (58.44^min - 60.02^max) MB/s -10%
Average of class Mini PC (6.85 - 87.3, n=111, last 2 years)	56.9 MB/s -14%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	53.4 (49.89^min - 53.35^max) MB/s -20%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	41.8 (39.53^min - 41.81^max) MB/s -37%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	38.5 (38.48^min - 38.51^max) MB/s -42%
4k q1 t1 write
Average Kingston OM8PGP4512Q-A0 (230 - 425, n=11)	339 MB/s +47%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	230 (202.75^min - 230.38^max) MB/s
GMK NucBox K9 MasonSemi 1TB MC7000	205 (173.87^min - 205.2^max) MB/s -11%
Average of class Mini PC (29.6 - 435, n=111, last 2 years)	199.8 MB/s -13%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	181.2 (172.56^min - 181.15^max) MB/s -21%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	136.8 (131.56^min - 136.81^max) MB/s -41%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	121.6 (117.56^min - 121.64^max) MB/s -47%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	83.1 (75.3^min - 83.11^max) MB/s -64%
4k q32 t16 read
GMK NucBox K9 MasonSemi 1TB MC7000	2243 (1941.91^min - 2243.48^max) MB/s +16%
Average Kingston OM8PGP4512Q-A0 (1921 - 1944, n=11)	1937 MB/s 0%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	1932 (791.29^min - 1932.47^max) MB/s
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1641 (1282.06^min - 1641.45^max) MB/s -15%
Average of class Mini PC (102.3 - 4158, n=111, last 2 years)	1528 MB/s -21%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	731 (660.89^min - 731.29^max) MB/s -62%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	698 (691.89^min - 697.84^max) MB/s -64%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	317 (315.3^min - 317.14^max) MB/s -84%
4k q32 t16 write
GMK NucBox K9 MasonSemi 1TB MC7000	3232 (3002.64^min - 3232.41^max) MB/s +51%
Average Kingston OM8PGP4512Q-A0 (1425 - 3412, n=11)	2754 MB/s +28%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	2147 (1705.81^min - 2147.11^max) MB/s
Average of class Mini PC (70.3 - 4288, n=111, last 2 years)	1471 MB/s -31%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1118 (836.38^min - 1118.45^max) MB/s -48%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	788 (756.12^min - 787.91^max) MB/s -63%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	311 (252.72^min - 310.91^max) MB/s -86%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	186.7 (155.05^min - 186.74^max) MB/s -91%

AS SSD
Score Total
GMK NucBox K9 MasonSemi 1TB MC7000	7509 Points +44%
Average Kingston OM8PGP4512Q-A0 (4744 - 7134, n=11)	6094 Points +17%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	5226 Points
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	5131 Points -2%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	4514 Points -14%
Average of class Mini PC (507 - 10021, n=109, last 2 years)	4510 Points -14%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3878 Points -26%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2500 Points -52%
Score Read
GMK NucBox K9 MasonSemi 1TB MC7000	3258 Points +57%
Average Kingston OM8PGP4512Q-A0 (2077 - 2391, n=11)	2305 Points +11%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	2077 Points
Average of class Mini PC (172 - 3741, n=109, last 2 years)	1630 Points -22%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1572 Points -24%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	1275 Points -39%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1096 Points -47%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	522 Points -75%
Score Write
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	3313 Points +59%
Average Kingston OM8PGP4512Q-A0 (1308 - 3538, n=11)	2643 Points +27%
GMK NucBox K9 MasonSemi 1TB MC7000	2593 Points +24%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	2306 Points +11%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	2112 Points +1%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	2083 Points
Average of class Mini PC (210 - 4371, n=109, last 2 years)	2074 Points 0%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1719 Points -17%
Seq Read
GMK NucBox K9 MasonSemi 1TB MC7000	5766.47 MB/s +78%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	5158 MB/s +59%
Average Kingston OM8PGP4512Q-A0 (3244 - 4152, n=11)	3990 MB/s +23%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3808 MB/s +17%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3404 MB/s +5%
Average of class Mini PC (483 - 6620, n=109, last 2 years)	3319 MB/s +2%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	3244 MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2791 MB/s -14%
Seq Write
GMK NucBox K9 MasonSemi 1TB MC7000	5653.88 MB/s +82%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3897 MB/s +25%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	3110 MB/s
Average Kingston OM8PGP4512Q-A0 (883 - 3292, n=11)	2964 MB/s -5%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	2646 MB/s -15%
Average of class Mini PC (326 - 5783, n=109, last 2 years)	2536 MB/s -18%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2358 MB/s -24%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1787 MB/s -43%
4K Read
Average Kingston OM8PGP4512Q-A0 (68.2 - 104.2, n=11)	91 MB/s +33%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	68.2 MB/s
GMK NucBox K9 MasonSemi 1TB MC7000	67.66 MB/s -1%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	63.6 MB/s -7%
Average of class Mini PC (18.2 - 104.3, n=109, last 2 years)	60.2 MB/s -12%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	57.3 MB/s -16%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	39.5 MB/s -42%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	38 MB/s -44%
4K Write
Average Kingston OM8PGP4512Q-A0 (177.5 - 366, n=11)	273 MB/s +54%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	182.1 MB/s +3%
Average of class Mini PC (40.8 - 366, n=109, last 2 years)	179.5 MB/s +1%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	177.5 MB/s
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	169.5 MB/s -5%
GMK NucBox K9 MasonSemi 1TB MC7000	148.58 MB/s -16%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	147.7 MB/s -17%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	119.7 MB/s -33%
4K-64 Read
GMK NucBox K9 MasonSemi 1TB MC7000	2614.06 MB/s +55%
Average Kingston OM8PGP4512Q-A0 (1604 - 1873, n=11)	1815 MB/s +8%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	1684 MB/s
Average of class Mini PC (94.3 - 3220, n=109, last 2 years)	1238 MB/s -26%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1192 MB/s -29%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	695 MB/s -59%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	658 MB/s -61%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	205 MB/s -88%
4K-64 Write
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	2878 MB/s +80%
Average Kingston OM8PGP4512Q-A0 (865 - 2843, n=11)	2073 MB/s +30%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1945 MB/s +22%
GMK NucBox K9 MasonSemi 1TB MC7000	1879.53 MB/s +18%
Average of class Mini PC (96.3 - 3731, n=109, last 2 years)	1641 MB/s +3%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1603 MB/s +1%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	1595 MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1336 MB/s -16%
Access Time Read
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	0.139 ms * -297%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	0.129 ms * -269%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	0.101 ms * -189%
Average of class Mini PC (0.025 - 0.288, n=109, last 2 years)	0.09298 ms * -166%
Average Kingston OM8PGP4512Q-A0 (0.035 - 0.192, n=11)	0.08591 ms * -145%
GMK NucBox K9 MasonSemi 1TB MC7000	0.06 ms * -71%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	0.053 ms * -51%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	0.035 ms *
Access Time Write
GMK NucBox K9 MasonSemi 1TB MC7000	0.195 ms * -509%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	0.131 ms * -309%
Average of class Mini PC (0.013 - 0.706, n=109, last 2 years)	0.105 ms * -228%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	0.093 ms * -191%
Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G	0.043 ms * -34%
Average Kingston OM8PGP4512Q-A0 (0.031 - 0.11, n=11)	0.03836 ms * -20%
Minix Elite EU512-AI Kingston OM8PGP4512Q-A0	0.032 ms *
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	0.024 ms * +25%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Minix Elite EU512-AI Kingston OM8PGP4512Q-A0; diskspd 2.0.17 f: Ø2114 (1789.7-4804.99)

Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G; diskspd 2.0.17 f: Ø3108 (2714.13-3123.96)

Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe; diskspd 2.0.17 f: Ø3164 (2746.39-3192.28)

Asus NUC 14 Pro Kingston KC3000 2048G SKC3000D2048G; diskspd 2.0.17 f: Ø6306 (1073.74-7111.48)

Minisforum UH125 Pro Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4790 (4223.81-4803.95)

GMK NucBox K9 MasonSemi 1TB MC7000; diskspd 2.0.17 f: Ø7053 (6435.53-7074.85)

3D 性能和游戏性能

遗憾的是，3D 性能尤其令人失望；Elite EU512 的 iGPU 与我们的期望值相差 50%。在测试的游戏中，采用相同 CPU/GPU 的竞争对手要快 35%。因此，游戏只能在非常有限的范围内进行，大多数情况下只能以 720p 的低细节画面进行，尽管节俭型游戏（DOTA 2 Reborn）也能达到全高清画面。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	99.6 pt
Average of class Mini PC	91.3 pt
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	85.2 pt
Average Intel Arc 7-Core iGPU	78.5 pt
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	78.4 pt
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	76.5 pt
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	52.7 pt
Minix Elite EU512-AI Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	51.1 pt

3DMark 11 - 1280x720 Performance GPU
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	15203 Points +174%
Average of class Mini PC (1349 - 93373, n=113, last 2 years)	12467 Points +125%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	11785 Points +112%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10737 Points +93%
Average Intel Arc 7-Core iGPU (5549 - 12061, n=7)	10490 Points +89%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10303 Points +86%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	8285 Points +49%
Minix Elite EU512-AI Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	5549 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	52135 Points +82%
Average of class Mini PC (7218 - 274441, n=107, last 2 years)	45716 Points +60%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	41975 Points +46%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	40086 Points +40%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	39695 Points +39%
Average Intel Arc 7-Core iGPU (28658 - 45644, n=5)	39212 Points +37%
Minix Elite EU512-AI Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	28658 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	28492 Points -1%
1920x1080 Fire Strike Graphics
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9145 Points +100%
Average of class Mini PC (1106 - 70249, n=112, last 2 years)	8743 Points +91%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7900 Points +73%
Average Intel Arc 7-Core iGPU (4575 - 8531, n=7)	7464 Points +63%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7325 Points +60%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7047 Points +54%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	4832 Points +6%
Minix Elite EU512-AI Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	4575 Points
2560x1440 Time Spy Graphics
Average of class Mini PC (304 - 28512, n=111, last 2 years)	3321 Points +59%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3269 Points +56%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	3205 Points +53%
Average Intel Arc 7-Core iGPU (2090 - 3319, n=7)	2934 Points +40%
GMK NucBox K9 Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2881 Points +38%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2796 Points +34%
Minix Elite EU512-AI Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2090 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1622 Points -22%

Performance Rating | Final Fantasy XV Benchmark | Dota 2 Reborn | X-Plane 11.11

Performance Rating - Percent
Acemagic F3A AMD Ryzen AI 9 HX 370, AMD Radeon 890M	99.7 pt
Average of class Mini PC	88.8 pt
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	77.1 pt
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	76.8 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	74.5 pt
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, AMD Radeon 780M	63.3 pt
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	56.7 pt

Final Fantasy XV Benchmark - 1920x1080 High Quality
Average of class Mini PC (2.5 - 209, n=104, last 2 years)	31.1 fps +93%
Acemagic F3A AMD Ryzen AI 9 HX 370, AMD Radeon 890M	30.8 fps +91%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	25.3 fps +57%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	23.4 fps +45%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	22.3 fps +39%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, AMD Radeon 780M	16.5 fps +2%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	16.1 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Acemagic F3A AMD Ryzen AI 9 HX 370, AMD Radeon 890M	82.5 (72.7^min) fps +51%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	73.3 (48.5^min) fps +34%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	72.9 (47.2^min) fps +34%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	70.5 (47.4^min) fps +29%
Average of class Mini PC (9.9 - 213, n=109, last 2 years)	69.4 fps +27%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, AMD Radeon 780M	58.4 (52.1^min) fps +7%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	54.5 (35.9^min) fps

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Acemagic F3A AMD Ryzen AI 9 HX 370, AMD Radeon 890M	53.3 fps +92%
Average of class Mini PC (7.62 - 147.9, n=92, last 2 years)	43.8 fps +58%
GMK NucBox K9 Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	37.3 fps +34%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, AMD Radeon 780M	35.2 fps +27%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.4 fps +20%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	32.9 fps +18%
Minix Elite EU512-AI Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	27.8 fps

	low	med.	high	ultra
Dota 2 Reborn (2015)	90.4	64.5	59.2	54.5
Final Fantasy XV Benchmark (2018)	40.8	21.8	16.1
X-Plane 11.11 (2018)	41	31.4	27.8

能源管理

关机时，Minix 的功耗约为 1.36W，对我们来说有点高。启动时，功耗会短暂飙升至 60 瓦，但在桌面上闲置后，功耗会稳定在 6 至 10 瓦之间，由小巧的 USB-C 电源适配器提供。

在浏览网页（包括 YouTube）时，系统的平均功耗为 15 到 16 瓦。在 Cinebench R23 中，初始功耗为 72 瓦，但约一分钟后功耗降至约 68 瓦。在《最终幻想 XV》的游戏测试中，功耗从大约 50 瓦开始，一分钟后降至大约 40-42瓦。与竞争对手相比，Minix 无疑更加省电。

	Minix Elite EU512-AI Ultra 5 125H, Arc 7-Core, Kingston OM8PGP4512Q-A0, , x,	Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M, AirDisk AFF 10-512G, , x,	Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe, , x,	Asus NUC 14 Pro Ultra 5 125H, Arc 7-Core, Kingston KC3000 2048G SKC3000D2048G, , x,	Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core, Kingston OM8PGP41024Q-A0, , x,	GMK NucBox K9 Ultra 5 125H, Arc 7-Core, MasonSemi 1TB MC7000, , x,	Average Intel Arc 7-Core iGPU	Average of class Mini PC
Power Consumption		-22%	-59%	-28%	-76%	-48%	-24%	-70%
Idle Minimum *	5	4.9 2%	8.5 -70%	5.1 -2%	11.9 -138%	10.9 -118%	6.61 ?(3 - 11.9, n=7) -32%	9.85 ?(2.2 - 45.7, n=112, last 2 years) -97%
Idle Average *	6	7.4 -23%	11 -83%	6.4 -7%	14.6 -143%	11 -83%	8.59 ?(6 - 14.6, n=7) -43%	12.2 ?(2.59 - 47.5, n=110, last 2 years) -103%
Idle Maximum *	10	9.4 6%	12.6 -26%	14.7 -47%	15.4 -54%	11.4 -14%	11.8 ?(6.5 - 16, n=7) -18%	15.6 ?(2.6 - 49, n=112, last 2 years) -56%
Load Average *	50	57.4 -15%	65.3 -31%	55.5 -11%	48.3 3%	52.8 -6%	51.2 ?(48.3 - 55.5, n=7) -2%	60 ?(12.9 - 170.6, n=112, last 2 years) -20%
Load Maximum *	60	106.6 -78%	109.8 -83%	103.3 -72%	89.8 -50%	72.2 -20%	75.7 ?(60 - 103.3, n=7) -26%	103.3 ?(26.2 - 423, n=112, last 2 years) -72%
Cyberpunk 2077 ultra external monitor *		72.6	68.8	59.1	52.7	57.1

* ... smaller is better

简要概述

Minix 在纸面上可能是一款功能强大的 AI mini PC，但在实际使用中却受到 TDP 过低的限制。另一方面，它又非常节能。因此，它只能是一款安静、低耗、具有人工智能功能的迷你办公电脑。

Back to the verdict

可能的替代品比较

Benchmark Comparison Plugin: ERROR, Layout "57" not supported!

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
