Minisforum Mars系列MC560评测。配备AMD Ryzen 5和集成网络摄像头的强大迷你电脑，适合办公室使用

Name: Minisforum Mars Series MC560
Brand: Minisforum

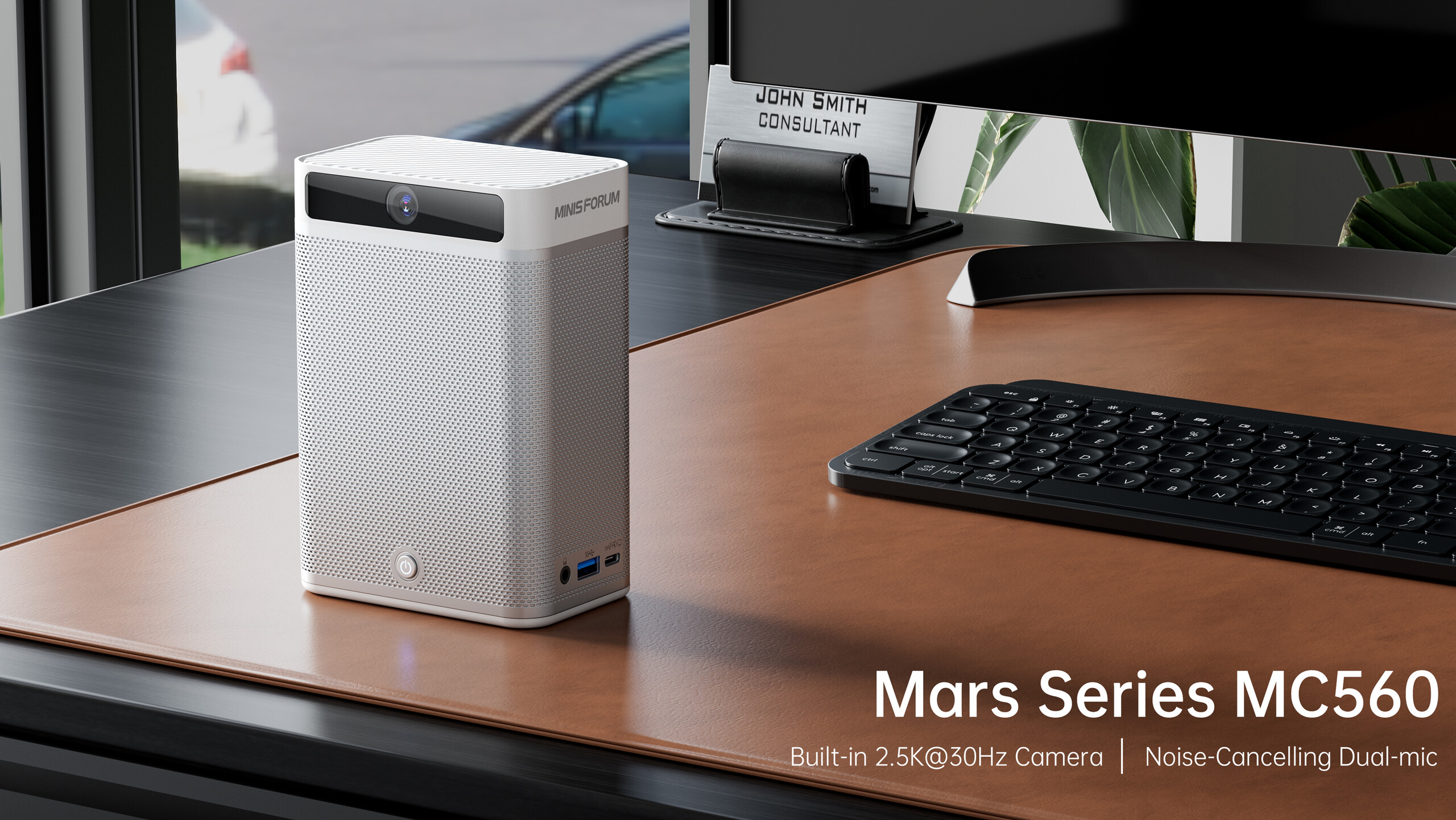

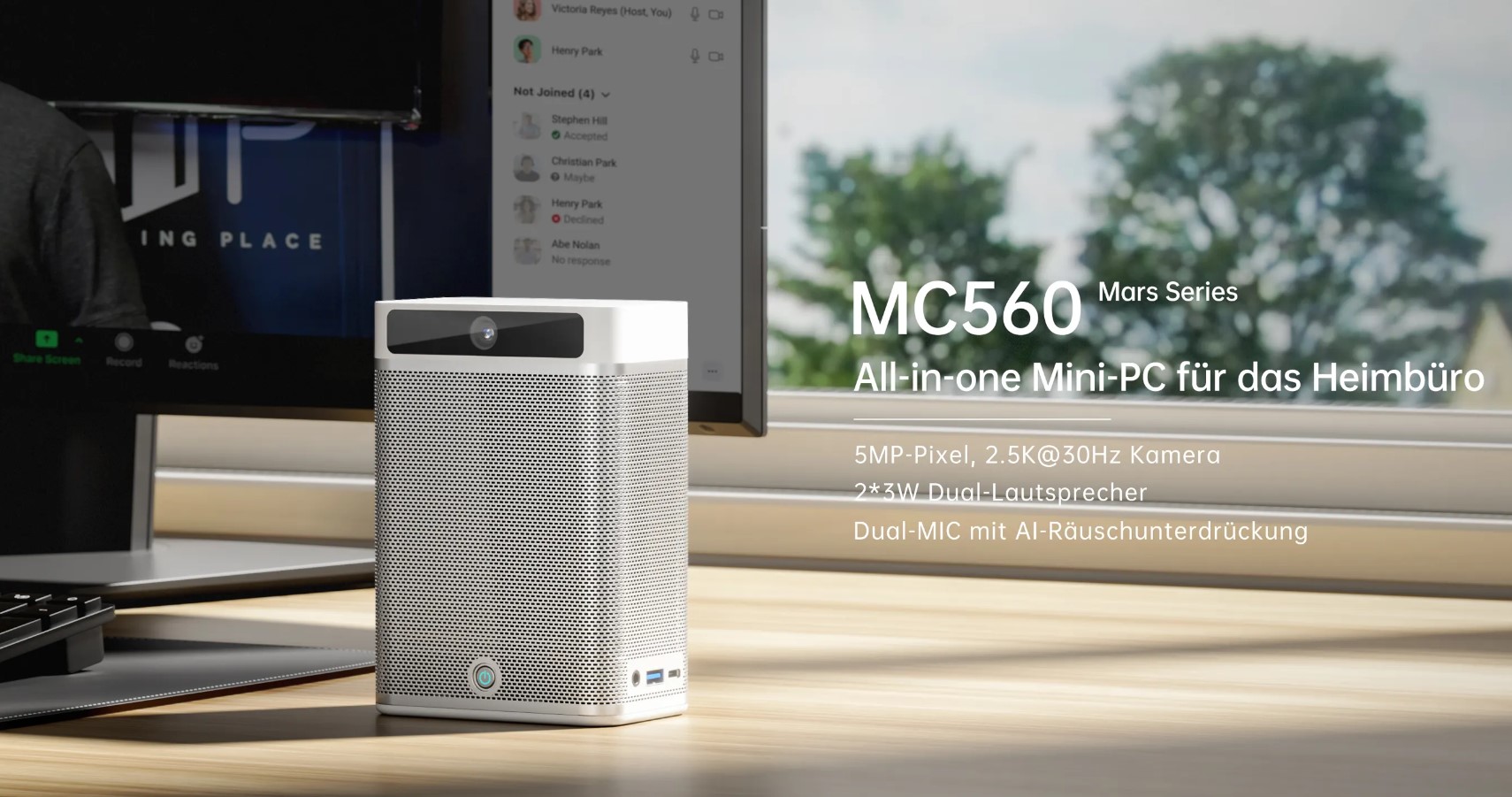

用于特殊要求的迷你PC。 凭借MC560，Minicforum是第一个在其产品系列中拥有内置摄像头和扬声器的紧凑型办公电脑的迷你PC制造商。该设备采用了基于Zen 3的AMD Ryzen 5 CPU，为广泛的应用提供了坚实的性能。在这篇评论中，我们将在许多测量和基准结果的帮助下讨论MC560还有哪些优势。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 02/15/2023 🇺🇸 🇩🇪 ...

Mini PC AMD Cezanne (Zen 3) Desktop Radeon Ryzen (Zen) Camera

迷你电脑现在非常流行，因为它们效率高，为日常工作提供足够的性能。但是，与笔记本电脑不同，它们通常没有配备重要的元素，如摄像头和扬声器。Minisforum公司主动创造了第一台内置网络摄像头和扬声器的迷你PC--新的Mars系列MC560。该机器还采用了一个体面的六核处理器，即AMD Ryzen 6 5625U 。图形处理由AMD Radeon RX Vega 7 ，这是一个我们在紧凑型笔记本电脑中多次见到的集成GPU。

在进一步讨论之前，我们想指出，Minicforum为我们提供了Mars Series MC560的预生产单位。我们的评测样品只配备了Ryzen 5 5600U，而最终产品将采用更新的Ryzen 5 5625U。就纯粹的性能而言，这两款处理器没有什么区别，因为它们都是基于相同的Zen 3架构，只有很小的差别。在与该公司联系后，我们被告知，供应链问题是这一SoC变化的原因。

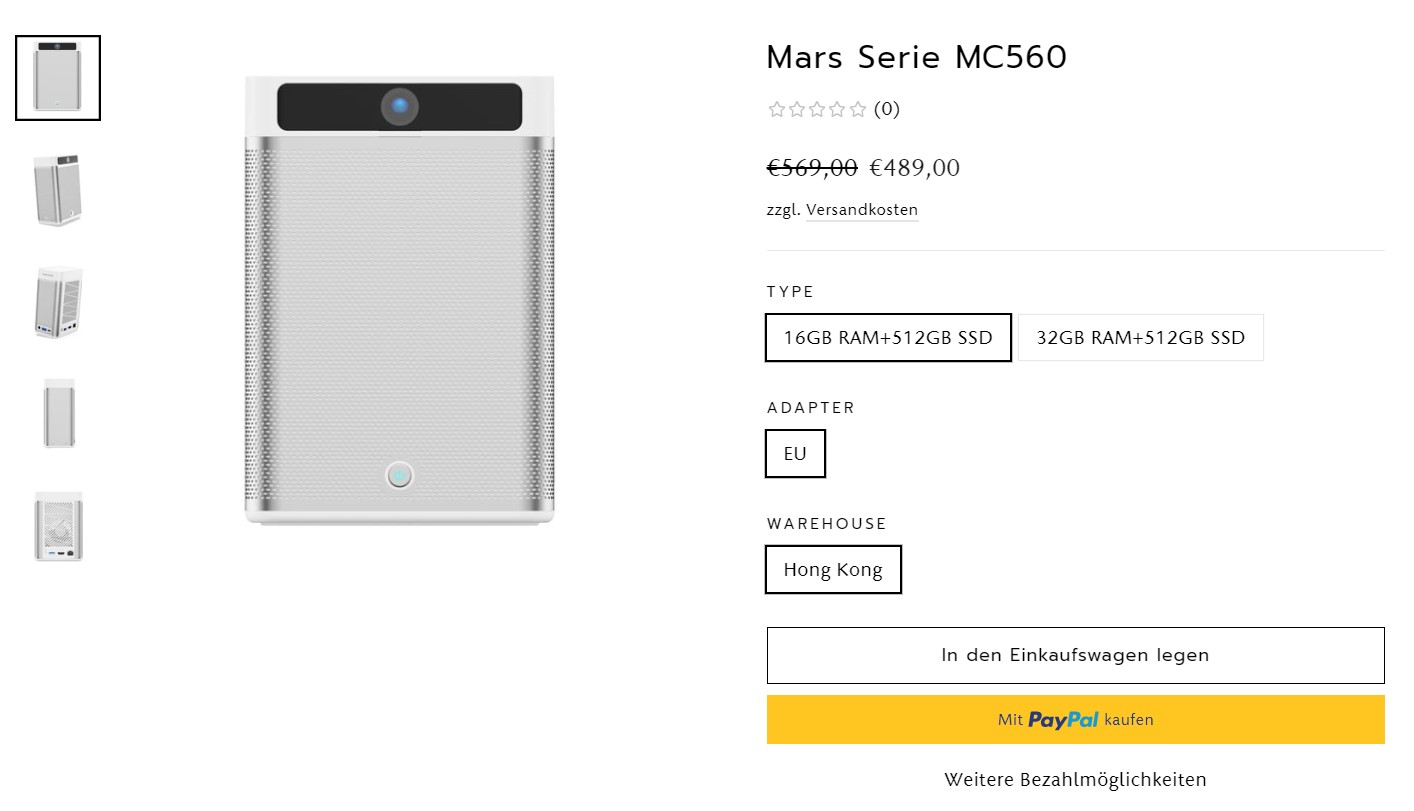

Mars系列MC560有两种配置，内存数量是它们之间唯一的区别。该产品总是配备AMD Ryzen 5 5625U和512GB SSD。至于内存，你可以在16和32GB之间选择。Minisforum已经决定根本不提供任何裸机变体，这可以归因于系统的构造方式。现在，16GB的选项将使你花费489欧元/399美元，而32GB的型号目前要价549欧元/458美元。

在本评论中，我们将把MC560与其他类似的紧凑型迷你电脑进行比较。下表给你提供了这些设备的概况。

Minisforum Mars Series MC560

Processor

AMD Ryzen 5 5600U 6 x 2.3 - 4.2 GHz, 30 W PL2 / Short Burst, 25 W PL1 / Sustained, Cezanne-U (Zen 3)

Graphics adapter

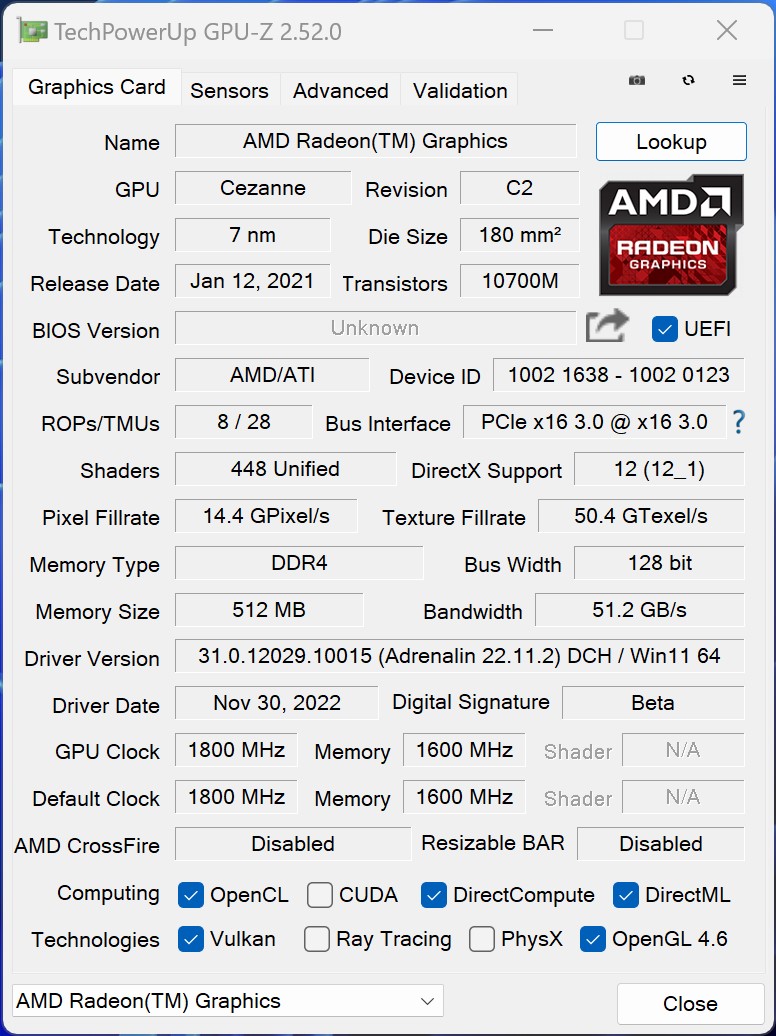

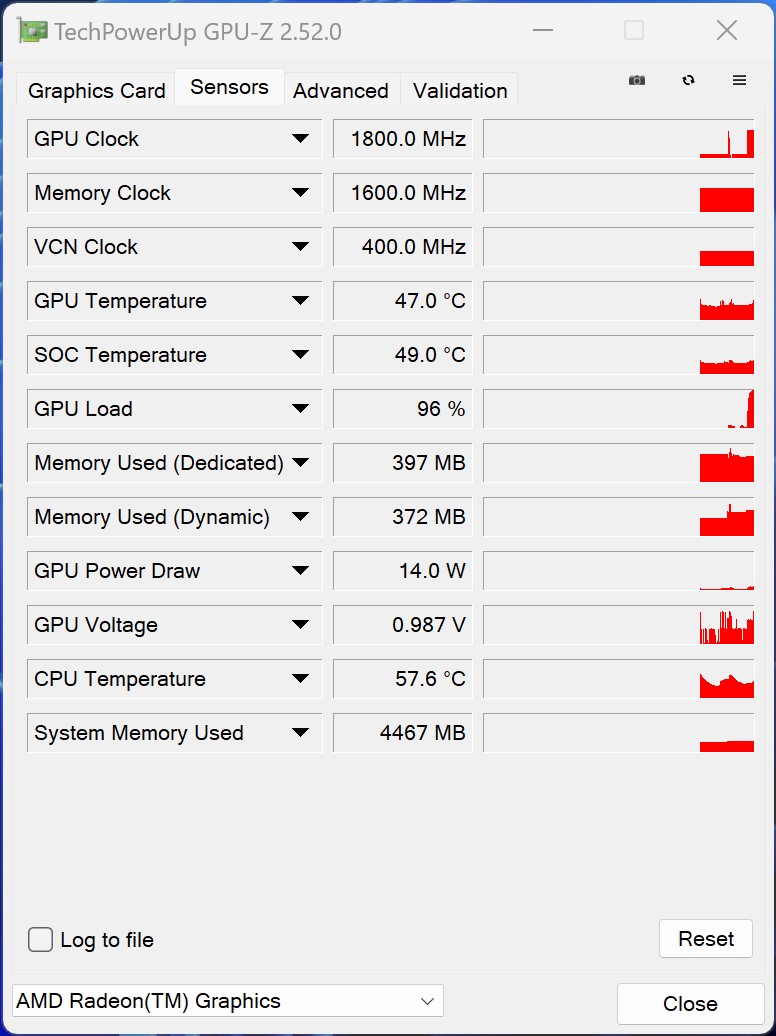

AMD Radeon RX Vega 7, Core: 1800 MHz, Memory: 1600 MHz, Adrenalin 22.11.2

Memory

16 GB

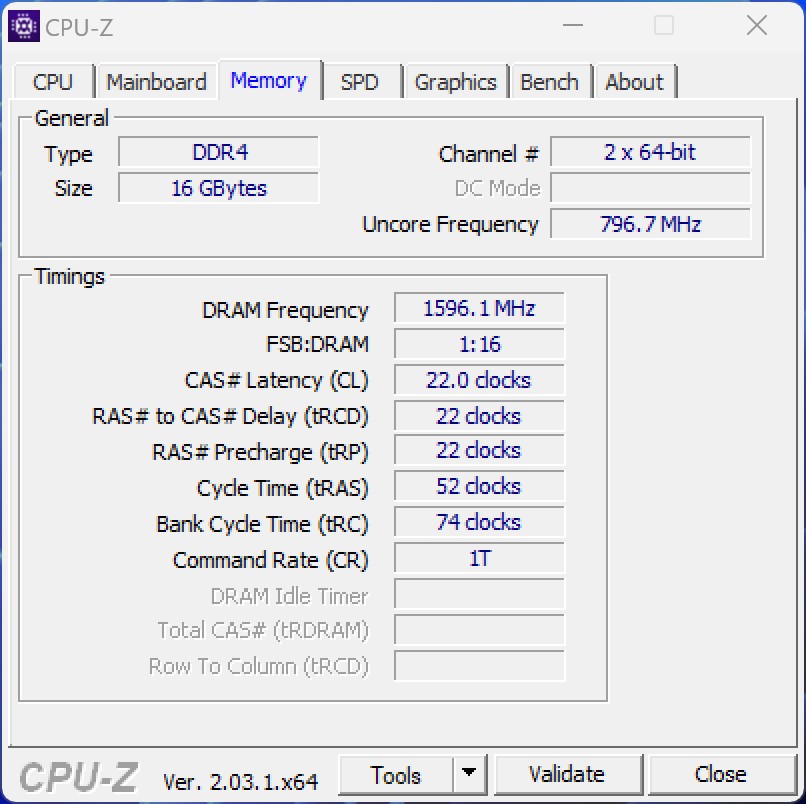

, DDR4-3200, 2 of 2 in use, max. 64 GB

Mainboard

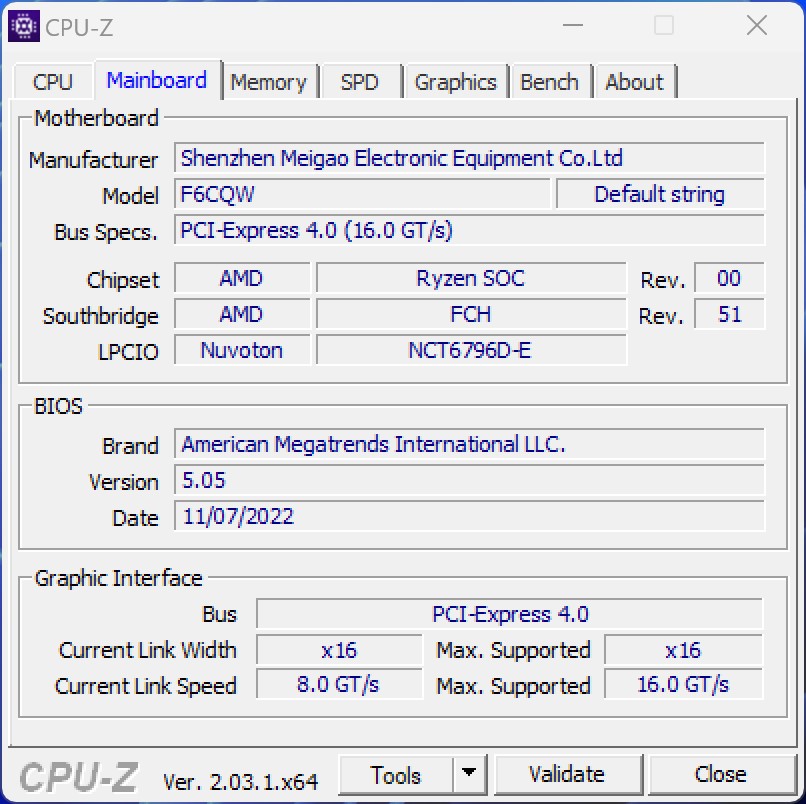

AMD Promontory/Bixby FCH

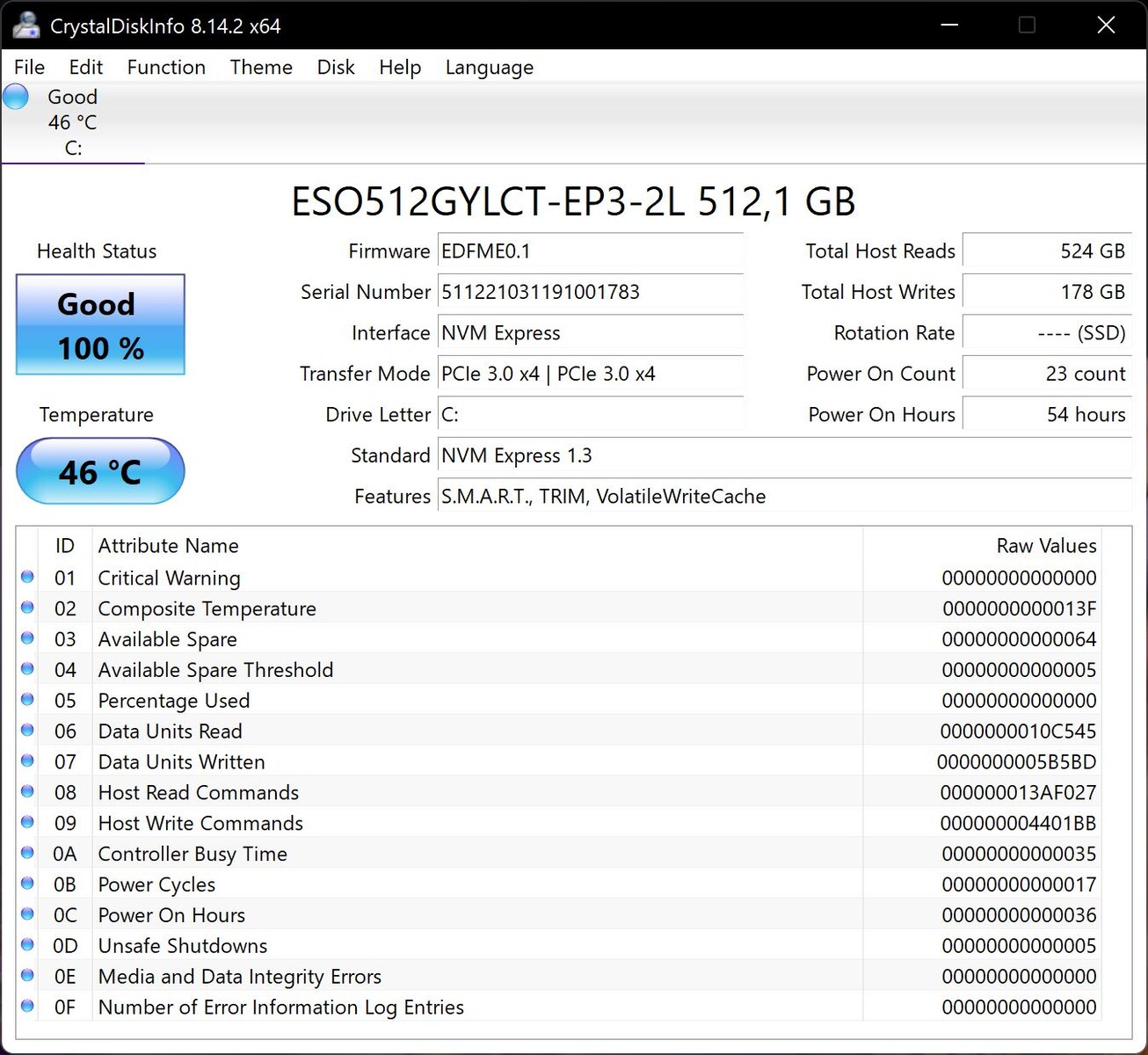

Storage

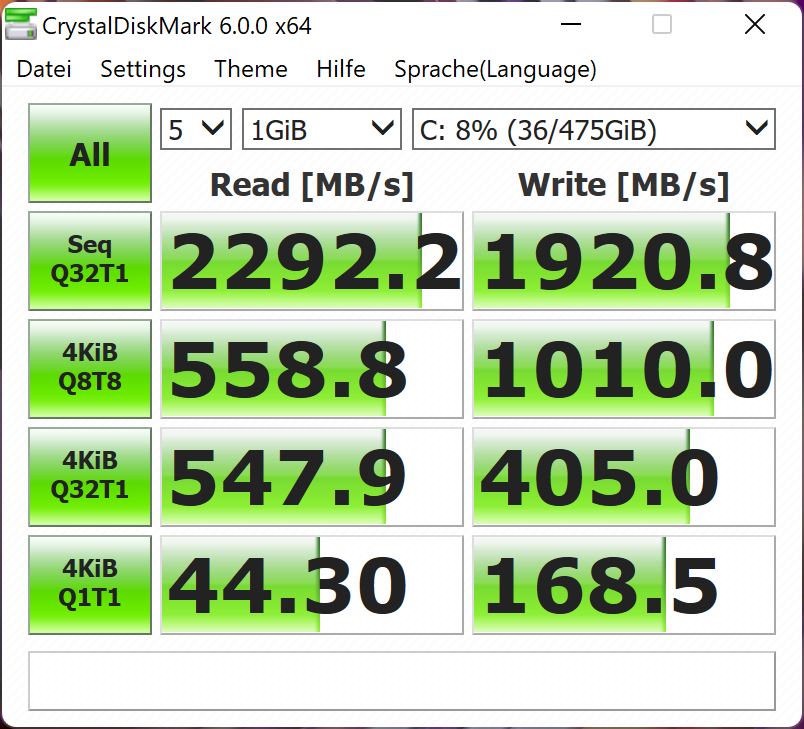

ESO512GYLCT, 512 GB

, M.2-2280 NVMe, PCIe 3.0

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, Audio Connections: 3.5-mm combo audio jack

Networking

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 66 x 104 x 153

Operating System

Microsoft Windows 11 Pro

Camera

Webcam: QHD
Primary Camera: 5 MPix HDR@30fps

Additional features

Speakers: 2 speakers (3W), Power adapter with cable, HDMI cable, manual, 24 Months Warranty

Weight

562 g, Power Supply: 230 g

Price

489 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Resolution
79.5 %	02/2023	Minisforum Mars Series MC560 R5 5600U, Vega 7	562 g	66 mm	x
	01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm	x
	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm	x
	06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm	x
	04/2022	Beelink SER4 R7 4800U, Vega 8	494 g	40 mm	x
	02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm	x
	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm	x
70.9 %	12/2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm	x

详细了解Minisforum Mars系列MC560

案例

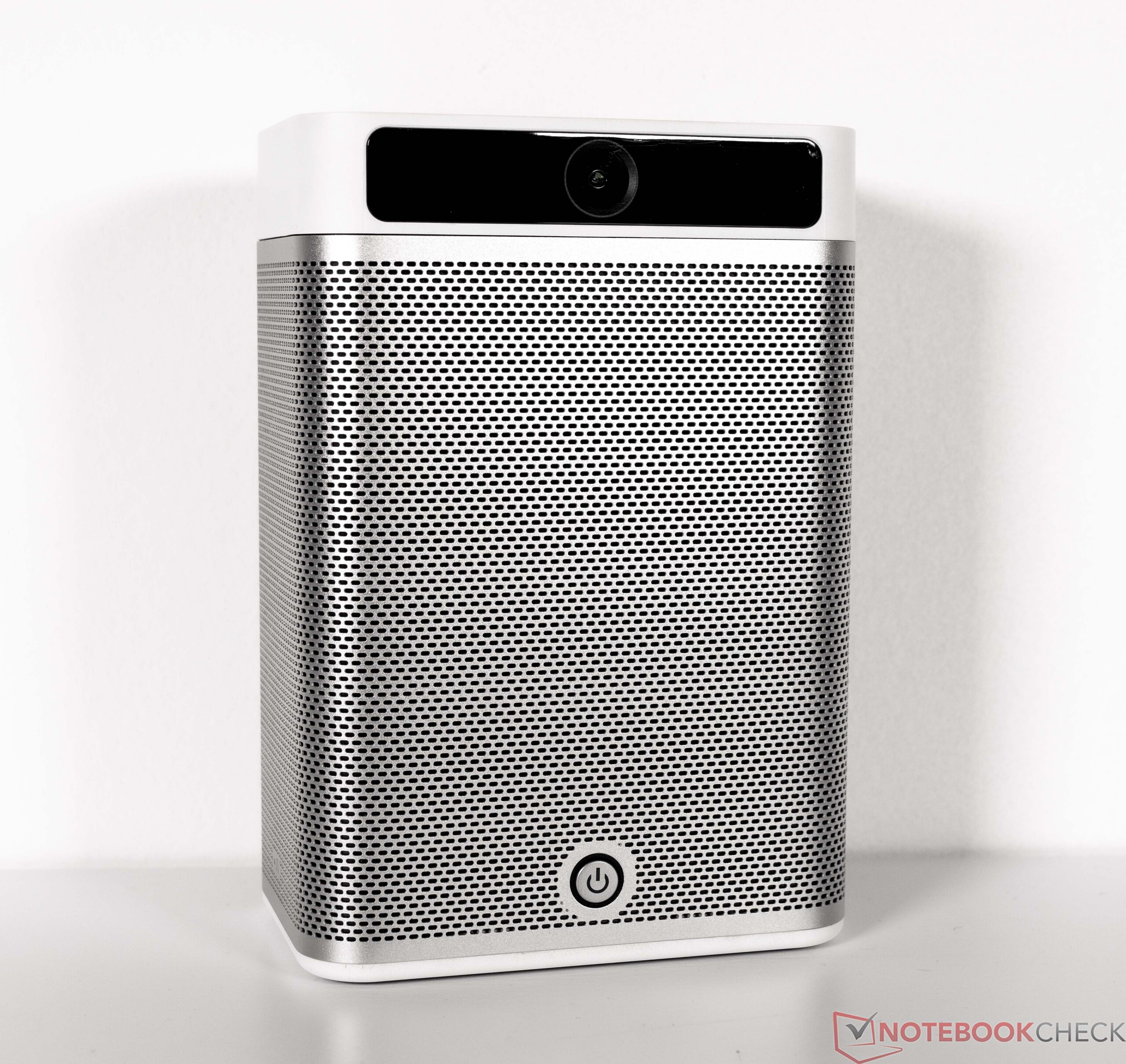

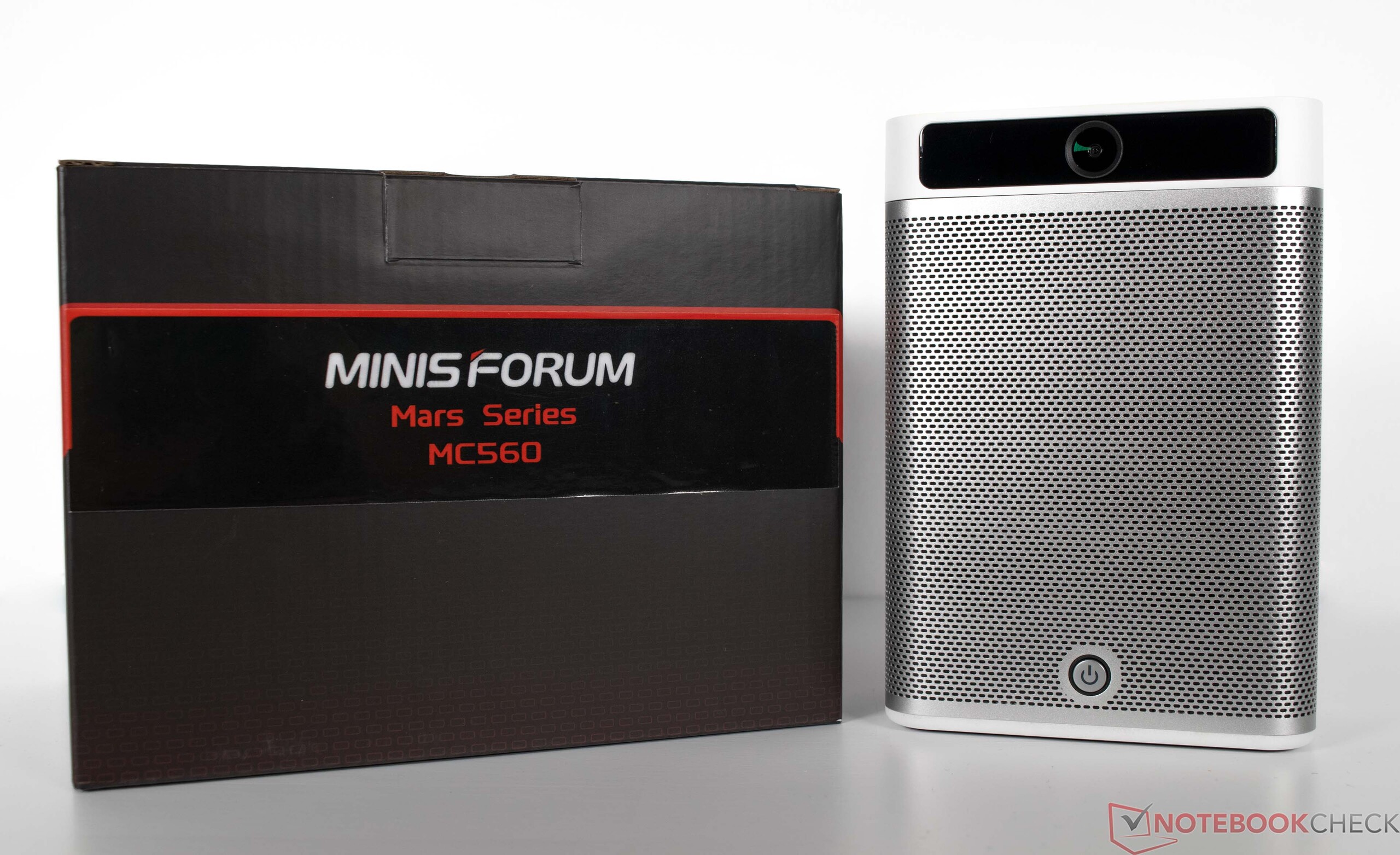

尽管是一个预生产单位，我们的评测样品有很好的配合和完成，在任何方面都不应该比零售版本差。

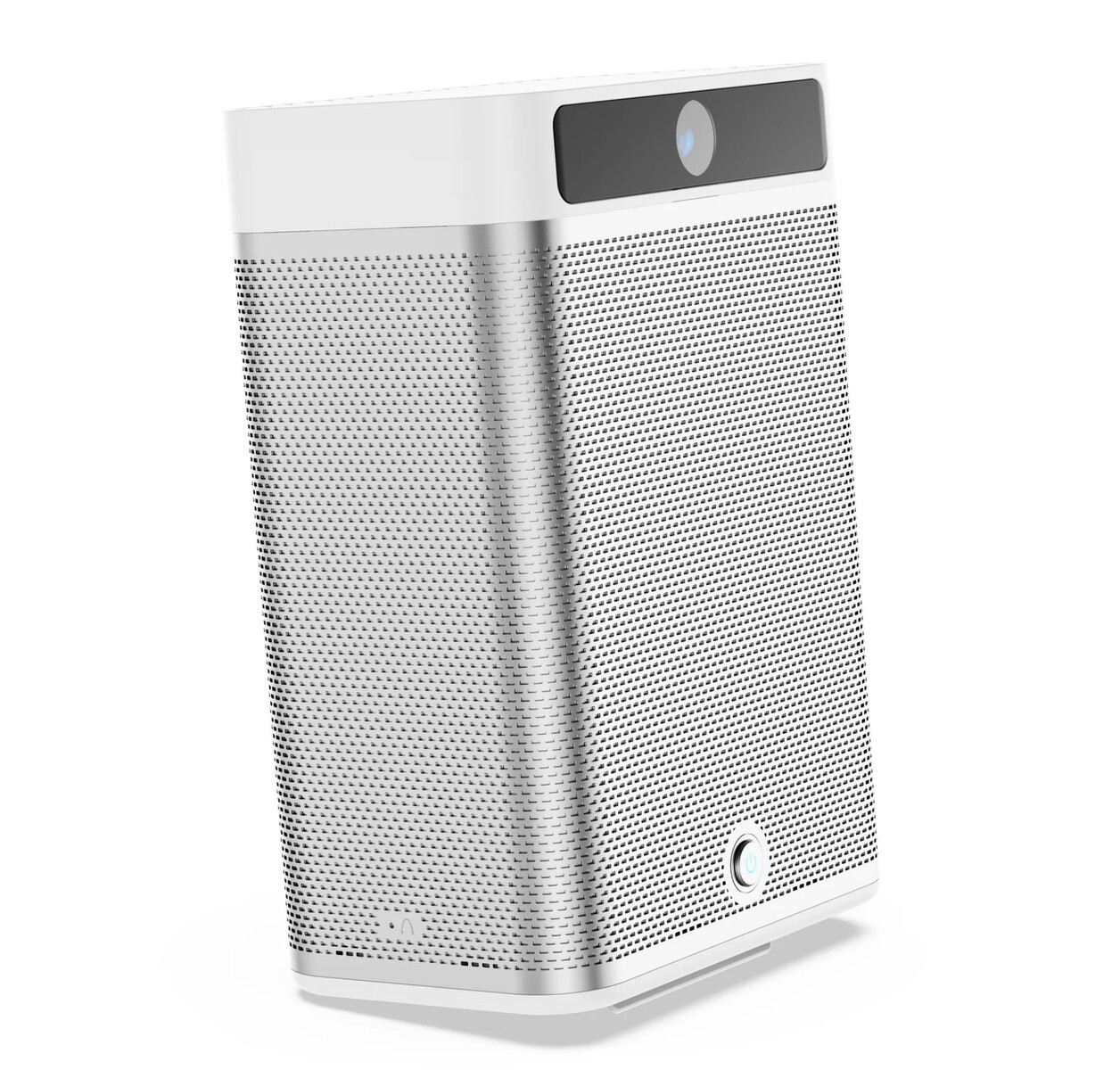

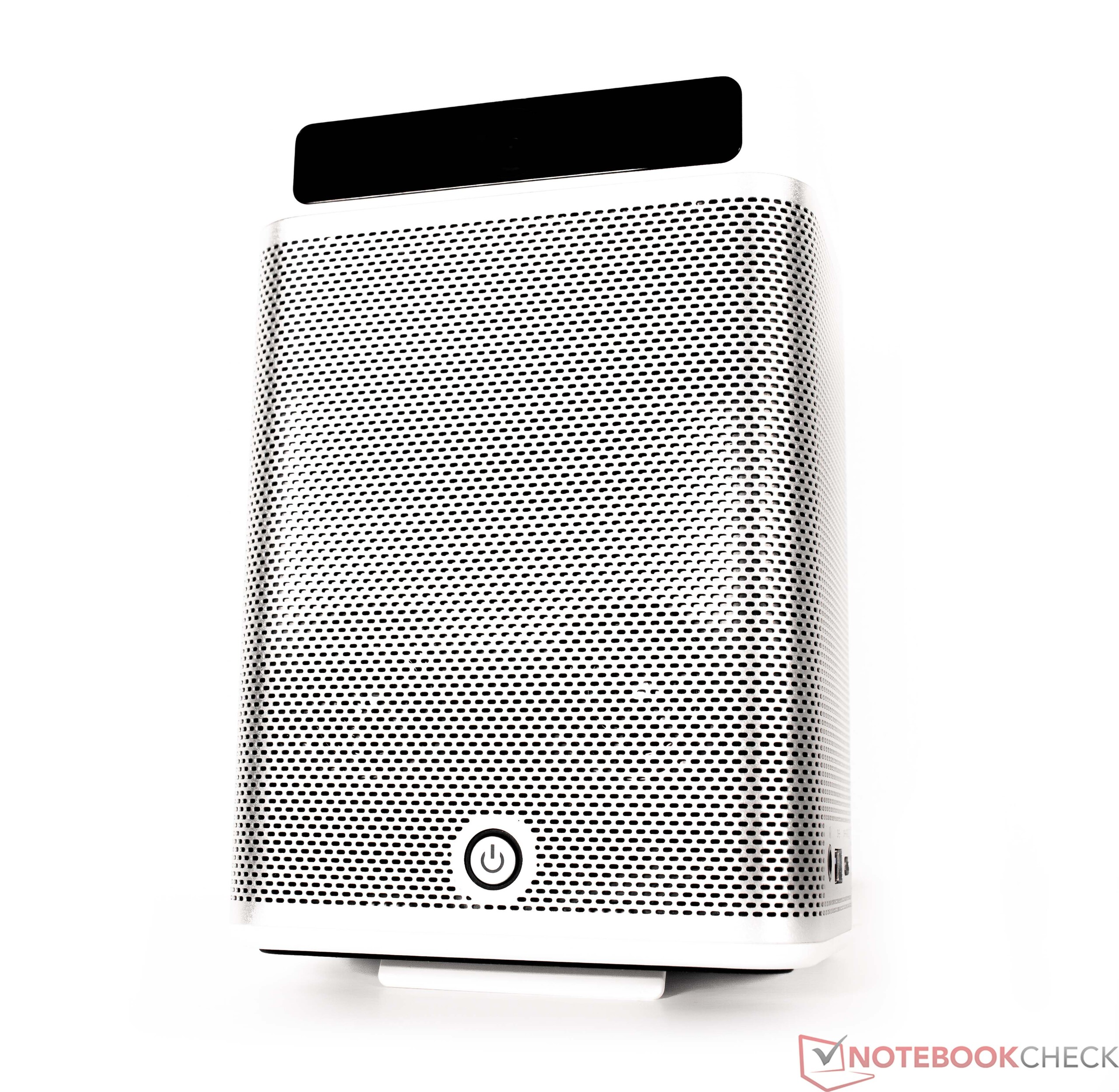

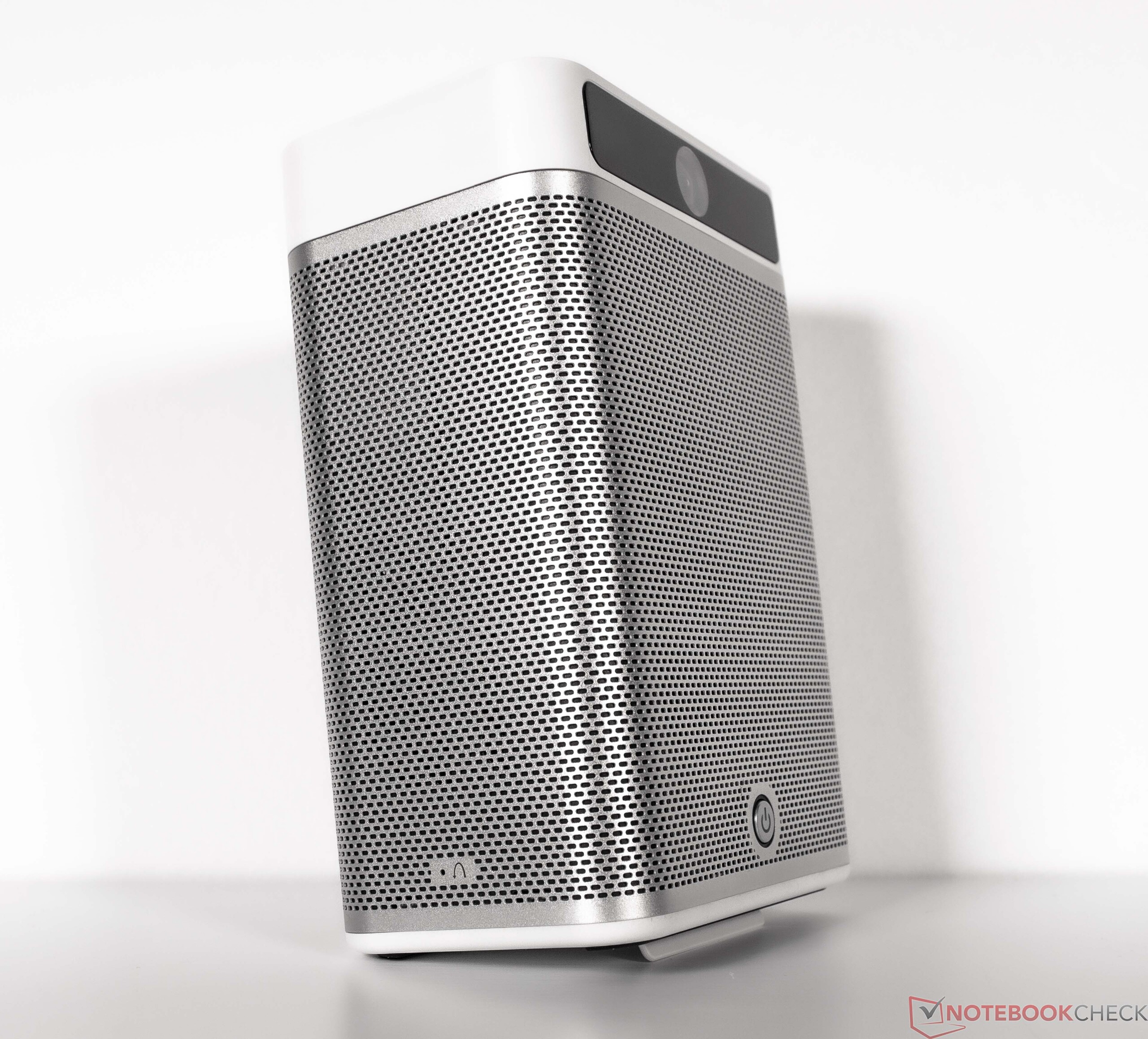

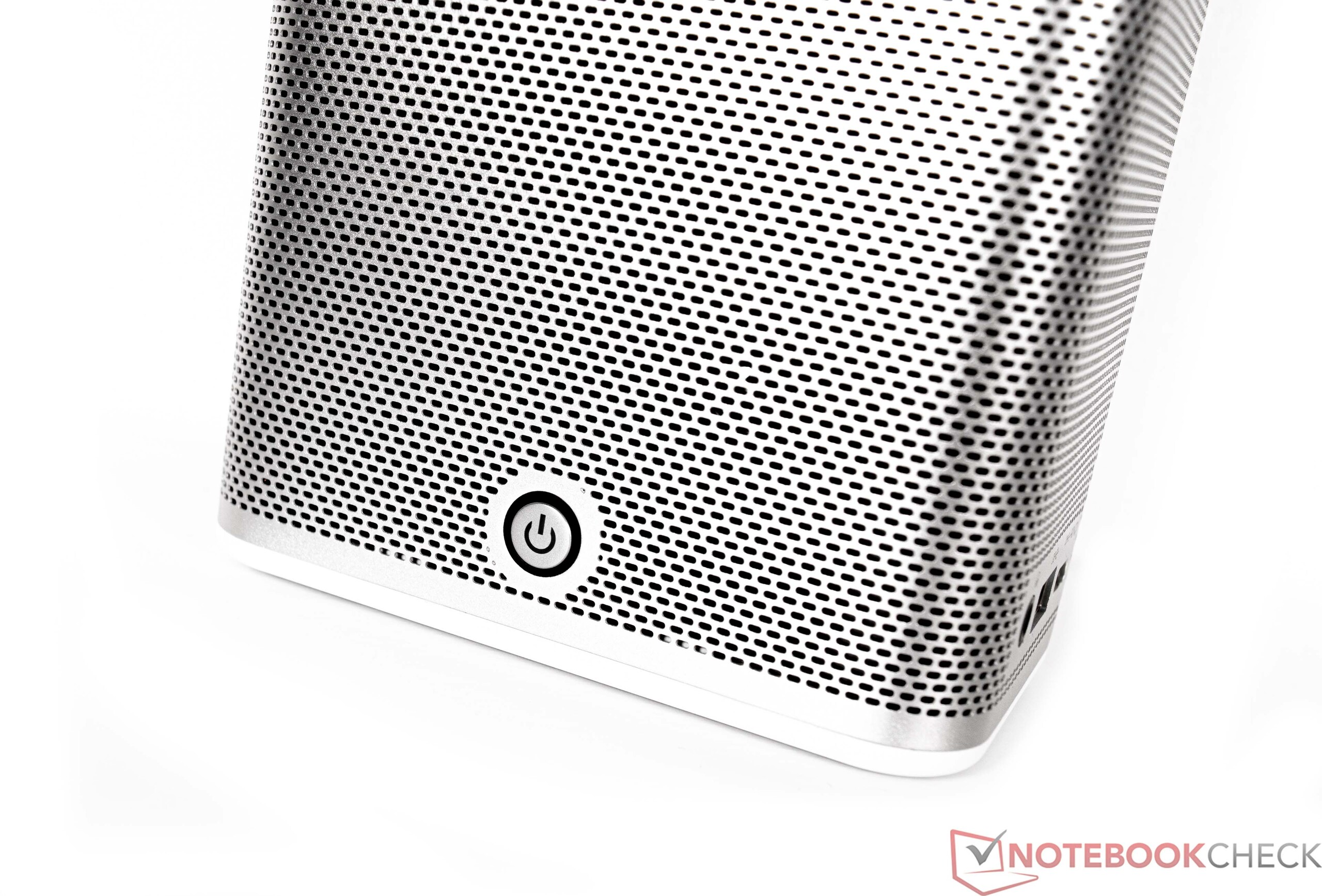

在材料方面，MINISFORUM选择了白色和银色的大部分塑料结构，这使Mars Series MC560看起来更有档次。不幸的是，很明显，该设备给人的感觉是塑料的。尽管如此，我们认为如果MINISFORUM用铝网覆盖银灰色区域，仍然是一个很好的装饰。

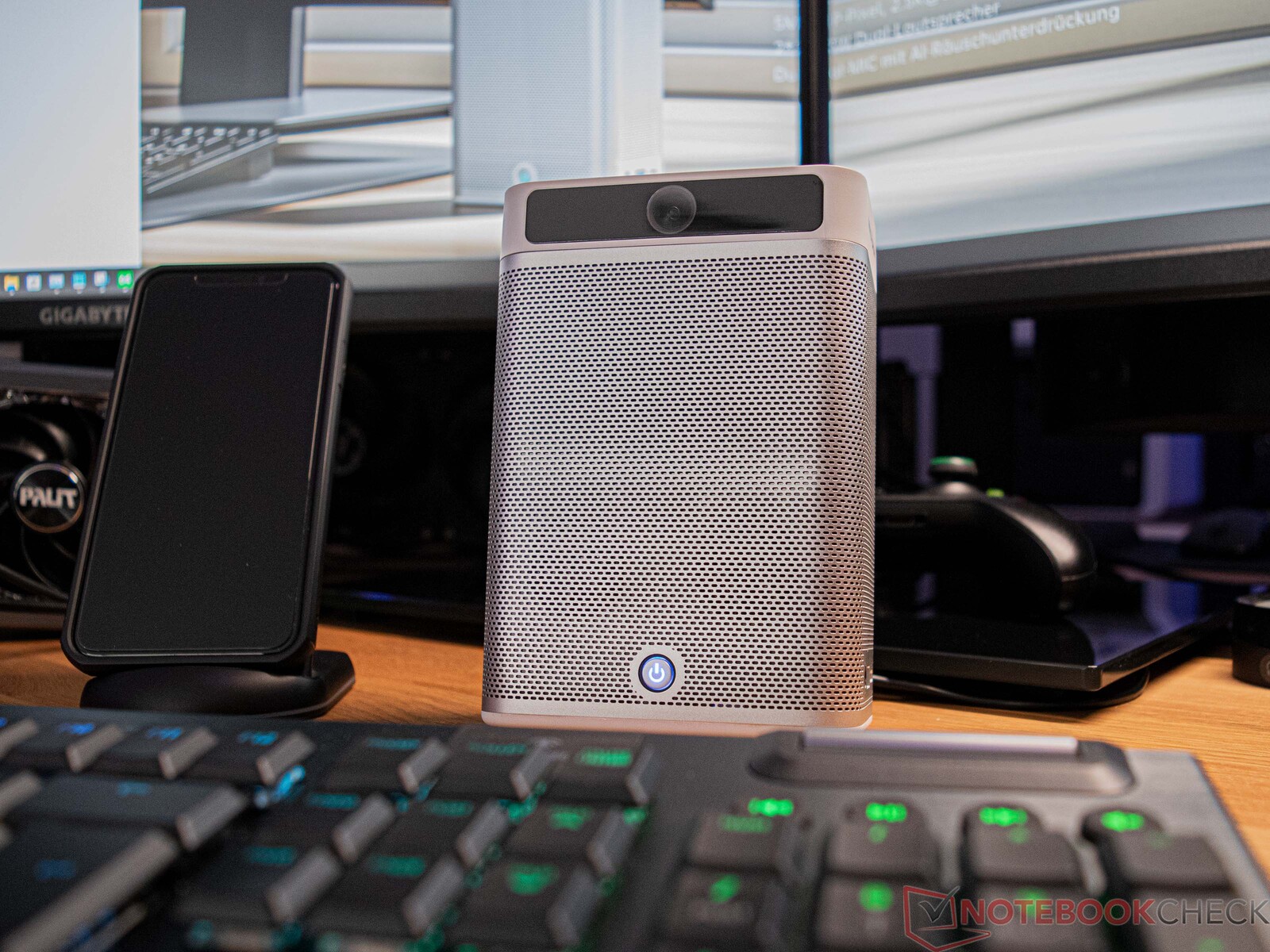

乍一看，这台机器在照片中显得相当小而紧凑。然而，它的高度为15厘米（5.9英寸），比你最初想象的略大。如果你想使用该相机，你需要在显示器下面有足够的空间。MC560很好，很轻，只有562克（1.24磅），其紧凑的电源适配器也不是特别重（230克，或0.51磅）。在我们的比较中，其他一些设备的重量大大超过了MC560。

尺寸比较

Minipc Union Ace Magician AMR5 Minisforum EliteMini B550 Minisforum EliteMini TH50 Minipc Union NiPoGi CK10 - 10810U Morefine S500+ Minisforum Mars Series MC560 Beelink SER4 DIN A4 ❌

规格

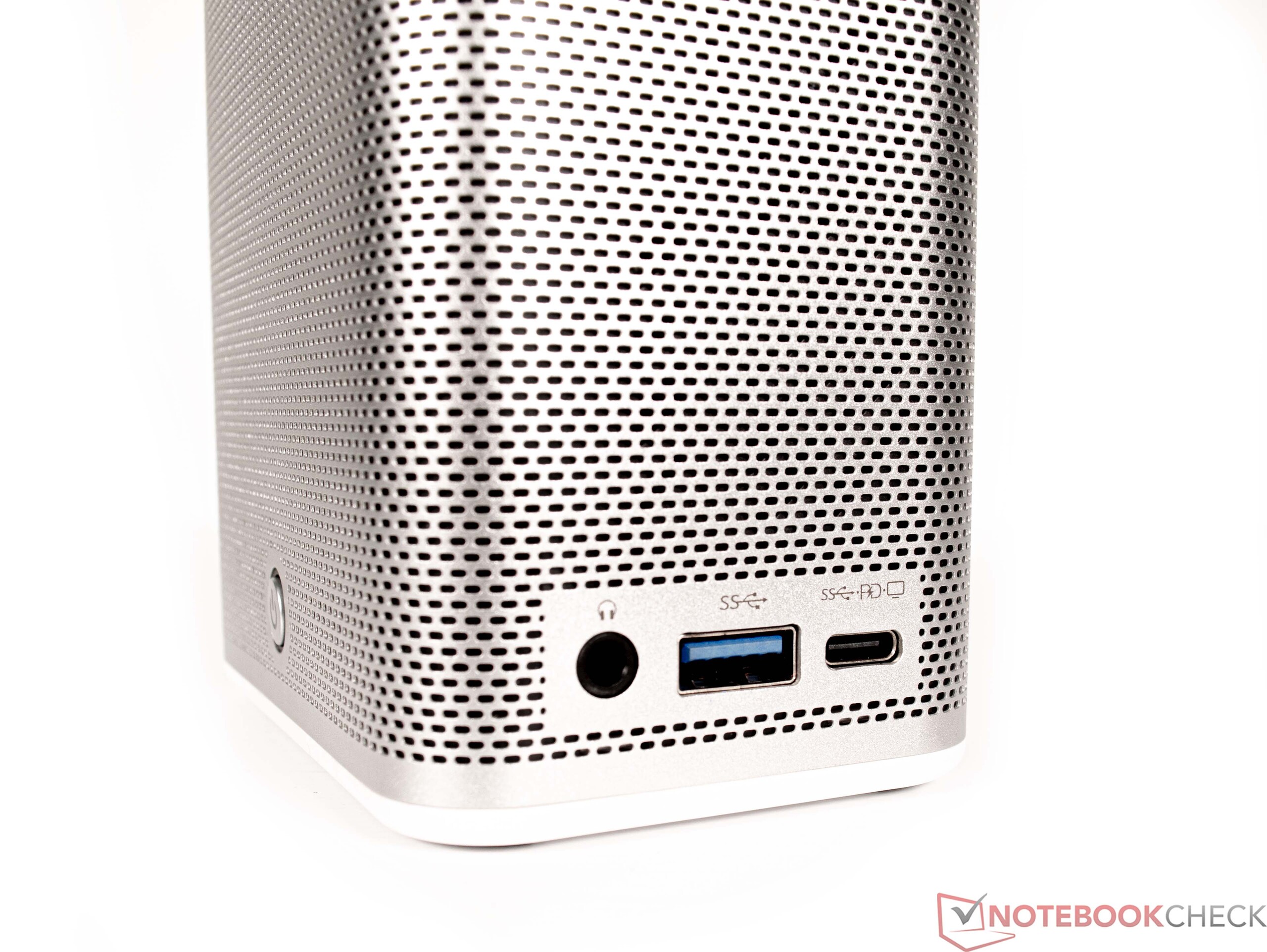

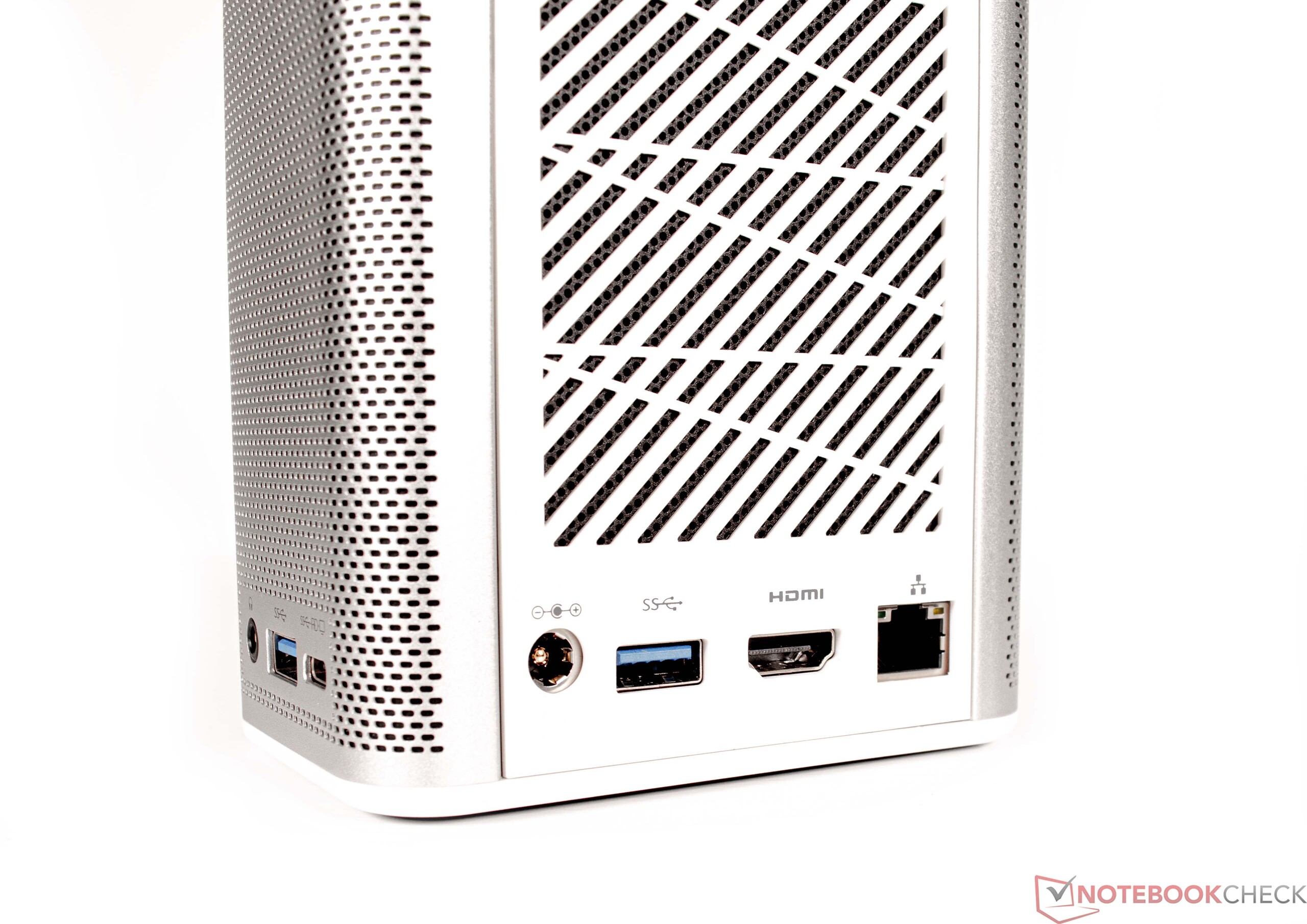

Minisforum Mars系列MC560的端口选择非常少，它们分布在设备的右侧和背面。总共有三个USB端口，其中两个是A型插座。除了一个HDMI端口，MC560还有一个能够输出显示信号的USB-C端口，这意味着它可以同时驱动两个原生4K显示器。不过，如果设备背面有一个额外的USB-A端口就更好了。令人遗憾的是，MC560还缺少一个SD卡读卡器。

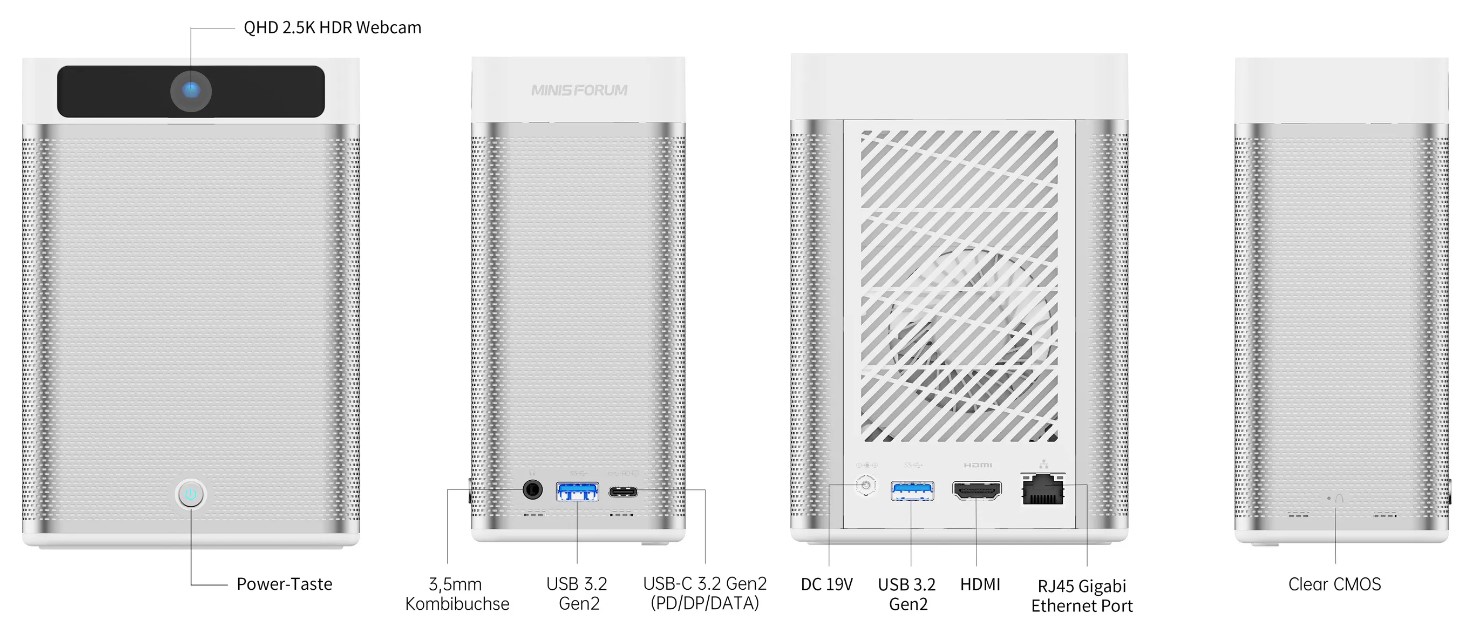

Minisforum Mars系列MC560的外部接口（来源：MINISFORUM）。

连接性

Minisforum为MC560配备了一个联发科Wi-Fi 6E模块。这种无线网卡支持6GHz频段，我们在许多其他迷你电脑中看到了同样的网卡。在分析设备的Wi-Fi连接时，我们总是使用同一个参考路由器（华硕ROG Rapture GT-AXE11000）。在测试中，MC560提供了稳定的发送和接收速度。也就是说，相对于5GHz频段，我们在使用6GHz频段时没有发现任何优势。作为选择，该设备还可以通过以太网端口连接到网络。但这种连接只支持高达1 Gbit/s的传输速率。

Networking
iperf3 receive AXE11000
Minisforum Mars Series MC560 MediaTek RZ608	949 (924^min - 954^max) MBit/s
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s -5%
Average of class Mini PC (192.9 - 1796, n=85, last 2 years)	897 MBit/s -5%
Average MediaTek RZ608 (430 - 975, n=19)	883 MBit/s -7%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s -18%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s -55%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s -80%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +3%
Minisforum Mars Series MC560 MediaTek RZ608	936 (873^min - 988^max) MBit/s
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s -7%
Average MediaTek RZ608 (572 - 979, n=19)	855 MBit/s -9%
Average of class Mini PC (184.1 - 1776, n=85, last 2 years)	828 MBit/s -12%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s -39%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s -63%
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (432 - 1764, n=39, last 2 years)	1158 MBit/s +36%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s +14%
Minisforum EliteMini TH50 MediaTek MT7921	866 (502^min - 950^max) MBit/s +2%
Minisforum Mars Series MC560 MediaTek RZ608	849 (799^min - 898^max) MBit/s
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s -3%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -33%
iperf3 receive AXE11000 6GHz
Average of class Mini PC (390 - 1771, n=38, last 2 years)	1197 MBit/s +25%
Minisforum Mars Series MC560 MediaTek RZ608	961 (949^min - 968^max) MBit/s
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s -6%
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s -14%
Minisforum EliteMini TH50 MediaTek MT7921	776 (482^min - 881^max) MBit/s -19%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s -55%

Minisforum Mars Series MC560; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø849 (799-898)

Minisforum Mars Series MC560; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø960 (949-968)

Minisforum Mars Series MC560; iperf3 receive AXE11000; iperf 3.1.3: Ø948 (924-954)

Minisforum Mars Series MC560; iperf3 transmit AXE11000; iperf 3.1.3: Ø936 (873-988)

网络摄像头

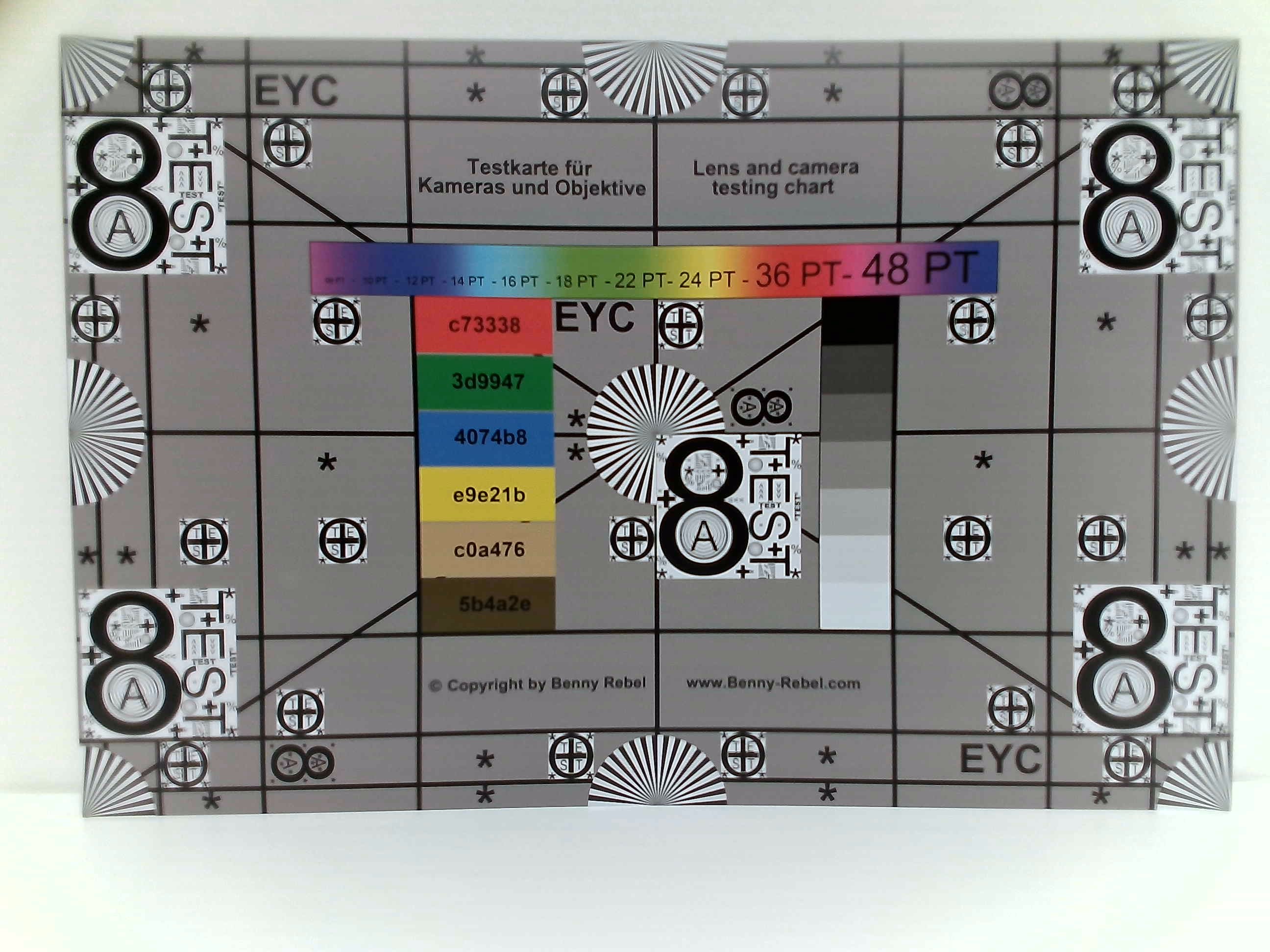

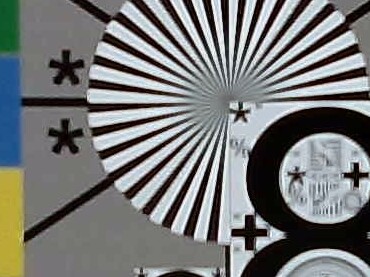

内置的网络摄像头是视频会议的一个很好的解决方案。但由于机器的静止性质，我们不建议用它来拍摄照片。该摄像头在色彩准确性方面并不出色。然而，由于它的2.5K分辨率（500万像素），它可以产生比许多笔记本电脑网络摄像头更高的细节水平。有一个集成的倾斜支架，可以让你将设备向后倾斜10度，并将相机调整到一个可用的位置。

ColorChecker Minisforum Mars Series MC560: 14.29 ∆E min: 2.9 - max: 21.34 ∆E

辅料

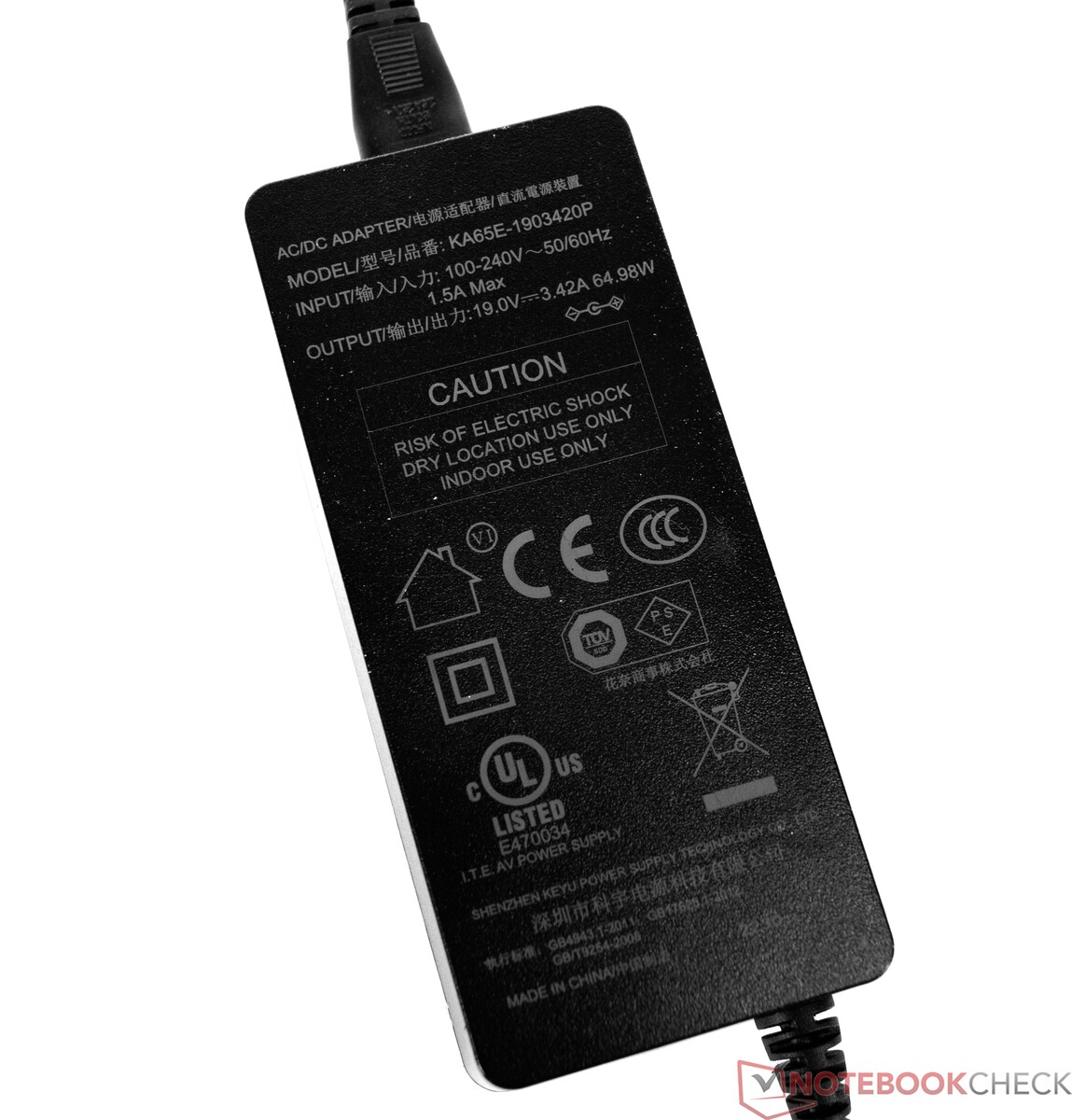

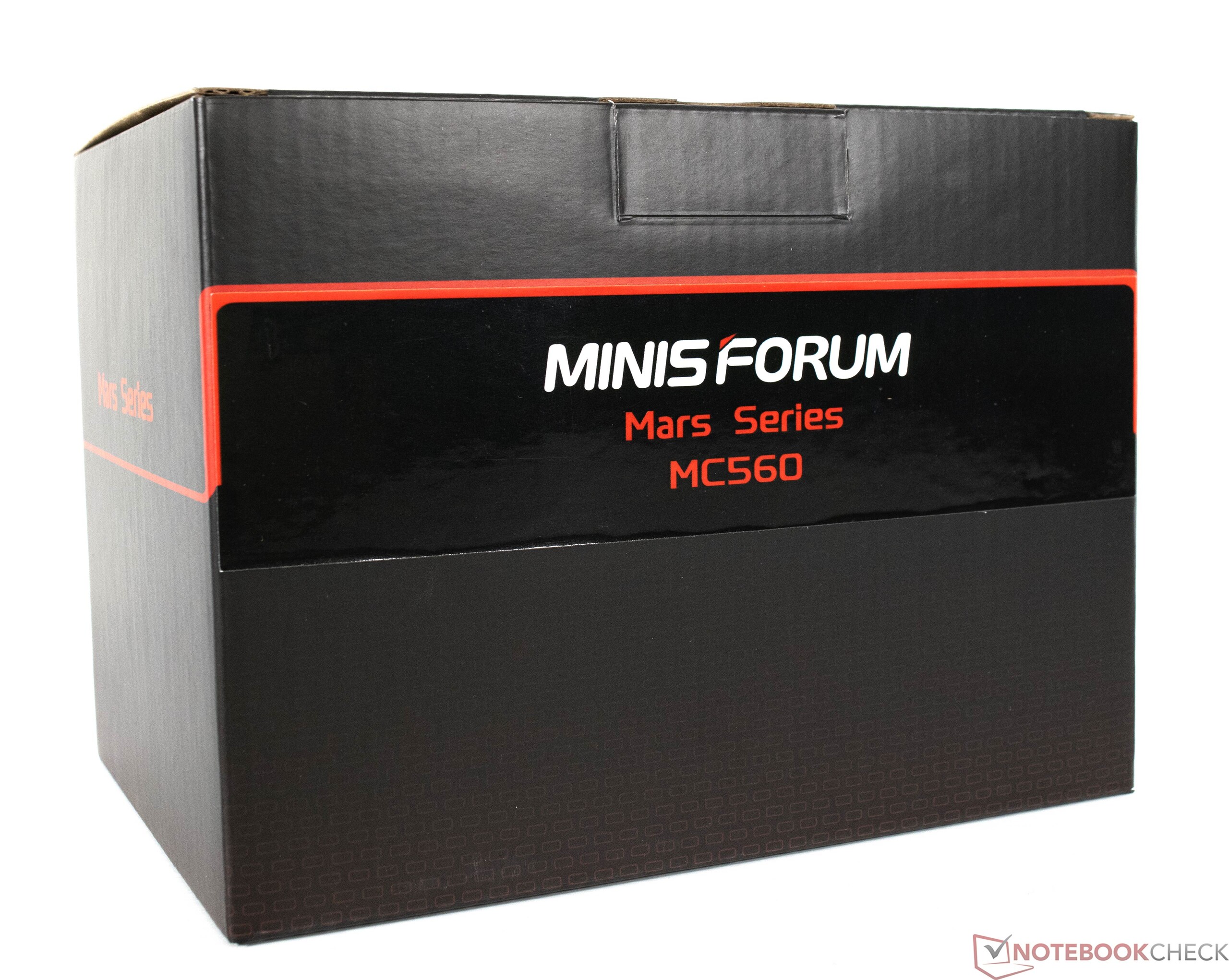

除了设备本身，你只能在盒子里找到一个65瓦的电源适配器和一条HDMI线。

维护

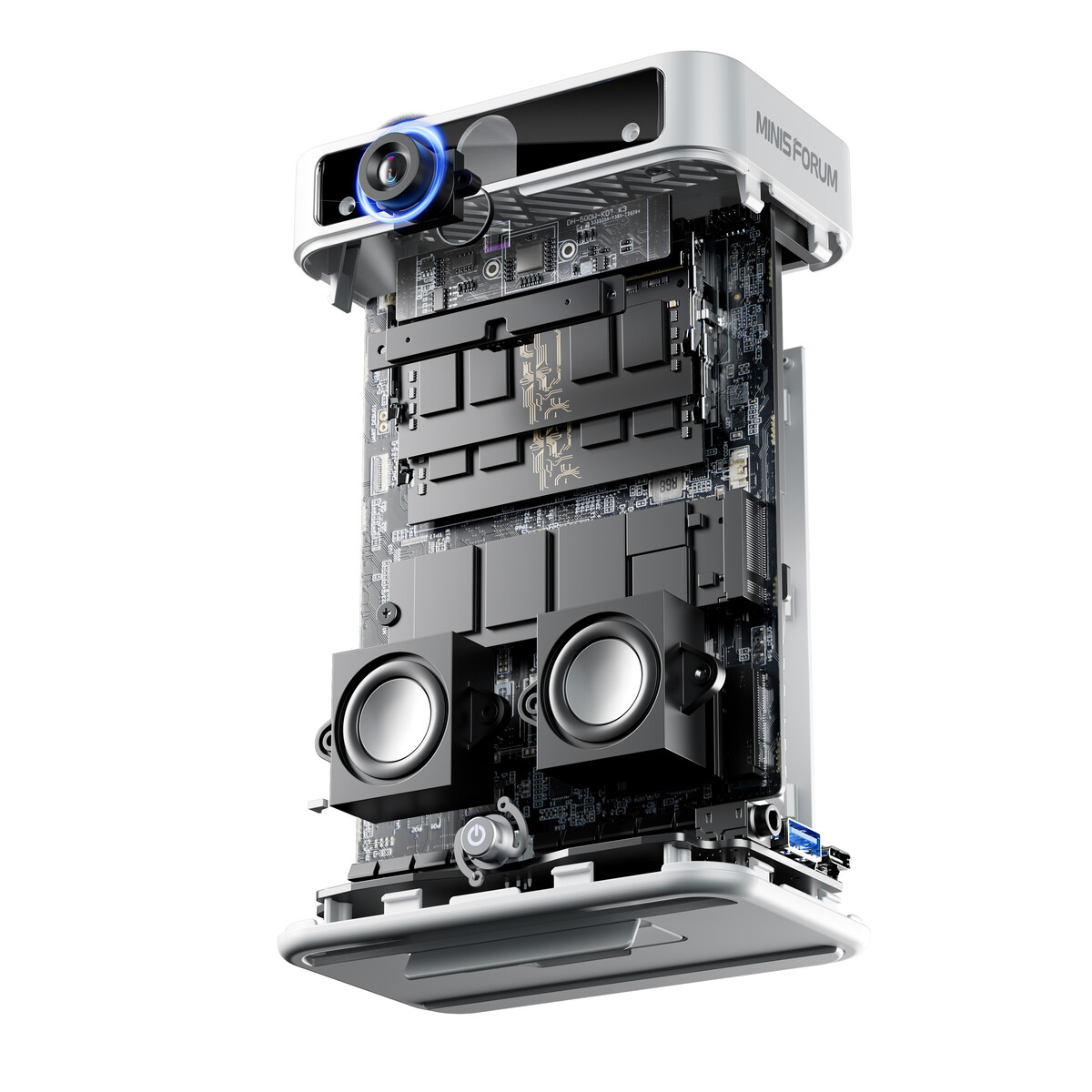

Minisforum明确建议用户不要进行任何需要打开设备的维护工作。其原因是内置的摄像头。MC560是在一个无尘室中组装的，以防止灰尘颗粒进入设备内部，对摄像头的图像质量产生负面影响。这也是为什么该公司选择不以裸机套件的形式提供该机器。考虑到上述所有原因，我们决定不为这次审查打开我们的样品装置。尽管如此，下面的图片将让你看到MINISFORUM Mars系列MC560的内部。

性能 - AMD的塞尚仍然足够快

淘宝网锐龙5600U在我们的评测单元中，可与 AMD Ryzen 5 5625U在性能方面。这款六核处理器为日常使用提供了坚实的性能，甚至不需要回避密集型任务。MC560还配备了Radeon RX Vega 7集成显卡和至少16GB的内存。如果你是那种同时打开很多浏览器标签的人，你可能要考虑直接购买32GB型号，以避免之前提到的升级设备的问题。

测试条件

在本次评测中，我们在MC560上选择了 "高性能 "电源方案进行所有与性能有关的测试。根据我们的测试标准，唯一的例外是我们在测量功耗和噪音水平时。我们没有修改SoC的功耗或BIOS中的风扇曲线。

处理器

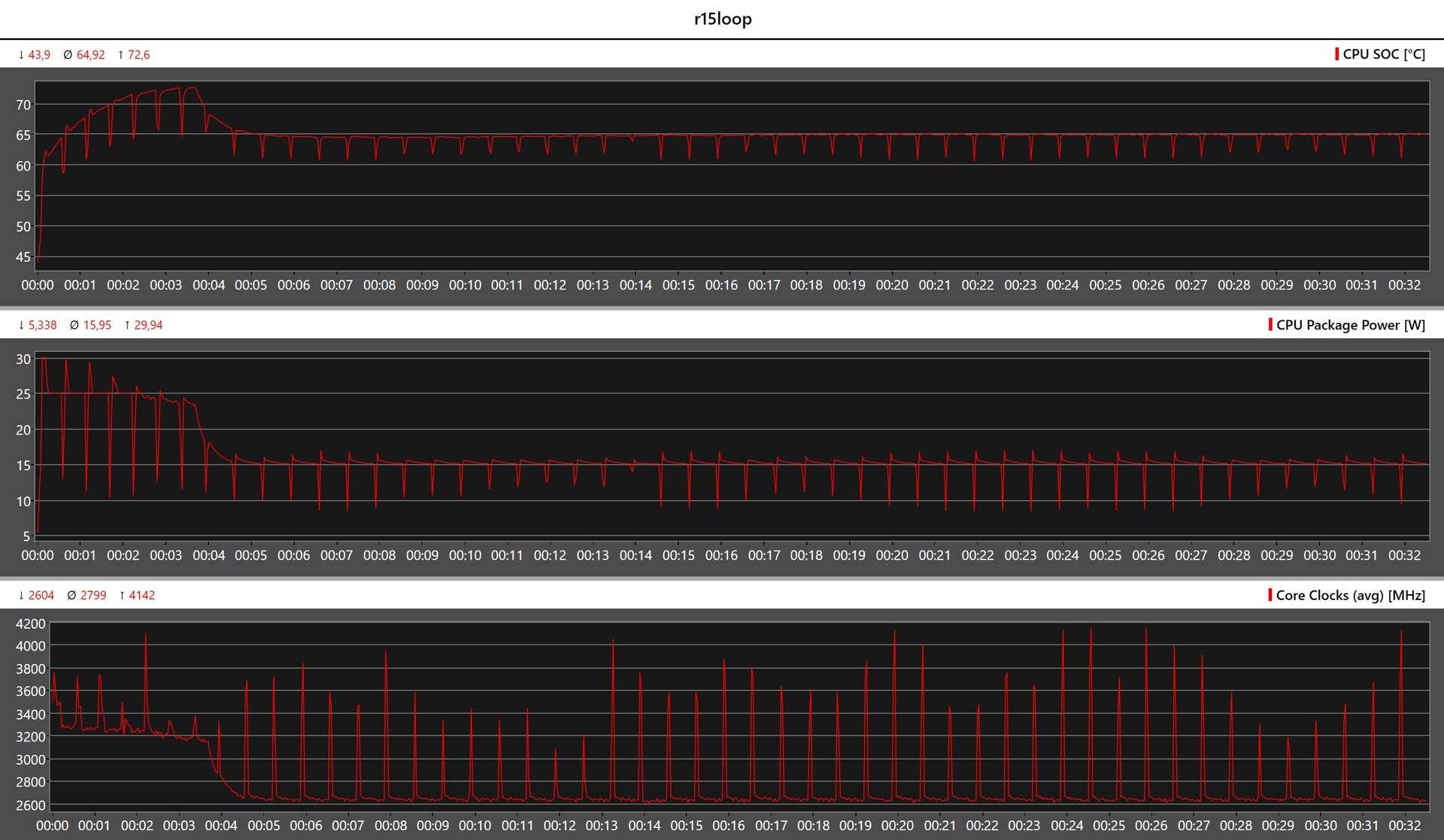

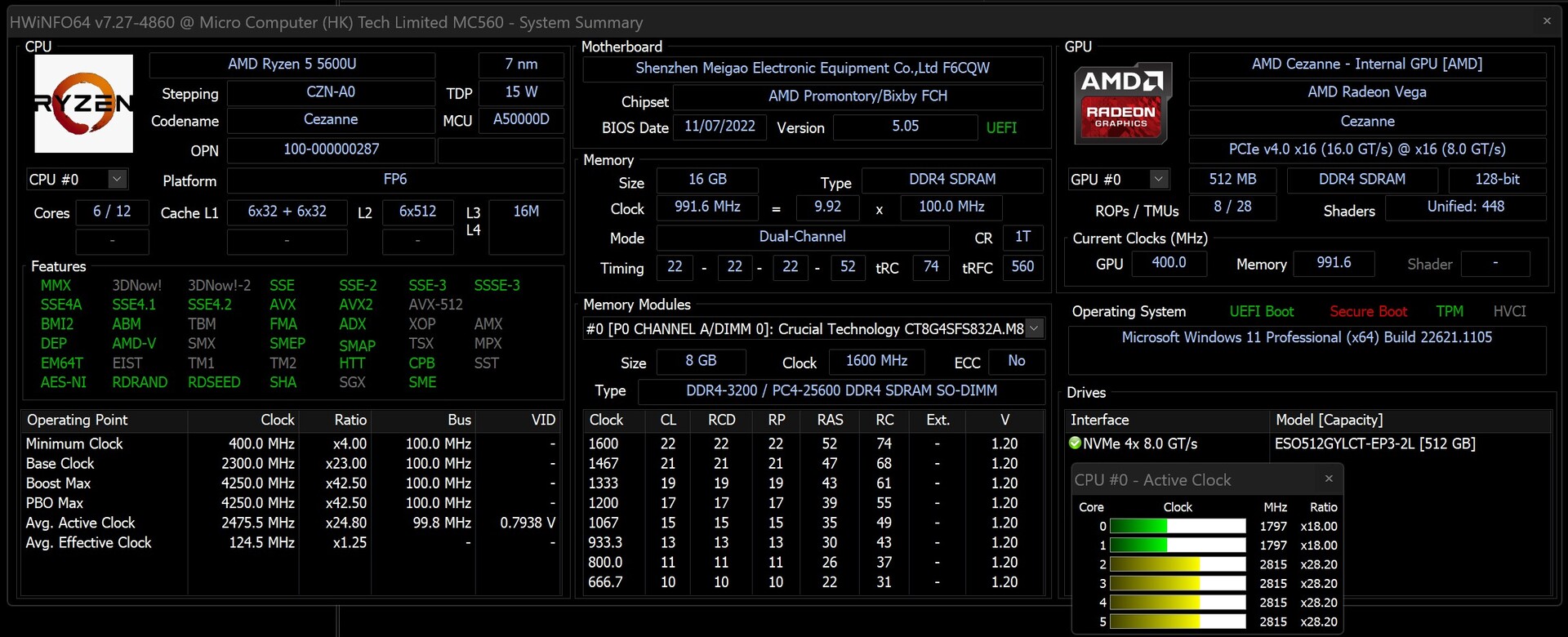

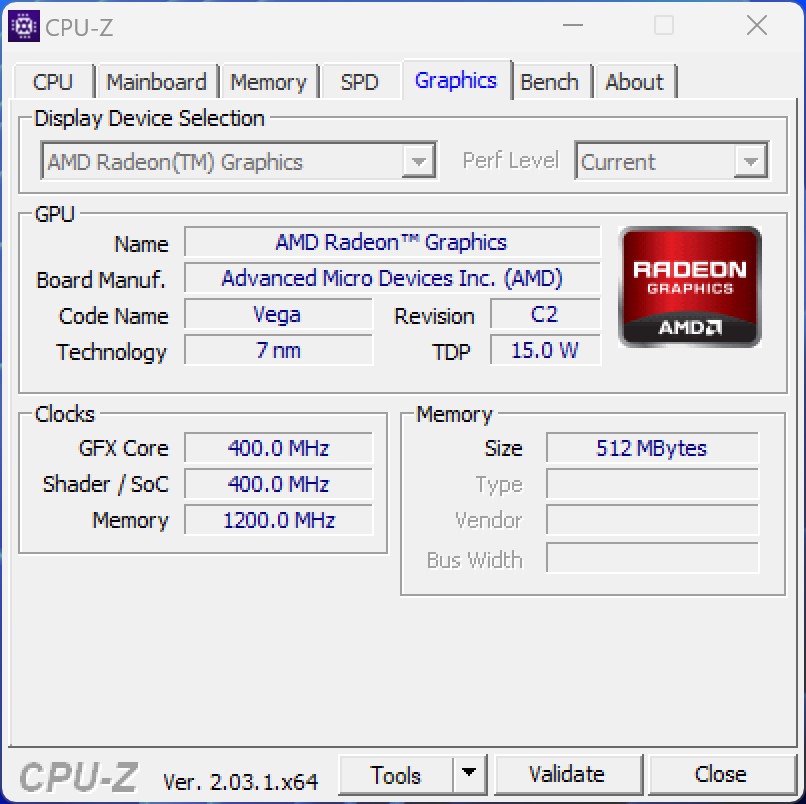

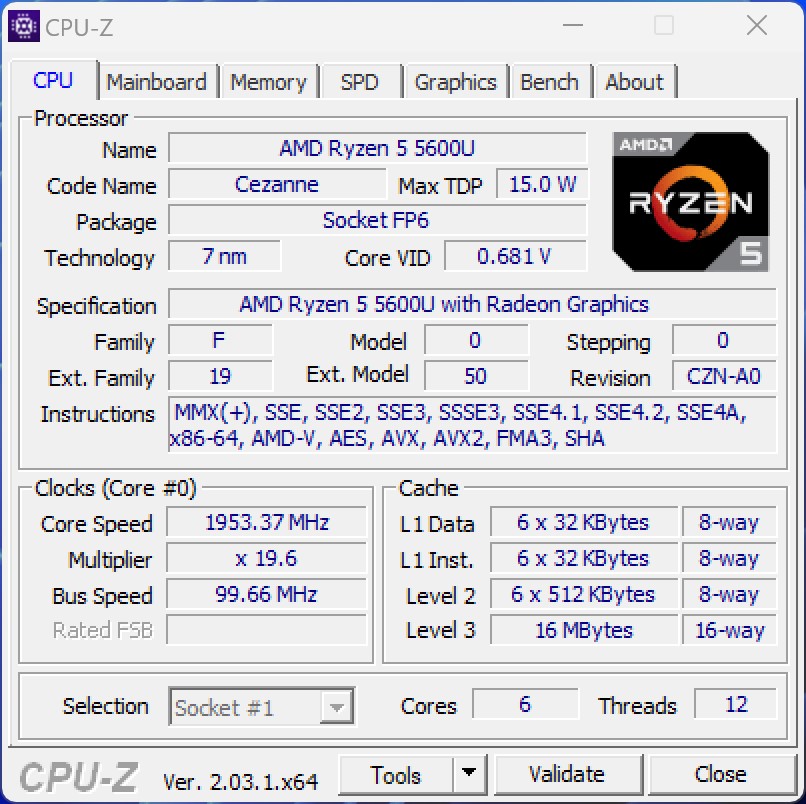

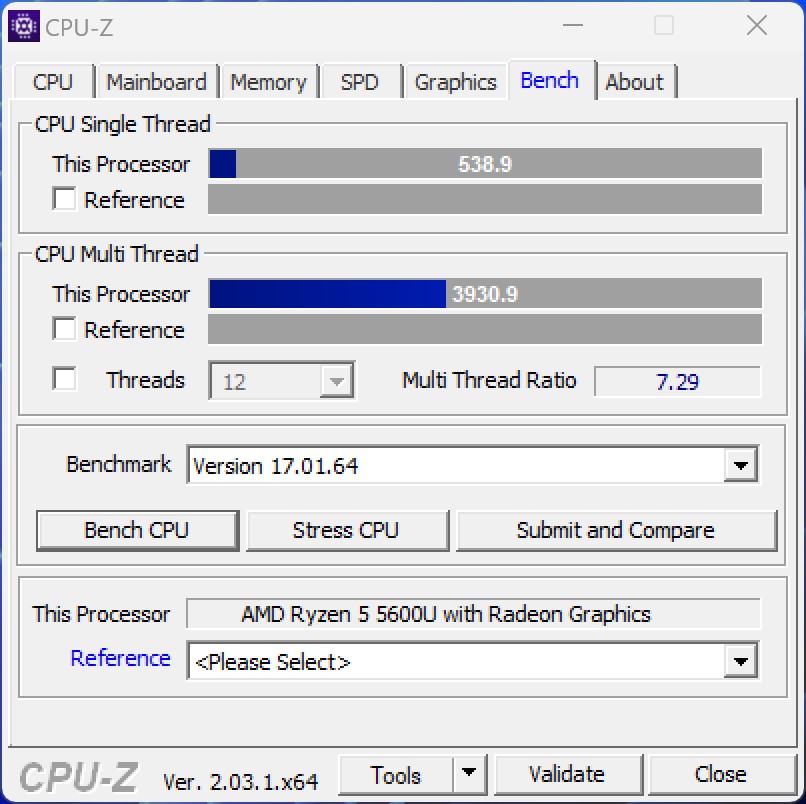

Minisforum Mars系列MC560的核心是一个AMD Ryzen 5 5600U ，它有六个Zen 3核心以及SMT。但正如我们在一开始提到的，该设备目前只配备了AMD Ryzen 5625U ，这是一个稍新的型号，时钟速度略高。这意味着MC560的零售单位应该比我们在这里看到的评测单位的性能好一点。为便于比较，我们在表中列出了Ryzen 5 5625U的平均性能。我们的评测单元提供了很好的性能，与Minipc Union Ace Magician AMR5 ，它使用相同的六核AMD处理器。它的性能比采用原生八核处理器的竞争对手差，但差得不多--性能等级的差异最多为12%。

前往这个页面了解更多的处理器基准测试。

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	46.8 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	46.7 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	46.5 pt
Beelink SER4 ^-16! AMD Ryzen 7 4800U, 1800 MHz	45.8 pt
Average AMD Ryzen 5 5625U ^-3!	42.8 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.5 pt
Average AMD Ryzen 5 5600U	41.1 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	39.9 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	33.5 pt

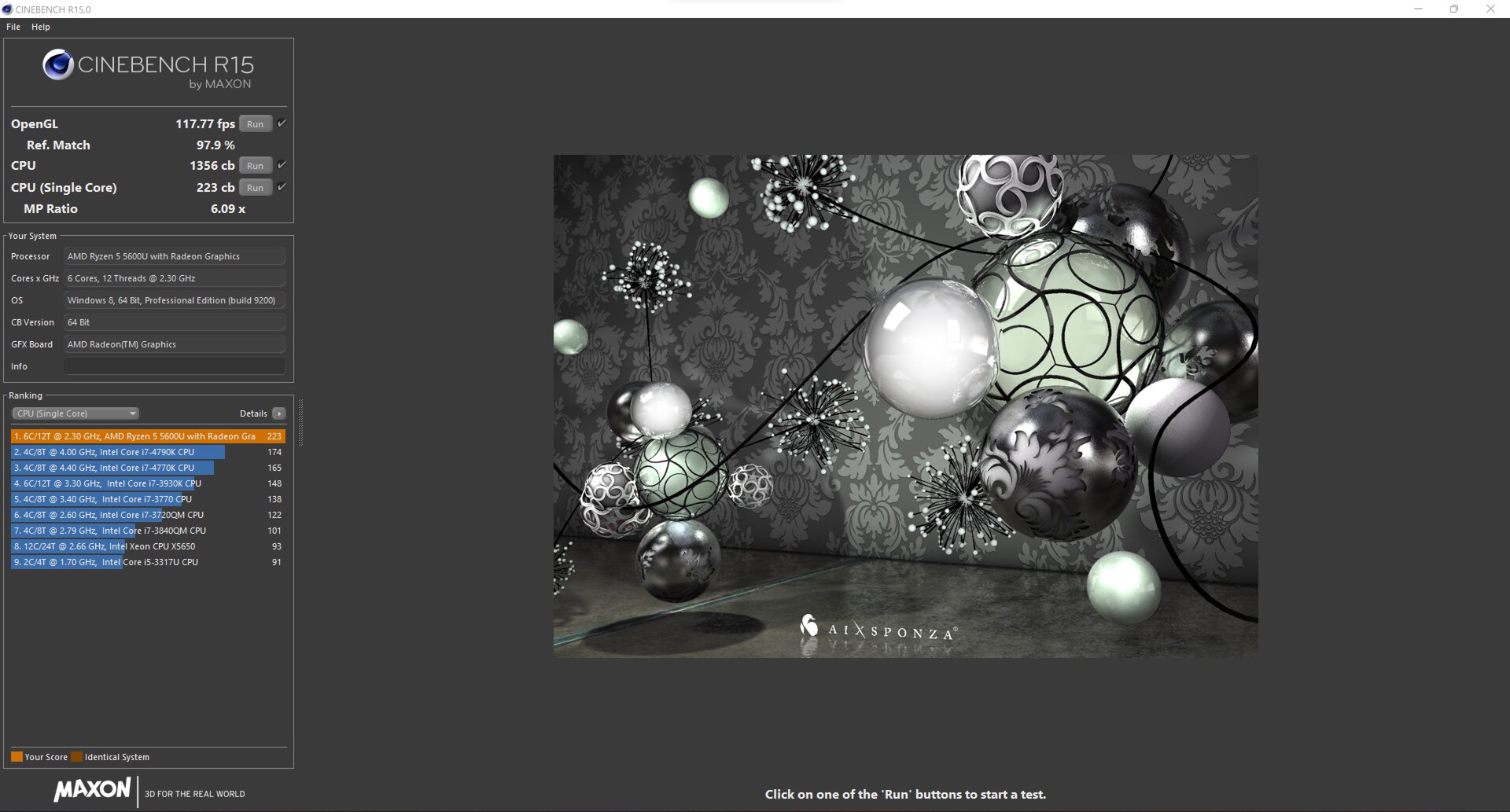

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	223 Points
Average AMD Ryzen 5 5625U (219 - 226, n=7)	223 Points 0%
Average AMD Ryzen 5 5600U (220 - 223, n=6)	222 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points -5%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	187 Points -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points -24%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +64%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +46%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +42%
Average AMD Ryzen 5 5625U (1219 - 1529, n=7)	1417 Points +4%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1411 (1390.29^min - 1411.03^max) Points +4%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1356 Points
Average AMD Ryzen 5 5600U (1265 - 1546, n=6)	1347 Points -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points -30%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points -54%

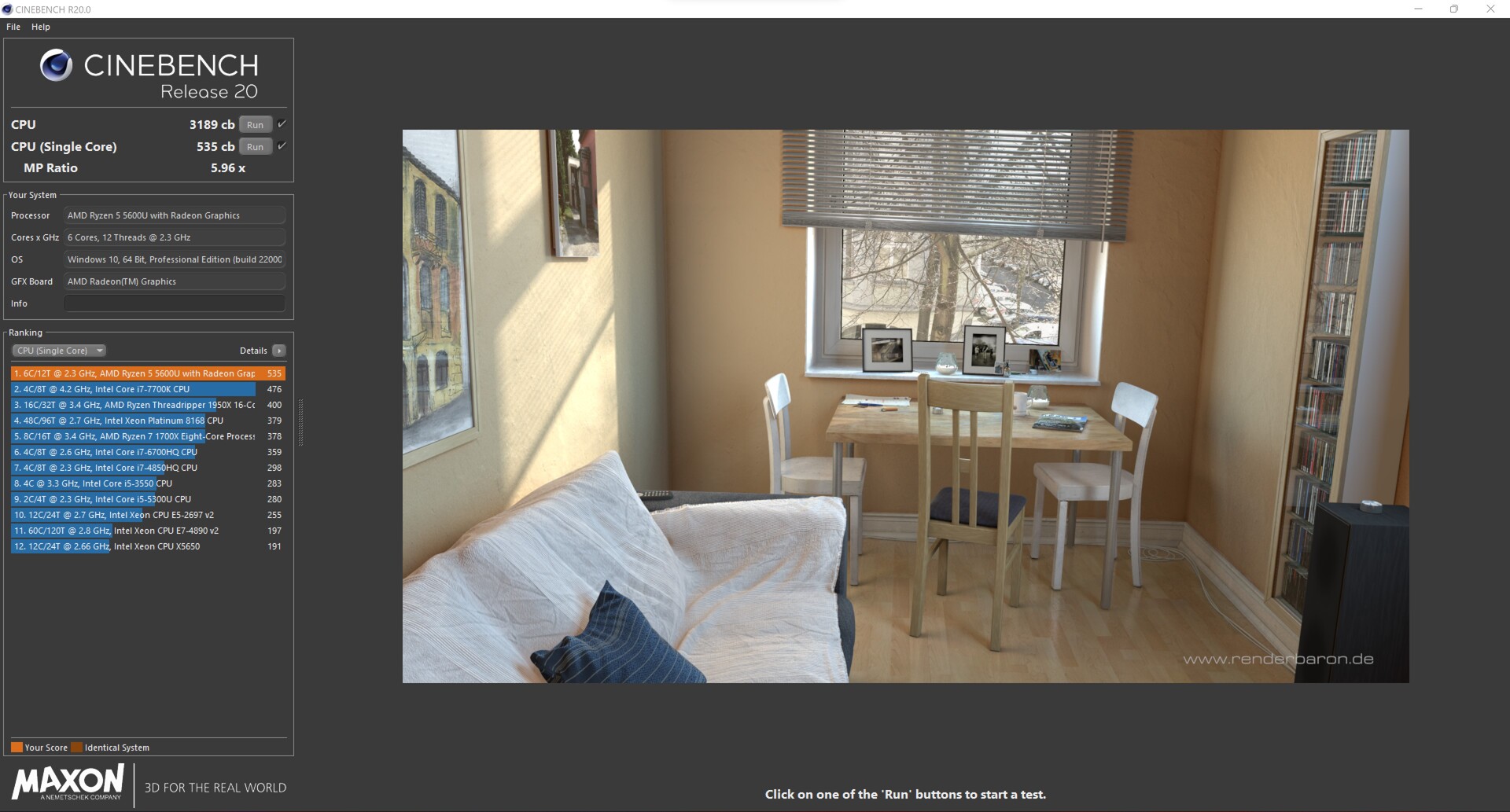

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +5%
Average AMD Ryzen 5 5625U (533 - 546, n=7)	541 Points +1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	535 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points 0%
Average AMD Ryzen 5 5600U (532 - 536, n=7)	534 Points 0%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	488 Points -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points -22%
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +46%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +41%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	3248 Points +2%
Average AMD Ryzen 5 5625U (2820 - 3549, n=7)	3206 Points +1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	3189 Points
Average AMD Ryzen 5 5600U (2345 - 3632, n=7)	3036 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points -27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points -53%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points +1%
Average AMD Ryzen 5 5625U ()	2.64 Points +1%
Average AMD Ryzen 5 5600U (2.61 - 2.64, n=3)	2.63 Points +1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	2.61 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points -4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1.95 Points -25%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +43%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +38%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	15.96 Points
Average AMD Ryzen 5 5625U ()	15.9 Points 0%
Average AMD Ryzen 5 5600U (14.5 - 16, n=3)	15.1 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points -32%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.98 Points -56%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	11132 Points
Average AMD Ryzen 5 5600U (11098 - 11143, n=3)	11124 Points 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8591 Points -23%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +44%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +30%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +27%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	50831 Points
Average AMD Ryzen 5 5600U (45363 - 50831, n=3)	47704 Points -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -11%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	23491 Points -54%

Blender - v2.79 BMW27 CPU
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds * -63%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * -21%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	426 Seconds *
Average AMD Ryzen 5 5600U (328 - 481, n=6)	413 Seconds * +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * +6%
Average AMD Ryzen 5 5625U (347 - 415, n=7)	373 Seconds * +12%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	340 Seconds * +20%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +41%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +46%

wPrime 2.10
32m
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.952 s * -43%
Average AMD Ryzen 5 5625U (4.7 - 8.23, n=2)	6.46 s * -33%
Average AMD Ryzen 5 5600U (4.85 - 8.78, n=3)	6.34 s * -31%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -11%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	4.848 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +32%
1024m
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	267.369 s * -81%
Average AMD Ryzen 5 5625U (147.4 - 266, n=2)	207 s * -40%
Average AMD Ryzen 5 5600U (147.8 - 277, n=3)	193.8 s * -31%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * -29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	147.807 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +38%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +15%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	236 (235^min - 246^max) fps
Average AMD Ryzen 5 5600U (234 - 236, n=2)	235 fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -1%
Average AMD Ryzen 5 5625U ()	229 fps -3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps -40%
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +58%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +44%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +38%
Average AMD Ryzen 5 5625U ()	82.1 fps +1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	80.95 (76.3^min - 82.4^max) fps
Average AMD Ryzen 5 5600U (76 - 81, n=2)	78.5 fps -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps -52%

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6858 KB/s
Average AMD Ryzen 5 5600U (6346 - 6877, n=3)	6694 KB/s -2%
Average AMD Ryzen 5 5625U (6100 - 6581, n=2)	6341 KB/s -8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s -20%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4747 KB/s -31%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -37%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +30%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	8.3 GB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s -8%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s -11%
Average AMD Ryzen 5 5600U (5.1 - 8.3, n=3)	7.03 GB/s -15%
Average AMD Ryzen 5 5625U (5.1 - 7.2, n=2)	6.15 GB/s -26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s -27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.9 GB/s -29%
Twofish Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +67%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +25%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1.2 GB/s
Average AMD Ryzen 5 5600U (1.1 - 1.2, n=3)	1.133 GB/s -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1 GB/s -17%
Average AMD Ryzen 5 5625U (1 - 1, n=2)	1 GB/s -17%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s -23%
Serpent Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +51%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +38%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.796 GB/s
Average AMD Ryzen 5 5600U (0.7 - 0.796, n=3)	0.759 GB/s -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -12%
Average AMD Ryzen 5 5625U (0.606 - 0.699, n=2)	0.653 GB/s -18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.566 GB/s -29%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s -34%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +21%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +20%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +20%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6523 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6375 Points -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -5%
Average AMD Ryzen 5 5625U (4813 - 6472, n=7)	5799 Points -11%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points -13%
Average AMD Ryzen 5 5600U (4506 - 6523, n=5)	5611 Points -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points -40%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1427 Points
Average AMD Ryzen 5 5625U (1361 - 1450, n=7)	1412 Points -1%
Average AMD Ryzen 5 5600U (1334 - 1430, n=5)	1388 Points -3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points -15%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1192 Points -16%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +21%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +21%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +20%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6479 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -6%
Average AMD Ryzen 5 5625U ()	6032 Points -7%
Average AMD Ryzen 5 5600U (5031 - 6479, n=3)	5876 Points -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points -39%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +6%
Average AMD Ryzen 5 5625U ()	1384 Points +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points +1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1371 Points
Average AMD Ryzen 5 5600U (1340 - 1383, n=3)	1365 Points 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points -11%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5918 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -1%
Average AMD Ryzen 5 5625U ()	5812 Points -2%
Average AMD Ryzen 5 5600U (5553 - 5918, n=3)	5775 Points -2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points -20%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +26%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +23%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	25738 Points
Average AMD Ryzen 5 5625U ()	24531 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -5%
Average AMD Ryzen 5 5600U (21830 - 25738, n=3)	24021 Points -7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points -25%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	13130 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -4%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	12541 Points -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points -11%
Average AMD Ryzen 5 5625U (8402 - 12316, n=7)	11116 Points -15%
Average AMD Ryzen 5 5600U (7823 - 13130, n=6)	11018 Points -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6537 Points -50%

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +42%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +37%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +36%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	40318 MIPS
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	40117 MIPS 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -3%
Average AMD Ryzen 5 5625U (35573 - 40034, n=7)	37873 MIPS -6%
Average AMD Ryzen 5 5600U (32052 - 43071, n=6)	37855 MIPS -6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS -33%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS -50%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +14%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS +2%
Average AMD Ryzen 5 5625U (5070 - 5260, n=7)	5208 MIPS +1%
Average AMD Ryzen 5 5600U (5118 - 5260, n=6)	5198 MIPS +1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5161 MIPS
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS -4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS -10%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	4603 MIPS -11%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +56%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +45%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +42%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	10.4 fps +2%
Average AMD Ryzen 5 5625U (9.28 - 11.7, n=7)	10.3 fps +1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	10.2 fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -1%
Average AMD Ryzen 5 5600U (7.31 - 11.8, n=6)	9.72 fps -5%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps -23%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps -49%

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec * -28%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * -14%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	0.576 sec * -5%
Average AMD Ryzen 5 5600U (0.537 - 0.59, n=6)	0.555 sec * -1%
Average AMD Ryzen 5 5625U (0.534 - 0.572, n=7)	0.554 sec * -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.548 sec *
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * +2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +10%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s * -19%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	62.6 s * -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	57.5 s *
Average AMD Ryzen 5 5600U (49.3 - 57.5, n=6)	54 s * +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +12%
Average AMD Ryzen 5 5625U (46.9 - 52, n=7)	50.6 s * +12%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +12%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +15%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +8%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +6%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +4%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	263 Points
Average AMD Ryzen 5 5625U (250 - 269, n=5)	259 Points -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -3%
Average AMD Ryzen 5 5600U (243 - 265, n=6)	255 Points -3%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	219 Points -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points -22%

Mozilla Kraken 1.1 - Total
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms * -47%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	793 ms * -20%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	659 ms *
Average AMD Ryzen 5 5600U (646 - 667, n=6)	656 ms * -0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +2%
Average AMD Ryzen 5 5625U (636 - 651, n=5)	643 ms * +2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +9%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +46%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +42%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +40%
Average AMD Ryzen 5 5600U (16412 - 20528, n=3)	18169 Points +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points +7%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17516 Points +7%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	16412 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points -48%
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +44%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +38%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +37%
Average AMD Ryzen 5 5625U (16822 - 19184, n=7)	18301 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points +3%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17885 Points +2%
Average AMD Ryzen 5 5600U (14756 - 20872, n=6)	17757 Points +1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	17499 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points -21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points -49%
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +61%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +40%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +37%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6514 Points +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points +7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points +3%
Average AMD Ryzen 5 5625U (3832 - 5540, n=7)	5080 Points 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5077 Points
Average AMD Ryzen 5 5600U (3820 - 5685, n=6)	4931 Points -3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points -46%

* ... smaller is better

Geekbench 5.5 | Geekbench 5.0 | Geekbench 4.4

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +21%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +20%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +20%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6523 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6375 Points -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -5%
Average AMD Ryzen 5 5625U (4813 - 6472, n=7)	5799 Points -11%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points -13%
Average AMD Ryzen 5 5600U (4506 - 6523, n=5)	5611 Points -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points -40%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1427 Points
Average AMD Ryzen 5 5625U (1361 - 1450, n=7)	1412 Points -1%
Average AMD Ryzen 5 5600U (1334 - 1430, n=5)	1388 Points -3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points -15%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1192 Points -16%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +21%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +21%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +20%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6479 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -6%
Average AMD Ryzen 5 5625U ()	6032 Points -7%
Average AMD Ryzen 5 5600U (5031 - 6479, n=3)	5876 Points -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points -39%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +6%
Average AMD Ryzen 5 5625U ()	1384 Points +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points +1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1371 Points
Average AMD Ryzen 5 5600U (1340 - 1383, n=3)	1365 Points 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points -11%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5918 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -1%
Average AMD Ryzen 5 5625U ()	5812 Points -2%
Average AMD Ryzen 5 5600U (5553 - 5918, n=3)	5775 Points -2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points -20%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +26%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +23%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	25738 Points
Average AMD Ryzen 5 5625U ()	24531 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -5%
Average AMD Ryzen 5 5600U (21830 - 25738, n=3)	24021 Points -7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points -25%

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	94.9 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	84.5 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	84.4 pt
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	64.6 pt
Average of class Mini PC	62.1 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	61.2 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	59.2 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	30.9 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +67%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +45%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +43%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +7%
Average of class Mini PC (561 - 27538, n=97, last 2 years)	9978 KRay/s +6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	9406 KRay/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s -20%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s -51%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +67%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +44%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +42%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	60111 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points -5%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points -6%
Average of class Mini PC (3604 - 116903, n=97, last 2 years)	52513 Points -13%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points -47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points -56%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +67%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +43%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +42%
Average of class Mini PC (225 - 5096, n=97, last 2 years)	2294 MB/s +11%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	2065 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -5%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s -11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s -49%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +49%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +38%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +34%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +11%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	70563 Points
Average of class Mini PC (8172 - 119569, n=97, last 2 years)	69137 Points -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points -20%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points -26%

AIDA64 / FPU SinJulia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +43%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +40%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +39%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	8507 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points -3%
Average of class Mini PC (408 - 15525, n=97, last 2 years)	7328 Points -14%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points -41%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points -45%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +44%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +42%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	33084 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points -5%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points -13%
Average of class Mini PC (1958 - 62378, n=97, last 2 years)	27844 Points -16%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points -43%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points -62%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +64%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +46%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +40%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	82315 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -5%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s -7%
Average of class Mini PC (3691 - 177158, n=97, last 2 years)	75036 MB/s -9%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s -34%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s -78%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +64%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +46%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +41%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s +12%
Average of class Mini PC (74.8 - 1183, n=97, last 2 years)	581 MB/s +9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	531 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -5%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s -23%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s -45%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +68%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +43%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +43%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +11%
Average of class Mini PC (308 - 14722, n=97, last 2 years)	5327 KRay/s +6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	5024 KRay/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -8%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s -20%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s -50%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +72%
Average of class Mini PC (4408 - 44347, n=97, last 2 years)	24659 MPixel/s +39%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s +36%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s +9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	17803 MPixel/s
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s -43%

Minisforum Mars系列MC560在Cinebench R15多循环中的表现

循环运行Cinebench R15让我们了解了冷却系统的效率如何。我们看到，仅在第一次运行后，性能就下降了大约10%。Minisforum Mars系列MC560的平均分数为1099分，略微落后于Ace Magician AMR5。王牌魔术师AMR5.

Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Beelink SER4 AMD Ryzen 7 4800U, AMD Ryzen 7 4800U: Ø1404 (1390.29-1411.03)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

系统性能

在我们的系统性能基准测试中，MC560绝对可以在与其他设备的比较中保持自己的地位。它与拥有更快的八核CPU的设备之间的性能差异相当合理，在正常的日常使用中并不明显。

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	99.5 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	96.6 pt
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	96.5 pt
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	94.6 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	93.7 pt
Beelink SER4, AMD Ryzen 7 4800U AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	82 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	79 pt
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel Core i7-10810U, Intel UHD Graphics 620, FPT310M8SSD512G	65.4 pt

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +11%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +6%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	5862 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -2%
Beelink SER4, AMD Ryzen 7 4800U AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	5257 Points -10%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points -12%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel Core i7-10810U, Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points -34%
Essentials
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	10484 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points -2%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points -3%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points -4%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points -9%
Beelink SER4, AMD Ryzen 7 4800U AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	9188 Points -12%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel Core i7-10810U, Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points -29%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +4%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +3%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	9545 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points 0%
Beelink SER4, AMD Ryzen 7 4800U AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	7916 Points -17%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points -28%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel Core i7-10810U, Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points -30%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +10%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +6%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points 0%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1300 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points -22%

CrossMark / Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +5%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points +3%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1335 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points -18%

CrossMark / Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points +4%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1325 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points -6%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points -22%

CrossMark / Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +12%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +11%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points +11%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1133 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points -31%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +28%
Average of class Mini PC (6481 - 70620, n=97, last 2 years)	42885 MB/s +13%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +10%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	38102 MB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s -1%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -8%
Average AMD Ryzen 5 5600U (19785 - 38102, n=6)	28327 MB/s -26%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s -50%

AIDA64 / Memory Read
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +17%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +16%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +9%
Average of class Mini PC (6914 - 71285, n=97, last 2 years)	43515 MB/s +8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +7%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40126 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -4%
Average AMD Ryzen 5 5600U (22505 - 40126, n=6)	31392 MB/s -22%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s -51%

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +24%
Average of class Mini PC (6862 - 89318, n=97, last 2 years)	46630 MB/s +15%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s +8%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40633 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -14%
Average AMD Ryzen 5 5600U (19884 - 40633, n=6)	30023 MB/s -26%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s -55%

AIDA64 / Memory Latency
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	96.2 ns *
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * +1%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * +2%
Average AMD Ryzen 5 5600U (88.2 - 96.2, n=6)	92.1 ns * +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * +5%
Average of class Mini PC (44.9 - 154.6, n=97, last 2 years)	88 ns * +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * +17%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * +23%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * +24%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns * +37%

* ... smaller is better

DPC延时

我们只观察到，当我们开始以4K播放我们的YouTube演示视频时，延迟略有增加。相比之下，同时打开几个浏览器标签也没有造成任何问题。利用 Ryzen 5的iGPU在播放我们的演示视频时仅低于40%。丢帧的数量可以忽略不计，只有两个。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7414 μs * -446%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -37%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -20%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1359.1 μs *
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * +19%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * +44%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +74%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	336 μs * +75%

* ... smaller is better

大容量存储

火星系列MC560配备了一块512GB的NVMe固态硬盘，在我们的测试中提供了坚实的性能。该公司表示，它不会提供任何其他SSD选项。而且，由于我们已经讨论过的原因，升级系统将是一项困难的任务。尽管如此，我们认为512GB对于办公应用来说是一个很好的存储量。MC560中的硬盘在持续负载下保持了非常稳定的性能水平。但是，在比较中的所有设备也不能这么说。

请参阅我们的存储驱动器列表以了解更多的比较和基准。

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

ESO512GYLCT

Sequential Read: 1645 MB/s

Sequential Write: 1841 MB/s

512K Read: 1207 MB/s

512K Write: 1754 MB/s

4K Read: 41.93 MB/s

4K Write: 166.5 MB/s

4K QD32 Read: 494.2 MB/s

4K QD32 Write: 384.6 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	88.5 pt
Average ESO512GYLCT	80 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	77 pt
Minisforum Mars Series MC560 ESO512GYLCT	73.3 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	63.5 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	61.1 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	57.8 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	57.6 pt
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	25.5 pt

DiskSpd
seq read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +59%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s +55%
Average of class Mini PC (233 - 4168, n=96, last 2 years)	2028 MB/s +55%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s +17%
Average ESO512GYLCT (1310 - 1645, n=3)	1523 MB/s +16%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s +5%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s +1%
Minisforum Mars Series MC560 ESO512GYLCT	1310 (1296.67^min - 1309.67^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s -76%
seq write
Average of class Mini PC (222 - 5595, n=96, last 2 years)	2049 MB/s +18%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +3%
Average ESO512GYLCT (1681 - 1877, n=3)	1764 MB/s +2%
Minisforum Mars Series MC560 ESO512GYLCT	1735 (1689.26^min - 1735.49^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -26%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -44%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s -44%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s -68%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s -75%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=96, last 2 years)	3155 MB/s +80%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +40%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s +35%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s +24%
Average ESO512GYLCT (1749 - 2360, n=3)	2151 MB/s +23%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s +13%
Minisforum Mars Series MC560 ESO512GYLCT	1749 (1565.12^min - 1749.09^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s -11%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s -75%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=96, last 2 years)	2223 MB/s +22%
Average ESO512GYLCT (1815 - 1946, n=3)	1870 MB/s +3%
Minisforum Mars Series MC560 ESO512GYLCT	1815 (1770.86^min - 1814.81^max) MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -27%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -46%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s -47%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s -70%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s -75%
4k q1 t1 read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s +76%
Average of class Mini PC (5.67 - 86.6, n=96, last 2 years)	51.3 MB/s +45%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +36%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s +34%
Average ESO512GYLCT (35.4 - 44.8, n=3)	39.4 MB/s +11%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s +10%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s +8%
Minisforum Mars Series MC560 ESO512GYLCT	35.4 (35.09^min - 35.36^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -17%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +33%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +28%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s +22%
Average of class Mini PC (22 - 425, n=96, last 2 years)	184.7 MB/s +12%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s +2%
Average ESO512GYLCT (161.3 - 168.4, n=3)	164.7 MB/s 0%
Minisforum Mars Series MC560 ESO512GYLCT	164.5 (163.24^min - 164.49^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -16%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s -50%
4k q32 t16 read
Average of class Mini PC (26.1 - 2810, n=96, last 2 years)	1088 MB/s +157%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +151%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +134%
Average ESO512GYLCT (424 - 831, n=3)	692 MB/s +63%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s +58%
Minisforum Mars Series MC560 ESO512GYLCT	424 (413.36^min - 423.78^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s -19%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -26%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s -30%
4k q32 t16 write
Average ESO512GYLCT (934 - 1611, n=3)	1346 MB/s +44%
Average of class Mini PC (30.2 - 3983, n=96, last 2 years)	1084 MB/s +16%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +4%
Minisforum Mars Series MC560 ESO512GYLCT	934 (912.82^min - 933.64^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s -5%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s -12%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s -29%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s -43%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s -65%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=94, last 2 years)	3534 Points +42%
Average ESO512GYLCT (2491 - 3139, n=3)	2873 Points +15%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +12%
Minisforum Mars Series MC560 ESO512GYLCT	2491 Points
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -10%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points -12%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points -26%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points -93%
Score Read
Average of class Mini PC (61 - 3635, n=94, last 2 years)	1346 Points +39%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +20%
Average ESO512GYLCT (954 - 1001, n=3)	973 Points +1%
Minisforum Mars Series MC560 ESO512GYLCT	965 Points
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -11%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points -28%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points -44%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points -60%
Score Write
Average of class Mini PC (88 - 4185, n=94, last 2 years)	1551 Points +50%
Average ESO512GYLCT (1037 - 1702, n=3)	1407 Points +36%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +11%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +2%
Minisforum Mars Series MC560 ESO512GYLCT	1037 Points
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -4%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points -83%
Seq Read
Average of class Mini PC (291 - 6620, n=94, last 2 years)	2804 MB/s +29%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +4%
Average ESO512GYLCT (2181 - 2215, n=3)	2196 MB/s +1%
Minisforum Mars Series MC560 ESO512GYLCT	2181 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -6%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -19%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s -24%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s -78%
Seq Write
Average of class Mini PC (240 - 5783, n=94, last 2 years)	1949 MB/s +10%
Average ESO512GYLCT (1762 - 1780, n=3)	1770 MB/s 0%
Minisforum Mars Series MC560 ESO512GYLCT	1769 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s -7%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -29%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -47%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s -51%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s -77%
4K Read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s +2%
Average of class Mini PC (6.08 - 104.2, n=94, last 2 years)	55.3 MB/s 0%
Minisforum Mars Series MC560 ESO512GYLCT	55.1 MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s -1%
Average ESO512GYLCT (53.2 - 55.3, n=3)	54.5 MB/s -1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s -5%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s -24%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -50%
4K Write
Average of class Mini PC (30.9 - 366, n=94, last 2 years)	166.7 MB/s +4%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s +2%
Minisforum Mars Series MC560 ESO512GYLCT	160.1 MB/s
Average ESO512GYLCT (151.8 - 160.1, n=3)	156.4 MB/s -2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s -10%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s -11%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -24%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s -75%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=94, last 2 years)	1010 MB/s +46%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +28%
Average ESO512GYLCT (679 - 726, n=3)	699 MB/s +1%
Minisforum Mars Series MC560 ESO512GYLCT	692 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s -10%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s -33%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s -53%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s -58%
4K-64 Write
Average of class Mini PC (32.8 - 3598, n=94, last 2 years)	1190 MB/s +70%
Average ESO512GYLCT (699 - 1374, n=3)	1073 MB/s +54%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +31%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s +11%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +7%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s +7%
Minisforum Mars Series MC560 ESO512GYLCT	699 MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s -87%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -600%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.112 ms * -409%
Average of class Mini PC (0.022 - 0.489, n=94, last 2 years)	0.1031 ms * -369%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -286%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * -268%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * -241%
Average ESO512GYLCT (0.022 - 0.117, n=3)	0.061 ms * -177%
Minisforum Mars Series MC560 ESO512GYLCT	0.022 ms *
Access Time Write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * -471%
Average of class Mini PC (0.016 - 0.765, n=94, last 2 years)	0.1304 ms * -443%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.113 ms * -371%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -329%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * -325%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * -0%
Minisforum Mars Series MC560 ESO512GYLCT	0.024 ms *
Average ESO512GYLCT (0.024 - 0.024, n=3)	0.024 ms * -0%

* ... smaller is better

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Minisforum Mars Series MC560 ESO512GYLCT: Ø1752 (1554.86-1765.21)

Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB: Ø1499 (1411.27-1985.99)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Beelink SER4 Intel SSD 660p SSDPEKNW512G8: Ø1407 (1225.09-1439.28)

Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1: Ø1905 (1097.76-2359.4)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G: Ø453 (292.09-461.16)

图形卡

MC560使用内置的Radeon RX Vega 7上的 Ryzen 5 5600U用于图形处理。该 Ryzen 5 5625U在产品的最终版本中配备了相同的iGPU。配备的是Radeon RX Vega 7，用户有一个很好的集成显卡供他们使用。在我们的测试中，该iGPU能够与英特尔Iris Xe图形保持一致。

我们评测单位的Radeon RX Vega 7提供了良好的性能--比Vega 7的平均性能要好。审查模型也接近Beelink SER4的水平（它有一个 AMD Radeon RX Vega 8)在图形性能方面的水平。

你可以参考我们的GPU列表以了解更多的比较和基准测试。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	96.8 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	84.3 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	83.3 pt
Beelink SER4 ^-2! AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	82.2 pt
Minisforum Mars Series MC560 ^-1! AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	79.5 pt
Minisforum EliteMini B550 ^-1! AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	76.8 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	72.9 pt
Average AMD Radeon RX Vega 7	71 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! Intel UHD Graphics 620, Intel Core i7-10810U	24.5 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +20%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +10%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +6%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points +2%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5923 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points -2%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -5%
Average AMD Radeon RX Vega 7 (3353 - 6249, n=58)	5054 Points -15%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points -72%

3DMark
1280x720 Sky Diver Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	14274 Points
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	13595 Points
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	12457 Points
Average AMD Radeon RX Vega 7 (8008 - 12857, n=8)	10587 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	8374 Points
1920x1080 Ice Storm Extreme Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	121736 Points +29%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	102227 Points +8%
Average AMD Radeon RX Vega 7 (76256 - 130476, n=13)	97550 Points +3%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	96874 Points +2%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	94698 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	91576 Points -3%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	50500 Points -47%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	35187 Points -63%
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +20%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +5%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	27497 Points
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	27339 Points -1%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points -5%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points -5%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points -14%
Average AMD Radeon RX Vega 7 (13713 - 31437, n=43)	23324 Points -15%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points -70%
1920x1080 Fire Strike Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +24%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +14%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points +3%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3819 Points
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points -1%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -6%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -12%
Average AMD Radeon RX Vega 7 (1772 - 4037, n=62)	3189 Points -16%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points -72%
2560x1440 Time Spy Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1592 Points +38%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1412 Points +22%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1247 Points +8%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points +8%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1153 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1150 Points 0%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -4%
Average AMD Radeon RX Vega 7 (496 - 1249, n=57)	991 Points -14%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	365 Points -68%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition

Performance Rating - Percent
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	96.2 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	91.4 pt
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	80.5 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	76.7 pt
Average AMD Radeon RX Vega 7	76.2 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	73.3 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	70.7 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! UHD Graphics 620, i7-10810U, FPT310M8SSD512G	25.4 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +25%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +5%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.6 fps
Average AMD Radeon RX Vega 7 (14.2 - 20.9, n=4)	17.9 fps -4%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps -5%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -13%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -20%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.4 fps -71%
Extreme Preset DX11
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +28%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +18%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.2 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps -1%
Average AMD Radeon RX Vega 7 (15.9 - 19.8, n=4)	17.8 fps -2%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -6%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -8%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.7 fps -69%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +21%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +15%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.3 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps -6%
Average AMD Radeon RX Vega 7 (9.6 - 13.2, n=4)	11.6 fps -6%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -8%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -14%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.9 fps -68%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps +30%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps +5%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.2 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -6%
Average AMD Radeon RX Vega 7 (8.5 - 13.5, n=4)	11.4 fps -7%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -12%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -25%

Unigine Superposition
1280x720 720p Low
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	7768 Points +16%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	6679 Points
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	6430 Points -4%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	6189 Points -7%
Average AMD Radeon RX Vega 7 (5347 - 7180, n=4)	6142 Points -8%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	5998 Points -10%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	5361 Points -20%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	2151 Points -68%
1920x1080 1080p High
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1995 Points +26%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points +22%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1702 Points +7%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	1584 Points
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points 0%
Average AMD Radeon RX Vega 7 (1274 - 1664, n=4)	1495 Points -6%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	1459 Points -8%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	507 Points -68%

3DMark 05 Standard		36088 points
3DMark 06 Standard Score		22723 points
3DMark Vantage P Result		18506 points
3DMark 11 Performance		6289 points
3DMark Ice Storm Standard Score		112710 points
3DMark Cloud Gate Standard Score		20194 points
3DMark Fire Strike Score		3421 points
3DMark Fire Strike Extreme Score		1560 points
3DMark Time Spy Score		1304 points
Help

... in comparison

游戏性能

尽管Minicforum Mars系列MC560在市场上纯粹是一款办公机器，但我们仍然想看看它的游戏性能。这台迷你PC可以在720p和低设置下处理许多游戏。也就是说，用户应该知道，Radeon RX Vega 7的性能不足以跟上现代专用显卡的步伐。

请参考我们的GPU游戏性能表以了解更多的比较和基准。

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.5 pt
Minisforum EliteMini HX90 ^-1! AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	78.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	76.2 pt
Average AMD Radeon RX Vega 7	68.4 pt
Minipc Union NiPoGi CK10 - 10810U ^-2! Intel Core i7-10810U, Intel UHD Graphics 620	25.4 pt

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	121.3 (9.08^min, 83.3^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps -6%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps -7%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps -18%
Average AMD Radeon RX Vega 7 (43.1 - 140.7, n=35)	89.5 fps -26%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	33.9 (12.8^min, 19.2^P1) fps -72%
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	103.7 (27.9^min, 62.5^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps -18%
Average AMD Radeon RX Vega 7 (38 - 123, n=33)	78.7 fps -24%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	28 (12.2^min, 16.9^P1) fps -73%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.8 (38.5^min, 43^P0.1, 53.7^P1) fps +41%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps +14%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps +8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	63.6 fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -3%
Average AMD Radeon RX Vega 7 (25.5 - 105.8, n=50)	58.1 fps -9%
1366x768 Medium Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	56.5 (23.4^min, 24.6^P0.1, 31.8^P1) fps +39%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.4 (32.2^min, 36.1^P0.1, 43.2^P1) fps +29%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.5 (31^min, 32.6^P0.1, 36.6^P1) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.8 (1.9^min, 2.75^P0.1, 29.8^P1) fps 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40.6 fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.4 (20.2^min, 22.2^P0.1, 30.4^P1) fps -3%
Average AMD Radeon RX Vega 7 (9.74 - 81.3, n=37)	34.1 fps -16%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +27%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	49 (42^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps -2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps -10%
Average AMD Radeon RX Vega 7 (27 - 57, n=24)	40.5 fps -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (10^min) fps -78%
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +32%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	22 (19^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps -5%
Average AMD Radeon RX Vega 7 (13 - 27, n=23)	19.1 fps -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (5^min) fps -77%

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +30%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +12%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	43 (33^min) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps -7%
Average AMD Radeon RX Vega 7 (24 - 52, n=4)	39.8 fps -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (8^min) fps -74%
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +38%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (17^min) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps -5%
Average AMD Radeon RX Vega 7 (13 - 26, n=4)	20 fps -5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (4^min) fps -76%

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +5%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.6 (79^min) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps 0%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps -1%
Average AMD Radeon RX Vega 7 (56.1 - 102.7, n=8)	82.3 fps -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.5 (19^min) fps -72%
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +30%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps +1%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps +1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40.8 fps
Average AMD Radeon RX Vega 7 (27 - 45.3, n=7)	38.9 fps -5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11.3 (5^min) fps -72%

F1 2021
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	122 (97^min, 96^P1) fps +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	105 (81^min, 78^P1) fps +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (74^min, 75^P1) fps 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	97.9 (81^min, 79^P1) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.7 (75^min, 75^P1) fps -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	91.1 (72^min, 71^P1) fps -7%
Average AMD Radeon RX Vega 7 (71 - 107.9, n=13)	83.6 fps -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	28 (21^min, 21^P1) fps -71%
1920x1080 Medium Preset AA:T AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52 (42^min, 42^P1) fps +27%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.3 (40^min, 40^P1) fps +22%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.5 (34^min, 34^P1) fps +3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.1 (31^min, 32^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.3 (32^min, 32^P1) fps -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.9 (32^min, 32^P1) fps -3%
Average AMD Radeon RX Vega 7 (29 - 45.8, n=12)	35.8 fps -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	12.2 (9^min, 9^P1) fps -70%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	117.4 (100.8^min) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps -5%
Average AMD Radeon RX Vega 7 (32.9 - 137.7, n=58)	99 fps -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	72.8 (60.3^min) fps -38%
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +10%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	97.5 (72.2^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps -1%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps -7%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps -8%
Average AMD Radeon RX Vega 7 (32.7 - 107.8, n=58)	76.7 fps -21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	45.1 (40.8^min) fps -54%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +2%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	86.3 (51.6^min, 72^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps -7%
Average AMD Radeon RX Vega 7 (34.8 - 95.3, n=41)	70.4 fps -18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.7 (5.3^min, 6.92^P1) fps -70%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +22%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	31.3 (22.1^min, 27^P1) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps -4%
Average AMD Radeon RX Vega 7 (13.4 - 36.1, n=41)	27.1 fps -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	9.8 (5^min, 5^P1) fps -69%

	low	med.	high	ultra
GTA V (2015)	121.3	103.7	28.5	12.6
The Witcher 3 (2015)	63.6	40.6	20.7	13.7
Dota 2 Reborn (2015)	117.4	97.5	57.2	50
Final Fantasy XV Benchmark (2018)	34.6	17.5	12.6
X-Plane 11.11 (2018)	43.6	31	27.2
Far Cry 5 (2018)	49	22	20	19
Strange Brigade (2018)	86.3	31.3	26	21.9
Far Cry New Dawn (2019)	43	21	20	18
Borderlands 3 (2019)	54.3	21.3	13.2	10.2
F1 2020 (2020)	90.6	40.8	31.7	22.4
F1 2021 (2021)	97.9	41.1	32.4	21.9
Tiny Tina's Wonderlands (2022)	27.1	21.3	13.5	9.8
F1 22 (2022)	38.8	34.8	26.1	18

排放 - 高效率和相对安静

噪声排放

根据我们的声级计，Mars系列MC560在轻度负载下运行非常安静，只产生30.4dB(A)的噪音。在负载情况下，噪音水平高达33.4 dB(A)，相比之下，还是非常安静的。的 Minisforum EliteMini HX90的噪音并不高，但由于MC560产生的高亢的风扇噪音，在我们的耳朵里听起来更明显。尽管如此，这种噪音仍然远远没有达到破坏性的程度，更不用说令人讨厌了。

Noise Level

Idle		30.4 / 30.4 / 30.4 dB(A)
Load		31.8 / 33.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30.2 dB(A)

	Minisforum Mars Series MC560 R5 5600U, Vega 7	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Beelink SER4 R7 4800U, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620
Noise		-2%	-11%	-1%	-8%	-8%	-22%	1%
off / environment *	30.2	30.8 -2%	30.1 -0%	30.2 -0%	23.4 23%	30.2 -0%	30.5 -1%	30.4 -1%
Idle Minimum *	30.4			30.5 -0%	33.2 -9%	30.8 -1%	31.5 -4%	30.8 -1%
Idle Average *	30.4	31.6 -4%	33.15 -9%	30.5 -0%	33.2 -9%	32.1 -6%	32.6 -7%	30.9 -2%
Idle Maximum *	30.4			30.5 -0%	33.2 -9%	32.9 -8%	33.8 -11%	30.9 -2%
Load Average *	31.8			31.2 2%	38.6 -21%	33.9 -7%	49.3 -55%	31 3%
Load Maximum *	33.4	33.4 -0%	41.63 -25%	35.1 -5%	40.8 -22%	41.4 -24%	50.9 -52%	31 7%
Witcher 3 ultra *					39.2

* ... smaller is better

温度

当设备运行时，MC560的机箱几乎没有发热。我们只观察到顶部的通风口处温度略高。尽管CPU温度在负载下高达87.1℃（188.8℉），但 Ryzen 5 5600U能够始终保持其基本时钟速度。

发言人

除了集成摄像头，Minicforum还为MC560配备了两个3瓦的扬声器，这样它就可以在没有任何外部网络摄像头或声音设备的情况下用于视频会议。这两个扬声器在播放音乐和语音方面都非常实用。但最大音量为62 dB(A)，它们的音量不足以填满大型办公空间。同时，内置的麦克风利用基于人工智能的噪音抑制技术来过滤背景噪音。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Minisforum Mars Series MC560 audio analysis

(-) | not very loud speakers (62.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.8% lower than median
(+) | bass is linear (5.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6.5% lower than median
(-) | mids are not linear (20.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.1% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (38.4% difference to median)
Compared to same class
» 75% of all tested devices in this class were better, 25% similar, 0% worse
» The best had a delta of 16%, average was 23%, worst was 38%
Compared to all devices tested
» 94% of all tested devices were better, 1% similar, 6% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Minipc Union Ace Magician TK11-A0 audio analysis

(±) | speaker loudness is average but good (80.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.4% lower than median
(±) | linearity of bass is average (10.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 9.3% higher than median
(±) | linearity of mids is average (10.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.7% higher than median
(±) | linearity of highs is average (8.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.4% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 25% similar, 25% worse
» The best had a delta of 16%, average was 23%, worst was 38%
Compared to all devices tested
» 48% of all tested devices were better, 8% similar, 44% worse
» The best had a delta of 4%, average was 25%, worst was 134%

消耗功率

Mars系列MC560的用电量一直很低。我们的使用监测器显示，该设备在空闲时仅消耗6.2-7.5瓦。在压力测试中，其功耗达到了49瓦的峰值，无论如何，这仍然是一个很好的结果。在我们的比较中，只有Beelink SER4在满负荷情况下消耗的功率更少。附带的电源适配器的额定功率为65瓦，在应对电源使用方面没有任何问题。

Power Consumption

Off / Standby	0.66 / 1.2 Watt
Idle	6.2 / 6.3 / 7.5 Watt
Load	41.3 / 49 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Minisforum Mars Series MC560 R5 5600U, Vega 7	Minisforum EliteMini B550 R7 5700G, Vega 8	Beelink SER4 R7 4800U, Vega 8	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Average AMD Radeon RX Vega 7	Average of class Mini PC
Power Consumption		-80%	28%	-23%	21%	-3%	-68%
Idle Minimum *	6.2	8.9 -44%	4.1 34%	8.4 -35%	4.8 23%	4.66 ?(2.6 - 8.4, n=52) 25%	9.8 ?(1.9 - 46.5, n=91, last 2 years) -58%
Idle Average *	6.3	9.6 -52%	4.1 35%	8.7 -38%	4.9 22%	7.56 ?(4.8 - 10.7, n=52) -20%	11.7 ?(1.9 - 63, n=90, last 2 years) -86%
Idle Maximum *	7.5	11.8 -57%	4.6 39%	9.3 -24%	5.5 27%	8.95 ?(5.6 - 13.8, n=52) -19%	14.7 ?(2.6 - 68.9, n=91, last 2 years) -96%
Load Average *	41.3	98.9 -139%	35.6 14%	46.4 -12%	23 44%	38.7 ?(21.6 - 54.9, n=53) 6%	51.9 ?(11.3 - 158.7, n=91, last 2 years) -26%
Load Maximum *	49	101.8 -108%	39.9 19%	52 -6%	54 -10%	51.9 ?(31 - 73.4, n=52) -6%	86 ?(18.1 - 271, n=91, last 2 years) -76%
Witcher 3 ultra *			35.6

* ... smaller is better

Power consumption with external monitor

Minisforum Mars Series MC560; Prime95 V2810 Stress (external Monitor): Ø31.3 (26.6-49)

Minisforum Mars Series MC560; Cinebench R15 Multi (external Monitor): Ø40.6 (38.8-45.7)

Minisforum Mars Series MC560; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø36 (29-48.3)

Minisforum Mars Series MC560; 1920x1080 The Witcher 3 ultra (external Monitor): Ø28.3 (27.2-31.1)

Minisforum Mars Series MC560; Idle 1min (external Monitor): Ø6.36 (6.04-8.75)

Pros

+ 伟大的设计

+ 坚固的底盘

+ 良好的系统性能

+ 快速的固态硬盘

+ 集成2.5K HDR网络摄像头

+ 两个3瓦的扬声器

+ 带噪音抑制的双麦克风

+ 相对高效

+ 负载下安静

Cons

- 没有SD卡读卡器

- 不支持Thunderbolt 4

- 外部端口少

- 不能升级（内存或SSD）

结论 - 用于视频会议的优秀迷你PC

Minisforum火星系列MC560评测：样品装置由MINISFORUM提供（来源：MINISFORUM）。

Minisforum Mars系列MC560是一款迷你电脑，凭借其集成的摄像头和两个扬声器等额外功能在人群中脱颖而出。该设备显然是针对那些必须参加视频通话的办公人员。内置网络摄像头和扬声器意味着用户不需要外部硬件来进行视频通话，从而使该系统成为其目标受众的一个引人注目的选择。Minisforum Mars系列MC560在纯性能方面也毫不逊色。这台机器在处理苛刻的任务方面没有问题，因为它有 AMD Ryzen 5 5600U.这款六核处理器也相当高效，并有足够的能力保持系统持续的敏捷性。

Minisforum Mars系列MC560是一款特殊的迷你PC，很适合许多不同的应用。然而，由于其iGPU相对较弱，游戏并不是它的优势之一。但该硬件足够强大，可以流畅地播放高分辨率的视频。

Minisforum Mars系列MC560是一款有趣的迷你PC，由于其内置摄像头、麦克风和扬声器，非常适合视频会议。

Minisforum Mars系列MC560的一个缺点是外部端口的选择不多。我们也不喜欢用户不能访问内存和固态硬盘等组件的事实。尽管我们理解由于集成了摄像头，机箱不应该被打开，但如果有一个可以让用户接触到内部组件的盖子，可能是一个很好的妥协。现在市场上还没有任何东西能与MC560直接竞争。的 Minipc Union Ace Magician AMR5是一款规格相似的机器，但它只是在性能上具有可比性，因为它没有任何内置的网络摄像头或扬声器。另外，你也可以看一下紧凑型笔记本电脑，例如戴尔Inspiron 14 5425.

价格和可用性

像往常一样，Mars Series MC560可以从Minicforum商店订购。目前16GB型号的售价为489欧元/399美元，32GB型号的售价为549欧元/458美元。从3月中旬开始，Minicforum将从香港运送该产品，并在德国停留，这意味着欧盟的买家将不会面临额外的进口关税。该产品预计稍后将在Minicforum的德国仓库上市，这将把运输时间缩短到大约3-7天。

审查样本是由制造商免费借给作者用于审查的。该公司对这篇评论没有影响，在发表前也没有收到任何版本。没有义务发表关于该产品的任何文章。

Minisforum Mars Series MC560 - 2023-02-12 02/12/2023 v7
Sebastian Bade

Chassis

83 / 98 → 84%

Connectivity

52 / 81 → 64%

Weight

82%

Games Performance

65%

Application Performance

93%

Noise

87%

Camera

38 / 85 → 44%

Average

70%

80%

Mini PC - Weighted Average

Editor of the original article: Zhiwei Zhuang - Translator - 147 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 387730 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Minisforum Mars系列MC560评测。配备AMD Ryzen 5和集成网络摄像头的强大迷你电脑，适合办公室使用

Sebastian Bade, 2023-02-15 (Update: 2023-02-15)
